INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
NC Freezer Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com
809-165A REV. A. 02/10/2026
SEE BACK COVER FOR
WARRANTY REGISTRATION
MODEL:
NC60HC-1-W
● Refrigeration system uses R290 refrigerant to comply with all
environmental concerns
● The unit is best suited for an environment where temperatures
remain below 75°F and humidity does not exceed 55%
● Areas with direct sunlight should also be avoided
● Exterior is white coated steel
● Interior is white powder coated surface
● Low energy consumption
● LED lighting
● Adjustable thermostat
● Operating temperature of 0°F to -10°F
● Angle top design with LowE tempered glass lids
● Lids are easily removable with lid lock & keys standard
● Round exterior edges
● Integrated tag molding
● 2” Heavy duty casters
● Drain plug for easy cleaning
● Six (6) removable baskets
5 Year Parts/Labor Warranty Available
7 Year Compressor Warranty
REFRIGERATION SYSTEM
OPTIONS & ACCESSORIES
CABINET CONSTRUCTION
● 3 Year parts/labor standard, additional 2 year
warranty available
● 2 Ring tub holder
● Custom graphics
● Dip well
NC NOVELTY CASES
NC60HC Novelty Freezers
Hydrocarbon Series
NC60HC NOVELTY FREEZER: SLANT TOP BUNKERS
Project: ____________________________
Item: ______________________________
Loca�on: ___________________________
Approved:
AIA#
SIS#
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax: 1-336-245-6453
Beverage-Air.com Sales@bevair.com
Specicationsaresubjecttochangewithoutpriornotice.Rev.10/23
Please verify qualifying units by visiting:
www.energystar.gov/cfs
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air2
WELCOME
Contents
Safety ........................................................................................................................................................................ 3
Important Information .......................................................................................................................................... 5
Product Information .............................................................................................................................................. 6
Clearance and Placement ......................................................................................................................................7
Unpacking and Set Up ........................................................................................................................................... 8
Electrical ................................................................................................................................................................... 9
Environmental Conditions ...................................................................................................................................10
Cleaning and Maintenance ................................................................................................................................. 11
Methods For Cleaning Exterior Finish ..............................................................................................................12
For The Service Tech - R290 ..............................................................................................................................13
Power/Freeze Failure ...........................................................................................................................................14
Limited Warranty ..................................................................................................................................................15
Limited Warranty (continued) ............................................................................................................................16
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located
within this manual. Please complete the card
and submit it to Beverage-Air within TEN days of
installation. Failure to properly register equipment
may limit or void the warranty.
• Beverage-Air reserves the right to change
specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Beverage-Air cabinet. This
series has passed our strict quality control inspection and
meets the high standards set by Beverage-Air! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities. USE THIS APPLIANCE FOR ITS INTENDED PURPOSE AS
DESCRIBED IN THIS MANUAL.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store or use gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Beverage-Air recommended technician certied
to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of
non OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air4
Using any electrical or electronic equipment entails the compliance with some fundamental rules.
THE MANUFACTURER DOES NOT ASSUME ANY RESPONSIBILITY ARISING FROM DAMAGES CAUSED BY
IMPROPER, INCORRECT, OR ERRONEOUS USE.
1. Do not touch the unit with wet hands or feet.
2. Do not install the equipment outdoors.
3. Do not remove or ignore safety devices.
4. Do not leave objects on top of the unit.
5. Do not climb on top of the unit.
6. Do not allow children to climb, stand, or hang on the
shelves in the freezer. This could damage the freezer
and seriously injure themselves.
7. Never use direct or indirect water jets on the unit.
8. Do not allow the electronic control to be adjusted
by customers or unqualied personnel. For any
adjustment, you must contact your distributor.
9. Verify that the hot air stream from the condenser
toward the back of the unit is not directed to other
refrigeration units, as this would compromise their
operation.
10. Under no circumstance, should you block the front
grille of the unit.
11. Use care when moving or handling the unit. It is
equipped with ammable refrigerant and damage to
refrigerant tubing will increase the risk of a leak.
12. When service is required, seek factory authorized
technicians trained to safely maintain and service
systems that utilize ammable refrigerants, such as
R-290. RSES oers such training and certication.
13. Only use factory authorized replacement parts to
minimize the risk of possible ignition.
It is important to instruct the user on the operation of
the equipment according to this instruction manual, and
make sure that the manual is within reach of any operator
that might use the unit.
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 5
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
This appliance must be properly installed and located in accordance with this manual.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air6
Model
Cabinet Dimensions
w x d x h (Inches)
Full Load
Amps
Power Cord
Plug (NEMA)
Refrigerant Type / Charge (g) /
Charge (oz)
NC28HC-1-W 27 7/8 X 26 X 34 3/16
3.0
5-15P
R-290 / 60 / 2.11
NC34HC-1-W 33 13/16 X 26 X 34 3/16 R-290 / 70 / 2.47
NC43HC-1-W 42 1/2 X 26 X 34 3/16
3.5
R-290 / 90 / 3.17
NC51HC-1-W 50 3/8 X 26 X 34 3/16
NC60HC-1-W 60 3/16 X 26 X 34 3/16
4.0
NC68HC-1-W 68 1/8 X 26 X 34 3/16 R-290 / 100 / 3.52
PRODUCT INFORMATION
• All models will maintain product temperature between 0 and -10°F.
• All models are 120 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
• Exterior is white powder coated painted steel.
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 7

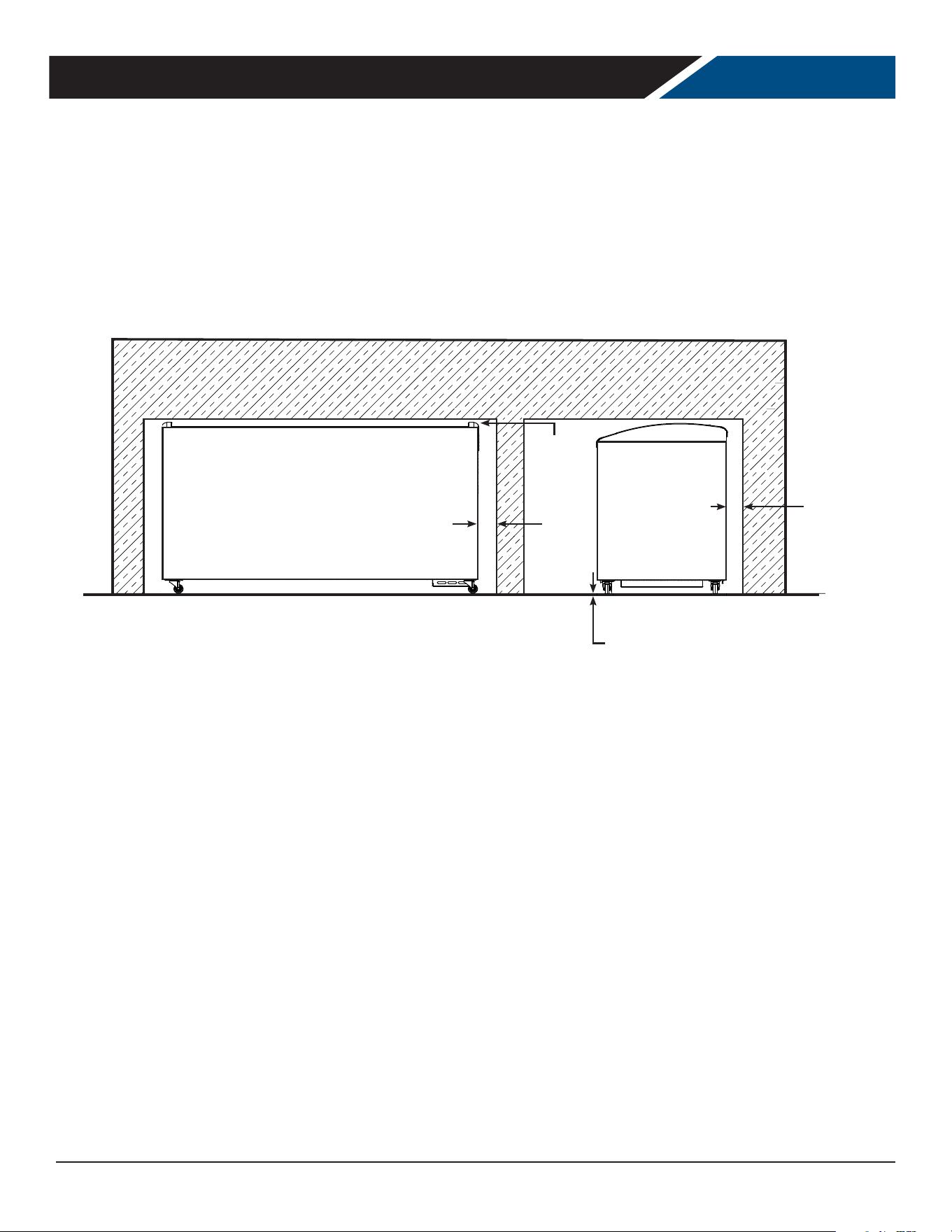

CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your Freezer:
Clearance:
• 0.0 in. at the top
• 4.0 in. at the rear
• 4.0 in. at the left side
• 4.0 in. at the right side
• 0.0 in at the bottom
Floor Load: the oor on which the Freezer is located must be even and level, free from vibrations, and strong enough to
support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
4"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
4"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
0"
TOP
MINIMUM
CLEARANCE
4"
LEFT/RIGHT
MINIMUM
CLEARANCE
01234ÿ67389
0
ÿ0ÿ
ÿ"#$%&''ÿ ()ÿ+,-.
/$0 ÿ"#$%&'' 123
4$5 ÿ"#$%&''ÿ67 ÿ8&9$%9: ;<ÿ+,-.
=>?@$%ÿABÿC9 1
=>?@$%ÿABÿD&9E$9 2
ÿ0ÿ
FGHÿIJKJLMNOÿPLQRMLÿSNTU VVT((
WX$%X&'ÿ ÿ"#$%&''ÿ6X: Y;ÿZ,[\.
WX$%X&'ÿ/$0 ÿ"#$%&''ÿ6X: V]ÿ^,[\.
WX$%X&'ÿ_%AXÿ4$5 ÿ"#$%&''ÿ6X: 1`3
WX$%X&'ÿa$&%ÿ4$5 ÿ"#$%&''ÿ6X: b(ÿ+,-.
ÿ
_>''ÿCA&ÿc?0$%$9ÿddef2gfd <T)
hiÿ
4A%9$0A7$% dfj
k&0&8lÿ6Dmnf4%: ddjg
4$&ÿa$o$8AXÿ6Dmnf4%: d2pe
k &%5$ÿ6'@9f5%&?9: )TV]qr])
ssiÿ
t%A99ÿ$5 ÿuÿk%&$ 1e1ÿ'@9
4$5 ÿuÿk%&$ je3
ÿuÿk%&$ 213
/$0 ÿuÿk%&$ bq.
vwvxyz{|}ÿx{v
wy}ÿx{v
{vÿx{v
134ÿ93ÿh333
01234ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
;]ÿIJKMÿ¡T¢ÿ£M¤N¥¦J§¢ÿFIÿbV)YÿV¥qqq¥q<Y¥]q))ÿÿ¨J©ªÿV¥;;(¥b<Y¥(<Y;ÿ§§«J¬§¥M«TLÿ¦J§¤®R§JM«TL
¯°±ÿ³´µ¶µ·ÿ¸¹ÿº»¼±½½±¾¼±
¿ÀÿÂÃÄÿÅÆÇÈÉÿÊÇËÉ¿ÀÌ
nX9ÿ0%$u7%$ÿ&ÿB&8u
N«OÿJ¡ÿMLQ¡§ÿqÍÿ¬ÿ
8A%ÿ&Xÿ0'>5ÿ9$
T
ÿ
ddef2gfd
=ÎÏcÿeudeÐ
ÑÒÓÔÿÖ×ØÖÙÑÒÓÔÿÖ×ÚÛÙÑ
ÞßàáâãßäåæçßèãèéêßëåìíåîâäßïåðåÞßèã
01234ÿ67389
0
ÿ0ÿ
ÿ"#$%&''ÿ ()ÿ+,-.
/$0 ÿ"#$%&'' 123
4$5 ÿ"#$%&''ÿ67 ÿ8&9$%9: ;<ÿ+,-.
=>?@$%ÿABÿC9 1
=>?@$%ÿABÿD&9E$9 2
ÿ0ÿ
FGHÿIJKJLMNOÿPLQRMLÿSNTU VVT((
WX$%X&'ÿ ÿ"#$%&''ÿ6X: Y;ÿZ,[\.
WX$%X&'ÿ/$0 ÿ"#$%&''ÿ6X: V]ÿ^,[\.
WX$%X&'ÿ_%AXÿ4$5 ÿ"#$%&''ÿ6X: 1`3
WX$%X&'ÿa$&%ÿ4$5 ÿ"#$%&''ÿ6X: b(ÿ+,-.
ÿ
_>''ÿCA&ÿc?0$%$9ÿddef2gfd <T)
hiÿ
4A%9$0A7$% dfj
k&0&8lÿ6Dmnf4%: ddjg
4$&ÿa$o$8AXÿ6Dmnf4%: d2pe
k &%5$ÿ6'@9f5%&?9: )TV]qr])
ssiÿ
t%A99ÿ$5 ÿuÿk%&$ 1e1ÿ'@9
4$5 ÿuÿk%&$ je3
ÿuÿk%&$ 213
/$0 ÿuÿk%&$ bq.
vwvxyz{|}ÿx{v
wy}ÿx{v
{vÿx{v
134ÿ93ÿh333
01234ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
;]ÿIJKMÿ¡T¢ÿ£M¤N¥¦J§¢ÿFIÿbV)YÿV¥qqq¥q<Y¥]q))ÿÿ¨J©ªÿV¥;;(¥b<Y¥(<Y;ÿ§§«J¬§¥M«TLÿ¦J§¤®R§JM«TL
¯°±ÿ³´µ¶µ·ÿ¸¹ÿº»¼±½½±¾¼±
¿ÀÿÂÃÄÿÅÆÇÈÉÿÊÇËÉ¿ÀÌ
nX9ÿ0%$u7%$ÿ&ÿB&8u
N«OÿJ¡ÿMLQ¡§ÿqÍÿ¬ÿ
8A%ÿ&Xÿ0'>5ÿ9$
T
ÿ
ddef2gfd
=ÎÏcÿeudeÐ
ÑÒÓÔÿÖ×ØÖÙÑÒÓÔÿÖ×ÚÛÙÑ
ÞßàáâãßäåæçßèãèéêßëåìíåîâäßïåðåÞßèã
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air8
UNPACKING AND SET UP
CAUTION
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Destroy carton, plastic bags, and any exterior wrapping material immediately after the freezer has been unpacked.
Children should never use these items for play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap
could become airtight chambers and can quickly cause suocation. The spacers used to secure the shelves during shipping
should also be discarded immediately, as they pose a choking hazard to small children.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level,
at head screw driver, and box cutter.
1. Cut the stretch wrap along a corner post and remove
the cardboard top capping and the corner posts.
2. Discard stretch wrap and any cardboard that will not
be recycled.
Note: additional clear plastic protective wrap is
applied directly to any product with a glass door.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
1. Remove the shipping bolts using the ¾” box wrench
while cabinet is held in one direction. Repeat the process
while the cabinet is held in the opposite direction.
2. None of the threads on the leg or caster stem should
be visible once screwed in.
3. Tilt the cabinet in one direction approximately 8” and
block it securely with pieces of 2x4 lumber or other
suitable material.
4. While moving the unit, take extra caution to not push,
pull, or strike the front or side glass.
Leveling:
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Note: If no casters, legs or levelers are to be installed,
the oor below the equipment must be level
Failure to level your cabinet may result in door not
sealing, closing correctly, or condensed water draining not
draining properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, leveling can be achieved by
placing large washers in between the ½’ stud and the
holes located on the bottom of the case.
Do NOT loosen casters to level
the cabinet. Casters MUST be
tightly secured to cabinet for full
strength.
Install or attach any accessories that will be used
Remove any plastic covering the stainless steel.
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 120 volt model is equipped with a cord and a 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
The power cord of this appliance is equipped with a
3-prong (grounding) plug, which mates with a standard
3-prong (grounding) wall outlet to minimize the
possibility of electric shock hazard from this appliance.
Initial Start Up
Before connecting your equipment, check that the
electrical data on the data plate matches your electrical
output. If voltage varies by 10 percent or more, freezer
performance may be aected. Operating the freezer with
insucient power can damage the compressor. Such
damage is not covered by the warranty. If you suspect
the voltage is too high or low, consult with your power
company for testing.
Plug the power cord into the proper power supply.
The cabinet temperature has been set at the factory and
should not be adjusted by unqualied personnel. For any
adjustment, you must contact your distributor.
Cautions
Unplug the freezer before cleaning and making repairs.
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
PLUG THE EQUIPMENT INDEPENDENTLY TO A LOAD
CENTER WITH AN APPROPRIATE CIRCUIT BREAKER
ACCORDING TO THE NAMEPLATE AMPS.
To prevent the freezer from being turned o accidentally,
do not plug the unit into an outlet controlled by a wall
switch or pull cord.
Do not pinch, knot, or bend the power cord in any manner.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Electronic Temperature Control

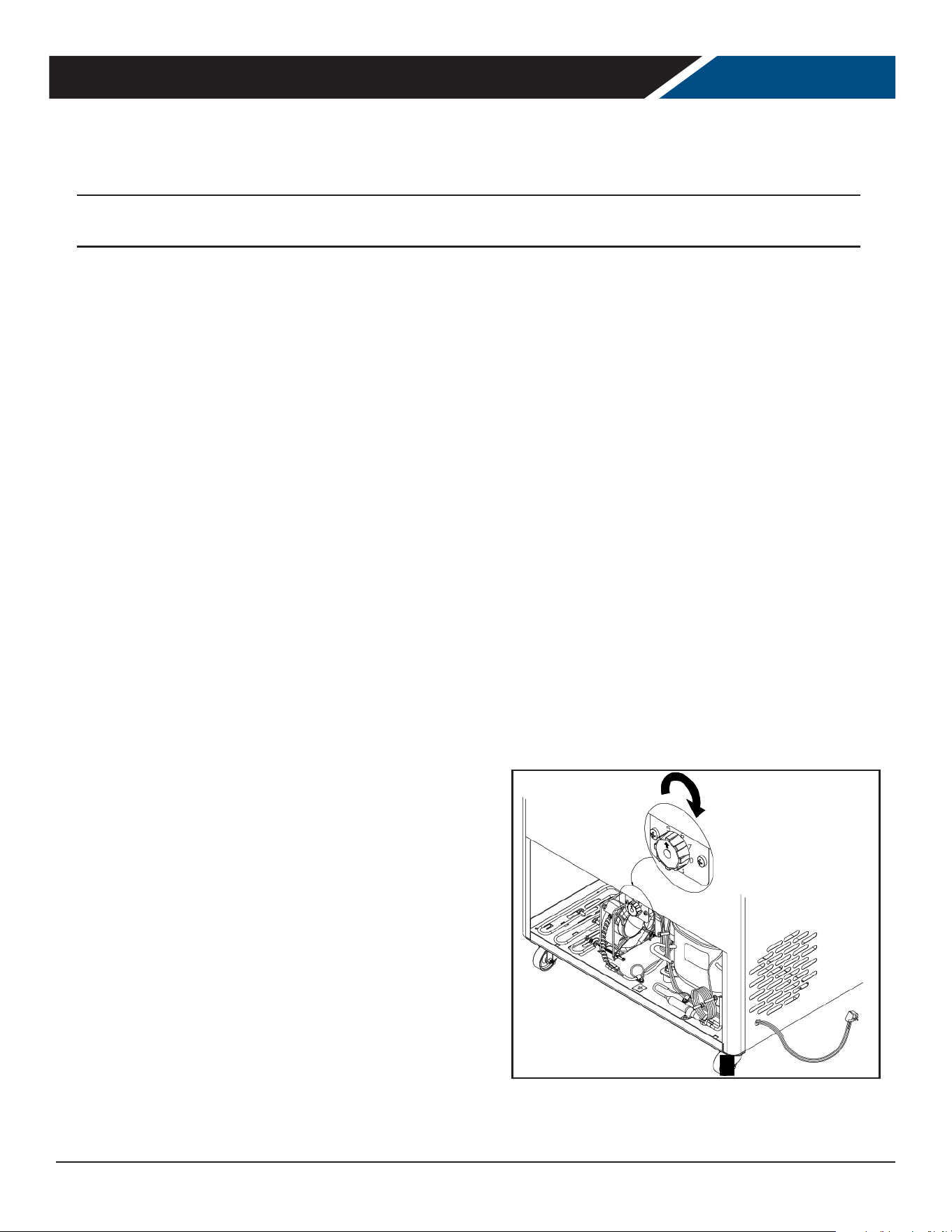

To access the temperature control, the right side grill should
be removed using a Phillips screw driver (see gure below).
The temperature control is factory pre-set to provide
satisfactory product storage products. However, the
temperature control is adjustable to provide a range of
temperatures for your personal satisfaction. If a colder
temperature is desired, turn the control clockwise. Allow
several hours for the temperature to stabilize between
adjustments.
ELECTRICAL
012345ÿ27489981592
95ÿ74159
74444ÿ194
!"#
ÿ
$
ÿ
%
&'(ÿ*+,-(.,ÿ'+/(ÿ*((0ÿ1(,230(1ÿ.4ÿ52.',.+01ÿ.'(ÿ62346,ÿ47ÿ0468+9ÿ:,(;ÿ</421ÿ=641:>.ÿ4/(694+1203ÿ.4ÿ
=6(/(0.ÿ1(7468203ÿ.'(ÿ*+,-(.,;
?@&&ABCÿ&D@ÿ&@EF@G<&HG@ÿIJB&GJK
&4ÿ+>>(,,ÿ.'(ÿ.(8=(6+.:6(ÿ>40.649Lÿ.'(ÿ623'.ÿ,21(ÿ36299ÿ,'4:91ÿ*(ÿ6(84/(1ÿ:,203ÿ+ÿF'2992=,ÿ,>6(5ÿ
162/(6;
&'(ÿ.(8=(6+.:6(ÿ>40.649ÿ2,ÿ7+>.46Mÿ=6(N,(.ÿ.4ÿ=64/21(ÿ,+.2,7+>.46Mÿ=641:>.ÿ,.46+3(ÿ=641:>.,;ÿ
D45(/(6Lÿ.'(ÿ.(8=(6+.:6(ÿ>40.649ÿ2,ÿ+1O:,.+*9(ÿ.4ÿ=64/21(ÿ+ÿ6+03(ÿ47ÿ.(8=(6+.:6(,ÿ746ÿM4:6ÿ=(6,40+9ÿ
,+.2,7+>.240;ÿA7ÿ+ÿ>491(6ÿ.(8=(6+.:6(ÿ2,ÿ1(,26(1Lÿ.:60ÿ.'(ÿ>40.649ÿ>94>-52,(;ÿ<9945ÿ,(/(6+9ÿ'4:6,ÿ746ÿ
.(8=(6+.:6(ÿ.4ÿ,.+*292P(ÿ*(.5((0ÿ+1O:,.8(0.,;
B4.(QÿR4ÿ04.ÿ4=(0ÿ.'(ÿ76((P(6ÿ1446ÿ:00(>(,,+629Mÿ27ÿ=45(6ÿ.4ÿ.'(ÿ76((P(6ÿ2,ÿ477ÿ746ÿ,(/(6+9ÿ'4:6,ÿ
A7ÿ+ÿ=45(6ÿ7+29:6(ÿ4>>:6,Lÿ764P(0ÿ7441,ÿ5299ÿ,.+Mÿ764P(0ÿ746ÿ+.ÿ9(+,.ÿSÿ'4:6,ÿ27ÿ.'(ÿ76((P(6ÿ2,ÿ-(=.ÿ>94,(1;ÿ
A7ÿ.'(ÿ=45(6ÿ7+29:6(ÿ>40.20:(,Lÿ=+>-ÿ,(/(0ÿ46ÿ(23'.ÿ=4:01,ÿ47ÿ16Mÿ2>(ÿ20.4ÿ.'(ÿ76((P(6ÿ(/(6MÿSTÿ'4:6,;ÿ
I4/(6ÿ.'(ÿ=641:>.ÿ52.'ÿ+ÿ>+61*4+61ÿ,'((.ÿ46ÿ40(ÿ20>'ÿ=49M:6(.'+0(ÿ,'((.ÿ+01ÿ>94,(ÿ.'(ÿ921,;ÿ<95+M,ÿ
5(+6ÿ394/(,ÿ+01ÿ:,(ÿ>+:.240ÿ5'(0ÿ'+019203ÿ16Mÿ2>(;ÿ
A7ÿ.'(ÿ76((P(6ÿ'+,ÿ,.4==(1ÿ4=(6+.203Lÿ,((ÿUV6((P(6ÿ14(,ÿ04.ÿ6:0Wÿ20ÿ.'(ÿ?(6/2>(ÿI'(>-92,.ÿ?(>.240ÿ47ÿ
.'2,ÿ8+0:+9;ÿA7ÿM4:ÿ>+004.ÿ,49/(ÿ.'(ÿ=64*9(8Lÿ>+99ÿ+0ÿ+:.'462P(1ÿ,(6/2>(ÿ288(12+.(9M;ÿR4ÿ04.ÿ+9945ÿ
20(X=(62(0>(ÿ=(4=9(ÿ.4ÿ6(=+26ÿ46ÿ84127Mÿ.'(ÿ(9(>.62>+9ÿ526203ÿ+01Y46ÿ6(7623(6+.240ÿÿ>48=40(0.,;ÿÿ
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air10
THIS UNIT CANNOT BE INSTALLED IN ENVIRONMENTS WITH EXPLOSIVE GASES, IT IS DESIGNED ONLY FOR
INDOOR OPERATION.
STORAGE OF THE EQUIPMENT:
• The unit must be located in an indoor environment. It
is best suited for an environment where temperatures
remain below 75°F and humidity doesn't exceed 55%.
• For the correct performance of the refrigeration system,
it is very important to leave at least 4" of free space on
both sides, and at the back of the unit to allow proper air
circulation. Do not block the grills on the side or back of
the unit.
• The location of the cooler must be kept away from
sources of heat and humidity including direct sunlight,
ovens, heaters, or any other heat generating appliances.
• If the equipment will be kept in storage, it is suggested
to keep it in it's original packing. If your equipment
needs to be inactive for a long period of time, it should
be uplugged and cleaned thoroughly with a damp cloth,
lukewarm water, and neutral soap. Once clean, carefully
dry the unit and cover it with a polyethylene lm or
similar waterproof material.
LOADING THE EQUIPMENT:
The NC series of units are not intended to be pull down
freezers, and as such, the product must be loaded at their
intended merchandising temperature.
OVERLOADING THE FREEZER FORCES THE COMPRESSOR
TO RUN LONGER. DO NOT EXCEED THE LOAD LIMIT
ACCORDING TO LABELS FIXED ON THE INNER CABINET
(WHICH CORRESPONDS TO THE BASKETS' HEIGHT)
• Before loading products, allow the equipment to
operate empty for at least four hours.
• Product to be loaded should be at -4°F since the
equipment is intended for maintaining a cool product
at 0°F at load level rather than freezing a warm
product.
• The baskets have been designed to withstand the
rigors of normal use. Avoid product overloading to
prevent deforming the baskets.
• Keep the lids closed to avoid warm air and moisture
getting into the freezer.
MOVING THE EQUIPMENT:
The unit is shipped with casters to facilitate moving the
unit into position.
• Before moving, disconnect the power cord plug from the
wall outlet.
• Remove all product, then defrost and clean the unit.
• Secure all loose items such as baskets and x the lids in
place to prevent damage.
• If transporting, secure the freezer in an upright position
in the moving vehicle, and cover it to protect the outside
of the cabinet.
REMOVAL OF FROST:
It is recommended to remove the frost accumulated
before reloading the freezer or anytime when one quarter
inch of frost has accumulated.
The unit will have to be manually defrosted. The manual
defrost frequency will depend on the units usage,
environment, and the amount of frost accumulated.
Make sure the drain plug is removed and the unit is
moved close to a oor drain.
Unplug the unit until all the frost is gone.
When the ice has melted, wipe up any water left on the
freezer oor.
Be sure to replace the drain plug before moving the
freezer back into position.
Allow the freezer to refrigerate and cycle before placing
the wire baskets and product back into freezer
To defrost while keeping the freezer plugged in, place a
clean dry soft cloth over the product to catch the frost
that will be removed. Remove the frost using a plastic
scraper trying to eliminate as much frost as possible.
ENVIRONMENTAL CONDITIONS
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 11
WARNING - DAMP OBJECTS STICK TO COLD METAL SURFACES. DO NOT TOUCH THE INTERIOR METAL
SURFACES WITH WET OR DAMP HANDS.
After defrosting, wash the inside surfaces of the freezer with a solution of two tablespoons of baking soda in one
quarter of a gallon (1.1 liters) warm water. Rinse and dry. Wring excess water out of the sponge or cloth when
cleaning in the area of the controls, or any electrical parts.
Wash the removable parts and door basket with the baking soda solution, or mild detergent and warm water.
Rinse and dry. Never use metallic scouring pads, brushes, abrasive cleaners, or alkaline solutions on any
surface. Do not wash removable parts in a dishwasher. Do not spray water with a hose nor use ammonia based
cleaners.
WARNING - THE LOWER SIDE OF THE GLASS LIDS IS PROVIDED WITH A SPECIAL FILM. DO NOT USE RAZOR
BLADES OR OTHER SHARP INSTRUMENTS WHICH CAN SCRATCH THE SURFACE AND DAMAGE THE FILM
CLEANING THE OUTSIDE
• Wash the cabinet with warm water and mild liquid
detergent. Rinse well and wipe dry with a clean soft
cloth. Do not spray water onto the unit with a hose,
or use ammonia based cleaners.
• Once a week, clean each external and internal surface
with only a damp piece of cloth and neutral soap, and
dry them with a clean soft cloth.
• Never use ammable or abrasive products. The unit
must never be cleaned with jets of water.
• During maintenance and cleaning operations, make
sure there are good visibility conditions in the
working area, using as many light sources as needed.
Be very careful when working with moving and/or
high temperature parts.
LID REMOVAL (IF REQUIRED)
• Stand in front of the freezer
• Assure that the lower lid is totally closed to the left
side of the freezer.
• To remove the top lid, slide it open to it's maximum
handling it by both sides, and push it toward the back.
This allows the lid to get out from the front rail where
it slides, then remove it pulling the lid out from the
rear rail. Handle the lid carefully, and place it on a
at, secure surface.
• Repeat steps as needed.
• To install the lids again, reverse the previous steps
starting with the lower lid.
CLEANING AND MAINTENANCE
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air12
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner
Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc.
Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING EXTERIOR FINISH
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 13
FOR THE SERVICE TECH - R290
Refrigeration service should only be attempted by a trained trade professional certied to work on R290 systems.
Here are some critical service items.
This list does not qualify anyone to service the unit. It is a
reminder and checklist for the service tech. Keep these in
mind for R290 service:
• Wire nuts are NOT to be used when changing an
electrical part.
• The switches in this product are sealed, only exact
replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components
that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during
service, the venting MUST be in an area free from
ame or spark. It must be near an opened window or
door.
• A sign noting service of a system containing propane
must be attached to the unit during refrigeration
service.
• A combustible gas leak detector must be used to
inform anyone in the area when propane is present in
the air.
Other Information:
Evacuation: It is critical that a refrigeration system be
leak free and internally dry. A thorough evacuation with
a good vacuum pump with a micron gauge attached is the
only way to ensure that the system is dry and ready for a
charge of refrigerant.
Charging: The system is critically charged and the proper
type and amount MUST be weighed in.
Overcharge symptoms: Unit will cool properly but
the suction line temperature will be unusually cold.
Compressor run time will be longer than normal.
Undercharge symptoms: Long run time, poor cooling
and a hot compressor dome are the main symptoms of an
undercharge.
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air14
POWER/FREEZE FAILURE
NOTE: DO NOT OPEN THE FREEZER DOOR UNNECESSARILY IF POWER TO THE FREEZER IS OFF FOR SEVERAL HOURS.
IF A POWER FAILURE OCCURS, FROZEN FOODS WILL STAY FROZEN FOR AT LEAST 2 HOURS IF THE FREEZER IS KEPT
CLOSED. IF THE POWER FAILURE CONTINUES, PACK SEVEN OR EIGHT POUNDS OF DRY ICE INTO THE FREEZER EVERY
24 HOURS. COVER THE PRODUCT WITH A CARDBOARD SHEET OR ONE INCH POLYURETHANE SHEET AND CLOSE THE
LIDS. ALWAYS WEAR GLOVES AND USE CAUTION WHEN HANDLING DRY ICE.
IF THE FREEZER HAS STOPPED OPERATING, SEE "FREEZER DOES NOT RUN" IN THE SERVICE CHECKLIST SECTION OF
THIS MANUAL. IF YOU CANNOT SOLVE THE PROBLEM, CALL AN AUTHORIZED SERVICE IMMEDIATELY. DO NOT ALLOW
INEXPERIENCED PEOPLE TO REPAIR OR MODIFY THE ELECTRICAL WIRING AND/OR REFRIGERATION COMPONENTS.
BEFORE CALLING SERVICE, REVIEW THIS LIST. IT MAY SAVE YOU BOTH TIME AND COSTS. THIS LIST INCLUDES
COMMON OCCURRENCES THAT ARE NOT THE RESULT OF DEFECTIVE WORKMANSHIP OR MATERIALS IN THIS
APPLIANCE.
OCCURRENCE SOLUTION
Freezer runs too much or for
too long
Check to ensure that the freezer is not plugged into a circuit that has ground fault interrupt - if you are unsure about the outlet,
have it checked by a certied technician.
Temperature control is in the OFF position - see "Setting the Temperature Control Section".
Freezer may not be plugged in, or the plug may be loose - be sure the plug is tightly pushed into electric outlet.
House fuse has blown, or the circuit breaker has tripped - check the circuit breaker and reset if needed, or replace fuse with a 15
amp time delay fuse.
In case of power outage - call the local electric company.
Temperature inside the freezer
is too low
Room or outside weather is hot - it's normal for the freezer to work harder under those conditions.
Freezer was recently disconnected for a period of time - the freezer requires 4 hours to cool down completely.
Large amounts of warm or hot product have been stored recently - warm product will cause the freezer to run more until the
desired temperature is reached.
Door is kept open too long or too frequently - warm air enters the freezer every time the door is opened, try to open the door
less often.
Freezer door may be slightly open.
Temperature control is set too cold - turn the control knob to a warmer setting and allow several hours for the temperature to
stabilize.
Temperature inside the freezer
is too high
Temperature control is set too low - turn the control to a warmer setting and allow several hours for the temperature to stabilize
Temperature of external freez-
er surface is warm
Temperature control is set too high - turn the control to a colder setting and allow several hours for the temperature to stabilize.
Door is kept open too long or is opened too frequently, which allows warm air to enter the freezer every time it is opened. - try
to open the door less often.
The door may be slightly opened.
The freezer has recently been disconnected for a period of time - allow 4 hours to cool down completely.
Noise level is higher whenever
the freezer is on
The exterior freezer walls can be as much as 30°F warmer than the room temperature. This is normal while the compressor
works to transfer heat from inside the freezer cabinet.
Noise level is higher when the
compressor comes on
The fan motor in the compressor compartment is damaged or has a loose connection.
Modern freezers have increased storage capacity and more even temperatures, so they require a high eciency compressor. So
when the surrounding noise level is low, you may hear the compressor running while it cools the interior.
Popping or cracking sound
when the compressor comes
on
Freezer operates at higher pressure during the start of the ON cycle - this is normal, the sound will level o or disappear as the
freezer continues to run.
Bubbling or gurgling sound,
like water boiling
Metal parts undergo expansion and contraction, similar to hot water pipes - this is normal, the sound will level or disappear as
the freezer continues to run.
Vibrating or rattling noise Refrigerant (used to cool freezers) is circulating throughout the system - this is normal.
Moisture forms on the inside
freezer walls
Freezer is not level, it may rock on the oor when it is moved slightly - level the unit.
Floor is uneven or weak, freezer rocks on the oor when it is moved slightly - be sure the oor can adequately support the
freezer. If so, level the freezer by placing either wood or metal shims under part of the freezer.
Weather is hot, or humidity level is high, this increases the internal rate of frost build-up - this is normal.
Door is slightly open, kept open too long, or is being opened too frequently - this causes the cold air from inside the freezer to
meet the warm moist air from outside.
Odor inside the freezer Interior needs to be cleaned - clean the interior according to the instructions in this manual.
Products with strong odors are inside the freezer - cover the product tightly.
User Manual for NC Freezers Beverage-Air
Rev. 02/26 Beverage-Air 15
LIMITED WARRANTY
WARRANTY (Warranty valid in USA and Canada)
THREE (3) YEAR PARTS AND LABOR WARRANTY:
Beverage-Air Corporation warrants to the original
purchaser of Beverage-Air branded equipment,
including all parts thereof, that such equipment is
free from defects in material and workmanship, under
normal use, proper maintenance, and service as
indicated by Beverage-Air installation and operation
instructions, for a period of three (3) years from the
date of installation, or thirty-nine (39) months from the
date of shipment from the manufacturer, whichever is
earlier.
ADDITIONAL TWO (2) YEAR COMPRESSOR PART
WARRANTY*:
In addition to the warranty set forth above, Beverage-
Air warrants the hermetically/semi-hermetically
sealed compressor (part only) for an additional TWO
(2) years beyond the rst THREE (3) years warranty
period; not to exceed sixty-three (63) months from the
date of shipment from Beverage-Air, provided upon
receipt of the compressor, manufacturer examination
shows the sealed compressor to be defective. This
extended warranty does not cover freight for the
replacement compressor or freight for the return of the
failed compressor.
* Units shipped after 07/01/2024. Previous warranty
applies to units shipped prior.
EXCEPTIONS:
• CT96 and CF3 models carry a ONE (1) year parts
and labor warranty, limited to fteen (15) months
from date of shipment from Beverage-Air. These
are excluded from additional compressor warranty.
• SR/SF (Slate) models carry a TWO (2) year parts
and labor warranty, limited to twenty-seven (27)
months from date of shipment from Beverage-Air.
• BZ, VM, CDR, BDC, NC, DPCR, MT and Blast Chillers
carry a THREE (3) year parts and labor warranty;
additional TWO (2) years compressor part only.
• Units installed in Residential applications will
be not covered under this warranty. Units are
intended for Commercial use only.
Also, this compressor-part only warranty does NOT
apply to any electrical controls, condenser, evaporator,
fan motors, overload switch, starting relay, capacitors,
temperature control, lter/drier, accumulator,
refrigeration tubing, wiring harness, labor charges, or
supplies which are covered by the warranty above.
Note: 3rd party extended warranties are not covered
by this warranty statement.
Normal wear parts, as deemed by Beverage-Air, such
as but not exclusive to, light bulbs/lamps and gaskets
are not covered by this warranty. For the purpose of
this warranty, the original purchaser shall be deemed
to mean the individual or company for who the
product was originally installed.
Units that utilize variable speed compressor
technology can experience nuisance tripping on Class
A GFCI outlets which have a trip limit of 4 mA to 6
mA. To avoid this issue in a location that requires GFCI
circuit protection, Beverage-Air & Victory recommends
using a HUBBELL Model Number GFRST83W 20A
Heavy Duty Hospital Grade Self-Test GFCI Receptacle.
Nuisance tripping not covered under warranty.
Our obligation under this warranty shall be limited to
repairing or replacing, including labor, any part of such
product, which proves thus defective. Beverage-Air
reserves the right to examine any product claimed to
be defective and request photos of the unit prior to
dispatching service. Moisture or water damage is not
covered under warranty. If service is deemed non-
warranty, Beverage-Air reserves the right to bill the
end user for service.
The labor warranty shall be for self-contained units
only and for standard straight time, which is dened
as normal service rate time, for service performed
during normal working hours. All warranty labor will
be covered at standard time. Any service requested
outside of a servicer's normal working hours including
weekends and any additional overtime will be at
the responsibility of the equipment purchaser. Any
part or accessory determined to be defective in the
product should be returned to the company within
thirty (30) days under the terms of this warranty
and must be accompanied by a record of the cabinet
model, serial number, and identied with a return
material authorization number (RMA#) issued by the
manufacturer.
Special installation/applications, including remote
locations, are limited in coverage by this warranty.
Any installation that requires extra work, and/or
travel, to gain access to the unit for service is the sole
responsibility of the equipment purchaser.
Improper operation resulting from factors, including
but not limited to, improper or negligent cleaning
and maintenance, improper installation, low voltage
conditions, inadequate wiring, outdoor use (unless
otherwise specied) and accidental damage are
not manufacturing defects and are strictly the
responsibility of the purchaser.
User Manual for NC Freezers Beverage-Air
Rev. 02/26Beverage-Air16
LIMITED WARRANTY (CONT'D)
With the exception of Blast Chillers, the product
is designed for maintaining temperature and not
bringing food to a desired temperature and therefore
cannot be held responsible for this function under
warranty. Units must be in a conditioned environment
or warranty will be void. Non-standard use of unit can
also be subject to reduced or voided warranty.
Condensing coils must be cleaned at regular intervals
as a part of preventative maintenance for optimal
performance. Failure to do so is subject to a voided
warranty. Although cleaning requirements vary
in accordance with operation of various products,
Beverage-Air recommends a minimum monthly
cleaning.
NO CLAIMS CAN BE MADE AGAINST THIS WARRANTY
FOR SPOILAGE OF FOOD, PRODUCTS, LOSS OF SALES
OR CONSEQUENTIAL DAMAGES.
THE FOREGOING WARRANTIES ARE EXPRESSLY
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE HERBY DISCLAIMED, ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART, AND
WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THE SALE OF SAID
REFRIGERATION UNITS OR ANY PARTS THERE OF.
This warranty shall not be assignable and shall be
honored only in so far as the original purchaser. This
warranty does not apply outside the limits of the
United States of America and Canada, nor does it apply
to any part that has been subject to misuse, neglect,
alteration, accident, or to any damage caused by
transportation, ood, re, acts of terrorism, or acts of
God.
LIMITATION OF LIABILITY:
Beverage-Air Corporation or their aliates shall
not be liable for any indirect, incidental, special or
consequential damages, or losses of a commercial
nature arising out of malfunction equipment or its
parts components thereof, as a result of defects in
material or workmanship.
THE ORIGINAL OWNER'S SOLE AND EXCLUSIVE
REMEDY AND BEVERAGE-AIR'S SOLE AND EXCLUSIVE
LIABILITY SHALL BE LIMITED TO THE REPAIR
OR REPLACEMENT OF PARTS OR COMPONENTS
CONTAINED IN THE EQUIPMENT IDENTIFIED
ABOVE WHICH UNDER NORMAL USE AND SERVICE
MALFUNCTION AS A RESULT OF DEFECTS IN
MATERIAL OR WORKMANSHIP, SUBJECT TO THE
APPLICABLE PROVISIONS AND LIMITATIONS STATED
ABOVE.
Note: Additional Terms and Conditions of sale may
apply. Notice: Specications are subject to change
without notice. Contact Beverage-Air for specic model
agency approval. All prices are ex-works Brookville,
PA. July 1, 2024
User Manual for NC Freezers Beverage-Air
Rev. 02/26
Warranty Registration
Register your product online at beverage-air.com/parts-service or ll out and mail the form below.
Cabinet Model Number: _____________________________________________ Date Of Installation: _________________
Cabinet Serial Number: _____________________________________________
Location Of Product
Business Name: ____________________________________________________
Business Street: ____________________________________________________
Business City: ____________________________________ State: _________ Postal Code:___________
Mail to: Beverage-Air, 3779 Champion Blvd, Winston-Salem, NC 27105
