INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
CDR Refrigerator Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com
809-245A Rev. A. 02/10/2026
SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for CDR Refrigerators Beverage-Air
Rev. 02/26Beverage-Air2
WELCOME
Contents
Safety ........................................................................................................................................................................3
Important Information ..........................................................................................................................................5
Product Information ..............................................................................................................................................6
Clearance and Placement ......................................................................................................................................7
Unpacking and Leveling ........................................................................................................................................ 8
Setting Up and Moving the Equipment .............................................................................................................9
Electrical ..................................................................................................................................................................10
Cleaning Instructions ............................................................................................................................................ 11
Methods For Cleaning Exterior Finish ..............................................................................................................12
For The Service Tech - R290 (Refrigerated Units Only) ...............................................................................13
Limited Warranty ..................................................................................................................................................14
Limited Warranty (continued) ............................................................................................................................15
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located
within this manual. Please complete the card
and submit it to Beverage-Air within TEN days of
installation. Failure to properly register equipment
may limit or void the warranty.
• Beverage-Air reserves the right to change
specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Beverage-Air cabinet. This
series has passed our strict quality control inspection and
meets the high standards set by Beverage-Air! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for CDR Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities. USE THIS APPLIANCE FOR ITS INTENDED PURPOSE AS
DESCRIBED IN THIS MANUAL.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store or use gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Beverage-Air recommended technician certied
to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of
non OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for CDR Refrigerators Beverage-Air
Rev. 02/26Beverage-Air4
Using any electrical or electronic equipment entails the compliance with some fundamental rules.
THE MANUFACTURER DOES NOT ASSUME ANY RESPONSIBILITY ARISING FROM DAMAGES CAUSED BY
IMPROPER, INCORRECT, OR ERRONEOUS USE.
1. Do not touch the unit with wet hands or feet.
2. Do not install the equipment outdoors.
3. Do not remove or ignore safety devices.
4. Do not leave objects on top of the unit.
5. Do not climb on top of the unit.
6. Do not allow children to climb, stand, or hang on the
shelves in the refrigerator. This could damage the
refrigerator or cause bodily injury.
7. Use care when moving or handling the unit. It is
equipped with ammable refrigerant and damage to
refrigerant tubing will increase the risk of a leak.
8. Never use direct or indirect water jets on the unit.
9. Do not keep the unit running while unloaded. Unplug
and clean it while not in use.
10. Do not remove grilles or panels that require the use of
tools to be accessed.
ADDITIONAL WARNINGS FOR REFRIGERATED UNITS:
11. Do not allow the electronic control to be adjusted
by customers or unqualied personnel. For any
adjustment, you must contact your distributor.
12. Under no circumstance, should you block the front
grille of the unit.
13. Verify that the hot air stream from the condenser
toward the back of the unit is not directed to other
refrigeration units, as this would compromise their
operation.
14. When service is required, seek factory authorized
technicians trained to safely maintain and service
systems that utilize ammable refrigerants, such as
R-290. RSES oers such training and certication.
15. Only use factory authorized replacement parts to
minimize the risk of possible ignition.
It is important to instruct the user on the operation of the equipment according to this instruction manual, and
make sure that the manual is within reach of any operator that might use the unit.
User Manual for CDR Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 5
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
This appliance must be properly installed and located in accordance with this manual.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
User Manual for CDR Refrigerators Beverage-Air
Rev. 02/26Beverage-Air6
Model
Cabinet Dimensions
w x d x h (Inches)
Full Load
Amps
Power Cord
Plug (NEMA)
Refrigerant Type / Charge (g) /
Charge (oz)
REFRIGERATED UNITS
CDR3HC-1 37 1/4 X 35 47/64 X 48 9/16
4
5-15P
R-290 / 80 / 2.7
CDR4HC-1 49 1/4 X 35 47/64 X 48 9/16
CDR5HC-1 60 1/4 X 35 47/64 X 48 9/16
5 R-290 / 95 / 3.21
CDR6HC-1 73 11/16 X 35 47/64 X 48 9/16
NON-REFRIGERATED (DRY) UNITS
CDR3HC-1-D 37 1/4 X 35 47/64 X 48 9/16
N/A
5-15P
N/A
CDR4HC-1-D 49 1/4 X 35 47/64 X 48 9/16
CDR5HC-1-D 60 1/4 X 35 47/64 X 48 9/16
N/A N/A
CDR6HC-1-D 73 11/16 X 35 47/64 X 48 9/16
PRODUCT INFORMATION
• All models will maintain product temperature between 33 and 41°F.
• All models are 120 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
• Exterior is galvanized metal with powder coated painted surface.
• Dry (-D) units are non-refrigerated display units, and are sold without a refrigeration system.
User Manual for CDR Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 7

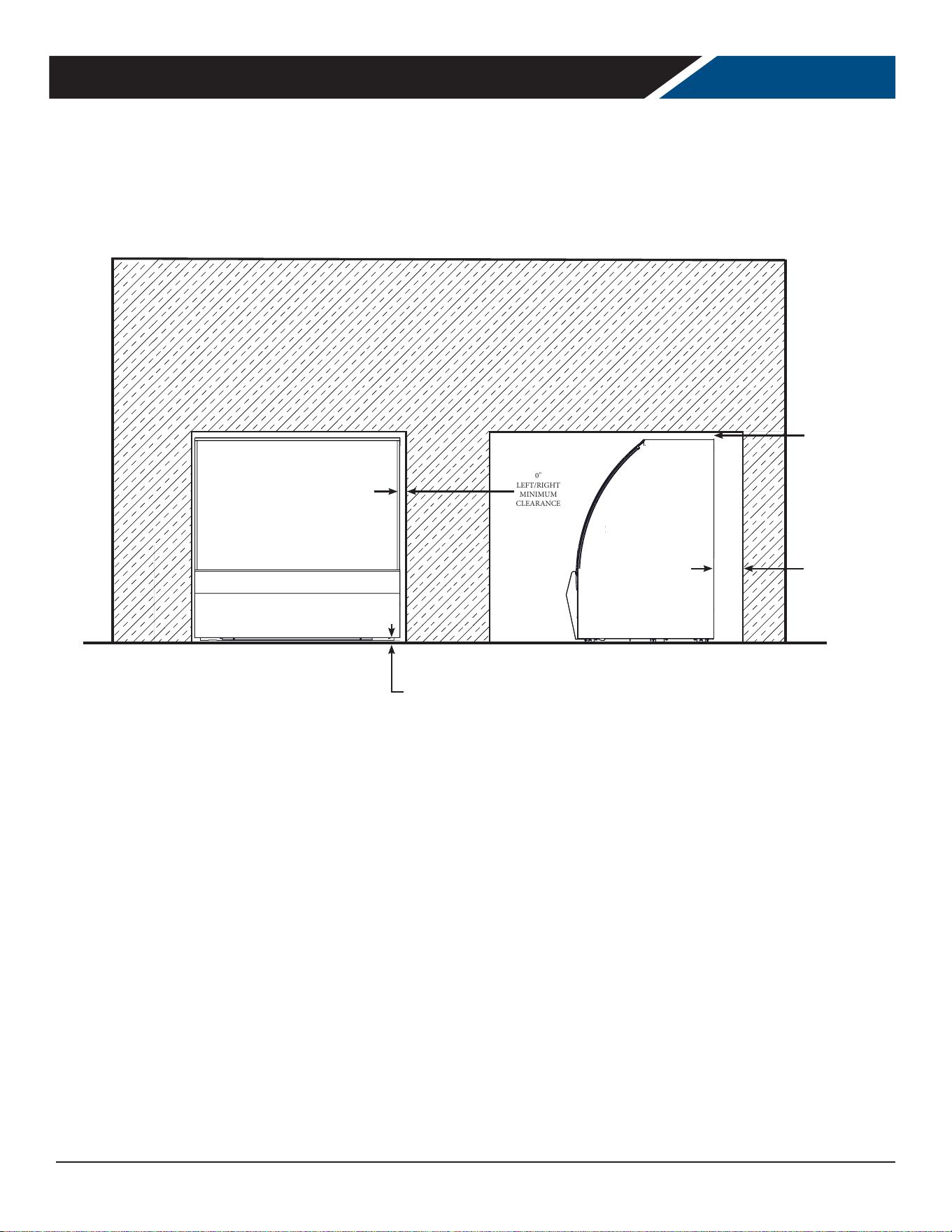

CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your Refrigerator:
Clearance:
• 0.0 in. at the top
• 3.0 in. at the rear
• 0.0 in. at the left side
• 0.0 in. at the right side
• 0.0 in at the bottom
Floor Load: the oor on which the Refrigerator is located must be even and level, free from vibrations, and strong enough
to support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
4"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
