Model Name: KMA-E
Available Sizes: 30" 36"
E-mail address: support@tazpi.com
Professional Wall-Mount Range Hood
THANK YOU FOR YOUR PURCHASE
We follow the mostadvanced manufacturing philosophy. Each appliance
leaves the factory afterthorough quality inspection and testing. We are
ready to answer anyquestions you may have regarding how to install, use
and care for yourproducts. We hope that this manual will help you learn to
use the product inthe safest and most effective manner.
lf you have any questions or concerns, please contact our Customer
Support at:support@tazpi.com
2
3

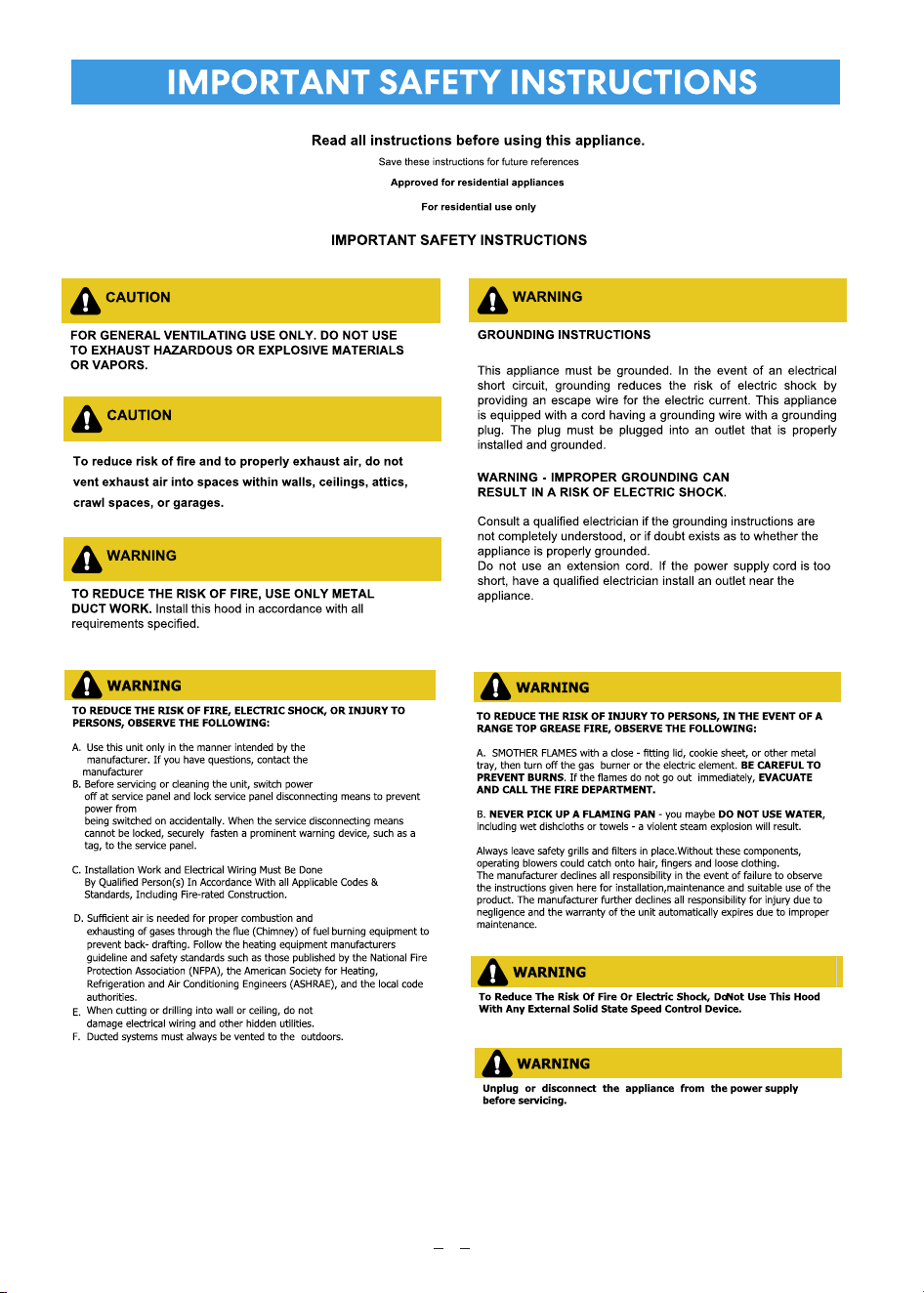

IMPORTANT SAFETY INSTRUCTIONS
ALUMINUM FILTERS
MEASUREMENNTS & DIAGRAMS
PARTS DIAGRAM
INSTALLATION OVERVIEW
RANGE HOOD INSTALLATION
RECIRCULATING CHARCOAL FILTERS
RANGE HOOD OPERATIONS

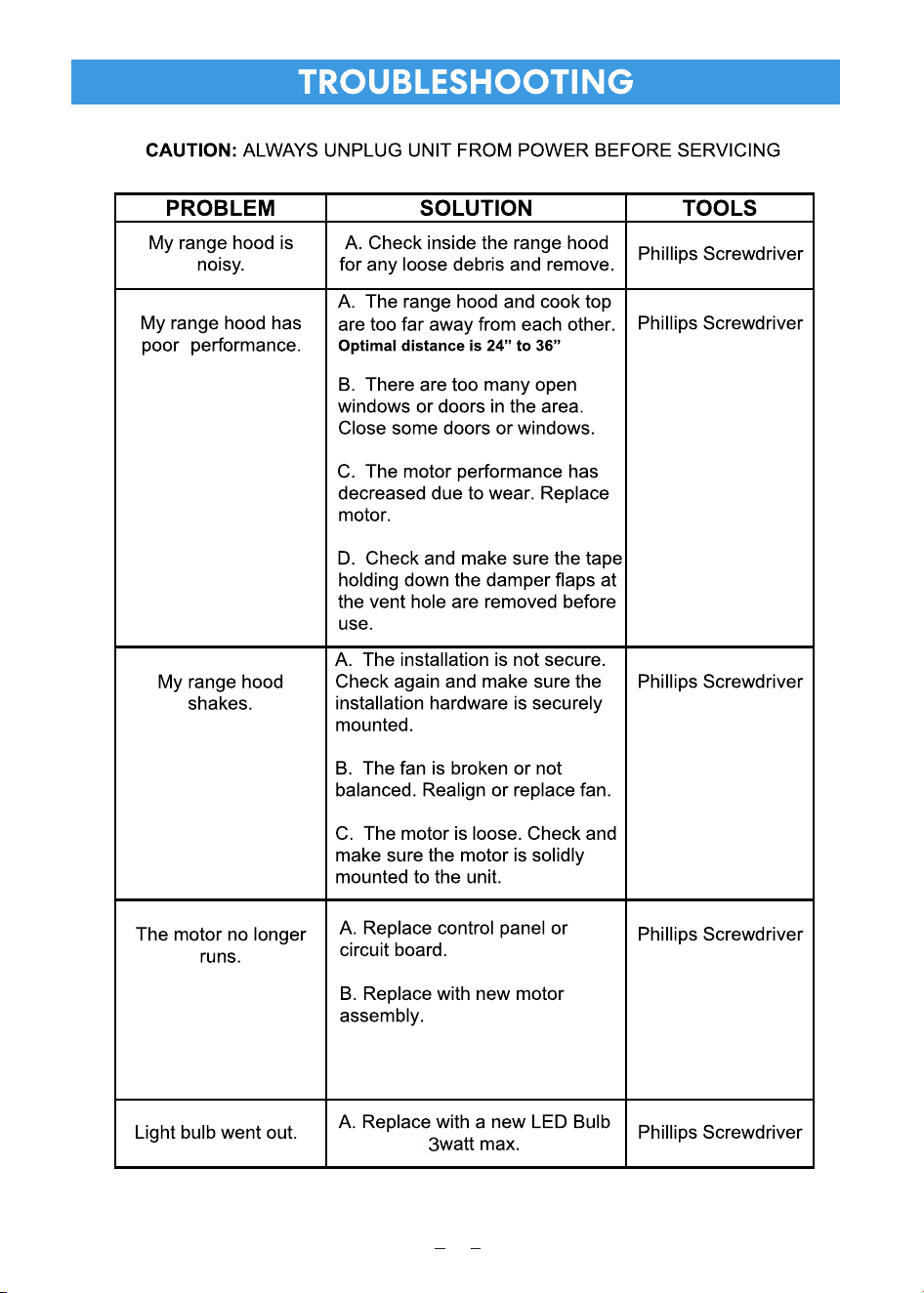

TROUBLESHOOTING
MEASUREMENNTS & DIAGRAMS
WARRANTY & SERVICE
4
5
6
7
8
9
10
12
13
15
16
17
MAINTENANCE & BULB REPLACEMENT
14
4

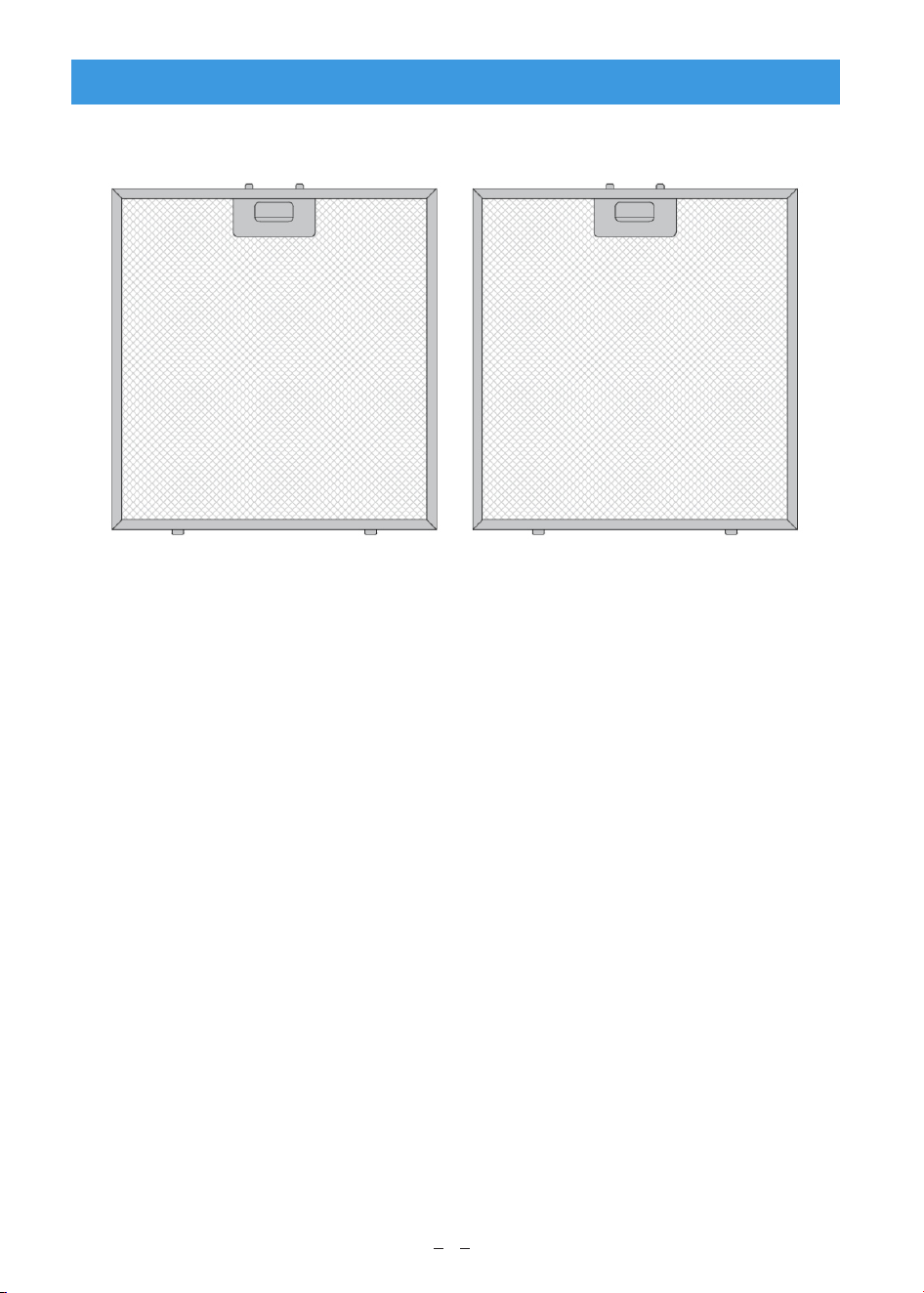

ALUMINUM FILTERS
About Your New Filters
Aluminum Filters are recommended to be replaced every 6 months
depending on usage.
Cleaning my Aluminum Filters
Your filters can be hand washed and cleaned to increase time between
replacements. Aluminum Filters may not be placed in the dishwasher.
5

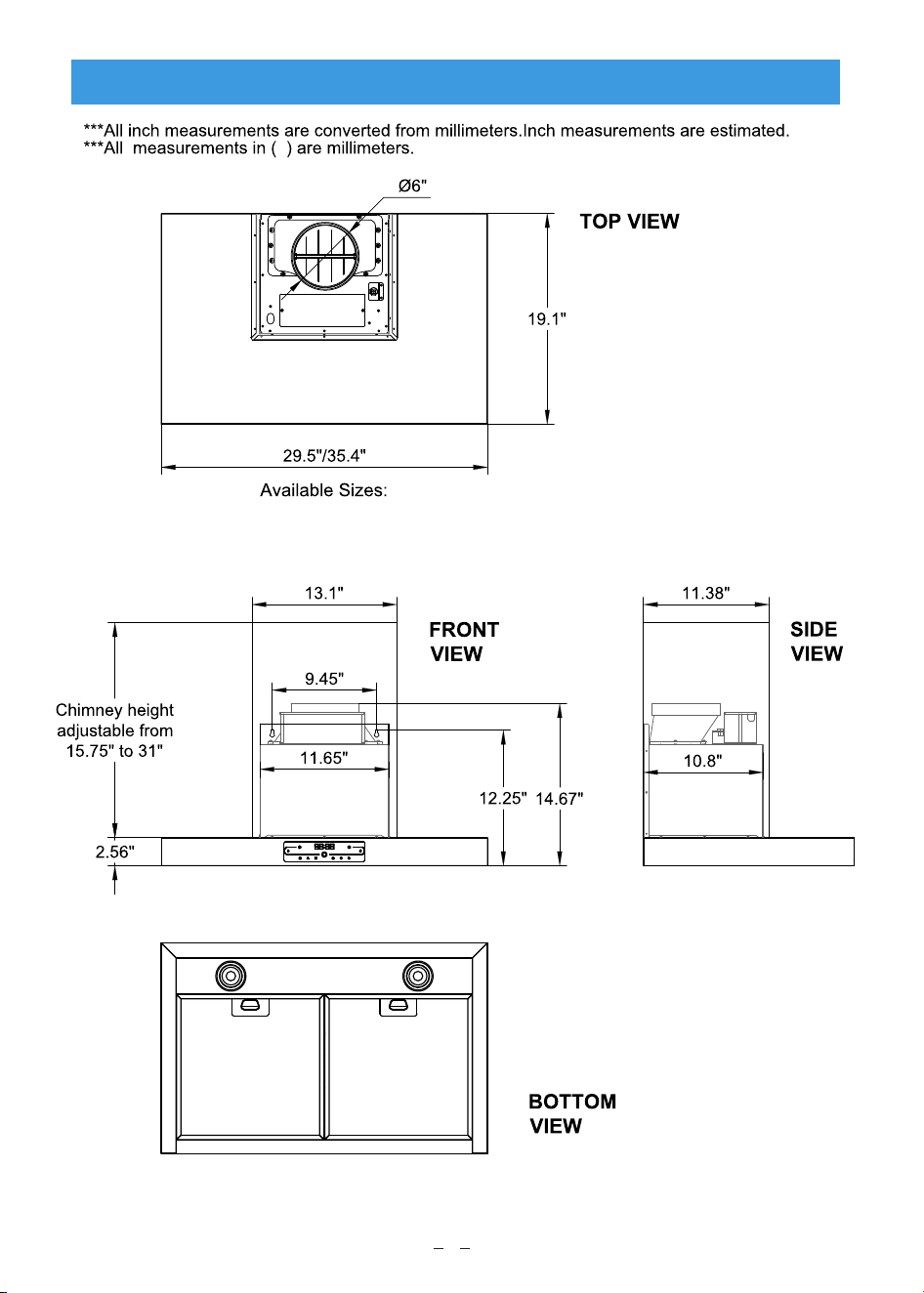

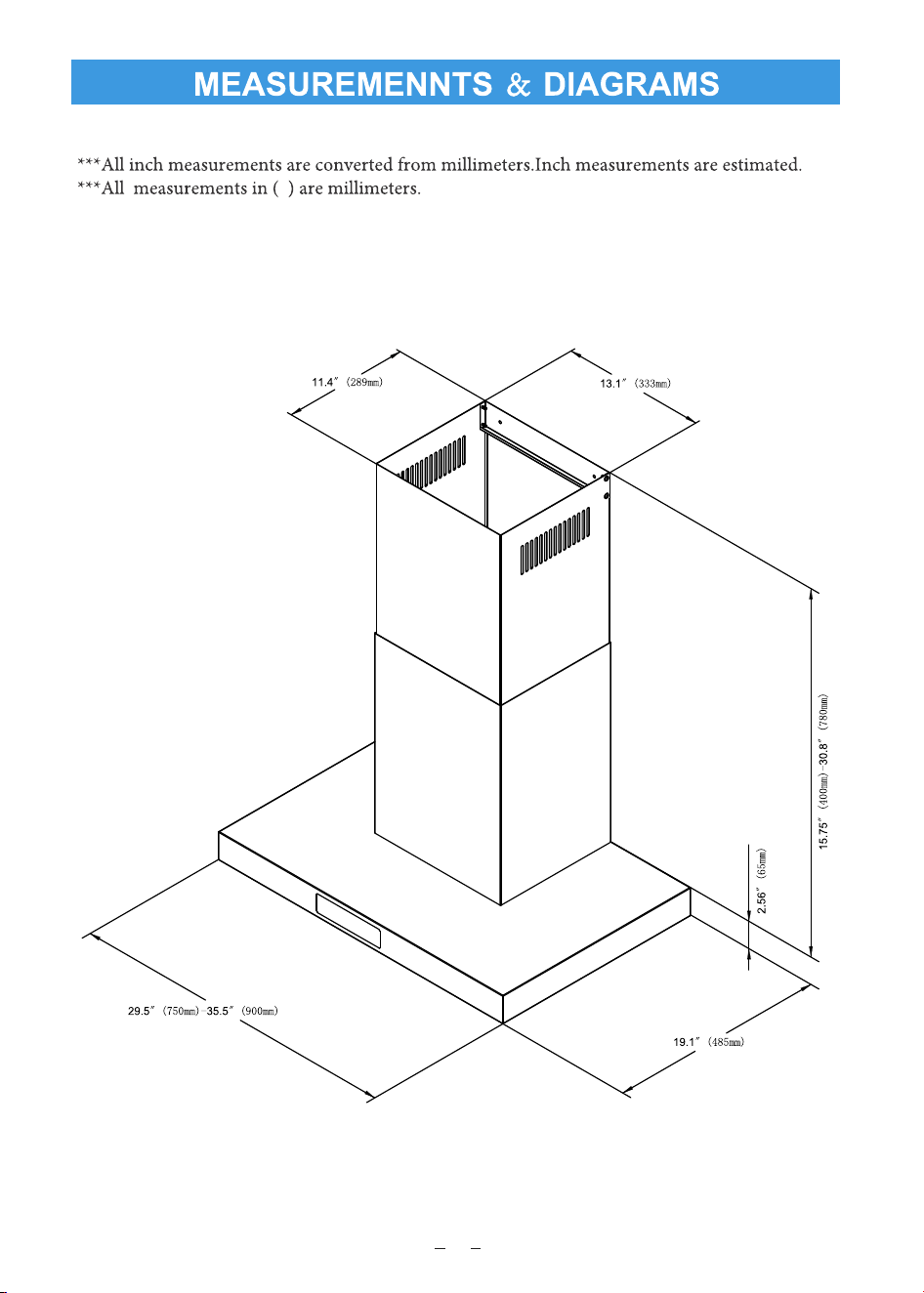

MEASUREMENNTS & DIAGRAMS
6
PARTS DIAGRAM
Mounting
Bracket
Lower
Chimney
Upper
Chimney
30" Baffle Filters (x2)
36" Baffle Filters (x3)
(x6)
M4-6mm
Big Head
blower Motor System
Vent Pipe
Charcoal Filter(x2)
7

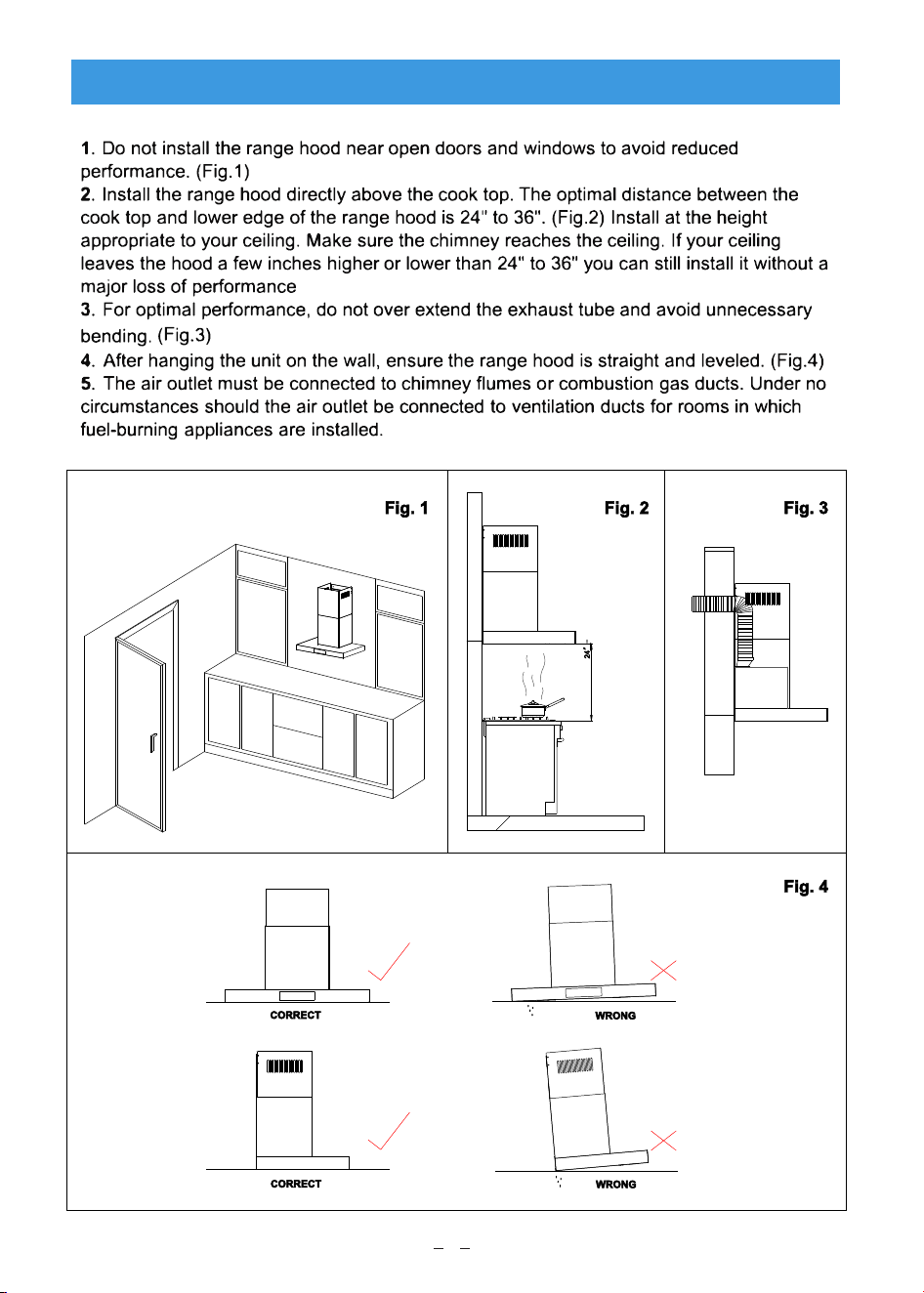

INSTALLATION REQUIREMENTS
8

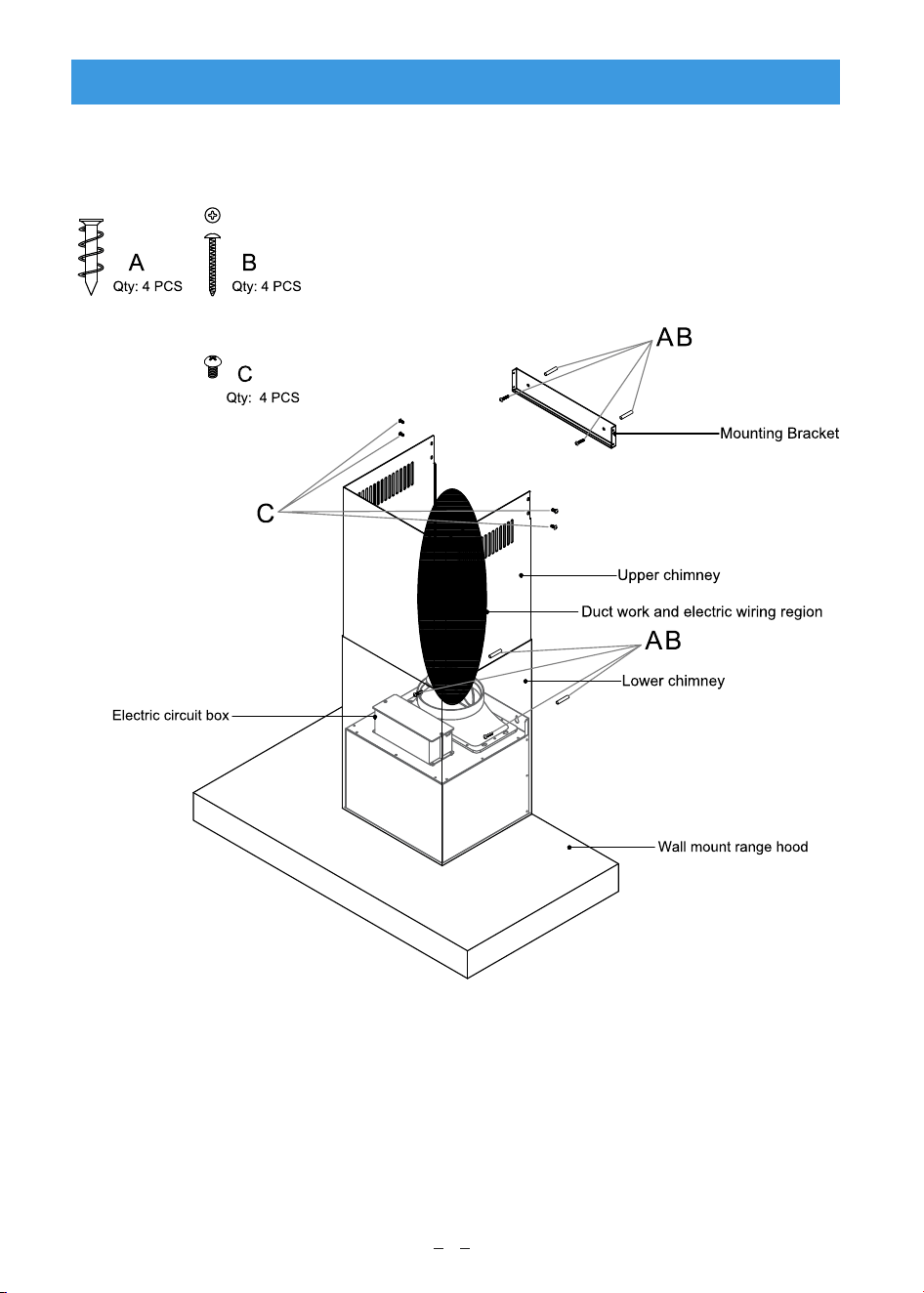

INSTALLATION OVERVIEW
9

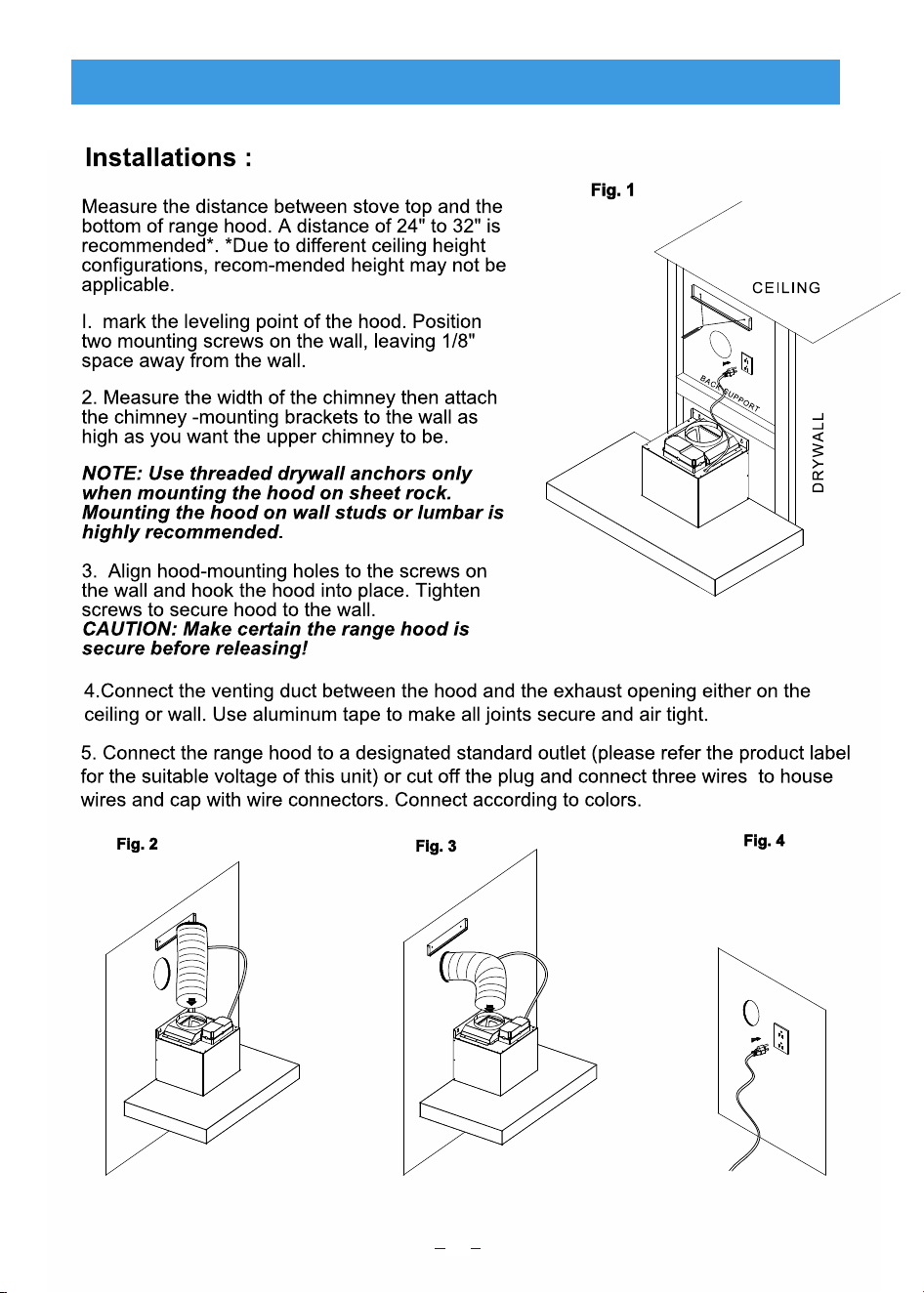

RANGE HOOD INSTALLATION
10

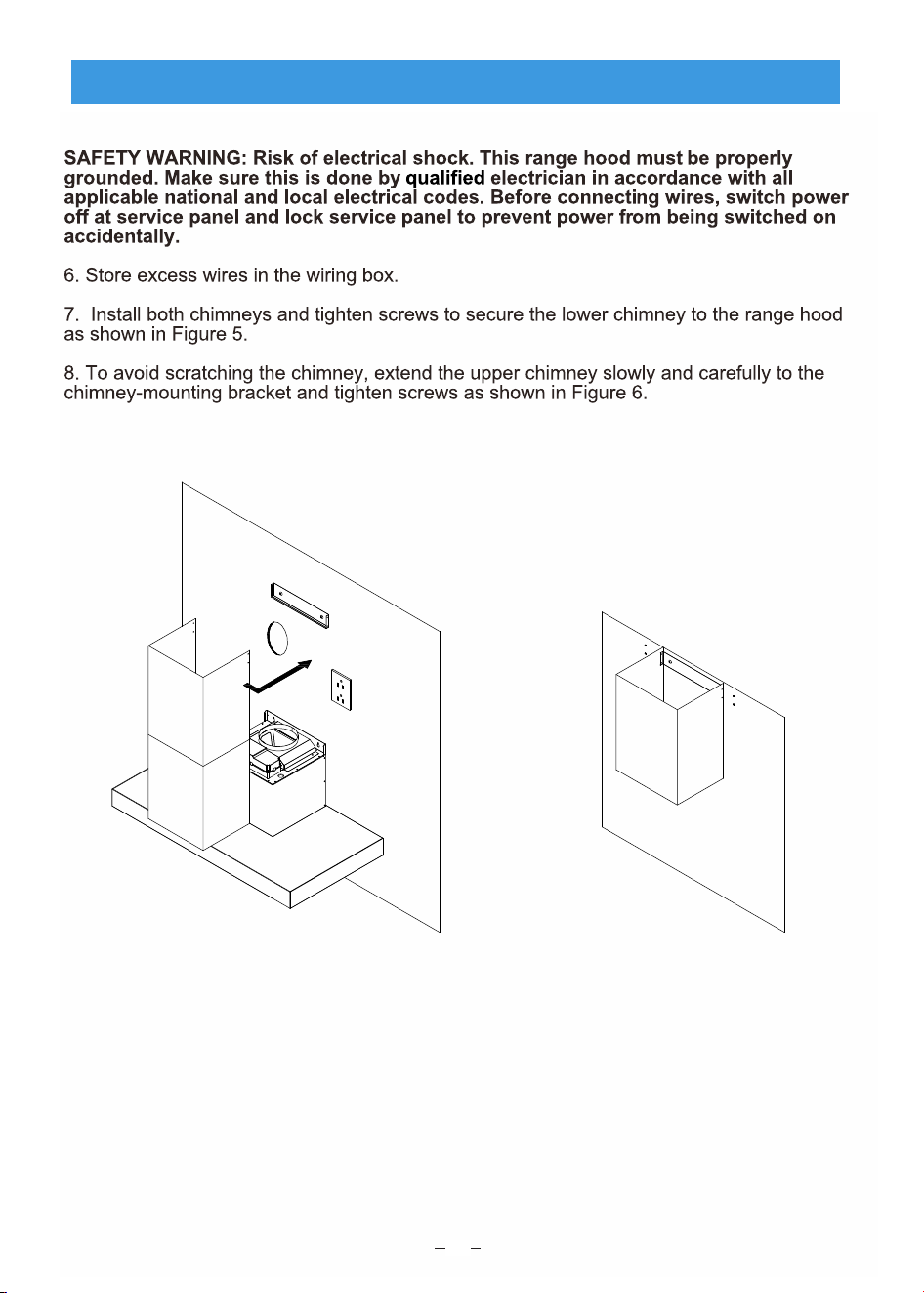

RANGE HOOD INSTALLATION
Fig.5
Fig.6
11

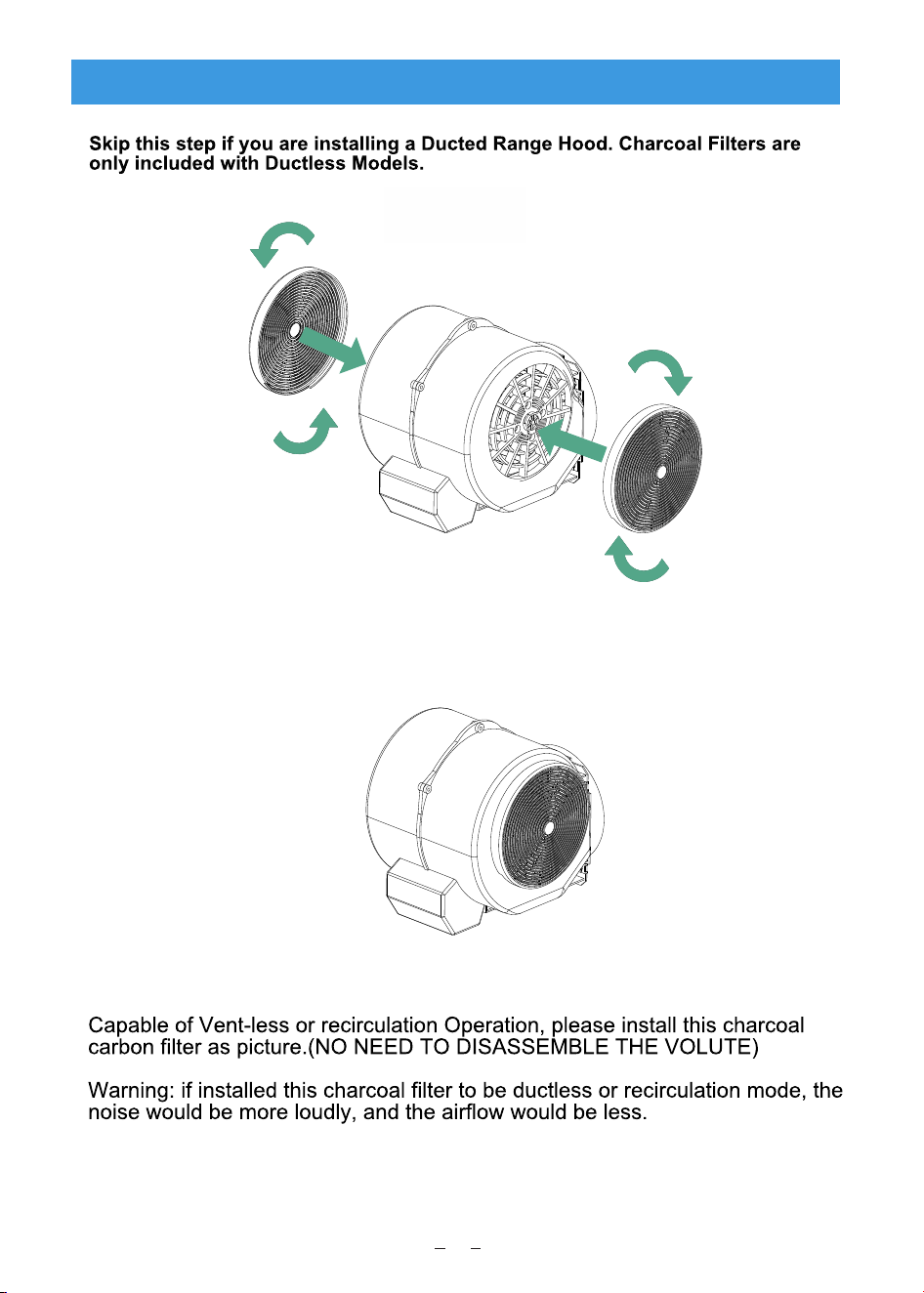

RECIRCULATING CHARCOAL FILTERS
12

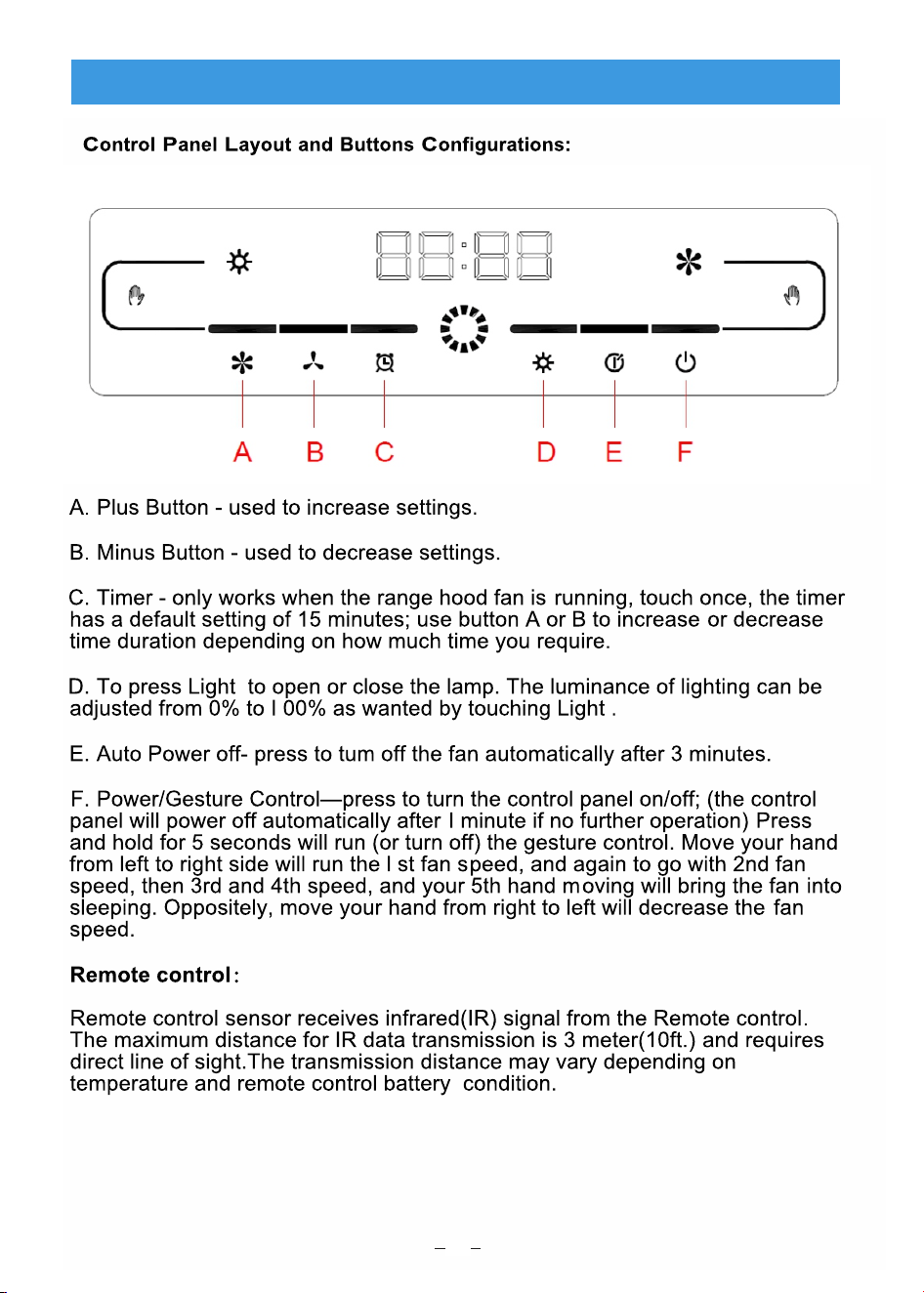

RANGE HOOD OPERATIONS
13

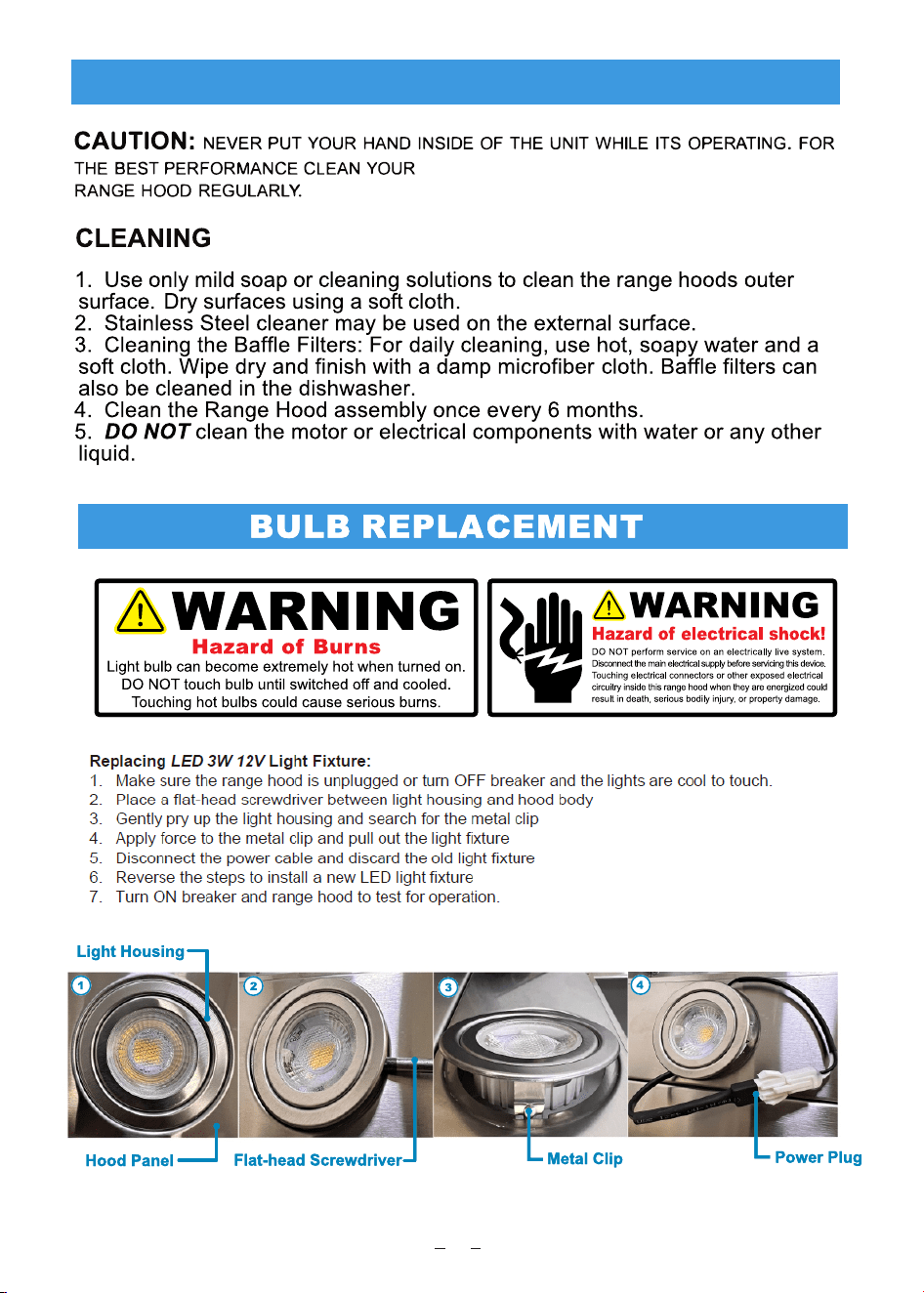

MAINTENANCE
14
15
MODEL NO.: KMA-E30"
KMA-E36"
16
Warranty Period
1. Customers are entitled to replacement or free repair service in case of quality
defect(s) found in the product within 15 days upon receipt of the product.
2. Customers are entitled to free repair service from us for any product proven
defective in material or workmanship that results in product failure during normal
consumer usage and conditions within the valid warranty period, which is 12
months counting from the date of selling. However warranty period varies by
product component and country of purchase. Please contact our after-sales
service team via support@tazpi.com for detailed warranty information.
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect.
mishandling, soaking, accident, and unauthorized alteration.
2. Products subjected to improper use or whose labels or security tags have
been torn off or altered.
3.Products whose warranty has expired.
4. Products damaged due to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please contact
us, or you can always contact our customer service through email at
support@tazpi.com.
2.Our customer service will guide you through the whole service procedure
regarding any product issue or problem you have encountered. We reserve the
right to reexamine damaged or returned products.
Contact Card
E-mail: support@tazpi.com
WARRANTY AND SERVICE
