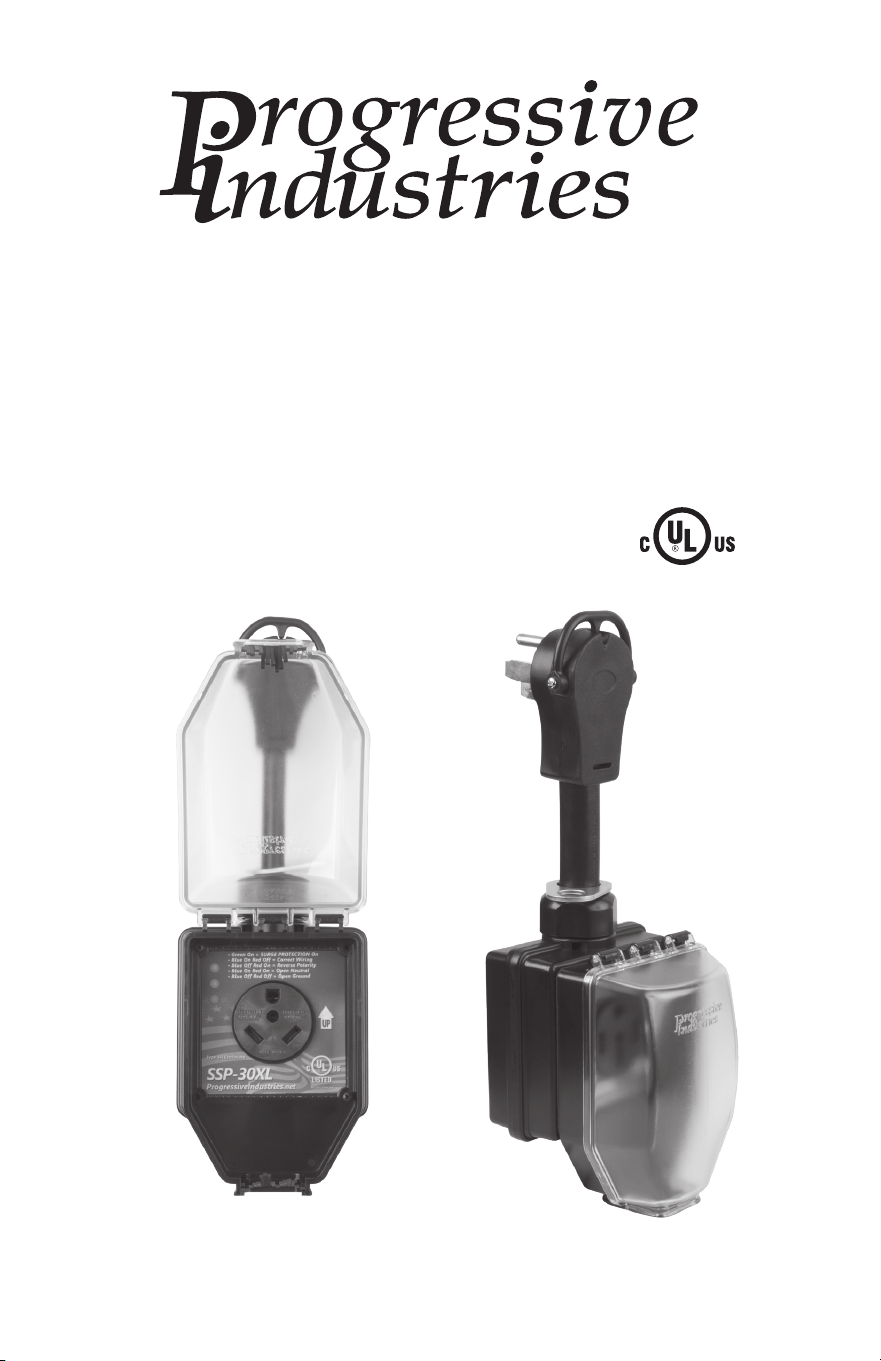

Smart Surge Protector (SSP)
SSP-30XL & SSP-50XL
Instruction Manual
SSP-30XL
SSP-50XL
ProgressiveIndustries.net | 919-267-6964
2
INSTRUCTION MANUAL: SMART SURGE PROTECTOR (SSP)
Instructions
SPECIFICATIONS:
Model SSP-30XL SSP-50XL
Rated: 120V 120/240V
Joule Rating: 825J 1,650J
Surge Amps: 22,500 45,000
Response Time: <1 Nano Seconds <1 Nano Seconds
FEATURES INCLUDE:
• (3) Color LED
indicator lights
• Weather resistant
• Dual line polarity
tester (SSP-50XL only)
• Pull handle on plug
• Limited lifetime warranty
• It’s portable, just plug it in
INSTALL STEPS:
STEP 1: Plug Smart Surge Protector into AC power. DO NOT plug in your RV at this
time. Verify GREEN surge indicator LED(s) is on.
STEP 2: Verify which LED’s come on.
The Correct Wiring condition occurs when both the GREEN and BLUE LED’s are
on. If this does not occur you may be experiencing one of the other three (3) wiring
conditions as noted in the diagrams:
A
B
C
D
Reverse Polarity
Open Neutral
Open Ground
Your Smart Surge Protector will continue to work during any of the wiring
conditions; however, only the Correct Wiring condition (both GREEN & BLUE
LED’s on) is optimal and any other wiring condition should be corrected by
Campground Maintenance before use.
STEP 3: Plug in your RV power to the Smart Surge Protector Refer to STEP 2 above for
surge protection wiring conditions.
ProgressiveIndustries.net | 919-267-6964
3
INSTRUCTION MANUAL: SMART SURGE PROTECTOR (SSP)
Note: Green light o indicates a surge occurrence.
Correct Wiring
OFF
ON
A
ON
A
GREEN
BLUE
RED
LED INDICATORS:
Reverse Polarity
OFF
ON
ON
B
GREEN
BLUE
RED
Open Neutral
ON
C
ON
ON
C
GREEN
BLUE
RED
Open Ground
OFF
OFF
ON
D
GREEN
BLUE
RED
SSP-50XL & SSP30XL
All weather shield assembly
installation diagaram
Four (4) screws included in
the hardward kit
INSTRUCTION MANUAL:
ProgressiveIndustries.net | 919-267-6964 | ZX485 (0518)
Smart Surge Protector (SSP)
SSP-30XL & SSP-50XL
SMART SURGE PROTECTOR (SSP)
Progressive Industries, Inc.
For more information regarding the Limited Lifetime Warranty,
Troubleshooting and the Warranty Claim Form visit:
www.progressiveindustrustries.net
Note: Lifetime warranty excludes All Weather Shield assembly.
Technical Support
• 919.267.6964
