*Test conditions: 95% DOD, 0.5C charge & discharge at +25±3°C, 70%SOH.
40-57.6V 12A charging(Max.), 24A discharging(Max.)
Battery Expansion Pack 614Wh
Supports up to 6 Battery Expansion Packs (sold separately).

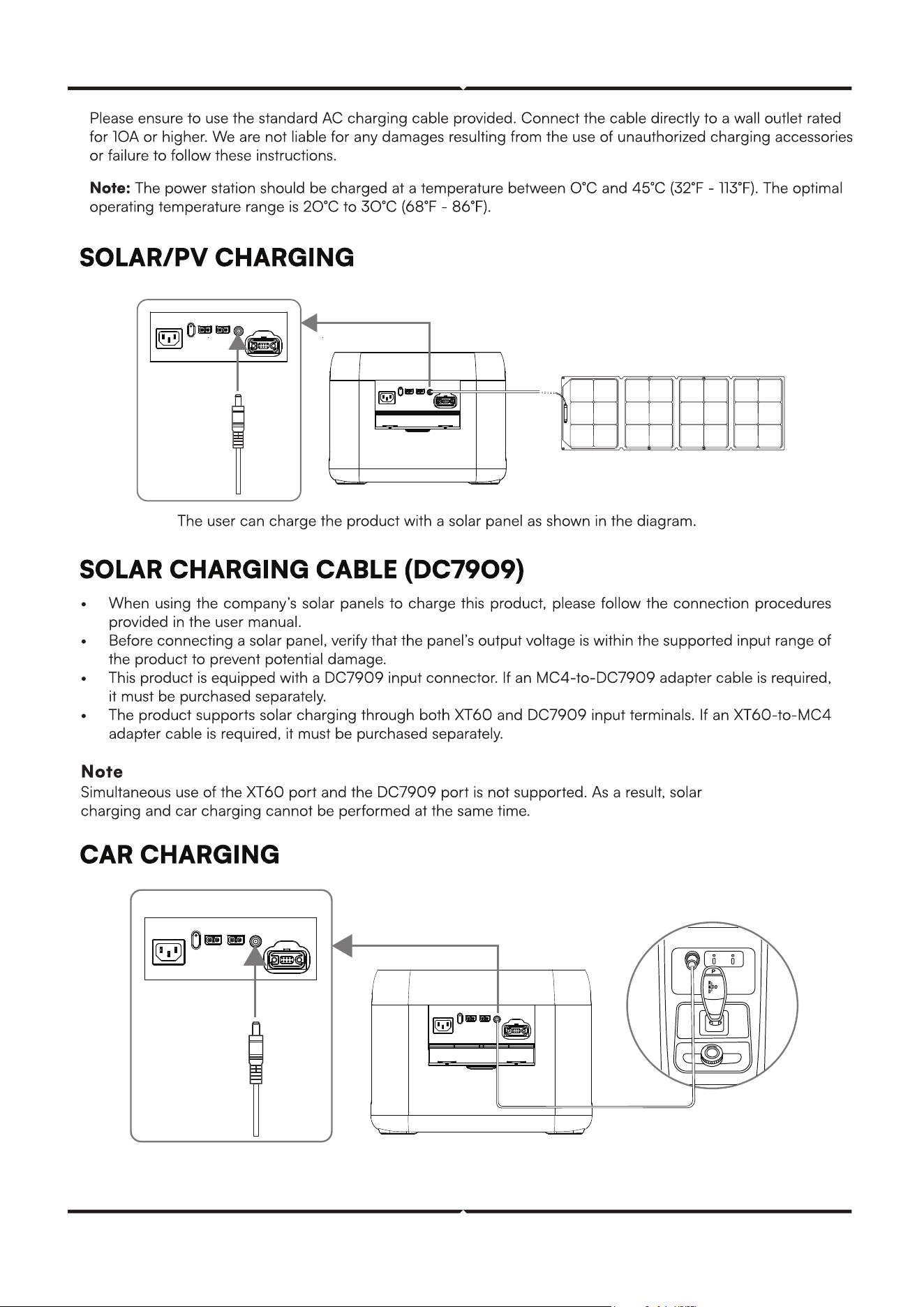

Solar/Car Charging Port
AC Input Socket
Solar Charging Port XT60*2
Power Expansion Port (IN)
Fast/Slow Charge
Switch Button
Heat
Dissipation
Vent
Heat
Dissipation
Vent

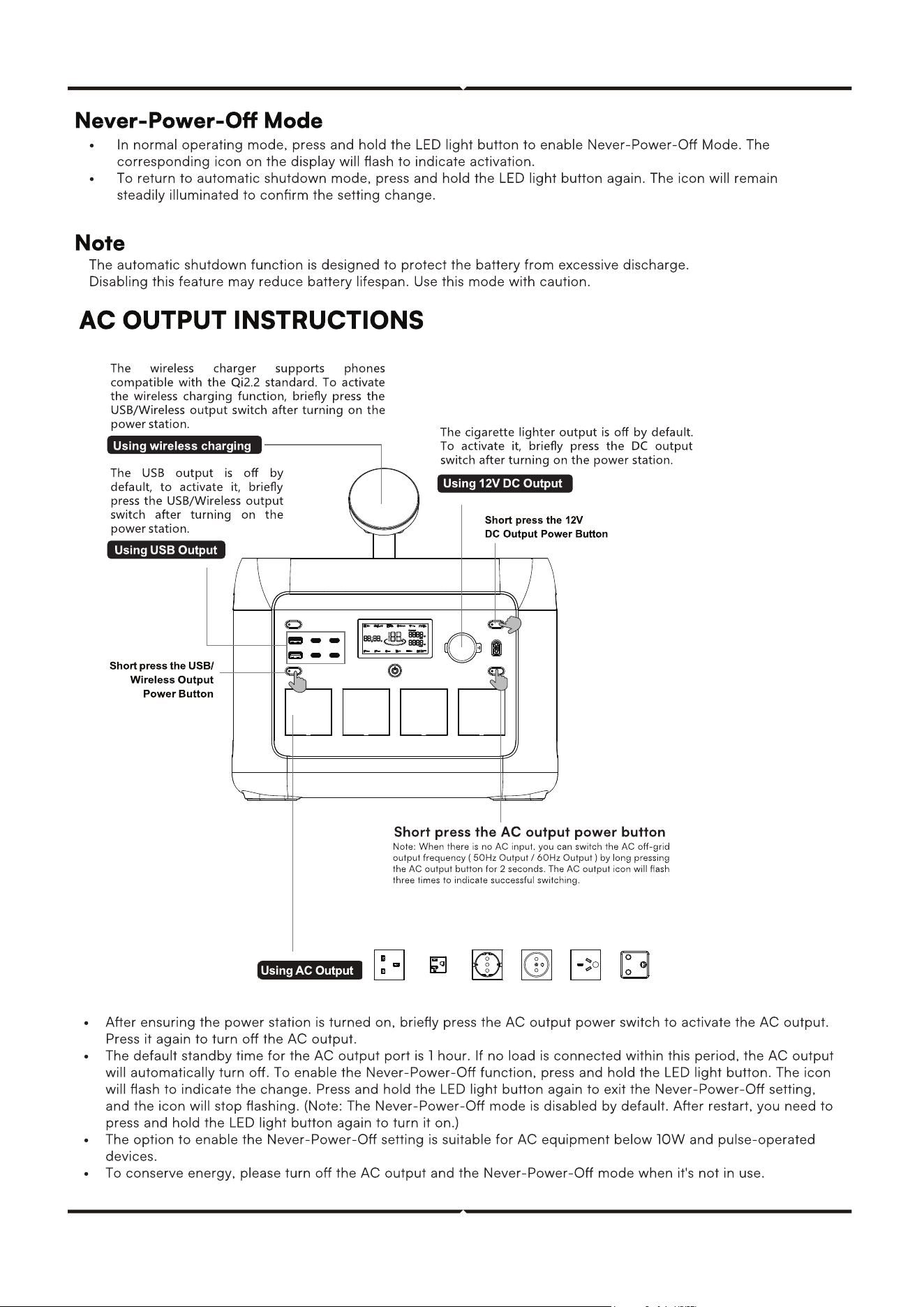

AC Output Power Button
XT60 Output Port
USB/Wireless Output
Power Button
AC Output Sockets *4
Car Output Port
ON/OFF button
DC Output Power Button
Wireless Charger
USB-C Output Ports *4
USB-A Output Ports *2
LED Light
LED Light Button
UK US EU
FR
AU
ZA
Wi-Fi Connection Status
Bluetooth
AC Output
Current
Battery Level
Power Expansion
Pack Connected
Remaining Charging
and Discharging
Time / Local time
Low Temperature
Warning
Over Temperature
Warning
Error Code
Car Charging
Fan Status
Solar Charging
DC Output
(including USB & Car Port
& Wireless charging)
Overload Warning
Current Input Power
Current Output Power
AC Input
Time display: The time display on the LCD screen contains two types of information: the remaining charging/discharging
time of the current device(generally showing 7 seconds), and the local time of the region where the device is located(generally
showing 3 seconds).
Battery Capacity: When the power station is charging, the SOC (State of Charge) icon will blink.
Wi-Fi Connection Status: During Wi-Fi reset, the Wi-Fi icon will flash for 3 seconds. It will remain lit when the Wi-Fi is successfully
connected and will go out when the Wi-Fi is disconnected.
Bluetooth Connection Status: The Bluetooth icon will light up when the product is matched wirelessly. It will remain lit when the
Bluetooth connection is successful and will turn o when the Bluetooth is disconnected.

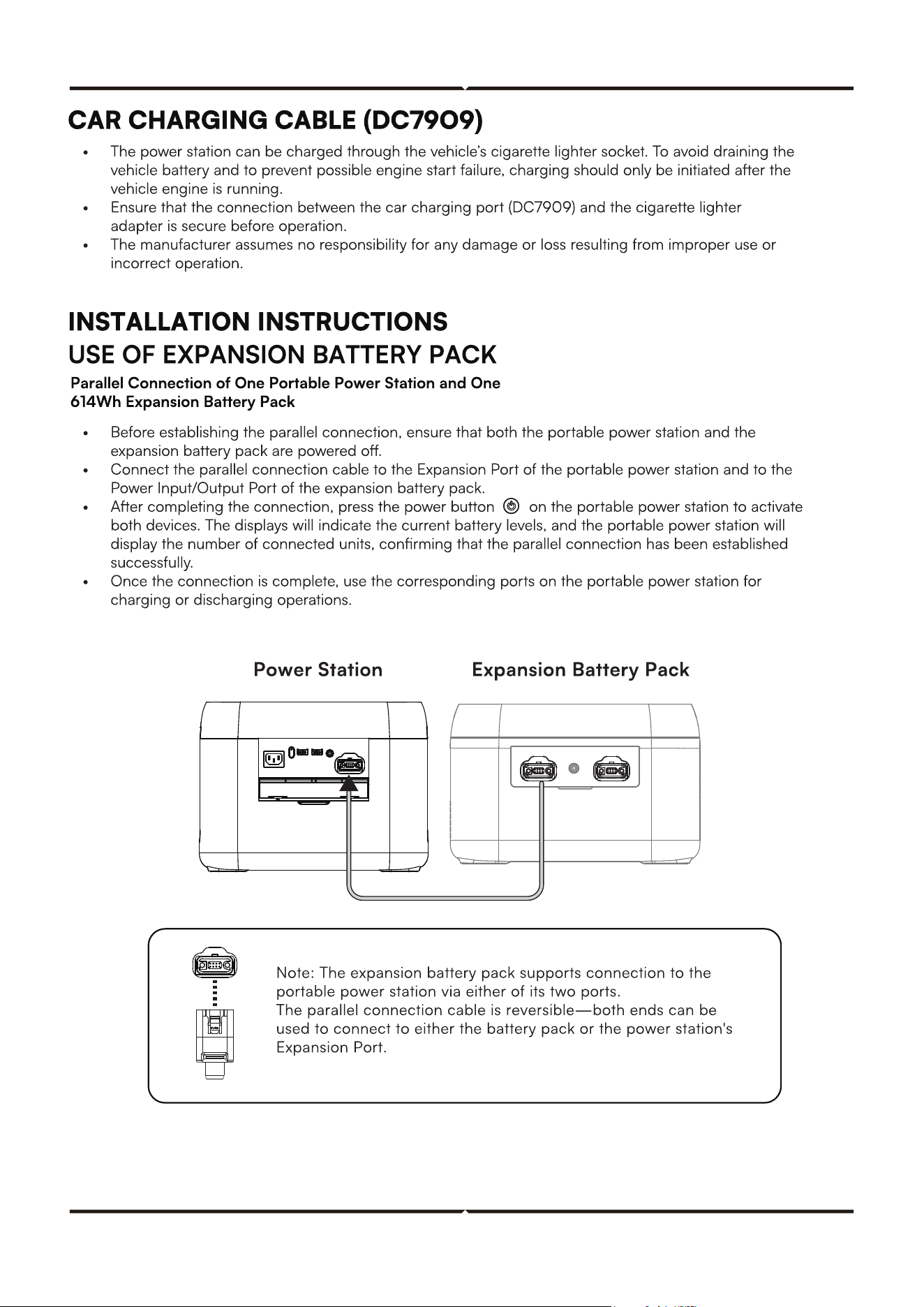

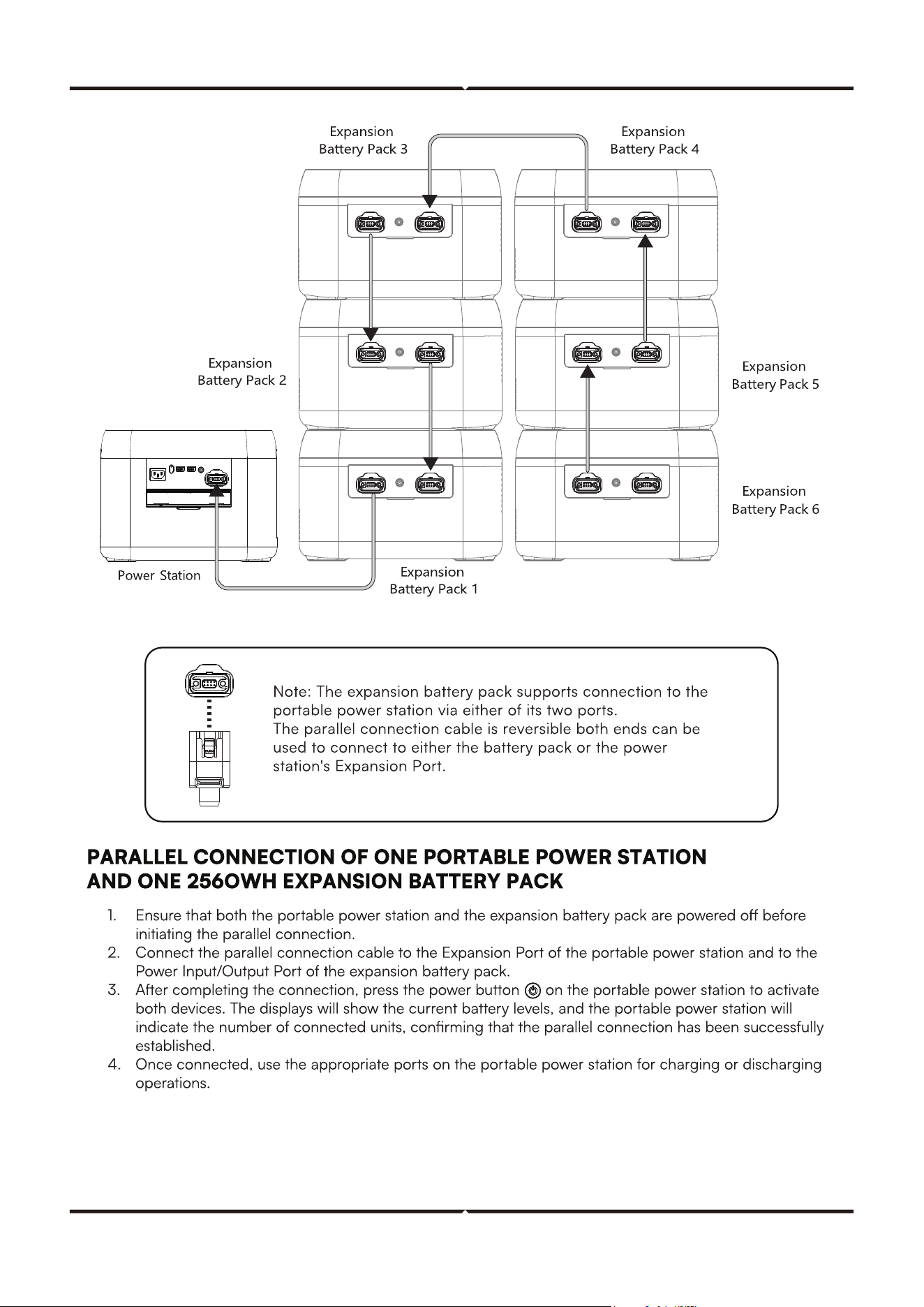

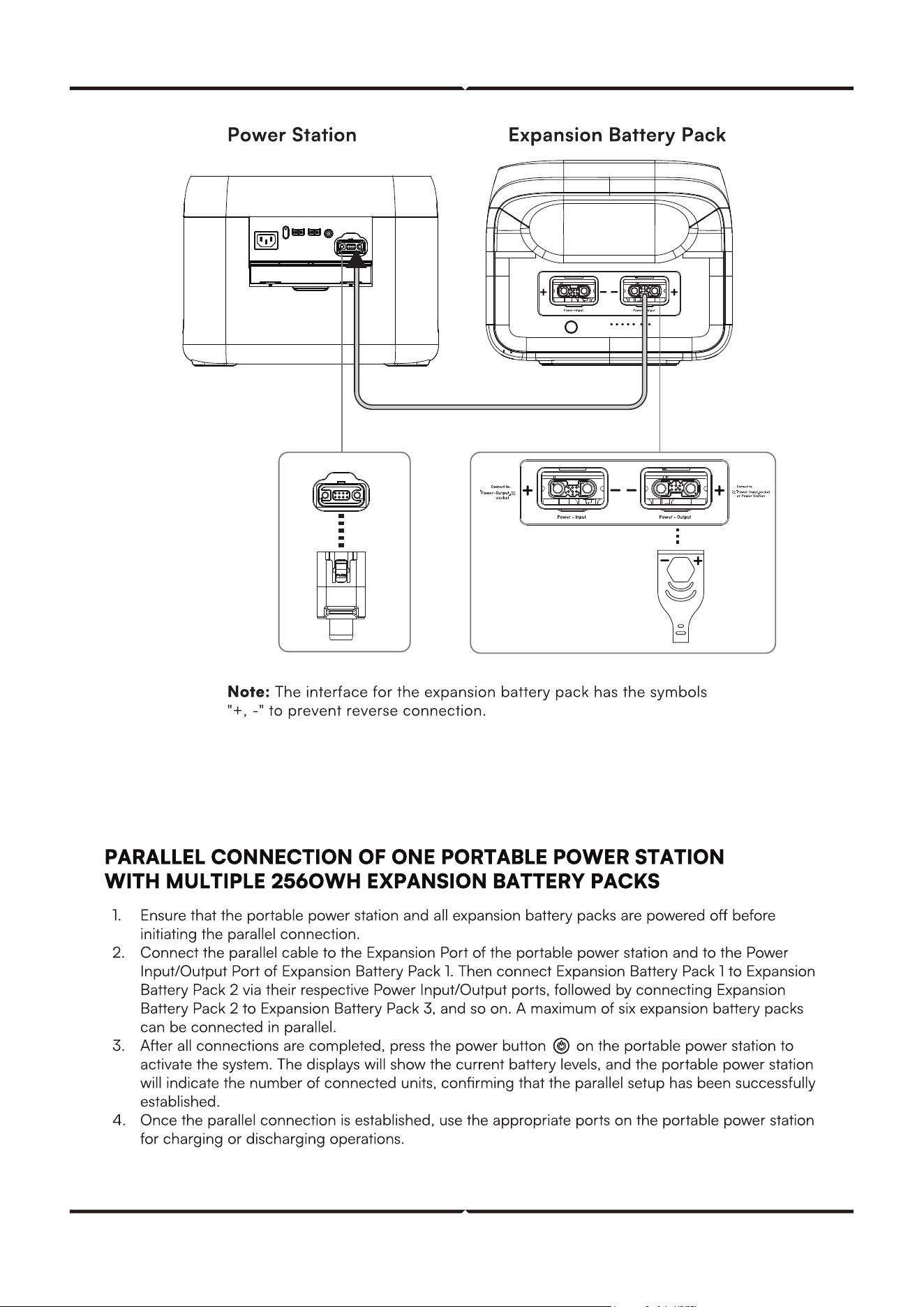

Expansion
Battery Pack 1
Expansion
Battery Pack 4
Expansion
Battery Pack 5
Expansion
Battery Pack 2
Expansion
Battery Pack 3
Expansion
Battery Pack 6
Power Station

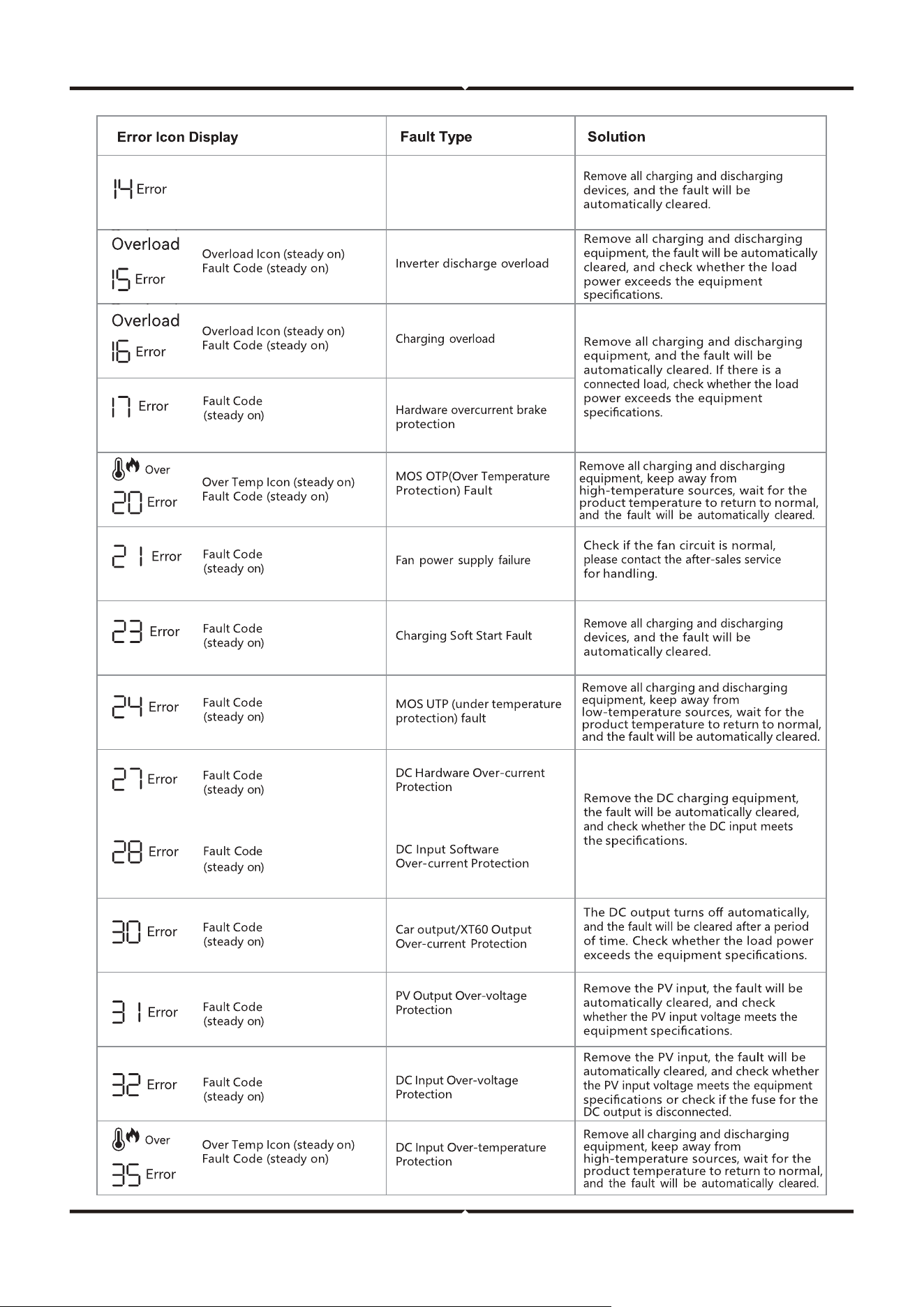

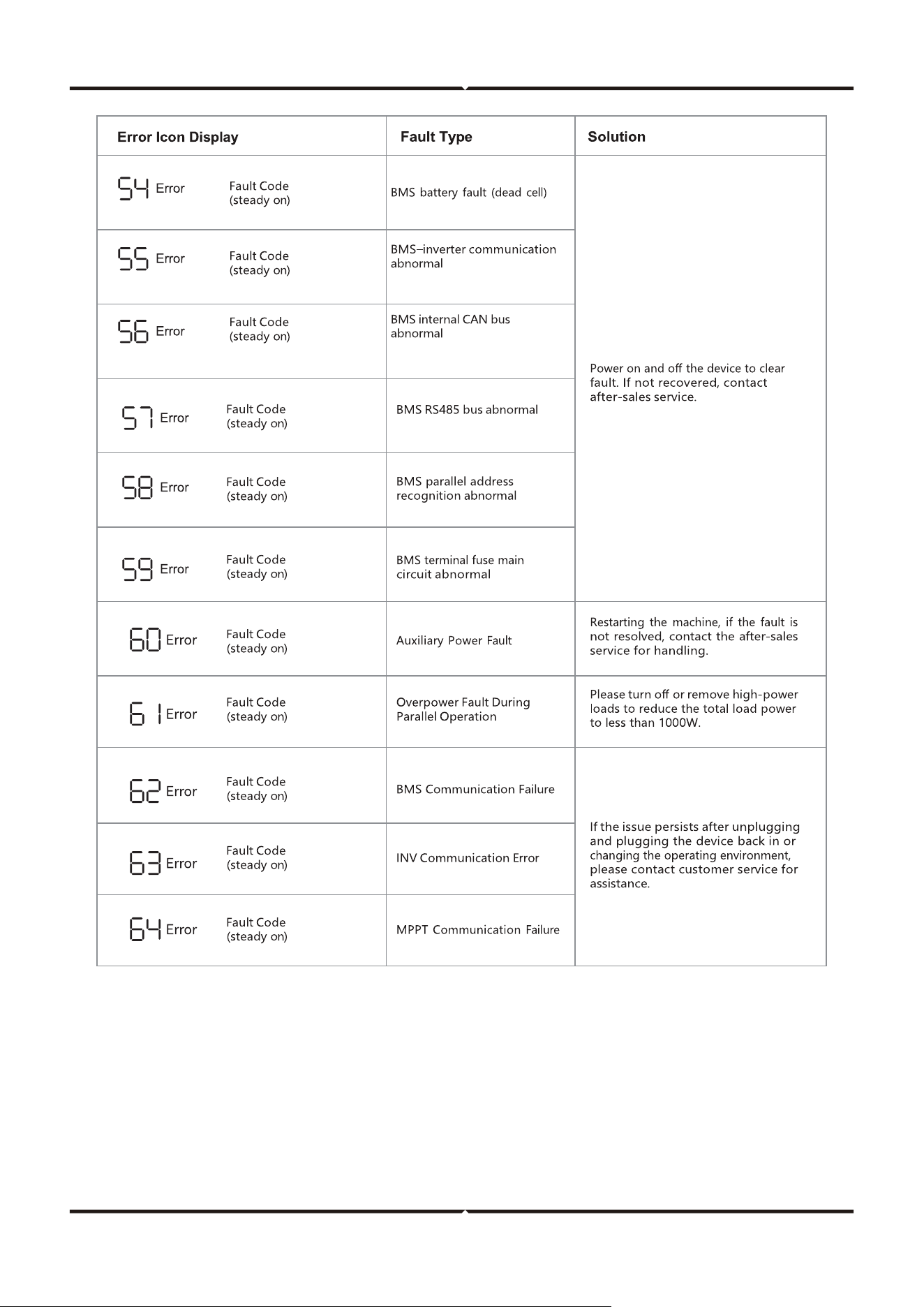

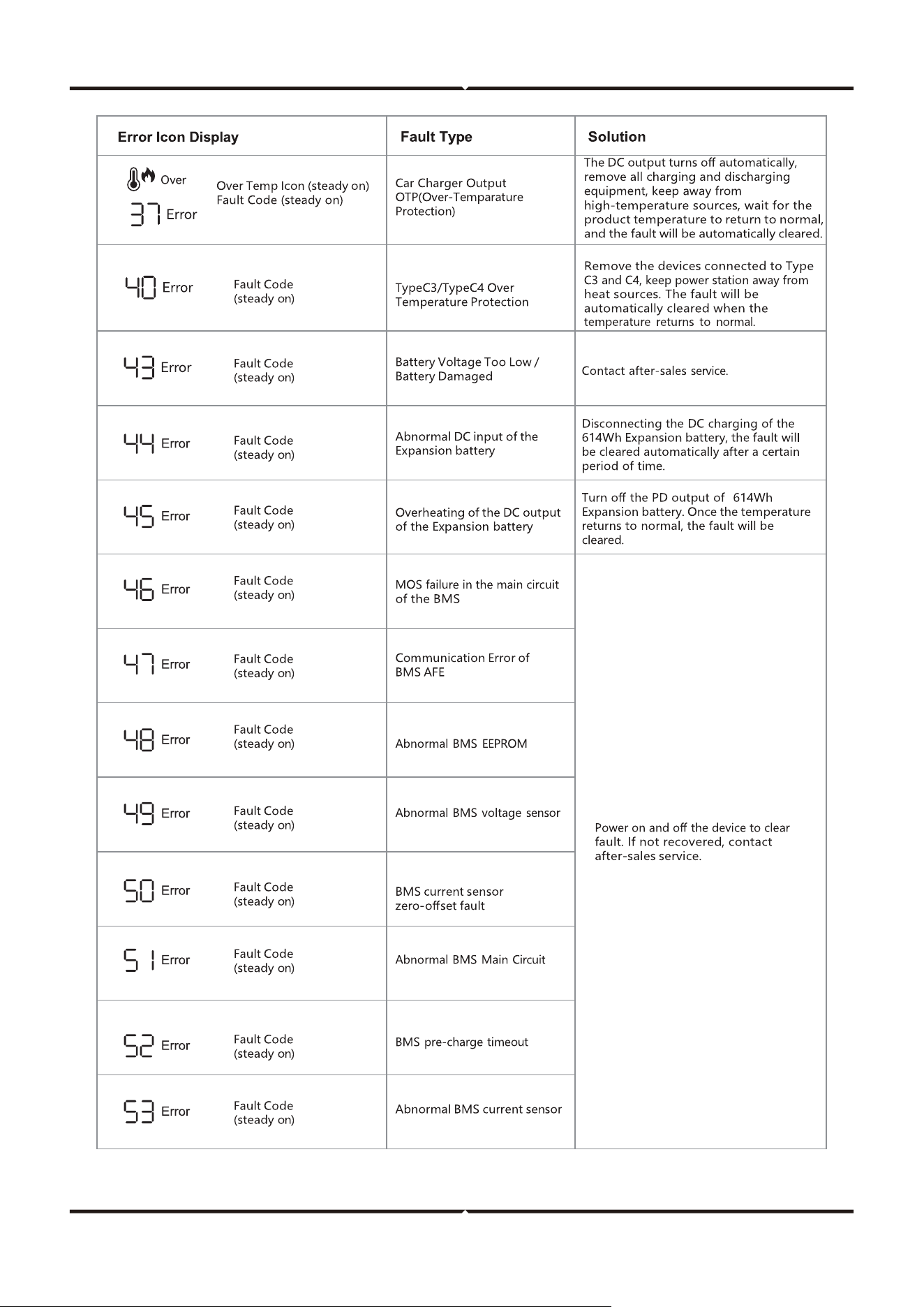

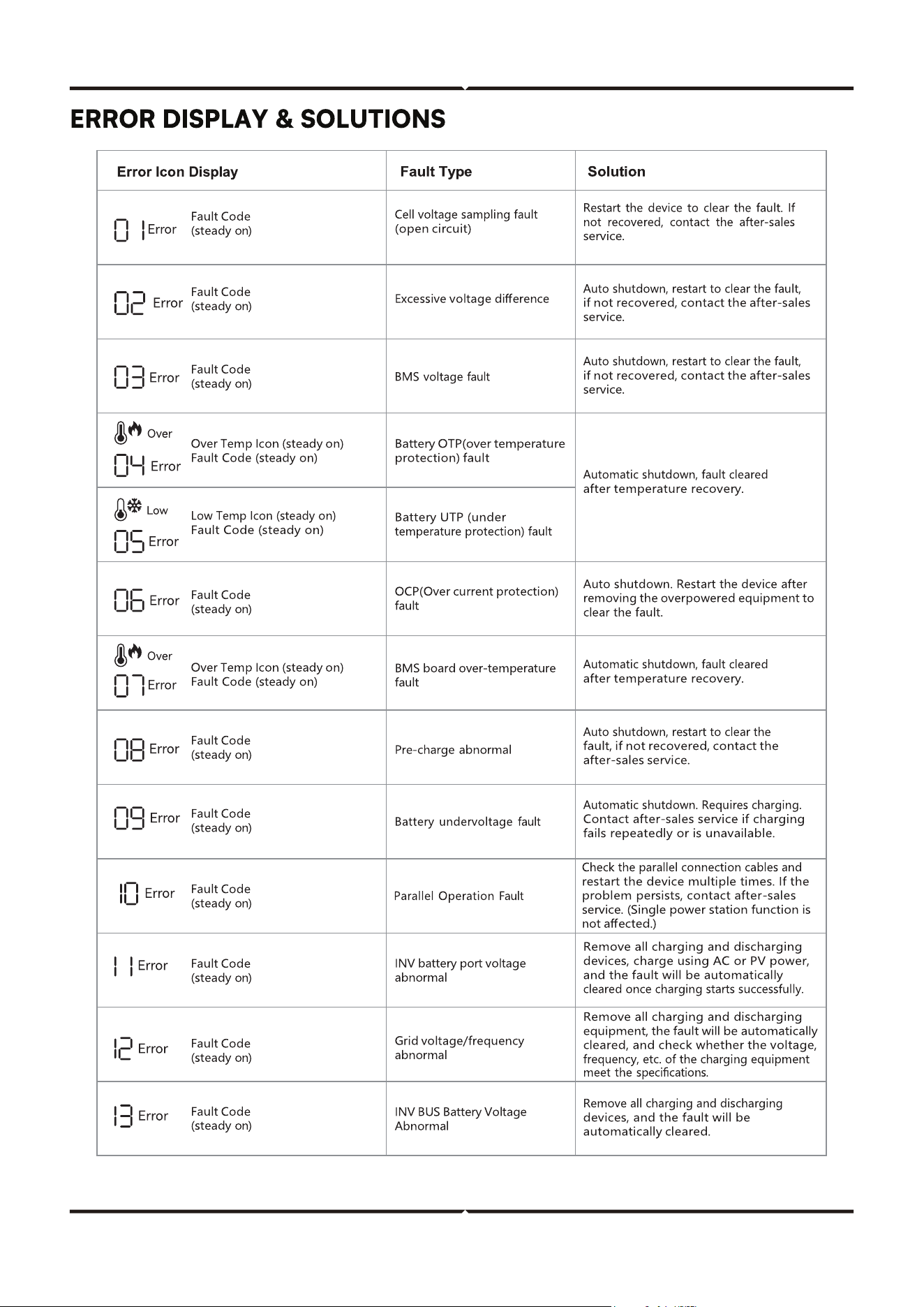

Fault Code
(steadyon)
Abnormal INV Output
