Introduction to the WR-03M Interne
t Radio Tuner
The WR-03M Internet Radio Tuner is an audio component for integration
into your home HiFi System as an added source of audio entertainment.
The radio provides a comprehensive set of enhancements to audio
entertainment and a gateway into the world of digital audio.
Precautions
• The radio should not be used in a high temperature or high humidity
environment over prolonged periods of time as this may damage
the unit.
• Keep the radio away from liquids as it may get damaged. Please
switch off the radio immediately if water or liquids is spilled into the
radio. Consult with the shop you bought this radio for any question.
• Avoid using or storing the unit in dusty or sandy environment.
• Do not open and repair the radio by yourself.
• Use only the DC adaptor supplied with the radio. Connecting a
power supply with a different rating will cause permanent damage
to the radio and may be hazardous.
• Clean only with dry cloth.
- 5 -
Internet Radio Tuner Connections
Radio
FM
Wi-Fi Streaming
Internet Radio
Local Radio
Media Center
Podcasts
BT Streaming
BT Speaker
Audio Pre-Amp Outputs - connect to Power Amp
Audio out
O ptical
HiFi System
Audio Power Amplifer
Modem/Router
Wired
LAN
ISP
(Internet Service
Provider)
WR-03M
Wi-Fi Wireless Network
(Need Network Name and
Passcode or Password to
Connect to Network)

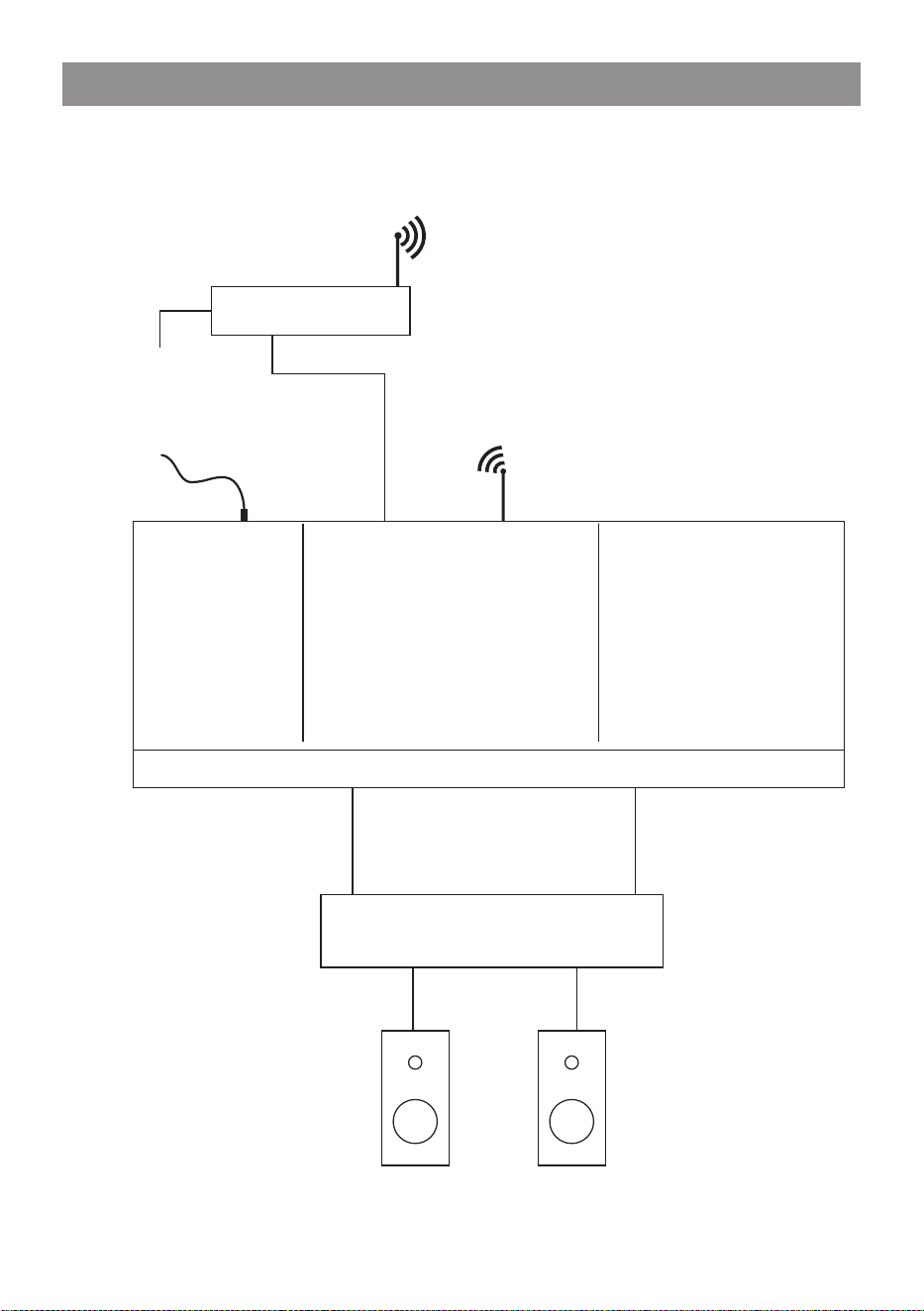

The illustration shows the WR-03M integrated into a HiFi system
ready to play in all modes.
- 6 -

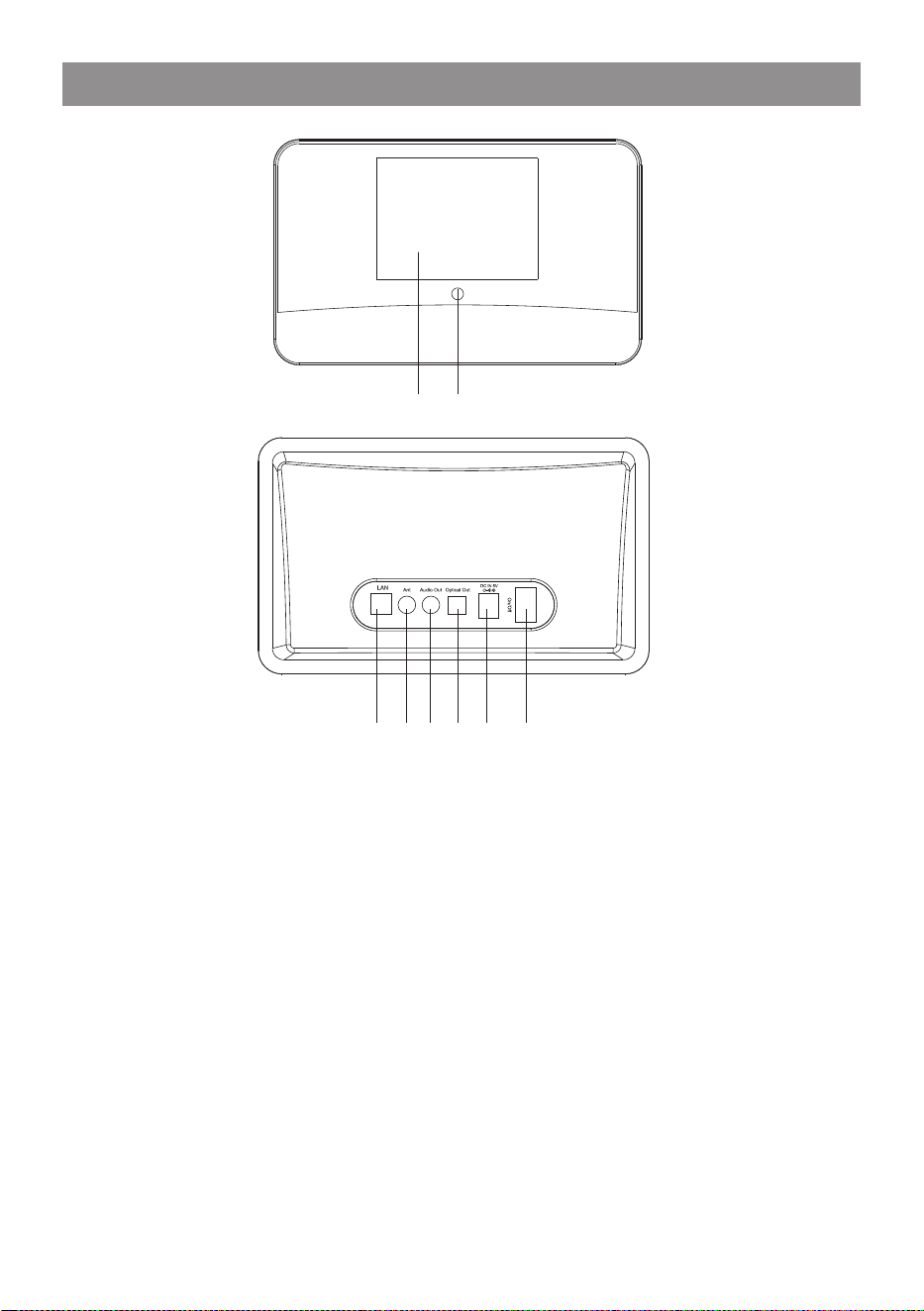

Location of Controls
3 4
6 7 8
5
1. Color screen 3.2"
2. Infrared remote sensor
3. RJ45 LAN connector
Connect an ethernet cable to this port and the other end of the cable to
the LAN of the router.
4. FM antenna connector
Connect the wire antenna supplied with the radio before using FM radio.
5. Audio out socket (3.5 mm connector)
Connect external powered speakers/amplifer or RCA converter that uses a
3.5mm plug.
6. Optical Out
Optical output connection
7. DC IN socket
Connect the power adapter comes with the radio.
8. Power ON/OFF switch
1 2

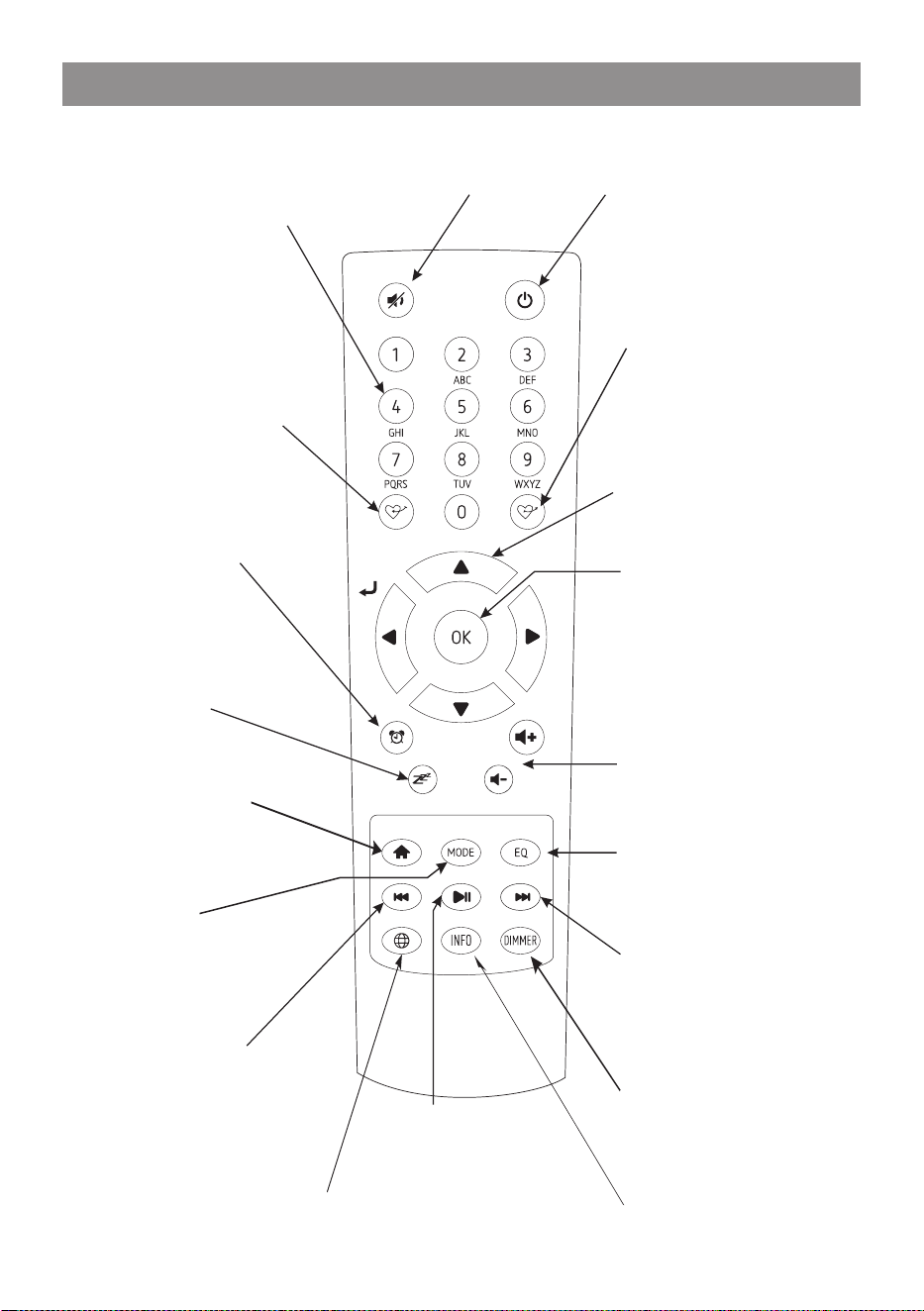

Remote control
Mute
O N/Standby
Alpha Numeric
(Press keys to
cycle through
characters)
Preset
(Save in
My Favorite)
Alarm
(Control & Setup)
Sleep Timer
(Control & Setup)
Home
(Go to home
for menu selection
Mode
(Cycle through
Modes)
Play Last
Access network
info of the radio
Dimmer setting
(Display brightness)
Play Next
Navigation
(Forward, Back,
Up, Down)
Select
(Confirm & Go)
Equalizer
(Playback sound)
Volume Control
Play/Pause
(Podcasts/BT /
Media Centre)
Play/Stop
(Internet radio)
Go to
My Favorite
- 7 -
(Internet radio / Podcast /
BT/ Media centre)
Manual Tune backward
(FM)
(Internet radio /
Podcast / BT/ Media
Centre)
Manual Tune forward
(FM)
Toggle for station's
info / big clock display
Before you start
Please ensure the following is ready:
You have a broadband internet connection. A wireless broadband router
is connected to the internet successfully. The radio supports Wireless B,
G and N connection (Wireless N router can also be used with t he
setting on B or G). You know the Wired Equivalent Privacy (WEP) or
Wi-Fi Protected Access ( WPA) data encryption code/password. You
need to key i n the correct code when the radio i s connected to the
wireless router for network connection. If you do not know the
code/password, please contact the person/technician who set up the
router/network f or y ou. The r adio works v ia 2 .4GHz Wireless
net work connection (Wi-Fi connection) and wired connection
(LAN RJ45).
n
The radio is powered via a 5 volts 1 amp mains adapter
(included). Connects the power adapter to the DC IN jack at the rear
side of the radio device and switch the Power on/off switch to ON.
The radio will power on. Press the [ ] button on the remote control
briefly to turn the radio to standby/sleep. The radio tuner can only be
operated by remote control.
Getting started
The Tuner is intended to connect with external powered
speaker/amplifier. It does not have amplifier and speaker driver
built-in. Please connect your stereo through the Analogue output or
Digital output located on the rear panel of the Tuner for listening.
- 8 -

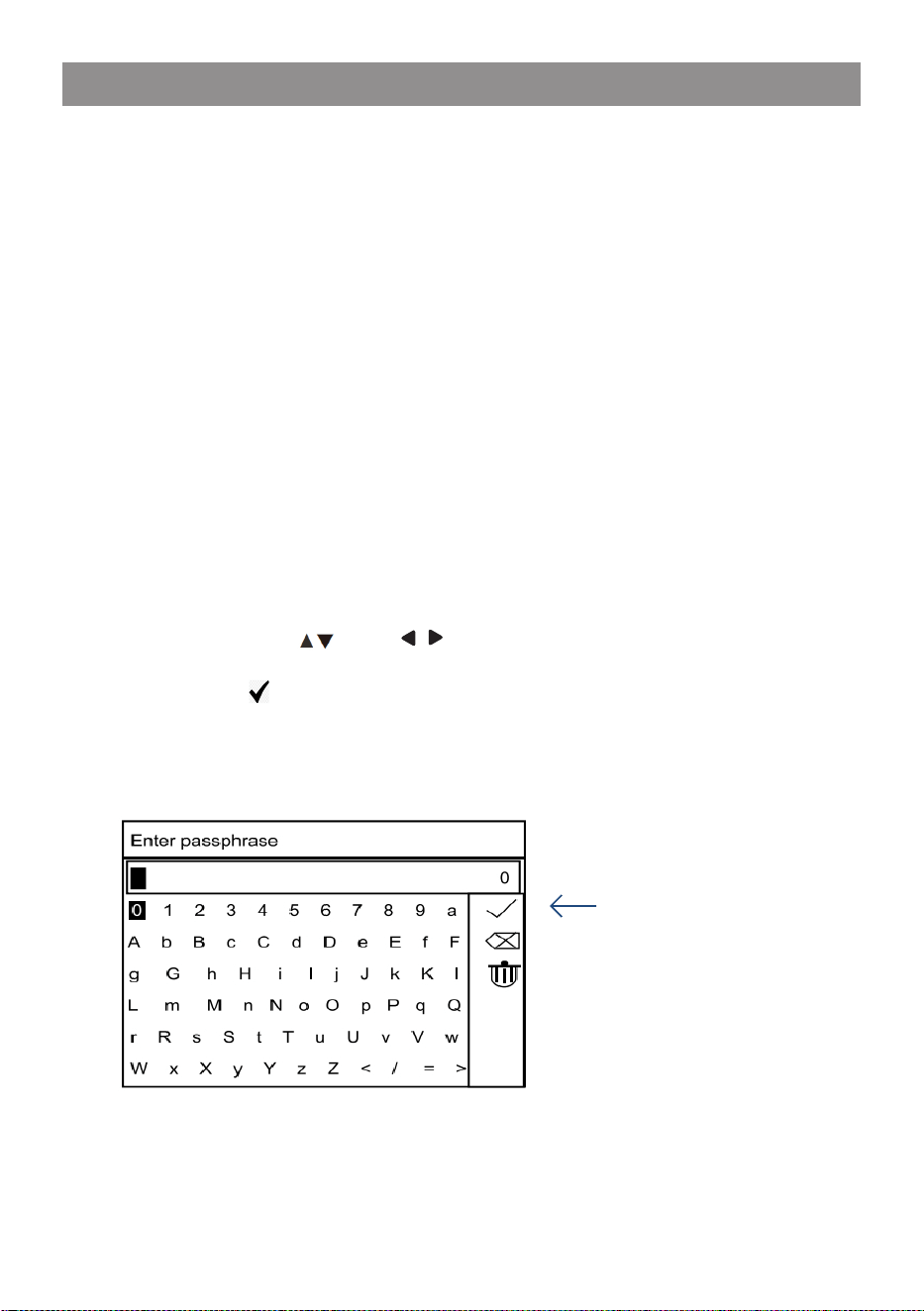

Entering password for your wireless network
On the alpha-numeric keypad of the remote control, press the buttons
repeatedly to cycle through the characters assigned to each button (see
the list below). Press [OK] to input the next one.
Button 1: 1 !@#$%^&*()_+[]{};:'”\|,./<>?
Button 2: 2ABCabc
Button 3: 3DEFdef
Button 4: 4GHIghi
Button 5: 5JKLjkl
Button 6: 6MNOmno
Button 7: 7PQRSpqrs
Button 8: 8TUVtuv
Button 9: 9WXYZwxyz
Button 0: 0
Alternatively, use the
and
button on the remote control to
select the
character,
Press [OK] to input the next one. When done, move
the cursor to the mark,
and press [OK] to confirm.
When the
entries are
done, move the
cursor to this
mark and press
OK to confirm.
- 9 -
Network Setup
Setting up the radio for the first time will prompt you to select
your preferred language and the time zone. Next, configure the
network following the wizard. Choose Yes to start.
Wired LAN (Ethernet)
Connect an ethernet cable to the LAN port on the Tuner, the other end to
the LAN port of the router with DHCP enabled, the network
configuration for Internet connection is automatically done and can
be used for Internet radio and UPnP sharing without user
interaction. When the network is connected, the Ethernet icon
will appear on the top left corner.
Wireless LAN (Wi-Fi)

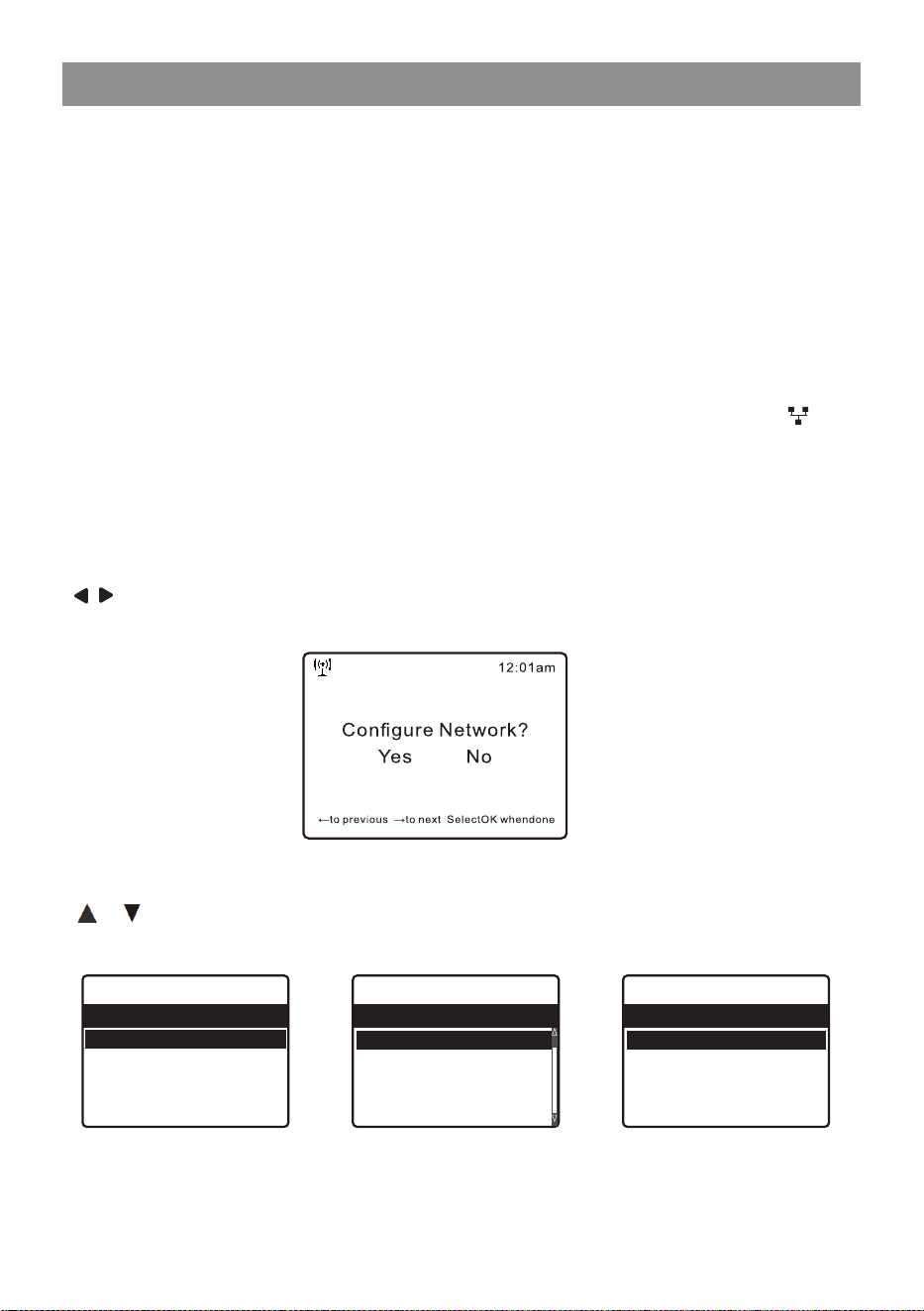

If this is first time to use the tuner, the Configure Network wizard will be
displayed. Choose Yes to start configuring network. Press the
[ / ] button
to highlight Yes and press [OK] to confirm.
Select Network and choose Add wireless network from the list, press the
[ / ] button to scroll and press it to confirm, then choose Scan &
select:
• It will start scanning the available wireless networks around. Scroll
to your network and confirm the selection. If your wireless network
has a security code protected, it will ask you to enter the

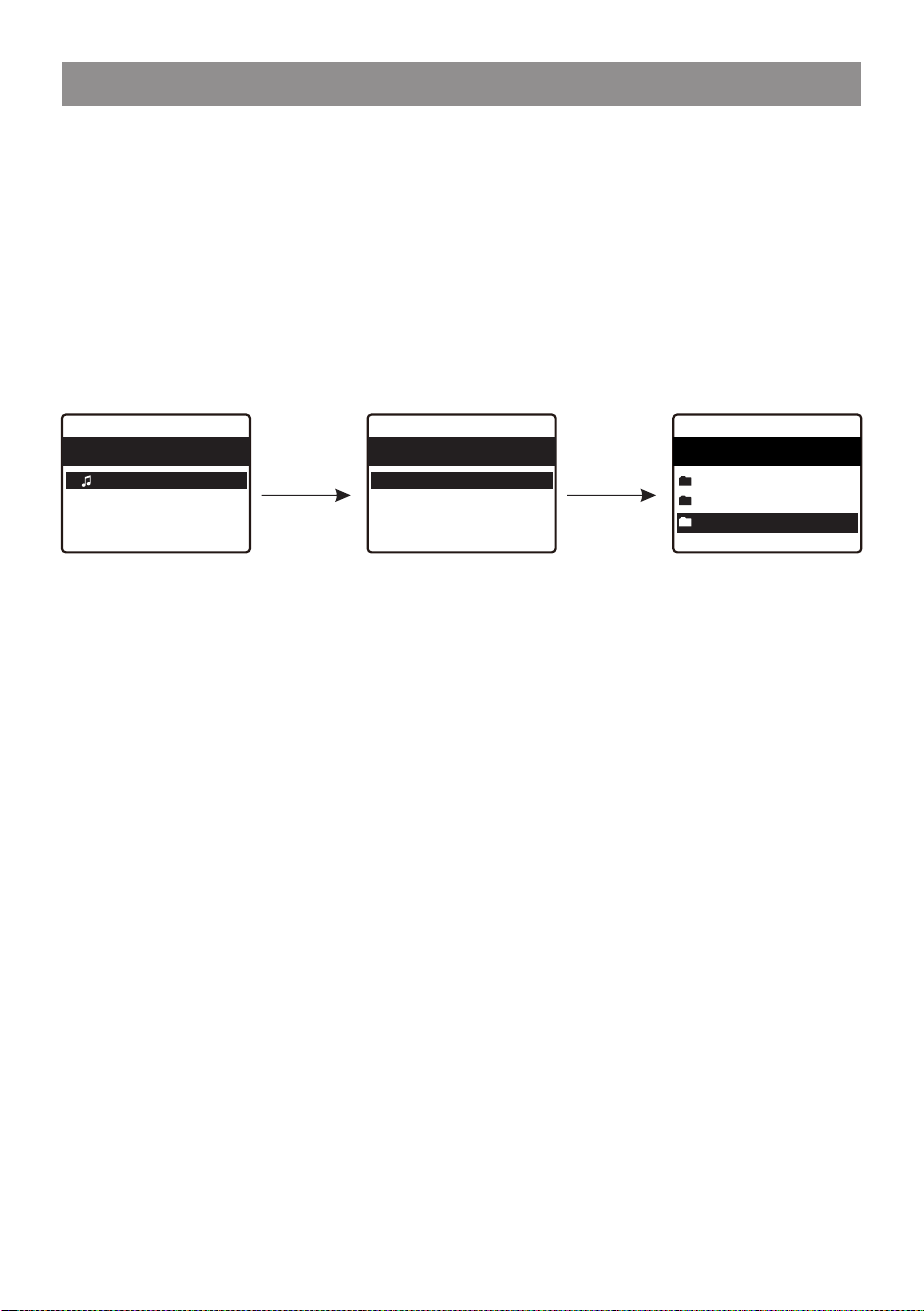

11:23am
Wireless network 1/6
< Add Wireless network >
Remove Wireless network
AP:[DE_AX55]
Signal:-49 dBm
IP: [Dynamic] >
11:23am
Add Wireless network 1/2
< Scan & select >
WPS button
11:23am
Network 1 /5
< Wireless network >
LAN network >
Network auto on/off >
Wireless channels >
Network connection test >
- 10 -
• When the Wi-Fi connection is successful, the Association Complete will
be shown briefly. The wifi signal bar will appear on the top left corner of
the display:
Network Setup
Wi-Fi signal bar
passphrase/password. Please refer to the above section ‘Entering
password for your wireless network' on P.9.
Note: The password is case sensitive. Please consult with the one
who setup your network if you don't know the password.
Alternatively, WPS connection i s available i f your router has a WPS
button
, then you can easily set up the network with WPS.
Setting up network with WPS button Setting up network (WPS)
WPS button
If your wifi router has a WPS button, you can choose the "WPS button"
option to quickly connect to the wifi network.
Suggest to place the radio near to the WiFi router for the setup. Select
the "WPS button" option on the radio, press [ OK ] on the remote
to
confirm.
Meanwhile, press the WPS button on the Wifi router, it will start
connecting with the radio. Once the connection is made, it will display
"Association complete".
- 11 -
Overview of features and functions
Press on the remote control. Scroll by using the navigation buttons
on the remote:

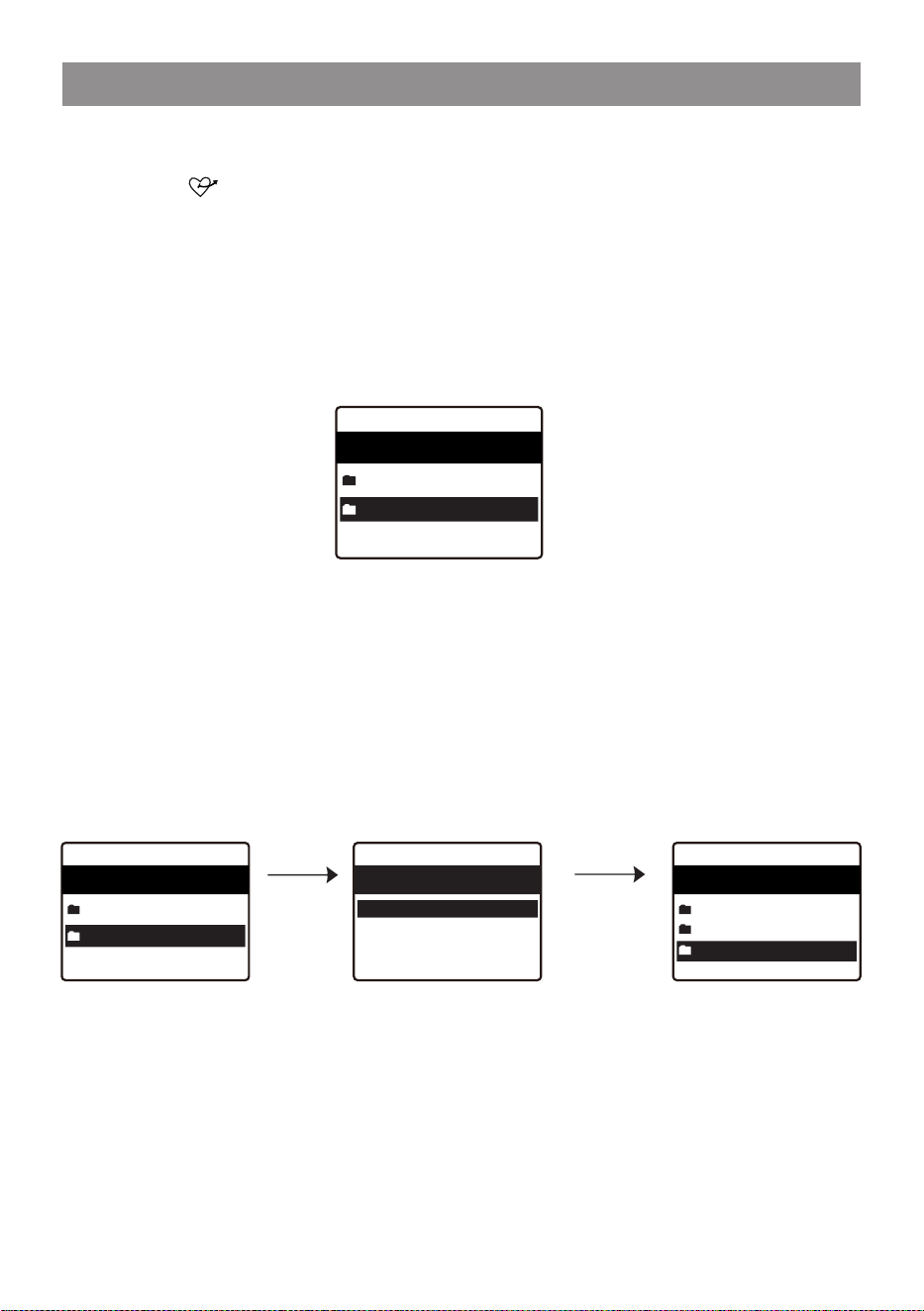

My Favorite
─ To show the list of favorite stations which have been
assigned to the presets. There are up to 150 presets
available.
Internet Radio ─ Start exploring the worldwide radio stations and music
here.
Media Centre ─ You can browse and stream music from your network
via UPnP or DLNA compatible devices.
FM Radio ─ Receive ordinary FM radio stations in your local area
(no internet connection required).
BT streaming ─ BT playback, to play audio stream (receive) from
another BT enabled device after pairing/connected
each other.
Alarm ─ Alarm clock. Two alarm settings available.

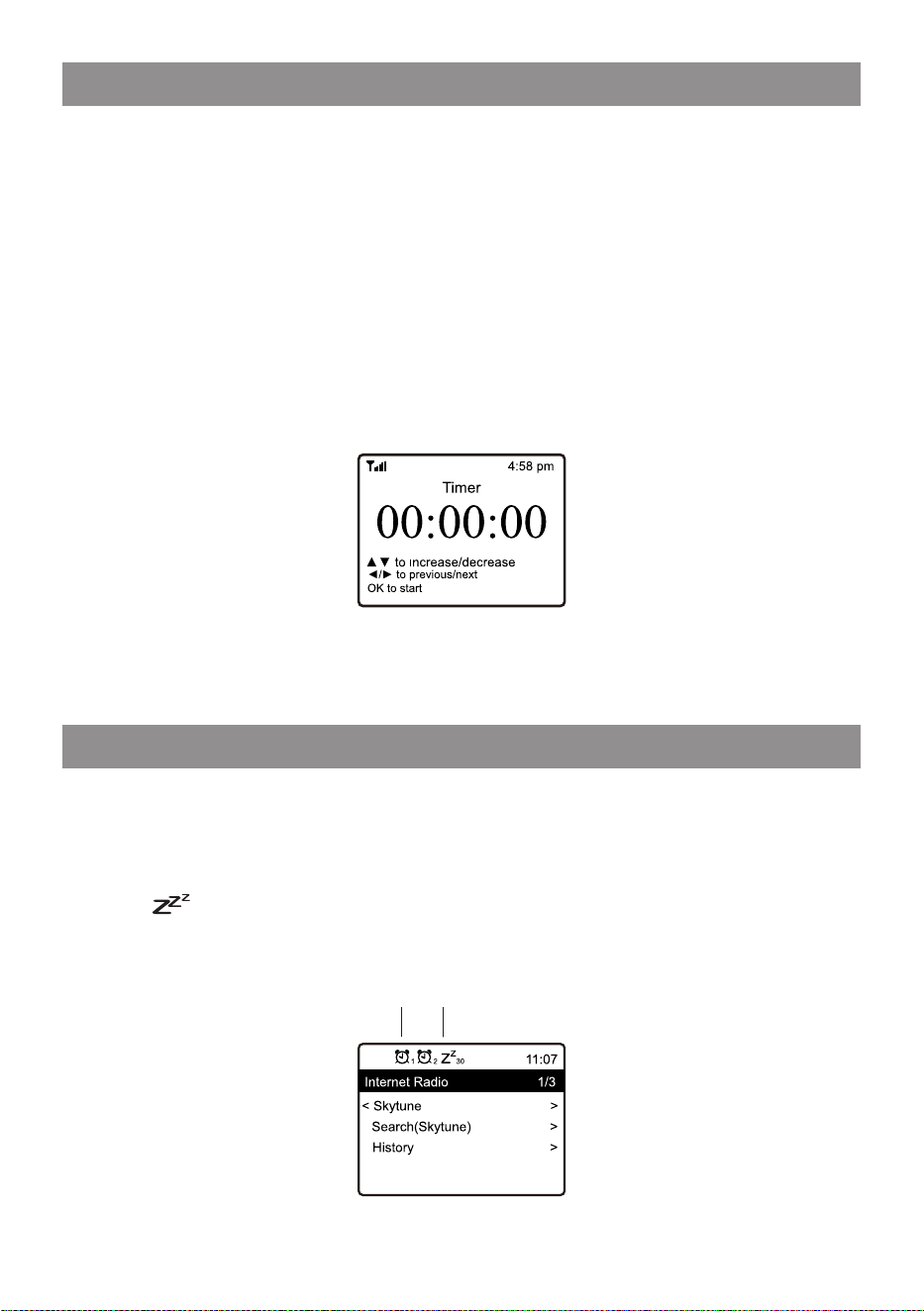

Timer ─ To count down from a specified time with alarm.
Sleep Timer ─ Enable the timer to turn the radio in standby after the
selected time elapsed.
Configuration ─ More options/settings available to personalize as you
desire.
Podcasts ― Here you can access thousands of Podcast channels, to
subscribe or listen again any time.

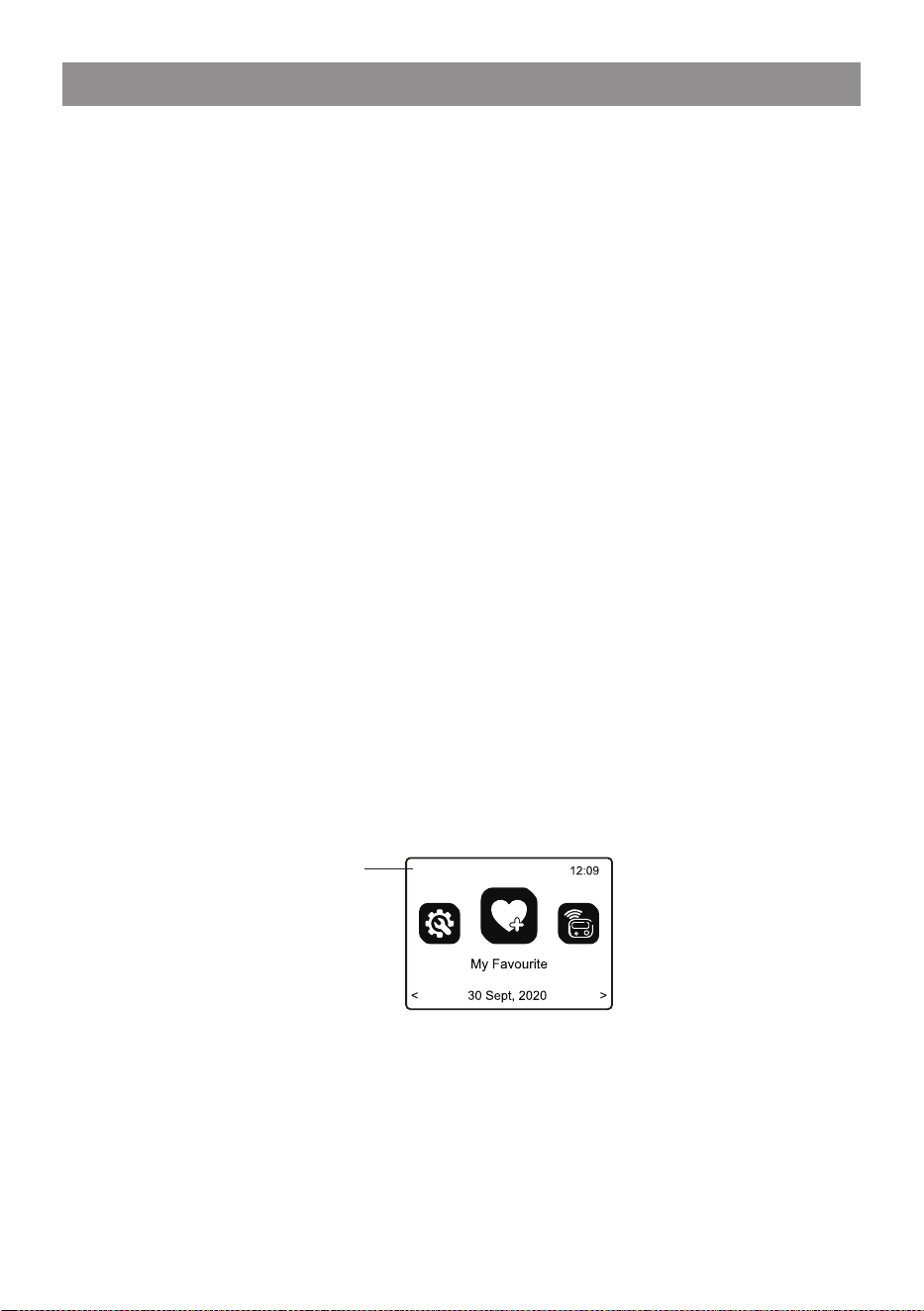

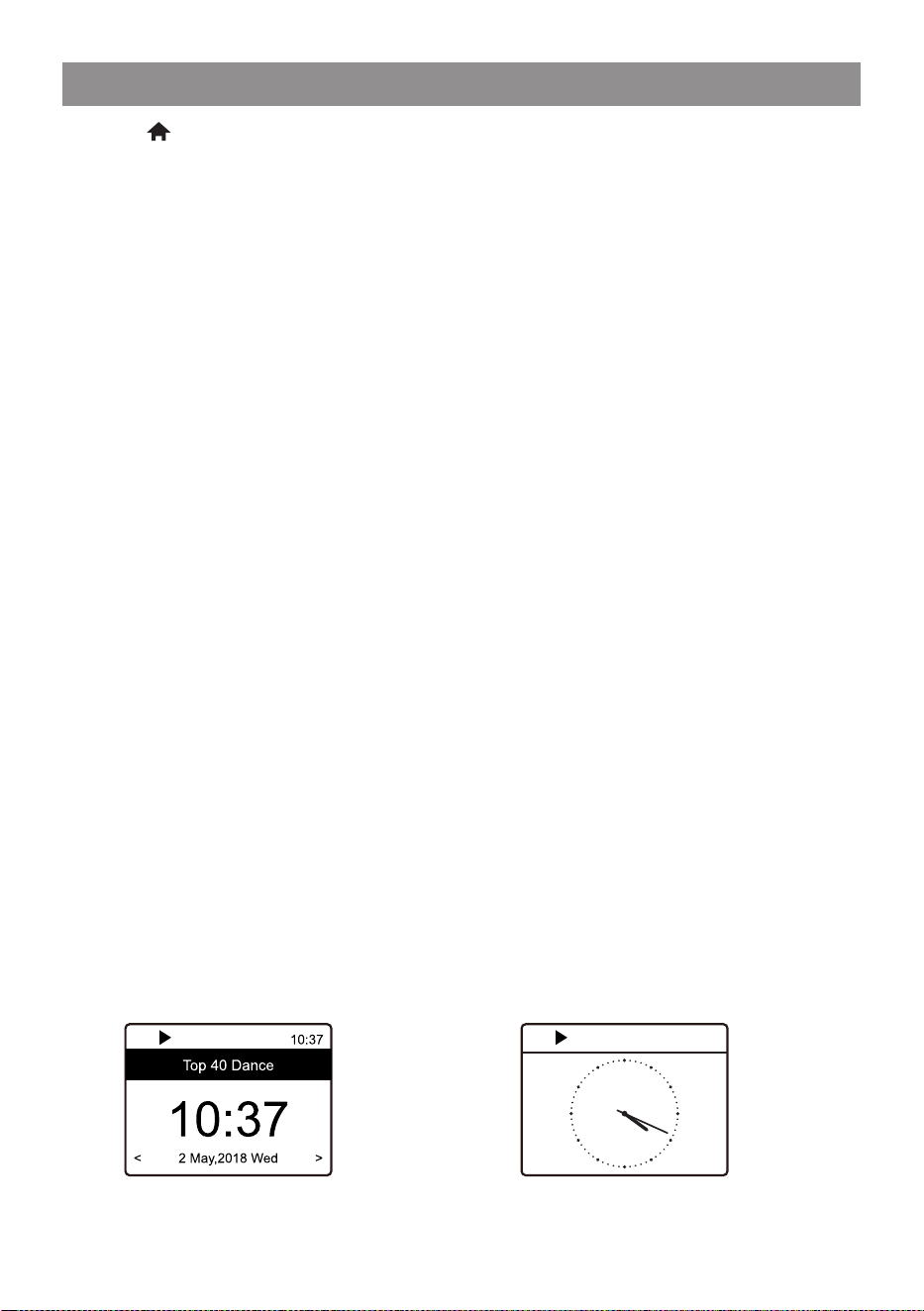

Clock style
Set the clock display in Digital or Analog as you like. Under
Configuration> Date & Time > Set clock style.
Digital style Analog style
History
16 Mon
4:19 pm
- 12 -

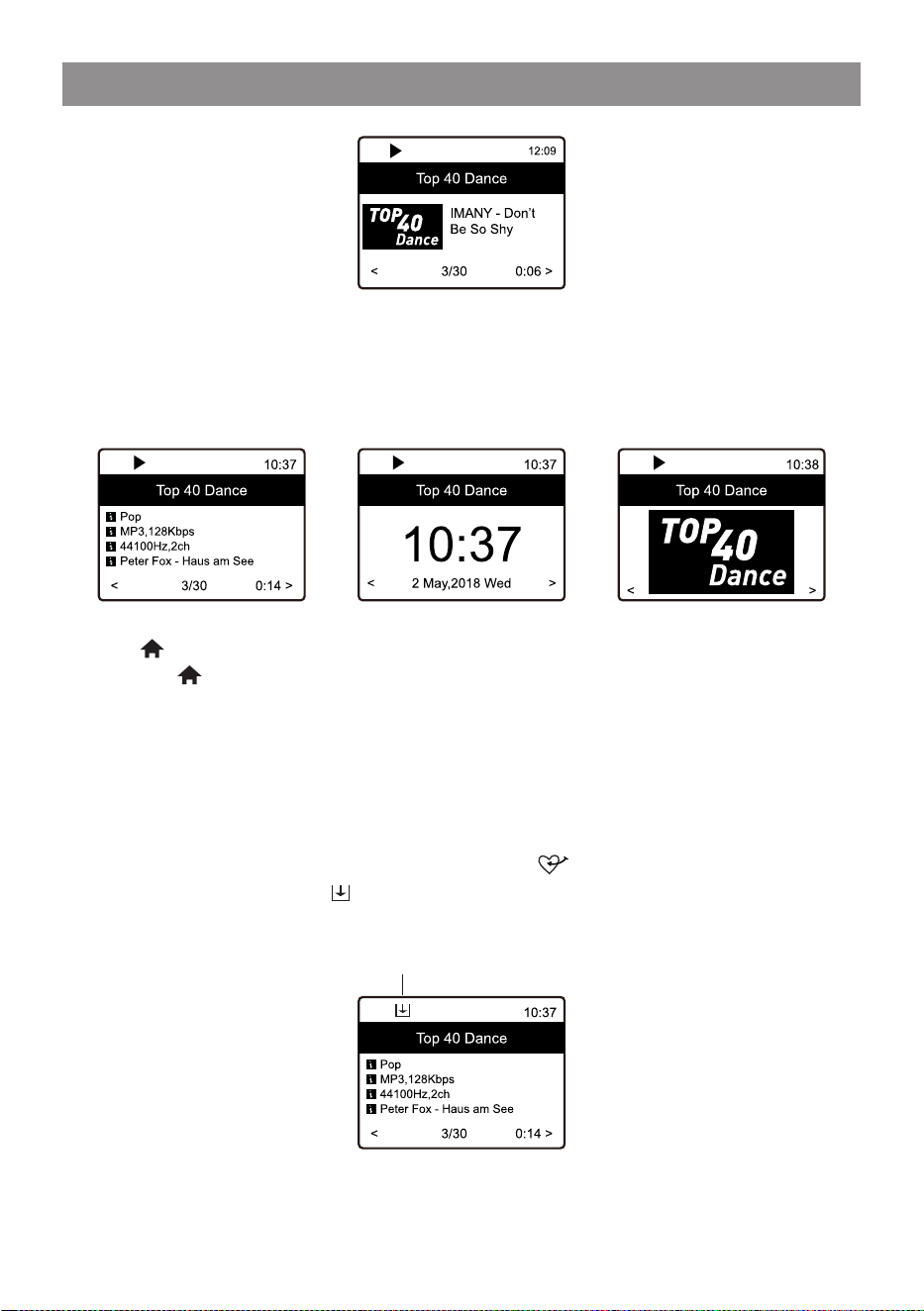

Internet Radio
On the Home screen, choose Internet Radio and you will find the
options below:

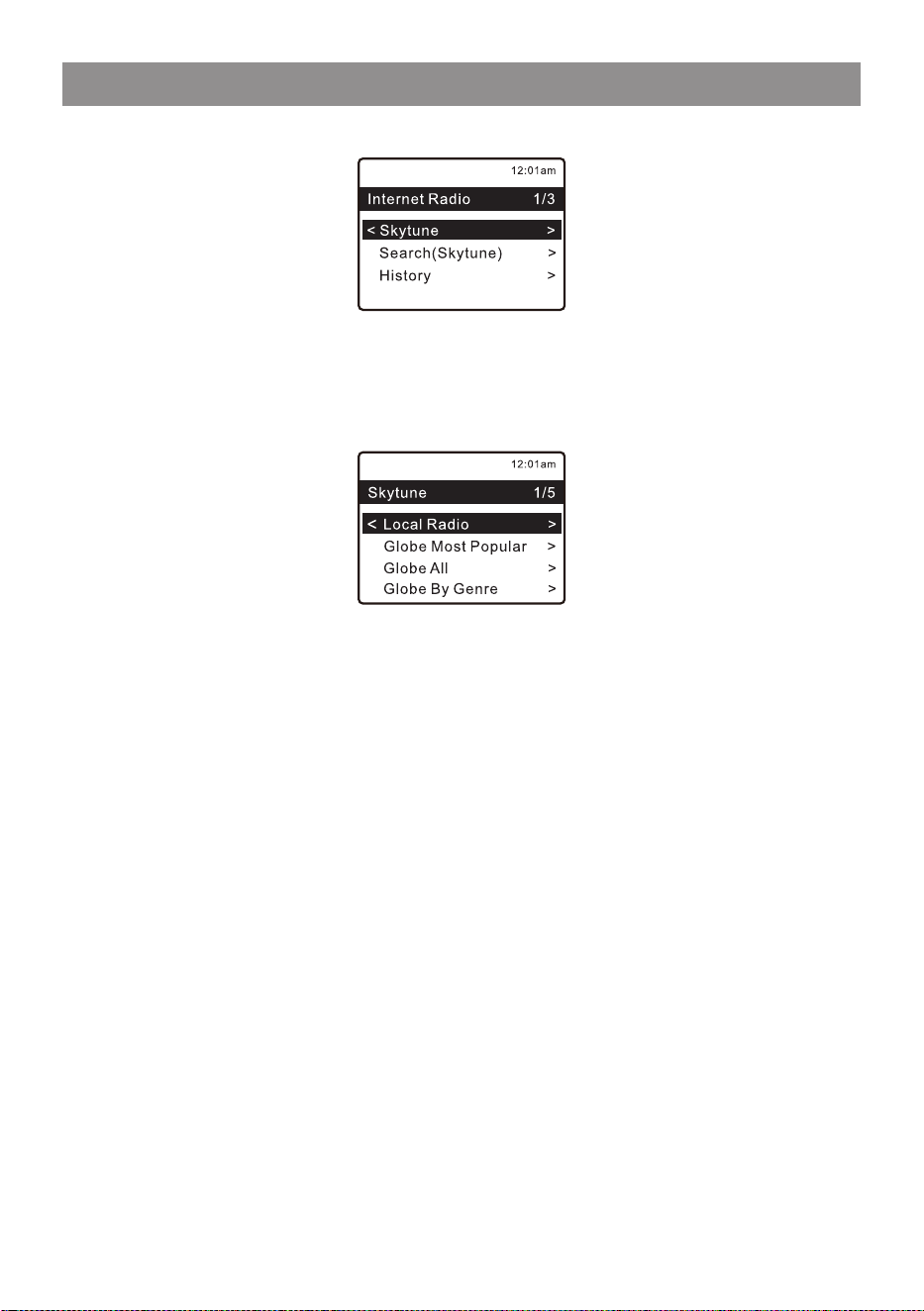

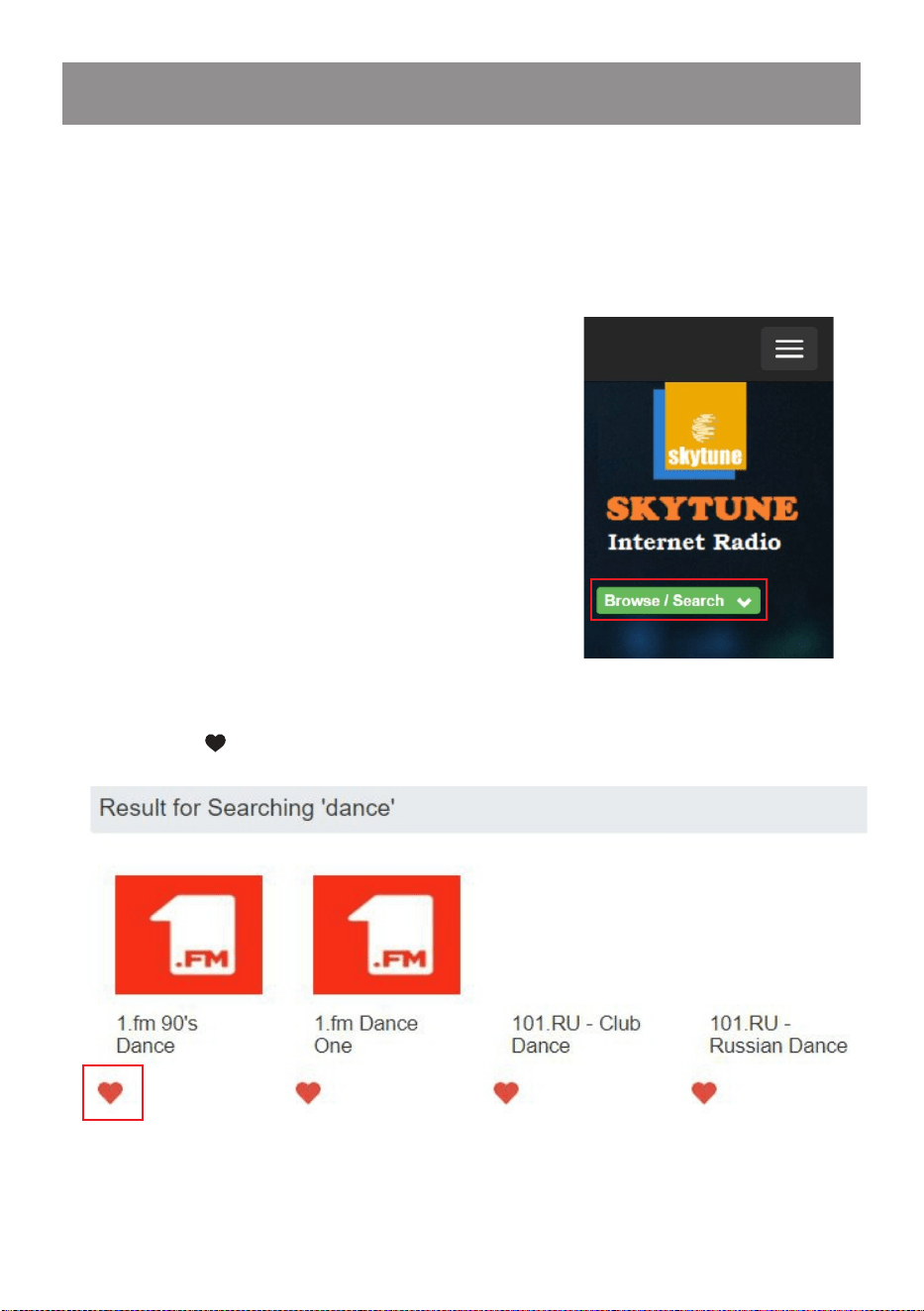

Skytune
Select Skytune to start enjoying thousands of radio stations over the
world. You can filter your search by Region, Music genre and talks.
The Local Radio let you access quickly the stations available in
your local area through internet connection.
Note ─ You can change the Local Radio area under Configuration>
Local radio setup.
Note ─ When you scroll along the list of Globe All and want to
quickly reach to a certain point of the long list, input the index
number on the remote control to quickly jump to that point. For
example, on the remote control, input 2 8 and press OK, it will
highlight the station no. 28.
Search
Instead of browsing the radio station list, you can input a few
characters of the desired station to filter out / short list the stations.
History
The radio memorizes the stations you have listened up to 99
stations.
If you have listened more than 99 stations, it will supersede the first
station that you have listened.
Start playing internet radio
When a radio station starts playing, more station information can be
displayed. Press the [INFO] button in the state of the playback
- 13 -
Internet Radio
screen below:
Every time you press the [INFO] button, it will cycle through
information at a time such as the streaming bit rate, name of the
song, artist name (if available), the big clock and the radio's
station logo (if available) or return to now playing screen:
Press [ ] to return home screen. To go back to the playback screen,
press the [ ] button again.
My Favorite
This is to show the list of your Favorite stations which have been
assigned to the presets.
Preset a station
When a radio station is playing, press the [ ] button on the remote
control, you will see the icon appears as below. It means the station
is added to the Favorite list.
The new added station will always show in the last item on the
Favorite list.
Preset icon
- 14 -
You can store up to 150 presets.
Internet Radio
Recall a station
Press the
[ ] button on the remote control to recall the list of My
favorite, or navigate to My Favourite on the Home screen and select it to
confirm.
Create new categories - make your own favorite list
There are two items in the My Favorite list as below, "All Favorites" and "
Uncategorized":
You can create new categories of your favorites and name it as you
like, e.g., "Morning mix", "My Jazz", "After work"...etc to manage
your favorites.
In the page of "My Favorite", press the [ ► ] button, it will enter the
edit menu with "Create Category" as below:
When a category is created (can create more categories as you like),
you can now assign the stations to the category as desired.
My favourite 2/2
11:30am
All favourites 3
Uncategorized 3
Press the
[ ► ]
button
Press OK,
enter the
name of
category,
e.g. My Jazz
My favourite
2/2
11:30am
All favourites 3
3
Uncategorized 3
Edit 1/1
12:48am
Create catogory
My favourite 3/3
11:30am
All favourites
3Uncategorized
3My Jazz
- 15 -
The "Uncategorized" means the stations which are not assigned to
any categories yet.
To move the stations to the respective category, enter either the "All
Favorites" or "Uncategorized" folder, choose the station from the list
and select "move to category", then highlight the category to move it to
and press [ OK ] to confirm.
You can always move a station from one category to another.
Choose the
station to be
moved, press [►]
button to enter
the edit menu.
Choose "Move to
category" and press
[OK], it will display the
list of categories, select
the one you want to move
it to. e.g., "My Jazz", then
press OK.
The station is
now moved to
"My Jazz" folder.
My favourite 1/3
12:48am
< 101 SMOOTH JAZZ
FM 106.30 MHZ
FM 98.90 MHz
Edit 1/2
12:48am
Move to category
Delete
My favourite 3/3
11:30am
All favourites 3
Uncategorized 2
My Jazz 1
Internet Radio
- 16 -
Media Centre
The device supports UPnP and is DLNA-compatible.
This provides the opportunity to stream music from your network.
However, this requires you to have a compatible device in your
network that can function as a server. This can be e.g., a network
hard drive or a conventional PC with e.g., Windows 8 via which
access to the shared folder or media sharing is permitted. The
folders can then be browsed and played on the Tuner.
Note ─ Please make sure your computer laptop is on the same Wi-Fi
network as the Radio before you start using this function.
Music streaming
• Once the UPnP/DLNA compatible server is configure to share
media files with your radio, you can start music streaming.
• On the main menu, select Media Centre and choose UPnP.
• It may take a few seconds for the radio to complete the scan for
available UPnP servers. If no UPnP servers are found, it will show
Empty List.
• After a successful scan is done, select your UPnP server.
• The radio will show the media categories available from the UPnP
server, e.g. 'Music', 'Playlists' etc.
• Choose the media files that you wish to play.
You can set the mode of playback under Configuration > Playback
setup.
My Playlist
You can make your own playlist for the UPnP music files. Choose and
highlight the song you want to add to playlist, press the [ ] on remote,
until the sign appears. The song will be added to My playlist.
Clear My Playlist
Remove all songs in "My Playlist" to allow a new playlist to be prepared.
Note ─ If you have DLNA compatible servers available, follow the steps
described above to browse the audio files from DLNA compatible device
on the Tuner to play.
- 17 -
FM Radio
To receive the ordinary FM stations (no internet connection is
required), connect the wire antenna (supplied with the product) to the
antenna jack on the rear cabinet first.
Place the Tuner close to the window and extend the antenna or
direction to get the best reception.
On the Home menu, scroll to FM Radio or use the [MODE] button on
the remote to switch to FM Radio. Press [OK] to start. Choose FM
full scan to confirm scanning if this is the first time using
the FM radio. When it is done, it will automatically save the

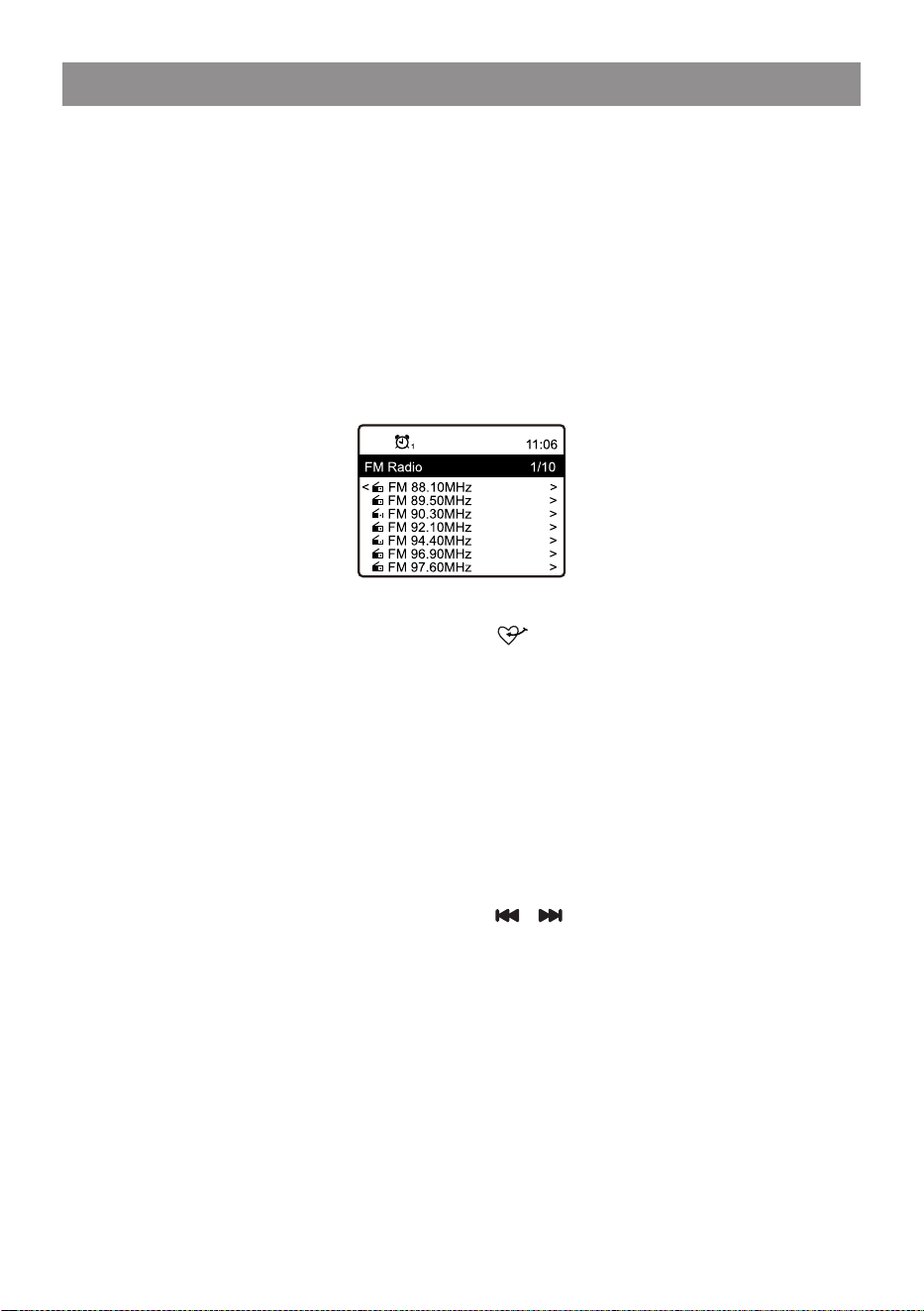

scanned channels to presets and display the list for your action.
You can select the channel and start listening to it. Whenever you
[ ] button and it will add to
want to add to My Favourite, press the
the favourite list.
Press the [ ◄ ] button to return to preset list.
Note ─ When it is playing FM radio, press the [ INFO] button to view
more radio information, each time you press the [ INFO ] button, it will
display various information at a time such as radio frequency and big
clock display.
Manual Tune
To manual tune the frequency, use the [ / ] button on remote to fine
tune the frequency. When done, press the [ OK ] button to play the
tuned frequency.
- 18 -
- 19 -
BT playback
Before transmission between your BT device and the radio is
possible, both devices must be coupled. This process is called
"pairing". The Tuner is served as a receiver, to receive music stream
to play on the Tuner. Check the BT antenna already installed.
If you have already coupled to a BT device before, this connection
will be restored automatically when both devices are in range and
BT operation has been selected on the radio. "Pairing" does not
have to be repeated. This function may need to be activated in your
BT device, however.
• Push the [ ] button to display the selection menu for thedifferent
operating modes.
• Use the up / down button to select the operating mode BT and pushthe
dial switch.
• Switch your BT device to which you want to connect the radio onand
activate the pairing mode here. The device scans for BTdevices in the
reception range.
• When the radio is found, your BT device shows its name WR-03M-XXXX
(the XXXX is an identification code for your radio unit).
• Select the radio at your BT device.
• Start playback on your BT device.
• Playback now takes place using the radio.
- 20 -
Alarm Setting
• Select either Alarm 1 or Alarm 2, choose Turn on to activate the
Alarm.
• Press the on the
remote control.
• Follow the alarm wizard instructions to set the alarm.
• The wizard will guide you through the settings below:
Time ─ Set the time for the alarm
Sound ─ You can choose Wake to Tone, My Favourite, Wake to FM
Radio as the alarm source.
Note ─ Wake to FM - only the preset
Wake to My Favourite ─ Please preset your favorite station
before setting this as the alarm source.
Repeat ─ You can schedule the alarm as you desire -Everyday,
Once or multiple days.
Alarm Volume ─ Adjust the volume of the alarm as you like by
pressing the [▲/▼] button on remote.
Alarm duration ─ Set the duration of the alarm from the preset
options ranging from 30 to 180 minutes. The
radio will be turned to standby when the selected
duration of time is due.
• After the above settings are completed, press the [◄] button to exit
and make sure the Alarm is turned on. You will see the Alarm icon
appeared on the display if it is activated.
stations can be u
sed for the radio alarm.
Timer Setting
Setting the Timer
The device offers the Timer function as a kitchen timer. The time will
count down from a specified time and ends with a beeping sound.
Timer settings is up to 99 hours, 59 minutes, 59 seconds.
The beeping tone volume and duration is adjustable from the Timer
settings in Configuration menu.
Switching off the timer
When the alarm sounds, you can turn it off by pressing the [OK] button on
the remote control.
Sleep Timer Setting
You can set the timer to let the radio goes to sleep after the selected
timer elapsed. There are number of preset timer options from 15
minutes to 180 minutes.
Press [ ] button on the remote control to set the timer.
You will see the icon appeared on the display if the timer is set.
Alarm S leep Timer
- 21 -
- 22 -
Podcasts operation
On the Home screen, select "Podcasts" and press OK to confirm.
You will find the following options:
Listen again ─ You can always add a particular episode to "Listen
again" to repeat on listening or continue the unfinished part.
To save the episode to "Listen again", press the Preset button
on the remote when it's playing. It will be added to the list. To remove
it from Listen again, highlight the episode and press the right arrow
button ► to edit.
Note: The episode will resume to play from where it left off.
Subscribed ─ Subscribe your favourite Podcast for easy access to
listen to the latest episode.
To subscribe a Podcast, highlight the Podcast and press the right
arrow button ► , then select Subscribe.
To remove the subscription, highlight the podcast and press the right
arrow button ► to edit.
History ─ the previous listened episode of the podcasts.
Browse ─ To browse the list of Podcasts available
Search ─ Search the Podcast by keywords
Search history ─ the list of previous search records.
When an episode is playing, you can always skip forward / backward
by "press and hold" the buttons, press these buttons briefly
will skip to next / previous episode.
Press the to pause the playback.
- 23 -
Configuration
Here you will find the complete settings / options available to
configure your own tuner. On the Home menu, navigate to
Configuration setting. Press OK and you will see a list of options
available.
Network
• Wireless Network
» Add wireless network
Scan & select ─ It will scan out a list of wireless
networksaround.
WPS button─ Choose this option to connect your Wi-Fi
router if the router has a WPS button.
» Remove wireless network
If you have already set up a network and want to remove it,
choose this option.
Note ─ Always bring the Tuner within 2 meters of the Wi-Fi
router for setup.
» AP: [ ]
If you have added more than one network on the radio and want
to switch to another one, select this option to change.
» Signal
This is to show the strength of the wifi Signal of the wifi router as
received by the radio. Usually signal levels lower than -70dBm
is at weaker level and if it affects the reception of your radio, you
may need to optimize the router location or check any problem
of the router itself.
» I P
The IP is set Dynamic by default. Select to change Fixed IP
according to your network condition.
» DNS
The DNS is set Dynamic by default. Select to change <Fixed>
DNS according to your network condition.
• LAN network
WiFi router using CAT 5 or CAT 6 cable. If your Router or Wi-Fi
router is DHCP-enabled (recommended), you don't have
anything to setup and the radio will connect to Internet with the
parameters automatically assigned by the Router/Wi-Fi router.
Use the remote control for configuration if you want to use a fixed
IP, scroll to IP:[Dynamic] and press OK. Choose Fixed. Press the
▲ button, you can then enter the IP, press ▲, ▼ to tune to the
required numbers: xxx.xxx.xxx.xxx. Switch among the 4 groups
by pressing ◄/► . When done, press OK. Scroll to GW and NM to
do the same.
You can also choose to use a DNS server other than the one from
the DHCP server. Scroll to DNS and do the same.
Note ‒ Use DHCP to get the network parameters unless you are
familiar with network setup.
• Network audo on/off
Always on: The WLAN function remains switched on
(fasteraccess when switching from DAB or FM mode to Internet
radio).Auto off in 15s/30s: The WLAN function shuts down after
15s/30seconds when not in use (to save energy).
• Wireless Channels
Not all of the Wireless channels are available in every country.
There may be variation between different countries. Therefore it
is necessary to choose the Wireless channels to ensure the Wi-Fi
performs satisfactory.
We have already set the channels according to the requirement in
different countries. Choose the country you are staying from the
list to get the correct channel.
• Network connection test
In case there are any issues in connecting Skytune, select this
option to check out any failed items of the network parameters for
further diagnosis.
Configuration
- 24 -
Enter date and time manually by selecting this option.
• Time zone
• Set Time Format
Choose either 12-hour or 24-hour notation you prefer.
• Set clock style
You can choose the clock display in digital form or Analog
style.The selected style will apply in Standby as well as the big
clockdisplay in radio playback.
• Set Date Format
• DST (Day Light Saving)
Enable on/off
• Set time from Network
Choose Yes to synchronize the tuner's clock with the network time.
Your Tuner will synchronize the time server by default every
time it powers up and connects to Internet.
Configuration
- 25 -
Set the time zone to synchronize the time automatically to the
network time. Coupled with the "set time from network" and "DST
(Daylight time saving) will be adjusted automatically if you choose to
use network time.
• Network time server
This is the time server being used to synchronize the tuner's
clock with a time server. You can change to use other time
server by inputting the URL address
Date and Time
• Set Date Format
• Set time from FM
Choose to synchronize the time with the FM broadcasts. The
accuracy depends on the broadcasting station, and may vary by
station.
Configuration
Language
There are multiple languages available for selection.
FM Setup
• Audio setting
If the signal is weak and stable stereo reception is not possible,
select "Forced Mono" to get better reception.
• FM full scan
You can always carry out a new scanning of FM channels by
selecting this option. All current presets and channels will be
- 26 -
erased. The radio at the lowest frequency of the scanned values will
be highlighted. The preset list will be saved unless a new preset
scan is carried out.
• FM station list
You can adjust the preset ranking by Move down, Move up or Delete
it. Highlight one of the preset and press the [ ► ] button (or [ ► ] on
the unit), it will enter into the Edit menu.
Always press the [ ◄ ] button to return to the Preset list.
Choose the FM area, scan settings and conditions.
Local Radio
Set the local region to access quickly from the Local radio
(Skytune>Local radio).
Playback Setup
This is to set the mode of playback under UPnP/DLNA compatible
streaming: Repeat All, Repeat Once or Shuffle.
Power-On Options
This is to select the state of the radio after a power reset / power cut,
or the next power up from Standby. There are 3 options available:
─ Go to Standby
─ Resume once ready: the radio will resume the last-played channel.
─ Ready to use: the radio will stay in Home screen without action.
Auto Power Save
Configuration
The radio will automatically turn to Standby/sleep after certain
time of no signal/ not playing. There are several timer selections
available.
- 27 -
Configuration
Dimmer
You can set the backlight level for the display as you prefer.
There are two settings: Mode and Level
• Mode ─ Normal or Dim
Normal ─ the display will stay with the same level of brightness
all the time without dim down.
Dim ─ the display will dim down after 20 seconds if no operation
is made on the radio.
• Level ─ Bright and Dim
Bright ─ This is to adjust the level of brightness in Normal mode.
Dim ─ This is to adjust the level of brightness in Dim mode.
• Dimmer in Standby
The highest backlight level in standby is set by system default. To
further reduce the backlight or turn it completely off, adjust it by
the ▼ button on the remote. Increasing the backlight beyond the
system level will illuminate for 20 seconds and then dim to
default setting automatically.
EQ(Equaliser)
Various music genres can be set.
Buffer Time
Sometimes you may experience uneven playback of the internet
radio. This can happen if the internet connection is slow or network
congestion occurs. To help improving the situation, you can choose
longer buffer time to get a few seconds of radio stream before
beginning to play.
The default value is 2 seconds. You can choose 5/10 seconds if you
prefer to have a longer buffering time.
- 28 -
Configuration
Timer
This is to set the alarm sound volume and the duration for the Timer
function.
Network information
View the network signal and other parameters.To access quickly to
this information, press the [ ] button on the remote control.
When you use your PC to manage the My favorite stations, you have
to use the IP address and you can view this info from here. Then type
in the IP address ( Configuration > Network Information > IP ) to your
PC's browser input window.
System information
The model number, system MID and software version (App version)
can be found here.
Software Update
There may be software release to upgrade features of the radio from
time to time. Check the update regularly to keep your radio up to
date with the latest software.
Reset to Default
You can do the reset to clear all the settings and return to default
settings.
**Please note all the Station presets, Settings and configuration will
be erased after you have performed the Reset.
- 29 -
Web browser control via PC / Smart phone
─ Tuning internet radio & manage favourite
Experience an easy way to control tuning internet radio channels
and manage your favourite list via PC or Smart phone's web
browser.
The supported browsers are Internet Explorer and Chrome. Have
the radio stayed on Internet radio mode when using this feature.
- Connect your PC or Smart phone to the same Wi-Fi network as
your radio.
- Visit www.skytune.net
- On the home page, click “Browse/Search”
- Browse or enter the name to search the radio channel, a list of
internet radio channels will be displayed.
- Click the “ ”symbol
- 30 -

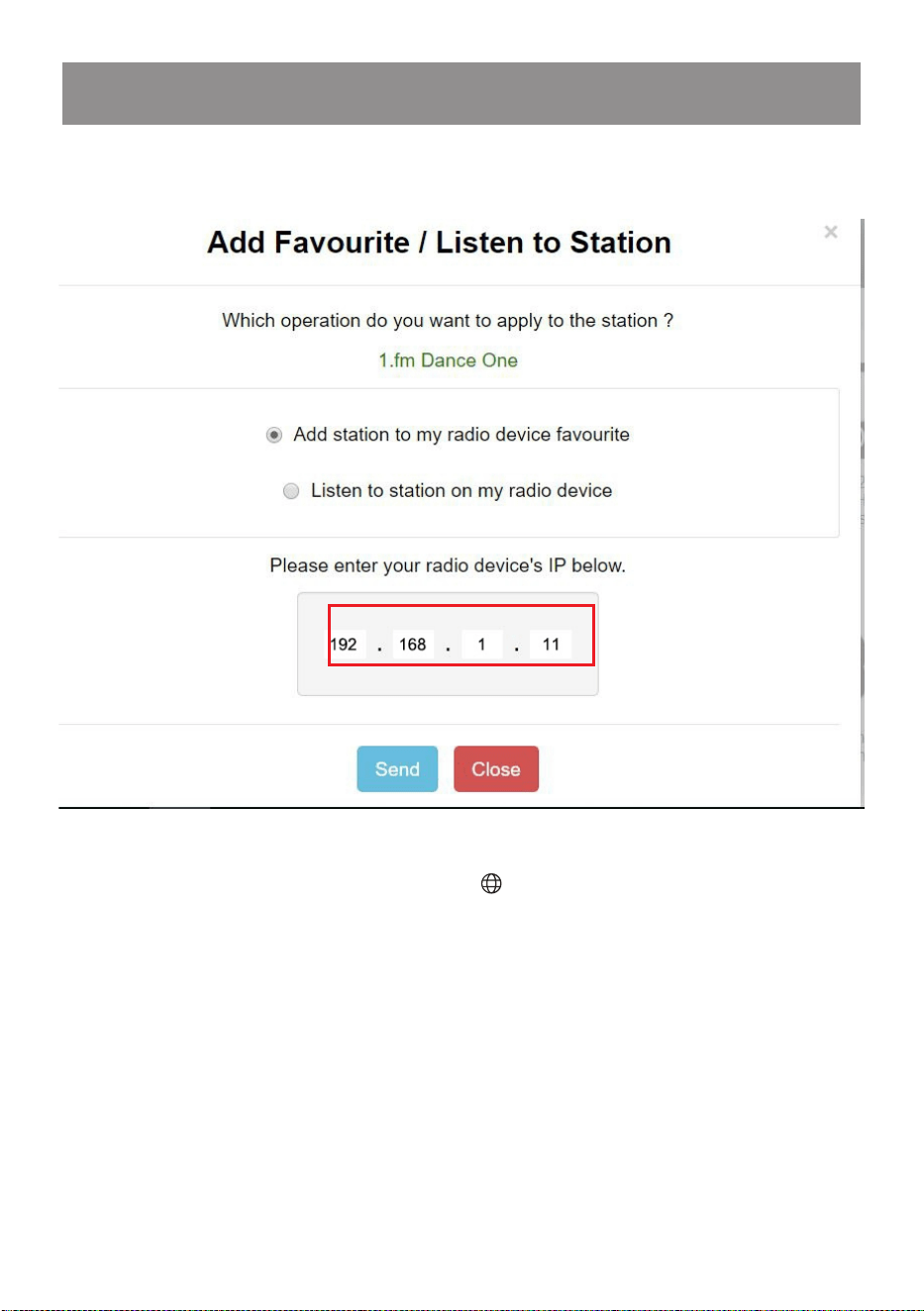

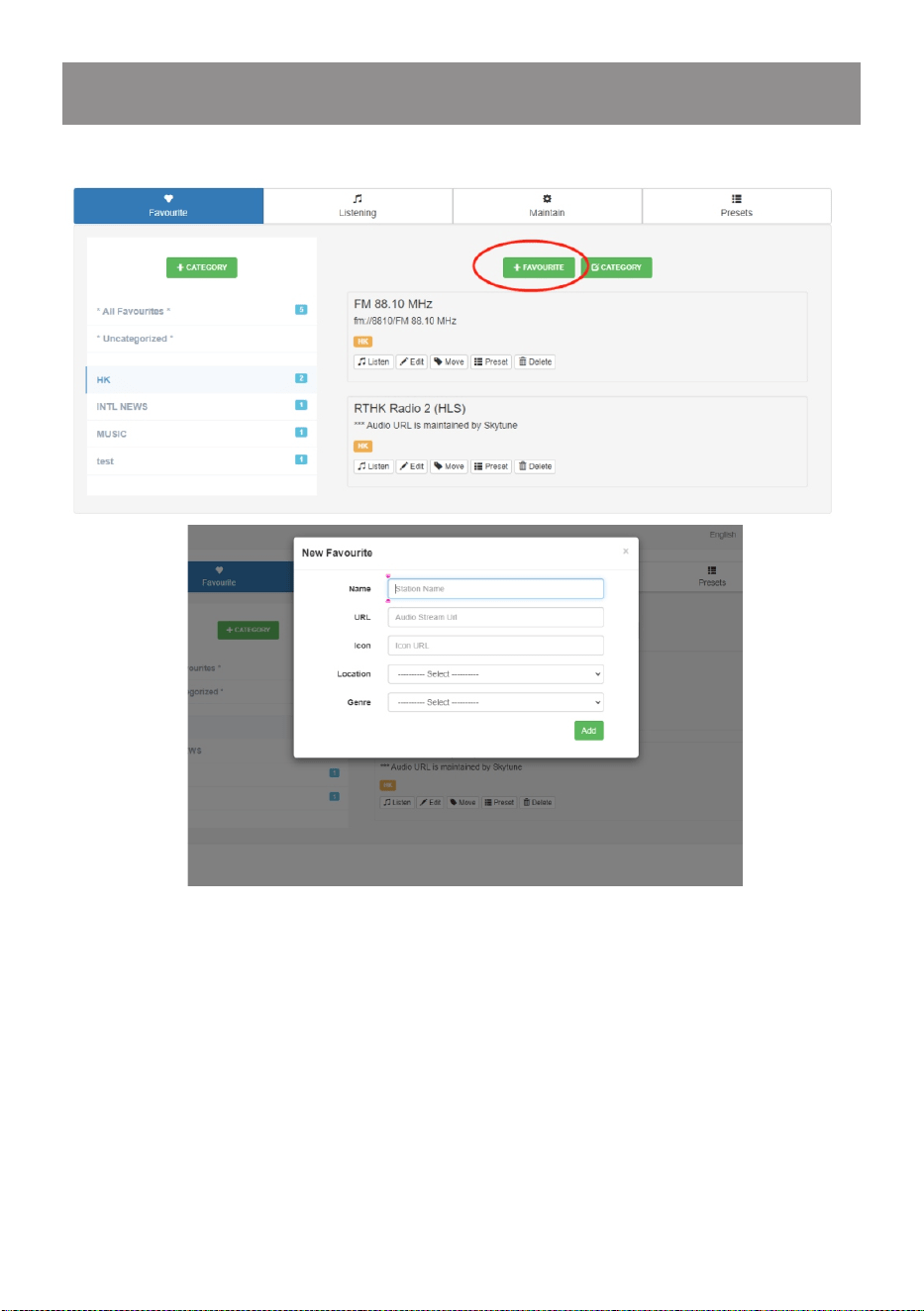

- It will prompt you whether to "Add Favourite" or "Listen to Station".
Enter the IP address of your radio (e.g. 192.168.1.11):
The IP address can be located on the radio unit as follow:
* On the remote control, press the [ ] button, scroll to IP to view
the IP address
* On the radio, return to the Home menu. Navigate to Configuration
> Network Information > IP
- Select "Listen to Station", click "Send" and the radio unit will switch
playing the channel and the "My Favourite" page will pop up on the
web browser.
You can then choose to add the playing station to favourite or
manage your list by other edit options. Any changes will synchronize
to the radio unit immediately.
Web browser control via PC / Smart phone
─ Tuning internet radio & manage favourite
- 31 -
You can also add the radio channel if you know the published audio
stream URL with the streaming format as follow:
1. Audio formats: MP3, AAC, AAC+
2. Stream formats: Shoutcast, Icecast (HTTP, HTTPS) and HLS
3. Playlist formats: PLS, M3U
4. Sampling frequency: 44.1 KHz and 48 KHz
Web browser control via PC / Smart phone
─ Tuning internet radio & manage favourite
- 32 -
Trouble Shooting
Problem
Cause Solutions
Cannot connect
to Wi-Fi network
Network down
• Confirm that a Wi-Fi or
Ethernet Wired connected PC
can access the internet (i.e.
can browse the web) using the
same network.
• Check that a DHCP server is
available, or that you have
configured a static IP address
on the radio.
• Check that you firewall is not
blocking any outgoing ports.
As a minimum the radio needs
access to UDP and TCP ports
80,443 and 8008, DNS port
53.
Router restricts
access to listed
MAC addresses
Obtain the MAC address from
Configuration > Information >
Network > Wi-Fi MAC and add
to the allowed equipment list on
your access point.
Note: The radio has separate
MAC addresses for wired and
wireless networks
Insufficient Wi-Fi
signal strength
• Check distance to router; see
if a computer can connect to
the network in this location
• Optimize the distance of the
router’s location
Unknown
encryption method
Change encryption method on
router.
The radio supports WEP, WPA,
WPA2
Firewall
preventing access
• Disable the fire wall to see if
radio can connect to the
network.
• Windows Media Player: varies
non Microsoft firewalls may
require configuration for UPnP.
- 33 -
Problem
Cause Solutions
Trouble Shooting
If your radio can
connect to the
network
successfully,
but is unable to
play particular
stations
• The station is not broadcasting
at this time of the day (remember
it may be located in a different
time zone).
• The station has too many people
trying to attach to the radio
station server and the server
capacity is not large enough.
• The station has reached the
maximum allowed number of
simultaneous listeners.
• The update of the link is done
regularly. To get the updated list
of stations, please access from
Internet radio > Skytune. If case
a particular stream is still not
working, please contact us or
Skytune to report the case.
No FM
reception
• Please check if the wire antenna
is connected to the Tuner.
• Move the radio close to the
window.
- 34 -
Problem
Cause Solutions
Trouble Shooting
FM Radio
reception is poor
• Please check that the aerial is
extended for the maximum
signal strength and improved
reception.
• Check that you do not have
other electrical equipment too
close to your radio, causing
interference.
No sound
• Please check if the playback is
stopped. Press the OK button
on the remote to resume
playback.
• Adjust the volume
• Check if other radio stations
have the same problem or just
happened on a particular
station.
If external speaker is connected
to the line out jack:
• Adjust the volume level on the
radio and the external powered
speaker.
• Please check if the power of
the external powered speaker
is switched on.
- 35 -
Helpful Tips
1. If the Internet Radio keeps re-buffering radio station:
The Internet Radio is streaming the data from the radio station via
your broadband connection, if there is a high error rate on your
broadband connection, or the connection is intermittent, then it will
cause the Internet Radio to pause until the connection is re-
established and it has received enough data to start playing again. If
your Internet Radio keeps stopping, please check the DSL modem to
ensure that the Broadband line is not suffering a high error rate or
disconnections. If you are experiencing these problems, you will
need to contact your broadband supplier.
2. What is Buffering?
When playing a stream, the Internet Radio/Media player, downloads
a small amount of the stream before it starts playing. This is used to
fill in any gaps in the stream that may occur if the internet or the
wireless network is busy. The Internet Radio streams music data
from the PC while you are listening. If a stream gets blocked or
experiences Internet congestion while transferring it may
stop/interfere with the quality of play. If this happens, check your
internet connection speed- it must be faster than the speed of the
streams.
3. My Tuner is working but some stations cannot be played.
The problem may be due to one or more of the followings:
a. The radio station is no longer broadcasting.
b. The radio station has reached the maximum allowed number of
simultaneous listeners.
c. The radio station has changed the stream arrangement and the
link is no longer valid.
d. The radio station is not broadcasting at the time of the day (not all
stations are broadcasting 24 hours throughout the day).
e. The Internet connection between your Tuner and the radio station
server is too slow or unstable to support the data rate of the
broadcast.
- 36 -
Technical Specification
Model
Power input
Power voltage
Wireless Network
Wireless network
frequency
Security Protocol
WR-03M
5V 1A
100-240V~50/60Hz
IEEE802.11b/g/n
2.4 GHz
WEP/WPA/WPA2
BT version
BT frequency
BT range
V5.3
2.4 GHz
10 meters (line of sight)
FM frequency range
87.5-108MHz
Audio output
Stereo line out
Optical (Toslink) out
Unit Dimension
170 x 55 x 105 mm(L x H x D)
Remark: Specification may vary without notice
Ethernet connection
(LAN)
10 Mbps RJ45
- 37 -
In the box
• I nternet Radio Tuner
• Power adaptor
• Wire antenna (for FM)
• RCA cable
• Remote control (without batteries)
• User manual
WEEE and Recycling
The European laws do not allow any more the disposal of old or
defective electric or electronic devices with the household waste.
Return your product to a municipal collection point for recycling to
dispose of it. This system is financed by the industry and ensures
environmentally responsible disposal and the recycling of
valuable raw materials.
Ocean Digital Technology Ltd.
Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg.,
20 Wang Hoi Road, Kowloon Bay, Hong Kong
Email: support@oceandigital.com.hk
- 38 -
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.
FCC
- 39 -
