Shanghai Hongying Intelligent Technology Co., Ltd.
Shanghai Smart Control Co., Ltd
.

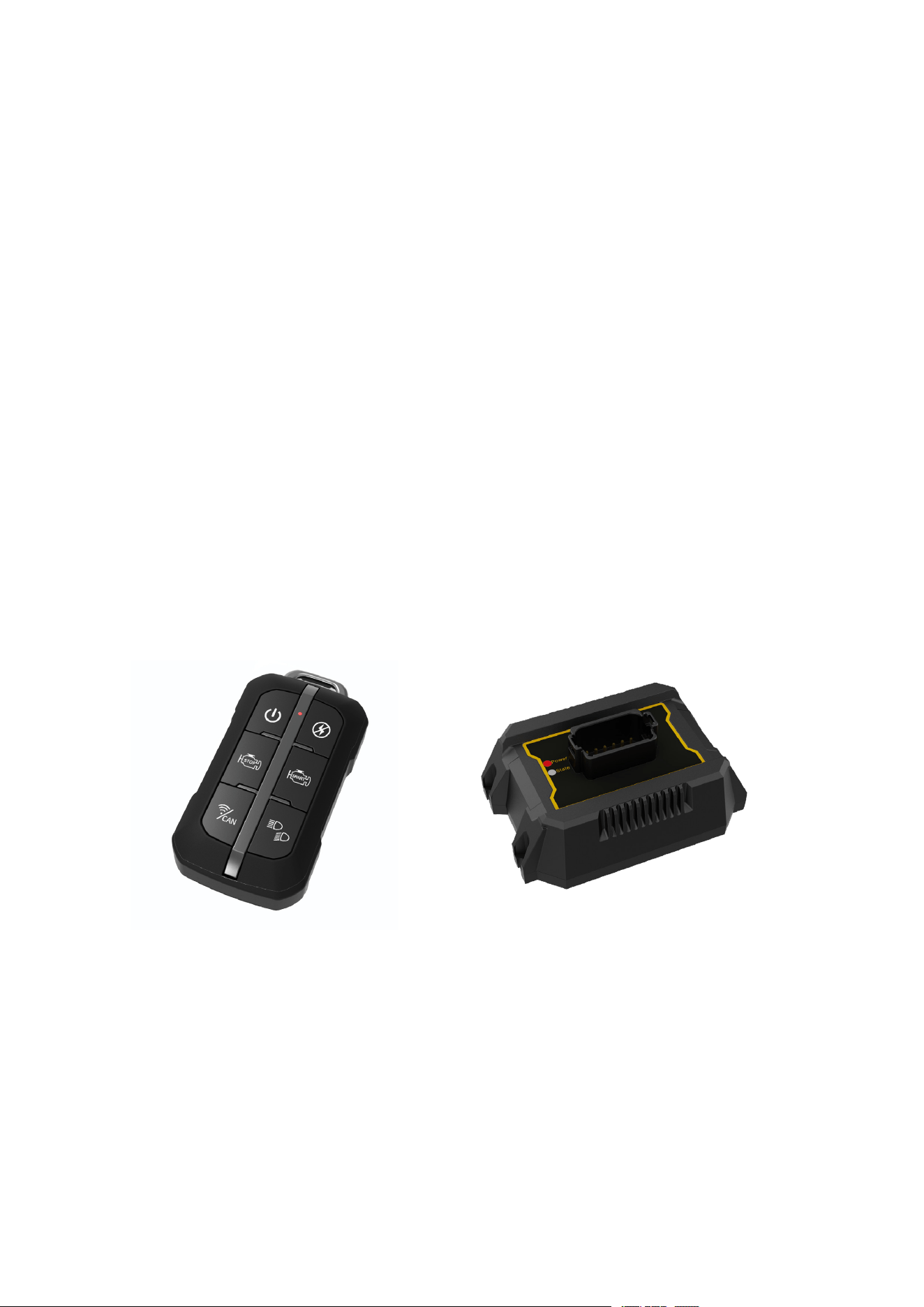

Key transmitter and
receiver instruc-
tion manual
Shanghai Hongying Intelligent Technology Co., Ltd.
Shanghai Smart Control Co., Ltd
.
Page 2/6
Add:Tower A,No.470,JiuJing Rd,Shanghai,China
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Web: www.smartsh.com
Address: Block A, No.470, Jiujing Road, Songjiang District, Shanghai
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Website:www.smartsh.com
Catalogue
1 technical parameter
��������������������������������������������������������������������������������������������������������������������������������������� 3
2 interface definition������������������������������������������������������������������������������������������������������������������������������������������ 4
3 Product size diagram������������������������������������������������������������������������������������������������������������������������������������ 5
4 Installation Method and Precautions
���������������������������������������������������������������������������������������������������������� 6
Shanghai Hongying Intelligent Technology Co., Ltd.
Shanghai Smart Control Co., Ltd
.
Page 3/6
Add:Tower A,No.470,JiuJing Rd,Shanghai,China
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Web: www.smartsh.com
Address: Block A, No.470, Jiujing Road, Songjiang District, Shanghai
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Website:www.smartsh.com
1 Technical Pa-
rameter
1.1 Key transmitter:
Key
Key
6 key
Operating life 1000000
Enviromental parameter
Working temperature -30~+85℃
Storage temperature
-40~+85℃
Electrical parameters
Radio frequency communication 315MHZ
Power supply mode
CR2032 Button Battery 3V
EMC
Electric load
GB/T 28046�2
Voltage transient or gradual change
IGB/T 28046�2
Electrical Transient Conductive Immunity along Power Line GB/T 21437�2
Electrical Transient Immunity of Non-Power Line Coupling
GB/T 21437�3
ESDR GB/T 19951
Surge immunity GB/T 17626�5
Radiation emission GB/T18655-2018 6�4
1.2 Receiver ：
Software
Processor S9S12 series
Maximum operating frequency 25MHz
CAN bus node 0X8D
Programming language
C language
Enviromental parameter
Working temperature -30℃ ~ +70℃
Storage temperature
-40℃ ~ +85℃
IP grade IP54
Electrical parameters
Service voltage
18V~32V
EMC
Electric load GB/T 28046�2
Voltage transient
IGB/T 28046�2
Electrical Transient Conductive Immunity along Power Line GB/T 21437�2
Electrical Transient Immunity of Non-Power Line Coupling
GB/T 21437�3
ESDR GB/T 19951
Surge immunity GB/T 17626�5
Radiation emission GB/T18655-2018 6�4
Pilot lamp
Number 2 individual
Pigment
Red (one indicates red, one indicates key pairing)
Communication mode
1�CANbus
2. Radio frequency 315MHz
Shanghai Hongying Intelligent Technology Co., Ltd.
Shanghai Smart Control Co., Ltd
.
Page 4/6
Add:Tower A,No.470,JiuJing Rd,Shanghai,China
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Web: www.smartsh.com
Address: Block A, No.470, Jiujing Road, Songjiang District, Shanghai
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Website:www.smartsh.com
2 interface definition
Pin number Definition Function Remarks
1 24VDC
2 GND
3 DIH
DIL/DIH hardware is configurable
4 DIH
DIL/DIH hardware is configurable
5 DIH
DIL/DIH hardware is configurable
6 CAN_H
7 CAN_L
8 DOH_1
Shutting
8A
9 DOH_2
Unblanking
8A
10 DOH_3 Power supply relay control port 8A
11 DOH_4 Buzzer 4A
12 DOH_5 Engine starting relay 4A
inputoutput port ：
5 2-channel DO (current <3A), 3-channel DO
(current <9A), 3-channel DIL/DIH (hardware
configurable)
1 Road CAN
Shanghai Hongying Intelligent Technology Co., Ltd.
Shanghai Smart Control Co., Ltd
.
Page 5/6
Add:Tower A,No.470,JiuJing Rd,Shanghai,China
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Web: www.smartsh.com
Address: Block A, No.470, Jiujing Road, Songjiang District, Shanghai
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Website:www.smartsh.com

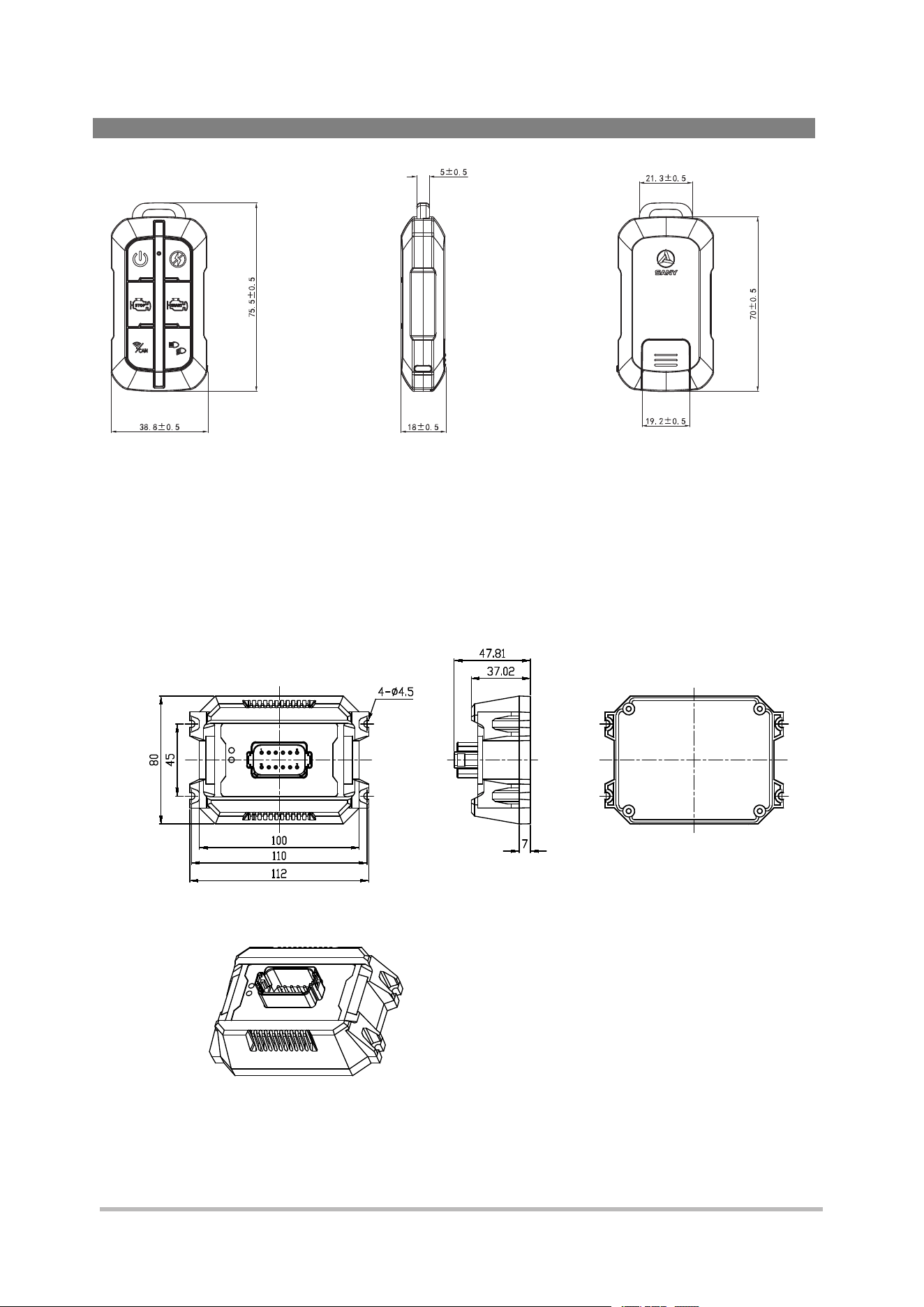

3 Product Size Diagram
3.1 Key transmitter:
3.2 receiver ：
Shanghai Hongying Intelligent Technology Co., Ltd.
Shanghai Smart Control Co., Ltd
.
Page 6/6
Add:Tower A,No.470,JiuJing Rd,Shanghai,China Tel: +86 021-3782
9910 Fax: +86 021-5186 2016
Web: www.smartsh.com
Address: Block A, No.470, Jiujing Road, Songjiang District, Shanghai
Tel: +86 021-3782 9910 Fax: +86 021-5186 2016
Website:www.smartsh.com
4 Installation Method and Precautions
1、 Pairing method:
First power on the receiver, then send the pairing message via PCAN. When the message is received,
the indicator light will flash slowly. Press any key on the transmitter to keep the indicator light on.
Release the key without further action. Wait for the indicator light to flash again to confirm successful
pairing. Pairing message
Can message ID: 005 standard frame
Can message data: 00 00 00 5345 54 52 46.
2、 matters need attention ：
a. Do not let the key transmitter come into contact with water to prevent switch failure.
b. Regularly inspect the transmitter housing and buttons, and replace any damaged components immediately.
c. The key transmitter contains a battery. Do not damage the battery itself to avoid potential hazards.
d. If the key transmitter and receiver fail to communicate, contact technical support immediately and do not
operate it privately.

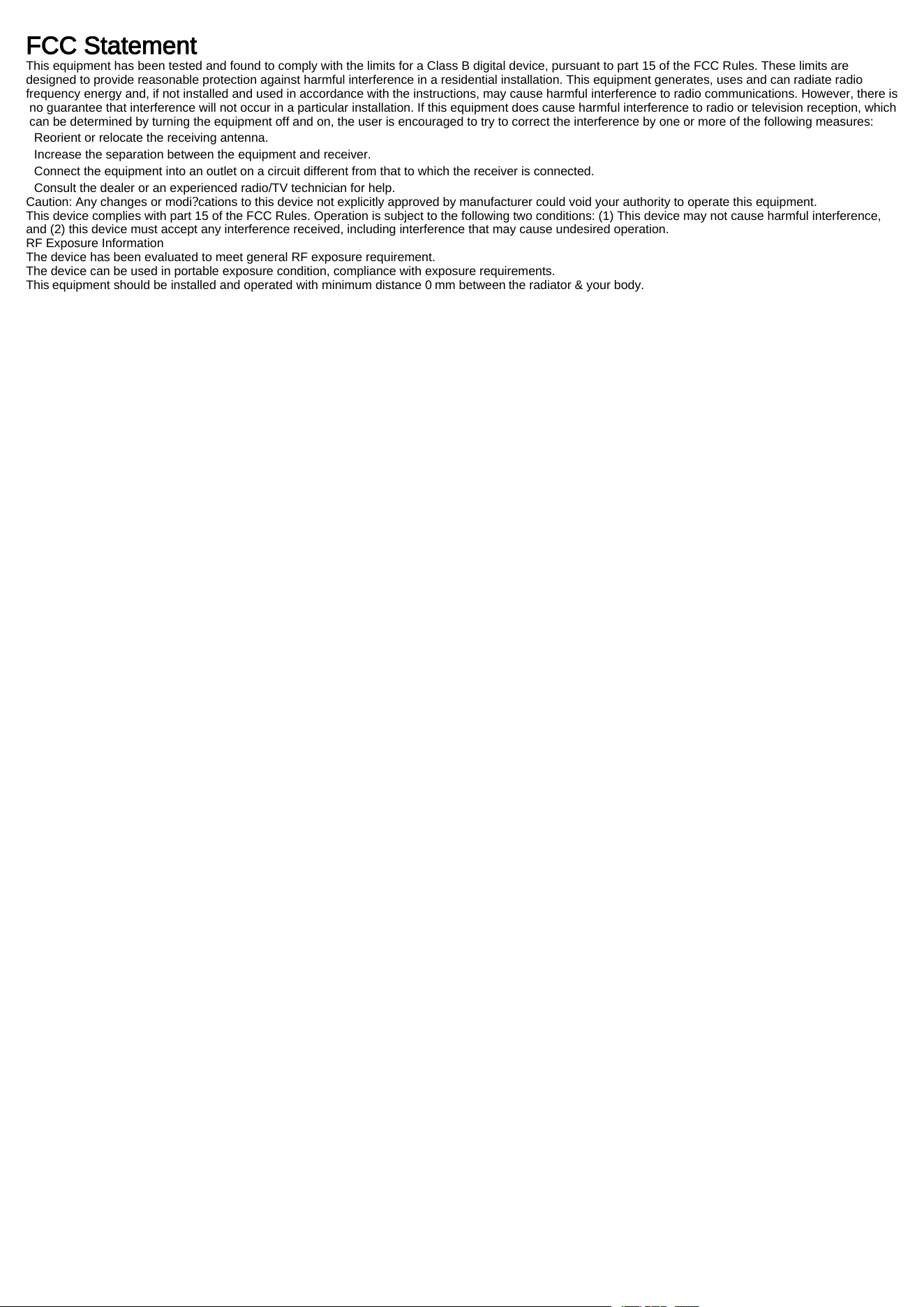

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modi？cations to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition, compliance with exposure requirements.
This equipment should be installed and operated with minimum distance 0 mm between the radiator & your body.
