Contents
1. Important Information
2. Assembly
3. Get to know your lock
Exterior assembly
Interior assembly
Safety
Caution
Disposal of used locks and
batteries
Packing list
Exploded views
Notice before assembling
Adjustable latch instructions
Assembly steps
02
03
09
10
13
4. Settings
5. Get to use your lock
Instructions before setting
Master mode
Settings
Network settings
Outdoor/ indoor unlock
Outdoor/ indoor lock
Mechanical key
6. Other features
7. Indicators
Lock status indicator
System locking indicator
8. Troubleshooting
Alert types
How to apply external power source
Battery replacement
Mute mode

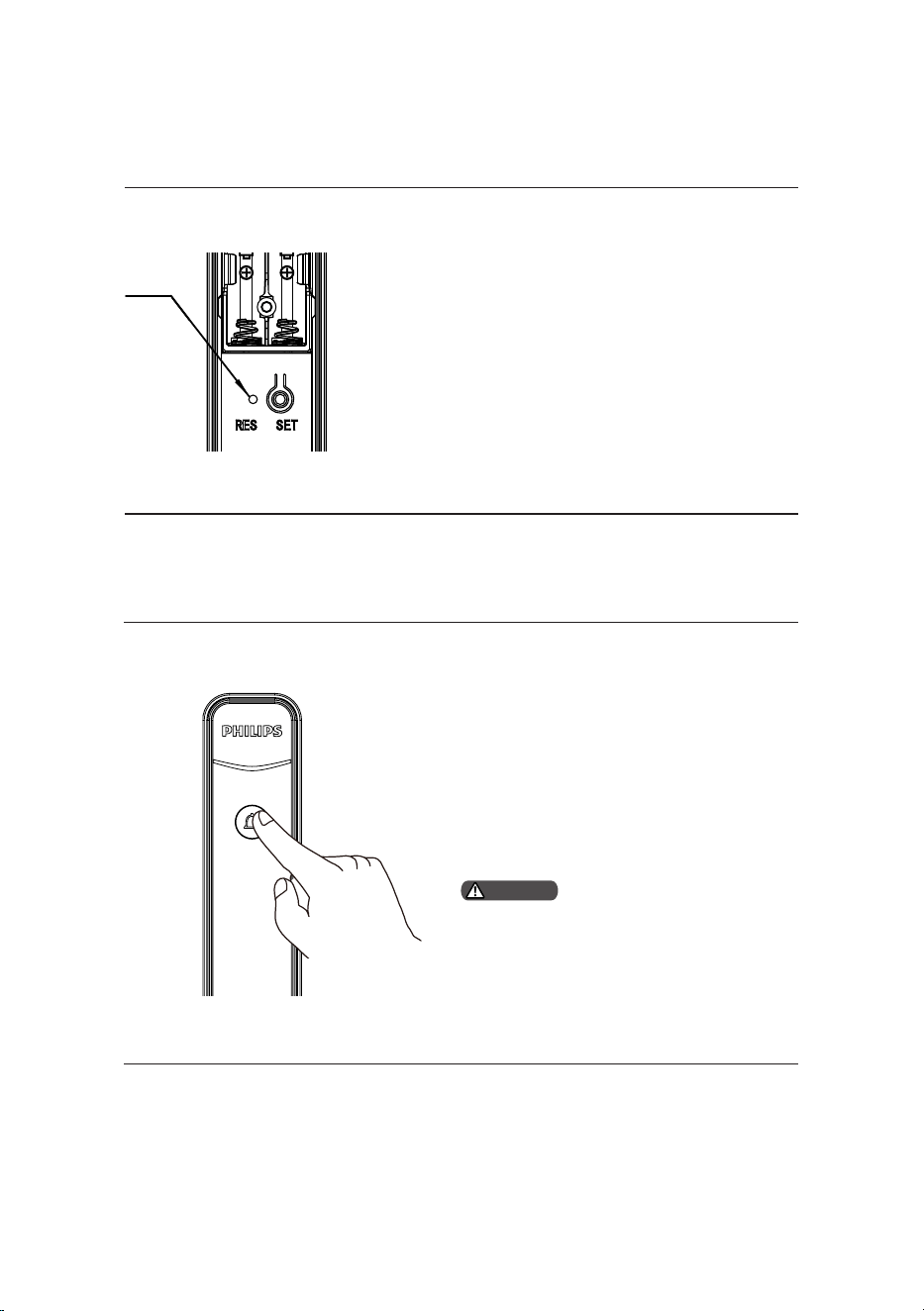

Factory reset
Doorbell
2
1. Important information
Safety
◆
Before using this product, please carefully read
through and understand all instructions. Damage
resulting from failure to follow these instructions
is not covered by the warranty.
◆
Please only use the accessories/components
specied by the manufacturer.
◆
Please only use alkaline batteries/lithium
polymer batteries provided with this product, or
batteries of the same specication/type.
◆
Please do not attempt to forcibly disassemble
the product to trigger an alert or cause damage.
◆
Please avoid using sharp objects to scrape
the ngerprint sensor, as this may result in
permanent damage.
◆
Please avoid exposing the product to areas
where water may leak or splash.
◆
To prevent damage to the protective cover, do
not expose the product to corrosive substances.
◆
Please avoid hanging objects on the handle as
it may interfere with the functioning of the lock.
◆
Please use a soft, damp cloth to wipe
ngerprints or dirt from the assembly surface.
◆
Please do not remove the batteries while
setting up or operating the product.
◆
Please select professional personnel for door
lock installation and follow the installation
instructions provided by our company. Do not
disassemble the door lock and ensure that the
relevant sealed stickers are properly kept.
◆
After completing the installation and
troubleshooting, please change the default
master PIN code immediately. Ensure that the
mechanical keys are stored properly and do not
share the PIN codes with others.
◆
After the door lock triggers a low battery alert,
promptly replace all batteries and ensure correct
polarity during installation.
Caution
◆
Do not place the batteries near sources of
ignition to prevent explosions.
◆
Do not use any power source that does not
meet safety requirements to power the product.
◆
Please avoid short-circuiting the battery's
polarity with metal objects to prevent explosions.
◆
Please ensure that installation or any
component replacement is carried out by
Philips, a Philips authorized service center, or
professional technicians.
◆
Please refrain from using accessories
or components made by unauthorized
manufacturers or not explicitly recommended by
Philips. Using such accessories and components
may void the warranty.
Disposal of used products
and batteries
◆
You can have your products taken back at
authorized Philips service centers. You may
receive appropriate compensation if your
products meet our refund conditions.
◆
Please familiarize yourself with local
regulations regarding the disposal and separate
collection of used batteries and products. Proper
disposal of used products and batteries helps
reduce negative impacts on the environment
and human health. It's important to note that
batteries should not be disposed of with regular
household waste.
3
⑤
QSG
⑨
Strike plate
⑥
Warranty card
⑩
Installation kit
⑦
Key tag
⑧

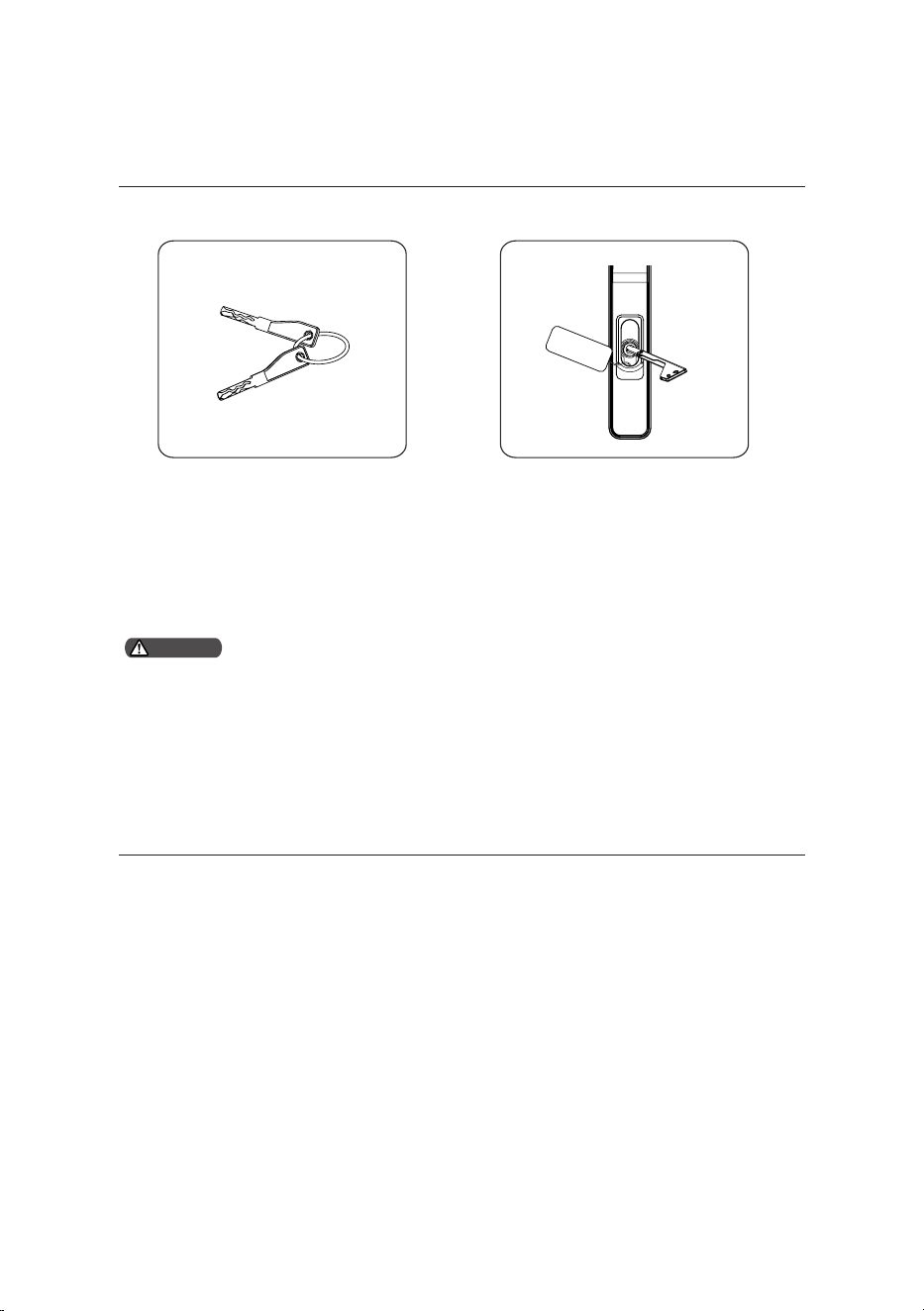

Mechanical key
①
Exterior
assemblywith
silicon pad
②
Interior
assemblywith
silicon pad
③
Drilling template
④
Mortise

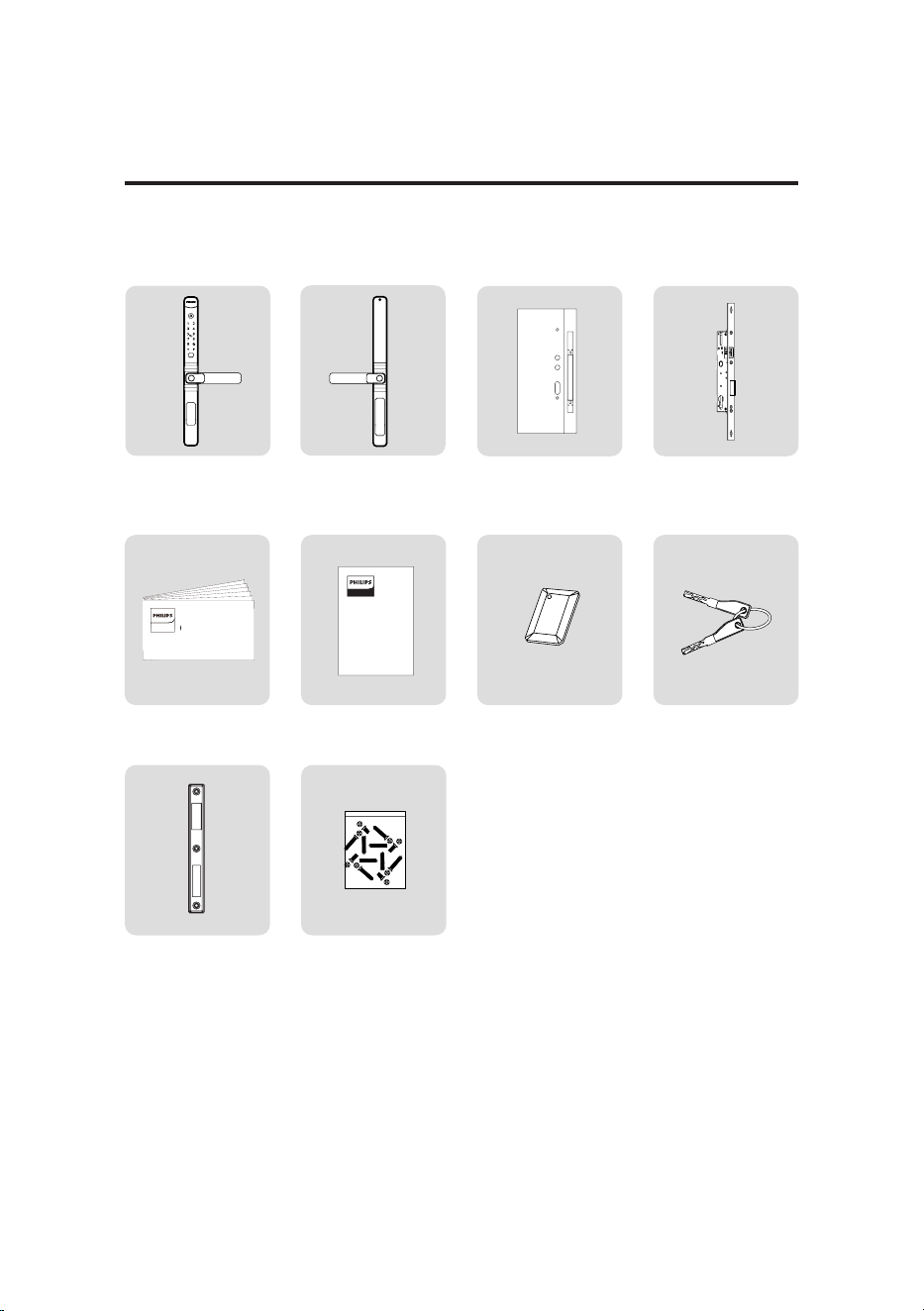

Packing list
This packing list is for reference only. Please refer to the actual packing items.
2 Assembly
Warranty
Card
Easy
Key
Quick Start
Guide
EasyKey
4

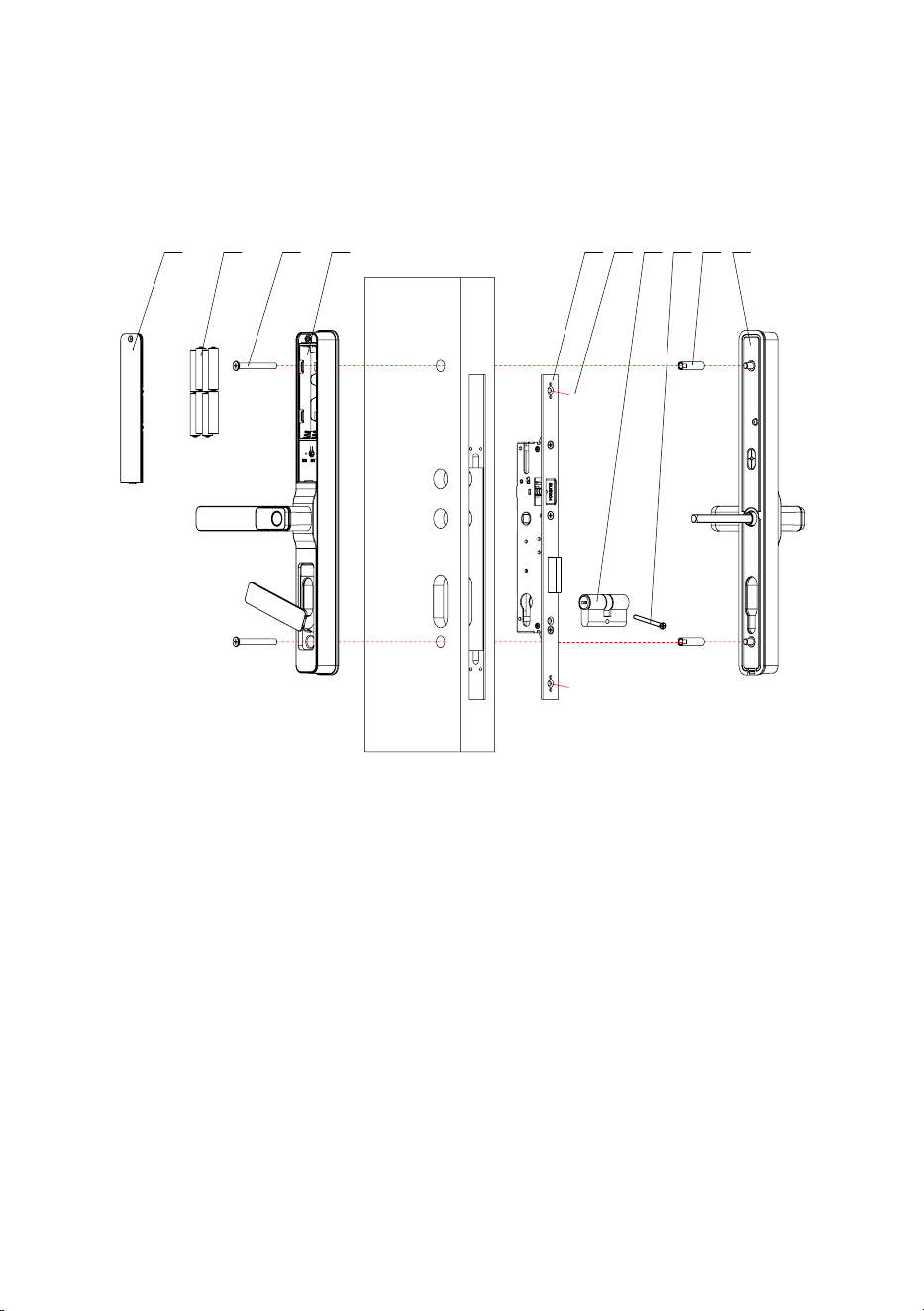

Exploded views
1. Battery cover*1
2. AAA battery*4
3. M6 anchor screw*2
4. Interior assembly*1
5. Mortise*1
6. Mortise anchor screw*2
7. Lock cylinder*1
8. Lock cylinder anchor
screw*1
9. M6 screw tube*2
10. Exterior assembly*1
1 2 3 4 5 6 7 8 9 10
5

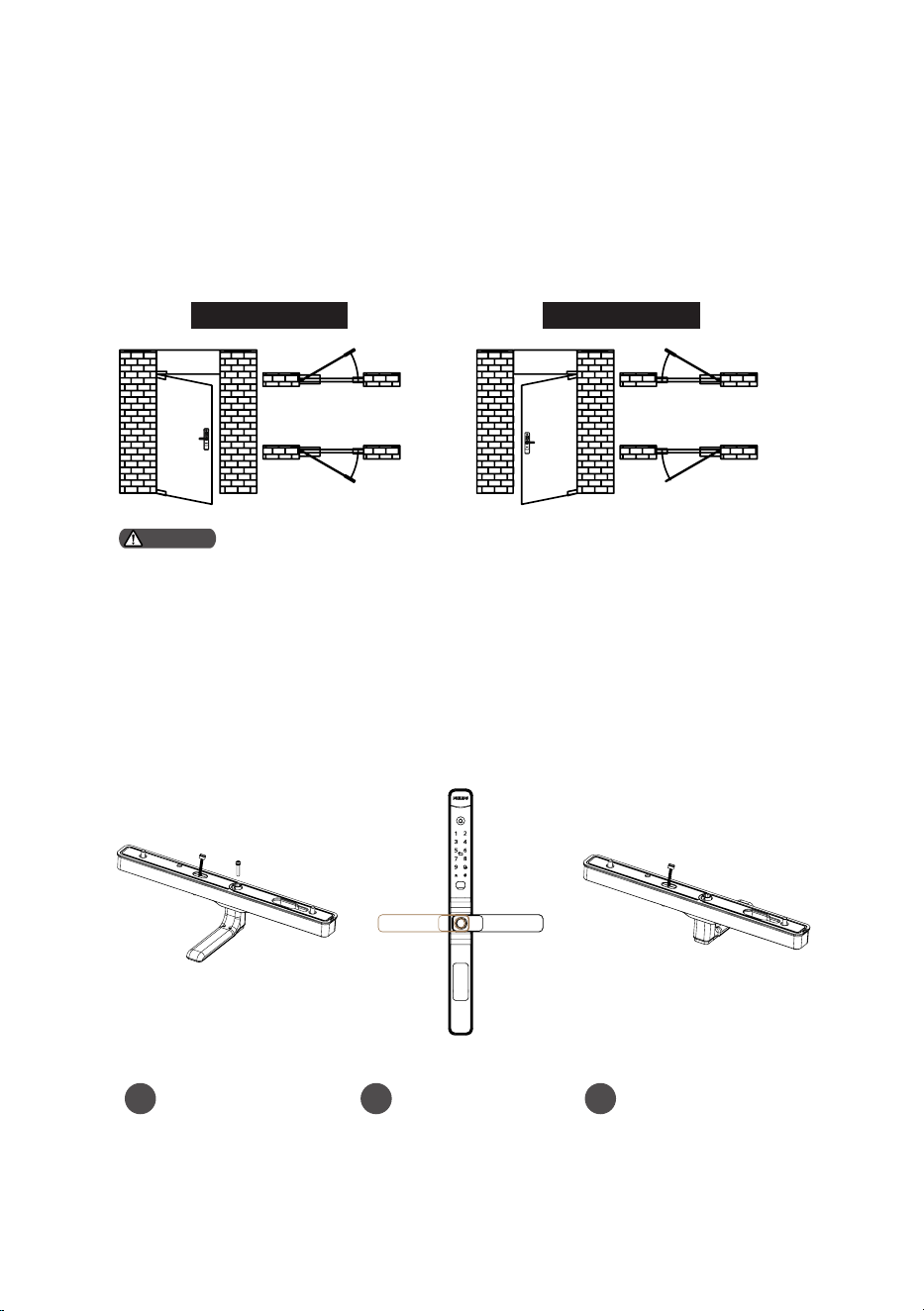

Step 1 | Door swing direction
This product applies to doors with four opening directions: left-hand inswing, left-
hand outswing, right-hand inswing, and right-hand outswing.
Step 2 | Adjustable front lever instructions
Left-hand inswing Right-hand inswing
Left-hand outswing Right-hand outswing
Notice before assembling
Left-hand swing Right-hand swing
1. Please choose the appropriate installation kit according to the thickness of the door.
2. The default installation kit is suitable for door thicknesses of 60-90mm. For other
door thicknesses, please consult your product dealer.
Attention
1 32
Loosen the
directional screw and
take out from the
handle center hole.
Rotate the lever
180° to the correct
position.
Then tighten the
directional screw.
6
1
3
2
1

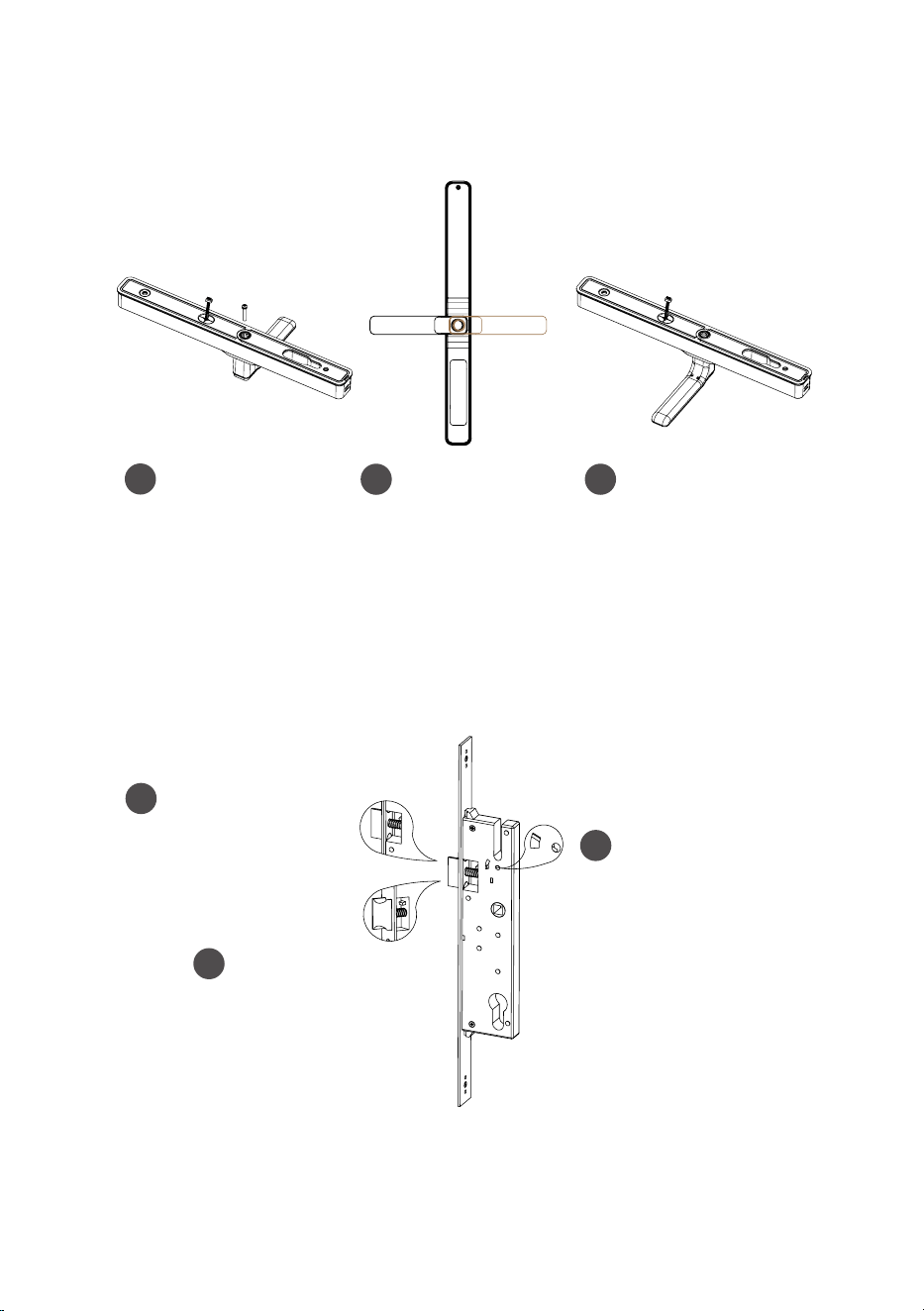

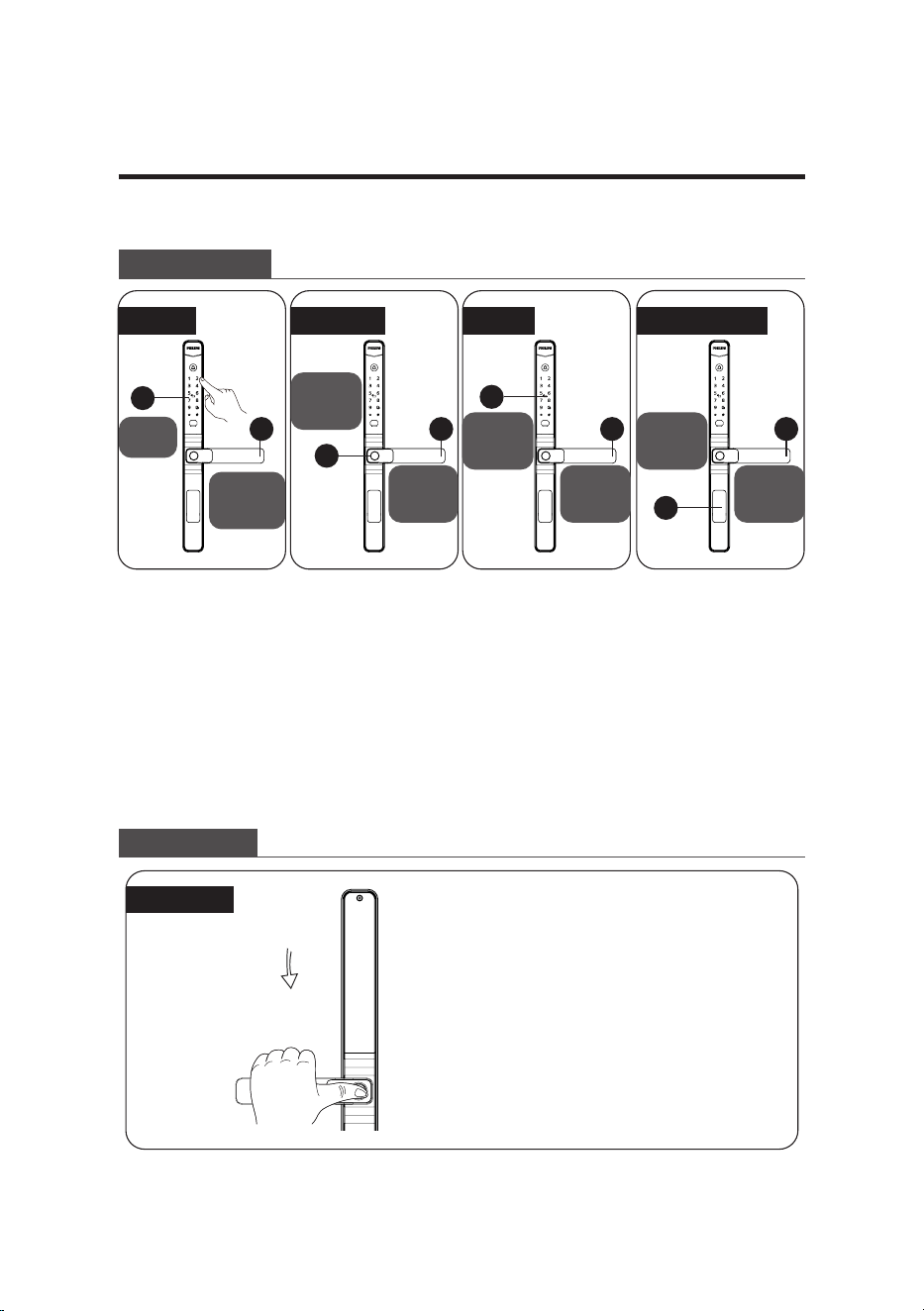

Step 3 | Adjustable latch instructions
32
Loosen the
directional screw and
take out from the
handle center hole.
Rotate the lever
180° to the correct
position.
Then tighten the
directional screw.
Adjustable rear lever instructions
Push the latch in
and rotate it to 180
degrees
Release the latch and
let it rebound
Pull the lock-out bolt
bar upward
7

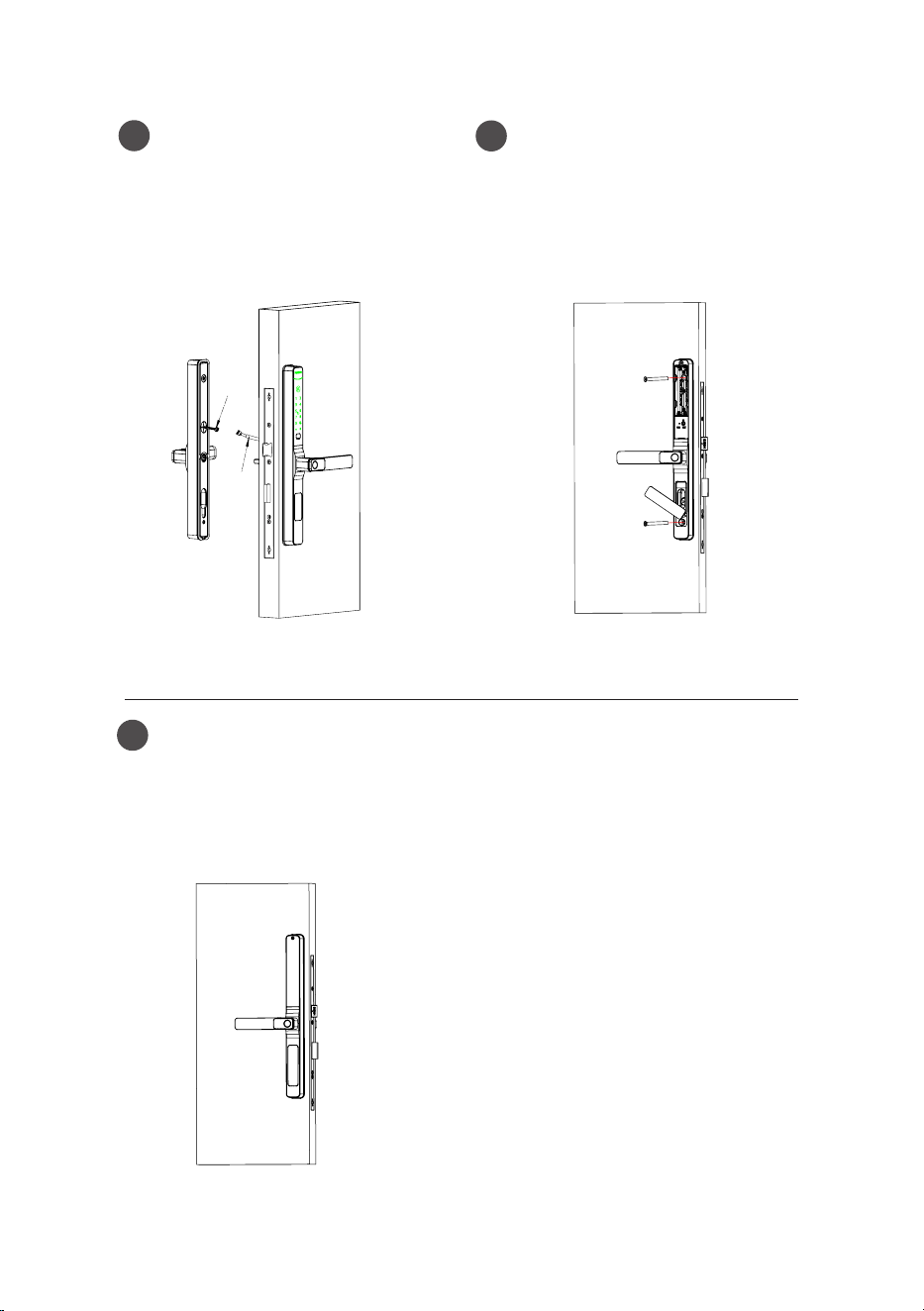

Assembly steps
The following assembly steps apply to the right-hand swing doors. For left-hand
swing doors, please read through the [Notice before assembling] and adjust the
latch direction rst.

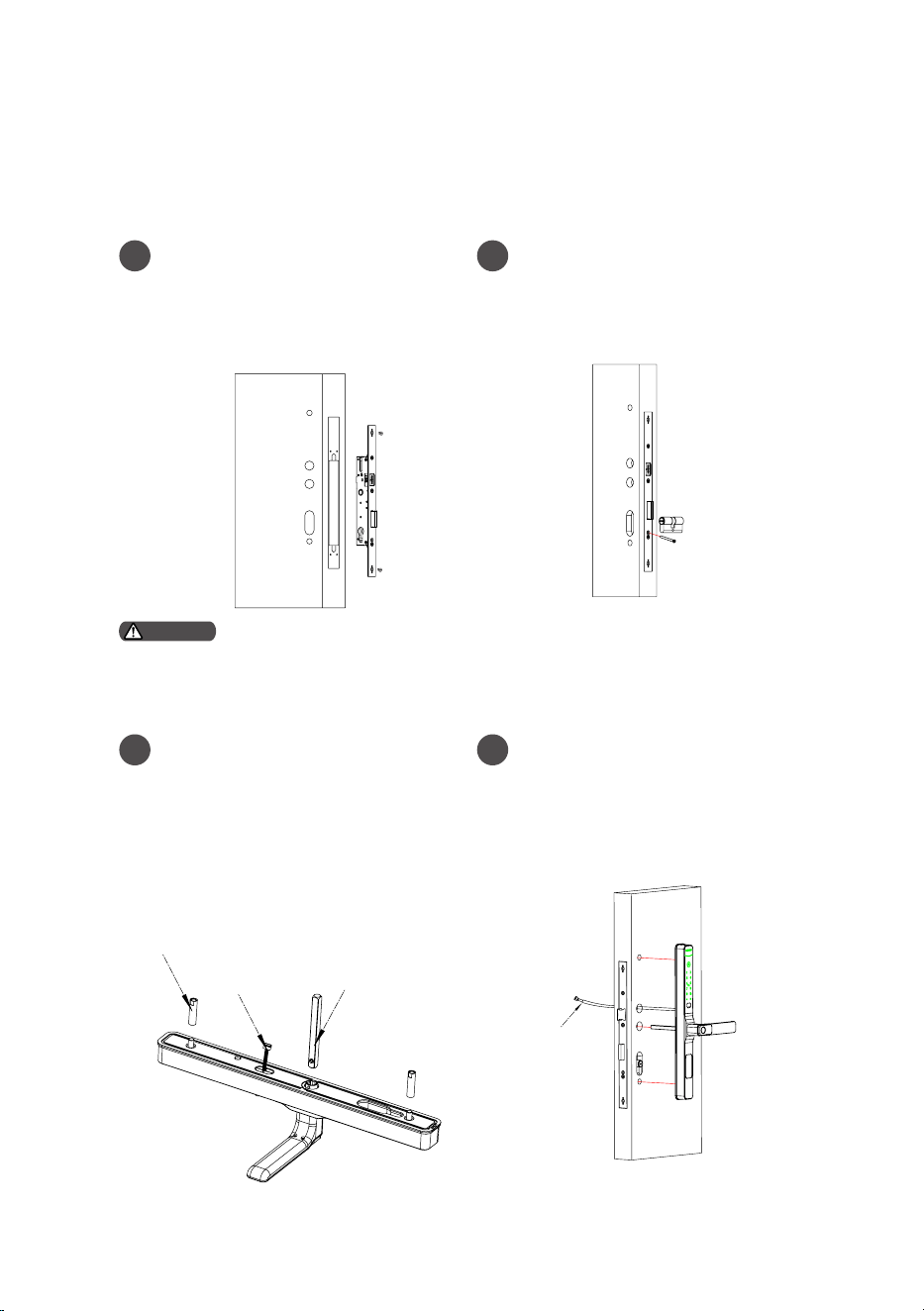

To drill holes in the door according
to the drilling template, mount
the mortise into the jamb, and
secure the two anchor screws.
Attach the screw tube onto the
exterior assembly and insert
the square shaft into the hole
accordingly. Please ensure that
the protruding part on the square
shaft is inserted into the hole until
it is securely seated.
Align the lock cylinder into
the mortise, then tighten
the screws to secure the lock
cylinder.
Pass the assembly cables through
the door hole, align and insert the
square shaft to the square shaft
hole, so that the exterior assembly
can closely t against the door.
1
3
2
4
Attention
Assembly cable
M6 screw tube
Assembly cable square shaft
Please ensure the dead bolt does not protrude
during installation.
8
5
7
6
Insert the connecting cables into
the sockets of the interior assembly
accordingly, and align the square
shaft with the hole to ensure the
interior assembly is rmly attached
to the inner surface of the door.
Install 4pcs AAA batteries and
secure the battery cover with
screws. Then put the interior
assembly cover on. Finally, check
whether each part is connected
and assembled in good condition.
Secure the top and bottom of the
interior assembly with M6 anchor
screws.
Assembly cable
Assembly cable
9
Interior assembly

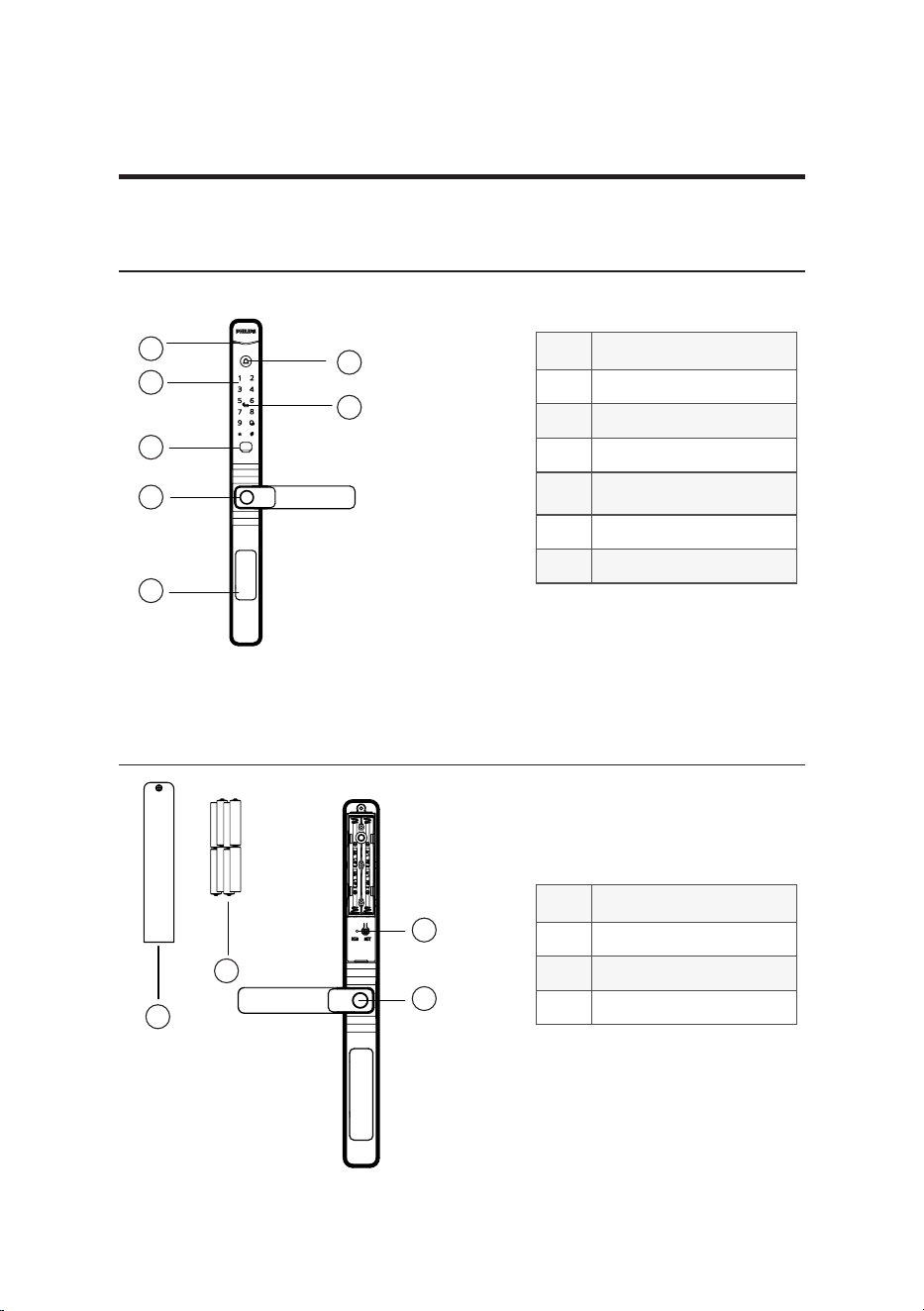

3 Get to know your lock
Exterior assembly
1
2
3
4
1
2
3
4
5
6
7
①
Status indicator
②
Doorbell
③
Keypad
④
Key tag recognition area
⑤
Reboot and emergency
charging port
⑥
Fingerprint sensor
⑦
Keyway hole
①
Battery cover
②
AAA battery*4
③
RES button
④
Fingerprint sensor
10
4 Settings
Instructions before setting
◆The system modes include the general mode and dual verication mode.
◆User number
You can delete a user's information by the user number without having to
delete everything. You can record the user information in the following
table for easy management and future reference.
Master PIN
code
PIN code Master
ngerprint
Fingerprint [#] buttonNo. 00-99
◆Icon annotation
Key tag [*] button
No. Name Fingerprint PIN code Key tag
00
01
02
03
04
05
06
07
08
09
1. When navigating the menu, to return to the previous menu, press the [*] key.
2. The default initial PIN code is 12345678.
3. Capacity: 1 set of master PIN code, 100 sets of ngerprints (including 1 set of master
ngerprint), 20 sets of user PIN codes, and 100 sets of key tags.
Attention
General mode: door can be opened using any enrolled access method.
Dual verication mode: door can be opened using any two combinations of
ngerprint, PIN code, or key tag.
11
Master mode Settings

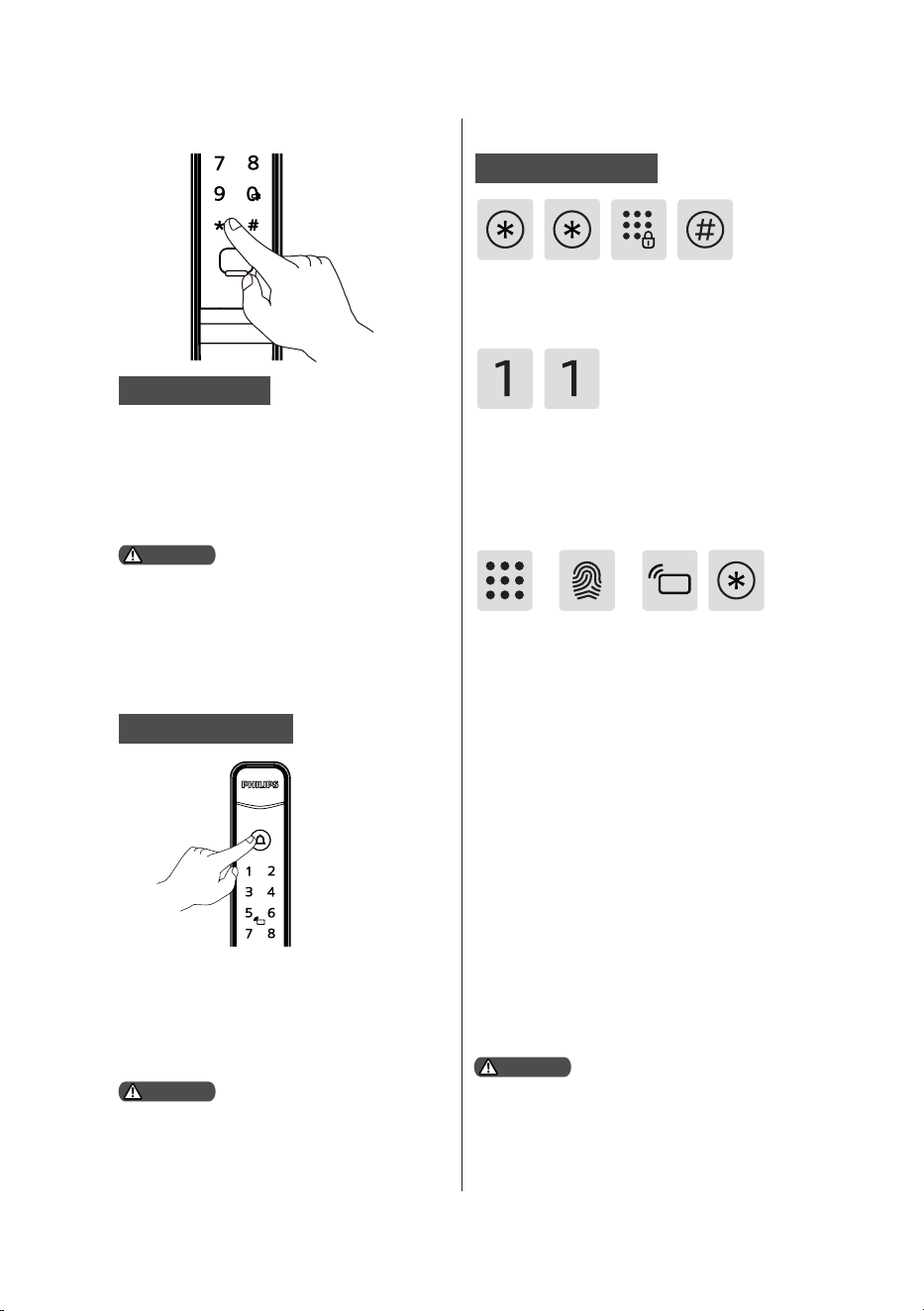

After illuminating the keypad, without
inputting any other numbers, press the [*]
key twice, then enter the master PIN code,
and press [#] to conrm to enter master
mode.
Press the [*] key twice, enter the master
PIN code, and then press the [#] key to
conrm.
Press [1] to enter settings, then press [1]
again to add a user. The door lock will
automatically detect and add PIN codes,
ngerprints, and key tags. Users can
simply add the desired access method.
Add a PIN code: Enter a new user PIN
code, press [#] to conrm, then re-enter
the PIN code and press [#] again. After the
successful addition prompt, press [*] to
return to the previous menu until exiting
master mode.
Add a ngerprint: Place your nger on
the ngerprint sensor. When prompted to
"Please remove your nger and try again,"
lift and then re-place your nger on the
sensor. Repeat this process several times.
After hearing the successful addition
prompt, press the [*] key to return to the
previous menu until exiting master mode.
Add a key tag: Enroll a new key tag. After
the successful addition prompt, press the
[*] key to return to the previous menu
until exiting master mode.
Or Or
After illuminating the keypad, without
entering any other numbers, press the [*]
key twice. Then, place the enrolled nger
on the ngerprint sensor to enter master
mode.
If the master PIN code is set to the default
PIN code, you must navigate to [1] and
then [5] in master mode to change the
master PIN code before proceeding with
other operations.
1. The door lock is initially without a master
ngerprint. Please enroll a master ngerprint
before use.
2. Do not enroll the master ngerprint as the
same as any user ngerprint.
Fingerprints successfully enrolled on the
front panel ngerprint reader can also be
used on the rear panel ngerprint reader
without having to re-enroll on the rear
panel.
Attention
Attention
Attention
Master PIN code
Add a user PIN code
Master ngerprint
12
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
Choose the access method to delete: Press
[1] to delete a PIN code; Press [2] to delete
a ngerprint; Press [3] to delete a key
tag. Follow the voice prompts for specic
deletion instructions. After successfully
deleting, press the [*] key to return to the

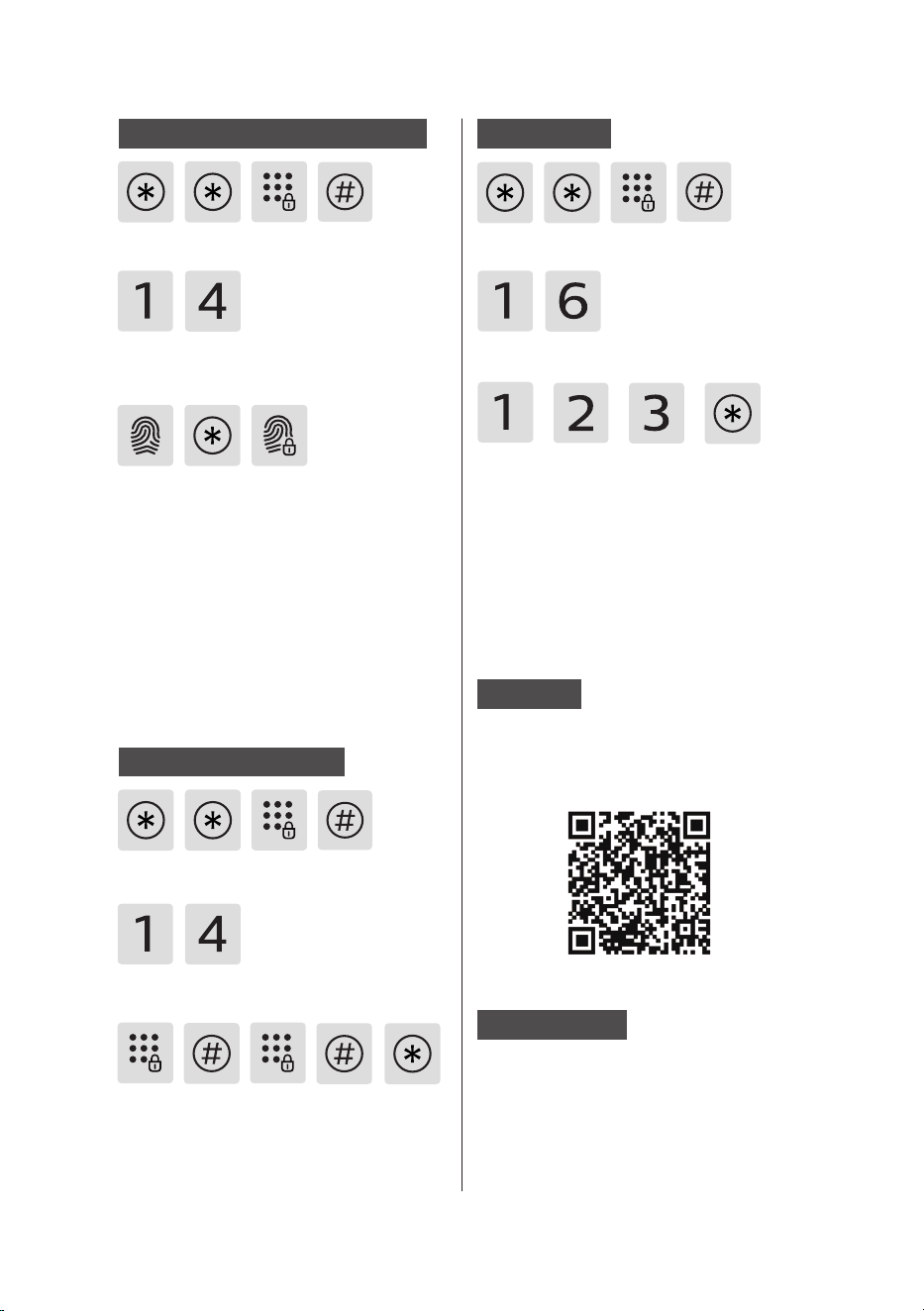

previous menu until exiting master mode.
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
Press [1] to enter settings, then press [4] to
enter the option for adding or modifying
the master ngerprint.
Press [1] to enter settings, then press [6] to
delete a user.
Press [1] to enter settings, then press [5] to
modify the master PIN code.
Enter a new master PIN code, press [#] to
conrm, then re-enter the PIN code, and
press [#] to conrm. After the successful
setting prompt, press the [*] key to return
to the previous menu until exiting master
mode.
No master ngerprint set: Input a new
user ngerprint, which will automatically
become the master ngerprint. After
hearing the successful addition prompt,
press the [*] key to return to the previous
menu until exiting master mode.
Master ngerprint already set: Input a
new user ngerprint, which will replace the
existing master ngerprint. After hearing
the successful addition prompt, press the
[*] key to return to the previous menu until
exiting master mode.
Modify or add a master ngerprint Delete a user
Modify a master PIN code
Or Or
Network settings
Scan the QR code below or search
for 'Home Access' in the app store to
download and install.
1. Install batteries and power up the door lock.
2. Turn on Bluetooth on your phone, open the
app, tap 'Add a device' on the homepage, and
follow the prompts in the app to complete the
network binding.
Download
Add a door lock
13
5 Get to use your lock
Outdoor/ indoor unlock
Outdoor unlock
Indoor unlock
PIN code
Lever unlock
Fingerprint Key tag
Mechanical key
①
Touch to light up
the keypad. Enter the
pre-enrolled PIN code,
then press [#] key to
conrm.
②
After hearing the
voice prompt "Door
opened", push down
the handle to open
the door.
①
Place the enrolled
nger correctly on the
ngerprint sensor.
②
After hearing the
voice prompt "Door
opened", push down
the handle to open
the door.
①
Place the enrolled nger
correctly on the ngerprint
sensor.
②
After hearing the voice
prompt "Door opened", push
down the handle to open
the door.
①
Place the pre-
enrolled key tag on
the card recognition
area.
②
After hearing the
voice prompt "Door
opened", push down
the handle to open
the door.
①
Press the bottom of
the keyhole cover on
the front assembly to
open it.
②
Insert the key to
unlock.
1
Press down
the handle to
unlock
Touch
keypad
2
1
Press down
the handle
to unlock
Fingerprint
recognition
area
1
1
Key tag
recognition
area
Mechanical
key
recognition
area
Press down
the handle
to unlock
Press down
the handle
to unlock
2 2 2
14

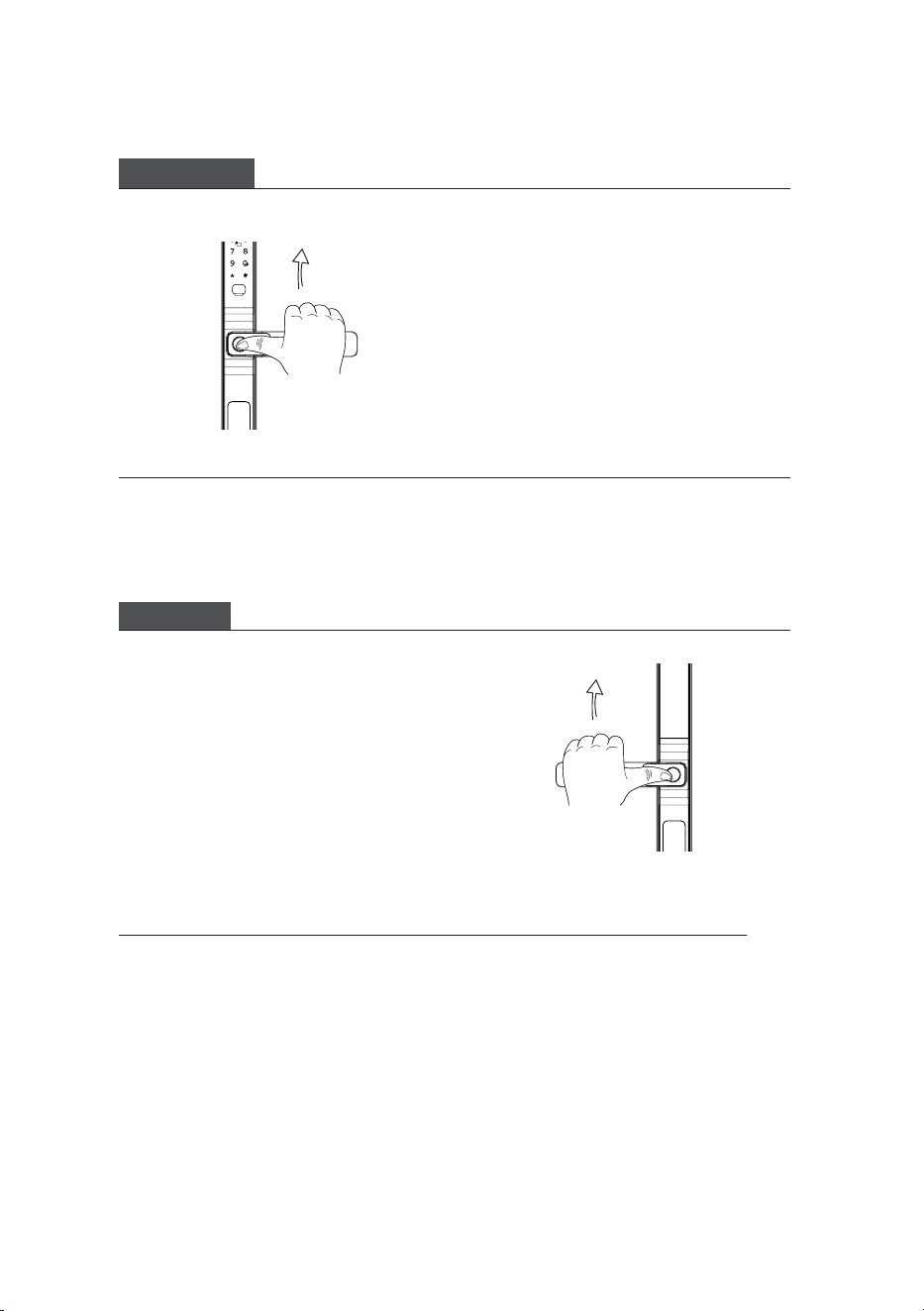

Outdoor/ indoor lock
Outdoor lock
After closing the door, lift
the lever upward to engage
the latch bolt and complete
the locking process.
After closing the door, lift
the lever upward to engage
the latch bolt and complete
the locking process.
Indoor lock
15
Mechanical key
①
Press the lower part of the
keyway cover, rotate the upper
part of the cover, and reveal the
keyway hole.
②
Insert the mechanical key
into the keyway hole and rotate
to unlock after inserting rmly.
1. Avoid using the mechanical key regularly. Only resort to it in emergencies such as drained
battery, forgotten PIN code, or system malfunctions.
2. Store the mechanical key outside the home, ideally in the oce, car, or a secure location,
for easy access during emergencies.
Attention
16
Function:
Activate mute mode by pressing the mute
button to silence voice prompts during
door unlock—great for quiet times to avoid
disturbing others in the household.
How to use:
1. Switching voice mode to mute mode:
while the system is awake, press and hold
the "Mute" button for 2 seconds to enter
mute mode. The voice prompt will say
"Mute mode".
2. Switching mute mode to voice mode:
while the system is awake, press and hold
the "Mute" button for 2 seconds to return
to voice mode. The voice prompt will say
"Voice mode".

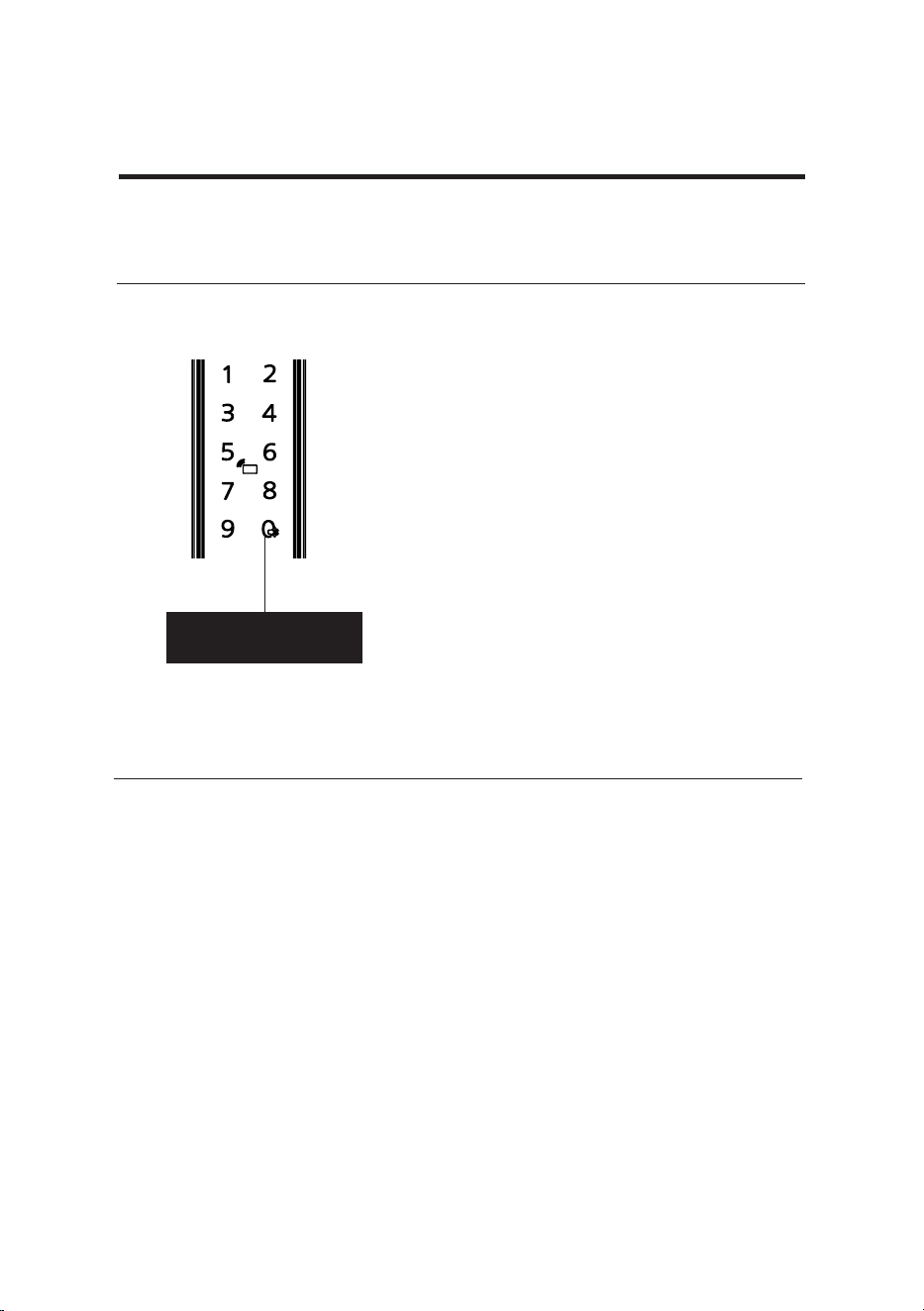

6 Other features
Mute button
The 0 button also serves
as a mute button.
17
Function:
Empty all user data and restore to factory
default settings.
How to use:
Double-press the [RES] button with a sharp
object, which will erase all user information
and restore the lock to its default settings.
Function:
The indoor speaker plays a ding-dong
sound, informing that someone is at the
door.
How to use:
When the doorbell is pressed, the indoor
speaker will emit a ringing sound.
Factory reset
Doorbell
1. Upon pressing the doorbell, the indicator
will light up in blue and ash.
2. The 'Do Not Disturb' mode can be set via
the app. Once set, pressing the doorbell will
not emit any sound indoors.
Attention
RES
RES
18

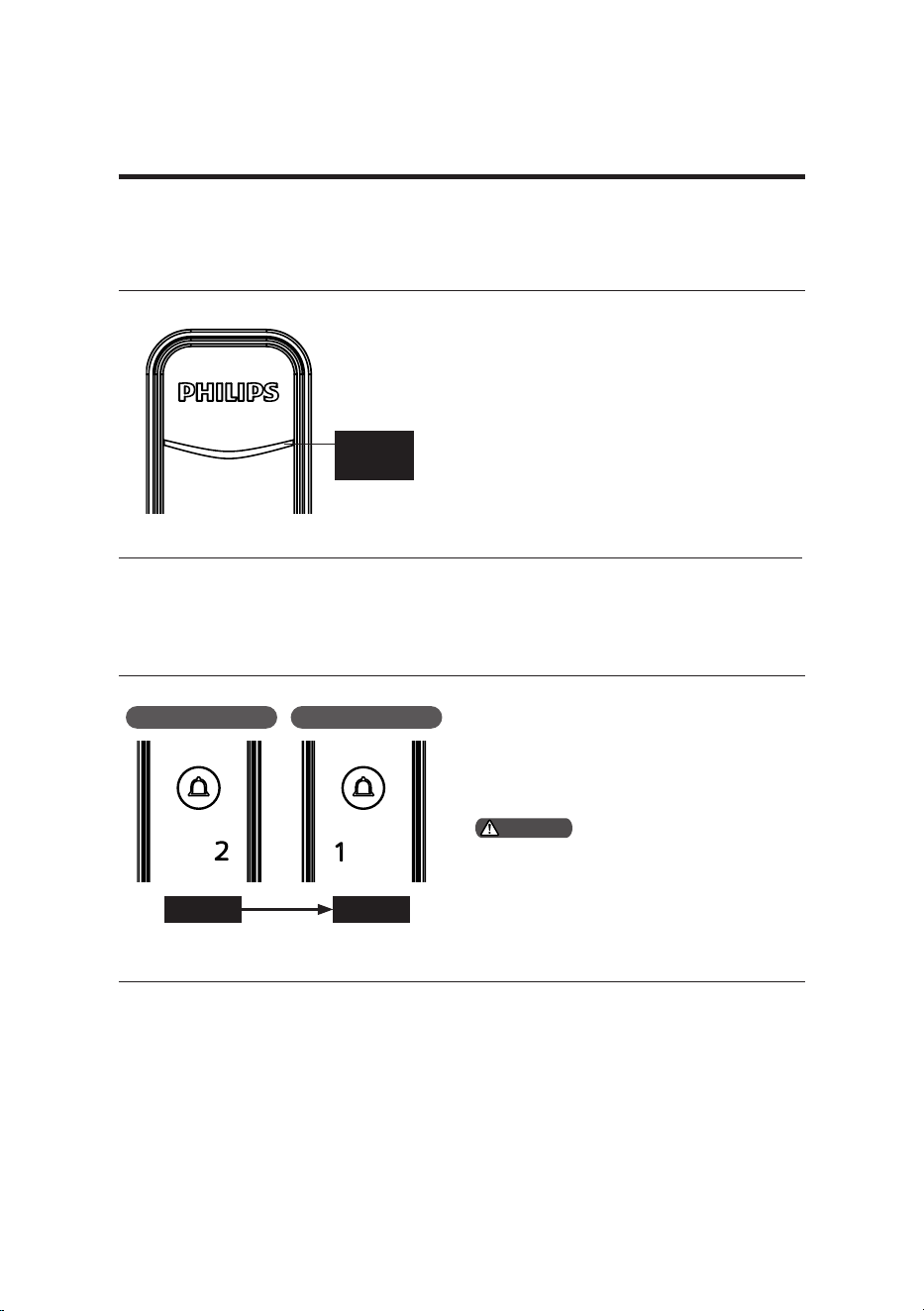

System locking indicator
7 Indicators
Status indicator
Blue:when the system wakes up, the
indicator turns blue, indicating that the
door lock is ready for operation.
Green:when the door lock is unlocked, the
indicator turns green, indicating that the
door has opened.
Red:when the door lock is locked, the
indicator turns red, indicating that the
door has closed.
If there are ve consecutive incorrect
attempts within ve minutes using
ngerprint, PIN code, or key tag, the door
lock will be locked for two minutes.
In 2 mins In 1 min
[2] button in ashing [1] button in ashing
Prompts will only appear upon touching
to wake up the keypad or when verifying
access methods.
Attention
Status
indicator
19

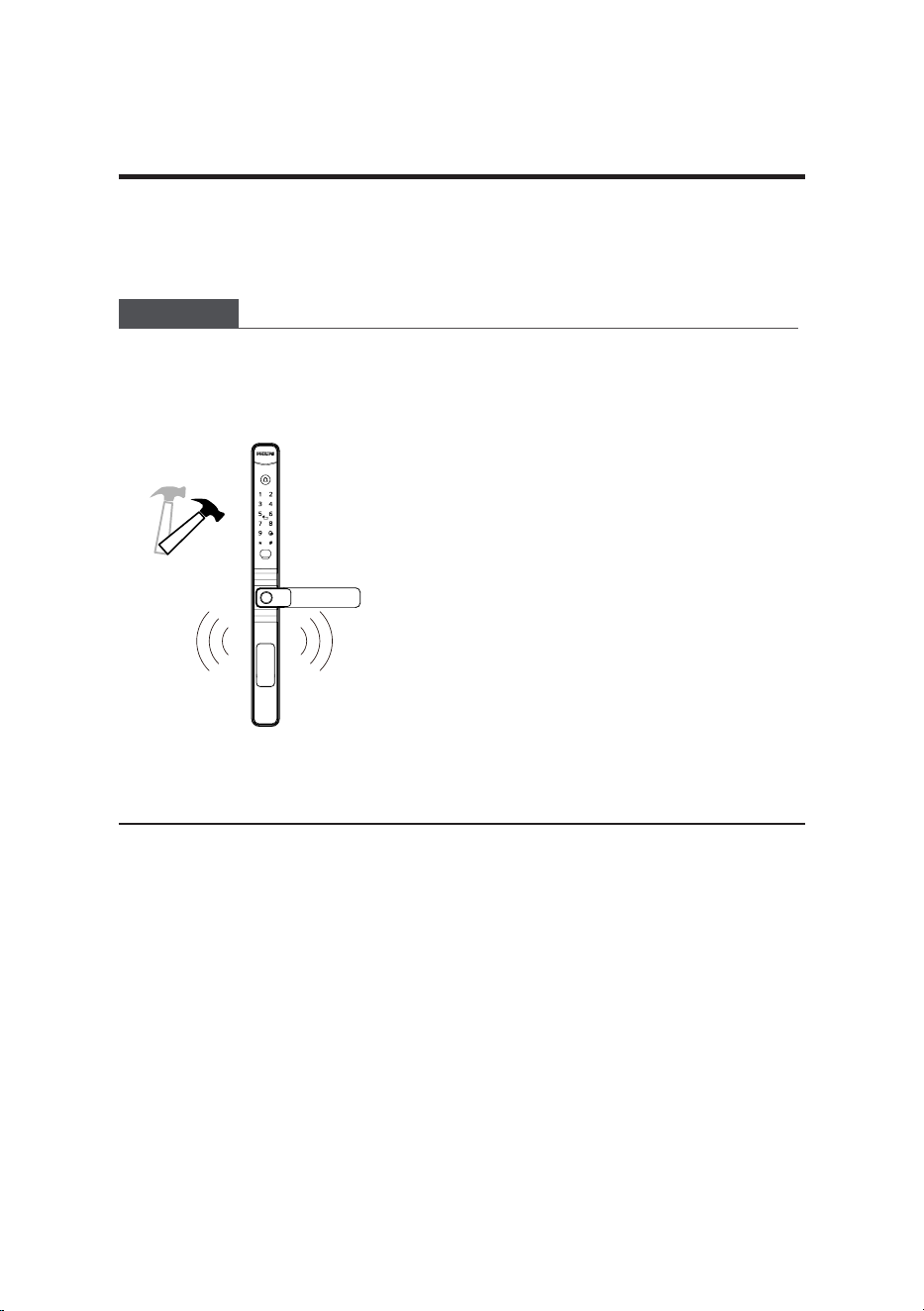

Triggering 1: after the door gap is pried
open, the assitant bolt will extend.
Alert method: continuous, repeated alert
sound.
O:the alert will be o automatically or
after a successful verication of any access
method.
Triggering 2: exterior assembly is pried
open, and not properly aligned with the
door.
Alert method: continuous, repeated alert
sound.
O:the alert will automatically be o or
upon successful verication of any access
method from outside or unlocking from
inside.
8 Troubleshooting
Alert types
Tamper alert
20
How to apply external power source
Battery replacement
When the battery voltage is low
and you're unable to unlock the
door from outside, you can use a
5V power bank as an emergency
power source for the door lock.
After unlocking the door, please
replace the battery promptly. In
case of system malfunction and
inability to open the door from
outside, you can also use a 5V
power bank to provide power to
the door lock. Upon powering
up, the system will automatically
restart.
1.The door lock operates on four
AAA alkaline batteries.
2. You can remove the battery cover
for replacement by unscrewing
the screw located at the top of the
cover.
Reboot and
emergency
charging port
21
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips
N.V. and are used under license. This product has been manufactured by and is sold
under the responsibility of Shenzhen Conex Intelligent Technology Co., Ltd., and
Shenzhen Conex Intelligent Technology Co., Ltd. is the warrantor concerning this
product.
