Operating and Installation
Instructions
Induction Cooktops
To prevent accidents and damage to the range, you must read all in-
structions supplied before installing or using the appliance.
en-US, CA M.-Nr. 13 038 370
Contents
IMPORTANT SAFETY INSTRUC-
TIONS.................................................
4
Sustainability and environmental
protection ..........................................
11
Installation......................................... 12
Safety notes for installation .............
12
Additional safety notes for
proud installation .........................
13
Additional safety notes for flush
installation.....................................
13
Safety distances ................................
14

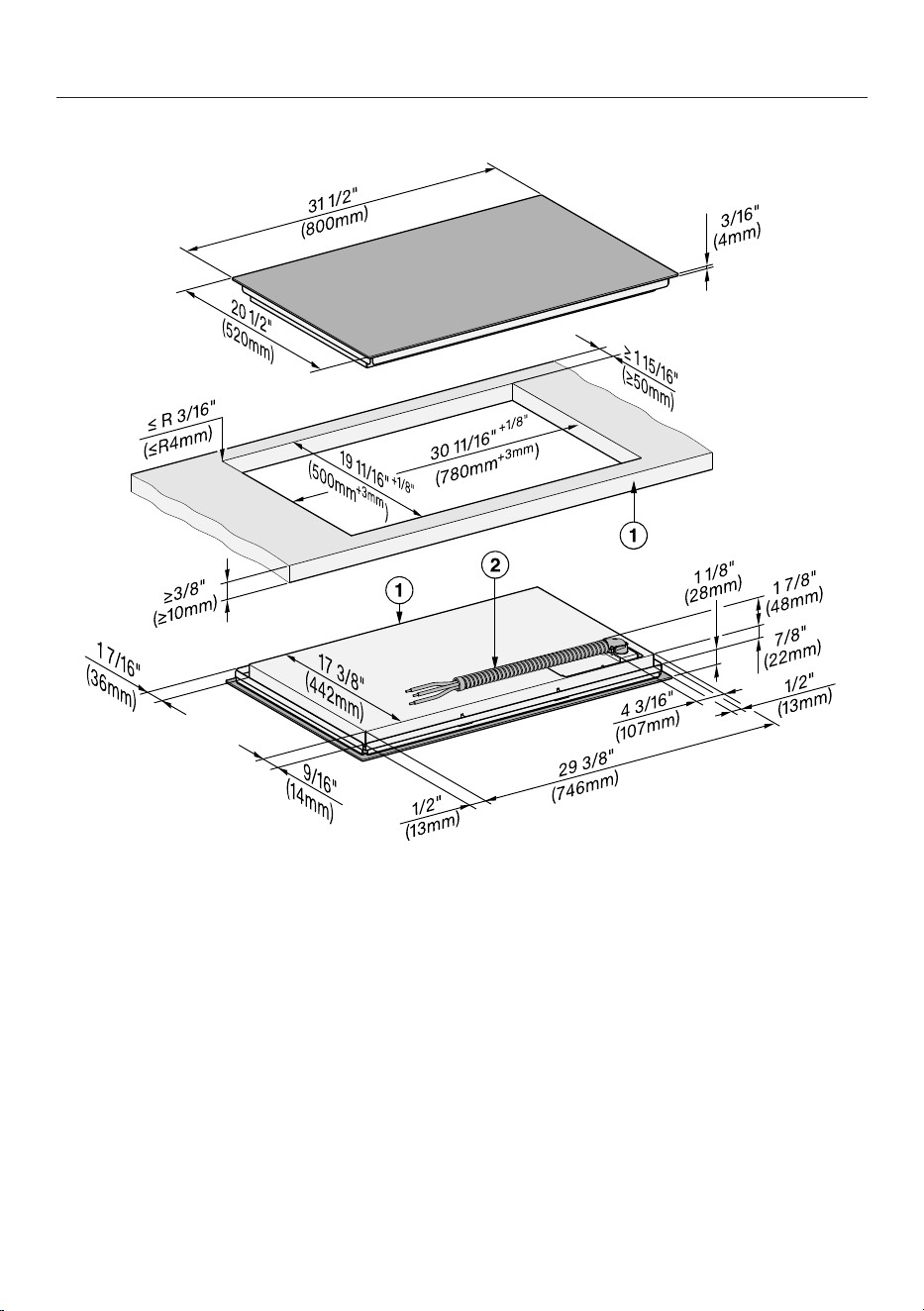

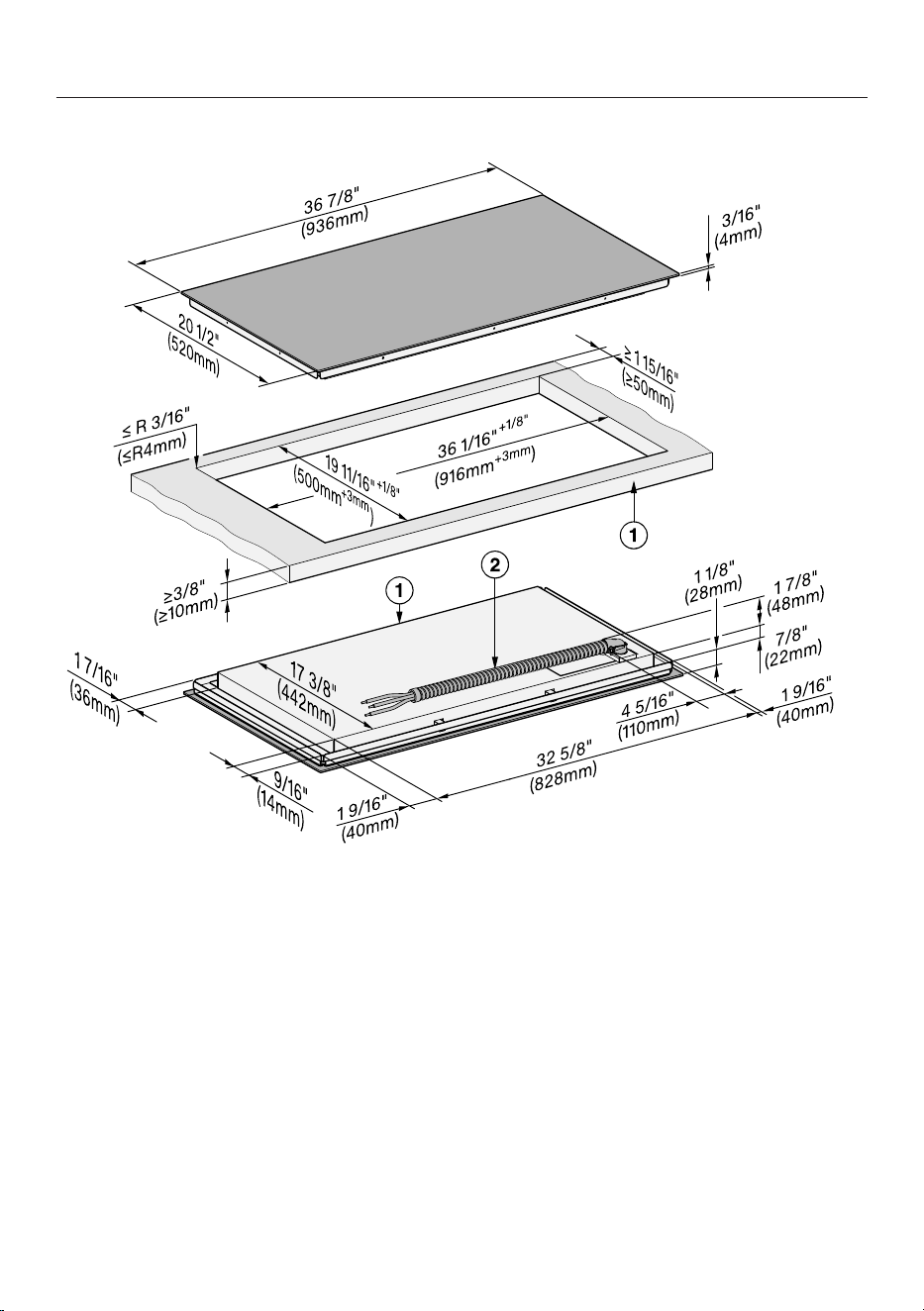

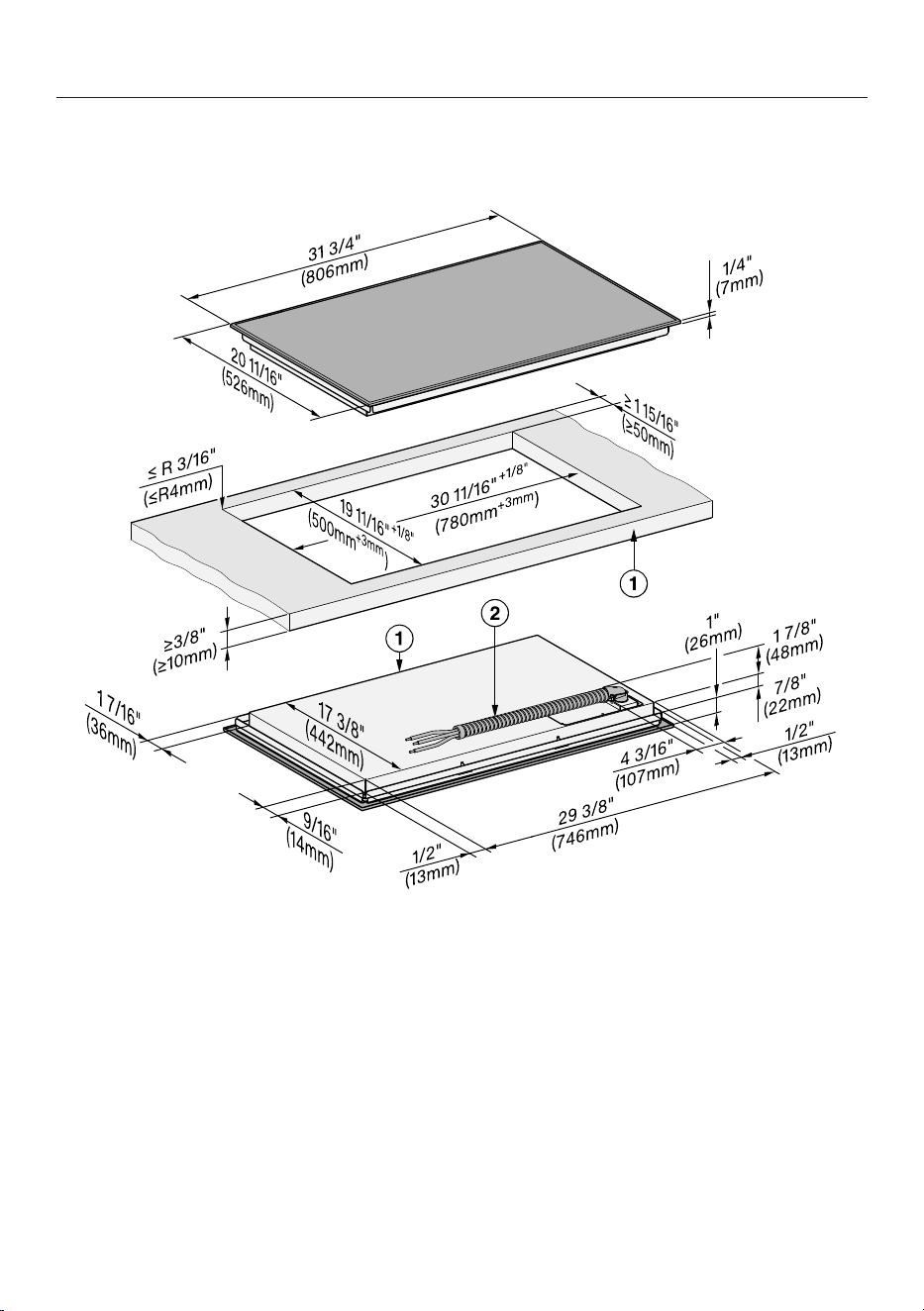

Installation dimensions for proud
installation ..........................................
18
KM7737FRDiamond................. 18
KM7737FLDiamond ................. 19
KM7747FRDiamond................. 20
KM7747FLDiamond ................. 21

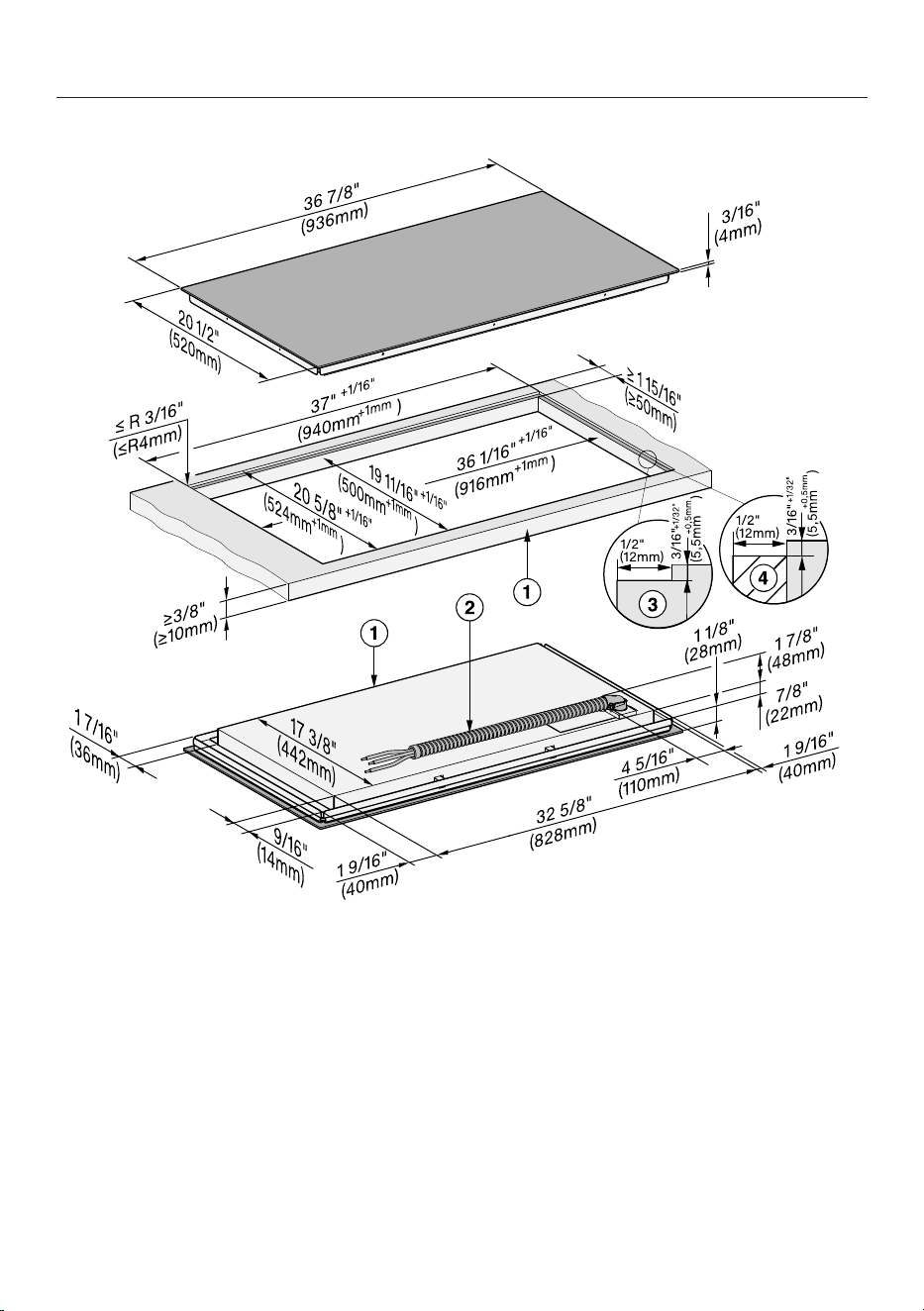

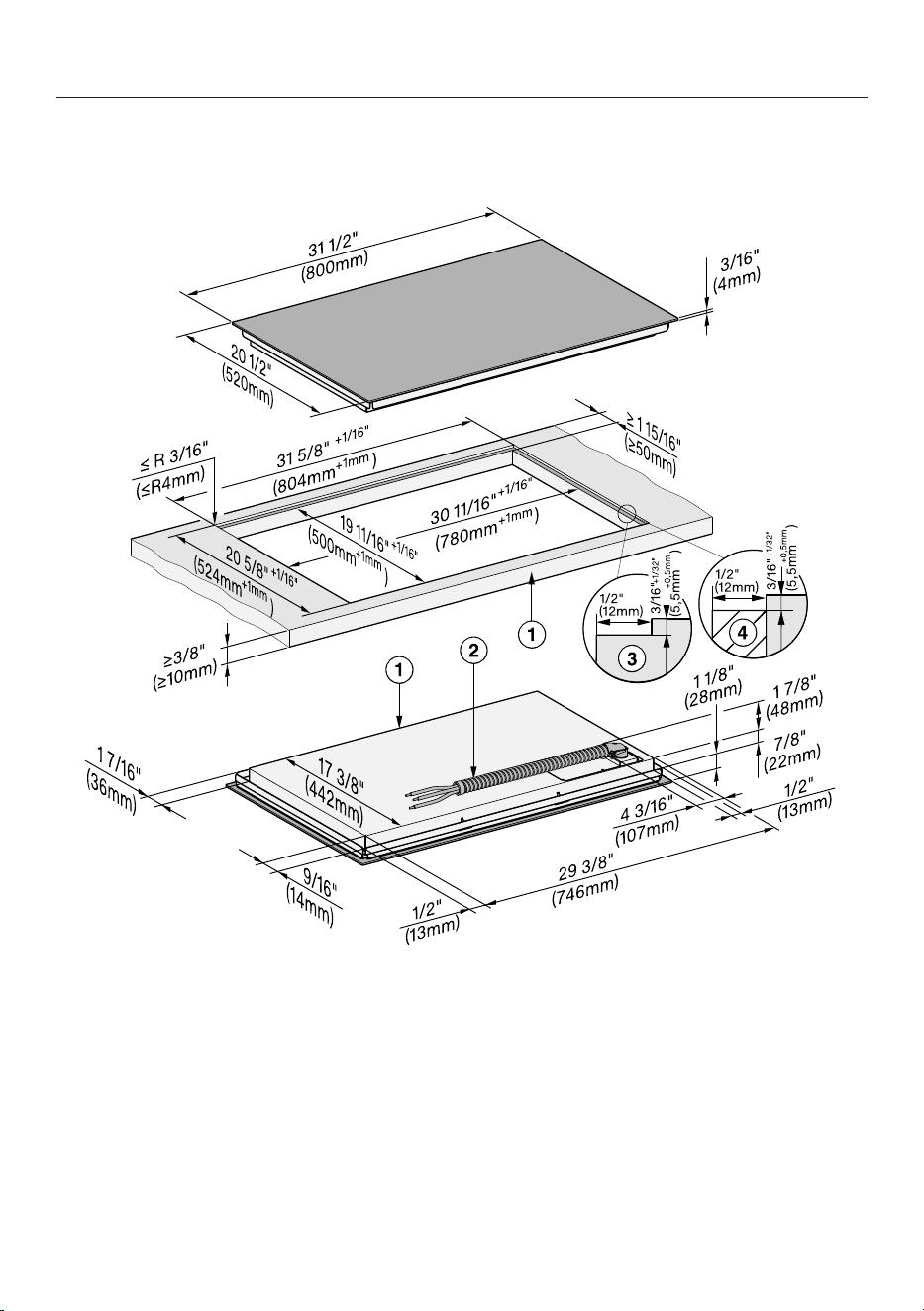

Installation dimensions for flush in-
stallation .............................................
22
KM7737FLDiamond ................. 22
KM7747FLDiamond ................. 23
Installing a proud cooktop................
24
Preparing the countertop for
proud installation .........................
24
Installing a proud cooktop .......... 24
Installing the cooktop flush with
the countertop ...................................
24
Preparing the countertop for
flush installation...........................
24
Installing a flush cooktop............ 24
Electrical connection ........................
25
Overview............................................ 27
Your cooktop ......................................
27
Controls and indicators ....................
27
Power management system ............
29
Operation............................................
29
Connecting to a network ............ 000
Connection only with the venti-
lation hood....................................
000
Special functions................................
29
Con@ctivity3.0 ........................... 29
Permanent pan recognition......... 29
Pan size recognition ..................... 29
Cooktop Booster .......................... 29
Stop&Go ..................................... 29
Auto heat-up ................................. 30
Timer .............................................. 30
System lock................................... 30
Safety lock..................................... 30
Keeping warm ............................... 30
Wipe protection............................ 30
Settings.......................................... 30
Demo mode................................... 30
Showroom mode.......................... 30
Residual heat indicator ................ 30
Safety shut-off .............................. 30
Overheating protection................ 31
Cooktop data................................. 32
Optional accessories.........................
32
Commissioning ................................. 33
Unpacking the cooktop .....................
33
Cleaning the cooktop for the first
time ......................................................
33
Switching on the cooktop for the
first time ..............................................
33
Networking..........................................
33
Connecting to a network via the
app..................................................
33
Connecting to a network via
WPS ...............................................
34
Connecting only with a ventila-
tion hood........................................
34
Operation............................................ 36
Safety notes for operation ................
36
Switching on the cooktop.................
36
Switching off the cooktop.................
37
Positioning cookware ........................
37
Cooktop power levels........................
38
Setting the power level................ 38
Setting the power level – inter-
mediate levels ...............................
38
Changing the power level............ 38
2
Contents
Booster ...............................................
38
Activating the Booster function. 38
Deactivating the Booster func-
tion.................................................
38
Activating/deactivating Stop&Go
39
Auto heat-up ......................................
39
Activating Auto heat-up.............. 39
Deactivating Auto heat-up ......... 40
Timer ...................................................
40
Setting timer durations............... 40
Setting the kitchen timer............ 40
Changing the kitchen timer ........ 40
Deleting the kitchen timer.......... 40
Setting the reduce time .............. 40
Changing the reduce time .......... 41
Deleting the reduce time............ 41
Setting multiple reduce times.... 41
Displaying reduce times ............. 41
Using both timer functions at
the same time ..............................
41
System lock........................................
41
Activating the system lock ......... 41
Deactivating the system lock..... 42
Safety lock..........................................
42
Activating the safety lock............ 42
Deactivating the safety lock....... 42
Keeping warm ....................................
42
Keeping warm temperatures for
various applications.....................
42
Tips for keeping food warm........ 42
Wipe protection.................................
43
Activating wipe protection ......... 43
Deactivating wipe protection..... 43
Cooktop data......................................
43
Displaying the model number/
serial number................................
43
Displaying the software version 43
Activating/deactivating demo
mode ...................................................
43
Activating/deactivating showroom
mode ...................................................
43
Setting ranges for the power lev-
els ........................................................
45
Customizing settings ....................... 46
Cleaning and care............................. 50
Safety notes on cleaning and care...
50
Cleaning the glass-ceramic sur-
faces.....................................................
50
Unsuitable cleaning agents ..............
50
Frequently asked questions ........... 52
Messages in the display....................
52
Miele Service..................................... 54
Contact in the event of a fault..........
54
Data plate............................................
54
Appliance warranty and product
registration ..........................................
54
Technical data.................................... 55
Declaration of conformity .................
55
3
IMPORTANT SAFETY INSTRUCTIONS
This cooktop complies with all relevant local and national safety re-
quirements. Inappropriate use can, however, lead to personal injury
and material damage.
Read the operating and installation instructions carefully before us-
ing the cooktop. They contain important information on safety, in-
stallation, use, and maintenance. This prevents both personal injury
and damage to the cooktop.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the cooktop as well as in the “IMPORTANT
SAFETY INSTRUCTIONS”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any fu-
ture owner.
Appropriate use
This cooktop is intended for domestic use and use in other similar
environments.
This cooktop is not intended for outdoor use.
The cooktop is intended for domestic use only to prepare food and
keep it warm. Any other use may be dangerous.
Persons (including children) who lack physical, sensory or mental
abilities, or experience with the appliance should not use it without
supervision or instruction by a responsible person.
Safety with children
Do not leave children unattended: Children should not be alone or
unsupervised in the area where the appliance is installed. Do not al-
low them to sit or stand on the appliance.
Children should be supervised in the vicinity of the cooktop. Never
allow children to play with the cooktop.
The cooktop gets hot when in use and remains hot for some time
after being turned off. Keep children away from the appliance until it
has cooled down and is no longer a burn hazard.
4
IMPORTANT SAFETY INSTRUCTIONS
Danger of burning. Do not store anything which might arouse a
child’s interest in storage areas above or behind the cooktop. Other-
wise they could be tempted to climb onto the cooktop.
Risk of burning or scalding. Turn pot and pan handles inward, so
children cannot pull them down and be burned.
Danger of suffocation. While playing, children may become entan-
gled in packaging material (such as plastic wrapping) or pull it over
their head, presenting the risk of suffocation. Keep packaging material
away from children.
Activate the system lock to ensure that children cannot turn on the
appliance inadvertently. Use the safety lock when the cooktop is in
use to prevent children from altering the settings selected.
Technical safety
Proper installation: Make sure that your appliance has been in-
stalled correctly and that it has been grounded by a qualified techni-
cian.
Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so.
Service work should only be performed by a qualified technician.
Unauthorized installation, maintenance, and repairs could result in
unforeseen dangers for the user, for which the manufacturer cannot
accept liability. Installation, maintenance, and repairs should only be
carried out by a qualified specialist or Miele Service.
Damage to the cooktop can compromise your safety. Check the
cooktop for visible signs of damage. Do not use the cooktop if it is
damaged.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronized with
the grid power supply (e.g., island networks, back-up systems) is pos-
sible. A prerequisite for operation is that the power supply system
complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
5
IMPORTANT SAFETY INSTRUCTIONS
The electrical safety of this cooktop can only be guaranteed when
correctly grounded. It is essential that this basic safety requirement is
fulfilled. If in doubt, the electrical installation should be checked by a
qualified electrician.
The connection data (voltage and frequency) on the data plate of
the cooktop must match the power supply in order to avoid the risk
of damage to the cooktop.
Compare this data before connecting the appliance. If in any doubt,
consult a qualified electrician.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
For safety reasons, the cooktop may only be used when it has
been fully installed.
This cooktop must not be used at non-stationary installation sites
(e.g., on a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the cooktop will endanger your safety
and may lead to the cooktop malfunctioning.
Do not open the cooktop housing under any circumstances.
The manufacturer’s warranty may be invalidated if the cooktop is
not repaired by a qualified specialist or by Miele Service.
It is recommended to replace faulty components with original
Miele parts. If original Miele parts are installed correctly, Miele en-
sures full compliance with safety requirements and the warranty re-
mains valid.
The appliance is not intended for use with an external timer switch
or a remote control system.
The cooktop must be connected to the electricity supply by a qual-
ified electrician (see “Installation – Electrical connection”).
If the power cord is damaged, it must only be replaced by a quali-
fied service technician (see “Installation–Electrical connection”).
The appliance must be completely disconnected from the electric-
ity supply during installation, maintenance and repair work. Ensure
that power is not supplied to the appliance until after it has been in-
stalled or until any maintenance or repair work has been carried out.
Disconnect by
6
IMPORTANT SAFETY INSTRUCTIONS
- removing the fuse,
- “tripping” the circuit breaker, or
- unplugging the unit (if equipped with plug). Pull the plug not the
cord.
Danger of electric shock. Do not use the cooktop if it is faulty, or if
the ceramic surface is cracked, chipped, or damaged in any way.
Switch it off immediately. Disconnect the cooktop from the electrical
power supply. Contact a qualified specialist or Miele Service.
If the cooktop is installed behind a cabinet door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door and cause damage to the cooktop, cabi-
netry, and flooring. Do not close the door until the residual heat indi-
cators go out.
Correct use
The cooktop gets hot when in use and remains hot for a while after
being turned off. There is a potential hazard until the residual heat in-
dicator goes out.
Never leave the appliance unattended at high heat settings–
Boilover causes smoking and greasy spillovers that may ignite.
Oil and fat can catch fire if overheated. Never leave the appliance
unattended when cooking with oil and fat. If the oil or fat catches fire,
do not attempt to put the flames out with water.
Turn off the cooktop and smother the flames using a lid or a suitable
fire blanket.
Do Not Use Water on Grease Fires–Smother fire or flame or use
dry chemical or foam-type extinguisher.
Storage in or on the appliance: Flammable materials should not be
stored in an oven or in the vicinity of the appliance.
The flames could set the grease filters of a ventilation hood on fire.
Do not flambé under a ventilation hood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the appliance. Cutlery inserts must be heat-resis-
tant.
Never heat empty cookware.
7
IMPORTANT SAFETY INSTRUCTIONS
Do not heat or can food in closed containers, such as tins or
sealed jars, on the cooktop, as pressure will build up in the container
and cause it to explode.
If the cooktop is covered, there is a risk that the material of the
cover will ignite, explode or melt if the cooktop is still hot or if turned
on inadvertently. Never cover the cooktop with a board, cloth or pro-
tective sheet.
When the cooktop is switched on either deliberately or by mistake,
or when there is residual heat present, there is the risk of metal items
placed on the cooktop heating up. Other materials can melt or catch
fire when the appliance is switched on. Damp pan lids may adhere to
the surface. Do not store items on the cooktop. Switch the cooktop
off after use.
You could burn yourself on the hot cooktop. Protect your hands
with heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to trans-
fer through the material more quickly with the risk of scalding or
burning yourself.
When using an electrical appliance (e.g., a hand mixer) near the
cooktop, make sure that the power cord does not come into contact
with the hot cooktop. The cord’s insulation could become damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the ce-
ramic surface is clean before placing pans on it.
Even a light object can cause damage to the ceramic cooktop in
certain circumstances. Do not drop anything on the ceramic surface.
Do not place hot pans on the sensor buttons and display as this
could cause damage to the electronics underneath. Do not place hot
pans on the area around the display.
Do not allow solid or liquid sugar, or pieces of plastic or aluminum
foil to get onto the cooktop when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, turn off the
appliance immediately and scrape off all the sugar, plastic or alu-
minum residues while still hot, using a shielded scraper blade. Use
pot holders. Allow the ceramic surface to cool down before cleaning
with a suitable ceramic cleaning agent.
Do not heat empty pots on the cooktop as this can damage the ce-
ramic surface and/or the cookware. Never leave the cooktop unat-
tended when it is turned on.
8
IMPORTANT SAFETY INSTRUCTIONS
Pots and pans with bases with pronounced edges or ridges can
scratch the ceramic surface. Only use pots and pans with smooth
bases.
Lift pans into position on the cooktop. Sliding them into place can
cause scuffs and scratches.
Because induction heating works so quickly, the temperature can
quickly reach the ignition point of oils and fats. Never leave the cook-
top unattended when it is turned on.
Do not heat oils and fats for longer than 1minute, and never use
the booster.
For people who have a heart pacemaker: Please note that an elec-
tromagnetic field is created in the area immediately surrounding the
cooktop when it is switched on. It is very unlikely to affect a pace-
maker. However, if in any doubt, consult the manufacturer of the
pacemaker or your doctor.
When switched on, the electromagnetic field of the cooktop can
impair the function of magnetizable objects. Do not leave credit
cards, digital storage devices, pocket calculators, etc. in the immedi-
ate vicinity of the cooktop.
Metal utensils stored in a drawer under the cooktop can become
hot if the appliance is used intensively for a long time.
The cooktop is equipped with a cooling fan. If a drawer is located
directly underneath the cooktop, ensure that there is sufficient space
between the drawer and its contents and the underside of the cook-
top in order to ensure sufficient ventilation for the cooktop.
If a drawer is located directly underneath the cooktop, do not store
any pointed or small items, paper, napkins, etc. in the drawer. They
could get in through the ventilation slots or be sucked into the casing
by the fan and damage the fan or impair cooling.
Wet sponges or cloths can cause burns due to hot steam if they
are used to wipe spilled food off a hot cooktop. Some cleansers can
emit hazardous vapors if they are applied to a hot surface. Be careful
when cleaning the cooktop.
If the cooktop is damaged, cleansers or spilled food can penetrate
the glass surface and cause a short-circuit. Never cook on a damaged
cooktop. Contact an electrician immediately.
If an induction adapter plate is used for cookware, the induction
generators may be damaged or even destroyed. Do not use induction
adapter plates.
9
IMPORTANT SAFETY INSTRUCTIONS
Cleaning and maintenance
The steam from a steam cleaner could reach live electrical compo-
nents and cause a short circuit.
Do not use a steam cleaner to clean the cooktop.
10
Sustainability and environmental protection
Disposal of the packing material
The cardboard box and packing materi-
als protect the appliance during ship-
ping.
Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out
of the reach of children. Danger of suffo-
cation!
Disposal of your old appliance
Electrical and electronic appliances con-
tain valuable materials. They also con-
tain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.
11
Installation
Safety notes for installation
Risk of damage caused by
incorrect installation.
Incorrect installation can dam-
age the cooktop.
The cooktop must only be in-
stalled by a qualified specialist.
Risk of electric shock from
voltage.
Incorrect connection to the
power supply may result in an
electric shock.
The cooktop must be con-
nected to the electrical supply
by a qualified electrician only.
Damage from falling ob-
jects.
Take care not to damage the
cooktop when installing wall
units or a ventilation hood
above it.
Install the wall units and venti-
lation hood before installing the
cooktop.
Dismantling the cooktop for
service purposes may damage
the sealing strip underneath
the edge of the cooktop.
Always replace the sealing strip
before reinstallation.
The cooktop must not be in-
stalled above refrigerators/freez-
ers, dishwashers, or washer/dry-
ers.
This cooktop may only be in-
stalled above a range or oven if it
has a built-in cooling fan.
Ensure that the power cord
cannot be touched after the
cooktop has been installed.
After installation, the power
cord of the cooktop must not
come into contact with any mov-
ing kitchen components (such as
a drawer) or be subject to me-
chanical loads.
The countertop must be heat-
resistant (up to 212°F / 100°C),
so that it does not become de-
formed or the veneer detached.
The wall strips must be heat-re-
sistant as well.
It is not recommended to in-
stall DiamondFinish models in
front of a window.
Direct sunlight causes the sur-
face to reflect more intensely and
makes the displays harder to see.
Remember to maintain the
minimum safety distances (see
“Installation – Safety distances”).
12
Installation
Additional safety notes for proud in-
stallation
Damage caused by incor-
rect installation.
Using sealant under the cook-
top could result in damage to
the cooktop and the counter-
top if the cooktop ever needs
to be removed.
Do not use sealant between
the cooktop and the counter-
top.
The sealing strip under the
edge of the cooktop provides a
sufficient seal for the counter-
top.
Grout lines and the hatched
area underneath the cooktop
frame must be smooth and even.
If they are not, the cooktop will
not sit flush with the countertop
and the sealing strip underneath
the cooktop will not provide a
good seal between the cooktop
and the countertop.
Additional safety notes for flush instal-
lation
Damage caused by unsuit-
able sealant.
Unsuitable sealant can damage
natural stone.
For natural stone countertops
and natural stone tiles, only use
silicone sealant that is temper-
ature-resistant (min. 320°F/
160°C) and specially formu-
lated for natural stone. Please
follow the manufacturer’s in-
structions.
13
Installation
The internal width of the base
unit underneath the appliance
must be at least as wide as the
inner countertop cut-out (see
“Installation – Building-in dimen-
sions for flush installation”), so
that the cooktop is easily acces-
sible from underneath after in-
stallation and the casing can be
removed for maintenance. If the
underside of the cooktop is not
freely accessible after installa-
tion, any sealant used must be
removed to enable the cooktop
to be lifted out of the cut-out
should this be necessary.
A flush cooktop is suitable only
for installation in natural stone
(granite, marble), solid wood, and
tiled countertops. When using a
countertop made from any other
material, please check first with
the countertop manufacturer that
the material is suitable for in-
stalling a flush cooktop.
- Natural stone countertops:
The cooktop is set directly in
the cut-out.
- Solid wood countertops, tiled
countertops: The cooktop is
secured inside the cut-out
with wooden battens. The
frame must be provided on
site and is not supplied with
the appliance.
Safety distances
Safety distance above the cooktop
The following must be ensured between
the cooktop and the ventilation hood
above it:
- The safety distance specified by the
manufacturer of the hood must be
maintained.
- When two or more appliances which
have different safety distances are in-
stalled together below a ventilation
hood, the greatest specified safety
distance must be maintained.
If combustible objects are installed
above the cooktop (e.g., a suspended
rack), a minimum safety distance of
500 mm must be maintained.
14
Installation
Safety distance behind and to the side of the cooktop
The minimum safety distances shown
below must be maintained between the
appliance and a tall cabinet or wall:
- between the back of the counter-
top cut-out and the rear edge of the
countertop:
2" (50 mm)
and
- on the right side between the
countertop cut-out and the closest
adjacent piece of furniture (e.g., tall
cabinet) or a room wall:
2" (50 mm) and on the opposite side
a minimum safety distance of 7 7/8"
(200 mm)
or
- on the left side between the coun-
tertop cut-out and the closest adja-
cent piece of furniture (e.g., tall cabi-
net) or a room wall:
2" (50 mm) and on the opposite side
a minimum safety distance of 7 7/8"
(200 mm)
Not allowed
Highly recommended
Not recommended
Not recommended
15
Installation
Minimum safety distance underneath the cooktop
To ensure sufficient ventilation to the cooktop, a minimum safety distance must be
left between the underside of the cooktop and any oven, protective base, or drawer.
Minimum safety distance between underside of
cooktop and
Upper edge of drawer ≥ 3/16'' (5 mm)
Base of drawer ≥ 3'' (75 mm)
Upper edge of oven ≥ 1/16'' (2 mm)
Upper edge of protective base ≥ 1/16'' (2 mm)
Protective base
Installation of a protective base under the cooktop is allowed but not required.
Side view
a
Front
b
Rear air gap
Leave a air gap of 3'' (75mm) at the back between the cabinet and the protec-
tive base to accommodate the power supply cord.
Safety distance from the wall covering
If a wall covering is installed, a minimum safety distance must be maintained be-
tween the countertop cut-out and the covering. High temperatures can alter or
damage these materials.
16
Installation
Flush installation Proud installation
b
b
c
a
a
d
d
c
x
x
e
e
a
Masonry
b
Dimensionx= thickness of the wall covering material
c
Countertop
d
Countertop cut-out
e
Minimum safety distance to
combustible materials (e.g., wood)
non-combustible materials (e.g., metal, natural stone, ceramic tiles)
Side Opposite side
Material Com-
bustible
Non-combustible Com-
bustible
Non-combustible
Back 2" (50
mm)
2" (50 mm) – dimen-
sionx
– –
Right 2" (50
mm)
2" (50 mm) – dimen-
sionx
7 7/8"
(200 mm)
7 7/8" (200 mm) –
dimensionx
Left 2" (50
mm)
2" (50 mm) – dimen-
sionx
7 7/8"
(200 mm)
7 7/8" (200 mm) –
dimensionx
See “Installation – Safety distances”
Example: 1/2" (15mm) thick non-combustible wall covering
2" (50mm) – 1/2" (15mm) = minimum safety distance of 1 3/8" (35mm)
17
Installation
Installation dimensions for proud installation
KM7737FRDiamond
All dimensions are given in mm and inches. The superscript numbers after the cut-out di-
mensions are the tolerances for the cut-out.
a
Front
b
Flexible metal hose with power cords,
L =4' (1,200mm)
18
Installation
KM7737FLDiamond
All dimensions are given in mm and inches. The superscript numbers after the cut-out di-
mensions are the tolerances for the cut-out.
a
Front
b
Flexible metal hose with power cords,
L =4' (1,200mm)
19
Installation
KM7747FRDiamond
All dimensions are given in mm and inches. The superscript numbers after the cut-out di-
mensions are the tolerances for the cut-out.
a
Front
b
Flexible metal hose with power cords,
L =4' (1,200mm)
20
Installation
KM7747FLDiamond
All dimensions are given in mm and inches. The superscript numbers after the cut-out di-
mensions are the tolerances for the cut-out.
a
Front
b
Flexible metal hose with power cords,
L =4' (1,200mm)
21
Installation
Installation dimensions for flush installation
KM7737FLDiamond
All dimensions are given in mm and inches. The superscript numbers after the cut-out di-
mensions are the tolerances for the cut-out.
a
Front
b
Flexible metal hose with power cords,
L =4' (1,200mm)
c
Stepped cut-out, natural stone countertop
d
Wooden strip 1/2" (12mm) (not supplied)
22
Installation
KM7747FLDiamond
All dimensions are given in mm and inches. The superscript numbers after the cut-out di-
mensions are the tolerances for the cut-out.
a
Front
b
Flexible metal hose with power cords,
L =4' (1,200mm)
c
Stepped cut-out, natural stone countertop
d
Wooden strip 1/2" (12mm) (not supplied)
23
Installation
Installing a proud cooktop
Preparing the countertop for proud in-
stallation
Remember to maintain the minimum
safety distances (see “Installation –
Safety distances”).
Create the countertop cut-out.
Wooden countertops:
Seal any cut surfaces with a special
varnish, silicone sealant, or resin to
prevent the wood from swelling as a
result of moisture ingress. The sealant
must be temperature-resistant.
Ensure that the sealant does not get
on the top surface of the countertop.
Installing a proud cooktop
The sealing strip ensures that the cook-
top will sit securely in the cut-out with-
out slipping. Any gap between the frame
and countertop will become smaller
over time.
Attach the sealing strip included in
the scope of delivery underneath the
edge of the cooktop. The joint edge
(start and end) of the sealing strip
must not be in a corner. Apply some
silicone joint sealant to the joint edge
of the sealing strip. Do not apply the
sealing strip under tension.
Feed the cooktop power cord down
through the cut-out in the countertop.
Place the cooktop in the center of the
cut-out. When doing this, make sure
that the seal of the appliance sits
flush with the countertop on all sides.
This is important to ensure an effec-
tive seal all round.
If the seal does not sit flush with the
countertop in the corners, the corner
radius (≤R4) can be carefully cut to
fit using a jigsaw.
Connect the cooktop to the power
supply (see “Installation – Electrical
connection”).
Check that the cooktop works.
Installing the cooktop flush with
the countertop
Preparing the countertop for flush in-
stallation
Remember to maintain the minimum
safety distances (see “Installation –
Safety distances”).
Create the countertop cut-out.
Solid wood and tiled countertops:
Fix the wooden battens 3/16"
(5.5mm below the top edge of the
countertop (see “Installation – Instal-
lation dimensions for flush installa-
tion”).
Installing a flush cooktop
Attach the sealing strip included in
the scope of delivery underneath the
edge of the cooktop. The joint edge
(start and end) of the sealing strip
must not be in a corner. Apply some
silicone joint sealant to the joint edge
of the sealing strip. Do not apply the
sealing strip under tension.
Feed the cooktop power cord down
through the cut-out in the countertop.
The gap between the ceramic surface
and the countertop must be at least
1/16" (2mm) wide.
24
Installation
This is required so that the cooktop can
be sealed.
Center the cooktop in the cut-out.
Connect the cooktop to the power
supply (see “Installation – Electrical
connection”).
Check that the cooktop works.
Seal the gap between the cooktop
and countertop with a silicone sealant
that is heat-resistant to at least
320°F (160°C).
Electrical connection
Damage through improper work.
Installation, repair, and maintenance
work performed by by unqualified
persons can cause considerable dan-
ger to users.
Miele cannot be held liable for any
damage arising as a result of such
work.
Installation, repair and maintenance
work should only be performed by a
Miele-authorized qualified electrician
in compliance with local regulations
and the ANSI National Electrical
Code/NFPA 70 in the United States
or the Canadian Electric Code, CSA
C22.1-02. in Canada.
Danger of electric shock.
There is a risk of electric shock when
performing installation, repair, and
service work .
Before performing installation, repair,
and service work, disconnect the
power supply by either removing the
fuse, shutting off the main power or
manually “tripping” the circuit
breaker.
Danger of electric shock by miss-
ing or interrupted grounding.
The appliance may be energized.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effec-
tive grounding system. It is impera-
tive that this basic safety require-
ment be met. If there is any doubt,
have the electrical system of the
house checked by a qualified electri-
cian.
Damage by incorrect connection.
If the household electrical supply is
not suitrable for the appliance, it can
be damaged.
The voltage and frequency listed on
the data plate must correspond with
the household electrical supply to
prevent damage to the appliance.
Ensure that the connection data on
the data plate match those of your
electrical supply. Consult an electri-
cian if in doubt.
For safety reasons, the cooktop may
only be used when it has been fully
installed into the countertop.
Important –Save these instructions
for the local electrical inspector’s use.
Connection
Ensure that the connection data on
the data plate (voltage, frequency, and
fuse rating) match those of your elec-
trical supply.
The data plate is located underneath
the appliance.
25
Installation
The appliance is approved and ready for
connection to a grounded connector
with three connecting wires, sheathed
by a flexible metal hose.
It must be connected to an assigned
line in an approved connecting socket.
The appliance must be able to be dis-
connected from the power supply on all
poles by disconnecting devices. When
turned off, a contact distance of at least
¹/₈" (3mm) must be present. The dis-
connecting devices are overcurrent pro-
tection elements and protective circuit
breakers.
Black: Connect to L1 (hot)
Red: Connect to L2 (hot)
Green: Connect to GND (ground)
KM 7737
208/240V, 60Hz, minimum32A
(select a higher protection level if nec-
essary)
KM 7747
208/240V, 60Hz, minimum48A
(select a higher protection level if nec-
essary)
Make sure that the power outlet is ac-
cessible after the installation of the ap-
pliance.
Further information can be found on the
included data plate.
WARNING:
THIS APPLIANCE MUST BE
GROUNDED
26
Overview
Your cooktop
a
Useable cooktop surface for a maximum of 6items of cookware
b
Controls and indicators
Controls and indicators
b d
f
g
a
i
j
kl
h
c e
a
Kitchen timer sensor control
b
Stop&Go sensor control
For stopping/starting a cooking process in progress
c
Cooktop On/Offsensor control
27
Overview
d
Wipe protection sensor control
For locking the sensor controls
e
Automatic reduce sensor button
Automatically reduces the heating to power level 1
f
Keeping warm sensor control
For activating/deactivating the Keeping warm function
g
Numerical display
–For setting the power level
–For setting the times
h
Positioning aid indicator
Indicates that the cookware needs to be repositioned.
i
Booster display
Booster function is activated
j
Residual heat indicators
k
Cookware assignment indicator light
Automatic reduce for heating cookware is activated
l
Timer display
: to
:
Time
System lock/safety lock is activated
Demo mode is activated
28
Overview
Power management system
Effects of power distribution
While the Booster is in operation, some
of the power is taken away from the
other induction coils. If an induction coil
gives power to another coil, this can
have the following effects:
- Auto heat-up is deactivated.
- The power level is reduced.
- The heating is switched off.
Operation
Cooktop when switched off
Only the printed On/Offsensor con-
trol is visible when the cooktop is
switched off. More sensor controls light
up when the cooktop is switched on.
Operation
a
Sensor controls and indicators
This glass-ceramic cooktop is equipped
with sensor controls which react to fin-
ger contact.
Each time a sensor control is activated,
an audible signal sounds.
For safety reasons, in order to switch
the appliance on, the On/Off sensor
control needs to be touched for a little
longer than the other sensors.
Special functions
Con@ctivity3.0
Con@ctivity3.0 is the direct communi-
cation system between your cooktop
and a Miele ventilation hood. Communi-
cation is achieved by means of network-
ing. Con@ctivity3.0 enables the venti-
lation hood to operate automatically de-
pending on the operating status of your
cooktop.
The Con@ctivity versions of the cook-
top and the ventilation hood must
match.
Additional information can be found in
the operating and installation instruc-
tions for your ventilation hood.
Permanent pan recognition
When you place cookware on a cooking
zone, the numerical display for the
cooking zone is activated automatically.
Pan size recognition
The size of the cookware is detected on
the cooktop surface. The release of en-
ergy is adapted to the size of the pan.
Cooktop Booster
When the Booster function is activated,
the power is boosted so that large
quantities can be heated up quickly, e.g.,
when boiling water for cooking pasta.
Stop&Go
When Stop&Go is activated, all power
levels are reduced to 1.
When the function is deactivated, the
appliance switches back to the power
level that was set last.
29
Overview
Tip: Use this function if there is a dan-
ger of food boiling over.
Auto heat-up
When Auto heat-up has been activated,
the cooking zone switches on automati-
cally at the highest setting and then
switches to the power level (continued
cooking level) which you have previously
selected.
Timer
The timer can be used for the following
2 functions:
- setting the kitchen timer
- reduce heating automatically to power
level 1
You can use the functions simultane-
ously.
Kitchen timer
You can set a timer for activities that are
independent of the cooktop.
Automatic reduce
A time can be set when the heating of a
cookware item is automatically reduced.
The function can be used simultane-
ously for all cookware items.
System lock
If the system lock is activated, then the
cooktop cannot be switched on.
Safety lock
The safety lock is activated while the
cooktop is switched on. When the
safety lock is activated, the cooktop can
only be operated to a limited extent.
Keeping warm
This special function enables food to be
kept warm after it has finished cooking.
The maximum duration for keeping food
warm is 2hours.
Wipe protection
The cooktop sensor controls can be
locked for 20s to remove soiling, for ex-
ample. The sensor control is not
locked.
Settings
You can adapt the settings of the cook-
top to your personal needs.
Demo mode
This function enables the cooktop to be
demonstrated in dealer showrooms
without heating up.
Showroom mode
In showroom mode, cooking processes
are simulated in an infinite loop. The se-
quence of the individual steps is re-
peated after 1minute. When you touch
a sensor control or place cookware on
the cooktop, it switches to demo mode.
Residual heat indicator
If an area of the ceramic surface is hot,
the residual heat indicator will light up
after the cooktop has been switched off.
Depending on the temperature, a dot
will appear above power levels 1, 2, and
3.
The dots of the residual heat indicator
go out one after the other as the ce-
ramic surface cools down. The last dot
only goes out when the ceramic surface
is safe to touch.
Safety shut-off
Sensor controls are covered
Your cooktop will turn off automatically
if one or several of the sensor controls
remain covered for longer than 10sec-
30
Overview
onds; for example, by finger contact,
food boiling over, or an object.
flashes briefly above the sensor
control and a tone will sound.
will go out once you have removed the
object and/or cleaned the soiling and
the cooktop will be ready to use again.
Excessive operating time
The safety shut-off mechanism is trig-
gered automatically if a cooking zone is
heated for an unusually long period of
time. This time depends on the power
level selected. If it has been exceeded,
the heat switches off and the residual
heat indicator will appear. A power level
can be selected in the usual way.
You can adjust the safety shut-off by
changing the safety setting (see “Cus-
tomizing settings”).
Power level
1
Maximum operating time
[h:min]
Safety setting
0
2
1 2
1 10:00 8:00 5:00
1. 10:00 7:00 4:00
2/2. 5:00 4:00 3:00
3/3. 5:00 3:30 2:00
4/4. 4:00 2:00 1:30
5/5. 4:00 1:30 1:00
6/6. 4:00 1:00 0:30
7/7. 4:00 0:42 0:24
8 4:00 0:30 0:20
8. 4:00 0:30 0:18
9 1:00 0:24 0:10
1
The power levels with a dot are intermedi-
ate levels (see “Setting ranges”).
2
Factory default setting
Overheating protection
In order to prevent the cooktop from be-
ing damaged by excessive tempera-
tures, the overheating protection mech-
anism intervenes in one of the following
ways:
Overheating protection measures
- If the Booster function is switched on,
it will stop.
- The set power level will be reduced.
- The heating switches off automati-
cally. will flash alternately with
in the timer display.
- All heating elements switch off.
31
Overview
Triggering the overheating protection
mechanism
The overheating protection may be acti-
vated under the following circum-
stances:
- The cookware being heated is empty.
- Fat or oil is being heated on a high
power level.
- Insufficient ventilation to the under-
side of the cooktop.
- A hot zone being switched on after a
power outage.
Cooktop data
The model number, serial number, and
software version of the cooktop can be
displayed.
Optional accessories
Cookware
Miele offers a wide range of cookware.
These have all been optimized for Miele
appliances in terms of functionality and
dimensions. Detailed information can be
found on the Miele website.
Cleaning and care products
Ceramic and stainless steel cleaner
250mL
Removes heavy soiling, lime scale, and
aluminum residue.
Microfiber cloth
Removes finger marks and light soiling.
32
Commissioning
Unpacking the cooktop
Please stick the extra data plate for
the appliance supplied with this docu-
mentation in the space provided in
the “Customer Service” section of
this manual.
Remove any protective foil and stick-
ers.
Cleaning the cooktop for the
first time
Before using it for the first time, clean
the cooktop with a damp cloth.
Wipe the cooktop dry.
Switching on the cooktop for
the first time
The metal components have a protec-
tive coating. When the cooktop is used
for the first time, this causes a smell
and possibly also vapor. The heating of
the induction coils also causes odors in
the first few hours of operation. With
each subsequent use, the odors are re-
duced until they disappear completely.
The smell and any vapors do not indi-
cate a faulty connection or a defective
appliance and are not harmful to your
health.
Networking
The Wi-Fi connection shares a fre-
quency range with other appliances (in-
cluding microwave ovens and remote
control toys). This can give rise to spo-
radic or even complete connection fail-
ures. Therefore, the availability of fea-
tured functions cannot be guaranteed.
Connecting to a network via the app
- A home Wi-Fi network is available.
- The signal of your Wi-Fi network is
sufficiently strong in the place
where your cooktop is installed.
- There is no direct Wi-Fi connection
between the cooktop and a Miele
ventilation hood.
Scan the QR code.
If you have installed the Miele app and
have a user account, you will be taken
directly to the networking steps.
If you have not yet installed the Miele
app, you will be taken to the Apple App
Store
®
or the Google Play Store™.
Install the Miele app and set up a user
account.
Scan the QR code again.
The Miele app will guide you through
the setup process.
33
Commissioning
Connecting to a network via WPS
- A home Wi-Fi network is available.
- The signal of your Wi-Fi network is
sufficiently strong in the place
where your cooktop is installed.
- There is no direct Wi-Fi connection
between the cooktop and a Miele
ventilation hood (Con@ctivity3.0).
- You must have a WPS (Wi-Fi pro-
tected setup) compatible router.
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
Touch the 0 and 6 sensor controls at
the same time for 6seconds.
The seconds can be seen counting
down in the timer display. After the time
has elapsed, a progress light appears in
the timer display during the connection
attempt (for max. 120seconds).
The WPS login is active during these
120seconds.
Activate the WPS function on your
Wi-Fi router.
If the connection was successful, the
code: appears in the timer display.
If the connection could not be estab-
lished, the timer display will show the
code:. You have probably not acti-
vated WPS on your router quickly
enough. Repeat the steps above.
Install the Mieleapp.
Follow the user navigation in the app.
You can use all Miele@home functions.
Tip: If your Wi-Fi router does not sup-
port WPS, please connect via the
Mieleapp.
Connecting only with a ventilation
hood
You can find the necessary information
on connecting the ventilation hood in
the associated operating and installation
instructions.
- Miele ventilation hood with
Con@ctivity3.0
- The cooktop is not connected to
your home network (Miele@home)
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
Touch the 0 and 7 sensor controls at
the same time for 6seconds.
The seconds can be seen counting
down in the timer display. After the time
has elapsed, a progress light appears in
the timer display during the connection
attempt. If the connection was success-
ful, the code: appears in the timer
display. If the connection could not be
established, the timer display will show
the code:. Repeat the steps above.
When successfully connected, 2 and 3
will light up constantly on the ventilation
hood.
Quit connection mode on the ventila-
tion hood by pressing the run-on
button.
Con@ctivity3.0 is now activated.
Canceling the process
Touch any sensor control.
Resetting settings
Reset the settings if you are disposing
of your cooktop, selling it, or putting a
used cooktop into operation. This is the
only way to ensure that all personal data
34
Commissioning
has been removed and the previous
owner will no longer be able to access
the cooktop.
Resetting is not required when replacing
the router.
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
Touch the 0 and 9 sensor controls at
the same time for 6seconds.
The seconds can be seen counting
down in the timer display.
After this time has elapsed, the
code: is displayed in the timer dis-
play for 10seconds.
35
Operation
Safety notes for operation
Risk of fire due to over-
heated food.
Unattended food can overheat
and ignite.
Do not leave the cooktop unat-
tended while it is being used.
Risk of burning due to hot
ceramic surface.
The ceramic surface will be hot
after use.
Do not touch the ceramic sur-
face while the residual heat in-
dicators are on.
Risk of burning due to hot
items.
When the cooktop is switched
on either deliberately or by
mistake, or when there is
residual heat present, there is
the risk of metal items placed
on the cooktop heating up.
Do not store items on the
cooktop.
After use, switch the cooktop
off with the sensor control.
Placing hot cookware on
the sensor controls and indica-
tors can damage the electronic
underneath.
The sensor controls do not re-
spond.
They may be switched on or off
unintentionally.
The cooktop will switch itself
off (see “Overview – Safety
shut-off”).
Do not place hot cookware
over the sensor controls or in-
dicators.
The cooktop cannot distin-
guish between cookware and
objects next to cookware.
The objects will be heated too.
Touching hot objects can
cause burns.
Do not place objects on the
cooktop. Only place cookware
on the cooktop.
Switching on the cooktop
Touch the sensor control.
Additional sensor controls will light up.
36
Operation
If no further entry is made, the cook-
top will turn itself off after a few sec-
onds for safety reasons.
Switching off the cooktop
Touch the sensor control.
Positioning cookware
Example to visualize the concept.
You can position the cookware any-
where on the useable cooktop surface.
Induction coils are located under the en-
tire useable cooktop surface. The induc-
tion coils are used to heat the cookware.
The induction coils are activated as
soon as the cookware covers a certain
area of the induction coils. If you are not
satisfied with the cooking or frying re-
sults, you can reposition the cookware
so that more of the base surface is
heated.
It can be a good idea to position the
cookware in a corner of the useable
cooktop surface.
Number of cookware items and size
You can use a maximum of 6items of
cookware at the same time on this
cooktop.
Depending on the position, cookware
with a base diameter between 4" and
53/4" (100 and 145mm) will not be
detected in every position on the cook-
top. These items of cookware are too
small to guarantee that at least one in-
duction coil will be covered sufficiently
in every position.
Cookware with a base diameter of <4"
(100mm) is no longer detected and
cannot be used.
If you are using several items of cook-
ware at once, position them as far
apart as possible. This will enable the
cooktop to recognize each of them in-
dividually.
Move items of cookware on the cook-
top one after the other, not all at the
same time.
When you move an item of cookware on
the cooktop, the associated numerical
display lights up. The set power level
“goes along” with it.
Tip: It is recommended to switch the
cooktop on first and then place the
cookware on it. If you do this, the cook-
ware will be detected more quickly by
the cooktop.
37
Operation
Cooktop power levels
Setting the power level
If you do not set a power level within
approx. 10seconds, the numerical dis-
play will go out.
Place the cookware in the required
position on the cooktop.
The sensor control on the correspond-
ing numerical display lights up.
Touch the sensor control on the rel-
evant numerical display.
Touch the appropriate sensor control
for the power level you want on the
numerical display.
Setting the power level – intermediate
levels
The intermediate levels are activated
(see “Customizing settings”).
Press the numerical display between
the sensor controls.
The numbers to the left and right of the
intermediate level light up brighter than
the other sensor controls.
Example:
If you have set power level 7., the num-
bers 7 and 8 will be brighter than the
other numbers.
Changing the power level
Touch the appropriate sensor control
for the power level you want on the
numerical display.
Booster
Activating the Booster function
When the Booster function is activated,
the settings for the linked cooking zone
may be changed (see “Overview –
Power management system”).
You can use the Booster with a maxi-
mum of 3items of cookware at the
same time: 1 on the right-hand side of
the cooktop, 1 in the center, and 1 on the
left-hand side of the cooktop.
TwinBooster level 1
Place the cookware on the cooking
zone you want to use.
Select a power level, if necessary.
Touch the Bsensor control.
The indicator light for TwinBooster
level 1 lights up.
TwinBooster level 2
Place the cookware on the cooking
zone you want to use.
Select a power level, if necessary.
Touch the Bsensor control twice.
The indicator light for TwinBooster
level 2 lights up.
Deactivating the Booster function
Touch theB sensor control repeatedly
until the indicator lights go out.
or
Select a different power level.
If you deactivate the Booster function or
the Booster time comes to an end and
38
Operation
- no power level was selected before
activating the Booster function, the
cooking zone will revert automatically
to level9.
- a power level was selected before ac-
tivating the Booster function, the
cooking zone will revert automatically
to the previously selected level.
Activating/deactivating
Stop&Go
The power levels and the timer settings
cannot be altered; the cooktop can only
be switched off. The kitchen timer,
switch-off, Booster, and heat-up times
continue to run.
If the function is not deactivated within
1hour, the cooktop will switch off.
Touch the sensor control.
Auto heat-up
The heat-up time depends on which
continued cooking level has been cho-
sen:
Continued cook-
ing level
1
Heat-up time
[min:sec]
1 approx. 00:15
1. approx. 00:15
2 approx. 00:15
2. approx. 00:15
3 approx. 00:25
3. approx. 00:25
4 approx. 00:50
4. approx. 00:50
5 approx. 2:00
5. approx. 5:50
6 approx. 5:50
6. approx. 2:50
7 approx. 2:50
7. approx. 2:50
8 approx. 2:50
8. approx. 2:50
9 –
1
The power levels with a dot are intermedi-
ate levels.
Activating Auto heat-up
Touch the sensor control for the con-
tinued cooking level you want until a
tone sounds and the sensor control
starts to pulsate.
During the heat-up time (see table) for a
selected:
- continued cooking level, the set con-
tinued cooking level will pulsate
- interim power level, the sensor con-
trols in front of and after the interim
power level will pulsate
39
Operation
Deactivating Auto heat-up
Tap the sensor control of the set con-
tinued cooking level.
or
Select a different power level.
Timer
Setting timer durations
A duration of between 1minute(:)
and 9hours 59minutes(:) can be
set.
Durations of up to 59minutes are
shown in minutes (0:59) and durations
of more than 60minutes are shown in
hours and minutes.
Durations are entered:
- using the left or front left numerical
display (depending on the model) in-
stead of a kitchen timer
- using the numerical display for the
cookware to reduce automatically in-
stead of an automatic reduce time
Enter durations in the order of hours,
followed by minutes in tens and then
units.
Example:
59minutes = 0:59hours,
Enter: 5–9
80minutes = 1:20hours,
Enter: 1–2–0
After the first number has been entered,
the timer display will light up constantly.
After the second number has been en-
tered, the first number will move to the
left. After the third number has been en-
tered, the first and second numbers will
move to the left.
Setting the kitchen timer
Touch the sensor control.
The timer display flashes.
Set the required duration (see “Timer
– Setting timer durations”).
Touch the sensor control or wait
10seconds to start the kitchen timer.
Changing the kitchen timer
Touch the sensor control.
The timer display flashes.
Set the required duration (see “Timer
– Setting timer durations”).
Touch the sensor control or wait
10seconds to start the kitchen timer.
Deleting the kitchen timer
Touch the sensor control.
Touch on the numerical display.
Setting the reduce time
The heating for an item of cookware will
switch off when the maximum operating
time has elapsed, independently of a set
reduce time (see “Overview – Safety
shut-off”).
A power level is set for the desired
item of cookware.
Touch the sensor control.
The timer display flashes.
Set the required duration (see “Timer
– Setting timer durations”).
Touch the sensor control or wait
10seconds to start the reduce time.
The reduce time for the cookware
elapses and the cockware reduce heat-
ing indicator light pulsates.
40
Operation
Changing the reduce time
Touch the sensor control repeat-
edly until the indicator light for the
item of cookware you require pul-
sates.
The timer display flashes.
Set the required duration (see “Timer
– Setting timer durations”).
Touch the sensor control or wait
10seconds to start the reduce time.
The reduce time for the cookware
elapses and the cockware reduce heat-
ing indicator light pulsates.
Deleting the reduce time
Touch the sensor control repeat-
edly until the indicator light for the
item of cookware you require pul-
sates.
The timer display flashes.
Touch the sensor control on the nu-
merical display.
Setting multiple reduce times
To set a reduce time for another item
of cookware, follow the steps de-
scribed in “Operation – Setting the
reduce time”.
If more than one reduce time is pro-
grammed, the shortest time left will be
displayed and the corresponding indica-
tor light will pulsate. The other indicator
lights will light up constantly.
Displaying reduce times
If you want to show the time left for
another item of cookware which is
counting down in the background,
touch the sensor control until the
indicator light for the desired item of
cookware pulsates.
The rounded-up time left is displayed
for the required cookware.
Using both timer functions at the
same time
If you use both functions simultane-
ously, the shortest time is always dis-
played. The sensor control (timer) or
the indicator light for the item of cook-
ware with the shortest reduce time pul-
sates.
If you want to show the times left
counting down in the background,
touch the or sensor control.
If a reduce time has been pro-
grammed for several items of cook-
ware, touch the sensor control re-
peatedly until the indicator light for
the required item of cookware pul-
sates.
System lock
Activating the system lock
All sensor controls are locked. A set
kitchen timer will continue to count
down.
Touch the sensor control for 6sec-
onds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, will appear in the
timer display. The system lock is acti-
vated.
If a disallowed sensor control is touched
while the system lock is activated,
will appear in the timer display for a few
seconds and a buzzer will sound.
41
Operation
The settings can be adjusted so that
the system lock is activated automati-
cally 5minutes after the cooktop has
been switched off (see “Customizing
settings”).
Deactivating the system lock
Touch the sensor control for 6sec-
onds.
will appear briefly in the timer dis-
play and then the seconds will count
down. The system lock is deactivated
once the time has elapsed.
Safety lock
Activating the safety lock
When the safety lock is activated:
- the heating and the cooktop can only
be switched off
- a set kitchen timer can be modified
Touch and hold the and sensor
controls at the same time for 6sec-
onds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, will appear in the
timer display. The safety lock is acti-
vated.
If a disallowed sensor control is touched
while the safety lock is activated,
will appear in the timer display for a
few seconds and a buzzer will sound.
Deactivating the safety lock
Touch and hold the and sensor
controls at the same time for 6sec-
onds.
will appear briefly in the timer dis-
play and then the seconds will count
down. Once the time has elapsed, the
safety lock function is deactivated.
Keeping warm
Keeping warm temperatures for vari-
ous applications
A keeping warm temperature of 75 is set
as standard. You can change the keep-
ing warm temperature (see “Customiz-
ing settings”).
Application Temperature (°F
(°C))
Melting chocolate 120-130 (50–55)
Keeping solid food
and thick liquids
warm
150-167 (65–75)
Keeping clear
soups warm
175-195 (80–90)
Tips for keeping food warm
- Only use cookware (pots/pans) for
keeping food warm. Cover the cook-
ware with a lid.
- Stir firm or viscous food (mashed
potatoes, stew) occasionally.
- Foods begin to lose their nutrients
during the cooking process and con-
tinue to do so while being kept warm.
The longer food is kept warm, the
greater the loss of nutrients. Try to en-
sure that food is kept warm for as
short a time as possible.
42
Operation
Wipe protection
Activating wipe protection
Tap the sensor control.
The time counts down in the timer dis-
play.
Deactivating wipe protection
Touch the sensor control until the
timer display goes out.
Cooktop data
Displaying the model number/serial
number
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
The sensor control on the correspond-
ing numerical display lights up.
Touch the sensor control on the rel-
evant numerical display.
Press the 0 and 4sensor controls on
the relevant numerical display at the
same time for 6seconds.
Numbers will appear in the timer display
one after another, separated by a dash.
Example: (model number
KM1234)– (serial num-
ber)
Displaying the software version
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
The sensor control on the correspond-
ing numerical display lights up.
Touch the sensor control on the rel-
evant numerical display.
Press the 0 and 3sensor controls on
the relevant numerical display at the
same time for 6seconds.
3numbers appear in the timer display:
Example: = software version1.23.
Activating/deactivating demo
mode
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
The sensor control on the correspond-
ing numerical display lights up.
Touch the sensor control on the rel-
evant numerical display.
Press the 0 and 2sensor controls on
the relevant numerical display at the
same time for 6seconds.
The following will flash in the timer dis-
play for a few seconds:
- alternating with (demo mode
activated)
or
- alternating with (demo mode
deactivated)
Activating/deactivating show-
room mode
Switch the cooktop on.
Place an induction-compatible item of
cookware on the cooktop.
The sensor control on the correspond-
ing numerical display lights up.
43
Operation
Touch the sensor control on the rel-
evant numerical display.
Press the 0 and 8sensor controls on
the relevant numerical display at the
same time for 6seconds.
The following will flash in the timer dis-
play for a few seconds:
- alternating with (showroom
mode activated)
or
- alternating with (showroom
mode deactivated)
44
Setting ranges for the power levels
The cooktop is programmed with 9power levels without intermediate levels at the
factory. If you wish to fine-tune the power levels, you can activate intermediate lev-
els via the settings (see “Customizing settings”).
Setting range
Factory setting
9levels
without
intermediate lev-
els
Finer setting
9levels
with
intermediate lev-
els
Melting butter
Melting chocolate
Dissolving gelatin
1–2 1–2.
Warming up small quantities of liquid
Keeping warm food which sticks easily
Cooking rice or porridge
Defrosting vegetables frozen in a block
2–4 2–3.
Warming up liquid and semi-solid food
Steaming fruit
Simmering potatoes (cookware with lids)
4–6 3.–5.
Making omelettes or lightly fried eggs
Gently frying meat patties
Steaming fish and vegetables
Cooking dumplings and dried pulses
Defrosting and reheating frozen food
Thickening sauces, e.g., Hollandaise
5–7 4.–7.
Gently frying fish, schnitzel, sausage, eggs, and pancakes
(without overheating the fat)
6–8 6–7.
Cooking potato fritters, pancakes, etc. 7–8 7–8.
Frying, e.g., French fries 9 8.–9
Boiling large quantities of water
Bringing to the boil
Searing large amounts of meat
9–Booster 8.–Booster
These settings should only be taken as a guide. The power of the induction coils will vary de-
pending on the voltage, size, and material of the cookware base. For this reason, it is possi-
ble that the power levels will need to be adjusted slightly to suit your cookware. As you use
the cooktop, you will get to know which settings suit your cookware best. When using new
cookware that you are not familiar with, set the power to one level below the one specified.
45
Customizing settings
Calling up settings
The sensor control is located approx.
1/2" (1cm) (index finger width) to the
left of the sensor control.
The cooktop is switched off.
Touch and hold the and sensor
controls until the sensor control
lights up and appears in the timer
display.
After a few seconds : (Program 01)
will flash alternately with : (Code) in
the timer display.
Setting parameters
For a two-digit parameter number you
need to first set the tens position.
While the parameter is visible in the
display (e.g., :), press the sen-
sor control repeatedly until the num-
ber for the parameter you want ap-
pears in the display or touch the ap-
propriate number on the numerical
display.
Setting the code
While the code is visible in the display
(e.g., :), touch the sensor con-
trol repeatedly until the number for
the code you want appears in the dis-
play or touch the appropriate number
on the numerical display.
Saving the settings
While the program is visible in the
display (e.g., :), touch the sen-
sor control until the indicators go out.
To avoid saving the settings
While the code is showing in the dis-
play (e.g., :), touch the sensor
control until the indicators go out.
46
Customizing settings
Parameter
1
Code Settings
2
P:01
Demo/showroom mode
C:00
Demo mode off
C:01 Demo mode on
3
C:02 Showroom mode on
3
P:02 Power management system
4
C:00
Off
C:01
3,680W
C:02
3,000W
C:03
2,000W
C:04
1,000W
P:03
Factory default
C:00
Do not restore factory default set-
tings
C:01 Restore factory default settings
P:04
Cooktop power level setting
range
C:00
9 power levels
without intermediate levels +
Booster
C:01
9 power levels
with intermediate levels + Booster
5
P:06
Keypad tone when a sensor con-
trol is touched
C:00 Off
6
C:01
Quiet
C:02
Medium
C:03
Loud
P:07
Audible signal for timer
C:00
Off
C:01
Quiet
C:02
Medium
C:03
Loud
P:08
System lock
C:00
System lock can only be activated
manually
C:01
System lock activated automatically
P:09
Maximum operating time
C:00
Safety setting0
C:01
Safety setting1
C:02
Safety setting2
47
Customizing settings
Parameter
1
Code Settings
2
P:10
WiFi registration
C:00
Not active/deactivated
C:01
Active but not configured
C:02
Active and configured (cannot be se-
lected; displays whether connection
was successful)
C:03
Connection possible via WPS push
button
C:04 WiFi reset to default (C:00)
C:05
Direct WiFi connection of cooktop
and ventilation hood without Miele
app (Con@ctivity3.0)
P:12
Sensor control reaction speed
C:00
Slow
C:01
Normal
C:02
Fast
P:14
Confirmation of power level
when position of pan is changed
C:00
Confirmation necessary
C:01
Confirmation not necessary
P:25
Keeping warm temperature
C:00
120°F (50°C)
C:01
130°F (55°C)
C:02
140°F (60°C)
C:03
150°F (65°C)
C:04
160°F (70°C)
C:05
170°F (75°C)
C:06
175°F (80°C)
C:07
185°F (85°C)
C:08
195°F (90°C)
1
Programs not shown here have no allocation.
2
The factory default setting is shown in bold.
3
After the cooktop has been switched on, appears in the timer display for several sec-
onds.
4
The total cooktop power may be reduced in order to meet the local power supply
provider’s requirements.
48
Customizing settings
5
In the text and charts, the intermediate levels are shown with a dot after the number for
better understanding.
6
The confirmation tone of the On/Offsensor control cannot be switched off.
49
Cleaning and care
Safety notes on cleaning and
care
Danger of burning due to
hot surfaces.
All parts of the cooktop may be
hot after use.
Turn off the cooktop.
Allow the cooktop to cool
down before cleaning it.
All surfaces could be discol-
ored or damaged if unsuitable
cleaning agents are used or if
residues from suitable cleaning
agents are heated on the cook-
top.
Allow the surfaces to cool
down before cleaning the cook-
top.
Remove any residual cleaning
agent immediately.
Do not clean with any abrasive
cleaning agents or sharp
pointed objects.
Do not use a steam cleaner to
clean the cooktop.
Do not use pointed objects for
cleaning.
When to clean
Before every use:
Clean the entire cooktop and the base
of the cookware.
After every use:
Clean the entire cooktop.
Cleaning the glass-ceramic sur-
faces
Removing light soiling
Clean the entire glass-ceramic sur-
face of the cooktop with a damp, soft
all-purpose cloth, and a solution of
water and a little liquid dish soap.
Please follow the cleaning agent man-
ufacturer’s instructions.
Removing stubborn soiling
First wipe down the surface with a
damp cloth to loosen soiling, then re-
move stubborn crusting with a glass
scraper.
Clean the glass-ceramic surface with
the Miele ceramic and stainless steel
cleaner (see “Optional accessories –
Cleaning and care products”) or with
a proprietary glass-ceramic cleaner.
Please follow the cleaning agent man-
ufacturer’s instructions.
Finishing the cleaning process
Remove all cleaning agent residues
with a damp cleaning cloth.
Dry the glass-ceramic surface of the
cooktop after cleaning.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
- cleaning agents containing soda, alka-
lis, ammonia, acids, or chlorides
- stain or rust removers
- abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
- cleaning agents containing solvents
- dishwasher cleaning agents
- grill and oven sprays
50
Cleaning and care
- hard, abrasive brushes
- eraser sponges
- sponges
51
Frequently asked questions
Many malfunctions and faults can be easily remedied. You can save time and
money in many cases, as you do not need to contact Miele Service.
More information to help you rectify faults yourself can be found at
https://www.mieleusa.com/support/customer-assistance.
Messages in the display
Problem Possible cause and solution
flashes alternately
with in the timer dis-
play and a signal sounds.
The cooktop is incorrectly connected.
Disconnect the cooktop from the electrical power
supply.
Contact Miele Service. The cooktop must be con-
nected to the power supply according to the wiring
diagram.
After turning on the
cooktop or touching a
sensor, the timer display
shows for a few sec-
onds.
The system lock is activated.
Deactivate the system lock.
The safety lock is activated.
Deactivate the safety lock.
After the cooktop has
been switched on, ap-
pears briefly in the timer
display. The cooktop
does not heat up.
The cooktop is in demo mode.
Press the 0sensor control on any numerical display.
Then touch the and sensor controls at the same
time until flashes alternately with in the timer
display.
The cooktop has
switched off automati-
cally. When the cooktop
is turned back on, ap-
pears above On/Off.
One or more of the sensor controls are covered, e.g.,
by finger contact, food boiling over, or an object.
Remove the soiling and/or the object.
will flash alternately
with in the timer
display.
Overheating protection has been triggered.
Allow the cooktop to cool down.
Rectify the causes of the overheating (see “Over-
view – Overheating protection”).
Check that the cooktop works.
If this fault message continues to appear in the dis-
play, contact Miele Customer Service.
52
Frequently asked questions
Problem Possible cause and solution
will flash alternately
with , , or in
the timer display.
The fan is blocked or defective.
Make sure it has not been blocked by an object.
Remove the obstruction.
If this fault message continues to appear in the dis-
play, contact Miele Customer Service.
In the timer display, an
E-number such as E-0
flashes alternately with
, , , , ,
, , or .
The fan is blocked or defective.
Make sure it has not been blocked by an object.
Remove the obstruction.
If this fault message continues to appear in the dis-
play, contact Miele Service.
A message not listed in
this table is appearing in
the timer display.
There is an electronic fault.
Disconnect the power supply to the cooktop for ap-
prox. 1minute.
If the problem persists after the power supply has
been restored, please contact Miele Service.
53
Miele Service
Information to help you rectify faults yourself and about Miele spare parts can be
found at www.miele.com/service.
Contact in the event of a fault
In the event of a fault which you cannot remedy yourself, please contact your Miele
dealer or Miele Customer Service.
You can book a Miele Service call online at www.miele.com/service.
Contact information for Miele Customer Service can be found at the end of this
document.
Please quote the model identifier and serial number of your appliance (SN) when
contacting Miele Customer Service. These can be found on the data plate or see
“Operation – Cooktop data”.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of this
document.
Appliance warranty and product registration
You can register your product and/or view the manufacturer´s warranty terms and
conditions for Miele appliances and vacuum cleaners at www.mieleusa.com.
54
Technical data
Declaration of conformity
Supplier's Declaration of Conformity 47CFR§2.1077 Compliance Information
Induction Cooktop
Unique Identifier: Miele Model: KM 7737; KM 7747
Responsible Party
Miele, Inc.
National Headquarters
9 Independence Way
Princeton, NJ08540
Phone: 800-843-7232
Fax: 609-419-4298
www.mieleusa.com
FCC Compliance Statement: This device complies with Part 18 of the FCC Rules.
IC Compliance Statement: This device complies with
CAN ICES-001 (B) / NMB-001 (B)
Radio Modules
This device contains the following WiFi module:
FCC ID 2ACUWEK037
IC ID 5669C-EK37
Frequency band 2.412GHz – 2.462GHz
Maximum transmitting power < 0.1W
Compliance Statement
This device complies with Part 15 of the FCC Rules and contains licence-exempt
transmitter(s)/receiver(s) that comply with Innovation, Science and Economic De-
velopment Canada’s licence-exempt RSS Standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
The construction of the device assures that the FCC/IC exposure limits are verifi-
ably met using the integrated radio module.
Warning!
Any changes or modifications to this unit not expressly approved by the party re-
sponsible for compliance could void the user’s authority to operate the equip-
ment.
55
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 13 038 370 / 02 / 001en-US, CA
KM7737FRDiamond, KM7737FLDiamond,
KM7747FRDiamond, KM7747FLDiamond
