Operating Instructions
Heat-Pump Dryer
It is essential to read these operating instructions before installing,
starting up, and using the appliance. This prevents both personal in-
jury and damage to the appliance.
en-US, CA M.-Nr. 12 902 410
Contents
Caring for the environment ........... 5
IMPORTANT SAFETY INSTRUC-
TIONS.................................................
6
Operating the tumble dryer ........... 14
Control panel......................................
14
How the sensor controls work ........
15
Wash2Dry ..................................
16
Functioning of the heat-pump
dryer....................................................
17
Initial set-up ...................................... 18
Downtime after installation .............
18
Networking.........................................
18
Requirements for networking .........
18
1. Notes on correct laundry care... 20
Points to note regarding washed
laundry ................................................
20
Preparing the laundry before drying
20
Drying..................................................
21
Understanding the care label
symbols.........................................
21
Selecting the correct drying
level................................................
21
2. Loading the tumble dryer........... 22
Loading the laundry...........................
22
3. Selecting a program and start-
ing it ....................................................
23
Switching on the tumble dryer ........
23
Selecting a program..........................
23
1. Selecting drying programs us-
ing the program selector.............
23
2. Selecting drying programs via
the MobileStart program se-
lector position ..............................
23
3. Selecting a drying program
via the Wash2Dry program
selector position ..........................
23
Selecting the drying level for pro-
grams with a selectable drying
level .....................................................
23
Time-controlled and other pro-
grams...................................................
24
Selecting Gentle.................................
24
Switching on delay start....................
24
Starting a program .............................
24
4. Removing the laundry at the
end of the program...........................
26
End of program/Anti-crease .............
26
Removing the laundry........................
26
Delay Start/SmartStart ............. 27
Selecting Delay Start.........................
27
SmartStart ..........................................
28
Program chart.................................... 29
Changing the program sequence .. 32
Changing a program once it has
started .................................................
32
Adding or removing laundry..............
32
Condensed water container........... 33
Emptying the condensed water
container..............................................
33
Fragrance flacon................................ 34
FragranceDos......................................
34
Removing the protective seal from
the fragrance flacon...........................
34
Inserting a fragrance flacon..............
35
Setting the fragrance intensity.........
36
Closing the fragrance flacon.............
36
Removing/replacing the fragrance
flacon ...................................................
36
Cleaning and care............................. 38
Lint filters.............................................
38
Removing the fragrance flacon... 38
Removing visible lint .................... 38
Cleaning the lint filters and air-
flow openings thoroughly............
39
Cleaning the lint filters with wa-
ter....................................................
40
Cleaning instructions when us-
ing fabric softener sheets............
41
2
Contents
Cleaning the plinth filter ...................
42
Removing the plinth filter ........... 42
Cleaning the plinth filter.............. 43
Cleaning the plinth-filter access
panel ..............................................
45
Cleaning the tumble dryer................
45
Frequently asked questions........... 46
Indicator lights or information on
the time display triggered when a
program is canceled..........................
46
Indicator lights or information on
the time display .................................
47
Unsatisfactory drying results...........
48
The drying cycle duration is very
long......................................................
49
Other problems..................................
50
Replacing the plinth filter .................
51
Reactivating the plinth filter.............
53
Checking the heat exchanger unit...
53
Bottom right grille..............................
54
Customer Service ............................ 55
Contact in the event of a fault.........
55
Appliance warranty and product
registration .........................................
55
Optional accessories ........................
55
IMPORTANT SAFETY INSTRUC-
TIONS.................................................
56
Installation......................................... 58

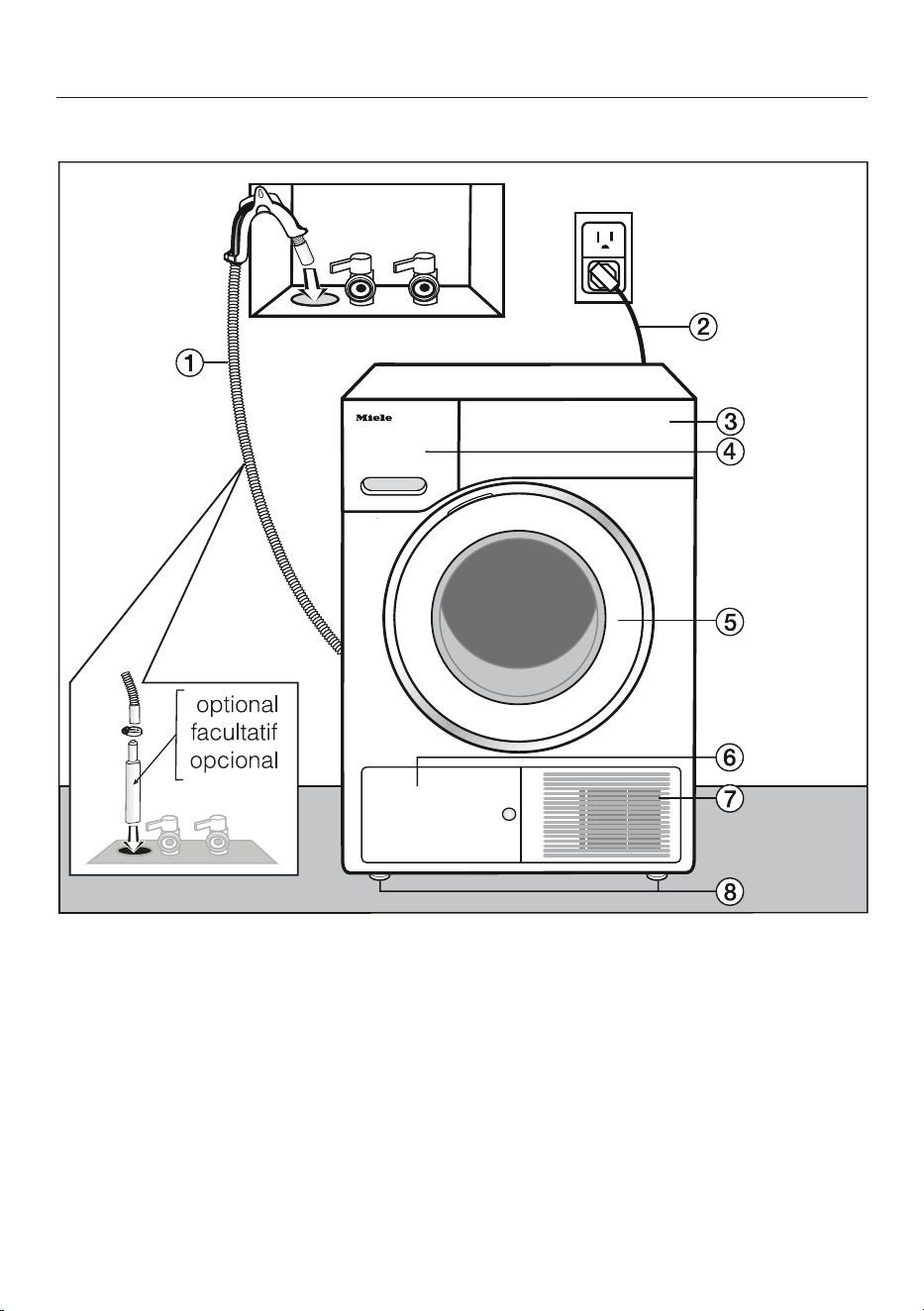

Front view...........................................
58
Rear view ............................................
59
Transporting the tumble dryer.........
59
Transporting the tumble dryer
to its installation site ...................
59
Installation..........................................
60
Leveling the tumble dryer ........... 60
Downtime after installation........ 60
Ventilation..................................... 60
Before moving the tumble dryer
again ..............................................
61
Electrical connection ........................
61
Connection adapter for NEMA
14-30 socket ................................
62
Additional installation require-
ments...................................................
62
Installation on a plinth.......................
63
Installing the tumble dryer .......... 64
Using tensioning strips................ 68

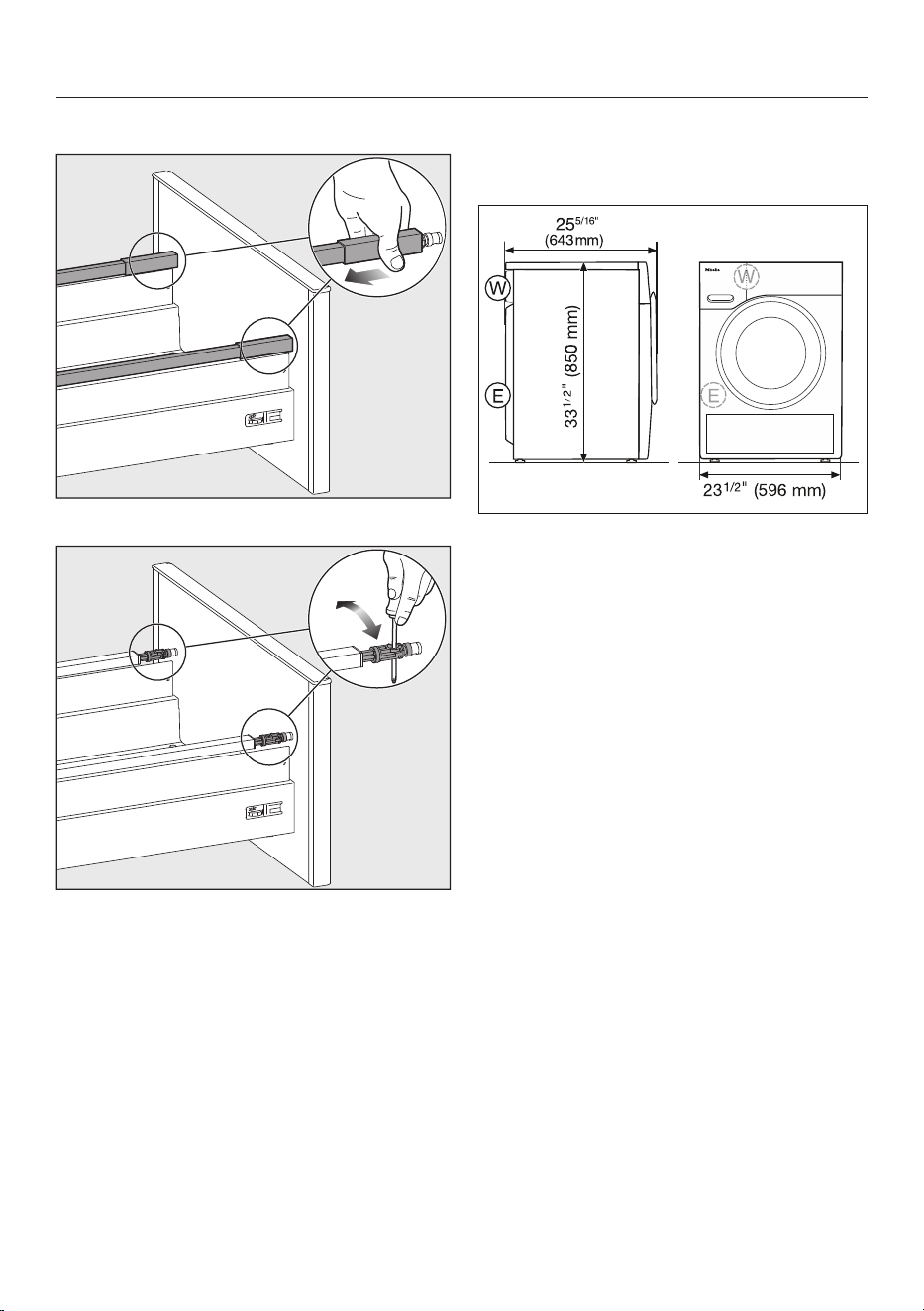

Product dimensions...........................
71
Dimensions ................................... 71
Washer-dryer stack...................... 72
External draining of condensed wa-
ter .........................................................
72
Arranging the drain hose ............. 72
Condensate drain ......................... 72
Changing the door hinging................
74
Changing the hinging over........... 74
Refitting.......................................... 79
Technical data.................................... 80
Programmable functions................. 81
Programming ......................................
81
factory default.............................
82
Cottons drying levels ..................
82
Wrinkle free drying levels ..........
83
Cooling down temperature .......
83
Buzzer volume ............................
83
Keypad tone ................................
83
PIN code......................................
83
Conductivity................................
84
Control field switch-off behav-
ior..........................................................
84
Memory .........................................
84
Anti-crease ...................................
85
Buzzer on ......................................
85
Airways indicator........................
85
Backlight brightness dimmed...
85
Duration of program end
buzzer...................................................
85
Welcome tone ............................
86
Operating hours..........................
86
Networking..........................................
86
Switching off WiFi ........................ 86
RemoteUpdate......................
86
Remote control.......................
87
SmartGrid ..............................
88
3
Caring for the environment
Disposal of the packing material
The cardboard box and packing materi-
als protect the appliance during ship-
ping. They have been designed to be
biodegradable and recyclable.
Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out
of the reach of children. Danger of suffo-
cation!
Disposal of your old appliance
Electrical and electronic appliances con-
tain valuable materials. They also con-
tain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when
using your appliance, follow basic precautions, including the fol-
lowing:
WARNING
This tumble dryer is intended for use in domestic households and
similar working and residential environments.
It is essential to read all instructions before using the appliance.
Risk of Suffocation and Injury from Entrapment:
Do not allow children to play on or in the appliance. Close supervision
is necessary when the appliance is used near children.
Always close the door after use to prevent child hazards.
Before this appliance is removed for service or discarded, remove
the door to the drying compartment.
Do not install or use a dryer with visible damage.
Do not reach into the dryer if the drum is moving.
Do not install or store this appliance where it will be exposed to
the weather.
Do not tamper with the controls.
Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in these operating in-
structions. Repairs to electrical appliances should only be performed
by qualified personnel. Incorrectly repaired machines may pose a
considerable risk to the user.
Do not use replacement parts that have not been recommended
by the manufacturer (e.g. parts made at home using a 3D printer).
6
IMPORTANT SAFETY INSTRUCTIONS
Important information regarding use of fabric softener sheets:
We do not recommend use of fabric softener sheets. Use of fabric
softener sheets can clog the surfaces of the lint filters, extending the
drying time and increasing energy consumption. During subsequent
cleaning, the plastic and surfaces of the lint filters can be damaged!
The best results are obtained by using liquid fabric softener in the
washing machine. Follow the manufacturer's instructions.
If you still wish to use fabric softener sheets, be sure to follow the
cleaning instructions under “Cleaning and care” in the “Cleaning in-
structions when using fabric softener sheets” section.
Tip:
Using a fragrance flacon (optional accessory) will add a pleasant fra-
grance to your laundry.
When a fragrance flacon is used, the fragrance is acquired by the en-
tire load of laundry. The disadvantage of fabric softener sheets is that
under certain circumstances the fragrance is acquired by only a few
items of laundry, especially when drying a full load.
When you use a fragrance flacon, always follow the warnings
in this section as well as those under “Fragrance flacon”.
7
IMPORTANT SAFETY INSTRUCTIONS
Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical reaction
that could cause a load to catch fire. To reduce the risk of fire due to
contaminated loads, the final part of a tumble dryer cycle occurs
without heat (cool down period). Avoid stopping a tumble dryer be-
fore the end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
To prevent the risk of fire, the following textiles must not be dried
in this dryer:
- items which have not been washed.
- items, such as work-wear, exposed to grease, oils, or other de-
posits (such as lotions or cosmetics) in your dryer. If these items
have not been thoroughly cleaned there is a danger that they may
contribute to a chemical reaction that could cause the laundry to
ignite when heated even after being removed from the dryer.
- items that have been previously cleaned, washed, soaked or spot-
ted with gasoline, dry-cleaning solvents or other flammable or ex-
plosive substances. They may give off vapors that could ignite or
explode.
- items treated with flammable cleaning agents or items containing
acetone, alcohol, gas, stain remover, wax or chemicals from buff-
ing, etc.
- items which have been splashed with hair spray, nail polish re-
mover, etc.
When washing heavily soiled items ensure that sufficient deter-
gent is used with a high temperature. If in doubt wash the item
several times.
- items containing foam rubber or similarly textured rubber-like ma-
terials.
- items with padding or filling (e.g. pillows or jackets) which have
been damaged. Loose filling could catch fire.
8
IMPORTANT SAFETY INSTRUCTIONS
Allow the dryer to complete each stage of the program selected,
including the cooling down phase. This will ensure that the items be-
ing removed are not too hot to handle.
Clean the lint filter before or after each load.
Keep the area around the air intake (toe kick) and adjacent sur-
rounding areas free from lint, dust and dirt.
The interior of the machine should be cleaned periodically by quali-
fied personnel.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by provid-
ing a path of least resistance for electric current. This appliance is
equipped with a cord having an equipment grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local
codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Contact a qualified
electrician if you are in doubt as to whether the appliance is properly
grounded.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronized with
the grid power supply (e.g., island networks, back-up systems) is pos-
sible. A prerequisite for operation is that the power supply system
complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
9
IMPORTANT SAFETY INSTRUCTIONS
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Before installation, disconnect the tumble dryer from the electrical
supply by shutting off the power main, unplugging the power cord or
tripping the circuit breaker. Do not restore power until the installation
is complete.
Miele tumble dryers and Miele washing machines can be installed
as a washer-dryer stack. A Miele washer-dryer connection kit is re-
quired as an optional accessory for this. Please ensure that the
washer-dryer connection kit is suitable for the Miele tumble dryer
and the Miele washing machine.
If you order a plinth for this tumble dryer (available from Miele as
an optional accessory), make sure it is the correct one.
The maximum dry laundry weight is 17.6 lbs (8.0kg).
See the “Program chart” for the maximum recommended loads for
individual programs.
Do not place shoes inside the drum for drying. Placing shoes in-
side the drum for drying can cause the belt to tear, requiring a service
call.
You must always use the dryer basket (optional accessory) when dry-
ing/airing shoes. Follow the additional operating instructions for the
dryer basket.
This tumble dryer is supplied with a special bulb to cope with par-
ticular conditions (e.g., temperature, moisture, chemical resistance,
abrasion resistance, and vibration). This special bulb must only be
used for the purpose for which it is intended. It is not suitable for
room lighting. Replacement bulbs may only be fitted by a Miele au-
thorized person or by Miele Service.
10
IMPORTANT SAFETY INSTRUCTIONS
Heat-pump technology and refrigerant:
The heat pump in this tumble dryer uses a gaseous refrigerant which
is condensed by the compressor. The refrigerant, which is brought to
a higher temperature level and liquified by condensing, is led in a
closed circuit through the heat exchanger unit where heat exchange
with the circulating drying air takes place.
- The humming noises caused by the heat pump during the drying
process are normal. This does not impair the efficient functioning
of the dryer.
- The refrigerant is not flammable or explosive.
- This tumble dryer contains fluorinated greenhouse gases. Hermeti-
cally sealed.
Designation of refrigerant: R134a
Amount of refrigerant: 16.6 oz (0.47 kg)
Global warming potential of refrigerant: 1430 kg CO
2
e
Global warming potential of appliance: 672 kg CO
2
e
This product contains chemicals known to the state of California to
cause cancer or reproductive harm. For more information go to
www.P65Warnings.ca.gov.
California Proposition 65
WARNING
This product can expose you to chemicals mineral oils
1
, Nickel
(Metallic)
1
, Diisononyl phthalate (DINP)
1
and Di-isodecyl phthalate
(DIDP)
2
, which are known to the State of California to cause
1
can-
cer and
2
birth defects or
2
other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
11
IMPORTANT SAFETY INSTRUCTIONS
Using a fragrance flacon (optional accessory)
Only use genuine Miele original fragrance flacons.
Store the fragrance flacon in its original packaging.
Caution: The fragrance can leak out of the flacon! Make sure that
you always keep the flacon, or the lint filter with the flacon inserted in
it, in a horizontal position when carrying and do not tip or place it
down on any surface.
Use an absorbent cloth to wipe up any fragrance which has leaked
out of the flacon onto the floor, the dryer or any dryer components
(e.g. the lint filter) immediately.
If fragrance comes in contact with the body: Wash skin thoroughly
with soap and water. Flush eyes with clean water for at least 15min-
utes. If swallowed, rinse mouth thoroughly with clean water. Seek
medical attention if the fragrance comes in contact with the eyes or
is swallowed!
Immediately change clothes that have come in contact with the
fragrance. Thoroughly wash clothing or fabric using a large amount of
water and detergent.
There is the risk of fire or damage to the tumble dryer if the follow-
ing instructions are not observed:
- Never refill a flacon with fragrance or any other substance.
- Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
12
IMPORTANT SAFETY INSTRUCTIONS
FCC Declaration of Conformity
This appliance complies with Part 15 of the FCC regulations. This
appliance has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules and is
subject to the following conditions: This appliance does not cause
harmful interference. The appliances may be interconnected as de-
sired.
FCC Radiation Exposure Statement
This appliance complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. These appliances should be in-
stalled and operated with a minimum distance of 8" (20cm) be-
tween the radiator and body.
Industry Canada Statement
This digital device does not exceed the Class B limits for radio
noise emissions from digital devices specified in the radio regulations
of the Canadian Radio-television and Telecommunications Commis-
sion. This appliance complies with the Class B specification of the
Canadian ICES-003.
SAVE THESE INSTRUCTIONS
13
Operating the tumble dryer
Control panel
a
Control field
The control field consists of various
sensor controls, a time display, and
indicator lights.
b
Sensor controls for drying levels
After selecting a drying level program
with the program selector, the rec-
ommended drying level lights up.
The drying levels that can be se-
lected for the corresponding program
are dimly lit.
c
Indicator lights
(These light up when necessary.)
Emptying the condensate con-
tainer
Clean the lint and plinth filters
d
Gentle sensor control
For protecting temperature-sensitive
fabrics.
e
PerfectDryindicator
flashes after the program has
started and switches off when the
program runtime is displayed. Per-
fectDry measures the residual mois-
ture of the laundry. In programs with
selectable drying levels, PerfectDry
dries the laundry precisely, although
the result is also influenced by the
calcium content of the water.
lights up toward the end of the
program once the selected drying
level has been reached, except in the
case of the Woolens, Time Dry/
DryFresh programs.
14
Operating the tumble dryer
f
Time display
After the program has started, the
program runtime will appear on the
display in hours and minutes.
– When delay start is being used,
the program runtime will appear
after the delay start period has
elapsed.
– With most programs, the duration
displayed may vary or “jump”. The
following factors, among others,
affect the program duration dis-
played: the quantity of laundry, the
type of fabric, and the residual
moisture in the laundry. The elec-
tronic adapts to these factors with
increasing accuracy.
g
Start/Add laundry sensor control
Touching the Start/Add laundry sen-
sor control starts a program. The cur-
rent program can be interrupted to
add laundry. The program can be
started when the sensor control is
flashing on and off. The sensor con-
trol lights up constantly once the
program has started.
h
Sensor controls
For the Delay Start function or the
Time Dry/DryFresh program runtime
After touching the sen-
sor control, a later start
time for the program (De-
lay Start) can be selected.
Once selected, lights
up brightly.
The or sensor con-
trols are used for select-
ing the duration of the
Delay Start period or the
duration of the Time Dry/
DryFresh program.
i
Optical interface
This is used by Miele Service as a
transmission point.
j
Program selector
for selecting programs and for
switching the machine off. The tum-
ble dryer is switched on when you
select a program and switched off by
turning the program selector to the
position.
If the tumble dryer is connected to
the Wi-Fi network, you will have ac-
cess to the following alternative op-
tions for selecting programs.
MobileStart
You can operate your tumble
dryer remotely with the Miele
app.
Wash2Dry
A drying program tailored to the
laundry is set in conjunction
with the connected washing
machine.
How the sensor controls work
The, , , and sensor controls re-
act to fingertip contact. Selection is
possible as long as the respective sen-
sor control is lit.
If a sensor control is brightly lit, this
means it is currently selected.
If a sensor control is dimly lit, this
means it can be selected.
15
Operating the tumble dryer
Wash2Dry
Once the program has come to a
proper end, the Miele washing ma-
chine transfers the program data via
the router to which the networked
tumble dryer is also connected, as well
as transferring it to the Miele Cloud.
The tumble dryer automatically sets a
drying program tailored to the laundry
based on the transferred program data.
All you need to do is start the drying
program once you have loaded the tum-
ble dryer. No additional program set-
tings are required on the tumble dryer.
Tip: The drying program must be started
within 24hours of the end of the wash
program. The data will be kept available
for the tumble dryer during this period,
but will be overwritten when a new
wash program ends.
Tip: Do not disconnect the tumble dryer
from the network. The program data
transferred by the washing machine will
be received by the tumble dryer as soon
as you select Wash2Dry.
If you have disconnected the appliance
from the network beforehand, this will
cause a delay in receiving the data.
In order to use the Wash2Dry func-
tion, the Miele washing machine and
tumble dryer must be networked using
Miele@home services.
Tip: Set up Miele@home as described
in these operating instructions.
16
Functioning of the heat-pump dryer
Two separate circuits ensure that the
laundry is dried:
Dry air circuit
The drying air flows through a heat ex-
changer, the drum, and several filters.
This is ensured by a blower in the
dryer.
- The drying air flows through the heat
exchanger in the longitudinal direction
and is heated in the rear area.
- The drying air is then blown into the
drum, where it absorbs the moisture
of the laundry.
- The damp drying air is blown back
through the heat exchanger via several
filters in the fill area and the plinth
area of the dryer.
- The drying air cools down in the front,
cool area of the heat exchanger, and
loses its moisture.
- The circuit begins again.
Refrigerant circuit
The refrigerant circuit regulates the
heating and cooling of the drying air
through the heat exchanger. The heat
pump is the central component: This is
a compressor that is connected to a
pipeline system which is filled with re-
frigerant.
- The pipeline system surrounds the
heat exchanger in several bends.
- The compressor draws in the gaseous
refrigerant and compresses it, causing
the temperature to rise.
- The hot refrigerant is passed through
the pipeline system to the rear of the
heat exchanger. The heat is released
into the drying air, which flows
through the heat exchanger.
- The refrigerant liquifies by dissipating
the heat.
- The liquid refrigerant then flows
through a capillary tube (a very thin
tube) to the front area of the heat ex-
changer. This changes the pressure of
the refrigerant.
- The refrigerant cools and reverts to its
gaseous state. This in turn cools the
front area of the heat exchanger and
dehumidifies the drying air.
- The circuit begins again.
17
Initial set-up
Downtime after installation
Damage caused by switching the
appliance on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
starting a drying program.
Removing the protective film
and stickers
Remove:
- any protective film from the door
- any stickers from the front and from
the lid
Please do not remove any labels (e.g.,
the data plate) which are visible
when you open the door.
Networking
Your tumble dryer is equipped with an
integrated Wi-Fi module. The Wi-Fi
module makes it possible to connect to
your home network and to use the
Mieleapp on a mobile device.
Once your tumble dryer has been con-
nected via Wi-Fi, the connection is au-
tomatically re-established every time it
is switched on.
Make sure that your Wi-Fi network sig-
nal is strong enough in the place where
you intend to install your tumble dryer.
Connecting your tumble dryer to your
Wi-Fi network will increase energy
consumption, even when the tumble
dryer is switched off.
Smart Extras via the Miele app*
Networking via the Miele app gives you
access to numerous Smart Extras, in-
cluding:
- Access status information.
- Use additional helpful functions.
- Keep your tumble dryer up to date
with the latest Miele developments
via software updates.
You can find more detailed information
about Smart Extras on the Miele web-
site, in the Apple App Store
®
, or in the
Google Play Store™.
*This is a separate digital offer from
Miele & Cie. KG. The range of func-
tions can vary depending on the model
and the country. Acceptance of the
General Terms and Conditions and Pri-
vacy Policy for Miele digital products
and services in the Miele app required.
Miele reserves the right to change or
discontinue the digital offers at any
time.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Requirements for networking
Note the following requirements for net-
working:
1. A home network is available at the
installation site.
Have the Wi-Fi password ready.
18
Initial set-up
2. The Mieleapp is available on a mo-
bile device.
3. You have a user account in the
Mieleapp.
You can also carry out networking at a
later date. Skip the “Networking” menu
option during commissioning.
Setting up Miele@home
There are 2 ways of connecting:
1. via the Miele@mobile app (default)
2. via WPS
To do so, you will need a WPS-com-
patible router.
Logging in via the Miele app
The Mieleapp can be used to connect
to your network.
Turn the program selector to Mo-
bileStart.
appears on the time display and the
timeout starts to count down from
10minutes. The Mieleapp will guide
you through the remaining steps.
When you have successfully connected,
will appear on the time display.
Logging in via WPS
Turn the program selector to Mo-
bileStart.
Touch the sensor button until
appears on the time display and a
short keypad tone sounds.
The timeout then starts to count down
from 2minutes on the time display.
Activate the WPS function on your
router within 2minutes.
When you have successfully connected,
will appear on the time display.
Tip: If the connection has not been set
up when the timeout has finished
counting down, repeat the process.
19
1. Notes on correct laundry care
Points to note regarding
washed laundry
- When washing very heavily soiled
items, ensure that you use sufficient
detergent and select a high tempera-
ture. If in doubt, wash the items sev-
eral times.
- Do not load the drum with items that
are still soaking wet. Make sure your
laundry is spun at the maximum spin
speed before drying. The higher the
spin speed, the greater the savings
that can be made in energy and time
during drying.
- New dark colored garments should be
washed and dried separately from
light colored garments. There is the
risk of colors running and discoloring
other garments or even plastic com-
ponents in the dryer. Dark colored
fibers can also settle on light colored
garments and vice versa.
- Starched laundry can be tumble dried.
To achieve the usual finish, double the
amount of starch should be used.
Preparing the laundry before
drying
Damage due to foreign objects
which were not removed from the
laundry.
Foreign objects can melt, burn, or ex-
plode.
Ensure that any foreign objects (e.g.,
detergent dispensing balls, lighters,
etc.) have been removed from the
laundry.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy the
dryer and the surroundings.
Read and observe “IMPORTANT
SAFETY INSTRUCTIONS”.
- Sort the laundry according to the type
of fiber and weave, size, garment care
label symbol, and the drying level re-
quired.
- Check seams and stitching to ensure
that padding and linings are intact.
This way you will avoid the danger of
fillings coming out. These could catch
fire when being dried.
- Untangle the laundry.
- Tie together textile belts and apron
ties.
- Fasten duvet covers and pillow cases
to prevent small items from being
rolled up inside them.
- Fasten hooks and eyes.
- Leave jackets open and undo any long
zippers so that textiles dry evenly.
- Sew in or remove underwiring from
bras.
- If necessary, reduce the size of the
load for these types of fabric. Easy
care fabric tends to crease more, the
larger the load. This is particularly the
case for garments made from very
fine weave fabric, such as dress shirts
or blouses.
20
1. Notes on correct laundry care
Drying
Tip: See the “Program chart”.
This describes the programs and gives
their maximum load.
- Always observe the maximum recom-
mended load for each program. This
will mean that the energy consump-
tion for the amount of laundry is at its
most economical.
- Down-filled garments have linings
which have a tendency to shrink, de-
pending on the quality of the item.
Only use the Woolens Handcare pro-
gram for these items.
- You should only tumble dry pure linen
if it is specified as suitable by the
manufacturer on the care label, as the
surface of the fabric may otherwise
become rough. Only use the Woolens
Handcare program for these items.
- Woolens and wool blends tend to be-
come matted and shrink if tumble
dried. Only use the Woolens Hand-
care program for these items.
- Jersey fabrics (e.g., T-shirts, under-
wear) tend to shrink when they are
washed for the first time. Therefore,
do not over-dry the fabrics to prevent
them from shrinking further. Buy jer-
sey fabrics that are one or two sizes
bigger.
- Select the Gentle extra option for fab-
ric which is particularly heat-sensitive
or susceptible to creasing.
Understanding the care label symbols
Drying
Normal/higher temperature
Low temperature*
* Select Gentle
Do not tumble dry
Ironing
Very hot
Warm
Hot
Do not iron
Selecting the correct drying level
- Extra Dry for multi-layered and very
thick fabrics.
- Normal for textiles that can shrink. Or
for light cotton or jersey textiles.
- Hand iron or Rotary iron if you want
to iron the laundry after drying.
Tip: You can alter the drying levels for
the Normal and Wrinkle-free programs
(damper or dryer). See “Programmable
functions” for this.
21
2. Loading the tumble dryer
Loading the laundry
Textiles may be damaged.
Before loading, read “1. Notes on cor-
rect laundry care”.
Unfold the laundry and load loosely
into the drum.
Do not overload the drum. Overloading
can cause unnecessary wear and tear
to the laundry, give a disappointing
drying result, and cause more creasing.
This can result in damage to the laun-
dry.
When closing the door, make sure
that laundry does not get trapped in
the door opening.
Twosockets for inserting fragrance
flacons
The “Fragrance flacon” chapter de-
scribes how to use the fragrance fla-
con.
If you are not using a fragrance flacon:
Push the tab down completely (see ar-
row) to close the socket. Otherwise,
lint will accumulate here.
Closing the door
Shut the door with a gentle swing.
22
3. Selecting a program and starting it
Switching on the tumble dryer
The tumble dryer is switched on when
you select a program and switched off
by turning the program selector to the
position.
Turn the program selector to a pro-
gram.
Selecting a program
There are 3 possible ways to select a
program.
1. Selecting drying programs using the
program selector
Turn the program selector to the re-
quired program.
A drying level may light up and durations
will appear on the time display.
2. Selecting drying programs via the
MobileStart program selector posi-
tion
Turn the program selector to Mo-
bileStart.
will light up on the time display.
Press the Start/Add laundry sensor
control.
The tumble dryer can now be operated
via a mobile device together with the
Miele app.
3. Selecting a drying program via the
Wash2Dry program selector posi-
tion
Once the wash process has ended,
place the clean laundry in the tumble
dryer.
Turn the program selector to
Wash2Dry.
If the connection is successful,
......will flash in the display. Once
the washing machine program has
come to a proper end, the drying time
and drying level will be displayed on the
tumble dryer.
To start the program, all you need to
do is press the Start/Add laun-
drysensor control on the tumble
dryer.
Program changeover is not available on
this tumble dryer after washing deli-
cate textiles (e.g., curtains) in special
wash programs.
Readouts on the time display:
...
...
Dryer starting query.
Program cannot be transfered
on tumble dryer or dryer wait-
ing for data.
Tumble dryer not connected
Selecting the drying level for
programs with a selectable dry-
ing level
Normal, Delicates, Bed Linens, Dress
Shirts, Denims, Express, Outdoor
The preset drying level can be changed
if required.
23
3. Selecting a program and starting it
Touch the sensor control for the dry-
ing level you want. It will then light up
brightly.
Any drying level can be selected for the
Normal, Express, and Bed Linens pro-
grams. A more limited range is available
when using the other programs.
Check the “Program overview” to see
which drying level meets your require-
ments.
Time-controlled and other pro-
grams
Time Dry/DryFresh
You can set the duration in ten-minute
increments fromminutes
tohours.
Touch the or sensor button re-
peatedly until the required program
duration appears on the time display.
Woolens/Silks, Proofing
The drying result is preset by the dryer
and cannot be altered.
Selecting Gentle
Delicate fabrics (with the symbol on
the care label, e.g., acrylic garments)
are dried at a lower temperature and
the program duration is longer.
Touch the Gentle sensor button. It
then lights up brightly.
- Gentle can be selected with the fol-
lowing programs:
– Normal
– Dress Shirts
– Denims
– Time Dry/DryFresh
- Gentle is always activated/cannot be
deselected with Delicates, Smooth-
ing.
Switching on delay start
The start of the program can be delayed
from 30minutes up to 24hours. This
allows you to make use of night-time
economy electricity rates, for example.
Starting a program
Touch the flashing Start/Add laundry
sensor control.
The Start/Add laundry sensor control
lights up.
- The Perfect Dry indicator will only
flash/light up with programs with se-
lectable drying levels (see also “Oper-
ating the tumble dryer”).
- This dryer measures residual moisture
content in the laundry to ensure per-
fect drying results.
24
3. Selecting a program and starting it
However, if you load the dryer with lit-
tle or dry laundry, it will be dried/aired
for a set duration. In this case, Perfect
Dry does not light up at the end of the
program.
Avoid overdrying items of laundry
and garments.
Otherwise they can wear out!
- Before the program finishes, the laun-
dry is cooled.
Adding laundry
You can add laundry after the program
has started.
Follow the description in “Changing
the program sequence – Adding or re-
moving laundry”.
25
4. Removing the laundry at the end of the program
End of program/Anti-crease
End of program: lights up in the
time display and the Start/Add laundry
sensor control goes out. An audible sig-
nal (buzzer) sounds. Or in some cases
bars flash in the time display
(.........)
The end of the program is followed by
the Anti-crease phase, which will run for
up to 2hours. The Woolens program
does not support the Anti-crease func-
tion.
See “Programmable function”.
The tumble dryer switches off automati-
cally.
Removing the laundry
Only open the door when the drying
process has finished. Otherwise, the
laundry will not be properly dried
through and cooled down.
Pull the door open at the side with the
orange marker.
Remove the laundry.
Items left in the dryer could be dam-
aged by over-drying when the dryer is
used the next time.
Always remove all items from the
drum.
Turn the program selector to the
position.
Remove the lint from the 2 lint filters
in the door opening: See “Cleaning
and care”.
Shut the door gently.
Empty the condensate container.
Drum lighting
The inside of the drum lights up so that
you don't forget any items of laundry
when you empty it.
The drum lighting switches off automati-
cally (energy saving).
26
Delay Start/SmartStart
Selecting Delay Start
You can delay the start of a program
from minutes up to hours.
However: Delay Start cannot be used
with the Time Dry/DryFresh program.
Touch the sensor button.
will light up brightly.
Touch the or sensor button re-
peatedly until the required delayed
start time appears on the time dis-
play.
Tip: The times will count upwards and
downwards automatically if you keep
your finger on the or sensor button.
Altering Delay Start
If you would like to alter the Delay Start
function after starting a program, the
function must be canceled first.
Turn the program selector to the
position.
The tumble dryer is switched off and
Delay Start is canceled.
Select a program.
Select a Delay Start time.
Delay Start countdown
- Delay Start times of more than will
count down in hours and then in min-
utes until the start of the program.
- The drum will turn briefly every hour
until the start of the program to re-
duce laundry creasing.
Adding laundry during ongoing Delay
Start period
Follow the description in “Changing
the program sequence – Adding or re-
moving laundry”.
27
Delay Start/SmartStart
SmartStart
The SmartStart function lets you de-
fine a time period during which your
dryer will start automatically. The start
takes place via a signal, e.g., from your
energy supplier, that indicates that the
electricity tariff is particularly econom-
ical.
This function is active when the
SmartGrid programmable function
is activated
The time period can be defined between
30minutes and 24hours. During this
period, the dryer waits for the signal
from the energy supplier. If no signal is
sent during the defined period, the dryer
starts the drying program.
Setting the time period
If the SmartGrid programmable
function is activated, the function of
the sensor button changes. The
time display no longer shows the De-
lay Start period, and instead shows the
time period in which your tumble dryer
can be started automatically.
The procedure for setting this is the
same as for setting the time for Delay
Start.
Touch the sensor button.
Set the time period you want using
the or sensor buttons.
Touch the Start/Add laundry sensor
button.
A flashing readout appears in the time
display for the duration: ....
The period can be ended by opening the
door.
28
Program chart
All weights marked with * are based on the weight of dry laundry.
Normal Full load (17.6lb/8kg)*
Extra, Normal**
Items Single and multi-layered cotton items. For example, T-shirts, under-
wear, baby clothes, workwear, jackets, covers, aprons, overalls, hand
towels, bath towels, bathrobes, and bed linen.
Tip - Select Extra for multi-layered and very thick fabrics.
- Do not use Extra for jersey fabrics (e.g., T-shirts, underwear, baby
clothes) because they can shrink.
Hand iron, Rotary iron
Items All cotton or linen fabrics requiring further processing. For example,
table linen, bed linen, or starched laundry.
Tip To prevent laundry from drying out, it should be rolled up until you are
ready for ironing.
** Note: The Normal program with the Normal drying level is the most energy-ef-
ficient for drying cotton items with normal residual moisture levels. Using the
Normal program with the Normal drying level is recommended for a mixed cotton
load and is the program used in energy consumption tests to CAN/CSA-C361-16
Standard and DOE test procedure methods specified at
10 CFR 430, Subpart B, Appendix D2.
Delicates Small load (5.7lb/2.5kg)*
Normal, Hand iron
Items Delicate items with the symbol on the care label made of syn-
thetic fiber, mixed fiber, rayon, and easy care cotton. For example,
dress shirts, blouses, lingerie, and appliquéd garments.
Tip The load should be reduced further for a particularly crease-free dry-
ing process.
Bed Linens Full load (8.8lb/4kg)*
Extra, Normal, Hand iron, Rotary iron
Items Bed linen
Tip - Select Extra for multi-layered and very thick fabrics.
- To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
29
Program chart
Woolens/Silks Small load (4.4lb/2kg)*
Items - For woolen garments and fabric containing wool blends. For exam-
ple, pullovers, knitted jackets, and pantyhose.
- Silk garments which are suitable for tumble drying, e.g., blouses
and shirts.
Tip - Woolen garments are loosened and fluffed up in a short amount of
time.
- The program reduces the amount of creases in silk garments that
are suitable for tumble drying.
- The items are not dried completely in this program.
- Please remove the garments as soon as the program has finished.
Dress Shirts Small load (4.4lb/2kg)*
Normal, Hand iron
Items For all shirts and blouses.
Denims Small load (6.6lb/3kg)*
Normal, Hand iron
Items All the denim garments, e.g., jackets, jeans, shirts, and skirts.
MobileStart
The Miele@mobile app is used to select the programs and operate the appliance.
Wash2Dry
The program is selected automatically in conjunction with the program selection
on the connected washing machine.
Express Half load (8.8lb/4kg)*
Extra, Normal, Hand iron, Rotary iron
Items Suitable for resistant garments for the Normal program.
Note The program duration is shortened.
Outdoor Small load (5.5lb/2.5kg)*
Normal, Hand iron
Items Outdoor clothing which is suitable for drying in a tumble dryer.
30
Program chart
Proofing Small load (5.5lb/2.5kg)*
Items For drying microfiber fabrics, skiwear, outdoor wear, fine, closeweave
cotton garments (poplin), and table linen which are suitable for dry-
ing in a tumble dryer.
Note - Items are dried to a Normal level only.
- This program includes a proofing fixing phase.
- Only use proofing agents which are stated by the manufacturer as
being “suitable for use on membrane textiles”. These agents con-
tain fluorochemical compounds.
- Risk of fire! Do not dry items which have been treated with proof-
ing agents containing paraffin.
Time Dry/DryFresh Full load (17.6lb/8kg)*
Note - For airing or drying textiles (Time Dry)
- For freshening up textiles (DryFresh)
1
- Do not select the longest drying time to start with. Check the
items as you are drying them to find the optimum time.
Items - Airing: multi-layered textiles whose layers have different drying
characteristics, e.g., jackets, pillows, sleeping bags, and other volu-
minous items
- Drying: individual items, e.g., bath towels, bathing costumes, dish
cloths, and towels
- Freshening up: clean textiles
1
1
Tip You can reduce or eliminate unwanted odors in clean, dry textiles. To
do this, use Time Dry/DryFresh in conjunction with the DryFresh fra-
grance flacon (optional accessory
2
). Select a time of at least 60min-
utes in order to freshen up the textiles effectively.
2
Insert fragrance flacon and set the intensity; see “Fragrance flacon”
31
Changing the program sequence
Changing a program once it has
started
It is no longer possible to change the
selected program. This prevents the ap-
pliance being operated unintentionally.
If you adjust the program selector, the
symbol will light up in the display.
The symbol goes out when you se-
lect the original program.
Canceling the current program
Turn the program selector to the
position.
The program is canceled.
You can now select a new program.
Adding or removing laundry
You have forgotten an item of laundry,
but the program has already started.
Touch the Start/Add laundrysensor
button.
The wordAdd will appear in the time
display. The Start/Add laundry sensor
button flashes slowly.
Open the door.
Add or remove laundry items.
You can still change the program selec-
tion.
Close the door.
Touch the Start/Add laundrysensor
button.
The program continues.
Exceptions when adding laundry
In some cases – for example, during
the cooling phase or the Proofing pro-
gram – it is not possible to add laundry
items.
In these cases, the wordAdd is not dis-
played.
In exceptional cases, the door can be
opened while the program is running.
32
Condensed water container
Emptying the condensed water
container
Condensate container
The condensed water is collected in
the condensate container.
Emptying interval: Empty the conden-
sate container after every drying pro-
gram.
The indicator light will light up if the
maximum level of the condensate con-
tainer is reached.
To turn the indicator light off: Open
and close the door while the dryer is
switched on.
Remove the condensed water con-
tainer.
To prevent water from running out,
keep it in a horizontal position when
carrying it. Hold the condensed water
container at the front and towards the
back.
Empty the condensed water con-
tainer.
Replace the condensed water con-
tainer in the dryer.
It can cause health problems in peo-
ple and animals.
Do not drink condensed water.
Condensed water can be used for iron-
ing. For this, you should pour the con-
densed water through a fine sieve or a
coffee filter. If you want to reuse con-
densed water in a steam iron or humidi-
fier, follow the manufacturer’s instruc-
tions.
33
Fragrance flacon
FragranceDos
Fragrance flacons (optional acces-
sories) can be used to give your laun-
dry a pleasant scent.
This tumble dryer has 2sockets for in-
serting fragrance flacons. This gives
you a choice of how to use them.
- You can use both sockets if you wish
to change from one fragrance to an-
other. You can close the fragrance fla-
con that you are not using.
- Use both sockets if you want a more
intense scent of the same fragrance.
Or if you wish to conveniently switch
between a fragrance for normal laun-
dry and DryFresh to freshen up your
laundry.
- To use just one fragrance, use one
socket only.
Risk of fire and harm to health if
fragrance flacons are used incor-
rectly.
Leaked fragrance can be harmful to
your health if it comes into contact
with your body. Leaked fragrance can
cause fire.
Before using a fragrance flacon,
please read “IMPORTANT SAFETY
INSTRUCTIONS”, “Using the fra-
grance flacon (optional accessory)”.
Removing the protective seal
from the fragrance flacon
Only hold the fragrance flacon as il-
lustrated. Do not hold it at an angle
or tip it as the fragrance will leak out
of it.
Take the fragrance flacon out of its
packaging.
Do not attempt to open the fragrance
flacon.
Hold the fragrance flacon securely so
that you do not open it by mistake.
Pull off the protective seal.
34
Fragrance flacon
Inserting a fragrance flacon
Open the door of the tumble dryer.
The fragrance flacon is inserted in the
upper lint filter. There is one socket on
the left-hand side of the recessed grip
and another on the right-hand side.
To open the cover, push the tab all the
way up to the top.
If you are not using a socket, keep its
cover closed to prevent the accumu-
lation of lint.
Push the tab of the cover all the way
down (see arrow), until you hear it
click into position.
Insert the fragrance flacon as far it will
go into the socket.
The markers and must line up
with one another.
35
Fragrance flacon
Turn the outer ring clockwise a lit-
tle.
The fragrance flacon may slip out.
Turn the outer ring so that the mark-
ers and line up.
Setting the fragrance intensity
Before drying, you can select the inten-
sity of the fragrance.
Turn the outer ring clockwise: the fur-
ther you open the fragrance flacon,
the more intense the fragrance.
Damp laundry and longer drying dura-
tions with sufficient heat transfer are
needed for the fragrance to be released
into the laundry effectively.
The fragrance will also be noticeable in
the room air during the process. The
Cold Air program will not generally apply
fragrance.
Closing the fragrance flacon
After drying, the fragrance flacon should
be closed to prevent the fragrance from
escaping needlessly.
Turn the outer ring counterclockwise
until markerb is in position_.
Replace the fragrance flacon with a
new one when the intensity of the fra-
grance is no longer sufficient.
Removing/replacing the fra-
grance flacon
36
Fragrance flacon
Turn the outer ring counterclockwise
until the markersa andb line up.
Replace the fragrance flacon with a
new one.
When not in use, you can store the fra-
grance flacon in its original packaging.
Replacement interval: Replace the fra-
grance flacon when it is empty or the
fragrance is no longer sufficient.
Fragrance flacons are available to order
from Miele dealers, Miele Service, or
online.
Fragrance can leak out of the flacon.
Do not lay the fragrance flacon down.
- If you are keeping the fragrance flacon
in its original packaging, do not store
the packaging upright on its edge or
upside down. Otherwise, the fra-
grance will leak out.
- Always store in a cool, dry place away
from direct sunlight.
- When purchasing new fragrance fla-
cons, only remove the protective seal
just before use.
37
Cleaning and care
Lint filters
This tumble dryer has 2 lint filters in the
loading area of the door. Both lint filters
trap lint produced during the drying
process.
Cleaning interval: Clean the lint filters
after each drying program.
Also clean the lint filters when the
indicator light comes on.
The program runtime is extended if
you do not clean the filter.
The program is aborted and a fault
occurs.
To make the indicator light go out,
open and close the door while the
tumble dryer is switched on.
Removing the fragrance flacon
The intensity of the fragrance will be re-
duced if the lint filters and plinth filter
are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon”, “Removing/re-
placing the fragrance flacon”.
Removing visible lint
Tip: You can also use a vacuum cleaner
so that you can remove the lint without
touching it.
Open the door.
Pull the upper lint filter forward to re-
move it.
Remove the lint (see arrows).
38
Cleaning and care
Remove the lint (see arrows) from the
filter surface of all the lint filters and
the perforated laundry deflector.
Push the upper lint filter back into po-
sition until it clicks.
Close the door.
Cleaning the lint filters and air-flow
openings thoroughly
If the drying time has become longer
or the surface of the lint filters is visi-
bly compacted with lint, you should
carry out the following cleaning proce-
dure.
Remove the fragrance flacon. See
“Fragrance flacon”.
Pull the upper lint filter forward to re-
move it.
Turn the yellow knob on the lower lint
filter in the direction of the arrow (un-
til you hear it click).
Hold the knob and pull the lint filter
forward to remove it.
39
Cleaning and care
Use a vacuum cleaner with a long
crevice nozzle attached to remove any
visible lint from the upper air flow
openings.
Clean all lint filters with water.
Cleaning the lint filters with water
Wipe the smooth plastic surfaces of
the lint filters with a damp cloth to
clean them.
Flush the lint filters through with
warm running water.
Shake the lint filters thoroughly and
then dry them carefully.
Ensure the filters are dry before re-
placing them. Wet filters could cause
operational faults.
Push the lower lint filter in completely
and lock it with the yellow dial.
Push the upper lint filter in com-
pletely.
Close the door.
40
Cleaning and care
Cleaning instructions when using fab-
ric softener sheets
If you are using fabric softener sheets,
please follow these warnings and in-
structions.
First, clean the filters as de-
scribed in “Cleaning the lint filters
with water”.
If the surfaces of the lint filters are
still strongly compacted with lint,
then follow these measures.
Please note the plastic and surfaces
of the lint filters can be damaged by
the cleaning process described be-
low.
If the surfaces of the lint filters
are not cleaned, this can extend the
drying time and increase the energy
consumption.
Try the following 3 cleaning instructions
to determine the one that achieves the
best results.
Option 1
Wipe the surfaces of the lint filters
several times with a cleaning cloth
with an alcohol base until you have re-
moved any debris//obstructions.
Risk of fire!
Then rinse the filter surfaces thor-
oughly with warm water to remove all
residues.
Option 2
Clean the lint filters in the dishwasher
without any other dishes. Use a high-
temperature program.
Option 3
Wet the surfaces of the lint filters
with a liquid color detergent (e.g.,
Miele Ultra Color Liquid Laundry De-
tergent).
Leave it on for approx. 2 hours.
Risk of fire!
Then rinse the filter surfaces thor-
oughly with warm water to remove all
residues.
41
Cleaning and care
Cleaning the plinth filter
Cleaning interval: Clean the plinth filter
whenever the indicator light comes
on or when the program runtime
seems to be taking longer than usual.
The program runtime is extended if
you do not clean the filter.
The program is aborted and a fault
occurs.
To make the indicator light go out,
open and close the door while the
tumble dryer is switched on.
Removing the plinth filter
Press the round, indented area on the
heat exchanger access panel to open
it.
The access panel will spring open.
Pull the plinth filter out by the handle.
The right-hand guide pin comes out
when the plinth filter is removed. The
guide pin prevents the access panel
from closing without the plinth filter.
42
Cleaning and care
Cleaning the plinth filter
Pull the handle out of the plinth filter.
Clean the plinth filter carefully and
thoroughly under running water.
Tip: To speed up the removal of residue
from the surface, run a water jet verti-
cally over the front of the plinth filter.
Squeeze the plinth filter very carefully
several times as you rinse it.
Rinse and wash the entire plinth filter
until all visible residues have been re-
moved.
Continue to carefully squeeze the
plinth filter until all of the water has
been removed.
Tip: To absorb water, place the damp
plinth filter between 2 towels. On an
even surface, gently press down on the
plinth filter with the palm of your hand.
This will help the plinth filter to dry
faster.
The plinth filter must not be installed
dripping wet.
Otherwise, this could cause a fault.
Carefully squeeze the water out of
the plinth filter.
If a drying program is interrupted with
a fault message after the clean plinth
filter has been installed, the plinth filter
was too wet when it was installed.
Carefully squeeze the water out of the
plinth filter again. Leave the plinth filter
to air-dry.
If a fault occurs again despite this, it
may be caused by stubborn residue
from washing substances. Reactivate
the plinth filter in the washing ma-
chine. See “Frequently Asked Ques-
tions – Reactivating the plinth filter”.
Blockages caused by a damaged
or worn plinth filter.
The heat exchanger becomes
blocked and damage may occur.
Check the plinth filter. Replace the
plinth filter if necessary.
43
Cleaning and care
Use a damp all-purpose cloth to re-
move any lint from the handle.
Install the plinth filter back on the
handle. Make sure it is the correct
way round.
Push the plinth filter in completely.
This will push in the right-hand guide pin
at the same time.
44
Cleaning and care
Cleaning the plinth-filter access panel
Use a damp cloth to remove any lint.
Make sure that you do not damage
the rubber seal when doing this.
Close the heat-exchanger access
panel.
Damage or ineffective drying if
drying takes place without a plinth fil-
ter or when the heat-exchanger ac-
cess panel is open.
An excessive accumulation of lint can
damage the tumble dryer. If the sys-
tem is not leak-tight, this can make
the drying ineffective.
Only operate the tumble dryer with
the plinth filter installed and the heat-
exchanger access panel closed.
Cleaning the tumble dryer
Disconnect the tumble dryer from
the power supply.
Damage due to the use of unsuit-
able care products.
Unsuitable care products could dam-
age plastic surfaces and other parts.
Do not use any solvents, abrasive
cleaning agents, glass cleaners, or
all-purpose cleaners.
Cleaning recommendation: Clean once
or twice a year and as required.
Clean the tumble dryer and the seal
on the inside of the door with a
slightly damp soft cloth, a mild solu-
tion of liquid dish soap, and water.
Dry all the parts with a soft all-pur-
pose cloth.
45
Frequently asked questions
Many malfunctions and faults can be easily remedied. You can save time and
money in many cases, as you do not need to contact Miele Service.
More information to help you rectify faults yourself can be found at
https://www.mieleusa.com/support/customer-assistance.
Indicator lights or information on the time display triggered when a
program is canceled
Problem Possible cause and solution
and flash, a signal
sounds.
The indicator light
comes on.
The system has been clogged by lint or detergent
residues.
To deactivate the message, turn the program selec-
tor to the position.
Clean the lint filters and the plinth filter.
– If the lint filters and the plinth filter are damaged
or out of shape, or if they cannot be cleaned,
they must be replaced.
– If the fault message is displayed again after
cleaning, this could be due to one of the causes
listed below.
The plinth filter was too wet when it was installed.
Carefully squeeze the water out of the plinth filter.
Leave the plinth filter to air-dry.
There is still underlying residue in the plinth filter that
could not be removed.
Check the plinth filter.
If the plinth filter is not damaged or out of shape,
you can reactivate it in a washing machine.
The heat exchanger is clogged.
Check the heat exchanger.
The indicator light
comes on after a pro-
gram has been canceled
and a signal sounds.
The condensate container is full or there is a kink in
the drain hose.
To switch off the indicator light, open and close
the door (with the tumble dryer switched on).
Empty out the condensate container.
Check the drain hose.
46
Frequently asked questions
Problem Possible cause and solution
and another num-
ber combination
flash after a pro-
gram has been
cancelled, a sig-
nal sounds.
There is no obvious cause.
Switch the dryer off and then on again.
Start a program.
If the program is interrupted again and an error mes-
sage appears, there is a fault. Contact Miele Service.
: lights up and the
program has been can-
celled, a signal sounds.
The laundry is unevenly distributed or has rolled up.
Untangle the laundry and remove a few items if nec-
essary.
Switch the dryer off and then on again.
Start a program.
Indicator lights or information on the time display
Problem Possible cause and solution
The indicator light
comes on at the end of
the program.
The tumble dryer is not working correctly or economi-
cally. Possible causes could be clogging caused by lint
or detergent residues.
To switch off the indicator light, open and close
the door (with the tumble dryer switched on).
Clean the lint filters.
Also check the plinth filter and clean it if necessary.
You can influence when the indicator lights up.
To do this, follow the instructions in “Programmable
functions”.
lights up. The program selector has been moved.
Select the original program. The time left will appear
on the display again.
Bars flash on the display
at the end of a program:
.........
The program has finished but the laundry has not yet
cooled down.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down
during the cooling phase.
Lines flash and light up
after turning on: .
Program selection is not
possible.
Access via a PIN code has been activated.
See “Programmable functions”, “PIN code”.
lit and program start
is not possible.
An update is available for the tumble dryer. See “Pro-
grammable functions”.
47
Frequently asked questions
Problem Possible cause and solution
lights up
This is not a fault. The tumble dryer is connected to
the network.
lights up
This is not a fault. The remote control function is
switched off. See “Programmable functions”.
lights up
This is not a fault. The tumble dryer is connected to
the network.
lights up
This is not a fault. The tumble dryer is not connected
to the network. See “Programmable functions”.
Unsatisfactory drying results
Problem Possible cause and solution
The laundry is not suffi-
ciently dry.
The load consisted of different types of fabric.
Finish drying using the Time Dry/DryFresh program.
Select a more suitable program next time.
Useful tip: you can alter the drying levels for some
programs. See “Programmable functions“, sections
“Normal drying levels“ and “Wrinkle-free dry-
ing levels”.
The laundry or feather-
filled pillows develop a
smell after drying.
The laundry was washed with insufficient detergent.
Feathers have the property of developing a significant
odor when they are warm.
Laundry: use sufficient detergent.
Pillows: take out of the tumble dryer and air them.
Use a fragrance flacon (available as an optional ac-
cessory) for your favorite fragrance.
Items made of synthetic
fibers are charged with
static electricity after
drying.
Synthetic fibers tend to attract static charge.
Static charge can be reduced by adding a fabric
softener to the final rinse in the washing program.
There is a build-up of
lint.
Lint is principally the result of friction when garments
are being worn and to some extent when they are be-
ing washed. Machine drying hardly causes any lint to
form.
Lint is collected by the lint filters and the plinth filter
and can be removed easily.
See “Cleaning and care”.
48
Frequently asked questions
The drying cycle duration is very long
Problem Possible cause and solution
The drying process goes
on too long or even
switches off.*
The room where the tumble dryer is located is too
warm.
Ventilate the room thoroughly.
Detergent residues, hair, and fine lint can clog the fil-
ters.
Clean the lint filters and the plinth filter.
Remove visible lint:
– at the bottom left, behind the panel in the heat
exchanger cavity (see “Cleaning and care”)
– at the bottom right of the cooling fins behind the
grille (see the end of this section)
The laundry is unevenly distributed or has rolled up.
The drum is too full.
Untangle the laundry and remove a few items.
Start a program.
The cool air intake (bottom right grille) is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The laundry is too damp.
Spin using a higher spin speed in the washing ma-
chine.
Metallic components, e.g., zippers, have prevented
the dryer from registering the correct moisture level.
Open the zippers next time.
If the problem recurs, dry these items using the
Time Dry/DryFresh program.
* Switch the tumble dryer off and on again before starting a new program.
49
Frequently asked questions
Other problems
Problem Possible cause and solution
You can hear operating
noises (buzzing/hum-
ming).
This is not a fault. The compressor is operating.
These noises are quite normal and can be heard when
the compressor is operating.
A program does not
start.
There is no obvious cause.
Connect the power plug.
Turn on the tumble dryer.
Close the door.
Check whether the fuse has tripped.
Power outage? When power is restored, any previ-
ously running program will restart automatically.
Only the Start/Add laun-
drysensor button
flashes slowly when the
program is running.
Once the program has been running for 10minutes,
the indicators go out. The Start/Add laundry sensor
button flashes slowly. This is not a fault, but a normal
function to help save energy.
Touch a sensor button to switch on the indicators.
See “Programmable functions – Control field
switch-off status”.
The tumble dryer is
switched off at the end
of the program.
The dryer switches off automatically to save energy.
This is not a fault, but a normal function.
To switch the dryer on, select a program.
The interior drum light-
ing does not come on.
The drum lighting switches off automatically ...
... when the door is closed.
... after a few minutes when the door is open to save
energy.
The drum lighting will come on when the door is
opened if the dryer is switched on.
50
Frequently asked questions
Replacing the plinth filter
The heat exchanger can clog up.
Replace the plinth filter immediately
if you see the following signs of wear
before or after cleaning (optional ac-
cessory).
Poor fit
The edges of the plinth filter do not sit
properly and the plinth filter is de-
formed. Lint will blow into the heat ex-
changer unfiltered through edges that
do not sit properly. This will cause a per-
manent obstruction in the heat ex-
changer.
Deformation
Deformations indicate that the plinth fil-
ter has become worn.
51
Frequently asked questions
Cracks, tears, indentations
Lint will blow into the heat exchanger
through cracks and tears. This will cause
a permanent obstruction in the heat ex-
changer.
White residues or residues of other col-
ors
Residues arise from laundry fibers and
traces of detergent components. They
can be found on the front and side
edges of the plinth filter. In extreme
cases, they can form stubborn crust.
Residues are a sign that the plinth filter
no is longer a snug fit at the sides, even
if it appears to be perfect:
Lint is getting in unfiltered at the edges.
Reactivate the plinth filter. If these
residues appear on the plinth filter again
soon after cleaning, the plinth filter must
be replaced.
52
Frequently asked questions
Reactivating the plinth filter
You can reactivate one or more dirty
plinth filters in the washing machine.
You will then be able to use the plinth
filter again.
Prior to reactivation, check that the
plinth filter is in good order. Check the
plinth filter following the instructions
provided in “Frequently Asked Ques-
tions – Replacing the plinth filter”. Re-
place the plinth filter if it has worn out.
Wash the plinth filter(s) separately,
not with any laundry items. Do not
add any detergent.
Select a short wash program with a
maximum temperature of 104°F
(40°C) and a maximum spin speed of
600rpm.
You can re-insert the plinth filter once
the wash and spin cycle is complete.
Checking the heat exchanger
unit
Sharp Edges – To reduce the risk
of injury, use care when cleaning the
condenser or evaporator coil fins.
You could cut yourself.
Do not touch the cooling fins with
your hands.
Look to see if lint has accumulated.
Remove any lint you can see.
Damage due to incorrect clean-
ing of the heat exchanger.
The tumble dryer will not dry if the
cooling fins are damaged or bent.
Clean using a vacuum cleaner with a
dusting brush attached. Only pass
the vacuum cleaner dusting brush
over the heat-exchanger fins lightly,
without applying any pressure.
Vacuum up any lint and residues.
53
Frequently asked questions
Bottom right grille
In general, the cooling fins be-
hind the grille on the bottom right do
not need cleaning. They should only
be cleaned if the drying process is
taking an exceptionally long time due
to a very high level of dust or lint in
the room in which the dryer is lo-
cated.
First open the panel for the plinth fil-
ter (bottom left).
To remove the grille, the catch under-
neath it needs to be released using a
teaspoon.
Insert a spoon handle underneath the
grille in the middle.
Press the spoon handle against the
catch and lever the grille open.
Remove the grille.
Sharp Edges – To reduce the risk
of injury, use care when cleaning the
condenser or evaporator coil fins.
Clean using a vacuum cleaner
with a dusting brush attached. Only
pass the vacuum cleaner brush over
them lightly, without applying any
pressure.
Take care not to bend the cooling fins
out of shape or to damage them.
Carefully vacuum up any visible lint or
dirt.
Re-insert the 3 hooks on the grille
into the appropriate holes in the front
of the dryer.
Press the grille firmly back into posi-
tion by pressing it in at the middle on
the left.
54
Customer Service
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call on-
line at www.miele.com/service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both pieces of information can be
found on the data plate.
Open the door of your tumble dryer to
find the data plate:
Appliance warranty and product
registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at www.mieleusa.com.
Optional accessories
Optional accessories for this tumble
dryer are available from your Miele
dealer or Miele Service.
You also can order these and many
other useful products from the Miele
online shop.
Dryer basket
The dryer basket enables items which
must not be subjected to mechanical
action to be dried or aired.
Fragrance flacon
A fragrance flacon can be used in your
tumble dryer to add a pleasant fra-
grance to your laundry.
55
IMPORTANT SAFETY INSTRUCTIONS
, WARNING - Risk of Fire
To reduce the risk of severe injury or death, follow all installation in-
structions.
Clothes dryer installation must be performed by a qualified in-
staller.
Install the clothes dryer according to the manufacturer's instruc-
tions and local codes.
Repair and maintenance work should be performed by a Miele au-
thorized service technician. Work by unqualified persons could be
dangerous and could void the warranty.
Before installation, disconnect the tumble dryer from the electrical
supply by shutting off the power main, unplugging the power cord or
tripping the circuit breaker. Do not restore power until the installation
is complete.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by provid-
ing a path of least resistance for electric current. This appliance is
equipped with a cord having an equipment grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local
codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Contact a qualified
electrician if you are in doubt as to whether the appliance is properly
grounded.
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Do not use an extension cord to connect this appliance to the
power supply. Extension cords do not guarantee the required safety
of the appliance (e.g. danger of overheating).
The installation of this unit in non stationary locations (e.g. ships)
must be performed by a qualified installer or service agency, in strict
accordance with national and local safety regulations and standards.
Do not install the machine in rooms where temperatures below
freezing may occur.
This dryer is not intended for wall-insert.
56
IMPORTANT SAFETY INSTRUCTIONS
If there is any doubt concerning installation, contact Miele’s Ser-
vice Department.
USA
888-99-MIELE(64353) [email protected]
CDN
1-800-565-6435 [email protected]
SAVE THESE INSTRUCTIONS
57
Installation
*INSTALLATION*
Front view
a
Drain hose for condensed water
b
Power cord
– Observe the section entitled
“Electrical connection”.
c
Control panel
d
Condensed water container
– empty after every drying cycle
e
Door
– do not open during drying
f
Access panel to the heat exchanger
and plinth filter
– do not open during drying
g
Cool air intake grille
– do not obstruct with a laundry bas-
ket or other objects
h
Four height-adjustable screw feet
58
Installation
*INSTALLATION*
Rear view
a
Protruding lid for holding when mov-
ing the tumble dryer (see arrows)
b
Drain hose for condensed water
c
Hook for winding the power cord
during transport
d
Power cord
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by mov-
ing the appliance incorrectly.
If the tumble dryer tips up, there is a
danger of injury to people and dam-
age to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being trans-
ported on its side, it must be tipped
onto its left or right side.
If the tumble dryer is being trans-
ported upright and you are using a
hand truck, you must transport it with
its left or right side resting on the
truck.
Transporting the tumble dryer to its in-
stallation site
The fixings at the back of the lid
may become brittle due to external
circumstances.
There is a danger of the lid being
pulled off when carrying the appli-
ance.
Before carrying the appliance check
that the lid is secure where it pro-
trudes at the back of the appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
59
Installation
*INSTALLATION*
Installation
Leveling the tumble dryer
Ensure that no closeable door,
sliding door, or an oppositely hinged
door is installed that would hinder
the door of the dryer being opened in
any way.
The appliance must stand perfectly level
to ensure safe and proper operation.
The screw feet can be adjusted to com-
pensate for unevenness in the floor.
Downtime after installation
Damage caused by switching the
appliance on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
starting a drying program.
Ventilation
The cool air intake at the front of the
dryer must not be blocked or cov-
ered. This would hinder a sufficient
intake of cool air for the heat ex-
changer.
Do not block the gap between the
bottom of the tumble dryer and the
floor with toe kicks, deep pile carpet,
etc. This would otherwise hinder a
sufficient flow of air to the tumble
dryer.
The hot air that is blown out from the
heat exchanger warms the room air. En-
sure sufficient ventilation of the room,
e.g., open the window. The drying time
will otherwise take longer (higher energy
requirement).
60
Installation
*INSTALLATION*
Before moving the tumble dryer again
A small quantity of condensed water
that remains in the area around the
pump after the drying process can run
out if the dryer is tilted. Recommenda-
tion: Start the Time Dry program for ap-
prox. 1minute before transporting the
dryer. Any remaining condensed water
will then be fed into the condensed wa-
ter container (which you will need to
empty again) or out through the drain
hose.
Electrical connection
GROUNDING INSTRUCTIONS
The electrical safety of this dryer can
only be guaranteed when continuity
is complete between it and an effec-
tive grounding system. It is essential
that this standard safety requirement
is observed and regularly tested. If in
any doubt, please have the electrical
installation inspected by a qualified
electrician. Miele cannot be held li-
able for the consequences of an inad-
equate grounding system. The elec-
trical socket must be easily accessi-
ble so that the dryer can be discon-
nected from the electricity supply.
WARNING – If the grounding con-
ductor is connected incorrectly, this
can result in electric shock. Contact a
qualified electrician if you are unsure
whether the appliance is properly
grounded.
Do not change the plug: If it does not
fit into the socket, you should have a
proper outlet installed by a qualified
electrician.
The dryer is equipped with a power cord
6'7" (2m) with plug. The dryer is con-
nected to a NEMA 5-15 socket with an
electrical connection of 120V, 60Hz,
15A.
The manufacturer recommends operat-
ing the appliance on a dedicated circuit
to avoid overloading the electrical cir-
cuit.
61
Installation
*INSTALLATION*
Connection adapter for NEMA 14-30
socket
If a NEMA 14-30 socket is pro-
vided on-site for the dryer, the Miele
connection adapter* can be used.
Observe the following description to
avoid damage to the dryer.
Tip: * You can order the connection
adapter directly from Miele (USA or
CDN).
- The connection adapter has a NEMA
14-30 plug and two NEMA 5-15
socket-side connectors. The dryer and
washing machine can therefore be
connected to the 120V/60Hz elec-
tricity supply.
- The connection adapter is equipped
with two 15A fuses which protect
both the connected appliances and
the connection adapter.
Additional installation require-
ments
All installations must be carried
out in accordance with local regula-
tions.
Slot-in
This tumble dryer is suitable for pushing
under a countertop.
It is very important to avoid a
build-up of heat. The warm air which
is expelled from the dryer must be
able to dissipate. Warm air which
cannot dissipate could cause a fault.
- The appliance lid must not be re-
moved.
- The electrical socket must be located
in an accessible position near the
tumble dryer.
- Drying durations may increase slightly.
Installing the dryer in a closet
Minimum installation distance
You must insert sufficiently large
ventilation openings into the closet
door. You can also open the closet
door slightly while the dryer is oper-
ating.
Otherwise, the dryer can overheat,
which can cause a fault.
62
Installation
*INSTALLATION*
Ensure that the dryer door can be
opened at any time.
Ensure that the laundry can easily be
removed at any time.
Installing the dryer in a floor-to-ceiling
closet
You can also insert a ventilation open-
ing at the top of the closet. In addition,
you must also provide an opening on
the bottom side of the closet door.
Direct ventilation is also possible via
an air conditioning outlet in the closet.
The air must be able to circulate
freely at the top of the closet.
The air supply must not be hindered
by a shelf.
Installation on a plinth
- WTS 510
The base is only intended for Miele
washing machines and tumble dry-
ers.
63
Installation
*INSTALLATION*
Installing the tumble dryer
The base is only intended for Miele
tumble dryers.
Risk of tipping over
If the base is not anchored in place, it
may move around with the tumble
dryer or tip over.
Anchor the base in place with the
tensioning strips provided.
Components of the base
a
Base
b
Connecting pieces
c
Adhesive strips for rear panel
d
Raised head screws, CEM 4x10
e
Spacer sleeves
f
Set screws, M10x40mm
g
Rear panel for the base
h
Installation kit for fastening to the
floor
Preparing the base for mounting
The set screws already fastened to the
base must be replaced with the
shorter set screws provided.
5 mm
4x
A
Unscrew set screws A using an Allen
wrench.
The longer set screws A are not required
when mounting a tumble dryer and can
be disposed of after removal.
5 mm
4x
B
Screw the shorter set screws B all the
way into the base.
64
Installation
*INSTALLATION*
Preparing the rear panel of the base
Stick the sealing strips from the ac-
cessory pack to the inside of the rear
panel as shown in the image.
Preparing the tumble dryer
Emptying the condensate container
Pull the condensate container out.
To prevent condensate from running
out, keep it in a horizontal position
when carrying it. Hold the condensate
container at the front and toward the
back.
Empty the condensate container.
Set the condensate container aside.
Screwing in the tumble dryer feet
0“
(0 mm)
Screw the 4 tumble dryer feet all the
way in.
65
Installation
*INSTALLATION*
Lifting the tumble dryer onto the base
This step must be carried out by 2
people.
Risk of fingers being crushed.
Fingers may be crushed if they are
trapped between the dryer casing
and the set screws.
Do not lift the tumble dryer by the
corners.
Lift the tumble dryer onto the base.
Guide the openings in the dryer feet
onto the set screws.
Connecting the tumble dryer to the
rear panel of the base
T20
Screw the rear panel onto the base at
the bottom using one of the raised
head screws provided so it is hand-
tight.
A
B
A
A
B
B
1
2
2
T30
Loosen the two bottom screws A and
B on the dryer rear panel (do not re-
move them).
Hook the connecting pieces onto the
loosened screws.
66
Installation
*INSTALLATION*
T20/T30
1
2
3
Use the raised head screws to screw
the connecting pieces and the rear
panel to the base.
Retighten the screws on the tumble
dryer.
Tighten the bottom raised head
screw on the rear panel.
Aligning and securing the feet of the
base
The base with the tumble dryer must
stand perfectly level on all 4 feet to en-
sure safe and proper operation.
Use a spirit level to check that the
dryer is standing level.
Unscrew one or more feet to level the
appliance.
1
3
2
Using a wrench, turn the counter nut
on the feet in a clockwise direction.
Turn the counter nut together with
the feet to unscrew.
Hold the feet securely with a pipe
wrench. Turn the counter nut using a
wrench until it sits firmly up against
the casing of the base.
67
Installation
*INSTALLATION*
Using tensioning strips
Anchoring the base to the floor using
tensioning strips
Risk of tipping over
If the base is not anchored in place, it
may move around with the tumble
dryer or tip over.
Anchor the base in place with the
tensioning strips provided.
Anchor the base feet diagonally with
the tensioning strips provided, e.g.,
the front right foot and the rear left
foot.
This will provide the best protection
against tipping over.
Tip: The anchoring will be most effec-
tive if the tensioning strips are turned
out slightly when fastened in place. Re-
fer to the installation instructions for the
tensioning strips.
Aligning the drawer
If the drawer front is not exactly in line
with the tumble dryer or the washing
machine, it can be adjusted.
Removing the cover cap
Open the drawer.
There is a cover cap on each side of
the drawer.
Remove the cover caps by hand.
68
Installation
*INSTALLATION*
Aligning the drawer vertically
On both sides of the drawer is a wheel
which can be used to adjust the height.
Make sure you adjust the height evenly
on the right and left.
Turn the wheel to move the drawer up
or down.
Replace the cover caps.
Aligning the drawer horizontally
There is also a screw on the right-hand
side, which can be used to move the
drawer front horizontally to the right or
left.
Turn the screw to move the drawer
front to the right or left.
69
Installation
*INSTALLATION*
Adjusting the inclination of the drawer
There are two different types of drawer.
1. Drawer with round rail
2. Drawer with square rail
Drawer with round rail
Push the top panels outward from in-
side and set the panels aside.
-
+
-
+
To adjust the inclination of the drawer,
turn the two rails.
Place the bottom of the panels in po-
sition and press the panels inward at
the top.
70
Installation
*INSTALLATION*
Drawer with square rail
Slide the two covers back.
To adjust the inclination of the drawer,
turn the two rails using a screwdriver.
Product dimensions
Dimensions
5.2ft (1.6m) drain hose, detach-
able, top right on the rear
6.5ft (2m) power cord, bottom
right on the rear
71
Installation
*INSTALLATION*
Washer-dryer stack
- WTV502 or WTV512
External draining of condensed
water
Note
When drying is in progress, condensed
water is pumped into the condensed
water container through the drain hose
which is located at the back of the
dryer.
The condensed water can also be exter-
nally drained away via the drain hose on
the back of the dryer. This means that
the condensed water container no
longer has to be emptied.
Drain hose length: 5.2ft (1.6m)
Maximum delivery head: 3.3ft (1m)
Maximum drain hose length: 13ft
(4m)
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a con-
tainer ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrow) and unwind it.
Allow any residual water to run into a
container.
Condensate drain
The drain hose on the back of the dryer
can be inserted into the stand pipe.
Attach the end of the hose to the
stand pipe.
72
Installation
*INSTALLATION*
Secure the drain hose carefully
(e.g., by tying it) to make sure it can-
not slip.
Overflowing water can cause dam-
age.
73
Installation
*INSTALLATION*
Changing the door hinging
You can change the door hinging on
this tumble dryer yourself.
For safety reasons, the tumble dryer
must be disconnected from the elec-
tricity supply before changing the
door hinging.
You will need:
- a Torx T20 and T30 screwdriver
- a flat head screwdriver or pointed pli-
ers
- the lock catch cover supplied
- the door hinge cover supplied
- a soft surface (e.g., a blanket)
Changing the hinging over
1. Remove the door from the tumble
dryer
Open the door.
Use a T30 Torx screwdriver to un-
screw the two screws on the base
plate of the door hinge .
The door cannot fall off.
Hold the door securely and pull it for-
wards: to remove the door you will
need to pull the base plate of the
hinge with its 2 pins out of the dryer.
To avoid scratching the door,
place it outer side downwards on a
soft surface (e.g., a blanket).
2. Change over the door lock on the
dryer
Use a Torx T30 screwdriver to un-
screw the two screws on the door
lock .
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its posi-
tion and can then be removed.
74
Installation
*INSTALLATION*
Turn the door lock by 180°.
Press the door lock into the openings
on the opposite side of the door
opening.
Adjust the position of the door lock so
that the screw holes line up with
those in the front panel of the dryer
.
Screw in both Torx screws in order to
secure the door lock.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
screw on the lock catch.
Pull off the lock catch together with
the lock catch cover .
75
Installation
*INSTALLATION*
Remove the lock catch from the
cover.
This lock catch cover is no longer
needed.
Insert the lock catch into the new
cover supplied with the dryer.
Place this new lock catch cover to
one side for now.
4. Dismantle the door hinge from the
door
The door hinge cover must be unclipped
from position and then removed.
Use a screwdriver to press down gen-
tly on position on the door hinge
cover.
Using a little force, pull out door hinge
cover .
This lock catch cover is no longer
needed.
76
Installation
*INSTALLATION*
5. Change the door hinge on the door
The door hinge is secured to the door
with 2 angled rods. These rods need to
be removed with a screwdriver or
pointed pliers.
Insert the end of the screwdriver
blade under rod and rotate it so it
is in an upright position. Do the same
to the other rod.
Use the screwdriver or pointed pliers
to guide first one then the other rod
to the middle until each can be re-
moved.
Tip: In some circumstances, the rods
can be difficult to dislodge. Moving the
screwdriver with a levering action while
pulling at the same time may help to
work the rods free.
Remove the door hinge and turn it by
180°.
Refit the door hinge on the opposite
side of the door.
Secure the door hinge with the two
rods .
Position the screwdriver under the
end of the rod and then push it into its
resting position .
77
Installation
*INSTALLATION*
You now need the new door
hinge cover supplied with the dryer.
Fit new door hinge cover and clip it
into position.
6. Change the lock catch on the door
You now need the new lock catch
cover supplied with the dryer which
you have already fitted with the lock
catch.
Push the lock catch cover with its
lock catch into position.
Tighten the screw .
78
Installation
*INSTALLATION*
Refitting
7. Refit the door
Press the rubber seal back into the
groove on the door.
Position the door in front of the dryer.
Fit the base of the door hinge with its
2 pins into the openings on the dryer.
The base of the door hinge must be
flush with the front panel of the dryer.
The door cannot fall off in this position.
Screw the door securely to the dryer
at the base of door hinge .
Now that you have changed the
door hinging, the door will open from
the opposite side.
Push the orange marker round to the
other side so that you will see at
which side to pull the door open.
Please keep the lock catch and
door hinge covers which were no
longer needed in a safe place. These
will be required if you choose to
change the door hinging back to its
original position.
79
Technical data
Height 337/16" (850mm)
Width 237/16" (596mm)
Depth 253/4" (655mm)
Depth with door open 423/8" (1077mm)
Slot-in Yes
Stackable Yes
Weight Approx. 137lbs (62kg)
Drum volume 31.7gal (120l)
Load quantity 17.6lb (8kg) dry laundry
Capacity of condensed water container 1.27gal (4.8l)
Hose length 63" (1.60m)
Maximum head height 39 1/3" (1.00m)
Maximum drain hose length 157 1/2" (4m)
Length of wiring 78 3/4" (2m)
Connection voltage See data plate
Power rating See data plate
Fuse See data plate
Test certificates awarded See data plate
LEDs Class 1
Frequency range 2.4000–2.4835GHz
Maximum transmission power <100mW
80
Programmable functions
Programming
You can use the programmable func-
tions to alter the dryer's electronics to
suit your requirements.
Programming is carried out in these
steps (, , ... ) using the sensor
buttons.
Accessing the programming level
Before you begin, ensure the following:
- The program selector is turned to a
program.
- The door of the dryer is open.
Touch the Start/Add laundrysensor
button and hold it down while carry-
ing out steps –.
Close the tumble-dryer door.
Wait until the Start/Add laundrysen-
sor button, which will now be flash-
ing quickly, lights up constantly...
...and then release the Start/Add
laundry sensor button.
will light up on the time display.
Choosing and selecting programmable
functions
The number of the programmable
function will appear on the time dis-
play as and a number: e.g.,.
Touch the or sensor control to
scroll to the next or previous pro-
grammable function:
Programmable function
Factory default
Cottons drying levels
Wrinkle free drying levels
Cooling down temperature
Buzzer volume
Keypad tone
PIN code
Conductivity
Control field switch-off behavior
Memory
Anti-crease
Buzzer on
Airways indicator
Backlight brightness dimmed
Duration of program end buzzer
Welcome tone
Operating hours
* RemoteUpdate
* SmartGrid
* Remote control
81
Programmable functions
*only visible after networking
Confirm the selected programmable
function by touching the Start/Add
laundry sensor control.
Editing and saving the programmable
function
You can either switch a programmable
function on/off or select different op-
tions.
The programmable function option will
appear on the time display as and a
number:
e.g.,.
Touch the or sensor control to
switch the programmable function
on/off or to select an option:
Programmable function
Available options
to
= can be selected
Confirm the chosen selection with
the Start/Add laundry sensor control.
The number of the programmable func-
tion (e.g.,) will then light up again.
Exiting the programming level
Turn the program selector to the
position.
The settings have been changed. You
can alter the settings again at any time.
factory default
The programmable functions are reset
to the factory default settings.
= Factory default is set
= Reset programmable functions
to factory default settings
Cottons drying levels
You can adjust the drying levels for the
Normal program to one of 7 different
levels.
= Even damper
= Damper
= A little damper
= Normal
= A little drier
= Drier
= Even drier
82
Programmable functions
Wrinkle free drying levels
You can adjust the drying levels for the
Wrinkle free program to one of 7 differ-
ent levels.
= Even damper
= Damper
= A little damper
= Normal
= A little drier
= Drier
= Even drier
Cooling down temperature
The laundry will be cooled to 130°F
(55°C) before the end of the program.
It can be cooled to a lower tempera-
ture, but this will prolong the cooling
phase.
The value is set in increments of 1°.
= 130°F (55°C)
= 129°F (54°C)
= 127°F (53°C)
= 126°F (52°C)
= 124°F (51°C)
= 122°F (50°C)
= 120°F (49°C)
= 118°F (48°C)
= 117°F (47°C)
= 115°F (46°C)
= 113°F (45°C)
= 111°F (44°C)
= 109°F (43°C)
= 108°F (42°C)
= 106°F (41°C)
= 104°F (40°C)
Buzzer volume
The buzzer volume can be changed.
= Quieter
= Louder
Keypad tone
The audible signal that sounds when a
sensor button is pressed can be
changed or switched off.
= Off
= Quieter
= Louder
PIN code
The PIN code prevents your dryer be-
ing used without your knowledge.
83
Programmable functions
When the code has been activated, you
have to enter the code after switching
the dryer on. Otherwise, the dryer can-
not be operated.
= Off
= On
If the option has been selected, after
switching on you will have to enter the
code before you can operate the dryer.
Using the tumble dryer with a PIN
code
After the dryer is switched on, will
flash on the time display.
The PIN code is and it cannot be al-
tered.
Touch the sensor button until a
flashes in the first position.
Confirm with the Start/Add laundry
sensor button.
Enter the two other numbers in the
same way.
The dryer is ready for use after has
been entered and confirmed.
Conductivity
This programmable function should
only be altered if the water is so soft
that it is likely to cause the electronics
which sense residual moisture in the
laundry to give false readings.
= Off
= Low
Important
This programmable function should only
be set if the water used for washing the
laundry is extremely soft with a conduc-
tivity reading (electrical conductivity) of
less than 150μS/cm. Contact your local
water authority for the conductivity level
of your drinking water supply.
Make sure that you only activate
for the condition described above.
Otherwise, the drying results can be
unsatisfactory.
Control field switch-off be-
havior
To save energy, the time display and
sensor controls will go out after
10minutes, and only the Start/Add
laundry sensor control will flash slowly.
= Off
The time display and sensor
controls do not go out.
= On
The time display and sensor
controls will go out after
10minutes if a program has
started.
Memory
You can set the following: The elec-
tronic will save the drying level and any
options selected for the current drying
program. It will also save the duration
of the Time Dry/DryFresh program.
When the program is selected again,
these saved settings will appear on the
display.
Options
= Off
= On
84
Programmable functions
Anti-crease
After the drying cycle has finished, the
drum will continue to rotate in a spe-
cial Anti-crease rhythm for a max. of 2
hours. This helps to prevent creasing if
the laundry is not removed immedi-
ately after the end of a program. The
duration can be shortened.
= No anti-crease
= 1hour
= 2hours
Buzzer on
The buzzer sounds to let you that it is
the end of the program. It can be
switched on or off.
The continuous tone which sounds
when there are fault messages is inde-
pendent of the buzzer.
= Off
= On
Airways indicator
Lint should be removed after drying.
The indicator light will also come on
when there is a certain build-up of lint
in the filters. You can decide at what
level of build-up of lint this reminder
should be given.
You will have an idea of how often this
should be done after a few drying pro-
grams.
= Off
The indicator light does not
come on. However, if there is a
very severe blockage in the
ducting, the program will be
canceled and the fault mes-
sage will appear on the
display regardless of this op-
tion.
= heavy
The indicator light will come
on when there is a heavy build-
up of lint.
= Normal
= light
The indicator light will come
on when there is only a small
build-up of lint.
Backlight brightness
dimmed
The brightness of the dimmed sensor
controls in the control field can be set
to one of 7 different levels.
The brightness will change as soon as a
different setting is chosen.
= Darkest level
...
= Brightest level
Duration of program end
buzzer
The buzzer sounds to let you that it is
the end of the program. You can de-
cide how long the buzzer should sound
for.
85
Programmable functions
= The buzzer sounds 3times at
the end of the program.
= The buzzer sounds until the ap-
pliance switches off automati-
cally (max. 1hour).
Welcome tone
You can decide whether or not a wel-
come tone is played when the appli-
ance is switched on.
= Off
= On
= on, slightly louder
Operating hours
You can read off how many hours the
tumble dryer has been in operation for.
The total running time is shown in the
time display in single digits. For exam-
ple, if the tumble dryer has been in op-
eration for 1,234hours. The figure
shown on the time display will start with
an followed by a, then a and after
this a and a. The letter is displayed
again after this.
Networking
The , , and programmable
functions are only displayed if the re-
quirements for using Miele@home
have been met (see “Miele@home”
and “Initial set-up”).
Switching off WiFi
The network configuration should be
reset whenever a tumble dryer is being
disposed of or sold, or if a used tumble
dryer is being put into operation. This
is the only way to ensure that all per-
sonal data has been removed and the
previous owner will no longer be able
to access the tumble dryer.
Turn the program selector to Mo-
bileStart.
will light up on the time display of
the tumble dryer.
Touch the sensor button on the
tumble dryer and hold the sensor
button until the countdown on the
time display has finished.
appears on the time display.
- The WiFi is switched off.
- The WiFi connection will be reset to
the factory default.
A new connection set-up has to be
carried out in order to use the
Miele@home setting again.
RemoteUpdate
The RemoteUpdate function is used for
updating the software in your tumble
dryer. If an update is available for your
tumble dryer, it will automatically down-
load it. Updates will not be installed au-
tomatically. They must be initiated man-
ually.
If you do not install an update, you can
continue to use your tumble dryer in the
usual way. However, Miele recommends
installing updates.
86
Programmable functions
Running a RemoteUpdate
Information about the content and
scope of an update is provided in the
Miele@mobile app.
The message will appear on the time
display if an update is available.
You can install the update immediately
or postpone this until later. When the
tumble dryer is switched on again, you
will be reminded about the update.
Deactivate RemoteUpdate if you do not
want to install the update.
The update may take several minutes.
Please note the following information
about the RemoteUpdate function:
- You will only receive a message when
an update is available.
- Once an update has been installed, it
cannot be undone.
- Do not switch off the tumble dryer
during an update. Otherwise, the up-
date will be aborted and will not be in-
stalled.
- Some software updates can only be
carried out by Miele Customer Ser-
vice.
On/Off
The RemoteUpdate function is activated
by default. Available updates will be
downloaded automatically but will only
be installed if you initiate installation
manually. Deactivate RemoteUpdate if
you do not want any updates to be
downloaded automatically.
Options
= Off
= On
Starting the update
After the tumble dryer is switched on,
appears on the time display.
Touch the Start/Add laundry sensor
button.
starts to flash on the time display.
The update starts.
Bars on the time display show the
progress of the update:
= 0%
= 100%
Postponing the update
After the tumble dryer is switched on,
appears on the time display.
Touch the sensor button.
The next time you switch on the appli-
ance, you will be prompted to start the
update again.
Remote control
You can use the Miele app to check
the status of your tumble dryer from
anywhere and start it remotely. You
can also control it remotely via the
MobileStart program.
Remote control is automatically acti-
vated when you connect the tumble
dryer to the Wi-Fi network. You can
switch off remote control if you do not
want to operate the tumble dryer with
your mobile device.
A program can be canceled via the app
even if this programmable function is
switched off.
Use the button to set a timeframe
during which you wish to start the tum-
ble dryer and start the Delay Start func-
tion.
The tumble dryer will then start within
the timeframe specified when it re-
87
Programmable functions
ceives your signal.
If it has not received a start signal by the
latest start time set, the tumble dryer
will start automatically.
Options
= Off
= On
SmartGrid
You can use this function to set your
tumble dryer to start automatically
based on an external signal within a
certain time period.
If you have activated SmartGrid, the
sensor control will have the new
“SmartStart” function rather than the
“Delay Start” function.
Use the sensor control to set a
SmartStart time period. The tumble
dryer will then start within the time pe-
riod specified by you when it receives an
external signal. If a signal has not been
received by the latest start time set, the
tumble dryer will start automatically
(see “Delay Start”).
Options
= Off
= On
Copyrights and licenses for the
communication module
For the purpose of operating and con-
trolling the communication module,
Miele uses proprietary or third-party
software that is not covered by open
source licensing terms. This software/
these software components are pro-
tected by copyright. The copyrights held
by Miele and third parties must be re-
spected.
This communication module contains
software components which are distrib-
uted under open source license condi-
tions. The open source components
contained in the appliance along with
the corresponding copyright notices,
copies of the licensing terms valid at the
time, and any additional information can
be accessed locally via http://<IP ad-
dress>/Licenses. The liability and war-
ranty arrangements for the open source
licenses displayed in this location only
apply in relation to the respective rights
holders.
88
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 12 902 410 / 00 / 002en-US, CA
TXF 360 WP
