1
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Installation Manual
Installation and Appliance Setup
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity.
High temperatures could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
NOTICE: DO NOT discard this manual!
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Models:
PIER-DV36IN
ST-DV36IN
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.B.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Note: The term “recommend” or “recommended” does not indicate a requirement. It is a best practice suggested by
Hearth & Home Technologies
®
.
Table of Contents
Installation Standard Work Checklist ....................3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications ..............................4
C. BTU Specications ...............................4
D. High Altitude Installations ..........................4
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 5
F. Combustible Materials Specication .................5
G. Electrical Codes .................................5
H. California ......................................5
I. Requirements for the Commonwealth of Massachusetts . . 6
2 Getting Started
A. Design and Installation Considerations ...............7
B. Good Faith Wall Surface/TV Guidelines ..............7
C. Tools and Supplies Needed ........................9
D. Inspect Appliance and Components ..................9
3 Framing and Clearances

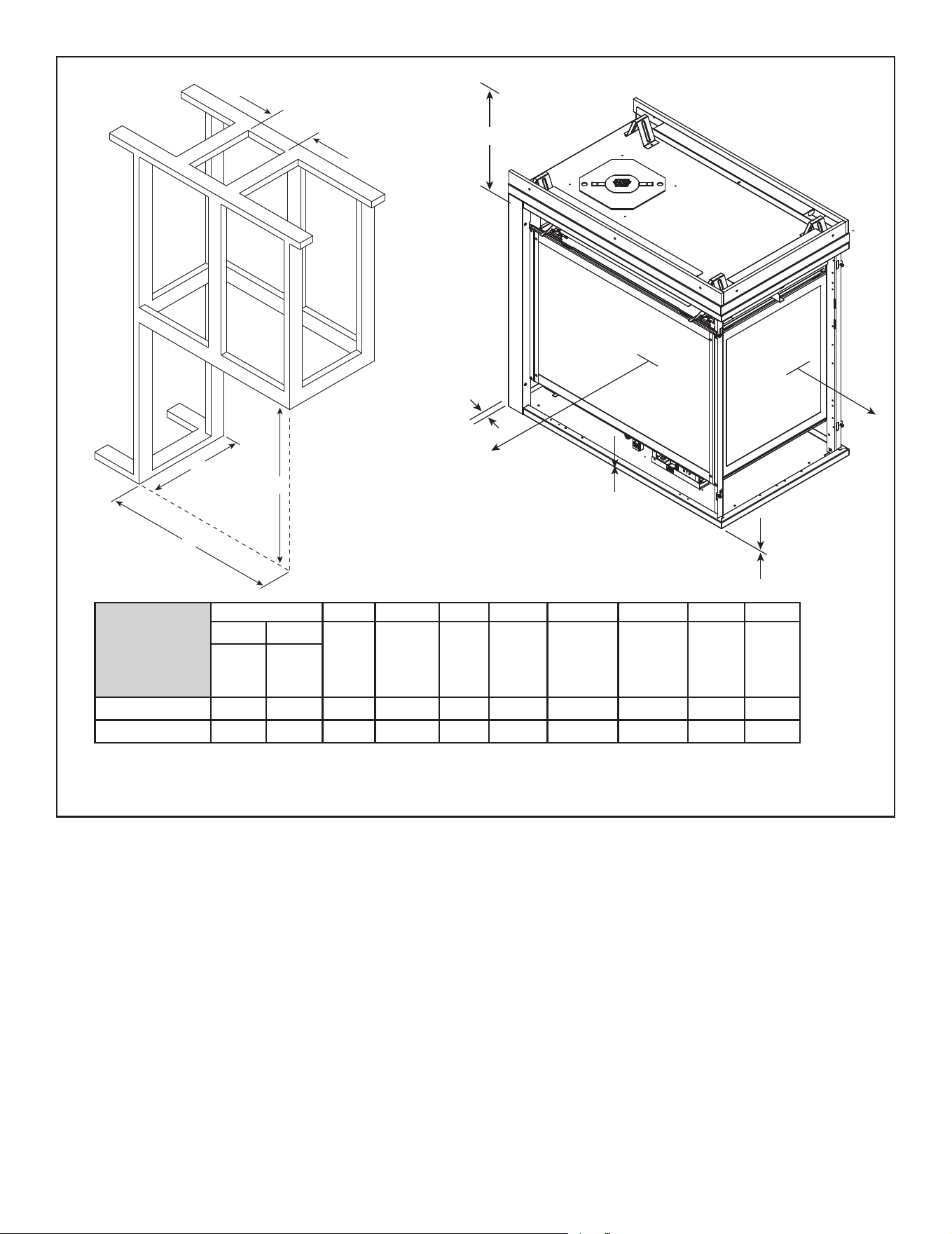

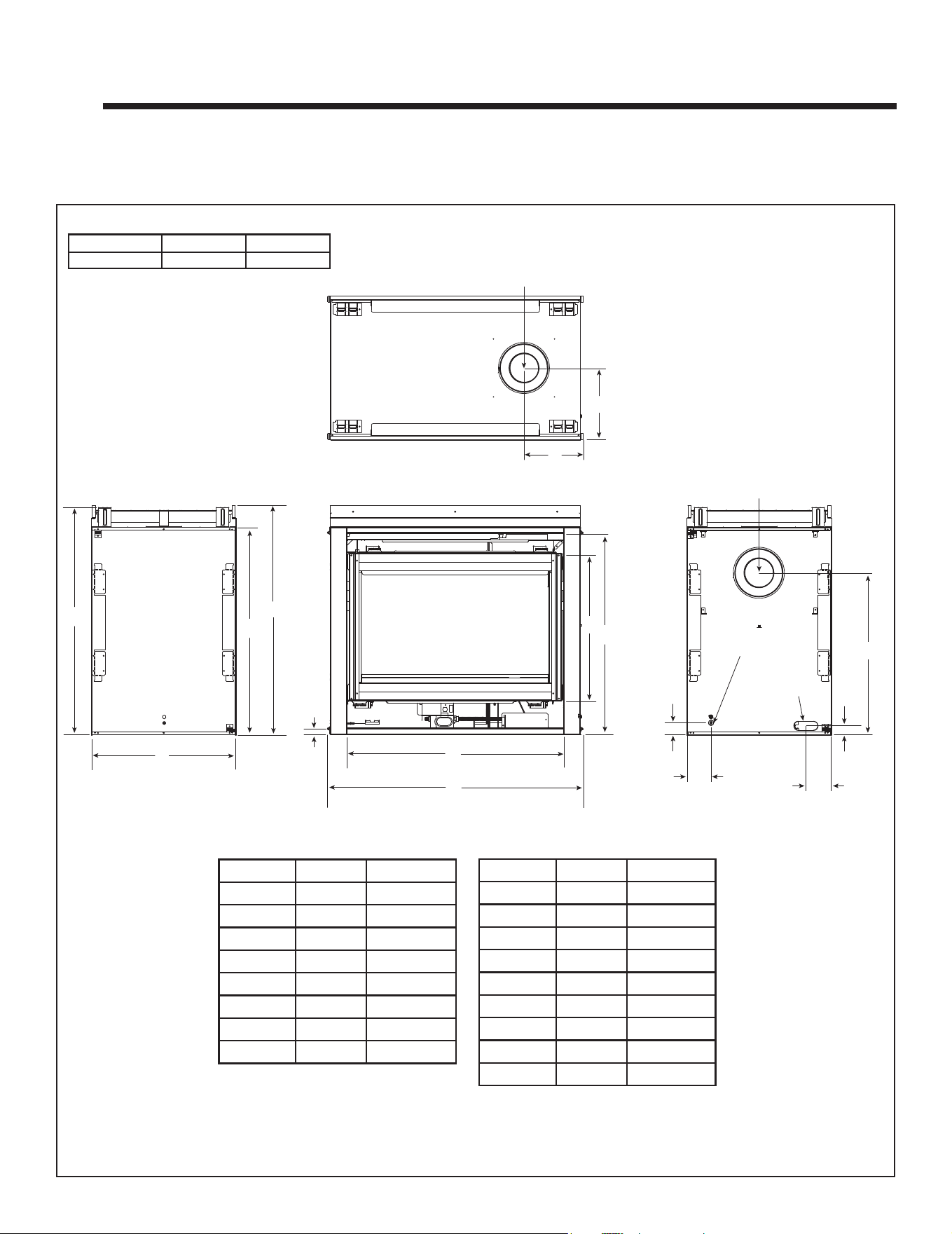

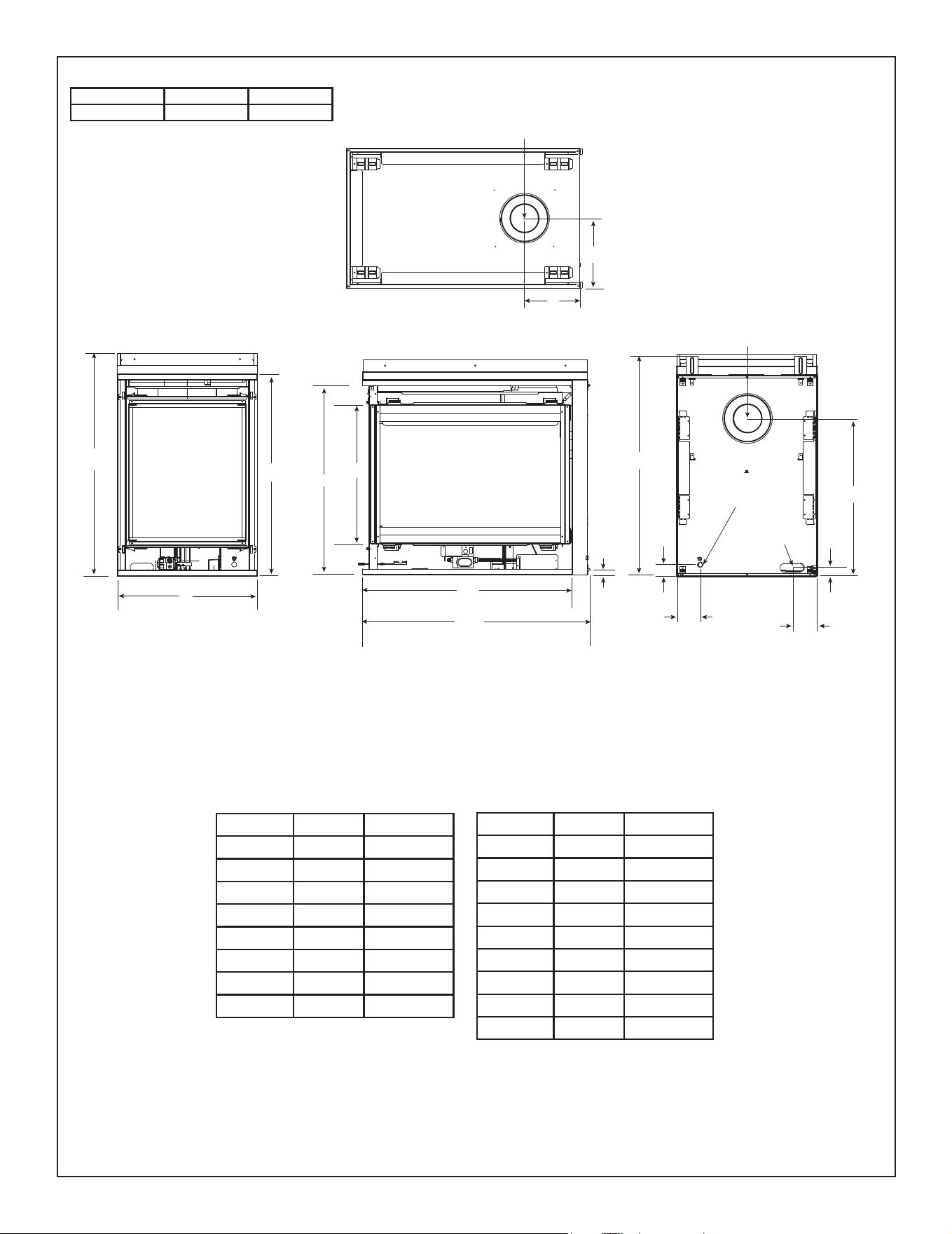

A. Appliance Weights and Dimensions .................10

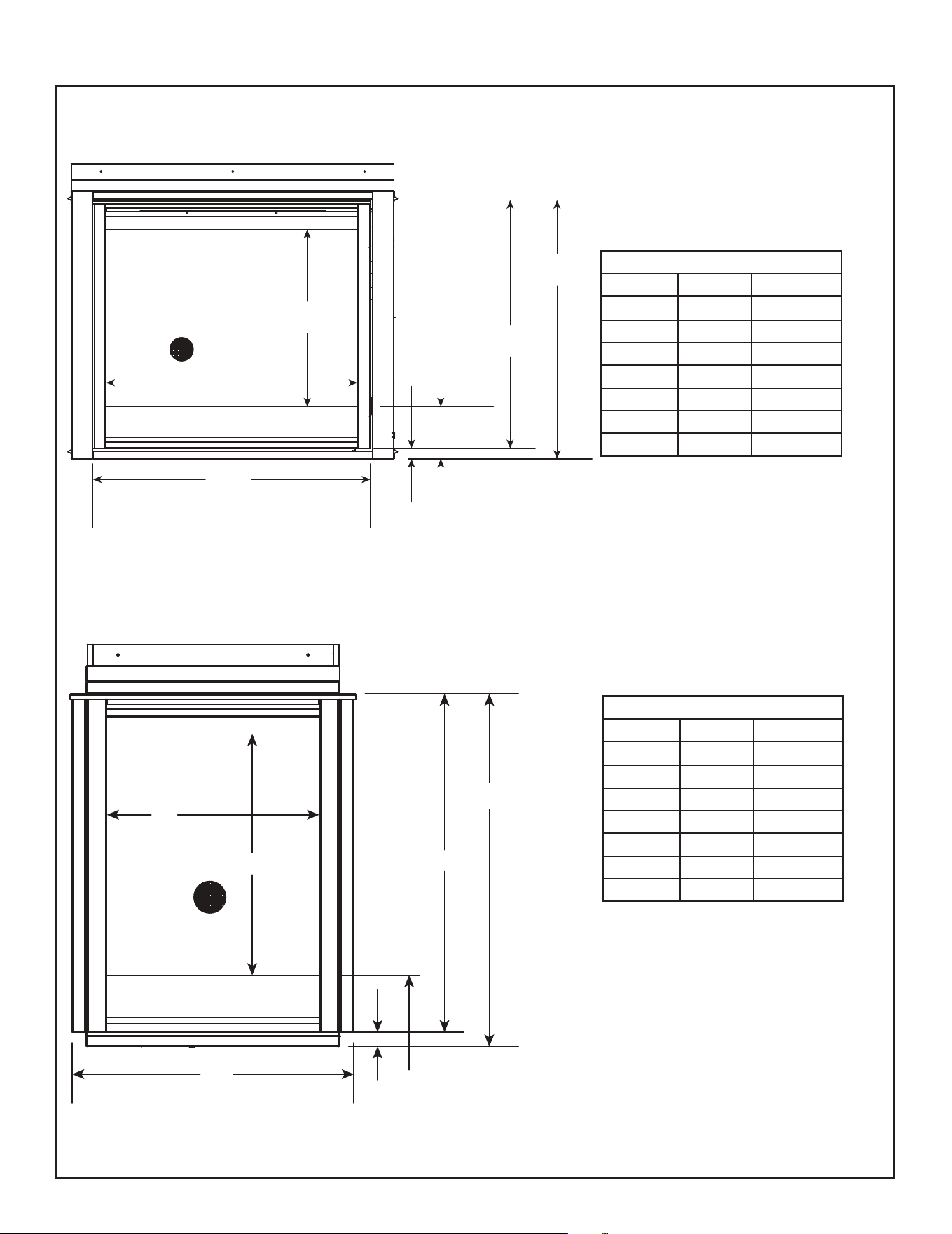

B. Decorative Barrier Front Dimension Diagrams. . . . . . . . . 12
C. Appliance Location and Clearances to Combustibles ... 13
D. Constructing the Appliance Chase ..................17
E. Floor Protection ................................17
4 Termination Location and Vent Information
A. Approved Pipe .................................18
B. Vent Termination Minimum Clearances ..............18

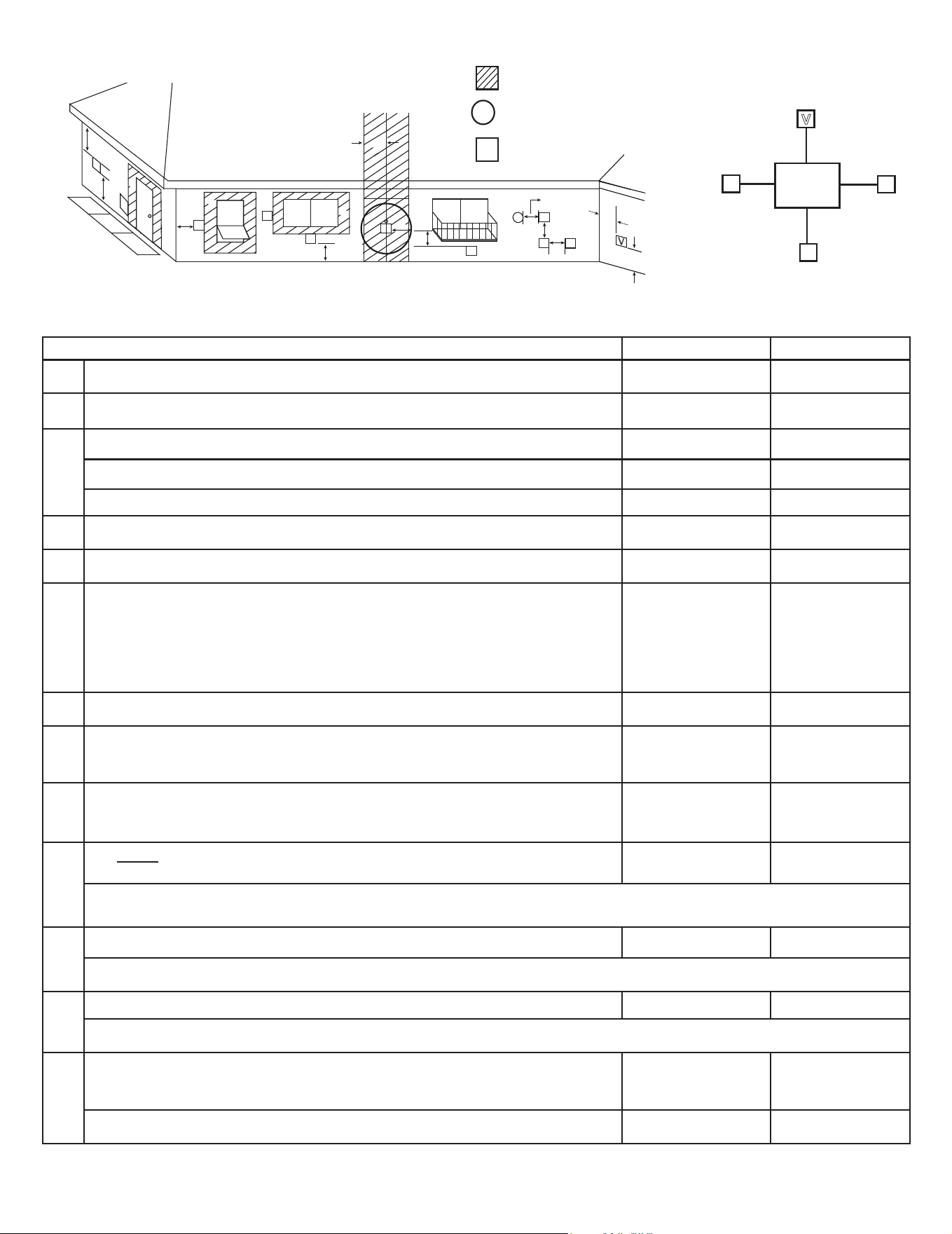

C. Vent Terminal Clearances ........................20

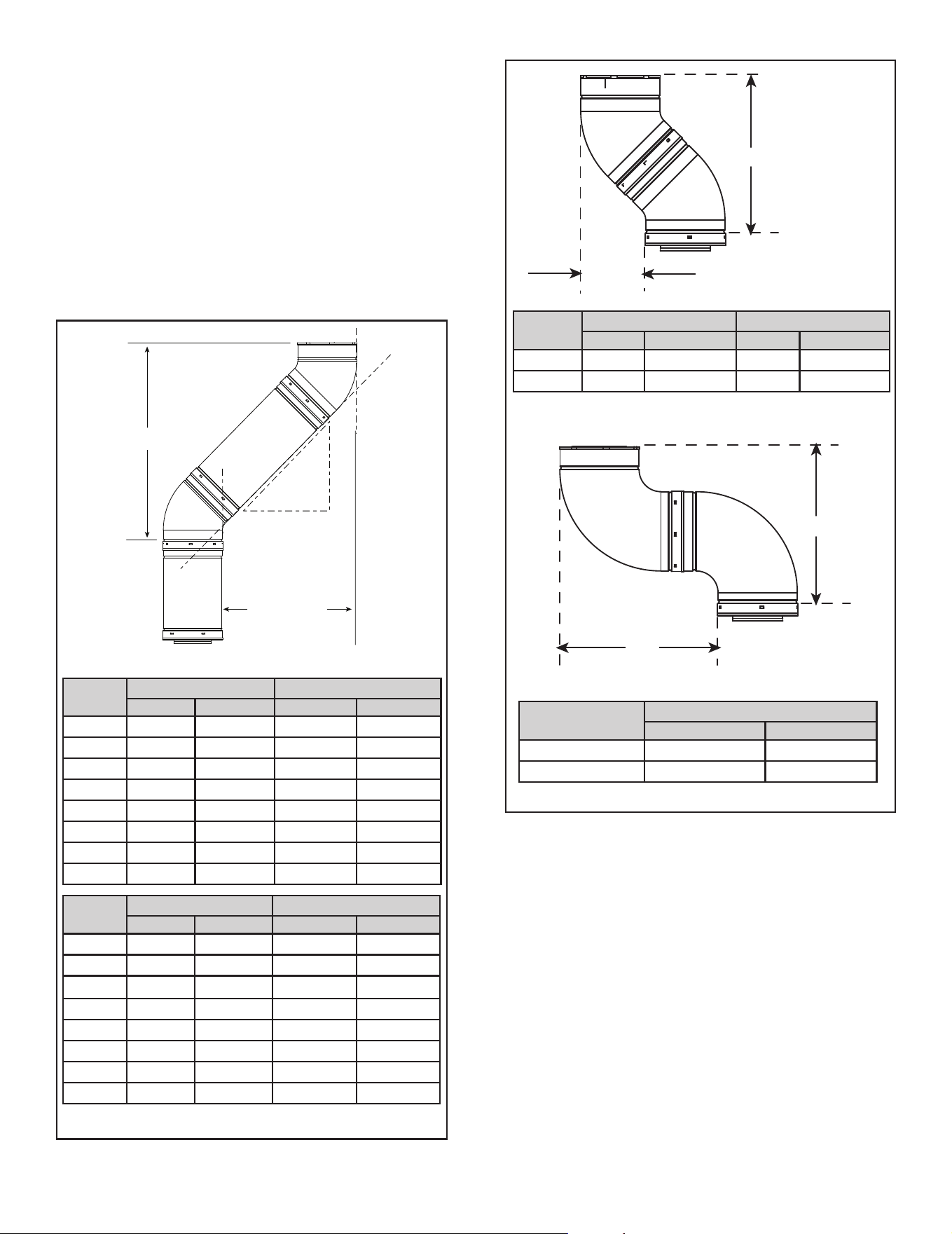

D. Use of Elbows .................................21

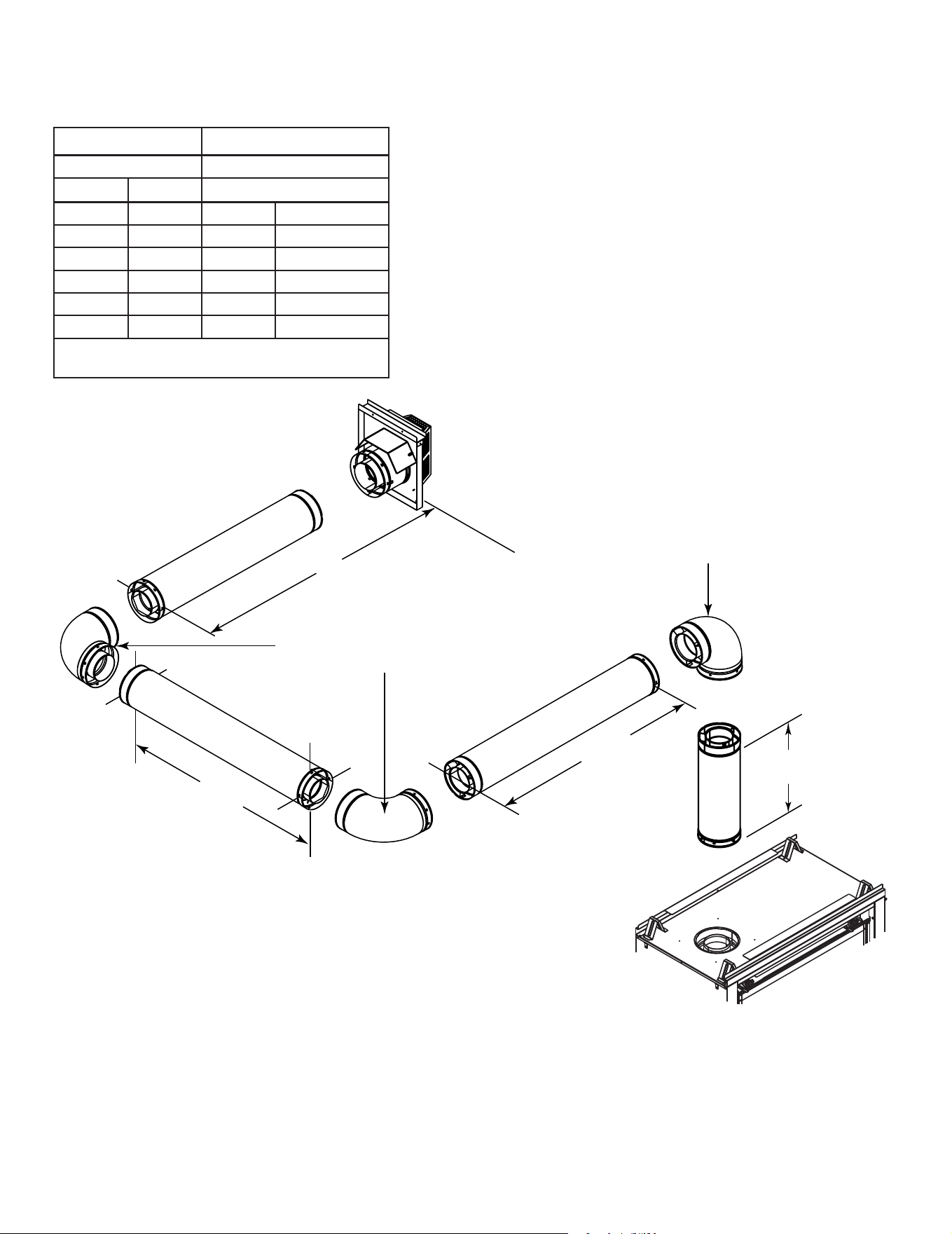

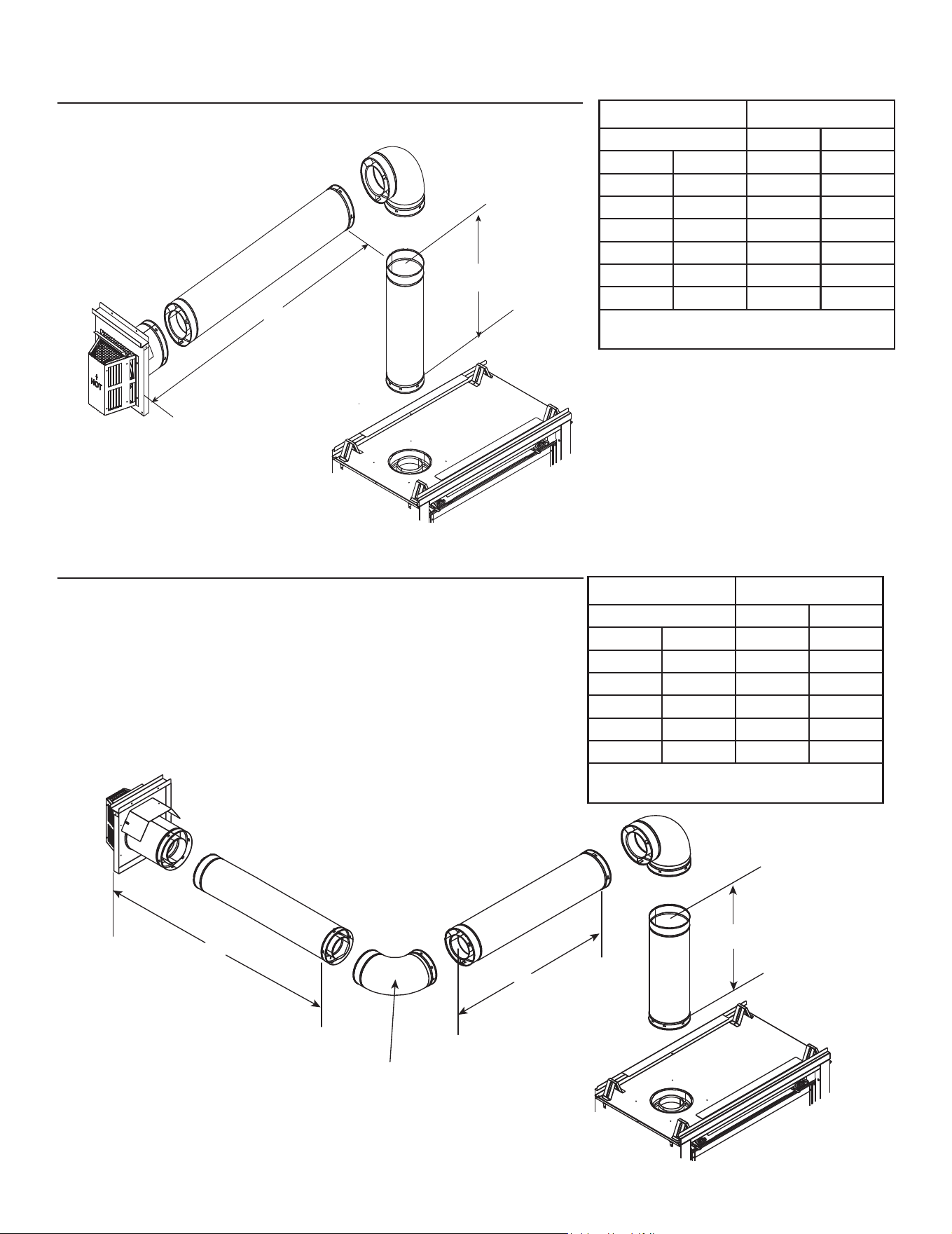

E. Vent Diagrams .................................22
5 Vent Clearances and Vent Framing
A. Vent Clearances to Combustibles ..................35
B. Wall Penetration Framing/Firestops .................36
C. Ceiling Firestop/Floor Penetration Framing ...........37
D. Install Attic Insulation Shield .......................37
6 Appliance Preparation
A. Vent Collar Preparation ..........................38
B. Securing and Leveling the Appliance ................40
C. Non-Combustible Material (Factory-Installed) ......... 41
7 Venting
A. Assemble Vent Sections (DVP Pipe Only) ...........42
B. Assemble Vent Sections (SLP Only) ................44
C. Assemble Slip Sections ..........................45
D. Secure the Vent Sections .........................46
E. Disassemble Vent Sections .......................46
F. Vertical Termination Requirements ..................47
G. Horizontal Termination Requirements ............... 48

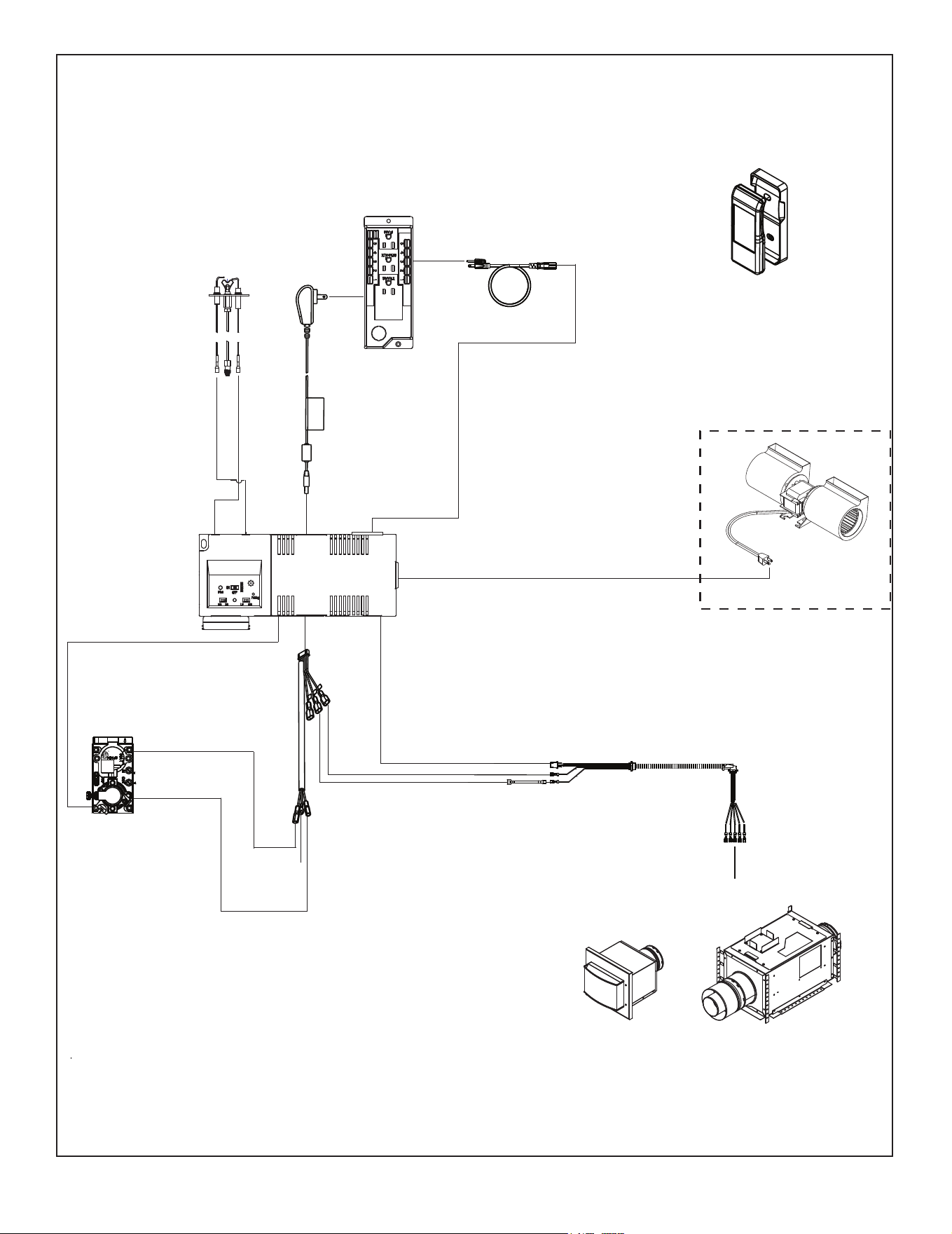

8 Electrical Information
A. General Information .............................50

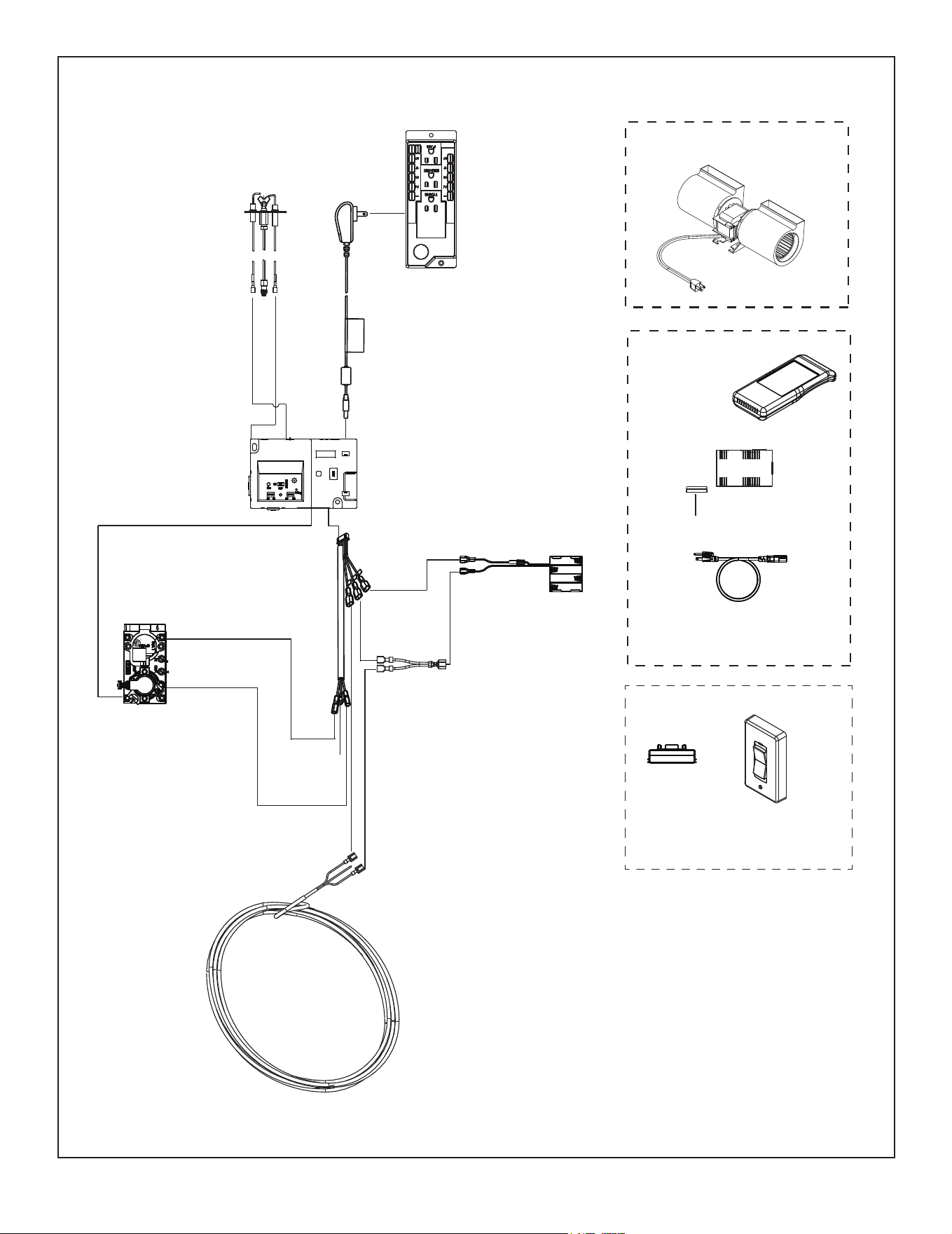

B. Wiring Requirements ............................51
C. Fan (Optional) .................................54
9 Gas Information
A. Fuel Conversion ................................55
B. Gas Pressure ..................................55
C. Gas Connection ................................55
D. High Altitude Installations .........................55
E. Air Shutter Setting ..............................56
10 Finishing
A. Facing Material .................................57
B. Installing a Television ............................58
C. Mantel and Wall Projections .......................58
D. Decorative Barrier Front Dimensions for Finishing. . . . . . 60
11 Appliance Setup
A. Remove the Shipping Materials ....................61
B. Clean the Appliance .............................61
C. Install the Refractory (Optional) ...................61
D. Glowing Ember and Lava Rock Placement ...........62

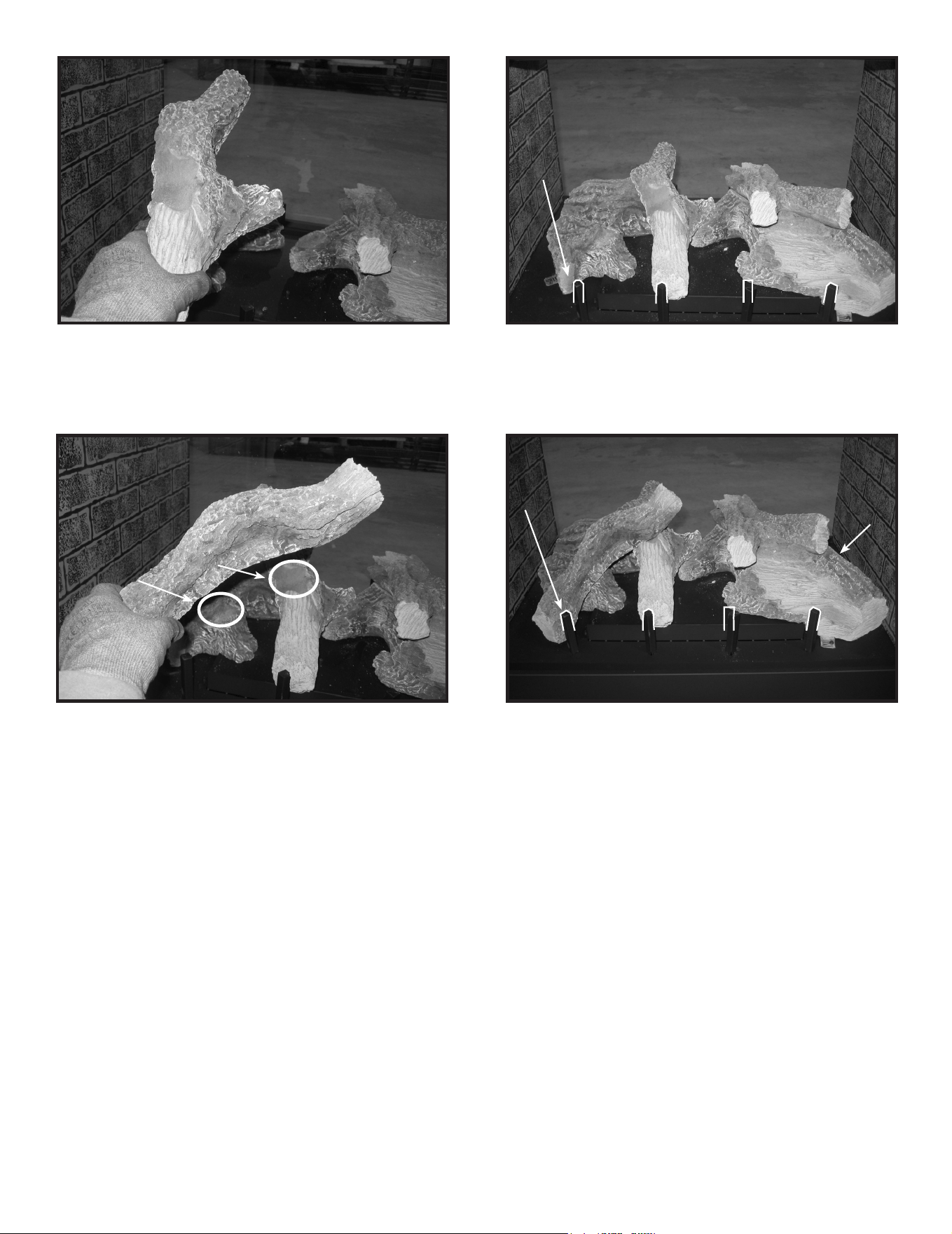

E. Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 63
F. IntelliFire Touch
®
Control System Setup ..............65
G. Install Fixed Glass Assembly ......................65
H. Install Decorative Barrier Front. . . . . . . . . . . . . . . . . . . . . 66
12 Reference Materials

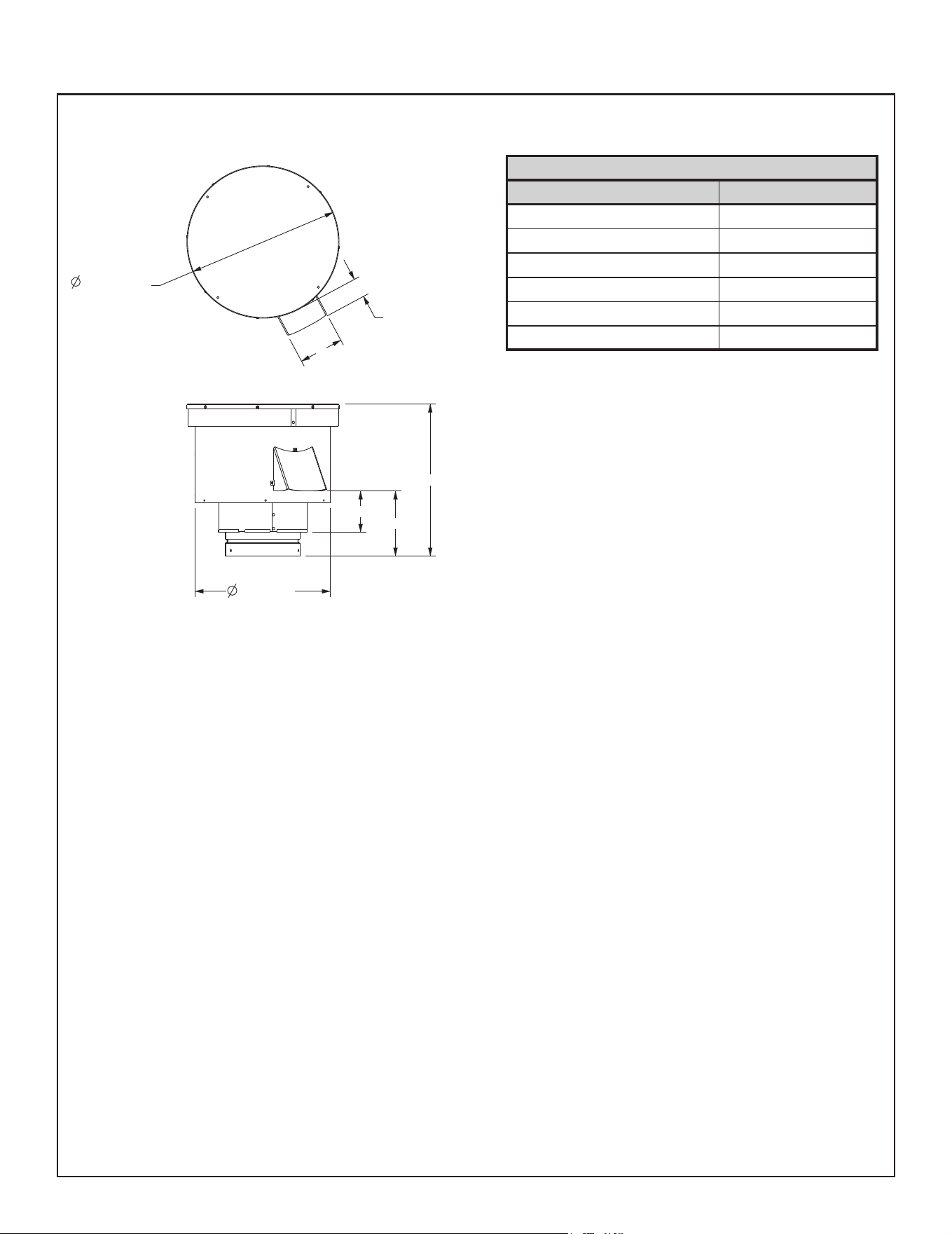

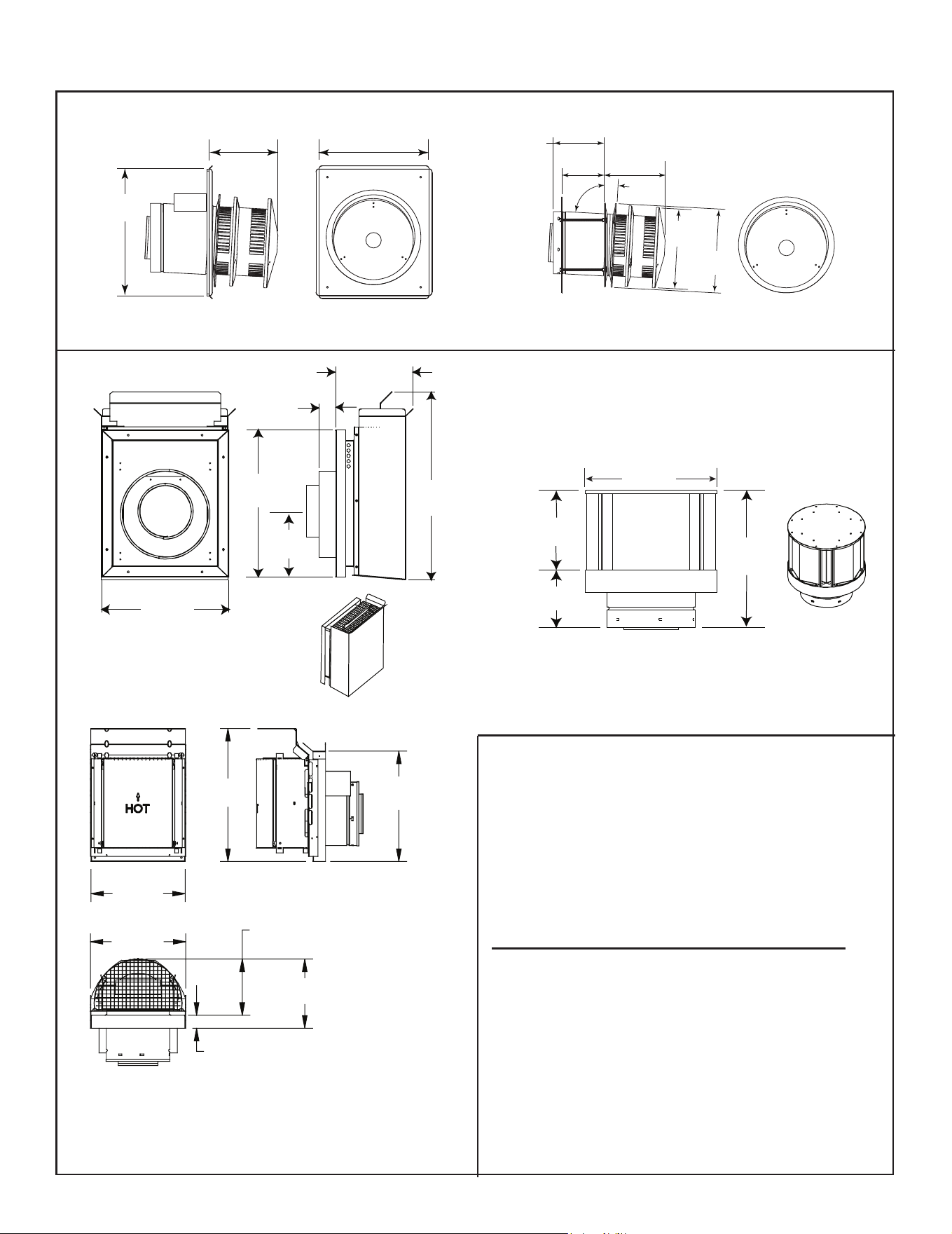

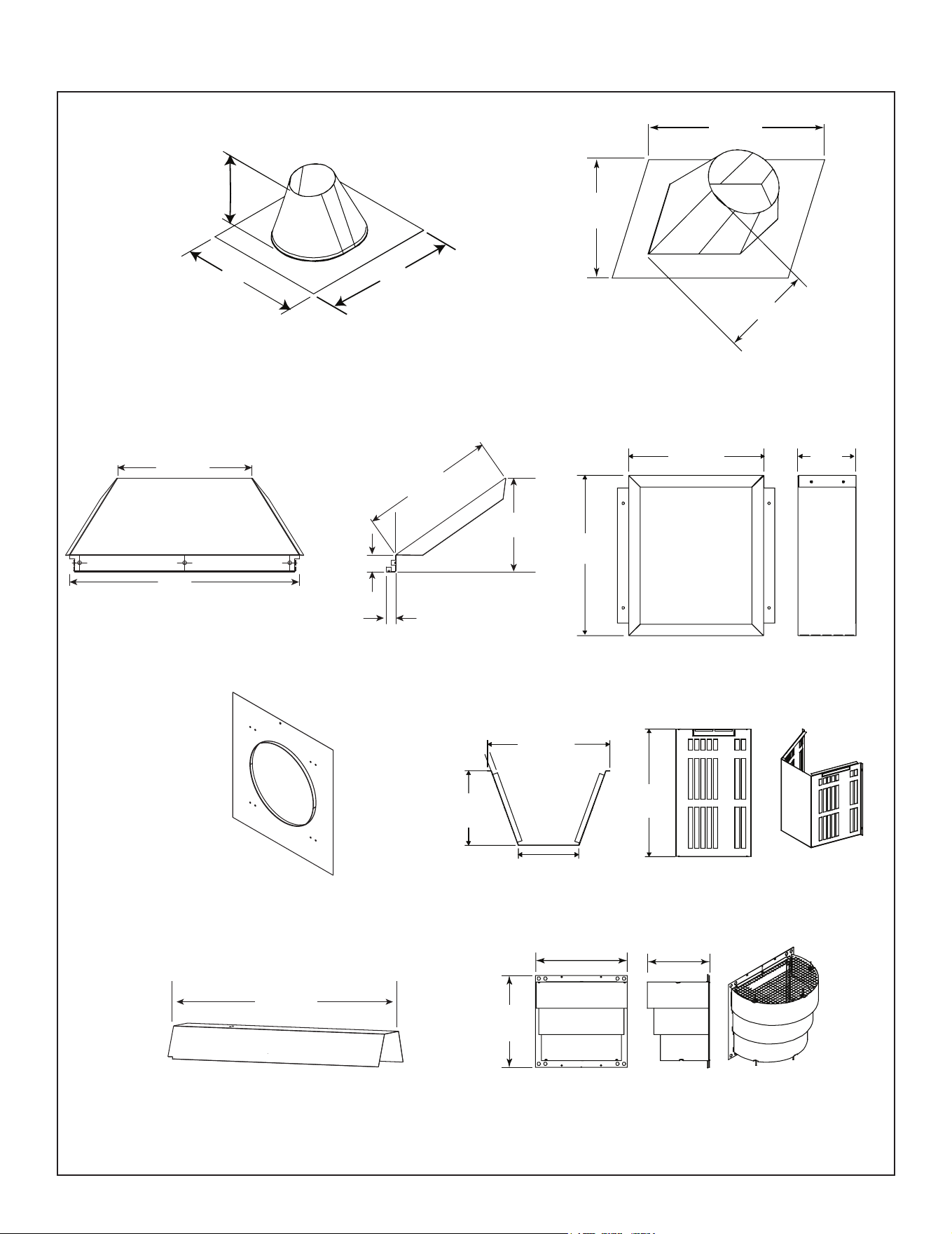

A. Vent Components Diagrams ......................67
B. Accessories ...................................78
= Contains updated information.
3
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): PIER-DV36IN ST-DV36IN
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Veried that the chase is insulated and sealed. (Pg.17) ___________________________
Required non-combustible board is installed. (Pg.41) ___________________________
Veried clearances to combustibles. (Pg. 13-16) ___________________________
Fireplace is leveled and secured. (Pg. 40) ___________________________
Venting/Chimney Section 7 (Pg 42-49)
Venting conguration complies to vent diagrams. ___________________________
Venting installed, locked and secured in place with proper clearance.
(May need to order separately.) ___________________________
Firestops installed. ___________________________
No insulation or foam materials in contact with venting or between
ceiling/wall shield restops. ___________________________
Attic insulation shield installed. ___________________________
Exterior wall/Roof ashing installed and sealed. ___________________________
Terminations installed and sealed. ___________________________
Electrical Section 8 (Pg 50-54)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg 55-56)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veried. ___________________________
Veried proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg 57-60)
Combustible materials not installed in non-combustible areas. ___________________________
Veried all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg 61-66)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, logs, lava rock and embers installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Mesh, decorative barrier front properly installed.
(May need to order separately.) __________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and veried no gas leaks exist. ___________________________
2658-982 3/22
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could lead
to a re or explosion. Install ONLY components and accessories approved by Hearth & Home Technologies.
Unapproved components and accessories could cause replace to overheat.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
4
A. Appliance Certication
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
1 1
Product Specic and Important Safety Information
MODELS: PIER-DV36IN, ST-DV36IN
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Heater
STANDARD: CSA / ANSI Z21.88-2019 • CSA 2.33-2019
This product is listed to ANSI standards for “Vented Gas
Fireplace Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
C. BTU Specications
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input BTU/h
Orice
Size
(DMS)
PIER-DV36IN
(NG)
(0-2000 FT)
38,000 21,000 32
PIER-DV36IN
(Propane)
(0-2000 FT)
35,500 20,000 50
ST-DV36IN
(NG)
(0-2000 FT)
38,000 21,000 32
ST-DV36IN
(Propane)
(0-2000 FT)
35,500 20,000 50
B. Glass Specications
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous lo-
cations such as bathtub enclosures as dened by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certied to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certication Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Sec-
tion 1201.5 “Certication and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certicate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m) above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
5
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be pro-
tected with ground-fault circuit interrupter protection,
in compliance with the applicable electrical codes,
when it is installed in locations such as in bathrooms
or near sinks.
H. California
WARNING: This product and the fuels used to
operate this product (liquid propane or natural
gas), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is
known to the State of California to cause cancer and
reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
6
I. Requirements for the Commonwealth of
Massachusetts
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above nished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satised:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas tter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed. In addi-
tion, the installing plumber or gas tter shall observe that
a battery operated or hard wired carbon monoxide detec-
tor with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualied licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fu-
eled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
oor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that dur-
ing said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accor-
dance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certied.
Signage
A metal or plastic identication plate shall be permanent-
ly mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fu-
eled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB-
STRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizon-
tally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector ob-
serves carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)
(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fu-
eled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not pro-
vide the parts for venting the ue gases, but identies
“special venting systems”, the following requirements
shall be satised by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment in-
stallation instructions; and
• The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that sys-
tem shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Ap-
proved side wall horizontally vented gas fueled equip-
ment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Common-
wealth of Massachusetts requirements.
Note: The following requirements reference various
Massachusetts and national codes not contained in this
document.
7
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
2 2
Getting Started
A. Design and Installation Considerations
WARNING! Risk of Fire or Explosion! Read all instruc-
tions before starting the installation.
Direct vent gas appliances are designed to operate with
all combustion air siphoned from outside of the building
and all exhaust gases expelled to the outside. No addi-
tional outside air source is required.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ocials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping requirements.
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Installation and service of this appliance should be performed by
qualied personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certied professionals.
NOTICE: Surface temperatures listed above are taken with
a temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured. Use appropriate nishing
materials that are able to withstand these conditions. For
additional nishing guidelines, see Section 10.

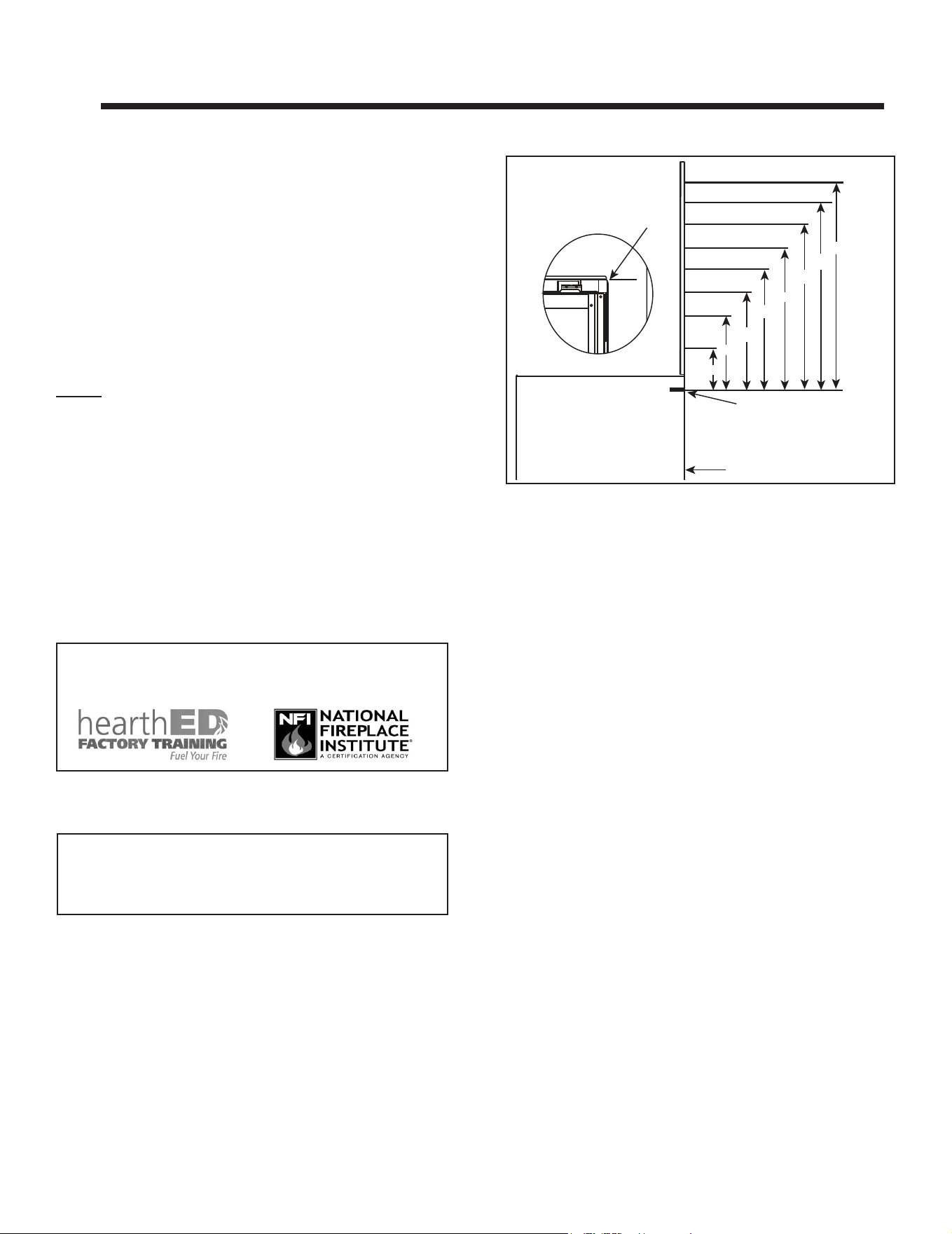

Figure 2.1 Good Faith Wall Surface Temperatures Above Appliance
B. Good Faith Wall Surface/TV Guidelines
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
48 in.
TO CEILING
42 in.
12 in.
130°F
APPLIANCE FRONT
FIREPLACE
OPENING
120°F
110°F
100°F
95°F
95°F
90°F
90°F
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
8

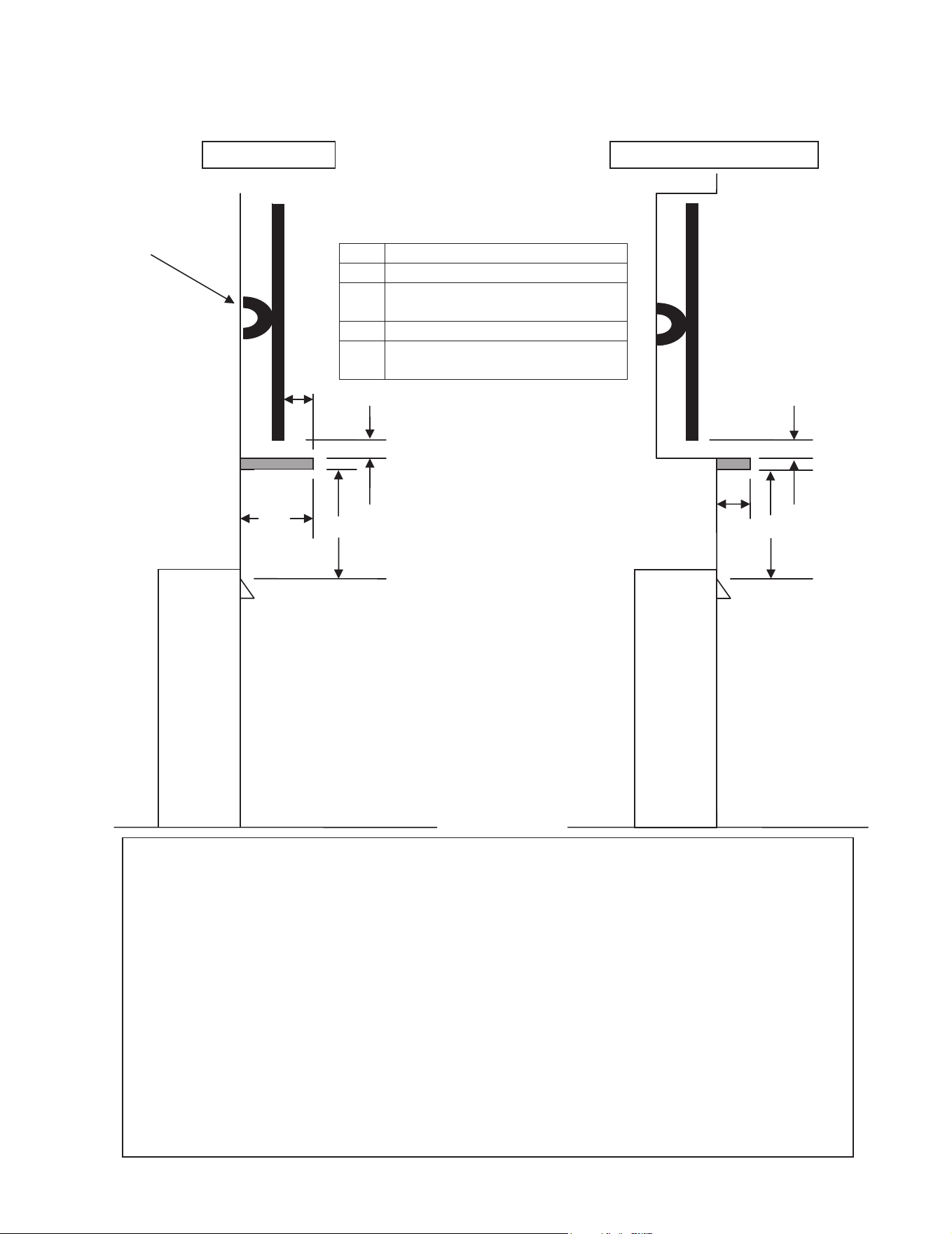

Item Minimum Dimensions
A 2.5 inches
B
2 inches minimum to 3 inches
maximum
C 18 inches
D
Wall Brkt + TV Thickness + 2.5
inches
BB
A
Appliance
TV
Mantel
A
C
Notes:
1. These are good faith recommended clearances only and not a guarantee of compliance with all TV
manufacturers’ maximum allowable opera�ng temperatures.
2. Since every home has unique air flow characteris�cs and maximum allowable opera�ng temperatures
can vary from manufacturer to manufacturer and from model to model, actual TV temperatures should
be validated at the �me of each installa�on. TVs should not be used in situa�ons where the actual TV
temperature exceeds the manufacturers’ maximum allowable opera�ng temperatures iden�fied in the
TV’s technical specifica�ons. Contact the TV’s manufacturer directly if you cannot locate this
informa�on or have ques�ons regarding the informa�on.
3. Mantel height and depth must conform to mantel requirements specified in the appliance installa�on
manual.
4. “C” dimension taken from the top of the hood or appliance opening.
5.
Sugges�ons on how to further reduce TV temperatures:
a. Increase “A” dimension.
b. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended
typically results in higher temperatures.
TV Wall
Bracket
D
Appliance
C
TV on the wall
TV recessed into the wall
Good Faith Guidelines for TV Installations Above Appliance
Figure 2.2 Good Faith TV Guidelines
9
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
D. Inspect Appliance and Components
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative barrier
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the logs/media (as applicable) or
the glass assembly.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Hammer
Phillips screwdriver Manometer
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure
rating)
One 1/4 in. female connection (for optional fan).
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
10
B
C
FRONT VIEW RIGHT VIEW
ELECTRICAL
ACCESS
GAS LINE
ACCESS
LEFT VIEW
A
P
J
Ø K
L
Ø K
D
F
G
H
M
O
i
N
E
TOP VIEW
Q
3 3
Framing and Clearances
A. Appliance Weights and Dimensions
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Appliance Weight Table
Model Pounds Kilograms
ST-DV36IN 220 99.8
Location Inches Millimeters
I 1-1/2 38
J 27 686
K 8 203
L 12 305
M 9-1/2 241
N 38 965
O 34-5/8 880
P 24 610
Q 38-1/8 968
Location Inches Millimeters
A 36 914
B 42-1/2 1080
C 24-1/2 622
D 33-1/2 851
E 1 25
F 2-1/8 54
G 4-1/8 105
H 4-1/4 108
Figure 3.1 Appliance Dimensions - ST-DV36IN
11
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Location Inches Millimeters
I 1-1/2 38
J 27 686
K 8 203
L 12 305
M 9-1/2 241
N 38 965
O 34-5/8 880
P 24 610
Q 38-1/8 968
Location Inches Millimeters
A 37-1/8 943
B 40-1/2 1029
C 24-1/2 622
D 33-1/2 851
E 1 25
F 2-1/8 54
G 4-1/8 105
H 4-1/4 108
Figure 3.2 Appliance Dimensions - PIER-DV36IN
FRONT VIEW RIGHT VIEW
LEFT VIEW
L
Ø K
M
N
ELECTRICAL
ACCESS
J
Ø K
F
G
H
i
TOP VIEW
B
A
E
C
D
P
O
Q
GAS LINE
ACCESS
Appliance Weight Table
Model Pounds Kilograms
PIER-DV36IN 220 99.8
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
12
Figure 3.3 Decorative Barrier Front Dimensions
B. Decorative Barrier Front Dimension Diagrams
DECORATIVE FRONT MSFR-36-BK
(Model: PIER-DV36IN / ST-DV36IN)
B
A
C
E
D
G
F
MSFR-36-BK
Location Inches Millimeters
A 32-3/8 822
B 22-9/16 573
C 36-1/16 916
D 1-3/8 35
E 6-7/8 175
F 32-1/16 814
G 33-7/16 849
END PANEL MSEP-36-BK
(Model: PIER-DV36IN)
MSEP-36-BK
Location Inches Millimeters
A 20-1/8 511
B 22-11/16 576
C 26-11/16 678
D 1-3/8 35
E 6-7/8 175
F 32-1/16 814
G 33-7/16 849
B
A
C
E
D
F
G
13
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
C. Appliance Location and Clearances to
Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls. See Figure
3.4.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be lo-
cated out of trac and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.

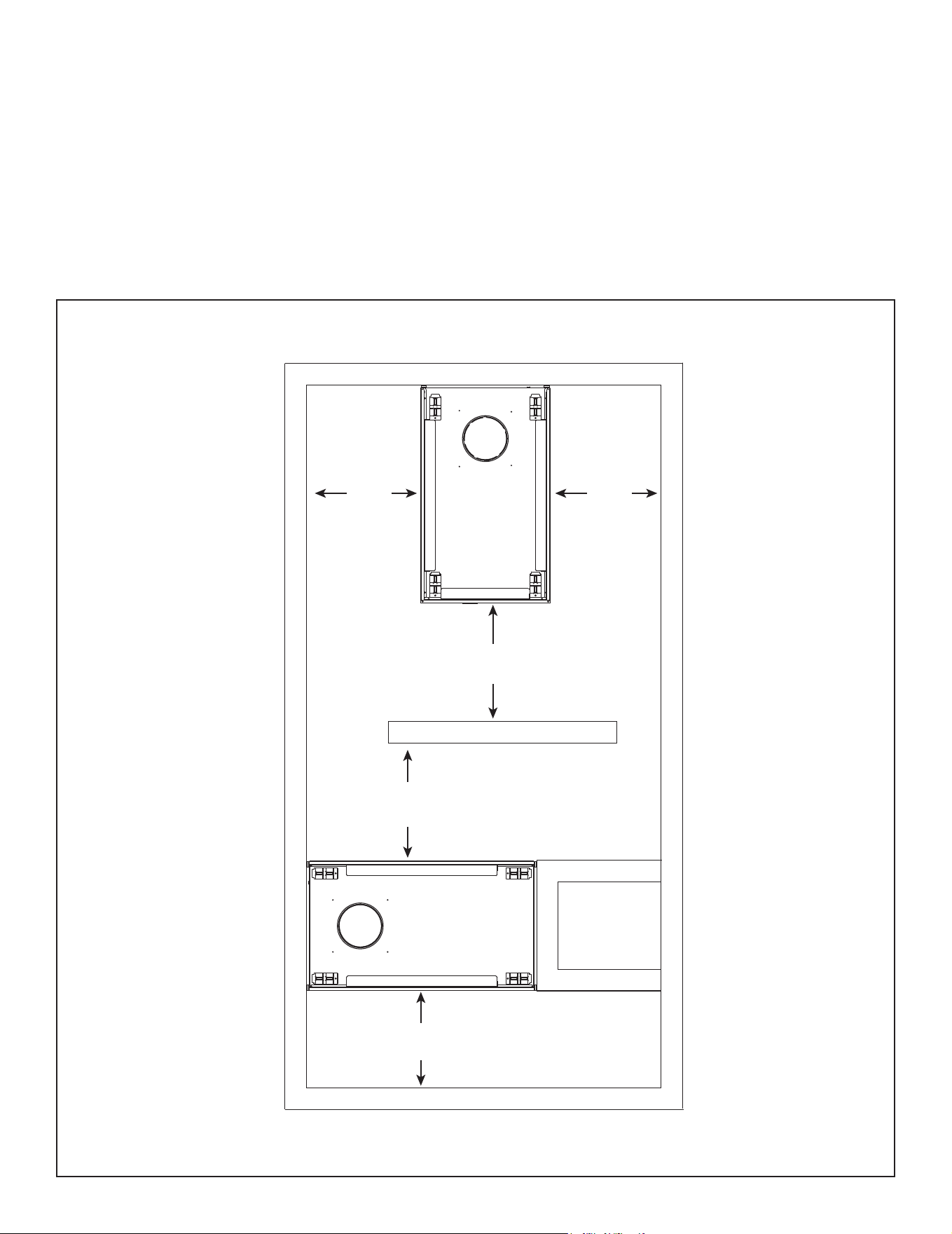

Figure 3.4 Appliance Locations
NOTICE: This See-Through appliance is NOT designed
or approved for an indoor/outdoor application.
PIER-DV36IN
ST-DV36IN
36 in.
914 mm
36 in.
914 mm
36 in.
914 mm
36 in.
914 mm
36 in.
914 mm
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
14

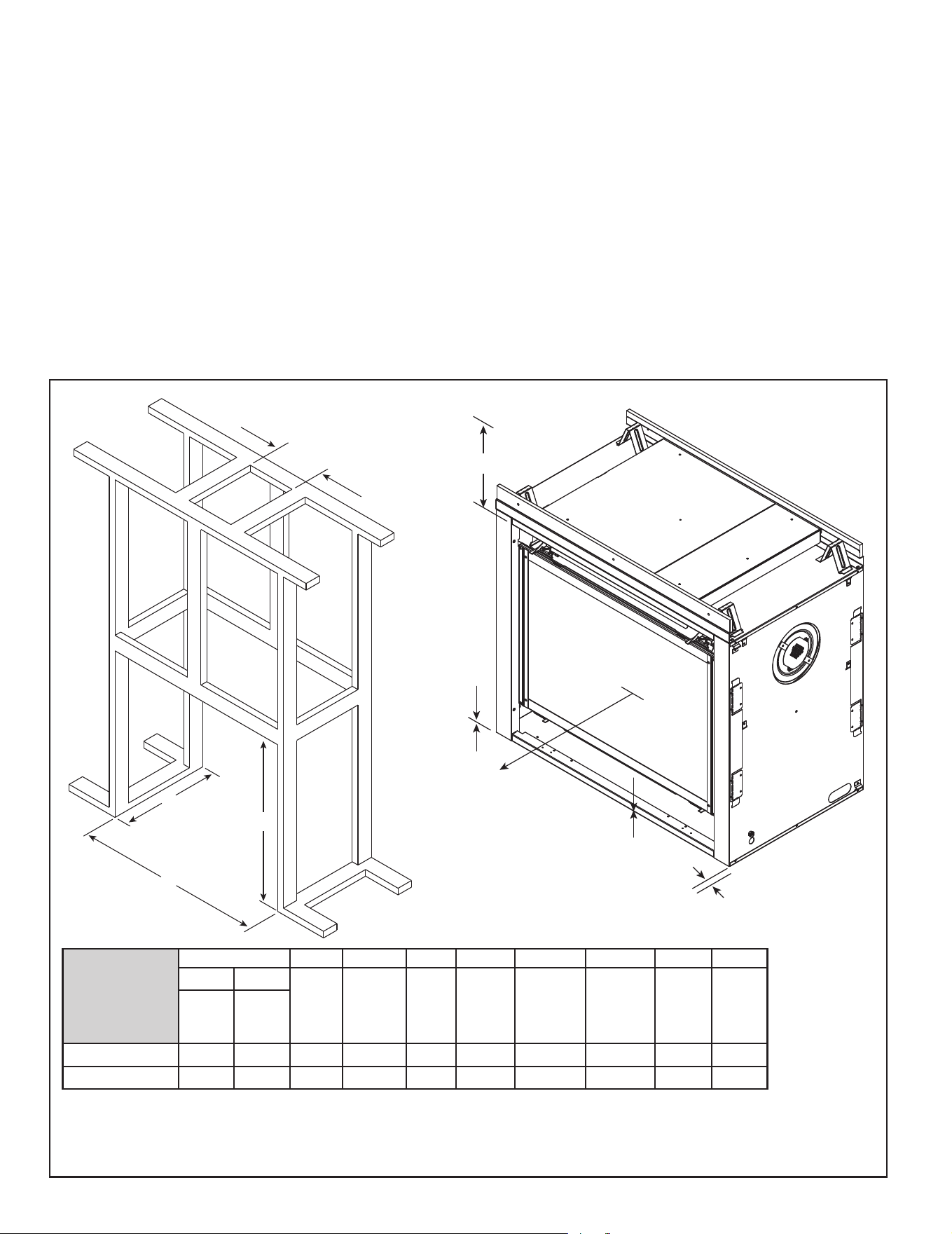

Figure 3.5 Clearances to Combustibles - ST-DV36IN
C
A
B
D
F
E
I
G*
H
ST-DV36IN
A B C D E F G* H I
DVP Pipe SLP Pipe
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Ends of
Appliance
Sides of
Appliance
Rough
Opening
(Width)
Rough
Opening
(Width)
Inches
10 9 38-1/8 23 43 31 0 0 1/2 36
Millimeters
254 229 968 584 1092 787 0 0 13 914
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.
Adjust framing dimensions for interior sheathing (such as sheetrock).
G* For installations with vinyl ooring, see Section 3.E.
15
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
C
A
B
D
Figure 3.6 Clearances to Combustibles - PIER-DV36IN
PIER-DV36IN
A B C D E F G* H I
DVP Pipe SLP Pipe
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
End of
Appliance
Sides of
Appliance
Rough
Opening
(Width)
Rough
Opening
(Width)
Inches
10 9 38-1/8 23 40 31 0 0 1/2 36
Millimeters
254 229 968 584 1016 787 0 0 13 914
G*
F
I
I
E
H
Adjust framing dimensions for interior sheathing (such as sheetrock).
G* For installations with vinyl ooring, see Section 3.E.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
16

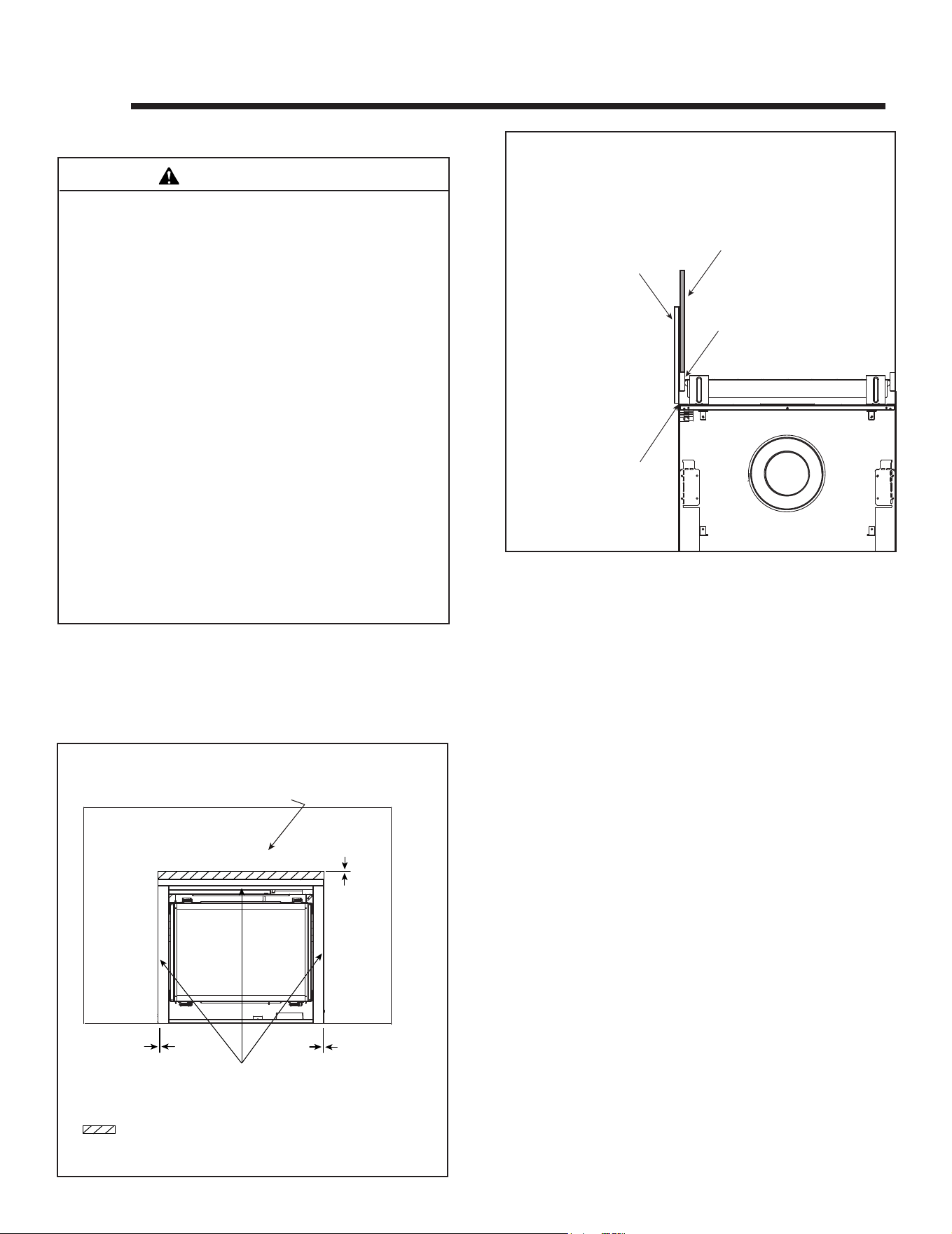

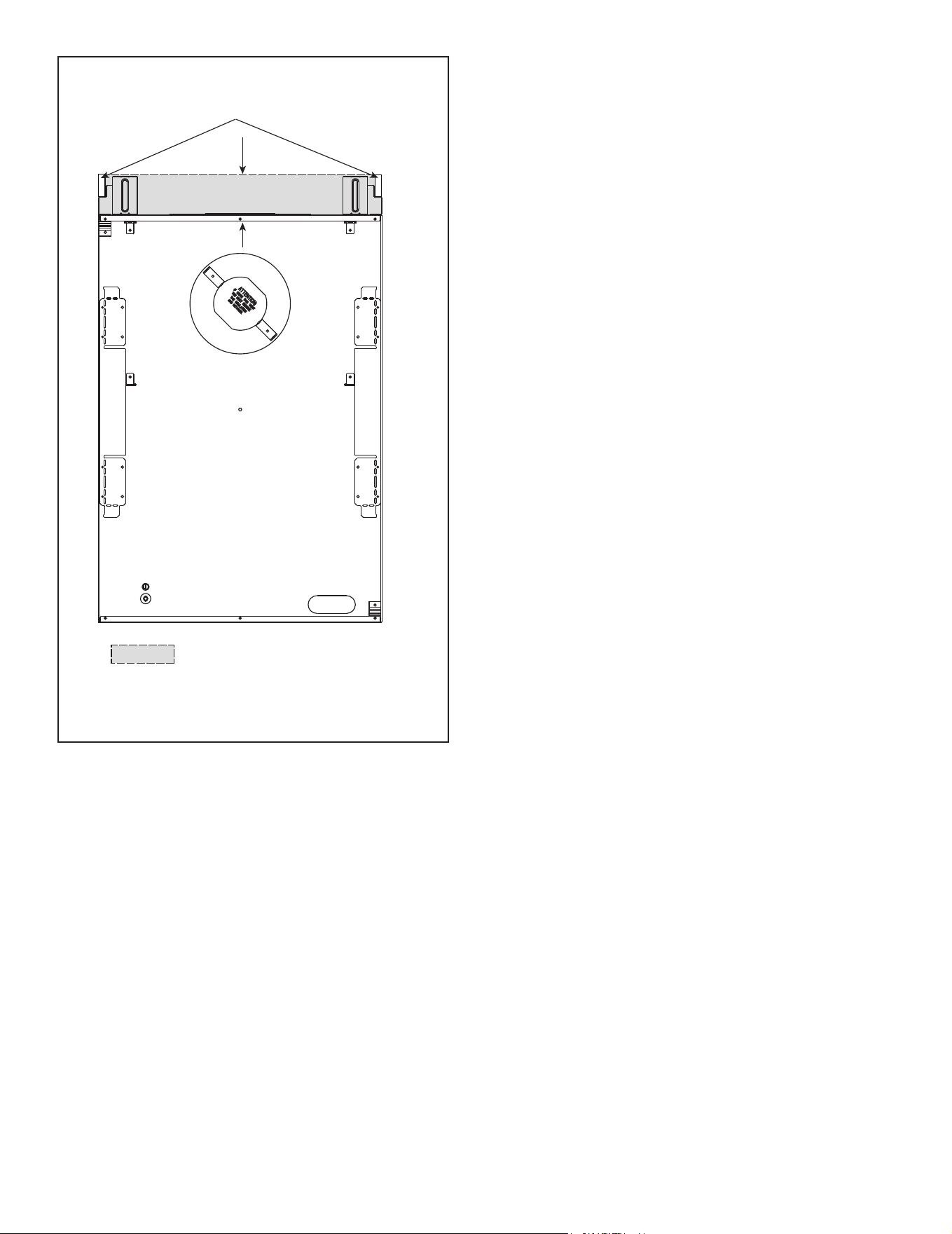

Figure 3.7 Non-Combustible Zone
FACTORY-INSTALLED
NON-COMBUSTIBLE BOARD
= AIR SPACE REQUIRED
3-7/8 in.
17
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
NOTICE: Where required by code, install only sprinkler
heads with a sprinkler activation temperature classied
as Extra High.
• Sprinklers inside of chase: Keep sprinkler head away
from vent and chimney.
Chases should be constructed and insulated in the same
manner as the thermal envelope of the home based on
the code requirements for that climate zone to prevent air
leakage and draft problems. The chase is an extension of
the building thermal envelope.
To further prevent drafts and air leakage, the wall shield
and ceiling restops should be sealed with caulk with
a minimum of 300 ºF continuous exposure rating to
seal gaps. Gas line holes and other openings should
be sealed with caulk with a minimum of 300 ºF continu-
ous exposure rating or stued with unfaced insulation. If the
appliance is being installed on a cement surface, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
Minimum height requirements for an exterior chase on a top-
vented appliance are shown in Figure 3.8. Reference Figure
4.5 for additional clearances.
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly on
carpeting, vinyl, or any combustible material other than
wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.

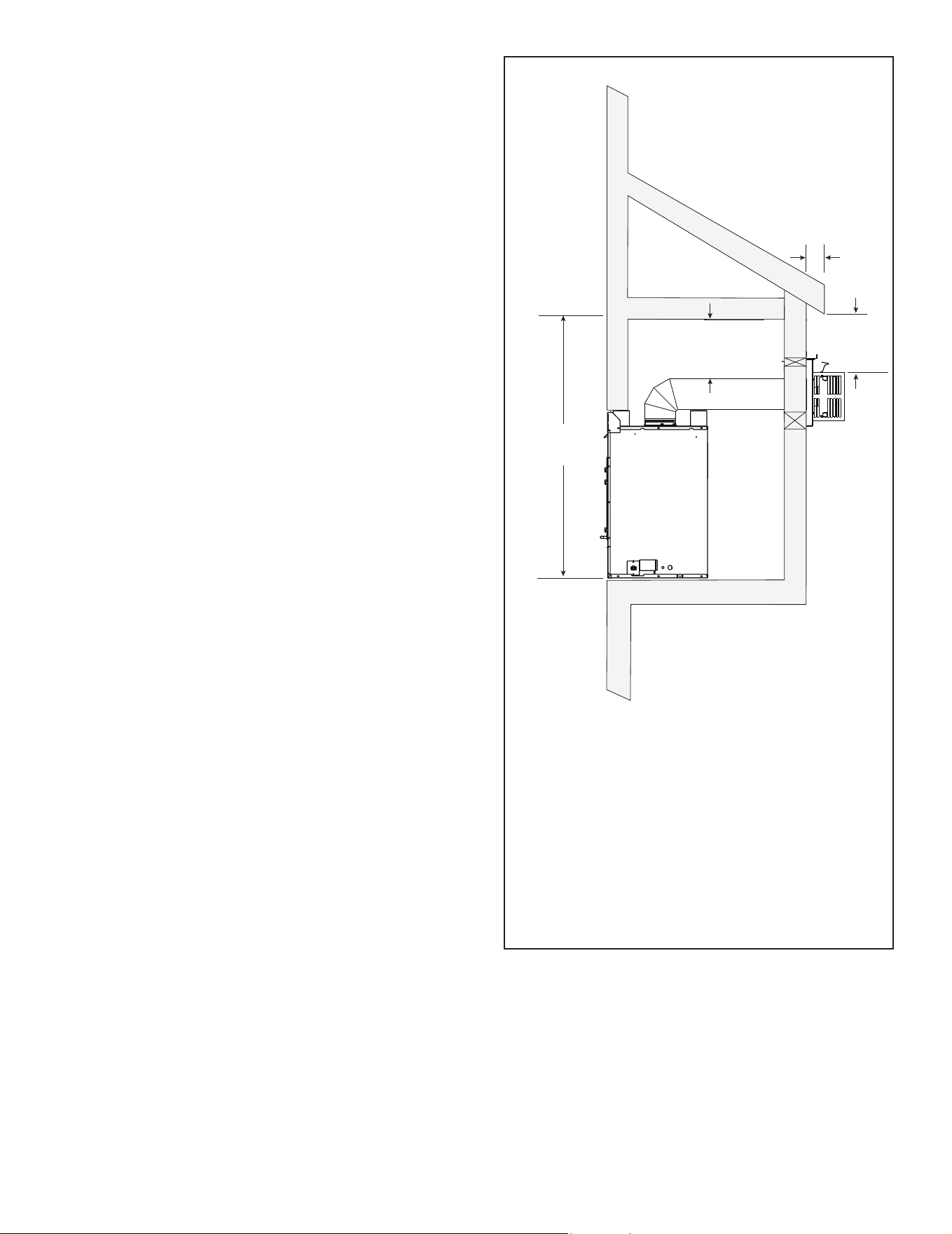

Figure 3.8 Exterior Chase - Minimum Height Requirements
49-3/4 IN. MIN.
____ IN.
3 IN. MIN.
TO COMBUSTIBLE
SURFACE
* NOTE: If overhang is less than 2 inches, clearance
from top of termination cap to bottom of overhang
may be 0 inches.
A - Measured from back of vent cap to end of
overhang
B* - Measured from bottom of overhang to top of
termination cap
Unventilated Soffit = 18 inches
Ventilated Soffit = 18 inches
Vinyl Soffit = 30 inches
C - Measured from bottom of appliance to
combustible surface
A
B* IN.
C
D. Constructing the Appliance Chase
E. Floor Protection
Vinyl Flooring
Vinyl ooring is sensitive to heat. Hearth and Home
Technologies does not recommend adhesive based vinyl
ooring due to thermal expansion. Floating-style ooring
can be used, but will reach temperatures up to 110 °F in a
room with ambient temperature of 70 °F. Consult ooring
specications to ensure compatibility.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
18

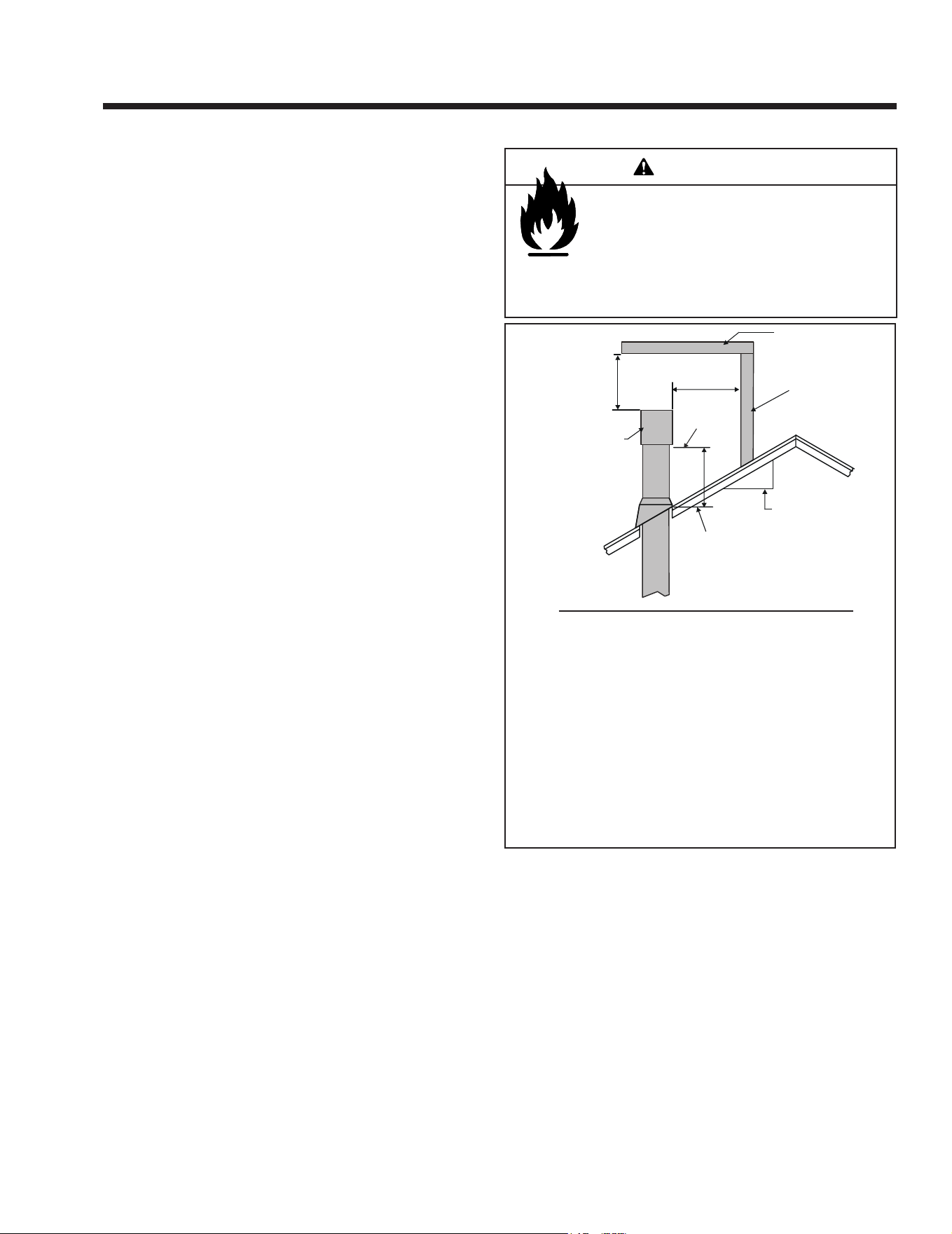

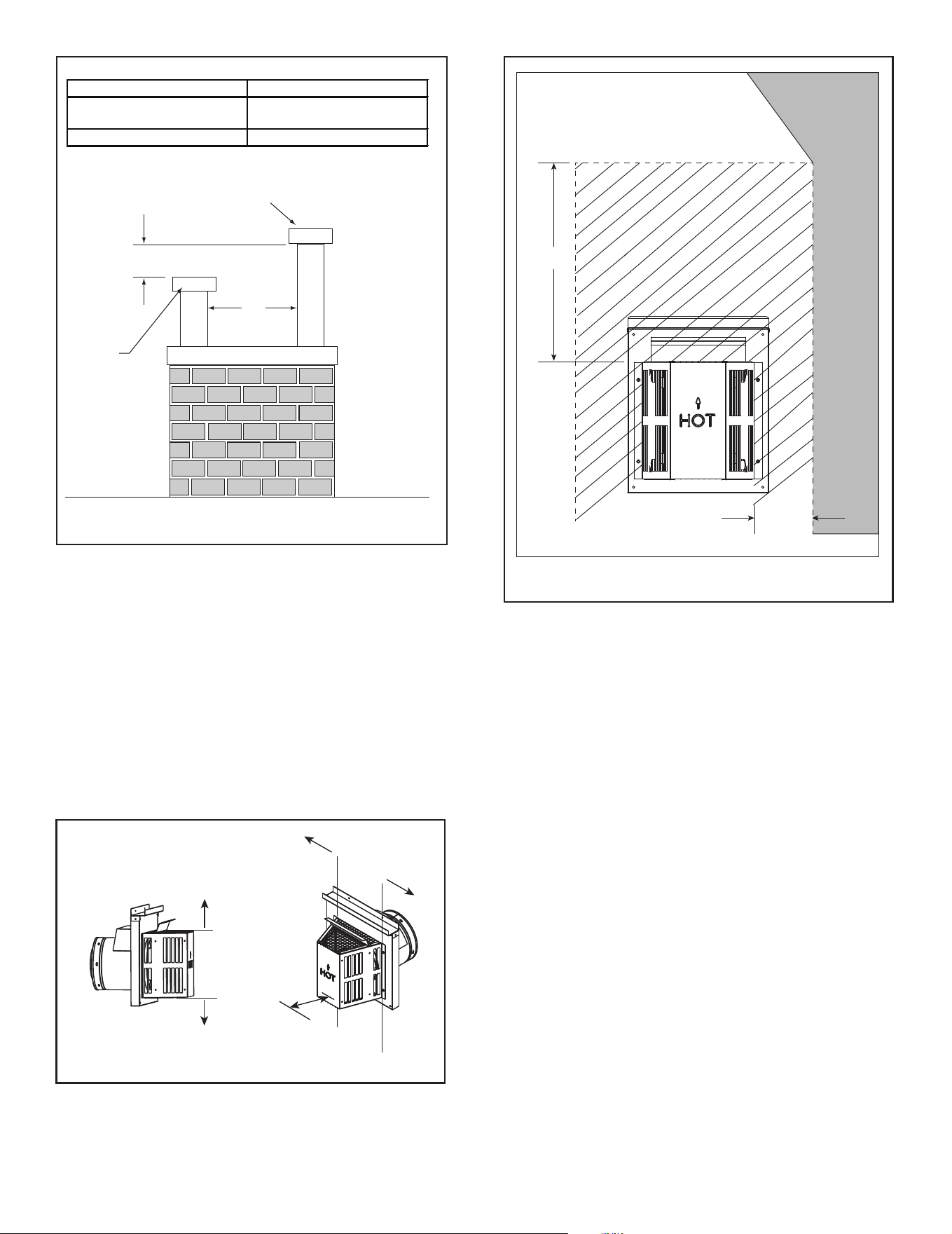

B. Vent Termination Minimum Clearances
Roof Pitch H (Min.) Ft
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12 .................................................1.25*
Over 7/12 to 8/12 .................................................1.5*
Over 8/12 to 9/12 .................................................2.0*
Over 9/12 to 10/12 ...............................................2.5*
Over 10/12 to 11/12 .............................................3.25
Over 11/12 to 12/12 .............................................4.0
Over 12/12 to 14/12 .............................................5.0
Over 14/12 to 16/12 .............................................6.0
Over 16/12 to 18/12 .............................................7.0
Over 18/12 to 20/12 .............................................7.5
Over 20/12 to 21/12 .............................................8.0
Figure 4.1 Minimum Height From Roof to Lowest Discharge
Opening
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
4 4
Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and re.
WARNING
* H minimum may vary depending on regional snowfall.
Refer to local codes.
A. Approved Pipe
WARNING! Risk of Fire, Delayed Ignition or Asphyxi-
ation. This appliance requires a separate vent. DO NOT
vent to a pipe serving any other appliance.
This appliance is only approved for use with Hearth &
Home Technologies DVP or SLP venting systems. Re-
fer to Section 12.A for vent component information and
dimensions. Only use listed decorative termination caps/
shrouds with Hearth & Home Technologies approved
venting systems.
DO NOT mix pipe, ttings or joining methods from dier-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
19
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Wood or Fuel Oil
Termination Cap
B
*Gas
Termination
Cap
A
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
* If two gas terminations are present, they may be level (B = 0 inches)
provided A is a minimum of 6 inches.
Figure 4.2 Staggered Termination Caps
CAUTION! Risk of Burns! Termination caps are HOT,
consider proximity to doors, trac areas or where people
may pass or gather (sidewalk, deck, patio, etc.). Listed
cap shields available. Contact your dealer.
• Local codes or regulations may require different
clearances.
• Hearth & Home Technologies assumes no responsibility
for the improper performance of the appliance when the
venting system does not meet these requirements.
• Vinyl protection kits are suggested for use with vinyl siding.
• Measure horizontal and vertical termination cap clearances
as noted in Figure 4.3 and Figure 4.4.
Figure 4.3
CLEARANCE
= 6 IN.
H
V
V
H=Measure Horizontal Distances from H
V=Measure Vertical Distances from V
H
Figure 4.4 Measure Horizontal and Vertical Termination
Clearance to Trapezoid Portion of Cap
OVERHANG
C
E
WALL
C and E dimensions are dened in Figure 4.5.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
20
C
J
B
D
B
F
B
A
E
V
V
V
V
V
V
M
H or i
V
G
X
V
H
A
V
V
H
Figure 4.5 Minimum Clearances for Termination
X
= AIR SUPPLY INLET
V
= VENT TERMINAL
= AREA WHERE TERMINAL IS NOT PERMITTED
Electrical
Service
V
K
V
K
V
L
C
V
C. Vent Terminal Clearances
U.S.A. CANADA
A Clearance above grade,veranda, porch, deck, balcony or roof. 12 in. (305 mm) 12 in. (305 mm)
B Clearance to window or door that may be opened, or to permanently closed window 9 in. min. (229 mm) 12 in. min. (305 mm)
C
clearance below unventilated sot 18 in. (457 mm) 18 in. (457 mm)
clearance below ventilated sot 18 in. (457 mm) 18 in. (457 mm)
clearance below any vinyl sots and electrical service 30 in. (762 mm) 30 in. (762 mm)
D clearance to outside corner 6 in. (152 mm) 6 in. (152 mm)
E clearance to inside corner 6 in. (152 mm) 6 in. (152 mm)
F clearance to each side of center line extended above gas meter/regulator assembly
Clearance in ac-
cordance with local
installation codes and
the requirements of
the gas supplier.
3 ft (914 mm) within
a height 15 ft (4.5
m) above the meter/
regulator assembly
G clearance to gas service regulator vent outlet 3 ft (914 mm) 3 ft (914 mm)
H
clearance to non-mechanical air supply inlet to building or the combustion air inlet to
any other appliance termination (mechanical or non-mechanical)
12 in. min.12 in. min. 12 in. min.12 in. min.
I
clearance to a mechanical (powered) air supply inlet
***(All mechanical air intakes within 10 feet of a horizontal termination cap must be
a minimum of 3 feet below termination.)
3 ft (914 mm)*** 6 ft (1.8m)
J
On public property: clearance above paved sidewalk or a paved driveway.
7 ft (2.1 m) 7 ft (2.1 m)**
**(A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and
serves both dwellings.)
K
clearance from sides of electrical service 6 in. (152 mm) 6 in. (152 mm)
Location of the vent termination must not interfere with access to the electrical service.
L
clearance above electrical service 12 in. (305 mm) 12 in. (305 mm)
Location of the vent termination must not interfere with access to the electrical service.
M
clearance under veranda, porch, deck, balcony or overhang
*(Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of
two sides beneath the oor.)
18 in. (457 mm) 12 in. (305 mm)*
vinyl or composite overhang 42 in. (1067 mm) 42 in. (1067 mm)
U.S.A. Installations: In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
Canadian Installations: In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.
21
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
D. Use of Elbows
Diagonal runs have both vertical and horizontal vent
aspects when calculating the eects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.6.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 inch
(216 mm) horizontal run and 8-1/2 inch (216 mm) vertical
run. A length of straight pipe is allowed between two 45º
elbows. See Figure 4.6.
Figure 4.7 shows the vertical and horizontal osets for
DVP or SLP elbows.
Figure 4.6
HORIZONTAL
VERTICAL
RUN
RISE
EFFECTIVE
LENGTH
Y
X
X
X
DVP
Pipe
Eective Length Rise/Run
Inches Millimeters Inches Millimeters
DVP4 4 102 2-3/4 70
DVP6 6 152 4-1/4 108
DVP12 12 305 8-1/2 216
DVP24 24 610 17 432
DVP36 36 914 25-1/2 648
DVP48 48 1219 34 864
DVP6A 3 to 6 76 to 152
2-1/8-4-1/4 54-108
DVP12A 3 to 12 76 to 305
2-1/8-8-1/2 54-216
Vent Type
X
Inches Millimeters
DVP 16-1/4 413
SLP 11-1/4 286
Figure 4.7 Vertical and Horizontal Oset for DVP and SLP Elbows
Vent
Type
X Y
Inches Millimeters Inches Millimeters
DVP 6-5/8 168 16-1/2 419
SLP 5-1/4 133 11-3/8 289
SLP
Pipe
Eective Length Rise/Run
Inches Millimeters Inches Millimeters
SLP4 4 102 2-3/4 70
SLP6 6 152 4-1/4 108
SLP12 12 305 8-1/2 216
SLP24 24 610 17 432
SLP36 36 914 25-1/2 648
SLP48 48 1219 34 864
SLP6A 3 to 6 76 to 152
2-1/8-4-1/4 54-108
SLP12A 3 to 12 76 to 305
2-1/8-8-1/2 54-216
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
22

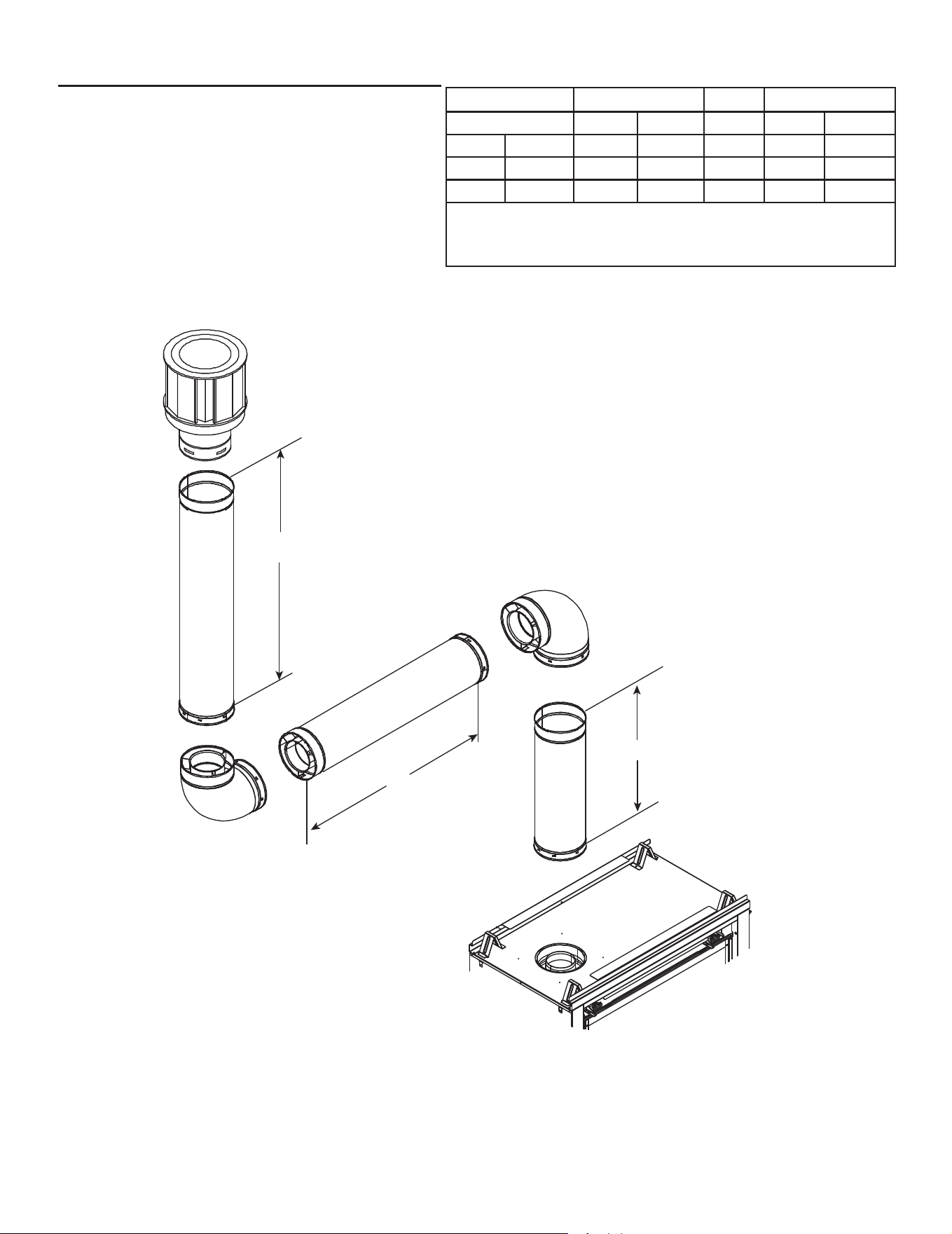

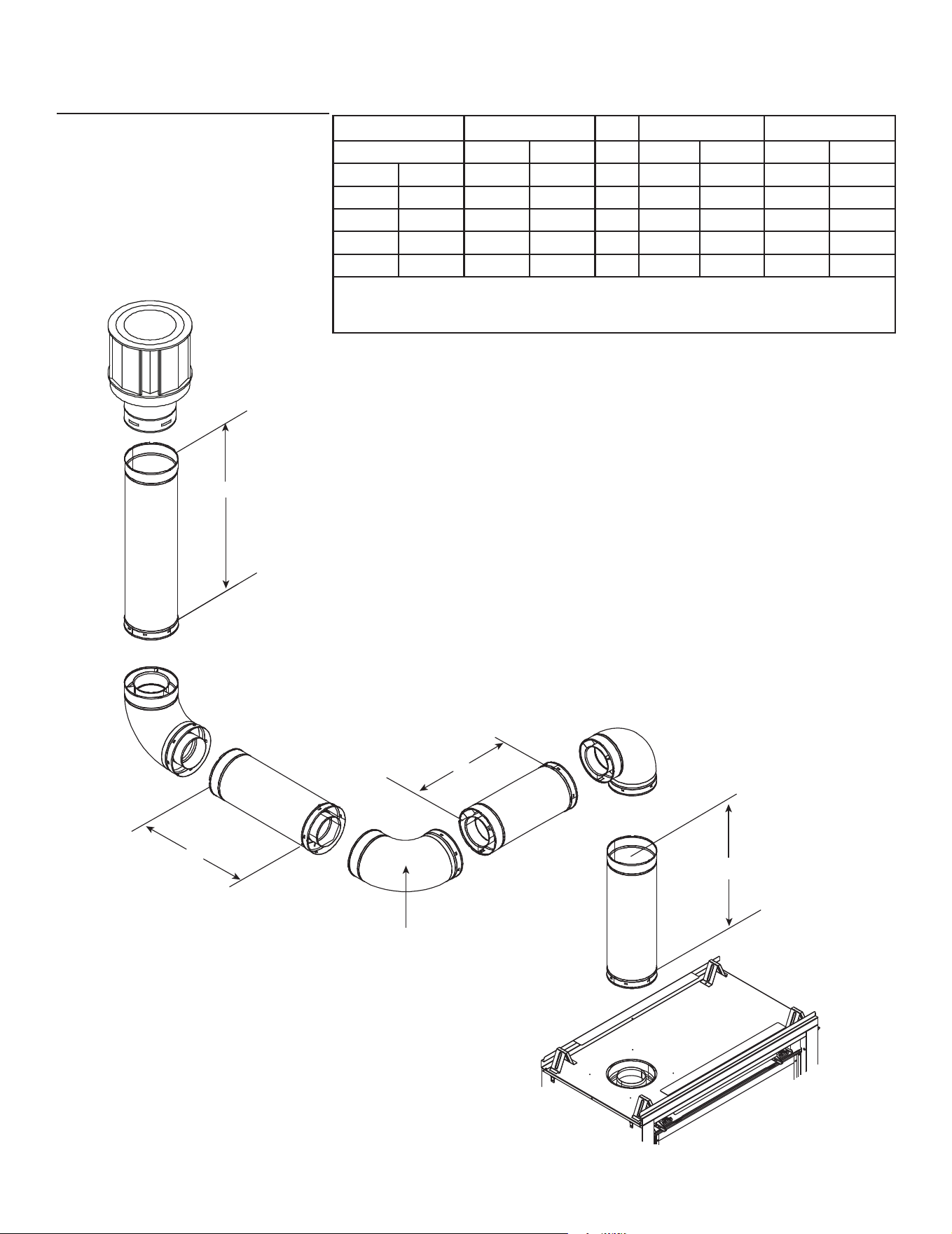

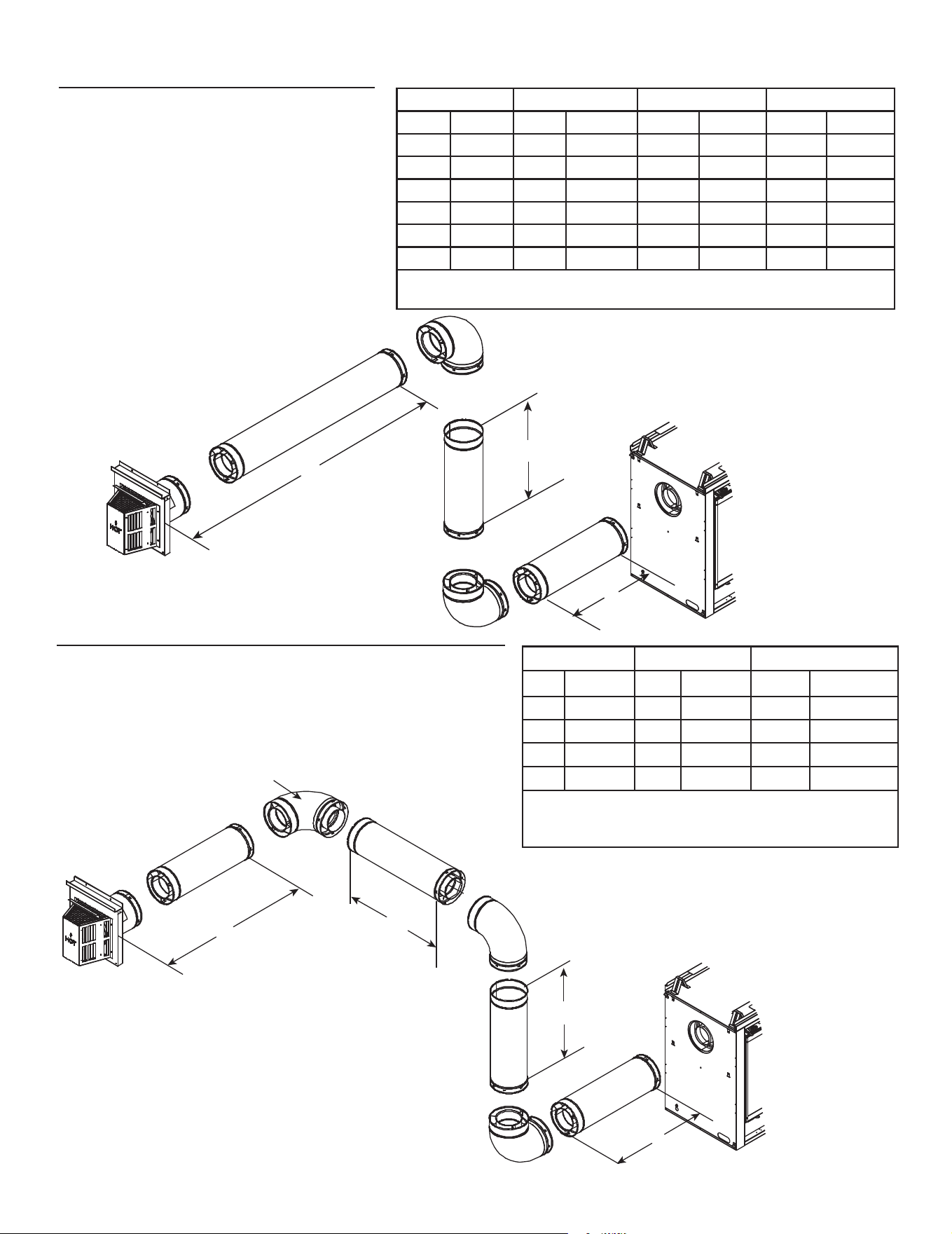

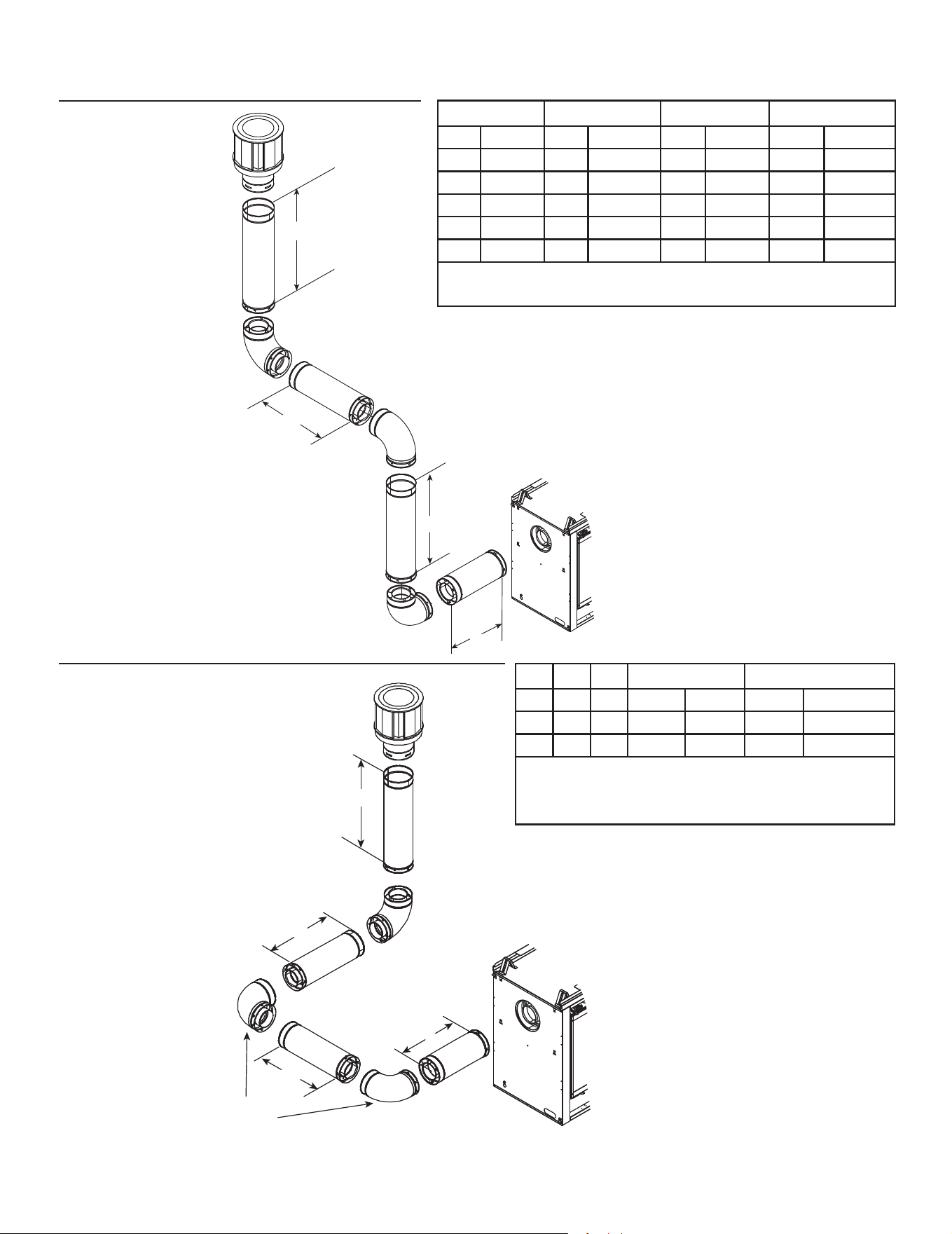

E. Vent Diagrams
General Rules:
• When penetrating a combustible wall, a wall shield
restop must be installed.
• When penetrating a combustible ceiling, a ceiling restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.
• It is recommended that the horizontal termination cap
have a 1/4 inch downward slant to allow any moisture
in cap to be released. See Figure 4.8.
If venting conguration diers from the vent diagrams on
the following pages (Figure 4.12-4.29), these rules also
apply:
• SUBTRACT 3 ft from the total H measurement for
each 90º elbow installed horizontally.
• SUBTRACT 1-1/2 ft from the total H measurement
for each 45º elbow installed horizontally.
• A maximum of three 90º elbows (or six 45º elbows)
may be used in any vent conguration. Some elbows
may be installed horizontally such as in Figure 4.15.
• Elbows may be placed back to back anywhere in
the system.
• Any 90º elbow may be replaced with two back to
back 45º elbows.
• 2 x 45° elbow jog directly o the top of the replace
is allowed but has no V or H value, is permitted
when reducing to SLP pipe, and DOES NOT count
towards total elbow count.
To replace the rst starter elbow with two 45° elbows,
refer to Figure 4.8. All other 90° elbows can be replaced
with two 45° elbows.

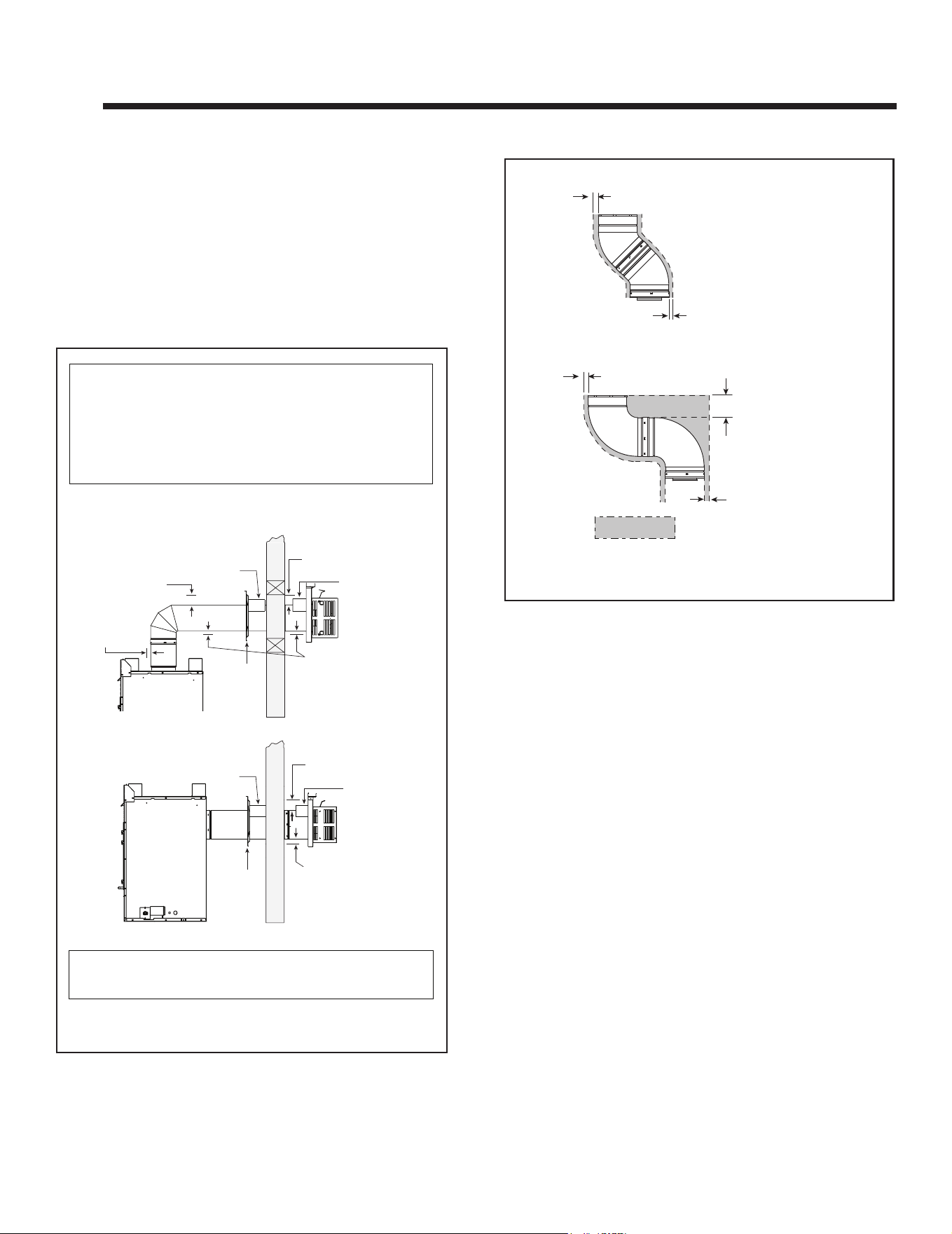

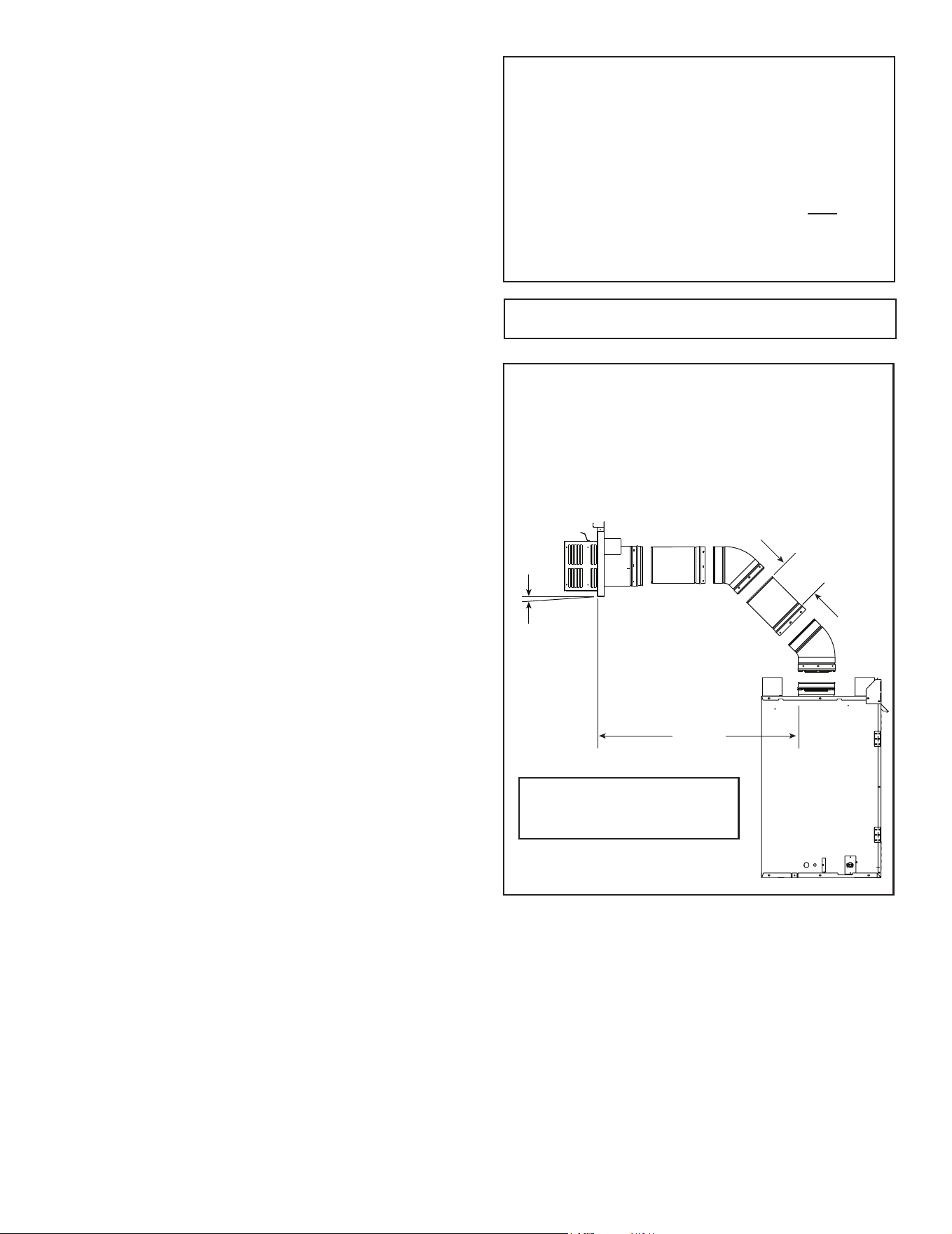

Top Vent Horizontal Termination
Two 45° Elbows
Installation requirements to replace the rst 90° elbow
with two 45° elbows:
4 ft min.
(1.22 m)
16 ft max.
(4.87 m)
1/4 in. max.
(6 mm)
Figure 4.8
Note: Reference Figure 4.23 for
special instructions for use of 45º
elbow on rear vent appliances.
Note: The ST-DV36IN and PIER-DV36IN replaces can
adapt to SLP series vent pipe, if desired.
When venting o the top of the unit, use a DVP-2SL adapter
and a minimum 48 inch vertical section of SLP series vent pipe.
A DVP-SLP24 adapter may also be used with a 24 inch vertical
section of SLP series vent pipe.
After the 48 inch vertical section, the venting table rules must
be followed. The rst 48 inch vertical section is NOT counted
as part of the vertical components in the table. It is still counted
as part of the overall maximum run. All venting table rules for
the vent run must still be followed.
Example: DVP pipe 1 ft. min. vertical = 3 ft. max. horizontal
SLP pipe 5 ft. min. vertical = 3 ft. max. horizontal
23
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

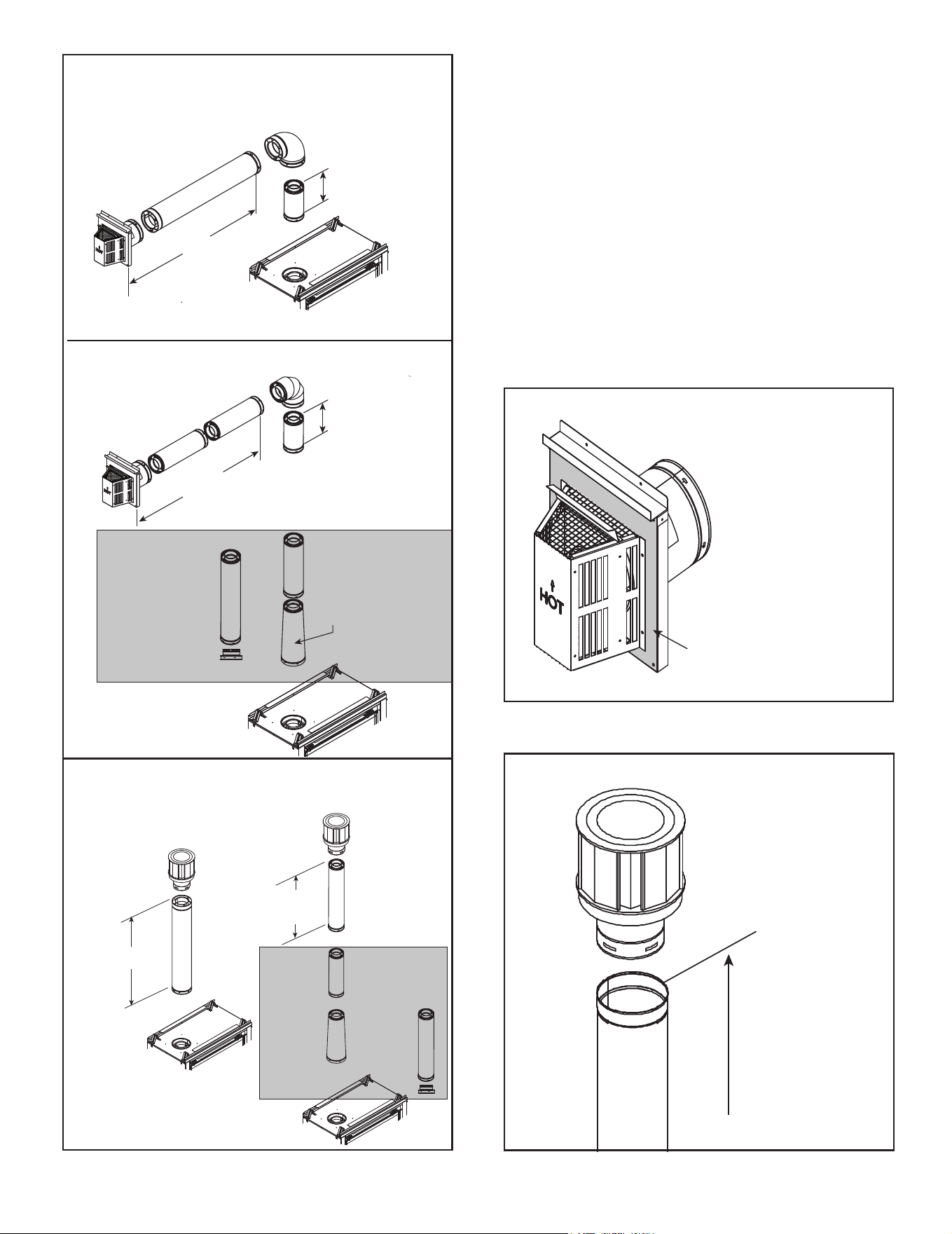

Measuring Standards:
Vertical and horizontal measurements listed in the vent
diagrams and clearances for termination were made
using the following standards:
• Pipe measurements are shown using the eective length
of pipe. See Section 12.A (Figure 12.1 for DVP, Figure
12.8 for SLP) for information on eective length of pipe
components.
• Horizontal terminations are measured to the outside
mounting surface (flange of termination cap). See
Figure 4.10.
• Vertical terminations are measured to top of last section
of pipe. See Figure 4.11.
• Horizontal pipe installed level with no rise.
MEASURE TO SHADED SURFACE
(OUTSIDE MOUNTING SURFACE)
Figure 4.10 Measure to Outside Mounting Surface
Figure 4.11 Measure to Top of Last Section of Pipe

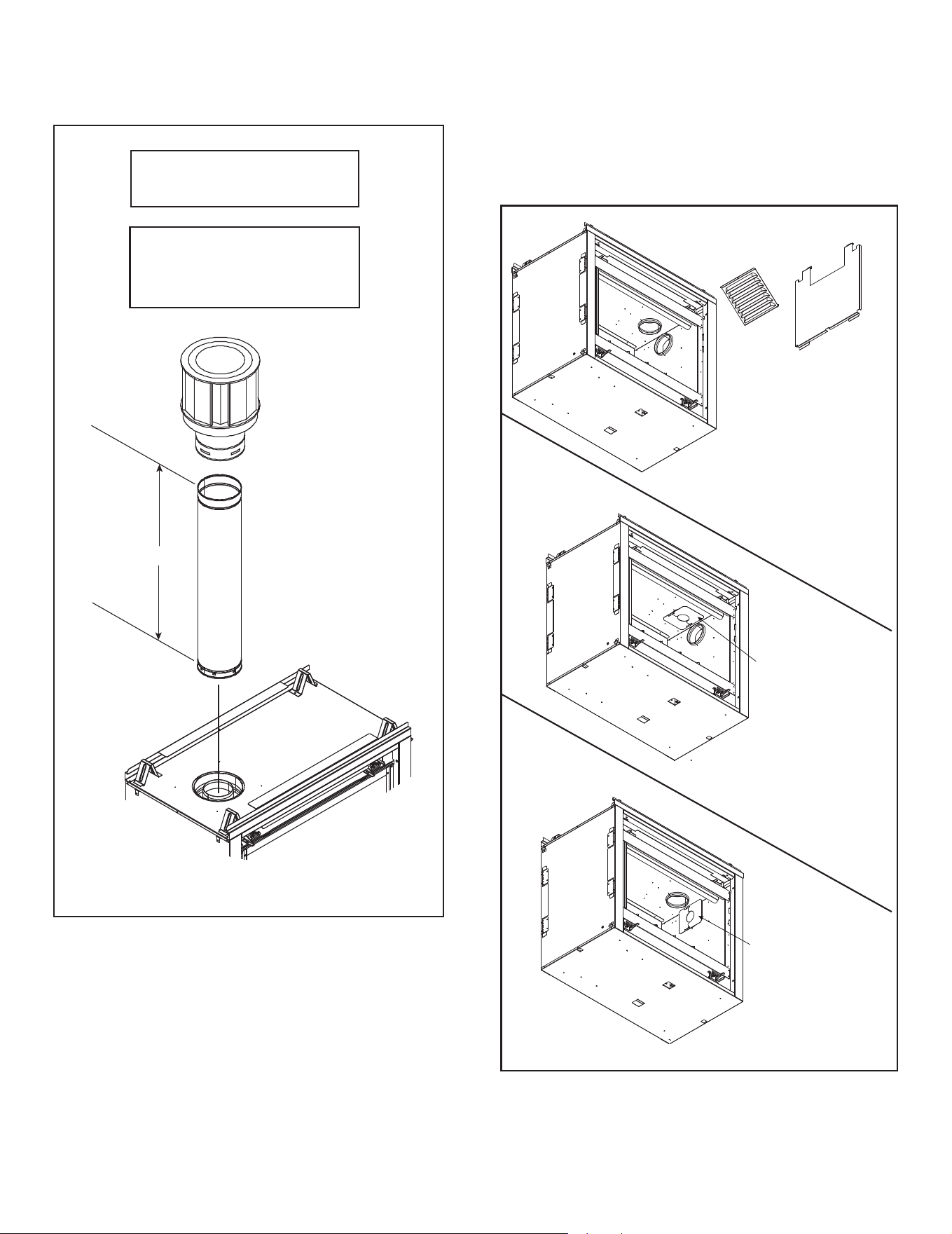

Figure 4.9 Adapt DVP Pipe to SLP Using DVP-SLP24 & DVP-2SL
DVP PIPE
HORIZONTAL EXAMPLE
(IDENTICAL VENT RUNS USING DVP AND SLP PIPE)
H
1
= 3 ft. (914 mm)
max.
DVP-SLP24
SLP PIPE
V
1
= 1 ft. (305 mm)
4 ft. SLP (1.2 m)
DVP-2SL
AND
OR
V
1
= 1 ft. (305 mm)
H
1
= 3 ft. (914 mm)
max.
2 ft. SLP (305 mm)
DVP-SLP24
Adapter
3 ft (914 mm) min.
60 ft (18.3 m) max.
DVP
SLP
VERTICAL EXAMPLE
(IDENTICAL VENT RUNS USING DVP AND SLP PIPE)
4 ft. SLP
DVP-2SL
AND
OR
3 ft (914 mm) min.
56 ft (17 m) max.
2 ft. SLP
(305 mm)
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
24
Top Vent - Horizontal Termination
H
1
V
1
Figure 4.12
Figure 4.13
One Elbow
Two Elbows
INSTALLED
HORIZONTALLY
H
1
H
2
V
1
V
1
Minimum H
1
Maximum
Elbow only 1-1/2 ft. 457 mm
6 in. 152 mm 2-1/2 ft. 610 mm
1 ft. 305 mm 3 ft. 914 mm
2 ft. 610 mm 6 ft 1.8 m
3 ft. 914 mm 9 ft. 2.7 m
4 ft. 1.2 m 12 ft. 3.7 m
5 ft. 1.5 m 15 ft. 4.6 m
6 ft. 1.8 m 18 ft. 5.5 m
V
1
+ H
1
= 50 ft. (15.2 m) Maximum
H
1
= 18 ft. (5.5 m) Maximum
V
1
Minimum H
1
+ H
2
Maximum
Elbow only 6 in. 152 mm
1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.2 m
3 ft. 914 mm 9 ft. 2.7 m
4 ft 1.2 m 12 ft. 3.7 m
5 ft. 1.5 m 15 ft. 4.6 m
6 ft. 1.8 m 18 ft. 5.5 m
V
1
+ H
1
+ H
2
= 50 ft. (15.2 m) Maximum
H
1
+ H
2
= 18 ft. (5.5 m) Maximum
25
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

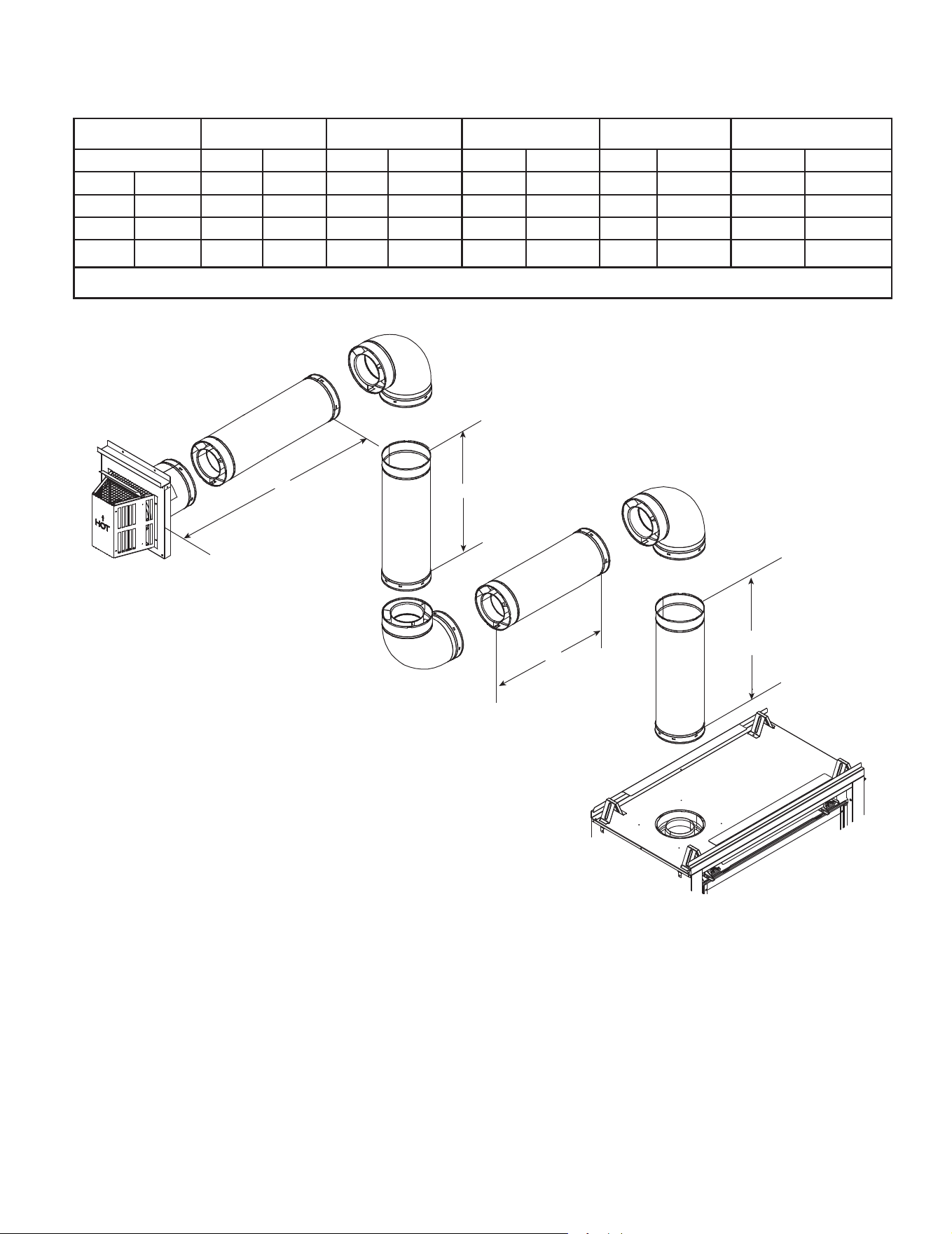

Figure 4.14
Top Vent - Horizontal Termination - (continued)
Three Elbows
H
2
H
1
V
2
V
1
V
1
Minimum H
1
Maximum V
2
Minimum H
2
Maximum V
1
+ V
2
Minimum
H
1
+ H
2
Maximum
Elbow only 1 ft. 305 mm 6 in. 152 mm 1 ft. 305 mm 6 in. 152 mm 1 ft. 305 mm
6 in. 152 mm 3 ft. 914 mm 6 in. 152 mm 2 ft. 610 mm 1 ft. 305 mm 3 ft. 914 mm
1 ft. 305 mm 6 ft 1.8 m 1 ft. 305 mm 6 ft 1.8 m 2 ft. 610 mm 12 ft. 3.7 m
2 ft. 610 mm 10 ft.* 3 m 2 ft. 610 mm 10 ft.* 3 m 4 ft 1.2 m 18 ft. 5.5 m
3 ft. 914 mm 12 ft.* 3.7 m 3 ft. 914 mm 12 ft.* 3.7 m 6 ft 1.8 m
18 ft 5.5 m
*H
1
+ H
2
= 18 ft. (5.5 m) Maximum V
1
+ V
2
+ H
1
+ H
2
= 50 ft. (15.2 m) Maximum
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
26
Figure 4.15
Three Elbows
V
1
Minimum H
1
+ H
2
+ H
3
Maximum
Elbow not allowed
6 in. 152 mm not allowed
1 ft. 305 mm 1 ft. 305 mm
2 ft. 610 mm 2 ft. 610 mm
3 ft. 914 mm 3 ft. 914 mm
4 ft. 1.2 m 4 ft. 1.2 m
5 ft. 1.5 m 5 ft. 1.5 m
6 ft. 1.8 m 6 ft. 1.8 m
V
1
+ H
1
+ H
2
+ H
3
= 50 ft. (15.2 m) Maximum
H
1
+ H
2
+ H
3
= 18 ft. (5.5 m) Maximum
H
1
V
1
H
2
H
3
Installed
Horizontally
Installed
Vertically
Top Vent - Horizontal Termination - (continued)
27
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Metal
Refractory Panel
To access the
exhaust opening,
remove the metal refractory
panel and exhaust baffle.
To remove metal refractory
panel, remove the two
screws on top. To remove
the exhaust baffle, remove
the three screws securing it.
Top Vent Application
Exhaust restrictor
Rear Vent Application
Note: Be sure to re-
install the exhaust
baffle and metal refractory
panel after exhaust
restrictor installation.
Exhaust restrictor
Note: Be sure to re-
install the exhaust
baffle and metal
r efractory panel after
exhaust restrictor
installation.
Exhaust Baffle
V
1
= 60 ft. Max. (18.3 m)
V
1
= 3 ft. Min. (914 mm)
Top Vent - Vertical Termination
No Elbow
NOTE: If installing a vertical vent/
termination o the top of the appli-
ance, the optional vertical termina-
tion bae should be used.
V
1
Figure 4.16
Exhaust restrictors are recommended for these verti-
cally terminated products which have excessive draft.
Exhaust restrictors will compensate for high draft, and
restore visual ame height. If the vent conguration has
a total vertical of 10-60 feet, an exhaust restrictor may
be needed. The exhaust restrictor can be located in the
appliance manual bag.
Exhaust restrictor Instructions
1. Remove metal refractory panel and exhaust bae from
pilot side of appliance. To remove the refractory panel
use a 1/4 inch nut driver and remove the two screws
that secure it in place. To remove the exhaust bae,
remove the three screws securing it in place. See Figure
4.17.
Figure 4.17
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
28

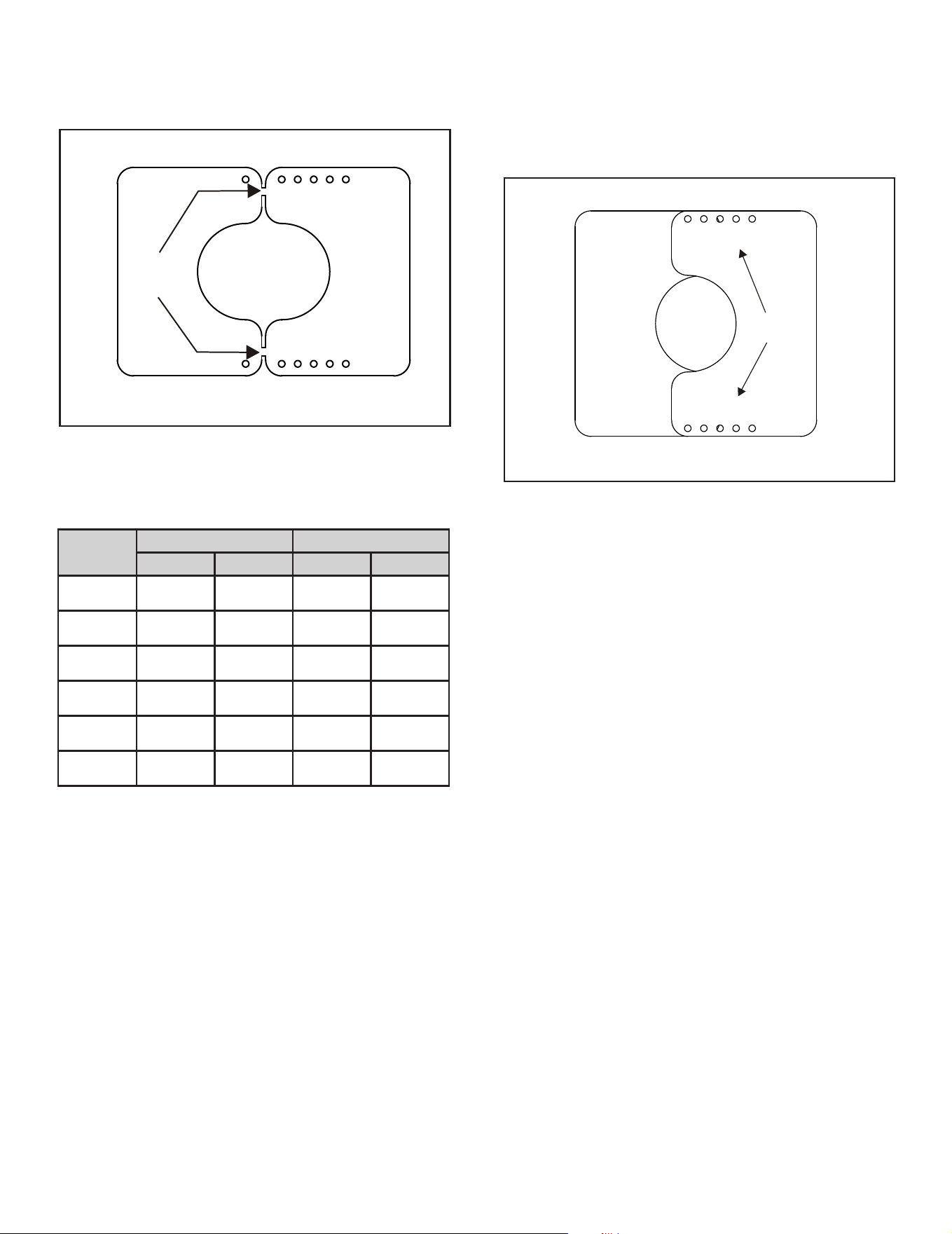

Figure 4.19
4. Center the exhaust restrictor in the open end of the
exhaust outlet and secure through the slots on the
exhaust restrictor with the 2-1/4 in. self-tapping screws
provided in the appliance manual bag.
5. Reinstall the exhaust bae and the refractory panel.
3. Use Table 4.1 to match the amount of vertical you have
in the system to nd the appropriate position to set the
exhaust restrictor. See Figure 4.19.
1 2 3 4 5
SETTINGS
1 2 3 4 5
Vertical
TOP VENT REAR VENT
NG Propane NG Propane
10 ft. 1-1 1-1 1-1 1-1
20 ft. 2-2 2-2 2-2 2-2
30 ft. 2-2 2-2 2-2 2-2
40 ft. 3-3 3-3 3-3 3-3
50 ft. 3-3 3-3 3-3 3-3
60 ft. 3-3 3-3 3-3 3-3
Note: If the DVP-2SL and DVP-SLP24 adapter and SLP
pipe is used, you MUST subtract one number from the
table above.
Example: Top vent 60 ft vertical with DVP pipe = 3-3
Top vent 60 ft vertical with SLP pipe = 2-2
Figure 4.18 Exhaust Restrictor
2. Break the exhaust restrictor into two pieces. Do this
by bending the part back and forth until it breaks (see
Figure 4.18).
BREAK
HERE
Table 4.1
29
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Figure 4.20
Two Elbows
H
1
V
1
V
2
V
1
H
1
Maximum V
2
V
1
+ V
2
Minimum
Elbow Only 2-1/2 ft. 762 mm * * *
2 ft. 607 mm 6 ft. 1.8 m * * *
4 ft. 1.2 m 12 ft. 3.7 m * * *
6 ft. 1.8 m 18 ft. 5.5 m * * *
V
1
+ V
2
+ H
1
= 50 ft (15.2 m) Maximum
*No specic restrictions on this value EXCEPT
V
1
+ V
2
+ H
1
cannot exceed 50 ft (15.2 m)
Top Vent - Vertical Termination - (continued)
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
30
Figure 4.21
Top Vent - Vertical Termination - (continued)
Three Elbows
INSTALLED
HORIZONTALLY
H
1
H
2
V
1
V
2
V
1
H
1
+ H
2
V
2
V
1
+ V
2
Minimum H
1
+ H
2
Maximum
ELBOW ONLY 1 ft. 305 mm * * * 1 ft. 305 mm
1 ft. 305 mm 2 ft. 610 mm * * * 2 ft. 610 mm
2 ft. 610 mm 4 ft 1.2 m * * * 4 ft 1.2 m
3 ft. 914 mm 9 ft. 2.7 m * * * 9 ft. 2.7 m
4 ft 1.2 m 12 ft. 3.7 m * * * 12 ft. 3.7 m
6 ft. 1.8 m 18 ft. 5.5 m * * * 18 ft. 5.5 m
H
1
+ H
2
= 18 ft (5.5 m) Maximum
*No specic restrictions on this value EXCEPT
V
1
+ V
2
+ H
1
+ H
2
cannot exceed 50 ft (15.2 m)
31
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

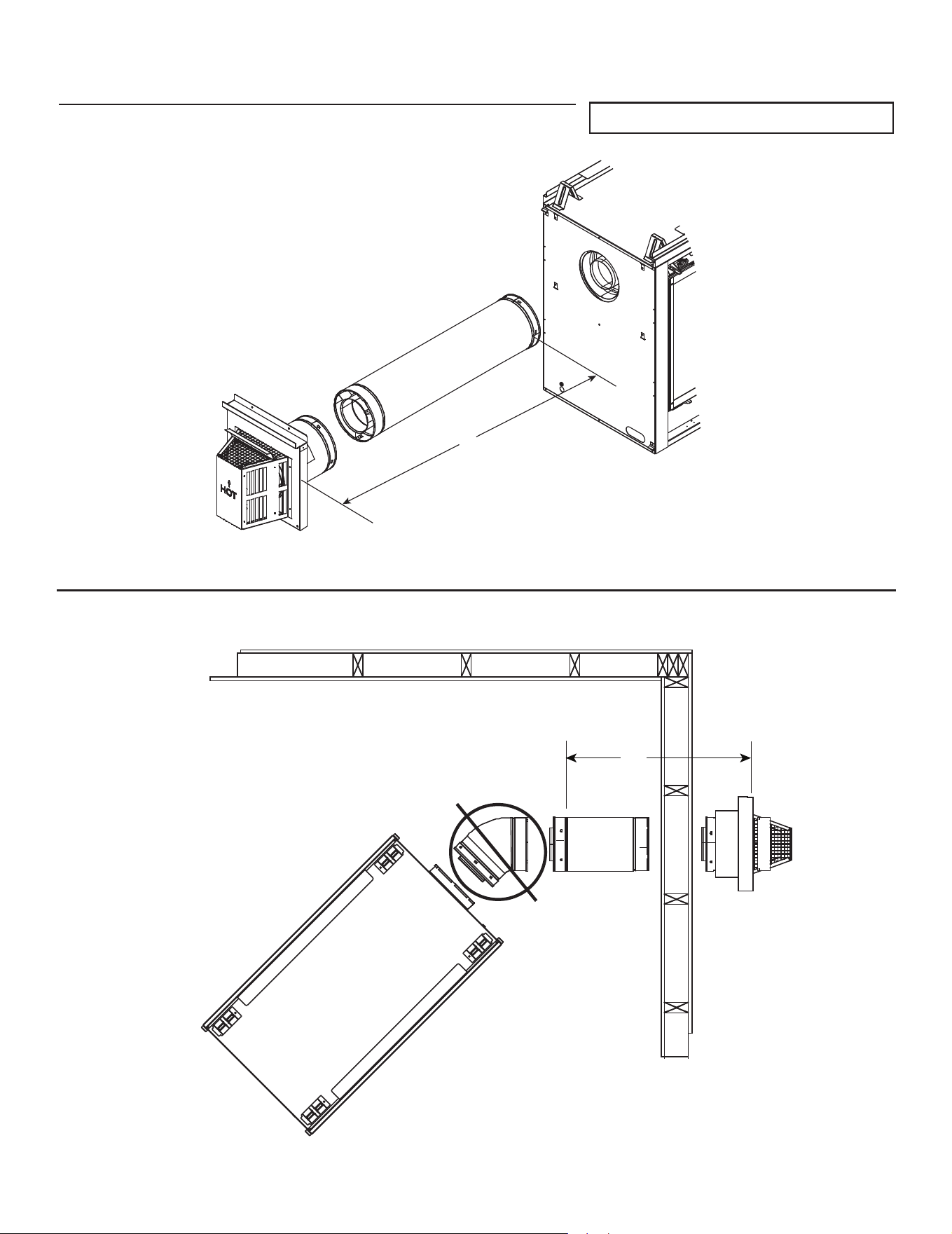

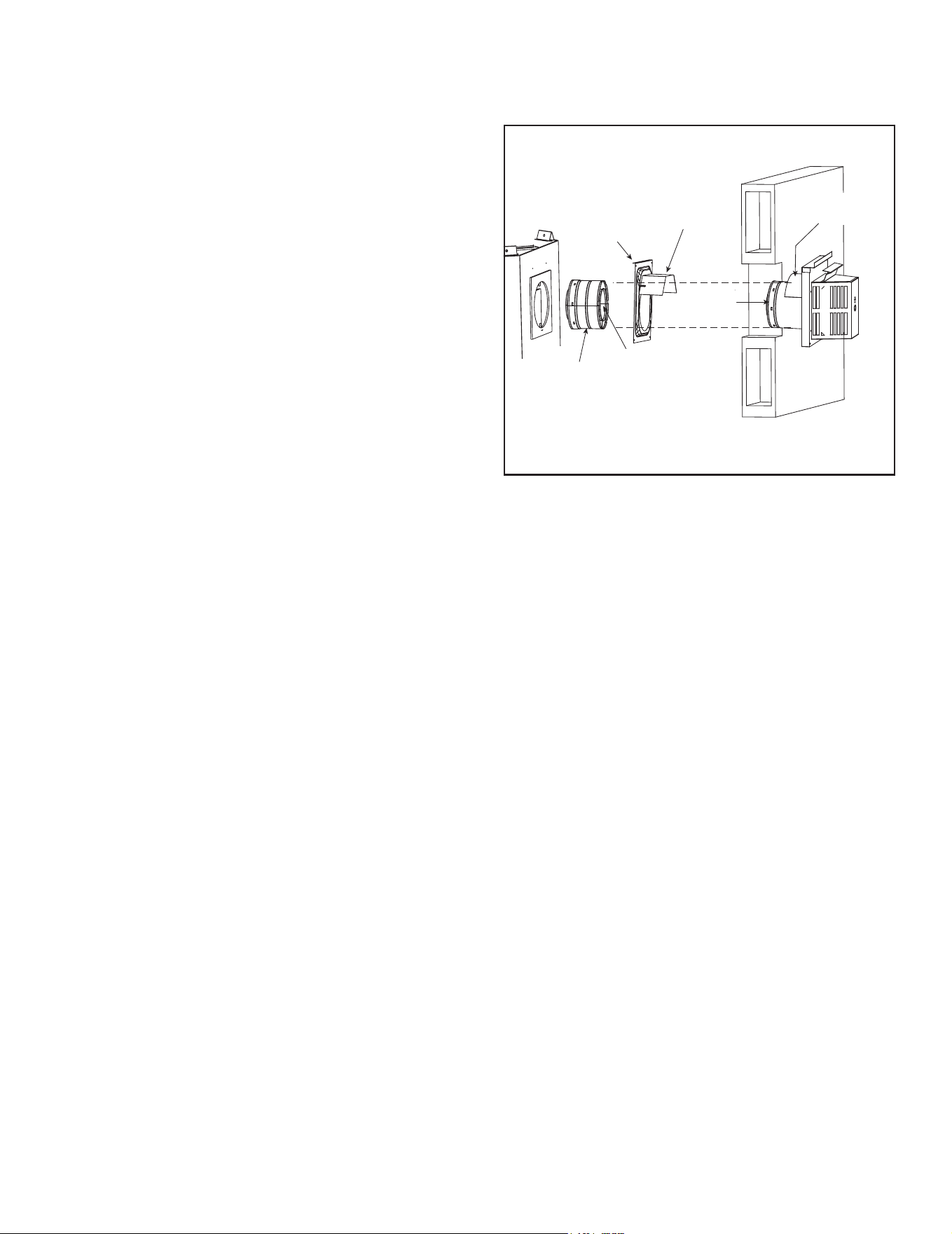

Rear Vent - Horizontal Termination
Figure 4.22
Figure 4.23
No Elbow
One 45º Elbow
H
1
H
1
= 16 in. (406 mm) Maximum
DO NOT use a 45º elbow
in corner installations. Use
two 90º elbow instead.
H
1
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
32

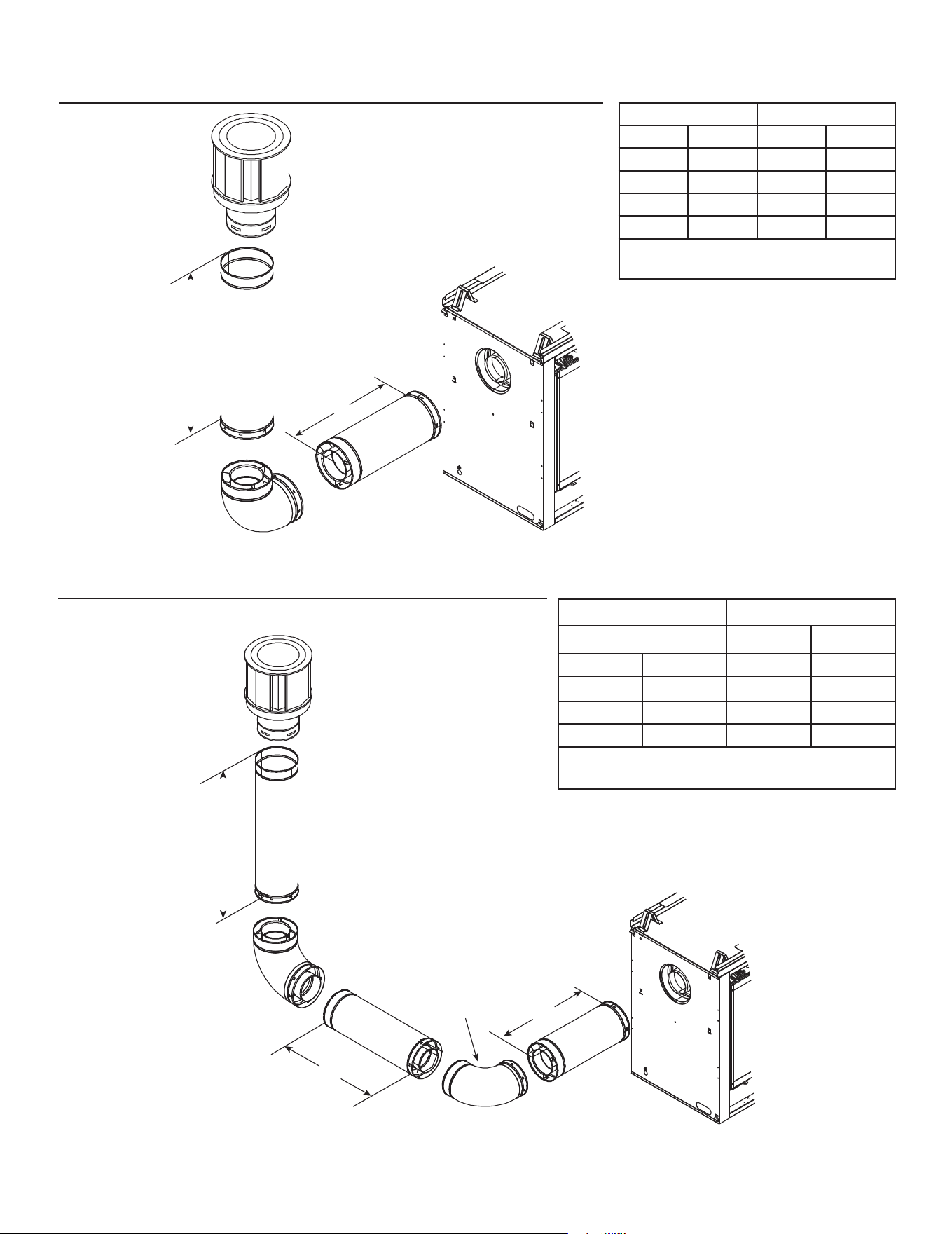

Rear Vent - Horizontal Termination - (continued)
Two Elbows
Figure 4.24
Figure 4.25
Three Elbows
H
1
H
2
V
1
INSTALLED
HORIZONTALLY
H
3
H
1
H
2
V
1
H
1
Maximum V
1
Minimum H
2
Maximum H
1
+ H
2
Maximum
1 ft. 305 mm 6 in. 152 mm 1 ft. 305 mm 1 ft 305 mm
2 ft. 610 mm 1 ft. 305 mm 2 ft. 610 mm 3 ft. 914 mm
3 ft. 914 mm 2 ft. 610 mm 4 ft 1.2 m 6 ft. 1.8 m
3 ft. 914 mm 3 ft. 914 mm 7 ft. 2.1 m 9 ft. 2.7 m
3 ft. 914 mm 4 ft. 1.2 m 10 ft. 3 m 12 ft. 3.7 m
3 ft. 914 mm 5 ft. 1.5 m 12 ft. 3.7 m 15 ft. 4.6 m
3 ft. 914 mm 6 ft. 1.8 m 15 ft. 4.6 m 18 ft. 5.5 m
V
1
+ H
1
+ H
2
= 50 ft (15.2 m) Maximum H
1
= 3 ft (914 mm) Maximum
*H
1
+ H
2
= 18 ft (5.5 m) Maximum
H
1
Maximum V
1
Minimum H
1
+ H
2
+ H
3
Maximum
6 in. 152 mm 6 in. 152 mm 1 ft. 305 mm
1 ft. 305 mm 1 ft. 305 mm 2 ft. 610 mm
3 ft. 914 mm 2 ft. 610 mm 4 ft. 1.2 m
3 ft. 914 mm 3 ft. 914 mm 6 ft. 1.8 m
3 ft. 914 mm 4 ft. 1.2 m 8 ft. 2.4 m
V
1
+ H
1
+ H
2
+ H
3
= 40 ft (12.2 m) Maximum
H
1
= 3 ft (94 mm) Maximum
H
1
+ H
2
+ H
3
= 12 ft (3.7 m) Maximum
33
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Rear Vent - Vertical Termination
One Elbow
Figure 4.26
Two Elbows
Figure 4.27
H
1
V
1
INSTALLED
HORIZONTALLY
H
1
H
2
V
1
V
1
Minimum H
1
Maximum
1 ft. 305 mm 3 ft. 914 mm
2 ft. 610 mm 5 ft. 1.5 m
3 ft. 914 mm 7 ft. 2.1 m
4 ft. 1.2 m 8 ft 2.4 m
5 ft. 1.5 m 8 ft 2.4 m
V
1
+ H
1
= 40 ft (12.2 m) Maximum
V
1
Minimum H
1
+ H
2
Maximum
Back to Back 90° Elbows 3 ft. 914 mm
2 ft 610 mm 6 ft. 1.8 m
4 ft. 1.2 m
9 ft. 2.7 m
5 ft. 1.5 m 10 ft. 3 m
6 ft. 1.8 m 12 ft. 3.7 m
V
1
+ H
1
+ H
2
= 50 ft (15.2 m) Maximum
H
1
+ H
2
= 16 ft (4.9 m) Maximum
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
34
Rear Vent - Vertical Termination - (continued)
Three Elbows
Figure 4.28
Three Elbows
Figure 4.29
INSTALLED
HORIZONTALLY
H
3
H
1
H
2
V
1
V
2
V
1
H
2
H
1
H
1
H
2
H
3
V
1
Minimum H
1
+ H
2
+ H
3
Maximum
* * * 8 ft. 2.4 m 4 ft. 1.2 m
* * * 9 ft. 2.7 m 5 ft. 1.5 m
* * * 10 ft. 3.1 m 6 ft. 1.8 m
*No specic restrictions on this value EXCEPT
V
1
+ H
1
+ H
2
+ H
3
cannot exceed 50 ft. (15.2 m) Maximum
H
1
+ H
2
+ H
3
= 6 ft. (1.8 m) Maximum
H
1
Maximum V
1
Minimum H
2
H
1
+ H
2
Maximum
1 ft. 305 mm 1 ft. 305 mm 1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 2 ft. 610 mm 3 ft. 914 mm 5 ft. 1.5 m
4 ft. 1.2 m 3 ft. 914 mm 4 ft. 1.2 m 8 ft. 4.6 m
5 ft. 1.5 m 4 ft. 1.2 m 6 ft. 1.8 m 11 ft. 3.4 m
6 ft. 1.8 m 5 ft. 1.5 m 8 ft. 2.4 m 14 ft. 4.3 m
8 ft. 2.4 m 6 ft. 1.8 m 9 ft. 2.7 m 17 ft. 5.2 m
H
1
= 8 ft (2.4 m) Max. V
1
+ V
2
+ H
1
+ H
2
= 50 ft (15.2 m) Max.
H
1
+ H
2
= 17 ft (5.2 m) Max.
35
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
A. Vent Clearances to Combustibles
WARNING! Risk of Fire! Maintain air space clearance
to vent. DO NOT pack insulation or other combustibles:
• Between ceiling restops
• Between wall shield restops
• Around vent system
Failure to keep insulation or other material away from
vent pipe could cause overheating and re.
5 5
Vent Clearances and Vent Framing
Figure 5.1 Horizontal Venting Clearances To Combustible
Materials
* When using SLP pipe, minimum clearances from the vent pipe to combustible materi-
als at inside wall firestops are: Top: 2-1/2 in. (64 mm)
Bottom: 1/2 in. (13 mm)
Sides: 1 in. (25 mm)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm).
• DVP heat shield - designed to be used on a wall 4 in. to 7-1/4 in. (102 mm to 184
mm) thick.
• If wall thickness is less than 4 in. the existing heat shields must be field trimmed. If
wall thickness is greater than 7-1/4 in. a DVP-HSM-B will be required.
• SLP heat shield - designed to be used on a wall 4-3/8 in. to 7-5/8 in. (111 mm to
194 mm thick).
• If wall thickness is less than 4-3/8 the existing heat shields must be field trimmed.
If wall thickness is greater than 7-5/8 in. a DVP-HSM-B will be required.
(DVP-SLP Pipe Shown)
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance
1 in. (25 mm)
clearance around
vertical sections
Elbow and Oset Clearances to Combustibles
Figure 5.2 Clearances from Vent to Combustible Framing
Materials
3 IN. VERTICAL CLEARANCE
HORIZONTAL PIPE SECTIONS
1 IN. MIN.
ALL SIDES
1 IN. MIN. HORIZONTAL
CLEARANCE
VERTICAL PIPE SECTIONS
= NO COMBUSTIBLES ALLOWED
IN SHADED AREA
1 IN. MIN.
ALL SIDES
1 IN. MIN.
ALL SIDES
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
36

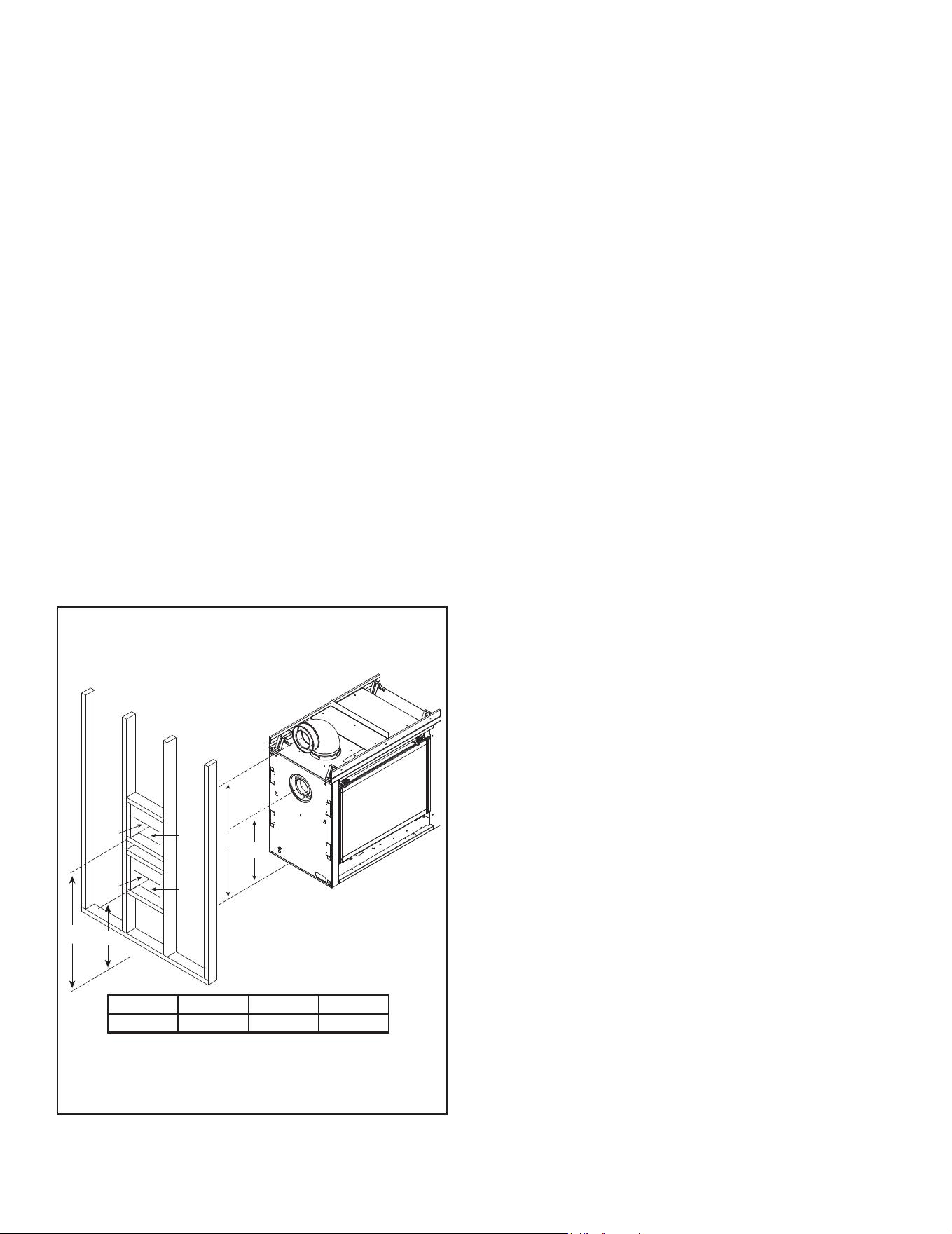

Figure 5.3 Wall Penetration
B. Wall Penetration Framing/Firestops
Combustible Wall Penetration
Whenever a combustible wall is penetrated, you must
frame a hole for the wall shield restop(s). The wall shield
restop maintains minimum clearances and prevents cold
air inltration.
• The opening must be framed on all four sides using the
same size framing materials as those used in the wall
construction.
• SLP pipe - A wall shield restop must be placed on each
side of an interior wall. A minimum 1-1/2 in. (38 mm)
overlap of attached heat shields must be maintained.
• DVP pipe - A wall shield restop is required on one side
only on interior walls. If your local inspector requires a
wall shield restop on both sides, then both wall shield
restops must have a heat shield (refer to Section
12.A.) attached to them.
• See Section 7.F. for information for regarding the instal-
lation of a horizontal termination cap.
Non-Combustible Wall Penetration
If the hole being penetrated is surrounded by non-com-
bustible materials such as concrete, a hole with diameter
one inch greater than the pipe is acceptable.
Whenever a non-combustible wall is penetrated, the wall
shield restop is only required on one side and no heat
shield is necessary.
DO NOT PACK VENT FRAMING HOLE WITH INSULATION
OR OTHER MATERIAL.
Note: Center of the horizontal vent pipe to the vertical measuring surface of a
trap cap is 5 inches (127 mm).
* Shows center of vent framing hole for top or rear venting. The center of the
hole is one (1) inch (25.4 mm) above the center of the horizontal vent pipe.
A* B* C D
43-3/4 in. 28 in. 42-3/4 in. 27 in.
C
D
A*
B*
10 in.
10 in.
12 in.
12 in.
37
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
D. Install Attic Insulation Shield
WARNING! Fire Risk. The use of an attic
shield is required to prevent loose materials
or insulation from contacting the vent causing
overheating and a re.
The International Fuel Gas Code requires an
attic shield constructed of 26 gauge minimum
steel that extends at least 2 in. (51 mm) above
insulation.
• Attic insulation shields must meet specied
clearances to combustible materials and be
secured in place.
• An attic insulation shield kit is available from
Hearth & Home Technologies. Contact your
dealer to order. Install attic insulation shield
according to instructions included with kit.

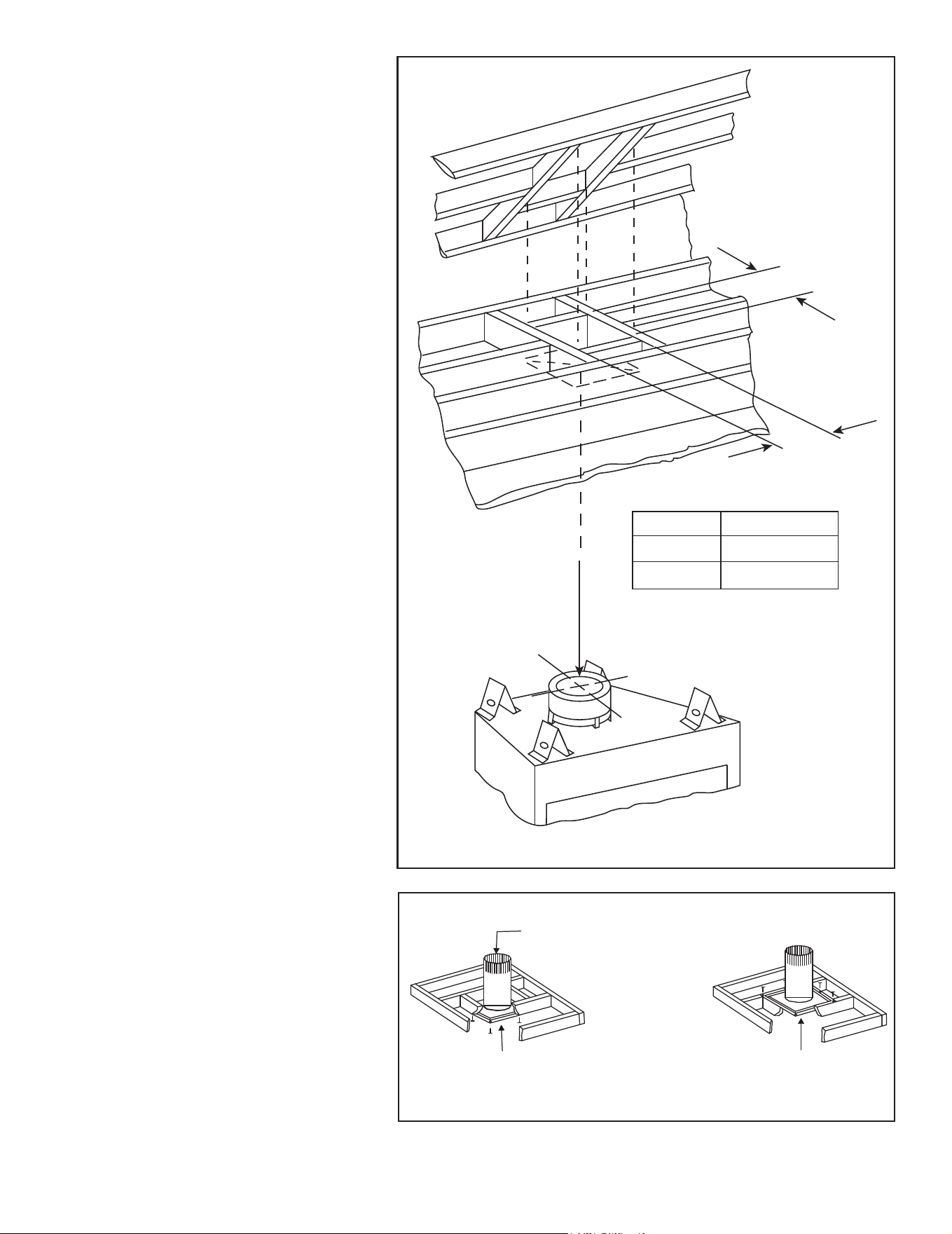

C. Ceiling Firestop/Floor Penetra-
tion Framing
WARNING! Risk of Fire! DO NOT pack insu-
lation around the vent. Maintain clearances to
vent to prevent overheating.
A ceiling restop MUST be used between
oors and attics.
• DVP pipe only - Frame an opening 10 in.
by 10 in. (254 mm by 254 mm) whenever
the vent penetrates a ceiling/oor (see
Figure 5.4).
• SLP pipe only - Frame opening 9 in. x 9
in. (229 mm x 229 mm) whenever the vent
penetrates a ceiling/oor (see Figure 5.4).
• Frame the area with the same sized lumber
as used in ceiling/oor joist.
• The ceiling restop may be installed above or
below the ceiling joists when installed with an
attic insulation shield. It must be under joists
between oors that are not insulated. Refer
to Figure 5.5.
• Secure in place with nails or screws.
Figure 5.4 Installing Ceiling Firestop
Figure 5.5 Installing the Attic Shield
INSTALL ATTIC INSULATION SHIELDS
BEFORE OR AFTER INSTALLATION OF VENT SYSTEM
CEILING FIRESTOP
INSTALLED BELOW CEILING
CEILING FIRESTOP
INSTALLED ABOVE CEILING
ATTIC ABOVE
A
PIPE
DVP
SLP
A
10 in. (254 mm)
9 in. (229 mm)
A
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
38
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
NOTICE: Once appliance is set up for top or rear venting,
it CANNOT be changed at a later time.

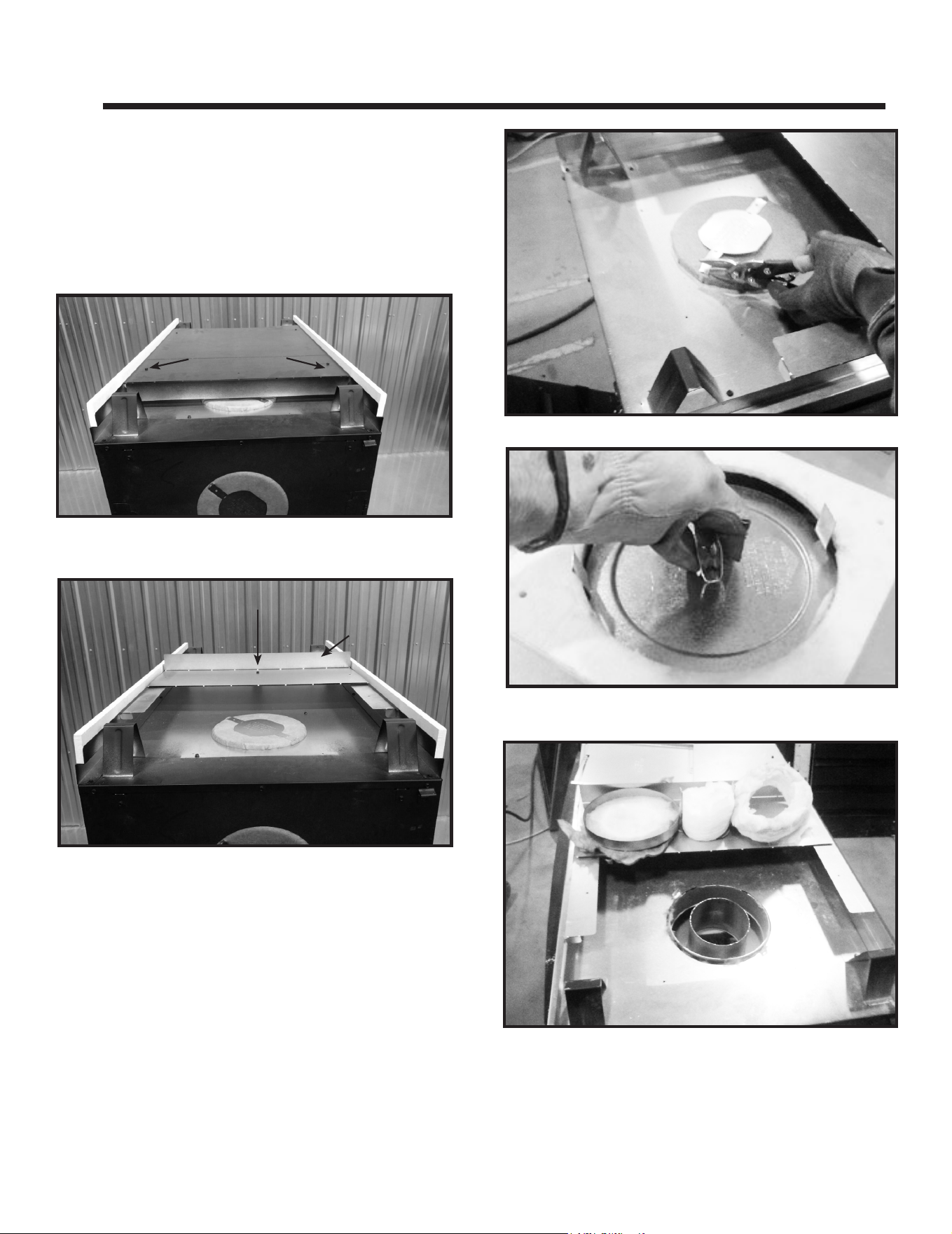

A. Vent Collar Preparation
6 6
Appliance Preparation
Top Vent
Figure 6.3 Cut the metal retaining band and fold the sides out.
Figure 6.5 Remove and discard the seal cap, insulation
donut, insulation plug, and the insulation basket. Attach
the rst vent section (it will snap into place). Slide the vent
gasket onto the vent section and then, up against the ap-
pliance. Secure the vent gasket to the appliance with two
self-tapping screws found in the manual bag. Note: The
vent gasket can found in the manual bag.
Proceed to Section 6.B.
Figure 6.2 ST-DV36IN Only: Fold heat shield back and
secure with screw. Bend heat shield ange to make it
at. This step is necessary to allow for framing header
clearance.
Figure 6.4 Fold the center parts of the retaining band up
and use to remove the vent cap.
Figure 6.1 ST-DV36IN Only: Remove screws from top
heat shield.
TOP HEAT SHIELDTOP HEAT SHIELD
REMOVE SCREWSREMOVE SCREWS
FOLD HEAT SHIELD BACKFOLD HEAT SHIELD BACK
SECURE WITH SCREWSECURE WITH SCREW
HEAT SHIELD FLANGEHEAT SHIELD FLANGE
BEND FLATBEND FLAT
39
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

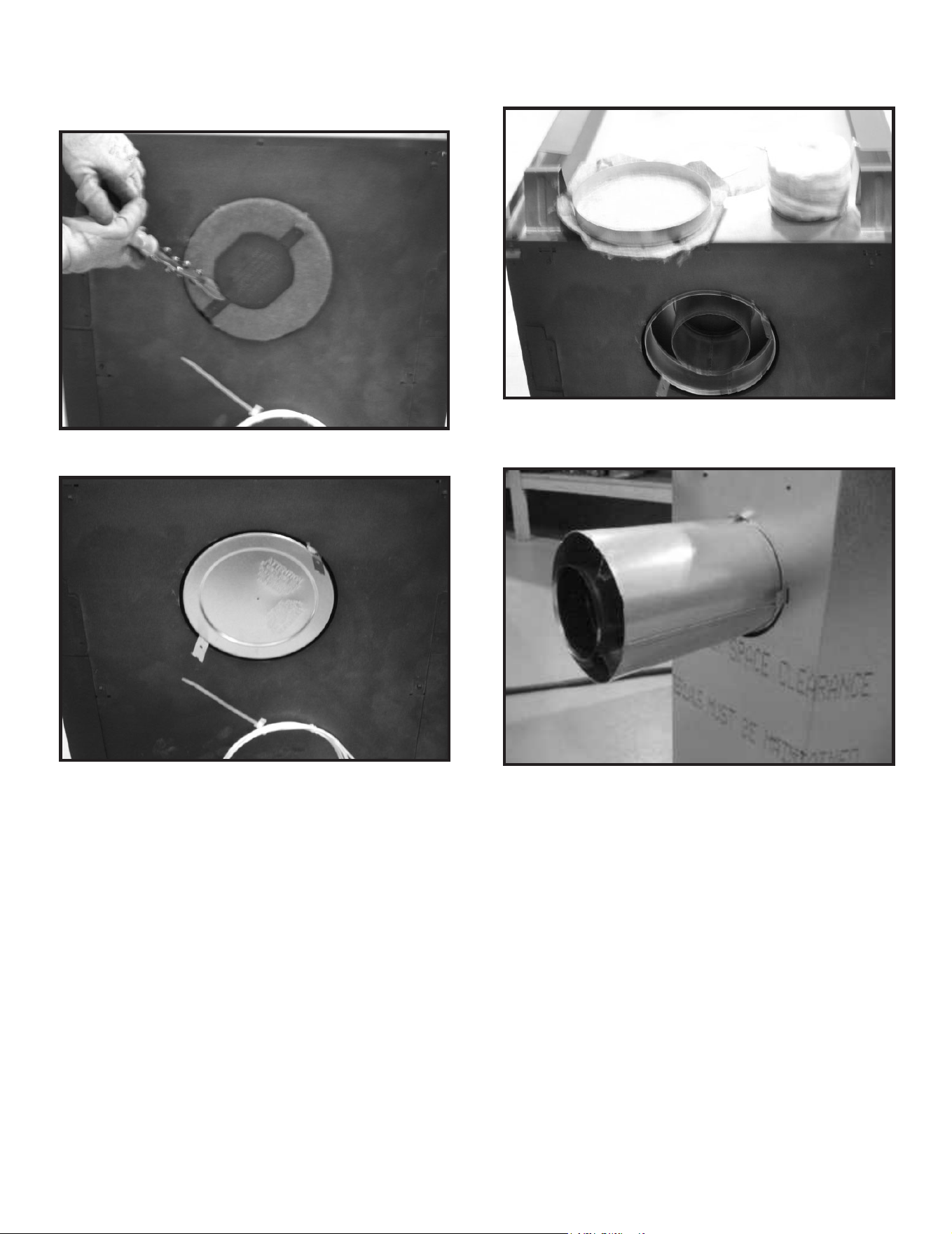

Rear Vent
NOTICE: Once appliance is set up for top or rear venting,
it CANNOT be changed at a later time.
NOTICE: Once the vent cap has been removed it CANNOT
be reattached.
Figure 6.6 Cut the metal retaining band.
Figure 6.7 Remove the seal cap.
Figure 6.8 Discard the seal cap, insulation plug and the
insulation basket.
Figure 6.9 Attach the rst vent section (it will snap into
place). Slide the vent gasket onto the vent section and then,
up against the appliance. Secure the vent gasket to the
appliance with two self-tapping screws found in the manual
bag. Note: The vent gasket can found in the manual bag.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
40

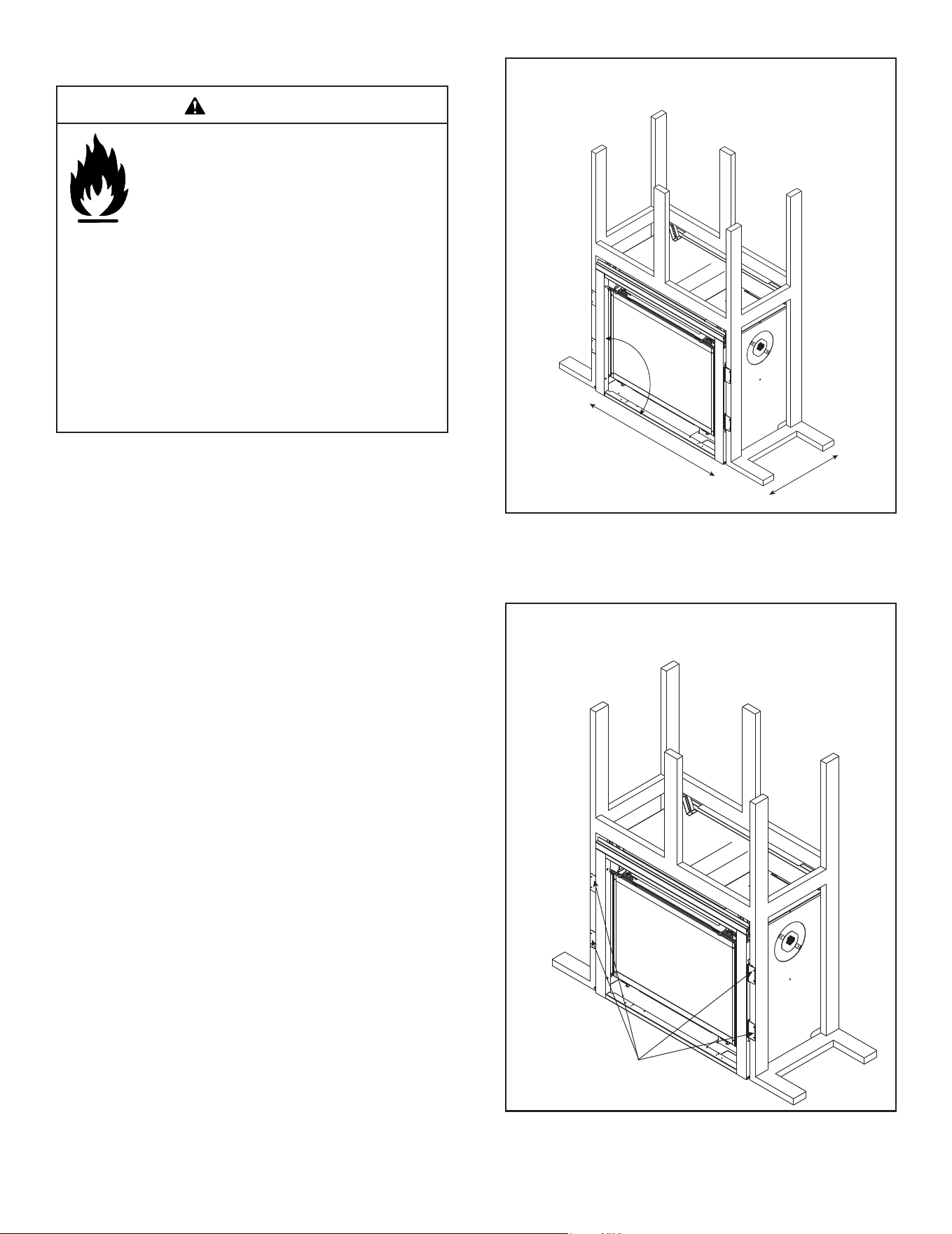

B. Securing and Leveling the Appliance
NOTICE: Failure to ensure that the replace opening is
square could result in the decorative front not tting properly.
The diagrams show how to properly position and secure
the appliance. See Figure 6.10. Nailing tabs are provided
to secure the appliance to the framing members. See
Figure 6.11.
• Bend out nailing tabs on each side.
• Place the appliance into position.
• Keep nailing tabs ush with the framing.
• Level the appliance from side to side and front to back.
• “Square” the unit by securing diagonal dimensions to
within 1/4 inch of each other. See Figure 6.12.
• Shim the appliance as necessary. It is acceptable to use
wood shims underneath the appliance.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs. Use a minimum of one
fastener per nailing tab.
• Optional: Secure the appliance to the oor by inserting
two screws through the pilot holes at the bottom of the
appliance.
Risk of Fire!
Prevent contact with:
• Sagging or loose insulation
• Insulation backing or plastic
• Framing and other combustible
materials
WARNING
DO NOT remove standos or notch the framing
around the appliance standos.
Failure to maintain air space clearance could
cause overheating and re.
Block openings into the chase to prevent entry
of blown-in insulation. Make sure insulation and
other materials are secured.
Figure 6.10 Proper Positioning and Leveling of an Appliance
90º
SIDE TO SIDE
FRONT TO BACK
NOTICE: Failure to ensure that the replace opening is
square could result in the decorative front not tting properly.
Figure 6.11 Securing An Appliance
NAILING TABS
NOTICE: Failure to ensure that the replace opening is
square may result in the decorative front not tting properly.
41
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

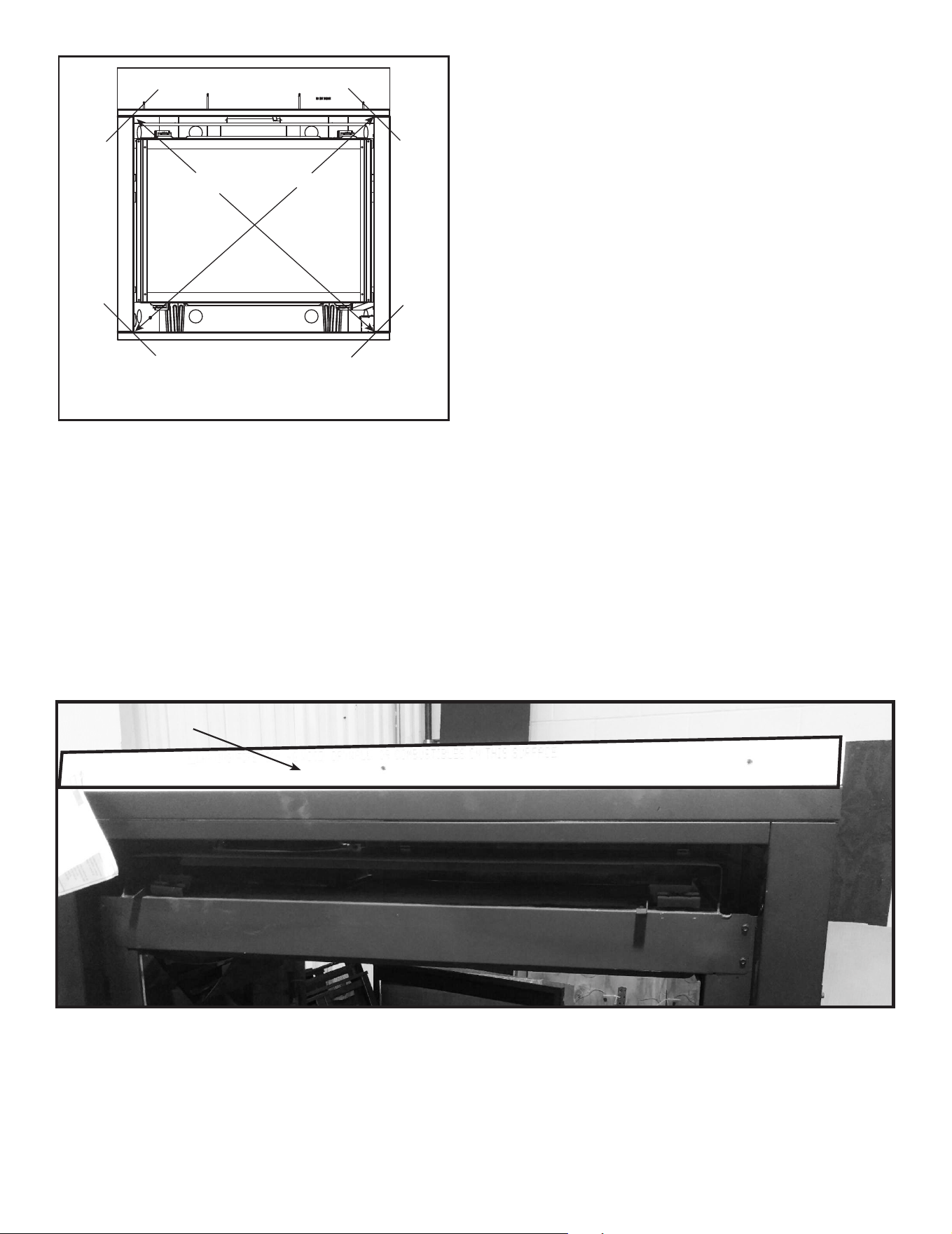

Figure 6.12 Positioning the Appliance Squarely
A
B
Note: Diagonal dimensions (A) and (B) must be within
1/4 inch of each other.
The factory-installed non-combustible board spans the
distance from the top of the replace to the framing header.
This board must be used. Do not remove. See Figure 6.13.
Figure 6.13 Non-combustible Board
NON-COMBUSTIBLE BOARDNON-COMBUSTIBLE BOARD
WARNING! Risk of Fire! DO NOT remove factory-
installed non-combustible material.
C. Non-Combustible Material (Factory-In-
stalled)
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
42

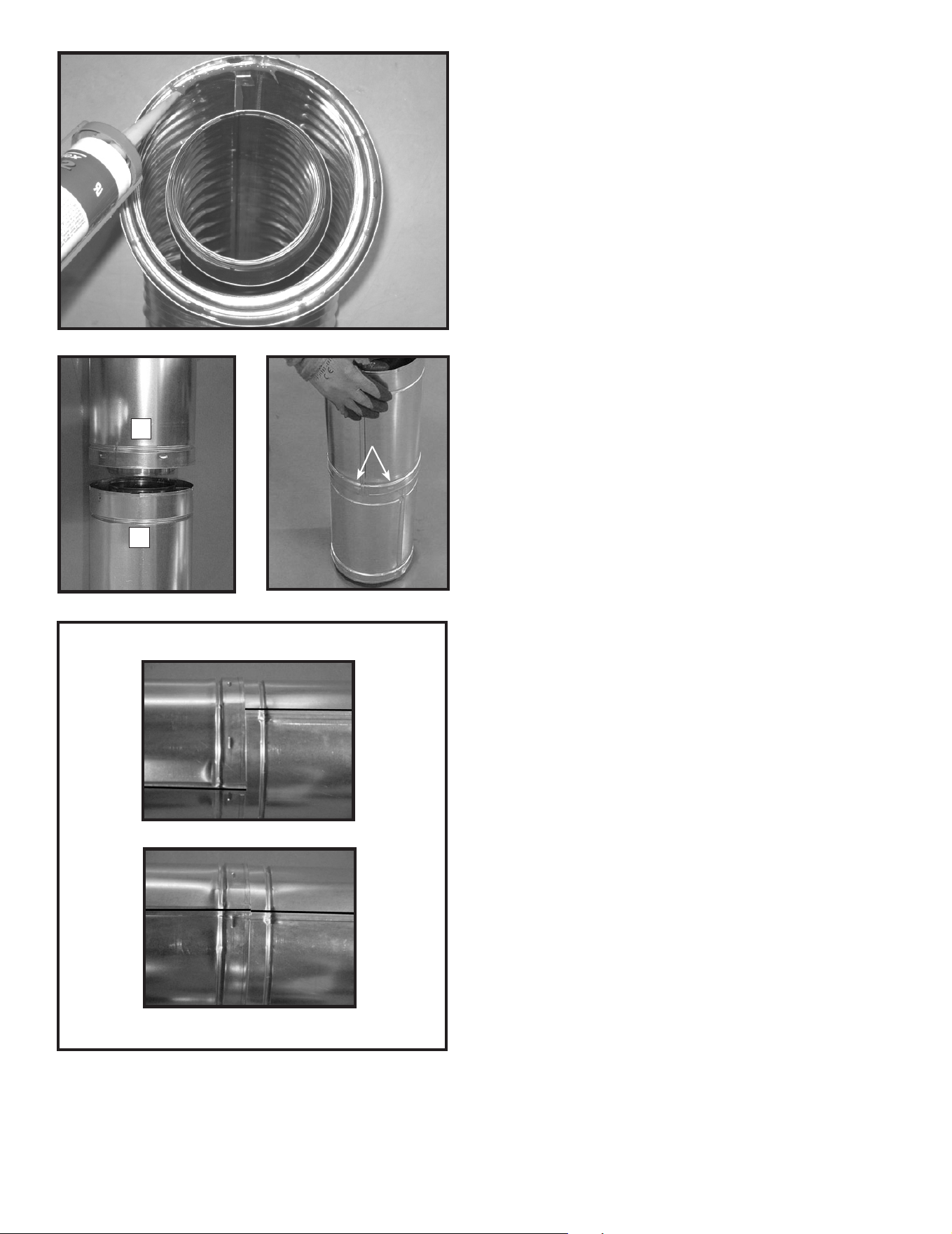

7 7
Venting
A. Assemble Vent Sections (DVP Pipe Only)
Attach Vent to the Firebox Assembly
Note: The end of the pipe sections with the lanced tabs
will face toward the appliance.
Attach the rst pipe section to the starting collar:
• Lanced pipe end of the starting collar.
• Inner pipe over inner collar.
• Push the pipe section until all lanced tabs snap in place.
• Lightly tug on pipe to conrm it has locked.
Assemble Pipe Sections
Per Figure 7.2:
• Start the inner pipe on the lanced end of section A into
the ared end of section B.
• Start the outer pipe of section A over the outer pipe of
section B.
• Once both vents sections are started, push rmly until
all lanced tabs lock into place.
• Lightly tug on the pipe to conrm the tabs have locked.
It is acceptable to use screws no longer than 1/2 in. (13
mm) to hold outer pipe sections together. If predrilling holes,
DO NOT penetrate inner pipe.
For 90º and 45º elbows that are changing the vent direction
from horizontal to vertical, one screw minimum should be put
in the outer ue at the horizontal elbow joint to prevent the
elbow from rotating. Use screws no longer than 1/2 in. (13
mm). If predrilling screw holes, DO NOT penetrate inner pipe.
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
WARNING! Risk of Fire or Explosion! Vent sections
MUST be installed correctly. Improperly installed vent
sections could leak or cause appliance to overheat.
Required: Commercial, Multi-family (Multi-level exceed-
ing two stories), or High-Rise Applications
Recommended: Vent Congurations with multiple pipe
joints/pipe connections
All outer pipe joints must be sealed using one of the meth-
ods below, including the slip section that connects directly
to the horizontal termination cap.
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1 OR
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) to the outside of connecting
joint after joining sections OR
Apply aluminum foil tape (300 ºF minimum continuous
exposure rating) to the outside of connecting joint after
joining sections. On horizontal pipe runs, it is recom-
mended that the tape seam is positioned on the bottom
side of the vent pipe.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer ues shall be sealed
in this manner, unless otherwise stated.
43
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Figure 7.2
A
B
Figure 7.3
Figure 7.4 Seams
Note: Make sure that the seams are not aligned to prevent
unintentional disconnection.
INCORRECT
CORRECT
LancesLances
Figure 7.1 High Temperature Silicone Sealant
NOTICE: When installing a vent system with an HRC
termination cap, all pipe system joints shall be sealed
using a high temperature silicone sealant (300 ºF minimum
continuous exposure rating).
• Apply a bead of silicone sealant (300 ºF minimum
continuous exposure rating) inside the female outer pipe
joint prior to joining sections.
• Only outer pipes are sealed, sealing the inner ue is not
required.
• All unit collar, pipe, slip section, elbow and cap outer
ues shall be sealed.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
44
To attach the rst vent component to the starting collars
of the appliance:
• Attach a DVP-SLP24 or DVP-2SL adapter to the starting
collar of the appliance.
• Lock the vent components into place by sliding the pipe
section onto the collar.
• Align the seam of the pipe and seam of collar to allow
engagement. Rotate the vent component to lock into
place. Use this procedure for all vent components. See
Figure 7.5.
• Slide the gasket over the rst vent section and place it
ush to the appliance. This will prevent cold air inltration.
Caulk with a minimum of 300 ºF continuous exposure
rating may be used to hold the part in place.
• Continue adding vent components, locking each
succeeding component into place.
• Ensure that each succeeding vent component is securely
tted and locked into the preceding component.
It is acceptable to use screws no longer than 1/2 in. (13
mm) to hold outer pipe sections together. If predrilling holes,
DO NOT penetrate inner pipe.

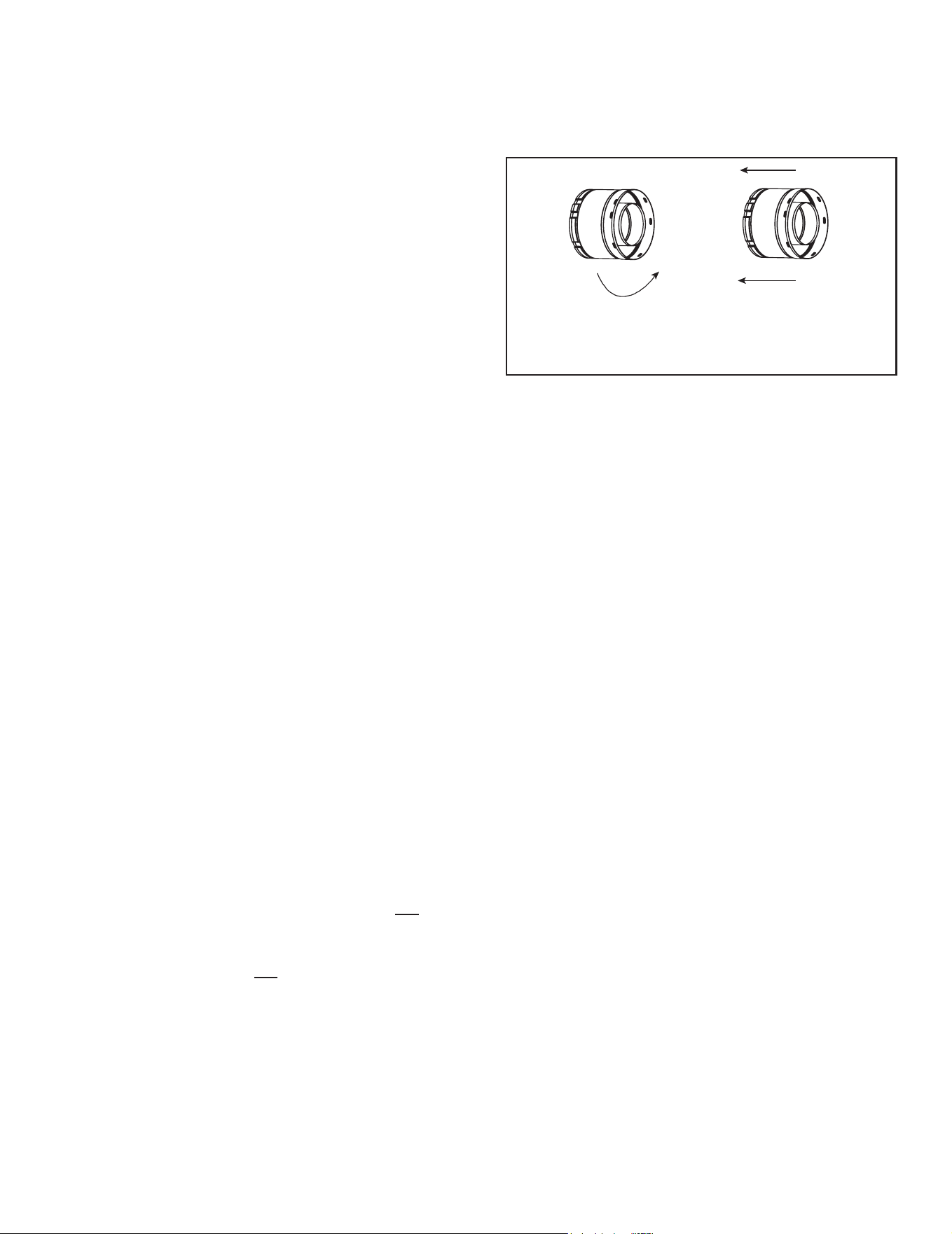

Figure 7.5 Adding Venting Components
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
Note: Align seams to engage pipe,
then rotate counterclockwise to lock
NOTICE: When installing a vent system with an HRC
termination cap, all pipe system joints shall be sealed
using a high temperature silicone sealant (300 ºF minimum
continuous exposure rating).
• Apply a bead of silicone sealant (300 ºF minimum
continuous exposure rating) inside the female outer pipe
joint prior to joining sections.
• Only outer pipes are sealed, sealing the inner ue is not
required.
• All unit collar, pipe, slip section, elbow and cap outer
ues shall be sealed.
WARNING! Risk of Fire or Explosion! Vent sections
MUST be installed correctly. Improperly installed vent
sections could leak or cause appliance to overheat.
B. Assemble Vent Sections (SLP Only)
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
Required: Commercial, Multi-family (Multi-level exceed-
ing two stories), or High-Rise Applications
Recommended: Vent Congurations with multiple pipe
joints/pipe connections
All outer pipe joints must be sealed using one of the meth-
ods below, including the slip section that connects directly
to the horizontal termination cap.
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1 OR
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) to the outside of connecting
joint after joining sections OR
Apply aluminum foil tape (300 ºF minimum continuous
exposure rating) to the outside of connecting joint after
joining sections. On horizontal pipe runs, it is recom-
mended that the tape seam is positioned on the bottom
side of the vent pipe.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer ues shall be sealed
in this manner, unless otherwise stated.
45
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
C. Assemble Slip Sections
• Slide the inner ue of the slip section into the inner ue
of the pipe section and the outer ue of the slip section
over the outer ue of the pipe section. See Figure 7.6.
• Slide together to the desired length.

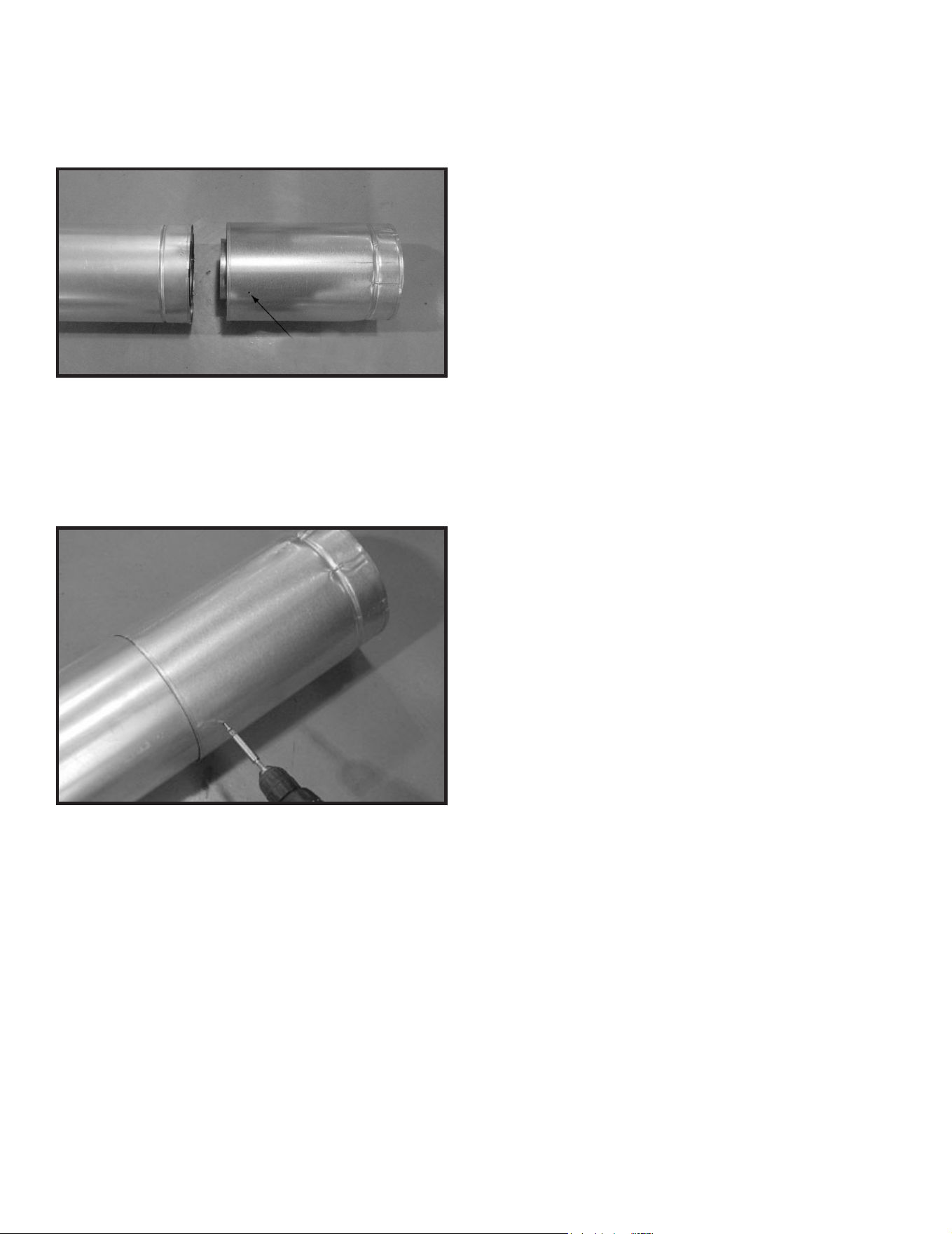

Figure 7.6 Slip Section Pilot Holes
Figure 7.7 Screws into Slip Section
Pilot holePilot hole
• Continue adding pipe as necessary following instructions
in “Assembling Pipe Sections.”
NOTICE: If slip section is too long, the inner and outer
ues of the slip section can be cut to the desired length.
• Maintain a 1-1/2 in. (38 mm) overlap between the slip
section and the pipe section.
• Secure the pipe and slip section with two screws no
longer than 1/2 in. (13 mm), using the pilot holes in the
slip section. See Figure 7.7.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
46
120º

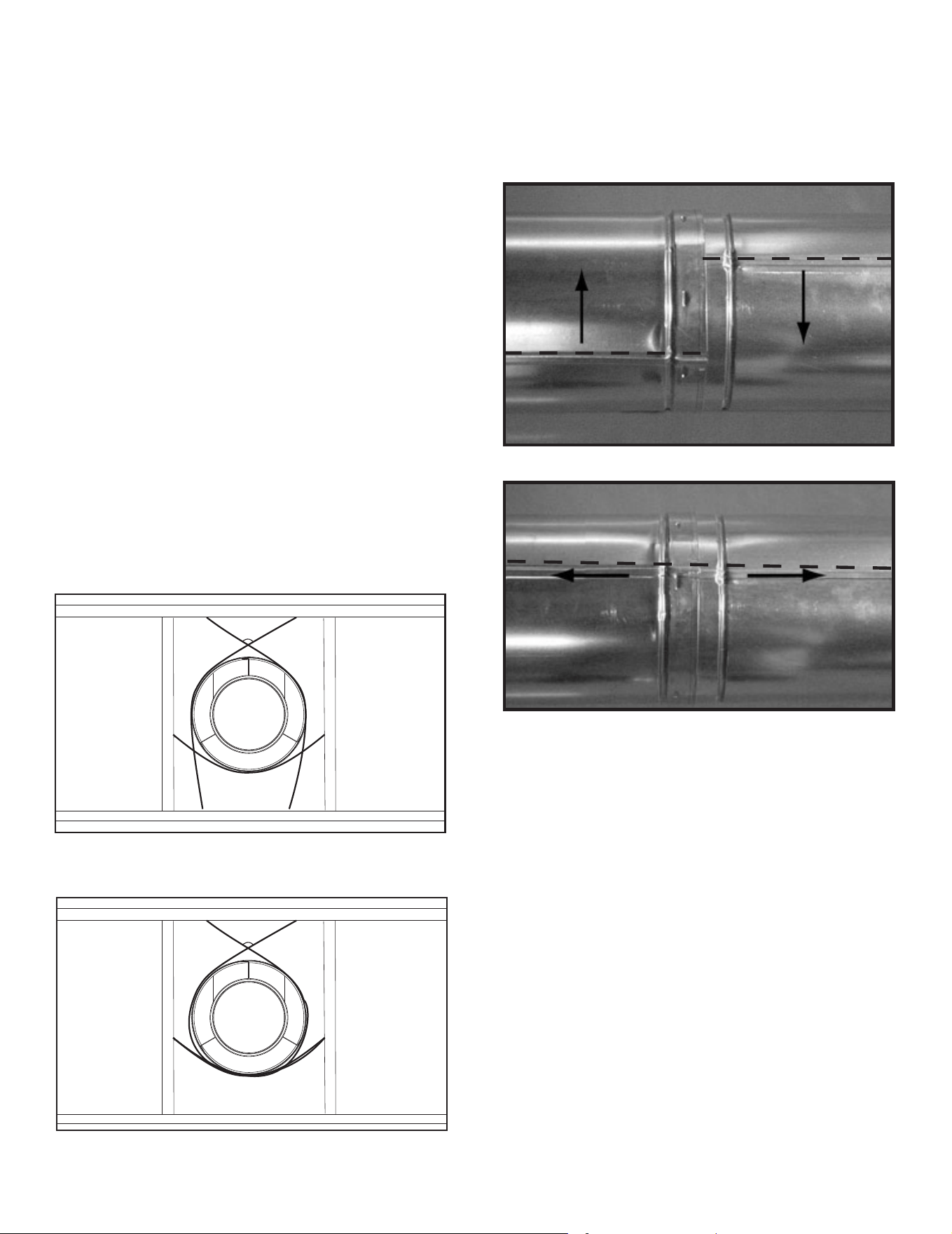

Figure 7.8 Securing Vertical Pipe Sections
120º
Figure 7.9 Securing Horizontal Pipe Sections
E. Disassemble Vent Sections
• Rotate either section (see Figure 7.10) so the seams on
both pipe sections are aligned as shown in Figure 7.11.
• Pull carefully to separate the pieces of pipe.
Figure 7.11 Align and Disassemble Vent Sections
Figure 7.10 Rotate Seams for Disassembly
D. Secure the Vent Sections
WARNING! Risk of Fire, Explosion or Asphyxiation!
Improper support could allow vent to sag and separate.
Use vent run supports and connect vent sections per in-
stallation instructions. DO NOT allow vent to sag below
connection point to appliance.
• Vertical runs originating o the top of the appliance, with
no osets, must be supported every 8 feet (2.44 m) after
the maximum allowed 25 feet (7.62 m) of unsupported
rise.
• Vertical runs originating o the rear of the appliance, or
after any elbow, must be supported every 8 feet (2.44
m).
• Horizontal runs must be supported every 5 feet (1.52 m).
• Vent supports or plumbers strap (spaced 120º apart)
may be used to support vent sections. See Figures 7.8
and 7.9.
Note: Figures 7.8 and 7.9 are to be used for reference
only. Method of strap installation could vary by
conguration of vent system.
• Wall shield restops may be used to provide horizontal
support to vent sections.
• SLP ceiling restops have tabs that may be used to
provide vertical support.
47
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
F. Vertical Termination Requirements
Install and Seal Metal Roof Flashing
• See minimum vent heights for various pitched roofs
(Section 4, Figure 4.1) to determine the length of pipe
to extend through the roof.
• Slide the roof ashing over the pipe sections extending
through the roof as shown in Figure 7.12.
• Use an elastomeric or silicone sealant with a minimum of
150 ºF temperature rating to seal the metal roof ashing.

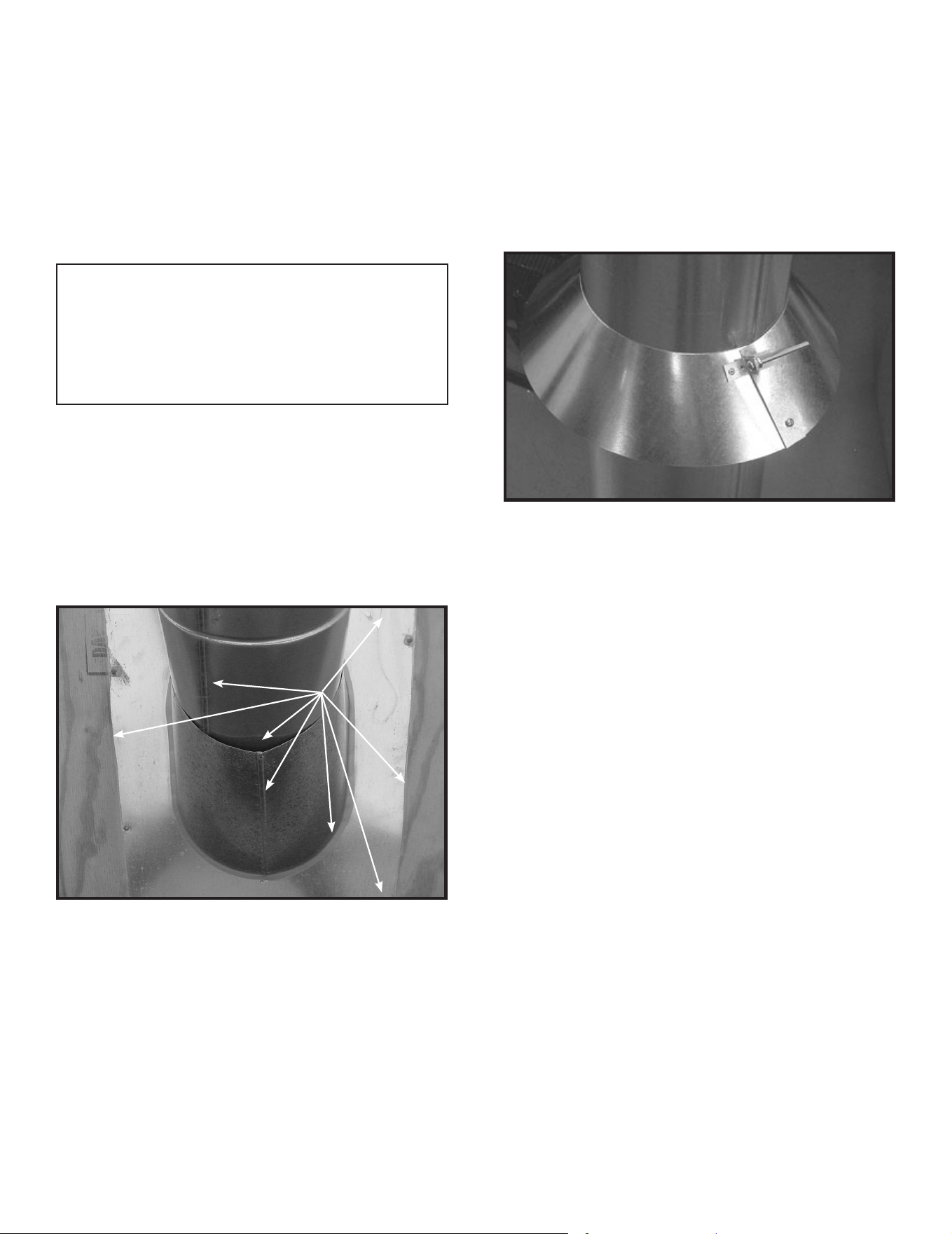

Figure 7.13 Insert Bolt into BracketsFigure 7.13 Insert Bolt into Brackets
NOTICE: Failure to properly seal the roof ashing and pipe
seams could permit entry of water.
• Seal the gap between the roof ashing and the outside
diameter of the pipe.
• Seal the perimeter of the ashing where it contacts the
roof surface. See Figure 7.12.
• Seal the exposed pipe section seams that are located
above the roof.
SEAL
Figure 7.12Figure 7.12
Assemble and Install Storm Collar
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
• Slide the storm collar onto the exposed pipe section
and align brackets.
• Insert a bolt (provided) through the brackets and install
nut. Do not completely tighten. See Figure 7.13.
• Slide the assembled storm collar down the pipe section
until it rests on the roof ashing. See Figure 7.14.
• Tighten nut and make sure the collar is tight against the
pipe section.
• Seal around the top of the storm collar. See Figure 7.14.
Note: When installing a silicone or EPDM pipe ashing boot
on a metal roof, it is recommended to put a bead of 100%
silicone sealant where the boot contacts the vent pipe to
prevent the entry of water. Follow the manufacturer’s recom-
mendations when installing the boot. Climate regions with
frequent temperatures below - 50 °F (-45.6 °C) should use a
silicone ashing boot.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
48

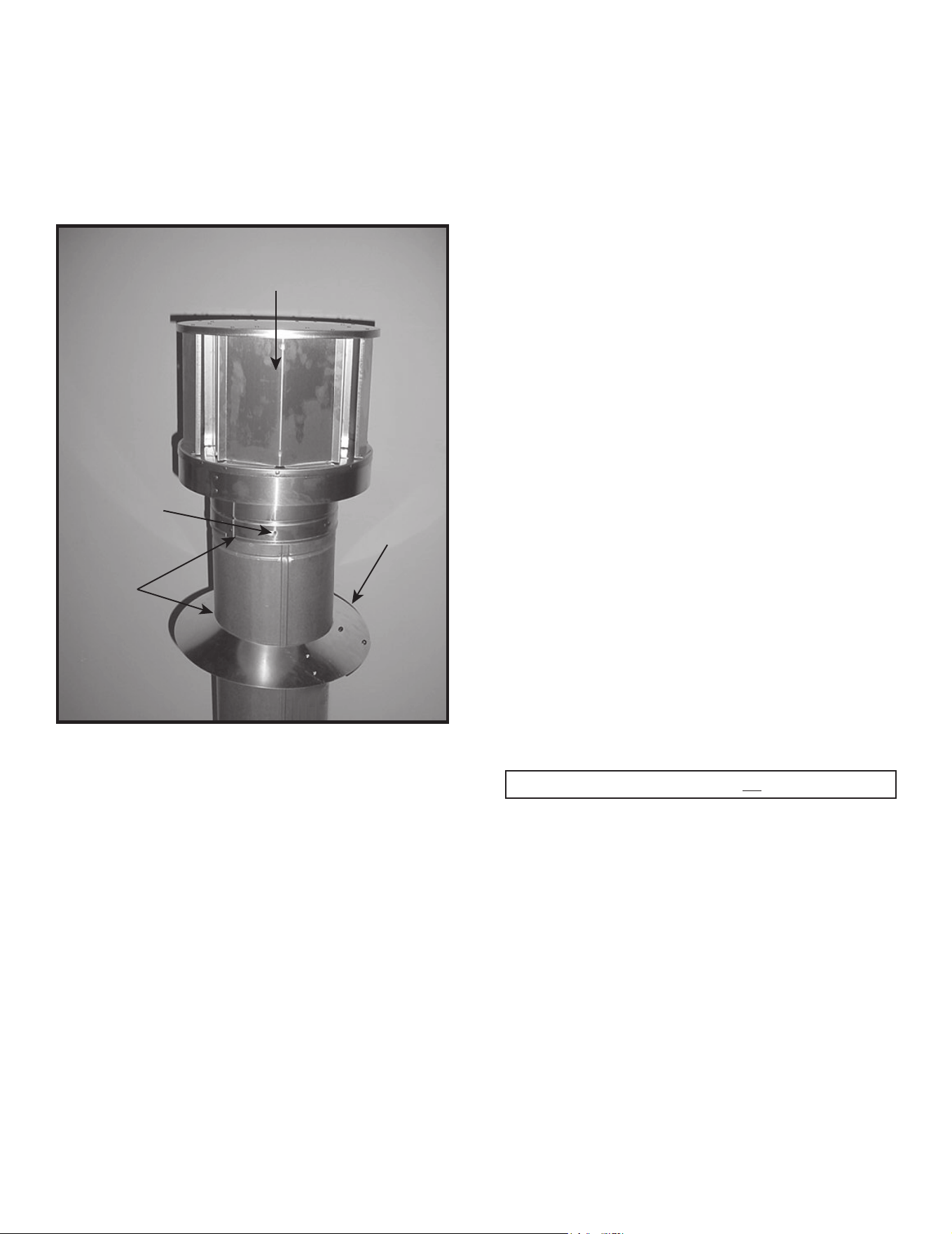

TERMINATION CAP
(1 OF 3)
SCREWS
SEAL
STORM
COLLAR
Install Vertical Termination Cap
• Attach the vertical termination cap by sliding the inner
collar of the cap into the inner ue of the pipe section
while placing the outer collar of the cap over the outer
ue of the pipe section.
• Secure the cap by driving three self-tapping screws
(supplied) through the pilot holes in the outer collar of
the cap into the outer ue of the pipe. See Figure 7.14.
Important Notice: Heat shields may not be eld constructed.
G. Horizontal Termination Requirements
Heat Shield Requirements for Horizontal
Termination
WARNING! Risk of Fire! To prevent overheating and
re, heat shields must extend through the entire wall
thickness.
• DO NOT remove the heat shields attached to the
wall shield restop and the horizontal termination cap
(shown in Figure 7.15).
• Heat shields must overlap 1-1/2 in. (38 mm) mini-
mum.
There are two sections of the heat shield. One section
is factory-attached to the wall shield restop. The other
section is factory-attached to the cap. See Figure 7.15.
If the wall thickness does not allow the required 1-1/2 in.
(38 mm) heat shield overlap when installed, an extended
heat shield must be used.
• If the wall thickness is less than 4 in./102 mm (DVP)
or 4-3/8 in./ 111 mm (SLP), the heat shields on the cap
and wall shield restop must be trimmed. A minimum
1-1/2 in. (38 mm) overlap MUST be maintained.
• Use an extended heat shield if the nished wall
thickness is greater than 7-1/4 in. (184 mm).
• The extended heat shield may need to be cut to length
maintaining sucient length for a 1-1/2 in. (38 mm)
overlap between heat shields.
• Attach the extended heat shield to either of the existing
heat shields using the screws supplied with the extended
heat shield. Refer to vent components diagrams in the
back of this manual.
• Rest the small leg on the extended heat shield on top
of the pipe section to properly space it from the pipe
section.
Figure 7.14Figure 7.14
49
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Figure 7.15 Venting Through the Wall
Note: When using termination caps with factory-supplied
heat shield attached, no additional wall shield restop is
required on the exterior side of a combustible wall.
Install Horizontal Termination Cap (DVP and
SLP Pipe)
WARNING! Risk of Fire! The telescoping ue section of
the termination cap MUST be used when connecting vent.
• 1-1/2 (38 mm) minimum overlap of ue telescoping
section is required.
Failure to maintain overlap could cause overheating and
re.
• Vent termination must not be recessed in the wall. Siding
may be brought to the edge of the cap base.
• Flash and seal as appropriate for siding material at
outside edges of cap.
• When installing a horizontal termination cap, follow
the cap location guidelines as prescribed by current
ANSI Z223.1 and CAN/CGA-B149 installation codes
and refer to Section 4 of this manual.
CAUTION! Risk of Burns! Local codes may require in-
stallation of a cap shield to prevent anything or anyone
from touching the hot cap.
NOTICE: For certain exposures which require superior
resistance to wind-driven rain penetration, a ashing kit
and HRC caps are available. When penetrating a brick
wall, a brick extension kit is available for framing the brick.
INTERIOR
HEAT SHIELD OR
EXTENDED
HEAT SHIELD
WALL SHIELD
FIRESTOP
HEAT SHIELD
1-1/2 IN. (38 MM) MIN.
OVERLAP
SHEATHING
SLIP SECTION
CAN BE EXTENDED
INNER VENT
OUTER VENT
EXTERIOR
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
50
A. General Information
WARNING! Risk of Shock! DO NOT wire 110-120 VAC
to the ignition module or to the appliance wall switch. (IPI)
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• Wire the appliance circuit using a minimum 14-2 AWG
with ground to unswitched 110-120 VAC. This is required
proper operation of the appliance (IntelliFire
®
ignition).
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
• In some instances, the spark ignition of the replace may
cause intermittent, non-damaging, interference during
the lighting sequence with a TV plugged into the same
circuit. It is recommended that the replace and TV use
dierent circuits to mitigate the interference potential.
If interference is occurring on the same circuit, the use
of surge protectors may help alleviate the interference.
8 8
Electrical Information
NOTICE: DO NOT wire 110-120 VAC to wall switch.
ROMEX CONNECTORS

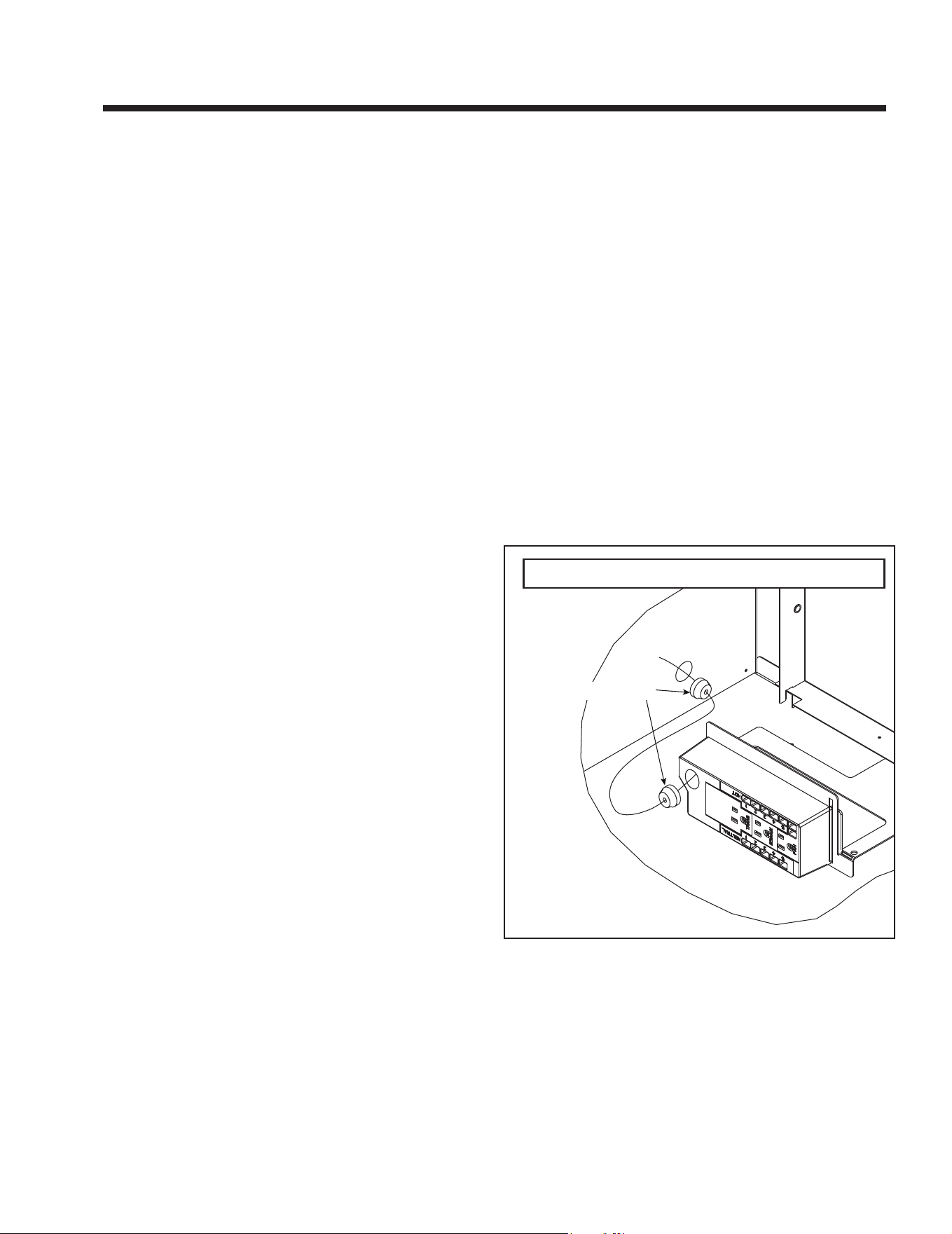

Figure 8.1 Junction Box Detail
Junction Box Installation
The junction box must be wired from the INSIDE of the
appliance:
• Determine which side of the appliance the junction box
is located on.
• Pull the electrical wires from outside the appliance through
the knockout making sure to use a Romex connector to
fasten the electrical wires to the unit.
• Pull enough wire into the valve compartment to easily reach
the junction box location.
• Remove the screw attaching the junction box to the junction
box bracket and set it aside.
• Route the wire through the knockout in the junction box
bracket.
• Wire the junction box and reattach it to the bracket by
inserting the tab in the slot and attaching with screw
previously removed. Ensure that a Romex connector is
used to attach the electrical wires to the junction box.
51
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Accessories Requirements
• This appliance may be used with a wall switch, wall
mounted thermostat and/or a remote control.
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
• Wire the appliance junction box to 110-120 VAC for
proper operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
• Refer to Figure 8.2 IntelliFire Touch (IFT) Wiring Diagram.
• This appliance is equipped with an IntelliFire control valve
which operates on a 6 volt system.
B. Wiring Requirements
IntelliFire Touch
®
Ignition System Wiring
NOTICE: Batteries should only be used as a power
source in the event of an emergency power outage.
Batteries should not be used as a primary long-term power
source. Batteries tend to corrode over time. When using
batteries as a power source, the 6 volt transformer must
be unplugged from the receptacle.
Do not store batteries in the battery pack when the
appliance is powered by the 6 volt transformer connected
to permanent electrical service.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
52
Figure 8.2 IntelliFire Touch Wiring With Wall Switch
RF MODULE
2326-120
6 VAC
TRANSFORMER
2326-131
6V BATTERY PACK
2326-134
ORANGE
GREEN
GROUND TO
FIREPLACE
CHASSIS
WHITE
ORANGE
INTERMITTENT
PILOT IGNITER (NG)
HOT
NEUTRAL
I
S
IFT CONTROL MODULE
2326-130
VALVE (NG)
2166-302
BLK
BLACK
RED
GREEN
ORANGE
BRN
RED
RED
WHITE
WIRE ASSEMBLY
2118-170
2478-012
WIRE HARNESS
2326-132
JUMPER
2187-198
OPTIONS
FAN GFK-160A
IFT-RC150
WIRELESS
WALL SWITCH
IFT-RC400
REMOTE
CONTROL
IFT-AUX
AC MODULE CABLE
2326-152
RF MODULE
2326-120
RF MODULE
2326-120
2326-150
JUNCTION BOX
110-120 VAC
53
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Figure 8.3 IntelliFire Touch Wiring With Optional Power Vent
6 VAC
TRANSFORMER
2326-131
ORANGE
GREEN
GROUND TO
FIREPLACE
CHASSIS
WHITE
ORANGE
INTERMITTENT
PILOT IGNITER (NG)
HOT
NEUTRAL
I
S
IFT CONTROL MODULE
2326-130
VALVE (NG)
2166-302
BLK
GREEN
ORANGE
BRN
2478-012
WIRE HARNESS
2326-132
AC MODULE CABLE
2326-152
RF MODULE
2326-120
IFT AUX
2326-150
IFT-RC400 REMOTE CONTROL
2326-110
OPTIONAL FAN
GFK-160A
JUMPER
2155-033
PVI-SLP-B
PVLP-SLP
PVI-SLP-B OR PVLP-SLP
WIRE HARNESS
PVI-WH10
PVI-WH20
PVI-WH40
PVI-WH60
PVI-WH80
PVI-WH100
JUNCTION BOX
110-120 VAC
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
54

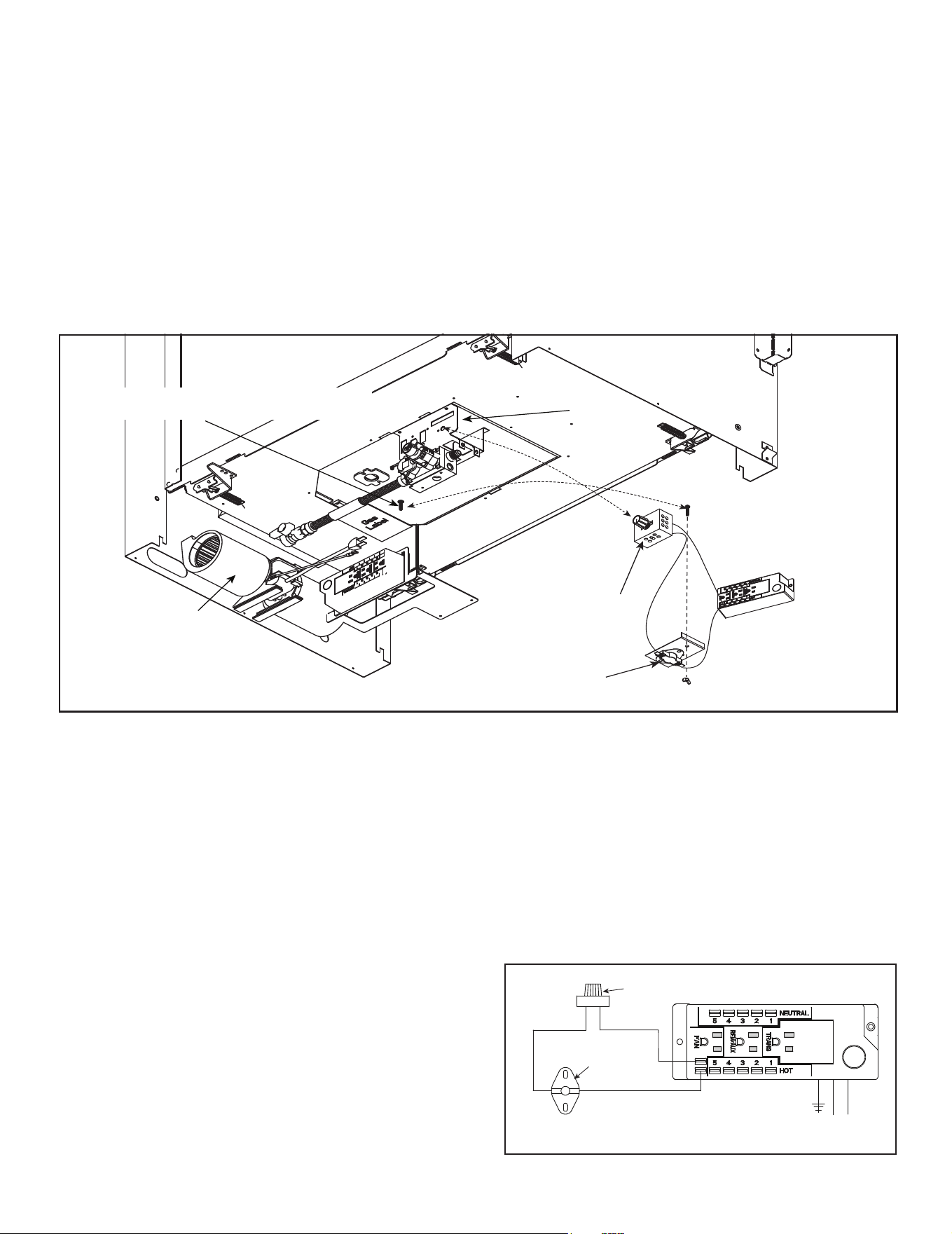

Figure 8.4 Fan Location, Fan and Rheostat Wiring
Installation (Without Optional Remote)
1. Install and wire the fan in appliance as shown in Figure
8.4 and Figure 8.5.
2. Wire the fan temperature sensor and adjustable speed
control (rheostat switch) according to the instructions
provided with the fan.
3. Attach rheostat switch to the valve bracket.
BLUE
RHEOSTAT
SWITCH
TEMPERATURE
SENSOR
JUNCTION BOX
Figure 8.5 Detail of Fan Wiring with Rheostat
FAN
LOCATION
THREADED STUD USED TO
INSTALL TEMPERATURE SENSOR
RHEOSTAT
SWITCH
TEMPERATURE
SENSOR
JUNCTION
BOX
VALVE
BRACKET
Temperature Sensor Wiring for Optional Fan
If the fan will not be installed for operation with the IFT-
RC400, the temperature sensor will need to be installed.
See Figure 8.4 for location of the temperature sensor and
rheostat switch.
• The power supply for the appliance must be brought into
the junction box.
• Install rheostat switch in location as seen in Figure 8.4.
• Connect temperature sensor switch wire and rheostat
switch wires to junction box as shown in Figure 8.5.
C. Fan (Optional)
Installation (With Optional Remote)
1. Wire the fan as shown in Figure 8.3.
2. Locate the fan as shown in Figure 8.4.
55
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
A. Fuel Conversion
• Make sure the appliance is compatible with available gas
types.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
B. Gas Pressure
C. Gas Connection
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
• Refer to Section 3 for location of gas line access in
appliance.
• Gas line may be run through knockout(s) provided.
• The gap between supply piping and gas access hole
may be sealed with caulk or aluminum foil tape with a
minimum of 300 ºF continuous exposure rating or stued
with non-combustible, unfaced insulation to prevent cold
air inltration.
• Ensure that gas line does not come in contact with outer
wrap of the appliance. Follow local codes.
• Pipe incoming gas line into valve compartment.
• Connect incoming gas line to the 1/2 in. (13 mm) NPT
connection on manual shuto valve.
WARNING! Risk of Fire or Explosion! Gas build-up
during line purge could ignite.
• A small amount of air will be in the gas supply lines.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks or
open ames.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all ttings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open ame. Fittings and connections could have loos-
ened during shipping and handling.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
9 9
Gas Information
Gas Pressure Natural Gas Propane
Minimum inlet pressure 5.0 in. w.c. 11.0 in. w.c.
Maximum inlet pressure 10.0 in. w.c. 13.0 in. w.c.
Manifold pressure 3.5 in. w.c. 10.0 in. w.c.
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI Z223.1. Installation
should be done by a qualied installer approved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensed plumber or gas tter).
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 in. (13 mm) T-handle manual shut-o valve
and exible gas connector are connected to the 1/2 in. (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Fire Risk.
Risk of Fire! Risk of Explosion!
High pressure will damage valve.
• Isolate gas supply piping BEFORE pressure
testing gas line.
• Close the manual shuto valve BEFORE
pressure testing gas line.
WARNING
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressure requirements when in operation are:
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
56
Shutter Setting Verication / Flame Appearance
• After 15 minutes, the ames will be a yellow/blue mix.
The front ames may be blue at this time.
• After 30 minutes, the ames should be yellow with
some blue ames near the burner ports.
• After 1 hour, the ame will be at its maximum maturity.
NOTICE: Flames should not appear orange or stretch
to the top refractory/ top of rebox. If ames are dark
orange with dark, smoky tips, provide more primary air
to the burner by opening the air shutter accordingly.

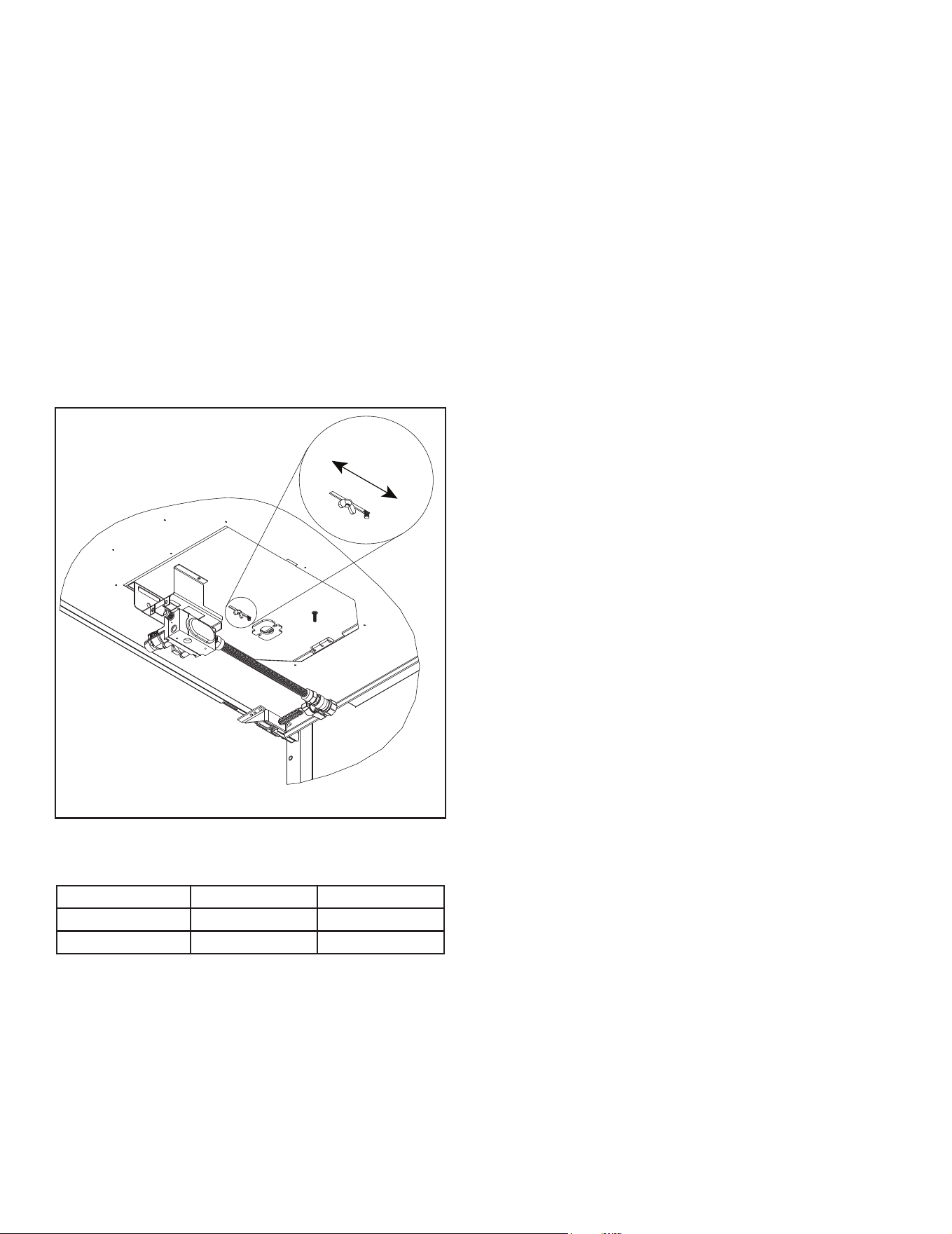

Figure 9.1 Air Shutter
AIR SHUTTER
OPEN
CLOSED
Air Shutter Settings (Factory Set to Minimum Vent Run)
GAS TYPE MIN. VENT RUN MAX. VENT RUN
NG 1/8 in. Full Open
PROPANE Full Open Full Open
Minimum and maximum shutter settings were determined
per the vent conguration shown in Figure 4.22.
• Minimum vent run consists of enough horizontal vent
pipe to exit 2 X 6 wall construction (approximately 8
inches).
• Maximum vent run consists of “H
1
Maximum” shown in
Figure 4.22.
Note: All vent runs may need to be evaluated for ideal
shutter settings. Shutter distances may vary due to vent
run, fuel quality, and elevation.
Air shutter settings should be adjusted by a qualied ser-
vice technician at the time of installation. The air shutter
is set at the factory for minimum vertical vent run. Mini-
mum vent run consists of enough horizontal vent pipe to
exit 2 X 6 wall construction (approximately 8 inches). Ad-
just air shutter for longer vertical runs. See Figure 4.12.
• Loosen the wing nut.
• Move the wing nut to adjust the air shutter. See Figure
9.1.
• Tighten the wing nut when adjustment is complete.
NOTICE: If sooting occurs, provide more air by opening
the air shutter.
Note: Adjust air shutter after ame has reached full
maturity (approximately 20-40 minutes).
E. Air Shutter Setting
57
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
10 10
Finishing
A. Facing Material
NOTICE: Surface temperatures around the appliance
will become warm while the appliance is in operation.
Ensure nishing materials used for all surfaces (oor, walls,
mantels, etc.) will withstand temperatures up to 190°F.
Risk of Fire!
DO NOT apply combustible materials beyond the min-
imum clearances. Comply with all minimum clearanc-
es to combustibles as specied in this manual. Ma-
terials overlapping into non-combustible zones could
ignite and will interfere with air ow through decorative
barrier fronts.
• Metal front of appliance may be covered with non-
combustible materials only.
• Facing and/or nishing materials must not interfere
with air ow through decorative barrier fronts, removal
of decorative barrier fronts or access for service.
• Facing and/or finishing materials must never
overhang into the glass opening.
• Observe all clearances when applying combustible
materials.
• Seal gaps between the nished wall and appliance
top and sides using a 300 ºF minimum sealant. Refer
to Figure 10.1 and Figure 10.2.
WARNING
Figure 10.1 Non-combustible Facing Diagram
0 in.
0 in.
0 in.
Finish wall material may be
combustible - Top and Sides
High Temperature Sealant (300° F/149° C min.)
Top and Side Seal Joint
= Factory-Installed Non-Combustible Board
If using vinyl ooring, refer to Section 3.E.
WARNING! Risk of Overheating! DO NOT allow gap
between nishing materials and front of appliance.
Figure 10.2 Finishing Material Installed
FACTORY-INSTALLED
NON-COMBUSTIBLE BOARD
NON-COMBUSTIBLE
FINISHING MATERIAL
NO GAP ALLOWED
DRYWALL OR
WALL SHEATHING
MATERIAL
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
58
Combustible Mantels
C. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances as specied. Mantel MUST be fastened to wall
with no gaps.
• Framing closer than the minimums listed must be
constructed entirely of non-combustible materials (i.e.,
steel studs, concrete board, etc.).
• No gaps allowed between the wall and the bottom of the
mantel.
• Combustible mantel legs and wall projections may be
applied over the non-combustible board supplied with
the appliance. Follow guidelines as shown in the gures
below for mantels, mantel legs and wall projections.
Note: Measurement is taken from top/side of the
opening, NOT the top/side of the replace.
If installing a television (TV) above the appliance, see
Section 2.B.
B. Installing a Television
Note: All
measurements
in inches.
TO CEILING
5
10
11
12
2-1/2
13
14
15
16
17
18
19
31
9
10
11
12
8
7
6
5
4
3
25
18
MAX.
MIN.
MEASUREMENT FROM FIREPLACE
OPENING TO BOTTOM OF
APPLIANCE= 33-1/2 IN.

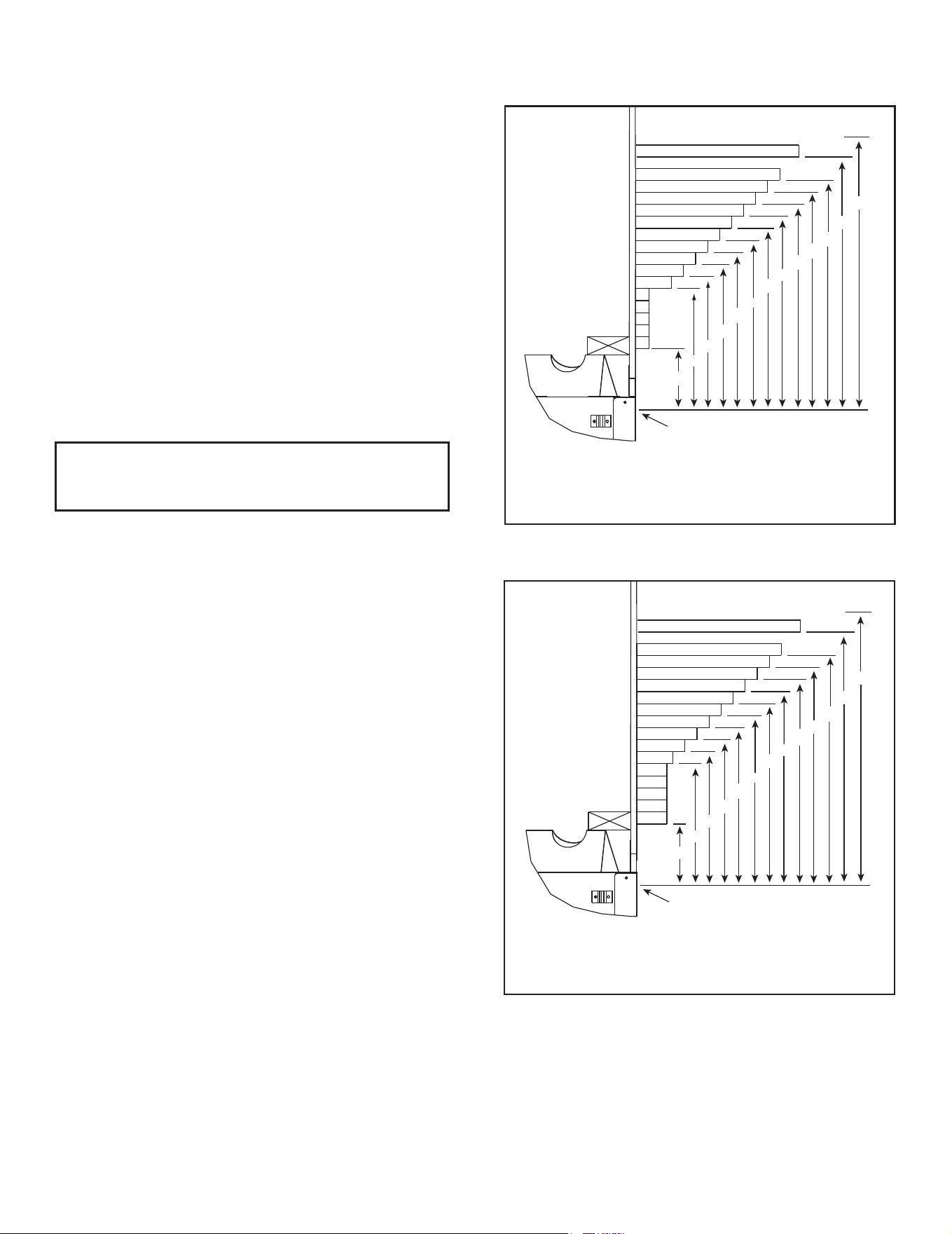

ST-DV36IN Combustible Mantel
Figure 10.4 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles
PIER-DV36IN Combustible Mantel
Note: All
measurements
in inches.
TO CEILING
5
10
11
12
1
13
14
15
16
17
18
19
31
9
10
11
12
8
7
6
5
4
3
25
18
MAX.
MIN.
MEASUREMENT FROM FIREPLACE
OPENING TO BOTTOM OF
APPLIANCE= 33-1/2 IN.
Figure 10.3 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles
59
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
10
11
12
18
9
8
7
6
1
2
3
4
5
6
12
31
MAX.
MIN.
TO CEILING
MEASUREMENT FROM FIREPLACE
OPENING TO BOTTOM OF
APPLIANCE= 33-1/2 IN.
Note: All
measurements
in inches.

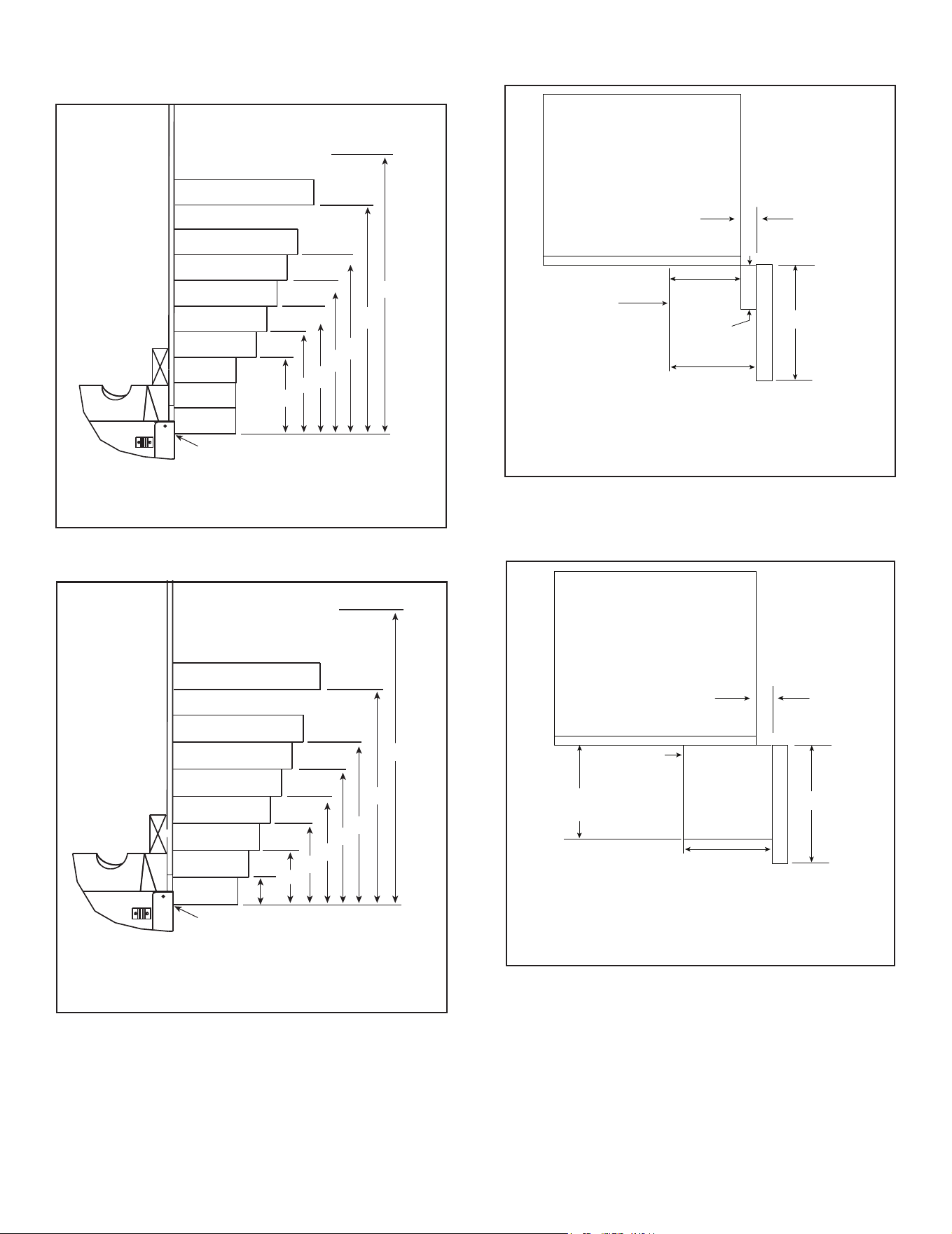

Figure 10.6 Minimum Vertical and Maximum Horizontal
Dimensions of Non-Combustibles
ST-DV36IN Non-Combustible Mantel
4
31
8
9
10
12
7
6
6
7
8
9
10
12
MAX.
MIN.
TO CEILING
MEASUREMENT FROM FIREPLACE
OPENING TO BOTTOM OF
APPLIANCE= 33-1/2 IN.
Note: All
measurements
in inches.
Figure 10.5 Minimum Vertical and Maximum Horizontal
Dimensions of Non-Combustibles
PIER-DV36IN Non-Combustible Mantel
Note: Clearance from opening to perpendicular wall.
Figure 10.7 Combustible Mantel Leg or Wall Projections
(Acceptable on both sides of opening)
Figure 10.8 Non-Combustible Mantel Leg
(Acceptable on both sides of opening)
TOP VIEW
3-1/4 in. Min.
1/2 in.
Min.
Unlimited
FIREPLACE
OPENING
PIER-DV36IN=4 IN. MAX.
ST-DV36IN=6 IN. MAX.
TOP VIEW
3-1/4 in. Min.
2-3/4
in. Min.
1/2 in.
Min.
Unlimited
1 in.
Max.
FIREPLACE
OPENING
Non-Combustible Mantels Combustible Mantel Legs or Wall Projections
Non-Combustible Mantel Legs or Wall Projections
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
60

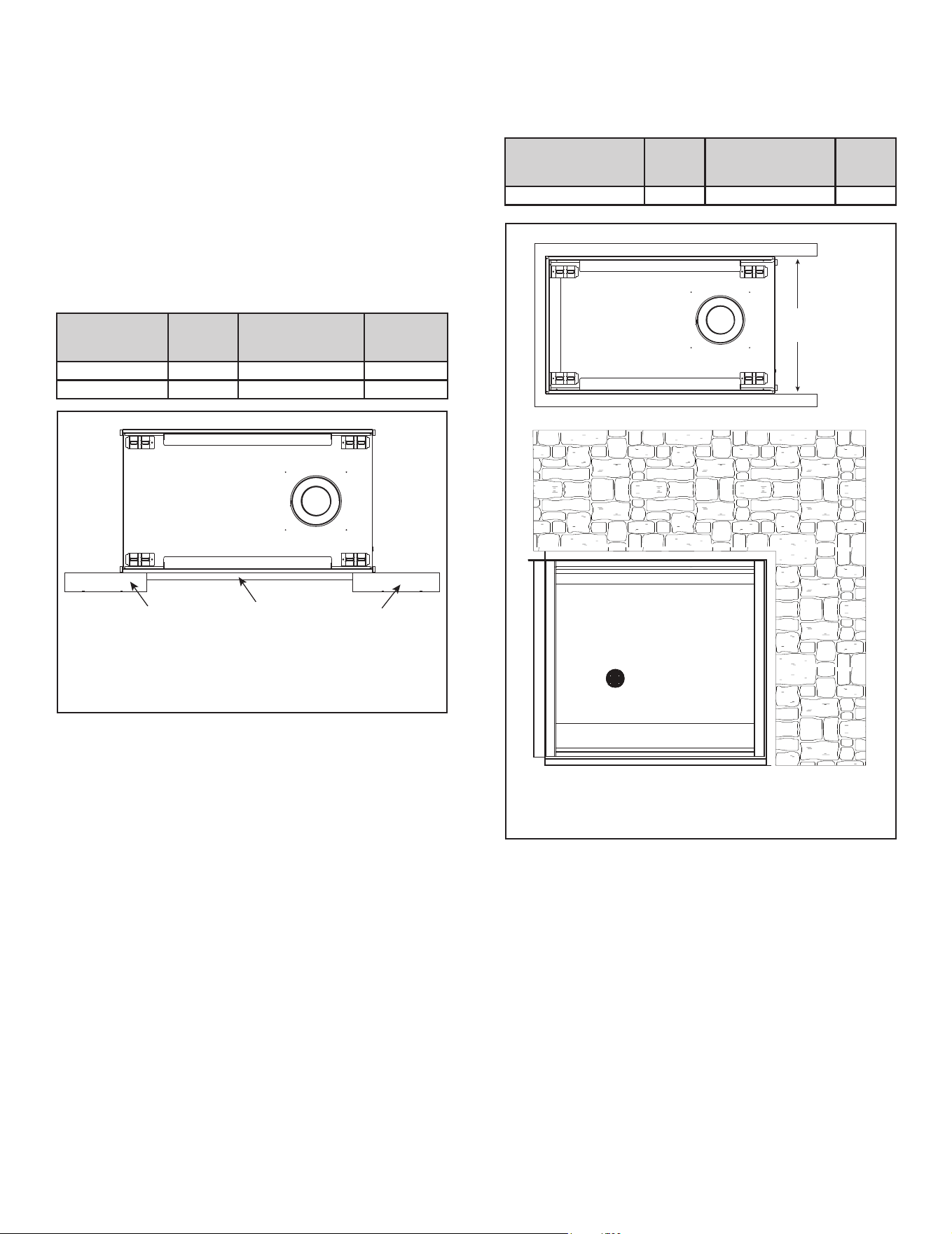

Figure 10.9 MSFR-36-BK Decorative Barrier Front
MODEL FIT
FINISH MATERIAL
MAXIMUM
THICKNESS
SEE
FIGURE
PIER-DV36IN Inside 4 IN. 10.8
ST-DV36IN Inside 6 IN. 10.8
D. Decorative Barrier Front Dimensions for
Finishing
The MSFR-36-BK decorative barrier front is certied for
use with the ST-DV36IN and PIER-DV36IN. The MSEP-
36-BK end panel is approved for use with the PIER-
DV36IN. Only decorative barrier fronts certied for use
with these appliance models may be used. The MSFR-
36-BK and MSEP-36-BK are inside t fronts.
Stop nishing material ush with opening.
FINISHING MATERIAL
DOOR
FINISHING MATERIAL
MODEL FIT
FINISH MATERIAL
MAXIMUM
THICKNESS
SEE
FIGURE
PIER-DV36IN Inside 4 IN. 10.9
Figure 10.10 PIER-DV36IN Decorative Barrier Front Finishing
*Finish up to the appliance opening for best results.
Decorative Barrier Front
MSFR-36-BK (ST-DV36IN / PIERDV36IN)
See Figure 10.9.
Decorative Barrier End Panel
MSEP-36-BK (PIER-DV36IN Only)
See Figure 10.10.
FINISHING
MATERIAL
61
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
11 11
Appliance Setup
A. Remove the Shipping Materials
WARNING! Risk of Fire! Close the ball valve before in-
stalling the splatter guard to prevent accidental lighting.
Remove the splatter guard before lighting the appliance.
Remove shipping materials from inside or underneath the
rebox.
• The splatter guard is a piece of corrugated material
used to protect the appliance during the installation
process before nishing work on the whole hearth is
complete. Splatter guards may be factory installed
or accompany the decorative barrier front of the ap-
pliance, depending on the replace model. Splatter
guards must be removed before appliance is red.
For instructions on removing and replacing the xed glass
assembly, see Section 11.F.
B. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the rebox or underneath in the control cavity.
C. Install the Refractory (Optional)
Optional glass or brick refractory kits are available for use
with these models. Install the glass refractory per instruc-
tions included with the kit.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
62
D. Glowing Ember and Lava Rock Placement
Place glowing embers as shown in Figure 11.1.
WARNING! Risk of Explosion! Follow ember placement
instructions in manual. DO NOT place embers directly over
burner ports. Replace ember material annually. Improperly
placed embers interfere with proper burner operation.
Placing the Ember Material
Ember material is shipped with this gas appliance. To place
the ember material:
• Embers may only be placed in areas as shown in Figure
11.1. Care should be taken not to cover the lighting trail
of ports near pilot assembly as shown in Figure 11.1.
• When placing Glowing Embers
®
onto the burner care
should be taken so that the ports are not covered. Place
the dime-size ember pieces. See Figure 11.1. Failure to
follow this procedure will likely cause lighting and sooting
problems.
• Place Lava Rock on areas of base pan away from the
burner as shown in Figure 11.2. Do not place lava rock
on burner. Use this material to give the appliance a
realistic ash bed.
• Save the remaining ember materials for use during
appliance servicing. The embers provided should be
enough for 3 to 5 applications.

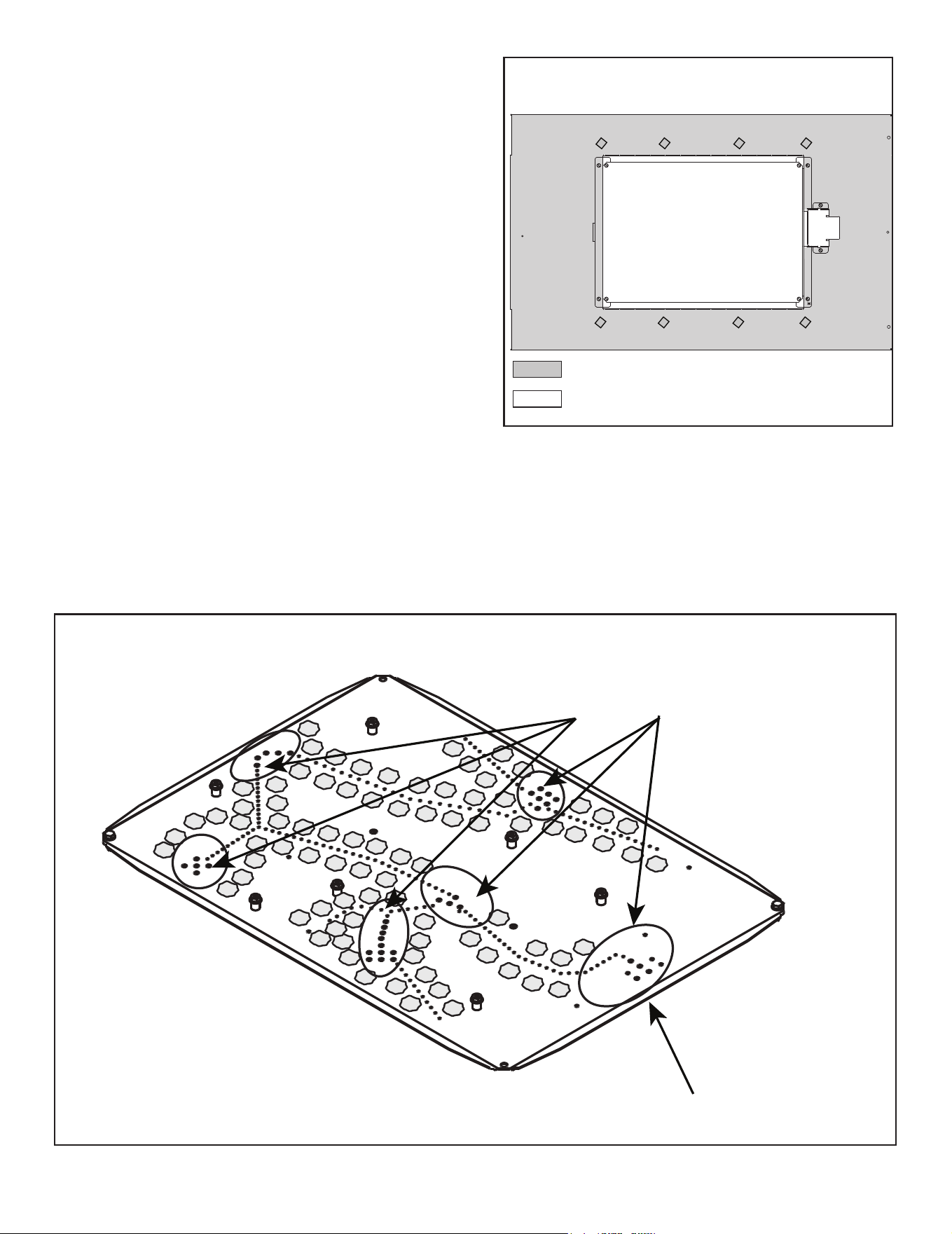

DO NOT PLACE EMBERS
IN THE CIRCLED AREAS
PILOT LOCATED HERE
Figure 11.1 Ember Placement
= LAVA ROCK PERMITTED IN THIS AREA
= NO LAVA ROCK IN THIS AREA
BURNER
BASE
PAN
Apply lava rock in shaded area only.
DO NOT place lava rock on burner.
Figure 11.2 Placement of Lava Rock
63
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

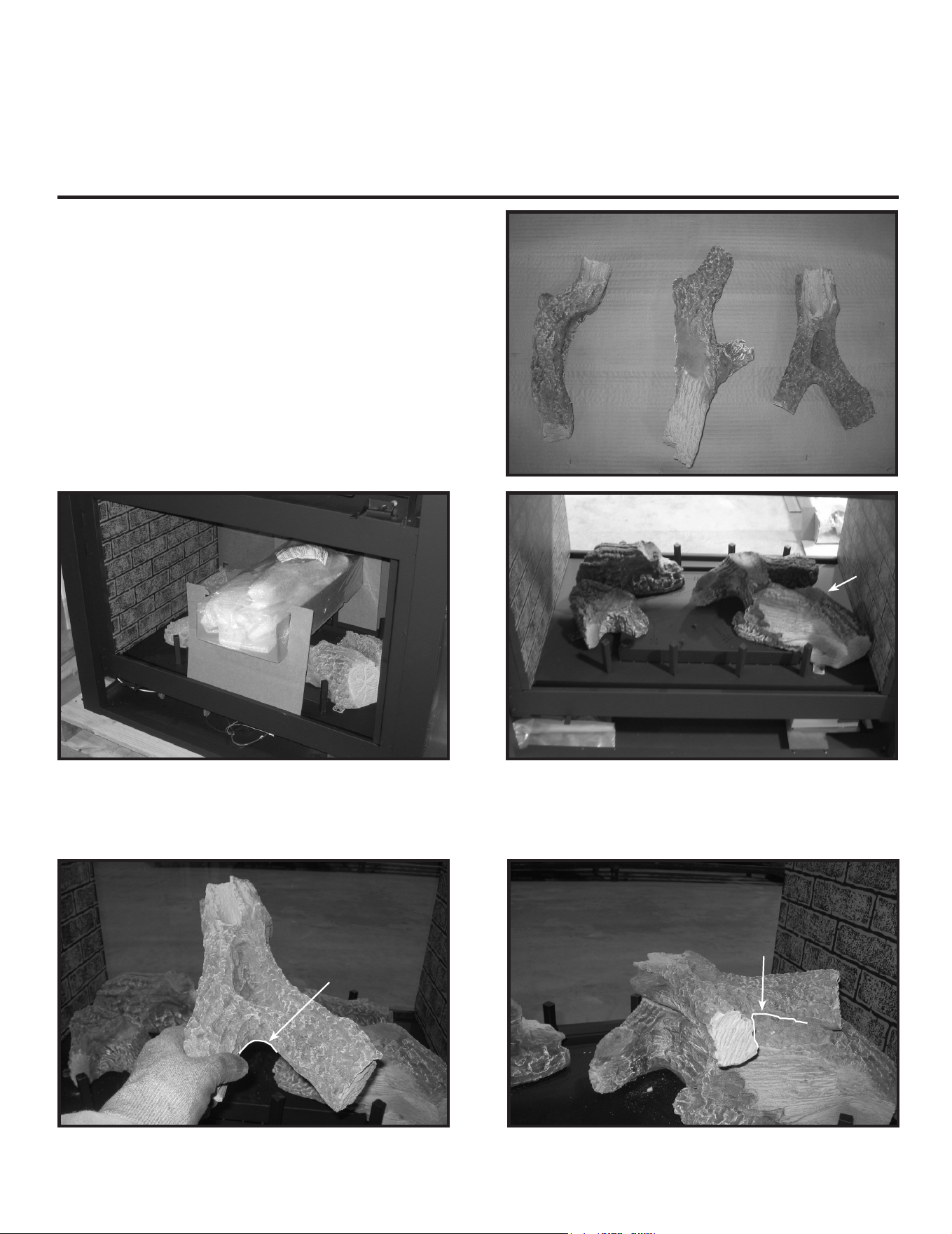

E. Install the Log Assembly
LOG PLACEMENT INSTRUCTIONS
Log Set Assembly: LOGS-2128
Models: ST-36TRB-IPI, PIER-36TRB-IPI
ST-36TVB-IPI, LCOR-36TRB-IPI, RCOR-36TRB-IPI
ST-36TRB-IFT, PIER-36TRB-IFT, ST-DV36IN, PIER-DV36IN
CAUTION: DO NOT reposition logs that have been
factory installed! Follow these instructions to position
the logs that were packaged separately.
11
22
33
STEP 1. CAUTION! Logs are fragile! Carefully remove the logs and cardboard tray from the inside of the replace.
See Figure 1. Remove the microfoam and inspect the logs for damage. Inspect the four factory installed logs for damage.
Locate the pilot in order to verify your position in relation to the appliance. See Figure 2.
Figure 2. Factory Installed Logs Figure 2. Factory Installed Logs
FFigure 1. Log Assembly Locationigure 1. Log Assembly Location
STEP 2. Log #1 (SRV2128-704): Mate the notch on the end of log # 1 with the hump on top of log A. Set the other
end of Log #1 onto the smooth area on top of Log C.
PILOTPILOT
Figure 4. Placement of Log #1 Figure 4. Placement of Log #1
FFigure 3. Placement of Log #1igure 3. Placement of Log #1
11
11
AA
AA
DD
BB
CC
NOTCHNOTCH
HUMPHUMP
CC
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
64
STEP 3. Log #2 (SRV2128-705): The Y-shaped end of log #2 should rest on log B and log C. The other end should
come in contact with the second grate tine from the left. Mate the bottom of log # 2 with the notches on top of log B and the
smooth area on top of the end of log C.
Figure 6. Placement of Log #2Figure 6. Placement of Log #2
FFigure 5. Placement of Log #2igure 5. Placement of Log #2
22
11
AA
22
BB
STEP 4. Log #3 (SRV2128-707): The bottom end of log #3 should come in contact with the far left grate tine. Mate
the bottom of log # 3 with the indentations on Log D and the top of Log #2.
Figure 8. Placement of Log #3Figure 8. Placement of Log #3
FFigure 7. Placement of Log #3igure 7. Placement of Log #3
33
11
AA
22
BB
33
DD
CC
CC
DD
22
INDENTATIONSINDENTATIONS
GRATE TINESGRATE TINES
GRATE TINESGRATE TINES
PILOTPILOT
2128-935C
65
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
F. IntelliFire Touch
®
Control System Setup
• Detailed instructions for electrical wiring and connec-
tions are provided in Section 8.
• Determine if this appliance is equipped with a Module
Reset Switch. See Section 8. Verify this switch is in
the ON position.
• Verify that the 3-Position switch on the IFT-ECM is
switched to the REMOTE position. Detailed Operating
Instructions for the IFT-ECM are provided in Section
3.K of the Owner’s Manual.

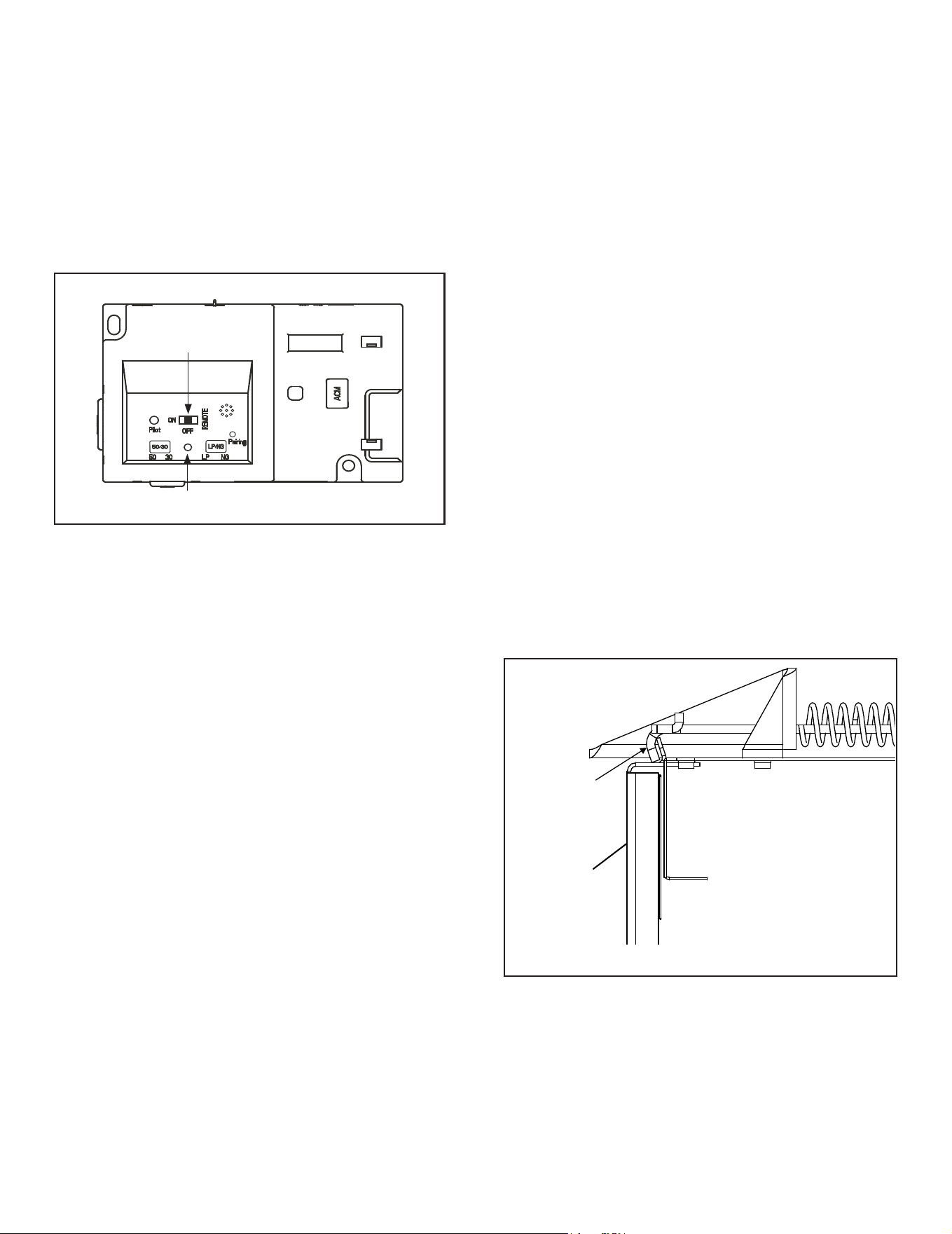

Figure 11.3 IFT-ECM
3 POSITION SWITCH
TOP VIEW
LED INDICATOR
If this appliance is being upgraded to an optional Intel-
liFire Touch Remote Control, and/or optional power vent,
fan, or light kit are added as new accessory upgrade(s)
to replace:
1. The RC400 remote will need to be paired to the ECM.
2. Follow the installation instructions provided with the
IntelliFire Touch remote and/or accessory kit(s).
G. Install Fixed Glass Assembly
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
• Replace the glass assembly on the appliance.
• Pull out the four glass latches and place in the grooves
on the glass frame top and bottom.
• Make sure all sides are replaced properly.
Figure 11.4 Fixed Glass Assembly
Removing Fixed Glass Assembly
• Pull the four glass latches out of the grooves on the glass
frame top and bottom.
• Remove the glass assembly from the appliance.
• Multiple sides may be able to be removed based upon
model.
Replacing Fixed Glass Assembly
• Replace the glass assembly on the appliance.
• Pull out the four glass latches and place in the grooves
on the glass frame top and bottom.
• Make sure all sides are replaced properly.
LATCHES
(BOTH BOTTOM
AND TOP)
GLASS
ASSEMBLY
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
66
H. Install Decorative Barrier Front
WARNING! Risk of Fire! Install ONLY decorative barrier
fronts approved by Hearth & Home Technologies. Unap-
proved decorative barrier fronts could cause replace to
overheat.
IMPORTANT! This fireplace requires an installed
decorative barrier front to prevent direct contact with
the hot viewing glass. DO NOT operate the replace
with the barrier removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative barrier front.
67
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
12 12
Reference Materials
A. Vent Components Diagrams

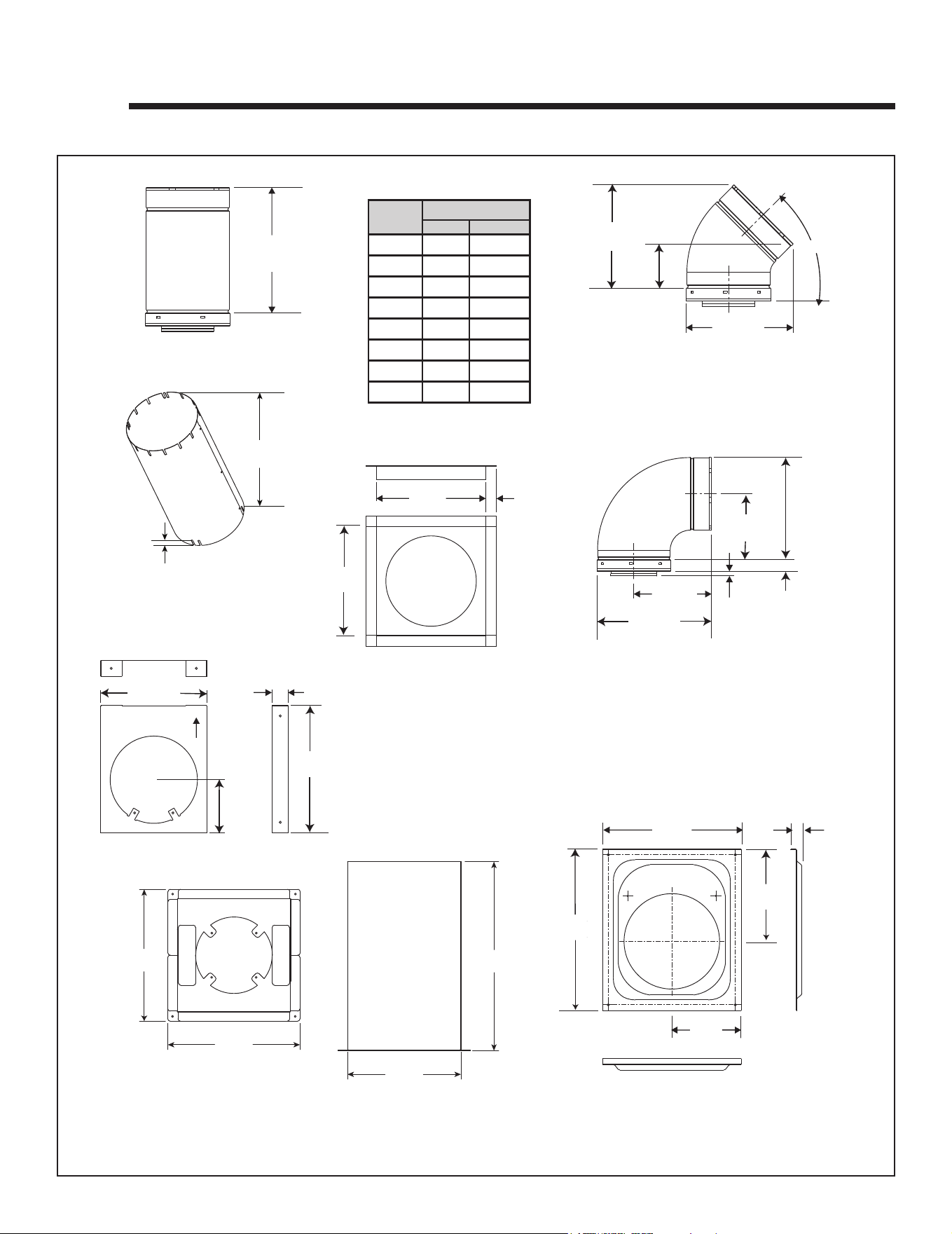

Figure 12.1 DVP Vent Components
Pipe
Eective Length
Inches Millimeters
DVP4 4 102
DVP6 6 152
DVP12 12 305
DVP24 24 610
DVP36 36 914
DVP48 48 1219
DVP6A 3 to 6 76 to 152
DVP12A 3 to 12 76 to 305
10-1/2 in.
(267 mm)
10-7/8 in.
(276 mm)
45
°
7-3/8 in.
(187 mm)
11-3/8 in.
(289 mm)
1-1/4 in. (32 mm)
9-1/4 in.
(235 mm)
13-1/4 in.
(337 mm)
1/2 in.
TYP
DVP90ST (90° Elbow)
10 in.
(254 mm)
10 in.
(254 mm)
1 in.
(25 mm)
DVP-FS (Ceiling Firestop)
DVP45 (45º Elbow)
DVP Pipe (see chart)
Effective
Height/Length
4-7/8 in.
(124 mm)
(13 mm)
10 in.
(254 mm)
1- 1/2 in.
(38 mm)
5 in.
(127 mm)
12 in.
(305 mm)
UP
DVP-HVS (Vent Support)
12 in.
(305 mm)
14 in.
(356 mm)
1 in.
(25 mm)
8 in.
(203 mm)
6 in.
(152 mm)
DVP-WS (Wall Shield Firestop)
Finished Height: 19-3/4 in./502 mm
UNIV-AS2 (Attic Insulation Shield)
Tab=1 in.
(25.4 mm)
20-3/4 in.
(527 mm)
14 IN.
(356 MM)
14 IN.
(356 MM)
20 IN.
(508 MM)
12 IN.
(305 MM)
DVP-RDS
ROOF DECK INSULATION SHIELD
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
68
A. Vent Components Diagrams (continued)

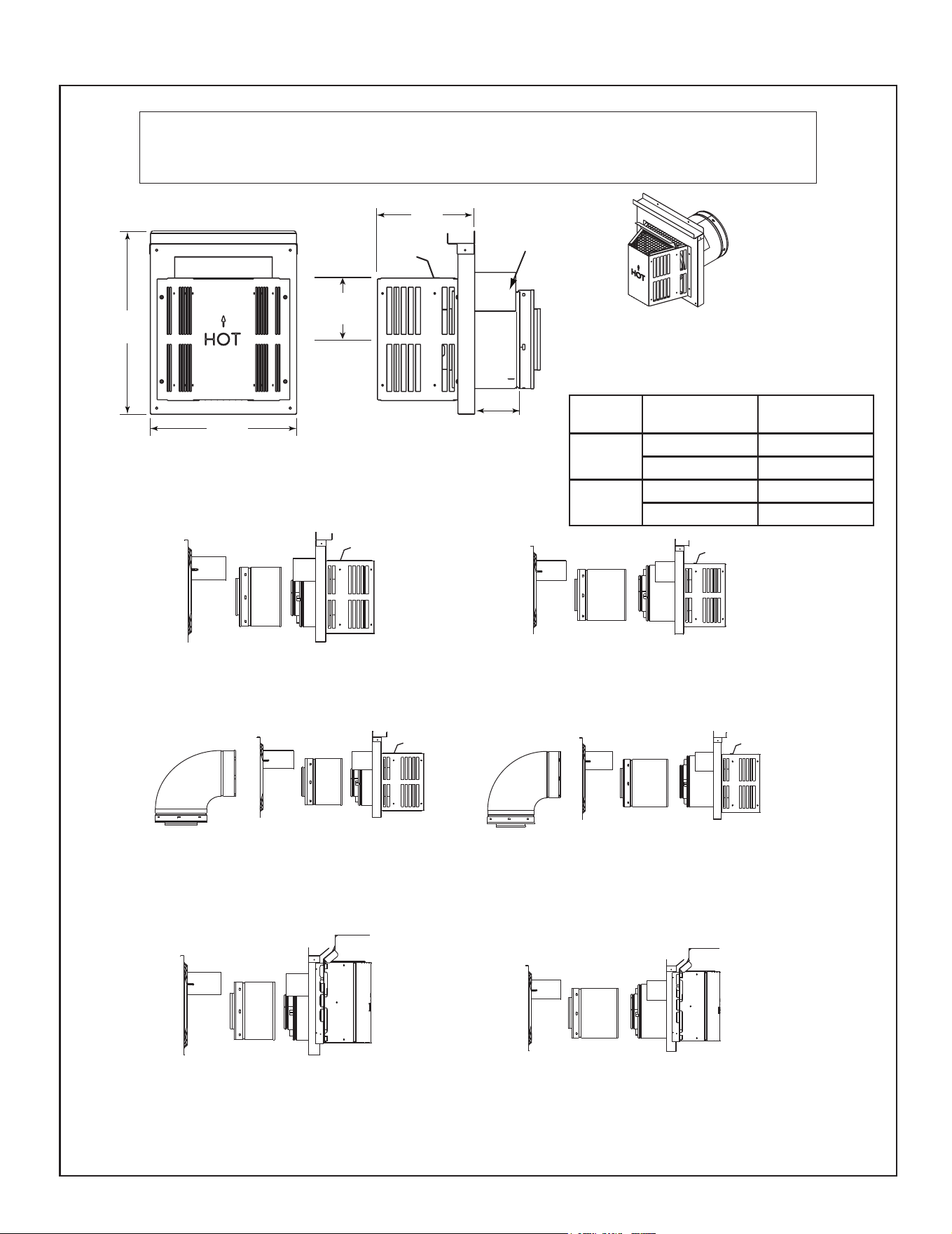

Figure 12.2 DVP Vent Components
Term Cap
Minimum
Eective Length
Maximum
Eective Length
Trap1
3-1/8 in. 4-5/8 in.
79 mm 117 mm
Trap2
5-3/8 in. 9-3/8 in.
137 mm 238 mm
DVP-HPC1
Can adjust 2-1/8 in. (4-1/4 to 6-3/8)
DVP-TRAP1
DVP-TRAP2
DVP-TRAPK2
DVP-TRAPK1
DVP-TRAP
Horizontal Termination Cap
15-1/8 in.
(384 mm)
12 in.
(305 mm)
8 in.
(203 mm)
Max
Effective
Length
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm) the
existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a DVP-HSM-B
will be required.
Heat
Shield
*5 in.
(127 mm)
* Center of the horizontal vent pipe to
the vertical measuring surface.
DVP-HPC2
Can adjust 4-1/8 in. (6-3/8 to 10-1/2)
69
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
13-1/4 in.
(337 mm)
24-5/8 in.
(625 mm)
27-1/2 in.
(699 mm)
RF6
Roof Flashing
31 in.
(787 mm)
24-5/8 in.
(625 mm)
13-1/4 in.
(337 mm)
RF12
Roof Flashing
Cap Shield
DRC-RADIUS
13-7/8 in.
(352 mm)
9-1/2 in.
(241 mm)
14 in.
(356 mm)
COOL-ADDM
Cap Shield
11-5/8 in.
(295 mm)
5-3/4 in.
(146 mm)
7-1/8 in.
(181 mm)
12-1/8 in.
(308 mm)
DVP-BEK2
DVP-HPC Cap Brick Extension
13-7/8 in.
(352 mm)
5 in.
(127 mm)
11-7/8 in.
(302 mm)
DVP-TRAPFL
Flashing
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
12 IN.
(305 mm)
7 IN.
(178 mm)
4-15/16 IN.
A A
A
1/2 IN.
(13 mm)
7/8 IN.
(22 mm)
(125 mm)
7 IN.
(178 mm)
TRAP-VSS
Vinyl Siding Shield
A. Vent Components Diagrams (continued)

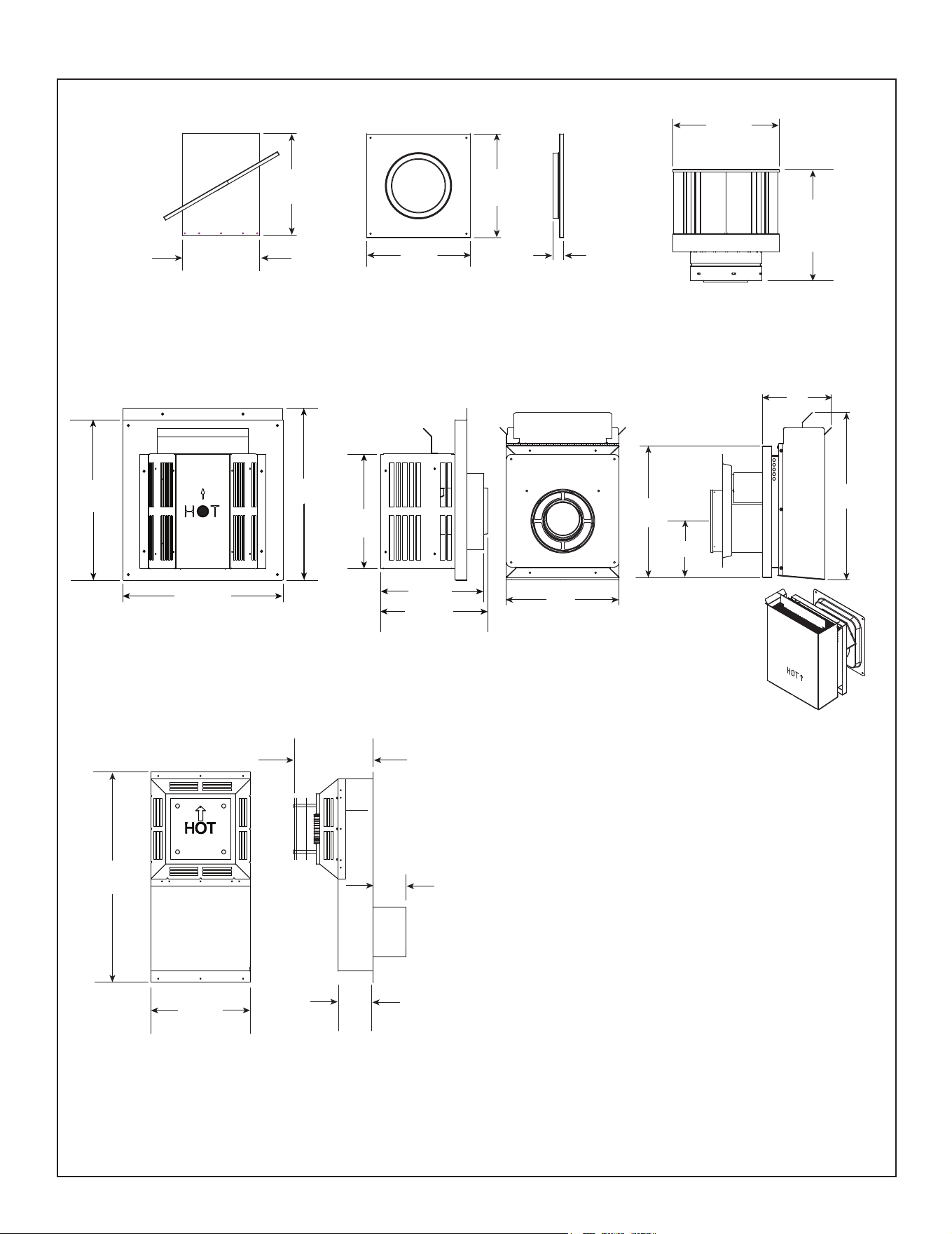

Figure 12.3 DVP Vent Components
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
70
A. Vent Components Diagrams (continued)
Figure 12.4 DVP Vent Components
DVP-TB1
Basement Vent Cap
12 in.
(305 mm)
1-1/2 in.
(38 mm)
7-3/8 in.
(187 mm)
14 in.
(356 mm)
17-3/4 in.
(451 mm)
14 in.
(356 mm)
12 in.
(305 mm)
12-1/8 in.
(314 mm)
7-1/8 in.
(181 mm)
8-3/4 in.
(222 mm)
1-5/8 in.
(41 mm)
16-7/8 in.
(429 mm)
DVP-HPC
High Performance Cap
7-1/4 in.
12 in.
305 mm
(184 mm)
5-1/4 in.
(133 mm)
12-1/2 in.
(318 mm)
DVP-TVHW
VerticalTermination Cap (Highwind)
6 in.
152 mm
13 in.
(330 mm)
15 in.
(381 mm)
8-1/8 in.
(206 mm)
DVP-HRC-SS
10-7/8 in.
276 mm
10-1/2 in.
267 mm
3°
87°
Effective Length
5-3/4 to 8-3/8 in.
146 to 213 mm
5-1/2 in.
140 mm
8-3/8 in.
213 mm
DVP-HRC-ZC-SS
DECORATIVE TERMINATIONS/SHROUDS
Only use listed decorative termination caps/shrouds
with Hearth & Home Technologies approved venting
systems.
This applies to both DVP and SLP venting systems.
Decorative Terminations Caps/Shrouds
DTO134
DTO146
DTS134
DTS146
LDS33
LDS46
LDS-BV
71
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
Figure 12.5 PVV-SLP Vent Components
13-5/8 IN.
13-11/16 IN.
1-3/4 IN.
4 IN.
5-7/8 IN.
3-11/16 IN.
12-1/8 IN.
TOP VIEW
SIDE VIEW
Optional Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
A. Vent Components Diagrams (continued)
PVV-SLP
Vertical Power Vent
Note: A wire harness is required to power the PVV-SLP and connect it to the appliance. It is ordered separately from
the PVV-SLP. Contact your dealer to order.
Note: The PVV-SLEEVE-12 and/or PVV-SLEEVE-48 is required to be installed with the PVV-SLP. It is ordered
separately from the PVV-SLP. Contact your dealer to order.
Note: The PVV-SLP requires one of the following options to be installed on this appliance.
Option A: IFT-RC400 and/or IFT-WFM, IFT-ACM and IntelliFire App that can be downloaded from the app store.
OR
Option B: IFT-RC150, IFT-ACM, IFT-WFM and an IntelliFire App that can be downloaded from the app store. These
accessories are purchased separately from the PVV-SLP. Contact your dealer to order.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
72

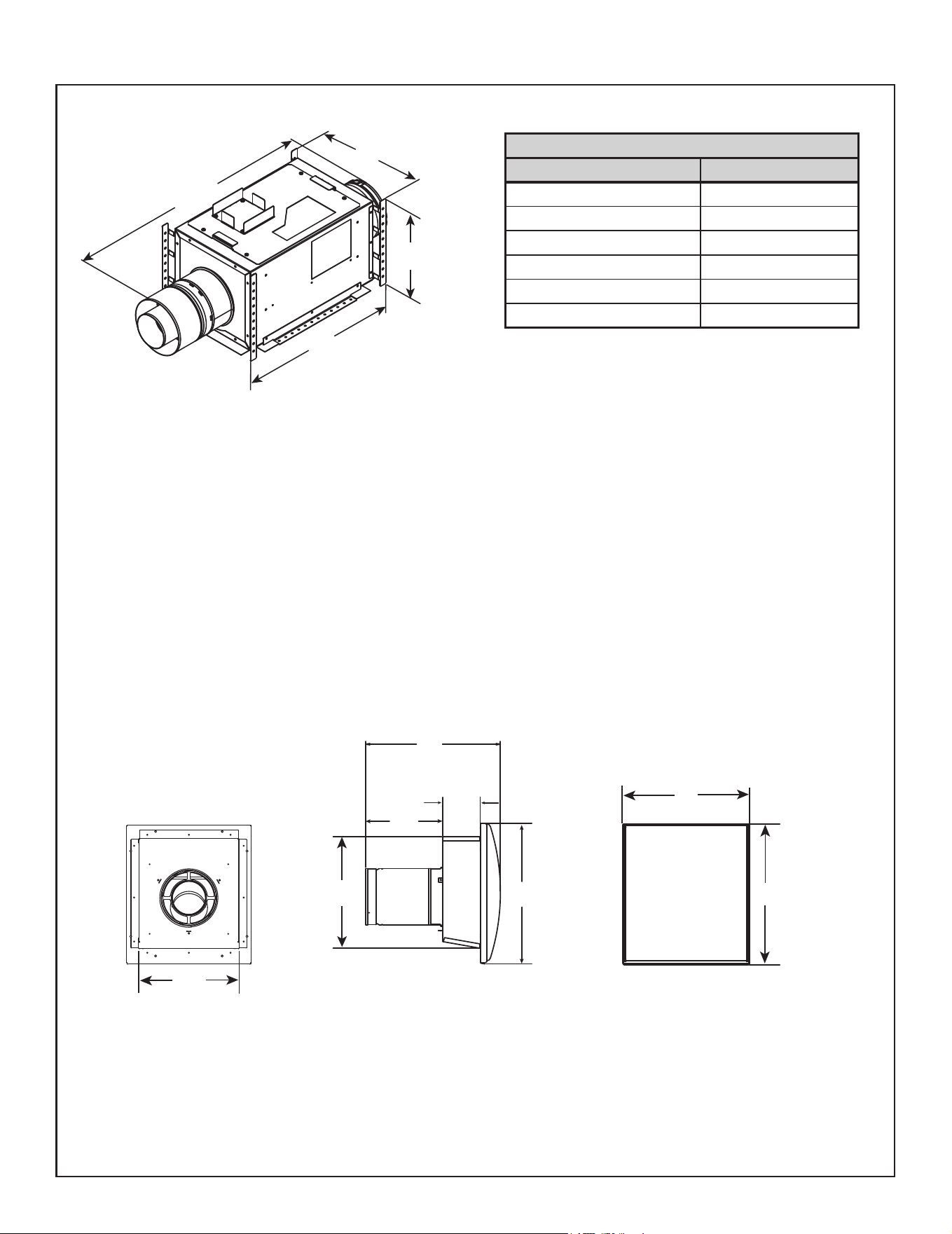

Figure 12.6 PVI-SLP-B Vent Components
Optional Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
PVI-SLP-B
Power Vent Inline
SLP-LPC
SLP Low Prole Cap
(Approved for use with PVI-SLP-B only)
Note: Wire harnesses required to power the PVI-SLP-B connect to the appliance and are ordered separately from
PVI-SLP-B. Contact your dealer to order.
16 IN.
406 mm
15 IN.
(381 mm)
16-11/16 IN.
(424 mm)
9-3/16 IN.
(233 mm)
4-1/2 IN.
114 mm
16-11/16 IN.
424 mm
13-5/8 IN.
(346 mm)
12-1/2 IN.
(318 mm)
12-1/2 IN.
318 mm
20-3/4 IN.
527 mm
13-5/8 IN.
346 mm
EFFECTIVE LENGTH
32 IN. (813 mm) MIN.
35 IN. (889 mm) MAX.
Note: The PVI-SLP-B requires one of the following options to be installed on this appliance.
Option A: IFT-RC400 and/or IFT-WFM, IFT-ACM and IntelliFire App that can be downloaded from the app store.
OR
Option B: IFT-RC150, IFT-ACM, IFT-WFM and an IntelliFire App that can be downloaded from the app store. These
accessories are purchased separately from the PVI-SLP-B. Contact your dealer to order.
A. Vent Components Diagrams (continued)
73
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
A. Vent Components Diagrams (continued)
Optional Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
Note: Wire harnesses required to power the PVLP-SLP connect to the appliance and are ordered separately from
PVLP-SLP. Contact your dealer to order.

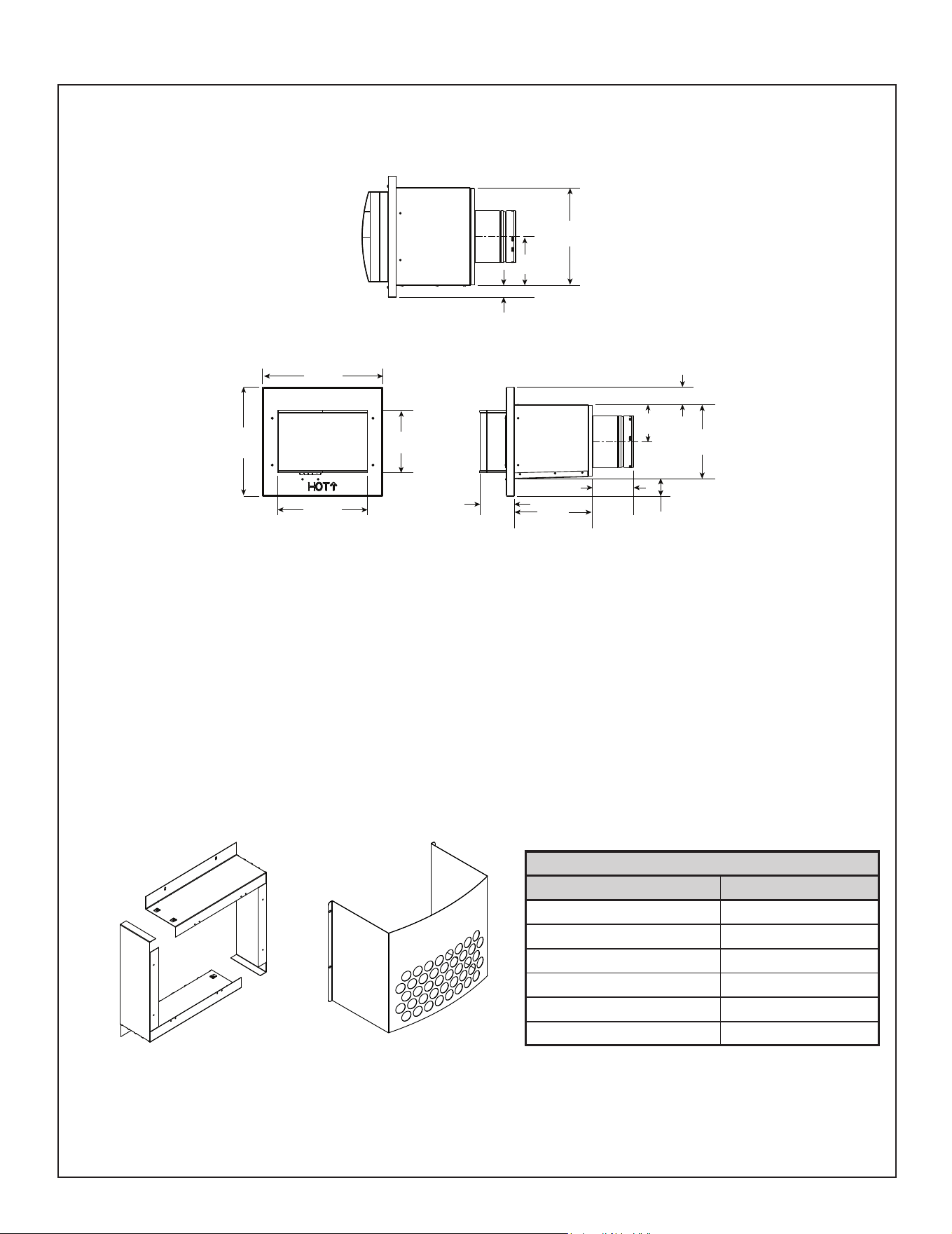

Figure 12.7 PVLP-SLP Vent Components
PVLP-HS
Heat Shield
14 IN.
356 mm
15-1/2 IN.
394 mm
11-1/2 IN.
292 mm
8 IN.
203 mm
4-3/8 IN.
112 mm
10 IN.
254 mm
5-1/4 IN.
135 mm
2-1/4 IN.
57 mm
9-1/2 IN.
241 mm
4-3/4 IN.
121 mm
2-1/4 IN.
57 mm
1-1/2 IN.
38 mm
6-1/4 IN.
159 mm
Front View
Top View
Side View
Note: A PVLP-HS heat shield is available and sold separately. Use if the PVLP-SLP is installed in a high trac area.
PVLP-BEK
Brick Kit
PVLP-SLP
Power Vent Low Prole
Note: The PVLP-SLP requires one of the following options to be installed on this appliance.
Option A: IFT-RC400 and/or IFT-WFM, IFT-ACM and IntelliFire App that can be downloaded from the app store.
OR
Option B: IFT-RC150, IFT-ACM, IFT-WFM and an IntelliFire App that can be downloaded from the app store. These
accessories are purchased separately from the PVLP-SLP. Contact your dealer to order.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
74
A. Vent Components Diagrams (continued)

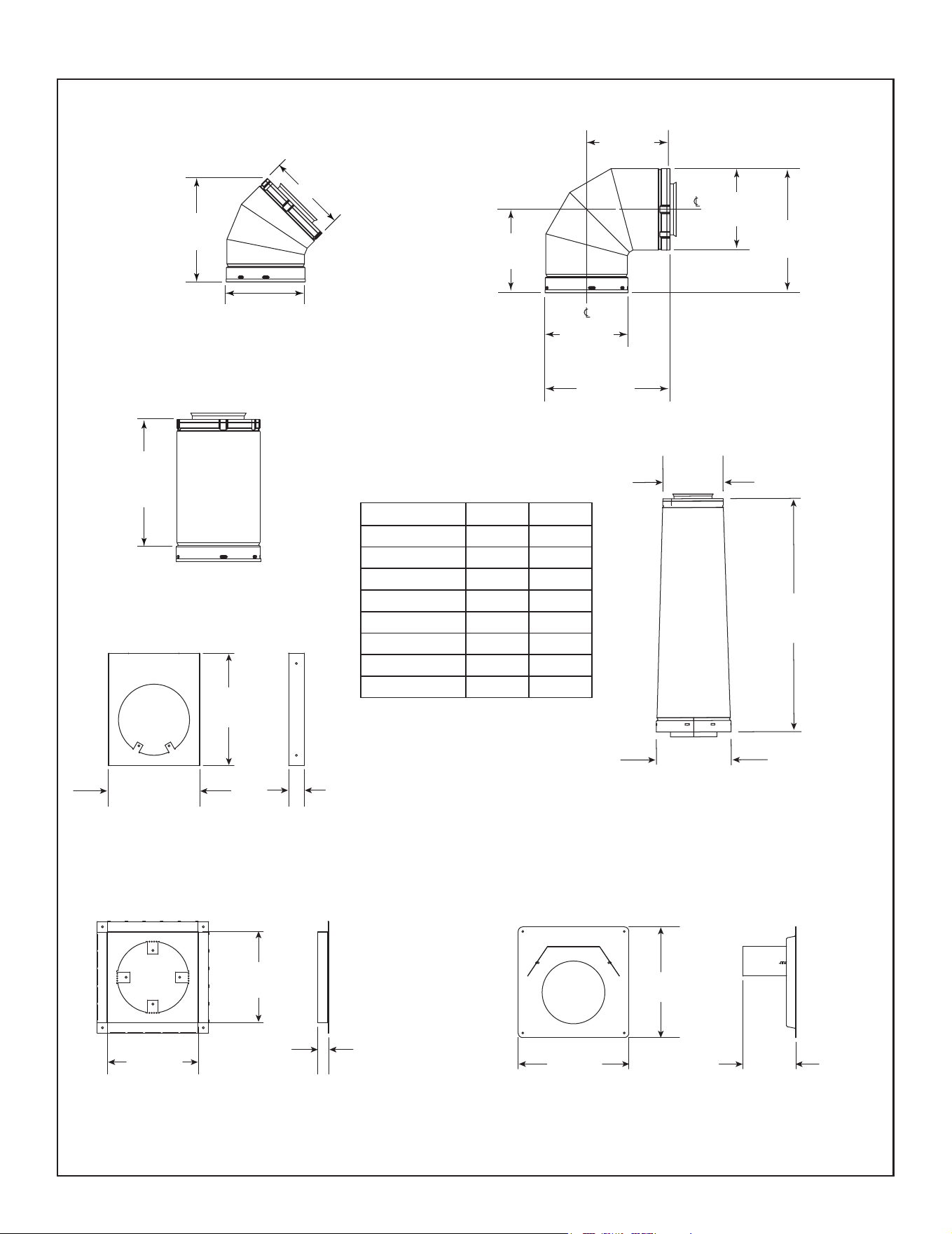

Figure 12.8 SLP Series Vent Components
8-3/4 in.
222 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
6 in.
152 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
9-7/8 in.
251 mm
6-1/2 in.
165 mm
9-1/4 in.
235 mm
SLP45
45° Elbow
SLP90
90° Elbow
Effective
Height/
Length
SLP PIPE
SLP-HVS
Horizontal Pipe
Support
SLP-FS
Ceiling Firestop
SLP-WS
Wall Shield Firestop
DVP-SLP24
Adapter
6-1/2 in.
165 mm
25-3/16 in.
640 mm
8-1/16 in.
205 mm
10-7/8 in.
276 mm
8-7/8 in.
225 mm
1-1/2 in.
38 mm
8-11/16 in.
220 mm
8-11/16 in.
220 mm
1-1/2 in.
38 mm
12 in.
305 mm
12 in.
305 mm
5-1/2 in.
146 mm
Eective Height/Length
Pipe inches mm
SLP4 4 102
SLP6 6 152
SLP12 12 305
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 - 6 51 - 152
SLP12A 2 - 12 51 - 305
75
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
A. Vent Components Diagrams (continued)

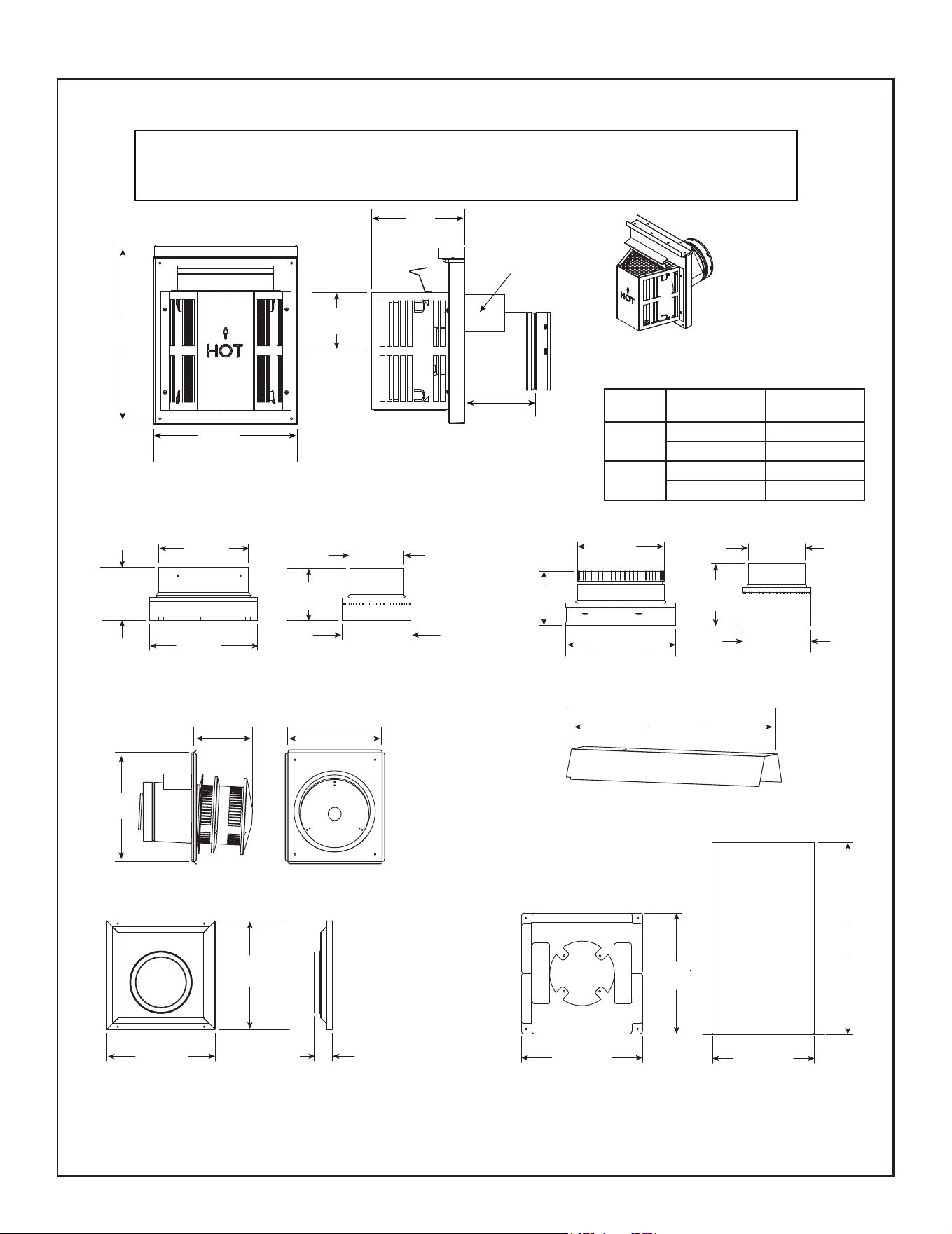

Figure 12.9 SLP Series Vent Components
SLP-WT-BK
Wall Thimble-Black
SL-2DVP
Adapter
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
SLP-TRAP
Horizontal Termination Cap
15-1/8 in.
(384 mm)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm)
the existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a
DVP-HSM-B will be required.
Heat
Shield
Term Cap
Minimum
Effective Length
Maximum
Effective Length
Trap1
3-1/8 in. 4-3/4 in.
79 mm 121 mm
Trap2
5-1/4 in. 9-1/4 in.
133 mm 235 mm
8 in.
(203 mm)
12 in.
(305 mm)
Max
Effective
Length
14-7/16 in.
367 mm
14-7/16 in.
367 mm
2-5/16 in.
59 mm
3-15/16 in.
(101 mm)
6-11/16 in.
(169 mm)
8 in.
(203 mm)
3-15/16 in.
(101 mm)
3-13/16 in.
(97 mm)
5-1/16 in.
(128 mm)
6-3/8 in.
163 mm
4-3/16 in.
106 mm
4-5/8 in.
117 mm
5-1/16 in.
128 mm
8-1/8 in.
206 mm
DVP-2SL
Adapter
4 in.
102 mm
13 in.
(330 mm)
15 in.
(381 mm)
8-1/8 in.
(206 mm)
SLP-HRC-SS
Horizontal Termination Cap
12-5/8 IN.
(321 mm)
12-5/8 IN.
(321 mm)
20 IN.
(508 mm)
10-5/8 IN.
(270 mm)
SLP-RDS
ROOF DECK INSULATION SHIELD
*5 in.
(127 mm)
* Center of the horizontal vent pipe to
the vertical measuring surface.
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
76
13 in.
330 mm
13 in.
330 mm
1-5/16 in.
34 mm
10-9/16 in.
269 mm
14 in.
356 mm
12-1/2 in.
318 mm
12 in.
305 mm
SLP-CCS-BK
Cathedral Ceiling
Support Box-Black
SLP-DCF-BK
Ceiling Firestop
Black
SLK-SNKD
Snorkel
Termination Cap
SLP-TVHW
Vertical
Termination Cap
13-1/2 in.
343 mm
28-1/2 in.
724 mm
10-11/16 in.
271mm
17-7/8 IN.
454 mm
7-3/8 IN.
187 mm
14 IN.
356 mm
12 IN.
305 mm
SLP-TB1
Basement Vent Cap
4-3/4 in.
121 mm
4-1/8 in.
105 mm
6 IN.
152 mm
SLP-FLEX-TRAP
Horizontal
Termination Kit
14-1/16 IN.
357 mm
15-1/16 IN.
383 mm
10-1/16 IN.
256 mm
9 IN.
229 mm
9-7/16 IN.
240 mm
14-1/16 IN.
357 mm
A. Vent Components Diagrams (continued)
Figure 12.10 SLP Series Vent Components
77
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22

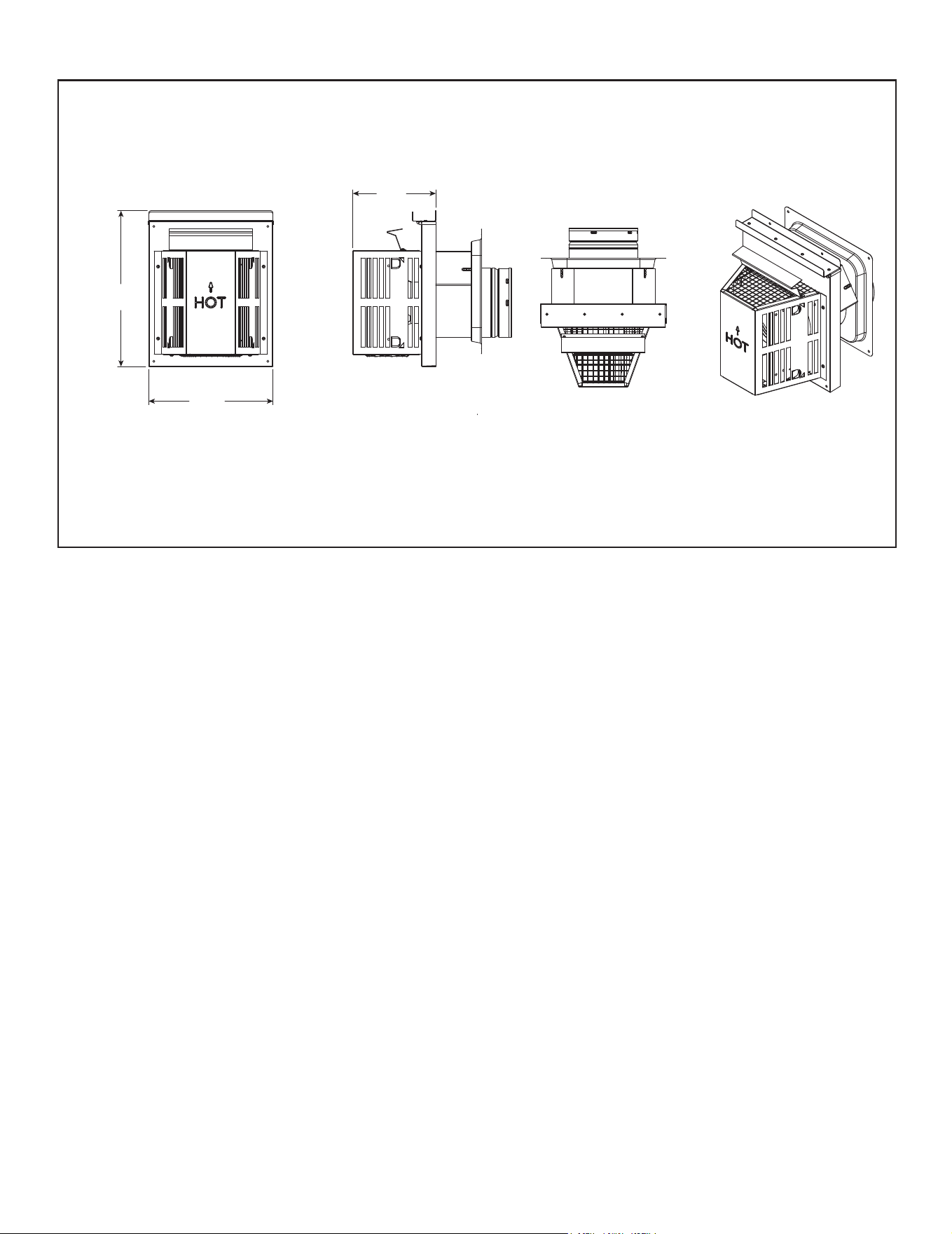

SLP-HHW2
Horizontal High Wind Termination Cap
15 IN.
(381 mm)
12 IN.
(305 mm)
8 IN.
(203 mm)
Figure 12.11 SLP series Vent Components
A. Vent Components Diagrams (continued)
Hearth & Home Technologies • PIER-DV36IN, ST-DV36IN Installation Manual • 2658-980 Rev. C • 4/22
78
B. Accessories
WARNING! Risk of Fire and Electric Shock! Use ONLY Hearth & Home Technologies-approved optional accessories with
this appliance. Using non-listed accessories could result in a safety hazard and will void the warranty.
Contact your dealer for more information and details, such as color options, on individual accessories. A qualied service
technician must install the approved accessories. Operate installed accessories according to the included instructions.
Note: Some optional accessories must be installed at the time of appliance installation. See Section 2.A.
Printed in U.S.A. - Copyright 2022
Hearth & Home Technologies
7571 215
th
Street West, Lakeville, MN 55044
www.hearthnhome.com
Please contact your Hearth & Home Technologies dealer with any questions or concerns.
For the location of your nearest Hearth & Home Technologies dealer,
please visit www.hearthnhome.com.
Options:
Remote Controls, Wall Controls and Wall Switches
IFT-RC150-HNG IntelliFire Touch wireless wall switch
IFT-RC400 IntelliFire Touch remote control, docking station and auxiliary control module
IntelliFire Wi-Fi module with IntelliFire App
IFT-WFM
Refractory Kit
LINER-36ST Glass Liner Kit - See Through
LINER-36PIER Glass Liner Kit - Pier
WTB36-ST Weathered Brown Refractory Kit - See Through
WTB36-PR Weathered Brown Refractory Kit - See Through
Fan
GFK-160A Fan Kit
Modern Conversion Kit
STPR-MOD-KIT Modern Conversion Kit
