Version 1.0
Copyright © 2022
T-Display-S3
User Guide
About This Guide
This document is intended to help users set up the basic software development
environment for developing applications using hardware based on the T-Display.
Through a simple example, this document illustrates how to use Arduino, including the
menu based configuration wizard, compiling the Arduino and firmware download to the
ESP32-S3 module.
Release Notes
Date
Version
Release notes
2022.11
V1.0 First release.
Table of Contents
1. Introduction! 1".............................................................................................................................
1.1.
T-Display-S3
! .........................................................................................................................1!
1.2.
Arduino
1".....................................................................................................................................
1.3. Preparation! 1".................................................................................................................................
2. Get Started! 2".............................................................................................................................
2.1.
Download the Arduino Software
! ...............................................................................................2!
2.1.1. Install Prerequisites
! .......................................................................................................2!
2.1.2. Toolchain Setup!
............................................................................................................2!
2.2.
Install the Arduino Software
! ......................................................................................................3!
2.3. Set up Path!
................................................................................................................................3!
! ................................................................................................................................4!
! 5"..................................................................................................................................
!
...........................................................................................................................6"
3. Configure
4. Connect
5. Test Demo
6. Upload Sketch
! 7".......................................................................................................................
6.1. Build and Flash! 7"..........................................................................................................................
6.2. Monitor! 8".......................................................................................................................................
7. SSC Command Reference! 9".....................................................................................................
7.1. op! 9"...............................................................................................................................................
7.2. sta! 9"..............................................................................................................................................
7.3. ap! 10".............................................................................................................................................
7.4. mac! 10"..........................................................................................................................................
7.5. dhcp! 11".........................................................................................................................................
7.6. ip! 11"..............................................................................................................................................
7.7. reboot! 12".......................................................................................................................................
7.8. ram! 12...........................................................................................................................................
!
1. Introduction
1. Introduction
1.1. T-Display-S3
T-Display-S3 is a development board. It can work independently.
It consists of ESP32-S3 MCU supporting Wi-Fi + BLE communication protocol and motherboard
PCB. The screen is 1.9 inch IPS LCD ST7789V.
At the core of this module is the ESP32S3R8 chip.
ESP32-S3 integrates Wi-Fi (2.4 GHz band) and Bluetooth 5.0 solutions on a single chip,
along with dual high performance cores and many other versatile peripherals. Powered
by 40 nm technology, ESP32-S3 provides a robust, highly integrated platform to meet the
continuous demands for efficient power usage, compact design, security, high
performance, and reliability.
Xinyuan provides the basic hardware and software resources that empowers application
developers to build their ideas around the ESP32-S3 series hardware. The software
development framework provided by Xinyuan is intended for rapidly developing Internet-
of-Things (IoT) applications, with Wi-Fi, Bluetooth, flexible power management and other
advanced system features.
The RF frequency range is 2.412 GHz to 2.484 GHz.
The T-Display-S3 manufacturer is Shenzhen Xin Yuan Electronic Technology Co., Ltd.
1.2. Arduino
A set of cross-platform applications written in Java. The Arduino Software IDE is derived
from the Processing programming language and the integrated development
environment of the Wiring program. Users can develop applications in Windows/Linux/
MacOS based on Arduino. It is recommended to use Windows 10. Windows OS has
been used as an example in this document for illustration purposes.
1.3. Preparation
To develop applications for ESP32-S3 you need:
• PC loaded with either Windows, Linux or Mac operating system
• Toolchain to build the Application for ESP32-S3
• Arduino that essentially contains API for ESP32-S3 and scripts to operate the Toolchain
• The ESP32-S3 board itself and a USB cable to connect it to the PC
Xinyuan
! /121
2022.11
!
2. Get Started
2. Get Started
2.1. Download the Arduino Software
The quickest how to install the Arduino Software (IDE) on Windows machines
2.1.1. Quick Start Guide
The website provides a quick start tutorial
• Windows:
https://www.arduino.cc/en/Guide/Windows
• Linux:
https://www.arduino.cc/en/Guide/Linux
• Mac OS X:
https://www.arduino.cc/en/Guide/MacOSX
2.1.2. Installation steps for Windows platform Arduino
Xinyuan
! /122
2022.11

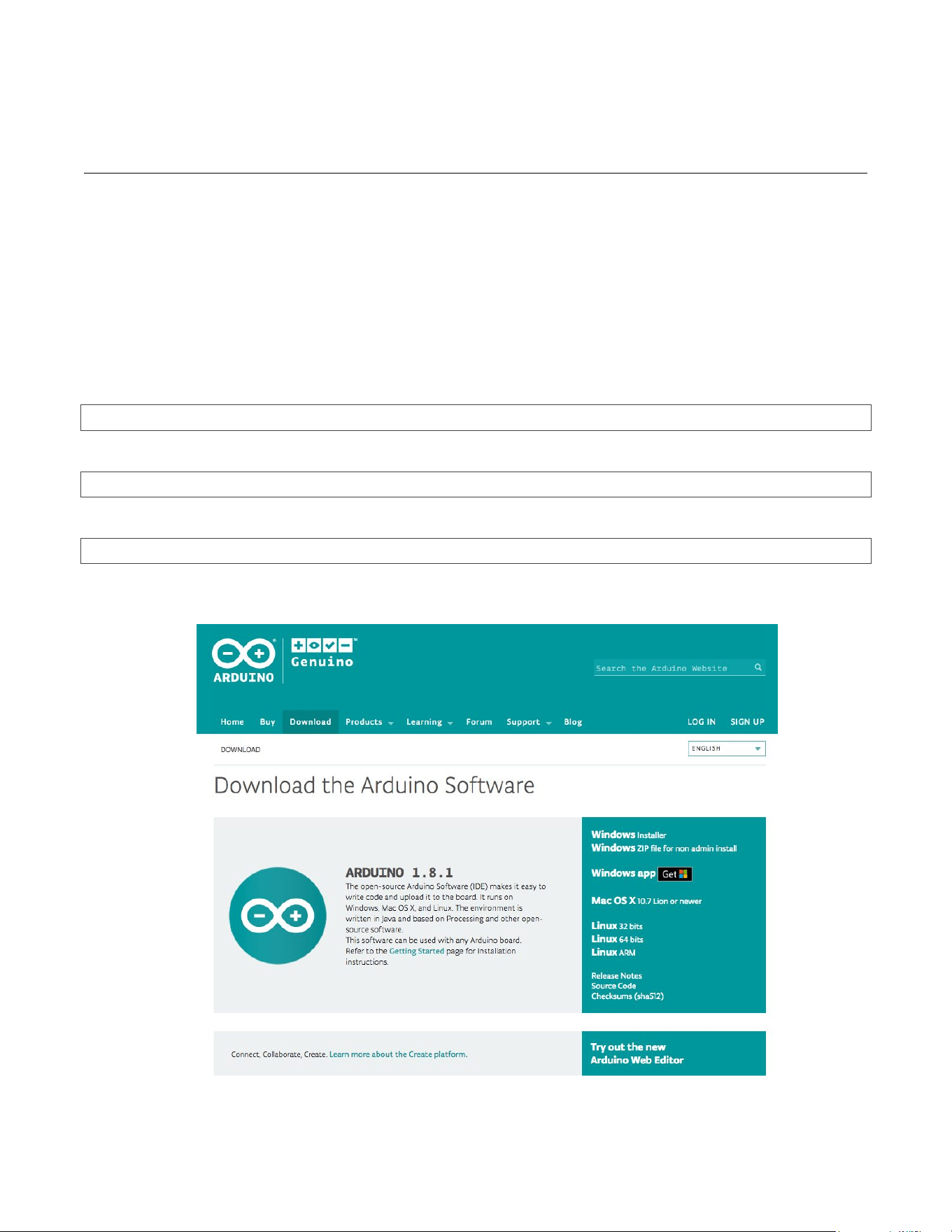

Enter the download interface, select Windows installer to install directly
!
2. Get Started
2.2. Install the Arduino Software
Xinyuan
! /123
2022.11

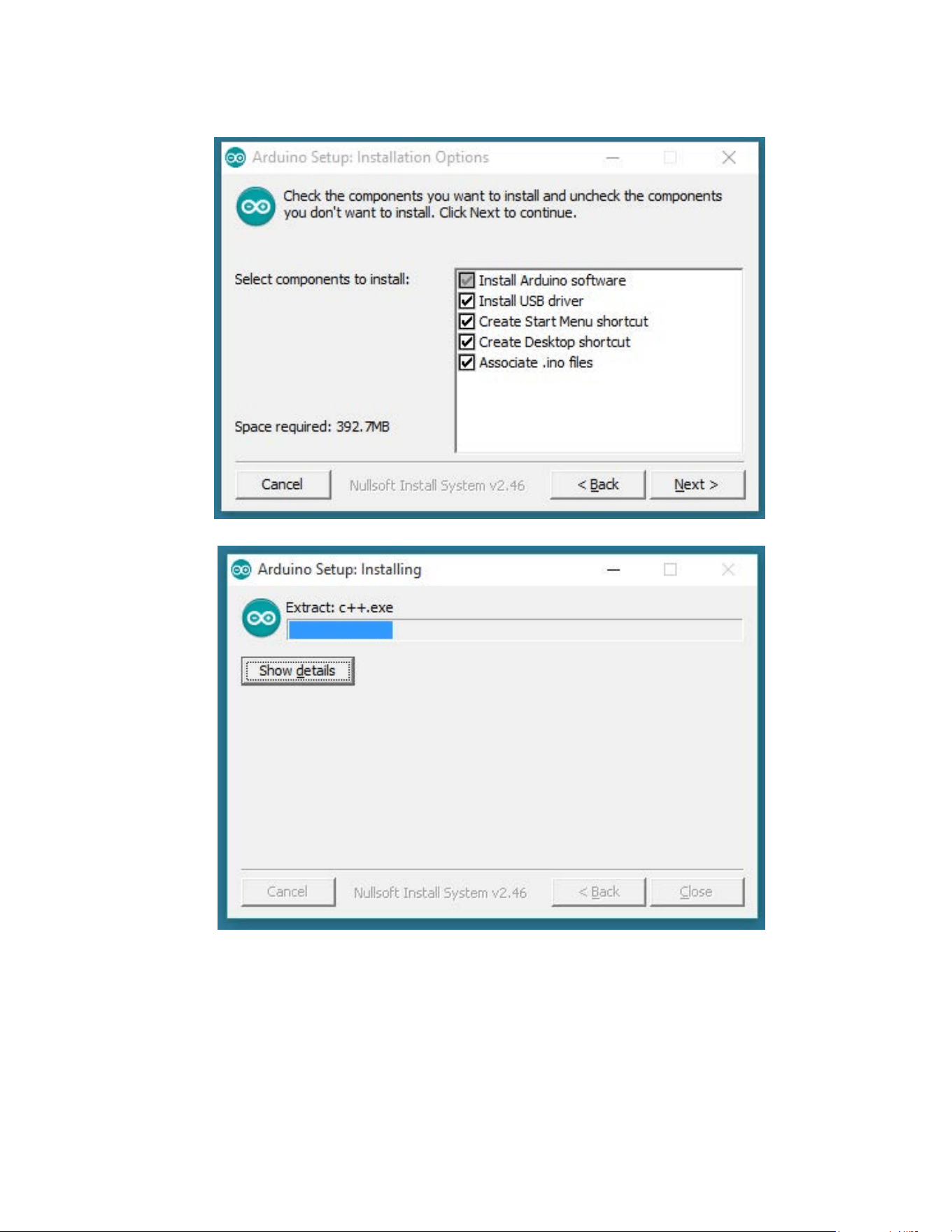

Wait for installation
!
3. Start a Project
3. Configure

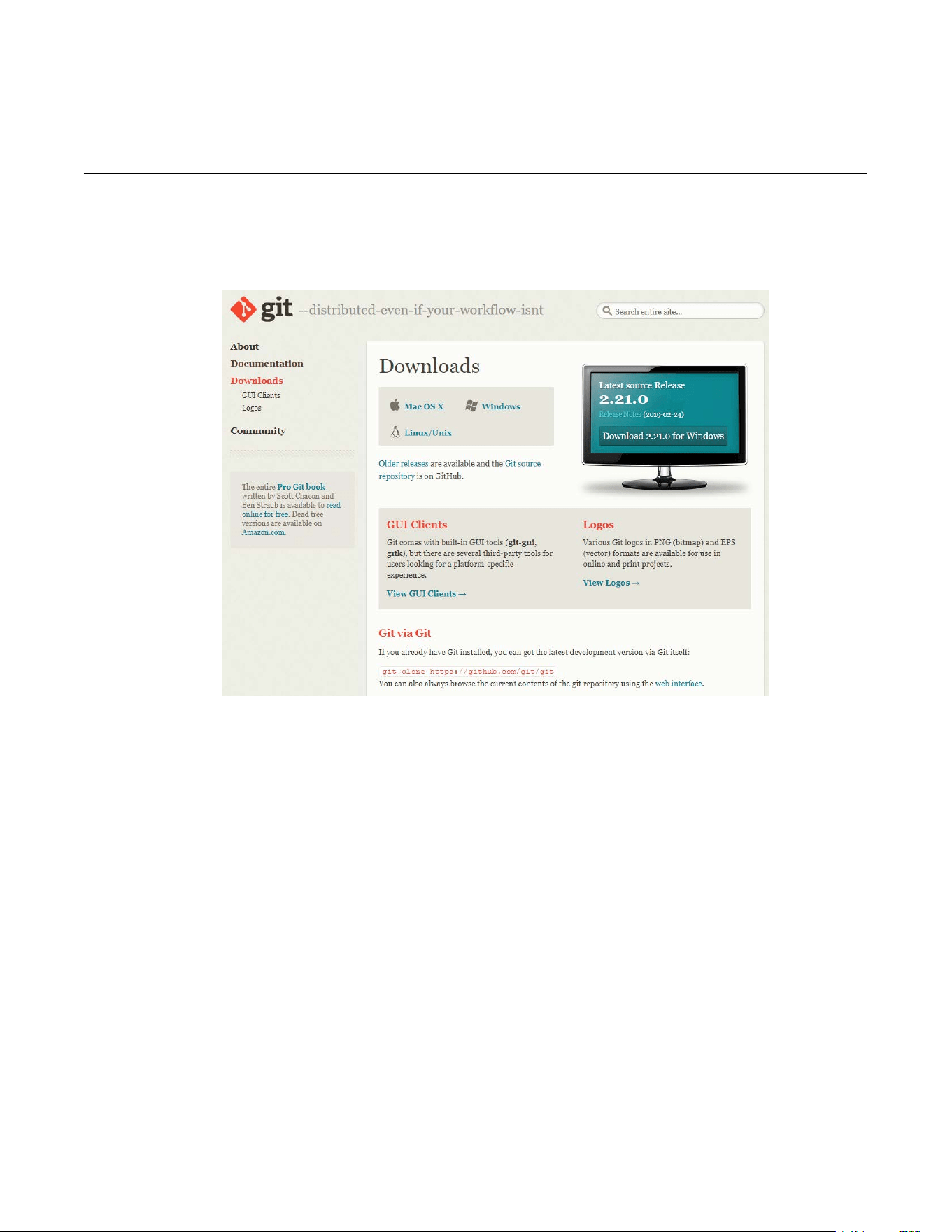

Download the installation package Git.exe
Xinyuan
! /124
2022.11
3.1. Download Git
3.2. Pre-build configuration
Click Arduino icon, then right click and select ``Open folder where ``
Select hardware ->
Mouse ** Right click ** ->
Click Git Bash Here
3.3. Cloning a remote repository
$ mkdir espressif
$ cd espressif
$ git clone --recursive https://github.com/espressif/arduino-esp32.git esp32
!
4. Connect
4. Connect
You are almost there. To be able to proceed further, connect ESP32-S3 board to PC,
check under what serial port the board is visible and verify if serial communication works.
Xinyuan
! /125
2022.11
!
4. Configure
5.
Test Demo
!
Xinyuan
! /126
2022.11

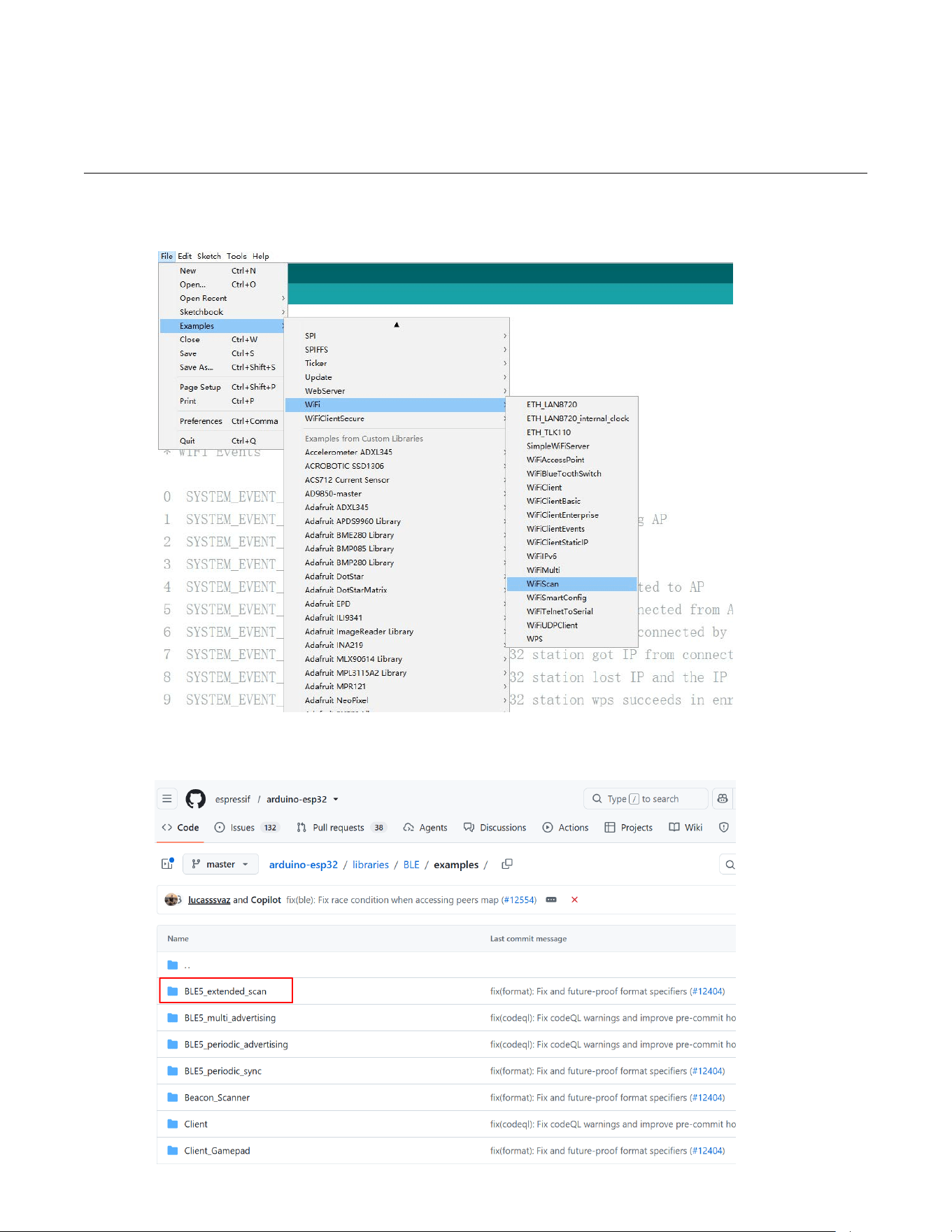

2. BLE Demo：https://github.com/espressif/arduino-esp32/tree/master/libraries/BLE/examples
1.Wi-Fi Demo：Select File>>Example>>WiFi>>WiFiScan
!
5. Build and Flash
6. Upload Sketch

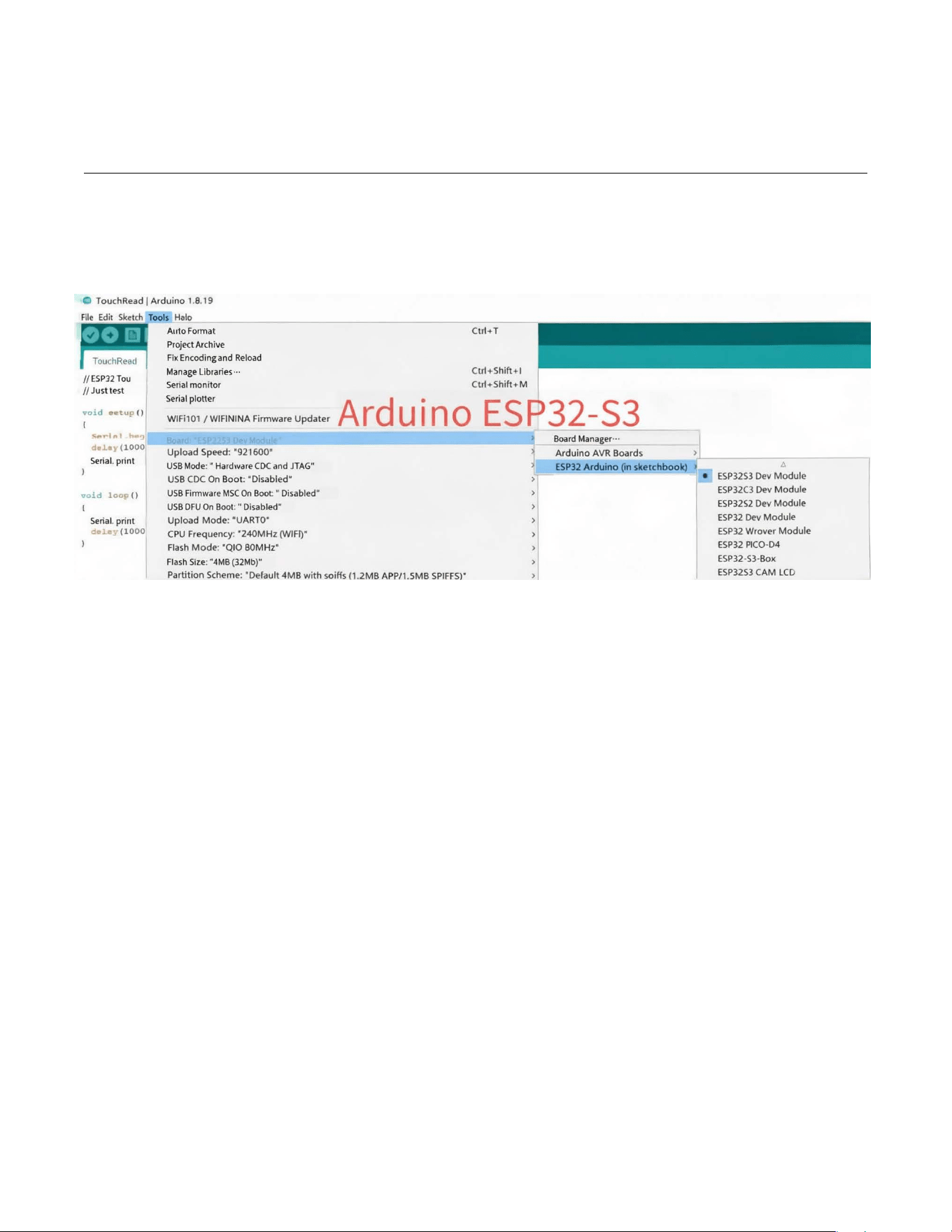

6.1. Select Board
Tools -> Board -> ESP32S3 Dev Module
Xinyuan
! /127
2022.11
6.2. Upload
Sketch -> Upload
!
5. Build and Flash

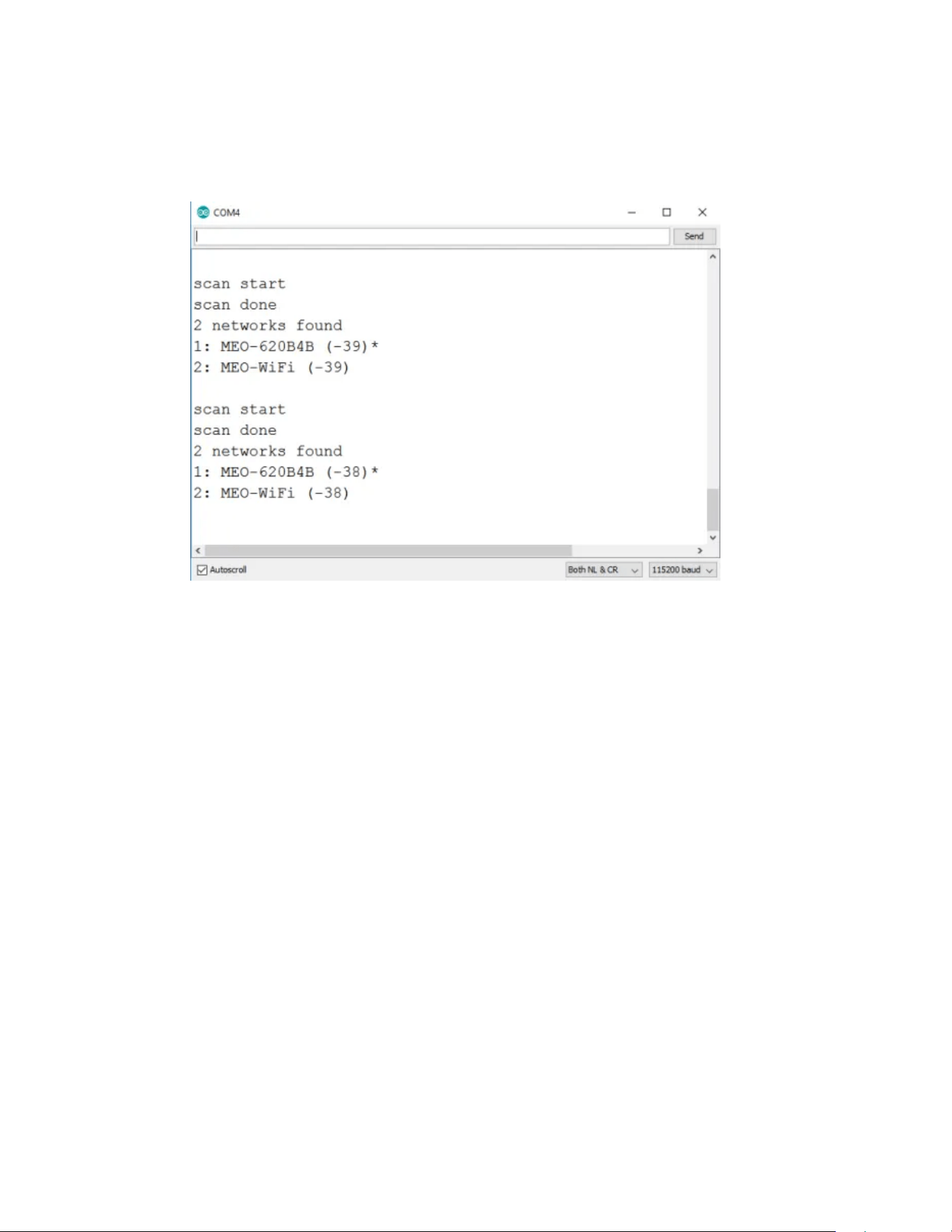

6.2. Serial Monitor
Tools ->Serial Monitor
Xinyuan
! /128
2022.11
!
6. SSC Command Reference
7. SSC Command Reference
Here lists some common Wi-Fi commands for you to test the module.
7.1. op
Description
op commands are used to set and query the Wi-Fi mode of the system.
Example
op-Q
op-S-owmode
Parameter
7.2. sta
Description
sta commands are used to scan the STA network interface, connect or disconnect AP, and
query the connecting status of STA network interface.
Example
sta-S[-sssid][-bbssid][-nchannel][-h]
sta-Q
sta-C[-sssid][-ppassword]
sta-D
Parameter
Table 6-1. op Command Parameter
Parameter
Description
-Q
Query Wi-Fi mode.
-S
Set Wi-Fi mode.
wmode
There are 3 Wi-Fi modes:
• mode = 1: STA mode
• mode = 2: AP mode
• mode = 3: STA+AP mode
Table 6-2. sta Command Parameter
Parameter
Description
-S scan
Scan Access Points.
Xinyuan
! /129
2022.11
!
6. SSC Command Reference
7.3. ap
Description
ap commands are used to set the parameter of AP network interface.
Example
ap-S[-sssid][-ppassword][-tencrypt][-nchannel][-h][-mmax_sta]
ap–Q
ap–L
Parameter
7.4. mac
Description
mac commands are used to query the MAC address of the network interface.
Example
mac-Q[-omode]
-s ssid
Scan or connect Access Points with the ssid.
-b bssid
Scan the Access Points with the bssid.
-n channel
Scan the channel.
-h
Show scan results with hidden ssid Access Points.
-Q
Show STA connect stutus.
-D
Disconnected with current Access Points.
Parameter
Description
Table 6-3. ap Command Parameter
Parameter
Description
-S
Set AP mode.
-s ssid
Set AP ssid.
-p password
Set AP password.
-t encrypt
Set AP encrypt mode.
-h
Hide ssid.
-m max_sta
Set AP max connections.
-Q
Show AP parameters.
-L
Show MAC Address and IP Address of the connected station.
Xinyuan
! /1210
2022.11
!
6. SSC Command Reference
Parameter
7.5. dhcp
Description
dhcp commands are used to enable or disable dhcp server/client.
Example
dchp-S[-omode]
dhcp-E[-omode]
dhcp-Q[-omode]
Parameter
7.6. ip
Description
ip command are used to set and query the IP address of the network interface.
Example
ip-Q[-omode]
ip-S[-iip][-omode][-mmask][-ggateway]
Table 6-4. mac Command Parameter
Parameter
Description
-Q
Show MAC address.
-o mode
• mode = 1: MAC address in STA mode.
• mode = 2: MAC address in AP mode.
Table 6-5. dhcp Command Parameter
Parameter
Description
-S
Start DHCP (Client/Server).
-E
End DHCP (Client/Server).
-Q
show DHCP status.
-o mode
• mode = 1 : DHCP client of STA interface.
• mode = 2 : DHCP server of AP interface.
• mode = 3 : both.
Xinyuan
! /1211
2022.11
!
6. SSC Command Reference
Parameter
7.7. reboot
Description
reboot command is used to reboot the board.
Example
reboot
7.8. ram
ram command is used to query the size of the remaining heap in the system.
Example
ram
Table 6-6. ip Command Parameter
Parameter
Description
-Q
Show IP address.
-o mode
• mode = 1 : IP address of interface STA.
• mode = 2 : IP address of interface AP.
• mode = 3 : both
-S
Set IP address.
-i ip
IP address.
-m mask
Subnet address mask.
-g gateway
Default gateway.
Xinyuan
! /1212
2022.11
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
