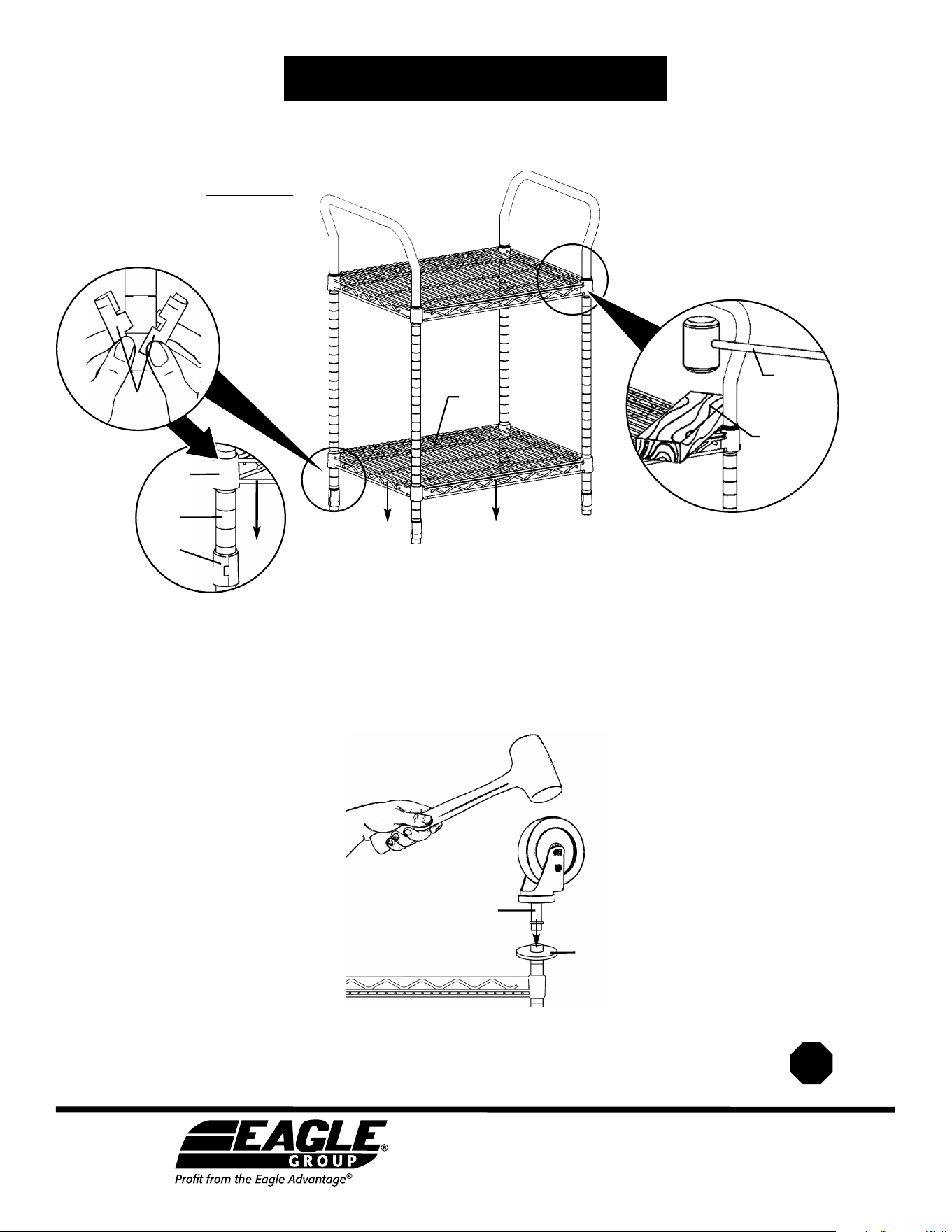

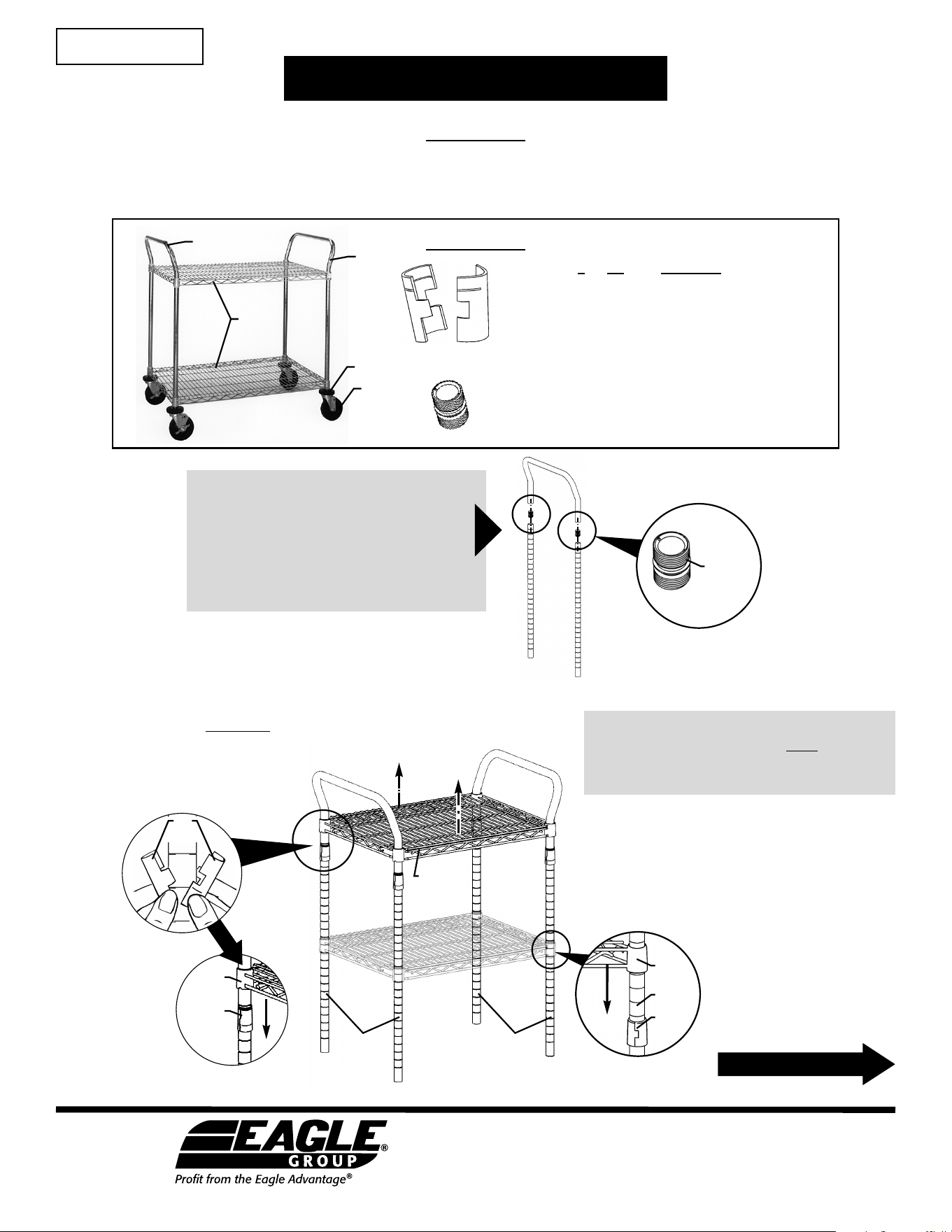

ASSEMBLY INSTRUCTIONS
Utility Cart
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG9830 Revised 04/24
Parts List
#2
#3
#4
#1
#1
* Quantity will vary per order.
** For carts with zinc or chrome finish only.
# qty description
#1 . . . 2 . . . . . “U” handle assembly
#2 . . . * . . . . . . wire shelves
#3 . . . 4 . . . . . donut bumpers
#4 . . . 4 . . . . . stem casters
#5 . . . * . . . . . . split sleeves (pack of four)
#6 . . . 4 . . . . . double-threaded bolt **
#5
top shelf
“U” handle
legs
“U” handle
legs
shelf
split
sleeve
Step 1 - Mount top shelf.
PLEASE READ BEFORE ASSEMBLY…
If your cart is plated in zinc or chrome, you
must assemble the “U”-handles PRIOR TO
cart assembly. Assemble as shown.
If your cart is stainless steel, skip this and
proceed to Step 1.
• Slide shelf toward top of “U” handle legs.
• Attach split sleeves to top groove of “U” handle legs (see figure
1a). The wider part of the taper goes toward the bottom.
• Slide shelf down onto split sleeves
(see figure 1b).
figure 1b
figure 2
split
sleeve
Step 2 - Mount mid shelf.
Before continuing, please note:
Step 2 pertains to carts with three shelves.
If your cart has only two shelves, skip Step 2
and proceed to Step 3.
split
sleeve
corner
collar
post
• Slide shelf toward top of “U” handle legs.
• Attach split sleeves (see figure 1a) to “U” handle
legs at desired height.
• Slide shelf down onto split sleeves (see figure 2 ).
double-
threaded
bolt
figure 1a
INSTRUCTION SHEET
#A201426
#6
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com
(continued on back page)
ASSEMBLY INSTRUCTIONS
Utility Cart
bottom
shelf
split
sleeve
corner
collar
post
split
sleeves
Step 3 - Mount bottom shelf.
• Slide shelf toward top of “U” handle legs.
• Attach split sleeves to bottom groove
of
“U” handle legs (see figure 3a).
• Slide shelf down onto split sleeves
(see figure 3b).
Step 4: Securely seat all shelves.
• On each shelf, lay a board diagonally
across the front and side wire shelf
trusses, and firmly seat shelf onto split
sleeves with a rubber mallet (see figure 4).
• Do NOT hammer directly on shelf.
• Repeat on remaining corners.
Tap with
rubber
mallet.
Place board
across shelf
corner.
figure 3a
figure 3b
figure 4
(End)
caster
stem
donut
bumper
• Place donut bumpers onto ends of “U” handle legs.
• Place caster stems into bottom of “U” handle legs and drive caster,
using a hammer or mallet (several solid blows are usually required).
Step 5 - Secure casters to unit.
Assembly is complete.
