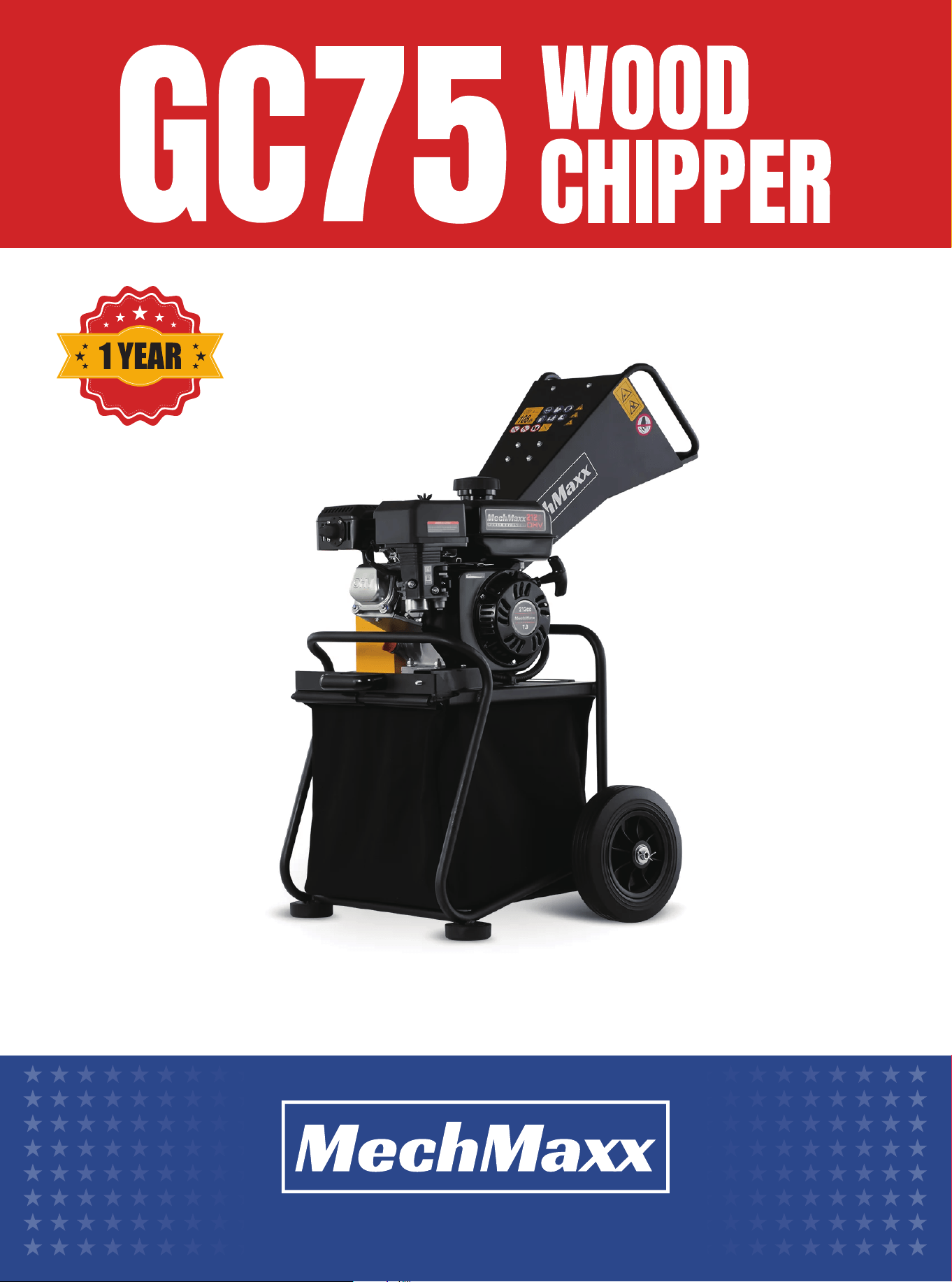

Wood Chipper
Enhanced design features come standard
Engineered for the best user experience
Quality metal parts are used instead of plastic
A robust warranty supports all products
OVERALL DIMENSIONS
Budget-friendly prices make it practical
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY SIGNS
SAFETY
1
2
2

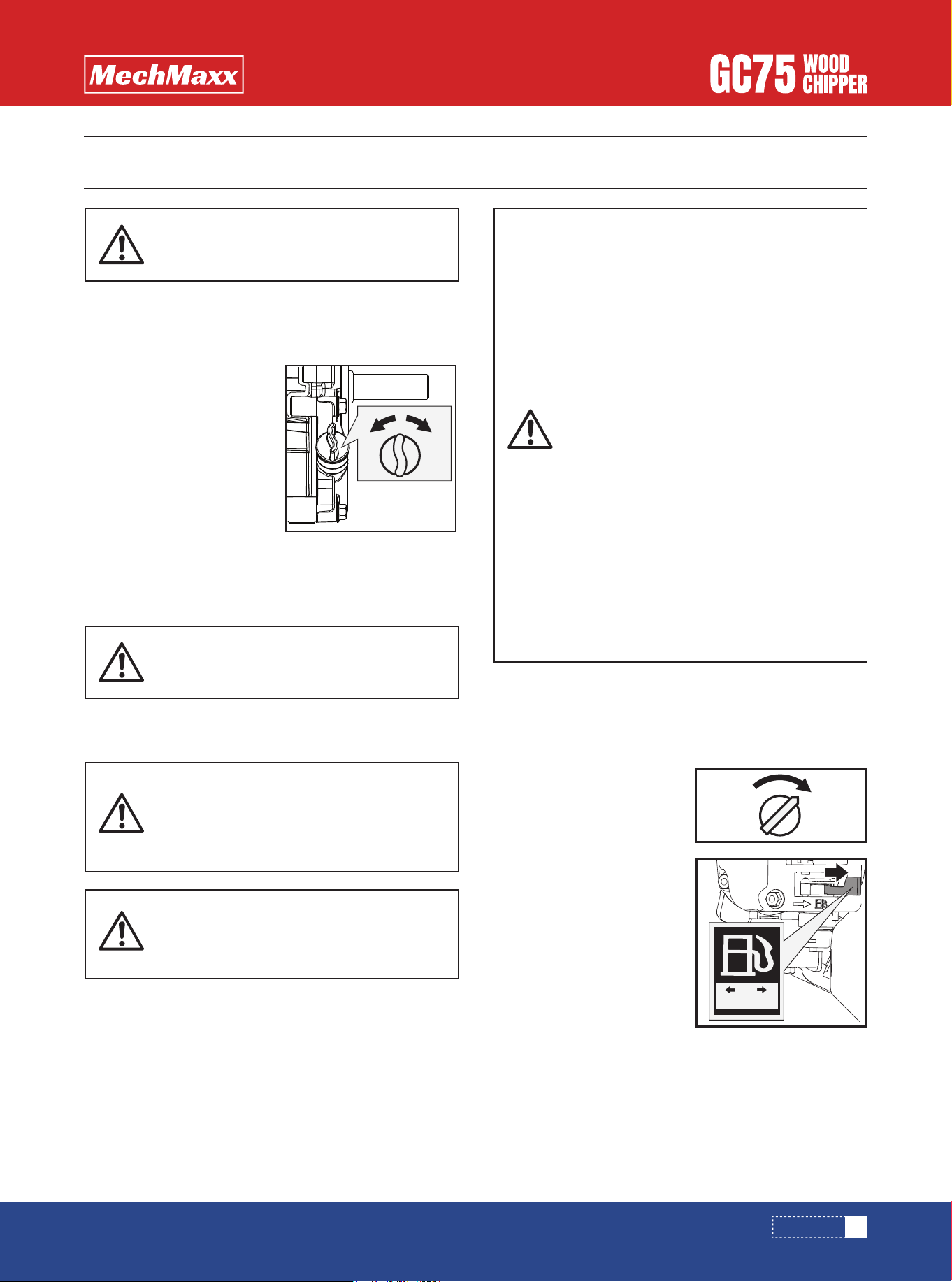

ADD OIL TO ENGINE
ADD GASOLINE TO ENGINE
15
15
STARTING ENGINE
15
OPERATING
16
IDLE SPEED
17
STOP ENGINE
17
PREVENTIVE MAINTENANCE
18
REGULAR MAINTENANCE CHECKLIST
18
KNIFE AND WEAR PLATE INSPECTION
19
KNIFE REMOVAL AND REPLACEMENT
19
GENERAL SAFETY RULES
PERSONAL SAFETY
INSPECT YOUR MACHINE
4
4
4
ENGINE SAFETY
5
FUEL SAFETY
5
SPECIFIC SAFETY RULES
5
PRIOR TO STARTING
5
OPERATION SAFETY
6
FEEDING MATERIALS
6
UNCLOGGING
6
MOVING
6
MACHINE USE AND CARE
6
MAINTAINING YOUR MACHINE 7
WHEEL AXLE
WHEELS
ENGINE
3
4
8
9
10
11
11
11
11
FEED HOPPER
GRIP HANDLES
COLLECTING BAG
12
12
12
UNPACHING THE CONTAINER
CONTENTS SUPPLIED
TO-SCALE HARDWARE
ASSEMBLY
13
KNOW YOUR MACHINE
15
OPERATION
17
TRANSPORTING
18
MAINTENANCE
20
STORAGE
21
TROUBLESHOOTING
Your new Wood Chipper offers quality construction, and
is easy and safe to operate. With proper use and care, it
is designed to give you many years of dependable
service.
Prepare to experience the durability to take on any job
with the ease, portability, and convenience of your new
Wood Chipper !
1
www. mechmaxx.com
TABLE OF CONTENTS
SPECIFICATIONS

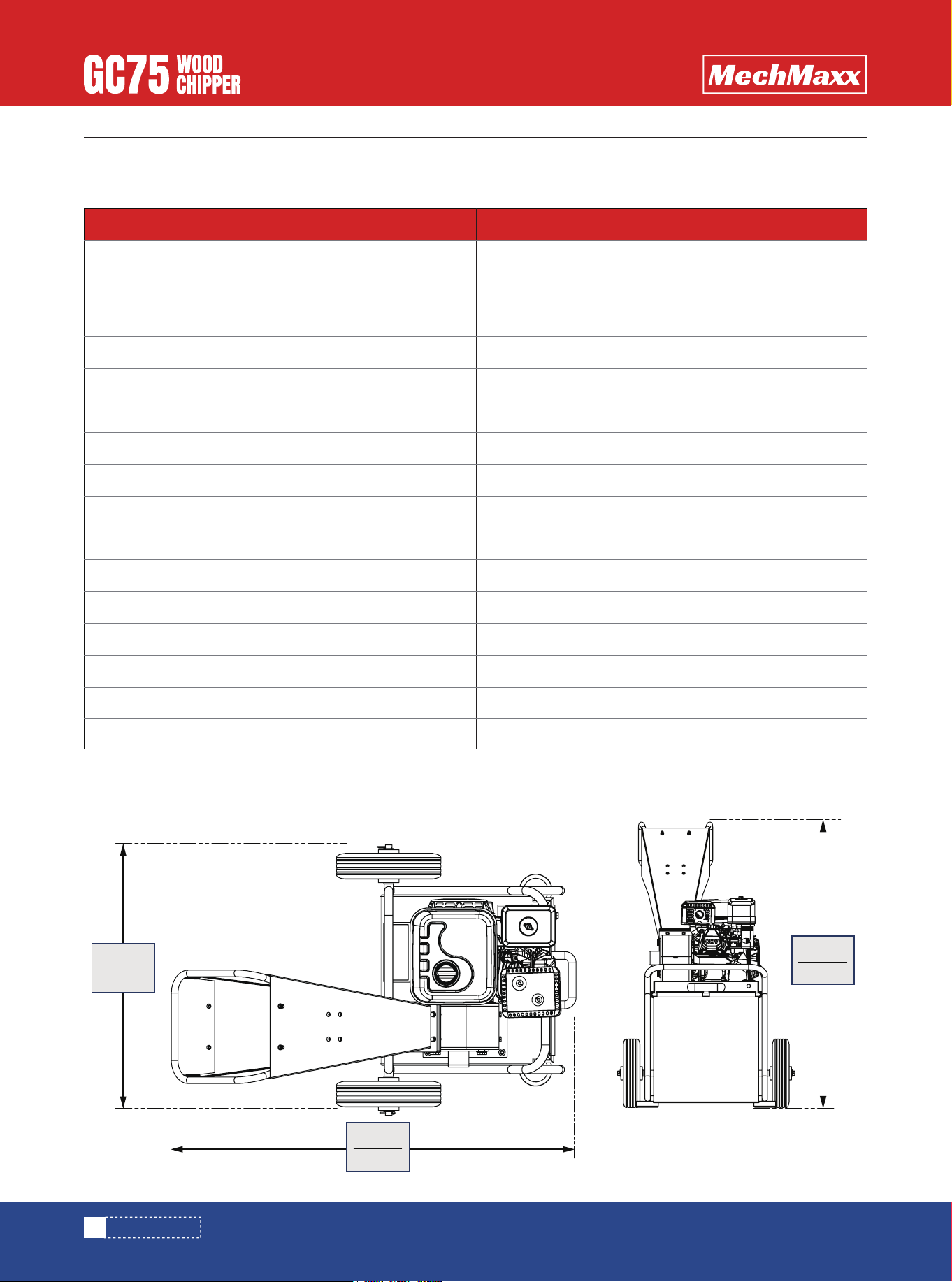

OVERALL DIMENSIONS
2
www. mechmaxx.com
SPECIFICATIONS
Engine
Model
Rato
GC75
Engine Type Single cylinder, 4 stroke, air-cooled, OHV
Engine Displacement
212cc
Horsepower
7hp
Chipping Dia.
Cutting method
Start
3 in
Drum
Recoil
Reduction ratio 20:1
Knives Nos. 2 x blade; 1 x anvil
Drive train Directly connecting roller
Discharge chute Collect bag 65L
Emergency stop Stop button
Wheel 10 in solid rubber
Weight (N.W./G.W.) 113/122 lbs
Package Method Carton
Packing Size 26*23*25 in
658mm
25.9”
1059mm
41.6”
983mm
38.7”
3
www. mechmaxx.com

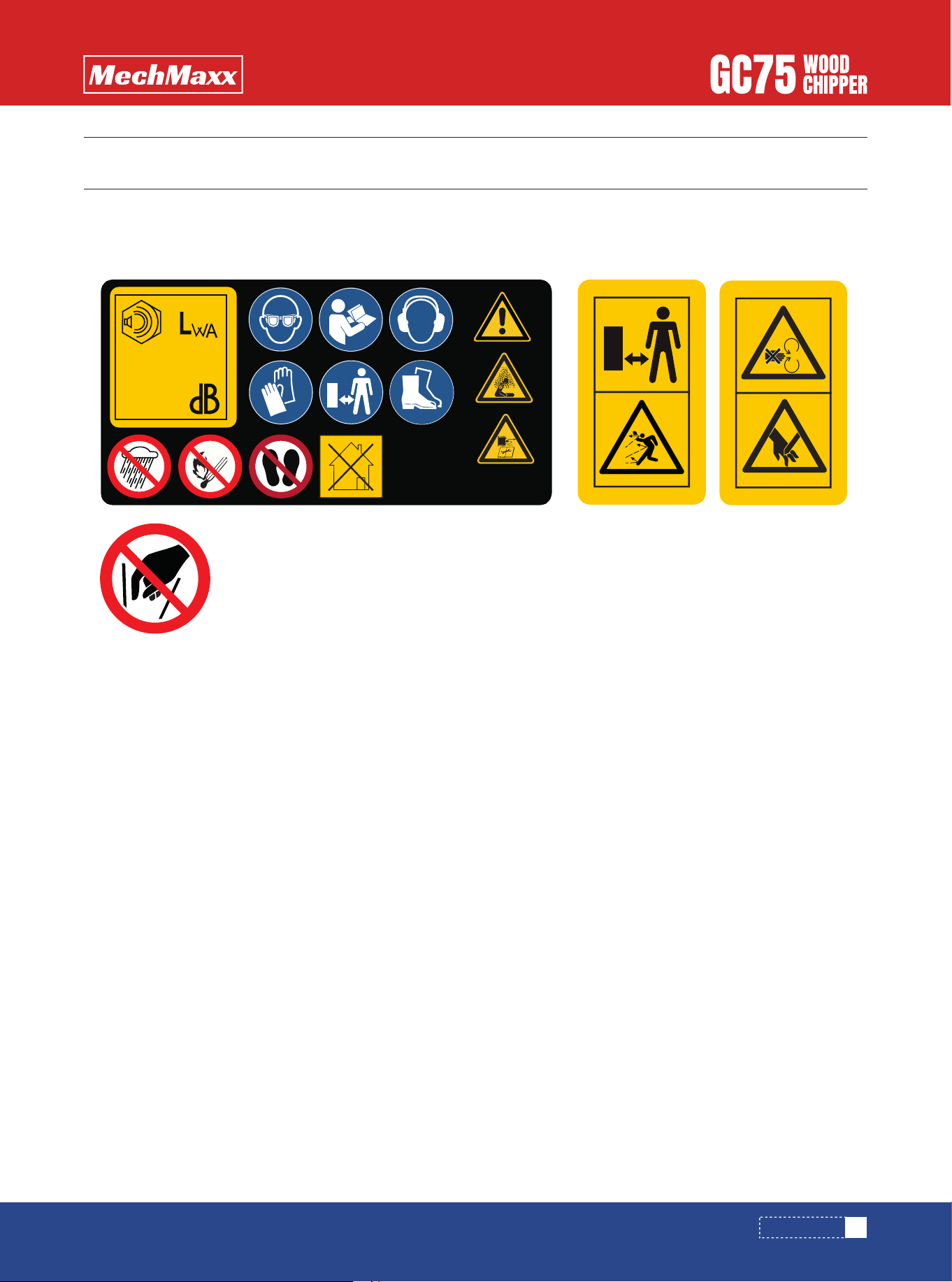

SAFETY SIGNS
The rating plate on your machine may show symbols. These represent important information about the product or instruc-
tions on its use.
SAFETY SIGNS
108
4
www. mechmaxx.com
GENERAL SAFETY RULES
SAFETY
SAFETY
Read this manual and labels affixed to the machine to
understand its limitations and potential hazards.
Always keep hands and feet away from all moving parts
during operation. Moving parts can cut or crush body
parts.
Do not touch parts that might be hot from operation.
Allow parts to cool before attempting to maintain, adjust,
or service.
Do not overreach. Do not operate the machine while
barefoot or when wearing sandals or similar lightweight
footwear. Wear protective footwear that will protect your
feet and improve your footing on slippery surfaces. Keep
proper footing and balance at all times. This enables
better control of the machine in unexpected situations.
Check your machine before starting it. Keep guards in
place and in working order. Make sure all nuts, bolts, etc.,
are securely tightened.
Never operate the machine when it is in need of repair or
is in poor mechanical condition. Replace damaged, miss-
ing, or failed parts before using it. Check for fuel leaks.
Keep the machine in safe working condition.
Do not use the machine if the engine's switch does not
turn it on or off. Any gasoline powered machine that can't
be controlled with the engine switch is dangerous and
must be replaced.
Regularly check to see that keys and adjusting wrenches
are removed from the machine area before starting it. A
wrench or a key that is left attached to a rotating part of
the machine may result in personal injury.
Avoid accidental starting. Be sure the engine's switch is
off before transporting the machine or performing any
maintenance or service on the unit. Transporting or
performing maintenance or service on a machine with its
switch on invites accidents.
If the machine should start to vibrate abnormally, stop
the engine (motor) and check immediately for the cause.
Vibration is generally a warning sign of trouble.
Stay alert, watch what you are doing, and use common
sense when operating the machine.
Always keep hands and feet away from all pinch points.
Be thoroughly familiar with the controls and their proper
operation. Know how to stop the machine and disengage
the controls quickly.
Make sure to read and understand all the instructions and
safety precautions as outlined in the Engine Manufactur-
er's manual packed separately with your unit. Do not
attempt to operate the machine until you fully understand
how to properly operate and maintain the engine and how
to avoid accidental injuries and/or property damage.
If the unit is to be used by someone other than original
purchaser or loaned, rented, or sold, always provide this
manual and any needed safety training before operation.
The user can prevent and is responsible for accidents or
injuries that may occur to themselves, other people, and
property.
Do not permit children to operate this machine at any
time.
Keep children, pets, and other people not using the unit
away from the work area. Be alert and shut off unit if
anyone enters work area. Keep children under the watch-
ful care of a responsible adult.
Do not operate the machine while under the influence of
drugs, alcohol, or any medication that could affect your
ability to use it properly.
Dress properly. Wear heavy long pants, boots, and gloves.
Do not wear loose clothing, short pants, or jewelry of any
kind. Secure long hair so it is above shoulder level. Keep
your hair, clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught in
moving parts.
Protect eyes, face, and head from objects that may be
thrown from the unit. Always wear safety goggles or
safety glasses with side shields when operating.
Do not force the machine. Use the correct machine for
your application. The correct machine will do the job more
efficiently and safer at the rate it was designed.
Wear appropriate hearing protection.
PERSONAL SAFETY
INSPECT YOUR MACHINE
5
www. mechmaxx.com
SAFETY
This machine is equipped with an internal combustion
engine. Do not use on or near any unimproved, forest
covered, or brush covered land unless the exhaust system
is equipped with a spark arrester meeting applicable
local, state, or federal laws.
Never start or run the engine inside a closed area. The
exhaust fumes are dangerous, containing carbon monox-
ide, an odorless and deadly gas. Operate this unit only in a
well-ventilated outdoor area.
Do not tamper with the engine to run it at excessive
speeds. The maximum engine speed is preset by the
manufacturer and is within safety limits. See engine
manual.
Keep a Class B fire extinguisher on hand when operating
this Wood chipper in dry areas as a precautionary
measure.
Fuel is highly flammable, and its vapors can explode if
ignited. Take precautions when using to reduce the
chance of serious personal injury.
When refilling or draining the fuel tank, use an approved
fuel storage container while in a clean, well-ventilated
outdoor area. Do not smoke, or allow sparks, open flames,
or other sources of ignition near the area while adding fuel
or operating the unit. Never fill the fuel tank indoors.
Keep grounded conductive objects, such as tools, away
from exposed, live electrical parts and connections to
avoid sparking or arcing. These events could ignite fumes
or vapors.
Always stop the engine and allow it to cool before filling
the fuel tank. Never remove the cap of the fuel tank or
add fuel while the engine is running or when the engine is
hot. Do not operate the machine with known leaks in the
fuel system.
Never overfill the fuel tank. Fill the tank to no more than
1/2" below the bottom of the filler neck to provide space
for expansion as the heat of the engine can cause fuel to
expand.
Replace all fuel tank and container caps securely and
wipe up spilled fuel. Never operate the unit without the
fuel cap securely in place.
Loosen the fuel tank cap slowly to relieve any pressure in
the tank.
Avoid creating a source of ignition for spilled fuel. If fuel
is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating
any source of ignition until fuel vapors have dissipated.
When fuel is spilled on yourself or your clothes, wash your
skin and change clothes immediately.
Store fuel in containers specifically designed and
approved for this purpose.
Store fuel in a cool, well-ventilated area, safely away from
sparks, open flames, or other sources of ignition.
Never store fuel or a machine with fuel in the tank inside
a building where fumes may reach a spark, open flame, or
any other source of ignition, such as a water heater,
furnace, or clothes dryer. Allow the engine to cool before
storing in any enclosure.
Identify hazards and take preventive steps to avoid
accidents and minimize risk. Possible hazards include,
but are not limited to, moving parts, thrown objects,
weight of the machine and components, and the operat-
ing environment.
Thoroughly inspect the area in which you are working,
keeping it clean and free of debris to prevent tripping.
Operate on a flat level ground.
Before starting your chipper shredder: make sure the feed
hopper and cutting housing are empty and free of all
debris, check the oil level, make sure all nuts and bolts
are tight, and check the air pressure in the tires.
Never place any part of your body where it would be in
danger if movement should occur during assembly, instal-
lation, operation, maintenance, repair, or moving.
Never place your hands, feet, or any part of your body in
the chipper hopper, discharge opening, or near or under
any moving part while the machine is running. Keep the
area of discharge clear of people, animals, buildings,
glass, or anything else that will obstruct clear discharge,
causing injury or damage. Wind can also change
discharge direction, so be aware. If it becomes necessary
to push materials to the chipper hopper, use a small-di-
ameter stick, not your hands.
Keep all bystanders and pets at least 75 feet away. If you
are approached, stop the unit immediately.
ENGINE SAFETY
FUEL SAFETY
SPECIFIC SAFETY RULES
PRIOR TO STARTING
OPERATION SAFETY
6
www. mechmaxx.com
SAFETY
Keep your face and body back from the chipper hopper and
discharge chute to avoid injury from accidental bounce
back of material.
Feed only clean materials into the machine. Foreign
matter such as soil, sand, grit, stones, pieces of
metal,etc. will damage the sharp edge of the cutting
knives. Root balls and dead wood will also dull the blades
quickly
Avoid feeding pine needles, flax and cabbage tree leaves
into the machine; these stringy materials can wrap
around the rotor shaft and work their way into the bearing.
Avoid feeding short, stubby pieces of wood into the
machine; they tend to bounce and spin in the feed
hopper.Feed these short pieces together with longer
pieces. After becoming familiar with the machine,prune to
suit its capabilities.
This machine is self-feeding, do not force branches into
the blades.Allow the machine to automatically feed
through.Allow time for the machine to reach the highest
spinning revolutions before feeding the next load of
branches.
Never allow processed material to build up in the
discharge area.This can prevent proper discharge and
result in kickback from the chipper hopper.
Never attempt to unclog either the feed hopper or
discharge chute while the engine is running.Immediately
shut off the engine,allow the cutting disk to come to a
complete stop, and then remove the clogged material.
Inspect for damage and check for any loose parts for
repair or replacement.
Whenever you leave the operating position or if you have
to remove processed material, leaves, or debris from the
machine, always shut down the engine, and ensure the
engine is switched to"off" to prevent accidental starting,
and wait for all moving parts to come to a complete stop.
Before opening the cutting roller housing,always make
sure the engine is switched off,the cutting roller is at a
complete standstill.
Move the machine at least 10 feet away from the refuel-
ing point before starting engine.
This chipper shredder is for movement by hand only. Never
attempt to tow the machine on public highways, roads,or
thoroughfares.
Position the machine in such a way that it can not move
during maintenance,cleaning, adjustment, assembly of
accessories or spare parts,as well as under storage
Do not force the machine.Use the correct machine for
your application. The correct machine will do the job
better and safer at the rate for which it is designed.
Do not change the engine governor settings or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
Do not run the engine at a high speed when youare not
working.
Always stop the engine before moving the machine, and
watch out for sharp objects that could pierce the tires.
Never reach with your hands inside the feed hopper past
the rubber flap while operating the machine.
Keep combustible substances away from the engine
when it is hot.
Do not tilt the machine while the engine is running
Never operate this machine without the feed hopper or
discharge chute properly attached.

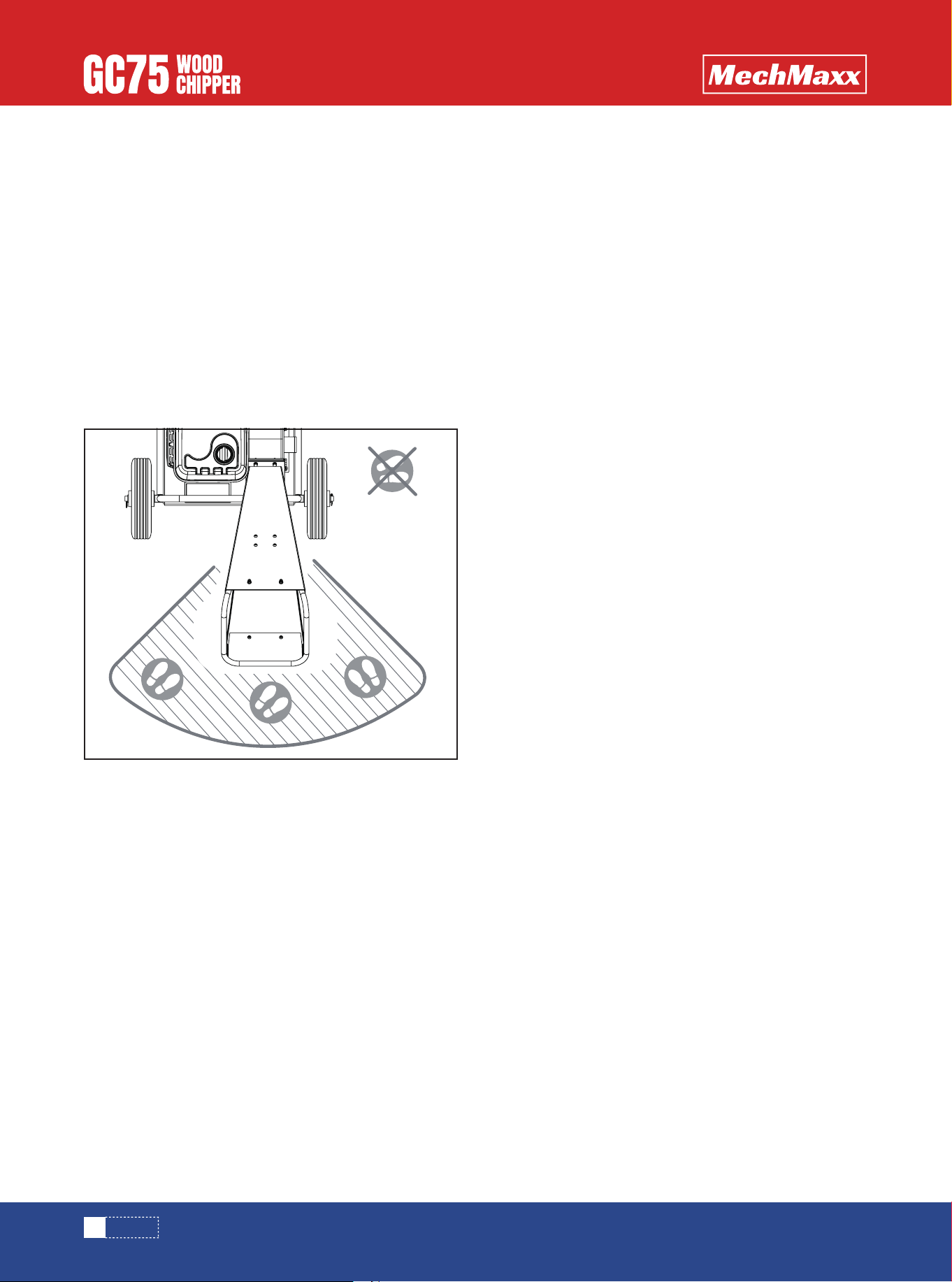

OPERATING ZONE
FEEDING MATERIALS
UNCLOGGING
MOVING
MACHINE USE AND CARE
7
www. mechmaxx.com
SAFETY
This machine has two rotating cutting knives capable of
amputating hands and feet and throwing objects.Keep
hands and feet out of openings while machine is running.
Failure to observe these safety instructions could result
in serious injury or death.
Avoid contact with hot fuel, oil, exhaust fumes and hot
surfaces.Do not touch the engine or muffler.These parts
get extremely hot from operation. They remain hot for a
short time after you turn off the unit.Allow the engine to
cool before doing maintenance or making adjustments.
If the machine should start to make an unusual noise or
vibration,immediately shut off the engine, disconnect the
spark plug wire,and check for the cause.Unusual noise or
vibration is generally a warning of trouble.
Keep the engine and muffler free of grass, leaves,exces-
sive grease or carbon build up to reduce the chance of a
fire hazard.
Never douse or squirt the unit with water or any other
liquid.Keep handles dry,clean and free from debris. Clean
after each use.
When storing machine out of the reach of children and do
not allow persons unfamiliar with the machine or these
instructions to operate it. This machine can be dangerous
when used by an untrained user.
Some parts of this machine are made of plastic or rubber
and should be kept away from chemicals.
Do not alter or adjust any part of the chipper shredder or
its engine that is sealed by the manufacturer or distribu-
tor. Only a qualified service technician may adjust parts
that increase or decrease governed engine speed.
To maintain your machine,check for any misalignment or
binding of any moving parts. Parts that are broken or worn
down that may affect the machine's operation.If damage
or worn parts are identify, they should be repaired before
use. Many accidents are caused by poorly maintained
equipment.
Never cover the machine while the muffler is still hot.
Observe proper disposal laws and regulations for
gas,oil,etc. to protect the environment.
Use only attachments and accessories approved by the
manufacturer. Failure to do so can result in personal
injury.
Do not put hands or feet near rotating parts.
MAINTAINING YOUR MACHINE
8
www. mechmaxx.com

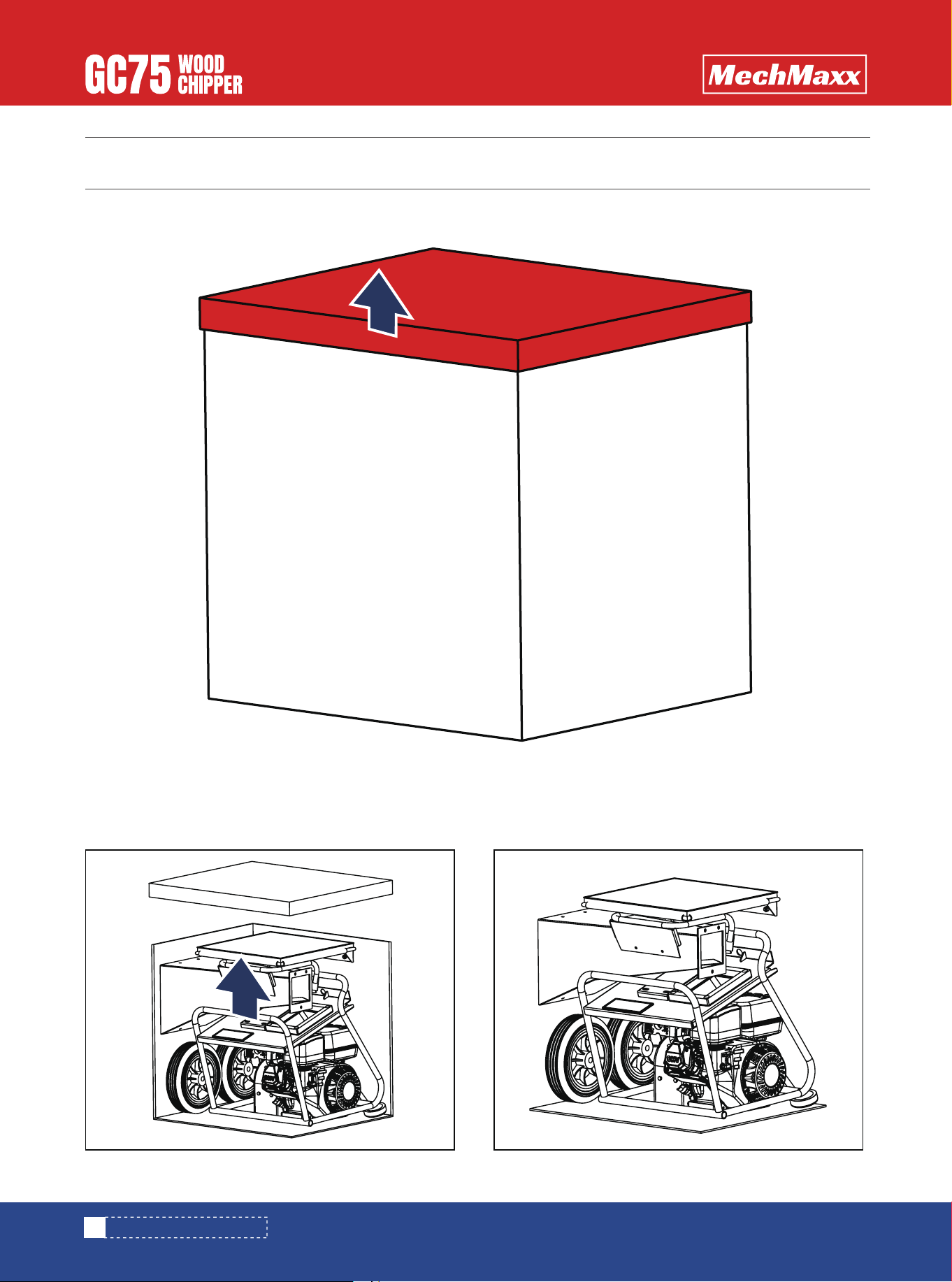

UNPACHING THE CONTAINER
Use scissors or a knife to cut and remove the straps. Remove the cover in the top. At least two people hold up the pack-
age and move it from the top.
UNPACHING THE CONTAINER
9
www. mechmaxx.com
CONTENTS SUPPLIED
CONTENTS SUPPLIED

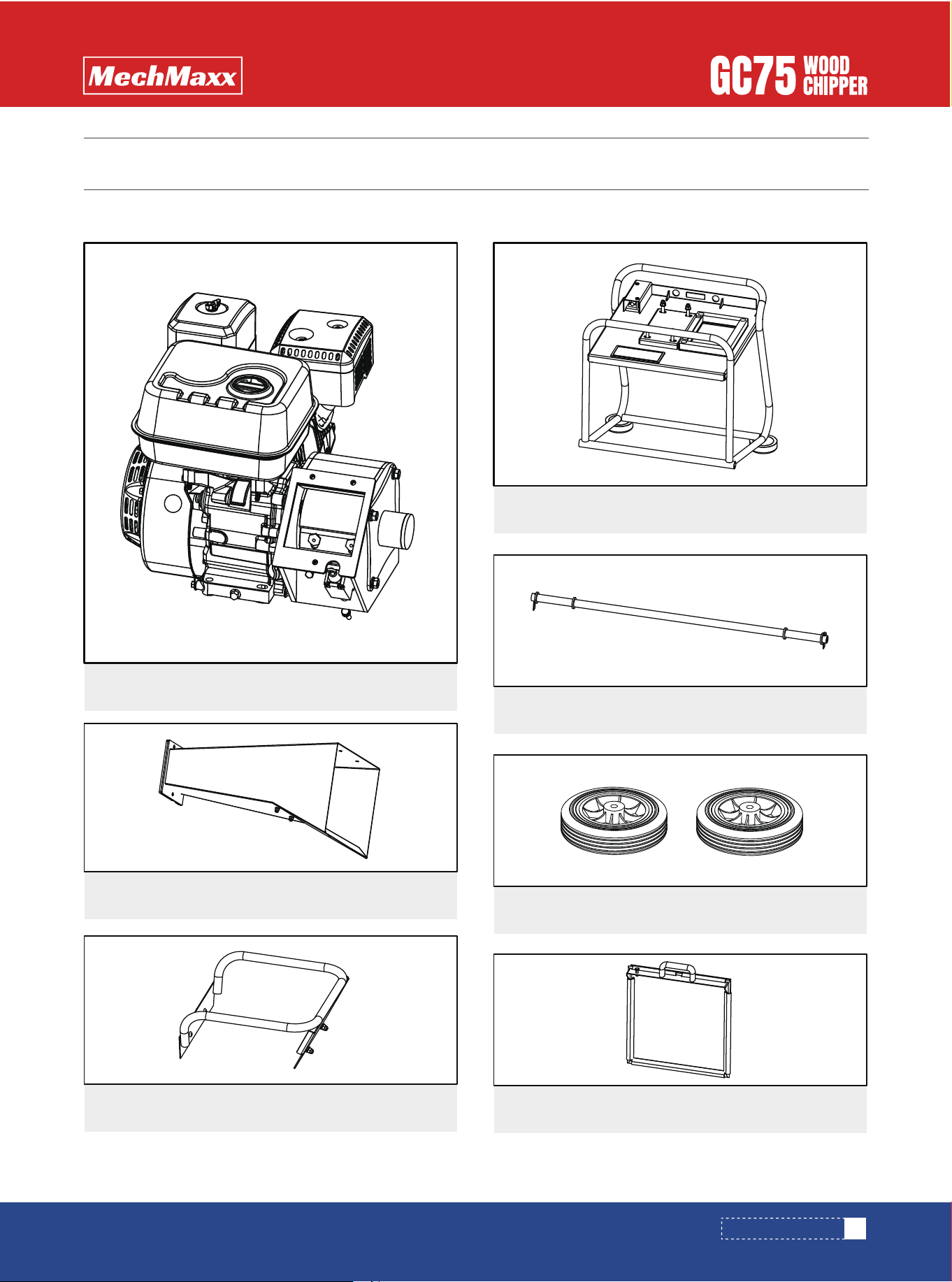

Your Wood chipper comes partially assembled and contains the following:
Verify all component and hardware quantities are correct prior to assembling the Wood chipper.
Engine 1x
1x
1x
1x
Base Frame
Grip Handles
Wheel axle
1x
Feed Hopper
1x
Wheels
1x
Collecting Bag
TO-SCALE HARDWARE
TO-SCALE HARDWARE
10
www. mechmaxx.com

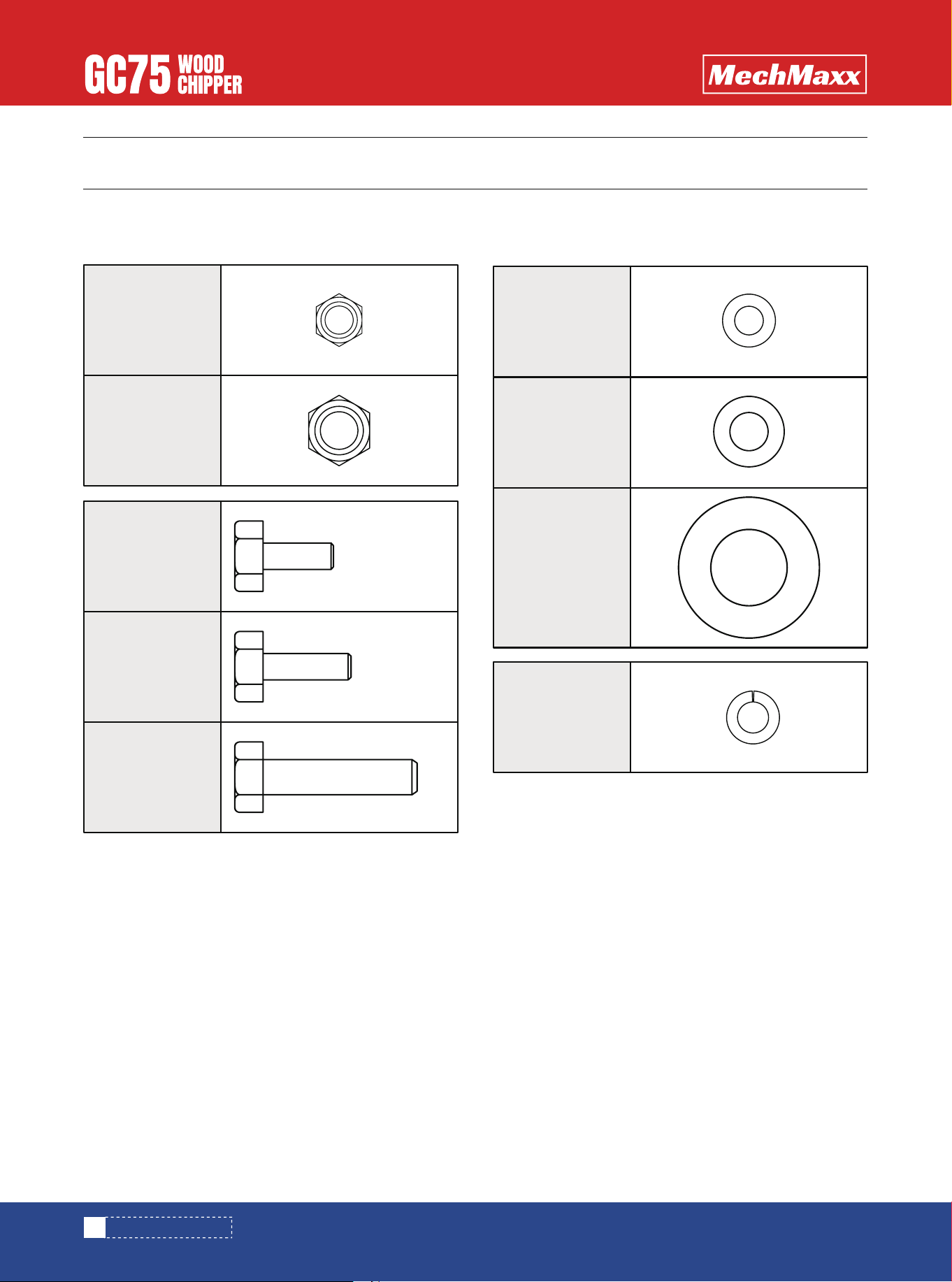

Hardware graphics are printed at 1:1 scale for ease of identification. Simply place the hardware over the image in the
tables to verify it is the correct size.
M8 X 35mm
Hex bolt
4X
M6 X 20mm
Hex bolt
3X
M6 X 16mm
Hex bolt
4X
8
Flat washer
4X
6
Flat washer
7X
16
Flat washer
4X
6
Spring washer
3X
4X
nut M6
Hex lock
4X
nut M8
Hex lock
ASSEMBLY
ASSEMBLY

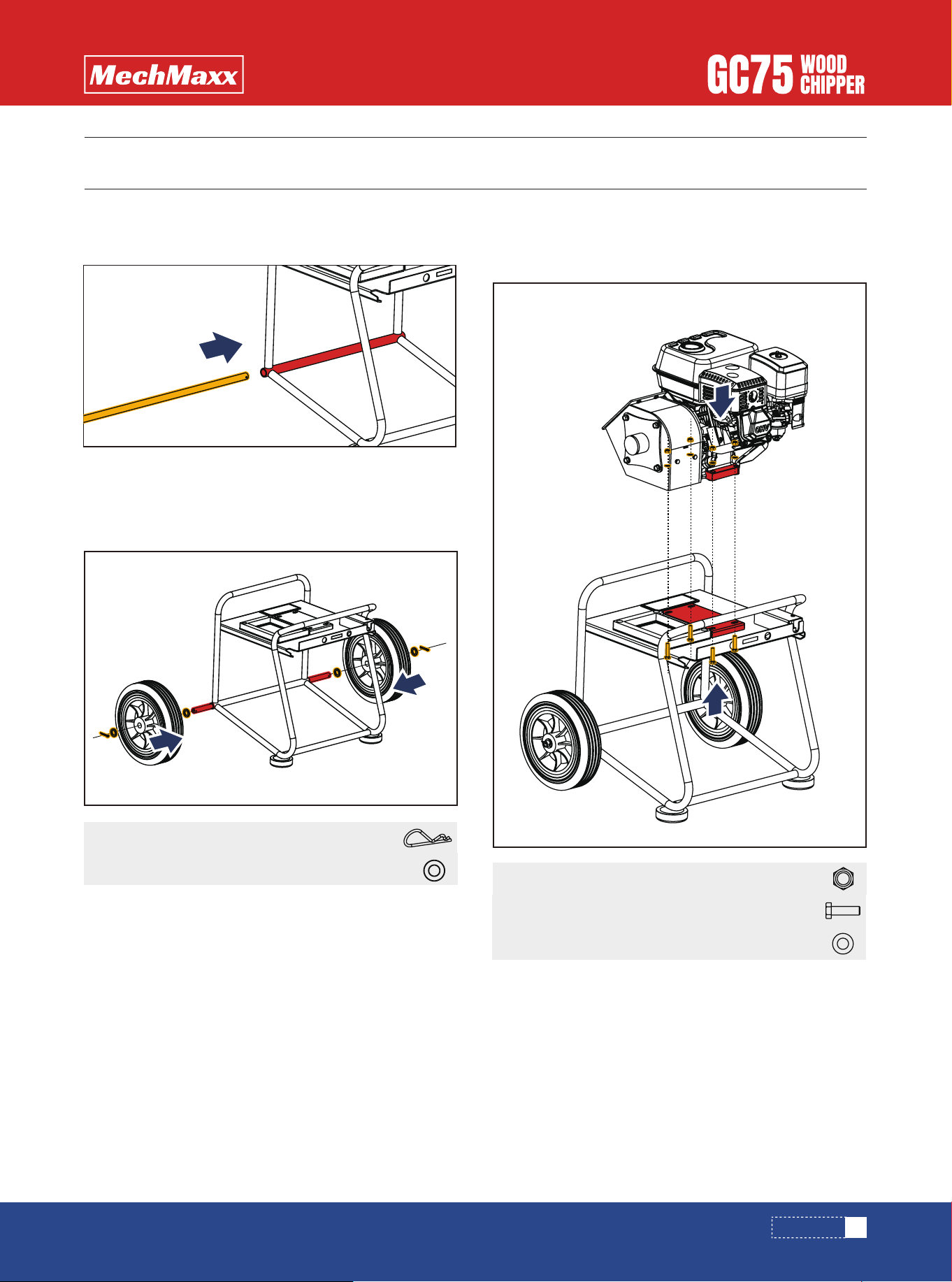

Install the Wheel axle into the base frame.(See Figure 1)
Install the Engine on the Base Frame using M8x35 hex
bolt,M8 Hex Bolt and Flat Washer 8.(See Figure 3)
11
www. mechmaxx.com
Flat washer 16
4X
Hex bolt M8 X 35mm
Split Pin2X
Flat washer 8
4X
4X
Hex lock nut M84X
Wheels
Attach the wheels to the wheel axle using Dome Cap,Split
Pin and Φ16 Flat Washer.(See Figure 2)
Figure 1
Figure 2
Figure 3
Wheel axle
Engine
12
www. mechmaxx.com

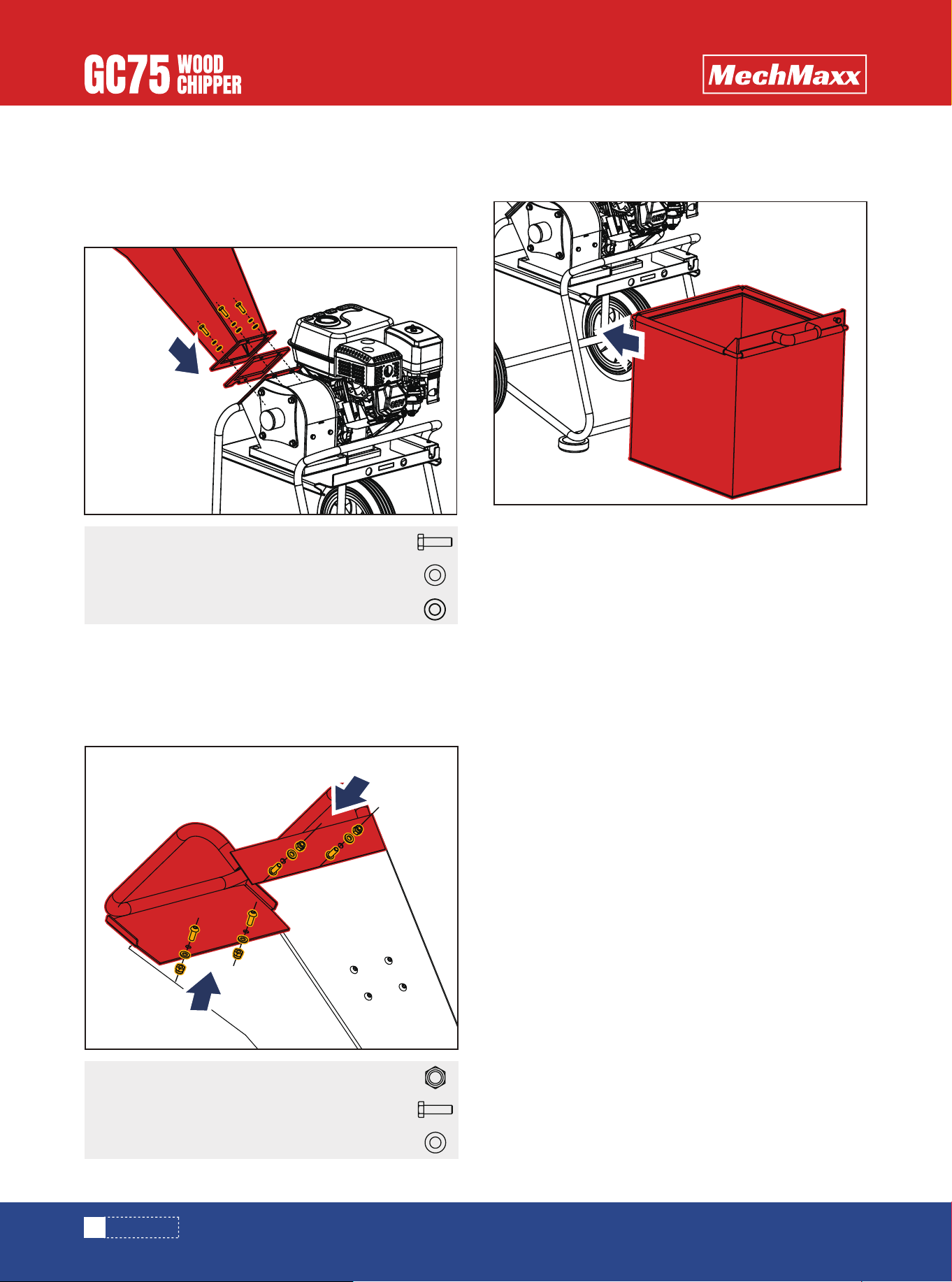

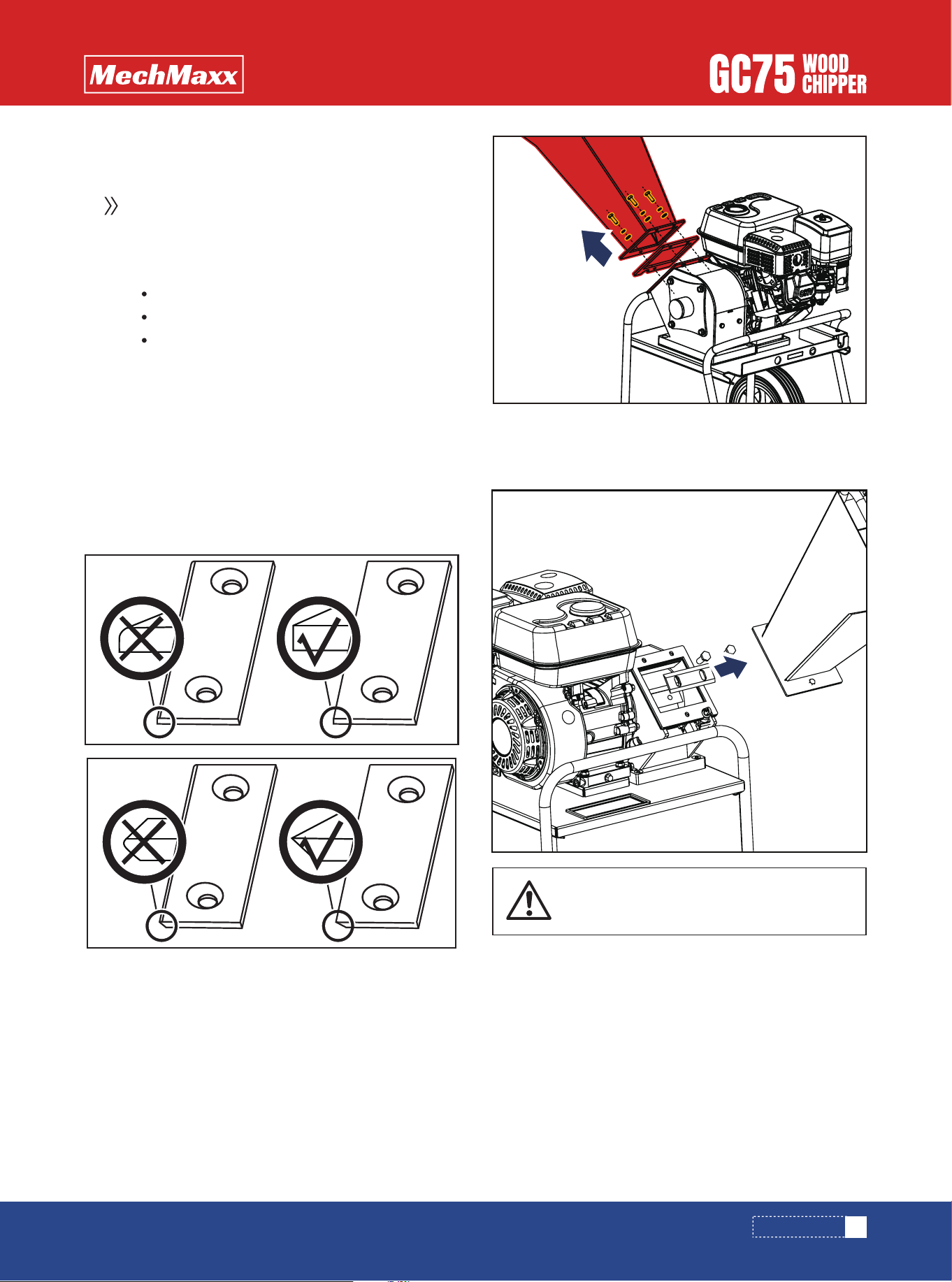

Attach the Feed Hopper to the Drum Housing using the
M6x20 Hex Bolt, Spring Washer 6 and Flat Washer 6.
(See Figure 4)
ASSEMBLY
Install the Grip Handles on the Feed Hopper using the
M6x16 hex Bolt, Hex lock nut M6, and Flat Washer 6. (See
Figure 5)
Spring washer 6
3X
Hex bolt M6 X 20mm
Flat washer 6
3X
3X
Hex lock nut M64X
Hex bolt M6 X 16mm
Flat washer 6
4X
4X
Feed Hopper
Figure 4
Figure 6
Figure 5
Grip Handles
Collecting Bag
Place the Collecting Bag into the Base Frame.(See Figure 6)
13
www. mechmaxx.com

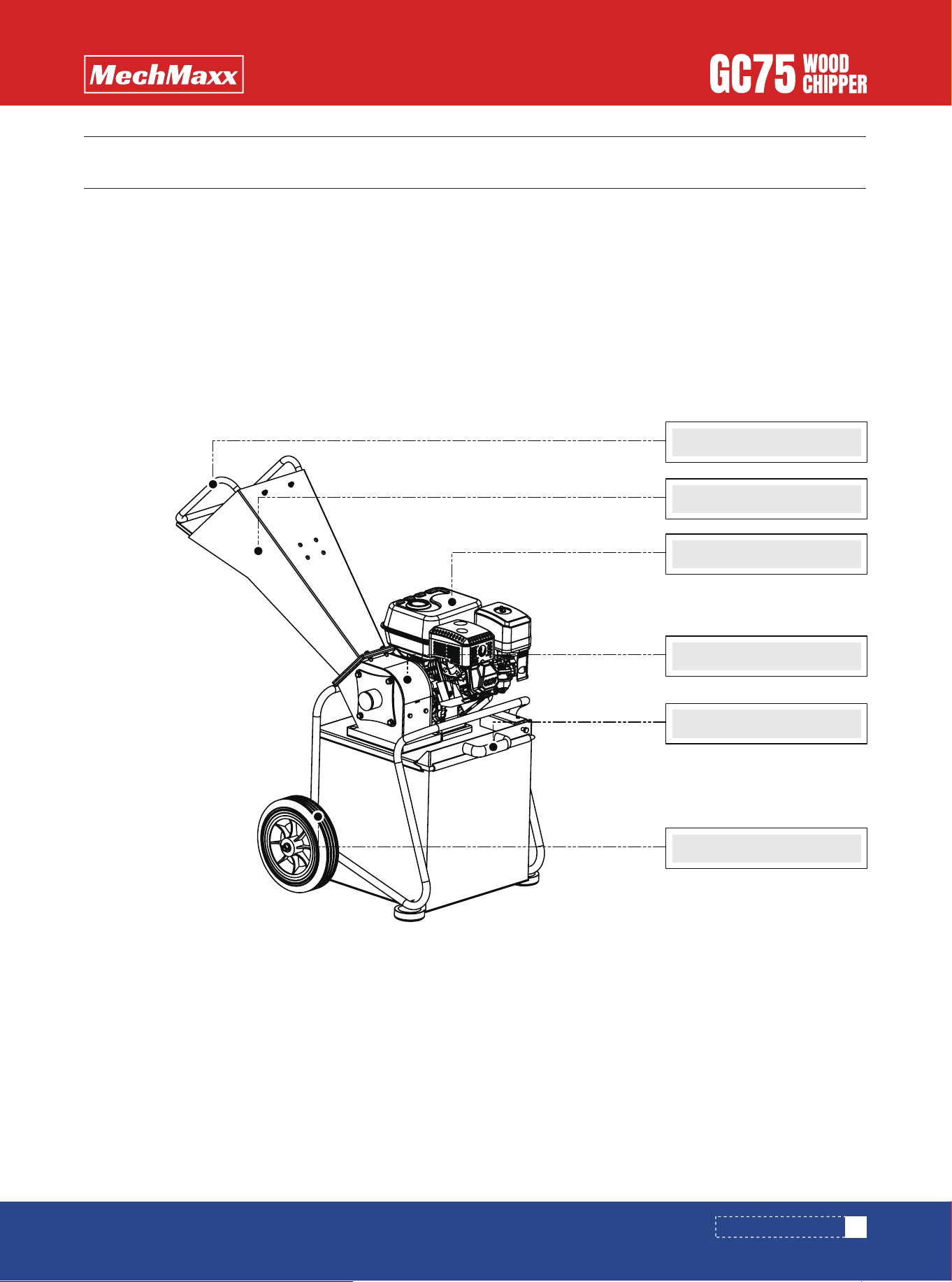

KNOW YOUR MACHINE
KNOW YOUR MACHINE
Engine
Wheels
Grip Handles
Feed Hopper
Collecting Bag
Blade Housing
KNOW YOUR MACHINE
14
www. mechmaxx.com

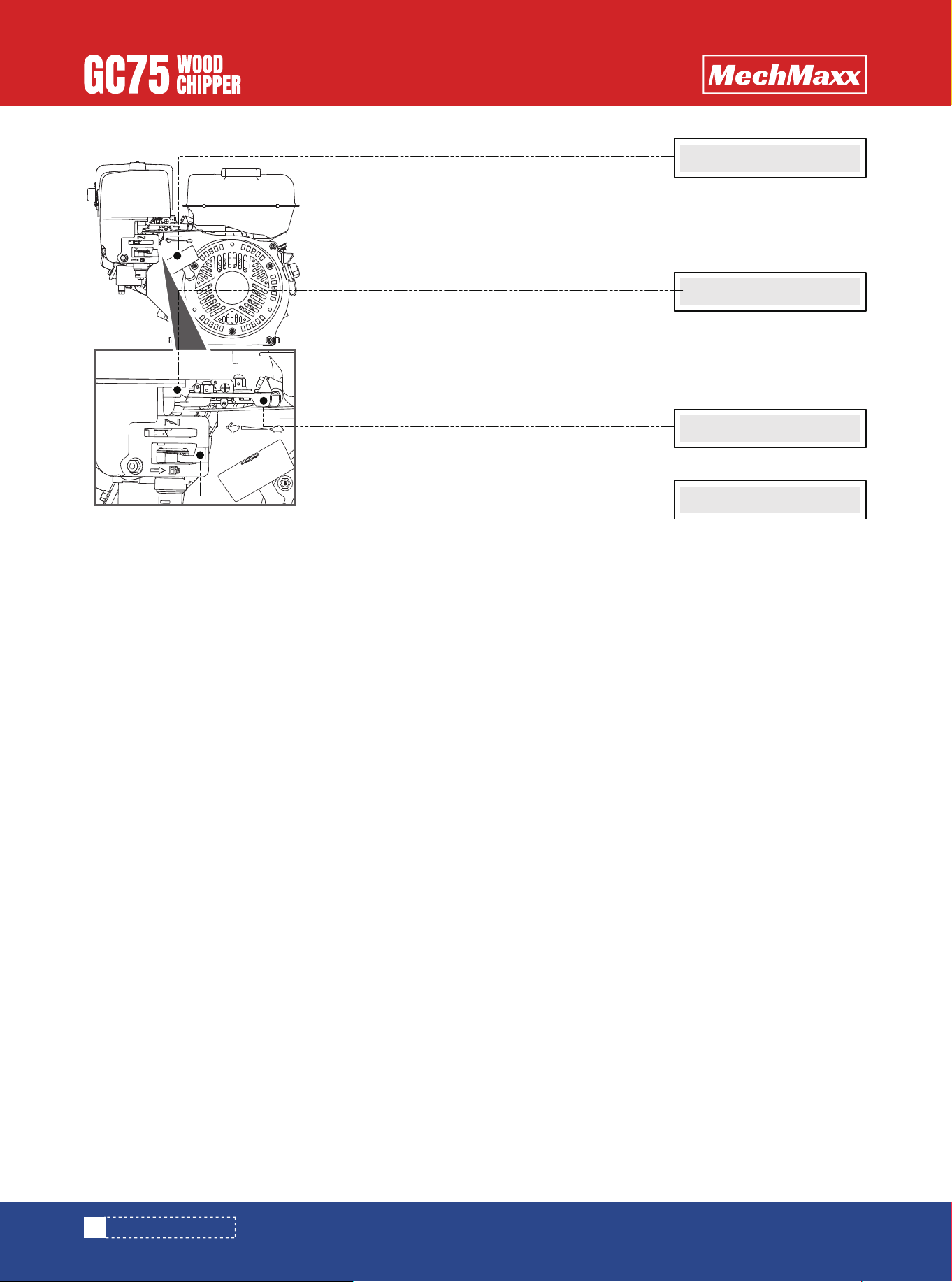

Recoil Starter Handle
Choke Control
Fuel Shut-Off Valve
Throttle Control
15
www. mechmaxx.com
OPERATION
OPERATION
3. Using a funnel, add oil up to the FULL mark on the
dipstick. (See engine manual for oil capacity, oil recom-
mendation, and location of fill cap.).
1. The engine must be off and allowed to cool at least two
minutes before adding fuel.
2. Remove the fuel filler cap and fill the tank. (See engine
manual for fuel capacity, fuel recommendation, and
location of fuel cap.)
The engine is shipped without oil. Do not
start the engine before adding oil.
DO NOT OVERFILL. Check engine oil level
daily and add as needed.
This equipment and/or its engine may
include evaporative emissions control
system components, required to meet
EPA and/or CARB regulations, that will
only function properly when the fuel tank
has been filled to the recommended level.
Overfilling may cause permanent damage
to evaporative emissions control system
components. Filling to the recommended
level ensures a vapor gap required to
allow for fuel expansion. Pay close atten-
tion while filling the fuel tank to ensure
that the recommended fuel level inside
the tank is not exceeded. Use a portable
gasoline container with an appropriately
sized dispensing spout when filling the
tank. Do not use a funnel or other device
that obstructs the view of the tank filling
process.
Gasoline is highly flammable and explo-
sive. You can be burned or seriously
injured when handling fuel. Use extreme
care when handling gasoline.
Fill the fuel tank outdoors, never indoors.
Gasoline vapors can ignite if they collect
inside an enclosure. Explosion can result.
ADD OIL TO ENGINE
ADD GASOLINE TO ENGINE
1. Make sure the chipper shredder is on a flat, level surface.
2. Remove the oil fill cap/
dipstick to add oil.
CLOSEDOPEN
3. Reinstall the fuel cap and tighten. Always clean up
spilled fuel.
IMPORTANT:DO NOT OVERFILL!
2.Open the fuel shut-off valve.
1. Move the engine switch to
the ON position.
STARTING ENGINE
ONOFF
ONOFF
16
www. mechmaxx.com
OPERATION
5. Pull the recoil starter until engine compression has
become difficult to pull. Let the recoil return to the home
position, then pull quickly to start the engine. Repeat
steps as needed. Fully open the choke and set the throt-
tle to the FAST position, before operating the unit.
Feed limbs or branches through cut-end first, leaving the
bushy head on. This helps guide the limb down the feed
hopper and reduces spinning and bouncing of small pieces
back up the feed hopper. Some side branches may require
pre-cutting so that the branch will self-feed more
efficiently.
If the chipper shredder stalls from overloading or clogging,
turn off the engine's power switch and wait until the
cutting roller is completely stopped . Allow the engine to
completely cool and switch the engine to off. Open the
housing cover to clear and remove all the materials from
the housing. Lock the housing cover, switch the engine to
the on position, and start the machine again to resume
operation.
As the discharge material plies up, move the chipper away
from the pile. This will keep the material from backing up
the discharge chute. Do not position the deflector
vertically, as this will reduce the airflow, impeding the
discharge and causing blockage.
It is always advisable to process freshly cut materials, as
wooden branches get very hard, they become springy
when dried out and can make the knives dull more quickly.
While operating the machine, keep a wooden stick handy,
approximately 1 inch in diameter by 2 feet long. This stick
will be useful to push in short, brushy and very leafy mate-
rials and keep the feed hopper clear.
Do not force material into the machine. If it does not chip
well, the chipper knives may need sharpening or to be
replaced, or the gap between the knives and the wear
plate needs adjusting.
Do not overload the machine by feeding too much material
in to the feed hopper at one time. If you hear the speed of
the engine decreasing, immediately stop feeding material
in to the machine. Do not resume feeding material into the
machine until the engine has returned to full speed.
The wood chipper can clog up with soft, wet, or fibrous
materials. However, if you feed soft materials intermit-
tently with branches, there should be no problem, as the
wood chipper tends to clean out any residue left in the
machine.
If any stringy material wraps around the rotor shaft,
remove it before it works its way into the bearing.
The chipper shredder can process a wide variety of dry or
green organic materials such as branches, stalks, vines,
leaves, roots, and vegetable matter. The maximum
capacity is 3-inch diameter branches, this can vary
depending on the type and hardness of wood. Rotating
the branch as you feed it into the machine will improve
performance.
After the engine warms up, pull the throttle lever to accel-
erate engine speed.
Rapid retraction of the starter cord (kick-
back) will pull your handand arm toward
the engine faster than you can let go.
Broken bones, fractures, bruises, or
sprains could result.
Make sure the machine is level and stable
to avoid unnecessary vibrations.
Do not operate on concrete or other hard
surface.

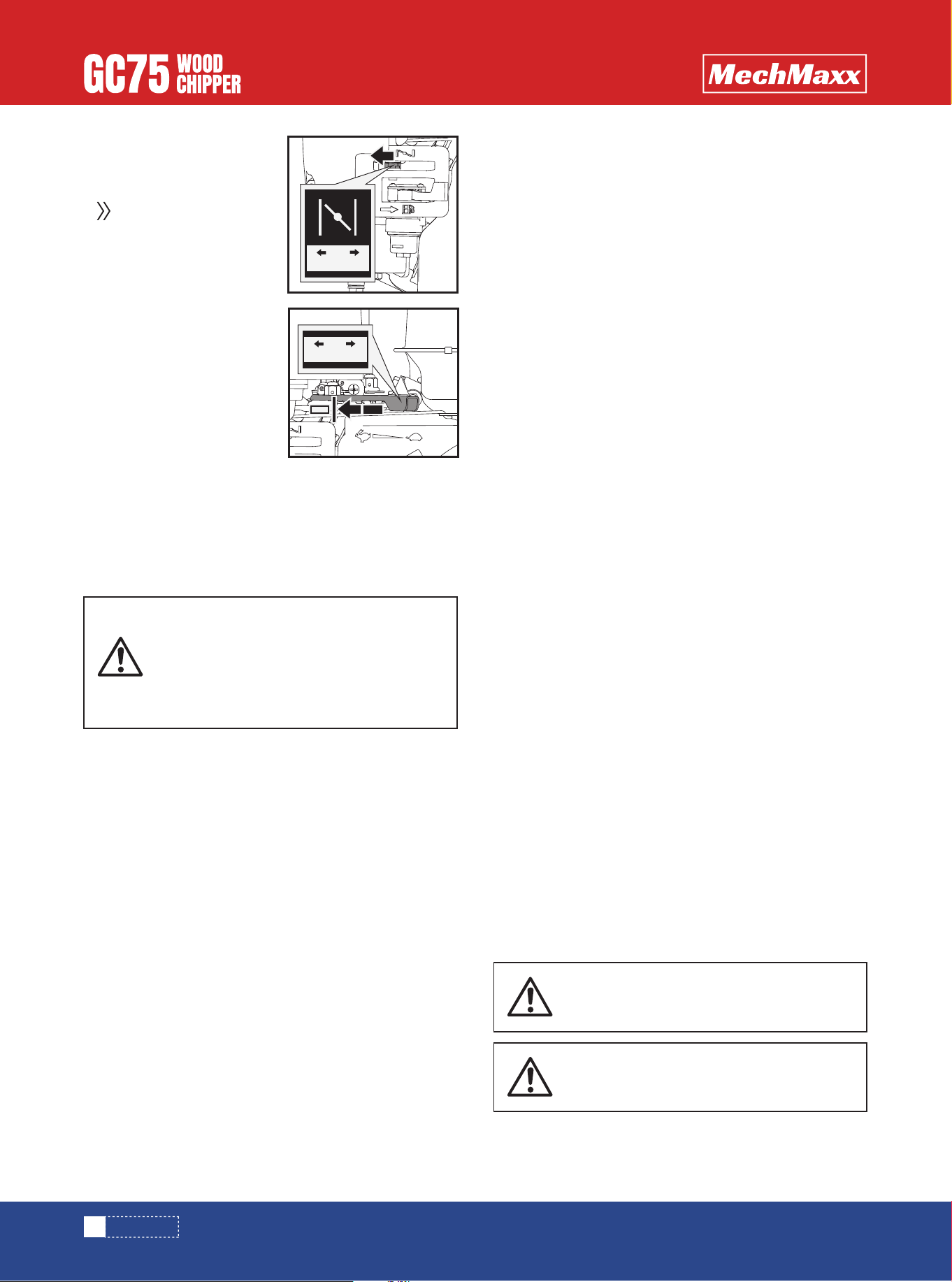

3.Move the choke lever to the
CLOSED position.
If the engine is hot,
closing the choke is not
necessary.
SLOWFAST
OPENCLOSED
4. Move the throttle lever
slightly to the FAST speed.
OPERATING
SLOWFAST
OPENCLOSED
17
www. mechmaxx.com
OPERATION
To stop the engine in an emergency, simply turn the
engine switch to the OFF position. Under normal condi-
tions, use the following procedure:
Your wood chipper is equipped with two large pneumatic
wheels for easy movement by hand. To move the unit, grip
the handles and tilt the wood chipper slightly after
making sure the oil tank cover is tightened.
Wait until the machine completely stops. Allow the
engine to completely cool. Remove the engine's spark
plug. Then clean out the interior of the machine and its
discharge chute.
Set the throttle control lever to the SLOW position to
reduce stress on the engine when chipping is not being
performed.Lowering the engine speed will help extend the
life of the engine, as well as conserve fuel and reduce
noise level.
Sudden stopping at a high speed under a
heavy load is not recommended. Engine
damage may result.
Do not move the choke control to CLOSE
to stop the engine. Backfire or engine
damage may occur.
Do not open the housing cover unless the
engine and cutting roller are completely
stopped.
The engine is fitted with an oil alert and
will not start if the oil level in the sump is
too low. It may also stop if it is operated
on a steep slope.
To shut down the machine, move the
throttle control lever to idle speed, turn
the engine switch to the OFF position, and
it will gradually come to a standstill.
IDLE SPEED
STOP ENGINE
1. Move the throttle lever to the SLOW ( ) position.
2.Let the engine idle for one or two minutes.
3.Turn the engine switch to the OFF position.
4. Turn the fuel valve lever to the OFF ( ) position.
TRANSPORTING
18
www. mechmaxx.com
2. Keep the engine's throttle lever in its SLOW position
and remove the spark plug wire from the spark plug and
secure.
3. Inspect the general condition of the chipper shredder.
Check for loose screws, misalignment or binding of
moving parts, cracked or broken parts, and any other
condition that may affect its safe operation.
4. Remove all debris from the Wood chipper with a soft
brush, vacuum, or compressed air. Then use a premium
quality lightweight machine oil to lubricate all moving
parts.
The service intervals shown are the maximum
under normal operating conditions. Increase
frequencies under extremely dirty or dusty condi-
tions.
5. Replace the spark plug wire.
Maintaining your Wood chipper will ensure long life to the
machine and its components.
Never use a pressure washer to clean your
Wood chipper. Water can penetrate tight
areas of the unit and cause damage to
spindles, pulleys, bearings, or the engine.
Shut down the engine, wait for all moving
parts to come to a complete stop, remove
the spark plug wire, and then wait five
minutes before performing maintenance
on the chipper.
MAINTENANCE
MAINTENANCE
PREVENTIVE MAINTENANCE
1. Turn off the engine. The engine must be cool.
REGULAR MAINTENANCE CHECKLIST
Before each use
Procedure
Every 8-10 Hours Every 40 Hours
Check engine oil level
Check general equipment condition
Check that cutting disk turns freely (with a long stick only)
Visually inspect knife for damage
Check knife and wear plate for sharpness
Check knife and wear plate attachment screws
Check for any loose nut and bolts
Check knife to wear plate gap
1 time 5 hours
st
Check tire pressure
Change engine oil
Inspect or replace spark plug
Inspect or replace air filter and precleaner
19
www. mechmaxx.com
Be careful and wear gloves when working
near the knives.
MAINTENANCE
If the machine's cutting roller strikes a foreign
object, or if the machine begins to make an
unusual noise or vibrates excessively, immedi-
ately shut off the engine. Allow the cutting roller
to come to a complete stop. Switch the engine to
"off" to avoid any accidental start. Then perform
the following steps:
Routine inspection of the knives for sharpness and wear
plate for a sharp edge will ensure that your wood chipper
is operating at full efficiency. Using dull knives or a round-
ed wear plate will decrease performance and cause
excessive vibration that will damage the machine and
make chipping difficult for the operator.
This Wood chipper is equipped with two chipper knives
mounted on the cutting disk. When the knives get dull or
show visible nicks, the machine will lose its self- feeding
action and the material has to be pushed in. Often it
comes out in long strips. Replace the knifes by following
steps.
4. Remove the dull or damaged knives and visually
inspect the cutting disk slot and knives mounting area.
Make sure they are clean and that the placement knives
will be able to mount flush against the cutting disk.
Remount new or sharpened knives with the knife edges
facing up.
KNIFE AND WEAR PLATE INSPECTION
KNIFE REMOVAL AND REPLACEMENT
1. Remove the feed hopper.
2. Rotate the cutting disc until the blade can be seen from
the feed hopper side.
Inspect for damage.
Repair оr replace damaged parts.
Check for any loose parts and tighten to ensure
continued safe operation.
3. Remove the bolts, nuts that fix the blade.
20
www. mechmaxx.com
If the cutting disk surface is not cleaned
properly and the knives are not mounted
flush on the cutting disk, the knives could
crack when the hardware is tightened.
Remove the spark plug and drain all oil
from the cylinder before attempting to
start the unit after storage.
Do not use strong detergents or petroleum
based cleaners when cleaning plastic
parts. Chemicals can damage plastics.
Do not store your chipper shredder with
fuel in a non-ventilated area where fuel
fumes could reach flames, sparks, pilot
lights or any ignition sources.
If your Wood chipper will not be used for more than 30
days, follow the steps below to prepare your unit for
storage:
1. Drain the fuel tank completely. Stale fuel has high
gum con tent and can clog the carburetor and restrict
fuel flow.
2. Start the engine and allow it to run until it stops. This
ensures no fuel is left in the carburetor and helps prevent
deposits from forming inside, which can damage the
engine.
3. Drain the oil from the engine while it is still warm.
Refill with fresh oil of the grade recommended in the
engine manual.
4. Allow the engine to cool. Remove the spark plug and
put 60 ml of SAE-30 high-quality engine oil into the cylin-
der. Pull the starter rope slowly to distribute the oil.
Replace the spark plug.
5. Use clean cloths to clean off the outside of the Wood
chipper and to keep the air vents free from obstructions.
6. Store your chipper shredder in an upright position in a
clean, dry building with good ventilation.
The clearance between the knives and wear plate should
be approximately 1 mm at the position of closest to the
rotor shaft and 3 mm at the position of farthest to the
rotor shaft. They are tapered out slightly to allow for a
small amount of movement in the cutting disk as it bites
into the wood.
Make sure that all locknuts are tightened properly. Then
turn the cutting disk with a long wooden stick to make
sure it rotates freely.
STORAGE
STORAGE
Use only approved fuel containers.
TROUBLESHOOTING
21
www. mechmaxx.com
TROUBLESHOOTING
Remedy
Problem
Cause
Engine fails to start 1. Spark plug wire is disconnected
2. Out of fuel or stale fuel
3. Engine and/or Fuel valve is not in
ON position
4. Choke lever is not in CLOSE position
5. Blocked fuel line
6. Fouled spark plug
7. Engine flooding
1. Attach spark plug wire securely to
spark plug
2. Fill with clean, fresh gasoline
3. Engine and Fuel valve must be in ON
position
4. Choke level must be in CLOSE position
for a cold start
5. Clean fuel line
6. Clean, adjust gap, or replace
7. Wait a few minutes to restart, but do
not prime
Engine runs erratically
1. Connect and tighten spark plug wire
2. Move choke lever to OPEN position
3. Clean fuel line. Fill tank with clean,
fresh gasoline
4. Clear vent
5. Drain fuel tank. Refill with fresh fuel
6. Clean or replace air cleaner
7. Refer to engine manual
1. Spark plug wire is loose
2. Unit running with Choke lever in
CLOSE position
3. Blocked fuel line or stale fuel
4. Vent plugged
5. Water or dirt in fuel system
6. Dirty air cleaner
7. Improper carburetor adjustment
Engine overheats 1. Fill crankcase with proper oil
2. Clean air cleaner
3. Remove housing and clean
4. Refer to engine manual
1.Engine oil level low
2.Dirty air cleaner
3. Air flow restricted
4. Carburetor not adjusted properly
Chipping action seems
too slow, cutting disk
stalls,or no material
is discharged when
engine is running
1.Sharpen or replace knives
2.Remove any built-up debris and turn
cutting disk with a wooden stick to be
sure it turns freely
3.Clean out debris
1.Knives are dull or damaged
2.Cutting disk is jammed by
debris from the feed hopper and
discharge chute
3.Discharge chute is clogged
22
www. mechmaxx.com
TROUBLESHOOTING
Remedy
Problem
Cause
When chipping,
branch seems to
vibrate and move
about excessively with
unusual noise
Chipper Knives are
hitting the wear plate
The machine's wheels
track left or right
while being towed
Low tire pressure
The gap between the knives and wear
plate is set incorrectly
Add air to tires
Adjust the gap
1.Sharpen or replace knives
2. Loosen the knife mounting screws, reset
the knives and tighten the screws
3. Adjust the gap
4. Allow unit to clear itself before adding
more material to the hopper
1. Knives are dull or damaged
2. Knives are not properly seated on
the cutting disk
3. The gap between the knives and
wear plate is too large
4. Rotor is overloaded with material
