Operator’s Manual
www. mechmaxx.com
WARRANTY
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY SIGNS
SAFETY
1
2
BLADE AND BREAKER MAINTENANCE
13

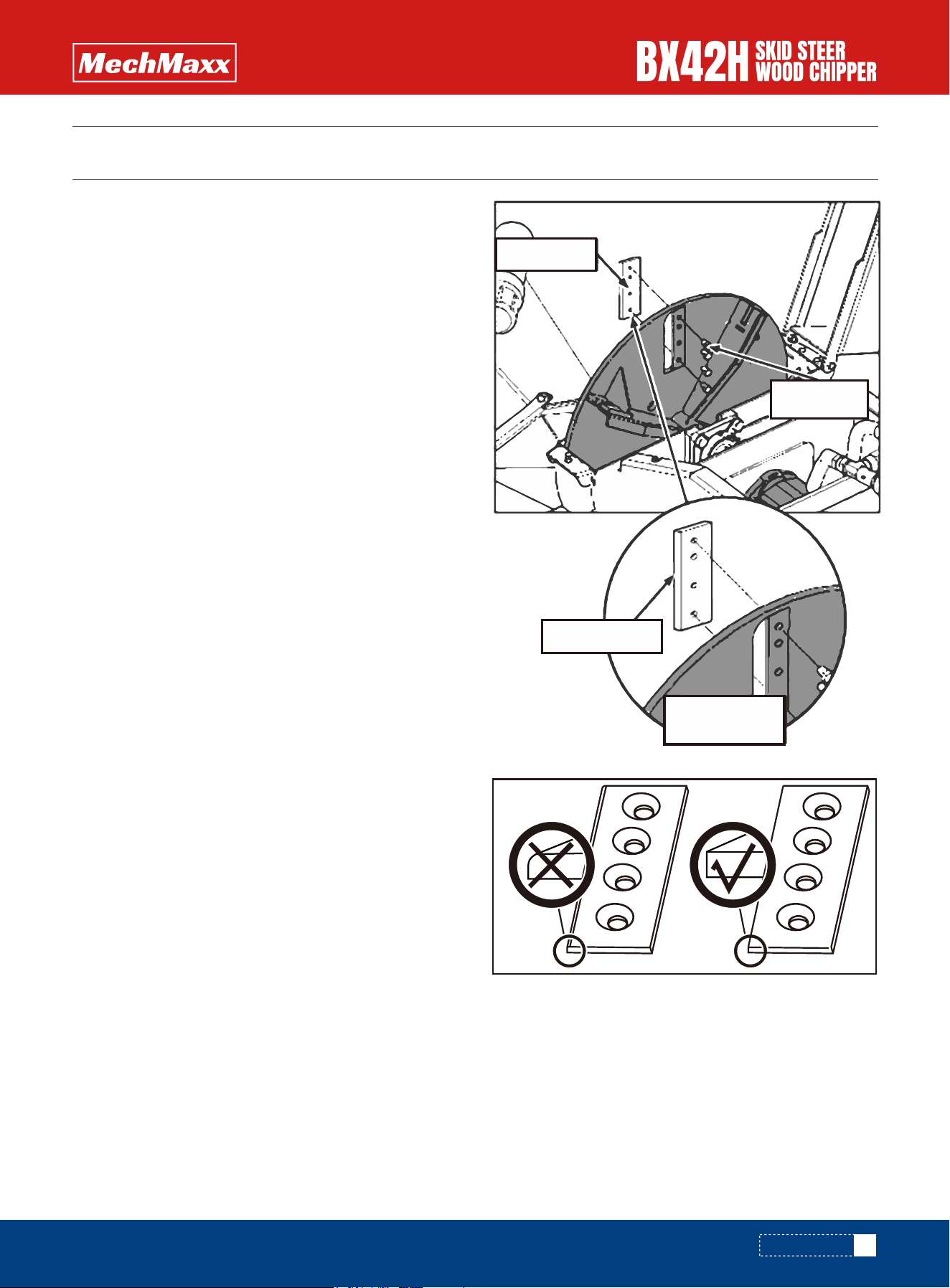

ROTOR BLADES
13

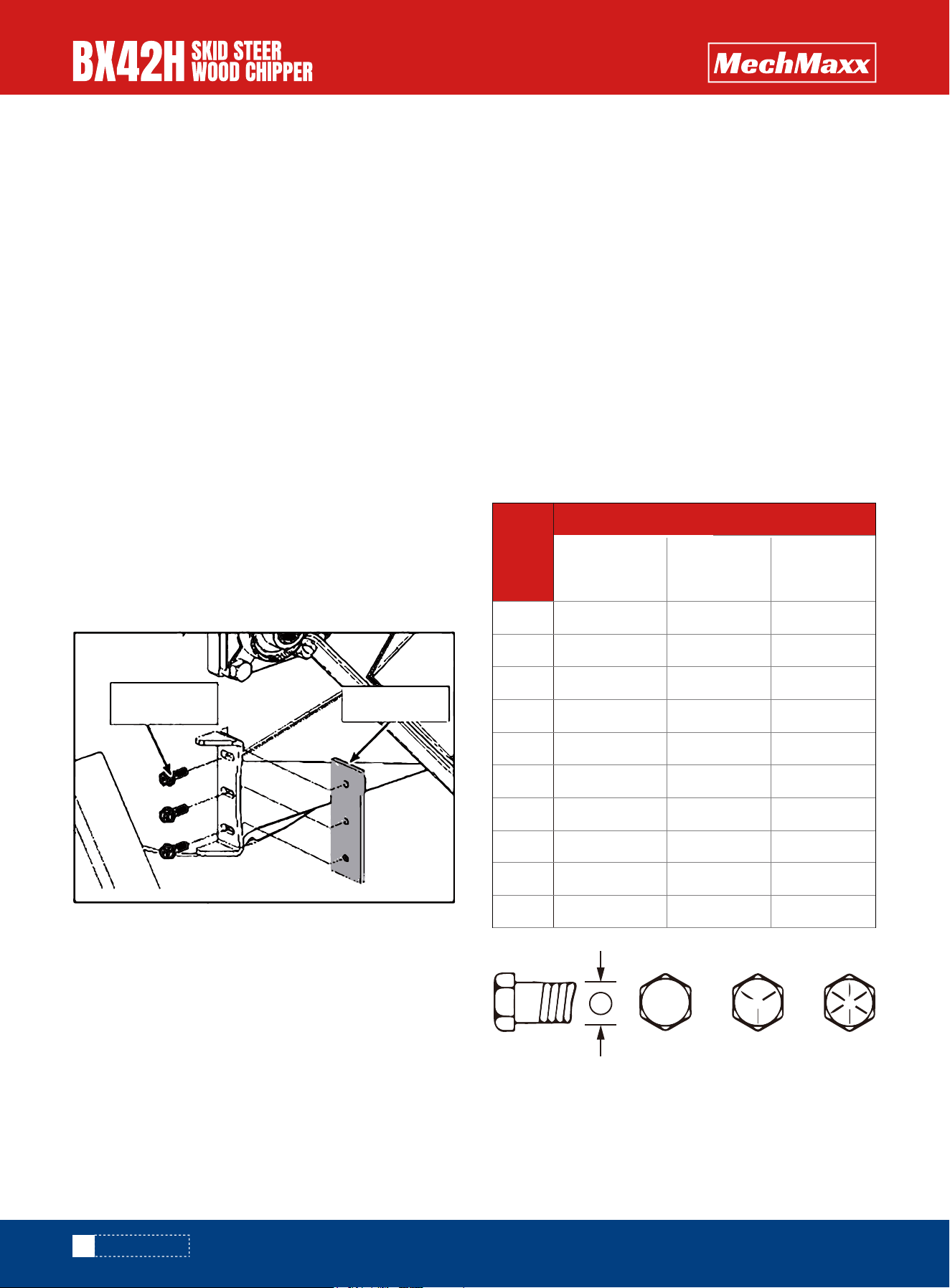

LEDGER BLADES MAINTENANCE
14

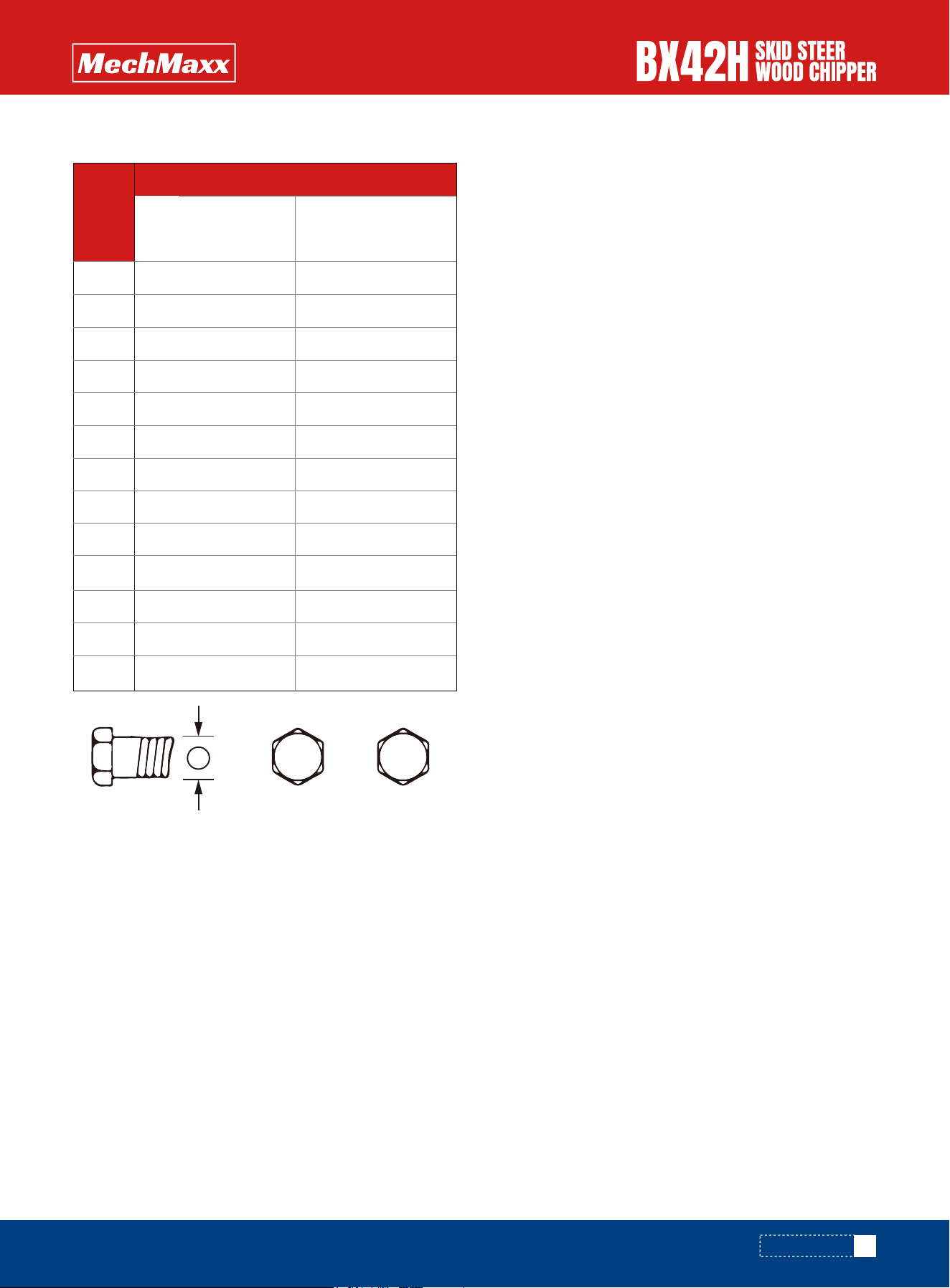

BOLT TORQUE
14
ENGLISH TORQUE SPECIFICATIONS
14
METRIC TORQUE SPECIFICATIONS
15
YOUR SAFETY
GENERAL SAFETY
EQUIPMENT SAFETY GUIDELINES
4
4
4
SAFETY TRAINING
5
SAFETY SIGNS
5
PREPARATION
6
MAINTENANCE SAFETY
6
OPERATING SAFETY
6
HYDRAULIC SAFETY
7
STORAGE SAFETY
7
TRANSPORT SAFETY
7
OPERATION SAFETY
8
TO THE NEW OPERATOR OR OWNER
8
MACHINE COMPONENTS
8
MACHINE BREAK-IN
8
PRE-OPERATION CHECKLIST
9
MACHINE SET-UP
9
3
4

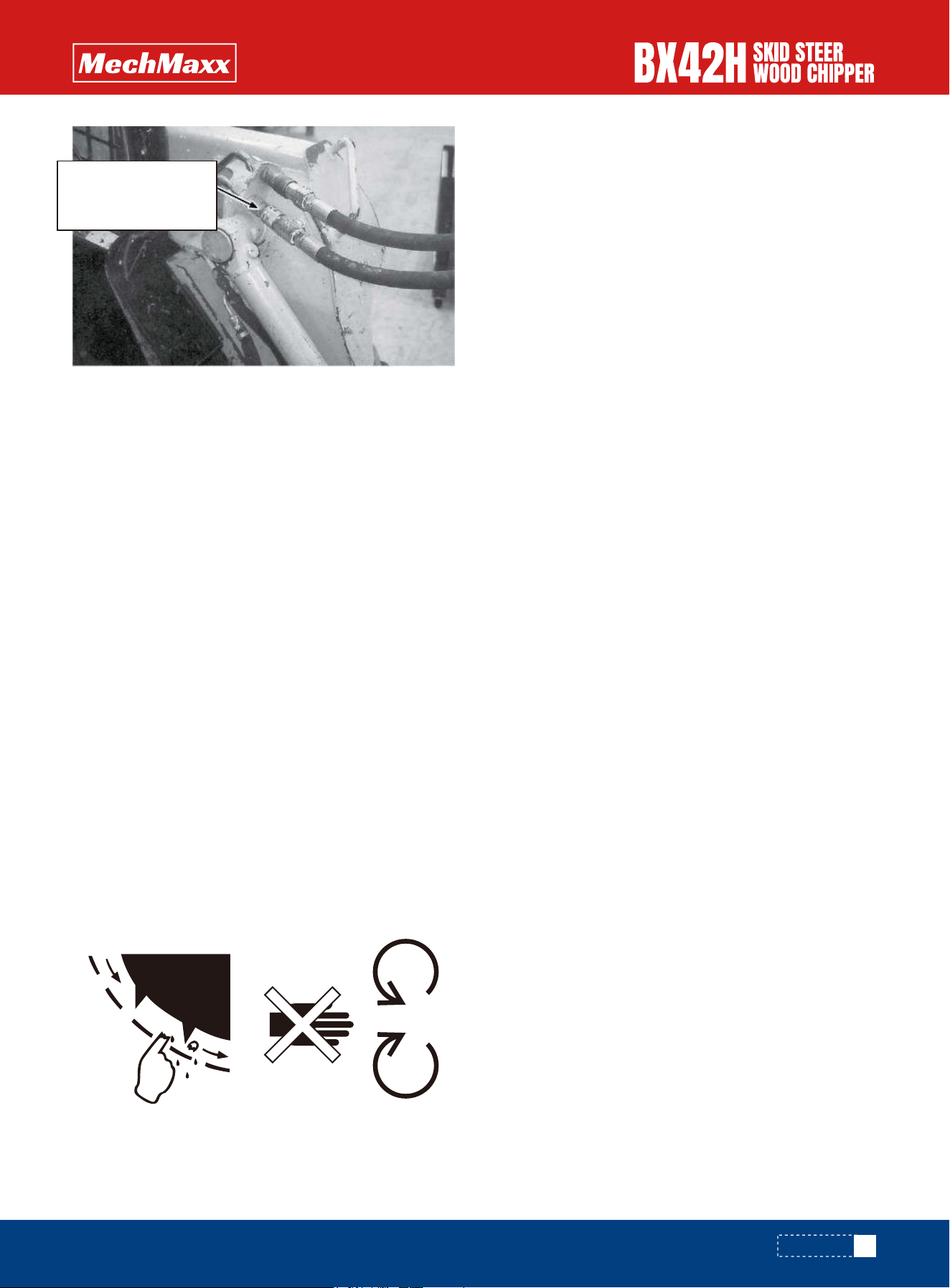

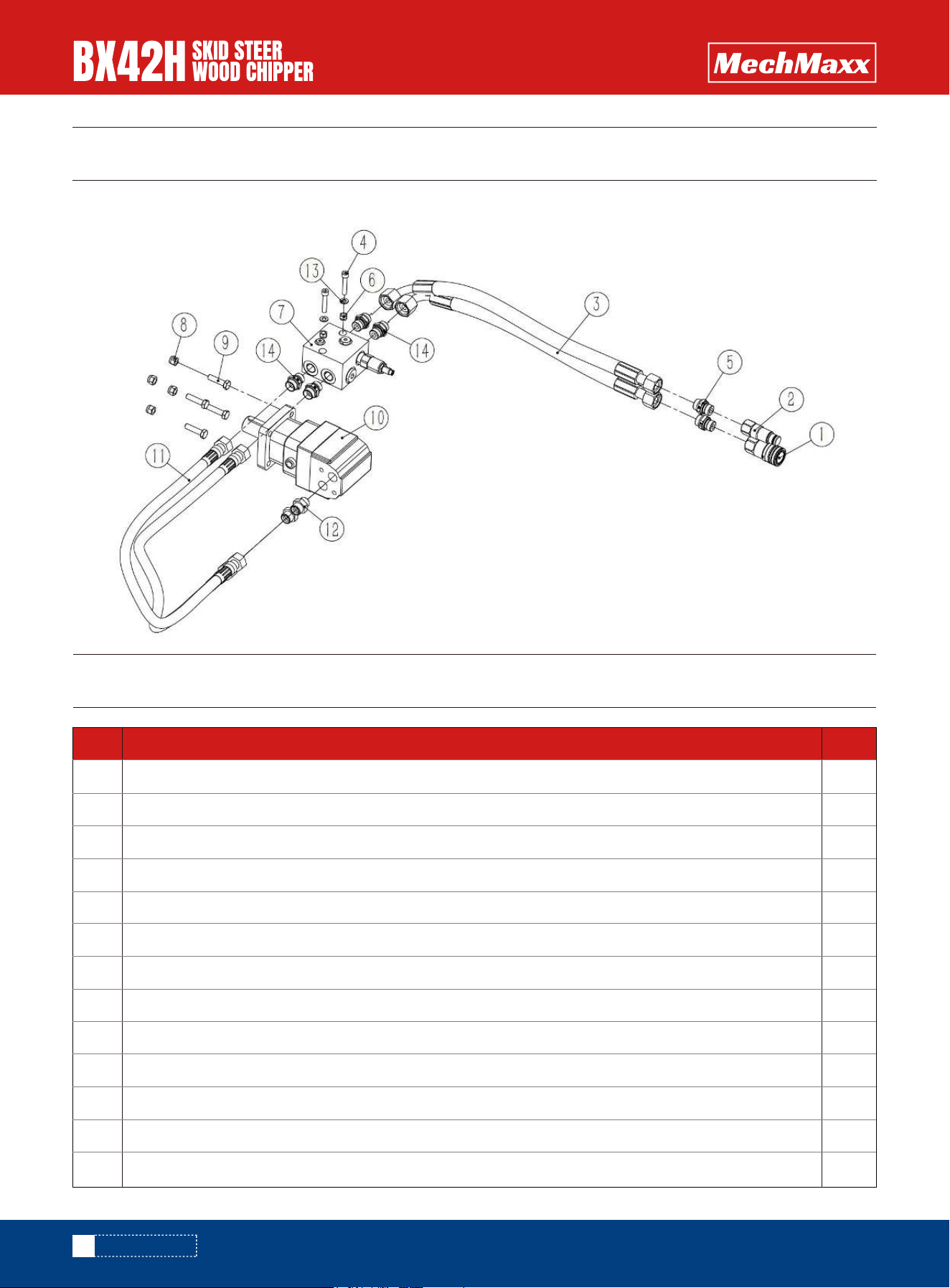

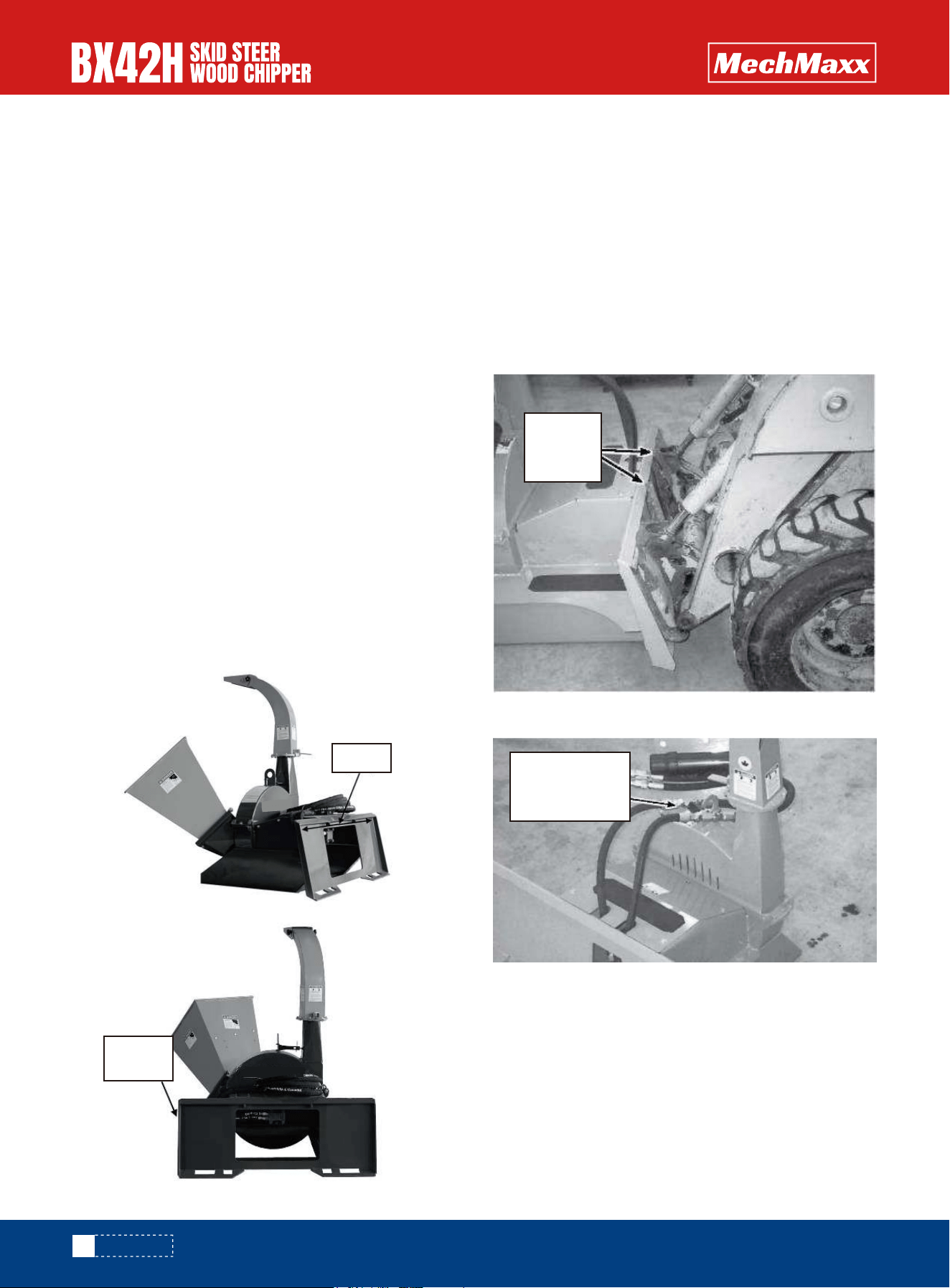

HYDRAULIC CONNECTIONS & MOUNTING
UNPLUGGING
10
11
SEVERE PLUG
11
13
MAINTENANCE
16

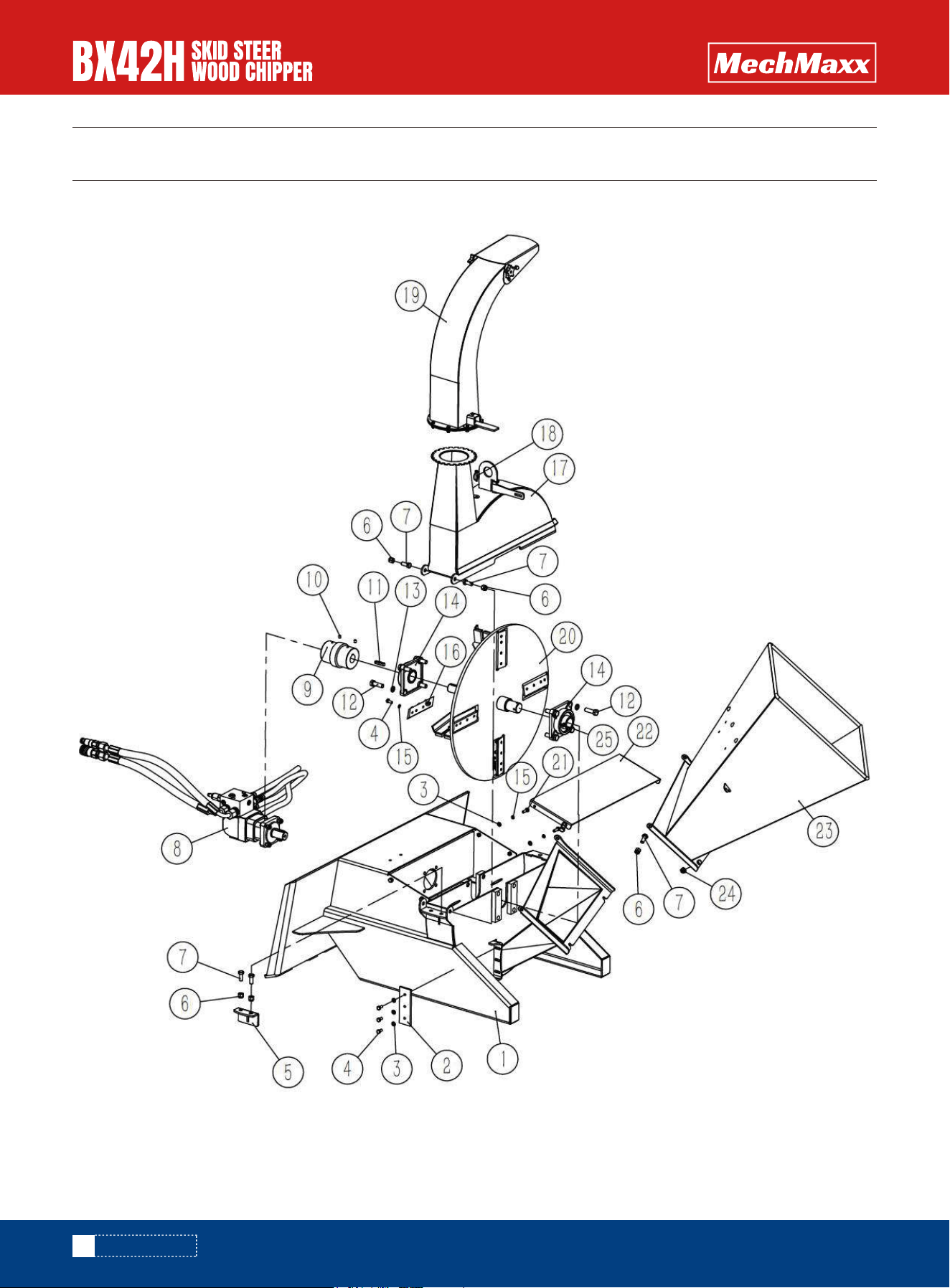

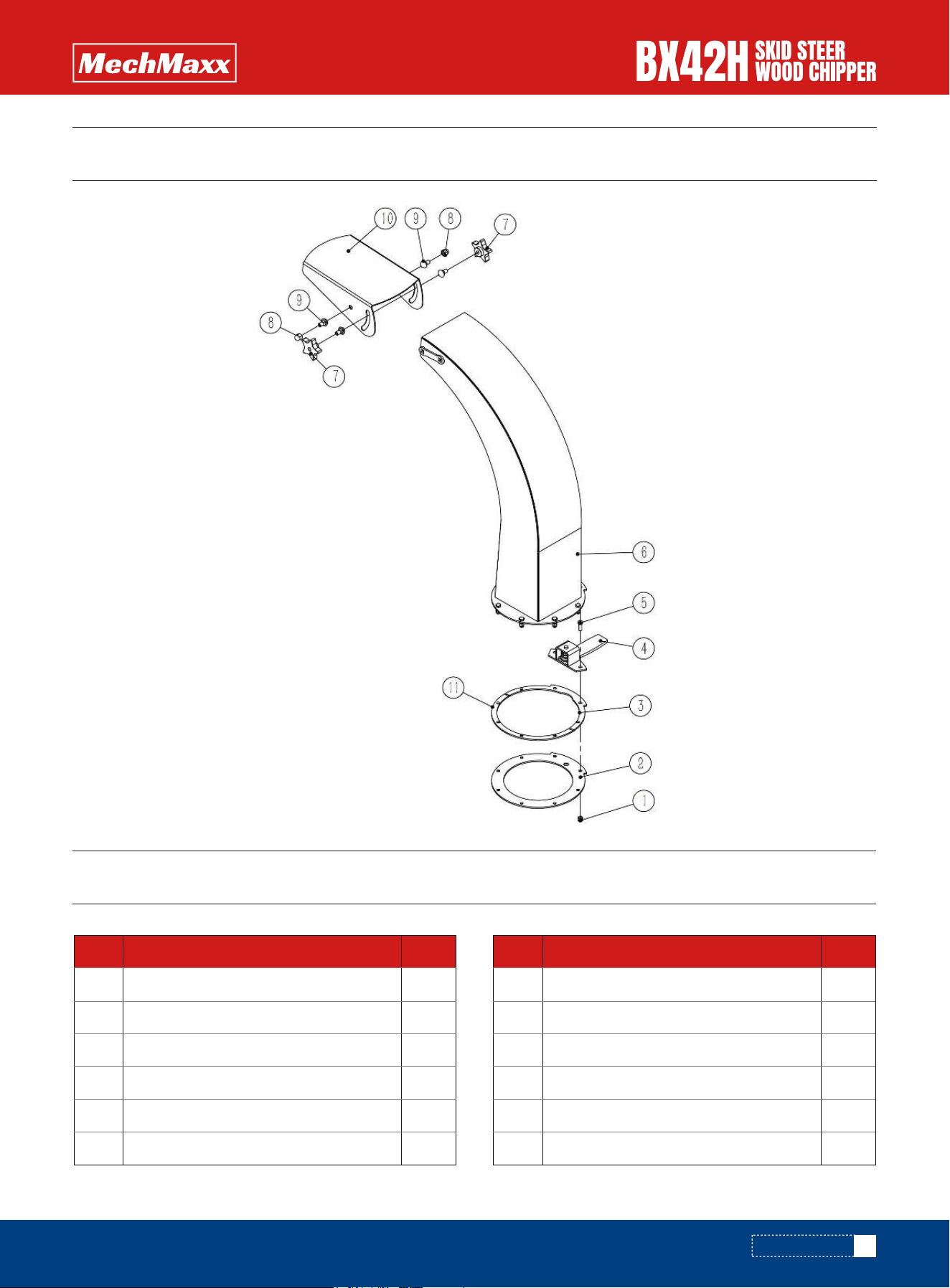

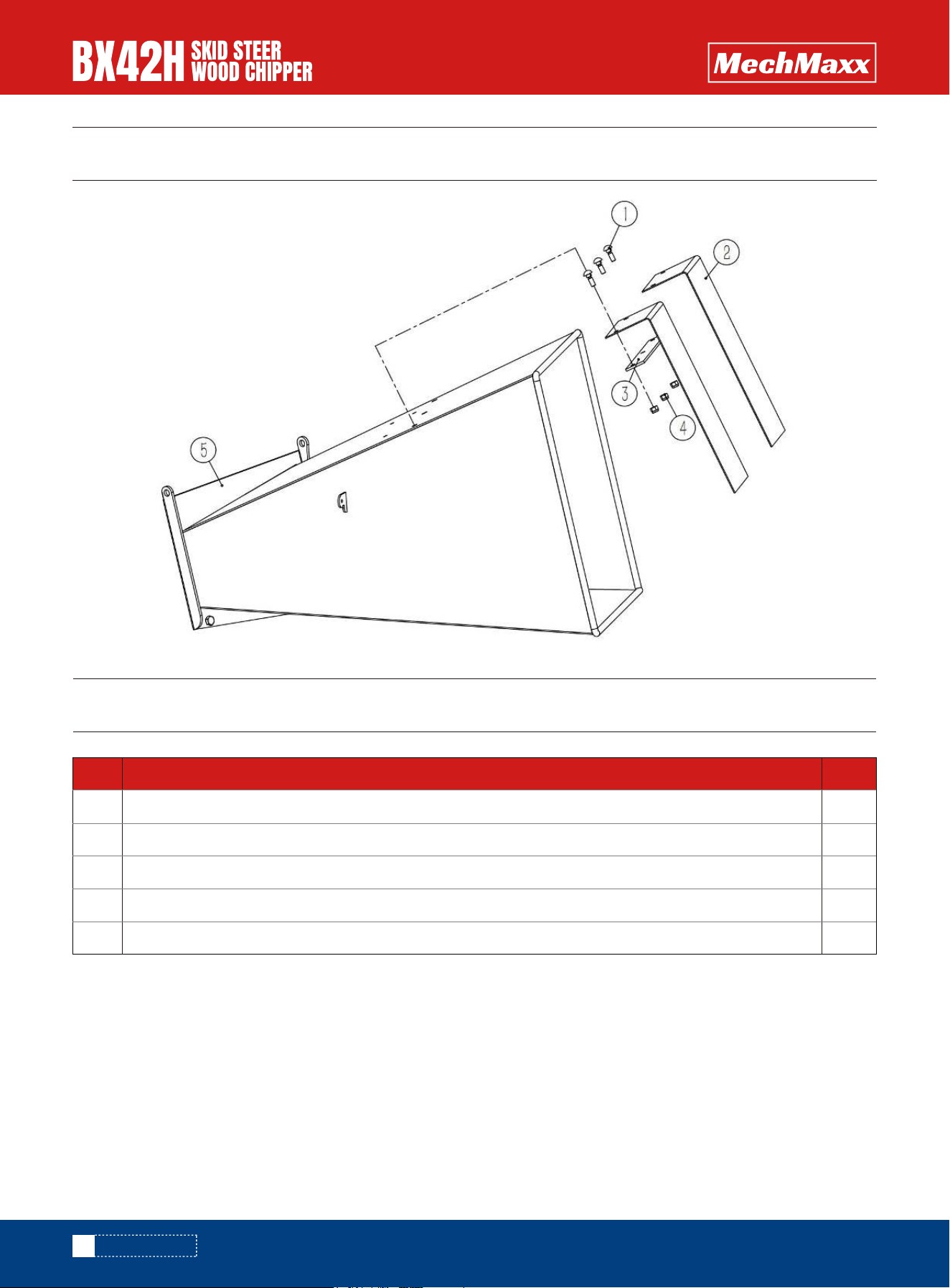

PARTS DIAGRAM
17
PARTS LIST
1
www. mechmaxx.com
TABLE OF CONTENTS
SPECIFICATIONS
2
www. mechmaxx.com
SPECIFICATIONS
Flow Range Low
Model
14gal/min
BX42H
Flow Range High 20gal/min
Auxiliary Pressure
2900 PSI
Chipper Capacity
4in Dia.
Rotor Weight
Rotor Size
Chipper Housing Opening
75 lbs
25 in
4 X 10 in
Rotor Thickness 0.5 in
Number Of Rotor Knives 4
Knife Material 4CrW2Si
Feeding System Self-feeding
Discharge Hood Rotation 360°
Discharge Hood Height 59 in
Rated 446-640 rpm
Dimension (hopper folded)
Hopper Opening
Weight (N.W/G.W.)
Warranty
20 X 20 in
712/851 lbs
1 year
47 X 42 X 42 in
3
www. mechmaxx.com

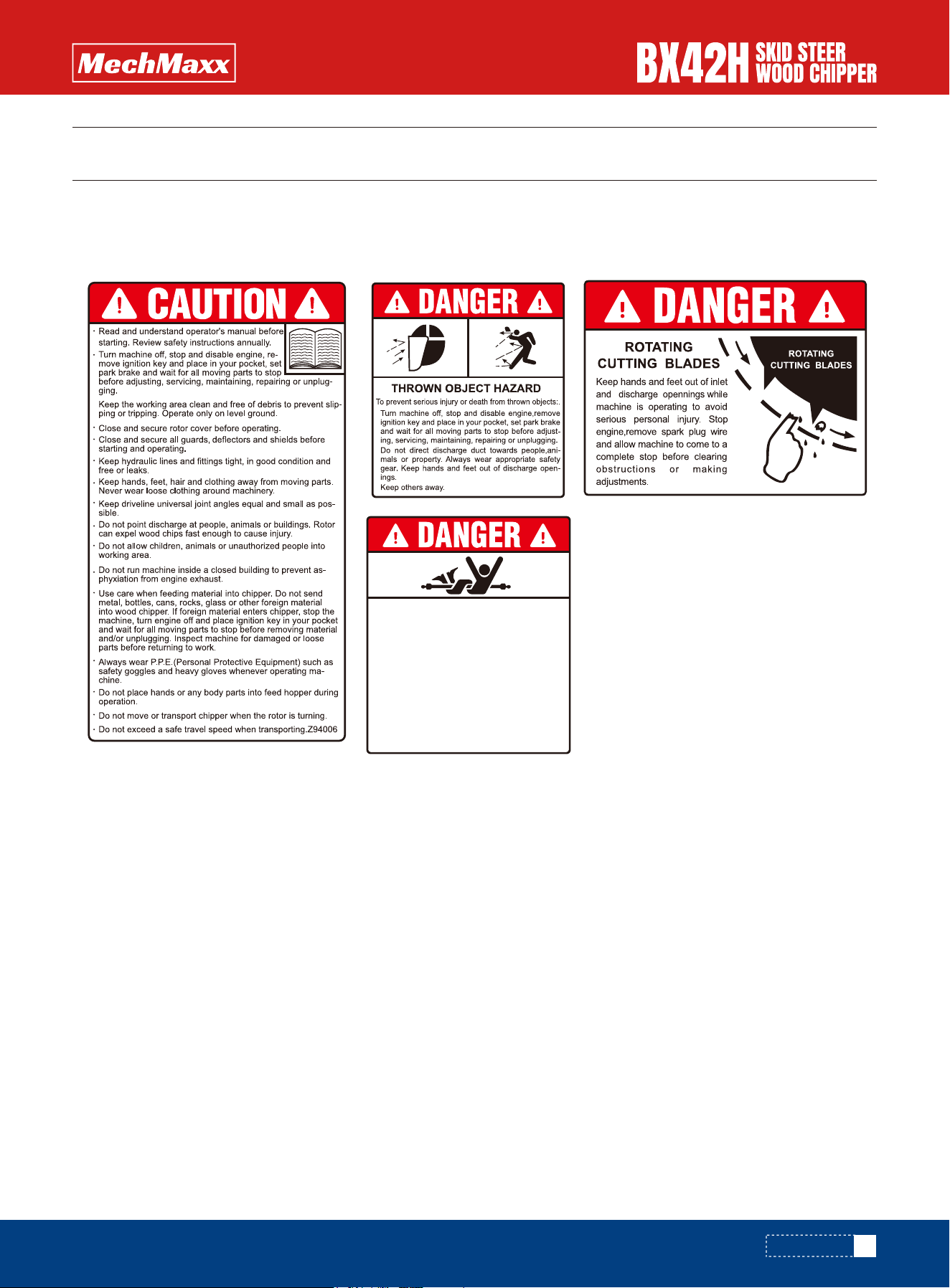

SAFETY SIGNS
The rating plate on your machine may show symbols. These represent important information about the product or instruc-
tions on its use.
SAFETY SIGNS
ROTATING DRIVELINE HAZARD
KEEP AWAY
To prevent serious injury or death from
rotating driveline:
• Keep all guards in place when operating.
• Operate only at 540 RPM.
• Keep hands, feet, hair and clothing away
from moving parts.
• Keep U-joint angles equal and small as
possible.
• Do not exceed driveline manufacturers
recommended operating length.
4
www. mechmaxx.com
IMPORTANT SAFETY INFORMATION
SAFETY
YOU are responsible for the SAFE operation and mainte-
nance of your Tractor Wood Chipper. YOU must ensure
that you and anyone else who is going to use, maintain or
work around the Tractor Wood Chipper be familiar with the
using and maintenance procedures and related SAFETY
information contained in this manual. This manual will
take you step-by-step through your working day and alerts
you to all good safety practices that should be used while
using the Tractor Wood Chipper.
Remember, YOU are the key to safety. Good safety
practices not only protect you but also the people around
you. Make these practices a working part of your safety
program. Be certain that EVERYONE using this equipment
is familiar with the recommended using and maintenance
procedures and follows all the safety precautions. Most
accidents can be prevented. Do not risk injury or death by
ignoring good safety practices.
• Skid Steer Mounted Wood Chipper owners must give
operating instructions to operators or employees before
allowing them to operate the machine, and at least
annually thereafter.
• The most important safety device on this equipment is
a SAFE operator. It is the operator's responsibility to
read and understand ALL Safety and Operating instruc-
tions in the manual and to follow these. Most accidents
can be avoided.
• A person who has not read and understood all using and
safety instructions is not qualified to use the machine.
An untrained operator exposes himself and bystanders
to possible serious injury or death.
• Do not modify the equipment in any way. Unauthorized
modification may impair the function and/or safety and
could affect the life of the equipment.
• Think SAFETY! Work SAFELY!
1. Safety of the operator and bystanders is one of the
main concerns in designing and developing equip-
ment.However, every year many accidents occur which
could have been avoided by a few seconds of thought and
a more careful approach to handling equipment. You, the
operator, can avoid many accidents by observing the
following precautions in this section. To avoid personal
injury or death, study the following precautions and insist
those working with you, or for you to follow them.
1. Read and understand the Operator's Manual and all
safety signs before using, maintaining, adjusting or clean-
ing the Skid Steer Mounted Wood Chipper.
2. Have a first-aid kit available for use should the need
arise and know how to use it.
3. Have a fire extinguisher available for use should the
need arise and know how to use it.
4. Do not allow riders.
5. Wear appropriate protective gear. This list includes but
is not limited to:
-A hard hat
-Protective shoes with slip resistant soles
-Protective glasses, goggles, or face shield
-Heavy gloves
-Wet weather gear
-Hearing Protection
-Respirator or filter mask
6. Install and secure all guards before starting.
7. Wear suitable ear protection for prolonged exposure to
excessive noise.
8. Turn machine off, stop and disable engine, remove
ignition key and place in your pocket, set park brake and
wait for all moving parts to stop before servicing,adjust-
ing, repairing, or unplugging.
9. Clear the area of people, especially small children,
before using the unit.
10. Review safety related items annually with all person-
nel who will operating or maintaining the Skid Steer
Mounted Wood Chipper.
YOUR SAFETY
GENERAL SAFETY
EQUIPMENT SAFETY GUIDELINES
5
www. mechmaxx.com
SAFETY
1. Always keep safety signs clean and legible.
2. Replace safety signs that are missing or have become
illegible.
3. Replaced parts that displayed a safety sign should also
display the current sign.
4. Safety signs displayed in Section 3 each have a part
number in the lower righthand corner. Use this part
number when ordering replacement parts.
5. Safety signs are available from your authorized Distrib-
utor or Dealer Parts Department or the factory.
1. Safety is a primary concern in the design and manufac-
ture of our products. Unfortunately, our efforts to provide
safe equipment can be wiped out by a single careless act
of an operator or bystander.
2. In addition to the design and configuration of equip-
ment, hazard control and accident prevention are depen-
dent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport,
maintenance, and storage of this equipment.
3. It has been said, "The best safety feature is an
informed, careful operator." We ask you to be that kind of
an operator. It is the operator's responsibility to read and
understand ALL Safety and Using instructions in the
manual and to follow these. Accidents can be avoided.
4. the machine. If this machine is used by any person
other than yourself, or is loaned or rented, it is the
machine owner's responsibility to make certain that the
operator, prior to using:
a.Reads and understands the operator's manuals.
b.Is instructed in safe and proper use.
5. Know your controls and how to stop the skid steer
tractor and machine quickly in an emergency. Read this
manual and the one provided with skid steer tractor.
6. Train all new personnel and review instructions
frequently with existing workers. Be certain only a proper-
ly trained and physically able person will use the machin-
ery. A person who has not read and understood all using
and safety instructions is not qualified to use the
machine. An untrained operator exposes himself and
bystanders to possible serious injury or death.If the elder-
ly are assisting with the work, their physical limitations
need to be recognized and accommodated.
2. In order to provide a better view, certain photographs
or illustrations in this manual may show an assembly with
a safety shield removed. However, equipment should
never be used in this condition. Keep all shields in place.
If shield removal becomes necessary for repairs, replace
the shield prior to use.
3. Replace any safety sign or instruction sign that is not
readable or is missing. Location of such safety signs is
indicated in this manual.
4. Never use alcoholic beverages or drugs which can
hinder alertness or coordination while using this equip-
ment. Consult your doctor about using this machine while
taking prescription medications.
5. Under no circumstances should young children be
allowed to work with this equipment. Do not allow
persons to use or assemble this unit until they have read
this manual and have developed a thorough understanding
of the safety precautions and of how it works. Review the
safety instructions with all users annually.
6. This equipment is dangerous to children and persons
unfamiliar with its operation. The operator should be a
responsible, properly trained and physically able person
familiar with machinery and trained in this equipment's
operations. If the elderly are assisting with work, their
physical limitations need to be recognized and accommo-
dated.
7. Never exceed the limits of a piece of machinery.
8. If its ability to do a job, or to do so safely, is in question
- DON'T TRY IT.
9. Do not modify the equipment in any way. Unauthorized
modification may result in serious injury or death and may
impair the function and life of the equipment.
10. In addition to the design and configuration of this
implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent
upon the awareness, concern, prudence, and proper train-
ing of personnel involved in the operation, transport, main-
tenance, and storage of the machine. Refer also to Safety
Messages and operation instruction in each of the appro-
priate sections of the skid steer and machine manuals.
Pay close attention to the Safety Signs affixed to the skid
steer and the machine.
SAFETY TRAINING
SAFETY SIGNS
6
www. mechmaxx.com
SAFETY
1. Never use the machine until you have read and
completely understand this manual, the skid steer tractor
Operator's Manual and each of the Safety Messages found
on the safety signs on the skid steer tractor and machine.
2. Personal protection equipment including hard hat,
safety glasses, safety shoes, and gloves are recommend-
ed during assembly, installation, operation, adjustment,
maintaining, repairing, removal, cleaning, or moving the
unit. Do not allow long hair, loose fitting clothing or jewel-
ry to be around equipment.
3. PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS!Power equipment with or
without equipment attached can often be noisy enough to
cause permanent, partial hearing loss. We recommend
that you wear hearing protection on a full-time basis if the
noise in the Operator's position exceeds 80 db. Noise over
85 db on a long-term basis can cause severe hearing loss.
Noise over 90 db adjacent to the Operator over a
long-term basis may cause permanent, total hearing loss.
NOTE: Hearing loss from loud noise (from tractors, chain
saws, radios, and other such sources close to the ear) is
cumulative over a lifetime without hope of natural recov-
ery.
4. Clear working area of stones, branches or hidden obsta-
cles that might be hooked or snagged, causing injury or
damage.
5. Use only in daylight or good artificial light.
6. Be sure machine is properly mounted, adjusted and in
good operating condition.
7. Ensure that all safety shielding, and safety signs are
properly installed and in good condition.
1. Good maintenance is your responsibility. Poor mainte-
nance is an invitation to trouble.
2. Follow good shop practices.
- Keep service area clean and dry.
- Be sure electrical outlets and tools are properly ground-
ed.
- Use adequate light for the job at hand.
3. Make sure there is plenty of ventilation. Never operate
the engine of the towing vehicle in a closed building. The
exhaust fumes may cause asphyxiation.
4. Before working on this machine, shut off the engine,
set the brake, and turn fuel valve off.
5. Never work under equipment unless it is blocked
securely.
6. Always use personal protection devices such as eye,
hand and hearing protectors, when performing any service
or maintenance work. Use heavy or leather gloves when
handling blades.
7. Where replacement parts are necessary for periodic
maintenance and servicing, genuine factory replacement
parts must be used to restore your equipment to original
specifications. The manufacturer will not be responsible
for injuries or damages caused by use of unapproved parts
and/or accessories.
8. A fire extinguisher and first aid kit should be kept readi-
ly accessible while performing maintenance on this equip-
ment.
9. Periodically tighten all bolts, nuts and screws and
check that all electrical and fuel connections are properly
secured to ensure unit is in a safe condition.
10. When completing a maintenance or service function,
make sure all safety shields and devices are installed
before placing unit in service.
1. Please remember it is important that you read and heed
the safety signs on the Skid Steer Mounted Wood Chipper.
Clean or replace all safety signs if they cannot be clearly
read and understood. They are there for your safety, as
well as the safety of others. The safe use of this machine
is strictly up to you, the operator.
2. All things with moving parts are potentially hazardous.
There is no substitute for a cautious, safe-minded opera-
tor who recognizes potential hazards and follows reason-
able safety practices. The manufacturer has designed
this Skid Steer Mounted Wood Chipper to be used with all
its safety equipment properly attached, to minimize the
chance of accidents. Study this manual to make sure you
have all safety equipment attached.
3. Close and secure rotor cover before operating.
4. Close and secure all guards, deflectors and shields
before starting and operating.
5. Read and understand operator's manual before start-
ing. Review safety instructions annually.
PREPARATION
MAINTENANCE SAFETY
OPERATING SAFETY
7
www. mechmaxx.com
SAFETY
1. Make sure that all the components in the hydraulic
system are kept in good condition and are clean.
2. Before applying pressure to the system, make sure all
components are tight, and that lines, hoses and couplings
are not damaged.
3. Do not attempt any makeshift repairs to the hydraulic
lines, fittings, or hoses by using tapes, clamps or
cements.The hydraulic system operates under extremely
high pressure. Such repairs will fail suddenly and create a
hazardous and unsafe condition.

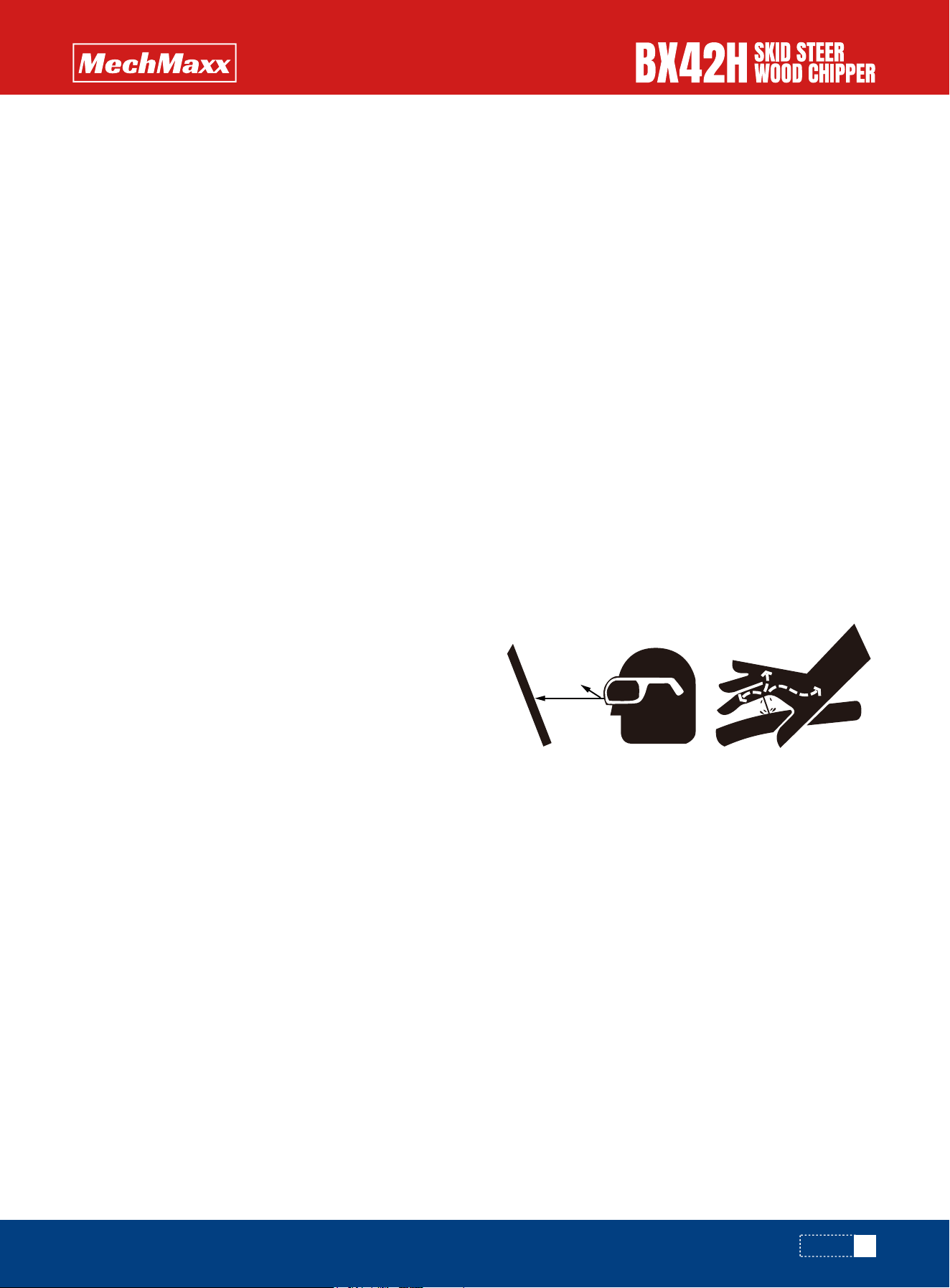

4. Wear proper hand and eye protection when searching
for a high-pressure hydraulic leak. Use a piece of wood or
cardboard as a backstop instead of hands to isolate and
identify a leak.
5. If injured by a concentrated high-pressure stream of
hydraulic fluid, seek medical attention immediately.
Serious infection or toxic reaction can develop from
hydraulic fluid piercing the skin surface.
6. Relieve pressure on hydraulic system before maintain-
ing or working on system.
1. Store the unit in an area away from human activity.
2. Do not children to play on or around the stored machine.
3. Store the unit in a dry, level area. Support the frame
with planks if required.
1. Comply with state and local laws governing safety and
transporting of machinery on public roads.
2. Check that all the lights, reflectors and other lighting
requirements are installed and in good working condition.
3. Do not exceed a safe travel speed. Slow down for rough
terrain and cornering.
4. Fold up and secure feed hopper before moving or trans-
porting.
5. Be sure the chipper is attached positively to the skid
steer with the lock pins fully engaged.
6. Personal protection equipment including hearing
protection, hard hat, safety glasses, safety shoes, and
gloves are recommended during assembly, installation,
operation, adjustment, maintaining, repairing, removal, or
moving. Do not allow long hair, loose-fitting clothing, or
jewelry to be around moving parts.
7. Keep hydraulic lines and fittings tight, in good condition
and free of leaks.
8. Never place any part of your body where it would be in
danger if movement should occur during assembly, instal-
lation, operation, maintenance, repairing, unplugging, or
moving.
9. Turn machine off, stop engine, remove ignition key and
place in your pocket, set park brake and wait for all
moving parts to stop before servicing, adjusting, repairing
or unplugging.
10. Do not run machine inside a closed building to prevent
asphyxiation from engine exhaust.
11. Use care when feeding material into chipper. Do not
send metal, bottles, cans, rocks, glass or other foreign
material into wood chipper. If foreign material enters
chipper, stop machine, turn engine off and place ignition
key in your pocket and wait for all moving parts to stop
before removing material and/or unplugging. Inspect
machine for damaged or loose parts before resuming
work.
12. Never use alcoholic beverages or drugs which can
hinder alertness or coordination while operating this
equipment. Consult your doctor about operating this
machine while taking prescription medications.
13. Do not allow riders on this machine at any time. There
is no safe place for any riders.
14. Never allow children or unauthorized people to operate
or be around this machine.
15. Do not reach into rotor or feed hopper openings when
the engine is running. Install and secure access covers
before starting engine.
16. Keep the working area clean and free of debris to
prevent tripping. Operate only on level ground.
17. Do not point discharge at people, animals or buildings.
Rotor can expel wood chips fast enough to cause injury.
18. Do not move or transport chipper when the rotor is
turning.
19. Do not exceed a safe travel speed when transporting.
HYDRAULIC SAFETY
STORAGE SAFETY
TRANSPORT SAFETY
8
www. mechmaxx.com
OPERATION
• Read and understand operator's manual before starting.
Review safety instructions annually.
• Turn machine off, stop engine, remove ignition key and
place in your pocket, set park brake and wait for all
moving parts to stop before servicing, adjusting, repair-
ing, or unplugging.
• Keep the working area clean and free of debris to
prevent tripping. Operate only on level ground.
• Close and secure rotor cover before operating.
• Close and secure all guards, deflectors, and shields
before starting and operating.
• Keep hydraulic lines and fittings tight, in good condition
and free of leaks.
• Do not point discharge at people, animals or buildings.
Rotor can expel wood chips fast enough to cause injury.
• Do not allow children, animals, or unauthorized people
into the working area.
• Do not run machine inside a closed building to prevent
asphyxiation from engine exhaust.
• Use care when feeding material into chipper. Do not
send metal, bottles, cans, rocks, glass or other foreign
material into wood chipper. If foreign material enters
chipper, stop machine, turn engine off and place ignition
key in your pocket and wait for all moving parts to stop
before removing material and/or unplugging. Inspect
machine for damaged or loose parts before resuming
work.
• Always wear P.P.E. (Personal Protective Equipment)
such as safety goggles and heavy gloves whenever
operating machine.
• Do not place hands or any body parts into feed hopper
during operation.
• Do not move or transport chipper when the rotor is
turning.
• Do not exceed a safe travel speed when transporting.
It is the responsibility of the owner or operator to read
this manual and to train all other operators before they
start working with the machine. Follow all safety instruc-
tions exactly. Safety is everyone's business. By following
recommended procedures, a safe working environment is
provided for the operator, bystanders, and the area around
the worksite. Untrained operators are not qualified to use
the machine.
Follow all safety instructions exactly. Safety is every-
one's business. By following recommended procedures, a
safe working environment is provided for the operator,
bystanders, and the area around the worksite. Untrained
operators are not qualified to operate the machine.Many
features incorporated into this machine are the result of
suggestions made by customers like you. Read this
manual carefully to learn how to use the chipper safely
and how to set it to provide maximum field efficiency. By
following the using instructions in conjunction with a
good maintenance program, your Skid Steer Mounted
Wood Chipper will provide many years of trouble- free
service.

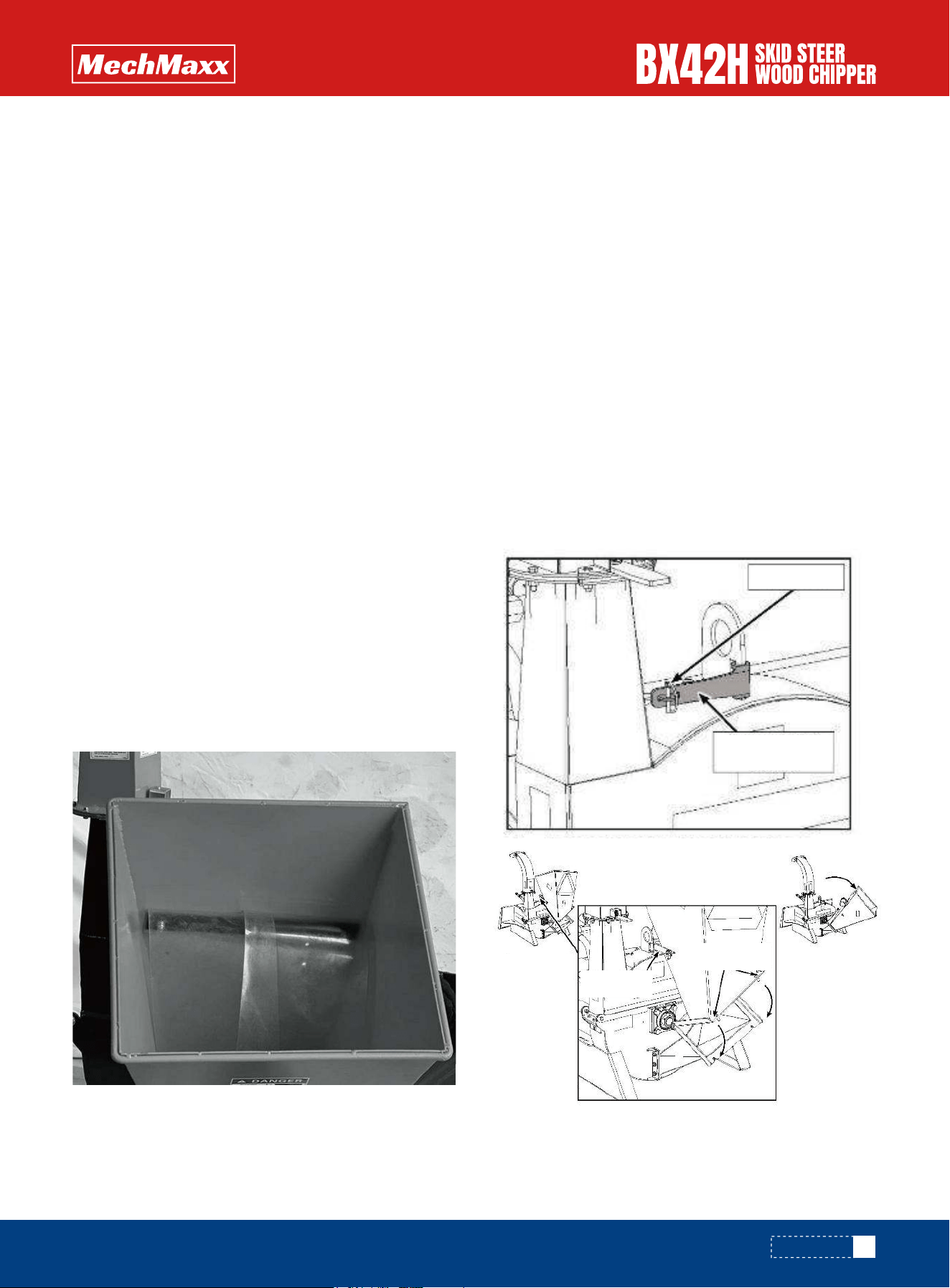

A hinged feed hopper moves the wood material into the
rotor. Each rotor is designed with 4 blades and a
twig-breaker to generate the small pieces of wood. A
stationary knife at the rear of the rotor housing is placed
by the moving knives to shear, chip or chop the material.
The skid steer tractor provides rotational power through
its hydraulic system into the hydraulic motor on the rotor-
shaft. This drive system is contained in the front frame.
Although there are no operational restrictions on the
Wood Chipper when used for the first time, it is recom-
mended that the following mechanical items be checked:
A. After operating for 1 hour:
1. Torque all fasteners and hardware.
2. Check condition of rotor bearings.
3. Check the condition and clearance of the twig-breaker,
rotor and stationary blades. Adjust or replace as required.
4. Check for entangled material. Remove all entangled
material before resuming work.
5. Lubricate all grease fittings.
B. After operating for 10 hours:
6. Do not drink and drive.
7. Be a safe and courteous driver. Always yield to oncom-
ing traffic in all situations, including narrow bridges,inter-
sections, etc. Watch for traffic when operating near or
crossing roadways.
8. Never allow riders on the machine.
OPERATION SAFETY
TO THE NEW OPERATOR OR OWNER
MACHINE COMPONENTS
MACHINE BREAK-IN
9
www. mechmaxx.com
OPERATION
1. Repeat steps 1 through 5 listed above. (Section A)
2. Go to the normal servicing and maintenance schedule
as defined in the Maintenance Section.
Efficient and safe operation of the Skid Steer Mounted
Wood Chipper requires that each operator reads and
understands the using procedures and all related safety
precautions outlined in this section. A pre-operation
checklist is provided for the operator. It is important for
both the personal safety and maintaining good mechani-
cal condition that this checklist is followed. Before
operating the Wood Chipper and each time thereafter, the
following areas should be checked off:
1. Lubricate the machine per the schedule outline in the
Maintenance Section.
2. Check the rotor, blades, and twig-breaker. Remove any
twine, wire or other material that has become entangled.
3. Check the condition and clearance of the twig- breaker,
rotor, andstationary blades. Adjust or replace as required.
4. Check that all bearings turn freely. Replace any that are
rough or seized.
5. Make sure that all guards and shields are in place,
secured and functioning as designed.
6. Check the condition of the curtain in the feed hopper. It
must be in good condition to prevent chips from flying out.
Follow this procedure to prepare and setup the machine
at the workdsite:
1. Use the skid steer to position the Wood Chipper at the
work site.
IMPORTANT
Position the machine so the prevailing wind/breeze blows
the exhaust gases/fumes away from the operator's
station.
2. Lower the feed hopper down into its working configura-
tion:
a.remove the nuts on the hopper anchor bolts,
b.unpin and the feeder hopper latch
c.carefully lower the hopper and secure it with the with
the nuts on the anchor bolts.
d.Secure the feed hopper latch to the discharge chute
with the Iatch pin
PRE-OPERATION CHECKLIST
MACHINE SET-UP
Latch Pin
Feed Hopper
Latch
Working
Position
Stowed
Position
Feeder Hopper
Anchor Bolts
Feed Hopper
Latch
OPERATION
10
www. mechmaxx.com
The machine is shipped from the factory in a basic, univer-
sal configuration that allows it to be mounted to any
model skid steer. However, the skid steer must be
equipped with a remote hydraulic outlet on the front of
the cab frame.
The wood chipper should always be located on a level, dry
area that is free of debris and other foreign objects. When
attaching the wood chipper to a skid steer, follow this
procedure:
1. Make sure that all bystanders, especially small children
are clear of the work area.
2. Make sure there is enough room and clearance to safely
drive up to the wood chipper.
3. Drive up to the wood chipper while aligning the mount-
ing components, and hook up into the mount.
4. Secure the mounting:
a.Drive into the mounting frame.
b.Seat the top of the face plate into the frame of the wood
chipper.
c.Raise the loader and tilt the face plate until it is fully
mated.
5. Engage the lock pins to secure the wood chipper to the
loader.
6. Connect the hydraulics:
a.Use a clean rag or paper towel to clean the dirt from the
couplers on the hose ends of the skid steer.
b.Connect the hoses to the skid steer couplers. Be sure
the couplers are securely seated.
c.Route and secure the hoses along the frame with clips,
tape or plastic ties to prevent binding and pinching. Be
sure to provide slack for tilting.
7. Raise the wood chipper.
HYDRAULIC CONNECTIONS & MOUNTING
Align
Lock
Pins
Hydraulic
Hoses
Mount
Plate
11
www. mechmaxx.com
OPERATION
8. Check that all hydraulic connections and locks are
secure before beginning work.
Reverse the above procedure when unhooking. Place
planks or boards under the frame for extra support if
required.
CHIPPING OPERATION
The Wood Chipper is a strong, rugged machine that is built
to a straightforward design which provides consistent
chipping of logs up to 4" (102mm)Always wear personal
protective equipment (PPE) whenever operating the
machine. This includes but is not limited to protective
shoes with slip resistant soles, protective goggles or
face shield, heavy gloves, hearing protection and protec-
tive clothing.
Do not place metal, bottles, cans, rocks, glass or other
solid material into the wood chipper. If something like this
gets into the machine, stop the machine immediately for
a detailed inspection. Stop engine, remove ignition key
and place in your pocket and wait for all moving parts to
stop before inspecting or unplugging. Inspect machine for
damaged or loosened parts before resuming work.
Caution and care should be exercised when feeding mate-
rial into the feeder. Do not reach into the hopper past the
curtain barrier.
a.Before beginning to feed the rotor is up to speed.
b.Slowly slide the wooden material into the feed hopper
and move it into the rotor.d
c.Do not force the material into the rotor, as the material
engages the rotor, the rotor will draw the material in. Use
continuous lite pressure to guide in the material.
d.Be aware of how much material you feed in, slow down
or stop if the rotor begins to slow down.
e.Do not reach into the feed hopper further than the
curtain to be sure not to contact the blades on the rotor.
f.Use a stick or branch to push any piece of material into
the rotor that does not move on its own. If the jam
persists then stop the engine and wait for the rotor to
stop and then clear the jam. Do not take a chance with
getting your hand caught in the rotor.
g.Ensure your wood chip pile is contained and doesn't
affect the immediate work area.
Although the machine is designed to handle a wide variety
of material without any problem, occasionally it plugs.
When the machine plugs, follow this procedure to unplug:
a.Clear the area of bystanders, especially small children.
b.Turn off the hydraulics, stop the engine, remove the
ignition key and place it in your pocket and wait for all
moving parts to stop before unplugging.
c.Pull the material out of the feed hopper. Be sure all the
material is out, and nothing is jammed or wedged
between the input opening and the rotor.
d.Pull the material out of the discharge hood. Use a stick
to poke loose any material jammed into the discharge
hood. Do not allow anything to remain in this area.
e.Check that everyone is clear of machine before restart-
ing engine.
f.Start the engine turn on the hydraulics, and resume
working
a.Clear the area of bystanders, especially small children.
b.Turn off the hydraulics, stop the engine, remove the
ignition key and place it in your pocket or remove spark
plug wire, and wait for all moving parts to stop before
unplugging.
UNPLUGGING
SEVERE PLUG
Connected
and secured
12
www. mechmaxx.com
OPERATION
c.Loosen the feed hopper anchor nuts and raise the feed
hopper.
d.Remove jammed material from inside the rotor compart-
ment.
e.Clean out the discharge area/rotor.
f.Open the upper rotary housing and clean out the housing.
g.Be sure to turn the rotor by hand to be sure there is
nothing jammed between the rotor and stationary blades.
h.Close, install and fold down all components opened to
unplug. Tighten fasteners to their specified torque.
i.Check that everyone is clear of machine before restart-
ing engine.
j.Start the engine turn on the hydraulics and resume work-
ing.
13
www. mechmaxx.com
MAINTENANCE
By following a careful service and maintenance program
for your machine, you will enjoy many years of trouble free
operation.
The rotor and ledger blades need to be sharp for the
Chipper to perform as expected. Periodic inspection is
recommended. Keep the blades sharp to reduce the
amount of power required during operation. Watch the
sharpness of the blades when processing material with a
lot of sand, soil or dirt mixed with it. Reverse or sharpen
the blades if the cutting edge becomes dull. Twig breaker
should be inspected for gouges or bent.
The rotor is equipped with 4 blades spaced evenly to keep
the rotor in balance. If one needs to be changed, the one
opposite should also be changed.
It is recommended that the rotor blades be removed from
the rotor when sharpening. Always sharpen the blades at
a 45° angle to provide the best cutting effect as it meets
the stationary blade. Be sure to tighten the blade mount-
ing bolts to their specified torque when reinstalling the
blades to the rotor.
1.Turn off the hydraulics, stop the engine, remove the
ignition key, and place it in your pocket and wait for all
moving parts to stop.
2.Remove the bolt that secures the upper rotor housing,
and carefully open the rotor housing.
3.Manually rotate chipper rotor plate so that the blade is
fully exposed
4.Remove the bolts that hold the rotor blade to the rotor,
remove the blade.
5.Rotate the blade and reinstall or replace with new or
resharpened blade.
6.Ensure the blade is properly oriented, with the leading
edge out.The blade is designed to fit into the rotor one
way only. See diagram for proper installation.
7.Tighten down bolts as specified in the torque chart.
8.Repeat steps for remaining blades.
BLADE AND BREAKER MAINTENANCE
ROTOR BLADES
Rotor Blade
Loading Edge
Proper orientation
of Rotor Blade
Rotor Blade
Bolts
MAINTENANCE
14
www. mechmaxx.com
The bx42h is equipped with a ledger (stationary) blade
that acts as a shear for the moving rotor blades. The
ledger blade is designed with 4 usable corners. When the
corner facing the rotor blade rounds over, remove the
blade and reinstall with a different corner facing the rotor
blade. It is recommended that the clearance between the
rotor and stationary blades be set and maintained at
1/32 to 1/16 " (.76 - 1.52 mm) to obtain the best perfor-
mance.
1. Turn off the hydraulics, stop the engine, remove the
ignition key and place it in your pocket and wait for all
moving parts to stop.
2. Remove the 2 bolts that hold the ledger blade to the
ledger mount, remove the blade.
3. Rotate the blade and replace or replace with new or
re-sharpened blade.
4. Hand tighten the bolts and set the clearance
between the ledger and rotor blades at 1/32 - 1/16" .
5. Tighten down bolts as specified in the torque chart .
CHECKING BOLT TORQUE
The tables shown below give correct torque values for
various bolts and cap screws. Tighten all bolts to the
torques specified in chart unless otherwise noted. Check
tightness of bolts periodically, using bolt torque chart as
a guide. Replace hardware with the same strength bolt.
Torque figures indicated above are valid for non-greased
or non-oiled threads and heads unless otherwise speci-
fied. Therefore, do not grease or oil bolts or cap screws
unless otherwise specified in this manual. When using
locking elements, increase torque values by 5%.
* Torque value for bolts and cap screws are identified by
their head markings
LEDGER BLADES MAINTENANCE BOLT TORQUE
Ledger Blade
Bolts
Ledger Blade
Bolt
Diameter
SAE 2
SAE-2
A
SAE-5 SAE-8
N.m lb-ft N.m lb-ft N.m lb-ft
SAE 5 SAE 8
Bolt Torque
1/4"
5/16"
3/8"
7/16"
1/2"
9/16"
5/8"
3/4"
7/8"
1"
8
13
27
41
61
95
128
225
230
345
6
10
20
30
45
60
95
165
170
225
12
25
45
72
110
155
215
390
570
850
9
19
33
53
80
115
160
290
420
630
17
36
63
100
155
200
305
540
880
1320
12
27
45
75
115
165
220
400
650
970
ENGLISH TORQUE SPECIFICATIONS
MAINTENANCE
15
www. mechmaxx.com
Bolt
Diameter
8.8
N.m lb-ft N.m lb-ft
10.9
Bolt Torque
M3
M4
M5
M6
M8
M10
M12
M14
M16
M20
M24
M30
M36
0.5
3
6
10
25
50
90
140
225
435
750
1495
2600
0.4
2.2
4
7
18
37
66
103
166
321
553
1103
1917
1.8
4.5
9
15
35
70
125
200
310
610
1050
2100
3675
1.3
3.3
7
11
26
52
92
148
229
450
744
1550
2710
METRIC TORQUE SPECIFICATIONS
MAINTENANCE
A
8.8 10.9
16
www. mechmaxx.com
PARTS DIAGRAM
PARTS DIAGRAM
17
www. mechmaxx.com
PARTS LIST
PARTS LIST
REF DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Housing, Bottom Rotor
Knife, Ledger
WASHER 8
Bolt M8*18
Twig Breaker
Nut M12
Bolt M12*30
Hydraulic components
Coupling XL5
Stop screw M8*12
Flat key A10*45
Bolt M14*1.5*40
SPRING WASHER 14
Bearing UCF208
SPRING WASHER 8
Knife, Rotor
Upper Weldment
Lick pin 10
Discharge Chute
Rotor Weldment
Bolt M8*20
Cover
Self-Feed Hopper
Nut M10
Grease nipple M6
1
1
7
19
1
7
7
1
1
2
1
8
8
2
20
4
1
1
1
1
4
1
1
2
2
18
www. mechmaxx.com
PARTS DIAGRAM
PARTS DIAGRAM
PARTS LIST
1
1
1
2
2
2
1
4
4
1
1
2
2
REF DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
FLAT FACED COUPLERS G1/2 FEMALE
FLAT FACED COUPLERS G1/2 MALE
Oil hose 02
Hex socket screw M8*40
END STRAIGHT JOINT G1/2"-M22*1.5
NUT M8
Overflow valve block
NUT M10
Bolt M10*40
Motor
Oil hose 01
END STRAIGHT JOINT M22*1.5-M22*1.5
WASHER 8
19
www. mechmaxx.com
PARTS DIAGRAM
PARTS DIAGRAM
PARTS LIST
8
1
2
1
8
1
REF DESCRIPTION QTY
1
2
3
4
5
6
Nut M6
Plate, Hood Capture
Plate, Spacer Ring
Hood Latch
Bolt M*20
Discharge Chute
Knob 8*32
Nut M8
Bolt M8*16
Deflector, Discharge Chute
Plate, Spacer Ring
2
2
4
1
2
REF DESCRIPTION QTY
7
8
9
10
11
20
www. mechmaxx.com
PARTS DIAGRAM
PARTS DIAGRAM
PARTS LIST
3
2
1
3
1
REF DESCRIPTION QTY
1
2
3
4
5
Bolt M8*25
Flap, Hopper
Strap, Hopper Flap
Nut M8
Infeed Hopper
