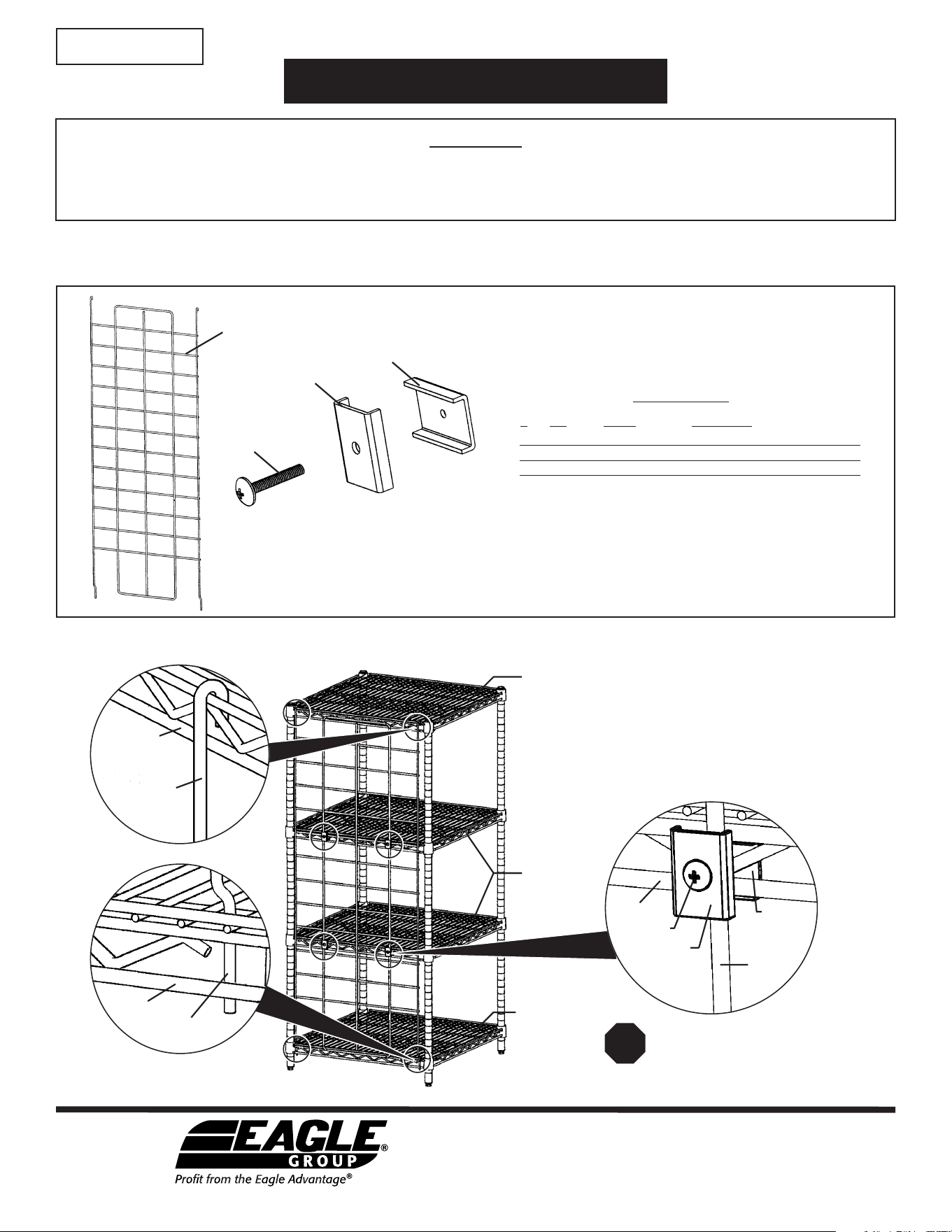

ASSEMBLY INSTRUCTIONS
Enclosure Panels for Wire Shelving
Parts List
* Quantity and part number of enclosure panel vary per order.
** Quantities shown are number per each enclosure panel.
# qty part # description
#1 * * enclosure panel
#2 4** 303197 8-32x1˝screw
#3 4** A200234 retaining clamp non-threaded
#4 4** A200233 retaining clamp threaded
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG9880 Revised 04/24
#1
#2
#3
#4
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com
INSTRUCTION SHEET
#A215024
Step 1 - Hook enclosure panel to top and bottom shelves.
See reverse side for Enclosure Panels for Solid Shelving
Step 2 - Secure enclosure panel
to mid shelves.
NOTE: Four retaining clamp assemblies
required per enclosure panel.
Assembly is complete.
enclosure panel
bottom hook
bottom
shelf
threaded
component
(horizontal)
enclosure
panel
shelf
non-threaded
component
(vertical)
screw
top
shelf
mid
shelves
bottom
shelf
top shelf
enclosure
panel hook
(End)
figure C
bottom of
solid shelf
enclosure
panel
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com

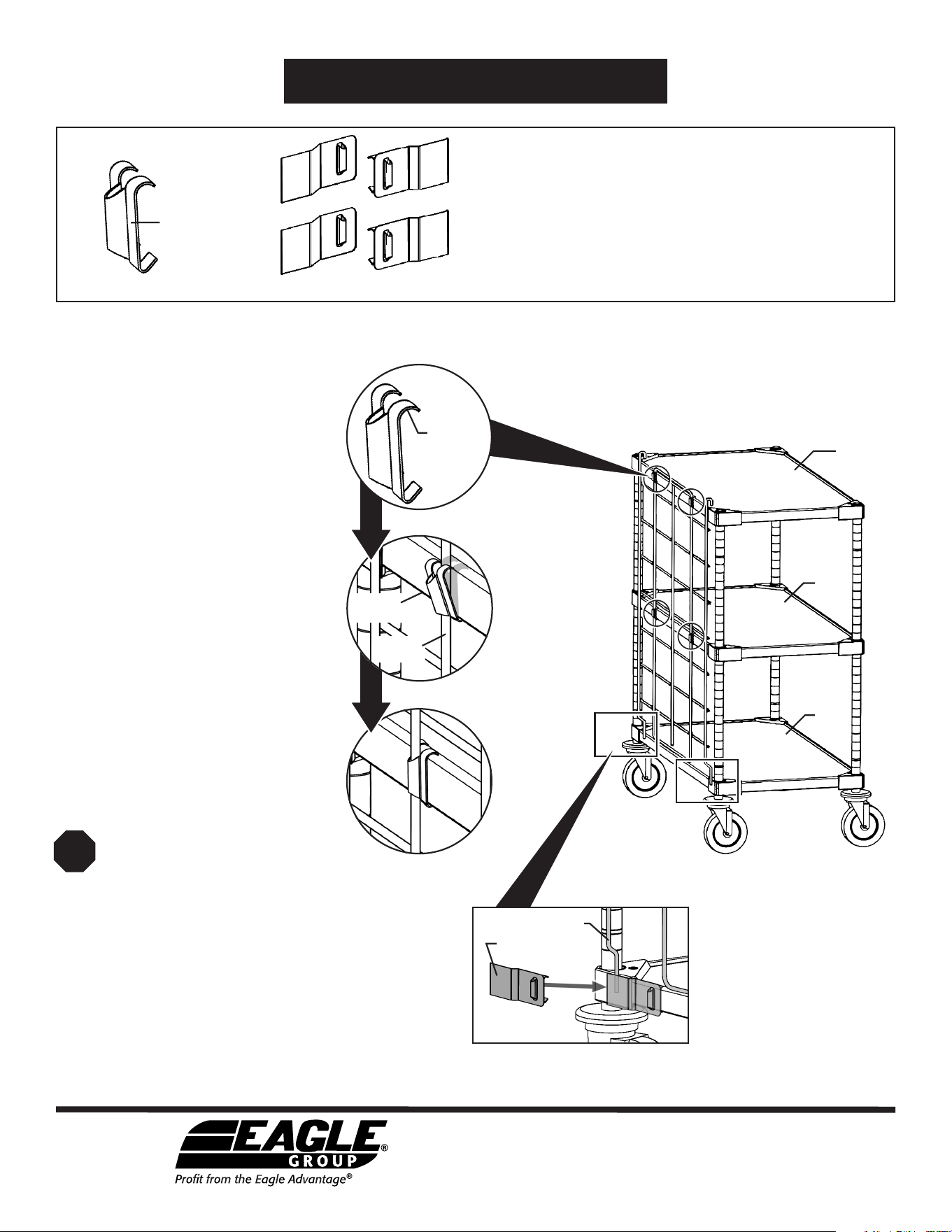

ASSEMBLY INSTRUCTIONS
Enclosure Panels for Solid Shelving
For further security, use #SSENCBKT to secure
enclosure panel to bottom solid shelf.
NOTE: Kit sold separately. Comes with two left and two right clips
(for two enclosure panels). For bottom solid shelves only!
Step 1 - Position enclosure panel onto desired side of solid shelf unit.
A) Position clip so that the large radius
(see figure A) is at the top edge of
the shelf.
A) Snap onto shelf, as shown (see figure D).
B) Repeat on remaining clip.
C) When the clips are installed, the enclosure panel wire will be
snug in between the solid shelf and the clip.
B) Hook the clip to the bottom of the shelf,
as shown (see figure B).
D) Repeat A-C on all remaining clips.
C) Press the top of the clip until it snaps over
the top of the shelf (see figure C).
NOTE: If needed, pliers may be used to
squeeze the clip until it snaps on the shelf.
top
shelf
large radius
(top of clip)
#A204318
mid
shelf
bottom
shelf
Solid shelving units accommodate the same
enclosure panels as wire shelving units do.
However, clip #A204318 is required to affix
enclosure panel(s) to top and mid solid
shelves of unit. Also, for further security, kit
#SSENCBKT is required to attach enclosure
panel(s) to bottom solid shelf.
Step 2 - Use #A204318 clips to
secure enclosure panel to top
and mid shelves.
NOTE: Individual clips sold separately.
Four clips required per enclosure panel.
(End)
#SSENCBKT
figure A
figure B
figure D
left
clip
enclosure
panel
