Xiamen Minglian Electronic Technology Co., Ltd.
一，零部件基本信息Basic Part Information
◆
Wireless 5557 Port Design
◆
PKE/BLE Inductive Keyless Start Function
◆
Turn signal flash/Horn function
◆ Learning remote control
二、Vehicle Start and Shutdown
Vehicle start-up：
Bring the smart remote control close to the vehicle (within 1.5 meters)，
①Tap once “POWER” Let go，
The vehicle detects a valid remote control, the turn signals flash twice or the
horn beeps twice, and the vehicle starts.。
Note: Smart remote refers to PKE key or BLE (Bluetooth) key (no manual
operation of the transmitter required).
②Press the remote control to unlock and activate the one-key start function
(reserved for operation when PKE fails)
Press the unlock button on the PKE remote once “ ” Key
;
At this
time, the backlight of the one-key start switch flashes. Within 5 seconds,
tap the "POWER" one-key start switch button and release it the vehicle.
(Times out and exits automatically; press the unlock button on the remote
briefly to activate)
（1） Engine off：
When the vehicle is started, “POWER” Release the push-button start switch to
turn off the vehicle。
（2）
PKE Key/BLE (Bluetooth) Key Pairing
：
①PEK key pairing：Long press the learning button on the main control board; the
turn signal will light up to indicate entering learning mode. At this point,
briefly press ann the remote control; the turn signal will flash once to indicate
successful pairing. To pair a second remote control, simply briefly press any key
on the other remote control. The system will automaxit learning mode upon
completion or after 10 seconds. The main unit is currently set to pair with a
maximum of 2 remote controls.
②BLE (Bluetooth) Key Pairing: Operate with the matched PKE key (ACC_ON, press
the unlock key lock key simultaneously for 3ds) to enter the main device
authorization mode, then click the Bluetooth device name in your phone settings to
pair successfully，The device supports pairing with a maximum of 2 mobile phones.
Xiamen Minglian Electronic Technology Co., Ltd.
三、基本参数Basic Parameters
（1）
工作频率Operating frequency：433
.
92
M
H
z
(
稳频
)
（2）
遥控距离Remote control distance：≥50 米(Open space conditions, remote control
1.5 meters above ground, main unit 1 meter above ground)
（3）
工作电压范围Operating voltage range：48
V
/
60
V
/
72
V
（4）
静态电流Static current：≤15mA（test voltage 85V）
（5）
ACC 使能启动最大持续电流ACC enables maximum continuous current：
48V 7A
/
60V
5A
/
72V 3A
(Max: 85V 2A)
（6）工作温度范围 operating temperature range：-30℃---80℃
四、PKE 感应参数 /PKE induction parameters
（1）
感应距离Detection distance：≥1.5 米
（2）
感应方向 sensing direction：
X
,
Y
,
Z
三轴感应

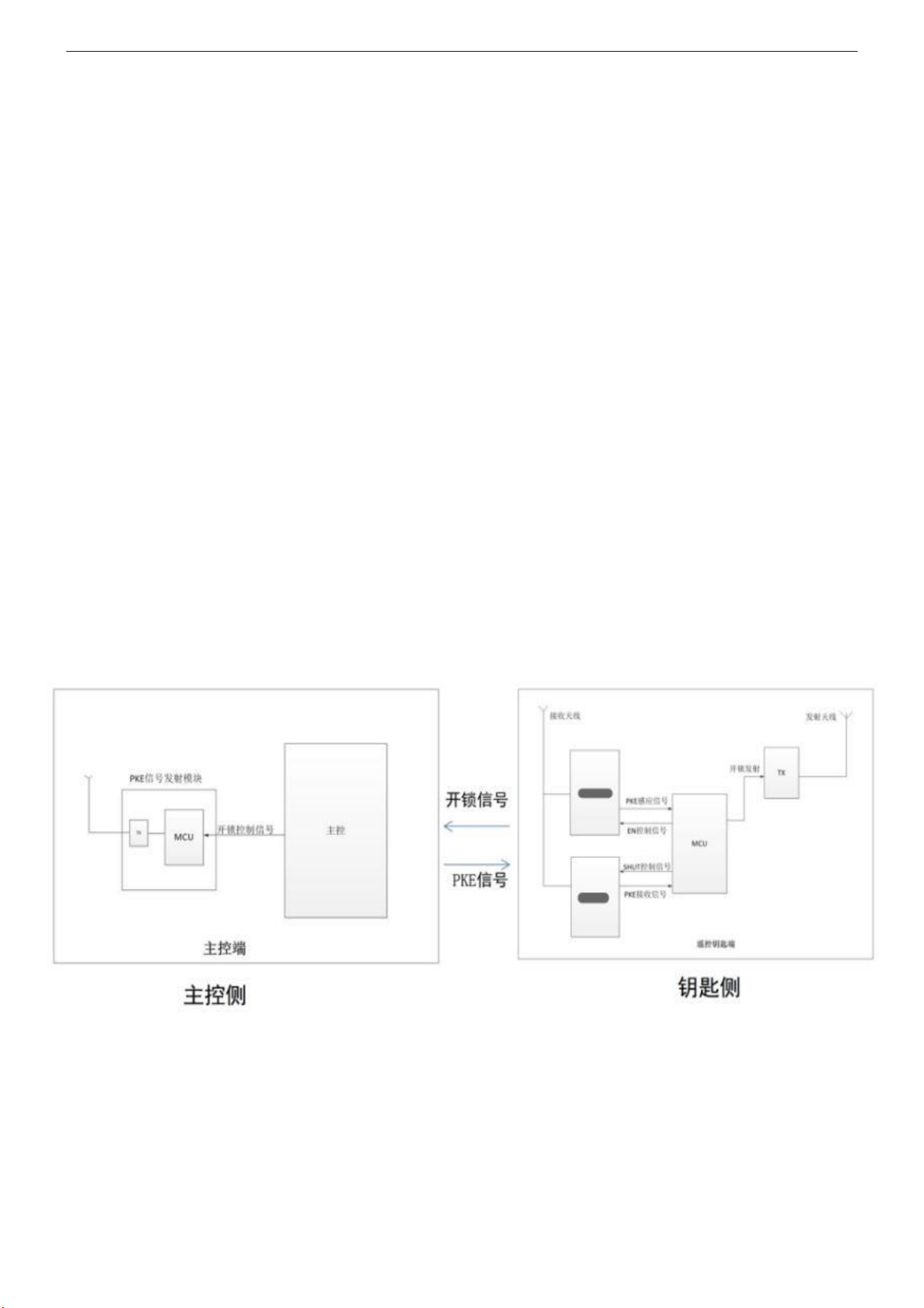

五，PKE 原理图示
Xiamen Minglian Electronic Technology Co., Ltd.

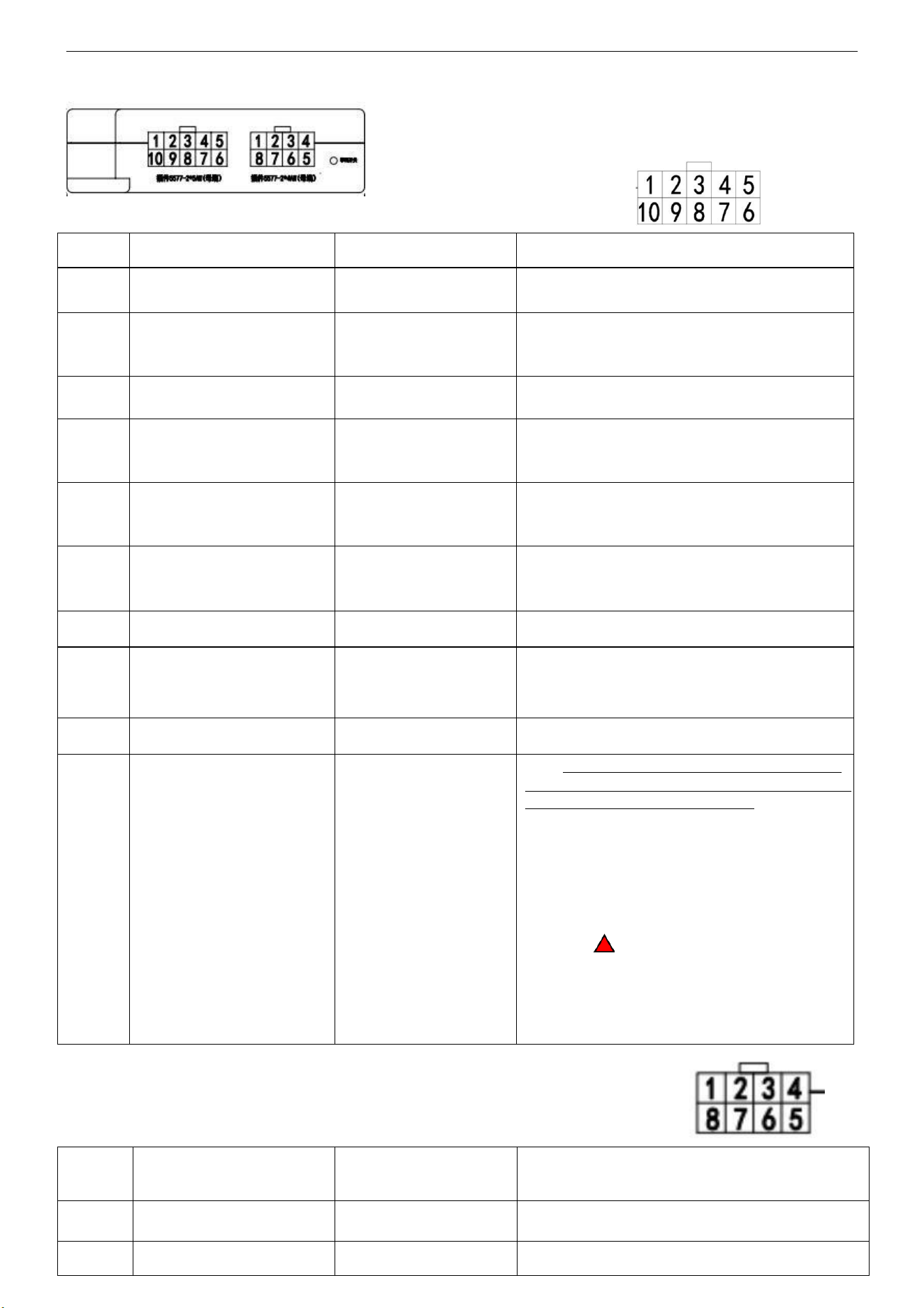

六．主机接插件（PCB 端）引脚定义Main Unit Connector (PCB Side) Pin Definition：
1）10Pin 引脚定义 /10Pin Pin definition：(插件 5557-2*5AW 母端）
引脚号
功能描述
规格参数
主机连接转接线
1.
电源正极
Anode
48
V
/
60
V
/
72
V
红线：电源正极（+）
Red wire: Power positive (+)
2.
电源负极
negative electrode
GND
黑线：电源负极（
GND
/
负极共地）
Black wire: Power negative (GND/Shared
ground)
3.
喇叭+极 Speaker
12V ≤3A
粉色：接报警喇叭+极（预留）
Pink: Alarm Horn +Pole (Reserved)
4.
左转向灯+极
left turn signal
12V ≤3A
绿线：接左转向灯+极
Green wire: Connect to left turn signal
+pole
5.
右转向灯+极
Right Turn Signal
12V ≤3A
绿线：接右转向灯+极
Green wire: Connect to right turn signal
+pole
6.
A
CC
/
电门锁ignition lock
48
V
/
60
V
/
72
V
≤3
A
黄线：接
A
CC
/
电门锁
/
D
C
控制端
Yellow wire: Connect to ACC/Key switch
lock/DC control terminal
7.
空
8.
方向闪灯
/
喇叭电源输入
(
兼容宽电压选择电源输入）
电源+12V
（可宽电压选择 48V/60V/72V)
蓝色：接电瓶电源+12V
Blue: Connect to battery power +12V
9.
空
橙色：当检测到加速踏板或车速输入信号时，就打开 20 分
钟自动关闭电门锁下电功能， 如果一直检测不到输入信号，
就不打开 20 分钟自动关闭电门锁下电功能，一键启动不工
10.
加速踏板 AD 或车速脉冲 S
信号输入
Accelerator pedal AD or
vehicle speed pulse S signal
input
AD/SP
作时不检测。
Orange: When an accelerator pedal or vehicle speed input signal is
detected, the 20-minute automatic ignition lock power-off function is
activated; if no input signal is sly detected, the 20-minute automatic
ignition lock power-off function is not activated. Detection is not
performed when the one-button start is not working.
温馨提示：
车辆不接加速踏板AD 或车速脉冲S 输入，主机不会启动以
上两个功能，直接悬空不影响主机正常正常使用！
If the vehicle does not connect the AD accelerator pedal or vehicle
speed pulse S input, the host will not activate the above two
functions; leaving them unconnected doet affect the normal operation
of the host!
2),8Pin 引脚定义/8Pin Pin definition： (插件 5557-2*4AW 母端）
pin
功能描述
Function Description
规格参数
Specifications
一键启动引线接线定义
One-key start lead wiring definition
1
空
/
2
空
/
Xiamen Minglian Electronic Technology Co., Ltd.
3
一键启动开关-检测信号
One-key Start Switch -
Detection Signal
低电平 0V 有效（负控）
Low level 0V active
(negative control)
黄线：一键启动_开
/
关信号
Yellow wire: One-key start_On/Off signal
4
一键启动开关-背光 LED+
One-touch Start Switch
- Backlit
≤0
.
3
A
红线：一键启动_ 控背光 LED+灯 IGN 状态指示
Red Wire: One-key Start_ Control Backlight
LED Light IGN Status Indicator
5
空
/
6
一键启动
-
地
GND
)
One-key Start - Ground
一键启动共地检测输入
One-key start common
ground detection
input
黑线：一键启动_负极
(
GND
)
Black Wire: One-Key Start_Negative (GND)
7
GND（预留）
/
8
空
/
Xiamen Minglian Electronic Technology Co., Ltd.

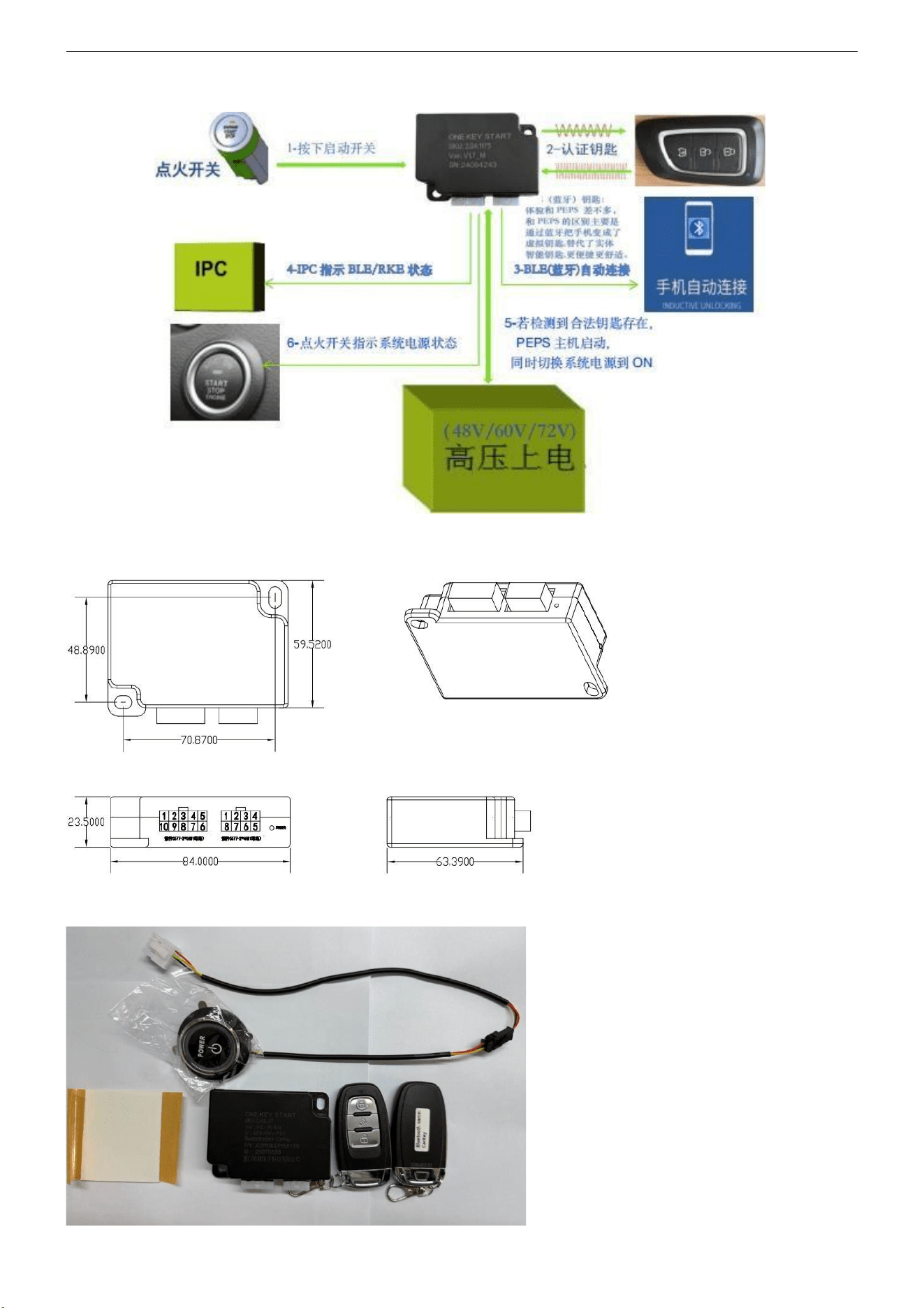

七．PEPS 一键启动系统图
/
PEPS One-key start system diagram：
八．外形图 Appearance diagram
九．产品实物配置图 Product actual configuration diagram
