WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
INSTALLATION INSTRUCTIONS: SKU# 346-3432, 346-3433, 346-3434,DIRECT-WIRE LINKABLE CCT ADJUSTABLE
UNDER CABINET LED LIGHT
FEATURES:
Direct wire and linkable design
Quick and easy linking system
Dimmable long life LED technology
ON/OFF/Dimmable Switch
2700K/ 3000K/ 4000K/ 5000K/ 6500K Switch
CAUTION:
- Do not install on radiant heated surfaces.
- This item is designed for dry/damp use and is not water proof.
- Do not place this item in a humid or dusty environment.
- Do not use in areas with temperature higher than 104 ° Fahrenheit.
- Do not use in areas near a gas source.
This light fixture is designed for permanent 120V AC direct hardwire installation.
Please read and get familiar with all components of this fixture before installation.
-Mounting holes go through the light fixture to make it easy to locate where to install.
-The rear access door can be removed to access three wires for 120V direct wire installation.
-Equipped with side link port for multi-fixture connection via matching link cable; all linked
lights support 2.4G wireless synchronous brightness & CCT adjustment.
WARNING: For safety reasons, do not exceed the maximum linking quantity per model.
Only small digital devices are allowed to charge via built-in USB-C output port.
Note: All wiring work must be operated by certied electrician.
Placement of the Fixture
Determine the installation position for 120V hardwire connection. This fixture is a permanent
direct-wire model, which must be hardwired to household wiring via junction box. If you are
unsure about wiring operation, consult a licensed electrician or electrical contractor before
proceeding.

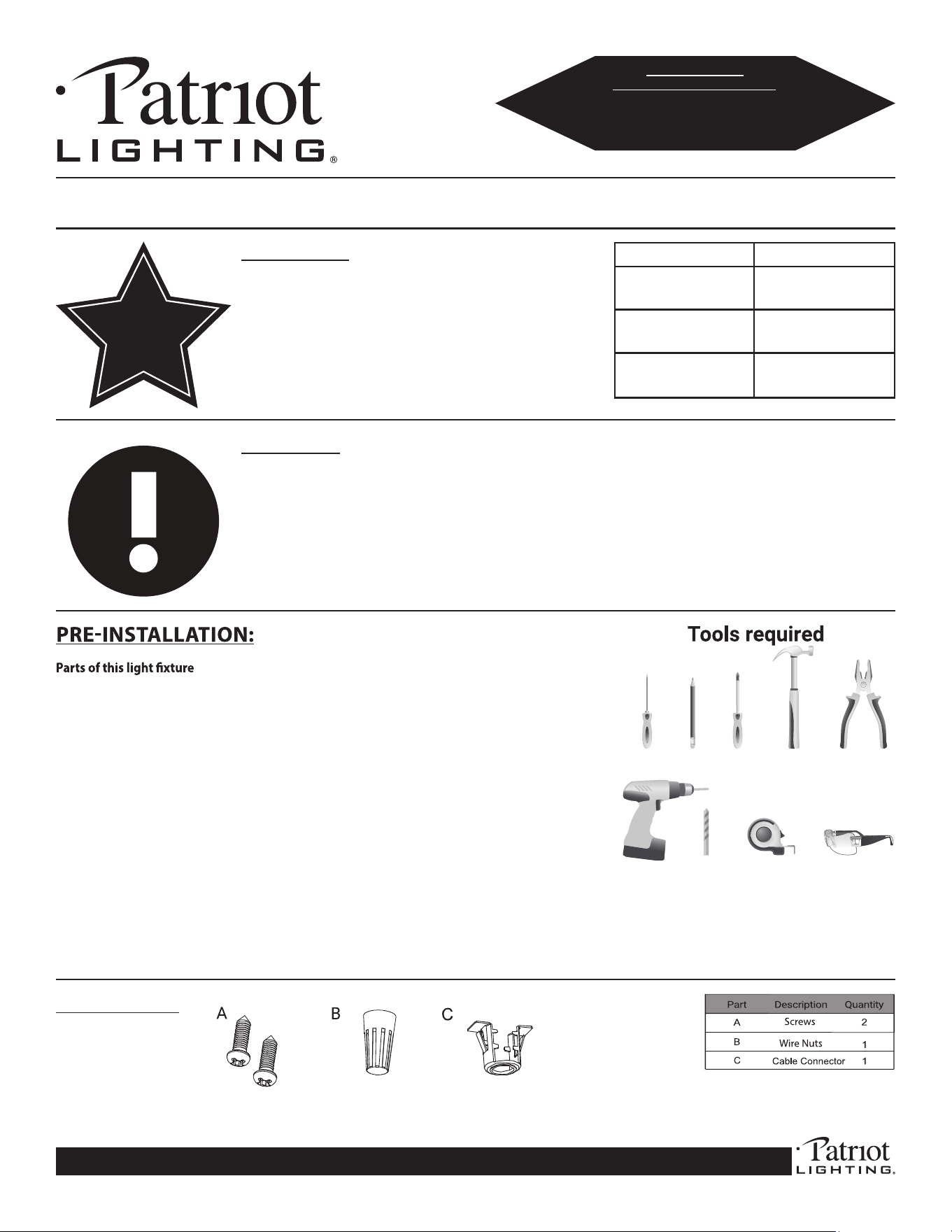

HARDWARE:
SKU# Max No. Linked
346-3432 10
346-3433
10
346-3434 10
If you have questions or missing parts, please contact our customer care at 1-888-745-4837
Awl Pencil Phillips Hammer Pliers
Screwdriver
Drill 1/16” Tape Safety
Drill Bit Measure Glasses
Screws
INSTALLATION INSTRUCTIONS: SKU# 346-3432, 346-3433, 346-3434,DIRECT-WIRE LINKABLE CCT ADJUSTABLE
UNDER CABINET LED LIGHT
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT

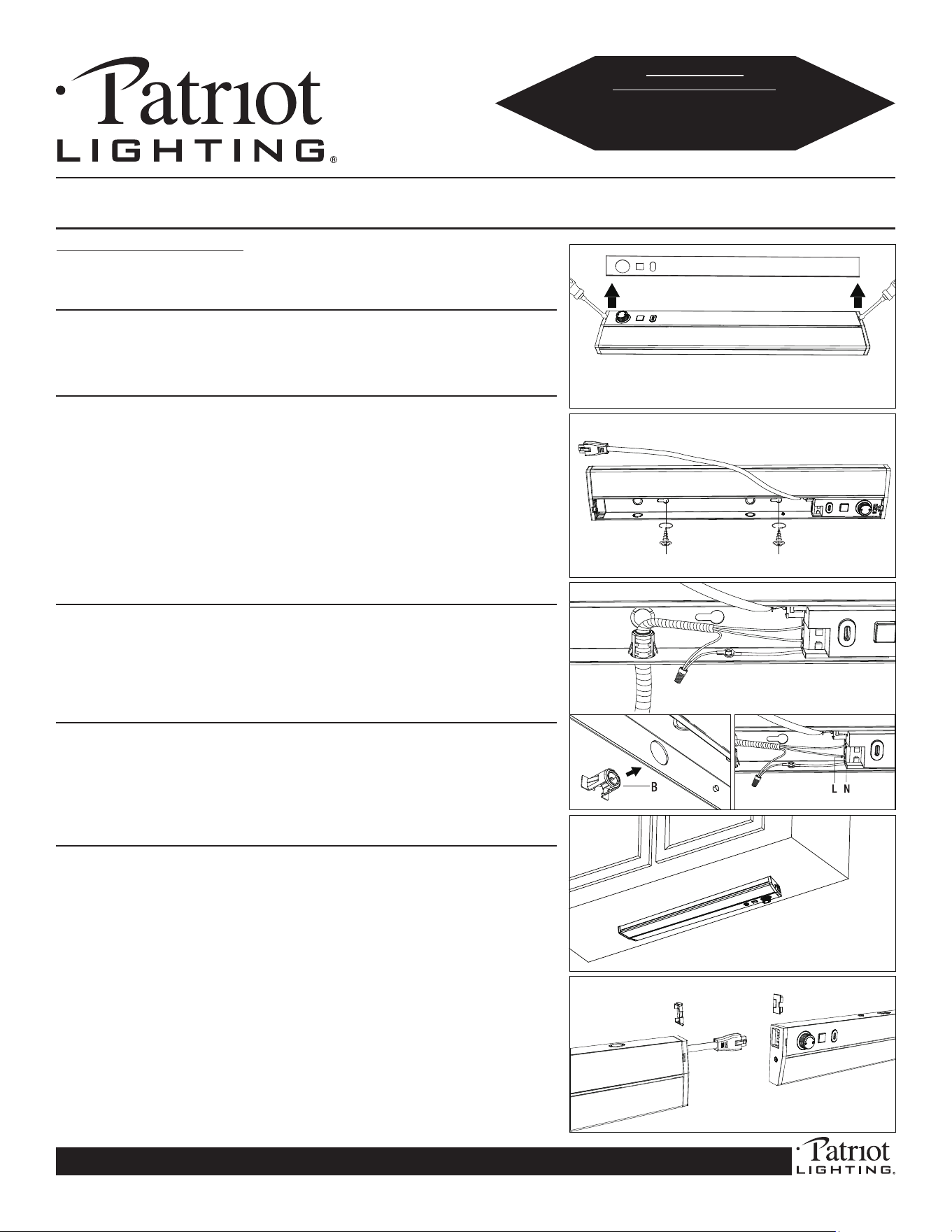

INSTALLATION INSTRUCTIONS:
1. Preparing the light for installation
Remove the dimmer knob access panel for access to the wiring compartment (Figure 1).
Figure 1
4. Mounting the light xture
NOTE: The xture mounting screws are suitable forcabinet bottoms 3/8 in. or thicker.
Use shorter screwsfor thinner cabinet bottoms.
2. Preparing the light for installation(continued)
2.1 Determine the electrical feed location.
2.2 Remove a knockout from either the back or side of thefixture housing.
The fixture has two to four knockoutsdepending on the length of your fixture.
3. Connecting the wires
3.1 Connect the ground wire from the fixture to the groundwire from the supply circuit,
using the wire connector (B).
3.2 Connect the white wire (Neutral wire) from the supplycircuit to the blue input (N)
of the connector (A) inside thelight.
3.3 Connect the black wire (Live wire) from the supplycircuit to the green input (L)
of the connector (A) inside thelight.
Attach the light to the desired surface using the fixturemounting screws (C).
Tighten the screws securely.
5. Re-attach the front cover
NOTE: Ensure the wires are covered properly insidethe xture.
Re-attach the front cover back to the light fixture with thetwo previously-removed screws.
Restore the power to theelectrical circuit at the service panel. Turn on the switch tolight the
fixture.
6. To link more lights
Attention: Max linkage is 10 units.Only connect to the lights of the same series.Only ONE light
is allowed to receive main powerinput from supply circuit.Otherwise, it will cause damage or
re.
6.1 Turn off the power of the light and remove the front cover.
6.2 Remove the side cover and release the linking cord from theclamp inside the light
compartment.
6.3 Extend the cord to a desired length and insert the cord into theconnector of the
next light.
6.4 Place the extra cord back into the clamp and re-attach thefront cover.
CAUTION: Make sure the white wire and the blackwire are copper wires among 14~20AWG.
Make sureall the threads of the wires are properly connected.
NOTE: Before you connect the wires, make sure theON/OFF switch on the surface is OFF or
it may causepotential risk if the switch is ON.
If you have questions or missing parts, please contact our customer care at 1-888-745-4837
connector
INSTALLATION INSTRUCTIONS: SKU# 346-3432, 346-3433, 346-3434,DIRECT-WIRE LINKABLE CCT ADJUSTABLE
UNDER CABINET LED LIGHT
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
TROUBLESHOOTING:
Problem Possible Cause Solution
The product does
not turn on
Check the power supply and make sure it is ON
There is a bad wire connection Check the wiring
The switch is defective Test and/or replace the switch
Circuit breaker trips
when the power is
sent to the light
Incorrect wire connections, or hot Ensure wires are connected correctly
wires are grounded out Contact an electrician
CCT FEATURE:
There are 5 selectable CCT modes built into this fixture: 2700K (warm white), 3000K (soft white), 4000K (bright white),
5000K (daylight), and 6500K (cool daylight). Simply short-press the integrated dimmer knob on the fixture body to cycle
between tones, and all connected lights will match the selected CCT automatically through the 2.4G wireless linkable
sync system.
DIMMING FEATURE:
This under cabinet light comes with an integrated smooth rotary dimmer knob for stepless brightness adjustment. Rotate
the knob clockwise or counter-clockwise to raise or lower light output freely.
All linked fixtures with 2.4G wireless sync function will adjust brightness synchronously when you operate the dimmer
knob on any single light. The fixture will automatically save your last brightness setting after power off.
EXTRA USB-C CHARGING FUNCTION
three-year warranty
A built-in USB-C output port is equipped on the fixture. Once the light is powered by 120V hardwire, the port provides
constant 5V charging output for small digital devices such as cell phones and wireless earbuds. Do not connect
high-power electrical appliances to this port.
EYES:
• DO NOT look directly at the LED lights.
• DO NOT remove the LED lights protective covering.
CARE FOR YOUR PRODUCT:
This product has a from the date of purchase. This guarantees
against failure due to factory defects, whether caused by materials or workmanship.
The warranty is non-transferable and only pertains to the original purchaser. Proof
of purchase is required for any repair or replacement, so please keep your proof of
purchase receipt. This warranty does not cover normal wear and tear or damage due
to misuse. Misuse of this product includes but is not limited to:
• Using outdoors in extreme weather conditions.
• Opening the product’s housing.
If you have questions or missing parts, please contact our customer care at 1-888-745-4837
