MAX Series
User Manual
Peplink Products:
BR2 Pro DX
Peplink Firmware 8.5.2
May 2025
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
Copyright © 2021 Peplink Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink International
Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.
Table of Contents
Introduction and Scope 6
Glossary 8
1 Product Features 9
1.1 Supported Network Features 9
1.2 Other Supported Features 12
2 MAX BR2 Pro DX Overview 13
2.1 Panel Appearance 13
3 Advanced Feature Summary 14
3.1 Drop-in Mode and LAN Bypass: Transparent Deployment 14
3.2 QoS: Clearer VoIP 14
3.3 Per-User Bandwidth Control 15
3.4 High Availability via VRRP 15
3.5 USB Modem and Android Tethering 16
3.6 Built-In Remote User VPN Support 16
3.7 SIM-card USSD support 17
3.8 KVM Virtualization 17
3.9 DPI Engine 18
3.10 NetFlow 18
3.11 Wi-Fi Air Monitoring 18
3.12 SP Default Configuration 18
3.13 Peplink Relay 19
3.14 DNS over HTTPS (DoH) 19
3.15 Peplink InTouch 19
3.16 Synergy Mode 19
3.17 Virtual WAN on VLAN 20
4 Installation 21
4.1 Preparation 21
4.2 Constructing the Network 21
4.3 Configuring the Network Environment 22
5 Connecting to the Web Admin Interface 23
6 SpeedFusion Connect Protect 25
6.1 Activate SpeedFusion Connect Protect 25
6.2 Enable SpeedFusion Connect Protect 26
6.3 Route by Cloud Application 31
https://www.peplink.com
2
Copyright @ 2025 Peplink
6.4 Route by Wi-Fi SSID 32
6.5 Route by LAN Client 33
7 Configuring the LAN Interface(s) 35
7.1 Basic Settings 35
7.2 Port Settings 44
7.3 Captive Portal 45
8 Configuring the WAN Interface(s) 49
8.1 Ethernet WAN 52
8.2 Cellular WAN 60
8.3 Wi-Fi WAN 66
8.4 WAN Connection Settings (Common) 70
8.5 WAN Health Check 71
8.6 Bandwidth Allowance Monitoring 74
8.7 Additional Public IP address 75
8.8 Dynamic DNS Settings 75
9 SpeedFusion VPN 77
9.1 SpeedFusion VPN 78
10 IPsec VPN 88
10.1 IPsec VPN Settings 88
10.2 GRE Tunnel 92
11 OpenVPN 94
12 Outbound Policy 95
12.1 Adding Rules for Outbound Policy 95
13 Port Forwarding 105
13.1 UPnP / NAT-PMP Settings 107
14 NAT Mappings 108
15 Media Fast 110
15.1 Setting Up MediaFast Content Caching 110
15.2 Viewing MediaFast Statistics 112
15.3 Prefetch Schedule 113
16 Edge Computing 115
16.1 Configuring the ContentHub 115
16.2 Configure a website for ContentHub 115
16.3 Configure an application for ContentHub 117
17 Docker 120
18 KVM 121
19 QoS 122
https://www.peplink.com
3
Copyright @ 2025 Peplink
19.1 User Groups 122
19.2 Bandwidth Control 123
19.3 Application Queue 123
19.4 Application 124
20 Firewall 126
20.1 Access Rules 127
20.2 Content Blocking 135
21 Routing Protocols 137
21.1 OSPF & RIPv2 137
21.2 BGP 139
22 Remote User Access 144
23 Miscellaneous Settings 147
23.1 High Availability 147
23.2 RADIUS Server 151
23.3 Certificate Manager 153
23.4 Service Forwarding 154
23.5 Service Passthrough 157
23.6 UART 158
23.7 GPS Forwarding 160
23.8 Ignition Sensing 161
Ignition Sensing installation 161
GPIO Menu 163
23.9 NTP Server 164
23.10 Grouped Networks 165
23.11 Remote SIM Management 166
23.12 SIM Toolkit 168
23.13 UDP Relay 170
24 AP 171
24.1 AP Controller 171
24.2 Wireless SSID 171
24.3 Wireless Mesh 177
24.4 Settings 178
25 AP Controller Status 185
25.1 Info 185
25.2 Access Point 187
25.3 Wireless SSID 190
25.4 Wireless Client 191
https://www.peplink.com
4
Copyright @ 2025 Peplink
25.5 Mesh / WDS 192
25.6 Nearby Device 193
25.7 Event Log 193
26 Toolbox 194
27 System 195
27.1 Admin Security 195
27.2 Firmware 200
27.3 Time 202
27.4 Schedule 203
27.5 Email Notification 204
27.6 Event Log 207
27.7 SNMP 208
27.8 SMS Control 210
27.9 InControl 211
27.10 Configuration 212
27.11 Feature Add-ons 213
27.12 Reboot 213
28 Tools 214
28.1 Ping 214
28.2 Traceroute Test 215
28.3 Wake-on-LAN 215
28.4 WAN Analysis 216
28.5 CLI (Command Line Interface Support) 219
29 Status 220
29.1 Device 220
29.2 GPS Data 222
29.3 Active Sessions 223
29.4 Client List 225
29.5 UPnP / NAT-PMP 226
29.6 OSPF & RIPv2 227
29.7 BGP 227
29.8 SpeedFusion VPN 227
29.9 Event Log 232
30 WAN Quality 234
31 Usage Reports 235
31.1 Real-Time 235
31.2 Hourly 236
https://www.peplink.com
5
Copyright @ 2025 Peplink
31.3 Daily 237
31.4 Monthly 238
Appendix A: Restoration of Factory Defaults 240
Appendix B: FusionSIM Manual 241
Appendix C: Overview of ports used by Peplink SD-WAN routers and other Peplink
services 253
Appendix D: Declaration 255
Introduction and Scope
Pepwave routers provide link aggregation and load balancing across multiple WAN connections,
allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE, Wi-Fi, external WiMAX
dongle, and satellite to be utilized to connect to the Internet.
The MAX wireless SD-WAN router series has a wide range of products suitable for many
different deployments and markets. Entry level SD-WAN models such as the MAX BR1 are
suitable for SMEs or branch offices. High-capacity SD-WAN routers such as the MAX HD2 are
suitable for larger organizations and head offices.
This manual covers setting up Pepwave routers and provides an introduction to their features
and usage.
Tips
Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction!
https://www.peplink.com
6
Copyright @ 2025 Peplink
Glossary
The following terms, acronyms, and abbreviations are frequently used in this manual:
Term
Definition
3G
3rd generation standards for wireless communications (e.g., HSDPA)
4G
4th generation standards for wireless communications (e.g., LTE)
DHCP
Dynamic Host Configuration Protocol
DNS
Domain Name System
EVDO
Evolution-Data Optimized
FQDN
Fully Qualified Domain Name
HSDPA
High-Speed Downlink Packet Access
HTTP
Hyper-Text Transfer Protocol
ICMP
Internet Control Message Protocol
IP
Internet Protocol
LAN
Local Area Network
MAC Address
Media Access Control Address
MTU
Maximum Transmission Unit
MSS
Maximum Segment Size
NAT
Network Address Translation
PPPoE
Point to Point Protocol over Ethernet
QoS
Quality of Service
SNMP
Simple Network Management Protocol
TCP
Transmission Control Protocol
UDP
User Datagram Protocol
VPN
Virtual Private Network
VRRP
Virtual Router Redundancy Protocol
WAN
Wide Area Network
WINS
Windows Internet Name Service
WLAN
Wireless Local Area Network
https://www.peplink.com
8
Copyright @ 2025 Peplink
1 Product Features
Pepwave routers enable all LAN users to share broadband Internet connections, and they
provide advanced features to enhance Internet access. Our Max BR wireless routers support
multiple SIM cards. They can be configured to switch from using one SIM card to another SIM
card according to different criteria, including wireless network reliability and data usage.
Our MAX HD series wireless routers are embedded with multiple 4G LTE modems, and allow
simultaneous wireless Internet connections through multiple wireless networks. The wireless
Internet connections can be bonded together using our SpeedFusion technology. This allows
better reliability, larger bandwidth, and increased wireless coverage compared to use only one
4G LTE modem.
Below is a list of supported features on Pepwave routers. Features vary by model. For more
information, please see peplink.com/products.
1.1 Supported Network Features
1.1.1 WAN
● Ethernet WAN connection in full/half duplex
● Static IP support for PPPoE
● Built-in cellular modems
● USB mobile connection(s)
● Wi-Fi WAN connection
● Network address translation (NAT)/port address translation (PAT)
● Inbound and outbound NAT mapping
● IPsec NAT-T and PPTP packet passthrough
● MAC address clone and passthrough
● Customizable MTU and MSS values
● WAN connection health check
● Dynamic DNS (supported service providers: changeip.com, dyndns.org, no-ip.org,
tzo.com and DNS-O-Matic)
● Ping, DNS lookup, and HTTP-based health check
1.1.2 LAN
● Wi-Fi AP
● Ethernet LAN ports
● DHCP server on LAN
https://www.peplink.com
9
Copyright @ 2025 Peplink
● Extended DHCP option support
● Static routing rules
● VLAN on LAN support
1.1.3 VPN
● SpeedFusion VPN with SpeedFusion
TM
● SpeedFusion VPN performance analyzer
● X.509 certificate support
● VPN load balancing and failover among selected WAN connections
● Bandwidth bonding and failover among selected WAN connections
● IPsec VPN for network-to-network connections (works with Cisco and Juniper)
● Ability to route Internet traffic to a remote VPN peer
● Optional pre-shared key setting
● SpeedFusion
TM
throughput, ping, and traceroute tests
● PPTP server
● PPTP and IPsec passthrough
1.1.4 Firewall
● Outbound (LAN to WAN) firewall rules
● Inbound (WAN to LAN) firewall rules per WAN connection
● Intrusion detection and prevention
● Specification of NAT mappings
● Outbound firewall rules can be defined by destination domain name
1.1.5 Captive Portal
● Splash screen of open networks, login page for secure networks
● Customizable built-in captive portal
● Supports linking to outside page for captive portal
1.1.6 Outbound Policy
● Link load distribution per TCP/UDP service
● Persistent routing for specified source and/or destination IP addresses per TCP/UDP
service
● Traffic prioritization and DSL optimization
● Prioritize and route traffic to VPN tunnels with Priority and Enforced algorithms
1.1.7 AP Controller
https://www.peplink.com
10
Copyright @ 2025 Peplink
● Configure and manage Pepwave AP devices
● Review the status of connected APs
1.1.8 QoS
● Quality of service for different applications and custom protocols
● User group classification for different service levels
● Bandwidth usage control and monitoring on group- and user-level
● Application prioritization for custom protocols and DSL/cable optimization
https://www.peplink.com
11
Copyright @ 2025 Peplink
1.2 Other Supported Features
● User-friendly web-based administration interface
● HTTP and HTTPS support for web admin interface (default redirection to HTTPS)
● Configurable web administration port and administrator password
● Firmware upgrades, configuration backups, ping, and traceroute via web admin interface
● Remote web-based configuration (via WAN and LAN interfaces)
● Time server synchronization
● SNMP
● Email notification
● Read-only user access for web admin
● Shared IP drop-in mode
● Authentication and accounting by RADIUS server for web admin
● Built-in WINS servers*
● Syslog
● SIP passthrough
● PPTP packet passthrough
● Event log
● Active sessions
● Client list
● WINS client list *
● UPnP / NAT-PMP
● Real-time, hourly, daily, and monthly bandwidth usage reports and charts
● IPv6 support
● Support USB tethering on Android 2.2+ phones
* Not supported on MAX Surf-On-The-Go, and BR1 variants
https://www.peplink.com
12
Copyright @ 2025 Peplink
2 MAX BR2 Pro DX Overview

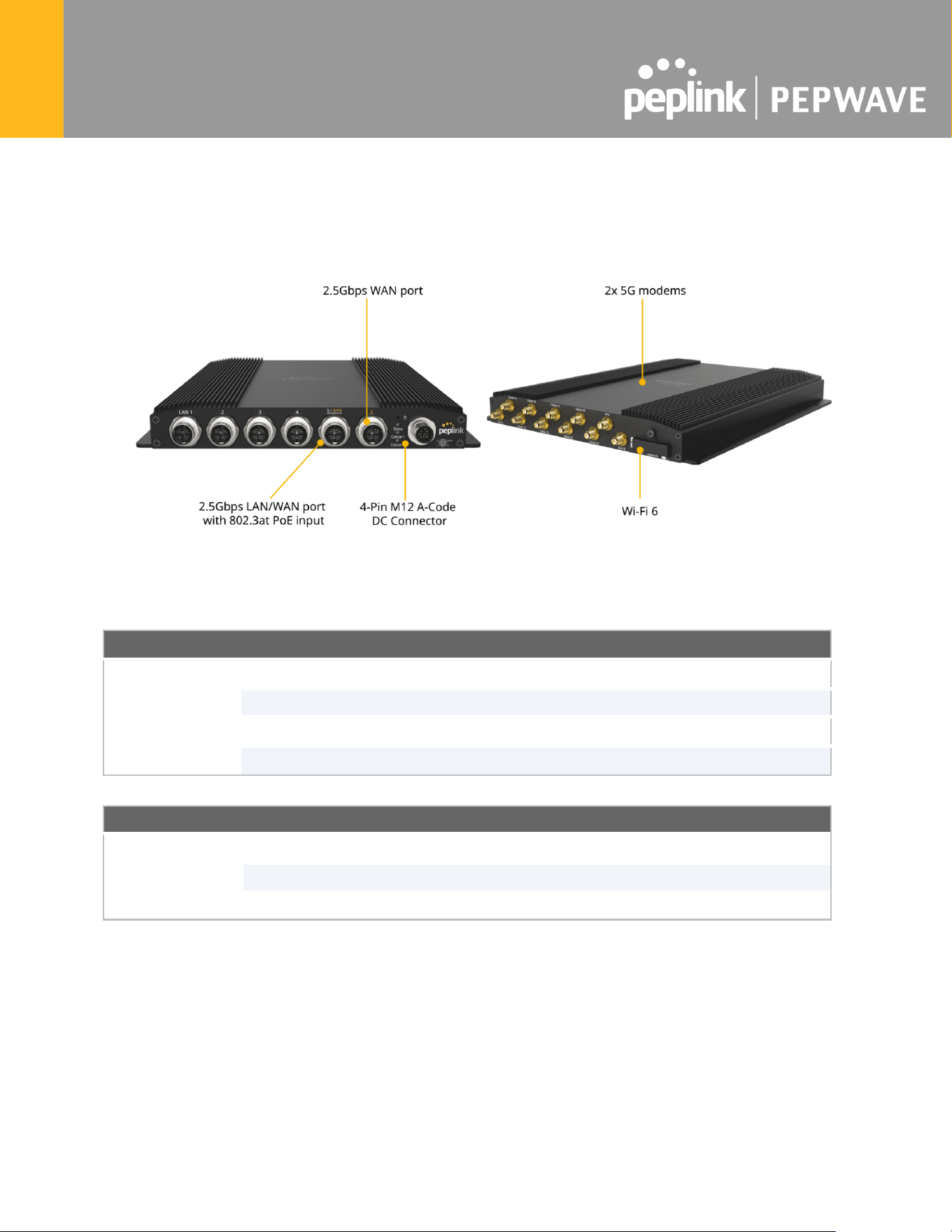

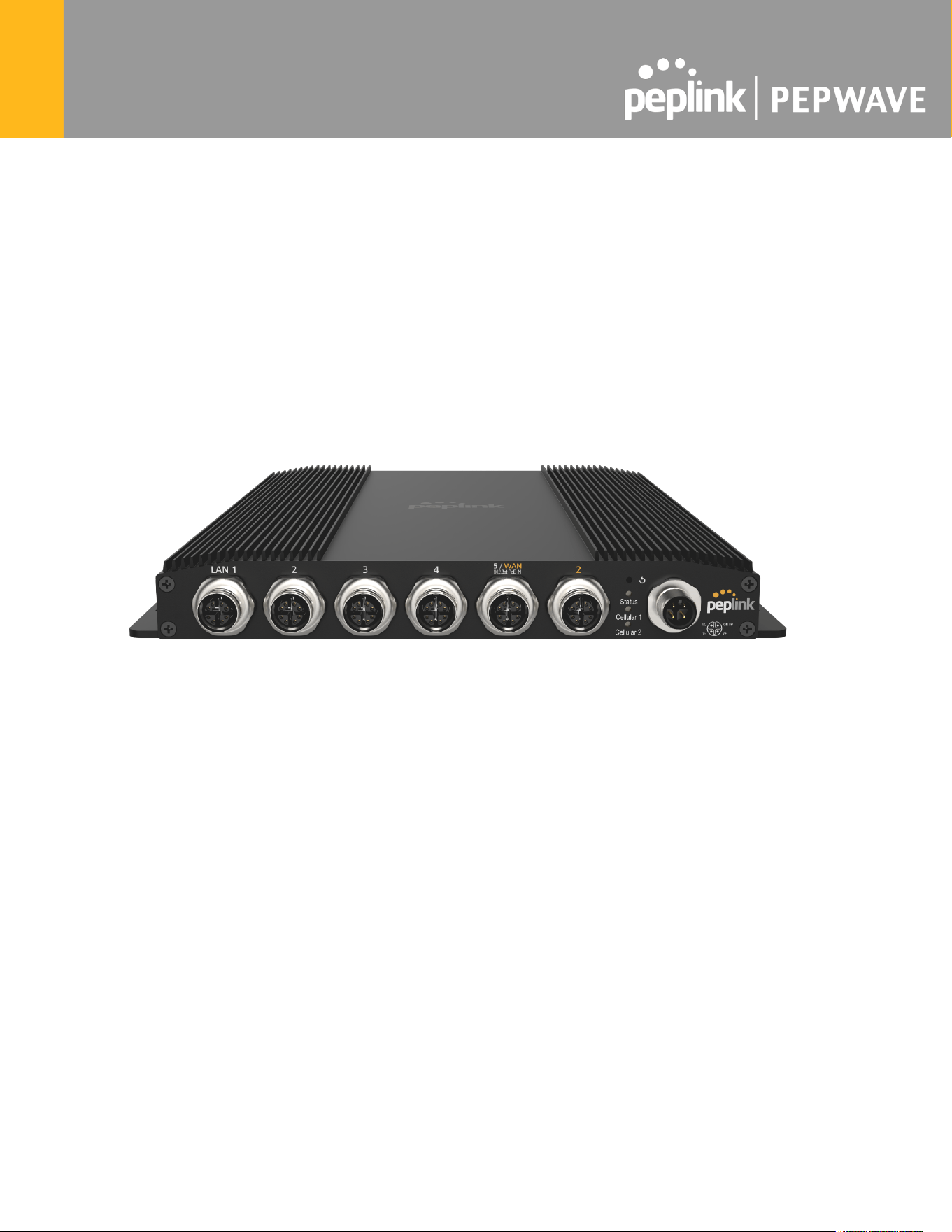

2.1 Panel Appearance
2.1.1 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
Blinking slowly
Connecting to network(s)
Green
Connected to network(s)
https://www.peplink.com
13
Copyright @ 2025 Peplink
3 Advanced Feature Summary
3.1 Drop-in Mode and LAN Bypass: Transparent Deployment

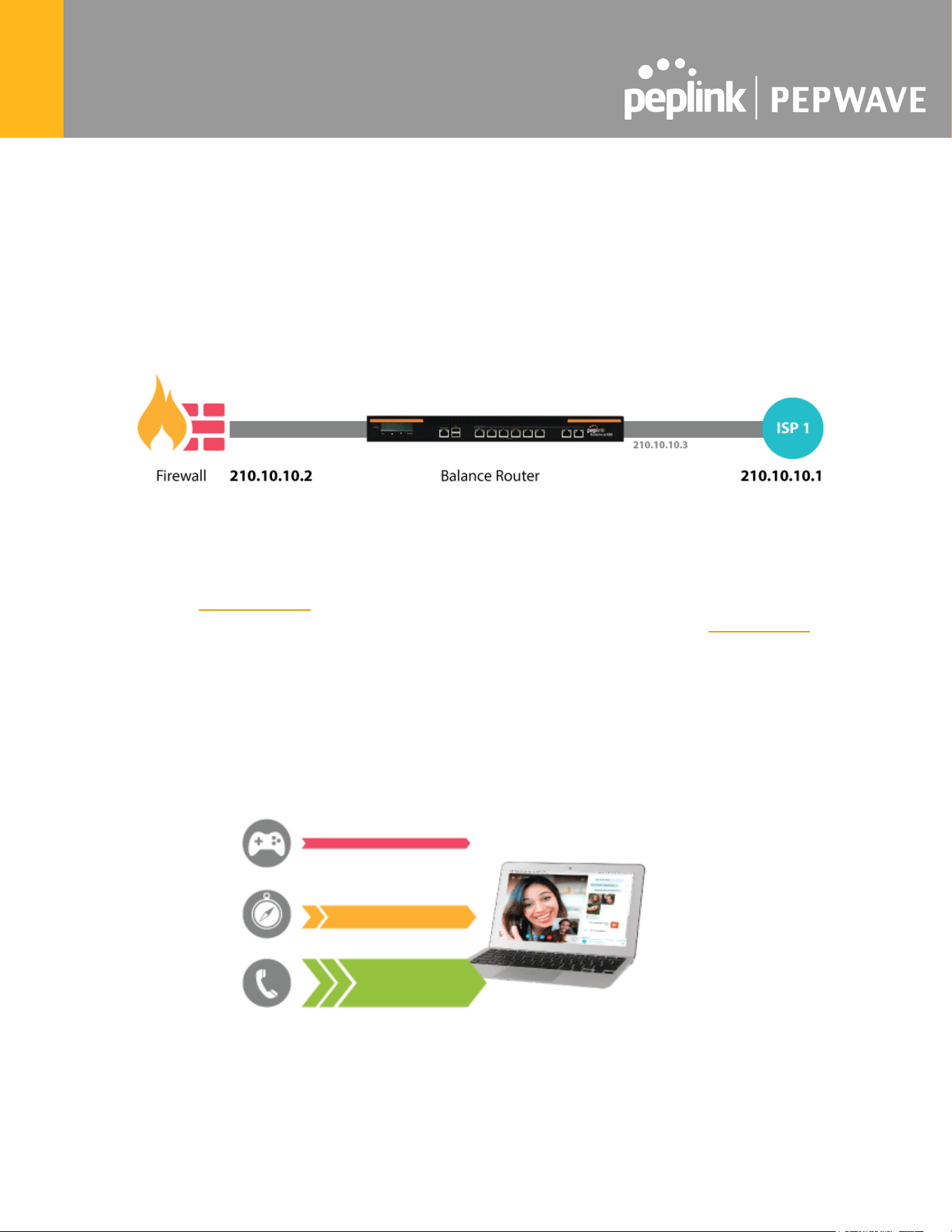

As your organization grows, it may require more bandwidth, but modifying your network can be
tedious. In Drop-in Mode, you can conveniently install your Peplink router without making any
changes to your network. For any reason your Peplink router loses power, the LAN Bypass will
safely and automatically bypass the Peplink router to resume your original network connection.
Note: Drop-in mode is compatible for All MAX models except MAX BR1 IP67
3.2 QoS: Clearer VoIP
VoIP and videoconferencing are highly sensitive to latency. With QoS, Peplink routers can
detect VoIP traffic and assign it the highest priority, giving you crystal-clear calls.
https://www.peplink.com
14
Copyright @ 2025 Peplink

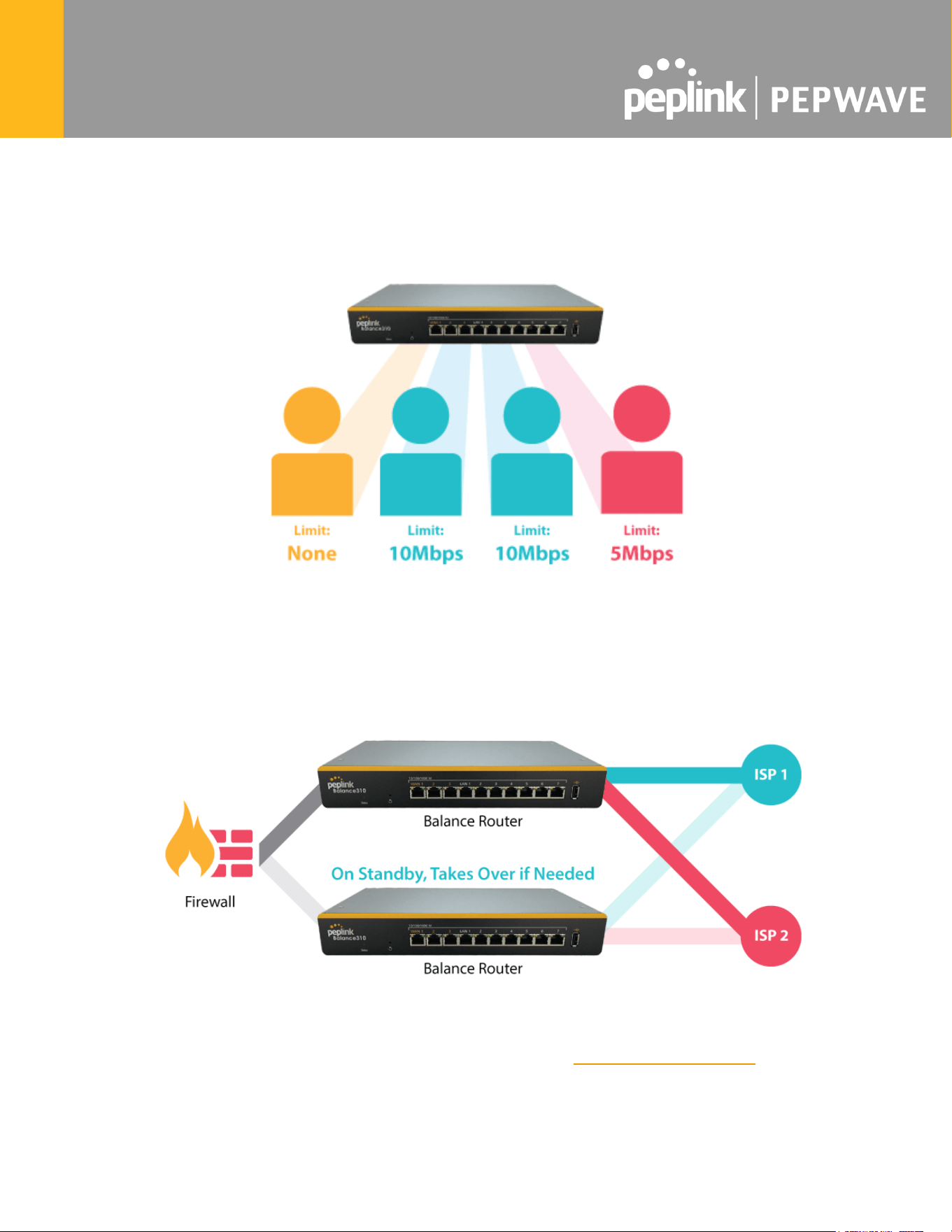

3.3 Per-User Bandwidth Control
With per-user bandwidth control, you can define bandwidth control policies for up to 3 groups of
users to prevent network congestion. Define groups by IP address and subnet, and set
bandwidth limits for every user in the group.
3.4 High Availability via VRRP

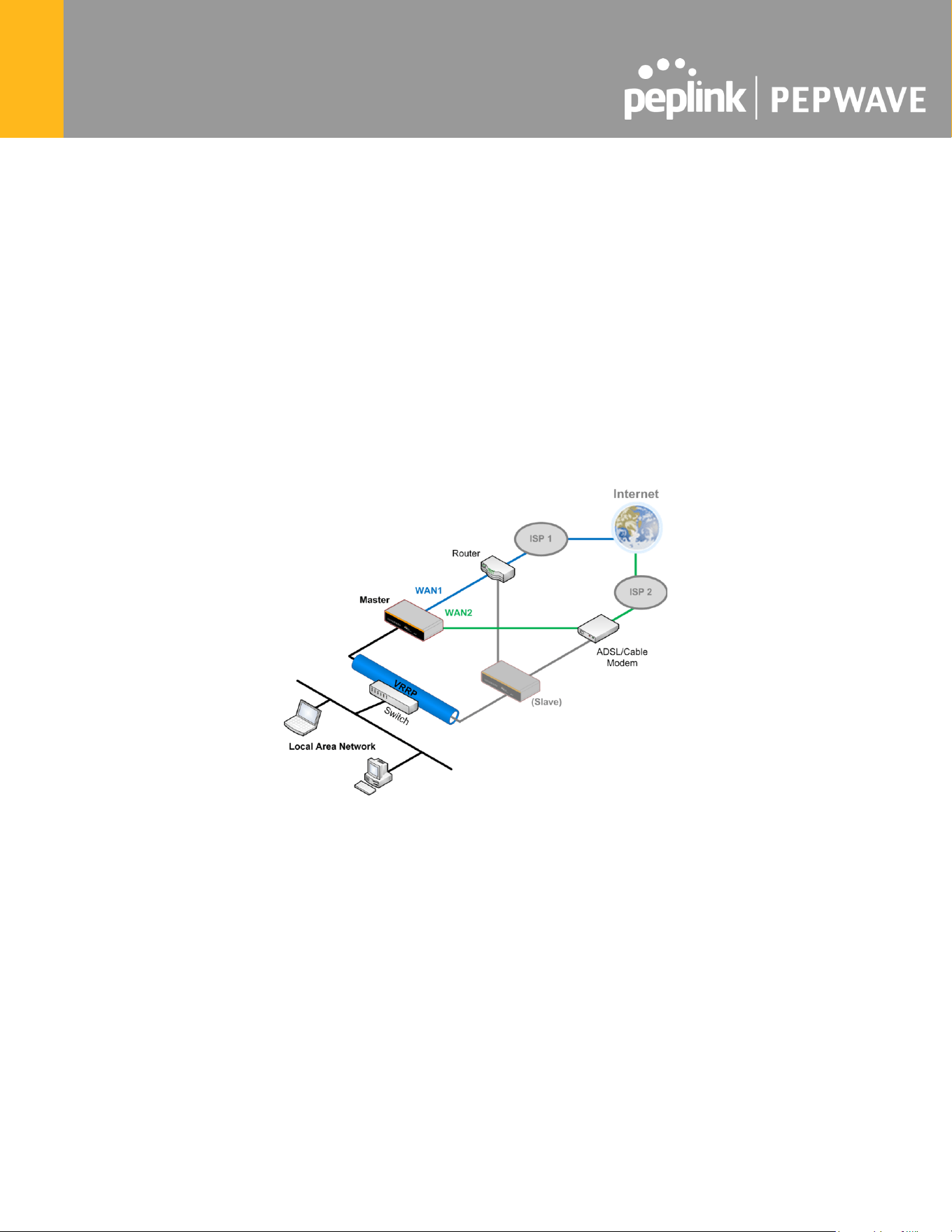

When your organization has a corporate requirement demanding the highest availability with no
single point of failure, you can deploy two Peplink routers in High Availability mode. With High
Availability mode, the second device will take over when needed.
https://www.peplink.com
15
Copyright @ 2025 Peplink
Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants)

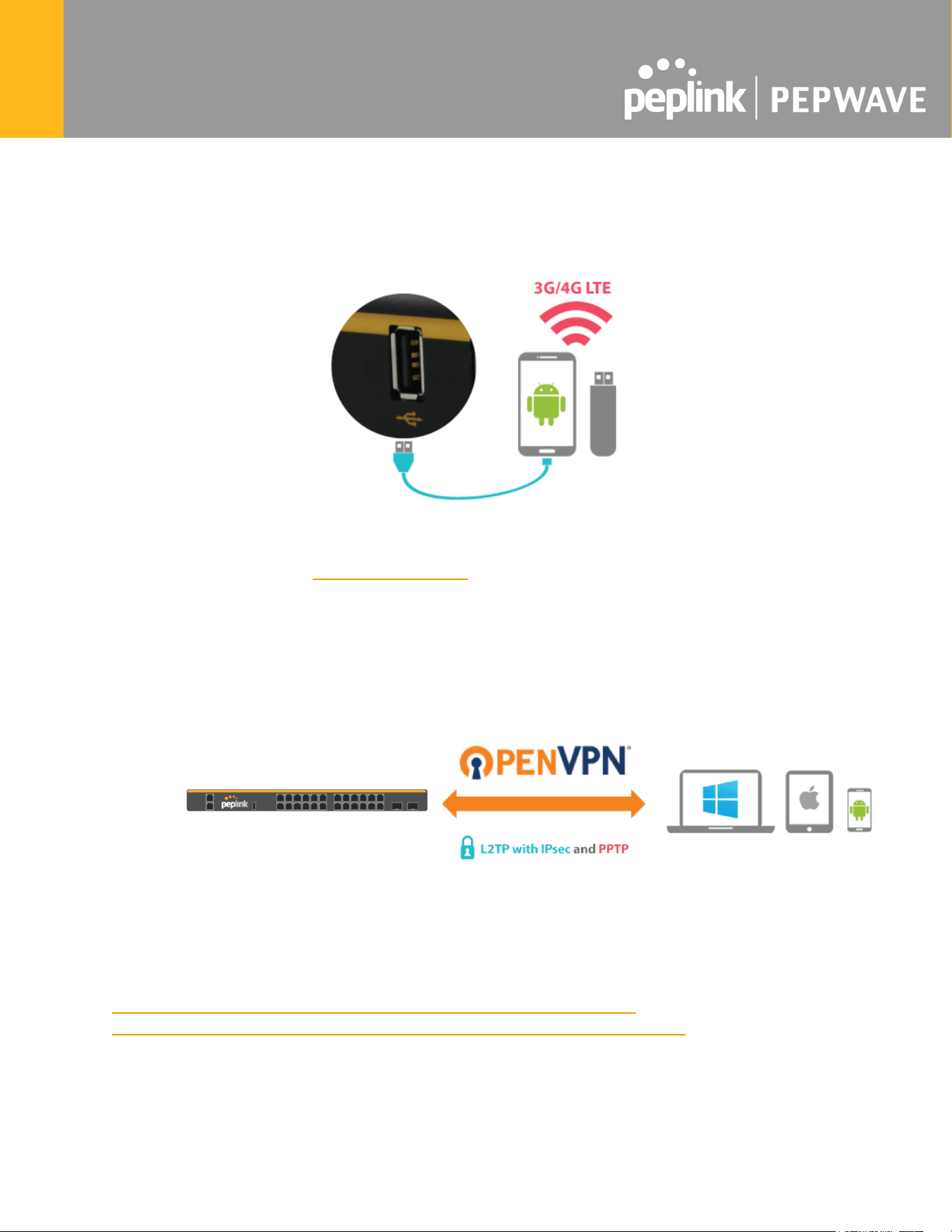

3.5 USB Modem and Android Tethering
For increased WAN diversity, plug in a USB LTE modem as a backup. Peplink routers are
compatible with over 200 modem types. You can also tether to smartphones running
Android 4.1.X and above.
Compatible with: MAX 700, HD2 (all variants except IP67), HD4 (All variants)
3.6 Built-In Remote User VPN Support
Use OpenVPN or L2TP with IPsec to safely and conveniently connect remote clients to your
private network. L2TP with IPsec is supported by most devices, but legacy devices can also
connect using PPTP.
Click here for the full instructions on setting up L2TP with IPsec.
Click here for the full instructions on setting up OpenVPN connections
https://www.peplink.com
16
Copyright @ 2025 Peplink
3.7 SIM-card USSD support
Cellular-enabled routers can now use USSD to check their SIM card’s balance, process
pre-paid cards, and configure carrier-specific services.
Click here for full instructions on using USSD
3.8 KVM Virtualization

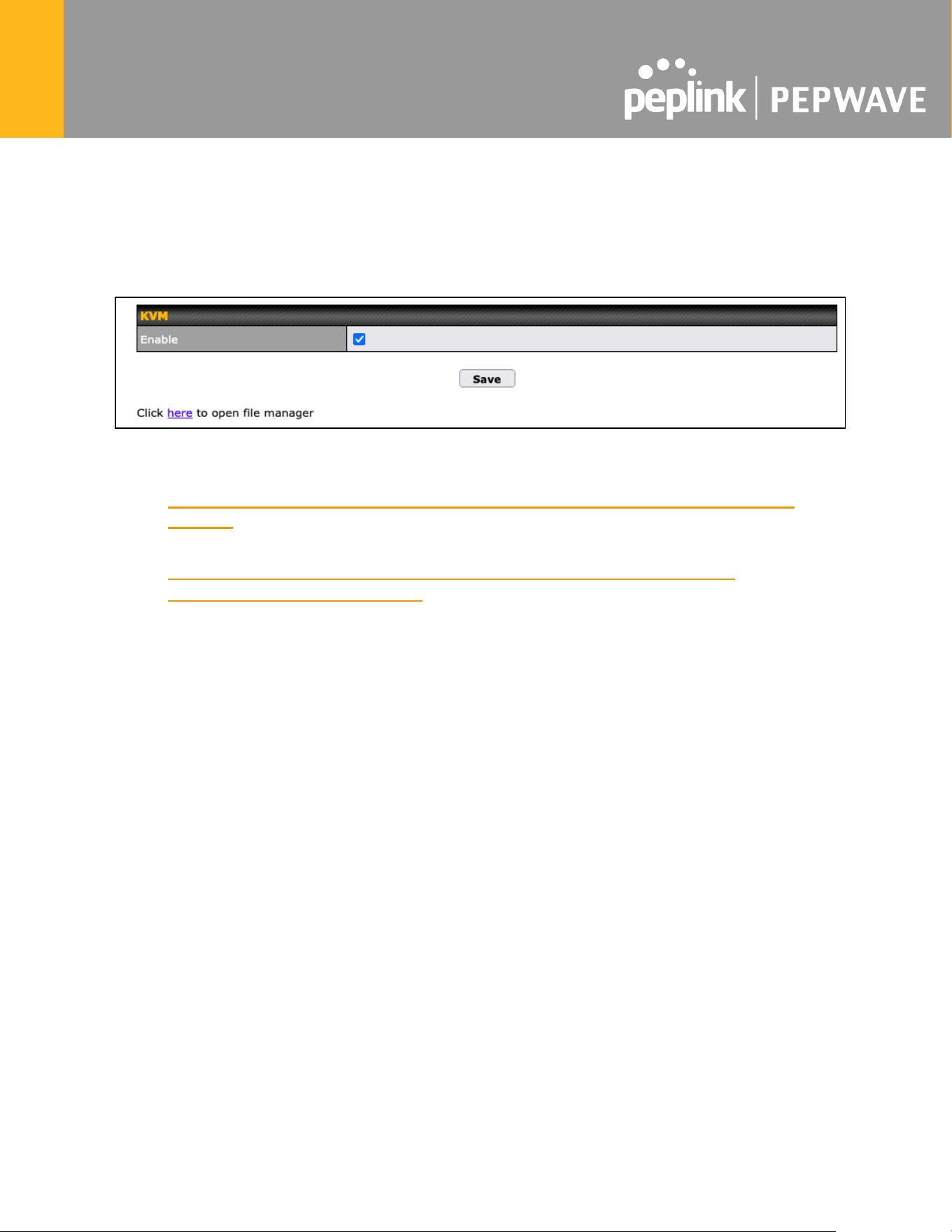

KVM is a virtualisation module that allows administrators using our routers to host a large range
of virtual machines. KVM is now supported on some MediaFast / ContentHub routers.
Click here for the full instructions on how to set up KVM
Click here for the full instructions on how to set up KVM with USB Storage
https://www.peplink.com
17
Copyright @ 2025 Peplink
3.9 DPI Engine
The DPI report written in the updated KB article will show further information on InControl2
through breaking down application categories into subcategories.
https://forum.peplink.com/t/ic2-deep-packet-inspection-dpi-reports-and-everything-you-n
eed-to-know-about-it/10151/
3.10 NetFlow
NetFlow protocol is used to track network traffic. Tracking information from NetFlow can be sent
to the NetFlow collector, which analyzes data and generates reports for review.

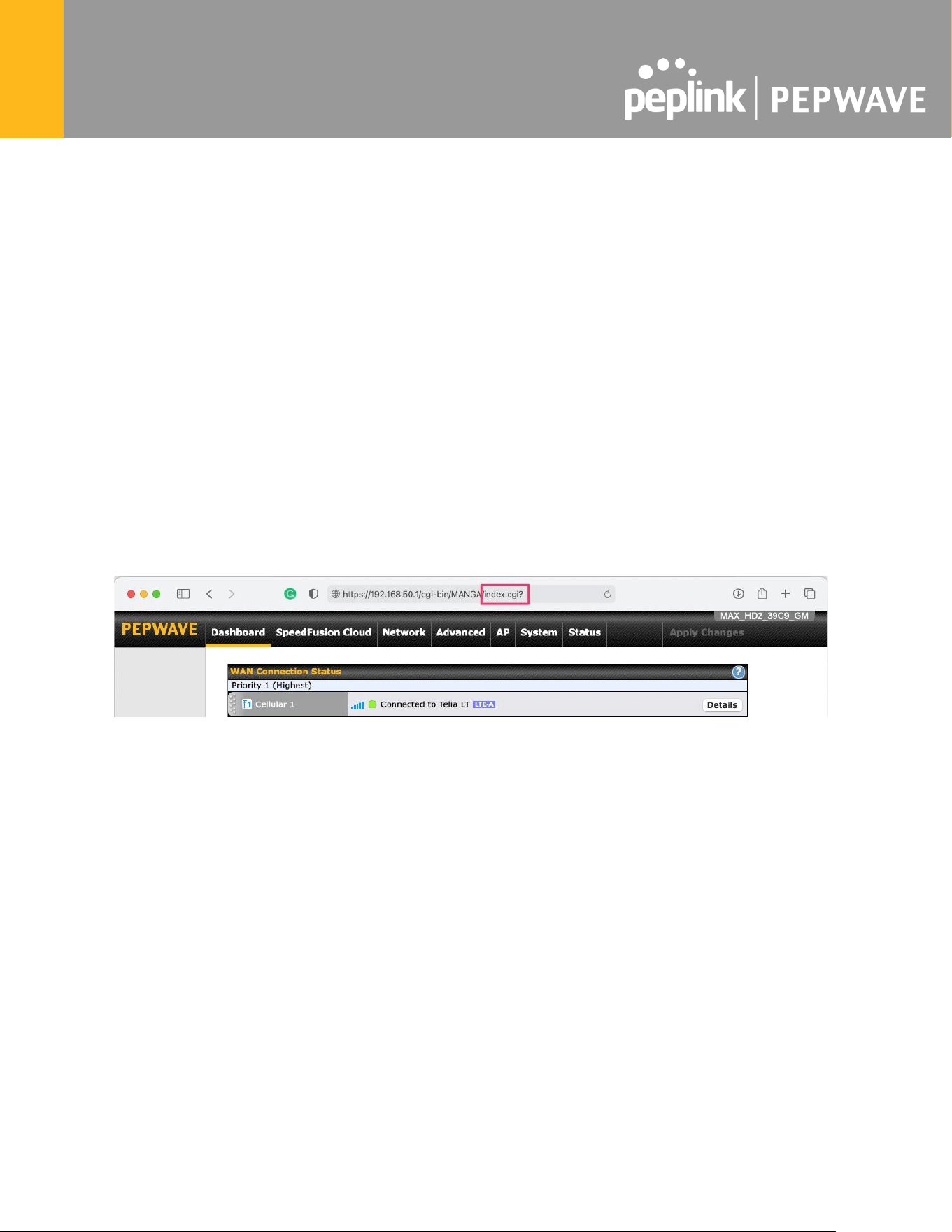

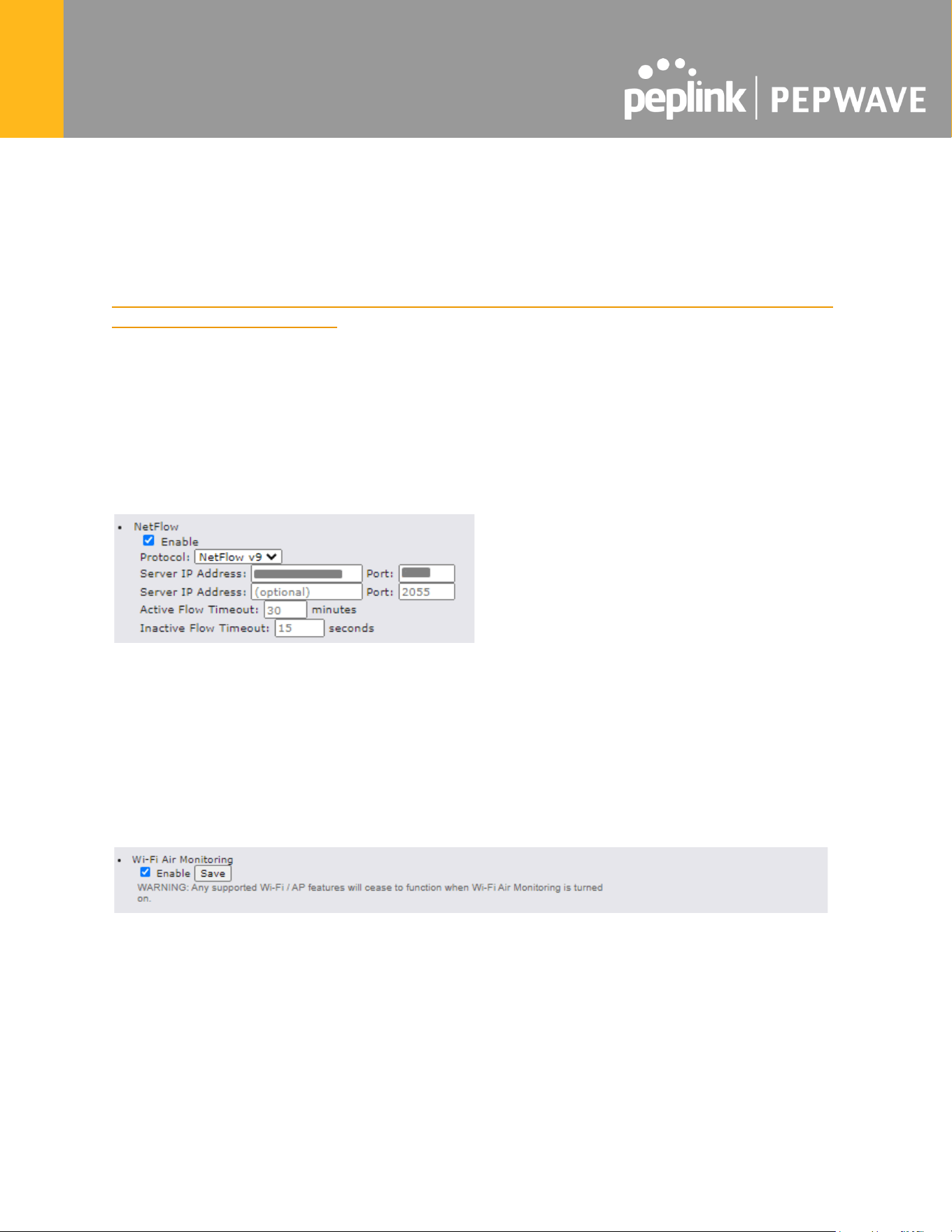

Note: To enable this feature, go to https://<Device's IP>/cgi-bin/MANGA/support.cgi
3.11 Wi-Fi Air Monitoring
Pepwave routers support Wi-Fi “Air Monitoring Mode” which is used to troubleshoot remotely
and proactively monitor Wi-Fi and WAN performance. The report can be viewed under InControl
2 > Reports > AirProbe Reports after enabling Wi-Fi Air Monitoring.
Note: To enable this feature, go to https://<Device's IP>/cgi-bin/MANGA/support.cgi
3.12 SP Default Configuration
The SP Default Configuration feature written in the updated KB article allows for the
provisioning of custom made settings (a.k.a. InControl2 configuration) via the Ethernet LAN port
and is ideal for those wanting to do a bulk deployment of many Peplink devices.
Note: If you would like to use this feature, please contact your purchase point (Eg.VAD).
https://www.peplink.com
18
Copyright @ 2025 Peplink
3.13 Peplink Relay
Cloud Service Providers often restrict access to certain applications. With SFC Relay, you can
route traffic before going out to the Internet, allowing access to previously restricted applications
experienced with the public SpeedFusion Cloud nodes. Available as an add-on for your home
router or as an upgradable license to your Peplink router, SFC Relay is sure to impress you and
any peers you give access to.
https://forum.peplink.com/t/configure-speedfusion-cloud-relay-server-and-client/6215ca9
b017e48e0f3ff2479/
3.14 DNS over HTTPS (DoH)
DoH provides the benefits of communicating DNS information over a secure HTTPS connection
in an encrypted manner. The protocol offers increased privacy and confidentiality by preventing
data interception and man-in-the-middle attacks.
3.15 Peplink InTouch
InTouch is Peplink’s zero-touch remote network management solution, leveraging InControl 2
and a SpeedFusion Connect (formerly known as SpeedFusion Cloud) data plan. This service
extends a network administrator’s ability to reach any device UI backed by a Peplink/Pepwave
router. To configure InTouch, all you need is a valid InControl 2 subscription, a SpeedFusion
Connect data plan, and a Peplink/Pepwave router (which requires the latest 8.2.0 firmware).
To watch a demonstration and read the FAQ, visit
https://www.peplink.com/enterprise-solutions/intouch/
Or learn to configure InTouch at https://youtu.be/zg0iavHGkJw
3.16 Synergy Mode
Synergy mode is a cascade multiple devices and combine the number of WANs to a single
device virtually. All the WANs on the Synergized Device will appear as native WAN interfaces at
the Synergy Controller and it can be managed like the built-in WAN interfaces.
https://forum.peplink.com/t/synergy-mode-(firmware-8.3.0)/639be7d8af8c71a6f3050323/
https://www.peplink.com
19
Copyright @ 2025 Peplink
3.17 Virtual WAN on VLAN
The Virtual WAN Activation License allows you to create 1 x virtual WAN on a particular VLAN,
on either WAN or LAN interface. This means that you can create a virtual WAN on VLAN for a
WAN port, or a virtual WAN on VLAN for a LAN port.
https://forum.peplink.com/t/b20x-virtual-wan-activation-license-faq/6204bac7d90b9e6355e96e8
d/1
https://www.peplink.com
20
Copyright @ 2025 Peplink
4 Installation
The following section details connecting Pepwave routers to your network.
4.1 Preparation
Before installing your Pepwave router, please prepare the following as appropriate for your
installation:
● At least one Internet/WAN access account and/or Wi-Fi access information
● Depending on network connection type(s), one or more of the following:
○ Ethernet WAN: A 10/100/1000BaseT UTP cable with RJ45 connector
○ USB: A USB modem
○ Embedded modem: A SIM card for 5G/4G LTE service
○ Wi-Fi WAN: Wi-Fi antennas
● A computer installed with the TCP/IP network protocol and a supported web browser.
Supported browsers include Microsoft Internet Explorer 11 or above, Mozilla Firefox 24
or above, Apple Safari 7 or above, and Google Chrome 18 or above.
4.2 Constructing the Network
At a high level, construct the network according to the following steps:
1. With an Ethernet cable, connect a computer to one of the LAN ports on the
Pepwave router. Repeat with different cables for up to 4 computers to be
connected.
2. Connect either another Ethernet cable or a USB modem to one of the WAN ports or
USB ports respectively, or connect to Wi-Fi as WAN on the Pepwave router. Repeat
the same process for any additional WAN ports.
3. Connect the power adapter to the power connector on the rear panel of the
Pepwave router, and then plug it into a power outlet.
https://www.peplink.com
21
Copyright @ 2025 Peplink
4.3 Configuring the Network Environment
To ensure that the Pepwave router works properly in the LAN environment and can access the
Internet via WAN connections, please refer to the following setup procedures:
● LAN configuration
For basic configuration, refer to Section 8, Connecting to the Web Admin Interface.
For advanced configuration, go to Section 9, Configuring the LAN Interface(s).
● WAN configuration
For basic configuration, refer to Section 8, Connecting to the Web Admin Interface.
For advanced configuration, go to Section 9.2, Captive Portal.
https://www.peplink.com
22
Copyright @ 2025 Peplink
5 Connecting to the Web Admin Interface
1. Start a web browser on a computer that is connected with the Pepwave router through
the LAN.
2. To connect to the router’s web admin interface, enter the following LAN IP address in the
address field of the web browser:
http://192.168.50.1
(This is the default LAN IP address for Pepwave routers.)

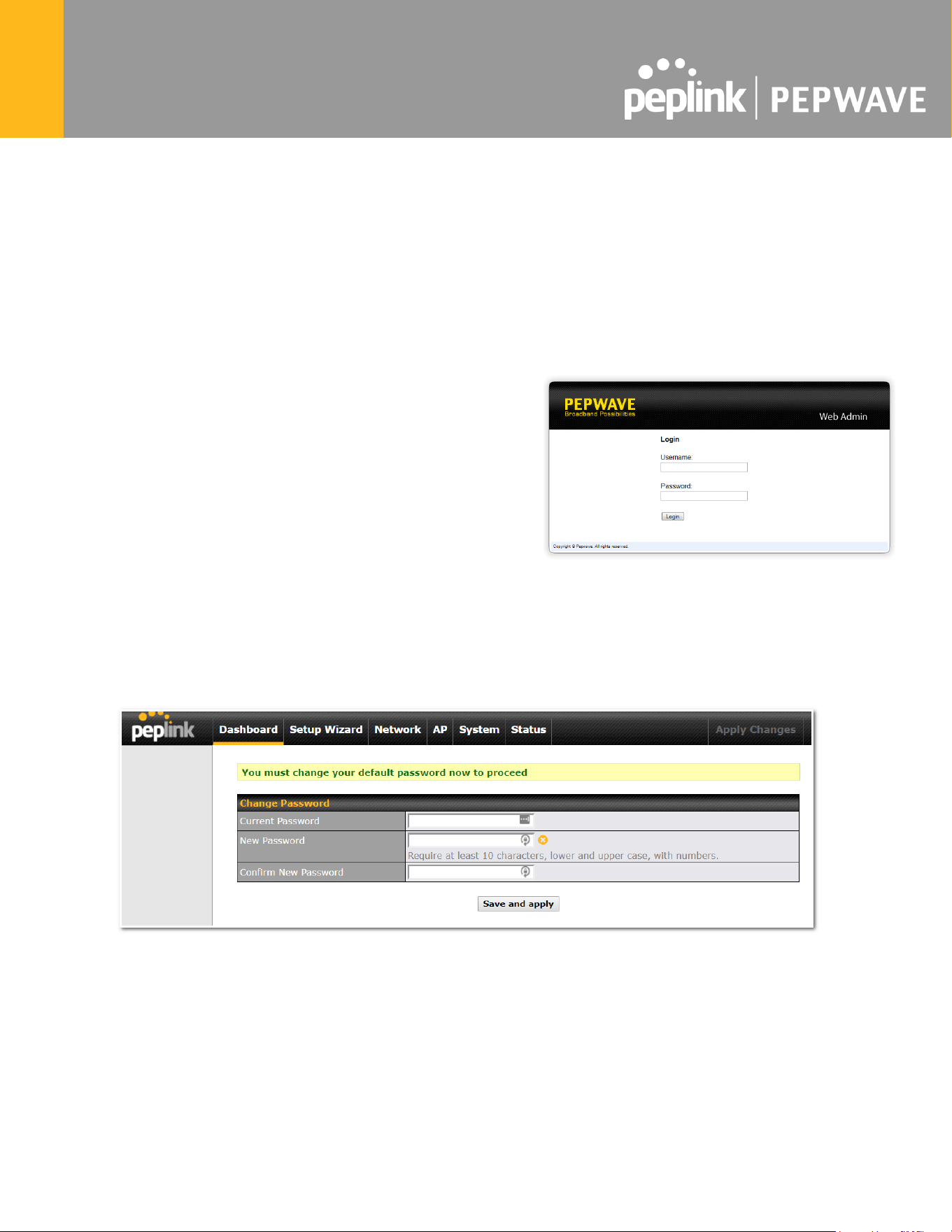

3. Enter the following to access the web admin
interface.
Username: admin
Password: admin
(This is the default username and password for
Pepwave routers).
● You must change the default password on the first successful logon.
● Password requirements are: A minimum of 10 lower AND upper case characters,
including at least 1 number.
● When HTTP is selected, the URL will be redirected to HTTPS by default.
https://www.peplink.com
23
Copyright @ 2025 Peplink

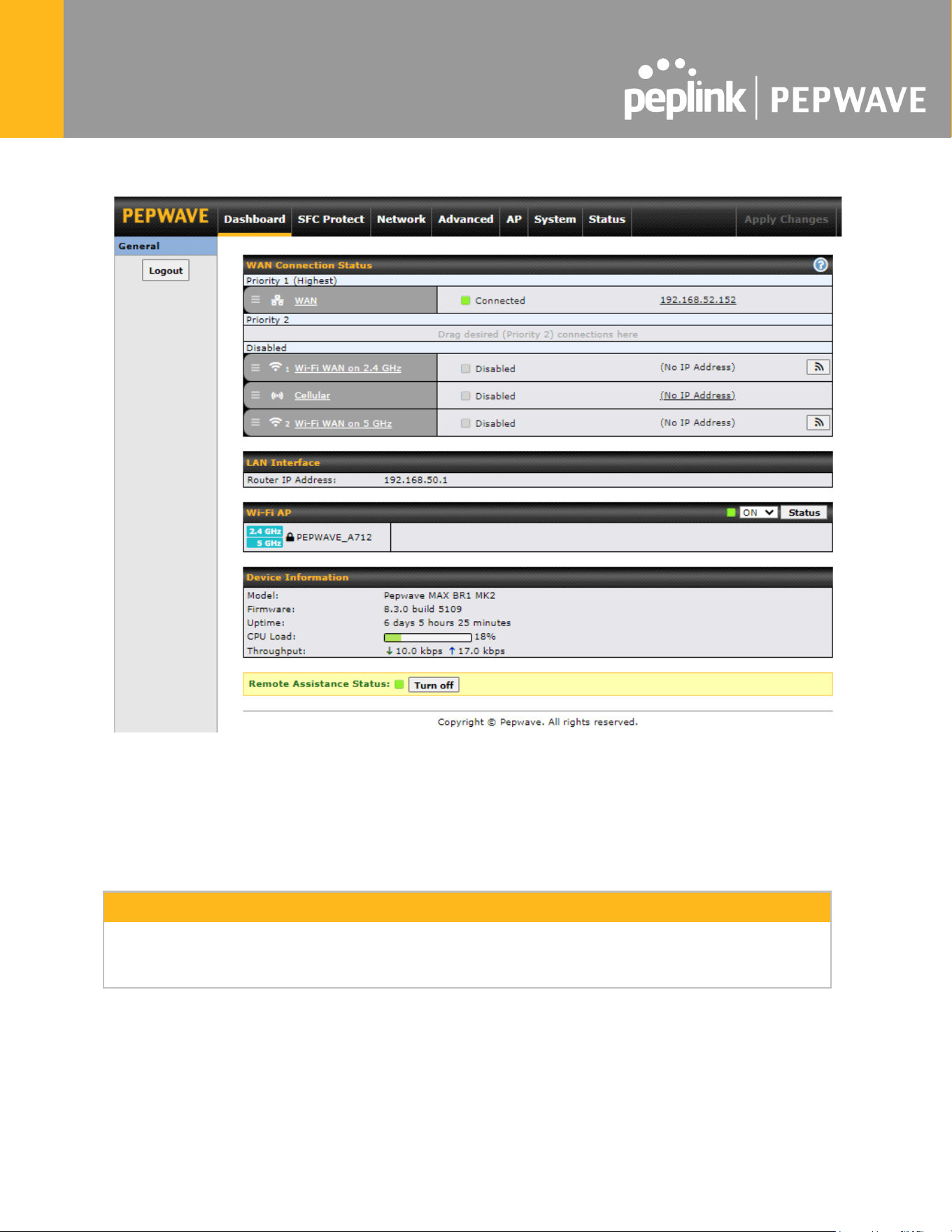

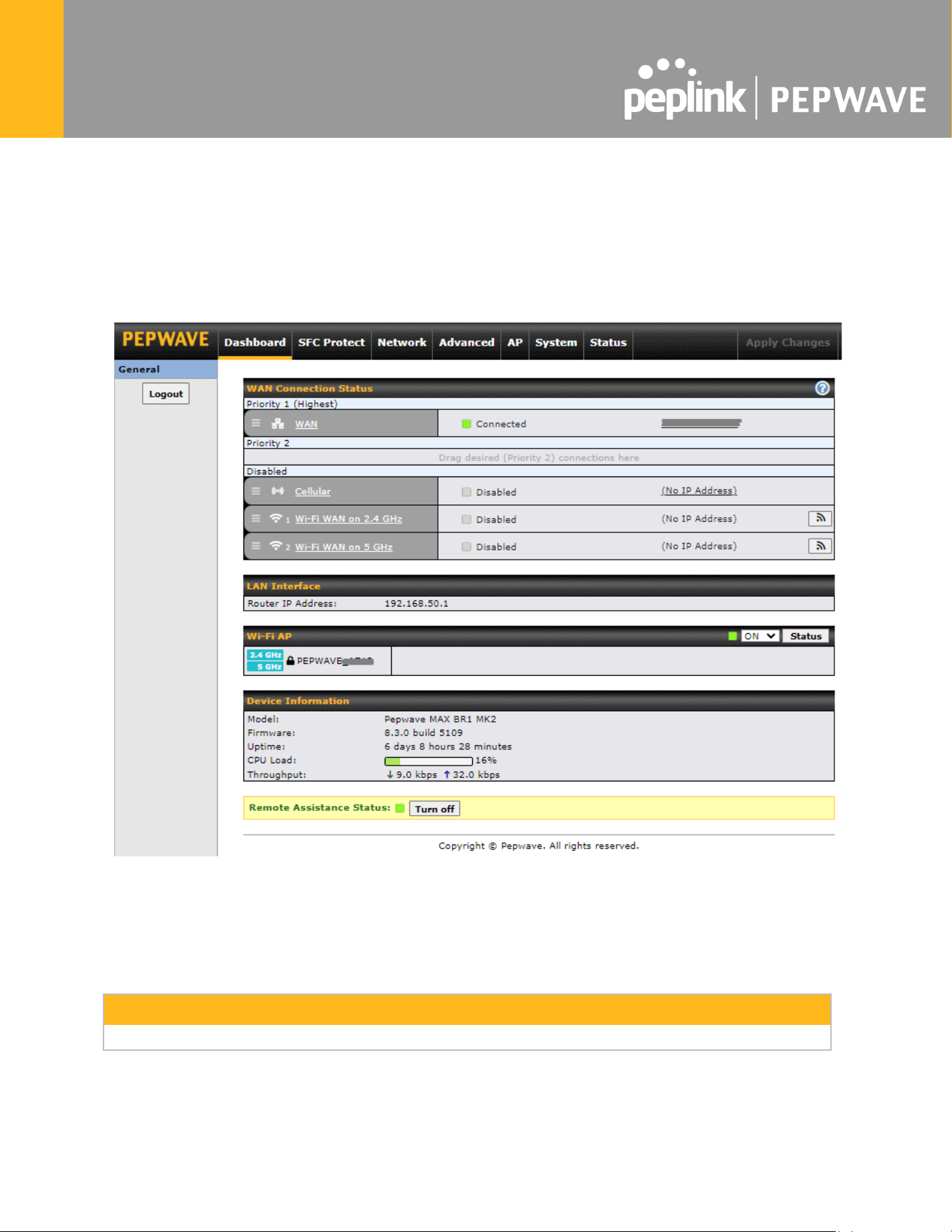

After successful login, the Dashboard of the web admin interface will be displayed.
The Dashboard shows current WAN, LAN, and Wi-Fi AP statuses. Here, you can change WAN
connection priority and switch on/off the Wi-Fi AP. For further information on setting up these
connections, please refer to Sections 8 and 9.
Device Information displays details about the device, including model name, firmware version,
and uptime. For further information, please refer to Section 22.
Important Note
Configuration changes (e.g. WAN, LAN, admin settings, etc.) will take effect only after clicking the
Save button at the bottom of each page. The Apply Changes button causes the changes to be saved
and applied.
https://www.peplink.com
24
Copyright @ 2025 Peplink
6 SpeedFusion Connect Protect

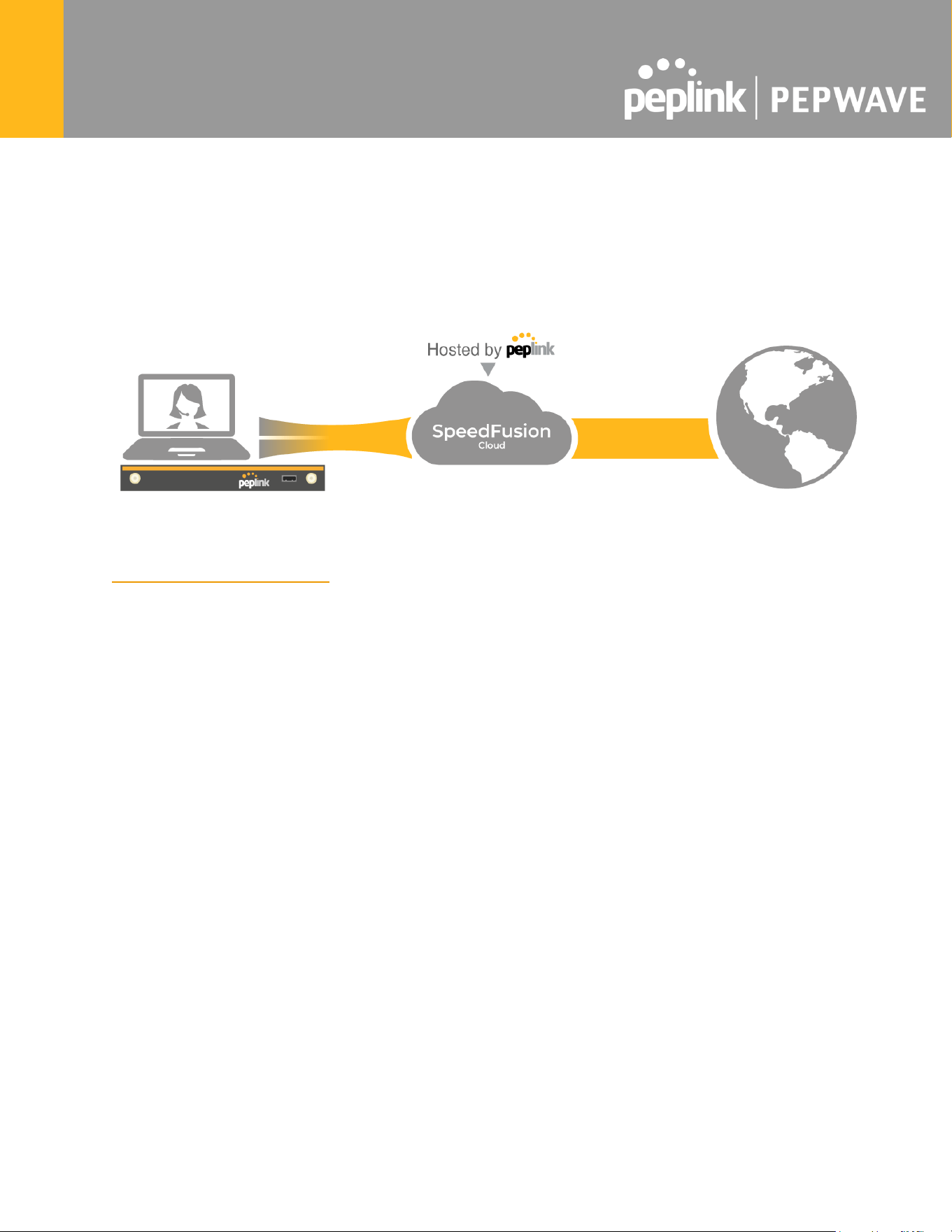

With Pepwave products, your device is able to connect to SpeedFusion Connect Protect without
the use of a second endpoint. This service has wide access to a number of SpeedFusion
endpoints hosted from around the world, providing your device with unbreakable connectivity
wherever you are.*
*SpeedFusion Connect Protect is supported in firmware version 8.1.0 and above. SpeedFusion
Connect is a subscription basis. SpeedFusion Connect Protect license can be purchased at
https://estore.peplink.com/ > SpeedFusion Service > SpeedFusion Connect Protect.
6.1 Activate SpeedFusion Connect Protect
All Care plans now come with SpeedFusion Connect Protect included. This data allowance will
automatically begin and end in accordance with your warranty. No activation is required.
https://www.peplink.com
25
Copyright @ 2025 Peplink
6.2 Enable SpeedFusion Connect Protect

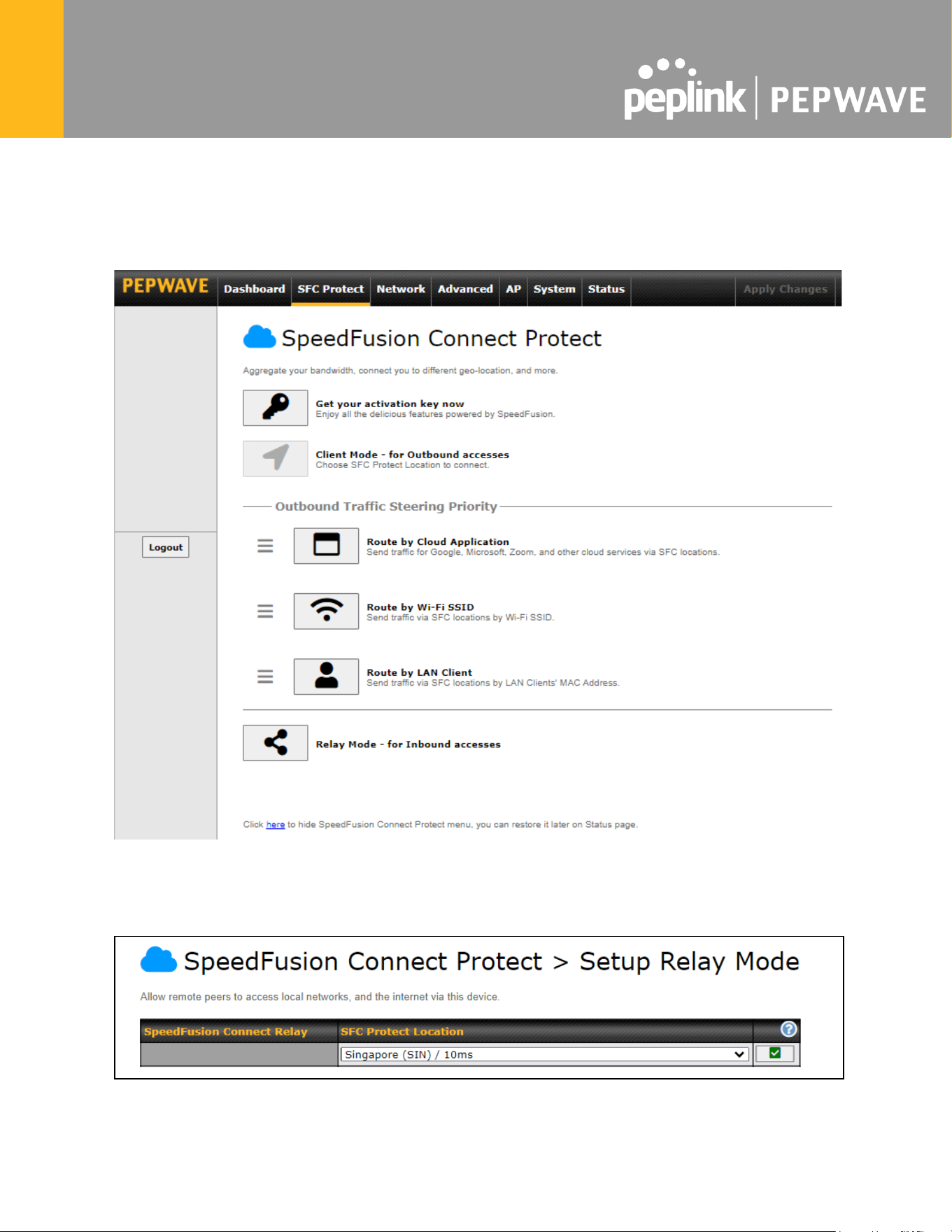

Access the Web Admin of the device you want to create as the Peplink Relay Server, navigating
to the “SFC Protect” tab.
To setup a Peplink Relay Mode, select “Relay Mode - for Inbound accesses" > Choose the
SFC Protect Location you wish to connect to > Click on the Green tick button to confirm the
change.
https://www.peplink.com
26
Copyright @ 2025 Peplink

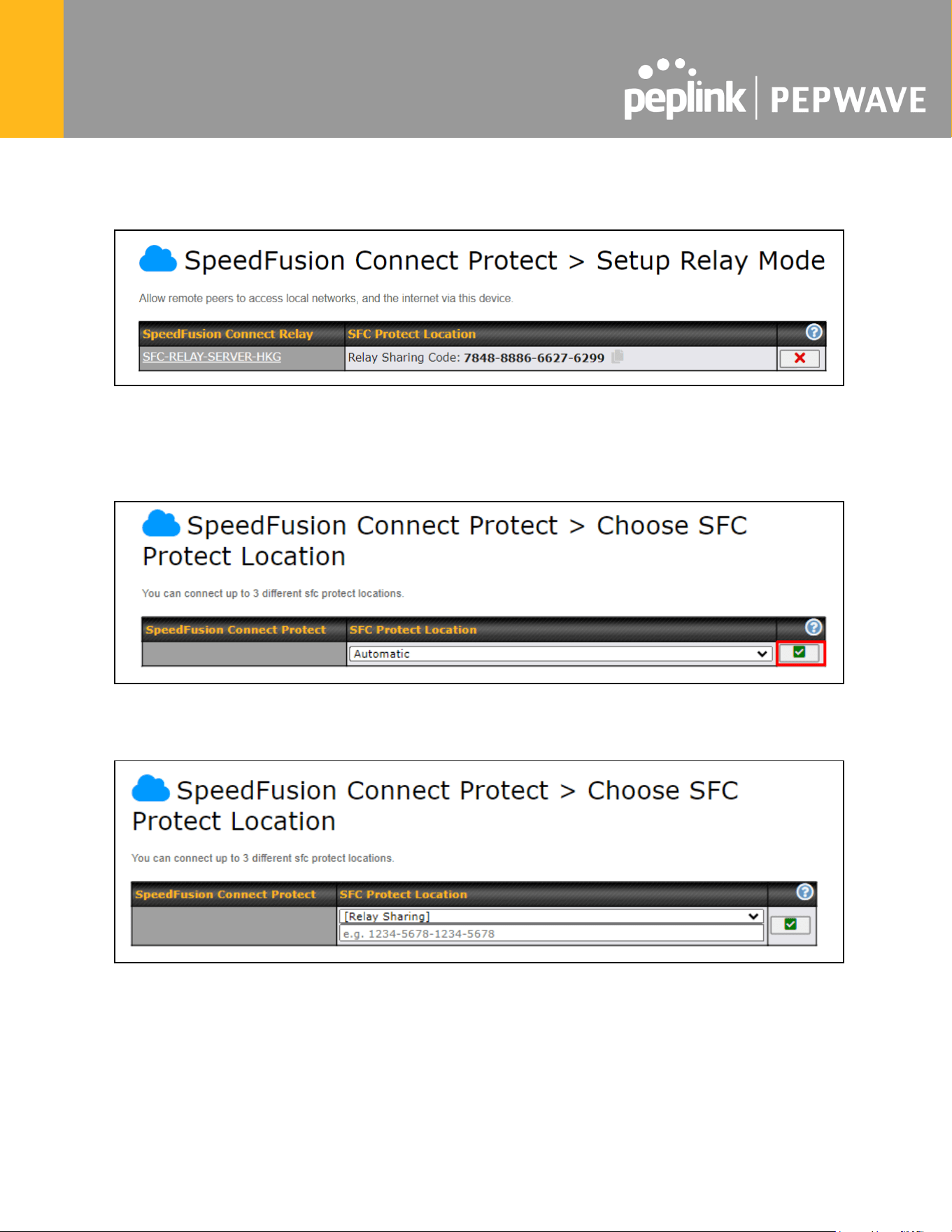

The Relay Sharing Code will be generated, and other peers can use this code to establish a
SpeedFusion Connect Protect that will forward the traffics to this device, allowing them to
access local networks and the internet via your WAN connection.
To connect to SpeedFusion Connect Protect, you can select a SFC Protect Location of your
choice, or simply and Automatic then the device will establish connection to the neareset SFC
Protect server.
Choose Automatic > Click on the green tick button to confirm the change.
Or you may select Home Sharing and use your Relay Sharing Code to create a profile if you
have set up a Peplink Relay Client on another device.
https://www.peplink.com
27
Copyright @ 2025 Peplink

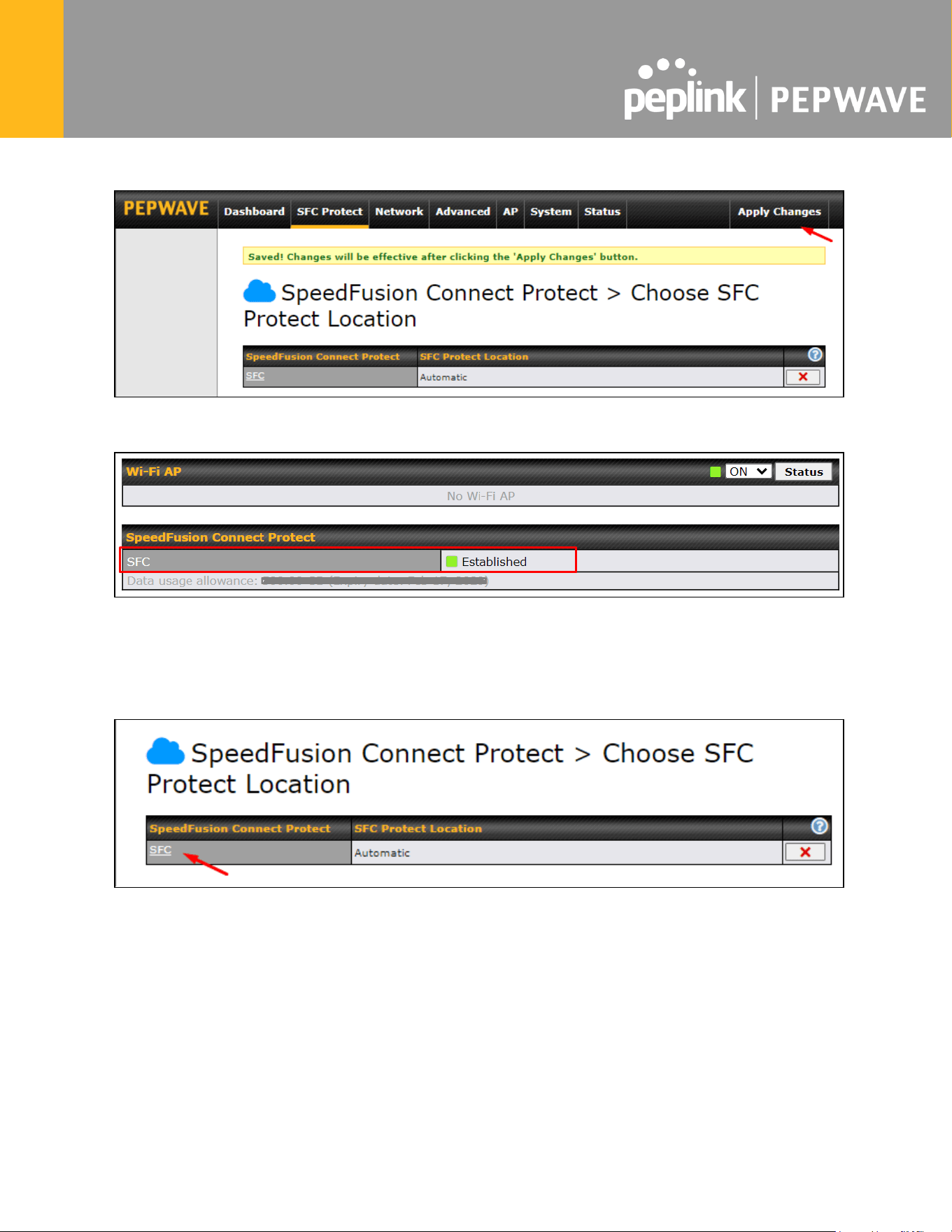

Click on Apply Changes to save the change.
By default, the router will build a SpeedFusion tunnel to the SpeedFusion Cloud.
If you are running a latency sensitive service like video streaming or VOIP, a WAN Smoothing

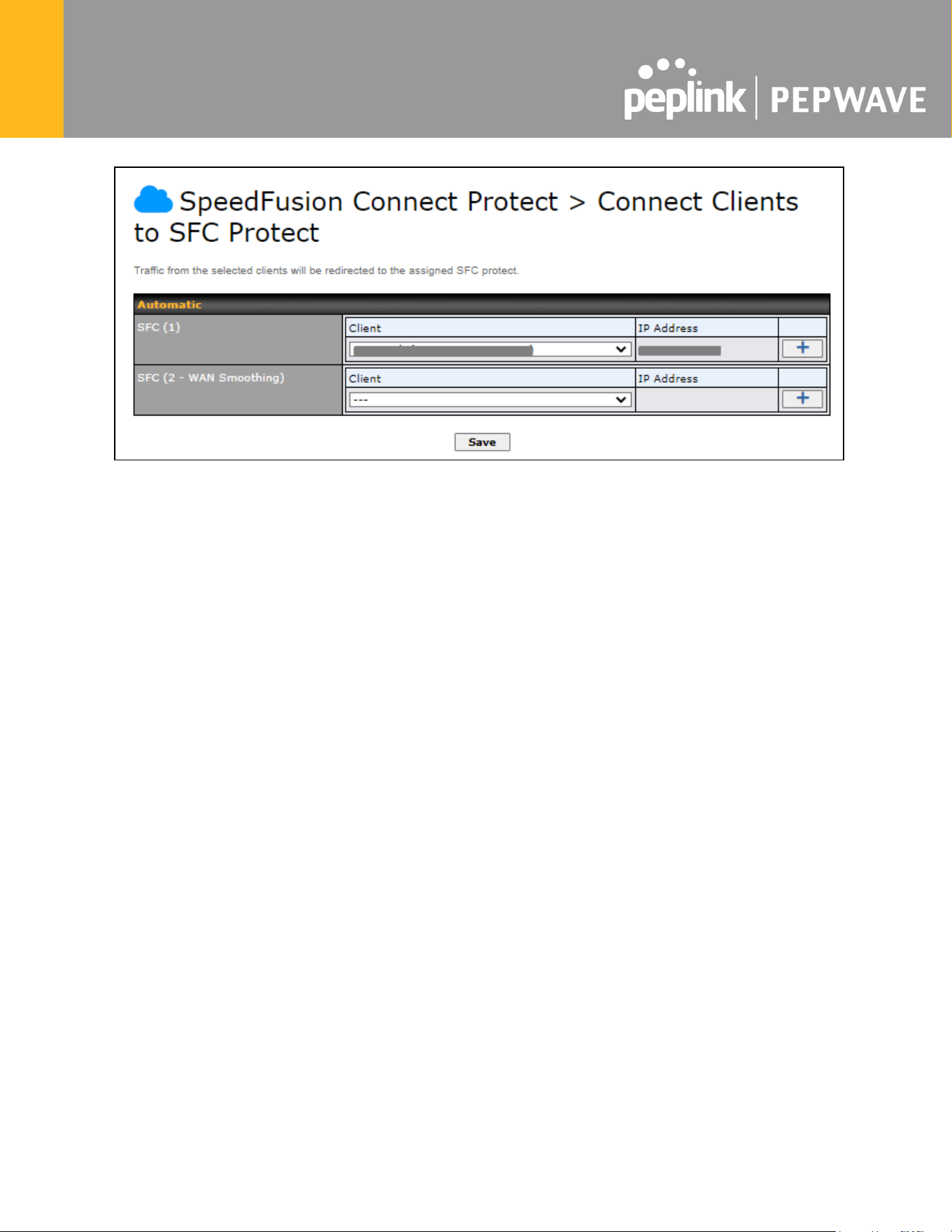

sub-tunnel can be created. Navigate to Navigate to SFC Protect > Client Mode - for
Outbound accesses > SFC.
https://www.peplink.com
28
Copyright @ 2025 Peplink

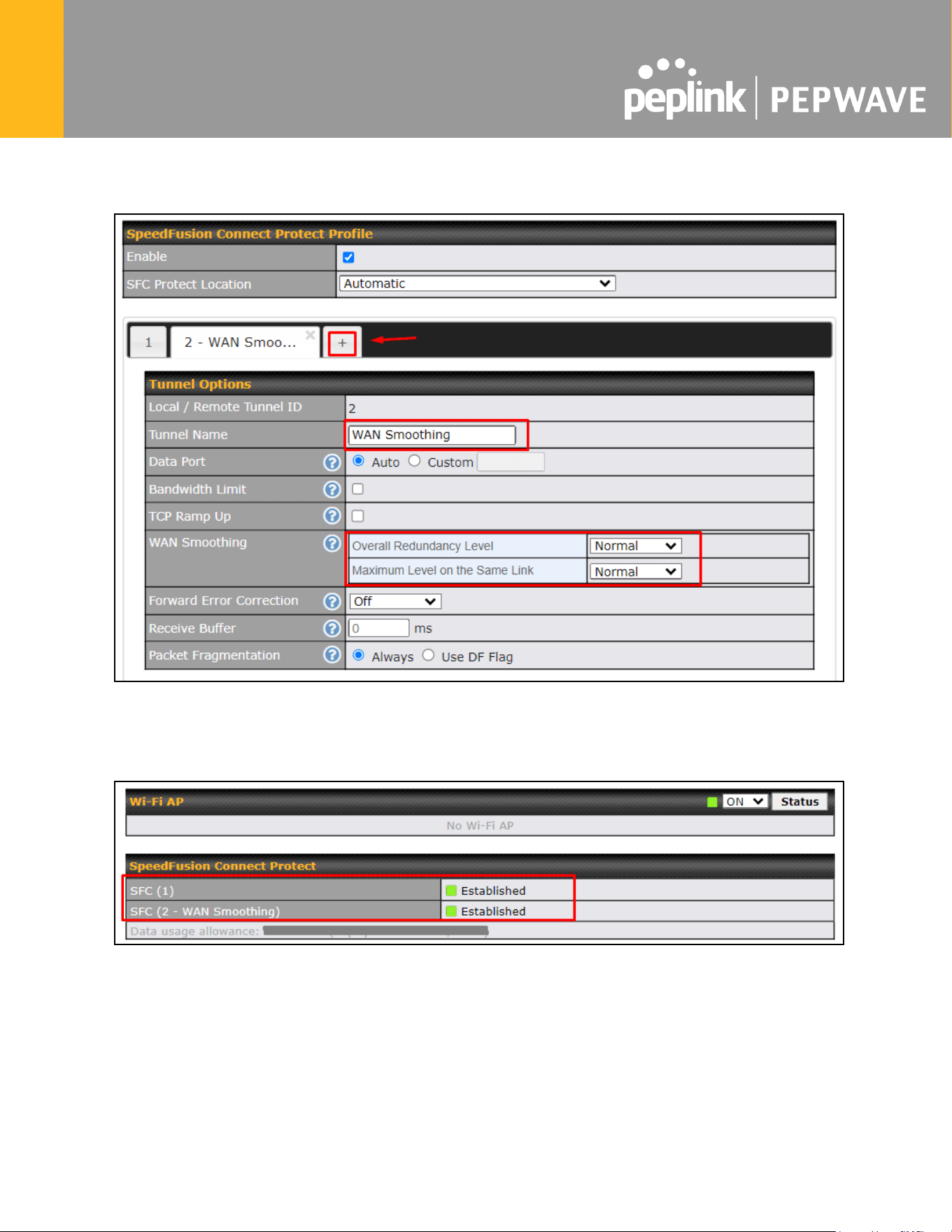

A SpeedFusion Connect Protect Profile configuration window will pop out. Click on the + sign to
create the WAN Smoothing sub-tunnel.
Click on Save and Apply Changes to save the configuration. Now, the router has 2
Speedfusion tunnels to the SpeedFusion Connect Protect.
https://www.peplink.com
29
Copyright @ 2025 Peplink

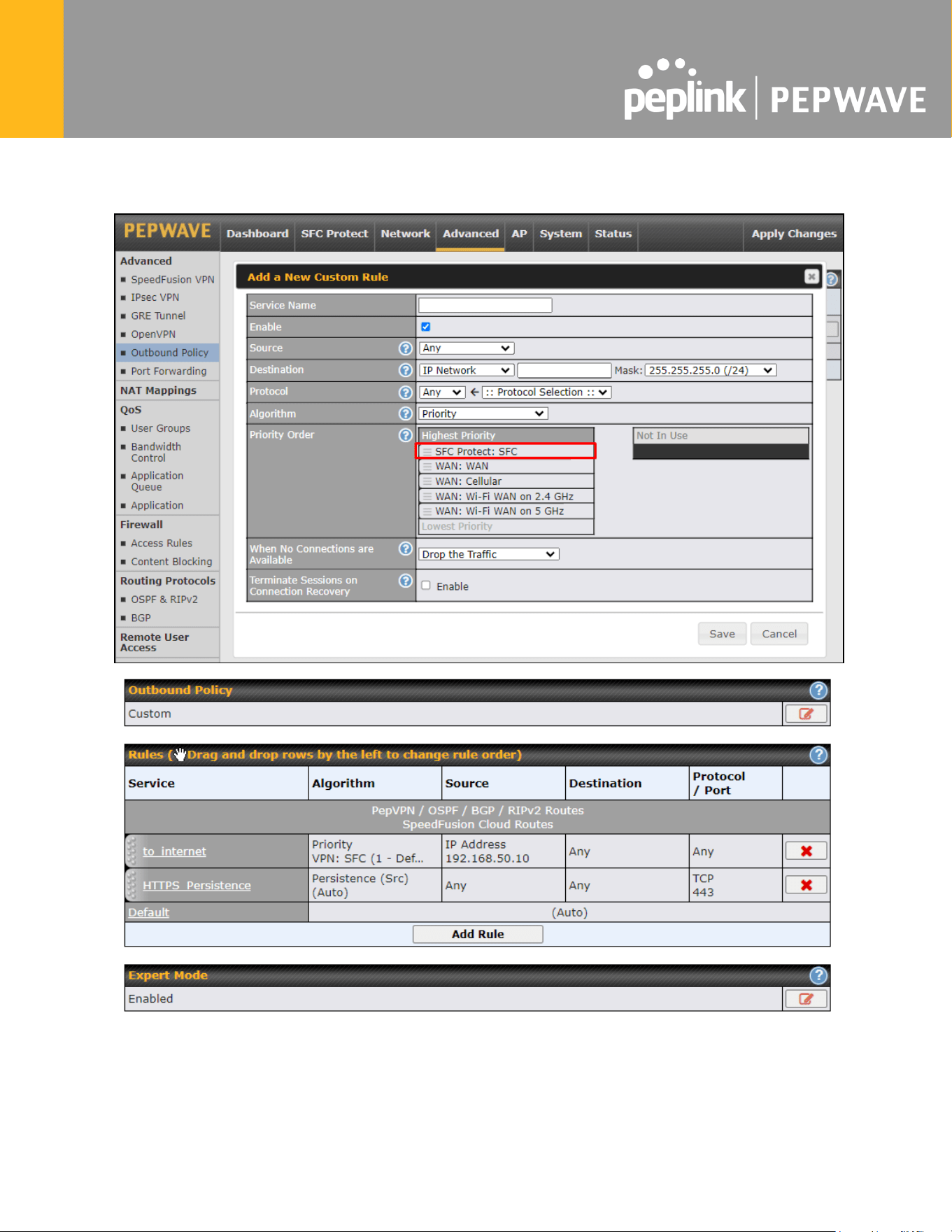

6.3 Route by Cloud Application

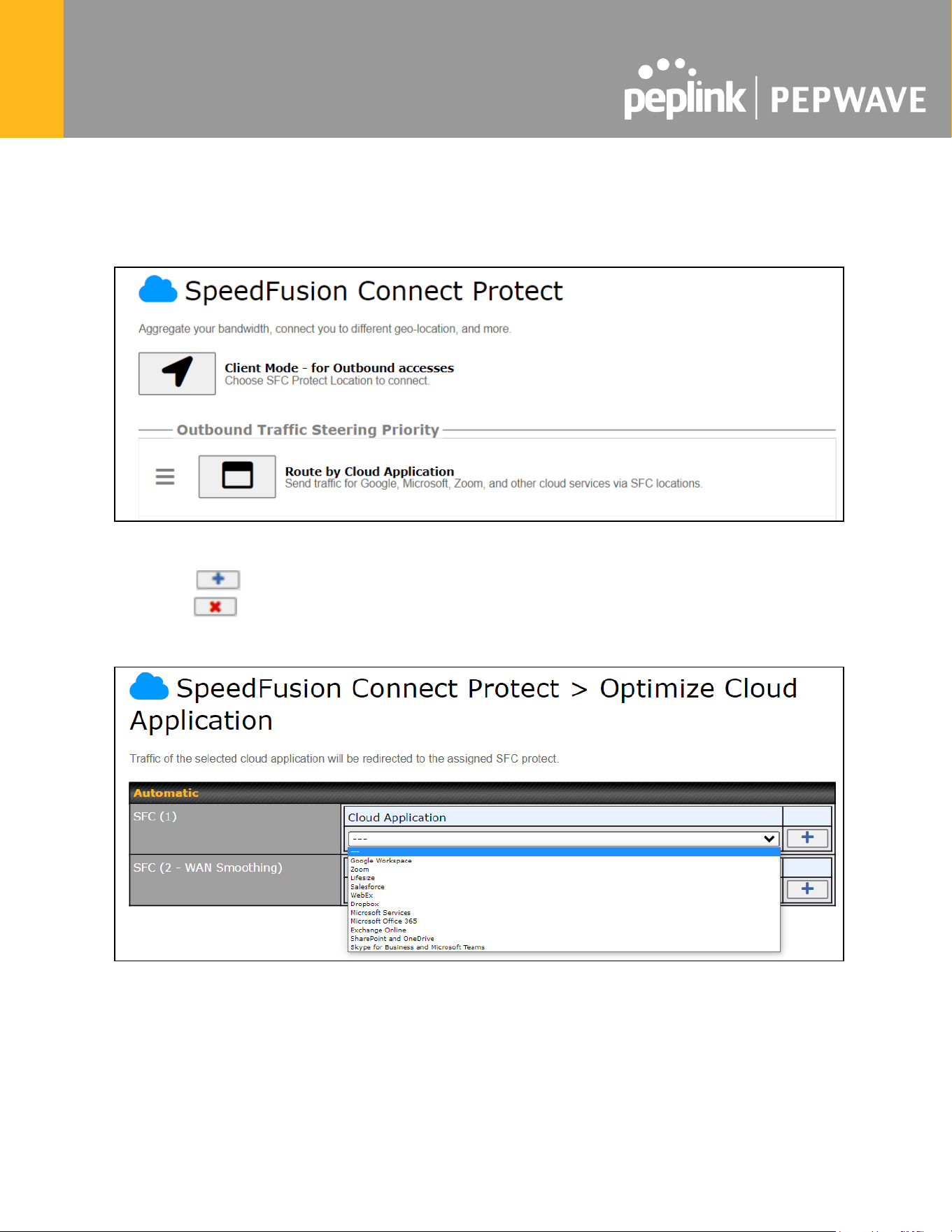

Optimize Cloud Application allows you to route Internet traffic through SpeedFusion Connect
Protect based on the application. Go to SFC Protect > Route by Cloud Application.
Select a Cloud application to route through SpeedFusion Connect Protect from the drop down
list > Click > Save > Apply Changes.
Click the to remove a selected Cloud application from routing through SpeedFusion
Connect Protect.
https://www.peplink.com
31
Copyright @ 2025 Peplink

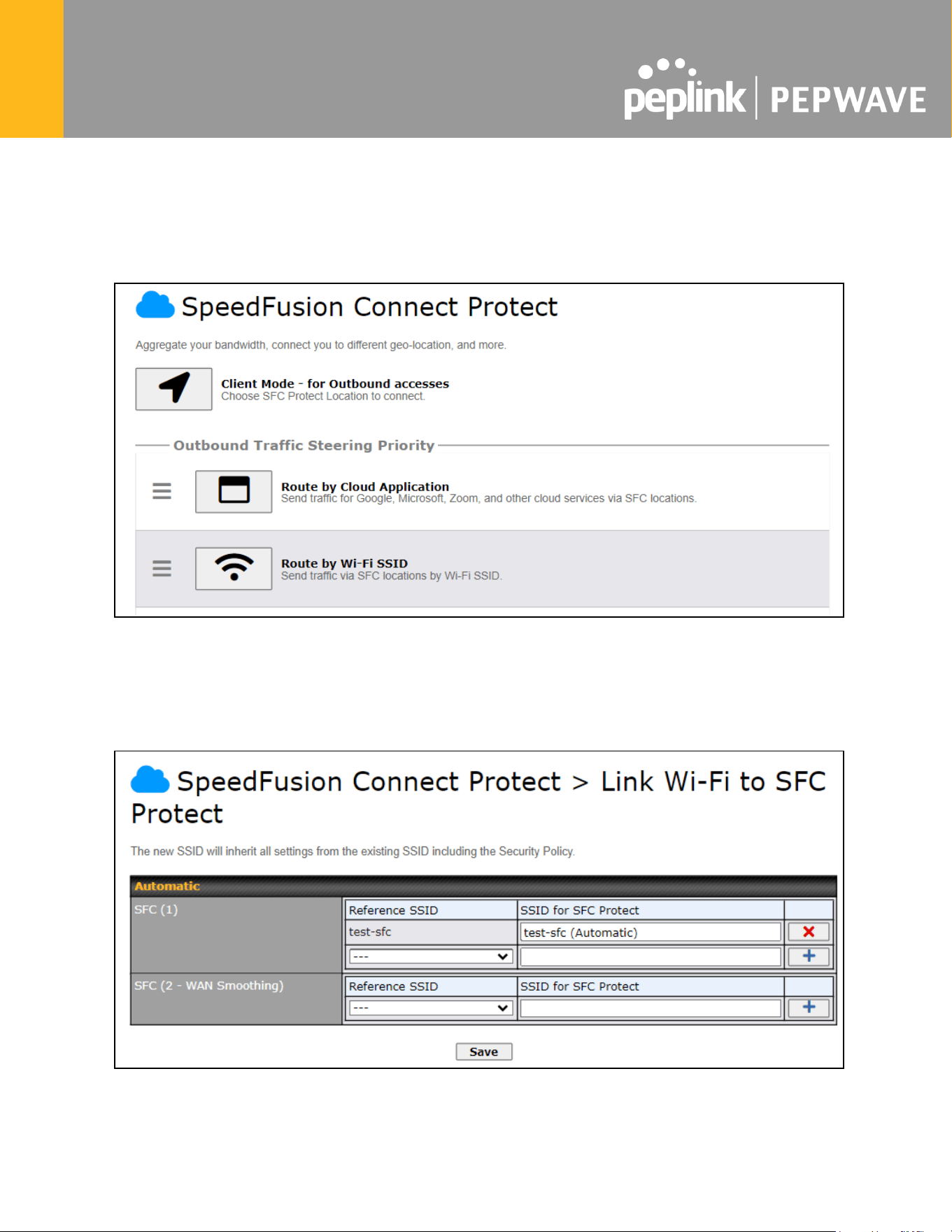

6.4 Route by Wi-Fi SSID
SpeedFusion Connect Protect provides a convenient way to route the Wi-Fi client to the cloud
from SFC Protect > Route by Wi-Fi SSID.
Create a new SSID for SFC Protect. The new SSID will inherit all settings from one of the
existing SSIDs including the Security Policy. Then click Save followed by Apply Changes.
https://www.peplink.com
32
Copyright @ 2025 Peplink

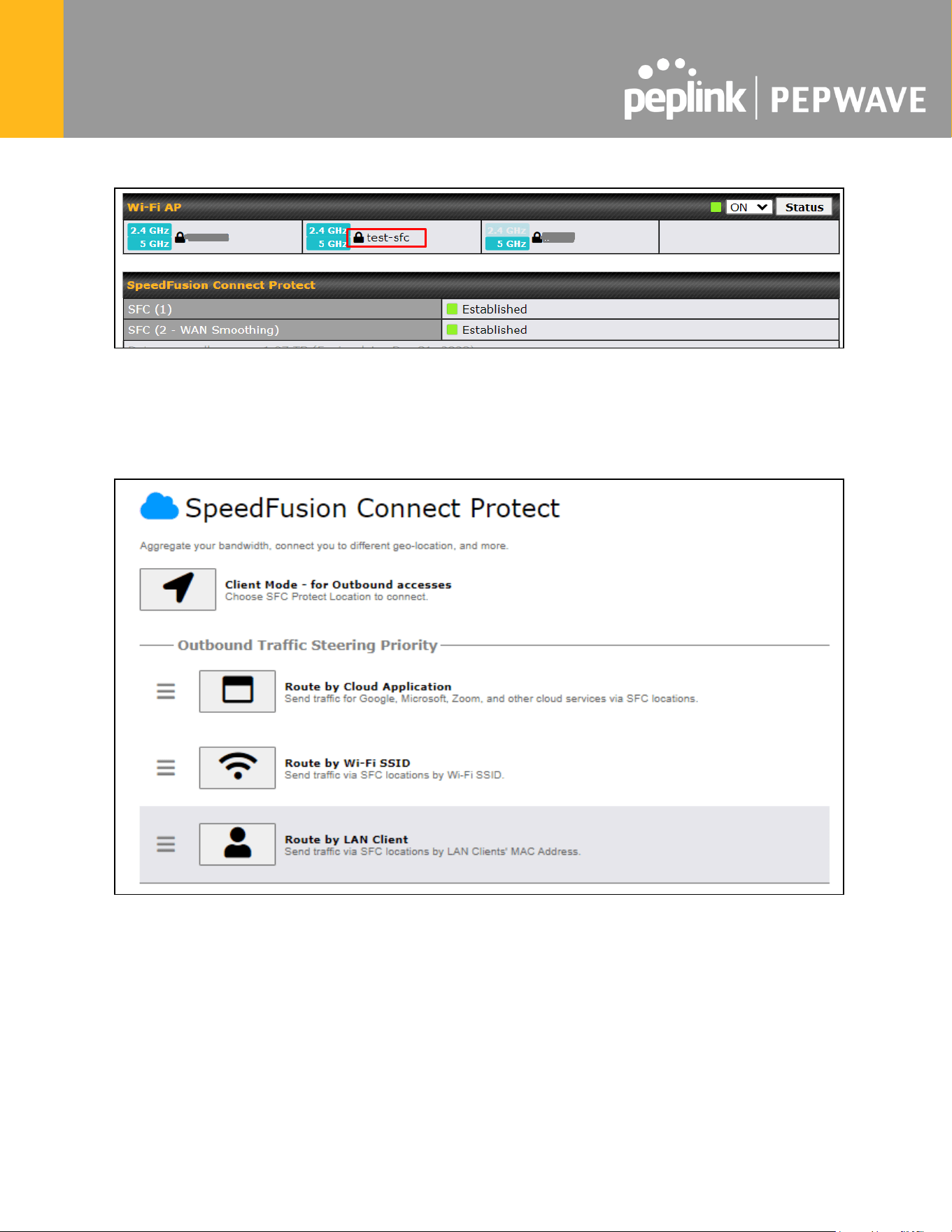

SFC Protect SSID will be shown on Dashboard.
6.5 Route by LAN Client
SpeedFusion Connect Protect provides a convenient way to route the LAN client to the cloud
from SFC Protect > Route by LAN Client.
Choose a client from the drop down list > Click + > Save > Apply Changes.
https://www.peplink.com
33
Copyright @ 2025 Peplink
7 Configuring the LAN Interface(s)
7.1 Basic Settings
LAN interface settings are located at Network > LAN > Network Settings. Navigating to that
page will show the following dashboard:

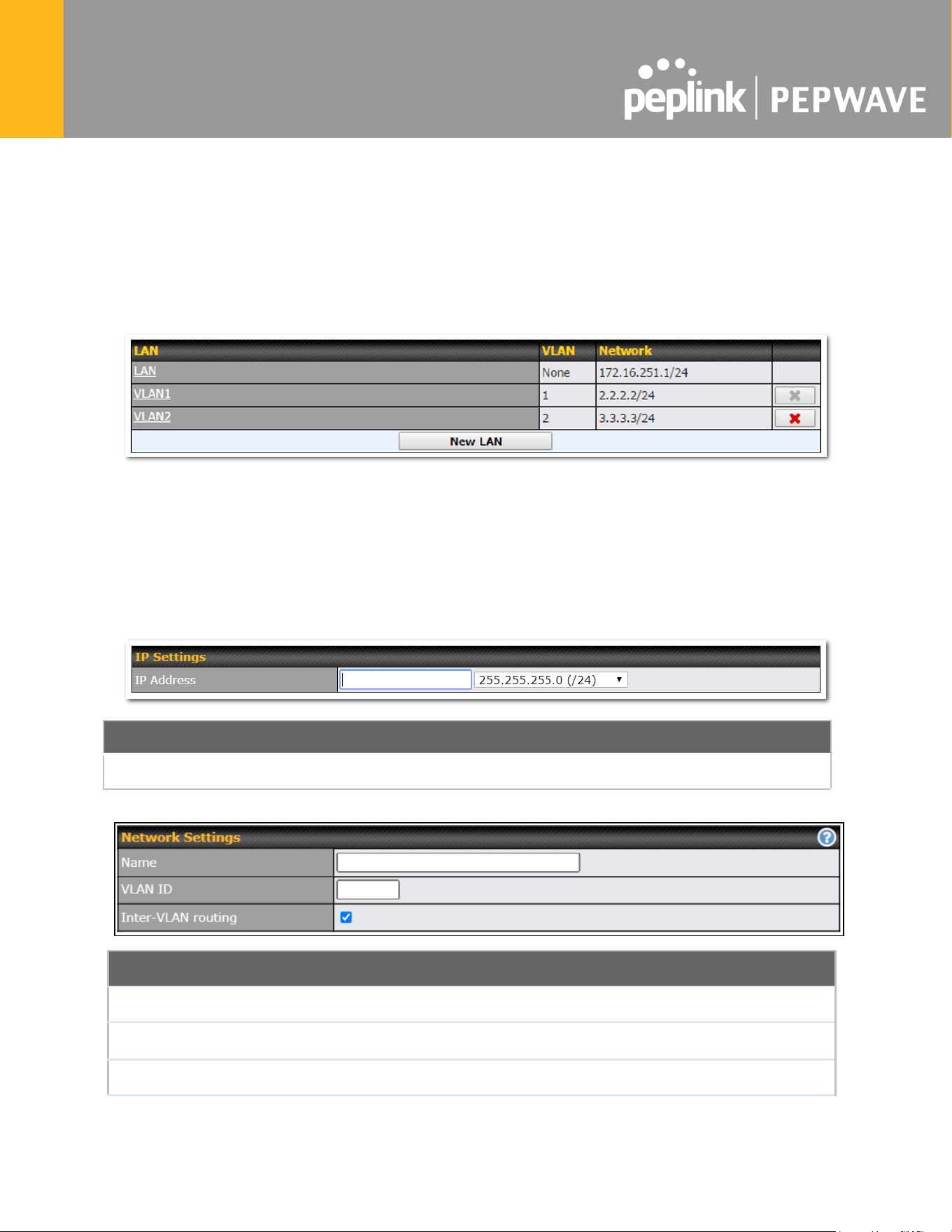

This represents the LAN interfaces that are active on your router (including VLAN). A gray “X”
means that the VLAN is used in other settings and cannot be deleted. You can find which
settings are using the VLAN by hovering over the gray “X”.
Alternatively, a red “X” means that there are no settings using the VLAN. You can delete that
VLAN by clicking the red “X”
Clicking on any of the existing LAN interfaces (or creating a new one) will show the following :

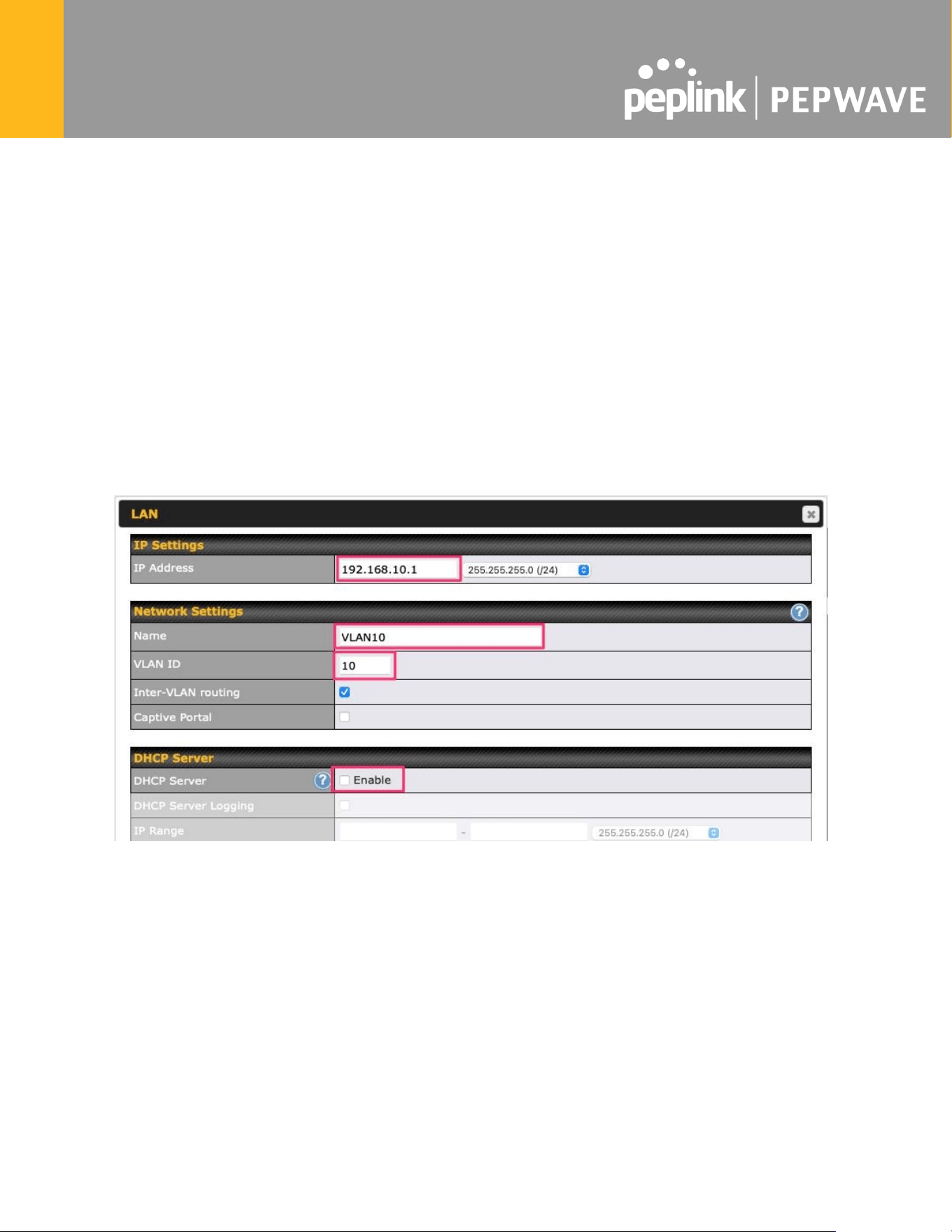

IP Settings
IP Address
The IP address and subnet mask of the Pepwave router on the LAN.
Network Settings
Name
Enter a name for the LAN.
VLAN ID
Enter a number for your VLAN
Inter-VLAN routing
Check this box to enable routing between virtual LANs.
https://www.peplink.com
35
Copyright @ 2025 Peplink

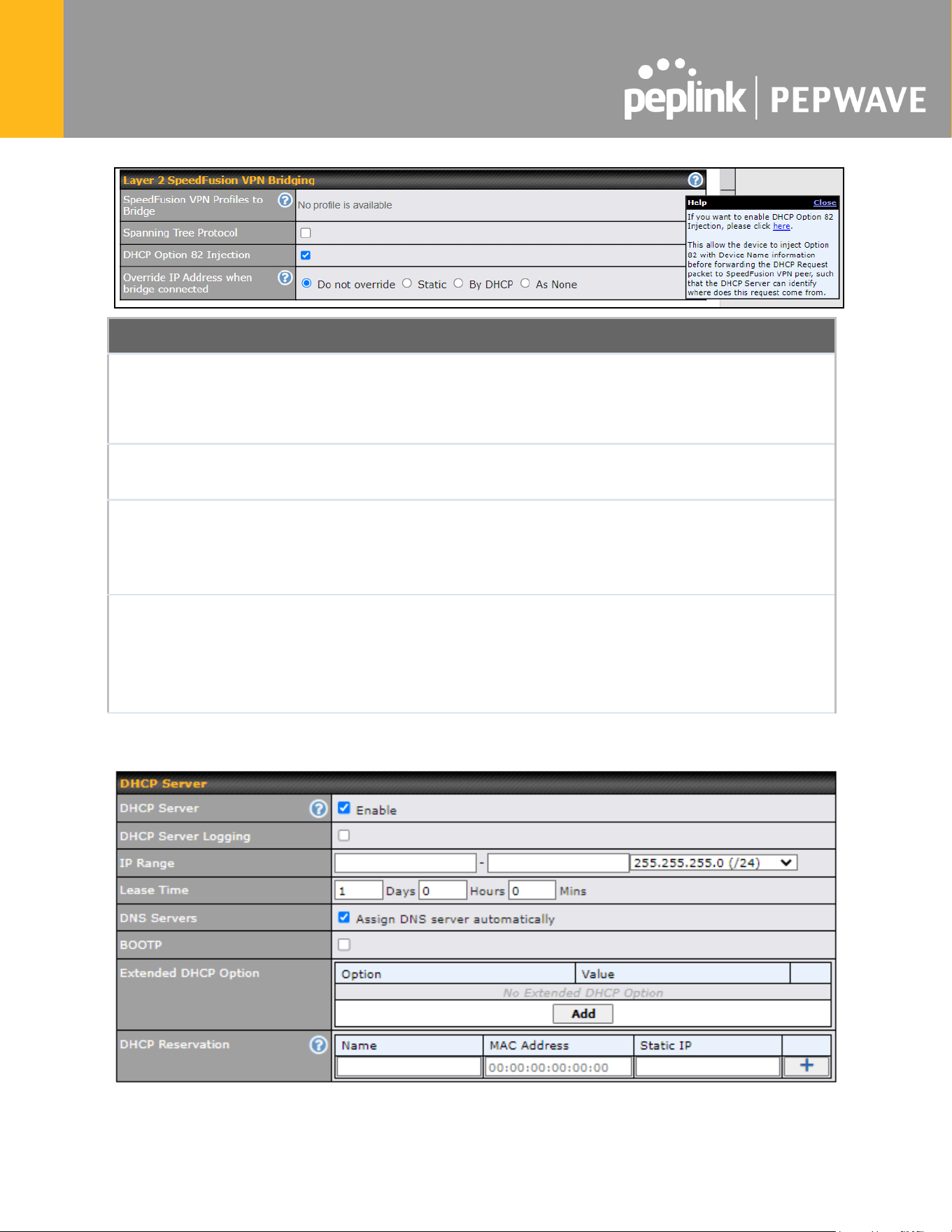

Layer 2 SpeedFusion VPN Bridging
SpeedFusion
VPN Profiles to
Bridge
The remote network of the selected SpeedFusion VPN profiles will be bridged with
this local LAN, creating a Layer 2 SpeedFusion VPN, they will be connected and
operate like a single LAN, and any broadcast or multicast packets will be sent over
the VPN.
Spanning Tree
Protocol
Click the box will enable STP for this layer 2 profile bridge.
DHCP Option 82
Click on the question Mark if you want to enable DHCP Option 82.
This allows the device to inject Option 82 with Router Name information before
forwarding the DHCP Request packet to a SpeedFusion VPN peer, such that the
DHCP Server can identify where the request originates from.
Override IP
Address when
bridge
connected
Select "Do not override" if the LAN IP address and local DHCP server should
remain unchanged after the Layer 2 SpeedFusion VPN is up.
If you choose to override the IP address when the VPN is connected, the device
will not act as a router, and most Layer 3 routing functions will cease to work.
https://www.peplink.com
36
Copyright @ 2025 Peplink
DHCP Server Settings
DHCP Server
When this setting is enabled, the Pepwave router’s DHCP server automatically
assigns an IP address to each computer that is connected via LAN and configured
to obtain an IP address via DHCP. The Pepwave router’s DHCP server can
prevent IP address collisions on the LAN.
To enable DHCP bridge relay, please click the icon on this menu item.
DHCP Server
Logging
Enable logging of DHCP events in the eventlog by selecting the checkbox.
IP Range
These settings allocate a range of IP addresses that will be assigned to LAN
computers by the Pepwave router’s DHCP server.
Lease Time
This setting specifies the length of time throughout which an IP address of a DHCP
client remains valid. Upon expiration of Lease Time, the assigned IP address will
no longer be valid and the IP address assignment must be renewed.
DNS Servers
This option allows you to input the DNS server addresses to be offered to DHCP
clients. If Assign DNS server automatically is selected, the Pepwave router’s
built-in DNS server address (i.e., LAN IP address) will be offered.
BOOTP
Check this box to enable BOOTP on older networks that still require it.
Extended DHCP
Option
In addition to standard DHCP options (e.g. DNS server address, gateway address,
subnet mask), you can specify the value of additional extended DHCP options, as
defined in RFC 2132. With these extended options enabled, you can pass
additional configuration information to LAN hosts. To define an extended DHCP
option, click the Add button, choose the option to define, and then enter its value.
For values that are in IP address list format, you can enter one IP address per line
in the provided text area input control. Each option can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers
on the LAN. The computers to be assigned fixed IP addresses on the LAN are
identified by their MAC addresses. The fixed IP address assignment is displayed
as a cross-reference list between the computers’ names, MAC addresses, and
fixed IP addresses.
Name (an optional field) allows you to specify a name to represent the device.
MAC addresses should be in the format of 00:AA:BB:CC:DD:EE. Press to
create a new record. Press to remove a record. Reserved clients
information can be imported from the Client List, located at Status>Client List.
For more details, please refer to Section 22.3.
https://www.peplink.com
37
Copyright @ 2025 Peplink

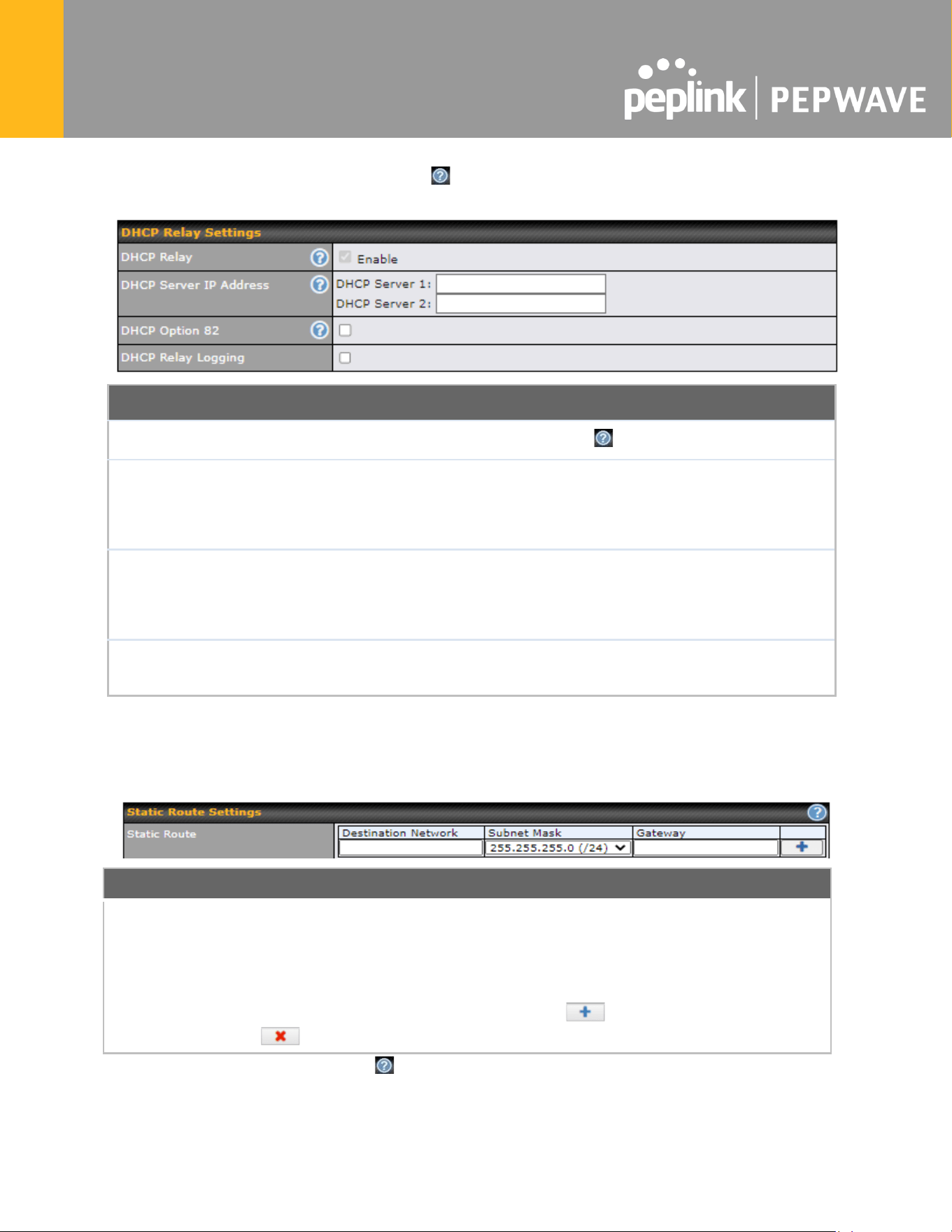

To configure DHCP relay, first click the button found next to the DHCP Server option to
display the settings.
DHCP Relay Settings
Enable
Check this box to turn on DHCP relay. Click the icon to disable DHCP relay.
DHCP Server IP
Address
Enter the IP addresses of one or two DHCP servers in the provided fields. The
DHCP servers entered here will receive relayed DHCP requests from the LAN. For
active-passive DHCP server configurations, enter active and passive DHCP server
relay IP addresses in DHCP Server 1 and DHCP Server 2.
DHCP Option 82
DHCP Option 82 includes device information as relay agent for the attached client
when forwarding DHCP requests from client to server. This option also embeds
the device’s MAC address and network name in circuit and remote IDs. Check this
box to enable DHCP Option 82.
DHCP Relay
Logging
Enable logging of DHCP Relay events in the eventlog by selecting the checkbox.
Once DHCP is set up, configure LAN Physical Settings, Static Route Settings, and DNS
Proxy Settings as noted above.
Static Route Settings
Static Route
This table is for defining static routing rules for the LAN segment. A static route
consists of the network address, subnet mask, and gateway address. The
address and subnet mask values are in w.x.y.z format.
The local LAN subnet and subnets behind the LAN will be advertised to the VPN.
Remote routes sent over the VPN will also be accepted. Any VPN member will be
able to route to the local subnets. Press to create a new route. Press
to remove a route.
A
- Advanced feature, please click the button on the top right hand corner of the Static Route section
to activate and configure Virtual Network Mapping to resolve network address conflict with remote peers.
https://www.peplink.com
38
Copyright @ 2025 Peplink
In case of a network address conflict with remote peers (i.e. SpeedFusion VPN / IPsec VPN / IP
Forwarding WAN are considered as remote connections), you can define Virtual Network
Mapping to resolve it.
Note: OSPF & RIPv2 settings should be updated as well to avoid advertising conflicted networks.
For further details on virtual network mapping watch this video:
https://youtu.be/C1FMdZCn3Z8

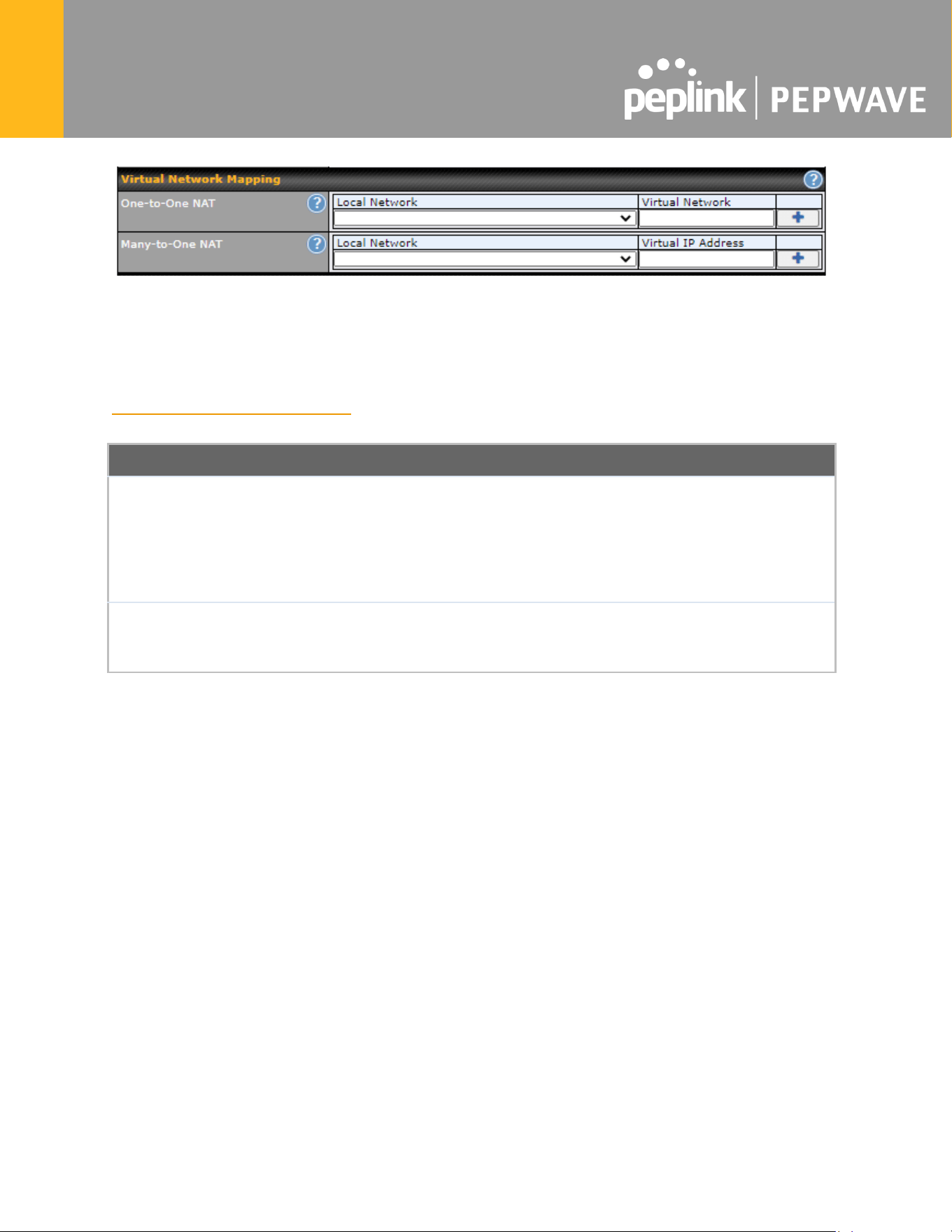

Virtual Network Mapping
One-to-One NAT
Every IP Address in the Local Network has a corresponding unique Virtual IP
Address for NAT.
Traffic originating from the Local Network to remote connections will be SNAT'ed
and behave like coming from the defined Virtual Network.
While traffic initiated by remote peers to the Virtual Network will be DNAT'ed
accordingly.
Many-to-One NAT
The subnet range defined in Local Network will be mapped to a single Virtual IP
Address for NAT. Traffic can only be initiated from local to remote, and these
traffic will be NAT'ed and behaves like coming from the same Virtual IP Address.
https://www.peplink.com
39
Copyright @ 2025 Peplink

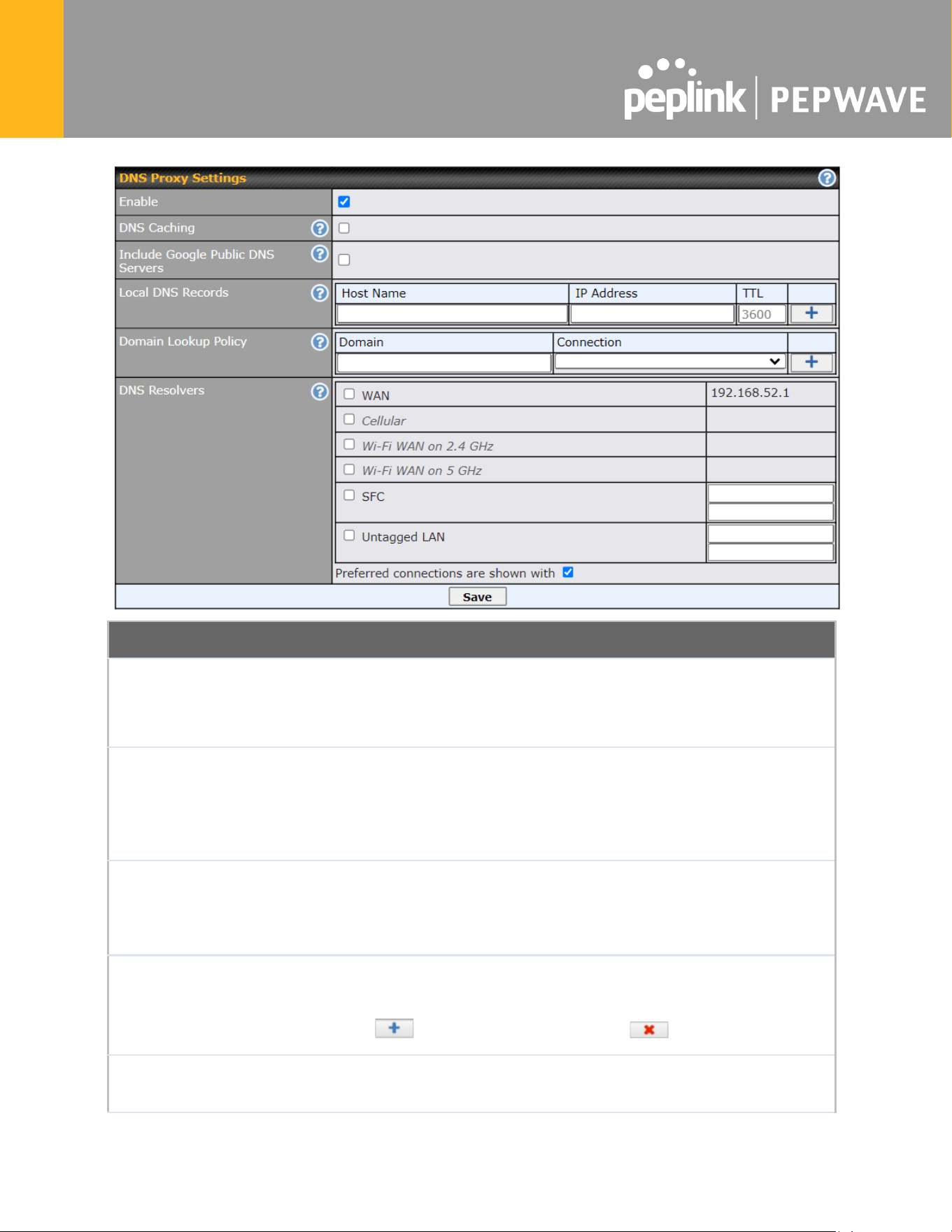

DNS Proxy Settings
Enable
To enable the DNS proxy feature, check this box, and then set up the feature at
Network > LAN > DNS Proxy Settings. A DNS proxy server can be enabled to
serve DNS requests originating from LAN/PPTP/SpeedFusion
TM
peers. Requests
are forwarded to the DNS servers/resolvers defined for each WAN connection.
DNS Caching
This field is to enable DNS caching on the built-in DNS proxy server. When the
option is enabled, queried DNS replies will be cached until the records’ TTL has
been reached. This feature can help improve DNS lookup time. However, it cannot
return the most up-to-date result for those frequently updated DNS records. By
default, DNS Caching is disabled.
Include Google
Public DNS
Servers
When this option is enabled, the DNS proxy server will also forward DNS requests
to Google's Public DNS Servers, in addition to the DNS servers defined in each
WAN. This could increase the DNS service's availability. This setting is disabled by
default.
Local DNS
Records
This table is for defining custom local DNS records. A static local DNS record
consists of a host name and IP address. When looking up the host name from the
LAN to LAN IP of the Pepwave router, the corresponding IP address will be
returned. Press to create a new record. Press to remove a record.
Domain Lookup
Policy
DNS Proxy will lookup the domain names defined in this table using the specified
connections only.
https://www.peplink.com
40
Copyright @ 2025 Peplink
DNS Resolvers
A
This field specifies which DNS servers can receive forwarded DNS requests. If no
DNS server is selected, then all of them will be selected by default.
If you wish to select a SpeedFusion VPN peer, enter the IP address(es) of the
VPN peer's DNS server.
Incoming queries will be forwarded to one of the selected servers. If none of the
selected servers can be reached, then the router will forward incoming queries to
all servers with healthy WAN connections.
A
- Advanced feature, please click the button on the top right hand corner to activate.
Finally, if needed, configure Bonjour forwarding, Apple’s zero configuration networking protocol.
Once VLAN configuration is complete, click Save to store your changes.

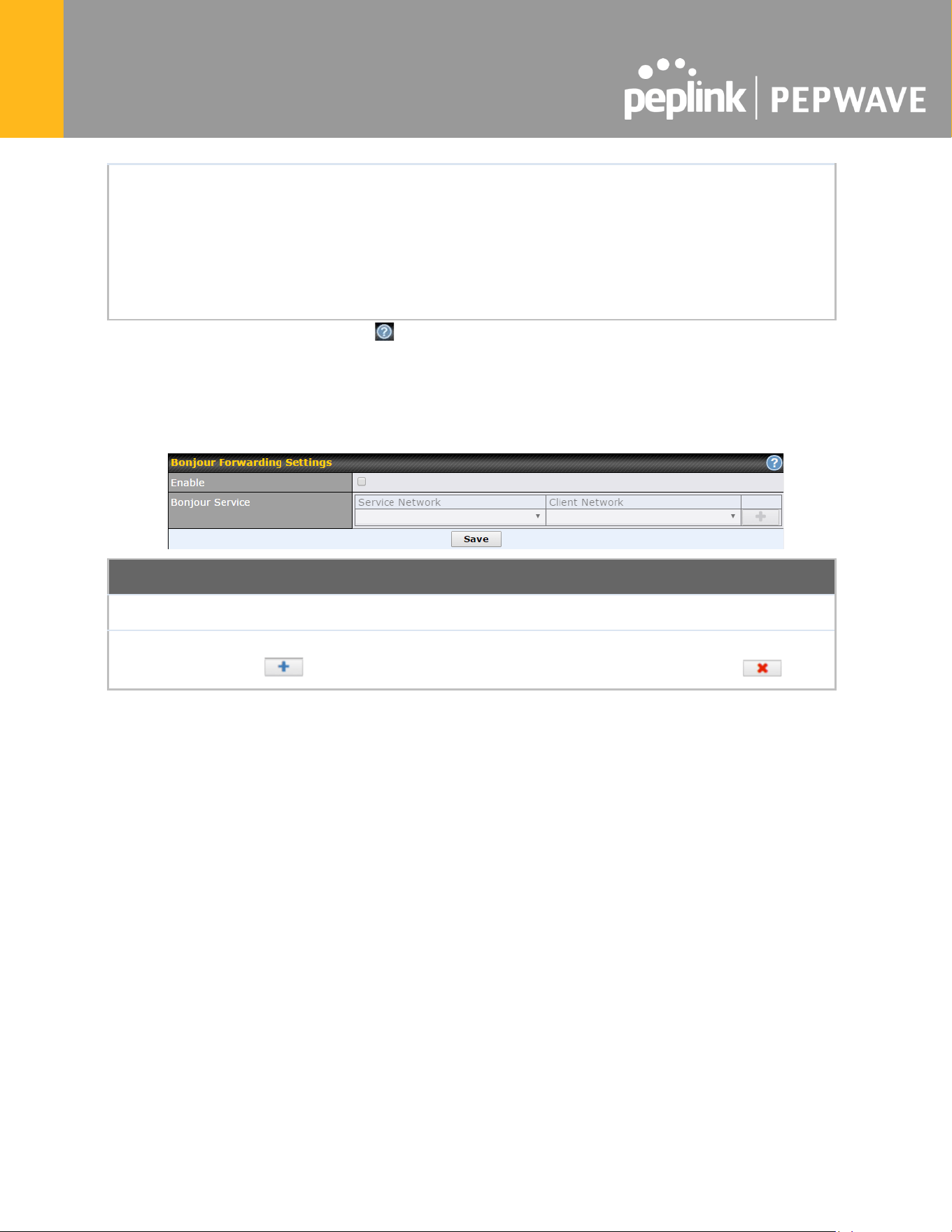

Bonjour Forwarding Settings
Enable
Check this box to turn on Bonjour forwarding.
Bonjour Service
Choose Service and Client networks from the drop-down menus, and then click
to add the networks. To delete an existing Bonjour listing, click .
https://www.peplink.com
41
Copyright @ 2025 Peplink
Drop-In Mode
Drop-in mode (or transparent bridging mode) eases the installation of the Pepwave MAX on a
live network between the firewall and router, such that changes to the settings of existing
equipment are not required.

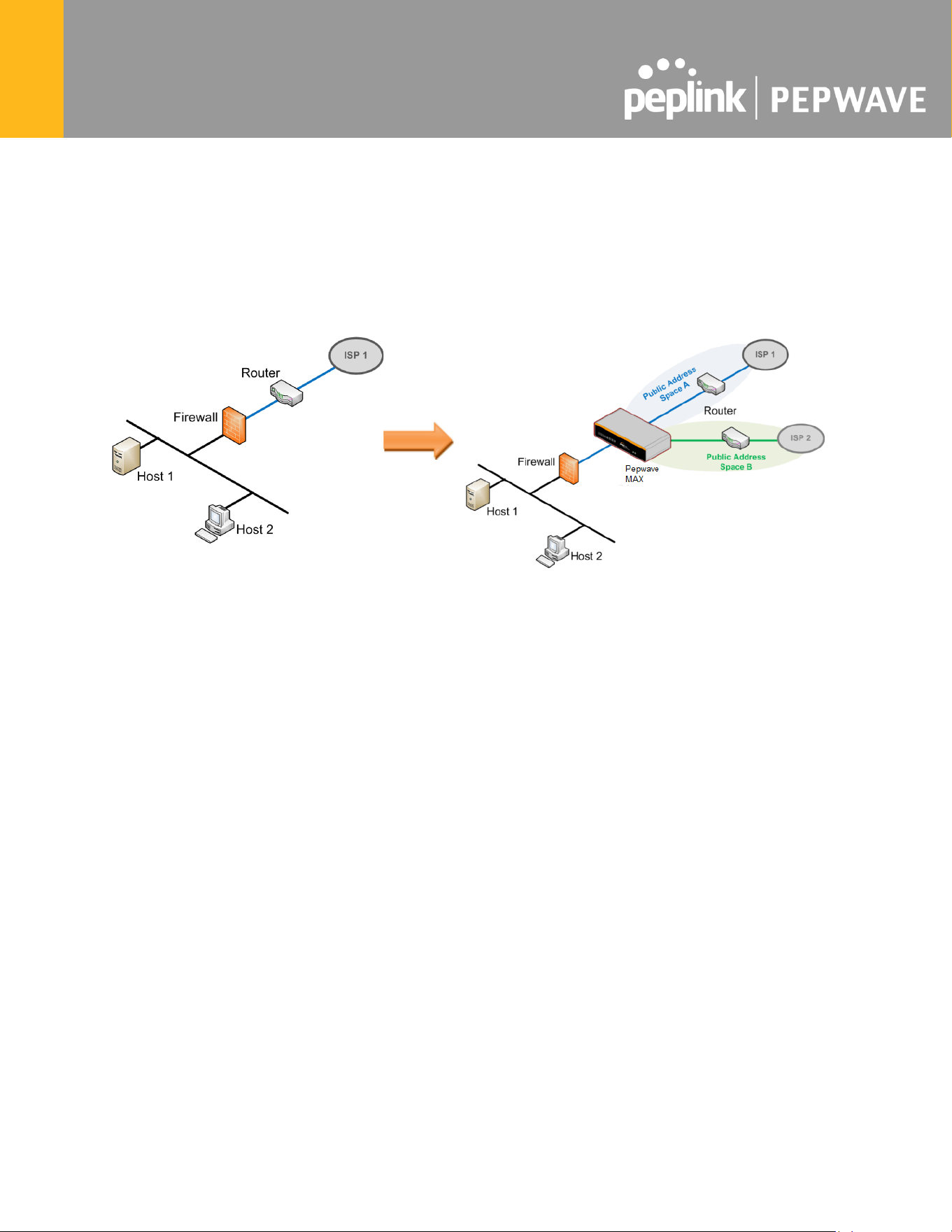

The following diagram illustrates drop-in mode setup:

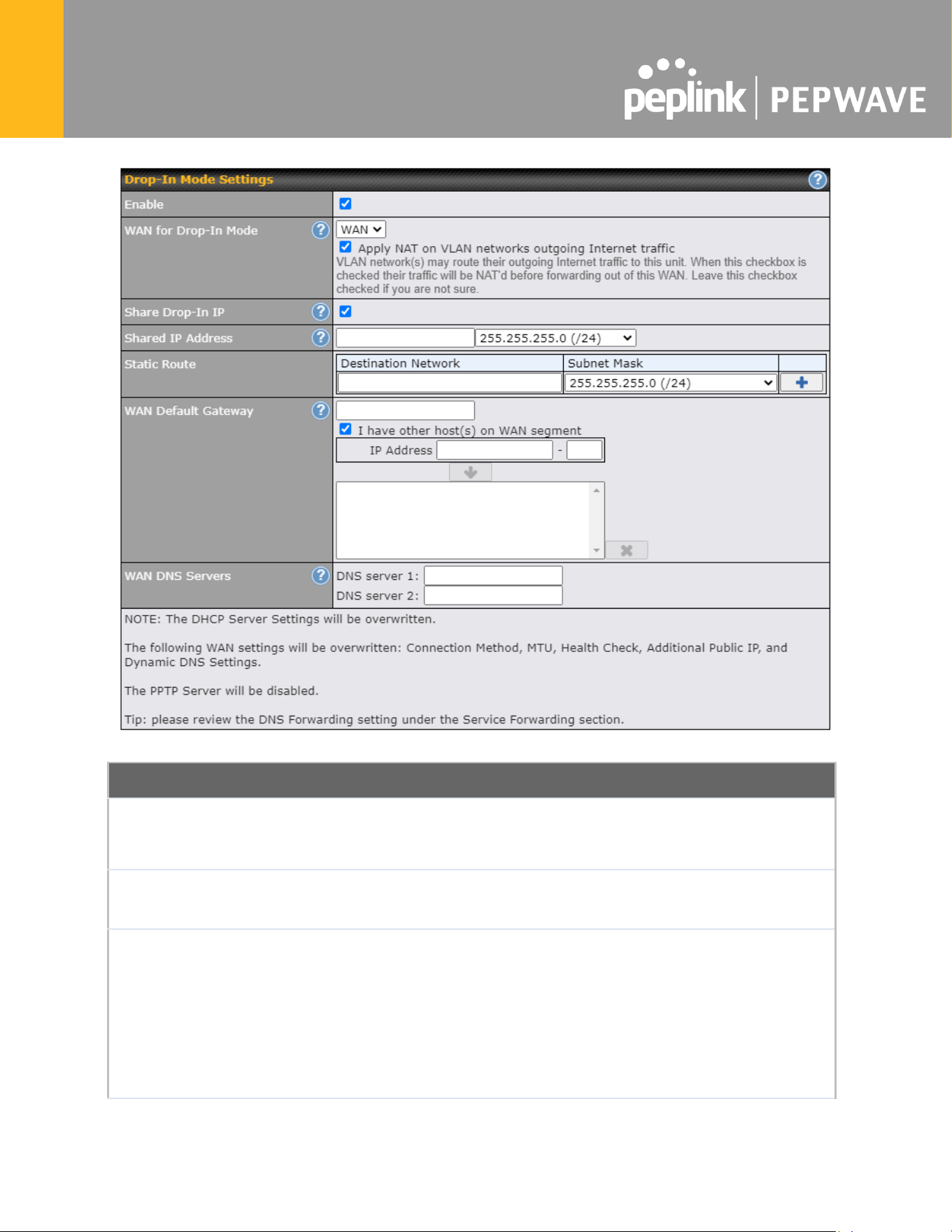

Check the box Enable to enable the Drop-in Mode. After enabling this feature and selecting the
WAN for Drop-in mode, various settings including the WAN's connection method and IP address
will be automatically updated.
When drop-in mode is enabled, the LAN and the WAN for drop-in mode ports will be bridged.
Traffic between the LAN hosts and WAN router will be forwarded between the devices. In this
case, the hosts on both sides will not notice any IP or MAC address changes.
After successfully setting up the Pepwave MAX as part of the network using drop-in mode, it
will, depending on model, support one or more WAN connections. Some MAX units also
support multiple WAN connections after activating drop-in mode, though a SpeedFusion license
may be required to activate more than one WAN port.
Please note the Drop-In Mode is mutually exclusive with VLAN.
https://www.peplink.com
42
Copyright @ 2025 Peplink
Drop-in Mode Settings
Enable
Drop-in mode eases the installation of the Pepwave MAX on a live network
between the existing firewall and router, such that no configuration changes are
required on existing equipment. Check the box to enable the drop-in mode feature.
WAN for
Drop-In Mode
Select the WAN port to be used for drop-in mode. If WAN is selected, the high
availability feature will be disabled automatically.
Shared Drop-In
IP
A
When this option is enabled, the passthrough IP address will be used to connect
to WAN hosts (email notification, remote syslog, etc.). The MAX will listen for this
IP address when WAN hosts access services provided by the MAX (web admin
access from the WAN, DNS server requests, etc.).
To connect to hosts on the LAN (email notification, remote syslog, etc.), the default
gateway address will be used. The MAX will listen for this IP address when LAN
hosts access services provided by the MAX (web admin access from the WAN,
DNS proxy, etc.).
https://www.peplink.com
43
Copyright @ 2025 Peplink
Shared IP
Address
A
Access to this IP address will be passed through to the LAN port if this device is
not serving the service being accessed. The shared IP address will be used in
connecting to hosts on the WAN (e.g., email notification, remote syslog, etc.) The
device will also listen on the IP address when hosts on the WAN access services
served on this device (e.g., web admin accesses from WAN, DNS server, etc.)
WAN Default
Gateway
Enter the WAN router's IP address in this field. If there are more hosts in addition
to the router on the WAN segment, click the button next to “WAN Default
Gateway” and check the other host(s) on the WAN segment box and enter the IP
address of the hosts that need to access LAN devices or be accessed by others.
WAN DNS
Servers
Enter the selected WAN's corresponding DNS server IP addresses.
A
- Advanced feature, please click the button on the top right-hand corner to activate.
7.2 Port Settings
To configure port settings, navigate to Network > Port Settings

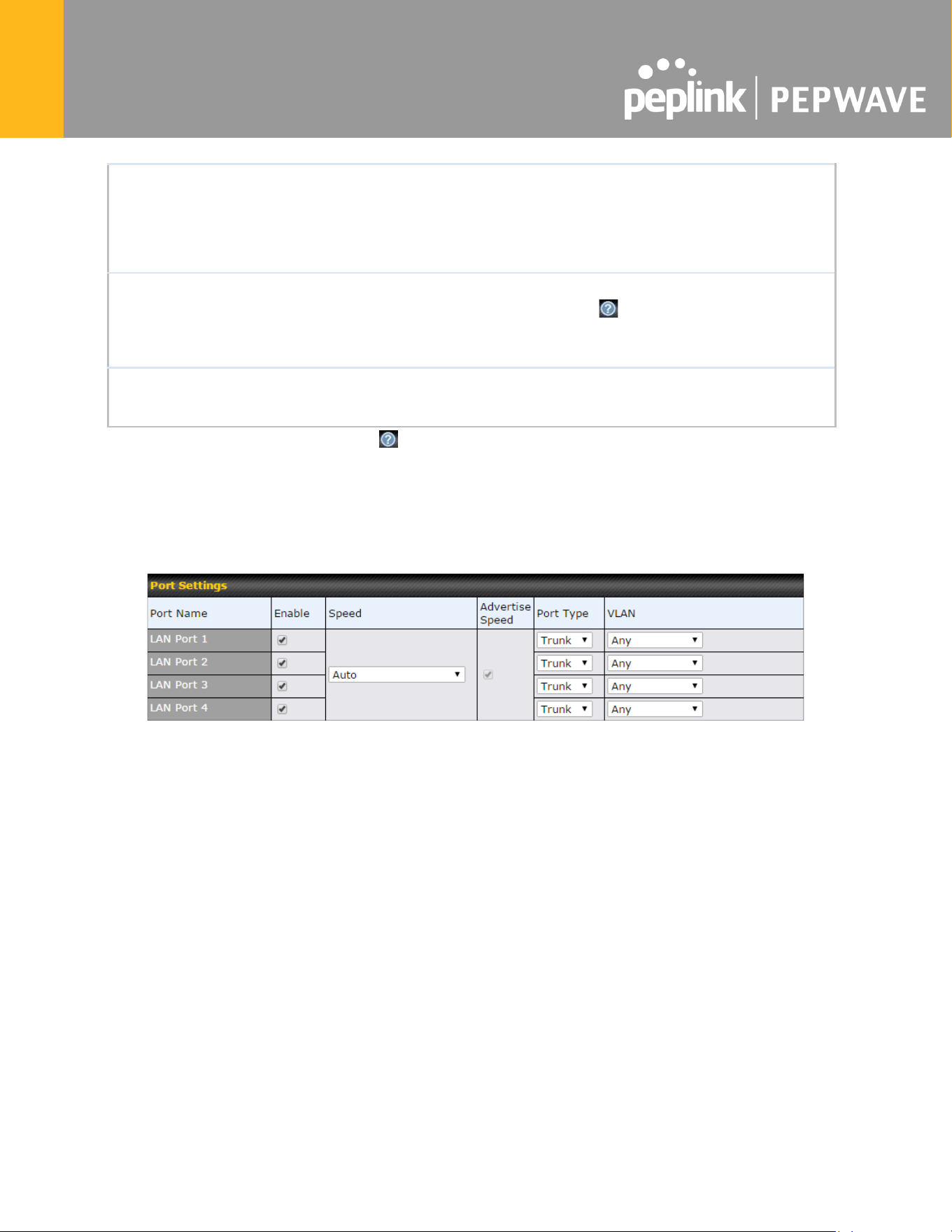

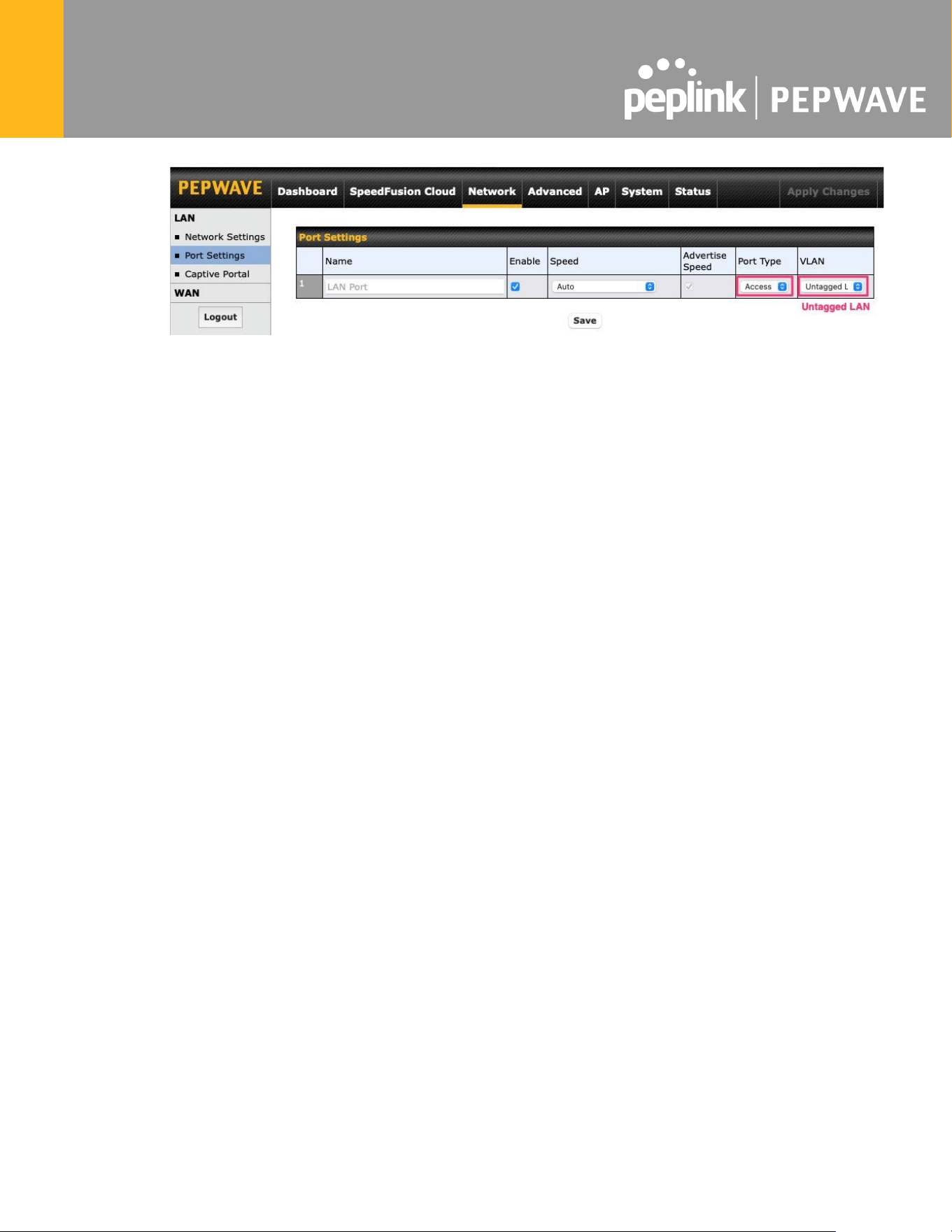

On this screen, you can enable specific ports, as well as determine the speed of the LAN ports,
whether each port is a trunk or access port, can well as which VLAN each link belongs to, if any.
https://www.peplink.com
44
Copyright @ 2025 Peplink

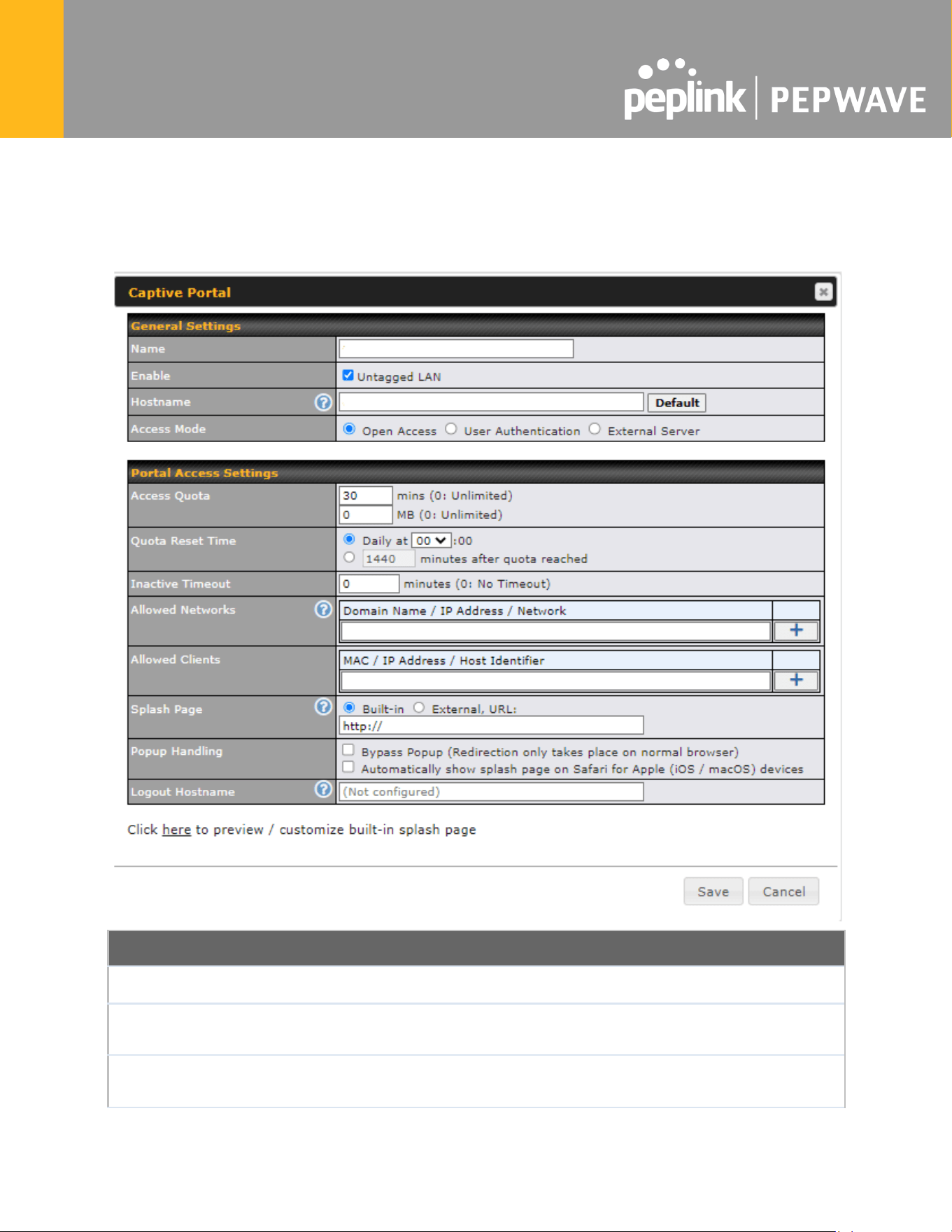

7.3 Captive Portal
The captive portal serves as a gateway that clients have to pass if they wish to access the
internet using your router. To configure, navigate to Network > LAN > Captive Portal.
Captive Portal Settings
Name
Enter the name for the Captive Portal.
Enable
Check Enable and then, optionally, select the LANs/VLANs that will use the
captive portal.
Hostname
To customize the portal’s form submission and redirection URL, enter a new
URL in this field. To reset the URL to factory settings, click Default.
https://www.peplink.com
45
Copyright @ 2025 Peplink
Access Mode
Click Open Access to allow clients to freely access your router. Click User
Authentication to force your clients to authenticate before accessing your
router.
Select External Server to use the Captive Portal with a HotSpot system.
As described in the following knowledgebase article:
https://forum.peplink.com/t/using-hotspotsystem-wi-fi-on-pepwave-max-routers/

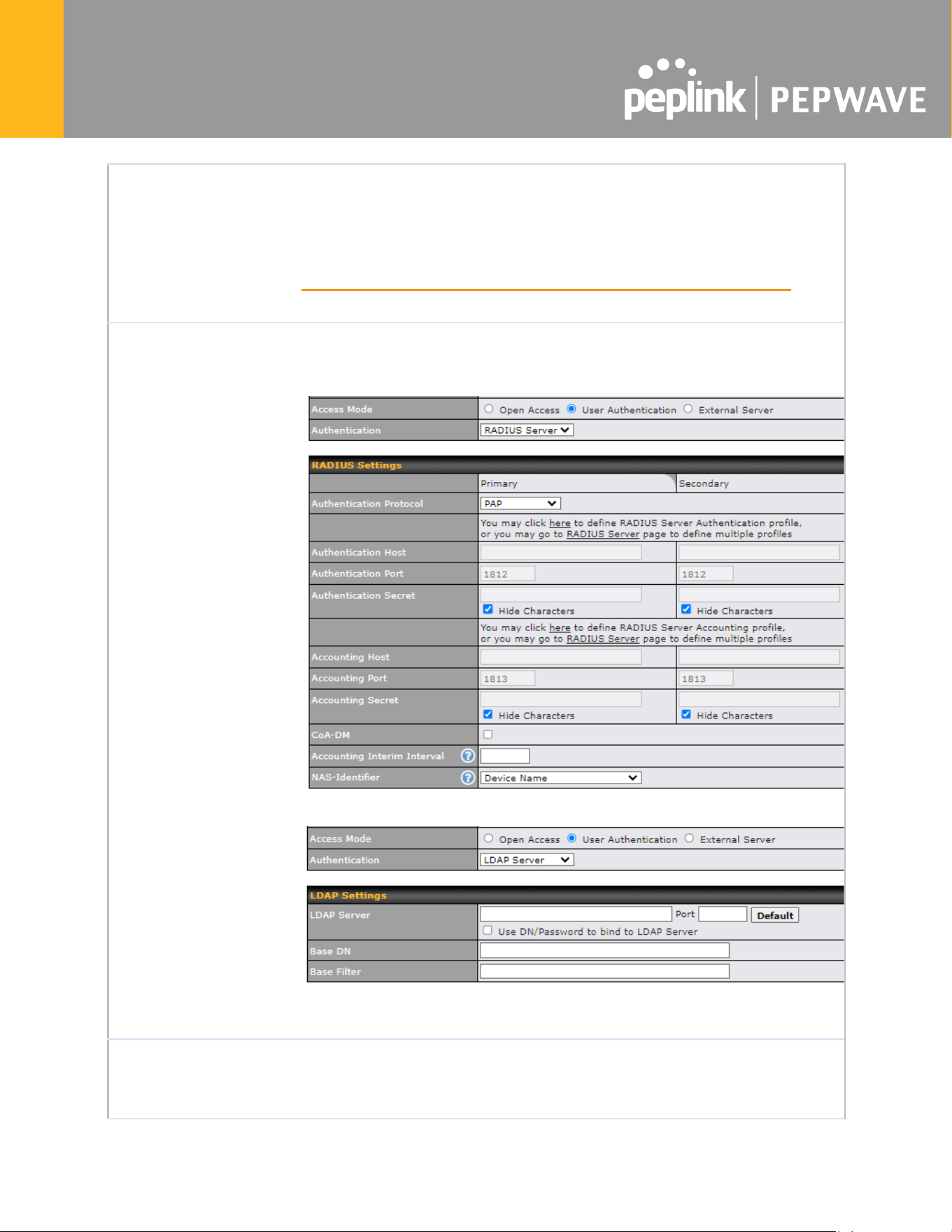

Authentication

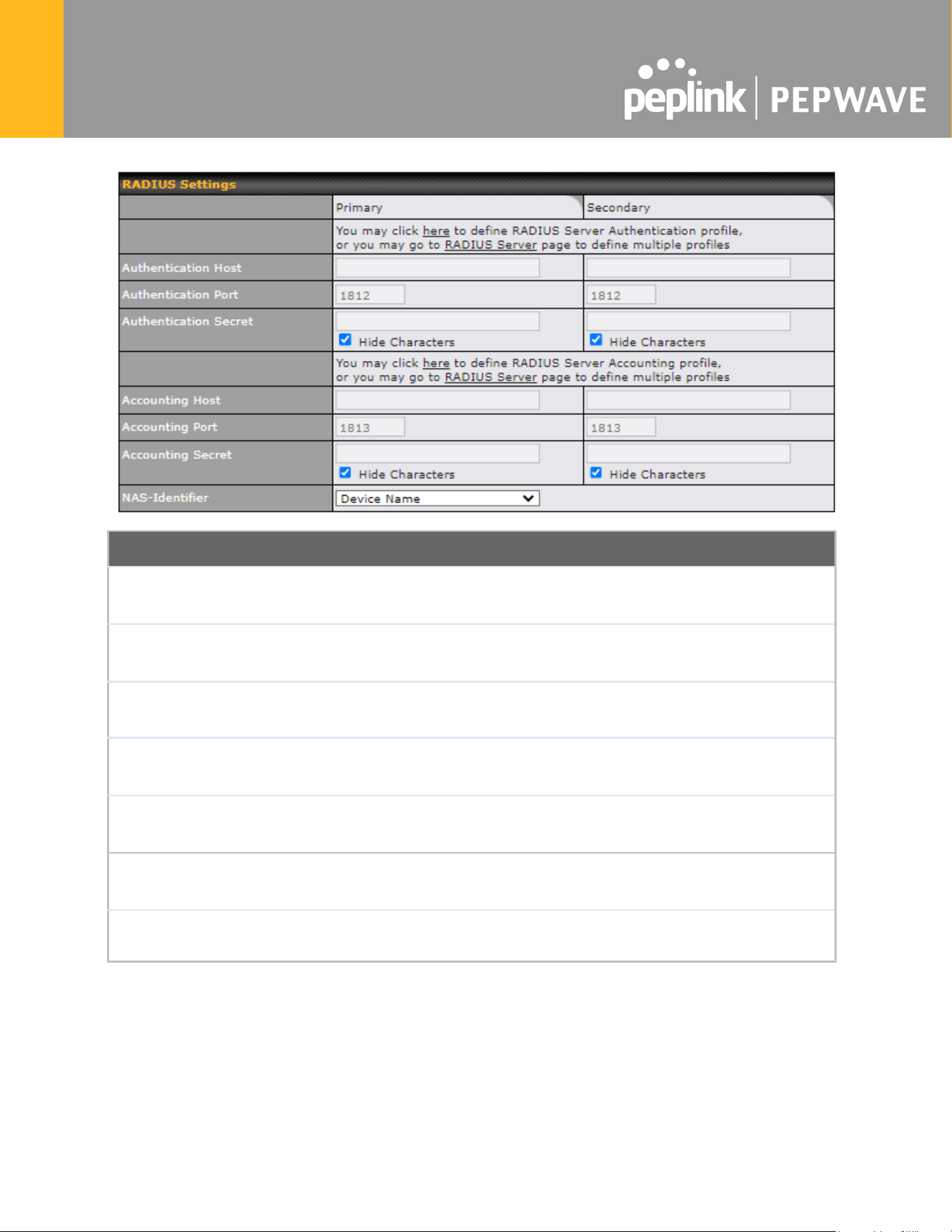

When selecting the “User Authentication” in the Access Mode field, you will
see the available option for the Authentication via drop-down list:
● RADIUS Server
● LDAP Server
Fill in the necessary information to complete your connection to the server
and enable authentication.

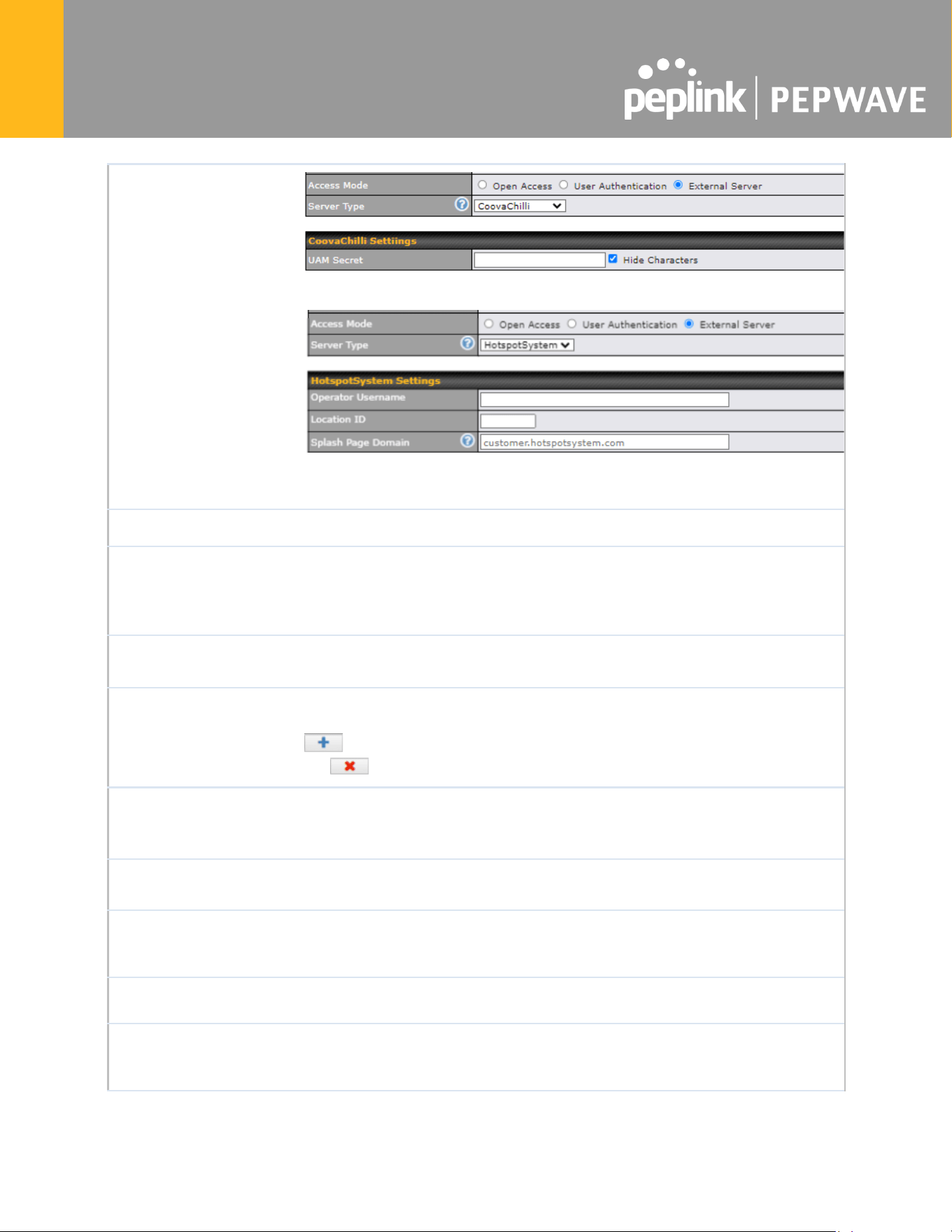

External Server
When selecting the “External Server” in the Access Mode field, you will see
the available option for the Service Type via drop-down list:
● CoovaChilli
https://www.peplink.com
46
Copyright @ 2025 Peplink
● HotspotSystem
Fill in the necessary information to complete your connection to the server
and enable authentication.
Access Quota
Set a time and data cap to each user’s Internet usage.
Quota Reset Time
This menu determines how your usage quota resets. Setting it to Daily will
reset it at a specified time every day. Setting a number of minutes after
quota reached establish a timer for each user that begins after the quota has
been reached.
Inactive Timeout
Clients will get disconnected when the inactive the configured time is reached.
Default 0: no timeout
Allowed Networks
Add networks that can bypass the captive Portal in this field.
To whitelist a network, enter the domain name / IP address here and click
. To delete an existing network from the list of allowed networks, click
the button next to the listing.
Allowed Clients
Add MAC address and /or IP addresses for client devices that are allowed to
bypass the Captive Portal. Clients accessing these domains and IP addresses
will not be redirected to the splash page.
Splash Page
Here, you can choose between using the Pepwave router’s built-in captive
portal and redirecting clients to a URL you define.
Popup Handling
Configurable options for popup handling:
- Bypass Popup (Redirection only takes place on normal browser)
- Automatically show splash page on Safari for Apple (iOS / macOS) devices
Logout Hostname
A hostname that can be used to logout captive portal when being accessed on
browser.

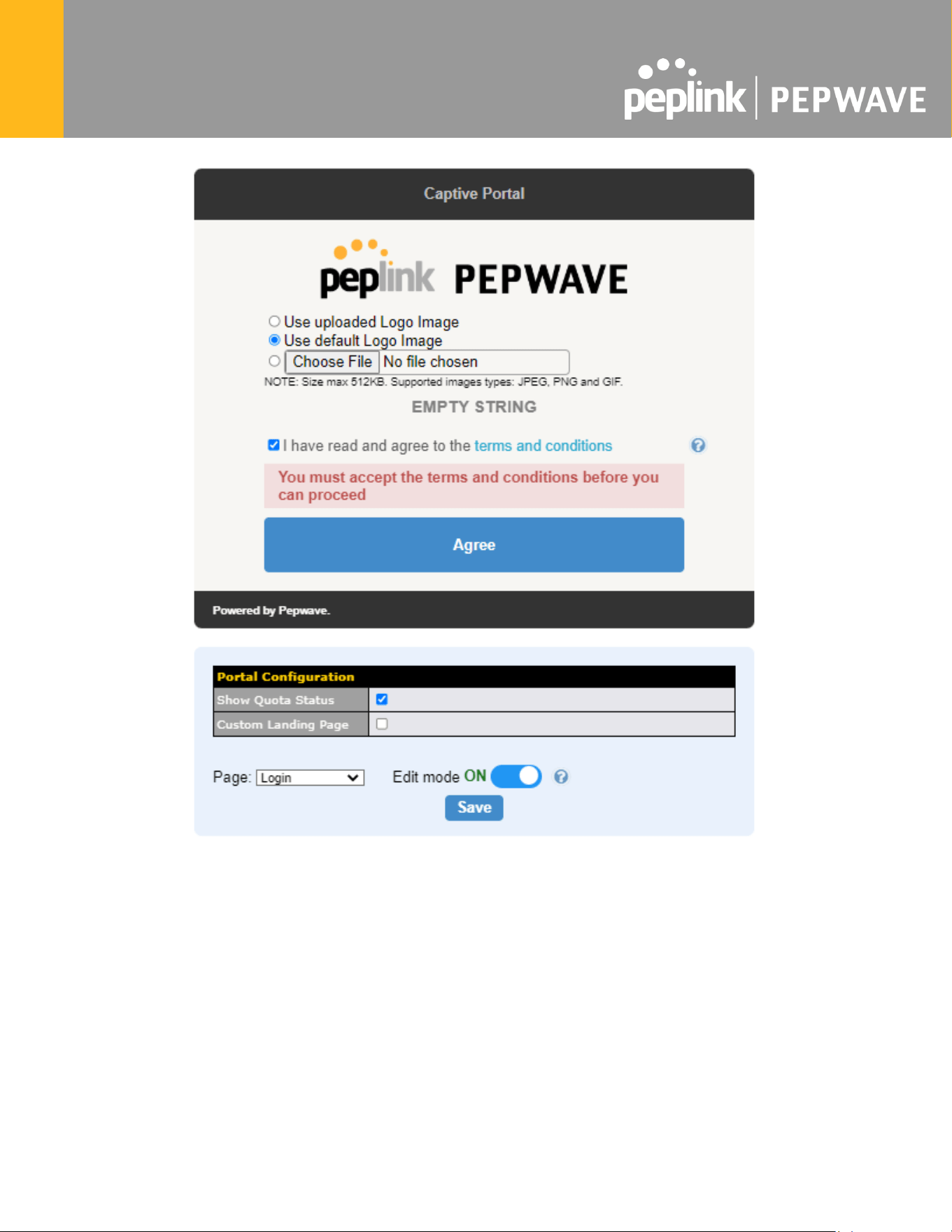

Customize
splash page
Click on the provided link in the Captive portal profile to customize the splash page.
A new browser tab is opened with a WYSIWYG editor of the splash page
o edit the content, click on the corresponding element after switching Edit Mode to ON.
https://www.peplink.com
47
Copyright @ 2025 Peplink
8 Configuring the WAN Interface(s)
WAN Interface settings are located at Network > WAN. To reorder WAN priority, drag on the
appropriate WAN by holding the left mouse button, move it to the desired priority (the first one
would be the highest priority, the second one would be lower priority, and so on), and drop it by
releasing the mouse button.
To able a particular WAN connection, drag on the appropriate WAN by holding the left mouse
button, move it the Disabled row, and drop it by releasing the mouse button.
You can also set priorities on the Dashboard. Click the WAN button in the corresponding row to
modify the connection setting.
Important Note
Connection details will be changed and become effective immediately after clicking the Save and Apply button.
https://www.peplink.com
49
Copyright @ 2025 Peplink

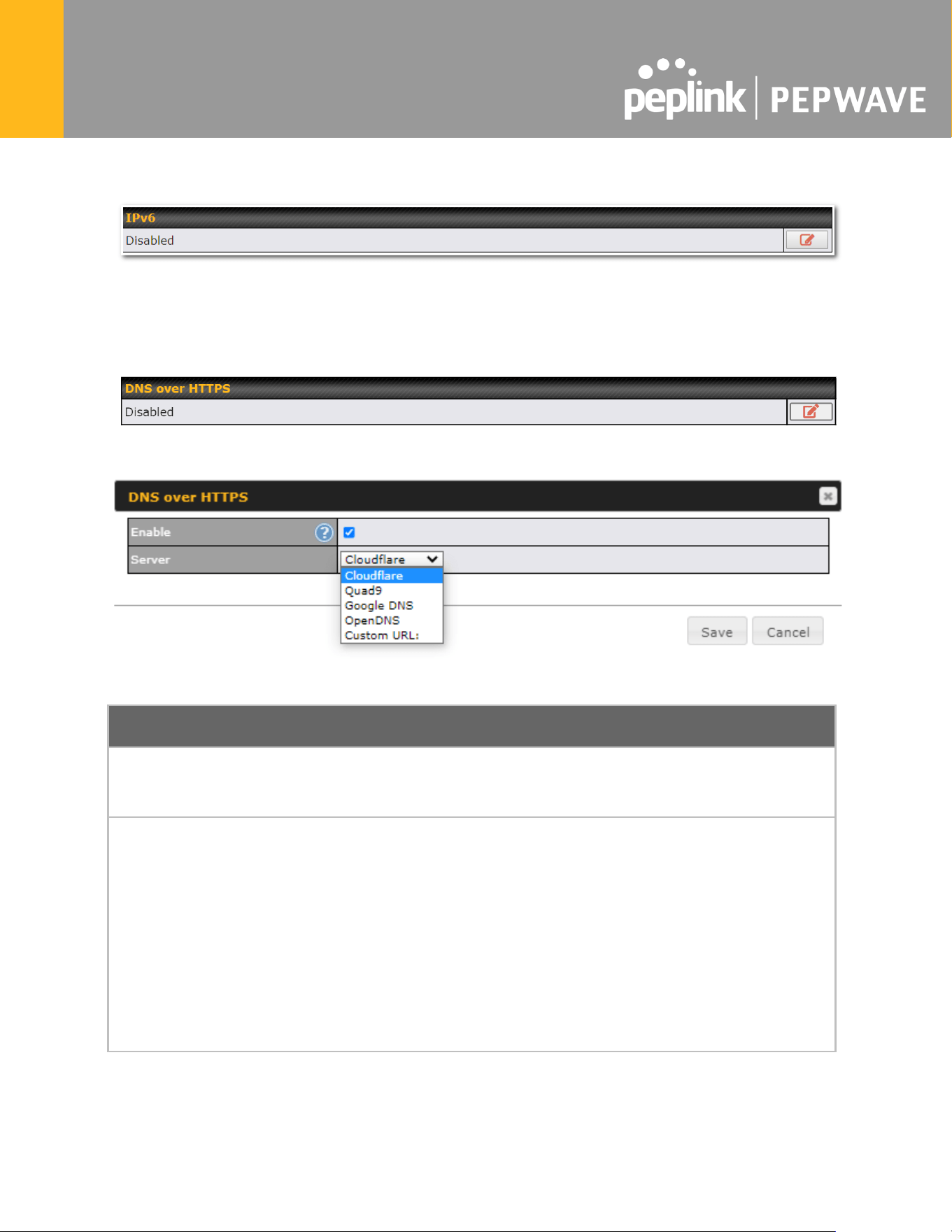

IPv6
You can also enable IPv6 support in this section.
DNS over HTTPS (DoH)
You can enable DoH (DNS over HTTPS) support in this section.
DNS over HTTPS
Enable
When this option is enabled, the DNS proxy server will use HTTPS connections to
forward DNS requests to the DoH resolver; it will not fallback to traditional UDP
DNS options.
Server
The options to configure DoH with a predefined server are:
● Cloudflare - The DNS server IP addresses for Cloudflare will be using
1.1.1.1, which is unfiltered.
● Quad9 - The DNS server IP addresses for Quad9 will be using 9.9.9.9
and 142.112.112.112, which is malware blocking and DNSSEC.
● Google DNS - The DNS server IP addresses for Google DNS will be
using 8.8.8.8 and 8.8.4.4, which is RFC8484 standard.
● OpenDNS - The DNS server IP addresses for OpenDNS will be using
208.67.222.222 and 208.67.220.220, which is standard DNS.
● Custom URL - You may select Custom URL:, and enter the resolver
URL and IP address.
https://www.peplink.com
50
Copyright @ 2025 Peplink

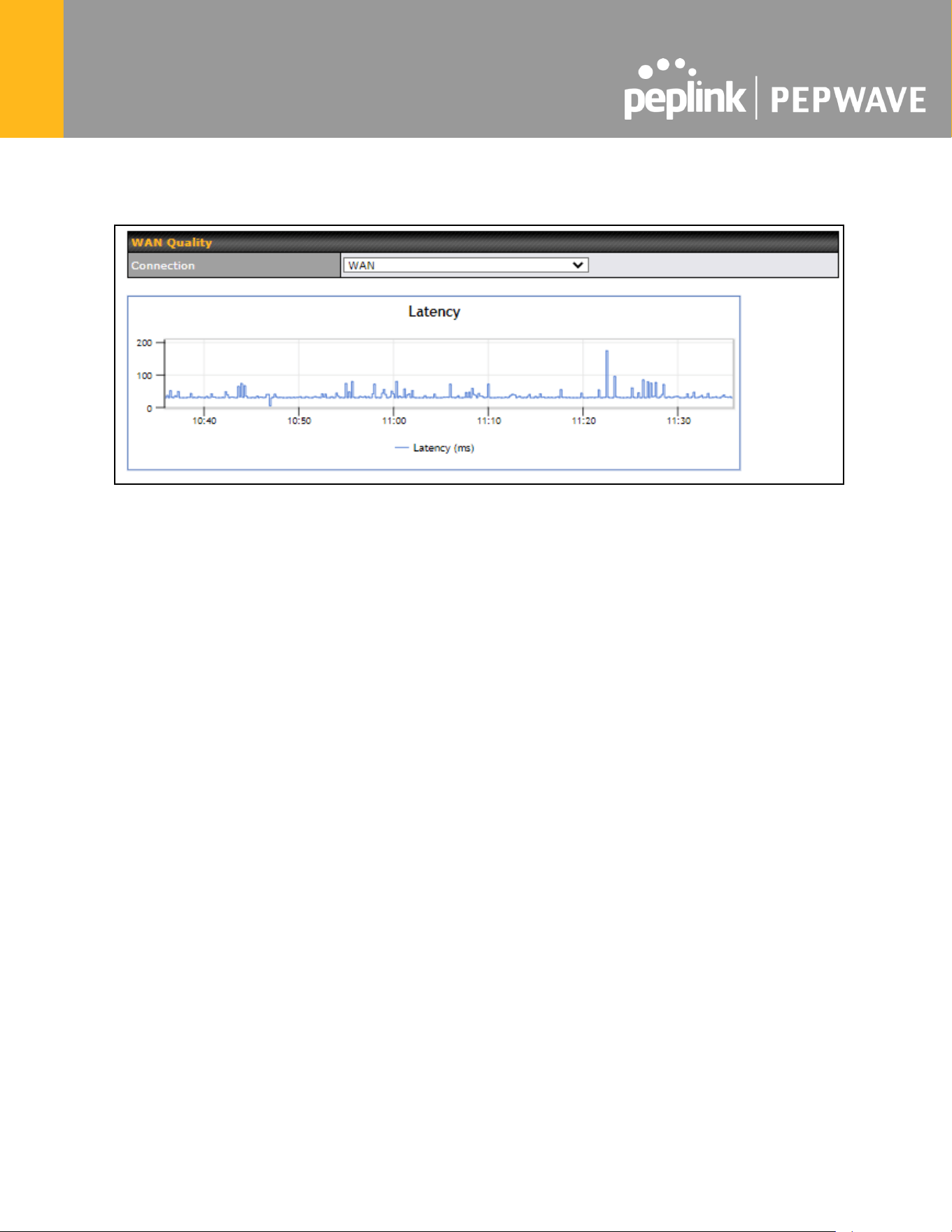

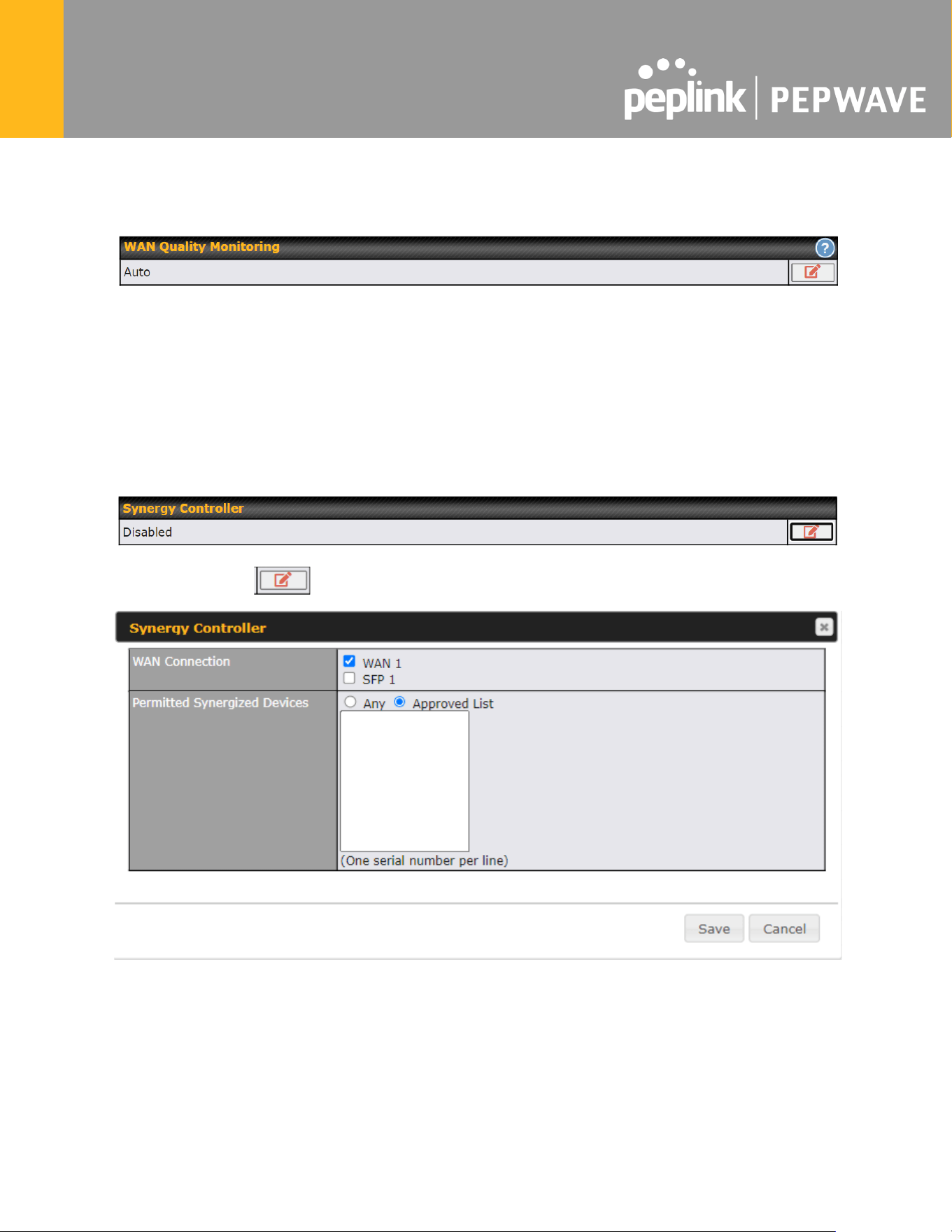

WAN Quality Monitoring
This settings advice how WAN Quality information is being gathered.
By default, WAN Quality will always be observed and gathered automatically. With customized
choice of WAN connections, the device will always observe WAN Quality of those selected WAN
connections. Other WAN connections may stop observing WAN Quality information if it is not
necessary for the underlying features.
Synergy Mode
You can enable the Synergy Controller in this section.
You may click this to enable the Synergy Controller. By default, the setting is disabled.
You may select the WAN connection to use as a Synegy Link which will connect to synergized
devices.
https://www.peplink.com
51
Copyright @ 2025 Peplink
8.1 Ethernet WAN
There are four possible connection methods for the Ethernet WAN connection:
1. DHCP
2. Static IP
3. PPPoE
4. L2TP

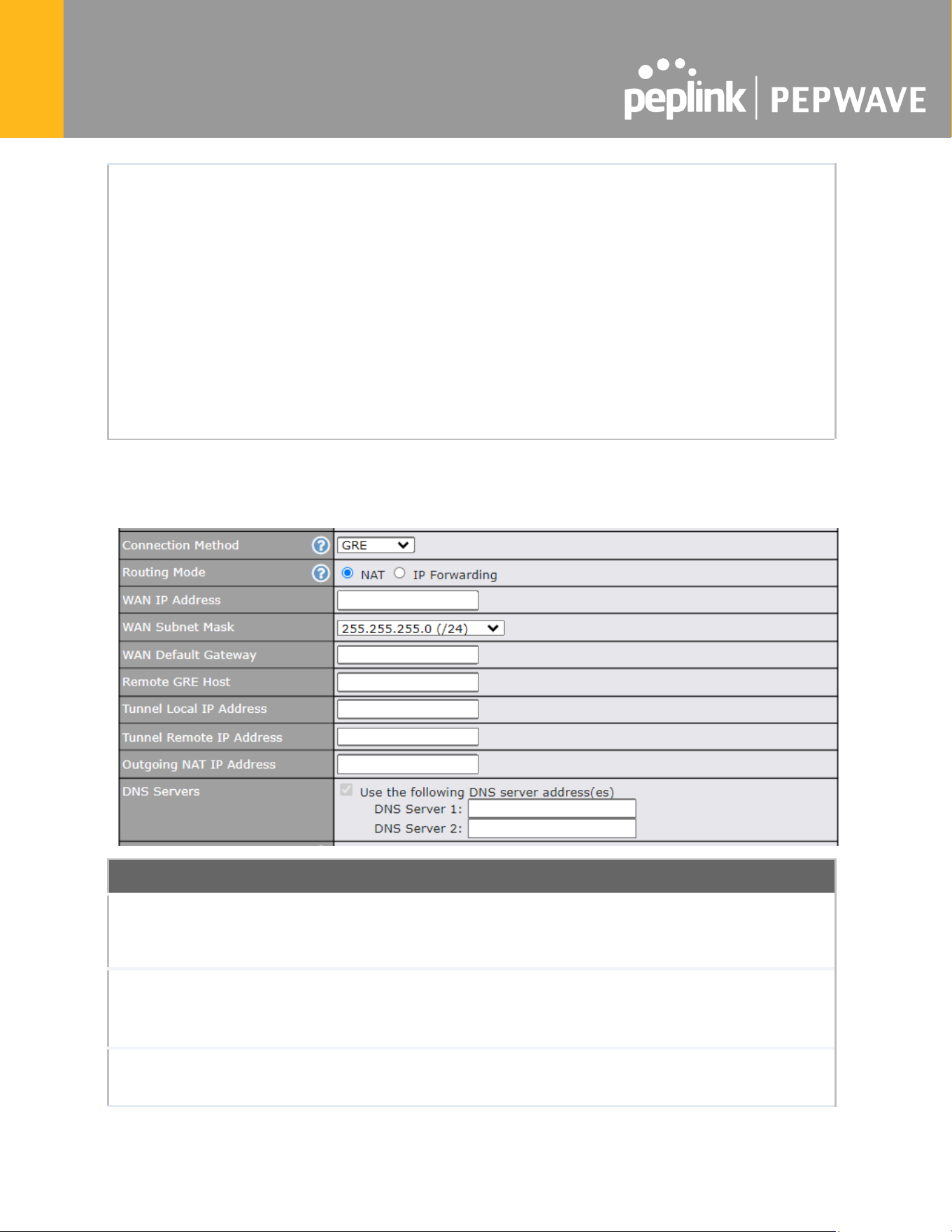

5. GRE
8.1.1 DHCP Connection
The DHCP connection method is suitable if the ISP provides an IP address automatically using
DHCP (e.g., satellite modem, WiMAX modem, cable, Metro Ethernet, etc.).

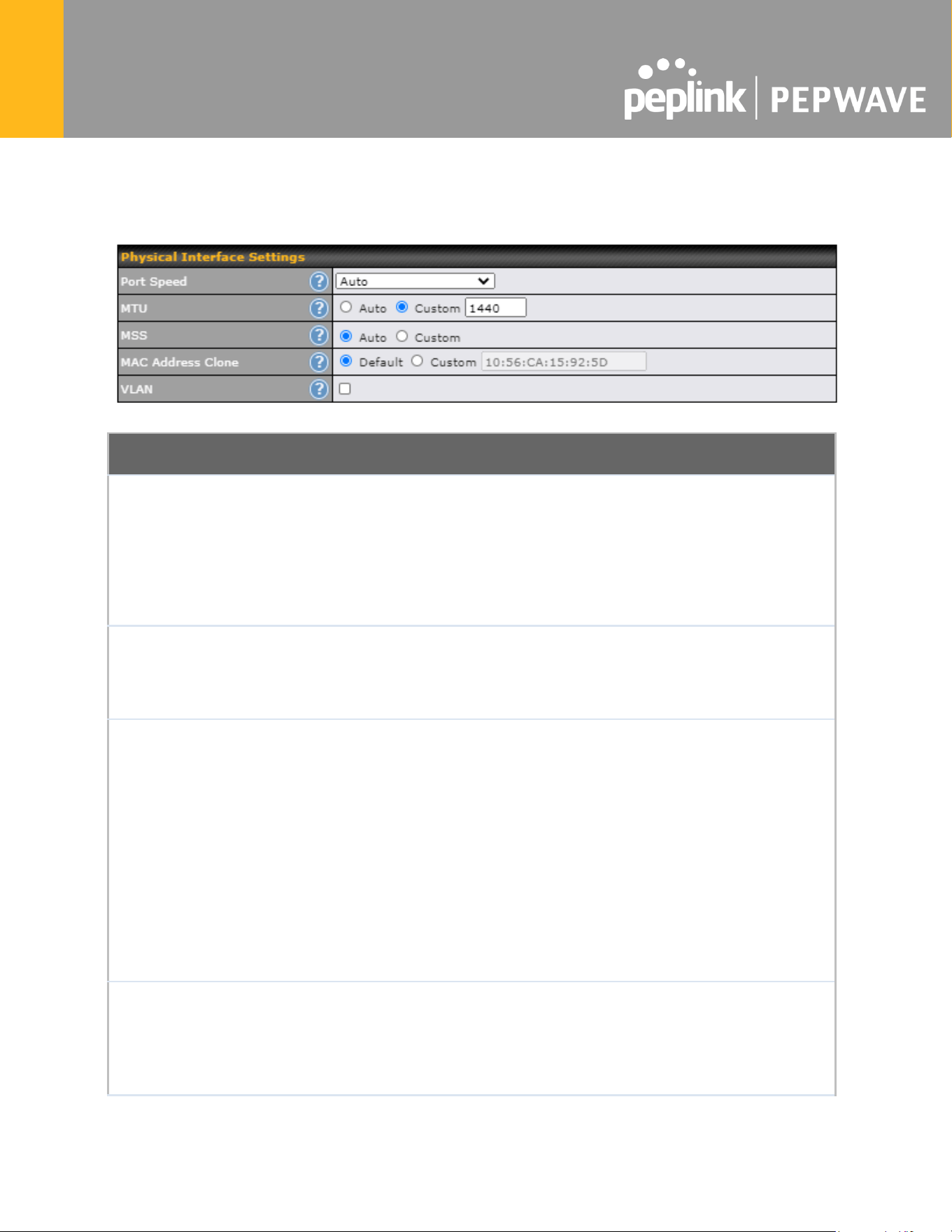

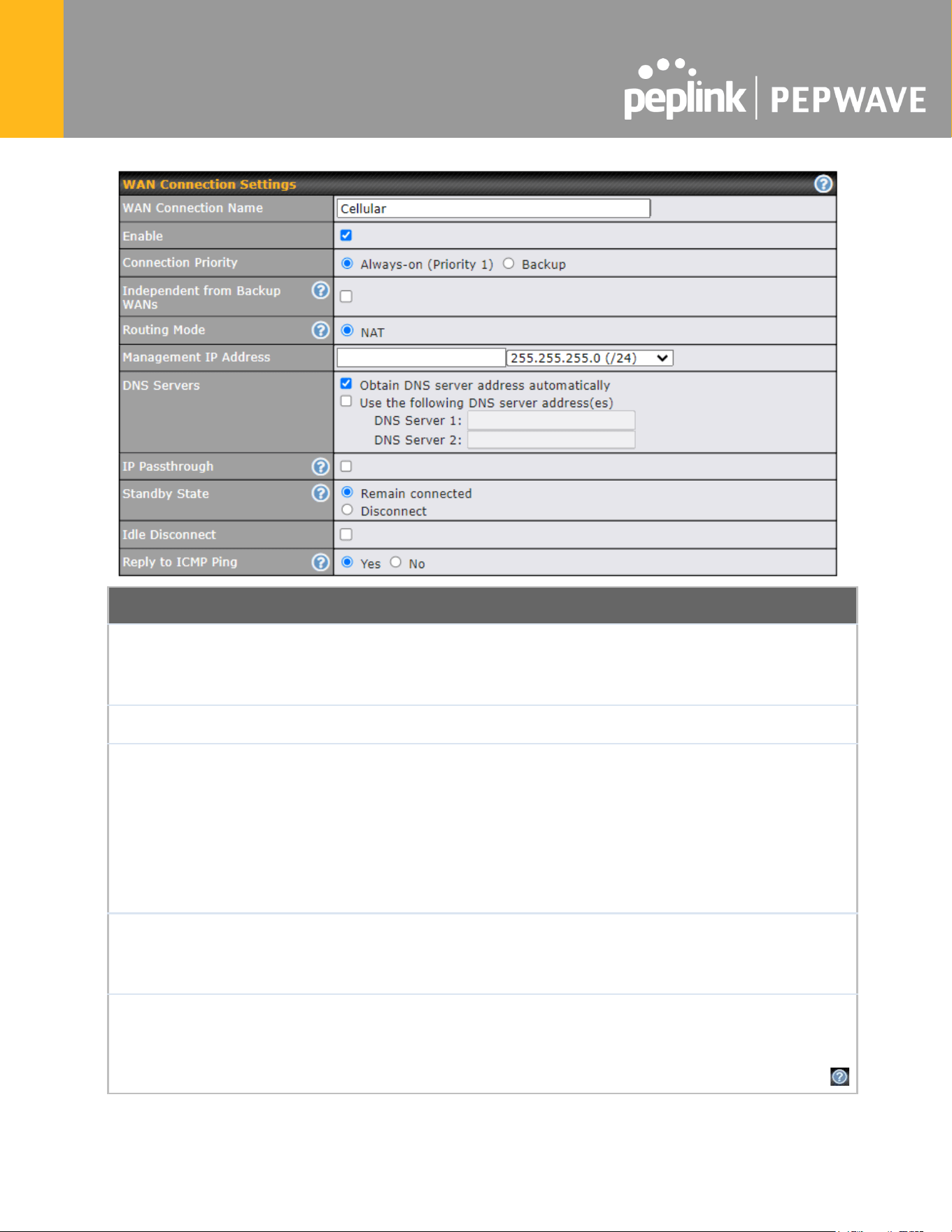

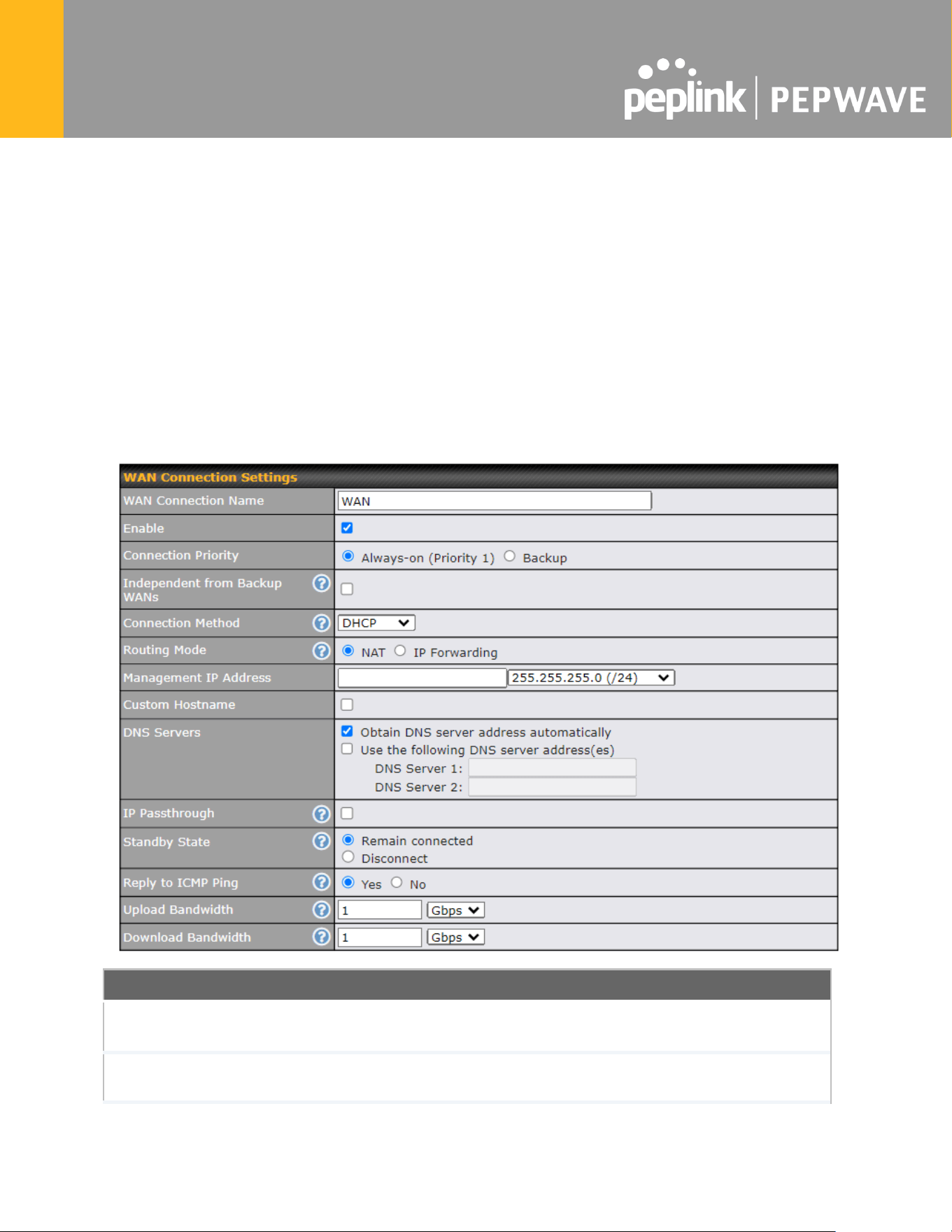

DHCP Connection Settings
WAN Connection
Name
Enter a name to represent this WAN connection.
Enable
This setting enables the WAN connection. If schedules have been defined,
you will be able to select a schedule to apply to the connection.
https://www.peplink.com
52
Copyright @ 2025 Peplink
Connection
Priority
This option allows you to configure the WAN connection whether for normal
daily usage or as a backup connection only.
If Always-on is chosen, the WAN connection will be kept on continuously,
regardless of the priority of other WAN connections.
If Backup is chosen, the WAN connection will depend on other WAN
connections. It will not be used when one or more higher priority dependent
WAN connections are connected.
Independent from
Backup WANs
If this is checked, the connection will be working independent from other
Backup WAN connections. Those in Backup Priority will ignore the status of
this WAN connection, and will be used when none of the other higher priority
connections are available.
Routing Mode
NAT allows substituting the real address in a packet with a mapped address
that is routable on the destination network. By clicking the help icon in this
field, you can display the IP Forwarding option, if your network requires it.
Management IP
Address
Management IP Address is available for configuration when you click here
for other DHCP settings.
This option allows you to configure the management IP address for the
DHCP WAN connection.
Custom Hostname
If your service provider's DHCP server requires you to supply a hostname
value upon acquiring an IP address, you may enter the value here. If your
service provider does not provide you with the value, you can safely bypass
this option.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting
specifies the DNS (Domain Name System) servers to be used when a DNS
lookup is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS
servers being assigned by the WAN DHCP server to be used for outbound
DNS lookups over the connection. (The DNS servers are obtained along with
the WAN IP address assigned from the DHCP server.)
When Use the following DNS server address(es) is selected, you may
enter custom DNS server addresses for this WAN connection into the DNS
Server 1 and DNS Server 2 fields.
https://www.peplink.com
53
Copyright @ 2025 Peplink
IP Passthrough
When this IP Passthrough option is active, after the ethernet WAN
connection is up, the router's DHCP server will offer the connection's IP
address to one LAN client. All incoming or outgoing traffic will be routed
without NAT.
Regardless the WAN connection's state, the router always binds to the LAN
IP address (Default: 192.168.50.1). So when the ethernet WAN is connected,
the LAN client could access the router's web admin by manually configuring
its IP address to the same subnet as the router's LAN IP address (e.g.
192.168.50.10).
Note: when this option is firstly enabled, the LAN client may not be able to
refresh its IP address to the ethernet WAN IP address in a timely fashion.
The LAN client may have to manually renew its IP address from DHCP
server. After this option is enabled, the DHCP lease time will be 2 minutes.
I.e. the LAN client could refresh its IP address and access the network at
most one minute after the ethernet WAN connection goes up.
Standby State
This option allows you to choose whether to remain connected when this
WAN connection is no longer in the highest priority and has entered the
standby state. When Remain connected is chosen, upon bringing up this
WAN connection to active, it will be immediately available for use.
If this WAN connection is charged by connection time, you may want to set
this option to Disconnect so that connection will be made only when needed.
SpeedFusion VPN may use connected standby WAN for failover if link failure
detected on the higher priority WAN, you can set this option to Disconnect to
avoid data passing through.
Reply to ICMP
PING
If the checkbox is unticked, this option is disabled and the system will not
reply to any ICMP ping echo requests to the WAN IP addresses of this WAN
connection.
Default: ticked (Yes)
Upload Bandwidth
This field refers to the maximum upload speed.
This value is referenced when default weight is chosen for outbound traffic
and traffic prioritization. A correct value can result in effective traffic
prioritization and efficient use of upstream bandwidth.
Download
Bandwidth
This field refers to the maximum download speed.
Default weight control for outbound traffic will be adjusted according to this
value.
https://www.peplink.com
54
Copyright @ 2025 Peplink

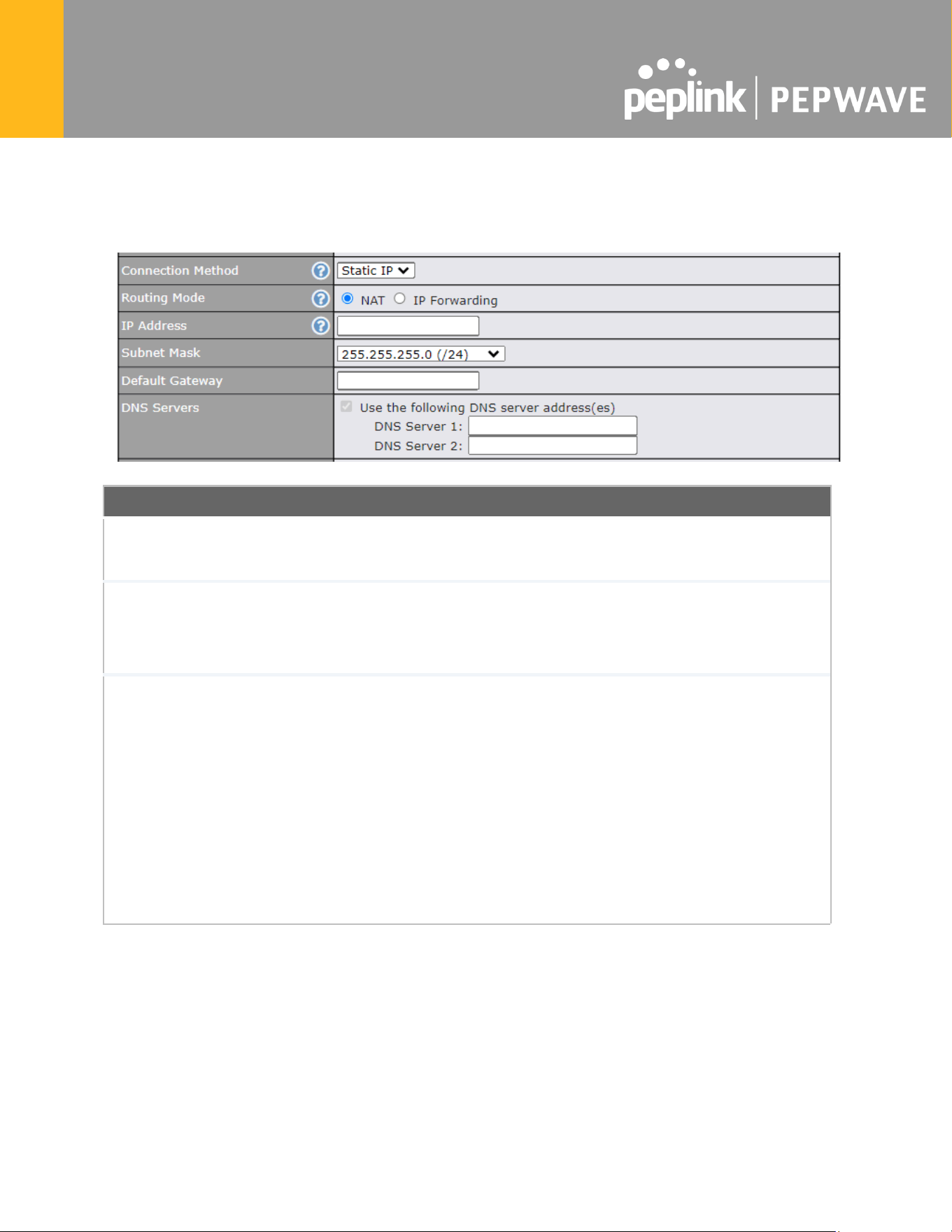

8.1.2 Static IP Connection
The Static IP connection method is suitable if your ISP provides a static IP address to connect
directly.
Static IP Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that
is routable on the destination network. By clicking the help icon in this field, you
can display the IP Forwarding option, if your network requires it.
IP Address /
Subnet Mask /
Default
Gateway
These settings allow you to specify the information required in order to
communicate on the Internet via a fixed Internet IP address. The information is
typically determined by and can be obtained from the ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting
specifies the DNS (Domain Name System) servers to be used when a DNS
lookup is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers
being assigned by the WAN DHCP server to be used for outbound DNS lookups
over the connection. (The DNS servers are obtained along with the WAN IP
address assigned from the DHCP server.
When Use the following DNS server address(es) is selected, you may enter
custom DNS server addresses for this WAN connection into the DNS Server 1
and DNS Server 2 fields.
https://www.peplink.com
55
Copyright @ 2025 Peplink
8.1.3 PPPoE Connection
The PPPoE connection method is suitable if your ISP provides a login ID/password to connect
via PPPoE.

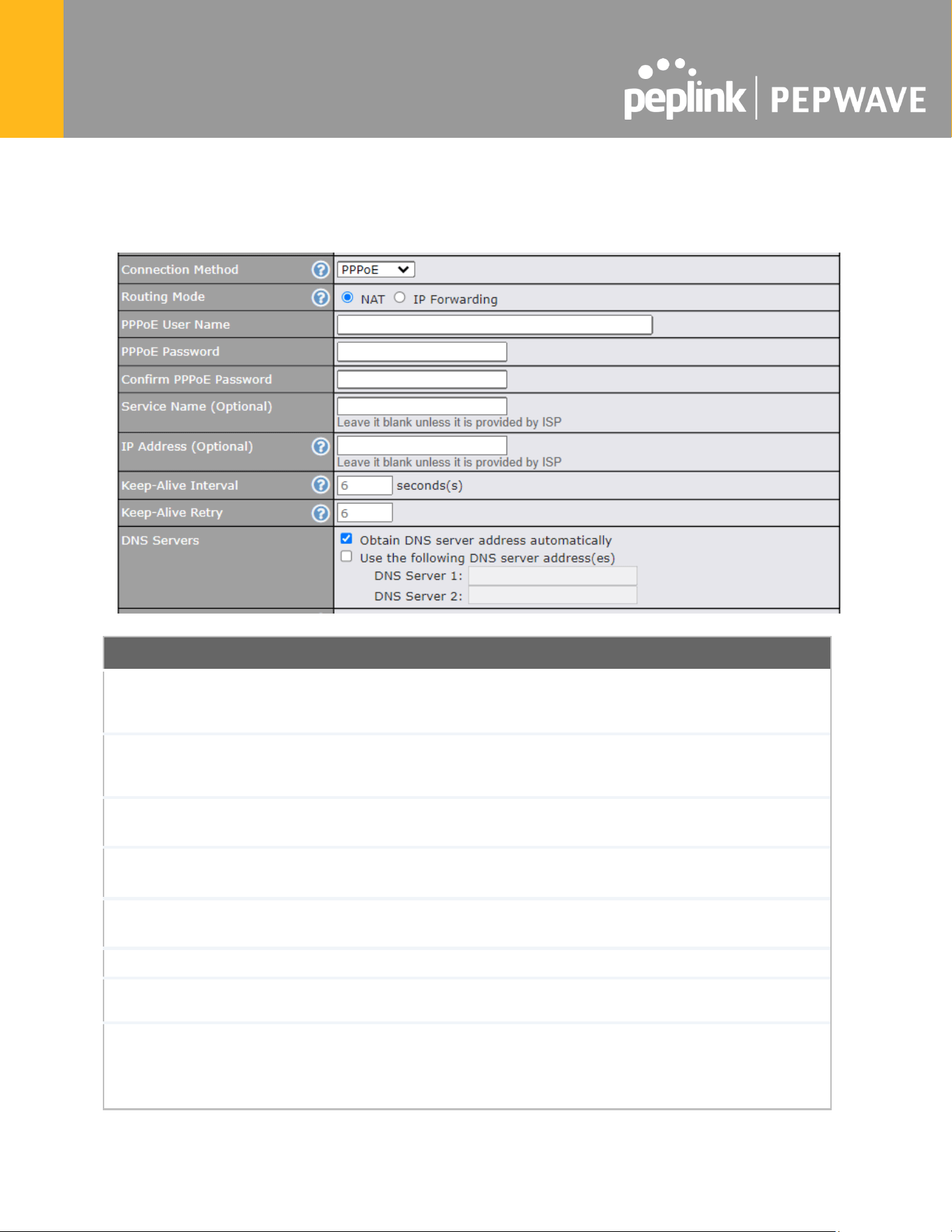

PPPoE Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address
that is routable on the destination network. By clicking the help icon in this
field, you can display the IP Forwarding option, if your network requires it.
PPPoE Username /
Password
Enter the required information in these fields in order to connect via PPPoE to
the ISP. The parameter values are determined by and can be obtained from
the ISP.
Confirm PPPoE
Password
Verify your password by entering it again in this field.
Service Name
(Optional)
Service name is provided by the ISP.
Note: Leave this field blank unless it is provided by your ISP.
IP Address
(Optional)
If your ISP provides a PPPoE IP address, enter it here.
Note: Leave this field blank unless it is provided by your ISP.
Keep Alive Interval
This is the time interval between each Keep-Alive packet.
Keep-Alive Retry
This is the number of consecutive Keep-Alive check failures before treating
PPPoE connection as down.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting
specifies the DNS (Domain Name System) servers to be used when a DNS
lookup is routed through this connection.
https://www.peplink.com
56
Copyright @ 2025 Peplink
Selecting Obtain DNS server address automatically results in the DNS
servers being assigned by the WAN DHCP server to be used for outbound
DNS lookups over the connection. (The DNS servers are obtained along with
the WAN IP address assigned from the DHCP server.)
When Use the following DNS server address(es) is selected, you may
enter custom DNS server addresses for this WAN connection into the DNS
Server 1 and DNS Server 2 fields.
8.1.4 L2TP Connection
L2TP has all the compatibility and convenience of PPTP with greater security. Combine this with
IPsec for a good balance between ease of use and security.

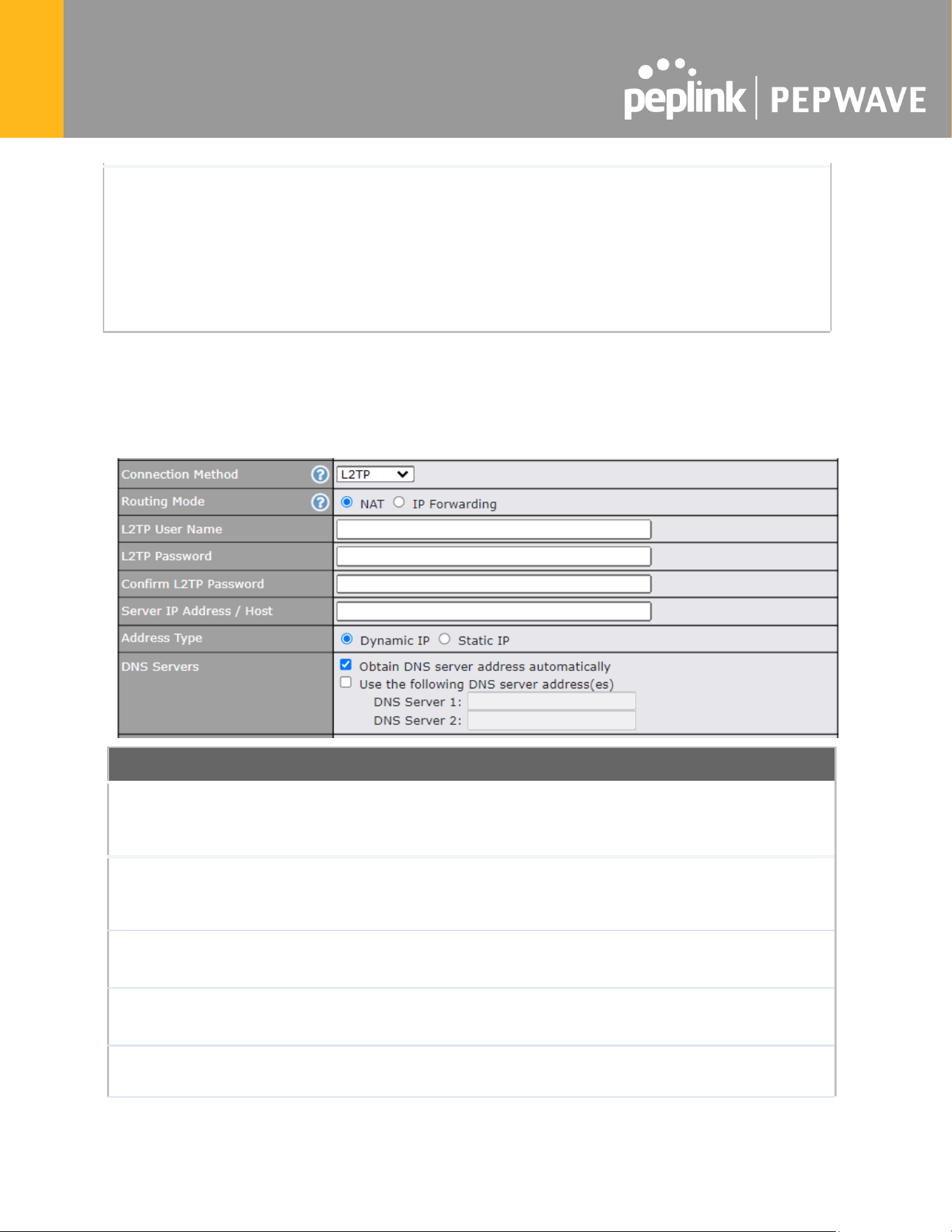

L2TP Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can
display the IP Forwarding option, if your network requires it.
L2TP Username /
Password
Enter the required information in these fields in order to connect via L2TP to your
ISP.
The parameter values are determined by and can be obtained from your ISP.
Confirm L2TP
Password
Verify your password by entering it again in this field.
Server IP
Address / Host
L2TP server address is a parameter which is provided by your ISP.
Note: Leave this field blank unless it is provided by your ISP.
Address Type
Your ISP will also indicate whether the server IP address is Dynamic or Static.
Please click the appropriate value.
https://www.peplink.com
57
Copyright @ 2025 Peplink
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting
specifies the DNS (Domain Name System) servers to be used when a DNS lookup
is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers
assigned by the PPPoE server to be used for outbound DNS lookups over the
WAN connection.
(The DNS servers are obtained along with the WAN IP address assigned from the
PPPoE server.)
When Use the following DNS server address(es) is selected, you can enter
custom DNS server addresses for this WAN connection into the DNS server 1 and
DNS server 2 fields.
8.1.5 GRE Connection
This connection method is suitable if your ISP provides a static WAN IP and Tunnel IP via GRE.
GRE Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can
display the IP Forwarding option, if your network requires it.
WAN IP Address
/ Subnet Mask /
Default Gateway
These settings allow you to specify the information required in order to
communicate on the Internet via a fixed Internet IP address. The information is
typically determined by and can be obtained from the ISP.
Remote GRE
Host
This field allows you to enter the IP address of the remote GRE.
https://www.peplink.com
58
Copyright @ 2025 Peplink
Tunnel Local IP
Address
This field allows you to enter the IP address of the local tunnel for the GRE tunnel
connection.
Tunnel Remote
IP Address
This field allows you to enter the IP address of the remote tunnel for the GRE
tunnel connection.
Outgoing NAT IP
Address
This field is to enter the NAT IP address for outgoing via GRE tunnel.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting
specifies the DNS (Domain Name System) servers to be used when a DNS lookup
is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers
assigned by the PPPoE server to be used for outbound DNS lookups over the
WAN connection.
(The DNS servers are obtained along with the WAN IP address assigned from the
PPPoE server.)
When Use the following DNS server address(es) is selected, you can enter
custom DNS server addresses for this WAN connection into the DNS server 1 and
DNS server 2 fields.
https://www.peplink.com
59
Copyright @ 2025 Peplink

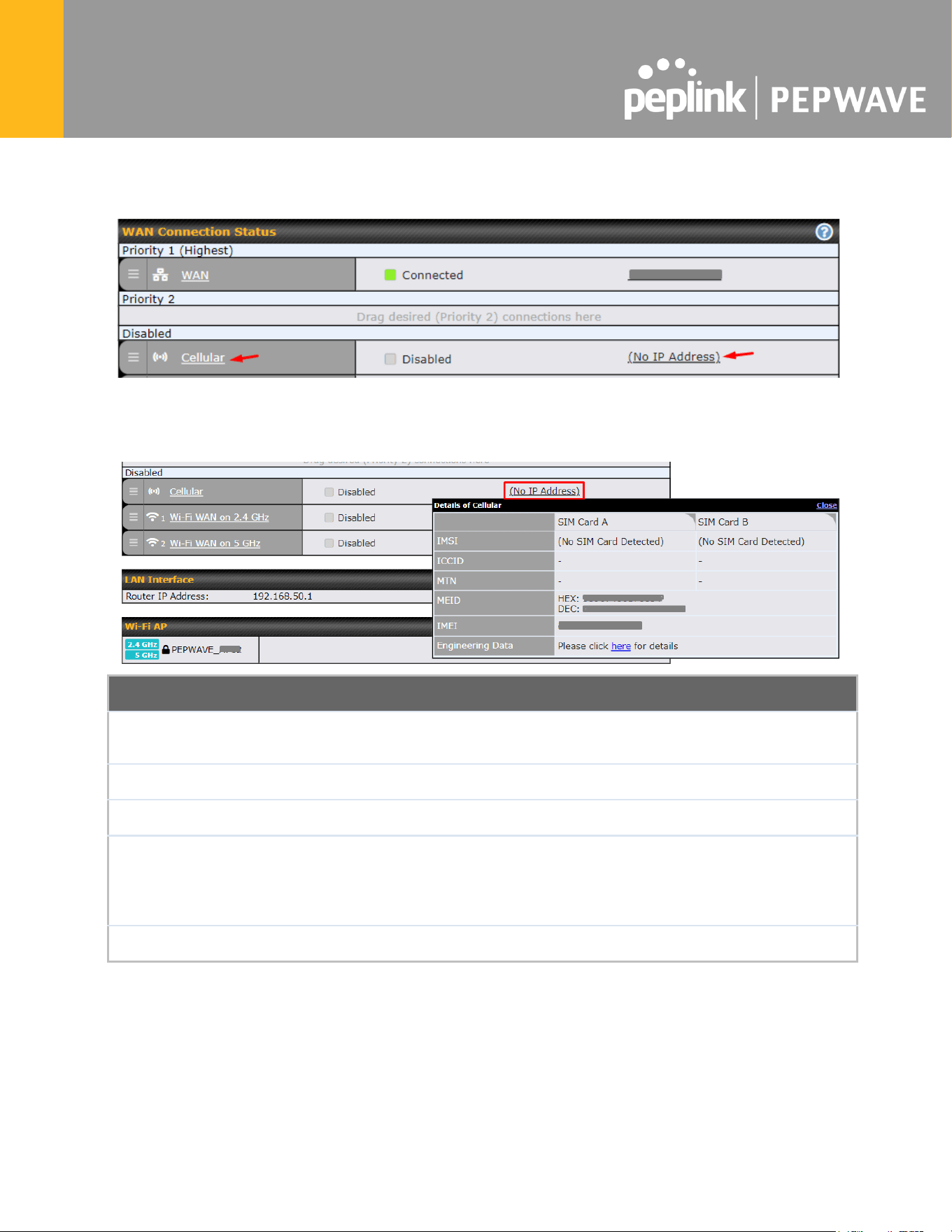

8.2 Cellular WAN
To access/configure the Cellular WAN settings, click Network > Cellular Name. You may click
the “No IP Address“ link to view the Cellular WAN details/status.
WAN Connection Status
IMSI
This is the International Mobile Subscriber Identity which uniquely identifies the SIM
card. This is applicable to 3G modems only.
ICCID
This is a unique number assigned to a SIM card used in a cellular device.
MTN
Thi field is to display the mobile telephone number of the SIM card.
MEID
Some Pepwave routers support both HSPA and EV-DO. For Sprint or Verizon
Wireless EV-DO users, a unique MEID identifier code (in hexadecimal format) is used
by the carrier to associate the EV-DO device with the user. This information is
presented in hex and decimal format.
IMEI
This is the unique ID for identifying the modem in GSM/HSPA mode.
https://www.peplink.com
60
Copyright @ 2025 Peplink
WAN Connection Settings
WAN
Connection
Name
Indicate a name you wish to give this Cellular WAN connection
Enable
Click the checkbox to toggle the on and off state of this connection.
Connection
Priority
This option allows you to configure the WAN connection whether for normal daily
usage or as a backup connection only.
If Always-on is chosen, the WAN connection will be kept on continuously, regardless
of the priority of other WAN connections.
If Backup is chosen, the WAN connection will depend on other WAN connections. It
will not be used when one or more higher priority dependent WAN connections are
connected.
Independent
from Backup
WANs
If this is checked, the connection will be working independent from other Backup WAN
connections. Those in Backup Priority will ignore the status of this WAN connection,
and will be used when none of the other higher priority connections are available.
Routing Mode
This option allows you to select the routing method to be used in routing IP frames via
the WAN connection. The mode can be either NAT (Network Address Translation) or
IP Forwarding.
In the case if you need to choose IP Forwarding for your scenario. Click the
https://www.peplink.com
61
Copyright @ 2025 Peplink
button to enable IP Forwarding.
Management IP
Address
Management IP Address is available for configuration when you click here for other
DHCP settings.
This option allows you to configure the management IP address for the DHCP WAN
connection.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies
the DNS (Domain Name System) servers to be used when a DNS lookup is routed
through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers
assigned by the WAN DHCP server being used for outbound DNS lookups over the
connection. (The DNS servers are obtained along with the WAN IP address assigned
by the DHCP server.)
When Use the following DNS server address(es) is selected, you may enter custom
DNS server addresses for this WAN connection into the DNS server 1 and DNS
server 2 fields.
IP Passthrough
When this IP Passthrough option is active, after the cellular WAN connection is up,
the router's DHCP server will offer the connection's IP address to one LAN client. All
incoming or outgoing traffic will be routed without NAT.
Regardless the WAN connection's state, the router always binds to the LAN IP
address (Default: 192.168.50.1). So when the cellular WAN is connected, the LAN
client could access the router's web admin by manually configuring its IP address to
the same subnet as the router's LAN IP address (e.g. 192.168.50.10).
Note: when this option is firstly enabled, the LAN client may not be able to refresh its
IP address to the cellular WAN IP address in a timely fashion. The LAN client may
have to manually renew its IP address from DHCP server. After this option is enabled,
the DHCP lease time will be 2 minutes. I.e. the LAN client could refresh its IP address
and access the network at most one minute after the cellular WAN connection goes
up
Standby State
This option allows you to choose whether to remain connected or disconnected when
this WAN connection is no longer in the highest priority and has entered the standby
state. When Remain connected is chosen, bringing up this WAN connection to active
makes it immediately available for use.
Idle Disconnect
If this is checked, the connection will disconnect when idle after the configured Time
value.
This option is disabled by default.
Reply to ICMP
PING
If the checkbox is unticked, this option is disabled and the system will not reply to any
ICMP ping echo requests to the WAN IP addresses of this WAN connection.
Default: ticked (Yes)
https://www.peplink.com
62
Copyright @ 2025 Peplink

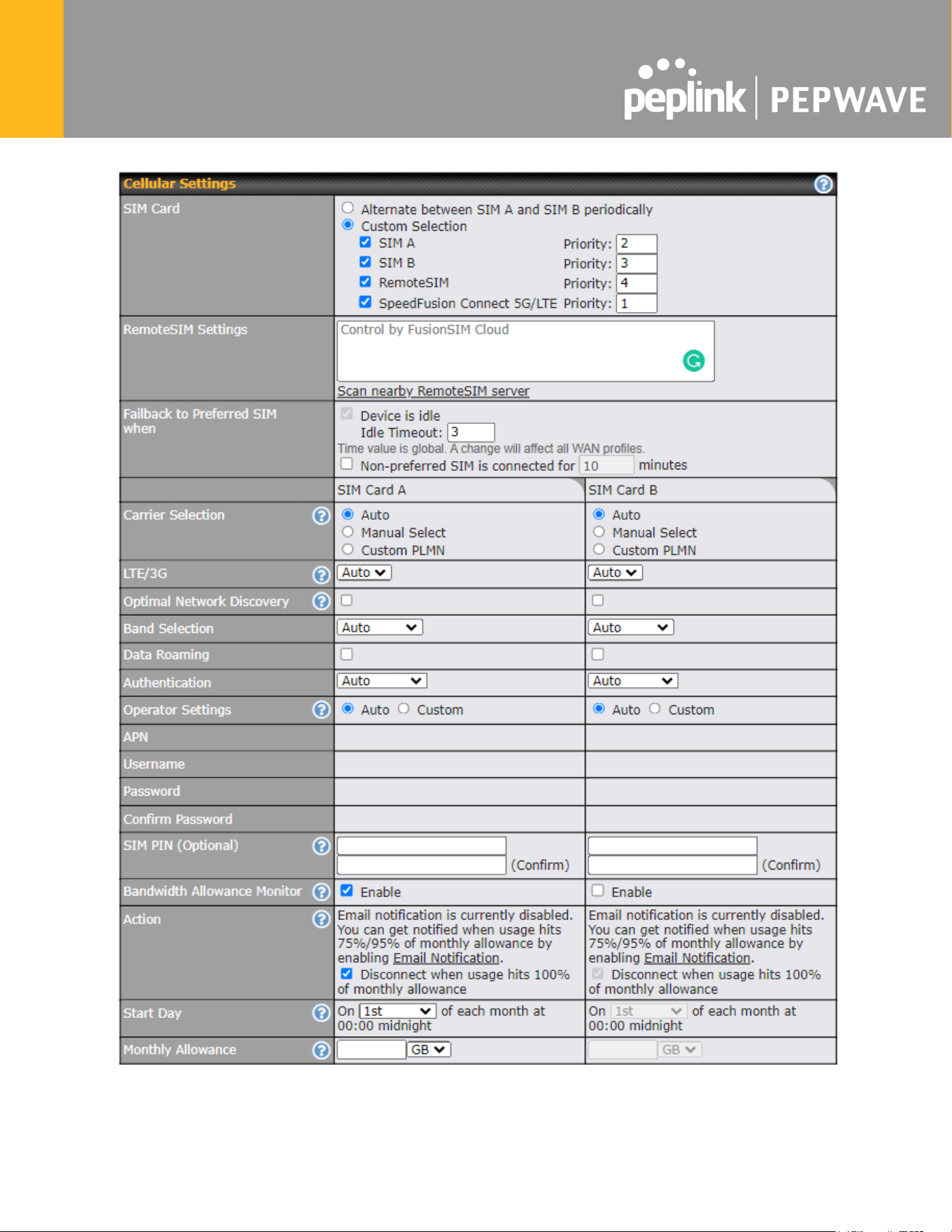

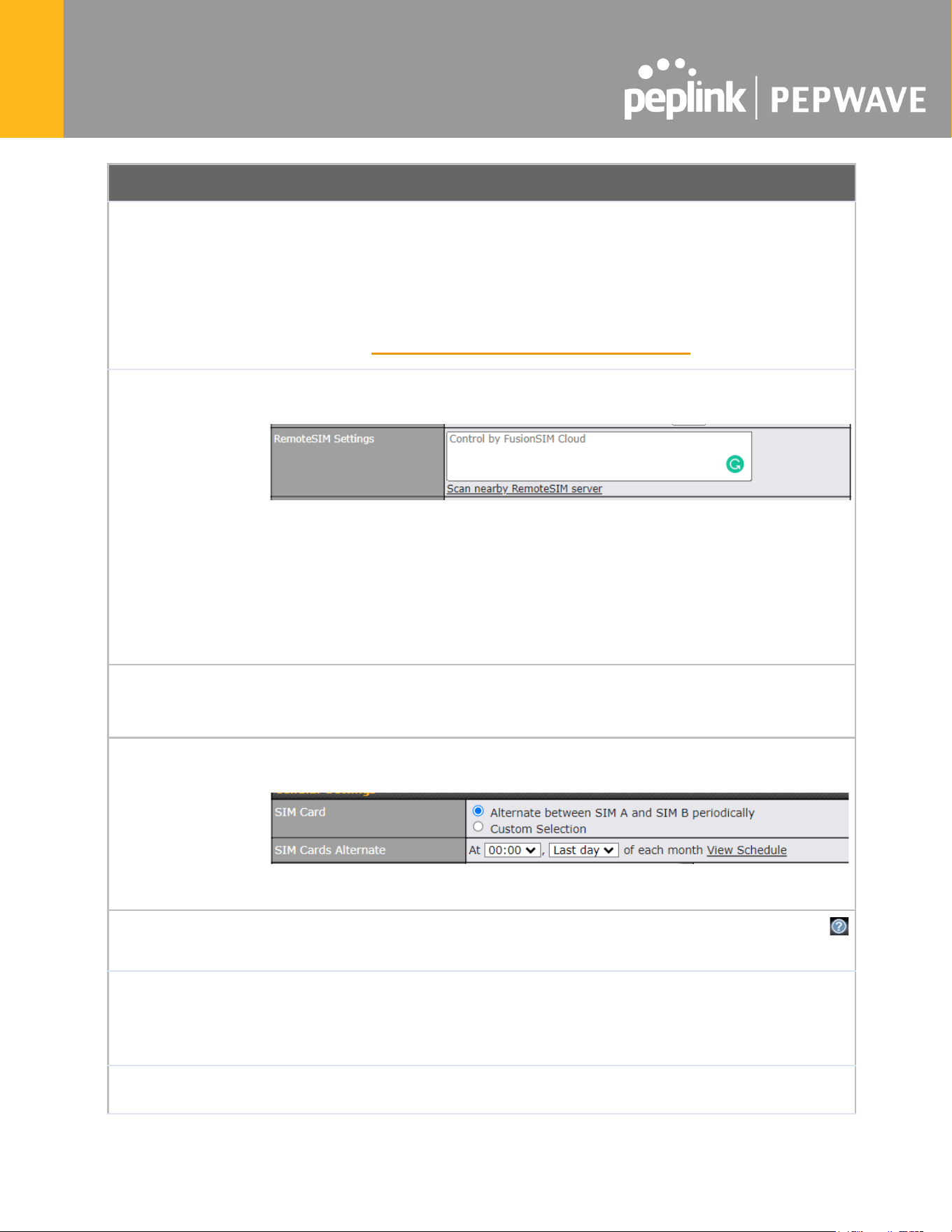

Cellular Settings
SIM Card
If “Alternate between SIM A and SIM B periodically” is selected, the SIM card will
be switching according to the schedule time in the SIM Cards Alternate.
If “Custom Selection” is selected, you can designate the priority of the SIM cards
(SIM A/ SIM B/ Remote SIM/ SpeedFusion Connect) and connect to.

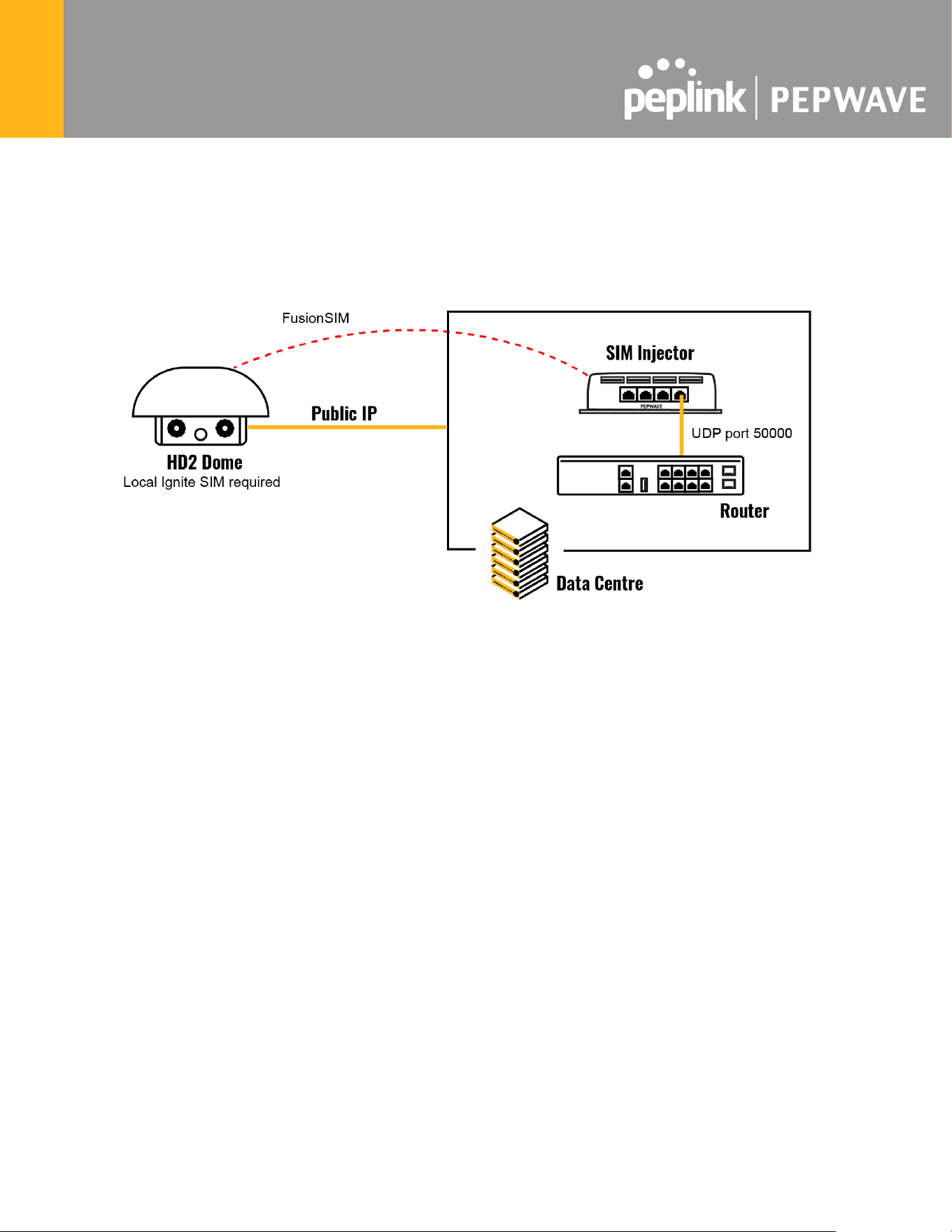

For routers that support the SIM Injector, you may select the “Remote SIM” to
provision a SIM from a SIM Injector. Further details on the SIM Injector found is
available here: https://www.peplink.com/products/sim-injector/.

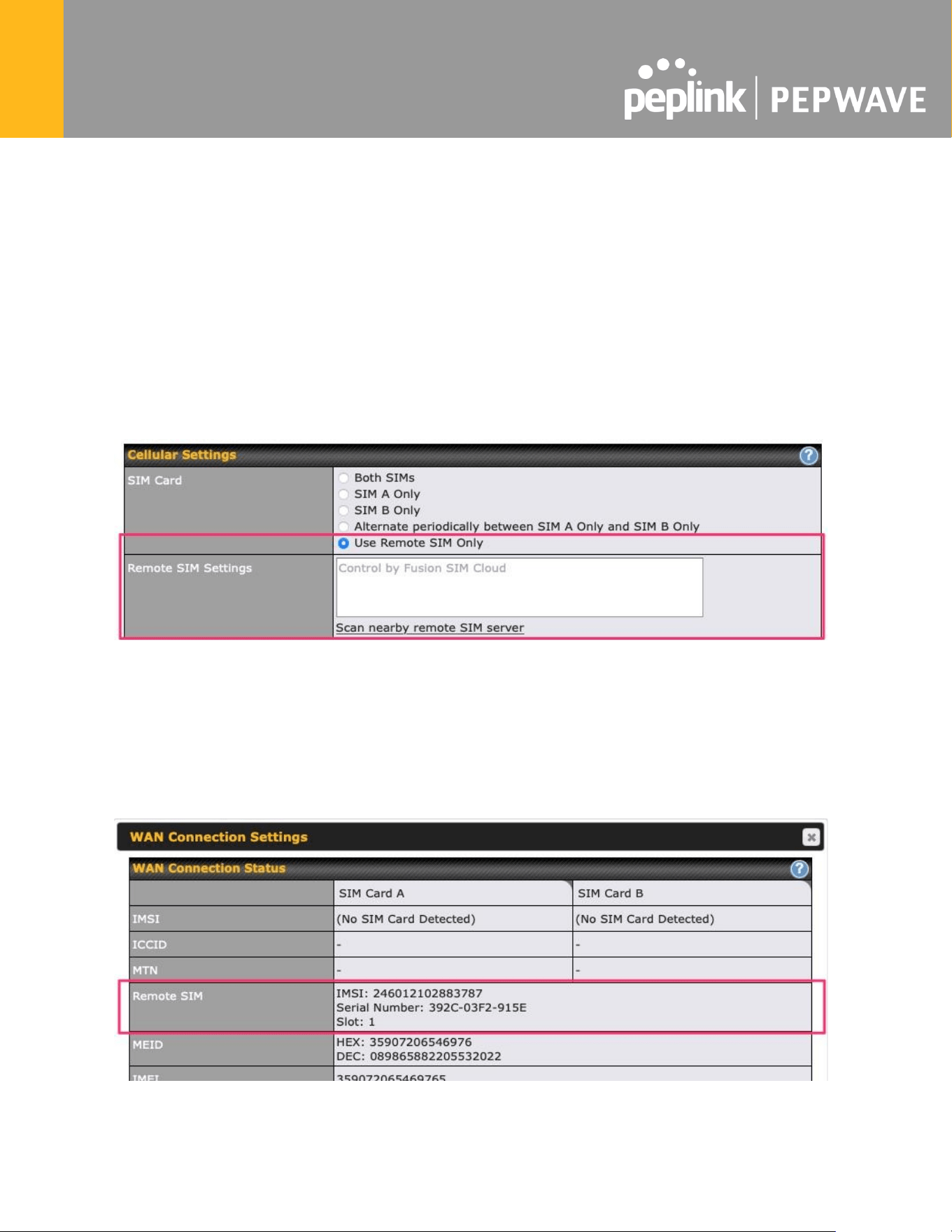

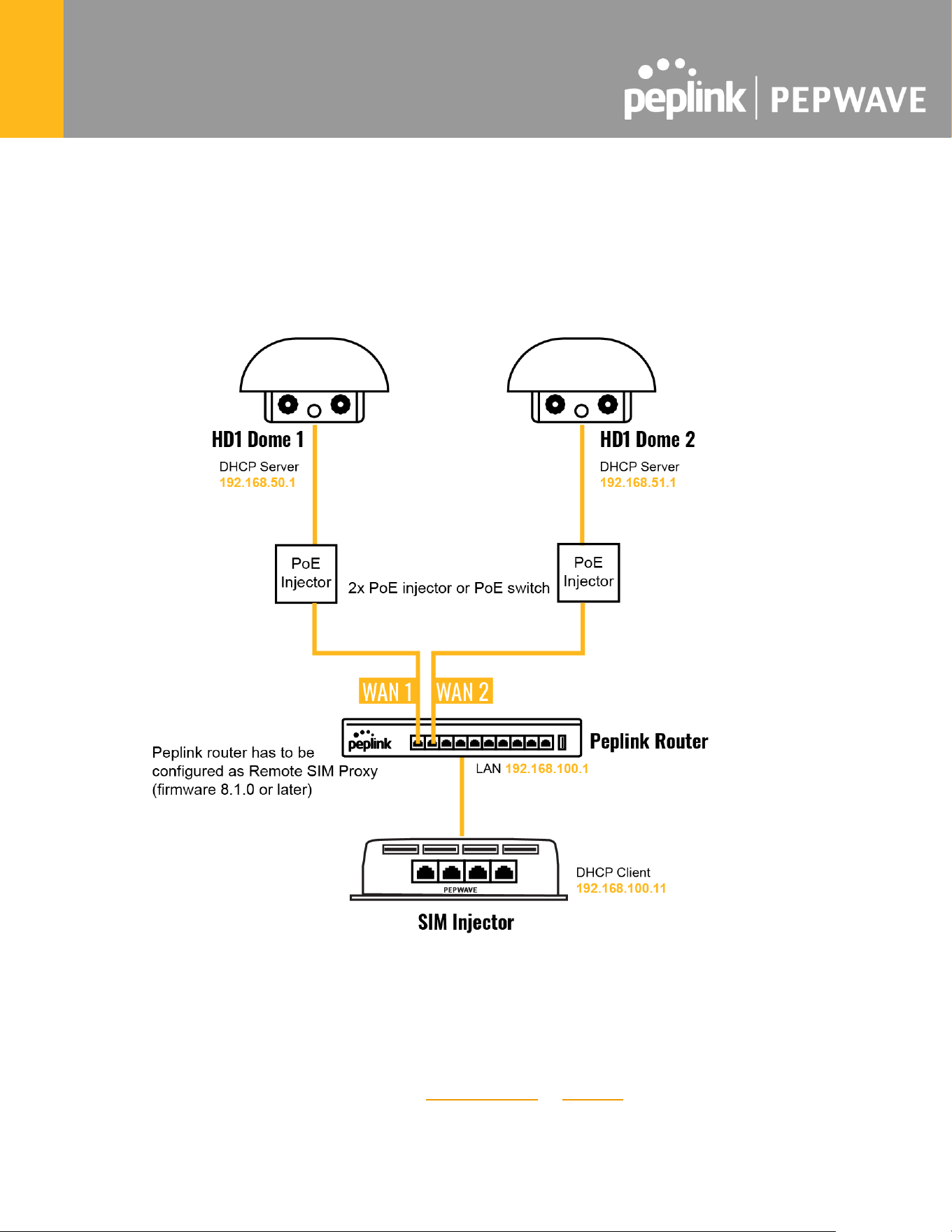

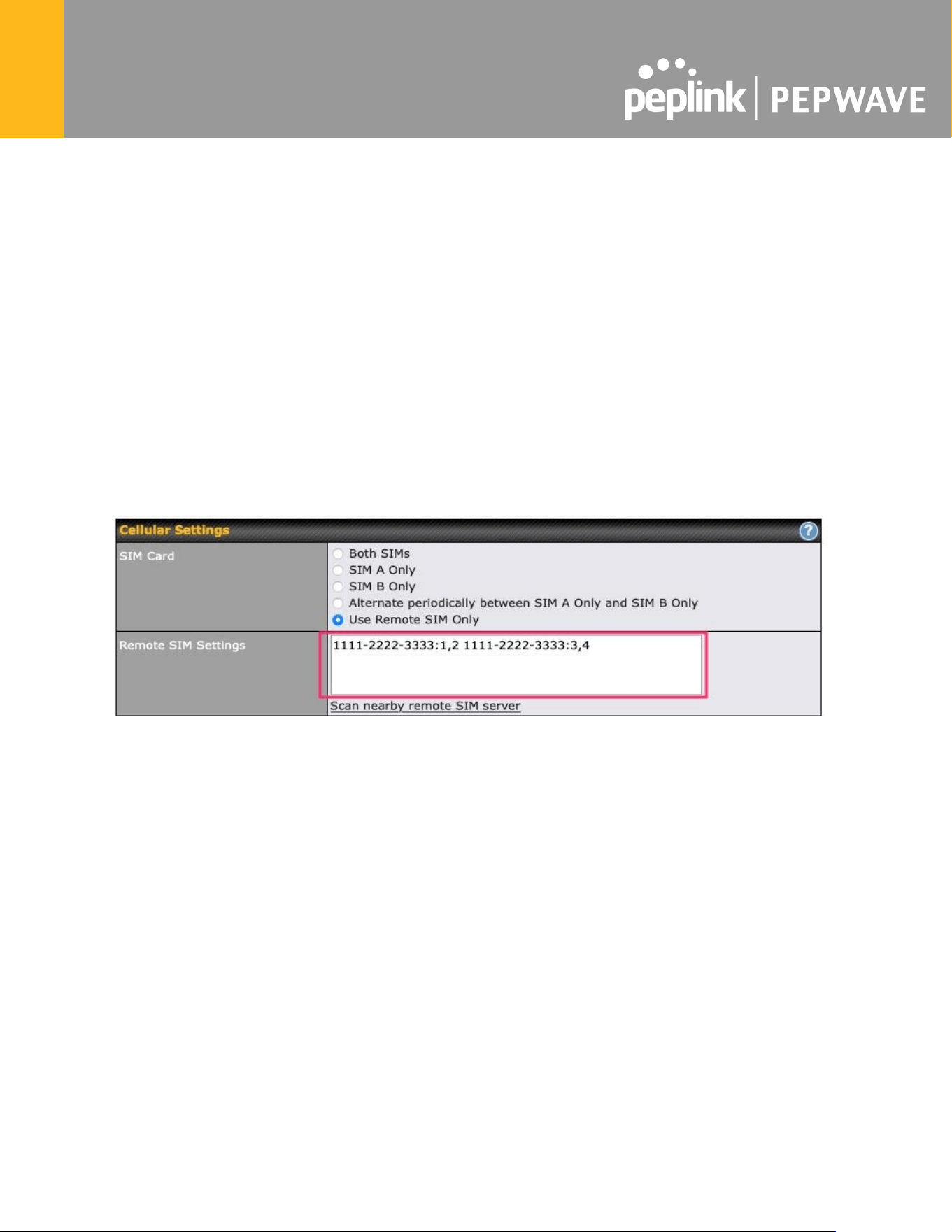

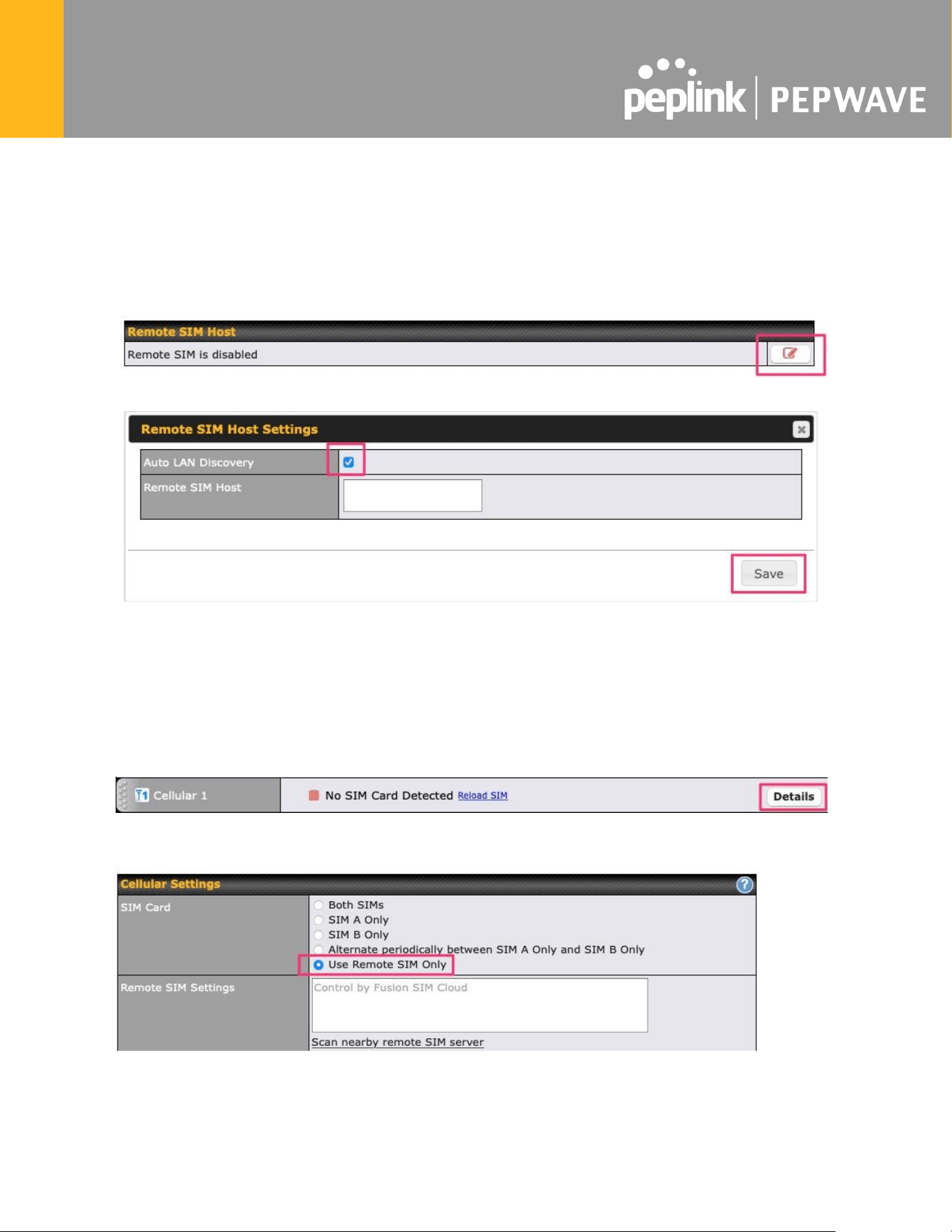

Remote SIM
Settings
If “Use Remote SIM Only” is selected in the SIM card section, the Remote SIM
Settings will be shown.

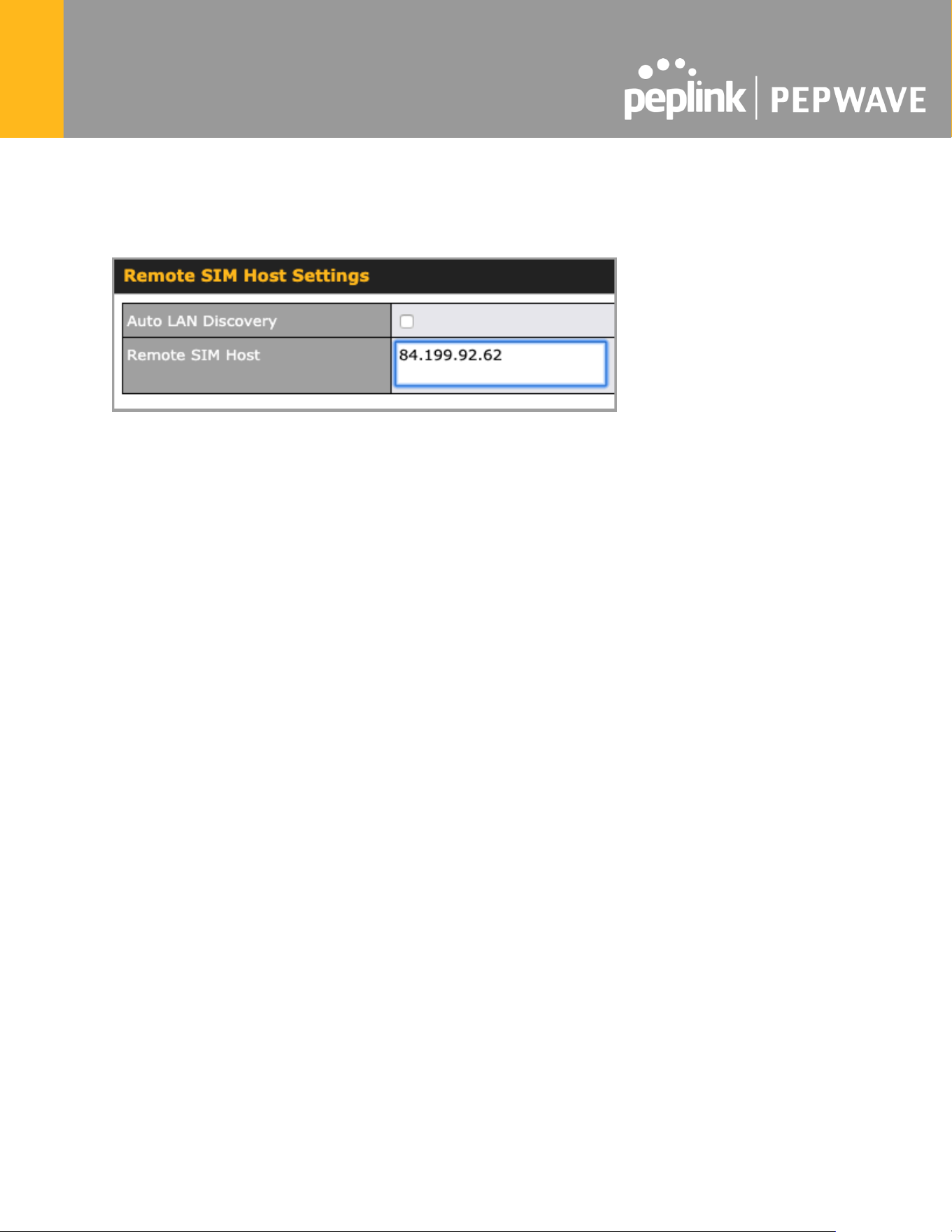

You may need to enable the remote SIM Host settings in the Remote SIM
management, see the section 22.10 or Appendix B for more details on FusionSIM.
After that, click on “Scan nearby remote SIM server” to show the serial number(s)
of the connected SIM Injector(s).
If you want to select a specific SIM, in the Cellular Settings, type “:” and then the
number of the SIM slot, eg.1111-2222-3333:7.
Fallback to
Prefered SIM
when
This option is allowing to switch to another SIM cards when the Cellular WAN
reached faillback timeout.
SIM Cards
Alternate
If “Alternate between SIM A and SIM B periodically” is selected in the SIM Card
section, the SIM Cards Alternate will be shown:
You may set the schedule time for for switching between SIM A only and SIM B only.
5G/LTE/3G
This drop-down menu allows restricting cellular to particular band. Click the
button to enable the selection of specific bands.
Optimal
Network
Discovery
Cellular WANs by default will only handover from 3G to LTE network when there is
no active data traffic, enable this option will make it run the handover procedures
after fallback to 3G for a defined effective period, even this may interrupt the
connectivity for a short while.
Band Selection
When set to Auto, band selection allows for automatically connecting to available,
supported bands (frequencies) .
https://www.peplink.com
64
Copyright @ 2025 Peplink
When set to Manual, you can manually select the bands (frequencies) the SIM will
connect to.
Data Roaming
This checkbox enables data roaming on this particular SIM card. When data roaming
is enabled this option allows you to select in which countries the SIM has a data
connection. The option is configured by using MMC (country) codes.Please check
your service provider’s data roaming policy before proceeding.
Authentication
Choose from PAP Only or CHAP Only to use those authentication methods
exclusively. Select Auto to automatically choose an authentication method.
Operator
Settings
This setting allows you to configure the APN settings of your connection. If Auto is
selected, the mobile operator should be detected automatically. The connected
device will be configured and connection will be made automatically. If there is any
difficulty in making connection, you may select Custom to enter your carrier’s APN,
Login, Password, and Dial Number settings manually. The correct values can be
obtained from your carrier. The default and recommended setting is Auto.
APN / Login /
Password /
SIM PIN
When Auto is selected, the information in these fields will be filled automatically.
Select Custom to customize these parameters. The parameter values are
determined by and can be obtained from the ISP.

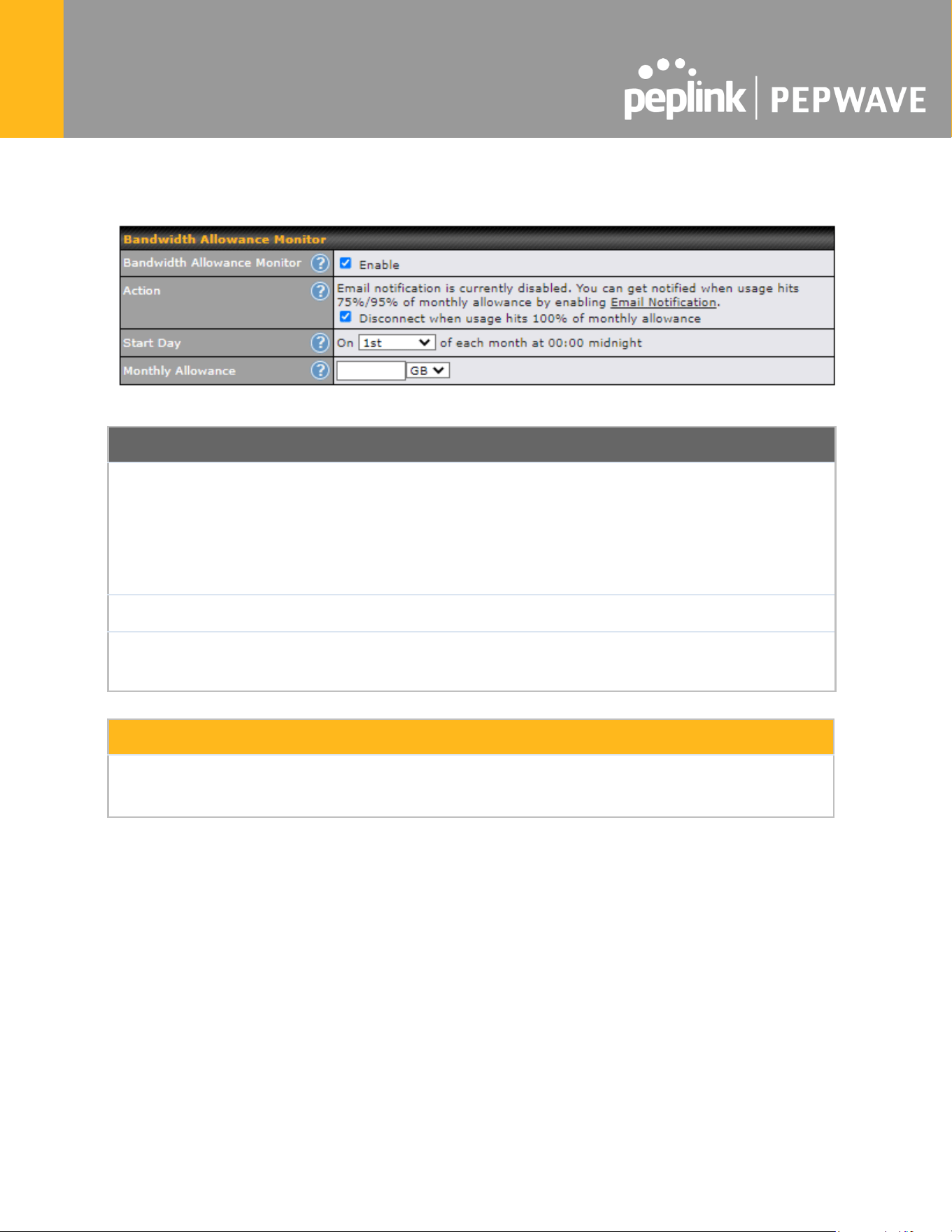

Bandwidth
Allowance
Monitor
Check the box Enable to enable bandwidth usage monitoring on this WAN
connection for each billing cycle. When this option is not enabled, bandwidth usage
of each month is still being tracked but no action will be taken.
Action
If email notification is enabled, you will be notified by email when usage hits 75% and
95% of the monthly allowance. If Disconnect when usage hits 100% of monthly
allowance is checked, this WAN connection will be disconnected automatically when
the usage hits the monthly allowance. It will not resume connection unless this option
has been turned off or the usage has been reset when a new billing cycle starts.
Start Day
This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance
This field is for defining the maximum bandwidth usage allowed for the WAN
connection each month.
Signal Threshold Settings
If signal threshold is defined, this connection will be treated as down when a weaker than
threshold signal is determined.
The following values are used by the threshold scale:

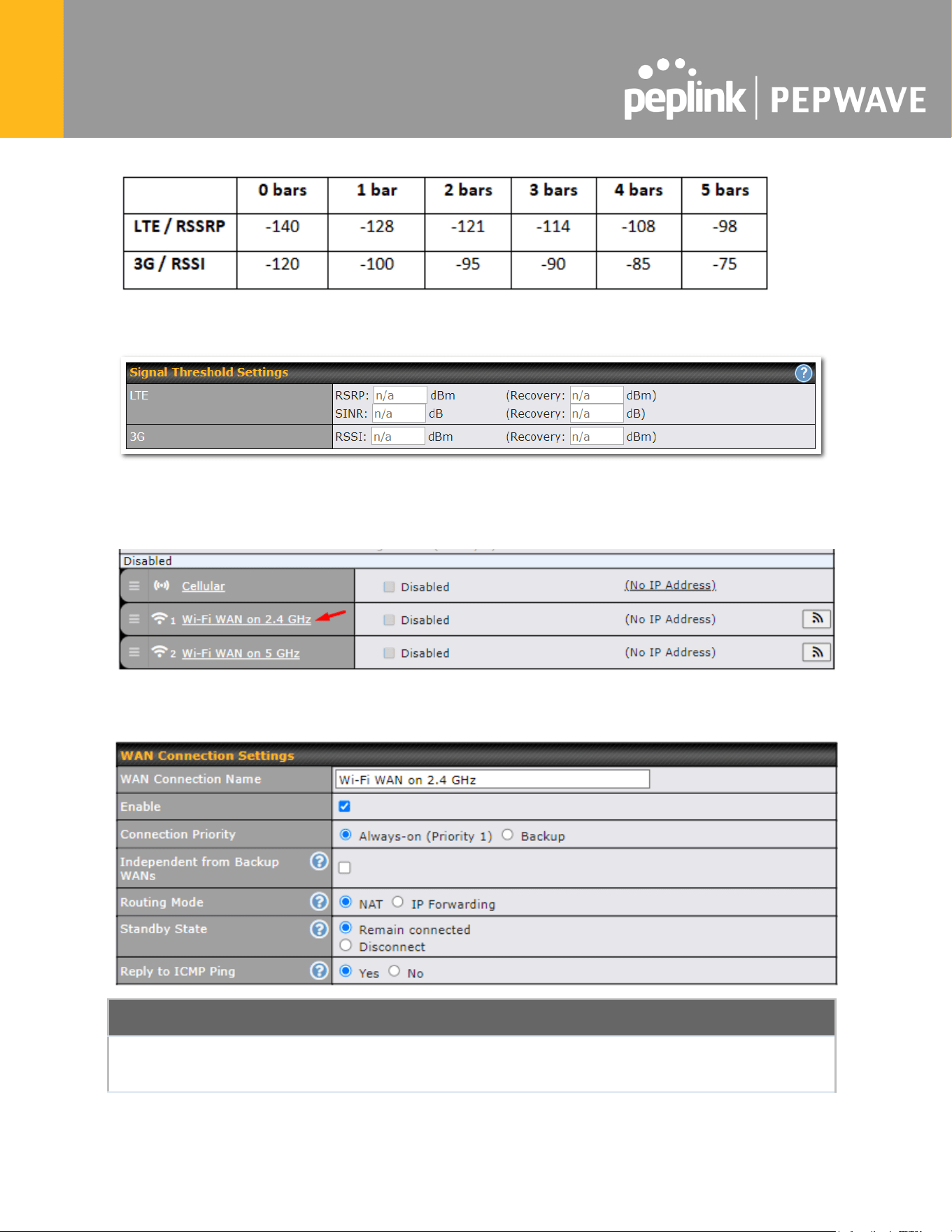

https://www.peplink.com
65
Copyright @ 2025 Peplink

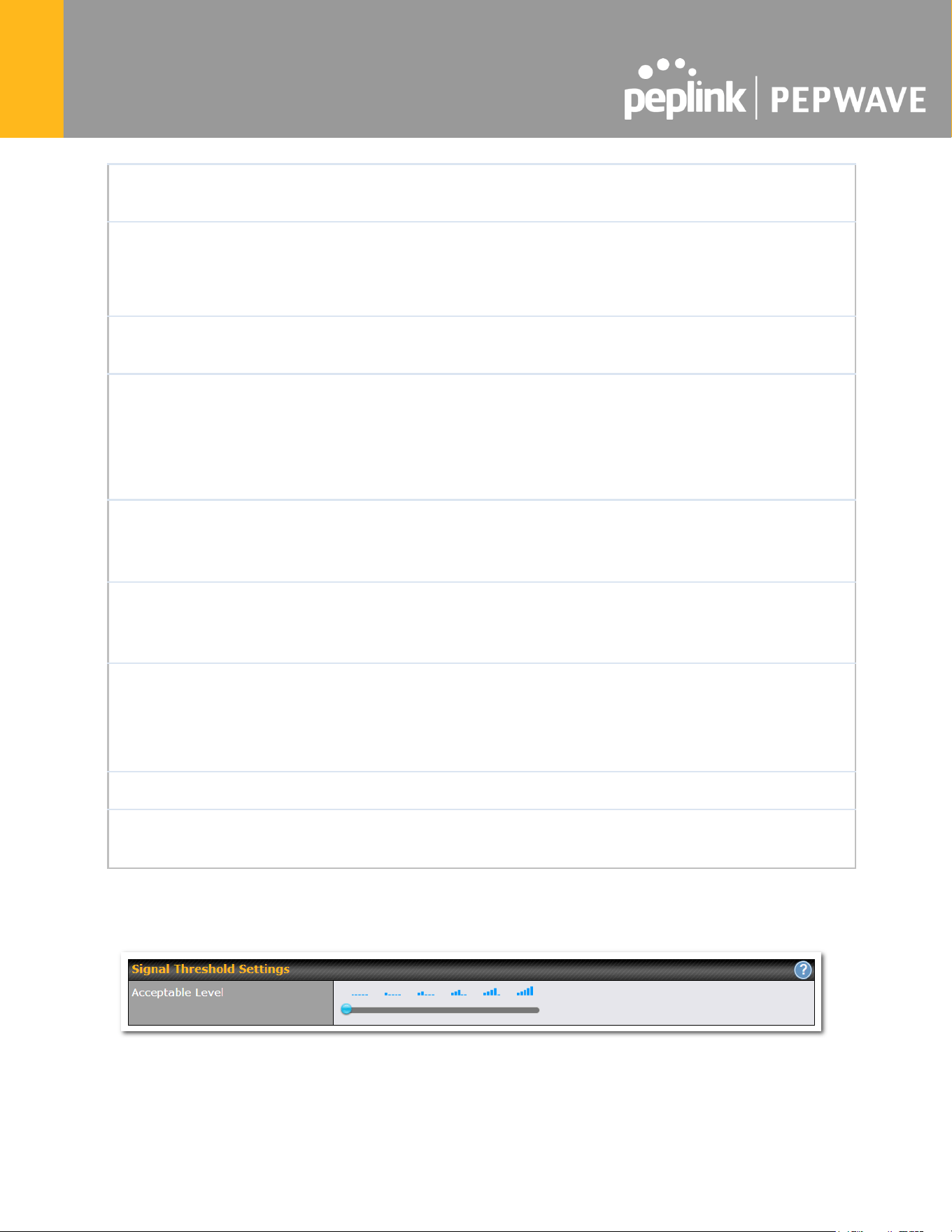

To define the threshold manually using specific signal strength values, please click on the
question Mark and the following field will be visible.
8.3 Wi-Fi WAN
To access/configure the Cellular WAN settings, click Network > Wi-Fi WAN Connetion Name.
WAN Connection Settings
WAN Connection
Name
Enter a name to represent this Wi-Fi WAN connection.
https://www.peplink.com
66
Copyright @ 2025 Peplink
Enable
Click the checkbox to toggle the on and off state of this connection.
Connection
Priority
This option allows you to configure the WAN connection whether for normal
daily usage or as a backup connection only.
If Always-on is chosen, the WAN connection will be kept on continuously,
regardless of the priority of other WAN connections.
If Backup is chosen, the WAN connection will depend on other WAN
connections. It will not be used when one or more higher priority dependent
WAN connections are connected.
Independent from
Backup WANs
If this is checked, the connection will be working independent from other Backup
WAN connections. Those in Backup Priority will ignore the status of this WAN
connection, and will be used when none of the other higher priority connections
are available.
Routing Mode
This option allows you to select the routing method to be used in routing IP
frames via the WAN connection. The mode can be either NAT (Network Address
Translation) or IP Forwarding.
In the case if you need to choose IP Forwarding for your scenario. Click the
button to enable IP Forwarding.
Standby State
This setting specifies the state of the WAN connection while in standby. The
available options are Remain Connected and Disconnect.
Reply to ICMP
PING
If this setting is disabled, the WAN connection will not respond to ICMP ping
requests. By default, this setting is enabled.

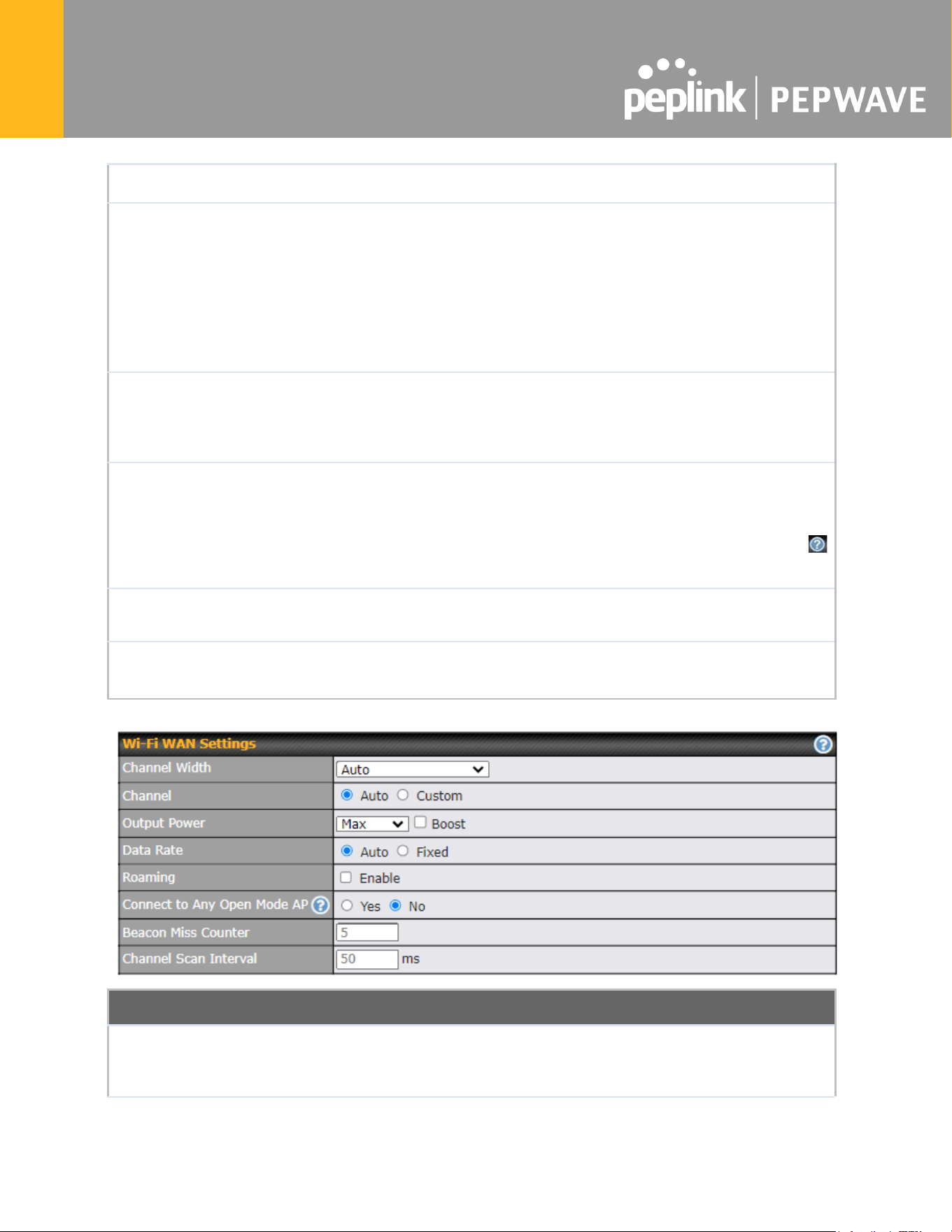

Wi-Fi WAN Settings
Channel Width
Select the channel width for this Wi-Fi WAN. 20MHz will have greater support for
older devices using 2.4Ghz, while 40MHz is appropriate for networks with newer
devices that connect using 5Ghz
https://www.peplink.com
67
Copyright @ 2025 Peplink

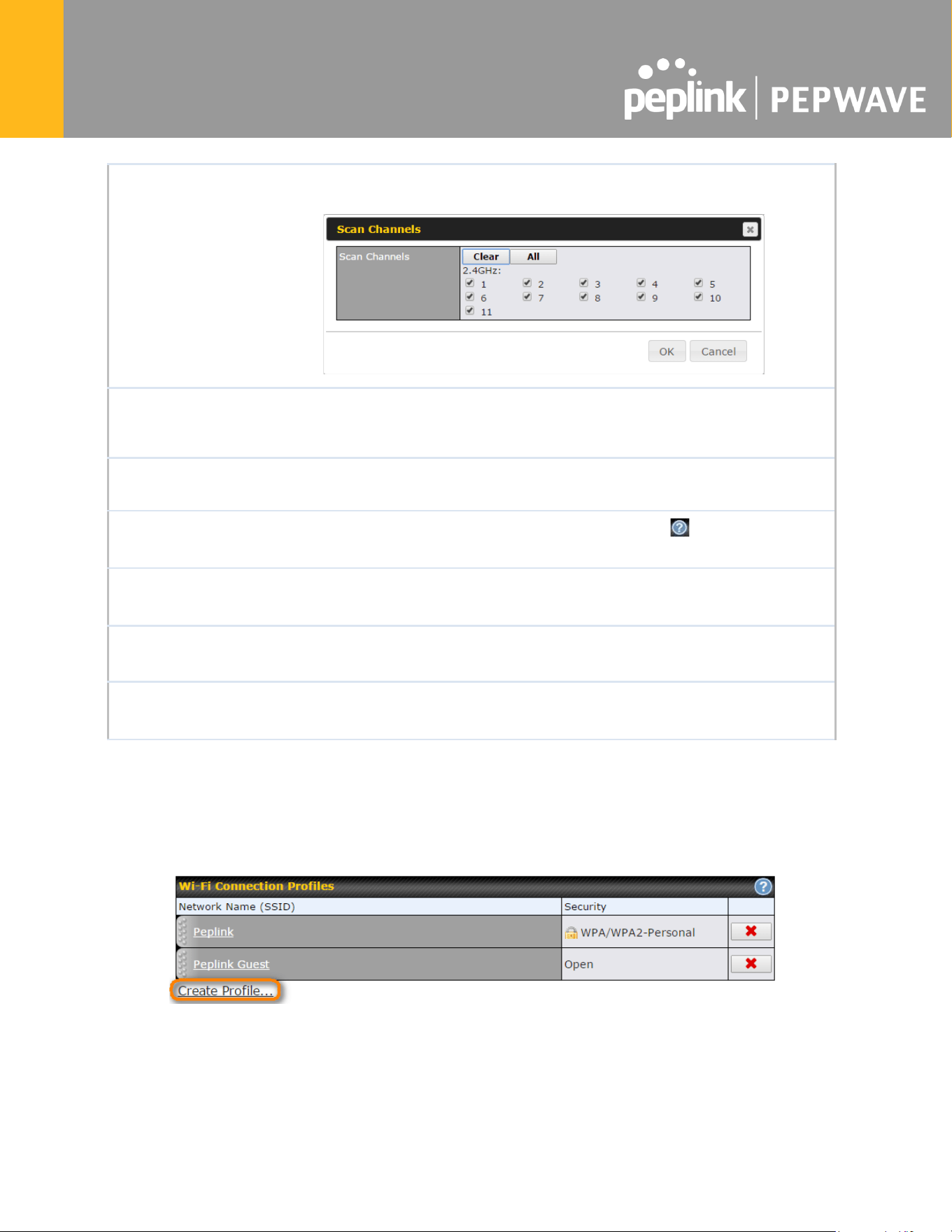

Channel
Determine whether the channel will be automatically selected. If you select custom,
the following table will appear:
Output Power
If you are setting up a network with many Wi-Fi devices in close proximity, then you
can configure the output power here. Click the “boost” button for additional power.
However, with that option ticked, output power may exceed local regulatory limits.
Data Rate
Selecting Auto will enable the router to automatically determine the best data rate,
while manually selecting a rate will force devices to connect using the fixed rate.
Roaming
Checking this box will enable Wi-Fi roaming. Click the icon for additional
options.
Connect to Any
Open Mode AP
This option is to specify whether the Wi-Fi WAN will connect to any open mode
access points it finds.
Beacon Miss
Counter
This sets the threshold for the number of missed beacons.
Channel Scan
Interval
Configure Channel Scan Interval in ms.
8.3.1 Creating Wi-Fi Connection Profiles
You can manually create a profile to connect to a Wi-Fi connection. This is useful for creating a
profile for connecting to hidden-SSID access points. Click Network > Wi-Fi WAN > Create
Profile… to get started.
This will open a window similar to the one shown below
https://www.peplink.com
68
Copyright @ 2025 Peplink

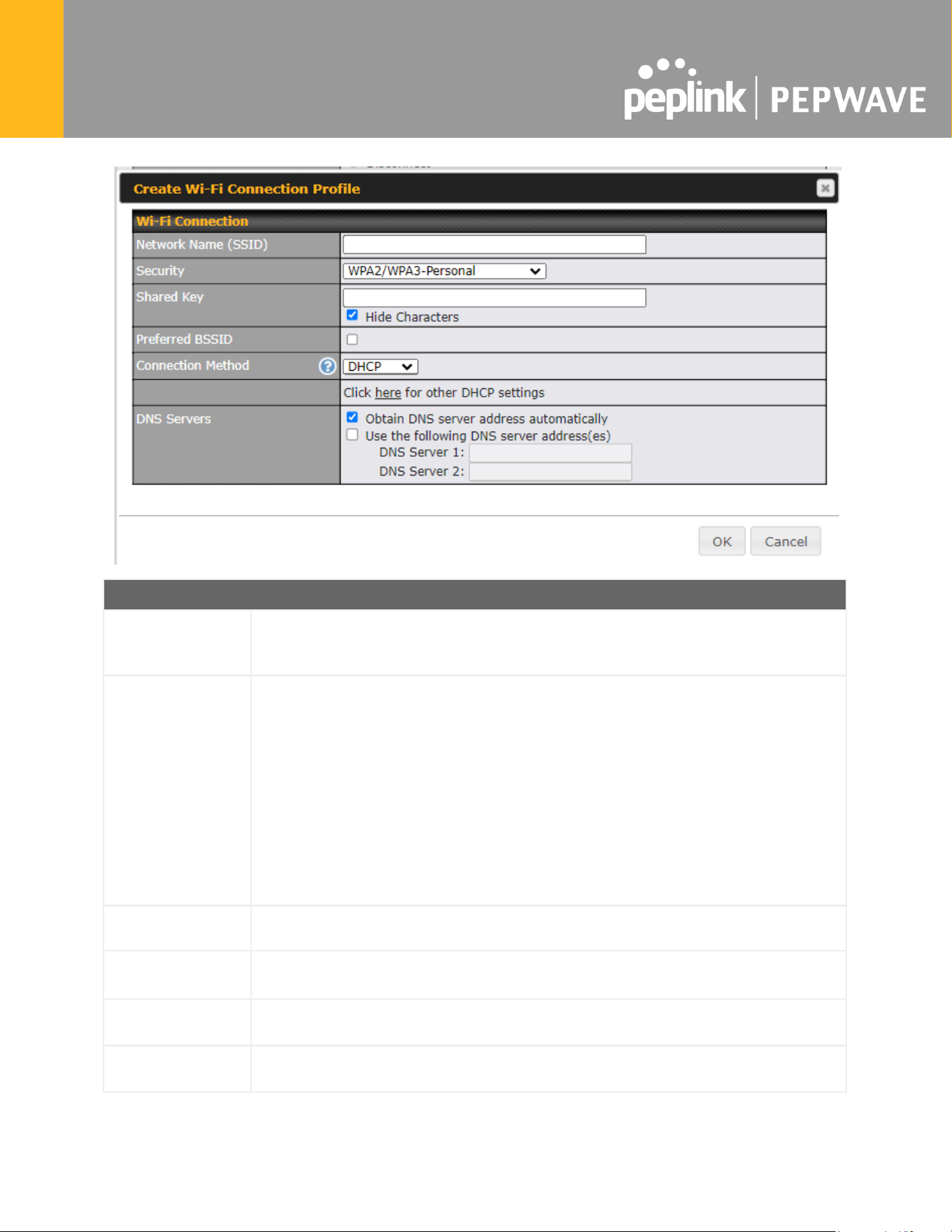

Wi-Fi Connection Profile Settings
Network Name
(SSID)
Enter a name to represent this Wi-Fi connection.
Security
This option allows you to select which security policy is used for this wireless
network. Available options:
● Open
● WEP
● Enhanced Open (OWE)
● WPA3 -Personal
● WPA2/WPA3 -Personal
● WPA/ WPA2 – Personal
● WPA/ WPA2 – ENterprise
● 802.1X with dynamic WEP key
Shared Key
Enter the password for the wireless network.
Preffered
BSSID
Configure the BSSID. The BSSID is the MAC address of the wireless access point
(WAP).
Connected
Method
Choose DHCP or Static IP for the Wi-Fi WAN connection method.
DNS Servers
Configure the DNS servers that this WAN connection should use.
https://www.peplink.com
69
Copyright @ 2025 Peplink
8.4 WAN Connection Settings (Common)
The remaining WAN-related settings are common to the WAN connection:
Physical Interface Settings
Speed
This is the port speed of the WAN connection. It should be set to the same speed
as the connected device in case of any port negotiation problems.
When a static speed is set, you may choose whether to advertise its speed to the
peer device or not. Advertise Speed is selected by default. You can choose not to
advertise the port speed if the port has difficulty in negotiating with the peer device.
Default: Auto
MTU
This field is for specifying the Maximum Transmission Unit value of the WAN
connection. An excessive MTU value can cause file downloads stall shortly after
connected. You may consult your ISP for the connection's MTU value. Default
value is 1440.
MSS
This field is for specifying the Maximum Segment Size of the WAN connection.
When Auto is selected, MSS will be depended on the MTU value. When Custom is
selected, you may enter a value for MSS. This value will be announced to remote
TCP servers for maximum data that it can receive during the establishment of TCP
connections.
Some Internet servers are unable to listen to MTU setting if ICMP is filtered by
firewall between the connections.
Normally, MSS equals to MTU minus 40. You are recommended to reduce the MSS
only if changing of the MTU value cannot effectively inform some remote servers to
size down data size.
Default: Auto
MAC Address
Clone
Some service providers (e.g. cable network) identify the client's MAC address and
require client to always use the same MAC address to connect to the network. If it
is the case, you may change the WAN interface's MAC address to the client PC's
one by entering the PC's MAC address to this field. If you are not sure, click the
Default button to restore to the default value.
https://www.peplink.com
70
Copyright @ 2025 Peplink
VLAN
Check the box to assign a VLAN to the interface.
8.5 WAN Health Check
To ensure traffic is routed to healthy WAN connections only, the Pepwave router can periodically
check the health of each WAN connection. The health check settings for each WAN connection
can be independently configured via Network > WAN Connection Name
Health Check Settings

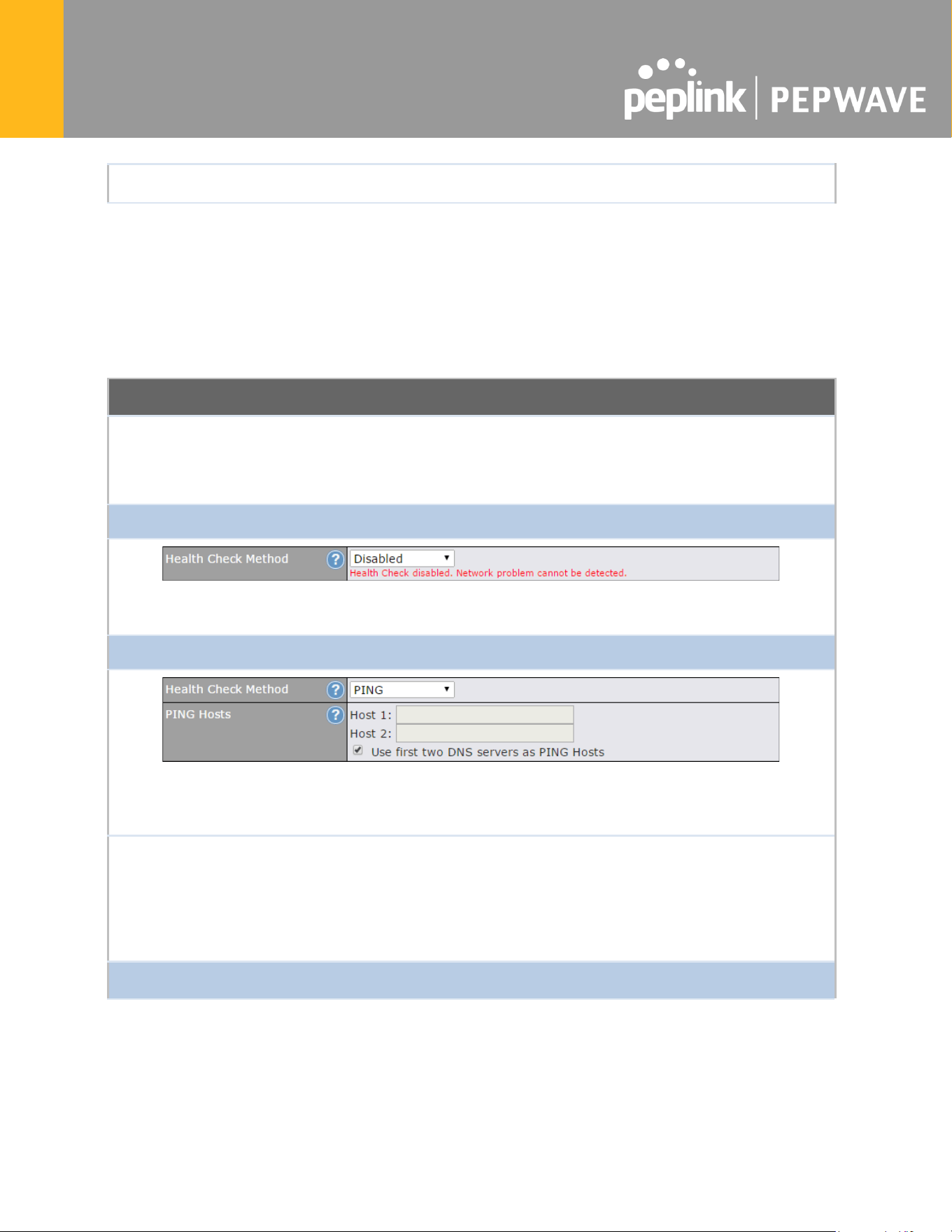

Method
This setting specifies the health check method for the WAN connection. This value
can be configured as Disabled, PING, DNS Lookup, or HTTP. The default
method is DNS Lookup. For mobile Internet connections, the value of Method
can be configured as Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up.
The connection will NOT be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or
hostname. A WAN connection is considered as up if ping responses are received from either one or both
of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be
tested via ICMP ping. If Use first two DNS servers as Ping Hosts is checked,
the target ping host will be the first DNS server for the corresponding WAN
connection. Reliable ping hosts with a high uptime should be considered. By
default, the first two DNS servers of the WAN connection are used as the ping
hosts.
Health Check Method: DNS Lookup
https://www.peplink.com
71
Copyright @ 2025 Peplink

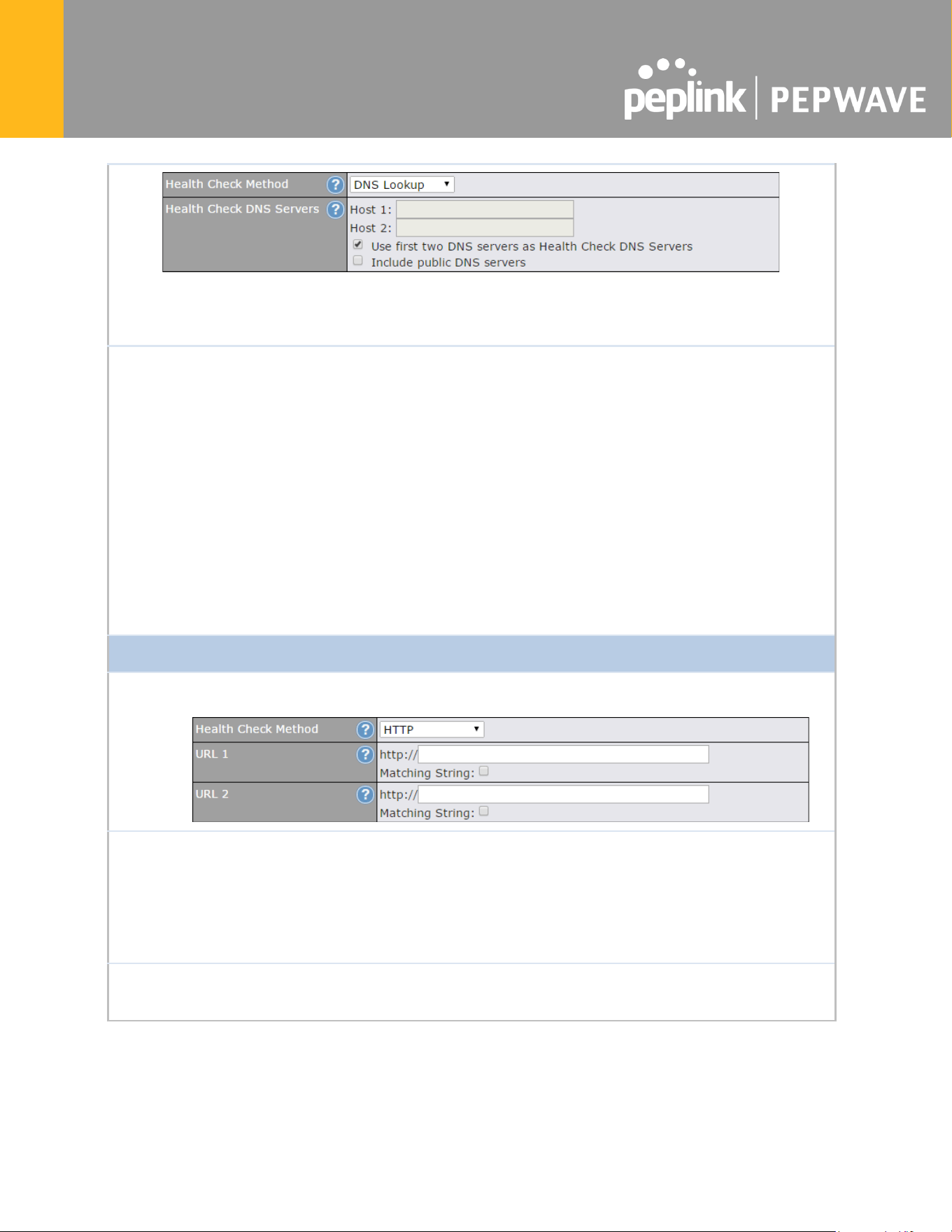

DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated
as up if DNS responses are received from one or both of the servers, regardless of whether the result
was positive or negative.
Health Check
DNS Servers
This field allows you to specify two DNS hosts’ IP addresses with which
connectivity is to be tested via DNS lookup.
If Use first two DNS servers as Health Check DNS Servers is checked, the first
two DNS servers will be the DNS lookup targets for checking a connection's
health. If the box is not checked, Host 1 must be filled, while a value for Host 2 is
optional.
If Include public DNS servers is selected and no response is received from all
specified DNS servers, DNS lookups will also be issued to some public DNS
servers. A WAN connection will be treated as down only if there is also no
response received from the public DNS servers.
Connections will be considered as up if DNS responses are received from any one
of the health check DNS servers, regardless of a positive or negative result. By
default, the first two DNS servers of the WAN connection are used as the health
check DNS servers.
Health Check Method: HTTP
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String
to Match is left blank, a health check will pass if the HTTP return code is between
200 and 299 (Note: HTTP redirection codes 301 or 302 are treated as failures).
When String to Match is filled, a health check will pass if the HTTP return code is
between 200 and 299 and if the HTTP response content contains the string.
URL 2
WAN Settings>WAN Edit>Health Check Settings>URL2
If URL2 is also provided, a health check will pass if either one of the tests passed.
https://www.peplink.com
72
Copyright @ 2025 Peplink

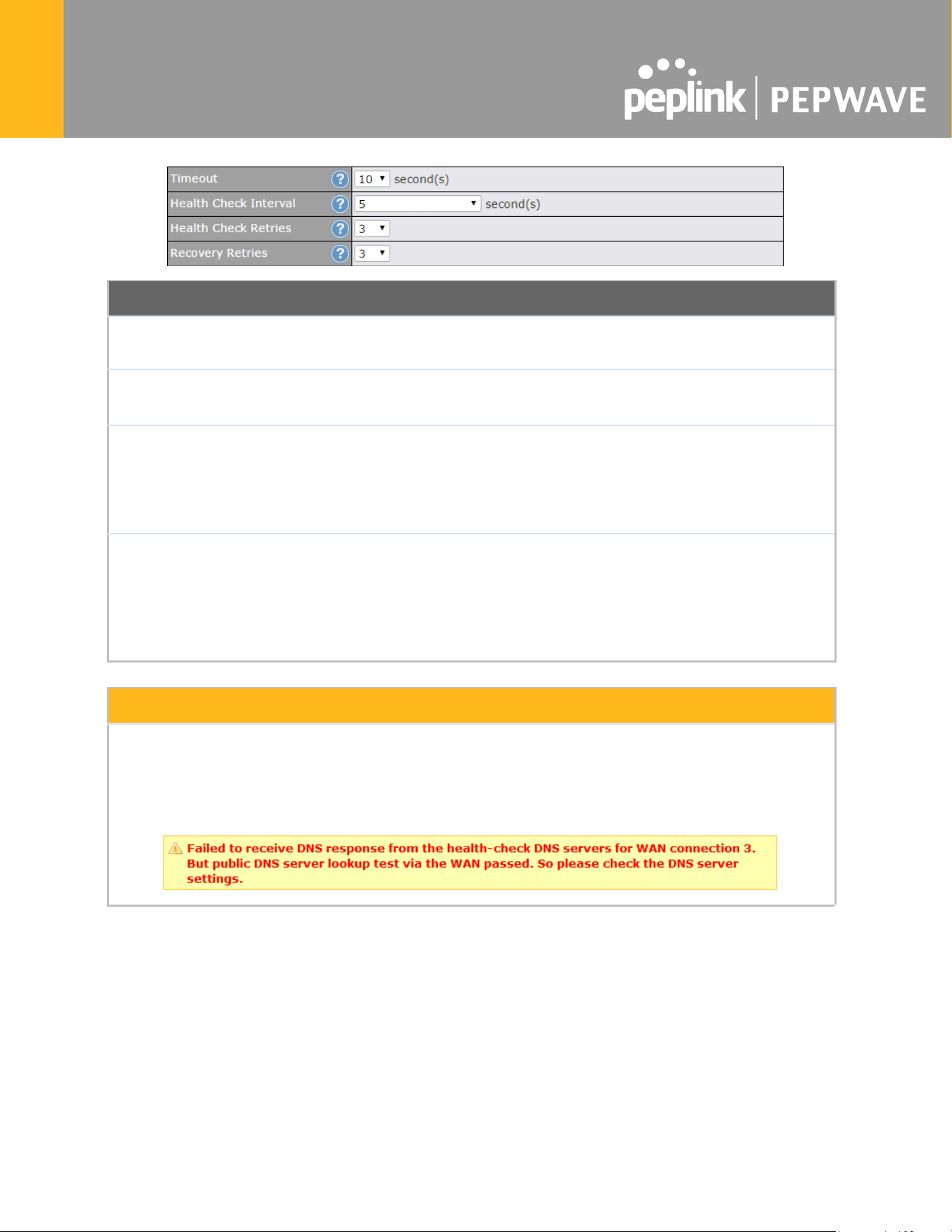

Other Health Check Settings
Timeout
This setting specifies the timeout in seconds for ping/DNS lookup requests. The
default timeout is 5 seconds.
Health Check
Interval
This setting specifies the time interval in seconds between ping or DNS lookup
requests. The default health check interval is 5 seconds.
Health Check
Retries
This setting specifies the number of consecutive ping/DNS lookup timeouts after
which the Pepwave router will treat the corresponding WAN connection as down.
Default health retries is set to 3. Using the default Health Retries setting of 3, the
corresponding WAN connection will be treated as down after three consecutive
timeouts.
Recovery Retries
This setting specifies the number of consecutive successful ping/DNS lookup
responses that must be received before the Pepwave router treats a previously
down WAN connection as up again. By default, Recover Retries is set to 3. Using
the default setting, a WAN connection that is treated as down will be considered
as up again upon receiving three consecutive successful ping/DNS lookup
responses.
Automatic Public DNS Server Check on DNS Test Failure
When the health check method is set to DNS Lookup and health checks fail, the Pepwave router will
automatically perform DNS lookups on public DNS servers. If the tests are successful, the WAN may not
be down, but rather the target DNS server malfunctioned. You will see the following warning message on
the main page:
https://www.peplink.com
73
Copyright @ 2025 Peplink
8.6 Bandwidth Allowance Monitoring
Bandwidth Allowance Monitor
Action
If Email Notification is enabled, you will be notified by email when usage hits
75% and 95% of the monthly allowance.
If Disconnect when usage hits 100% of monthly allowance is checked, this
WAN connection will be disconnected automatically when the usage hits the
monthly allowance. It will not resume connection unless this option has been
turned off or the usage has been reset when a new billing cycle starts.
Start Day
This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance
This field is for defining the maximum bandwidth usage allowed for the WAN
connection each month.
Disclaimer
Due to different network protocol overheads and conversions, the amount of data reported by this Peplink device
is not representative of actual billable data usage as metered by your network provider. Peplink disclaims any
obligation or responsibility for any events arising from the use of the numbers shown here.
https://www.peplink.com
74
Copyright @ 2025 Peplink
8.7 Additional Public IP address

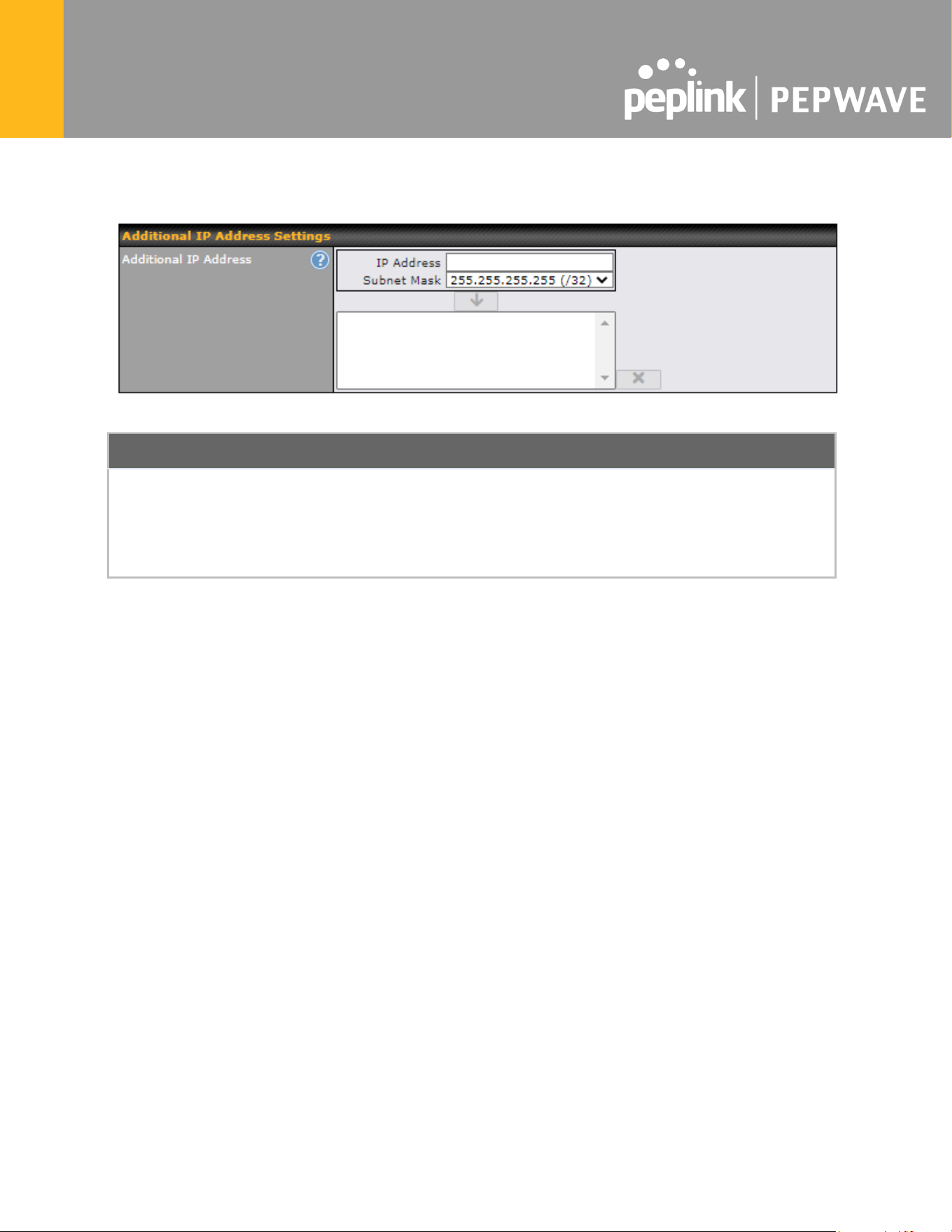

Additional Public IP Settings
IP Address List
IP Address List represents the list of fixed Internet IP addresses assigned by the
ISP in the event that more than one Internet IP address is assigned to this WAN
connection. Enter the fixed Internet IP addresses and the corresponding subnet
mask, and then click the Down Arrow button to populate IP address entries to the
IP Address List.
8.8 Dynamic DNS Settings
Pepwave routers are capable of registering the domain name relationships to dynamic DNS
service providers. Through registration with dynamic DNS service provider(s), the default public
Internet IP address of each WAN connection can be associated with a host name. With dynamic
DNS service enabled for a WAN connection, you can connect to your WAN's IP address from
the external, even if its IP address is dynamic. You must register for an account from the listed
dynamic DNS service providers before enabling this option.
If the WAN connection's IP address is a reserved private IP address (i.e., behind a NAT router),
the public IP of each WAN will be automatically reported to the DNS service provider.
Either upon a change in IP addresses or every 23 days without link reconnection, the Pepwave
router will connect to the dynamic DNS service provider to perform an IP address update within
the provider’s records.
The settings for dynamic DNS service provider(s) and the association of hostname(s) are
configured via Network > WAN > Details > Dynamic DNS Service Provider/Dynamic DNS
Settings.
https://www.peplink.com
75
Copyright @ 2025 Peplink

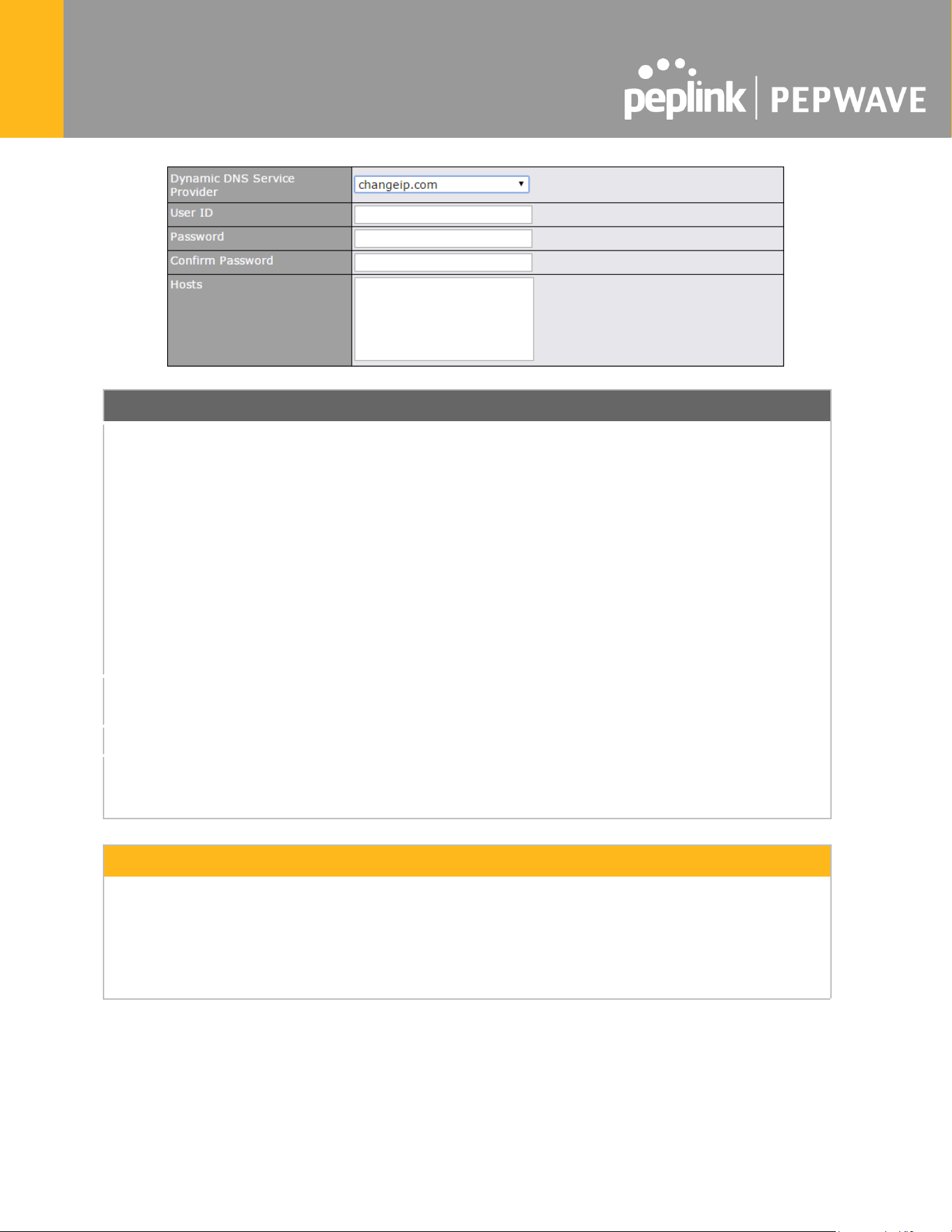

Dynamic DNS Settings
Dynamic DNS
This setting specifies the dynamic DNS service provider to be used for the
WAN based on supported dynamic DNS service providers:
● Disabled
● changeip.com
● dyndns.org
● no-ip.org
● DNS-O-Matic
● Others…
Support custom Dynamic DNS servers by entering its URL. Works with any
service compatible with DynDNS API.
Select Disabled to disable this feature.
User ID/ Username
/ Email
This setting specifies the registered user name for the dynamic DNS service.
Password
This setting specifies the password for the dynamic DNS service.
Hosts
This field allows you to specify a list of host names or domains to be
associated with the public Internet IP address of the WAN connection. If you
need to enter more than one host, use a carriage return to separate them.
Important Note
In order to use dynamic DNS services, appropriate host name registration(s) and a valid account with a
supported dynamic DNS service provider are required. A dynamic DNS update is performed whenever
a WAN’s IP address changes (e.g., the IP is changed after a DHCP IP refresh, reconnection, etc.). Due
to dynamic DNS service providers’ policy, a dynamic DNS host will automatically expire if the host
record has not been updated for a long time. Therefore the Pepwave router performs an update every
23 days, even if a WAN’s IP address has not changed.
https://www.peplink.com
76
Copyright @ 2025 Peplink

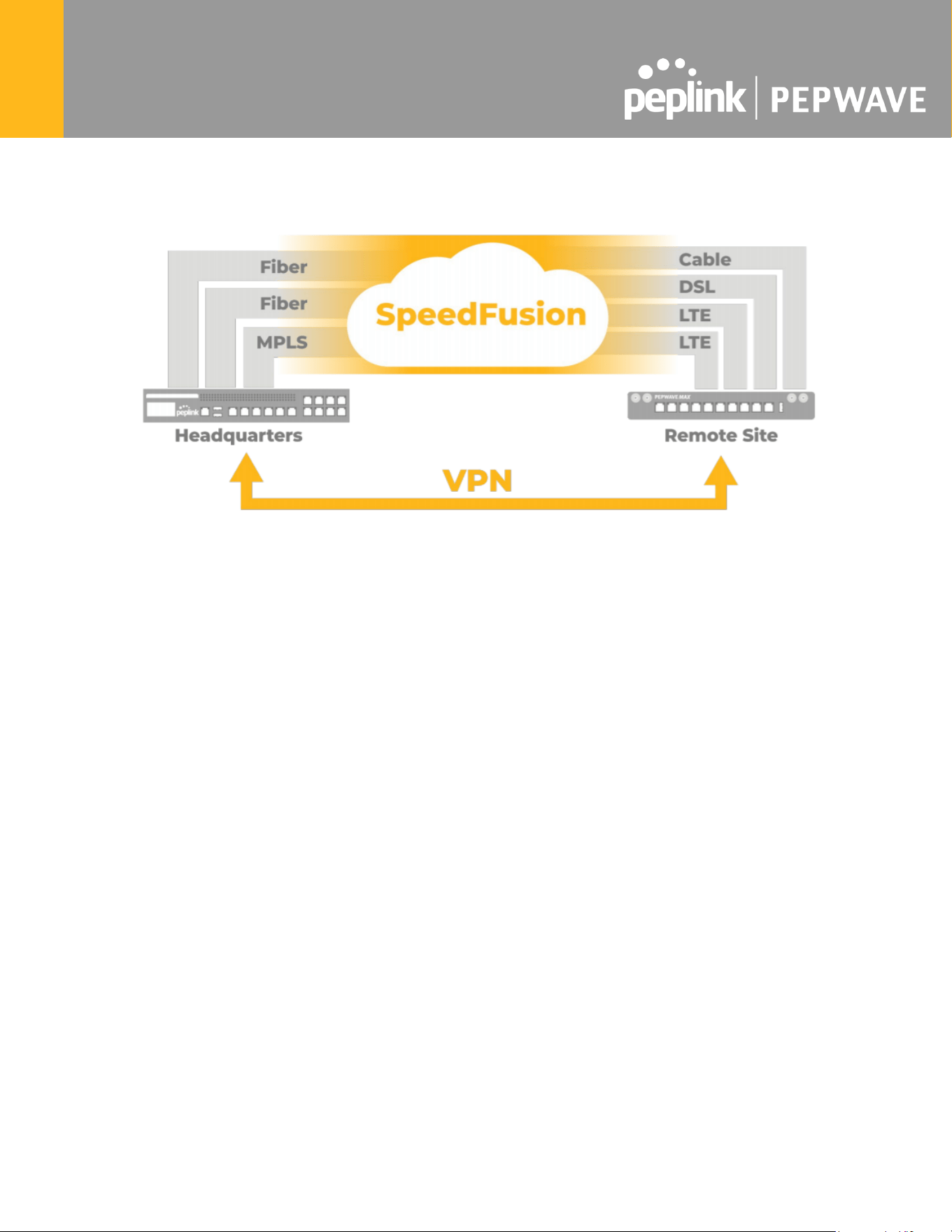

9 SpeedFusion VPN
Pepwave bandwidth bonding SpeedFusion
TM
is our patented technology that enables our
SD-WAN routers to bond multiple Internet connections to increase site-to-site bandwidth and
reliability. SpeedFusion functionality securely connects your Pepwave router to another
Pepwave or Peplink device (Peplink Balance 210/310/380/580/710/1350 only). Data, voice, or
video communications between these locations are kept confidential across the public Internet.
Bandwidth bonding SpeedFusion
TM
is specifically designed for multi-WAN environments. In case
of failures and network congestion at one or more WANs, other WANs can be used to continue
carrying the network traffic.
Different models of our SD-WAN routers have different numbers of site-to-site connections
allowed. End-users who need to have more site-to-site connections can purchase a
SpeedFusion license to increase the number of site-to-site connections allowed.
Pepwave routers can aggregate all WAN connections’ bandwidth for routing SpeedFusion
TM
traffic. Unless all the WAN connections of one site are down, Pepwave routers can keep the
VPN up and running.
VPN bandwidth bonding is supported in Firmware 5.1 or above. All available bandwidth will be
utilized to establish the VPN tunnel, and all traffic will be load balanced at packet level across all
links. VPN bandwidth bonding is enabled by default.
https://www.peplink.com
77
Copyright @ 2025 Peplink
9.1 SpeedFusion VPN
To configure SpeedFusion VPN, navigate to Advanced > SpeedFusion VPN.
The local LAN subnet and subnets behind the LAN (defined under Static Route on the LAN
settings page) will be advertised to the VPN. All VPN members (branch offices and
headquarters) will be able to route to local subnets.
Note that all LAN subnets and the subnets behind them must be unique. Otherwise, VPN
members will not be able to access each other.
All data can be routed over the VPN using the 256-bit AES encryption standard. To configure,
navigate to Advanced > SpeedFusion VPN and click the New Profile button to create a new
VPN profile (you may have to first save the displayed default profile in order to access the New
Profile button). Each profile specifies the settings for making VPN connection with one remote
Pepwave or Peplink device. Note that available settings vary by model.

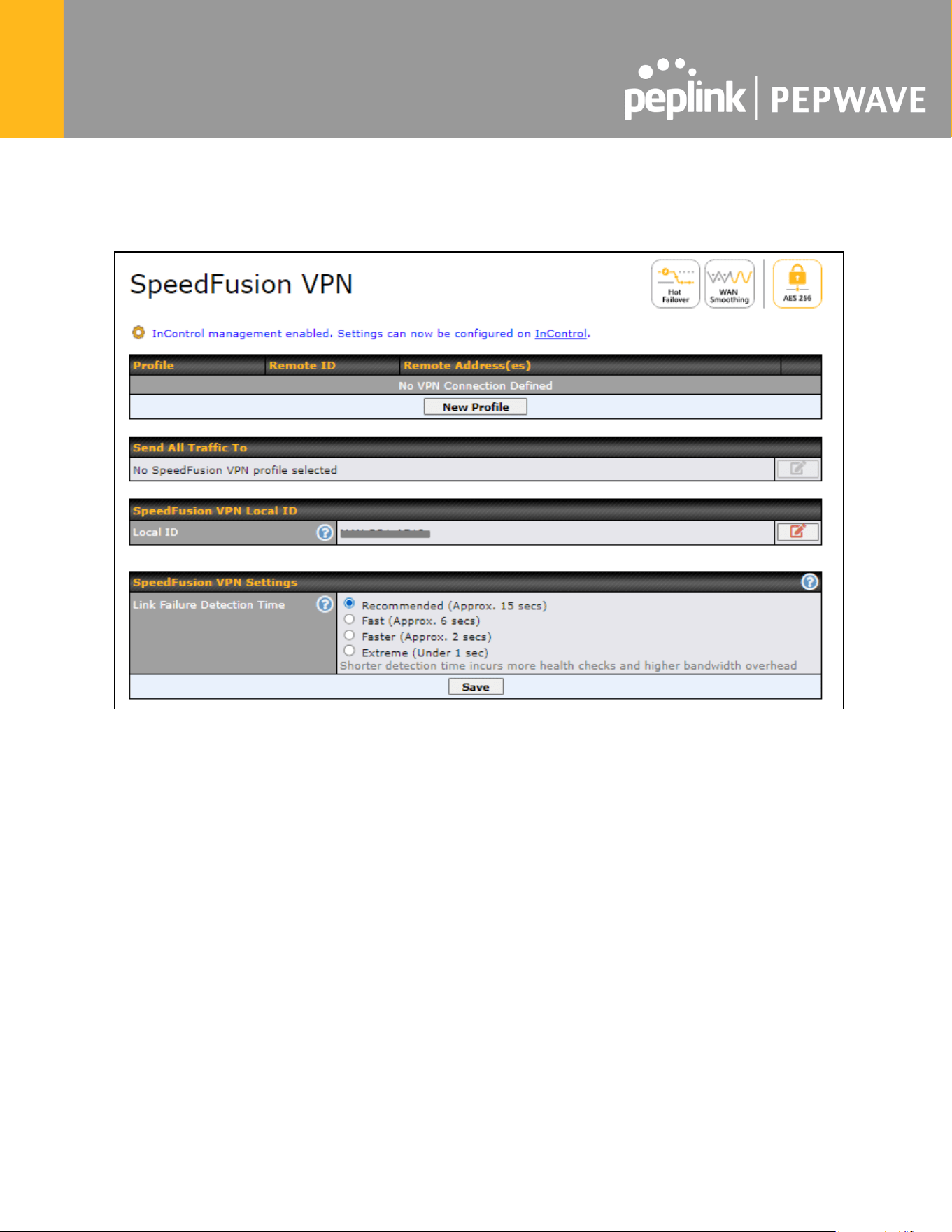

A list of defined SpeedFusion
connection profiles and a Link Failure Detection Time option will
be shown. Click the New Profile button to create a new VPN connection profile for making a
VPN connection to a remote Pepwave or Peplink device via the available WAN connections.
Each profile is for making a VPN connection with one remote Pepwave or Peplink Device.
https://www.peplink.com
78
Copyright @ 2025 Peplink
SpeedFusion VPN Profile Settings
Name
This field is for specifying a name to represent this profile. The name can be any
combination of alphanumeric characters (0-9, A-Z, a-z), underscores (_), dashes
(-), and/or non-leading/trailing spaces ( ).
Enable
When this box is checked, this VPN connection profile will be enabled. Otherwise,
it will be disabled.
Encryption
By default, VPN traffic is encrypted with 256-bit AES. If Off is selected on both
sides of a VPN connection, no encryption will be applied.
Authentication
Select from By Remote ID Only, Preshared Key, or X.509 to specify the method
the Pepwave MAX will use to authenticate peers. When selecting By Remote ID
Only, be sure to enter a unique peer ID number in the Remote ID field.
Remote ID /
Pre-shared Key
This optional field becomes available when Remote ID / Pre-shared Key is
selected as the Pepwave router’s VPN Authentication method, as explained
above. Pre-shared Key defines the pre-shared key used for this particular VPN
connection. The VPN connection's session key will be further protected by the
pre-shared key. The connection will be up only if the pre-shared keys on each side
match. When the peer is running firmware 5.0+, this setting will be ignored.
https://www.peplink.com
79
Copyright @ 2025 Peplink
Enter Remote IDs either by typing out each Remote ID and Pre-shared Key, or by
pasting a CSV. If you wish to paste a CSV, click the icon next to the “Remote
ID / Preshared Key” setting.
Remote
ID/Remote
Certificate
These optional fields become available when X.509 is selected as the Pepwave
MAX’s VPN authentication method, as explained above. To authenticate VPN
connections using X.509 certificates, copy and paste certificate details into these
fields. To get more information on a listed X.509 certificate, click the Show Details
link below the field.
Allow Shared
Remote ID
When this option is enabled, the router will allow multiple peers to run using the
same remote ID.
NAT Mode
Check this box to allow the local DHCP server to assign an IP address to the
remote peer. When NAT Mode is enabled, all remote traffic over the VPN will be
tagged with the assigned IP address using network address translation.
Remote IP
Address / Host
Names
(Optional)
If NAT Mode is not enabled, you can enter a remote peer’s WAN IP address or
hostname(s) here. If the remote uses more than one address, enter only one of
them here. Multiple hostnames are allowed and can be separated by a space
character or carriage return. Dynamic-DNS host names are also accepted.
This field is optional. With this field filled, the Pepwave MAX will initiate connection
to each of the remote IP addresses until it succeeds in making a connection. If the
field is empty, the Pepwave MAX will wait for connection from the remote peer.
Therefore, at least one of the two VPN peers must specify this value. Otherwise,
VPN connections cannot be established.
Cost
Define path cost for this profile.
OSPF will determine the best route through the network using the assigned cost.
Default: 10
Data Port
This field is used to specify a UDP port number for transporting outgoing VPN
data. If Default is selected, UDP port 4500 will be used. Port 32015 will be used if
the remote unit uses Firmware prior to version 5.4 or if port 4500 is unavailable. If
Custom is selected, enter an outgoing port number from 1 to 65535.
Click the icon to configure data stream using TCP protocol
[EXPERIMENTAL].In the case TCP protocol is used, the exposed TCP session
option can be authorised to work with TCP accelerated WAN link.
Bandwidth Limit
Define maximum download and upload speed to each individual peer. This
functionality requires the peer to use SpeedFusion VPN version 4.0.0 or above.
WAN Smoothing
While using SpeedFusion VPN, utilize multiple WAN links to reduce the impact of
packet loss and get the lowest possible latency at the expense of extra bandwidth
consumption. This is suitable for streaming applications where the average bitrate
requirement is much lower than the WAN's available bandwidth.
https://www.peplink.com
80
Copyright @ 2025 Peplink
Off - Disable WAN Smoothing.
Normal - The total bandwidth consumption will be at most 2x of the original data
traffic.
Medium - The total bandwidth consumption will be at most 3x of the original data
traffic.
High - The total bandwidth consumption depends on the number of connected
active tunnels.
Forward Error
Correction
Forward Error Correction (FEC) can help to recover packet loss by using extra
bandwidth to send redundant data packets. Higher FEC level will recover packets
on a higher loss rate link.
The expected overhead of Low is 13.3% and High is 26.7%.
Require peer using SpeedFusion VPN version 8.0.0 and above.
Receive Buffer
Receive Buffer can help to reduce out-of-order packets and jitter, but will introduce
extra latency to the tunnel. Default is 0 ms, which disables the buffer, and
maximum buffer size is 2000 ms.
Packet
Fragmentation
If the packet size is larger than the tunnel's MTU, it will be fragmented inside the
tunnel in order to pass through.
Select Always to fragment any packets that are too large to send, or Use DF Flag
to only fragment packets with Don't Fragment bit cleared. This can be useful if
your application does Path MTU Discovery, usually sending large packets with DF
bit set, if allowing them to go through by fragmentation, the MTU will not be
detected correctly.
Use IP ToS
A
Checking this button enables the use of IP ToS header field.
Latency
Difference
Cutoff
A
Traffic will be stopped for links that exceed the specified millisecond value with
respect to the lowest latency link. (e.g. Lowest latency is 100ms, a value of 500ms
means links with latency 600ms or more will not be used)
A
- Advanced feature, please click the button on the top right-hand corner to activate.
To enable Layer 2 Bridging between SpeedFusion VPN profiles, navigate to Network > LAN >
Basic Settings > *LAN Profile Name* and refer to instructions in section 9.1
https://www.peplink.com
81
Copyright @ 2025 Peplink

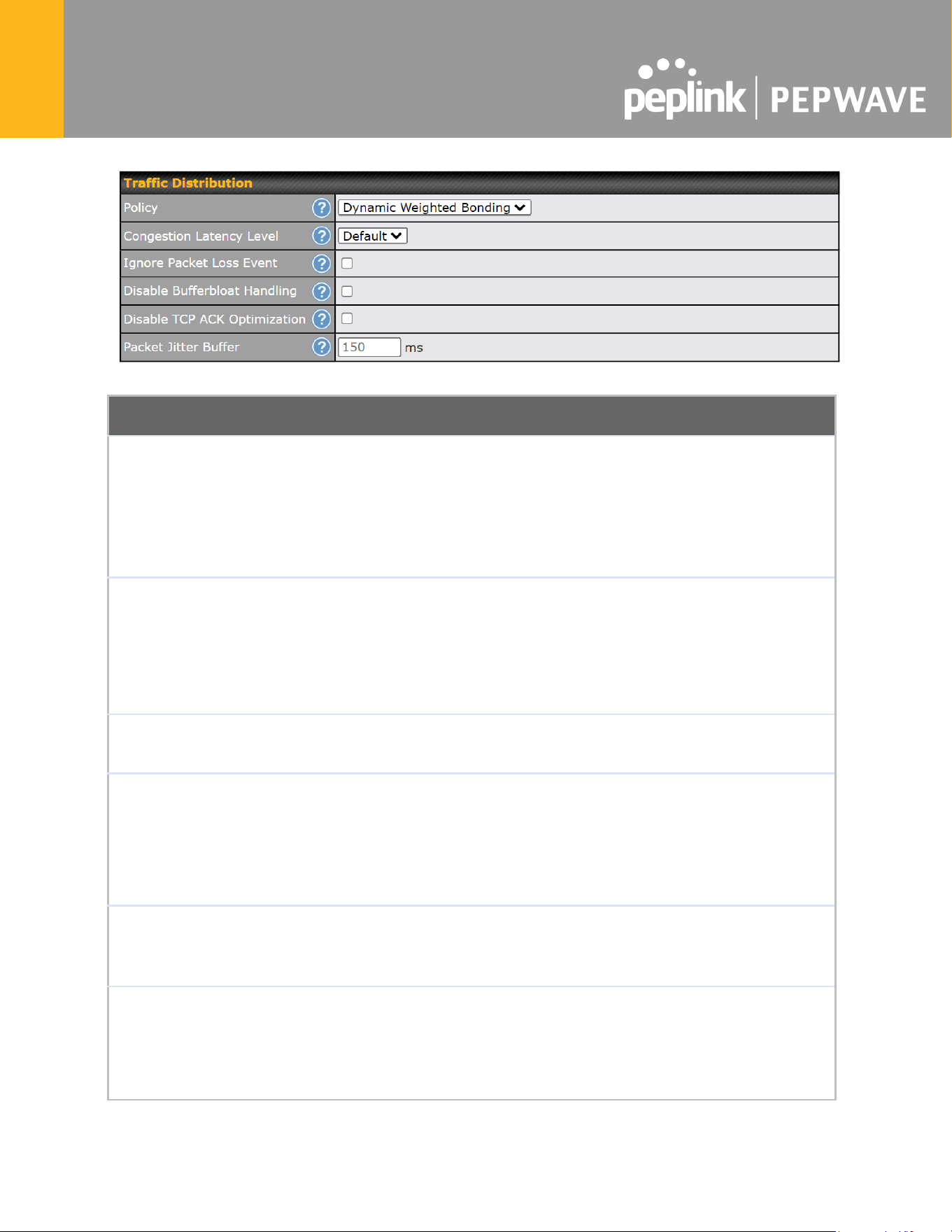

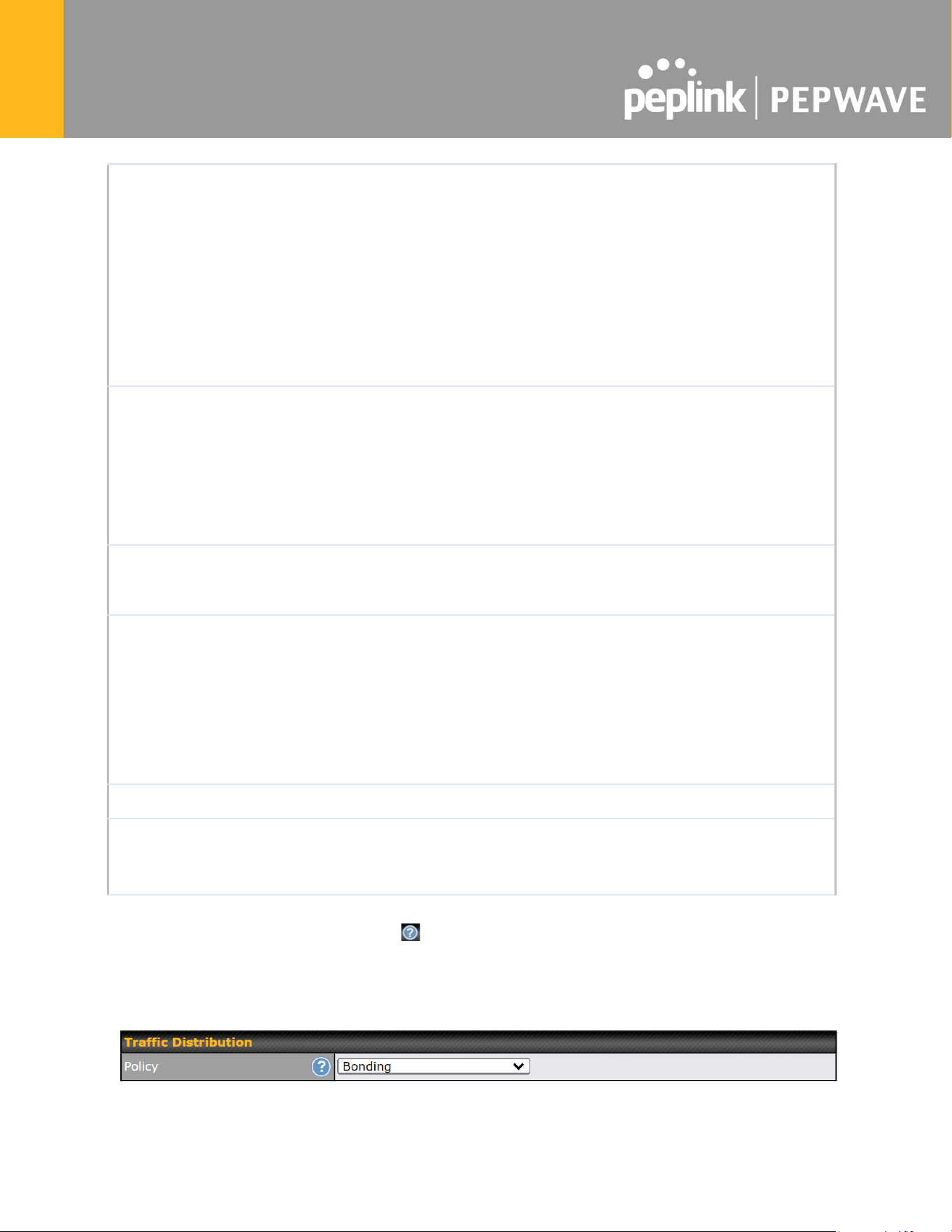

Traffic Distribution
Policy
This option allows you to select the desired out-bound traffic distribution policy:
● Bonding - Aggregate multiple WAN-to-WAN links into a single higher
throughput tunnel.
● Dynamic Weighted Bonding - Aggregates WAN-to-WAN links with similar
latencies.
By default, Bonding is selected as a traffic distribution policy.
Congestion
Latency Level
For most WANs, especially on cellular networks, the latency will increase when the
link becomes more congested.
Setting the Congestion Latency Level to Low will treat the link as congested
more aggressively.
Setting it to High will allow the latency to increase more before treating it as
congested.
Ignore Packet
Loss Event
By default, when there is packet loss, it is considered as a congestion event. If this
is not the case, select this option to ignore the packet loss event.
Disable
Bufferbloat
Handling
Bufferbloat is a phenomenon on the WAN side when it is congested. The latency
can become very high due to buffering on the uplink. By default, the Dynamic
Weighted Bonding policy will try its best to mitigate bufferbloat by reducing TCP
throughput when the WAN is congested. However, as a side effect, the tunnel
might not achieve maximum bandwidth.
Selecting this option will disable the bufferbloat handling mentioned above.
Disable TCP
ACK
Optimization
By default, TCP ACK will be forwarded to remote peers as fast as possible. This
will consume more bandwidth, but may help to improve TCP performance as well.
Selecting this option will disable the TCP ACK optimization mentioned above.
Packet Jitter
Buffer
The default jitter buffer is 150ms, and can be modified from 0ms to 500ms. The
jitter buffer may increase the tunnel latency. If you want to keep the latency as low
as possible, you can set it to 0ms to disable the buffer.
Note: If the Receive Buffer is set, the Packet Jitter Buffer will be automatically
disabled.
https://www.peplink.com
82
Copyright @ 2025 Peplink

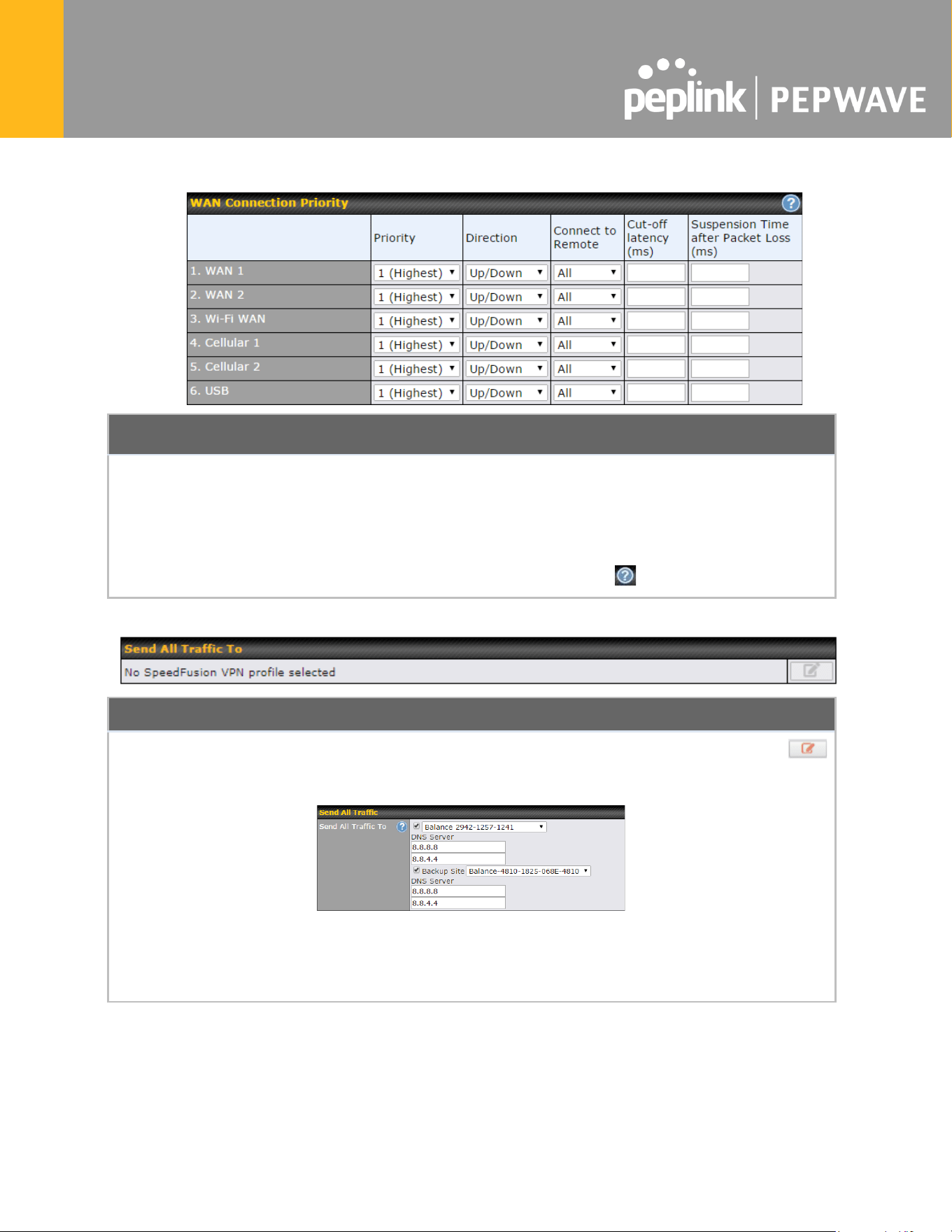

8.41
WAN Connection Priority
WAN Connection
Priority
If your device supports it, you can specify the priority of WAN connections to be
used for making VPN connections. WAN connections set to OFF will never be
used. Only available WAN connections with the highest priority will be used.
To enable asymmetric connections, connection mapping to remote WANs, cut-off
latency, and packet loss suspension time, click the button.
Send All Traffic To
This feature allows you to redirect all traffic to a specified SpeedFusion VPN connection. Click the
button to select your connection and the following menu will appear:
You could also specify a DNS server to resolve incoming DNS requests. Click the checkbox next to
Backup Site to designate a backup SpeedFusion profile that will take over, should the main
SpeedFusion VPN connection fail.
https://www.peplink.com
83
Copyright @ 2025 Peplink

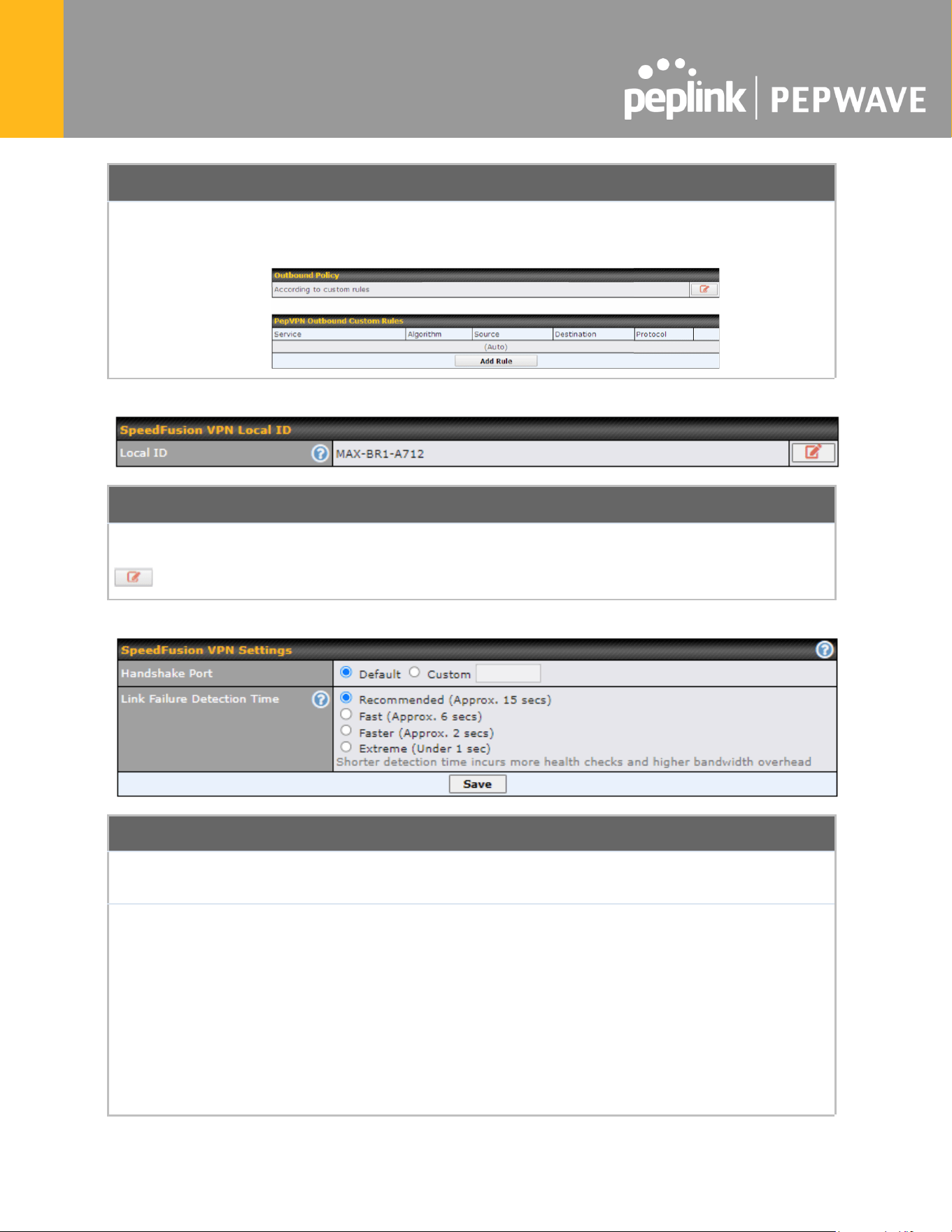

Outbound Policy/SpeedFusion VPN Outbound Custom Rules
Some models allow you to set outbound policy and custom outbound rules from
Advanced>SpeedFusion VPN. See Section 14 for more information on outbound policy settings.
SpeedFusion VPN Local ID
The local ID is a text string to identify this local unit when establishing a VPN connection. When creating
a profile on a remote unit, this local ID must be entered in the remote unit's Remote ID field. Click the
icon to edit Local ID.
SpeedFusion VPN Settings
Handshake Port
A
To designate a custom handshake port (TCP), click the custom radio button and
enter the port number you wish to designate.
Link Failure
Detection Time
The bonded VPN can detect routing failures on the path between two sites over
each WAN connection. Failed WAN connections will not be used to route VPN
traffic. Health check packets are sent to the remote unit to detect any failure. The
more frequently checks are sent, the shorter the detection time, although more
bandwidth will be consumed.
When Recommended (default) is selected, a health check packet is sent every
five seconds, and the expected detection time is 15 seconds.
When Fast is selected, a health check packet is sent every three seconds, and the
expected detection time is six seconds.
When Faster is selected, a health check packet is sent every second, and the
https://www.peplink.com
84
Copyright @ 2025 Peplink
expected detection time is two seconds.
When Extreme is selected, a health check packet is sent every 0.1 second, and
the expected detection time is less than one second.
A
- Advanced feature, please click the button on the top right-hand corner to activate.
Important Note
Peplink proprietary SpeedFusion
TM
uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If
you have a firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols
to allow inbound and outbound traffic to pass through the firewall.
Tip
Want to know more about VPN sub-second session failover? Visit our YouTube Channel for a video
tutorial!
http://youtu.be/TLQgdpPSY88
https://www.peplink.com
85
Copyright @ 2025 Peplink
9.2 The Pepwave Router Behind a NAT Router
Pepwave routers support establishing SpeedFusion
TM
over WAN connections which are behind
a NAT (network address translation) router.
To enable a WAN connection behind a NAT router to accept VPN connections, you can
configure the NAT router in front of the WAN connection to inbound port-forward TCP port
32015 to the Pepwave router.
If one or more WAN connections on Unit A can accept VPN connections (by means of port
forwarding or not), while none of the WAN connections on the peer Unit B can do so, you should
enter all of Unit A’s public IP addresses or hostnames into Unit B’s Remote IP Addresses /
Host Names field. Leave the field in Unit A blank. With this setting, a SpeedFusion
TM
connection
can be set up and all WAN connections on both sides will be utilized.
See the following diagram for an example of this setup in use:

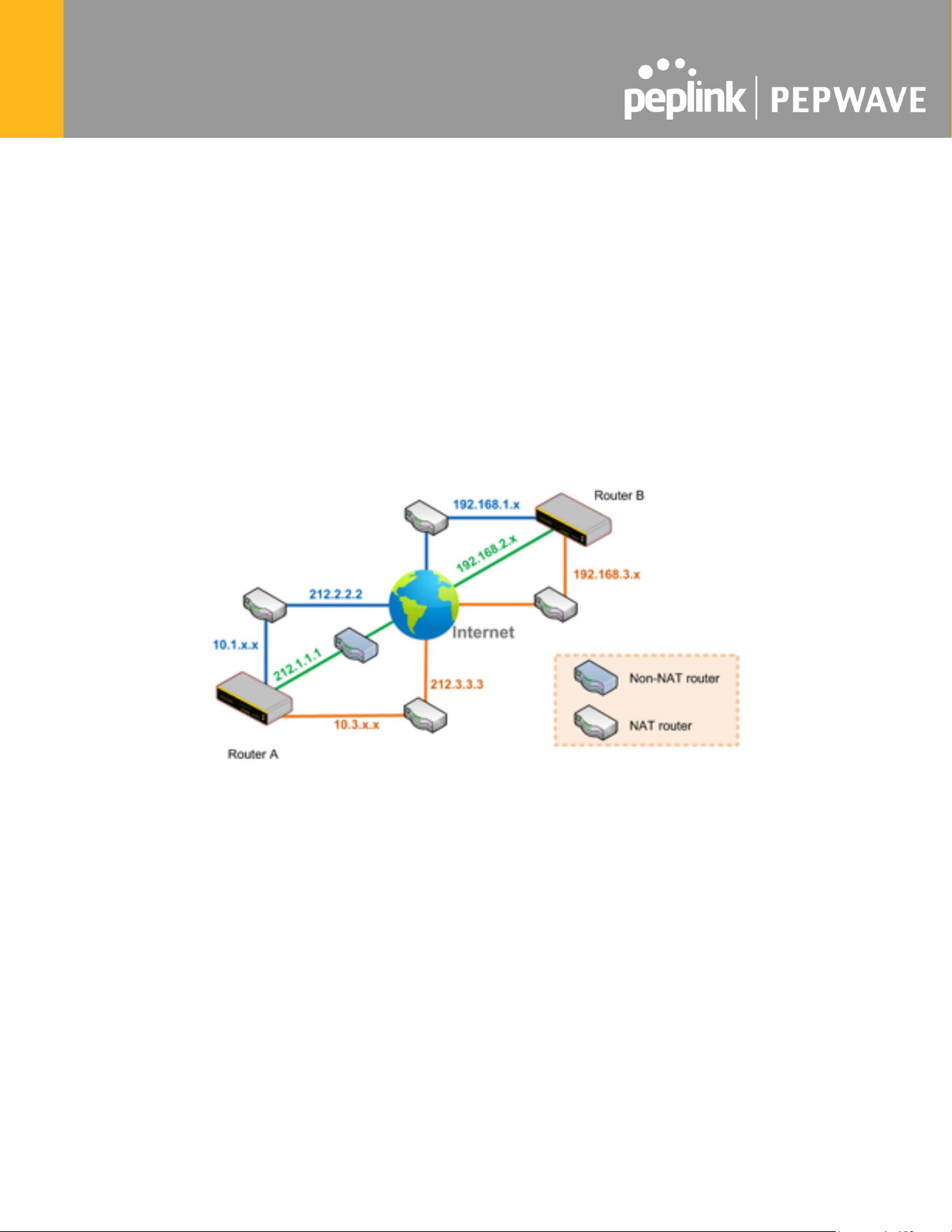

One of the WANs connected to Router A is non-NAT’d (212.1.1.1). The rest of the WANs
connected to Router A and all WANs connected to Router B are NAT’d. In this case, the Peer IP
Addresses / Host Names field for Router B should be filled with all of Router A’s hostnames or
public IP addresses (i.e., 212.1.1.1, 212.2.2.2, and 212.3.3.3), and the field in Router A can be
left blank. The two NAT routers on WAN1 and WAN3 connected to Router A should inbound
port-forward TCP port 32015 to Router A so that all WANs will be utilized in establishing the
VPN.
https://www.peplink.com
86
Copyright @ 2025 Peplink
9.3 SpeedFusion VPN Status
SpeedFusion VPN status is shown in the Dashboard. The connection status of each connection
profile is shown as below.

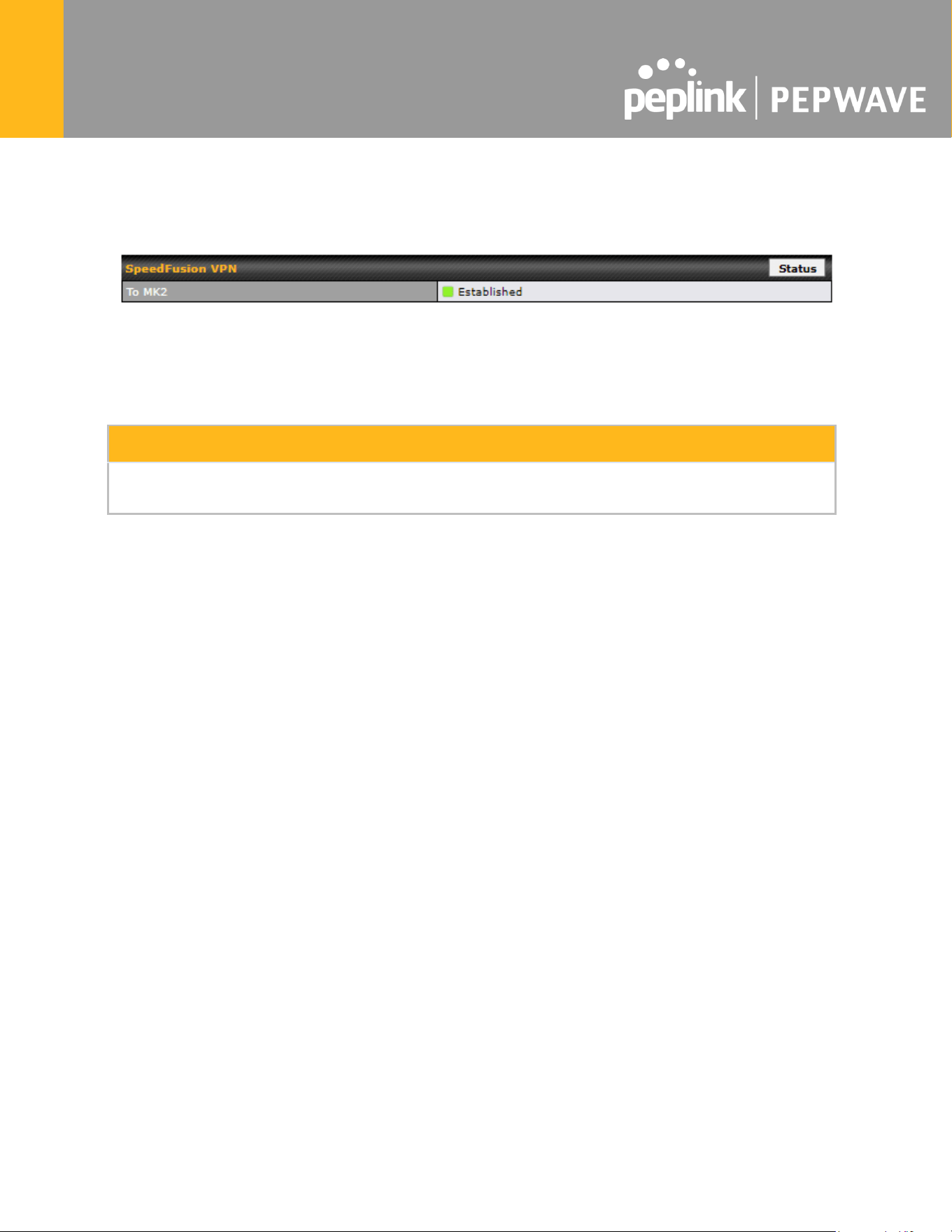

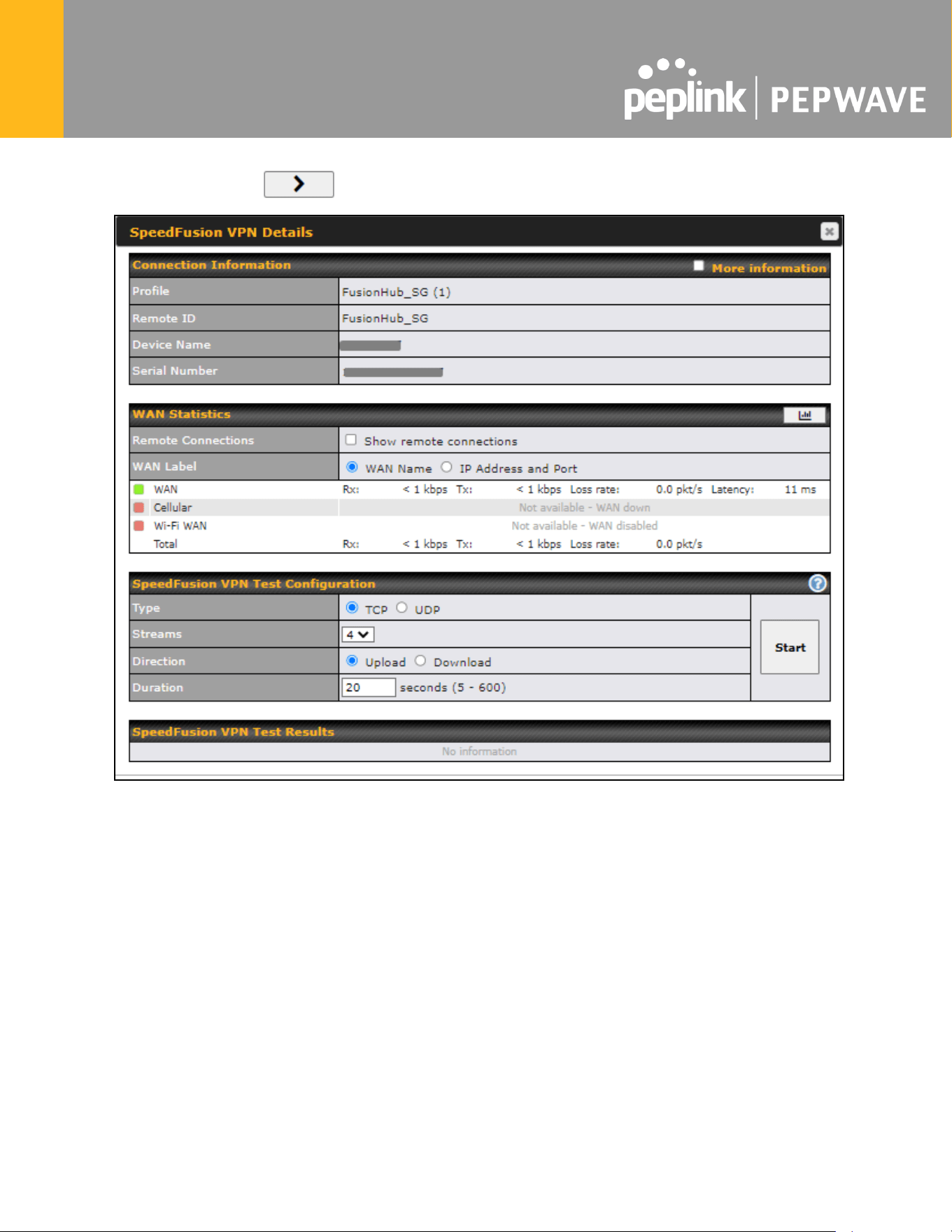

After clicking the Status button at the top right corner of the SpeedFusion
TM
table, you will be
forwarded to Status > SpeedFusion VPN, where you can view subnet and WAN connection
information for each VPN peer.
IP Subnets Must Be Unique Among VPN Peers
The entire interconnected SpeedFusion
TM
network is a single non-NAT IP network. Avoid duplicating
subnets in your sites to prevent connectivity problems when accessing those subnets.
https://www.peplink.com
87
Copyright @ 2025 Peplink
10 IPsec VPN
IPsec VPN functionality securely connects one or more branch offices to your company's main
headquarters or to other branches. Data, voice, and video communications between these
locations are kept safe and confidential across the public Internet.
IPsec VPN on Pepwave routers is specially designed for multi-WAN environments. For instance,
if a user sets up multiple IPsec profiles for a multi-WAN environment and WAN1 is connected
and healthy, IPsec traffic will go through this link. However, should unforeseen problems (e.g.,
unplugged cables or ISP problems) cause WAN1 to go down, our IPsec implementation will
make use of WAN2 and WAN3 for failover.
10.1 IPsec VPN Settings
Many Pepwave products can make multiple IPsec VPN connections with Peplink, Pepwave,
Cisco, and Juniper routers. Note that all LAN subnets and the subnets behind them must be
unique. Otherwise, VPN members will not be able to access each other. All data can be routed
over the VPN with a selection of encryption standards, such as 3DES, AES-128, and AES-256.
To configure IPsec VPN on Pepwave devices that support it, navigate to Advanced>IPsec
VPN.

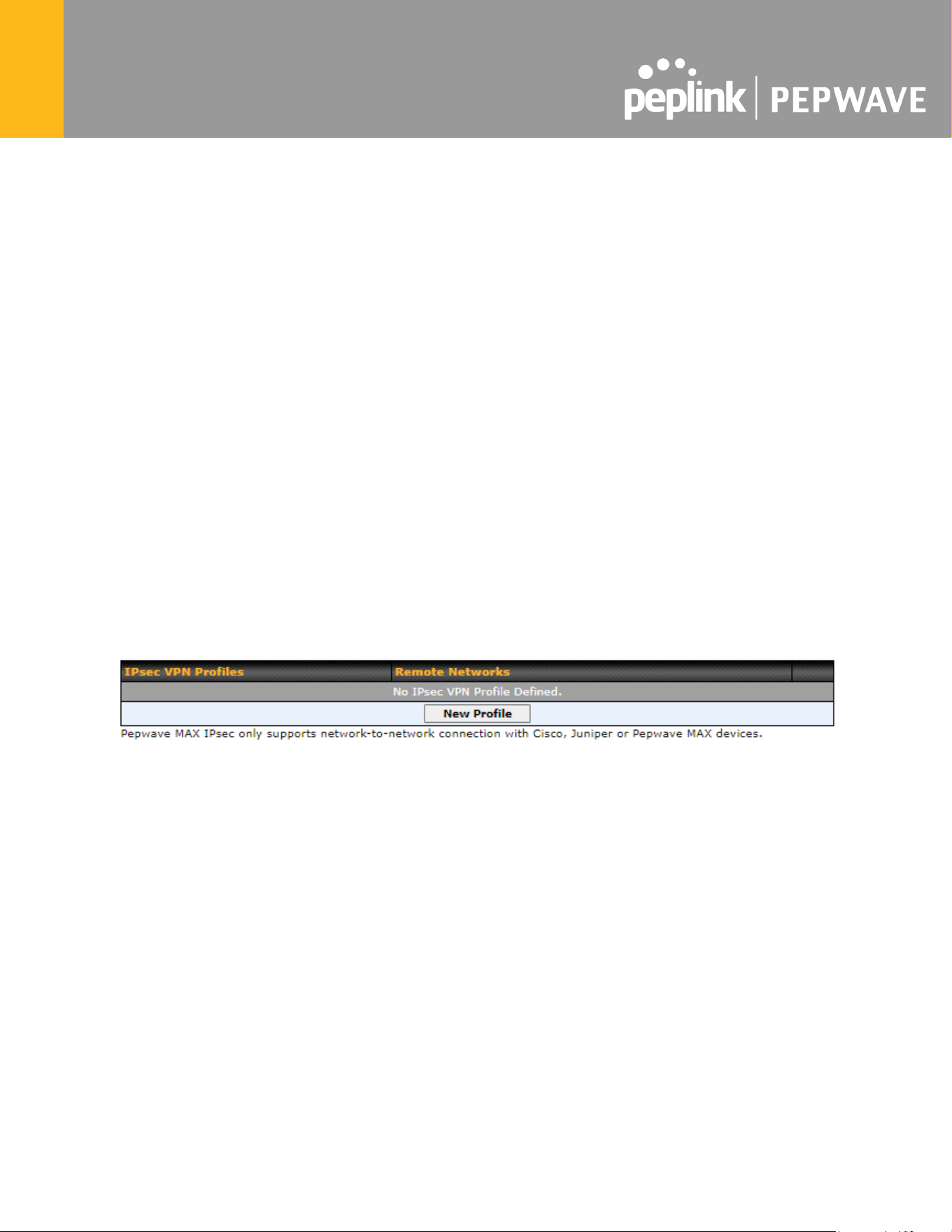

Click the New Profile button to create new IPsec VPN profiles that make VPN connections to
remote Pepwave, Cisco, or Juniper routers via available WAN connections. To edit any of the
profiles, click on its associated connection name in the leftmost column.
https://www.peplink.com
88
Copyright @ 2025 Peplink

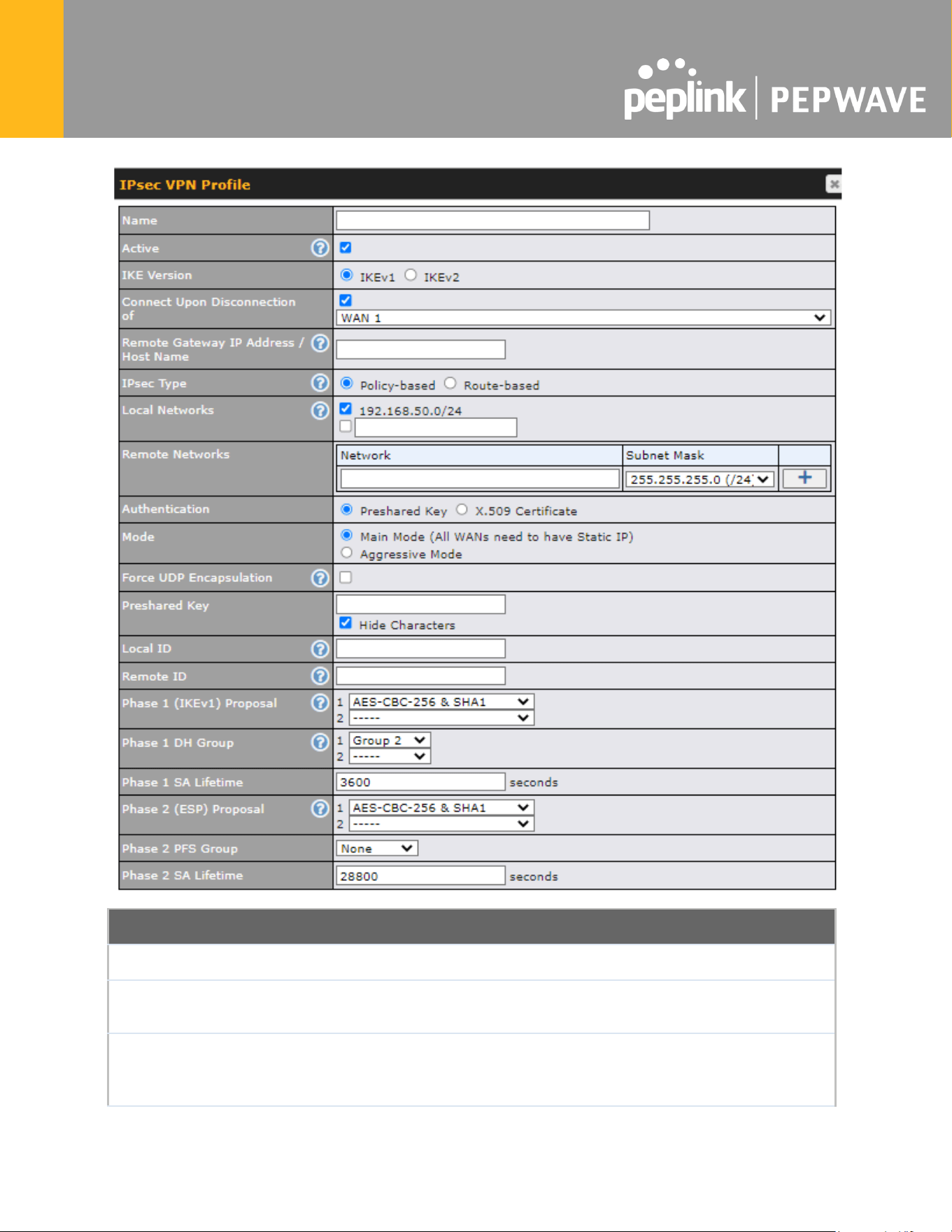

IPsec VPN Profile Settings
Name
This field is for specifying a local name to represent this connection profile.
Active
When this box is checked, this IPsec VPN connection profile will be enabled.
Otherwise, it will be disabled.
IKE Version
Two versions of the IKE standards are available:
● IKEv1
● IKEv2
https://www.peplink.com
89
Copyright @ 2025 Peplink
Connect Upon
Disconnection
of
Check this box and select a WAN to connect to this VPN automatically when the
specified WAN is disconnected.
Remote
Gateway IP
Address / Host
Name
Enter the remote peer’s public IP address. For Aggressive Mode, this is
optional.
IPsec Type
Policy-based - (default) All the matched traffic as defined in Local Networks and
Remote Networks will be routed to this IPsec connection, this cannot be
overridden by other routing methods.
Route-based - Outbound Policy rule is required to route traffic to this tunnel and
comes with more flexibility to control how to route traffic compared to
Policy-based. If you want to modify the traffic selector instead of using the
default (0.0.0.0/0).
Note: This option is available for certain following models only:
● MAX: BR1 ENT, Transit, 700 HW3 or above, HD2 HW5 or above, HD4
Local Networks
Enter the local LAN subnets here. If you have defined static routes, they will be
shown here.
Using NAT, you can map a specific local network / IP address to another, and the
packets received by remote gateway will appear to be coming from the mapped
network / IP address. This allow you to establish IPsec connection to a remote
site that has one or more subnets overlapped with local site.
Two types of NAT policies can be defined:
One-to-One NAT policy: if the defined subnet in Local Network and NAT Network
has the same size, for example, policy "192.168.50.0/24 > 172.16.1.0/24" will
translate the local IP address 192.168.50.10 to 172.16.1.10 and 192.168.50.20
to 172.16.1.20. This is a bidirectional mapping which means clients in remote
site can initiate connection to the local clients using the mapped address too.
Many-to-One NAT policy: if the defined NAT Network on the right hand side is an
IP address (or having a network prefix /32), for example, policy "192.168.1.0/24
> 172.168.50.1/32" will translate all clients in 192.168.1.0/24 network to
172.168.50.1. This is a unidirectional mapping which means clients in remote
site will not be able to initiate connection to the local clients.
Remote
Networks
Enter the LAN and subnets that are located at the remote site here.
Authentication
To access your VPN, clients will need to authenticate by your choice of methods.
Choose between the Preshared Key and X.509 Certificate methods of
https://www.peplink.com
90
Copyright @ 2025 Peplink
authentication.
Mode
Choose Main Mode if both IPsec peers use static IP addresses. Choose
Aggressive Mode if one of the IPsec peers uses dynamic IP addresses.
Force UDP
Encapsulation
For forced UDP encapsulation regardless of NAT-traversal, tick this checkbox.
Pre-shared Key
This defines the peer authentication pre-shared key used to authenticate this
VPN connection. The connection will be up only if the pre-shared keys on each
side match.
Remote
Certificate (pem
encoded)
Available only when X.509 Certificate is chosen as the Authentication method,
this field allows you to paste a valid X.509 certificate.
Local ID
In Main Mode, this field can be left blank. In Aggressive Mode, if Remote
Gateway IP Address is filled on this end and the peer end, this field can be left
blank. Otherwise, this field is typically a U-FQDN.
Remote ID
In Main Mode, this field can be left blank. In Aggressive Mode, if Remote
Gateway IP Address is filled on this end and the peer end, this field can be left
blank. Otherwise, this field is typically a U-FQDN.
Phase 1 (IKE)
Proposal
In Main Mode, this allows setting up to six encryption standards, in descending
order of priority, to be used in initial connection key negotiations. In Aggressive
Mode, only one selection is permitted.
Phase 1 DH
Group
This is the Diffie-Hellman group used within IKE. This allows two parties to
establish a shared secret over an insecure communications channel. The larger
the group number, the higher the security.
Group 2: 1024-bit is the default value.
Group 5: 1536-bit is the alternative option.
Phase 1 SA
Lifetime
This setting specifies the lifetime limit of this Phase 1 Security Association. By
default, it is set at 3600 seconds.
Phase 2 (ESP)
Proposal
In Main Mode, this allows setting up to six encryption standards, in descending
order of priority, to be used for the IP data that is being transferred. In
Aggressive Mode, only one selection is permitted.
Phase 2 PFS
Group
Perfect forward secrecy (PFS) ensures that if a key was compromised, the
attacker will be able to access only the data protected by that key.
None - Do not request for PFS when initiating connection. However, since there
is no valid reason to refuse PFS, the system will allow the connection to use
PFS if requested by the remote peer. This is the default value.
Group 2: 1024-bit Diffie-Hellman group. The larger the group number, the higher
the security.
Group 5: 1536-bit is the third option.
https://www.peplink.com
91
Copyright @ 2025 Peplink
Phase 2 SA
Lifetime
This setting specifies the lifetime limit of this Phase 2 Security Association. By
default, it is set at 28800 seconds.

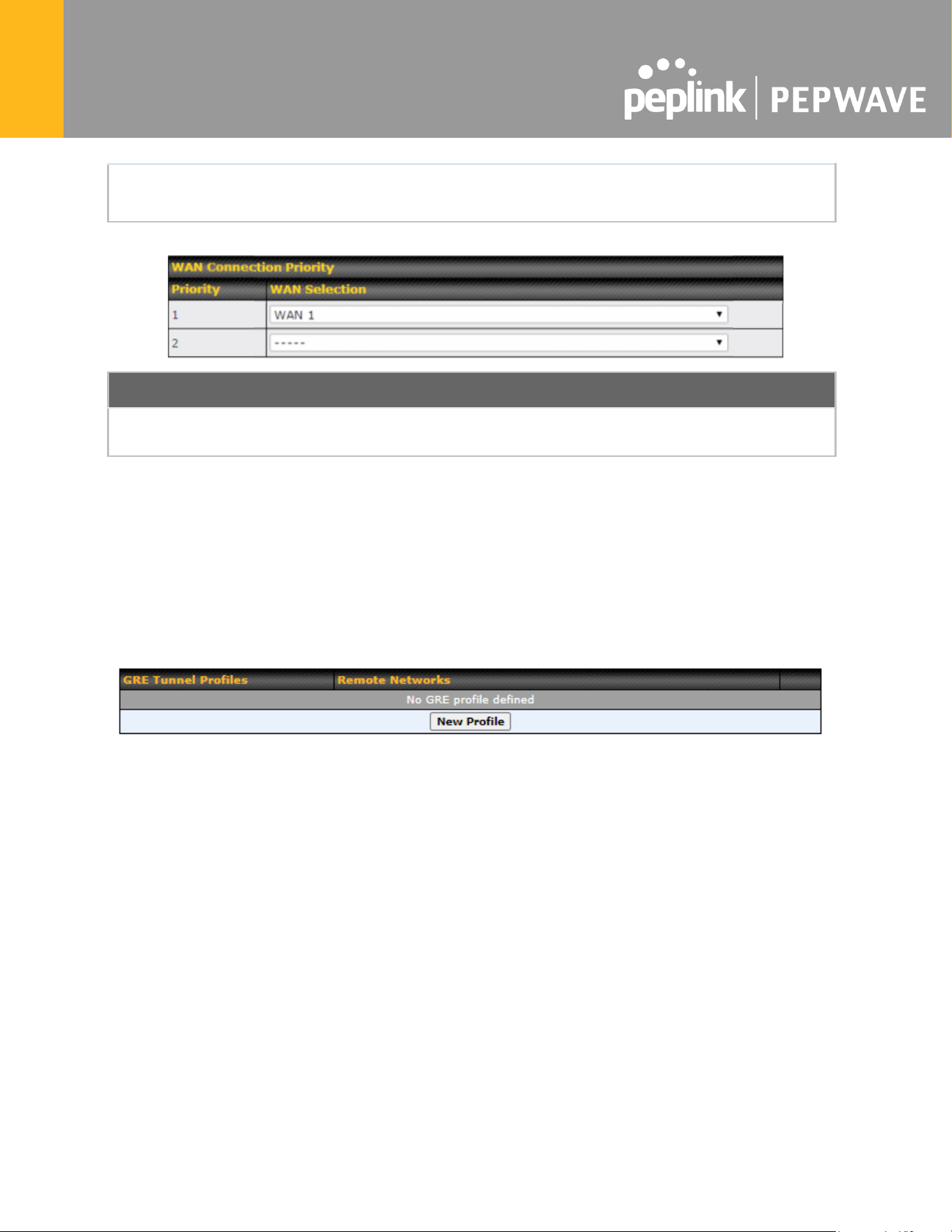

WAN Connection Priority
WAN Connection
Select the appropriate WAN connection from the drop-down menu.
10.2 GRE Tunnel
Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a wide
variety of network layer protocols inside virtual point-to-point links over an Internet Protocol
network. A GRE tunnel is similar to IPSec or SpeedFusion VPN.
To configure a GRE Tunnel, navigate to Advanced > GRE Tunnel.
Click the New Profile button to create new GRE tunnel profiles that establish tunnel
connections to remote tunnel endpoints via available WAN connections. To edit the profiles,
click on its associated connection name in the leftmost column.
https://www.peplink.com
92
Copyright @ 2025 Peplink

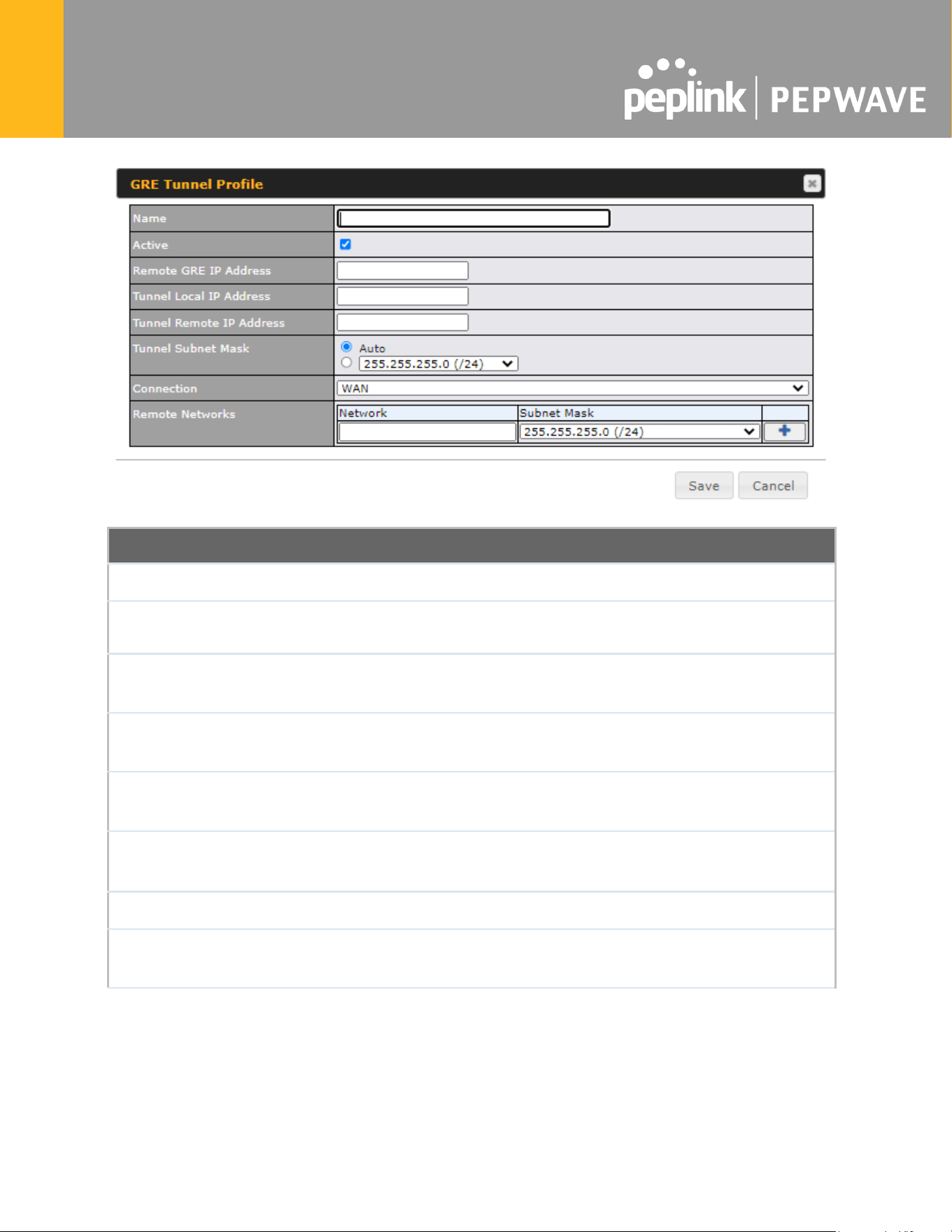

GRE Tunnel Profile Settings
Name
This field is for specifying a name to represent this GRE Tunnel connection profile.
Active
When this box is checked, this GRE Tunnel connection profile will be enabled.
Otherwise, it will be disabled.
Remote GRE IP
Address
This field is for entering the remote GRE’s IP address
Tunnel Local IP
Address
This field is for specifying the tunnel source IP address.
Tunnel Remote
IP Address
This field is for specifying the tunnel destination IP address
Tunnel Subnet
Mask
This field is to select the subnet mask that is to be used for the GRE tunnel.
Connection
Select the appropriate WAN connection from the drop-down menu.
Remote
Networks
Input the LAN and subnets that are located at the remote site here.
https://www.peplink.com
93
Copyright @ 2025 Peplink
11 OpenVPN
OpenVPN is a site to site VPN mode that can encapsulate a wide variety of network layer
protocols inside virtual point-to-point links over an Internet Protocol network.
To configure a OpenVPN, navigate to Advanced > OpenVPN and click the New Profile.

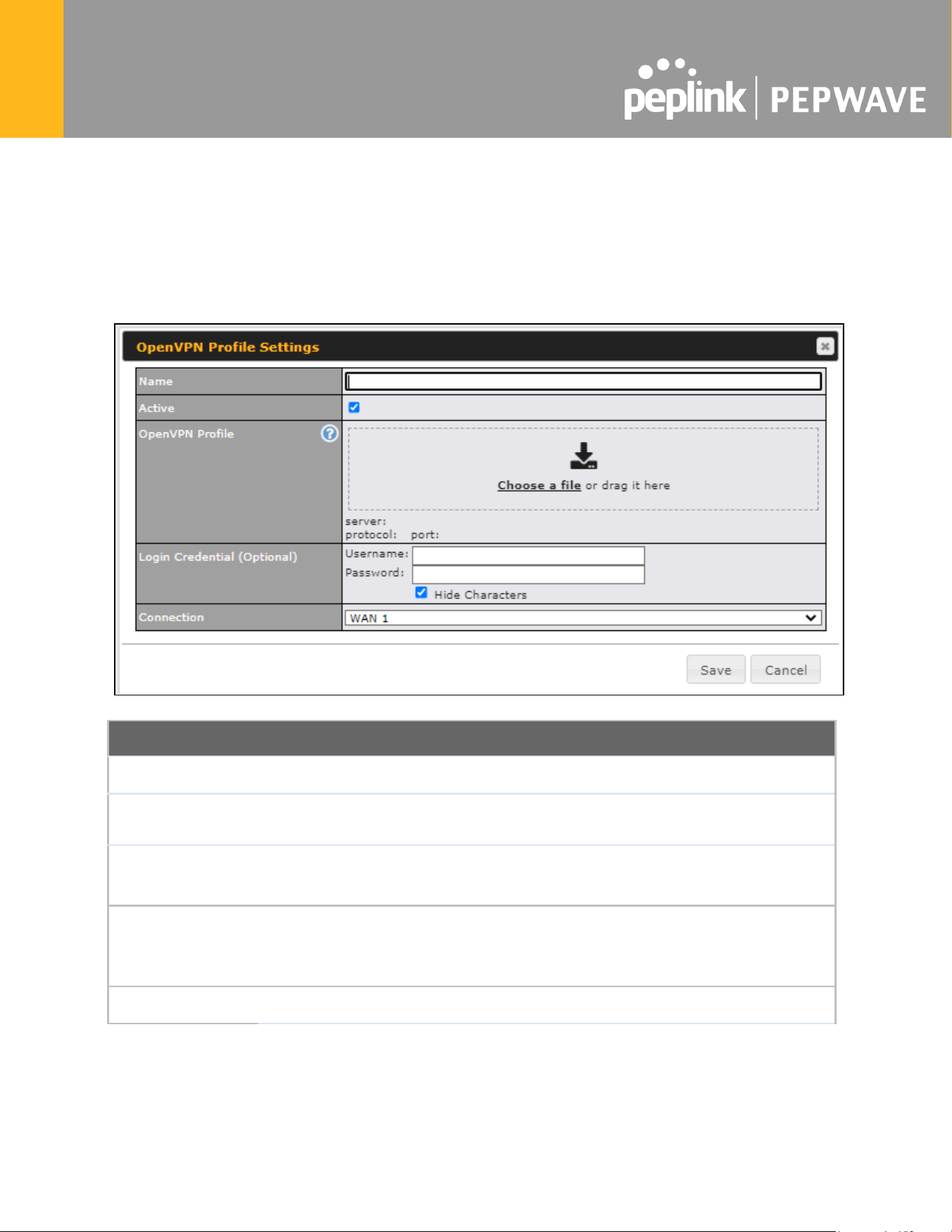

OpenVPN Profile Settings
Name
This field is for specifying a name to represent this OpenVPN profile.
Active
When this box is checked, this OpenVPN connection profile will be enabled.
Otherwise, it will be disabled.
OpenVPN
Profile
Upload the OpenVPN configuration (.ovpn) file from your service provider.
Login
Credential
(Optional)
This option is an optional for you to enter the username and password to login for
the OpenVPN connection if the profile need to login.
Connection
Select the appropriate WAN connection from the drop-down menu.
https://www.peplink.com
94
Copyright @ 2025 Peplink

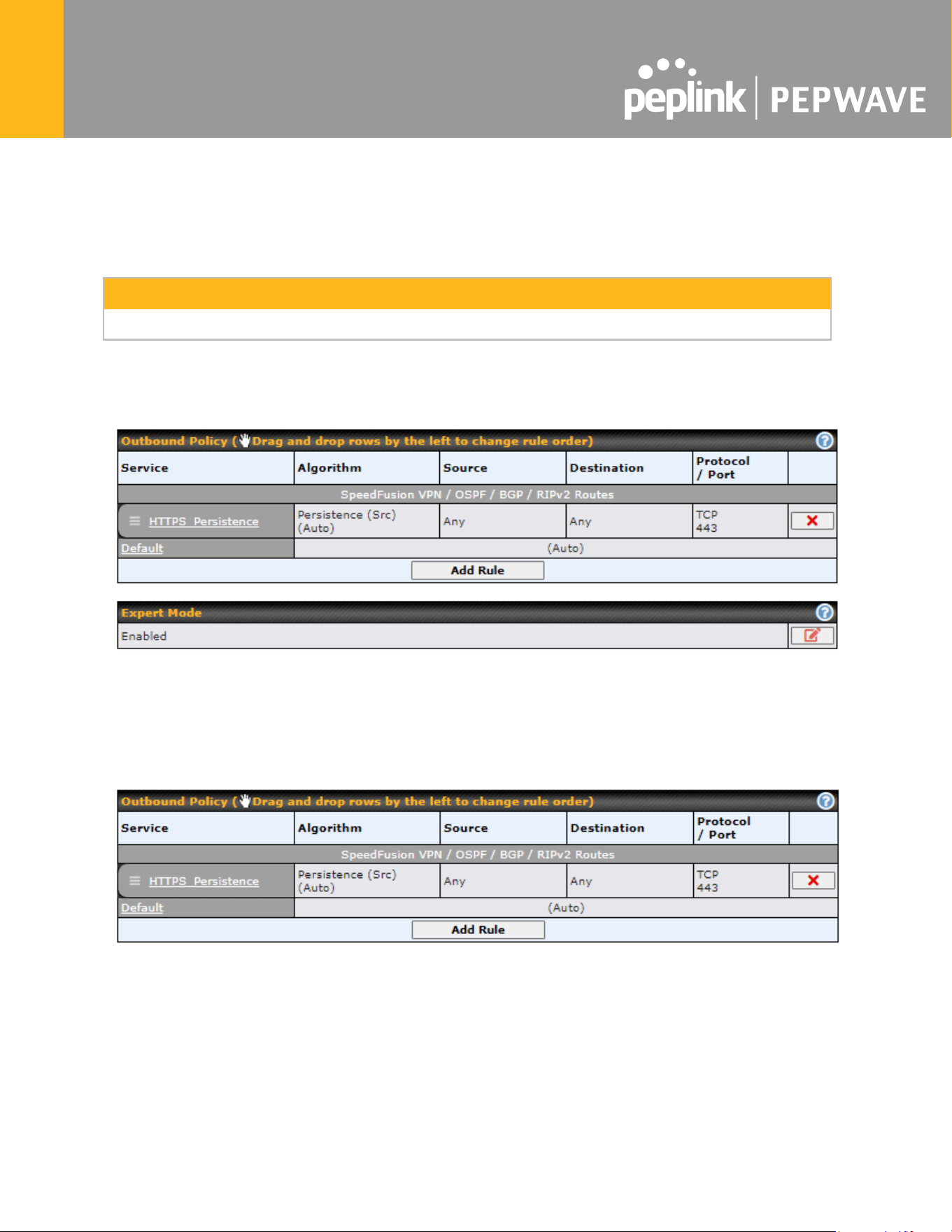

12 Outbound Policy
Pepwave routers can flexibly manage and load balance outbound traffic among WAN
connections.
Important Note
Outbound policy is applied only when more than one WAN connection is active.
The settings for managing and load balancing outbound traffic are located at
Advanced > Outbound Policy.
12.1 Adding Rules for Outbound Policy

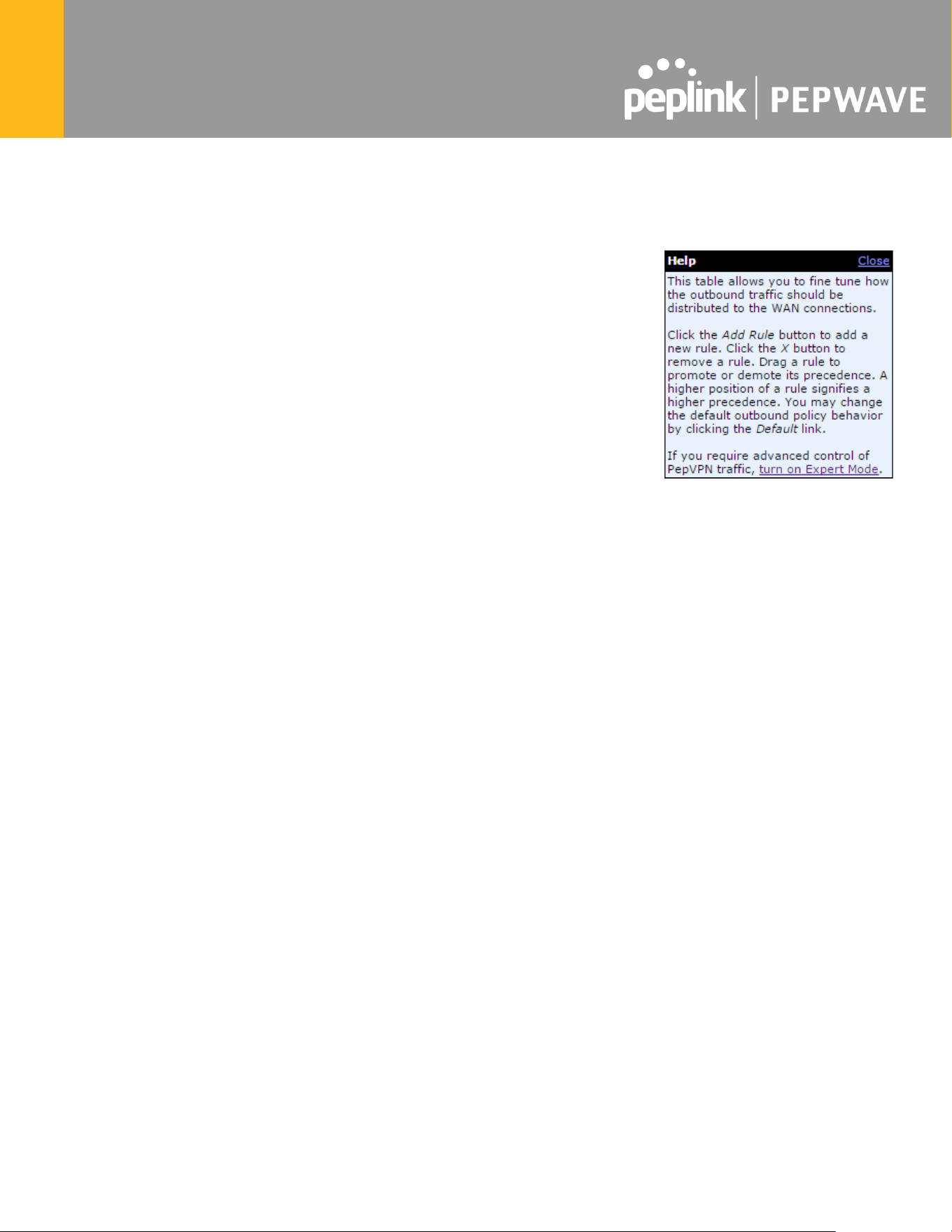

The menu underneath enables you to define Outbound policy rules:
The bottom-most rule is Default. Edit this rule to change the device’s default manner of controlling
outbound traffic for all connections that do not match any of the rules above it. Under the Service
heading, click Default to change these settings.
To rearrange the priority of outbound rules, drag and drop them into the desired sequence.
https://www.peplink.com
95
Copyright @ 2025 Peplink

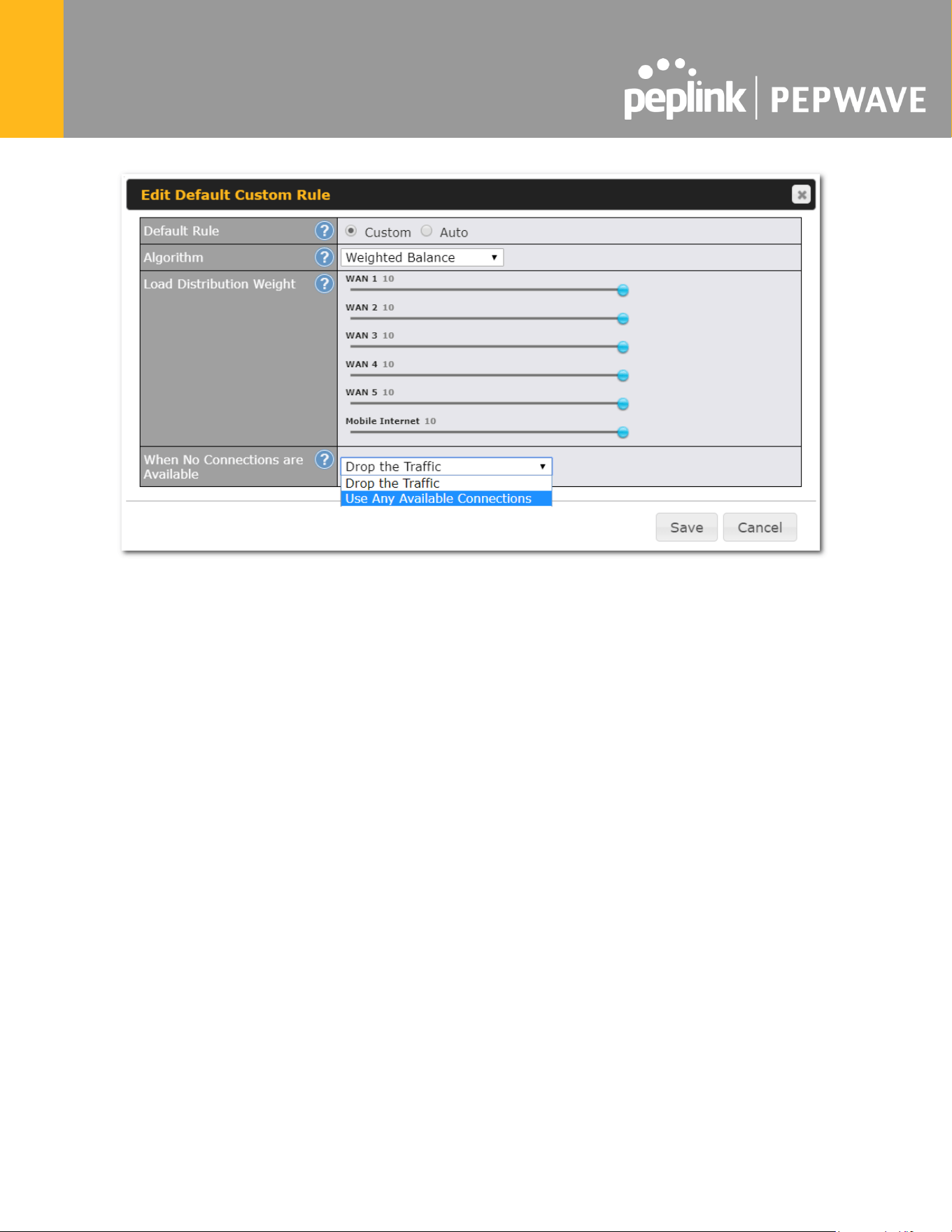

By default, Auto is selected as the Default Rule. You can select Custom to change the algorithm to be
used. Please refer to the upcoming sections for the details on the available algorithms.
To create a custom rule, click Add Rule at the bottom of the table.
https://www.peplink.com
96
Copyright @ 2025 Peplink

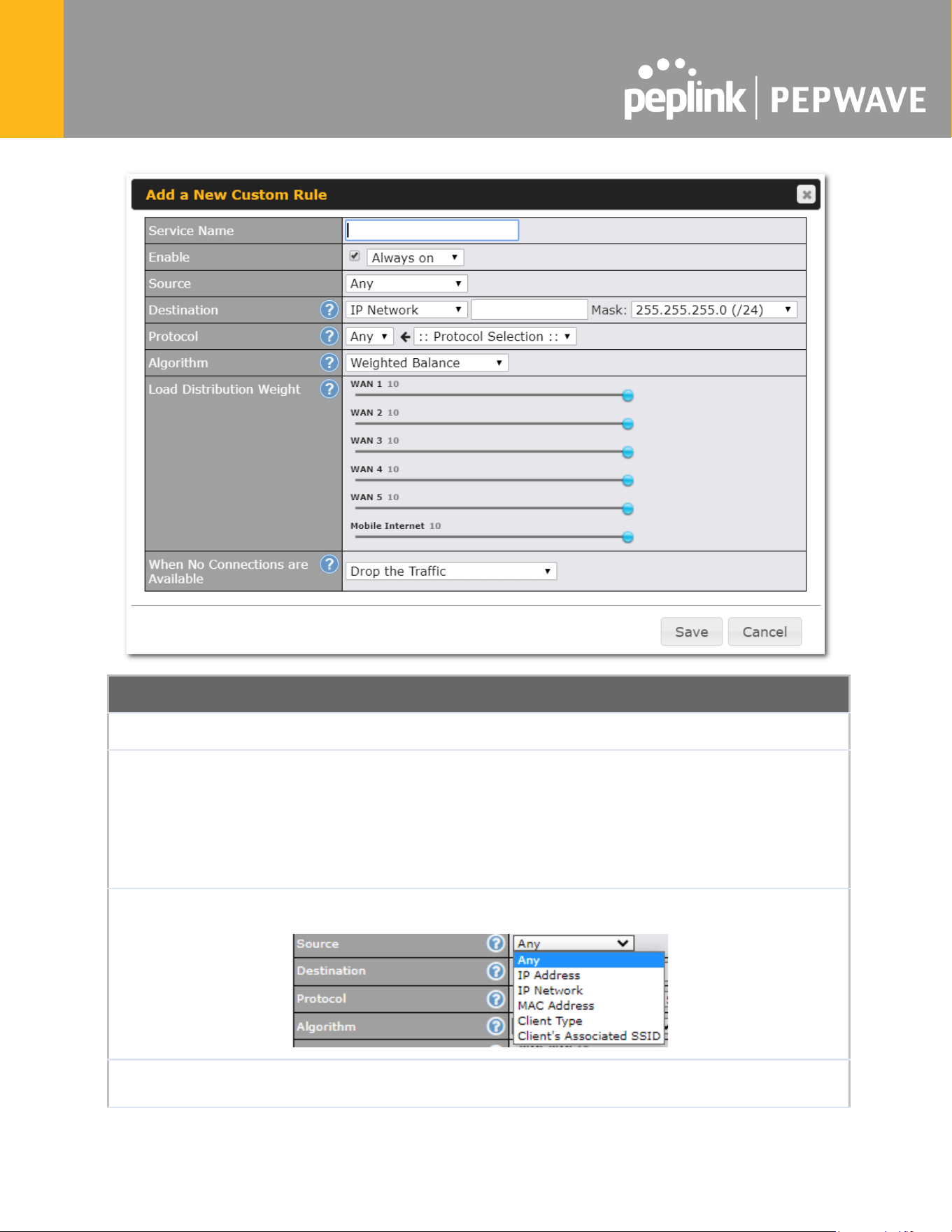

New Custom Rule Settings
Service Name
This setting specifies the name of the outbound traffic rule.
Enable
This setting specifies whether the outbound traffic rule takes effect. When Enable is
checked, the rule takes effect: traffic is matched and actions are taken by the Pepwave
router based on the other parameters of the rule. When Enable is unchecked, the rule does
not take effect: the Pepwave router disregards the other parameters of the rule.
Click the drop-down menu next to the checkbox to apply a time schedule to this custom
rule.
Source
This setting specifies the source IP Address, IP Network, MAC Address or Grouped
Network for traffic that matches the rule.

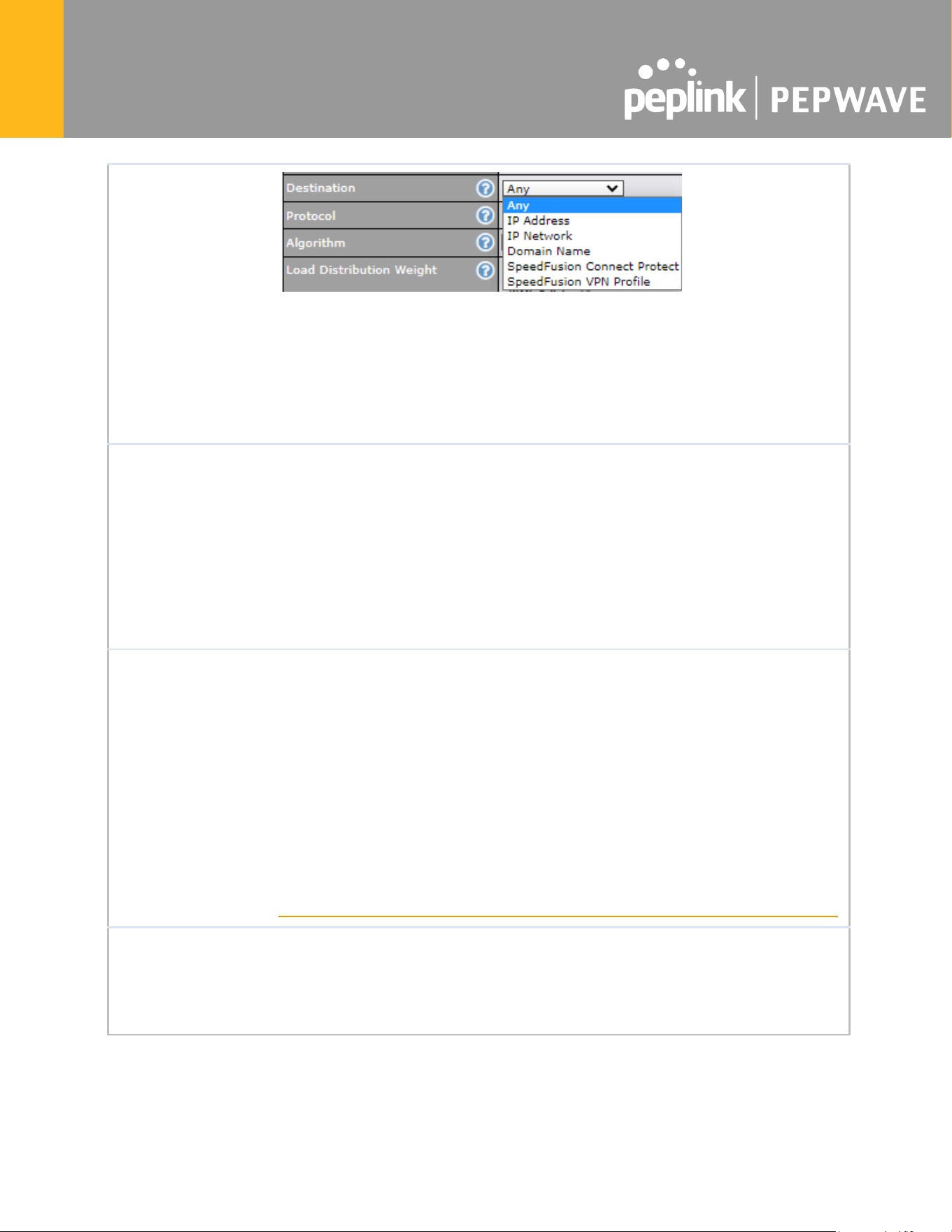

Destination
This setting specifies the destination IP address, IP network, Domain name, SpeedFusion
Cloud, SpeedFusion VPN Profile or Grouped network for traffic that matches the rule.
https://www.peplink.com
97
Copyright @ 2025 Peplink
If Domain Name is chosen and a domain name, such as foobar.com, is entered, any
outgoing accesses to foobar.com and *.foobar.com will match this criterion. You may enter
a wildcard (.*) at the end of a domain name to match any host with a name having the
domain name in the middle. If you enter foobar.*, for example, www.foobar.com,
www.foobar.co.jp, or foobar.co.uk will also match. Placing wildcards in any other position is
not supported.
Note: if a server has one Internet IP address and multiple server names, and if one of the
names is defined here, access to any one of the server names will also match this rule.
Protocol and Port
This setting specifies the IP protocol and port of traffic that matches this rule. Via a
drop-down menu, the following protocols can be specified:
● Any
● TCP
● UDP
● IP
● DSCP
Alternatively, the Protocol Selection Tool drop-down menu can be used to automatically
fill in the protocol and port number of common Internet services (e.g., HTTP, HTTPS, etc.)
After selecting an item from the Protocol Selection Tool drop-down menu, the protocol
and port number remains manually modifiable.
Algorithm
This setting specifies the behavior of the Pepwave router for the custom rule.
One of the following values can be selected (Note that some Pepwave routers provide only
some of these options):
● Weighted Balance
● Persistence
● Enforced
● Priority
● Overflow
● Least Used
● Lowest Latency
● Fastest Response Time
For a full explanation of each Algorithm, please see the following article:
https://forum.peplink.com/t/exactly-how-do-peplinks-load-balancing-algorithmns-work/8059
Load Distribution
Weight
This is to define the outbound traffic weight ratio for each WAN connection.
https://www.peplink.com
98
Copyright @ 2025 Peplink
When No
connections are
available
This field allows you to configure the default action when all the selected Connections are
not available.
Drop the Traffic - Traffic will be discarded.
Use Any Available Connections - Traffic will be routed to any available Connection, even
it is not selected in the list.
Fall-through to Next Rule - Traffic will continue to match the next Outbound Policy rule
just like this rule is inactive.
Terminate
Sessions on
Connection
Recovery
This setting specifies whether to terminate existing IP sessions on a less preferred WAN
connection in the event that a more preferred WAN connection is recovered. This setting is
applicable to the Priority algorithms. By default, this setting is disabled. In this case,
existing IP sessions will not be terminated or affected when any other WAN connection is
recovered. When this setting is enabled, existing IP sessions may be terminated when
another WAN connection is recovered, such that only the preferred healthy WAN
connection(s) is used at any point in time.
12.1.1 Algorithm: Weighted Balance
This setting specifies the ratio of WAN connection usage to be applied on the specified IP
protocol and port. This setting is applicable only when Algorithm is set to Weighted Balance.
The amount of matching traffic that is distributed to a WAN connection is proportional to the
weight of the WAN connection relative to the total weight. Use the sliders to change each WAN’s
weight.

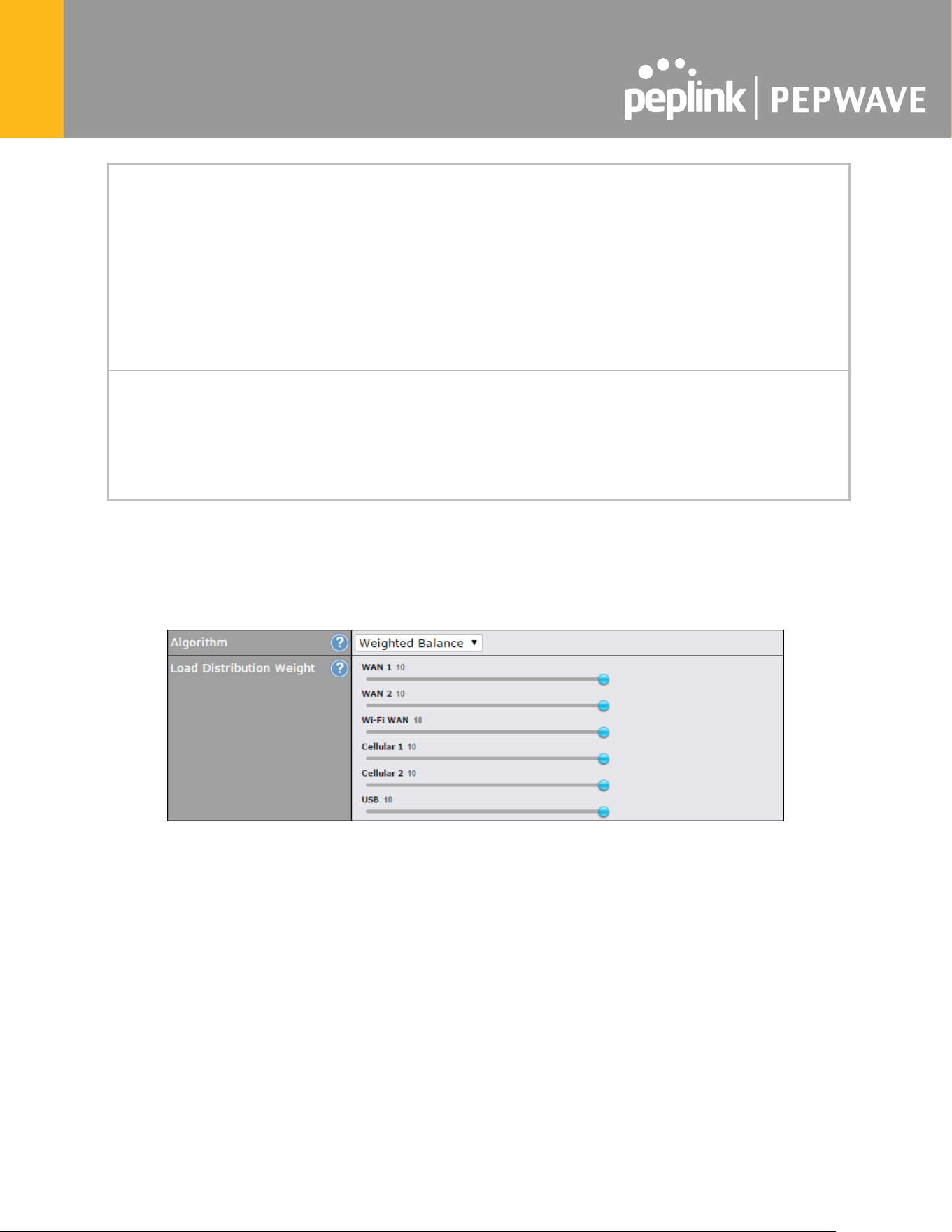

For example, with the following weight settings:
● Ethernet WAN1: 10
● Ethernet WAN2: 10
● Wi-Fi WAN: 10
● Cellular 1: 10
● Cellular 2: 10
https://www.peplink.com
99
Copyright @ 2025 Peplink
● USB: 10
Total weight is 60 = (10 +10 + 10 + 10 + 10 + 10).
Matching traffic distributed to Ethernet WAN1 is 16.7% = (10 / 60 x 100%.
Matching traffic distributed to Ethernet WAN2 is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to Wi-Fi WAN is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to Cellular 1 is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to Cellular 2 is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to USB is 16.7% = (10 / 60) x 100%.
12.1.2 Algorithm: Persistence
The configuration of persistent services is the solution to the few situations where link load
distribution for Internet services is undesirable. For example, for security reasons, many
e-banking and other secure websites terminate the session when the client computer’s Internet
IP address changes mid-session.
In general, different Internet IP addresses represent different computers. The security concern is
that an IP address change during a session may be the result of an unauthorized intrusion
attempt. Therefore, to prevent damages from the potential intrusion, the session is terminated
upon the detection of an IP address change.
Pepwave routers can be configured to distribute data traffic across multiple WAN connections.
Also, the Internet IP depends on the WAN connections over which communication actually takes
place. As a result, a LAN client computer behind the Pepwave router may communicate using
multiple Internet IP addresses. For example, a LAN client computer behind a Pepwave router
with three WAN connections may communicate on the Internet using three different IP
addresses.
With the persistence feature, rules can be configured to enable client computers to persistently
utilize the same WAN connections for e-banking and other secure websites. As a result, a client
computer will communicate using one IP address, eliminating the issues mentioned above.
https://www.peplink.com
100
Copyright @ 2025 Peplink
There are two persistent modes: By Source and By Destination.
By Source:
The same WAN connection will be used for traffic matching the rule and
originating from the same machine, regardless of its destination. This option
will provide the highest level of application compatibility.
By Destination:
The same WAN connection will be used for traffic matching the rule,
originating from the same machine, and going to the same destination. This
option can better distribute loads to WAN connections when there are only a
few client machines.

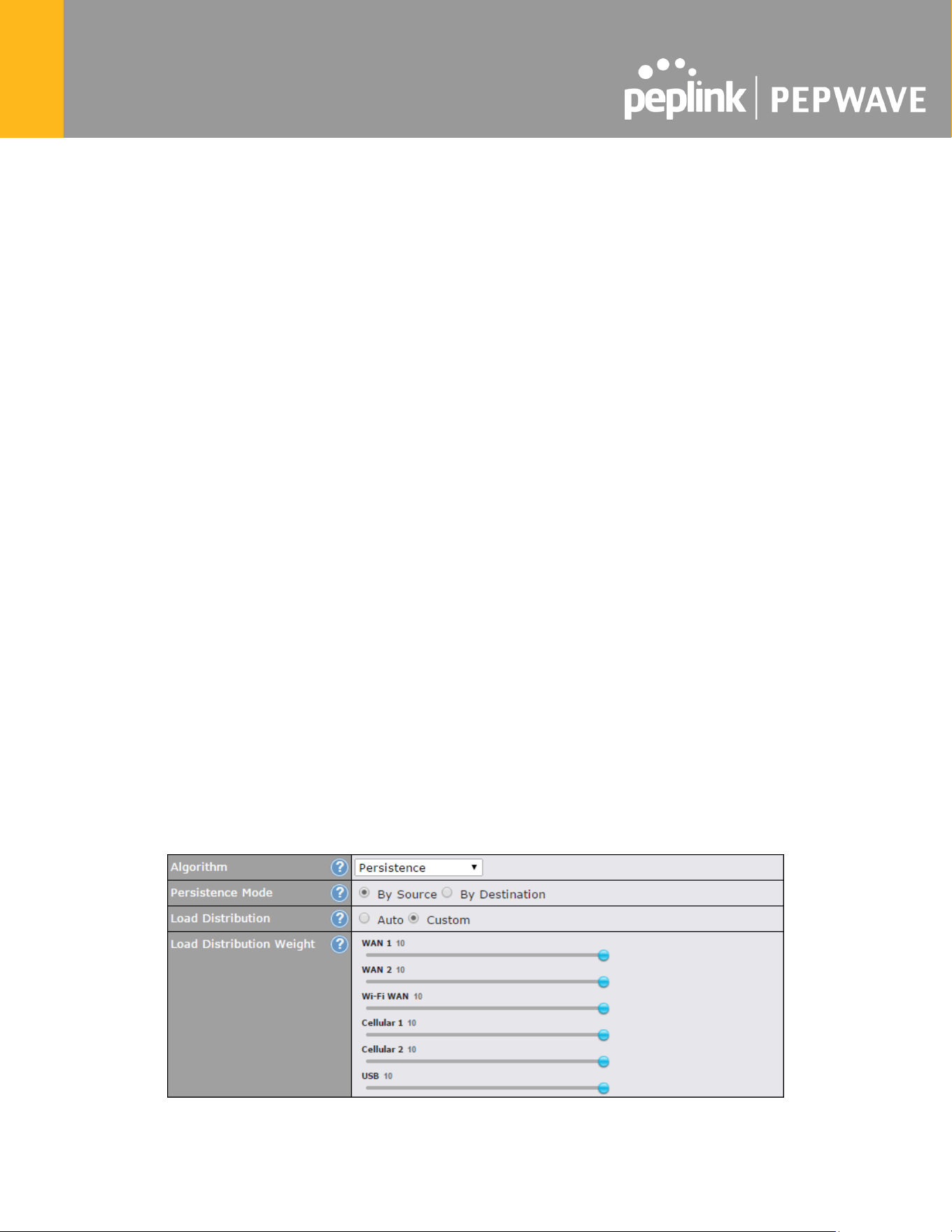

The default mode is By Source. When there are multiple client requests, they can be distributed
(persistently) to WAN connections with a weight. If you choose Auto in Load Distribution, the
weights will be automatically adjusted according to each WAN’s Downstream Bandwidth which
is specified in the WAN settings page). If you choose Custom, you can customize the weight of
each WAN manually by using the sliders.

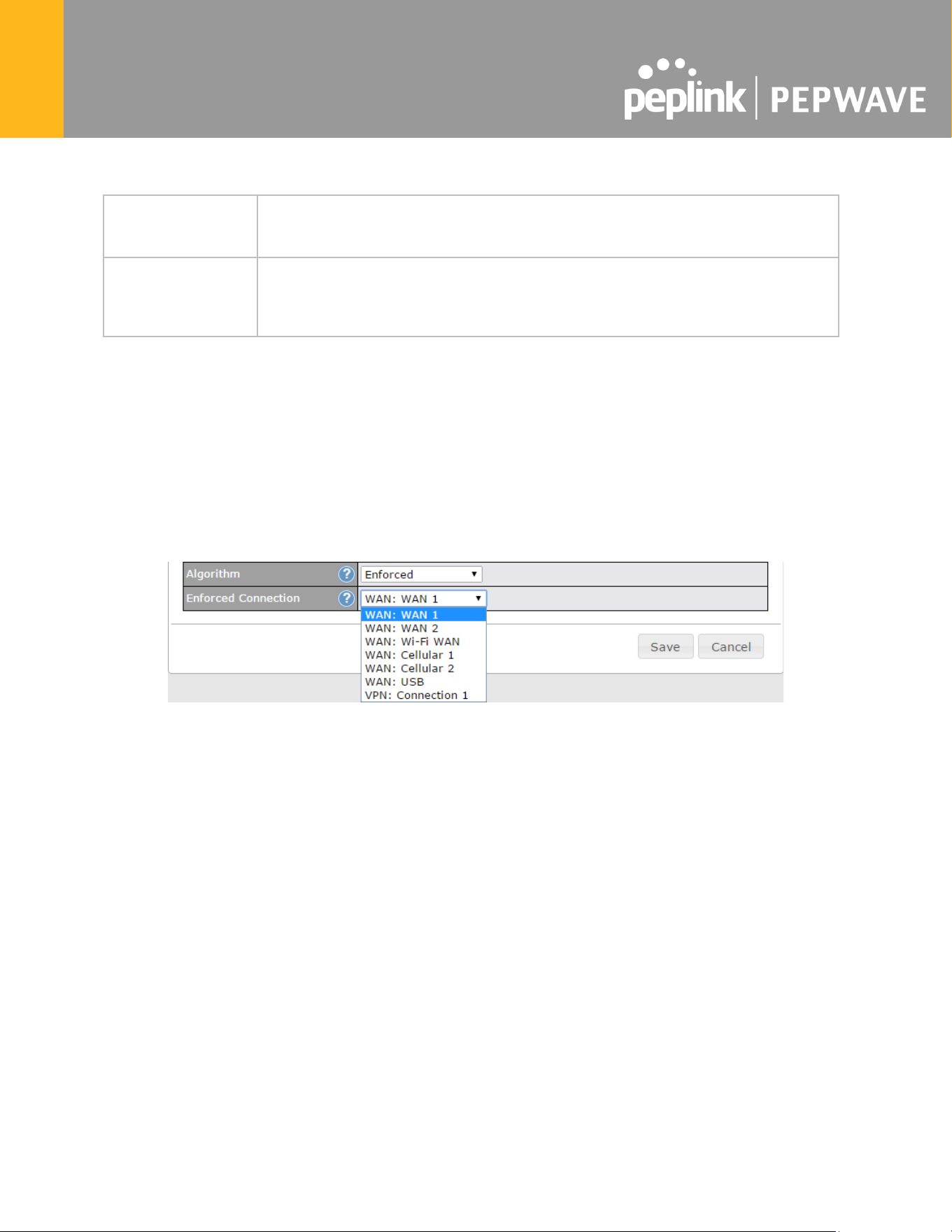

12.1.3 Algorithm: Enforced
This setting specifies the WAN connection usage to be applied on the specified IP protocol and
port. This setting is applicable only when Algorithm is set to Enforced.
Matching traffic will be routed through the specified WAN connection, regardless of the health
check status of the WAN connection. Starting from Firmware 5.2, outbound traffic can be
enforced to go through a specified SpeedFusion
TM
connection.
12.1.4 Algorithm: Priority
This setting specifies the priority of the WAN connections used to route the specified network
service. The highest priority WAN connection available will always be used for routing the
specified type of traffic. A lower priority WAN connection will be used only when all higher
priority connections have become unavailable.
https://www.peplink.com
101
Copyright @ 2025 Peplink

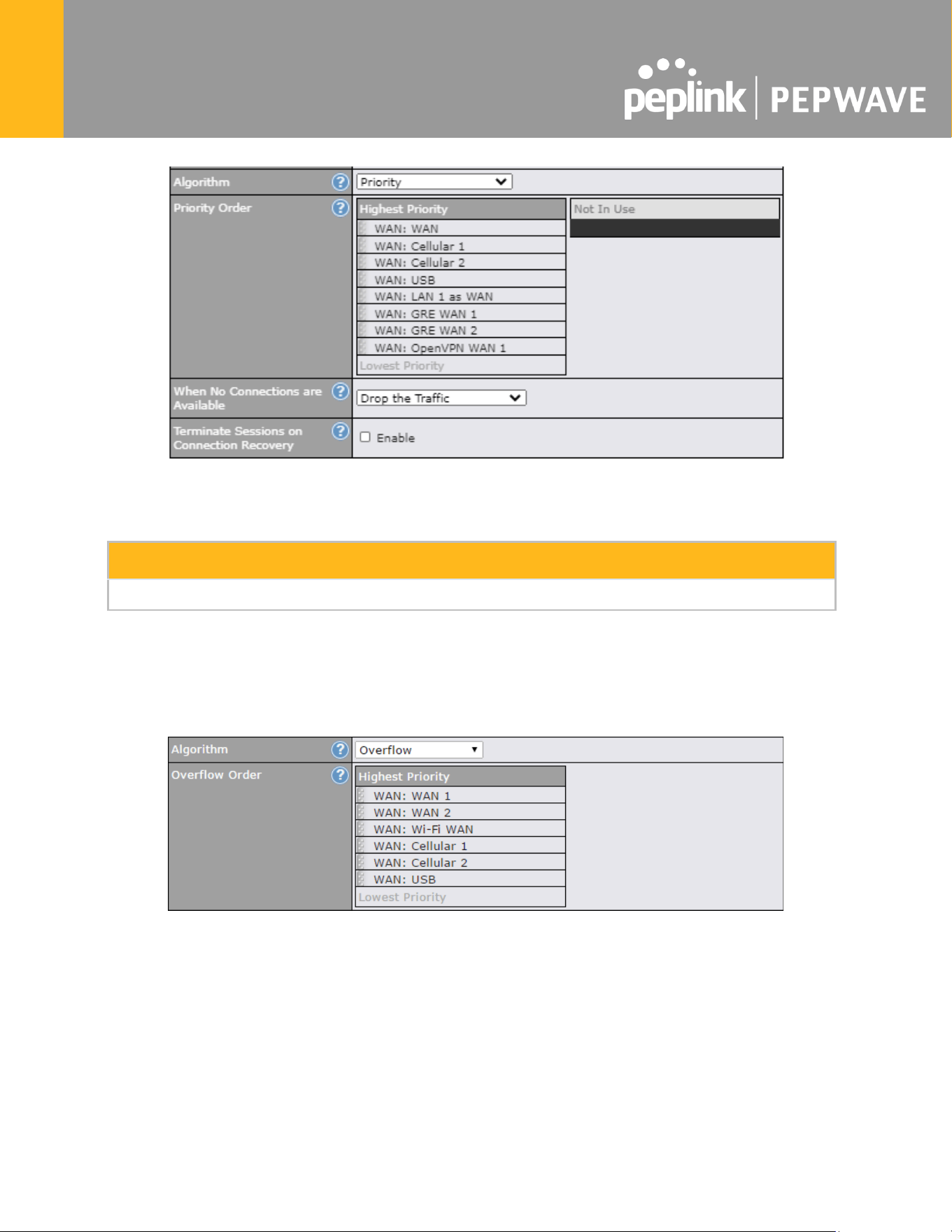

Starting from Firmware 5.2, outbound traffic can be prioritized to go through SpeedFusion
TM
connection(s). By default, VPN connections are not included in the priority list.
Tip
Configure multiple distribution rules to accommodate different kinds of services.
12.1.5 Algorithm: Overflow
The traffic matching this rule will be routed through the healthy WAN connection that has the
highest priority and is not in full load. When this connection gets saturated, new sessions will be
routed to the next healthy WAN connection that is not in full load.
Drag and drop to specify the order of WAN connections to be used for routing traffic. Only the
highest priority healthy connection that is not in full load will be used.
https://www.peplink.com
102
Copyright @ 2025 Peplink

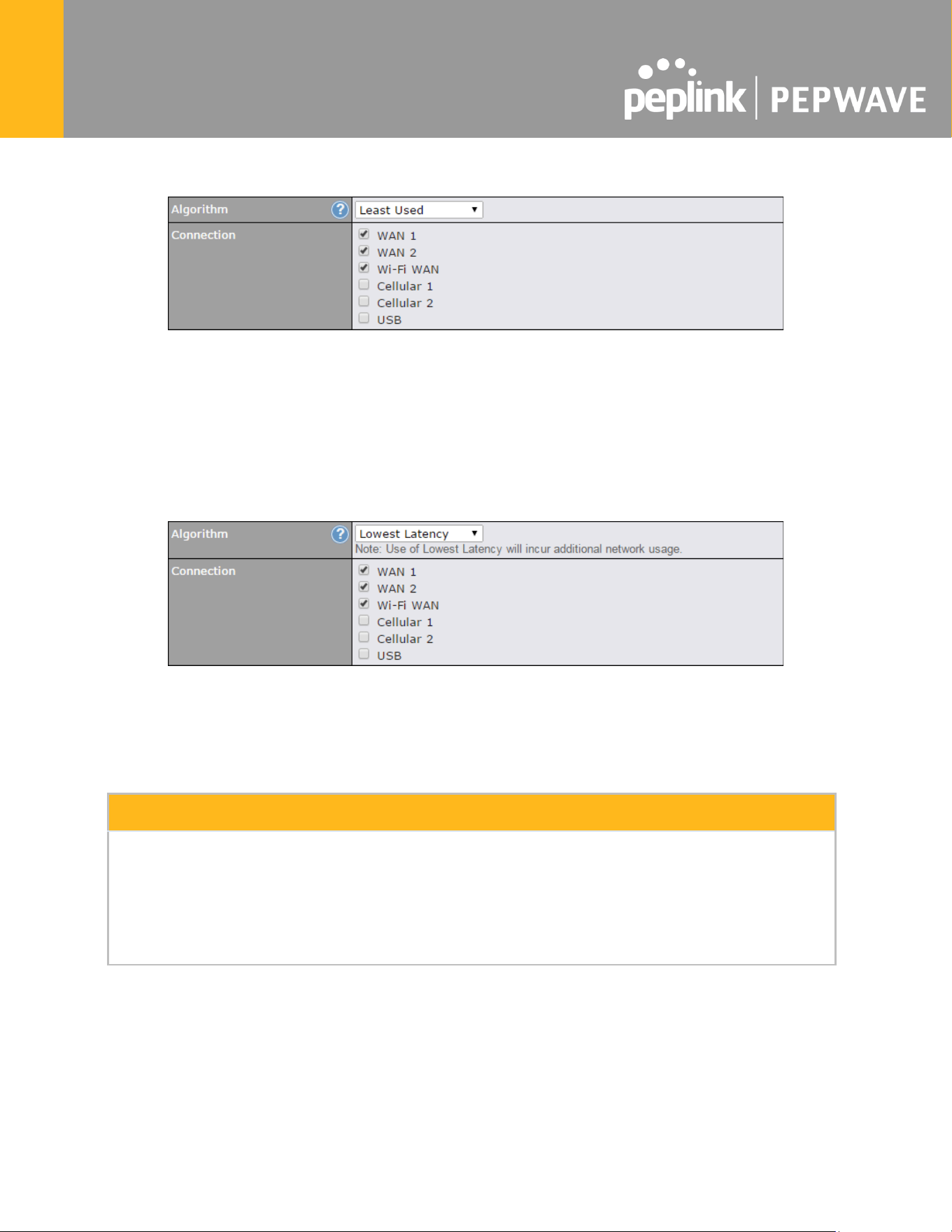

12.1.6 Algorithm: Least Used
The traffic matching this rule will be routed through the healthy WAN connection that is selected
in Connection and has the most available download bandwidth. The available download
bandwidth of a WAN connection is calculated from the total download bandwidth specified on
the WAN settings page and the current download usage. The available bandwidth and WAN
selection is determined every time an IP session is made.
12.1.7 Algorithm: Lowest Latency
The traffic matching this rule will be routed through the healthy WAN connection that is selected
in Connection and has the lowest latency. Latency checking packets are issued periodically to
a nearby router of each WAN connection to determine its latency value. The latency of a WAN is
the packet round trip time of the WAN connection. Additional network usage may be incurred as
a result.
Tip
The roundtrip time of a 6M down/640k uplink can be higher than that of a 2M down/2M up link because
the overall round trip time is lengthened by its slower upload bandwidth, despite its higher downlink
speed. Therefore, this algorithm is good for two scenarios:
● All WAN connections are symmetric; or
● A latency sensitive application must be routed through the lowest latency WAN, regardless of
the WAN’s available bandwidth.
https://www.peplink.com
103
Copyright @ 2025 Peplink
12.1.8 Expert Mode
Expert Mode is available on some Pepwave routers for use by
advanced users. To enable the feature, click on the help icon and click
turn on Expert Mode.
In Expert Mode, a new special rule, SpeedFusion
TM
Routes, is
displayed in the Custom Rules table. This rule represents all
SpeedFusion
TM
routes learned from remote VPN peers. By default, this
bar is on the top of all custom rules. This position means that traffic for
remote VPN subnets will be routed to the corresponding VPN
peer. You can create custom Priority or Enforced rules and move
them
above the bar to override the SpeedFusion
TM
routes.
Upon disabling Expert Mode, all rules above the bar will be removed.
https://www.peplink.com
104
Copyright @ 2025 Peplink
13 Port Forwarding
Pepwave routers can act as a firewall that blocks, by default, all inbound access from the
Internet. By using port forwarding, Internet users can access servers behind the Pepwave
router. Inbound port forwarding rules can be defined at Advanced > Port Forwarding.

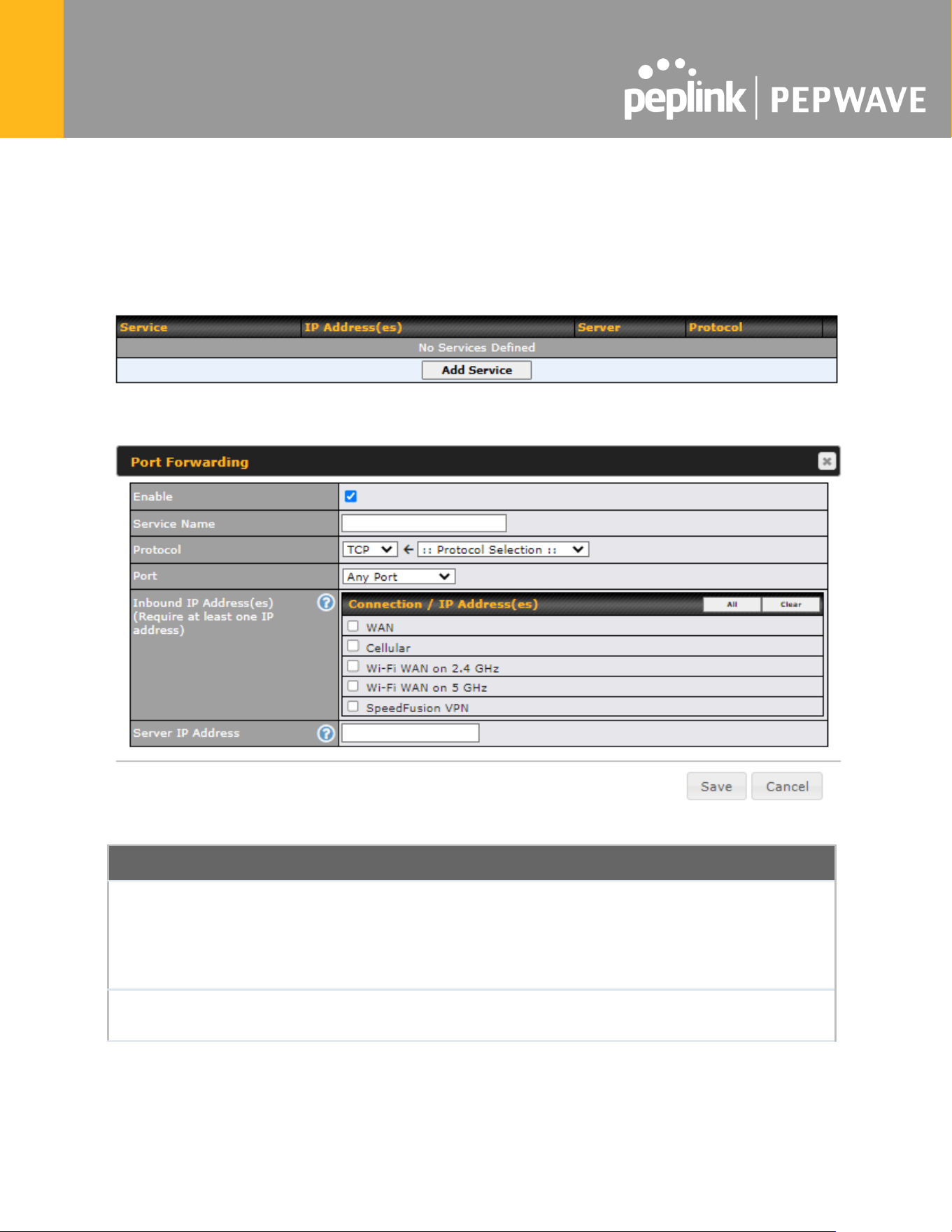

To define a new service, click Add Service.
Port Forwarding Settings
Enable
This setting specifies whether the inbound service takes effect. When Enable is
checked, the inbound service takes effect: traffic is matched and actions are taken by
the Pepwave router based on the other parameters of the rule. When this setting is
disabled, the inbound service does not take effect: the Pepwave router disregards the
other parameters of the rule.
Service Name
This setting identifies the service to the system administrator. Valid values for this
setting consist of only alphanumeric and underscore “_” characters.
https://www.peplink.com
105
Copyright @ 2025 Peplink
Protocol
The IP Protocol setting, along with the Port setting, specifies the protocol of the
service as TCP, UDP, ICMP, or IP. Traffic that is received by the Pepwave router via
the specified protocol at the specified port(s) is forwarded to the LAN hosts specified
by the Servers setting. Please see below for details on the Port and Servers
settings. Alternatively, the Protocol Selection Tool drop-down menu can be used to
automatically fill in the protocol and a single port number of common Internet services
(e.g. HTTP, HTTPS, etc.). After selecting an item from the Protocol Selection Tool
drop-down menu, the protocol and port number remain manually modifiable.

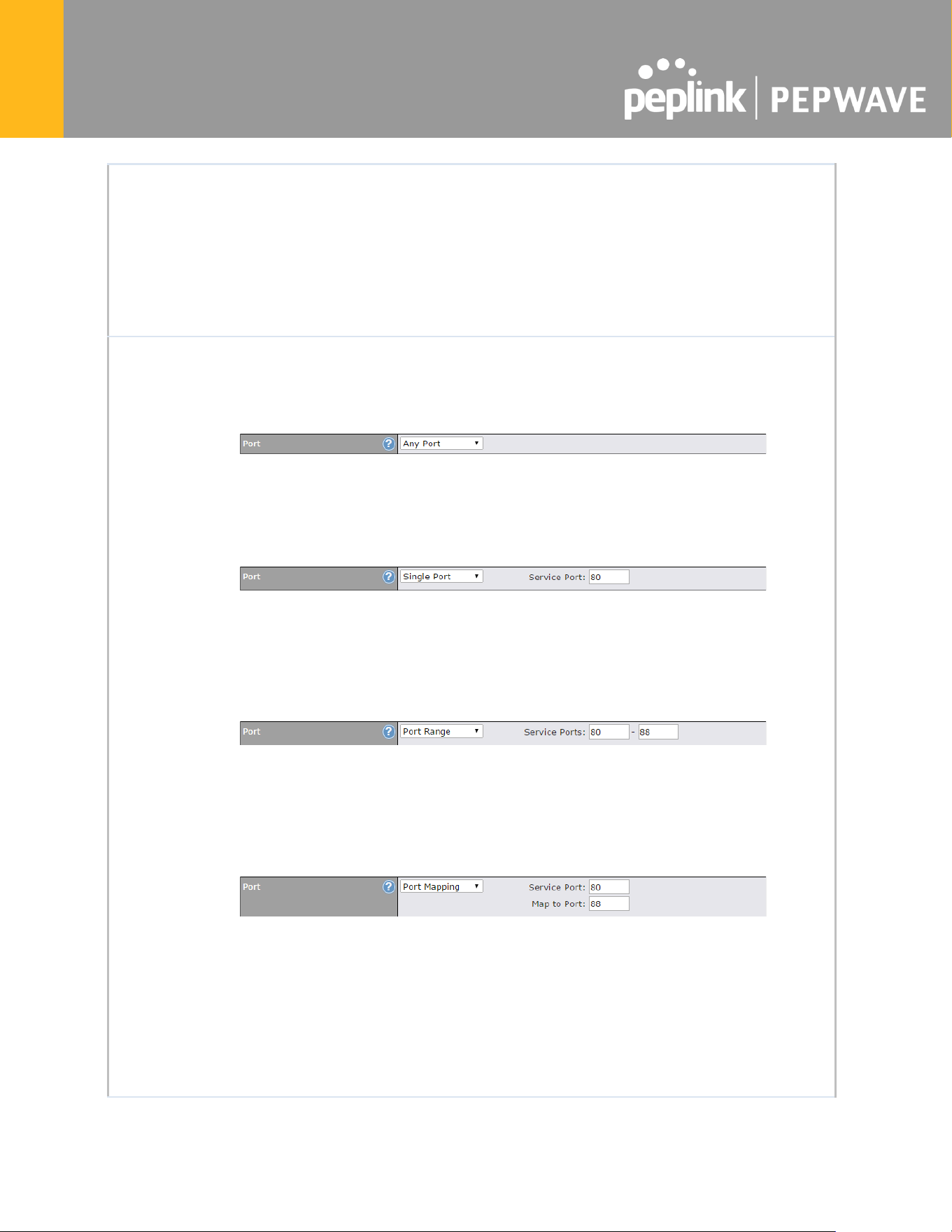

Port
The Port setting specifies the port(s) that correspond to the service, and can be
configured to behave in one of the following manners:
Any Port, Single Port, Port Range, Port Map, and Range Mapping
Any Port: all traffic that is received by the Pepwave router via the specified protocol is
forwarded to the servers specified by the Servers setting. For example, with IP
Protocol set to TCP, and Port set to Any Port, all TCP traffic is forwarded to the
configured servers.
Single Port: traffic that is received by the Pepwave router via the specified protocol at
the specified port is forwarded via the same port to the servers specified by the
Servers setting. For example, with IP Protocol set to TCP, and Port set to Single
Port and Service Port 80, TCP traffic received on port 80 is forwarded to the
configured servers via port 80.
Port Range: traffic that is received by the Pepwave router via the specified protocol at
the specified port range is forwarded via the same respective ports to the LAN hosts
specified by the Servers setting. For example, with IP Protocol set to TCP, and Port
set to Port Range and Service Ports 80-88, TCP traffic received on ports 80 through
88 is forwarded to the configured servers via the respective ports.
Port Mapping: traffic that is received by Pepwave router via the specified protocol at
the specified port is forwarded via a different port to the servers specified by the
Servers setting.
For example, with IP Protocol set to TCP, and Port set to Port Mapping, Service
Port 80, and Map to Port 88, TCP traffic on port 80 is forwarded to the configured
servers via port 88.
(Please see below for details on the Servers setting.)
https://www.peplink.com
106
Copyright @ 2025 Peplink

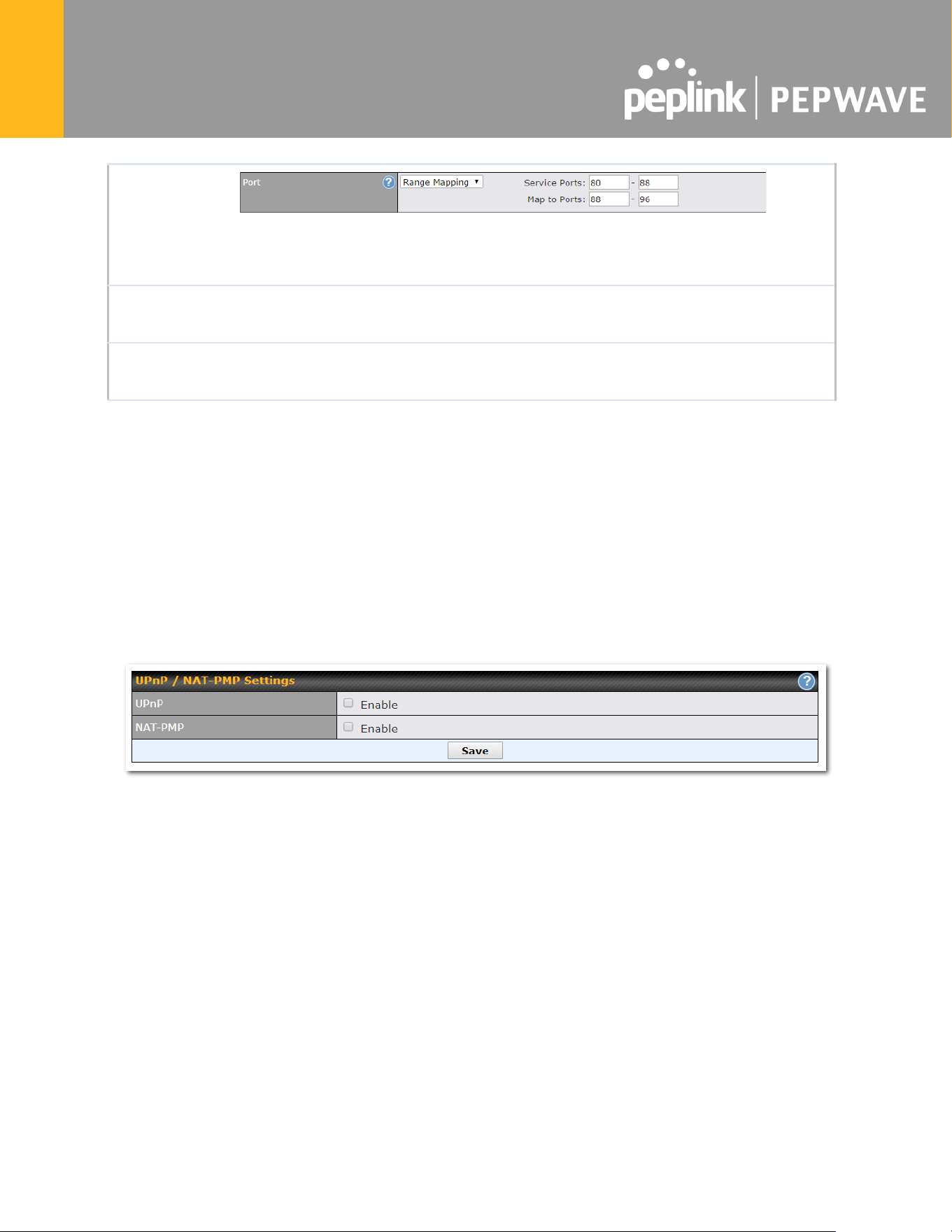

Range Mapping: traffic that is received by the Pepwave router via the specified
protocol at the specified port range is forwarded via a different port to the servers
specified by the Servers setting.
Inbound IP
Address(es)
This setting specifies the WAN connections and Internet IP address(es) from which
the service can be accessed.
Server IP
Address
This setting specifies the LAN IP address of the server that handles the requests for
the service.
13.1 UPnP / NAT-PMP Settings
UPnP and NAT-PMP are network protocols which allow a computer connected to the LAN port
to automatically configure the router to allow parties on the WAN port to connect to itself. That
way, the process of inbound port forwarding becomes automated.
When a computer creates a rule using these protocols, the specified TCP/UDP port of all WAN
connections' default IP address will be forwarded.
Check the corresponding box(es) to enable UPnP and/or NAT-PMP. Enable these features only
if you trust the computers connected to the LAN ports.
When the options are enabled, a table listing all the forwarded ports under these two protocols
can be found at Status > UPnP / NAT-PMP.
https://www.peplink.com
107
Copyright @ 2025 Peplink
14 NAT Mappings
NAT mappings allow IP address mapping of all inbound and outbound NAT’d traffic to and from
an internal client IP address. Settings to configure NAT mappings are located at Advanced >
NAT Mappings.

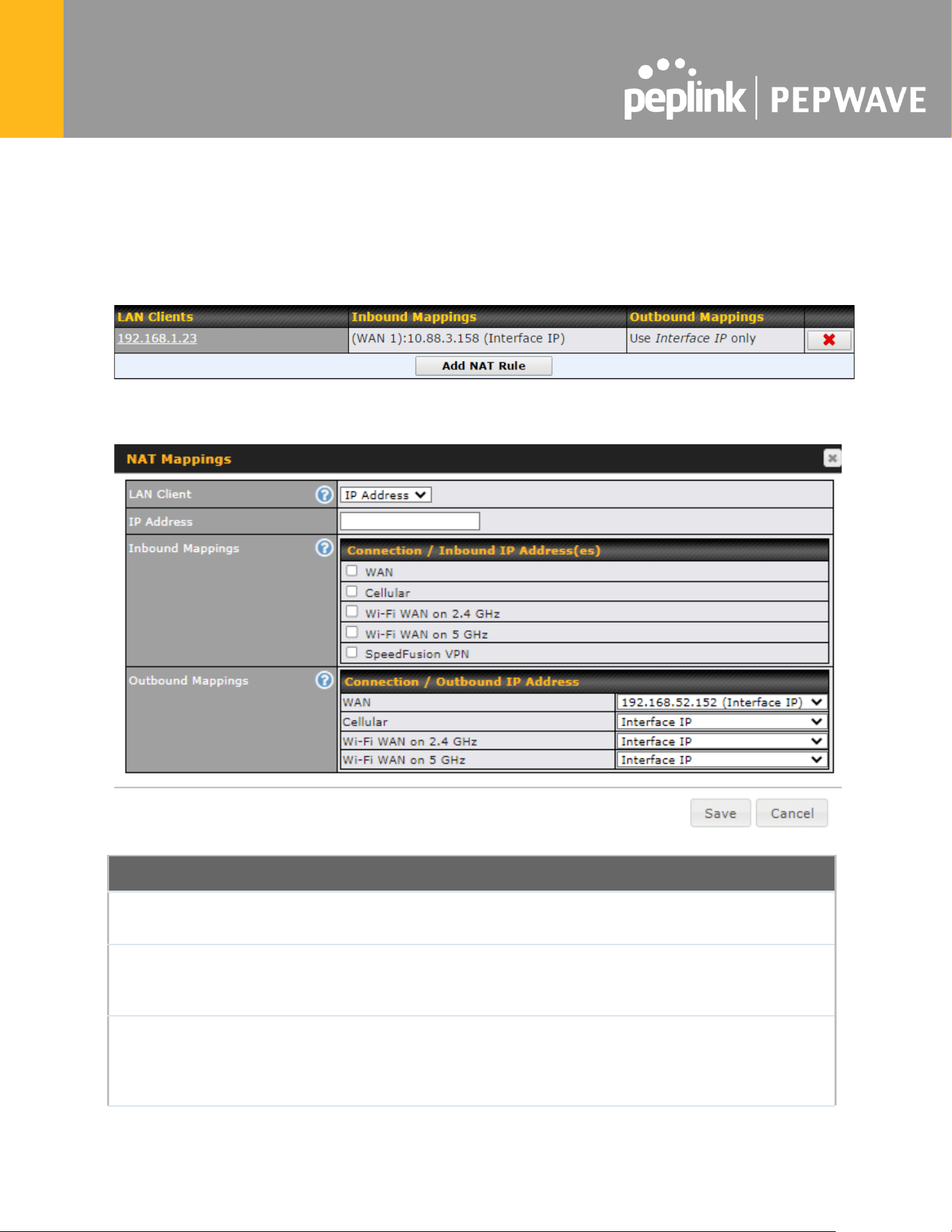

To add a rule for NAT mappings, click Add NAT Rule.
NAT Mapping Settings
LAN Client
NAT mapping rules can be defined for a single LAN IP Address, an IP Range, or an
IP Network.
IP Address
This refers to the LAN host’s private IP address. The system maps this address to a
number of public IP addresses (specified below) in order to facilitate inbound and
outbound traffic. This option is only available when IP Address is selected.
IP Range
The IP range is a contiguous group of private IP addresses used by the LAN host.
The system maps these addresses to a number of public IP addresses (specified
below) to facilitate outbound traffic. This option is only available when IP Range is
selected.
https://www.peplink.com
108
Copyright @ 2025 Peplink
IP Network
The IP network refers to all private IP addresses and ranges managed by the LAN
host. The system maps these addresses to a number of public IP addresses
(specified below) to facilitate outbound traffic. This option is only available when IP
Network is selected.
Inbound
Mappings
This setting specifies the WAN connections and corresponding WAN-specific
Internet IP addresses on which the system should bind. Any access to the specified
WAN connection(s) and IP address(es) will be forwarded to the LAN host. This
option is only available when IP Address is selected in the LAN Client(s) field.
Note that: inbound mapping is not needed for WAN connections in drop-in mode or
IP forwarding mode. Also note that each WAN IP address can be associated to one
NAT mapping only.
Outbound
Mappings
This setting specifies the WAN IP addresses that should be used when an IP
connection is made from a LAN host to the Internet. Each LAN host in an IP range
or IP network will be evenly mapped to one of each selected WAN's IP addresses
(for better IP address utilization) in a persistent manner (for better application
compatibility).
Note that: if you do not want to use a specific WAN for outgoing accesses, you
should still choose default here, then customize the outbound access rule in the
Outbound Policy section. Also note that WAN connections in drop-in mode or IP
forwarding mode are not shown here.
Click Save to save the settings when configuration has been completed.
Important Note
Inbound firewall rules override the Inbound Mappings settings.
https://www.peplink.com
109
Copyright @ 2025 Peplink
15 Media Fast
MediaFast settings can be configured from the Advanced menu.
15.1 Setting Up MediaFast Content Caching

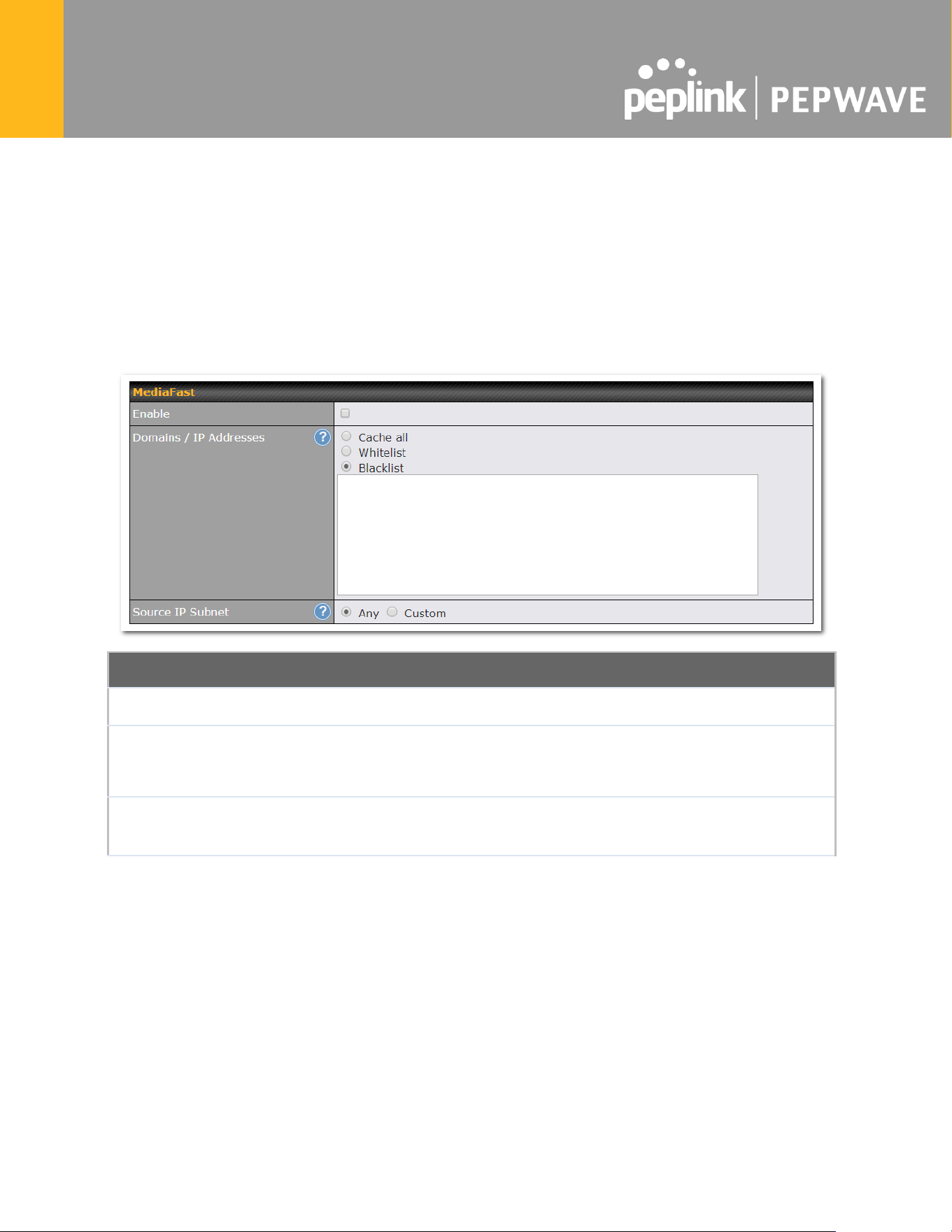

To access MediaFast content caching settings, select Advanced > Cache Control
MediaFast
Enable
Click the checkbox to enable MediaFast content caching.
Domains / IP
Addresses
Choose to Cache on all domains, or enter domain names and then choose
either Whitelist (cache the specified domains only) or Blacklist (do not cache
the specified domains).
Source IP
Subnet
This setting allows caching to be enabled on custom subnets only.
If "Any" is selected, then caching will apply to all subnets.
https://www.peplink.com
110
Copyright @ 2025 Peplink

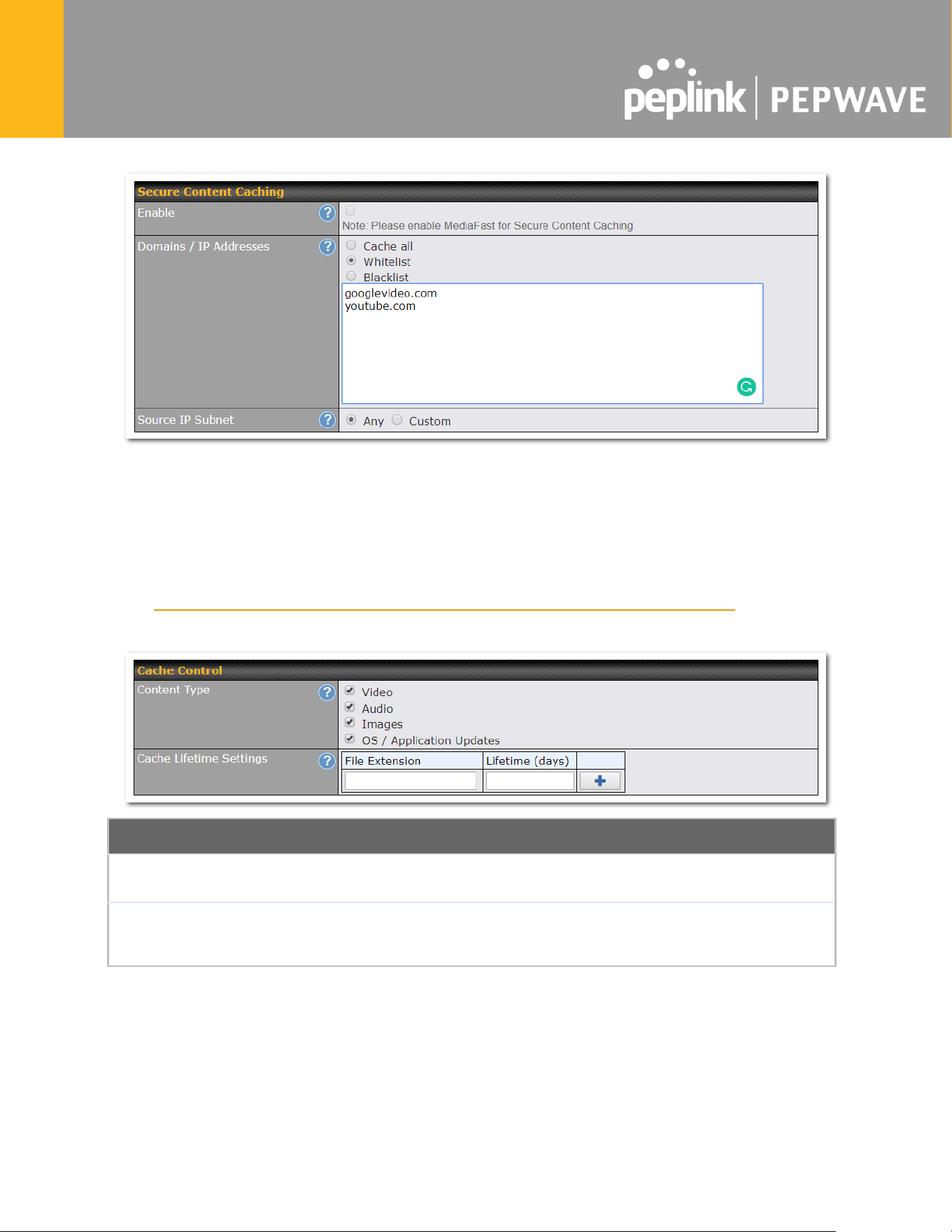

The Secure Content Caching menu operates identically to the MediaFast menu, except it is
for secure content cachting accessible through https://.
In order for Mediafast devices to cache and deliver HTTPS content, every client needs to have
the necessary certificates installed*.
*See https://forum.peplink.com/t/certificate-installation-for-mediafast-https-caching/
Cache Control
Content Type
Check these boxes to cache the listed content types or leave boxes unchecked to disable
caching for the listed types.
Cache Lifetime
Settings
Enter a file extension, such as JPG or DOC. Then enter a lifetime in days to specify how
long files with that extension will be cached. Add or delete entries using the controls on the
right.
https://www.peplink.com
111
Copyright @ 2025 Peplink
15.3 Prefetch Schedule
Content prefetching allows you to download content on a schedule that you define, which can
help to preserve network bandwidth during busy times and keep costs down. To access
MediaFast content prefetching settings, select Advanced > Prefetch Schedule.

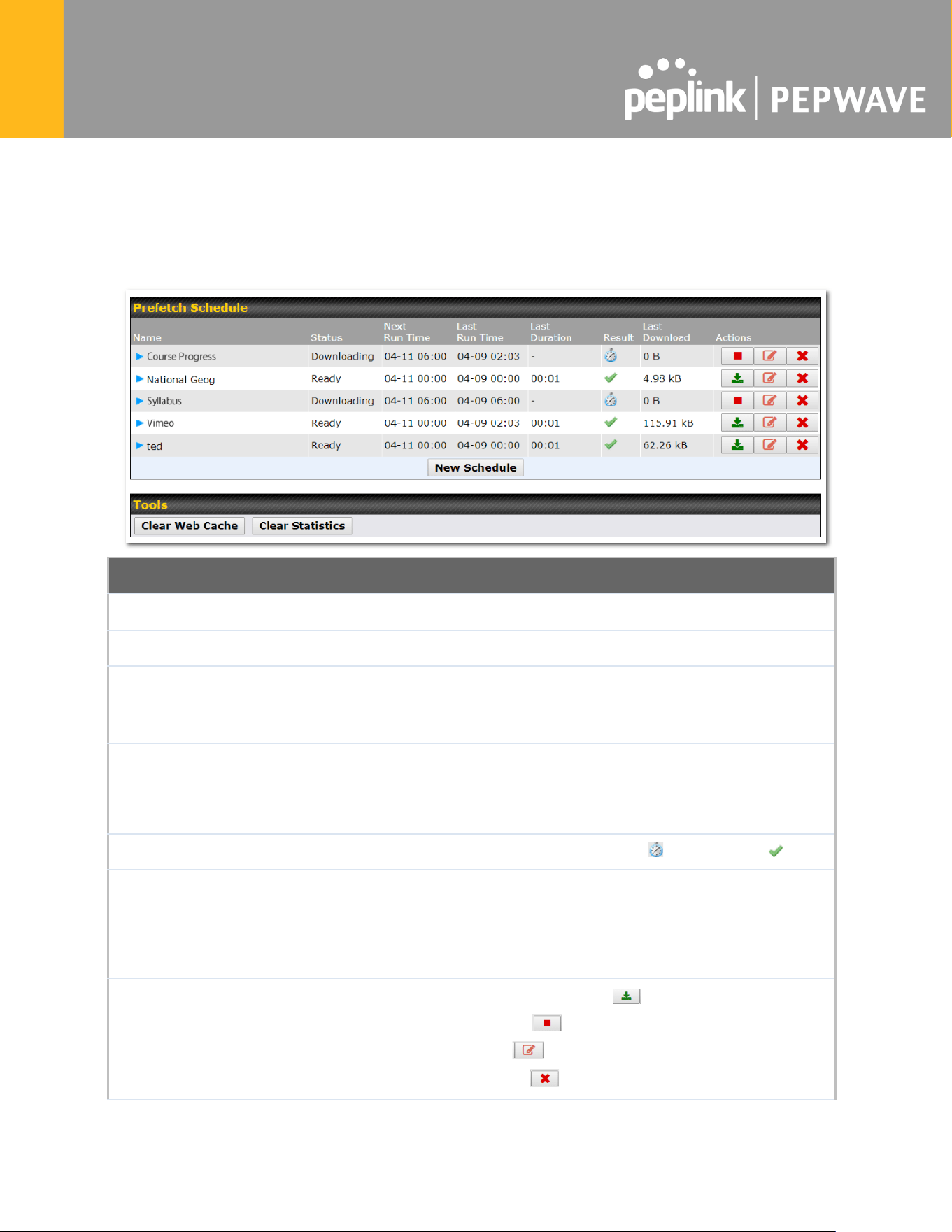

Prefetch Schedule Settings
Name
This field displays the name given to the scheduled download.
Status
Check the status of your scheduled download here.
Next Run
Time/Last Run
Time
These fields display the date and time of the next and most recent occurrences of
the scheduled download.
Last Duration
Check this field to ensure that the most recent download took as long as expected
to complete. A value that is too low might indicate an incomplete download or
incorrectly specified download target, while a value that is too long could mean a
download with an incorrectly specified target or stop time.
Result
This field indicates whether downloads are in progress ( ) or complete ( ).
Last Download
Check this field to ensure that the most recent download file size is within the
expected range. A value that is too low might indicate an incomplete download or
incorrectly specified download target, while a value that is too long could mean a
download with an incorrectly specified target or stop time. This field is also useful
for quickly seeing which downloads are consuming the most storage space.
Actions
To begin a scheduled download immediately, click .
To cancel a scheduled download, click .
To edit a scheduled download, click .
To delete a scheduled download, click .
https://www.peplink.com
113
Copyright @ 2025 Peplink
New Schedule
Click to begin creating a new scheduled download. Clicking the button will cause
the following screen to appear:

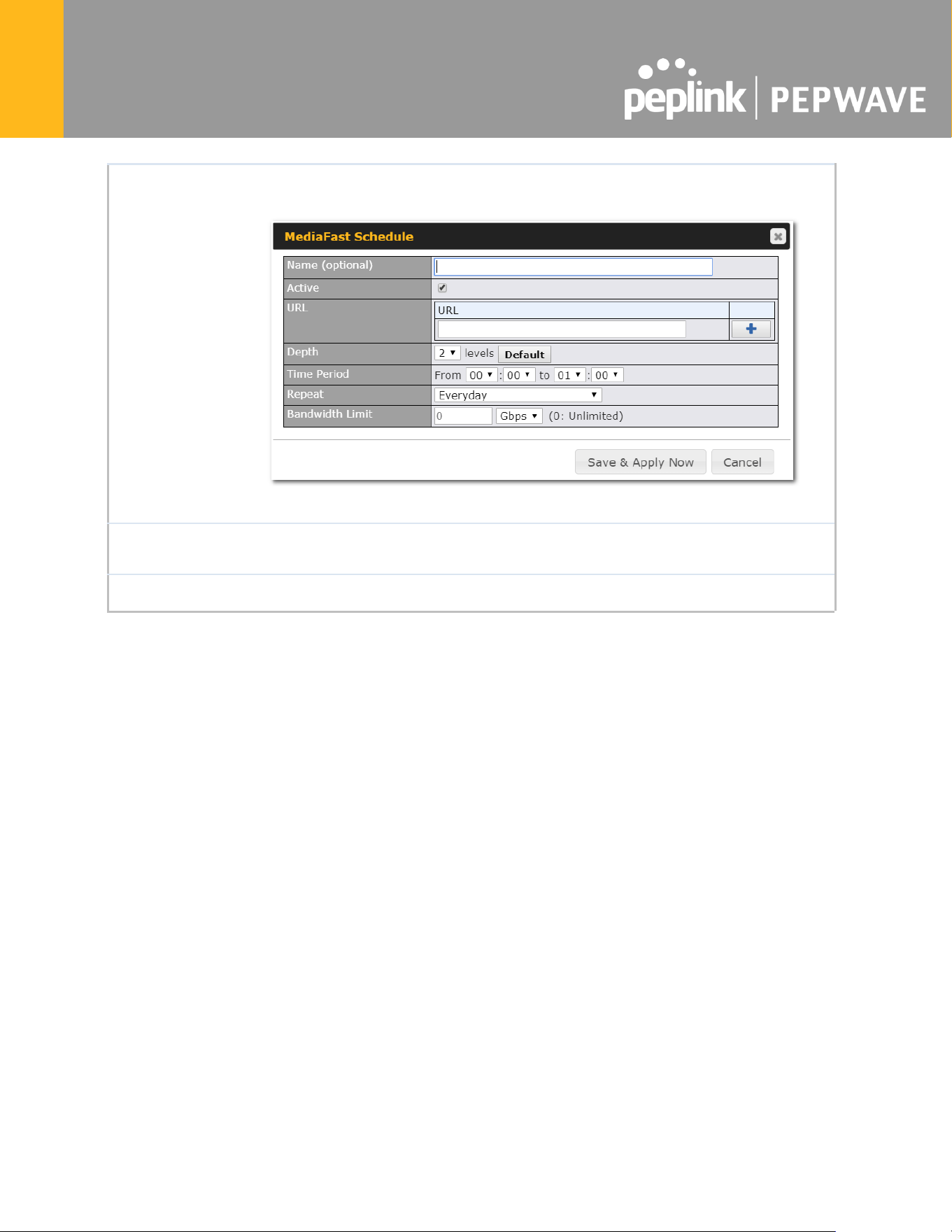

Simply provide the requested information to create your schedule.
Clear Web Cache
To clear all cached content, click this button. Note that this action cannot be
undone.
Clear Statistics
To clear all prefetch and status page statistics, click this button.
https://www.peplink.com
114
Copyright @ 2025 Peplink
16 Edge Computing
ContentHub allows you to deliver webpages and applications to users connected to the SSID
using the local storage on your router, like the Max HD2/HD4 with Mediafast, which can store up
to 8GB of media. Users will be able to access news, articles, videos, and access your web app
without the need for internet access.
The ContentHub can be used to provide infotainment to connected users on transport.
16.1 Configuring the ContentHub
ContentHub storage needs to be configured before content can be uploaded to the ContentHub.

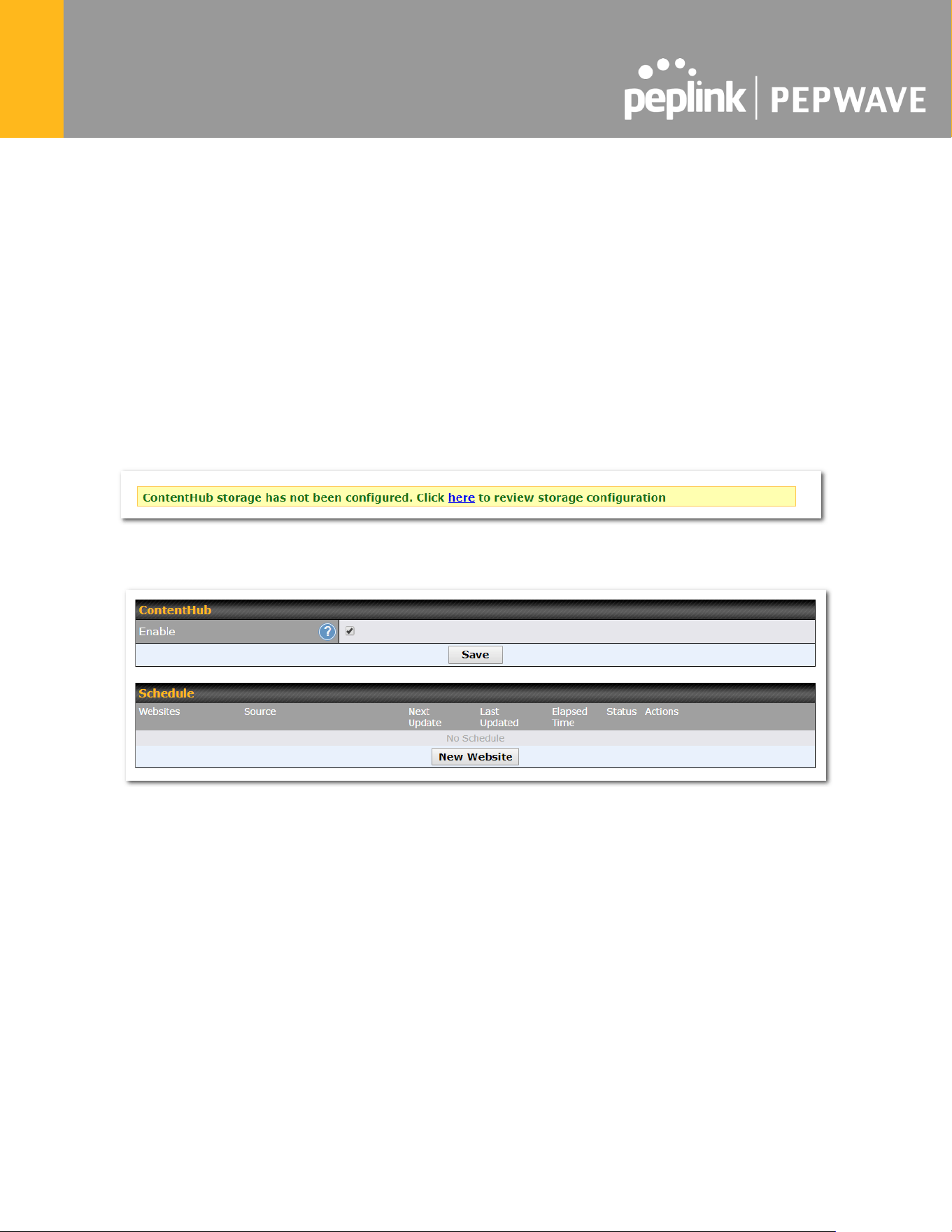

Click on the link on the information panel to configure storage.
To access ContentHub, navigate to Advanced > ContentHub and check the Enable box.
On an external server, configure content (a website or application) that will be synced to the
ContentHub. For example, an html5 website.
To configure a website or application as content, follow the steps below.
16.2 Configure a website for ContentHub
This option allows you to sync a website to the Pepwave router. This website will then be
published with the specified domain from the router itself and makes the content available to
the client via the HTTP/HTTPS protocol.
Only FTP sync is supported for this type of ContentHub content.
The content should be uploaded to an FTP server before you sync it with ContentHub.
https://www.peplink.com
115
Copyright @ 2025 Peplink

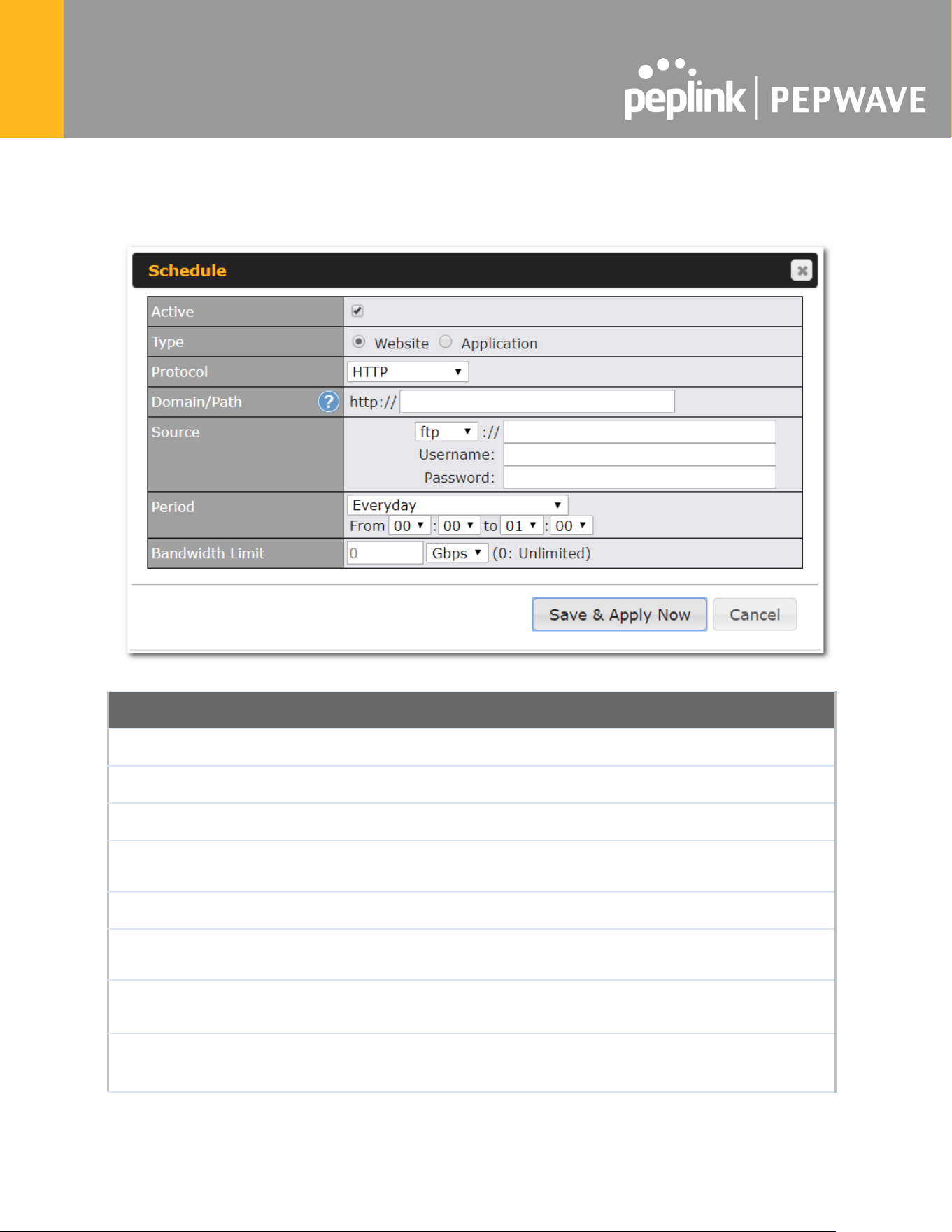

Click New Website and a window with the following configuration options will appear:
Schedule
Active
Checking the box toggles the activation of the content.
Type
Select the type of content: Website or Application.
Protocol
Configure the protocol to be used: HTTP, HTTPS or both.
Domain/Path
Enter the URL for the ContenHub to use as the domain name for client access
(such as http://mytest.com).
Method
Only applicable for Application type content. Choose between sync or file upload.
Source
Enter the details of the server that the content will be downloaded from. Enter
credentials under Username and Password.
Period
This field determines how often the router will search for updates to the source
content.
Bandwidth
Limit
Set a bandwidth limit for clients.
https://www.peplink.com
116
Copyright @ 2025 Peplink

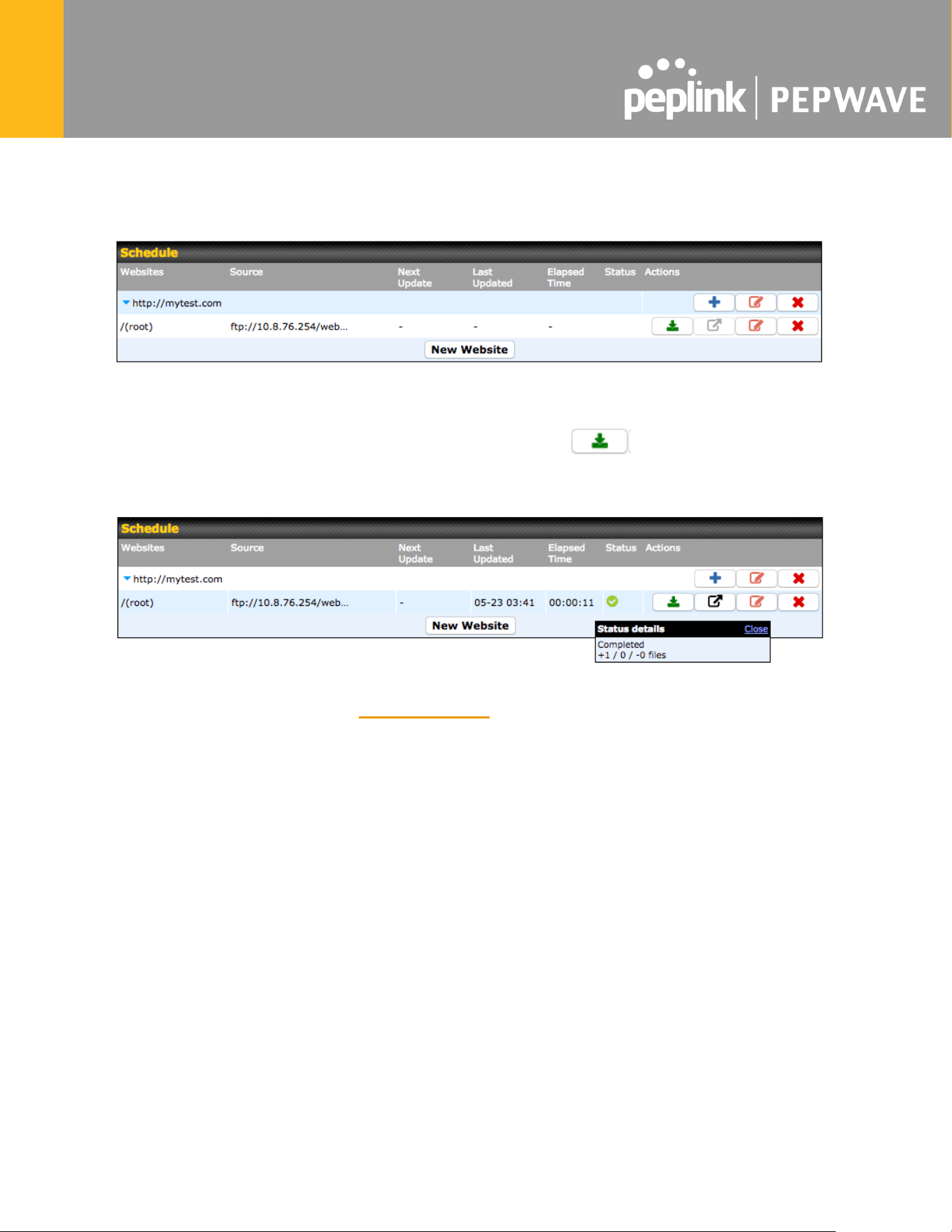

Click “Save & Apply Now” to activate the changes. A screenshot of the display after
configuration is shown below:
The content will be synced regularly according to the time set in the Period that was configured
earlier.
If you want to activate the sync manually, you can click the “ ” icon. The “Status” column
will display the sync progress. When the sync is completed, a summary will be displayed, as
shown in the screenshot below:
To access the content, open a browser in the MFA’s client and enter the domain details that
were configured earlier (such as http://mytest.com).
16.3 Configure an application for ContentHub
MediaFast routers allow you to configure and publish any application from the router itself by
using one of the supported frameworks below:
● Python (version 2.7.12)
● Ruby (version 2.3.3)
● Node.js (version 6.9.2)

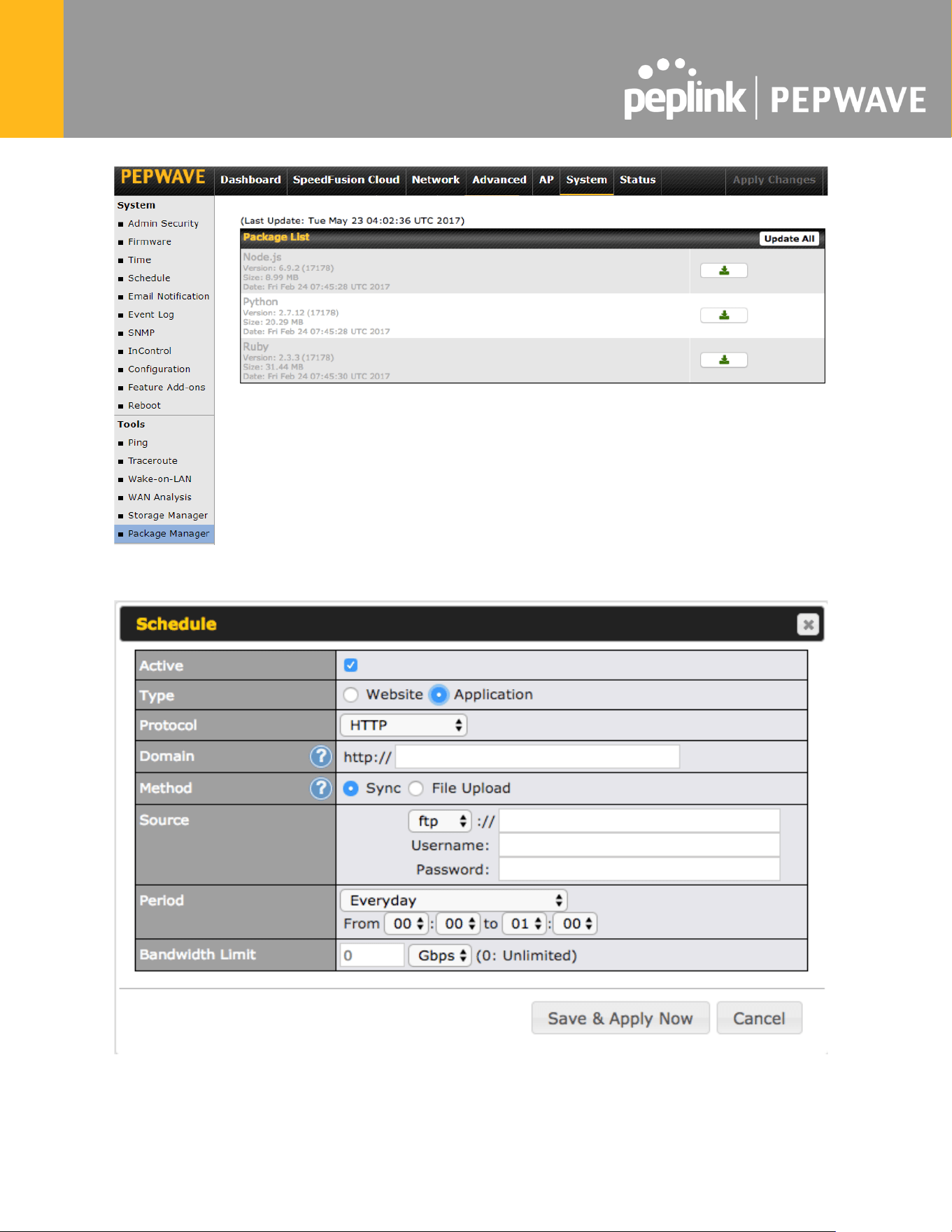

Install the desired framework under “Package Manager” as shown below:
https://www.peplink.com
117
Copyright @ 2025 Peplink
Application type content need to be packed as explained below:
1. Implement two bash script files, start.sh and stop.sh in the root folder, to start and stop
your application. The MediaFast router will only execute start.sh and stop.sh when the
corresponding website is enabled and disabled respectively.
2. Compress the application files and the bash script to .tar.gz format.
3. Upload this tar file to the router.
https://www.peplink.com
119
Copyright @ 2025 Peplink
17 Docker
MediaFast enabled routers can host Docker containers when running Firmware 7.1 or later.
Docker is an open platform for developing, shipping, and running applications.
From Firmware version 7.1.0 and upwards, it is possible to install and run Docker Containers on
your Pepwave routers with MediaFast, such as the MAX HD2 and the MAX HD4.
Due to the nature of Docker and its unlimited variables, this feature is supported by Pepwave up
to the point of creating a running Docker Container.
Information about Docker can be found on the Docker Documentation site:
https://docs.docker.com/ 2
This will allow you to run a file sharing platform (ownCloud), a web server (WordPress, Joomla!)
, a learning platform (Moodle), or a visualisation tool for viewing large scale data (Kibana).
When creating a new Docker Container, the Pepwave router will search through the Docker Hub
repository. https://hub.docker.com/explore/ 7
For detailed configuration instructions, refer to our knowledge base:
https://forum.peplink.com/t/how-to-run-a-docker-application-on-a-peplink-mediafast-router/1602
1
https://www.peplink.com
120
Copyright @ 2025 Peplink
18 KVM
MediaFast enabled routers now support KVM. Users will have to download and install Virtual
Machine Manager to manage the KVM virtual machines. Through this, users are able to
virtualise a Linux environment.
For detailed configuration instructions, refer to our knowledge base articles:
1. How to install a Virtual Machine on Peplink/Pepwave - MediaFast/ContentHub
Routers
2. How to Install Virtual Machine with USB storage on Peplink/Pepwave -
MediaFast/ContentHub Routers
https://www.peplink.com
121
Copyright @ 2025 Peplink
19 QoS
19.1 User Groups
LAN and PPTP clients can be categorized into three user groups: Manager, Staff, and Guest.
This menu allows you to define rules and assign client IP addresses or subnets to a user group.
You can apply different bandwidth and traffic prioritization policies on each user group in
the Bandwidth Control and Application sections (note that the options available here vary by
model).
The table is automatically sorted by rule precedence. The smaller and more specific subnets are
put towards the top of the table and have higher precedence; larger and less specific subnets
are placed towards the bottom.
Click the Add button to define clients and their user group. Click the button to remove the
defined rule. Two default rules are pre-defined and put at the bottom. They are All DHCP
reservation clients and Everyone, and they cannot be removed. The All DHCP reservation
client represents the LAN clients defined in the DHCP Reservation table on the LAN settings
page. Everyone represents all clients that are not defined in any rule above. Click on a rule to
change its group.

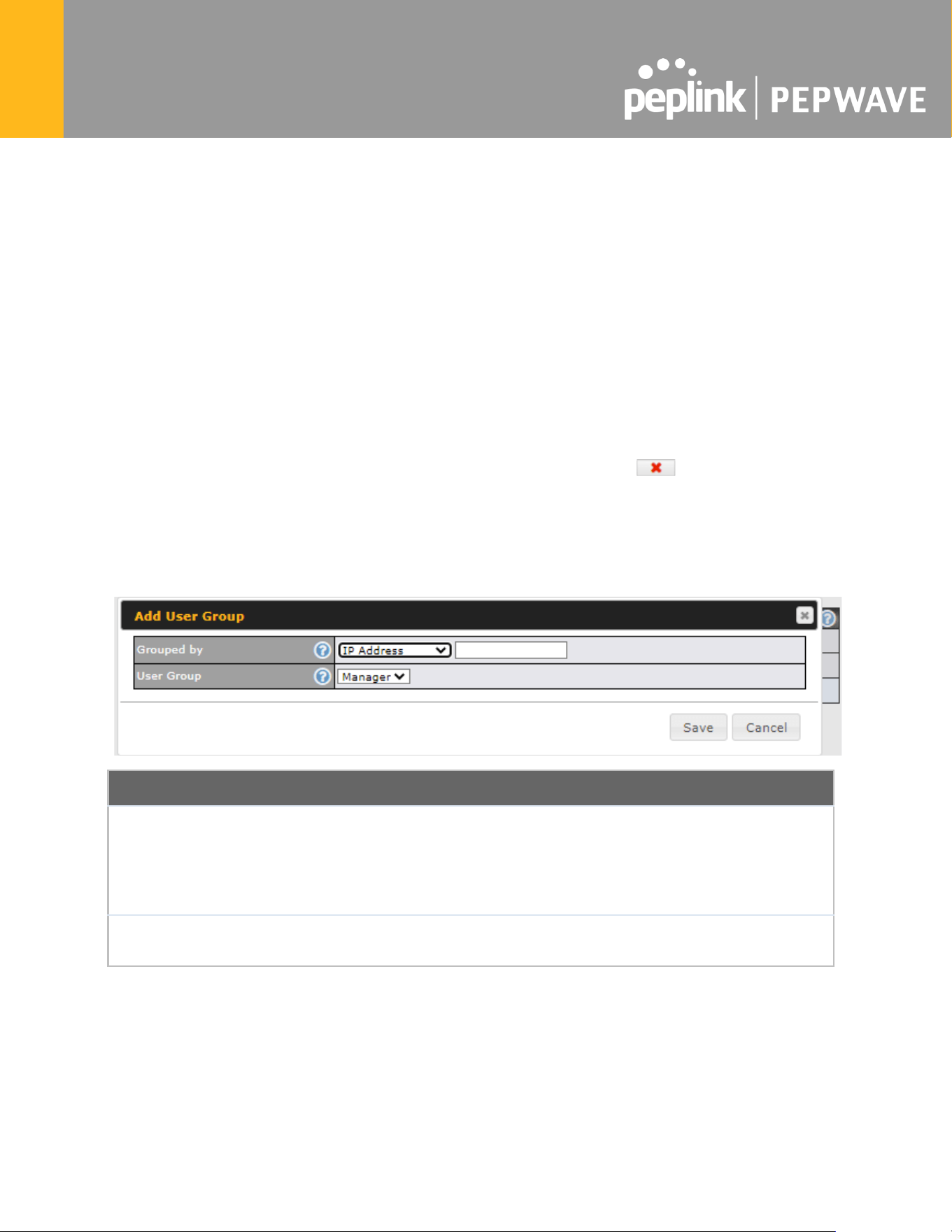

Add / Edit User Group
Grouped by
From the drop-down menu, choose whether you are going to define the
client(s) by an IP Address or a Subnet. If IP Address is selected, enter a
name defined in DHCP reservation table or a LAN client's IP
address. If Subnet is selected, enter a subnet address and specify its subnet
mask.
User Group
This field is to define which User Group the specified subnet / IP address
belongs to.
Once users have been assigned to a user group, their internet traffic will be restricted by rules
defined for that particular group. Please refer to the following two sections for details.
https://www.peplink.com
122
Copyright @ 2025 Peplink

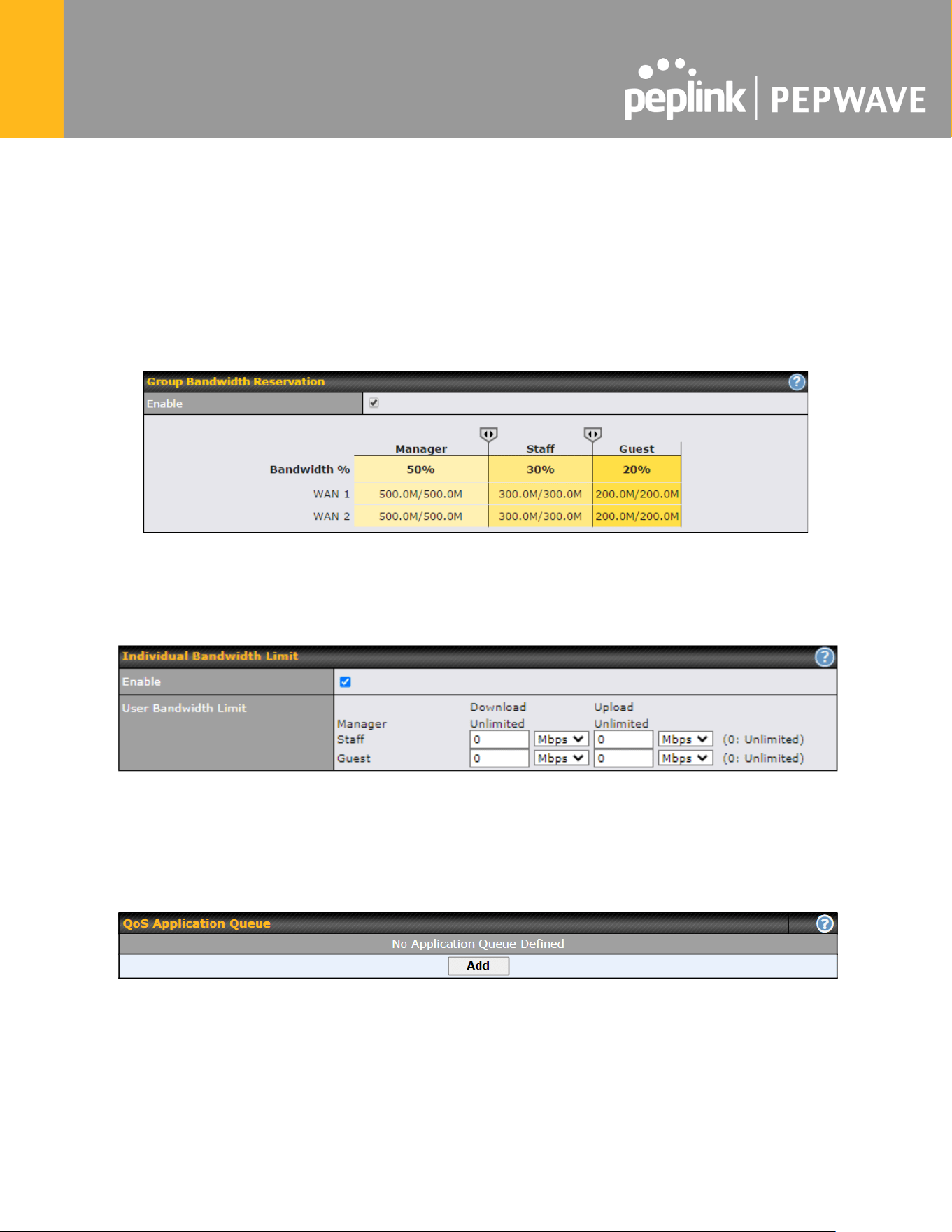

19.2 Bandwidth Control
This section is to define how much minimum bandwidth will be reserved to each user group
when a WAN connection is in full load. When this feature is enabled, a slider with two
indicators will be shown. You can move the indicators to adjust each group's weighting. The
lower part of the table shows the corresponding reserved download and uploads bandwidth
value of each connection.
By default, 50% of bandwidth has been reserved for Manager, 30% for Staff, and 20% for
Guest.
You can define a maximum download speed (over all WAN connections) and upload speed (for
each WAN connection) that each individual Staff and Guest member can consume. No limit can
be imposed on individual Managers. By default, download and upload bandwidth limits are set
to unlimited (set as 0).
19.3 Application Queue
This section is to define the QoS Application Queue. You can set guaranteed bandwidth for a
queue and assign it to applications.
Click the Add button to create the QoS Application Queue.
https://www.peplink.com
123
Copyright @ 2025 Peplink

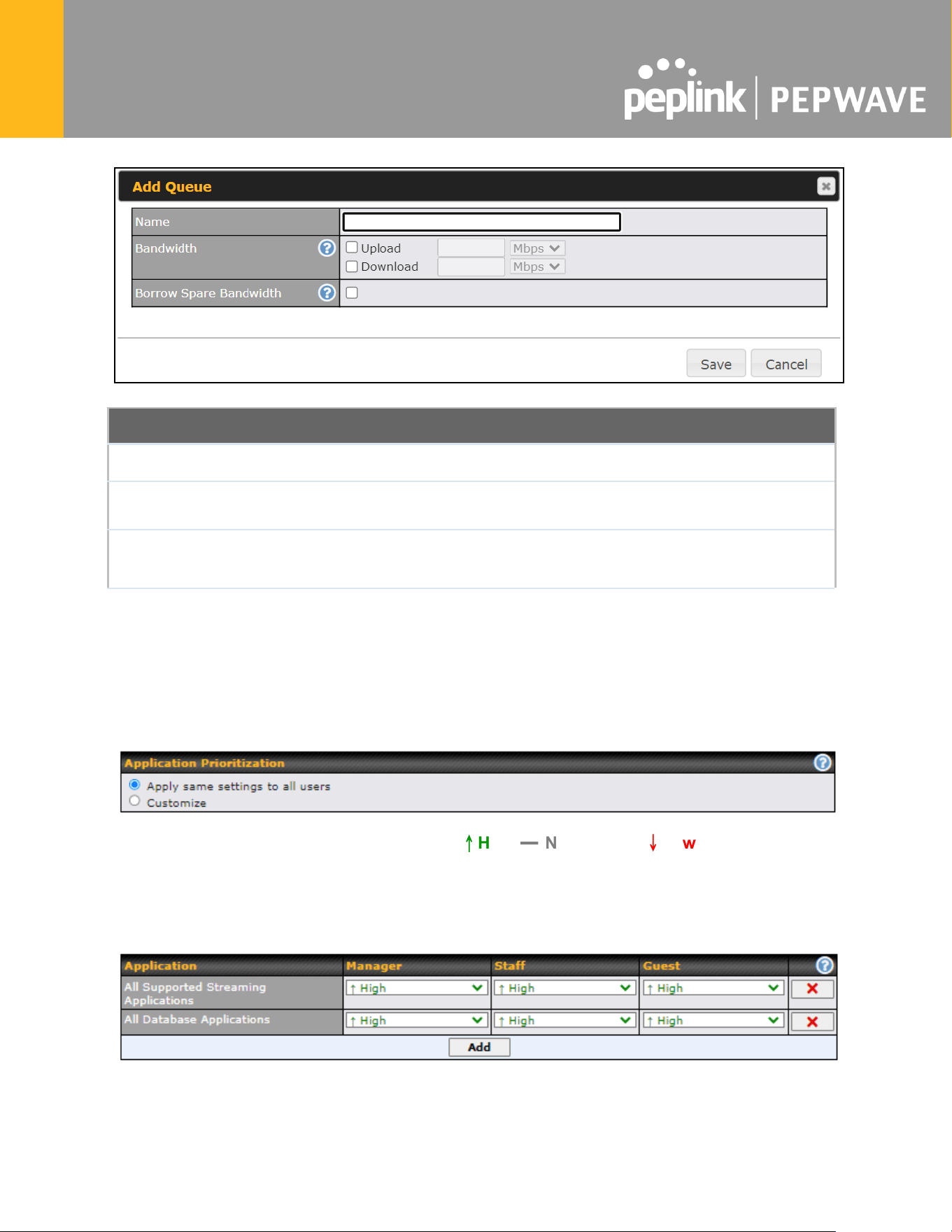

Add Queue
Name
This setting specifies a name for the QoS Application Queue.
Bandwidth
Bandwidth to be reserved (for each WAN connection) for this queue. When WAN is
congested, this bandwidth will remain available for applications assigned to this queue.
Borrow Spare
Bandwidth
Enable this option if you want this queue to utilize WAN's unused bandwidth.
19.4 Application
19.4.1 Application Prioritization
On many Pepwave routers, you can choose whether to apply the same prioritization settings to
all user groups or customize the settings for each group.
Three application priority levels can be set:
↑
High,
━
Normal, and
↓
Low. Pepwave routers
can detect various application traffic types by inspecting the packet content. Select an
application by choosing a supported application, or by defining a custom application
manually. The priority preference of supported applications is placed at the top of the
table. Custom applications are at the bottom.
https://www.peplink.com
124
Copyright @ 2025 Peplink

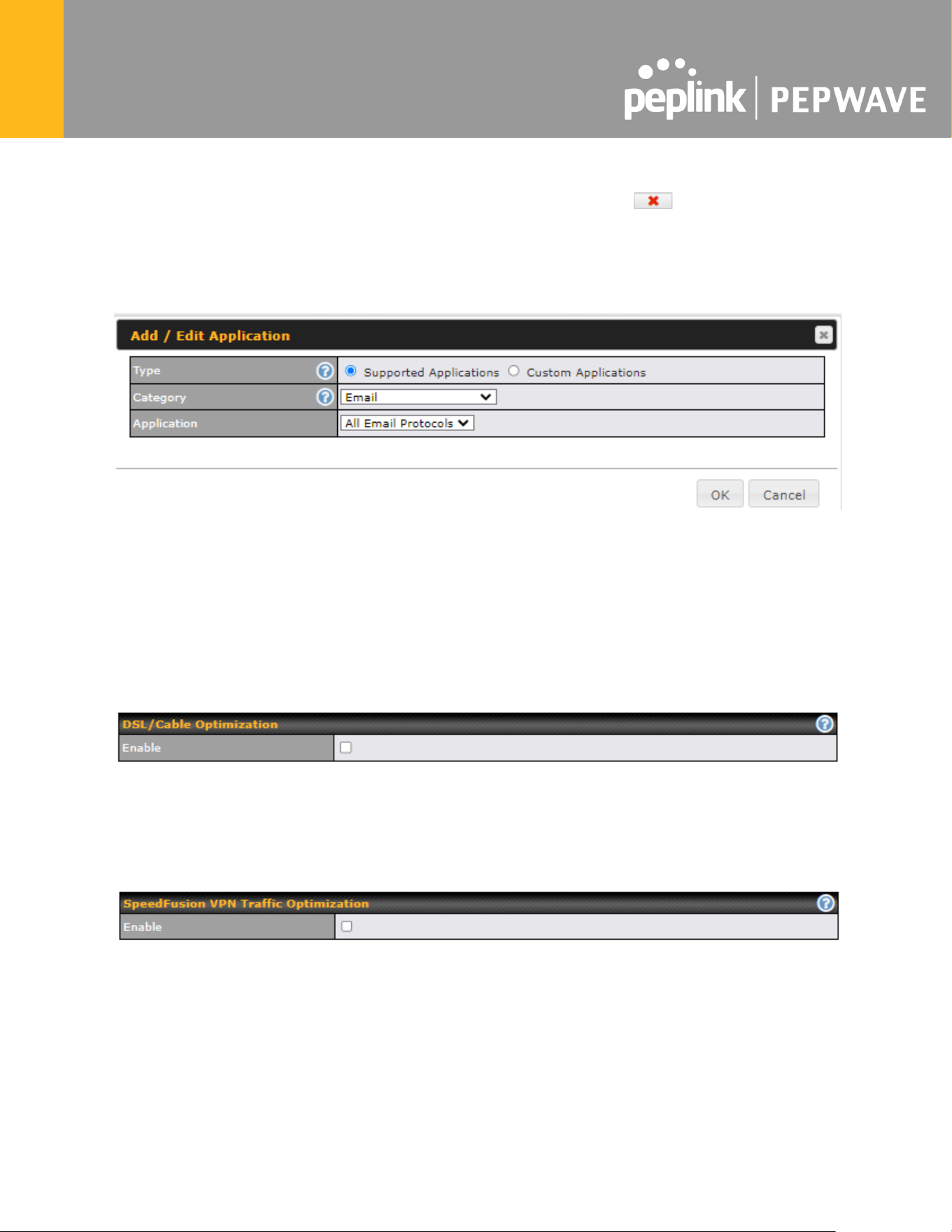

19.4.2 Prioritization for Custom Applications
Click the Add button to define a custom application. Click the button in the Action column
to delete the custom application in the corresponding row.
When Supported Applications is selected, the Pepwave router will inspect network traffic and
prioritize the selected applications. Alternatively, you can select Custom Applications and
define the application by providing the protocol, scope, port number, and DSCP value.
19.4.3 DSL/Cable Optimization
DSL/cable-based WAN connections have lower upload bandwidth and higher
download bandwidth. When a DSL/cable circuit's uplink is congested, the download bandwidth
will be affected. Users will not be able to download data at full speed until the uplink becomes
less congested. DSL/Cable Optimization can relieve such an issue. When it is enabled, the
download speed will become less affected by the upload traffic. By default, this feature is
disabled.
19.4.4 SpeedFusion VPN Traffic Optimization
To enable this option to allow SpeedFusion VPN traffic has highest priority when WAN is
congested.
https://www.peplink.com
125
Copyright @ 2025 Peplink
20 Firewall
A firewall is a mechanism that selectively filters data traffic between the WAN side (the Internet)
and the LAN side of the network. It can protect the local network from potential hacker attacks,
access to offensive websites, and/or other inappropriate uses.
The firewall functionality of Pepwave routers supports the selective filtering of data traffic in both
directions:
●
●
● Outbound (LAN to WAN)
● Inbound (WAN to LAN)
● Internal Network (VLAN to VLAN)
● Local Service
The firewall also supports the following functionality:
● Intrusion detection and DoS prevention
● Web blocking
With SpeedFusion
TM
enabled, the firewall rules also apply to VPN tunneled traffic.
https://www.peplink.com
126
Copyright @ 2025 Peplink

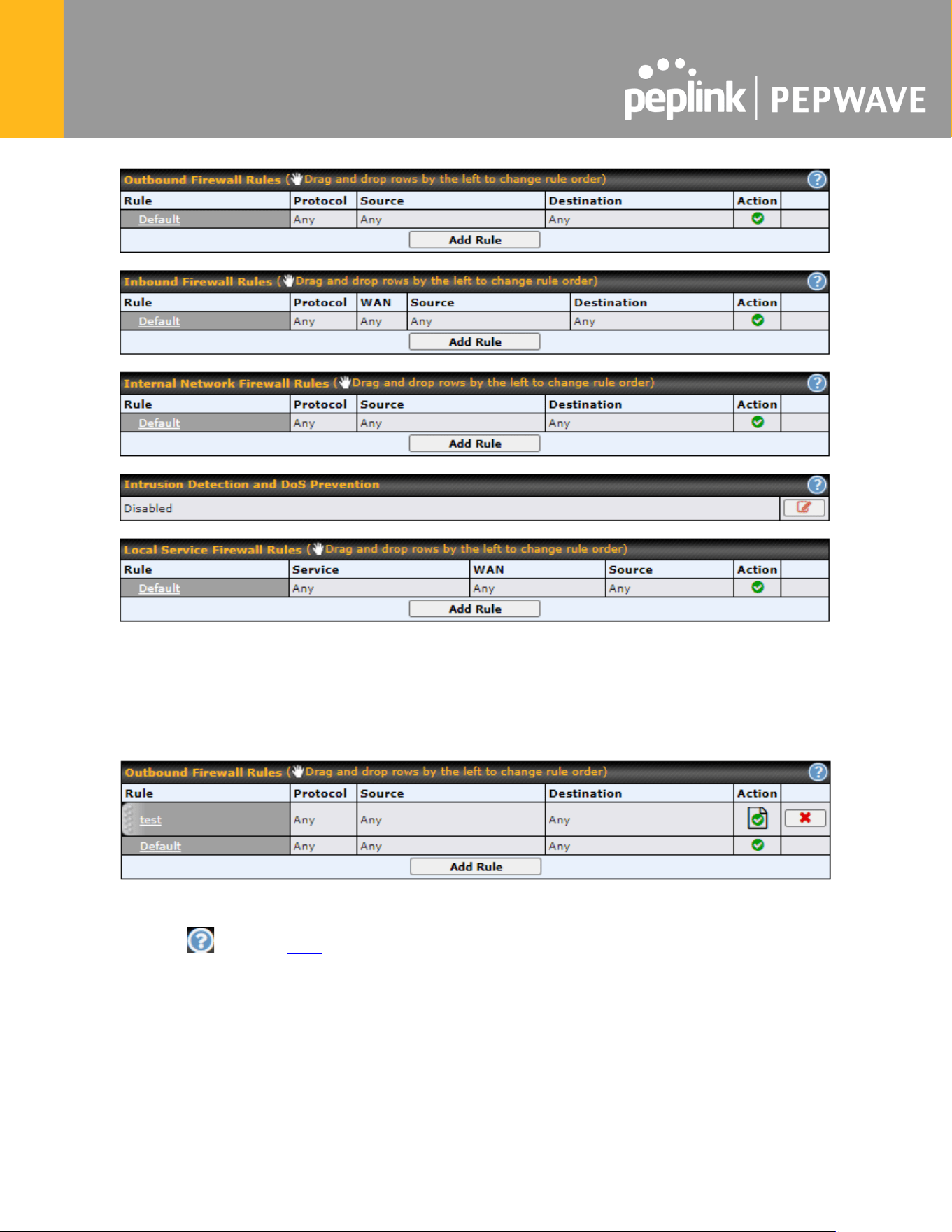

20.1 Access Rules
Outbound Firewall Rules
The outbound firewall settings are located at Advanced > Firewall > Access Rules.
To enable or disable the Outbound Firewall to manage device local network traffic, click on the
help icon and click here, the sceen will shows below.
https://www.peplink.com
127
Copyright @ 2025 Peplink

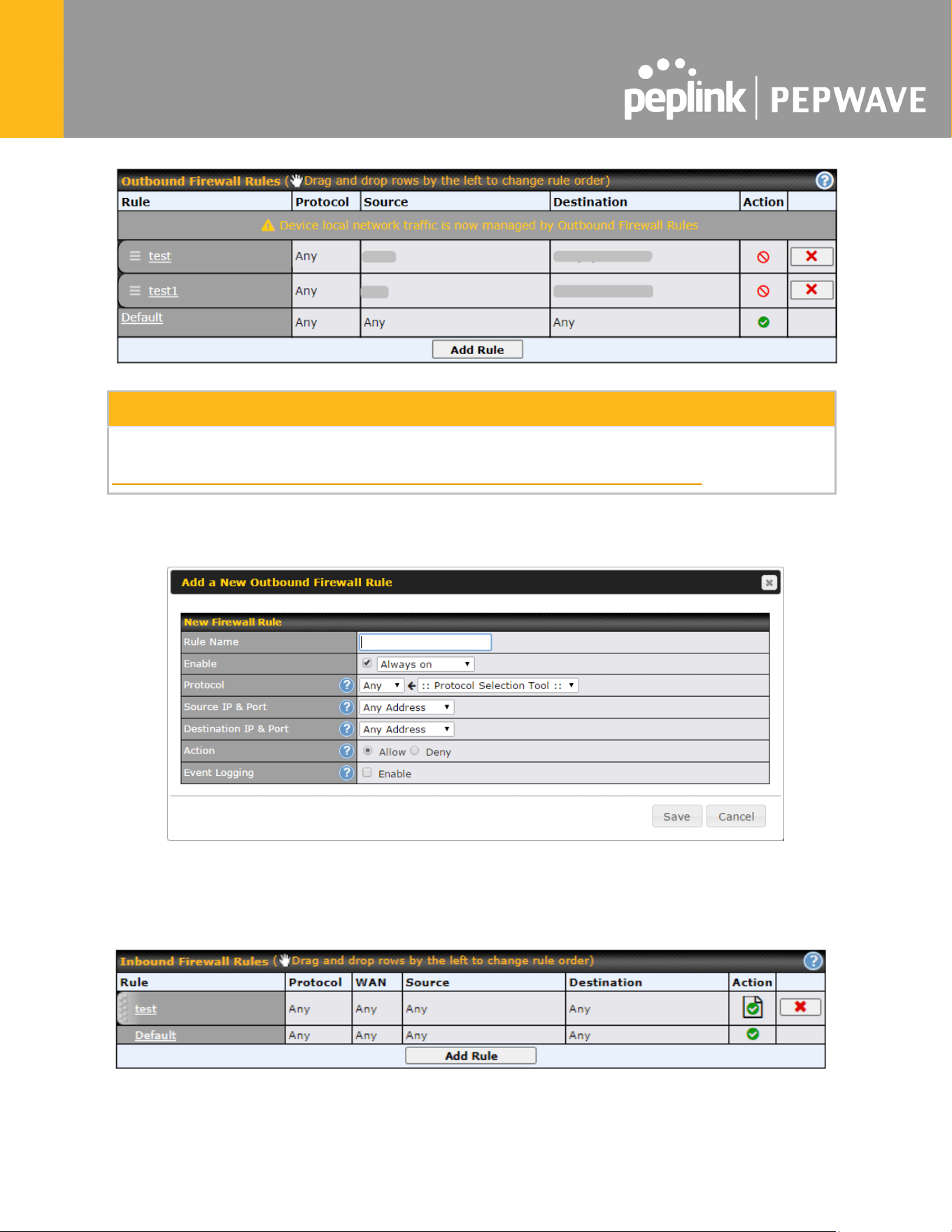

Note
To utilize the Outbound Firewall Rule to block the Peplink device from contacting InControl 2. may refer to the link
below:
https://forum.peplink.com/t/faq-prevent-device-reaching-incontrol-2./63f48fdfd466df34ab475f55/
Click Add Rule to display the following screen:
Inbound Firewall Rules
Inbound firewall settings are located at Advanced > Firewall > Access Rules.
Click Add Rule to display the following screen:

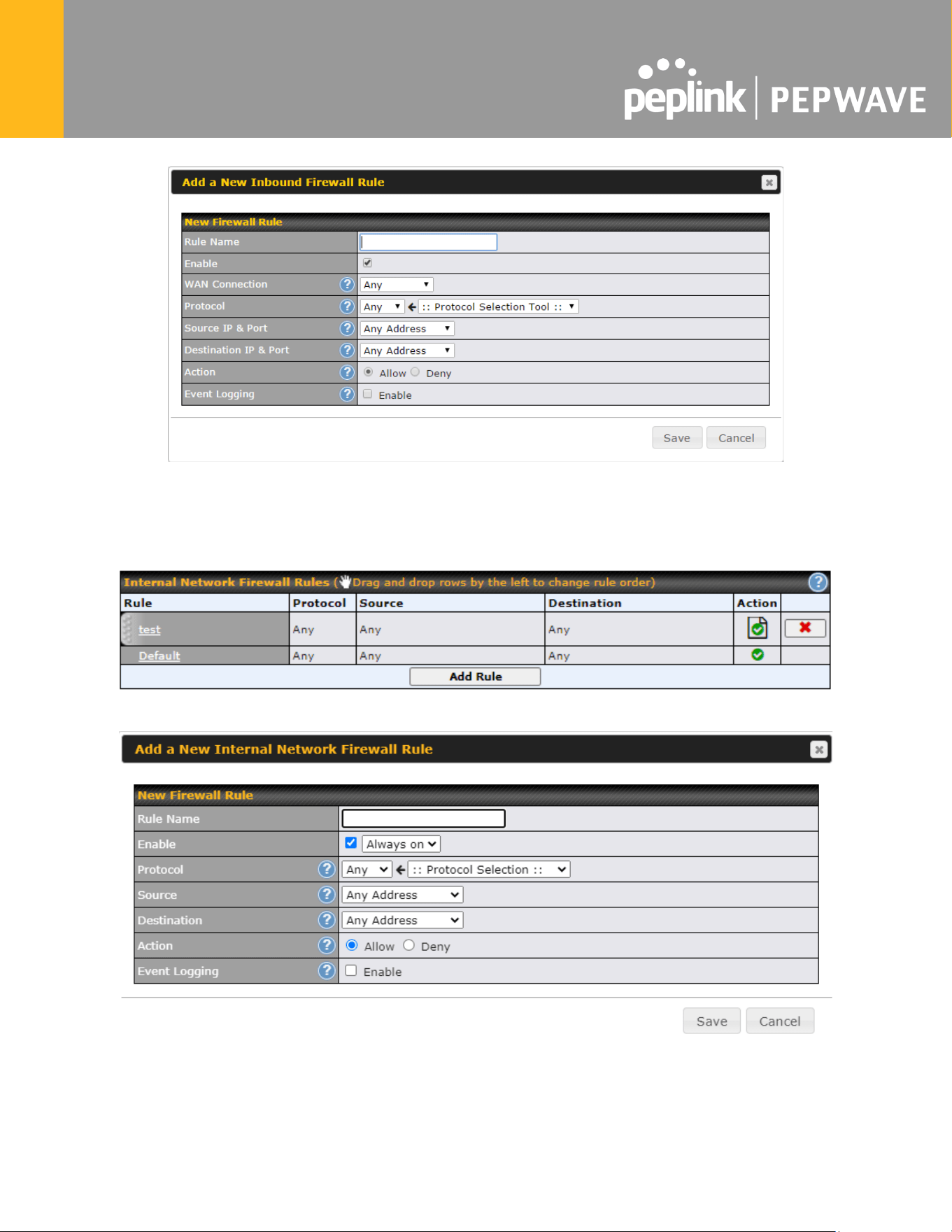

https://www.peplink.com
128
Copyright @ 2025 Peplink

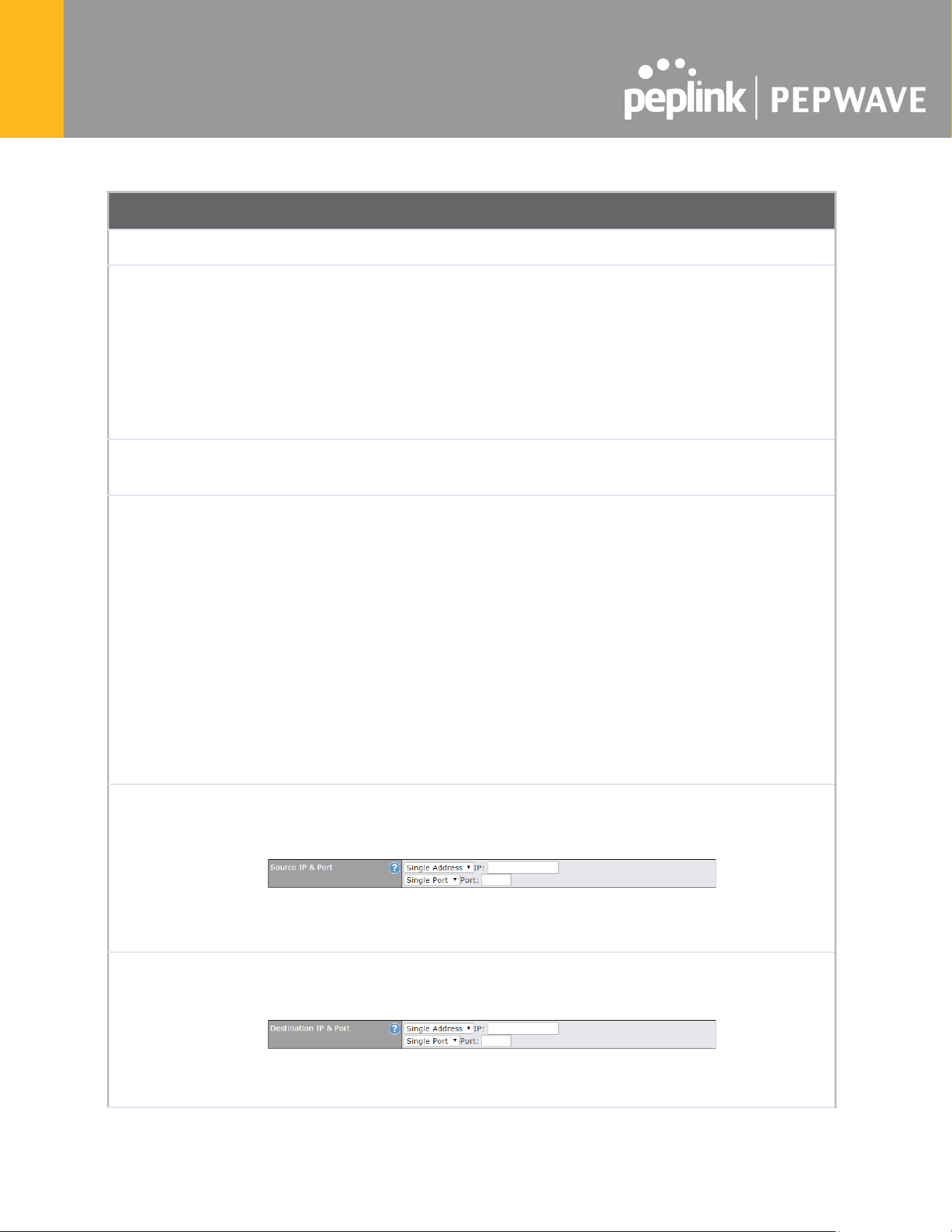

Inbound / Outbound / Internal Network Firewall Settings
Rule Name
This setting specifies a name for the firewall rule.
Enable
This setting specifies whether the firewall rule should take effect. If the box is
checked, the firewall rule takes effect. If the traffic matches the specified
protocol/IP/port, actions will be taken by the Pepwave router based on the other
parameters of the rule. If the box is not checked, the firewall rule does not take
effect. The Pepwave router will disregard the other parameters of the rule.
Click the dropdown menu next to the checkbox to place this firewall rule on a time
schedule.
WAN Connection
(Inbound)
Select the WAN connection that this firewall rule should apply to.
Protocol
This setting specifies the protocol to be matched. Via a drop-down menu, the
following protocols can be specified:
● Any
● TCP
● UDP
● ICMP
● DSCP
● IP
Alternatively, the Protocol Selection Tool drop-down menu can be used to
automatically fill in the protocol and port number of common Internet services
(e.g., HTTP, HTTPS, etc.)
After selecting an item from the Protocol Selection Tool drop-down menu, the
protocol and port number remains manually modifiable.
Source IP & Port
This specifies the source IP address(es) and port number(s) to be matched for the
firewall rule. A single address, or a network, can be specified as the Source IP &
Port setting, as indicated by the following screenshot:
In addition, a single port, or a range of ports, can be specified for the Source IP &
Port settings.
Destination IP &
Port
This specifies the destination IP address(es) and port number(s) to be matched
for the firewall rule. A single address, or a network, can be specified as the
Destination IP & Port setting, as indicated by the following screenshot:
In addition, a single port, or a range of ports, can be specified for the Destination
IP & Port settings.
https://www.peplink.com
130
Copyright @ 2025 Peplink
Action
This setting specifies the action to be taken by the router upon encountering traffic
that matches the both of the following:
● Source IP & port
● Destination IP & port
With the value of Allow for the Action setting, the matching traffic passes through
the router (to be routed to the destination). If the value of the Action setting is set
to Deny, the matching traffic does not pass through the router (and is discarded).
Event Logging
This setting specifies whether or not to log matched firewall events. The logged
messages are shown on the page Status>Event Log. A sample message is as
follows:
Aug 13 23:47:44 Denied CONN=Ethernet WAN SRC=20.3.2.1
DST=192.168.1.20 LEN=48 PROTO=TCP SPT=2260 DPT=80
● CONN: The connection where the log entry refers to
● SRC: Source IP address
● DST: Destination IP address
● LEN: Packet length
● PROTO: Protocol
● SPT: Source port
● DPT: Destination port
Click Save to store your changes. To create an additional firewall rule, click Add Rule and
repeat the above steps.

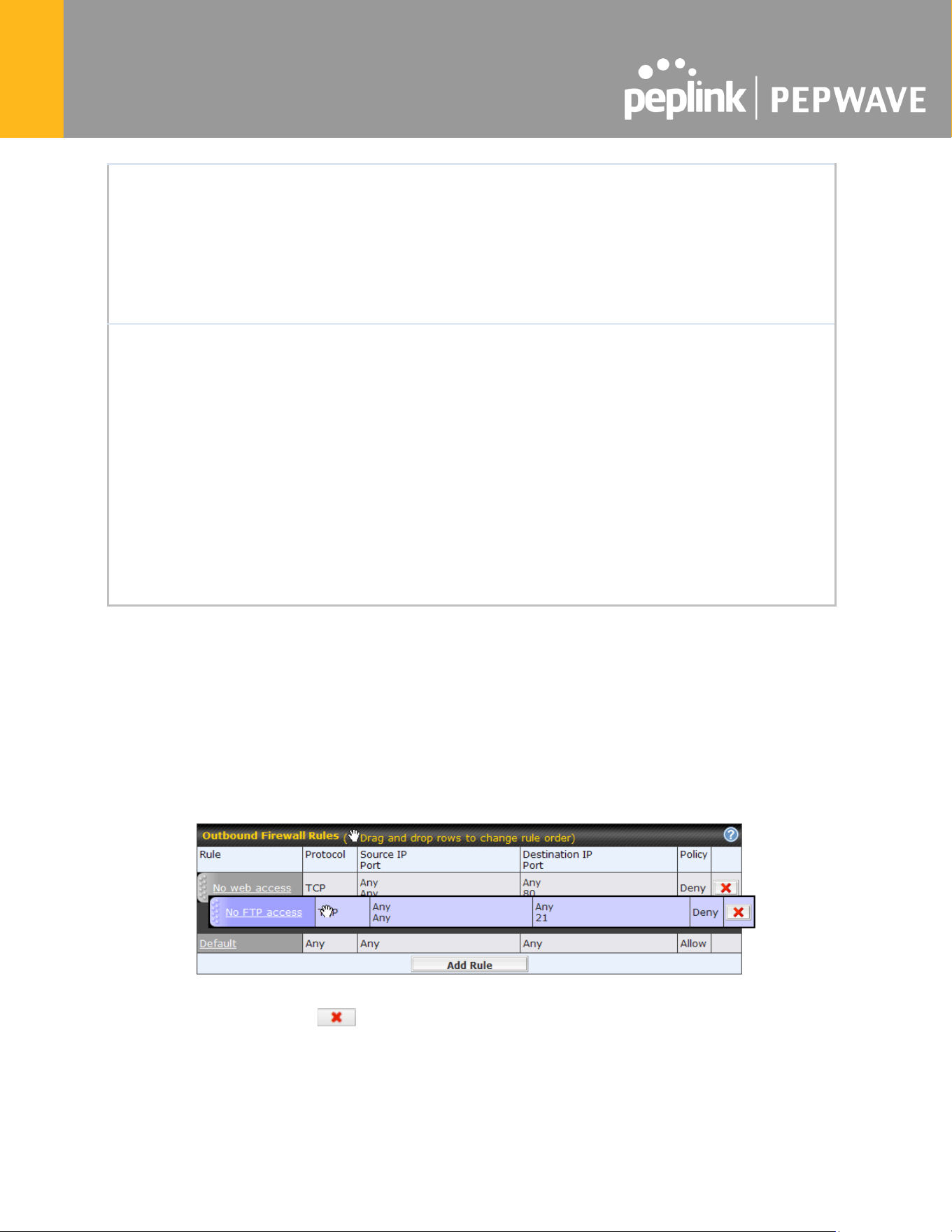

To change a rule’s priority, simply drag and drop the rule:
● Hold the left mouse button on the rule.
● Move it to the desired position.
● Drop it by releasing the mouse button.
To remove a rule, click the button.
Rules are matched from top to bottom. If a connection matches any one of the upper rules, the
matching process will stop. If none of the rules match, the Default rule will be applied. By
https://www.peplink.com
131
Copyright @ 2025 Peplink
default, the Default rule is set as Allow for Outbound, Inbound and Internal Network access.
Tip
If the default inbound rule is set to Allow for NAT-enabled WANs, no inbound Allow firewall rules will
be required for inbound port forwarding and inbound NAT mapping rules. However, if the default
inbound rule is set as Deny, a corresponding Allow firewall rule will be required.

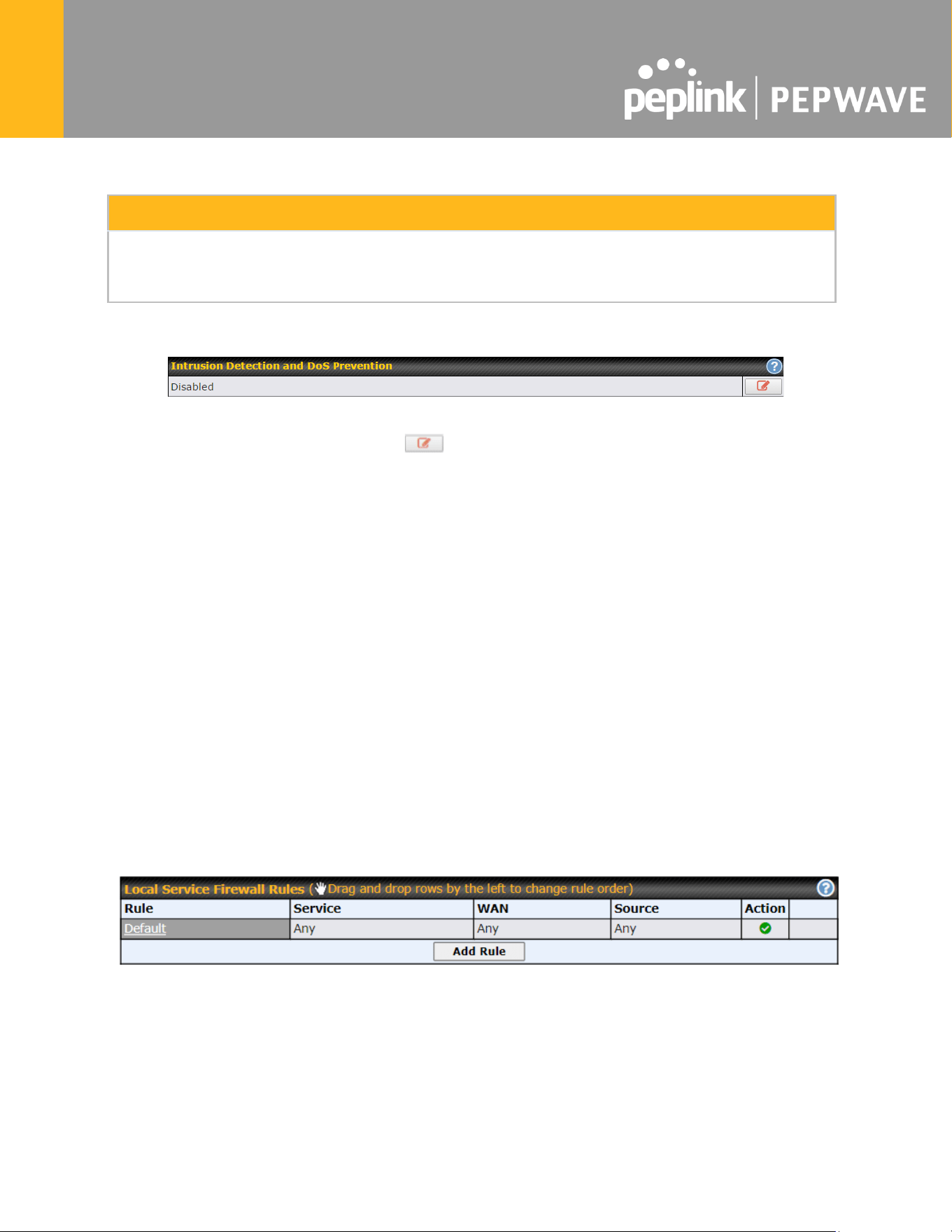

Intrusion Detection and DoS Prevention
Pepwave routers can detect and prevent intrusions and denial-of-service (DoS) attacks from the
Internet. To turn on this feature, click , check the Enable check box, and press the Save
button.
When this feature is enabled, the Pepwave router will detect and prevent the following kinds of
intrusions and denial-of-service attacks.
● Port scan
o NMAP FIN/URG/PSH
o Xmas tree
o Another Xmas tree
o Null scan
o SYN/RST
o SYN/FIN
● SYN flood prevention
● Ping flood attack prevention
Local Service Firewall Rules
For every WAN inbound traffic to local service, rules will be matched to take the defined action.
The Local Service firewall settings are located at Advanced > Firewall > Access Rules.
Click Add Rule to display the following window:
https://www.peplink.com
132
Copyright @ 2025 Peplink
Local Service Firewall Settings
Rule Name
This setting specifies a name for the firewall rule.
Enable
This setting specifies whether the firewall rule should take effect.
If the box is checked, the firewall rule takes effect. If the traffic matches the specified
protocol/IP/port, actions will be taken by Peplink Balance based on the other parameters of
the rule.
If the box is not checked, the firewall rule does not take effect. The Peplink Balance will
disregard the other parameters of the rule.
Click the dropdown menu next to the checkbox to place this firewall rule on a time
schedule.
Service
This option allows you to define the supported local service to be matched.
If Any is chosen, the firewall rule will match to all supported local services from the list.
Via a drop-down menu, the following services can be specified:
● Any
● SpeedFusion / PepVPN Handshake
● SpeedFusion / PepVPN Data Port
● Web Admin Access
● DNS Server
● SNMP Server
● KVM Management Port
● KVM VNC Port
● FusionSIM Agent / Remote SIM Proxy
WAN
Connection
Select the WAN connection that this firewall rule should apply to.
Source
This specifies the source IP address and IP Network to be matched for the firewall rule.
Action
With the value of Allow for the Action setting, the matching traffic passes through the
router (to be routed to the destination). If the value of the Action setting is set to Deny, the
matching traffic does not pass through the router (and is discarded).
https://www.peplink.com
133
Copyright @ 2025 Peplink
Event Logging
This setting specifies whether or not to log matched firewall events. The logged messages
are shown on the page Status>Event Log. A sample message is as follows:
Aug 13 23:47:44 Denied CONN=Ethernet WAN SRC=20.3.2.1
DST=192.168.1.20 LEN=48 PROTO=TCP SPT=2260 DPT=80
● CONN: The connection where the log entry refers to
● SRC: Source IP address
● DST: Destination IP address
● LEN: Packet length
● PROTO: Protocol
● SPT: Source port
● DPT: Destination port
https://www.peplink.com
134
Copyright @ 2025 Peplink

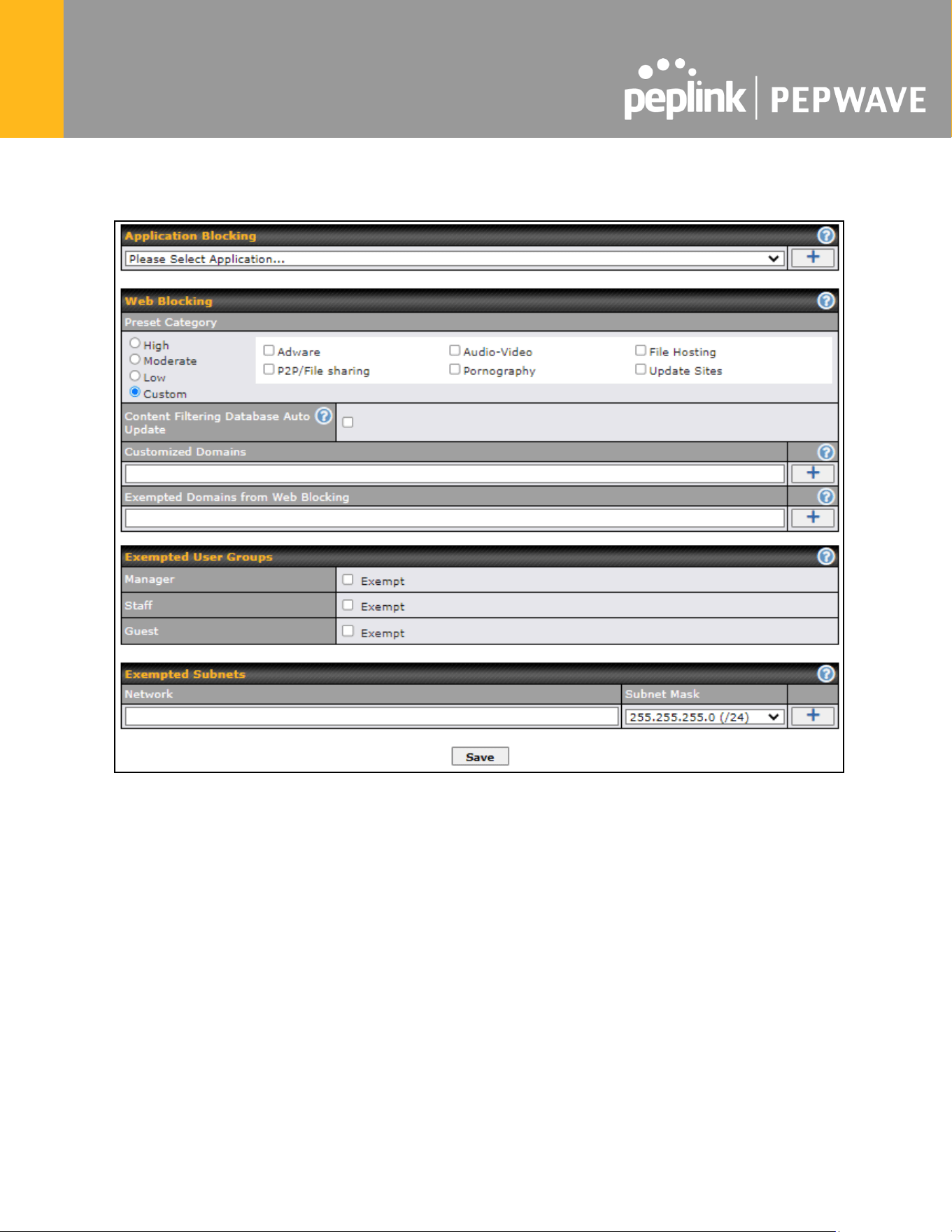

20.2 Content Blocking
20.2.1 Application Blocking
Choose applications to be blocked from LAN/PPTP/SpeedFusion VPN peer clients' access,
except for those on the Exempted User Groups or Exempted Subnets defined below.
20.2.2 Web Blocking
Defines website domain names to be blocked from LAN/PPTP/SpeedFusion VPN peer clients'
access except for those on the Exempted User Groups or Exempted Subnets defined below.
If "foobar.com" is entered, any web site with a host name ending in foobar.com will be blocked,
e.g. www.foobar.com, foobar.com, etc. However, "myfoobar.com" will not be blocked.
You may enter the wild card ".*" at the end of a domain name to block any web site with a host
name having the domain name in the middle. If you enter "foobar.*", then "www.foobar.com",
"www.foobar.co.jp", or "foobar.co.uk" will be blocked. Placing the wild card in any other position
https://www.peplink.com
135
Copyright @ 2025 Peplink
is not supported.
The device will inspect and look for blocked domain names on all HTTP and HTTPS traffic.
20.2.3 Customized Domains
Enter an appropriate website address, and the Pepwave MAX will block and disallow
LAN/PPTP/SpeedFusionTM peer clients to access these websites. Exceptions can be added
using the instructions in Sections 20.1.3.2 and 20.1.3.3.
You may enter the wild card ".*" at the end of a domain name to block any web site with a host
name having the domain name in the middle. For example, If you enter "foobar.*," then
"www.foobar.com," "www.foobar.co.jp," or "foobar.co.uk" will be blocked. Placing the wild card in
any other position is not supported.
The Pepwave MAX will inspect and look for blocked domain names on all HTTP traffic. Secure
web (HTTPS) traffic is not supported.
20.2.4 Exempted User Groups
Check and select pre-defined user group(s) who can be exempted from the access blocking
rules. User groups can be defined at QoS>User Groups section. Please refer to Section 17.1
for details.
20.2.5 Exempted Subnets
With the subnet defined in the field, clients on the particular subnet(s) can be exempted from the
access blocking rules.
https://www.peplink.com
136
Copyright @ 2025 Peplink
21 Routing Protocols
21.1 OSPF & RIPv2
The Pepwave supports OSPF and RIPv2 dynamic routing protocols.
Click the Advanced tab from the top bar, and then click the Routing Protocols > OSPF &
RIPv2 item on the sidebar to reach the following menu:

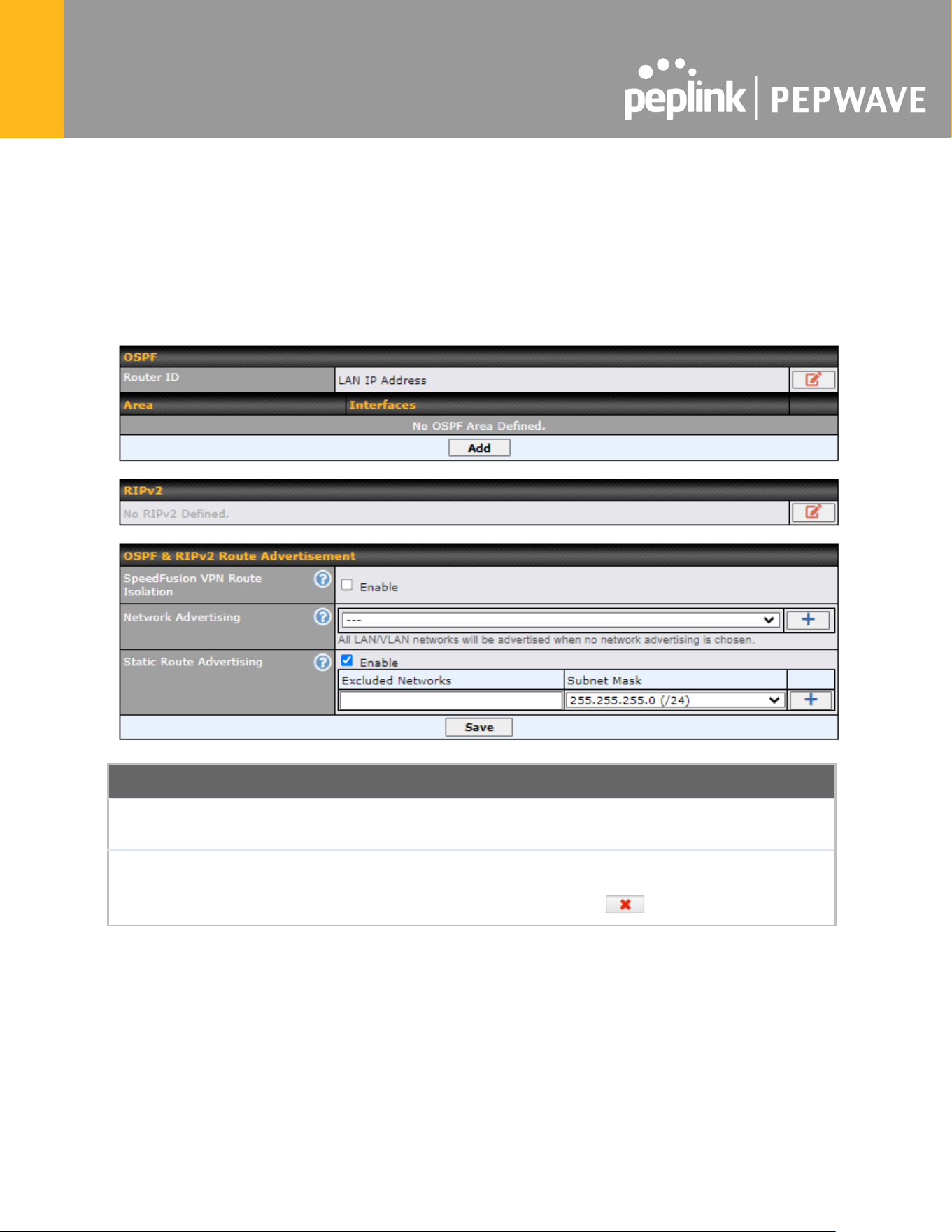

OSPF
Router ID
This field determines the ID of the router. By default, this is specified as the WAN
IP address. If you want to specify your own ID, enter it into the Custom field.
Area
This is an overview of the OSPF areas that you have defined. Clicking on the
name under Area allows you to configure the connection. To define a new area,
click Add. To delete an existing area, click on the .
https://www.peplink.com
137
Copyright @ 2025 Peplink

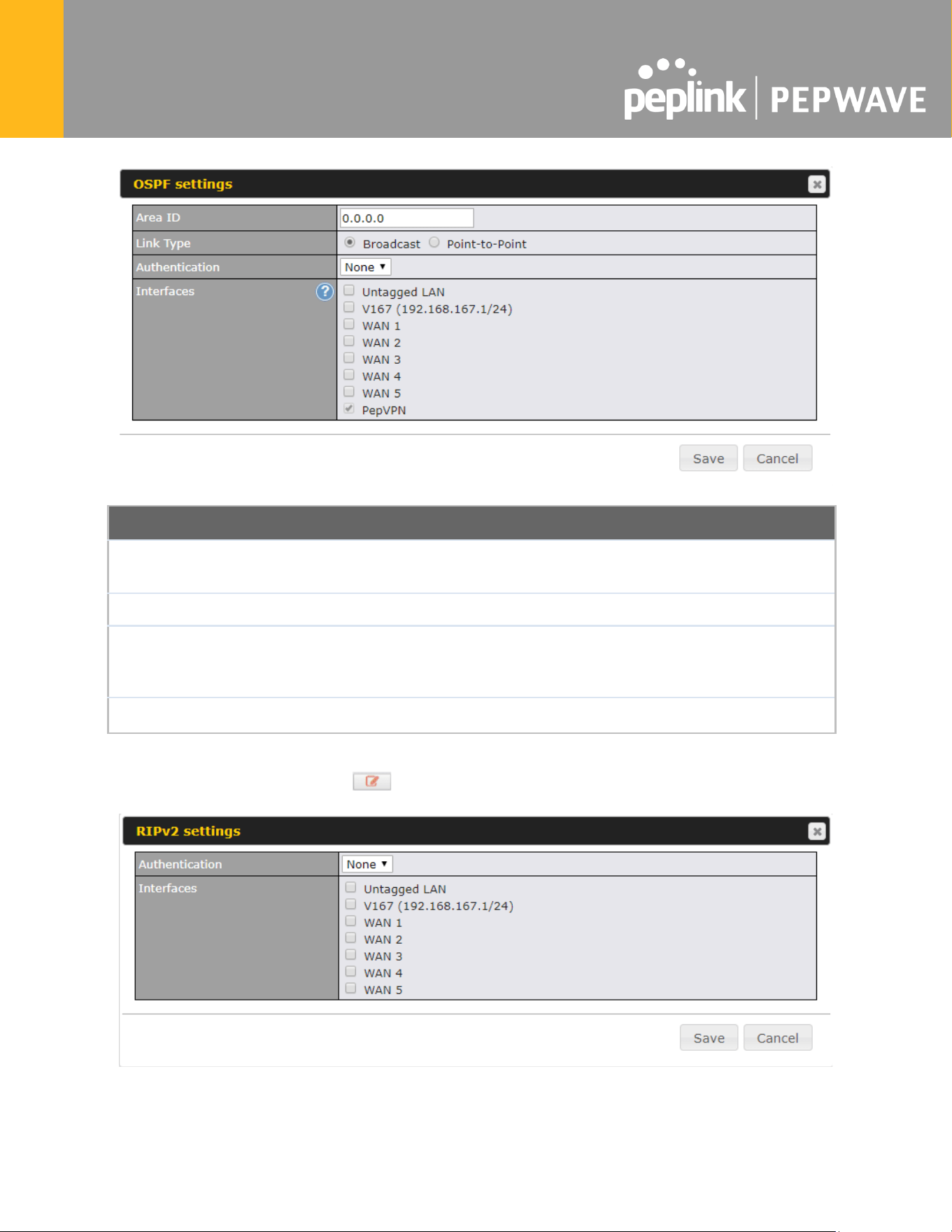

OSPF Settings
Area ID
Assign a name to be applied to this group. Machines linked to this group will send
and receive related OSPF packets, while unlinked machines will ignore them.
Link Type
Choose the type of network that this area will use.
Authentication
If an authentication method is used, select one from this drop-down menu.
Available options are MD5 and Text. Authentication key(s) may be input next to
the drop-down menu after selecting an authentication method.
Interfaces
Select the interface(s) that this area will use to listen to and deliver OSPF packets.
To access RIPv2 settings, click on .
https://www.peplink.com
138
Copyright @ 2025 Peplink
RIPv2 Settings
Authentication
If an authentication method is used, select one from this drop-down menu.
Available options are MD5 and Text. Authentication key(s) may be input next to
the drop-down menu after selecting an authentication method.
Interfaces
Select the interface(s) that this area will use to listen to and deliver RIPv2 packets.

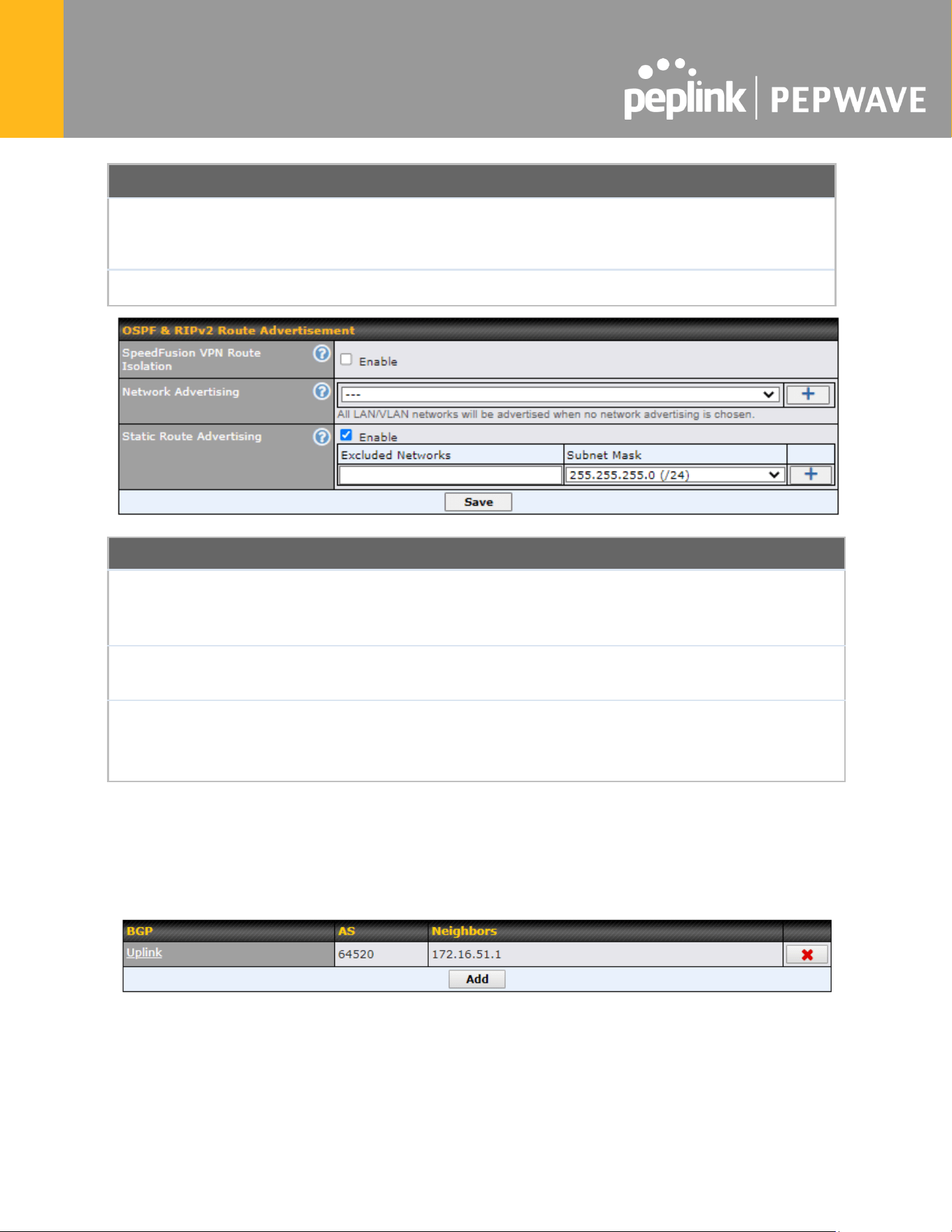

OSPF & RIPv2 Route Advertisement
SpeedFusion
VPN Route
Isolation
Isolate SpeedFusion VPN peers from each other. Received SpeedFusion VPN
routes will not be forwarded to other SpeedFusion VPN peers to reduce bandwidth
consumption..
Network
Advertising
Networks to be advertised over OSPF & RIPv2. If no network is selected, all LAN /
VLAN networks will be advertised by default.
Static Route
Advertising
Enabling OSPF & RIPv2 Route Advertising allows it to advertise LAN static routes
over OSPF & RIPv2. Static routes on the Excluded Networks table will not be
advertised.
21.2 BGP
Click the Advanced tab along the top bar, and then click the BGP item on the sidebar to
configure BGP.
Click the "x" to delete a BGP profile.
Click "Add" to create a new BGP profile.
https://www.peplink.com
139
Copyright @ 2025 Peplink

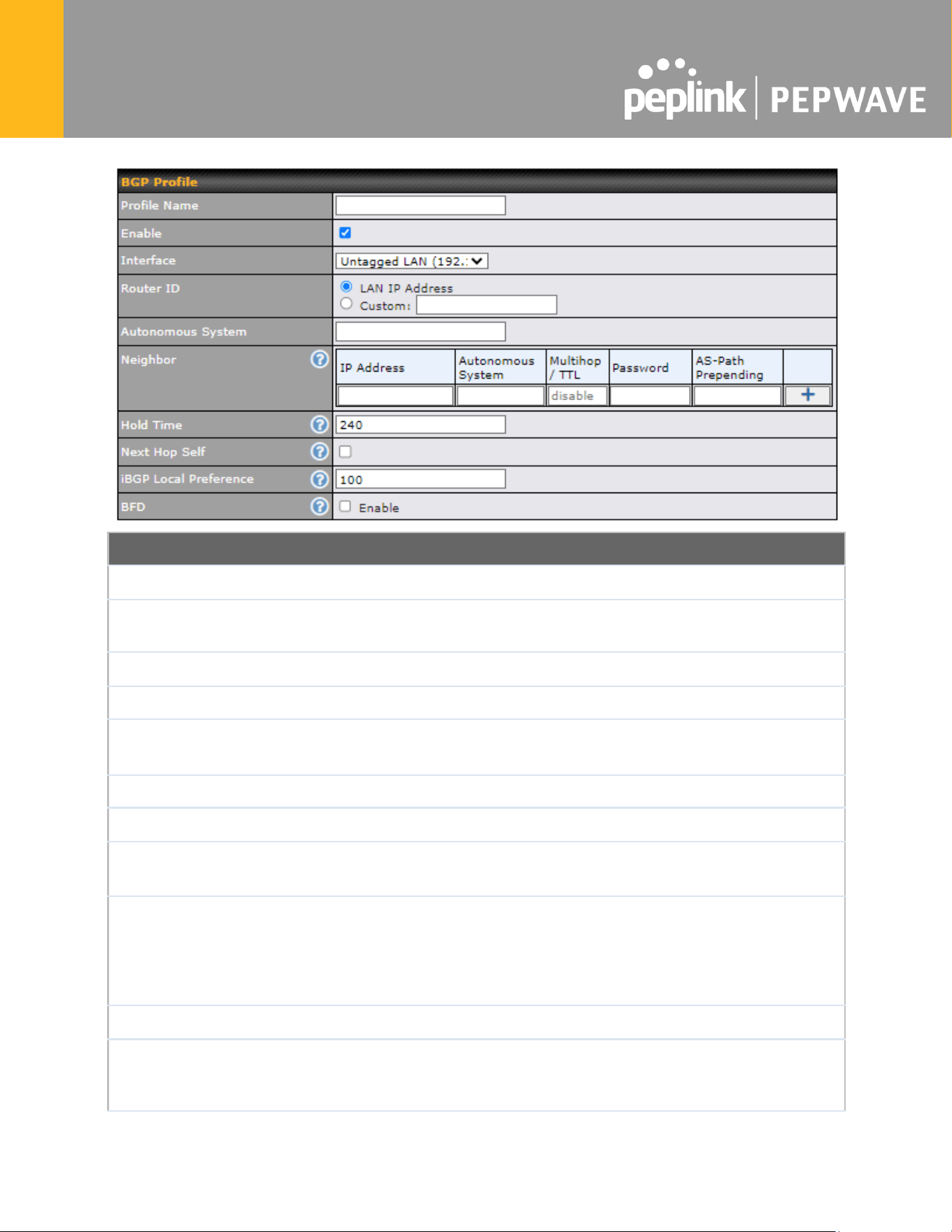

BGP Profile
Name
This field specifies the name that represents this profile.
Enable
When this box is checked, this BGP profile will be enabled.
If it is left unchecked, it will be disabled.
Interface
The interface in which the BGP neighbor is located.
Router ID
This field specifies the unique IP as the identifier of the local device running BGP.
Autonomous
System
The Autonomous System Number (ASN) assigned to this profile.
Neighbor
BGP Neighbors and their details.
IP address
The IP address of the Neighbor.
Autonomous
System
The Neighbor's ASN.
Multihop/TTL
This field determines the Time-to-live (TTL) of BGP packets.
Leave this field blank if the BGP neighbor is directly connected, otherwise you must
specify a TTL value. This option should be used if the configured Neighbor’s IP
address does not match the selected Interface’s network subnets. The TTL value
must be between 2 to 255.
Password
(Optional) Assign a password for MD5 authentication of BGP sessions.
AS-Path
Prepending:
AS path to be prepended to the routes received from this Neighbor.
Values must be ASN and separated by commas.
For example: inputting "64530,64531" will prepend "64530, 64531" to received
https://www.peplink.com
140
Copyright @ 2025 Peplink
routes.
Hold Time
Wait time in seconds for a keepalive message from a Neighbor before considering
the BGP connection as stalled.
The value must be either 0 (infinite hold time) or between 3 and 65535 inclusively.
Default: 240
Next Hop Self
Enable this option to advertise your own source address as the next hop when
propagating routes.
iBGP Local
Preference
This is the metric advertised to iBGP Neighbors to indicate the preference for
external routes. The value must be between 0 to 4294967295 inclusively.
Default: 100
BFD
Enable this option to add Bidirectional Forwarding Detection for path failure. All
directly connected Neighbors that use the same physical interface share the same
BFD settings. All mulithop Neighbors share the same multihop BFD settings. You
can configure BFD settings in the BGP profile listing page after this option is
enabled.

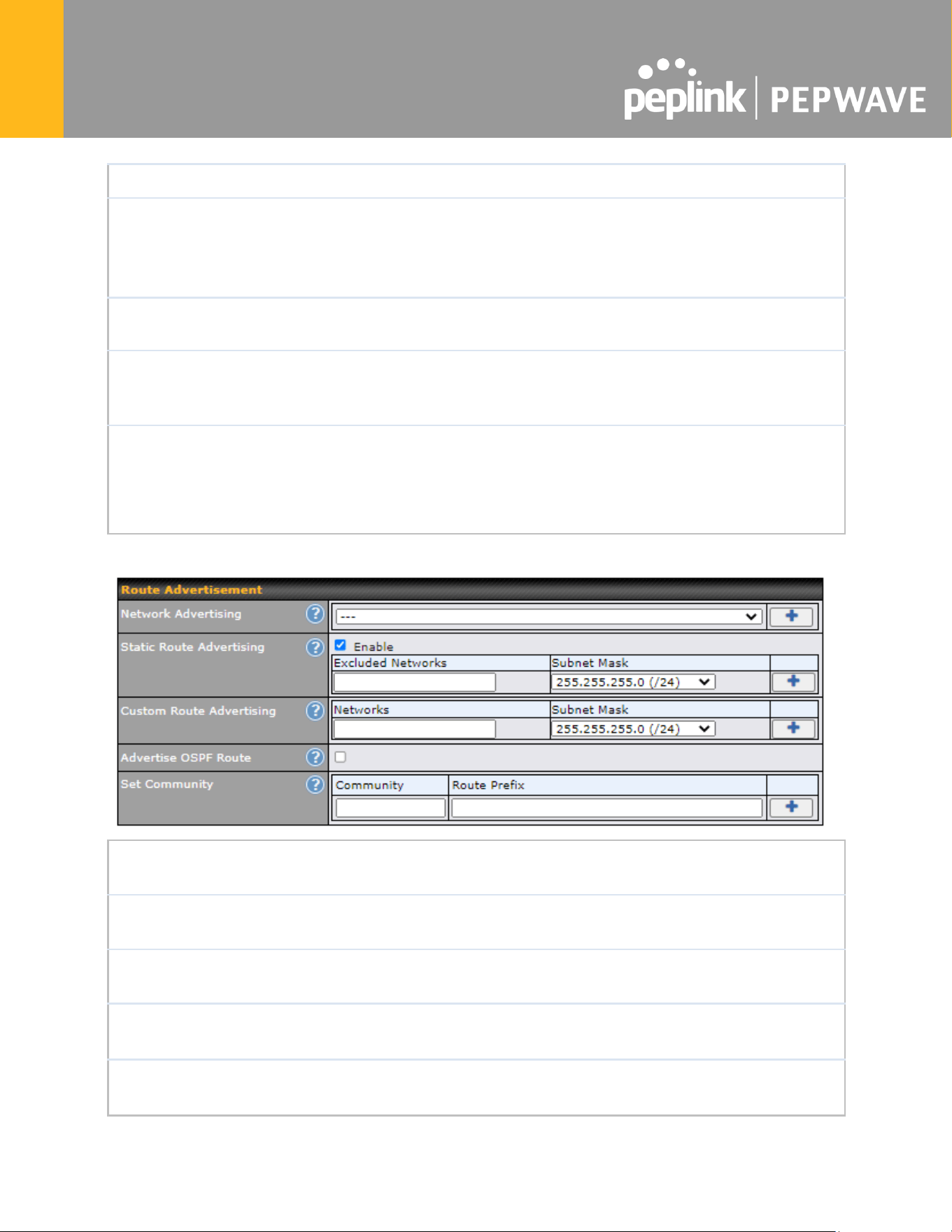

Network
Advertising
Select the Networks that will be advertised to the BGP Neighbor.
Static Route
Advertising
Enable this option to advertise static LAN routes. Static routes that match the
Excluded Networks table will not be advertised.
Custom Route
Advertising
Additional routes to be advertised to the BGP Neighbor.
Advertise OSPF
Route
When this box is checked, every learnt OSPF route will be advertised.
Set Community
Assign a prefix to a Community.
https://www.peplink.com
141
Copyright @ 2025 Peplink
Community:
Two numbers in new-format.
e.g. 65000:21344
Well-known communities:
no-export 65535:65281
no-advertise 65535:65282
no-export-subconfed 65535:65283
no-peer 65535:65284
Route Prefix:
Comma separated networks.
e.g. 172.168.1.0/24,192.168.1.0/28

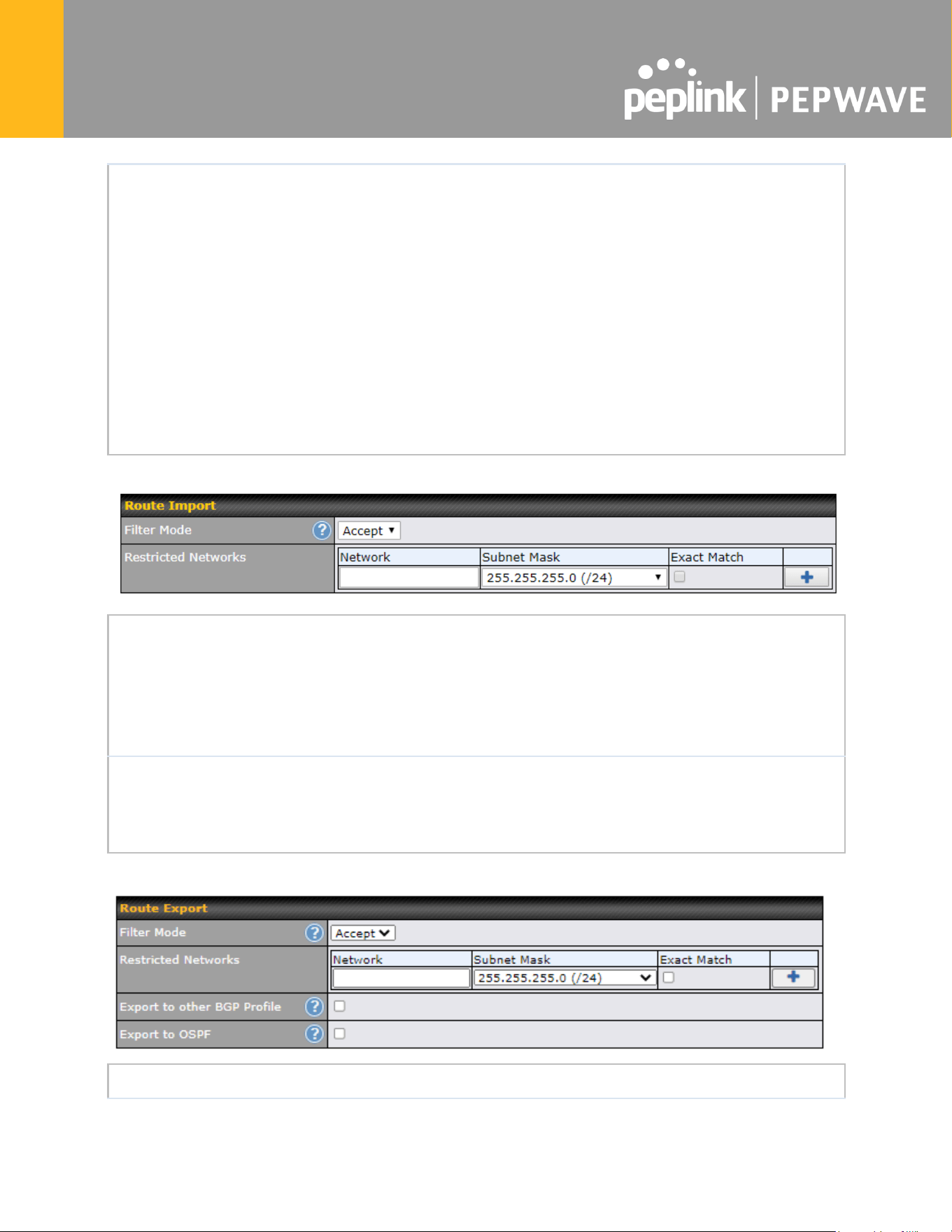

Filter Mode
This field allows for the selection of the filter mode for route import.
None: All BGP routes will be accepted.
Accept: Routes in "Restricted Networks" will be accepted, routes not in the list will
be rejected.
Reject: Routes in "Blocked Networks" will be rejected, routes not in the list will be
accepted.
Restricted
Networks /
Blocked
Networks
This field specifies the network(s) in the “route import” entry.
Exact Match: When this box is checked, only routes with the same Network and
Subnet Mask will be filtered.
Otherwise, routes within the Networks and Subnets will be filtered.
Filter Mode
This field allows for the selection of the filter mode for route export.
https://www.peplink.com
142
Copyright @ 2025 Peplink
None: All BGP routes will be accepted.
Accept: Routes in "Restricted Networks" will be accepted, routes not in the list will
be rejected.
Reject: Routes in "Blocked Networks" will be rejected, routes not in the list will be
accepted.
Restricted
Networks /
Blocked
Networks
This field specifies the network(s) in the “route export” entry.
Exact Match: When this box is checked, only routes with the same Network and
Subnet Mask will be filtered.
Otherwise, routes within the Networks and Subnets will be filtered.
Export to other
BGP Profile
When this box is checked, routes learnt from this BGP profile will be exported to
other BGP profiles.
Export to OSPF
When this box is checked, routes learnt from this BGP profile will be exported to the
OSPF routing protocol.
https://www.peplink.com
143
Copyright @ 2025 Peplink
22 Remote User Access
A remote-access VPN connection allows an individual user to connect to a private business
network from a remote location using a laptop or desktop computer connected to the Internet.
Networks routed by a Pepwave router can be remotely accessed via OpenVPN, L2TP with
IPsec or PPTP. To configure this feature, navigate to Advanced > Remote User Access and
choose the required VPN type.

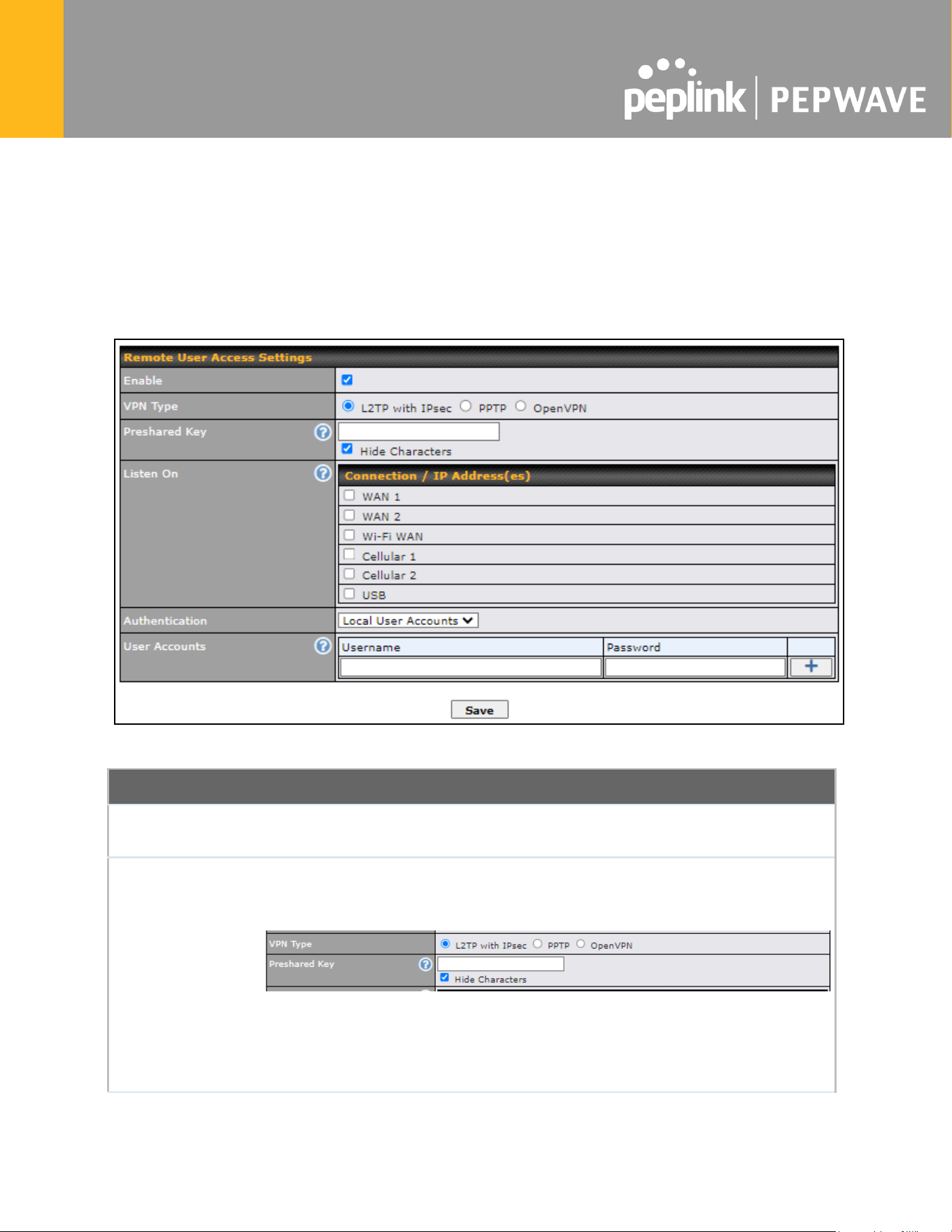

Remote User Access Settings
Enable
When this box is checked, this Remote User Access profile will be enabled.
If it is left unchecked, it will be disabled.

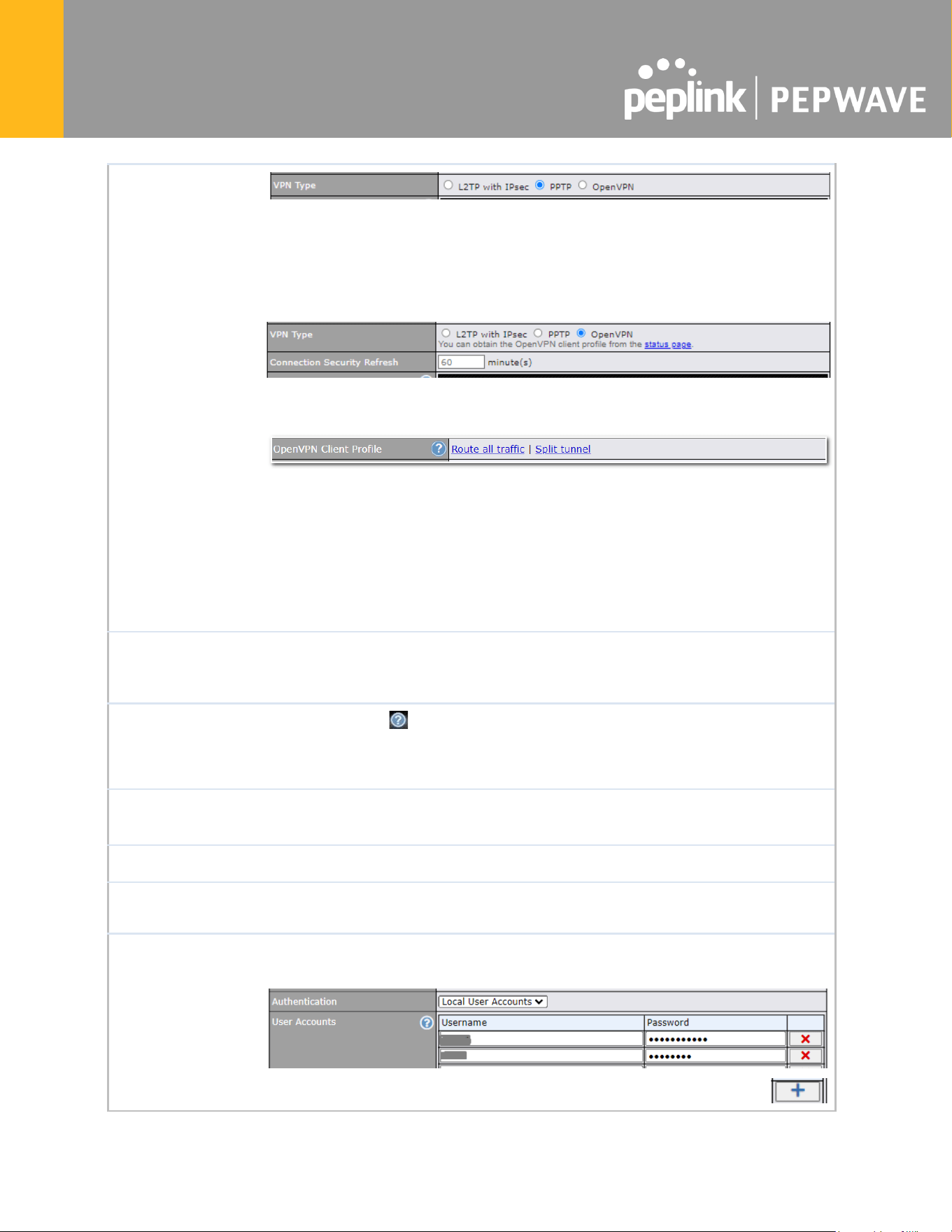

VPN Type
This field allows you to select the VPN type for the remote user access
connection. The available options are:
● L2TP with IPsec
If L2TP with IPsec is selected, it may need to enter the pre-shared key for the
remote user access.
● PPTP
https://www.peplink.com
144
Copyright @ 2025 Peplink
If PPTP selected, there is no additional configuration required. The Point-to-Point
Tunneling Protocol (PPTP) is an obsolete method for implementing virtual private
networks. PPTP has many well known security issues
● OpenVPN
If the OpenVPN is selected, the OpenVPN Client profile can be downloaded from
the Status > Device page after the configuration has been saved.
You have a choice between 2 different OpenVPN Client profiles:
● "Route all traffic" profile
Using this profile, VPN clients will send all the traffic through the
OpenVPN tunnel
● "Split tunnel" profile
Using this profile, VPN clients will ONLY send those traffic designated to
the untagged LAN and VLAN segment through the OpenVPN tunnel.
Pre-shared Key
If L2TP with IPsec is selected in the VPN Type, enter the pre shared key in the
text field. Please note that remote devices will need this preshared key to access
the Balance.
Disabled Weak
Ciphers
You may click the button to show in the Pre-shared key and enable this option.
When checked, weak ciphers such as 3DES will be disabled.
Please note: Legacy and Android devices may not able to connect.
Connection
Security Refresh
If OpenVPN is selected in the VPN Type, this settings is for specifying the interval
for refreshing the connection.
Listen On
This setting is for specifying the WAN IP addresses that allow remote user access.
Port
If OpenVPN is selected in the VPN Type, the Port setting specifies the port(s) that
correspond to the service.
Authentication
Determine the method of authenticating remote users:
● Local User Accounts
This setting allows you to define the Remote User Accounts. Click Add
https://www.peplink.com
145
Copyright @ 2025 Peplink
to input username and password to create an account. After adding the user
accounts, you can click on a username to edit the account password.
Note:
The username must contain lowercase letters, numerics, underscore(_), dash(-),
at sign(@), and period(.) only.
The password must be between 8 and 12 characters long

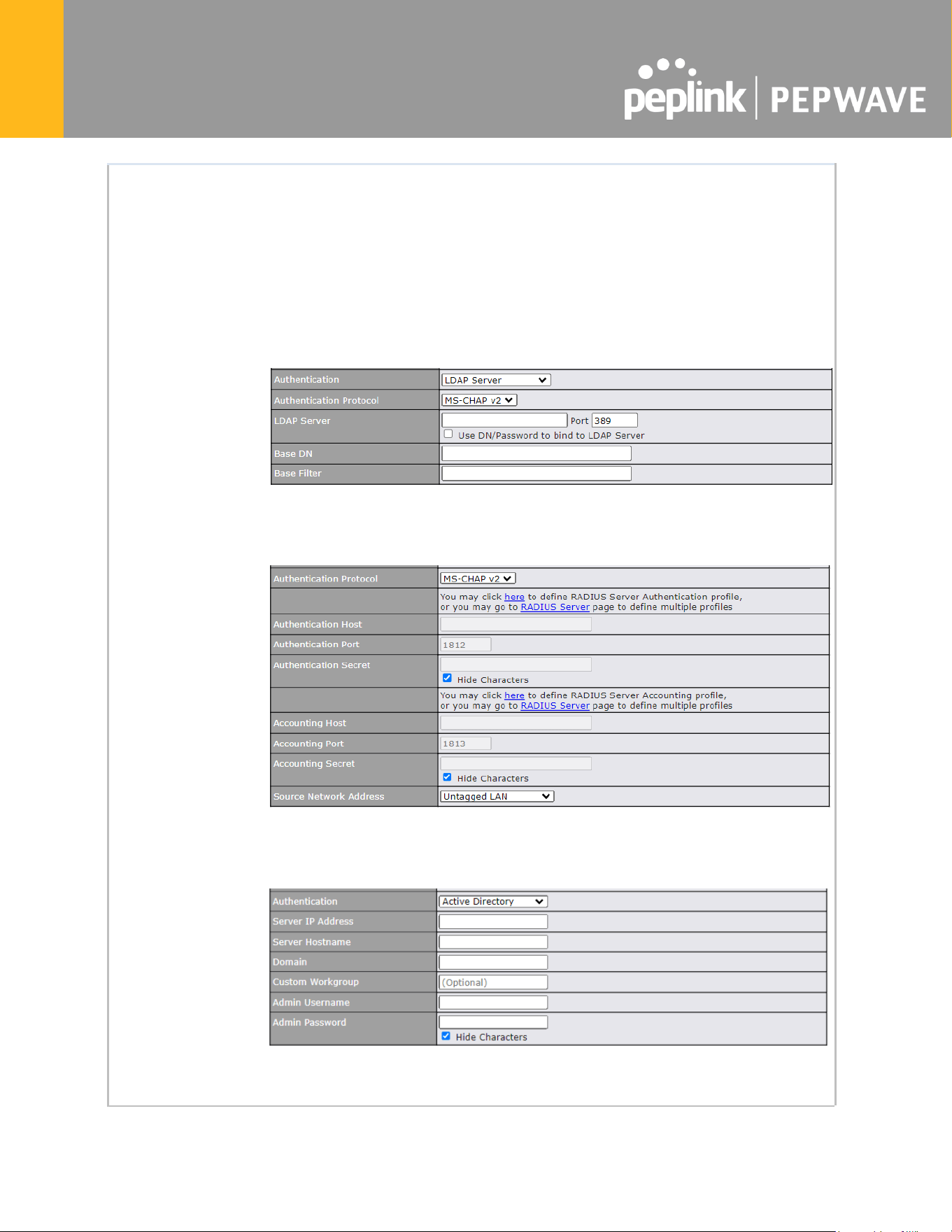

● LDAP Server
Enter the matching LDAP server details to allow for LDAP server authentication.
● Radius Server
Enter the matching Radius server details to allow for Radius server authentication.
● Active Diretory
Enter the matching Active Directory details to allow for Active Directory server
authentication.
https://www.peplink.com
146
Copyright @ 2025 Peplink
23 Miscellaneous Settings
The miscellaneous settings include configuration for High Availability, Certificate Manager,
service forwarding, service passthrough, GPS forwarding, GPIO, Groupe Networks and SIM
Toolkit (depending the feature is supported on the model of Peplin router that is being used).
23.1 High Availability
Many Pepwave routers support high availability (HA) configurations via an open standard virtual
router redundancy protocol (VRRP, RFC 3768). In an HA configuration, two Pepwave routers
provide redundancy and failover in a master-slave arrangement. In the event that the master
unit is down, the slave unit becomes active. High availability will be disabled automatically
where there is a drop-in connection configured on a LAN bypass port.

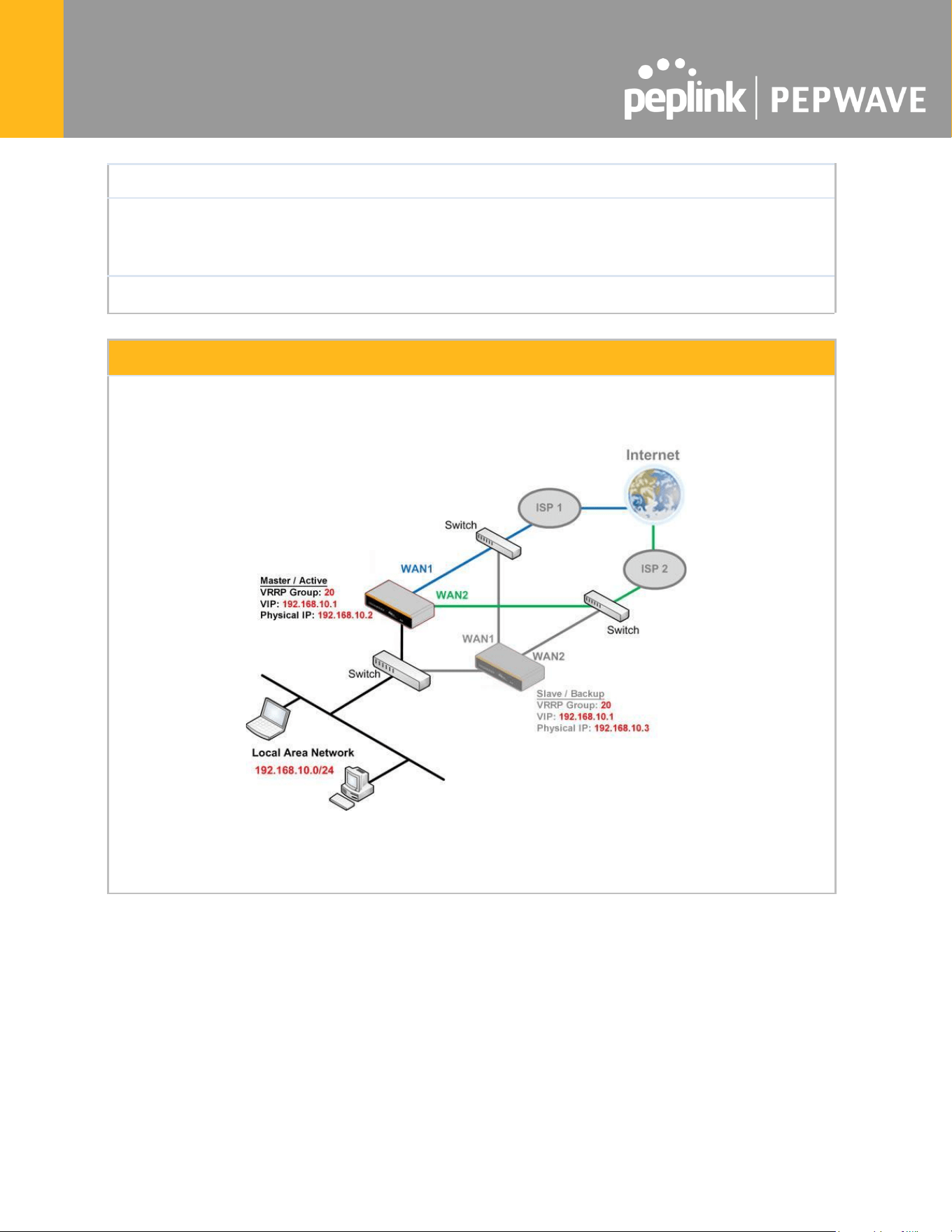

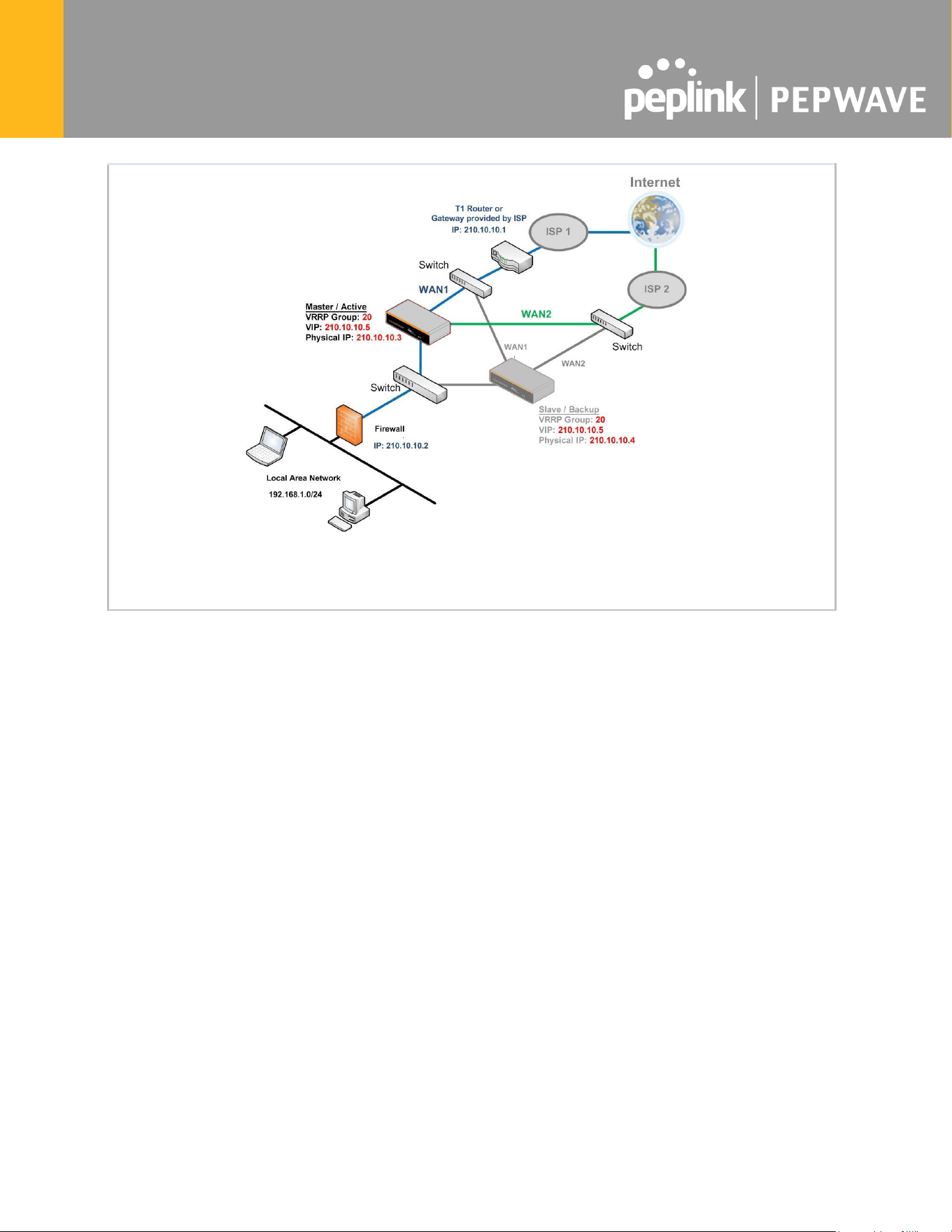

In the diagram, the WAN ports of each Pepwave router connect to the router and to the modem.
Both Pepwave routers connect to the same LAN switch via a LAN port.
An elaboration on the technical details of the implementation of the virtual router redundancy
protocol (VRRP, RFC 3768) by Pepwave routers follows:
● In an HA configuration, the two Pepwave routers communicate with each other using
VRRP over the LAN.
● The two Pepwave routers broadcast heartbeat signals to the LAN at a frequency of one
heartbeat signal per second.
● In the event that no heartbeat signal from the master Pepwave router is received in 3
seconds (or longer) since the last heartbeat signal, the slave Pepwave router becomes
active.
● The slave Pepwave router initiates the WAN connections and binds to a previously
https://www.peplink.com
147
Copyright @ 2025 Peplink
configured LAN IP address.
● At a subsequent point when the master Pepwave router recovers, it will once again
become active.
You can configure high availability at Advanced > Misc. Settings > High Availability.

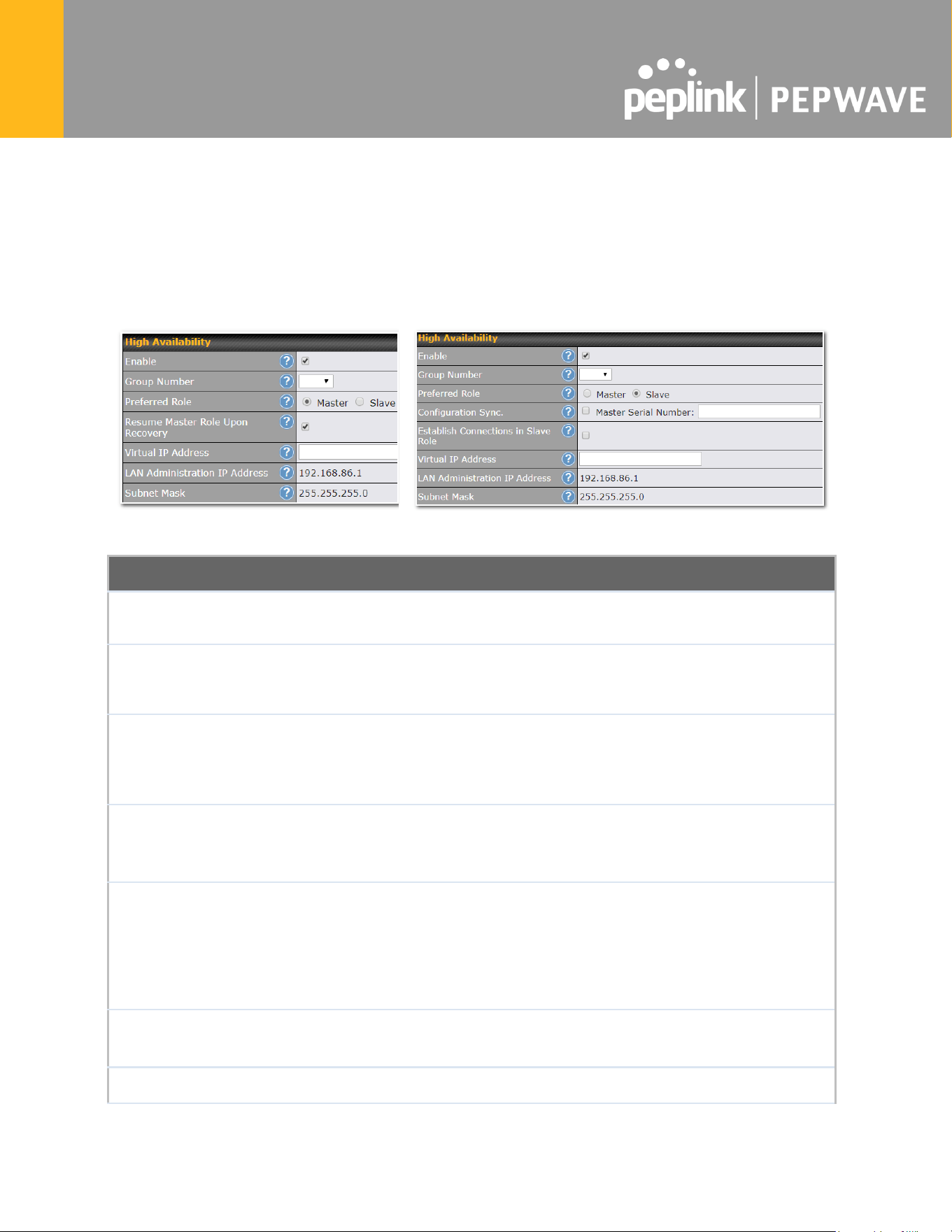

Interface for Master Router
Interface for Slave Router
High Availability
Enable
Checking this box specifies that the Pepwave router is part of a high availability
configuration.
Group Number
This number identifies a pair of Pepwave routers operating in a high availability
configuration. The two Pepwave routers in the pair must have the same Group
Number value.
Preferred Role
This setting specifies whether the Pepwave router operates in master or slave
mode. Click the corresponding radio button to set the role of the unit. One of the
units in the pair must be configured as the master, and the other unit must be
configured as the slave.
Resume Master
Role Upon
Recovery
This option is displayed when Master mode is selected in Preferred Role. If this
option is enabled, once the device has recovered from an outage, it will take over
and resume its Master role from the slave unit.
Configuration
Sync.
This option is displayed when Slave mode is selected in Preferred Role. If this
option is enabled and the Master Serial Number entered matches with the actual
master unit's, the master unit will automatically transfer the configuration to this unit.
Please make sure the LAN IP Address and the Subnet Mask fields are set
correctly in the LAN settings page. You can refer to the Event Log for the
configuration synchronization status.
Master Serial
Number
If Configuration Sync. is checked, the serial number of the master unit is required
here for the feature to work properly.
Virtual IP
The HA pair must share the same Virtual IP. The Virtual IP and the LAN
https://www.peplink.com
148
Copyright @ 2025 Peplink
Administration IP must be under the same network.
LAN
Administration
IP
This setting specifies a LAN IP address to be used for accessing administration
functionality. This address should be unique within the LAN.
Subnet Mask
This setting specifies the subnet mask of the LAN.
Important Note
For Pepwave routers in NAT mode, the virtual IP (VIP) should be set as the default gateway for all
hosts on the LAN segment. For example, a firewall sitting behind the Pepwave router should set its
default gateway as the virtual IP instead of the IP of the master router.
In drop-in mode, no other configuration needs to be set.
https://www.peplink.com
149
Copyright @ 2025 Peplink

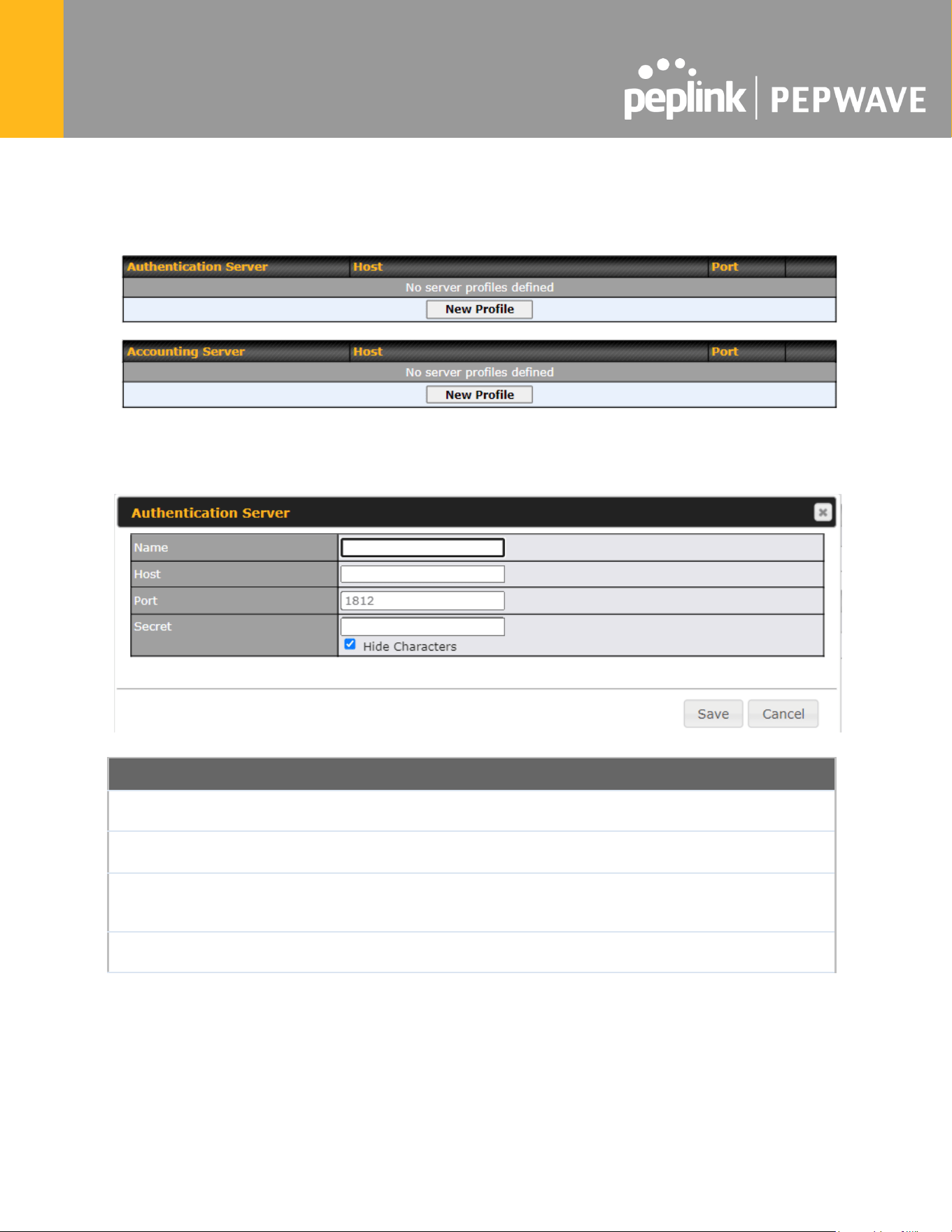

23.2 RADIUS Server
RADIUS Server settings are located at Advanced > Misc. Settings > RADIUS Server.
To configure the Authentication Server and Accounting Server, click New Profile to display the
following screen:
Authentication Server
Name
This field is for specifying a name to represent this profile.
Host
Specifies the IP address or hostname of the RADIUS server host.
Port
This setting specifies the UDP destination port for authentication requests. By
default, the port number is 1812.
Secret
This field is for entering the secret key for communicating to the RADIUS server.
https://www.peplink.com
151
Copyright @ 2025 Peplink

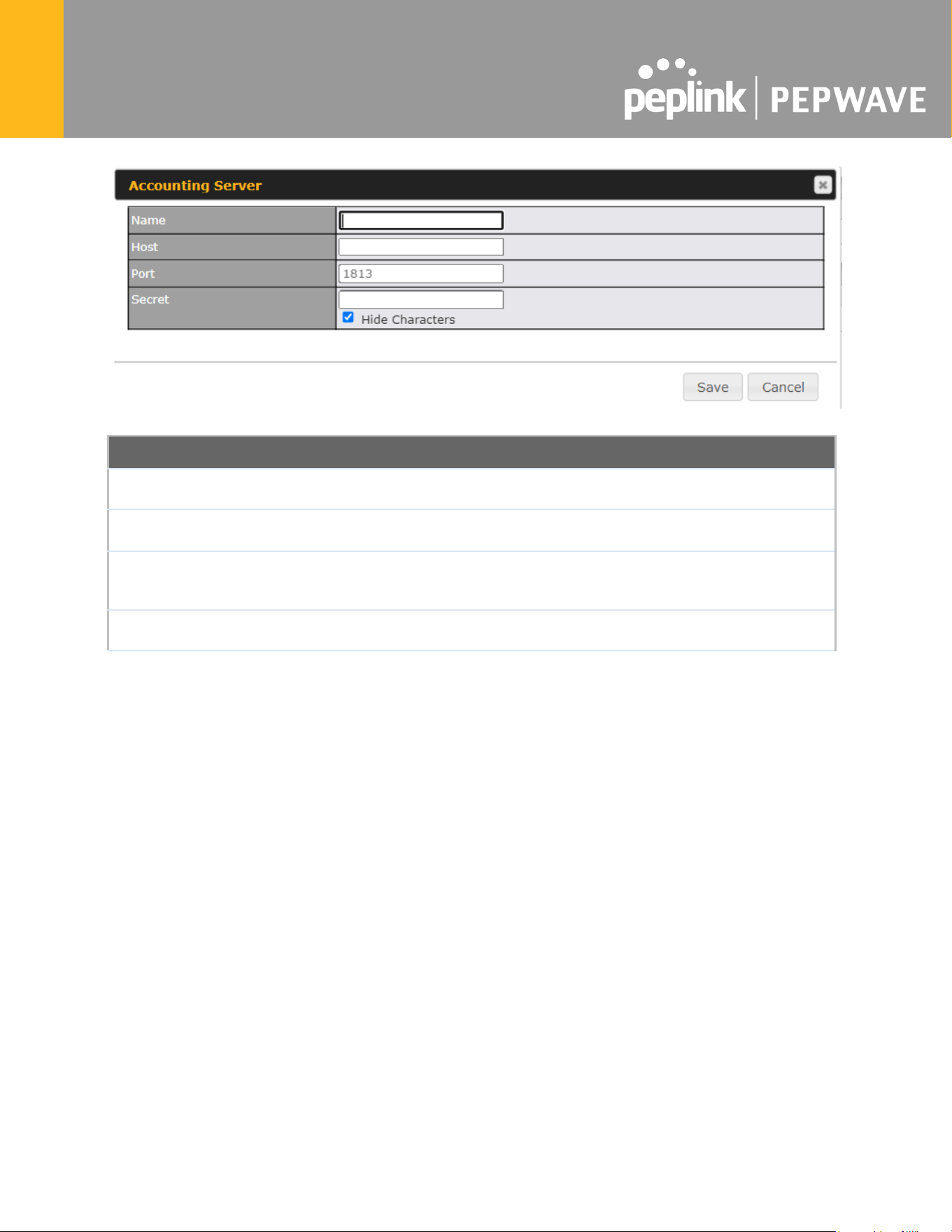

Accounting Server
Name
This field is for specifying a name to represent this profile.
Host
Specifies the IP address or hostname of the RADIUS server host.
Port
This setting specifies the UDP destination port for accounting requests. By default,
the port number is 1813.
Secret
This field is for entering the secret key for communicating to the RADIUS server.
https://www.peplink.com
152
Copyright @ 2025 Peplink
23.3 Certificate Manager

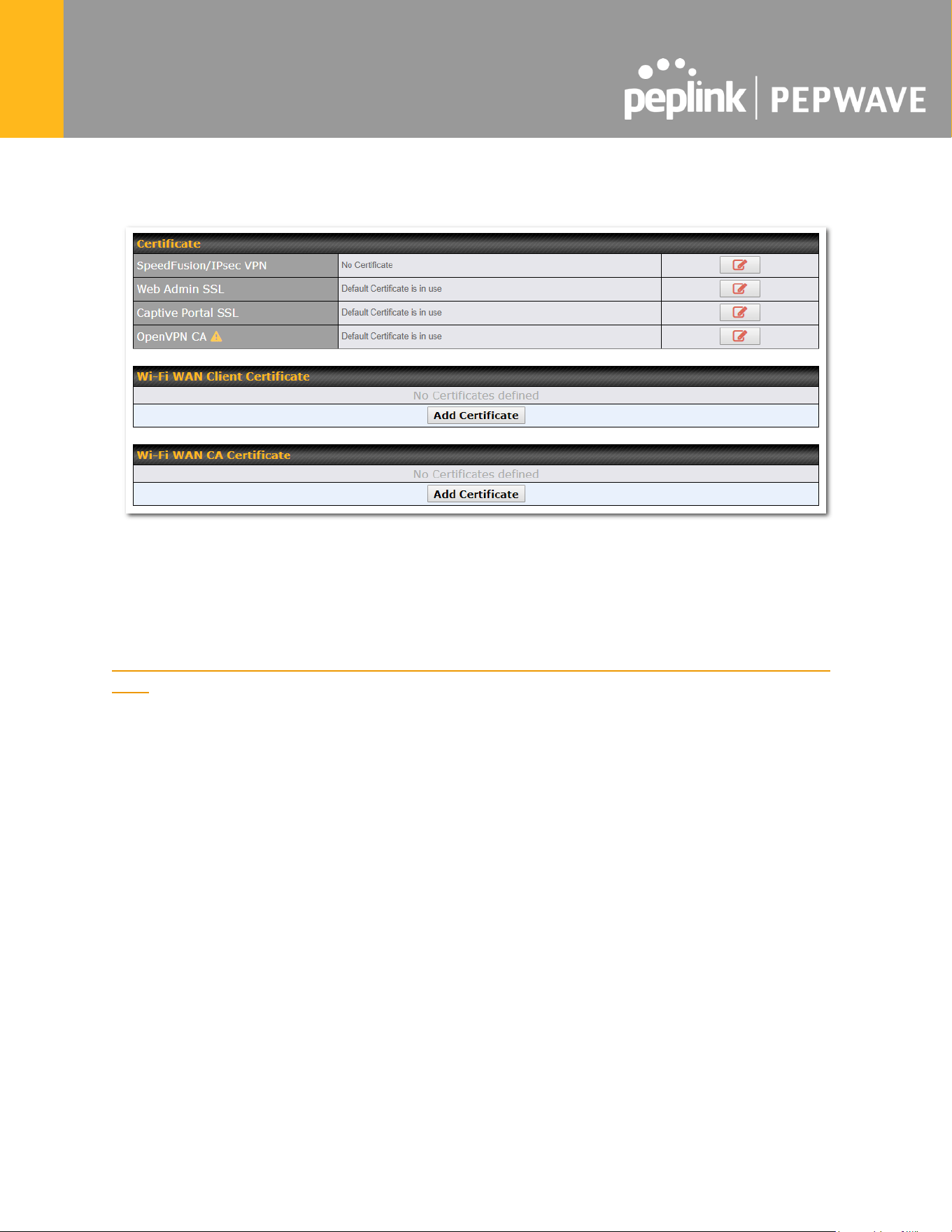

This section allows for certificates to be assigned to the local VPN, Web Admin SSL, Captive
Portal SSL, OpenVPN CA, Wi-Fi WAN Client certificate and Wi-Fi WAN CA Certificate.
The following knowledge base article describes how to create self-signed certificates and import
it to a Peplink Product.
https://forum.peplink.com/t/how-to-create-a-self-signed-certificate-and-import-it-to-a-peplink-pro
duct/
https://www.peplink.com
153
Copyright @ 2025 Peplink

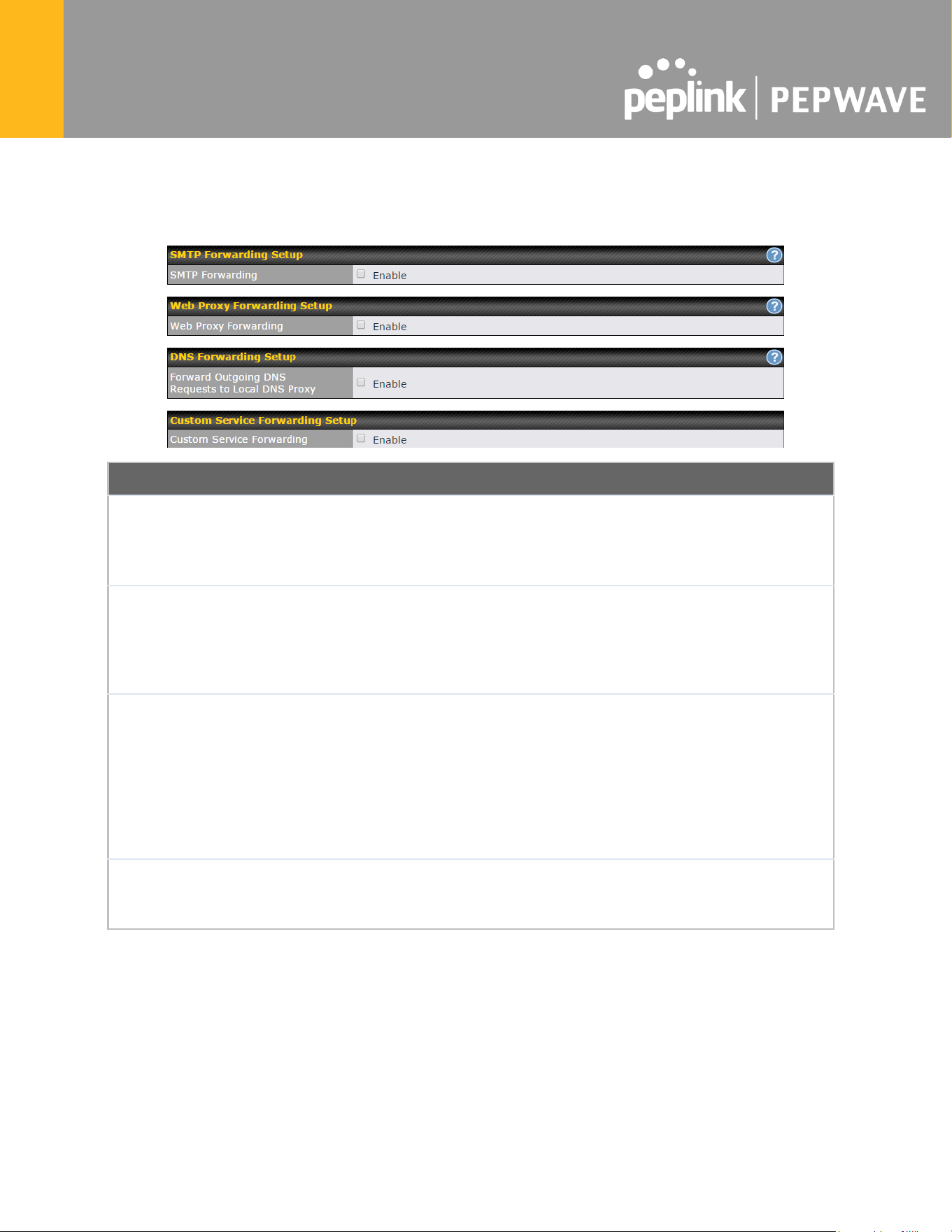

23.4 Service Forwarding
Service forwarding settings are located at Advanced > Misc. Settings > Service Forwarding.
Service Forwarding
SMTP Forwarding
When this option is enabled, all outgoing SMTP connections destined for
any host at TCP port 25 will be intercepted. These connections will be
redirected to a specified SMTP server and port number. SMTP server
settings for each WAN can be specified after selecting Enable.
Web Proxy
Forwarding
When this option is enabled, all outgoing connections destined for the proxy
server specified in Web Proxy Interception Settings will be intercepted.
These connections will be redirected to a specified web proxy server and
port number. Web proxy interception settings and proxy server settings for
each WAN can be specified after selecting Enable.
DNS Forwarding
When this option is enabled, all outgoing DNS lookups will be intercepted
and redirected to the built-in DNS name server. If any LAN device is using
the DNS name servers of a WAN connection, you may want to enable this
option to enhance the DNS availability without modifying the DNS server
setting of the clients. The built-in DNS name server will distribute DNS
lookups to corresponding DNS servers of all available WAN connections. In
this case, DNS service will not be interrupted, even if any WAN connection
is down.
Custom Service
Forwarding
When custom service forwarding is enabled, outgoing traffic with the
specified TCP port will be forwarded to a local or remote server by defining
its IP address and port number.
23.4.1 SMTP Forwarding
Some ISPs require their users to send e-mails via the ISP’s SMTP server. All outgoing SMTP
connections are blocked except those connecting to the ISP’s. Pepwave routers support
intercepting and redirecting all outgoing SMTP connections (destined for TCP port 25) via a
WAN connection to the WAN’s corresponding SMTP server.
https://www.peplink.com
154
Copyright @ 2025 Peplink

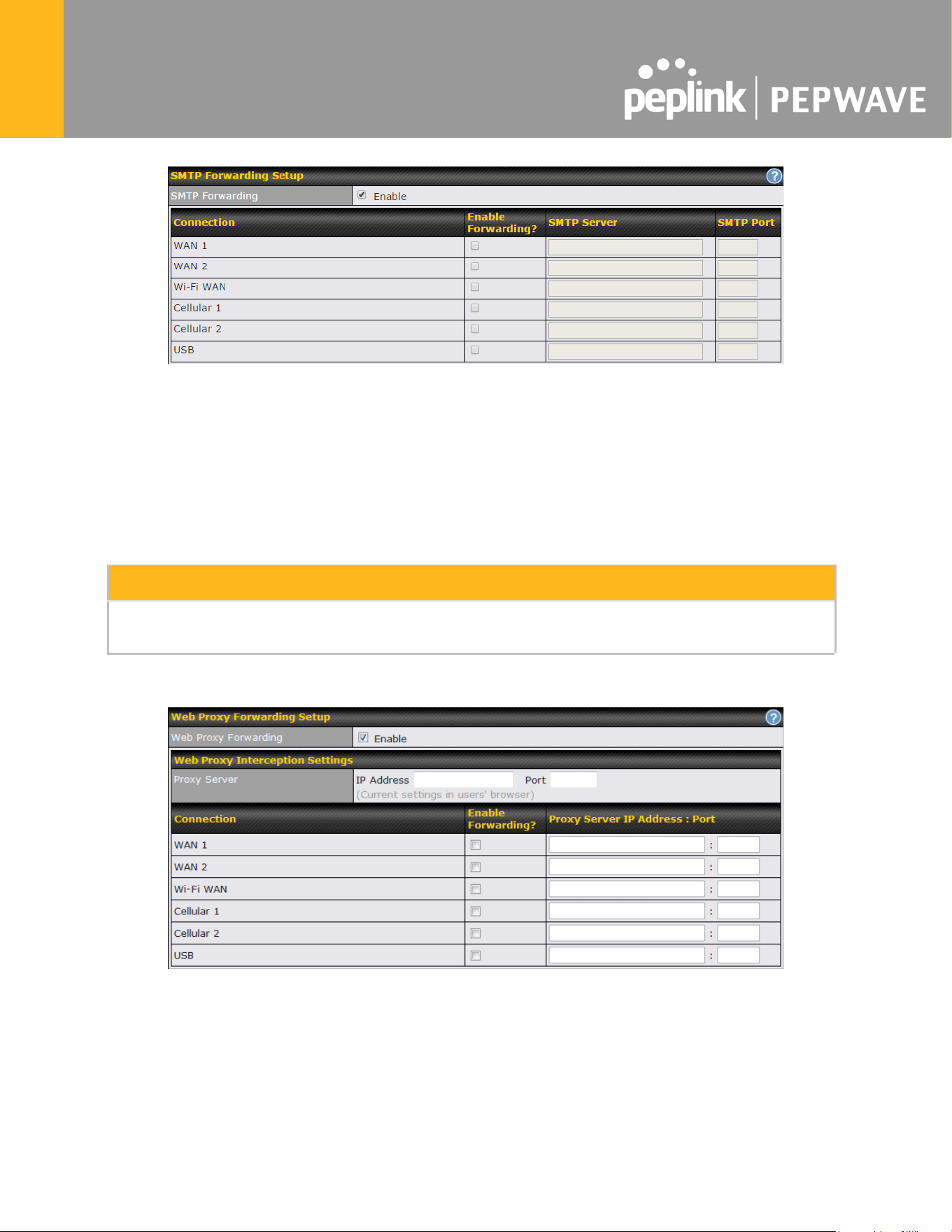

To enable the feature, select Enable under SMTP Forwarding Setup. Check Enable
Forwarding for the WAN connection(s) that needs forwarding. Under SMTP Server, enter the
ISP’s e-mail server host name or IP address. Under SMTP Port, enter the TCP port number for
each WAN.
The Pepwave router will intercept SMTP connections. Choose a WAN port according to the
outbound policy, and then forward the connection to the SMTP server if the chosen WAN has
enabled forwarding. If the forwarding is disabled for a WAN connection, SMTP connections for
the WAN will be simply be forwarded to the connection’s original destination.
Note
If you want to route all SMTP connections only to particular WAN connection(s), you should create a
custom rule in outbound policy (see Section 14.2).
23.4.2 Web Proxy Forwarding
When this feature is enabled, the Pepwave router will intercept all outgoing connections
destined for the proxy server specified in Web Proxy Interception Settings, choose a WAN
connection with reference to the outbound policy, and then forward them to the specified web
proxy server and port number. Redirected server settings for each WAN can be set here. If
forwarding is disabled for a WAN, web proxy connections for the WAN will be simply forwarded
to the connection’s original destination.
https://www.peplink.com
155
Copyright @ 2025 Peplink

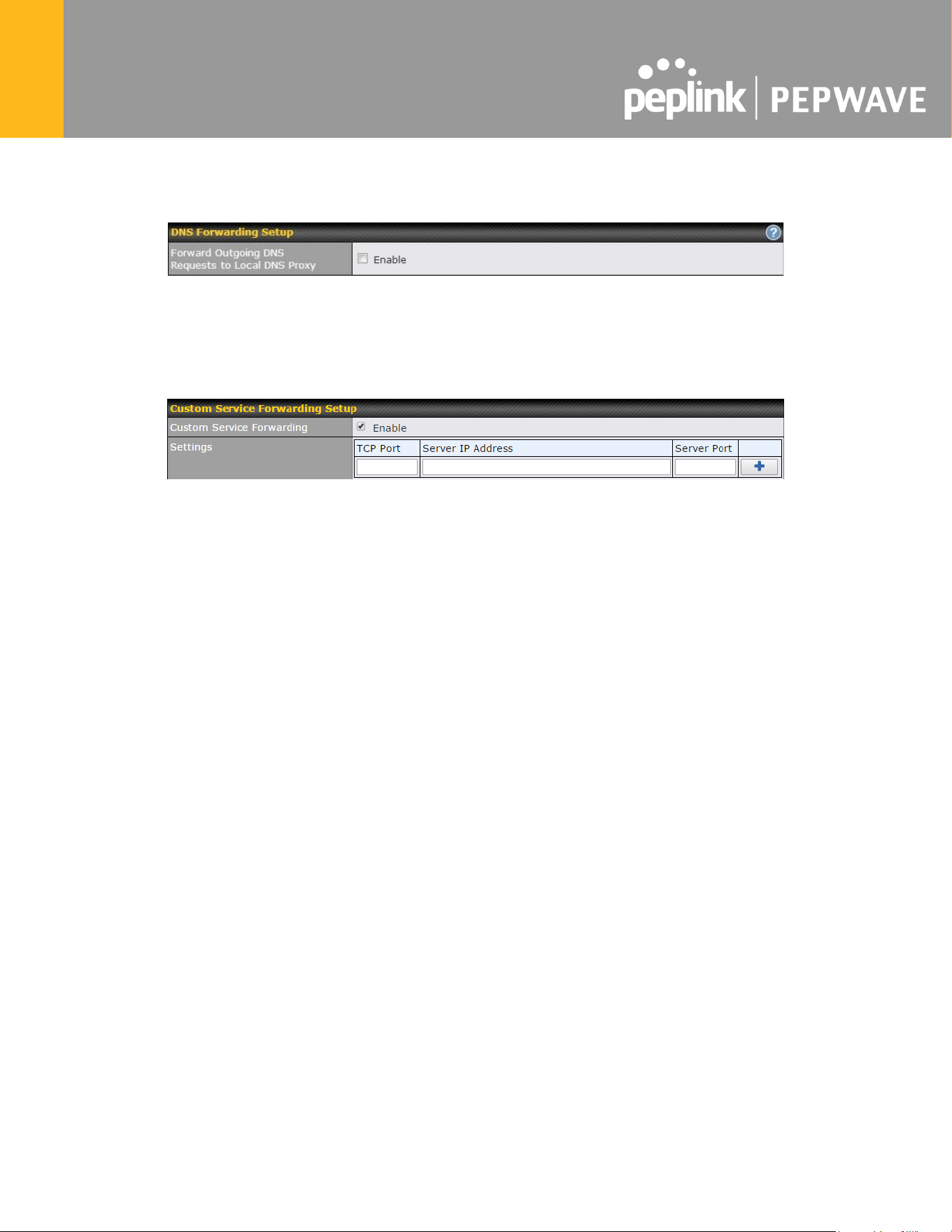

23.4.3 DNS Forwarding
When DNS forwarding is enabled, all clients’ outgoing DNS requests will also be intercepted
and forwarded to the built-in DNS proxy server.
23.4.4 Custom Service Forwarding
After clicking the enable checkbox, enter your TCP port for traffic heading to the router, and
then specify the IP Address and Port of the server you wish to forward to the service to.
https://www.peplink.com
156
Copyright @ 2025 Peplink
23.5 Service Passthrough
Service passthrough settings can be found at Advanced > Misc. Settings > Service
Passthrough.
Some Internet services need to be specially handled in a multi-WAN environment. Pepwave
routers can handle these services such that Internet applications do not notice being behind a
multi-WAN router. Settings for service passthrough support are available here.

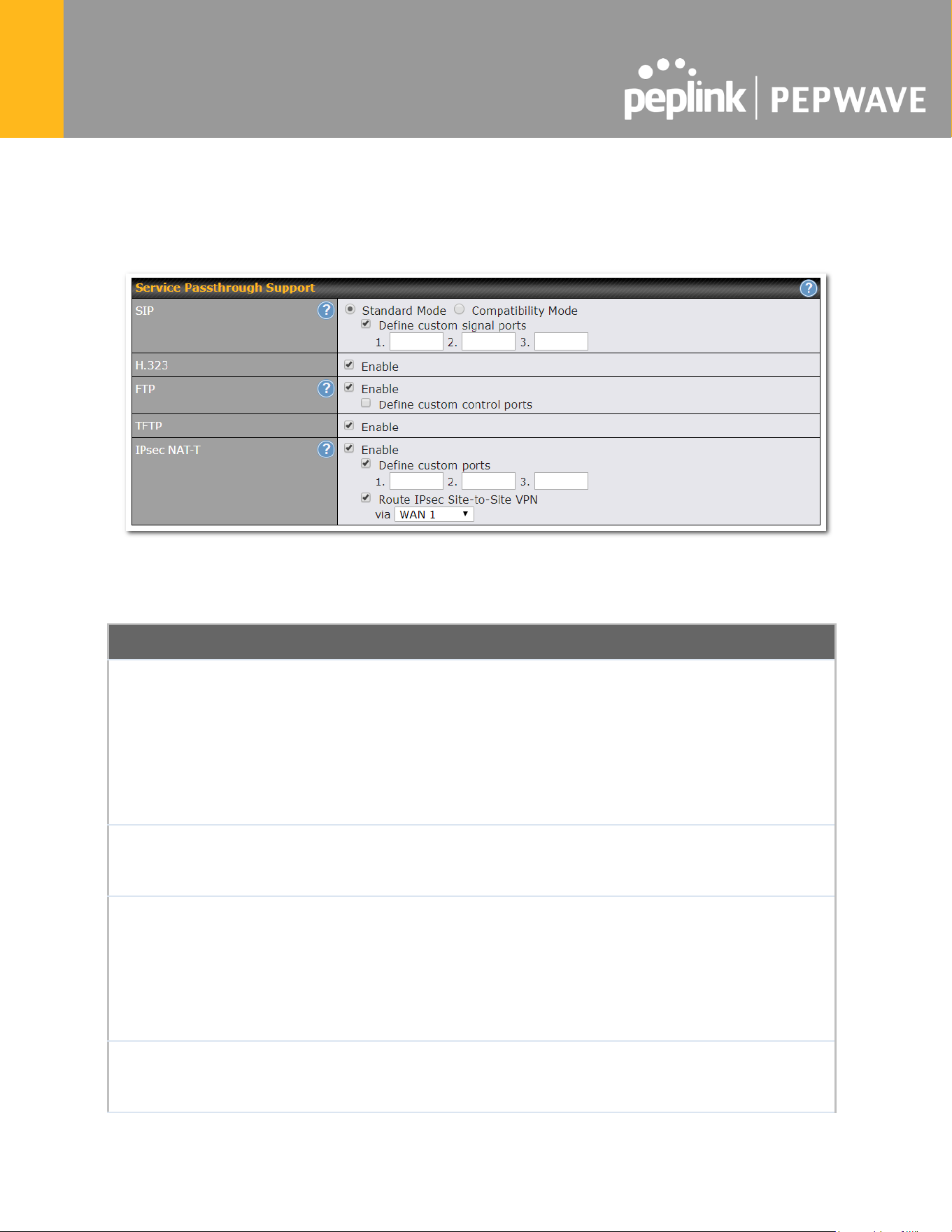

Service Passthrough Support
SIP
Session initiation protocol, aka SIP, is a voice-over-IP protocol. The Pepwave
router can act as a SIP application layer gateway (ALG) which binds
connections for the same SIP session to the same WAN connection and
translate IP address in the SIP packets correctly in NAT mode. Such
passthrough support is always enabled, and there are two modes for selection:
Standard Mode and Compatibility Mode. If your SIP server’s signal port
number is non-standard, you can check the box Define custom signal ports
and input the port numbers to the text boxes.
H.323
With this option enabled, protocols that provide audio-visual communication
sessions will be defined on any packet network and pass through the Pepwave
router.
FTP
FTP sessions consist of two TCP connections; one for control and one for data.
In a multi-WAN situation, they must be routed to the same WAN connection.
Otherwise, problems will arise in transferring files. By default, the Pepwave
router monitors TCP control connections on port 21 for any FTP connections
and binds TCP connections of the same FTP session to the same WAN. If you
have an FTP server listening on a port number other than 21, you can check
Define custom control ports and enter the port numbers in the text boxes.
TFTP
The Pepwave router monitors outgoing TFTP connections and routes any
incoming TFTP data packets back to the client. Select Enable if you want to
enable TFTP passthrough support.
https://www.peplink.com
157
Copyright @ 2025 Peplink
IPsec NAT-T
This field is for enabling the support of IPsec NAT-T passthrough. UDP ports
500, 4500, and 10000 are monitored by default. You may add more custom
data ports that your IPsec system uses by checking Define custom ports. If
the VPN contains IPsec site-to-site VPN traffic, check Route IPsec Site-to-Site
VPN and choose the WAN connection to route the traffic to.
23.6 UART
Selected Pepwave MAX routers feature a RS-232 serial interface on the built-in terminal block.
The RS-232 serial interface can be used to connect to a serial device and make it accessible
over an TCP/IP network.

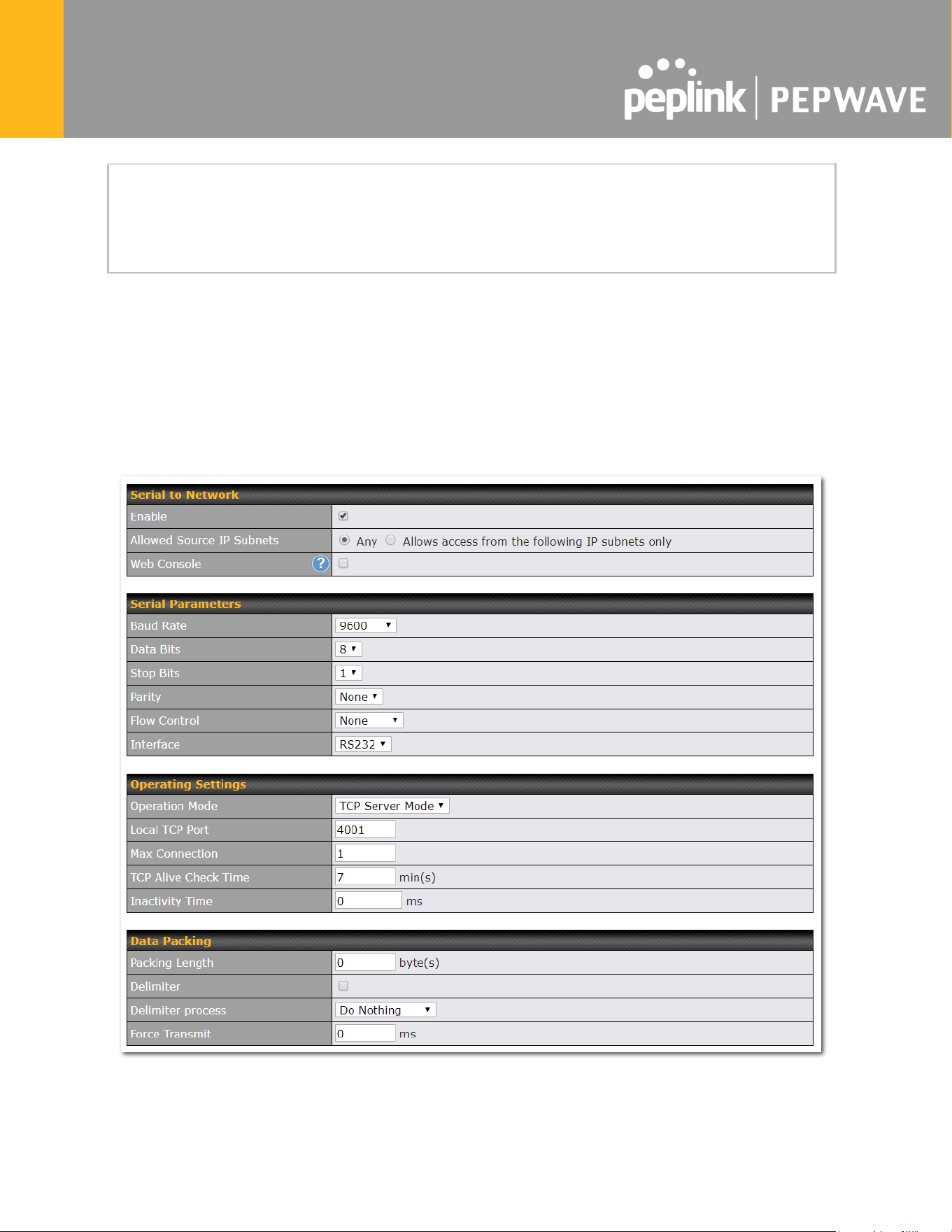

The serial interface can be enabled and parameters can be set on the web admin page under
Advanced > UART. Make sure they match the serial device you are connecting to.
https://www.peplink.com
158
Copyright @ 2025 Peplink
There are 4 pins i.e. TX, RX, RTS, CTS on the terminal block for serial connection and they
correspond to the pins in a DB-9 connector as follows:
DB-9
Pepwave MAX Terminal Block
Pin 1
–
Pin 2
Rx (rated -+25V)
Pin 3
Tx (rated -+12V)
Pin 4
–
Pin 5
–
Pin 6
–
Pin 7
RTS
Pin 8
CTS
Pin 9
–
The RS232 serial interface is not an isolated RS232. External galvanic isolation may be added if
required.
Be sure to check whether your serial cable is a null modem cable, commonly known as
crossover cable, or a straight through cable. If in doubt, swap Rx and Tx, and RTS and CTS, at
the other end and give it another go.
Once connected, your serial device should be accessible on your Pepwave MAX router LAN IP
address at the specified TCP port.
https://www.peplink.com
159
Copyright @ 2025 Peplink
23.7 GPS Forwarding
Using the GPS forwarding feature, some Pepwave routers can automatically send GPS reports
to a specified server. To set up GPS forwarding, navigate to Advanced > Misc. Settings > GPS
Forwarding.

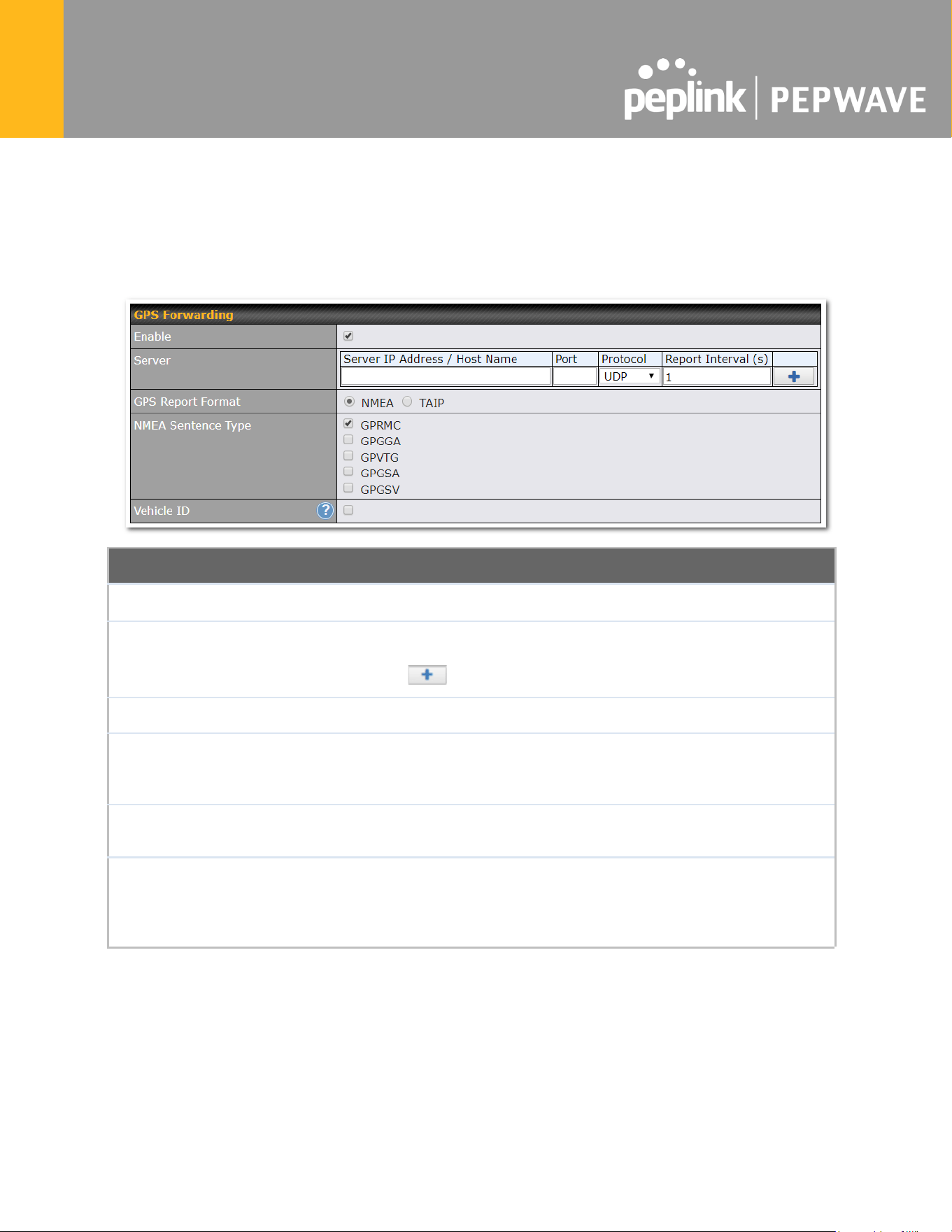

GPS Forwarding
Enable
Check this box to turn on GPS forwarding.
Server
Enter the name/IP address of the server that will receive GPS data. Also specify
a port number, protocol (UDP or TCP), and a report interval of between 1 and
10 seconds. Click to save these settings.
GPS Report Format
Choose from NMEA or TAIP format for sending GPS reports.
NMEA Sentence
Type
If you’ve chosen to send GPS reports in NMEA format, select one or more
sentence types for sending the data (GPRMC, GPGGA, GPVTG, GPGSA, and
GPGSV).
Vehicle ID
The vehicle ID will be appended in the last field of the NMEA sentence. Note
that the NMEA sentence will become customized and non-standard.
TAIP Sentence
Type/TAIP ID
(optional)
If you’ve chosen to send GPS reports in TAIP format, select one or more
sentence types for sending the data (PV—Position / Velocity Solution and
CP—Compact Velocity Solution). You can also optionally include an ID
number in the TAIP ID field.
https://www.peplink.com
160
Copyright @ 2025 Peplink
23.8 Ignition Sensing
Ignition Sensing detects the ignition signal status of a vehicle it is installed in.
This feature allows the cellular router to start up or shut down when the engine of that vehicle is
started or turned off.
The time delay setting between ignition off and power down of the router is a configurable
setting, which allows the router to stay on for a period of time after the engine of a vehicle is
turned off.

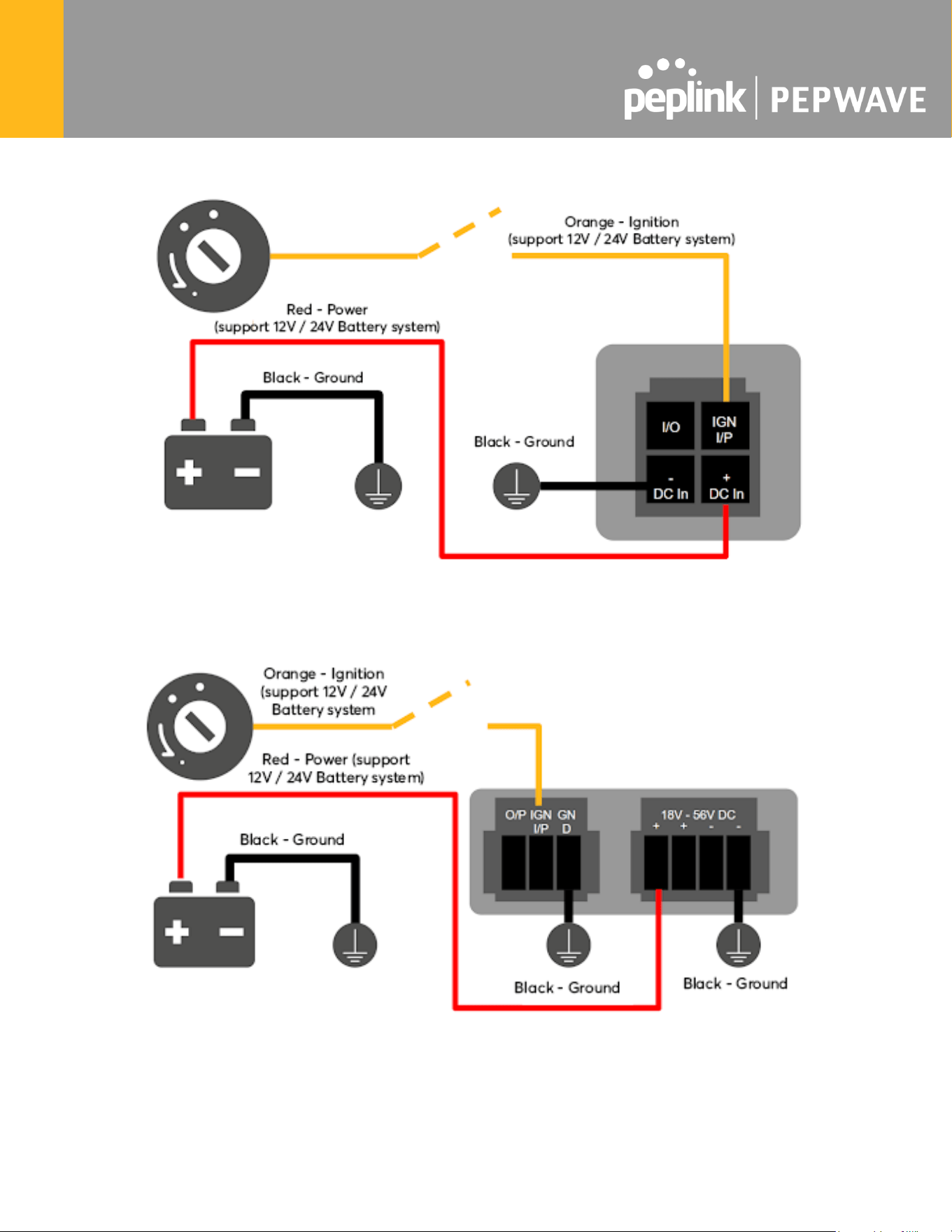

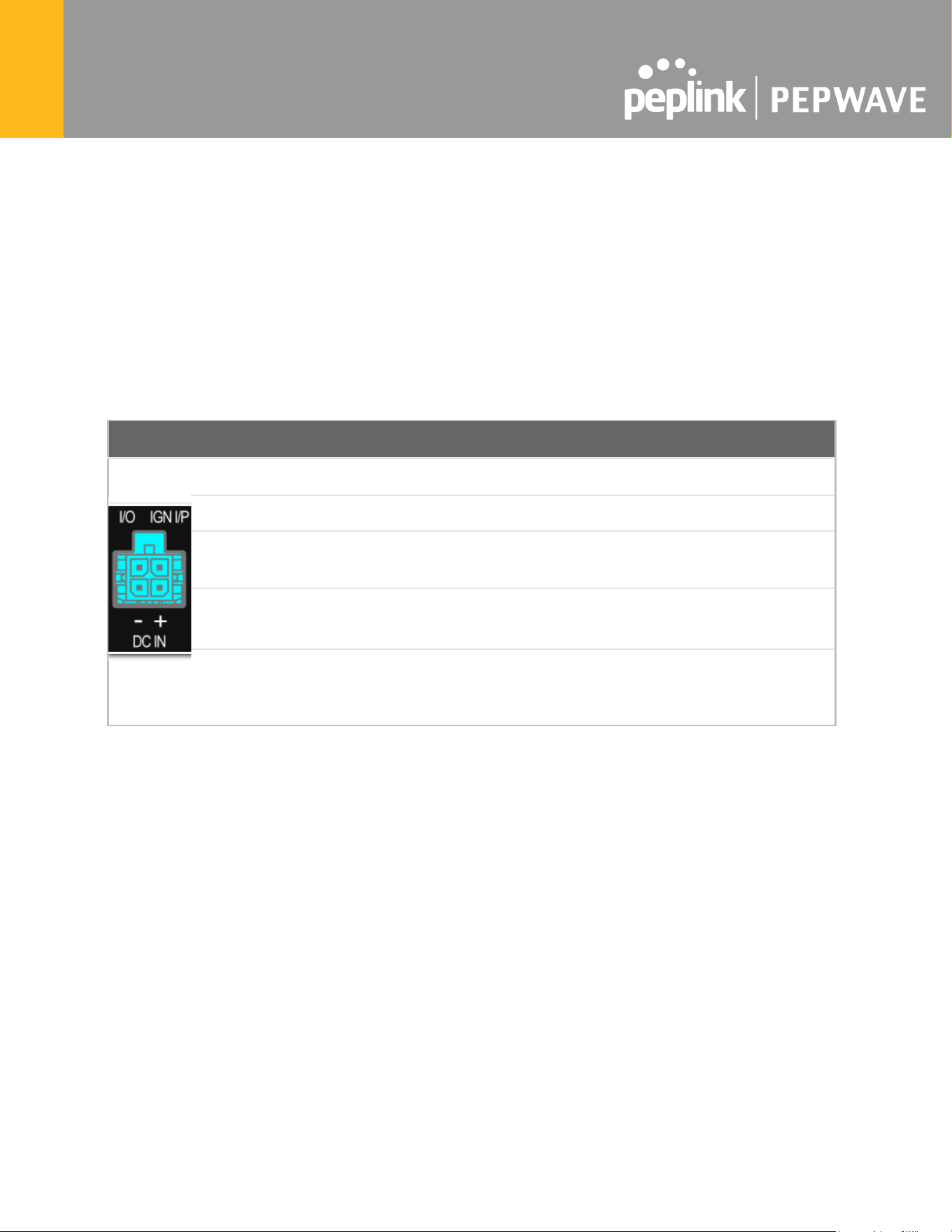

Ignition Sensing installation
Function
Colour Wire
I/O
optional *
Brown
IGN I/P
connected to positive feed on the ignition **
Orange
DC IN
-
connected to permanent negative feed (ground)
Black
DC IN
+
connected to permanent positive feed (power)
Red
* Currently not functional; will be used for additional features in future firmware.
** Connecting IGN I/P is optional and is needed only if the Ignition Sensing feature is
configured.
https://www.peplink.com
161
Copyright @ 2025 Peplink
GPIO Menu
Note: This feature is applicable for certain models that come with a GPIO interface.

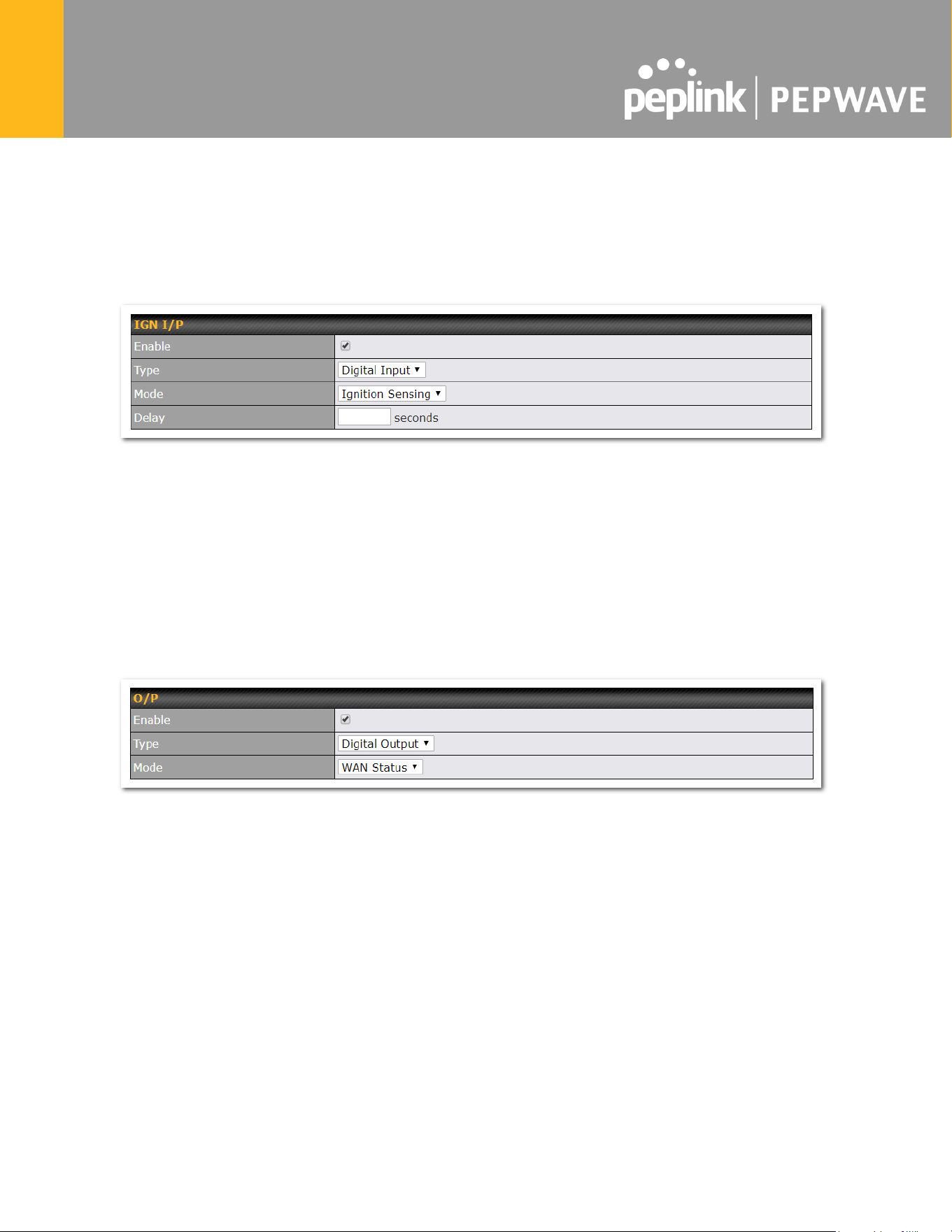

Ignition Sensing options can be found in Advanced > Misc. Settings > GPIO.
The configurable option for Ignition Input is Delay; the time in seconds that the router stays
powered on after the ignition is turned off.
The O/P (connected to the I/O pin on a 4 pin connector) can be configured as a digital input, a
digital output, or an analog input.
Digital Input - the connection supports input sensing; it reads the external input and determines
if the settings should be 'High' (on) or 'Low' (off).
Digital Output - when there is a healthy WAN connection, the output pin is marked as 'High' (on).
Otherwise, it will be marked as 'Low' (off).
Note: The Digital Output state (on/off) upon rebooting the device may vary depending on the model, eg. MAX
BR1 MK2 = Persistent; MAX Transit Mini with ContentHub = Reset to default, etc.
Analog Input - to be confirmed. In most cases, it should read the external input and determine
the voltage level.
https://www.peplink.com
163
Copyright @ 2025 Peplink

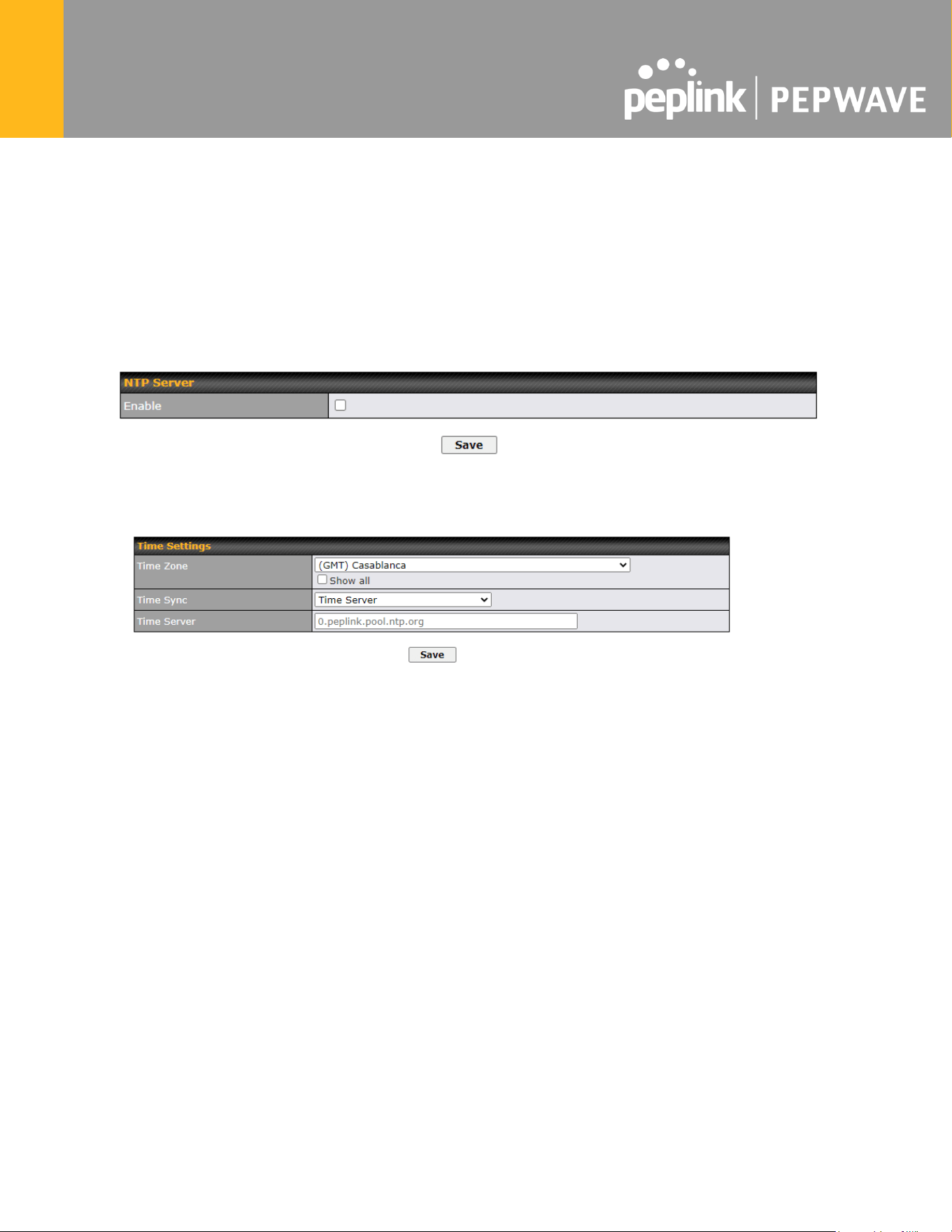

23.9 NTP Server
Pepwave routers can now serve as a local NTP server. Upon start up, it is now able to provide
connected devices with the accurate time, precise UTC from either an external NTP server or
via GPS and ensuring that connected devices always receive the correct time.
Compatible with: BR1 ENT, BR1 Pro CAT-20/5G, 700 HW3, HD2/4, Transit
NTP Server setting can be found via: Advanced > Misc. Settings > NTP Server
Time Settings can be found at System > Time > Time Settings
https://www.peplink.com
164
Copyright @ 2025 Peplink
23.10 Grouped Networks
Advanced > Misc. Settings > Grouped Networks allows to configure destination networks in
grouped format.

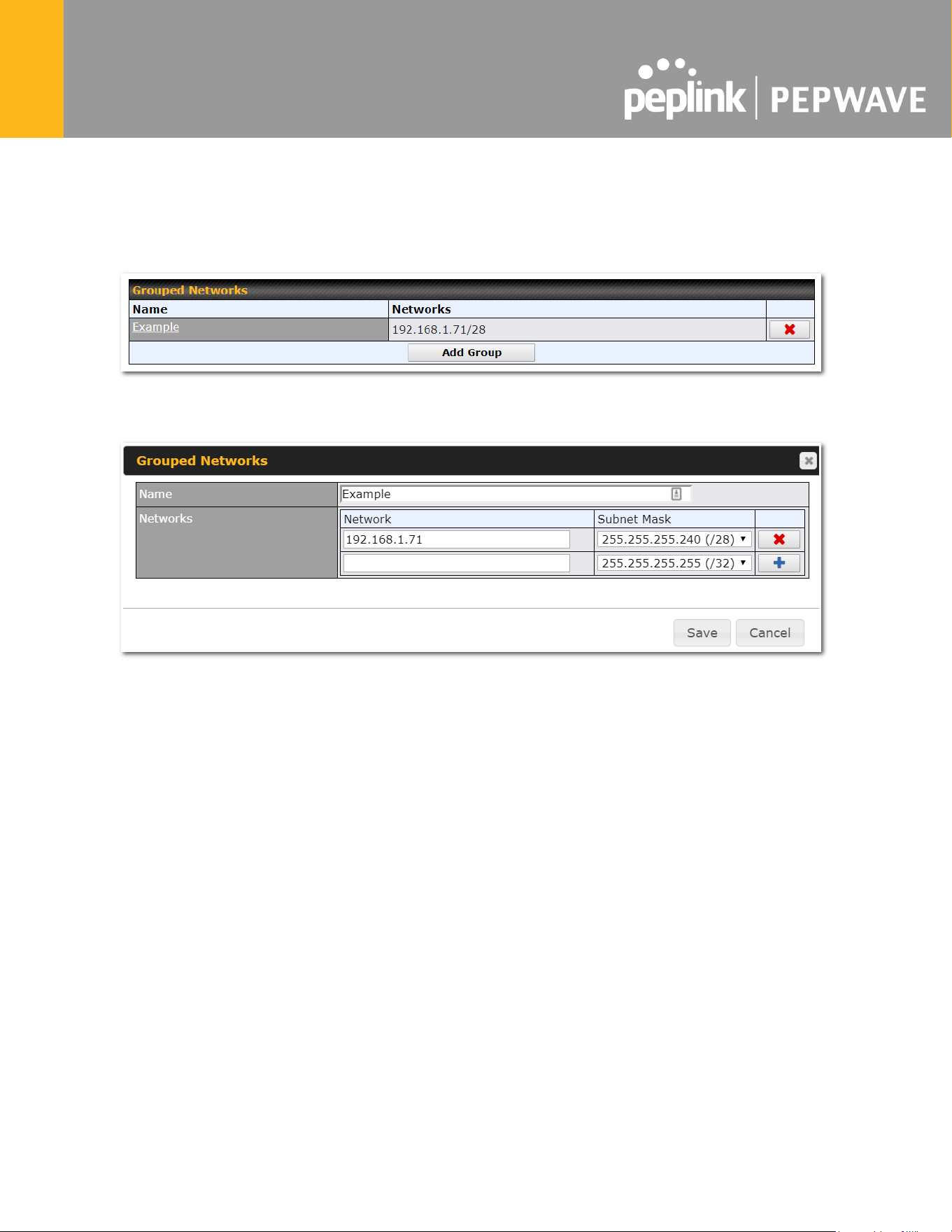

Select Add group to create a new group with single IPaddresses or subnets from different
VLANs.
The created network groups can be used in outbound policies, firewall rules.
https://www.peplink.com
165
Copyright @ 2025 Peplink
23.11 Remote SIM Management
The Remote SIM management is accessible via Advanced > Misc Settings > Remote SIM
Management. By default, this feature is disabled.
Please note that a limited number of Pepwave routers support the SIM Injector, may refer to the
link: https://www.peplink.com/products/sim-injector/ or Appendix B for more details on
FusionSIM Manual.

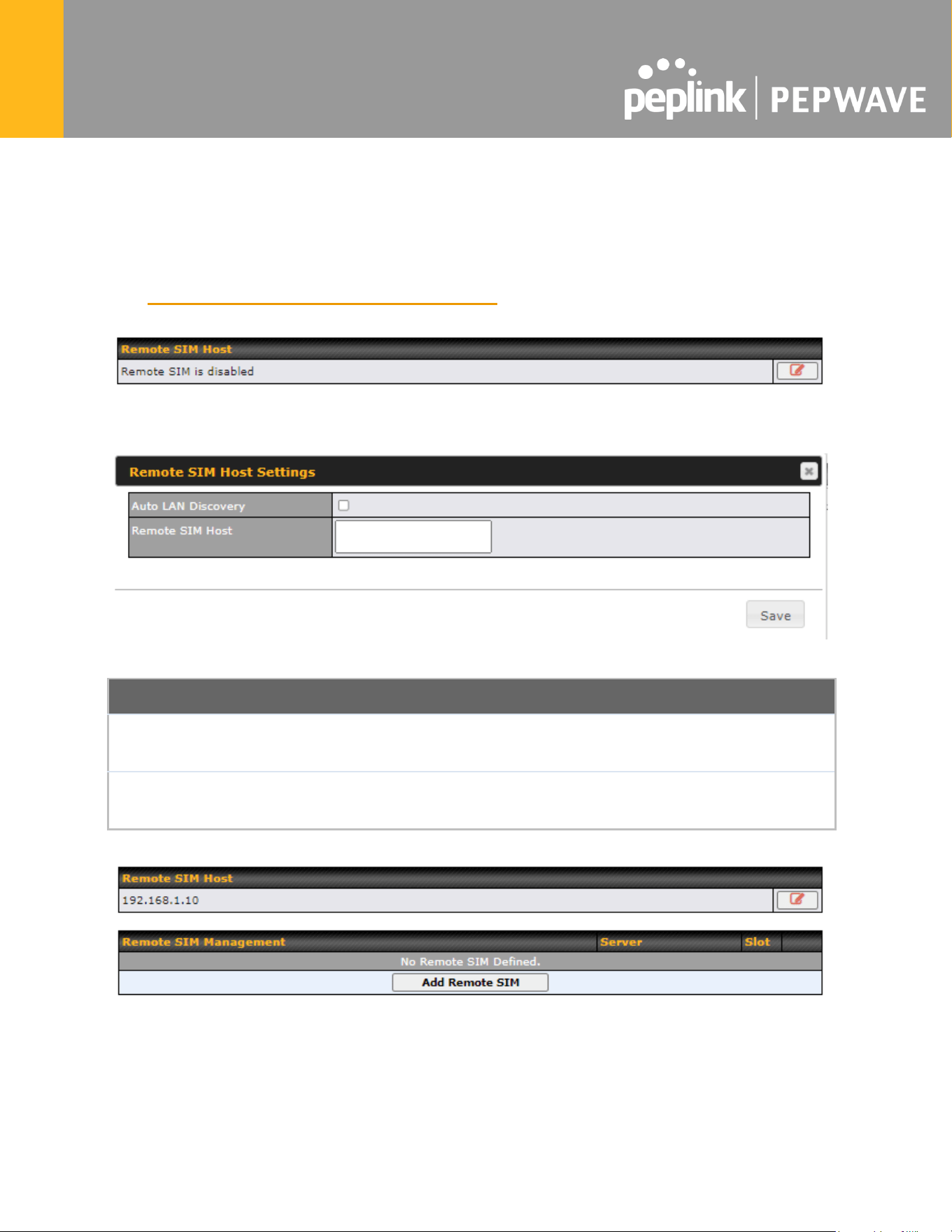

Remote SIM Host Settings
Remote SIM Host Settings

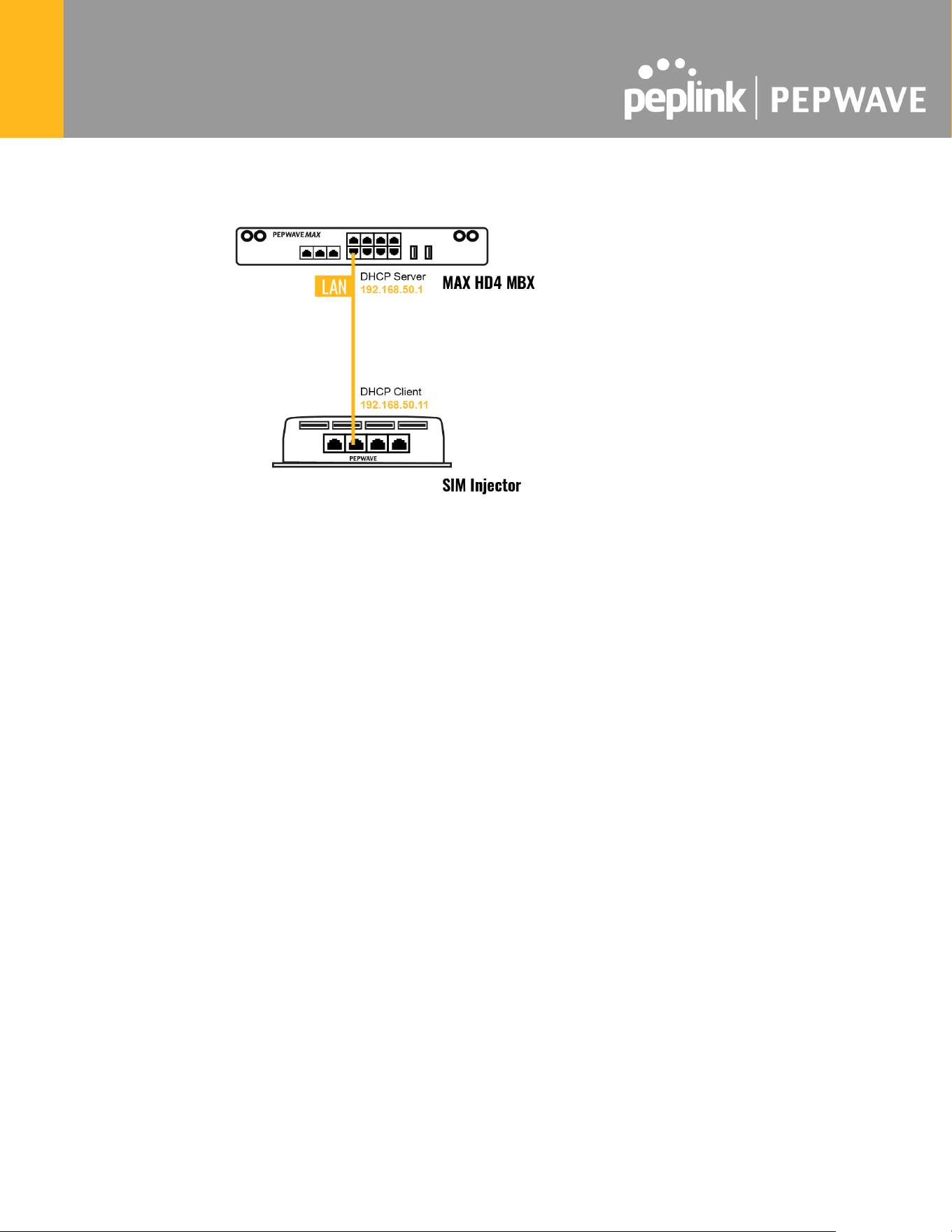

Active LAN
Discovery
Check this box to enable Auto LAN discovery of the remote SIM server..
Remote SIM
Host
Enter the public IP address of the SIM Injector. If you enter IP addresses here, it is
not necessary to tick the “Auto LAN Discovery” box above.
You may define the Remote SIM information by clicking the “Add Remote SIM”. Here, you can
enable Data Roaming and custom APN for your SIM cards.
https://www.peplink.com
166
Copyright @ 2025 Peplink

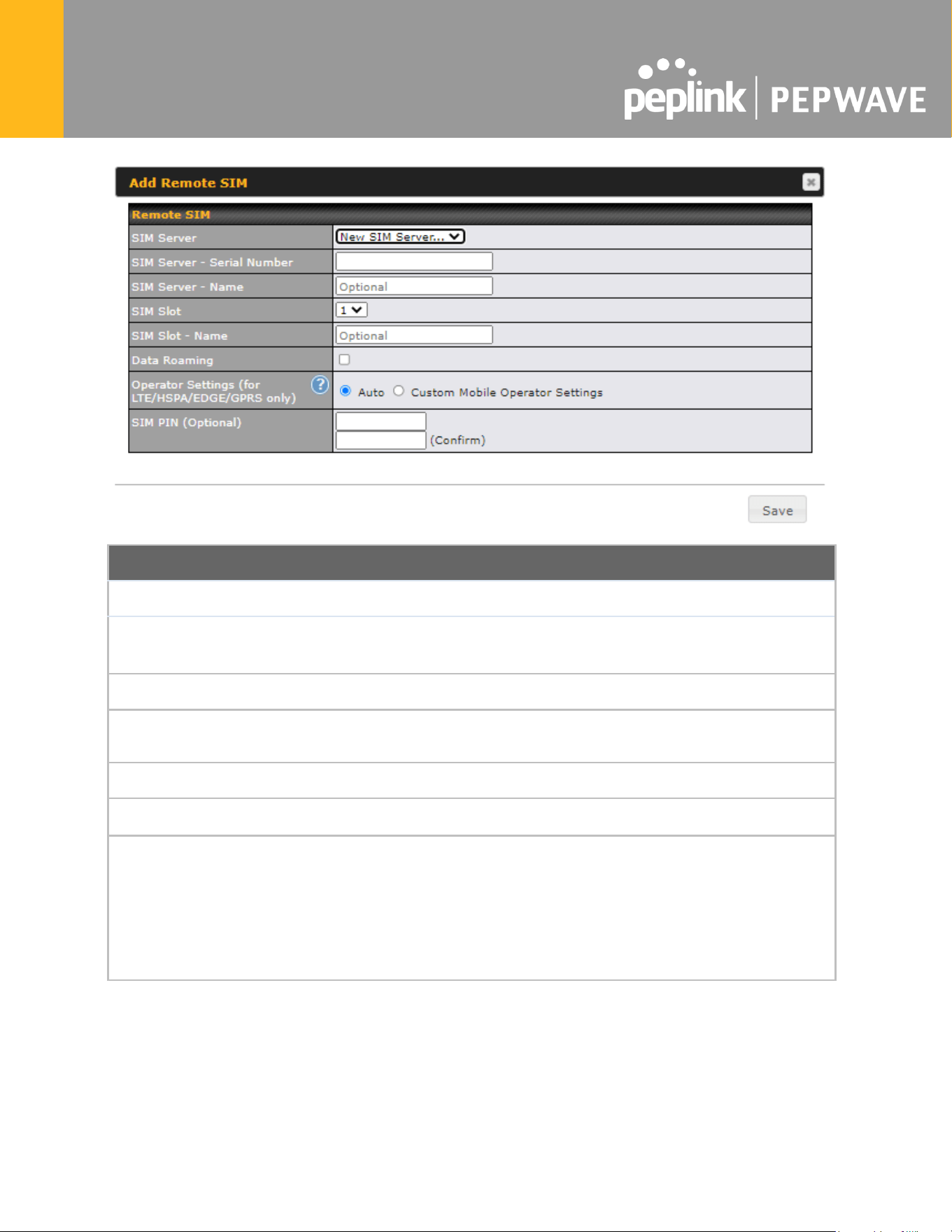

Add Remote SIM Settings
SIM Server
Add a new SIM Server
SIM Server - Serial
Number
Enter the serial number of SIM Server
SIM Server - Name
This optional field allows you define a name for the SIM Server
SIM Slot
Click the drop-down menu and choose which SIM slot you want to
connect.
SIM Slot - Name
This optional field allows you define a name for the SIM slot.
Data Roaming
Enables data roaming on this particular SIM card.
Operator Settings (for
LTE//HSPA/EDGE/GPRS
Only)
This setting allows you to configure the APN settings of your connection.
If Auto is selected, the mobile operator should be detected automatically.
The connected device will be configured and connection will be made
automatically. If there is any difficulty in making a connection, you may
select Custom to enter your carrier’s APN, Username and Password
settings manually. The correct values can be obtained from your carrier.
The default and recommended setting is Auto.
https://www.peplink.com
167
Copyright @ 2025 Peplink
23.12 SIM Toolkit
The SIM Toolkit, accessible via Advanced > Misc Settings > SIM Toolkit, supports two
functionalities, USSD and SMS.
USSD
Unstructured Supplementary Service Data (USSD) is a protocol used by mobile phones to
communicate with their service provider’s computers. One of the most common uses is to query
the available balance.

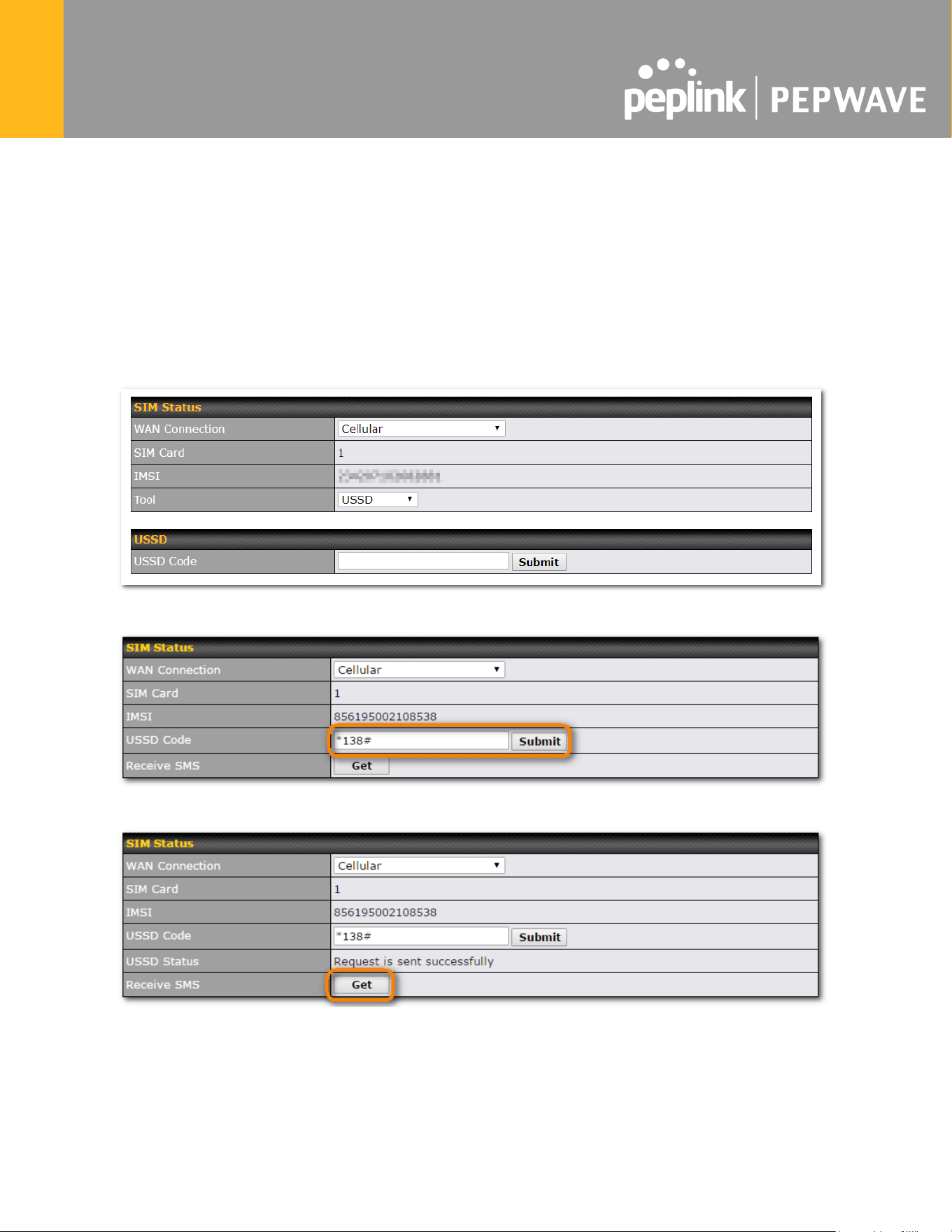

Enter your USSD code under the USSD Code text field and click Submit.

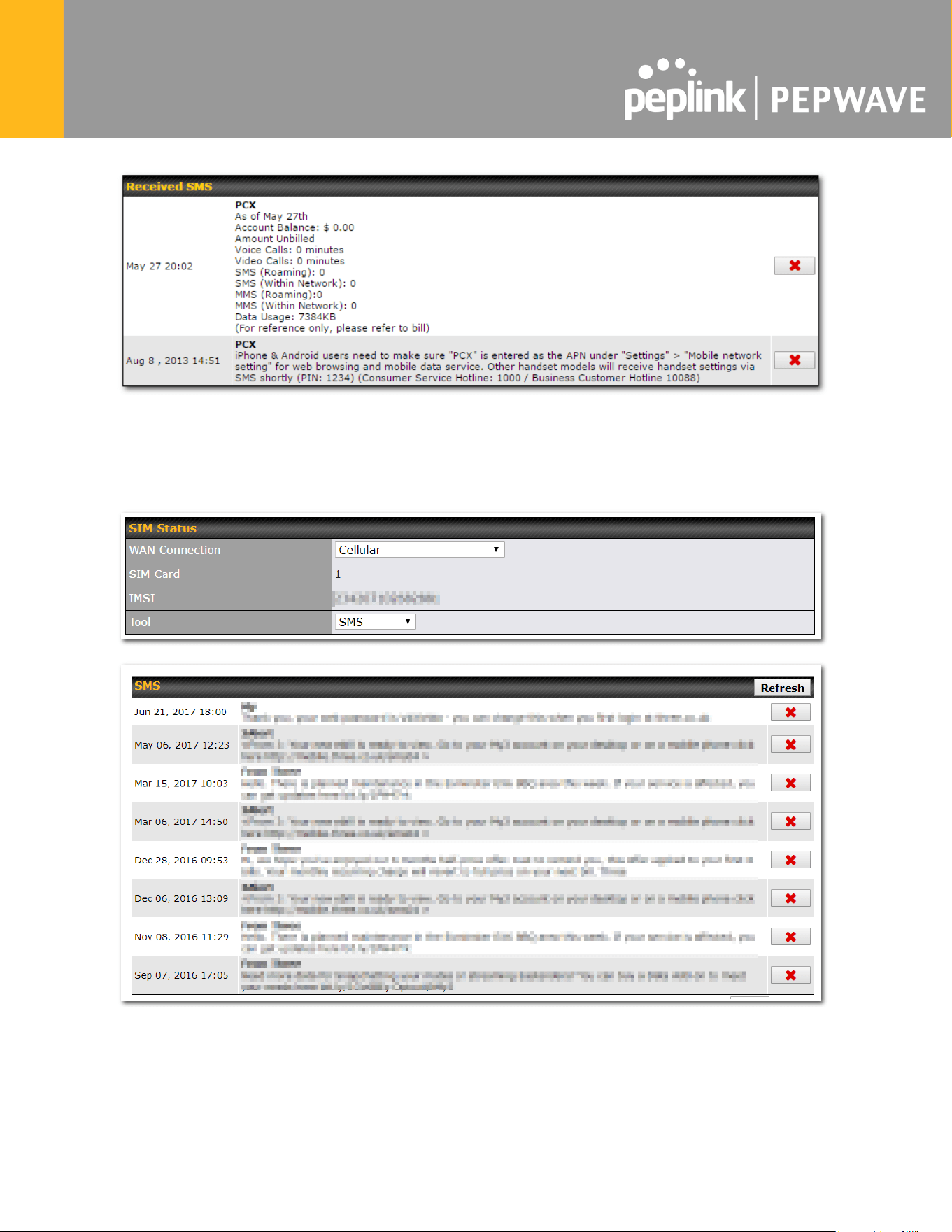

You will receive a confirmation. To check the SMS response, click Get.
After a few minutes you will receive a response to your USSD code
https://www.peplink.com
168
Copyright @ 2025 Peplink

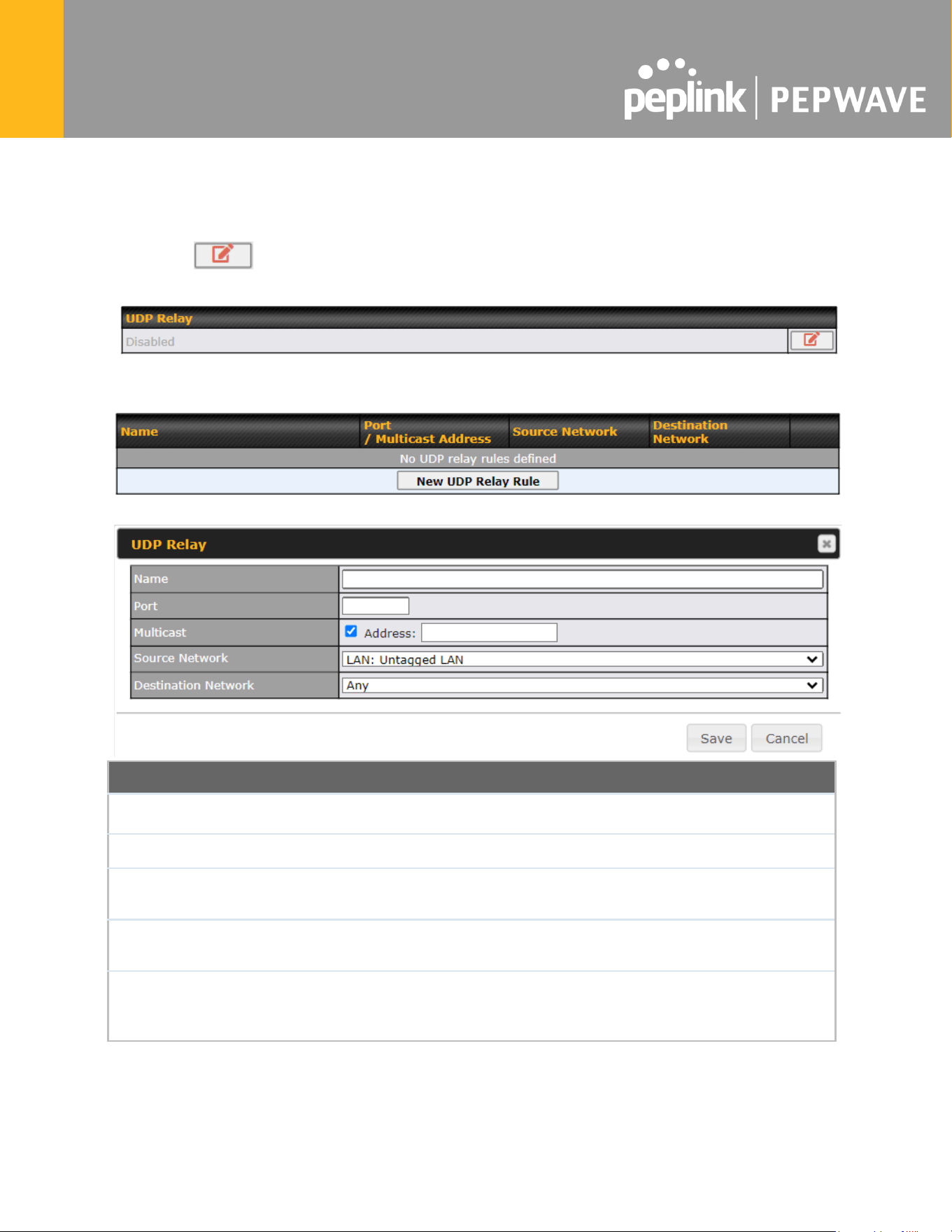

23.13 UDP Relay
You may define the UDP relay by clicking the Advanced > Misc Settings > UDP Relay. You
can click to enable the UDP relay to relay UDP Broadcast or Multicast traffic for
LAN/VLAN/SpeedFusion VPN.
Click “New UDP Relay Rule” to define the relay rule.
UDP Relay
Name
This field is for specifying a name to represent this profile.
Port
This feid is to enter the specific port number for the UDP relay
Multicast
If Multicast is not selected, it will broadcast relay rule. If Multicast is
selected, you may need to enter a valid multicast address.
Secure Network
Select the specific connection as a source network to where the device is
to relay UDP Broadcast packets.
Destination Network
You may select the specific connection from the drop-down list or may
custom combination network as a destination network that receives the
UDP packet relays.
https://www.peplink.com
170
Copyright @ 2025 Peplink

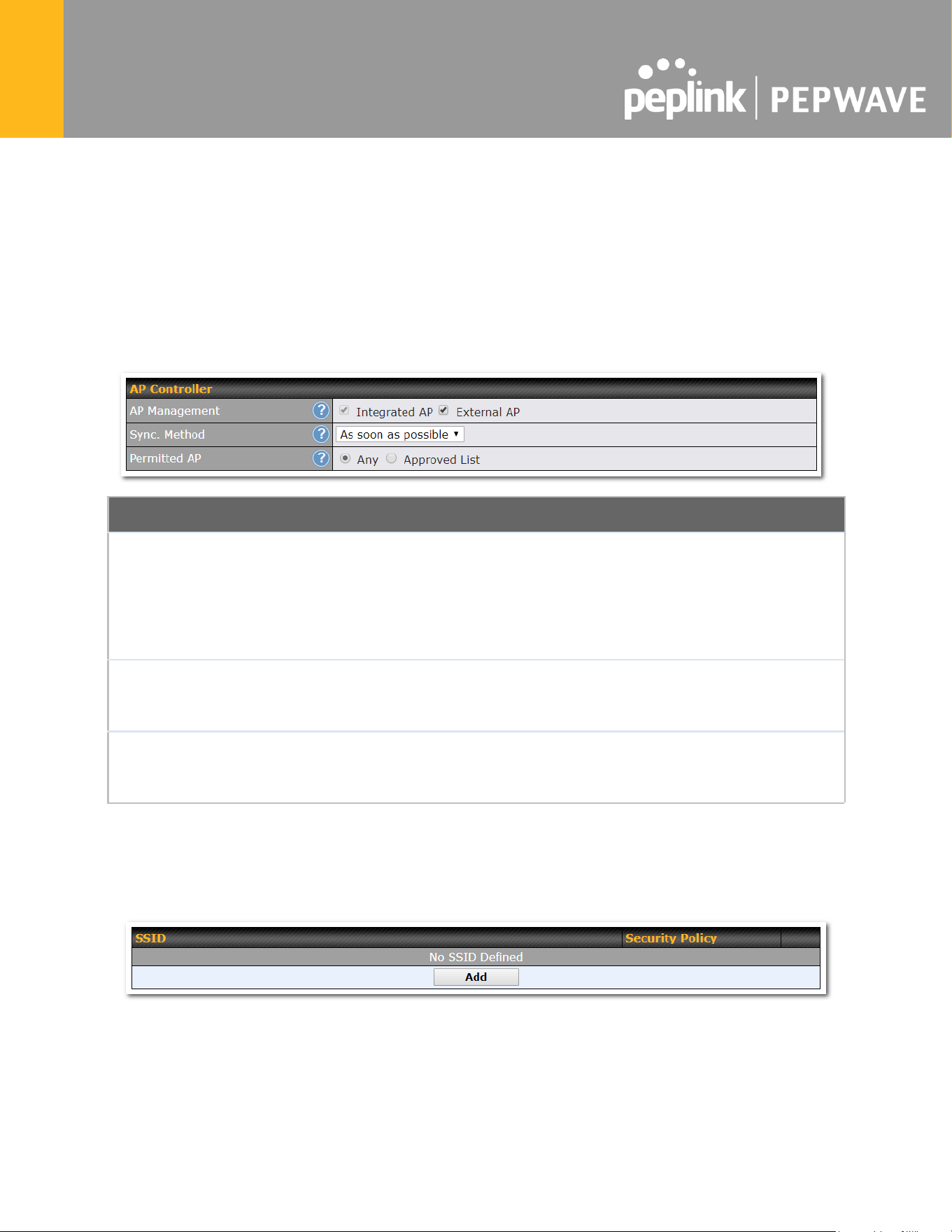

24 AP

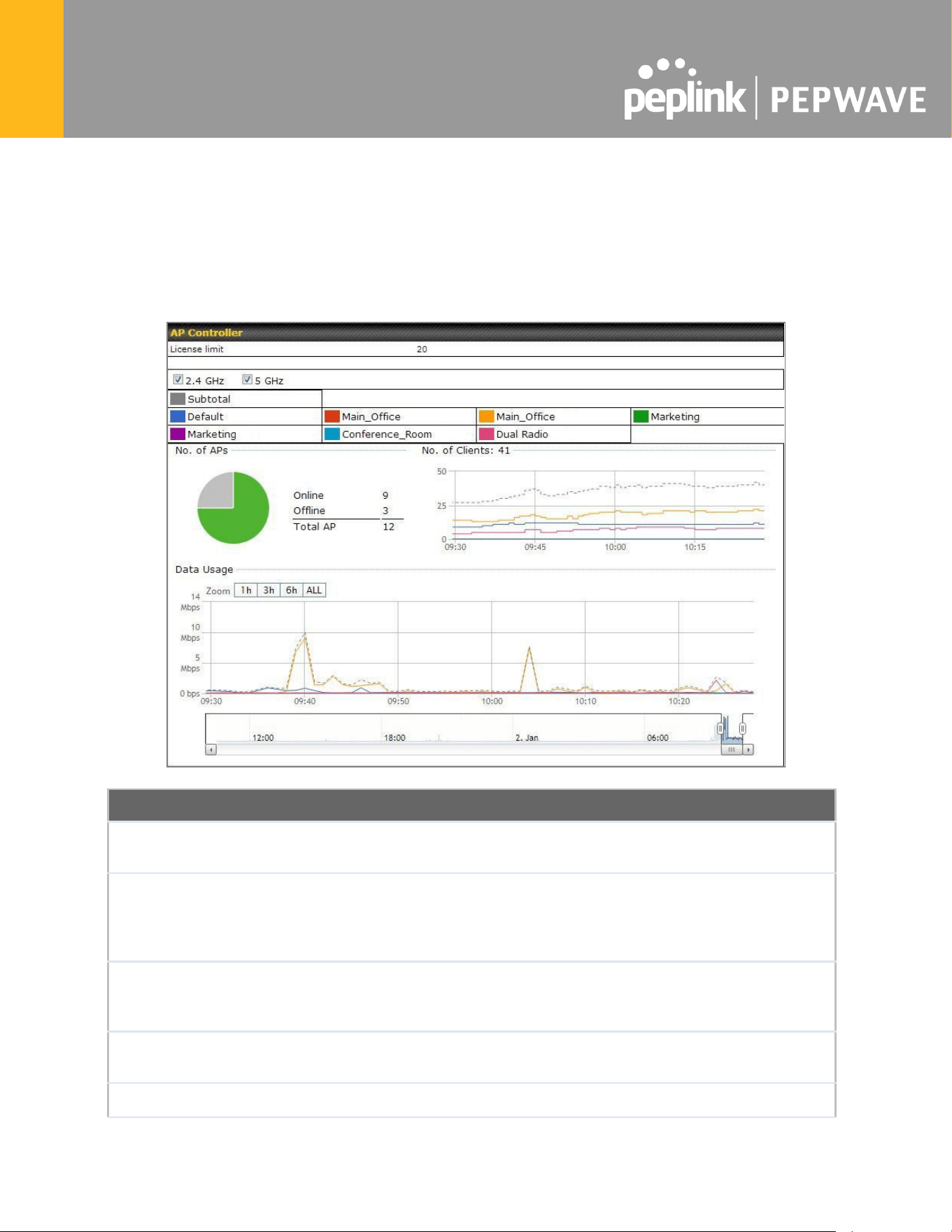

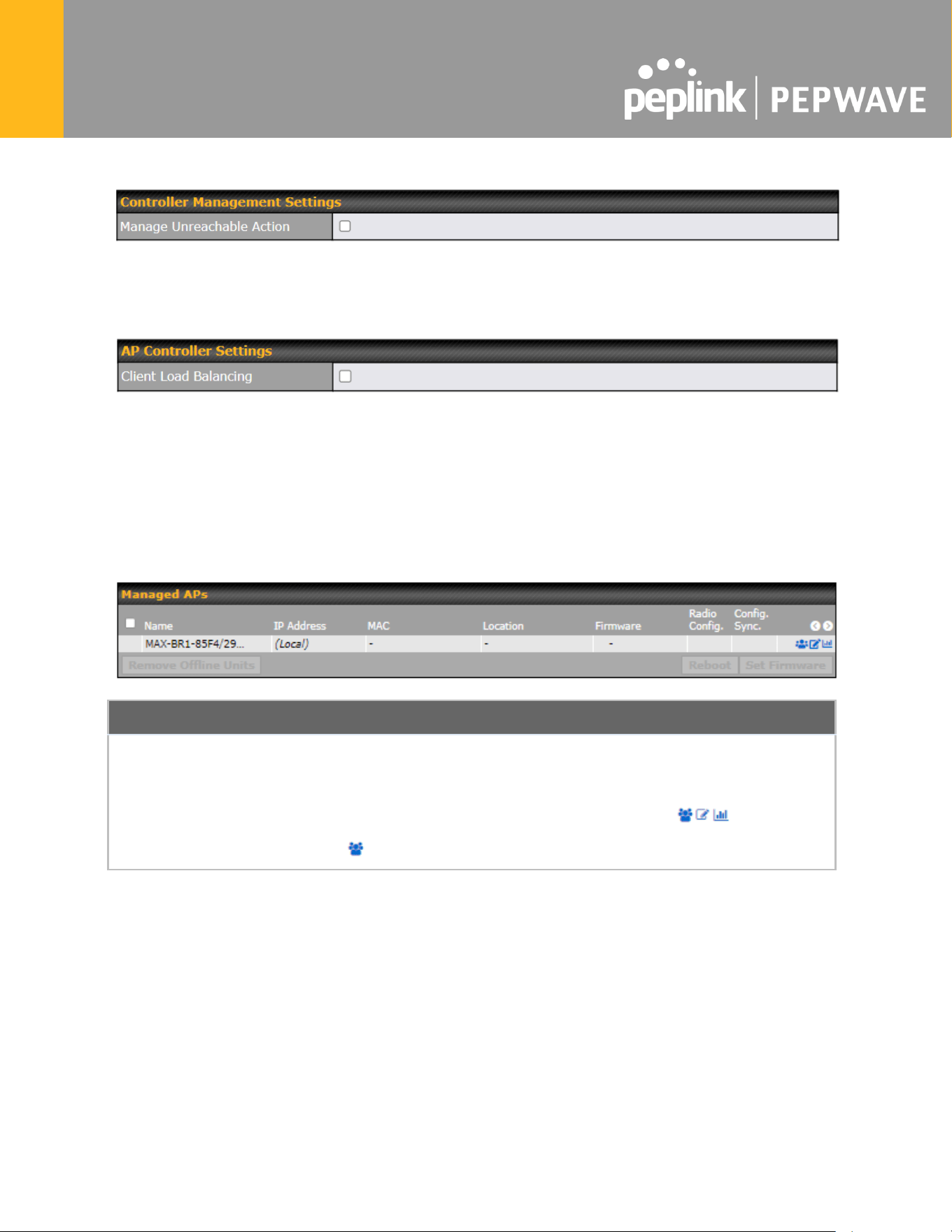

24.1 AP Controller
The AP controller acts as a centralized controller of Pepwave Access Points.
With this feature, users can customize and manage up to 1500 Access Points from a single
Pepwave router interface.
To configure, navigate to the AP tab. and the following screen appears.
AP Controller
AP Management
The AP controller for managing Pepwave APs can be enabled by checking this box.
When this option is enabled, the AP controller will wait for management connections
originating from APs over the LAN on TCP and UDP port 11753. It will also wait for
captive portal connections on TCP port 443. An extended DHCP option, CAPWAP
Access Controller addresses (field 138), will be added to the DHCP server. A local
DNS record, AP Controller, will be added to the local DNS proxy.
Sync Method
● As soon as possible
● Progressively
● One at a time
Permitted AP
Access points to manage can be specified here. If Any is selected, the AP controller
will manage any AP that reports to it. If Approved List is selected, only APs with
serial numbers listed in the provided text box will be managed.
24.2 Wireless SSID
Current SSID information appears in the SSID section. To edit an existing SSID, click its name
in the list. To add a new SSID, click Add. Note that the following settings vary by model.
The below settings ishows a new SSID window with Advanced Settings enabled (these are
available by selecting the question mark in the top right corner).
https://www.peplink.com
171
Copyright @ 2025 Peplink

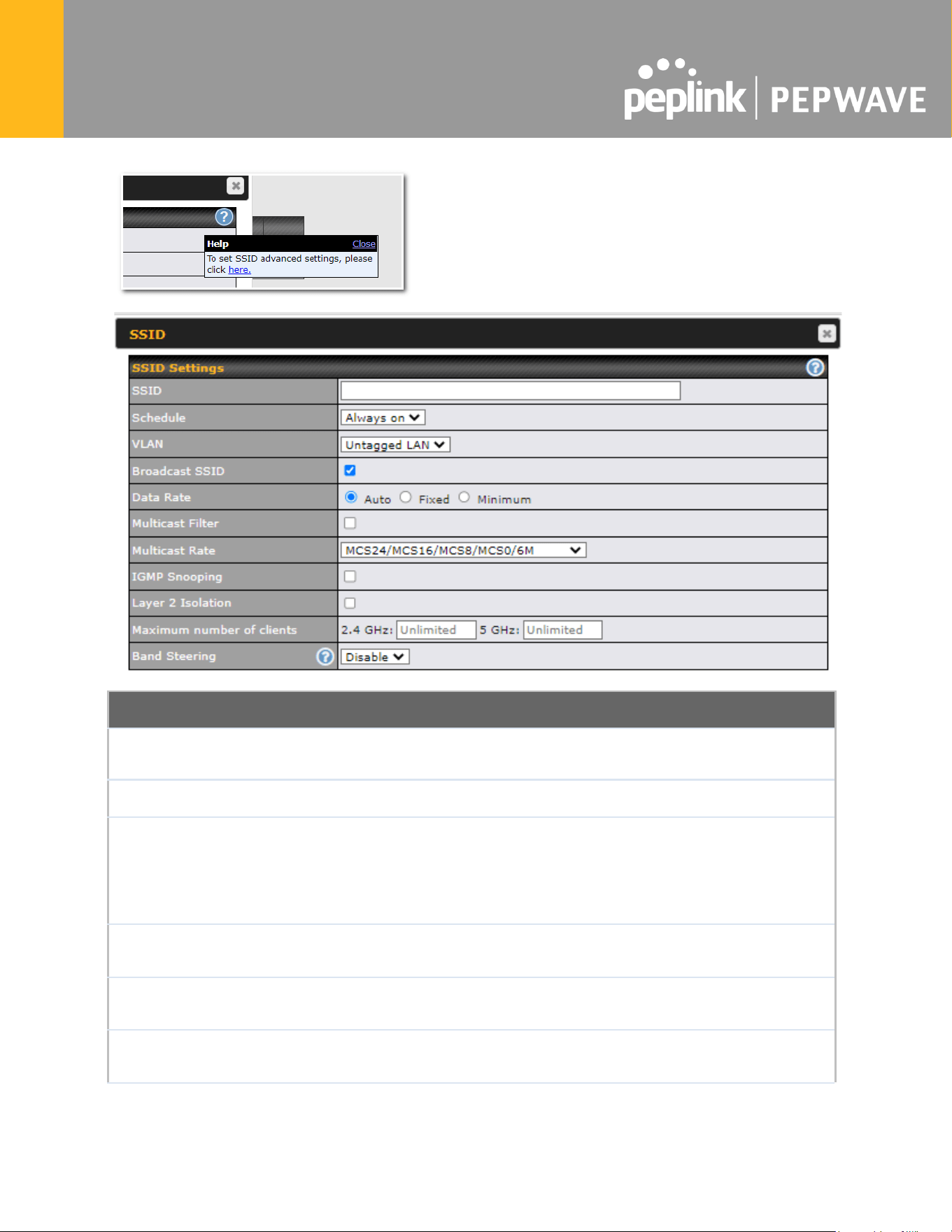

SSID Settings
SSID
This setting specifies the SSID of the virtual AP to be scanned by Wi-Fi
clients.
Schedule
Click the drop-down menu to apply a time schedule to this interface
VLAN
This setting specifies the VLAN ID to be tagged on all outgoing packets
generated from this wireless network (i.e., packets that travel from the Wi-Fi
segment through the Pepwave AP One unit to the Ethernet segment via the
LAN port). The default value of this setting is 0, which means VLAN tagging
is disabled (instead of tagged with zero).
Broadcast SSID
This setting specifies whether or not Wi-Fi clients can scan the SSID of this
wireless network. Broadcast SSID is enabled by default.
Data Rate
A
Select Auto to allow the Pepwave router to set the data rate automatically,
or select Fixed and choose a rate from the displayed drop-down menu.
Multicast Filter
A
This setting enables the filtering of multicast network traffic to the wireless
SSID.
https://www.peplink.com
172
Copyright @ 2025 Peplink
Multicast Rate
A
This setting specifies the transmit rate to be used for sending multicast
network traffic. The selected Protocol and Channel Bonding settings will
affect the rate options and values available here.
IGMP Snooping
A
To allow the Pepwave router to listen to internet group management protocol
(IGMP) network traffic, select this option.
Layer 2 Isolation
A
Layer 2 refers to the second layer in the ISO Open System Interconnect
model.
When this option is enabled, clients on the same VLAN, SSID, or subnet are
isolated to that VLAN, SSID, or subnet, which can enhance security. Traffic
is passed to the upper communication layer(s). By default, the setting is
disabled.
Maximum Number of
Clients
A
Indicate the maximum number of clients that should be able to connect to
each frequency.
Band Steering
A
To reduce 2.4 GHz band overcrowding, AP with band steering steers clients
capable of 5 GHz operation to 5 GHz frequency.
Choose between:
Force - Clients capable of 5 GHz operation are only offered with 5 GHz
frequency.
Prefer - Clients capable of 5 GHz operation are encouraged to associate
with 5 GHz frequency. If the clients insist to attempt on 2.4 GHz frequency,
2.4 GHz frequency will be offered.
Disable - Default
A
- Advanced feature. Click the button on the top right-hand corner to activate.

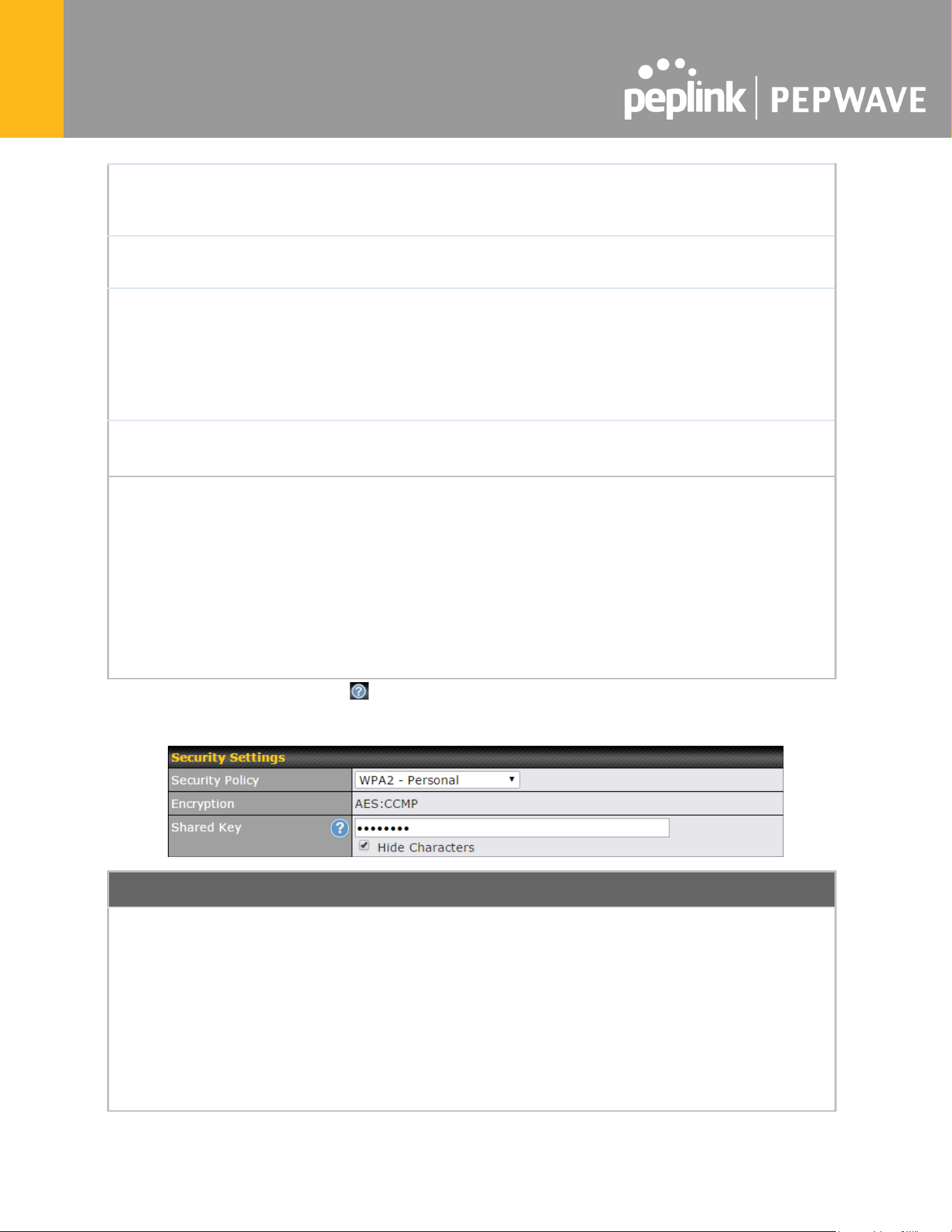

Security Settings
Security Policy
This setting configures the wireless authentication and encryption methods.
Available options :
● Open (No Encryption)
● Enhanced Open (OWE)
● WPA3 -Personal (AES:CCMP)
● WPA3 -Enterprise (AES:CCMP)
● WPA2/WPA3 -Personal (AES:CCMP)
● WPA2 -Personal (AES:CCMP)
● WPA2 – Enterprise
● WPA/WPA2 - Personal (TKIP/AES: CCMP)
https://www.peplink.com
173
Copyright @ 2025 Peplink
● WPA/WPA2 – Enterprise
When WPA/WPA2 - Enterprise is configured, RADIUS-based 802.1 x
authentication is enabled. Under this configuration, the Shared Key option should
be disabled. When using this method, select the appropriate version using the V1/V2
controls. The security level of this method is known to be very high.
When WPA/WPA2- Personal is configured, a shared key is used for data encryption
and authentication. When using this configuration, the Shared Key option should be
enabled. Key length must be between eight and 63 characters (inclusive). The
security level of this method is known to be high.
NOTE:
When WPA2/WPA3- Personal is configured, if a managed AP which is NOT WPA3
PSK capable, the AP Controller will not push those WPA3 and WPA2/WPA3 SSID to
that AP.

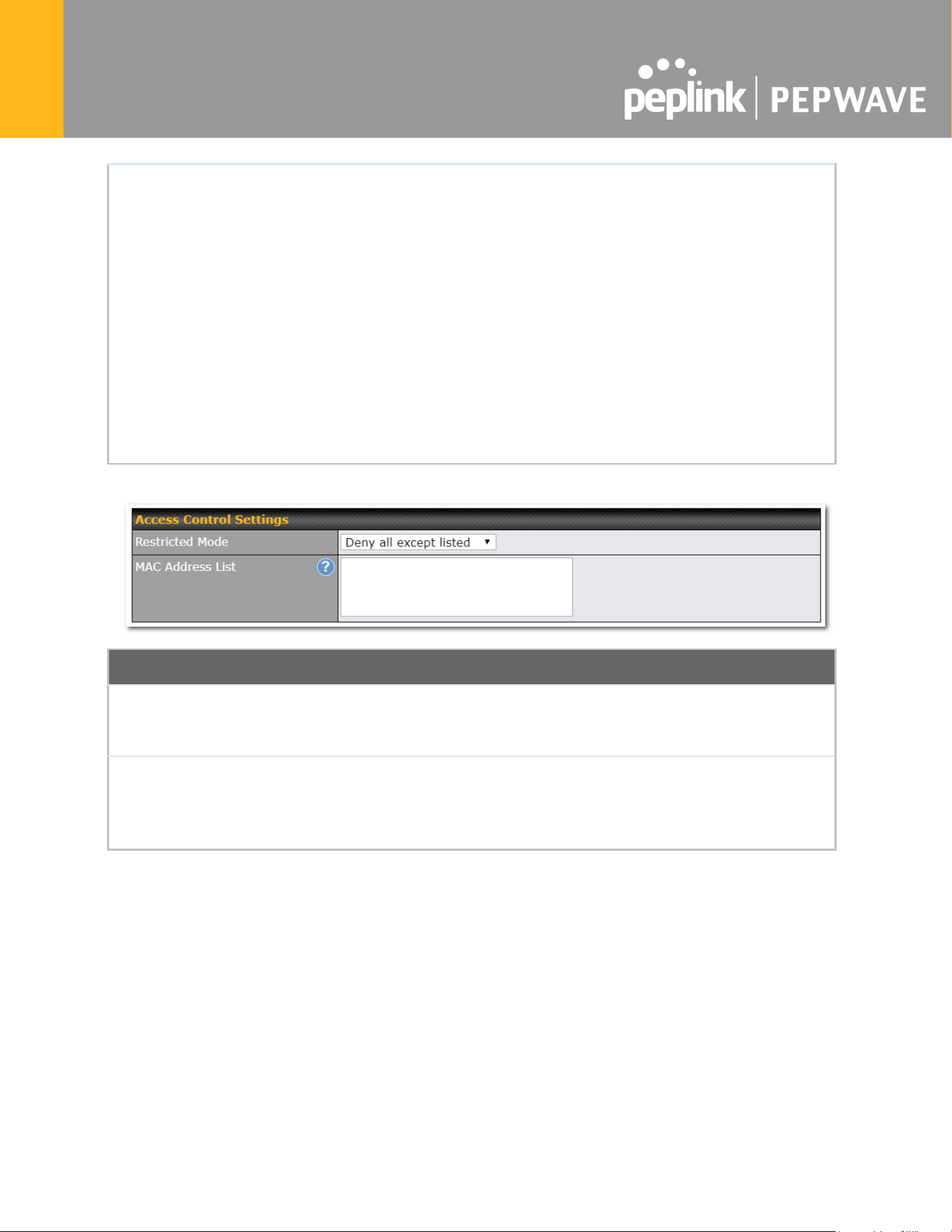

Access Control
Restricted
Mode
The settings allow the administrator to control access using MAC address filtering.
Available options are None, Deny all except listed, Accept all except listed and
Radius MAC Authentication.
MAC Address
List
Connection coming from the MAC addresses in this list will be either denied or
accepted based on the option selected in the previous field.
If more than one MAC address needs to be entered, you can use a carriage return
to separate them.
https://www.peplink.com
174
Copyright @ 2025 Peplink
RADIUS Settings
Authentication
Host
This field is for specifying the IP address of the primary RADIUS server for
Authentication and, if applicable, the secondary RADIUS server.
Authentication
Port
In the field, the UDP authentication port(s) used by your RADIUS server(s) or click
the Default is 1812.
Authentication
Secret
This settings is enter the RADIUS shared secret for the primary server and, if
applicable, the secondary RADIUS server.
Accounting
Host
This field is for specifying the IP address of the primary RADIUS server for
Accounting and, if applicable, the secondary RADIUS server.
Accounting
Port
In the field, enter the UDP accounting port(s) used by your RADIUS server(s) or
click the Default is 1813.
Accounting
Secret
This settings is enter the RADIUS shared secret for the primary server and, if
applicable, the secondary RADIUS server.
NAS-Identifier
Choose between Device Name, LAN MAC address, Device Serial Number and
Custom Value
https://www.peplink.com
175
Copyright @ 2025 Peplink

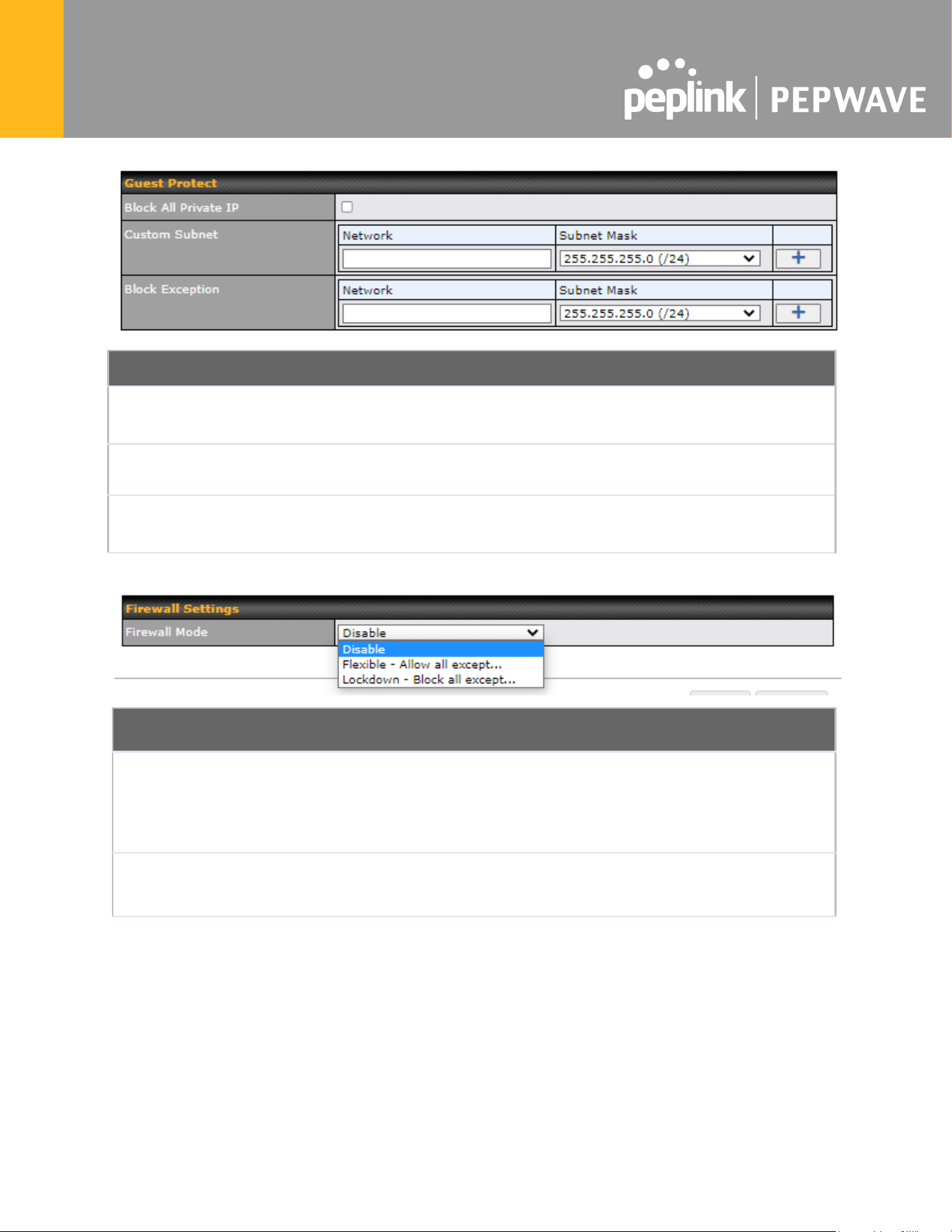

Guest Protect
Block All
Private IP
Check this box to deny all connection attempts by private IP addresses.
Custom Subnet
To create a custom subnet for guest access, enter the IP address and choose a
subnet mask from the drop-down menu.
Block
Exception
To block access from a particular subnet, enter the IP address and choose a subnet
mask from the drop-down menu.
Firewall Settings
Firewall Mode
The settings allow administrators to control access to the SSID based on Firewall
Rules.
Available options are Disable, Lockdown - Block all except... and Flexible
-Allow all except…
Firewall
Exceptions
Create Firewall Rules based on Port, IP Network, MAC address or Domain
Name
https://www.peplink.com
176
Copyright @ 2025 Peplink

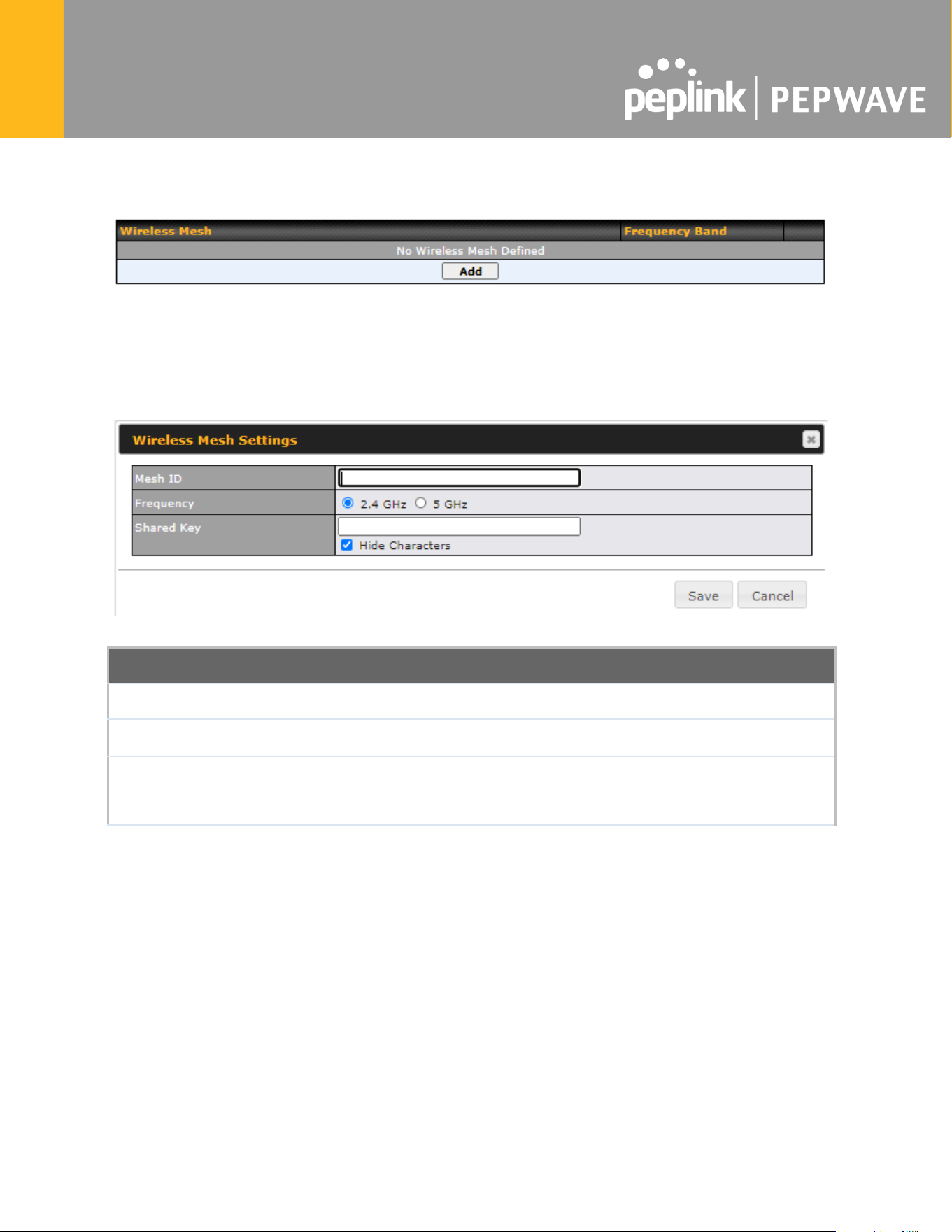

24.3 Wireless Mesh
Wireless Mesh Support is available on devices running 802.11ac (Wi-Fi 5) and above. Along
with the AP Controller, mesh network extensions can be established, which can expand network
coverage. Note that the Wireless Mesh settings need to match the Mesh ID and Shared Key of
the other devices on the same selected frequency band.
To create a new Wireless Mesh profile, go to AP > Wireless Mesh, and click Add.
Wireless Mesh Settings
Mesh ID
Enter a name to represent the Mesh profile.
Frequency
Select the 2.4GHz or 5GHz frequency to be used.
Shared Key
Enter the shared key in the text field. Please note that it needs to match the shared keys of
the other APs in the Wireless Mesh settings.
Click Hide / Show Characters to toggle visibility.
https://www.peplink.com
177
Copyright @ 2025 Peplink
24.4 Settings
To configure the AP settings, navigating to AP > Settings :

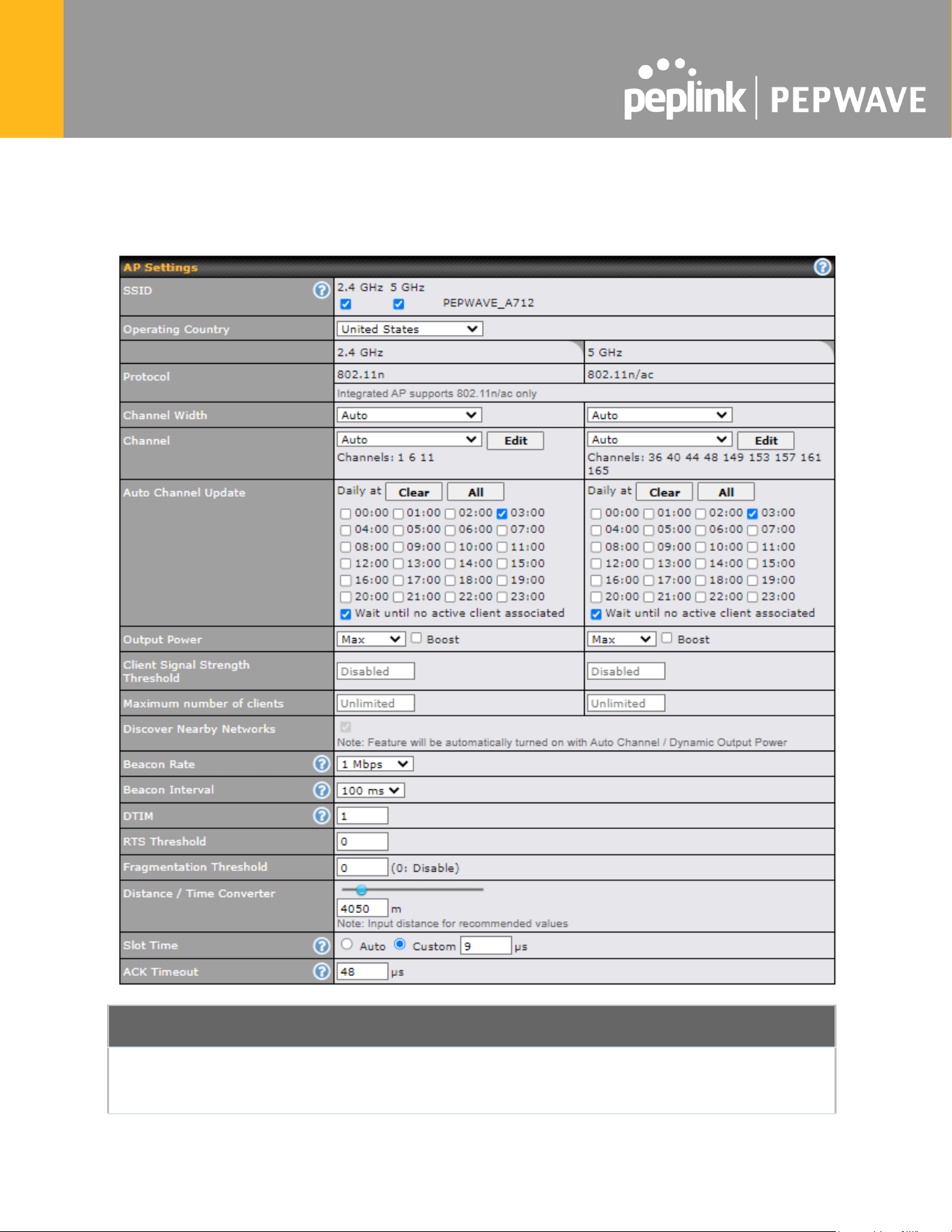

AP Settings
SSID
These buttons specify which wireless networks will use this AP profile. You can
also select the frequencies at which each network will transmit. Please note that
the Pepwave MAX does not detect whether the AP is capable of transmitting at
https://www.peplink.com
178
Copyright @ 2025 Peplink
both frequencies. Instructions to transmit at unsupported frequencies will be
ignored by the AP.
Operating Country
This drop-down menu specifies the national / regional regulations which the AP
should follow.
● If a North American region is selected, RF channels 1 to 11 will be
available and the maximum transmission power will be 26 dBm (400
mW).
● If European region is selected, RF channels 1 to 13 will be available.
The maximum transmission power will be 20 dBm (100 mW).
Note: Users are required to choose an option suitable to local laws and
regulations.
Per FCC regulation, the country selection is not available on all models
marketed in the US. All US models are fixed to US channels only.
Preferred
Frequency
These buttons determine the frequency at which access points will attempt to
broadcast. This feature will only work for APs that can transmit at both 5.4GHz
and 5GHz frequencies.
Protocol
This option allows you to specify whether 802.11b and/or 802.11g client
association requests will be accepted. Available options are 802.11ng and
802.11na. By default, 802.11ng is selected.
Channel Width
There are three options: 20 MHz, 20/40 MHz, and 40 MHz. With this feature
enabled, the Wi-Fi system can use two channels at once. Using two channels
improves the performance of the Wi-Fi connection.
Channel
This drop-down menu selects the 802.11 channel to be utilized. Available
options are from 1 to 11 and from 1 to 13 for the North America region and
Europe region, respectively. (Channel 14 is only available when the country is
selected as Japan with protocol 802.11b.) If Auto is set, the system will perform
channel scanning based on the scheduled time set and choose the most
suitable channel automatically.
Auto Channel
Update
Indicate the time of day at which update automatic channel selection.
Output Power
This drop-down menu determines the power at which the AP under this profile
will broadcast. When fixed settings are selected, the AP will broadcast at the
specified power level, regardless of context. When Dynamic settings are
selected, the AP will adjust its power level based on its surrounding APs in
order to maximize performance.
The Dynamic: Auto setting will set the AP to do this automatically. Otherwise,
the Dynamic: Manual setting will set the AP to dynamically adjust only if
instructed to do so. If you have set Dynamic:Manual, you can go to
AP>Toolbox>Auto Power Adj. to give your AP further instructions.
If you click the Boost checkbox, the AP under this profile will transmit using
additional power. Please note that using this option with several APs in close
proximity will lead to increased interference.
https://www.peplink.com
179
Copyright @ 2025 Peplink
Client Signal
Strength Threshold
This field determines that maximum signal strength each individual client will
receive. The measurement unit is megawatts.
Max number of
Clients
This field determines the maximum clients that can be connected to APs under
this profile.
Management VLAN
ID
This field specifies the VLAN ID to tag to management traffic, such as AP to AP
controller communication traffic. The value is 0 by default, meaning that no
VLAN tagging will be applied.
Note: change this value with caution as alterations may result in loss of
connection to the AP controller.
Discover Nearby
Networks
A
This option is to turn on and off to scan the nearby the AP.
Note: Feature will be automatically turned on with Auto Channel / Dynamic
Output Power
Beacon Rate
A
This drop-down menu provides the option to send beacons in different transmit
bit rates. The bit rates are 1Mbps, 2Mbps, 5.5Mbps, 6Mbps, and 11Mbps.
Beacon Interval
A
This drop-down menu provides the option to set the time between each beacon
send. Available options are 100ms, 250ms, and 500ms.
DTIM
A
This field provides the option to set the frequency for beacon to include delivery
traffic indication message (DTIM). The interval unit is measured in milliseconds.
RTS Threshold
A
This field provides the option to set the minimum packet size for the unit to send
an RTS using the RTS/CTS handshake. Setting 0 disables this feature.
Fragmentation
Threshold
A
Determines the maximum size (in bytes) that each packet fragment will be
broken down into. Set 0 to disable fragmentation.
Distance/Time
Converter
A
Select the distance you want your Wi-Fi to cover in order to adjust the below
parameters. Default values are recommended.
Slot Time
A
This field provides the option to modify the unit wait time before it transmits. The
default value is 9μs.
ACK Timeout
A
This field provides the option to set the wait time to receive acknowledgement
packet before doing retransmission. The default value is 48μs.
A
- Advanced feature. Click the button on the top right-hand corner to activate.
Important Note
Per FCC regulation, the country selection is not available on all models marketed in the US. All US models are
fixed to US channels only.
https://www.peplink.com
180
Copyright @ 2025 Peplink

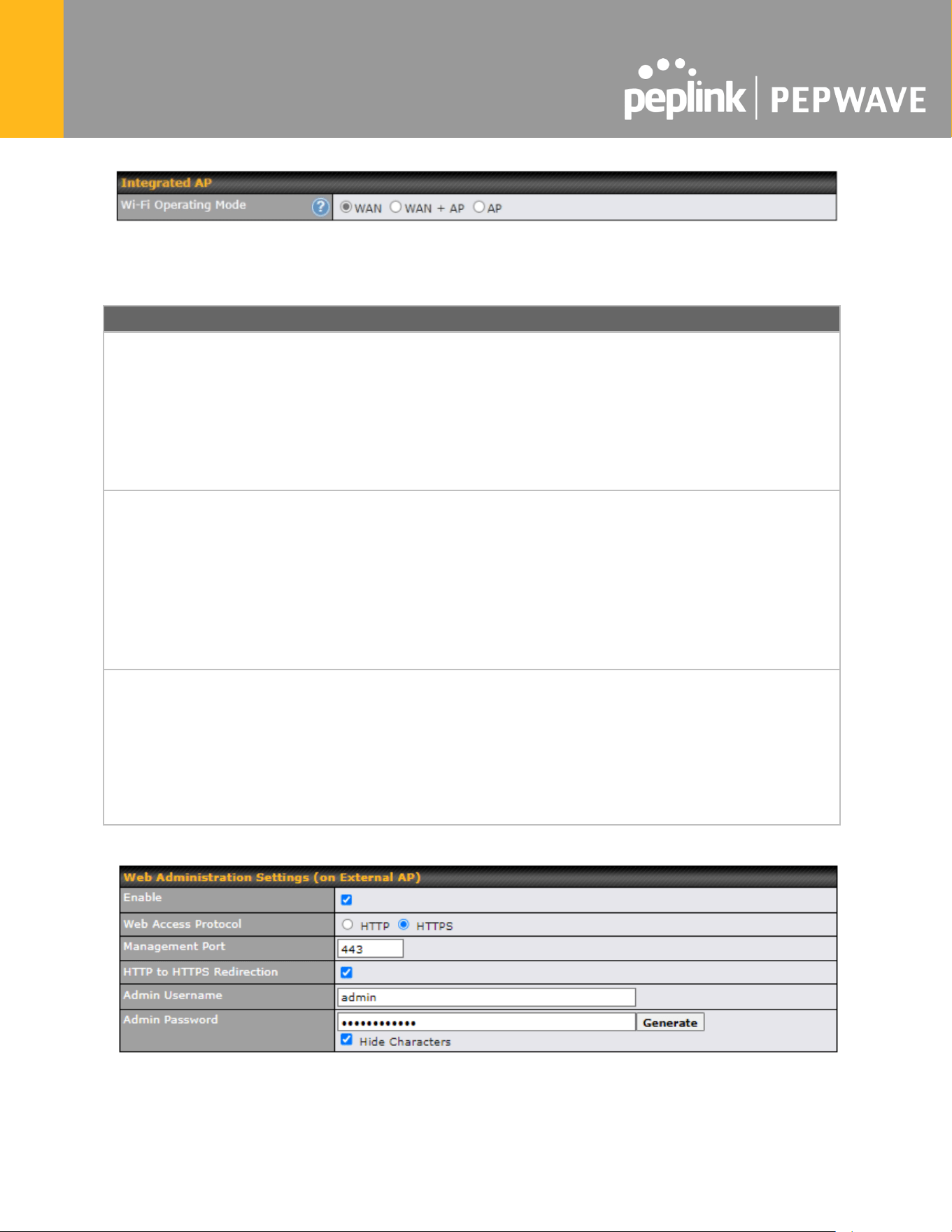

The device with integrated AP can operate under the Wi-Fi Operating Mode, and the default
setting is WAN + AP mode:
Note: This option is available for selected devices only (HD2/HD4 and HD2/HD4 MBX).
Integrated AP
WAN
In this mode, all Wi-Fi will operate as Wi-Fi WAN and no integrated Wi-Fi AP
will be operated on this device.
If Wi-Fi Operating mode is choosing WAN, The status indicated by the front
panel LED is as follows:
- Wi-Fi 1 is Green if Wi-Fi WAN 1 is enabled.
- Wi-Fi 2 is Green if Wi-Fi WAN 2 is enabled.
WAN + AP
In this mode, some Wi-Fi will operate as Wi-Fi WAN. Some other Wi-Fi WANs
will be forced offline and their Wi-Fi resources will be reserved for integrated
Wi-Fi AP operations.
If Wi-Fi Operating mode is choosing WAN + AP, The status indicated by the
front panel LED is as follows:
- Wi-Fi 1 is Green if WI-FI WAN is enabled.
- Wi-Fi 2 is Green if Wi-Fi AP is ON.
AP
In this mode, all Wi-Fi functions as integrated Wi-Fi AP. All Wi-Fi WANs will be
forced to go offline.
If Wi-Fi Operating mode is choosing AP, The status indicated by the front panel
LED is as follows:
- W-Fi 1 is Green, if there is any Wireless SSID is selected 2.4GHz.
- W-Fi 2 is Green, if there is any Wireless SSID is selected 5GHz.
https://www.peplink.com
181
Copyright @ 2025 Peplink

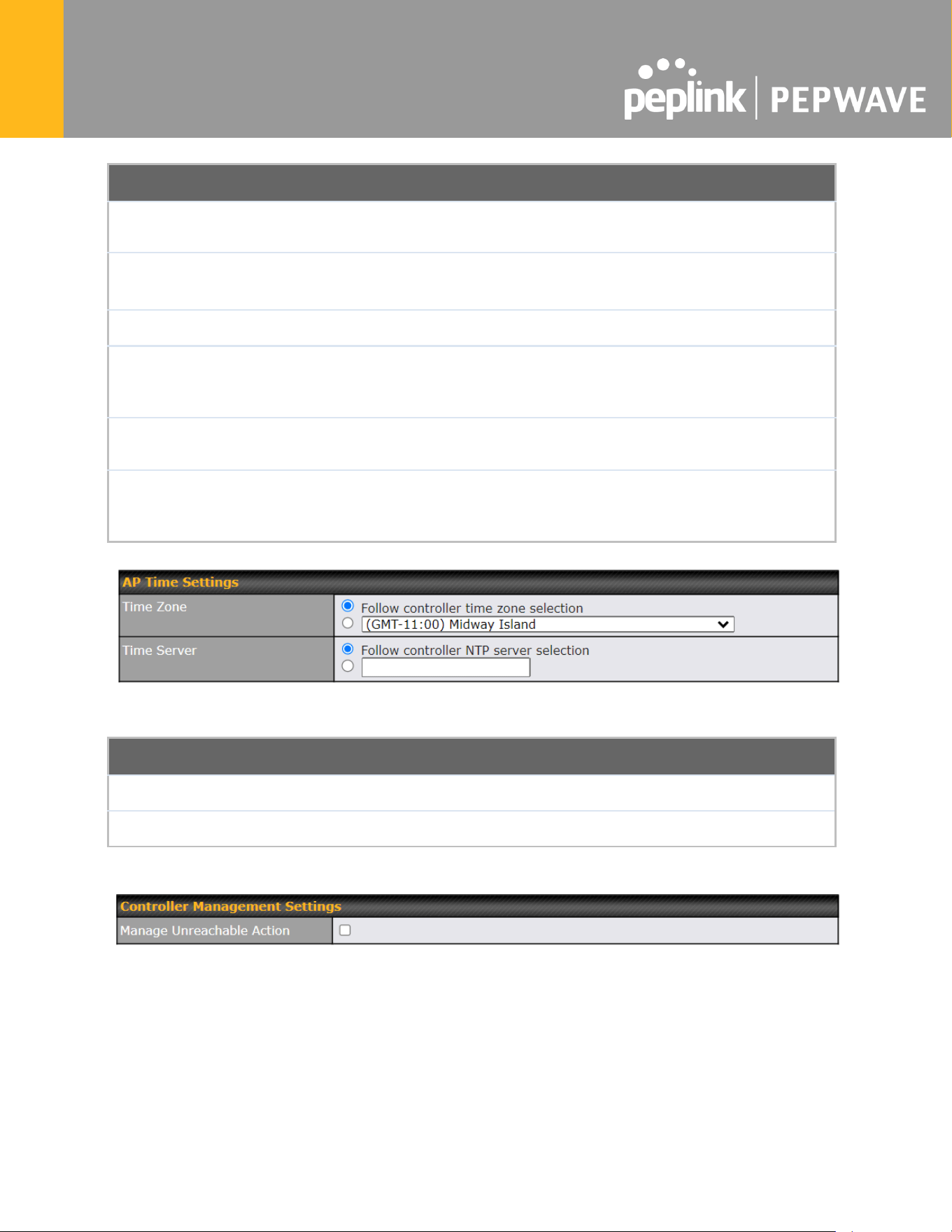

Web Administration Settings (on External AP)
Enable
Check the box to allow the Pepwave router to manage the web admin access
information of the AP.
Web Access
Protocol
These buttons specify the web access protocol used for accessing the web
admin of the AP. The two available options are HTTP and HTTPS.
Management Port
This field specifies the management port used for accessing the device.
HTTP to HTTPS
Redirection
This option will be available if you have chosen HTTPS as the Web Access
Protocol. With this enabled, any HTTP access to the web admin will redirect to
HTTPS automatically.
Admin User Name
This field specifies the administrator username of the web admin. It is set as
admin by default.
Admin Password
This field allows you to specify a new administrator password. You may also
click the Generate button and let the system generate a random password
automatically.
This allow user to configure AP Time Settings (both Timezone and NTP) in AP Controller.
AP Time Settings
Time Zone
Ths field is to select the time zone for the AP controller.
Time Server
Ths field is to select the time server for the AP controller.
This settings is to allow user to manage external AP's controller unreachable action. When
Manage Unreachable Action is checked, there will have 2 options which are "None" and
"Radio Off".
https://www.peplink.com
182
Copyright @ 2025 Peplink

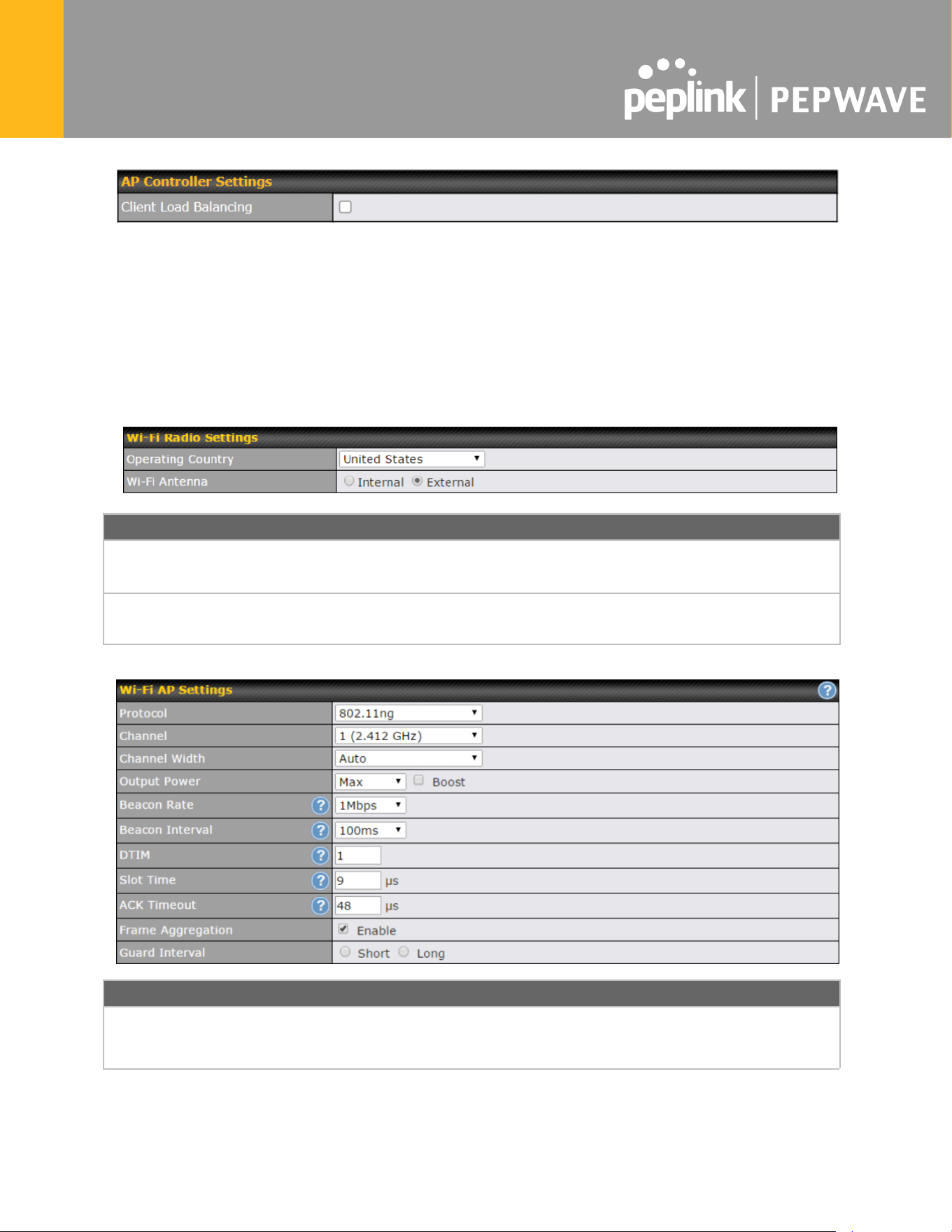

This is an option to enable client load balancing for AP Controller. When the option is enabled, it
is trying to balance the station count on APs within the same profile.
Some Pepwave models displays a screen similar to the one shown below, navigating to AP >
Settings:
Wi-Fi Radio Settings
Operating
Country
This option sets the country whose regulations the Pepwave router follows.
Wi-Fi Antenna
Wi-Fi Antenna Choose from the router's internal or optional external antennas, if
so equipped.
Wi-Fi AP Settings
Protocol
This option allows you to specify whether 802.11b and/or 802.11g client
association requests will be accepted. Available options are 802.11ng and
802.11na. By default, 802.11ng is selected.
https://www.peplink.com
183
Copyright @ 2025 Peplink
Channel
This option allows you to select which 802.11 RF channel will be used. Channel
1 (2.412 GHz) is selected by default.
Channel Width
Auto (20/40 MHz) and 20 MHz are available. The default setting is Auto (20/40
MHz), which allows both widths to be used simultaneously.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP.
There are 4 relative power levels available – Max, High, Mid, and Low. The
actual output power will be bound by the regulatory limits of the selected
country.
Beacon Rate
A
This option is for setting the transmit bit rate for sending a beacon. By default,
1Mbps is selected.
Beacon Interval
A
This option is for setting the time interval between each beacon. By default,
100ms is selected.
DITM
A
This field allows you to set the frequency for the beacon to include a delivery
traffic indication message. The interval is measured in milliseconds. The default
value is set to 1 ms.
Slot Time
A
This field is for specifying the wait time before the Router transmits a packet. By
default, this field is set to 9 µs.
ACK Time
A
This field is for setting the wait time to receive an acknowledgement packet
before performing a retransmission. By default, this field is set to 48 µs.
Frame
Aggreagtion
A
This option allows you to enable frame aggregation to increase transmission
throughput.
Guard Interval
A
This setting allows choosing a short or long guard period interval for your
transmissions.
https://www.peplink.com
184
Copyright @ 2025 Peplink
25 AP Controller Status
25.1 Info
A comprehensive overview of your AP can be accessed by navigating to AP > Controller
Status > Info.
AP Controller
License Limit
This field displays the maximum number of AP your Balance router can control.
You can purchase licenses to increase the number of AP you can manage.
Frequency
Underneath, there are two check boxes labeled 2.4 Ghz and 5 Ghz. Clicking
either box will toggle the display of information for that frequency. By default, the
graphs display the number of clients and data usage for both 2.4GHz and 5
GHz frequencies.

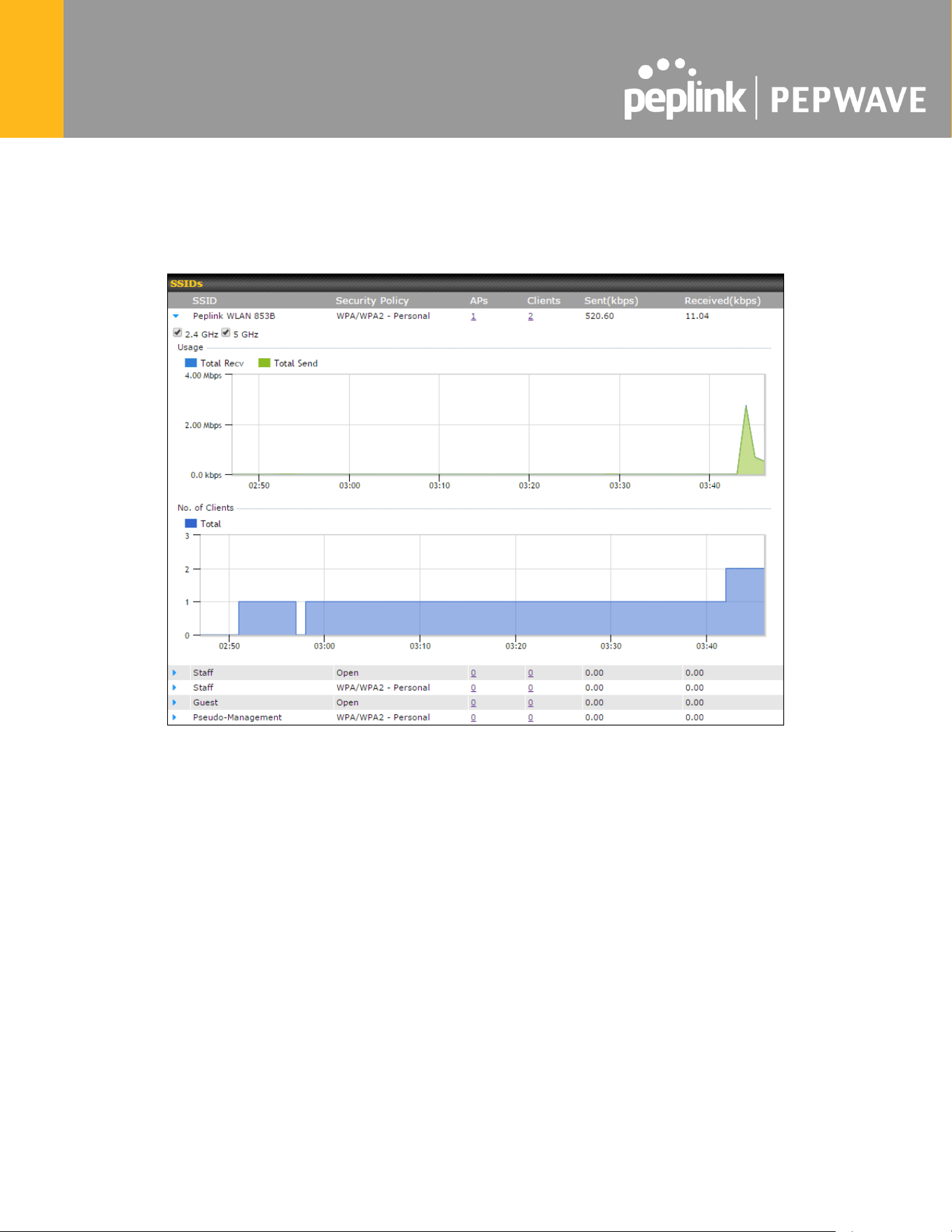

SSID
The colored boxes indicate the SSID to display information for. Clicking any
colored box will toggle the display of information for that SSID. By default, all the
graphs show information for all SSIDs.
No. of APs
This pie chart and table indicates how many APs are online and how many are
offline.
No.of Clients
This graph displays the number of clients connected to each network at any
https://www.peplink.com
185
Copyright @ 2025 Peplink
given time. Mouse over any line on the graph to see how many clients
connected to a specific SSID for that point in time.
Data Usage
This graph enables you to see the data usage of any SSID for any given time
period. Mouse over any line on the graph to see the data usage by each SSID
for that point in time. Use the buttons next to Zoom to select the time scale you
wish to view. In addition, you could use the sliders at the bottom to further refine
your timescale.

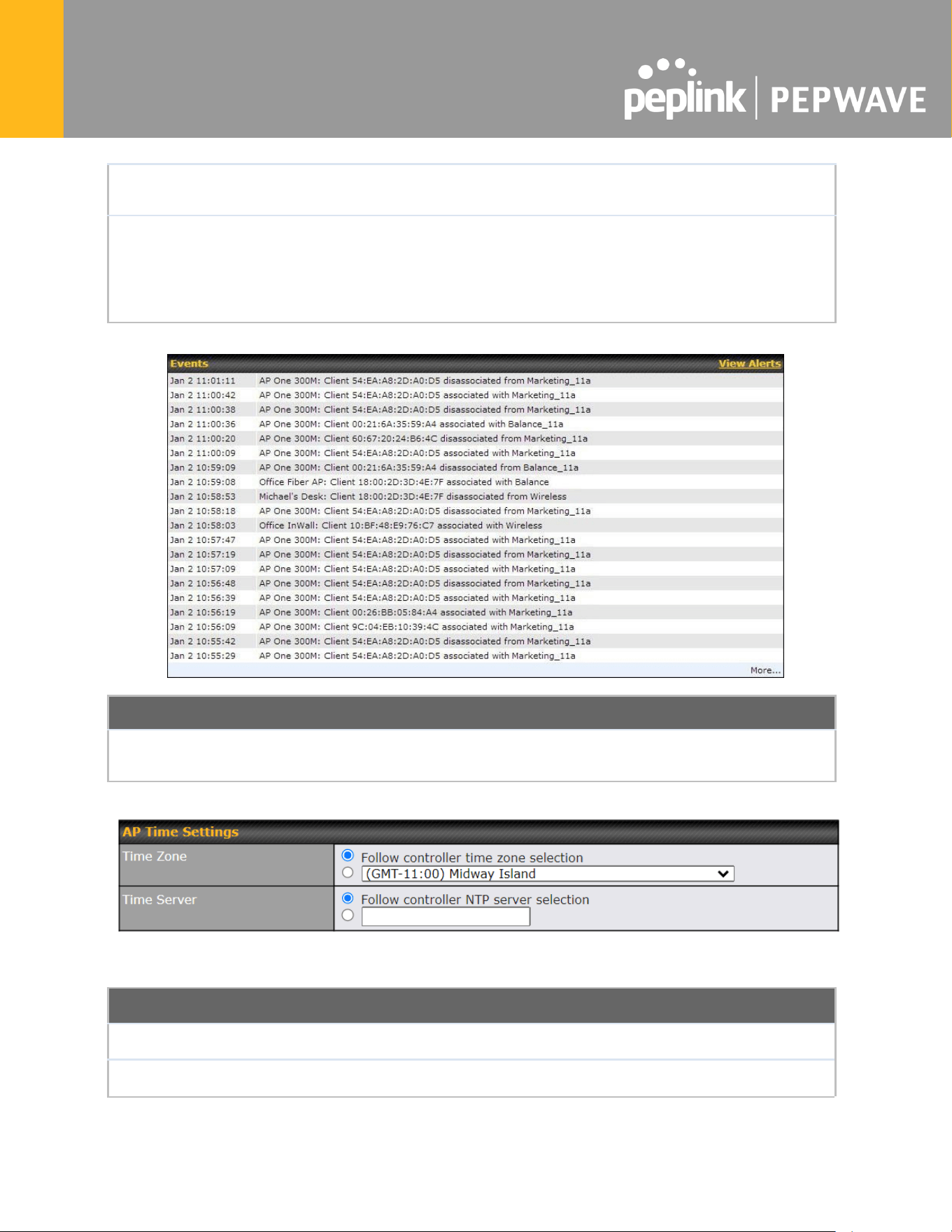

Events
This event log displays all activity on your AP network, down to the client level. Click View Alerts to see
only alerts, and click the More… link for additional records.
This allow user to configure AP Time Settings (both Timezone and NTP) in AP Controller.
AP Time Settings
Time Zone
Ths field is to select the time zone for the AP controller.
Time Server
Ths field is to select the time server for the AP controller.
https://www.peplink.com
186
Copyright @ 2025 Peplink
This settings is to allow user to manage external AP's controller unreachable action. When
Manage Unreachable Action is checked, there will have 2 options which are "None" and
"Radio Off".
This is an option to enable client load balancing for AP Controller. When the option is enabled, it
is trying to balance the station count on APs within the same profile.
25.2 Access Point
A detailed breakdown of data usage for each AP is available at AP > Controller Status >
Access Point.
Managed APs
Managed APs
This table shows the detailed information on each AP, including channel,
number of clients, upload traffic, and download traffic. Click the blue arrows at
the left of the table to expand and collapse information on each device group.
On the right of the table, you will see the following icons: .

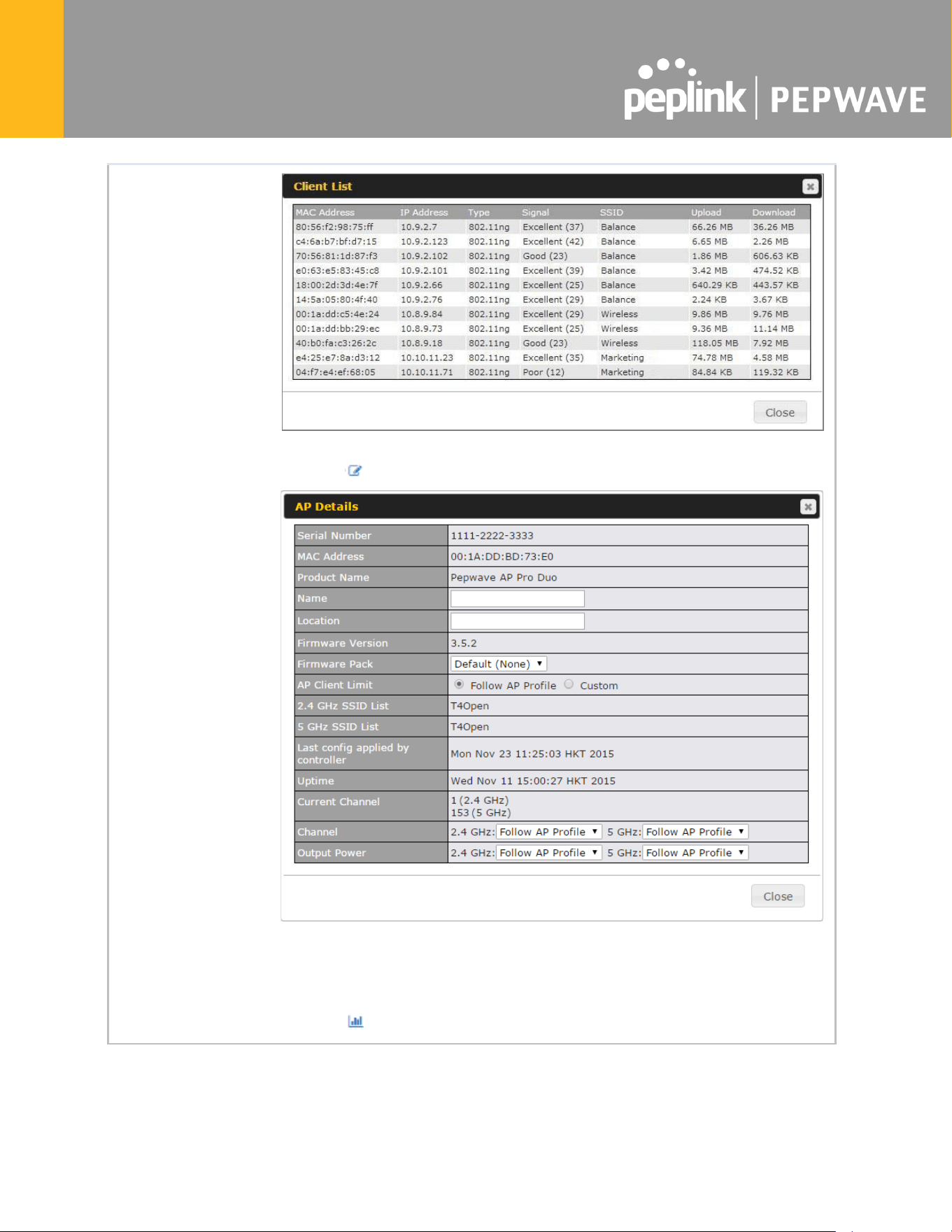

Click the icon to see a usage table for each client:
https://www.peplink.com
187
Copyright @ 2025 Peplink
Click the icon to configure each client
For easier network management, you can give each client a name and
designate its location. You can also designate which firmware pack (if any) this
client will follow, as well as the channels on which the client will broadcast.
Click the icon to see a graph displaying usage:
https://www.peplink.com
188
Copyright @ 2025 Peplink

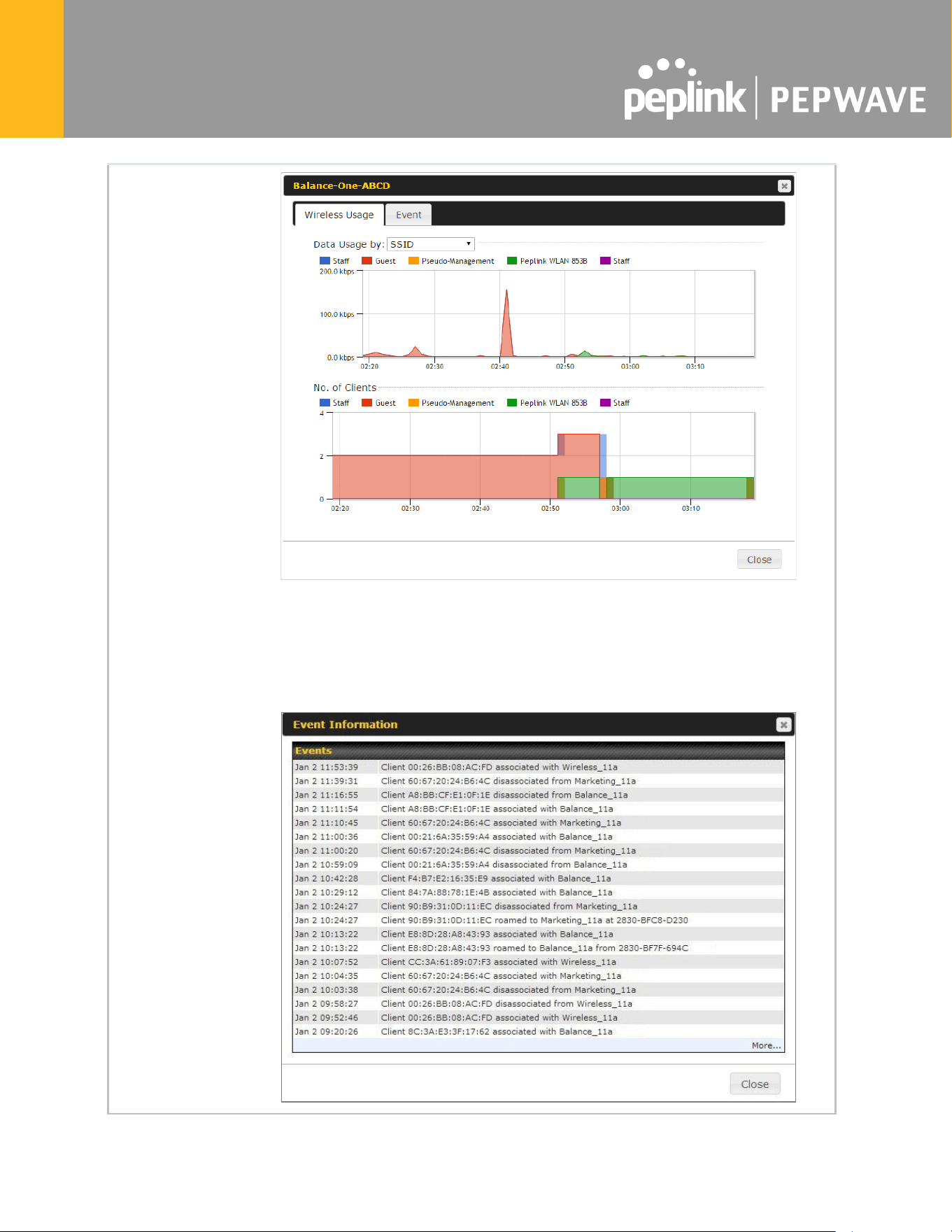

Click any point in the graphs to display detailed usage and client information for
that device, using that SSID, at that point in time. On the Data Usage by menu,
you can display the information by SSID or by AP send/receive rate.
Click the Event tab next to Wireless Usage to view a detailed event log for that
particular device:
https://www.peplink.com
189
Copyright @ 2025 Peplink

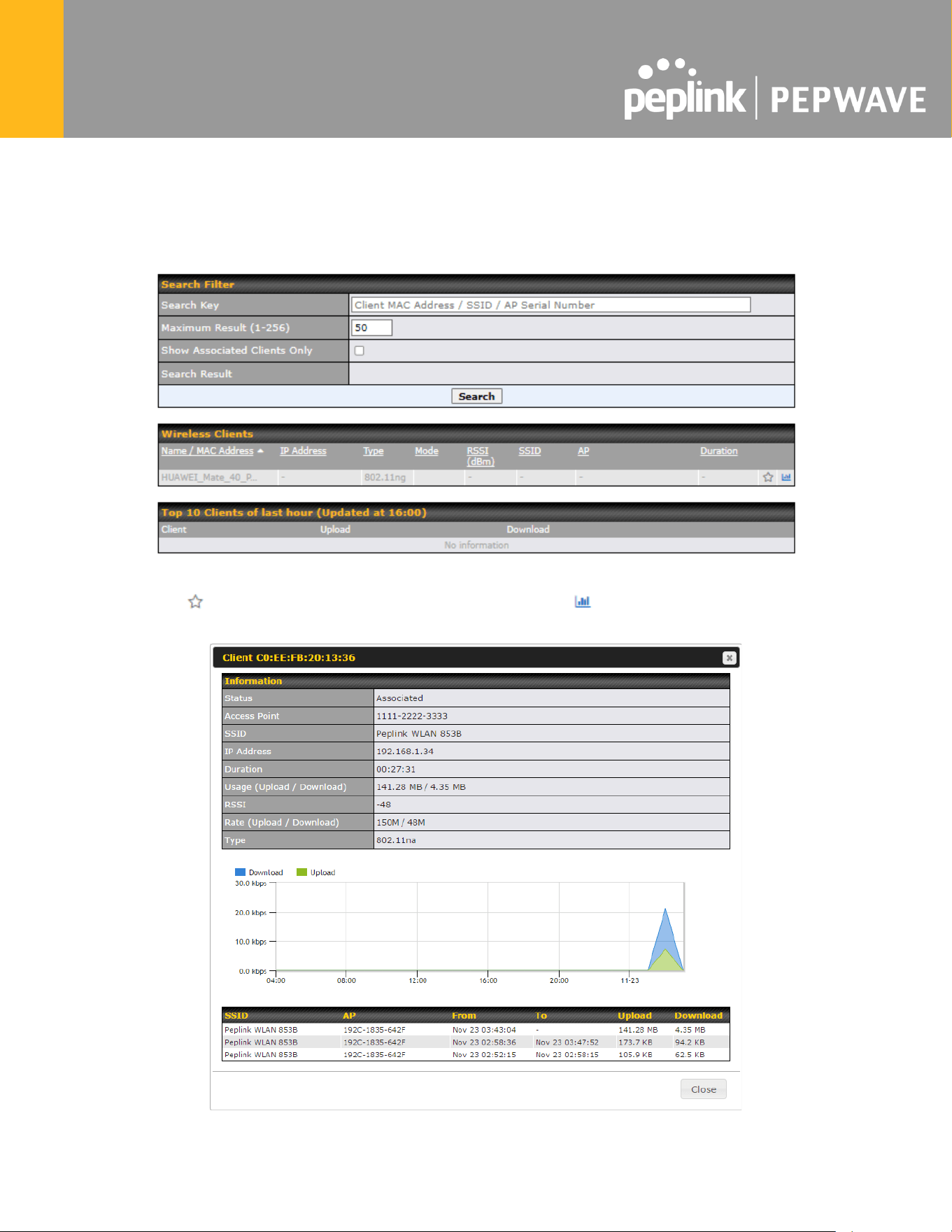

25.4 Wireless Client
You can search for specific Wi-Fi users by navigating to AP > Controller Status > Wireless
Client.
Here, you will be able to see your network’s heaviest users as well as search for specific users.
Click the icon to bookmark specific users, and click the icon for additional details about
each user:
https://www.peplink.com
191
Copyright @ 2025 Peplink

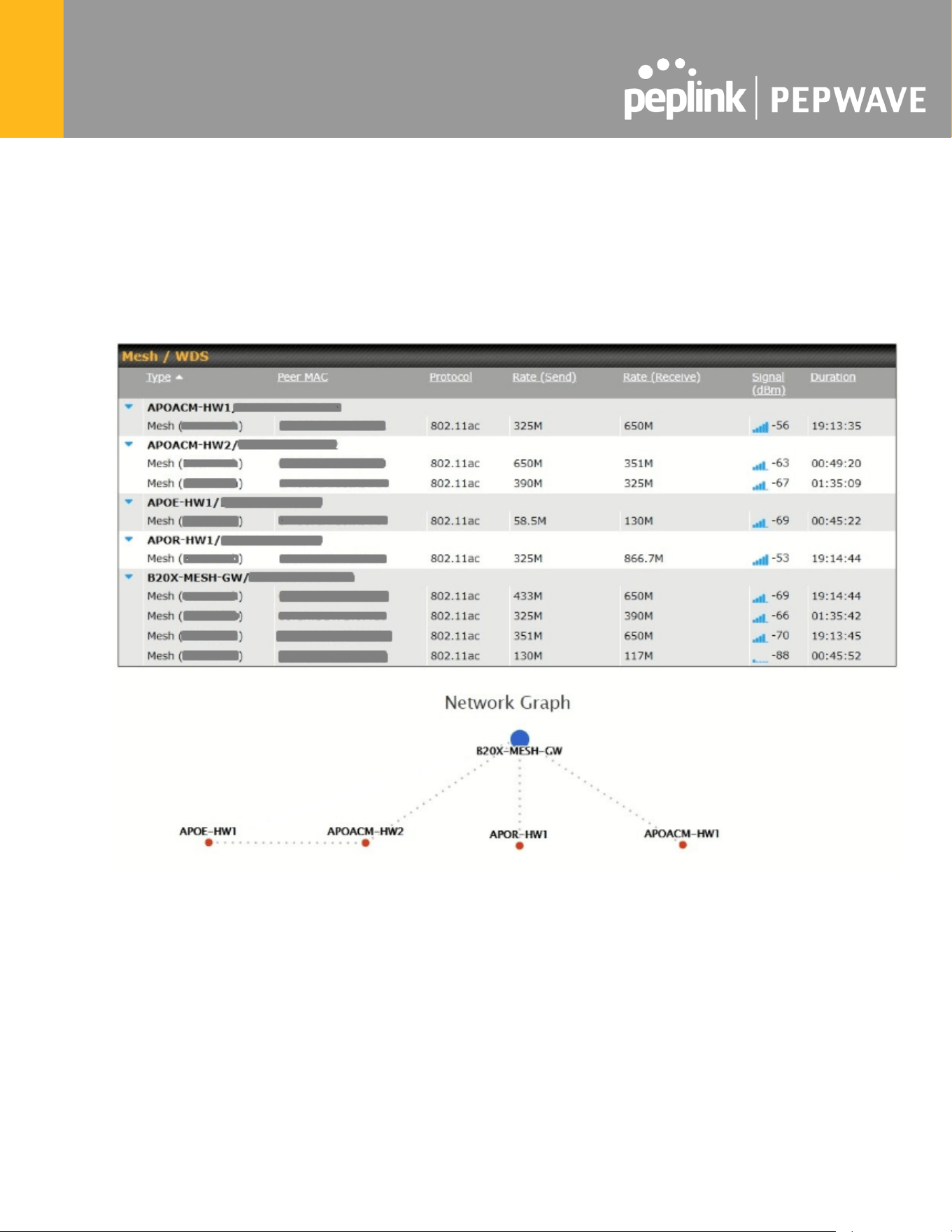

25.5 Mesh / WDS
Mesh / WDS allows you to monitor the status of your wireless distribution system (WDS) or
Mesh, and track activity by MAC address by navigating to AP > Controller Status > Mesh /
WDS. This table shows the detailed information of each AP, including protocol, transmit rate
(sent / received), signal strength, and duration.
https://www.peplink.com
192
Copyright @ 2025 Peplink
25.6 Nearby Device
A listing of near devices can be accessed by navigating to AP > Controller Status > Nearby
Device.

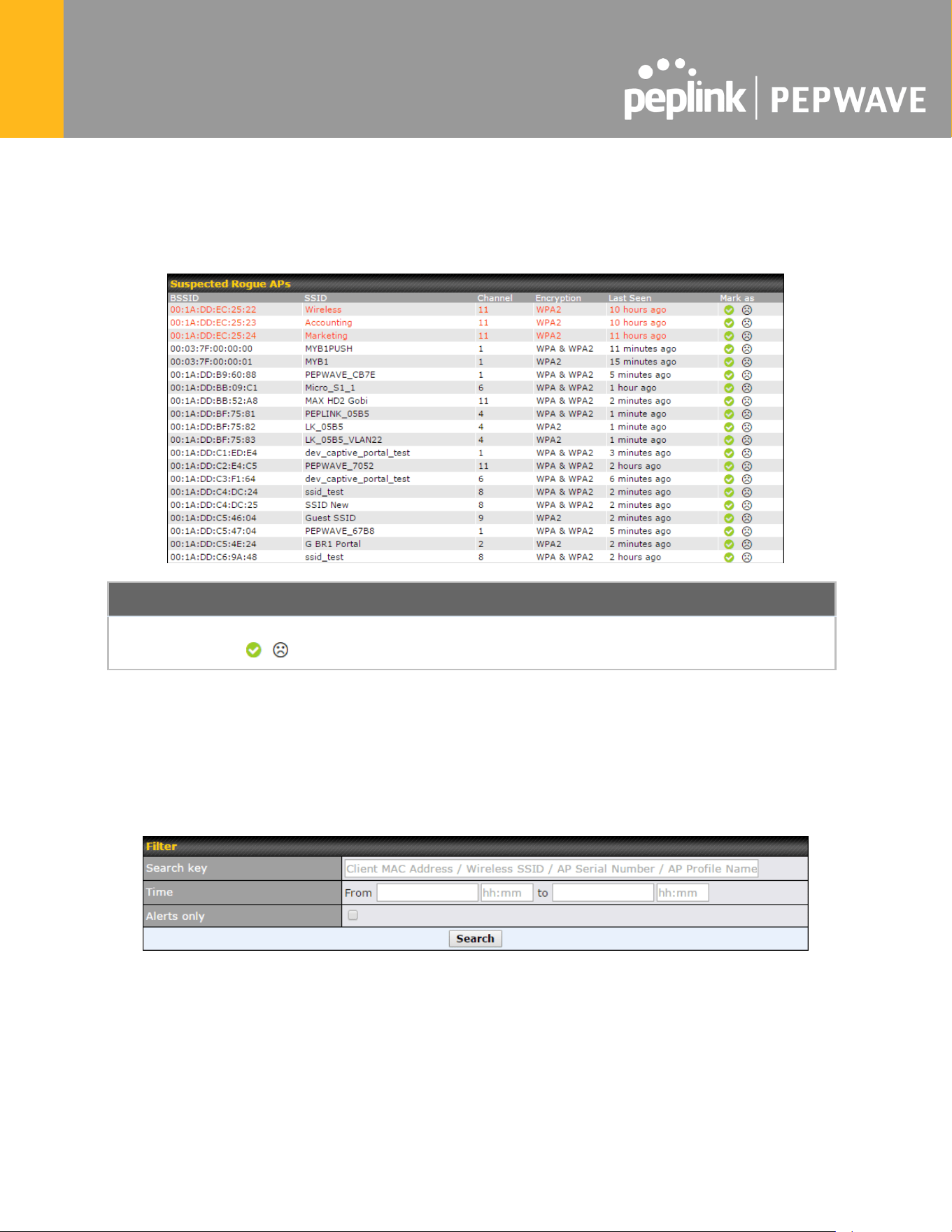

Suspected Rogue Devices
Hovering over the device MAC address will result in a popup with information on how this device was
detected. Click the icons and the device will be moved to the bottom table of identified devices.
25.7 Event Log
You can access the AP Controller Event log by navigating to AP > Controller Status > Event
Log.
https://www.peplink.com
193
Copyright @ 2025 Peplink

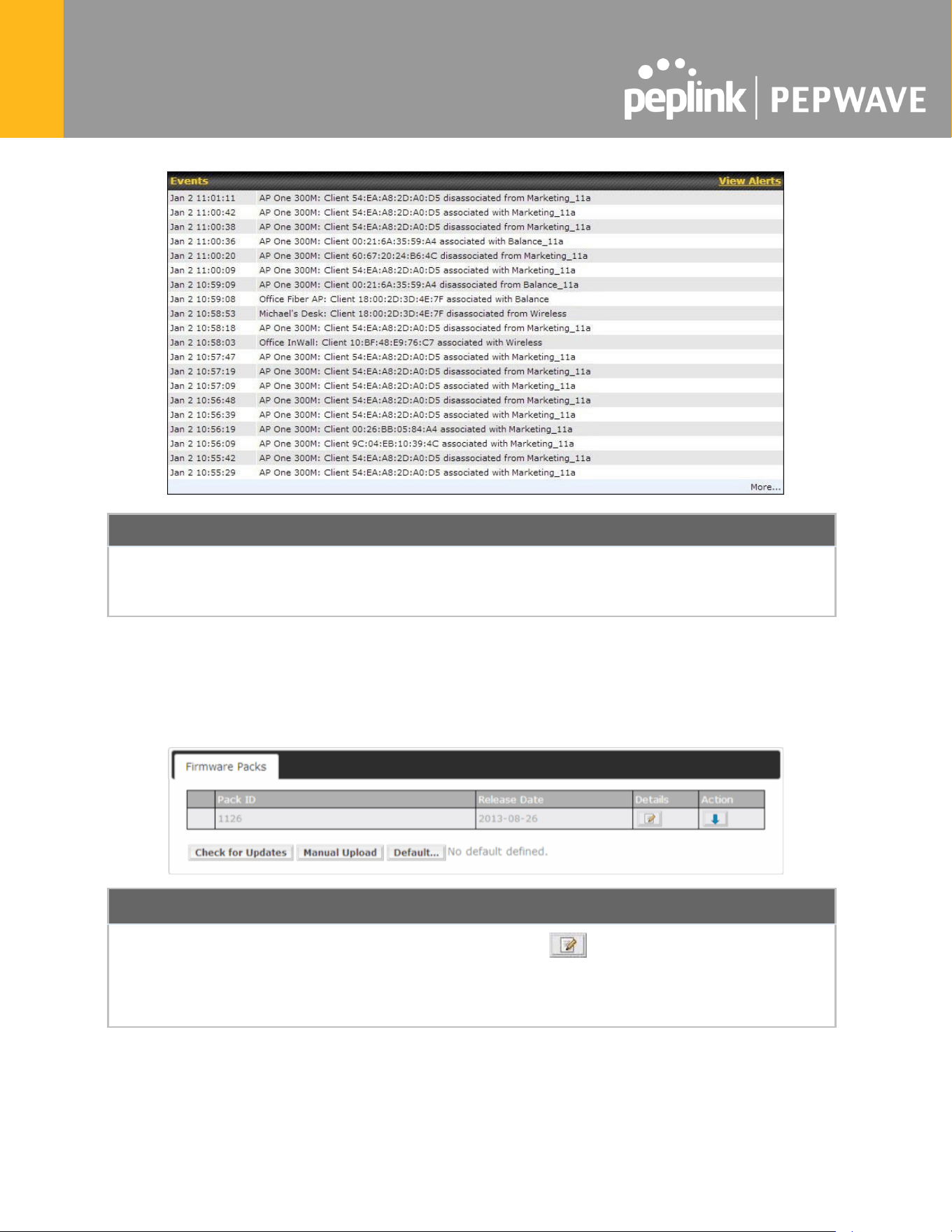

Events
This event log displays all activity on your AP network, down to the client level. Use to filter box to
search by MAC address, SSID, AP Serial Number, or AP Profile name. Click View Alerts to see only
alerts, and click the More… link for additional records.
26 Toolbox
Tools for managing firmware packs can be found at AP > Toolbox.
Firmware Packs
Here, you can manage the firmware of your AP. Clicking on will result in information regarding
each firmware pack. To receive new firmware packs, you can click Check for Updates to download new
packs, or you can click Manual Upload to manually upload a firmware pack. Click Default to define
which firmware pack is default.
https://www.peplink.com
194
Copyright @ 2025 Peplink
27 System
27.1 Admin Security
There are two types of user accounts available for accessing the web admin: admin and user.
They represent two user levels: the admin level has full administrative access, while the
user level is read-only. The user level can access only the device's status information; users
cannot make any changes on the device.
A web login session will be logged out automatically when it has been idle longer than the Web
Session Timeout. Before the session expires, you may click the Logout button in the web
admin to exit the session.
0 hours 0 minutes signifies an unlimited session time. This setting should be used only in
special situations, as it will lower the system security level if users do not log out before closing
the browser. The default is 4 hours, 0 minutes.
For security reasons, after logging in to the web admin Interface for the first time, it is
recommended to change the administrator password. Configuring the administration interface to
be accessible only from the LAN can further improve system security. Administrative settings
configuration is located at System > Admin Security.
https://www.peplink.com
195
Copyright @ 2025 Peplink

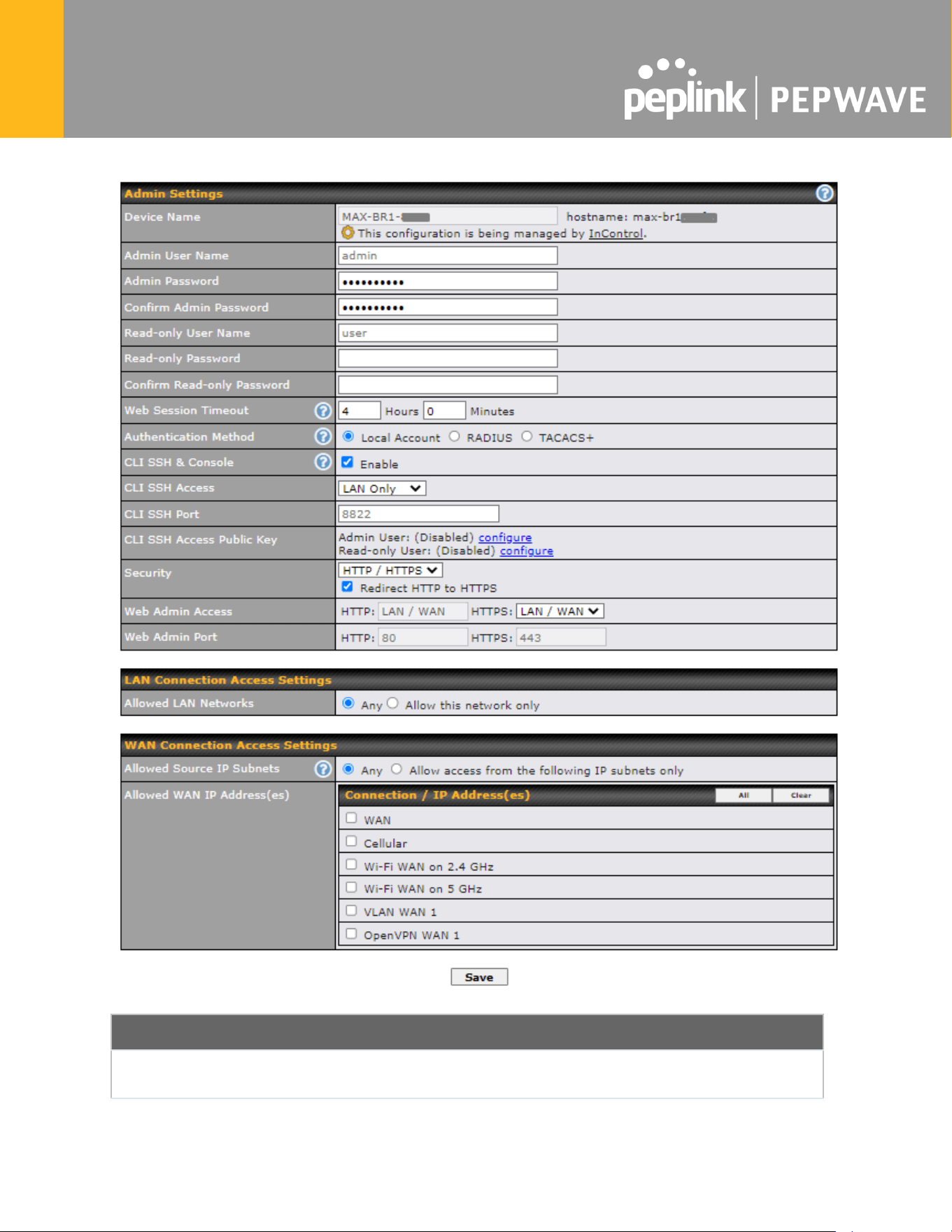

the unit’s serial number.
Admin User
Name
Admin User Name is set as admin by default, but can be changed, if desired.
Admin Password
This field allows you to specify a new administrator password.
Confirm Admin
Password
This field allows you to verify and confirm the new administrator password.
Read-only User
Name
Read-only User Name is set as user by default, but can be changed, if desired.
Read-only
Password
This field allows you to specify a new user password. Once the user password is
set, the read-only user feature will be enabled.
Confirm
Read-only
Password
This field allows you to verify and confirm the new user password.
Web Session
Timeout
This field specifies the number of hours and minutes that a web session can
remain idle before the Pepwave router terminates its access to the web admin
interface. By default, it is set to 4 hours.

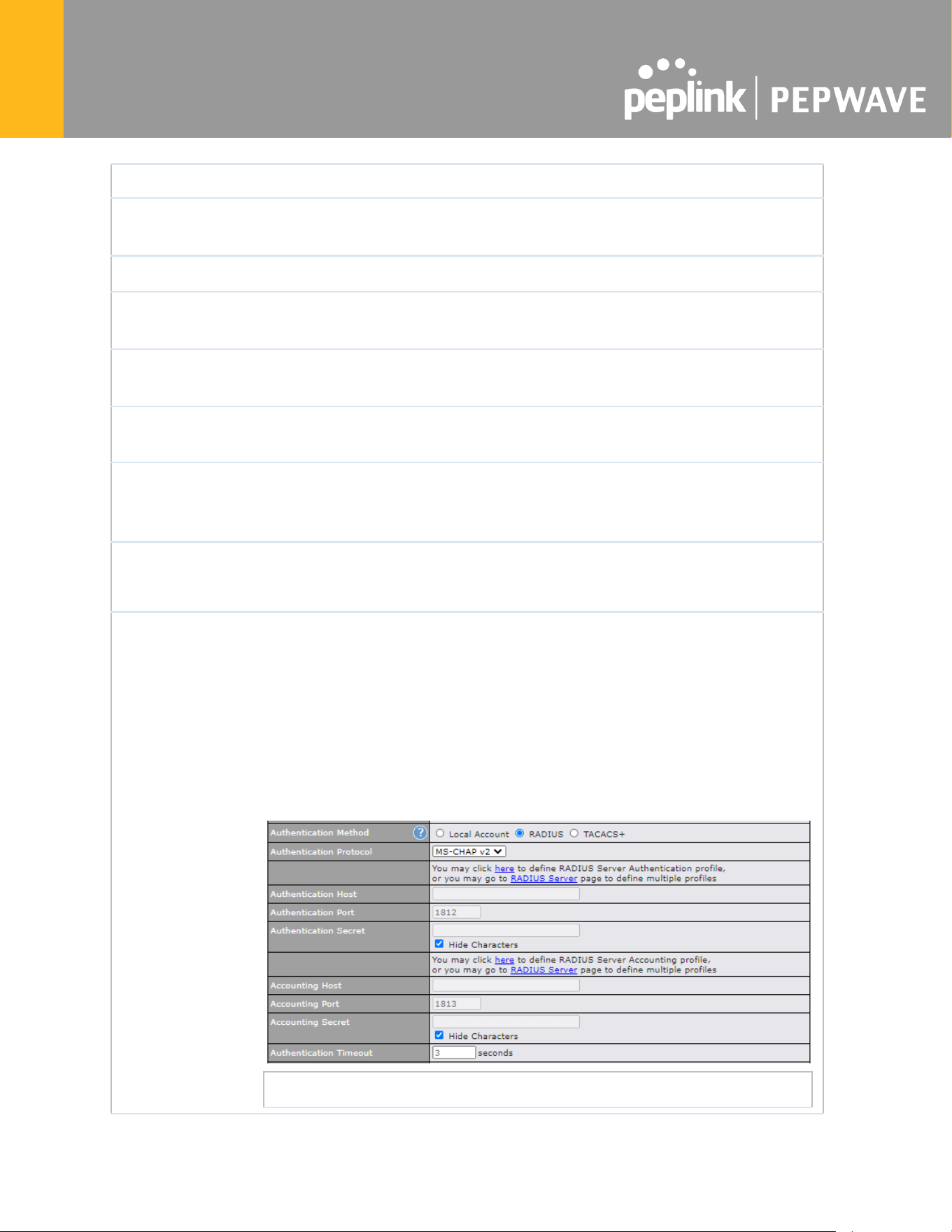

Authentication
Method
With this box is checked, the web admin will authenticate using an external
RADIUS server. Authenticated users are treated as either "admin" with full
read-write permission or “user” with read-only access. Local admin and user
accounts will be disabled. When the device is not able to communicate with the
external RADIUS server, local accounts will be enabled again for emergency
access. Additional authentication options will be available once this box is
checked.
Available options:
● Local Account
● RADIUS
Authentication
This specifies the authentication protocol used.
https://www.peplink.com
197
Copyright @ 2025 Peplink
Protocol
Available options are MS-CHAP v2 and PAP.
Authentication
Host
This specifies the IP address or hostname of the
RADIUS server host.
Authentication
Port
This setting specifies the UDP destination port for
authentication requests.
Authentication
Secret
This field is for entering the secret key for accessing
the RADIUS server.
Accounting Host
This specifies the IP address or hostname of the
RADIUS server host.
Accounting Port
This setting specifies the UDP destination port for
accounting requests.
Accounting Secret
This field is for entering the secret key for accessing
the accounting server.
Authentication
Timeout
This option specifies the time value for authentication
timeout

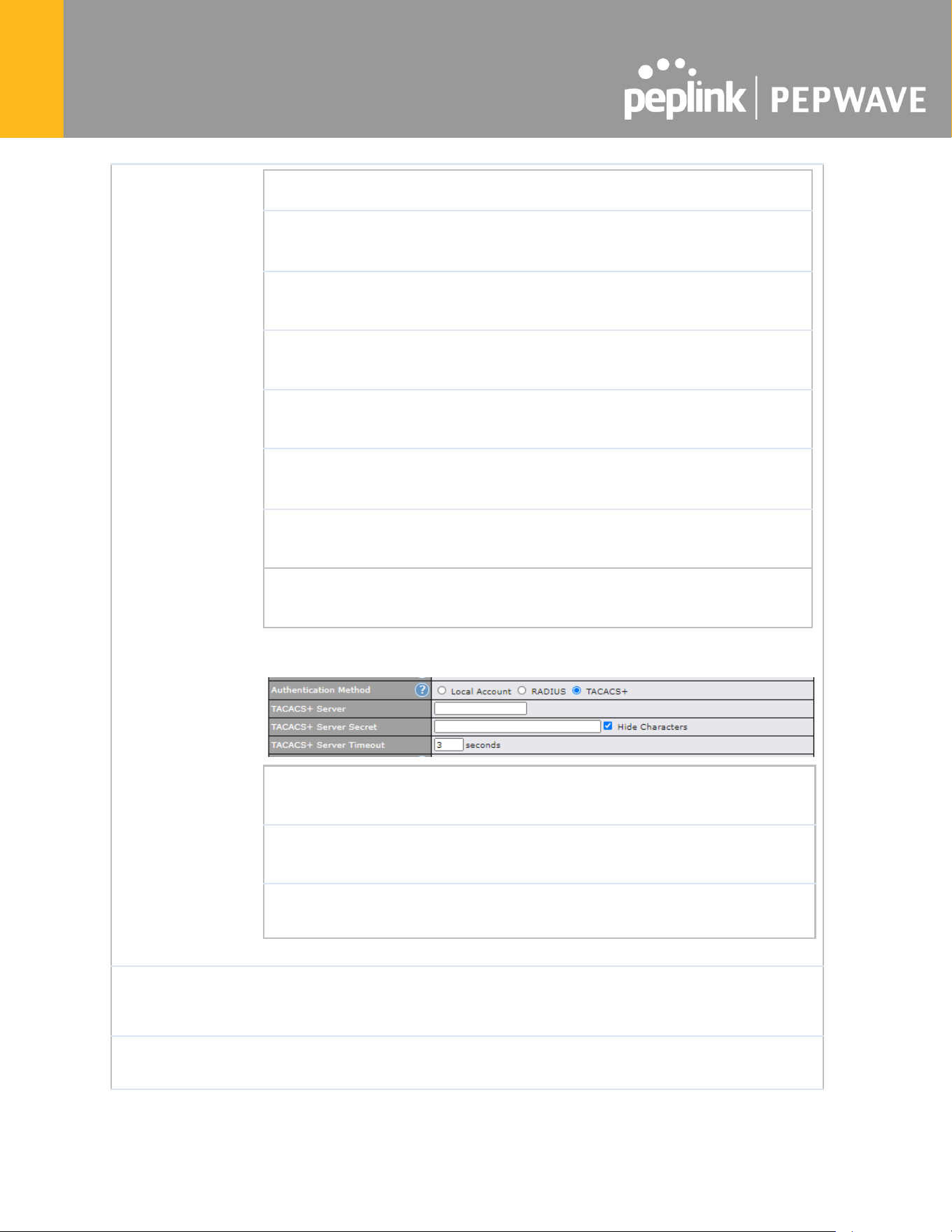

● TACACS+
TACACS+ Server
This specifies the access address of the external
TACACS+ server.
TACACS+ Server
Secret
This field is for entering the secret key for accessing
the RADIUS server.
TACACS+ Server
Timeout
This option specifies the time value for TACACS+
timeout
CLI SSH &
Console
The CLI (command line interface) can be accessed via SSH. This field enables
CLI support. For additional information regarding CLI, please refer to Section
30.5.
CLI SSH Access
This menu allows you to choose between granting access to LAN and WAN
clients, or to LAN clients only.
https://www.peplink.com
198
Copyright @ 2025 Peplink
CLI SSH Port
This field determines the port on which clients can access CLI SSH.
CLI SSH Access
Public Key
This field is for entering the Public Key for Admin Users and Read-only Users to
access CLI SSH.
Security
This option is for specifying the protocol(s) through which the web admin
interface can be accessed:
● HTTP
● HTTPS
● HTTP/HTTPS
HTTP to HTTPS redirection is enabled by default to force HTTPS access to the
web admin interface.
Web Admin
Access
This option is for specifying the network interfaces through which the web admin
interface can be accessed:
● LAN only
● LAN/WAN
If LAN/WAN is chosen, the WAN Connection Access Settings form will be
displayed.
Web Admin Port
This field is for specifying the port number on which the web admin interface can
be accessed.

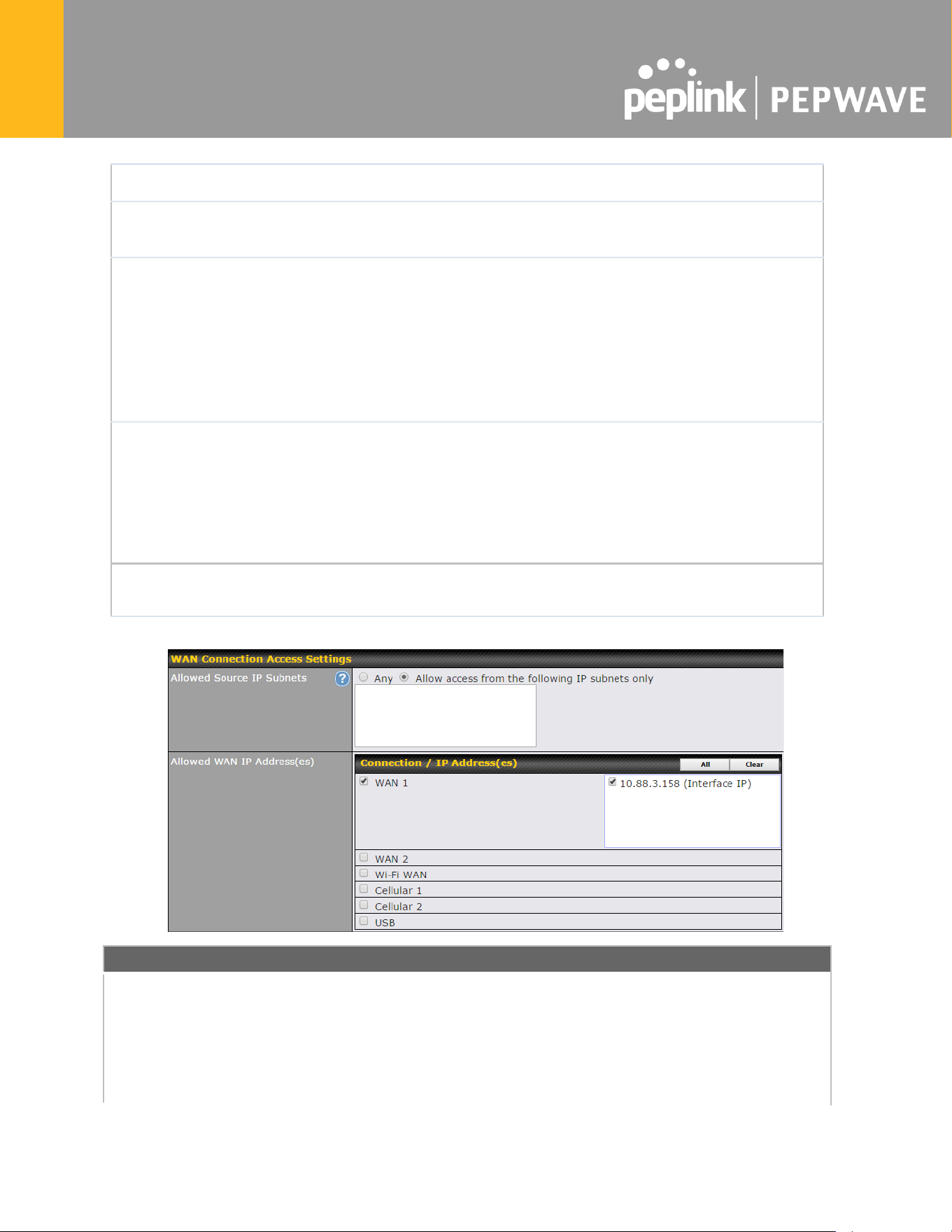

WAN Connection Access Settings
Allowed Source
IP Subnets
This field allows you to restrict web admin access only from defined IP subnets.
● Any - Allow web admin accesses to be from anywhere, without IP
address restriction.
● Allow access from the following IP subnets only - Restrict web admin
access only from the defined IP subnets. When this is chosen, a text
input area will be displayed beneath:
https://www.peplink.com
199
Copyright @ 2025 Peplink
The allowed IP subnet addresses should be entered into this text area. Each IP
subnet must be in form of w.x.y.z/m, where w.x.y.z is an IP address (e.g.,
192.168.0.0), and m is the subnet mask in CIDR format, which is between 0 and
32 inclusively (For example, 192.168.0.0/24).
To define multiple subnets, separate each IP subnet one in a line. For example:
● 192.168.0.0/24
● 10.8.0.0/16
Allowed WAN IP
Address(es)
This is to choose which WAN IP address(es) the web server should listen on.
27.2 Firmware
Web admin interface : automatically check for updates
Upgrading firmware can be done in one of three ways.
Using the router’s interface to automatically check for an update, using the router’s interface to
manually upgrade the firmware, or using InControl2 to push an upgrade to a router.

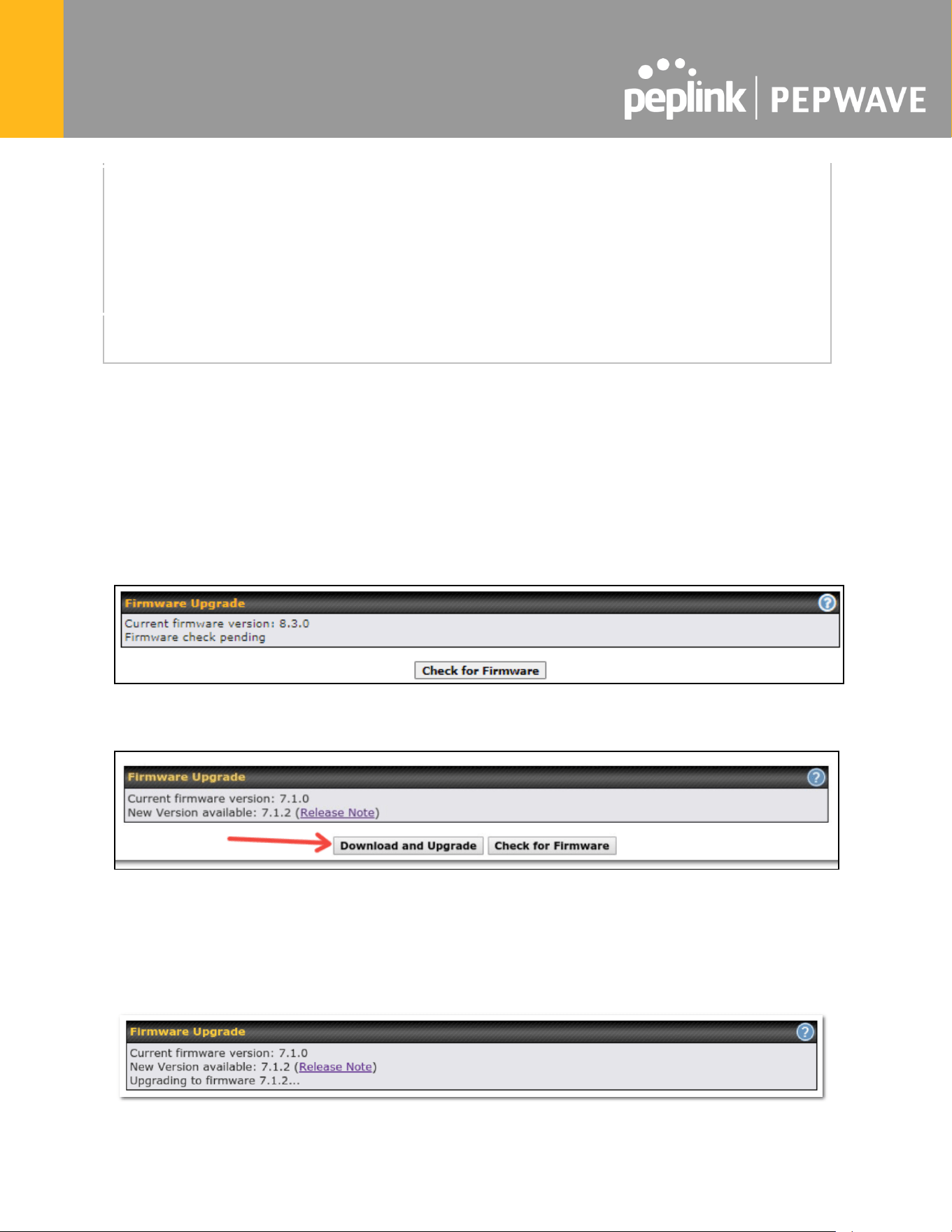

The automatic upgrade can be done from System > Firmware.
If an update is found the buttons will change to allow you to Download and Update the
firmware.
Click on the Download and Upgrade button. A prompt will be displayed advising to download
the Current Active Configuration. Please click on the underlined download text. After
downloading the current config click the Ok button to start the upgrade process.
The router will download and then apply the firmware. The time that this process takes will
depend on your internet connection’s speed.
https://www.peplink.com
200
Copyright @ 2025 Peplink

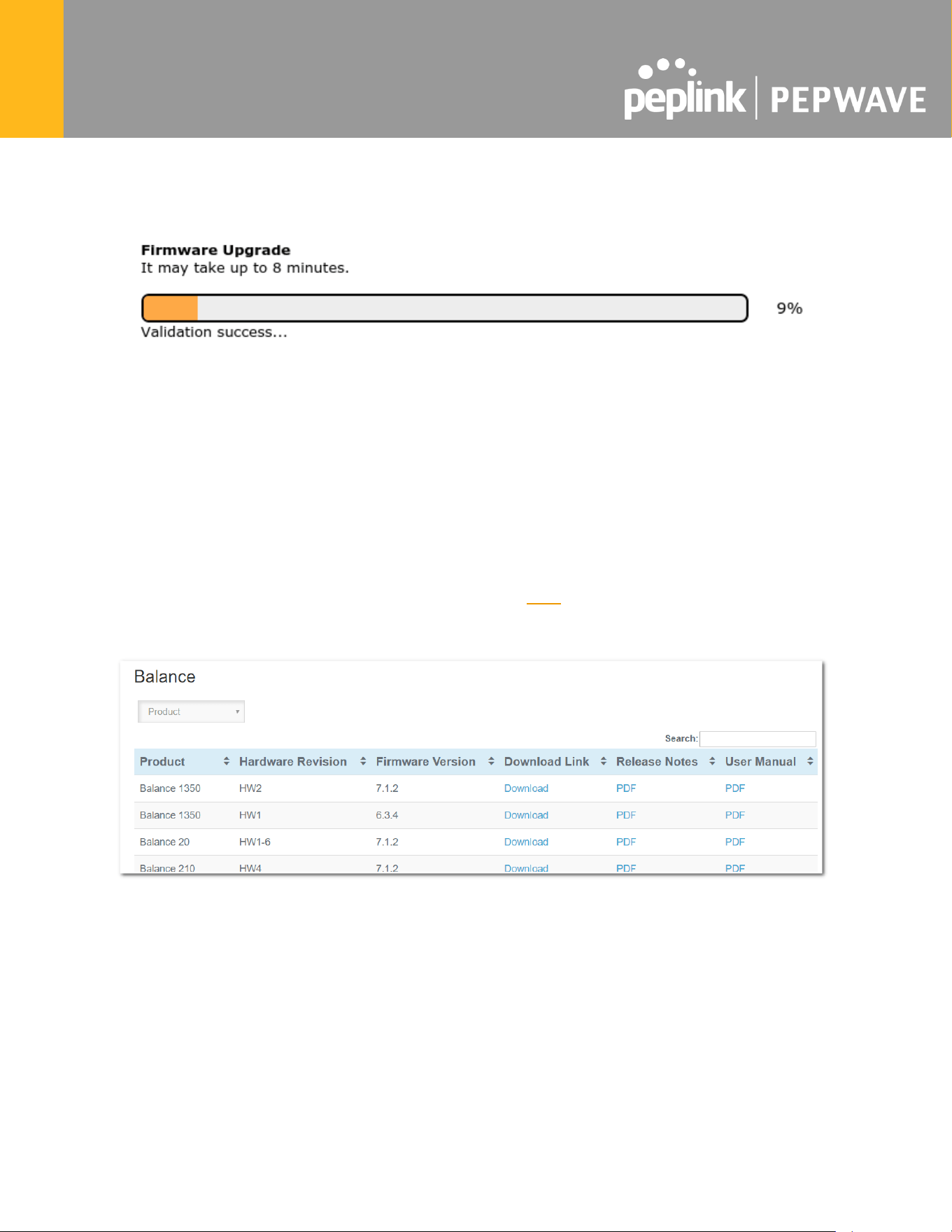

The firmware will now be applied to the router*. The amount of time it takes for the firmware to
upgrade will also depend on the router that’s being upgraded.
*Upgrading the firmware will cause the router to reboot.
Web admin interface : install updates manually
In some cases, a special build may be provided via a ticket or it may be found in the forum.
Upgrading to the special build can be done using this method, or using IC2 if you are using that
to manage your firmware upgrades. A manual upgrade using the GA firmware posted on the
site may also be recommended or required for a couple of reasons.
All of the Peplink/Pepwave GA firmware can be found here Navigate to the relevant product line
(ie. Balance, Max, FusionHub, SOHO, etc). Some product lines may have a dropdown that lists
all of the products in that product line. Here is a screenshot from the Balance line.
If the device has more than one firmware version the current hardware revision will be required
to know what firmware to download.
Navigate to System > Firmware and click the Choose File button under the Manual Firmware
Upgrade section. Navigate to the location that the firmware was downloaded to select the “.img”
file and click the Open button.
Click on the Manual Upgrade button to start the upgrade process.
https://www.peplink.com
201
Copyright @ 2025 Peplink

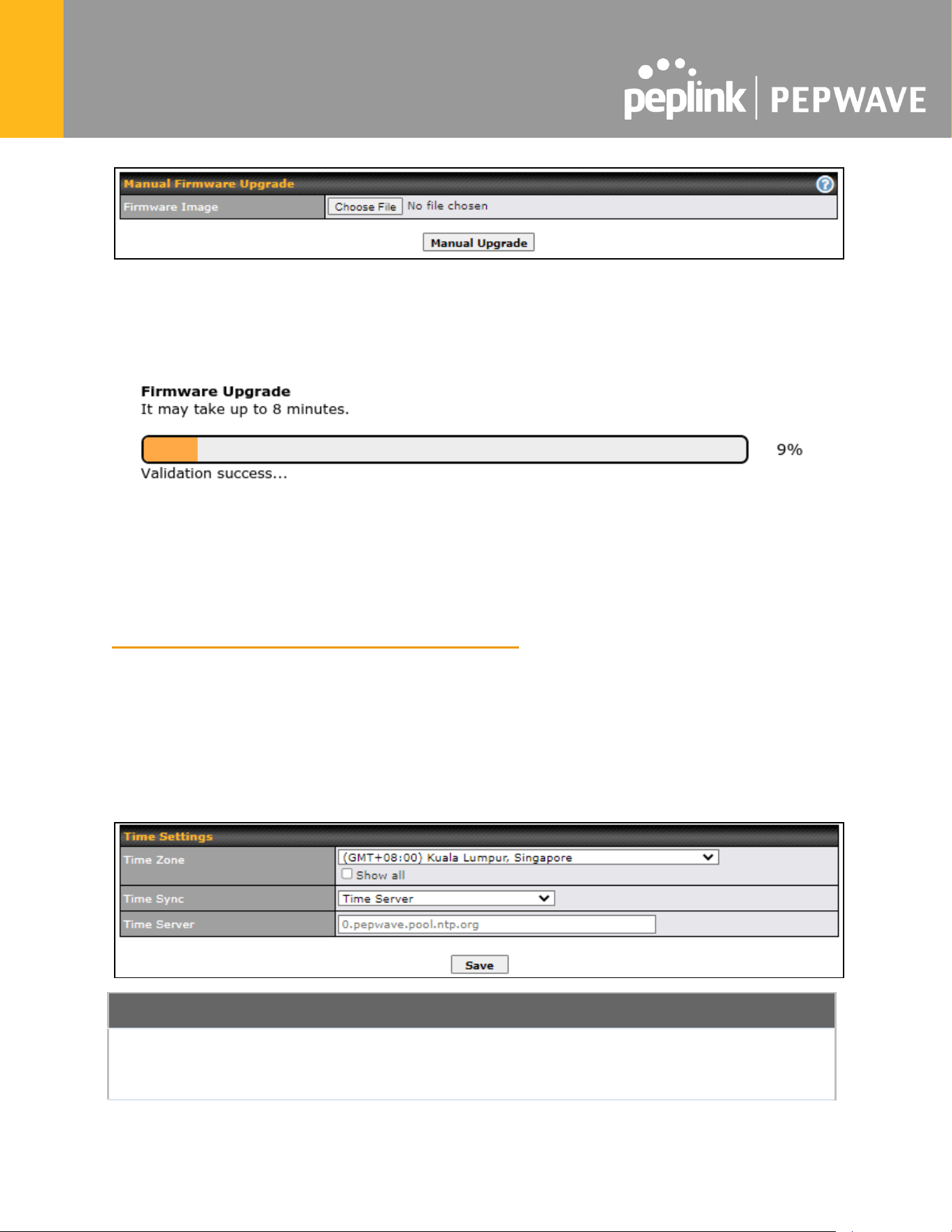

A prompt will be displayed advising to download the Current Active Configuration. Please click
on the underlined download text. After downloading the current config click the Ok button to
start the upgrade process. The firmware will now be applied to the router*. The amount of time it
takes for the firmware to upgrade will depend on the router that’s being upgraded.
*Upgrading the firmware will cause the router to reboot.
The InControl method
Described in this knowledgebase article on our forum.
27.3 Time
Time Settings enables the system clock of the Pepwave router to be synchronized with a
specified time server. Time settings are located at System > Time.
Time Settings
Time Zone
This specifies the time zone (along with the corresponding Daylight Savings Time
scheme). The Time Zone value affects the time stamps in the Pepwave router’s
event log and e-mail notifications. Check Show all to show all time zone options.
https://www.peplink.com
202
Copyright @ 2025 Peplink
Time Sync
This field allows to select your time sync mode, the available options are:
● Time Server
● GPS
● GPS with Time Server as fallback
Time Server
This setting specifies the NTP network time server to be utilized by the Pepwave
router.

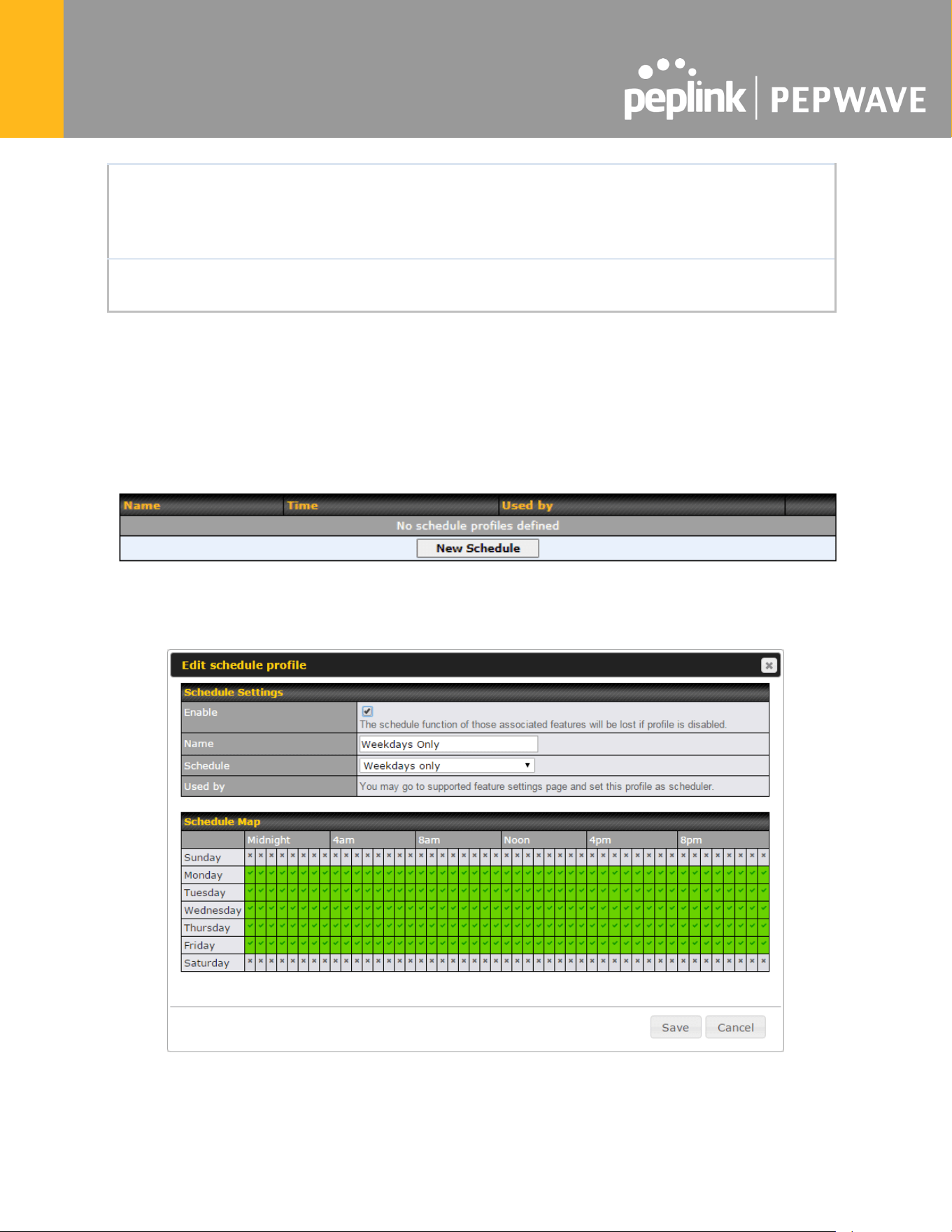

27.4 Schedule
Enable and disable different functions (such as WAN connections, outbound policy, and firewalls
at different times, based on a user-scheduled configuration profile. The settings for this are
located at System > Schedule
Enable scheduling, and then click on your schedule name or on the New Schedule button to
begin.
https://www.peplink.com
203
Copyright @ 2025 Peplink
Edit Schedule Profile
Enabling
Click this checkbox to enable this schedule profile. Note that if this is disabled,
then any associated features will also have their scheduling disabled.
Name
Enter your desired name for this particular schedule profile.
Schedule
Click the drop-down menu to choose pre-defined schedules as your starting point.
Please note that upon selection, previous changes on the schedule map will be
deleted.
Schedule Map
Click on the desired times to enable features at that time period. You can hold
your mouse for faster entry.

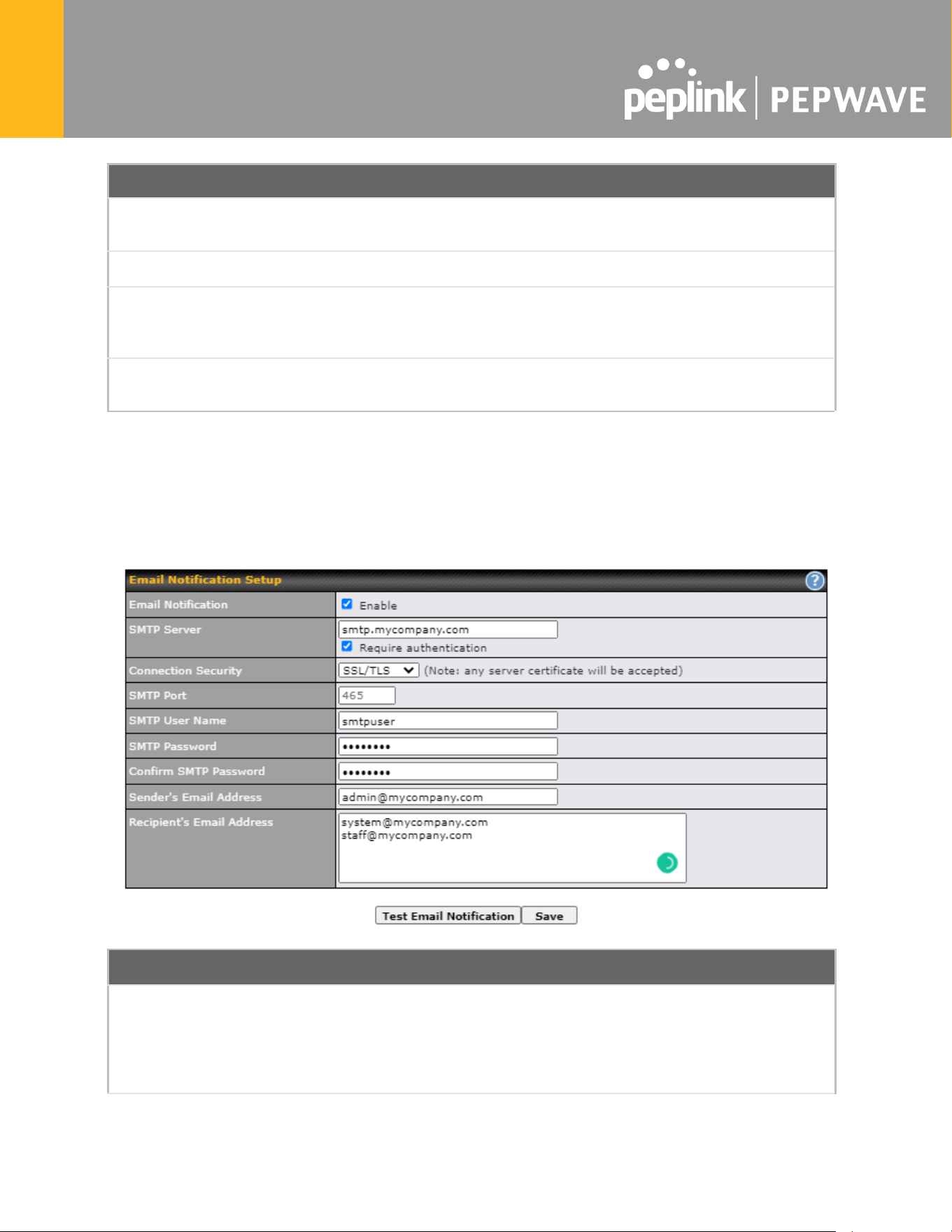

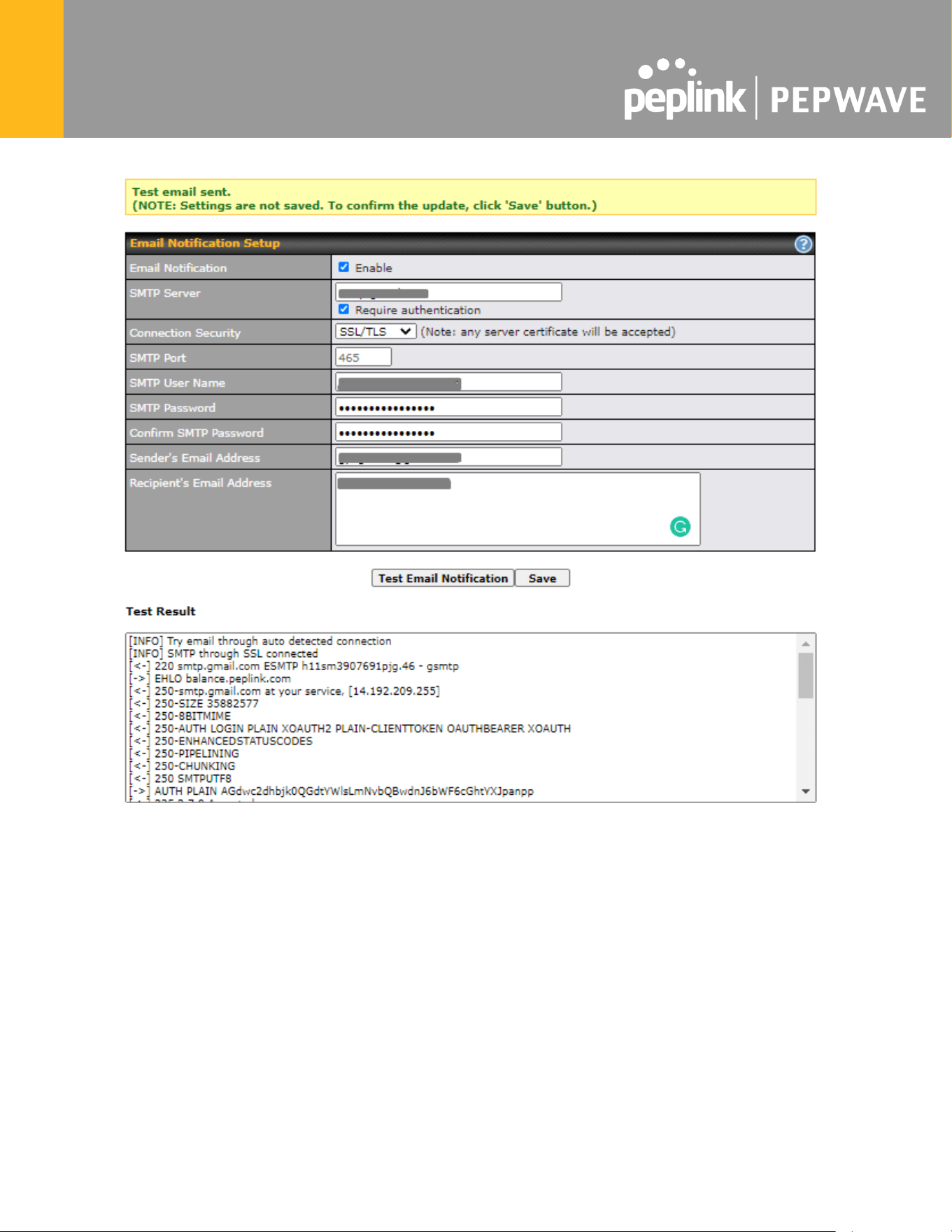

27.5 Email Notification
Email notification functionality provides a system administrator with up-to-date information on
network status. The settings for configuring email notifications are found at System>Email
Notification.
Email Notification Settings
Email
Notification
This setting specifies whether or not to enable email notification. If Enable is
checked, the Pepwave router will send email messages to system administrators
when the WAN status changes or when new firmware is available. If Enable is not
checked, email notification is disabled and the Pepwave router will not send email
messages.
https://www.peplink.com
204
Copyright @ 2025 Peplink

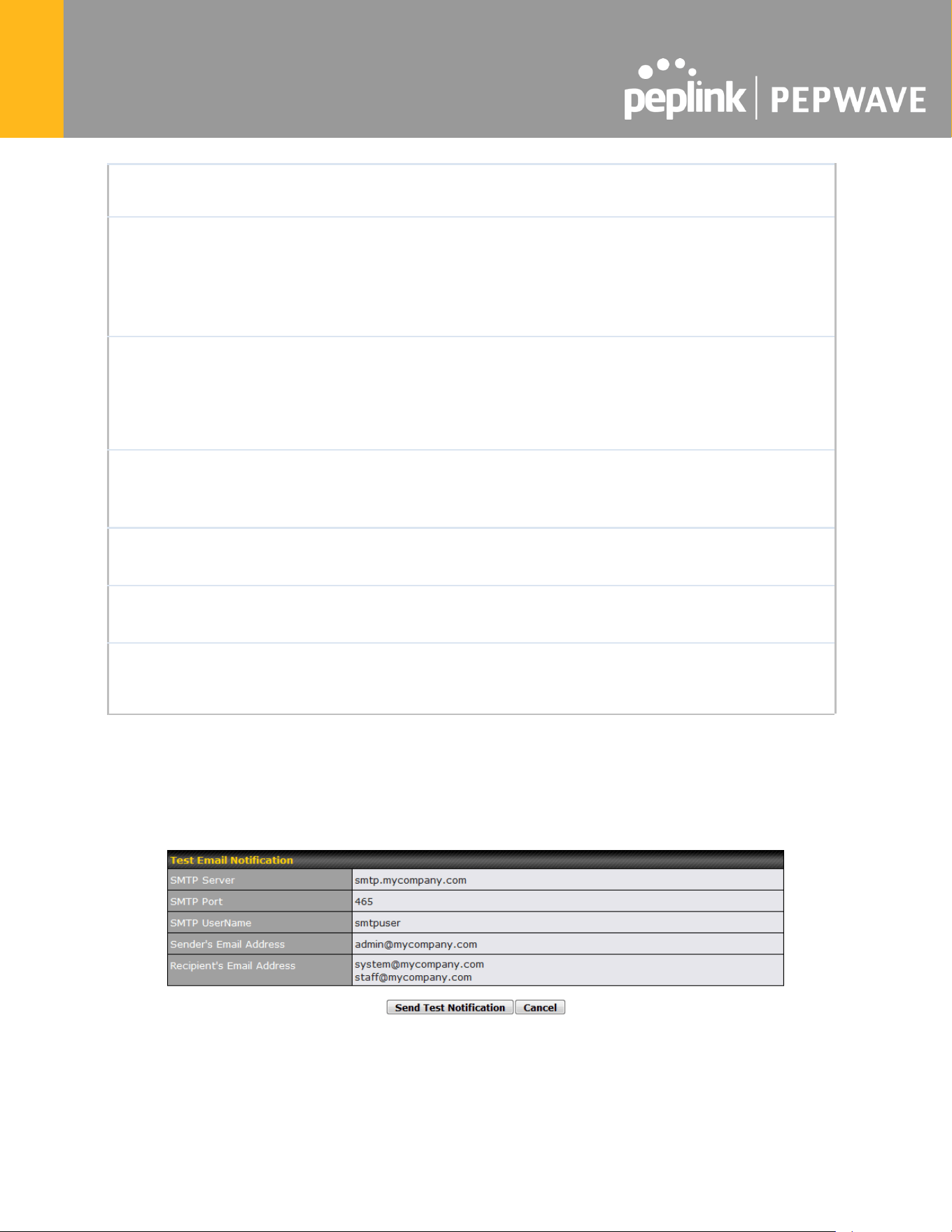

SMTP Server
This setting specifies the SMTP server to be used for sending email. If the server
requires authentication, check Require authentication.
Connection
Security
This setting specifies via a drop-down menu one of the following valid Connection
Security:
● None
● STARTTLS
● SSL/TLS
SMTP Port
This field is for specifying the SMTP port number. By default, this is set to 25. If
Connection Security is selected “STARTTLS”, the default port number will be set
to 587. If Connection Security is selected “SSL/TLS”, the default port number will
be set to 465.
You may customize the port number by editing this field.
SMTP User
Name /
Password
This setting specifies the SMTP username and password while sending email.
These options are shown only if Require authentication is checked in the SMTP
Server setting.
Confirm SMTP
Password
This field allows you to verify and confirm the new administrator password.
Sender’s Email
Address
This setting specifies the email address the Pepwave router will use to send
reports.
Recipient’s Email
Address
This setting specifies the email address(es) to which the Pepwave router will send
email notifications. For multiple recipients, separate each email addresses using
the enter key.
After you have finished setting up email notifications, you can click the Test Email Notification
button to test the settings before saving. After Test Email Notification is clicked, you will see
this screen to confirm the settings:
Click Send Test Notification to confirm. In a few seconds, you will see a message with detailed
test results.
https://www.peplink.com
205
Copyright @ 2025 Peplink
27.6 Event Log
Event log functionality enables event logging at a specified remote syslog server. The settings
for configuring the remote system log can be found at System > Event Log.
Event Log Settings
Remote Syslog
This setting specifies whether or not to log events at the specified remote syslog
server.
Remote Syslog
Host
This setting specifies the IP address or hostname of the remote syslog server.
Source Network
Address
Via drop-down list, you may choose the LAN interface for Event Log, URL
Logging, Sessions Logging and RADIUS.
Push Events
The Pepwave router can also send push notifications to mobile devices that have
our Mobile Router Utility installed. Check the box to activate this feature.
URL Logging
This setting is to enable event logging at the specified log server.
URL Logging
Host
This setting specifies the IP address or hostname of the URL log server.
https://www.peplink.com
207
Copyright @ 2025 Peplink
Session Logging
This setting is to enable event logging at the specified log server.
Session Logging
Host
This setting specifies the IP address or hostname of the Session log server.
For more information on the Router Utility, go to:
www.peplink.com/products/router-utility
27.7 SNMP
SNMP or simple network management protocol is an open standard that can be used to collect
information about the Pepwave router. SNMP configuration is located at System > SNMP.
SNMP Settings
SNMP Device
This field shows the router name defined at System > Admin Security.
https://www.peplink.com
208
Copyright @ 2025 Peplink
Name
SNMP Port
This option specifies the port which SNMP will use. The default port is 161.
SNMPv1
This option allows you to enable SNMP version 1.
SNMPv2
This option allows you to enable SNMP version 2.
SNMPv3
This option allows you to enable SNMP version 3.
SNMP Trap
This option allows you to enable SNMP Trap. If enabled, the following entry fields
will appear.
SNMP Trap
Community
This setting specifies the SNMP Trap community name.
SNMP Trap
Server
Enter the IP address of the SNMP Trap server.
SNMP Trap Port
This option specifies the port which the SNMP Trap server will use. The default
port is 162.
SNMP Trap
Server Heartbeat
This option allows you to enable and configure the heartbeat interval for the SNMP
Trap server.
To add a community for either SNMPv1 or SNMPv2, click the Add SNMP Community button in
the Community Name table, upon which the following screen is displayed:
SNMP Community Settings
Community
Name
This setting specifies the SNMP community name.
Allowed Source
Subnet Address
This setting specifies a subnet from which access to the SNMP server is allowed.
Enter subnet address here (e.g., 192.168.1.0) and select the appropriate subnet
mask.
https://www.peplink.com
209
Copyright @ 2025 Peplink
To define a user name for SNMPv3, click Add SNMP User in the SNMPv3 User Name table,
upon which the following screen is displayed:
SNMPv3 User Settings
User Name
This setting specifies a user name to be used in SNMPv3.
Authentication
Protocol
This setting specifies via a drop-down menu one of the following valid
authentication protocols:
● NONE
● MD5
● SHA
When MD5 or SHA is selected, an entry field will appear for the password.
Privacy Protocol
This setting specifies via a drop-down menu one of the following valid privacy
protocols:
● NONE
● DES
When DES is selected, an entry field will appear for the password.
27.8 SMS Control
SMS Control allows the user to control the device using SMS even if the modem does not have
a data connection. The settings for configuring the SMS Control can be found at System > SMS
Control.
Supported Models
● Balance/MAX: *-LTE-E, *-LTEA-W, *-LTEA-P, *-LTE-MX
● EPX: *-LW*, *-LP*
https://www.peplink.com
210
Copyright @ 2025 Peplink
When this box is checked, the device will be allowed to take actions according to received
commands via SMS.
Make sure your mobile plan supports SMS, and note that some plans may incur additional
charges for this.
SMS Control can reboot devices and configure cellular settings over signalling channels, even if
the modem does not have a data connection.
For details of supported SMS command sets, please refer to our knowledge base.
SMS Control Settings
Enable
Click the checkbox to enable the SMS Control.
Password
This setting sets the password for authentication - maximum of 32 characters,
which cannot include semicolon (;).
White List
Optionally, you can add phone number(s) to the whitelist. Only matching phone
numbers are allowed to issue SMS commands. Phone numbers must be in the
E.164 International Phone Numbers format.
27.9 InControl
InControl is a cloud-based service which allows you to manage all of your Peplink and Pepwave
devices with one unified system. With it, you can generate reports, gather statistics, and
https://www.peplink.com
211
Copyright @ 2025 Peplink
configure your devices automatically. All of this is now possible with InControl.
When this check box is checked, the device's status information will be sent to the Peplink
InControl system. This device's usage data and configuration will be sent to the system if you
enable the features in the system.
Alternatively, you can also privately host InControl. Simply check the “Privately Host InControl”
box and enter the IP Address of your InControl Host. If you have multiple hosts, you may enter
the primary and backup IP addresses for the InControl Host and tick the “Fail over to InControl
in the cloud” box. The device will connect to either the primary InControl Host or the
secondary/backup ICA/IC2.
You can sign up for an InControl account at https://incontrol2.peplink.com/. You can register
your devices under the account, monitor their status, see their usage reports, and receive offline
notifications.
27.10 Configuration
Backing up Pepwave router settings immediately after successful completion of initial setup is
strongly recommended. The functionality to download and upload Pepwave router settings is
found at System > Configuration. Note that available options vary by model.
Configuration
Restore
Configuration to
The Restore Factory Settings button is to reset the configuration to factory
default settings. After clicking the button, you will need to click the Apply
https://www.peplink.com
212
Copyright @ 2025 Peplink
Factory Settings
Changes button on the top right corner to make the settings effective.
Download Active
Configurations
Click Download to backup the current active settings.
Upload
Configurations
To restore or change settings based on a configuration file, click Choose File to
locate the configuration file on the local computer, and then click Upload. The new
settings can then be applied by clicking the Apply Changes button on the page
header, or you can cancel the procedure by pressing discard on the main page of
the web admin interface.
Upload
Configurations
from High
Availability Pair
In a high availability (HA) configuration, a Pepwave router can quickly load the
configuration of its HA counterpart. To do so, click the Upload button. After loading
the settings, configure the LAN IP address of the Pepwave router so that it is
different from the HA counterpart.
27.11 Feature Add-ons
Some Pepwave routers have features that can be activated upon purchase. Once the purchase
is complete, you will receive an activation key. Enter the key in the Activation Key field, click
Activate, and then click Apply Changes.
27.12 Reboot
This page provides a reboot button for restarting the system. For maximum reliability, the
Pepwave router can equip with two copies of firmware. Each copy can be a different version.
You can select the firmware version you would like to reboot the device with. The firmware
marked with (Running) is the current system boot up firmware.
Please note that a firmware upgrade will always replace the inactive firmware partition.
https://www.peplink.com
213
Copyright @ 2025 Peplink
28 Tools
28.1 Ping
The ping test tool sends pings through a specific Ethernet interface or a SpeedFusion
TM
VPN
connection. You can specify the number of pings in the field Number of times, to a maximum
number of 10 times. Packet Size can be set to a maximum of 1472 bytes. The ping utility is
located at System > Tools > Ping, illustrated below:
Tip
A system administrator can use the ping utility to manually check the connectivity of a particular
LAN/WAN connection.
https://www.peplink.com
214
Copyright @ 2025 Peplink
28.2 Traceroute Test
The traceroute test tool traces the routing path to the destination through a particular Ethernet
interface or a SpeedFusion
TM
connection. The traceroute test utility is located at System > Tools
> Traceroute.
Tip
A system administrator can use the traceroute utility to analyze the connection path of a LAN/WAN
connection.
28.3 Wake-on-LAN
Pepwane routers can send special “magic packets” to any client specified from the Web UI. To
access this feature, navigate to System > Tools > Wake-on-LAN
Select a client from the drop-down list and click Send to send a “magic packet”
https://www.peplink.com
215
Copyright @ 2025 Peplink
28.4 WAN Analysis
The WAN Analysis feature allows you to run a WAN to WAN speed test between 2 Peplink
devices .
You can set a device up as a Server or a Client. One device must be set up as a server to run
the speed tests and the server must have a public IP address.
The default port is 6000 and can be changed if required. The IP address of the WAN interface
will be shown in the WAN Connection Status section.
https://www.peplink.com
216
Copyright @ 2025 Peplink
The client side has a few more settings that can be changed. Make sure that the Control Port
matches what’s been entered on the server side. Select the WAN(s) that will be used for testing
and enter the Servers WAN IP address. Once all of the options have been set, click the Start
Test button.
https://www.peplink.com
217
Copyright @ 2025 Peplink
28.5 CLI (Command Line Interface Support)
The CLI (command line interface) can be accessed via SSH. This field enables CLI support.
The below settings specify which TCP port and which interface(s) should accept remote SSH
CLI access. The user name and password used for remote SSH CLI access are the same as
those used for web admin access.
https://www.peplink.com
219
Copyright @ 2025 Peplink
29 Status
29.1 Device
System information is located at Status > Device.
System Information
Device Name
This is the name specified in the Device Name field located at System > Admin
Security.
Model
This shows the model name and number of this device.
Product Code
If your model uses a product code, it will appear here.
Hardware
Revision
This shows the hardware version of this device.
https://www.peplink.com
220
Copyright @ 2025 Peplink
Serial Number
This shows the serial number of this device.
Firmware
This shows the firmware version this device is currently running.
SpeedFusion
VPN Version
This shows the current SpeedFusion VPN version.
Modem Support
Version
This shows the modem support version. For a list of supported modems, click
Modem Support List.
InControl
Managed
Configuration
InControl Managed Configurations (firmware, VLAN, Captive Portal, etcetera)
Host Name
The host name assigned to the Pepwave router appears here.
Uptime
This shows the length of time since the device has been rebooted.
System Time
This shows the current system time.
OpenVPN Client
Profile
Link to download OpenVpn Client profile when this is enabled in Remote User
Access
Diagnostic
Report
The Download link is for exporting a diagnostic report file required for system
investigation.
Remote
Assistance
This option is to Turn on remote assistance with the time duration.
The second table shows the MAC address of each LAN/WAN interface connected. To view your
device’s End User License Agreement (EULA), click Legal.
https://www.peplink.com
221
Copyright @ 2025 Peplink
29.2 GPS Data
GPS enabled models automatically store up to seven days of GPS location data in GPS
eXchange format (GPX). To review this data using third-party applications, click Status >
Device and then download your GPX file.
The Pepwave GPS enabled devices export real-time location data in NMEA format through the
LAN IP address at TCP port 60660. It is accessible from the LAN or over a SpeedFusion
connection. To access the data via a virtual serial port, install a virtual serial port driver. Visit
http://www.peplink.com/index.php?view=faq&id=294 to download the driver.
https://www.peplink.com
222
Copyright @ 2025 Peplink
29.3 Active Sessions
Information on active sessions can be found at Status > Active Sessions > Overview.
This screen displays the number of sessions initiated by each application. Click on each service
listing for additional information. This screen also indicates the number of sessions initiated by
each WAN port. In addition, you can see which clients are initiating the most sessions.
You can also perform a filtered search for specific sessions. You can filter by subnet, port,
protocol, and interface. To perform a search, navigate to Status > Active Sessions > Search.
https://www.peplink.com
223
Copyright @ 2025 Peplink
This Active Sessions section displays the active inbound/outbound sessions of each WAN
connection on the Pepwave router. A filter is available to sort active session information. Enter a
keyword in the field or check one of the WAN connection boxes for filtering.
https://www.peplink.com
224
Copyright @ 2025 Peplink
29.4 Client List
The client list table is located at Status > Client List. It lists DHCP and online client IP
addresses, names (retrieved from the DHCP reservation table or defined by users), current
download and upload rate, and MAC address.
Clients can be imported into the DHCP reservation table by clicking the button on the
right. You can update the record after import by going to Network > LAN.
If the PPTP server (see Section 19.2), SpeedFusion
TM
(see Section 12.1), or AP controller (see
Section 20) is enabled, you may see the corresponding connection name listed in the Name
field.
In the client list table, there is a “Ban Client” feature which is used to disconnect the Wi-Fi and
Remote User Access clients by clicking the button on the right.
There is a blocklist on the same page after you banned the Wi-Fi or Remote User Access
clients.
https://www.peplink.com
225
Copyright @ 2025 Peplink
You may also unblock the Wi-Fi or Remote User Access clients when the client devices need to
reconnect the network by clicking the button on the right.
29.5 UPnP / NAT-PMP
The table that shows the forwarded ports under UPnP and NAT-PMP protocols is located at
Status > UPnP/NAT-PMP. This section appears only if you have enabled UPnP / NAT-PMP as
mentioned in Section 16.1.1.
Click to delete a single UPnP / NAT-PMP record in its corresponding row. To delete all
records, click Delete All on the right-hand side below the table.
Important Note
UPnP / NAT-PMP records will be deleted immediately after clicking the button or Delete All, without the
need to click Save or Confirm.
https://www.peplink.com
226
Copyright @ 2025 Peplink
29.6 OSPF & RIPv2
The table shows status of OSPF and RIPv2.
29.7 BGP
The table shows status of BGP
29.8 SpeedFusion VPN
Current SpeedFusion VPN status information is located at Status > SpeedFusion VPN.
Details about SpeedFusion VPN
connection peers appears as below:
https://www.peplink.com
227
Copyright @ 2025 Peplink
Click on the corresponding peer name to explore the WAN connection(s) status and subnet
information of each VPN peer.
Click the button for a SpeedFusion chart displaying real-time throughput, latency,
and drop-rate information for each WAN connection.
https://www.peplink.com
228
Copyright @ 2025 Peplink
When pressing the button, the following menu will appear:
The connection information shows the details of the selected SpeedFusion VPN profile,
consisting of the Profile name, Router ID, Router Name and Serial Number of the remote
router
Advanced features for the SpeedFusion VPN profile will also be shown when the More
Information checkbox is selected.
The WAN statistics show information about the local and remote WAN connections (when
show Remote connections) is selected.
The available details are WAN Name, IP address and port used for the Speedfusion
connection. Rx and Tx rates, Loss rate and Latency.
Connections can be temporarily disabled by sliding the switch button next to a WAN connection
to the left.
The wan-to-wan connection disabled by the switch is temporary and will be re-enabled after 15
https://www.peplink.com
229
Copyright @ 2025 Peplink
minutes without any action.
This can be used when testing the SpeedFusion VPN’s speed between two locations to see if
there is interference or network congestion between certain WAN connections.
The SpeedFusion VPN test configuration allows us to configure and perform thorough tests.
This is usually done after the initial installation of the routers and in case there are problems
with aggregation.
Press the Start button to perform throughput test according to the configured options.
If TCP is selected, 4 parallel streams will be generated to get the optimal results by default. This
can be customized by selecting a different value of streams.
Using more streams will typically get better results if the latency of the tunnel is high.
https://www.peplink.com
230
Copyright @ 2025 Peplink
29.9 Event Log
Event log information is located at Status > Event Log.
29.9.1 Device Event Log
The log section displays a list of events that has taken place on the Pepwave router. Click the
to refresh log entries automatically. Click the button to clear the log.
https://www.peplink.com
232
Copyright @ 2025 Peplink
29.9.2 Firewall Event log
This section displays a list of events that have taken place within a firewall. Click the
button and the log will be refreshed.
29.9.3 SpeedFusion VPN Event log
This section displays a list of events that have taken place within a SpeedFusion VPN
connection. Click the button and the log will be refreshed.
https://www.peplink.com
233
Copyright @ 2025 Peplink
31 Usage Reports
This section shows bandwidth usage statistics and is located at Status > Usage Reports
Bandwidth usage at the LAN while the device is switched off (e.g., LAN bypass) is neither
recorded nor shown.
31.1 Real-Time
The Data transferred since installation table indicates how much network traffic has been
processed by the device since the first bootup. The Data transferred since last reboot table
indicates how much network traffic has been processed by the device since the last bootup.
https://www.peplink.com
235
Copyright @ 2025 Peplink
31.3 Daily
This page shows the daily bandwidth usage for all WAN connections, with the option of viewing
each individual connection.
Select the connection to check from the drop-down menu. If you have enabled the Bandwidth
Monitoring feature, the Current Billing Cycle table for that WAN connection will be displayed.
Click on a date to view the client bandwidth usage of that specific date. This feature is not
available if you have selected to view the bandwidth usage of only a particular WAN connection.
The scale of the graph can be set to display megabytes (MB) or gigabytes (GB).
All WAN Daily Bandwidth Usage
https://www.peplink.com
237
Copyright @ 2025 Peplink
31.4 Monthly
This page shows the monthly bandwidth usage for each WAN connection. If you have enabled
the Bandwidth Monitoring feature, you can check the usage of each particular connection and
view the information by Billing Cycle or by Calendar Month.
Click the first two rows to view the client bandwidth usage in the last two months. This feature is
not available if you have chosen to view the bandwidth of an individual WAN connection. The
scale of the graph can be set to display megabytes (MB) or gigabytes (GB).
All WAN Monthly Bandwidth Usage
https://www.peplink.com
238
Copyright @ 2025 Peplink
Appendix A: Restoration of Factory Defaults
To restore the factory default settings on a Pepwave router, follow the steps below:
1. Locate the reset button on the front or back panel of the Pepwave router.
2. With a paperclip, press and keep the reset button pressed.
Hold for approximately 20 seconds for factory reset (Note: The LED status light shows in RED,
all WAN/LAN port lights start blinking, and release the button)
After the Pepwave router finishes rebooting, the factory default settings will be restored.
Important Note
All previous configurations and bandwidth usage data will be lost after restoring factory
default settings. Regular backup of configuration settings is strongly recommended.
https://www.peplink.com
240
Copyright @ 2025 Peplink
Appendix B: FusionSIM Manual
Peplink has developed a unique technology called FusionSIM, which allows SIM cards to
remotely link to a cellular router. This can be done via cloud or within the same physical
network. There are a few key scenarios to fit certain applications.
The purpose of this manual is to provide an introduction on where to start and how to set up for
the most common scenarios and uses.
Requirements
1. A Cellular router that supports FusionSIM technology
2. SIM Injector
3. SIM card
Notes:
- Always check for the latest Firmware version for both the cellular router and the SIM
Injector. You can also check for the latest Firmware version on the device’s WEB
configuration page.
- A list of products that support FusionSIM can be found on the SIM Injector WEB page.
Please check under the section Supported models.
SIM Injector reset and login details
How to reset a SIM Injector:
- Hold the reset button for 5-10 seconds. Once the LED status light turns RED, the reset
button can be released. SIM Injector will reboot and start with the factory default settings.
The default WEB login settings:
- User: admin
- Password: admin
- IP address: the device only has a DHCP client and no fallback IP address. Therefore, it
is advised to check every time what IP address is assigned to the SIM Injector.
Notes:
- The SIM Injector can be monitored via InControl 2. Configuration is not supported.
Scenario 1: SIM Injector in LAN of Cellular Router
https://www.peplink.com
241
Copyright @ 2025 Peplink
Setup topology
This is the most basic scenario in which the SIM Injector is connected directly to the cellular
router’s LAN port via an ethernet cable. This allows for the cellular router to be positioned for the
best possible signal. Meanwhile, the SIM cards can be conveniently located in other locations
such as the office, passenger area, or the bridge of a ship. The SIM Injector allows for easily
swapping SIM cards without needing to access a cellular router.
IMPORTANT: Cellular WAN will not fallback to the local SIM if it is configured to use the SIM
Injector.
Configuring the SIM Injector
1. Connect the SIM Injector to the LAN port of the cellular router.
2. Insert SIM cards into the SIM Injector. The SIM cards will be automatically detected.
IMPORTANT: SIM cards inserted into SIM Injector must not have a PIN code.
Note 1: The SIM Injector gets its IP address via DHCP and doesn't have a static IP address. To
find it’s address, please check the DHCP lease on the cellular router.
Configuring the Cellular Router
Step 1. Enable the SIM Injector communication protocol.
https://www.peplink.com
242
Copyright @ 2025 Peplink
1a. If you are using a Balance cellular router, go to the Network tab (top navigation bar).
1b. If you are using a MAX cellular router, go to the Advanced tab (top navigation bar).
2. Under Misc. settings (left navigation bar) find Remote SIM Management.
3. In Remote SIM Management, click on the edit icon next to Remote SIM is Disabled.
4. Check the Auto LAN discovery checkbox and click Save and Apply Changes.
5. Click Save and then Apply Changes.
Step 2. Enable RemoteSIM for the selected Cellular interface.
1. Go to Network (top navigation bar), then WAN (left navigation bar) and click Details for a
selected cellular WAN. This will open the WAN Connection Settings page.
2. Scroll down to Cellular settings.
3. In the SIM Card section, select Use Remote SIM Only.
https://www.peplink.com
243
Copyright @ 2025 Peplink
4. Enter configuration settings in Remote SIM Settings section. Click on Scan nearby remote
SIM server to show the serial number(s) of the connected SIM Injector(s). Available
configuration options for cellular interface are shown below:
A. Defining SIM Injector(s)
- Format: <S/N>
- Example 1: 1111-2222-3333
- Example 2: 1111-2222-3333 4444-5555-6666
B. Defining SIM Injector(s) SIM slot(s):
- Format: <S/N:slot number>
- Example 1: 1111-2222-3333:7,5 (the Cellular Interface will use SIM in slot 7, then 5)
- Example 2: 1111-2222-3333:1,2 1111-2222-3333:3,4 (the cellular Interface will use SIM
in slot 1, then in 2 from the first SIM Injector, and then it will use 3 and 4 from the second
SIM Injector).
Note: It is recommended to use different SIM slots for each cellular interface.
5. Click Save and Apply Changes.
Step 3. (Optional) Custom SIM cards settings.
1a. For a Balance router, go to the Network (Top tab).
1b. For a MAX router, go to the Advanced (Top tab).
2. Under Misc. settings (Left-side tab) find Remote SIM Management.
3. Click on the Add Remote SIM button, fill in all the required info and click Save. This section
allows defining custom requirements for a SIM card located in a certain SIM slot:
- Enable/Disable roaming (by default roaming is disabled).
- Add Custom mobile operator settings (APN, user name, password).
4. Repeat configuration for all SIM cards which need custom settings.
5. Click Apply Changes to take effect.
https://www.peplink.com
244
Copyright @ 2025 Peplink
Scenario 2: SIM Injector in WAN of main Router and
multiple Cellular Routers
Setup topology
In this scenario, each HD Dome creates a WAN connection to the main router. A single SIM
Injector is used to provide SIM cards for each HD Dome. The HD Dome can be replaced with
any Peplink cellular router supporting RemoteSIM technology.
This scenario requires the completion of the configuration steps shown in Scenario 1 in
addition to the configuration steps explained below.
Additional configurations for Cellular Routers
Step 1. Disable the DHCP server.
- HD Dome 1 should act as a DHCP server.
- HD Dome 2 should be configured to have a static IP address with DHCP disabled.
- Both routers should be in the same subnet (e.g. 192.168.50.1 and 192.168.50.2).
https://www.peplink.com
245
Copyright @ 2025 Peplink
1. Go to Network (Top tab), then Network Settings (Left-side tab), and click on Untagged
LAN. This will open up the LAN settings page.
2. Change the IP address to 192.168.50.2.
3. In the DHCP Server section, uncheck the checkbox to disable DHCP Server.
4. Click Save and Apply Changes.
Step 2. Ethernet port configuration
The Ethernet port must be set to ACCESS mode for each HD Dome. To do this, dummy VLANs
need to be created first.
1. Go to Network (Top tab), then Network Settings (Left-side tab), and click on New LAN.
This will open the settings page to create a dummy VLAN.
2. The image below shows the values that need to be changed to create a new VLAN:
Note: set different IP addresses for each HD dome (e.g. 192.168.10.1 and 192.168.10.2).
3. Click Save and Apply Changes.
4. Go to Network (Top tab), then Port Settings (Left-side tab).
5. Set the Port Type to Access and set VLAN to Untagged LAN (see picture below).
https://www.peplink.com
246
Copyright @ 2025 Peplink
6. Click Save and Apply Changes.
Configuration requirements for the main Router
Requirements for the main router are:
- Configure WAN 1 as a DHCP client.
- WAN 1 will automatically get the Gateway IP address from HD Dome 1.
- Configure WAN 2 as a Static IP and set it to 192.168.50.12.
- Configure WAN 2 Gateway to 192.168.50.2. Same as the HD Dome 2’s IP address.
https://www.peplink.com
247
Copyright @ 2025 Peplink
Scenario 3: SIM Injector in LAN of main Router and
multiple Cellular Routers
Setup topology
In this scenario, SIMs are provided to the HD Domes via the main router. In this example, the
Remote SIM Proxy functionality needs to be enabled on the main router.
Notes:
- HD Dome can be replaced with any other cellular router that supports RemoteSIM.
- It is recommended to use Peplink Balance series or X series routers as the main router.
https://www.peplink.com
248
Copyright @ 2025 Peplink
This scenario requires the completion of the configuration steps for the cellular router
and the SIM Injector as in Scenario 1. The configuration for the main router is explained
below.
Main Router configuration
IMPORTANT: Main router LAN side and Cellular Routers must be configured using different
subnets, e.g. 192.168.50.1/24 and 192.168.100.1/24.
Note: please make sure the Peplink router is running Firmware 8.1.0 or above.
1. Open the main router WEB interface and change:
From <IP address>/cgi-bin/MANGA/index.cgi to <IP address>/cgi-bin/MANGA/support.cgi.
This will open the support.cgi page.
2. Scroll down to find Remote SIM Proxy and click on [click to configure] that is located next
to it.
3. Check the Enable checkbox.
4. Click on Save.
5. Go back to the index.cgi page and click on Apply Changes.
https://www.peplink.com
249
Copyright @ 2025 Peplink
Scenario 4: SIM Injector in a remote location
Setup topology
Requirements for installing a SIM Injector in a remote location:
● Cellular router communicates with the SIM Injector via UDP port 50000. Therefore this
port must be reachable via public IP over the Internet.
● The one way latency between the cellular router and the SIM Injector should be up to
250 ms. A higher latency may lead to stability issues.
● The cellular router must have Internet connection to connect to the SIM Injector. It can
be another Internet connection via Ethernet or Fiber if possible, or a secondary cellular
interface with a local SIM (Ignite SIM).
● Due to its high latency, it is not recommended to use satellite WAN for connecting to a
SIM Injector in remote locations.
SIM Injector configuration is the same as in Scenario 1.
Cellular Router configuration
Step 1. Enable the SIM Injector communication protocol.
1a. For a Balance cellular router, go to the Network (Top tab).
1b. For a MAX cellular router, go to the Advanced (Top tab).
https://www.peplink.com
250
Copyright @ 2025 Peplink
2. Under Misc. settings (Left-side tab), find Remote SIM Management.
3. In Remote SIM Management, click on the edit icon next to Remote SIM is Disabled.
4. Enter the public IP of the SIM Injector and click Save and Apply Changes.
Notes:
- Do NOT check Auto LAN Discovery.
- Do NOT add a SIM Injector serial number to the Remote SIM Host field.
Step 2. RemoteSIM and custom SIM card settings configurations are the same as in Scenario
1.
https://www.peplink.com
251
Copyright @ 2025 Peplink
How to check if a Pepwave Cellular Router supports
Remote SIM
1. Go to Network (Top tab), then WAN (Left-side tab), and click Details on any cellular WAN.
This will open the WAN Connection Settings page.
2. Scroll down to Cellular settings.
If you can see the Remote SIM Settings section, then the cellular router supports Remote
SIMs.
Monitor the status of the Remote SIM
1. Go to Network (Top tab), then WAN (Left-side tab), and click Details on the cellular WAN
which was configured to use RemoteSIM.
2. Check the WAN Connection Status section. Within the cell WAN details, there is a section
for Remote SIM (SIM card IMSI, SIM Injector serial number and SIM slot).
https://www.peplink.com
252
Copyright @ 2025 Peplink
Appendix C: Overview of ports used by Peplink SD-WAN
routers and other Peplink services
Default Port
Number
Usage
Service
Inbound/Outbound
Default
Status
UDP 5246
Data flow
InControl
Outbound
Enabled
TCP 443
HTTPS service
InControl
Outbound
Enabled
TCP 5246
Optional, used when TCP
443 is not responding
InControl
Outbound
Enabled
TCP 5246
Remote Web Admin
InControl Virtual
Appliance
Outbound
Enabled
TCP 4500
VPN Data (TCP Mode)
SpeedFusion VPN /
SpeedFusion
Inbound / Outbound*
Disabled
TCP 32015
VPN handshake
SpeedFusion VPN /
SpeedFusion
Inbound / Outbound*
Disabled
UDP 4500
VPN Data
SpeedFusion VPN /
SpeedFusion
Inbound / Outbound*
Disabled
UDP 32015º
VPN Data (alternative)
SpeedFusion VPN /
SpeedFusion
Inbound / Outbound*
Disabled
TCP/UDP
4500+N-1^
VPN Sub-Tunnels Data
SpeedFusion VPN /
SpeedFusion
Inbound / Outbound*
Disabled
UDP 32015+N-1^
VPN Sub-Tunnels Data
(alternative)
SpeedFusion VPN /
SpeedFusion
Inbound / Outbound*
Disabled
UDP 4500
VPN Data
IPsec
Inbound / Outbound*
Disabled
UDP 500
VPN initiation
IPsec
Inbound / Outbound*
Disabled
UDP 500
L2TP
Remote User
Access
Inbound
Disabled
UDP 1701
L2TP
Remote User
Access
Inbound
Disabled
UDP 4500
L2TP
Remote User
Access
Inbound
Disabled
UDP 1194
OpenVPN
Remote User
Access
Inbound
Disabled
IP 47
PPTP (GRE)
Remote User
Access
Inbound
Disabled
TCP 2222
Remote Assistance Direct
connection
Peplink
Troubleshooting
Assistance
Outbound
Enabled
TCP 80
HTTP traffic
Web Admin
Inbound
Enabled
https://www.peplink.com
253
Copyright @ 2025 Peplink
Interface access
TCP 443
HTTPS traffic
Web Admin
Interface access
(secure)
Inbound
Enabled
TCP 8822
SSH
SSH
Inbound
Disabled
UDP 161
SNMP Get
SNMP monitoring
Inbound
Disabled
UDP 162
SNMP Trap
SNMP monitoring
Outbound
Disabled
TCP, UDP 1812
Radius Authentication
Radius
Outbound
Disabled
TCP, UDP 1813
Radius Accounting
Radius
Outbound
Disabled
UDP 123
Network Time Protocol
NTP
Inbound
Outbound
Disabled
Enabled
TCP 60660
Real-time location data in
NMEA format
GPS
Outbound
Disabled
Disclaimer:
● By default, only TCP 32015 and UDP 4500 are needed for SpeedFusion VPN / SpeedFusion.
● Inbound / Outbound* - Inbound = For Server mode; Outbound = For Client mode
● UDP 32015º - If IPsec VPN or L2TP/IPsec RUA is enabled, the UDP 4500 is occupied, so
SpeedFusion VPN / SpeedFusion will automatically switch to UPD 32015 as VPN data port .
● UDP 32015+N-1^ / TCP/UDP 4500+N-1^ - When using Sub-Tunnels, multiple ports are in use (1
for each Sub-Tunnel profile).
● The default UDP data ports used when using (N number of Sub-Tunnel profiles) are:
4500…4500+N-1, or (when port 4500 is in use by IPsec or L2TP/IPsec) 32015… 32015+N-1".
https://www.peplink.com
254
Copyright @ 2025 Peplink
Appendix D: Declaration
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 Mini
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
FCC Caution Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. IEEE 802.11b or 802.11g
operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
FCC Radiation Exposure Statement (for MAX BR1 mini)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
https://www.peplink.com
255
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 16.38 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
258
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 16.38 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
261
Copyright @ 2025 Peplink
Industry Canada Statement (for MAX BR1 Mini)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisee aux deux conditions suivantes (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le
fonctionnement.
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
This device complies with the ISED radiation exposure limit set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance 20cm
between the radiator & your body.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimum
de 20 cm entre le radiateur et votre corps.
https://www.peplink.com
262
Copyright @ 2025 Peplink
FCC & IC Requirements for Operation in the United States and Canada (for MAX BR1
Mini)
FCC ID : U8G-P1930LITER6
FCC 15.21: The changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
RF exposure warning: This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter. End-users and installers must be provide
with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
IC Warning:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to
the following two conditions
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisee aux deux conditions suivantes
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioelect rique subi, meme si le
brouillage est susceptible d'en compromettre le fonctionnement.
https://www.peplink.com
263
Copyright @ 2025 Peplink
Informations concernant l'exposition aux frequences radio (RF)
Cet equipement est conforme avec l'exposition aux radiations IC definies pour un
environnement noncontrole.
Cet equipement doit etre installe et utilise a une distance minimum de 20 cm entre le radiateuret
votre corps.
Cet emetteur ne doit pas etre co-localisees ou operant en conjonction avec une autreantenne
ou transmetteur.
Les utilisateurs finaux et les installateurs doivent etre informes des instructions d'installation de
l'antenne et des conditions de fonctionnement de l'emetteur afin de satisfaire a la conformite
d'exposition RF.
This radio transmitter IC 20682-P1930LITER6 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
Le present emetteur radio 20682-P1930LITER6 a ete approuve par Innovation, Sciences et
Developpement economique Canada pour fonctionner avec les types d'antenne enumeres ci
dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste,
et dont le gain est superieur au gain maximal indique pour tout type figurant sur la liste, sont
strictement interdits pour l'exploitation de l'emetteur.
antenna type Omni-directional
antenna gain 5.33
https://www.peplink.com
264
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 MK2
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 24cm
between the radiator & your body.
Industry Canada Statement (For MAX BR1 MK2)
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
https://www.peplink.com
265
Copyright @ 2025 Peplink
exempts de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850
MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
point à point et non point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bande
5725-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance 20cm
between the radiator & your body.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimum
de 20 cm entre le radiateur et votre corps.
https://www.peplink.com
266
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.95 dBm
5GHz ( 5150 - 5250 MHz ) : 22.73 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
269
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 Classic
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Caution Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement (for MAX BR1 Classic )
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
https://www.peplink.com
270
Copyright @ 2025 Peplink
Industry Canada Statement ( for MAX BR1 Classic )
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the
following two conditions (1) This device may not cause interference; and(2) This device must
accept any interference, including interference that may cause undesired operation of the
device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisee aux deux conditions suivantes (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le
fonctionnement.
This device complies with the ISED radiation exposure limit set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance 20cm
between the radiator & your body.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimum
de 20 cm entre le radiateur et votre corps.
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
https://www.peplink.com
271
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.78 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
274
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.78 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
277
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX HD4 MBX, MAX HD2 MBX, MAX HD4 MBX 5G, MAX HD2 MBX 5G
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
IMPORTANT NOTE
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
ISED Warning Statement For MAX HD4 MBX
Industry Canada Statement
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following
two conditions (1) This device may not cause interference; and(2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisee aux deux conditions suivantes (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d'en compromettre le fonctionnement.
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
https://www.peplink.com
278
Copyright @ 2025 Peplink
Le présent produit est conforme aux spécifications techniques applicables d'Innovation, Sciences et
Développement économique Canada.
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band
5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for
point-to-point and non-point-to-point operation as appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à
l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles
utilisant les mêmes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande
5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation point à point et non
point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance
sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bande 5725-5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
IC Radiation Exposure Statement
This equipment complies with Innovation, Science and Economic Development Canada RF exposure
limits set forth for an uncontrolled environment. This equipment should be installed and operated to
ensure a minimum of 20 cm spacing to any person at all times.
Declaration d'exposition aux radiations Cet equipement est conforme aux limites d'exposition aux
rayonnements IC etablies pour un environnement non controle. Cet equipement doit etre installe et utilise
avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This radio transmitter 20682-P1MBX has been approved by Innovation, Science and Economic
Development Canada to operate with the antenna types listed below, with the maximum permissible gain
indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated
for any type listed are strictly prohibited for use with this device.
WIFI Antenna type Replacement Antenna
WIFI Antenna gain 2.4GHz / 2.44 dBi , 5GH / 4.73 dBi
LTE Antenna type Replacement Antenna
LTE Antenna gain 4.38 dBi
https://www.peplink.com
279
Copyright @ 2025 Peplink
Battery Caution Statement (MAX HD4 MBX, MAX HD2 MBX, MAX HD4 MBX 5G, MAX HD2
MBX 5G)
Risk of explosion if the battery replaced by an incorrect type, place the battery into fire, a hot oven,
extremely high temperature or low air pressure surrounding environment, the leakage of flammable liquid
or gas, and mechanically crushing or cutting of the battery.
https://www.peplink.com
280
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.6 dBm
5GHz ( 5150 - 5250 MHz ) : 19.4 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
283
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.6 dBm
5GHz ( 5150 - 5250 MHz ) : 19.4 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
288
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.6 dBm
5GHz ( 5150 - 5250 MHz ) : 19.4 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
293
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX HD2
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 50 centimeters between the
radiator and your body.
Industry Canada Statement (MAX HD2)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation, Sciences et
Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation
of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d’en
https://www.peplink.com
296
Copyright @ 2025 Peplink
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band
5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for
point-to-point and non-point-to-point operation as appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à
l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles
utilisant les mêmes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande
5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation point à point et non
point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance
sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bande 5725-5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 37cm between the radiator & your
body. 70 cm minimum distance for the device operate with plug-in USB cellular device which has
maximum of 7W(ERP) output power.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé à une distance minimum de 37 cm entre le radiateur
et votre corps. Distance minimale de 70 cm pour que l'appareil fonctionne avec un appareil cellulaire USB
enfichable qui a une puissance de sortie maximale de 7 W (ERP).
Battery Caution Statement
Risk of explosion if the battery replaced by an incorrect type, place the battery into fire, a hot oven,
extremely high temperature or low air pressure surrounding environment, the leakage of flammable liquid
or gas, and mechanically crushing or cutting of the battery.
https://www.peplink.com
297
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.90 dBm
5GHz ( 5150 - 5250 MHz ) : 22.88 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
301
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.86 dBm
5GHz ( 5150 - 5250 MHz ) : 22.68 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
304
Copyright @ 2025 Peplink
Mounting the Unit
Wall Mount
Some devices can be wall mounted using screws. After adding the screw on the wall, slide in
the screw hole socket as indicated below. Recommended screw specification M3.5 x 20mm,
head diameter 6mm, head thickness 2.4mm.
For type 1, the device requires four screws for wall mounting.
For type 2, the device requires two screws for wall mounting.
https://www.peplink.com
305
Copyright @ 2025 Peplink
( For MAX BR1 Classic CB IEC 62368-1 )
Output of the external power source shall complied with ES1 and ES2 requirements, output rating 10-30
Vdc, minimum 12W ( DC Jack or POE injector ), with minimum ambient temperature 65 ℃, altitude =
5000m , and evaluated in accordance to UL/EN/IEC 60950-1 and / or UL/EN/IEC 62368-1
Ensure to connect the power cord of power adapter to a socket-outlet with earthing.
( For MAX BR1 Mini HW3 CB IEC 62368-1 )
Output of the external power source shall complied with ES1 and PS2 requirements, input rating 10-30
Vdc, maximum 18W ( DC Power Port) or 802.3at PoE, with minimum ambient temperature 65 ℃,
altitude = 5000m , and evaluated in accordance to UL/EN/IEC 60950-1 and / or UL/EN/IEC 62368-1.
Ensure to connect the power cord of power adapter to a socket-outlet with earthing.
The MAX BR1 Mini is investigated to IEC TR 62102 as SELV (ES1) circuits and only connected to
PoE without routing to the outside plant, including campus environment.
https://www.peplink.com
306
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 Pro 5G
FCC 15.21
The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least
23 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provide with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
https://www.peplink.com
307
Copyright @ 2025 Peplink
Industry Canada Statement ( MAX BR1 Pro 5G )
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to
the following two conditions
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisee aux deux conditions suivantes
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d'en
compromettre le fonctionnement.Informations concernant l'exposition aux frequences radio (RF)
Cet equipement est conforme avec l'exposition aux radiations IC definies pour un
environnement noncontrole.
Cet equipement doit etre installe et utilise a une distance minimum de 23 cm entre le radiateuret
votre corps.
Cet emetteur ne doit pas etre co-localisees ou operant en conjonction avec une autreantenne
ou transmetteur.
Les utilisateurs finaux et les installateurs doivent etre informes des instructions d'installation de
l'antenne et des
conditions de fonctionnement de l'emetteur afin de satisfaire a la conformite d'exposition RF.
This radio transmitter IC 20682-P1AX02 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
antenna type Omni-directional
antenna gain for 2.4GHz 2.44 dBi
https://www.peplink.com
308
Copyright @ 2025 Peplink
antenna gain for 5GHz ( 5150 ~ 5250 MHz ) 4.10 dBi
antenna gain for 5GHz ( 5725 ~ 5850 MHz ) 4.73 dBi
Battery Caution Statement
Risk of explosion if the battery replaced by an incorrect type, place the battery into fire, a hot oven,
extremely high temperature or low air pressure surrounding environment, the leakage of flammable liquid
or gas, and mechanically crushing or cutting of the battery.
https://www.peplink.com
309
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.74 dBm
5GHz ( 5150 - 5250 MHz ) : 22.66 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
312
Copyright @ 2025 Peplink
2.4GHz ( 2412 – 2472 MHz ) : 19.74 dBm
5GHz ( 5150 - 5250 MHz ) : 22.66 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
317
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 Mini Core
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Industry Canada Statement ( MAX BR1 Mini Core )
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le present produit est conforme aux specifications techniques applicables a l'innovation,
Science et Developpement economique Canada.
https://www.peplink.com
320
Copyright @ 2025 Peplink
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance 20cm
between the radiator & your body.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimum
de 20 cm entre le radiateur et votre corps.
https://www.peplink.com
321
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 Mini HW3 (FCC ID: U8G-P1MT01)
Federal Communication Commission Interference Statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Industry Canada Statement (MAX BR1 Mini, IC: 20682-P1MT01)
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
https://www.peplink.com
322
Copyright @ 2025 Peplink
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
ex-empts de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potent for harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices
in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits as appropriate; (detachable antenna only) ; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850
MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(iii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii)Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la
bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation point
à point et non point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes
5725-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
(iii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
https://www.peplink.com
323
Copyright @ 2025 Peplink
point à point et non point à point.
Radiation Exposure Statement
This equipment complies with ISED RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Cet appareil doit être installé et utilisé avec une distance minimale de 20cm entre l’émetteuret
votre corps. Cet appareil et sa ou ses antennes ne doivent pas être co-localisés ou fonctionner
en conjonction avec tout autre antenne ou transmetteur.
This radio transmitter IC: 20682-P1MT01 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
WIFI Antenna type: Omni-directional
WIFI Antenna gain: 2.4GHz / 3.15 dBi
5150 ~ 5250 MHz / 3.29 dBi
5725 ~ 5850 MHz / 4.76 dBi
Cet émetteur radio IC : 20682-P1MT01 a été approuvé par Innovation, Sciences et
Développement économique Canada pour fonctionner avec les types d'antennes répertoriés
ci-dessous, avec le gain maximal autorisé indiqué. Les types d'antenne non inclus dans cette
liste qui ont un gain supérieur au gain maximum indiqué pour tout type répertorié sont
strictement interdits pour une utilisation avec cet appareil.
Type d'antenne WIFI : omnidirectionnelle
Gain de l'antenne Wi-Fi : 2.4 GHz / 3.15 dBi
5150 ~ 5250 MHz / 3.29 dBi
5725 ~ 5850 MHz / 4.76 dBi
https://www.peplink.com
324
Copyright @ 2025 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.95 dBm
5GHz ( 5150 - 5250 MHz ) : 22.65 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
EC25-E module:
LN920A6-WW module:
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
327
Copyright @ 2025 Peplink
NCC statement
For MAX BR1 Mini (HW3)
減少電磁波影響，請妥適使用。
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。
高增益指向性天線只得應用於固定式點對點系統。
電波功率密度 MPE標準值: 0.9 mW/cm2，送測產品實測值: 0.118 mW/cm2，建議使用時設備天
線至少距離人體20公分。
分頻雙工(FDD)：
本設備- WCDMA 2100 (Band 1) FDD支援LTE上行1920MHz -1980MHz \ 下行2110MHz
-2170MHz。
本設備- WCDMA 900 (Band 8) FDD支援LTE上行1885MHz -915MHz \ 下行930MHz -960MHz。
本設備- LTE 2100 (Band 1) FDD支援LTE上行1920MHz -1980MHz \ 下行2110MHz -2170MHz。
本設備- LTE 1800 (Band 3) FDD支援LTE上行1710MHz -1770MHz \ 下行1805MHz -1865MHz。
本設備- LTE 2600 (Band 7) FDD支援LTE上行2500MHz～2570MHz \ 下行2620MHz～2690MHz
。
本設備- LTE 900 (Band 8) FDD支援LTE上行885MHz -915MHz \ 下行930MHz -960MHz。
本設備- LTE 700 (Band 28) FDD支援LTE上行703MHz -748MHz \ 下行758MHz -803MHz。
分時雙工(TDD)：
本設備- LTE 2600 (Band 38) TDD支援頻段(2570MHz～2620MHz)。
本設備- LTE 2600 (Band 41) TDD支援頻段(2500MHz～2690MHz)。
為避免電磁干擾，本產品不應安裝或使用於住宅環境。
如果更換不正確之電池型式會有爆炸的風險，請依製造商說明書處理用過之電池。
https://www.peplink.com
330
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX 700
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 22 centimeters between the
radiator and your body.
https://www.peplink.com
331
Copyright @ 2025 Peplink
For MAX HD2 IP67, MAX HD2 Mini, MAX HD2 Dome, MAX HD4 IP67, MAX
BR1 ENT, MAX BR1 M2M, SpeedFusion Engine
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Industry Canada Statement (MAX HD2 IP67, MAX HD2 Mini, MAX HD2 Dome, MAX HD4
IP67, MAX BR1 ENT, MAX BR1 M2M, SpeedFusion Engine)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Le present produit est conforme aux specifications techniques applicables d'Innovation, Sciences et
Developpement economique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation
of the device.
https://www.peplink.com
332
Copyright @ 2025 Peplink
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d’en
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 20cm between the radiator & your
body.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé à une distance minimum de 20 cm entre le radiateur
et votre corps.
Battery Caution Statement (MAX HD2 IP67, MAX HD2 Mini, MAX HD1 Dome, MAX HD2
Dome, MAX HD4 IP67, MAX BR1 ENT)
Risk of explosion if the battery replaced by an incorrect type, place the battery into fire, a hot oven,
extremely high temperature or low air pressure surrounding environment, the leakage of flammable liquid
or gas, and mechanically crushing or cutting of the battery.
https://www.peplink.com
333
Copyright @ 2025 Peplink
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
336
Copyright @ 2025 Peplink
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
339
Copyright @ 2025 Peplink
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
344
Copyright @ 2025 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.78 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
347
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX HD4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 40 centimeters between the radiator
and your body.
Industry Canada Statement (MAX HD4)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Le present produit est conforme aux specifications techniques applicables d'Innovation, Sciences et
Developpement economique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two
conditions
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired opera- tion
of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio ex- empts
de licence. L'exploitation est autorisee aux deux conditions suivantes
https://www.peplink.com
348
Copyright @ 2025 Peplink
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d'en
(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band
5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for
point-to-point and non-point-to-point operation as appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est reserve uniquement pour une utilisation a
l'interieur afin de reduire les risques de brouillage prejudiciable aux systemes de satellites mobiles
utilisant les memes canaux;
(ii) Le gain maximal d'antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande
5725-5850 MHz doit se conformer a la limitation P.I.R.E specifiee pour l'exploitation point a point et non
point a point, selon le cas.
En outre, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute puissance
sont designes utilisateurs principaux (c.-a-d., qu'ils ont la priorite) pour les bande 5725-5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 40cm between the radiator & your
body.
Cet equipement est conforme avec l'exposition aux radiations ISED definies pour un environnement non
controle. Cet equipement doit etre installe et utilise a une distance minimum de 40 cm entre le radiateur
et votre corps.
Battery Caution Statement (MAX HD4)
Risk of explosion if the battery replaced by an incorrect type, place the battery into fire, a hot oven,
extremely high temperature or low air pressure surrounding environment, the leakage of flammable liquid
or gas, and mechanically crushing or cutting of the battery.
https://www.peplink.com
349
Copyright @ 2025 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 18.87 dBm
5GHz ( 5150 - 5250 MHz & 5725 - 5850 MHz ) : 19.13 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
352
Copyright @ 2025 Peplink
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
355
Copyright @ 2025 Peplink
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
MC7455 module:
EC25-E module:
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
358
Copyright @ 2025 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX Transit, MAX Transit Duo
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 24 centimeters between the
radiator and your body.
Industry Canada Statement (MAX Transit, MAX Transit Duo)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Le present produit est conforme aux specifications techniques applicables d'Innovation, Sciences et
Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired opera- tion
of the device.
https://www.peplink.com
359
Copyright @ 2025 Peplink
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio ex- empts
de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d’en
(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band
5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for
point-to-point and non-point-to-point operation as appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est reserve uniquement pour une utilisation a
l'interieur afin de reduire les risques de brouillage prejudiciable aux systemes de satellites mobiles
utilisant les memes canaux;
(ii) Le gain maximal d'antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande
5725-5850 MHz doit se conformer a la limitation P.I.R.E specifiee pour l'exploitation point a point et non
point a point, selon le cas.
En outre, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute puissance
sont designes utilisateurs principaux (c.-a-d., qu'ils ont la priorite) pour les bande 5725-5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 30cm between the radiator & your
body.
Cet equipement est conforme avec l'exposition aux radiations ISED definies pour un environnement non
controle. Cet equipement doit etre installe et utilise a une distance minimum de 30 cm entre le radiateur
et votre corps.
Battery Caution Statement
Risk of explosion if the battery replaced by an incorrect type, place the battery into fire, a hot oven,
extremely high temperature or low air pressure surrounding environment, the leakage of flammable liquid
or gas, and mechanically crushing or cutting of the battery.
https://www.peplink.com
360
Copyright @ 2025 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 18.68 dBm
5GHz ( 5150 - 5250 MHz ) : 18.19 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
363
Copyright @ 2025 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 18.68 dBm
5GHz ( 5150 - 5250 MHz ) : 18.19 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
366
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX Transit Mini
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
Industry Canada Statement (MAX Transit Mini)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Ce produit répond aux spécifications techniques applicables à l'innovation, Science et Développement
économique Canada.
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 20cm between the radiator & your
body.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé à une distance minimum de 20 cm entre le radiateur
et votre corps.
https://www.peplink.com
367
Copyright @ 2021 Peplink
This radio transmitter has been approved by Innovation, Science and Economic Development Canada to
operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types
not included in this list that have a gain greater than the maximum gain indicated for any type listed are
strictly prohibited for use with this device.
Antenna types Replacement Antenna
Antenna gain (in dBi) 5.33 dBi
Innovation, Sciences et Developpement economique Canada a approuve l'utilisation de ce transmetteur
radio avec les types d'antenne enumeres ci-dessous, le gain maximal admissible etant indique. Les types
d'antennes non inclus dans cette liste qui ont un gain superieur au gain maximal indique pour tout type
liste sont strictement interdits pour une utilisation avec cet appareil.
Types d'antennes Replacement Antenna
Gain d'antenne (en dBi) 5.33 dBi
https://www.peplink.com
368
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.78 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20 cm
between the radiator & your body.
contact as: https://www.peplink.com/
https://www.peplink.com
371
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 PRO, UBR LTE
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 23 centimeters between the
radiator and your body.
Industry Canada Statement (MAX BR1 PRO, UBR LTE)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation, Sciences et
Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired opera- tion
of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio ex- empts
de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d’en
https://www.peplink.com
372
Copyright @ 2021 Peplink
For licence exempt equipment with detachable antennas, the user manual shall also contain the following
notice in a conspicuous location:
This radio transmitter 20682-P1941 has been approved by Innovation, Science and Economic
Development Canada to operate with the antenna types listed below, with the maximum permissible gain
indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated
for any type listed are strictly prohibited for use with this device.
WIFI Antenna type: Replacement Antenna
WIFI Antenna gain: 2.4GHz I 2.44 dBi , 5GHz I 4.73 dBi
LTE Antenna type: Replacement Antenna (04-410055-00)
LTE Antenna gain: 4 dBi
LTE Antenna type: Replacement Antenna (04-410093-01)
LTE Antenna gain: 4.38 dBi
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potent for
harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band
5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate;
(detachable antenna only) ; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
(iii) where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to
remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly
indicated.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est reserve uniquement pour utilisation a
l'interieur afin de reduire les risques de brouillage prejudiciable aux systemes de satellites mobiles
utilisant les memes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande
5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation point à point et non
point à point, selon le cas. (antenne détachable uniquement)
En outre, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute puissance
sont designes utilisateurs principaux (c.-a-d., qu'ils ont la priorite) pour les bande 5725-5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
(iii) En outre, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute puissance
sont designes utilisateurs principaux (c.-a-d., qu'ils ont la priorite) pour les bande 5725-5850 MHz et
https://www.peplink.com
373
Copyright @ 2021 Peplink
Radiation Exposure Statement
This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 23 cm between the radiator & your
body.
Cet equipement est conforme avec l'exposition aux radiations ISED definies pour un environnement non
controle. Cet equipement doit etre installe et utilise a une distance minimum de 23 cm entre le radiateur
et votre corps.
https://www.peplink.com
374
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.94 dBm
5GHz ( 5150 - 5250 MHz ) : 20.34 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
377
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR1 IP55, MAX BR2 IP55
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
https://www.peplink.com
378
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 18.16 dBm
5GHz ( 5150 - 5250 MHz) : 20.32 dBm
5GHz ( 5725 - 5850 MHz) : 13.00 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 50cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
381
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 18.99 dBm
5GHz ( 5150 - 5250 MHz ) : 22.95 dBm
5GHz ( 5725 - 5850 MHz ) : 12.80 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 50cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
384
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX Transit Pro E / MAX Transit LTEA (FCC ID: U8G-P1835)
FCC 15.21:
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
FCC 15.105
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance.
https://www.peplink.com
385
Copyright @ 2021 Peplink
ICES Statement
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisee aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
RF exposure warning
This device complies with the ISED radiation exposure limit set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Cet équipement est conforme avec l'exposition aux radiations ISED définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimum
de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit pas être colocalisées ou
opérant en conjonction avec une autre antenne ou transmetteur.
https://www.peplink.com
386
Copyright @ 2021 Peplink
This radio transmitter IC: 20682-P1835 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
https://www.peplink.com
387
Copyright @ 2021 Peplink
Cet émetteur radio IC : 20682-P1835 a été approuvé par Innovation, Sciences et
Développement économique Canada doit fonctionner avec les types d'antennes énumérés
ci-dessous, avec le gain maximal admissible indiqué. Les types d'antenne non inclus dans cette
liste qui ont un gain supérieur au gain maximum indiqué pour tout type répertorié sont
strictement interdits pour une utilisation avec cet appareil.
https://www.peplink.com
388
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX Transit Pro E (FCC ID: U8G-P1AX09)
Federal Communication Commission Interference Statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Industry Canada Statement (MAX Transit Pro E, IC: 20682-P1AX09)
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
https://www.peplink.com
389
Copyright @ 2021 Peplink
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
ex-empts de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potent for harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices
in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits as appropriate; (detachable antenna only) ; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850
MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(iii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
point à point et non point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes
5725-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
(iii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
https://www.peplink.com
390
Copyright @ 2021 Peplink
point à point et non point à point.
Radiation Exposure Statement
This equipment complies with ISED RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Cet appareil doit être installé et utilisé avec une distance minimale de 20cm entre l’émetteuret
votre corps. Cet appareil et sa ou ses antennes ne doivent pas être co-localisés ou fonctionner
en conjonction avec tout autre antenne ou transmetteur.
This radio transmitter IC: 20682-P1AX09 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
WIFI Antenna type: Omni-directional
WIFI Antenna gain: 2.4GHz / 2.44 dBi
5150 ~ 5250 MHz / 4.10 dBi
5725 ~ 5850 MHz / 4.73 dBi
Cet émetteur radio IC : 20682-P1AX09 a été approuvé par Innovation, Sciences et
Développement économique Canada pour fonctionner avec les types d'antennes répertoriés
ci-dessous, avec le gain maximal autorisé indiqué. Les types d'antenne non inclus dans cette
liste qui ont un gain supérieur au gain maximum indiqué pour tout type répertorié sont
strictement interdits pour une utilisation avec cet appareil.
Type d'antenne WIFI : omnidirectionnelle
Gain de l'antenne Wi-Fi : 2.4 GHz / 2.44 dBi
5150 ~ 5250 MHz / 4.10 dBi
5725 ~ 5850 MHz / 4.73 dBi
https://www.peplink.com
391
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.97 dBm
5GHz ( 5150 - 5250 MHz ) : 22.99 dBm
LN920A12-WW: WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
394
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX Transit Duo Pro
Federal Communication Commission Interference Statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Industry Canada Statement (MAX Transit Duo Pro)
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
https://www.peplink.com
395
Copyright @ 2021 Peplink
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
ex-empts de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potent for harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices
in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits as appropriate; (detachable antenna only) ; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850
MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(iii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
point à point et non point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes
5725-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
(iii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
https://www.peplink.com
396
Copyright @ 2021 Peplink
point à point et non point à point.
Radiation Exposure Statement
This equipment complies with ISED RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Cet appareil doit être installé et utilisé avec une distance minimale de 20cm entre l’émetteuret
votre corps. Cet appareil et sa ou ses antennes ne doivent pas être co-localisés ou fonctionner
en conjonction avec tout autre antenne ou transmetteur.
This radio transmitter IC: 20682-P1AX11 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
WIFI Antenna type: Omni-directional
WIFI Antenna gain: 2.4GHz / 2.44 dBi
5150 ~ 5250 MHz / 4.1 dBi
5725 ~ 5850 MHz / 4.73 dBi
Cet émetteur radio IC : 20682-P1AX11 a été approuvé par Innovation, Sciences et
Développement économique Canada pour fonctionner avec les types d'antennes répertoriés
ci-dessous, avec le gain maximal autorisé indiqué. Les types d'antenne non inclus dans cette
liste qui ont un gain supérieur au gain maximum indiqué pour tout type répertorié sont
strictement interdits pour une utilisation avec cet appareil.
Type d'antenne WIFI : omnidirectionnelle
Gain de l'antenne Wi-Fi : 2.4 GHz / 2.44 dBi
5150 ~ 5250 MHz / 4.1 dBi
5725 ~ 5850 MHz / 4.73 dBi
https://www.peplink.com
397
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.74 dBm
5GHz ( 5150 - 5250 MHz ) : 22.88 dBm
EM7421: WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
EM12-G: WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
400
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR2 Pro
Federal Communication Commission Interference Statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Industry Canada Statement (MAX BR2 Pro, IC: 20682-P1AX203)
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
Le présent produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
https://www.peplink.com
403
Copyright @ 2021 Peplink
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
ex-empts de licence. L'exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d’en
(i) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potent for harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices
in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits as appropriate; (detachable antenna only) ; and
The high-power radars are allocated as primary users (i.e. priority users) of the band 5725-5850
MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(iii) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate.
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
point à point et non point à point, selon le cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes
5725-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
(iii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant
la bande 5725-5850 MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation
https://www.peplink.com
404
Copyright @ 2021 Peplink
point à point et non point à point.
Radiation Exposure Statement
This equipment complies with ISED RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Cet appareil doit être installé et utilisé avec une distance minimale de 20cm entre l’émetteuret
votre corps. Cet appareil et sa ou ses antennes ne doivent pas être co-localisés ou fonctionner
en conjonction avec tout autre antenne ou transmetteur.
This radio transmitter IC: 20682-P1AX203 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
WIFI Antenna type: Omni-directional
WIFI Antenna gain: 2.4GHz / 2.44 dBi
5150 ~ 5250 MHz / 4.1 dBi
5725 ~ 5850 MHz / 4.73 dBi
Cet émetteur radio IC : 20682-P1AX203 a été approuvé par Innovation, Sciences et
Développement économique Canada pour fonctionner avec les types d'antennes répertoriés
ci-dessous, avec le gain maximal autorisé indiqué. Les types d'antenne non inclus dans cette
liste qui ont un gain supérieur au gain maximum indiqué pour tout type répertorié sont
strictement interdits pour une utilisation avec cet appareil.
Type d'antenne WIFI : omnidirectionnelle
Gain de l'antenne Wi-Fi : 2.4 GHz / 2.44 dBi
5150 ~ 5250 MHz / 4.1 dBi
5725 ~ 5850 MHz / 4.73 dBi
https://www.peplink.com
405
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.94 dBm
5GHz ( 5150 - 5250 MHz ) : 22.96 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz
frequency range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
408
Copyright @ 2021 Peplink
2.4GHz ( 2412 - 2472 MHz ) : 19.84 dBm
5GHz ( 5150 - 5250 MHz ) : 22.76 dBm
WWAN : Refer 3GPP TS 36.521 -1 ( UE Power class )
This equipment complies with CE radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body.
This equipment is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency
range in above countries.
contact as: https://www.peplink.com/
https://www.peplink.com
413
Copyright @ 2021 Peplink
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
For MAX BR2 Pro DX
Federal Communication Commission Interference Statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
Professional Installation Instruction
This product must be installed only by personnel who have completed Peplink training and
obtained Peplink certification. The general user shall not attempt to install or change the
settings.
https://www.peplink.com
416
Copyright @ 2021 Peplink
USB WAN Modem Port Specification
MAX Series
MAX 700
MAX HD2 /
MAX HD2
Media Fast
MAX HD2
Mini
MAX HD2 /
HD4 MBX
MAX BR1
ENT
MAX HD4 / MAX
HD4 Media Fast
/ MediaFast 200
MAX BR2 Pro
Output
Rating
5V DC,
2A
5V DC, 2A
5V DC, 2A
5V DC,
0.5A
5V DC, 2A
5V DC, 2A
5V DC, 2A
https://www.peplink.com
417
Copyright @ 2021 Peplink
