INSTRUCTIONS FOR USE
5-10-15 US TRAYS BLAST CHILLER
Serie “NEW RUNNER”
EVX-205 Control panel version
BCB/05US
BCB/10US
BCB/15US
Manual BCB US Rev02 05-2021
www.gemm-srl.com
BCB US Rev.02 05-2021 pag. 2
Serial Number
BCB US Rev.02 05-2021 pag. 3
INDEX
1.
SAFETY
6
1.1 – Symbols used
1.2 – General warnings
1.3 – Residual risks
1.4 – Personnel
1.5 – Improper use
1.6 – Safety devices
1.7 – Stop functions
2.
GENERAL INFORMATION
11
2.1 – Marking
2.2 – Declaration of conformity
2.3 – Warranty
2.4 – After-sales service
2.5 – How to use and keep the manual
3.
MACHINE DESCRIPTION
14
3.1 – Technical data
3.2 – Description of blast chiller and it use
3.2.1 – Main parts
3.3 – Noise
3.4 – Ambient conditions
4.
TRANSPORT AND HANDLING
19
4.1 – Transport
4.2 – Handling the packed blast chiller
4.2.1 – Weight and dimensions
4.2.2 – Means requie
BCB US Rev.02 05-2021 pag. 4
5.
INSTALLATION
21
5.1 – Preparation for installation
5.2 – Unpacking
5.2.1 – Means required
5.2.2 – Unpacking procedure
5.3 – Handling the blast chiller
5.3.1 – Means required
5.3.2 – Handling the unpacked blast chiller
5.4 – Blast chiller assembly
6.
SETTING UP
23
6.1 – Connections
6.1.1 – Electrical connection
6.2 – Preliminary checks
6.2.1 – Regulation
7.
USE
24
7.1 – Reccomended use
7.2 – Non recommended use

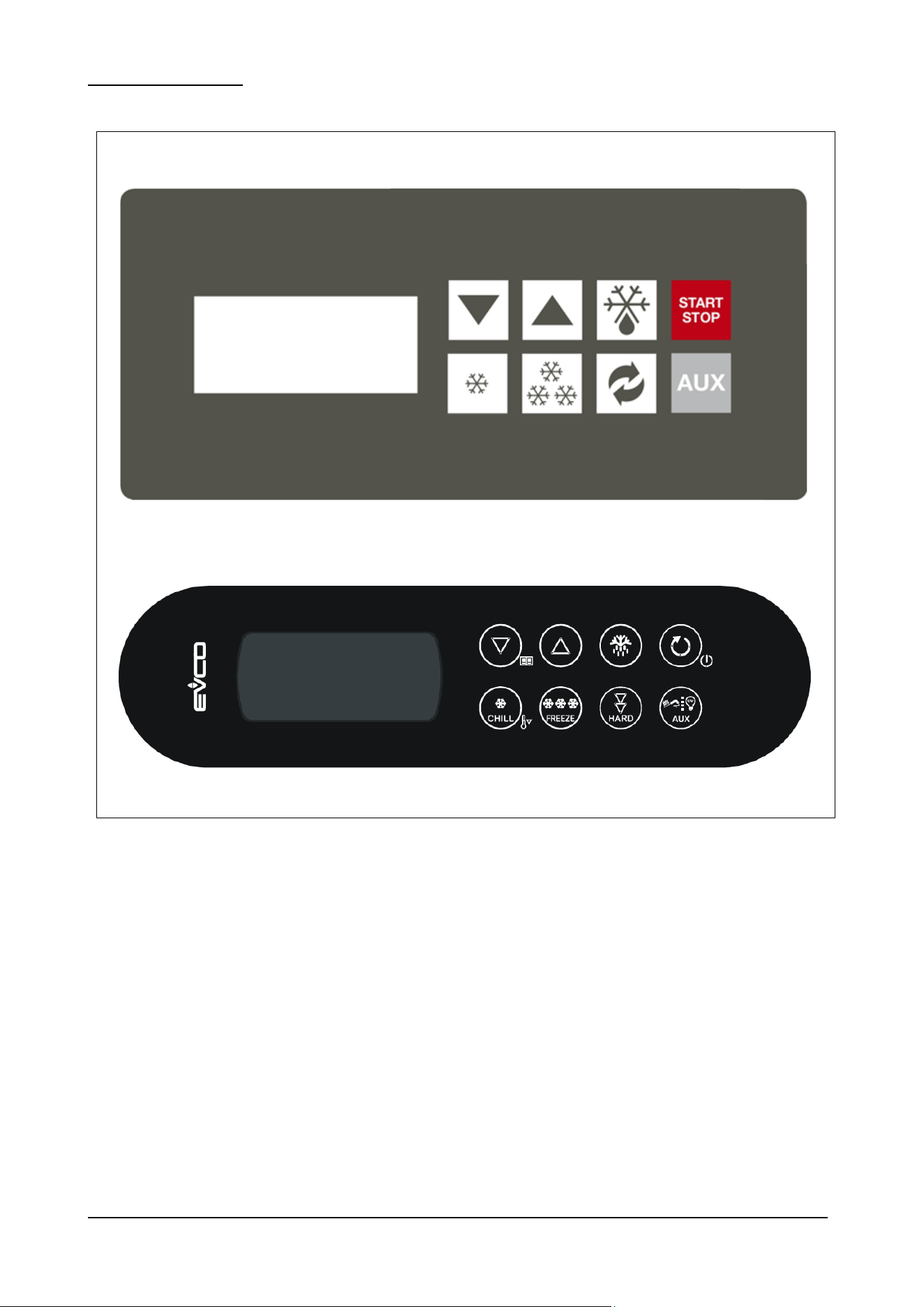

7.3 – Control panel

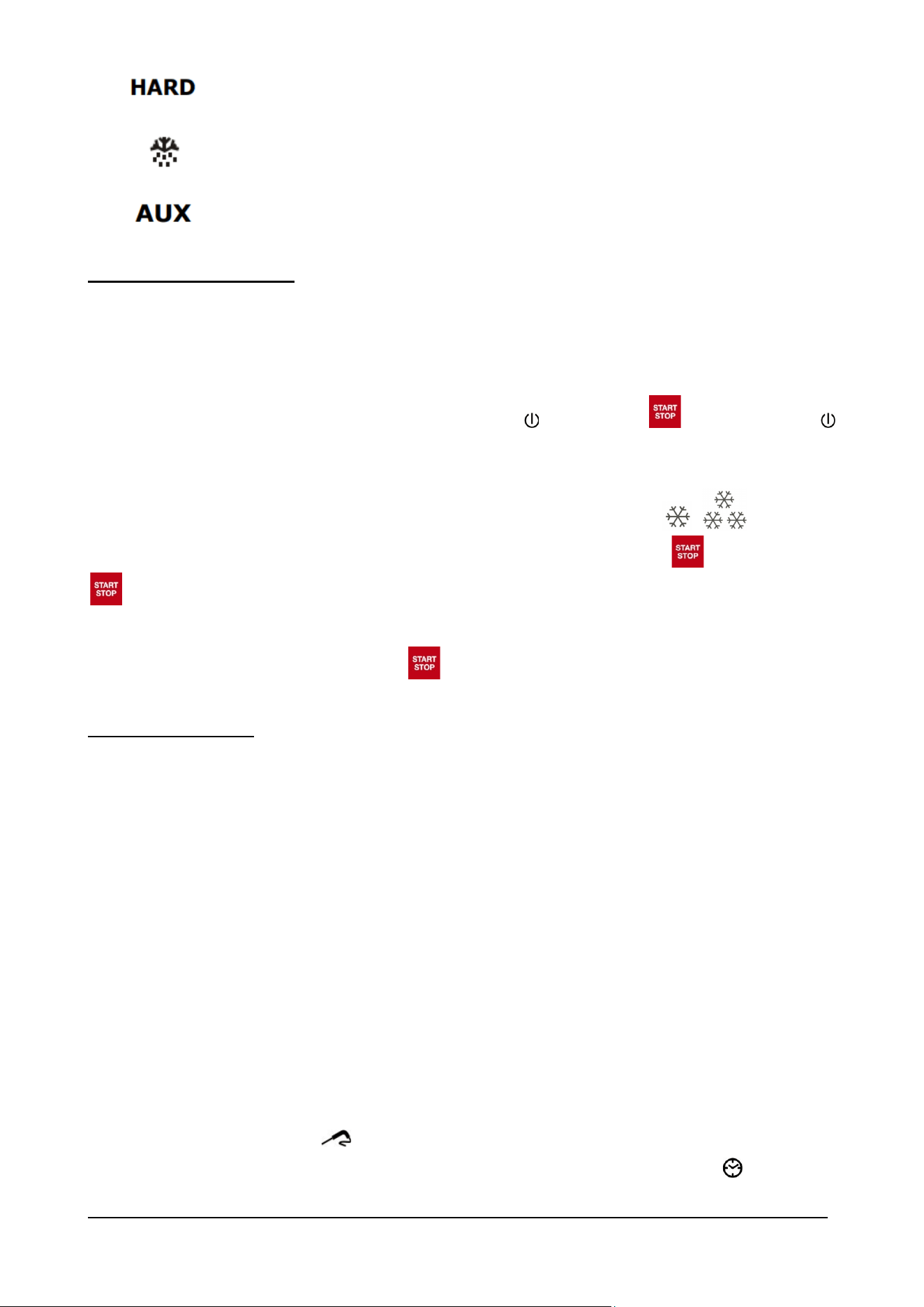

7.4 – Control procedures
7.5 – Product recommended use
7.6 – Soft chilling

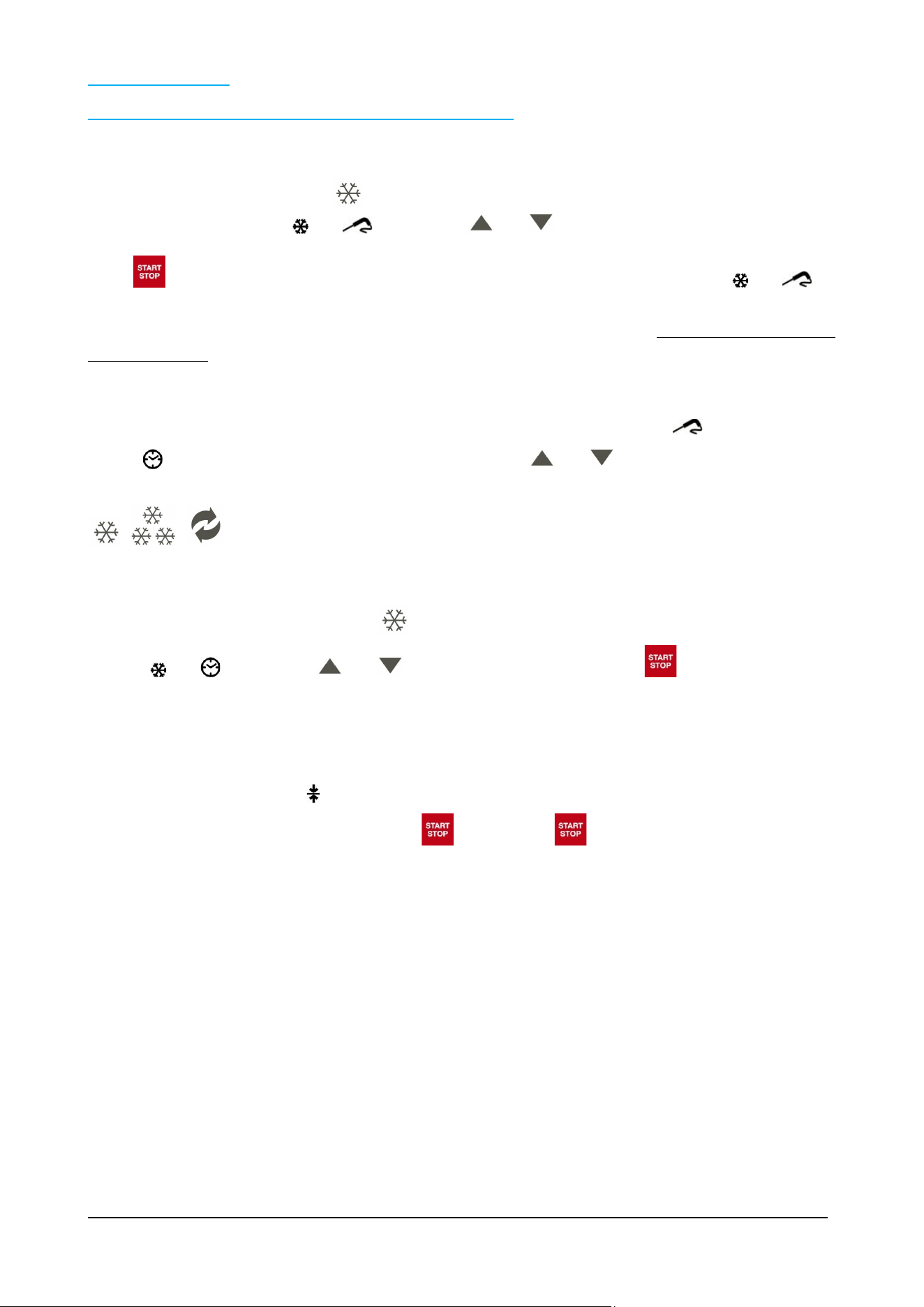

7.6.1 – Setting and Selecting of soft chilling cycle (Soft blast chilling)
7.7 – Hard chilling

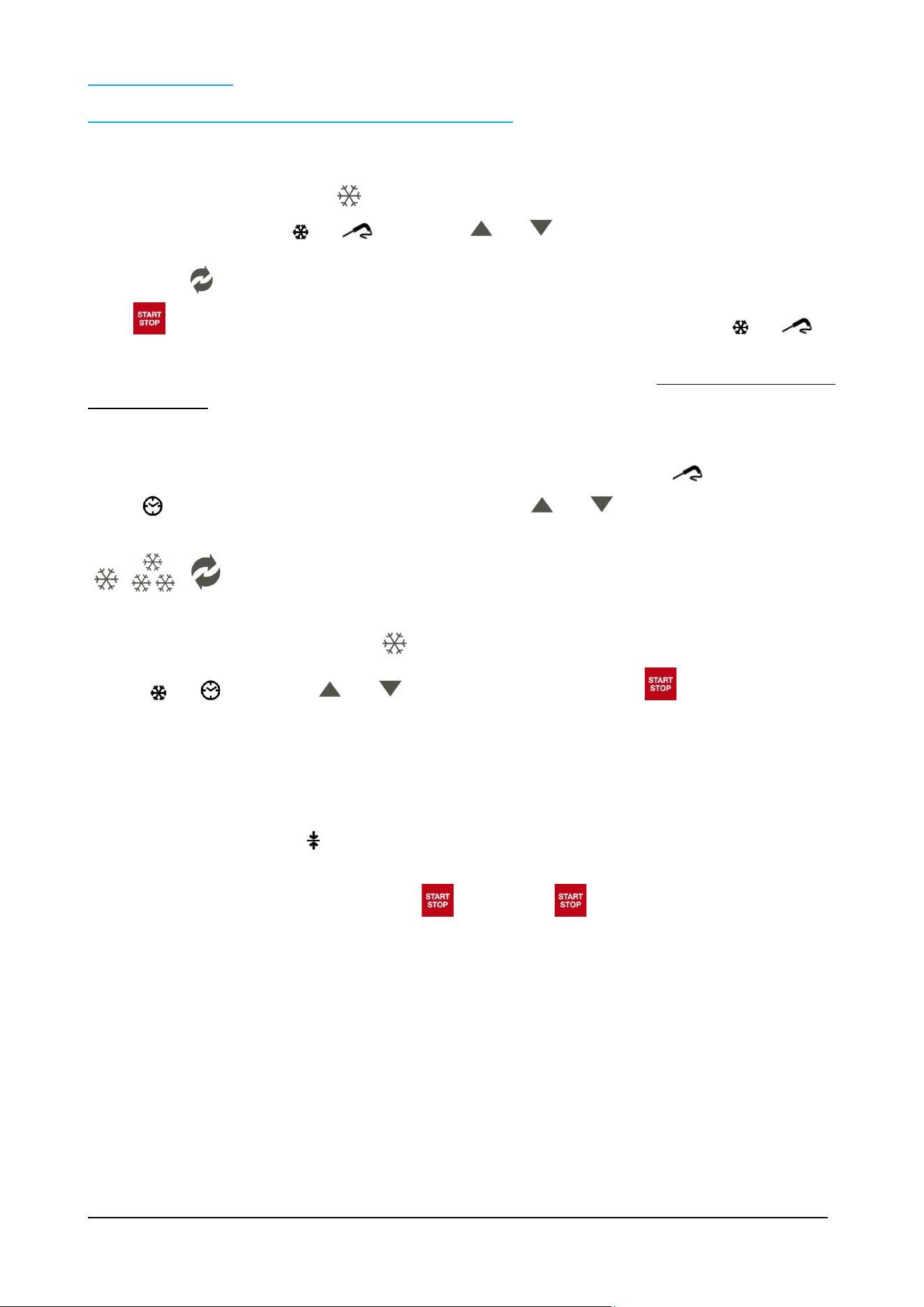

7.7.1 – Setting and Selecting of hard chilling cycle (Hard blast chilling)
7.8 – Freezing
7.8.1 – Setting and Selecting a of freezing cycle
7.9 – Special functions and uses
7.9.1 – Pre-chilling function
7.9.2 – Defrost
7.9.3 – Long idle perdios
BCB US Rev.02 05-2021 pag. 5
8.
MAINTENANCE
32
8.1 – Special precautions
8.2 – Routine maintenance
8.2.1 – Routine maintenance table (tab. 5)
8.2.2 – Cleaning the chamber
8.2.3 – Cleaning the outside of the appliance
8.2.4 – Cleaning the condenser
8.2.5 – Cleaning the core probe
8.3 – Extraordinary maintenance
8.4 – Operating anomalies and faults
8.4.1 – Alarms
8.4.2 – Errors
9.
DISMANTLING
38
10.
DISPOSAL
38
10.1 – Disposal method
11.
SPARE PARTS
39
11.1 – Ordering spare parts
12.
APPENDICES
39
BCB US Rev.02 05-2021 pag. 6
1. – SAFETY

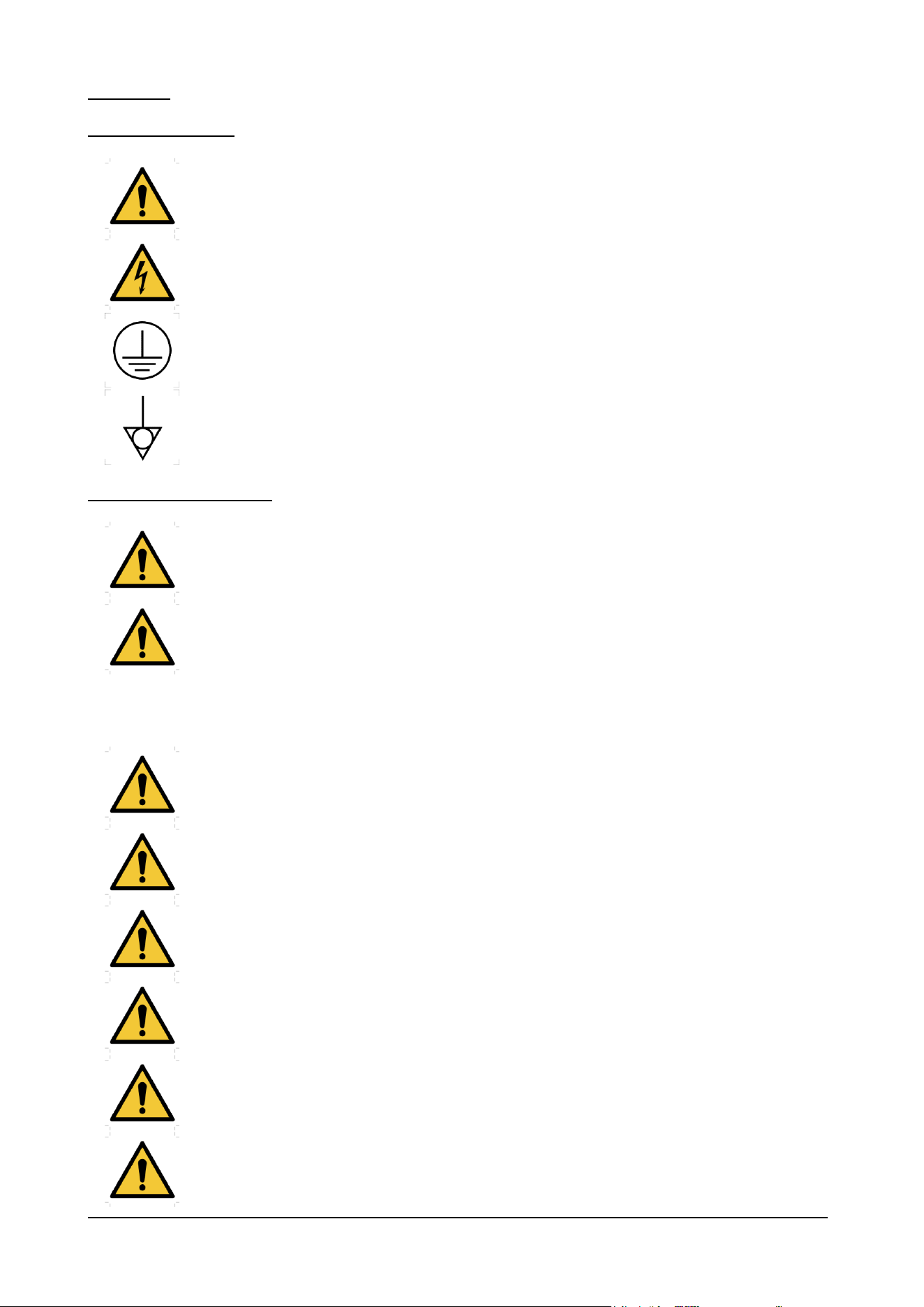

1.1 – SYMBOLS USED
This symbol indicates information and warnings which if not observed could damage the appliance or
compromise the safety of personnel.
This symbol indicates information and warnings regarding electrical devices which if not observed could
damage the appliance or compromise the safety of personnel.
To identify any terminal which is intended for connection to an external conductor for protection against
electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.
To identify the terminals which, when connected together, bring the various parts of an equipment or of
a system to the same potential, not necessarily being the earth (ground) potential, e.g. for local bonding.
1.2 – GENERAL WARNINGS
IMPORTANT: before using the appliance read this manual carefully and follow the technical operating
instructions and indications to the letter. The operator must know the position and function of all the
control devices and the characteristics of the blast chiller.
The blast chiller complies with current safety regulations, but improper use may cause damage to
persons and things.
At the time of installation all operatives must be suitably trained in accident hazards, operator safety
devices, general accident prevention regulations described in international directives and the current
law in the countries where the appliance is used. Start-up and use of the appliance must be exclusively
in the hands of trained personnel. The behaviour of operators must in any case scrupulously observe
accident prevention regulations in the country where the appliance is used.
Do not remove or deface the plates fitted to the appliance by the manufacturer.
The blast chiller must not be used if the control panel or any other part is damaged.
Do not obstruct the front and/or rear air vents on the appliance; do not place food to be processed up
against the ventilation grilles or air ducts, or directly on the bottom of the chamber.
Promptly report any anomalies in operation.
Use only accessories recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant inside the
appliance.
BCB US Rev.02 05-2021 pag. 7
Do not expose the appliance to rain or sprays of water.
Routine and extraordinary maintenance that require the electrical box to be opened or even partial
dismantling of the blast chiller must be carried out only after the appliance has been disconnected.
If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.
The manufacturer has no responsibility in the following cases:
− the maintenance plan is not carried out;
− unauthorized alterations and/or operations:
− spare parts used are not original;
− failure to observe even part of the contents of this manual;
− improper use of the appliance.
Any tampering with or unauthorized replacement of one or more appliance parts or components and use of
accessories and consumables different from the original ones can constitute a hazard and relieve the
manufacturer of any civil or penal responsibility.
If in doubt about operation of the appliance, refrain from using it and contact the manufacturer.
1.3 – RESIDUAL RISKS
LOW TEMPERATURE BURN HAZARD
During its operation the appliance runs extremely low temperatures: avoid direct contact with
the internal parts immediately after opening the door.
1.4 – PERSONNEL
This manual is for the use of operators, authorized fitters and maintenance engineers.
Operators must not carry out operations reserved for maintenance engineers or specialised
technicians.
The manufacturer accepts no responsibility for damage deriving from failure to observe this
rule.
- Appliance operator: specialised person who can operate the appliance in normal working conditions by using
the relevant controls. The operator must also be capable of carrying out simple routine maintenance (cleaning,
loading) and starting or resetting the appliance after a power failure.
- Specialised electrician: specialised electrician who has been trained by the manufacturer to work on the
appliance. The specialised electrician must be capable of installing the appliance and operating it in normal
conditions; s/he is qualified to carry out all electrical and mechanical adjustments, maintenance and repairs. S/he
is able to operate with live electrical control boxes and connector blocks.
- Qualified fork-lift operator: person qualified in handling materials on the company’s premises, holder of a licence
for the use of fork-lift trucks.
BCB US Rev.02 05-2021 pag. 8
1.5 – IMPROPER USE
The blast chiller must not be used:
− for purposes different from those given in paragraph 3.2 “Description of blast chiller and its use”;
− with safety systems not working;
− after badly done installation;
− by untrained personnel;
− when maintenance has not been carried out, or has been carried out badly;
− when non-original spare parts are used;
− with damaged power lead and/or electrical socket;
− with obstructed air ducts (ref. 1 fig. 1);
− with the food to be processed placed against the ventilation grilles (ref. 1 fig. 1), air ducts, or on the bottom of the
chamber (ref. 2 fig. 1).
Fig. 1
1
2
BCB US Rev.02 05-2021 pag. 9

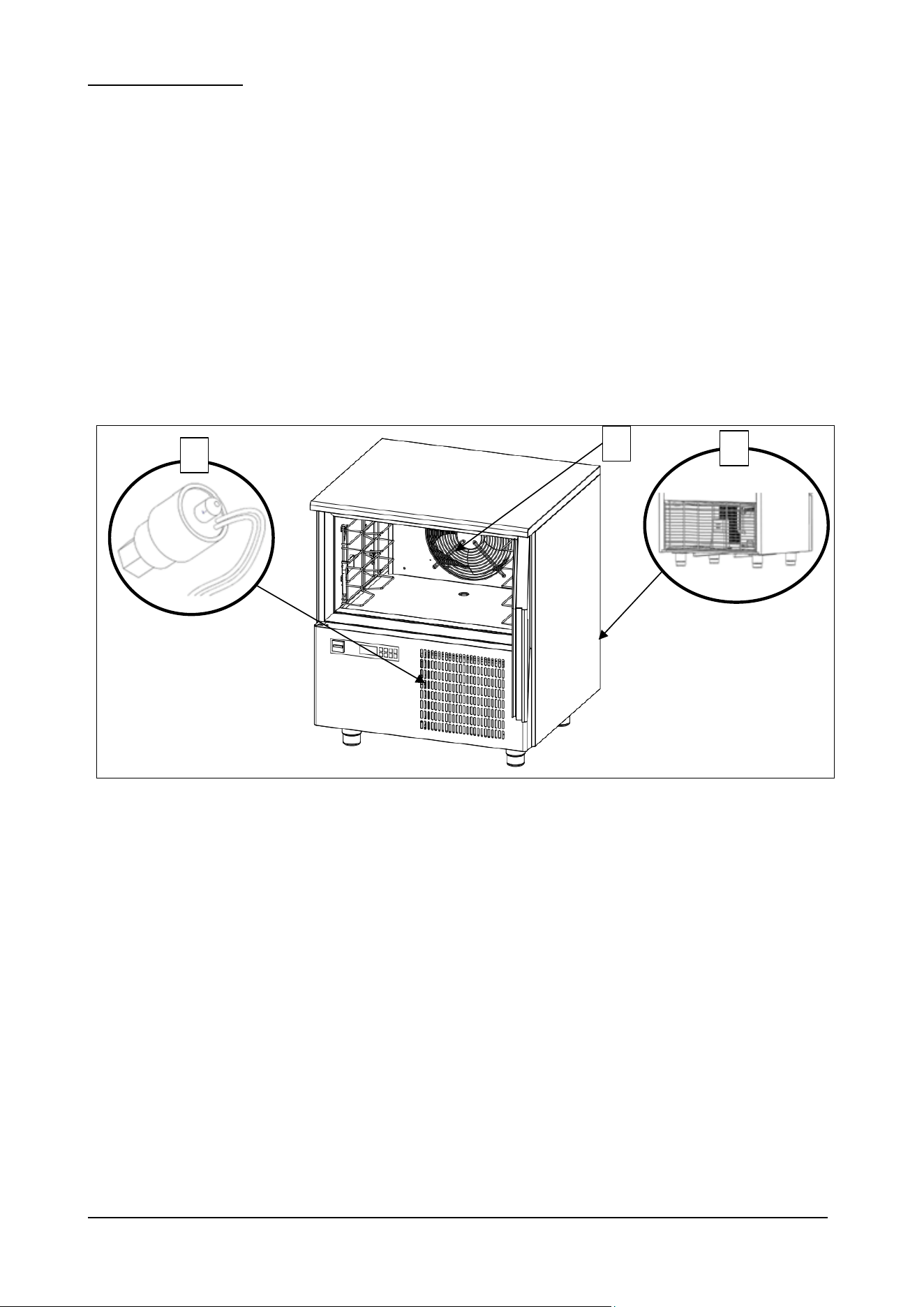

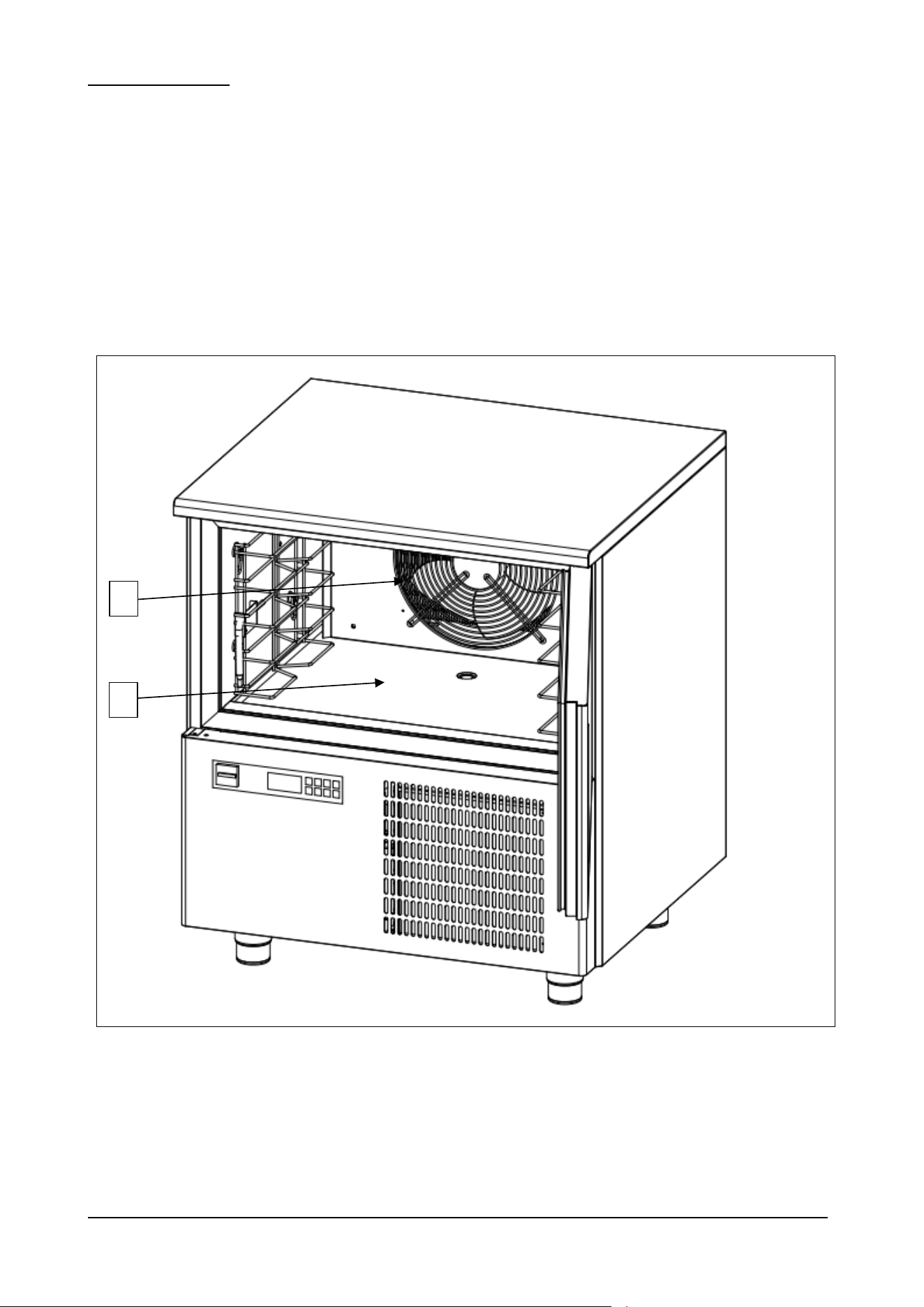

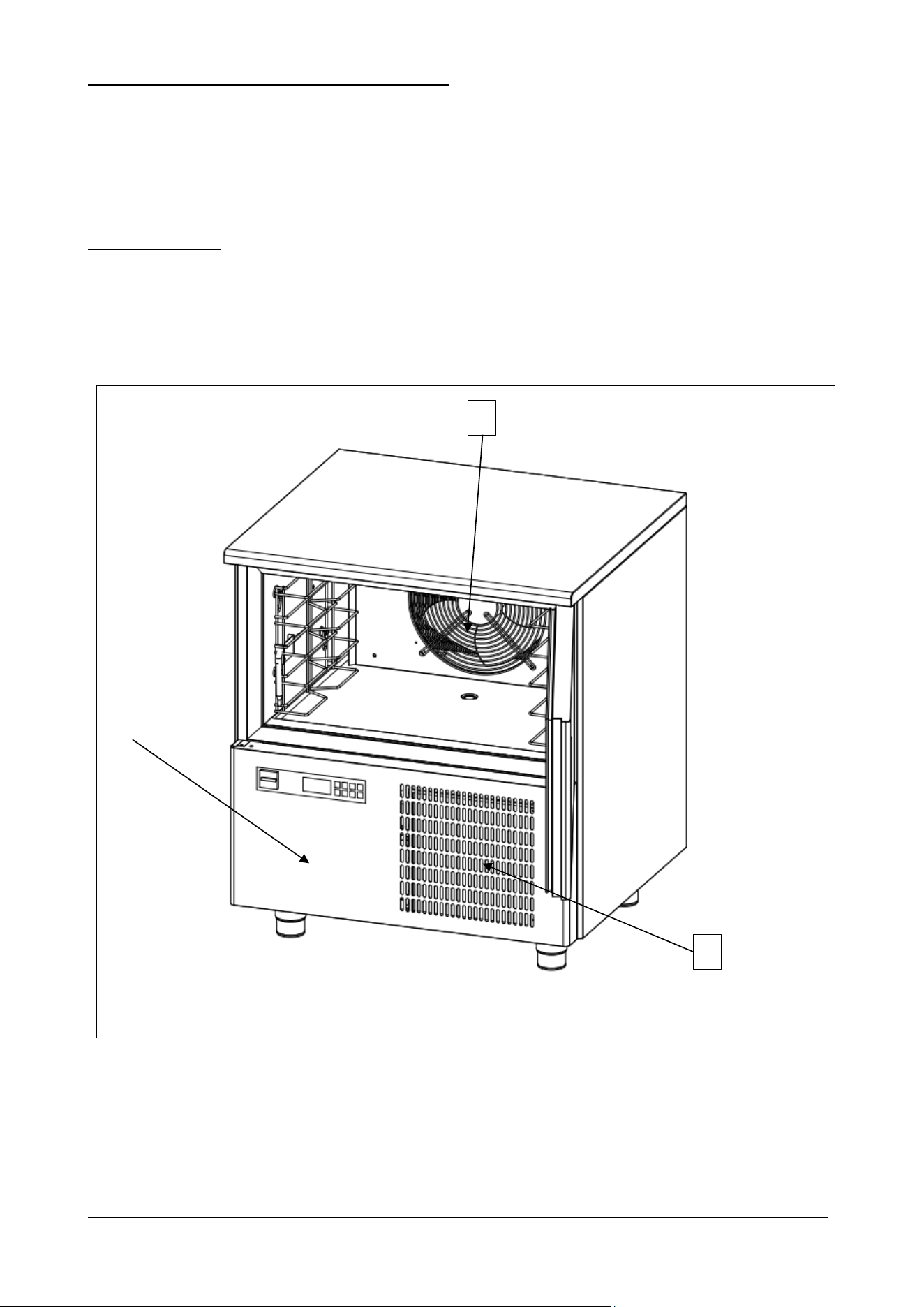

1.6 – SAFETY DEVICES
Personnel exposed to the hazards inherent in moving parts are protected by special safety devices on the appliance.
− grilles covering the cooling fans (ref. 1 fig. 2);
− grilles covering the condenser unit (ref. 2 fig. 2).
The appliance is also provided with devices to protect the food during processing. Below is a list of the safety devices on
the appliance.
− Sensor reads and signals door opening. If the doors remains open for a presetted time, it will appear on the
display the message “ id ” combined with a acoustic alarm and the compressor will switch off.
− Sensor (ref. 3 fig. 2) located on cooling circuit signals any overheating of the equipment and places the machine
on standby.
− Differential magnetothermal overload relay for compressor protection: only in three phase equipment.
Fig. 2
1
3
2
BCB US Rev.02 05-2021 pag. 10

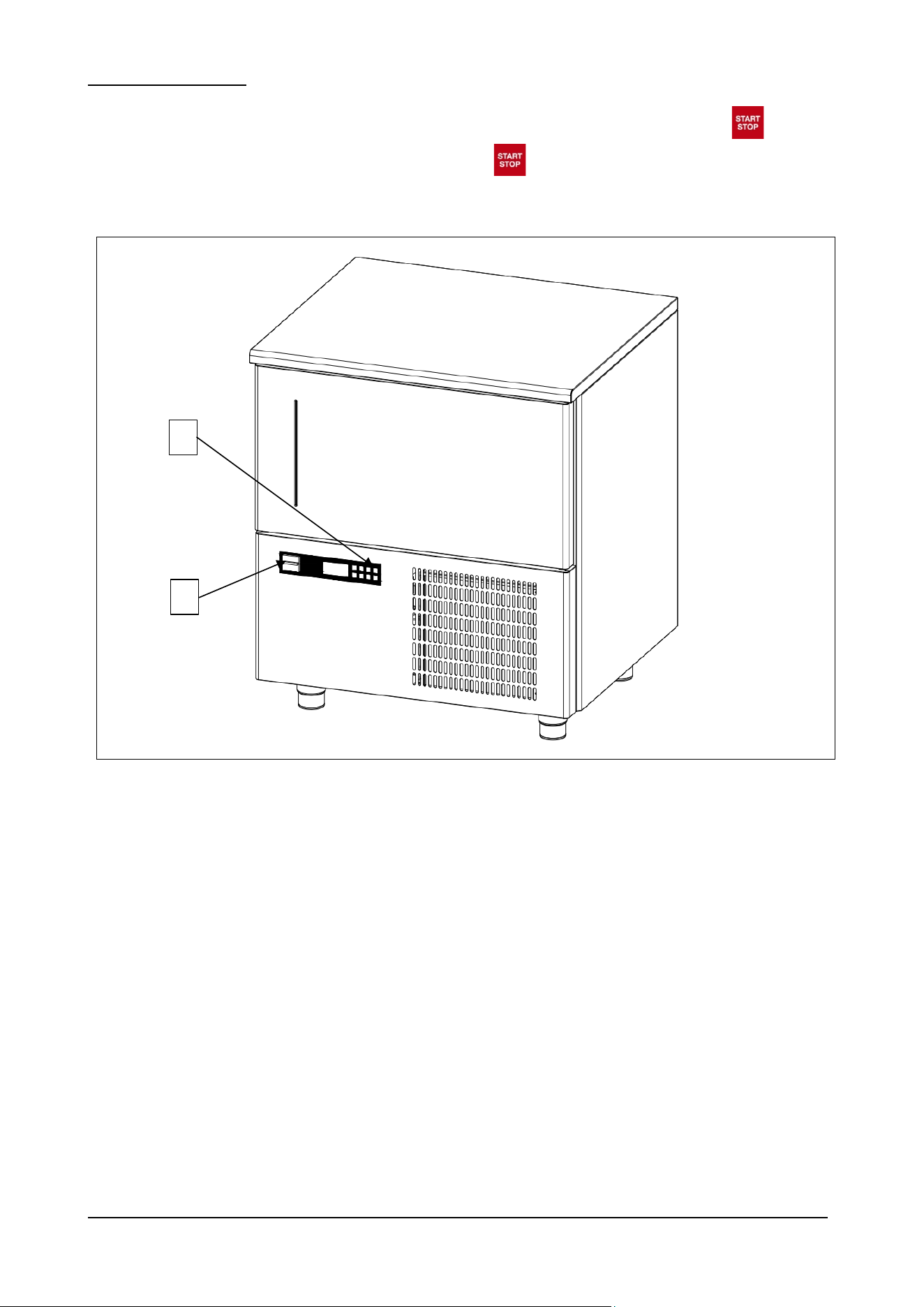

1.7 – STOP FUNCTIONS
The entire appliance is controlled by an electronic circuit board. The stop function is represented by the button (ref.
1 fig. 3). Whatever condition the machine is in, holding down the button for 3 seconds sets in standby the machine.
Whatever condition the machine is in, switching off the main switch (ref. 2 fig. 3) cuts out the circuit board.
Fig. 3
1
2
BCB US Rev.02 05-2021 pag. 11
2 – GENERAL INFORMATION
Thank you for choosing a blast chiller of our production.
Read this manual very carefully and make sure it is available to those who will install, use and maintain the equipment.

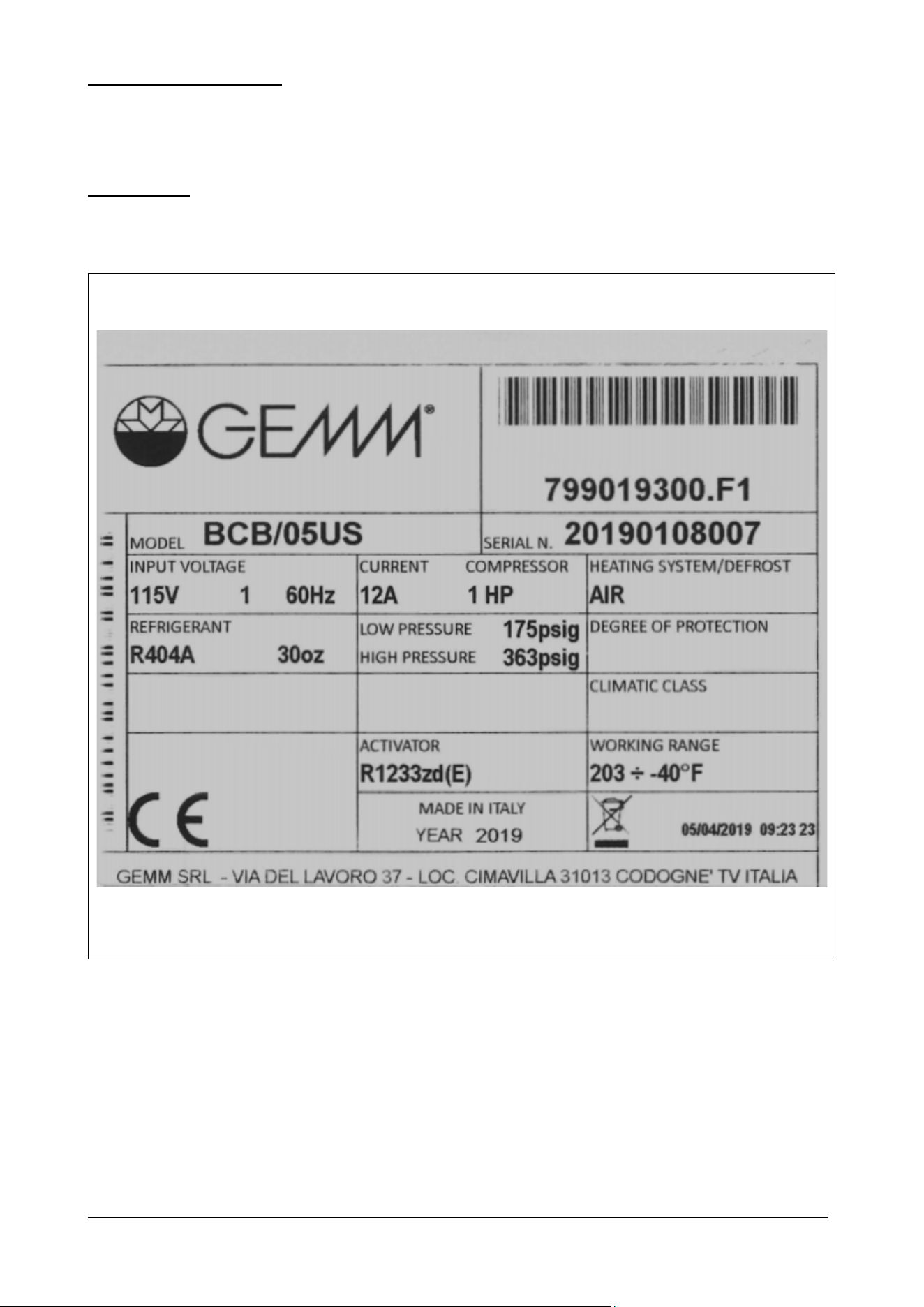

2.1 – MARKING
The ID plates are located on the outside of the appliance, in the bottom right-hand corner of the front: Fig. 4 below shows
copies.
Fig. 4
BCB US Rev.02 05-2021 pag. 12

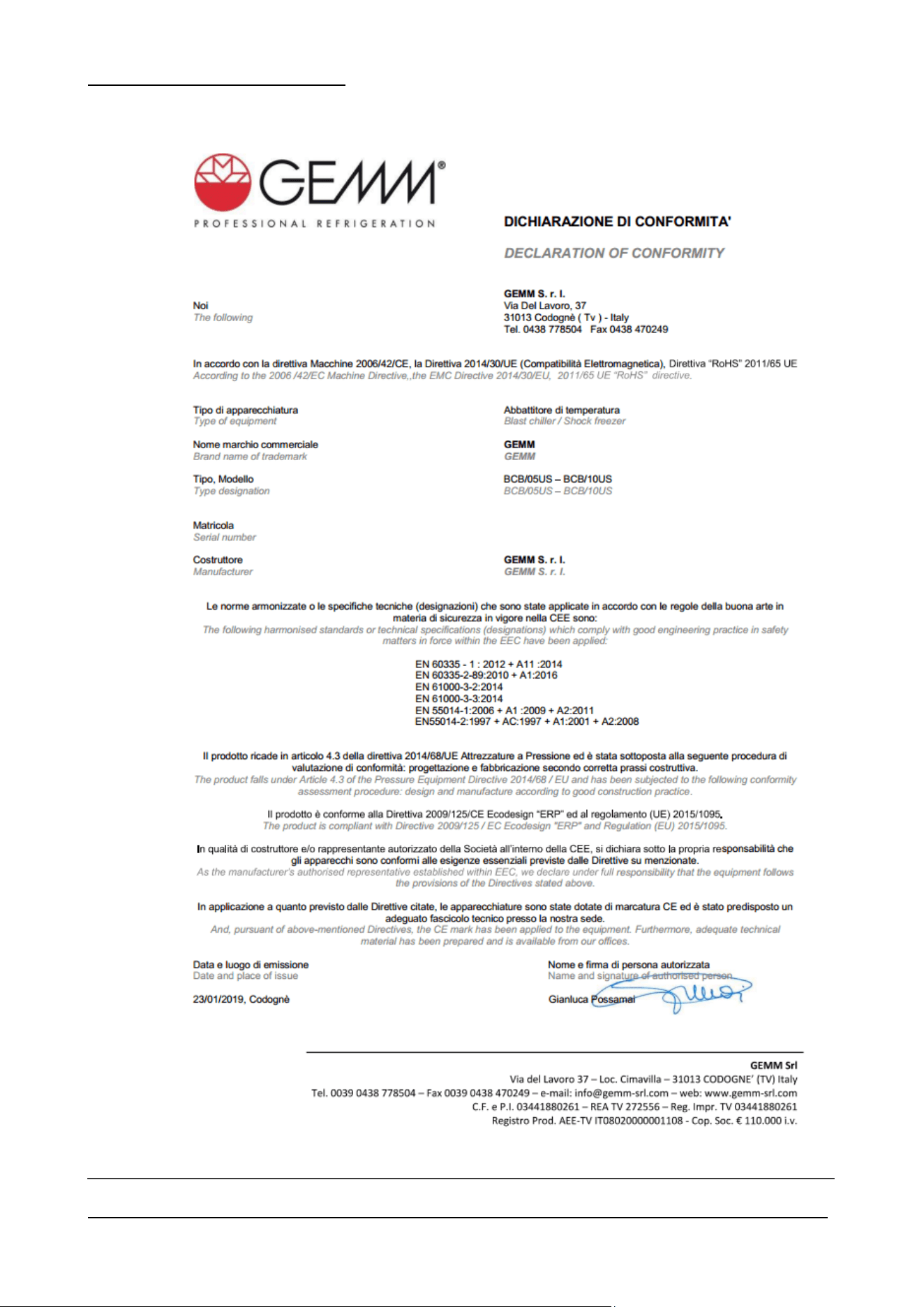

2.2 – DECLARATION OF CONFORMITY
BCB US Rev.02 05-2021 pag. 13
2.3 – WARRANTY
The warranty covering the various parts of the appliance is valid from the date on the relative delivery note and is as
described in the sales agreement.
The warranty does not cover damage to the appliance caused by:
- transport and/or handling;
- operator errors;
- lack of the maintenance described in this manual;
- faults and/or breakages that cannot be traced to faulty operation of the appliance;
- maintenance operations carried out by unqualified personnel;
- improper use.
2.4 – AFTER-SALES SERVICE
Please contact the manufacturer directly for any needs regarding use, maintenance or ordering of spare parts, and specify
the identification of the appliance given on the ID plate.
2.5 – HOW TO USE AND KEEP THE MANUAL
The purpose of this manual is to provide all the information necessary to ensure proper use of the appliance in complete
safety and independence.
The manual is sub-divided into chapters with paragraphs and sub-paragraphs: the contents page is easily consulted to find
any aspect of interest.
The material in this document is provided exclusively for the purpose of information and may be altered without notice.
Although great attention is paid to drawing up the manual, the manufacturer is not responsible for damage deriving
from errors, omissions or the use made of the information herein.
Keep this manual and all the documentation in the appendices in good condition, legible and complete in all its parts; keep
it close to the equipment in an accessible place known to all operators.
BCB US Rev.02 05-2021 pag. 14
3 – MACHINE DESCRIPTION

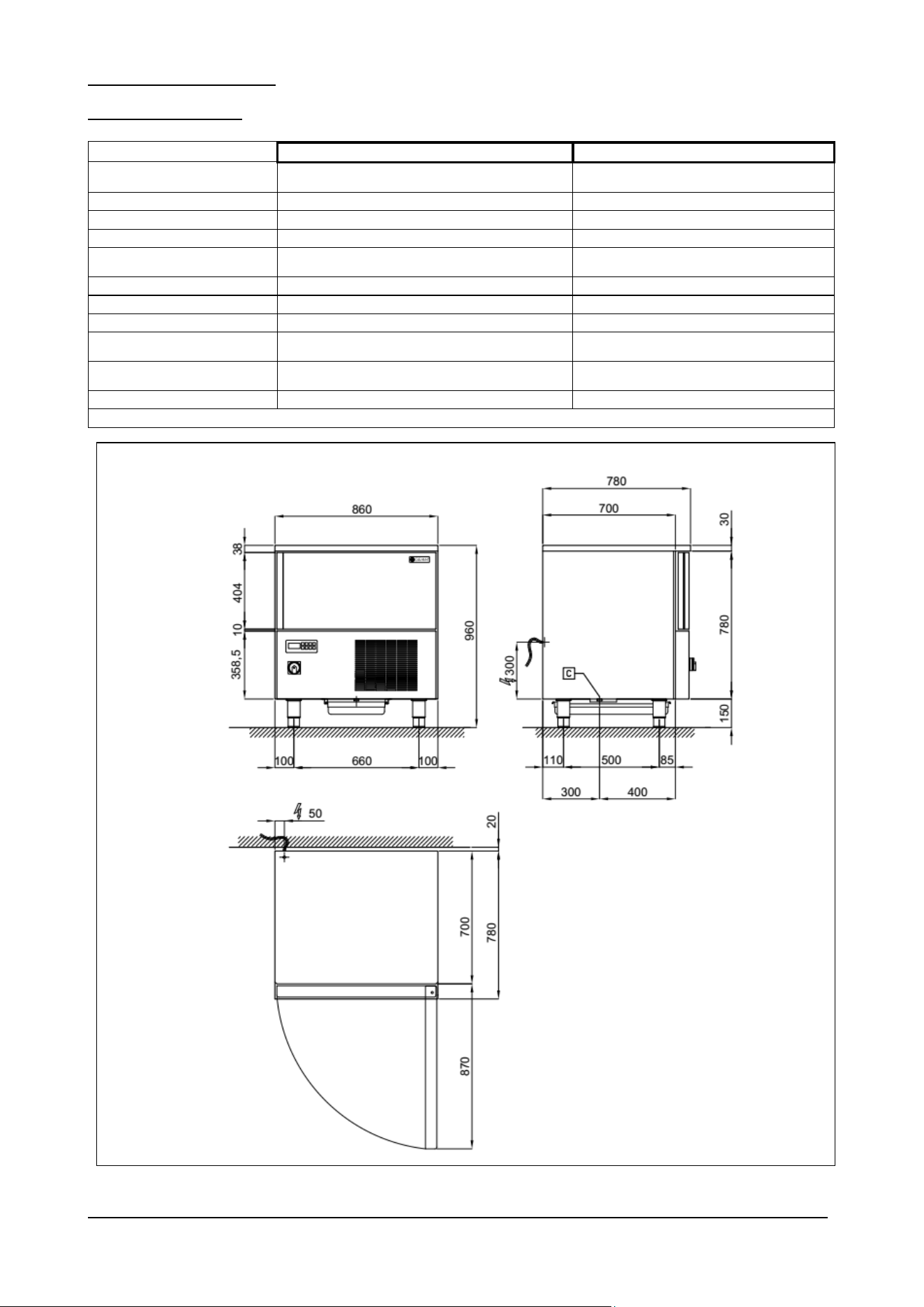

3.1 –TECHNICAL DATA
Model
BCB/05US
BCB/05US
External
dimensions
inches
33 7/8 X 30 3/4 X 37 3/4
33 7/8 X 30 3/4 X 37 3/4
Weight
lb
238
293
Trays
No.
5 (26X18'')
5 (26X18'')
Max load for trays
lb
55
55
Chamber
temperature
°F
203 / - 40
203 / - 40
Output
lb
57 (+ 149 °F ÷ + 37 °F); 35 (+ 149 °F ÷ 0 °F)
57 (+ 149 °F ÷ + 37 °F); 35 (+ 149 °F ÷ 0 °F)
Gas
R404A
R449A
Compressor power
Hp
1
1
Max. absorbed
courrent
A
12
9
Power supply
voltage
Volt 1x115 ~ 60 Hz
Volt 1x230 ~ 60 Hz
Electricity supply
3x12AWG – NEMA 5-20P – 9ft
3x12AWG – NEMA 6-20P – 9ft
Tab. 1/a

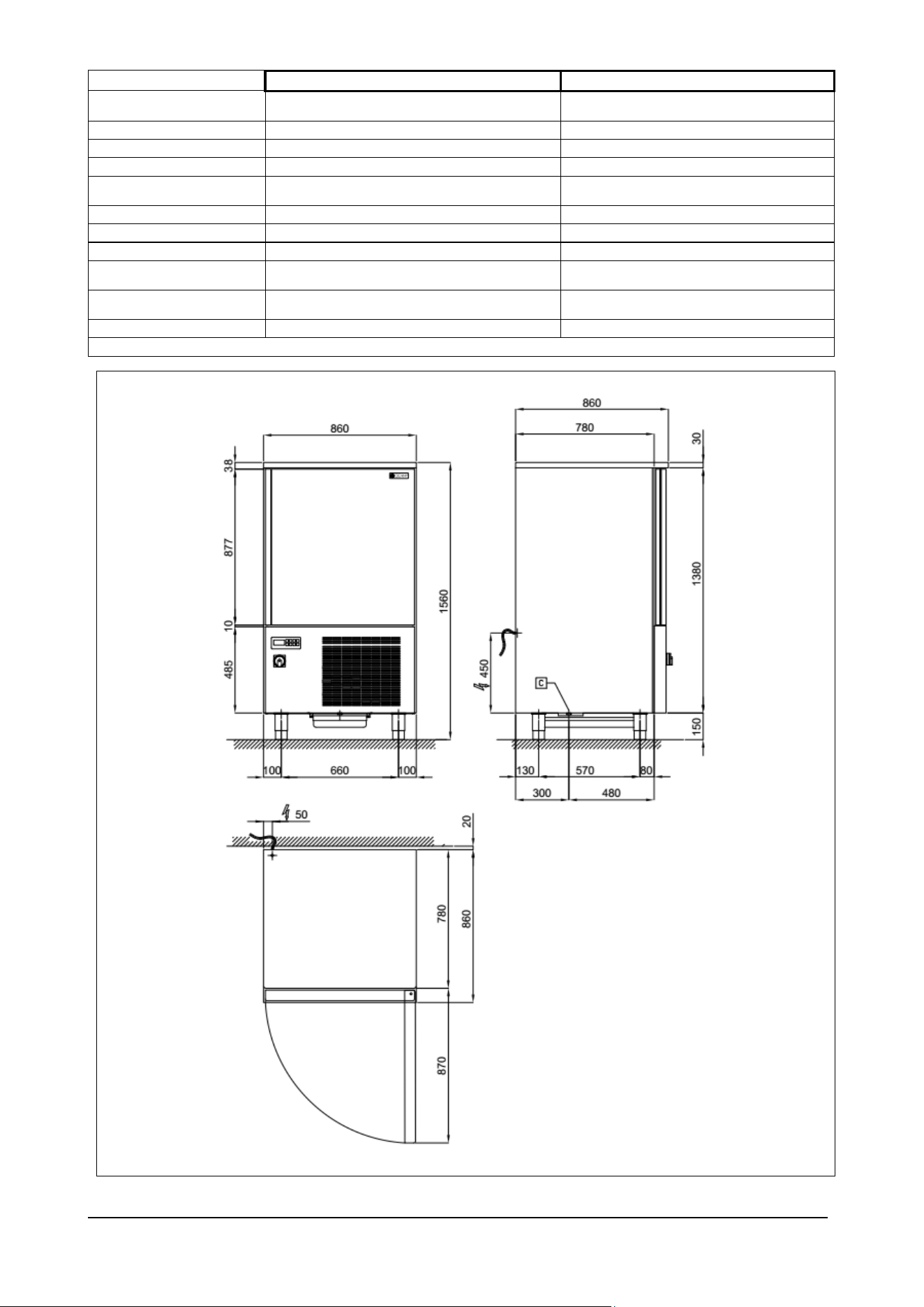

Fig. 5/a
BCB US Rev.02 05-2021 pag. 15
Model
BCB/10US
BCB/10US
External
dimensions
inch
33 7/8 X 33 7/8 X 61 3/8
33 7/8 X 33 7/8 X 61 3/8
Weight
lb
348
381
Trays
No.
10 (26X18'')
10 (26X18'')
Max load for trays
lb
55
55
Chamber
temperature
°F
203 / - 40
203 / - 40
Output
lb
75 (+ 149 °F ÷ + 37 °F); 48.5 (+ 149 °F ÷ 0 °F)
75 (+ 149 °F ÷ + 37 °F); 48.5 (+ 149 °F ÷ 0 °F)
Gas
R404A
R449A
Compressor power
Hp
1 1/2
1 1/2
Max. absorbed
courrent
A
10
16
Power supply
voltage
Volt 1x230 ~ 60 Hz
Volt 1x230 ~ 60 Hz
Electricity supply
3x14AWG – NEMA 6-15P – 9ft
3x12AWG – NEMA 6-20P – 9ft
Tab. 1/b

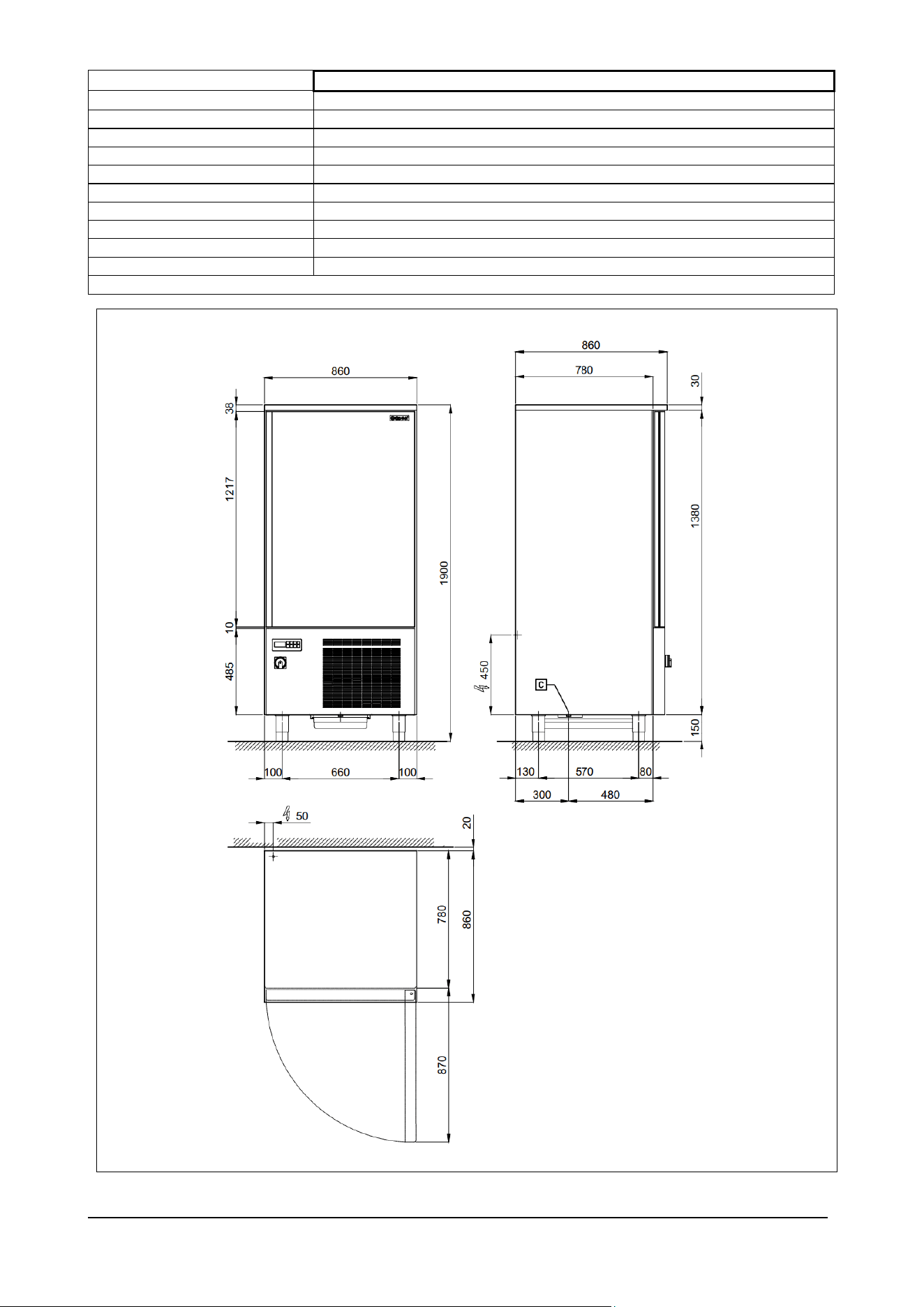

Fig. 5/b
BCB US Rev.02 05-2021 pag. 16
Model
BCB/15US
External dimensions
inch
33 7/8 X 33 7/8 X 74 7/8
Weight
lb
500
Trays
No.
15 (26X18'')
Max load for trays
lb
55
Chamber temperature
°F
203 / - 40
Output
lb
126 (+ 149 °F ÷ + 37 °F); 95 (+ 149 °F ÷ 0 °F)
Gas
R449A
Compressor power
Hp
2
Max. absorbed courrent
A
10
Power supply voltage
Volt 3x230 ~ 60 Hz
Tab. 1/c
Fig. 5/c
BCB US Rev.02 05-2021 pag. 17
3.2 – DESCRIPTION OF BLAST CHILLER AND ITS USE
Blast chillers are appliances with a powerful refrigeration system that can rapidly reduce the temperature at the core of
food. Ideal for use in kitchens, bakeries and ice cream establishments.
The machine’s main work cycles are CHILLING and FREEZING. Each cycle includes two different end of cycle modes at
the point at which holding commences: temperature controlled (the probe inserted into the core of the product ends the
cycle when it reaches the set temperature) or time controlled (the cycle ends as soon as the set time expires).
3.2.1 – MAIN PARTS
The appliance comprises the following parts:
− body;
− condenser unit (ref. 2, fig. 6);
− evaporator unit (ref. 1, fig. 6);
− control panel (ref. 3, fig. 6)
Fig. 6
1
3
2
BCB US Rev.02 05-2021 pag. 18
3.3 – NOISE
The appliance is designed and built to keep its noise level as low as possible.
3.4 –AMBIENT CONDITIONS
Installation site
Bakeries, confectioner’s, ice cream makers, and kitchens in general
Relative humidity
< 80% without condensation
Climatic class
5 +104°F 40%HR
Tab. 2
BCB US Rev.02 05-2021 pag. 19
4 – TRANSPORT AND HANDLING
4.1 – TRANSPORT
The packing used is suitable for the type, dimensions and weight of the appliance and ensures that it is protected and
remains undamaged during transport and delivery to the purchaser.
The blast chiller must be placed in position and kept upright on a pallet and surrounded by its packing box throughout its
journey.
The blast chiller is handed over to the carrier ready to be handled.
The appliance must never be overturned.
The packing must be well placed on the platform of the means of transport and secured by
appropriate ropes.
Take the utmost care when lifting and positioning the blast chiller, so as to avoid serious damage
to persons or things. The manufacturer declines all responsibility if the indications for lifting
and transport the blast chiller are not observed.
Ambient temperature must never drop below 39°F during transport.
Once the blast chiller has been unpacked, the packing material must be eliminated and/or re-used in compliance with
current waste disposal regulations in the countries where the appliance will be used.
4.2. – HANDLING THE PACKED BLAST CHILLER
Take great care when lifting and handling the blast chiller; there is an injury hazard in handling
loads, which may also be fatal.
All handling and lifting operations must be carried out with great caution, making sure that all
personnel is strictly at a safety distance and that no-one stands under suspended loads, be they
still or in motion.
Before starting the operation, check the whole appliance handling area to identify any
dangerous points.
Ambient temperature must never drop below 39°F during transport.
BCB US Rev.02 05-2021 pag. 20
AUTHORIZED PERSONNEL
Specialised fork-lift truck operator.
Individual safety devices:
- safety shoes;
- safety gloves.
Personnel carrying out such operations must not wear rings, wrist watches, jewellery, loose or unfastened garments, such
as, for example, ties, torn garments, scarves, unbuttoned jackets or blouses with open zips, etc. In general, personnel
must wear safety apparel.
4.2.1 – WEIGHT AND DIMENSIONS
Model
BCB/05US
BCB/10US
BCB/15US
Dimensions
inches
33 7/8 X 30 3/4 X 37 3/4
33 7/8 X 33 7/8 X 61 3/8
33 7/8 X 33 7/8 X 74 7/8
Weight
lb
238(R404A); 293(R449A)
348(R404A);381(R449A)
500
Tab.3
4.2.2 – MEANS REQUIRED
- To lift the appliance use a fork-lift truck of suitable minimum capacity.
The use of unsuitable equipment can cause accidents to those involved in the operation and/or
damage to the appliance.
The manufacturer declines all responsibility for improper non-compliant use of equipment for
lifting, transport and handling.
BCB US Rev.02 05-2021 pag. 21
5 – INSTALLATION
Use the utmost care in handling the appliance, so as to avoid damage to persons or things.
Do not start the appliance if there are faults on the control panel or parts are damaged.
AUTHORIZED PERSONNEL
Specialised electrician.
Individual safety devices:
− safety shoes;
− safety gloves.
Personnel carrying out such operations must not wear rings, wrist watches, jewellery, loose or unfastened garments, such
as, for example, ties, torn garments, scarves, unbuttoned jackets or blouses with open zips, etc. In general, personnel
must wear safety apparel.
5.1 – PREPARATION FOR INSTALLATION
For installation prepare an area of manoeuvre suitable for the dimensions of the appliance (see fig. 5) and the chosen
lifting equipment.
The installation site must be prepared with all the connecting systems required for the appliance to work.
Choose an installation site with requisites that will allow the appliance to be used safely. The area must provide good
support, with a solid flat floor whose finish will ensure a suitable and safe working place for personnel.
Install the appliance in a place with natural and/or artificial light suitable for the operations to be carried out (in compliance
with specific regulations).
5.2 – UNPACKING
Check that the packing has not been damaged during transport.
5.2.1 – MEANS REQUIRED
Use a fork-lift truck or equivalent equipment to lift the appliance.
The use of unsuitable equipment can cause accidents to those involved in the operation and/or
damage to the appliance.
The manufacturer declines all responsibility for improper non-compliant use of equipment for
lifting, transport and handling.
BCB US Rev.02 05-2021 pag. 22
5.2.2 – UNPACKING PROCEDURE
All the handling and unpacking operations must be carried out with extreme care, making sure
that all personnel is strictly at a safety distance and that no-one stands under suspended loads,
be they still or in motion.
To unpack the appliance just remove its cardboard wrapping. Take the appliance off the pallet, lifting it by means of a
suitable fork-lift truck; the forks should be placed under the appliance taking care not to damage the two water tray
runners.
AFTER INSTALLING THE APPLIANCE, WAIT AT LEAST TWO HOURS BEFORE TURNING IT ON.
5.3 – HANDLING THE BLAST CHILLER
5.3.1 – MEANS REQUIRED
See paragraph 5.2.1.
The use of unsuitable equipment can cause accidents to those involved in the operation and/or
damage to the appliance.
The manufacturer declines all responsibility for improper non-compliant use of equipment for
lifting, transport and handling.
5.3.2 – HANDLING THE UNPACKED BLAST CHILLER
All the handling and unpacking operations must be carried out with extreme care, making sure
that all personnel is strictly at a safety distance and that no-one stands under suspended loads,
be they still or in motion.
To move blast chillers on wheels, release the brakes on the wheels and push, taking care to block the brakes again when
the appliance is in its permanent position.
To move blast chillers on feet, lift them with a suitable fork-lift truck; the forks should be placed under the appliance, taking
care not to damage the two water tray runners.
5.4 – BLAST CHILLER ASSEMBLY
The blast chiller is delivered to the customer assembled in all its parts.
Remove the water tray from the chamber and place it in position along the runners placed under the appliance between
the feet.
BCB US Rev.02 05-2021 pag. 23
6 – SETTING UP
AFTER INSTALLING THE APPLIANCE, WAIT AT LEAST TWO HOURS BEFORE TURNING IT ON.
6.1 – CONNECTIONS
6.1.1 – ELECTRICAL CONNECTION
Electrical connection must be made by a specialised electrician.
− Check that the power supply voltage given on the ID plate corresponds to that available at the
installation site.
− Connections must be made to current regulations; the supply mains must have an efficient
earthing system compliant with electricity regulations in the country; this is a responsibility of
the customer.
− Do not make tight bends on the power lead and do not place any object whatsoever on top of
it.
If it is necessary to unplug the mains supply, first make sure the main switch is on OFF.
The manufacture declines all responsibility for damage or accidents caused by failure to
observe such regulations.
ELECTRICAL CONNECTION PROCEDURE
The appliance is supplied by the manufacturer complete with power plug. Just connect the power plug to a socket at the
installation site; the system must be carried out to current regulations.
The electricity supply at the installation site must have the following requisites:
− Voltage: 1x115 Vac BCB/05US(R404A); 1x230 Vac BCB/05US(R449A); BCB/10US(R404A/R449A);
3x230 Vac (BCB15US)
− Frequency: 60 Hz
6.2 – PRELIMINARY CHECKS
The electrician fitter shall train the operator in the correct use of the blast chiller and give the basic notions of maintenance.
METHOD
The operations to prepare the blast chiller for initial start-up must be carried out by a specialised engineer, in the presence
of the operator, who can acquire information to carry out certain routine maintenance and cleaning.
Before starting up the appliance, a series of checks and inspections must be carried out for the purpose of preventing
errors or accidents during start-up.
− Check that the appliance has not been damaged during transport.
− Check with special care for any damage to the electrical box, push button control panel, wiring and pipes.
− Check that all external power sources have been connected properly.
− Check that the machine is perfectly level.
6.2.1 – REGULATION
Regulation carried out by unauthorized personnel may damage the appliance and expose the
operator to serious hazards. Regulation carried out by unauthorized personnel is considered
tampering with the appliance and as such null the warranty and relieve the manufacturer of any
responsibility.
BCB US Rev.02 05-2021 pag. 24
7 – USE
IN R449A APPLIANCES THERE IS A COMPRESSOR OIL HEATER, ONCE THE MACHINE FIRST
STARTS THE STANDBY MODE (MAIN SWITCH ON AND LED BOARD OFF), IT IS NECESSARY
TO WAIT AT LEAST 2 HOURS BEFORE STARTING A BLAST CHILLING CYCLE.
7.1 – USE FORSEEN
Blast chillers are appliances with a powerful refrigeration system that can rapidly reduce the temperature at the core of
food. Ideal for use in kitchens, bakeries and ice cream establishments.
The machine’s main work cycles are CHILLING and FREEZING. Each cycle includes two different end of cycle modes at
the point at which holding commences: temperature controlled (the probe inserted into the core of the product ends the
cycle when it reaches the set temperature) or time controlled (the cycle ends as soon as the set time expires).
- SOFT CHILLING. Positive “delicate” temperature reduction (+37°F). Food just out of the oven is quickly taken to
a temperature of 37°F in no longer than 90’, thus inhibiting bacterial proliferation and avoiding dehydration of the
cooked food due to evaporation. Food treated in this way can be preserved perfectly for 5-7 days without altering
its original qualities.
- HARD CHILLING. Positive “rapid” temperature reduction (+37°F). Also lasts for a maximum of 90’. This type
of process is used when the food to be chilled is thicker than an inch (i.e. large joints) and with dense or fatty
food. During this phase the appliance reaches -4°F air temperature and provides to accelerate penetration of
the cold into the food.
- FREEZING. Deep freezing or freezing (0°F). During this phase the appliance reaches -40°F air temperature.
This work cycle will take the core of the food to a temperature of 0°F in less than four hours (240’). The speed of
the process avoids the formation of macrocrystals, ensuring that when it is used the thawed food has its original
consistency, colour and quality.
- HOLDING. At the end of both the chilling and freezing cycles the machine will automatically go to the set holding
temperature.
7.2 – UNFORSEEN USE
Blast chillers cannot be used for purposes other than those described in point 7.1. In particular the appliance is not suitable
for storing food for an indefinite period.
BCB US Rev.02 05-2021 pag. 25
7.3 – CONTROL PANEL
or
Fig. 7
BCB US Rev.02 05-2021 pag. 26

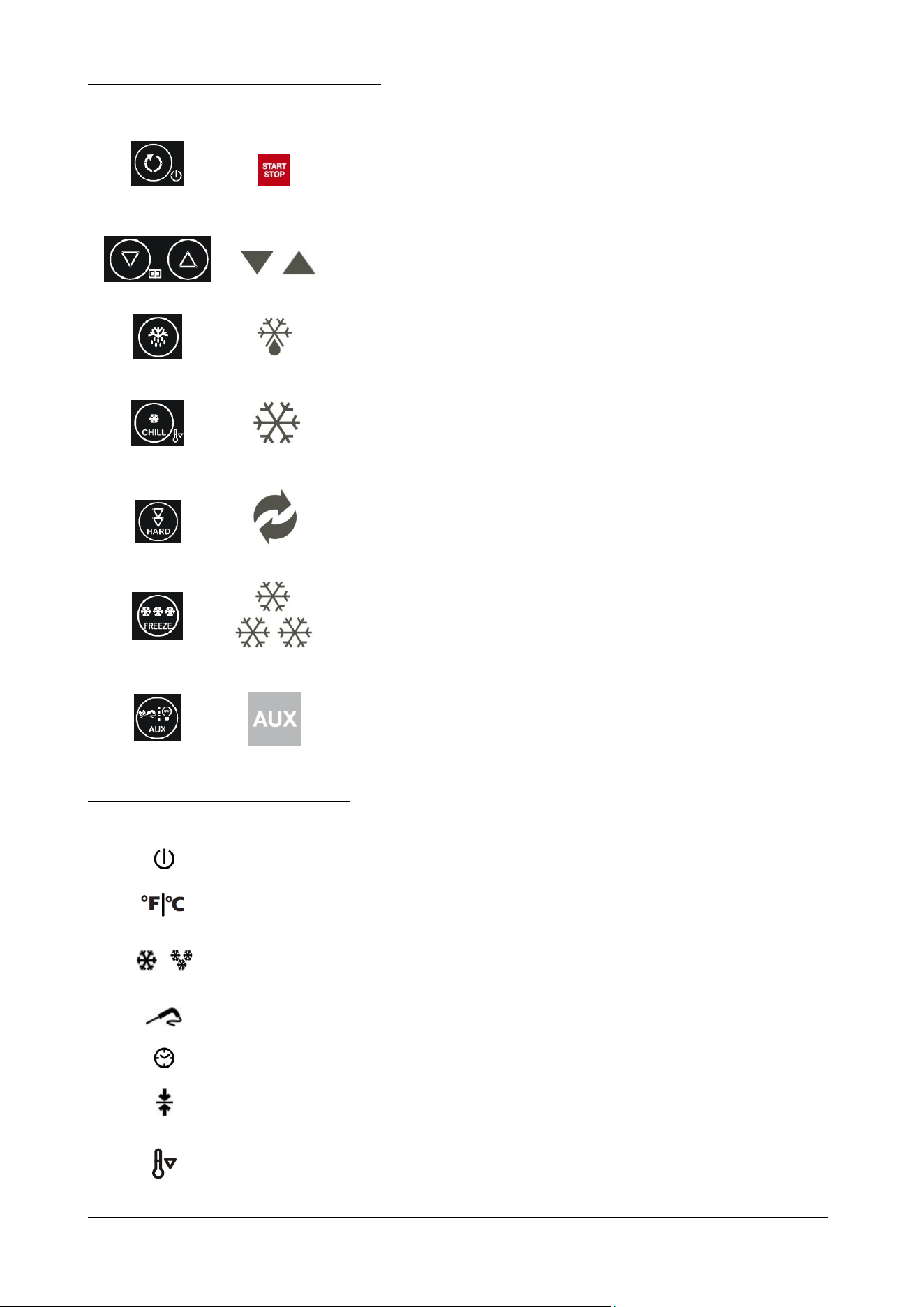

The buttons on the control panel are as follows:
BUTTON 0/1,
START/STOP
With the machine OFF (0) press once to go to
STANDBY (1). With the machine on STANDBY press
once to START a cycle. When a cycle is in progress
press once to STOP it. In whatever situation the
machine is, if the button is held down for 3 seconds
the circuit board is cut OFF.
- AND + BUTTONS
Used to increase or decrease the value shown on the
display.
DEFROST BUTTON
With the machine on STANDBY and/or during the
storage, press once to start a defrost cycle.
CHILLLING BUTTON
With the machine on STANDBY press once to select
a time controlled chilling cycle.
Keep held down the button for 3 second in order to
start the continuous cycle
HARD/SOFT BUTTON
With the cycle selected, press once in order to select
HARD or SOFT process.
FREEZING BUTTON
With the machine on STANDBY press once to select
a time controlled freezing cycle.
AUXILIARY BUTTON
Press this button in order to use the accessory, as UV
lamp, warmed probe, where installed.
The icons on the control panel display are:
OFF
Illuminated when the machine is OFF; not illuminated in all other
situations.
FAHRENHEIT / CELSIUS
Can be illuminated in red or green to indicate the temperature
measuring unit.
CHILLING AND FREEZING
Flash when the cycles they refer to are in progress; remain
illuminated during the following holding cycle.
TEMPERATURE
Illuminated during a temperature controlled cycle
TIME
Illuminated during a time controlled cycle.
HOLDING
Illuminated or flashing during the holding period.
CONTINUOUS CYCLE
Illuminated or flashing during the pre-cooling phase, also
CONTINUOUS CYCLE.
BCB US Rev.02 05-2021 pag. 27
HARD BLAST
CHILLER/FREEZING
Illuminated during the hard blast chilling/hard blast freezing.
DEFROST
Illuminated during the defrost.
AUXILIARY
Illuminated during the on of the accessory, as UV lamp, warmed
probe, where installed
7.4 – CONTROL PROCEDURES
The entire appliance is controlled by an electronic circuit board.
When the machine is powered the appliance display illuminates fully for a “lamp-test” lasting a few seconds, at the end of
which it returns to the condition it was in before being switched off. In particular, if a cycle was in progress it will re-start
from the point at which it was interrupted.
With the circuit board OFF the display is completely off, except for the icon. Press the button to turn off the
icon on the display and go to STANDBY, which shows the chamber temperature in blue.
The various machine functions can be activated by using the controls on the panel and observing the indications on the
display.
With the circuit board in STANDBY you can go from one cycle to another simply by pressing , .
With the circuit board on STANDBY and a cycle selected you can start the cycle by pressing (START). Pressing
(STOP) once blocks the cycle in progress.
The buzzer can be silenced, whatever its cause, by pressing any button.
Whatever situation the machine is in, holding down for 3 seconds cuts OFF the circuit board.
7.5 – USE PROCEDURES
Clean the inside of the chamber before using the machine.
After installation or a prolonged idle period, it is good practice to operate the empty appliance until it reaches the set
temperature. To achieve good output from the blast chiller it is advisable to place the food inside in such a way as to assist
air circulation: do not obstruct the fan, do not stack trays on top of each other, distribute the load neatly and do not cove r
the containers with lids or cling film.
In order to avoid altering the food, it is also advisable not to overload the machine beyond the permitted load, not to use
pieces thicker than 2-3” and to limit door opening as much as possible.
Clean and sterilise the core probe before use. The probe must be placed in the centre of the largest joint or piece, taking
care that the point does not go right through the food to come into contact with the tray.
To improve the efficacy of the working cycle is recommended to perform a pre-cooling of the cell, by turning on
the machine at least 15 min before insert the product, both in killing and freezing.
When a temperature controlled cycle is selected the electronic circuit board checks the temperature read by the
chamber probe and core probe to assess correct insertion of the probe (AUTOMATIC probe identification). This
check lasts just over two minutes, at the end of which the cycle proceeds normally if the probe is properly inserted.
This check lasts just over 2 minutes, accordingly with established parameters, at the end of which the cycle
proceeds with a temperature controlled cycle if the probe is properly inserted. In this case the temperature of the
probe will be showed and the icon will remain turned on.
If the test has a negative result, after a minute of buzzer’s alarm, the display will show the icon and the cycle
will proceed with a time controlled cycle.
BCB US Rev.02 05-2021 pag. 28
7.6 – SOFT CHILLING
7.6.1 – SELECTING AND SETTING OF SOFT CHILLING CYCLE
Load the machine suitably with the food to be chilled, place the core probe into the food and close the door.
With the appliance on STANDBY press : the display will show the set point temperature of the room referred to 23°F
cycle, in the meantime the icons and flash. Use the and buttons to edit this value.
Press (START) to start the cycle: the display will show the temperature of the room and the icons and will
remain on. As already explained, once confirmed the cycle, the device does an automatic identification of probe’s insertion
(around 2 minutes), at the end of which the cycle will be confirmed or by probe or by time. All this process will be made
AUTOMATICALLY.
If the test has a positive result, the device will confirm the temperature controller cycle (probe) and the display will show
the temperature of the probe.
Otherwise, if the result is negative, after buzzer’s alarm and visual signalling of the flashing icon , the display will show
the icon and the cycle will change in time controlled cycle. Use the and buttons to edit this value.
During the visualization of the residual time, it is possible to change the temperature of the room by pressing the buttons
, , .
It is possible select the time controlled cycle DIRECTLY, bypassing the automatic phase of probe’s recognizing.
With the appliance on STANDBY press TWICE : the display will show the duration of the cycle 90 min, in the meantime
the icons and flash. Use the and buttons to edit this value. Than press (START) in order to start
the cycle.
Once finish the time relative to 90’ cycle or once reaches the core temperature of 37°F, the device automatically starts the
conservation cycle, 36°F rooms, previously reported by the buzzer’s alarm.
On the display will appear the icon
The cycle can be interrupted at any time by pressing (STOP): press (START) again in order to restart again
the cycle.
BCB US Rev.02 05-2021 pag. 29
7.7 – HARD CHILLING
7.7.1 – SELECTING AND SETTING OF HARD CHILLING CYCLE
Load the machine suitably with the food to be chilled, place the core probe into the food and close the door.
With the appliance on STANDBY press : the display will show the set point temperature of the room referred to 23°F
cycle, in the meantime the icons and flash. Use the and buttons to edit this value.
Press once the button in order to start with hard phase. Also the symbol HARD will flash on the display.
Press (START) to start the cycle: the display will show the temperature of the room and the icons and will
remain on. As already explained, once confirmed the cycle, the device does an automatic identification of probe’s insertion
(around 2 minutes), at the end of which the cycle will be confirmed or by probe or by time. All this process will be made
AUTOMATICALLY.
If the test has a positive result, the device will confirm the temperature controller cycle (probe) and the display will show
the temperature of the probe.
Otherwise, if the result is negative, after buzzer’s alarm and visual signalling of the flashing icon , the display will show
the icon and the cycle will change in time controlled cycle. Use the and buttons to edit this value.
During the visualization of the residual time, it is possible to change the temperature of the room by pressing the buttons
, , .
With the appliance on STANDBY press TWICE : the display will show the duration of the cycle 90 min, in the meantime
the icons and flash. Use the and buttons to edit this value. Than press (START) in order to start
the cycle.
Once finish the time relative to 90’ cycle or once reaches the core temperature of 37°F, the device automatically starts the
conservation cycle, 36°F rooms, previously reported by the buzzer’s alarm.
On the display will appear the icon
The cycle can be interrupted at any time by pressing (STOP): press (START) again in order to restart again
the cycle.
BCB US Rev.02 05-2021 pag. 30
7.8 – FREEZING
7.8.1– SELECTING AND SETTING OF FREEZING CYCLE
Load the machine suitably with the food to be frozen, place the core probe into the food and close the door.
With the appliance on STANDBY press : the display will show the set point temperature of the room referred to
- 40°F cycle, in the meantime the icons and flash. Use the and buttons to edit this value.
Press (START) to start the cycle: the display will show the temperature of the room and the icons and
will remain on. As already explained, once confirmed the cycle, the device does an automatic identification of probe’s
insertion (around 2 minutes), at the end of which the cycle will be confirmed or by probe or by time. All this process will be
made AUTOMATICALLY.
If the test has a positive result, the device will confirm the temperature controller cycle (probe) and the display will show
the temperature of the probe.
Otherwise, if the result is negative, after buzzer’s alarm and visual signalling of the flashing icon , the display will show
the icon and the cycle will change in time controlled cycle. Use the and buttons to edit this value.
During the visualization of the residual time, it is possible to change the temperature of the room by pressing the buttons
, , .
You can DIRECTLY select the cycle time, bypassing the automatic stage of probe recognition.
With the appliance on STANDBY press TWICE : the display will show the duration of the cycle 240 min, in the
meantime the icons and flash. Use the and buttons to edit this value. Than press (START) in
order to start the cycle.
Once finish the time relative to 240’ cycle or once reaches the core temperature of 0°F, the device automatically starts the
conservation cycle, -13°F rooms, previously reported by the buzzer’s alarm.
On the display will appear the icon
The cycle can be interrupted at any time by pressing (STOP): press (START) again in order to restart again
the cycle.
BCB US Rev.02 05-2021 pag. 31
7.9 – SPECIAL USES
7.9.1 – PRE-CHILLING FUNCTION OR CONTINUOUS CYCLE.
If the temperature of the food to be chilled is very high (above 149°F) it is advisable to pre-chill it in the following way:
press the button for some seconds, the device will start and the led will flash. Once reached the set point (-31°F),
the led remains on and it will be possible to choose any type of cycle or load the device with the foods you have to
chill/freeze. The new selected cycle will “overwrite” the continuous cycle, without turning off the device previously.
The continuous cycle is ideal for ice-cream laboratories, as the working cycles are very frequent (HARDERING).
It is necessary to have just the room temperature as parameter. Instead time is not a parameter necessary.
7.9.2 – DEFROST
The machine evaporator is defrosted by stopping the compressor. It can be Automatic or Manual and is shown on the
display by illumination of the wording “ dEF ” first fixed then, during the drip flashing.
Automatic defrost can only take place during the holding period, at intervals of 6 hours with a duration of 15’ and the
evaporator temperature does not exceed 46°F.
Manual defrosting can be activated when the machine is on STANDBY and the evaporator temperature does not exceed
46°F, by pressing . Because on STANDBY the compressor is already off forced ventilation takes place during Manual
defrost, so it is advisable to keep the door open throughout the cycle.
7.9.3 – LONG IDLE PERIODS
Turn the machine OFF by pressing for three seconds, switch OFF the main switch, then unplug.
Clean the machine thoroughly (see paragraph 8.2) and make sure the door is left open at the end of the operation and
throughout the idle period.
BCB US Rev.02 05-2021 pag. 32
8 – MAINTENANCE
8.1 – SPECIAL PRECAUTIONS
Contact the manufacturer for any anomalies not described in this manual; contact the manufacturer
also for any doubts during the maintenance operations described herein. Maintenance carried out
by unauthorized personnel may damage the appliance and expose the operator to serious hazards.
Maintenance carried out by unauthorized personnel is considered tampering with the appliance and
therefore nulls the warranty and relieves the manufacturer of any responsibility.
Any routine or extraordinary maintenance operation that requires the electric box to be
opened or the machine to be dismantled, even partially, must be carried out only after the
appliance has been switched off the main switch, and unplugged.
Any maintenance operations carried out on a live machine may cause people serious
accidents which may also be fatal.
The safety devices must be deactivated only by authorized personnel, who will guarantee safety for
people and avoid damage to the machine. The safety devices must be carefully activated again after
carrying out maintenance.
During maintenance or repairs unauthorized persons must keep a safe distance from the appliance.
Observe the intervals prescribed or indicated in this manual for making inspections.
At the end of maintenance or repairs the appliance can be started only after the specialist engineer
has made sure that:
- all the work has been fully carried out;
- the safety systems are active;
- the appliance is working perfectly;
- no-one is working on the appliance.
8.2 – ROUTINE MAINTENANCE
8.2.1 – ROUTINE MAINTENANCE TABLE (TAB. 5)
Component
Type of operation
Timing
Responsibility
Method
Chamber
Cleaning
When needed
Appliance operator
See para. 8.2.2
External part
Cleaning
When needed
Appliance operator
See para. 8.2.3
Condenser
Cleaning
Every 30 days
Appliance operator
See para. 8.2.4
Core probe
Cleaning
Every cycle
Appliance operator
See para. 8.2.5
Tab. 5
8.2.2 –CLEANING THE CHAMBER
Carry out this operation whenever necessary.
APPLIANCE STATUS:
- I/O main switch in position “O” (OFF);
- power supply plug disconnected from the mains.
AUTHORIZED PERSONNEL
Appliance operator.
BCB US Rev.02 05-2021 pag. 33
METHOD
Clean very carefully the internal part of the chamber, the door closure surface (ref. 1 fig. 8) and gasket (ref. 2 fig. 8), using
a non-abrasive sponge soaked in neutral detergent. Rinse with a sponge soaked in water and dry with a clean cloth.
Proper cleaning of the inside of the appliance prevents the formation of bad odour which could affect the end product
negatively.
Use exclusively water and non-abrasive neutral detergent for cleaning. The use of different products
could damage the surface of the appliance and compromise the quality and healthiness of the
product being processed.
Do not use abrasive sponges.
When cleaning do not use cloths that leave lint.
Do not use water jets to clean the appliance.

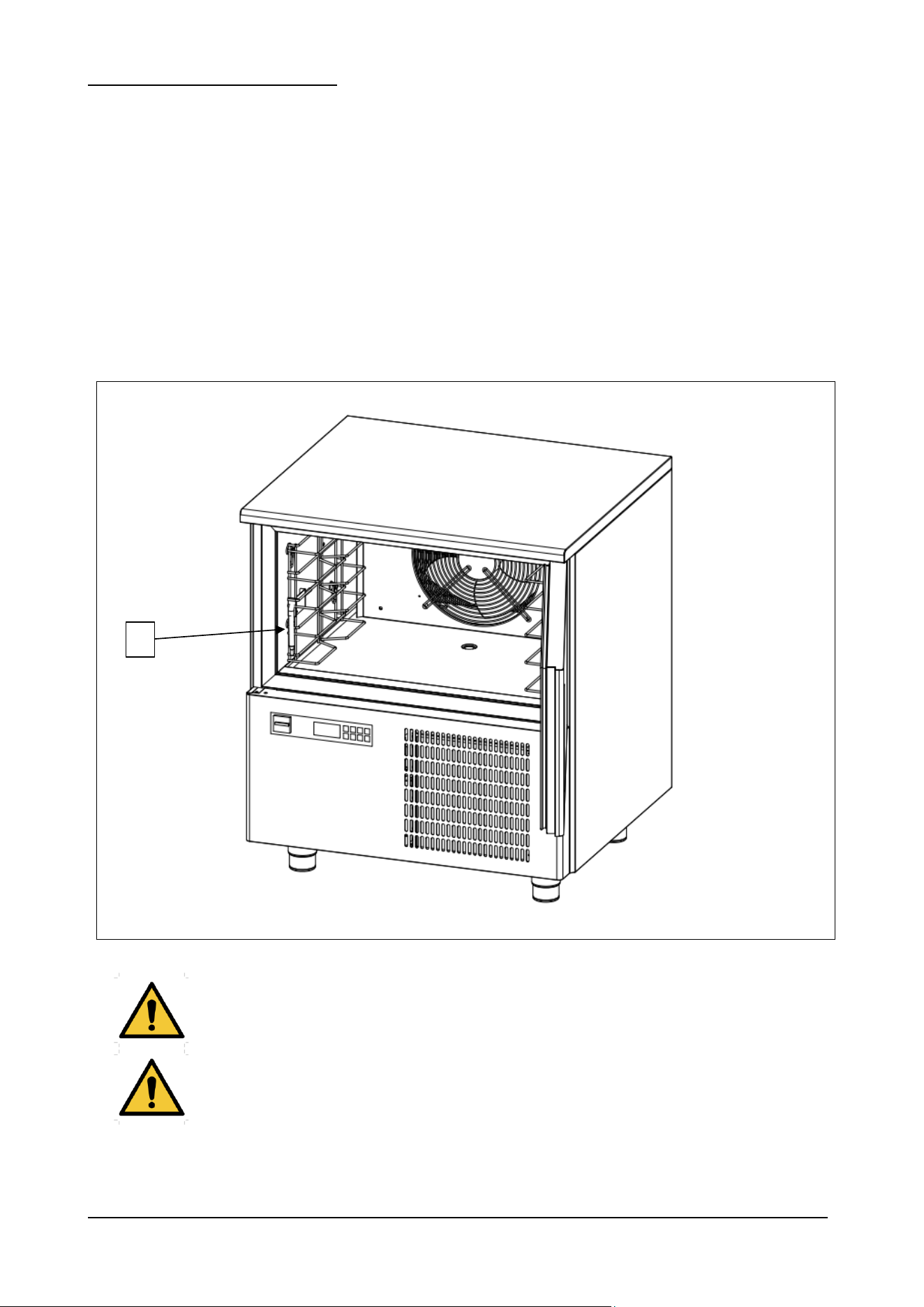

Fig. 8
2
1
BCB US Rev.02 05-2021 pag. 34
8.2.3 – CLEANING THE OUTSIDE OF THE APPLIANCE
Carry out this operation whenever necessary.
APPLIANCE STATUS:
- I/O main switch in position “O” (OFF);
- power supply plug disconnected from the mains.
AUTHORIZED PERSONNEL
Appliance operator.
METHOD
Clean the outer surface of the appliance (steel base and panelling), using a non-abrasive sponge soaked in neutral
detergent. Rinse with a sponge soaked in water and dry with a clean cloth.
Use exclusively water and non-abrasive neutral detergent for cleaning. The use of different products
could damage the surface of the appliance and compromise the quality and healthiness of the
product being processed.
Do not use abrasive sponges.
When cleaning do not use cloths that leave lint.
BCB US Rev.02 05-2021 pag. 35

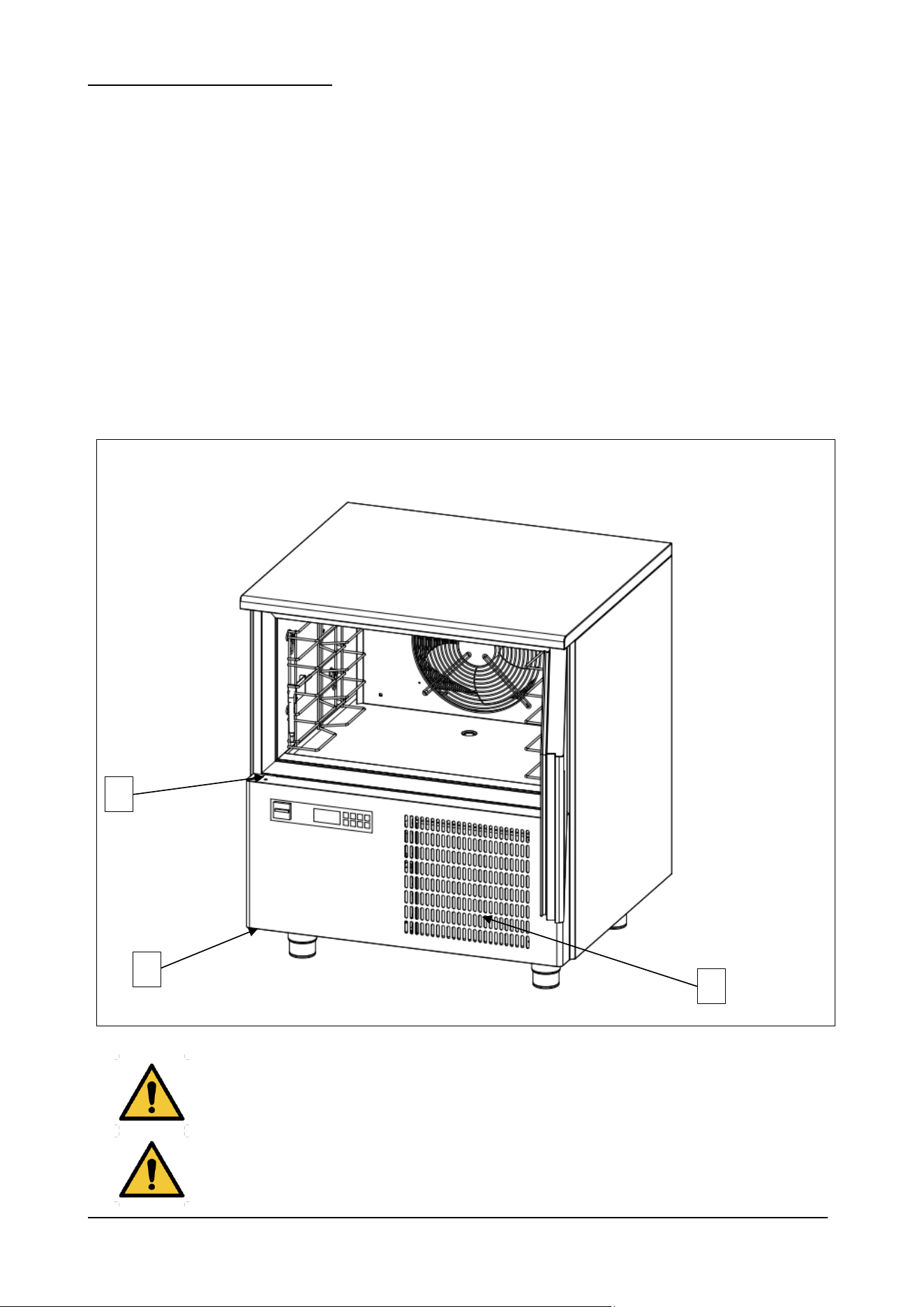

8.2.4 – CLEANING THE CONDENSER
Carry out this operation every 30 days.
APPLIANCE STATUS:
- I/O main switch in position “O” (OFF);
- power supply plug disconnected from the mains.
AUTHORIZED PERSONNEL
Appliance operator.
METHOD
To ensure that the appliance works properly and efficiently, the air condenser (ref. 1 fig. 9) must be kept clean so that the
air can circulate freely. This operation should be carried out every 30 days. Remove the control panel by loosening the
screws (ref. 2 and 3 fig. 9). Clean with a non-metal brush to remove all the dust and fluff from the fins. It is advisable to
use a vacuum cleaner so that dust does not float in the air. If there are greasy deposits, eliminate with a brush soaked in
alcohol. DO NOT SCRAPE THE SURFACES WITH POINTED OR ABRASIVE OBJECTS.
Fig. 9
The condenser has sharp edges. When carrying out the operations mentioned above, wear safety
gloves, goggles and face masks.
Do not use direct water jets to clean the appliance.
2
3
1
BCB US Rev.02 05-2021 pag. 36
8.2.5 – CLEANING THE CORE PROBE
Carry out this operation at every cycle.
APPLIANCE STATUS:
- I/O main switch in position “O” (OFF);
AUTHORIZED PERSONNEL
Appliance operator.
METHOD

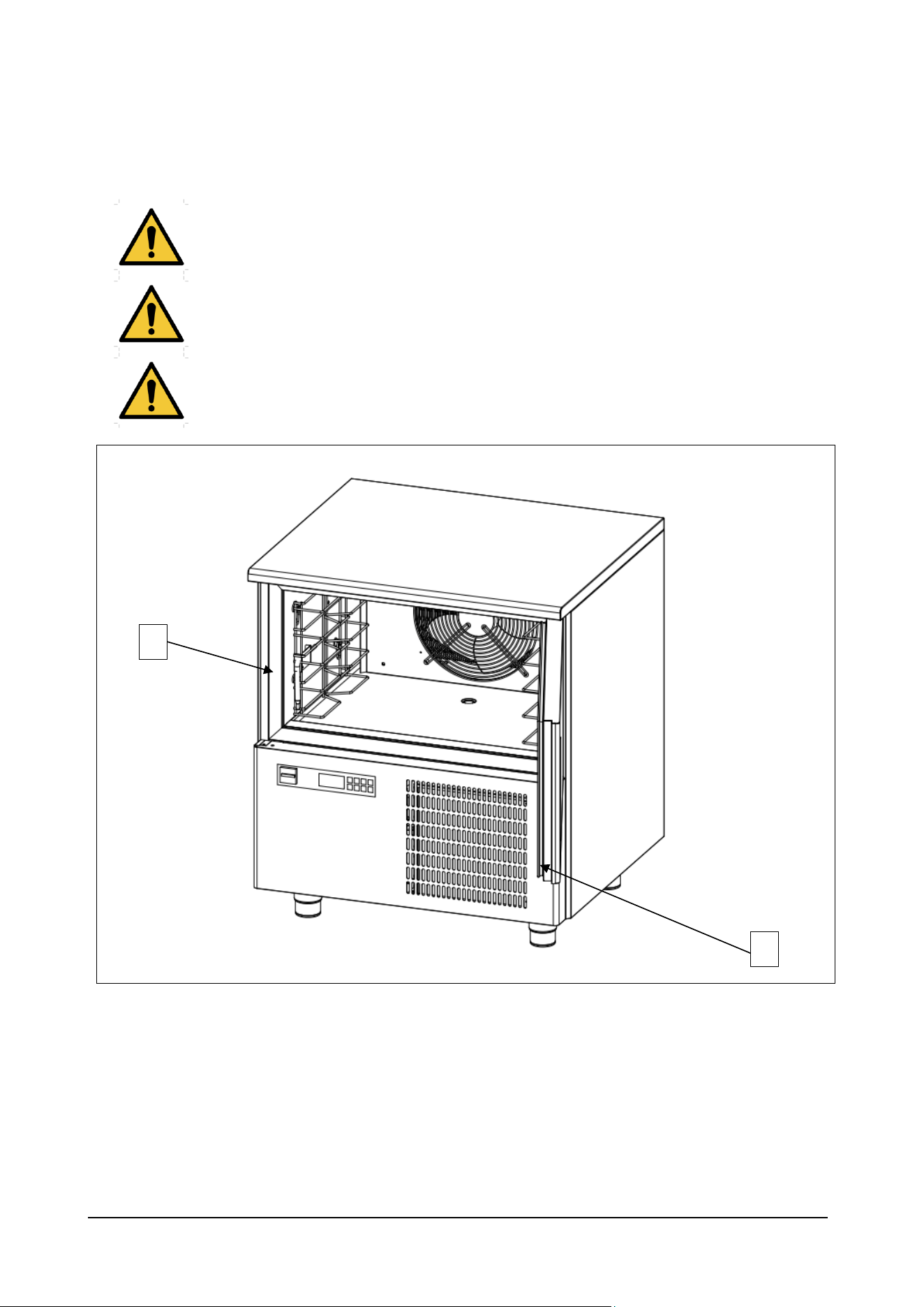

The core probe (ref. 1 fig. 10) must always be cleaned before a new cycle so as to avoid polluting the product in any way.
Remove all residue by means of a sponge soaked in neutral detergent. Rinse with lots of water and apply a sterilising
product.
Fig. 10
Do not pull the probe wire; you may damage it.
The probe has a very pointed end. During cleaning always wear safety gloves and take the utmost
care.
1
BCB US Rev.02 05-2021 pag. 37
8.3 – EXTRAORDINARY MAINTENANCE
If the appliance needs extraordinary maintenance, or if operating anomalies occur that are not described in this manual,
contact the manufacturer.
8.4 – OPERATING ANOMALIES AND FAULTS
It is important to remember that whatever machine status is, pressing the button for 3 seconds turns it OFF and
switching OFF the main switch.
When any operating anomaly occurs the buzzer sounds intermittently and red wording appears on the display. Whatever
the reason for the buzzer, it can be silenced by pressing any button.
8.4.1– ALARMS
Possible alarm warnings on the display are as follows:
- “ tiME ” alarm temperature chilling or temperature freezing are not reached within the maximum duration
(HACCP). This alarm doesn’t have any effect, it will be just memorized..
- “ AL ” alarm minimum temperature. During any kind of cycle, this alarm doesn’t have any effect.
- “ AH ” alarm maximum temperature. During any kind of cycle, this alarm doesn’t have any effect.
- “ HP ” high pressure switch alarm. On STANDBY it has no effect. During any other work stage it causes the
cycle to stop and go onto STANDBY. Eliminate the cause of the alarm then turn off the machine by pressing
for 3 seconds, then press (START) to re-start. This alarm can be caused by high ambient
temperature (above that admitted; see para. 3.4) or a dirty condenser (which must be cleaned as described in
para. 8.2.4).
- “ id ” door open alarm. This alarm doesn’t have any effect and it will finish by closing the door.
8.4.2– ERRORS
Errors recognized by the electronic controller are:
- “ Pr 1 ” chamber probe error. On STANDBY impedes cycle start. On Chilling or Freezing causes the cycle to
stop and the machine to go onto STANDBY. During the Holding period the cycle is not interrupted and the
compressor works cyclically to ensure maintenance of the chamber temperature. Check probe connection and
replace if necessary.
- “ Pr 2 ” core probe error. On STANDBY impedes the start of a temperature controlled cycle. On temperature
controlled Chilling or Freezing causes the machine to go to a time controlled cycle. During the Holding period it
has no effect. Check probe connection and replace if necessary.
- “ Pr 3 ” evaporator probe error. On STANDBY, Chilling or Freezing and during Holding it has no effect. If
defrost is taking place it will end by time-out.
BCB US Rev.02 05-2021 pag. 38
9 – DISMANTLING
Contact the manufacturer to dismantle the appliance in any way.
10 – DISPOSAL
10.1 – DISPOSAL METHOD
APPLIANCE STATUS
- electronic circuit board in position “O” (OFF);
- I/O main switch in position “O” (OFF);
- power supply plug disconnected from the mains.
METHOD
The appliance is made of ferrous materials, electronic components and plastics. If it needs to be disposed of, separate
the various components according to the material of which they are made, to simplify separate waste collection or re-use
of the parts. The appliance must be disposed of separately from urban waste.
No special instructions apply to the dismantled appliance. Dispose of it through the special operators or return to the
dealer, if the law provides for this (also see “Information to users regarding waste disposal in the European Union” below).
For disposal consult the laws applicable in the country where the appliance is used (also see “Information to users regarding
waste disposal in the European Union” below).
TAKE CARE: THE APPLIANCE CONTAINS REFRIGERANT GAS THAT MUST BE
CONTROLLED AND RECOVERED ACCORDING TO THE REGULATIONS OF THE COUNTRY
IN WHICH DISPOSAL WILL TAKE PLACE.
Consult the fitter for any dismantling requirements.

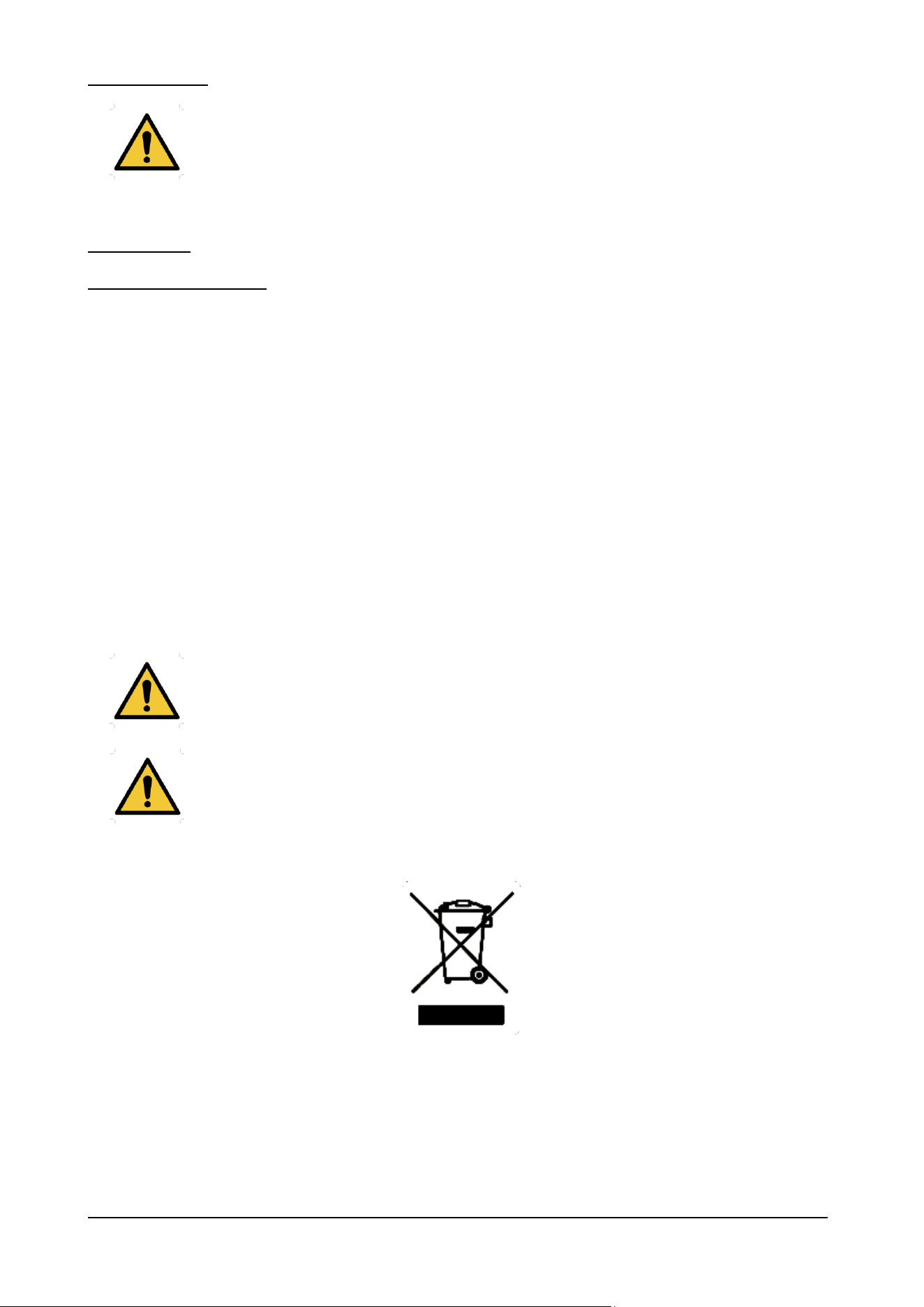

INFORMATION TO USERS REGARDING WASTE DISPOSAL IN THE EUROPEAN UNION
The symbol of a crossed waste bin on the appliance indicates that at the end of its working life the product must be collected
separately from other waste.
Therefore, at the end of the product’s working life the user must take it to a suitable centre for the collection of electronic
and electrical waste, or return it to a dealer when purchasing a new appliance of the same type.
Suitable separate waste collection of unwanted appliances and their forwarding to treatment, recovery and
environmentally friendly disposal makes it possible to avoid potential negative effects on the environment and human
health, and assists recycling and recovery of materials.
BCB US Rev.02 05-2021 pag. 39
Unauthorized disposal of the product by the user is punished by the application of fines established by the countries in
which the appliance is disposed of.
11 – SPARE PARTS
11.1 – ORDERING SPARE PARTS
Contact the manufacturer or authorized dealer to order spare parts.
12 – APPENDICES
The appliance comes with the following appendices:
- Declaration of conformity

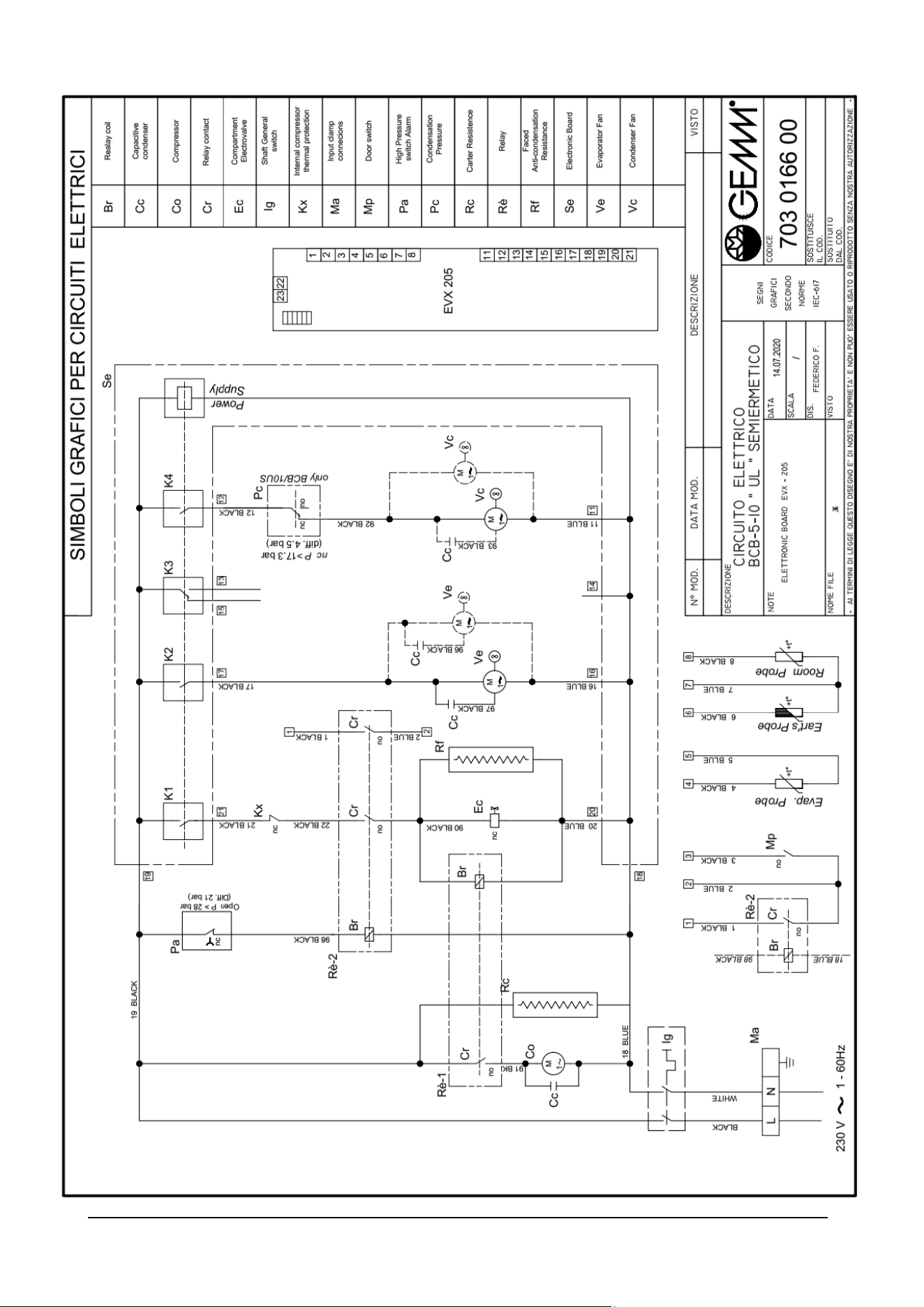

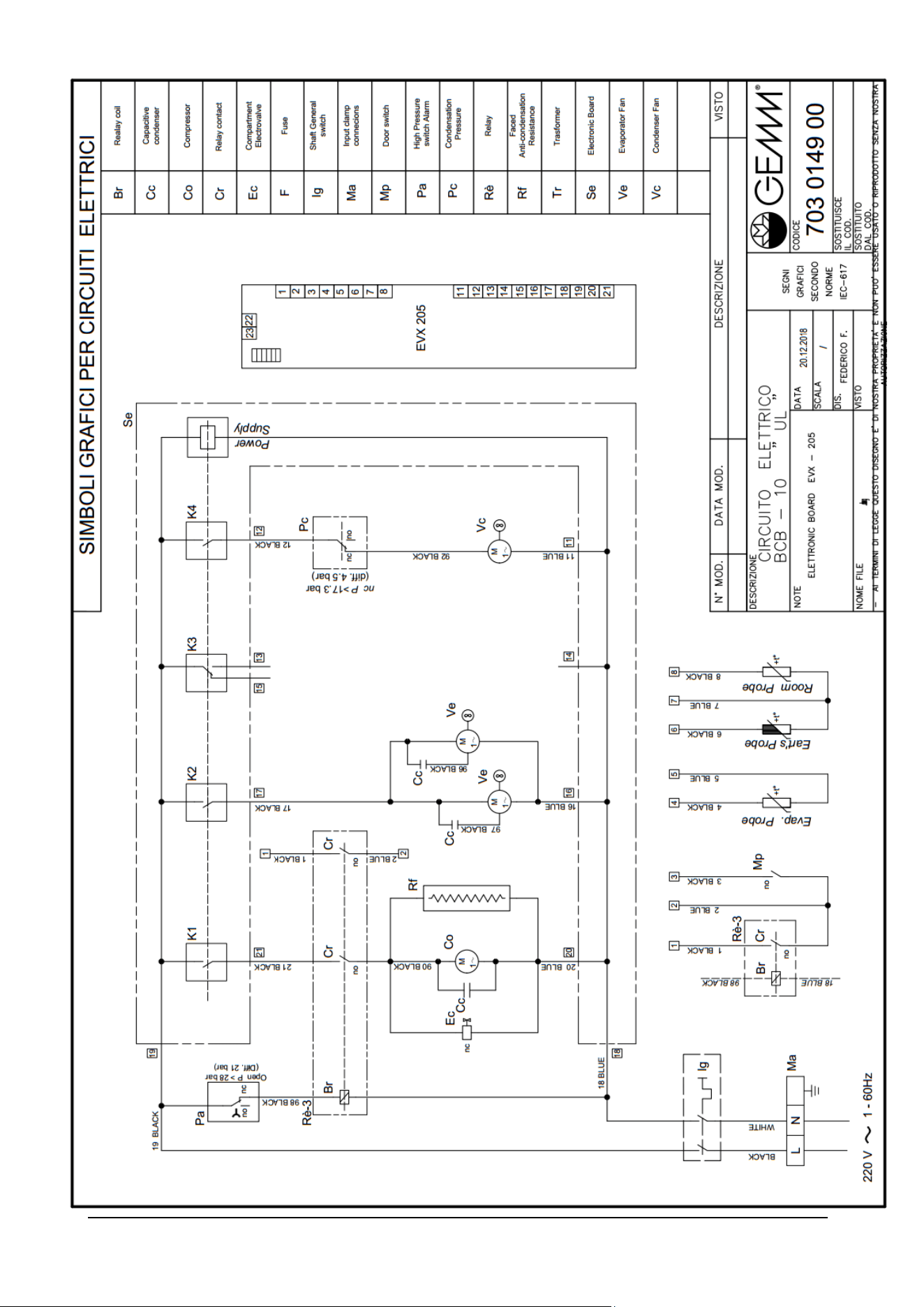

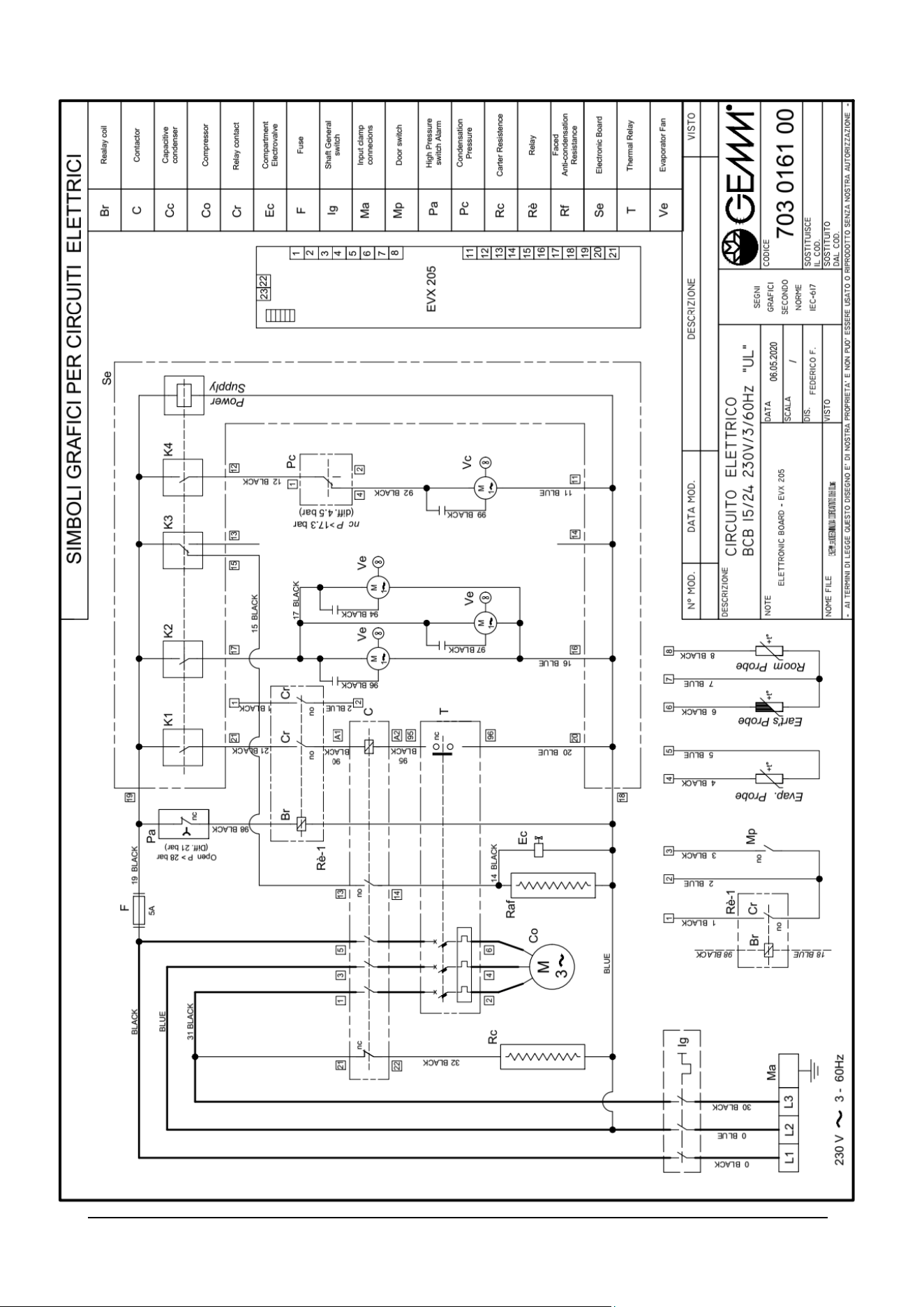

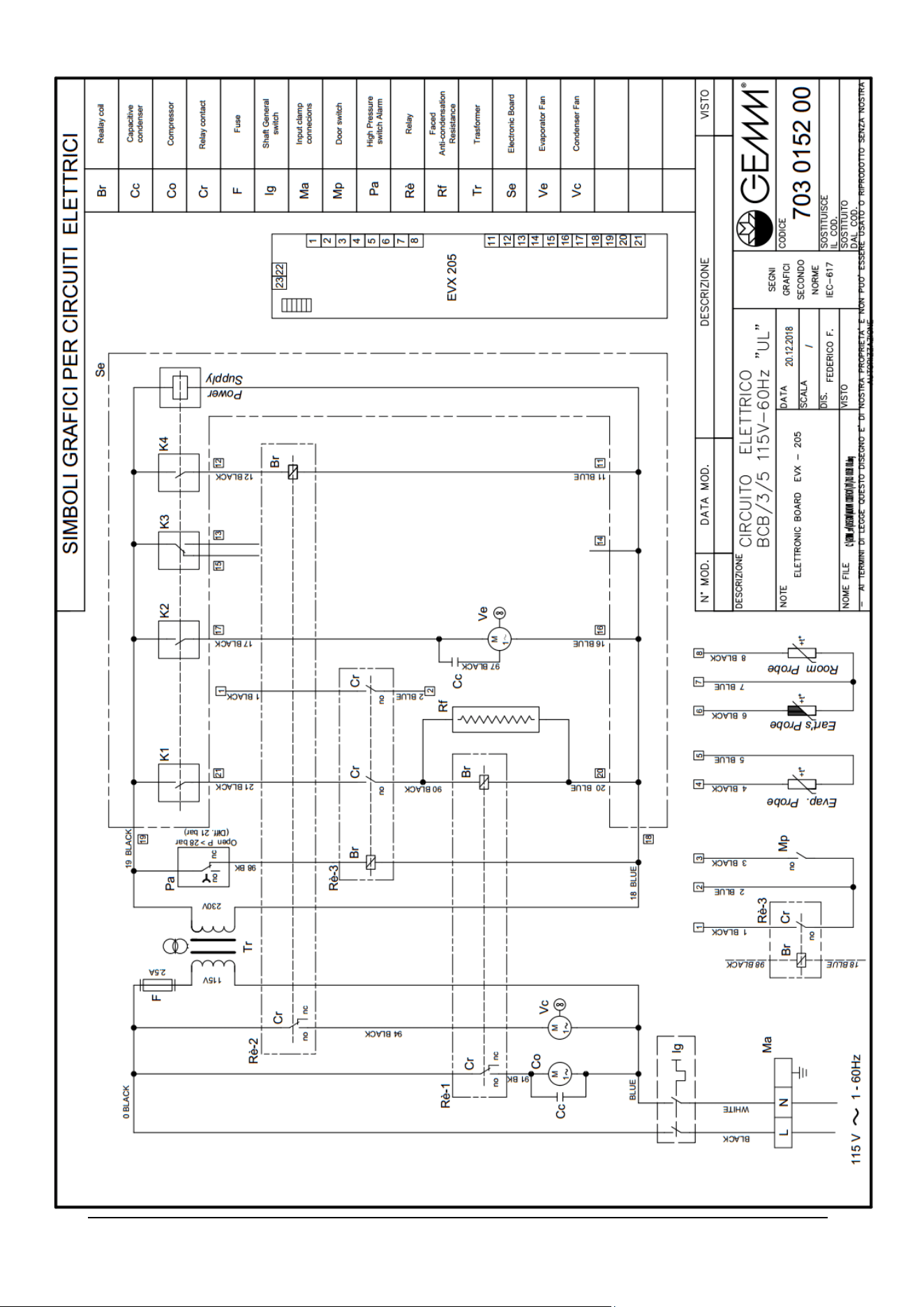

- Electrical diagram
- Electrical approval report
- Assessment of vacuum, leakage and gas loading for cooling unit.
BCB US Rev.02 05-2021 pag. 40
BCB US Rev.02 05-2021 pag. 41
BCB US Rev.02 05-2021 pag. 42
BCB US Rev.02 05-2021 pag. 43
BCB US Rev.02 05-2021 pag. 44
NOTE
BCB US Rev.02 05-2021 pag. 45
GEMM srl
Via del Lavoro, 37 - Loc. Cimavilla - 31013 CODOGNE' (TV) - ITALY
T. +39 0438 778504 – F. +39 0438 470249
e-mail: [email protected] - www.gemm-srl.com
Iscr.Reg.Impr. TV - CF e P.IVA 03441880261 - REA TV 272556
Registro Prod. AEE-TV n IT08020000001108
