Aluminum case for Raspberry Pi
3 Model B/B+
2 Model B
1 Model B+
PI01

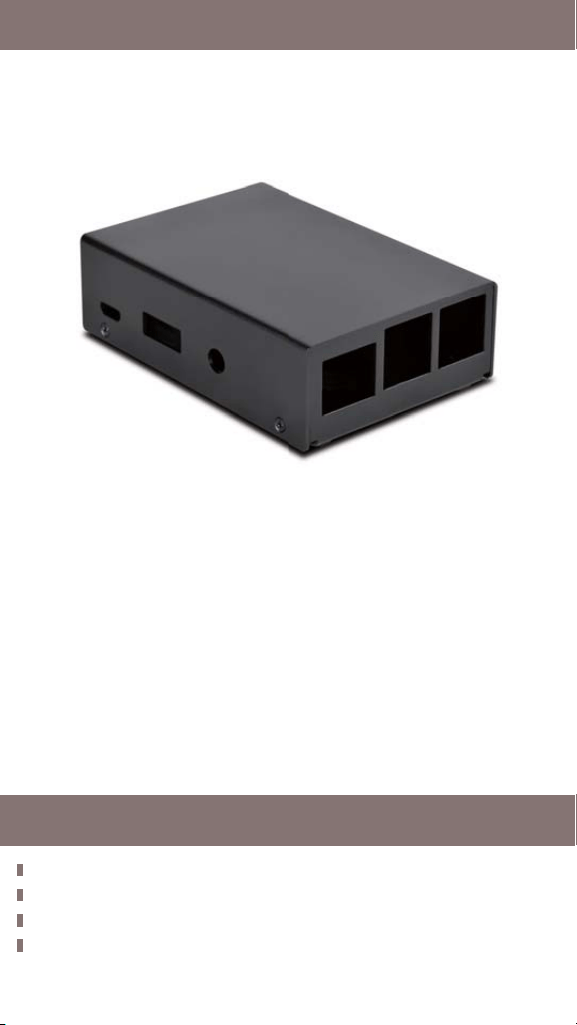

To fulfill the needs of Raspberry Pi users, SilverStone
created PI01, an aluminum case compatible with Raspberry Pi
3B+/3B/2B/1B+ version. It’s easy to install and includes two
heatsinks and thermal pads to help conduct heat from CPU to
aluminum casing.
Wall mount capable
Aluminum casing designed for additional heat dissipation
Two heatsinks and thermal pads included
Compatible with Raspberry Pi 3B+/3B/2B/1B+ version
SPECIAL FEATURES
INTRODUCTION
SPECIFICATIONS
SST-PI01B
Black
Aluminum
Raspberry Pi 3B+/3B/2B/1B+ version
55 g
90 mm (W) x 28 mm (H) x 62 mm (D)
Heatsink
Aluminum
Heatsink 1
Heatsink 2
: 9 mm (W) x 15.2 mm (H) x 9 mm (D), 2.6 g
: 14 mm (W) x 15.2 mm (H) x 14 mm (D), 6.5 g
Model No.
Color
Material
Support Raspberry Pi Version
Net weight
Dimension
Material
Net Weight and dimension
Thermal Pad
1.5W/m.k
-40 °C ~ 200 °C
Thermal conductivity
Operating temperature
0.5 / 1.25mm
Blue
Gray
Gray
Pad
Pad 1
Pad 2
: 14 mm (W) x 0.5 mm (H) x 14 mm (D), 0.25 g
: 14 mm (W) x 1.25 mm (H) x 14 mm (D), 0.4 g
: 9 mm (W) x 1.25 mm (H) x 9 mm (D), 0.2 g
Thermal pad thickness
Net Weight and dimension

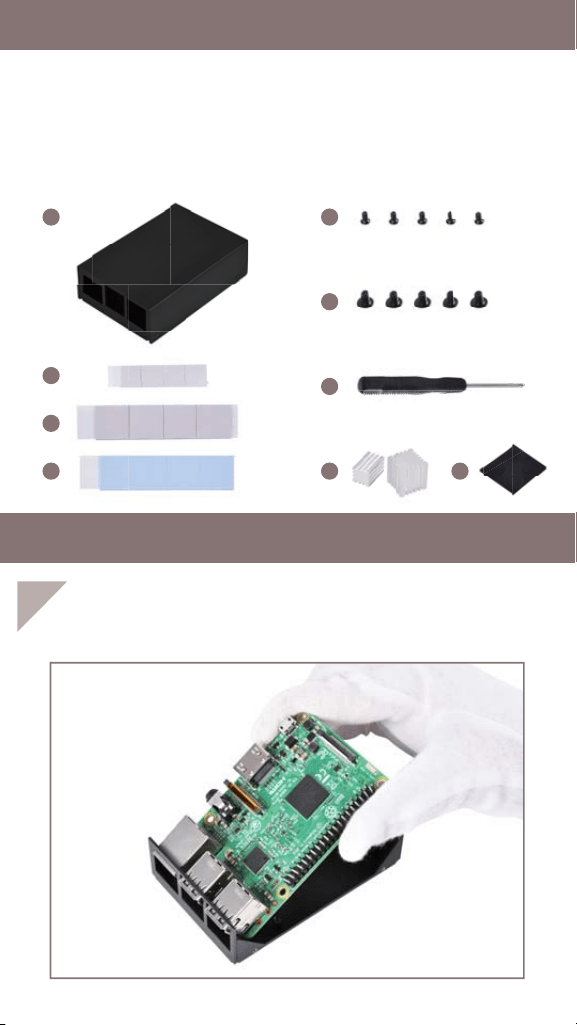

1. PI01 case x 1 pcs
2. PCB screw x 5 pieces
3. Case screw x 5 pieces
4. Screwdriver x 1 pcs
5. Heatsink x 2 pieces
6. Gray thermal pad 1 x 4 pieces
7. Gray thermal pad 2 x 4 pieces
8. Blue thermal pad x 4 pieces
9. Foot pad x 4 pieces
INSTALLATION GUIDE
PACKAGE CONTENT
Place Raspberry Pi PCB on bottom half of PI01 case
1
1
6
7
8 5 9
4
2
3
Adhere corresponding thermal pads on top and bottom of
heatsinks
3

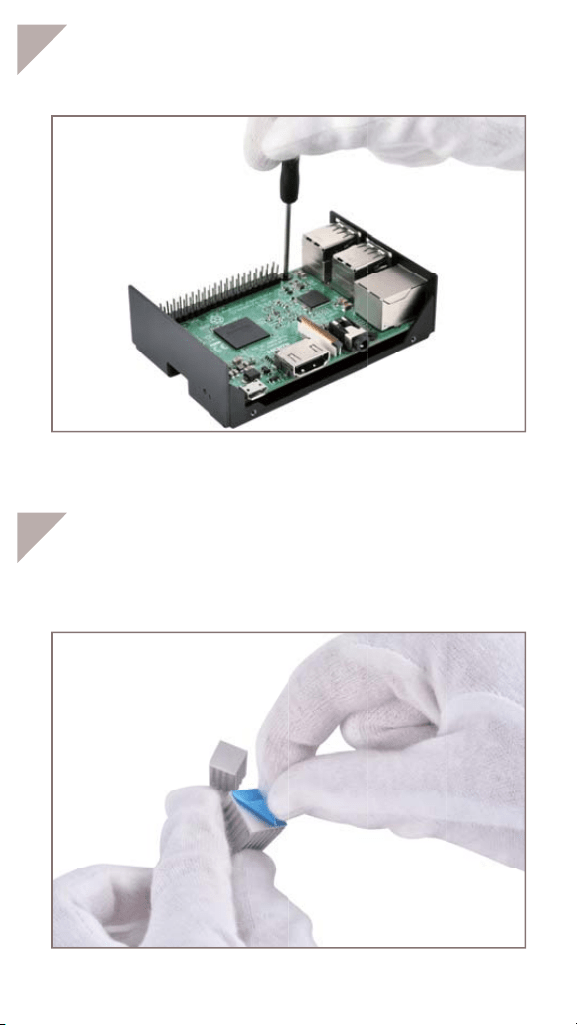

Secure with PCB screws
2

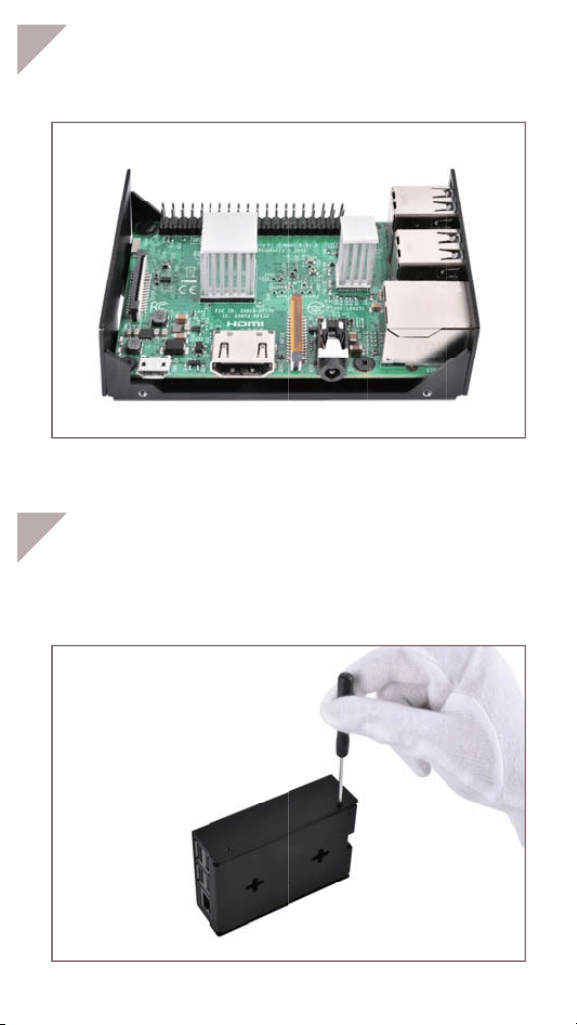

Place and align aluminum case cover over the bottom half
and secure with screws
5
Place heatsinks on Raspberry Pi’s CPU and IC
4

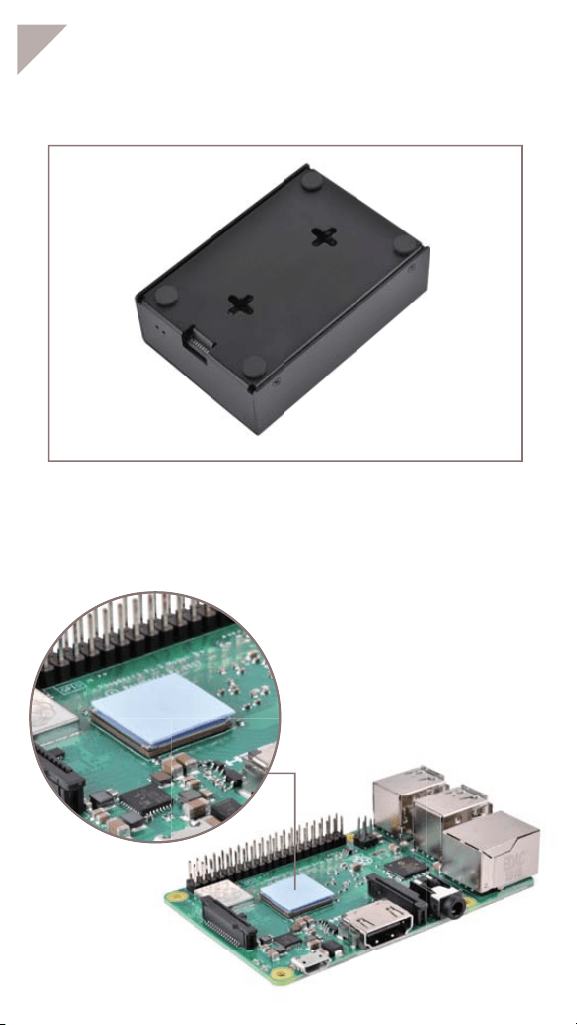

*Note: If using Raspberry Pi 3 B+, please use the blue thermal
pad on CPU heatsink,
Adhere foot pads to complete installation
6
