1
About This Guide
This guide is a complement to Quick Installation Guide. The Quick Installation Guide
provides instructions for quick internet setup, while this guide contains details of each
function and demonstrates how to configure them.
Features available in the router may vary by model and software version. Router
availability may also vary by region or ISP. All images, steps, and descriptions in this
guide are only examples and may not reflect your actual Router experience.
Conventions
In this guide the following conventions are used:
Convention Description
Underlined
Underlined words or phrases are hyperlinks. You can click to redirect to a website or a
specific section.
Teal
Contents to be emphasized and texts on the web page are in teal, including the menus,
items, buttons and so on.
>
The menu structures to show the path to load the corresponding page. For example,
Advanced > Wireless > MAC Filtering means the MAC Filtering function page is under the
Wireless menu that is located in the Advanced tab.
Note:
Ignoring this type of note might result in a malfunction or damage to the device.
Tips:
Indicates important information that helps you make better use of your device.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard
802.11 specifications. Actual wireless data throughput and wireless coverage are
not guaranteed and will vary as a result of 1) environmental factors, including building
materials, physical objects, and obstacles, 2) network conditions, including local
interference, volume and density of traffic, product location, network complexity, and
network overhead, and 3) client limitations, including rated performance, location,
connection, quality, and client condition.
More Info
The latest software, management app and utility can be found at Download Center at
https://www.tp-link.com/support/download/.
The Quick Installation Guide can be found where you find this guide or inside the
package of the router.
Specifications can be found on the product page at https://www.tp-link.com.
TP-Link Community is provided for you to discuss our products and share knowledge at
https://community.tp-link.com.
Our Technical Support contact information can be found at the Contact Technical
Support page at https://www.tp-link.com/support/.
3
Chapter 1
Get to Know About Your Router
1 1 Product Overview
The TP-Link router is designed to fully meet the need of Small Office/Home Office
(SOHO) networks and users demanding higher networking performance. The powerful
antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread
coverage throughout your home, and the built-in Ethernet ports supply high-speed
connection to your wired devices.
Moreover, it is simple and convenient to set up and use the TP-Link router due to its
intuitive web interface and the powerful Tether app.
1 2 Panel Layout
1 2 1 Top View

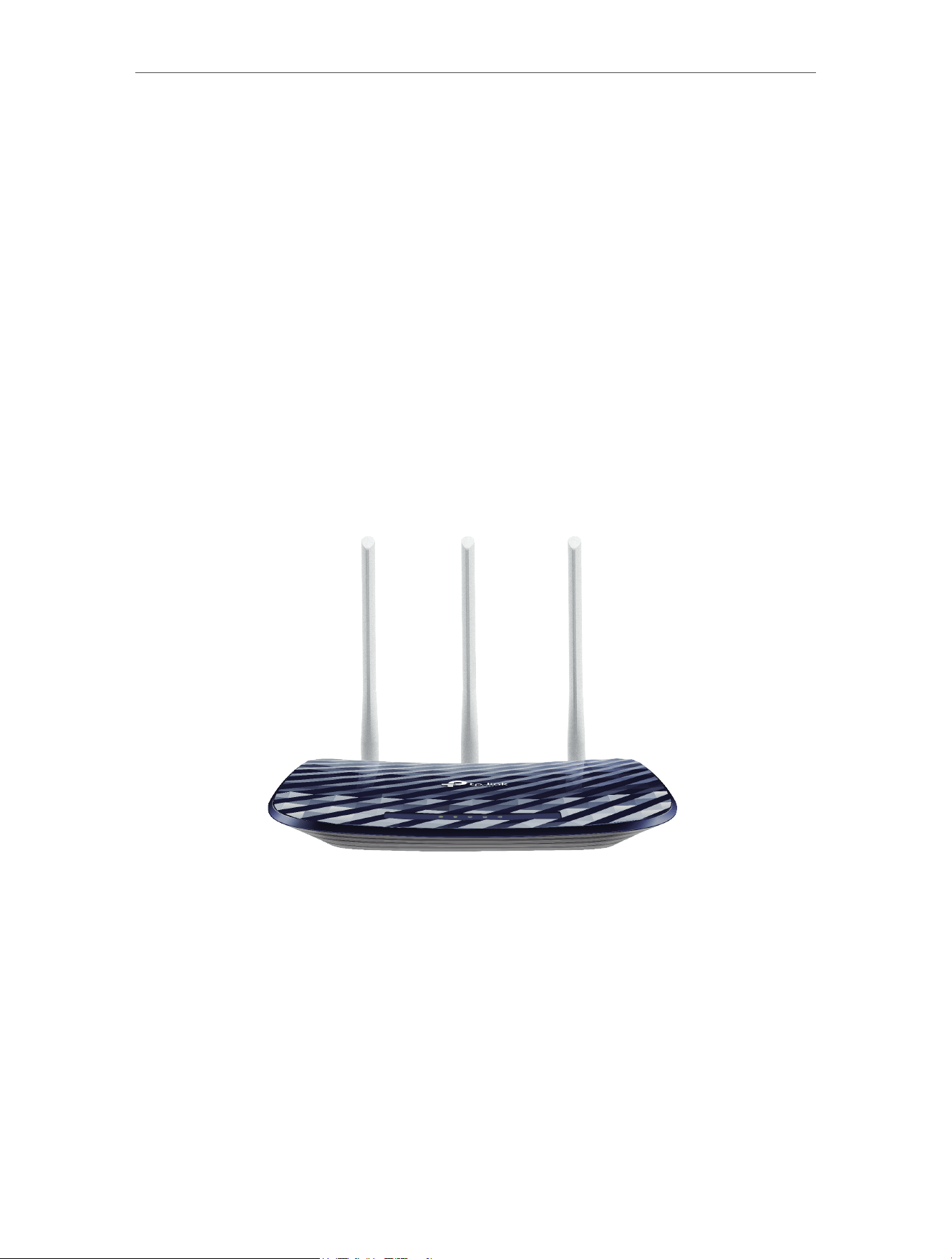

The router’s LEDs (view from left to right) are located on the front panel. You can check
the router’s working status by following the LED Explanation table.
4
Chapter 1
Get to Know About Your Router
LED Explanation
Name Status Indication
(Power)
On The system has started up successfully.
Slow Flashing
The system is starting up or firmware is being upgraded. Do not
disconnect or power off your router.
Quick Flashing WPS connection is in progress (about 2 minutes).
Off Power is off.
(2.4GHz Wireless)
On The 2.4GHz wireless band is enabled.
Off The 2.4GHz wireless band is disabled.
(5GHz Wireless)
On The 5GHz wireless band is enabled.
Off The 5GHz wireless band is disabled.
(Ethernet)
On At least one Ethernet port is connected to a powered-on device.
Off No Ethernet port is connected to a powered-on device.
(Internet)
Green On Internet service is available.
Orange On The router’s Internet port is connected, but the internet is not available.
Off The router’s Internet port is not connected.

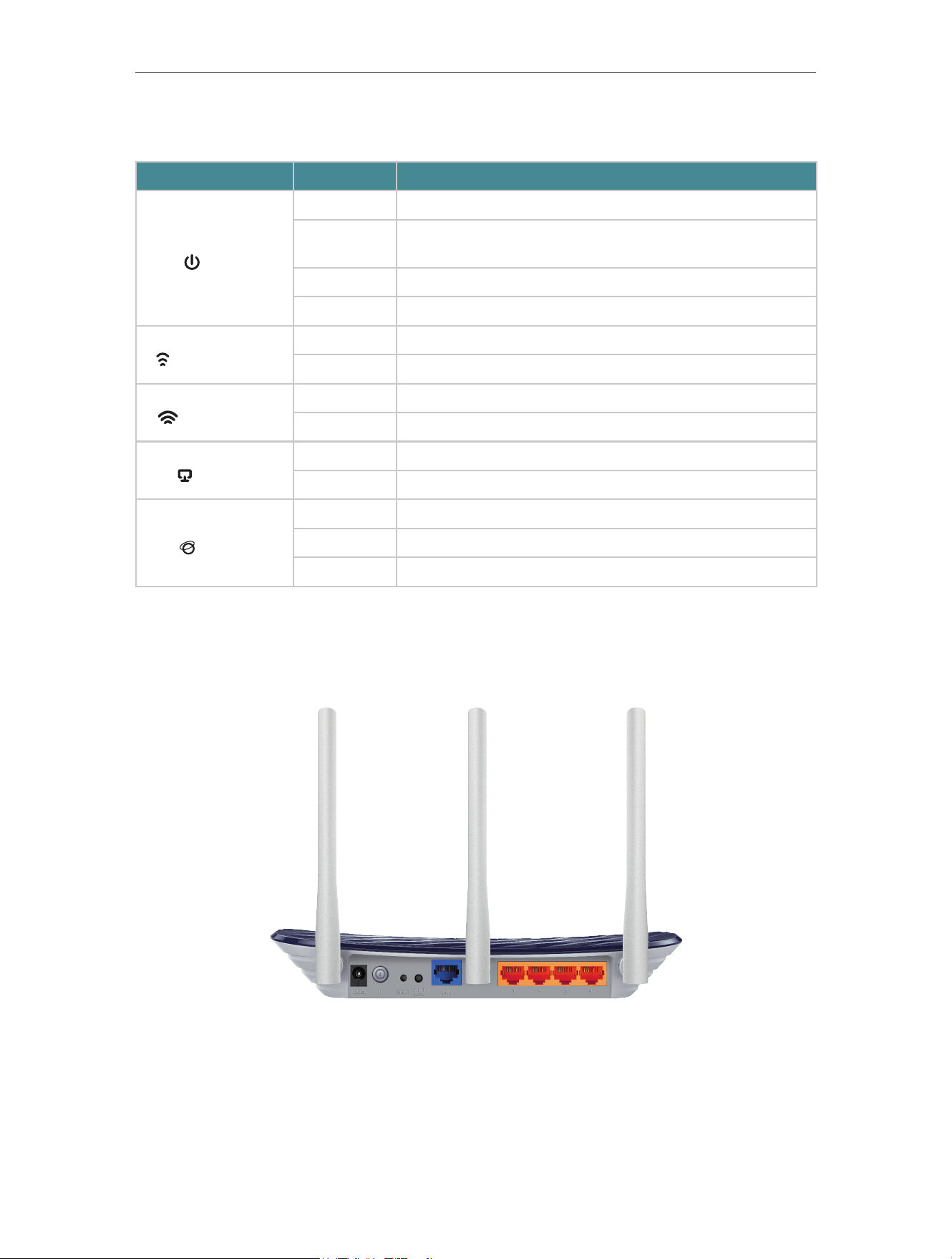

1 2 2 The Back Panel
The following parts (view from left to right) are located on the rear panel.
5
Chapter 1
Get to Know About Your Router
Item Description
Wi-Fi/WPS Button
Press this button for 1 second, and immediately press the WPS button on your device.
The Power LED of the router should change from flashing to solid on, indicating
successful WPS connection.
Press and hold this button for about 5 seconds to turn on or off the wireless function
of your router.
Reset Button
Press and hold this button until all LEDs turn off to reset the router to its factory
default settings.
WAN Port For connecting to a DSL/Cable modem, or an Ethernet port.
LAN Ports (1/2/3/4) For connecting your PCs or other wired network devices to the router.
Power On/Off Button
Press this button to power on or off the router.
Power Port For connecting the router to a power socket via the provided power adapter.
Antennas
Used for wireless operation and data transmitting. Upright them for the best Wi-Fi
performance.
7
Chapter 2 Connect to the Internet
2 1 Position Your Router
• The product should not be located in a place where it will be exposed to moisture or
excessive heat.
• Place the router in a location where it can be connected to multiple devices as well as
to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do not
create a tripping hazard.
• The router can be placed on a shelf or desktop.
• Keep the router away from strong devices with strong electromagnetic interference,
such as Bluetooth devices, cordless phones and microwaves.
Note:

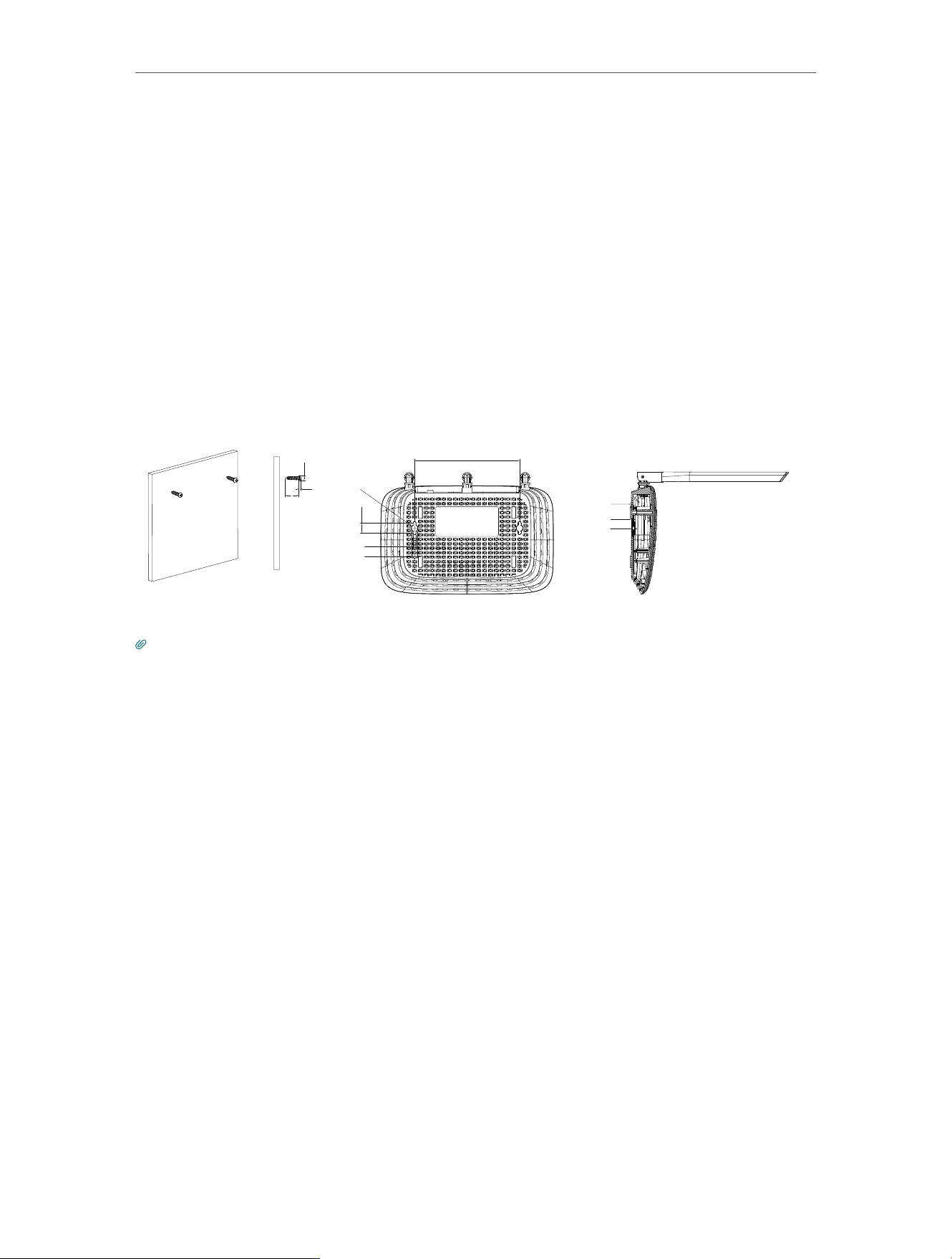

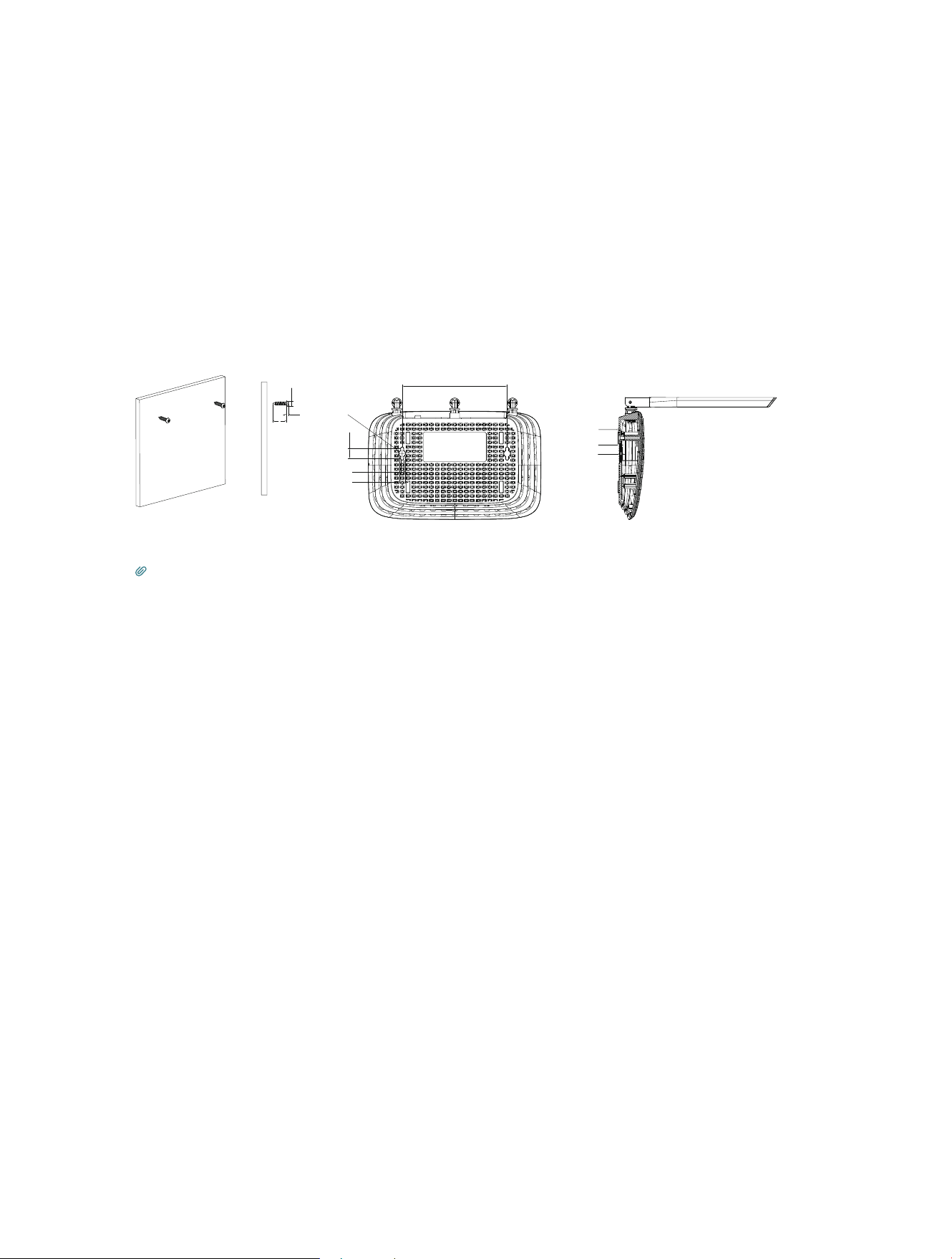

The diameter of the screw head, 4.4mm < D < 7.3mm, and the distance of two screws is 139.6mm. The screw that project
from the wall need around 5mm based, and the length of the screw need to be at least 8.7mm to withstand the weight
of the product.
2 2 Connect Your Router
This mode enables multiple users to share internet connection via ADSL/Cable Modem.
1. Follow the steps below to connect your router.
If your internet connection is through an Ethernet cable directly from the wall instead
of through a DSL / Cable / Satellite modem, connect the Ethernet cable to the router’s
Internet port, and then follow Step 4 and 5 to complete the hardware connection.
ΦD
H
NOTE
：
4.4
＜
D
＜
7.3mm
H
＜2.
3mm
L
＞
8.7mm
L
139.6
13.6
3.9
7.8
∅
8.6
1.5
1.2
2.3
8

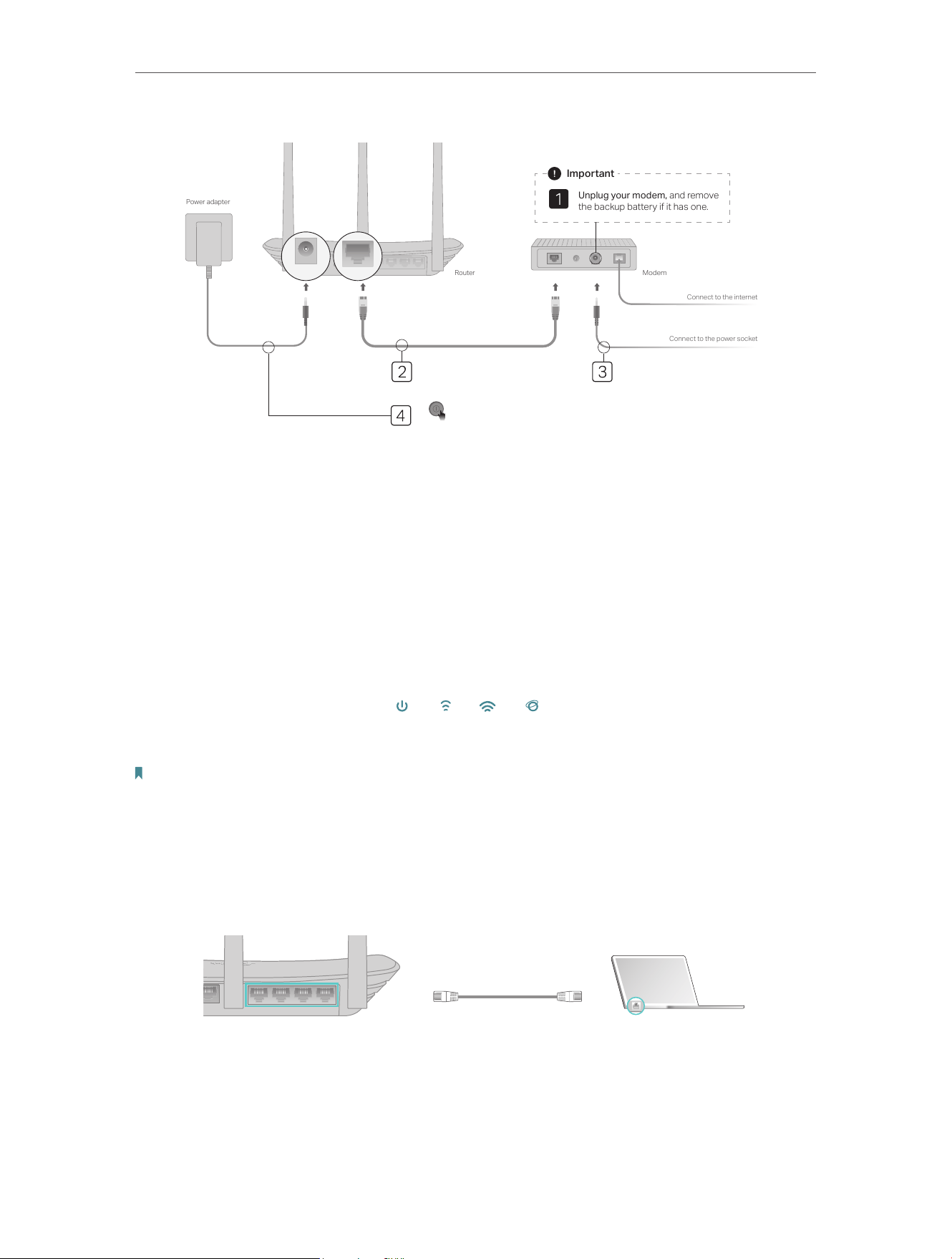

Chapter 2 Connect to the Internet
Unplug your modem, and remove
the backup battery if it has one.
Modem
Router
Power adapter
Connect to the power socket
Connect to the internet
Important
Power On/Off
WAN
POWER
RESET
Wi-Fi
/WPS
POWER
WAN
1 ) Unplug your modem, and remove the backup battery if it has one.
2 ) Connect the powered-off modem to the router’s WAN port with an Ethernet
cable.
3 ) Power on the modem and then wait about 2 minutes for it to restart.
4 ) Connect the power adapter to the router and turn it on.
5 ) Verify that the hardware connection is correct by checking these LEDs.
Power
On
5G
On
On
Internet
2.4G
On
Note:
If the 2.4GHz and 5GHz Wi-Fi LEDs are off, press and hold the Wi-Fi/WPS button on the rear panel for about 5 seconds,
then release the button. Both LEDs will turn on.
2. Connect your computer to the router.
• Method 1: Wired
Turn off the Wi-Fi on your computer and connect it to the router via an Ethernet cable.
Ethernet cable
• Method 2: Wirelessly
1 ) Find the SSID (Network Name) and Wireless Password printed on the label at
the bottom of the router.
9
Chapter 2 Connect to the Internet

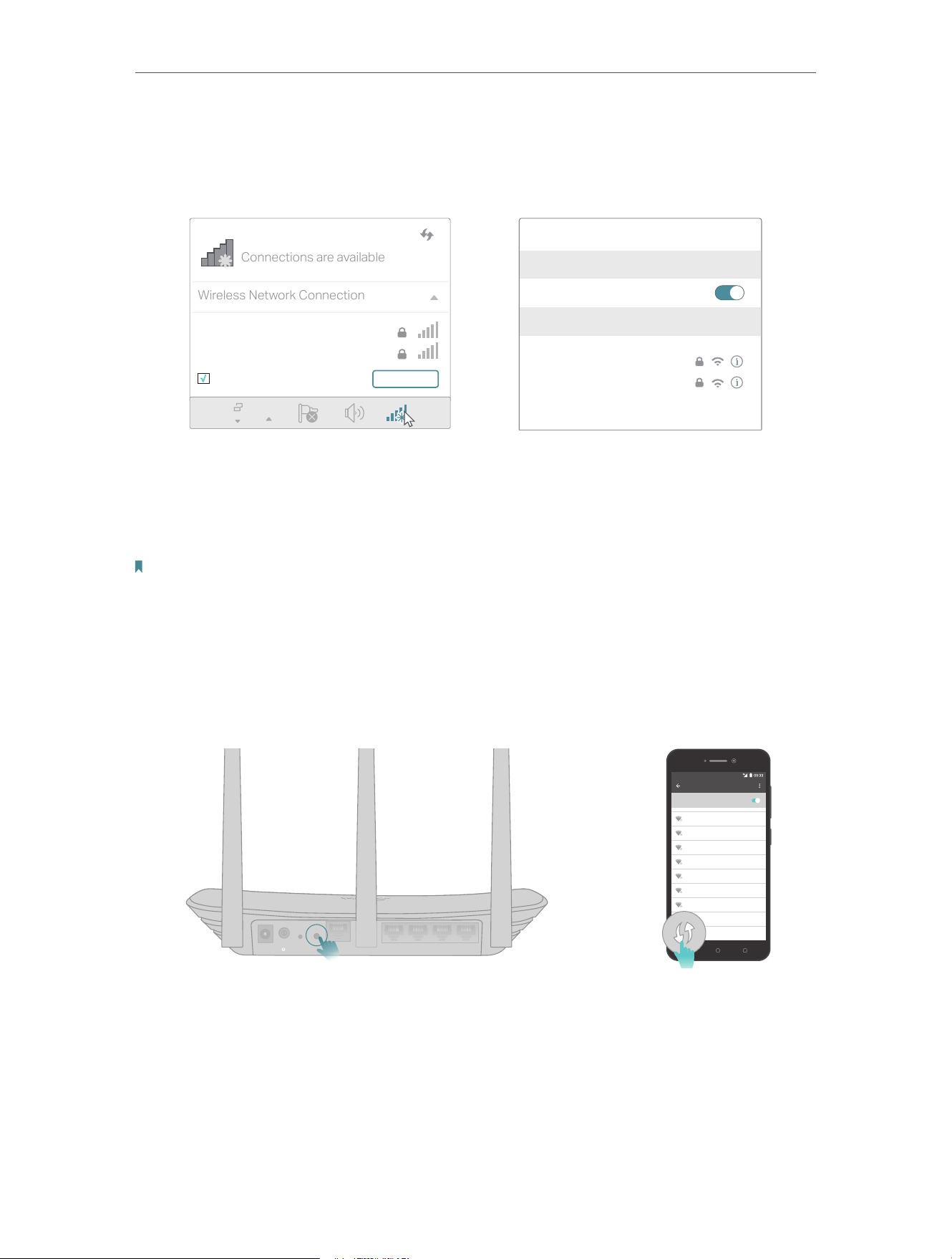

2 ) Click the network icon of your computer or go to Wi-Fi Settings of your smart
device, and then select the SSID to join the network.
OR
Connections are available
Wireless Network Connection
Connect automatically Connect
TP-Link_XXXX
TP-Link_XXXX_5G
Wi-Fi
Wi-Fi
TP-Link_XXXX
TP-Link_XXXX_5G
CHOOSE A NETWORK...
Other...
< Settings
Computer Smart Device
Smart DeviceComputer
• Method 3: Use the WPS button
Wireless devices that support WPS, including Android phones, tablets and most USB
network cards, can be connected to your router through this method ( not supported
by iOS devices).
Note:
The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be
disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the
appropriate encryption before configuring the WPS.
1 ) Tap the WPS icon on the device’s screen. Here we take an Android phone as an
example.
2 ) Immediately press the WPS button on your router.
WLAN
On
TP-LINK
YSL
David
Hotdog
Ts_5G
Sunny
Test
WAN
POWER
RESET
Wi-Fi
/WPS
Close to
Chapter 3
Log In to the Router
This chapter introduces how to log in to the Web-based Utility of the router.
11
Chapter 3
Log In to the Router
With the Web-based Utility, it is easy to configure and manage the router. The Web-
based Utility can be used on any Windows, Macintosh or UNIX OS with a web browser,
such as Microsoft the Internet Explorer, Mozilla Firefox or Apple Safari.
Follow the steps below to log in to your router.

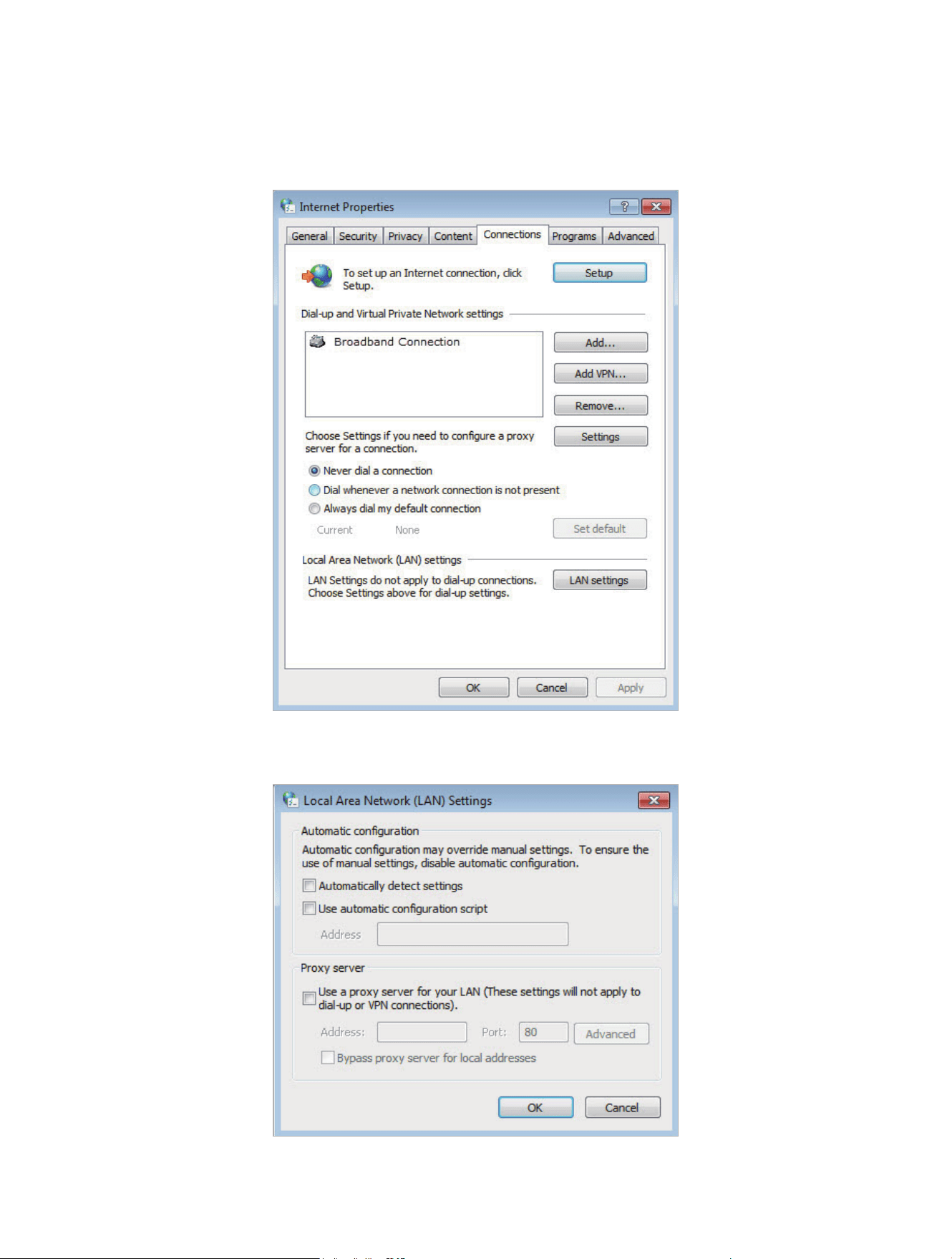

1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your
computer.

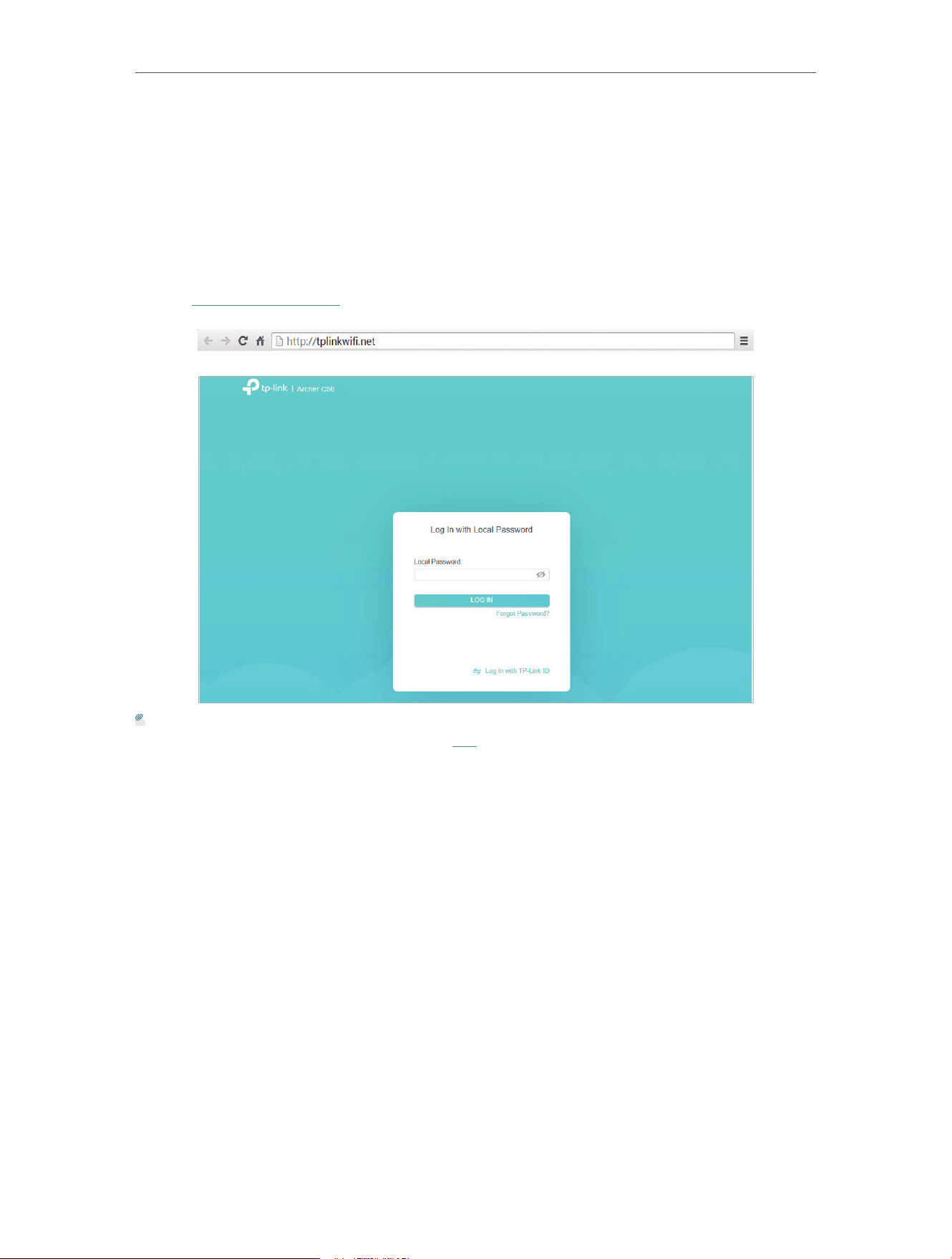

2. Visit http://tplinkwifi.net, and log in with the password you set for the router. .
Note:
If the login window does not appear, please refer to the FAQ section.
Chapter 4
Configure the Router in
Wireless Router Mode
This chapter presents how to configure the various features of the router working as a
wireless router.
It contains the following sections:
• Network Map
• Operation Mode
• Network Map
• TP-Link Cloud Service
• EasyMesh with Seamless Roaming
• Wireless Settings
• NAT Forwarding
• Parental Controls
• QoS
• Network Security
• IPv6
• Smart Life Assistant
• Manage the Router
13
Chapter 4
Configure the Router in Wireless Router Mode
4 1 Network Map
Network Map outlines device connectivity of your network visually and helps you
manage general settings of the network.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Network Map.

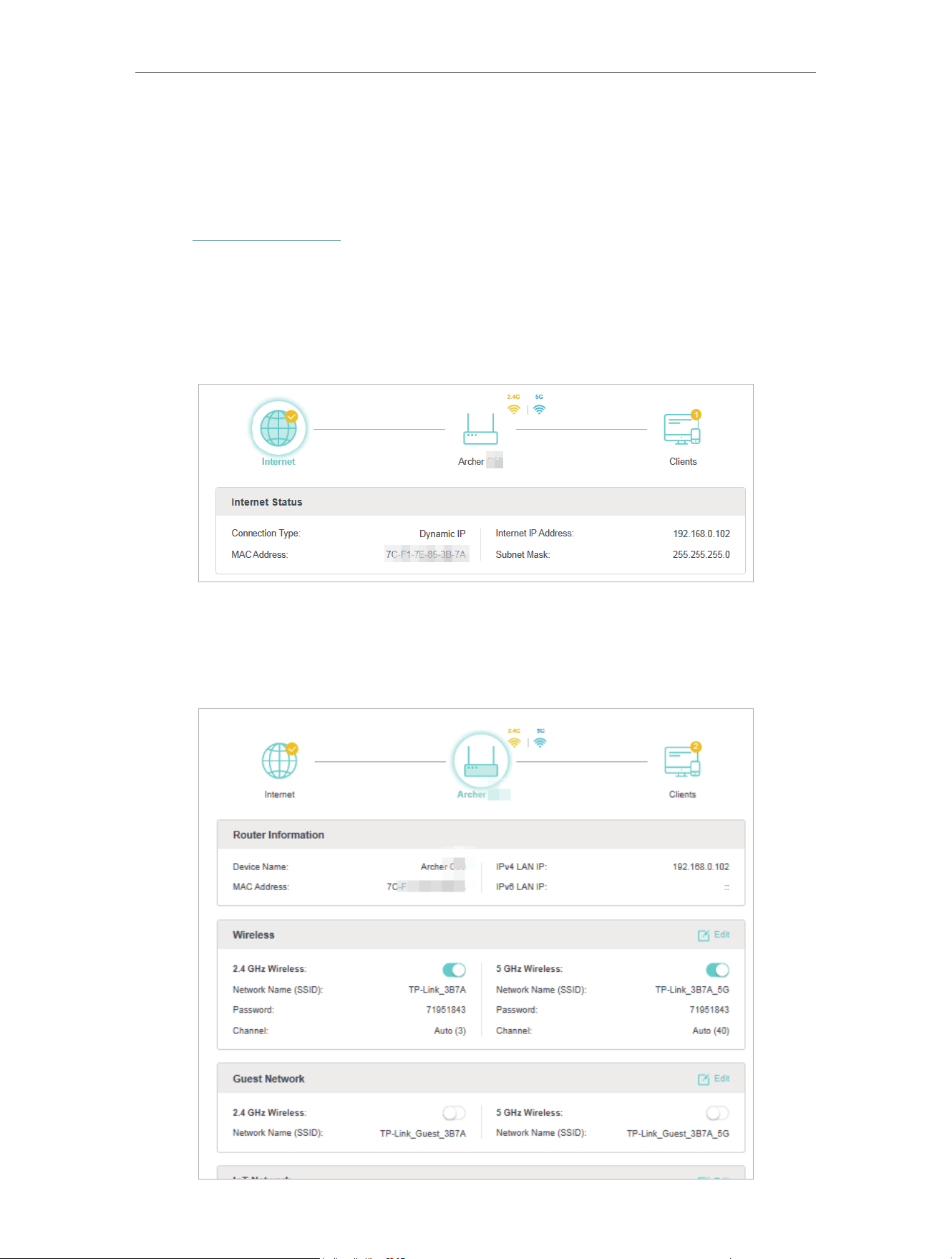

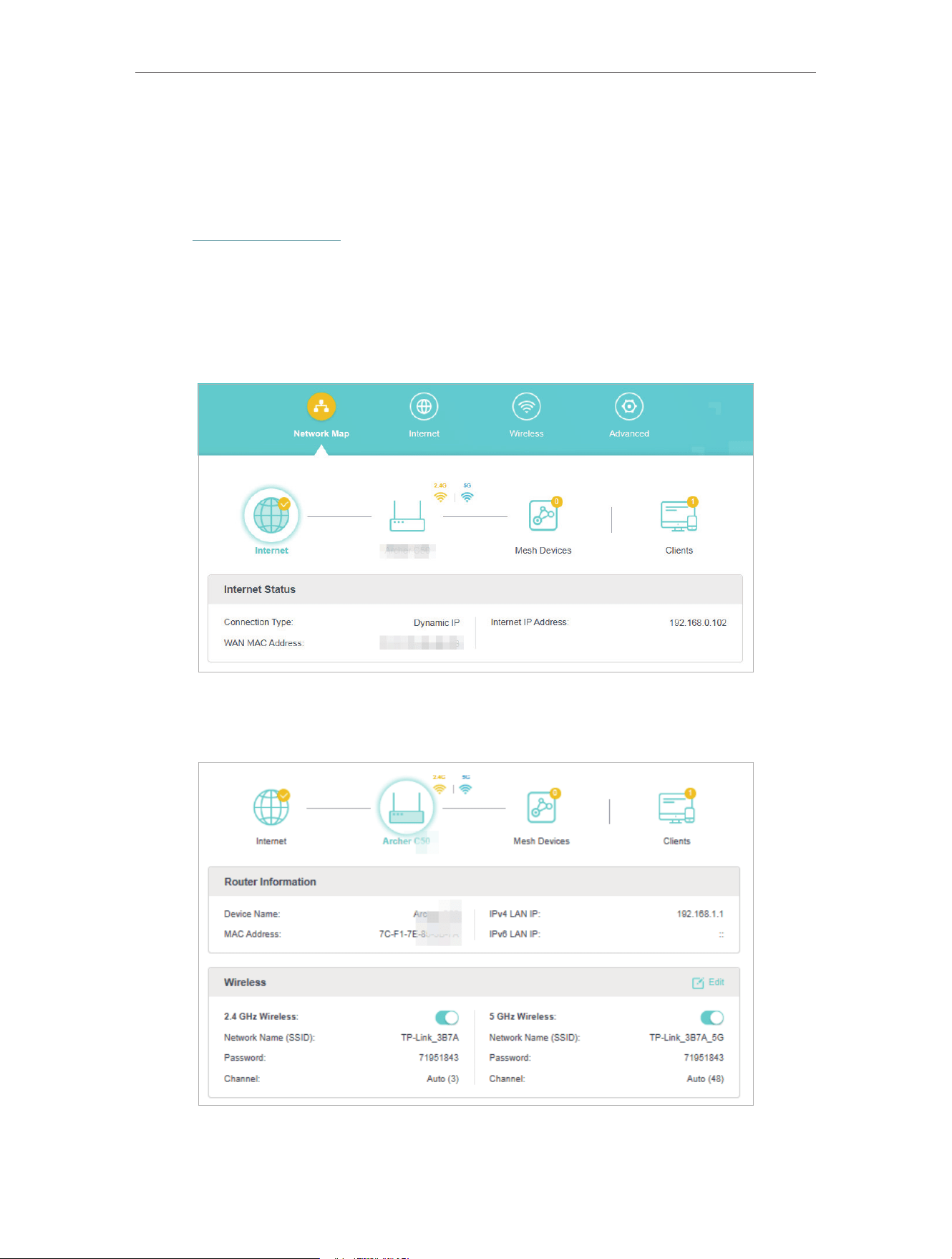

3. Click each network device icon to check and manage general network settings.
• Click Internet to check internet status.
• Click the router to check device status and network settings. You can turn on or off
the wireless network or guest network, or click Edit to change related settings.
14
Chapter 4
Configure the Router in Wireless Router Mode

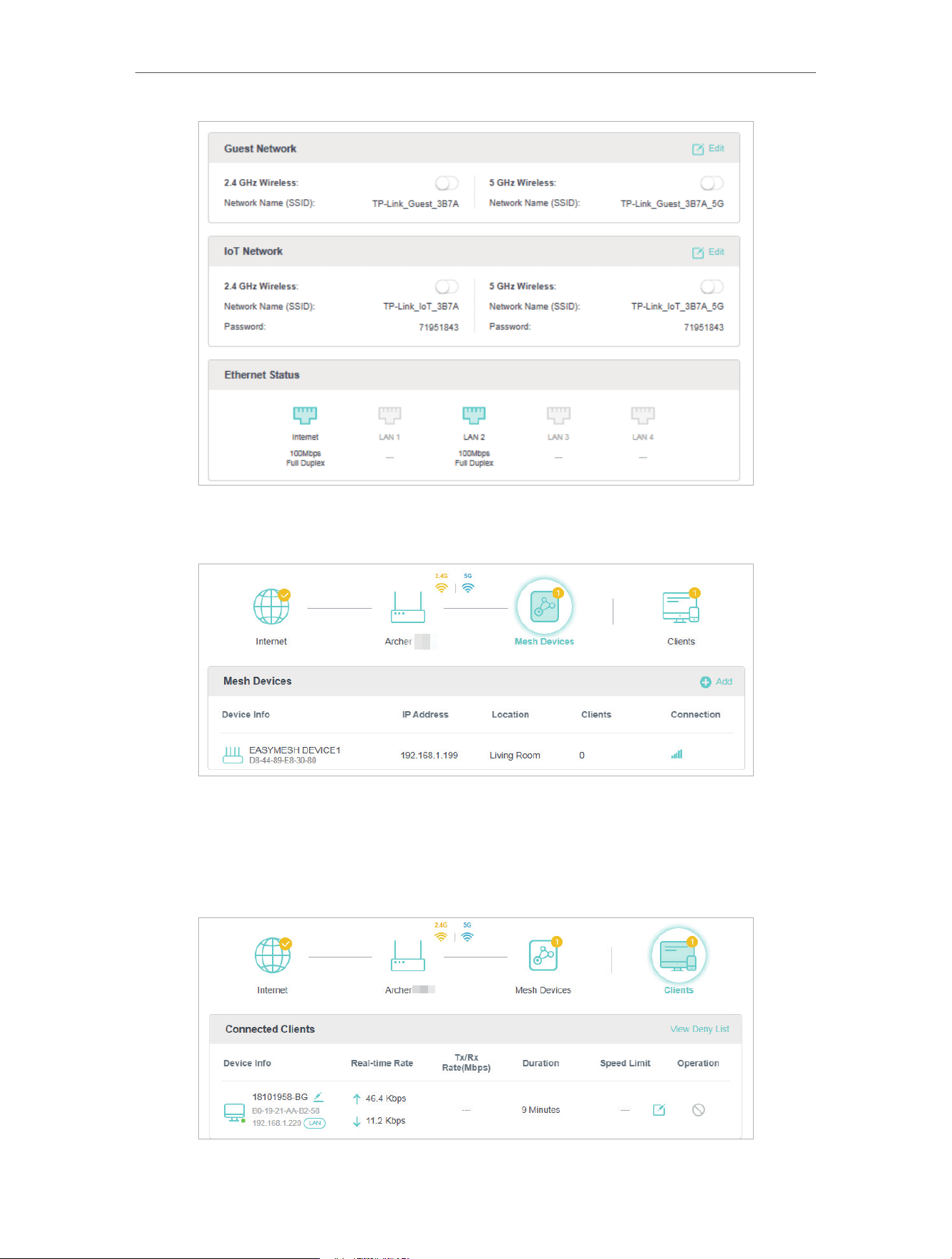

• Click Mesh Devices to view the devices that form a mesh network with the router.
• Click Clients to view the client devices in your network. You can block devices so they
cannot access your network, or set Speed Limit to limit their upload and download
speeds.
15
Chapter 4
Configure the Router in Wireless Router Mode

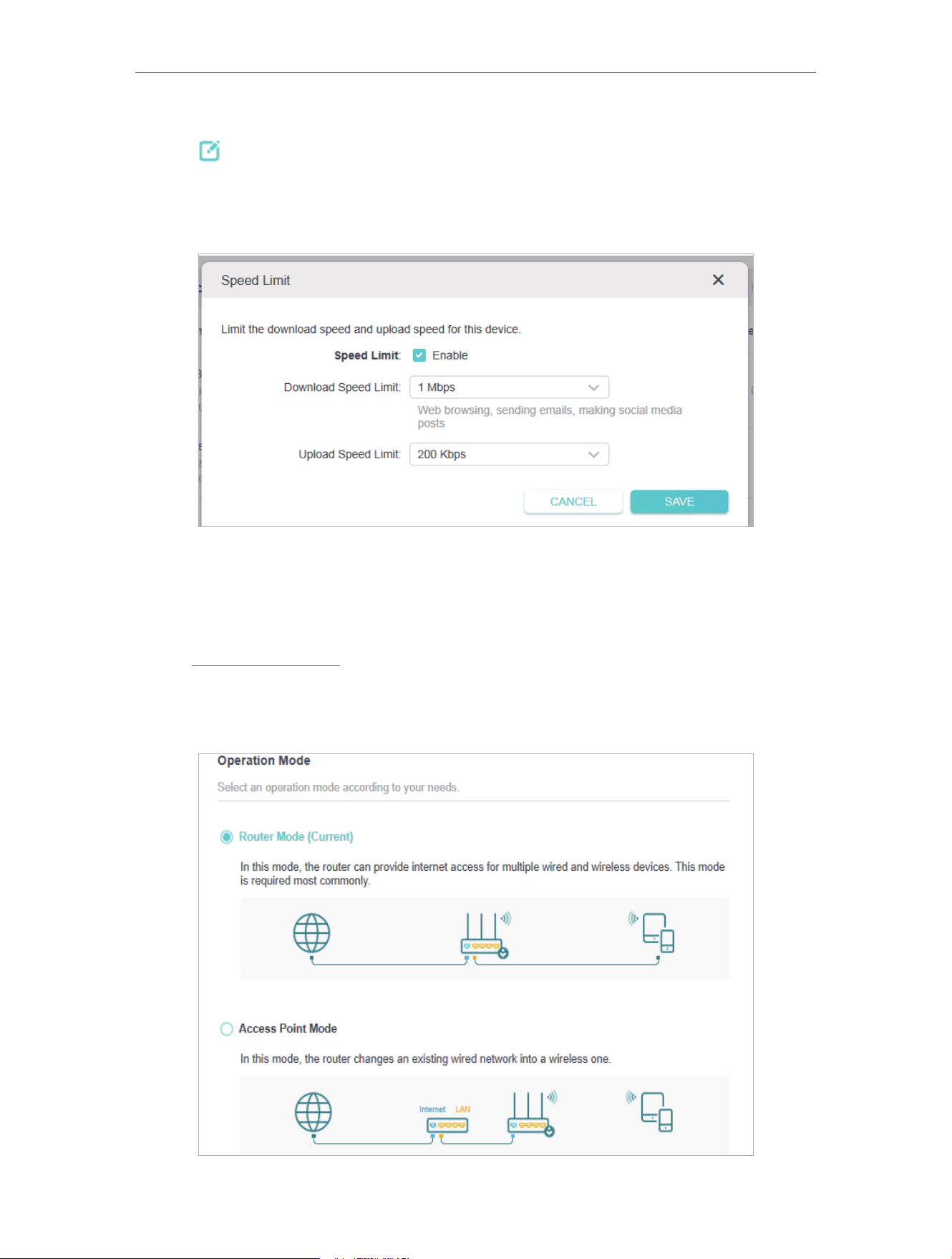

To limit the speeds of a device:
1. Click in the Speed Limit column.
2. Enable Speed Limit.
3. Set the download and upload speed limit according to your needs.
4. Click SAVE . The speeds of the device will be limited.

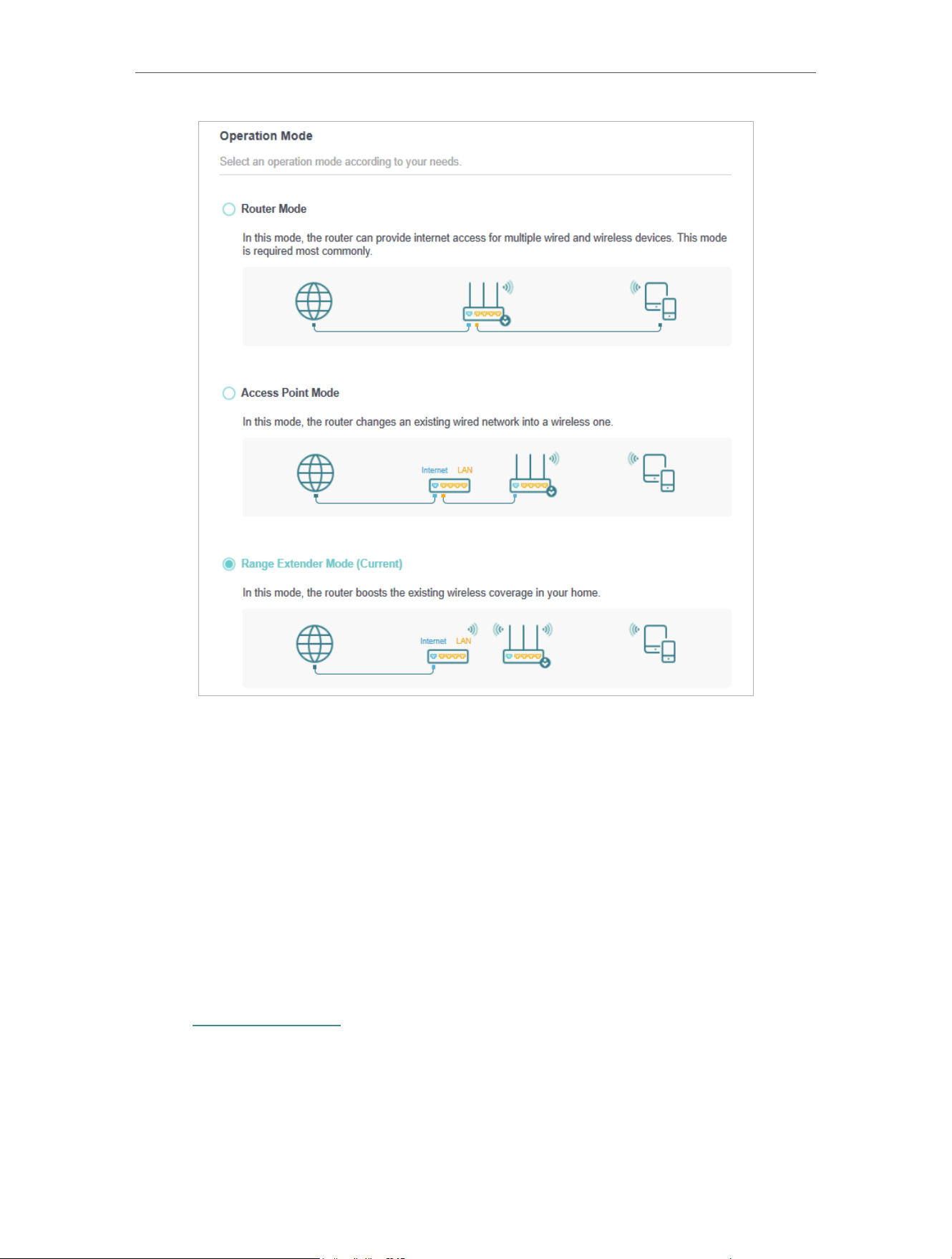

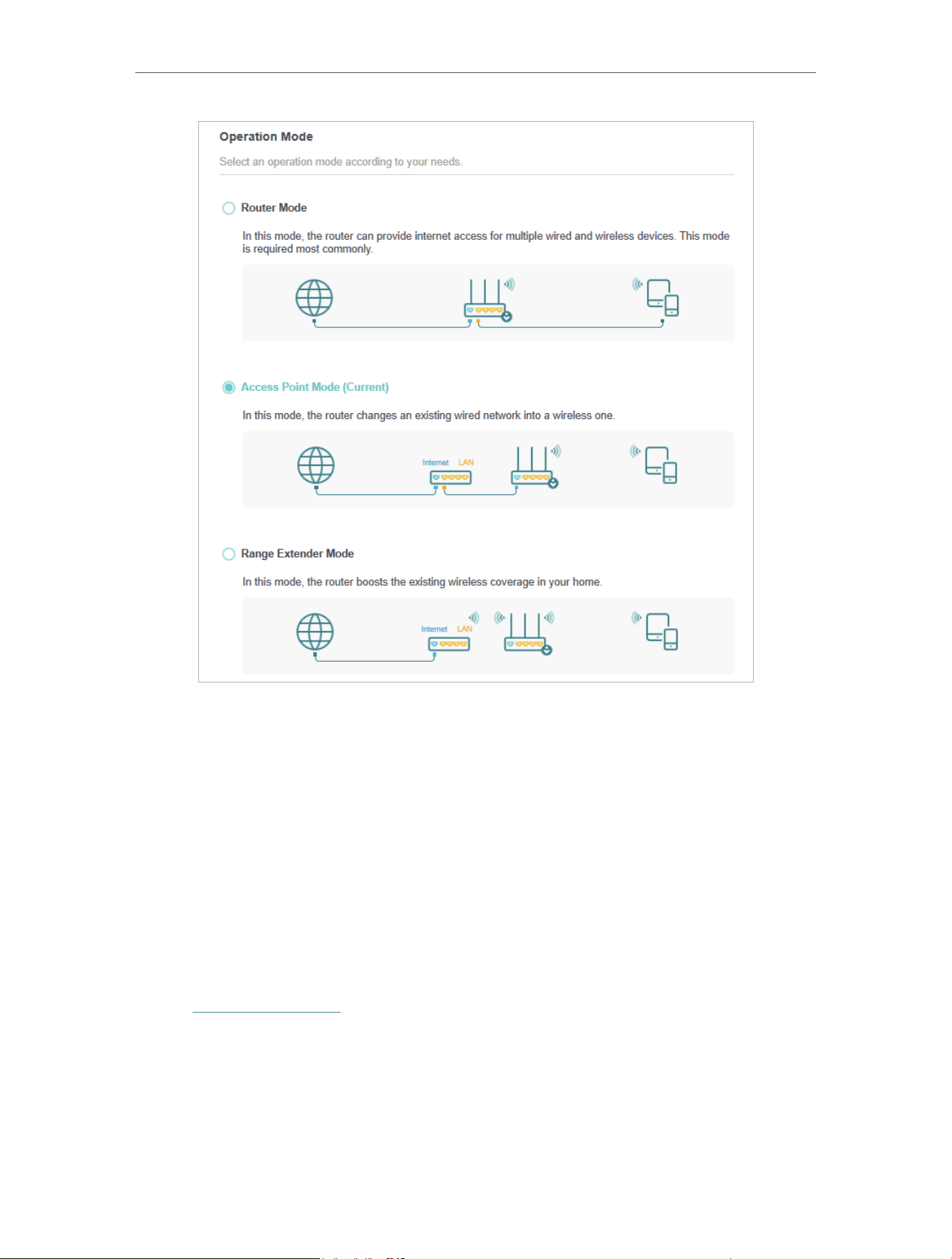

4 2 Operation Mode
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > Operation Mode.
3. Select the working mode as needed and click SAVE .
16
Chapter 4
Configure the Router in Wireless Router Mode
4 3 Network
This chapter guides you on how to configure advanced network features.
4 3 1 Status
You can view the current status information of the router.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

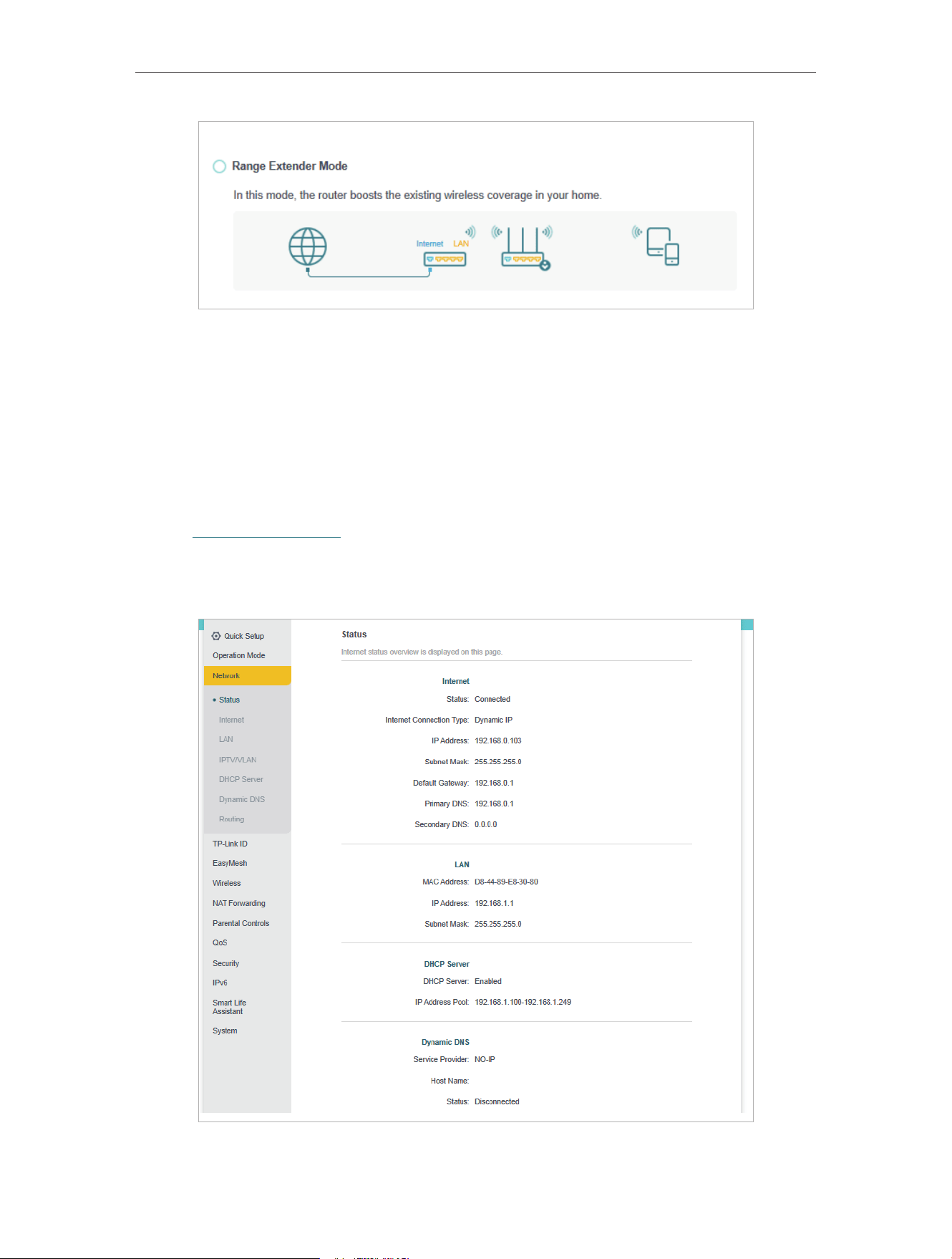

2. Go to Advanced > Network > Status.
17
Chapter 4
Configure the Router in Wireless Router Mode
• Internet - This field displays the current settings of the WAN, and you can configure
them on the Advanced > Network > Internet page.
• Status - The current status of the WAN port. It indicates whether the WAN port
is connected and whether it can access the internet.
• Internet Connection Type - It indicates the current connection type of your
router to establish internet connection.
• IP Address - The current WAN (Internet) IP Address.
• Subnet Mask - The subnet mask associated with the WAN IP Address.
• Default Gateway - The Gateway currently used is shown here.
• DNS - The IP addresses of the primary and secondary DNS (Domain Name
System) server.
• The IP Address, Subnet Mask, Default Gateway and DNS infomation will be
blank or 0.0.0.0 if the IP Address is assigned dynamically and there is no internet
connection.
• LAN - This field displays the current settings of the LAN, and you can configure them
on the Advanced > Network > LAN page.
• MAC Address - The physical address of the router.
• IP Address - The LAN IP address of the router.
• Subnet Mask - The subnet mask associated with the LAN IP address.
• DHCP Server - This field displays the current settings of the DHCP (Dynamic Host
Configuration Protocol) server, and you can configure them on the Advanced >
Network > DHCP Server page.
• DHCP Server - It indicates whether the DHCP server is enabled or disabled. If
disabled, you must have another DHCP server within your network or else you
must configure the computer manually.
• IP Address Pool - It specifies the range of IP addresses that the DHCP Server
can assign to devices in the network.
• Dynamic DNS - This field displays the current settings of the DDNS (Dynamic Domain
Name System) feature, and you can configure it on the Advanced > Network > Dynamic
DNS page.
• Service Provider - The DDNS Service Provider.
• Host Name - The domain name for remote access to your device, website, or
server behind the router you have created.
• Status - It indicates whether the router is connected to the DDNS service
provider.
18
Chapter 4
Configure the Router in Wireless Router Mode
4 3 2 Change the Internet Settings
After setting up your internet, you can also easily configure the internet settings if
needed. You can change the MAC address, configure the DoH (DNS over HTTPS) feature,
set up NAT and configure Internet Port Negotiation Speed Setting for the router.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Network > Internet.

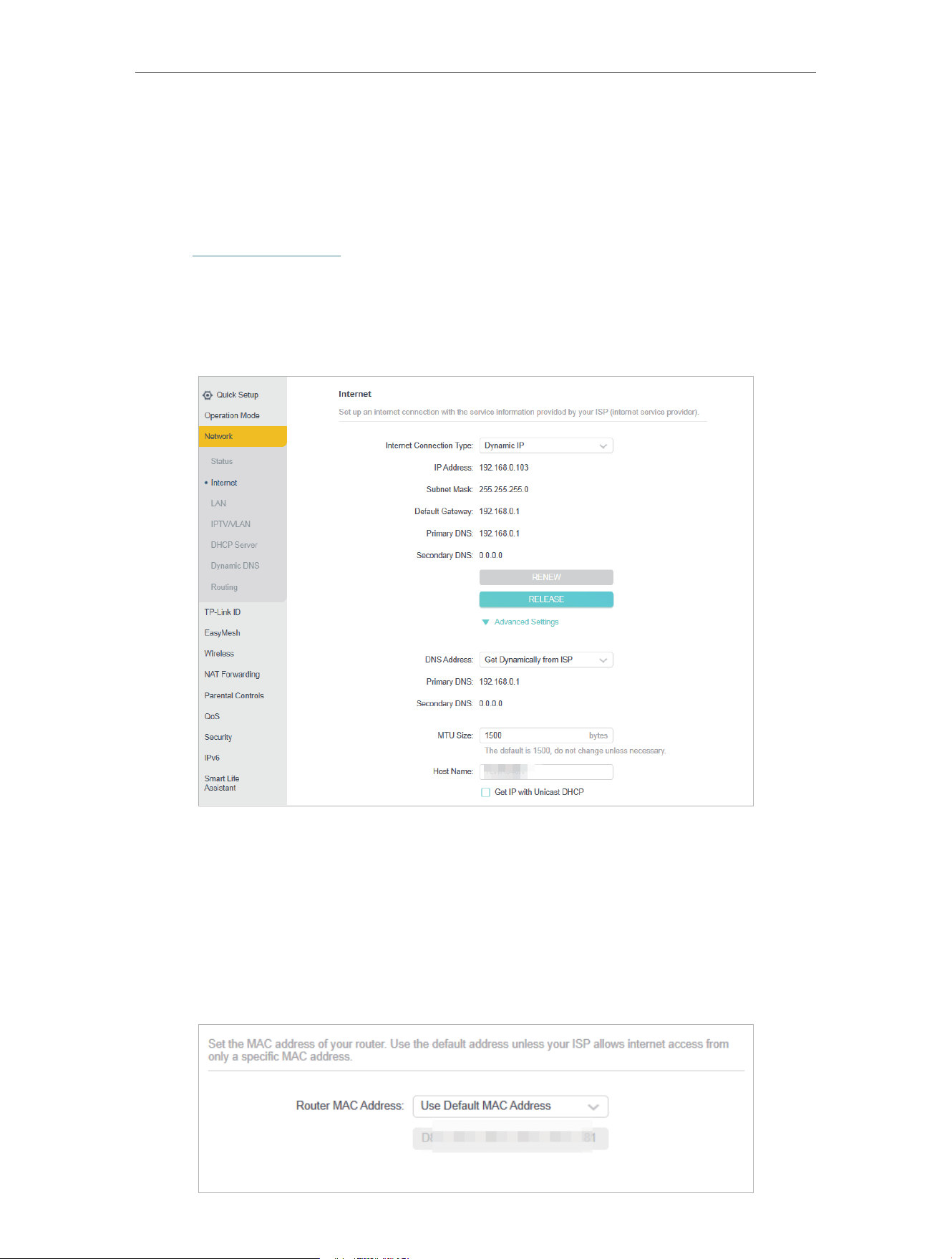

• To configure the internet connection settings:

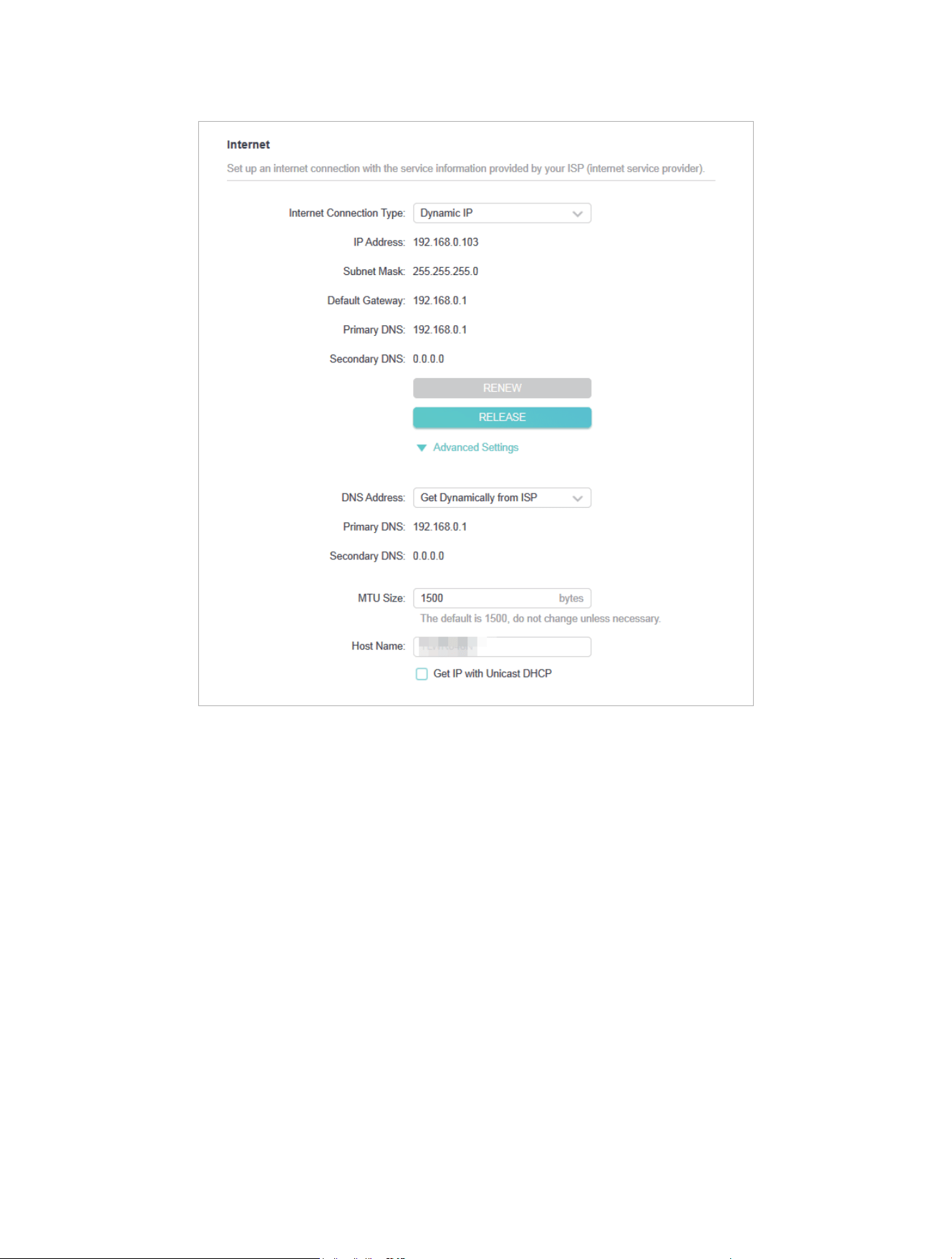

1. Select Internet Connection Type and configure the settings according to the
information provided by your ISP.
2. Click Advanced settings to reveal the advanced settings and change them if needed.
It’s recommended to keep the default settings.
3. Click SAVE.

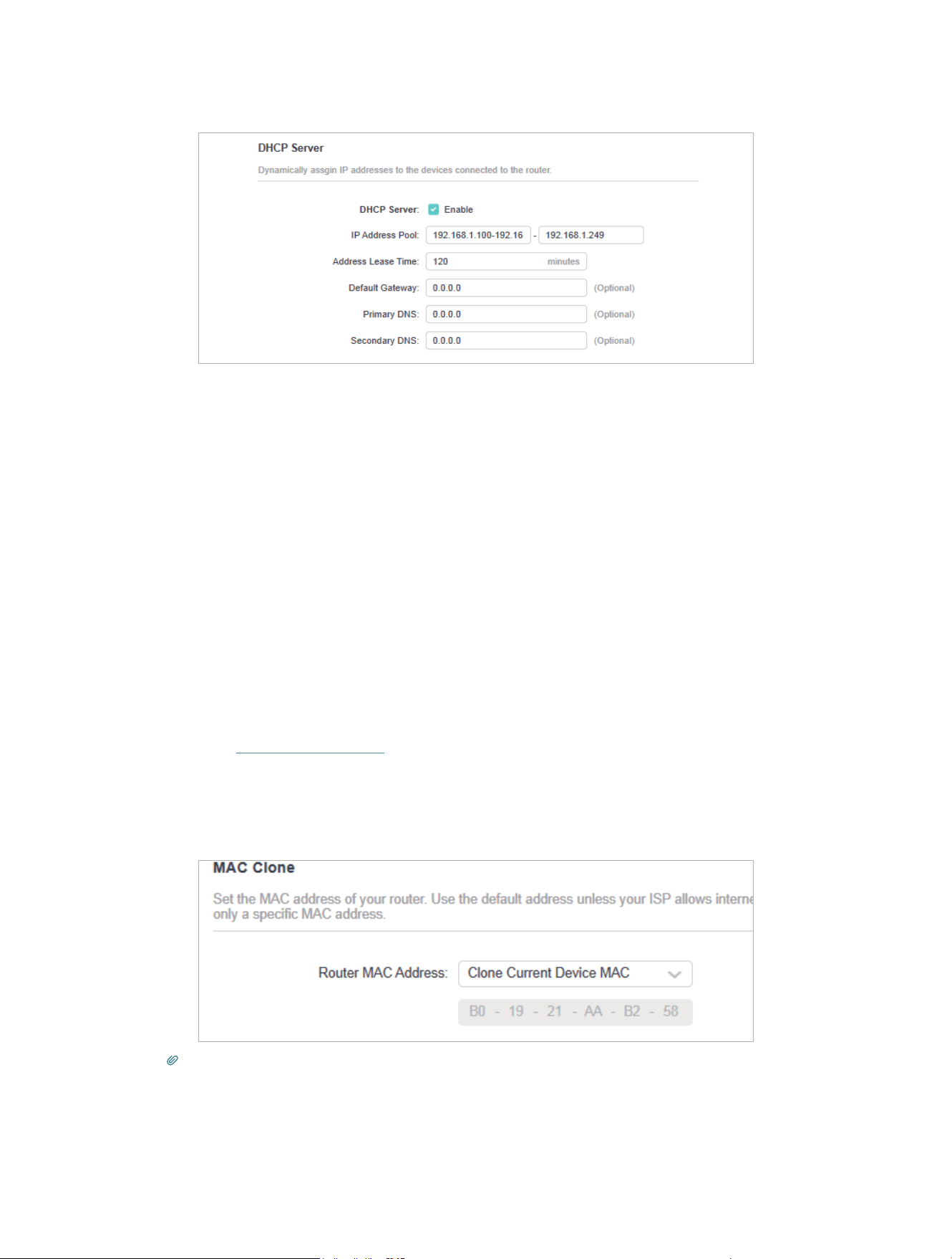

• To change the MAC address:
19
Chapter 4
Configure the Router in Wireless Router Mode
You can set the MAC address of your router. Use the default address unless your lSP
allows internet access fromonly a specific MAC address. You have three options:
• Use Default MAC Address - Do not change the default MAC address of your
router in case the ISP does not bind the assigned IP address to the MAC
address.
• Clone Current Device MAC - Select to copy the current MAC address of the
computer that is connected to the router, in case the ISP binds the assigned IP
address to the MAC address.
• Use Custom MAC Address - Select if your ISP requires you to register the MAC
address and enter the correct MAC address in this field, in case the ISP binds
the assigned IP address to the specific MAC address.

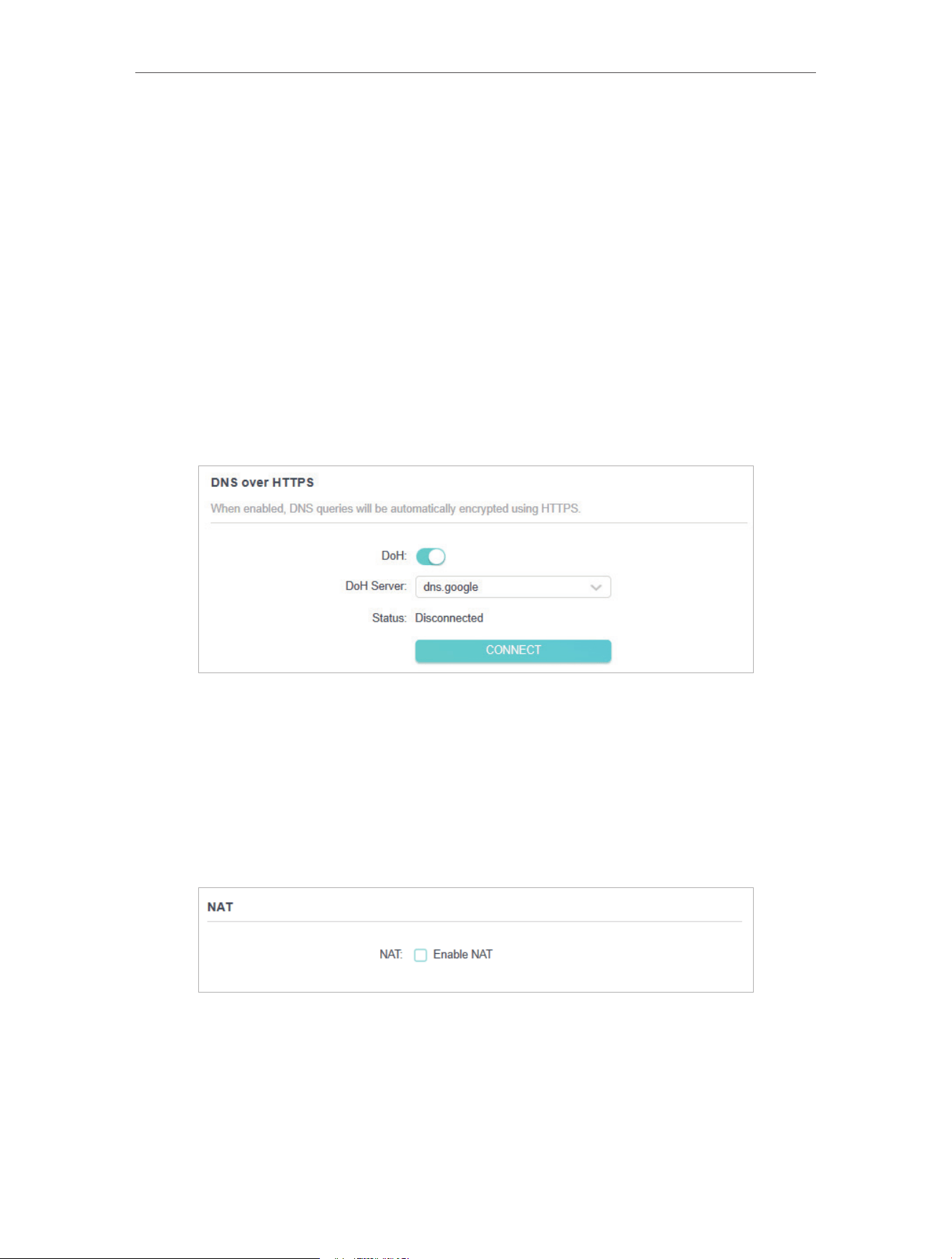

• To configure the DoH (DNS over HTTPS) feature:
1. Click to enable DoH (DNS over HTTPS). When enabled, DNS queries will be
automatically encrypted using HTTPS.
2. Select a DoH Server from the dropdown list.
3. Click CONNECT.
• To set up NAT:
The router’s NAT (Network Address Translation) feature makes devices on the LAN
use the same public IP address to communicate with devices on the internet, which
protects the local network by hiding IP addresses of the devices.
If you want to enable or disable NAT, tick or untick the Enable NAT checkbox, and click
SAVE.
20
Chapter 4
Configure the Router in Wireless Router Mode

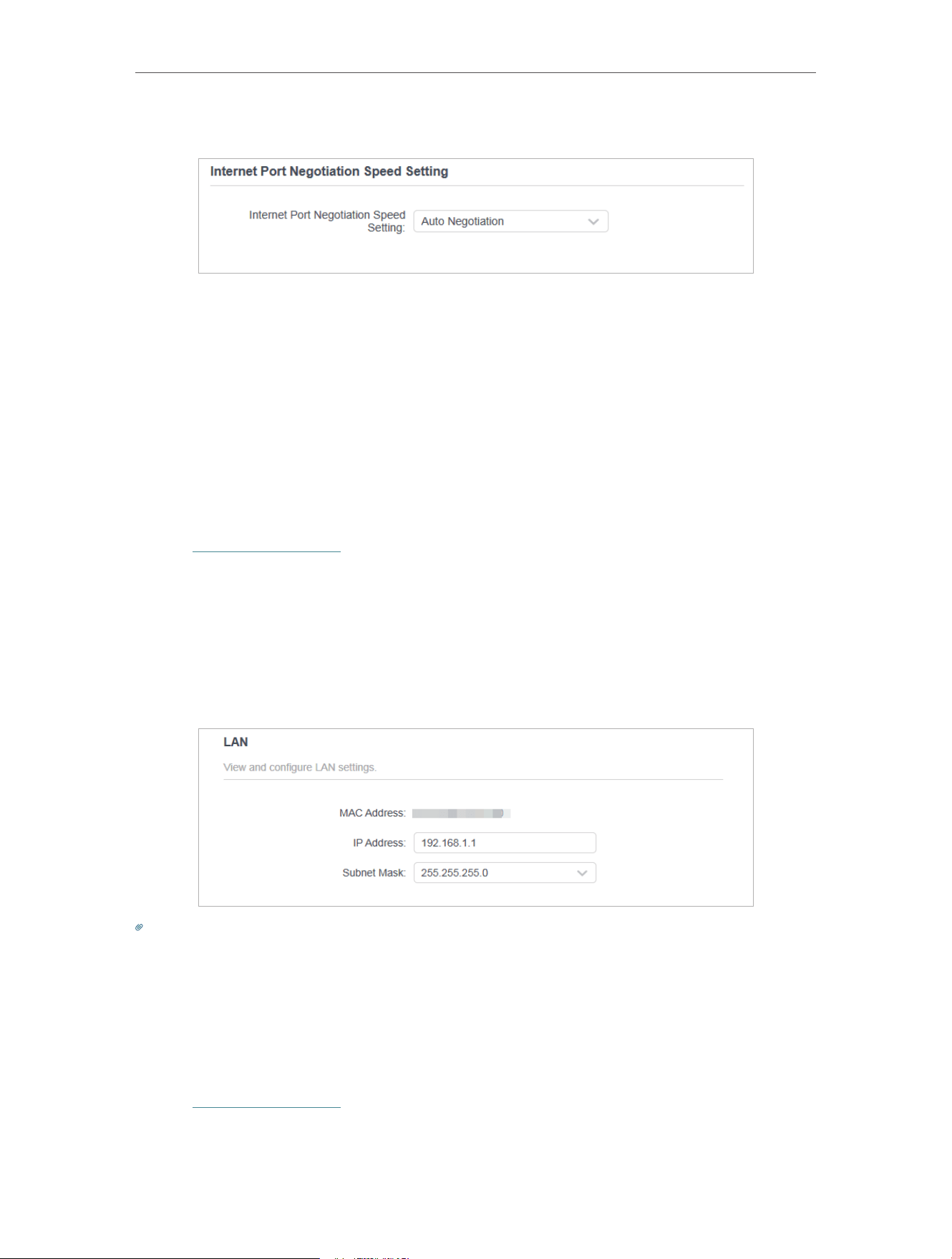

• To configure Internet Port Negotiation Speed Setting:
You can change the internet port speed mode. Auto Negotiation is recommended.

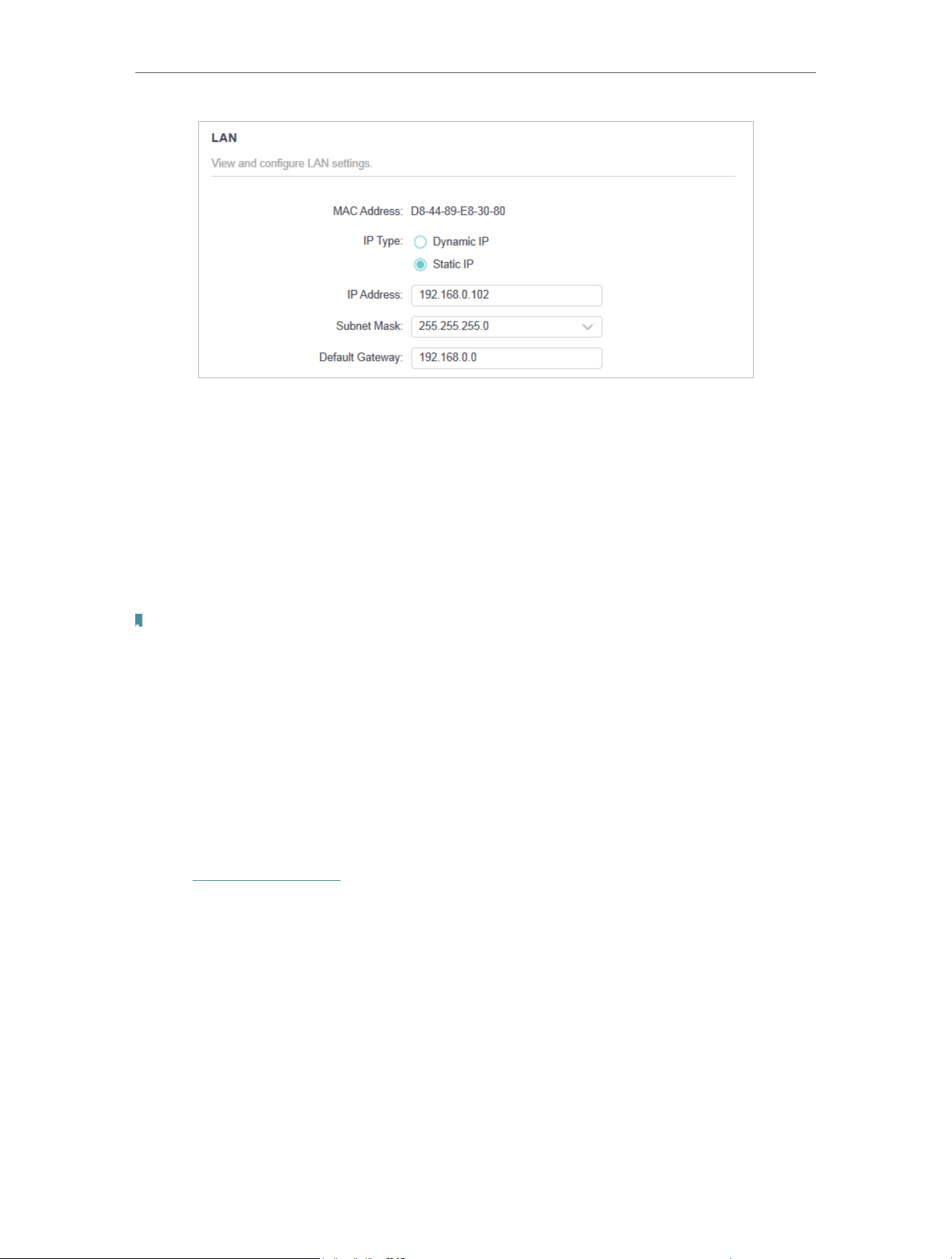

4 3 3 Change the LAN Settings
The router is preset with a default LAN IP, which you can use to log in to its web
management page. The LAN IP address together with the Subnet Mask also defines
the subnet that the connected devices are on. If the IP address conflicts with another
device on your local network or your network requires a specific IP subnet, you can
change it.

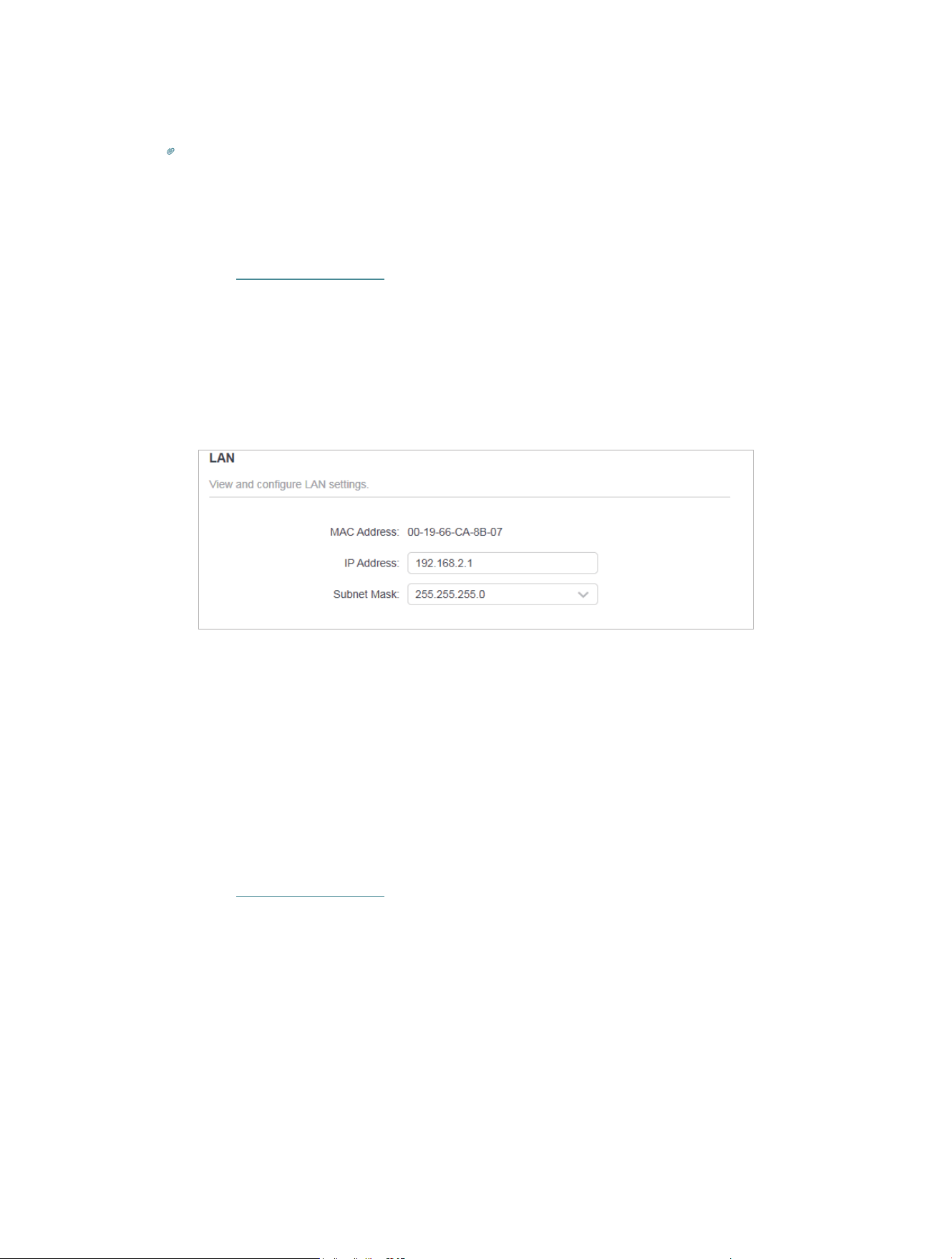

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Network > LAN.

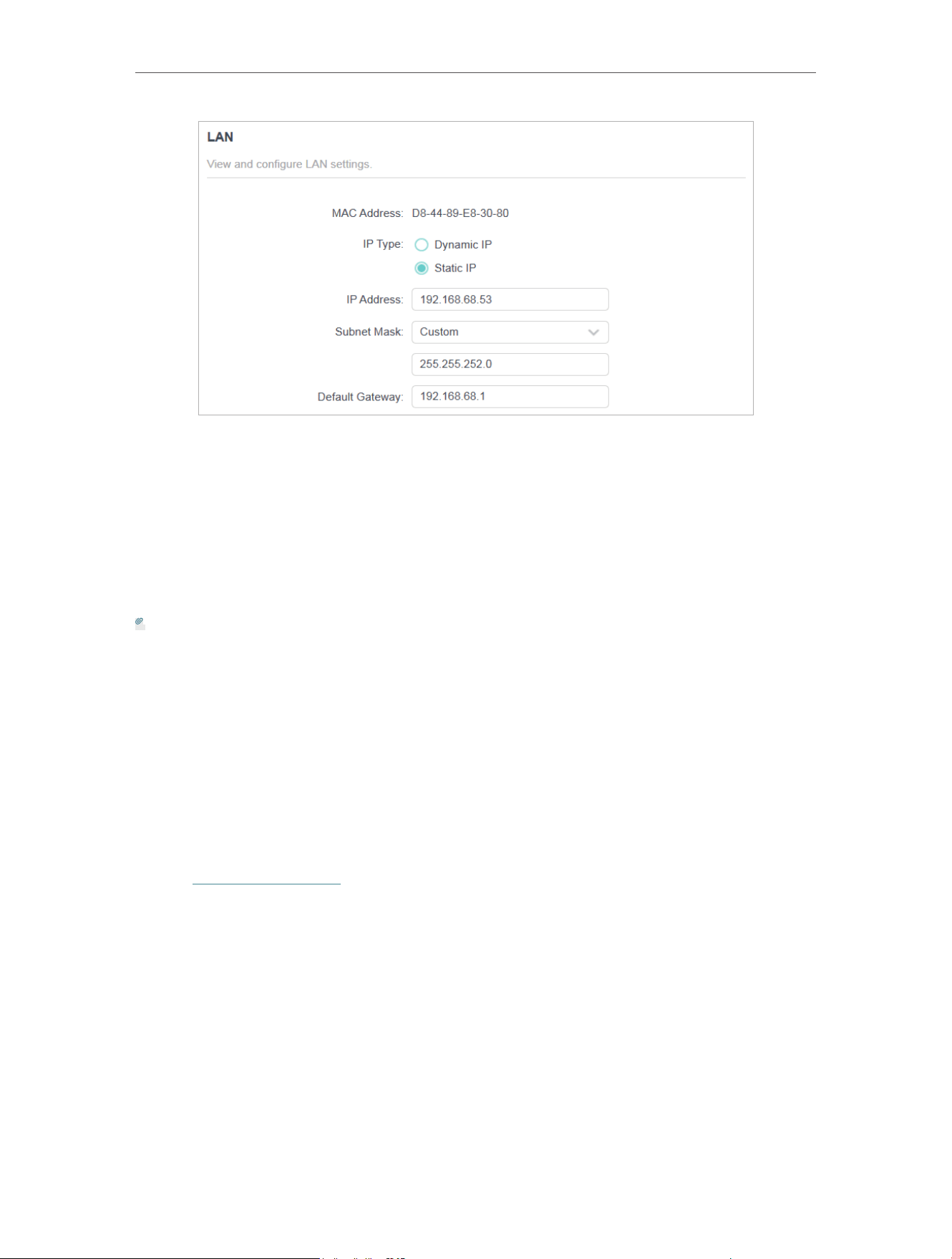

3. Type in a new IP Address appropriate to your needs. And leave the Subnet Mask as
the default settings.
4. Click SAVE.
Note: If you have set the Port Forwarding, DMZ or DHCP address reservation, and the new LAN IP address is not in the
same subnet with the old one, then you should reconfigure these features.
4 3 4 Configure to Support IPTV Service
You can configure IPTV/VLAN settings if you want to enjoy IPTV or VoIP service, or if
your ISP requires VLAN tags.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

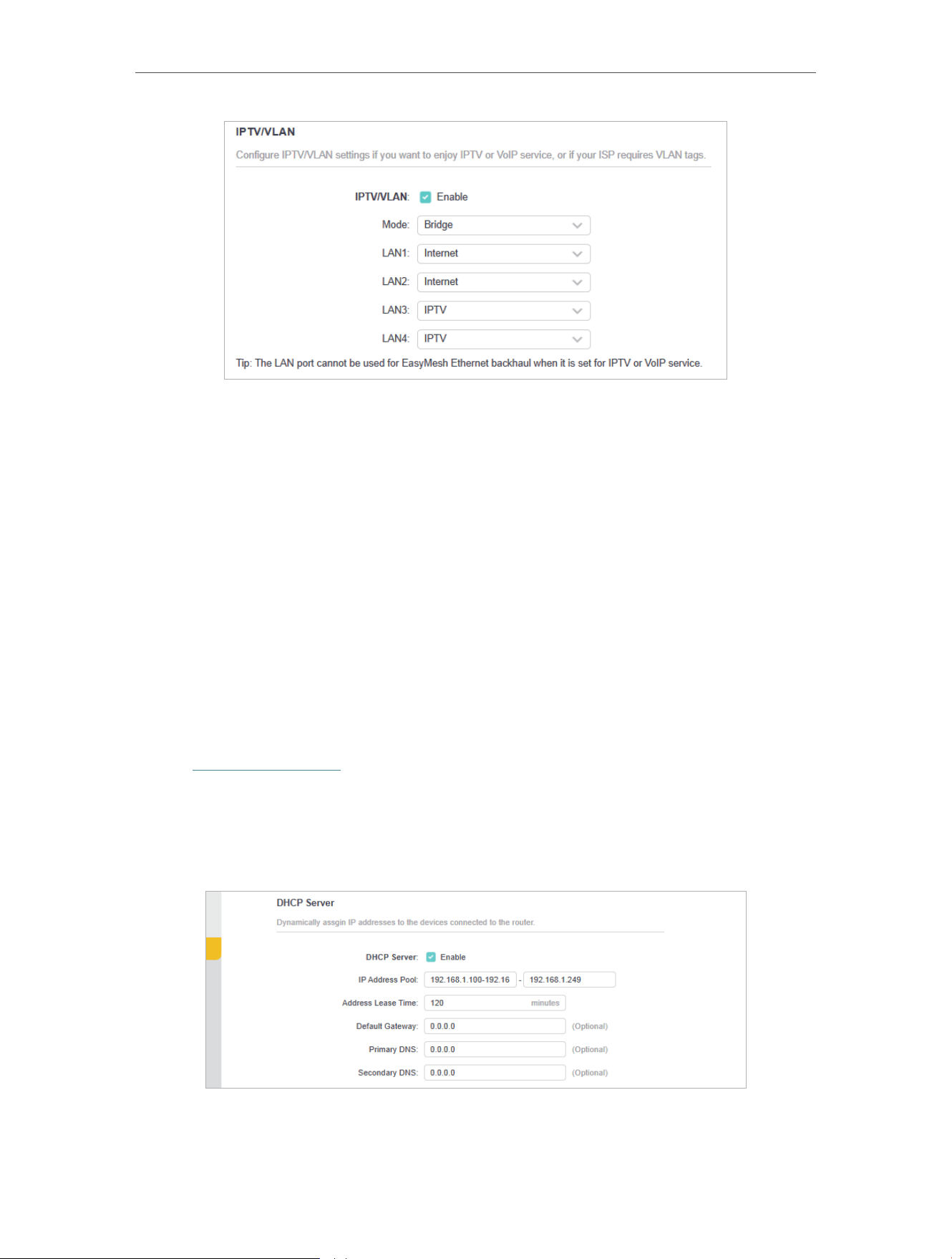

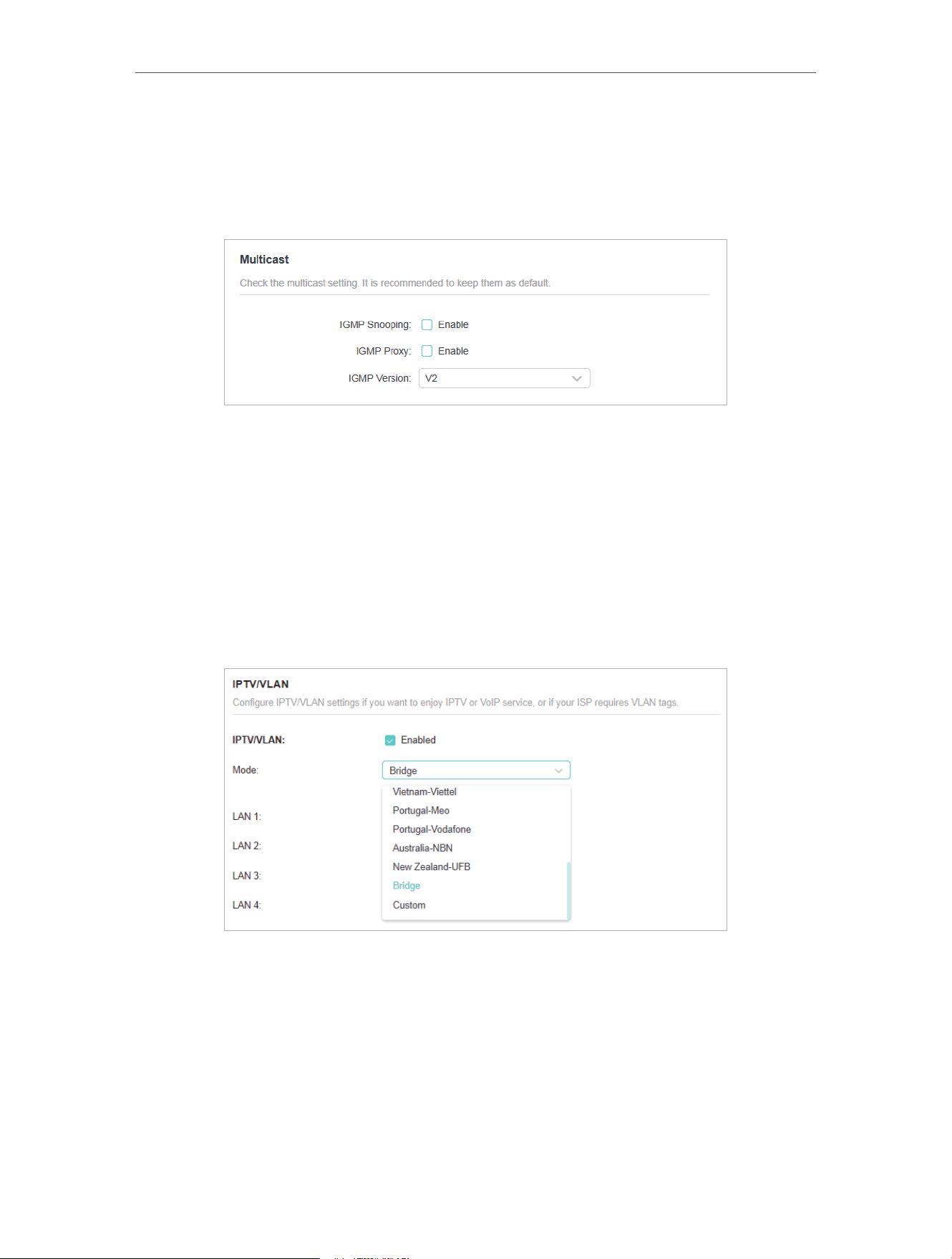

2. Go to Advanced > Network > IPTV/VLAN.
21
Chapter 4
Configure the Router in Wireless Router Mode
3. If your ISP provides the networking service based on IGMP technology, e.g., British
Telecom(BT) and Talk Talk in UK:
1 ) Tick the IGMP Proxy and IGMP Snooping checkbox, then select the IGMP Version,
either V2 or V3, as required by your ISP.
2 ) Click SAVE .
3 ) After configuring IGMP proxy, IPTV can work behind your router now. You can
connect your set-top box to any of the router’s Ethernet port.
If IGMP is not the technology your ISP applies to provide IPTV service:
1 ) Tick Enable IPTV/VLAN.
2 ) Select the appropriate Mode according to your ISP.
• Select Bridge if your ISP is not listed and no other parameters are required.
• Select Custom if your ISP is not listed but provides necessary parameters.
3 ) After you have selected a mode, the necessary parameters, including the LAN
port for IPTV connection, are predetermined. If not, select the LAN type to
determine which port is used to support IPTV service.
22
Chapter 4
Configure the Router in Wireless Router Mode
4 ) Click SAVE .
5 ) Connect the set-top box to the corresponding LAN port which is predetermined
or you have specified in Step 3.
Done!
Your IPTV setup is done now! You may need to configure your set-top box before
enjoying your TV.

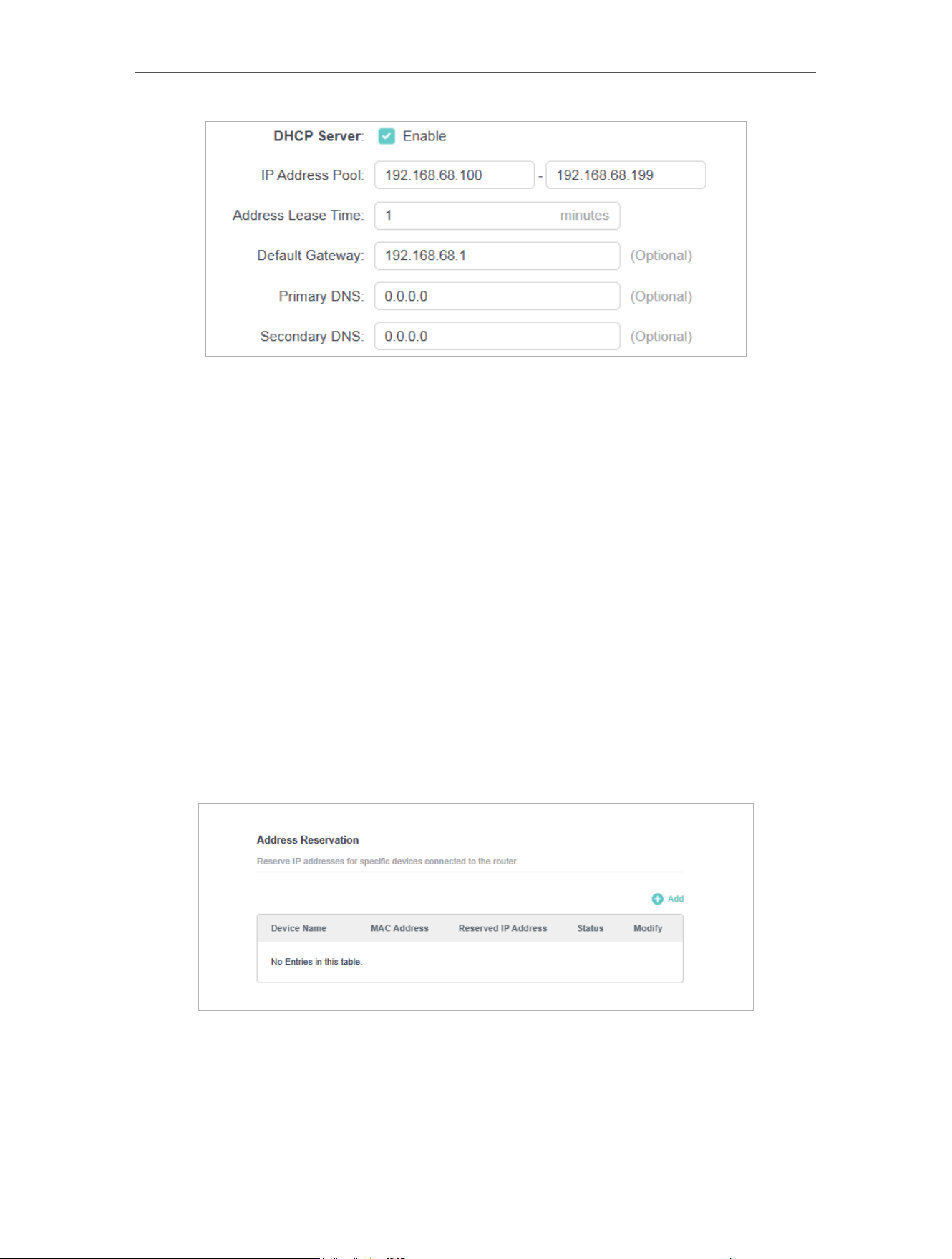

4 3 5 Specify DHCP Server Settings
By default, the DHCP (Dynamic Host Configuration Protocol) Server is enabled and
the router acts as a DHCP server; it dynamically assigns TCP/IP parameters to client
devices from the IP Address Pool. You can change the settings of the DHCP Server if
necessary, and you can reserve LAN IP addresses for specified client devices.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

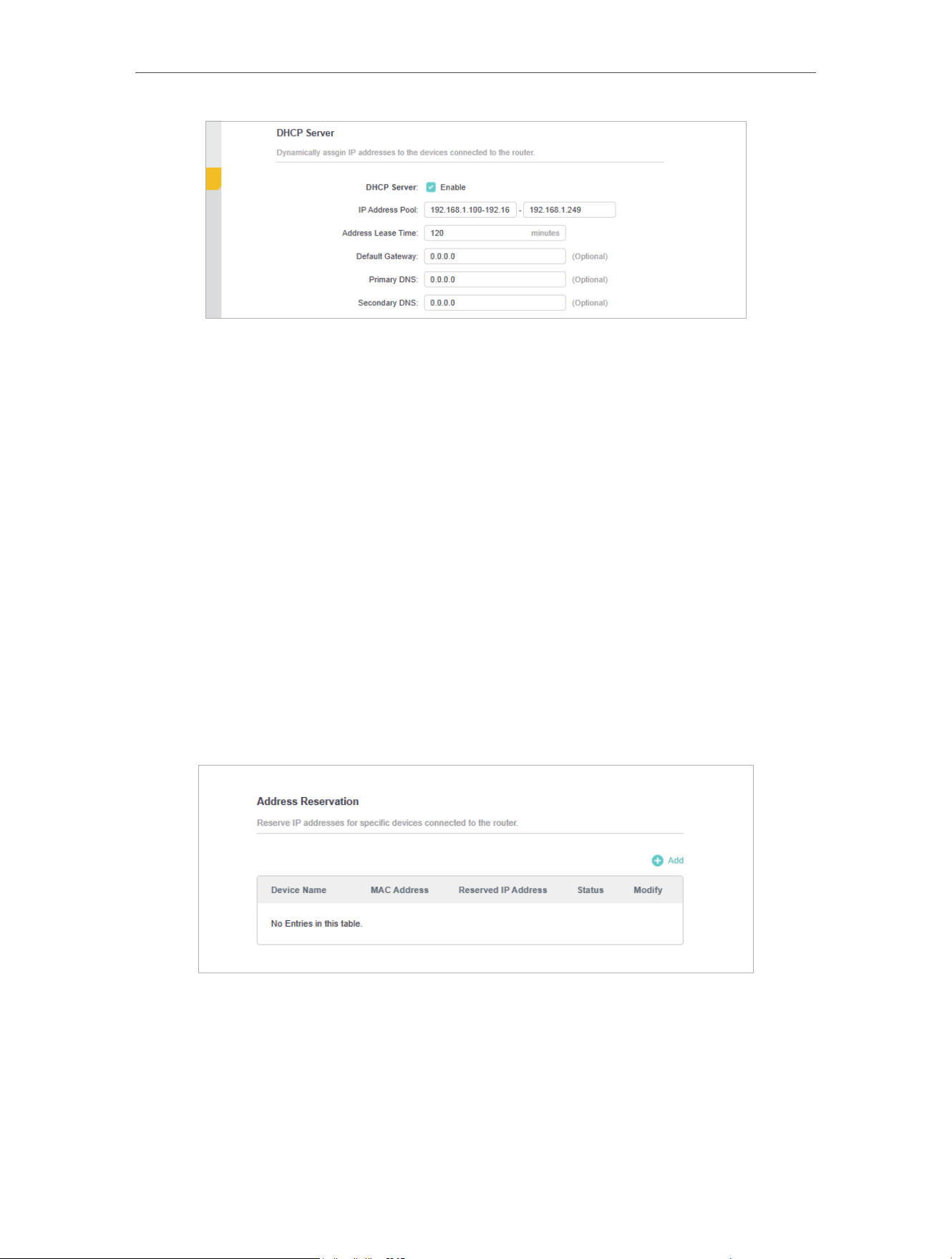

2. Go to Advanced > Network > DHCP Server.
• To specify the IP address that the router assigns:
1. Tick the Enable checkbox.
2. Enter the starting and ending IP addresses in the IP Address Pool.
23
Chapter 4
Configure the Router in Wireless Router Mode
3. Enter the Address Lease Time. It is the amount of time a network user will be allowed
to connect to the router with the current dynamic IP Address. When time is up, the
user will be automatically assigned a new dynamic IP address. The range of the time
is 1 ~ 2880 minutes. The default value is 120.
4. Set the Default Gateway (Optional). It is suggested to input the IP address of the LAN
port of the router.
5. Set the DNS Server (Optional). Input the DNS IP address provided by your ISP.
6. Set the Secondary DNS Server (Optional). Input the IP address of another DNS server
if your ISP provides two DNS servers.
7. Click SAVE .
• To reserve an IP address for a specified client device:

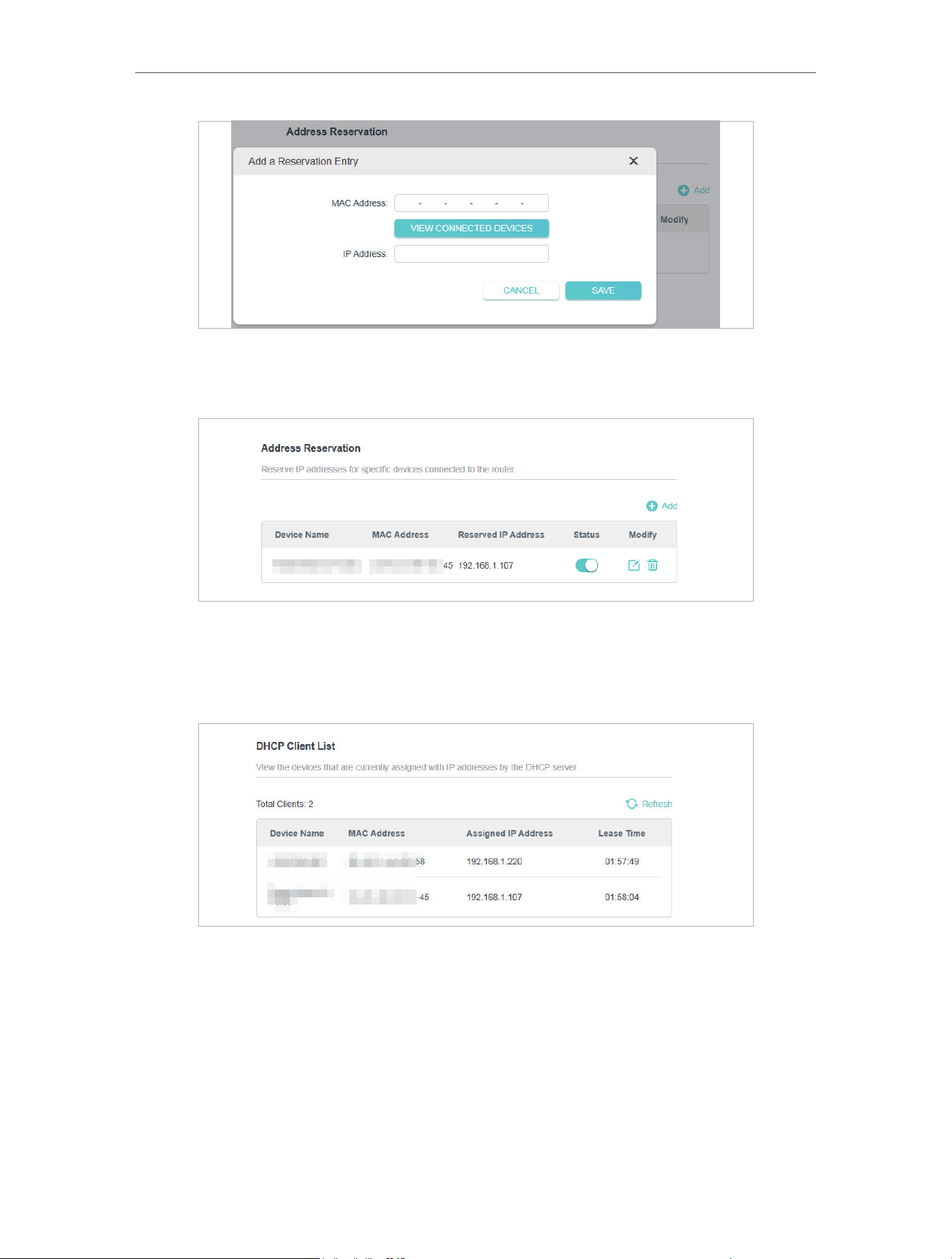

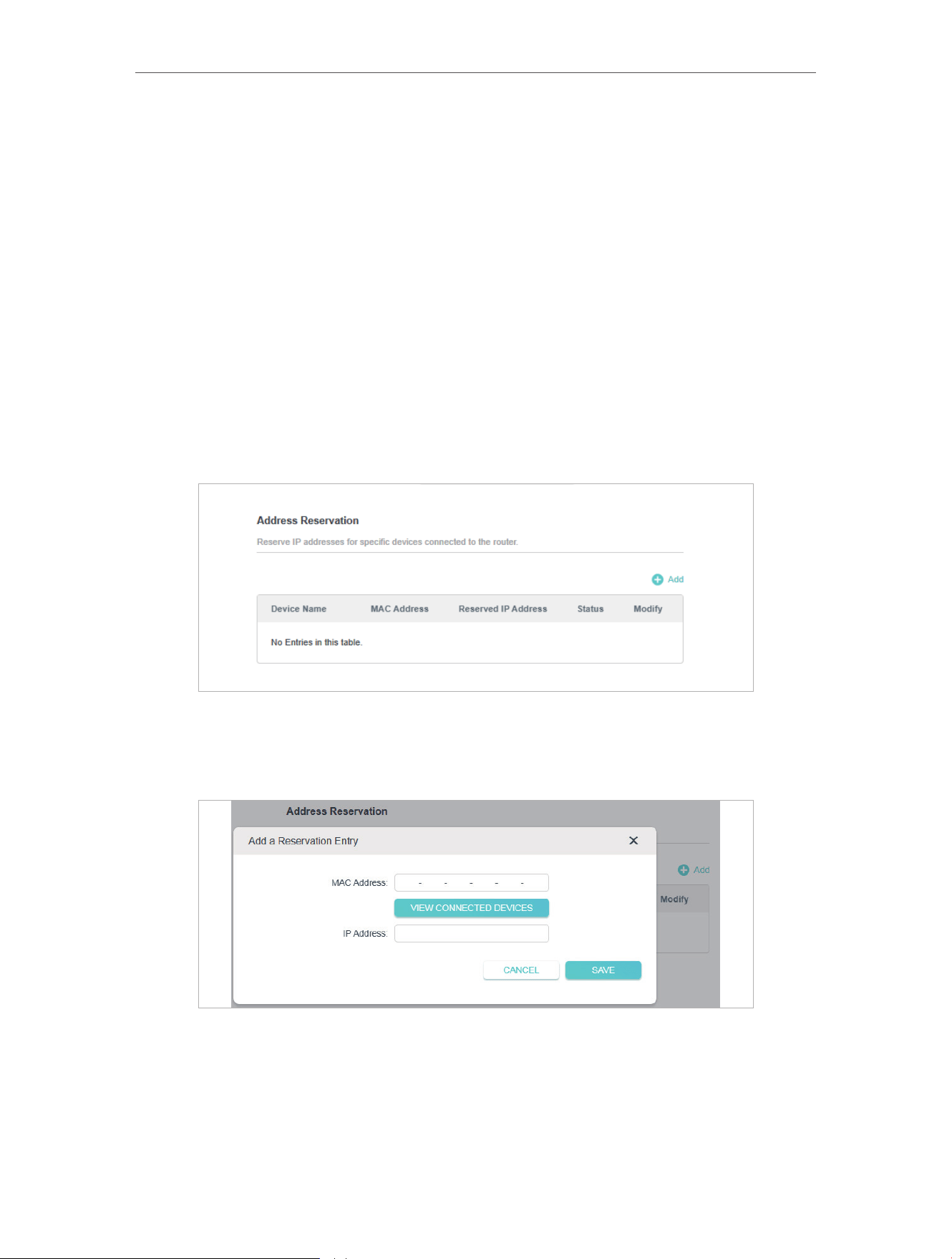

1. Click Add in the Address Reservation section.
2. Click VIEW CONNECTED DEVICES and select the you device you want to reserve an
IP for. Then the MAC Address will be automatically filled in. Or enter the MAC address
of the client device manually.
3. Enter the IP address to reserve for the client device.
4. Click SAVE .
24
Chapter 4
Configure the Router in Wireless Router Mode

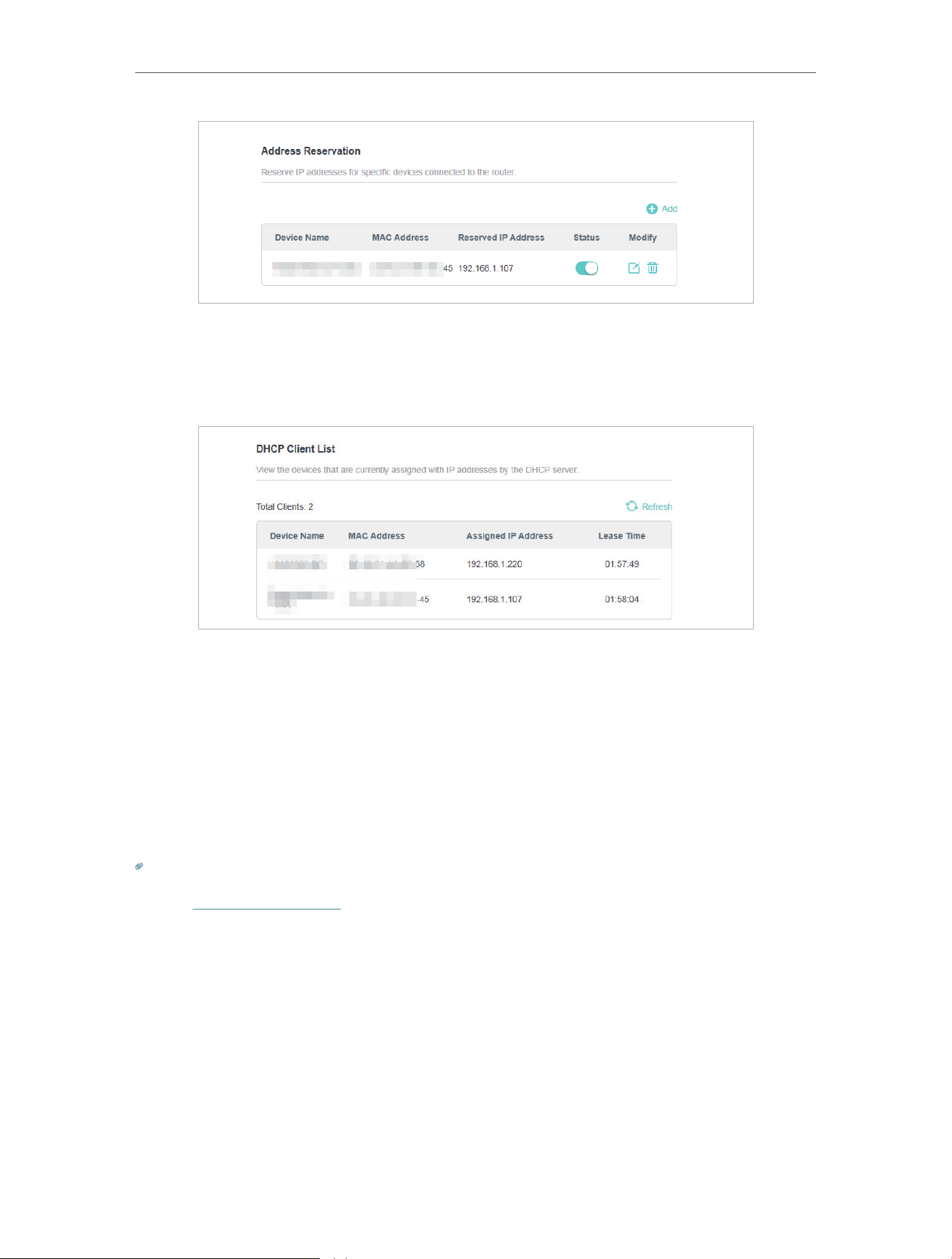

• To view devices assigned with IP addresses by the DHCP server:
You can view the devices that are currently assigned with IP addresses by the DHCP
server in DHCP Client List.
4 3 6 Set Up a Dynamic DNS Service Account
Most ISPs assign a dynamic IP address to the router and you can use this IP address
to access your router remotely. However, the IP address can change from time to time
and you don’t know when it changes. In this case, you might apply the DDNS (Dynamic
Domain Name Server) feature on the router to allow you and your friends to access your
router and local servers (FTP, HTTP, etc.) using a domain name without checking and
remembering the IP address.
Note: DDNS does not work if the ISP assigns a private WAN IP address (such as 192.168.1.x) to the router.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

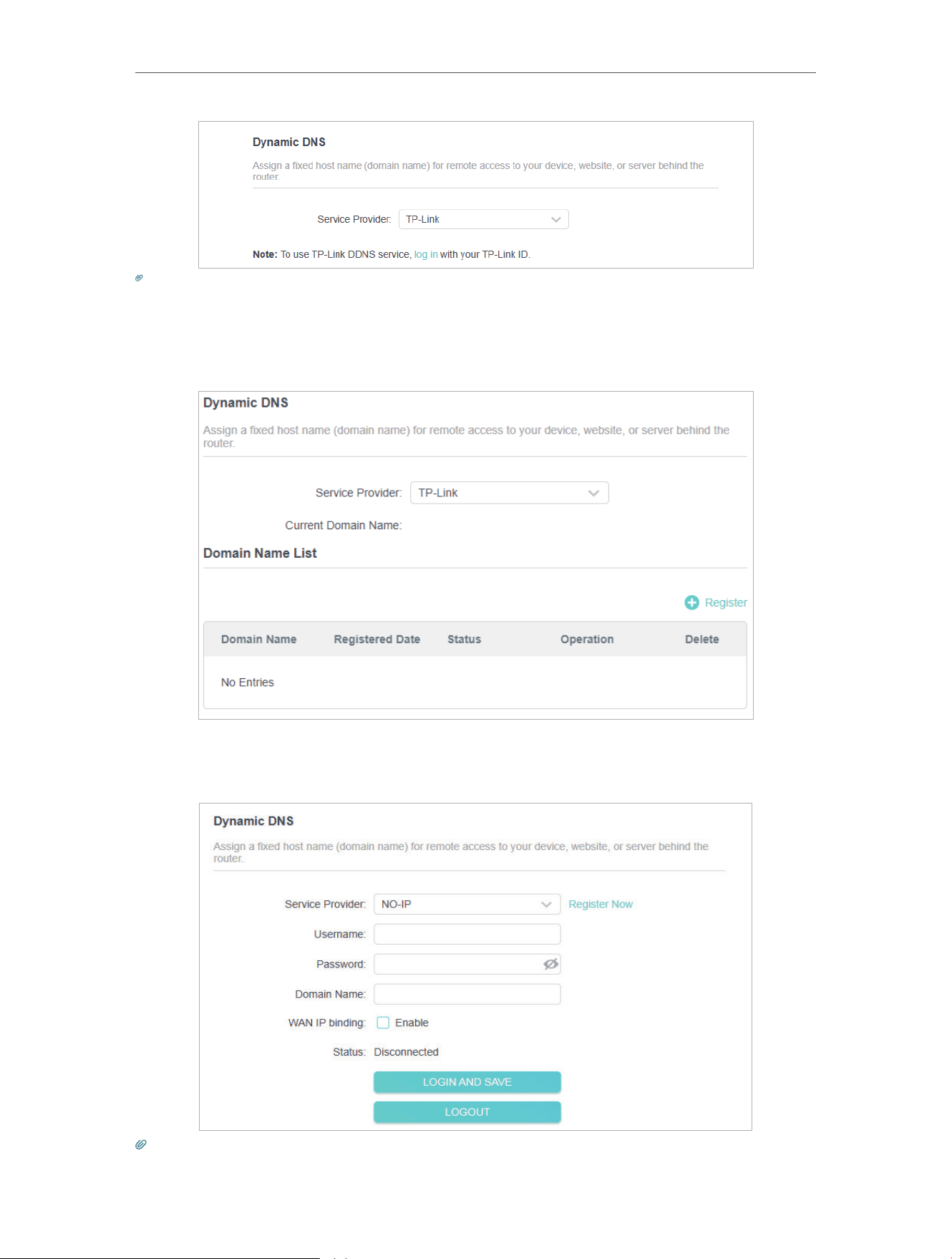

2. Go to Advanced > Network > Dynamic DNS.
3. Select the DDNS Service Provider: TP-Link, NO-IP or DynDNS. It is recommended
to select TP-Link so that you can enjoy TP-Link’s superior DDNS service. Otherwise,
please select NO-IP or DynDNS. If you don’t have a DDNS account, you have to
register first by clicking Register Now.
25
Chapter 4
Configure the Router in Wireless Router Mode
Note: To enjoy TP-Link’s DDNS service, you have to log in with a TP-Link ID. If you have not logged in with one, click
log in.
4. Click Register in the Domain Name List if you have selected TP-Link, and enter the
Domain Name as needed.
If you have selected NO-IP or DynDNS, enter the username, password and domain
name of your account. Click LOGIN AND SAVE.
Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.
26
Chapter 4
Configure the Router in Wireless Router Mode
4 3 7 Static Routing
Static routing is a form of routing that is configured manually by a network administrator
or a user by adding entries into a routing table. The manually-configured routing
information guides the router in forwarding data packets to the specific destination.
• To create static routes:
I want to:
Visit multiple networks and servers at the same time.
For example, in a small office, my PC can surf the internet through Router A, but I also
want to visit my company’s network. Now I have a switch and Router B. I connect the
devices as shown in the following figure so that the physical connection between my
PC and my company’s server is established. To surf the internet and visit my company’s
network at the same time, I need to configure the static routing.
Company’s server
PC
Router B
Router A
Switch
LAN: 192.168.0.1
192.168.0.100
LAN: 192.168.0.2
WAN: 172.30.30.100
172.30.30.1
How can I do that?
1 Change the routers’ LAN IP addresses to two different IP addresses on the same
subnet. Disable Router B’s DHCP function.
2 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
Router A.
3 Go to Advanced > Network > Routing.

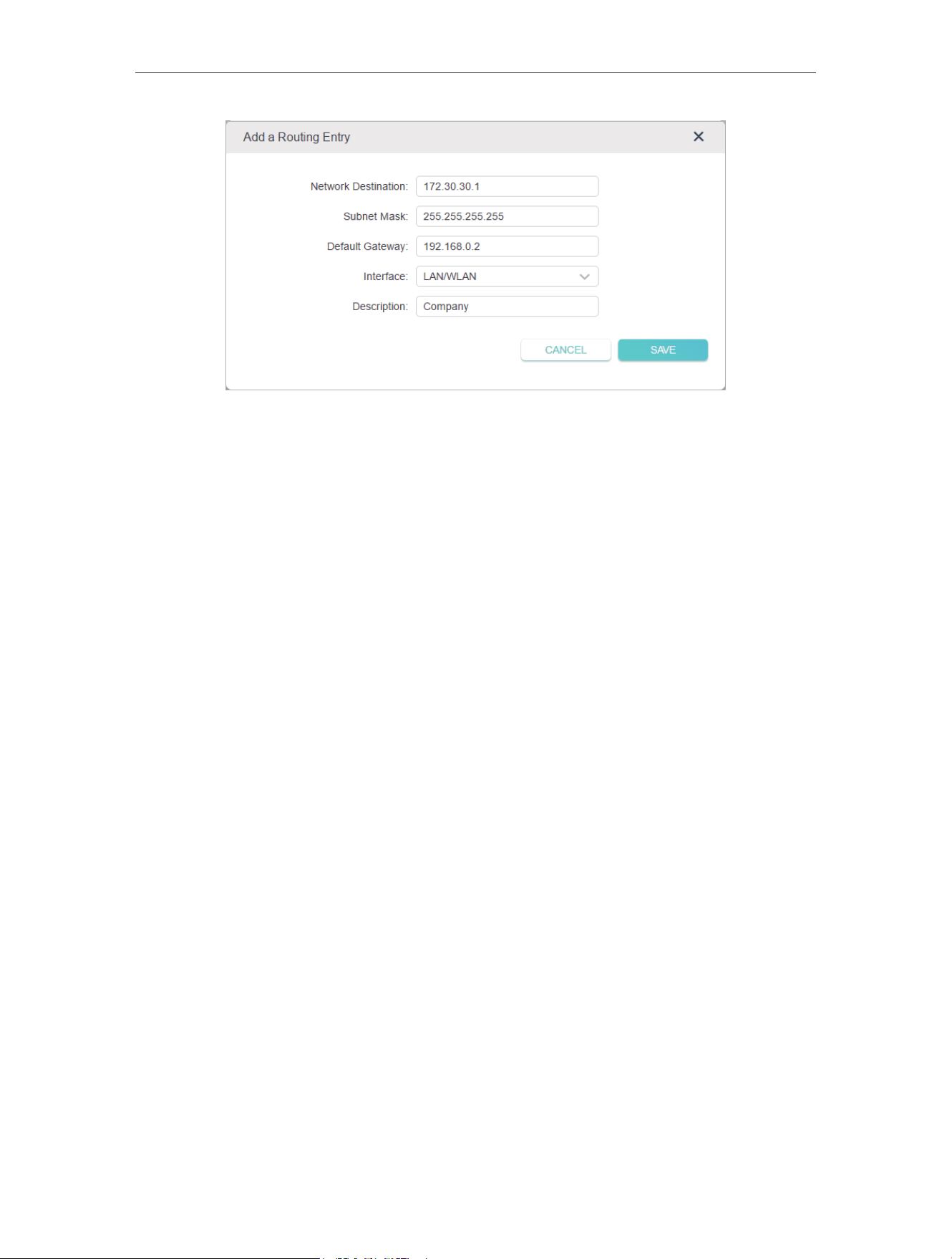

4 Click Add and finish the settings according to the following explanations:
27
Chapter 4
Configure the Router in Wireless Router Mode
Network Destination: The destination IP address that you want to assign to a static
route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of
Router A. In the example, the IP address of the company network is the destination
IP address, so here enter 172.30.30.1.
Subnet Mask: Determines the destination network with the destination IP address.
If the destination is a single IP address, enter 255.255.255.255; otherwise, enter
the subnet mask of the corresponding network IP. In the example, the destination
network is a single IP, so here enter 255.255.255.255.
Default Gateway: The IP address of the gateway device to which the data packets
will be sent. This IP address must be on the same subnet with the router’s IP which
sends out data. In the example, the data packets will be sent to the LAN port of
Router B and then to the Server, so the default gateway should be 192.168.0.2.
Interface: Determined by the port (WAN/LAN) that sends out data packets. In the
example, the data are sent to the gateway through the LAN port of Router A, so LAN/
WLAN should be selected.
Description: Enter a description for this static routing entry.
5 Click SAVE.

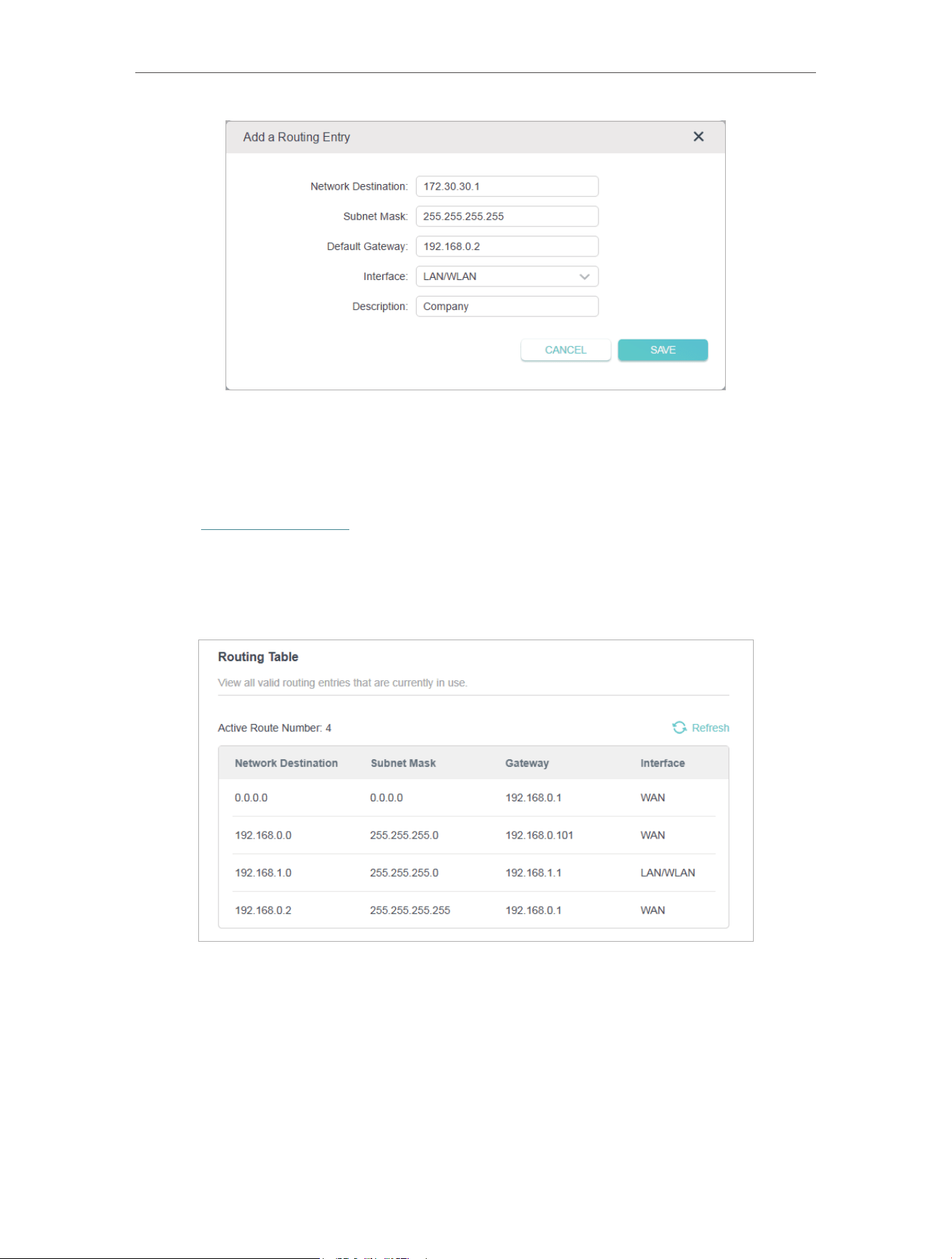

6 Check the Routing Table below. If you can find the entry you’ve set, the static routing
is set successfully.
28
Chapter 4
Configure the Router in Wireless Router Mode
Done! Open a web browser on your PC. Enter the company server’s IP address to visit
the company network.
• To view the Routing Table:
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
Router A.
2 Go to Advanced > Network > Routing. You can view all valid routing entries that are
currently in use in the Routing Table.
29
Chapter 4
Configure the Router in Wireless Router Mode
4 4 TP-Link Cloud Service
TP-Link Cloud service provides a better way to manage your cloud devices. Log in to
your router with a TP-Link ID, and you can easily monitor and manage your home network
when you are out and about via the Tether app. To ensure that your router stays new and
gets better over time, the TP-Link Cloud will notify you when an important firmware
upgrade is available. Surely you can also manage multiple TP-Link Cloud devices with a
single TP-Link ID.
4 4 1 Register a TP-Link ID
If you have skipped the registration during the Quick Setup process, you can:
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.

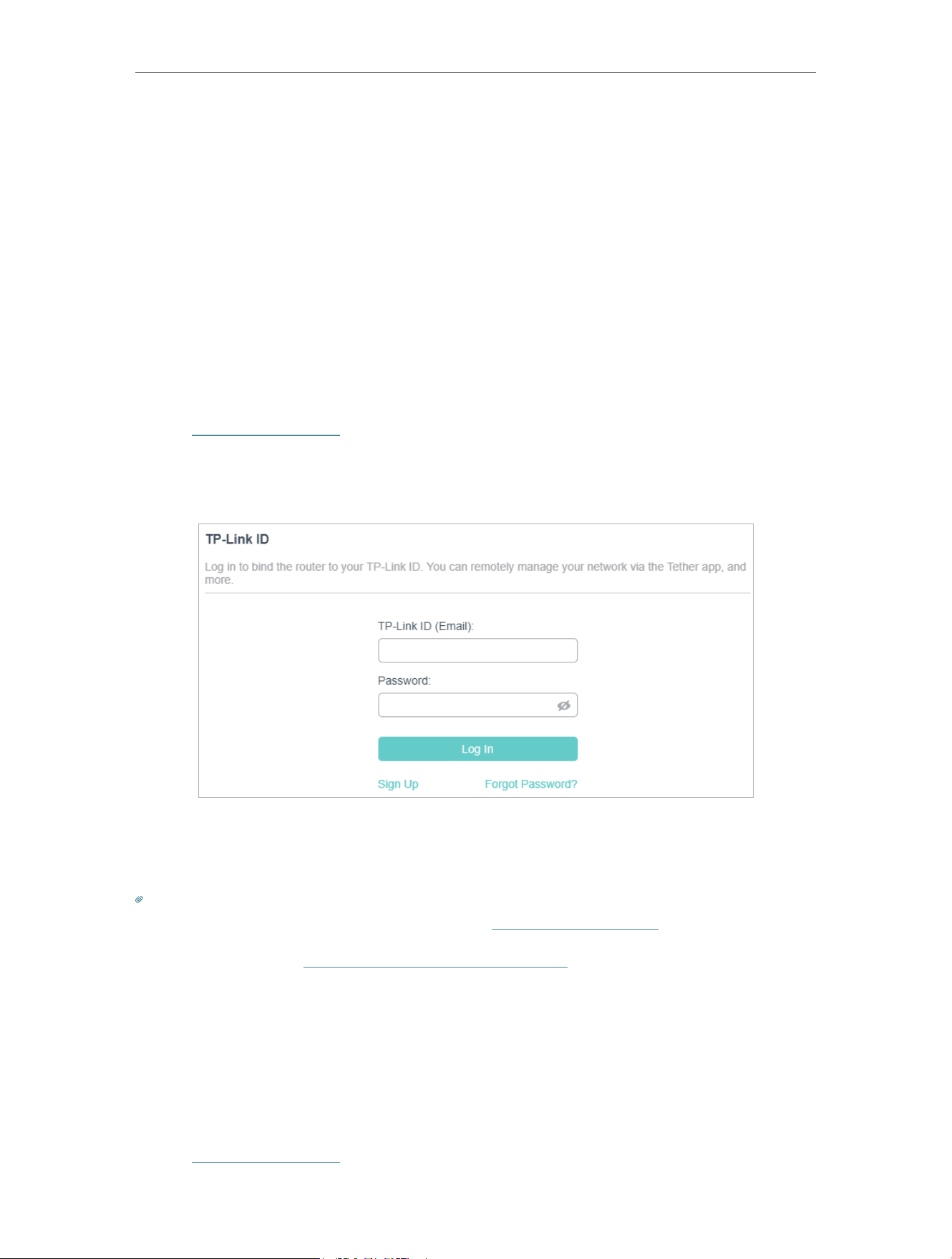

2. Go to Advanced > TP-Link ID or click TP-Link ID on the very top of the page.
3. Click Sign Up and follow the instructions to register a TP-Link ID.
4. After activating your TP-Link ID, come back to the TP-Link ID page to log in. The
TP-Link ID used to log in to the router for the first time will be automatically bound as
an Admin.
Note:
• To learn more about the Admin and User TP-Link ID, refer to Manage the User TP-Link IDs.
• Once you have registered a TP-Link ID on the web management page, you can only register another TP-Link ID via the
Tether APP. Please refer to Manage the Router via the TP-Link Tether App to install the app.
• If you want to unbind the admin TP-Link ID from your router, please go to Advanced > TP-Link ID, an click Unbind in the
Device Information section.
4 4 2 Change Your TP-Link ID Information
Follow the steps below to change your email address and password of your TP-Link ID
as needed.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.
30
Chapter 4
Configure the Router in Wireless Router Mode
2. Go to Advanced > TP-Link ID, and focus on the Account Information section.

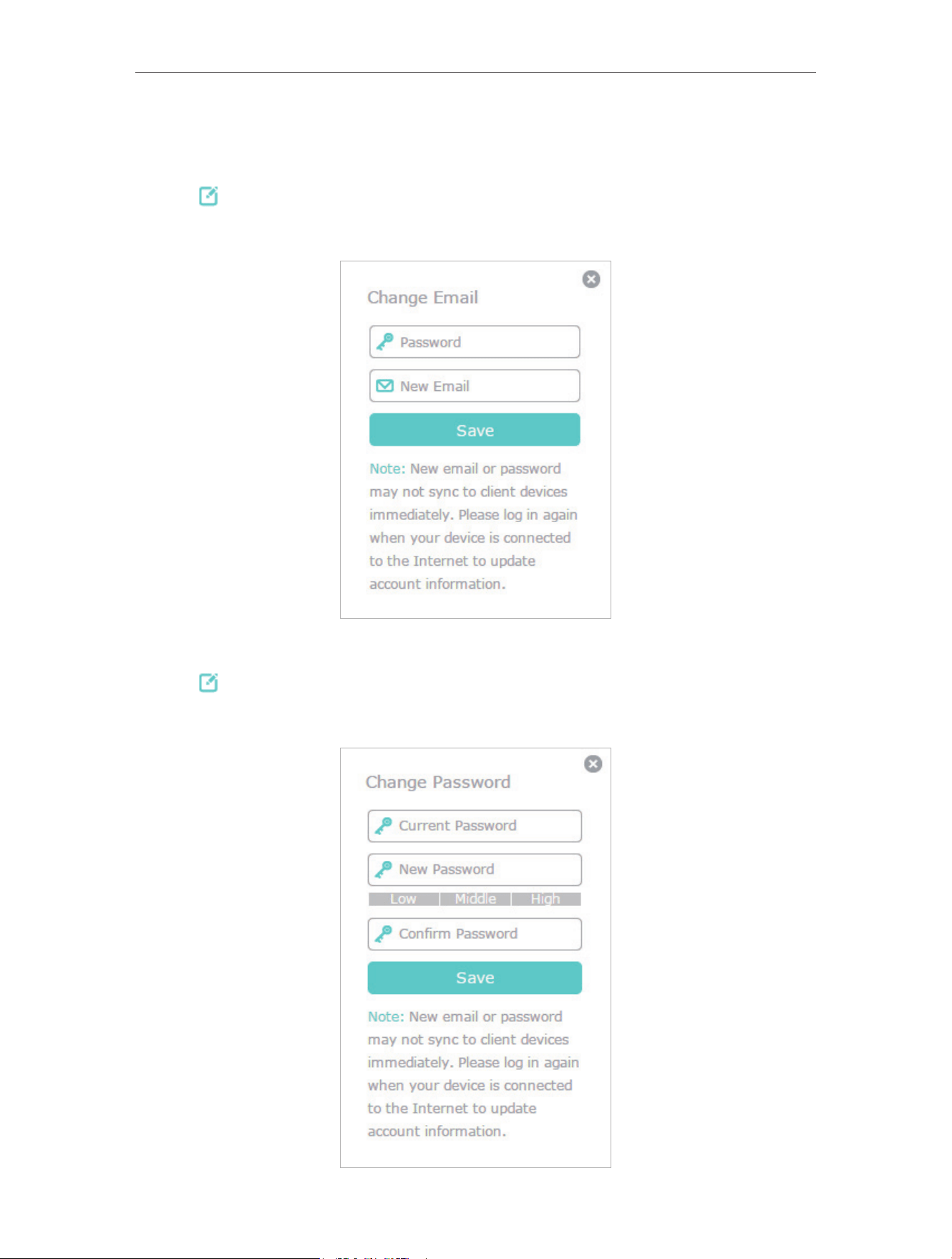

• To change your email address:
1. Click behind the Email.
2. Enter the password of your TP-Link ID, then a new email address. And click SAVE .
• To change your password:
1. Click behind the Password.
2. Enter the current password, then a new password twice. And click SAVE.
31
Chapter 4
Configure the Router in Wireless Router Mode
4 4 3 Manage the User TP-Link IDs
The TP-Link ID used to log in to the router for the first time will be automatically bound
as the Admin account. An admin account can add or remove other TP-Link IDs to or
from the same router as Users. All accounts can monitor and manage the router locally
or remotely, but user accounts cannot:
• Reset the router to its factory default settings either on the web management page
or in the Tether app.
• Add/remove other TP-Link IDs to/from the router.
• Add TP-Link ID to Manage the Router
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.

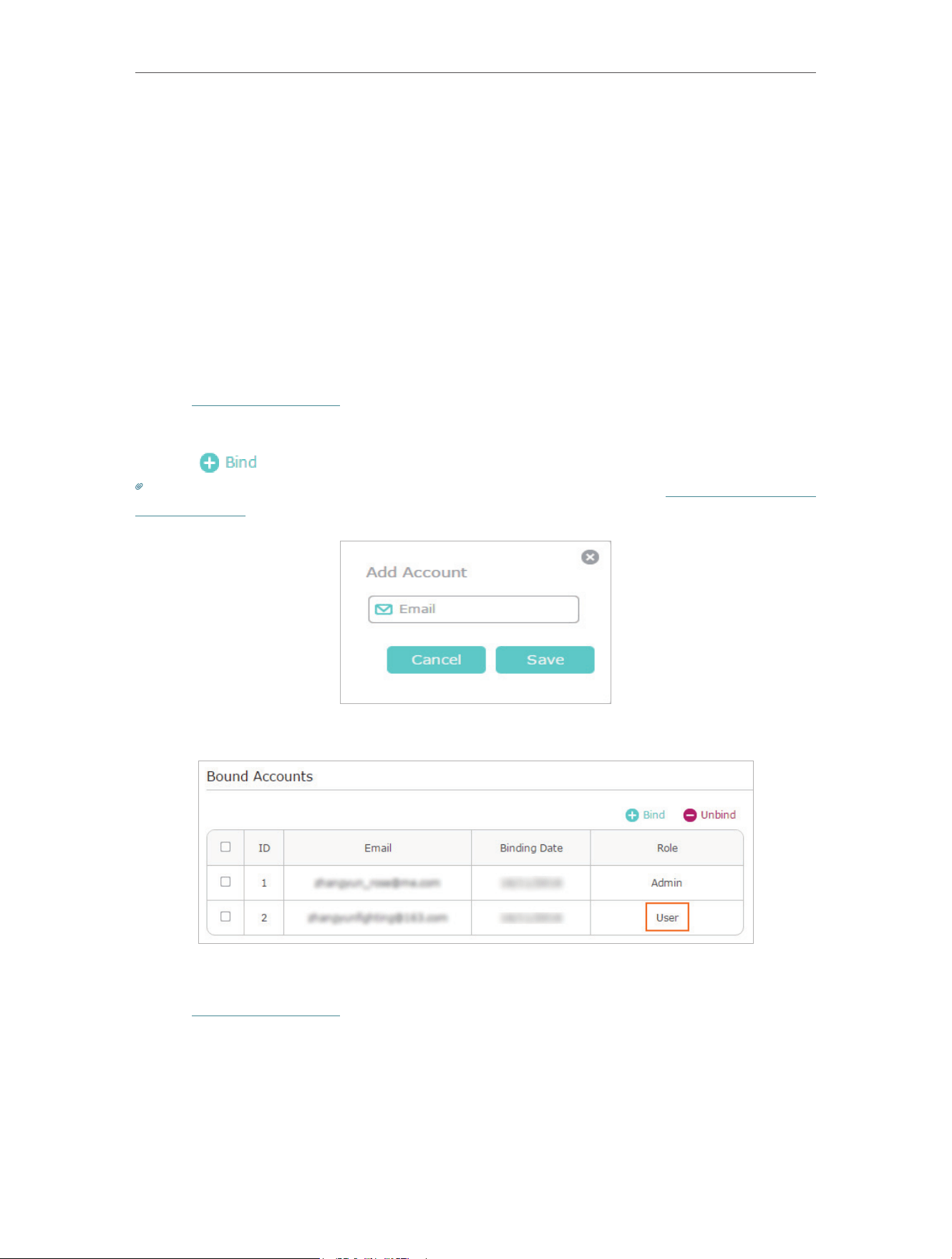

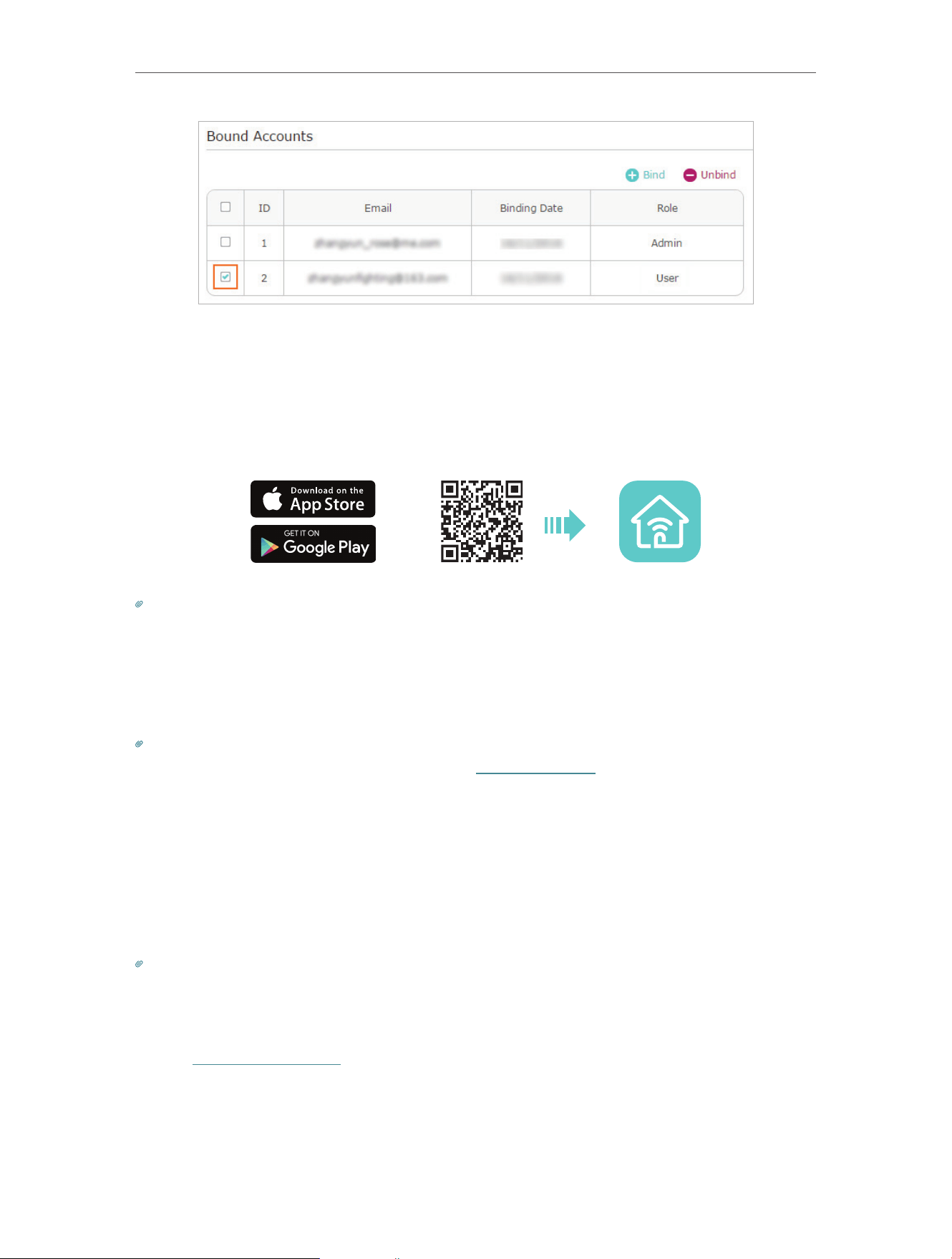

2. Go to Advanced > TP-Link ID, and focus on the Bound Accounts section.
3. Click , enter another TP-Link ID as needed and click SAVE.
Note: If you need another TP-Link ID, please register a new one via the Tether app. Refer to Manage the Router via the
TP-Link Tether App to install the app and register a new TP-Link ID.
4. The new TP-Link ID will be displayed in the Bound Accounts table as a User.
• Remove TP-Link ID(s) from Managing the Router
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.
2. Go to Advanced > TP-Link ID, and focus on the Bound Accounts section.
3. Tick the checkbox(es) of the TP-Link ID(s) you want to remove and click Unbind.
32
Chapter 4
Configure the Router in Wireless Router Mode
4 4 4 Manage the Router via the TP-Link Tether App
The Tether app runs on iOS and Android devices, such as smartphones and tablets.
1. Launch the Apple App Store or Google Play store and search “TP-Link Tether” or
simply scan the QR code to download and install the app.
OR
2. Launch the Tether app and log in with your TP-Link ID.
Note: If you don’t have a TP-Link ID, create one first.
3. Connect your device to the router’s wireless network.
4. Go back to the Tether app, select the model of your router and log in with the password
you set for the router.
5. Manage your router as needed.
Note: If you need to remotely access your router from your smart devices, you need to:
• Log in with your TP-Link ID. If you don’t have one, refer to Register a TP-Link ID.
• Make sure your smartphone or tablet can access the internet with cellular data or a Wi-Fi network.
4 5 EasyMesh with Seamless Roaming
EasyMesh routers and extenders work together to form one unified Wi-Fi network.
Walk through your home and stay connected with the fastest possible speeds thanks
to EasyMesh’s seamless coverage.
Note: Routers and range extenders must be compatible with EasyMesh or OneMesh™. Firmware upgrades may be
required.
• Add a Router as a Satellite Device:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > EasyMesh, and enable EasyMesh.
33
Chapter 4
Configure the Router in Wireless Router Mode

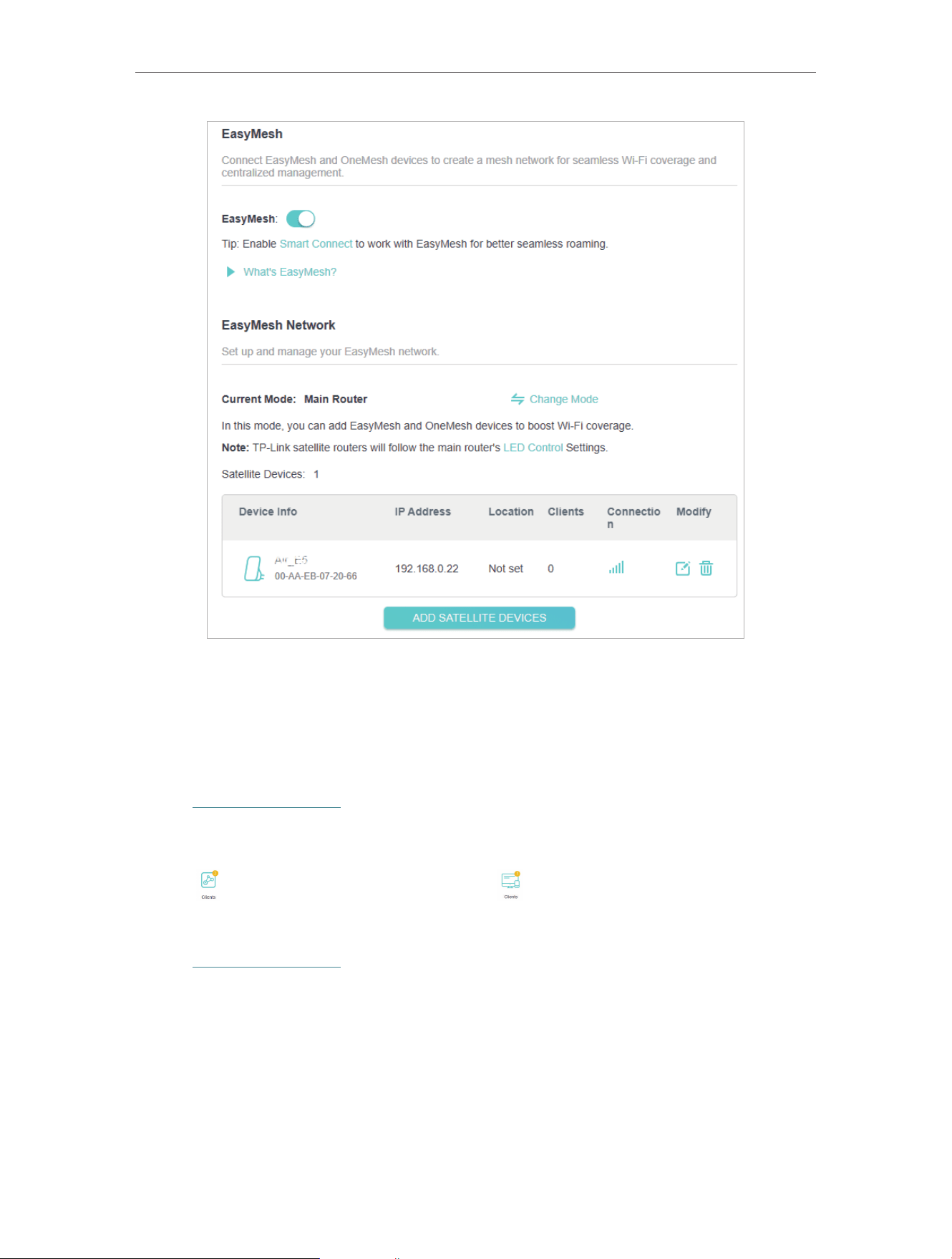

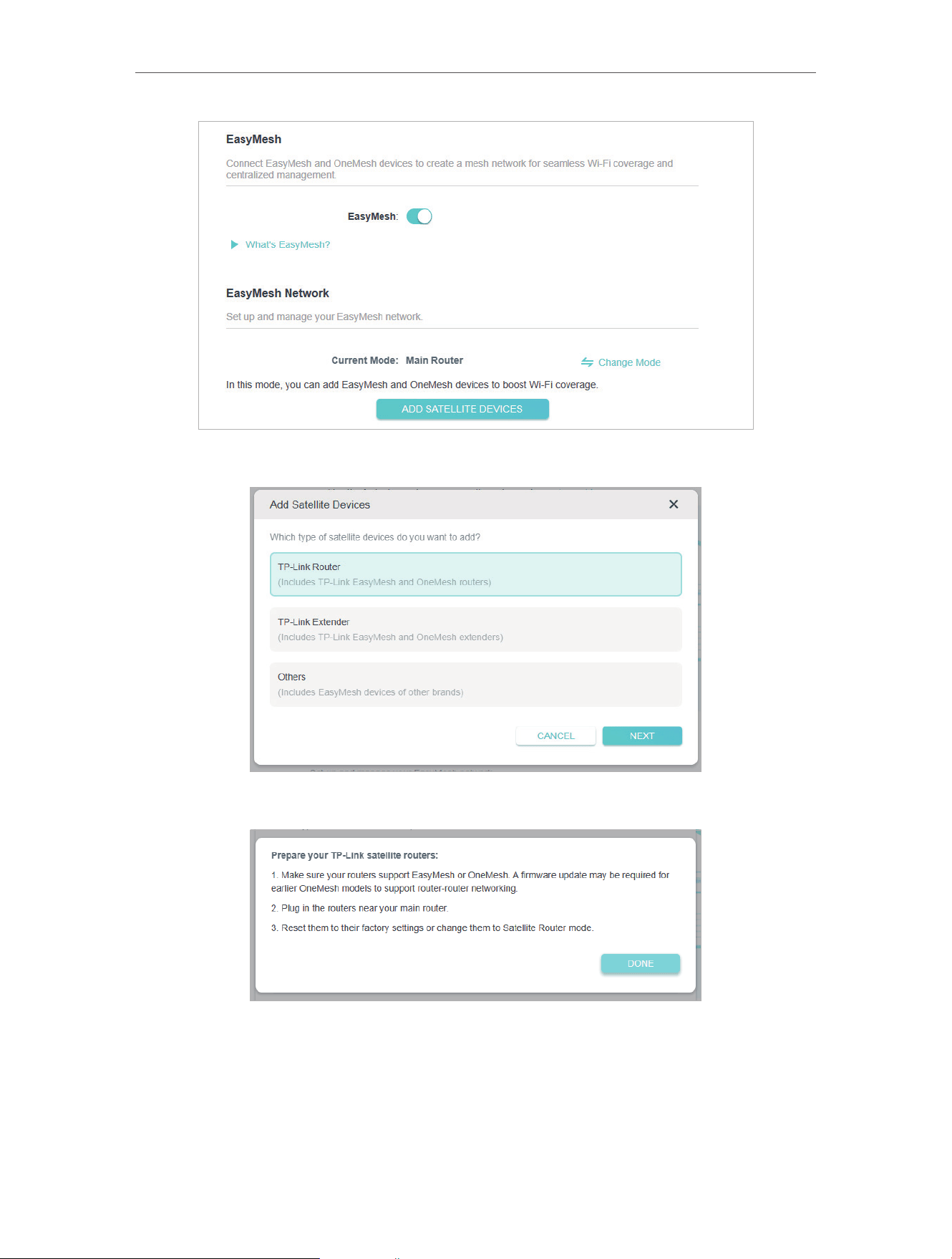

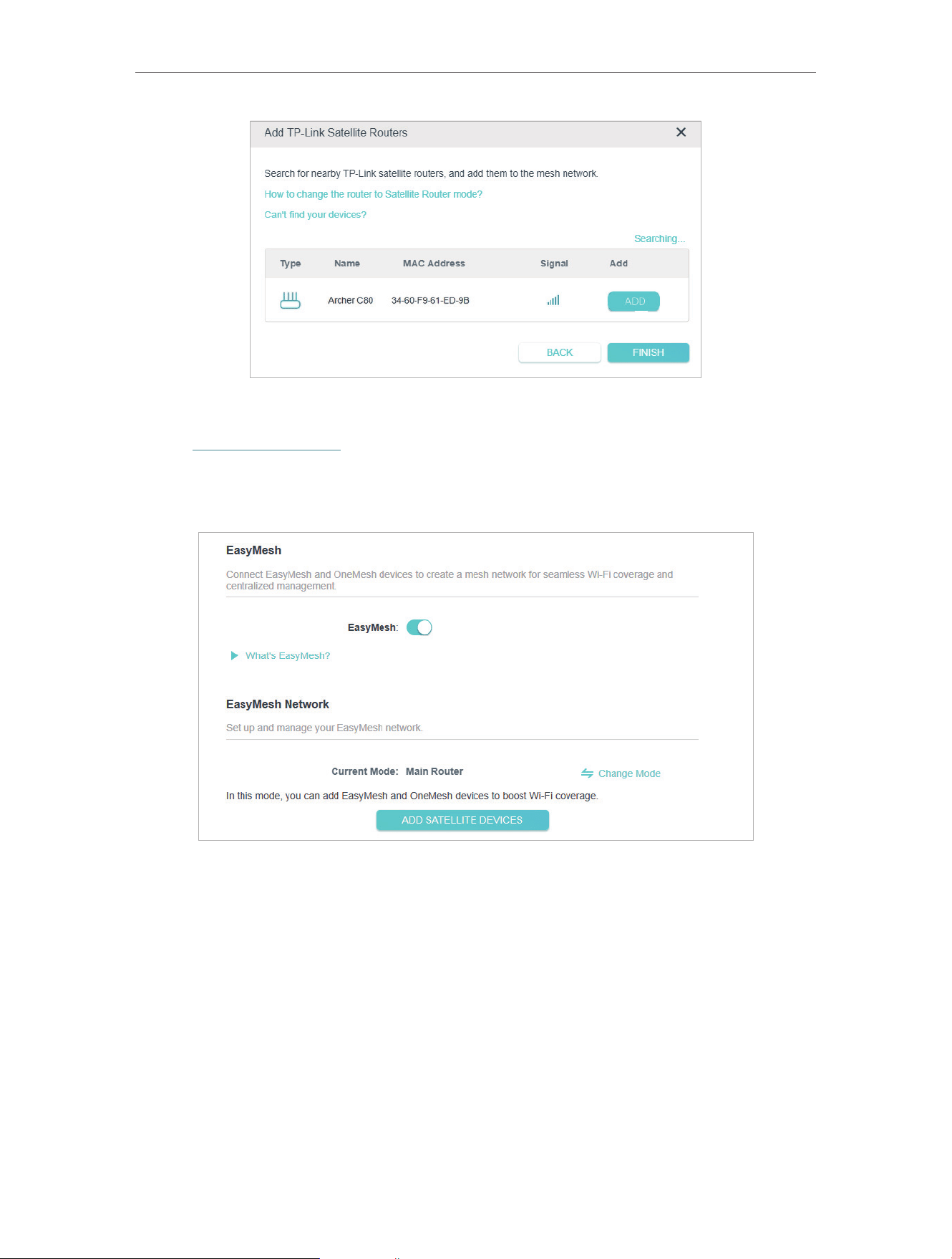

3. Click ADD SATELLITE DEVICES, select TP-Link Router, then click NEXT.
4. Follow the page instructions to prepare your satellite device, then click DONE.
5. Click ADD. When prompted “This device has been added successfully“, click OK,
then click FINISH.
34
Chapter 4
Configure the Router in Wireless Router Mode
• Add a Range Extender as a Satellite Device:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > EasyMesh, and enable EasyMesh.`
3. Plug in the extender next to the main router.
4. With in 2 minutes, press the WPS button on main router and on the extender. Wait
until the WPS process is complete.
5. Done! You can check the mesh device on the router’s web page too.
35
Chapter 4
Configure the Router in Wireless Router Mode
• Manage Devices in the EasyMesh Network:
In an EasyMesh network, you can manage all mesh devices and connected clients on
your main router’s web page.
• View EasyMesh Devices and Connected Clients in the Network:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Network Map.
3. Click to view all mesh devices, and click to view all connected clients.
• Manage an EasyMesh device in the network:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > EasyMesh.
3. Click the Modify button to view detailed information and change its settings.
36
Chapter 4
Configure the Router in Wireless Router Mode

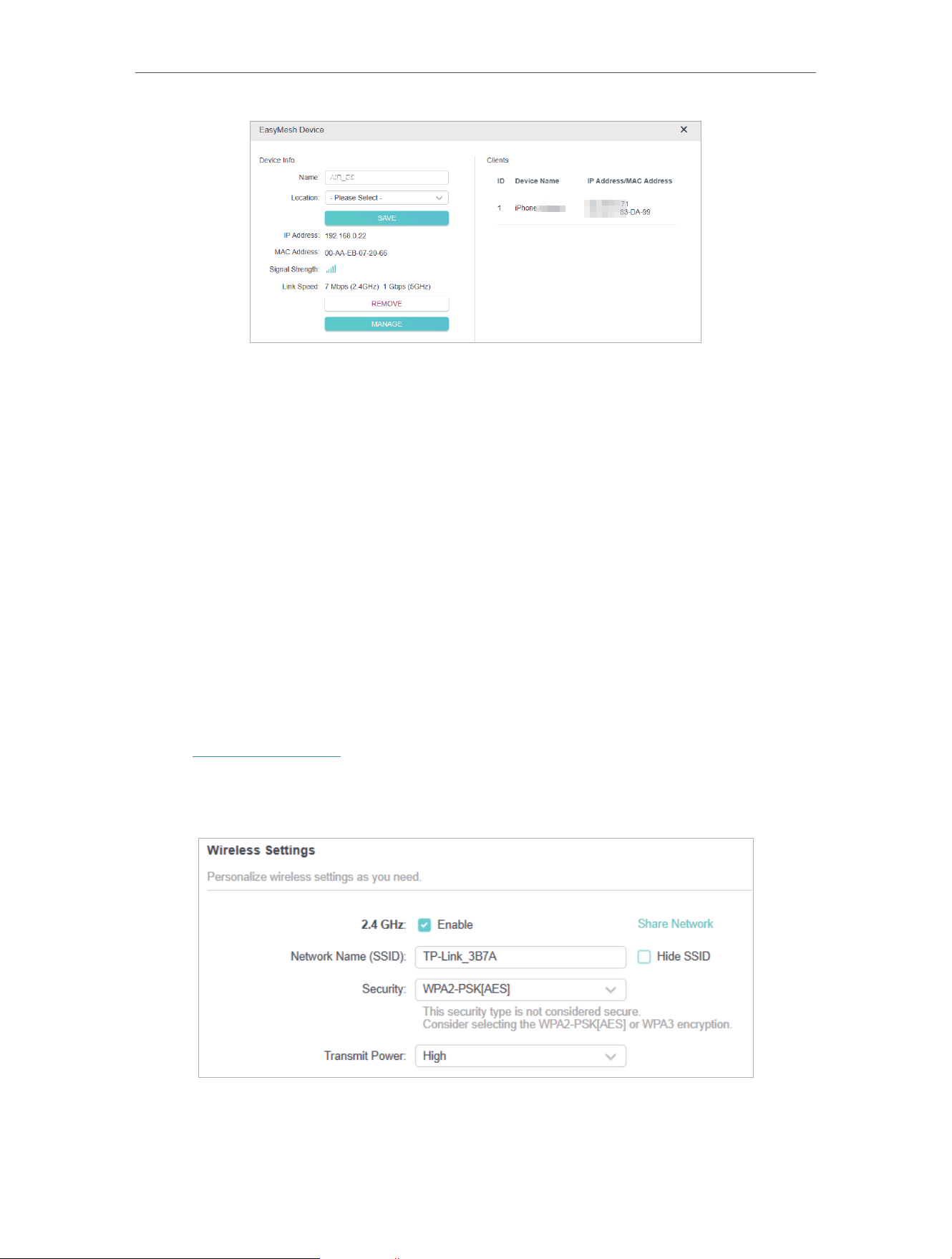

• Name - Enter a name for the EasyMesh Device.
• Location - Select a location for the EasyMesh Device from the dropdown list.
• Clients - View the connected client devices.
• Click Manage to redirect to the web management page of this device.
• Click Remove to delete this device from the EasyMesh network.
4. Click SAVE .
4 6 Wireless Settings
This chapter guides you on how to configure the wireless settings.
4 6 1 Specify Wireless Settings
You can personalize wireless settings as you need.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless or Advanced > Wireless > Wireless Settings.
37
Chapter 4
Configure the Router in Wireless Router Mode

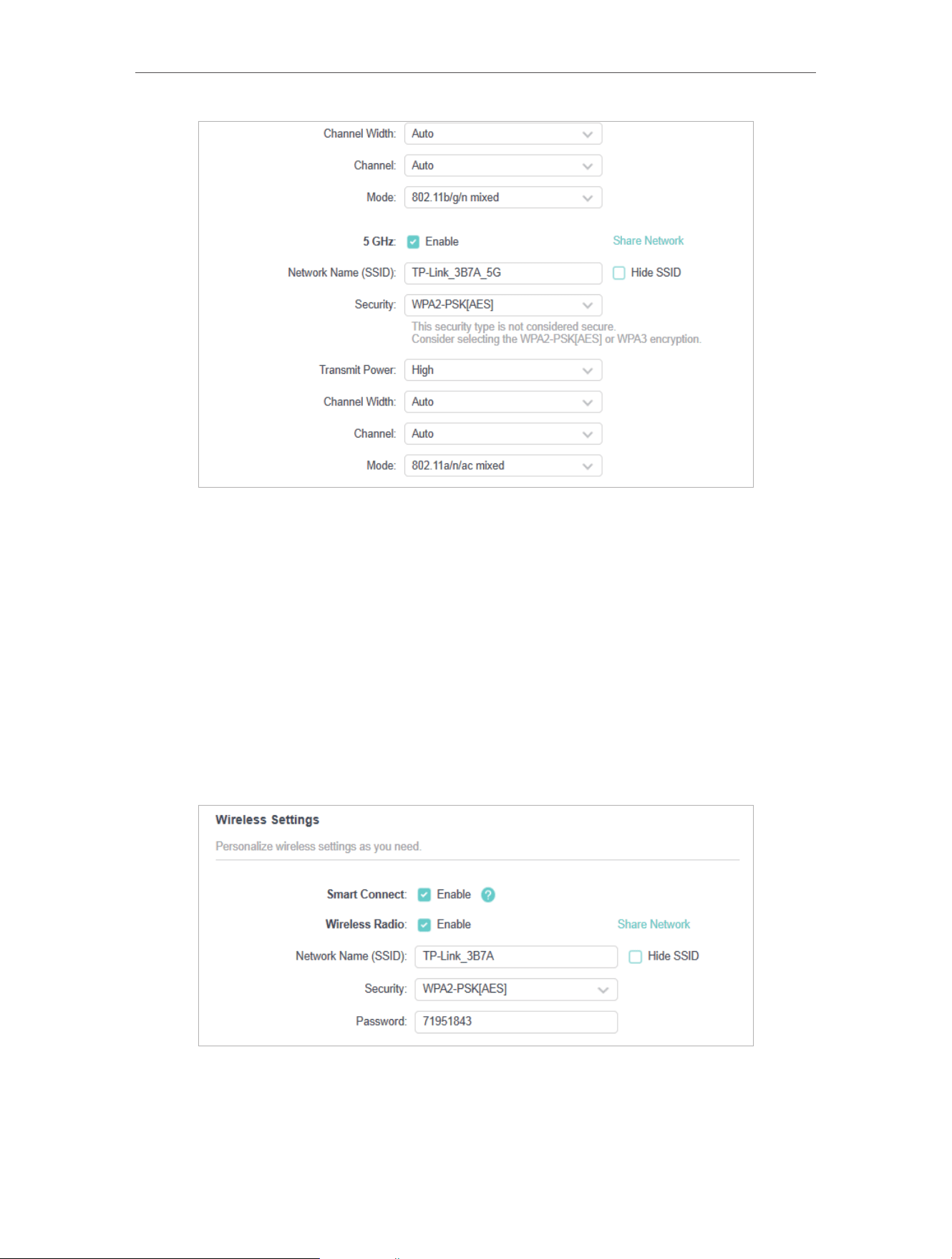

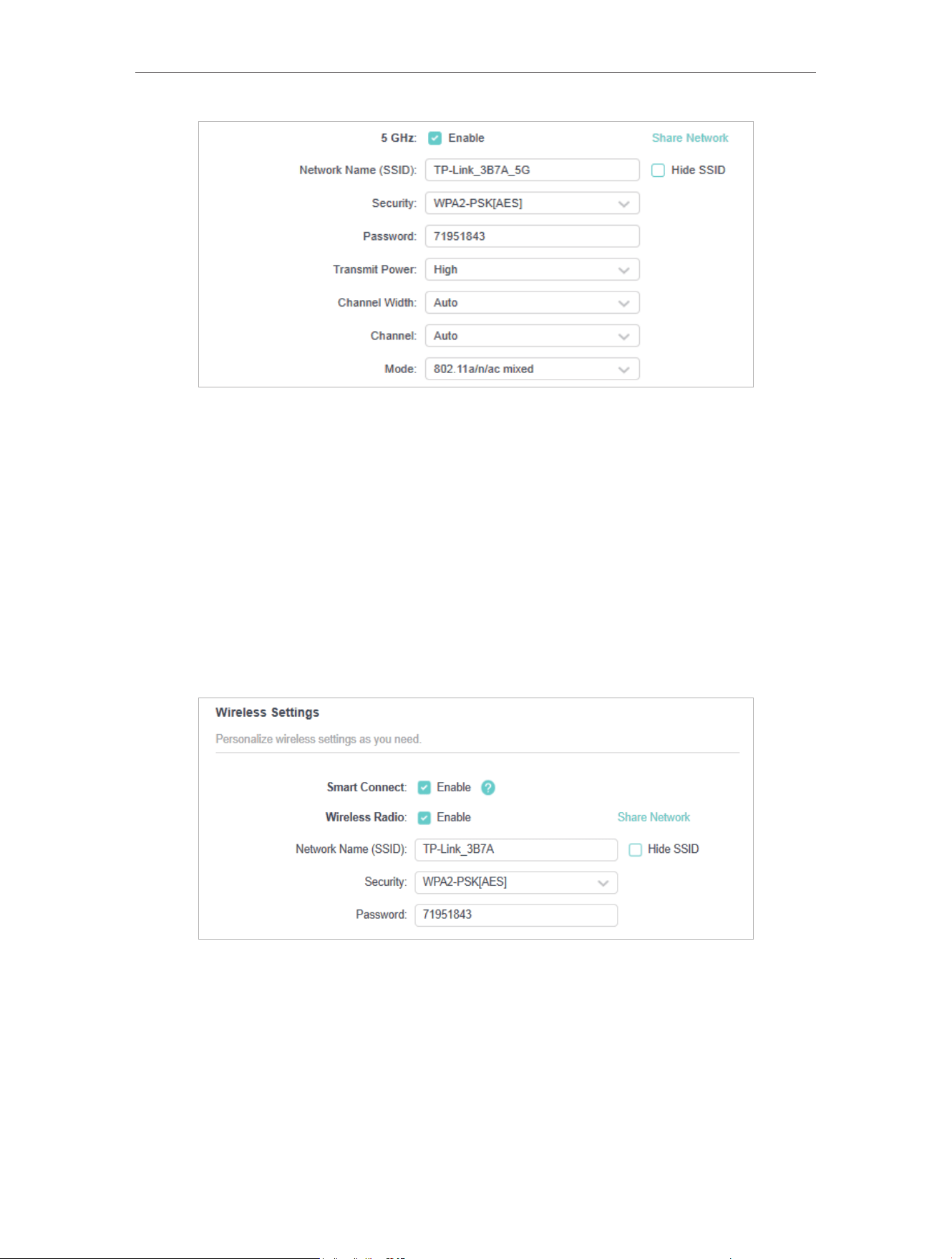

• To use the Smart Connect function:
When enabled, the 2.4 GHz and 5 GHz networks share the same network name and
password (only one SSID will be displayed), and your wireless device will automatically
switch connection to the Wi-Fi band that provides the fastest speed.
1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. Enable Smart Connect.
3. Keep the default values or set a new SSID and password, and click SAVE . This SSID
and password will be applied for the 2.4 GHz and 5 GHz wireless networks. If you want
to configure the wireless settings separately for each band, deselect the checkbox
to disable this feature.
• To enable or disable the wireless function:
1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. The wireless bands are enabled by default. If you want to disable a wireless band, just
deselect its Enable checkbox.
38
Chapter 4
Configure the Router in Wireless Router Mode
• To change the wireless network name (SSID) and wireless password:
1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. Create a new SSID in Network Name (SSID) and customize the password for the
network in Password. The value is case-sensitive.
Note: If you change the wireless settings with a wireless device, you will be disconnected when the settings are
effective. Please write down the new SSID and password for future use.
• To hide SSID:
1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. Select Hide SSID, and your SSID won’t display when you scan for local wireless
networks on your wireless device and you need to manually join the network.
• To change the security option:
1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. Select an option from the Security drop-down list. We recommend you don’t change
the default settings unless necessary.
• To change the transmit power:
1. Go to Advanced > Wireless > Wireless Settings.
2. Select an option from the Transmit Power drop-down list: High, Middle or Low. The
default and recommended setting is High.
• To change channel settings:
1. Go to Advanced > Wireless > Wireless Settings.
2. Select a Channel Width (bandwidth) for the wireless network. It is recommended to
just leave it as default.
3. Select an operating Channel for the wireless network. It is recommended to leave
the channel to Auto if you are not experiencing the intermittent wireless connection
issue.
• To change the transmission mode:
1. Go to Advanced > Wireless > Wireless Settings.
2. Disable Smart Connect, then select a transmission Mode according to your wireless
client devices. It is recommended to just leave it as default.
• To Share Network:
1. Go to Wireless or Advanced > Wireless > Wireless Settings.

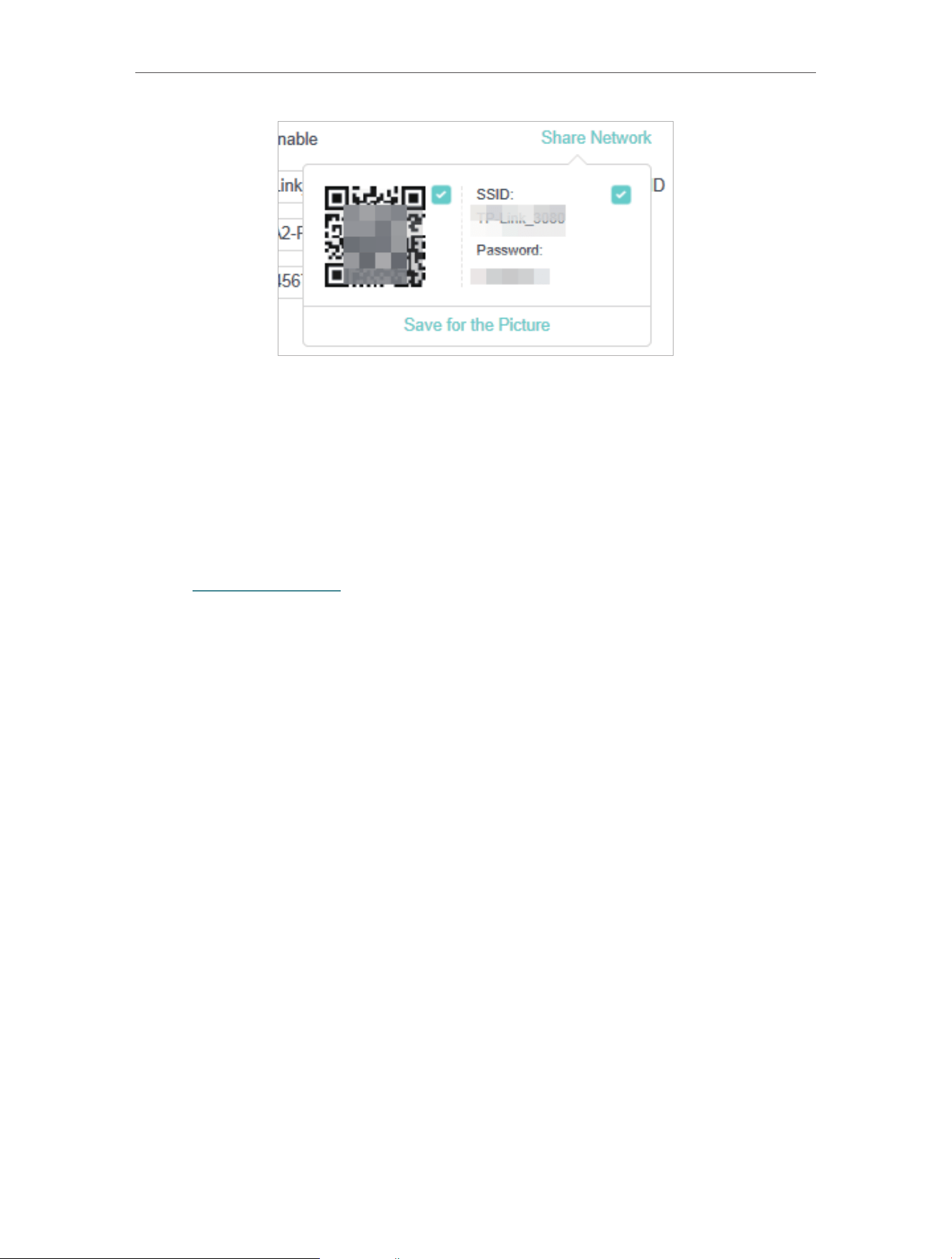

2. Click Share Network to share the SSID and password to your guests.
39
Chapter 4
Configure the Router in Wireless Router Mode
4 6 2 Guest Network
Guest Network allows you to provide Wi-Fi access for guests without disclosing your
host network. When you have guests in your house, apartment, or workplace, you can
create a guest network for them. In addition, you can customize guest network settings
to ensure network security and privacy.
• Create a Network for Guests:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Wireless > Guest Network or go to Wireless and locate the Guest
Network section.
3. Create a guest network as needed.

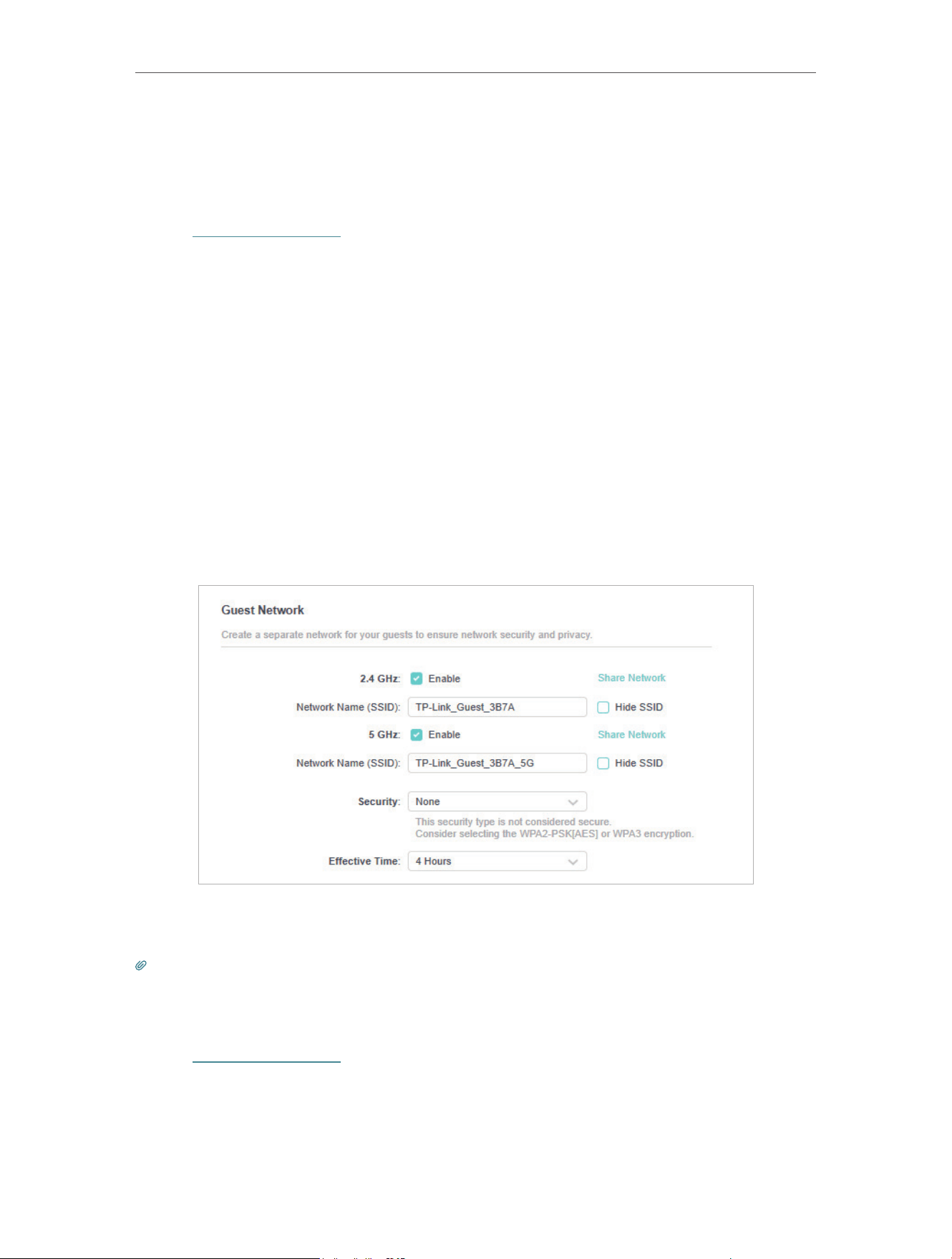

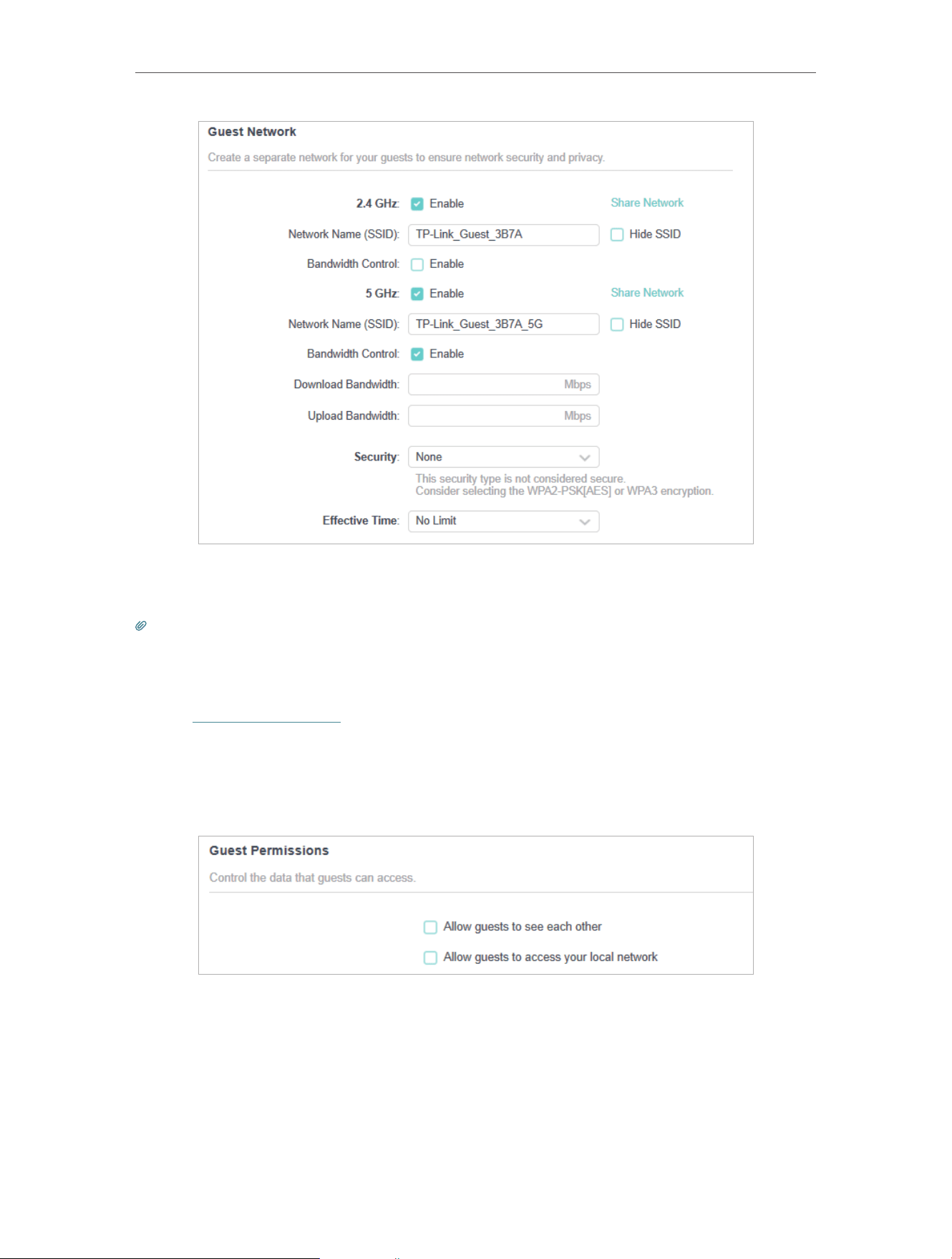

1 ) Tick the Enable checkbox for the 2.4GHz or 5 GHz wireless network.
2 ) Customize the SSID. Don‘t select Hide SSID unless you want your guests to
manually input the SSID for guest network access.
3 ) Click Share Network to share the SSID and password to your guests.
4 ) Enable Bandwidth Control if you want to limit the network speed of your guests.
Then enter the limited bandwidth value.
5 ) Set the Effective Time to keep the guest network on during the selected
duration.
6 ) Select the Security type and customize your own password. If None is selected,
no password is needed to access your guest network.
40
Chapter 4
Configure the Router in Wireless Router Mode
4. Click SAVE. Now your guests can access your guest network using the SSID and
password you set!
Tips: To view guest network information, go to Network Map and locate the Guest Network section. You can turn on
or off the guest network function conveniently.
• Customize Guest Network Options:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Wireless > Guest Network. Locate the Guest Permissions section.
3. Customize guest network options according to your needs.
• Allow guests to see each other
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with each other via methods such as network neighbors and Ping.
• Allow guests to access your local network
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with the devices connected to your router’s LAN ports or main
network via methods such as network neighbors and Ping.
41
Chapter 4
Configure the Router in Wireless Router Mode
4. Click SAVE . Now you can ensure network security and privacy!
4 6 3 IoT Network

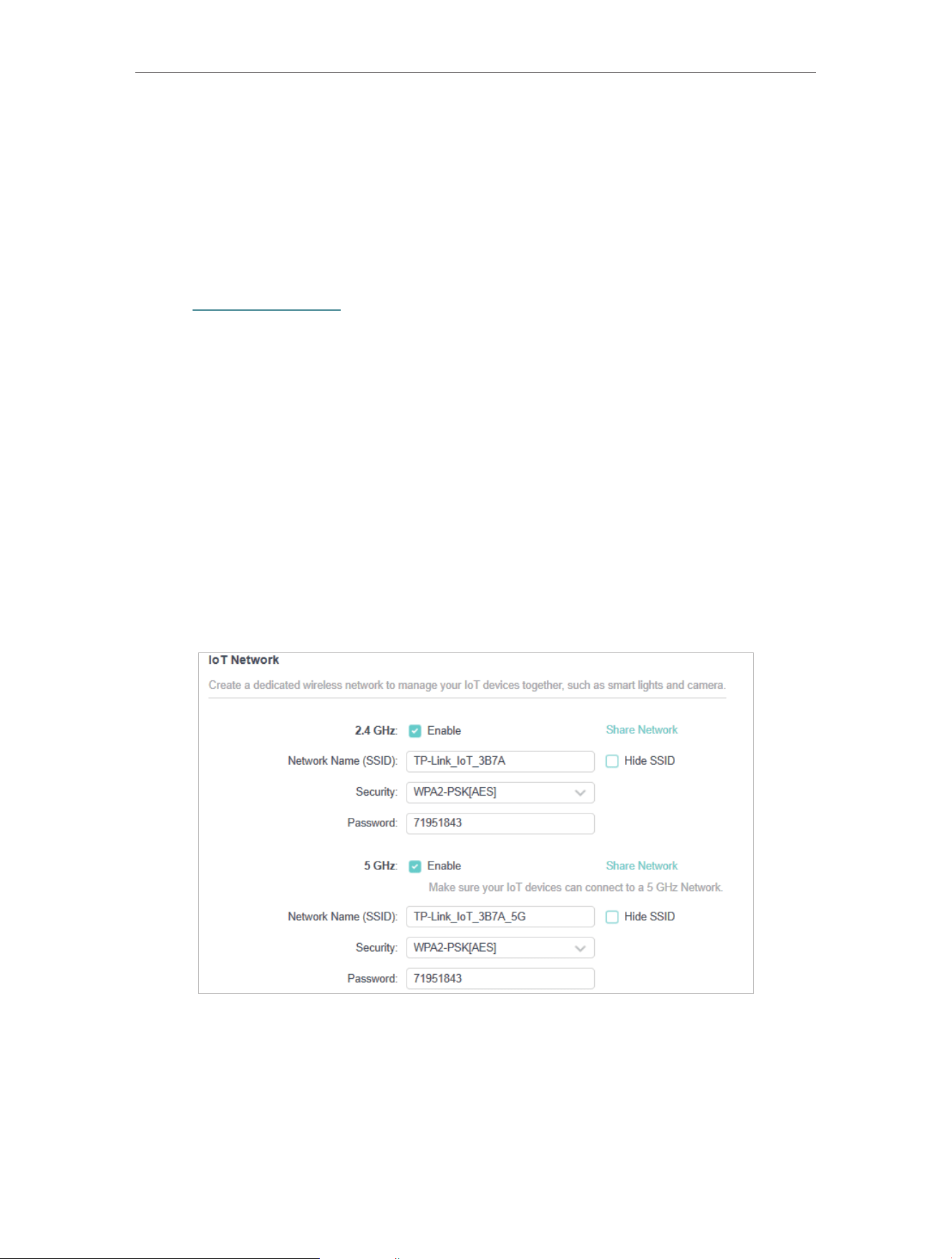

This feature further secures your home network by allowing you to create a dedicated
wireless network to manage your loT devices together, such as smart lights and
cameras.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Wireless > IoT Network or go to Wireless and locate the IoT
Network section.
3. Create an IoT network as needed.
1 ) Tick the Enable checkbox for the 2.4GHz or 5 GHz wireless network. For 5 GHz
IoT networks, make sure your IoT devices can connect to a 5 GHz network.
2 ) Customize the SSID. Don‘t select Hide SSID unless you want your IoT devices
to manually input the SSID for network access.
3 ) Click Share Network to share the SSID and password to others.
4 ) Select the Security type and customize your own password. If None is selected,
no password is needed to access the IoT network.
4. Click SAVE . Now you can connect your IoT devices to the dedicated IoT network.
4 6 4 Wireless Schedule
The wireless network can be automatically off at a specific time when you do not need
the wireless connection.
42
Chapter 4
Configure the Router in Wireless Router Mode
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

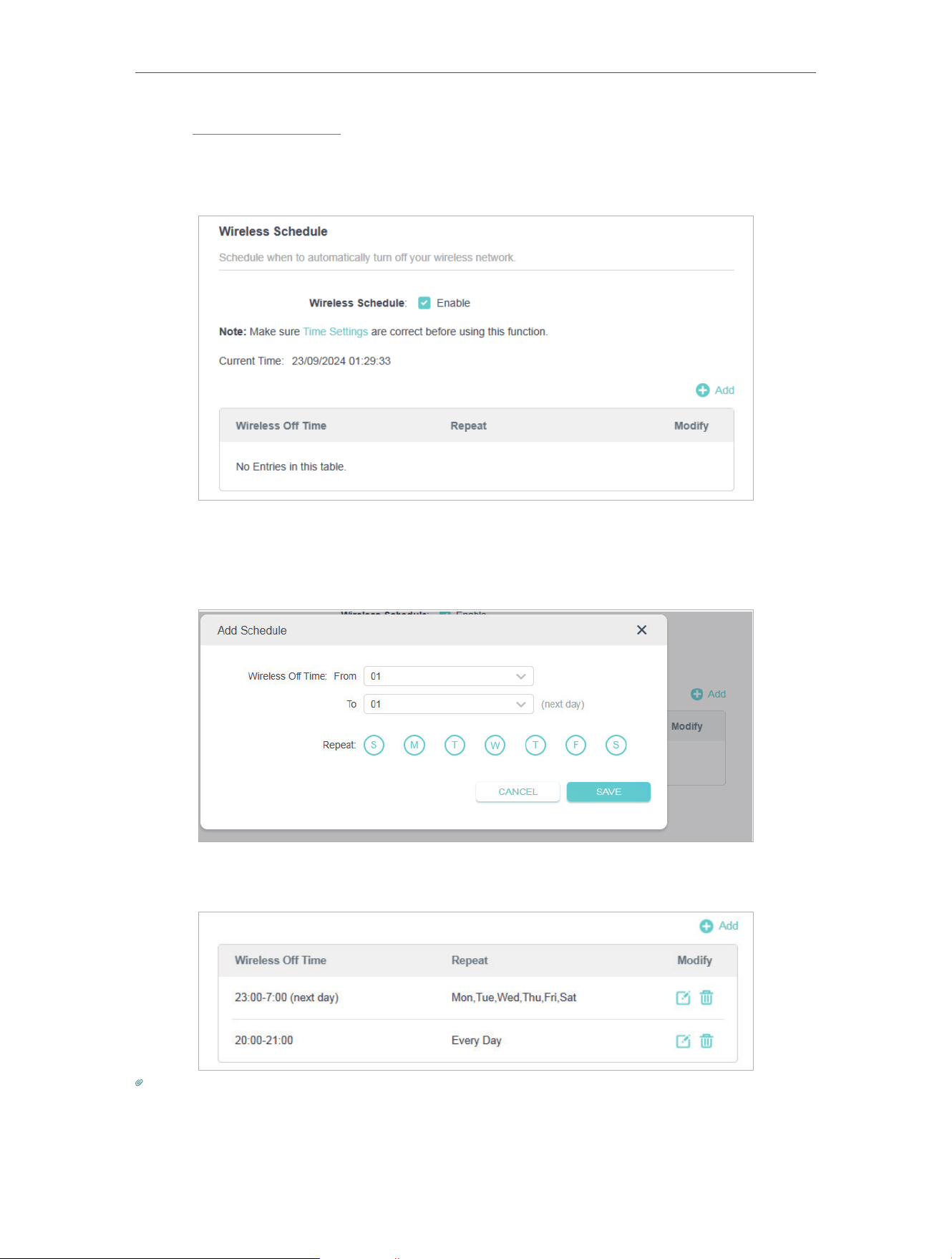

2. Go to Advanced > Wireless > Wireless Schedule.
3. Tick the Enable checkbox to enable the wireless schedule function.

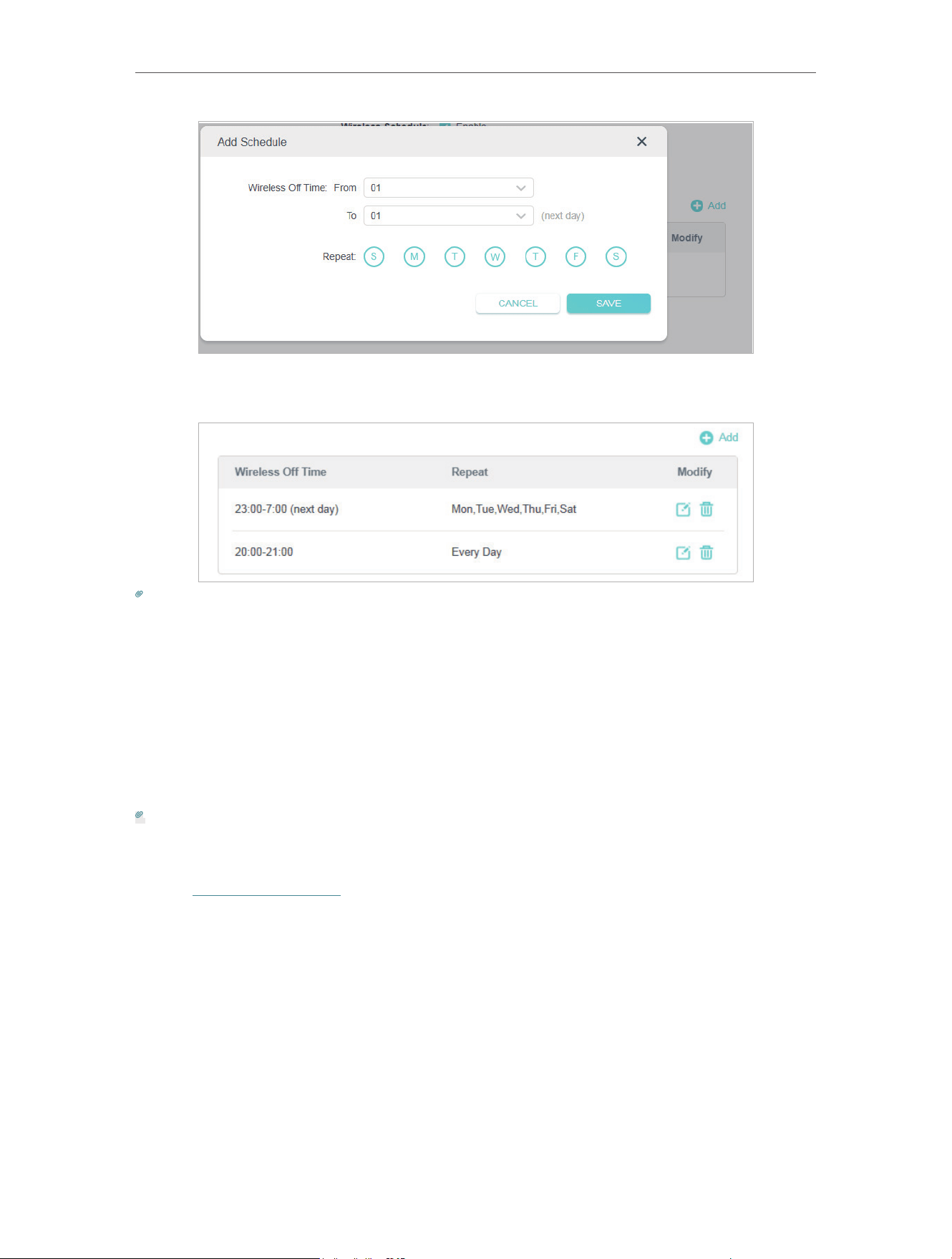

4. Click Add to specify a wireless off period during which you need the wireless off
automatically, and click SAVE.
5. The wireless schedules added will appear in the list. You can modify the settings here.
Note:
• The Effective Time Schedule is based on the time of the router. You can go to Advanced > System > Time & Language
to modify the time.
• The wireless network will be automatically turned on after the time period you set.
43
Chapter 4
Configure the Router in Wireless Router Mode
4 6 5 WPS
WPS (Wi-Fi Protected Setup) can help you to quickly and securely connect to a network.
This section will guide you to add a new wireless device to your router’s network quickly
via WPS.
Note:
The WPS function cannot be configured if the wireless function of the router is disabled. Please make sure the wireless
function is enabled before configuration.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

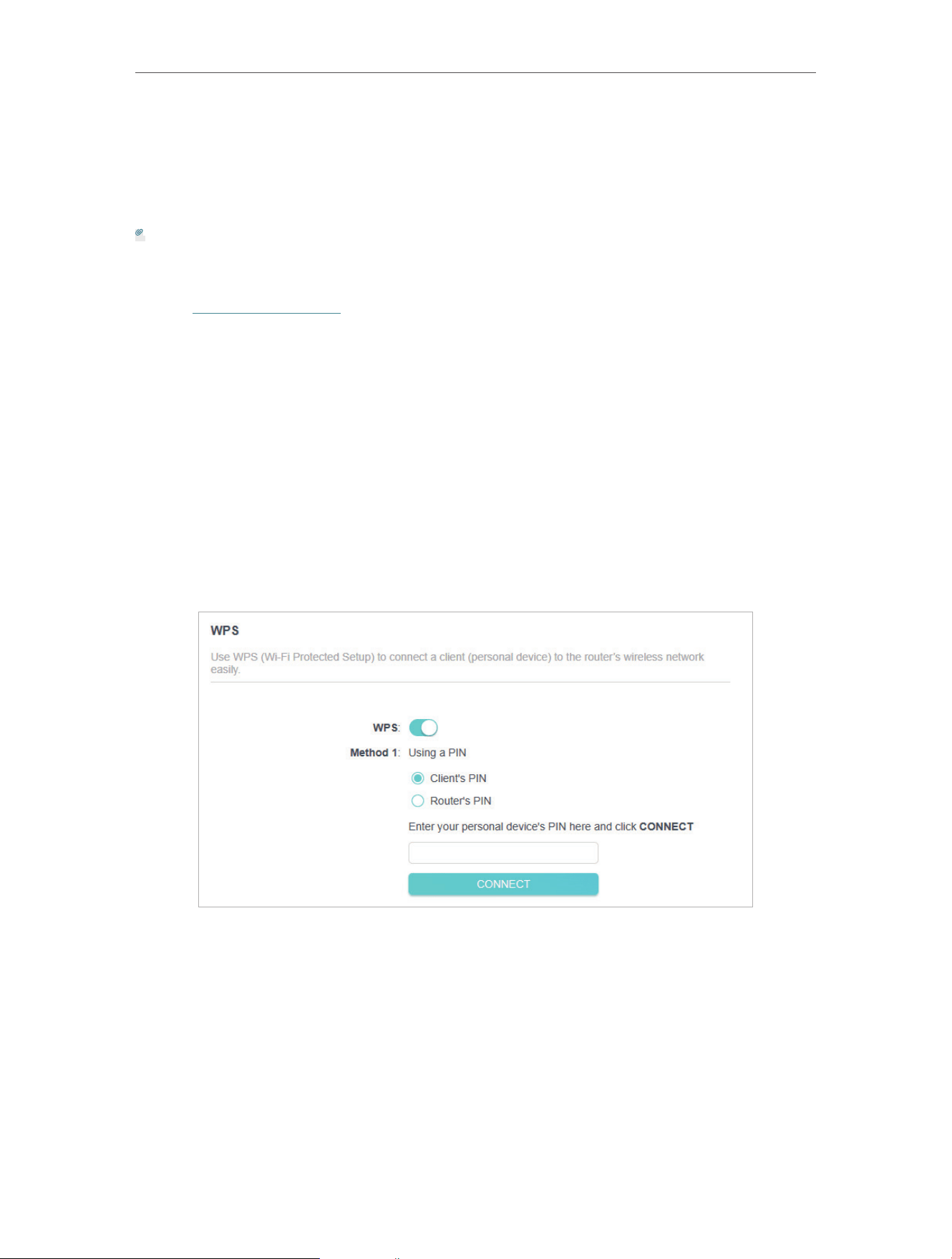

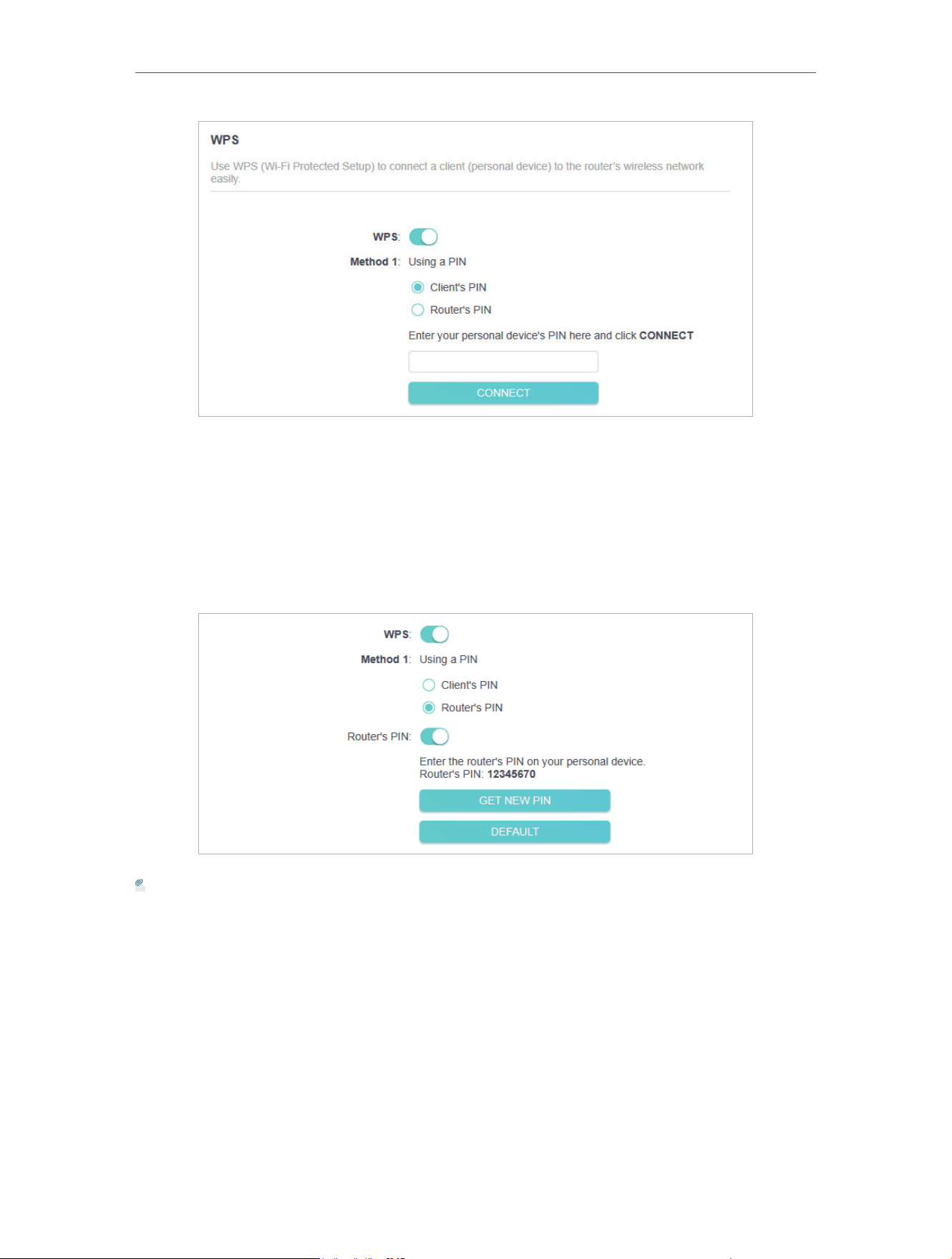

2. Go to Advanced > Wireless > WPS.
3. Click to enable the WPS function.

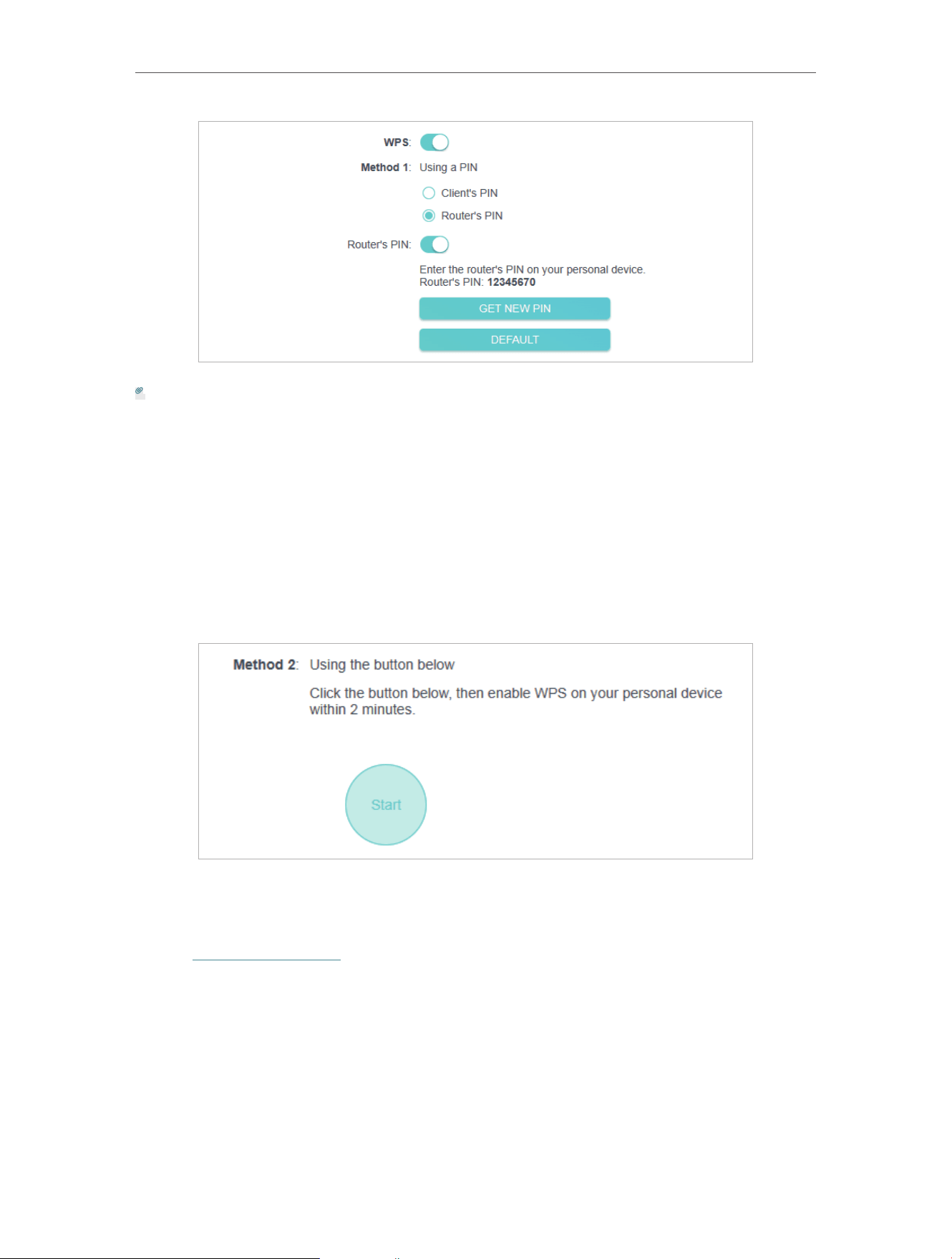

4. Follow one of the following methods to connect your client device to the router’s Wi-
Fi network.

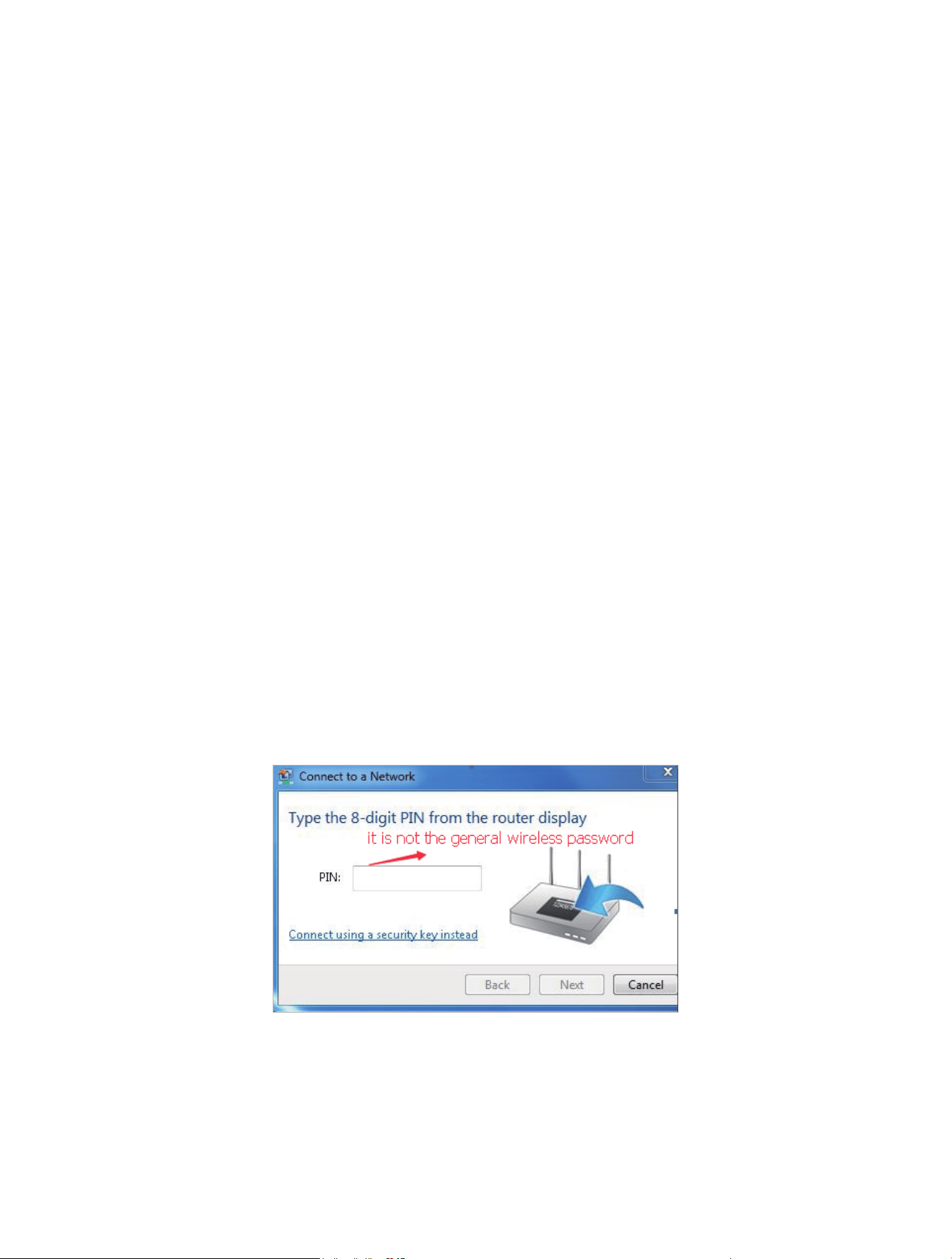

• Connect via the Client’s PIN
1. Select Client’s PIN.
2. Enter the PIN of your device and click CONNECT. Then your device will get connected
to the router.
• Connect via the Router’s PIN
1. Select Router’s PIN.
2. Enable Router’s PIN. You can click GET NEW PIN to generate a new one or click
DEFAULT to use the default PIN.
3. Enter the router’s PIN on your personal device.
44
Chapter 4
Configure the Router in Wireless Router Mode
Note:
PIN (Personal Identification Number) is an eight-character identification number preset to each router. WPS supported
devices can connect to your router with the PIN. The default PIN is printed on the label of the router.

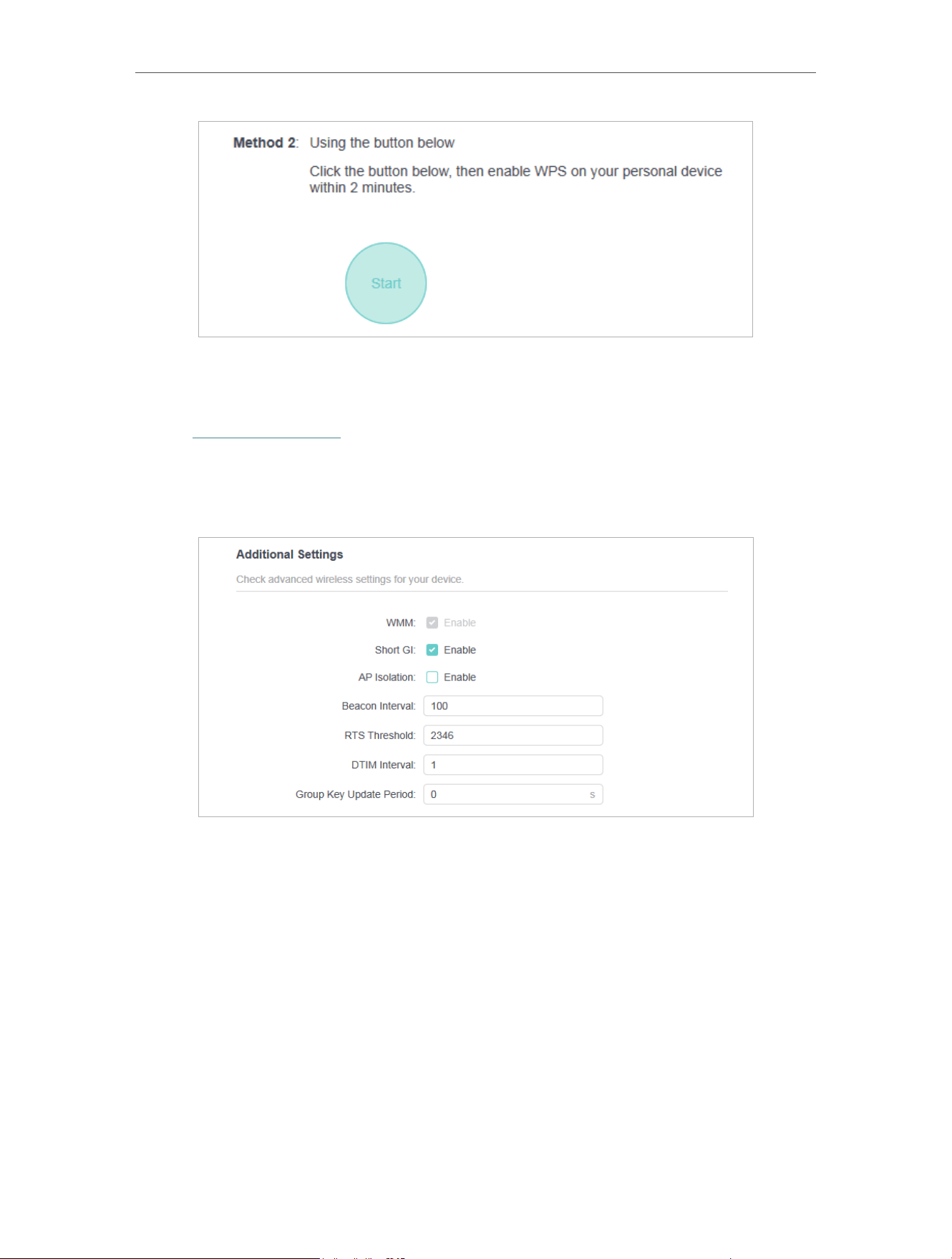

• Push the WPS Button
1. Click the Start button on the screen or directly press the router’s WPS button. Within
two minutes, press the WPS button on your client device.
2. A success message will appear on the page if the client device has been successfully
added to the router’s network. And the Wi-Fi LED of the router should change from
flashing to solid on, indicating successful WPS connection.
4 6 6 Advanced Wireless Settings

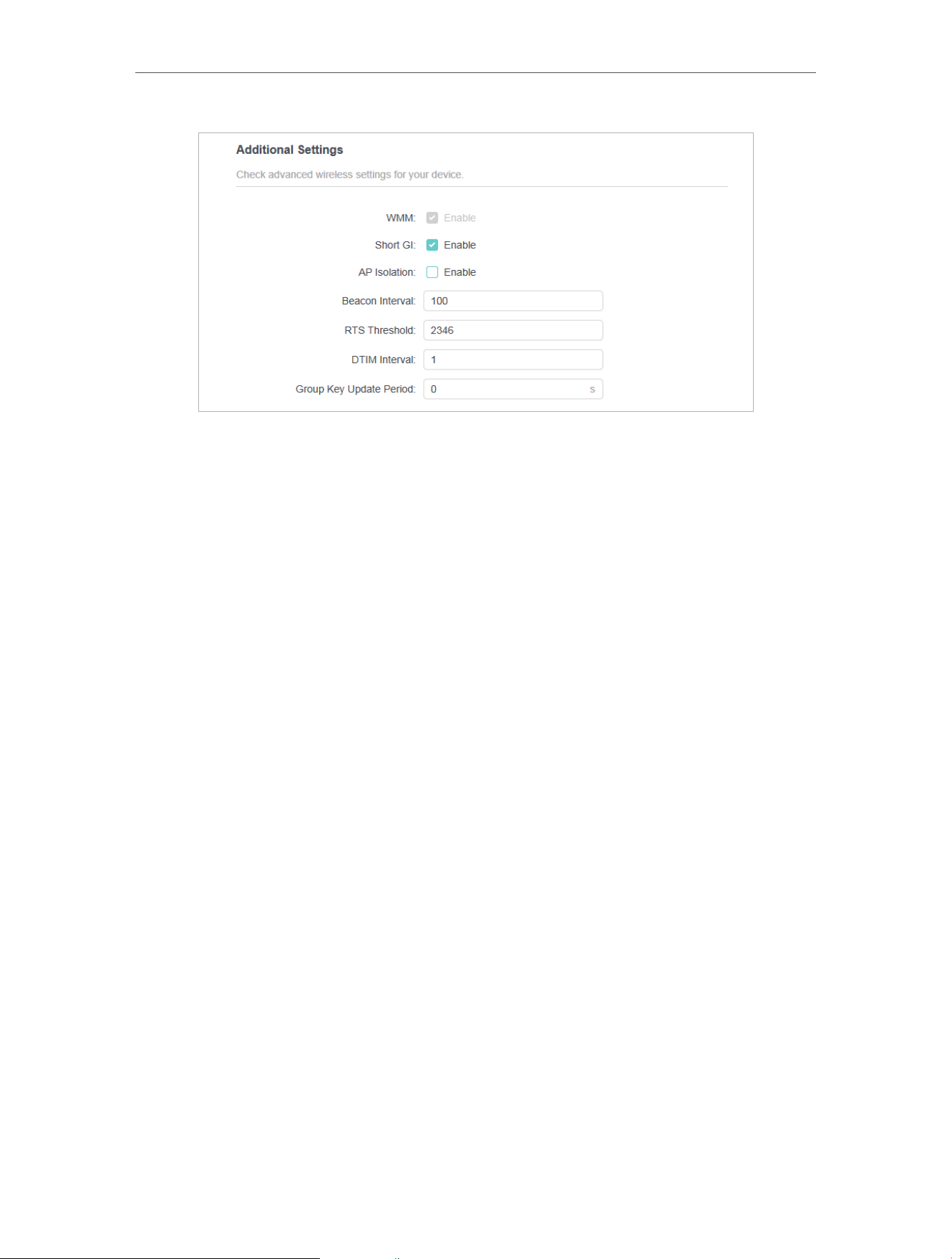

Check advanced wireless settings for your device.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Wireless > Additional Settings.
45
Chapter 4
Configure the Router in Wireless Router Mode
• WMM - WMM (Wi-Fi multimedia) function can guarantee the packets with high-priority
messages being transmitted preferentially.
• Short GI - It is recommended to enable Short GI (Short Guard Interval) function, for it
will increase the data capacity by reducing the guard interval time.
• AP Isolation - This function isolates all connected wireless stations so that wireless
stations cannot access each other through WLAN.
• Beacon Interval - Enter a value between 40 and 1000 in milliseconds to determine the
duration between beacon packets that are broadcasted by the router to synchronize
the wireless network. The default value is 100 milliseconds.
• RTS Threshold- Enter a value between 1 and 2346 to determine the packet size of
data transmission through the router. By default, the RTS (Request to Send) Threshold
size is 2346. If the packet size is greater than the preset threshold, the router will send
RTS frames to a particular receiving station and negotiate the sending of a data frame.
• DTIM Interval - The value determines the interval of DTIM (Delivery Traffic Indication
Message). Enter a value between 1 and 15 intervals. The default value is 1, which
indicates the DTIM Interval is the same as Beacon Interval.
• Group Key Update Period - Enter a number of seconds (minimum 30) to control the
time interval for the encryption key automatic renewal. The default value is 0, meaning
no key renewal.
4 7 NAT Forwarding
The router’s NAT (Network Address Translation) feature makes devices on the LAN use
the same public IP address to communicate with devices on the internet, which protects
the local network by hiding IP addresses of the devices. However, it also brings about
the problem that an external host cannot initiatively communicate with a specified
device on the local network.
46
Chapter 4
Configure the Router in Wireless Router Mode
With the forwarding feature the router can penetrate the isolation of NAT and allows
devices on the internet to initiatively communicate with devices on the local network,
thus realizing some special functions.
The TP-Link router supports four forwarding rules. If two or more rules are set, the
priority of implementation from high to low is Port Forwarding, Port Triggering, UPNP
and DMZ.
4 7 1 Share Local Resources on the Internet by Port Forwarding
When you build up a server on the local network and want to share it on the internet,
Port Forwarding can realize the service and provide it to internet users. At the same
time Port Forwarding can keep the local network safe as other services are still invisible
from the internet.
Port Forwarding can be used for setting up public services on your local network,
such as HTTP, FTP, DNS, POP3/SMTP and Telnet. Different services use different
service ports. Port 80 is used in HTTP service, port 21 in FTP service, port 25 in SMTP
service and port 110 in POP3 service. Please verify the service port number before the
configuration.
I want to:
Share my personal website I’ve built in local network with my friends through the internet.
For example, the personal website has been built on my home PC (192.168.0.100). I hope
that my friends on the internet can visit my website in some way. The PC is connected
to the router with the WAN IP address 218.18.232.154.
INTERNET
WAN: 218.18.232.154LANHome
Personal Website
Router
How can I do that?
1 Assign a static IP address to your PC, for example 192.168.0.100.
2 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
3 Go to Advanced > NAT Forwarding > Port Forwarding.
4 Click .
47
Chapter 4
Configure the Router in Wireless Router Mode

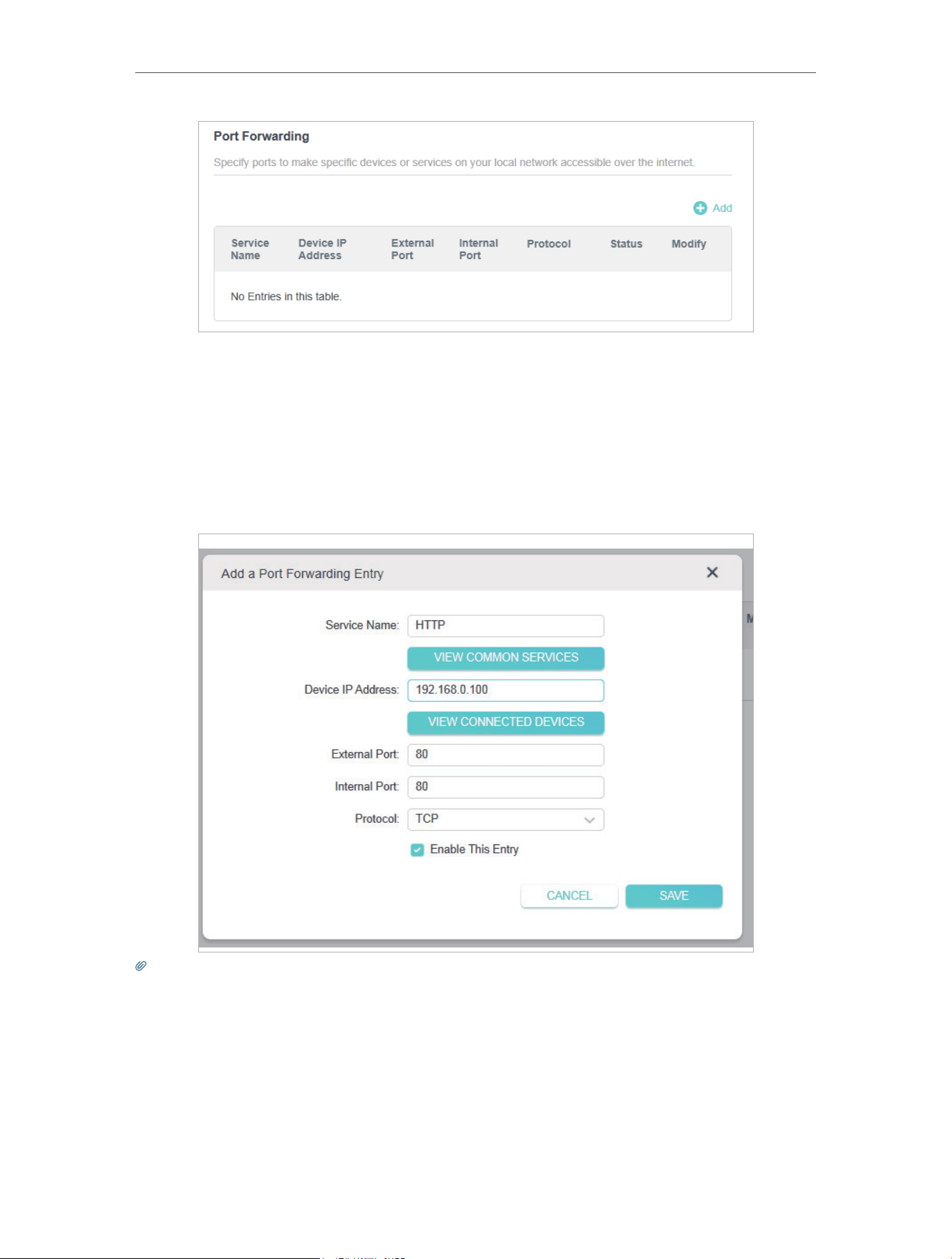

5 Click VIEW COMMON SERVICES and select HTTP. The External Port, Internal Port
and Protocol will be automatically filled in.
6 Click VIEW CONNECTED DEVICES and select your home PC. The Device IP
Address will be automatically filled in. Or enter the PC’s IP address 192.168.0.100
manually in the Device IP Address field.
7 Click SAVE.
Tips:
• It is recommended to keep the default settings of Internal Port and Protocol if you are not clear about which port and
protocol to use.
• If the service you want to use is not in the common services list, you can enter the corresponding parameters
manually. You should verify the port number that the service needs.
• You can add multiple port forwarding rules if you want to provide several services in a router. Please note that the
External Port should not be overlapped.
Done!
Users on the internet can enter http:// WAN IP (in this example: http:// 218.18.232.154)
48
Chapter 4
Configure the Router in Wireless Router Mode
to visit your personal website.
Tips:
• The WAN IP should be a public IP address. For the WAN IP is assigned dynamically by the ISP, it is recommended
to apply and register a domain name for the WAN referring to Set Up a Dynamic DNS Service Account. Then users
on the internet can use http:// domain name to visit the website.
• If you have changed the default External Port, you should use http:// WAN IP: External Port or http:// domain name:
External Port to visit the website.
4 7 2 Open Ports Dynamically by Port Triggering
Port Triggering can specify a triggering port and its corresponding external ports.
When a host on the local network initiates a connection to the triggering port, all the
external ports will be opened for subsequent connections. The router can record the
IP address of the host. When the data from the internet return to the external ports, the
router can forward them to the corresponding host. Port Triggering is mainly applied to
online games, VoIPs, video players and common applications including MSN Gaming
Zone, Dialpad and Quick Time 4 players, etc.
Follow the steps below to configure the Port Triggering rules:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

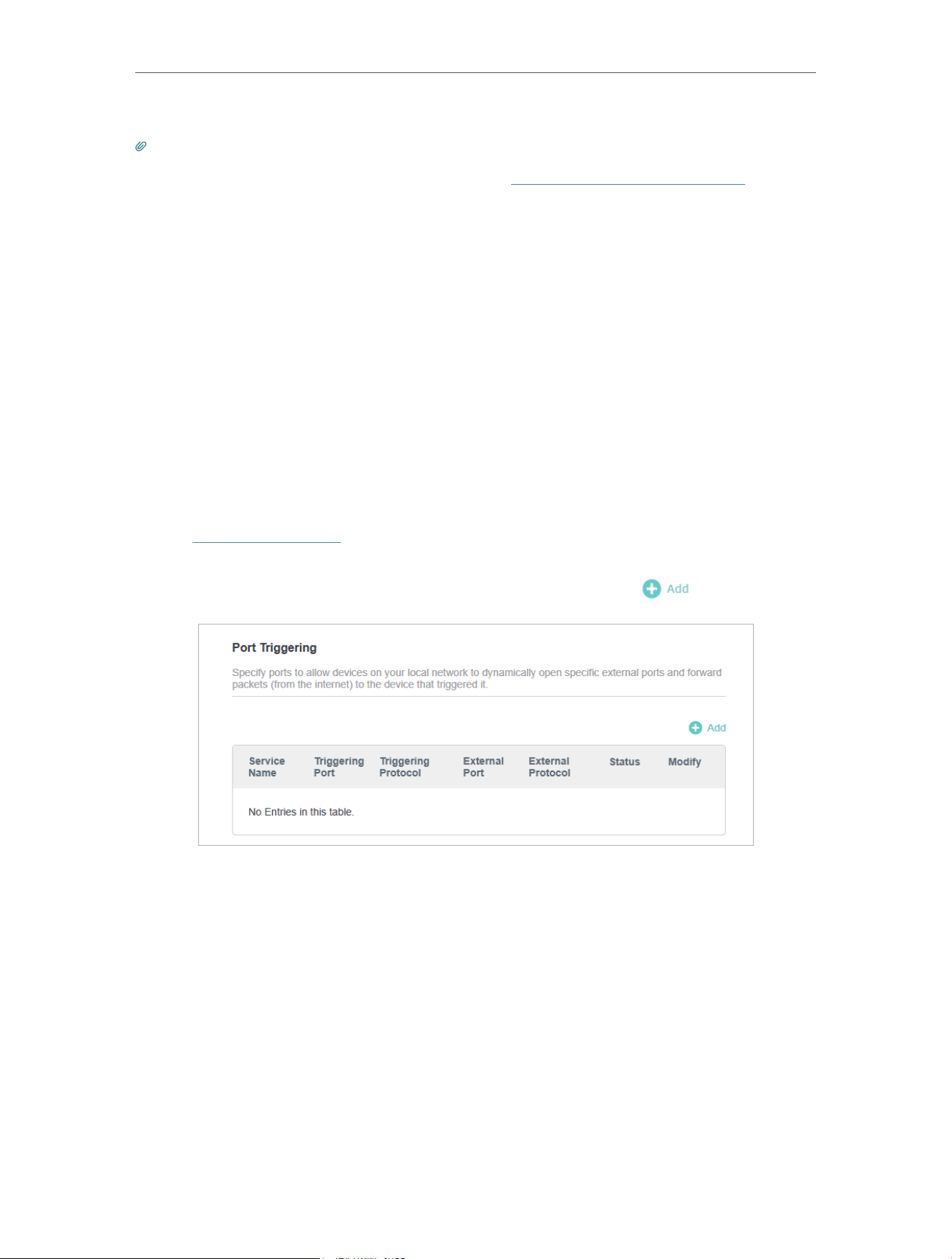

2. Go to Advanced > NAT Forwarding > Port Triggering and click .
3. Click VIEW COMMON SERVICES, and select the desired application. The Triggering
Port, Triggering Protocol and External Port will be automatically filled in. The following
picture takes application MSN Gaming Zone as an example.
49
Chapter 4
Configure the Router in Wireless Router Mode

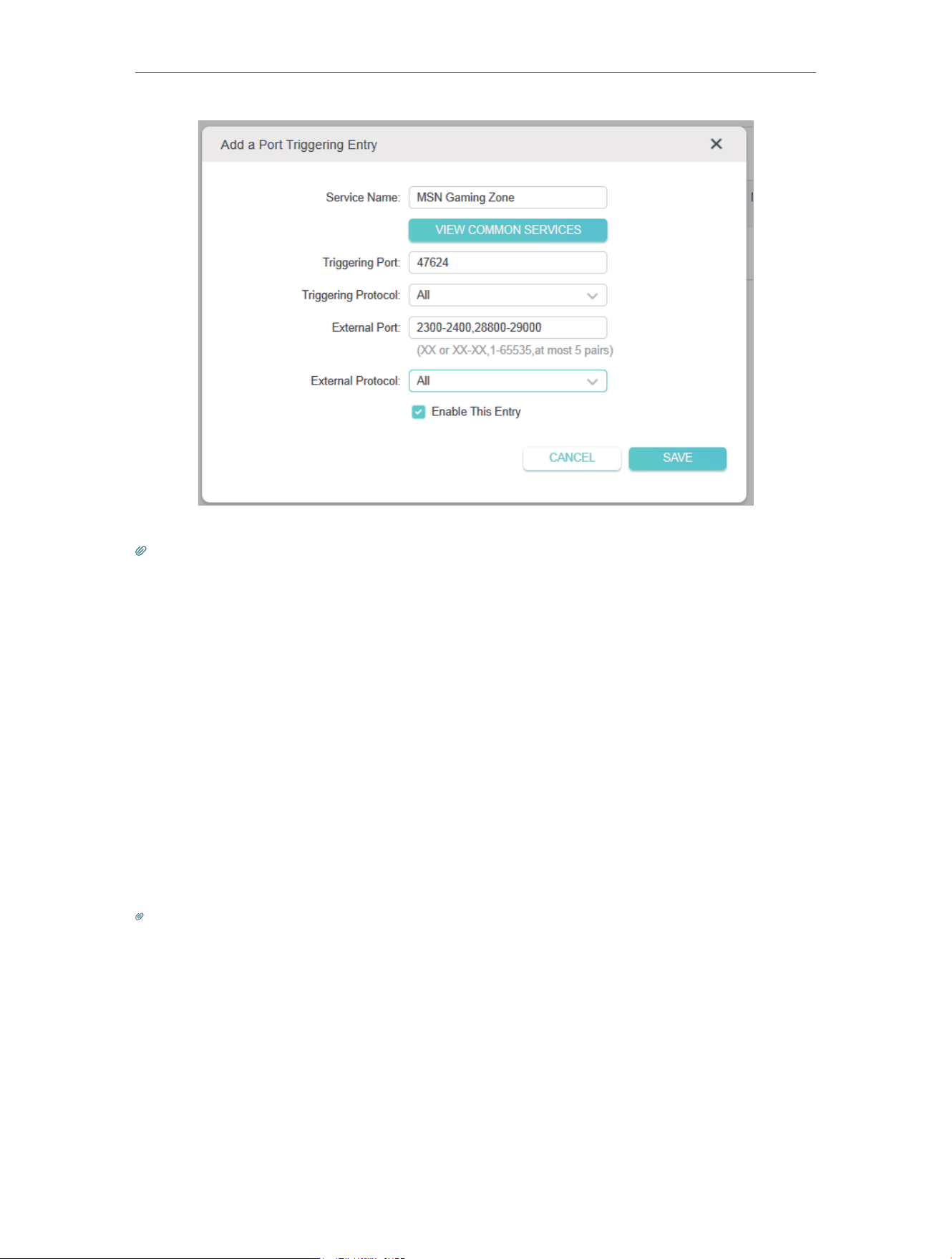

4. Click SAVE .
Tips:
• You can add multiple port triggering rules according to your network need.
• The triggering ports can not be overlapped.
• If the application you need is not listed in the Existing Applications list, please enter the parameters manually. You
should verify the external ports the application uses first and enter them into External Port field according to the
format the page displays.
4 7 3 Make Xbox Online Games Run Smoothly by UPnP
The UPnP (Universal Plug and Play) protocol allows applications or host devices
to automatically find the front-end NAT device and send request to it to open the
corresponding ports. With UPnP enabled, the applications or host devices on the
local network and the internet can freely communicate with each other thus realizing
the seamless connection of the network. You may need to enable the UPnP if you
want to use applications for multiplayer gaming, peer-to-peer connections, real-time
communication (such as VoIP or telephone conference) or remote assistance, etc.
Tips:
• UPnP is enabled by default in this router.
• Only the application supporting UPnP protocol can use this feature.
• UPnP feature needs the support of operating system (e.g. Windows Vista/ Windows 7/ Windows 8, etc. Some of
operating system need to install the UPnP components).
For example, when you connect your Xbox to the router which has connected to
the internet to play online games, UPnP will send request to the router to open the
corresponding ports allowing the following data penetrating the NAT to transmit.
Therefore, you can play Xbox online games without a hitch.
50
Chapter 4
Configure the Router in Wireless Router Mode

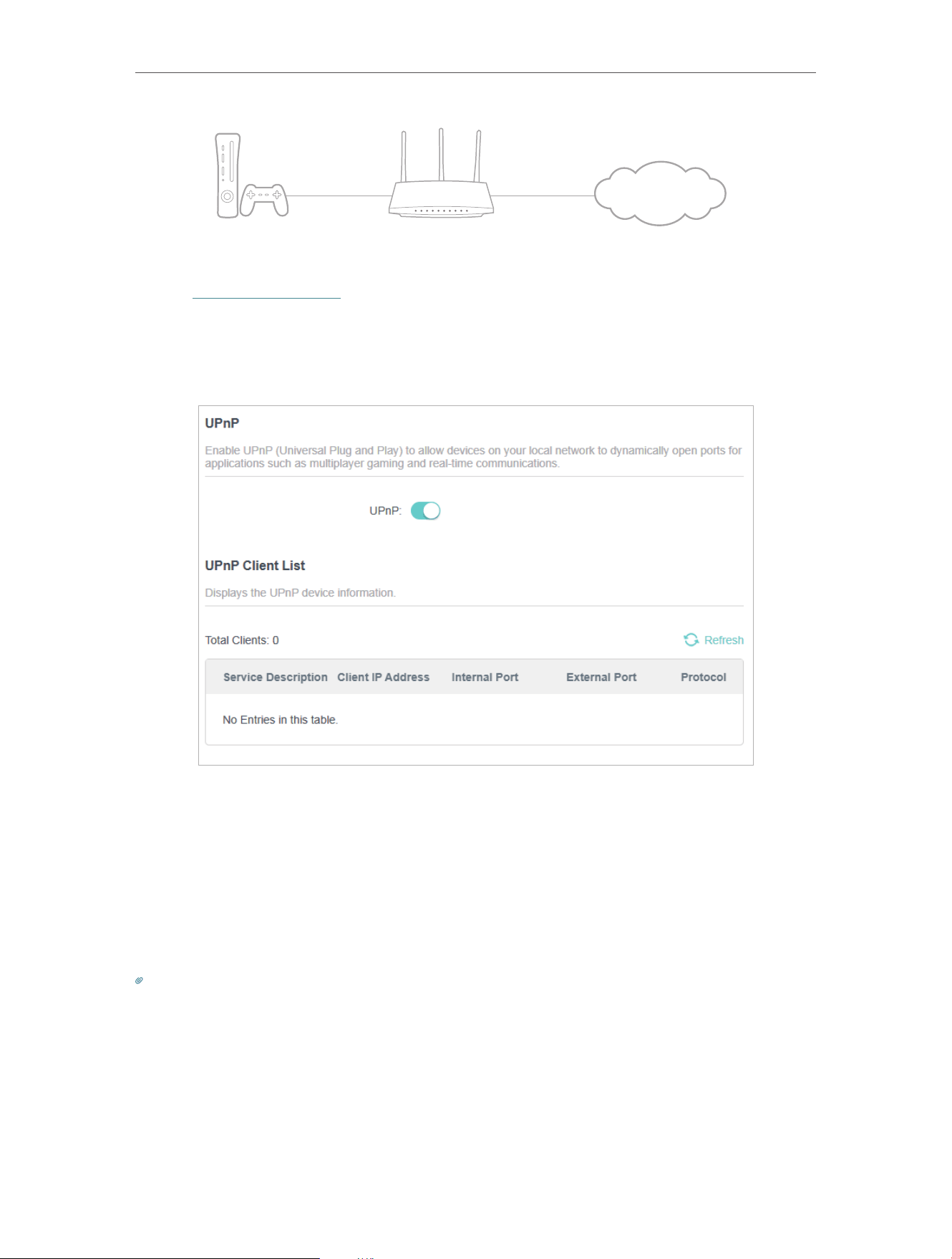

INTERNET
If necessary, you can follow the steps to change the status of UPnP.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > NAT Forwarding > UPnP and toggle on or off according to your
needs.
4 7 4 Make Applications Free from Port Restriction by DMZ
When a PC is set to be a DMZ (Demilitarized Zone) host on the local network, it is totally
exposed to the internet, which can realize the unlimited bidirectional communication
between internal hosts and external hosts. The DMZ host becomes a virtual server with
all ports opened. When you are not clear about which ports to open in some special
applications, such as IP camera and database software, you can set the PC to be a DMZ
host.
Note:
When DMZ is enabled, the DMZ host is totally exposed to the internet, which may bring some potential safety hazards. If
DMZ is not in use, please disable it in time.
I want to:
Make the home PC join the internet online game without port restriction.
For example, due to some port restriction, when playing the online games, you can log
in normally but cannot join a team with other players. To solve this problem, set your PC
51
Chapter 4
Configure the Router in Wireless Router Mode
as a DMZ host with all ports open.
How can I do that?
1 Assign a static IP address to your PC, for example 192.168.0.100.
2 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

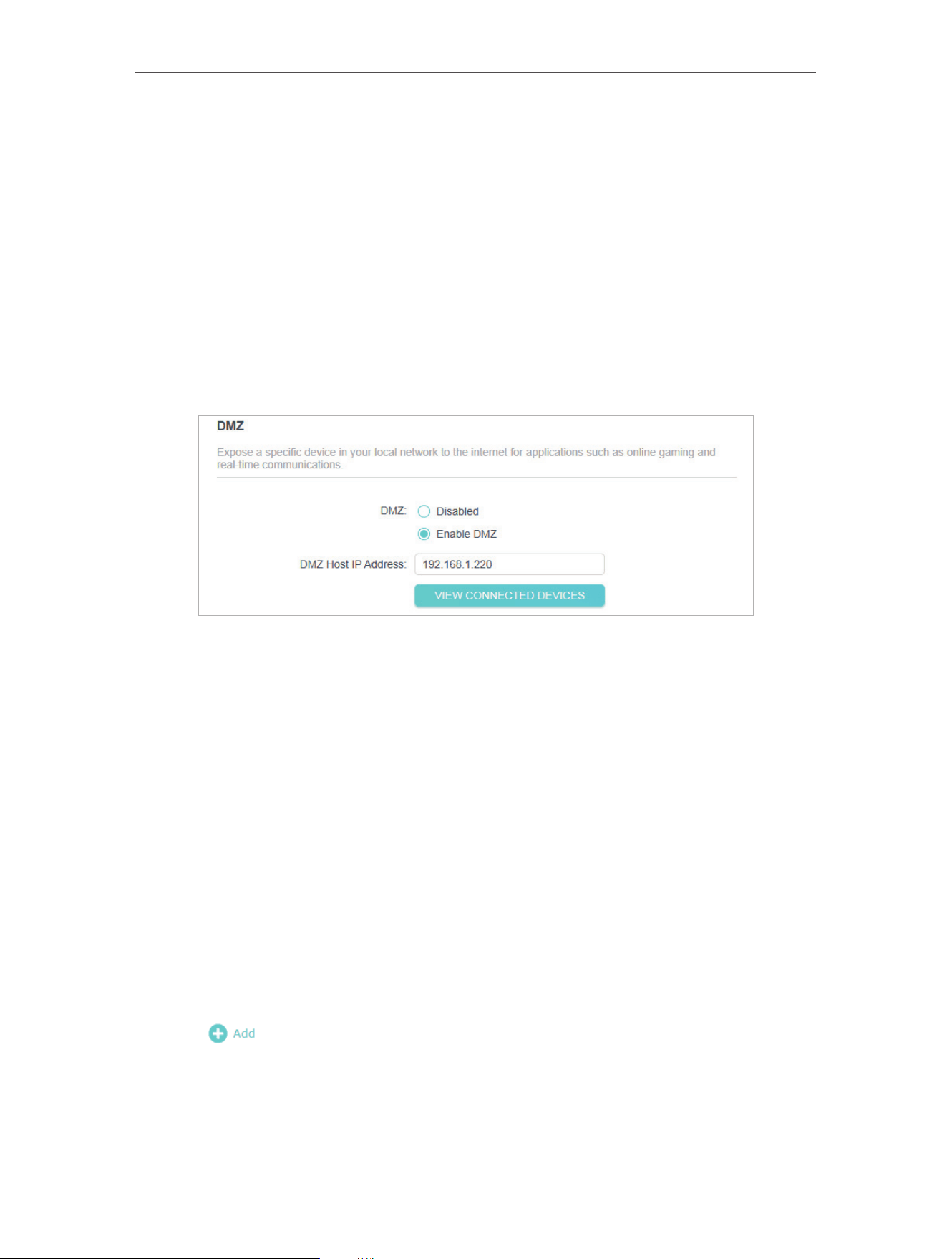

3 Go to Advanced > NAT Forwarding > DMZ and tick to enable DMZ.
4 Click VIEW CONNECTED DEVICES and select your PC. The Device IP
Address will be automatically filled in. Or enter the PC’s IP address 192.168.0.100
manually in the DMZ Host IP Address field.
5 Click SAVE.
Done!
The configuration is completed. You’ve set your PC to a DMZ host and now you can
make a team to game with other players.
4 8 Parental Controls
Parental Controls allows you to set up unique restrictions on internet access for each
member of your family. You can block inappropriate content, set daily limits for the total
time spent online and restrict internet access to certain times of the day.
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2 Go to Advanced > Advanced > Parental Controls.
3 Click to create a profile for a family member.
52
Chapter 4
Configure the Router in Wireless Router Mode

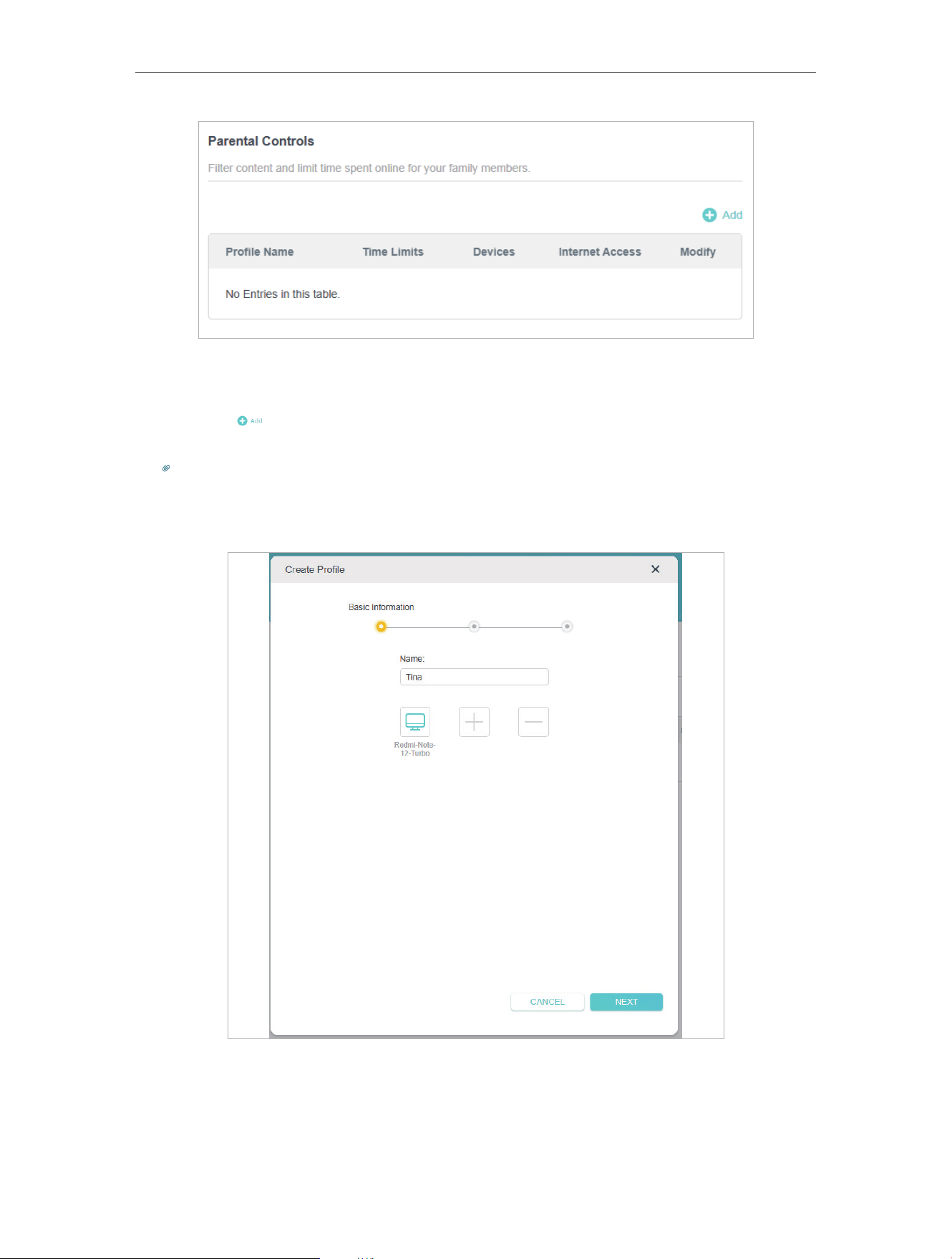

4 Add basic profile information.
1 ) Enter a Name for the profile to make it easier to identify.
2 ) Click and select the devices that belong to this family member. Access
restrictions will be applied to these devices. Click Add when finished.
Note: Only devices that have previously been connected to your router’s network are listed here. If
you are unable to find the device you want to add, connect it to your network and then try again.
3 ) Click NEXT
5 Block content for this profile.
1 ) Select the content categories to block in the Content Filter list.
2 ) You can also block a specific website. Enter a keyword (for example,
“Facebook”) or a URL (for example, “www.facebook.com”), then click Add.
53
Chapter 4
Configure the Router in Wireless Router Mode

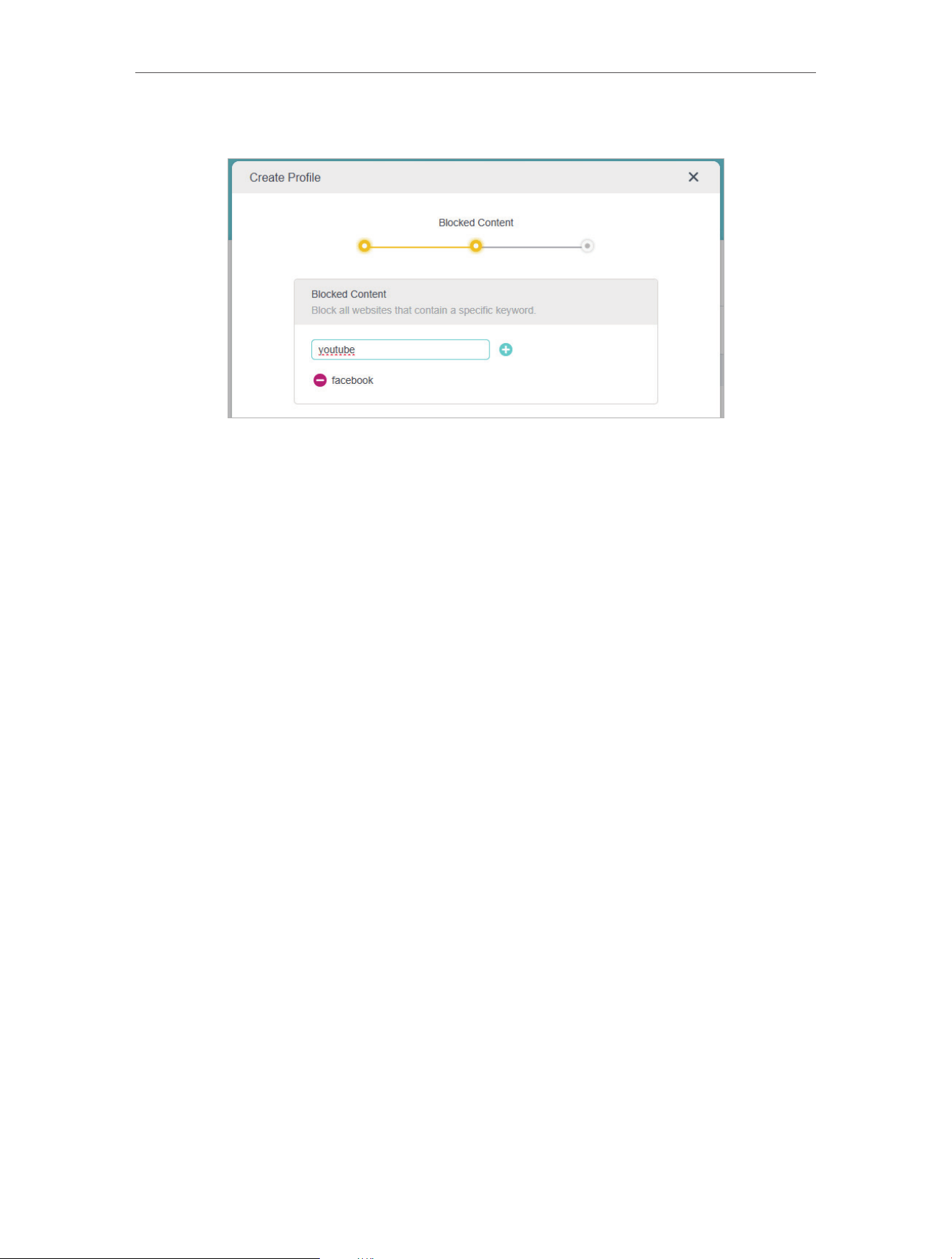

3 ) Click NEXT.

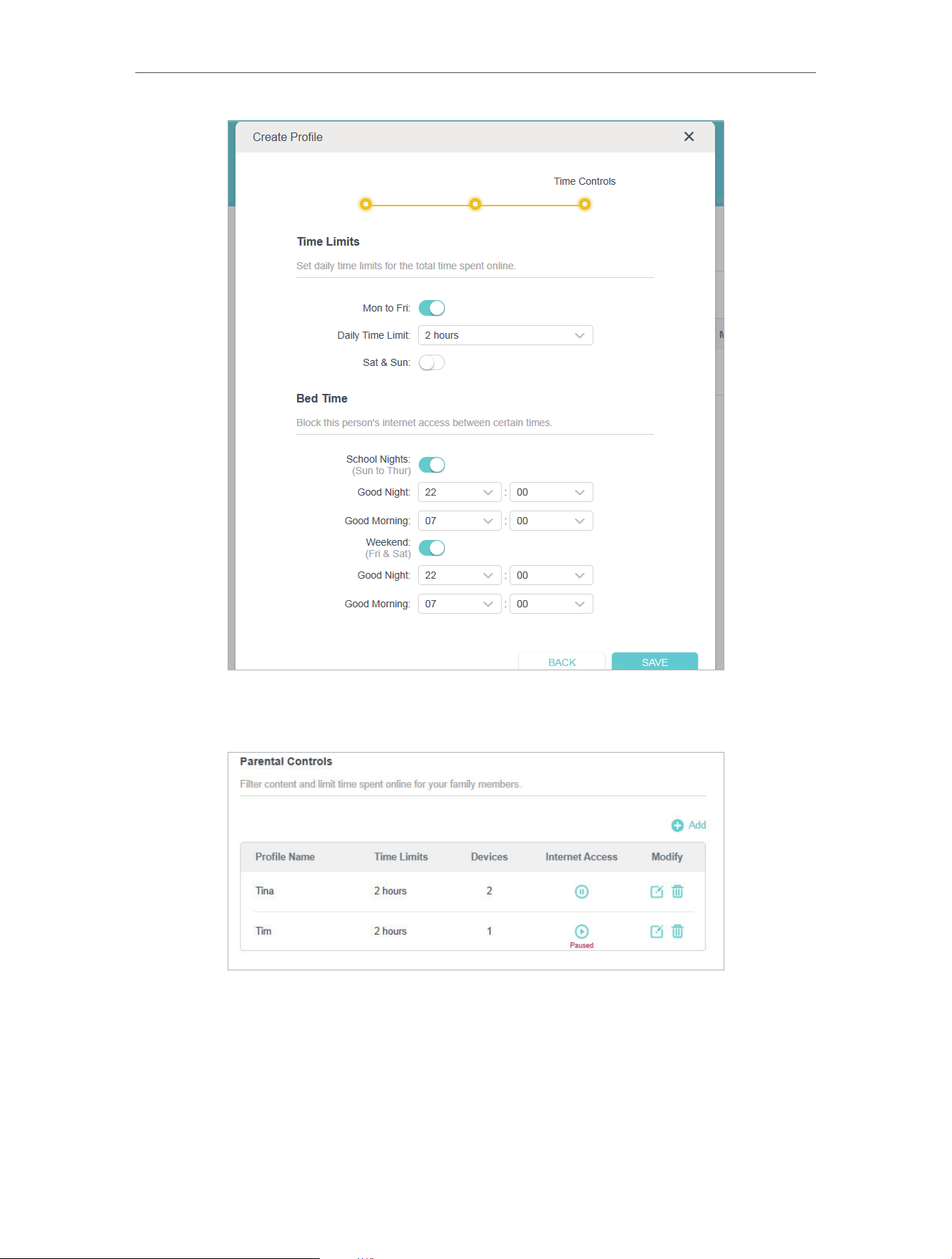

6 Set time restrictions on internet access.
1 ) Set daily Time Limits for the total time spent online. You can set daily time limits
for Mon to Fri and Sat & Sun separately.
2 ) Set Bed Time to block internet access between certain times. Devices under
this profile will be unable to access the internet during this time period. You can
set bed time for School Nights and Weekend separately.
3 ) Click SAVE .
54
Chapter 4
Configure the Router in Wireless Router Mode
4 ) After adding a profile, you can pause or restore the network connection for this
profile anytime.
4 9 QoS
QoS (Quality of Service) allows you to prioritize connection of specific devices for a set
duration. Devices set as high priority will be allocated more bandwidth and so continue
to run smoothly even when there is heavy traffic on the network.
55
Chapter 4
Configure the Router in Wireless Router Mode
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2 Go to Advanced > Advanced > QoS.

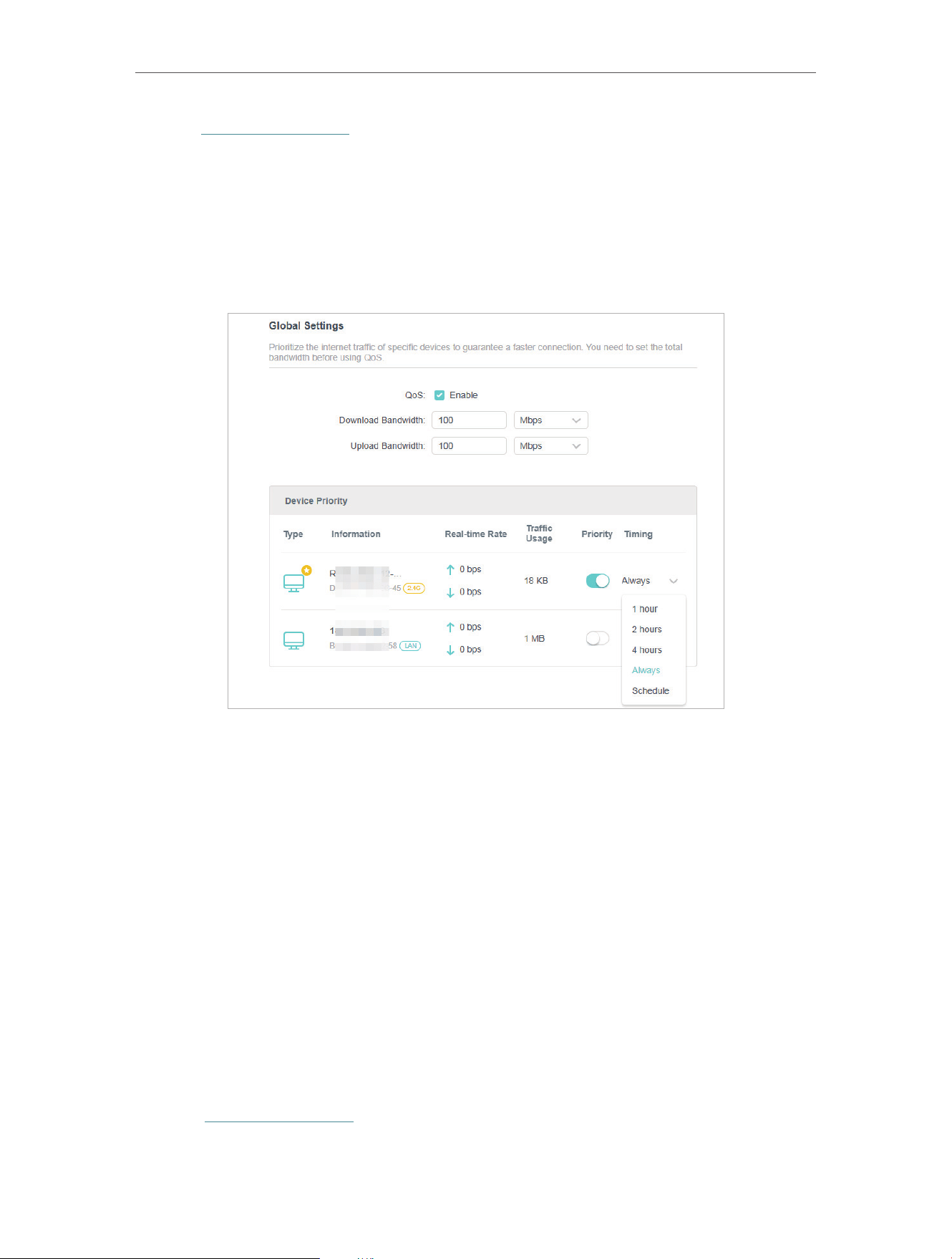

3 Enable QoS to set the total bandwidth. Then click SAVE.
4 Enable Priority for the desired device and select its effective time in the Timing
dropdown list.
4 10 Network Security
This chapter guides you on how to protect your home network from cyber attacks and
unauthorized users by implementing these three network security functions. You can
protect your home network from cyber attacks, block or allow specific client devices
to access your network using Access Control, you can prevent ARP spoofing and ARP
attacks using IP & MAC Binding, protect your network security by isolating your IoT
devices.
4 10 1 Protect the Network from Cyber Attacks
The SPI (Stateful Packet Inspection) Firewall protects the router from cyber attacks
and validate the traffic that is passing through the router based on the protocol. This
function is enabled by default.
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
56
Chapter 4
Configure the Router in Wireless Router Mode

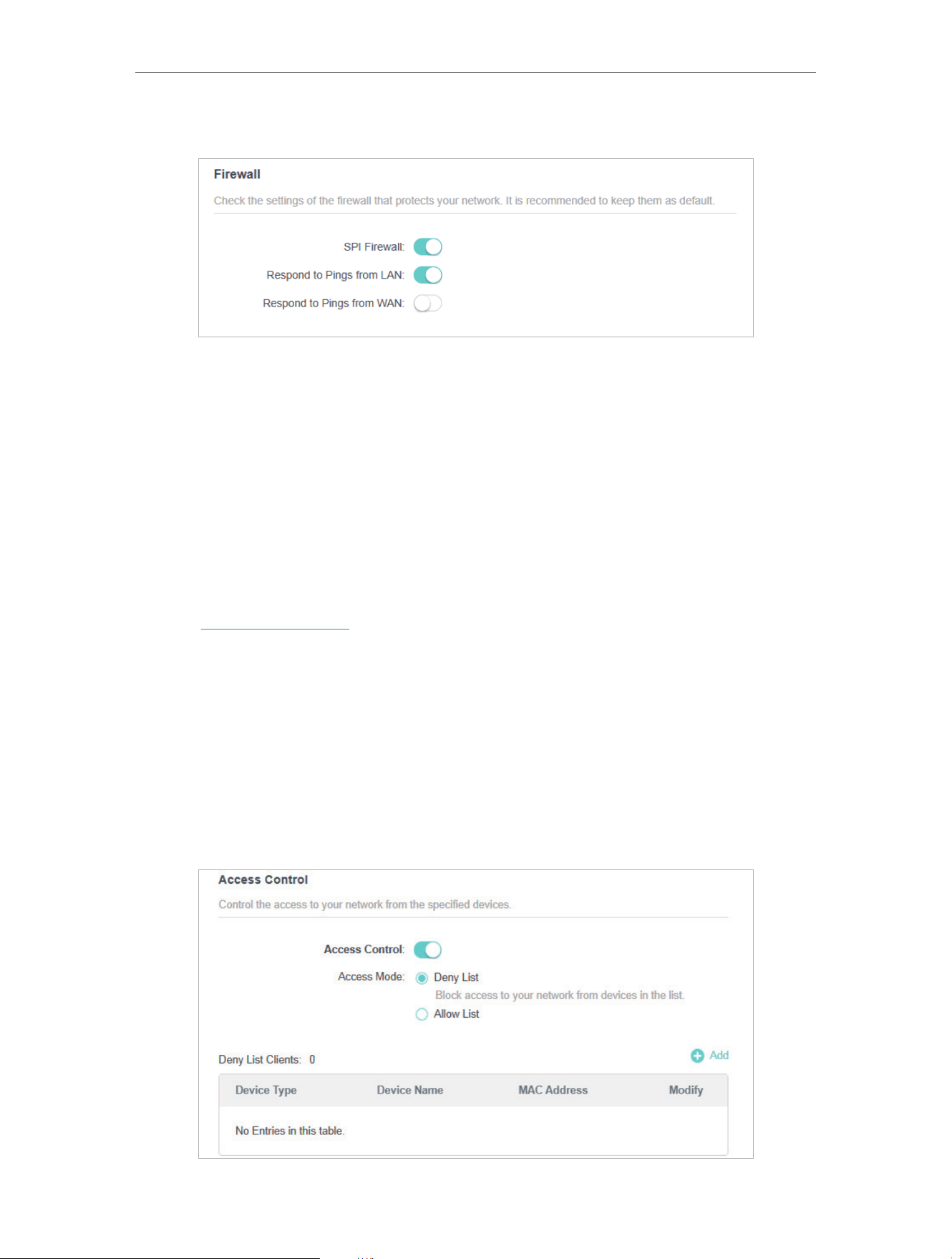

2 Go to Advanced > Security > Firewall. It’s recommended to keep the default settings.
4 10 2 Access Control
Access Control is used to block or allow specific client devices to access your network
(via wired or wireless) based on a list of blocked devices (Decy List) or a list of allowed
devices (Allow List).
I want to:
Block or allow specific client devices to access my network (via wired or wireless).
How can I do that?
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2 Go to Advanced > Security > Access Control.
3 Toggle on to enable Access Control.
4 Select the access mode to either block (recommended) or allow the device(s) in the
list.

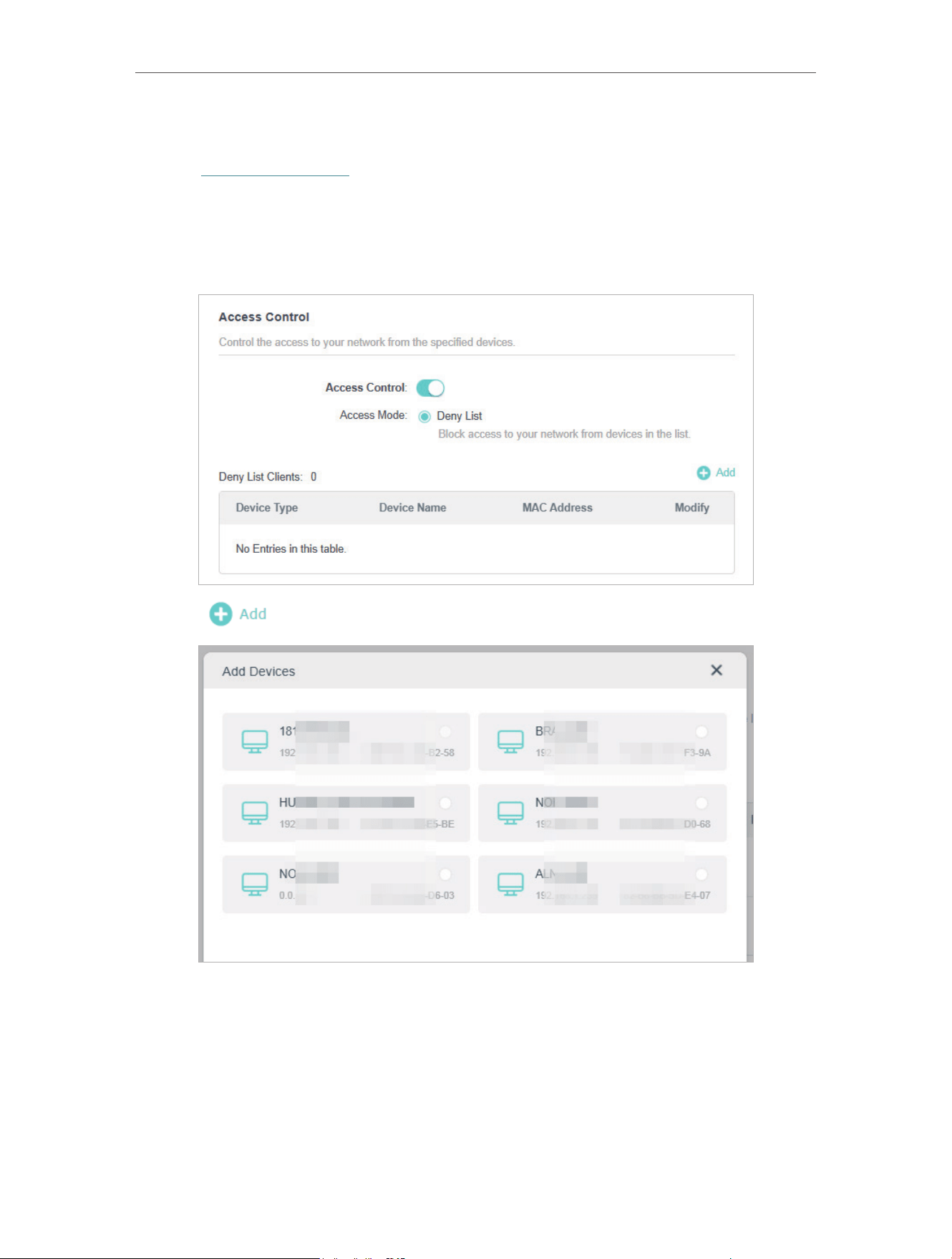

To block specific device(s):
1 ) Select Deny List.
57
Chapter 4
Configure the Router in Wireless Router Mode

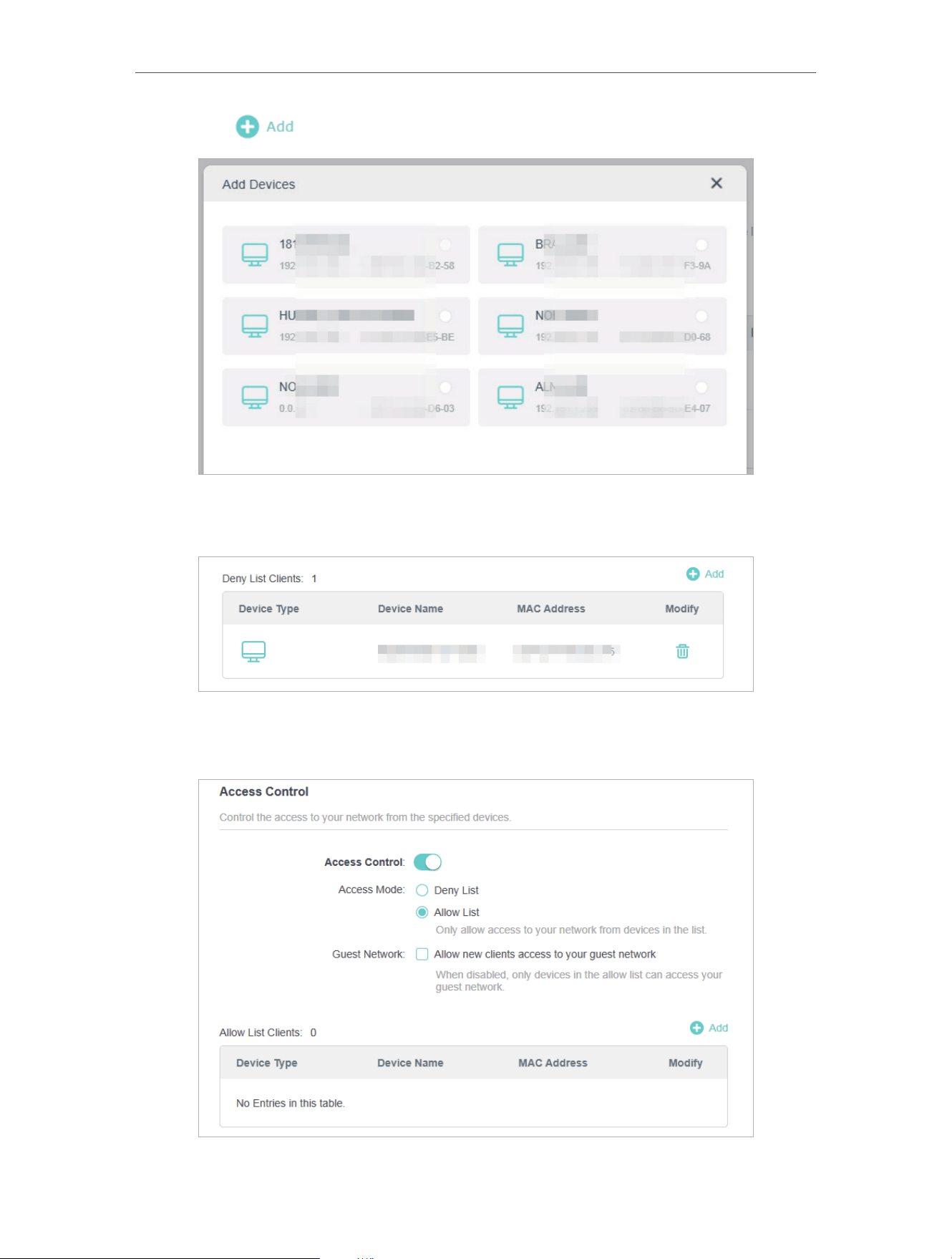

2 ) Click and select devices you want to block. Then click ADD.
3 ) The Operation Succeeded message will appear on the screen, which means the
selected devices have been successfully added to the Deny List.
To allow specific device(s):
1 ) Select Allow List.
58
Chapter 4
Configure the Router in Wireless Router Mode
2 ) Tick the Allow new clients access to your guest network checkbox if you need.
When disabled, only devices in the allow list can access your guest network.
3 ) Click and select devices you want to add to the Allow List or add it
manually. Then click ADD.

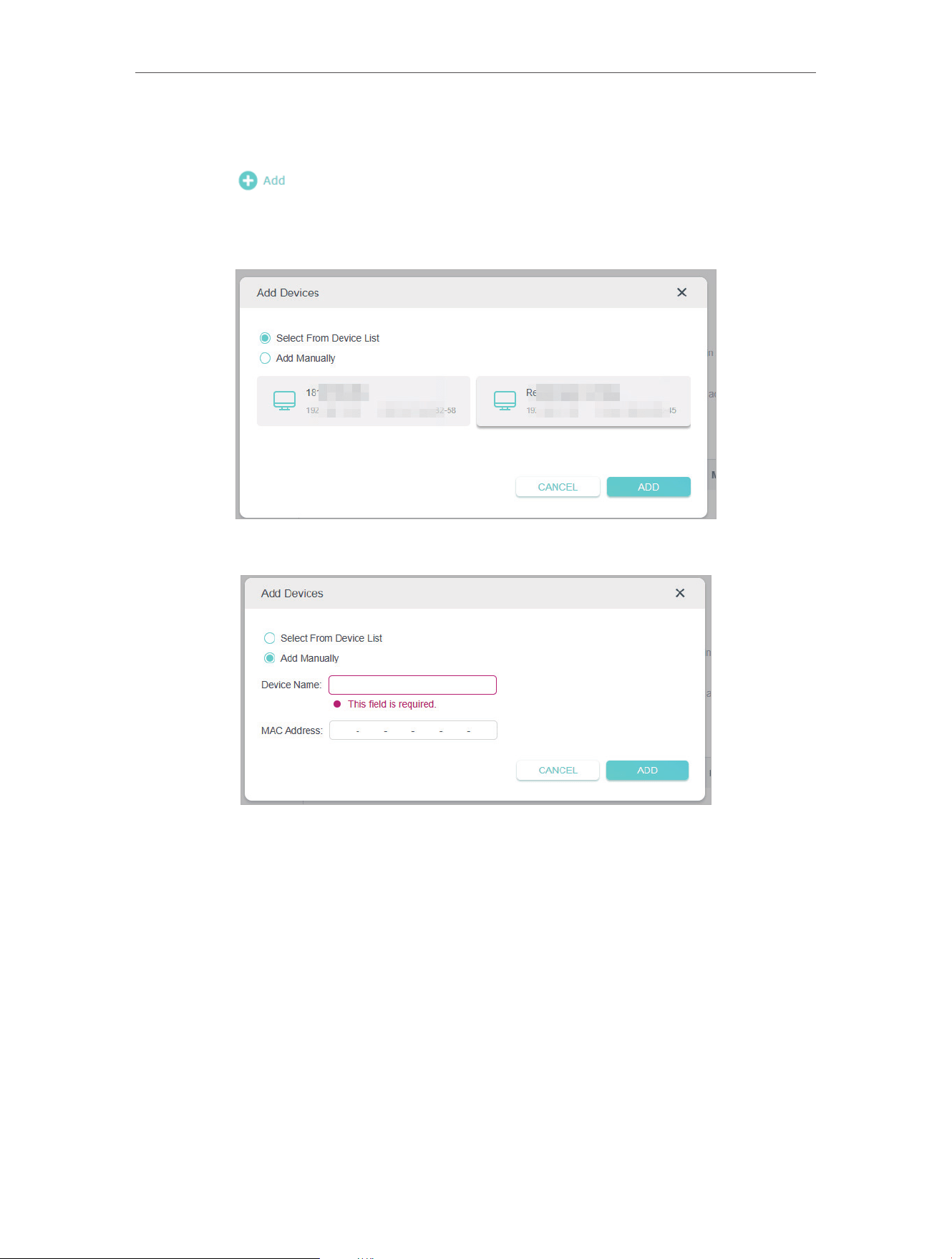

• Select from device list
• Add manually
4 ) The Operation Succeeded message will appear on the screen, which means the
selected devices have been successfully added to the Allow List.
Done!
Now you can block or allow specific client devices to access your network (via wired or
wireless) using the Deny List or Allow List.
4 10 3 IP & MAC Binding
IP & MAC Binding, namely, ARP (Address Resolution Protocol) Binding, is used to bind
network device’s IP address to its MAC address. This will prevent ARP Spoofing and
other ARP attacks by denying network access to an device with matching IP address in
the Binding list, but unrecognized MAC address.
59
Chapter 4
Configure the Router in Wireless Router Mode
I want to:
Prevent ARP spoofing and ARP attacks.
How can I do that?
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2 Go to Advanced > Security > IP & MAC Binding.
3 Enable IP & MAC Binding.
4 Bind your device(s) according to your need.
To bind the connected device(s):
1 ) Click in the Binding List section.
2 ) Click VIEW CONNECTED DEVICES and select the device you want to bind. The
MAC Address and IP Address fields will be automatically filled in.
3 ) Click SAVE .
60
Chapter 4
Configure the Router in Wireless Router Mode

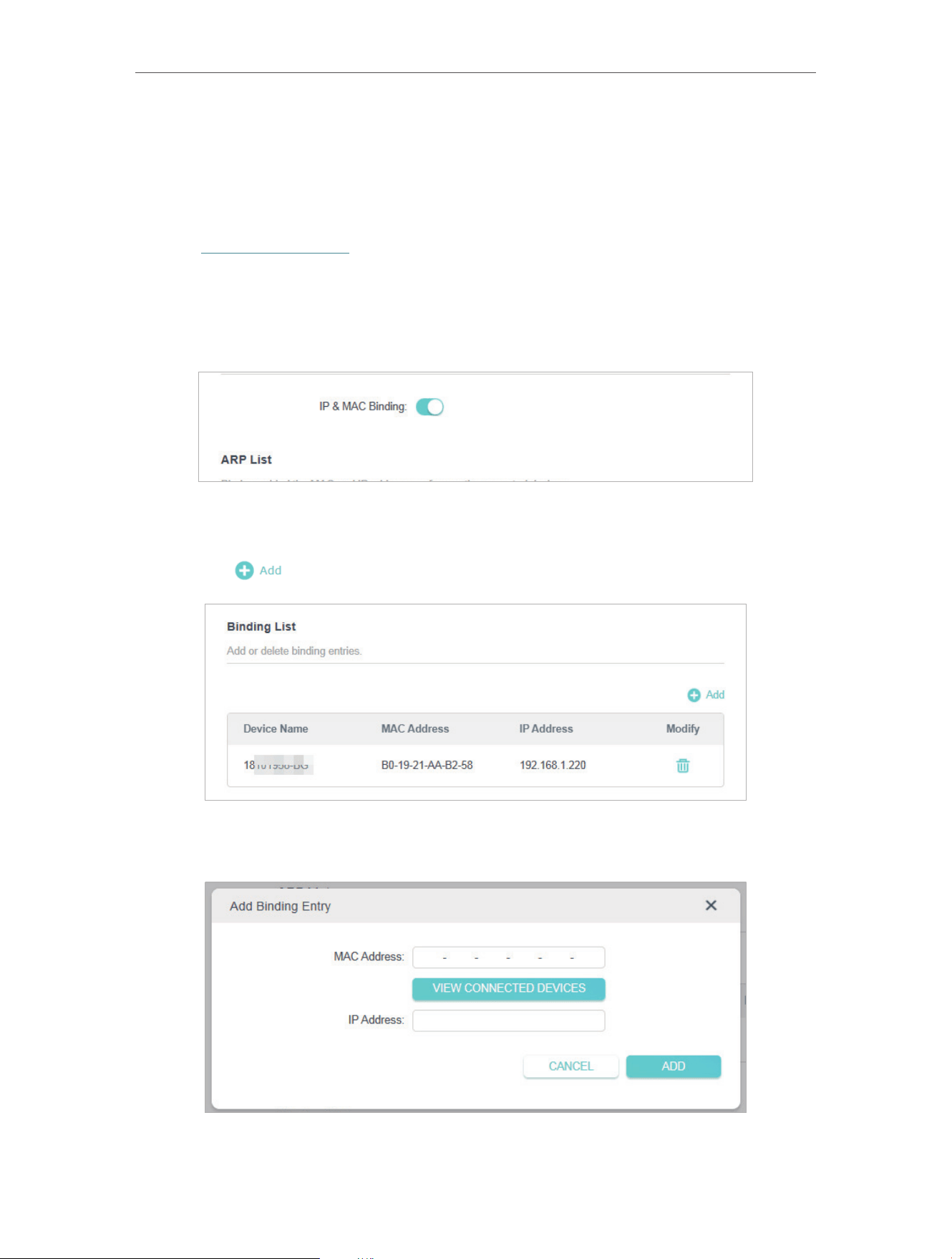

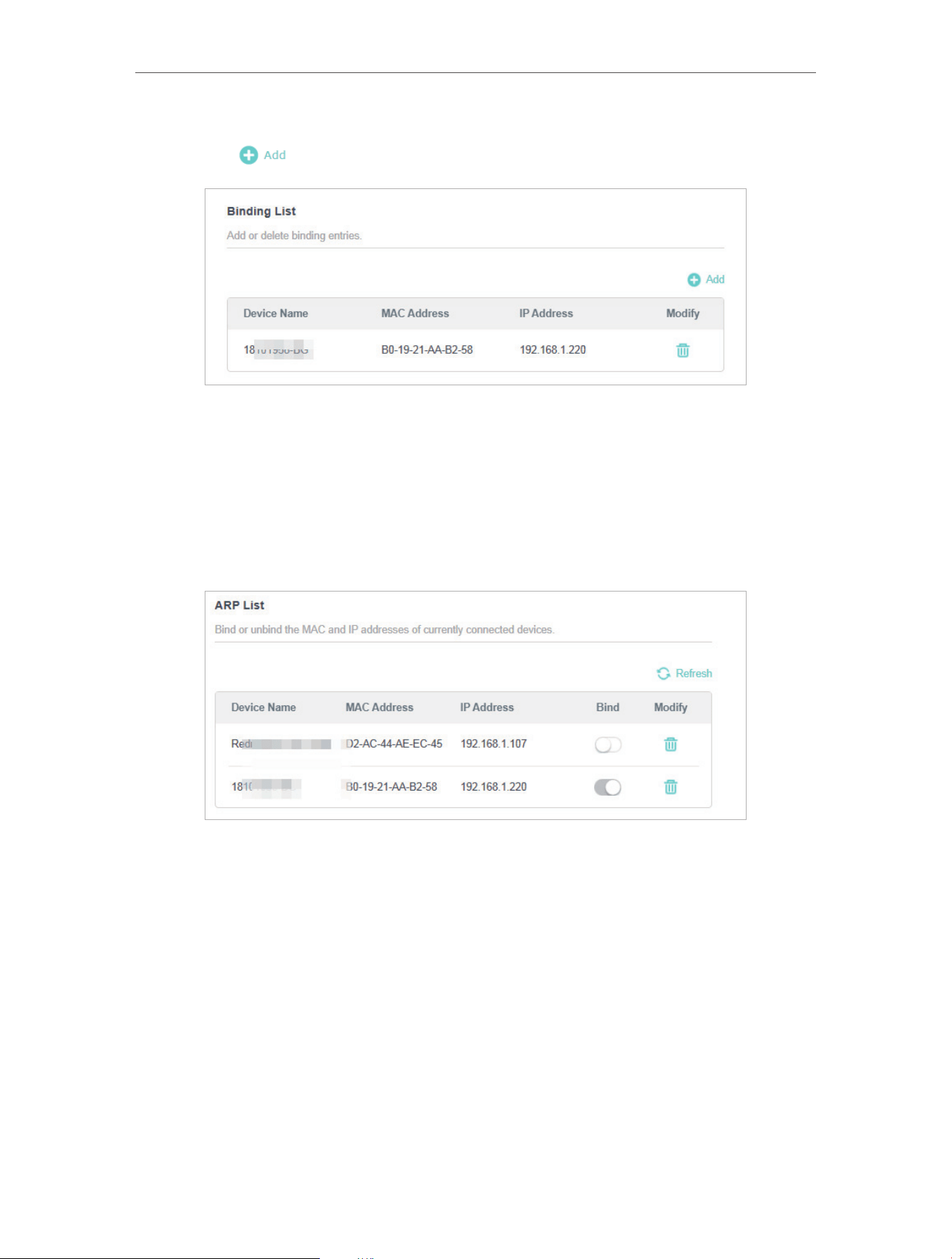

To bind the unconnected device:
1 ) Click in the Binding List section.
2 ) Enter the MAC Address and IP Address that you want to bind.
3 ) Click SAVE . When added, your device will appear in the Binding List and ARP List.
5 To unbind the MAC and IP addresses of a device in the list, click the Delete icon in
the Binding List.
6 To rebind the MAC and IP addresses of a device deleted, click the toggle button of
Bind in the ARP List.
Done!
Now you don’t need to worry about ARP spoofing and ARP attacks!
4 10 4 ALG
ALG allows customized NAT traversal filters to be plugged into the gateway to support
address and port translation for certain application layer “control/data” protocols such
as FTP, TFTP, H323 etc. It is recommended to keep the default settings.
You may need to disable SIP ALG when you are using voice and video applications to
create and accept a call through the router, since some voice and video communication
applications do not work well with SIP ALG.
61
Chapter 4
Configure the Router in Wireless Router Mode

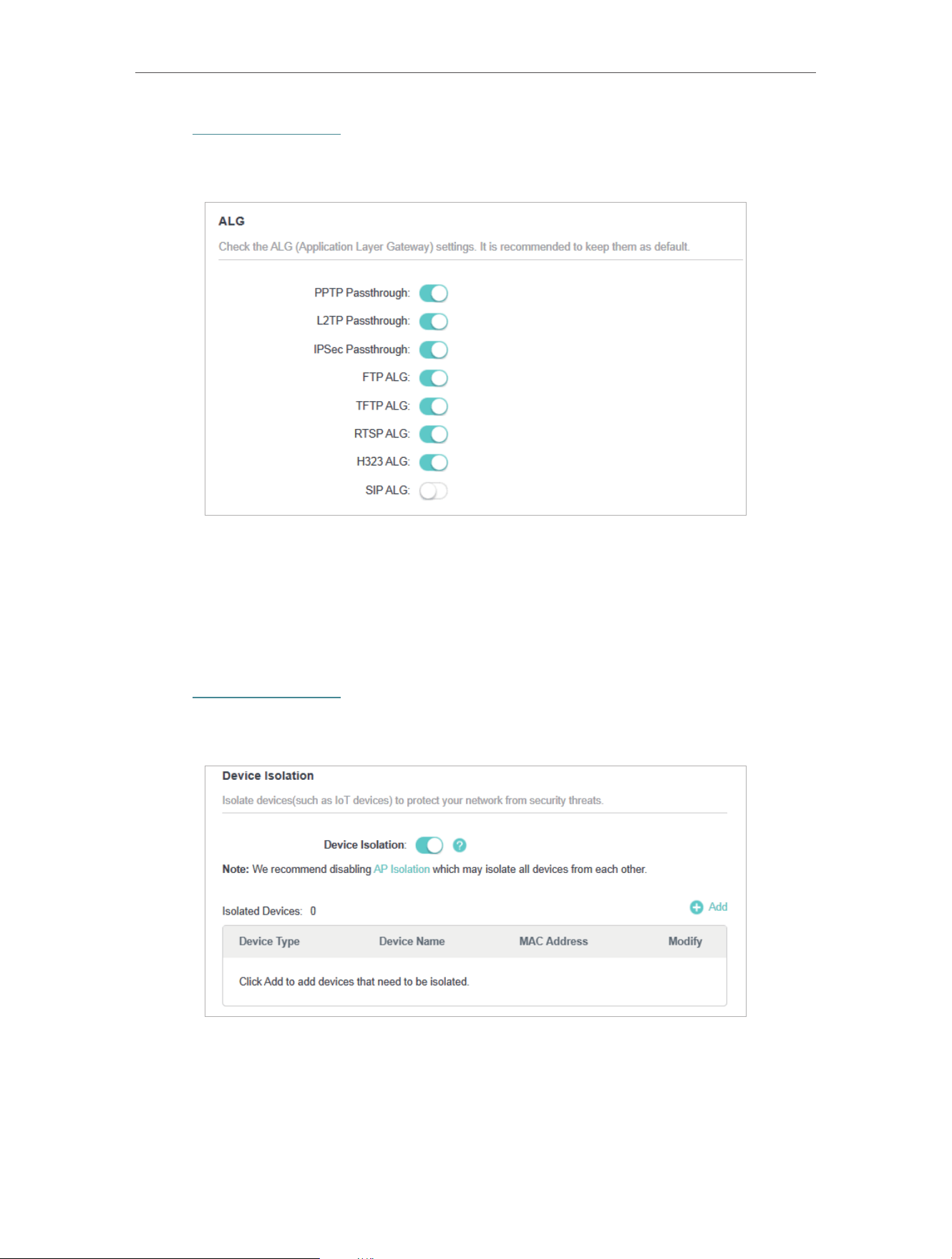

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Security > ALG.
4 10 5 IoT Security
Some devices, such as IoT devices, are vulnerable to security threats. To keep your
important devices and data safe, you can isolate these devices to protect your network
from being infected.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Security > IoT Security. Enable IoT Security.
3. Click +Add to add your IoT devices.
62
Chapter 4
Configure the Router in Wireless Router Mode

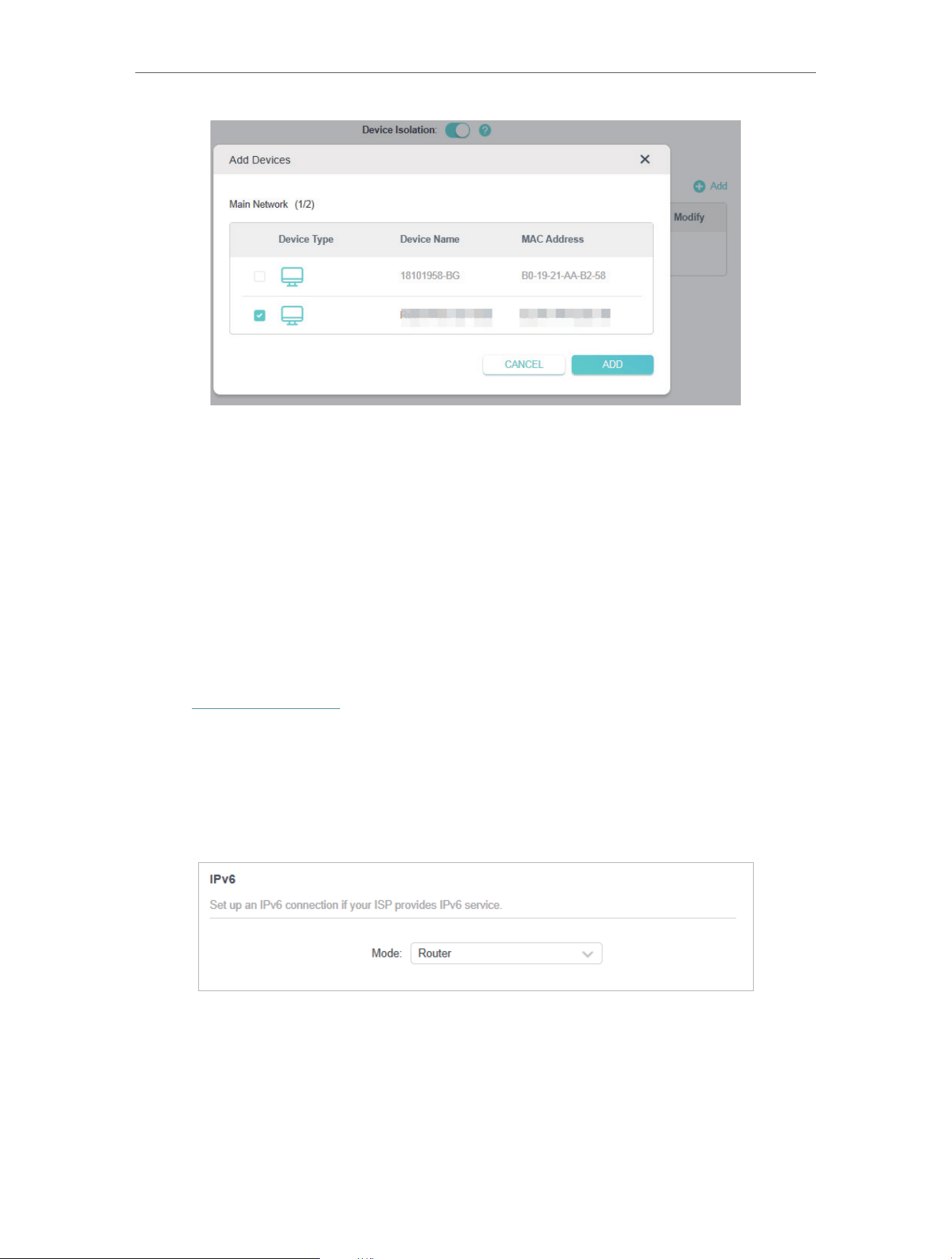

Done!
While isolated, isolated devices (these devices) can still access the internet and
communicate with other isolated devices. However, isolated devices (these devices)
cannot transfer data with devices on your home, including managing gateway devices,
accessing USB devices, etc.
4 11 IPv6
This function allows you to enable IPv6 function and set up the parameters of the
router’s Wide Area Network (WAN) and Local Area Network (LAN).
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > IPv6, and you can view the current IPv6 status information of the
router.
3. Enable IPv6 and select the mode: Router or Pass-Through (Bridge).
• If you select Router:
Fill in WAN and LAN information as required by different connection types.
• Normal: The default connection type.

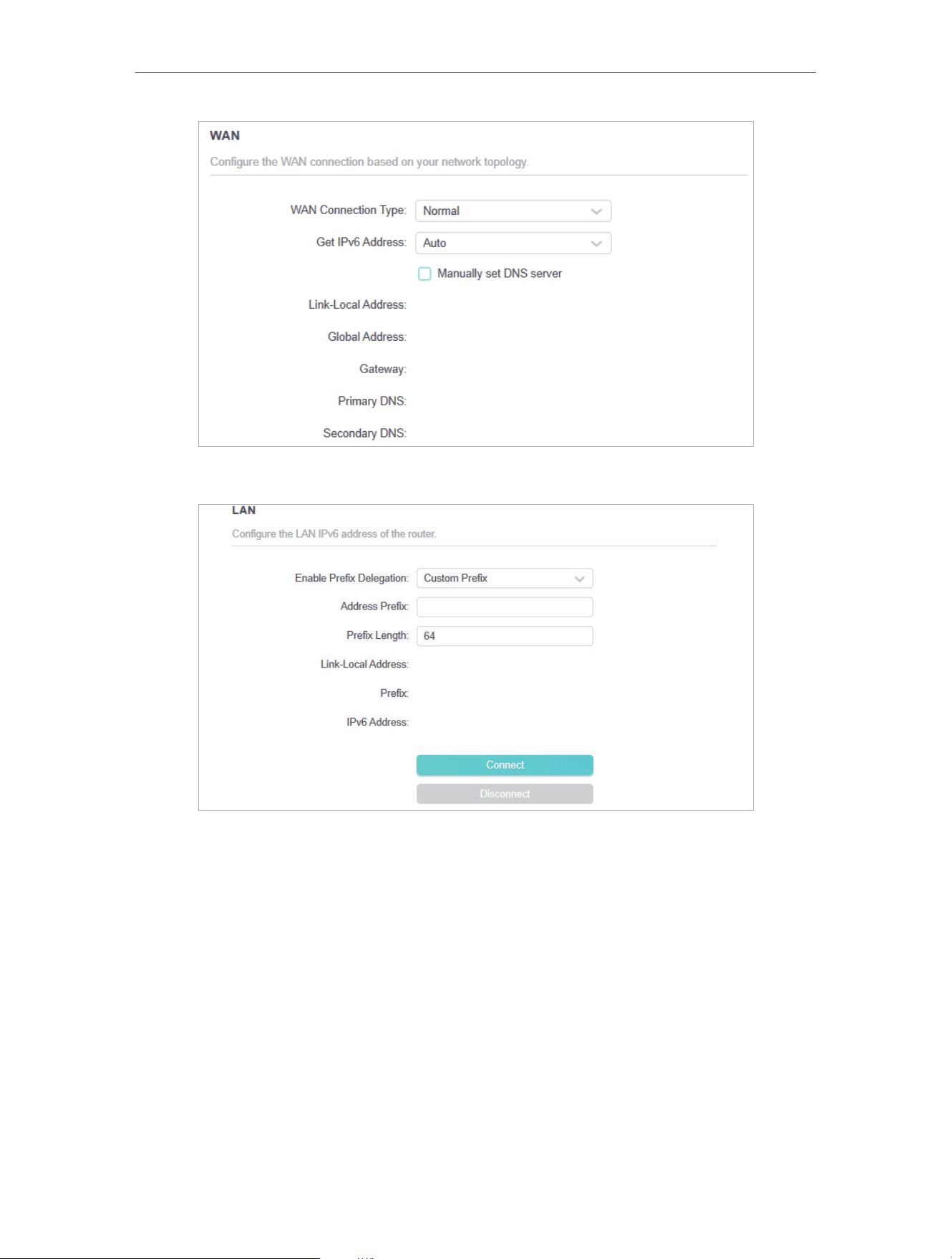

1 ) Configure the WAN settings.
63
Chapter 4
Configure the Router in Wireless Router Mode
2 ) Configure the LAN settings.
3 ) Click SAVE.

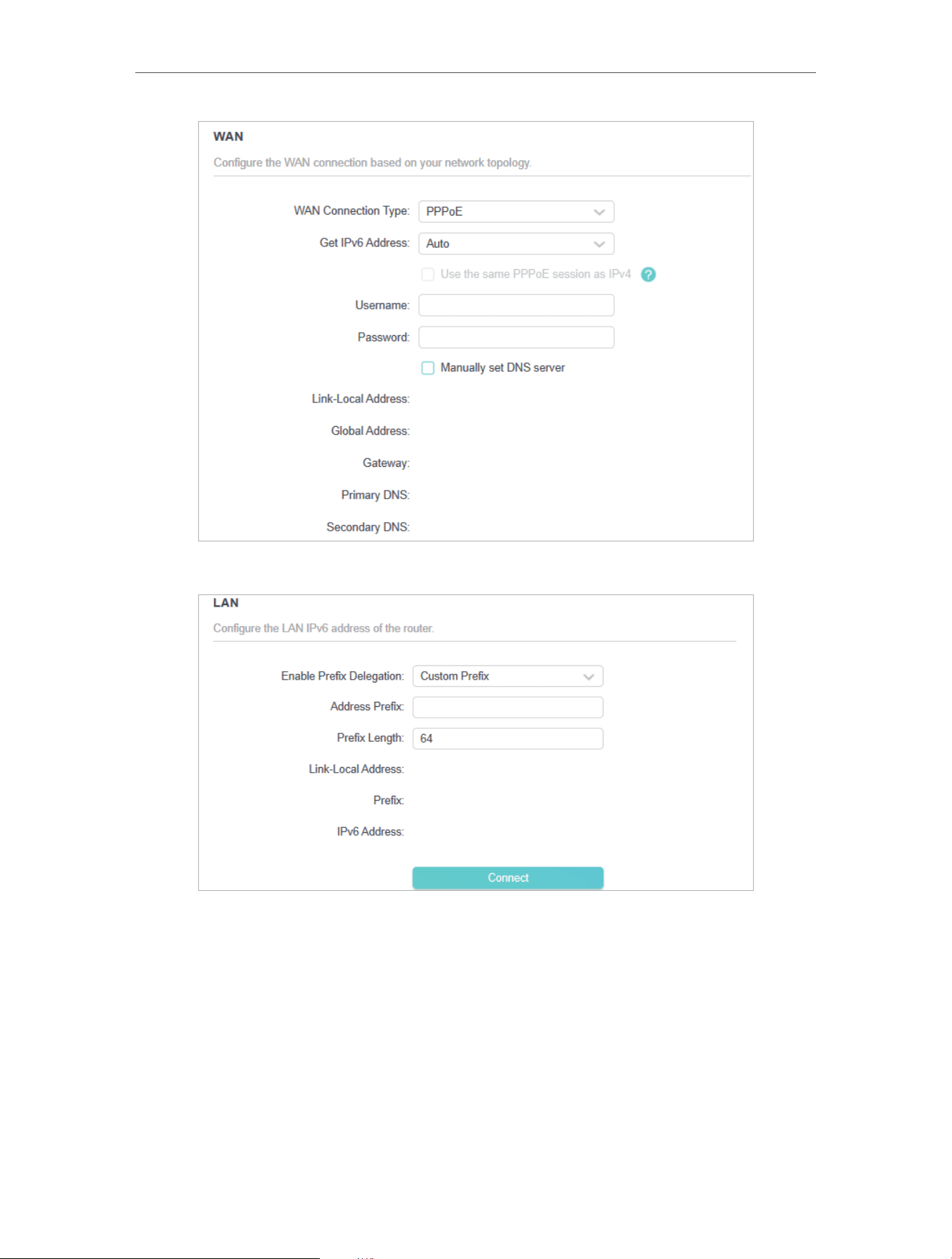

• PPPoE: Select this type if your ISP uses PPPoEv6, and provides a username and
password.
1 ) Configure the WAN settings.
64
Chapter 4
Configure the Router in Wireless Router Mode
2 ) Configure the LAN settings.

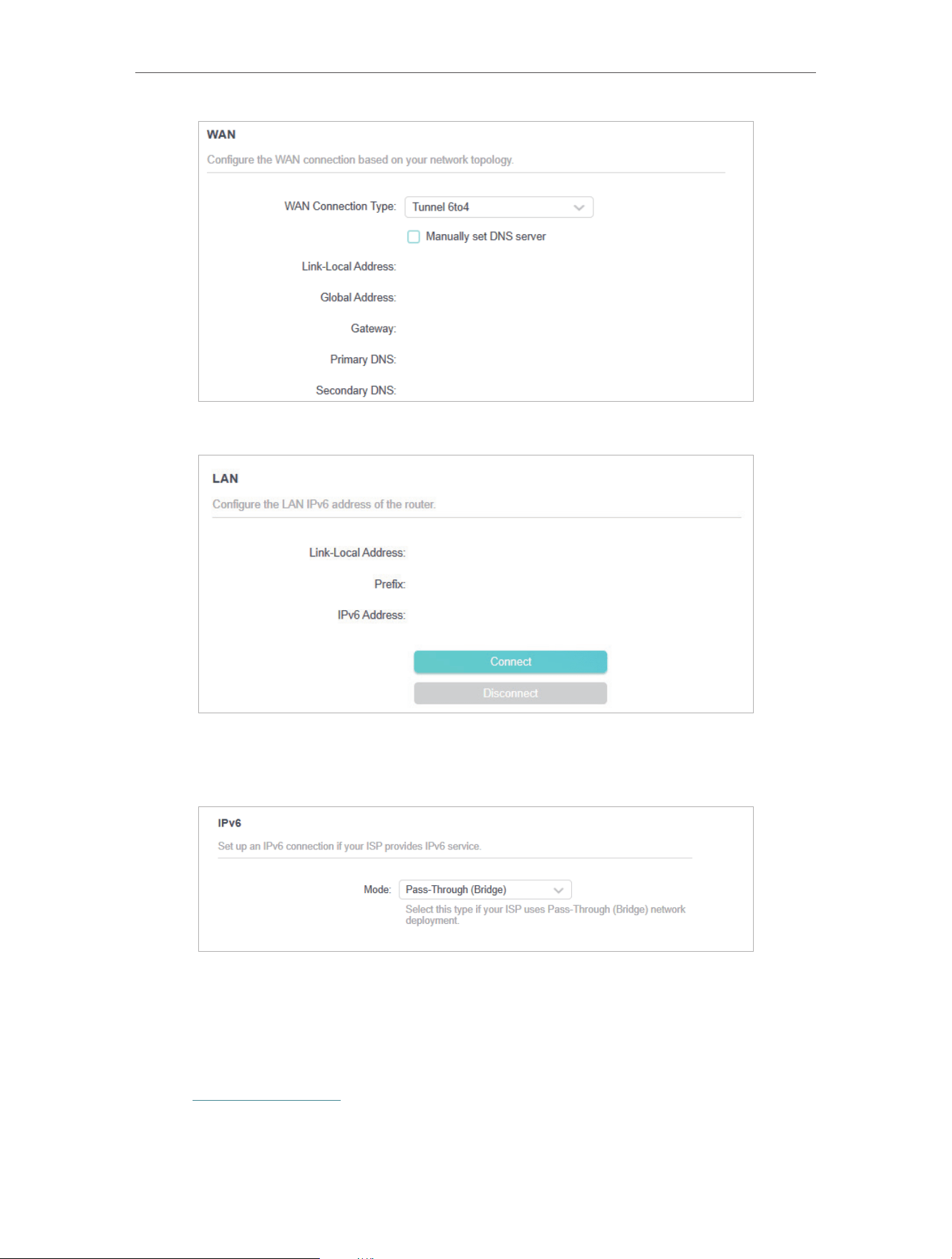

• Tunnel 6to4: Select this type if your ISP uses 6 to 4 deployment fort assigning
address.
1 ) Configure the WAN settings.
65
Chapter 4
Configure the Router in Wireless Router Mode
2 ) Configure the LAN settings.
• If you select Pass-Through (Bridge):
Click SAVE. No configuration is required.

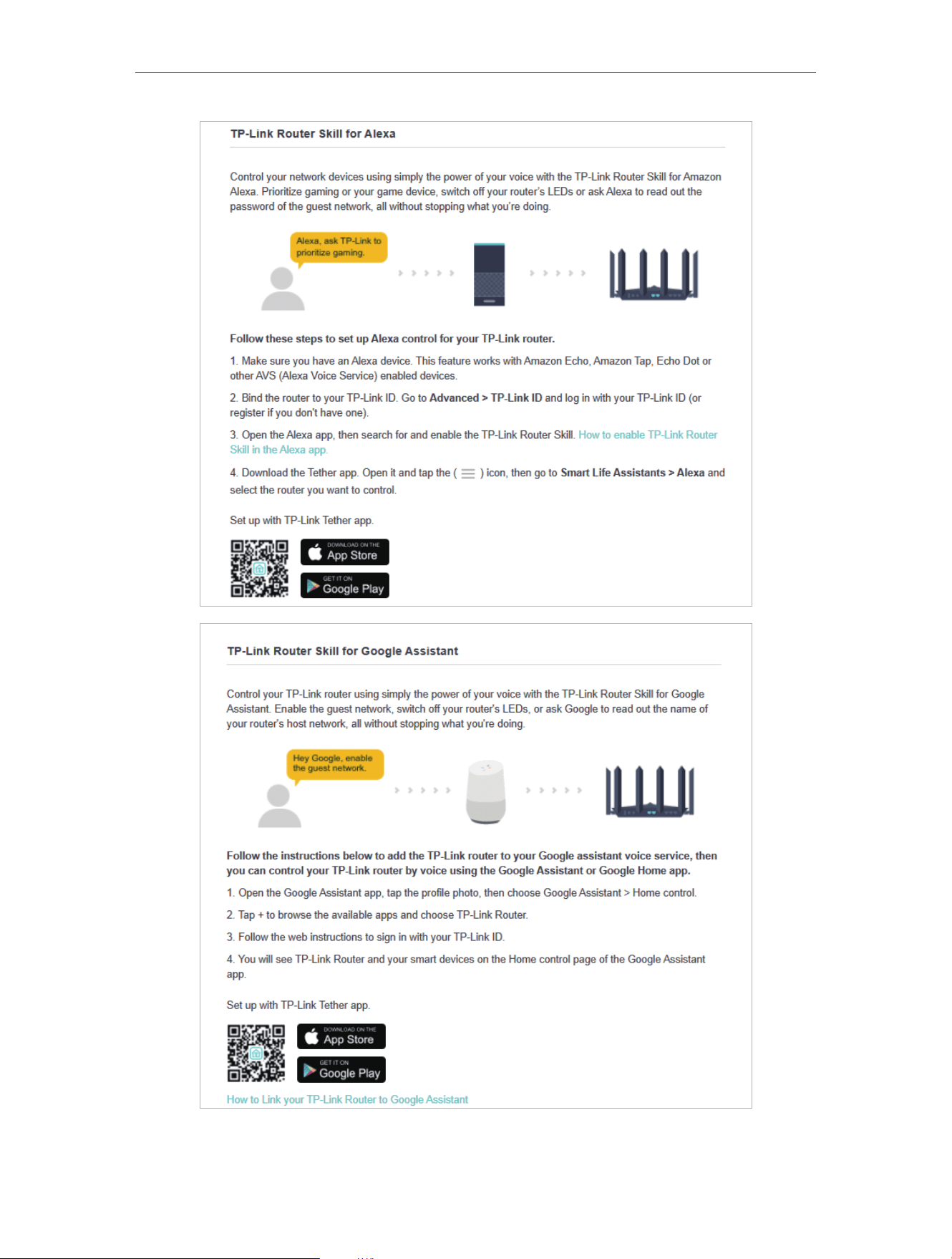

4 12 Smart Life Assistant
You can control your network devices using simply the power of your voice with the TP-
Link Router Skill for Amazon Alexa or Google Assistant.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Smart Life Assistant for further guidance.
66
Chapter 4
Configure the Router in Wireless Router Mode
67
Chapter 4
Configure the Router in Wireless Router Mode
4 13 Manage the Router
4 13 1 Firmware Update
TP-Link aims at providing better network experience for users.
We will inform you through the web management page if there’s any new firmware
available for your router. Also, the latest firmware will be released at the TP-Link official
website www.tp-link.com, and you can download it from the Support page for free.
Note:
• Back up your router’s configurations before firmware update.
• Do NOT turn off the router during the firmware update.

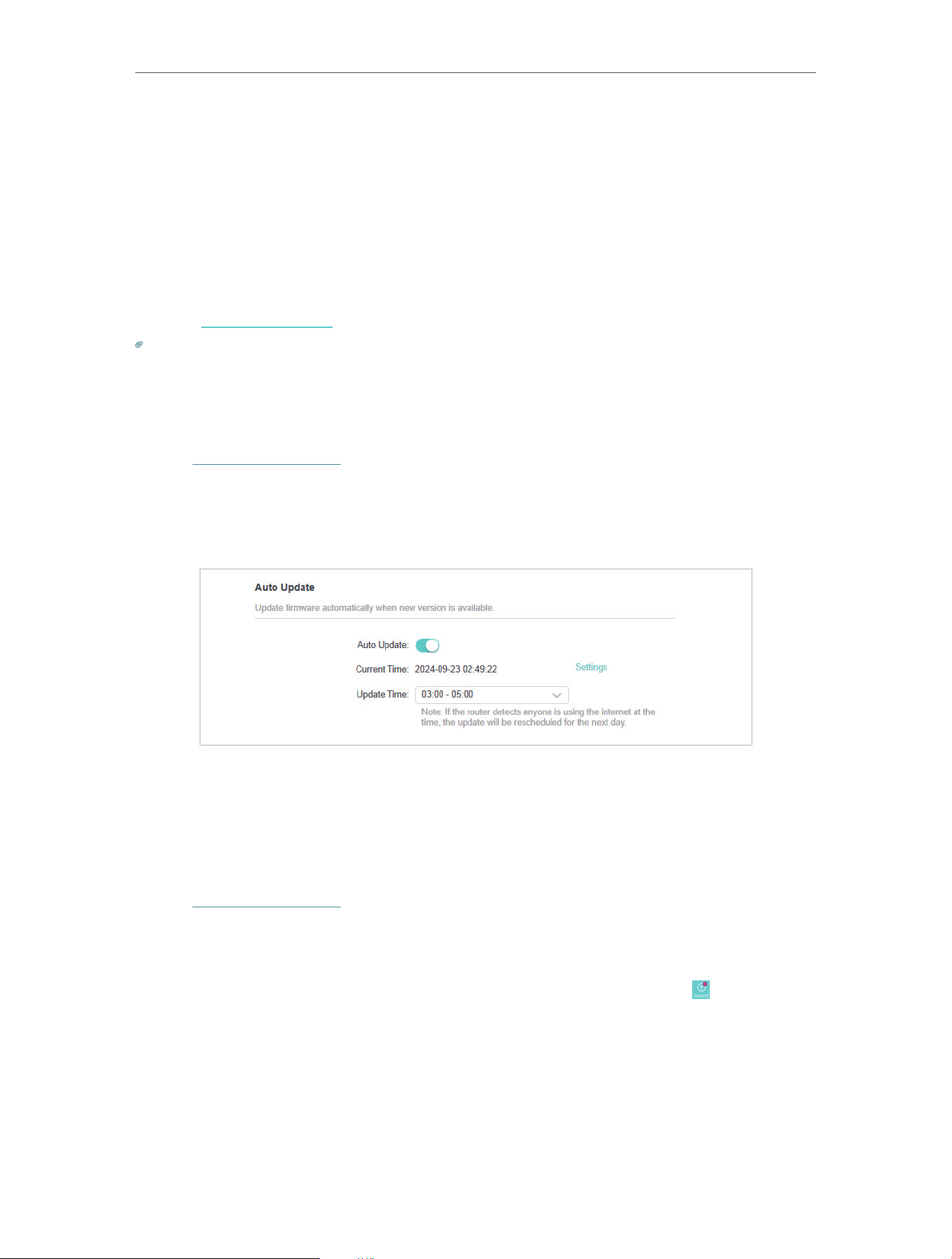

• Auto Update:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Firmware Update.
3. Enable Auto Update.
4. Specify the Update Time and save the settings.
The router will update firmware automatically at the specified time when new version is
available.

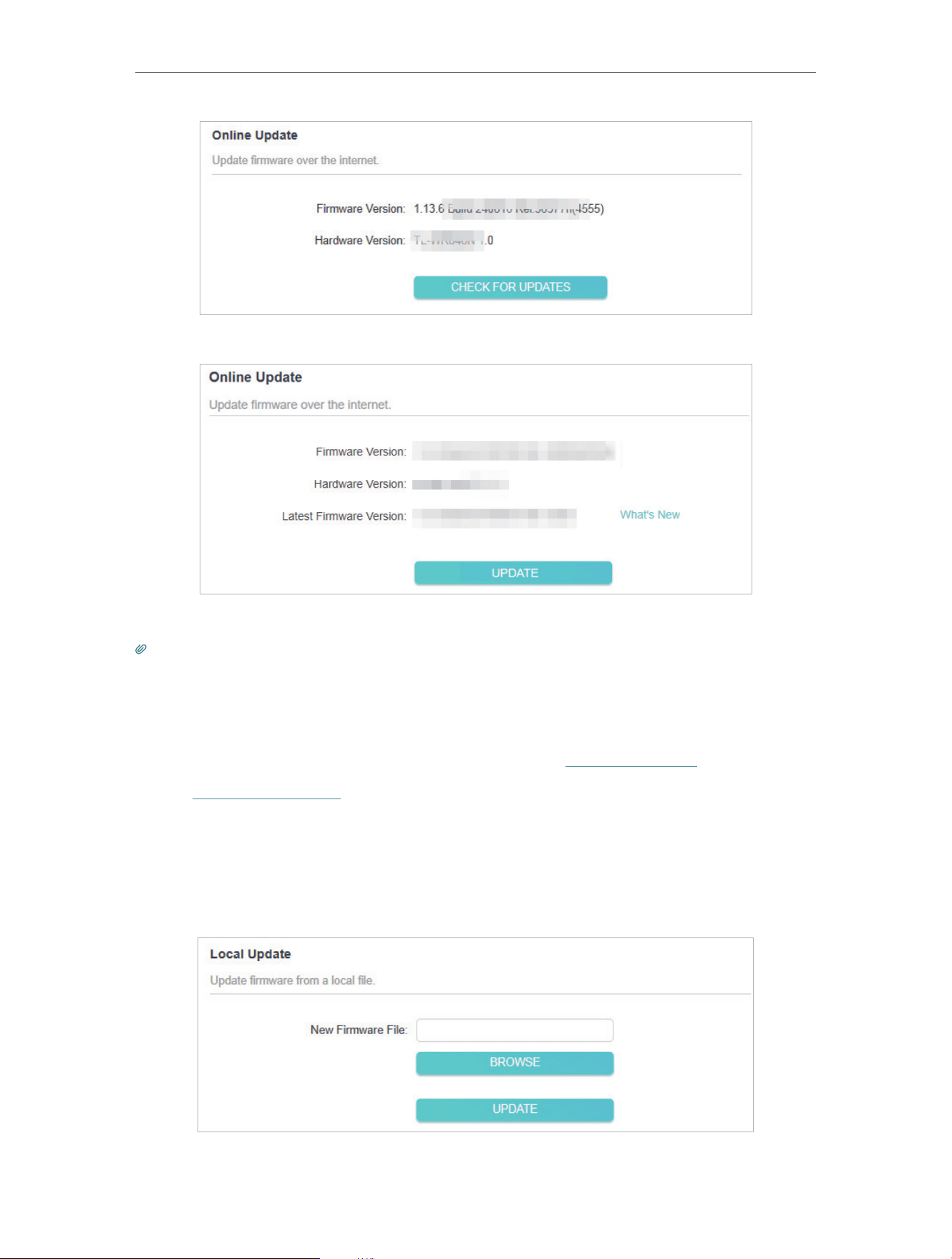

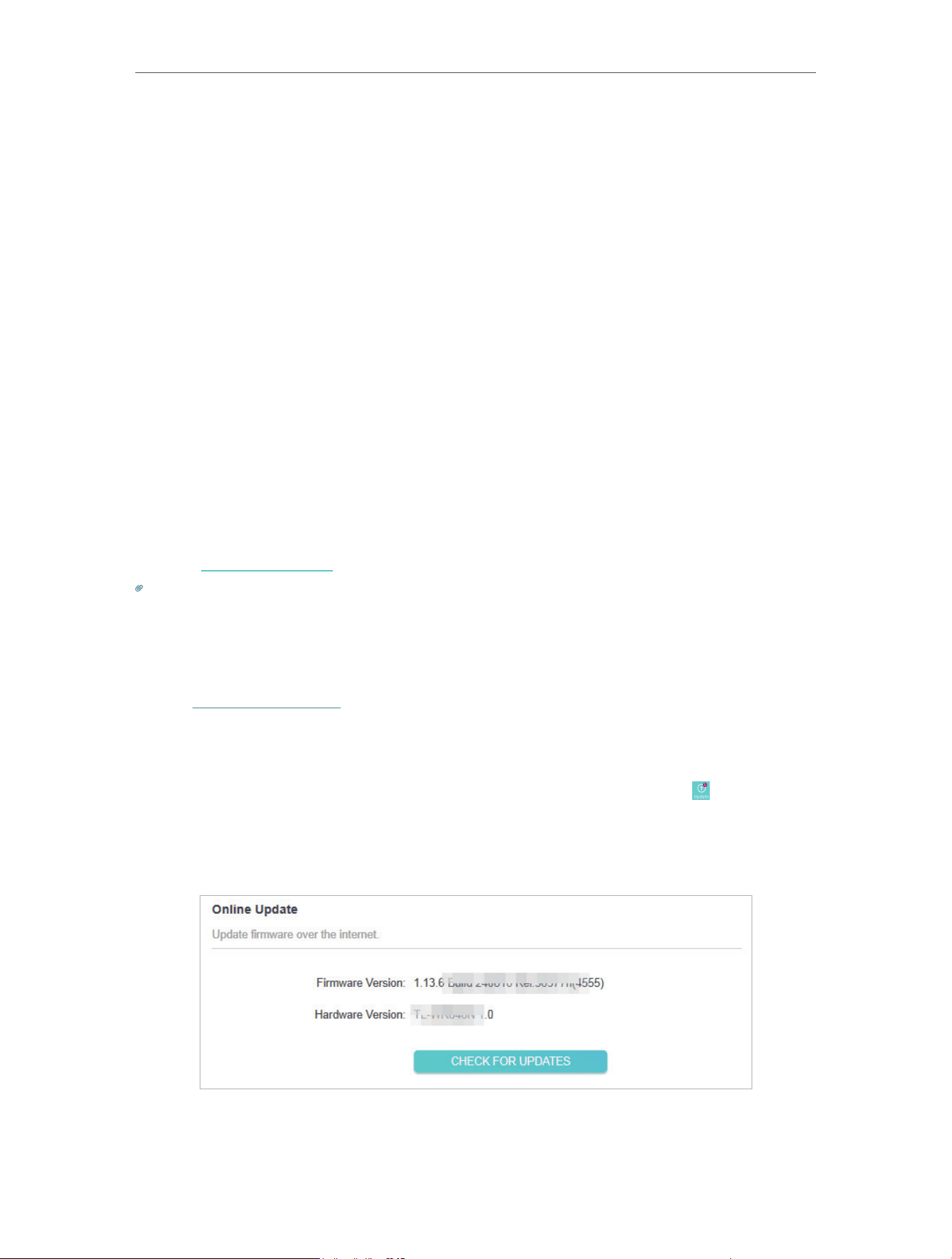

• Online Update:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Firmware Update.
3. When the latest firmware is available for your router, the update icon will display in
the top-right corner of the page. Click the icon to go to the Firmware Update page.
Alternatively, you can go to Advanced > System > Firmware Update, and click CHECK
FOR UPDATES to see whether the latest firmware is released.
68
Chapter 4
Configure the Router in Wireless Router Mode

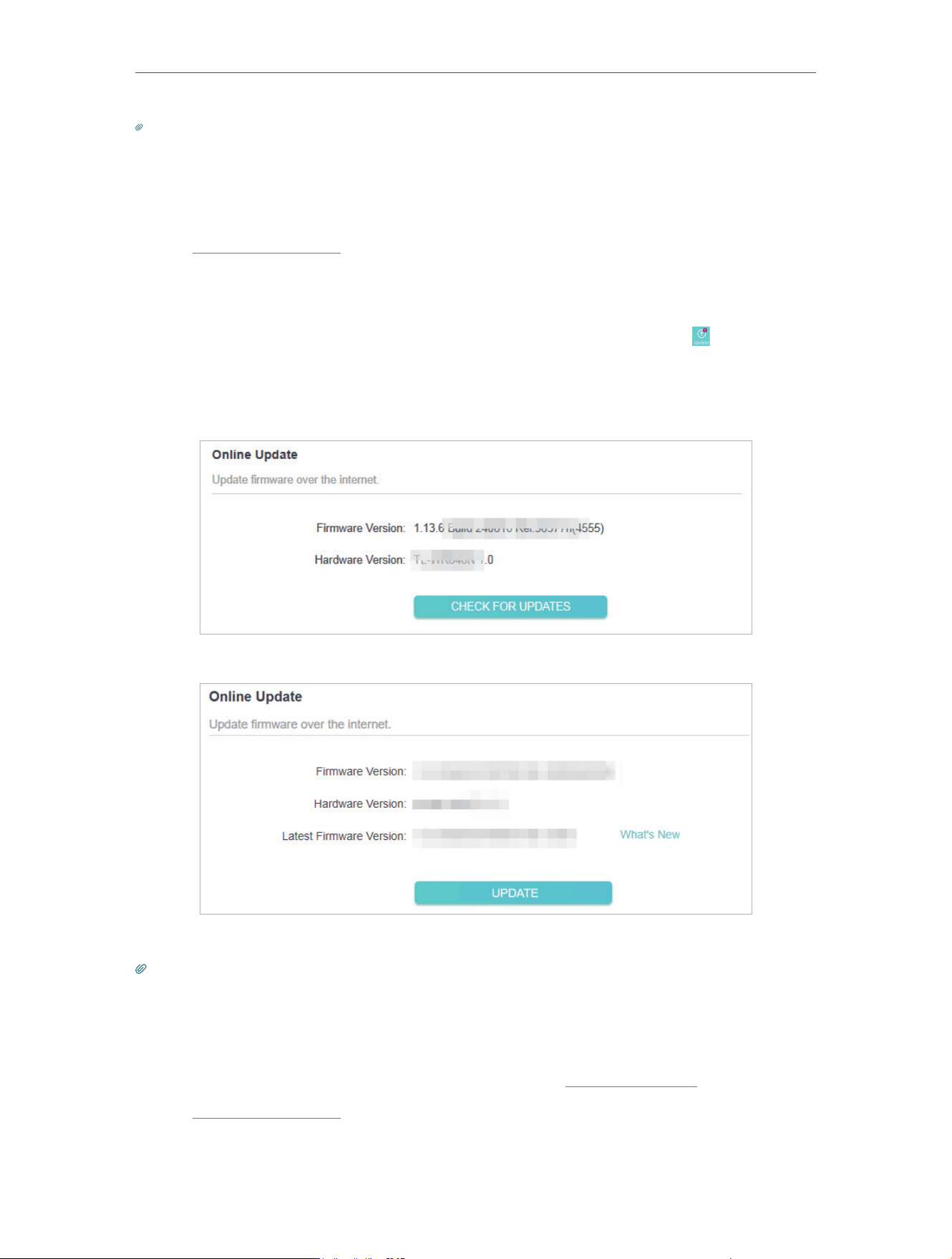

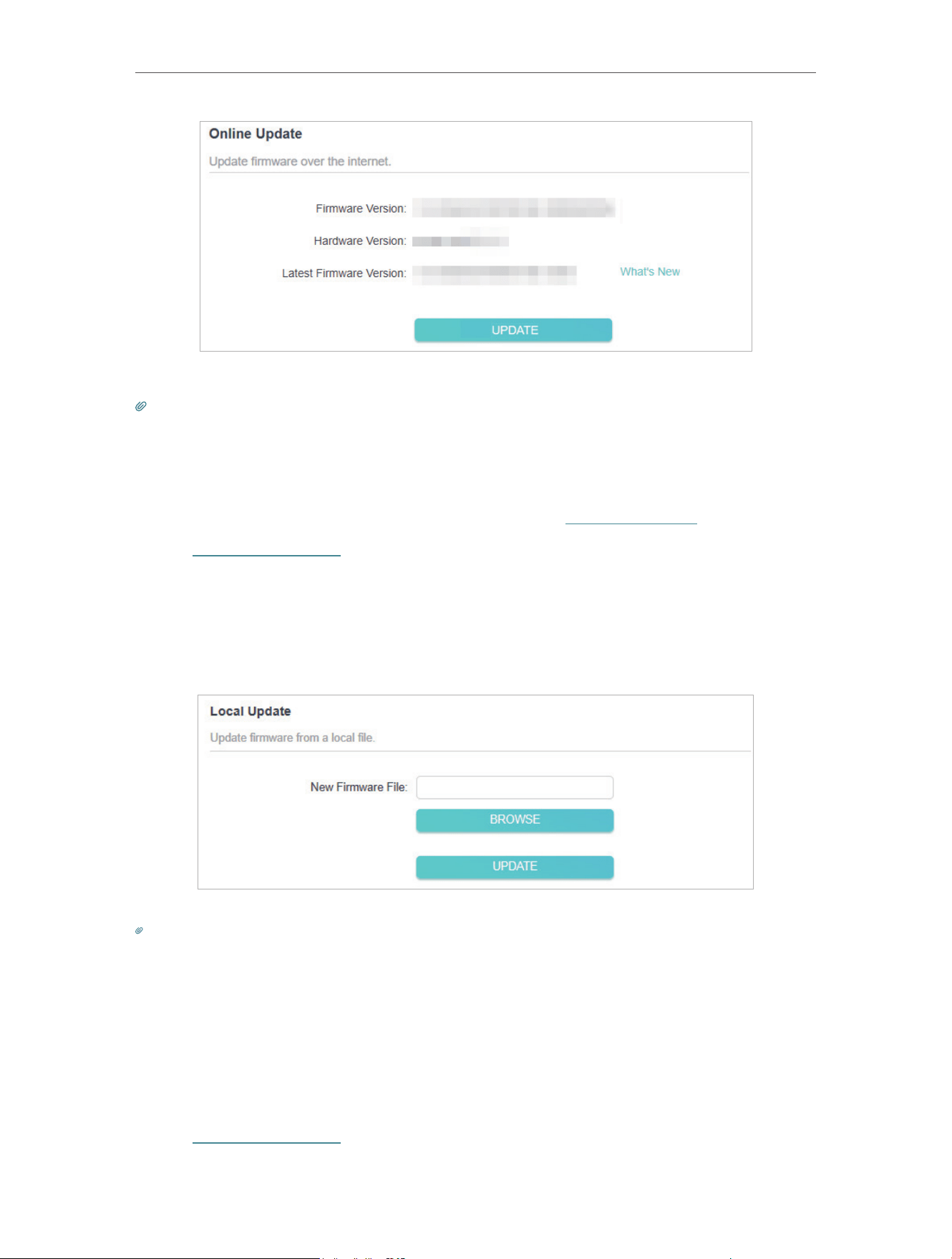

4. Focus on the Online Update section, and click UPDATE if there is new firmware.
5. Wait a few minutes for the update and reboot to complete.
Tips: If there’s a new and important firmware update for your router, you will see the prompt notification on your
computer as long as a web browser is opened. Click to update, and log in to the web management page with the
username and password you set for the router. You will see the Firmware Update page.
• Local Update:
1. Download the latest firmware file for the router from www.tp-link.com.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
3. Go to Advanced > System > Firmware Update.
4. Focus on the Local Update section. Click BROWSE to locate the downloaded new
firmware file, and click UPDATE.
5. Wait a few minutes for the update and reboot to complete.
69

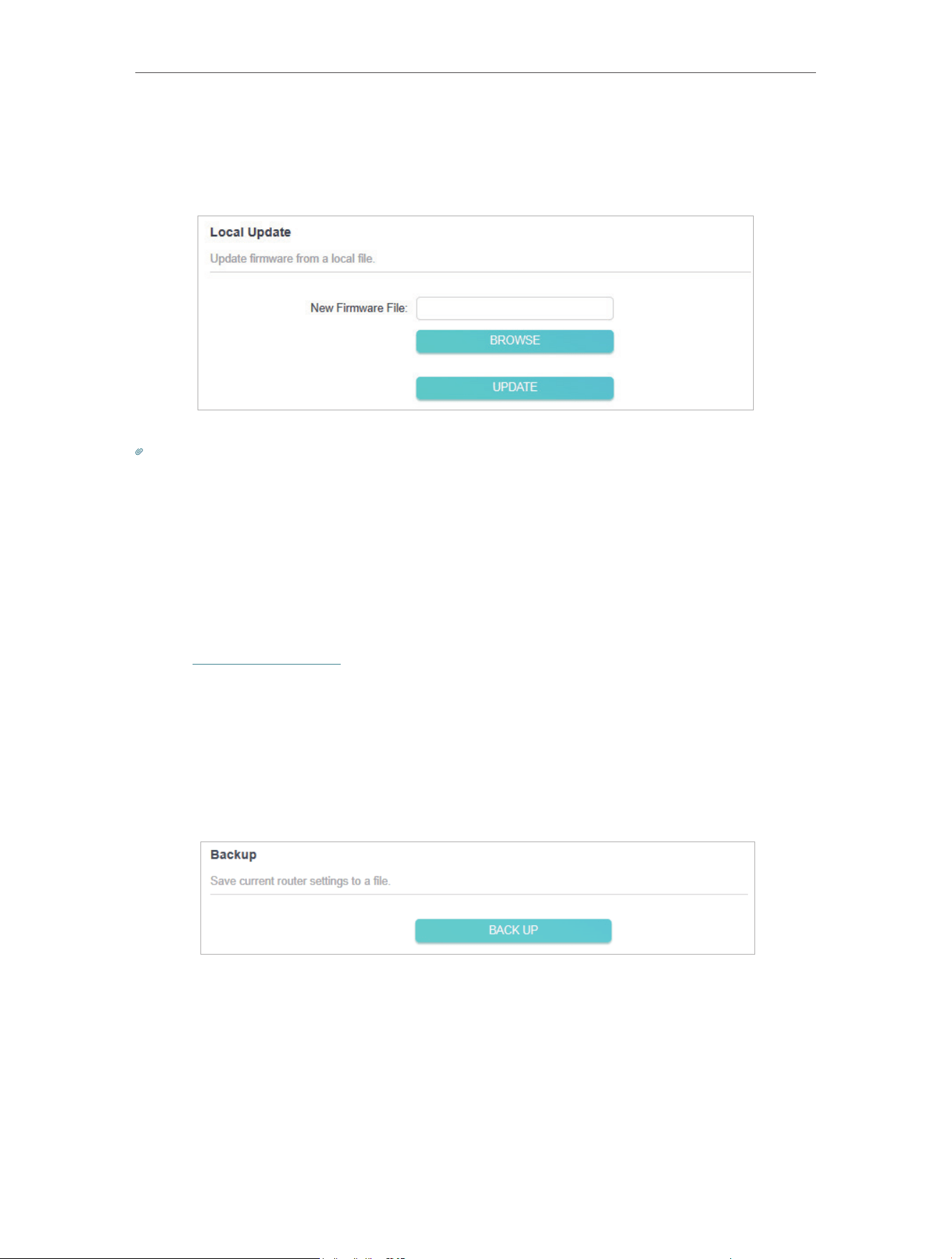

Chapter 4
Configure the Router in Wireless Router Mode
Note: If you fail to update the firmware for the router, please contact our Technical Support.

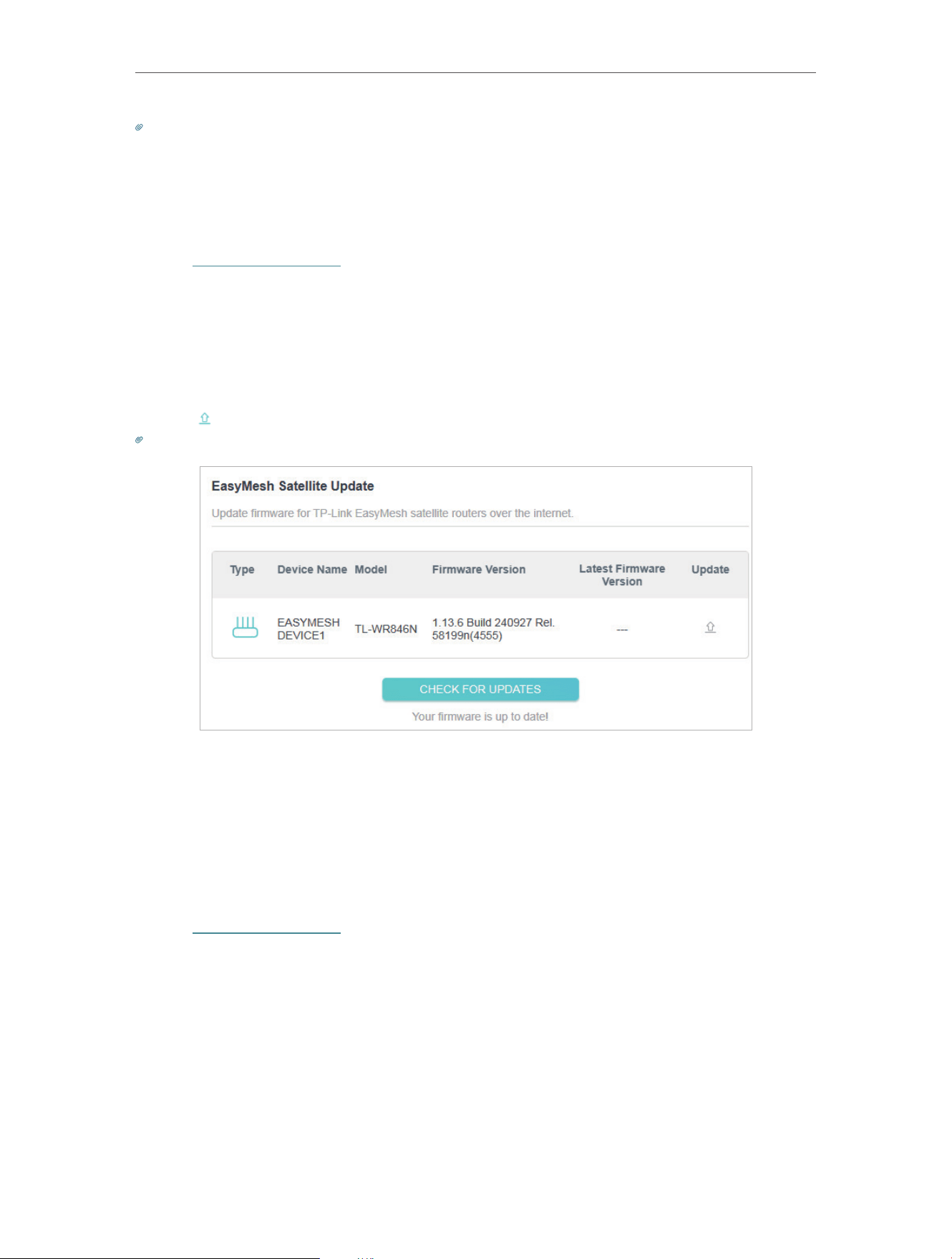

• EasyMesh Satellite Update:
EasyMesh Satellite Update allows you to remotely check and update the firmware of
the satellite devices connected to this router via EasyMesh.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Firmware Update, and locate the EasyMesh Satellite
Update section.
3. The router’s satellite devices will appear on the table. Click CHECK FOR UPDATES to
see whether the latest firmware is released. If you want to update a satellite device,
click on the right of the corresponding device.
Note: The update will take a few minutes and the satellite router will reboot.

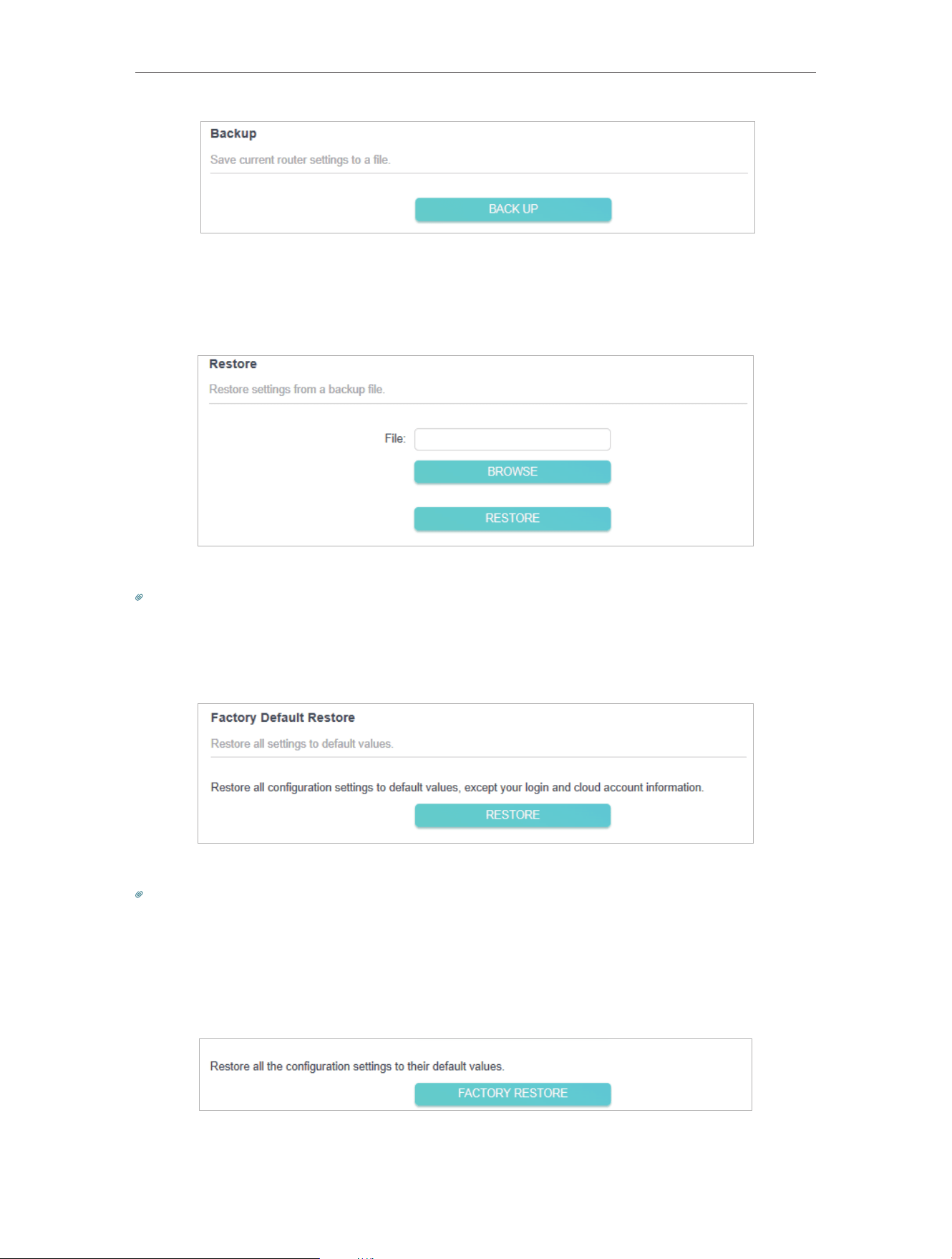

4 13 2 Backup and Restore Configuration Settings
The configuration settings are stored as a configuration file in the router. You can
backup the configuration file to your computer for future use and restore the router to
a previous settings from the backup file when needed. Moreover, if necessary you can
erase the current settings and reset the router to the default factory settings.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Backup & Restore.

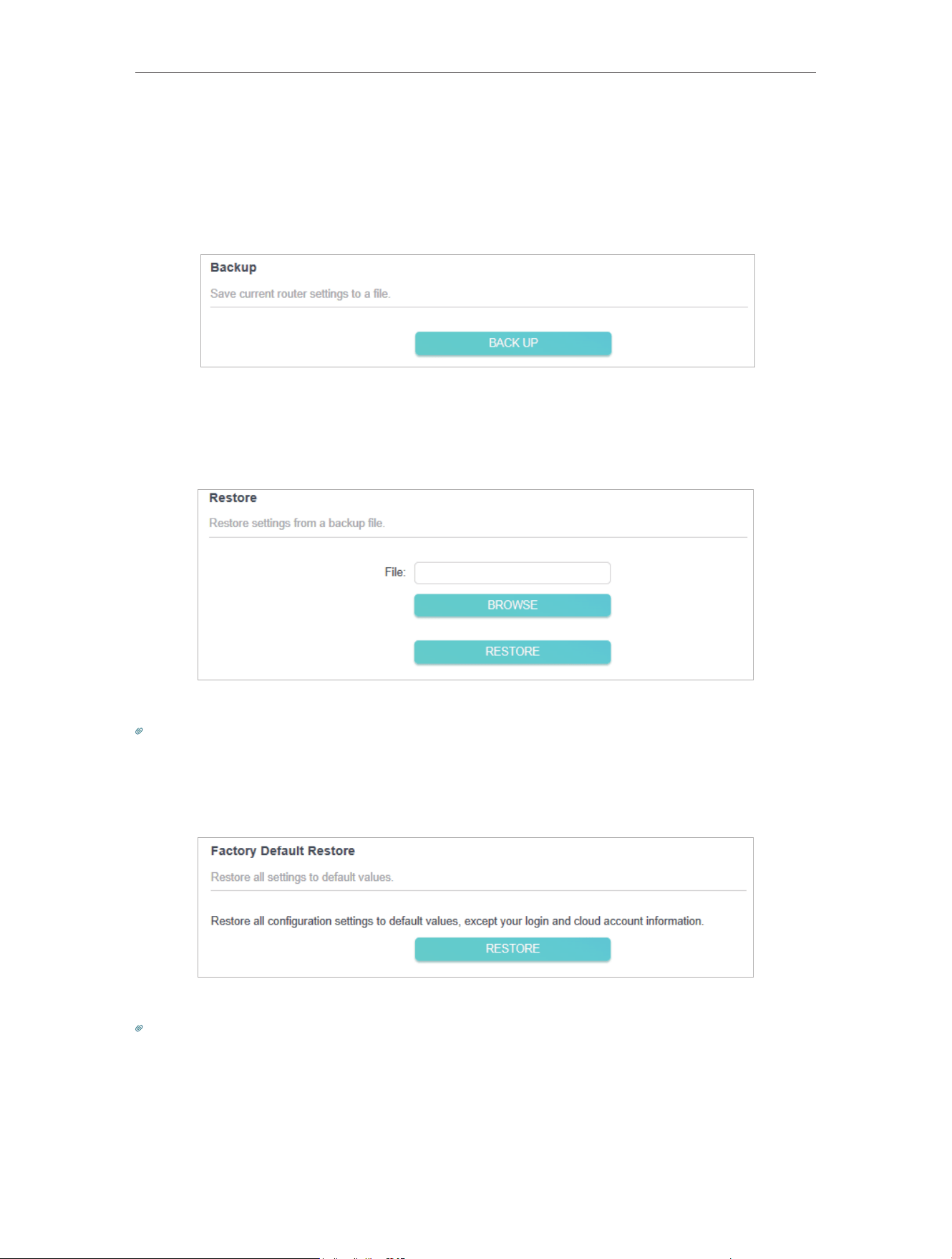

• To backup configuration settings:
Click BACK UP to save a copy of the current settings to your local computer. A ‘.bin’ file
of the current settings will be stored to your computer.
70
Chapter 4
Configure the Router in Wireless Router Mode

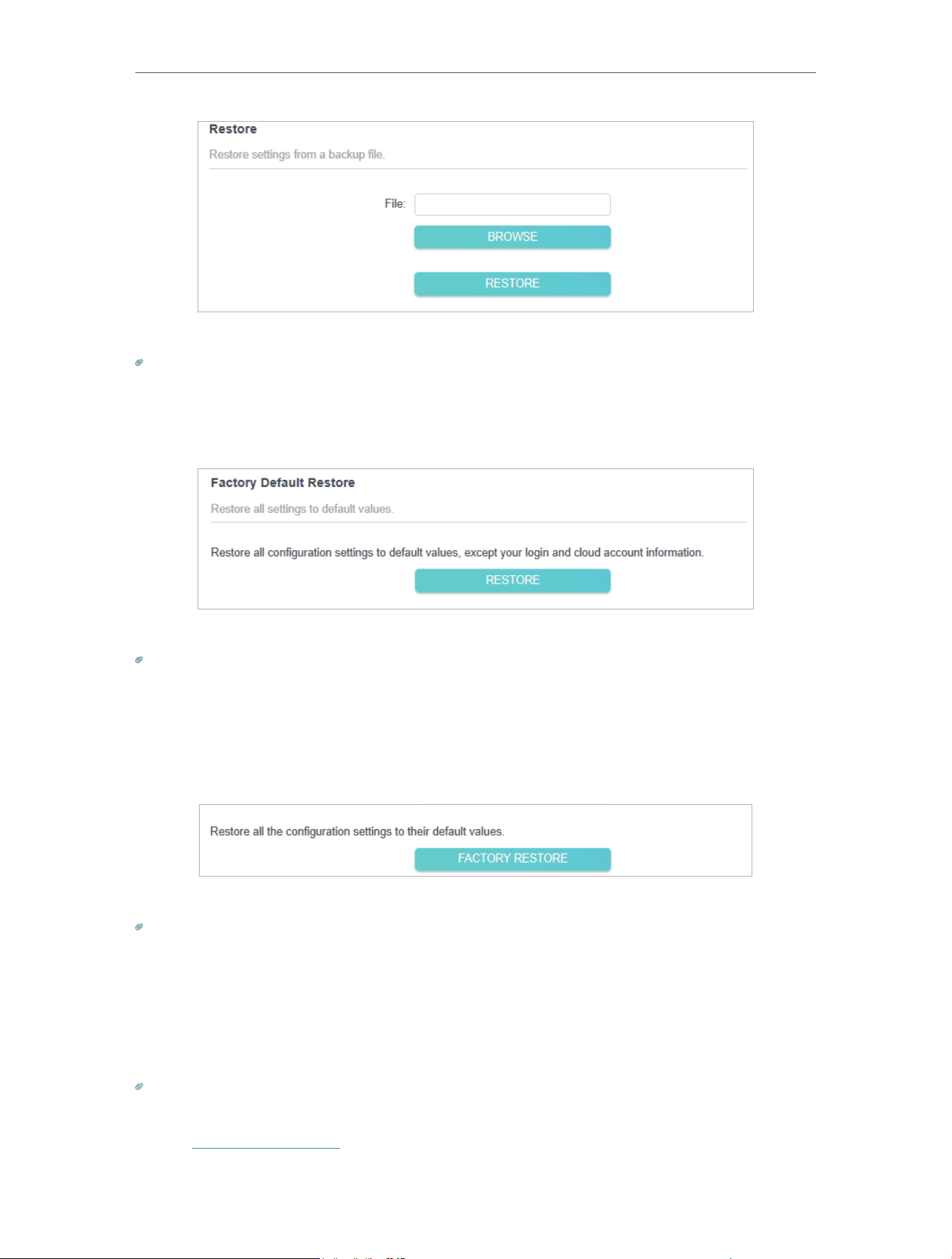

• To restore configuration settings:
1. Click BROWSE to locate the backup configuration file stored on your computer, and
click RESTORE.
2. Wait a few minutes for the restoring and rebooting.
Note: During the restoring process, do not turn off or reset the router.
• To reset the router except your login password and TP-Link ID:
1. In the Factory Default Restore section, click RESTORE.
2. Wait a few minutes for the resetting and rebooting.
Note:
• During the resetting process, do not turn off the router.
• After reset, you can still use the current login password or the TP-Link ID to log in to the web management page.
• To reset the router to factory default settings:
1. Click FACTORY RESTORE to reset the router.
2. Wait a few minutes for the resetting and rebooting.
71

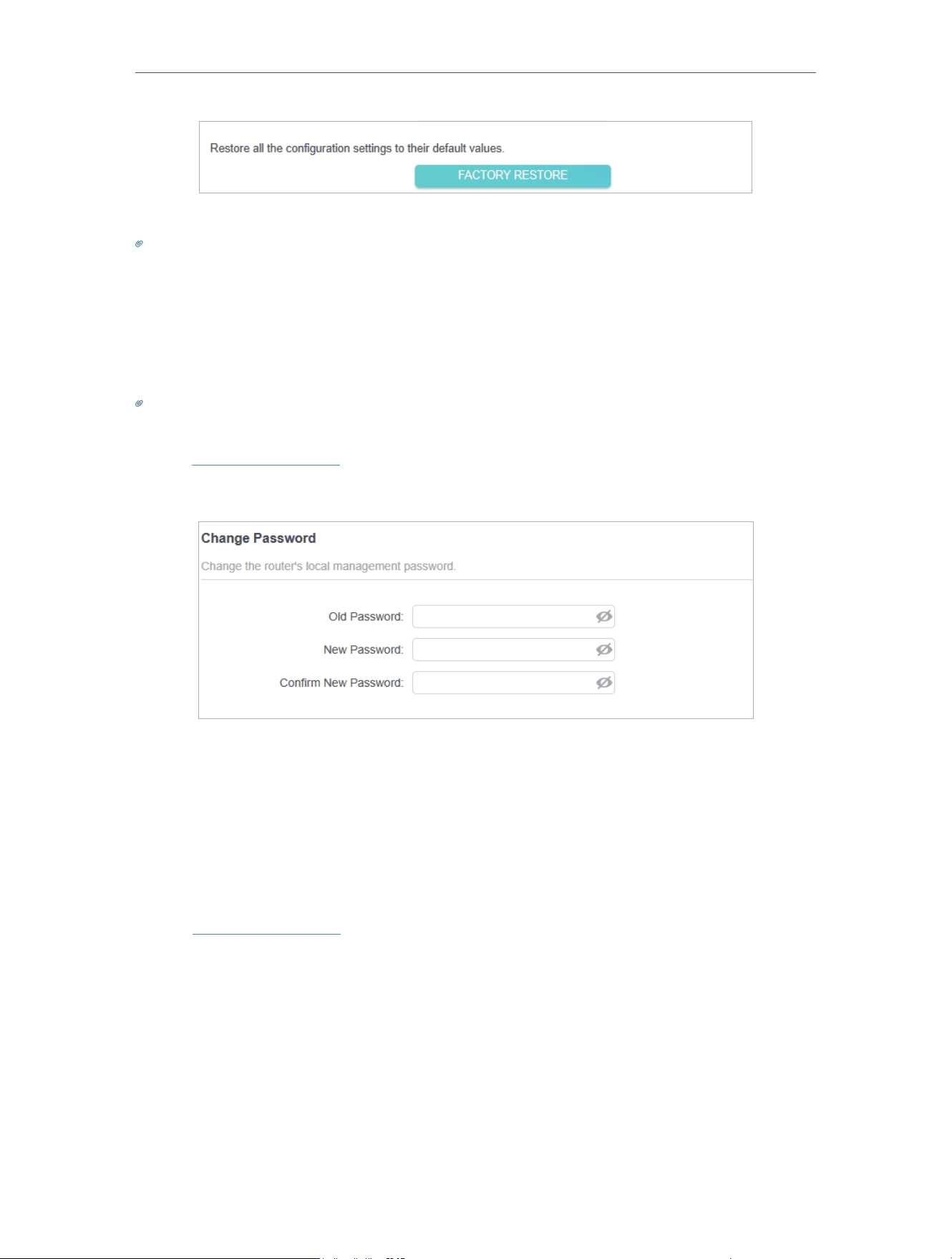

Chapter 4
Configure the Router in Wireless Router Mode
Note:
• During the resetting process, do not turn off or reset the router.
• We strongly recommend you backup the current configuration settings before resetting the router.

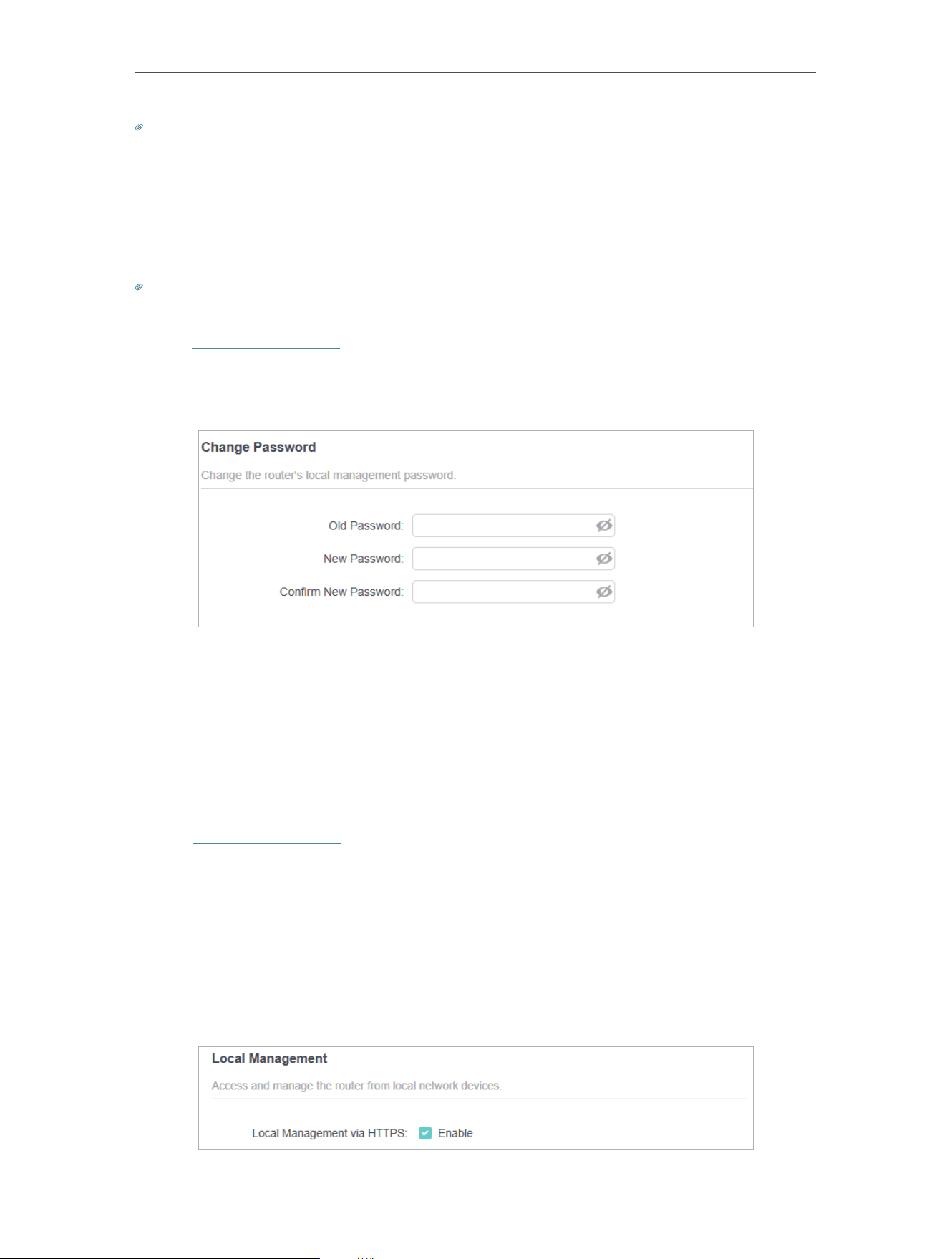

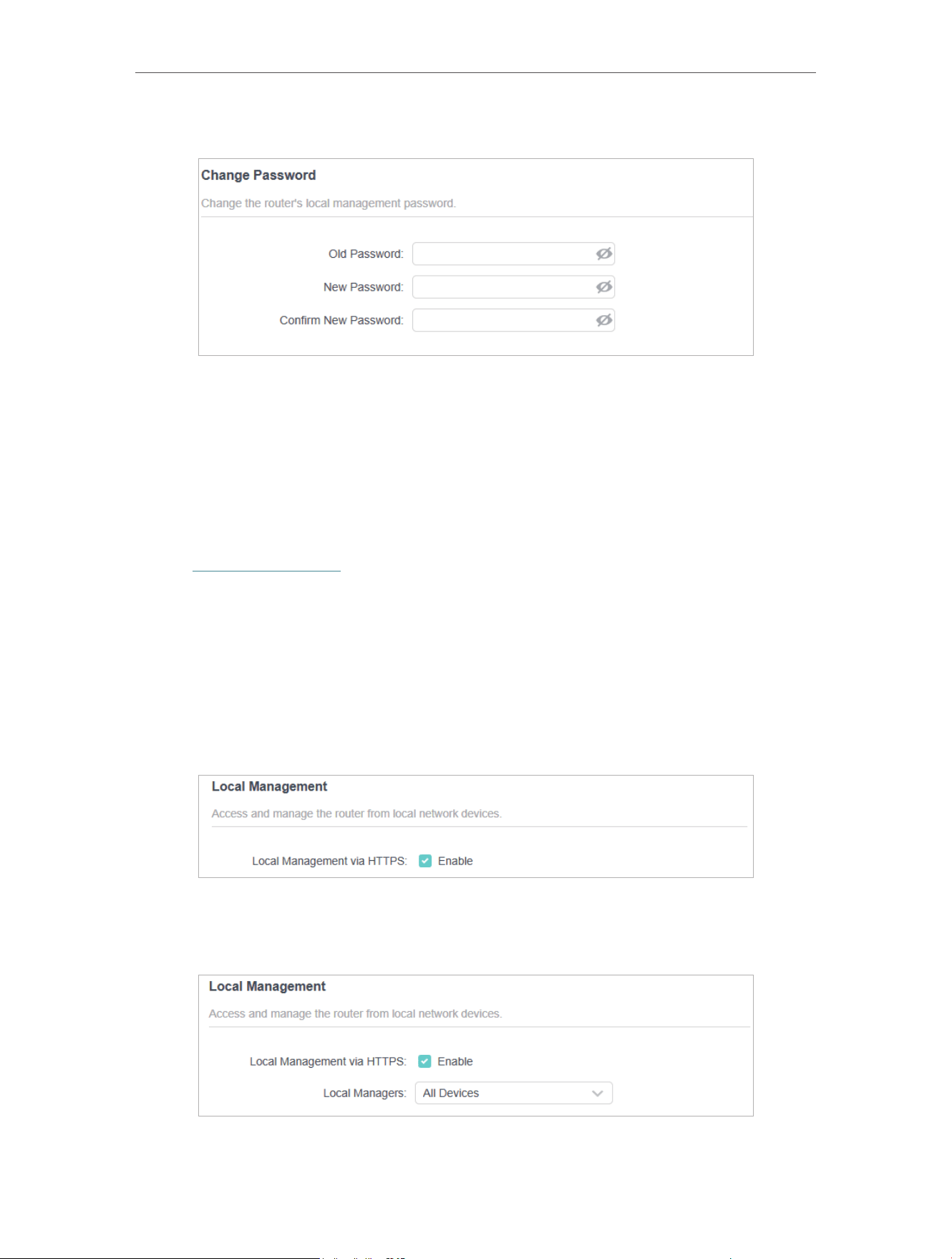

4 13 3 Change Password
You can change your login password of the web management page.
Note: If you are using a TP-Link ID to log in to the web management page, the account management feature will be
disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > System > Administration and focus on the Change Password
section.
3. Enter the old password, then a new password twice (both case-sensitive). Click SAVE .
4. Use the new password for future logins.

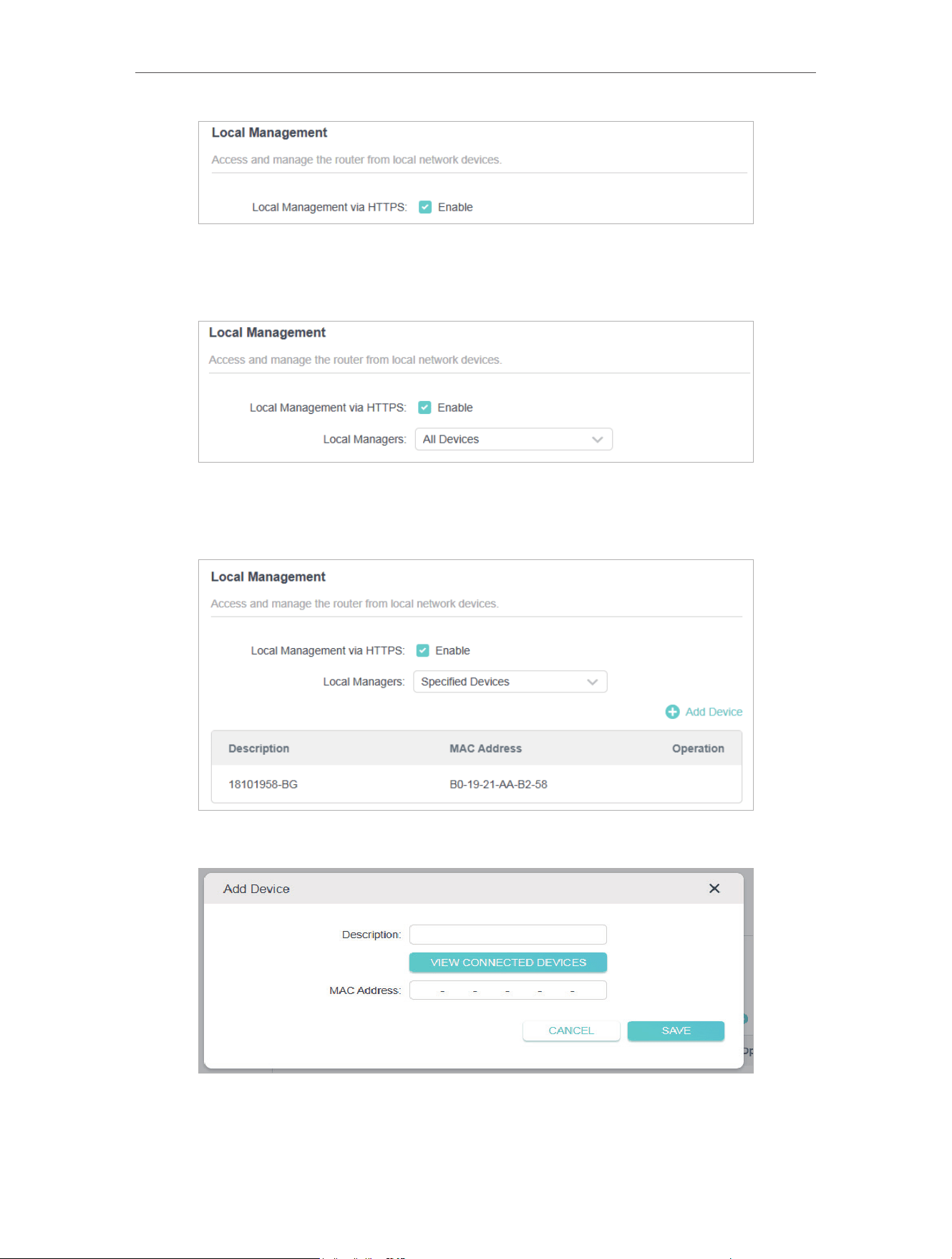

4 13 4 Local Management
This feature allows you to limit the number of client devices on your LAN from accessing
the router by using the MAC address-based authentication.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Administration and complete the settings In Local
Management section as needed.
• Local Management via HTTPS:
Tick the Local Management via HTTPS checkbox to access the router via HTTPS and
HTTP, or keep it disabled to access the router only via HTTP. Click SAVE .
72
Chapter 4
Configure the Router in Wireless Router Mode

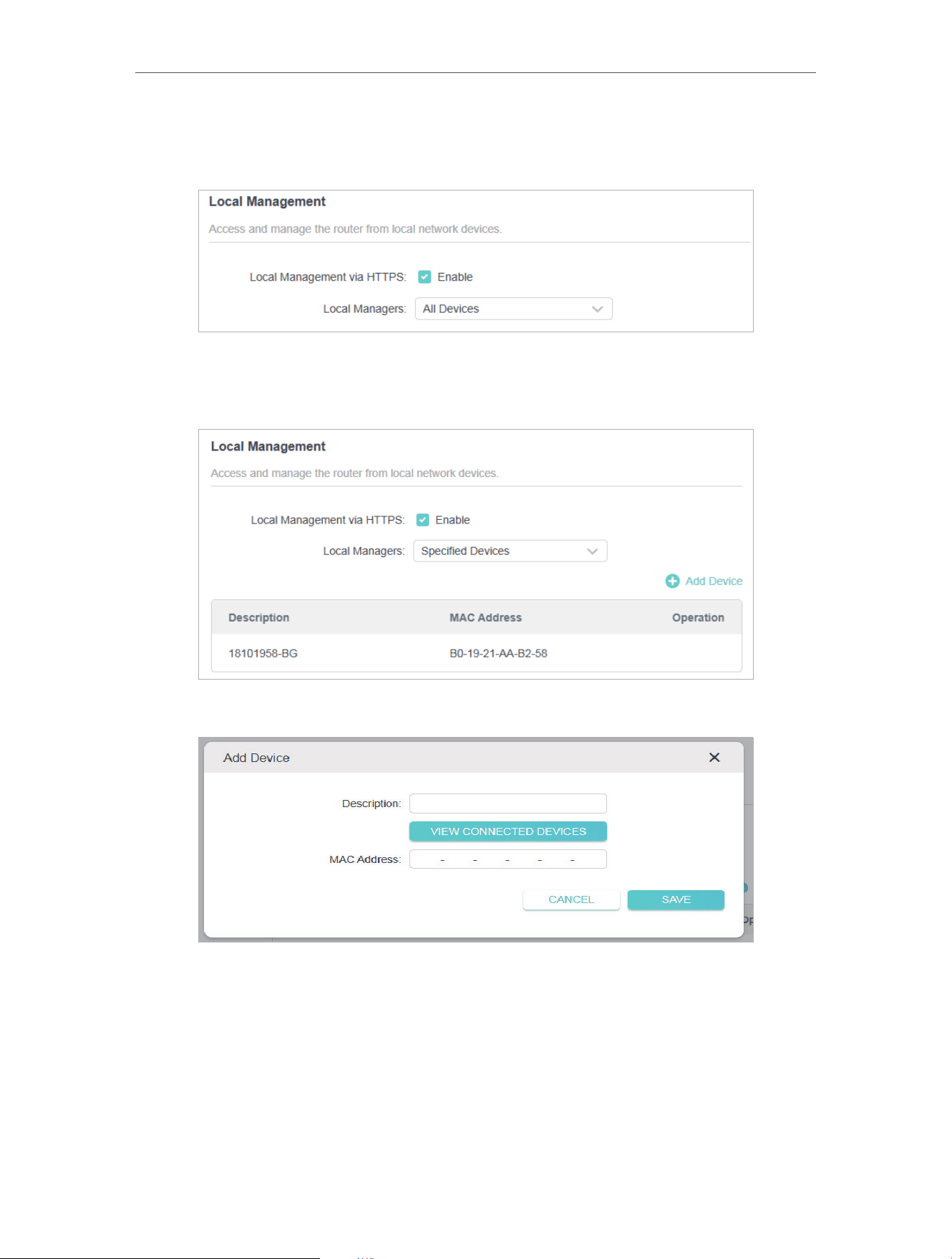

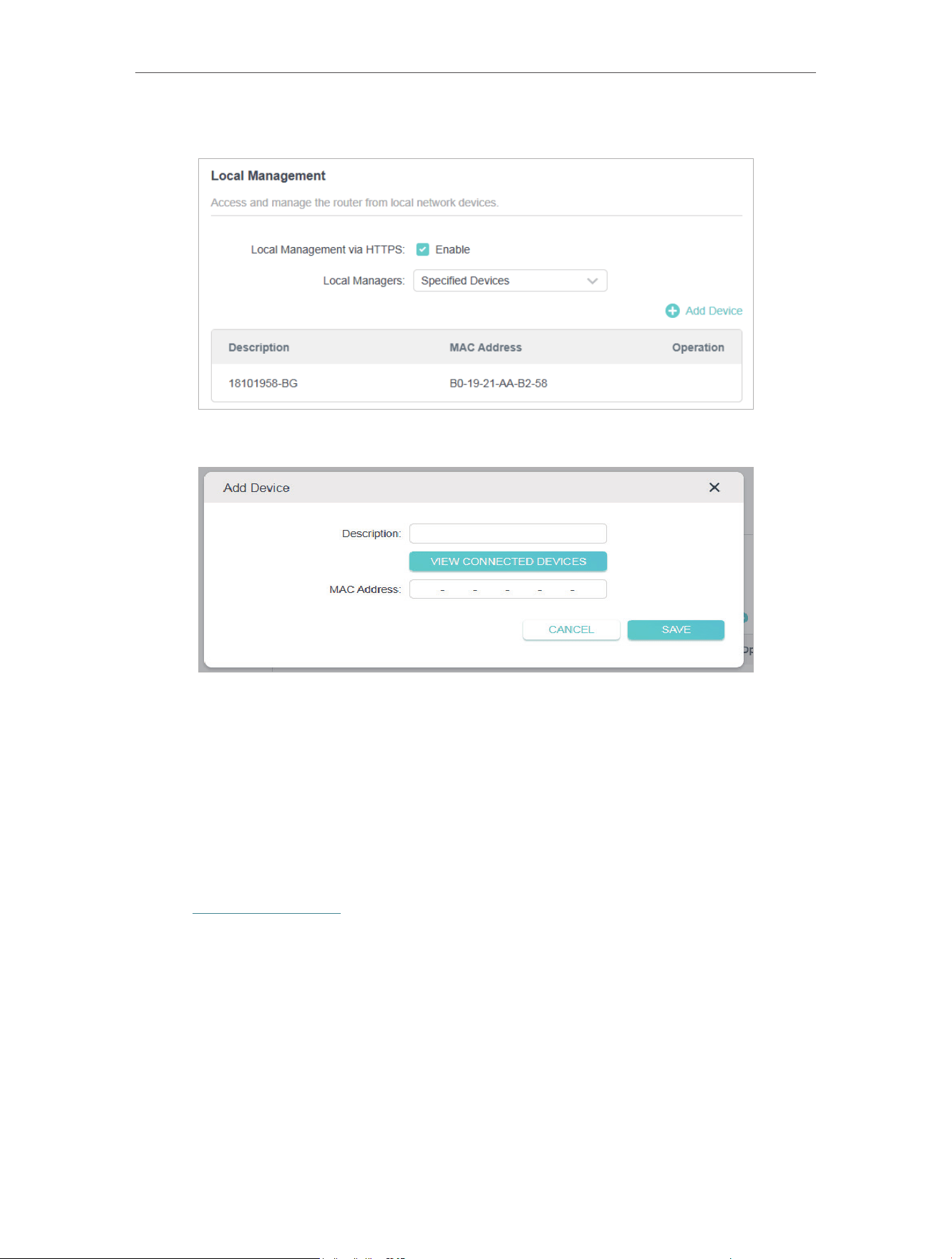

• Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers. Click SAVE.
• Allow specific devices to manage the router:
1. Select Specified Devices for Local Managers.
2. Click Add Device.
3. Click VIEW CONNECTED DEVICES and select the device to manage the router from
the Connected Devices list, or enter the MAC address of the device manually. Click
SAVE. The devices added will appear in the list.
4. Click SAVE .
4 13 5 Remote Management
This feature allows you to control remote devices’ authority to manage the router.
73
Chapter 4
Configure the Router in Wireless Router Mode

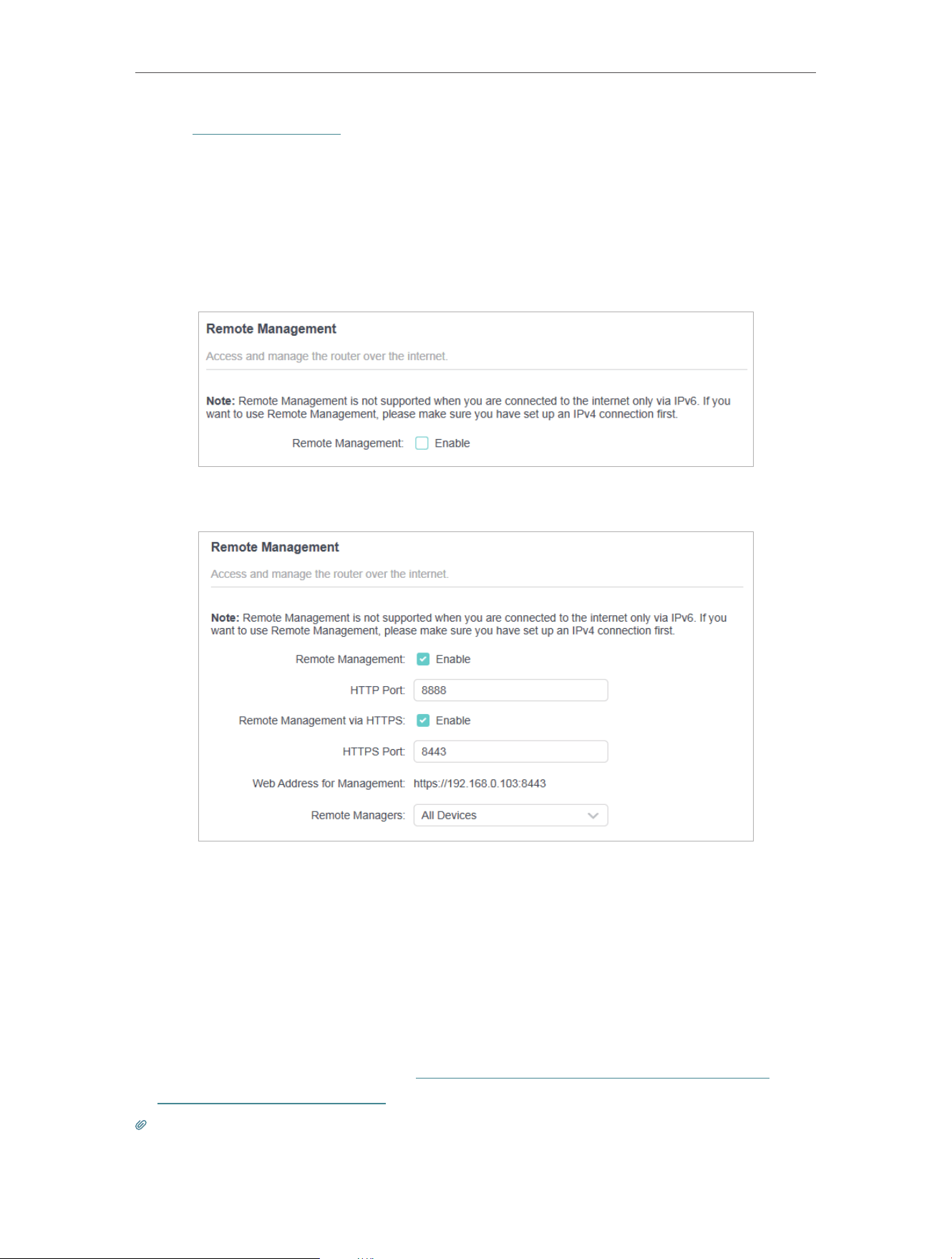

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Administration and complete the settings in Remote
Management section as needed.
• Forbid all devices to manage the router remotely:
Do not tick the Enable checkbox of Remote Management.
• Allow all devices to manage the router remotely:
1. Tick the Enable checkbox of Remote Management. Tick the Enable checkbox of
Remote Management via HTTPS if you want to allow the manager to access the
router via HTTPS.
2. Keep the HTTP and HTTPS port as default settings (recommended) or enter a value
between 1024 and 65535.
3. Select All Devices for Remote Managers.
4. Click SAVE .
Devices on the internet can log in to https://Router’s WAN IP address:port number (such
as https://113.116.60.229:1024) to manage the router.
Tips:
• You can find the WAN IP address of the router on Network Map > Internet.
74
Chapter 4
Configure the Router in Wireless Router Mode
• The router’s WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want to log
in to the router through a domain name.

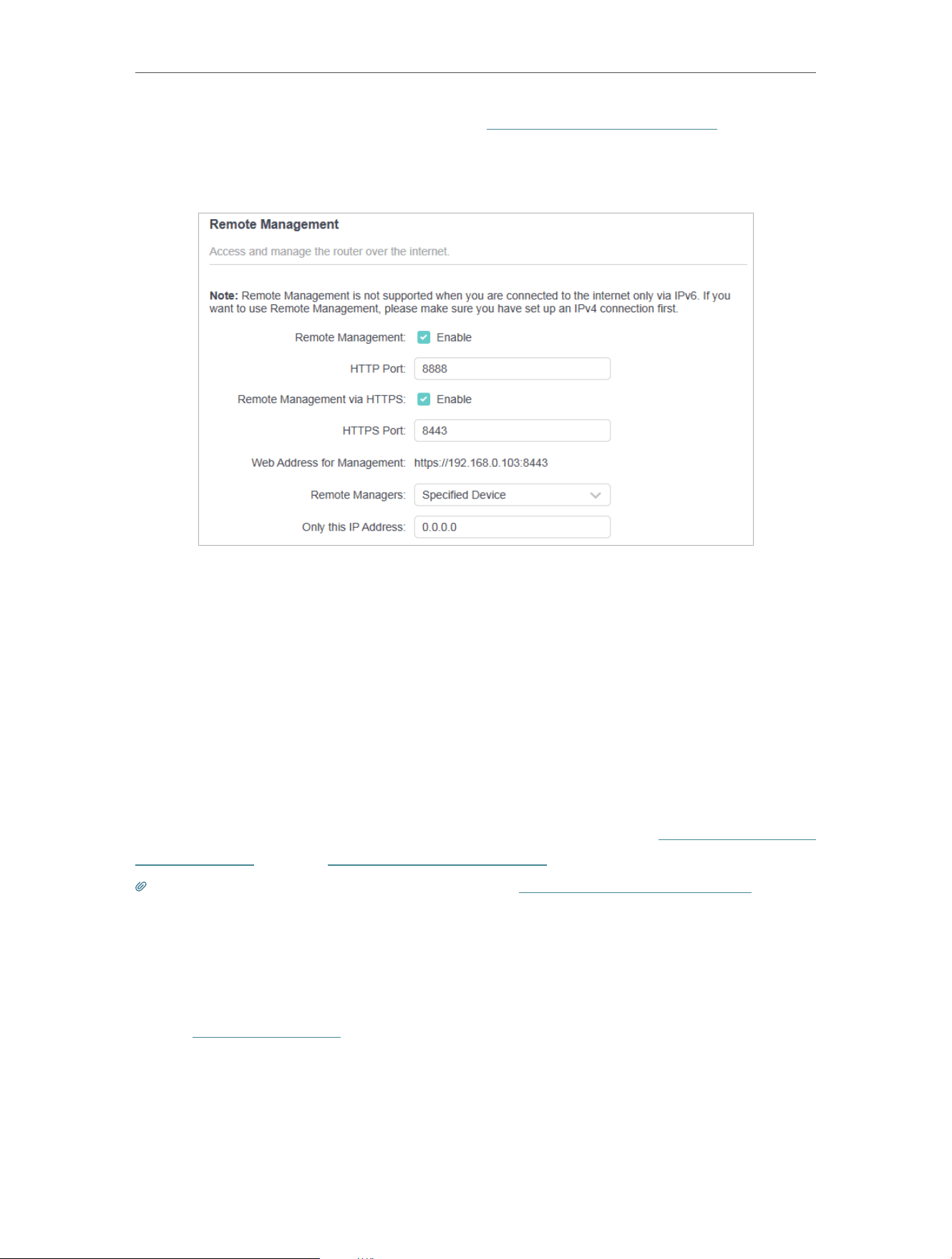

• Allow a specific device to manage the router remotely:
1. Tick the Enable checkbox of Remote Management. Tick the Enable checkbox of
Remote Management via HTTPS if you want to allow the manager to access the
router via HTTPS.
2. Keep the HTTP and HTTPS port as default settings (recommended) or enter a value
between 1024 and 65535.
3. Select Specified Device for Remote Managers.
4. In the Only this IP Address field, enter the IP address of the remote device to manage
the router.
5. Click SAVE .
Devices using this WAN IP can manage the router by logging in to http://Router’s WAN
IP:port number (such as http://113.116.60.229:1024).
Tips: The router’s WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want
to log in to the router through a domain name.
4 13 6 HTTP Referer Head Check
HTTP referer header check function can protect your networks against CSRF attacks.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Administration, and locate the HTTP Referer Head Check
section.
75
Chapter 4
Configure the Router in Wireless Router Mode

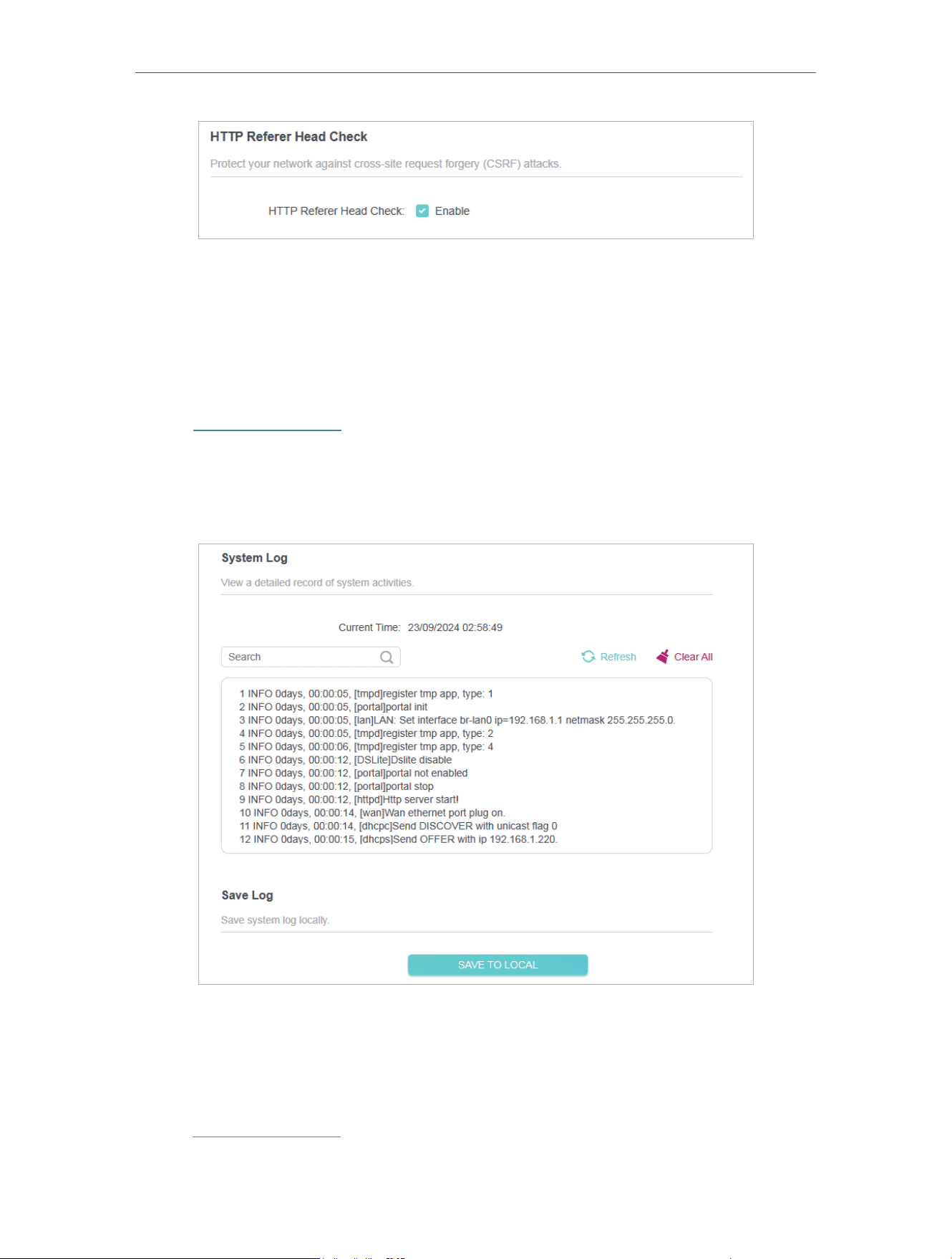

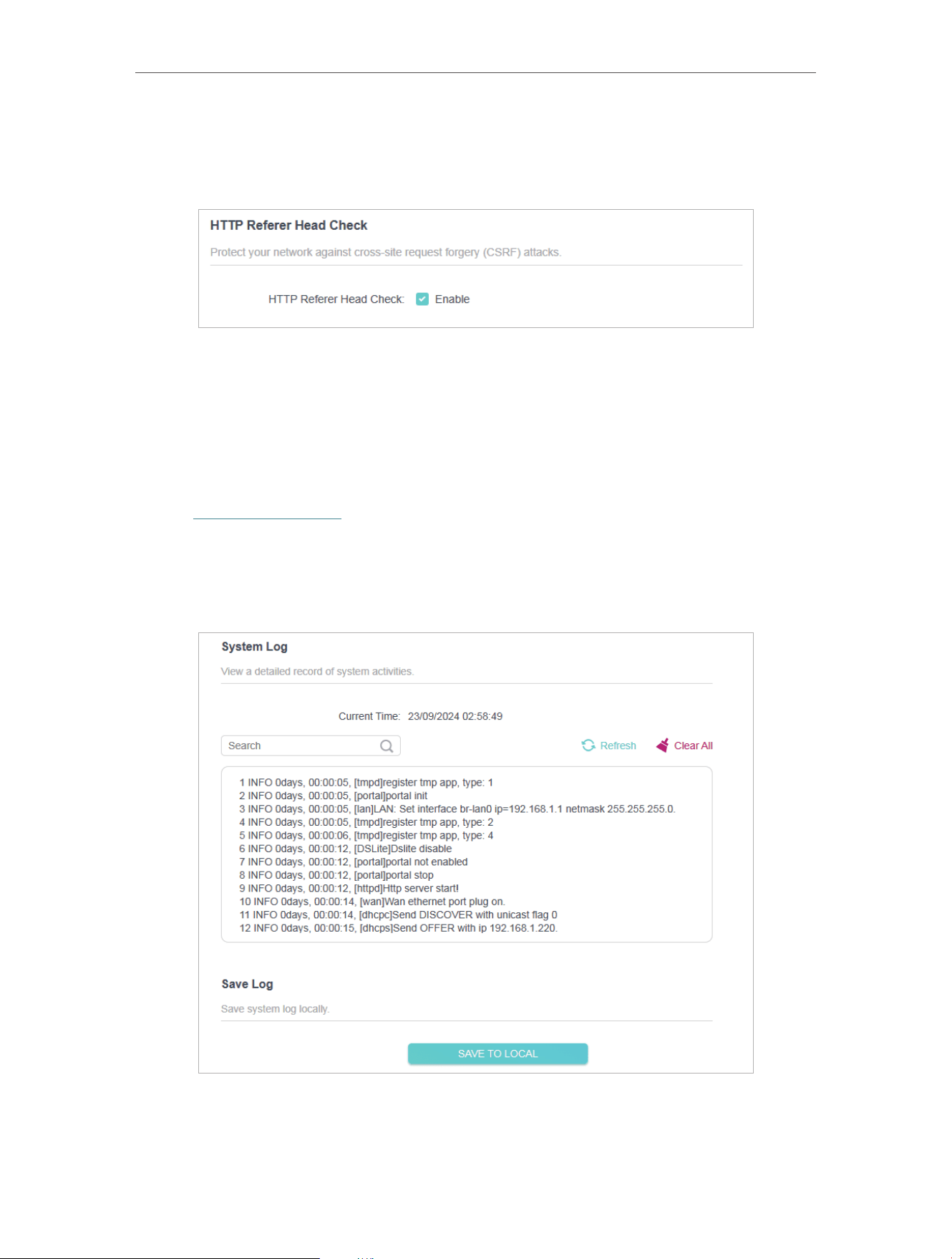

3. HTTP Referer Head Check is enabled by default, and it is recommended to keep
the default settings. This feature protects your network against cross-site request
forgery (CSRF) attacks.

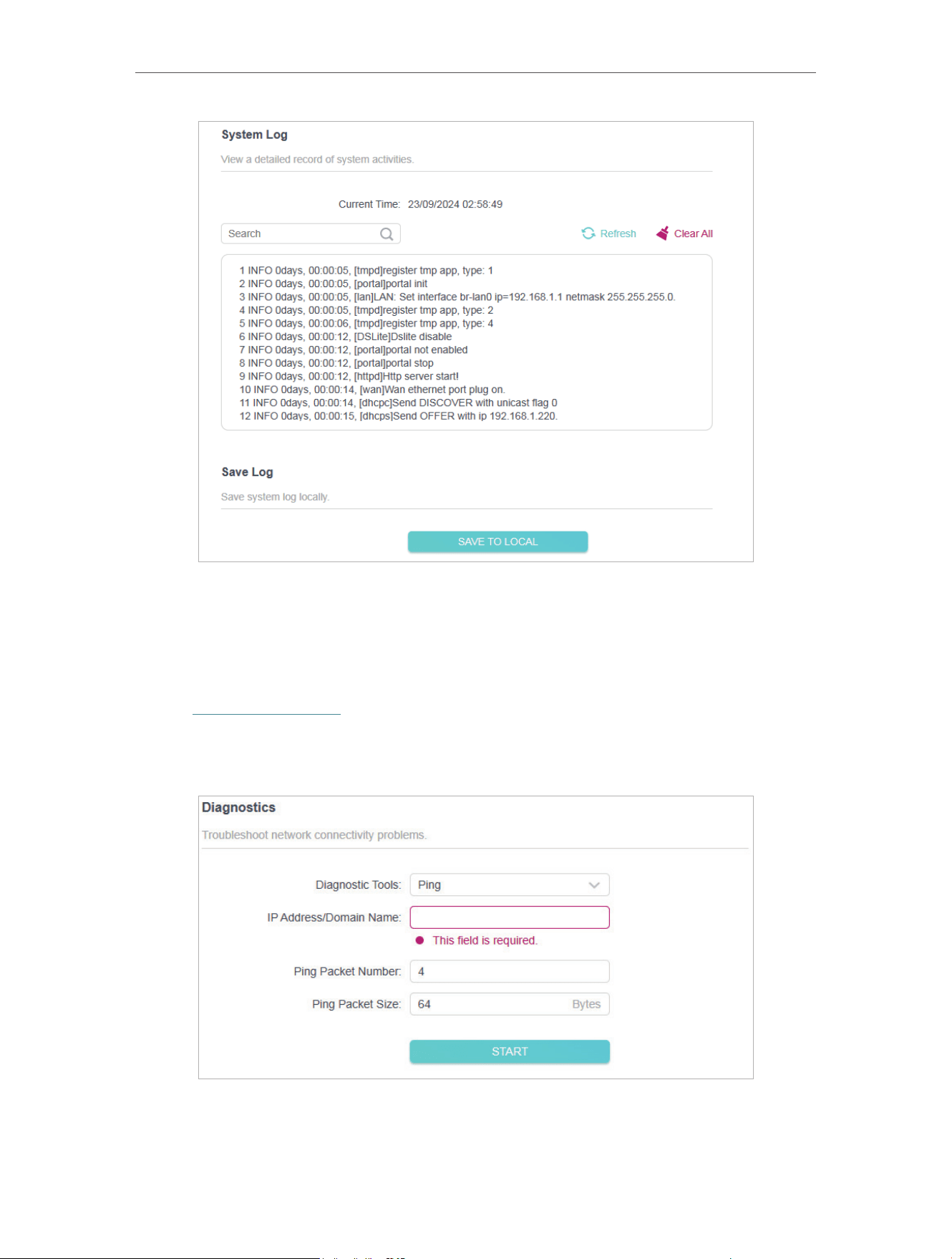

4 13 7 System Log
When the router does not work normally, you can save the system log and send it to the
technical support for troubleshooting.
• To save the system log locally:
1. Visit http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the
router.
2. Go to Advanced > System > System Log.
3. In the Save Log section, click SAVE TO LOCAL to save the system logs to a local disk.

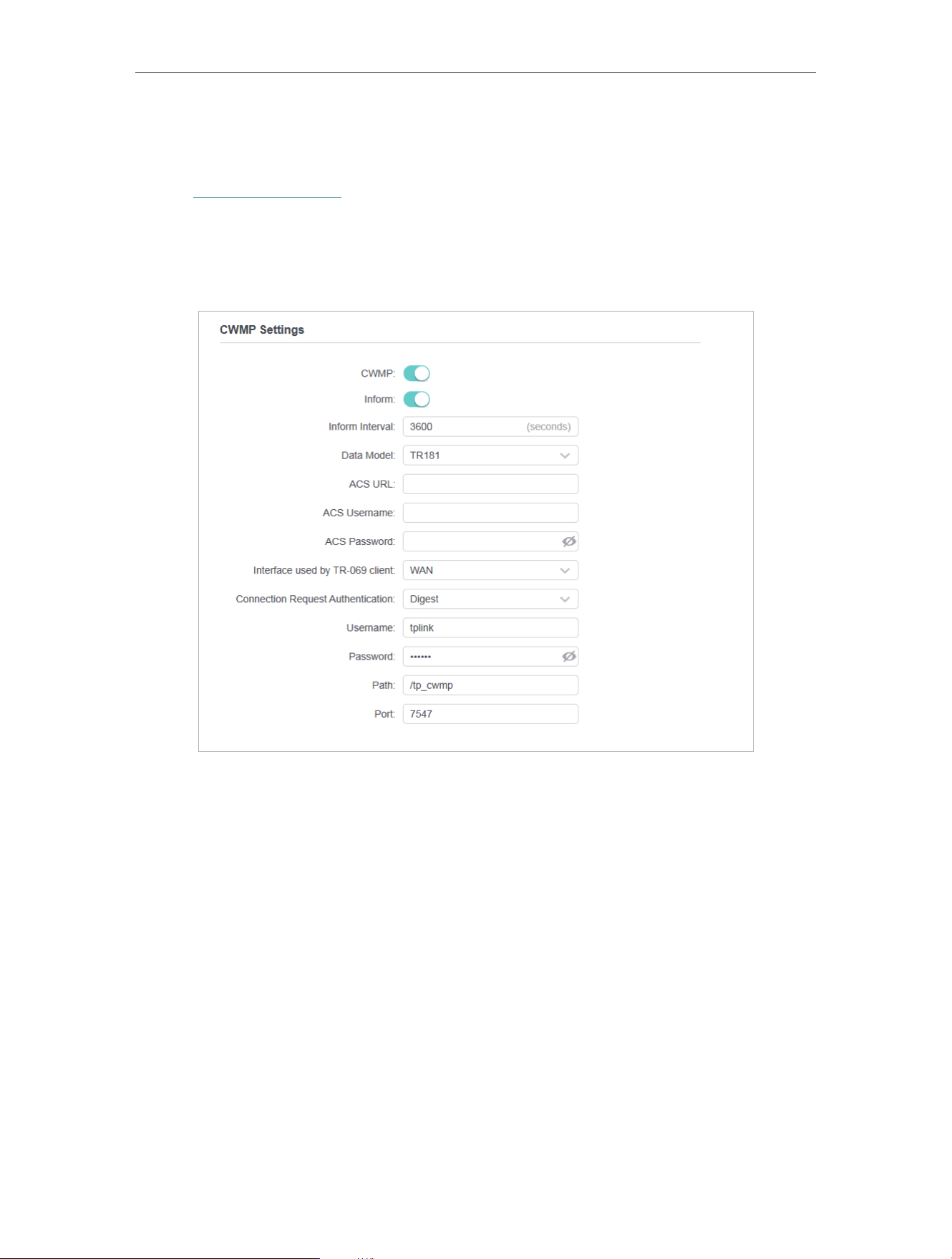

4 13 8 CWMP Settings
CPE WAN Management Protocol (also called TR-069) allows Auto-Configuration Server
76
Chapter 4
Configure the Router in Wireless Router Mode
(ACS) to perform auto-configuration, provision, connection, and diagnostics to this
device. You may configure this function under your ISP’s instructions.
1. Visit http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the
router.
2. Go to Advanced > System > CWMP Settings.
3. Configure the parameters according to your ISP’s instructions, and click SAVE.
• CWMP - Toggle on to enable the CWMP function.
• Inform - Enable to send an inform message to the ACS periodically.
• Inform Interval - Enter the time interval when the Inform message will be sent to the
ACS.
• Data Model - Select under your ISP’s instructions the data model according to which
the inform message will be sent to the ACS.
• ACS URL - Enter the web address of the ACS provided by your ISP.
• ACS Username/Password - Enter the username/password to log in to the ACS server.
• Interface used by TR-069 client - Select the interface to be used by the TR-069 client.
• Connection Require Authentication - Under your ISP’s instructions, select the
authentication mode. If you select Basic or Digest, enter the username and password
for the ACS server to log in to the router.
• Path - Enter the path for the ACS server to log in to the router.
77
Chapter 4
Configure the Router in Wireless Router Mode
• Port - Enter the port that connects to the ACS server.

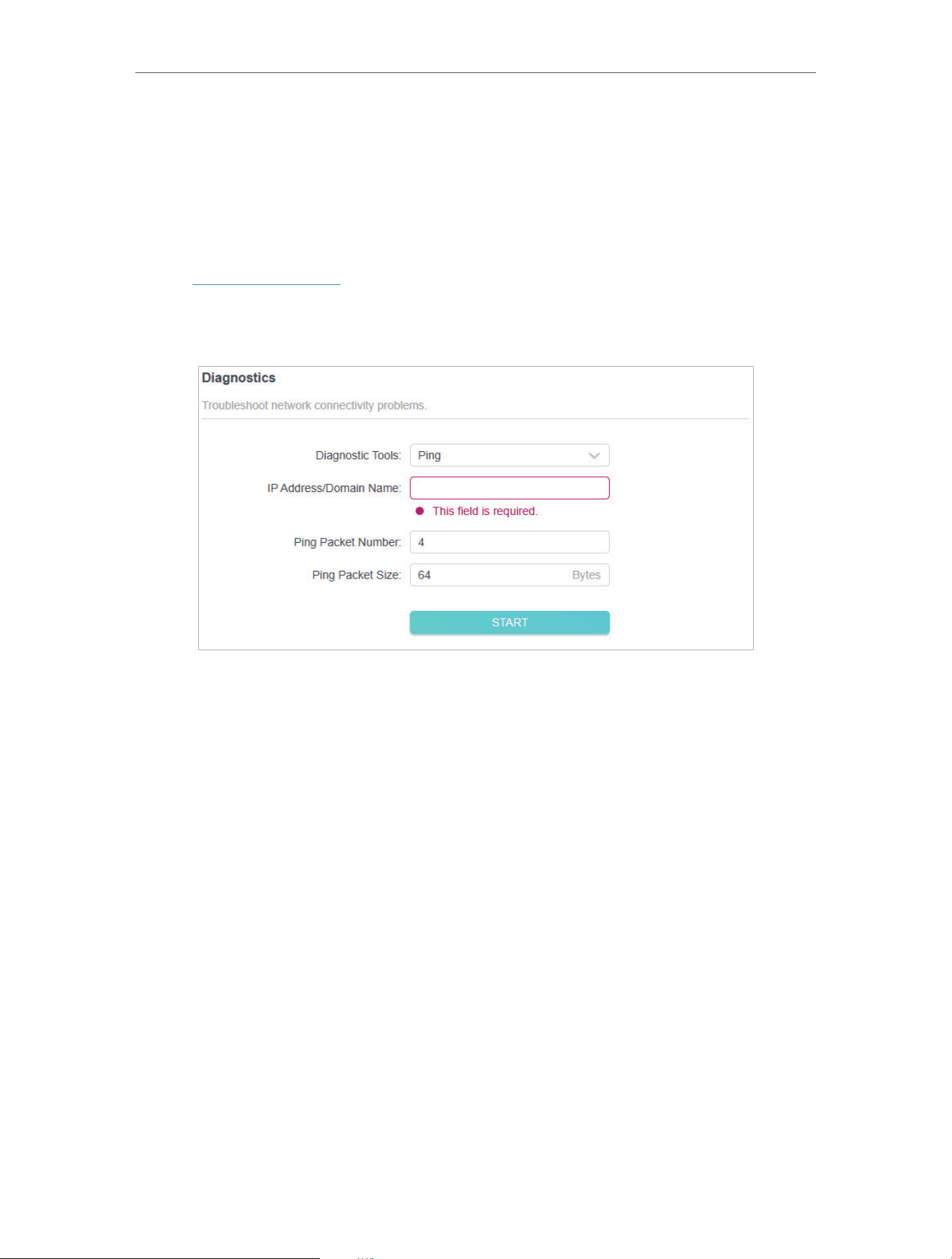

4 13 9 Diagnostics
Diagnostics is used to test the connectivity between the router and the host or other
network devices.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Diagnostics.
3. Enter the information:
1 ) Choose Ping or Traceroute as the diagnostic tool to test the connectivity;
• Ping is used to test the connectivity between the router and the tested host,
and measure the round-trip time.
• Traceroute is used to display the route (path) your router has passed to reach
the tested host, and measure transit delays of packets across an Internet
Protocol network.
2 ) Enter the IP Address or Domain Name of the tested host.
3 ) Modify the Ping Packet Number and the Ping Packet Size. It’s recommended to
keep the default value.
4 ) If you have chosen Traceroute, you can modify the Traceroute Max TTL. It’s
recommended to keep the default value.
4. Click START to begin the diagnostics.

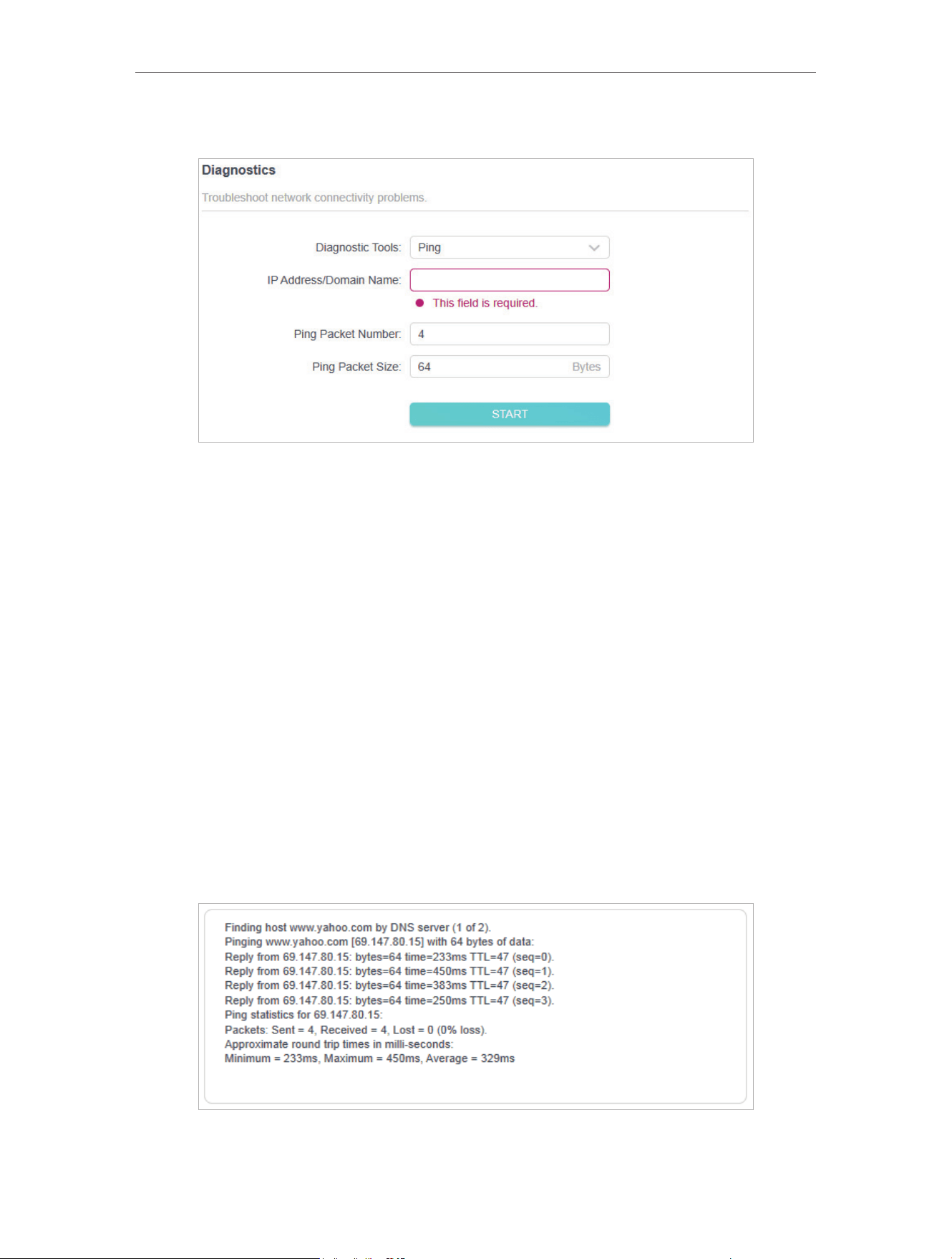

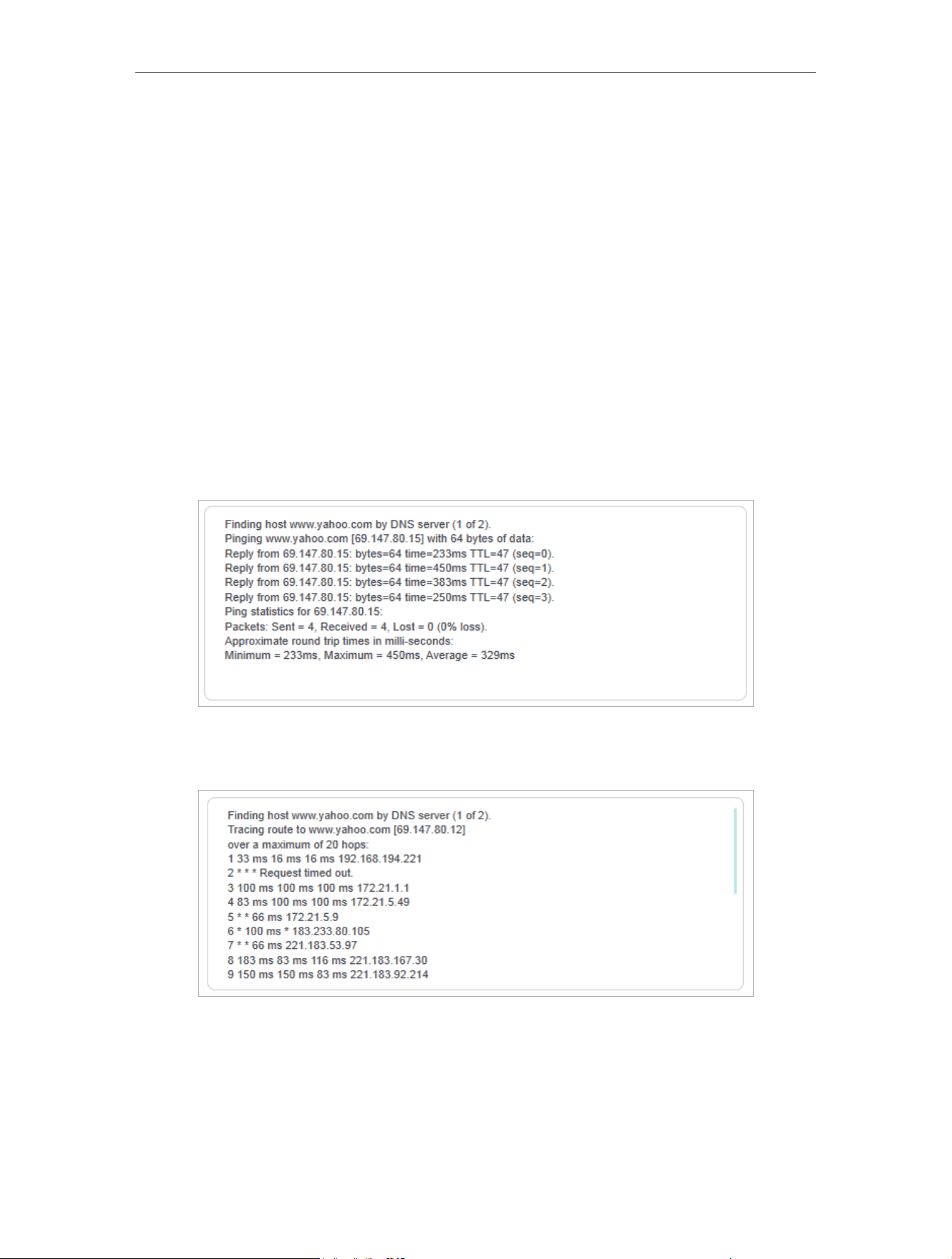

The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Ping.
78
Chapter 4
Configure the Router in Wireless Router Mode

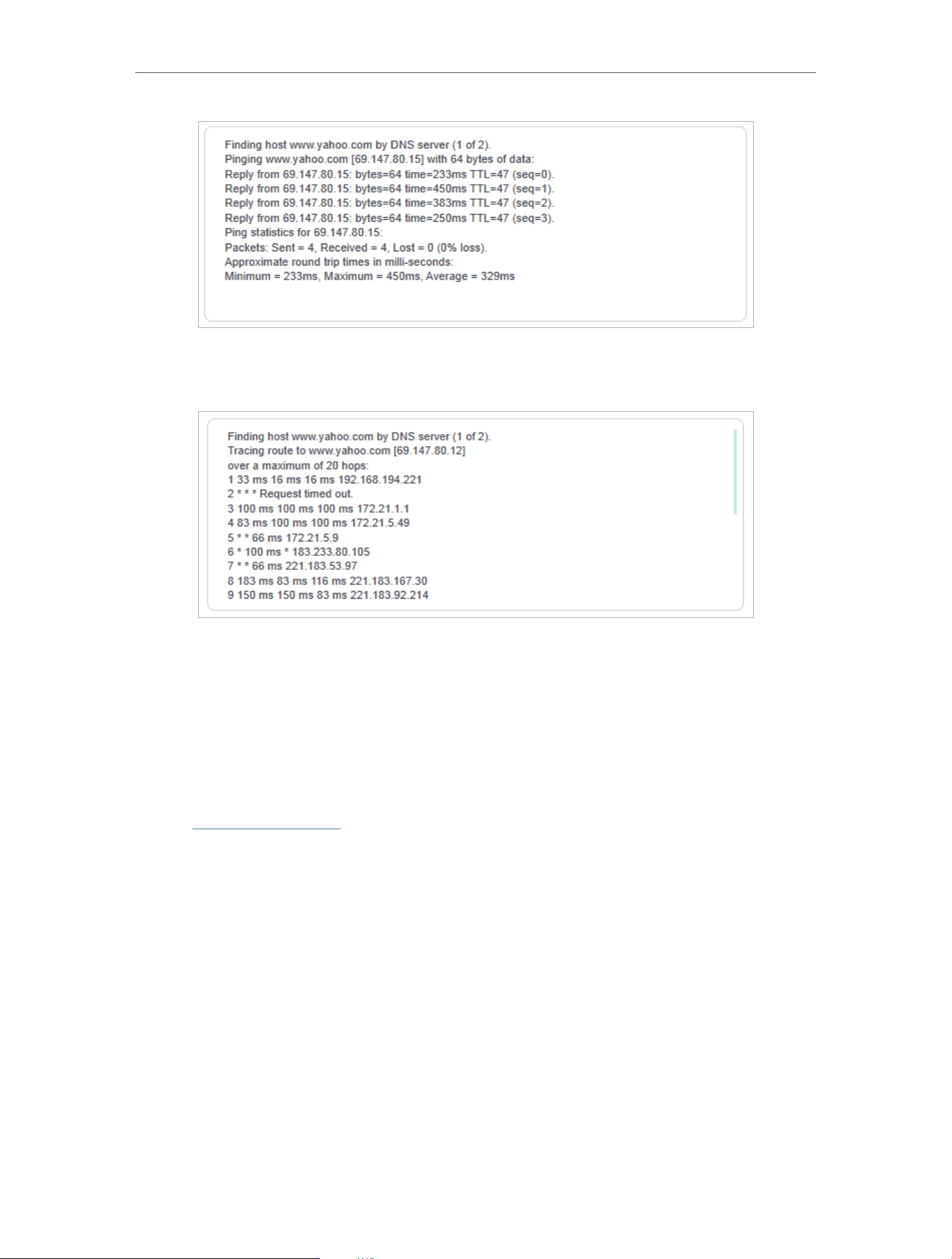

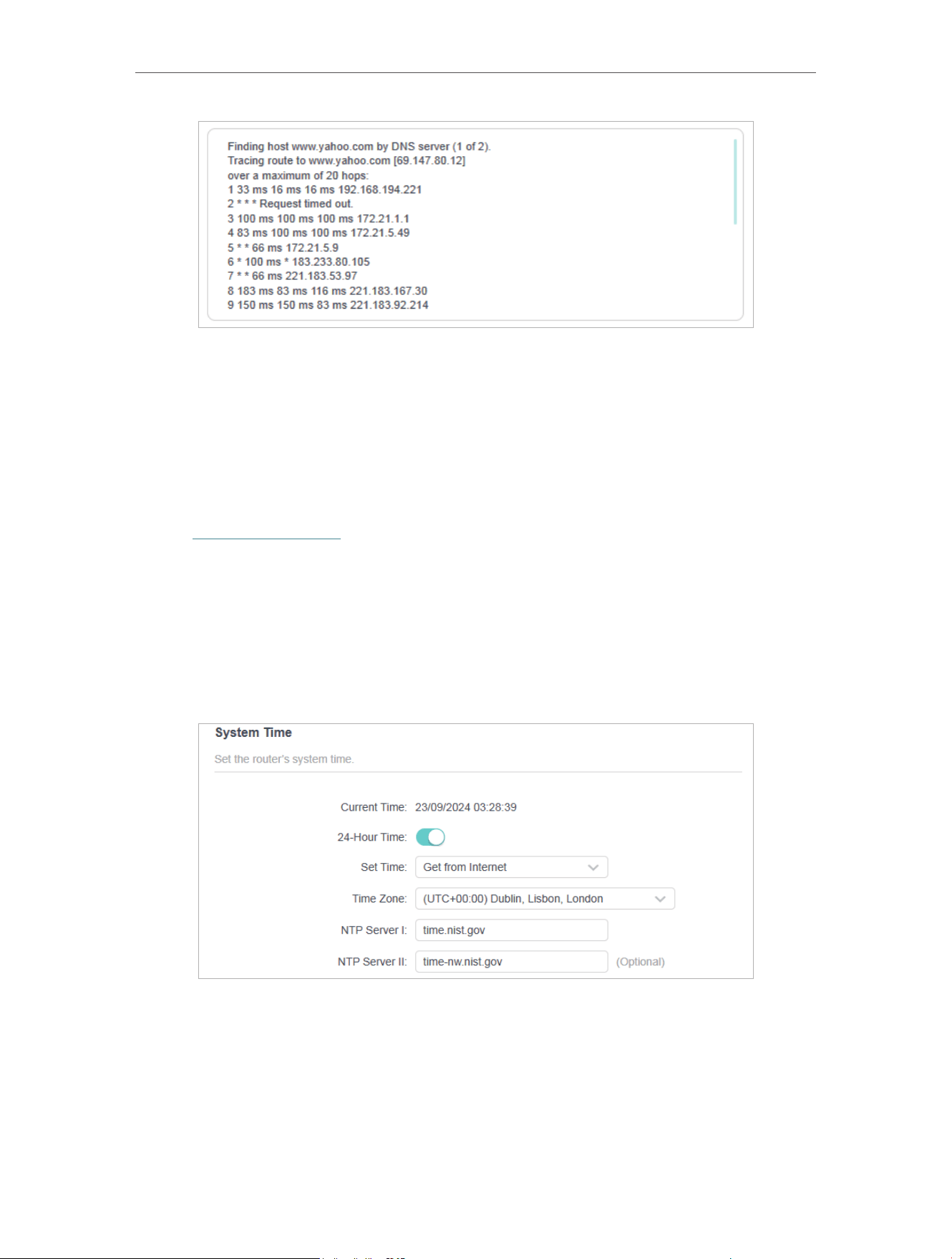

The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Traceroute.

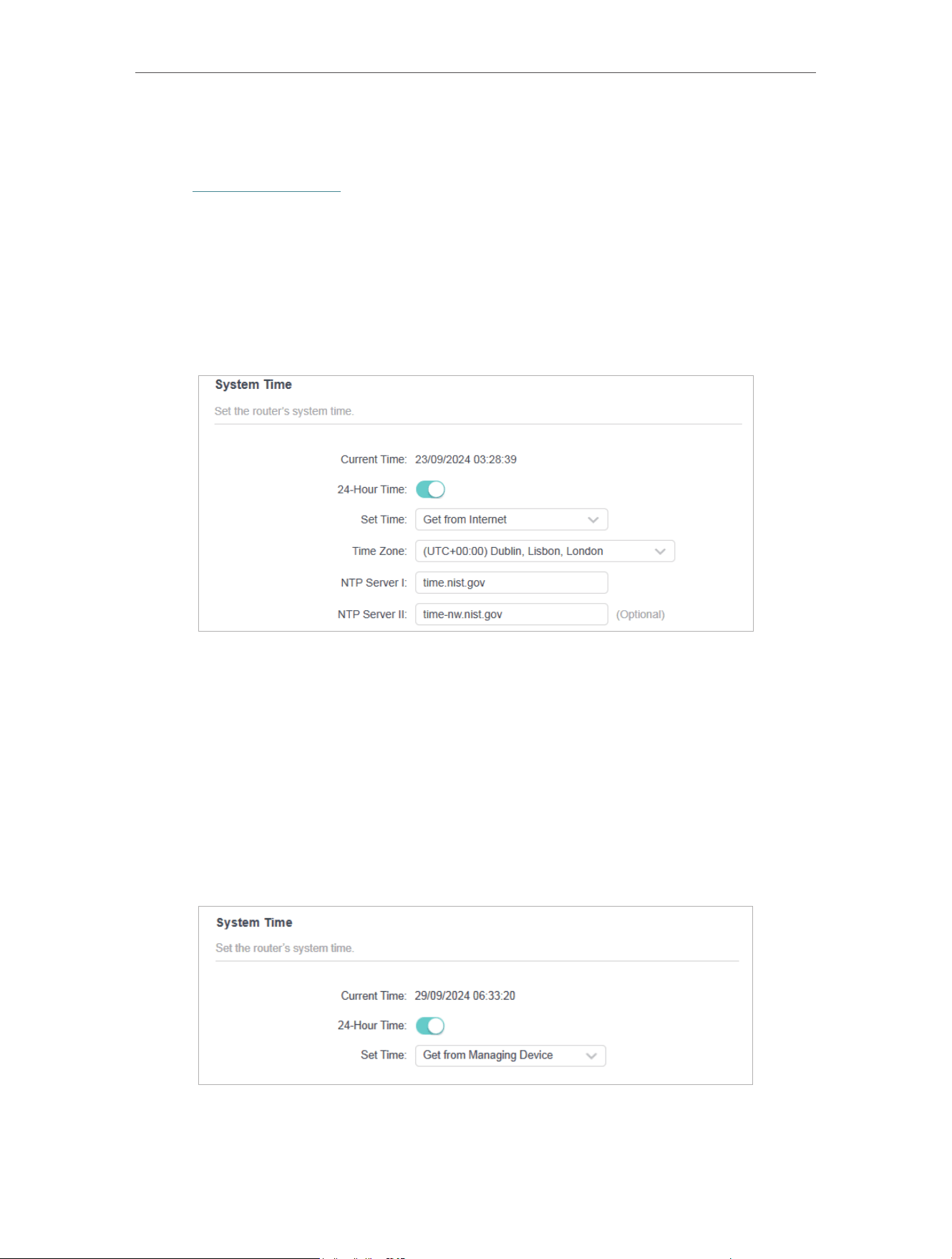

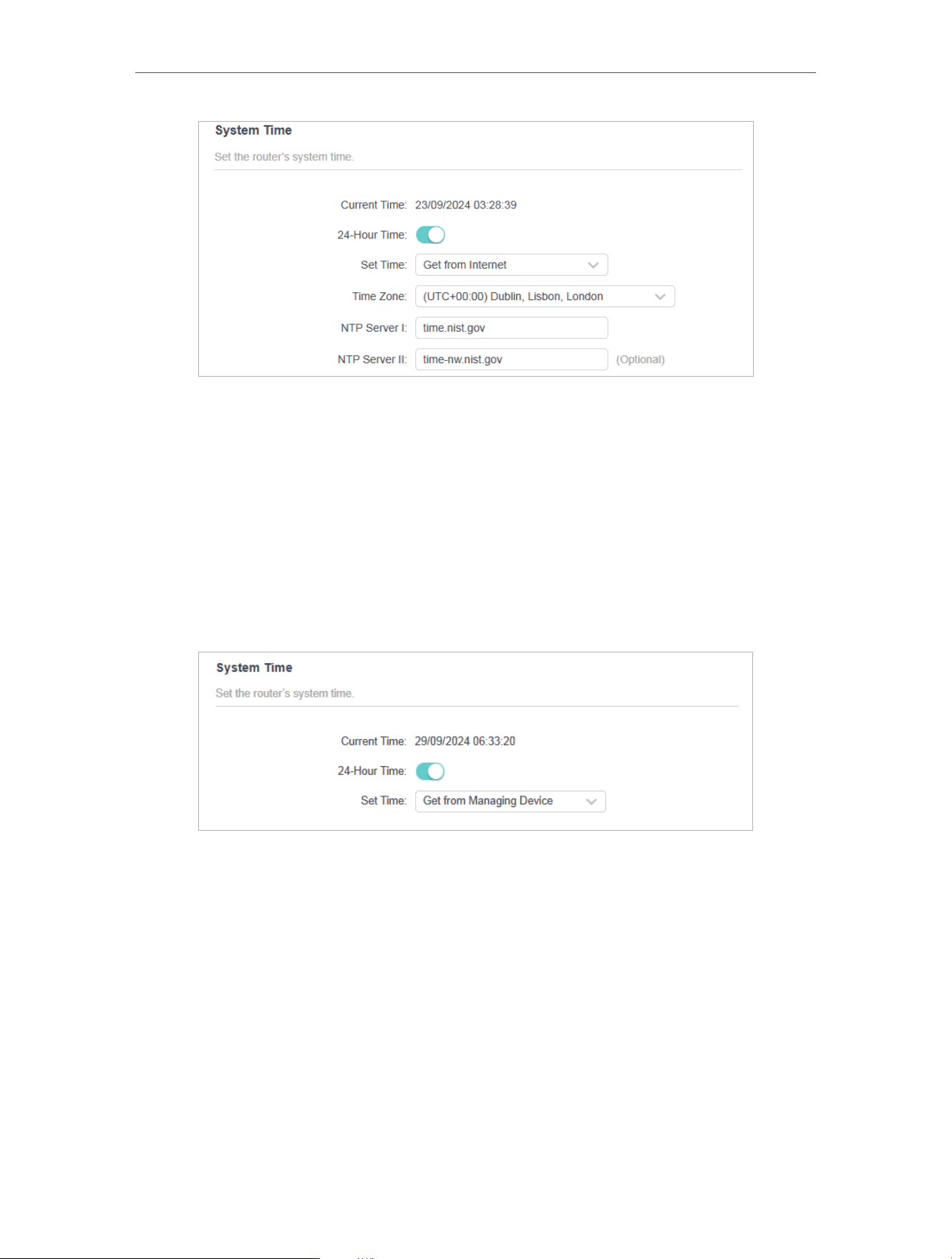

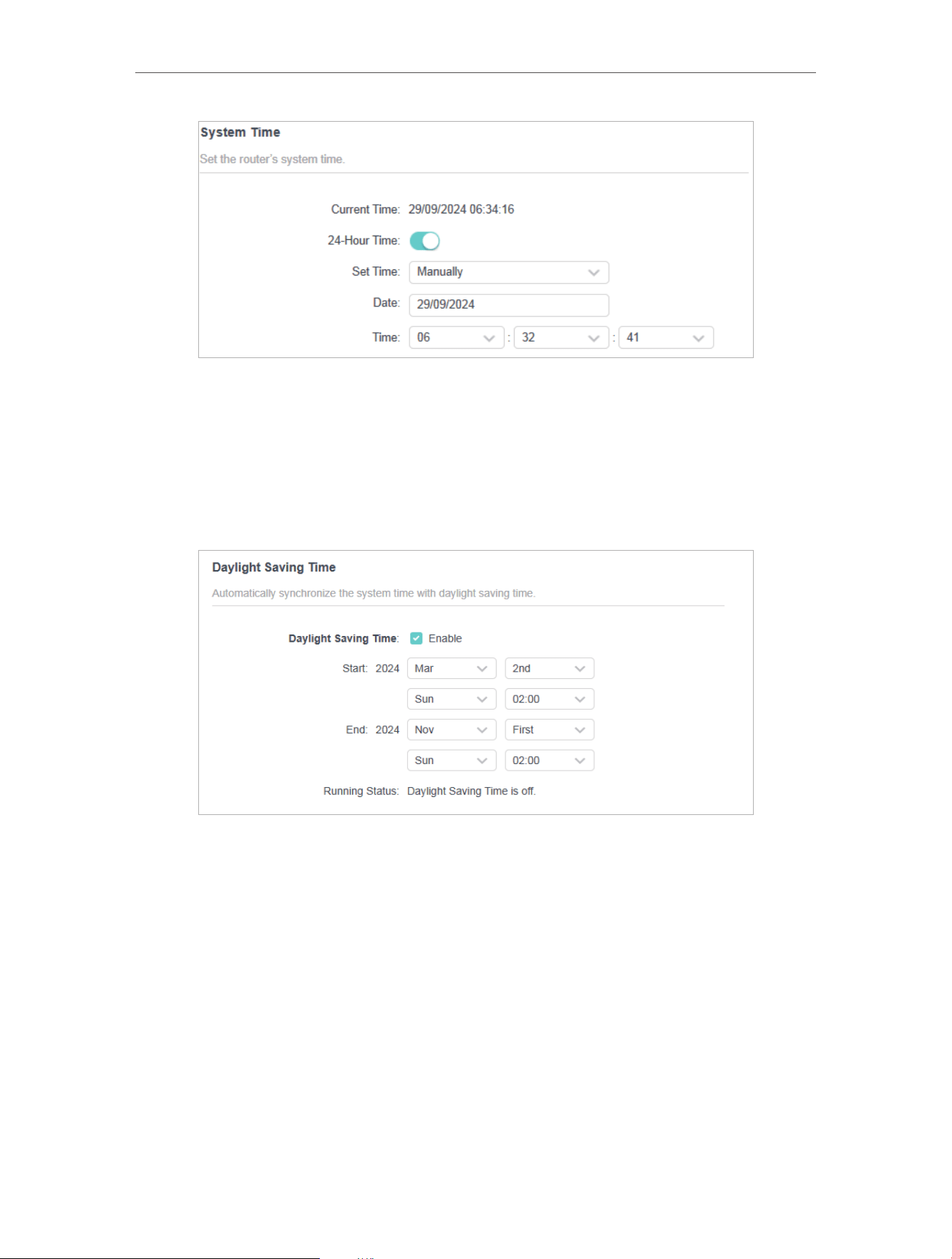

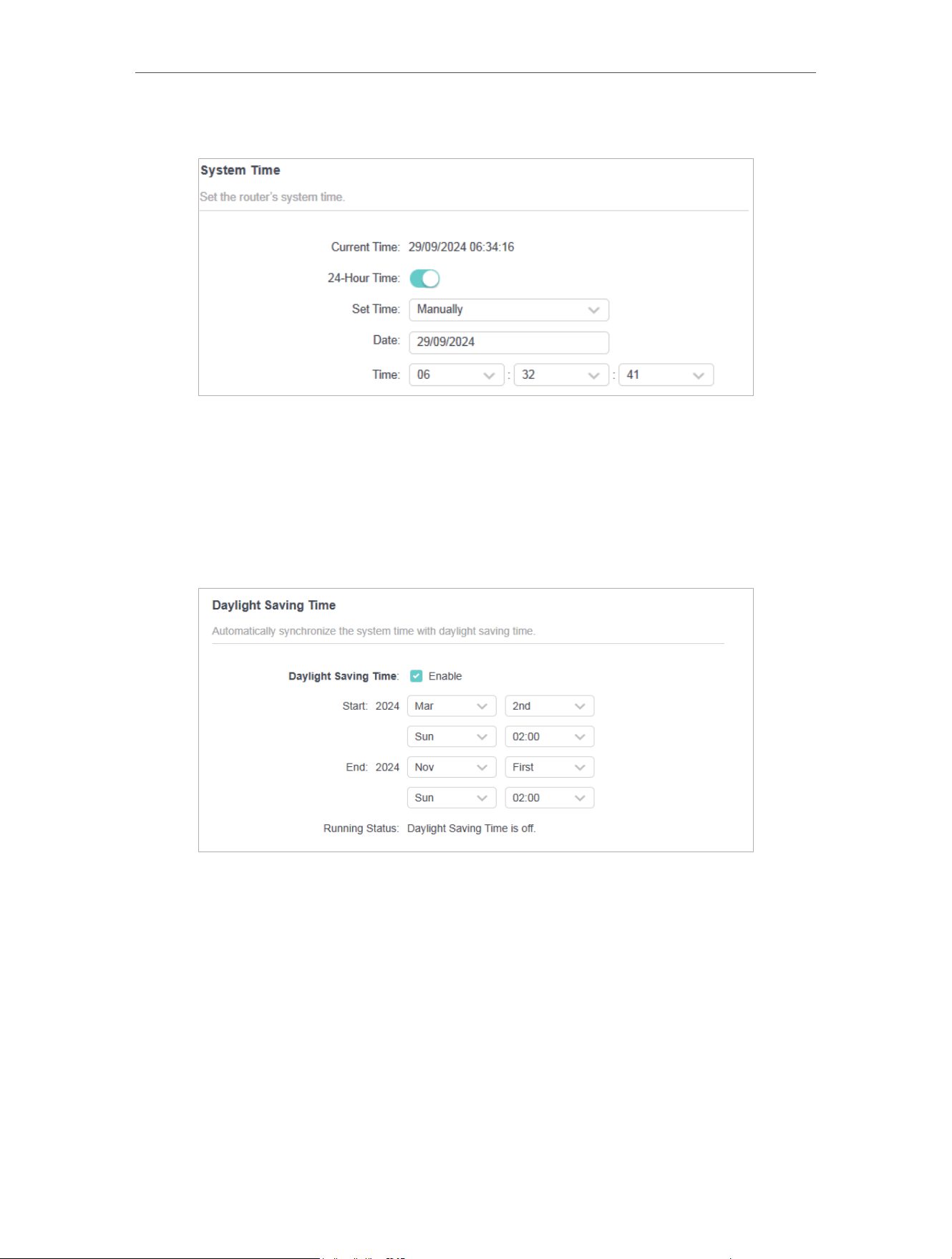

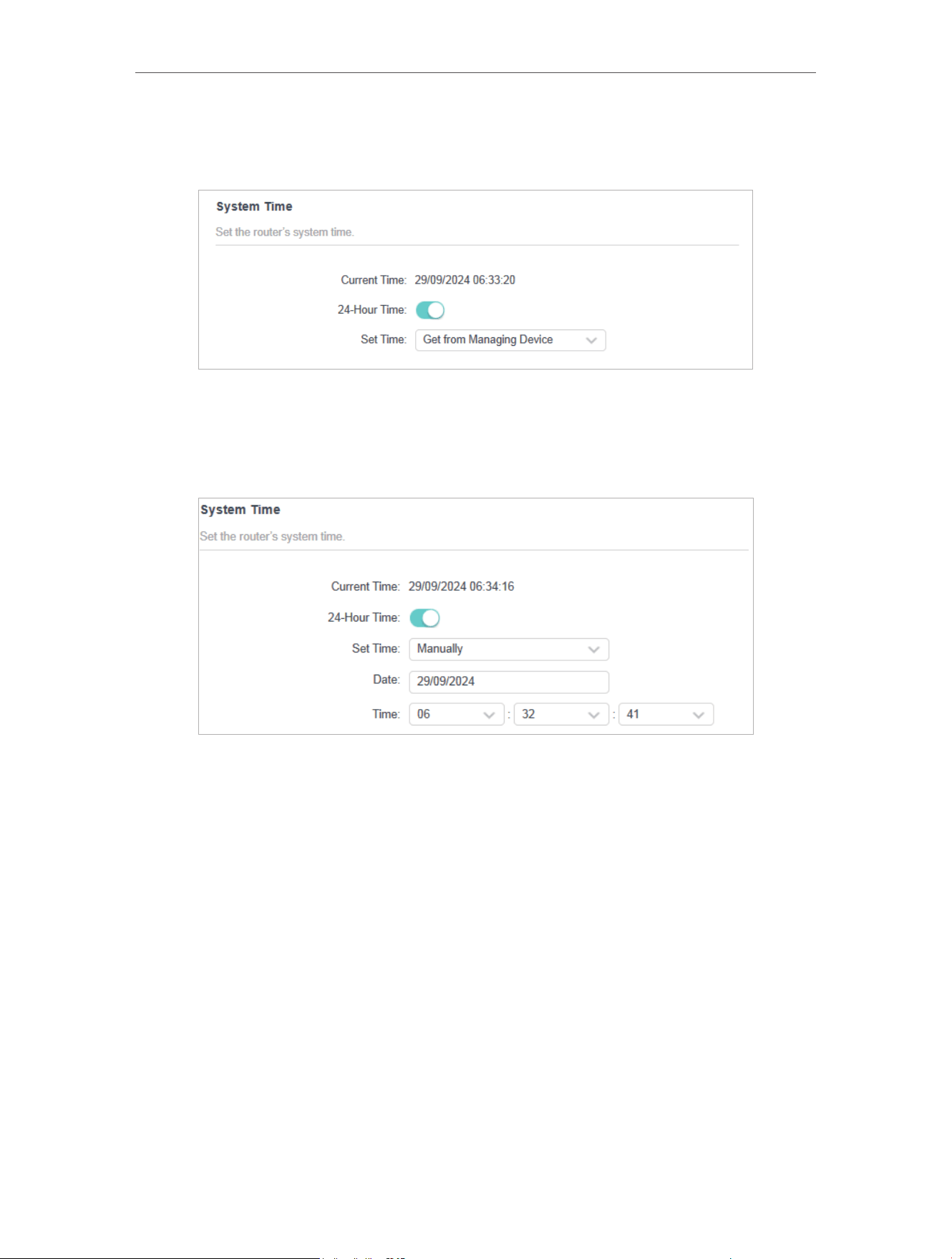

4 13 10 Set System Time and Language
System time is the time displayed while the router is running. The system time you
configure here will be used for other time-based functions like Parental Controls. You
can choose the way to obtain the system time as needed.
System language is the language displayed when you log into the router. You can
change the system language as needed.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Time & Language.
• To get time from the internet:
1. Enable 24-Hour Time if you want the time to display in a 24-hour way.
2. In the Set Time field, select Get from Internet.
79
Chapter 4
Configure the Router in Wireless Router Mode
3. Select your local Time Zone from the drop-down list.
4. In the NTP Server I field, enter the IP address or domain name of your desired NTP
Server.
5. (Optional) In the NTP Server II field, enter the IP address or domain name of the
second NTP Server.
6. Click SAVE .
• To get time from your computer:
1. In the Set Time field, select Get from Managing Device.
2. The time of your computer will then be displayed and click SAVE.
• To manually set the date and time:
1. In the Set Time field, select Manually.
80
Chapter 4
Configure the Router in Wireless Router Mode
2. Set the current Date (In DD/MM/YYYY format).
3. Set the current Time (In HH/MM/SS format).
4. Click SAVE .
• To set Daylight Saving Time:
1. Tick the Enable box of Daylight Saving Time.
2. Select the correct Start date and time when daylight saving time starts at your local
time zone.
3. Select the correct End date and time when daylight saving time ends at your local
time zone.
4. Click SAVE .
• To set system language:
Select the language from the dropdown list, then click SAVE .
81
Chapter 4
Configure the Router in Wireless Router Mode
4 13 11 Reboot & Reboot Schedule
• To reboot the router:
You can reboot the router to clear cache and enhance running performance.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Reboot.
3. Click REBOOT.
• To set reboot schedule:
The Scheduled Reboot feature cleans the cache to enhance the running performance
of the router.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Reboot.
3. Tick the Enable box of Reboot Schedule.
82
Chapter 4
Configure the Router in Wireless Router Mode
4. Specify the Reboot Time when the router reboots and Repeat to decide how often it
reboots.
5. Click SAVE .
4 13 12 Control the LED
• To turn off or turn on the LEDs:
You can turn the router’s LEDs on or off.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > LED Control.
3. Toggle the LED Status button to turn on or turn off the LEDs.
• To enable Night Mode for the LEDs:
The LED of the router indicates its activities and status. You can enable the Night Mode
feature to specify a time period during which the LED is off.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > LED Control.
3. Enable Night Mode.
4. Specify the LED off time, and the LED will be off during this period every day.
5. Click SAVE .
84
Chapter 5
Congure the Router in Access Point Mode
5 1 Network Map
Network Map outlines device connectivity of your network visually and helps you
manage general settings of the network.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Network Map.

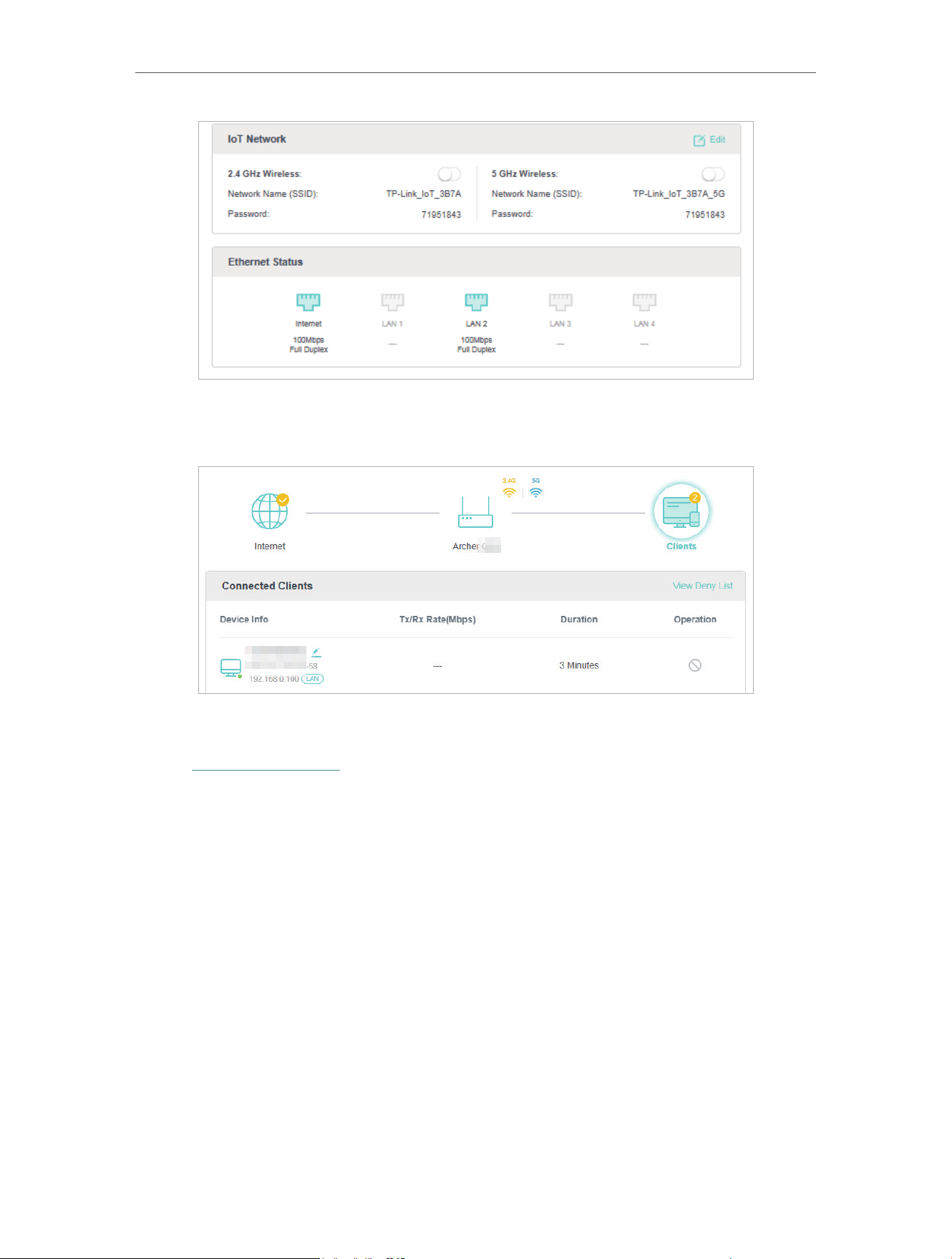

3. Click each network device icon to check and manage general network settings.
• Click Internet to check internet status.
• Click the router to check device status and network settings. You can turn on or off
the wireless network, guest network and IoT network, or click Edit to change related
settings.
85
Chapter 5
Congure the Router in Access Point Mode
• Click Clients to view the client devices in your network. You can block devices so they
cannot access your network.
5 2 Operation Mode
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > Operation Mode.
3. Select the working mode as needed and click SAVE .
86
Chapter 5
Congure the Router in Access Point Mode
5 3 Network
This chapter guides you on how to configure advanced network features.
5 3 1 LAN Settings
The router is preset with a default LAN IP, which you can use to log in to its web
management page. The LAN IP address together with the Subnet Mask also defines
the subnet that the connected devices are on. If the IP address conflicts with another
device on your local network or your network requires a specific IP subnet, you can
change it.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Internet > LAN.
3. Configure the IP parameters of the LAN and click SAVE.
87
Chapter 5
Congure the Router in Access Point Mode
• MAC Address - The physical address of the LAN ports. The value can not be changed.
• IP Type - Either select Dynamic IP to get IP address from DHCP server, or Static IP to
configure IP address manually.
• IP Address - Enter the IP address in dotted-decimal notation if your select Static IP.
• Subnet Mask - An address code that determines the size of the network. Normally
255.255.255.0 is used as the subnet mask.
• Default Gateway - The Gateway currently used is shown here. Enter the Default
Gateway in dotted-decimal notation if your select Static IP.
Note:
• If you have changed the IP address, you must use the new IP address to login.
• If you select Dynamic IP, the DHCP server of the router will not start up.
• If the new IP address you set is not in the same subnet as the old one, the IP Address pool in the DHCP Server will be
configured.
5 3 2 DHCP Server Settings
When enabled, the DHCP server dynamically assigns TCP/IP parameters to client
devices from the IP Address Pool. You can change the settings of the DHCP Server if
necessary, and you can reserve LAN IP addresses for specified client devices.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Internet > DHCP Server.
• To specify the IP address that the router assigns:
88
Chapter 5
Congure the Router in Access Point Mode
1. Tick the Enable checkbox.
2. Enter the starting and ending IP addresses in the IP Address Pool.
3. Enter the Address Lease Time. It is the amount of time a network user will be allowed
to connect to the router with the current dynamic IP Address. When time is up, the
user will be automatically assigned a new dynamic IP address. The range of the time
is 1 ~ 2880 minutes.
4. Set the Default Gateway (Optional). It is suggested to input the IP address of the LAN
port of the router.
5. Set the DNS Server (Optional). Input the DNS IP address provided by your ISP.
6. Set the Secondary DNS Server (Optional). Input the IP address of another DNS server
if your ISP provides two DNS servers.
7. Click SAVE .
• To reserve an IP address for a specified client device:
1. Click Add in the Address Reservation section.
2. Click VIEW CONNECTED DEVICES and select the you device you want to reserve an
IP for. Then the MAC Address will be automatically filled in. Or enter the MAC address
of the client device manually.
89
Chapter 5
Congure the Router in Access Point Mode
3. Enter the IP address to reserve for the client device.
4. Click SAVE .
• To view devices assigned with IP addresses by the DHCP server:
You can view the devices that are currently assigned with IP addresses by the DHCP
server in DHCP Client List.
5 3 3 Access Control
In Access Point mode, the Access Control feature is used to block specific client devices
to access your network (via wired or wireless) based on a list of blocked devices (Decy
List).
I want to:
Block specific client devices to access my network (via wired or wireless).
90
Chapter 5
Congure the Router in Access Point Mode
How can I do that?
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2 Go to Internet > Access Control.
3 Toggle on to enable Access Control.
4 Click and select devices you want to block. Then click ADD.
5 The Operation Succeeded message will appear on the screen, which means the
selected devices have been successfully added to the Deny List.
91
Chapter 5
Congure the Router in Access Point Mode
Done!
Now you can block specific client devices to access your network (via wired or wireless)
using the Deny List.

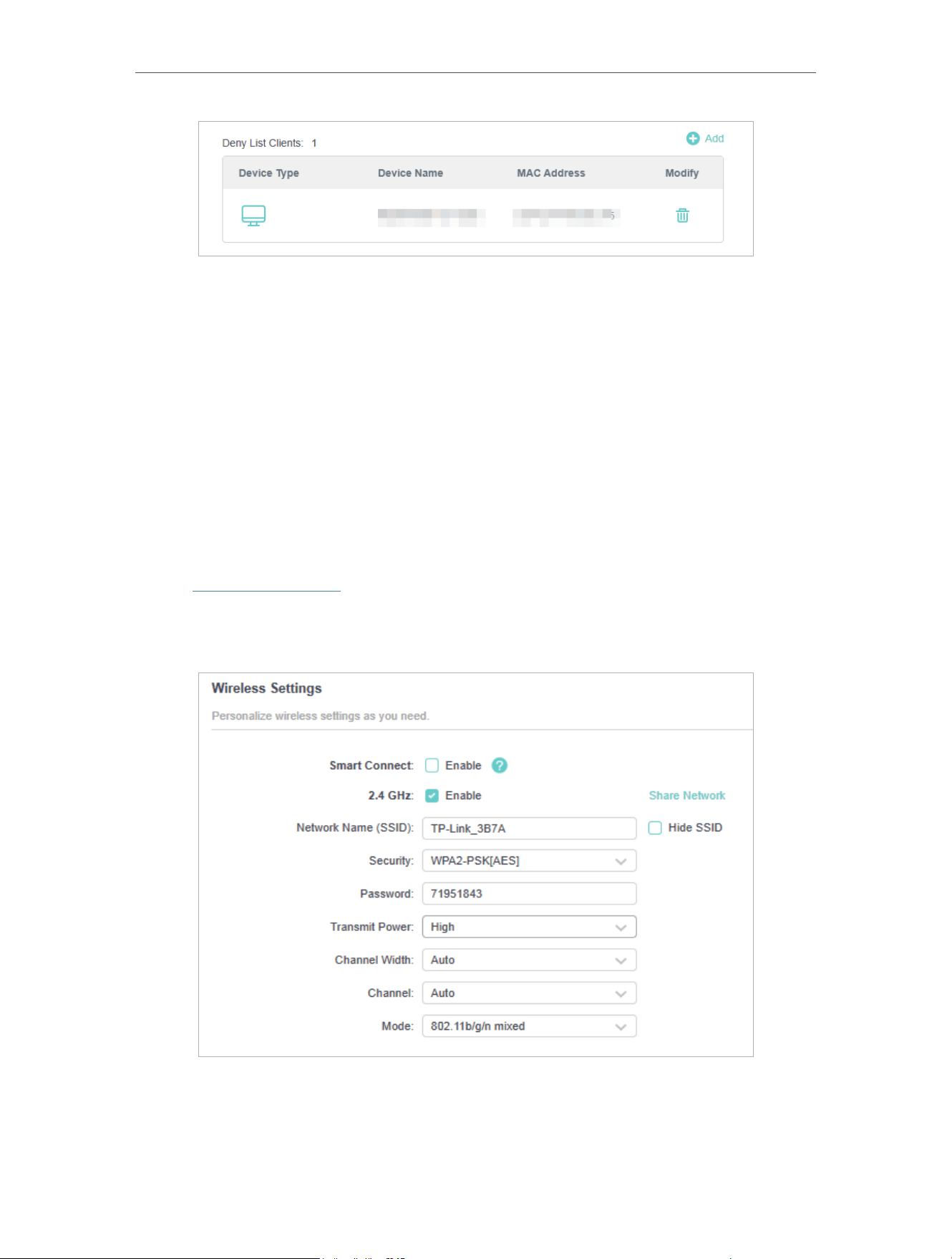

5 4 Wireless Settings
This chapter guides you on how to configure the wireless settings.
5 4 1 Specify Wireless Settings
You can personalize wireless settings as you need.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > Wireless Settings.
92
Chapter 5
Congure the Router in Access Point Mode
• To use the Smart Connect function:
When enabled, the 2.4 GHz and 5 GHz networks share the same network name and
password (only one SSID will be displayed), and your wireless device will automatically
switch connection to the Wi-Fi band that provides the fastest speed.
1. Go to Wireless > Wireless Settings.
2. Enable Smart Connect.
3. Keep the default values or set a new SSID and password, and click SAVE . This SSID
and password will be applied for the 2.4 GHz and 5 GHz wireless networks. If you want
to configure the wireless settings separately for each band, deselect the checkbox
to disable this feature.
• To enable or disable the wireless function:
1. Go to Wireless > Wireless Settings.
2. The wireless bands are enabled by default. If you want to disable a wireless band, just
deselect its Enable checkbox.
• To change the wireless network name (SSID) and wireless password:
1. Go to Wireless > Wireless Settings.
93
Chapter 5
Congure the Router in Access Point Mode
2. Create a new SSID in Network Name (SSID) and customize the password for the
network in Password. The value is case-sensitive.
Note: If you change the wireless settings with a wireless device, you will be disconnected when the settings are
effective. Please write down the new SSID and password for future use.
• To hide SSID:
1. Go to Wireless > Wireless Settings.
2. Select Hide SSID, and your SSID won’t display when you scan for local wireless
networks on your wireless device and you need to manually join the network.
• To change the security option:
1. Go to Wireless > Wireless Settings.
2. Select an option from the Security drop-down list. We recommend you don’t change
the default settings unless necessary.
• To change the transmit power:
1. Go to Wireless > Wireless Settings.
2. Select an option from the Transmit Power drop-down list: High, Middle or Low. The
default and recommended setting is High.
• To change channel settings:
1. Go to Wireless > Wireless Settings.
2. Select a Channel Width (bandwidth) for the wireless network. It is recommended to
just leave it as default.
3. Select an operating Channel for the wireless network. It is recommended to leave
the channel to Auto if you are not experiencing the intermittent wireless connection
issue.
• To change the transmission mode:
1. Go to Wireless > Wireless Settings.
2. Disable Smart Connect, then select a transmission Mode according to your wireless
client devices. It is recommended to just leave it as default.
• To Share Network:
1. Go to Wireless > Wireless Settings.
2. Click Share Network to share the SSID and password to your guests.
5 4 2 Guest Network
Guest Network allows you to provide Wi-Fi access for guests without disclosing your
host network. When you have guests in your house, apartment, or workplace, you can
94
Chapter 5
Congure the Router in Access Point Mode
create a guest network for them. In addition, you can customize guest network settings
to ensure network security and privacy.
• Create a Network for Guests:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > Guest Network.
3. Create a guest network as needed.
1 ) Tick the Enable checkbox for the 2.4GHz or 5 GHz wireless network.
2 ) Customize the SSID. Don‘t select Hide SSID unless you want your guests to
manually input the SSID for guest network access.
3 ) Click Share Network to share the SSID and password to your guests.
4 ) Set the Effective Time to keep the guest network on during the selected
duration.
5 ) Select the Security type and customize your own password. If None is selected,
no password is needed to access your guest network.
4. Click SAVE. Now your guests can access your guest network using the SSID and
password you set!
Tips: To view guest network information, go to Network Map and locate the Guest Network section. You can turn on
or off the guest network function conveniently.
• Customize Guest Network Options:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > Guest Network. Locate the Guest Permissions section.
3. Customize guest network options according to your needs.
95
Chapter 5
Congure the Router in Access Point Mode
• Allow guests to see each other
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with each other via methods such as network neighbors and Ping.
4. Click SAVE . Now you can ensure network security and privacy!
5 4 3 IoT Network
This feature further secures your home network by allowing you to create a dedicated
wireless network to manage your loT devices together, such as smart lights and
cameras.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > IoT Network.
3. Create an IoT network as needed.
1 ) Tick the Enable checkbox for the 2.4GHz or 5 GHz wireless network. For 5 GHz
IoT networks, make sure your IoT devices can connect to a 5 GHz network.
2 ) Customize the SSID. Don‘t select Hide SSID unless you want your IoT devices
to manually input the SSID for network access.
3 ) Click Share Network to share the SSID and password to others.
4 ) Select the Security type and customize your own password. If None is selected,
no password is needed to access the IoT network.
96
Chapter 5
Congure the Router in Access Point Mode
4. Click SAVE . Now you can connect your IoT devices to the dedicated IoT network.
5 4 4 Wireless Schedule
You can schedule the wireless function of your router. The wireless network can be
automatically off at a specific time when you do not need the wireless connection.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > Wireless Schedule.
3. Tick the Enable checkbox to enable the wireless schedule function.
4. Click Add to specify a wireless off period during which you need the wireless off
automatically, and click SAVE.
97
Chapter 5
Congure the Router in Access Point Mode
5. The wireless schedules added will appear in the list. You can modify the settings here.
Note:
• The Effective Time Schedule is based on the time of the router. You can go to Advanced > System > Time & Language
to modify the time.
• The wireless network will be automatically turned on after the time period you set.
5 4 5 WPS
WPS (Wi-Fi Protected Setup) can help you to quickly and securely connect to a network.
This section will guide you to add a new wireless device to your router’s network quickly
via WPS.
Note:
The WPS function cannot be configured if the wireless function of the router is disabled. Please make sure the wireless
function is enabled before configuration.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > WPS.
3. Click to enable the WPS function.
4. Follow one of the following methods to connect your client device to the router’s Wi-
Fi network.
• Connect via the Client’s PIN
1. Select Client’s PIN.
2. Enter the PIN of your device and click CONNECT. Then your device will get connected
to the router.
98
Chapter 5
Congure the Router in Access Point Mode
• Connect via the Router’s PIN
1. Select Router’s PIN.
2. Enable Router’s PIN. You can click GET NEW PIN to generate a new one or click
DEFAULT to use the default PIN.
3. Enter the router’s PIN on your personal device.
Note:
PIN (Personal Identification Number) is an eight-character identification number preset to each router. WPS supported
devices can connect to your router with the PIN. The default PIN is printed on the label of the router.
• Push the WPS Button
1. Click the Start button on the screen or directly press the router’s WPS button. Within
two minutes, press the WPS button on your client device.
2. A success message will appear on the page if the client device has been successfully
added to the router’s network. And the Wi-Fi LED of the router should change from
flashing to solid on, indicating successful WPS connection.
99
Chapter 5
Congure the Router in Access Point Mode
5 4 6 Advanced Wireless Settings
Check advanced wireless settings for your device.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless > Additional Settings.
• WMM - WMM (Wi-Fi multimedia) function can guarantee the packets with high-priority
messages being transmitted preferentially.
• Short GI - It is recommended to enable Short GI (Short Guard Interval) function, for it
will increase the data capacity by reducing the guard interval time.
• AP Isolation - This function isolates all connected wireless stations so that wireless
stations cannot access each other through WLAN.
• Beacon Interval - Enter a value between 40 and 1000 in milliseconds to determine the
duration between beacon packets that are broadcasted by the router to synchronize
the wireless network. The default value is 100 milliseconds.
• RTS Threshold- Enter a value between 1 and 2346 to determine the packet size of
data transmission through the router. By default, the RTS (Request to Send) Threshold
100
Chapter 5
Congure the Router in Access Point Mode
size is 2346. If the packet size is greater than the preset threshold, the router will send
RTS frames to a particular receiving station and negotiate the sending of a data frame.
• DTIM Interval - The value determines the interval of DTIM (Delivery Traffic Indication
Message). Enter a value between 1 and 15 intervals. The default value is 1, which
indicates the DTIM Interval is the same as Beacon Interval.
• Group Key Update Period - Enter a number of seconds (minimum 30) to control the
time interval for the encryption key automatic renewal. The default value is 0, meaning
no key renewal.
5 5 Manage the Router
5 5 1 Firmware Update
TP-Link aims at providing better network experience for users.
We will inform you through the web management page if there’s any new firmware
available for your router. Also, the latest firmware will be released at the TP-Link official
website www.tp-link.com, and you can download it from the Support page for free.
Note:
• Back up your router’s configurations before firmware update.
• Do NOT turn off the router during the firmware update.
• Online Update:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Firmware Update.
3. When the latest firmware is available for your router, the update icon will display in
the top-right corner of the page. Click the icon to go to the Firmware Update page.
Alternatively, you can go to Advanced > System > Firmware Update, and click CHECK
FOR UPDATES to see whether the latest firmware is released.
4. Focus on the Online Update section, and click UPDATE if there is new firmware.
101
Chapter 5
Congure the Router in Access Point Mode
5. Wait a few minutes for the update and reboot to complete.
Tips: If there’s a new and important firmware update for your router, you will see the prompt notification on your
computer as long as a web browser is opened. Click to update, and log in to the web management page with the
username and password you set for the router. You will see the Firmware Update page.
• Local Update:
1. Download the latest firmware file for the router from www.tp-link.com.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
3. Go to Advanced > Firmware Update.
4. Focus on the Local Update section. Click BROWSE to locate the downloaded new
firmware file, and click UPDATE.
5. Wait a few minutes for the update and reboot to complete.
Note: If you fail to update the firmware for the router, please contact our Technical Support.
5 5 2 Backup and Restore Configuration Settings
The configuration settings are stored as a configuration file in the router. You can
backup the configuration file to your computer for future use and restore the router to
a previous settings from the backup file when needed. Moreover, if necessary you can
erase the current settings and reset the router to the default factory settings.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
102
Chapter 5
Congure the Router in Access Point Mode
2. Go to Advanced > Backup & Restore.
• To backup configuration settings:
Click BACK UP to save a copy of the current settings to your local computer. A ‘.bin’ file
of the current settings will be stored to your computer.
• To restore configuration settings:
1. Click BROWSE to locate the backup configuration file stored on your computer, and
click RESTORE.
2. Wait a few minutes for the restoring and rebooting.
Note: During the restoring process, do not turn off or reset the router.
• To reset the router except your login password and TP-Link ID:
1. In the Factory Default Restore section, click RESTORE.
2. Wait a few minutes for the resetting and rebooting.
Note:
• During the resetting process, do not turn off the router.
• After reset, you can still use the current login password or the TP-Link ID to log in to the web management page.
• To reset the router to factory default settings:
1. Click FACTORY RESTORE to reset the router.
103
Chapter 5
Congure the Router in Access Point Mode
2. Wait a few minutes for the resetting and rebooting.
Note:
• During the resetting process, do not turn off or reset the router.
• We strongly recommend you backup the current configuration settings before resetting the router.
5 5 3 Change Password
You can change your login password of the web management page.
Note: If you are using a TP-Link ID to log in to the web management page, the account management feature will be
disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > Administration and focus on the Change Password section.
3. Enter the old password, then a new password twice (both case-sensitive). Click SAVE .
4. Use the new password for future logins.
5 5 4 Local Management
This feature allows you to limit the number of client devices on your LAN from accessing
the router by using the MAC address-based authentication.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Administration and complete the settings In Local Management
section as needed.
• Local Management via HTTPS:
Tick the Local Management via HTTPS checkbox to access the router via HTTPS and
HTTP, or keep it disabled to access the router only via HTTP. Click SAVE .
104
Chapter 5
Congure the Router in Access Point Mode
• Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers. Click SAVE.
• Allow specific devices to manage the router:
1. Select Specified Devices for Local Managers.
2. Click Add Device.
3. Click VIEW CONNECTED DEVICES and select the device to manage the router from
the Connected Devices list, or enter the MAC address of the device manually. Click
SAVE. The devices added will appear in the list.
105
Chapter 5
Congure the Router in Access Point Mode
4. Click SAVE .
5 5 5 HTTP Referer Head Check
HTTP referer header check function can protect your networks against CSRF attacks.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Administration, and locate the HTTP Referer Head Check section.
3. HTTP Referer Head Check is enabled by default, and it is recommended to keep
the default settings. This feature protects your network against cross-site request
forgery (CSRF) attacks.
5 5 6 System Log
When the router does not work normally, you can save the system log and send it to the
technical support for troubleshooting.
• To save the system log locally:
1. Visit http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the
router.
2. Go to Advanced > System Log.
3. In the Save Log section, click SAVE TO LOCAL to save the system logs to a local disk.
106
Chapter 5
Congure the Router in Access Point Mode
5 5 7 Diagnostics
Diagnostics is used to test the connectivity between the router and the host or other
network devices.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Diagnostics.
3. Enter the information:
1 ) Choose Ping or Traceroute as the diagnostic tool to test the connectivity;
107
Chapter 5
Congure the Router in Access Point Mode
• Ping is used to test the connectivity between the router and the tested host,
and measure the round-trip time.
• Traceroute is used to display the route (path) your router has passed to reach
the tested host, and measure transit delays of packets across an Internet
Protocol network.
2 ) Enter the IP Address or Domain Name of the tested host.
3 ) Modify the Ping Packet Number and the Ping Packet Size. It’s recommended to
keep the default value.
4 ) If you have chosen Traceroute, you can modify the Traceroute Max TTL. It’s
recommended to keep the default value.
4. Click START to begin the diagnostics.
The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Ping.
The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Traceroute.
5 5 8 Set System Time and Language
System time is the time displayed while the router is running. The system time you
configure here will be used for other time-based functions like Parental Controls. You
can choose the way to obtain the system time as needed.
108
Chapter 5
Congure the Router in Access Point Mode
System language is the language displayed when you log into the router. You can
change the system language as needed.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Time & Language.
• To get time from the internet:
1. Enable 24-Hour Time if you want the time to display in a 24-hour way.
2. In the Set Time field, select Get from Internet.
3. Select your local Time Zone from the drop-down list.
4. In the NTP Server I field, enter the IP address or domain name of your desired NTP
Server.
5. (Optional) In the NTP Server II field, enter the IP address or domain name of the
second NTP Server.
6. Click SAVE .
• To get time from your computer:
1. In the Set Time field, select Get from Managing Device.
2. The time of your computer will then be displayed and click SAVE.
• To manually set the date and time:
109
Chapter 5
Congure the Router in Access Point Mode
1. In the Set Time field, select Manually.
2. Set the current Date (In DD/MM/YYYY format).
3. Set the current Time (In HH/MM/SS format).
4. Click SAVE .
• To set Daylight Saving Time:
1. Tick the Enable box of Daylight Saving Time.
2. Select the correct Start date and time when daylight saving time starts at your local
time zone.
3. Select the correct End date and time when daylight saving time ends at your local
time zone.
4. Click SAVE .

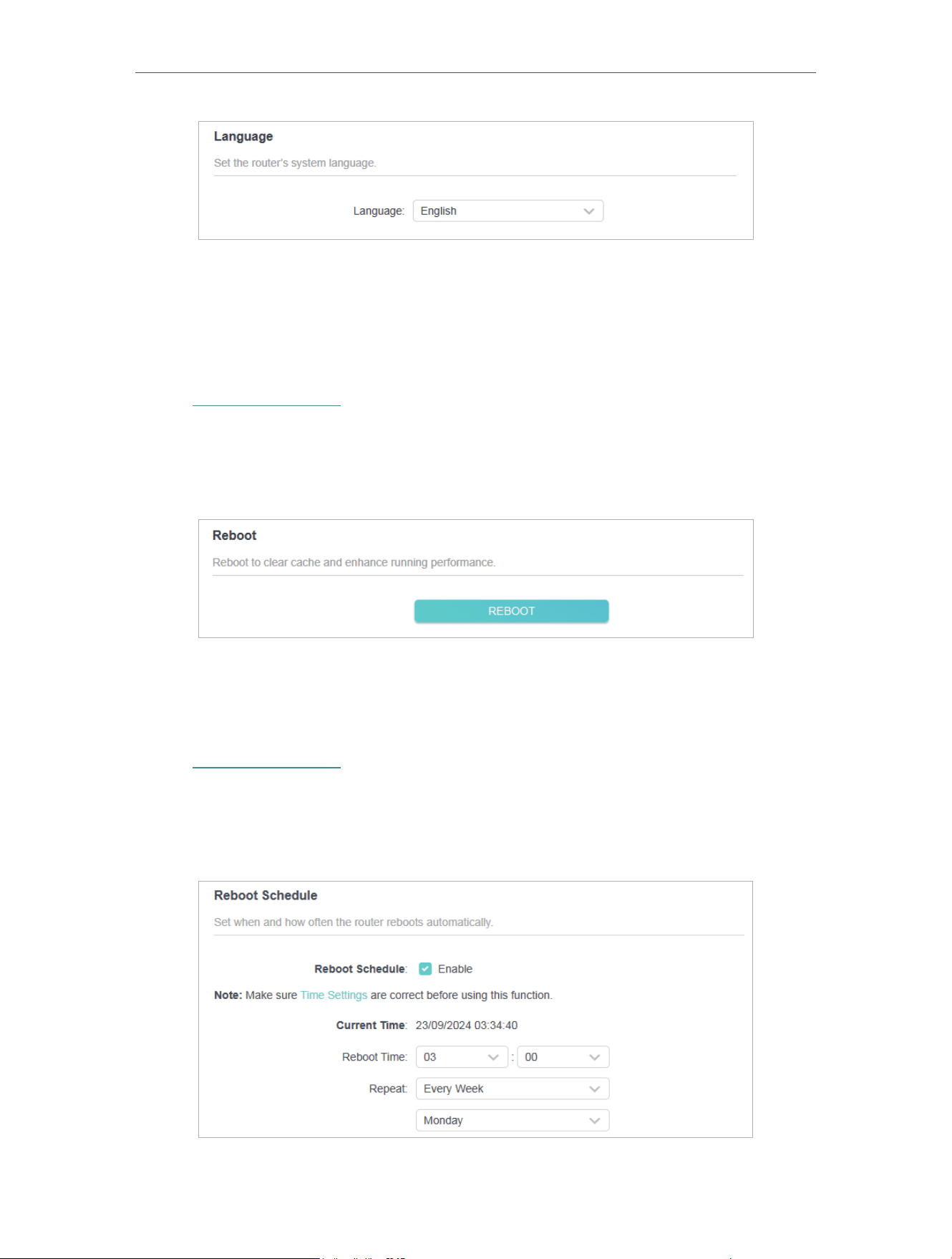

• To set system language:
Select the language from the dropdown list, then click SAVE .
110
Chapter 5
Congure the Router in Access Point Mode
5 5 9 Reboot & Reboot Schedule
• To reboot the router:
You can reboot the router to clear cache and enhance running performance.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Reboot.
3. Click REBOOT.
• To set reboot schedule:
The Scheduled Reboot feature cleans the cache to enhance the running performance
of the router.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Reboot.
3. Tick the Enable box of Reboot Schedule.
111
Chapter 5
Congure the Router in Access Point Mode
4. Specify the Reboot Time when the router reboots and Repeat to decide how often it
reboots.
5. Click SAVE .

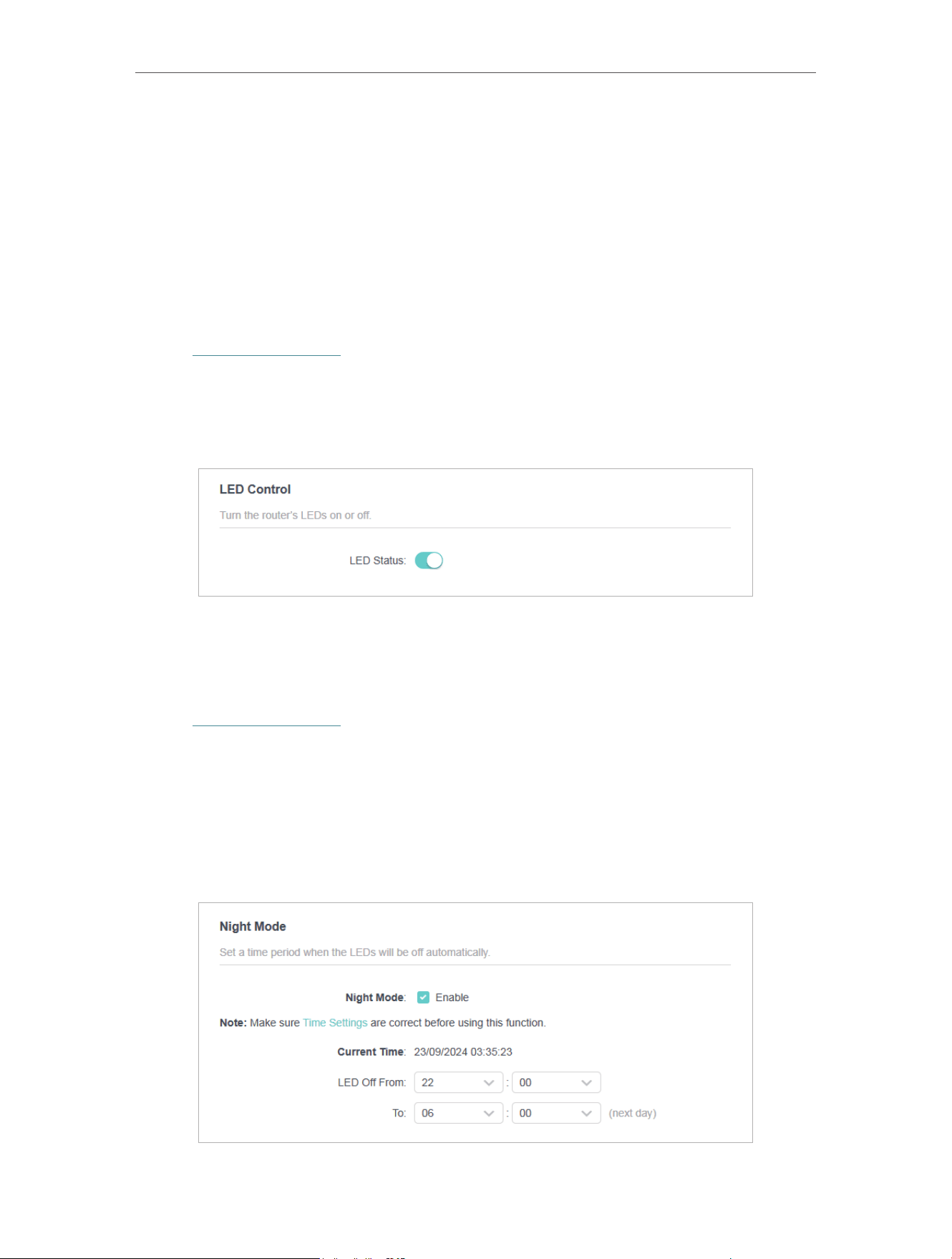

5 5 10 Control the LED
• To turn off or turn on the LEDs:
You can turn the router’s LEDs on or off.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > LED Control.
3. Toggle the LED Status button to turn on or turn off the LEDs.
• To enable Night Mode for the LEDs:
The LED of the router indicates its activities and status. You can enable the Night Mode
feature to specify a time period during which the LED is off.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > LED Control.
3. Enable Night Mode.
4. Specify the LED off time, and the LED will be off during this period every day.
5. Click SAVE .
113
Chapter 6
Configure the Router in Range Extender Mode
6 1 Network Map
Network Map outlines device connectivity of your network visually and helps you
manage general settings of the network.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Network Map.
3. Click each network device icon to check and manage general network settings.

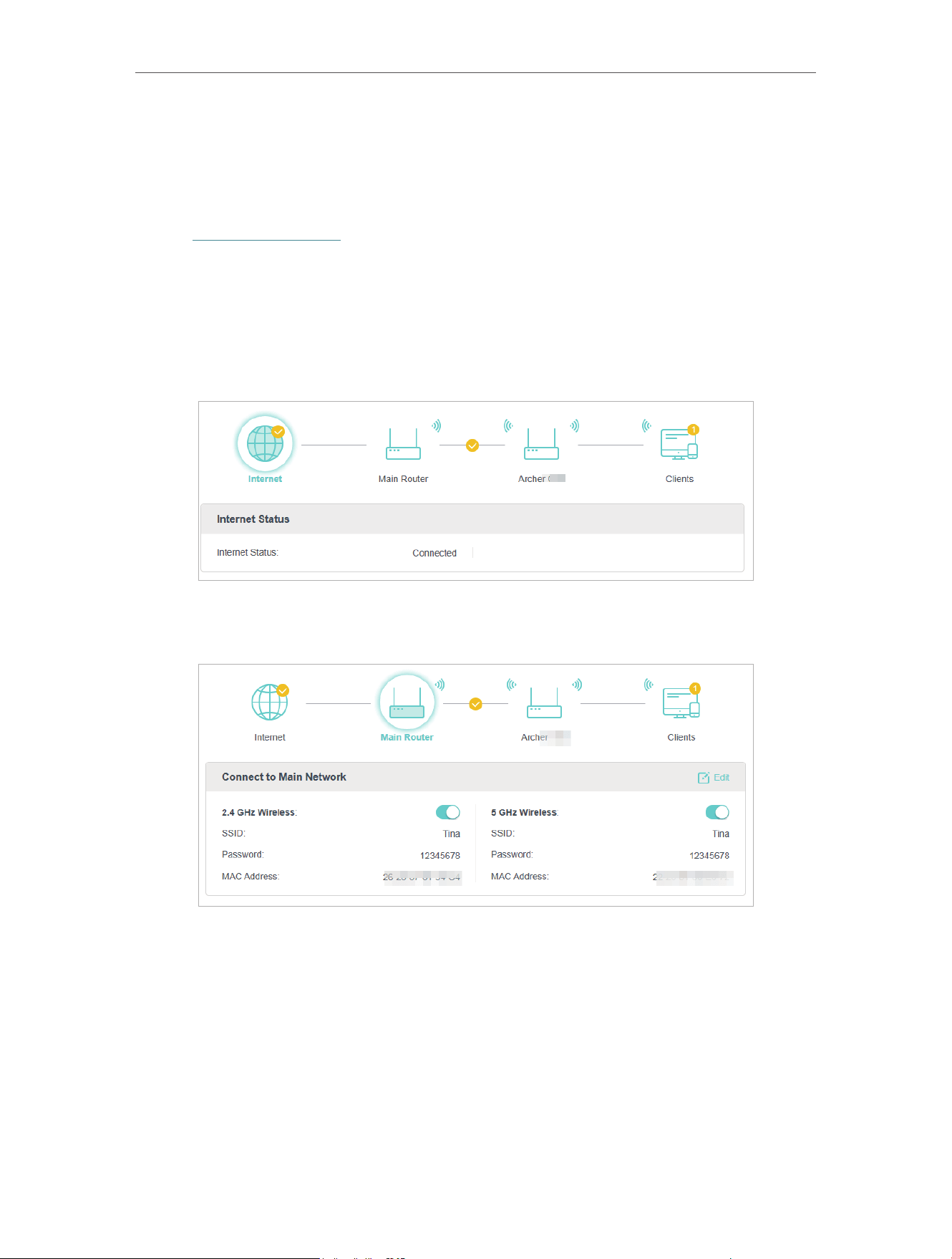

• Click Internet to check internet status.
• Click Main Router to check the connection status to the main network. You can
connect or disconnect to the main network, or click Edit to change related settings.

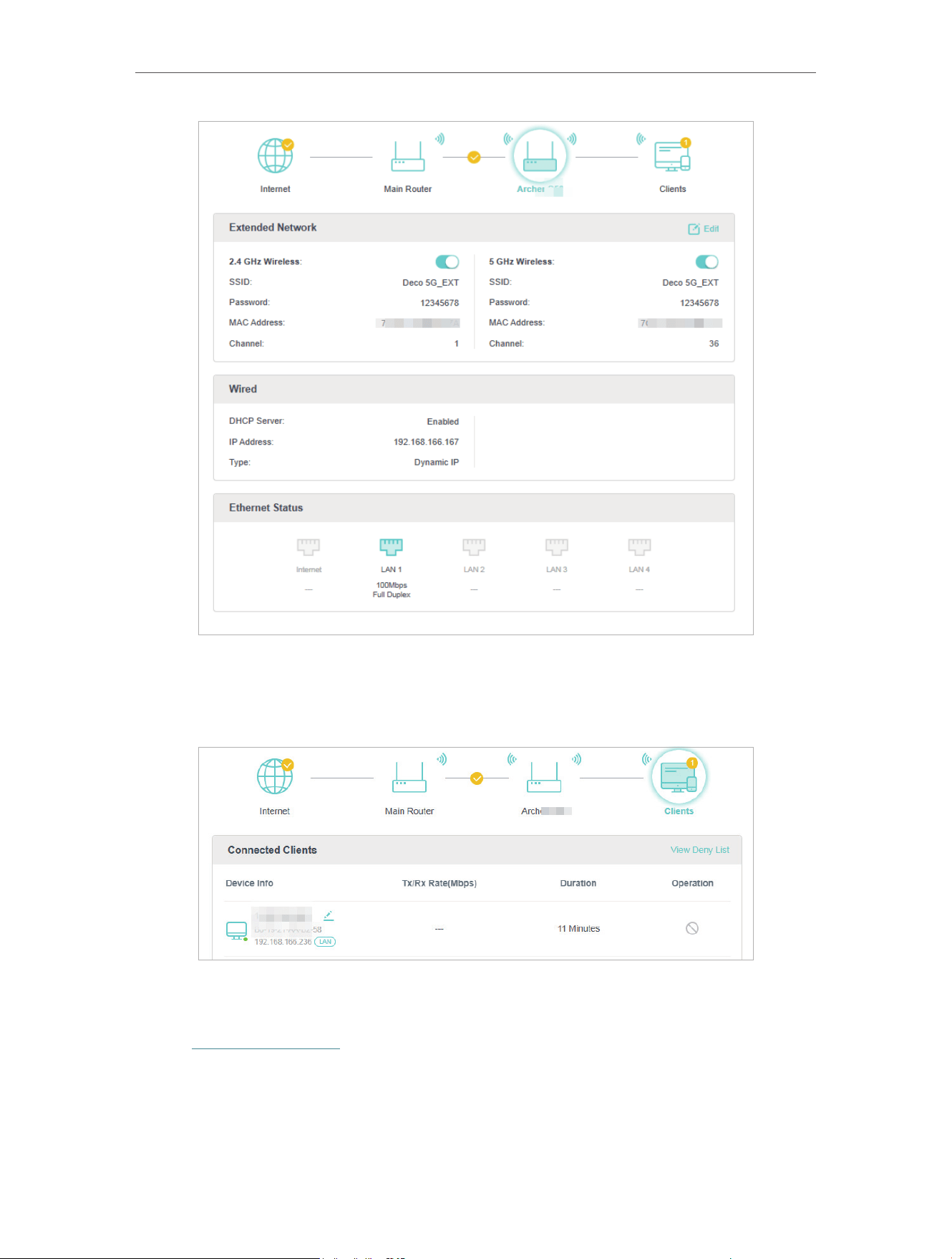

• Click the router to check device status and network settings. You can turn on or off
the extended network, or click Edit to change related settings.
114
Chapter 6
Configure the Router in Range Extender Mode
• Click Clients to view the client devices in your network. You can block devices so they
cannot access your network.
6 2 Operation Mode
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > Operation Mode.
3. Select the working mode as needed and click SAVE .
115
Chapter 6
Configure the Router in Range Extender Mode
6 3 Network
This chapter guides you on how to configure advanced network features.
6 3 1 LAN Settings
The router is preset with a default LAN IP, which you can use to log in to its web
management page. The LAN IP address together with the Subnet Mask also defines
the subnet that the connected devices are on. If the IP address conflicts with another
device on your local network or your network requires a specific IP subnet, you can
change it.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Internet > LAN.
3. Configure the IP parameters of the LAN and click SAVE .
116
Chapter 6
Configure the Router in Range Extender Mode
• MAC Address - The physical address of the LAN ports. The value can not be changed.
• IP Type - Either select Dynamic IP to get IP address from DHCP server, or Static IP to
configure IP address manually.
• IP Address - Enter the IP address in dotted-decimal notation if your select Static IP.
• Subnet Mask - An address code that determines the size of the network.
• Default Gateway - The Gateway currently used is shown here. Enter the Default
Gateway in dotted-decimal notation if your select Static IP.
Note:
• If you have changed the IP address, you must use the new IP address to login.
• If you select Dynamic IP, the DHCP server of the router will not start up.
• If the new IP address you set is not in the same subnet as the old one, the IP Address pool in the DHCP Server will be
configured.
6 3 2 DHCP Server Settings
When enabled, the DHCP server dynamically assigns TCP/IP parameters to client
devices from the IP Address Pool. You can change the settings of the DHCP Server if
necessary, and you can reserve LAN IP addresses for specified client devices.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Internet > DHCP Server.
• To specify the IP address that the router assigns:
117
Chapter 6
Configure the Router in Range Extender Mode
1. Tick the Enable checkbox.
2. Enter the starting and ending IP addresses in the IP Address Pool.
3. Enter the Address Lease Time. It is the amount of time a network user will be allowed
to connect to the router with the current dynamic IP Address. When time is up, the
user will be automatically assigned a new dynamic IP address. The range of the time
is 1 ~ 2880 minutes.
4. Set the Default Gateway (Optional). It is suggested to input the IP address of the LAN
port of the router.
5. Set the DNS Server (Optional). Input the DNS IP address provided by your ISP.
6. Set the Secondary DNS Server (Optional). Input the IP address of another DNS server
if your ISP provides two DNS servers.
7. Click SAVE .
• To reserve an IP address for a specified client device:
1. Click Add in the Address Reservation section.
2. Click VIEW CONNECTED DEVICES and select the you device you want to reserve an
IP for. Then the MAC Address will be automatically filled in. Or enter the MAC address
of the client device manually.
118
Chapter 6
Configure the Router in Range Extender Mode
3. Enter the IP address to reserve for the client device.
4. Click SAVE .
• To view devices assigned with IP addresses by the DHCP server:
You can view the devices that are currently assigned with IP addresses by the DHCP
server in DHCP Client List.
6 3 3 Access Control
In Access Point mode, the Access Control feature is used to block specific client devices
to access your network (via wired or wireless) based on a list of blocked devices (Decy
List).
I want to:
Block specific client devices to access my network (via wired or wireless).
119
Chapter 6
Configure the Router in Range Extender Mode
How can I do that?
1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2 Go to Internet > Access Control.
3 Toggle on to enable Access Control.
4 Click and select devices you want to block. Then click ADD.
5 The Operation Succeeded message will appear on the screen, which means the
selected devices have been successfully added to the Deny List.
120
Chapter 6
Configure the Router in Range Extender Mode

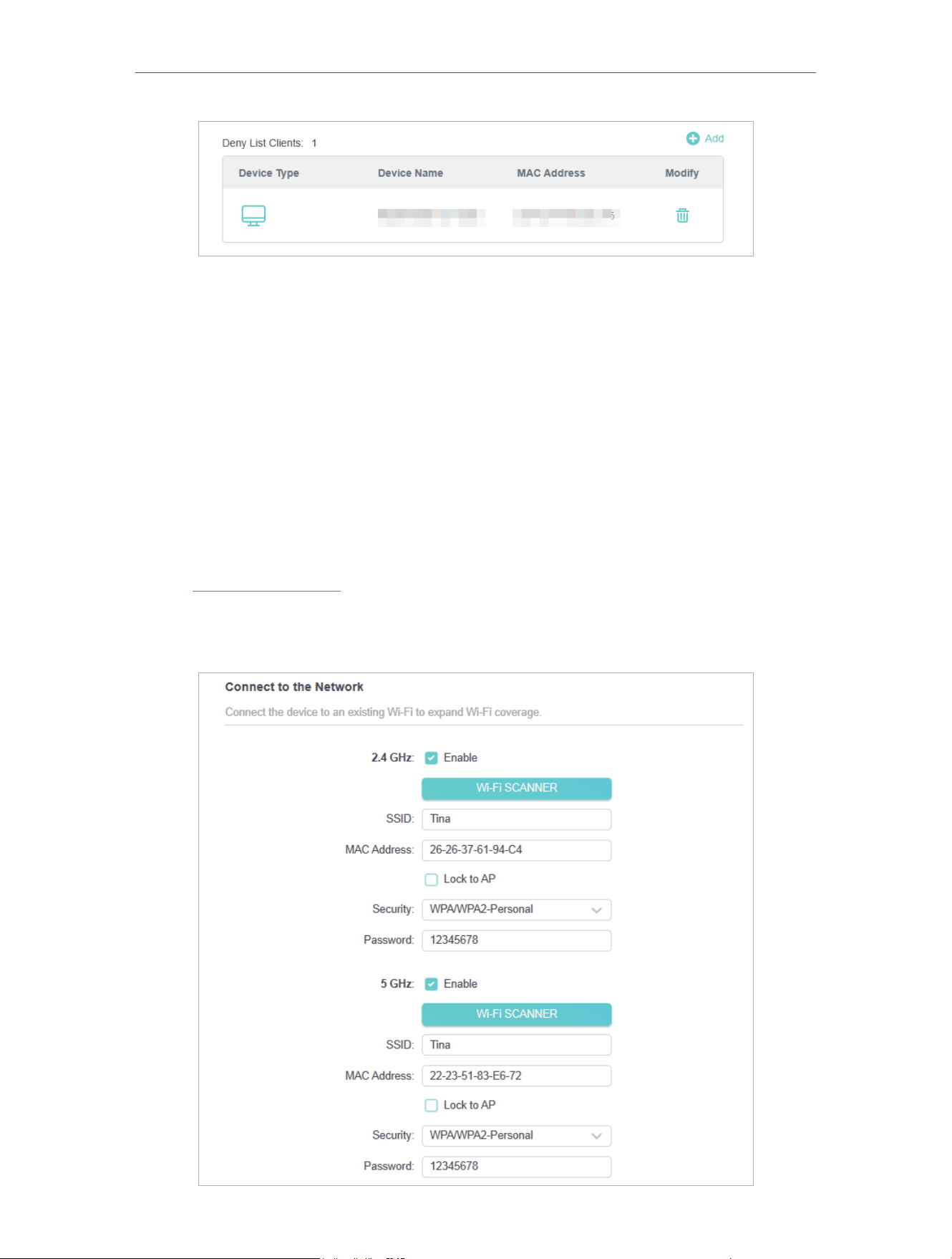

Done!
Now you can block specific client devices to access your network (via wired or wireless)
using the Deny List.
6 4 Wireless Settings
This chapter guides you on how to configure the wireless settings.
6 4 1 Connect to the Main Network
You can connect the device to an existing Wi-Fi to expand Wi-Fi coverage.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless and locate the Connect to the Network section.
121
Chapter 6
Configure the Router in Range Extender Mode

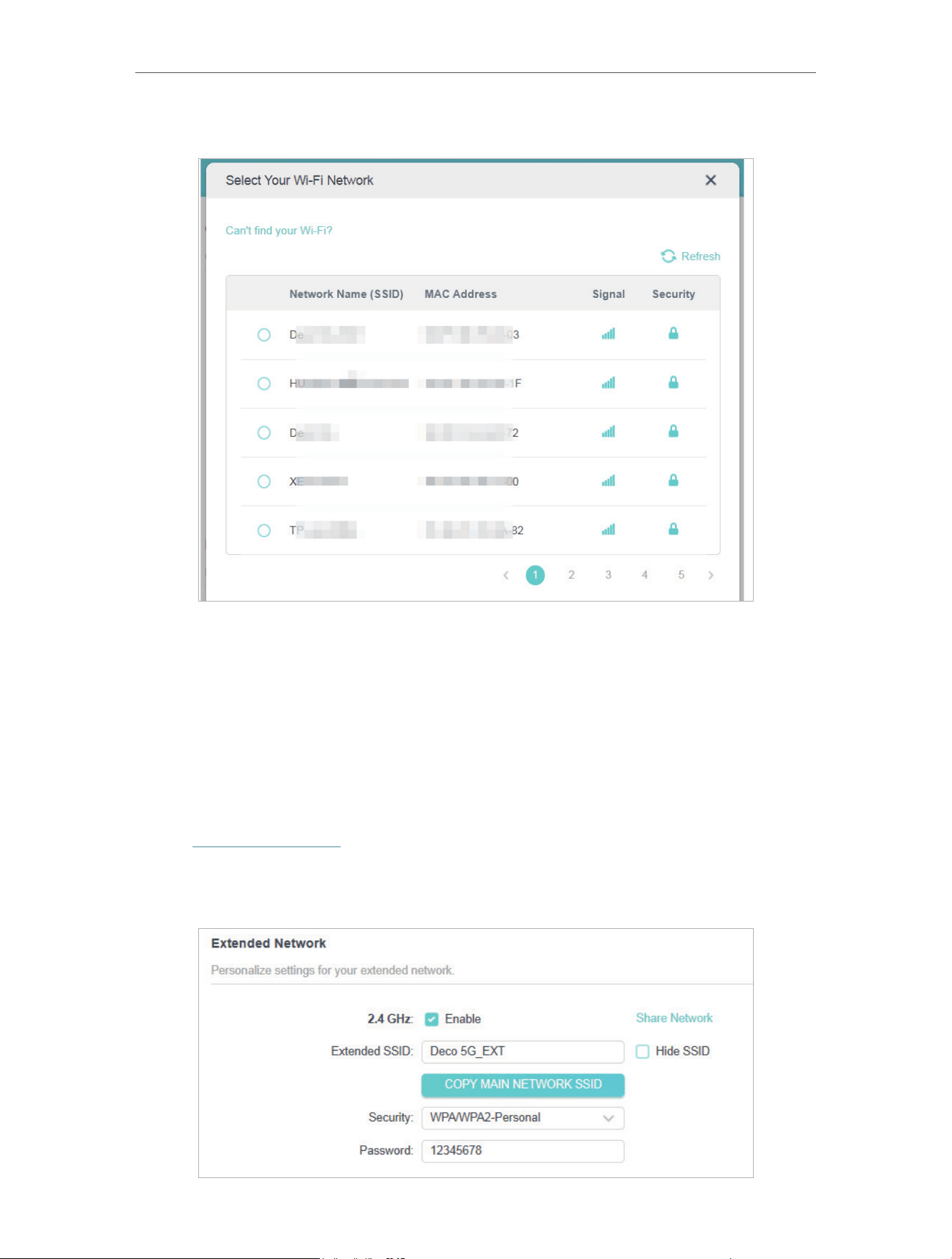

3. Click Wi-Fi SCANNER and select a main network to connect to.
4. Enter the Password of the main network.
5. Tick the Lock to AP checkbox to stick to one wireless access point all the time even
though there is another access point having the same wireless settings.
6. Click SAVE .
6 4 2 Specify Wireless Settings
You can personalize wireless settings as you need.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless and locate the Extended Network section.
122
Chapter 6
Configure the Router in Range Extender Mode

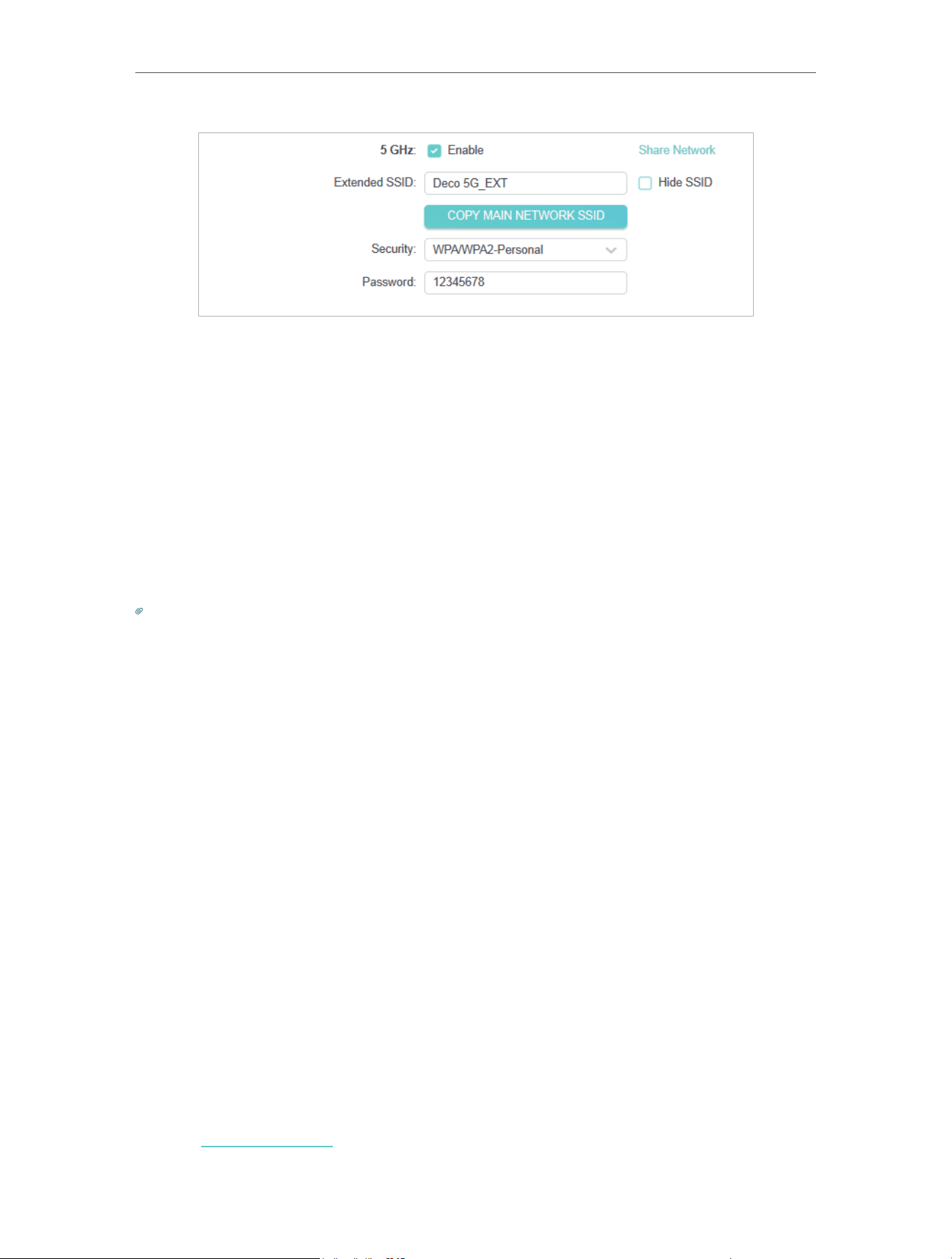

• To enable or disable the wireless function:
1. Go to Wireless and locate the Extended Network section.
2. The wireless bands are enabled by default. If you want to disable a wireless band, just
deselect its Enable checkbox.
• To change the wireless network name (SSID) and wireless password:
1. Go to Wireless and locate the Extended Network section.
2. Create a new SSID in Network Name (SSID) or click COPY MAIN NETWORK SSID
to copy the SSID of the main network. Customize the password for the network in
Password. The value is case-sensitive.
Note: If you change the wireless settings with a wireless device, you will be disconnected when the settings are
effective. Please write down the new SSID and password for future use.
• To hide SSID:
1. Go to Wireless and locate the Extended Network section.
2. Select Hide SSID, and your SSID won’t display when you scan for local wireless
networks on your wireless device and you need to manually join the network.
• To change the security option:
1. Go to Wireless and locate the Extended Network section.
2. Select an option from the Security drop-down list. We recommend you don’t change
the default settings unless necessary.
6 5 Manage the Router
6 5 1 Firmware Update
TP-Link aims at providing better network experience for users.
We will inform you through the web management page if there’s any new firmware
available for your router. Also, the latest firmware will be released at the TP-Link official
website www.tp-link.com, and you can download it from the Support page for free.
123
Chapter 6
Configure the Router in Range Extender Mode
Note:
• Back up your router’s configurations before firmware update.
• Do NOT turn off the router during the firmware update.
• Online Update:
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Firmware Update.
3. When the latest firmware is available for your router, the update icon will display in
the top-right corner of the page. Click the icon to go to the Firmware Update page.
Alternatively, you can go to Advanced > Firmware Update, and click CHECK FOR
UPDATES to see whether the latest firmware is released.
4. Focus on the Online Update section, and click UPDATE if there is new firmware.
5. Wait a few minutes for the update and reboot to complete.
Tips: If there’s a new and important firmware update for your router, you will see the prompt notification on your
computer as long as a web browser is opened. Click to update, and log in to the web management page with the
username and password you set for the router. You will see the Firmware Update page.
• Local Update:
1. Download the latest firmware file for the router from www.tp-link.com.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
124
Chapter 6
Configure the Router in Range Extender Mode
3. Go to Advanced > Firmware Update.
4. Focus on the Local Update section. Click BROWSE to locate the downloaded new
firmware file, and click UPDATE.
5. Wait a few minutes for the update and reboot to complete.
Note: If you fail to update the firmware for the router, please contact our Technical Support.
6 5 2 Backup and Restore Configuration Settings
The configuration settings are stored as a configuration file in the router. You can
backup the configuration file to your computer for future use and restore the router to
a previous settings from the backup file when needed. Moreover, if necessary you can
erase the current settings and reset the router to the default factory settings.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Backup & Restore.
• To backup configuration settings:
Click BACK UP to save a copy of the current settings to your local computer. A ‘.bin’ file
of the current settings will be stored to your computer.
• To restore configuration settings:
1. Click BROWSE to locate the backup configuration file stored on your computer, and
click RESTORE.
125
Chapter 6
Configure the Router in Range Extender Mode
2. Wait a few minutes for the restoring and rebooting.
Note: During the restoring process, do not turn off or reset the router.
• To reset the router except your login password and TP-Link ID:
1. In the Factory Default Restore section, click RESTORE.
2. Wait a few minutes for the resetting and rebooting.
Note:
• During the resetting process, do not turn off the router.
• After reset, you can still use the current login password or the TP-Link ID to log in to the web management page.
• To reset the router to factory default settings:
1. Click FACTORY RESTORE to reset the router.
2. Wait a few minutes for the resetting and rebooting.
Note:
• During the resetting process, do not turn off or reset the router.
• We strongly recommend you backup the current configuration settings before resetting the router.
6 5 3 Change Password
You can change your login password of the web management page.
Note: If you are using a TP-Link ID to log in to the web management page, the account management feature will be
disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
126
Chapter 6
Configure the Router in Range Extender Mode
2. Go to Advanced > Administration and focus on the Change Password section.
3. Enter the old password, then a new password twice (both case-sensitive). Click SAVE .
4. Use the new password for future logins.
6 5 4 Local Management
This feature allows you to limit the number of client devices on your LAN from accessing
the router by using the MAC address-based authentication.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Administration and complete the settings In Local Management
section as needed.
• Local Management via HTTPS:
Tick the Local Management via HTTPS checkbox to access the router via HTTPS and
HTTP, or keep it disabled to access the router only via HTTP. Click SAVE .
• Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers. Click SAVE.
• Allow specific devices to manage the router:
127
Chapter 6
Configure the Router in Range Extender Mode
1. Select Specified Devices for Local Managers.
2. Click Add Device.
3. Click VIEW CONNECTED DEVICES and select the device to manage the router from
the Connected Devices list, or enter the MAC address of the device manually. Click
SAVE. The devices added will appear in the list.
4. Click SAVE .
6 5 5 HTTP Referer Head Check
HTTP referer header check function can protect your networks against CSRF attacks.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Administration, and locate the HTTP Referer Head Check section.
3. HTTP Referer Head Check is enabled by default, and it is recommended to keep
the default settings. This feature protects your network against cross-site request
forgery (CSRF) attacks.
128
Chapter 6
Configure the Router in Range Extender Mode
6 5 6 System Log
When the router does not work normally, you can save the system log and send it to the
technical support for troubleshooting.
• To save the system log locally:
1. Visit http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the
router.
2. Go to Advanced > System Log.
3. In the Save Log section, click SAVE TO LOCAL to save the system logs to a local disk.
6 5 7 Diagnostics
Diagnostics is used to test the connectivity between the router and the host or other
network devices.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
129
Chapter 6
Configure the Router in Range Extender Mode
2. Go to Advanced > Diagnostics.
3. Enter the information:
1 ) Choose Ping or Traceroute as the diagnostic tool to test the connectivity;
• Ping is used to test the connectivity between the router and the tested host,
and measure the round-trip time.
• Traceroute is used to display the route (path) your router has passed to reach
the tested host, and measure transit delays of packets across an Internet
Protocol network.
2 ) Enter the IP Address or Domain Name of the tested host.
3 ) Modify the Ping Packet Number and the Ping Packet Size. It’s recommended to
keep the default value.
4 ) If you have chosen Traceroute, you can modify the Traceroute Max TTL. It’s
recommended to keep the default value.
4. Click START to begin the diagnostics.
The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Ping.
The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Traceroute.
130
Chapter 6
Configure the Router in Range Extender Mode
6 5 8 Set System Time and Language
System time is the time displayed while the router is running. The system time you
configure here will be used for other time-based functions like Parental Controls. You
can choose the way to obtain the system time as needed.
System language is the language displayed when you log into the router. You can
change the system language as needed.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Time & Language.
• To get time from the internet:
1. Enable 24-Hour Time if you want the time to display in a 24-hour way.
2. In the Set Time field, select Get from Internet.
3. Select your local Time Zone from the drop-down list.
4. In the NTP Server I field, enter the IP address or domain name of your desired NTP
Server.
5. (Optional) In the NTP Server II field, enter the IP address or domain name of the
second NTP Server.
6. Click SAVE .
131
Chapter 6
Configure the Router in Range Extender Mode
• To get time from your computer:
1. In the Set Time field, select Get from Managing Device.
2. The time of your computer will then be displayed and click SAVE.
• To manually set the date and time:
1. In the Set Time field, select Manually.
2. Set the current Date (In DD/MM/YYYY format).
3. Set the current Time (In HH/MM/SS format).
4. Click SAVE .
• To set Daylight Saving Time:
1. Tick the Enable box of Daylight Saving Time.
132
Chapter 6
Configure the Router in Range Extender Mode

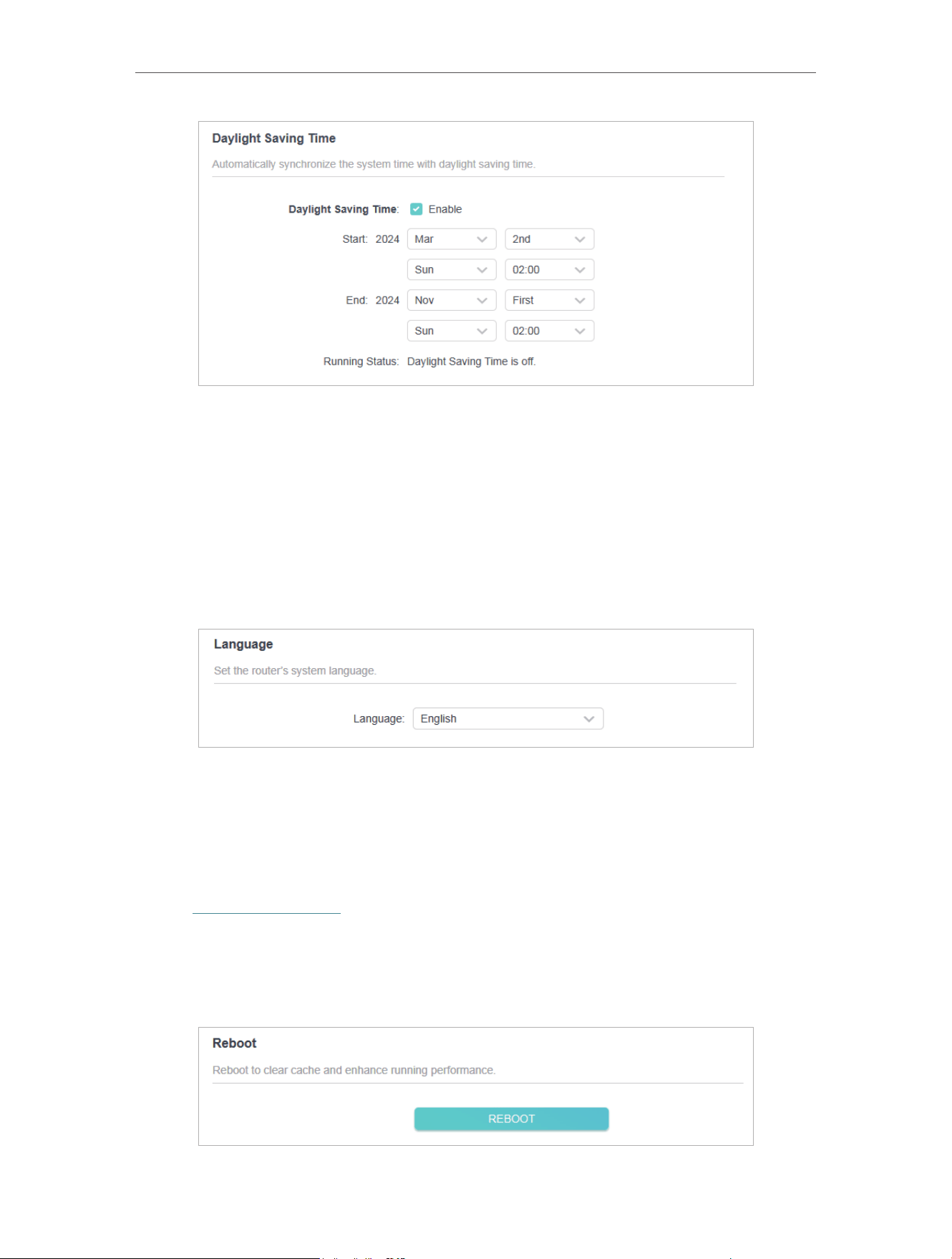

2. Select the correct Start date and time when daylight saving time starts at your local
time zone.
3. Select the correct End date and time when daylight saving time ends at your local
time zone.
4. Click SAVE .
• To set system language:
Select the language from the dropdown list, then click SAVE .
6 5 9 Reboot & Reboot Schedule
• To reboot the router:
You can reboot the router to clear cache and enhance running performance.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Reboot.
3. Click REBOOT.
133
Chapter 6
Configure the Router in Range Extender Mode

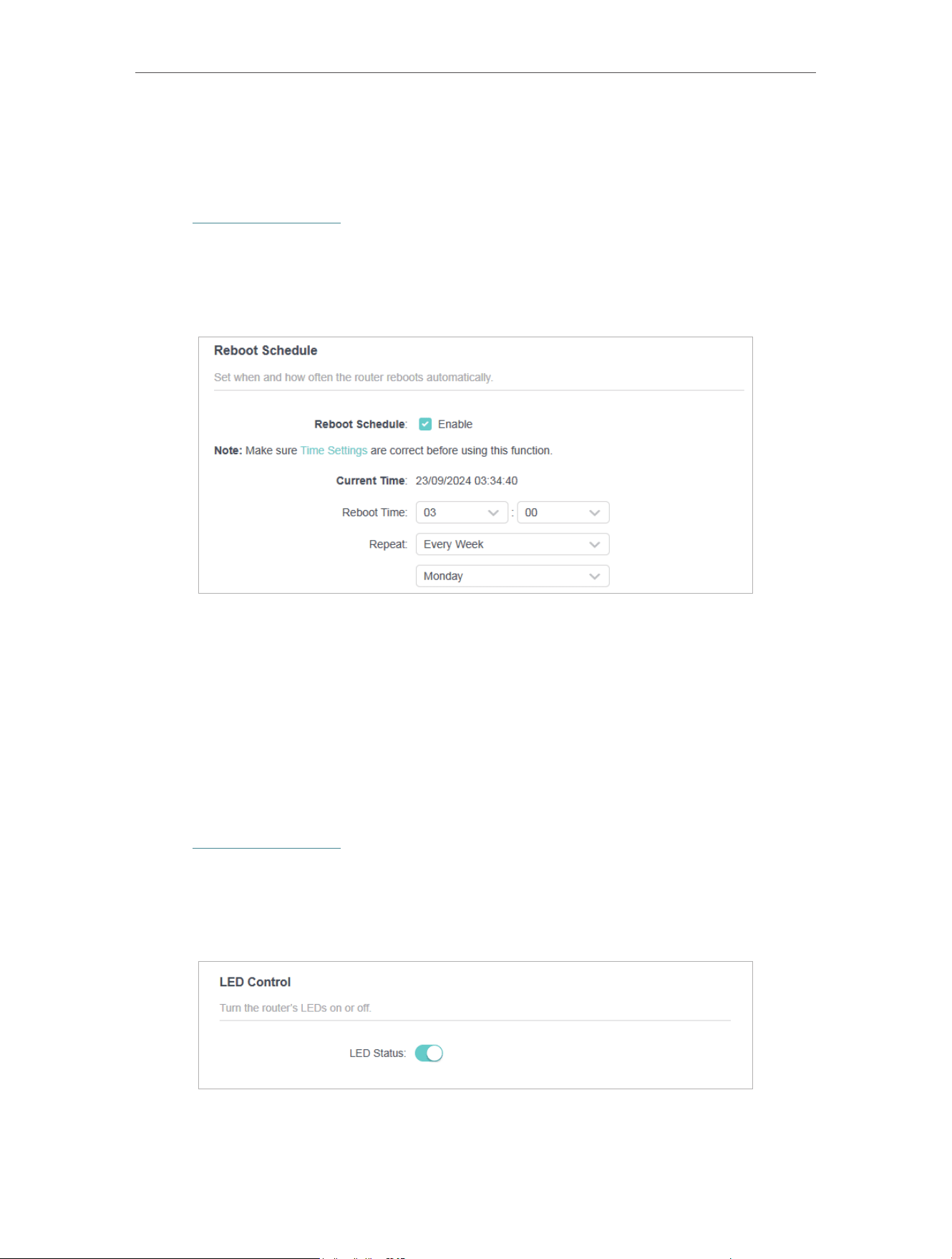

• To set reboot schedule:
The Scheduled Reboot feature cleans the cache to enhance the running performance
of the router.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Reboot.
3. Tick the Enable box of Reboot Schedule.
4. Specify the Reboot Time when the router reboots and Repeat to decide how often it
reboots.
5. Click SAVE .
6 5 10 Control the LED
• To turn off or turn on the LEDs:
You can turn the router’s LEDs on or off.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > LED Control.
3. Toggle the LED Status button to turn on or turn off the LEDs.
• To enable Night Mode for the LEDs:
134
Chapter 6
Configure the Router in Range Extender Mode

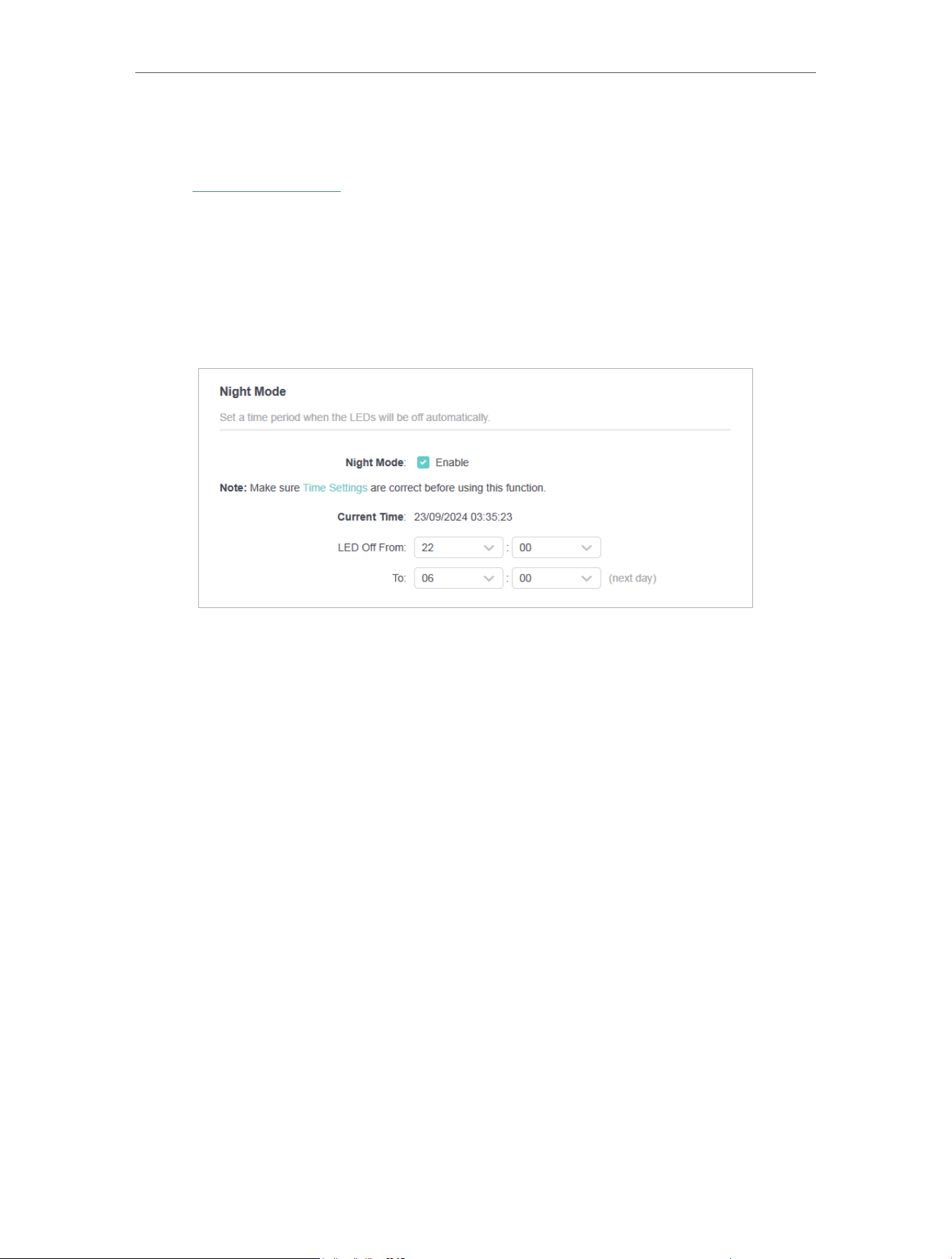

The LED of the router indicates its activities and status. You can enable the Night Mode
feature to specify a time period during which the LED is off.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > LED Control.
3. Enable Night Mode.
4. Specify the LED off time, and the LED will be off during this period every day.
5. Click SAVE .
135
FAQ
Q1 What should I do if I forget my wireless password?
The default wireless password is printed on the label of the router. If the password has
been altered, please connect your computer to the router using an Ethernet cable and
follow the steps below:
1. Visit http://tplinkwifi.net, and log in with the username and password you set for the
router.
2. Go to Wireless to retrieve or reset your wireless password.
Q2 What should I do if I forget my login password of the Web-based
Utility?
• If you are using a TP-Link ID to log in, or you have enabled the Password Recovery
feature of the router, click Forgot password on the login page and then follow the
instructions to reset it.
• Alternatively, press and hold the Reset button of the router for about 6 seconds until the
Power LED blinks to restore factory default settings, and then visit http://tplinkwifi.net
to create a new login password.
Note:
• Please refer to Change “Change Password” to learn how to change Password.
• You’ll need to reconfigure the router to surf the internet once the router is reset, and please mark down your new
password for future use.
Q3 What should I do if I cannot log in to the router’s Web-based Utility?
This can happen for a variety of reasons. Please try the methods below to log in again.
• Make sure your computer has connected to the router correctly and the corresponding
LED lights up.
• Make sure the IP address of your computer is configured as Obtain an IP address
automatically and Obtain DNS server address automatically.
• Make sure you enter the correct IP address to log in: http://tplinkwifi.net or 192.168.0.1.
• Check your computer’s settings:
1 ) Go to Start > Control Panel > Network and Internet, and click View network
status and tasks.
136
2 ) Click Internet Options on the bottom left.
3 ) Click Connections and select Never dial a connection.
4 ) Click LAN settings and deselect the following three options, and click OK.
137

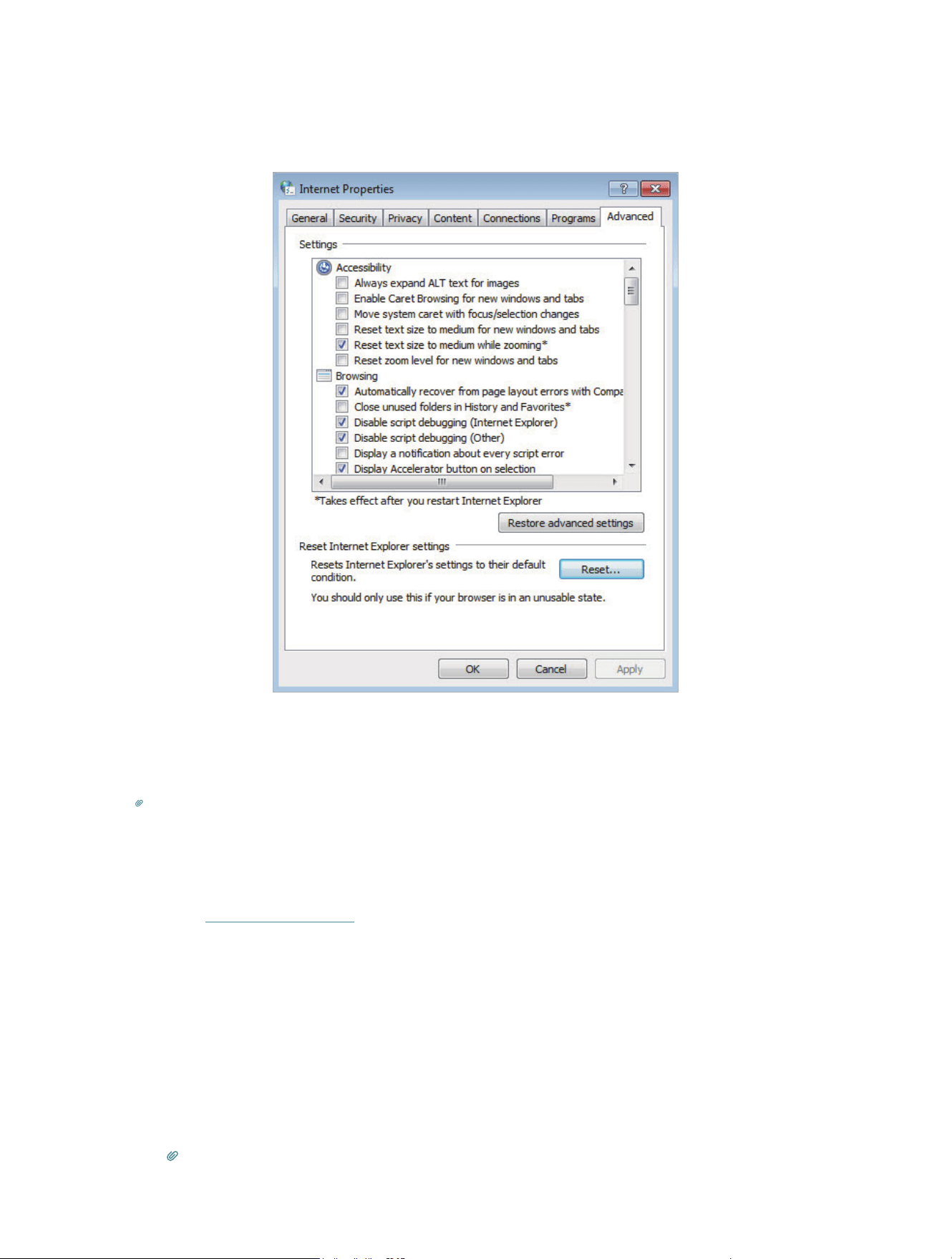

5 ) Go to Advanced > Restore advanced settings, and click OK.
• Use another web browser or computer to log in again.
• Reset the router to factory default settings and try again. If the login still fails, please
contact the technical support.
Note: You’ll need to reconfigure the router to surf the internet once the router is reset.
Q4 What should I do if I cannot access the internet even though the
configuration is finished?
1 Visit http://tplinkwifi.net, and log in to with the username and password you set for
the router.
2 Go to Advanced > Network > Status to check Internet status:
If IP Address is a valid one, please try the methods below and try again:
• Your computer might not recognize any DNS server addresses, please manually
configure DNS server.
1 ) Go to Advanced > Network > DHCP Server.
2 ) Enter 8.8.8.8 as Primary DNS, and click Save.
Tips: 8.8.8.8 is a safe and public DNS server operated by Google.
138
• Restart the modem and the router.
1 ) Power off your modem and the router, and leave them off for 1 minute.
2 ) Power on your modem first, and wait about 2 minutes.
3 ) Power on the router, and wait another 1 or 2 minutes and check the Internet
access.
• Reset the router to factory default settings and reconfigure the router.
• Upgrade the firmware of the router.
• Check the TCP/IP settings on the particular device if all other devices can get internet
from the router.
If the IP Address is 0 0 0 0, please try the methods below and try again:
• Make sure the physical connection between the router and the modem is proper.
• Clone the MAC address of your computer.
1 ) Visit http://tplinkwifi.net, and log in with the username and password you set for
the router.
2 ) Go to Advanced > Network > Internet, select Clone Current Device MAC and
click SAVE.
Tips:
• Some ISP will register the MAC address of your computer when you access the Internet for the first time
through their Cable modem, if you add a router into your network to share your Internet connection, the ISP will
not accept it as the MAC address is changed, so we need to clone your computer’s MAC address to the router.
• The MAC addresses of a computer in wired connection and wireless connection are different.
139
• Modify the LAN IP address of the router.
Note:
Most TP-Link routers use 192.168.0.1/192.168.1.1 as their default LAN IP address, it may conflict with the IP range
of your existent ADSL modem/router. If so, the router is not able to communicate with your modem and cause you
can’t access the Internet. To resolve this problem, we need to change the LAN IP address of the router to avoid
such conflict, for example, 192.168.2.1.
1 ) Visit http://tplinkwifi.net, and log in with the username and password you set for
the router.
2 ) Go to Advanced > Network > LAN.
3 ) Modify the LAN IP address as the follow picture shows. Here we take 192.168.2.1
as an example.
4 ) Click Save.
• Restart the modem and the router.
1 ) Power off your modem and the router, and leave them off for 1 minute.
2 ) Power on your modem first, and wait about 2 minutes.
3 ) Power on the router, and wait another 1 or 2 minutes and check the internet
access.
• Double check the Internet Connection Type.
1 ) Confirm your Internet Connection Type, which can be learned from the ISP.
2 ) Visit http://tplinkwifi.net, and log in with the username and password you set for
the router.
3 ) Go to Advanced > Network > Internet.
4 ) Select your Internet Connection Type and fill in other parameters.
5 ) Click Save.
140
6 ) Restart the modem and the router.
• Please upgrade the firmware of the router.
If you’ve tried every method above but cannot access the internet, please contact the
technical support.
Q5 What should I do if I cannot find my wireless network or I cannot
connect to the wireless network?
If you fail to find any wireless network, please follow the steps below:
• Make sure the wireless function of your device is enabled if you’re using a laptop
with a built-in wireless adapter. You can refer to the relevant document or contact the
laptop manufacturer.
• Make sure the wireless adapter driver is installed successfully and the wireless
adapter is enabled.
• On Windows 7
1 ) If you see the message No connections are available, it is usually because the
wireless function is disabled or blocked somehow.
141
2 ) Clicking Troubleshoot and windows might be able to fix the problem by itself.
• On Windows XP
1 ) If you see the message Windows cannot configure this wireless connection,
this is usually because windows configuration utility is disabled or you are
running another wireless configuration tool to connect the wireless.
2 ) Exit the wireless configuration tool (the TP-Link Utility, for example).
3 ) Select and right click My Computer on Desktop, and select Manage to open
Computer Management window.
4 ) Expand Services and Applications > Services, and find and locate Wireless
Zero Configuration in the Services list on the right side.
5 ) Right click Wireless Zero Configuration, and then select Properties.
6 ) Change Startup type to Automatic, click Start and make sure the Service status
is Started. And then click OK.
If you can find other wireless network except your own, please follow the steps below:
• Make sure your computer/device is still in the range of your router/modem. Move
closer if it is currently too far away.
If you can find your wireless network but fail to connect, please follow the steps below:
• Authenticating problem/password mismatch:
1 ) Sometimes you will be asked to type in a PIN number when you connect to
the wireless network for the first time. This PIN number is different from the
Wireless Password/Network Security Key. Usually you can only find it on the
label of your router.
2 ) If you cannot find the PIN or PIN failed, you may choose Connecting using a
security key instead, and then type in the Wireless Password/Network Security
Key.
3 ) If it continues to show note of Network Security Key Mismatch, it is suggested
to confirm the wireless password of your wireless router.
142
Note: Wireless Password/Network Security Key is case sensitive.
• Windows unable to connect to XXXX / Can not join this network / Taking longer than
usual to connect to this network:
• Check the wireless signal strength of your network, if it is weak (1~3 bars),
please move the router closer and try again.
• Change the wireless Channel of the router to 1,6,or 11 to reduce interference
from other networks.
• Re-install or update the driver for your wireless adapter of the computer.
143
FCC compliance information statement
Product Name: AC750 Wireless Dual Band Router
Model Number: Archer C20
Component Name Model
I.T.E POWER SUPPLY T090060-2B1
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
144
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to
only Mobile Configurations. The antennas used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.”
We, TP-Link Systems Inc , has determined that the equipment shown as above has
been shown to comply with the applicable technical standards, FCC part 15. There
is no unauthorized change is made in the equipment and the equipment is properly
maintained and operated.
Issue Date: 2025-03-05
FCC compliance information statement
Product Name: I.T.E. Power Supply
Model Number: T090060-2B1
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
145
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
We, TP-Link Systems Inc , has determined that the equipment shown as above has
been shown to comply with the applicable technical standards, FCC part 15. There
is no unauthorized change is made in the equipment and the equipment is properly
maintained and operated.
Issue Date: 2025-03-05
146
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
2400 MHz -2483.5 MHz(20dBm)
5150 MHz -5250 MHz(23dBm)
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements
and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU and
(EU) 2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/
support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of
exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your
body.
National Restrictions
Attention: This device may only be used indoors in all EU member states, EFTA countries
and Northern Ireland.
Frequency band: 5150 - 5250 MHz:
Indoor use: Inside buildings only. Installations and use inside road vehicles and train
carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall
not be attached to a fixed installation or to the external body of road vehicles, a fixed
infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is
limited to within the 5170 - 5250 MHz band.
AT BE BG CH CY CZ DE DK
EE EL ES FI FR HR HU IE
IS IT LI LT LU LV MT NL
NO PL PT RO SE SI SK UK(NI)
147
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements
and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK declaration of conformity may be found at https://www.tp-link.com/
support/ukca/
National restrictions
Attention: This device may only be used indoors in Great Britain.
UK
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme
aux CNR d’Innovation, Sciences et Développement économique Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Caution:
1. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems;
Avertissement:
1. Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable
aux systèmes de satellites mobiles utilisant les mêmes canaux;
148
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice:
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。
高增益指向性天線只得應用於固定式點對點系統。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
149
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
設備名稱：AC750 Wireless Dual Band Router
Equipment name
型號（型式）：Archer C20
Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘 Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr
+6
)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
外殼
○ ○ ○ ○ ○ ○
電源供應器
— ○ ○ ○ ○ ○
天線
○ ○ ○ ○ ○ ○
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the
restricted substance exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the
percentage of reference value of presence.
備考 3.〝－〞係指該項限用物質為排除項目。
Note 3: The “−” indicates that the restricted substance corresponds to the exemption.
運作溫度: 0°C~40°C (32°F~104°F)
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність
вимогам нормативних документів та вимогам, що передбачені чинними
законодавчими актами України.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service,
please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original
packing of this product. If you have any questions, please don’t hesitate to contact us.
150
• This product uses radios and other components that emit electromagnetic fields.
Electromagnetic fields and magnets may interfere with pacemakers and other
implanted medical devices. Always keep the product and its power adapter more than
15 cm (6 inches) away from any pacemakers or other implanted medical devices. If
you suspect your product is interfering with your pacemaker or any other implanted
medical device, turn off your product and consult your physician for information
specific to your medical device.
• Operating Temperature: Operating Temperature: 0°C~40°C (32°F~104°F)
Please read and follow the above safety information when operating the device. We
cannot guarantee that no accidents or damage will occur due to improper use of the
device. Please use this product with care and operate at your own risk.
Explanation of the symbols on the product label
Symbols may vary from products.
Note: The product label can be found at the bottom of the product and its I.T.E. power
supply.
Symbol Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
DC voltage
Polarity of output terminals
Indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy efficiency Marking
Protective earth
Earth
151
Symbol Explanation
Frame or chassis
Functional earthing
Caution, hot surface
Caution
Operator’s manual
Stand-by
“ON”/”OFF” (push-push)
Fuse
Fuse is used in neutral N
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means
that this product must be handled pursuant to European
directive 2012/19/EU in order to be recycled or dismantled
to minimize its impact on the environment.
User has the choice to give his product to a competent
recycling organization or to the retailer when he buys a
new electrical or electronic equipment.
Caution, avoid listening at high volume levels for long
periods
Disconnection, all power plugs
m Switch of mini-gap construction
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction
(for other versions except US)
ε
Switch without contact gap (Semiconductor switching
device)
152
Appendix: 定位您的路由器
• 產品不應放置在會受潮濕或過高溫度的地方。
• 將路由器放置在能夠連接多個設備並接上電源的地方。
• 請確保線和電源線放置在安全位置，以免造成絆倒的危險。
• 將路由器遠離具有強烈電磁干擾的設備，例如藍牙設備、無線電話和微波爐。
• 通常，路由器放置在水平的表面上，例如在架子上或桌面上。
• 該設備還可以安裝在牆上，如下圖所示。
ΦD
H
NOTE
：
4.4
＜
D
＜
7.3mm
H
＜2.
3mm
L
＞
8.7mm
L
139.6
13.6
3.9
7.8
∅
8.6
1.5
1.2
2.3
注意：
螺絲頭直徑為4.4mm < D < 7.3mm，兩個螺絲之間的距離為139.6mm。從牆壁突出的螺絲需要約5mm的基底，並且螺絲
的長度至少需要8.7mm才能承受產品的重量。
