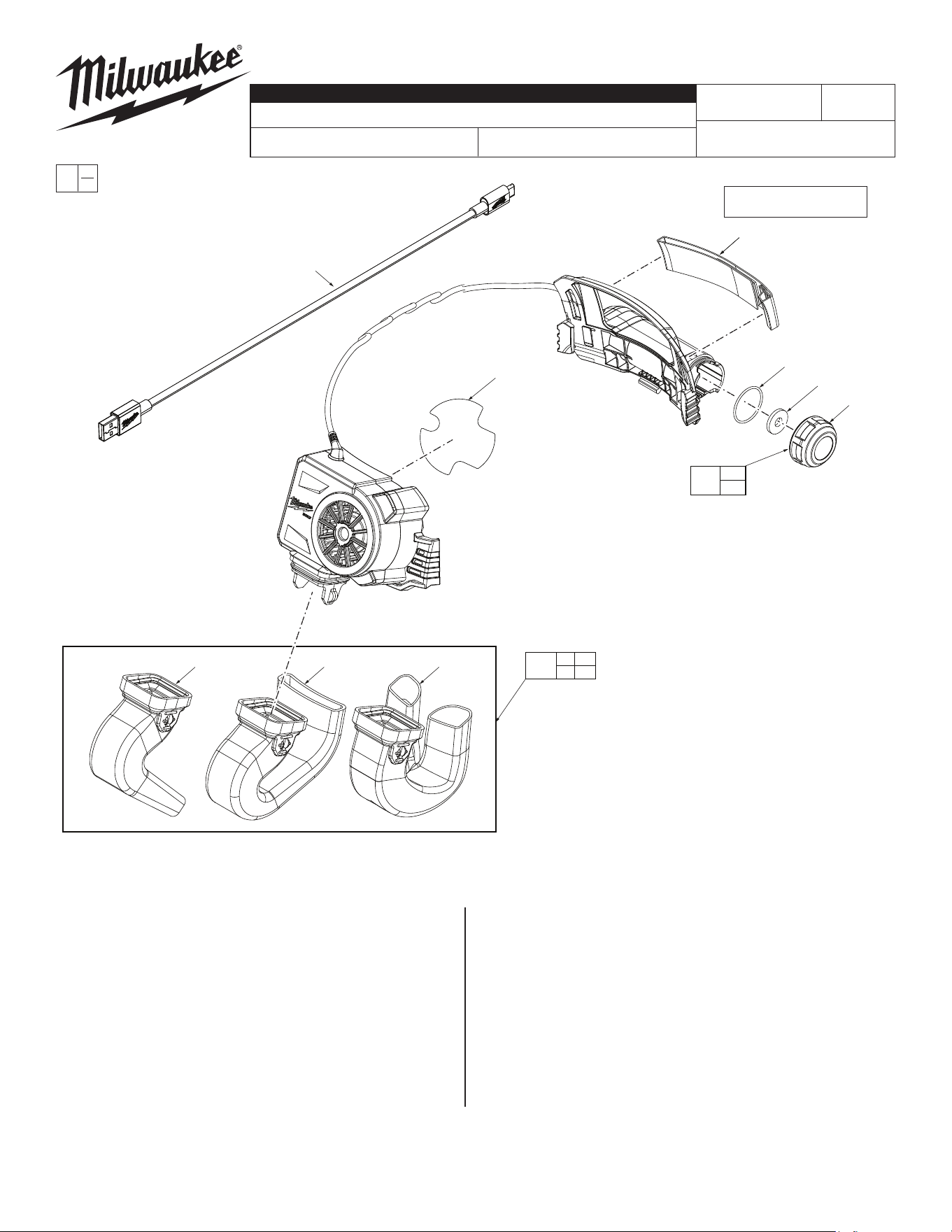

SERVICE PARTS LIST
CATALOG NO. 48-73-1385
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
BOLT™ REDLITHIUM™ USB Cooling Fan
SERIAL NO.
DATE
Oct. 2025
WIRING INSTRUCTION
R95A
24
1
2
30
19 20
21
31
1212
2
3
1
19 20 21
27
FIG. NOTES
27 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or name
plate.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 ---------------- Cap (1)
2 ---------------- Cushion Pad (1)
3 31-15-1385 O-ring (1)
12 45-56-1385 Hook and Loop Strap (1)
19 ---------------- Universal Duct (1)
20 ---------------- Hard Hat Duct (1)
21 ---------------- Helmet Duct (1)
24 42-44-1210 USB-C to USB-A Cable (1)
27 12-20-1386 Service Nameplate (1)
30 31-12-1385 Battery Cap Kit (1)
31 43-24-1385 Air Duct Kit (1)
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. 12 See page 2 for
weaving instructions.

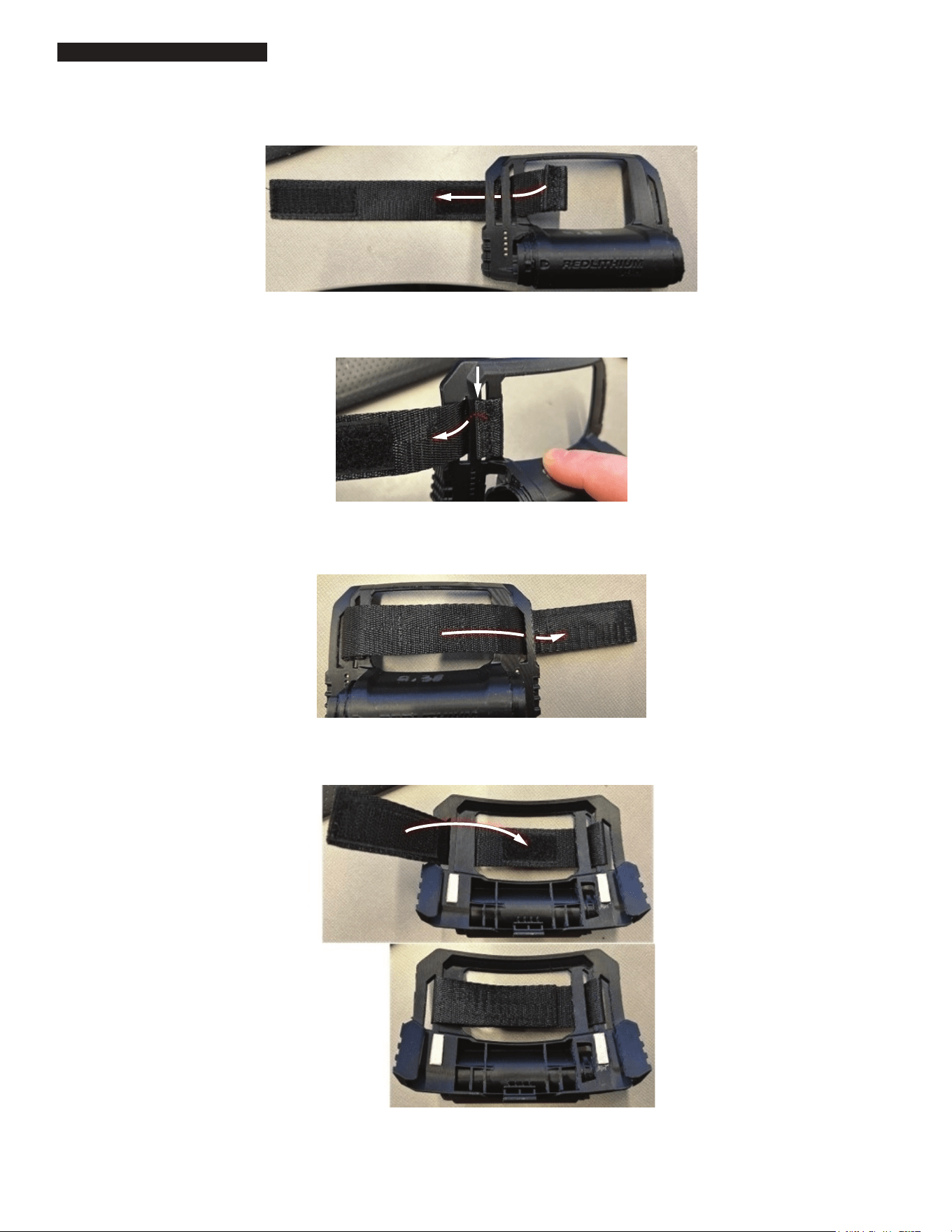

STRAP WEAVING INSTRUCTIONS
A
Step 1:
Weave strap (with hook and look side up) down through Slot “A”.
B
C
Step 2:
Pull strap up through Slot “B”, so the end is tight to “C”.
Step 5:
Flip bracket over, and attach hook and loop.
D
Step 4:
Pull strap across bracket, and weave through Slot “D”.
