UVC
Bacterial Disinfection
for Ductless Mini-Split Systems
Owner’s Manual
Model Number: IKT-UVL32UL-AG
FREE
DISINFECTION
SILENCE
SANITIZATION RECYCLE SAFETYCLEAN AIR
ozoneozoneozone
UVUVUV
Specifications
• Input: AC 85-265V 50/60Hz
Output: DC 12V 8W•
BF > 0.5, Tc < 176 ºF•
LED Input: 6.72W•
Current: 0.56A•
Voltage: 12V•
Intensity of UV irradiation: 345.1 μW/cm2•
Applicable for These Air System Types
Wall-Mount
Floor-Ceiling
Cassette
1491.54 mm
The kits of UVC Mini
Improves Indoor Air Quality and ghts biological contamination inside mini splits.
Prolonged exposure to direct LED UV light
may be harmful to eyes & skin.
This unit is equipped with an LED UV light disinfection system.
Disconnect power before servicing.
Indirect exposure (blue glow) is not harmful
CAUTION
UV LED LIGHT
K
K
UV LED Driver
RF Receiver (Optional)
RF Emitter (Optional)
LED UVC Strip
L
L
Screw
Ring Connector (Optional)
Adhesive Wire Base
Alcohol Wipe
Mounting Pads
Warning Sticker
Wired Switch (Optional)
UV Shield Strip
M
Manual
M
Only Qualified technicians should install this product
Install only in accordance with the relevant building code
Read instructions carefully including those safety warnings

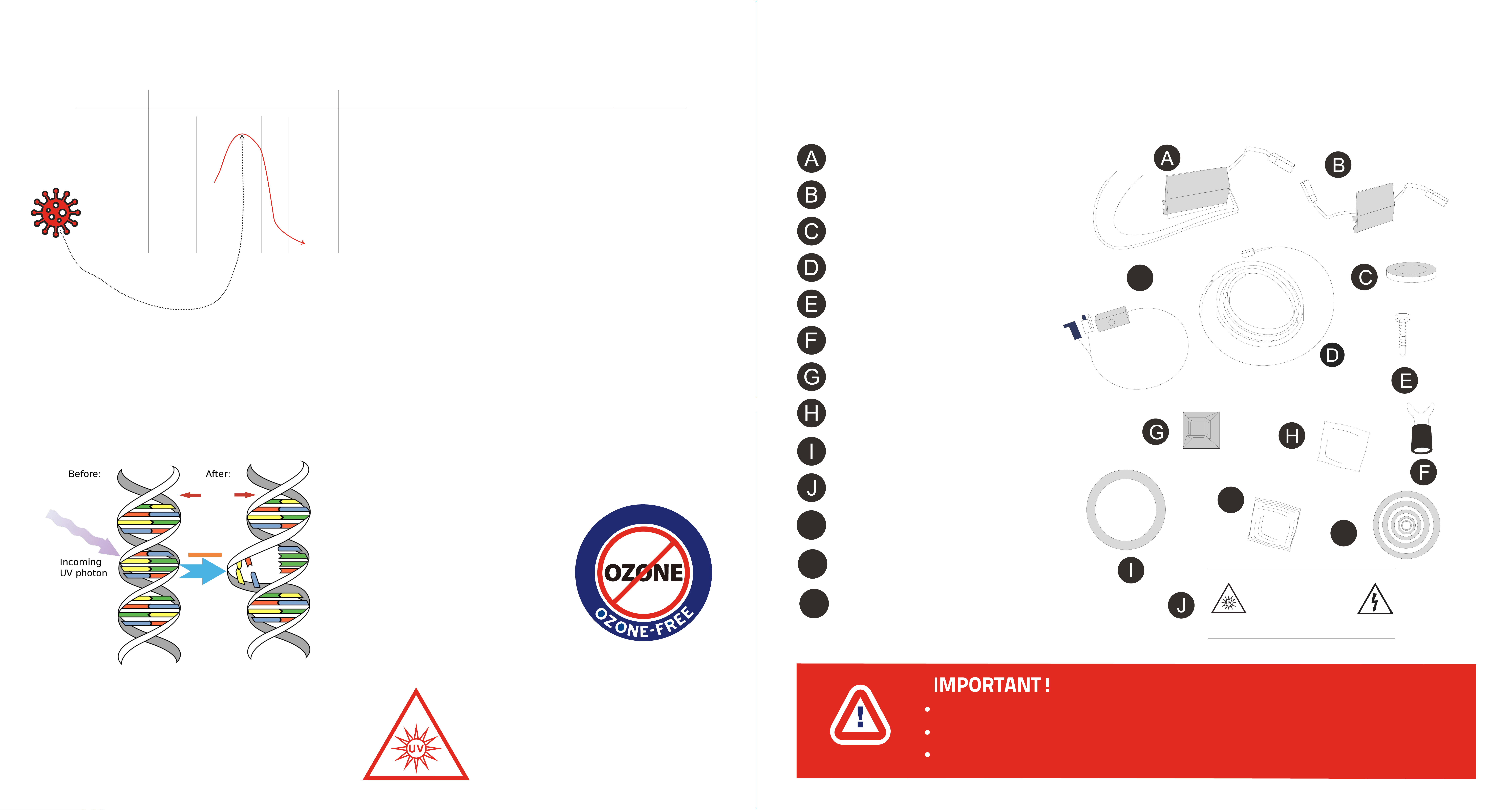

Operation Priciples & Technology
X-RAYS
ULTRAVIOLET
VISIBLE LIGHT
INFRARED
VAU
UM-UV
UV-C UV-B
UV-A
100
200
280
315
400
700
UVC Radiation used for disinfection is most effective at a wavelength of 254nm.
The entire UV spectrum can kill or inactivate many microorganism species,
preventing them from replicating. UVC energy at 253.7 nanometers provides
the most germicidal effect. Combination of UVC + UVA is very effective in
disinfection and also odors cleaning.
Scientistic studies say:
When exposing microorganisms to
UVC light, the light penetrates through
their cell wall and disrupts the structure
of their DNA molecules, prohibiting
reproduction.
DNA Structure
UVC
Min i Kit s
Also to know
Indirect exposure (blue glow)
is not harmful
Prolonged exposure to direct LED UV Light
may be harmful to eyes & skin
UVC
1491.54 mm
1491.54 mm
IMPORTANT!
Install LED strip so that the light shines into the air system, not into the room.
IMPORTANT!
Disconnect the power supply before you do anything on the installation!
Introduction of the UVC Mini Kits
CAUTION UV LED LIGHT
Prolonged exposure to direct LED UV light may be harmful to eyes & skin.
Disconnect power before servicing. Indirect exposure (blue glow) is not harmful.

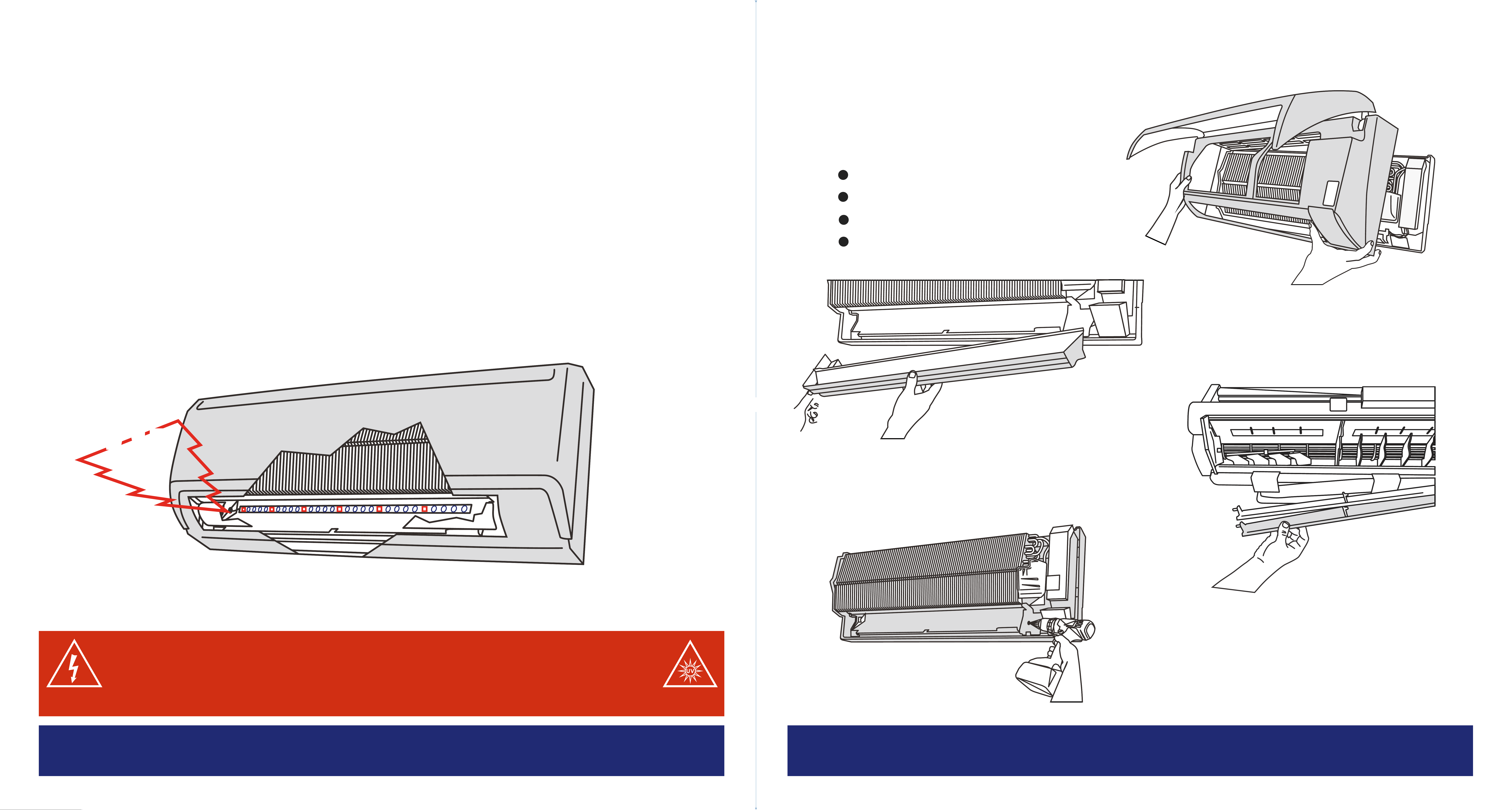

Cutaway View of Typical Installation UVC MINi KITS in Mini Split
It is normally used to disinfect an air conditioning system, by stopping bio-
growth on fan, coils and other surfaces, and related bad odors. It helps
dramatically to maintain a clean, fresh air conditioner system, improves the
indoor air quality, extends life span and reduce maintenance cost.
Because space is tight and sufcient exposure of the surfaces is required, the
UVC MINI KITS is best to be installed inside the supply vent with the light shing
onto the blower wheel(which is prone to be the worst mold growth).
UVC MINi KITS is one of the innovated applications of the UV disinfection in Mini
Split and other space limited systems.
Air System Preparation before installation
1. Remove the cabinet cover
Disconnect Power Supply
Detach lter
Dismantle the LED display assy
Open the control box cover
2a. Detach drain pan to access
the area behind it.
2b. For systems with non-removable
drain pan, remove the louvers and
grills to access.
3. Unless required, drill a 2/3 hole to
pass connector cable to the back.
(By the side of the control box)
UVC
1491.54 mm

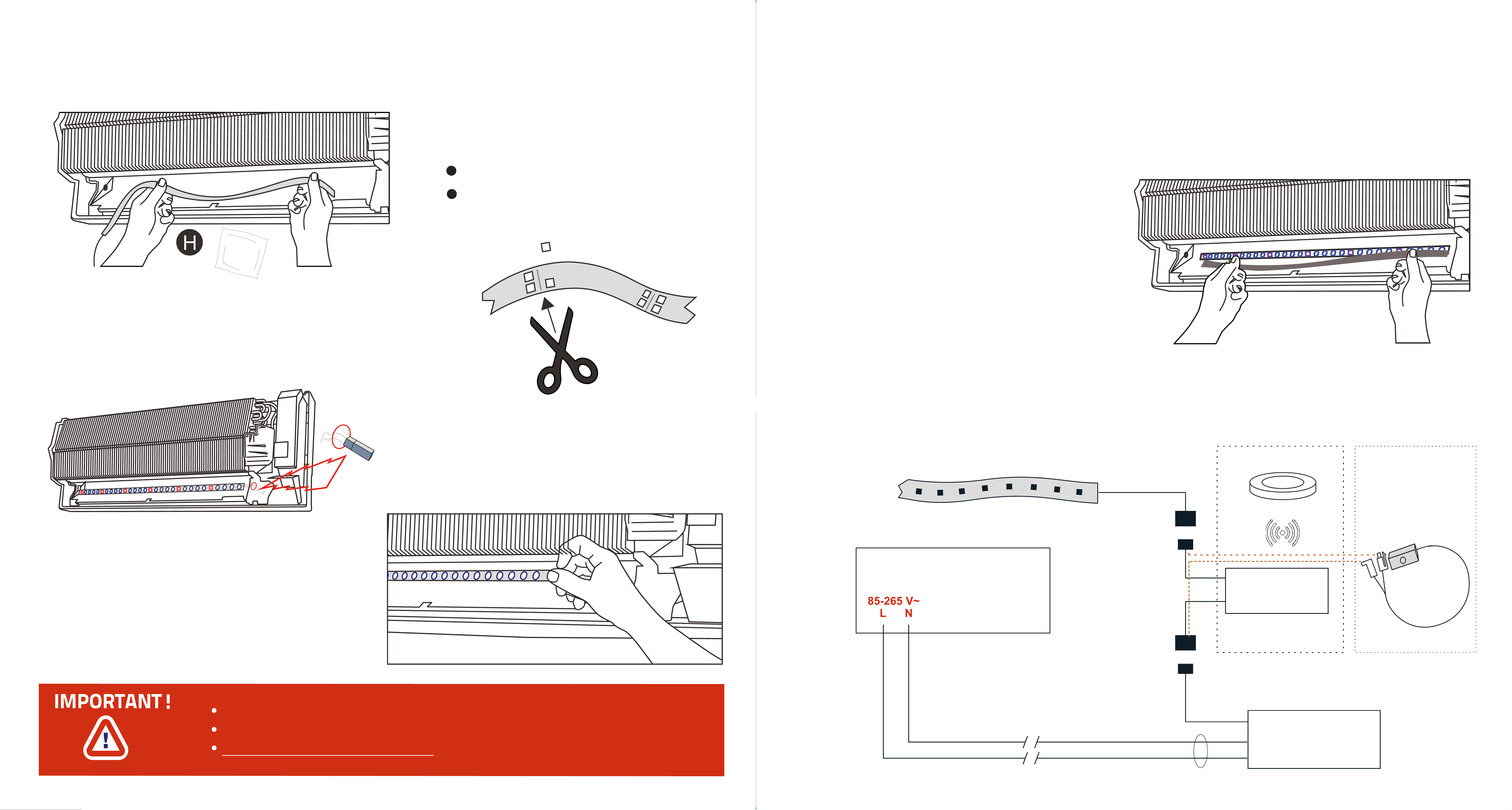

Mounting the UVC LED Strip
1. Determine best location
Clean with cloth for dust/dirty
Clean out with alcohol wipe
2. If needed, cut the strip into the length
that best ts into the space. (Cut-to-length
instruction is provided in this manual)
3.Pass the connector cable through
the drilled hole
3.Peel off paper from the adhesive
backing on the LED strip. A few at a
time and press it down rmly onto
the clean surfaces.
Place the LED strip so the light will shine on the blower wheel
Cut the strip only following the instruction by manufacturer
UV Light NOT INTO THE ROOM
Install the light Shield Strip
UVC light shield strip is innovated by manufacturer and recommended to
be installed with the UV LED strip. It is adhesive with special material, to
shield these lights which may be exposed INTO THE ROOM.
To Install, simply peel off the paper
from the adhesive side and stick
rmly to the UV LED strip, with an
angle of 90°degree, upstraight.
Electric Installation Preparation
Remark:
Remote and wired control not in one system
Mini Split
UV LED DRIVER
Input: 85-265 V~
Output: 12 Vac, 2A
Blue
Red
RF Receiver
RF Emitter
Remote Control
Optional
Wired Control
Optional
UVC LED Strip
1491.54 mm

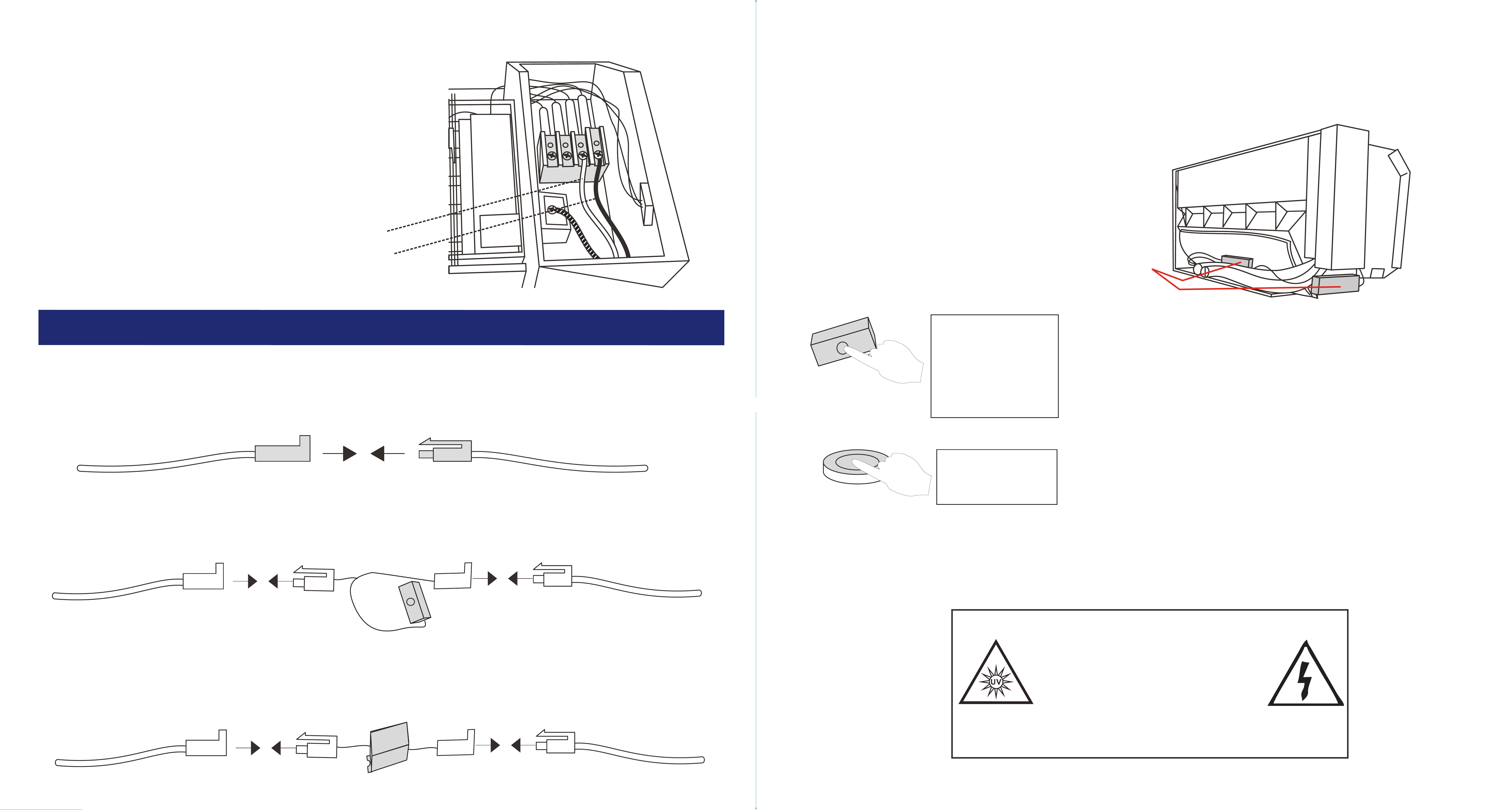

Electrical Installation
1. Remove the control box cover and
connect the UV LED Driver power cable
with the following:
UV LED DRIVER
Blue Wire: “L”
Red Wire: “N”
Notice: UVC MINI KITS comes with a wide voltage 85-265Vac power supply.
2a. Connect the UV LED DRIVER cable connector to the strip directly,
only if the model is equipped with neither wired nor remote control.
Driver Cable
LED Strip Cable
2b. If equipped with a wired control, connect the UV LED DRIVER cable to
one end of the wired control, and the other end to the UV LED Strip.
Driver Cable
LED Strip Cable
Wired Control Cable
UV LED DRIVER
2c. If equipped with a wired control, connect the UV LED DRIVER cable to
one end of the wired control, and the other end to the UV LED Strip.
Driver Cable
LED Strip Cable
RF Receiver
Electrical Installation
3. Tuck the power cable into the line chase
on the back of the unit or place it under the
control box or other location secure.
4. Turn on the power supply and conrm if
the UVC MINI KITS is working.
Or
a. Press once
to turn on/off
b. Long Press
to week/Strong
Press once
to turn on/off
5. Apply the UV Warning Sticker in a proper location.
Prolonged exposure to direct LED UV light
may be harmful to eyes & skin.
This unit is equipped with an LED UV light disinfection system.
Disconnect power before servicing.
Indirect exposure (blue glow) is not harmful
CAUTION
UV LED LIGHT
Benefits
Kits Include:
Features
■ Prevent mold and bacteria growth
■ Ensure a clean mini-split system
■ Extend life of a mini split system
■ Improve indoor air quality
■ Reduce maintenance cost
■ LED Strip (UVA/UVC)
■ LED Driver
■ Strip Cabinet
■ Bushing Block
■ Super compact / High intensity
■ Easy fit with simple installation
■ 85-265 VAC wide range power supply
■ Cut-to-length LED strip design
■ Water resistance / Heat dissipation
■ 50,000 hours+ expected LED life
■ Three years system warranty
■ Designed to fit major brands
■ For Wall-Mount, Floor-Ceiling & Cassette
EASY
INST
A
L
LA
TION
UVC
Bacterial Disinfection
for Ductless Mini-Split Systems
Prevents bio-growth & related odors
on fan, coil and other interior surfaces!
■ Adhesive Sticker
■ Hardware
■ User Manual
■ Cleaning Cloth
Parker Davis HVAC International, Inc.
3250 NW 107th Avenue
Doral, FL 33172
https://www.pdhvac.com
Phone: (305) 513-4488
Toll Free: (800) 675-7410
1491.54 mm

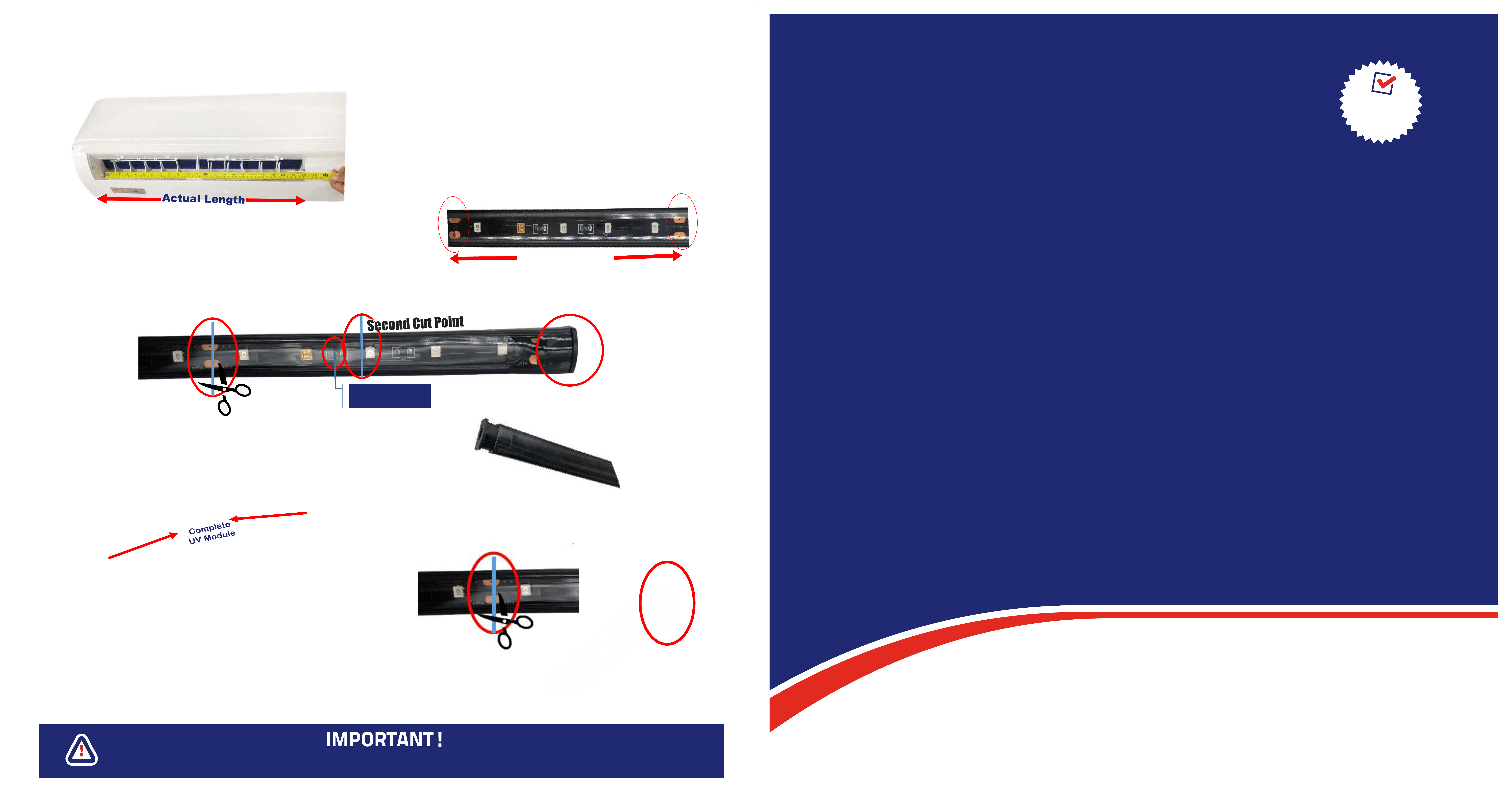

Cut-to-length Instruction
Concepts to know
UV M
odul
e Des
ign
Actual Length = air outlet vent length
which determine the required actual L.
One UV modular cycle is 10cm,
which includes UVC(1)+UVA(4)
End with bushing
First Cut Point(Most Recommended)
Cycle Point
Locate the best cutting point
Closed Elec. Cycle
1. Determine how long you need to cut.
10 cm is a LED Modular Cycle.
2. Cut from the end without the cable!
Take off the bushing and prepare to cut.
3. Cut from the rst cut point
(two copper n) if >=10cm.If < 10cm,
cut at the second point.
4. Seal the end with the bushing,
tightly, make sure not to wrinkle
the inner LED strip circuit.
Factory Pre-Cut Services are available at any length as per requested.
