Medusa Series
1
2
3
4
5
6
1. Turn on the WiFi in the device menu, then turn on the phone WiFi and
the APP in the test software. Find the MAC address name
"APPshow-XX-XXXXX" on the phone's WiFi list and enter the password
"12345678" to connect the device.
2. After the device is connected to the phone via WiFi, real-time captured
images can be observed.
Short press the menu button to enter the reticle zeroing calibration interface,
then short press the video button to switch between different function
options, and short press the up/down keys to adjust the value of the function;
Image Freeze: Short press the menu button to choose whether to freeze the
screen;
Short press the video button to move to the X and Y axis values, and adjust
the reticle position through the up/down keys until it coincides with the
impact point. Short press the video button to move to other options. After
setting, move to the save option and short press the menu button to save
and exit, or long press the menu button to exit without saving;
The set distance is used as the zeroing distance in smart ballistics and saved
in the zeroing storage.
Short press the menu button to enter the submenu page, short press the
menu button to select turn on or off, and short press the menu button to
confirm the selection and return to the main menu.
7
Short press the menu button to enter the subpage, and short press the
menu button to turn the gyroscope on or off.
There are three modes for auto ballistics: Off disables the feature, On
enables automatic ballistic calculation, and Settings allows you to
manually adjust the ballistic parameters.
There are two options for range unit selection: Meter / Yard.

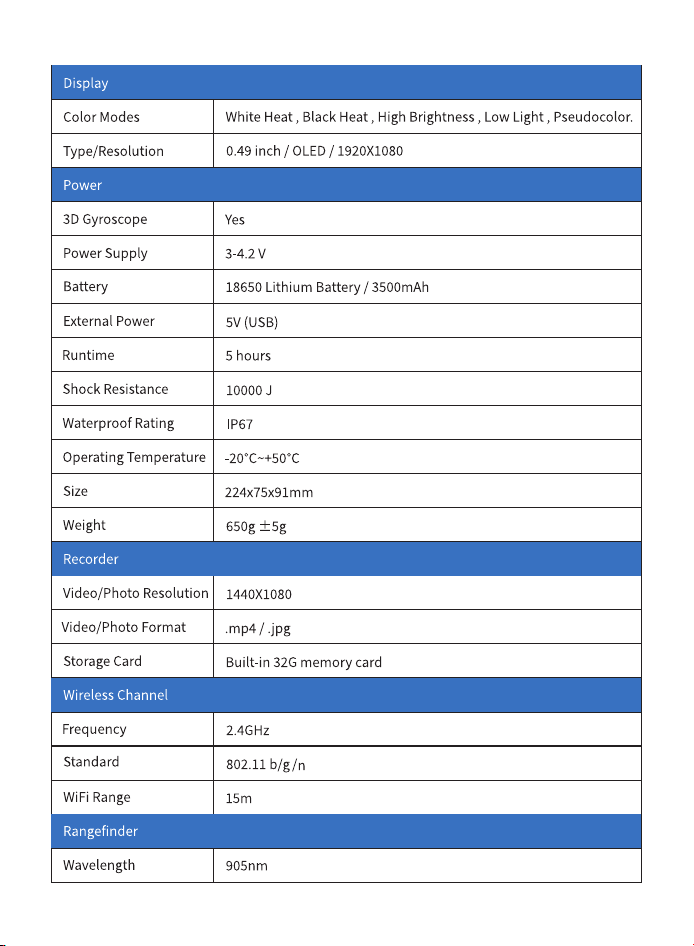

White Heat Mode, Black Heat Mode, High Brightness Mode, Low Light
Mode, Pseudocolor Mode. Choose the appropriate mode based on your
needs, and consider whether to cycle through them.
8
9
XX-XX-XXX
XX-XX-XXX
WLAN
Falcon Outdoor
