ViewSonic PX700HDH 3700-Lumen Full HD DLP Home Theater User Manual

PX700HDH

Projector

User Guide

Model No. VS20135

Model Name: PX700HDH

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product

in a safe manner, as well as registering your product for future service. Warranty information contained in this

User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual soluons, ViewSonic® is dedicated to exceeding the

world’s expectaons for technological evoluon, innovaon, and simplicity. At ViewSonic®,

we believe that our products have the potenal to make a posive impact in the world, and

we are condent that the ViewSonic® product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precautions - General

Please read the following Safety Precautions before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper

ventilation.

• Place the projector in a well-ventilated area. Do not place anything on the

projector that prevents heat dissipation.

• Do not place the projector on an uneven or unstable surface. The projector may

fall over, causing personal injury or projector malfunction.

• Do not use if the projector is tilted at an angle of more than 10° degrees left or

right, nor at an angle of more than 15° degrees forwards or backwards.

• Do not look straight at the projector lens during operation. The intense light

beam may damage your eyes.

• Always open the lens shutter or remove the lens cap when the projector lamp is

on.

• Do not block the projection lens with any objects when the projector is under

operation as this could cause objects to become heated and deformed or even

cause a fire.

• The lamp becomes extremely hot during operation. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for

replacement.

• Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the

rated life could cause them to break on rare occasions.

• Never replace the lamp assembly or any electronic component unless the

projector is unplugged.

• Do not attempt to disassemble the projector. There are dangerous high voltages

inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on

anything.

• Do not place any heavy objects on the projector or connection cables.

• Do not stand the projector on end vertically. Doing so may cause the projector

to fall over, causing personal injury or projector malfunction.

• Avoid exposing the projector to direct sunlight or other sources of sustained

heat. Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including amplifiers) that may increase the

temperature of the projector to dangerous levels.

• Do not place liquids near or on the projector. Liquids spilled into the projector

may cause it to fail. If the projector does become wet, disconnect it from the

power supply and call your local service center to have the projector serviced.

• When the projector is under operation, you may sense some heated air and

odor from its ventilation grill. It is a normal operation and not a defect.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide and third blade are provided for your safety. If the plug does not fit into

your outlet, obtain an adapter and do not attempt to force the plug into the

outlet.

• When connecting to a power outlet, DO NOT remove the grounding prong.

Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched, particularly at the

plug, and at the point where it emerges from the projector.

• In some countries, the voltage is NOT stable. This projector is designed to

operate safely within a voltage between 100 to 240 volts AC, but could fail if

power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate

or cut out, it is recommended that you connect your projector through a power

stabilizer, surge protector, or uninterruptable power supply (UPS).

• If smoke, an abnormal noise, or a strange odor is present, immediately switch

the projector off and call your dealer or ViewSonic®. It is dangerous to continue

using the projector.

• Use only attachments/accessories specified by the manufacturer.

• Disconnect the power cord from the AC outlet if the projector is not being used

for a long period of time.

• Refer all servicing to qualified service personnel.

CAUTION: Possibly hazardous optical radiation is emitted from this product. As

with any bright light source, do not stare into the beam,

RG2 IEC 62471-5:2015.

Safety Precautions - Ceiling Mounting

Please read the following Safety Precautions before you start using the projector.

If you intend to mount the projector on the ceiling, we strongly recommend

that you use a proper fitting projector ceiling mount kit and that you ensure it is

securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the

projector may fall from the ceiling due to an improper attachment through the use

of the wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your

projector. We recommend that you also purchase a separate security cable and

attach it securely to both the anti-theft lock slot on the projector and the base of

the ceiling mount bracket. This will perform the secondary role of restraining the

projector should its attachment to the mounting bracket become loose.

Contents

Safety Precautions - General ....................................... 3

Introduction ................................................................ 9

Package Contents ...................................................................................................9

Product Overview .................................................................................................10

Projector ................................................................................................................ 10

Controls and Functions ............................................................................................... 10

Connection Ports ......................................................................................................... 11

Remote Control ..................................................................................................... 12

Controls and Functions ............................................................................................... 12

Remote Control Effective Range ................................................................................. 13

Replacing the Remote Control Batteries ..................................................................... 13

Initial Setup ............................................................... 14

Choosing a Location ..............................................................................................14

Projection Dimensions .................................................................... ......................15

16:9 Image on a 16:9 Screen ................................................................................. 15

16:9 Image on a 4:3 Screen ................................................................................... 16

Mounting the Projector ........................................................................................17

Preventing Unauthorized Use...............................................................................18

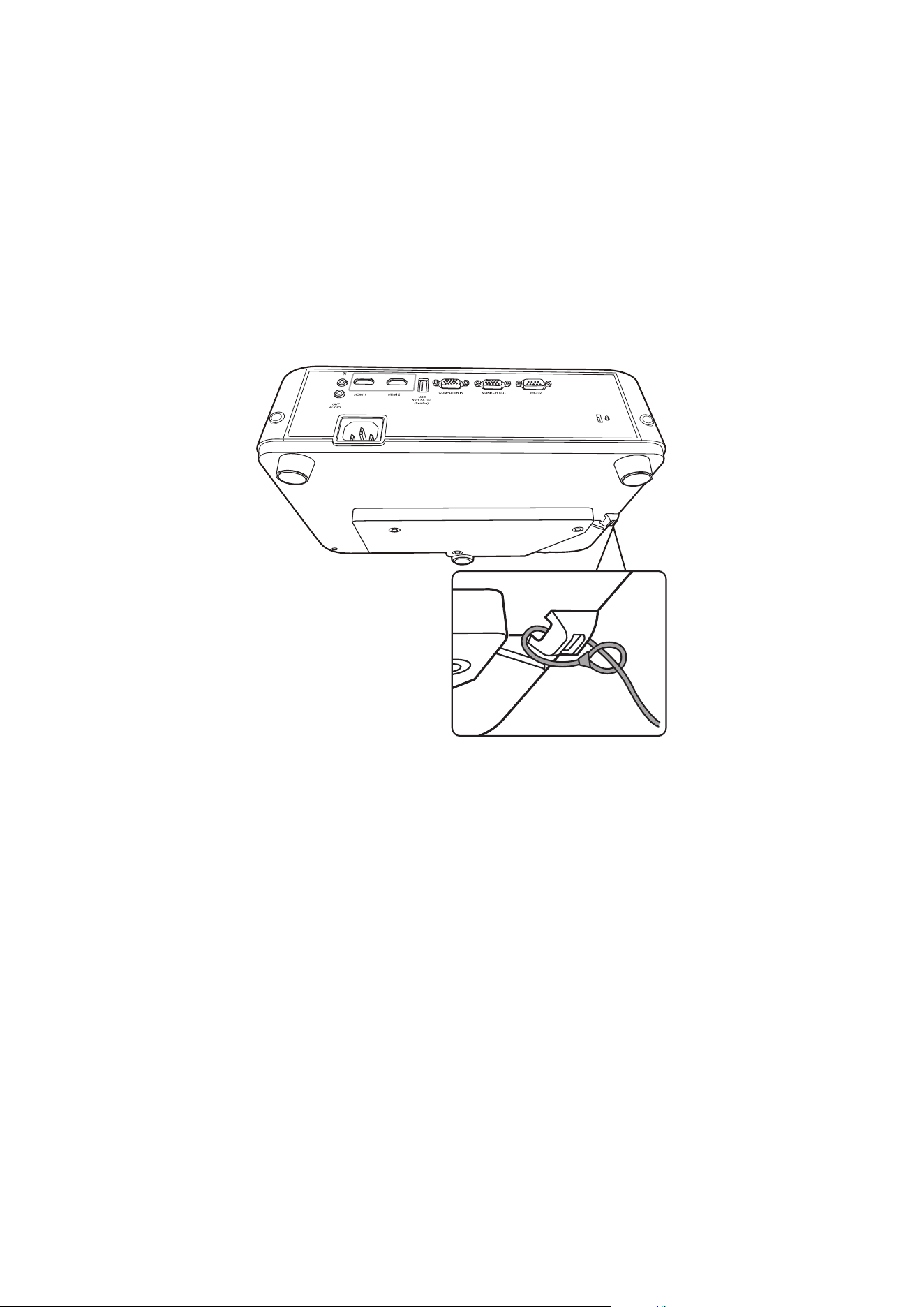

Using the Security Slot .......................................................................................... 18

Using the Password Function ................................................................................ 19

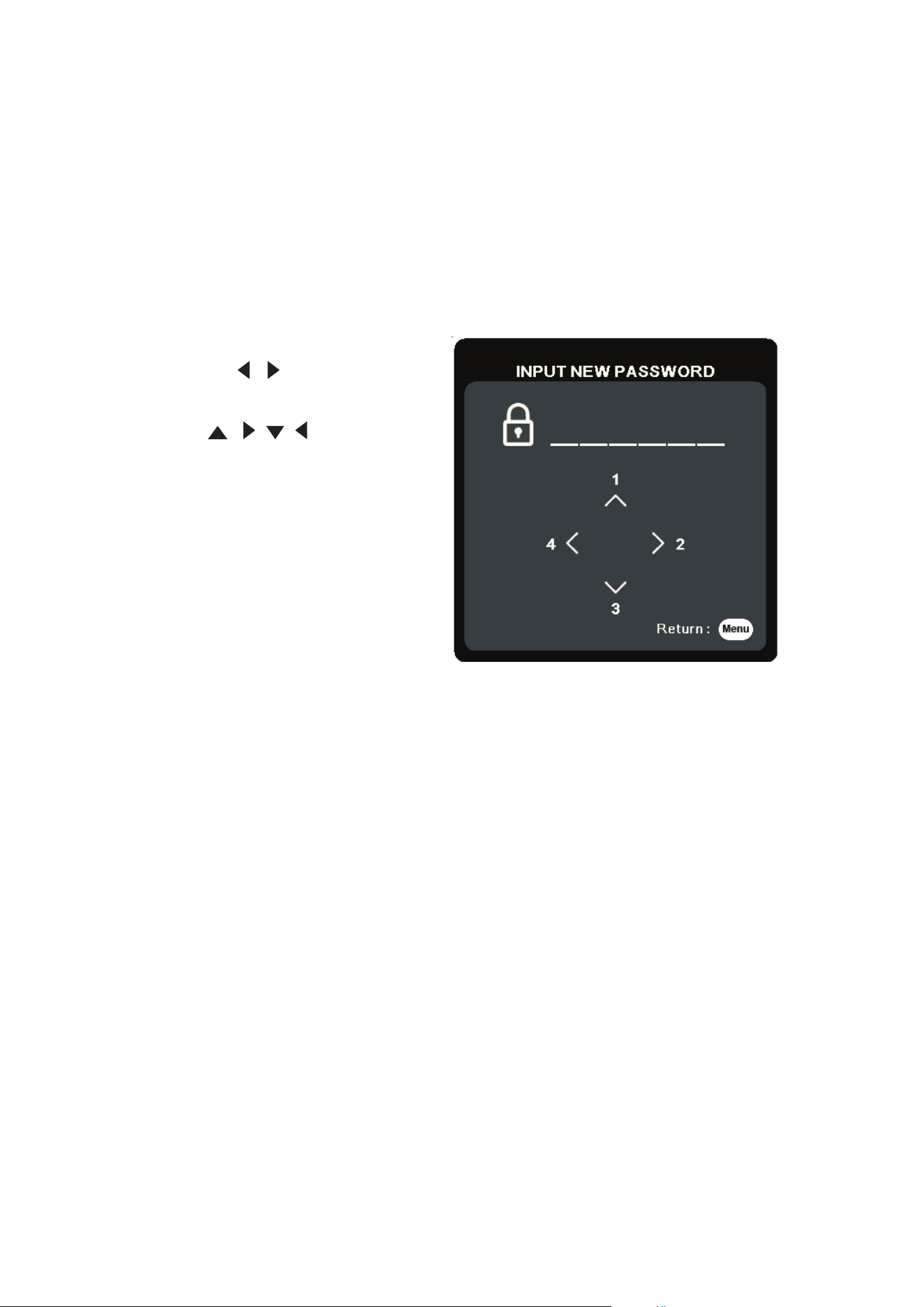

Setting a Password ...................................................................................................... 19

Changing the Password ............................................................................................... 20

Disabling the Password Function ................................................................................ 20

Forgetting the Password ............................................................................................. 21

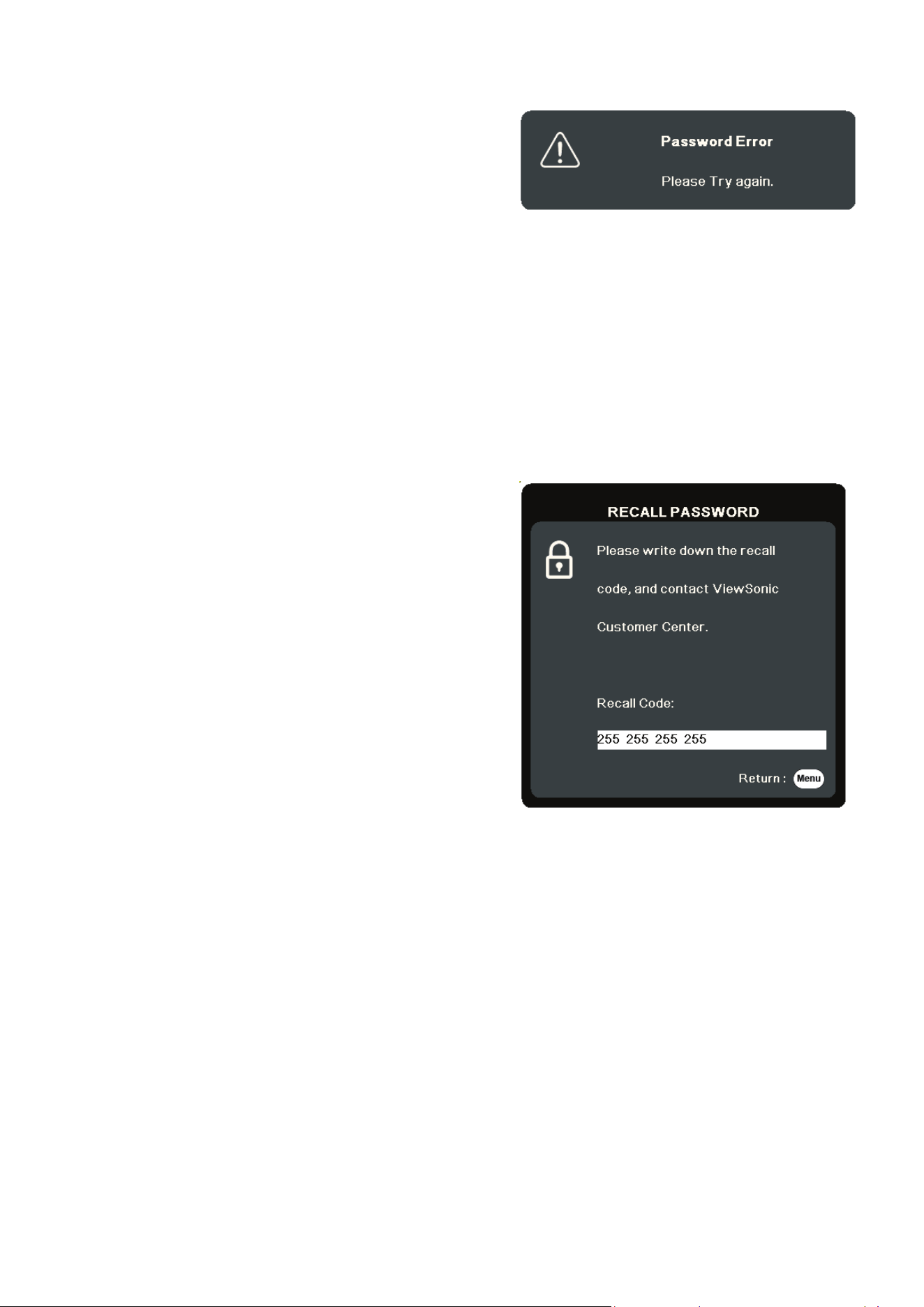

Password Recall Procedure ......................................................................................... 21

Locking the Control Keys ....................................................................................... 22

Making Connections .................................................. 23

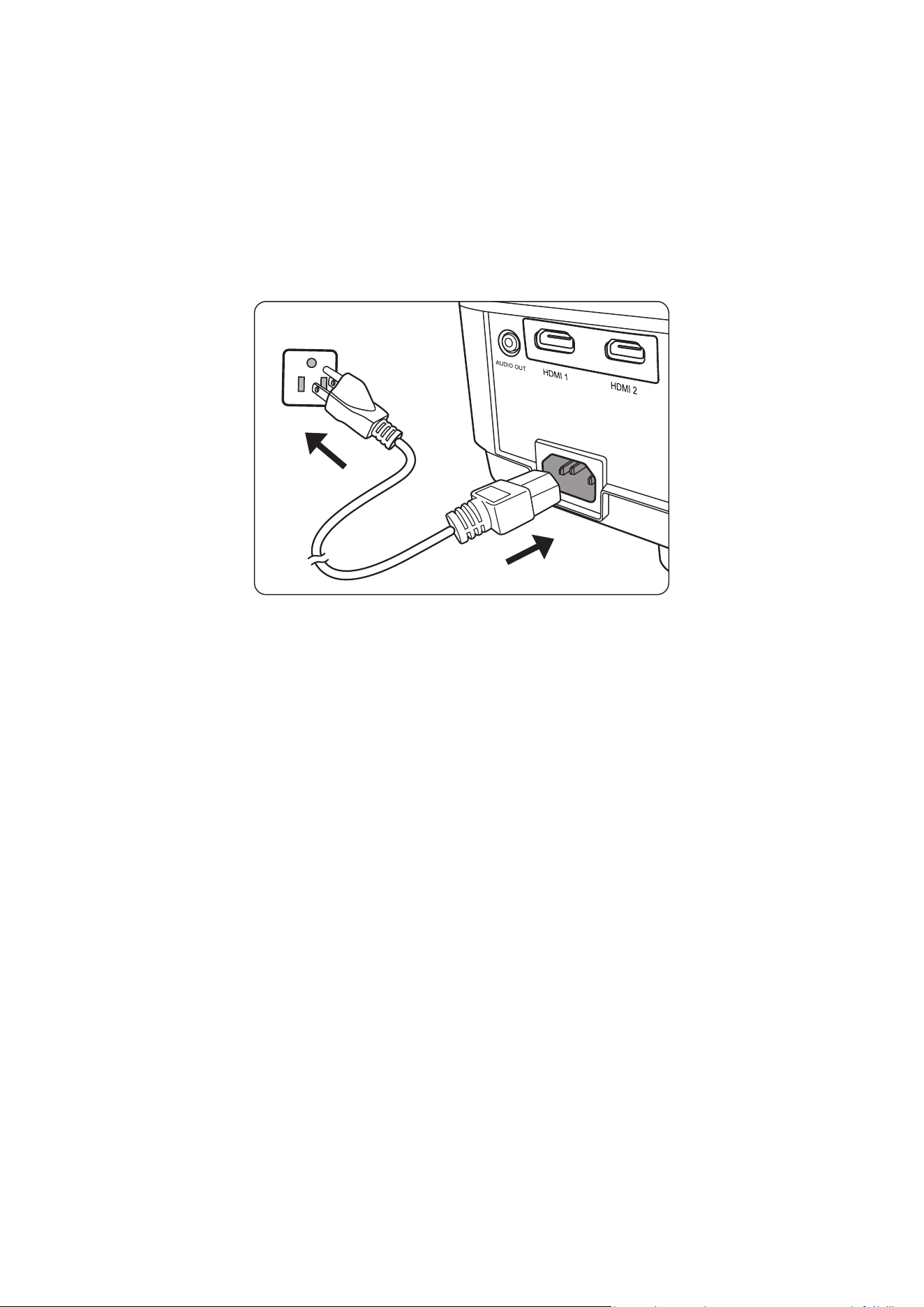

Connecting to Power ............................................................................................23

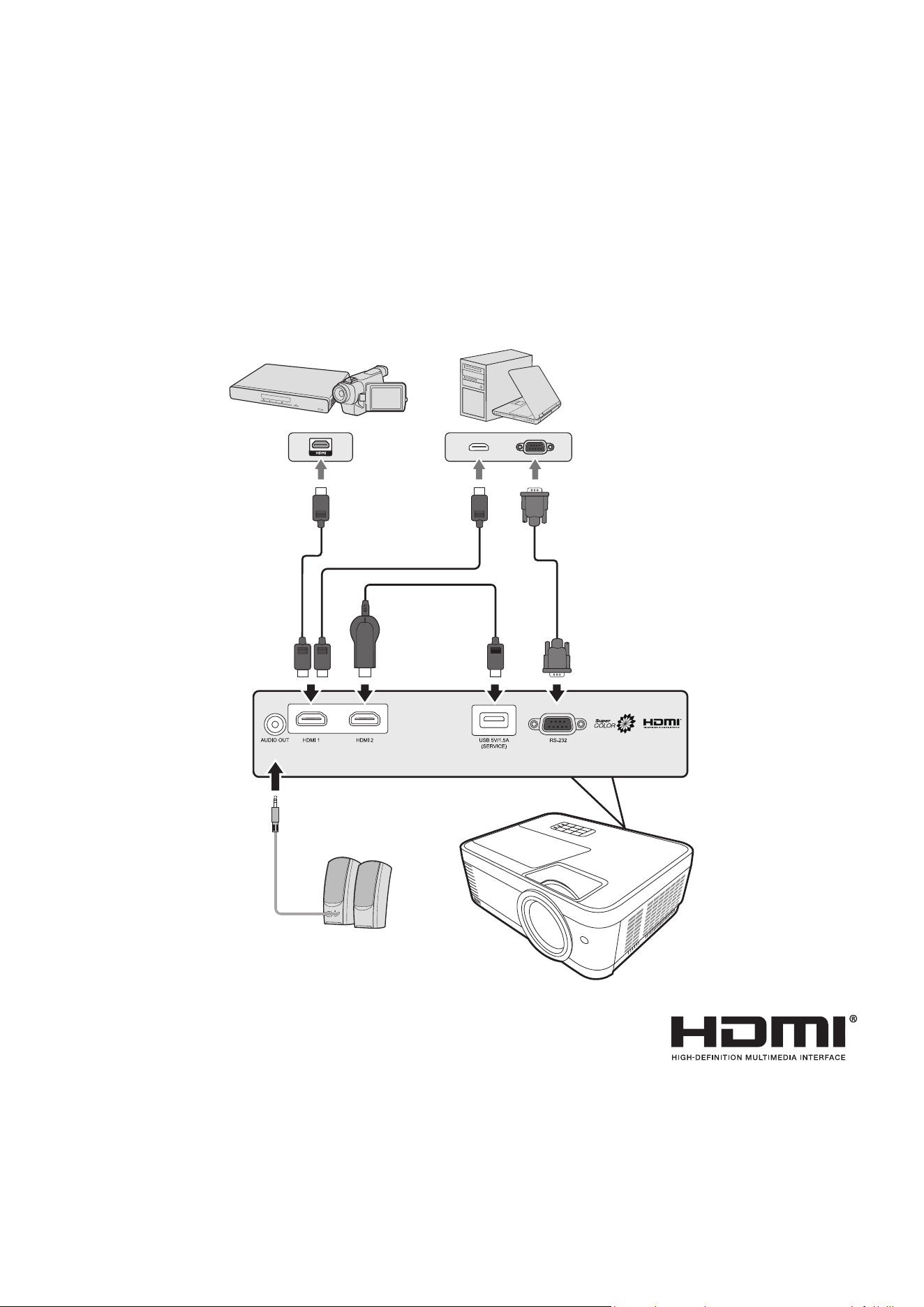

Connecting to Video/Computer Sources ..............................................................24

HDMI Connection .................................................................................................. 24

Connecting to Audio .............................................................................................24

Operation .................................................................. 25

Turning the Projector On/Off ...............................................................................25

Starting Up the Projector ...................................................................................... 25

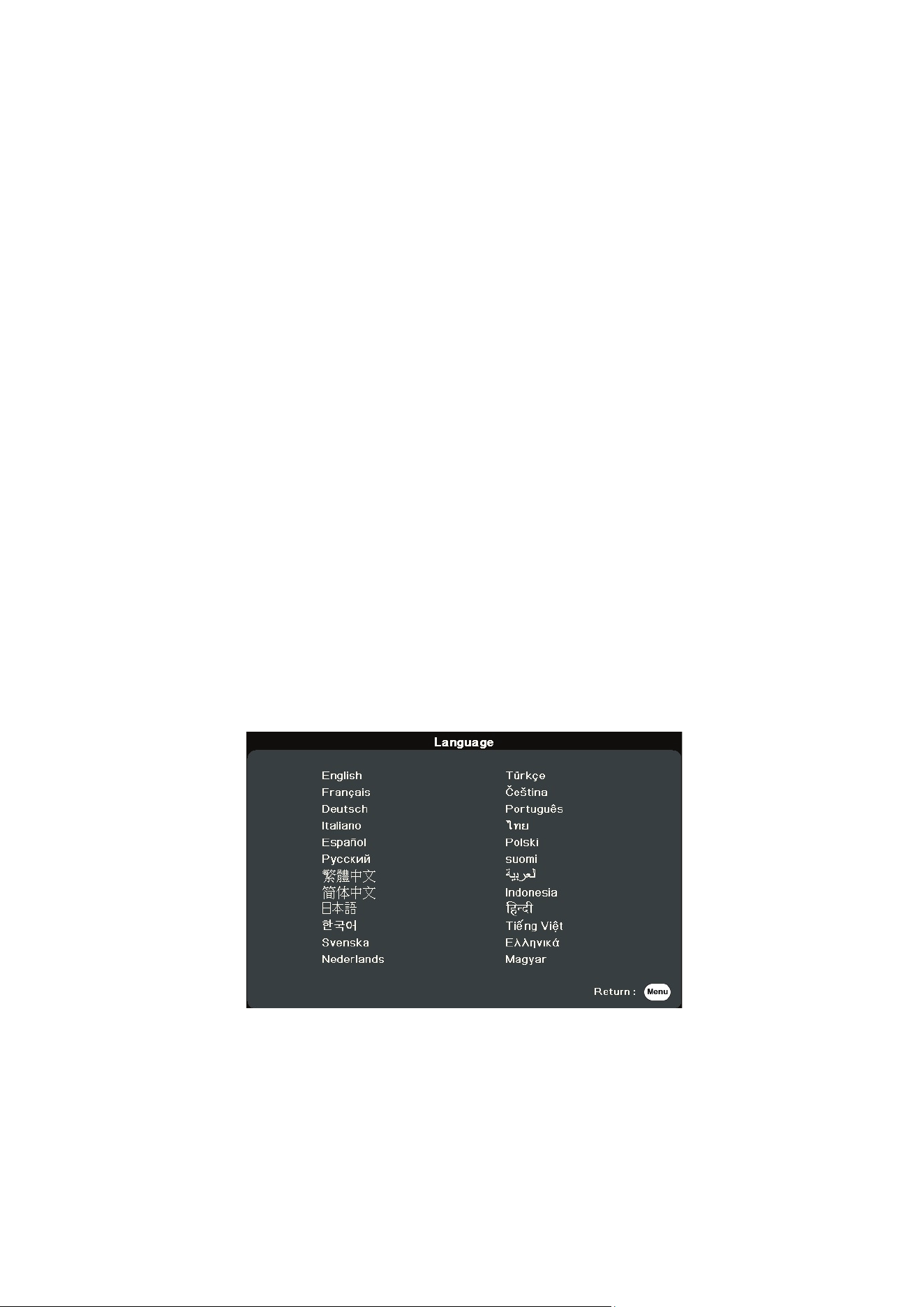

First Time Activation ................................................................................................... 25

Shutting Down the Projector ................................................................................. 26

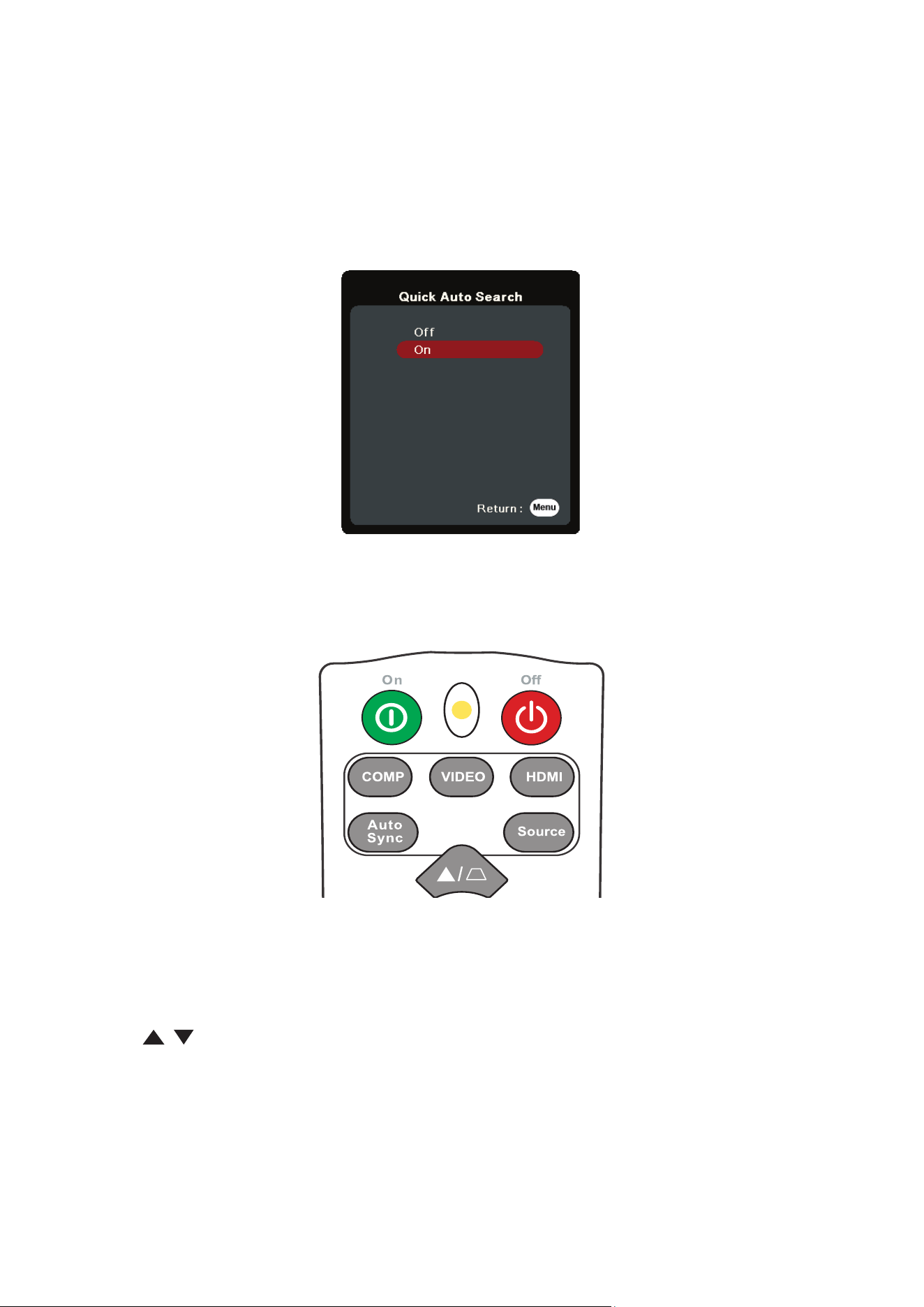

Selecting an Input Source .....................................................................................27

Adjusting the Projected Image .............................................................................28

Adjusting the Projector's Height and Projection Angle ............................................... 28

Fine-Tuning the Image Size and Clarity ................................................................. 28

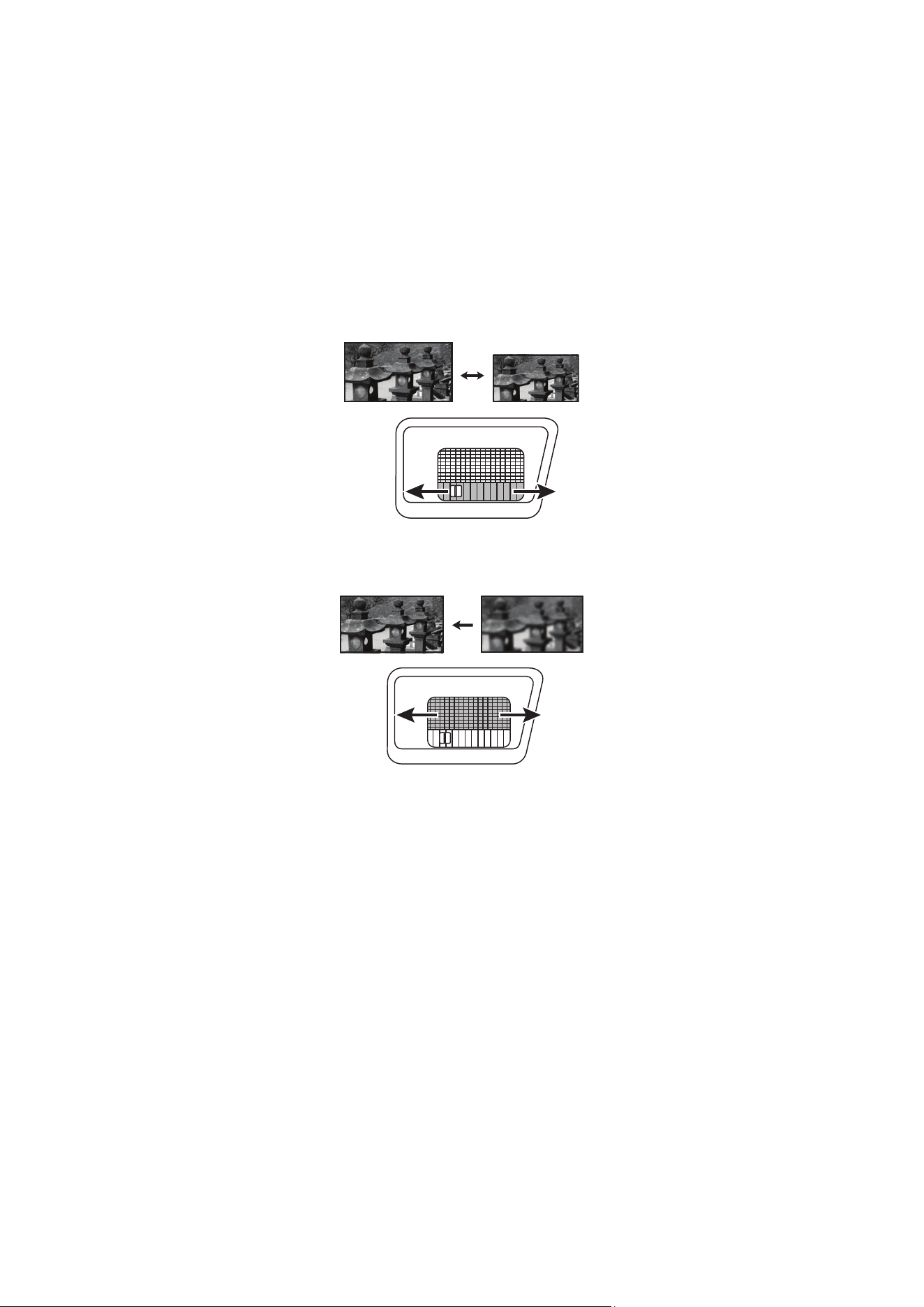

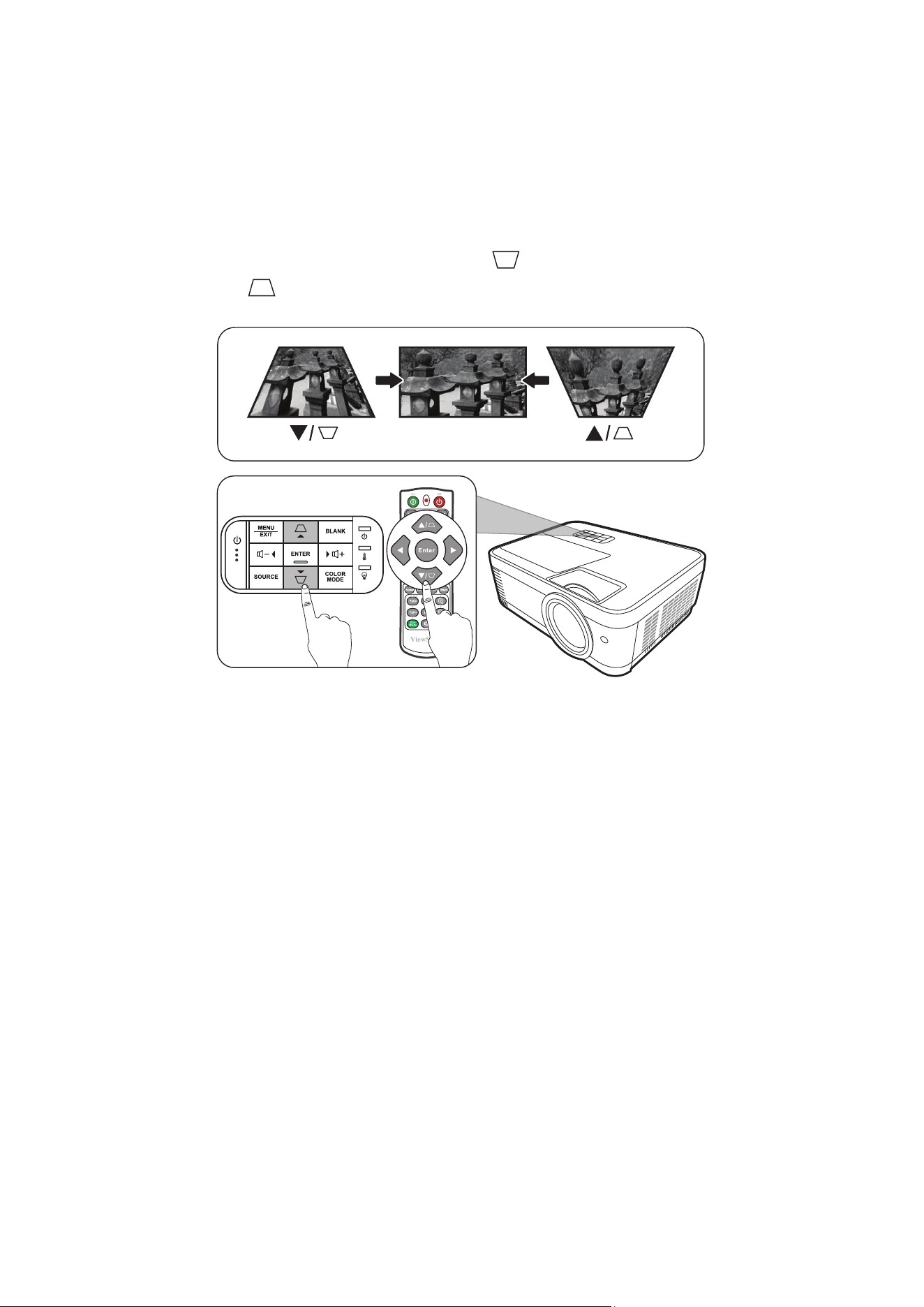

Correcting Keystone .............................................................................................. 29

Hiding the Image ..................................................................................................30

Menu Functions ........................................................ 31

General On-Screen Display (OSD) Menu Operation .........................................31

On-Screen Display (OSD) Menu Tree .................................................................... 32

DISPLAY Menu ......................................................................................................37

IMAGE Menu ........................................................................................................39

POWER MANAGEMENT Menu .............................................................................42

BASIC Menu ..........................................................................................................45

ADVANCED Menu .................................................................................................48

SYSTEM Menu .......................................................................................................51

INFORMATION Menu ...........................................................................................53

Appendix ................................................................... 54

Specifications .................................................................... .................................... 54

Projector Dimensions ............................................................................................ 55

Timing Chart .........................................................................................................55

IR Control Table ....................................................................................................58

Address Code ........................................................................................................ 59

Troubleshooting ...................................................................................................60

Common Problems ................................................................................................ 60

LED Indicators ........................................................................................................ 61

Maintenance.........................................................................................................62

General Precautions .............................................................................................. 62

Cleaning the Lens .................................................................................................. 62

Cleaning the Case .................................................................................................. 62

Storing the Projector ............................................................................................. 62

Disclaimer .............................................................................................................. 62

Regulatory and Service Information .......................... 63

Compliance Information ....................................................................................... 63

FCC Compliance Statement ................................................................................... 63

Industry Canada Statement ................................................................................... 63

CE Conformity for European Countries ................................................................. 64

Declaration of RoHS2 Compliance......................................................................... 65

Indian Restriction of Hazardous Substances ......................................................... 66

Product Disposal at End of Product Life ................................................................ 66

Customer Service .................................................................................................. 68

Limited Warranty .................................................................................................. 69

Mexico Limited Warranty ...................................................................................... 72

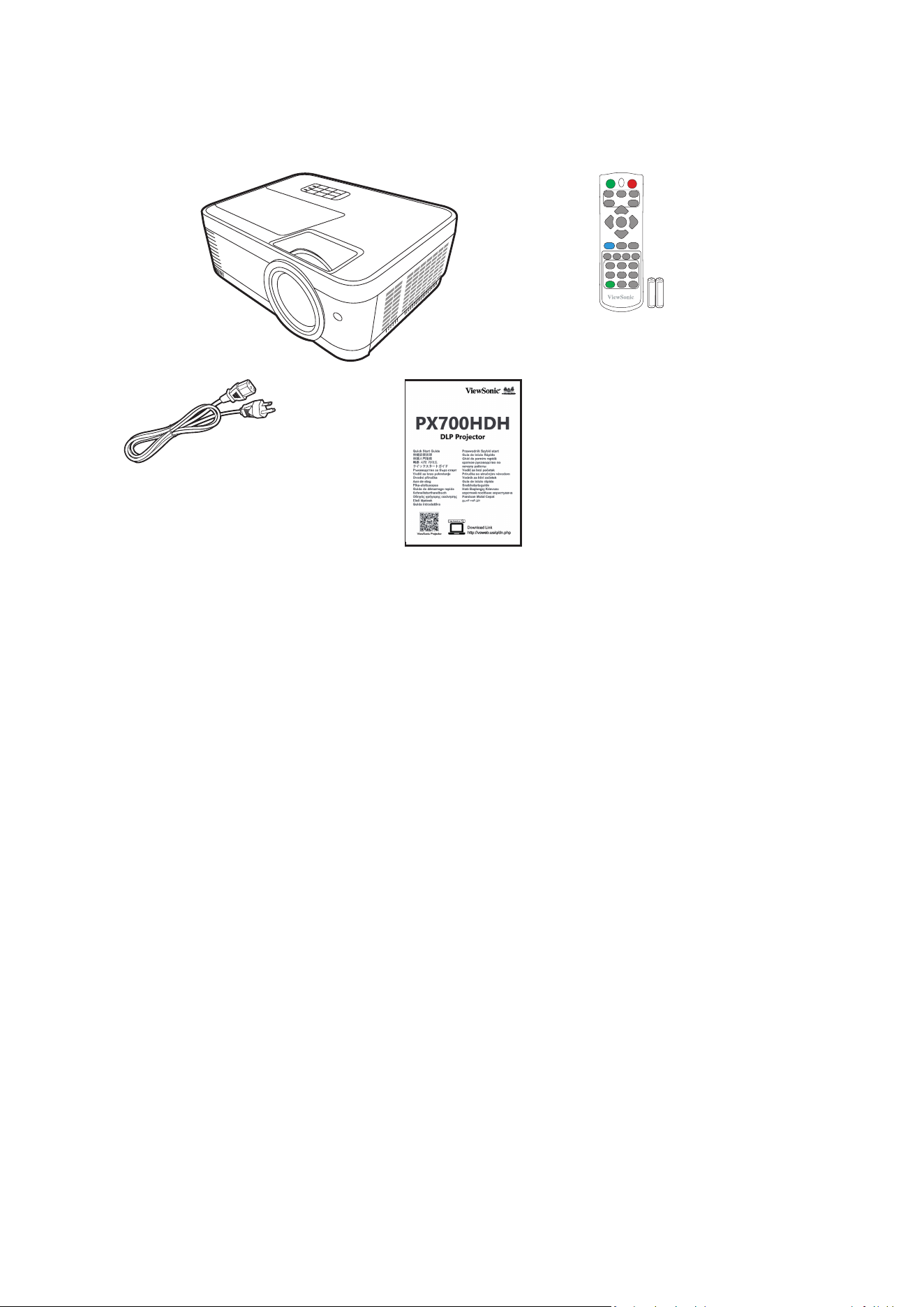

Package Contents

NOTE: The power cord and/or video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Introduction

Product Overview

Projector

Controls and Functions

Power Indicator Light

Temperature Indicator Light

Light Source Indicator Light

Focus Ring

Zoom Ring

Projection Lens

Vent (heated air exhaust)

Remote IR sensor

Key Description

[ ] Power

Toggles the projector between standby mode and Power On.

[

/ ] Keystone Keys

Manually corrects distorted images resulting from an angled

projection.

[

/ ] Volume Keys

Increases or decreases the volume level.

[ / / / ]

Left/Right/Up/Down

Selects the desired menu items and makes adjustments

when the On-Screen Display (OSD) Menu is activated.

Menu/Exit Turns on or off the On-Screen Display (OSD) Menu.

Source Displays the input source selection bar.

Displays the HELP menu with a long press for 3 seconds.

Blank Hides the screen picture.

Enter Enacts the selected On-Screen Display (OSD) Menu item

when the OSD Menu is activated.

Color Mode Displays the color mode selection bar.

Connection Ports

2 31 4 5

AC Power Cord Inlet

Ceiling Mount Holes

Security Slot

Security Bar

Adjuster Foot

Interactive module mounting

Port Description

[1] AUDIO OUT Audio signal output socket.

[2] HDMI 1 HDMI port.

[3] HDMI 2 HDMI port.

[4] USB 5V/1.5A (SERVICE) USB Type A port for power supply.

[5] RS-232 RS-232 control port.

Remote Control

Controls and Functions

Button

Description

On/ Off

Toggles between standby

mode and Power On.

COMP

No function.

VIDEO

No function.

HDMI

Selects the source from the

HDMI port(s) for display.

Press this button again to

switch between the two (2)

ports if available.

Auto Sync

No function.

Source

Displays the source

selection bar.

[ / ]

Keystone Keys

Manually corrects distorted

images resulting from an

angled projection.

Enter

Enacts the selected OSD

Menu item.

Button

Description

Left/ Right

Up/ Down

Selects the desired

menu items and makes

adjustments.

Turns on/off the On-Screen

Display (OSD) Menu or

goes back to previous OSD

Menu.

(INFORMATION)

Displays the INFORMATION

menu. Displays the HELP

menu by a long press for 3

seconds.

Exit

Exits and saves menu

settings.

Aspect

Displays the aspect ratio

selection bar.

Freeze

Freezes the projected

image.

Pattern

Displays embedded test

pattern.

Blank

Hides the screen picture.

PgUp (Page

Up)/

PgDn (Page

Down)

Operates your display

software program

(on a connected PC) which

responds to

page up/down commands

(like Microsoft

PowerPoint).

NOTE: Only available

when a PC input

signal is selected.

Eco Mode

Selects the Eco mode.

(Volume

Up)

Increases the volume level.

(Volume

Down)

Decreases the volume level.

(Mute)

Toggles audio between on

and off.

Magnifies the projected

picture size.

Reduces the projected

picture size.

Color Mode

Displays the color mode

selection bar.

Remote Control Effective Range

To ensure proper function of the remote control

follow the steps below:

1. The remote control must be held at an angle

within 30° perpendicular to the projector’s IR

remote control sensor(s).

2. The distance between the remote control and

the sensor(s) should not exceed 8 m (26 ft.)

NOTE:

Refer to the illustration for the location of

the infrared (IR) remote control sensor(s).

Approx. 30°

Replacing the Remote Control Batteries

1. Remove the baery cover from the rear of the remote control by pressing the

nger grip and sliding it down.

2. Remove any exisng baeries (if necessary) and install two AAA baeries.

NOTE: Observe the battery’s polarities as indicated.

3. Replace the baery cover by aligning it with the base and pushing it back into

posion.

NOTE:

• Avoid leaving the remote control and baeries in excessive heat or a humid

environment.

• Replace only with the same or equivalent type recommended by the baery

manufacturer.

• Dispose of the used baeries according to the manufacturer’s instrucons and

local environment regulaons for your region.

• Never throw the baeries into a re. There may be danger of an explosion.

• If the baeries are drained or if you will not be using the remote control for an

extended period of me, remove the baeries to avoid damage to the remote

control.

Initial Setup

This section provides detailed instructions for setting up your projector.

Choosing a Location

Personal preference and room layout will decide the installation location. Consider

the following:

• Size and Posion of your screen.

• Locaon of a suitable power outlet.

• Locaon and Distance between the projector and other equipment.

The projector is designed to be installed in one of the following locations:

1. Front Table

The projector is placed near the floor in

front of the screen.

2. Front Ceiling

The projector is suspeneded upside-

down from the ceiling in front of the

screen.

3. Rear Ceiling

The projector is suspended upside-down

from the ceiling behind the screen.

NOTE:

A special rear projection screen

is required.

4. Rear Table

The projector is placed near the floor

behind the screen.

NOTE:

A special rear projection screen

is required.

Projection Dimensions

NOTE: See “Specicaons” on page 54 for the nave display resoluon of this

projector.

• 16:9 Image on a 16:9 Screen

(a)

(d)

(c)

(b)

(e)

(f)

(a)

(c)

(b)

(e)

(f)

(d)

• 16:9 Image on a 4:3 Screen

(a)

(c)

(b)

(e)

(f)

(d)

(a)

(c)

(b)

(e)

(f)

(d)

NOTE: (e) = Screen

(f) = Center of Lens

16:9 Image on a 16:9 Screen

(a) Screen Size (b) Projection Distance (c) Image

Height

(d) Vertical

Offset

minimum maximum

in. mm in. mm in. mm in. mm in. mm

60 1524 77 1958 85 2154 29 747 2.4 59.8

70 1778 90 2284 99 2513 34 872 2.7 69.7

80 2032 103 2611 113 2872 39 996 3.1 79.7

90 2286 116 2937 127 3231 44 1121 3.5 89.7

100 2540 128 3263 141 3589 49 1245 3.9 99.6

110 2794 141 3589 155 3948 54 1370 4.3 109.6

120 3048 154 3916 170 4307 59 1494 4.7 119.5

130 3302 167 4242 184 4666 64 1619 5.1 129.5

140 3556 180 4568 198 5025 69 1743 5.5 139.5

150 3810 193 4895 212 5384 74 1868 5.9 149.4

160 4064 206 5221 226 5743 78 1992 6.3 159.4

170 4318 218 5547 240 6102 83 2117 6.7 169.4

180 4572 231 5874 254 6461 88 2241 7.1 179.3

190 4826 244 6200 269 6820 93 2366 7.5 189.3

200 5080 257 6526 283 7179 98 2491 7.8 199.2

16:9 Image on a 4:3 Screen

(a) Screen Size (b) Projection Distance (c) Image

Height

(d) Vertical

Offset

minimum maximum

in. mm in. mm in. mm in. mm in. mm

60 1524 71 1797 78 1977 27 686 2.2 55

70 1778 83 2097 91 2306 32 800 2.5 64

80 2032 94 2396 104 2636 36 914 2.9 73

90 2286 106 2696 117 2965 41 1029 3.2 82

100 2540 118 2995 130 3295 45 1143 3.6 91

110 2794 130 3295 143 3624 50 1257 4.0 101

120 3048 142 3594 156 3954 54 1372 4.3 110

130 3302 153 3894 169 4283 59 1486 4.7 119

140 3556 165 4193 182 4613 63 1600 5.0 128

150 3810 177 4493 195 4942 68 1715 5.4 137

160 4064 189 4792 208 5272 72 1829 5.8 146

170 4318 200 5092 221 5601 77 1943 6.1 155

180 4572 212 5391 233 5930 81 2057 6.5 165

190 4826 224 5691 246 6260 86 2172 6.8 174

200 5080 236 5990 259 6589 90 2286 7.2 183

NOTE:

It is recommended that if you intend to permanently install the projector,

please physically test the projecon size and distance using the actual

projector in situ before you permanently install it.

Mounting the Projector

NOTE: If you buy a third-party mount, please use the correct screw size. Screw size

can vary depending on the thickness of the mounng plate.

1. To ensure the most secure installaon, please use a ViewSonic® wall or ceiling

mount.

2. Ensure the screws used to attach a mount to the projector meet the following

specifications:

• Screw type: M4 x 8

• Maximum Screw length: 8 mm

199

NOTE:

• Avoid installing the projector near a heat source.

• Keep at least a 10 cm gap between the ceiling and the boom of the

projector.

Preventing Unauthorized Use

The projector has several built-in security features to prevent theft, access, or

accidental setting changes.

Using the Security Slot

To help prevent the projector from being stolen, use a security slot locking device

to secure the projector to a fixed object.

Below is an example of setting up a security slot locking device:

NOTE: The security slot can also be used as a safety anchor if the projector is

mounted to the ceiling.

1919

Using the Password Function

To help prevent unauthorized access or use, the projector offers a password

security option. The password can be set through the On-Screen Display (OSD)

Menu.

NOTE:

Make note of your password, and keep it in a safe place.

Setting a Password

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings and

press Enter.

2. Highlight Power On Lock and select

On by pressing

/ .

3. As pictured to the right, the four

arrow keys (

, , , ) represent

4 digits (1, 2, 3, 4). Press the arrow

keys to enter a six digit password.

4. Confirm the new password by re-entering the new password. Once the password

is set, the OSD Menu will return to the Security Settings page.

5. Press Exit to leave the OSD Menu.

NOTE:

Once set, the correct password must be entered every me the projector is

started.

Changing the Password

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Sengs >

Change Password.

2. Press Enter, the message, ‘INPUT CURRENT PASSWORD’ will appear.

3. Enter the old password.

 If the password is correct, the message, ‘INPUT NEW PASSWORD’ will

appear.

 If the password is incorrect, a password error message will appear for 5

seconds followed by the message, ‘INPUT CURRENT PASSWORD’. You can try

again or press Exit to cancel.

4. Enter a new password.

5. Confirm the new password by re-entering the new password.

6. To leave the OSD Menu, press Exit.

NOTE:

The digits being input will display as asterisks (*).

Disabling the Password Function

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Sengs >

Power On Lock.

2. Press

/ to select Off.

3. The message, “Input Password” will appear. Enter the current password.

 If the password is correct, the OSD Menu returns to the Password page with

“O” shown in the row of Power On Lock.

 If the password is incorrect, a password error message will appear for 5

seconds followed by the message, ‘INPUT CURRENT PASSWORD’. You can try

again or press Exit to cancel.

NOTE:

Please keep the old password, as you will need it to reacvate the password

funcon.

Forgetting the Password

If the password function is activated, you will

be asked to enter the six-digit password every

time you turn on the projector. If you enter the

wrong password, the password error message,

as pictured to the right, will appear for 5

seconds, and the message ‘INPUT PASSWORD’

follows.

You can retry or if you do not remember, you can use the “Password Recall

Procedure”.

NOTE:

If you enter an incorrect password 5 mes in succession, the projector will

automacally shut down for a short me.

Password Recall Procedure

1. When the message ‘INPUT CURRENT

PASSWORD’ appears, press and hold

Auto Sync for 3 seconds. The projector will

display a coded number on the screen.

2. Write down the number and turn off your

projector.

3. Seek help from the local service center to

decode the number. You may be required to

provide proof of purchase documentation to

verify that you are an authorized user of the

projector.

Locking the Control Keys

With the control keys on the projector locked, you can prevent your settings from

being changed accidentally (by children, for example).

NOTE:

When the Panel Key Lock is On, no control keys on the projector will operate

except Power.

1. Press Menu to open the OSD Menu and go to: SYSTEM > Panel Key Lock.

2. Press

/ to select On.

3. Select Yes and press Enter to confirm.

4. To release panel key lock, press and hold

on the projector for 3 seconds.

NOTE:

You can also use the remote control to enter the SYSTEM > Panel Key Lock

menu and select Off.

Making Connections

This section guides you on how to connect the projector with other equipment.

Connecting to Power

1. Connect the power cord to the AC IN jack at the rear of the projector.

2. Plug the power cord into a power outlet.

NOTE: When installing the projector, incorporate a readily accessible disconnect

device in the xed wiring, or connect the power plug to an easily accessible

outlet near the unit. If a fault should occur during operaon of the projector,

use the disconnect device to switch o the power supply, or disconnect the

power plug.

Connecting to Video/Computer Sources

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then

connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector.

Connecting to Audio

The projector is equipped with speakers, however, you can also connect external

speakers to the AUDIO OUT port of the projector.

NOTE:

The audio output is controlled by the projector’s Volume and Mute sengs.

Operation

Turning the Projector On/Off

Starting Up the Projector

1. Press the Power buon to turn on the projector.

2. The lamp will light up, and a “Power On/O Ring Tone” will play.

3. The Power Indicator Light stays green when the projector is On.

NOTE:

• If the projector is sll hot from previous use, it will run the cooling fan for 90

seconds before acvang the lamp.

• To maintain lamp life, once you turn the projector On, wait at least ve (5)

minutes before turning it o.

4. Turn on all of the connected equipment, i.e. notebook, and the projector will

start to search for an input source.

NOTE:

If the projector detects an input source, the Source Selecon Bar will appear. If

an input source is not detected, the message, ‘No Signal’ will appear.

First Time Activation

If the projector is activated for the first time, select your OSD language following

the on-screen instructions.

Shutting Down the Projector

1. Press the Power or O buon and a conrmaon message will appear to prompt

you to press the Power or O buon a second me. Addionally you can press

any other buon to cancel.

NOTE:

If you do not respond in a few seconds aer the rst press, the message will

disappear.

2. Once the cooling process nishes, a “Power On/O Ring Tone” will play.

3. Disconnect the power cord from the power outlet if the projector will not be

used for an extended period of me.

NOTE:

• To protect the lamp, the projector will not respond to commands during the

cooling process.

• Do not unplug the power cord before the projector completely shuts down.

Selecting an Input Source

The projector can be connected to multiple devices at the same time. However, it

can only display one full screen at a time.

If you want the projector to automatically search for the input source, ensure the

Quick Auto Search function in the SYSTEM menu is On.

The Input Source can also be manually selected by pressing one of the source

selection buttons on the remote control, or by cycling through the available input

sources.

To manually select the input source do the following:

1. Press Source, and a source selecon menu will appear.

2. Press

/ unl your desired signal is selected and press Enter.

3. Once detected, the selected source informaon will be displayed on the screen

for a few seconds.

NOTE:

If there are mulple devices connected to the projector, repeat steps 1-2 to

search for another source.

Adjusting the Projected Image

Adjusting the Projector's Height and Projection Angle

The projector is equipped with one (1) adjuster foot. Adjusting the foot will change

the projector’s height and the vertical projection angle. Carefully adjust the feet to

fine tune the projected image’s position.

Fine-Tuning the Image Size and Clarity

To adjust the projected image to the size that you need, rotate the Zoom Ring.

To improve the clarity of the image, rotate the Focus Ring.

Correcting Keystone

Keystoning refers to the situation where the projected image becomes a trapezoid

due to angled projection.

To correct this, besides adjusting the height of the projector, you may also:

1. Use the keystone keys on the projector or remote control to display the keystone

page.

2. Aer the keystone page is displayed, press

to correct keystoning at the top of

the image. Press to correct keystoning at the boom of the image.

Hiding the Image

In order to draw the audience’s full attention to the presenter, you can press Blank

on the projector or remote control to hide the screen image. Press any key on the

projector or remote control to restore the image.

CAUTION:

Do not block the projecon lens as this could cause the blocking object to

become heated and deformed or even cause a re.

Menu Functions

This section will introduce the On-Screen Display (OSD) Menu and its options.

General On-Screen Display (OSD) Menu Operation

The projector is equipped with an On-Screen Display (OSD) Menu for making

various adjustments. It can be accessed by pressing Menu on the projector or

remote control.

1. Press / to select a main menu. Then press Enter or use / to access the

sub-menu list.

2. Press

/ to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

On-Screen Display (OSD) Menu Tree

Main Menu Sub-menu Menu Opon

DISPLAY

Aspect Ratio Auto

4:3

16:9

16:10

Native

Keystone -40~40

Zoom 0.8X ~2.0X

OverScan Off/1/2/3/4/5

3X Fast Input Inactive

Active


Color Mode Brightest

Sports

Standard

Gaming

Movie

User 1

User 2

Brightness 0~100

Contrast -50~50

Color Temp. 8000K/6500K/5500K

Red Gain 0~100

Green Gain 0~100

Blue Gain 0~100

Red Offset -50~+50

Green Offset -50~+50

Blue Offset -50~+50

Main Menu Sub-menu Menu Opon


Advanced Color -50~50

Sharpness 0~31

Gamma 1.8/2.0/2.2/2.35/

2.5/Cubic/sRGB

Brilliantcolor Off/1/2/3/4/

5/6/7/8/9/10

Color Management Primary Color

Hue

Saturation

Gain

Reset Color Settings Reset

Cancel

POWER

MANAGEMENT

Auto Power On Signal Disable/HDMI

CEC Disable/Enable

Direct Power On Disable/Enable

Smart Energy Auto Power Off Disable/10 min/20

min/30 min

Sleep Timer Disable/30 min/1

hr/2hr/3 hr/4 hr/ 8

hr/12 hr

Power Saving Disable/Enable

Quick Power Off Disable

Enable

USB A Power On

Off

Main Menu Sub-menu Menu Opon

BASIC

Audio Settings Mute Off/On

Audio Volume 0~20

Power On/Off Ring Tone Off/On

Presentation Timer Timer Period 1~240 m

Timer Display Always/1 min/2 min/3

min/Never

Timer Position Top-Left/Bottom-Left/

Top-Right/Bottom-Right

Timer Counting Direction Count Down/Count Up

Sound Reminder Off/On

Start Counting/Off

Pattern Off

Test Card

Blank Timer Disable/5 min/10 min/15 min/20 min/25

min/30 min

Message Off

Splash Screen Black

Blue

ViewSonic

ADVANCED

3D Settings 3D Sync Auto

Off

Frame Sequential

Frame Packing

Top-Bottom

Side-by-Side

3D Sync Invert Disable/Invert

Save 3D Settings Yes/No

HDMI Settings HDMI Format Auto/RGB/YUV

HDMI Range Auto/Enhanced/Normal

Main Menu Sub-menu Menu Opon

ADVANCED

Light Source Settings Light Source Mode Normal/Eco/

Dynamic Eco/

SuperEco+

Reset Light Source Hours Reset/Cancel

Light Source Information Lamp Usage Time

Normal

Eco

Dynamic Eco

SuperEco+

Equivalent Lamp Hour

Reset Settings Reset

Cancel

SYSTEM

Language Multi-Language OSD Selection

Projector Position Front Table

Rear Table

Rear Ceiling

Front Ceiling

Menu Settings Menu Display Time 5 sec/10 sec/15 sec/20

sec/25 sec/30 sec

Menu Position Center/Top-Left/

Top-Right/

Bottom-Left/

Bottom-Right

High Altitude Mode Off

Quick Auto Search Off

Security Settings Change Password

Power On Lock Off/On

Main Menu Sub-menu Menu Opon

SYSTEM

Panel Key Lock Off

Remote Control Code 1/2/3/4/5/6/7/8

Control Method RS-232

USB

Baud Rate 2400/4800/9600/14400/19200/38400/57600/

115200

INFORMATION

Source

Color Mode

Resolution

Color System

Firmware Version

3X Fast Input

S/N

DISPLAY Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the DISPLAY menu. Then press Enter or use / to access

the DISPLAY menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

Aspect Ratio

Auto

Scales an image proportionally to fit the projector’s native

resolution in its horizontal width. This is suitable for the

incoming image which is neither in 4:3 nor 16:9 and you want

to make most use of the screen without altering the image’s

aspect ratio.

4:3

Scales an image so that it is displayed in the center of the

screen with a 4:3 aspect ratio. This is most suitable for 4:3

images like computer monitors, standard definition TV, and

4:3 aspect DVD movies, as it displays them without aspect

alteration.

16:9

Scales an image so that it is displayed in the center of the

screen with a 16:9 aspect ratio. This is most suitable for images

which are already in a 16:9 aspect, like high definition TV, as it

displays them without aspect alteration.

16:10

Scales an image so that it is displayed in the center of the

screen with a 16:10 aspect ratio. This is most suitable for

images which are already in a 16:10 aspect, as it displays them

without aspect alteration.

Native

Projects an image as its original resolution and resizes it

to fit within the display area. For input signals with lower

resolutions, the projected image will be displayed in its original

size.

Keystone

Adjusts the keystoning situation where the projected image

becomes a trapezoid due to angled projection.

Zoom

Magnifies the projected image and allows you to navigate the

image.

OverScan

Adjusts the overscan rate from 0% to 5%.

NOTE: This funcon is only available when a Composite Video or

HDMI input signal is selected.

3X Fast Input

This function is favorable to frame rate reducing. Quick

response time in native timing can be achieved. When enabled,

the following settings will return to factory preset values:

Aspect Ratio, Zoom, OverScan.

NOTE: This funcon is only available when a nave ming input

signal is selected.

IMAGE Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the IMAGE menu. Then press Enter or use / to access

the IMAGE menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

Color Mode

Brightest

Maximizes the brightness of the projected image. This mode

is suitable for environments where extra-high brightness is

required, such as using the projector in well lit rooms.

Sports

Designed for viewing sports in well-lit environments.

Standard

Designed for normal circumstances in a daylight environment.

Gaming

Suitable for playing video games in a bright living room.

Movie

For playing colorful movies, video clips from digital cameras or

DVs through the PC input for best viewing in a blackened (little

light) environment.

User 1/User 2

Recalls the customized settings. After User 1/User 2 is selected,

some of the sub-menus under the IMAGE menu can be

adjusted, according to your selected input source.

Brightness

The higher the value, the brighter the image.

Adjust this option so the

black areas of the image

appear just as black and

details in the dark area are

more visible.

Contrast

Use this to set the peak white level after you have

previously adjusted the

Brightness setting.

Menu Option Description

Color Temp.

8000K

Images appear bluish white.

6500K

Images maintain a normal white appearance.

5500K

Images appear reddish white.

To set a custom color temperature, you can further adjust the

following items:

Red Gain/Green Gain/Blue Gain

Adjusts the Contrast levels of Red, Green, and Blue.

Red Offset/Green Offset/Blue Offset

Adjusts the Brightness levels of Red, Green, and Blue.

Advanced

Color

A lower setting produces less saturated colors. If the setting

is too high, colors will be overpowering and may appear

unrealistic.

Sharpness

A higher value will sharpen the image, while a lower value will

soften the image.

Gamma

Gamma refers to the brightness level of the projector’s

grayscale levels.

Brilliantcolor

This feature utilizes a new color-processing algorithm and

system level enhancements to enable higher brightness while

providing truer, more vibrant colors in the projected picture.

It enables a greater than 50% brightness increase in mid-tone

images, which are common in video and natural scenes, so the

projector reproduces images in realistic and true colors. If you

prefer images with that quality, select a level that suits your

need.

Advanced

Color Management

Only in permanent installations with controlled lighting levels

such as boardrooms, lecture theaters, or home theaters,

should color management be considered. Color management

provides fine color control adjustment to allow for more

accurate color reproduction. Select Primary Color first and

adjust its range/values in Hue, Saturation and Gain.

Reset Color Settings

Returns current image settings to the factory preset values.

POWER MANAGEMENT Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the POWER MANAGEMENT menu. Then press Enter or use

/ to access the POWER MANAGEMENT menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

Auto Power On

Signal

Selecting HDMI allows the projector to turn on automatically

once the HDMI signal is fed through the HDMI cable.

CEC

This projector supports CEC (Consumer Electronics Control)

function for synchronized power on/off operation via HDMI

connection. That is, if a device that also supports CEC function

is connected to the HDMI input of the projector, when the

projector’s power is turned off, the power of the connected

device will also be turned off automatically. When the power

of the connected device is turned on, the projector’s power

will be turned on automatically.

NOTE:

• In order for the CEC funcon to work properly, make sure

that the device is correctly connected to the HDMI input

of the projector via an HDMI cable, and its CEC funcon is

turned on.

• Depending on the connected device, the CEC funcon may

not work.

Direct Power On

Allows the projector to turn on automatically once power is fed

through the power cord.

Smart Energy

Auto Power Off

Allows the projector to turn off automatically after a set

period of time once no input source is detected to prevent

unnecessary waste of lamp life.

NOTE: Disabling Auto Power O will increase energy

consumpon.

Sleep Timer

Allows the projector to turn off automatically after a set period

of time to prevent unnecessary waste of lamp life.

Power Saving

Lowers power consumption if no input source is detected.

When Enable is selected, the projector lamp mode will change

to SuperEco+ mode after no signal is detected for five (5)

minutes. This will also help prevent any unnecessary waste of

lamp life.

Menu Option Description

Quick Power Off

Enable

The projector will not enter the cooling process after being

shut down.

Disable

The projector will enter the normal cooling process after being

shut down.

NOTE: If you aempt to restart the projector right aer it’s been

turned o, it may not be turned on successfully and will

rerun its cooling procedure.

USB A Power

When On, the USB Type A port can supply power, and the

Control Method will automatically switch to RS-232.

BASIC Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the BASIC menu. Then press Enter or use / to access the

BASIC menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

Audio Settings

Mute

Select On to temporarily turn off the projector’s internal

speaker or the volume being output from the audio output

jack.

Audio Volume

Adjusts the volume level of the projector’s internal speaker or

the volume being output from the audio output jack.

Power On/Off Ring Tone

Turns on/off the ring tone during the starting up and shutting

down process.

Presentation Timer

Presentation timer can indicate the presentation time on the

screen to help you achieve better time management when

giving presentations.

Timer Period

Sets the time period. If the timer is already on, the timer will

restart whenever the Timer Period is reset.

Timer Display

Allows you to decide if you want the timer to show up on the

screen for one of the following time periods:

 Always: Displays the mer on screen throughout the

presentaon me.

 1 min/2 min/3 min: Displays the mer on screen in the

last 1/2/3 minute(s).

 Never: Hides the mer throughout the presentaon me.

Timer Position

Sets the timer position.

Timer Counting Direction

Sets your desired counting direction between:

 Count Down: Decreases from the preset me to 0.

 Count Up: Increases from 0 to the preset me.

Sound Reminder

Allows you to decide if you want to activate a sound reminder.

Once enabled, a double beep sound will be heard at the last 30

seconds of counting down/up, and a triple beep sound will be

produced when the timer is up.

Start Counting/Off

Select Start Counting to activate the timer. Select Off to cancel

it.

Pattern

Helps adjust the image size and focus, and checks for distortion

in the projected image.

Menu Option Description

Blank Timer

Allows the projector to return the image automatically after a

period of time when there is no action taken on the blank

screen. To display the blank screen, press Blank on the projector

or remote control.

NOTE: Do not block the projecon lens as this could cause the

blocking object to become heated and deformed or even

cause a re.

Message

Sets reminder messages, i.e. “Blank” message, On or Off.

Splash Screen

Selects which logo screen will appear during projector start-up.

ADVANCED Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the ADVANCED menu. Then press Enter or use / to

access the ADVANCED menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

3D Settings

This projector features a 3D function which enables you

to enjoy 3D movies, videos, and sporting events in a more

realistic way by presenting the depth of the images. You need

to wear a pair of 3D glasses to view 3D images.

3D Sync

The default setting is Auto and the projector automatically

chooses an appropriate 3D format when detecting 3D

contents. If the projector cannot recognize the 3D format,

choose a 3D mode.

3D Sync Invert

When you discover the inversion of the image depth, enable

this function to correct the problem.

Save 3D Settings

Saves current 3D settings. 3D settings will automatically be

applied if the same resolution and input source are selected.

NOTE: When the 3D Sync funcon is on:

• The brightness level of the projected image will decrease.

• The Color Mode, Light Source Mode, Zoom, and OverScan

cannot be adjusted.

HDMI Settings

HDMI Format

Select a suitable color space according to the color space

setting of the output device connected.

 Auto: Sets the projector to detect the color space seng

of the input signal automacally.

 RGB: Sets the color space as RGB.

 YUV: Sets the color space as YUV.

HDMI Range

Select a suitable HDMI color range according to the color range

setting of the output device connected.

 Auto: Sets the projector to detect the HDMI range of the

input signal automacally.

 Enhanced: Sets the HDMI color range as 0 - 255.

 Normal: Sets the HDMI color range as 16 - 235.

Menu Option Description

Light Source Settings

Light Source Mode

 Normal: Provides full lamp brightness.

 Eco: Reduces lamp power consumpon by 16% and

lowers brightness to extend the lamp life and decreases

the fan noise.

 Dynamic Eco: Reduces lamp power consumpon by up to

30% depending on the content brightness level.

 SuperEco+: Reduces lamp power consumpon by 60%

and lowers brightness to extend the lamp life and

decreases the fan noise.

NOTE: To control the lamp temperature, Eco Mode will be

switched on for 10 minutes in every 4 hours when the

Light Source Mode is set as SuperEco+.

Reset Light Source Hours

Resets the lamp timer after new lamp is installed. For changing

the lamp, please contact qualified service personnel.

When the Lamp Indicator Light lights up, please install a new

lamp or consult your dealer.

CAUTION: An old lamp may cause a malfunction in the

projector and in some instances the lamp may

explode.

NOTE: It is recommended to turn the power o and disconnect

the projector from the power outlet, and contact a

qualied service personnel for lamp replacement.

Light Source Information

 Lamp Usage Time: Displays the number of hours the

lamp has been used.

 Equivalent Lamp Hour: Displays the overall lamp life. The

method of calculang the equivalent light source hour is

as follows: Total (equivalent) Lamp Hour = 3.33 x (hours

used in Normal mode) + 2 x (hours used in Eco mode) + 2

x (hours used in Dynamic Eco mode) + 1 x (hours used in

SuperEco+ mode)

Reset Settings

Returns all settings to the factory preset values. When using

Reset Settings, the following settings will still remain: Zoom,

Keystone, Language, Projector Position, High Altitude Mode,

Security Settings, Remote Control Code, and Baud Rate.

SYSTEM Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the SYSTEM menu. Then press Enter or use / to access

the SYSTEM menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE:

Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use

/ or / to adjust/select the seng.

Menu Option Description

Language

Sets the language for the On-Screen Display (OSD) Menu.

Projector Position

Selects a proper position for the projector.

Menu Settings

Menu Display Time

Sets the length of time the OSD Menu will remain active after

your last interaction.

Menu Position

Sets the OSD Menu’s position.

High Altitude Mode

We recommend you use the High Altitude Mode when your

environment is between 1,500 m to 3,000 m above sea level,

and ambient temperature is between 5°C–25°C.

NOTE:

• Do not use High Altude Mode if your environment is

between 0 to 1,499 m, and the temperature is between

5°C to 35°C. If used, the projector will become over

cooled.

• Using “High Altude Mode” may cause more operang

noise, as the fan speed will be increased to improve

cooling and performance.

Quick Auto Search

Allows the projector to automatically search for the signals.

Security Settings

See “Using the Password Function” on page 19.

Panel Key Lock

Locks the control keys on the projector.

Remote Control Code

Sets the remote control code for this projector (between 1~8).

When multiple adjacent projectors are in operaon at the same

me, switching the codes can prevent interference from other

remote controls. Aer the remote control code is set, switch to

the same ID for the remote control to control this projector.

Control Method

Allows you to select a preferred control port: through the

RS-232 port or the USB port. When selecting USB, USB A Power

will be switched to Off automatically.

Baud Rate

Selects a baud rate that is identical with your computer’s so

that you can connect the projector using a suitable RS-232

cable and control the projector with RS-232 commands

INFORMATION Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press

/ to select the INFORMATION menu and display its contents.

Menu Option Description

Source

Shows the current input source.

Color Mode

Shows the selected mode in the IMAGE menu.

Resolution

Shows the native resolution of the input source.

Color System

Shows input system format.

Firmware Version

Shows the current firmware version.

3X Fast Input

Shows whether the function is activated or not.

S/N

Shows the serial number for this projector.

Specifications

Item Category Specifications

Projector Type DLP Lamp 0.65” 1080p

Display Size 70” ~ 150”

Throw Ratio 1.49~1.64 (95”±3%@3.1m)

Lens 1.1x±2% Optical Zoom

Lamp Type UHP 203-170W 0.8 E20.7i Fusion Air

Display System 1-CHIP DMD

Input Signal HDMI f

: 15K~102KHz, f

:23~120Hz,

Pixel rate: 170MHz

Resolution Native 1920 x 1080

Power Adapter

Input Voltage AC 100-240V, 50/60 Hz (auto switch)

Operating

conditions

Temperature 0°C to 40°C (32°F to 104°F)

Humidity 0% to 90% (non-condensing)

Altitude 0 to 1,499 m at 5°C to 35°C

1,500 to 3,000 m at 5°C to 25°C

Storage

conditions

Temperature -20°C to 60°C (non-condensing)

Humidity 0% to 90% (non-condensing)

Altitude 0 to 1,219 m at -20°C to 30°C

Dimensions Physical

(W x H x D)

293 x 115 x 221 mm

(11.5” x 4.5” x 8.7”)

Weight Physical 2.4 kg (5.29 lbs)

Power Saving

Modes

260 W (Typical)

Off < 0.5 W (Standby)

Please use the power adapter from ViewSonic® or an authorized source only.

The test condition follows EEI standards.

Appendix

Projector Dimensions

293 mm (W) x 115 mm (H) x 221 mm (D)

221 mm

293 mm

115 mm

60 mm

90 mm

Timing Chart

HDMI (PC)

Signal Resolution (dots) Aspect ratio Refresh rate (Hz)

VGA 640 x 480 4:3 60/72/75

720 x 400 720 x 400 9:5 70

SVGA 800 x 600 4:3 56/60/72/75/120

XGA 1024 x 768 4:3 60/70/75/120

1152 x 864 4:3 75

HD 1280x 720 16:9 60/120

WXGA 1366 x 768 16:9 59.7

1280 x 800 16:10 60/120

Quad-VGA 1280 x 960 4:3 60

SXGA 1280 x 1024 5:4 60/75

WXGA+ 1440 x 900 16:10 60

UXGA 1600 x 1200 4:3 60

WSXGA+ 1680 x 1050 16:10 60

MAC 13" 640 x 480 4:3 67

MAC 16" 832 x 624 4:3 75

MAC 21" 1152 x 870 4:3 75

HDTV (1080p) 1920 x 1080 16:9 60

HDMI (Video)

Timing Resolution Horizontal

Frequency

(kHz)

Vertical

frequency

(Hz)

Dot Clock

Frequency

(MHz)

480i 720(1440) x 480 15.73 59.94 27

480p 720 x 480 31.47 59.94 27

576i 720(1440) x 576 15.63 50 27

576p 720 x 576 31.25 50 27

720/50p 1280 x 720 37.5 50 74.25

720/60p

1280 x 720 45 60 74.25

1080/50i

1920 x 1080 28.13 50 74.25

1080/60i

1920 x 1080 33.75 60 74.25

1080/24P 1920 x 1080 27 24 74.25

1080/50P 1920 x 1080 56.25 50 148.5

1080/60P 1920 x 1080 67.5 60 148.5

HDMI 3D (InfoFrame)

Timing Resolution (dots) Refresh rate (Hz)

In Frame Packing format

1080p 1920 x 1080 23.98/24

720p 1280 x 720 50/59.94/60

In Side-by-Side format

1080i 1920 x 1080 50/60

1080p 1920 x 1080 50/60

In Top-Bottom format

1080p 1920 x 1080 24/50/60

720p 1280 x 720 50/60

3D (HDMI/VGA signal included)

Timing Resolution (dots) Refresh rate (Hz)

HDTV(1080p) 1920 x 1080 60*

WXGA 1280 x 800 60*/120**

HD(720p) 1280 x 720 60*/120**

XGA 1024 x 768 60*/120**

SVGA 800 x 600 60*/120**

NOTE: *60Hz signals are supported for Side-by-Side, Top-Boom, and

Frame Sequential formats.

NOTE: **120 Hz signals are supported for Frame Sequential format only.

IR Control Table

Key Format Byte 1 Byte 2 Byte 3 Byte 4

NEC-F2 83 F4 4F B0

Off

NEC-F2 83 F4 4E B1

COMP NEC-F2 83 F4 41 BE

VIDEO NEC-F2 83 F4 52 AD

HDMI NEC-F2 83 F4 58 A7

Auto Sync NEC-F2 83 F4 8 F7

Source NEC-F2 83 F4 40 BF

Up/

NEC-F2 83 F4 0B F4

Left

NEC-F2 83 F4 0E F1

Enter NEC-F2 83 F4 15 EA

Right

NEC-F2 83 F4 0F F0

Down/

NEC-F2 83 F4 0C F3

Menu NEC-F2 83 F4 30 CF

(INFORMATION)

NEC-F2 83 F4 97 68

Exit NEC-F2 83 F4 28 D7

Aspect NEC-F2 83 F4 13 EC

Freeze NEC-F2 83 F4 03 FC

Pattern NEC-F2 83 F4 55 AA

Blank NEC-F2 83 F4 7 F8

PgUp NEC-F2 83 F4 06 F9

PgDn NEC-F2 83 F4 05 FA

(Mute)

NEC-F2 83 F4 14 EB

(Volume Down)

NEC-F2 83 F4 83 7C

(Volume Up)

NEC-F2 83 F4 82 7D

(Zoom in)

NEC-F2 83 F4 67 98

(Zoom out)

NEC-F2 83 F4 68 97

Eco Mode NEC-F2 83 F4 2B D4

Color Mode NEC-F2 83 F4 10 EF

Address Code

Code 1 83F4

Code 2 93F4

Code 3 A3F4

Code 4 B3F4

Code 5 C3F4

Code 6 D3F4

Code 7 E3F4

Code 8 F3F4

Troubleshooting

Common Problems

This section describes some common problems that you may experience when

using the projector.

Problem Possible Solutions

The projector does not turn on • Ensure the power cord is properly aached to the

projector and to the power outlet.

• If the cooling process has not completed, please

wait unl it has nished then try to turn on the

projector again.

• If the above does not work, try another power outlet

or another electrical device with the same power

outlet.

There is no picture • Ensure the video source cable is connected properly,

and that the video source is turned on.

• If the input source is not selected automacally,

select the correct source with the Source key on

either the projector or the remote control.

The image is blurred • Adjusng the Focus Ring will help correctly focus the

projecon lens.

• Ensure the projector and screen are aligned properly.

If necessary, adjust the height of the projector as

well as the projecon angle and direcon.

The remote control does not

work

• Ensure there are no obstacles between the remote

control and projector; and that they are within 8 m

(26 ) of each other.

• The baeries may be out of power, please check and

replace if necessary.

LED Indicators

Light Status and Description

Power

Green

Flashing

Off Off Stand-by mode

Green Off Off Powering up

Green Off Off Normal operation

Green

Flashing

Off Off Normal power-down cooling

Red Off Off Downloading

Green Green Green Burn in off

Lamp

Green

Flashing

Off Red First light source-lit error cooling

Off Off Red Light source error in normal operation

Green Off Red Color wheel start has failed

Heating/Cooling

Off Red Off Fan 1 error (actual fan speed is outside the desired speed).

Off Red Red Fan 2 error (actual fan speed is outside the desired speed).

Off Red Green Fan 3 error (actual fan speed is outside the desired speed).

Off Red Orange Fan 4 error (actual fan speed is outside the desired speed).

Red

Flashing

Red Off Fan 5 error (actual fan speed is outside the desired speed).

Red

Flashing

Red

Flashing

Off Fan 6 error (actual fan speed is outside the desired speed).

Red Red Red Thermal sensor 1 open error (the remote diode has an

open-circuit condition).

Red Red Green Thermal sensor 2 open error (the remote diode has an

open-circuit condition).

Green Red Red Thermal sensor 1 short error (the remote diode has an

open-circuit condition).

Off Red Green Thermal sensor 2 short error (the remote diode has an

open-circuit condition).

Orange Red Red Temperature 1 error (over limited temperature).

Orange Red Green Temperature 2 error (over limited temperature).

Off Green Red Fan IC #1 I2C connection error.

Maintenance

General Precautions

• Make sure the Projector is turned o and the power cable is unplugged from the

power outlet.

• Never remove any parts from the Projector. Contact ViewSonic® or a reseller

when any part of the Projector needs replacing.

• Never spray or pour any liquid directly onto the case.

• Handle the Projector with care, as a darker-colored projector, if scued, may

show marks more clearly than a lighter-colored projector.

Cleaning the Lens

• Use a canister of compressed air to remove dust.

• If the lens is sll not clean, use lens-cleaning paper or moisten a so cloth with

lens cleaner and gently wipe the surface.

CAUTION:

Never rub the lens with abrasive materials.

Cleaning the Case

• Use a so, lint-free, dry cloth to remove dirt or dust.

• If the case is sll not clean, apply a small amount of non-ammonia, non-alcohol

based, mild non-abrasive detergent onto a clean, so, lint-free cloth, then wipe

the surface.

CAUTION:

Never use wax, alcohol, benzene, thinner, or other chemical detergents.

Storing the Projector

If you intend to store the Projector for an extended period of time:

• Ensure the temperature and humidity of the storage area are within the

recommend range.

• Retract the adjuster foot completely.

• Remove the baeries from the Remote Control.

• Pack the Projector in its original packaging or equivalent.

Disclaimer

• ViewSonic® does not recommend the use of any ammonia or alcohol-based

cleaners on the lens or case. Some chemical cleaners have been reported to

damage the lens and/or case of the projector.

• ViewSonic® will not be liable for damage resulng from use of any ammonia or

alcohol-based cleaners.

Regulatory and Service Informaon

Compliance Informaon

This secon addresses all connected requirements and statements regarding

regulaons. Conrmed corresponding applicaons shall refer to nameplate labels

and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operaon is subject to the following

two condions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may

cause undesired operaon. This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protecon against harmful

interference in a residenal installaon. This equipment generates, uses, and

can radiate radio frequency energy, and if not installed and used in accordance

with the instrucons, may cause harmful interference to radio communicaons.

However, there is no guarantee that interference will not occur in a parcular

installaon. If this equipment does cause harmful interference to radio or television

recepon, which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separaon between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cauoned that changes or modicaons not expressly approved

by the party responsible for compliance could void your authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada.

CAN ICES(B) / NMB(B)

CE Conformity for European Countries

The device complies with the EMC Direcve 2014/30/EU and Low Voltage

Direcve 2014/35/EU. Ecodesign Direcve 2009/125/EC.

The following informaon is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical

and Electronic Equipment Directive 2012/19/EU (WEEE). The mark

indicates the requirement NOT to dispose of the equipment as unsorted

municipal waste, but use the return and collection systems according to

local law.

Declaraon of RoHS2 Compliance

This product has been designed and manufactured in compliance with Direcve

2011/65/EU of the European Parliament and the Council on restricon of the use

of certain hazardous substances in electrical and electronic equipment (RoHS2

Direcve) and is deemed to comply with the maximum concentraon values issued

by the European Technical Adaptaon Commiee (TAC) as shown below:

Substance

Proposed Maximum

Concentraon

Actual Concentraon

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers

(PBDE)

0.1% < 0.1%

Bis (2-ethylhexyl) phthalate

(DEHP)

0.1% < 0.1%

Butyl benzyl phthalate (BBP) 0.1% < 0.1%

Dibutyl phthalate (DBP) 0.1% < 0.1%

Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex

III of the RoHS2 Direcves as noted below. Examples of exempted components

are:

• Copper alloy containing up to 4% lead by weight.

• Lead in high melng temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

• Electrical and electronic components containing lead in a glass or ceramic other

than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or

ceramic matrix compound.

• Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V

DC or higher.

Indian Restricon of Hazardous Substances

Restricon on Hazardous Substances statement (India). This product complies

with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent

chromium, polybrominated biphenyls or polybrominated diphenyl ethers in

concentraons exceeding 0.1 weight % and 0.01 weight % for cadmium, except for

the exempons set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is commied to working and living

green. Thank you for being part of Smarter, Greener Compung. Please visit the

ViewSonic® website to learn more.

USA & Canada:

hps://www.viewsonic.com/us/go-green-with-viewsonic

Europe:

hps://www.viewsonic.com/eu/go-green-with-viewsonic

Taiwan:

hps://recycle.moenv.gov.tw/

For EU users, please contact us for any safety/accident issue experienced with this

product:

ViewSonic Europe Limited

Haaksbergweg 75

1101 BR Amsterdam

Netherlands

+31 (0) 650608655

EPREL@viewsoniceurope.com

hps://www.viewsonic.com/eu/

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microso, Windows, and the Windows logo are registered trademarks of Microso

Corporaon in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic®

Corporaon.

VESA is a registered trademark of the Video Electronics Standards Associaon.

DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protecon

Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporaon has determined that this

product meets the ENERGY STAR® guidelines for energy eciency.

Disclaimer: ViewSonic® Corporaon shall not be liable for technical or editorial

errors or omissions contained herein; nor for incidental or consequenal damages

resulng from furnishing this material, or the performance or use of this product.

In the interest of connuing product improvement, ViewSonic® Corporaon

reserves the right to change product specicaons without noce. Informaon in

this document may change without noce.

No part of this document may be copied, reproduced, or transmied by any means,

for any purpose without prior written permission from ViewSonic® Corporation.

PX700HDH_UG_ENG_1a_20240726

Customer Service

For technical support or product service, see the table below or contact your

reseller.

NOTE: You will need the product’s serial number.

Country/ Region Website Country/ Region Website

Asia Pacic & Africa

Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/

中国 (China)

www.viewsonic.com.cn

香港 (繁體中文)

www.viewsonic.com/hk/

Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/

Indonesia www.viewsonic.com/id/ Israel www.viewsonic.com/il/

日本 (Japan)

www.viewsonic.com/jp/ Korea www.viewsonic.com/kr/

Malaysia www.viewsonic.com/my/ Middle East www.viewsonic.com/me/

Myanmar www.viewsonic.com/mm/ Nepal www.viewsonic.com/np/

New Zealand www.viewsonic.com/nz/ Pakistan www.viewsonic.com/pk/

Philippines www.viewsonic.com/ph/ Singapore www.viewsonic.com/sg/

臺灣 (Taiwan)

www.viewsonic.com/tw/

ประเทศไทย

www.viewsonic.com/th/

Việt Nam

www.viewsonic.com/vn/ South Africa & Maurius www.viewsonic.com/za/

Americas

United States www.viewsonic.com/us Canada www.viewsonic.com/us

Lan America www.viewsonic.com/la

Europe

Europe www.viewsonic.com/eu/ France www.viewsonic.com/fr/

Deutschland www.viewsonic.com/de/ Қазақстан www.viewsonic.com/kz/

Россия www.viewsonic.com/ru/ España www.viewsonic.com/es/

Türkiye www.viewsonic.com/tr/ Україна www.viewsonic.com/ua/

United Kingdom www.viewsonic.com/uk/

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and

workmanship, under normal use, during the warranty period. If a product

proves to be defecve in material or workmanship during the warranty period,

ViewSonic® will, at its sole opon, repair or replace the product with a like product.

Replacement product or parts may include remanufactured or refurbished parts or

components.

Limited Three (3) year General Warranty:

Subject to the more limited one (1) year warranty set out below, North and South

America: Three (3) years warranty for all parts excluding the lamp, three (3) years

for labor, and one (1) year for the original lamp from the date of the rst consumer

purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic®

oce for the warranty informaon.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage sengs, where a projector’s use includes more than fourteen

(14) hours average daily usage, North and South America: One (1) year warranty

for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the

original lamp from the date of the rst consumer purchase; Europe: One (1) year

warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days

for the original lamp from the date of the rst consumer purchase. Other regions

or countries: Please check with your local dealer or local ViewSonic® oce for the

warranty informaon. Lamp warranty subject to terms and condions, vericaon

and approval. Applies to manufacturer’s installed lamp only. All accessory lamps

purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the rst consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modied, or

removed.

2. Damage, deterioraon, or malfuncon resulng from:

 Accident, misuse, neglect, re, water, lightning, or other acts of nature,

unauthorized product modicaon, or failure to follow instrucons supplied

with the product.

 Operaon outside of product specicaons.

 Operaon of the product for other than the normal intended use or not

under normal condions.

 Repair or aempted repair by anyone not authorized by ViewSonic®.

 Any damage of the product due to shipment.

 Removal or installaon of the product.

 Causes external to the product, such as electric power uctuaons or

failure.

 Use of supplies or parts not meeng Viewsonic’s specicaons.

 Normal wear and tear.

 Any other cause which does not relate to a product defect.

3. Removal, installaon, and set-up service charges.

How to get service:

1. For informaon about receiving service under warranty, contact ViewSonic®

Customer Support (Please refer to the “Customer Support” page). You will need

to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide: (a) the original

dated sales slip, (b) your name, (c) your address, (d) a descripon of the problem,

and (e) the serial number of the product.

3. Take or ship the product, freight prepaid, in the original container to an

authorized ViewSonic® service center or ViewSonic®.

4. For addional informaon or the name of the nearest ViewSonic® service center,

contact ViewSonic®.

Limitaon of implied warranes:

There are no warranes, express or implied, which extend beyond the descripon

contained herein including the implied warranty of merchantability and tness for a

parcular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product.

ViewSonic® shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based

upon inconvenience, loss of use of the product, loss of me, loss of prots, loss of

business opportunity, loss of goodwill, interference with business relaonships,

or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequenal or otherwise.

3. Any claim against the customer by any other party.

Eect of state law:

This warranty gives you specic legal rights, and you may also have other rights

which vary from local authority. Some local governments do not allow limitaons

on implied warranes and/or do not allow the exclusion of incidental or

consequenal damages, so the above limitaons and exclusions may not apply to

you.

Sales outside the U.S.A. and Canada:

For warranty informaon and service on ViewSonic® products sold outside of the

U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer.

The warranty period for this product in mainland China (Hong Kong, Macao,

and Taiwan Excluded) is subject to the terms and condions of the Maintenance

Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found at:

http://www.viewsonic.com/eu/ under “Support/Warranty Informaon”.

Projector Warranty Term Template In UG

VSC_TEMP_2005

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and

workmanship, under normal use, during the warranty period. If a product

proves to be defecve in material or workmanship during the warranty period,

ViewSonic® will, at its sole opon, repair or replace the product with a like product.

Replacement product or parts may include remanufactured or refurbished parts or

components & accessories.

How long the warranty is eecve:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original

lamp from the date of the rst consumer purchase.

Lamp warranty subject to terms and condions, vericaon and approval. Applies

to manufacturer’s installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the rst consumer purchaser.

What the warranty excludes and does not cover:

1. Any product on which the serial number has been defaced, modied or removed.

2. Damage, deterioraon, or malfuncon resulng from:

 Accident, misuse, neglect, re, water, lightning, or other acts of nature,

unauthorized product modicaon, unauthorized aempted repair, or

failure to follow instrucons supplied with the product.

 Any damage of the product due to shipment.

 Causes external to the product, such as electrical power uctuaons or

failure.

 Use of supplies or parts not meeng ViewSonic®’s specicaons.

 Normal wear and tear.

 Any other cause which does not relate to a product defect.

3. Any product exhibing a condion commonly known as “image burn-in” which

results when a stac image is displayed on the product for an extended period of

me.

4. Removal, installaon, insurance, and set-up service charges.

How to get service:

For informaon about receiving service under warranty, contact ViewSonic®

Customer Support (Please refer to the aached “Customer Service” page). You

will need to provide your product’s serial number, so please record the product

informaon in the space provided below on your purchase for your future use.

Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: Model Number:

Document Number: Serial Number:

Purchase Date: Extended Warranty Purchase? (Y/N)

If so, what date does warranty expire?

1. To obtain warranty service, you will be required to provide (a) the original dated

sales slip, (b) your name, (c) your address, (d) a descripon of the problem, and

(e) the serial number of the product.

2. Take or ship the product, in the original container packaging, to an authorized

ViewSonic® service center.

3. Round trip transportaon costs for in-warranty products will be paid by

ViewSonic®.

Limitaon of implied warranes:

There are no warranes, express or implied, which extend beyond the descripon

contained herein including the implied warranty of merchantability and tness for a

parcular purpose.

Exclusion of damages:

ViewSonic®’s liability is limited to the cost of repair or replacement of the product.

ViewSonic® shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based

upon inconvenience, loss of use of the product, loss of me, loss of prots, loss of

business opportunity, loss of goodwill, interference with business relaonships,

or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequenal or otherwise.

3. Any claim against the customer by any other party.

4. Repair or aempted repair by anyone not authorized by ViewSonic®.

Contact Informaon for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporavo Interpalmas,

Col. San Fernando Huixquilucan, Estado de México

Tel: (55) 3605-1099 hp://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de CV.

Calle Juarez 284 local 2

Col. Bugambilias C.P: 83140

Tel: 01-66-22-14-9005

E-Mail: [email protected]ared.net.mx

Villahermosa:

Compumantenimietnos Garanzados, S.A. de C.V.

AV. GREGORIO MENDEZ #1504

COL, FLORIDA C.P. 86040

Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09

E-Mail: compumantenimientos@prodigy.net.mx

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio:

29 SUR 721 COL. LA PAZ

72160 PUEBLA, PUE.

Tel: 01(52).222.891.55.77 CON 10 LINEAS

E-Mail: dat[email protected]

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av.

Americas # 419

ENTRE PINZÓN Y ALVARADO

Fracc. Reforma C.P. 91919

Tel: 01-22-91-00-31-67

E-Mail: g[email protected]x

Chihuahua:

Soluciones Globales en Computación

C. Magisterio # 3321 Col. Magisterial

Chihuahua, Chih.

Tel: 4136954

E-Mail: Cef[email protected]

Cuernavaca:

Compusupport de Cuernavaca SA de CV

Francisco Leyva # 178 Col. Miguel Hidalgo

C.P. 62040, Cuernavaca Morelos

Tel: 01 777 3180579 / 01 777 3124014

E-Mail: aquev[email protected]

Distrito Federal:

QPLUS, S.A. de C.V.

Av. Coyoacán 931

Col. Del Valle 03100, México, D.F.

Tel: 01(52)55-50-00-27-35

E-Mail : g[email protected]x

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V.

Av. Niños Héroes # 2281

Col. Arcos Sur, Sector Juárez

44170, Guadalajara, Jalisco

Tel: 01(52)33-36-15-15-43

E-Mail: mmiranda@servicrece.com

Guerrero Acapulco:

GS Computación (Grupo Sesicomp)

Progreso #6-A, Colo Centro

39300 Acapulco, Guerrero

Tel: 744-48-32627

Monterrey:

Global Product Services

Mar Caribe # 1987, Esquina con Golfo Pérsico

Fracc. Bernardo Reyes, CP 64280

Monterrey N.L. México

Tel: 8129-5103

E-Mail: a[email protected]

MERIDA:

ELECTROSER

Av Reforma No. 403Gx39 y 41

Mérida, Yucatán, México CP97000

Tel: (52) 999-925-1916

E-Mail: rrrb@sureste.com

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y

SERVICIO, S.A. de C.V.

Murguía # 708 P.A., Col. Centro, 68000, Oaxaca

Tel: 01(52)95-15-15-22-22

Fax: 01(52)95-15-13-67-00

E-Mail. [email protected]om

Tijuana:

STD

Av Ferrocarril Sonora #3780 L-C

Col 20 de Noviembr

Tijuana, Mexico

FOR USA SUPPORT:

ViewSonic® Corporaon

381 Brea Canyon Road, Walnut, CA. 91789 USA

Tel: 800-688-6688

E-Mail: hp://www.viewsonic.com

Projector Mexico Warranty Term Template In UG

VSC_TEMP_2006

ViewSonic PX700HDH 3700-Lumen Full HD DLP Home Theater Projector

Product's Documents

User Manual3.4 MB

Specifications

ViewSonic PX700HDH Questions and Answers

Related Products

ViewSonic LS740HD 5000-Lumen Full HD Laser DLP Projector

ViewSonic LS710HD 4200-Lumen Full HD Short-Throw Laser Projector

ViewSonic PS502X 4000-Lumen XGA Short-Throw DLP Projector

ViewSonic PS502W 4000-Lumen WXGA Short-Throw DLP Projector

ViewSonic PX700HD Bright 3500 Lumens 1080p Home Theater Projector

ViewSonic PX701-4K 4K UHD 3200 Lumens 240Hz 4.2ms Home Theater Projector
