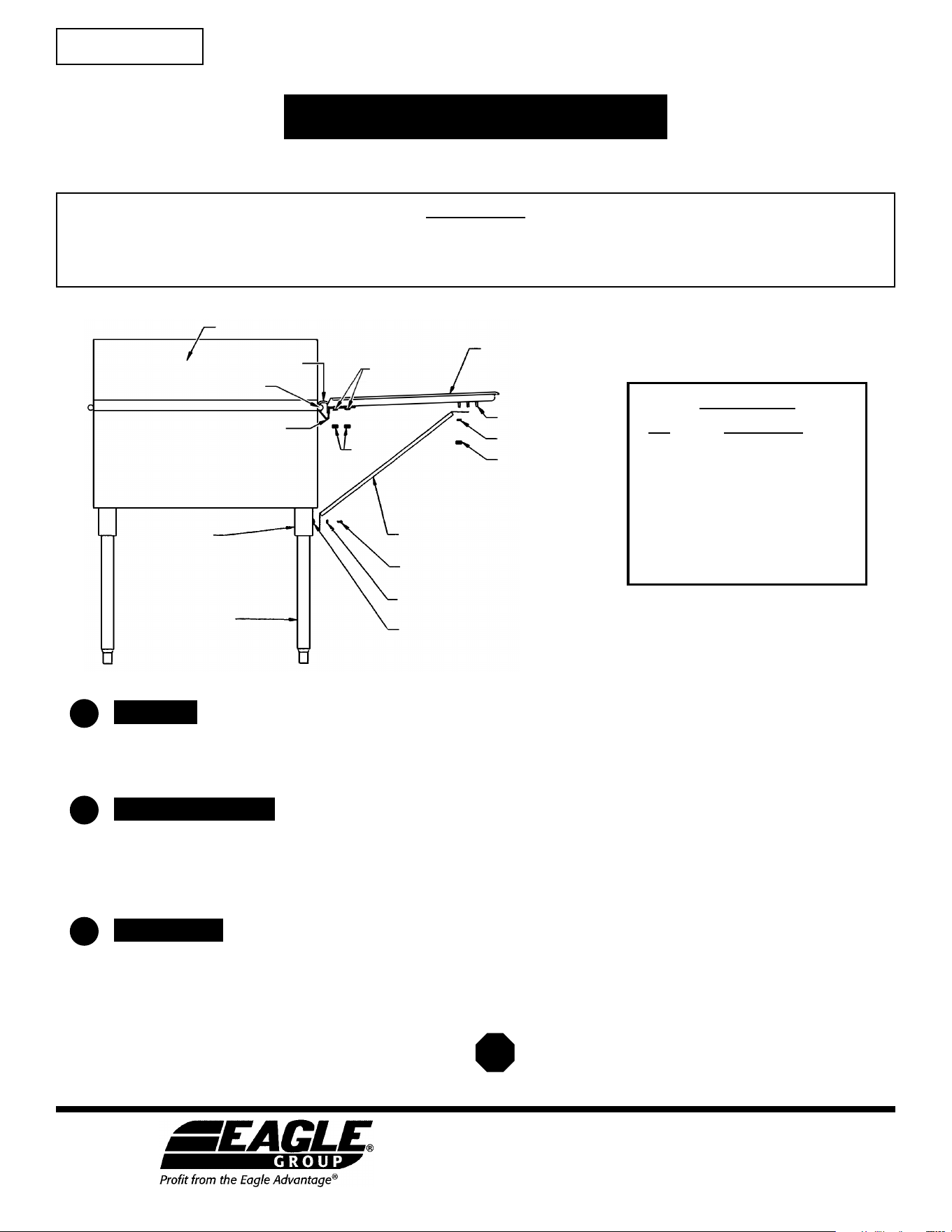

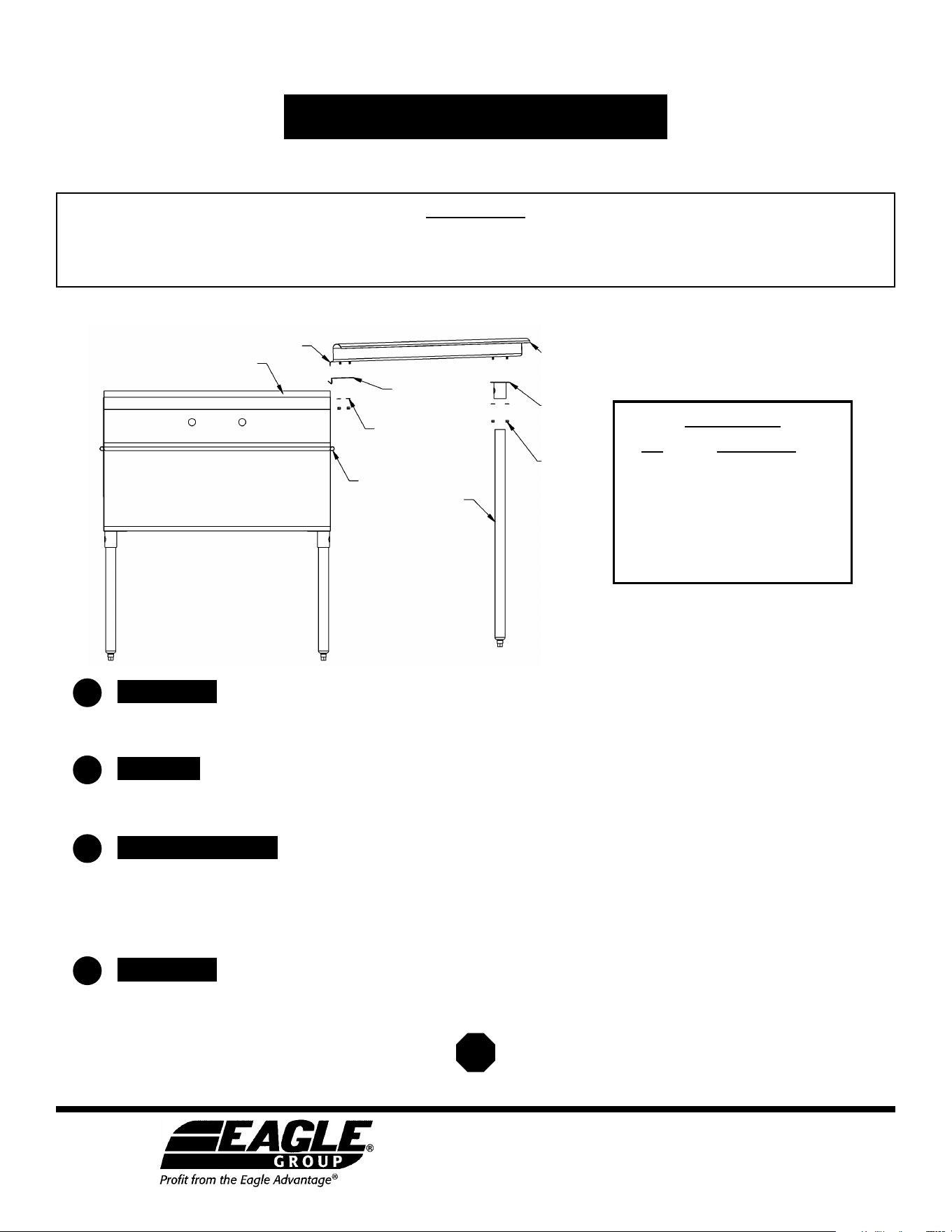

INSTALLATION INSTRUCTIONS
Detachable Drainboard
(less than 30˝ length*)
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG9844 Revised 12/22
(End)
If legs are not already installed under the sink, install the legs into the leg gussets. Attach brace to a leg
gusset with lock washers and machine screws included. Repeat with remaining brace and leg gusset.
1
Legs
Mount the drainboard to the sink so that the angle bracket catches tightly under the end panel roll of the
sink, and that the drainboard flange goes over the top of the end panel roll.
Note: Ensure angle bracket is attached to drainboard with 4 flat washers and 4 lock nuts.
2
Angle Bracket
Determine the desired pitch of the drainboard and mount the brace to the appropriate threaded stud with
flat washers and lock nuts included.
3
Brace
Parts List
qty description
2 . . . . . . . braces
2 . . . . . . . machine screws
2 . . . . . . . lock washers
6 . . . . . . . flat washers
6 . . . . . . . lock nuts
1 . . . . . . . angle bracket
1 . . . . . . . drainboard
TAPPED HOLE IN
LEG GUSSET
LOCK WASHER (QTY: 2)
MACHINE SCREW (QTY: 2)
LEG GUSSET
END PANEL ROLL
SINK
ANGLE BRACKET
(ATTACHED TO
DRAINBOARD)
BRACE (QTY: 2)
LEG
FLAT WASHER (QTY: 2)
FLAT WASHER
(QTY: 4)
LOCK NUT (QTY: 2)
LOCK NUT
(QTY: 4)
THREADED STUD
DRAINBOARD
DRAINBOARD
FLANGE
INSTRUCTION SHEET
#600074
* For Drainboard 30˝ and longer, see back page.
Installation is complete.
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2022 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTALLATION INSTRUCTIONS
Detachable Drainboard
(30˝ and longer*)
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
(End)
Install the legs into the leg gussets under the drainboard.
2
Legs
With flat washers and lock nuts provided, install the 2 gussets to the underside of the drainboard.
1
Gussets
Adjust the feet to provide the desired pitch for drainage.
4
Feet
Hook the drainboard flange over the top of the sink’s end panel roll. Attach the angle bracket to the
underside of the drainboard with 4 flat washers and 4 lock nuts. Make sure the angle bracket catches
tightly under the end panel roll.
Installation is complete.
3
Angle Bracket
Parts List
qty description
2 . . . . . .legs
2 . . . . . .gussets
12 . . . . . .flat washers
12 . . . . . .lock nuts
1 . . . . . .angle bracket
1 . . . . . .drainboard
GUSSET
END
PANEL
ROLL
SINK
ANGLE BRACKET
LEG
FLAT
WASHER
LOCK NUT
DRAINBOARD
DRAINBOARD
FLANGE
* For Drainboard less than 30˝ long, see front page.
