Contents
1. Important Information 6. Other features02 14
17
Safety
Caution
Disposal of used locks and batteries
Mute mode
Factory reset
Doorbell
2. Assembly 7. Indicators
Packing list
Exploded views
Notice before assembling
Adjustable deadbolt instructions
Assembly steps
Status indicator
Low battery indicator
Armed
mode indicator System
locking indicator
How to change handle cover
03 15
Exterior assembly
Interior assembly
3. Get to know your lock 09
4. Settings 10
12
Instructions before setting
Master mode
Settings
Network settings
8. Troubleshooting
Alert types
How to apply external power source
Battery replacement
How to change handle cover
5. Get to use your lock
Outdoor / indoor unlock
Indoor lock
Mechanical key unlock
2
1. Important information
Safety
◆
Before using this product, please carefully read
through and understand all instructions. Damage
resulting from failure to follow these instructions
is not covered by the warranty.
◆
Please only use the accessories/components
specied by the manufacturer.
◆
Please only use alkaline batteries/lithium
polymer batteries provided with this product, or
batteries of the same specication/type.
◆
Please do not attempt to forcibly disassemble
the product to trigger an alert or cause damage.
◆
Please avoid using sharp objects to scrape
the ngerprint sensor, as this may result in
permanent damage.
◆
Please avoid exposing the product to areas
where water may leak or splash.
◆
To prevent damage to the protective cover, do
not expose the product to corrosive substances.
◆
Please avoid hanging objects on the handle as
it may interfere with the functioning of the lock.
◆
Please use a soft, damp cloth to wipe
ngerprints or dirt from the assembly surface.
◆
Please do not remove the batteries while
setting up or operating the product.
◆
Please select professional personnel for door
lock installation and follow the installation
instructions provided by our company. Do not
disassemble the door lock and ensure that the
relevant sealed stickers are properly kept.
◆
After completing the installation and
troubleshooting, please change the default
master PIN code immediately. Ensure that the
mechanical keys are stored properly and do not
share the PIN codes with others.
◆
When the door lock's low battery alert is
triggered, promptly replace the batteries and
ensure correct polarity, or recharge the batteries
as needed.
Caution
◆
Do not place the batteries near sources of
ignition to prevent explosions.
◆
Do not use any power source that does not
meet safety requirements to power the product.
◆
Please avoid short-circuiting the battery's
polarity with metal objects to prevent
explosions.
◆
Please ensure that installation or any
component replacement is carried out by
Philips, a Philips authorized service center, or
professional technicians.
◆
Please refrain from using accessories
or components made by unauthorized
manufacturers or not explicitly recommended by
Philips. Using such accessories and components
may void the warranty.
Disposal of used
products and batteries
◆
You can have your products taken back at
authorized Philips service centers. You may
receive appropriate compensation if your
products meet our refund conditions.
◆
Please familiarize yourself with local
regulations regarding the disposal and separate
collection of used batteries and products. Proper
disposal of used products and batteries helps
reduce negative impacts on the environment
and human health. It's important to note that
batteries should not be disposed of with regular
household waste.
3
Warranty
Card
Easy
Key
EasyKey
2 Assembly

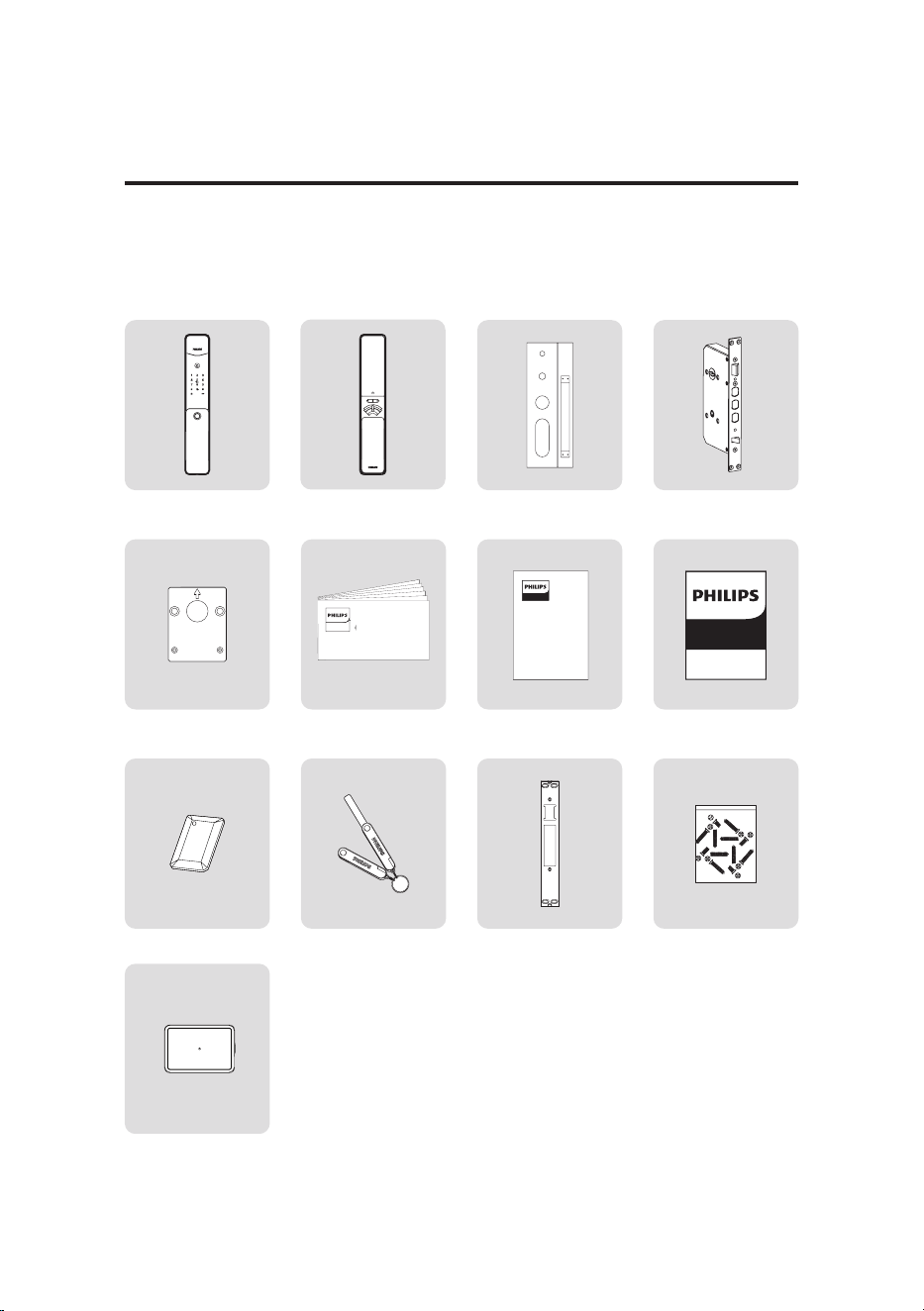

Packing list
This packing list is for reference only. Please refer to the actual included items.
①
Exterior assemblywith
silicon pad
②
Interior assemblywith
silicon pad
③
Drilling template
④
Mortise
⑤
Mounting plate
⑥
QSG
⑦
Warranty card
⑧
Quality certicate
⑨
Key tag
⑩
Mechanical key
⑪
Strike plate
⑫
Installation kit
Quick Start
Guide
EasyKey
合格证
⑬
Gateway(physical)
4
1 2 3 4 5 6 7 8 9 10
119312

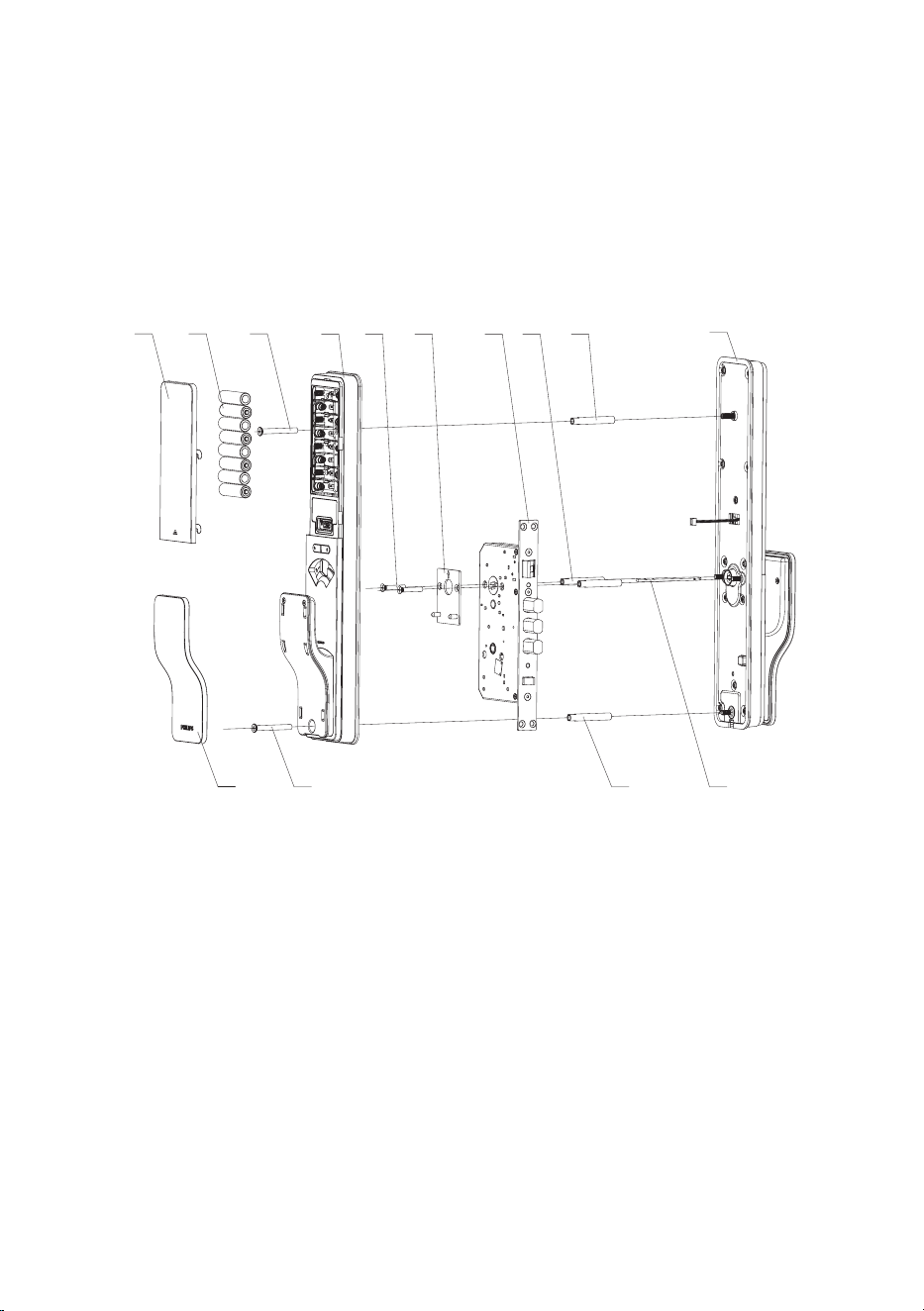

Exploded views
1.Battery cover X1
2. Alkaline battery X8
3. M6 anchor screw X2
4. Interior assembly X1
5. M5 anchor screw X2
6. Mounting plate X1
7. Mortise X1
8. M5 screw tubeX2
9. M6 screw tubeX2
10. Exterior assembly X1
11. Mortise tumbler X1
12. Rear handle cover X1
5
1
3
2

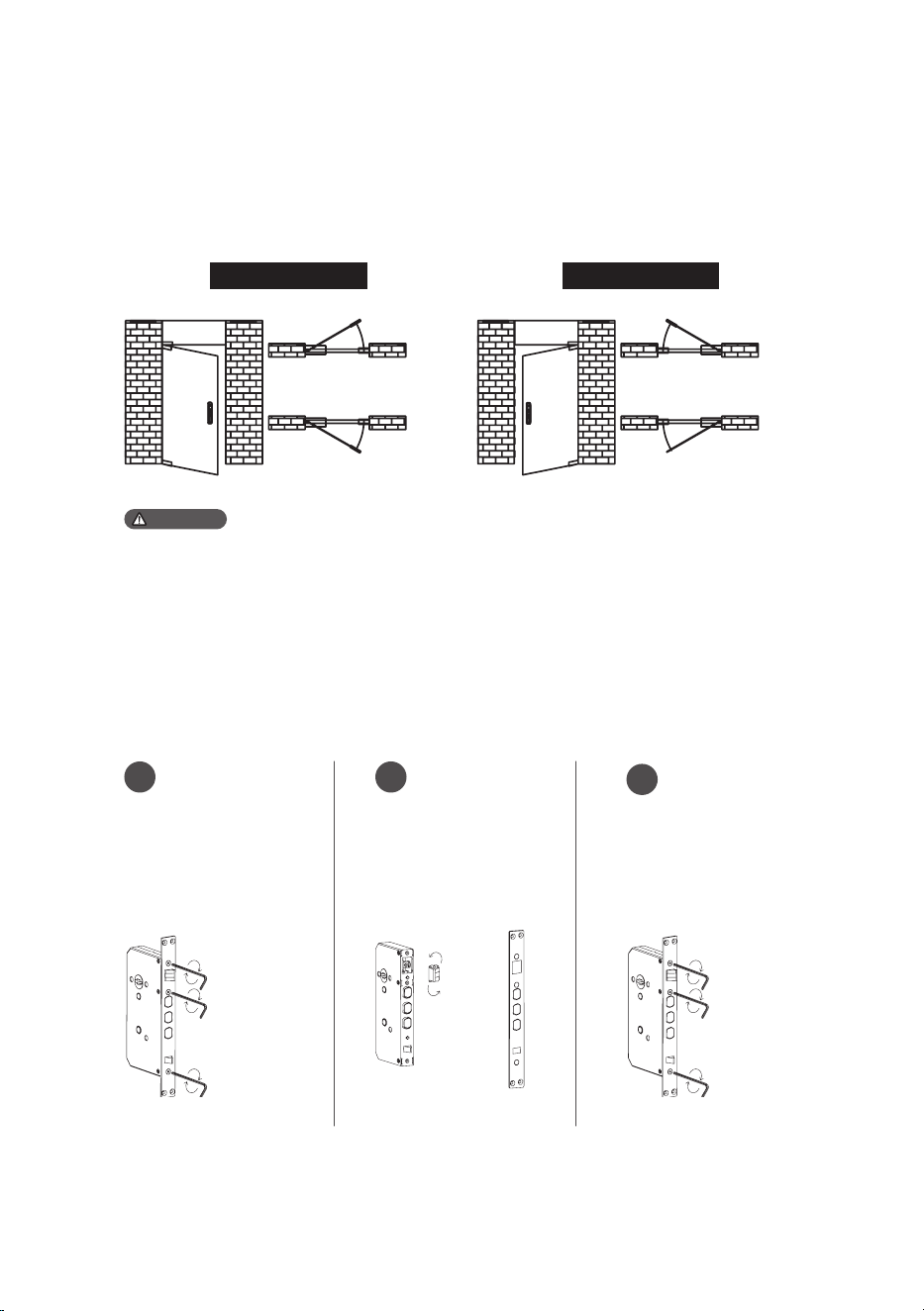

Notice before assembling
This product applies to doors with swing directions as follows left-hand inswing,
left-hand outswing, right-hand inswing, and right-hand outswing.
Left-hand swing Right-hand swing
Left-hand inswing
Mortise plate Mortise plate
Allen wrench Allen wrench
Deadbolt
Left-hand outswing
Right-hand inswing
Right-hand outswing
Please select the installation kit based on the door thickness.
Attention
Adjustable latch instructions
Use an Allen wrench
to turn the screws
counterclockwise to
remove them, then take
o the mortise plate.
Install the mortise plate,
tighten the screws, and
complete the deadbolt
direction adjustment.
Remove the deadbolt,
rotate it 180 degrees, and
then reinstall it.
6
To drill holes in the door according
to the drilling template, mount the
mortise into the jamb, and secure the
four anchor screws.
Install the screw tubes onto the
exterior assembly, then insert the
mortise tumbler into the tumbler hole.
1
3
2
4
Align the mounting plate against the
interior door surface, tighten the M5
anchor screws to secure the exterior
assembly.
Pass the assembly cables and mortise
cables through the door hole, align
and insert the mortise tumbler to
the rotary hole, so that the exterior
assembly can closely t against the
door.
M6 screw tube
Assembly cable
M5 screw tube
Assembly cable
Mortise cable
Mortise tumbler
M6 screw tube

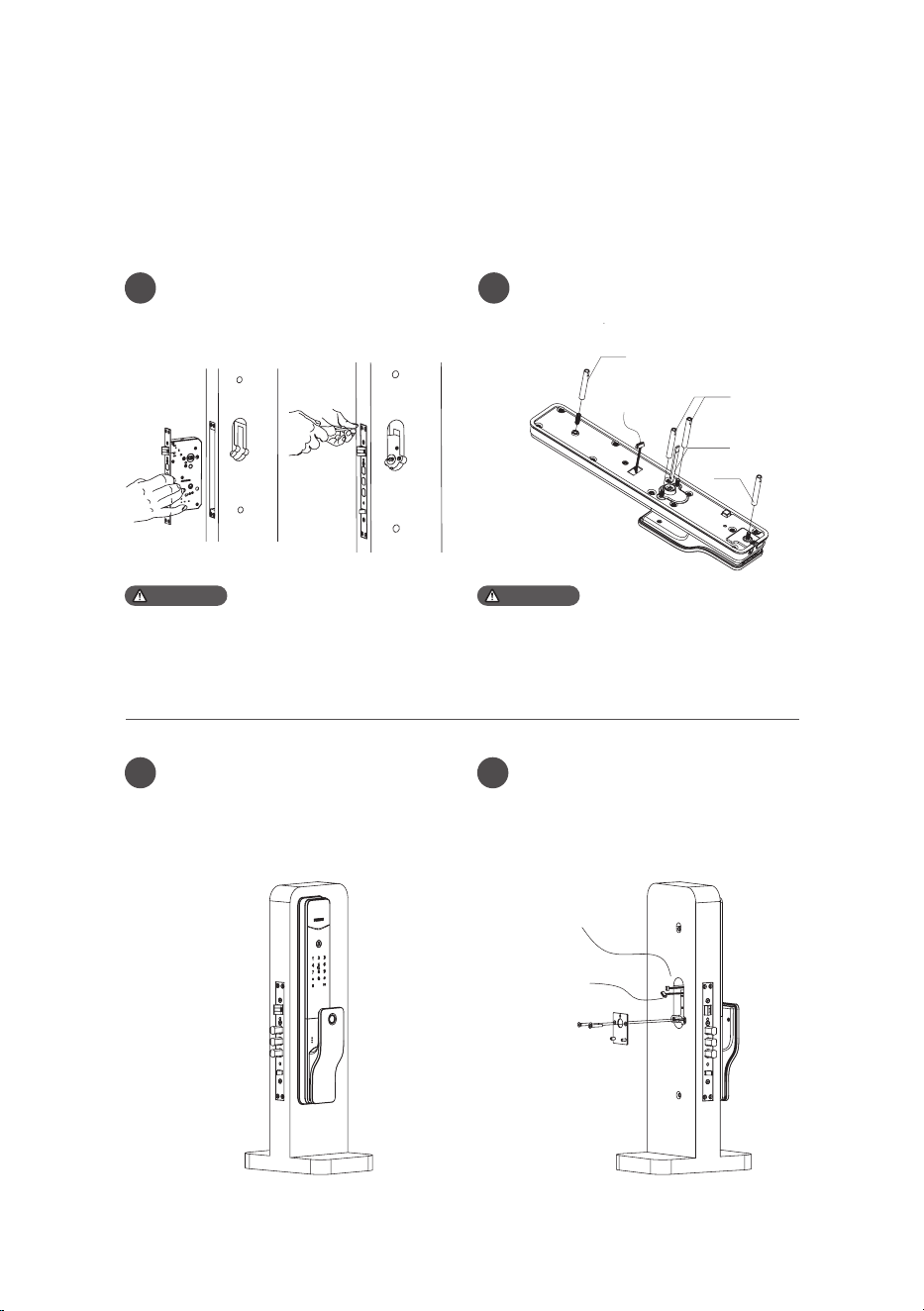

Assembly steps
The following assembly steps apply to the right-hand swing doors. For left-hand
swing doors, please read through the [Notice before assembling] and adjust the
latch direction rst.
Please ensure the latch bolt does not
protrude during installation.
Cut the mortise tumbler to an appropriate
length based on the door thickness. After
inserting the tumbler into the mortise, the
exposed portion should be 10mm to 20mm
above the door surface.
Attention Attention
7

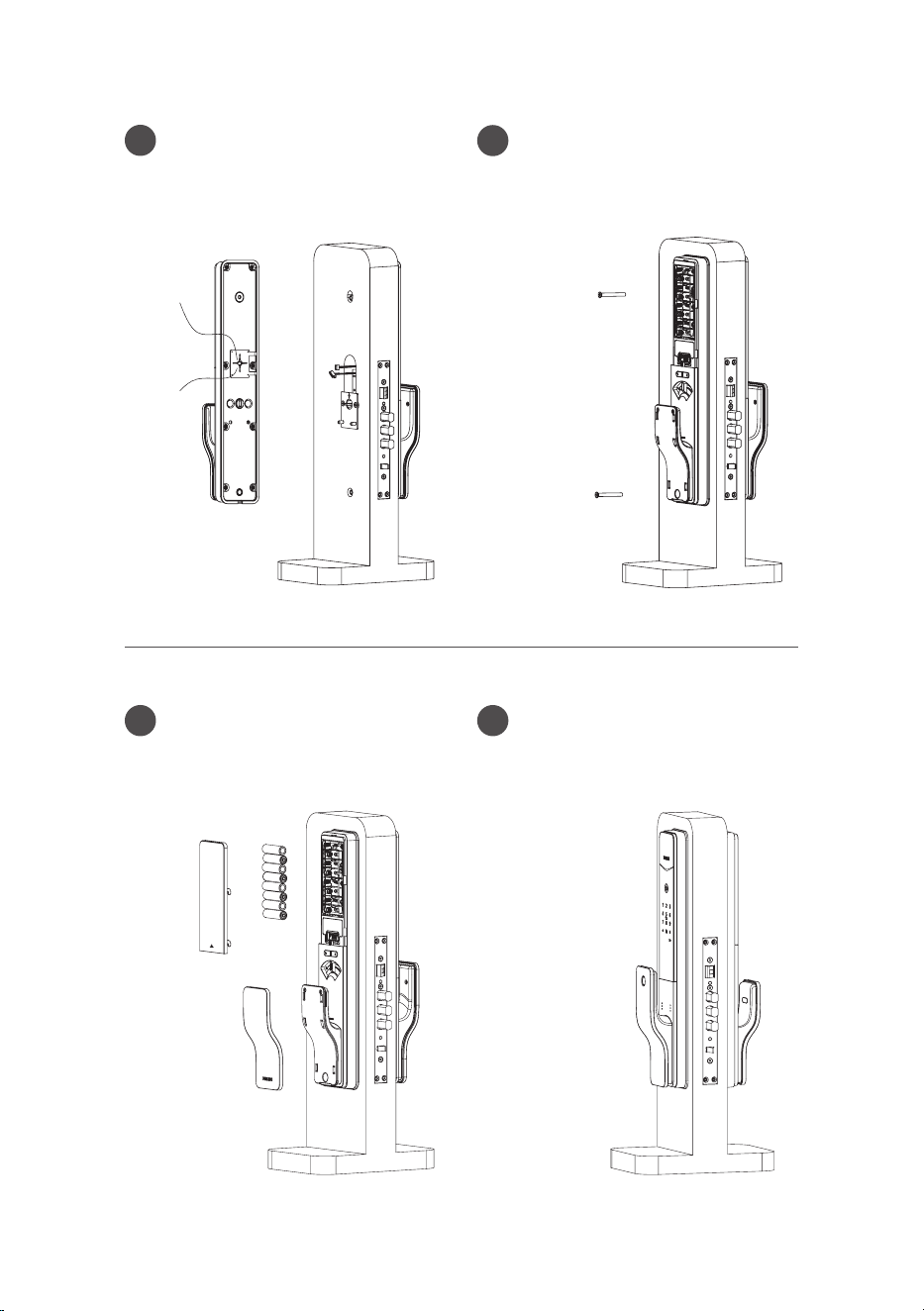

Insert the assembly and mortise cables
from the exterior assembly into their
corresponding interfaces.
5
6
Align and insert the mortise tumbler
into the tumbler hole on the interior
assembly. Place any excess wiring into
the hole, then tighten the screws to
secure the interior assembly.
7 8
Install the batteries (4 or 8 AA
batteries) and attach the battery
cover. Then, fasten the bottom handle
cover to complete the installation.
Check the toggle switch,
mechanical key, and all components
for proper connection.
Mortise cable
interface
Assembly
cable
interface
8

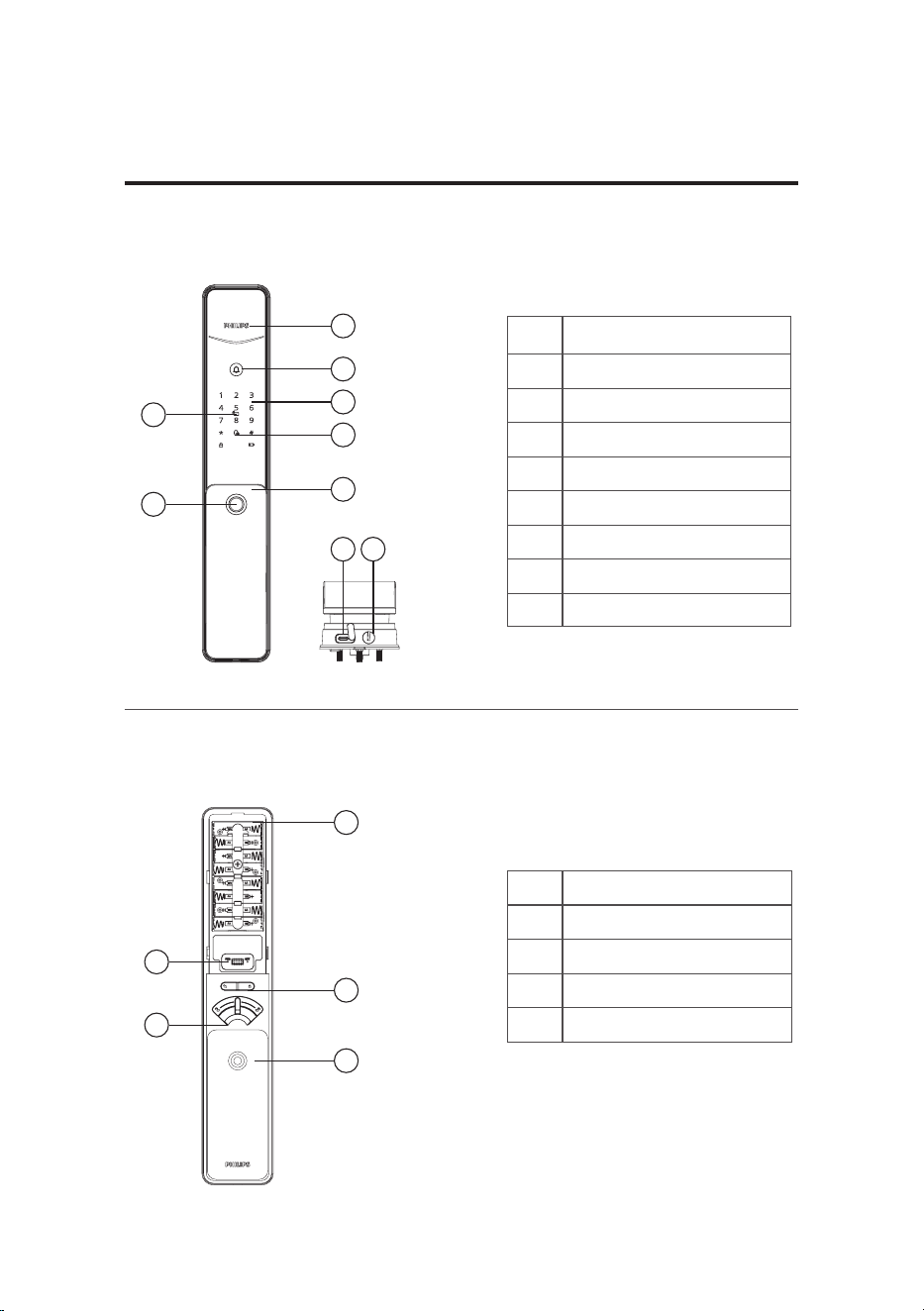

①
Status indicator
②
Doorbell
③
Keypad
④
Key tag recognition area
⑤
Mute button
⑥
Push-pull handle
⑦
Fingerprint recognition area
⑧
Charging port
⑨
Keyhole
①
Battery cover
②
RES button
③
OPEN/CLOSE button
④
Toggle switch
⑤
Infrared handle
1
3
5
8 9
4
7
2
4
3 Get to know your lock
Interior
assembly
Exterior assembly
1
2
3
5
6
9
No. Name Fingerprint PIN code Key tag
00
01
02
03
04
05
06
07
08
Key tag
[#] button [*] button
Instructions before setting
◆ The system modes include the general mode and dual verication mode.
4 Settings
General mode Door can be opened using any enrolled access method
Door can be opened using any two combinations of
ngerprint, PIN code, key tag, or face ID.
Dual verication mode
◆ User code
You can delete a user's information by the user number without having to delete everything. You can
record the user information in the following table for easy management and future reference.
Master PIN
code
PIN code No. 00-99 FingerprintMaster
ngerprint
◆ Icon annotation
1.When navigating the menu, to return to the previous menu, press the [*] key.
2. The default PIN code is 12345678.
3. Capacity: 1 set of master PIN code, 100 sets of ngerprints (including 1 set of master
ngerprint), 20 sets of user PIN codes, and 100 sets of key tags.
Attention
10
Master mode Settings
Attention
Master PIN code
Master ngerprint
After illuminating the keypad, without
inputting any other numbers, press the [*] key
twice, then enter the master PIN code, and press
[#] to conrm to enter master mode.
If the master PIN code is set to the default PIN code,
you must change the master PIN code in master
mode before proceeding with other operations.
After illuminating the keypad, without
entering any other numbers, press the [*] key
twice. Then, place the enrolled nger on the
ngerprint sensor to enter master mode.
Attention
1.The door lock does not have a master
ngerprint by default. Please enroll a master
ngerprint before use.
2.Do not enroll the master ngerprint to be
the same as any user ngerprint.
1
Add a PIN code: Enter a new user PIN code,
press [#] to conrm, then re-enter the PIN
code and press [#] again. After the successful
addition prompt, press [*] to return to the
previous menu until exiting master mode.
Add a ngerprint: Place your nger on the
ngerprint scanner. When prompted to
“Please remove your nger and try again,”
lift and then re-place your nger on the
scanner. Repeat this process several times.
After hearing the successful addition
prompt, press the [*] key to return to the
previous menu until exiting master mode.
Add a key tag: Enroll a new key tag. After
the successful addition prompt, press the
[*] key to return to the previous menu until
exiting master mode.
1
Add a user PIN code
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
Press [1] to enter settings, then press [1]
again to add a user. The door lock will
automatically detect and add PIN codes,
ngerprints, and key tags. Users can simply
add the desired access method.
Or Or
Modify or add a master ngerprint
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
11
Press [1] to enter settings, then press [4] to enter
the option for adding or modifying the master
ngerprint.
No
master ngerprint set: Input a new user
ngerprint, which will automatically become
the master ngerprint. After hearing the
su
ccessful addition prompt, press the [*] key
to return to the previous menu until exiting
mast
er mode.
Master fingerprint already set: Input a new
user fingerprint, which will replace the
existing master fingerprint. After hearing
the successful addition prompt, press the [*]
key to return to the previous menu until
exiting master mode.

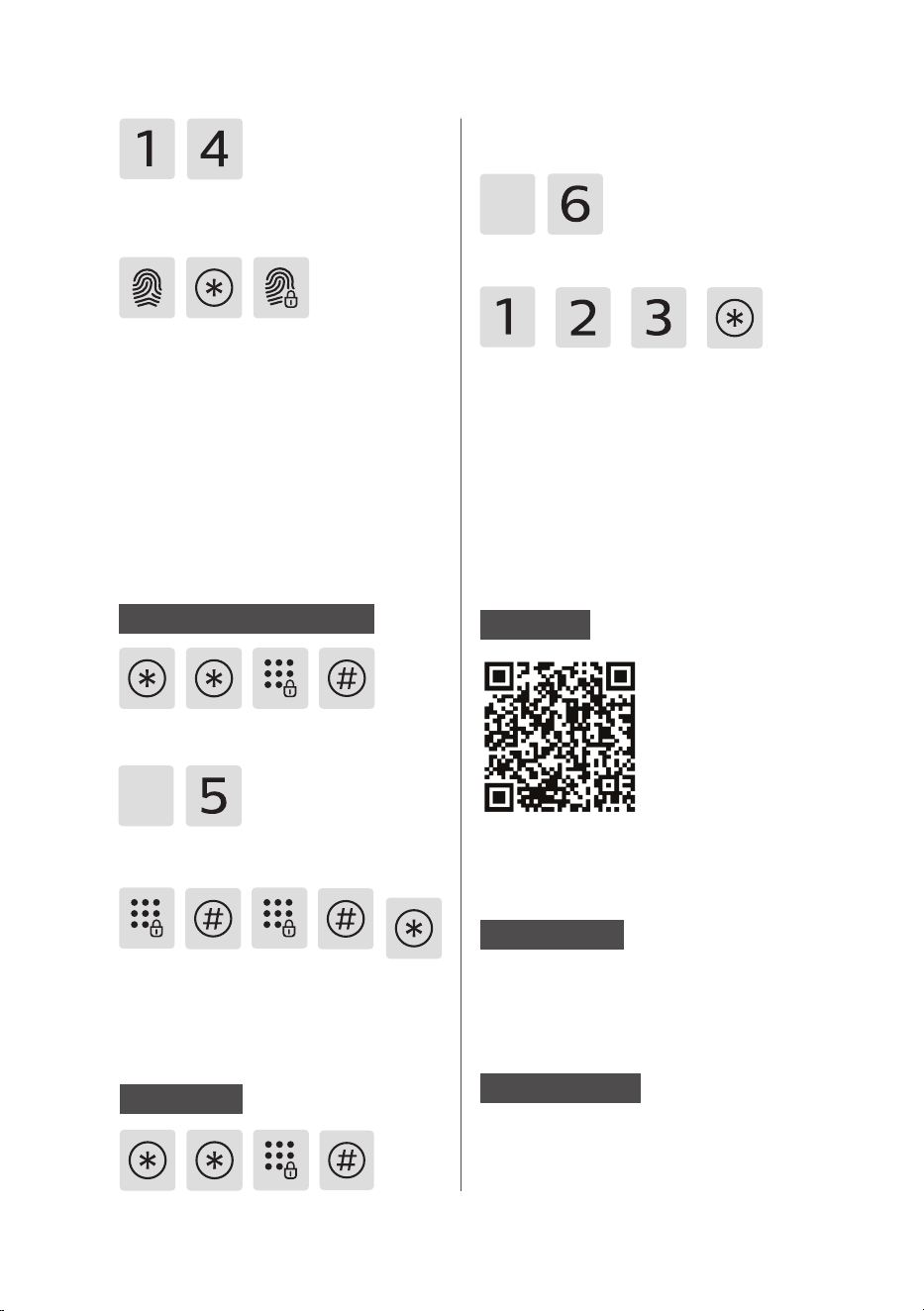

1

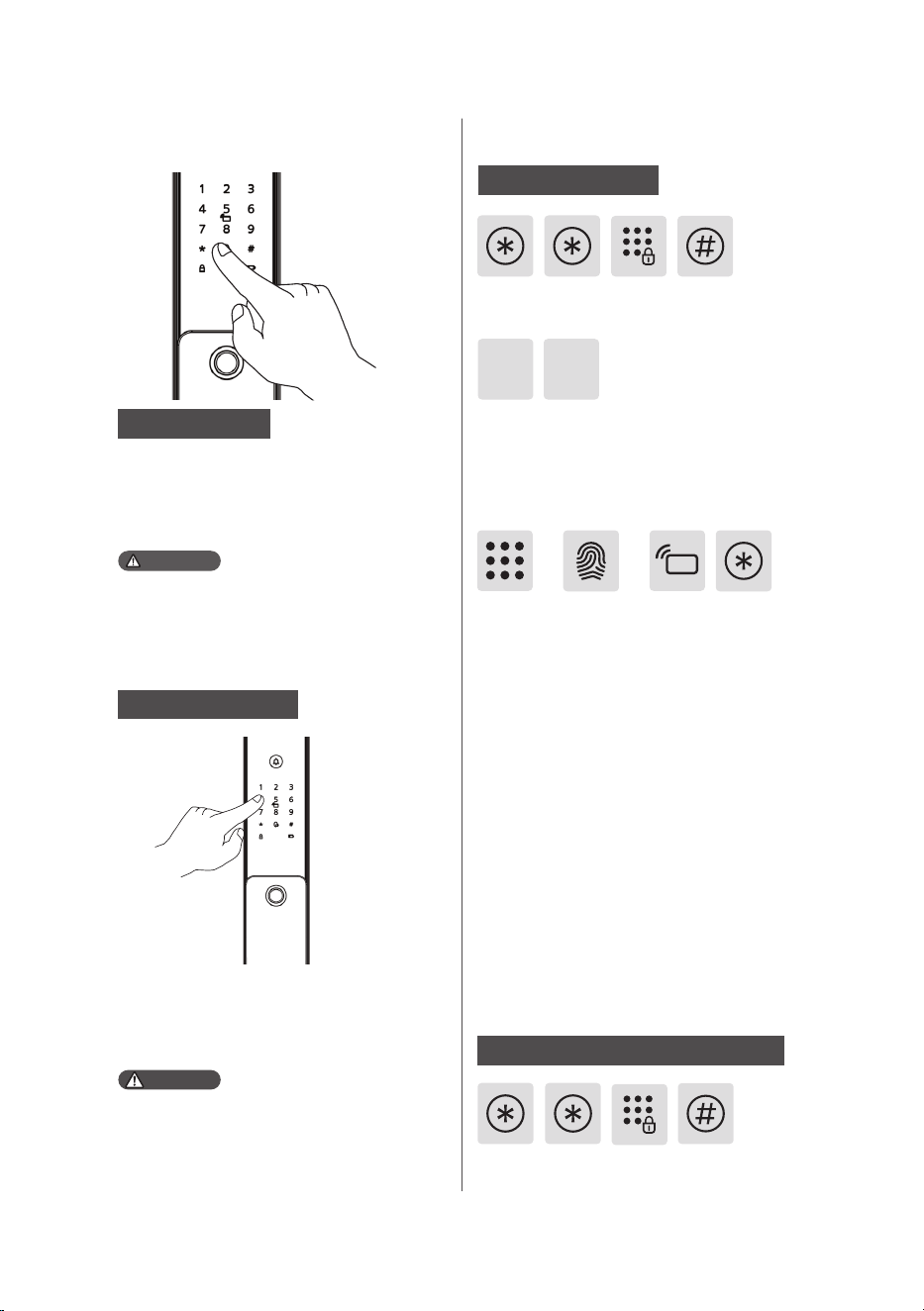

Modify the master PIN code
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
Press [1] to enter settings, then press [5] to
modify the master PIN code.
Enter a new master PIN code, press [#] to
conrm, then re-enter the PIN code, and press
[#] to conrm. After the successful setting
prompt, press the [*] key to return to the
previous menu until exiting master mode.
Press [1] to enter settings, then press [6] to
delete a user.
Press the [*] key twice, enter the master PIN
code, and then press the [#] key to conrm.
Or Or
1
Choose the access method to delete: Press
[1] to delete a PIN code; Press [2] to delete
a ngerprint; Press [3] to delete a key tag.
Follow the voice prompts for specic deletion
instructions. After successfully deleting, press
the [*] key to return to the previous menu until
exiting master mode.
Delete a user
Scan the QR code below or search for 'Home
Access' in the app store to download and
install the app.
Download
Network settings
1. Install batteries.
2. Turn on Bluetooth on your phone,
open the app, tap 'Add a device' on the
homepage, and follow the prompts in the
app to complete network binding.
After linking the door lock to the app,
add the gateway and pair it with the lock
by following the instructions in the user
manual of gateway.
Add door Lock
Gateway binding
12
①
Touch to wake up the
keypad, enter the enrolled
PIN code, and press the [#]
key to conrm.
①
Place the enrolled nger
correctly on the ngerprint
sensor.
①
Place the enrolled key
tag properly on the key tag
recognition area.
②
After hearing the voice
prompt "Verication
succeeded, please open the
door", simply push or pull
the handle to unlock it.
②
After hearing the voice
prompt "Verication
succeeded, please open the
door", simply push or pull
the handle to unlock it.
②
After hearing the voice
prompt "Verication
succeeded, please open the
door", simply push or pull
the handle to unlock it.
The smart lock features
an indoor quick-release
mechanism, allowing easy
unlocking by moving the
toggle switch left or right.
Press the [OPEN] button
twice within one second,
then push or pull the handle
to unlock.
The handle has a built-in
infrared sensor; touching
the inner side of the handle
unlocks the door.

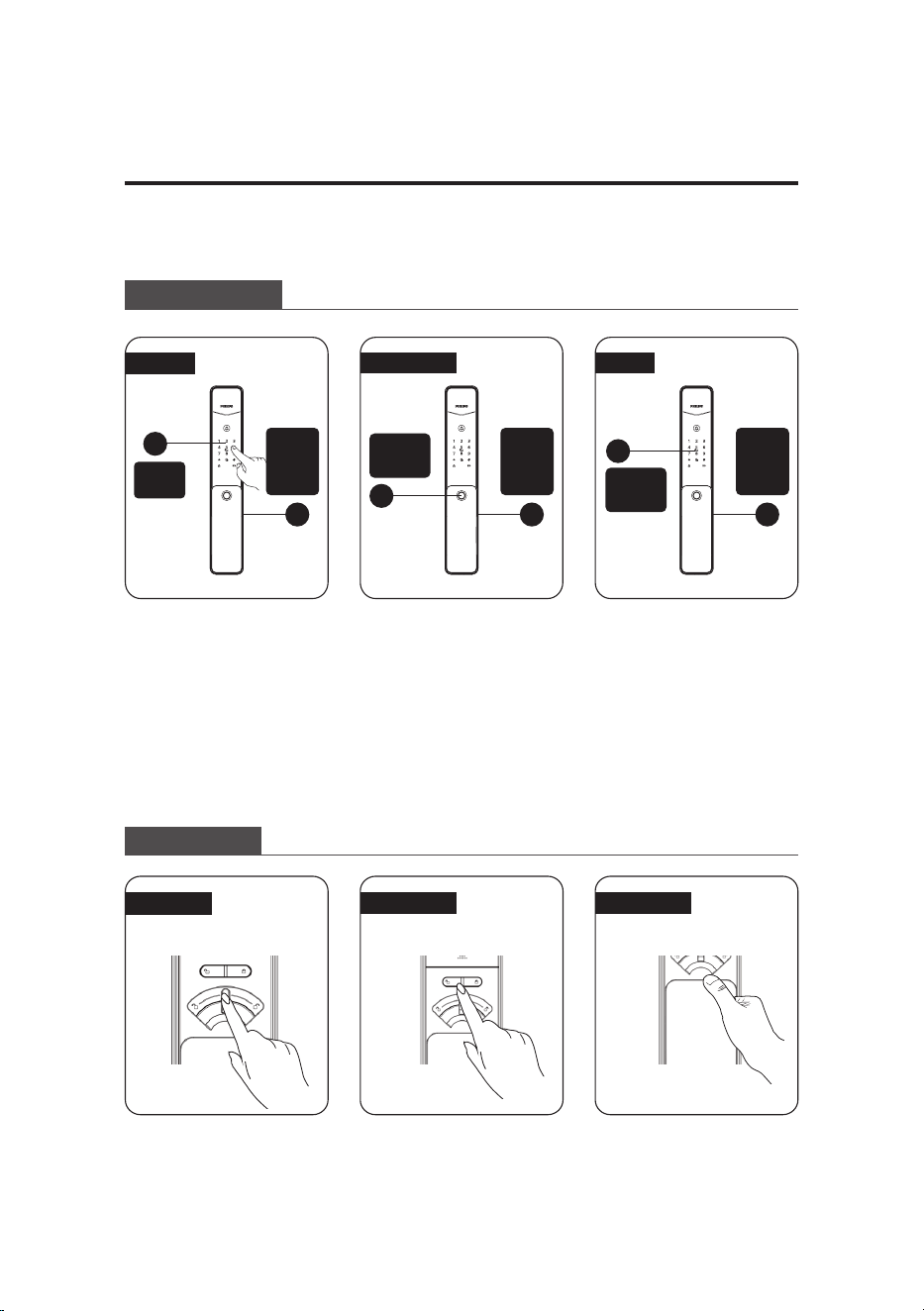

Outdoor/ indoor unlock
5 Get to use your lock
Outdoor unlock
PIN code
Toggle switch
Fingerprint
OPEN button
Key tag
Infrared handle
Touch
keypad
Fingerprint
recognition
area
Key tag
recognition
area
Push/
pull the
handle
to unlock
2
Push/
pull the
handle to
unlock
2
Push/
pull the
handle to
unlock
2
1
1
1
Indoor unlock
13

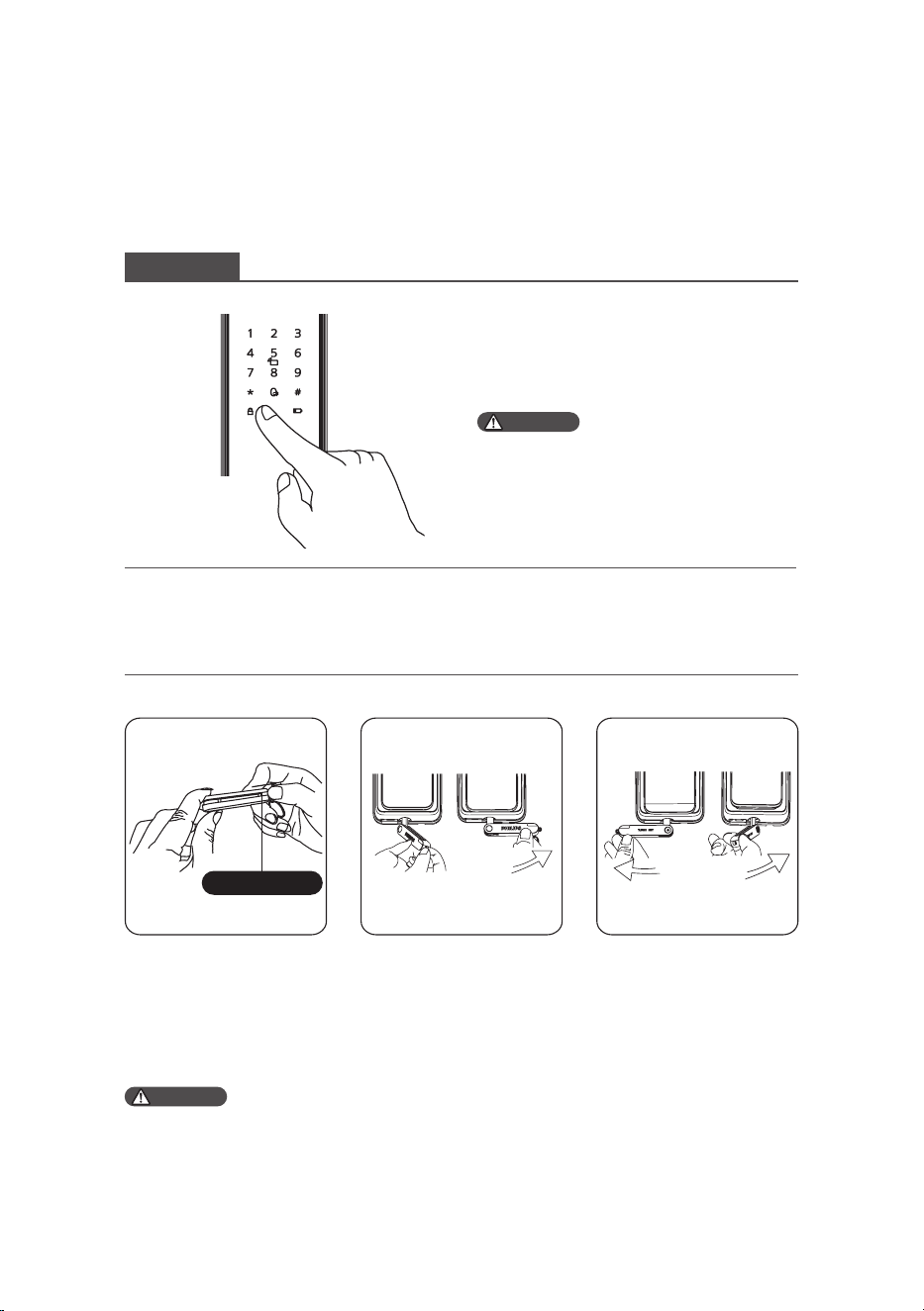

①
Cut the key box, take out
the mechanical key, press
the release switch, and slide
out the key.
②
Insert the key into the
keyhole with the key casing
vertical. Rotate the key
casing 90° towards the
handle until it is close to the
door surface.
③
Rotate the key casing
180° downward until it is
parallel to the horizontal
plane. Then, turn the key
casing horizontally towards
the handle to unlock.
Release switch
Indoor lock
After closing the door, the latch bolt will automatically extend to lock it, and a voice prompt will
conrm that the door is closed.
Indoor lock
If the door lock fails to auto-lock, press the
[CLOSE] button after closing the door to lock
it manually.
Attention
Attention
After closing the door, press and hold the
[CLOSE] button for 3 seconds to activate
privacy mode. When enabled, the door can
only be opened from the outside with a
master PIN code or a key.
1. Avoid using the mechanical key regularly. Only resort to it in emergencies such as drained
battery, forgotten PIN code, or system malfunctions.
2. Store the mechanical key outside the home, ideally in the oce, car, or a secure location, for
easy access during emergencies.
Mechanical key
14

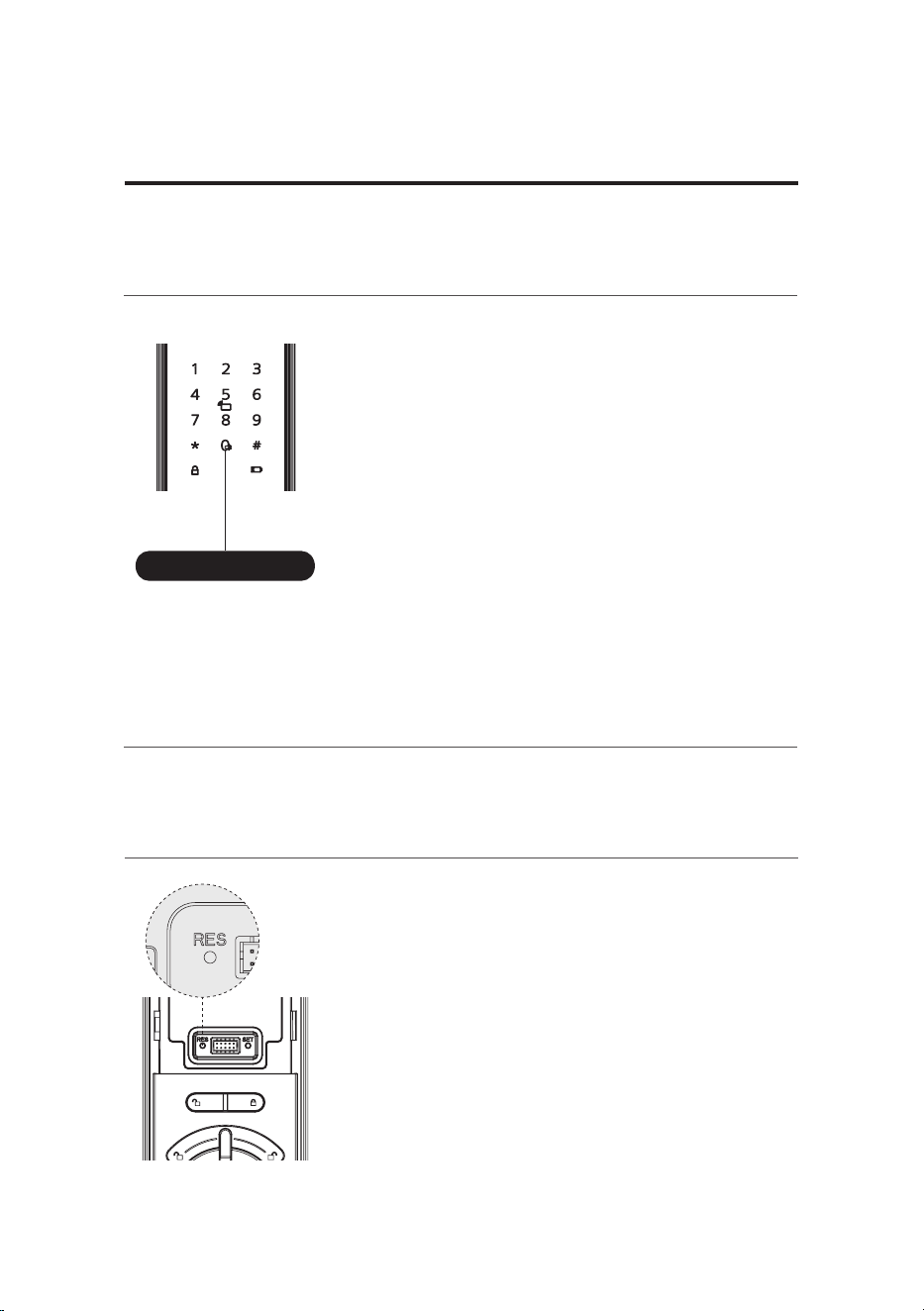

Factory reset
6 Other features
Mute button
The 0 button also
serves as a mute button
Function:
Activate mute mode by pressing the mute button
to silence voice prompts during door unlock—great
for quiet times to avoid disturbing others in the
household.
How to use:
1. Switching voice mode to mute mode: while the
system is awake, press and hold the "0" button for 2
seconds to enter mute mode. The voice prompt will
say "Mute mode".
2. Switching mute mode to voice mode: while the
system is awake, press and hold the "0" button for 2
seconds to return to voice mode. The voice prompt
will say "Voice mode".
Function:
Empty all user data and restore to default settings.
How to use:
Double-press the [RES] button with a sharp object,
which will erase all user information and restore the
lock to its default settings.
15

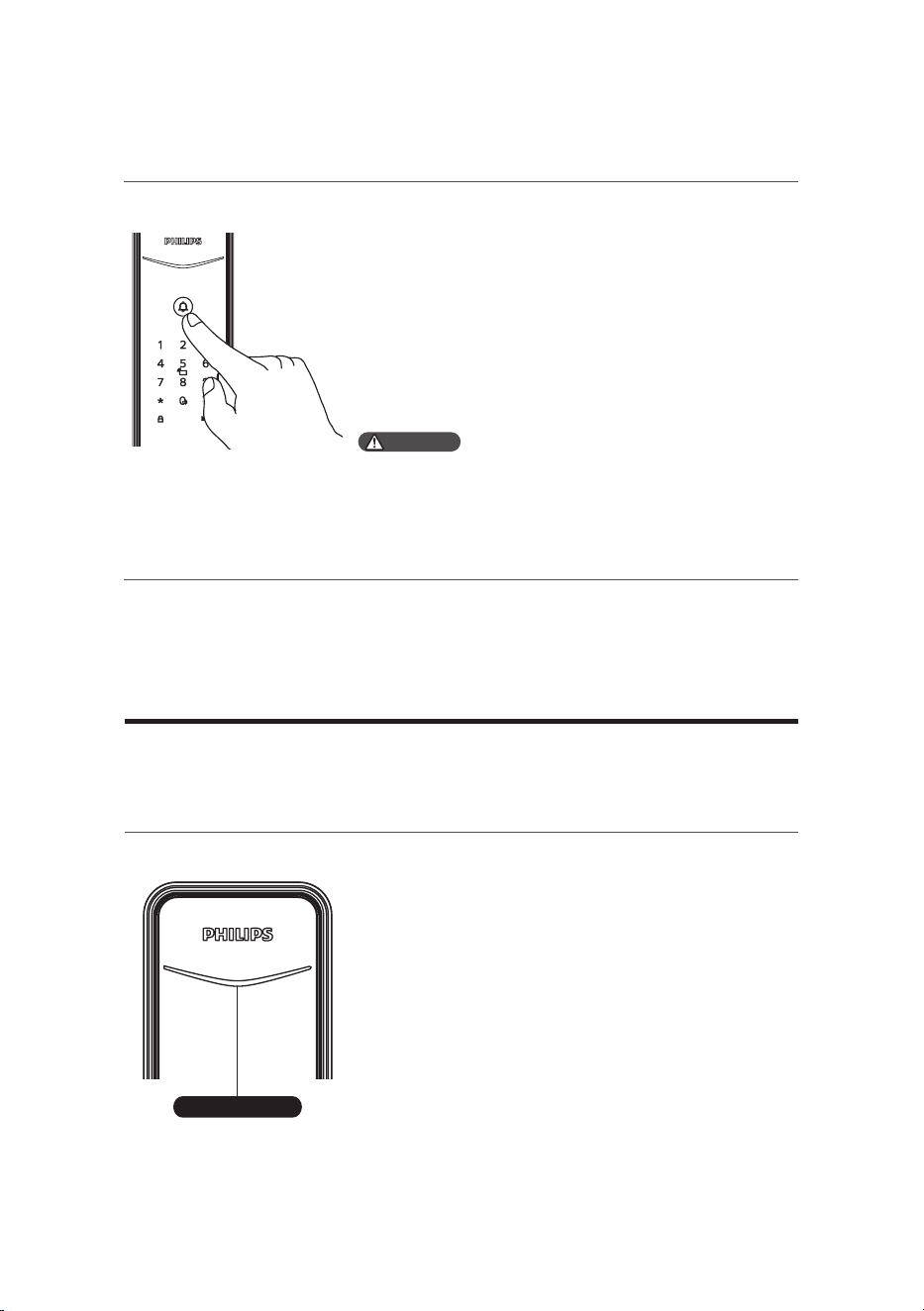

Doorbell
Status indicator
Function:
The indoor chime of the door lock rings to remind the
homeowner of a visitor.
How to use:
When the doorbell button is pressed from outside,
the indoor chime of the door lock will ring.

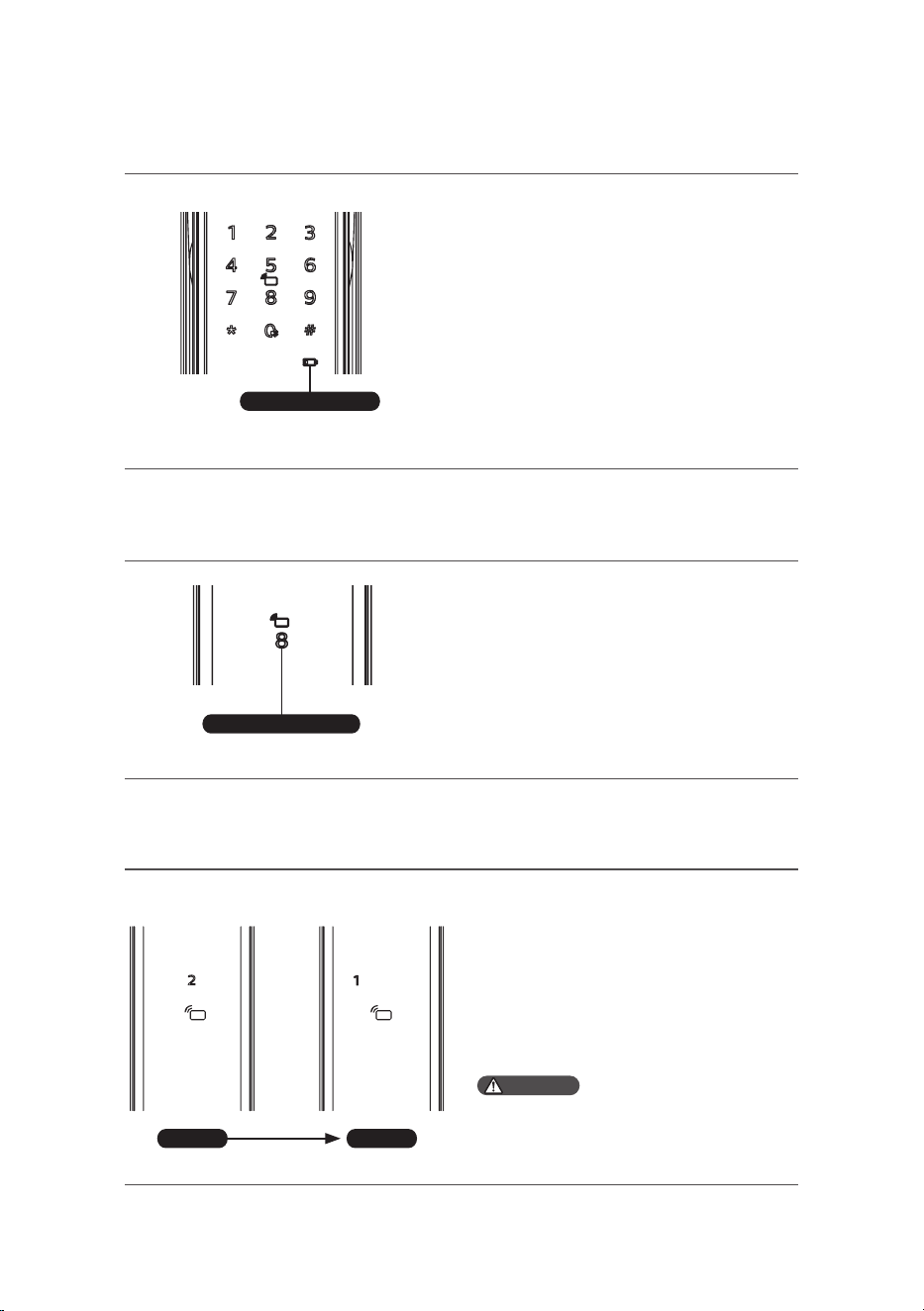

Blue: when the system wakes up, the indicator
turns blue, indicating that the door lock is ready for
operation.
Green: when the door lock is unlocked, the indicator
turns green, indicating that the door has opened.
Red: when the door lock is locked, the indicator turns
red, indicating that the door has closed.
Attention
1. Upon pressing the doorbell, the indicator will light up in
blue and ash.
2. The 'Do Not Disturb' mode can be set via the app. Once
set, pressing the doorbell will not emit any sound indoors.
7 Indicators
Status indicator
16
Red:
when the door lock is awakened,
it automatically checks the battery

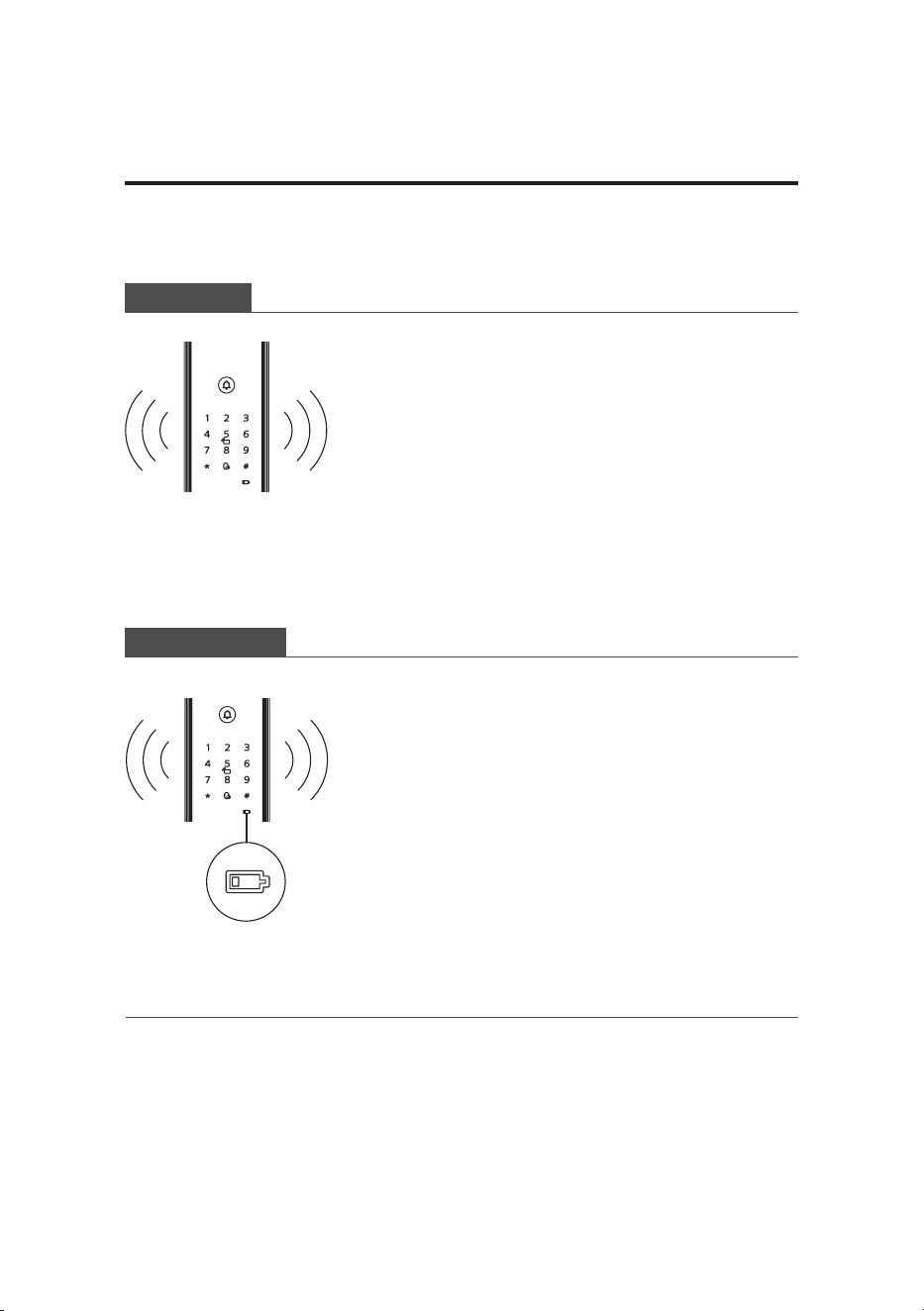

voltage. If the battery voltage is too
low, the low battery indicator will
illuminate. When unlocking, a voice
prompt will remind you to replace the
battery.
Low battery indicator
Low battery indicator
White:
when the door lock is locked, the
number key "8" will light up, indicating
that you can activate the armed mode.
If there are ve consecutive incorrect
attempts within ve minutes using
ngerprint, PIN code, or key tag,
the door lock will be locked for 100
seconds.
Armed mode indicator
In 2 mins
[2] button in ashing [1] button in ashing
In 1 mins
System locking indicator
Armed mode indicator
Attention
Prompts will only appear upon touching
to wake up the keypad or when verifying
access methods.
17
8 Troubleshooting
Alert types
Armed mode
Trigg
ering:
Triggering: when the door lock is in the armed mode,
opening it from the inside will trigger the alert.
Alert method:
Alert method: continuous, repeated alert sound.
O:
The alert will be off automatically after a successful
verication with any access method.
Low battery alert
Triggering:
when the system awakens, it will automatically check
the battery voltage. If the voltage is low, an alert will
prompt you to replace the batteries.
Alert method:
a voice prompt “Low
battery, please replace the battery” upon
unlocking.
O:
the alert will be o automatically.
18
Tamper alert
Triggering1:
after the door gap is pried open, the sensor latch will
extend.
Alert method:
continuous, repeated alert sound.
O:
the alert will be o automatically or after a successful
verication with any access method.
Triggering2:
exterior assembly is pried open, and not properly
aligned with the door.
Alert method:
continuous, repeated alert sound.
O:
the alert will automatically be o or upon successful
verication with any access method from outside or
unlocking from inside.

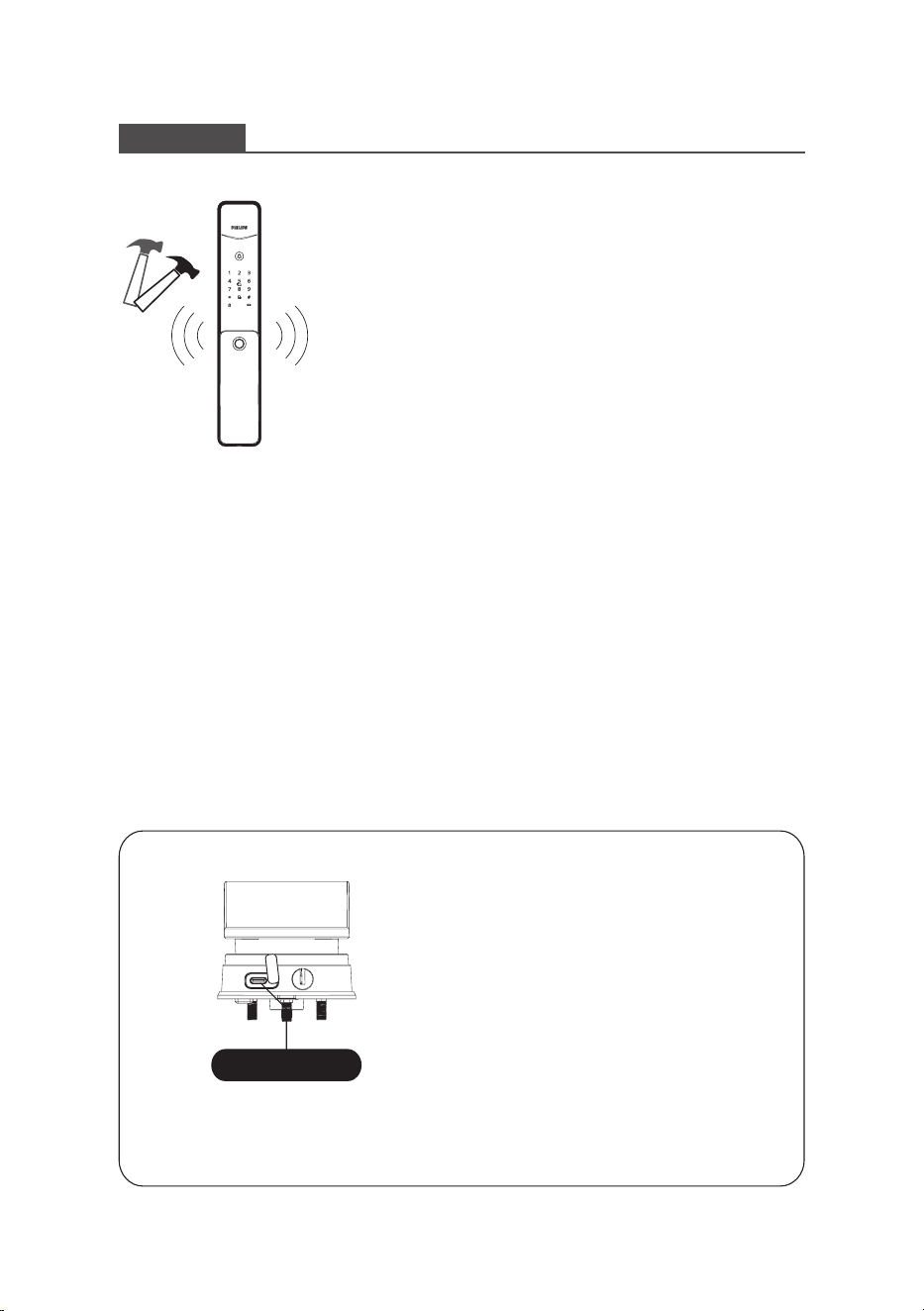

When the battery is low and you
can’t unlock the door from outside,
use a 5V power bank to power the
door lock. After unlocking, replace
the battery promptly. If the system
malfunctions and you still can’t open
the door, the 5V power bank will also
restart the system when connected.
How to apply external power source
Restart interface &
charging port
19

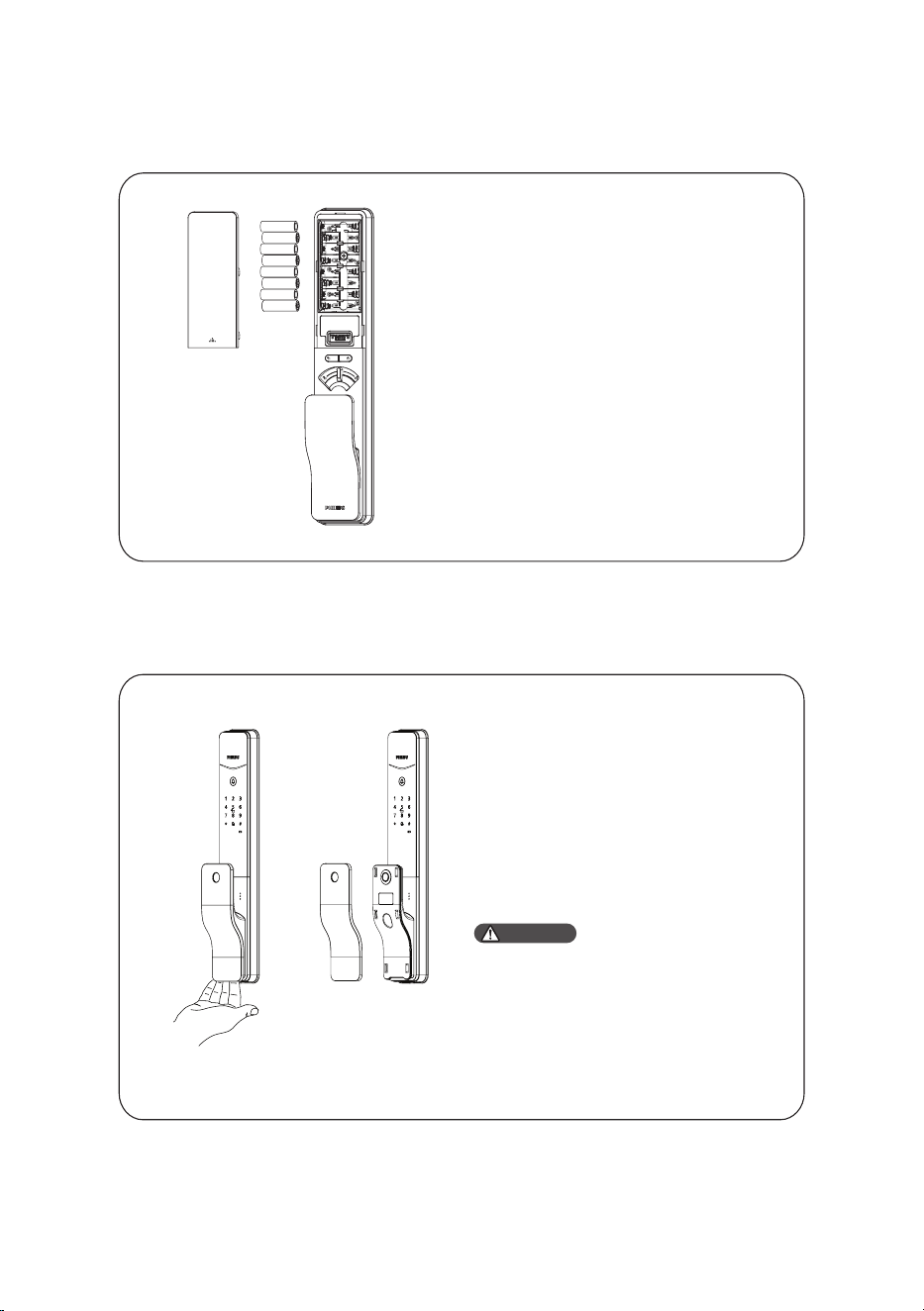

1.The door lock operates on four
AA alkaline batteries. The battery
compartment can hold up to eight
batteries, extending battery life
and reducing the need for frequent
replacements.
2.Press and hold the triangular push
area (as shown) and slide the battery
cover upwards to remove it and
replace the batteries.
1. Locate the clip position beneath
the handle (as shown on the left)
and unclip the handle cover from the
bottom.
2. Align the clip points of the new
handle cover with the clip position
and snap it into place.
Battery replacement
How to change handle cover
Attention
You can customize the handle cover
in dierent colors. For more details,
please consult a Philips Smart Lock's
ocial consumer care center or an
authorized dealer.
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips
N.V. and are used under license. This product has been manufactured by and is sold
under the responsibility of Shenzhen Conex Intelligent Technology Co., Ltd., and
Shenzhen Conex Intelligent Technology Co., Ltd. is the warrantor concerning this
product.
