ASSEMBLY INSTRUCTIONS
Ceiling Mount Boat Rack

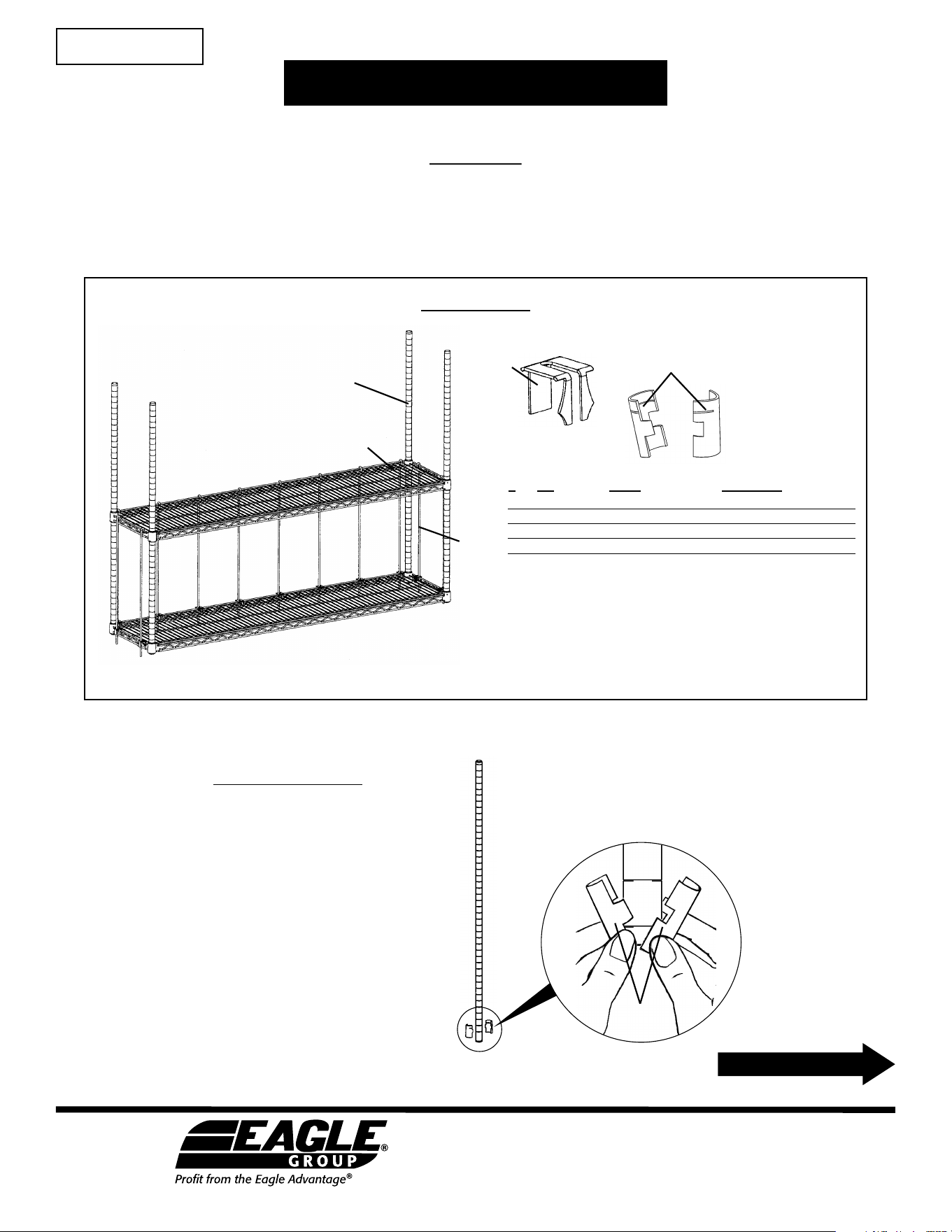

Parts List
* Part number of shelves varies, depending on size.
** Quantities of rods and clips vary, depending on shelf size.
Note: Ceiling-mounting hardware (#3/8-16 threaded rods) not included.
EG9960 Revised 03/24
#
qty part # description
#1 4 BRCP45-C post
#2 2 * shelf
#3 ** A213304 rod
#4 ** A204297 clip
#5 2 A200816 bag of four split sleeves
#1
#2
#3
#4 #5
split
sleeves
Step 1 - Attach split sleeves (for bottom shelf) to posts
Snap split sleeve onto each post at the
second-from-last groove
(the wider part
of the taper goes toward the bottom).
NOTE: Top of post is the end with a
threaded nut inside.
INSTRUCTION SHEET
#316517
(continued on back page)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE
. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
(continued on back page)
split
sleeve
shelf
collar
post

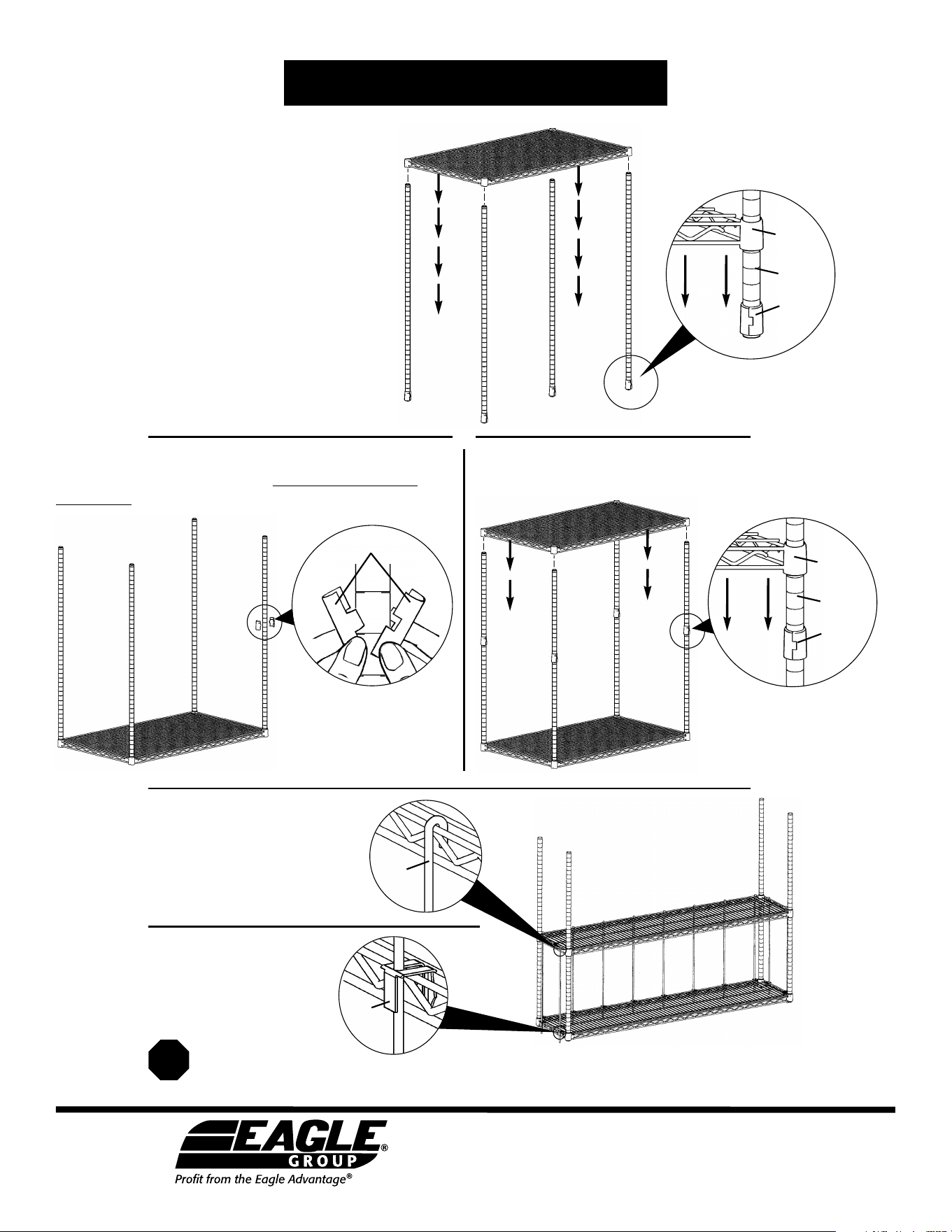

Step 2 - Assemble bottom shelf to posts
Step 4 - Assemble top shelf to posts
Step 5 - Attach rods
Hook rods where desired onto
outside of top shelf.
NOTE: At least one rod required on
each end.
Step 6 - Attach clips at
bottom of rods
Step 3 - Attach split sleeves (for top shelf) to posts
Snap split sleeve onto each post at approximately 22˝ from
bottom shelf.
split
sleeves
split
sleeve
shelf
collar
post
rod
clip
(End)
