LANDSCAPE SERIES
LS4T SAT | LS6T SAT
INSTALLATION AND SUPPORT MANUAL
2
SLS SATELLITE SPEAKERS
LS4T SAT | LS6T SAT
TABLE OF CONTENTS
2 Box Contents
2 Introduction
2 Important Safety Information
2 Satellite Placement
3 Wiring and Installation
5 Technical Specifications
6 Warranty
BOX CONTENTS
(1) Manual
(1) Satellite Speaker
(2) Silicone filled wire nuts
INTRODUCTION
Thank you for purchasing Sonance Landscape Series
Speakers. When properly installed, these speakers will
provide you with years of outdoor entertainment. To
get the most out of your new speakers, please read this
manual thoroughly before you begin installation.
IMPORTANT: Read this section in its entirety before
attempting use of speaker.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using
your speaker to reduce the risk of fire, electric shock,
and injury to prople or objects.
1. Read all the safety and operating instructions before
operating the speaker and retain them for future
reference.
2. Adhere to all warnings and precautions listed on the
speaker and in the operating instructions.
3. Follow all operating instructions.
SATELLITE PLACEMENT
The SLS system is designed to deliver a seamless, evenly
dispersed sound field in an ‘open air’ environment. An
array of multiple satellite speakers and subwoofers
should be strategically placed to minimize ‘hot spots’ and
‘nulls’ as you move around the outdoor entertainment
area. Recommended placement of the SLS satellites is
every 8-10 feet around the area of coverage. The shorter
spacing is recommended for higher SPL and closer
listening applications. After every four to five sats, install
one SLS sub of choice within the speaker wire chain. This
will allow the output of the satellites and subwoofers to
blend together more seamlessly (see Figure 1).
NOTE: As a general guideline, one satellite will cover
about 250 square feet of listening area.

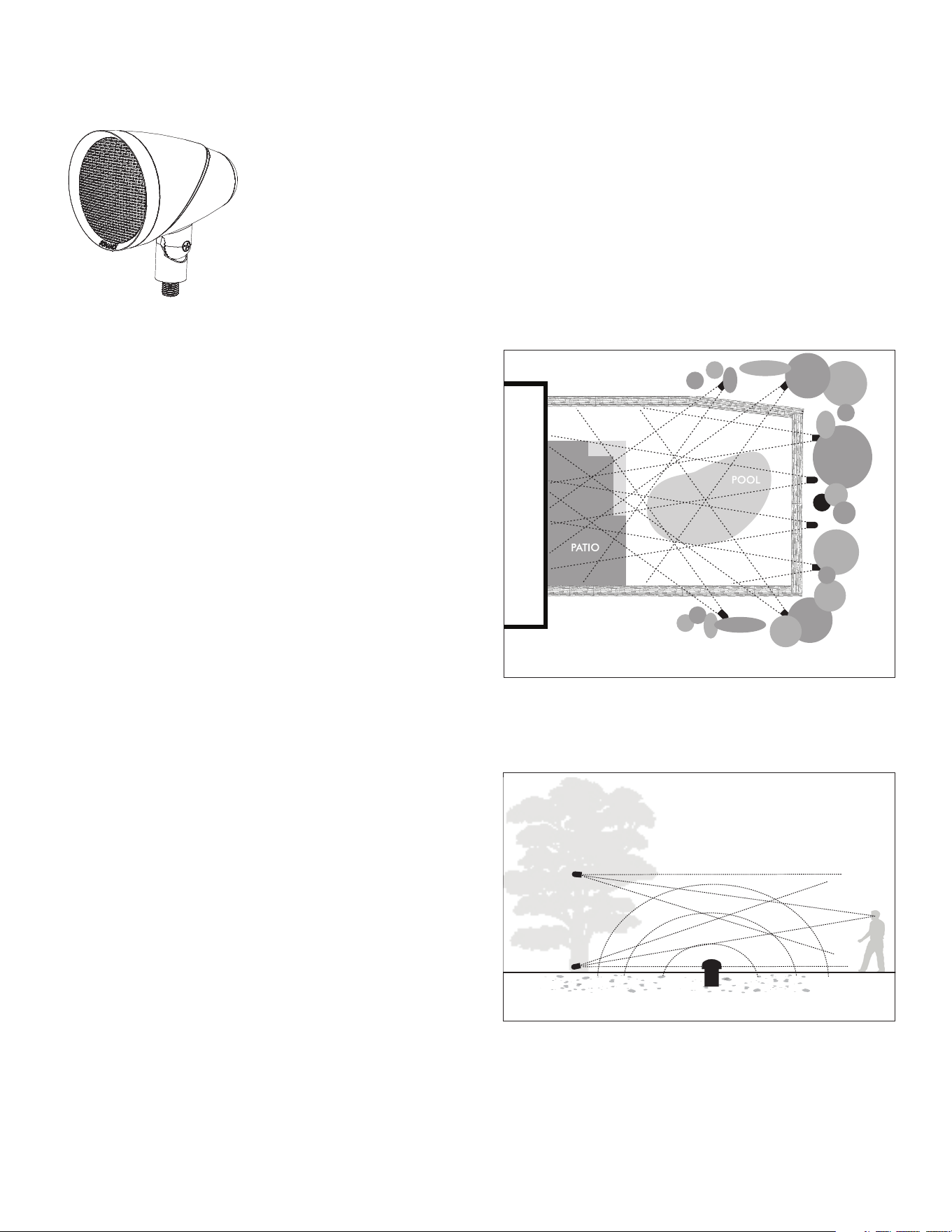

Figure 1: Speaker Placement
ADJUSTABLE TAP
SLS features a wide bandwidth Sonance Laminated Core
Transformer (SLCT) with an adjustable tap, allowing the
system to be configured for 70V/100V or 8 ohm. If using
this SLS product in an 8 ohm application, ensure the
tap switch is positioned to the 8 ohm setting. If using
this product in a 70V/100V system, ensure the tap is
positioned to one of the 70V/100V settings.
Use care to select satellite locations that are equally
distant from the main listening area. When possible, use
high and low locations to centralize the acoustic stage
(see Figure 2).
Figure 2: Speaker Placement
3
NOTE: Ensure that all satellites and subwoofers are set
to either 70V/100V or 8 ohm tap settings to avoid any
damage to your amplifier. DO NOT combine products
set to any of the 70V/100V settings with products set
to the 8 ohm setting on a single amplifier.
Some 70V/100V system designs will require variations
of higher and lower output in dierent areas of the
landscaping. The SLCT adjustable tap allows each
satellite or subwoofer to be individually dialed to the
desired output. Adjusting the tap settings will impact
your wattage calculations. Please review the Wattage
Calculator on the Sonance website: sonance.com/
collections/sonance-landscape-series
NOTE: This product ships with the SLCT adjustable tap
set to 40W. Adjustments can be made to the tap switch
once all the satellites and subwoofers are connected to
achieve the appropriate output level.
SONAMP DSP 2-750 AMP POWER
PLANNING
The maximum number of satellites and subwoofers that
can be used in a system will depend on the amplifier
power. It is important to calculate the amplifier power
your installation will require before you begin. Multiple
amplifiers may be required in large installations.Refer to
the SLS wattage calculator on the Sonance website:
sonance.com/collections/sonance-landscape-series
WIRING AND INSTALLATION
SLS systems allow for speakers to be daisy chained
together. In a typical system with one zone of audio,
simply run a stereo or 4-conductor speaker wire from
the amplifier to the closest speaker. Designate the
first speaker as either left or right and connect the
appropriate positive and negative wires to the speaker
terminals. Continue alternating the wires between the
left and right channels for each speaker, creating a daisy
chain of stereo satellites. The subwoofer can be wired
anywhere in the chain and will receive either left or right
speaker wires (see Figure 3).

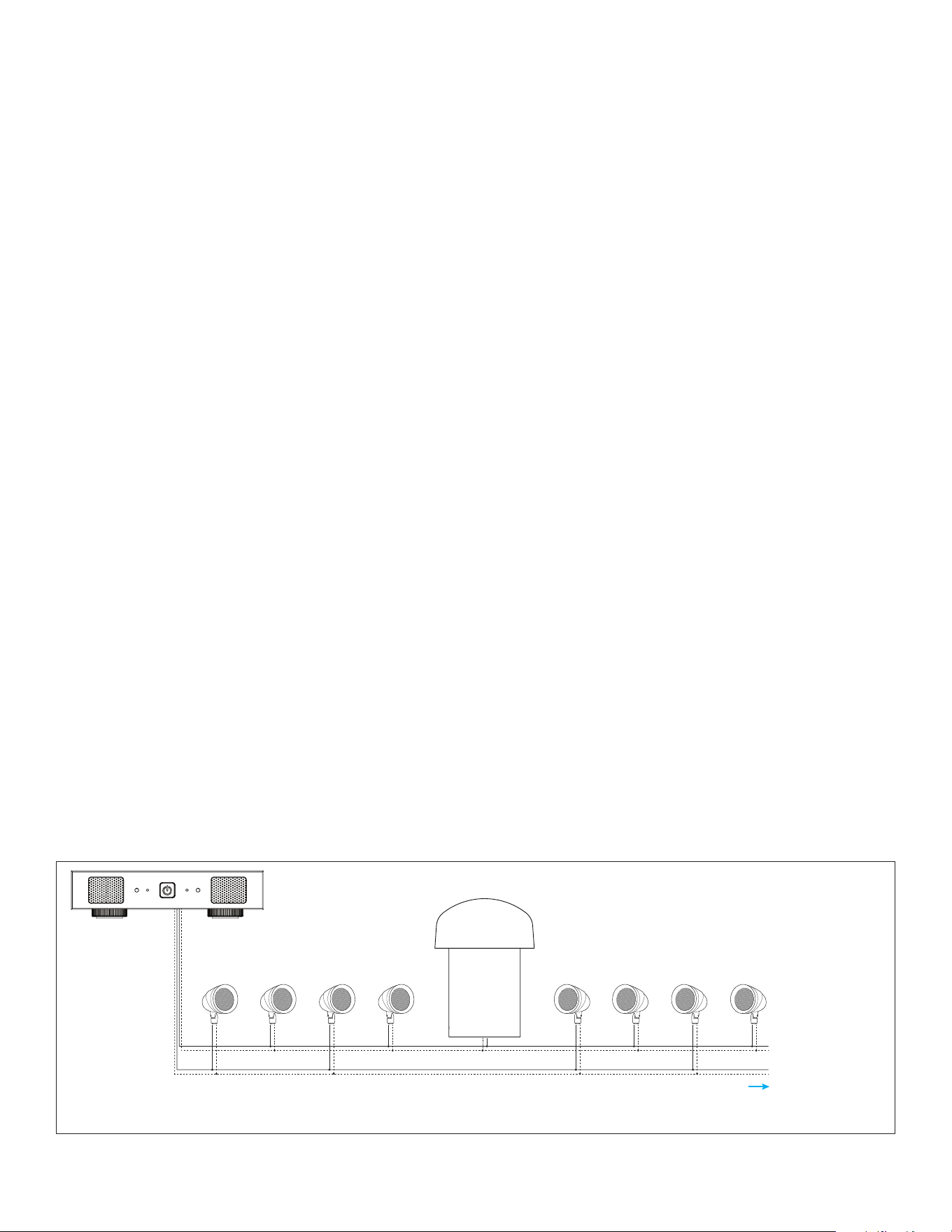

Figure 3: SLS Wiring Diagram: 4 SATs | 1 SUB or 8 SATs | 1 SUB
Expandable
LeftLeft RightRight
R1L1
SR 2-125
LeftLeft RightRight
Note: The subwoofer
can be connected at any
point in the daisy chain.
NOTE: Do not stake SLS speakers within direct spray
range of sprinkler heads. Keep at a distance of 2’ or
greater from direct water streams.
NOTE: Sonance strongly recommends the use of 14/4
direct burial wire for distances up to 200’ and 12/4
direct burial for longer runs. Keep wires as short as
possible to minimize resistive wire losses.
CAUTION: The amp should not be connected to
AC power until all speaker wire connections are
completed. High power 70V amps present a serious
shock hazard.
NOTE: Before installing satellite speakers, ensure that
each one has been set to the appropriate 70V/100V
or 8 ohm tap setting for your system design and
requirements.
1. Once locations have been established, choose the
appropriate mounting accessories for the project.
NOTE: Always use a #3 Phillips head screwdriver when
fine tuning the height adjustment screw.
• For applications on flat surfaces, such as the side
of a building or structure, use the SM1 Round
Surface Mount. See instruction manual included with
accessory for precise mounting instructions.
• For placement directly into the ground, use the GS9
ABS in-ground stake for the LS4T SAT, and/or the
GP19 PVC Ground Post for the LS6T SAT. LS4T SAT
and LS6T SAT speakers have 1/2” NPS mounting
threads. See Instruction Manual included with
accessory for precise instructions.
• For in-tree Mounting, use the TSMJB Tree/Surface
Mounting Junction Box. See Instruction Manual
included with accessory for precise instructions.
2. Once the accessories have been mounted at the
desired locations, mount the satellites by threading
the mounting shaft into the corresponding opening
of the accessory.
4
Figure 4: Connect
Twist wires
together
Waterproof
Wire Nuts
To next
speaker/sub
To Amp
Positive
+
Negative
-
NOTE: Attention must be paid to the electrical leads to
avoid nicks and cuts that might short the system.
3. Prepare individual leads to be connected to main
leads.
4. Dig a 4–5” deep trench for running the speaker wires.
5. Run the wire through the trench from the amplifier to
the first speaker location.
6. Connect the direct burial wire to each speaker wire;
connections should be made with either silicone filled
wire connectors or appropriate junction boxes (see
Figure 4).
IMPORTANT: Be sure not to let any stray ‘+’ and ‘–’
strands touch each other. Touching strands can cause
a short-circuit that could damage your amplifier and
degrade sound quality.
7. After all the speaker connections are completed,
connect the wires to your amplifier (see Figure 4).
8. Turn your amplifier on and test the system with
your favorite music. If the speakers are operating
properly, refill the wire trench and enjoy your new
system.
5

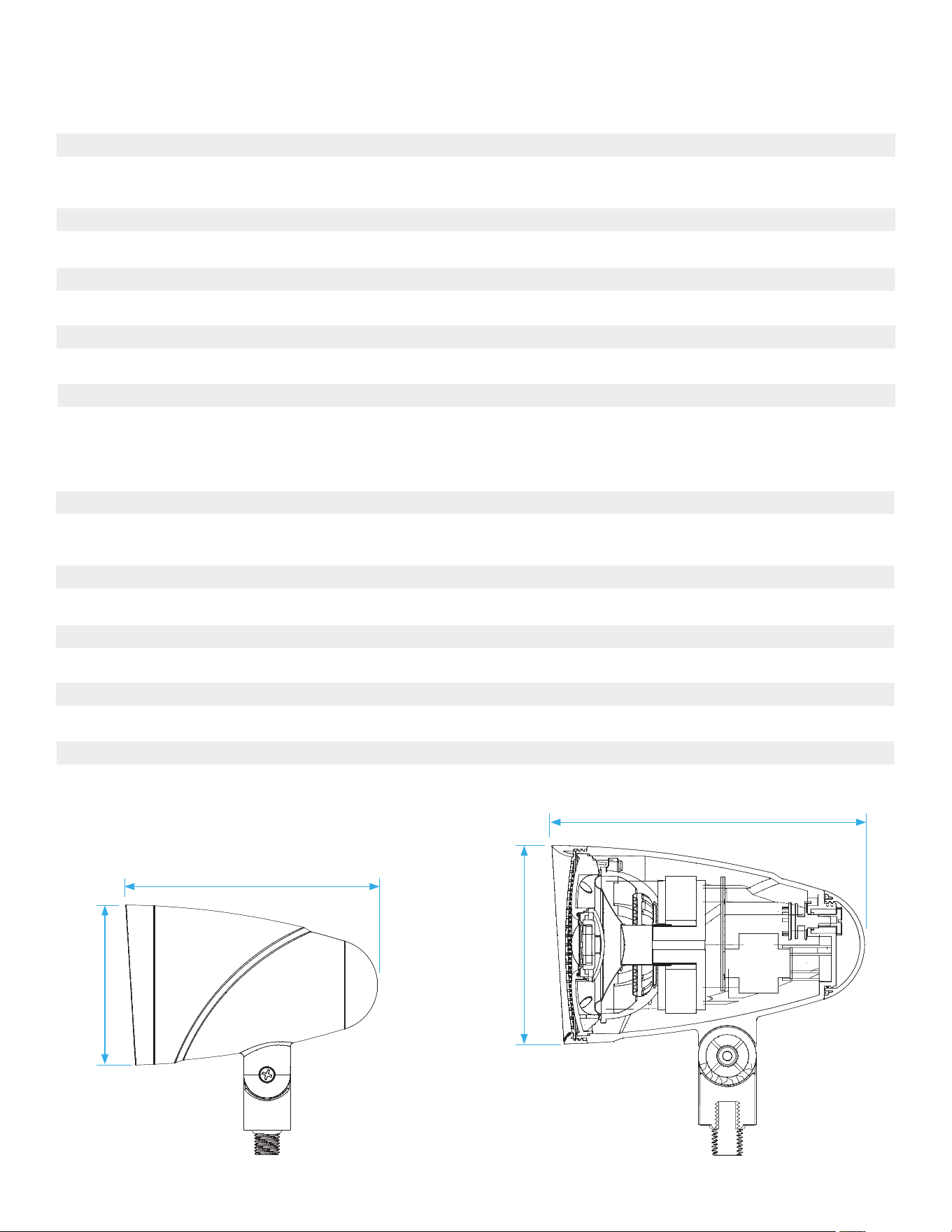

LS4T SAT
Tweeter 1” (25mm) polyurethane dome
Woofer 4 1/2” (114mm) injection molded polypropylene cone with a
Santoprene rubber surround
Frequency Response 75Hz - 20kHz +/-3dB
Transformer Taps 40W, 20W, 10W, (5W 70V) | 300 watts RMS (600 watts peak)
Impedance 8 ohms
Dispersion +/-60 degrees or 120 degrees conical
Enclosure Material High heat ABS non-corrosive sealed enclosure
Dimensions (LxDia) 8.07” x 5.12” (205mm x 130mm)
Shipping Weight 6.28 lbs (2.85kg)
TECHNICAL SPECIFICATIONS
11.7” (297mm)
7.43” (189mm)
8.07” (205mm)
5.12” (130mm)
LS6T SATLS4T SAT
LS6T SAT
Tweeter 1” (25mm) polyurethane dome
Woofer 6 1/2” (165mm) injection molded polypropylene cone with a
Santoprene rubber surround
Frequency Response 55Hz - 20kHz +/-3dB
Transformer Taps 60W, 30W, 15W, (7.5W 70V) | 300 watts RMS (600 watts peak)
Impedance 8 ohms
Dispersion +/-60 degrees or 120 degrees conical
Enclosure Material High heat ABS non-corrosive sealed enclosure
Dimensions (LxDia) 11.7” x 7.43” (297mm x 189mm)
Shipping Weight 9.92 lbs (4.5kg)
6
©2025 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations. Due to continuous product improvement, all features and
specifications are subject to change without notice. For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777
11.24.2025
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized
Sonance Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille, which
is warranted for five (5) years. Sonance will at its option and expense either repair the defect or replace the Product with a new or
remanufactured Product or a reasonable equivalent.
EXCLUSIONS: TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF
FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. No one is
authorized to make or modify any warranties on behalf of Sonance.
The warranty stated above is the sole and exclusive remedy and Sonance’s performance shall constitute full and final satisfaction of all
obligations, liabilities and claims with respect to the Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY, OR
PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.
This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state. Some states do
not allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your
state does not allow disclaimer of implied warranties, the duration of such implied warranties is limited to period of Sonance’s express
warranty.
Your Product Model and Description: Sonance Landscape Series LS4T SAT or LS6T SAT Satellite Speakers
Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the
initial installation of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied
or associated equipment which may result for any reason from use with this Product, and does not include labor or parts caused by
accident, disaster, negligence, improper installation, misuse (e.g. overdriving the amplifier or speaker, excessive heat or cold or humidity,
outdoor installation), or from service or repair which has not been authorized by Sonance.
Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized Sonance Dealer/Installer or call Sonance
Customer Service at (949) 492-7777, must obtain a return merchandise number (RMA), and must deliver the Product to Sonance
shipping prepaid during the warranty period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.
In order to initiate a warranty claim:
1. Contact Sonance Technical Support with a description of the fault, the speaker’s serial number and the date of purchase from an
authorized Sonance dealer at: [email protected]
2. Sonance Technical Support will follow-up and may request additional troubleshooting.
3. Once a determination has been made on the fault, Sonance Customer Service will follow-up by email. Please have a scanned copy of
your Sonance Landscape Series Speaker sales invoice ready to send upon request to document the speaker’s warranty status.
4. Sonance Customer Service will provide an RMA number to be included on the shipping label of the packaging. Please send the
speaker back in its original factory carton, which has been specifically designed to protect the speaker during transit.
Contact us at: https://www.sonance.com/company/contact
