Model: GF-6610/GF-6610B
Install Video
Replacement
Accessories
NOTE:
Please use the pure water in the hard water
area.
Please remove the carpet glider before
mopping hard floor.
Gorfanty steam mops were 100% passed
quality test before shipping from factory.
Some pure water may residue after the test.
Any problem & warranty registration please contact
service@gorfanty.net
1
ANY QUESTIONS OR PROBLEM?
Please contact us at Email: service@gorfanty.net along with your:
1. Order Number (for better service tracking);
2. Your problem or question (better with pictures or videos).
2 YEAR LIMITED WARRANTY-LEGAL
GorFanty warrants to the original purchaser only, that all GorFanty products will provided
2
years
warranty from date of purchase, if original purchaser registers the product within 30 days from
purchasing.
Product registration can be completed online by scanning the below QR-code OR contact
also retain their receipt as proof of purchase.
THE 2-YEAR WARRANTY PERIOD IS CONDITIONED ON
REGISTRATION OF THE PRODUCT WITHIN 30 DAYS OF
PURCHASE.
If original purchasers do not register their product timely, the
foregoing limited warranty will apply for a duration of 1 year.
Warranty Registration
- This warranty does not cover part failure due to normal wear or tool abuse.
- This warranty does not apply to accessories or damage caused where repairs have been made
or attempted by others.
- THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS MOP
PAD AND OTHER RELATED ITEMS.ANY IMPLIED WARRANTIES APPLICABLE TO A
PRODUCT SHALL BE LIMITED IN DURATION EQUAL TO THE DURATION OF THE EXPRESS
WARRANTIES APPLICABLE.
2
TABLE OF CONTENT
WARRANTY .................................................................................................................................. 1
GENERAL SAFETY INSTRUCTIONS ...........................................................................................3
SAFE OPERATION ....................................................................................................................... 4

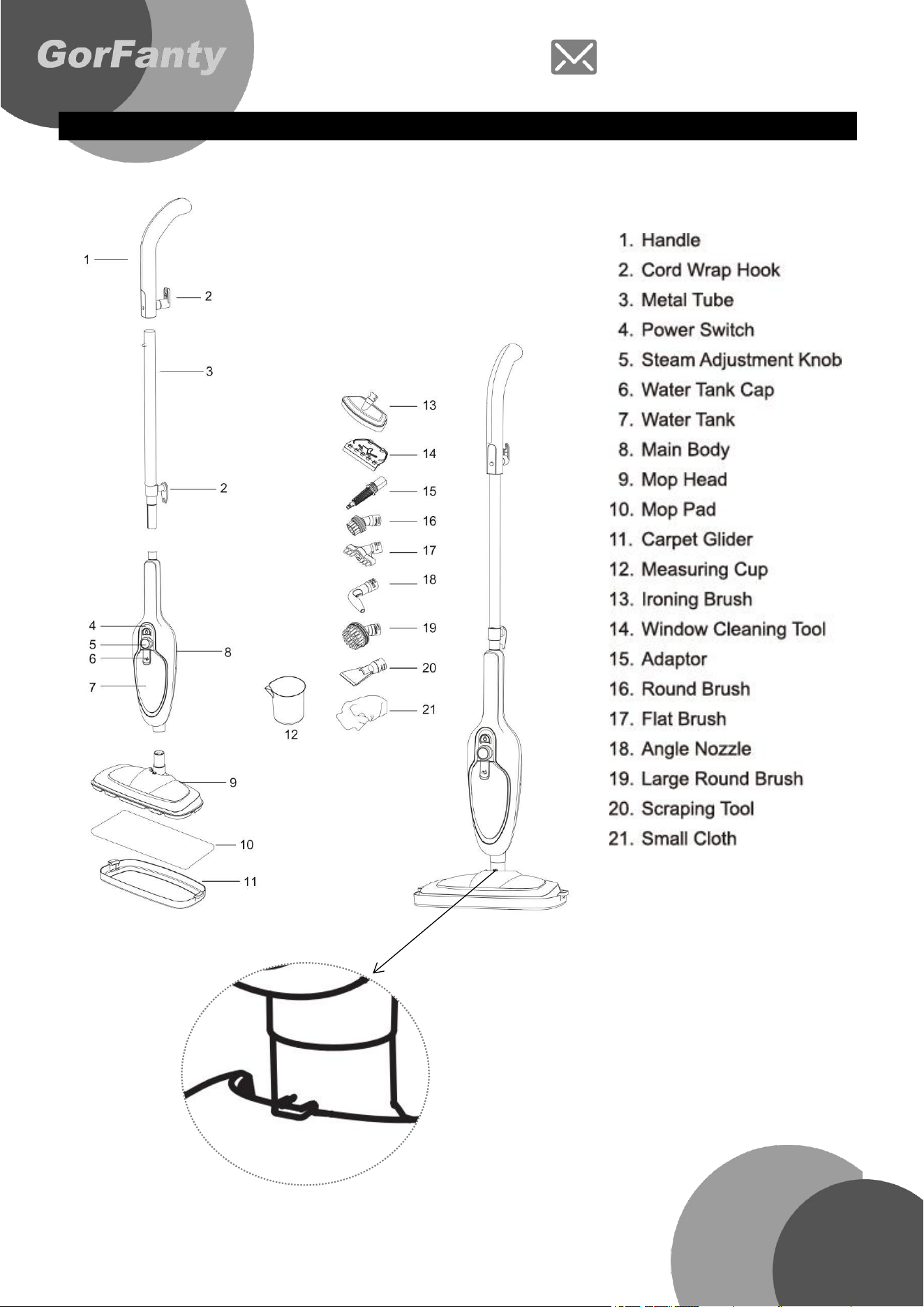

PRODUCT DIAGRAM ................................................................................................................... 6
ASSEMBLING THE STEAM MOP .................................................................................................7
ASSEMBLING THE HANDHELD STEAM CLEANER ................................................................... 9

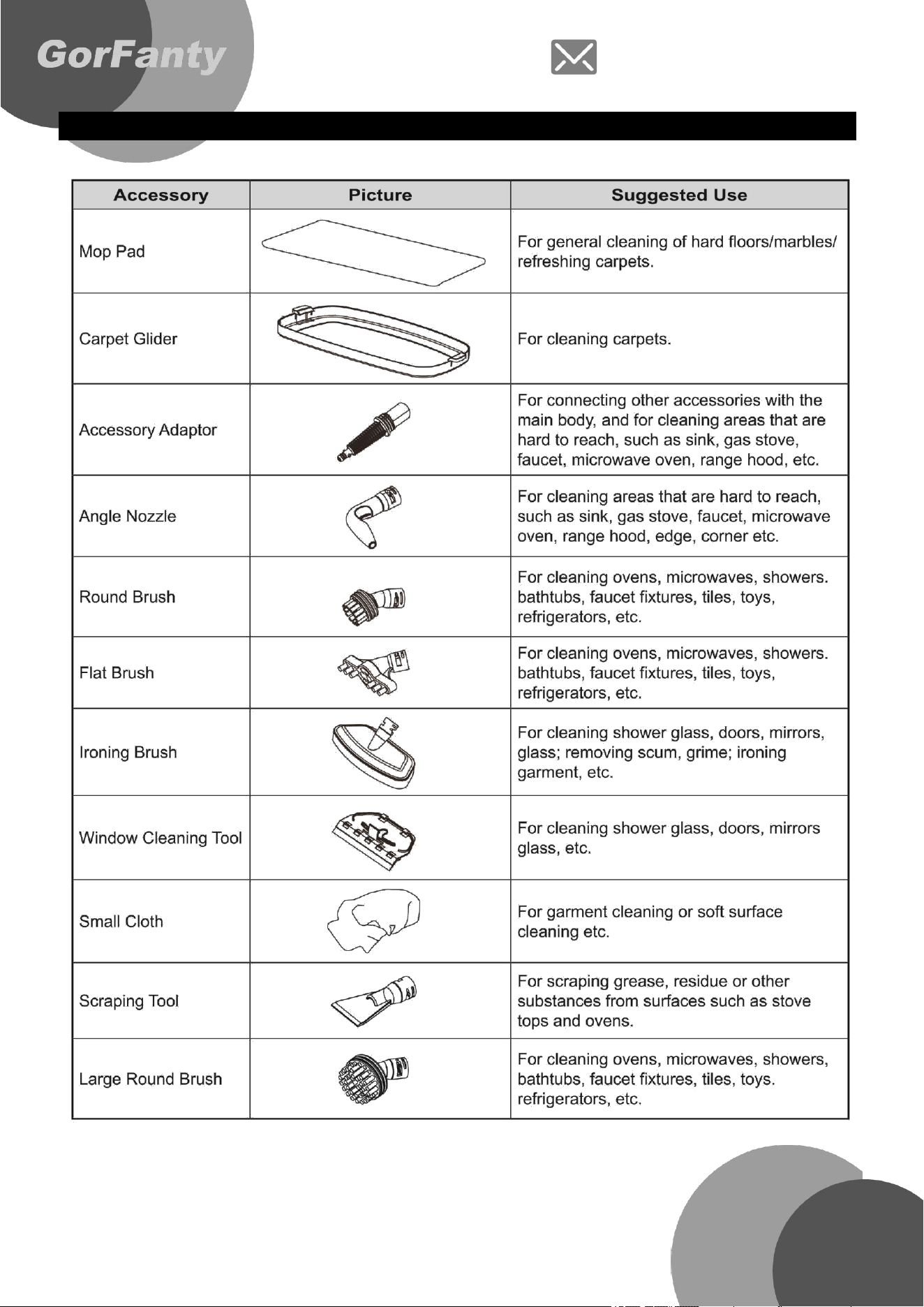

ACCESSORIES KIT .................................................................................................... 10
USING THE STEAM MOP/CLEANER ......................................................................................... 11
CLEANING AND STORAGE ....................................................................................................... 13
TECHNICAL SPECIFICATIONS ..................................................................................................13
TROUBLE SHOOTING GUIDE ................................................................................................... 14
FREQUENTLY QUESTION & ANSWER ..................................................................................... 15
CONTACT US ............................................................................................................................. 15
3
GENERAL SAFETY INSTRUCTIONS
Read this manual thoroughly before first use, even if you are familiar with this type of product.
Always follow basic safety precautions and accident prevention measures when using an
electrical appliance, including the following:
1 Before turning on the steam mop, ensure your electrical voltage and circuit frequency
correspond to those indicated on the appliance rating label.
2 To provide continued protection against the risk of electric shock, connect the appliance
to a properly grounded electrical outlet only. Never force the plug into an outlet.
3 Do not use an extension cord or electrical outlet with inadequate currentcarrying
capacity.
4 To reduce the risk of electrocution, never operate this product with wet hands or without
shoes. Never immerse it under water or spill liquids into the product.
5 Protect the power cord. Do not kink or damage the power cord. Do not pull or carry the
steam mop by the cord. Do not use the cord as a handle, close a door on the cord, or pull the cord
around sharp edges or corners. Keep the cord away from heated surfaces.
6 If the supply cord or plug is damaged, do not use the appliance. A damaged cord or plug
must be replaced by the manufacturer, its service agent or appropriately qualified personnel in
order to avoid a hazard.
7 Do not leave the appliance unattended while connected to the power supply.
8 Turn off the switch and unplug the electrical cord when not in use and before servicing.
To unplug, grasp the plug, not the cord.
9 This steam mop is intended for household use only. Do not use it for anything other than
its intended purpose, and only use it as described in this manual.
10 Only use the steam mop with the accessories supplied with the product.
11 Improper assembly or use may result in the risk of fire, electric shock and/or injury to
persons.
4
12 We assume no liability for any eventual damages due to improper use or incorrect
handling.
13 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
14 Supervise young children to ensure they do not play with the appliance.
Do not allow the steam mop to be used as a toy.
15 Close attention is necessary when this appliance is used near children, pets or plants.
16 Do not use the steam mop outdoors.
SAFE OPERATION
5
WARNING:
Do not use any detergents in the water tank for cleaning, only use water.
[ Please use distilled or purified water in hard water area. ]
1 Ensure that all the parts are correctly assembled before operation.
2 Do not use the steam mop without the floor cloth in place.
3 Do not use it without water in the water tank.
4 Place the appliance on a flat surface when operating to avoid overturning.
5 Do not insert any objects into openings. Do not use with any opening blocked.
6 Never block the steam openings or place the product on a soft surface, where the steam
openings may be blocked. Keep the steam openings free of lint,hair
7 Using detergents in the water tank is unsafe and will damage the unit.
8 Never direct steam towards people, animals or plants, or equipment containing electrical
components.
9 Use extra caution when using the steam mop on stairs.
10 Keep your work area well lit.
11 Store your steam mop indoors in a cool, dry area out of children's reach.
12 The unit has no user-serviceable parts contained within. Do not attempt to repair,
disassemble or modify the appliance.
7

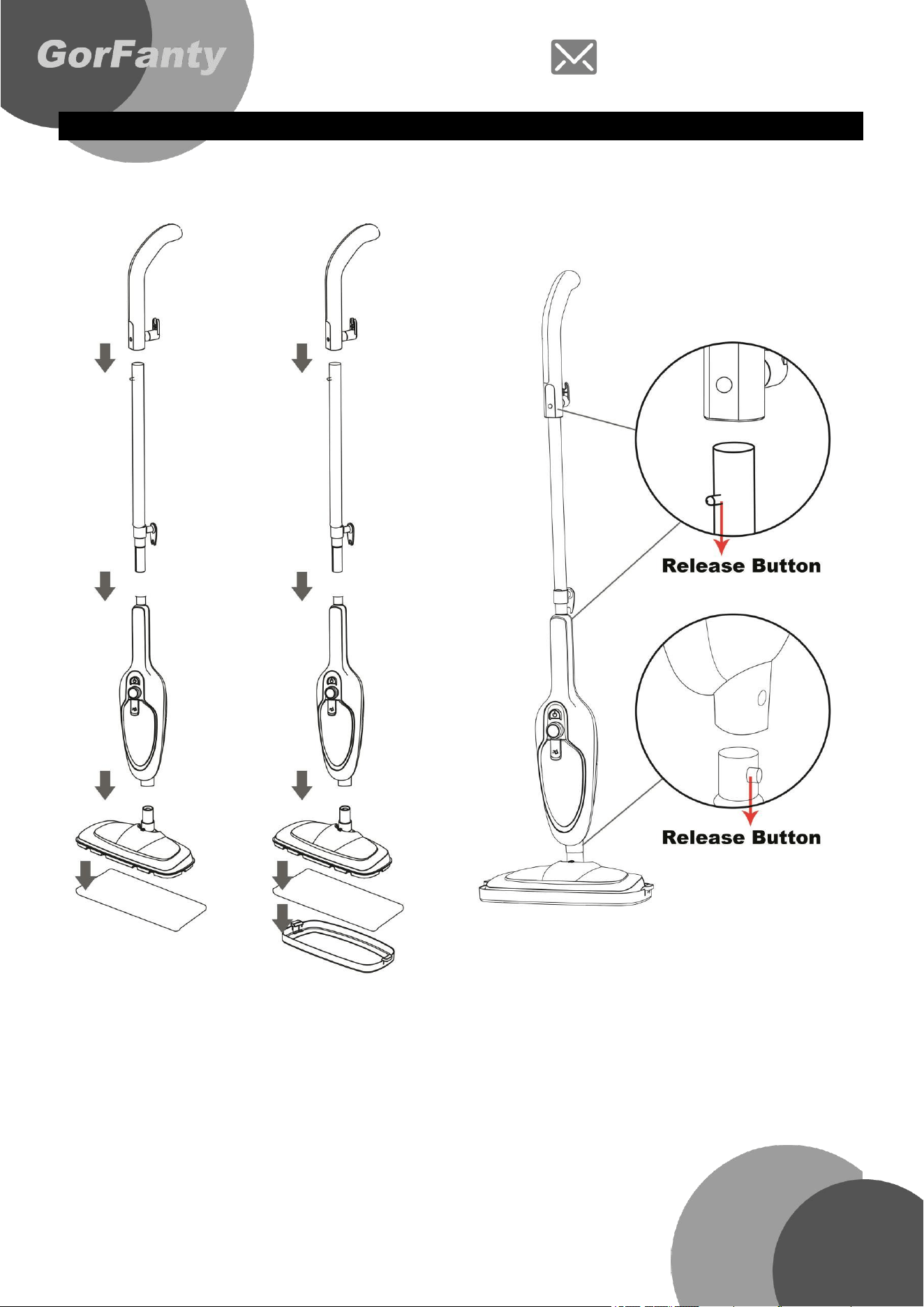

ASSEMBLING THE STEAM MOP
1) Before assembling the steam mop ,please make sure the power switch is in the “OFF” position
2) Connect the part as shown below:
Clean Hard Floor
Clean Carpet
8
3) Fit the mop pad over the mop head as shown below:
Use on the Floor
(MUST REMOVE the carpet glider)
Use on the Carpet
(Install the carpet glider )
4) Switch the self-stand mode to flexible mopping mode
Holding the mop head and pull the main body back, so that the locking buckle will be detached,
and the mop head will be flexible rotating to mop.
Self-standing Mode (Buckle Locking)
Flexible Mopping Mode(Buckle Unlocked)
9

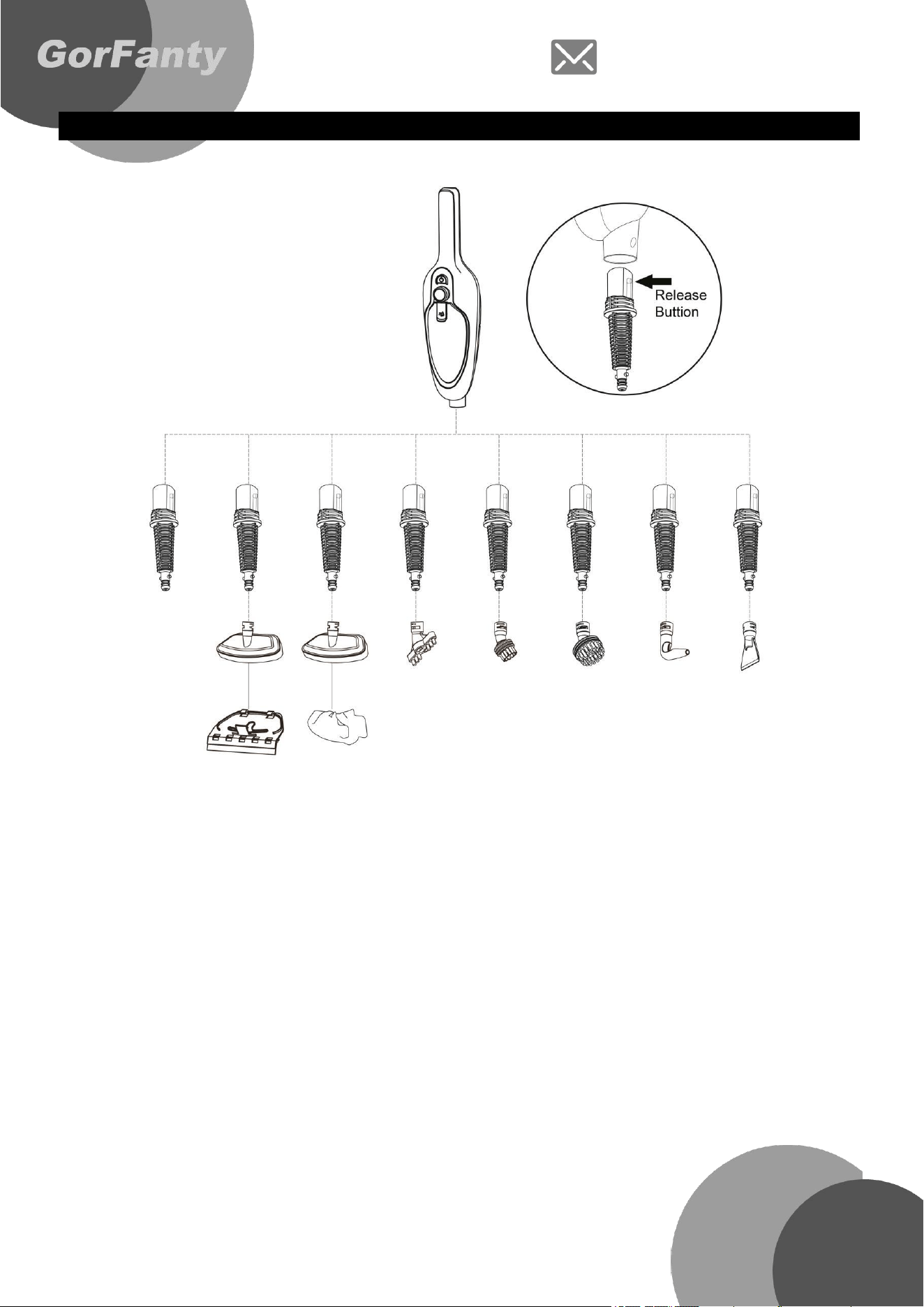

ASSEMBLING THE HANDHELD STEAM CLEANER
1) Before assembling the steam mop ,please make sure the power switch is in the “OFF” position
2) Remove the handle from the main body
3) Choose the appropriate accessory as shown in the Accessories List. Connect the accessory
with the adaptor by inserting the tip of adaptor into the opening of the accessory and turning the
adaptor clockwise to lock into place.
4) Align the Release Button on the accessory adaptor with the opening on the main body and
insert the adaptor into the opening on the main body.
NOTE:
- To remove accessory adaptor from the main body,press Release Button on the accessory
adaptor.
- When using the window cleaning tool, ironing brush is used to link the adaptor with it.
11
USING THE STEAM MOP/CLEANER
The easy,environmentally friendly way to clean your floors
NO CHEMICALS
Thoroughly cleans and sanitizes floor surfaces without any chemicals.
NO ELBOW GREASE
Easily removes dirt and grime from hard floors or carpets, leaving them hygienically clean without
the need for hard physical labour.
TAP WATER ONLY
Designed for use with plain tap water that is converted into steam.[Distilled or purified water is
recommended for use in hard water areas.]
REUSABLE CLOTH
Comes with two reusable, highly absorbent microfibre cloths that can be machine-washed in hot
water and tumble dried.
USE ON MOST HARD FLOOR
Designed for use on hard surfaces that can withstand high heat,including ceramic tiles,marble,
stone or linoleum floors and on sealed hardwood or parquetry floor [see “CAUTION!” note below].
USE ON CARPET AND RUGS
Designed for use with the supplied carpet glider on carpet and rugs that can withstand high heat.
CAUTION!
Do not use the steam mop on unsealed wood floors.
Do not let the steam mop stand on any wood floor for an extended period of time.This can
cause the wood grain to expand. Test on an isolated area of the surface before proceeding.
Take extra care when using the steam mop on surfaces that have been treated with wax,as
the heat and steam may remove the wax or sheen.
Take extra care when using the steam mop on vinyl, linoleum or any other heat-sensitive
floor, as too much heat can melt the glue on the floor. We recommend cleaning a small
sample in an inconspicuous area of the floor first and checking the manufacturer's use and
care instructions for the surface to ensure its suitability for steam cleaning.
WARNING: DANGER OF SCALDING!
Never run the steam mop without water. Never point the steam directly at any person or animal!
12
NOTES:
Before you start steam cleaning your floor,make sure:
The surfaces that you want to steam clean have been swept or vacuumed.
The steam mop is fully assembled.
The microfibre cloth sits tightly around the steam head.[Do not use the mop without the
microfibre cloth! ]
The water tank is filled.[Do not add cleaning solutions, only use tap water,or distilled/purified
water.]
Start using the steam mop/cleaner:
1. Plug into electrical outlet suitable for the appliance,ensure the AC outlet and the product
rating label voltage are compatible.
2. Turn on the power switch power indicator light; the unit starts heating up.It takes
approximately 20-30 seconds for the unit to heat up and the steam to be ready.
3. Push the unit forward and backward along the floor.
4. When the water level in the water tank is low, the power switch must be turned off
immediately. Unplug the unit from the electrical outlet and refill the water tank by following the
instructions.
5. If you use the steam mop for a long time, the cloth sleeve may become very wet or dirty G will
need to be replaced. Turn off the unit &allow it to cool before replacing.While replacing the
cloth sleeve, don't touch the steam head to avoid scalding.
6. To sanitize a specific area of your floor, position the steam mop over the area for a minimum
of 8 seconds, but no longer than 15 seconds. The steam temperature will reach
approximately 194℉-230℉ (90°C-110°C).This is particular useful for cleaning the bathroom,
shower. pet sleeping area or around garbage bins.
13
CLEANING AND STORAGE
·Always switch off the appliance, disconnect the appliance from the power source, and let it cool
thoroughly before cleaning.
·Wipe the exterior of the appliance with damp cloth.
·The accessories can be washed in water with mild detergent.
· Never immerse the appliance in water or any other liquids.
· Never use abrasive cleansers, scouring pads, metal brushes, as they may damage the
surface.
· Ensure the appliance is completely cool and dry before storage.
· Do not wrap the cord around the appliance, as this will damage the cord.
· Keep the appliance in a cool, dry place.
TECHNICAL SPECIFICATIONS
Model
GF6610/GF6610B
Rated Voltage
110-120V 60Hz
Water Tank Capacity
300 ml/10 fl oz
Steam Generation Delay Time
20-30 seconds
Rated Power
1100-1200W
14
TROUBLE SHOOTING GUIDE
Problem
Reason
Solution
Can Not Turn On
Doesn’t plugged in
/Poor connection
1.Unplug and then plug it again.
2.Plug the product beside the socket
Power switch not turn on
Press the power button to ON status
Product Damage
Stop Using & Contact customer service
(service@gorfanty.net)
Can Not Turn Off
Switch isn’t turn off
Switch off the machine
Product Damage
Stop Using & Contact customer service
(service@gorfanty.net)
Reduced steam
/ No Steam
Power switch not turn on
Press the power button to ON status
Out of water
Turn off the cleaner and refill the water tank.
Low steam setting
Adjust the steam level to a higher setting
Gravity ball straw does not
touch the water
Shake the main body & move the gravity ball
into water.
Plug was pulled out
/Poor Connection
Unplug and then plug it again.
Steam generation need 20sec
Please wait as least 20sec for the water to
heat up & the power light to turn green
Have used chemical cleaner or
water with high hardness.
Stop Using & Contact customer service
(service@gorfanty.net)
Can Not
be detached
Didn't press the release
buttons
Press the release buttons & pull out the
accessory at the same time.
Stop working
Short Out Protection
Running with NO water
Turn off the cleaner and refill the water tank.
Plug was pulled out
/Poor Connection
Unplug and then plug it again.
Product Damage
Stop Using & Contact customer service
(service@gorfanty.net)
Can Not clean the
floor as well
Carpet glider did not remove &
the mop pad did not reach the
floor.
Remove the carpet glider for hard floor
mopping.
Hard to swivel the
mop head
Did not unlock the self stand
buckle of the mop head
Unlock the self stand buckle following page 8.
Water leaking
Loosen tank cap
Turn off the cleaner and turn the tank cap
tightly.
The mop head did not connect
with the machine body
properly.
Please remove the mop head and install it
back correctly.
Product Damage
Stop Using & Contact customer service
(service@gorfanty.net)
Hard to use on the
carpet
Carpet glider not buckled
Make sure the carpet glider has been buckled
on the floor head.
There is a puddle of
water / The mop pad
is not picking up dirt
The mop pad is saturated and
needs changing.
Change another mop pad or wash the mop
pad.
The metal button of
pole did not pop up
Metal button to attach pole
parts is stuck inside pole.
Please press it out with a small stick, press it
several times until it pops up flexibly
15
FREQUENTLY QUESTION & ANSWER
CONTACT US
Company: Onewin Trade Limited
Address: 12/F., San Toi Building, 137-139 Connaught Road Central, Hong Kong
Made in China
Question
Answer
Are the cleaning pads
reusable/washable?
Yes, our microfiber mop pads are machine washable.
Please use only liquid detergents. Do not use fabric
softeners or bleach for best results. Air dry the mops.
What floors can the steam mop
use for?
Our steam mop is designed to clean hard flooring
such as ceramic tile, vinyl, laminate, marble, stone
and sealed hard wood floors. Use of your steam mop
on waxed or some non-waxed floors may result in a
diminished glossiness.
Do you need to pump the handle
to release the steam or is it
automatic?
Our steam mop will release steam automatically.
Steam Level is adjustable: Low(delicate floors),
Medium(regular cleaning) and High(durable floors or
sticky messes).
Can you use a cleaning solution
with this steam mop or should
you only use water in it?
Our steam mop can not use any cleaning solution. We
recommend only using distilled water to increase the
service life of mop.
