Operator’s Manual
www.mechmaxx.com
WARRANTY
OVERALL DIMENSIONS
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY SIGNS
SAFETY
1
2
2
ADDING FUEL
STARTING ENGINE
13
13
OPERATING
13
IDLE SPEED
13
STOPPING ENGINE
13
PREVENTIVE MAINTENANCE
14
ADJUSTING CLUTCH
14
LUBRICATION
14
ADJUSTING STEERING
14
TIRE PRESSURE
14
ENGINE MAINTENANCE
14
GENERAL SAFETY RULES
WORK AREA
PERSONAL SAFETY
4
4
4
FUEL SAFETY
4
MACHINE USE AND CARE
5
SERVICE
5
SPECIFIC SAFETY RULES
5
WHEELS
LIGHTING LAMP
DUMP BOX
3
4
7
8
9
10
10
10
10

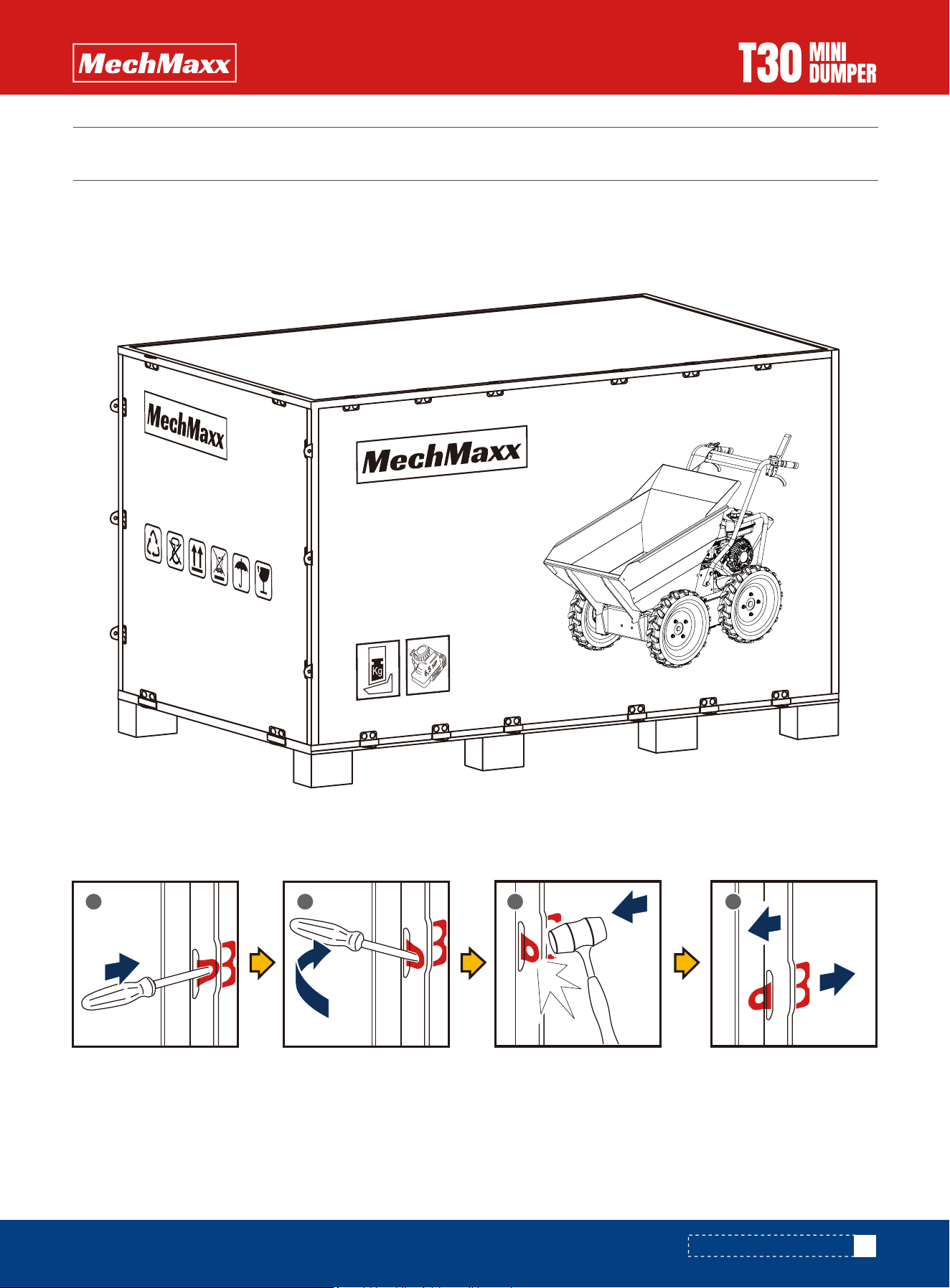

UNPACHING THE CONTAINER
CONTENTS SUPPLIED
TO-SCALE HARDWARE
ASSEMBLY
11
KNOW YOUR MACHINE
13
WHEELBARROW OPERATION
14
MAINTENANCE
15
STORAGE
16TROUBLESHOOTING
1
www.mechmaxx.com
TABLE OF CONTENTS
Prepare to experience the durability to take on any job
with the ease, portability, and convenience of your new
electric powered barrow !
Your new mini dumper will more than satisfy your expec-
tations. It has been manufactured under stringent quali-
ty standards to meet superior performance criteria. You
will find it easy and safe to operate, and with proper
care, it will giveyou many years of dependable service.
MAX performance,MAX Value,MAX Support that’s
Mini Dumper
Backed by decades of proven manufacturing expertise
Enhanced design features come standard
Engineered for the best user experience
Quality metal parts are used instead of plastic
A robust warranty supports all products
Budget-friendly prices make it practical
SPECIFICATIONS

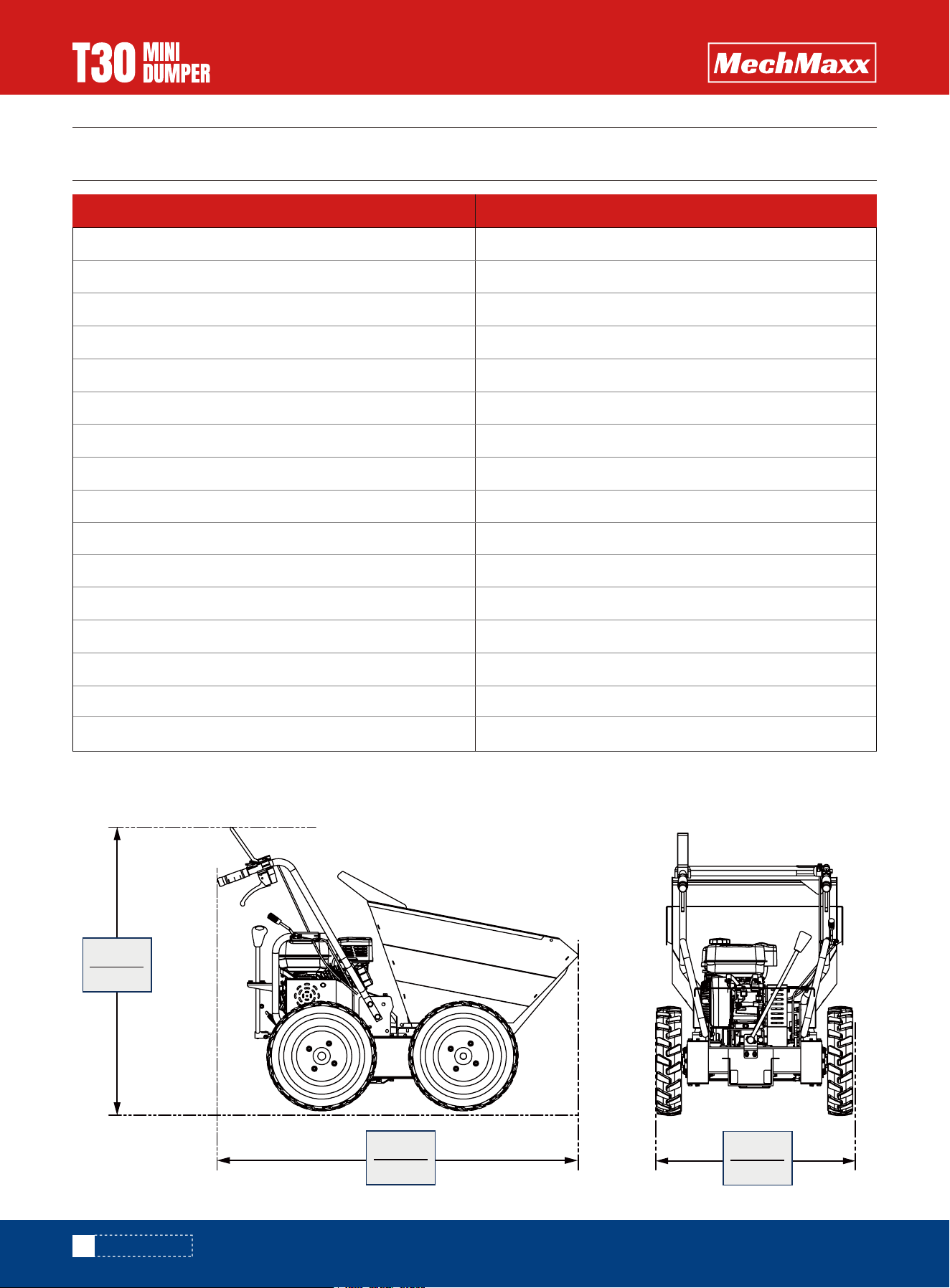

OVERALL DIMENSIONS
2
www.mechmaxx.com
SPECIFICATIONS
Engine
Engine Type
Engine Displacement
Horsepower
Start
Loading Capacity
Transmission
Steering
Tipping Method
Speed
Front Wheel
Rear Wheel
Bucket Type
Weight (N.W/G.W.)
Package Method
Packing Size
DUCAR
Single Cylinder, 4 Stroke, Air-Cooled, OHV
212 cc
7 HP
Recoil
660 lbs
3F+1R
Yes
Manual
0-5.0 km/h
4.00-8 Tubeless Tyre
4.00-8 Tubeless Tyre
Frame
316/349 Ibs
Plywood Case
44 x 31 x 35 in
Model T30
1073mm
42.2”
745mm
29.3”
1360mm
53.5”
3
www.mechmaxx.com
SAFETY SIGNS
The rating plate on your machine may show symbols. These represent important information about the product or instruc-
tions on its use.
SAFETY SIGNS
WARNING:OPERATE THE STEERING
LEVERS ONLY AT A REDUCED SPEED
P
RUN
STOP
OFF
OPERATE THE STEERING
LEVERS ONLY AT A LOW SPEED.
4
www.mechmaxx.com
GENERAL SAFETY RULES
WORK AREA
PERSONAL SAFETY
FUEL SAFETY
SAFETY
SAFETY
Read this manual and labels affixed to the machine to
understand its limitations and potential hazards.
Be thoroughly familiar with the controls and their proper
operation. Know how to stop the machine and disengage
the controls quickly.
Make sure to read and understand all the instructions and
safety precautions as outlined in the Engine Manufactur-
er's manual packed separately with your unit. Do not
attempt to operate the machine until you fully understand
how to properly operate and maintain the engine and know
how to avoid accidental injuries and/or property damage.
If the unit is to be used by someone other than original
purchaser, or is to be loaned, rented, or sold, always
provide this manual and any needed safety training before
operation. The user can prevent and is responsible for
accidents or injuries that may occur to themselves, to
other people, or to property.
Do not force the machine beyond its limits. Use the
correct machine for your application.
Never start or run the machine inside a closed area. The
exhaust fumes are dangerous. containing carbon monox-
ide, an odorless and deadly gas. Operate this unit only in a
well ventilated outdoor area.
Do not operate the machine while under the influence of
drugs, alcohol, or any medication that could all ect your
ability to use it properly
Dress properly. Wear heavy long pants, boots and gloves.
Do not wear loose clothing. Short pants, and jewelry of
any kind. Secure long hair so it is above shoulder level.
Keep your hair. Clothing and gloves away from moving
parts. Loose clothes. Jewelry or long hair can be caught in
moving parts.
Use safety equipment. Always wear eye protection. Safety
equipment such as a dust mask, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
Check your machine before starting it. Keep guards in
place and in working order. Make sure all nuts bolts, etc.
are securely tightened.
Never operate the machine when it is in need of repair or
is in poor mechanical condition. Replace damaged, miss-
ing or failed parts before using ti. Check for fuel
leaks.Keep the machine in safe working condition.
Never remove or tamper with safety device. Check their
proper operation regularly.
Do not use the machine if the engine’s switch does not
turn it on or off. Any gasoline powered machine that can
not be controlled with the engine switch is dangerous and
must be replaced.
Form a habit of checking to see that keys and adjusting
wrenches are removed from machine area before starting
it. A wrench or a key that is left attached to a rotating part
of the machine may result in personal injury.
Stay alert, watch what you are doing and use common
sense when operating the machine.
Do not overreach. Do not operate the machine while
barefoot or when wearing sandals or similar light weight
footwear. Wear protective footwear that will protect your
feet and improve your footing on slippery surfaces. Keep
proper footing and balance at all times. This enables
better control go the machine in unexpected situations.
Avoid accidental starting. Be surethe engine is off before
transporting the machine or performing any maintenance
or service on the unit. Transporting or performing mainte-
nance or service on a machine with engine on invites
accidents.
Fuel is highly flammable, and its vapors can explode if
ignited. Take precautions when using to reduce the
chance of serious personal injury.
When refilling or draining the fuel tank, use an approved
fuel storage container while in a clean, well-ventilated
outdoor area. While adding fuel or operating the unit, do
not smoke, and stay away from sparks, open flames, or
other sources of ignition near the area of operation. Never
fill the fuel tank indoors.
Keep grounded conductive objects. such as tools, away
from exposed. live electrical parts and connections to
avoid sparking or arcing. These events could ignite fumes
or vapors.
5
www.mechmaxx.com
SAFETY
Always stop the engine and allow it to cool before filling
the fuel tank. Never remove the cap of the fuel tank or add
fuel while the engine is running or when the engine is hot.
Do not operate the machine with known leaks is the fuel
system.
Loosen the fuel tank cap slowly to relieve any pressure in
the tank.
Never overfill fuel tank. Fill tank to no more than 12.5mm
(1/2”) below the bottom of the filler neck to provide
space for expansion as the heat of the engine can cause
fuel to expand.
Replace all fuel tank and container caps securely and
wipe up spilled fuel. Never operate the unit without the
fuel cap securely in place.
Avoid creating a source of ignition for spilled fuel. lf fuel is
spilled, do not attempt to start the engine. but move the
machine away from the area of spillage and avoid creating
any source of ignition until fuel vapors have dissipated.
Store fuel in containers specifically designed and
approved for this purpose.
Store fuel in a cool. well-ventilated area, safely away from
sparks, open flames or other sources of ignition.
Never store fuel or machine with fuel in the tank inside a
building where fumes may reach a spark, open flame, or
other sources of ignition, such as a water heater, furnace,
clothes dryer and the like, Allow the engine to cool before
storing in any enclosure.
Position the machine in such a way that it can not move
during maintenance, cleaning, adjustment, assembly of
accessories or spare parts, as well as under storage.
Do not force the machine. Use the correct machine for
your application, The correct machine will do the job
better and safer at the rate for which it was designed.
Do not change the engine governor settings or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
Do not run the engine at a high speed when you are not
working.
Do not put hands or feet near rotating parts.
Avoid contact with hot fuel. oil. exhaust fumes and hot
surfaces. Do not touch the engine or muffler. These parts
get extremely hot from operation. They remain hot for a
short time after you turn off the unit, Allow the engine to
cool before doing maintenance or making adjustments.
lf the machine should start to make an unusual noise or
vibration, immediately shut off the engine, disconnect the
spark plug wire, and check for the cause, Unusual noise or
vibration is generally warning of trouble.
Use only attachments and accessories approved by the
manufacturer. Failure to do so can result in personal injury
Maintain the machine. Check for misalignment or binding
of moving parts. breakage of parts and any other condition
that may affect the machine’s operation. lf damaged.
have the machine repaired before use. Many accidents are
caused by poorly maintained equipment.
Keep the engine and muffler free of grass,leaves, exces-
sive grease or carbon build up to reduce the chance of a
fire hazard.
Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris. Clean
after each use.
Observe proper disposal laws and regulations for gas.oil
etc,to protect the environment.
Store idle machine out of the reach of children and do not
allow persons unfamiliar with the machine or these
instructions to operate it. Machine is dangerous in the
hands of untrained users.
Before cleaning, repair, inspecting, or adjusting, shut off
the engine and make certain all moving parts have
stopped. Disconnect the spark plug wire, and keep the
wire away from the plug to prevent accidental starting.
Have your machine serviced by qualified repair personnel
using only identical replacement parts This will that the
safety of the machine maintained.
Thoroughly inspect the area to be worked, keep the work-
ing area clean and free of debris to prevent tripping.
Operate on a flat level ground.
Never place any part of your body where it would be in
danger if movement should occur during Assemble, instal-
lation, and operation, maintenance, repairing or moving.
Keep all bystanders,children,and pets at least 23m
(75feet) away. If you are approached, stop the unit imme-
diately.
Do not mount on a dump box and never carry passengers.
Never park the machine in a place with unstable ground
which could give way. particularly when it is full.
Disengage clutch lever before starting the engine.
MACHINE USE AND CARE
SERVICE
SPECIFIC SAFETY RULES
6
www.mechmaxx.com
SAFETY
Start the engine carefully according to instructions and
with feet well away from the moving parts.
Never leave the operating position when the engine is
running.
Always hold the unit with both hands when lowercase.
Keep a firm grip on the handlebars. After that the machine
may unexpectedly bounce upward or jump forward if the
machine should strike buried obstacles such as large
stones.
Walk, never run with the machine.
Do not overload the machine capacity. Drive at a safe
speed, adjusting the speed to the slope of the land, the
surface conditions of the road, and the weight of the load.
Use extreme caution when in reverse or pulling the
machine towards you.
Exercise extreme caution when operating on or crossing
gravel drives, walks, or roads. Stay alert for hidden
hazards or traffic.
On soft ground, drive at the first forward / reverse gear.
Do not rapidly accelerate, turn sharply or stop.
Pay the utmost attention when working on frozen ground
as the machine may tend to skid.
If possible, avoid driving on pebble river bed, crushed
stone terrains, steel concrete, stumpy field, logs etc.,
since such operation cause fatal damage or shorten the
lifespan of the tracks.
Do not operate the machine in confined areas where there
may be a risk of crushing the operator between the
machine and another object.
Never operate the machine on slopes where angle is over
20°.
When moving over a slope, whether moving forward or in
reverse, always make certain that the weight is evenly
balanced.
Always move in directions parallel with the slope (up or
down), To avoid danger, do not shift gears on slopes.
When tipping the load from a dumper, the center of gravity
will change continuously and the ground conditions will
be essential for the stability of the machine. There are
special hazards for dumpers working on soft ground and
when the load is sticking to body e.g. wet clay.
7
www.mechmaxx.com
UNPACHING THE CONTAINER
Use the screwdriver and hammer to open all the side locks.
UNPACHING THE CONTAINER
1 2 3 4
3
00
www.mechmaxx.com
GASOLINE POWERED
WHEELBARROW
Model Number:
Package size:
www.mechmaxx.com
Gross weight:
GASOLINE POWERED
WHEELBARROW
8
www.mechmaxx.com

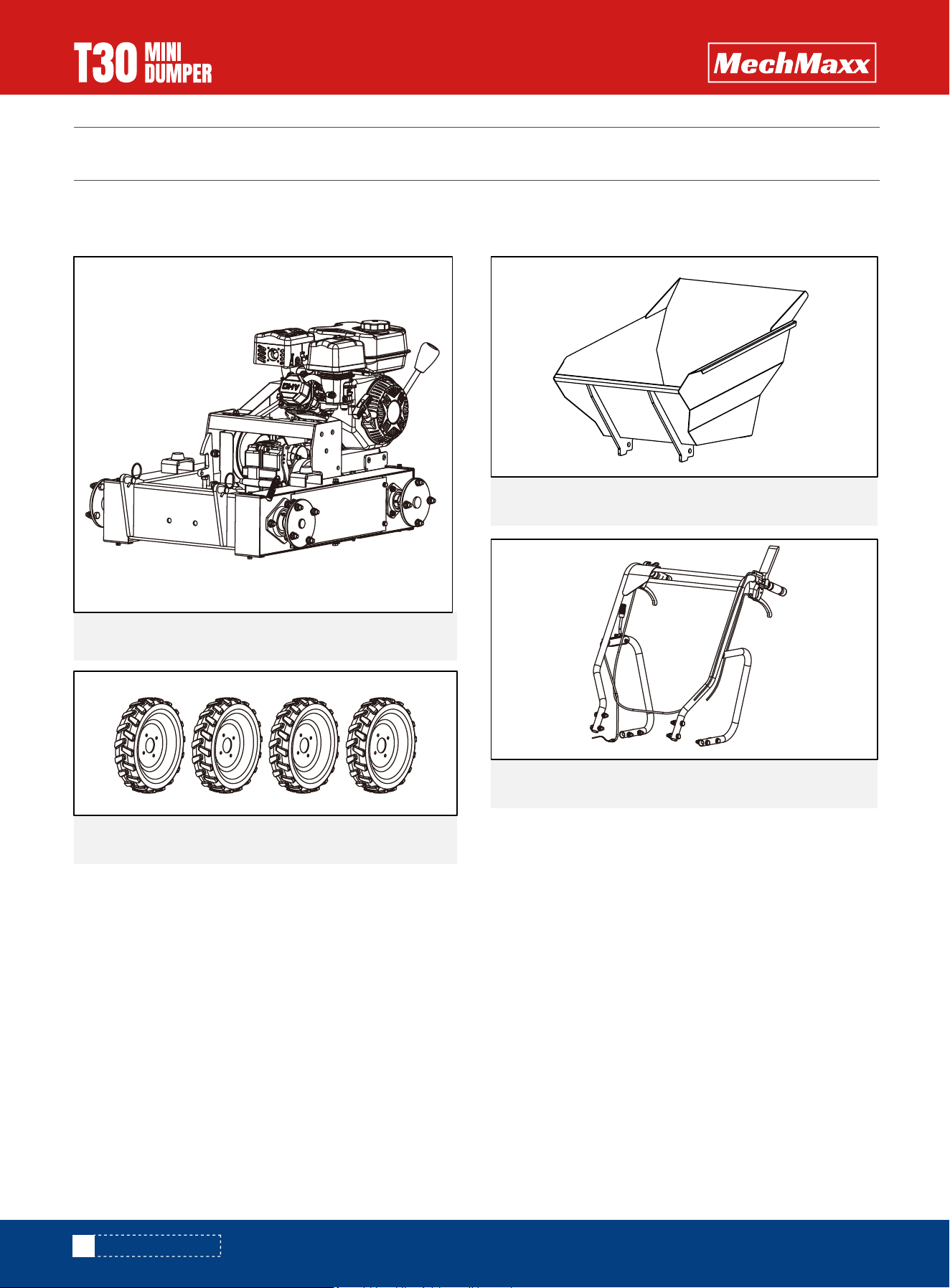

CONTENTS SUPPLIED
The mini dumper comes partially assembled and is shipped in carefully packed package. After all the parts have been
removed from the package, you should have:
Verify all component and hardware quantities are correct prior to assembling the Wood chipper.
Main Frame
1x
1x
1x
Dump Box
Wheels
CONTENTS SUPPLIED
1x
Handle Bar
9
www.mechmaxx.com

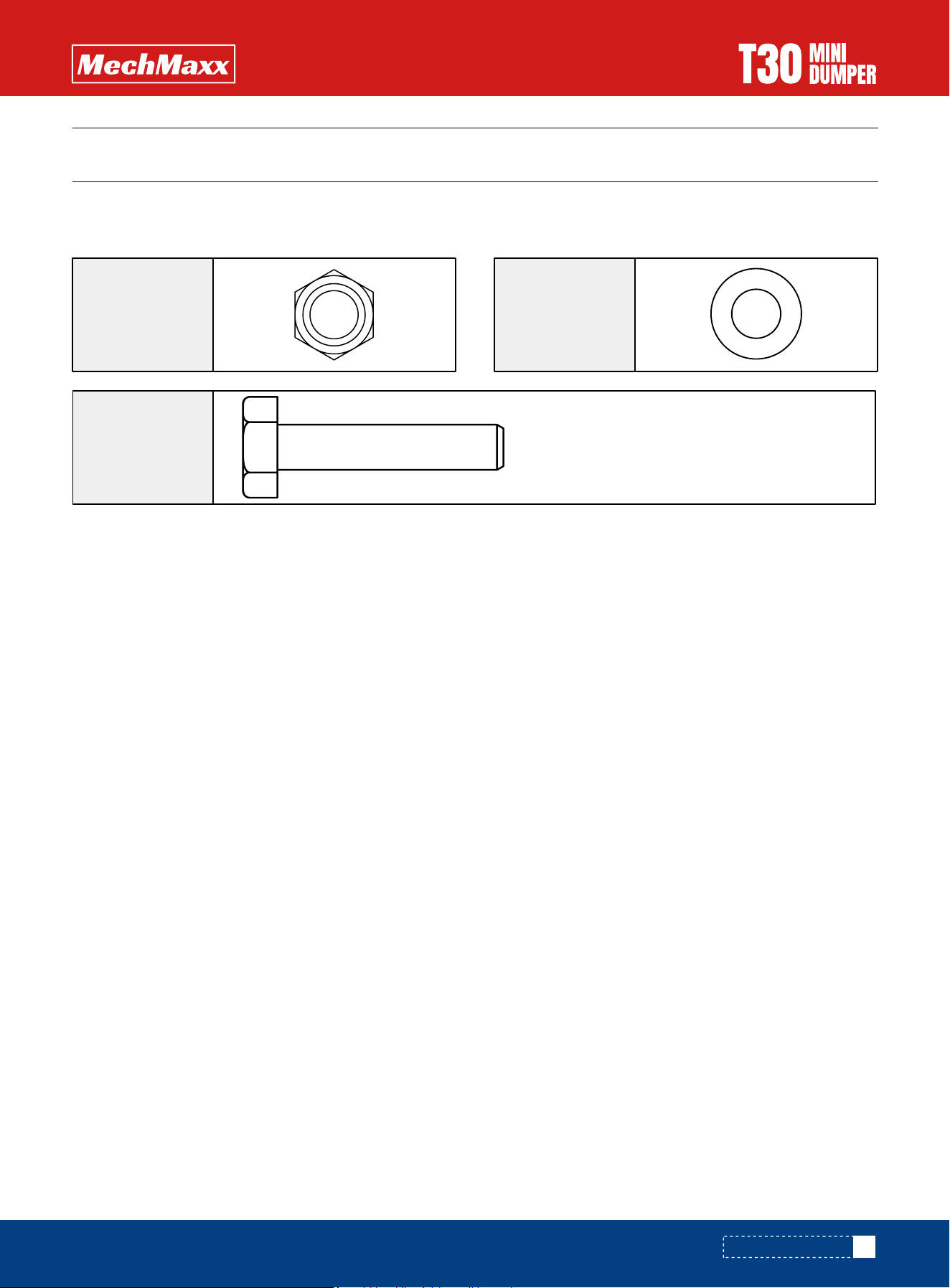

TO-SCALE HARDWARE
TO-SCALE HARDWARE
Hardware graphics are printed at 1:1 scale for ease of identification. Simply place the hardware over the image in the
tables to verify it is the correct size.
M10 X 50mm
Hex bolt
8X
10
Flat washer
20X
12X
nut M10
Hex lock

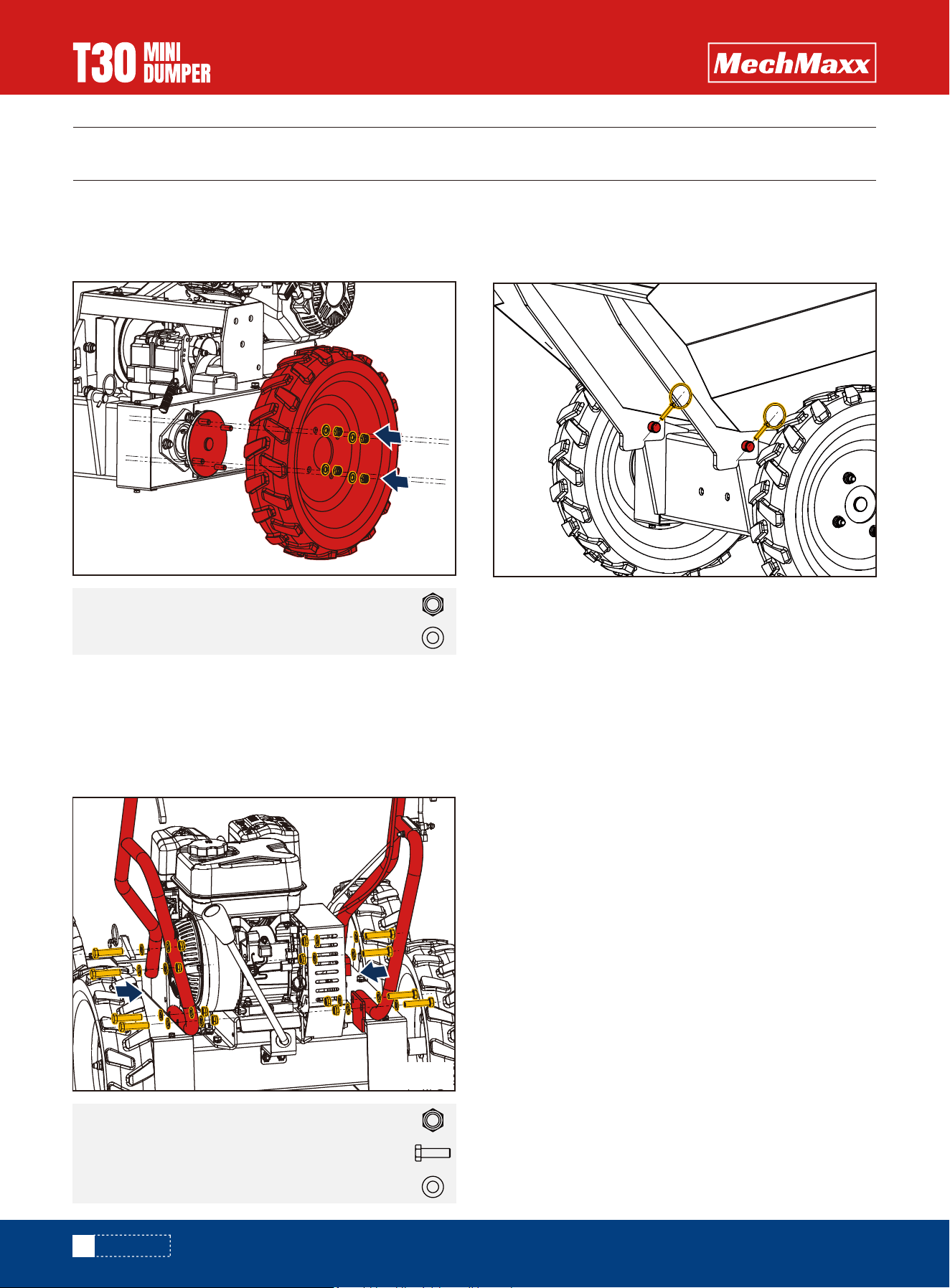

ASSEMBLY
Mount the wheels and fasten them with M10 nuts, (See
Figure 1)
Mount the handle frame assembly to the chassis and
secure it with M10X50 bolts, washers and nuts at the
front and M10X50 bolts, washers and nuts at the rear.
(See Figure 2)
Install the dump box and fasten the front with two 5X40
R-clips. (See Figure 3)
ASSEMBLY
10
www.mechmaxx.com
Flat washer 10
4 X
Hex bolt M10 X 50mm
Flat washer 10
8X
16X
Wheels
LIGHTING LAMP
DUMP BOX
Figure 1 Figure 3
Figure 2
Hex lock nut M104X
Hex lock nut M108X

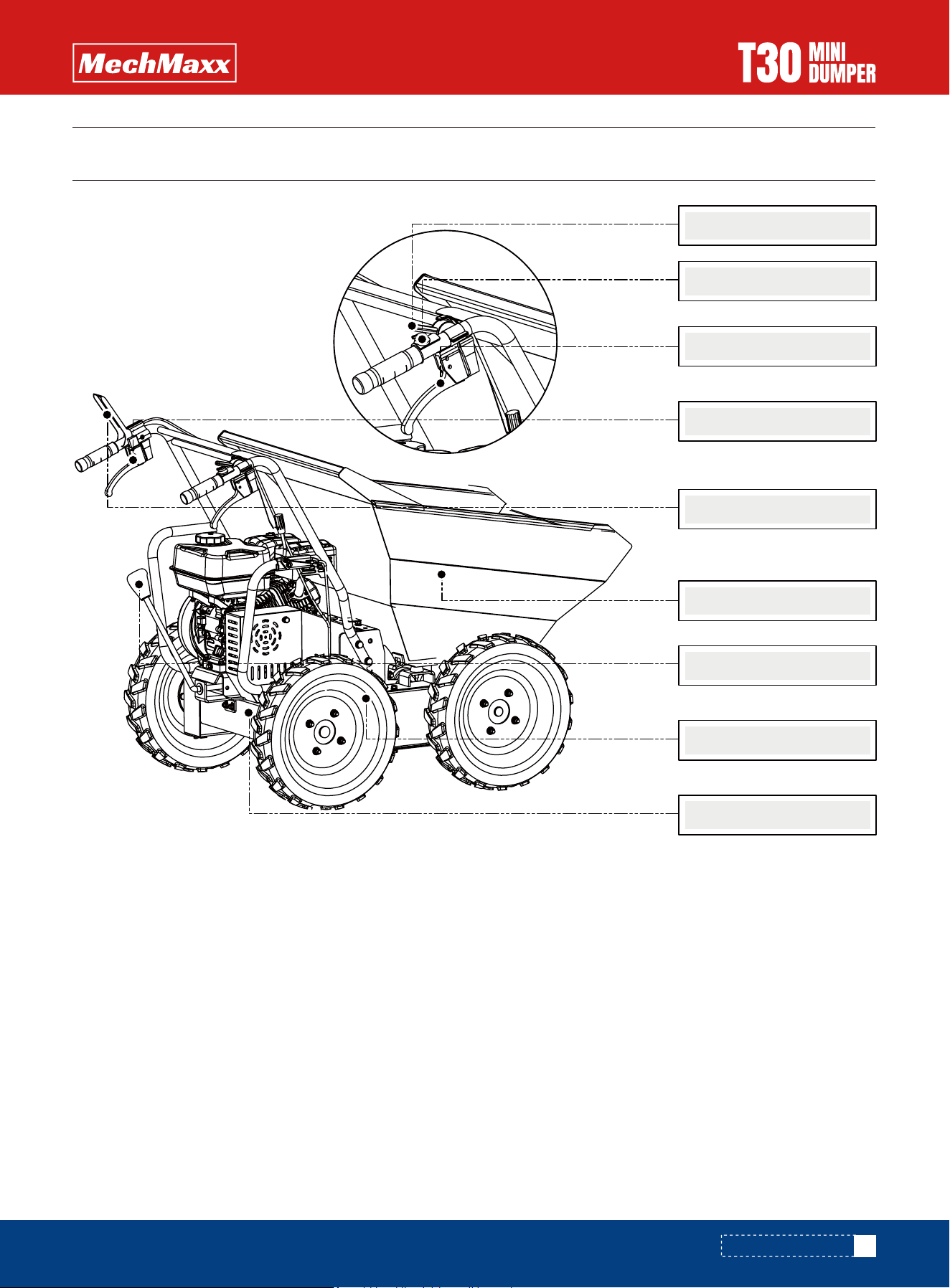

KNOW YOUR MACHINE
11
www.mechmaxx.com
The engine switch enables and disables the ignition
system.
The engine switch must be in the ON position for the
engine to run.
Turning the engine switch to the OFF position stops the
engine.
ENGINE SWITCH
Squeeze the control lever, clutch engine. Release the
lever, clutch disengaged.
CLUTCH CONTROL LEVER
It controls engine speed. Put the throttle control on low
speed (L) or high speed (H) or an intermediary position
between Land H to increase or decrease the speed of
engine.
THROTTLE CONTROL
Operate the lever to turn left.
LEFT STEERING LEVER
Operate the lever to turn right.
RIGHT STEERING LEVER
It controls forward or reverse movements of the machine.
GEAR SELECTION LEVER
KNOW YOUR MACHINE
Throttle Control
Engine Switch
Right Steering Lever
Clutch Control Lever
Left Steering Lever
Dump Box
Gear Selection Lever
Wheel
Gearbox
12
www.mechmaxx.com
KNOW YOUR MACHINE

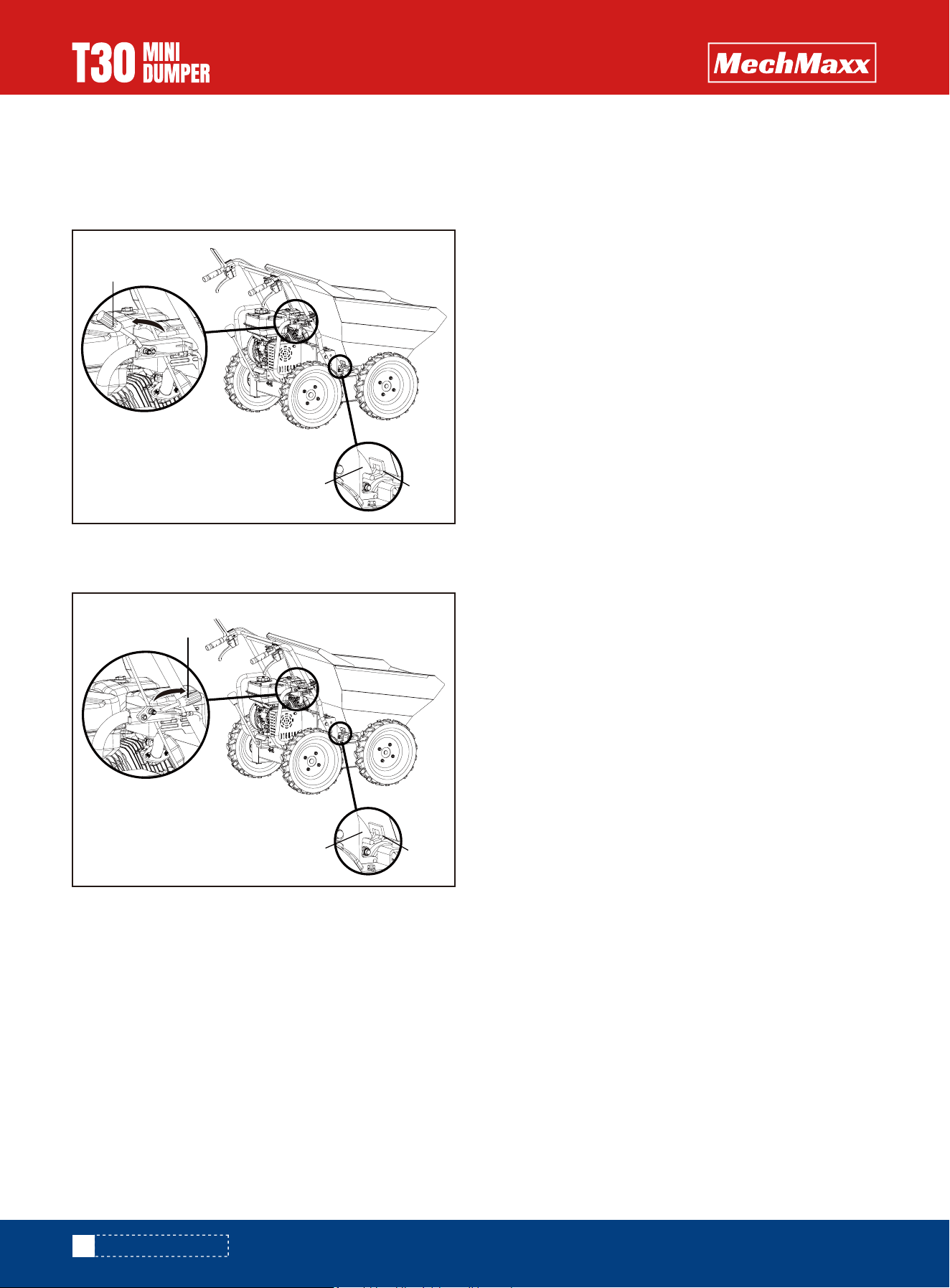

TIPPING HANDLE
It controls tipping of the dump box. Swing tipping handle A
in the direction of the arrow to release limiter B out of
hook C. The dump box will be released.
A
B
C
After tipping the load, swing handle A back to reset limiter
B into hook C, which will lock the dump box.
A
B
C
13
www.mechmaxx.com
WHEELBARROW OPERATION
ELECTRICAL WHEELBARROW OPERATION
A more detailed description of the engine operation and all
related precautions and procedures can be found in the
Engine Manual packed separately with the powered
wheelbarrow.
Follow the procedure below for cold starts:
1. Turn choke lever on the engine to full choke position.
2. Set the throttle lever on the handlebar at halfway
position.
3. Turn the engine switch on.
4. Pull the starting rope slowly several times to allow the
gasoline to flow into the engine's carburetor. Then hold
the start handle firmly and pull rope out a short distance
until you feel some resistance. Then pull the rope smooth-
ly and briskly, and allow rope to return gently. Do not let
the rope snap back. If necessary, pull the rope several
times until the engine starts.
5. Allow the engine to run for several seconds to warm up.
Then,gradually move chock lever to "OPEN” position.
Restarting an engine that is already warm from previous
running does not normally require use of the choke.
Set the throttle lever on the handlebar at halfway
position.Hold the start handle firmly and pull rope out a
short distance until you feel some resistance. Then pull
the rope smoothly and briskly, and allow rope to return
gently. Do not let the rope snap back.
Fill the fuel tank as instructed in the separate Engine
Manual packed with the machine.
Fill tank to no more than 12.5mm (1/2")
below the bottom of the filler neck to
provided space for expansion.
ADDING FUEL
STARTING ENGINE
After engine warms up, pull throttle lever to accelerate
engine speed.
Engage the required gear and slowly squeeze the clutch
control lever. If the gear does not engage straight away,
slowly release the clutch lever and try again. In this way
the powered wheelbarrow will start moving.
The powered wheelbarrow has the steering levers on the
handlebars and this makes steering very easy. To turn
right or left, simply operate the corresponding right or left
steering lever.
The sensitivity of the steering increases in proportion to
the speed of the machine and that with the empty
machine, a light pressure on the lever is all that is needed
to turn. While when the machine is loaded, more pressure
is required.
The powered wheelbarrow has a maximum capacity of
300kg. However, it is advisable to assess the load and
adjust it according to the ground on which the machine
will be used.
It is therefore advisable to cover such stretches using
low gear and taking extra care. In such situations, the
machine should be kept in low gear for the whole stretch.
Avoid sharp turns and frequent changes of direction while
driving on the road, in particularly on rough, hard terrains
full of sharp, uneven points with a high degree of friction.
Remember to be careful when working in adverse weather
conditions (ice, heavy rain and snow) or on types of
ground that could make the powered wheelbarrow unsta-
ble.
When the clutch control lever is released, the machine
will stop and brake automatically.
If the machine is stopped on a steep slope, a wedge
should be placed against one of the wheels.
Set throttle control lever to its"SLOW"position to reduce
stress on the engine when working is not being
performed. Lowering the engine speed to idle the engine
will help extend the life of the engine, as well as conserve
fuel and reduce the noise level of the machine.
To stop the engine in an emergency, simply turn the
engine switch to the OFF position. Under normal condi-
tions, use the following procedure.
1. Move the throttle lever to the SLOW position.
2. Let engine idle for one or two minutes.
3. Turn the engine switch to the OFF position.
4. Turn the fuel valve lever to the OFF position.
OPERATING
IDLE SPEED
STOPPING ENGINE
MAINTENANCE
MAINTENANCE
14
www.mechmaxx.com
Never use a "pressure washer" to clean
your unit. Water can penetrate tight areas
of the machine and its transmission case
and cause damage to spindles, gears,
bearings, or the engine. The use of pres-
sure washerswill result in shortened life
and reduce serviceability
Separation of tire and rim parts is possi-
ble when they are serviced incorrectly.
1.Do not attempt to mount a tire without
the proper equipment and experience to
perform the job.
2. Do not inflate the tires above the
recommended pressure.
3. Do not weld or heat a wheel and tire
assembly Welding can structurally
weaken or deform the wheel. Heating can
cause an increase in the air pressure
resulting in burst.
4. Do not st and in front or over the tire
assembly while inflating.
A proper maintenance and lubrication will help the
machine in a perfect working condition.
Turn off engine and disengage all command levers. Engine
must be cool.
Inspect the general condition of the unit. Check for loose
screws, misalignment or binding of moving parts, cracked
or broken parts, and any other condition that may affect
its safe operation.
Remove all debris and other materials that may have
accumulated to the track and unit. Clean after each use.
Then use a premium quality lightweight machine oil to
lubricate all moving parts.
As clutch wears out, the same lever could have a wider
opening, being so uneasy to use. This means that it is
necessary to adjust the cable, setting clutch lever on its
original position acting on the adjustment device and on
counter-nut.
If you have difficulty steering the unit, you will need to
adjust the steering levers with the special adjusters.
Slacken off the lock nut and unscrew the adjusters to
eliminate the play in the cable, which can occur after
initial use or normal wear. Be very careful not to unscrew
the adjusters too much because this can create another
problem the loss of traction Remember to tighten the lock
nut when you have finished.
The gearbox is pre-lubricated and sealed at the factory.-
Check oil level every 50 hours of working. Remove the
plug and check, with machine horizontal, oil reaches the
two notches. If necessary, add the oil.Gear oil GL-5 or
GL-6. SAE8OW-90 is recommended.Do not use synthetic
oil. Oil must be replaced when hot by unscrewing filler cap
and plug equipped with an oil dipstick. When oil is
completely drained, replace filler cap and fill up with new
oil.
Check the pressure of tires periodically to make sure they
are properly inflated. Recommended pressure is 30 psi for
all the tires.
Refer to the Engine Manual included in your unit for the
information on engine maintenance. Your engine manual
provides detailed information and a maintenance sched-
ule for performing the tasks.
PREVENTIVE MAINTENANCE
ADJUSTING CLUTCH
ADJUSTING STEERING
LUBRICATION
TIRE PRESSURE
ENGINE MAINTENANCE
15
www.mechmaxx.com
STORAGE
STORAGE
Do not use strong detergents or petroleum
based cleaners when cleaning plastic
parts. Chemicals can damage plastics.
Do not store the machine with fuel in a
non-ventilated area where fuel fumes may
reach flame, sparks, pilot lights or any
ignition sources.
If the powered wheelbarrow will not be used for a period
longer than 30 days, follow the steps below to prepare
your unit for storage.
1.Drain the fuel tank completely. Stored fuel containing
ethanol or MTBE can start to go stale in 30 days. Stale
fuel has high gum content and can clog the carburetorand
restrict fuel flow
2.Start the engine and allow it to run until it stops. This
ensures no fuel is left in the carburetor. Run the engine
until it stops. This helps prevent gum deposits from
forming inside the carburetor and possible engine
damage.
3.While the engine is still warm, drain the oil from the
engine. Refill with fresh oil of the grade recommended in
the Engine Manual.
4.Use clean cloths to clean off the outside of the machine
and to keep the air vents free of obstructions.
5.Inspect for any loose or damaged parts. Repair or
replace damaged parts and tighten loose screws, nuts or
bolts.
6.Store your unit on flat ground in a clean, dry building that
has good ventilation.
16
www.mechmaxx.com
Engine fails to start.
Engine runs erratically.
Engine over heats.
Machine does not move
while engine is running
1. Attach spark plug wire securely to spark
plug.
2. Fill with clean, fresh gasoline.
3. Throttle must be positioned at choke for a
cold start.
4. Clean the fuel line.
5. Clean, adjust gap, or replace.
6. Wait a few minutes to restart, but do not
prime.
1. Connect and tighten spark plug wire.
2. Move choke lever to OFF.
3. Clean fuel line. Fill tank with clean, fresh
gasoline.
4. Clear vent.
5. Drain fuel tank. Refill with fresh fuel.
6. Clean or replace air cleaner.
7. Refer to Engine Manual.
1. Fill crankcase with proper oil.
2. Clean air cleaner.
3. Remove housing and clean.
4. Refer to Engine Manual.
1. Ensure gear lever is not in between two
different gears.
2. Tighten drive belt.
TROUBLESHOOTING
TROUBLESHOOTING
Remedy
Problem
Cause
1. Spark plug wire disconnected.
2. Out of fuel or stale fuel.
3. Choke not in open position.
4. Blocked fuel line.
5. Fouled spark plug.
6. Engine flooding.
1. Spark plug wire loose.
2. Unit running on CHOKE.
3. Blocked fuel line or stale fuel.
4. Vent plugged.
5. Water or dirt in fuel system.
6. Dirty air cleaner.
7.Improper carburetor adjustment.
1. Engine oil level low.
2. Dirty air cleaner.
3. Air flow restricted.
4. Carburetor not adjusted properly
1. Gear is not properly selected.
2. Drive belt not tight enough.
