User Manual
• The product warranty is printed on the back of this guide.
• This product is suitable for AC 220 - 240 V only.
AT5U207-NWBModel
Use & Care
Guide
AIR PURIFIER
2
Dust Sensor
(Smart Sensor)
User Manual
• The product warranty is printed on the back of this guide.
• This product is suitable for AC 220 - 240 V only.
AT5U207-NWBModel
Use & Care
Guide
AIR PURIFIER
WHERE TO USE

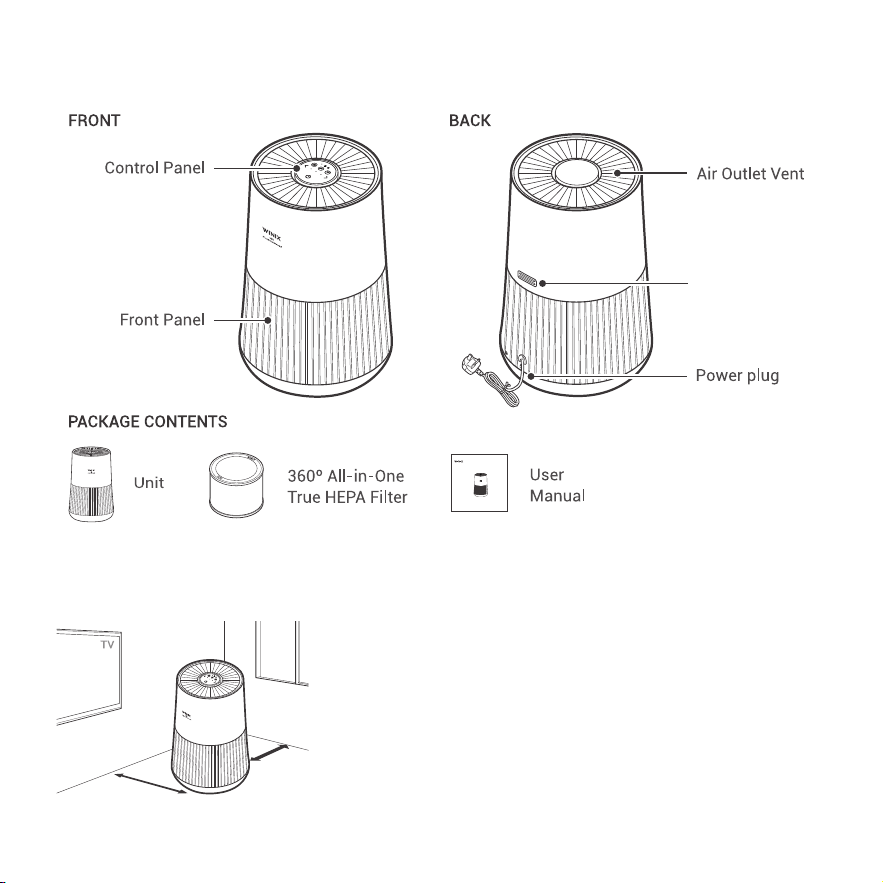

MODEL PART DIAGRAM
Allow 30 ~ 45 cm of space between TVs, radios, and other electronics
Electromagnetic interference from certain electronics may cause
product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and vibrations.
Allow 30 ~ 45 cm from walls
For maximum air flow.
30 ~ 45 cm
30 ~ 45 cm
3
01. Sleep Mode Indicator
When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.
• The fan speed will automatically be set to the lowest speed (below “Low”) and will be virtually silent.
• When Sleep Mode is activated, the PlasmaWave
®
will be deactivated, but can be turned back on.
02. Filter Replacement Indicator
LED light indicates when it is time to change the filter.
03. Filter Reset Button
After replacing the 360º All-in-One True HEPA Filter, use a small object such as a paper clip, to press and hold the Filter Reset
Button for at least 5 seconds until the Filter Replacement Indicator turns off. You can also use the Winix Smart App to reset
the Filter Change Indicator.
04. Auto Mode Indicator / Button
The Auto indicator lights up when Auto mode is enabled.
• Auto Mode automatically adjusts fan speeds according to your indoor air quality. The fan speed will adjust to
low when air quality is good, medium when fair, and to high when poor.

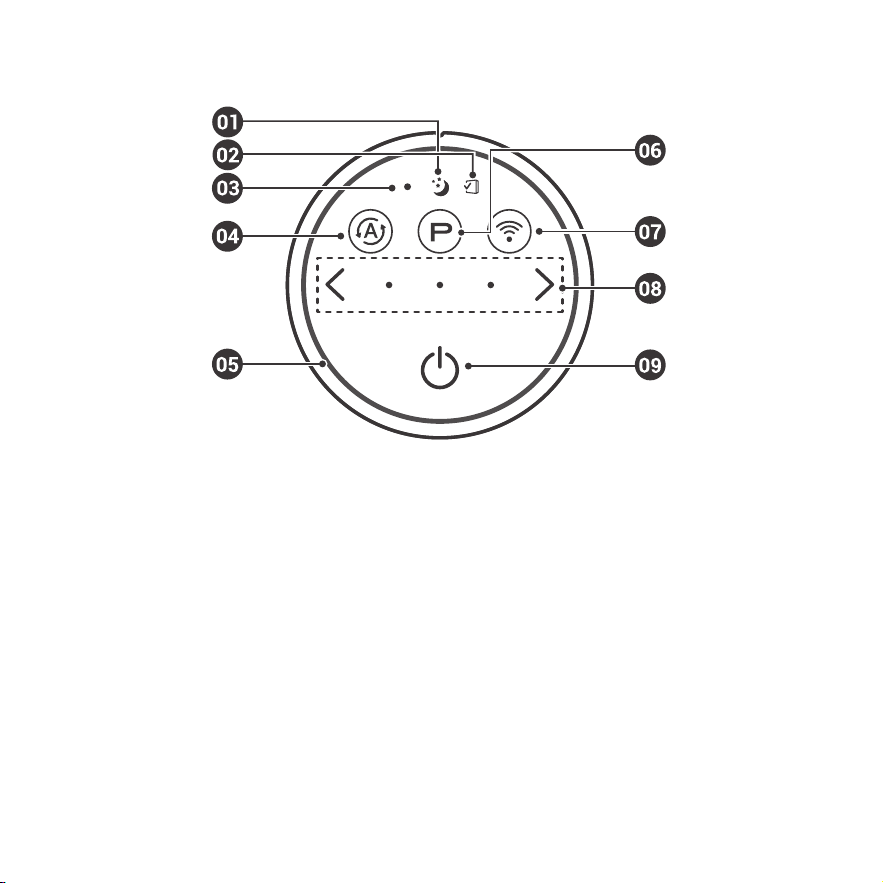

CONTROL PANEL
4
05. Air Quality Indicator
Color coded LED light indicates one of three levels of Air Quality
: Red (poor), Amber (fair), and Blue (good).
06. PlasmaWave
®
Technology Indicator / Button
Enables or disables PlasmaWave
®
technology.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from particles passing
through PlasmaWave
®
, it is normal and does not signify product failure.
• Press the PlasmaWave
®
Technology button when the unit is on to enable or disable this feature.
07. Wi-Fi Indicator / Button
Wi-Fi indicator will display on the front while Wi-Fi is active.
• Short press to turn Wi-Fi on or off.
• Press and hold for 3 seconds to activate pairing mode.
08. Fan Speed Indicator / Button
Indicates the current fan speed.
• Use the Fan Speed arrow buttons to set the desired fan speed.
• Fan speeds cycle over in this sequence: Sleep, Auto, Low, Medium, High, Sleep.
Low Medium High
09. Power Button
Turns the unit on or off.
• During the first 30 seconds of power, the Air Quality Indicator will cycle through Blue, Amber and Red colors. Smart Sensor
takes approximately 30 seconds to detect the air quality in the environment before normal operation begins.
• When the unit is first turned on, it will default to Auto with PlasmaWave
®
enabled.
CONTROL PANEL
5
When to Replace Filters
Filter Indicator Light When to service When to replace
360º All-in-One
True HEPA Filter
Clean once every 14 days Lasts Approx. 12 months
• When the Check Filter indicator LED is on, it is time to replace the Filter.
• Intervals between filter replacement may vary depending on environment.
MAINTENANCE
Carbon Filter
Fine Mesh Pre-Filter
True HEPA Filter
PlasmaWave Technology

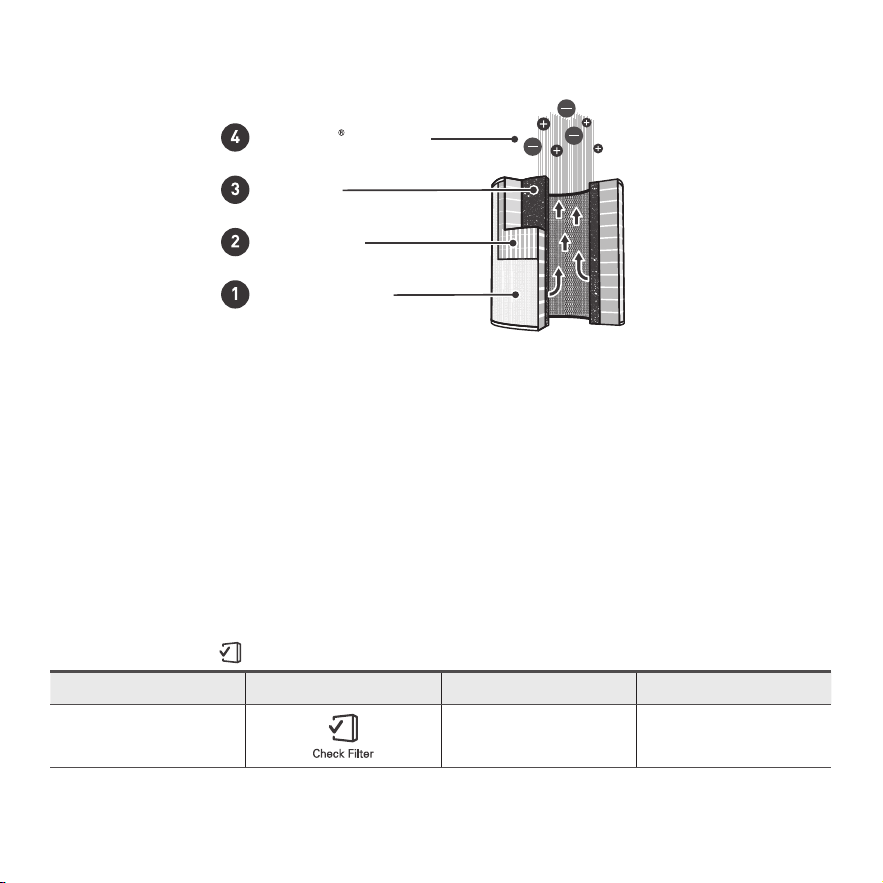

4-STAGE AIR PURIFICATION
01. Fine Mesh Pre-Filter
Designed to catch larger airborne particles found
indoors.
02. True HEPA Filter
Winix True HEPA captures 99.97%* of airborne allergens
including pollen, dust, smoke, pet dander, and other
particles as small as 0.3 microns.
*Based on independent laboratory tests conducted on
inanimate particles as small as 0.3 microns.
03. Carbon Filter
Reduces VOCs and household odors from cooking,
pets, and smoke.
04. PlasmaWave
®
Technology
Winix PlasmaWave
®
Technology helps to reduce
airborne contaminants*.
*Tested by an independent third-party laboratory.
6

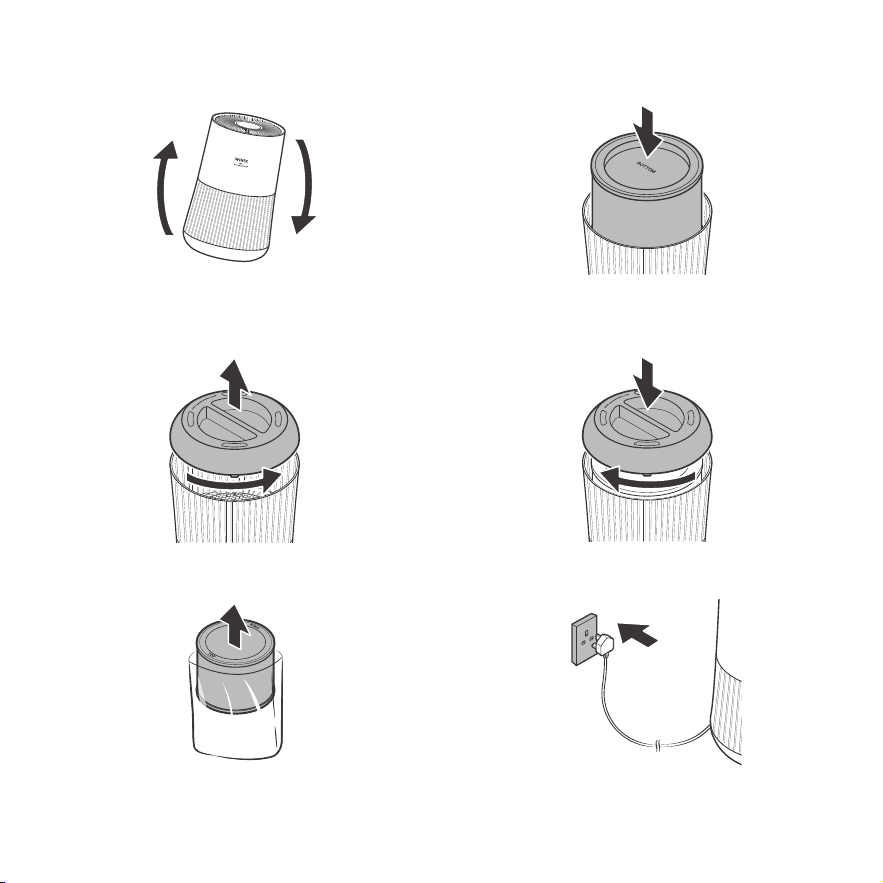

INITIAL OPERATION
1.
Turn the product upside down.
2.
Grab the handle at the bottom of the product, turn
counter-clockwise, and pull out the filter cover.
3.
Remove the protective vinyl from the filter
installed inside the product.
4.
Install the filter, top side down, into the bottom of unit,
until it is fully inserted. The top of the filter shows the
opening and the bottom of the filter is solid.
5.
After installing the filter, turn the handle clockwise
to close the filter cover.
6.
Return the product to an upright position and
resume normal operation.
7
REPLACING FILTERS

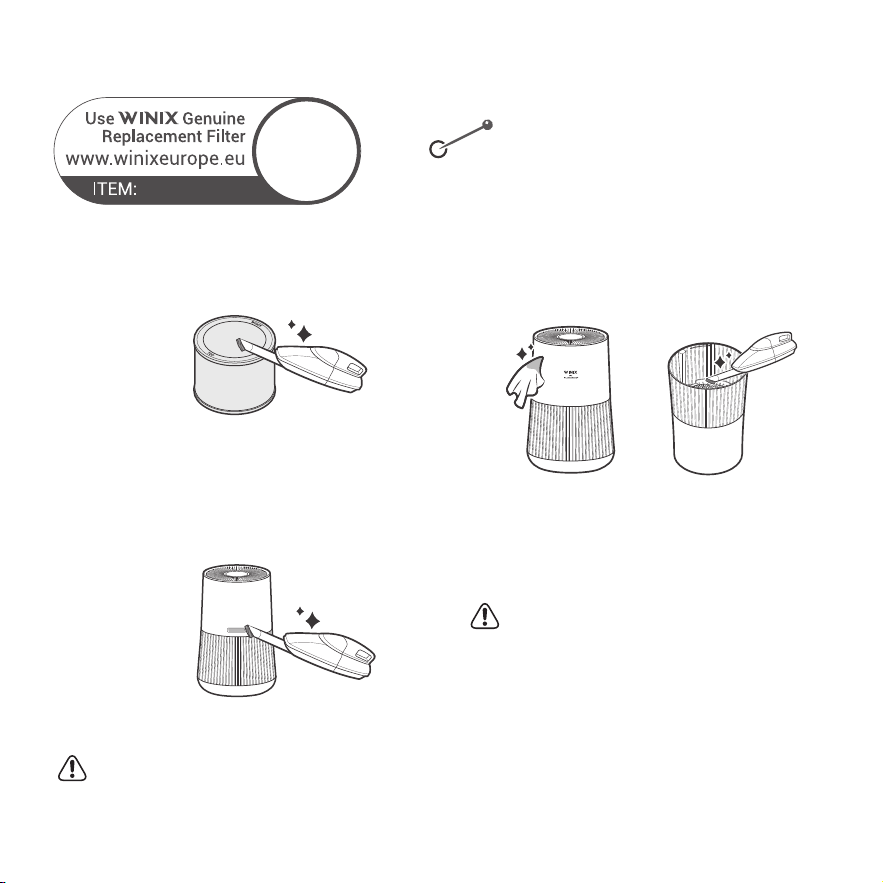

CLEANING CARE
Cleaning the Filters:
Clean with a vacuum or a soft brush.
• Only clean the Pre-Filter.
• This filter CAN NOT be washed.
• Intervals between filter cleaning may vary
depending on the air quality.
Cleaning the Smart Sensor (Dust Sensor):
Clean Smart Sensor (Dust Sensor) with vacuum cleaner.
• Cleaning interval: EVERY 2 MONTHS.
NOTICE
• Do not use benzene, alcohol, or other volatile fluids,
which may cause damage or discoloration.
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room temperature
water. Afterwards, wipe it down with a clean dry cloth.
After turning the product upside down, remove the filter
cover and clean the interior with a vacuum cleaner.
• For optimal performance, clean every 14 days.
NOTICE
• When cleaning the unit, always unplug the power cord
first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.
O
1712-0110-04
FILTER
Resetting Filter Life:
After replacing the 360º All-in-One True HEPA
Filter, use a small object such as a paper clip,
to press and hold the Filter Reset Button for at
least 5 seconds until the Filter Replacement
Indicator turns off.
8
Before operating this equipment, carefully read and
follow these safety cautions.
Ensure filters are inserted before running unit
Running the unit without filters may shorten the lifespan
of the unit and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents
on the unit
Objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet
hands
The high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
Blockage may lead to increased internal temperatures
causing product failure and deformation.
Do not use the unit as a step stool or place heavy
objects on it
Personal injury may occur or product failure and
deformation.
When turning the product upside down, install the filter
with care in the direction so that the bottom (blocked)
side of the filter is visible from the top
If the filter direction is not installed properly, it may
cause product damage and user injury.
WARNING
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children should be supervised to ensure that they
do not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
Before cleaning or maintaining, ensure unit is
unplugged.
Do not pull on the power cord when unplugging the
unit.
Do not tie or knot the power cord when unit is in
operation.
If the unit becomes submerged in water, unplug it
and contact customer service.
Do not unplug or move the unit while in operation.
Do not plug additional appliances into the same
outlet or power supply.
Do not touch the plug with wet hands.
Unplug the unit when not in operation for extended
periods of time.
Do not place around heating elements.
Do not use around mist or fumes from industrial oil
or around large quantities of metallic dust.
The cord can become damaged by forcefully
bending, pulling, twisting, bundling, pinching or
placing heavy objects on it.
Do not install in any sort of motor or transport
vehicle (trucks, boats, ships, etc).
Do not place in an area with excessive amounts of
noxious gases.
Do not place near any flammable materials
(aerosols, fuel, gases etc).
Do not have the unit facing into wind or drafts.
Do not place below any electrical outlet.
Do not place in excessively humid areas where the
unit may become wet.
To reduce the risk of fire or electric shock, do not use
this fan with any solid-state speed control device.
Do not place unit closer than 30 cm from the wall
during operation. It may cause condensation to the
wall and the surrounding area.
SAFETY AND CAUTIONS
9
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for household use only.
• Do not repair or modify the unit. All repairs should be
completed by a qualified technician.
• Do not use if the power cord or plug is damaged or
the connection to the wall outlet is loose.
• Use AC 220 - 240 V only.
• Do not damage, break, forcefully bend, pull, twist,
bundle, coat, pinch, or place heavy objects on the
power cord.
• Periodically remove dust from the power plug.
This will reduce the risk of shock due to humidity
build up.
• Remove the power plug from the outlet before
cleaning the unit. When removing the power plug,
grasp by holding the plug itself, never hold by the
cord.
• If the power plug is damaged, it must be replaced by
the manufacturer or a qualified technician.
• Remove the power plug from the outlet when not in
use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-
generating insecticides.
• Do not clean unit with benzene or paint thinner.
Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the
unit may become wet, such as the bathroom.
• Do not insert fingers or foreign objects into air intake
or outlet.
• Do not use the unit near flammable gases. Do not
use near cigarettes, incense, or other spark-creating
items.
• Unit will not remove carbon monoxide emitted from
heating appliances or other sources.
IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER
WARNING : Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact with
steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue,
such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter.
• Do not hold by the front panel.
• Do not stick any small objects in the air outlet vents or
fan
.
10
PRODUCT WARRANTY
The terms of the warranty are as follows.
1.
This product is manufactured under stringent
quality control and inspections.
2.
The warranty will be voided if product failure is a
result of negligence or misuse by the consumer,
shipping and service fees may be incurred even
during the warranty period.
3.
A proof of purchase must be presented upon
claiming a Product Warranty.
4.
Store the proof of purchase in a safe place or
register your product on www.winixeurope.eu to
upload your proof of purchase.
5.
This warranty is valid only in EU and UK.
* for more information visit www.winixeurope.eu
Product Name Air purifier
Model Name AT5U207-NWB
Purchase Date
Warranty period Two (2) years
Place of purchase
Place of Purchase
tel.
Customer
Address
Name
Tel.
The unit does not turn on at all
• Is the plug securely attached to the outlet?
- Make sure the outlet has power going to it, and
ensure the plug is secured.
• Is there a power outage?
- Check to see if other lights and electrical
equipment are working and try again.
The unit doesn’t work in Auto Mode
• Has Auto Mode been selected?
- Press the Fan Speed button until Auto Mode is
selected.
• Is the sensor blocked or clogged?
- Clean Smart Sensor (Dust Sensor) with vacuum
cleaner.
It vibrates and makes a lot of noise
• Is it running on a slanted or uneven surface?
- Move the unit to a hard, flat, even area.
The power plug and outlet feel hot
• Is the plug securely plugged in?
- Make sure the plug is properly plugged into the
outlet.
There is a strange smell
• Is it being used in a place with a lot of smoke, dust, or
odors?
- Clean the air intakes and clean the Pre-Filter.
- Replace the 360º All-in-One True HEPA Filter.
The fan strength is weak. The unit is not purifying
the air
• Is the Check Filter Indicator light on?
- Change the filters as required.
FREQUENTLY ASKED QUESTIONS
11
UNIT SPECIFICATIONS
Model Name AT5U207-NWB
Power Voltage AC 220 - 240 V, 50/60 Hz
Power Rate 55W
Verified Room Size 50 m
2
Dimensions 24.1 cm (W) x 24.1 cm (D) x 37.1 cm (H)
Weight 3.1 kg
Replacement Filter FILTER O / SKU : 1712-0110-04
The exterior, design, and product specifications may be changed without prior notice to improve product performance.
•
Website: www.winixeurope.eu
Contact Winix for
product related inquiries
and customer service
To expedite service, please specify the model name and number, the nature of the problem,
your contact information, and your address.
