ITEM #5709385
5709393
Español p. 18
ATTACH YOUR RECEIPT HERE
Purchase Date
MODEL #BAY52MBKB3R
BAY60MBKB3R
BAYLON CEILING FAN
APPROVED FOR
USE IN DAMP
LOCATIONS
4007498
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
1
2
Safety Information ..................................................................................................................................... 2
Package Contents ..................................................................................................................................... 5
Hardware Contents
....................................................................................................................................
............ 6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ...................................................................................................................................................... 11
Final Installation ...................................................................................................................................... 12

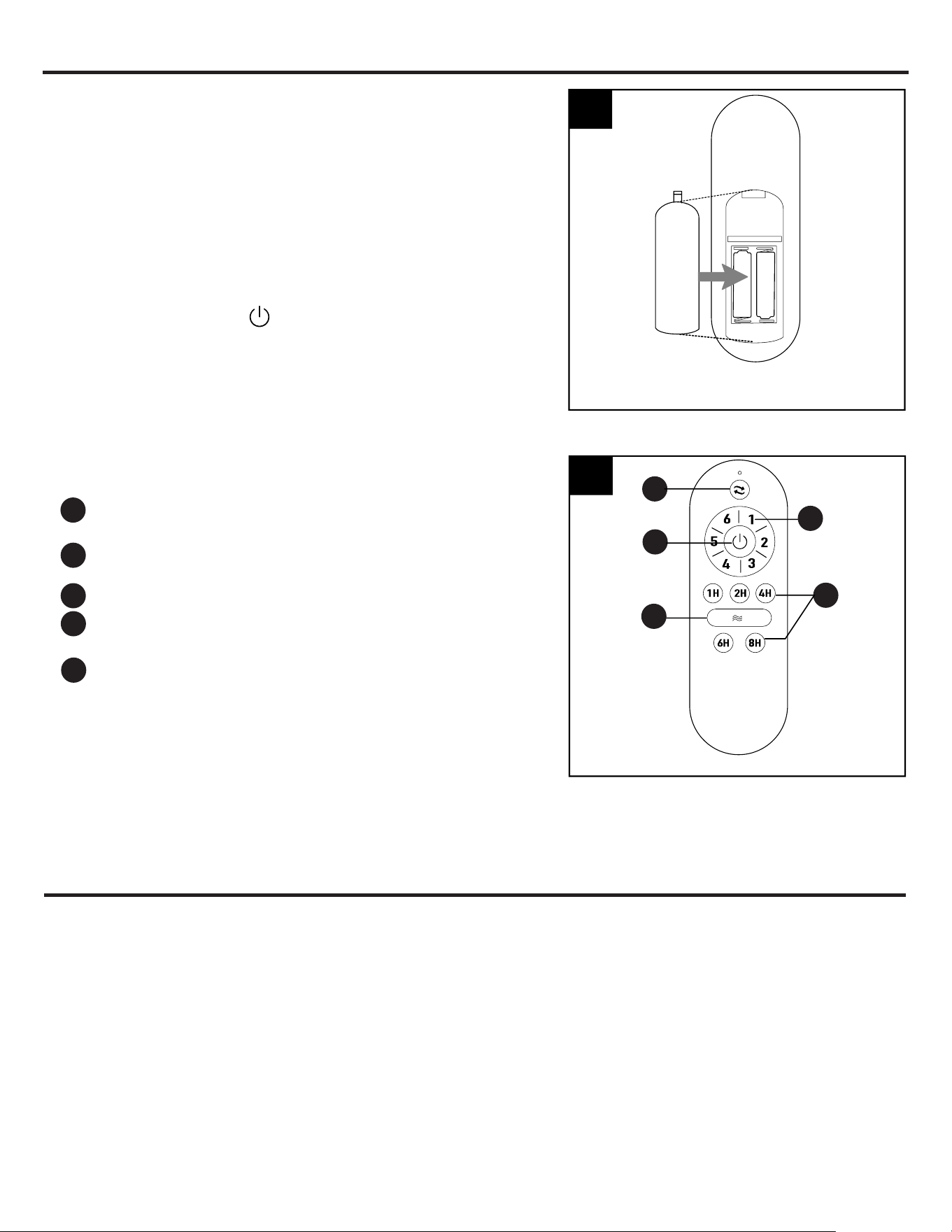

Operating Instructions ............................................................................................................................. 13
Care and Maintenance .......................................................................................................................
.
.... 15
Troubleshooting ...................................................................................................................................... 16
Limited Lifetime Warranty ....................................................................................................................... 17
Replacement Parts List ........................................................................................................................... 17
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: BAY52MBKB3R: 10.14 lbs
BAY60MBKB3R: 12.35 lbs
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
The DC Motor will not operate until blades are installed.
5

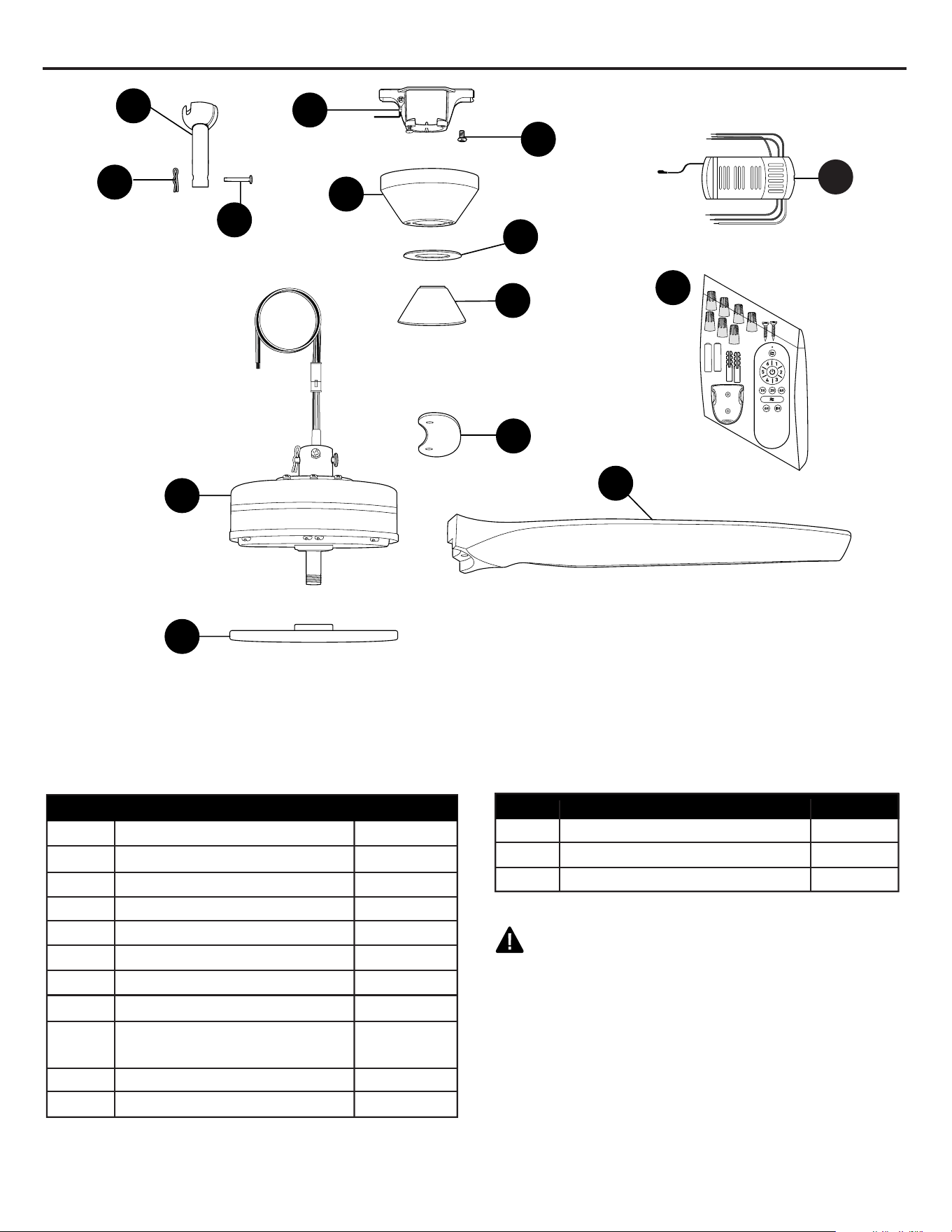

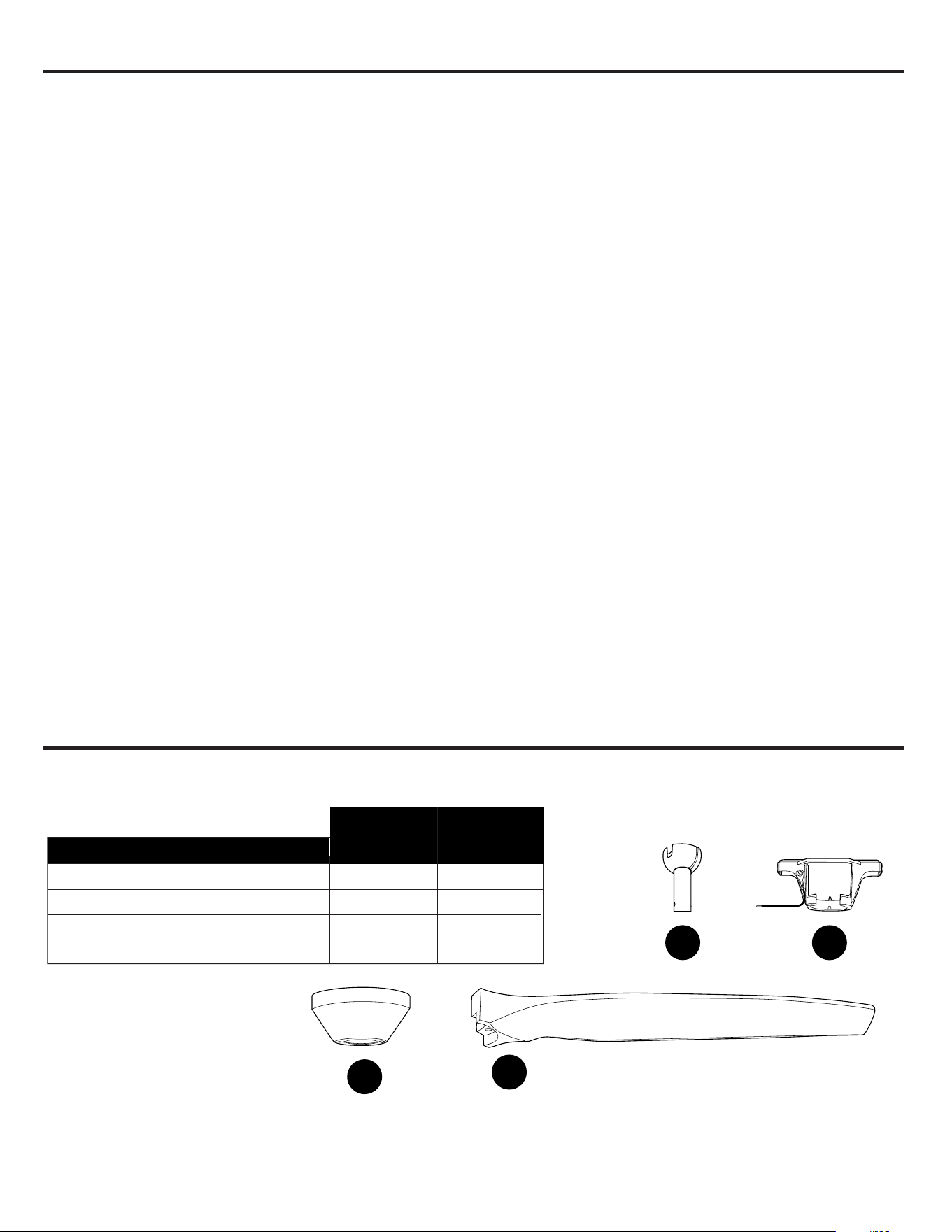

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Mounting Bracket 1
C Canopy 1
D Yoke Cover 1
E Motor Housing 1
F Blade 3
G Pin (preassembled) 1
H Clip (preassembled) 1
I Canopy Mounting Screw 2
(preassembled)
J Remote Control Receiver 1
K Remote Pack 1
DESCRIPTIONPART
QUANTITY
DESCRIPTION
QUANTITY
PART
F
L
I
H
C
B
M
D
E
K
G
A
N
J
L Blade Plate 3
M Canopy Cover 1
N Metal Cover 1
6

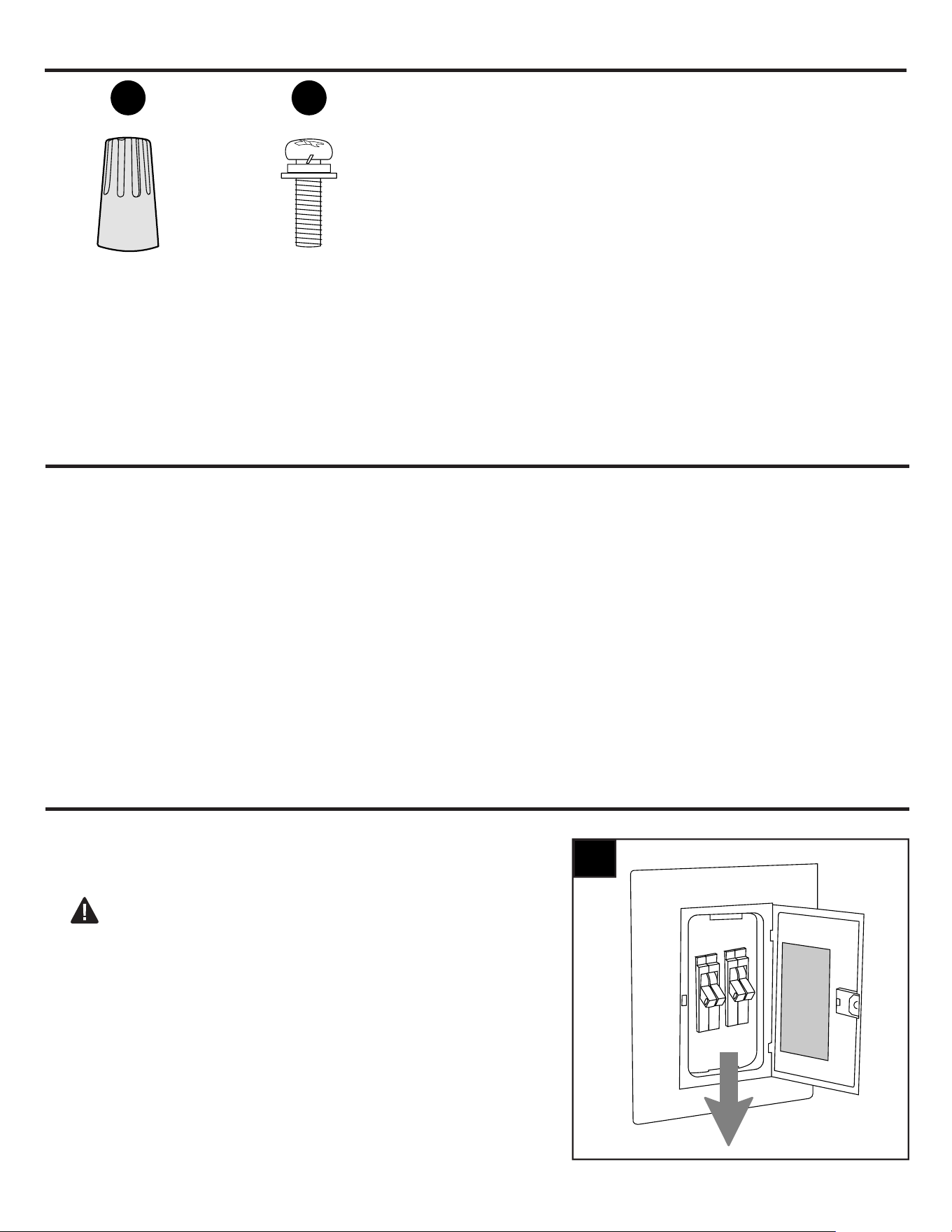

HARDWARE CONTENTS (shown actual size)
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers .
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
Blade Screw/
Lock Washer
Qty. 6
+1 extra
BB
Wire
Connector
Qty. 3
AA
INITIAL INSTALLATION
2.

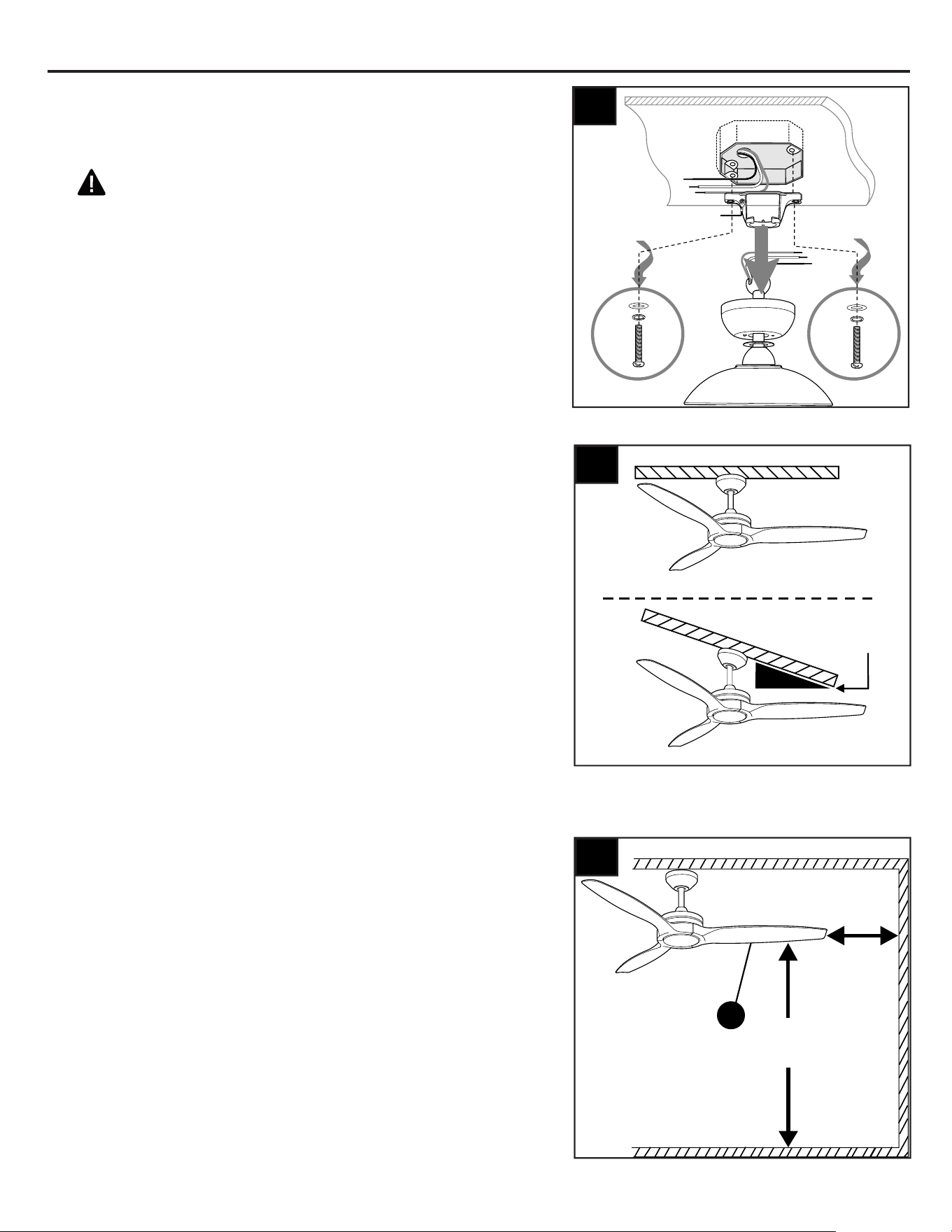

Determine mounting method to use.
A. Standard mount
B. Angled mount
IMPORTANT: If using the angle mount, check
to make sure the ceiling angle is not
steeper than 18°.
NOTE: Closemount option is not available for
this fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.
Check to make sure blades (F) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (F) will be at least
7 ft. above the floor.
4.
3.
A
B
18° max.
7 ft.
min.
30 in.
min.
F
3
4
7
2
If applicable, remove existing fan including the
mounting bracket, from outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers provided with the outlet box to be used
for fan installation.
3
5
E
Motor
Stabilization
Piece
INITIAL INSTALLATION
6
Open End
B
B
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box. [These
may have been previously removed in step
2 page 7.]
WARNING: It is very important you use the
proper hardware when installing the mounting
bracket (B) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is
installed facing the higher point of the ceiling,
and ensure the ceiling angle is not steeper than
18°.
6.
ANGLE
MOUNT
STANDARD
MOUNT
8

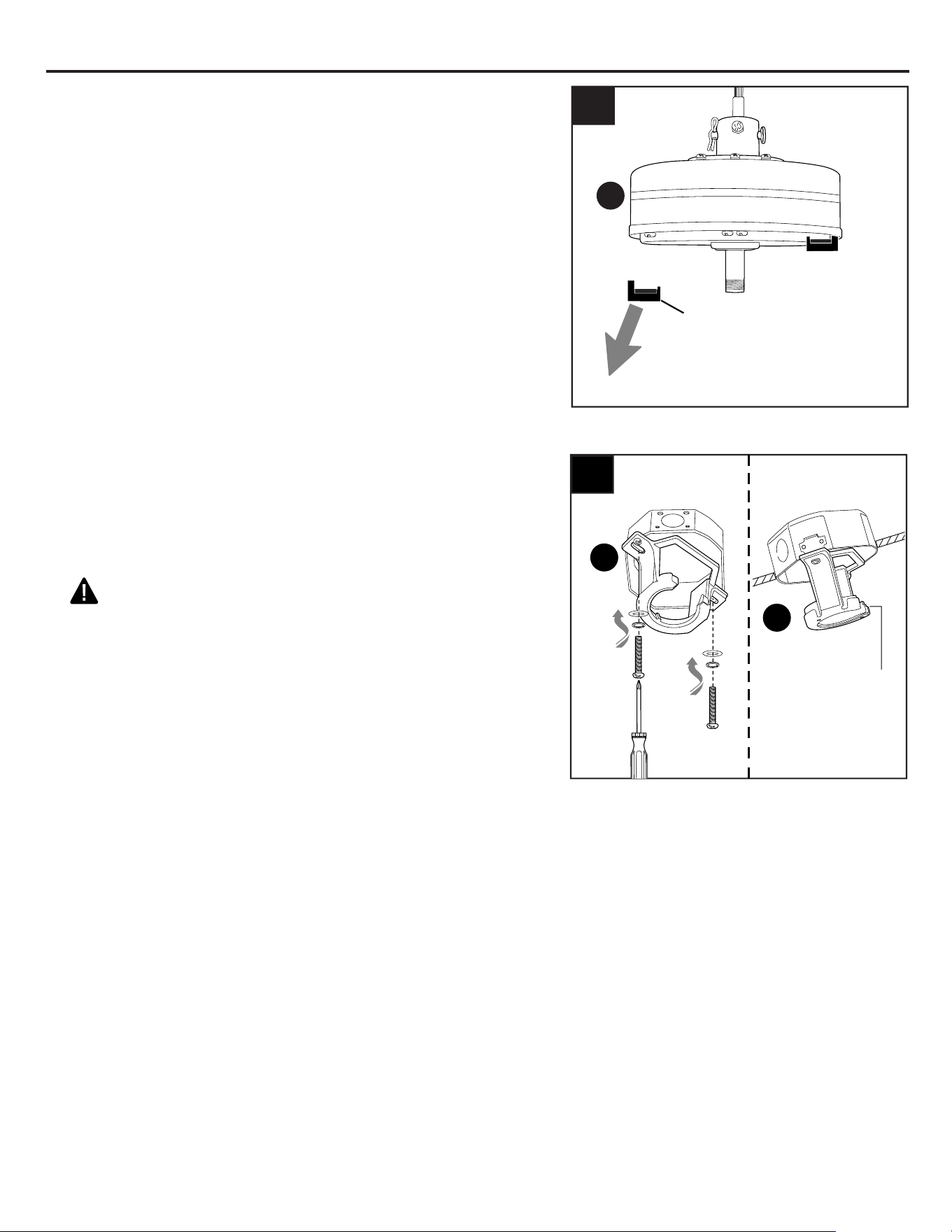

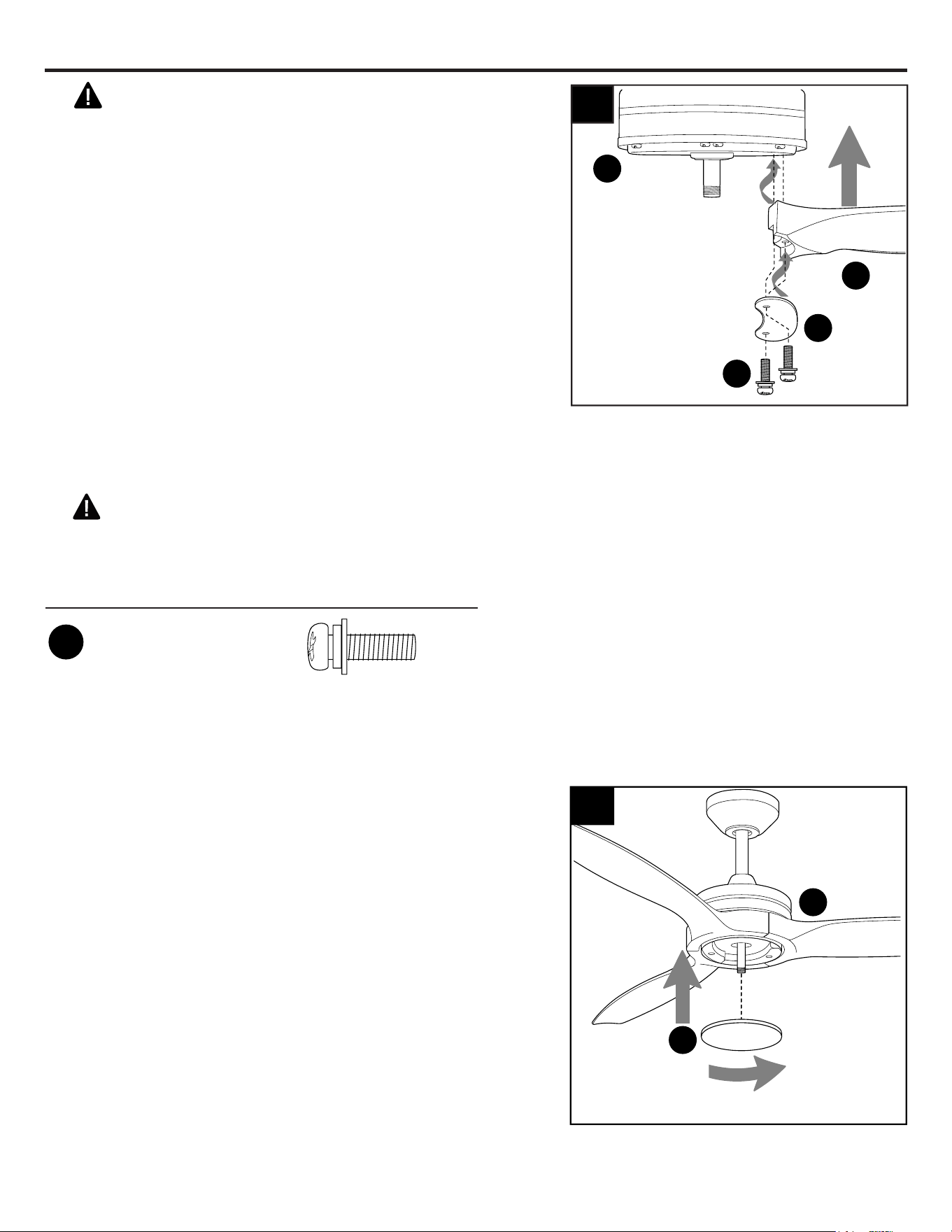

Remove all three preassembled motor
stabilization pieces from motor housing (E). The
motor stabilization pieces may be discarded at
this time.
5.
INITIAL INSTALLATION
9
8.
Remove pin (G) and clip (H) from downrod (A).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing (E).
7a.
7b.
7a
H
E
G
A
7b
Yoke
Set Screw
& Nut
Sideview
A
8
C
M
D

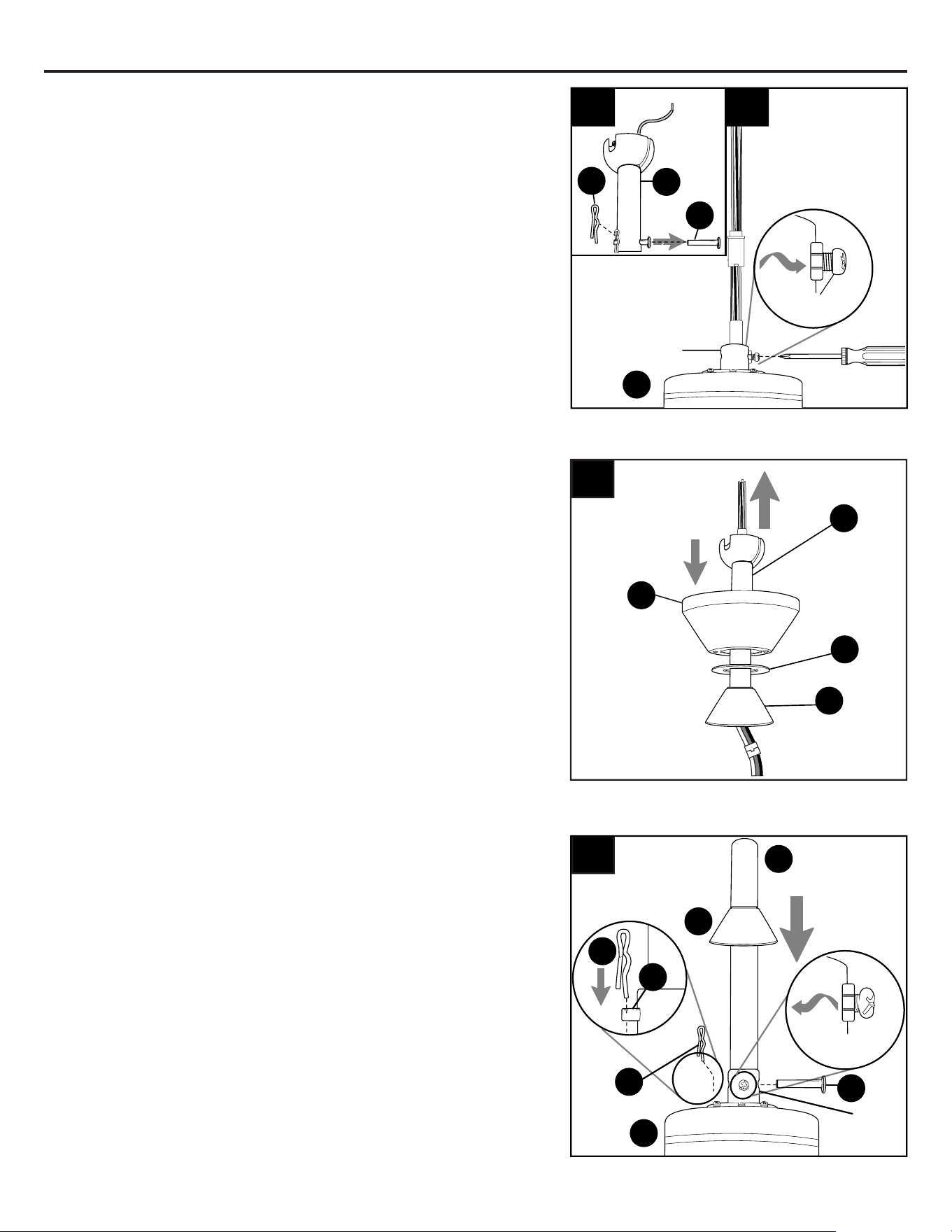

Insert downrod (A) through canopy (C), canopy
cover (M) and yoke cover (D). NOTE: Canopy
cover (M) must be turned with the smooth side
toward the motor housing (E).
Then, thread wires from motor housing (E)
through downrod (A).
9.
Slip downrod (A) into yoke, align holes and
re-install pin (G) and clip (H). Tighten set screws
in yoke and then tighten nut. Then slide yoke
cover (D) down until it rests on top of motor
housing (E).
9
G
H
E
A
D
H
G
Set Screw
and Nut
Sideview
Yoke
INITIAL INSTALLATION
10
E
12.
Install hanging ball of downrod (A) into opening
of mounting bracket (B). Align one of the slots in
hanging ball with the tab in mounting bracket
(B).
DANGER: Failure to align one of the slots in
hanging ball with the tab in mounting bracket (B)
may result in serious injury or death.
Tab
B
12
A
Slot

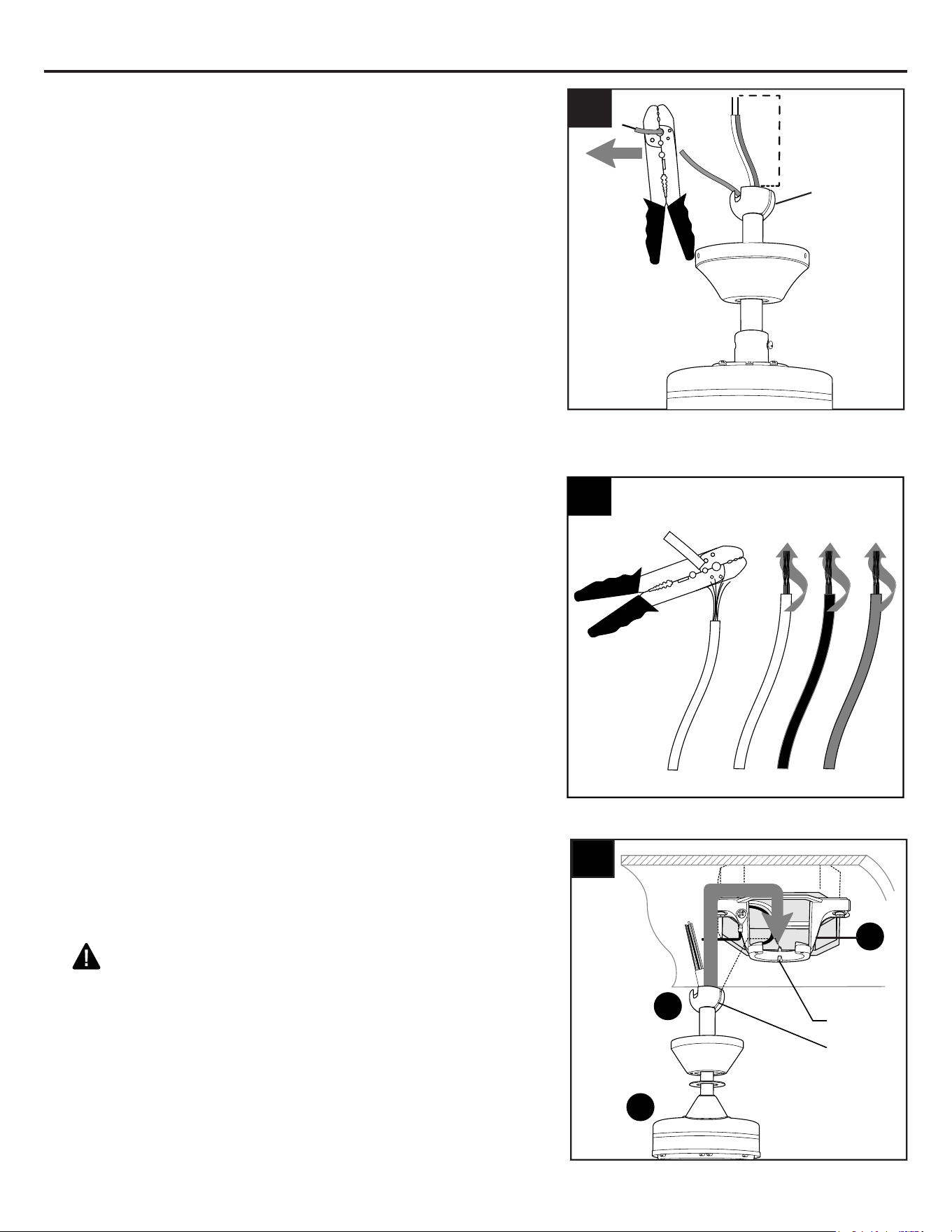

If you decided to cut back the lead wires in
Step 9, strip 1/2 in. of insulation from end of
each wire -- RED, PINK and GRAY (if
applicable). Twist stripped ends of each strand
of wire within the insulation with pliers (not
included).
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball
on the downrod and measure 8 in. of lead wire,
then cut the excess wire off with wire cutters
(not included).
NOTE: If you do not cut back the lead wires,
Steps 9 and 10 are not necessary and you
may proceed to Step 11 instead.
11.
10.
11
10
Hanging
Ball
8 in.
J
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PINK
RED
RED
GRAY
PINK
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
B
GREEN/
GROUND
GRAY
AA
A
1b
J
11

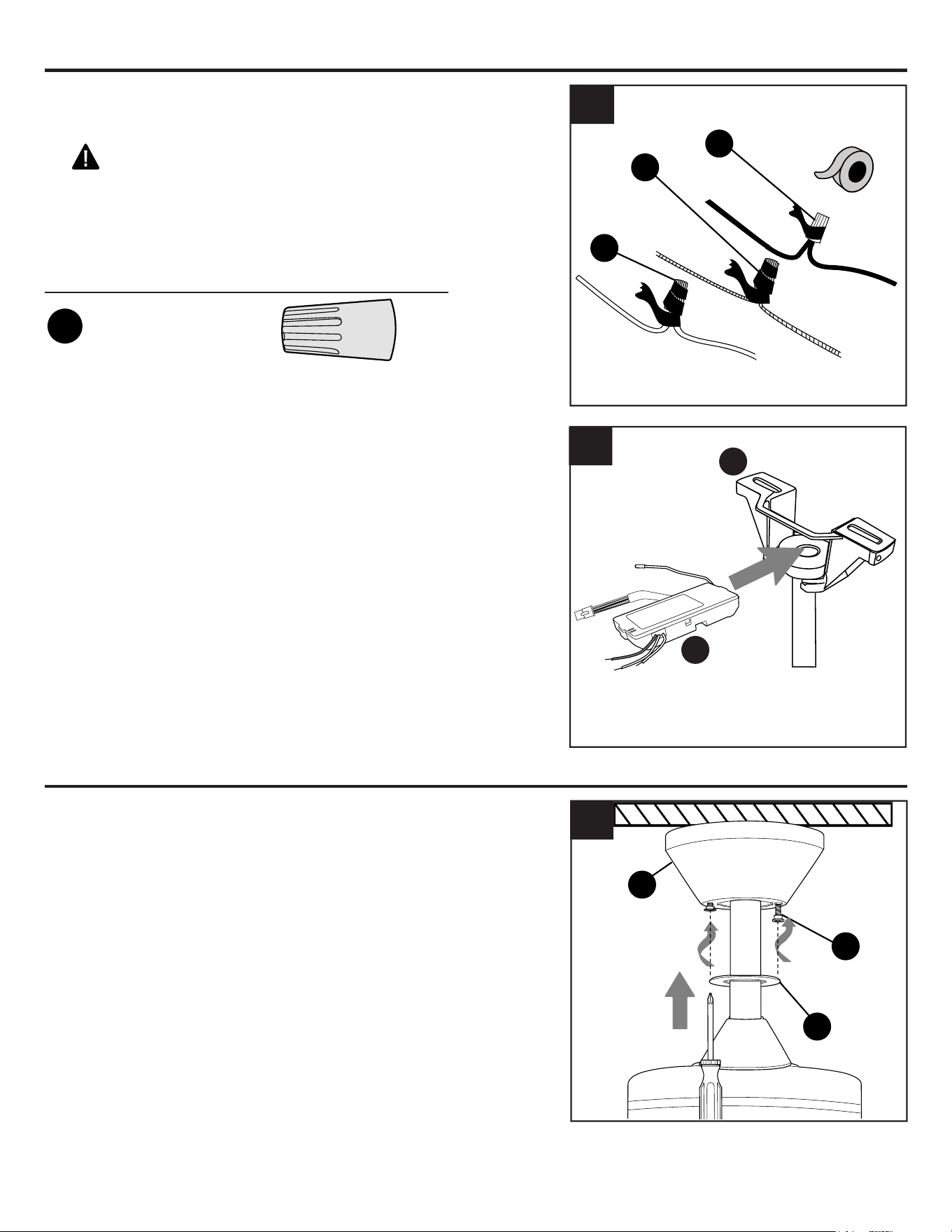

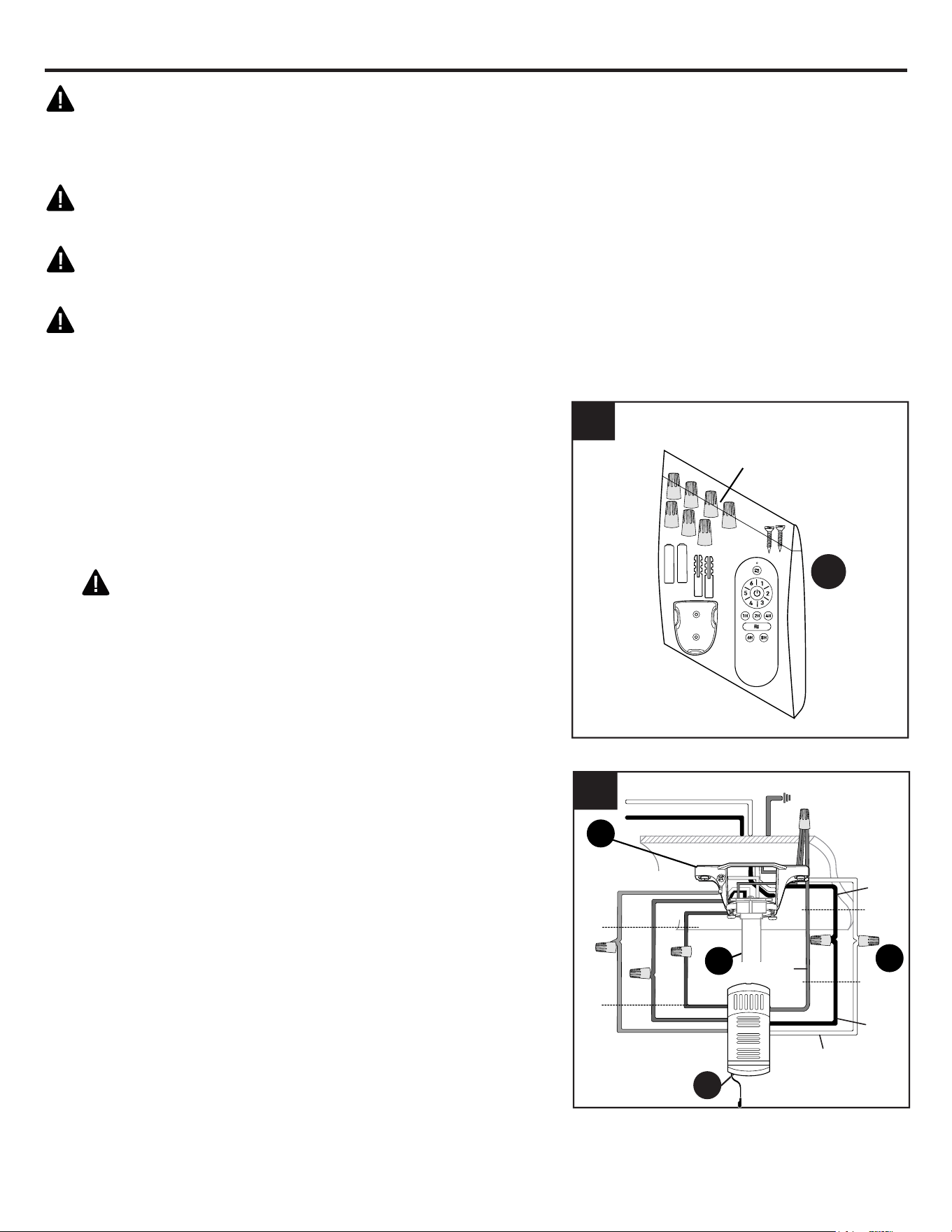

WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
1a.
Make the necessary wiring connections for
remote control operation as detailed below
and in the accompanying drawing. To make
wire connections, use wire connectors (AA) in
hardware pack and wire connectors in remote
pack (K), making sure to screw each wire
connector on in a clockwise direction.
CAUTION: Assistance from another
person is recommended for this step.
K
Wire
Connectors
1a
1b.
Connect all GROUND (GREEN) wires from fan
(on downrod (A) and mounting bracket (B)) and
remote control receiver (J) to BARE/GREEN
supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (J) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (J) to WHITE supply
wire from ceiling.
Connect RED wire (labeled TO MOTOR) from
remote control receiver (J) to RED wire from
motor housing (E).
Connect GRAY wire (labeled TO MOTOR) from
remote control receiver (J) to GRAY wire from
motor housing (E).
Connect PINK wire (labeled TO MOTOR) from
remote control receiver (J) to PINK wire from
motor housing (E).
12
WIRING
Wrap electrical tape (not included) around each
individual wire connector down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
Wire Connector x 3
Hardware Used
AA
AA
AA
AA
3
Gently slide remote control receiver (J) flat-side up
into mounting bracket (B). Turn spliced/taped wires
upward and gently push wires and wire connectors
(AA) into outlet box. Let antenna from remote control
receiver (J) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor watage: 65 MAX.
3.
J
1.
FINAL INSTALLATION
1
Locate two canopy mounting screws (I) on
underside of mounting bracket (B) and remove
canopy mounting screw (I) closest to the open end
of the mounting bracket (B). Partially loosen the
other canopy mounting screw (I). Lift canopy (C) to
mounting bracket (B). Place rounded part of slotted
hole in canopy (C) over loosened canopy mounting
screw (I) and push up. Twist canopy (C) to lock.
Re-insert canopy mounting screw (I) that was
removed, then tighten both canopy mounting screws
(I).
Locate knobs on center ring of canopy cover (M).
Slide canopy cover (M) up to canopy (C), aligning
knobs on canopy cover (M) with openings in bottom
of canopy (C). Press up gently but firmly on canopy
cover (M) until it fits into the bottom of the canopy
(C) and then turn canopy cover (M) about 1/2 in.
I
C
M
Antenna
B
3
E
N
13
FINAL INSTALLATION
2.
2
F
BB
L
E
3.
Align hole on metal cover (N) with threaded rod
on underside of motor housing (E). Turn metal
cover (N) to the right (clockwise) until it no
longer turns.
Blade Screw/
Lock Washer
Hardware Used
BB
6
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (F). If overtightened, blades
(F) may crack and break.
Place one blade plate (L) under blade (F),
aligning holes. Insert two blade screws/lock
washers (BB) into holes of the blade (F), until the
blade screw/lock washer (BB) comes through the
other side of the blade (F). Repeat with the other
blade screw/lock washers (BB).
Align the protruding ends of the blade screw/lock
washer (BB) with the corresponding holes on the
underside of the motor housing (E). Tighten both
blade screws/lock washers (BB).
Repeat Step 2 for the other two blades (F).
DANGER: To reduce the risk of personal
injury, make sure all blades (F) are
completely secure before proceeding.
14
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
Locate remote control transmitter in remote pack (K).
Remove battery cover. Install two AAA batteries from
remote pack (K). Observe diagram inside battery
compartment to install batteries correctly. Replace
battery cover.
WARNING: Batteries are to be inserted with correct
polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
K
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or
visit www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
15
OPERATING INSTRUCTIONS
3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and to turn
fan ON
- OFF power button
- Timer mode: fan may be set to run for
– 1 hour / 2 hours / 4 hours / 6 hours / 8 hours
- Breeze mode: Fan automatically cycles between
all 6 different speeds
3
1
2
4
5
Remote Control Transmitter
3
1
3
2
4
5
2.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate or
you have purchased a new remote control transmitter,
make sure to turn the power off first. Restore electrical
power. Within 30 seconds of powering fan, press and
hold ON/OFF button ( ) on remote control transmitter
for 5 seconds until fan beeps once in order to
synchronize remote with fan motor. Use the remote
control transmitter to test the fan functions to confirm
the learning process is complete.
Remote Control Transmitter
(back side)
2
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly and tighten all screws on fan.
Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (F) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
16
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 15.
4. Install all blades (see page 13).
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
Excessive wobbling.
1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan to
another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
1. Refer to instructions in Step 2 on
page 15.
2. Check that batteries have been
installed with correct polarity.
3. Replace both batteries according to
instructions on page 14.
17
Printed in China
DRLI2402
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
REPLACEMENT PARTS LIST
A
B
C
F
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
PART DESCRIPTION
A Downrod
B
Mounting Bracket
C Canopy
F Blade
5709385-A
5709385-B
5709385-C
5709385-F
#
5709385
PART #
#
5709393
PART #
5709393-A
5709393-B
5709393-C
5709393-F
