DF25526
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, missing parts?
Before returning, contact us on:
Purchase Date
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ITEM #6030895
MODEL #ASH46MBK6LR
ASHBOURNE LED CEILING FAN
Español p. 21
ATTACH YOUR RECEIPT HERE
4007498
APPROVED FOR USE
IN DAMP LOCATIONS
1
2
TABLE OF CONTENTS
Safety Information ..................................................................................................................................... 2
Package Contents .................................................................................................................................... 5
Hardware Contents ................................................................................................................................... 6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ...................................................................................................................................................... 12
Final Installation ...................................................................................................................................... 14
Operating Instructions ............................................................................................................................. 16
Care and Maintenance ........................................................................................................................... 18
Troubleshooting ...................................................................................................................................... 19
Limited Lifetime Warranty ....................................................................................................................... 20
Replacement Parts List ........................................................................................................................... 20
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might exceed
the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 21.38= lbs.
SAFETY INFORMATION
DANGER
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.87 KG) OR LESS" and
use mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever connectors to use.
WARNING
4
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
WARNING
CAUTION
The DC Motor will not operate until blades are installed.
Ensure the outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Due to the weight and construction of this fan, it is advisable to seek the help of another person.
5
DESCRIPTIONPART
QUANTITY
DESCRIPTION
PART
A Mounting Bracket 1
B Downrod 1
C Clip (preassembled) 1
D Pin (preassembled) 1
E Canopy 1
F Motor Housing 1
G Blade 6
H Yoke Cover 1
I Canopy Mounting Screw 2
(preassembled)
J Canopy Cover 1
K Fitter Plate 1
L Motor Plate Screw 3
(preassembled)
M Blade Plate 6
N Motor Housing Screw 10
(preassembled)
O Remote Pack 1
P Remote Control Receiver 1
Q Metal Cover 1
R LED Segment 5
S LED Connector 5
(preassembled)
T LED Connector Screw 10
(preassembled)
U Support Arm 5
V Support Arm Screw 10
(preassembled)
W Additional Wiring 2

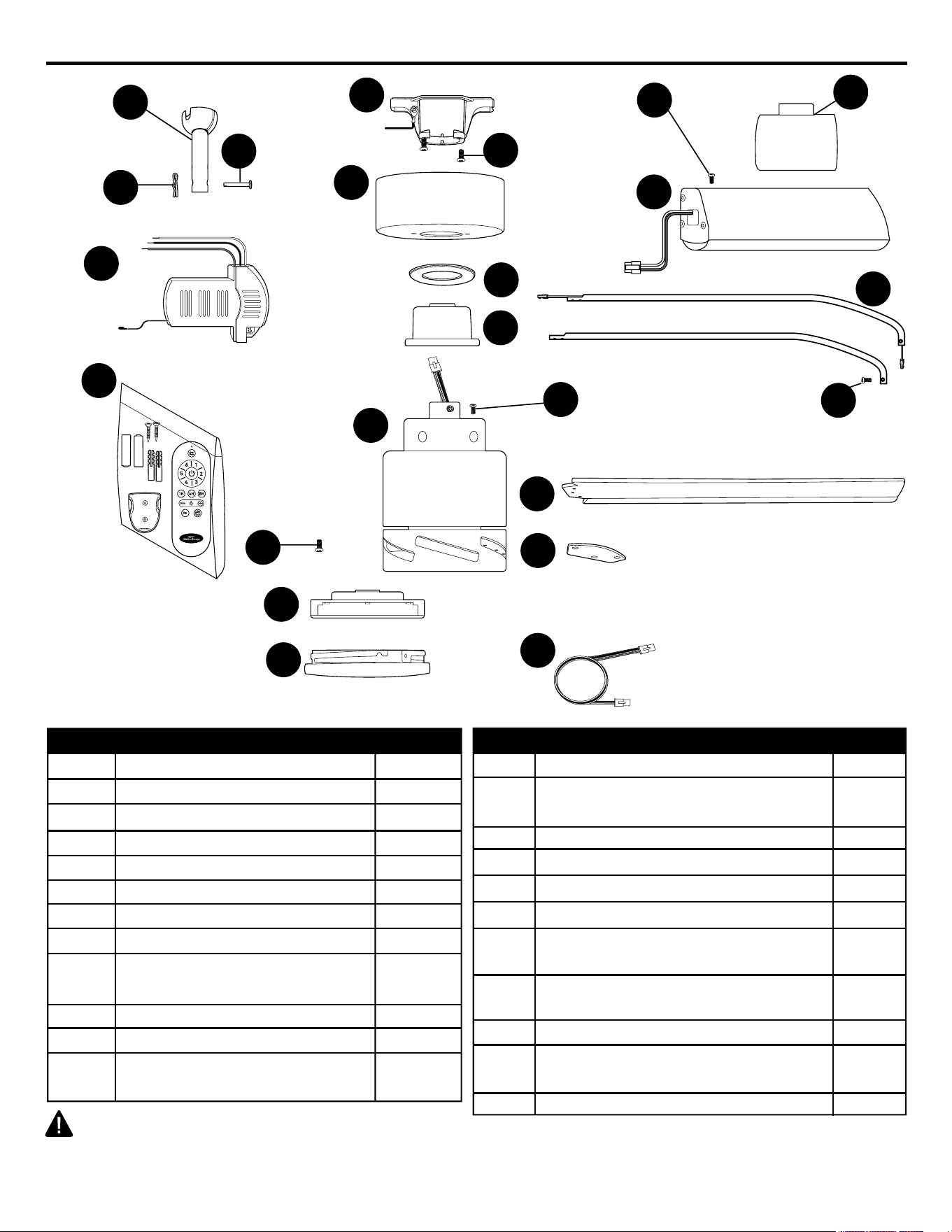

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation and
safety.
W
G
F
R
V
U
T
N
O
Q
S
J
H
I
C
B
D
E
L
A
AAA
AAA
M
K
P
ON
OFF
ON
OFF
1
6
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder, Wire Strippers and Precision Screwdriver (2 in.)
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters

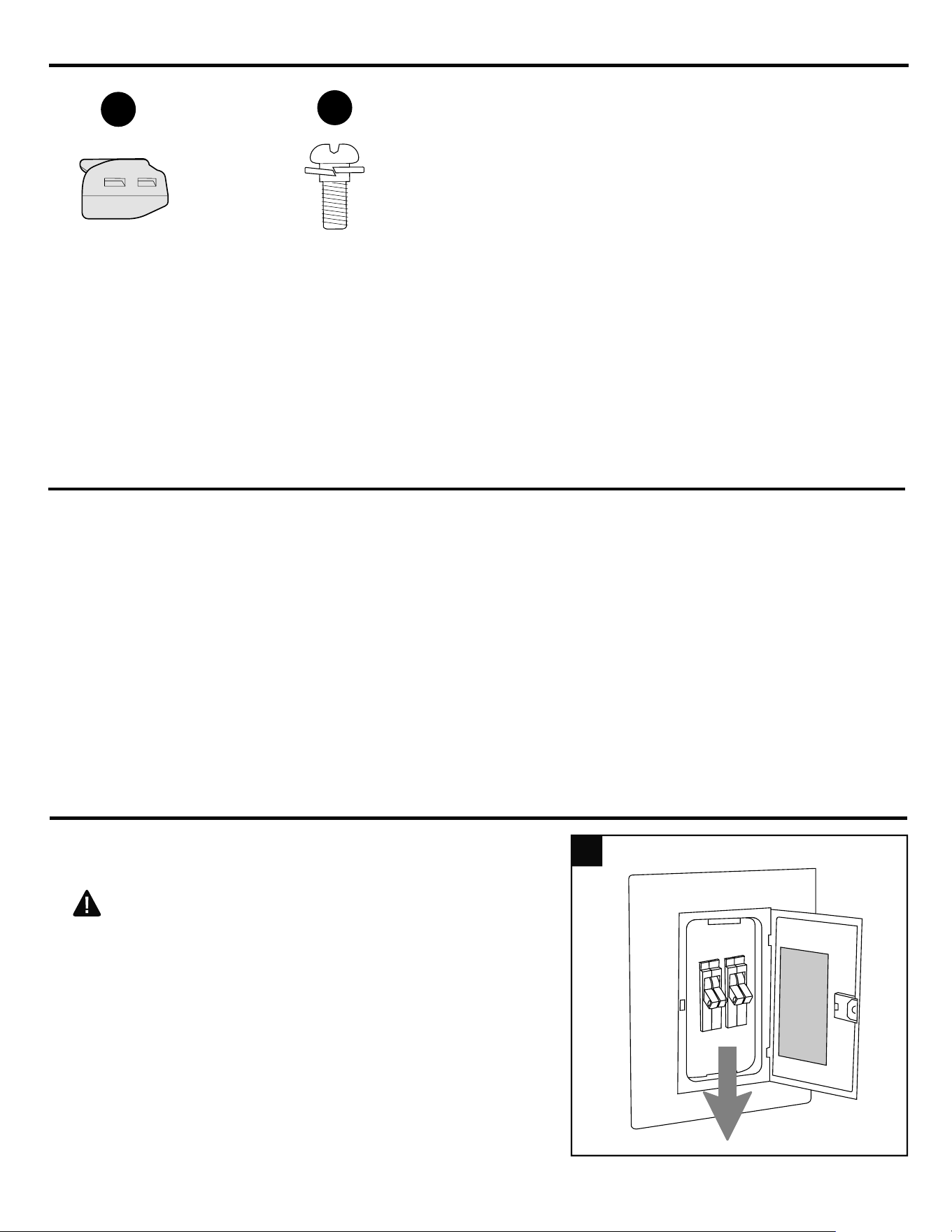

PREPARATION
AA
BB
CC
Lever Wire
Connector
Qty. 3
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
Blade Screw/
Lock Washer
Qty. 18
+ 1 extra
3.

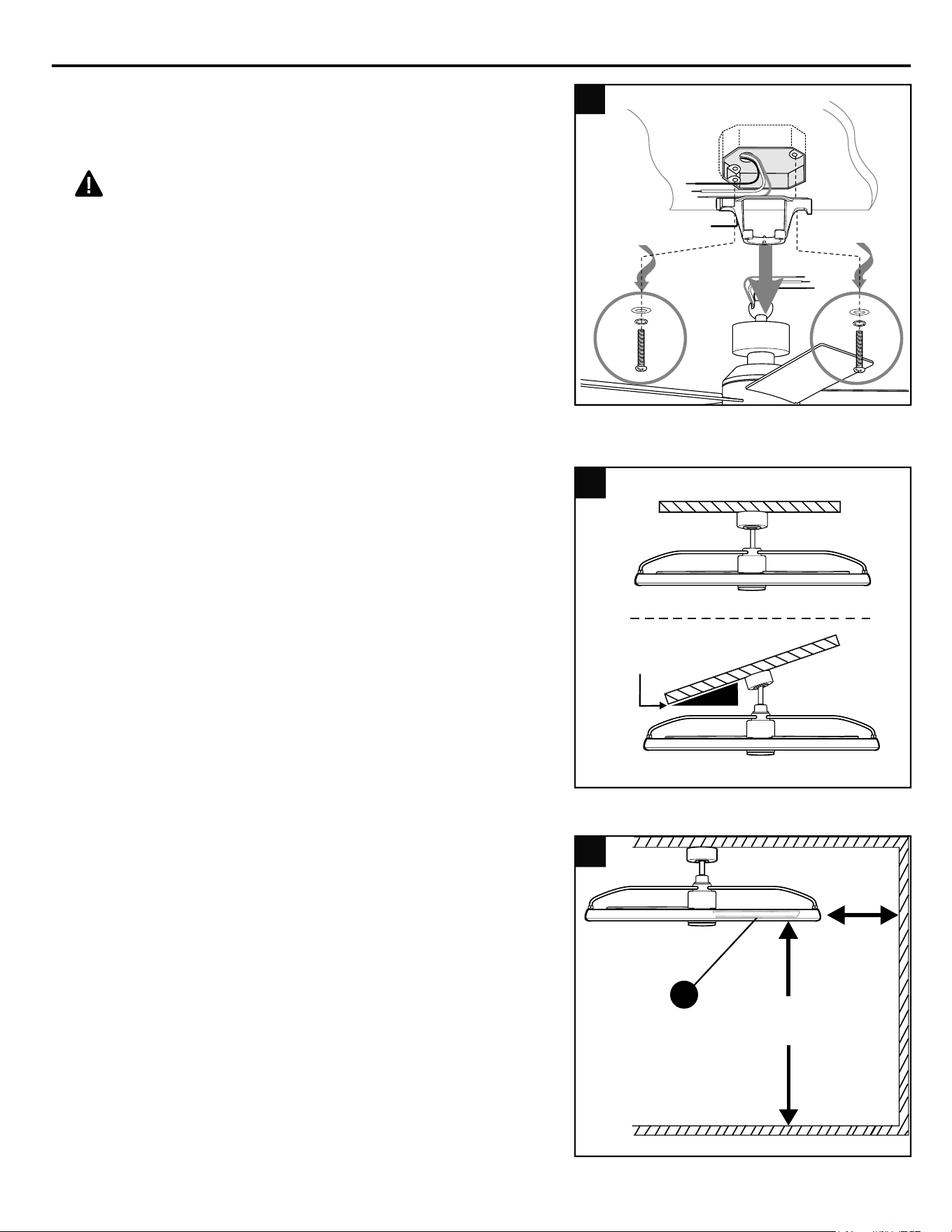

Determine mounting method to use for new fan.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 16°.
NOTE: Closemount option is not available for
this fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.
7
Check to make sure fan will be at least 30
inches from any obstruction. Check downrod
(B) length to ensure blades (G) will be at least
7 ft. above the floor.
4.
A
B
16° max.
7 ft.
min.
30 in.
min.
4
3
2
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) for fan
installation.
2.
G
INITIAL INSTALLATION
STANDARD MOUNT
Outlet Box
Screws
Wall
CORRECT Screw Position
VS
INCORRECT Screw Position
5
5a
A
Wall
5b
(underside)
A
(view from underside)
Screw
Screw
Screw
Position
Screw
Position
(view from underside)

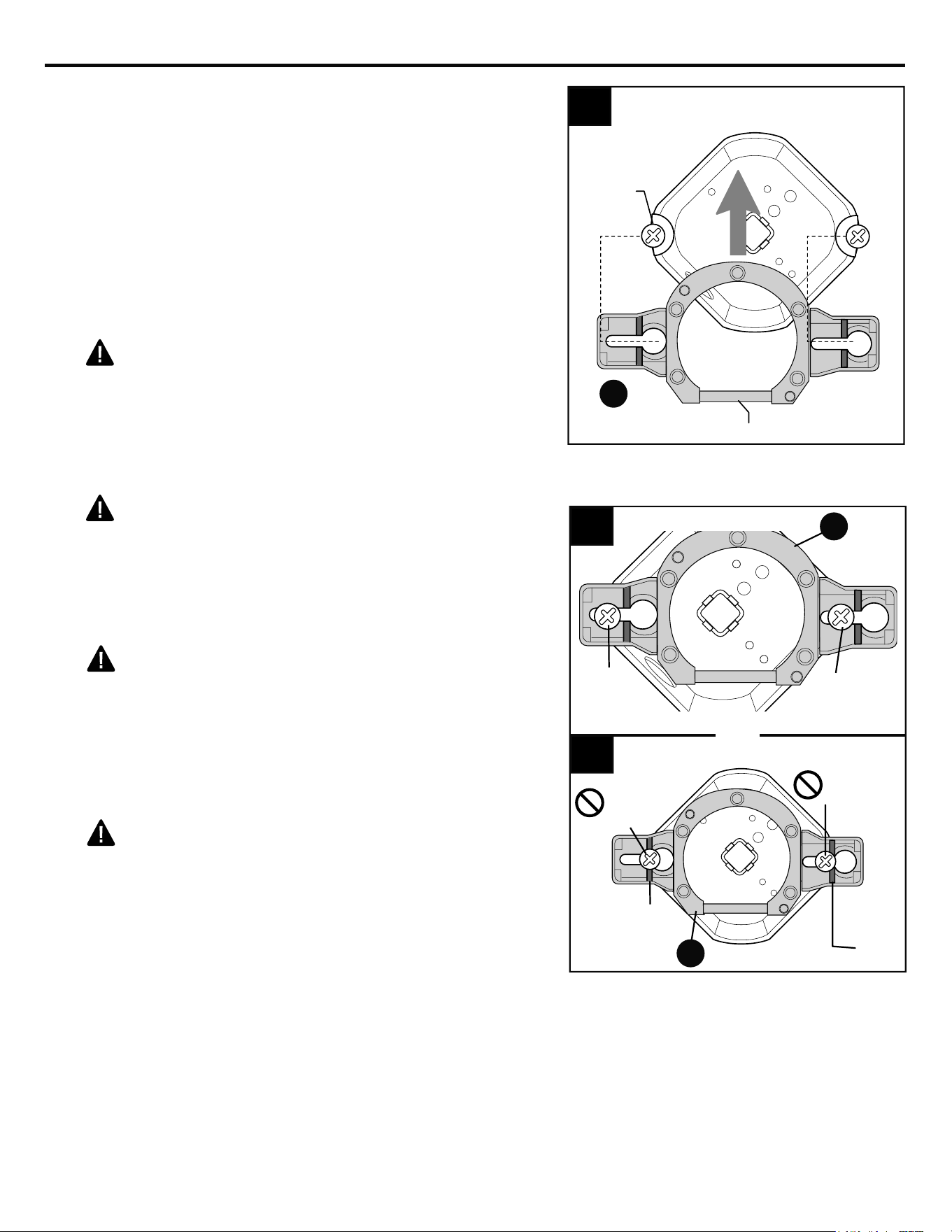

If attaching mounting bracket (A) to an
existing outlet box (not included) with
pre-installed screws, spring washers and
flat washers, slide mounting bracket (A) over
the screws. Then proceed to the following
paragraph. If attaching mounting bracket
(A) to outlet box where screws/washers
were removed, secure mounting bracket (A)
to outlet box using the screws, spring
washers and flat washers previously removed
in (Step 2, page 7).
WARNING: It is very important you use
the proper hardware when installing the
mounting bracket as this will support the fan.
DANGER: To reduce the risk of serious
injury or death, the outlet box screws MUST
be installed somewhere within the long slots
of the mounting bracket and then
TIGHTENED DOWN COMPLETELY. [Refer
to Fig. 5a.]
DANGER: To reduce the risk of fire,
electrical shock, serious personal injury or
damage to the fan, make sure outlet box
screws DO NOT get installed on or near the
wall that separates the keyhole and the long,
narrow slot on each side of the mounting
bracket. [Refer to Fig. 5b.]
WARNING: If using the angle mount,
make sure open end of mounting bracket (A)
is installed facing the higher point of the
ceiling, and ensure the ceiling angle is not
steeper than 16°.
5.
5a.
5b.
A
Open End
8
INITIAL INSTALLATION
Opening
9
IMPORTANT: Due to the size of this fan, it
is recommended to carefully assemble fan
on the ground.

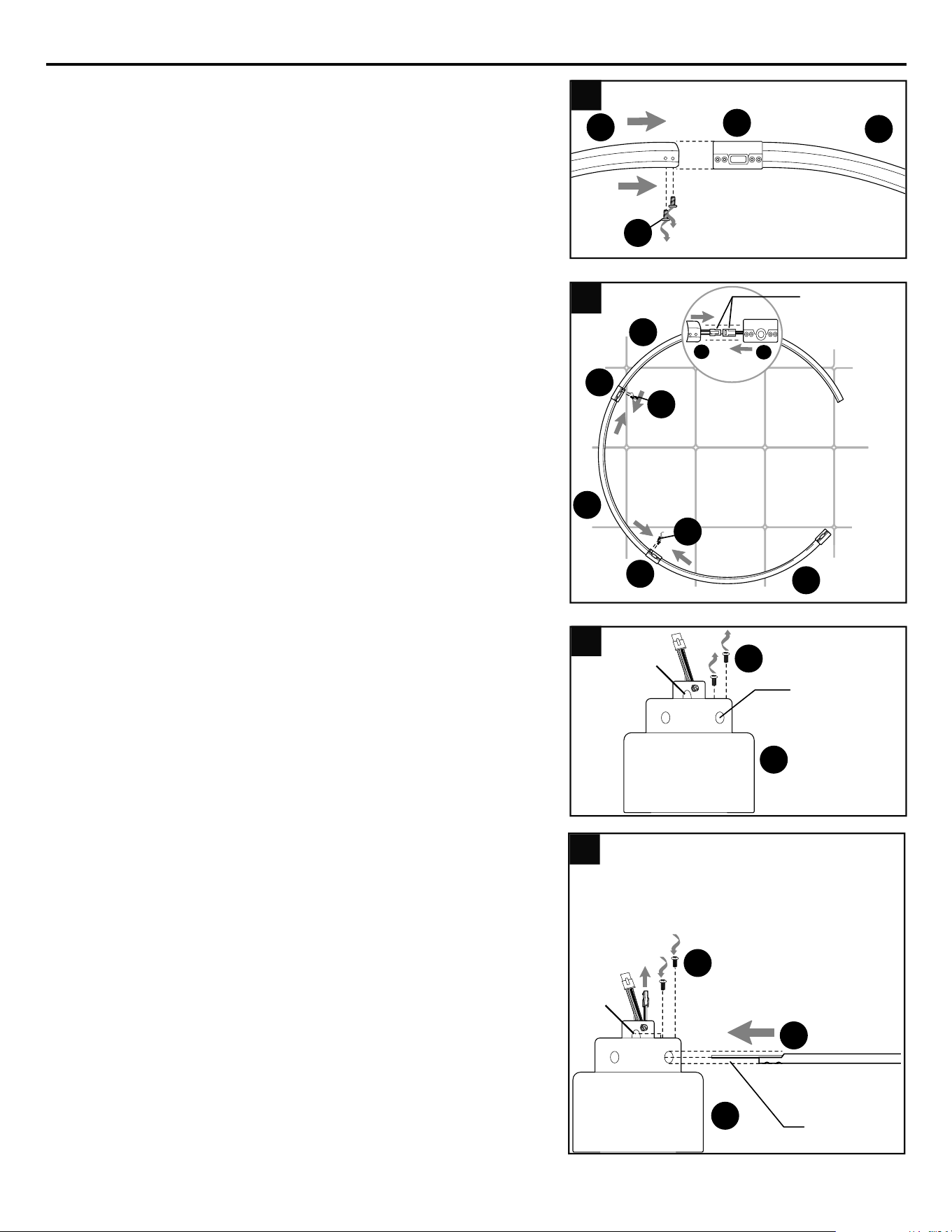

Remove 2 LED connector screws (T) from
end of LED segment (R). Align the end of
LED connector (S) with end of LED
segment (R).
Connect plug from LED segment (R) to the plug
from LED connector (S). Slide the end of the LED
segment (R) into the LED connector (S), aligning
screw holes. Re-insert the 2 LED connector
screws (T) into LED connector (S) and partially
tighten screws with a Phillips screwdriver to
attach LED segment (R) to LED connector (S).
Make sure that the wires are not caught between
the LED segments (R) and LED connector (S),
Repeat this step until LED ring is complete.
Wiring
support arm hole
8.
Locate support arm (U) with wiring. Thread
wiring through support arm hole identified in
previous step. Then, insert the support arm (U),
aligning motor housing screw (N) holes as
shown. Secure support arm (U) to top of motor
housing (F) by replacing 2 motor housing screws
(N) with a Phillips screwdriver (not included).
Thread wiring in support arm (U) with wires
through the opening on the yoke.
Repeat for remaining support arms (U). making
sure motor housing screws (N) are securely
tightened.
6b.
6a.
8
6b
6a
7
7.
Remove preassembled motor housing screws
(N) located on top side of motor housing (F).
Save for later use.
Locate support arm hole on top of motor housing
(F) nearest to opening on the yoke.
R
T
T
T
R
S
S
S
R
R
F
N
F
R
Plugs
U
N
R
Opening
INITIAL INSTALLATION
S
Plugs
10
U
V
V
S
R R
10

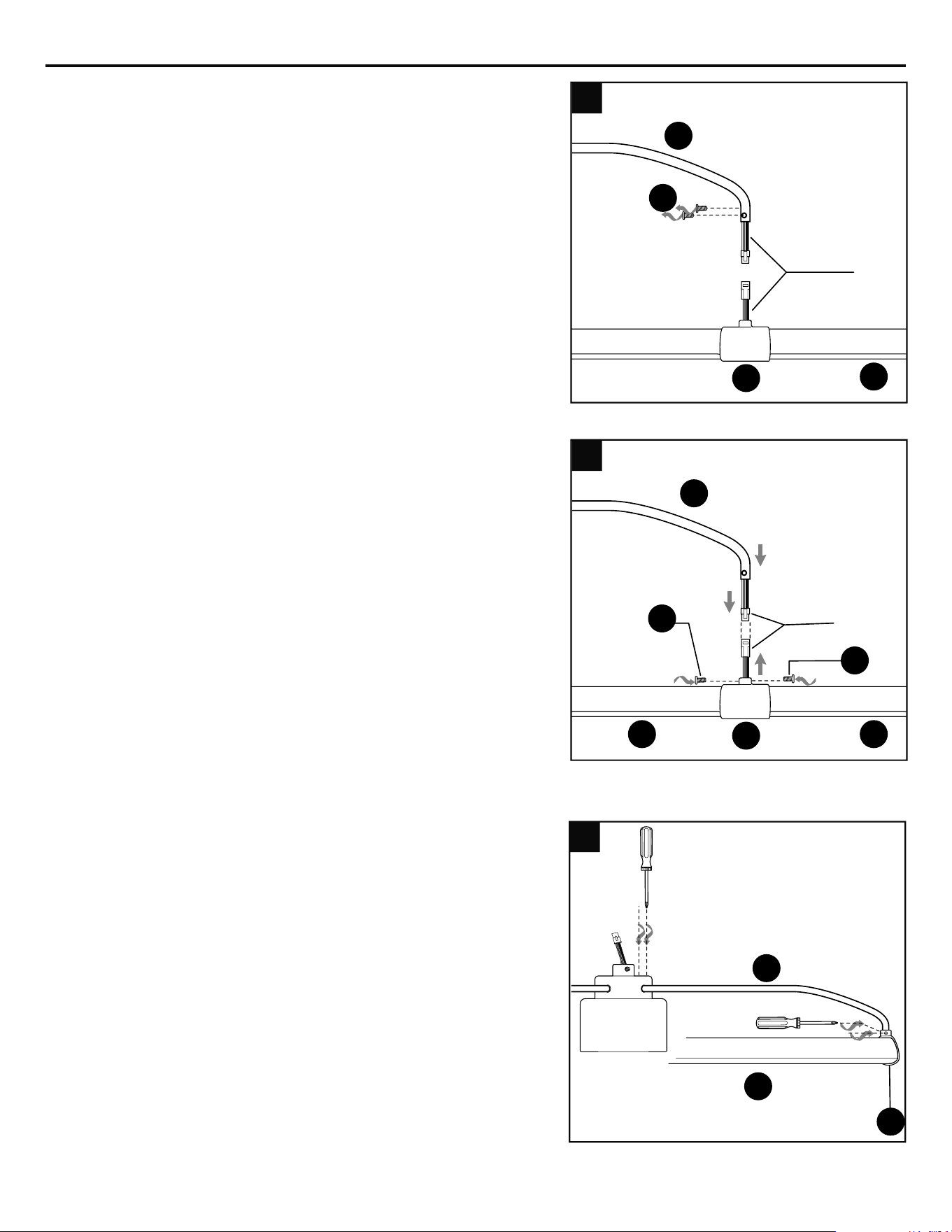

Once each support arm (U) is attached to an
LED connector (S) completely tighten all
support arm screws (V) securely with a Phillips
screwdriver.
IMPORTANT: Once the LED ring assembly is
complete, make sure all screws are securely
tightened with a Phillips screwdriver.
11.
Align curved end of support arm (U) with wiring,
with hole on LED connector (S) with wiring
identified in previous step. Connect plug from
support arm (U) to plug from LED connector
(S). Make sure connections are secure.
Carefully insert wiring into LED connector (S).
Insert curved end of support arm (U) into the
LED connector (S) aligning screw holes on
curved end with screw holes in neck of LED
connector (S). Insert 2 support arm screws (V)
previously removed and partially secure the
screws to attach support arm (U). NOTE: Do
NOT completely tighten support arm screws
(V), as this will be done on the following step.
Repeat procedure for remaining support arms
(U).
Remove preassembled support arm screws (V)
from curved end of support arms (U), and save
for later use.
Locate LED connector (S) with wiring on LED
ring.
Wiring
10.
9.
9
11
U
U
V
S
R
R
S
INITIAL INSTALLATION
11
12a
C
12b
B
Set Screw
Sideview
D
Yoke
14.

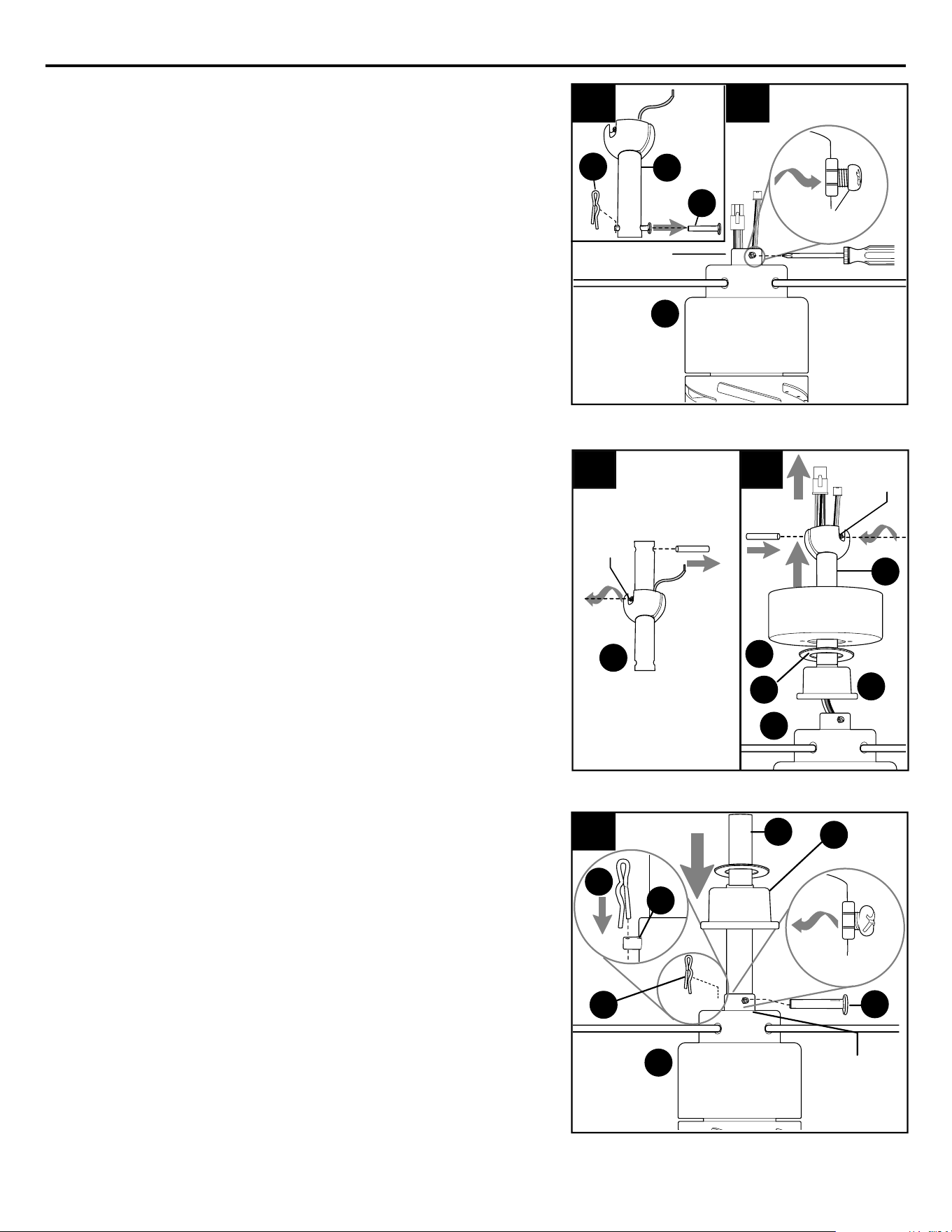

Slip downrod (B) into motor housing
yoke, align holes and re-install pin (D)
and clip (C). Tighten set screws in motor
housing yoke and then tighten
preassembled nut on one of the set
screws. Then, slide yoke cover (H) down
until it rests on top of motor housing (F).
14
F
H
C
Yoke
Set Screw
and Nut
Sideview
C
B
D
Remove pin (D) and clip (C) from
downrod (B).
Partially loosen preassembled set screws
and nut in yoke at top of motor housing
(F).
12a.
12b.
D
13b.
13a.
B
B
13b13a
J
E
H
Remove stop pin from downrod (B) by
loosening set screw on hanging ball.
Lower hanging ball and remove stop pin.
Insert downrod (B) through canopy (E),
canopy cover (J) and yoke cover (H).
Thread wires from motor housing (F)
through downrod (B). Raise hanging ball,
replace stop pin and tighten set screw.
Set
Screw
Hanging
Ball
Stop Pin
Stop Pin
Set
Screw
F
F
INITIAL INSTALLATION
12
F
CAUTION: Due to the weight and
construction of this fan, it is advisable to seek the
help of another person to hang the fan.

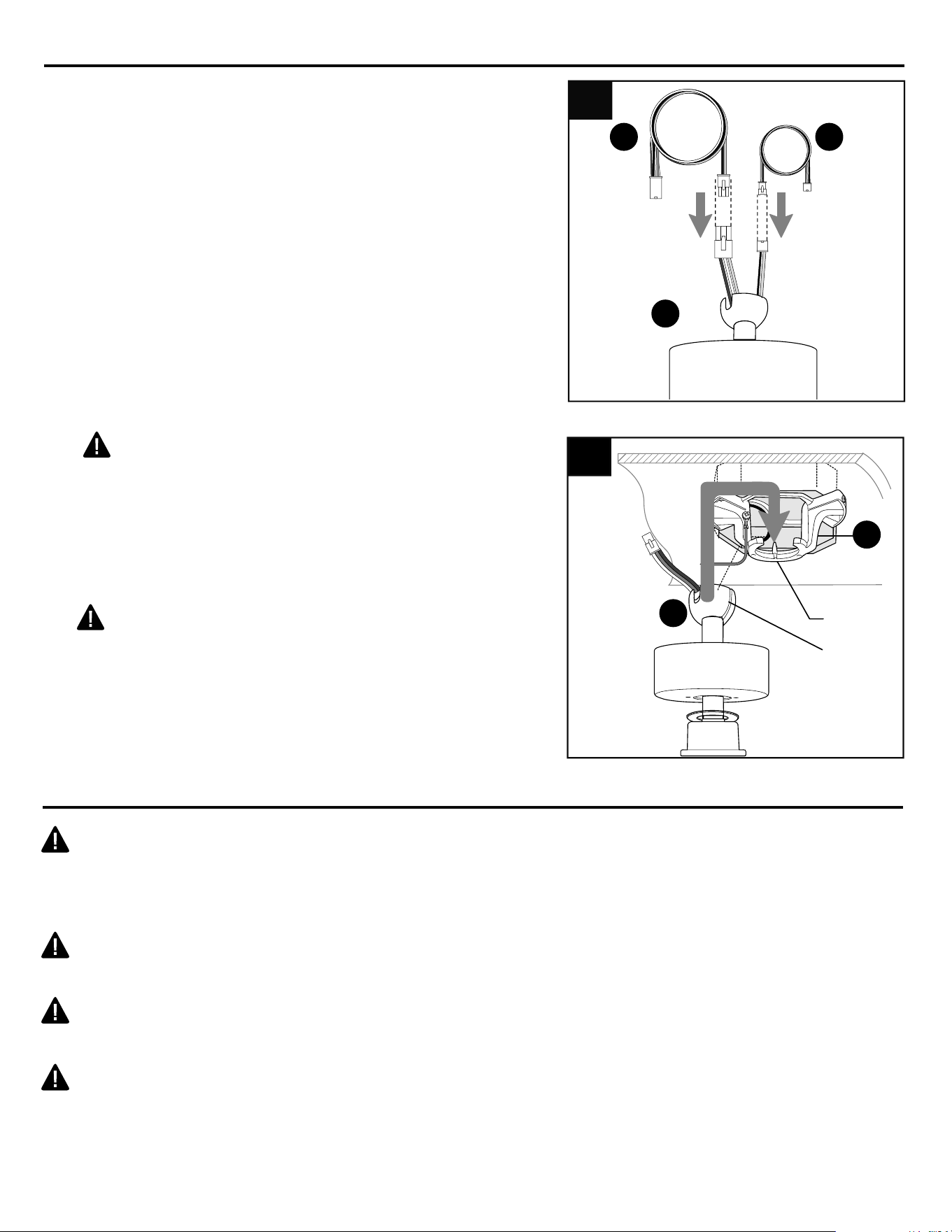

Install hanging ball of downrod (B) into opening
of mounting bracket (A). Align one of the slots in
hanging ball with tab in mounting bracket (A).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury
or death.
16.
15.
15
Depending on the length of downrod you use,
you may need to use the additional wiring (W).
Connect male plugs from motor housing (F) to
the ends of additional wiring (W) with female
plugs matching up the colors on the plugs for
correct fit. Make sure plugs connect tightly.
NOTE: If you do not use additional wiring (W),
Step 15 is not necessary and you may
proceed to Step 16 instead.
Tab
A
16
B
Slot
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
W W
INITIAL INSTALLATION
13
WIRING

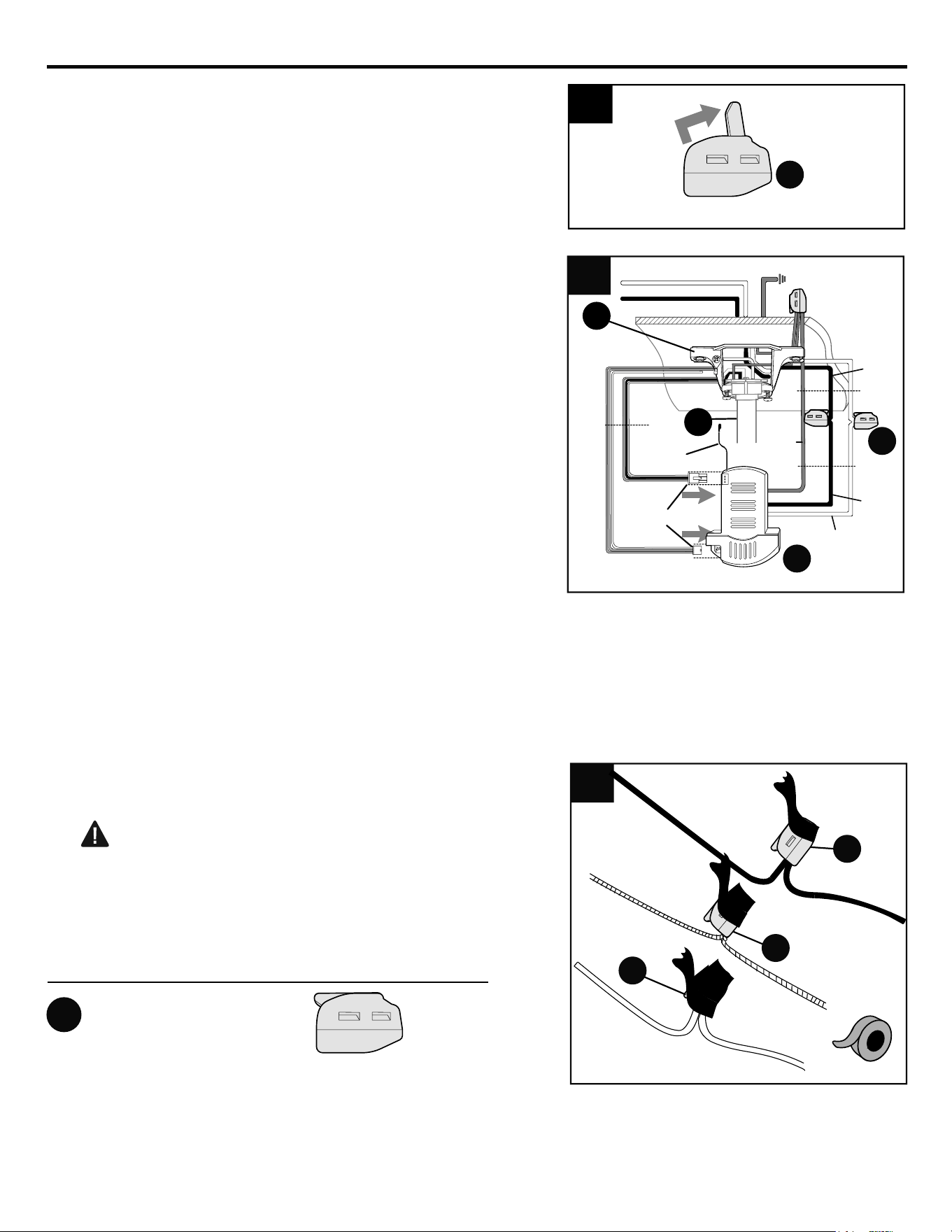

Insert each GROUND (GREEN) wire from fan (on
downrod (B), and mounting bracket (A)), remote
control receiver (P) and the BARE/GREEN supply
wire from ceiling into openings in lever wire connector
(AA) with five levers.
Insert BLACK wire (labeled AC IN L) from remote
control receiver (P) and BLACK supply wire from
ceiling into openings in lever wire connector (AA).
Insert WHITE wire (labeled AC IN N) from remote
control receiver (P) and WHITE supply wire from
ceiling into openings in lever wire connector (AA).
Connect male plugs from motor housing (F) into
corresponding female plugs on remote control
receiver (P). Make sure plugs connect tightly.
NOTE: BLACK wire is hot power for fan. WHITE wire
is neutral for fan. GREEN or BARE wire is the
ground.
2.
Wrap electrical tape around each individual lever
wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of box from the BLACK and BLUE
(if applicable) connections.
3.
3
1
2
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PLUGS
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
CEILING
ANTENNA
B
GREEN
/GROUND
P
A
1.
IMPORTANT: Make the necessary wiring
connections for remote control operation as
detailed in Step 2 below. Each wire connection is
made by firmly raising the levers on each lever
wire connector (AA), as shown. Then, ONE wire
is inserted into each opening.
AA
AA
AA
AA
AA
Lever Wire Connector x 3
Hardware Used
AA
FROM
FAN
14
WIRING
4

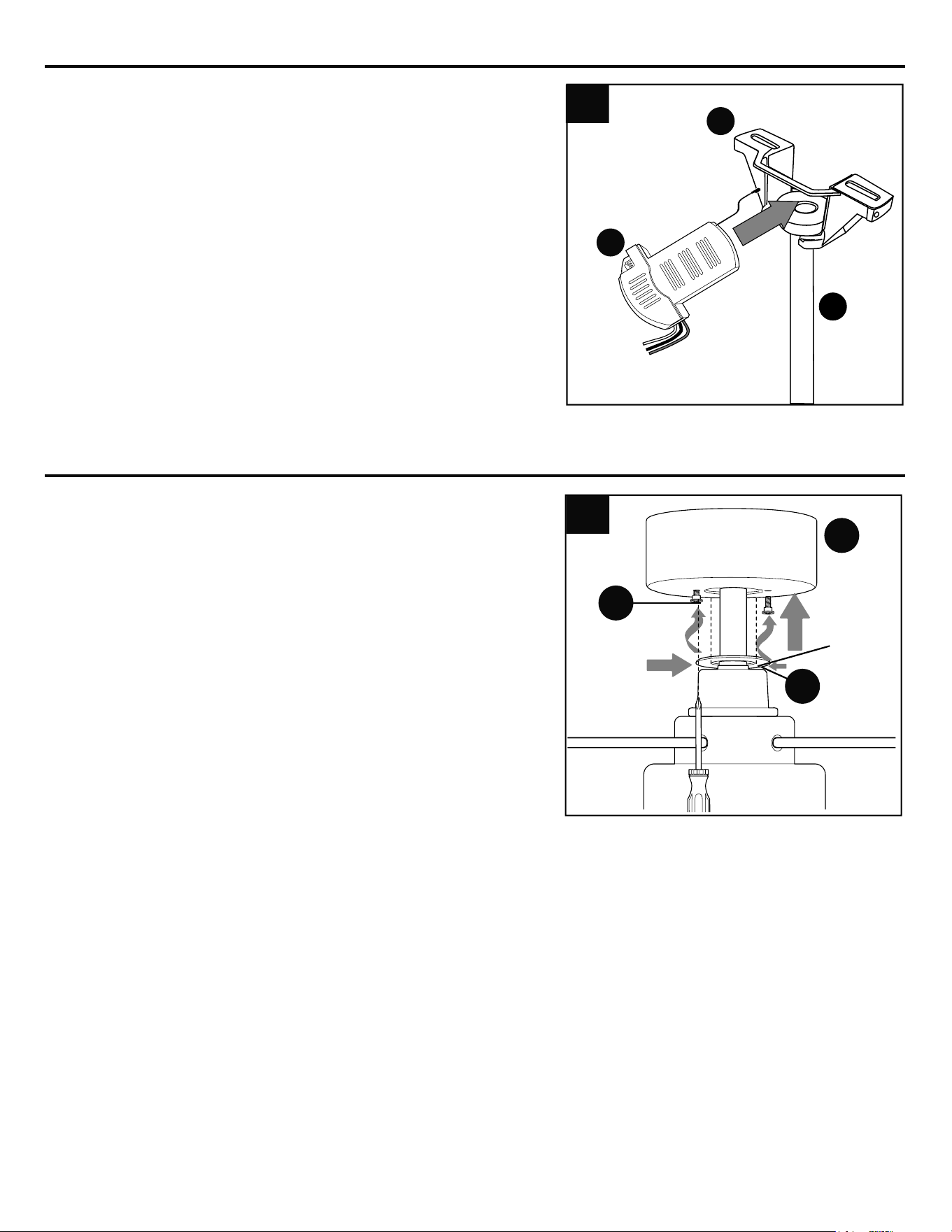

Gently slide remote control receiver (P) flat-side up
into mounting bracket (A). Turn spliced/taped wires
upward and gently push wires and wire connectors
into outlet box. Let antenna from remote control
receiver (P) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
Motor and LED wattage: 60W MAX.
4.
Antenna
P
A
FINAL INSTALLATION
B
1.
1
Knobs
J
I
E
Locate two canopy mounting screws (I) on
underside of mounting bracket (A) and remove
canopy mounting screw (I) closest to the open
end of the mounting bracket (A). Partially
loosen the other canopy mounting screw (I).
Lift canopy (E) to mounting bracket (A). Place
rounded part of slotted hole in canopy (E) over
loosened canopy mounting screw (I) and push
up. Twist canopy (E) to lock. Re-insert canopy
mounting screw (I) that was removed, then
tighten both canopy mounting screws (I).
Slide canopy cover (J) up to canopy (E),
aligning knobs on canopy cover (J) with
openings in bottom of canopy (E). Press up
gently but firmly on canopy cover (J) until it fits
into the bottom of the canopy (E) and then turn
canopy cover (J) about 1/2 in.
15
Hardware Used
Blade Screw/Lock washer x 18
BB
FINAL INSTALLATION
2.

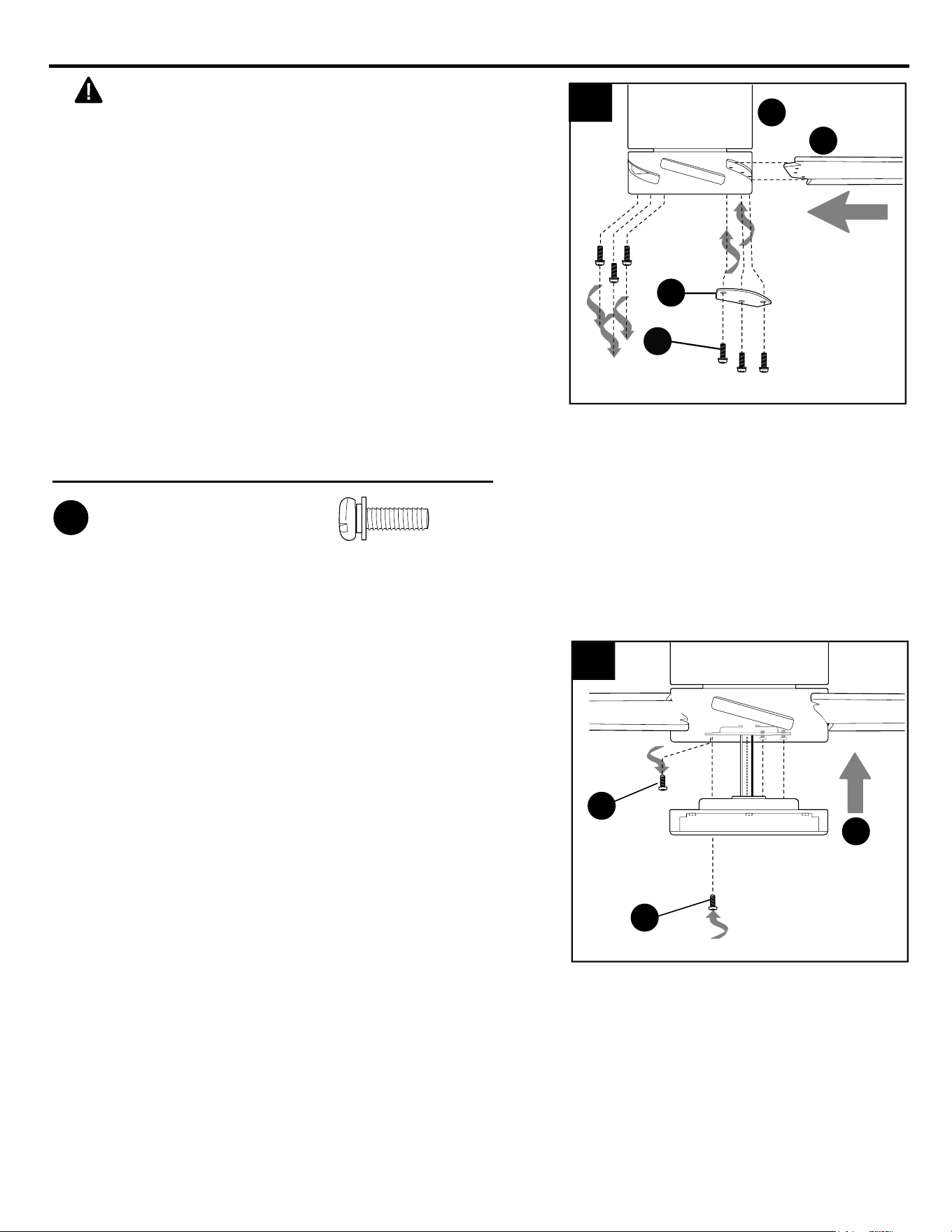

DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (G). If screws are
overtightened, blades (G) may crack and break.
Noting the THIS SIDE UP label on blade (G),
align holes in blade (G) and blade plate (M) with
holes on the bottom of motor housing (F) as
shown. Partially insert three blade screws/lock
washers (BB) to attach blade (G) and blade plate
(M) to motor housing (F). Tighten blade
screws/lock washers (BB) securely. Repeat Step
2 for remaining blades (G).
NOTE: Make sure to completely secure each
blade (G) before proceeding to the next.
3
2
M
G
F
BB
3.
I
L
Remove one motor plate screw (L) from motor
plate on underside of motor housing (F) and
partially loosen the other two motor plate screws
(L). Align slotted holes in fitter plate (K) with
loosened motor plate screws (L). Twist fitter plate
(K) to lock. Re-insert the motor plate screw (L) that
was removed and securely tighten all three motor
plate screws (L).
I
L
I
K
FINAL INSTALLATION
16
4.
Align slots on metal cover (Q) with protrusions
on inside of fitter plate (K). Turn metal cover (Q)
clockwise until it no longer turns.
NOTE: Pull down gently on metal cover (Q) to
make sure it is secured completely.
K
Slot
Q
Protrusion
4
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this
is not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
OPERATING INSTRUCTIONS
17
OPERATING INSTRUCTIONS

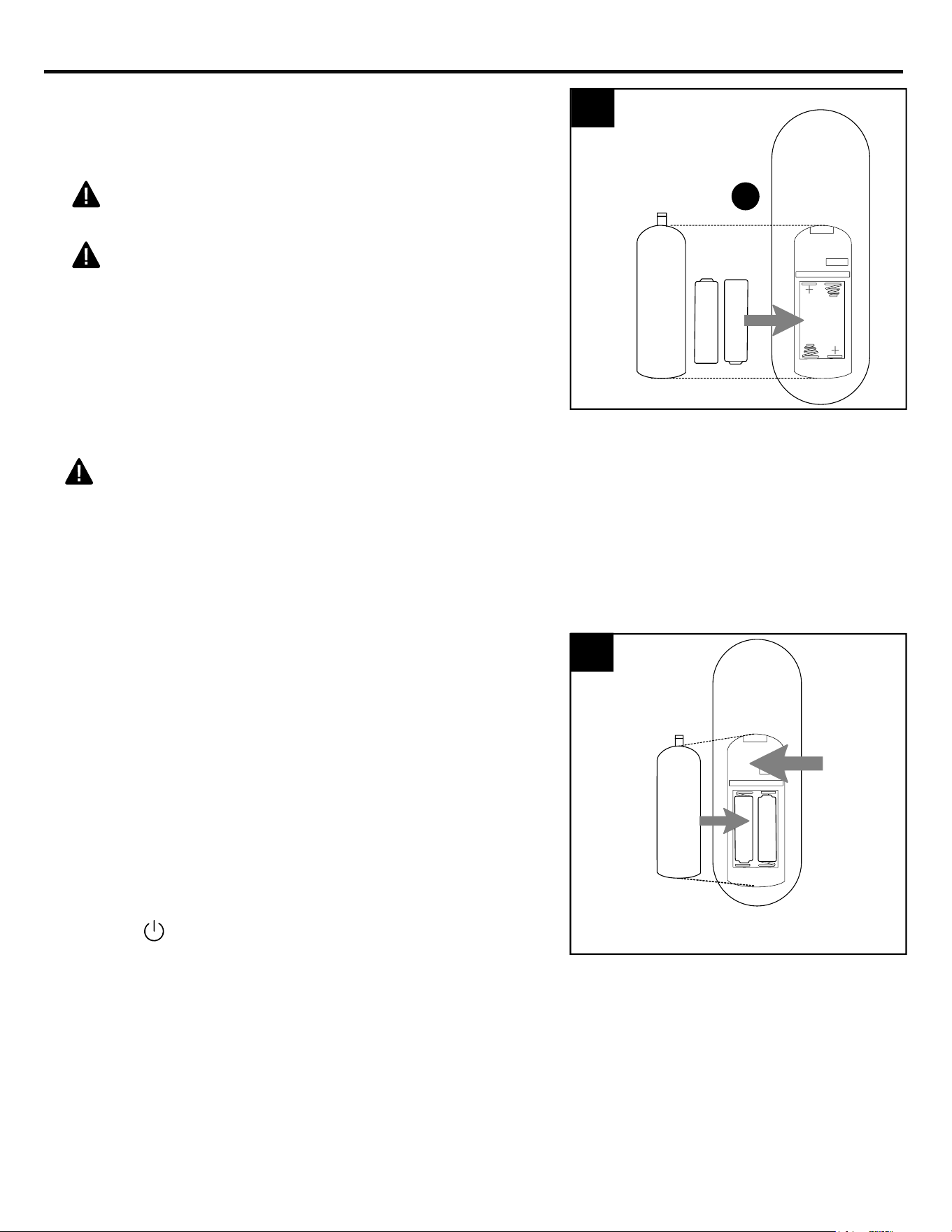

Locate remote control transmitter in remote pack (O).
Remove battery cover. Install two AAA batteries from
remote pack (O). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of them
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
O
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or
visit www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
Replace battery cover on remote control transmitter.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the OFF
button ( ) on the remote control transmitter (refer
to Step 3 on the following page) for 5 seconds or
until fan beeps. Use the remote control transmitter to
test the light and fan functions to confirm the
learning process is complete.
2.
Remote Control Transmitter
(back side)
2
18
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy to check downrod assembly, and then tighten all screws on fan.
Clean motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added
protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this LED is 30 watts; do not attempt to replace the LEDs.

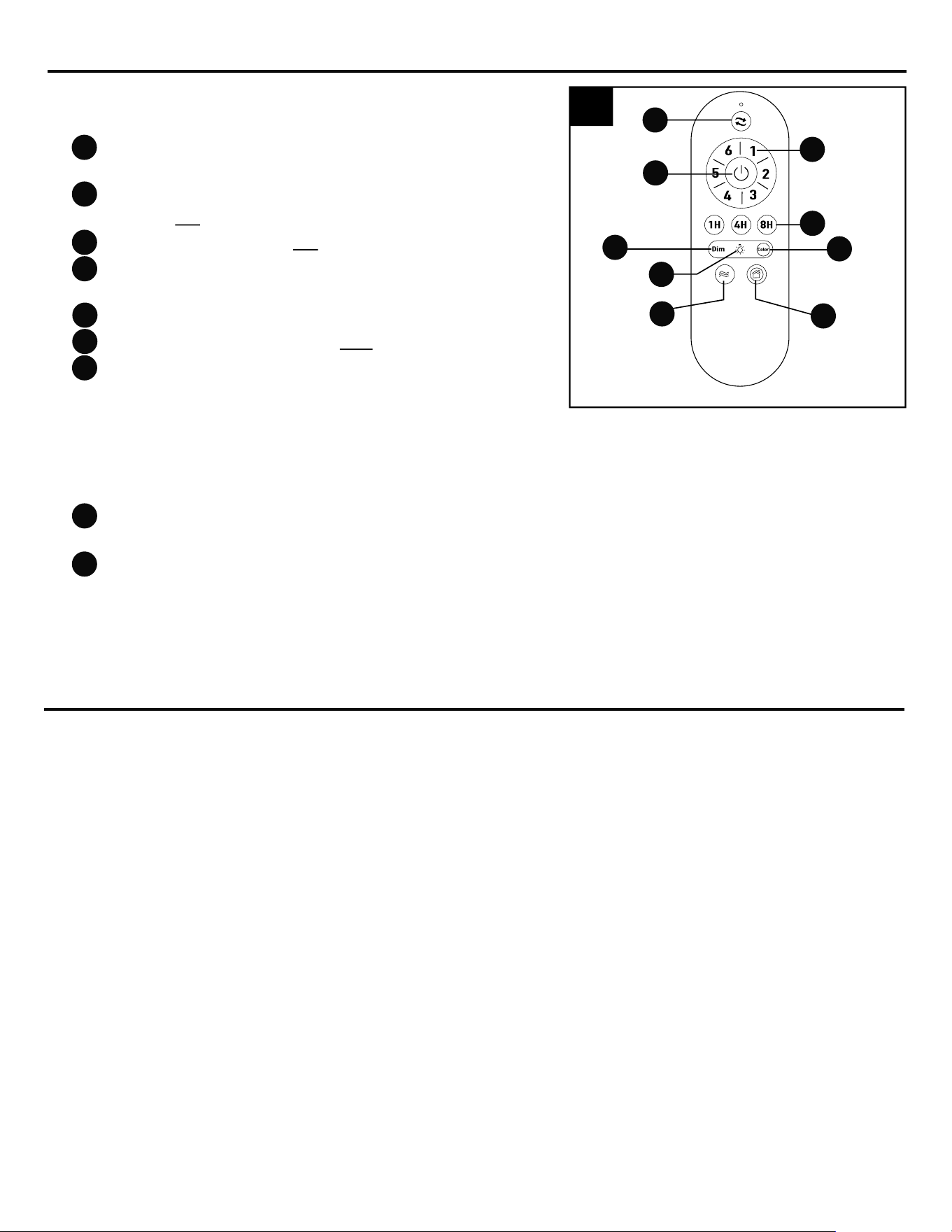

3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan and learning function
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles between all
6 different speeds
- Vacation mode: light kit switches on for 5 minutes
every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
19
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Install all blades (see page 15).
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of a few
days, especially when running the fan
at Medium and High speeds.
Excessive wobbling.
1. Blades are loose.
2. Blade plates incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade plates.
3. Switch one blade with a blade from the
opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan to
another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy and
verify that set screw on hanging ball is
tightened securely.
TROUBLESHOOTING
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 13.
2. Make sure wall switch to fan is on.
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
1. Refer to instructions in Step 2 on page
17.
2. Check that batteries have been
installed with correct polarity.
3. Replace both batteries according to
instructions on page 17.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
OGLI2512
Printed in Cambodia
20
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
A Mounting Bracket
B Downrod
E Canopy
G Blade
PART DESCRIPTION PART #
6030895-A
6030895-B
6030895-E
6030895-G
G
A B E
REPLACEMENT PARTS LIST
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at [email protected].
