Federal ELPRSS6 Industries ELPRSS-6 Elements Low Profile User Manual

E2915-24 01/01/25

Installation & Operation Instructions

Refrigerated LPRSS & ELPRSS Models

Federal Industries

215 Federal AVE

Belleville, WI 53508

Toll Free: (800) 356-4206

WI Phone: (608) 424-3331

Fax: (608) 424-3234

Page 2 of 48

Contents

(1) Introduction .................................................................................................................................... 5

1.1 Serial Number ............................................................................................................................. 5

(2) Warning Labels & Safety Instructions ............................................................................................. 6

(3) Pre-Installation Procedures .......................................................................................................... 12

3.1 Inspection for Shipping Damage ............................................................................................... 12

(4) General Electrical & Grounding .................................................................................................... 13

4.1 Electrical Data ........................................................................................................................... 13

4.2 Cord Connected ........................................................................................................................ 13

4.3 Permanent Connected (Option) ............................................................................................... 14

(5) Installation Instructions ................................................................................................................ 15

5.1 “REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING” ......................... 15

5.2 Locating the Display Case ......................................................................................................... 15

5.3 Removing Case From Shipping Skid and General Installation .................................................. 15

5.4 Cleaning ..................................................................................................................................... 16

5.5 Center Panel Joining (Option) ................................................................................................... 16

5.6 Refrigeration System................................................................................................................. 17

Self-Contained Models ...................................................................................................................... 17

Remote Models.................................................................................................................................. 17

5.7 Evaporator Condensate Drain Tube ......................................................................................... 19

5.8 Condensate Pump ..................................................................................................................... 20

(6) Shelving Installation & Removal ................................................................................................... 21

6.1 Metal Shelves ............................................................................................................................ 21

6.2 Glass Shelves ............................................................................................................................. 22

6.3 Optional Shelf Lights - ELPRSS................................................................................................... 23

(7) Plastic End Removal & Installation ............................................................................................... 24

(8) Rear Doors (Options) .................................................................................................................... 25

(9) Night Curtain ................................................................................................................................. 26

(10) Security Night COVER (Option) ..................................................................................................... 27

(11) Operating Instructions .................................................................................................................. 28

11.1 User Controls Overview ............................................................................................................ 28

11.2 Using the electronic control...................................................................................................... 29

Button and Display Overview ........................................................................................................ 29

Powering on control ...................................................................................................................... 29

Adjusting the set point .................................................................................................................. 30

Page 3 of 48

Entering manual defrost mode ..................................................................................................... 30

Error codes .................................................................................................................................... 30

11.3 Initial Startup ............................................................................................................................ 31

11.4 Placing Product in Case ............................................................................................................. 31

(12) Maintenance ................................................................................................................................. 32

12.1 Light Replacement .................................................................................................................... 32

(13) Periodic Maintenance ................................................................................................................... 33

13.1 Cleaning Condenser Coil ........................................................................................................... 33

(14) Cleaning Instructions .................................................................................................................... 34

14.1 Daily Cleaning ............................................................................................................................ 34

14.2 Weekly Cleaning ........................................................................................................................ 34

(15) Sale & Disposal .............................................................................................................................. 37

15.1 Owner Responsibility ................................................................................................................ 37

(16) Service Information ....................................................................................................................... 38

16.1 Pre-Service checklist ................................................................................................................. 39

Case does not operate................................................................................................................... 39

Lights do not operate .................................................................................................................... 39

Case temperature too warm (product is exceeding 41°F) ............................................................ 39

16.2 Special Service Instructions ...................................................................................................... 39

16.3 Electronic Control Operation .................................................................................................... 40

Operation ...................................................................................................................................... 40

Defrost Cycle ................................................................................................................................. 40

16.4 Error Codes ............................................................................................................................... 41

16.5 Refrigeration Operation ............................................................................................................ 41

Self-Contained Models .................................................................................................................. 41

Remote Models ............................................................................................................................. 42

(17) Wiring Diagrams ............................................................................................................................ 43

17.1 Self Contained ........................................................................................................................... 43

17.2 Remote ...................................................................................................................................... 44

(18) Replacement Parts ........................................................................................................................ 45

Page 4 of 48

Tables

Table 1 - Electrical Ratings ........................................................................................................................ 13

Table 2 - Shelf Loading Limits ................................................................................................................... 31

Table 3 - Error Codes and Resolutions ...................................................................................................... 41

Table 4 - Temperature Probe Common Resistance Chart ........................................................................ 41

Page 5 of 48

(1) INTRODUCTION

Thank you for purchasing a Federal Industries display case. This manual contains important instructions for

installing and servicing the LPRSS refrigerated self-service merchandisers. A repair parts list and wiring diagram

are also included in the manual. Read all of these documents carefully before installing or servicing your case.

NOTICE

Read this manual before installing your case. Keep this manual and refer to it

before doing any service on the equipment. Failure to do so could result in

personal injury or damage to the case.

NOTICE

Installation and service of the electrical components in the case must be

performed by a licensed electrician.

The portions of this manual covering components contain technical instructions

intended only for persons qualified to perform electrical work.

DANGER

Improper or faulty hookup of electrical components in the case can result in

severe injury or death.

All electrical wiring hookups must be done in accordance with all applicable local,

regional, or national standards.

1.1 SERIAL NUMBER

Record the model and serial numbers of the case for easy reference. Always refer to both model and serial

numbers in your correspondence with Federal regarding the case.

Case Model__________________________ Serial Number______________________

Condensing Unit Model________________ Serial Number______________________

This manual cannot cover every installation, use, or service situation. If you need additional information, call

or write us:

WARRANTY/TECHNICAL SERVICE DEPARTMENT

Federal Industries

215 Federal AVE

Belleville, WI 53508

Toll Free (800) 356-4206 / WI Phone (608) 424-3331

Page 6 of 48

(2) WARNING LABELS & SAFETY INSTRUCTIONS

This is the safety-alert symbol. When you see this symbol on your case or

in the manual, be alert to the potential for personal injury or damage to

your equipment.

Be sure you understand all safety messages and always follow recommended precautions and safe

operating procedures.

NOTICE TO EMPLOYERS

You must make sure that everyone who installs, uses, or services your case is thoroughly

familiar with all safety information and procedures.

Important safety information is presented in this section and throughout the

manual. The following signal words are used in the warning and safety messages:

DANGER: Severe injury or death will occur if you ignore the message.

WARNING: Severe injury or death can occur if you ignore the message.

CAUTION: Minor injury or damage to your case can occur if you ignore the message.

NOTICE: This is important installation, operation, or service information. If you ignore the

message, you may damage your case.

The warning and safety labels shown throughout this manual are placed on your Federal Industries case

at the factory. Follow all warning label instructions. If any warning or safety labels become lost or

damaged, call our customer service department at 1(800)

356-4206 for replacements.

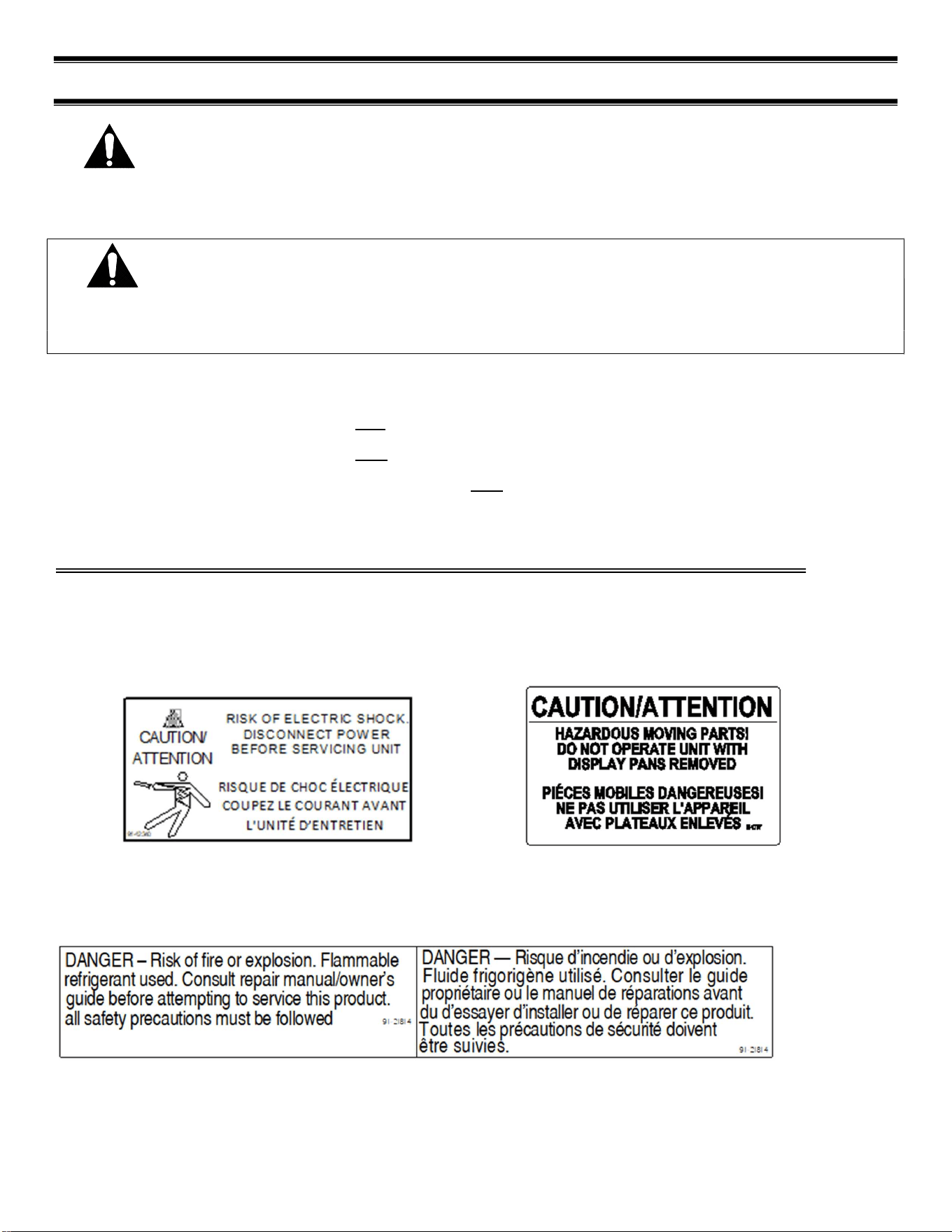

This label is located behind the removable base This label is located under display

deck panels display and under deck pans.

This label is located by condensing unit

Page 7 of 48

REFRIGERATION WARNING

INSTALLATION-REPAIR-DECOMMISSIONING

This is the Danger-Flammable symbol. When you see this symbol on your case or in the

manual, be alert to the potential for risk of fire or explosion.

Be sure you understand all the safety messages and always follow recommended precautions and safe

operating procedures.

DANGER

Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel.

Do not puncture refrigerant tubing. Dispose of properly in accordance with federal or local regulations

Consult repair manual/owner’s guide before attempting to service this product. All safety precautions

must be followed.

Follow handling instructions carefully in compliance with national regulations.

Auxiliary devices which may be ignition sources shall not be installed in the ductwork, other than

auxiliary devices listed for use with the specific appliance.

Do not store explosive substances (such as aerosol cans with a flammable propellant) in this case.

Do not use an electrical appliance INSIDE the food storage compartments unless its type is

recommended by manufacturer.

Flammable refrigerant type specified on case nameplate is on the serial label.

APPLIES TO R290 REFRIGERANT MODELS ONLY! Contains a charge of R290 refrigerant with a lower

flammability limit (LFL) of .038kg/m³. See table for amount of charge.

Page 8 of 48

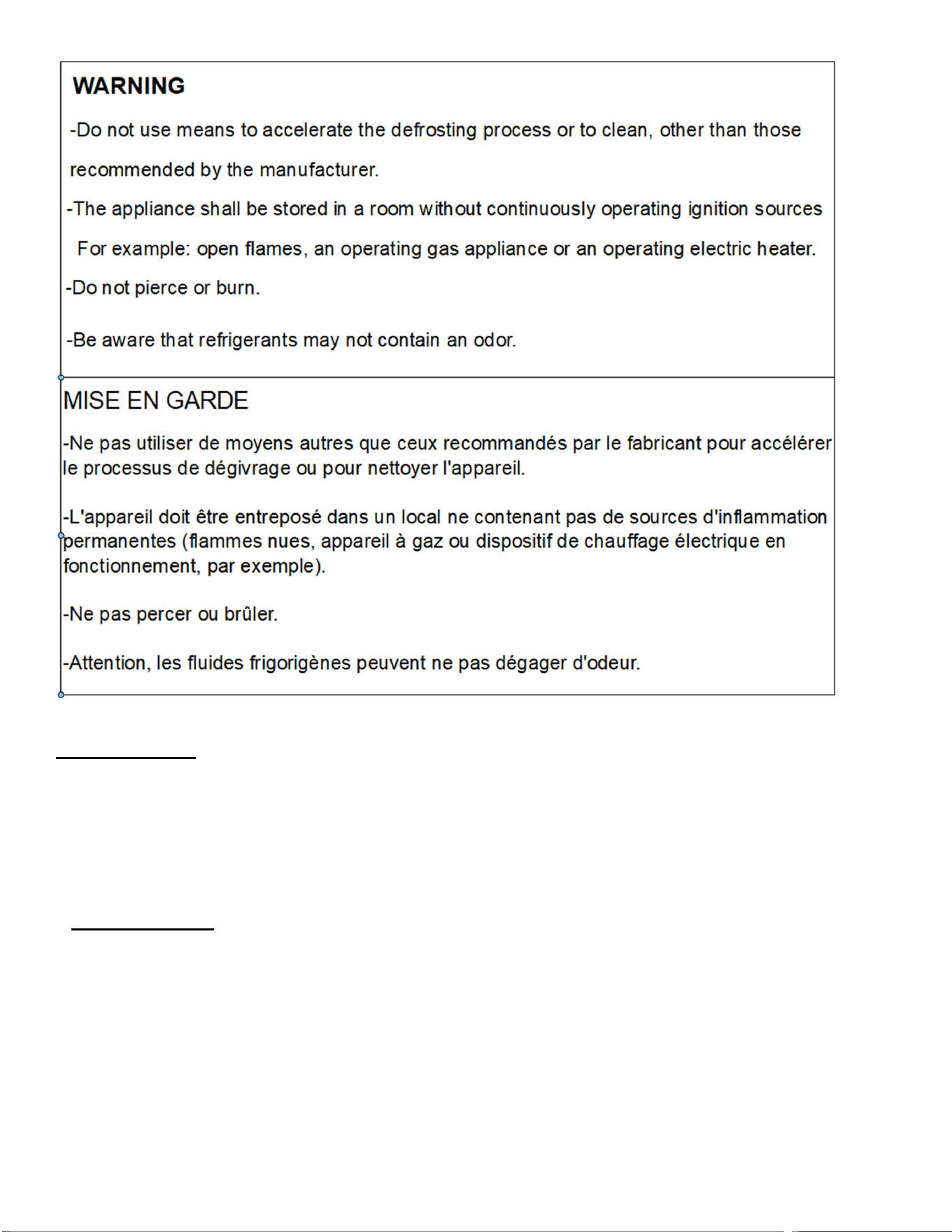

3. Qualification: All refrigeration and electrical maintenance, service, and repair must be performed

by a Certified Technician that is trained in the required flammable refrigerants safety procedures.

Technicians must read the entire section “REFRIGERATION WARNINGS SECTION” of this manual.

Including but not limited to the following:

a) breaking into the refrigerating circuit.

b) opening of sealed components.

c) opening of ventilated enclosures.

4.Checks to Area: Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS,

safety checks are necessary to ensure that the risk of ignition is minimized prior to conducting work

on the system.

-Capacitors are discharged: this shall be done in a safe manner to avoid the possibility of sparkling.

- No live electrical components and wiring are exposed while charging, recovering or purging the

system.

- Continuity of earth bonding.

-Work shall be undertaken under a controlled procedure to minimize the risk of a

flammable gas or vapor being present while the work is being performed.

-All maintenance staff and others working in the local area shall be instructed on the nature of the

work being carried out. Work in confined spaces shall be avoided.

Page 9 of 48

-The area shall be checked with an appropriate refrigerant detector prior to and during

work, to ensure the technician is aware of potentially toxic or flammable atmospheres.

Ensure that the leak detection equipment being used is suitable for use with all applicable

refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe.

-If any hot work is to be conducted on the refrigerating equipment or any associated parts,

appropriate fire extinguishing equipment shall be available on hand. A dry chemical or CO2 fire

extinguisher should be adjacent to the charging area.

-No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing

any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or

explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far

away from the site of installation, repairing, removing and disposal, during which refrigerant can

possibly be released to the surrounding space. Prior to work taking place, the area around the

equipment shall be surveyed to make sure that there are no flammable hazards or ignition risks. “No

Smoking” signs shall be displayed.

-Ensure that the area is in the open or that it is adequately ventilated before breaking into the system

or conducting any hot work. A degree of ventilation shall continue during the period that the work is

carried out. The ventilation should safely disperse any released refrigerant and preferably expel it

externally into the atmosphere.

-Where electrical components are being changed, they shall be fit for the purpose and to the correct

specification so as to minimize the risk of possible ignition due to incorrect parts. At all times, the

manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the

manufacturer’s technical department for assistance. The following checks shall be applied to

installations using flammable refrigerants:

a) the actual REFRIGERANT CHARGE is in accordance with the room size within which the

refrigerant containing parts are installed.

b) The ventilation machinery and outlets are operating adequately and are not obstructed.

c) Markings of the equipment continue to be visible and legible. Markings and signs

that are illegible shall be corrected.

d) Refrigerating pipes or components are installed in a position where they are

unlikely to be exposed to any substance which may corrode refrigerant containing

-Repair and maintenance to electrical components shall include initial safety checks and

component inspection procedures. If a fault exists that could compromise safety, then no electrical

supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be

corrected immediately but it is necessary to continue operation, an

An adequate temporary solution should be used. This shall be reported to the owner of the Initial

safety checks shall include:

Page 10 of 48

5. Repairs to sealed components

-During repairs to sealed components, all electrical supplies shall be

disconnected from the equipment being worked upon prior to any removal of sealed

covers, etc. If it is necessary to have an electrical supply to equipment during

servicing, then a permanently operating form of leak detection shall be located at the most critical

point to warn of a potentially hazardous situation.

-Particular attention shall be paid to the following to ensure that by working on

electrical components, the casing is not altered in such a way that the level of protection is affected.

This shall include damage to cables, excessive number of connections, terminals not made to original

specification, damage to seals, incorrect fitting of glands, etc. Ensure that the apparatus is mounted

securely.

Ensure that seals or sealing materials have not degraded to the point that they no longer serve the

purpose of preventing the egress of flammable atmospheres. Replacement parts shall be in

accordance with the manufacturer’s specifications.

-Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this

will not exceed the permissible voltage and current permitted for the equipment in use.

NOTE The use of silicon sealants can inhibit the effectiveness of some types of leak detection

equipment. Intrinsically safe components do not have to be isolated prior to working on them.

8. Detection of flammable refrigerants: Under no circumstances shall potential ignition sources be

used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using

a naked flame) shall not be used.

The following leak detection methods are deemed acceptable for all refrigerant systems:

-Electronic leak detectors may be used to detect refrigerant leaks but, in the case of

FLAMMABLE REFRIGERANTS, the sensitivity might not be adequate or might need recalibration.

(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a

potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be

set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed,

and the appropriate percentage of gas (25 % maximum) is confirmed.

-Leak detection fluids are also suitable for use with most refrigerants but the use of

detergents containing chlorine shall be avoided as the chlorine can react with the

refrigerant and corrode the copper pipework.

NOTE Examples of leak detection fluids are

– bubble method,

– fluorescent method agents.

If a leak is suspected, all naked flames shall be removed/extinguished.

If a leakage of refrigerant is found which requires brazing, all the refrigerants shall be

recovered from the system, or isolated (by means of shut off valves) in a part of the system

remote from the leak.

Page 11 of 48

9. Removal and Evacuation:

When breaking into the refrigerant circuit to make repairs-or for any other purpose-conventional

procedures shall be used. However, for flammable refrigerants it is important that the best practice be

followed, since flammability is a consideration. The following procedure shall be adhered to:

a. Safely remove refrigerant following local and national regulations.

b. Purge the circuit with inert gas.

c. Evacuate (optional for A2L).

d. Purge with inert gas (optional for A2L).

e. Open the circuit by cutting or brazing.

The refrigerant change shall be recovered into the correct recovery cylinders if venting is not allowed

by local and national codes. For appliances containing flammable refrigerants, the system shall be

purged with oxygen-free nitrogen to render the appliance safe for flammable refrigerants. This

process might need to be repeated several times. Compressed air or oxygen shall not be used for

purging refrigerant systems. For appliances containing flammable refrigerants, refrigerant purging

shall be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to

fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a

vacuum (optional for A2L). This process shall be repeated until no refrigerant is within the system

(optional for A2L). When the final oxygen-free nitrogen change is used, the system shall be vented

down to atmospheric pressure to enable work to take place. Ensure that the outlet for the vacuum

pump is not close to any potential ignition sources and that ventilation is available.

10. Charging procedures:

In addition to conventional charging procedures, the following requirements shall be followed.

a. Ensure that contamination of different refrigerants does not occur when using charging equipment.

Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.

b. Cylinders should be kept in an appropriate position according to the instructions.

c. Ensure that the REFRIGERATING SYSTEM is earthed prior to charging the system with

refrigerant.

d. Label the system when charging is complete (if not already).

e. Extreme care shall be taken not to overfill the REFRIGERATING SYSTEM.

11. Decommissioning:

Before carrying out this procedure, it is essential that the technician is completely familiar with the

equipment and all its details. It is recommended good practice that all refrigerants are recovered

safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis

is required prior to re-use of recovered refrigerant. It is essential that electrical power is available

before the task commences.

a. Become familiar with the equipment and its operation.

b. Isolate the system electrically.

c. Before attempting the procedure, ensure that:

i. Mechanical handling equipment is available, if required, for handling refrigerant cylinders.

ii. All personal protective equipment is available and is being used correctly.

iii. The recovery process is supervised at all times by a competent person.

iv. Recovery equipment and cylinders conform to the appropriate standards.

d. Pump down the refrigerant system, if possible.

e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts

of the system.

f. Make sure that the cylinder is situated on the scales before recovery takes place.

g. Start the recovery machine and operate in accordance with instructions.

h. Do not overfill cylinders (no more than 80% volume liquid charge).

i. Do not exceed the maximum working pressure of the cylinder, even temporarily.

Page 12 of 48

j. When the cylinders have been filled correctly and the process completed, make sure that the

cylinders and the equipment are removed from the site properly and all isolation valves on the

equipment are closed off.

k. Recovered refrigerant shall not be charged into another refrigerating system unless it has been

cleaned and checked.

12. Labeling:

Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The

label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there

are labels on the equipment stating the equipment contains flammable refrigerant.

13.Recovery:

When removing the refrigerant from a system, either for servicing or decommissioning, it is

recommended good practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery

cylinders are employed. Ensure that the correct number of cylinders for holding the total system

charge is available. All cylinders to be used are designated for the recovered refrigerant and labeled

for that refrigerant (i.e., special cylinders for the recovery of refrigerant). Cylinders shall be complete

with pressure-relief valve and associated shut-off valve in good working order. Empty recovery

cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the

equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants

including, when applicable, FLAMMABLE REFRIGERANTS. In addition, a set of calibrated weighing

scales shall be available and in good working order. Hoses shall be complete with leak-free

disconnect coupling and in good condition. Before using the recovery machine, check that it is in

satisfactory working order, has been properly maintained and that any associated electrical

components are sealed to prevent ignition in the event of refrigerant release. Consult manufacturer if

in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder,

and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and

especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an

acceptable level to make certain that FLAMMABLE REFRIGERANT does not remain within the

lubricant. The evacuation process shall be carried out prior to returning the compressor to the

suppliers. Only electric heating to the compressor body shall be employed to accelerate this process.

When oil is drained from a system, it shall be carried out safely.

(3) PRE-INSTALLATION PROCEDURES

3.1 INSPECTION FOR SHIPPING DAMAGE

You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for

damage as soon as they arrive. If damage is noted to shipping crates, cartons, or if a shortage is found, note

this on the bill of lading (all copies) prior to signing.

If damage is discovered when the case is uncrated, immediately call the delivering truck line and follow up the

call with a written report indicating concealed damage to your shipment. Ask for an immediate inspection of

your concealed damage item. Crating material must be retained to show the inspector from the truck line.

Page 13 of 48

(4) GENERAL ELECTRICAL & GROUNDING

DANGER:

Improper or faulty hookup of electrical components in the display case can result

in severe injury or death.

4.1 ELECTRICAL DATA

Table 1 - Electrical Ratings

SELF CONTAINED REMOTE

MODEL VOLTAGE AMPERAGE

CORD STYLE VOLTAGE AMPERAGE

LPRSS3

ELPRSS3

120/60/1 10.4

20AMP

NEMA 5-15P 120/60/1 3

LPRSS4

ELPRSS4

120/60/1 10.4

20AMP

NEMA 5-15P 120/60/1 3

LPRSS5

ELPRSS5

230/60/1 9.6

15AMP

NEMA 6-15P 120/60/1 2

LPRSS6

ELPRSS6

230/60/1 9.6

15AMP

NEMA 6-15P 120/60/1 2

4.2 CORD CONNECTED

All standard models are supplied with a power cord that is properly sized to the amperage

requirements of the case. See the electrical data plate located on the rear left interior ceiling of the

case for the proper circuit size for each case.

The cord is factory installed protruding from the bottom rear corner of the case.

A separate circuit for each display case is required to prevent other appliances on the same circuit from

overloading the circuit and causing malfunction.

Page 14 of 48

4.3 PERMANENT CONNECTED (OPTION)

Only a licensed electrician must perform all case electrical connections.

All electrical wiring hookups must be done in accordance with all applicable local, regional, or national

electrical standards.

A separate circuit for each display case is required to prevent other appliances on the same circuit from

overloading the circuit and causing malfunction.

The electrical service must be grounded upon installation.

See the electrical data plate located at the rear of the case for proper circuit size and wire ampacity.

The electrical connection box is accessible from the rear of the case with rear grill removed.

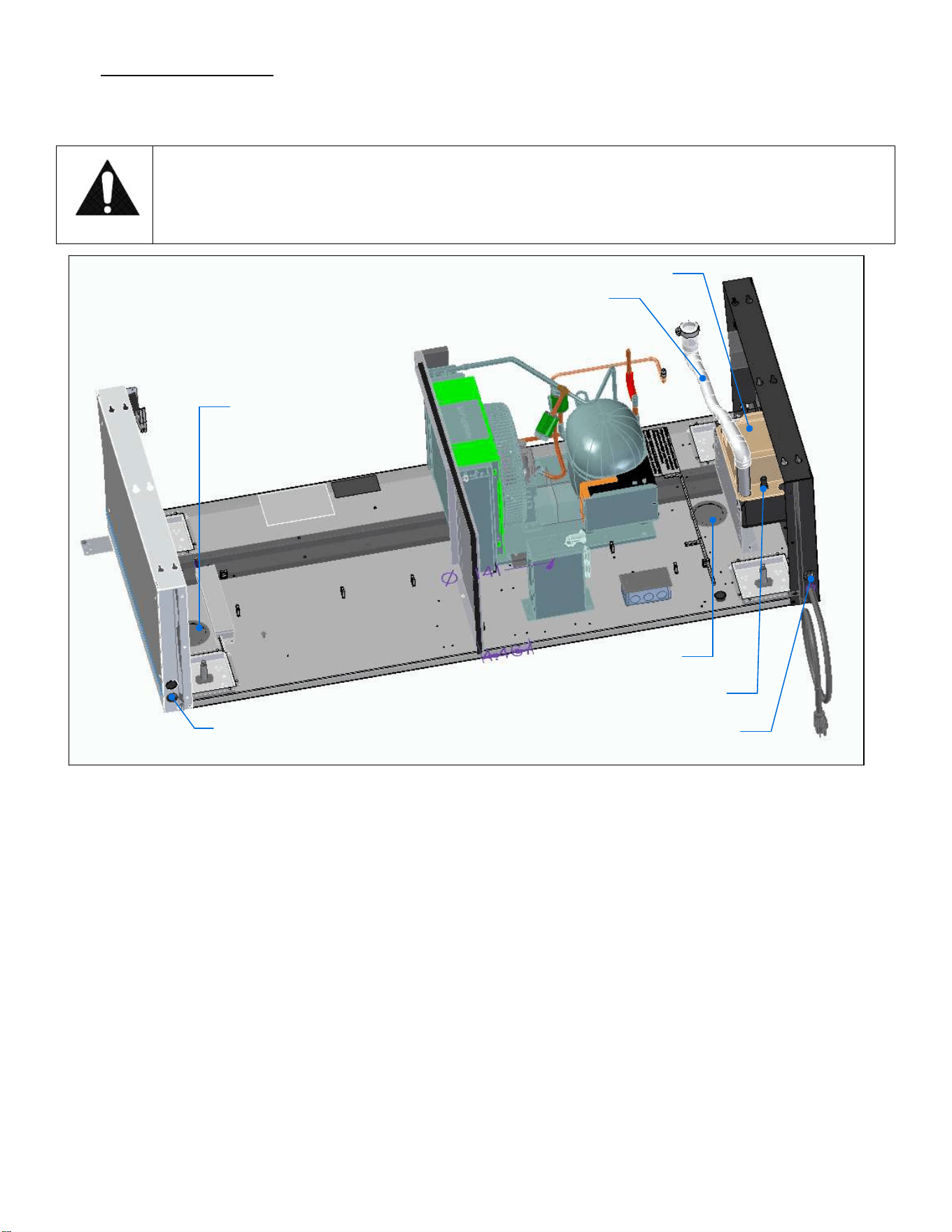

FIELD CONNECTION BOX

POWER CORD OR

CONDUIT CONNECTION

HOLE (7/8"

)

REAR BASE

PANEL

(6) REAR BASE

PANEL SCREWS

Page 15 of 48

(5) INSTALLATION INSTRUCTIONS

IMPORTANT: Read this Section of this manual located on page 7.

5.1 “REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

The installation of the appliance and the refrigerant must only be performed by Federals approved

Service or suitably qualified person.

Appliance to be installed in accordance with safety standards ANSI/ASHREA 15.

The appliance shall not be installed in public corridors or lobbies.

This case is designed for a class 2 environment.

Test room

climate

class

Dry bulb

temperature

[°F]

Relative

Humidity

[%] Dew point [°F]

Water vapour

mass in dry air

[lbm

water/lbm air]

Required

Test Lab

Temperature

[°F]

2.0

71.6

59.36

0.0108

89.6

NSF TYPE 1 Temperature cannot exceed 75 deg F and 55% humidity.

5.2 LOCATING THE DISPLAY CASE

The case should be located where it is not subjected to the direct rays of the sun, heating ducts, grills,

radiator, or ceiling fans, nor should it be located near open doors or main door entrances. Also, avoid

locations where there are excessive air movement or air disturbances.

The case requires a minimum of 6 inches of clearance at the rear of the unit for air discharge. Do not locate

case with back tight against the wall. The louvers located on front of base must remain clear for air intake. If

rear clearance or front clearance is not possible see a Federal representative for air intake and discharge kit

options.

No clearance is needed on sides of the unit.

5.3 REMOVING CASE FROM SHIPPING SKID AND GENERAL INSTALLATION

CAUTION:

Do not push or pull against the top panel, plastic end, end glass, or door frames when

removing the case from the skid or moving the case. Case damage or glass breakage could

result.

1. Remove crate top and sides and note missing or damaged items as explained in the pre-installation

procedures outlined above.

2. Move the case as near as possible to the final location and before removing it from the shipping skid.

3. Remove the (4) brackets that secure the case to the shipping skid.

4. Prepare cabinet according to instructions in this section that pertain to your model.

5. Lift the case off of skid and into required position. Only lift the case from under the rear lip and front

bottom trim channel above the base. Note: Do not push or pull on front bottom trim channel or lift

using the plastic end panel.

Page 16 of 48

6. The case must be level for proper drainage of defrost condensate to the condensate evaporator. Using

the wrench provided level and square the case as needed by adjusting the leg leveler in each corner of

base. The 6ft cases also have a set of leg levelers in the center. These must be adjusted so the base is

flat.

7. The leveled case must be sealed to the floor using a NSF listed sealant.

5.4 CLEANING

For initial setup, clean the case as outlined in the “Weekly Cleaning” section of this manual.

5.5 CENTER PANEL JOINING (OPTION)

If your cases were ordered with the Center Panel Joining Option, you will need to perform the following

installation procedures.

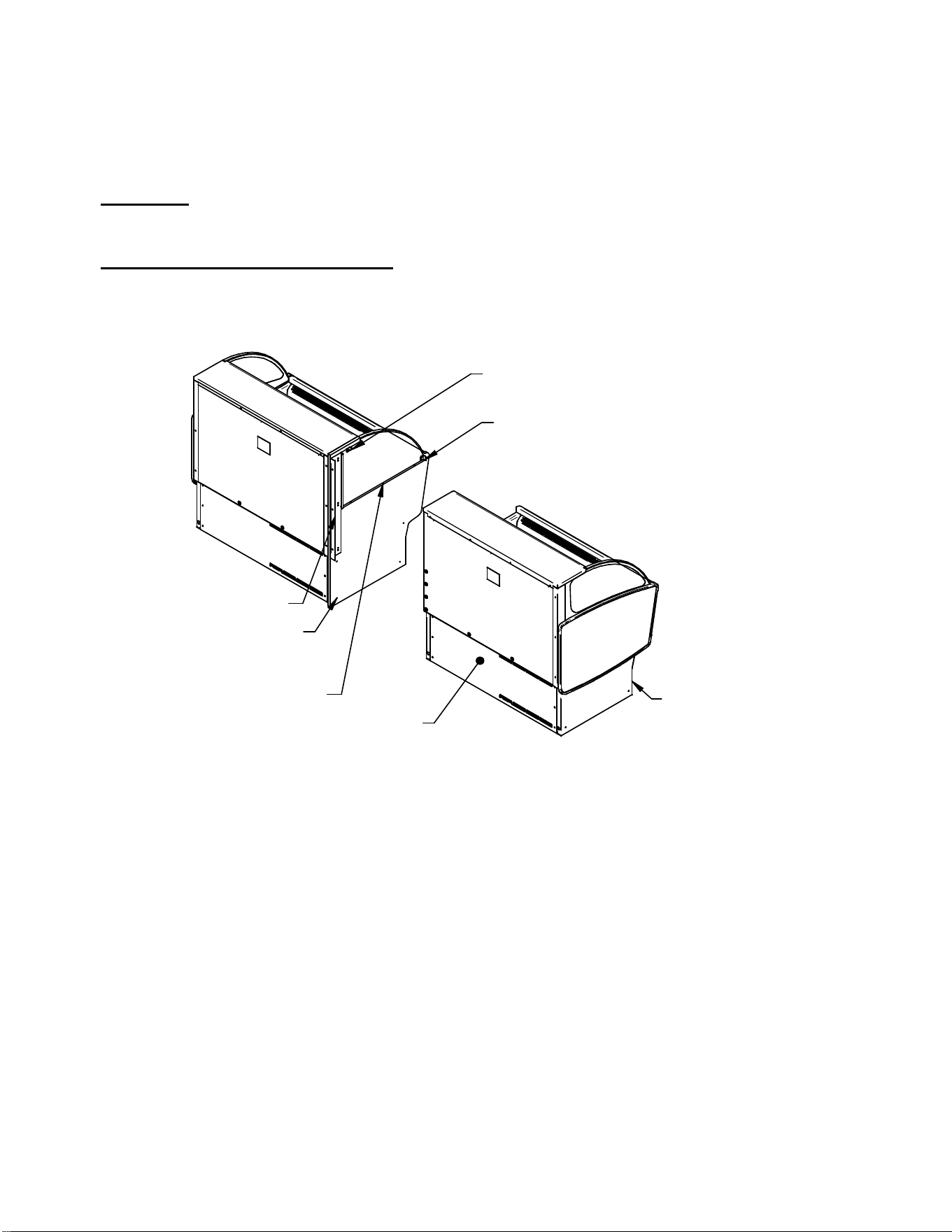

FRONT JOINING

BRACKET

REAR JOINING TRIM

CENTER PANEL

BASE MOUNTING

HOLES (4)

RIGHT CASE

LEFT CASE

LEFT CASE REAR

BASE PANEL

LEFT CASE FRONT

BASE PANEL

TOP JOINING

BRACKET

INTERIOR JOINING FLANGE

1. Place the right case into desired location and level case by adjusting leg levelers with provided

wrench.

2. Remove the front base panel (4) screws and rear base panels (6) screws from the left case. Push

the left case end tightly against the right case end. The rear joining trim on the right case must be

behind the back panel of the left case and the front joining bracket on the right case must be inside

the front aluminum trim channel of the left case.

3. Adjust the leg levelers on the left case so it is level and exactly aligned with the right case. The (4)

base mounting hole in the right case panel must align with the (4) mounting holes located in base

compartment of left case.

4. Push the cases together as tightly as possible and the gap between the cases must be tight and

even. If the gap is larger at the top or the bottom adjust leg levelers accordingly. HOLD CASES

TOGETHER AS TIGHT AS POSSIBLE WHILE ATTACHING ALL JOINING BRACKETS AND DO NOT OVER

TIGHTEN SCREWS OR SCREWS WILL STRIP OUT.

5. Attach the bottom of the left case to the right case center panel base mounting holes through the

holes located inside of the left case base. Use the (4) large 10-12x1/2 screws provided.

Page 17 of 48

6. Attach the rear top of left case through the holes in the rear joining bracket using the (3) black

#10-12x1/2 self-drilling screws provided.

7. Attach the front of left case through the holes in the front joining bracket using the (2) smaller

#8-12x1/2 self-drilling screws provided.

8. Attach the top of left case through the holes in the top joining bracket using the (2) smaller

#8-12x1/2 self-drilling screws provided.

9. Attach the interior of left case through the holes in the interior joining flange using the (3) smaller

#8-12x1/2 self-drilling screws provided

10. If any there are any gaps along the joining seam fill them with NSF black silicone.

11. Reinstall front and rear grills.

5.6 REFRIGERATION SYSTEM

Self-Contained Models

The self-contained models are shipped from the factory with a completely operational refrigeration

system and require no modifications or adjustments upon installation. Case must be installed as per

the installation section of this manual to provide proper condensing air cooling.

Dual Pressure Control (Self-Contained Models Only)

The dual pressure control is used as a safety device and is factory set. The pressure control works on a

differential. The low-pressure side is a safety to protect the compressor in the case of refrigerant loss.

The high-pressure side is a safety to protect from system failure causing too high of system pressure.

The high side of the pressure control is factory set to 400psi and is not adjustable.

Low side setting for cases are set at 40psi differential for the cutout and 60psi for the cut-in.

Remote Models

The remote models are shipped from the factory with the evaporator coil, expansion valve, sight glass,

service valves and refrigerant solenoid valve. Installation must be performed by a licensed

Refrigeration Technician. See the Service section of this manual for installation requirements.

Electronic Expansion Valve (EEV) After 1/20 On Remote Cases Only

A traditional TXV uses springs and a temperature bulb to open and close a valve port that controls the

flow of refrigerant entering the evaporator coil. An electronic expansion valve (EEV) controls the

refrigerant flow much more precisely, increasing the performance and efficiency of the refrigeration

system. The EEV controls the flow of Refrigerant by opening and closing the valve port based on the

response to signals sent to the EEV by an electronic controller. The electronic Control bases these

signals by processing information provided from a temperature sensor and pressure transducer located

on the discharge side of the evaporator coil.

These sensors monitor the evaporator superheat and protects the compressor from any liquid flood

back under low superheat conditions.

EEV Controller Settings

The electronic expansion valve controller also allows the use of different types of refrigerants without

the need to change the expansion valve.

The controller is set from the factory to run on 449A refrigerant and will not need any changes to the

control unless another refrigerant is used.

Page 18 of 48

Note: Check your State and Local regulations for approved refrigerants for your install location.

Federal Industries is not liable for any alternate refrigerants used.

The control is located in the base of the case to the left of the electrical connection box.

Note: Never change any of the other settings other than the refrigerant type. It may also be

necessary to change the superheat setting only when using a different refrigerant.

Changing Refrigerant

 Access the set point mode by pressing and holding the button until Ctl displays on the screen.

 Use the up or down arrows to advance through the available set points until rFG displays on the

screen and press the button.

 Use the up or down arrows until the desired refrigeration displays on the screen and press and

hold the button until rFG once again displays on the screen.

 Press the to return to escape the settings menu.

Changing Superheat

 Access the set point mode by pressing and holding the button until Ctl displays on the screen.

 Use the up or down arrows to advance through the available set points until SSP displays on the

screen and press the button.

 Use the up or down arrows to set the desired superheat displays on the screen and press and

hold the button until SSP once again displays on the screen.

 Press the to return to escape the settings menu.

Page 19 of 48

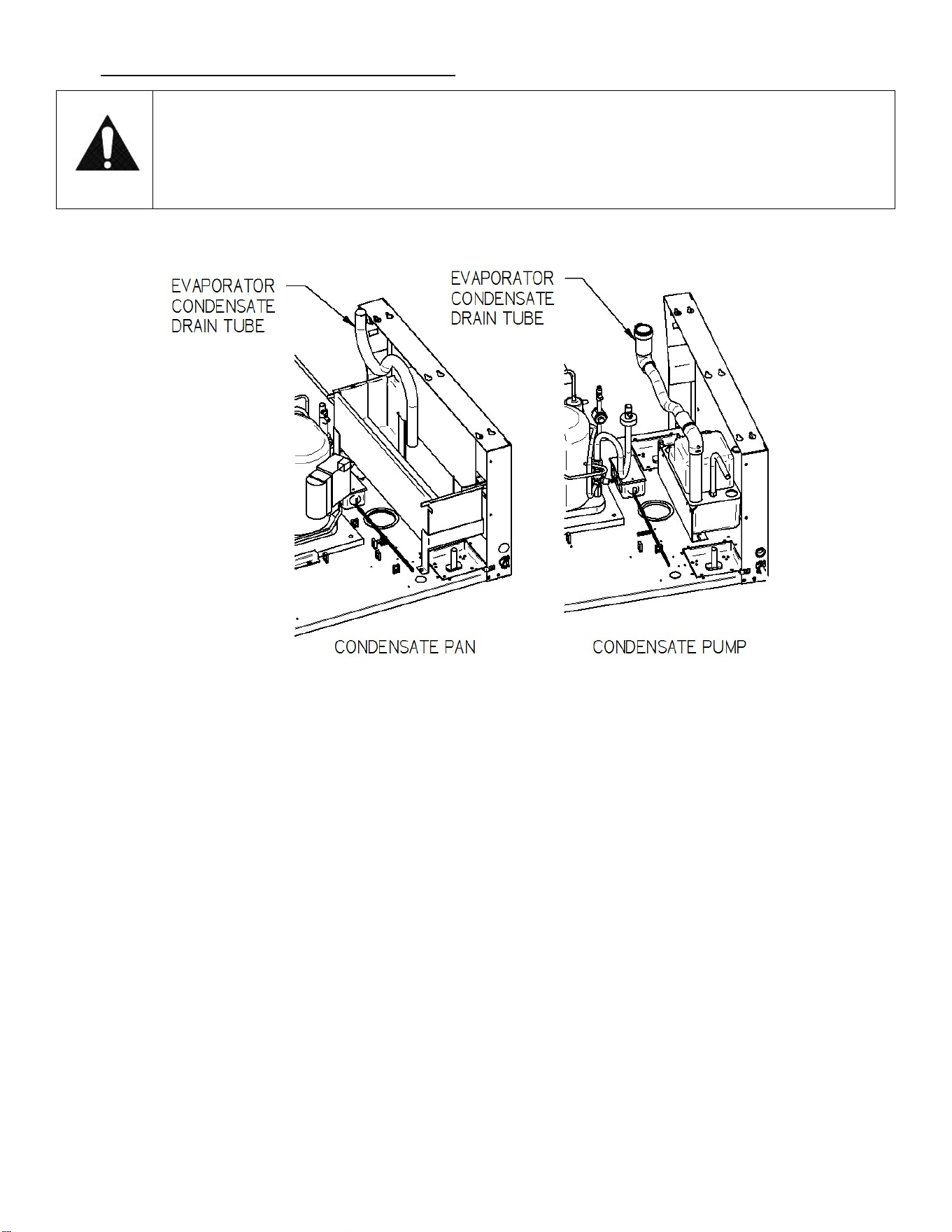

5.7 EVAPORATOR CONDENSATE DRAIN TUBE

WARNING TO INSTALLER:

Evaporator Condensate Drain Tube may become dislodged during shipping. Installer must

check Evaporator Condensate Drain Tube upon installation to be sure drain tube is properly

seated and installed correctly.

Evaporator Drain Tube must be attached to tube protruding from bottom of Evaporator Tub and must either

be inside the Condensate Pan area or inside of hole of Condensate Pump.

Page 20 of 48

5.8 CONDENSATE PUMP

A condensate pump is Standard on some models and Optional on all models. Installer must check unit to see if

a condensate pump has been provided with case.

WARNING TO INSTALLER:

Installer must determine if case was provided with condensate pump. Failure to hook up

pump hose to drain will cause water on floor and cause a slip hazard.

DRAIN LINE

EXIT LOCATIONS

DRAIN LINE

EXIT LOCATIONS

DRAIN LINE

EXIT LOCATIONS

DRAIN LINE

EXIT LOCATIONS

CONDENSATE PUMP

DRAIN TUBE

CONDENSATE PUMP

CONDENSATE

DRAIN TUBE

Instead of using heat energy to remove condensate run off from the evaporator coil a condensate pump

moves the water to a nearby drain.

 The Condensate Pump is provided with 50ft of clear 1/2in OD x 3/8in ID tubing that must be run out of

the base area to a drain.

 There are several drain tube exit locations provided in the base as noted in the drawing above. Plugs or

caps will need to be removed in the desired exit location.

 The hose can be run the entire 50ft in any direction as required, but no higher than 20ft from the

pump base. A check valve is provided in the pump to prevent water from flowing back into the

reservoir. For best efficiency extend the hose level below the level of the pump base to create a

siphoning effect. Never run the hose to or through an area below freezing (32°F, 0°C) or freezing water

will block the tube.

Page 21 of 48

(6) SHELVING INSTALLATION & REMOVAL

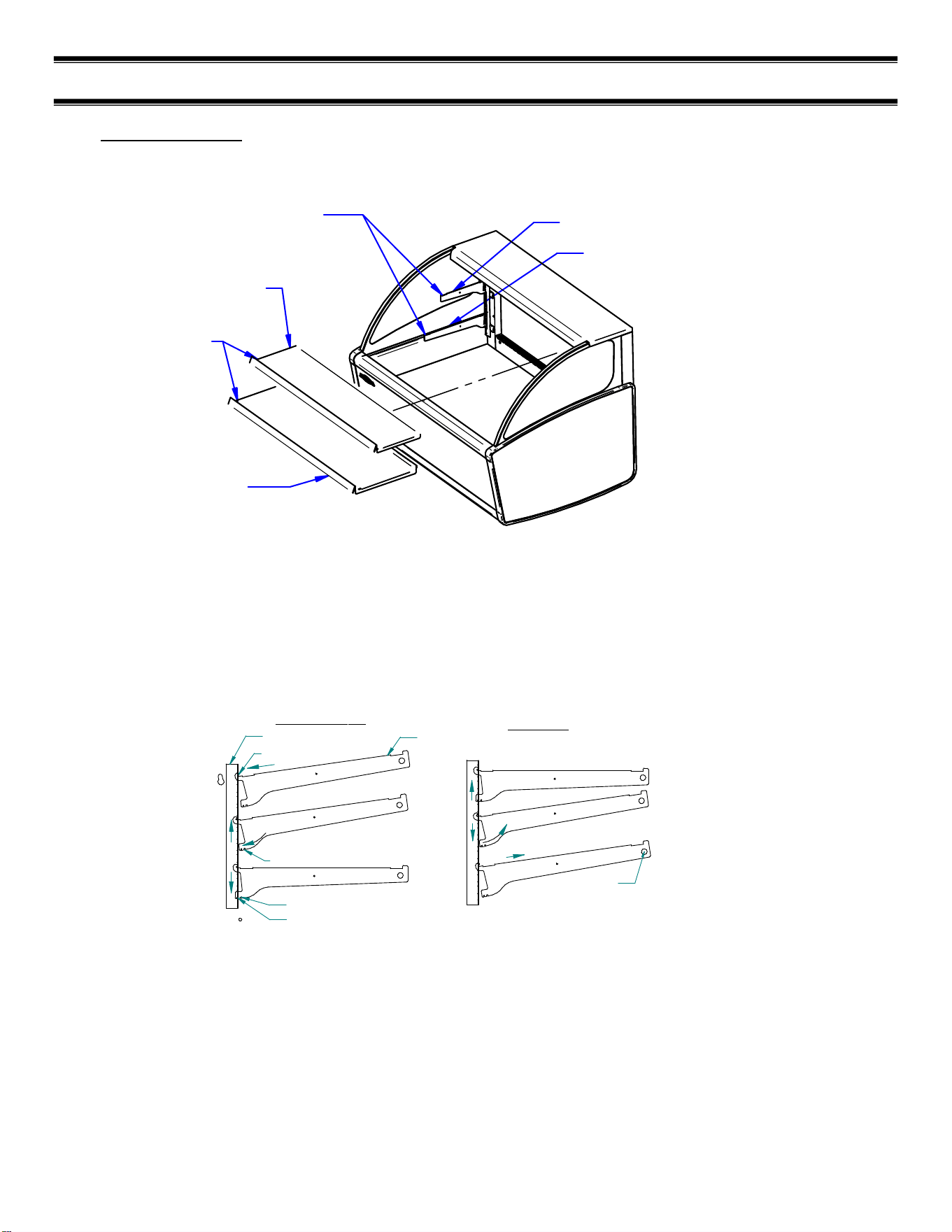

6.1 METAL SHELVES

SHORTER TOP SHELF

WIDER BOTTOM SHELF

SHORTER TOP SHELF BRACKET

LONGER BOTTOM SHELF BRACKET

SHELF NOTCH

SHELF BRACKET FRONT TAB

1. Follow the instructions in the illustration below and insert (1) of the shelf brackets in the desired shelf

standard slot on one side of the case. Place the additional bracket in the same shelf standard slot on the

opposite end of case. If the case was supplied with shelf light option (ELPRSS), the bracket with a clear

plastic cord retainer clip must be on the side with the shelf light. For LPRSS case with (2) shelves repeat

for shorter top shelf brackets.

0v NOTCH

6v NOTCH

INSTALLATION

REMOVAL

TOP HOOK

BOTTOM TAB

SHELF BRACKET

SHELF STANDARD

1. Place shelf bracket top hook into desired shelf

standard slot.

2. Lift shelf bracket top hook to allow shelf bracket

bottom tab to clear shelf standard slot.

3. Swing shelf bracketbottom tab into shelf standard

slot.

4. Place the desired shelf bracket notch of 0, 6, or 12

degrees onto bottom of shelf standard slot.

1. Lift shelf bracket up to allow shelf bracket notch

to clear the bottom of shelf standard slot.

2. Swing shelf bracket bottom tab out of shelf

standard slot.

3. Drop shelf bracket down to allow shelf bracket top

hook to clear top of shelf standard slot.

4. remove shelf bracket top from shelf standard slot.

CLEAR BUMPER

TOWARDS END PANEL

2. Place the longer bottom shelf on top of the longer bottom shelf brackets with the flanges on each end of

the shelf overhanging the outside of the bracket. Place the front tab of the shelf bracket into the notch

located on the front of the shelf.

Page 22 of 48

3. On the LPRSS case with (2) shelves place the shorter top shelf on top of the shorter top shelf brackets

with the flanges on each end of the shelf overhanging the outside of the bracket. Place the front tab of

the shelf bracket into the notch located on the front of the shelf.

4. If shelf includes optional light (ELPRSS), plug the cords into the plug receptacle located toward rear of

case.

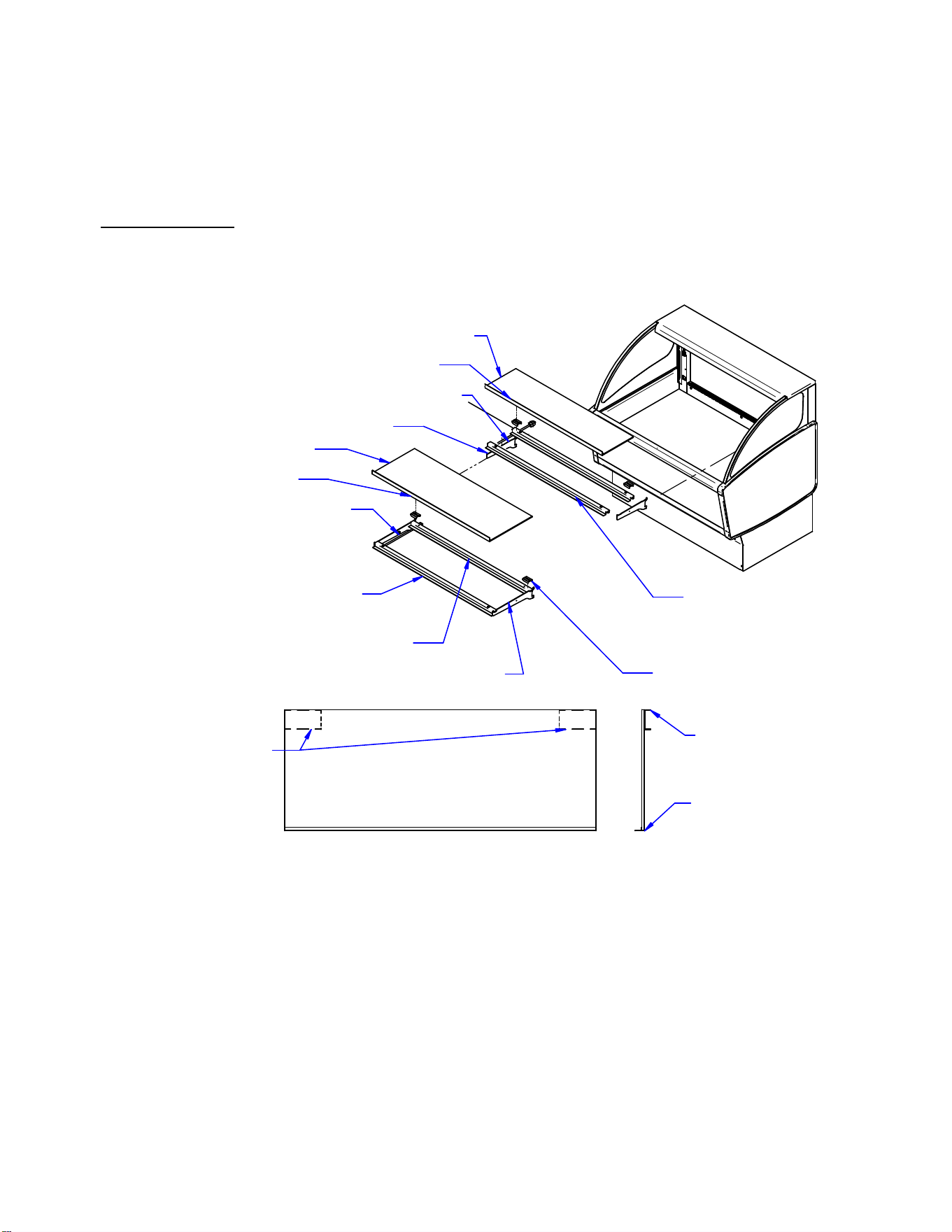

6.2 GLASS SHELVES

SHORTER GLASS TOP SHELF

LONGER GLASS BOTTOM SHELF

SHORTER TOP SHELF BRACKETS

LONGER BOTTOM SHELF BRACKETS

SHELF BRACKET FRONT TAB

SHELF SUPPORT

SHELF SUPPORT, LONG CORD WHEN SUPPLIED

WITH SHELF LIGHT OPTION.

CORD RETAINER CLIP ON THIS SIDE

WHEN ORDERED WITH SHELF LIGHT OPTION

GLASS SHELF RETAINER CLIPS.

MUST INSTALL TO GLASS

GLASS SHELF RETAINER

CLIP LOCATED IN FAR

CORNER OF GLASS SHELF.

(FIELD INSTALLED TO GLASS

BOTTOM)

TOP VIEW

CLEAR PRODUCT STOP

(FIELD INSTALLED TO

GLASS FRONT LIP)

GLASS SHELF RETAINER CLIP

1. When installing for the first time, attach (2) glass shelf retainers to each glass shelf. Remove the backing

from the tape located on the flat side of the glass shelf retainer. Position the glass shelf retainer in the (2)

far corners of the glass as shown in the above figure. Repeat for each glass shelf.

NOTE: Clean the area of glass where the glass shelf holder is to be located with isopropyl alcohol and let

it air dry before installing the glass shelf holder.

2. When installing for the first time attach (1) clear glass product stop to each glass shelf as shown in the

figure above. Align the clear product stop edge with the edge of the glass and push the “U” portion of the

glass product stop onto the glass lip across the entire front of the glass. Repeat for each glass shelf.

3. Install the shelf brackets into the shelf standard as described in Step (1) of “Metal Shelves Installation” of

this manual.

Page 23 of 48

4. Place the front of the glass shelf onto the front shelf support.

5. Set the rear side of the glass shelf onto the rear shelf support so that the glass shelf retainers straddle the

rear shelf support.

6. Repeat steps 2 & 3 for each tier.

6.3 OPTIONAL SHELF LIGHTS - ELPRSS

1. Install shelves as described in the Metal Shelves Installation and Glass Shelves Installation sections in this

manual. Note: On models with glass shelves with lights, a shelf support will be placed on the back and

front of the shelf bracket.

2. Remove the cap from the appropriate female light sockets.

3. Plug in each shelf light by plugging the male plug on the appropriate shelf light cord plugs with the female

light sockets and push together.

Shelves and shelf light quantity

It is not required that all shelves and shelf lights supplied with each case are used. The quantity of shelves and

shelf lights can be tailored to your specific needs. If the supplied quantity of shelves and shelf lights are not

required, cap unused female socket located in interior of the case mullion with caps supplied.

Page 24 of 48

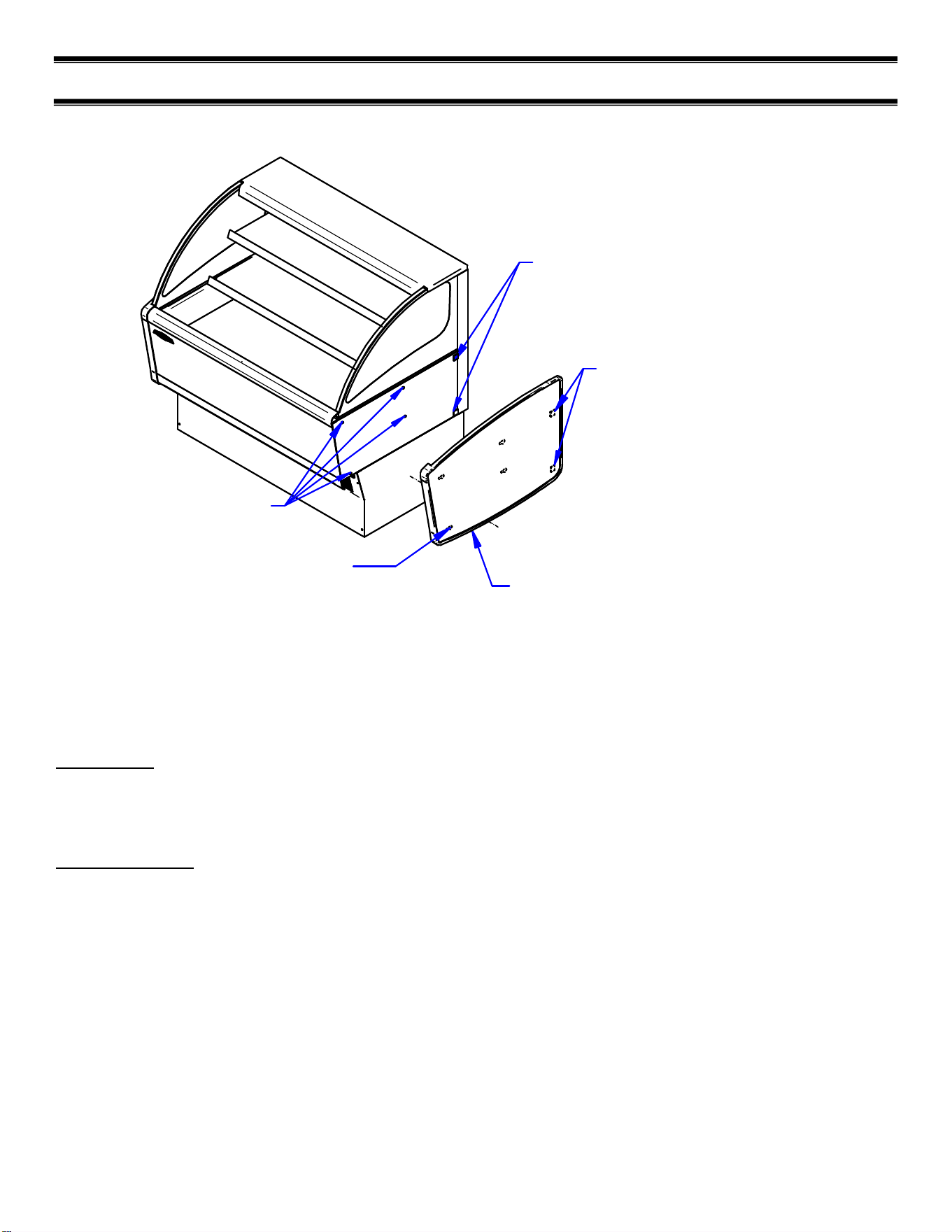

(7) PLASTIC END REMOVAL & INSTALLATION

(2) VELCRO STYLE

PADS ON CASE

PLASTIC END PANEL

(4) SCREWS WITH

SPACERS ON CASE

(4) KEY SLOTS IN

BACK OF PANEL

(2) VELCRO STYLE PADS

ON BACK OF PANEL

Right and Left plastic end panels are ordinarily shipped installed from the factory but can be easily removed

for cleaning. Removing end panels make it easier to grab on to case when moving or installing case and can

easily be reinstalled.

REMOVAL:

1. Lift the back side of the panel out to disengage (2) Velcro style pads

2. Slide the panel forward to disengage the (4) Key slots in panel from (4) screws in case.

INSTALLATION:

1. Hold panel tightly against the side of the case with the front lip of panel tight against front of case.

2. Slide panel forward about ½ until screws fall into key slots. Slide the panel towards the back of case

making sure all (4) key slots engage.

3. Push in on end panel in location of the (2) Velcro style pads to lock panel in place.

Page 25 of 48

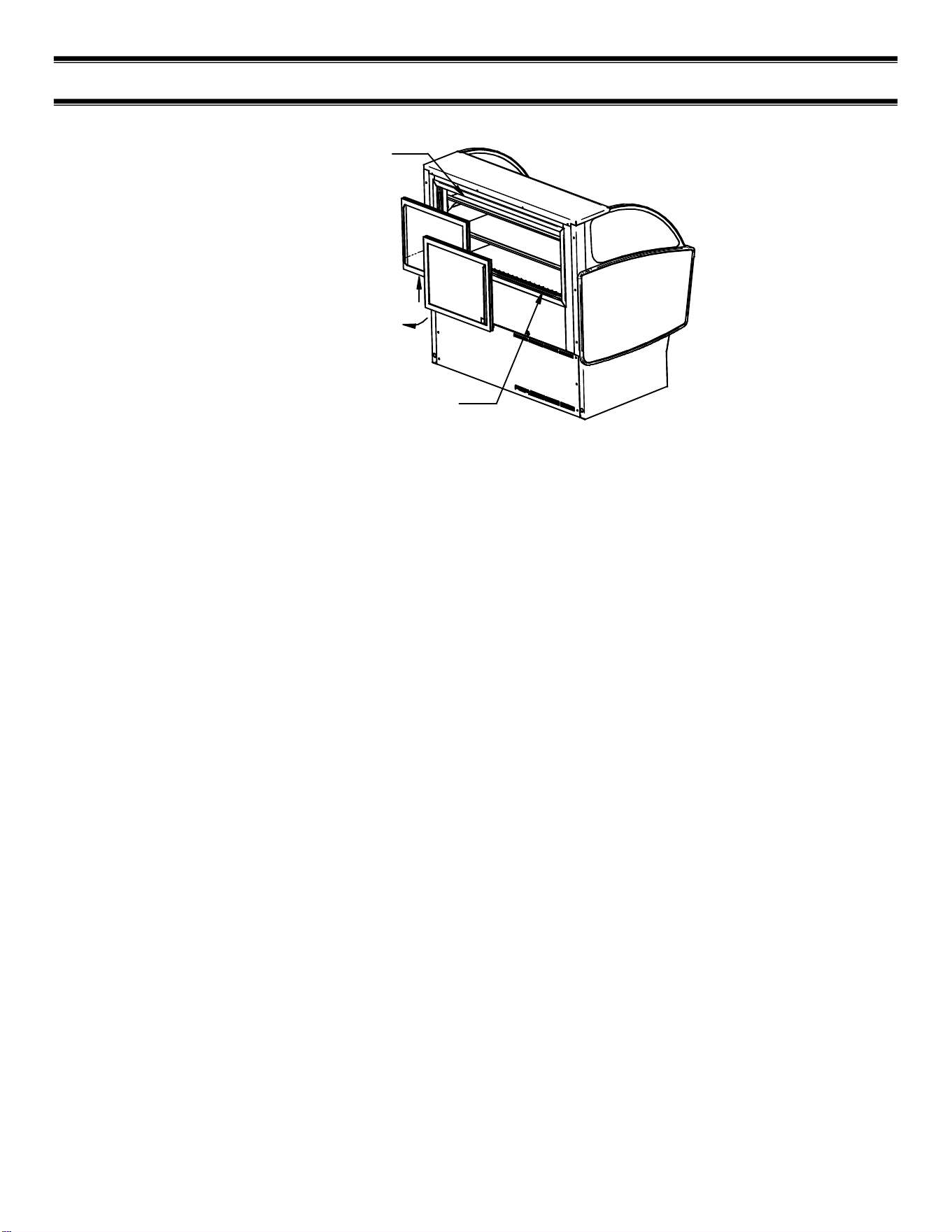

(8) REAR DOORS (OPTIONS)

1. LIFT UP

2. SWING BOTTOM OUT

LOWER TRACK

UPPER TRACK

1. Start with the outer door and lift the door upward until the bottom edge of door clears the lower track

and then swing the bottom of the door outward and down out of upper track.

2. After the outer door is removed repeat the procedure for the inner door.

3. Reverse this procedure for door reinstallation. The doors are not interchangeable.

Page 26 of 48

(9) NIGHT CURTAIN

NIGHT CURTAIN

STRAP WITH SNAP

SNAP

NIGHT CURTAIN

HOLDER BRACKETS

FRONT TRIM

OPENING:

1. Grab night curtain strap and lift the rolled night curtain out of the night curtain holder brackets. Pull

the night curtain across the top of case and down the front.

2. Attach the snap located under the night curtain strap on to the snap located on the front trim.

CLOSING:

1. Grab the night curtain strap and detach the snap from the snap located in the front top trim.

2. While holding the night curtain strap allow the night curtain to roll up and place the rolled night curtain

carefully into the night curtain holder brackets.

Note: The 5’ and 6’ models have (2) night curtains.

Page 27 of 48

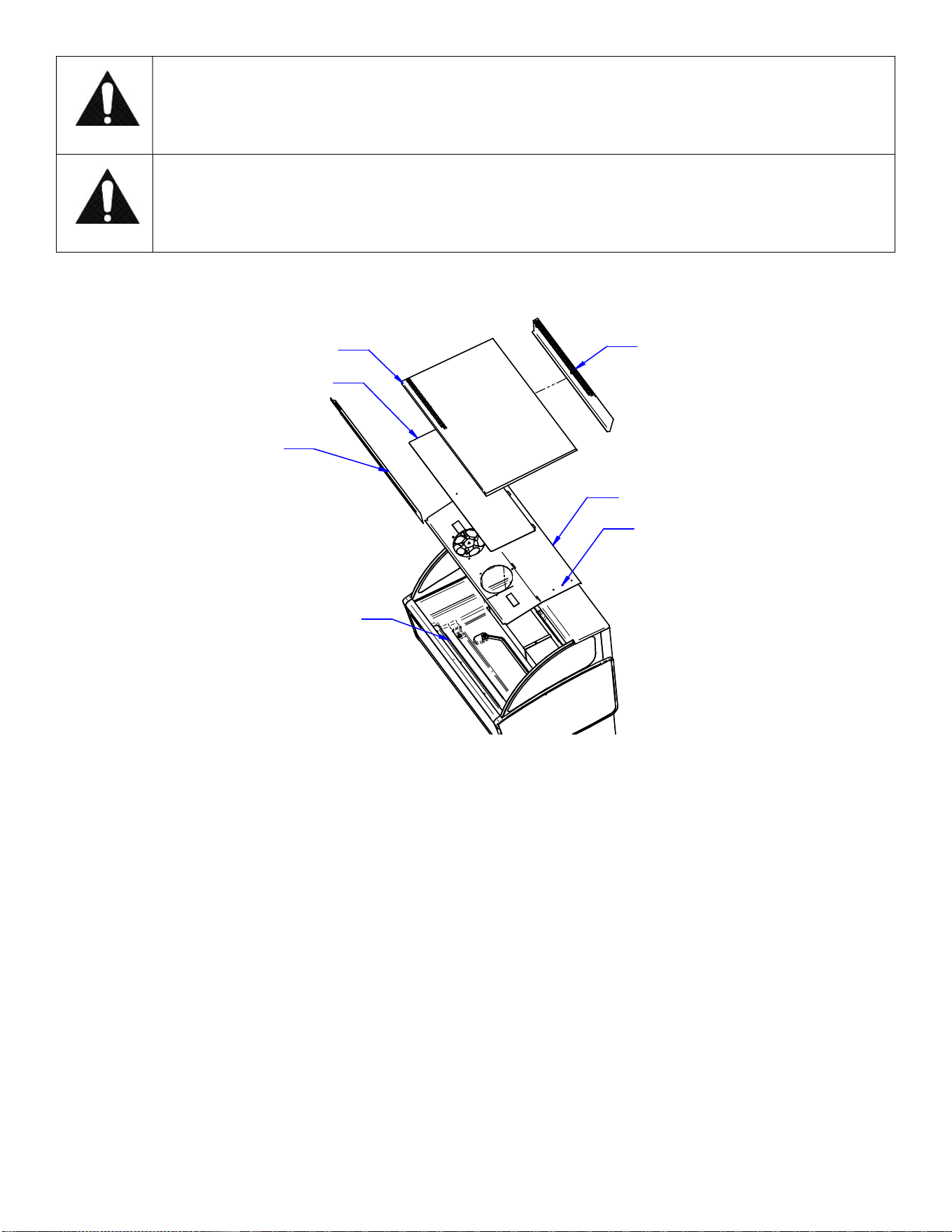

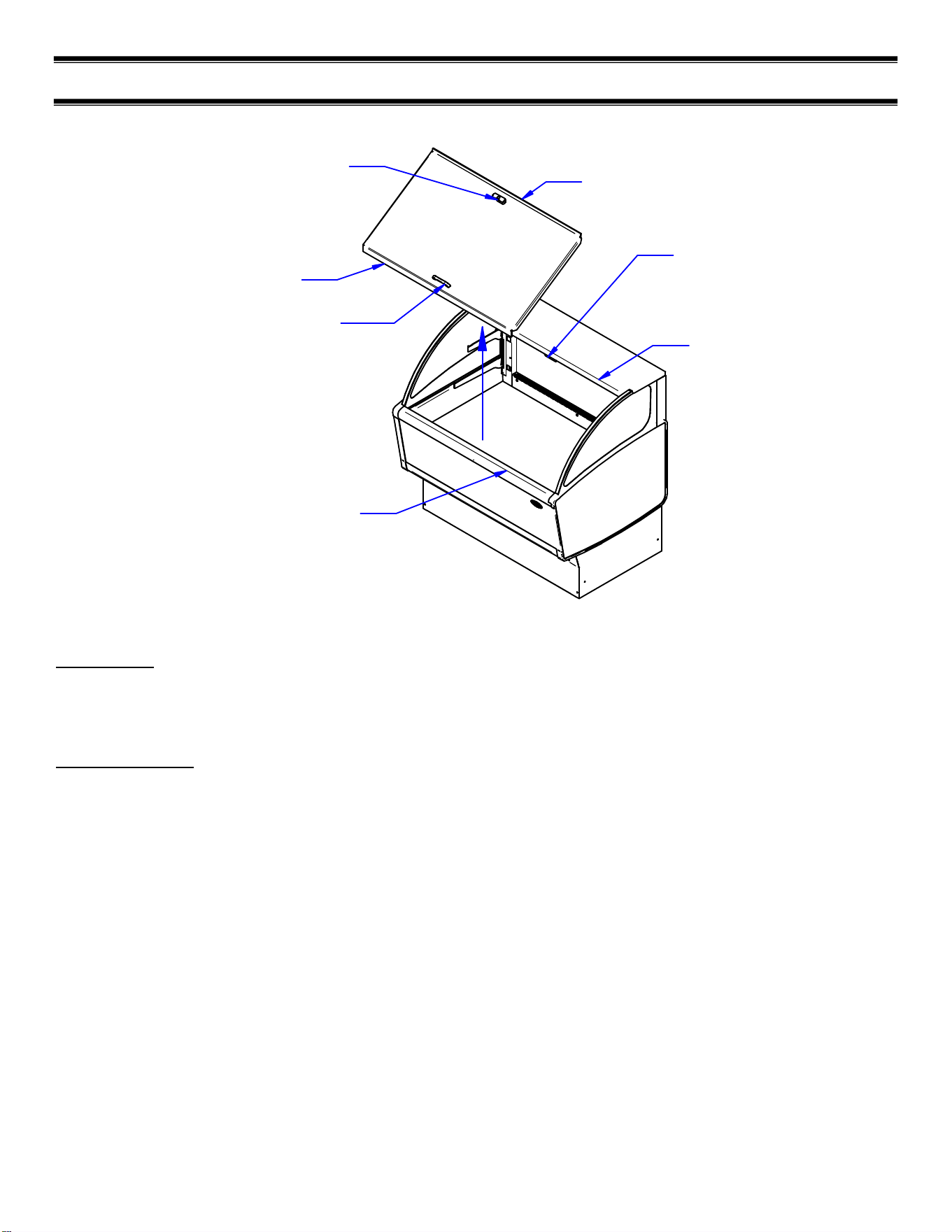

(10) SECURITY NIGHT COVER (OPTION)

SECURITY NIGHT COVER

LOCK HANDLE

SECURITY NIGHT COVER

FRONT HANDLE

SECURITY NIGHT

COVER LOCK

HANDLE CATCH

FRONT TRIM

BOTTOM FLANGE

TOP FLANGE

TOP PANEL

REMOVAL:

1. Unlock the lock handle and turn handle to disengage from lock handle catch.

2. Grab the lock handle and the front handle and lift the cover straight up out of the case opening.

INSTALLATION:

1. Turn the lock handle so the latch is horizontal to the top of the case.

2. Holding the lock handle and the front handle place the bottom flange of the security night cover inside

of case opening. The bottom flange of the security night cover must be tight against the flat inner side

of the front trim.

3. Set the top flange of the security cover down against the top panel.

4. Turn the lock handle so it engages the lock handle catch and use key to lock it in place.

Note: The 6’ models have (2) security covers.

IMPORTANT: Cleaning the Acrylic plastic security night cover require special care to prevent hazing of

material. Lightly dust (not wipe) the surface with clean soft cloth. Then the surface can be wiped carefully with

a soft, wet cloth or chamois. The cloth or chamois must be kept free of grit by frequently rinsing in clean

water. Grease and oil can be removed with kerosene. Do not use window cleaners or kitchen scouring

compounds. DO NOT use solvents such as Acetone, Benzene, Carbon Tetrachloride, and Lacquer Thinners. A

spray wax such as Pledge or Maguire’s polish can be applied and wiped with a clean soft cloth. The wax tends

to fill in and hide small scratches.

Page 28 of 48

(11) OPERATING INSTRUCTIONS

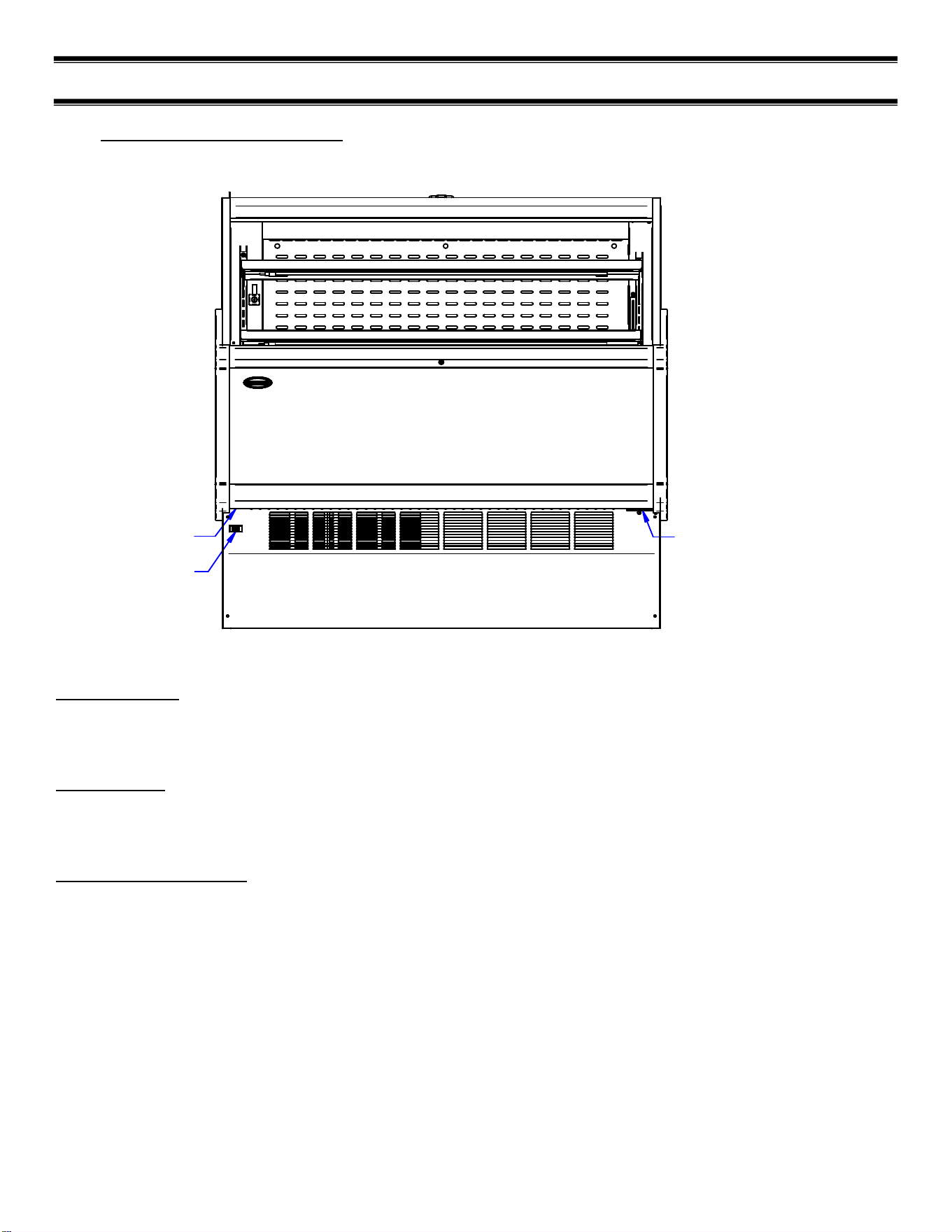

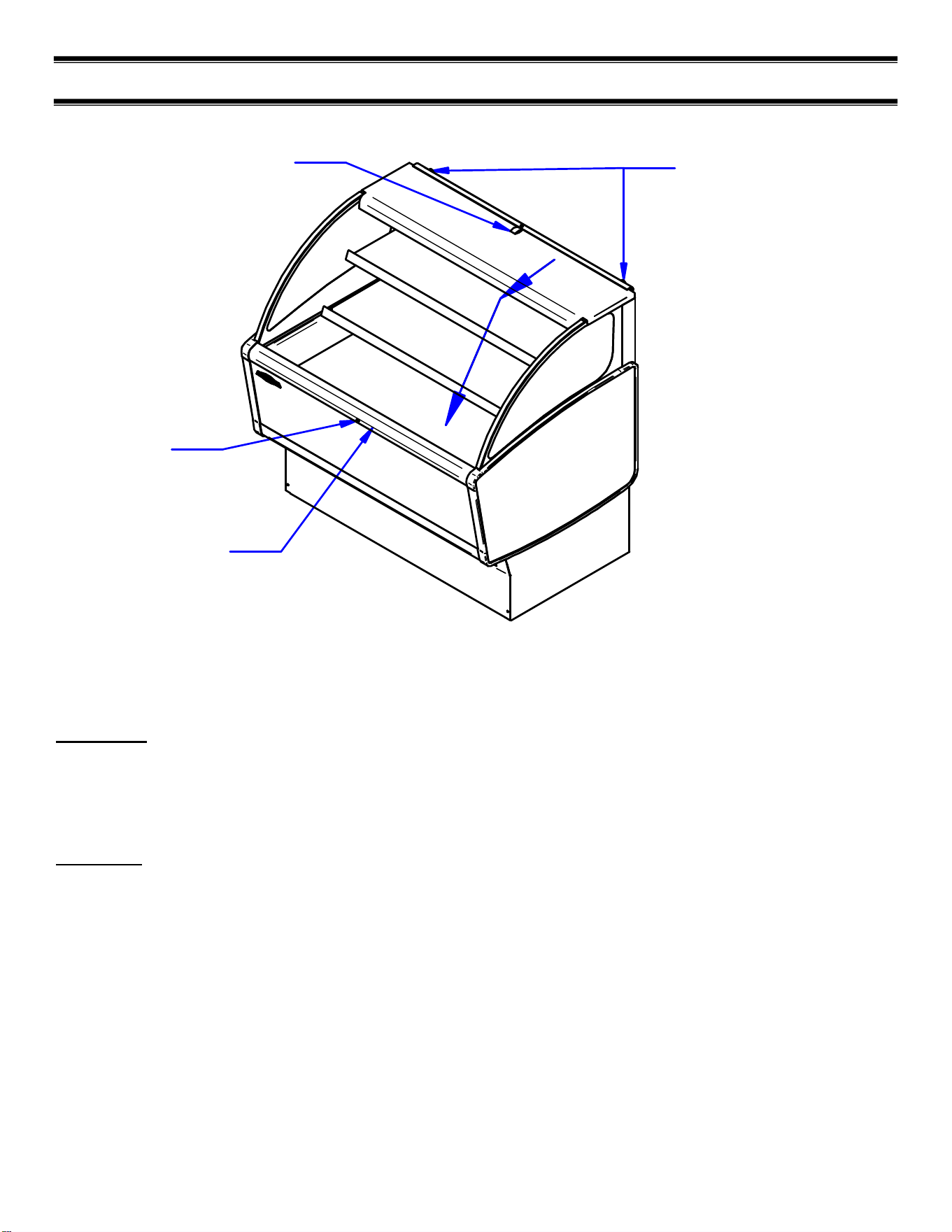

11.1 USER CONTROLS OVERVIEW

POWER

SWITCH

TEMPERATURE

CONTROL

LIGHT

SWITCH

Power Switch

The unit has a power switch that turns off power to the entire unit, including the condensate evaporator and

the lights. This switch is located behind the front valence on the unit base.

Light Switch

The unit has a light switch that turns on and off the interior lights of unit. The switch is located on the left

hand side of the base front below the power switch.

Temperature Control

Located in the front grille of the display case, the temperature control allows the user to adjust the

temperature of the display merchandiser to their needs.

Page 29 of 48

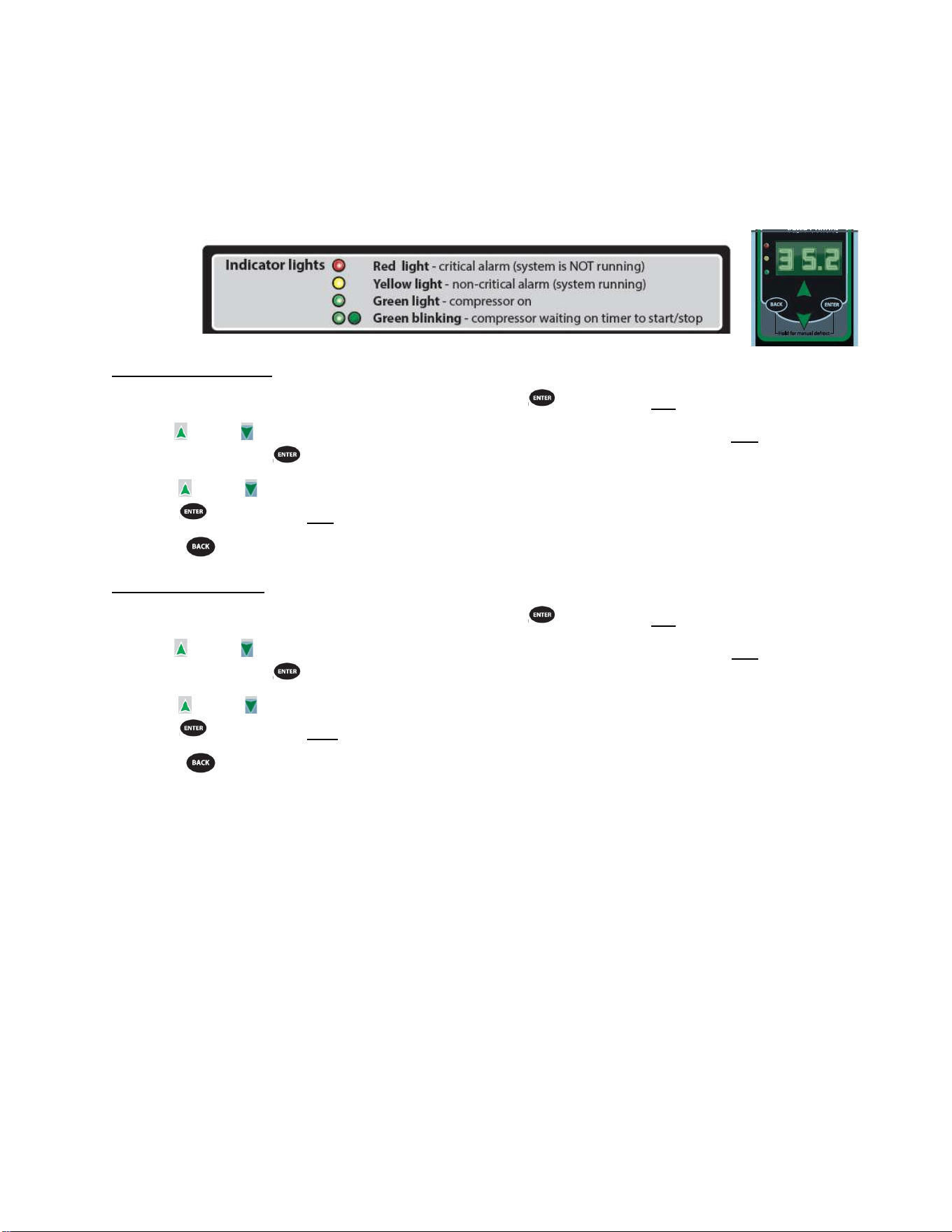

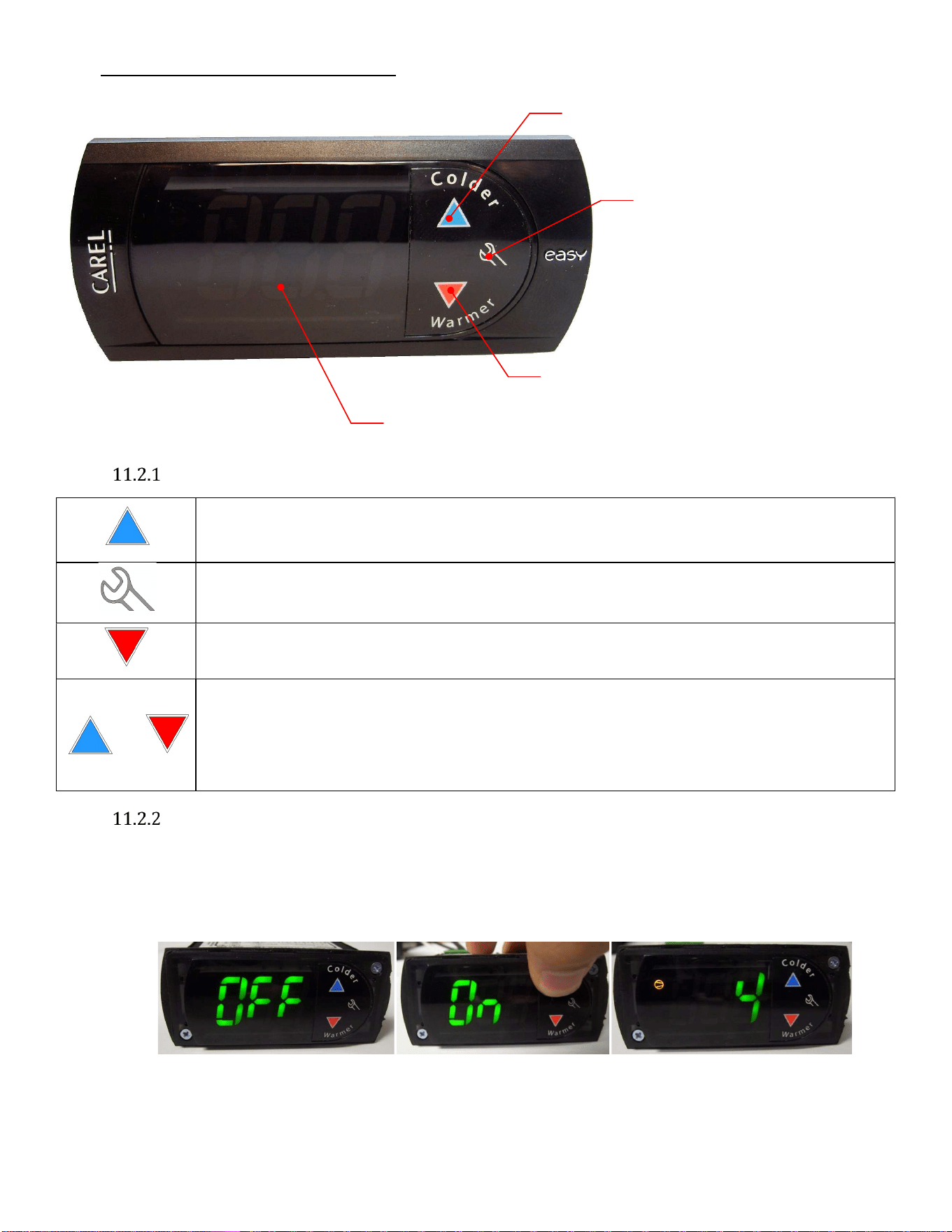

11.2 USING THE ELECTRONIC CONTROL

POWER TOGGLE & SET POINT UP ADJUST

MANUAL DEFROST AND SET POINT DOWN ADJUST

SET POINT ADJUST MODE

DIGITAL DISPLAY

Button and Display Overview

Press and hold this button for 3s to turn system on (if off) or off (if on).

Also used to adjust set point when in set point adjust mode

Press to enter set point adjust mode, confirm set point changes, and mute alarms.

Press and hold this button for 3 seconds to initiate a manual defrost (and cancel defrost if

initiated), also adjusts set point down when in set point adjust mode

Press both buttons simultaneously to check air stream probe temperature. This is not an

indicator of product temperature.

Powering on control

To turn power on to the refrigeration system press and hold, for three seconds, the blue up arrow on

the control’s keypad. The keypad will read “On” while the button is depressed. When the system

powers on, the display will read the current set point (a number “1” through “9”). The orange

compressor run indicator will illuminate on the display.

Page 30 of 48

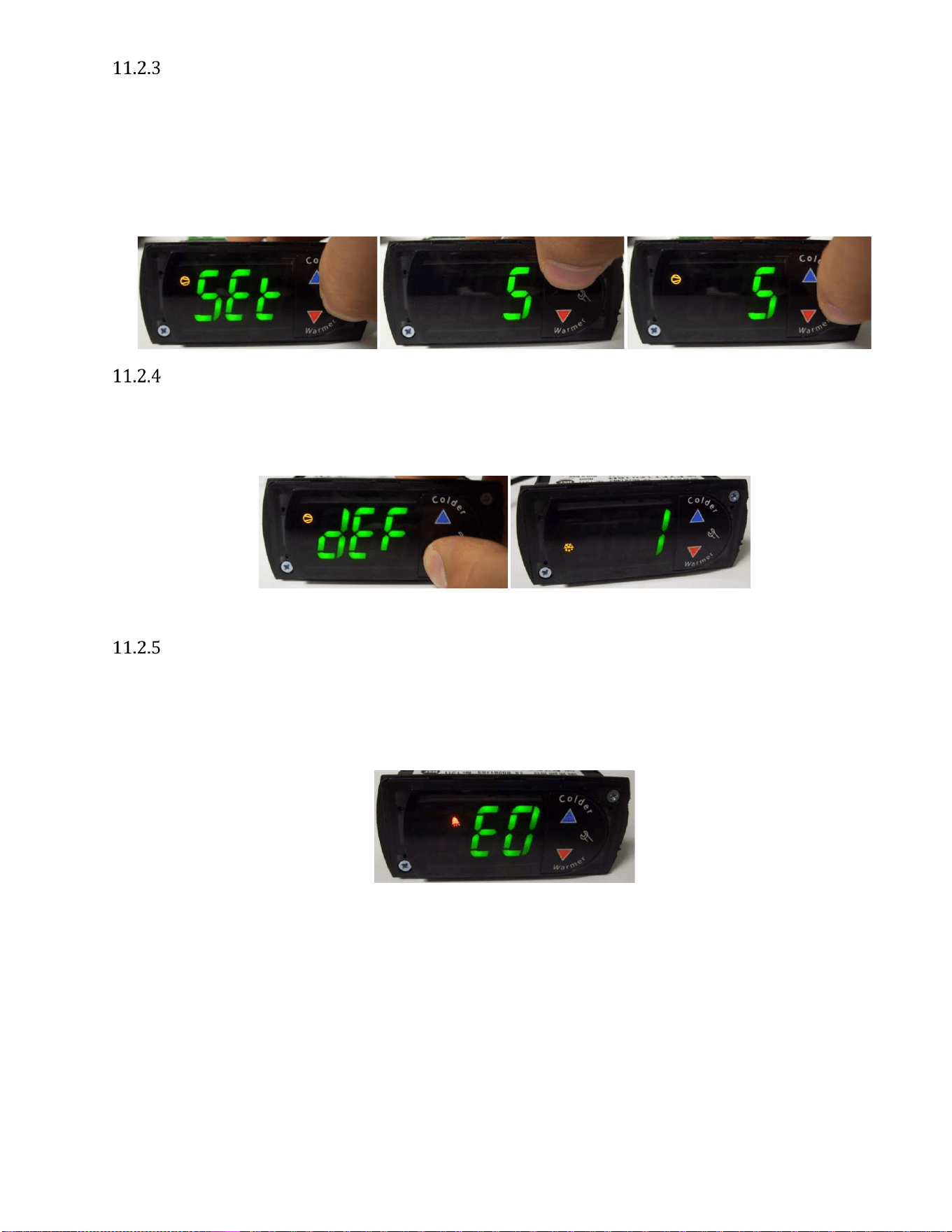

Adjusting the set point

The set point is what determines how cold the display case will hold food and beverage. To adjust the

set point press and hold the wrench button until the display begins to flash a number (three seconds).

Then use the up and down arrows of the keypad to scroll through the set point options. There are nine

(9) available set points, the higher the number of the set point name, the colder the display case will

run, with setting “9” being the coldest and setting “1” being the warmest. Once you have chosen your

desired setting press the wrench button again to confirm your choice.

Entering manual defrost mode

In order to initiate a manual defrost press and hold the red down arrow for 3s. The control will read

“dEF” while the button is being held. The defrost is initiated when the orange snowflake appears on

the control display.

Error codes

It is possible for error codes to be displayed on the control screen. In the event of a malfunction an

alarm will sound and a red ringing bell will be displayed on the screen. An error code or codes will flash

intermittently on the display. If there are multiple codes, the display will continuously cycle through

them. The following photo shows error code “E0” as an example next to the red bell.

You may mute the alarm by pressing and releasing the wrench button. The red ringing bell and all error

codes will still be displayed. When the fault is remedied the control will return to normal operation and

will automatically clear the codes from the display.

Page 31 of 48

11.3 INITIAL STARTUP

After all the checks outlined in the installation section of this manual have been made, the case is ready to be

put into service. Turn on the Power at the breaker box and flip the Power Switch and Light Switch on unit to

the on position. Also ensure that the control is powered on as described above in “11.2.2”.

At start up from a warm unit, it is recommended that the temperature control is set to a warmer setting, such

as 1. After the unit has gone through several cycles, adjust the control to a mid range setting, then to a colder

setting if necessary to maintain desired product temperature

NOTICE:

This refrigerated display case is designed to operate in a maximum environment of 75°F

(23.9°C) and 55% relative humidity. Exceeding these limits will cause poor case performance

and excessive sweating.

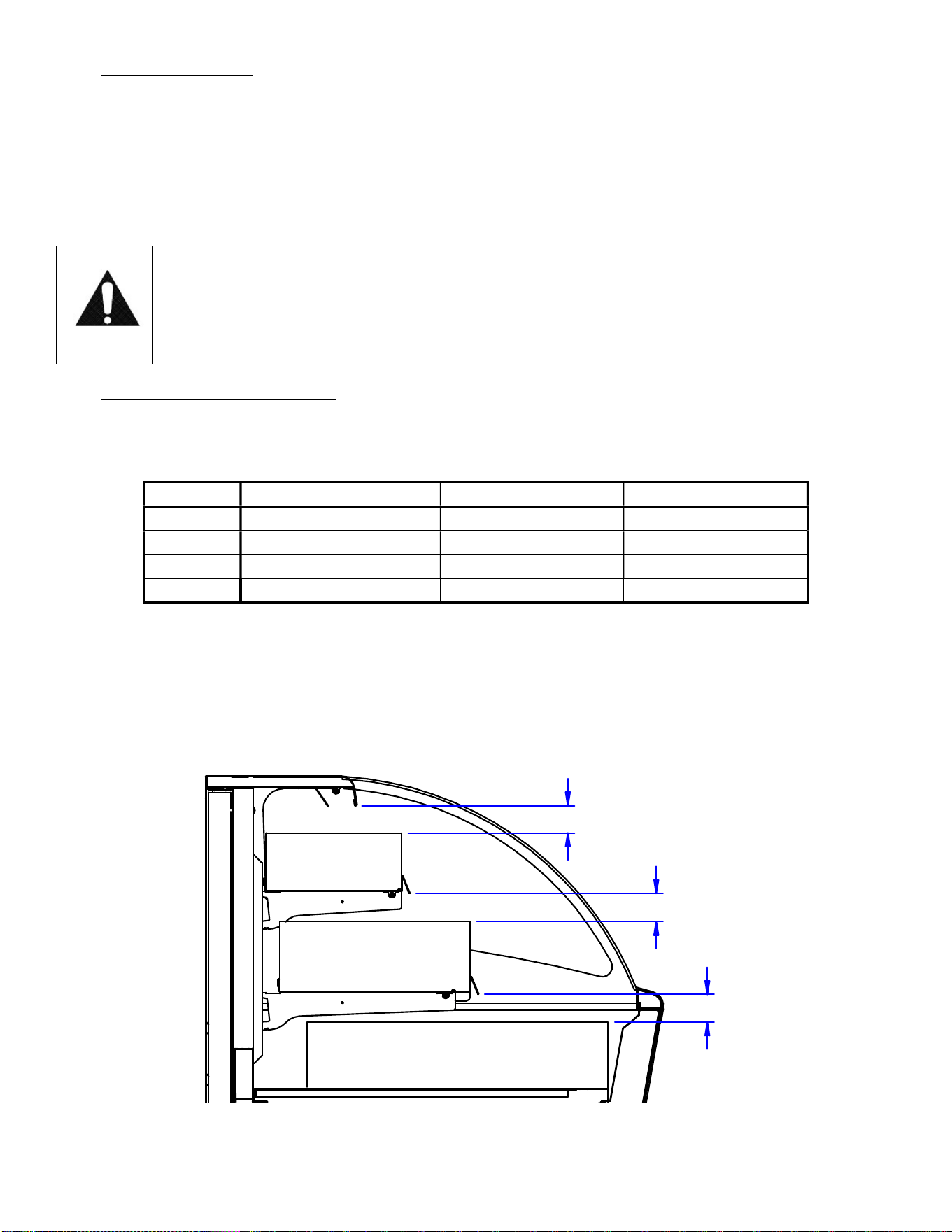

11.4 PLACING PRODUCT IN CASE

 Do not exceed weight limits shown in the table below when loading product into the display case.

Table 2 - Shelf Loading Limits

Model Top Shelf/ELPRSS Shelf Bottom Shelf Display Deck

E/LPRSS3

70lbs (32kg) 100lbs (45kg) 250lbs (114kg)

E/LPRSS4

100lbs (45kg) 135lbs (61kg) 320lbs (146kg)

E/LPRSS5

120lbs (55kg) 170lbs (77kg) 390lbs (177kg)

E/LPRSS6

150lbs (68kg) 210lbs (95kg) 460lbs (209kg)

 Determine desired shelving location before placing product in case. Product must be removed to

readjust shelf location.

 Allow a minimum of 2 inches between top of product and bottom of shelf as shown below.

2.00 MIN

LEAVE 1/2" GAP BETWEEN PRODUCT

TO ALOW AIR FLOW AROUND PRODUCT

2.00 MIN

Page 32 of 48

 Do not overhang the front or rear of shelves with product. Improper clearance in front and rear of shelf

will block the refrigerated air flow and will cause product loss.

 Do not block the slots along the front and rear air discharge slots. Covering these slots will block the

refrigerated air flow and will cause product loss.

 The display deck is removable for cleaning and can become dislodged in shipment. To ensure proper

airflow and performance of the case, make sure that the display deck is pushed completely down.

 Allow refrigerated models to run for at least two hours before placing pre-chilled product into unit.

NOTICE:

Case must be stocked with pre-chilled product only. Product should be at or below 40°F

(4.5°C) before adding it to the display case. Use a refrigerator to pull down product that is

above 40°F (4.5°C). This display case is temperature holding product only it will not pull down

product that is above the recommended temperature.

(12) MAINTENANCE

12.1 LIGHT REPLACEMENT

1. All lights are LED Bar type. The TOP LIGHT is attached to LIGHT LINER using plastic clips. SHELF LIGHTS

are attached using double sided tape. If replacement should become necessary follow the directions

below to replace LED light.

TOP LIGHT

- Unplug cord from light

- Carefully pry plastic clip tab away from lip on LED light body, with a slight twist

motion, disengage the clip locking tab on each of the plastic clips. Install replacement

LED by inserting replacement LED lip on the body under the locking tab on plastic clip.)

- Re-install cord plug.

SHELF LIGHTS

- Unplug cord from light

- Use putty knife to pry LED light body from Shelf and or Top Light Liner. It may be

useful to slide the putty knife along the length of light once putty knife is between LED

light body and component surface. (it is recommended to remove shelves from case

when replacing LED lights)

- Remove residual adhesive tape from shelf / top light liner and clean surface with

alcohol

- Remove liner from Double Sided Tape on replacement Light

- Use small holes in Top Light Liner & Shelves as a locational guide for LED placement

- Mount light and apply pressure along the length of LED body to ensure good adhesion

Re-install shelf and cord plug.

Page 33 of 48

(13) PERIODIC MAINTENANCE

IMPORTANT: Read this Section of this manual located on page 7.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

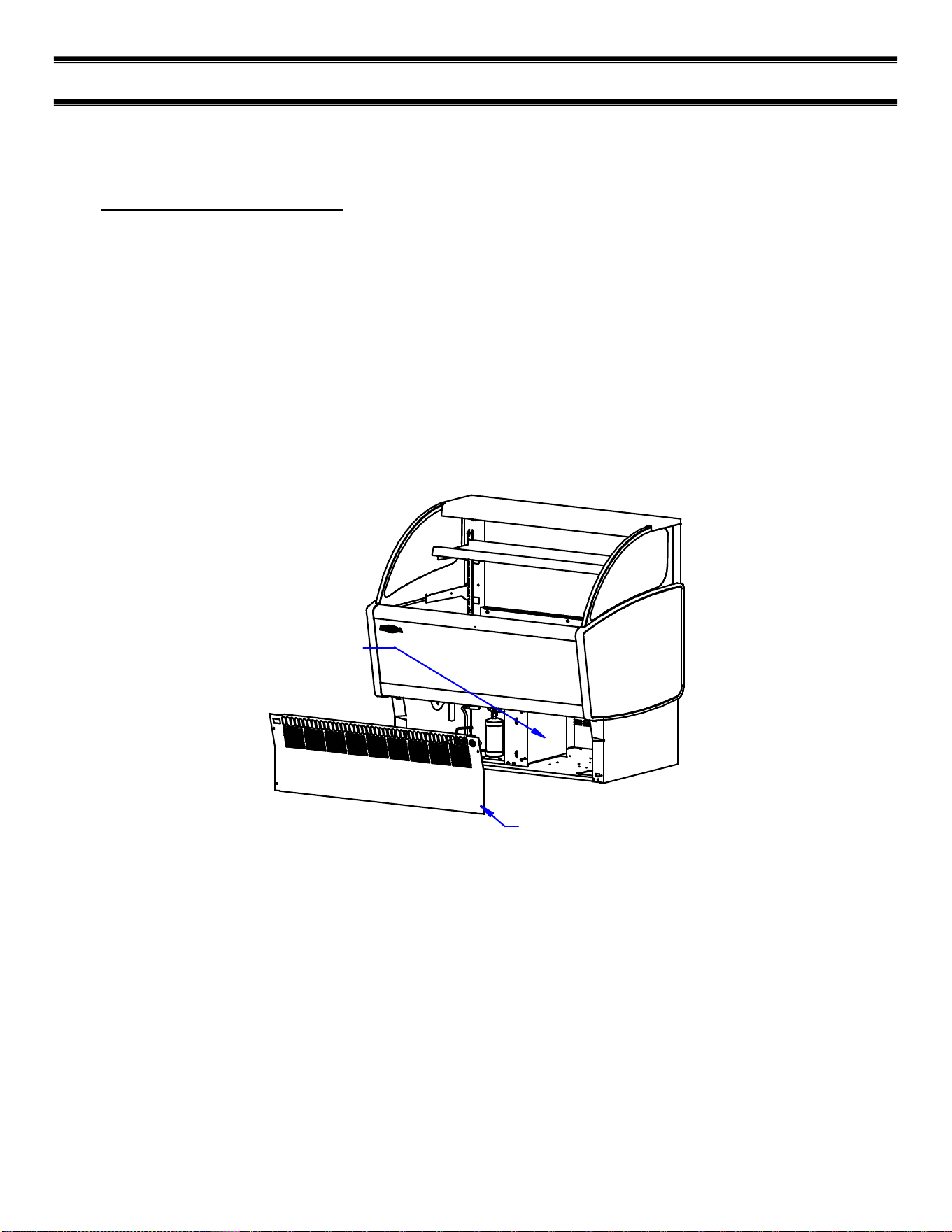

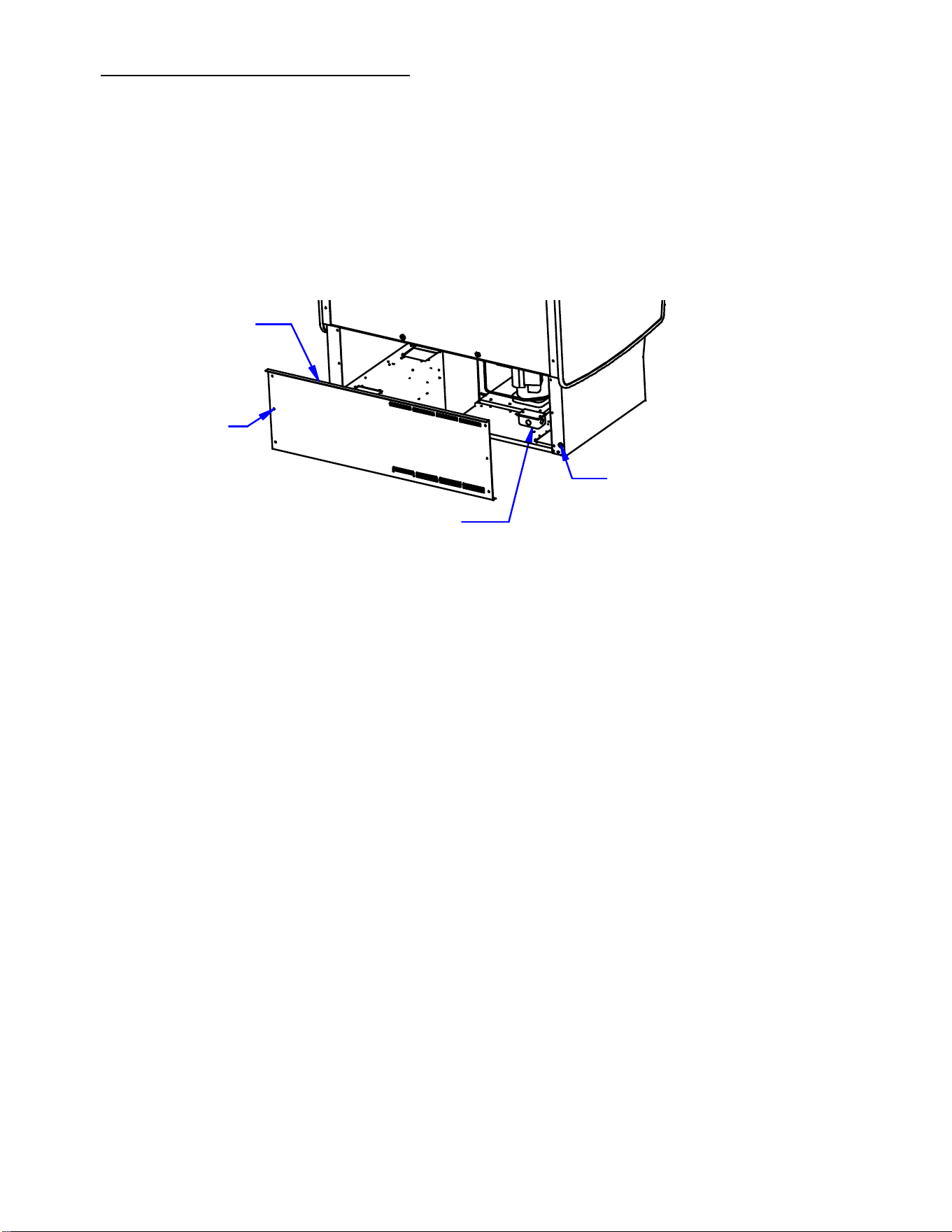

13.1 CLEANING CONDENSER COIL

It is very important that the condenser coil is cleaned twice per month to insure proper refrigeration

performance and to prevent compressor failure. Failure to clean condenser coil will void condenser warranty.

1. Disconnect power to the unit

2. Remove the front panel located on the front bottom of unit by removing the (4) front panel retaining

screws.

3. Carefully vacuum the front surface of condenser coil. Take care not to bend coil fins with vacuum

cleaner nozzle, a brush attachment works well to prevent this.

4. Reinstall front panel and retaining screws.

(4) FRONT BASE

PANEL SCREWS

VACUUM FRONT

SURFACE OF

CONDENSER COIL

Figure 1 - Condenser Cleaning

Page 34 of 48

(14) CLEANING INSTRUCTIONS

14.1 DAILY CLEANING

The case should be cleaned thoroughly, as described in the weekly cleaning section, before it is used for the

first time.

NOTICE:

Avoid splashing or soaking any electrical components with water to prevent electrical

damage to the case.

NOTICE:

Shut off lights and power switches and remove all product from case. Allow sufficient time

for the unit to reach room temperature before proceeding with cleaning.

NOTICE:

Remove all product from case before proceeding with cleaning procedure.

NOTICE:

Acrylic end panels and top panel require special washing procedures to prevent hazing and

yellowing of material. Read cleaning of end panel and top panel procedure carefully.

NOTICE:

This case is not designed to be cleaned by flushing.

Note: For major spills or foreign material buildup perform the weekly cleaning instructions.

1. (If Supplied With Optional Rear Doors.) Clean all foreign materials from the door opening and clean

both sides of the doors with a damp cloth

2. Wipe complete interior and exterior of case using a damp cloth.

3. Clean both sides of end glass panels using any common window cleaner.

14.2 WEEKLY CLEANING

This procedure is recommended on a weekly basis. It may need to be performed more often if necessary

to maintain a clean, sanitary case. The case should be cleaned to this procedure before using the first time.

NOTICE:

Avoid splashing or soaking any electrical components with water to prevent electrical

damage to the case.

NOTICE:

Shut off lights and power switches and remove all product from case. Allow sufficient time

for the unit to reach room temperature before proceeding with cleaning.

Page 35 of 48

NOTICE:

Remove all product from case before proceeding with cleaning procedure.

NOTICE:

This case is not designed to be cleaned by flushing.

DISPLAY DECK

FAN COVER

FAN SHROUD ASSEMBLY

FAN SHROUD

RETAINING LATCH

FAN SHROUD

RETAINER

EVAPORATOR

AIR DISCHARGE GRILL

EVAPORATOR

AIR RETURN GRILL

1. If supplied with rear door option remove both rear doors as described in the “Door Removal” section

of this manual.

2. Remove shelving from unit as described in the “Shelving Installation and Removal” section of this

manual. Remove all interior shelving as described in the shelving installation and removal section of

this manual.

3. Remove both shelf standards from interior of case by removing the (2) thumbscrew from top and

bottom.

4. Lift the display deck up and out of evaporator tub.

5. Lift the grab tab of the fan cover and slide the fan cover tabs out of the fan shroud assembly slots. and.

6. Remove the fan shroud assembly by lifting (4) black tabs up on each end of evaporator coil. Lift the

rear of the evaporator fan shroud and slide the front lip out of the fan shroud retainer. Reach in and

unplug the evaporator fan motor cord. Remove evaporator fan shroud.

Page 36 of 48

7. Clean the entire interior of the case using warm soapy water. Wipe off all soapy water with a damp

cloth and allow to dry. (DO NOT use solvents such as Acetone, Benzene, Carbon Tetrachloride, and

Lacquer Thinners)

NOTE: Depending on the amount of usage and spillage of foreign material, some fasteners may have to be

removed and parts disassembled to allow proper cleaning of the unit.

8. Clean all shelves, shelf support bars, shelf brackets, and display pans using warm soapy water and a

brush. Rinse thoroughly and allow to dry.

9. If supplied with rear door option clean all foreign material from inner and outer rear door tracks and

clean them and both sides of the doors using warm soapy water and a brush. Apply a light film of

lubricant such as PAM to door tracks to make the doors operate smoother.

10. Clean end glass panels using any common window cleaner.

11. Reassemble the case in reverse order.

Page 37 of 48

(15) SALES & DISPOSAL

IMPORTANT: Read this Section of this manual located on page 7.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians

If you, the owner, sells or gives away this Federal Industries case, it is the owner’s responsibility

to make sure that all safety labels and the Installation-Service Manual are included with it. If you

need replacement labels or manuals, Federal Industries will provide them free of charge. Contact

the customer service department at Federal Industries at (800) 356-4206.

The customer service department at Federal Industries should be contacted at the time of sale

or disposal of your case so records may be kept of its new location.

If you sell or give away your Federal Industries case, you should evacuate the refrigerant charge

before shipment. Federal Industries recommends that the charge be evacuated into a recovery

system to prevent the possibility of HFO’s from being released into the atmosphere.

Refrigerant Recovery/Recycling/Disposal

When recycling or discarding case, refrigerants MUST BE handled according to local, state

and federal codes, requirements and regulations.

If disposing of a refrigerated case that uses ozone depleting chemicals in its refrigeration

system, make sure the refrigerant is removed by a qualified service technician and properly

disposed of.

If you intentionally release refrigerant into the atmosphere, you may be subject to fines or other

penalties (under regulation mandated by environmental regulators and/or legislative edict.)

15.1 OWNER RESPONSIBILITY

If you sell or give away your Federal Industries case, you must make sure that all safety labels and the

Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries

will provide them free of charge. Contact the customer service department at Federal Industries at (800) 356-

4206.

The customer service department at Federal Industries should be contacted at the time of sale or disposal of

your case so records may be kept of its new location.

If you sell or give away your Federal Industries case and you evacuate the refrigerant charge before

shipment. Federal Industries recommends that the charge be evacuated into a recovery system to

Page 38 of 48

(16) SERVICE INFORMATION

Fax: (608) 424-3234 Service Information

Before any service work is performed on

the case, make sure all power is

disconnected to the case.

IMPORTANT: Read this Section of this manual located on page 8

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

To find a service company in your area, please visit our website at

https://federalind.com/support-service/service-rep-locator. There you can also find self-service tools

to help you get the answers you need faster!

For warranty service requests and all technical support, including compressors and other service parts please

contact:

- Phone: (833) 238-8168

- Email: techservice@partstown.com

Federal Industries has partnered with Parts Town for ALL Non-Warranty Part Identification, Pricing, Lead

Times, Orders & Freight Quotes. Please contact Parts Town directly if you need parts:

- Website: PartsTown.com

- Email: CustomerService@PartsTown.com

- Phone: 833-809-8188

WARNING

RISK OF ELECTRIC SHOCK

DISCONNECT POWER BEFORE

SERVICING UNIT

Page 39 of 48

16.1 PRE-SERVICE CHECKLIST

You may avoid the cost and inconvenience of an unnecessary service call by first reviewing this checklist of

frequently encountered situations that can cause unsatisfactory case performance.

CAUTION:

Before servicing case, turn off power at the main breaker of fuse box.

Case does not operate

 Check for disconnected power supply.

 Check for tripped breaker or blown fuse.

 Check that power switch is on.

Lights do not operate

 Check that light switch is on.

 Shelf light: Check that shelf light cords are tight in the sockets

Case temperature too warm (product is exceeding 41°F)

 Check that the cold air inlet and outlet slots are not blocked.

 If supplied with rear door option be sure that the rear doors are closed and tightly sealed

Check for blocked or dirty condenser coil fins and clean them (see “0 IMPORTANT: Read this Section of

this manual located on page 7.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

 Cleaning Condenser Coil” page 33).

16.2 SPECIAL SERVICE INSTRUCTIONS

IMPORTANT: Read this Section of this manual located on page 7.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians

There are rare occasions when the refrigerant charge must be evacuated from a case in order to perform

service work. In those situations, Federal Industries recommends that the refrigerant charge be evacuated

into a recovery system to prevent the possibility of hydrofluorocarbons (HFC’s) from being released into the

atmosphere.

If moisture or liquid is observed around or under a Federal Industries case, an immediate investigation should

be made by qualified personnel to determine the source of the moisture or liquid. The investigation made

should determine if the case is malfunctioning or if there is a simple housekeeping problem.

Moisture or liquid around or under a case is a potential slip/fall hazard for persons walking by or working in

the general area of the case. Any case malfunction or housekeeping problem that creates a slip/fall hazard

around or under a case should be corrected immediately.

Page 40 of 48

16.3 ELECTRONIC CONTROL OPERATION

This unit is equipped with an electronic temperature control. The control parameters are set at the factory

and cannot be manually changed in the field. The preset control parameters are listed on the chart in the

Settings Chart below.

Operation

The control uses two sensors, one located in the air stream and one located on the evaporator coil. The

sensor located in the air stream is referred to as the temperature control sensor. The sensor located on

the evaporator coil is referred to as the defrost probe.

The temperature control sensor is located on the plastic tub behind the evaporator coil on the

centerline of the display case in the cold air stream. The sensor location is critical for proper operation

on the unit. Do not move or relocate this sensor.

The coil sensor is strapped to the evaporator coil. This sensor location is critical for proper operation of

the unit. Do not move or relocate this sensor.

The temperature control is set to cut in at 38°F (3.3°C). The Temp control cuts out at 16°F (-8.9°C) at

the coldest setting (“9”) and 28°F (-2.2°C) at the warmest setting (“1”).

See “11.2 Using the electronic control” on page 29 for more details on using the control.

Defrost Cycle

The control is programmed to initiate defrost via two different methods. There are 3 programmed

defrost cycles in the case which will initiate a defrost cycle every 8 hours. The unit does not have a time

clock so the defrost cycles cannot be set for any specific time of day.

The unit also has an ‘On demand’ defrost feature that will initiate a defrost when the temperature

differential between the evaporator temperature and the air temperature is more than 12°F (6.7°C) for

5 minutes after 30 minutes into the refrigeration cycle (e.g. if the air stream probe measures 32°F/0°C

or greater and the defrost probe measures 20°F/-6.7°C or lower for five minutes). Once initiated the

defrost cycle will terminate when evaporator coil sensor reaches 45°F (7.2°C).

If a manual defrost is required, one can be initiated by pressing and holding the down arrow for three

(3) seconds. This is typically unnecessary and should only be performed if special circumstances require

it.

Page 41 of 48

16.4 ERROR CODES

Error codes may be encountered if either the controller or the display case is malfunctioning. The following is

a list of error codes that may be encountered.

Table 3 - Error Codes and Resolutions

Code

Description Cause Resolution

E0 Temperature probe

error

Probe signal is interrupted or

short-circuited

1. Check to ensure probe wires and quick

disconnect are secure in control.

2. Check probe resistance to table below. If 0

resistance is present, check wiring insulation. If

infinite resistance is present, check for breaks

in wiring (meter will likely read overload or

very high in the mega-ohm range).

3. Ensure that probes are wired per the wiring

diagram provided.

4. Replace probe if other remedies fail, or if

probe resistance deviates from “Error!

Reference source not found.” Error!

Reference source not found.

E1 Defrost probe error See E0

EE Unit parameter

reading error

Operating conditions 1. Remedy abnormal operating conditions. The

control is rated to operate in a range of 14 to

122°F (-10 to 50°C) and less than 90%RH non-

condensing.

2. Replace control if problem persists.

EF Operating

parameter reading

error

See EE

Table 4 - Temperature Probe Common Resistance Chart

Probe Temp Maximum Resistance [Ω]

Normal Resistance [Ω]

Minimum Resistance [Ω]

32°F (0°C) 27.83 27.28 26.74

77°F (25°C) 10.1 10 9.9

212°F (100°C)

1 0.97 0.94

16.5 REFRIGERATION OPERATION

Self-Contained Models

The self-contained models are shipped from the factory with a completely operational refrigeration

system and require no modifications or adjustments upon installation. Case must be installed as per

the installation section of this manual to provide proper condensing air cooling.

The unit temperature is controlled by the electronic control outlined in the control section of this

manual.

Note: The condenser fan runs continuously.

Page 42 of 48

Remote Models

Refrigeration Charge R404a before 1/19, R449a after 1/19

CHARGED IN FIELD

Remote Low Press. Switch Cut In

50 psi

Remote Low Press. Switch Cut Out

15 psi

Adjustable Headmaster

200 psi

Remote High Press. Switch Cut Out

400 psi

The remote models are shipped from the factory with the evaporator coil, expansion valve, sight glass, and

refrigerant solenoid valve. Filter Drier must be installed in field. Electronic control runs identical to the self-

contained models except the electronic control opens and closes a refrigeration solenoid valve located on the

suction line instead of turning on and off a compressor. The solenoid valve closes and shuts off the

refrigeration flow to the unit and initiates a pump down cycle. This will allow the remote low pressure switch

to open and shut off remote compressor.

The condensing unit and pressure controls are optionally supplied from the factory for remote location

installation. The condensing unit must be mounted and wired by the installer. The high low pressure switch

must be wired in series with the compressor power supply as shown in diagram below

1. Mount condensing unit indoors as close to the remote display case as practical. The refrigeration line

should be as short as possible and must not exceed 30 feet.

2. All refrigeration and/or electrical materials between the condensing unit and display case are to be

supplied by installing contractor.

3. Route properly sized and designed refrigeration lines from the condensing unit to the cabinet.

4. Horizontal suction lines should be pitched downward towards the condensing unit at least ½” per 10’

run to aid the oil drainage. A “P” trap must be installed in the suction line at the foot of every riser to

insure oil return. Dry nitrogen must be used to flow through tubing while brazing refrigeration lines.

5. Suction line must be insulated the entire length with Armaflex (or equivalent). Do not run liquid line

inside insulation with suction line.

6. The remote high/low-pressure control must be mounted, wired and set pressures by the installer.

7. Leak check condensing unit, cabinet, and all connecting tubing. Cabinet and condensing unit tubing

should be checked to ensure no leaks occurred during shipping or from rough handling.

8. Make certain all refrigeration valves are opened and evacuate system to 500 microns. Charge the

system with refrigerant type specified on the data plates.

REMOTE

HIGH LOW

PRESSURE

CONTROL

LIQUID LINE

SUCTION LINE (INSULATED)

REMOTE

CONDENSING

UNIT

EVAPORATOR

COILS

DISPLAY CASE

EXPANSION

VALVE

HIGH

LOW

LIQUID LINE

SOLENOID VALVE

SIGHT GLASS

DRIER/FILTER

FIELD CONNECTION

HOT

FUSED

POWER

SUPPLY

DEFROST

TERMINATE

PROBE

ELECTRONIC

CONTROL

AIR TEMP. CONTROL PROBE

FUSED

CASE

POWER

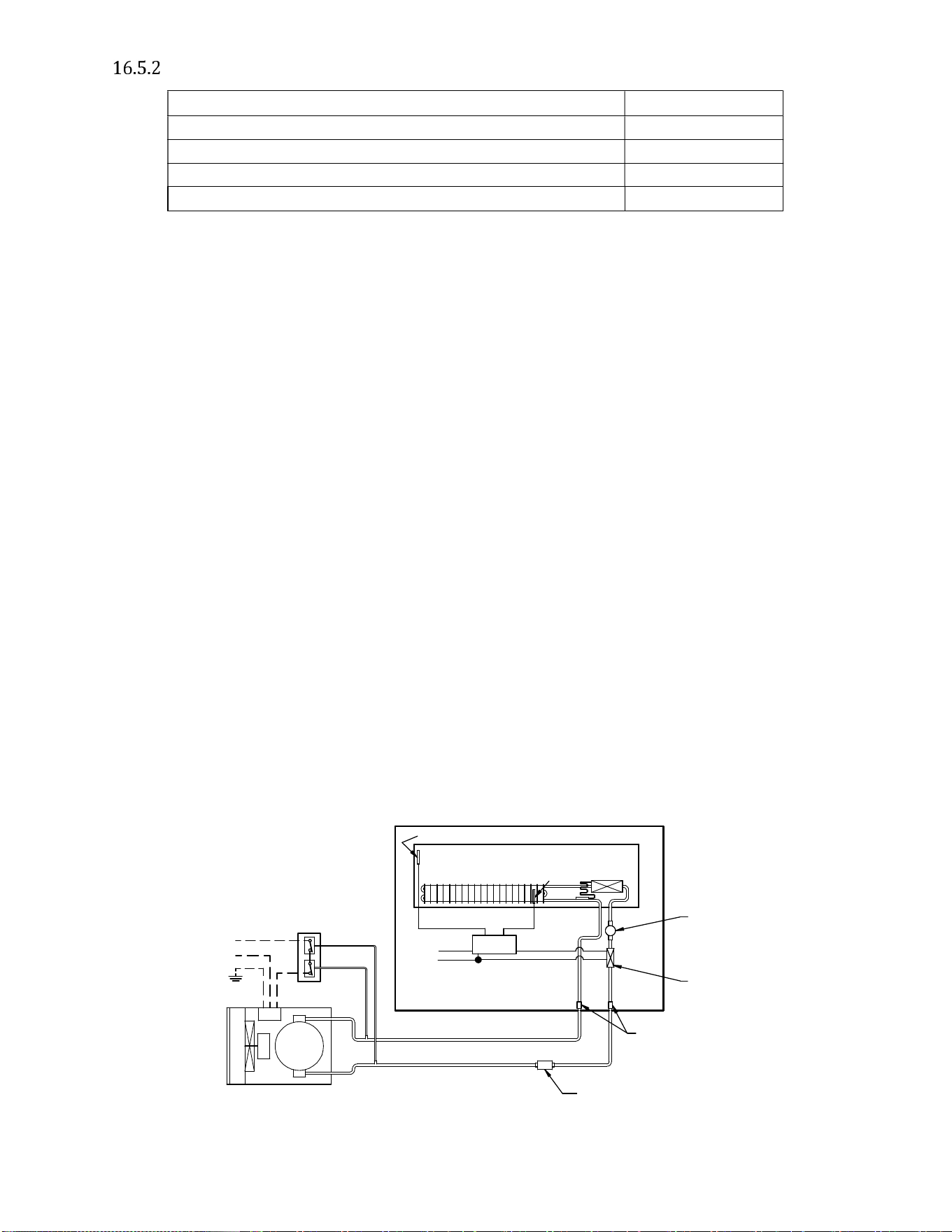

Figure 2 - Remote Refrigeration Diagram

Page 43 of 48

(17) WIRING DIAGRAMS

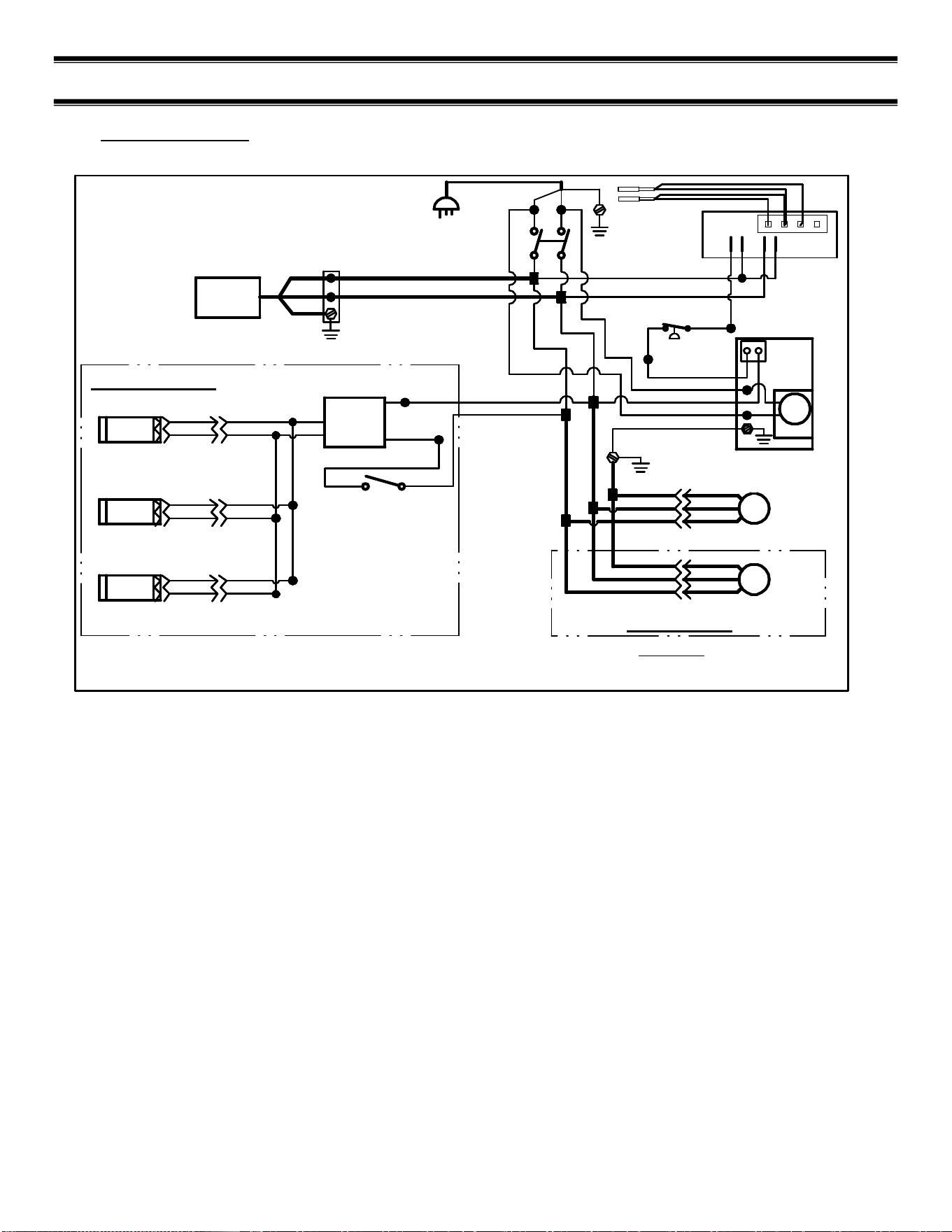

17.1 SELF CONTAINED

TOP LIGHT

LED

BLK

SHELF LIGHT

LED

POWER

SUPPLY

BLK

SHELF LIGHT

COLOR CODE

B = BLUE

Y = YELLOW

W = WHITE

R = RED

BLK = BLACK

CORD & PLUG

CONDENSATE PUMP

OR EVAPORATOR

BLK

EVAP.

FAN

BLK/RIB

BLK

BLK/RIB

BLK

FAN

RELAY

TOP & SHELF LIGHTS

BLK

EVAP.

FAN

BLK/RIB

BLK

5' AND 6' MODELS

PLUG

LIGHT SWITCH

DARK LINES REPRESENT

(3) CONDUCTOR CORD

BLK

POWER

SWITCH

BLK

COMPRESSOR

Y/G

G = GREEN

LED

91-21853 01/01/25

HIGH PSI

SWITCH

14GA. 18GA.

BLK

RED

W W

BLK

E LE CTRO NIC

CO NTROLLE R

1110

14GA. 18GA.

TEMP. PROBE PBI

DEFROST PROBE PB2

BLK OR RED

Page 44 of 48

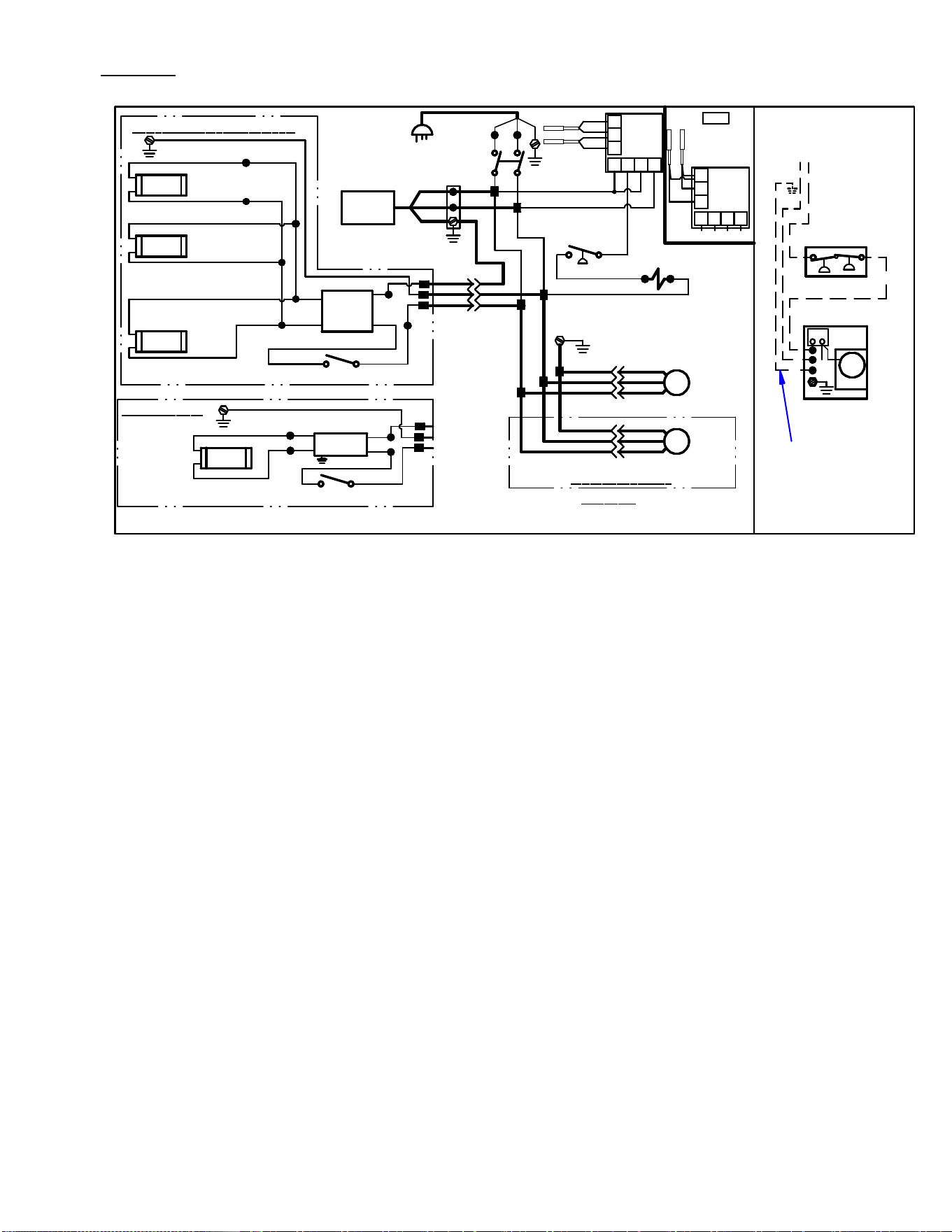

17.2 REMOTE

COLOR CODE

B = BLUE

Y = YELLOW

W = WHITE

R = RED

BLK = BLACK

BRW= BROWN

CORD & PLUG

91-19494 REV B - 06/05/18

CONDENSATE PUMP

OR EVAPORATOR

BLK

EVAP.

FAN

BLK/RIB

BLK

BLK/RIB

BLK

BLK/RIB

BLK

EVAP.

FAN

BLK/RIB

BLK

4', 5' AND 6' MODELS

PLUG

DARK LINES REPRESENT

(3) CONDUCTOR CORD

BLK

POWER

SWITCH

HI/LO PRESS

SWITCH, NC

BLK

Y/G

G = GREEN

NOTE PROBE

WIRING

BLK

SEE CAREL WIRING

TEMP PROBE

DEFROST PROBE

ALTERNATE

CONTROL

(RANCO)

7654

CAREL

CONTROL

7654

TEMP PROBE

DEFROST

RANCO

REFRIG

SOLENOID

FAN

RELAY

REMOTE

COMPRESSOR

HI/LO PRESS SW

OPTIONAL REMOTE

MOUNTED & WIRED

COMPONENTS

ALL FIELD WIRED

SEPARATE

POWER SUPPLY

PRESSURE

CONTROL

REMOTE

LAMP

BLU

BLK

POWER

SUPPLY

BLK

TOP LIGHT

TOP LIGHT ONLY

LIGHT SWITCH

BLU

LIGHT SWITCH

SHELF LIGHT

BLK

POWER

SUPPLY

SHELF LIGHT

BLK

BLU

LAMP

TOP & SHELF LIGHTS (OPTIONAL)

LAMP

TOP LIGHT

BLU

LAMP

Page 45 of 48

(18) REPLACEMENT PARTS

Condensing Unit (Self Contained) 30-21725 30-21725 30-21762 30-21762

Evaporator Coil 33-17700-21 33-17700-22 33-17700-23 33-17700-24

TXV Expansion Valve

High Pressure switch

Temperature Control

Temperature Probe

Control Display

Digital Display Ribbon Cable

Evaporator Fan

Latch Evaporator Housing to Coil

Condnsate Pump (Std 5 & 6)

Condensate Base Fan Motor(Opt on Rem)

Condensate Base Fan Blade(Opt on Rem)

Condensate Pan Ass'y (Std 3 & 4)

Condensate Pan PTC Heater

Condensate Drain Tube

Thermometer

Light Switch

Power Switch

LED Light Power Supply

Top Light Cord

LED Light

42-20871-25C35 42-20871-38C35 42-20871-48C35 42-20871-66C35

Harness Led Lights

Top Shelf Light Cord (ELPRSS Optional)

Bottom Shelf Light Cord (LPRSS)

Main Wire Harness

Power Cord

Wiring Diagram

72-32507

32-19093

32-21749

32-19094

32-19446

32-21751

32-21850

41-21237-16

SA5202

REFRIGERATION

41-18186

43-19492

43-20974-1

41-11066

LPRSS3,

ELPRSS3

120V

32-19445

66-13640

41-11628

47-15686 47-15687

39-20986

LPRSS3,

ELPRSS3

120V

LPRSS4,

ELPRSS4

120V

LPRSS5,

ELPRSS5

240V

LPRSS6,

ELPRSS6

240V

40-19498 -

ELECTRICAL

43-20862-2B

SA5210

43-20860-1B

43-11302 43-17839

43-20862-1B

91-21853 SC / 91-19494 REM

LPRSS4,

ELPRSS4

120V

LPRSS5,

ELPRSS5

240V

LPRSS6,

ELPRSS6

240V

32-13662

06-17699

39-20986

43-20860-1B

Page 46 of 48

Glass End Clear

Glass End Reflective Left(Optional)

Glass End Reflective Right(Optional)

End Panel Mirror Int.Left(Optional)

End Panel Mirror Int.Right(Optional)

Cover Top Black M15910-1 M15910-2 M15910-3 M15910-4

Cover Top Stainless (Optional) M15910-1A M15910-2A M15910-3A M15910-4A

End Glass Trim Front Black

EndGlass Trim Stainless (Optional)

End Panel Ass'y Left (color needed)

End Panel Ass'y Right (color needed)

Pad 1x1 End Panel (Dual Lock 250)

Pad 1x1 Cabinet (Dual Lock 170)

Acrylic End Clear

Shelf Top Black M20969-1 M20969-3 M20969-5 M20969-7

Shelf Bottom Black M20969-2 M20969-4 M20969-6 M20969-8

Shelf Top Stainless (Optional) M20969-1A M20969-3A M20969-5A M20969-7A

Shelf Bottom Stainless (Optional) M20969-2A M20969-4A M20969-6A M20969-8A

Glass Shelf Top (Optional) 52-17991-1 52-17991-2 52-17991-3 52-17991-4

Glass Shelf Bottom (Optional) 52-17992-1 52-17992-2 52-17992-3 52-17992-4

Glass Shelf Retainer(Optional)

Shelf Bracket Top

Shelf Bracket Bottom

Shelf Standard

Shelf Black M20969-9 M20969-10 M20969-11 M20969-12

Shelf Bracket

Shelf Standard

Rear Door Inner Black(Optional) 53-17912-1 53-17912-2 53-17912-3 53-17912-4

Rear Door Outer Black (Optional) 53-17913-1 53-17913-2 53-17913-1 53-17913-1

Rear Door Top Track (Optional) 57-17910-1 57-17910-2 57-17910-3 57-17910-4

Rear Door Bottom Track (Optional) 57-17909-1 57-17909-2 57-17909-3 57-17909-4

Rear Door Jamb (Optional)

Inner Rear Door LH M22314-1L M22314-2L M22314-3L M22314-4L

Inner Rear Door RH M22314-1R M22314-2R M22314-3R M22314-4R

Inner Rear Door Track Top & Bottom M22308-1 M22308-2 M22308-3 M22308-4

Inner Rear Door Glides W11939-1 W11939-2 W11939-3 W11939-4

Bracket, Door Closure M22333 M22333 M22333 M22333

Security Night Cover Panel (Optional) M16107-1 M16107-2 M16107-3 M16107-4

Security Night Cover Latch (Optional)

Night Curtain Black 65-19459 65-19460 65-19458 65-19300

Step Riser Top (Optional) SA4367-1 SA4367-2 SA4367-3 SA4367-4

Step Riser Bottom (Optional) SA4367-5 SA4367-6 SA4367-7 SA4367-8

ELPRSS4

M14679-A

ELPRSS SHELVING ELPRSS3 ELPRSS4 ELPRSS5 ELPRSS6

ELPRSS PANELS ELPRSS3 ELPRSS5 ELPRSS6

15-19808

LPRSS3

77-17849

67-17732-2

LPRSS SHELVING

77-17848

LPRSS4 LPRSS5

LPRSS MISCELLANEOUS OPTIONS

M14679-A

SA4361-L

SA4361-R

LPRSS3 LPRSS4 LPRSS5 LPRSS6

50-17701-1L

67-17732-1

67-17732-2

66-11727

LPRSS PANELS

LPRSS4 LPRSS5 LPRSS6

LPRSS3

57-17911

LPRSS6

SA4287-R

M15959

M15959-A

SA4091

50-17701

50-17701-1R

SA4287-L

Page 47 of 48

California Residents Only.

WARNING

This product can expose you to chemicals including chromium which is known to the State of California to cause

cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Page 48 of 48

REV

CHANGE RECORD

APP’D

DATE

ECN#

Release for R290 units

BJW

02/03/25

3940

Federal ELPRSS6 Industries ELPRSS-6 Elements Low Profile Self-Serve Refrigerated

Product's Documents

Installationoperationsmanual

Specifications

Federal ELPRSS6 Questions and Answers

Related Products

Federal EIMSS84SC-3 Industries Elements Island Self-Serve Refrigerated

Federal ERR3628SS Industries Elements Counter Top Self-Serve Refrigerated Rear

Federal UCR6033S Industries Undercounter Refrigerated Self-Serve Display Case

Federal UCR3633S Industries Undercounter Refrigerated Self-Serve Display Case

Federal EH3628SSD Industries Elements Countertop Self-Serve Heated

Federal VNSS3660S-SLD Industries Vision Series Non-Refrigerated Self-Serve Display
