Miele KM 8895-2 FL DIAMOND&MSENSE KM 8895-2 FL User Manual

Operating and installation

instructions

Induction hobs

It is essential to read the operating and installation instructions be-

fore setup, installation, and commissioning. This prevents both per-

sonal injury and damage to the appliance.

en-GB M.-Nr. 12 985 360

Contents

Warnings and safety notes ............ 5

Sustainability and environmental

protection ..........................................

Installation......................................... 13

Safety notes for installation .............

Additional safety notes for sur-

face-mounted installation ..........

Additional safety notes for

flush-fit installation......................

Safety distances ................................

Installation dimensions for surface-

mounted installation .........................

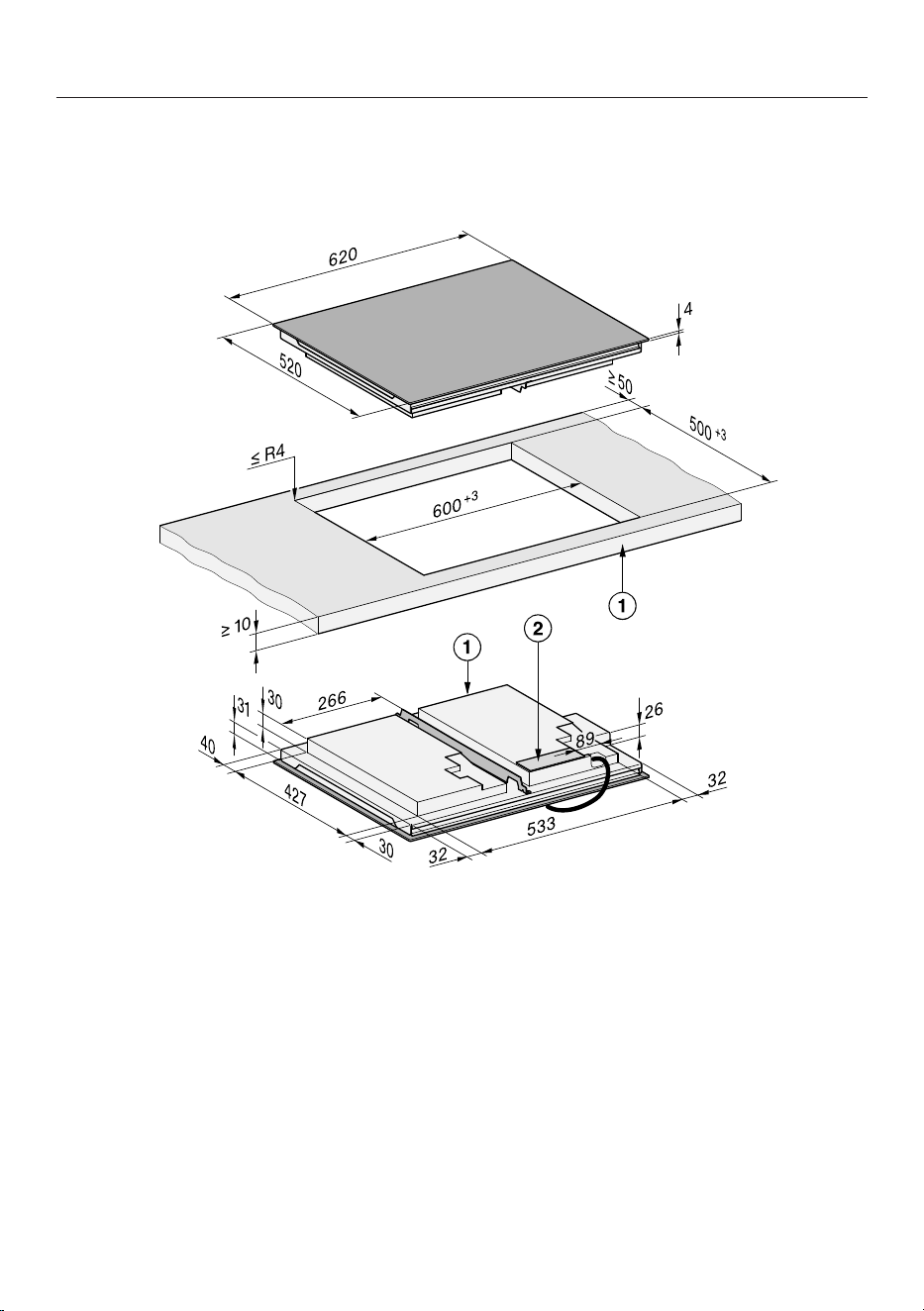

KM8765FLDiamond................. 23

KM8885-2FLDiamond and

MSense........................................

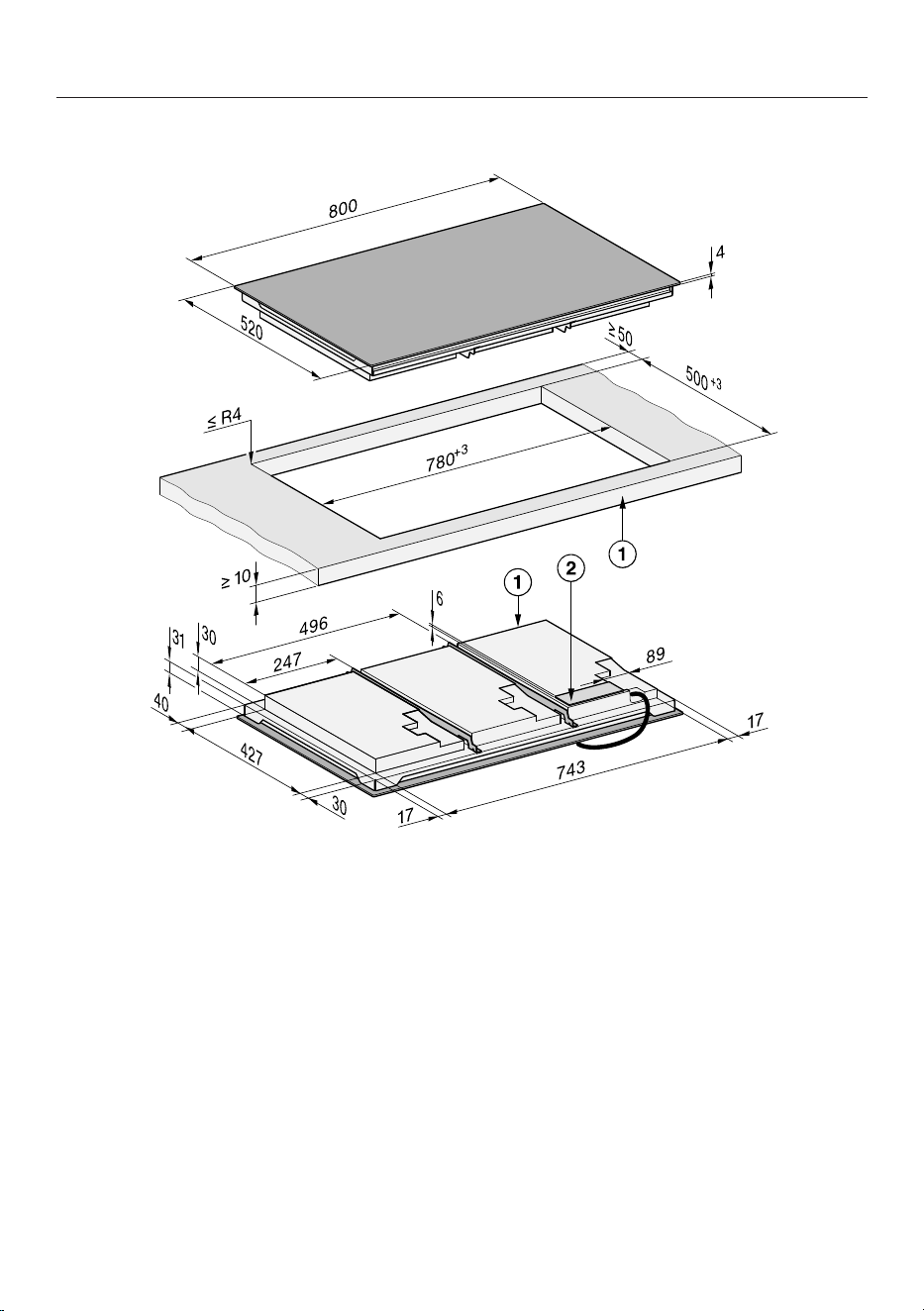

KM8895-2FLDiamond and

MSense........................................

Installation dimensions for flush-fit

installation ..........................................

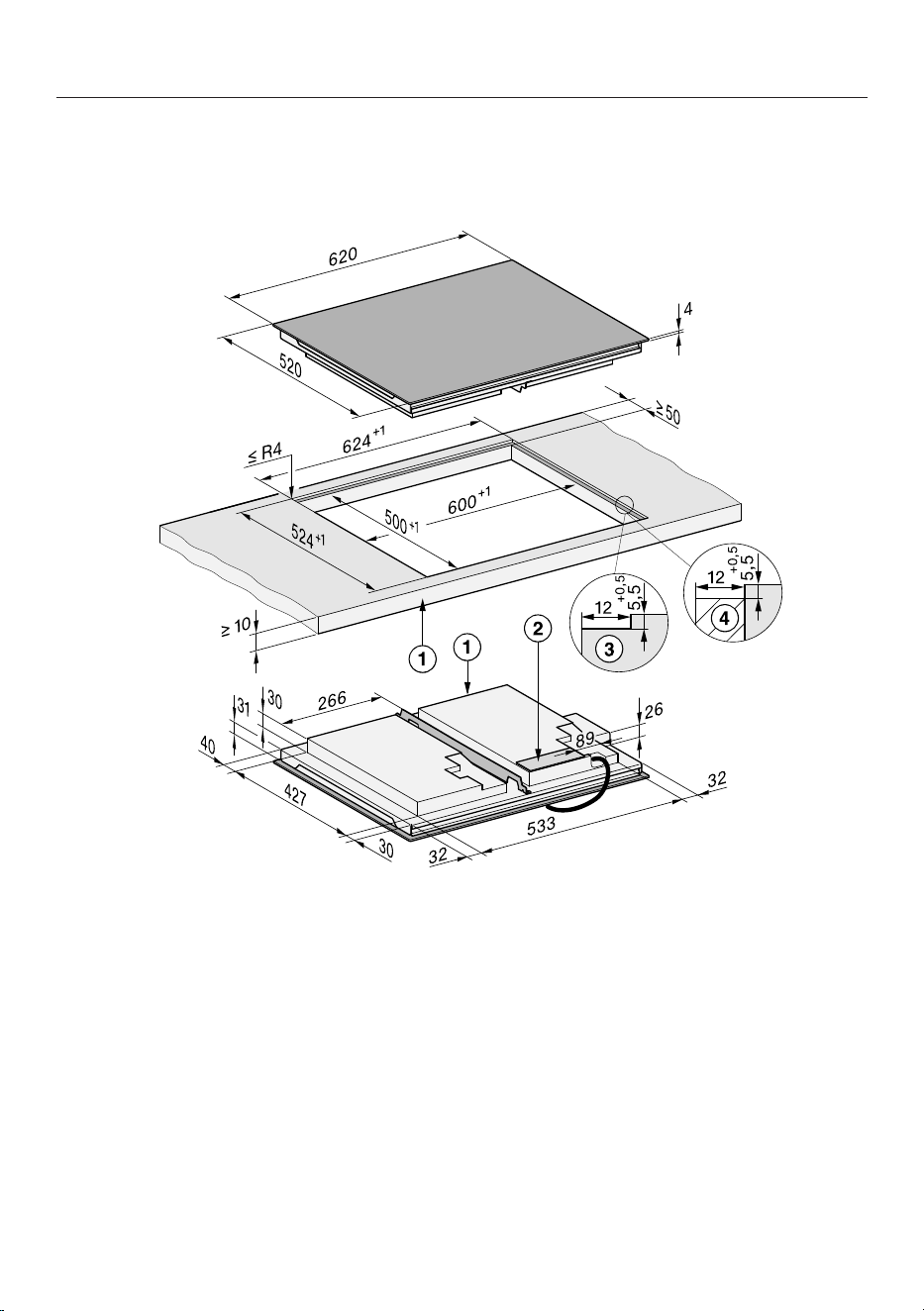

KM8765FLDiamond................. 26

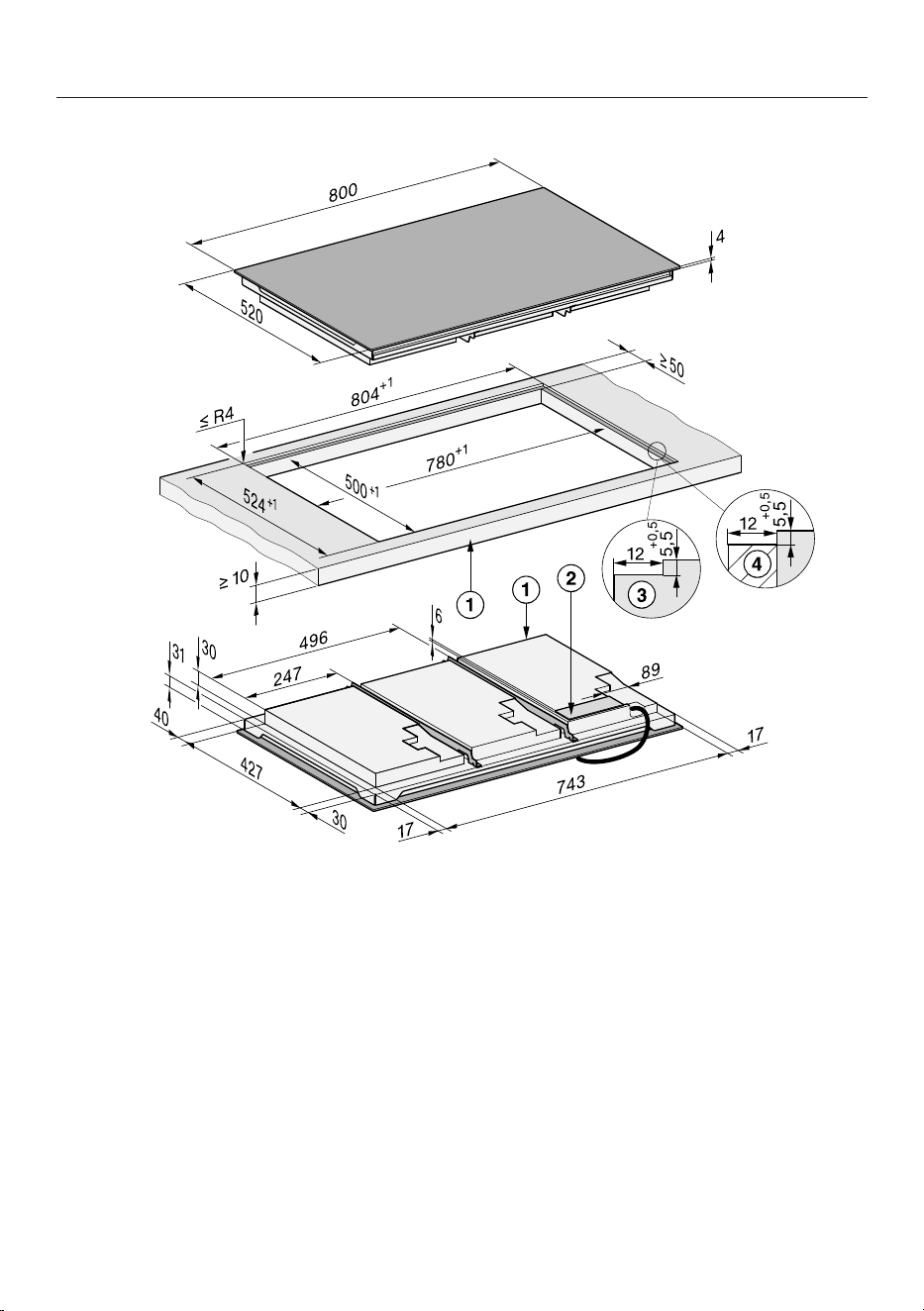

KM8885-2FLDiamond and

MSense........................................

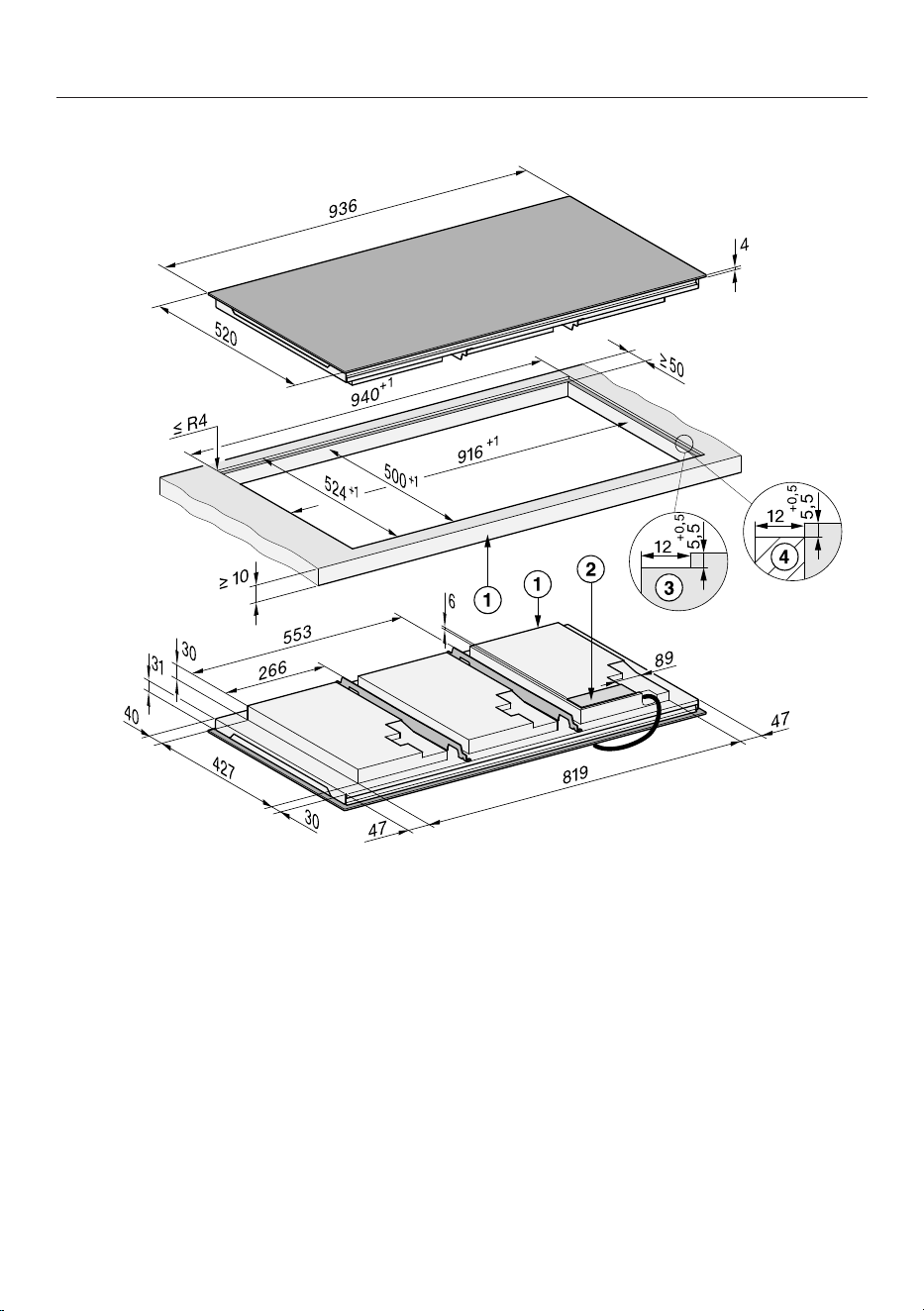

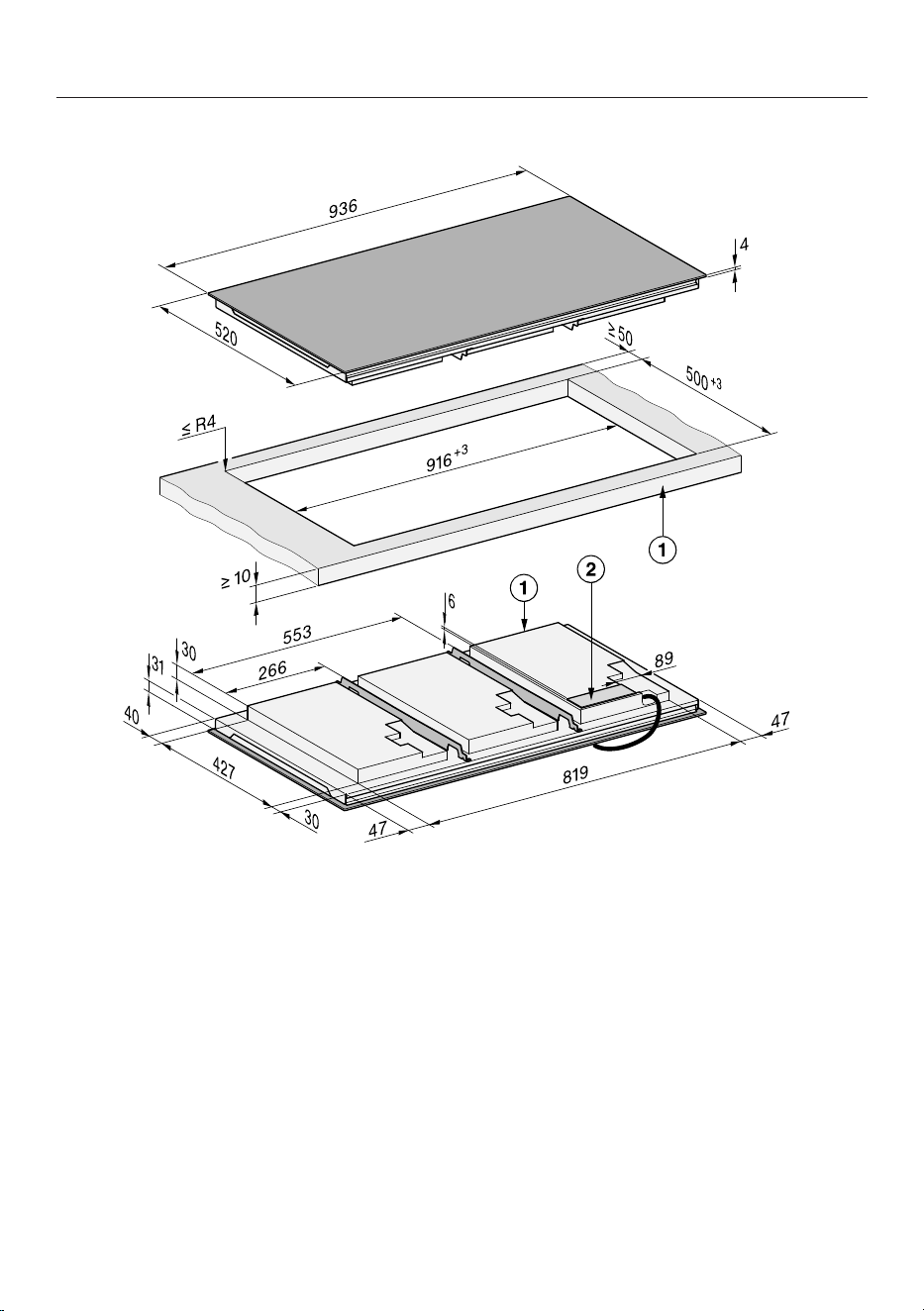

KM8895-2FLDiamond and

MSense........................................

Installing a surface-mounted hob...

Preparing the worktop for sur-

face-mounted installation ..........

Installing a surface-mounted

hob .................................................

Installing the hob flush with the

worktop...............................................

Preparing the worktop for flush-

fit installation................................

Installing a flush-fit hob .............. 29

Electrical connection ........................

Familiarisation................................... 33

Your hob..............................................

KM8765FLDiamond................. 33

KM8885-2FLDiamond and

MSense........................................

KM8895-2FLDiamond and

MSense........................................

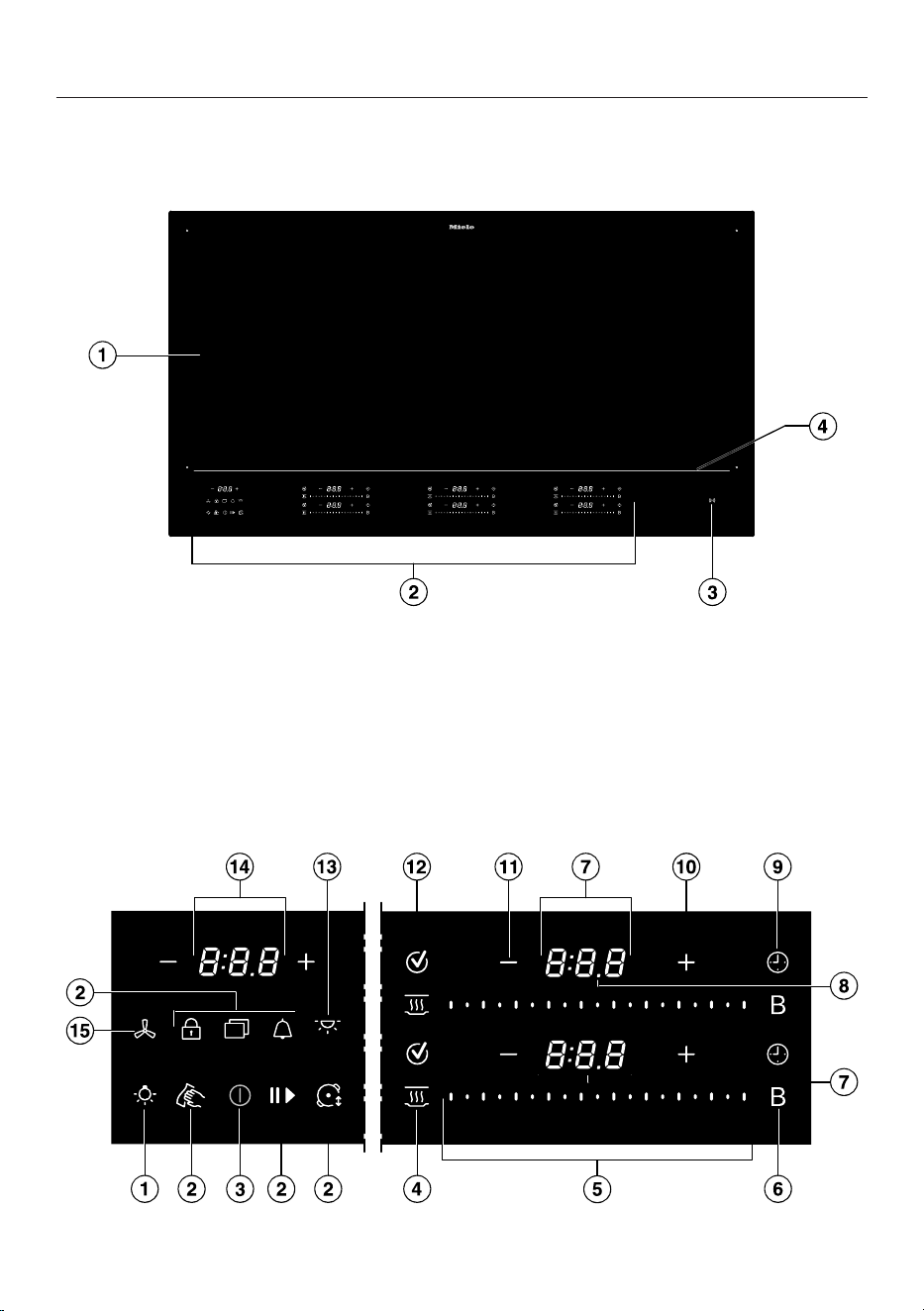

Controls and indicators ....................

Power management...........................

Operation ............................................

Networking..........................................

Special functions................................

M Sensecookware ready............ 39

Controlling a cooker hood ........... 39

Permanent pan recognition......... 39

Pan size recognition ..................... 39

Hob Booster.................................. 39

Stop&Go........................................ 39

Hob power levels.......................... 39

Auto heat-up ................................. 39

Timer functions............................. 40

Professional mode........................ 40

Light line......................................... 40

System lock................................... 40

Keypad lock ................................... 40

Recall.............................................. 40

Keeping warm ............................... 40

Wipe protection............................ 40

Settings.......................................... 40

Demo mode................................... 41

Residual heat indicator ................ 41

Safety switch-off .......................... 41

Overheating protection................ 42

Model identifier and serial num-

ber...................................................

Software version........................... 42

Software update ........................... 42

Optional accessories.........................

Commissioning ................................. 44

Unpacking the hob.............................

Cleaning the hob for the first time...

Switching on the hob for the first

time ......................................................

Contents

Networking.........................................

Requirements for networking

with your home network.............

Using NFC .................................... 44

Performing Scan & Connect...... 45

Requirements for direct net-

working with your Miele cooker

hood...............................................

Networking your hob with your

Miele cooker hood.......................

Resetting settings........................ 45

Operation........................................... 47

Safety notes for operation................

Switching the hob on........................

Switching the hob/cookware off .....

Positioning cookware........................

Hob power levels...............................

Setting the power level for

cookware.......................................

Setting the power level for

cookware – without intermedi-

ate levels .......................................

Changing the power level for

cookware.......................................

Booster ...............................................

Activating the Booster ................ 49

Deactivating the Booster............ 50

Activating/deactivating Stop&Go ..

Auto heat-up ......................................

Activating auto heat-up............... 51

Deactivating auto heat-up.......... 51

Timer functions...................................

Setting the timer........................... 51

Changing the timer....................... 52

Deleting the timer......................... 52

Setting the time for a duration ... 52

Setting the duration of a cook-

ing process ....................................

Changing the duration of a

cooking process............................

Deleting the duration of a cook-

ing process ....................................

Setting a duration for further

cooking processes........................

Starting elapsed time measure-

ment of a cooking process ..........

Cancelling elapsed time meas-

urement of a cooking process ....

Starting elapsed time measure-

ment of further cooking pro-

cesses ............................................

Switching between the power

level display and timer function

display ............................................

Professional mode .............................

Activating Professional mode ..... 53

Changing the power levels for

the hob areas in Professional

mode ..............................................

Deactivating Professional mode 54

System lock.........................................

Activating the system lock .......... 55

Deactivating the system lock...... 55

Keypad lock.........................................

Activating the keypad lock .......... 55

Deactivating the keypad lock...... 55

Recall ...................................................

Activating the Recall function..... 56

Discarding the Recall function.... 56

Wipe protection .................................

Activating wipe protection .......... 56

Deactivating wipe protection...... 56

Contents

Using M Sensecookware ................

M Sensecookware: activating

special functions on the hob......

M Sensecookware: deactivat-

ing special functions on the hob

Ending assistance from M

Sensecookware...........................

Hob data .............................................

Displaying the model identifier/

serial number................................

Displaying the software version 57

Activating/deactivating demo

mode ...................................................

Activating/deactivating demo

mode ...................................................

Setting ranges for the hob power

levels...................................................

Notes for test institutes ...................

Good to know.................................... 61

How induction hobs work ................

Noises .................................................

Cookware............................................

Adjusting settings ............................ 63

Displaying the model identifier/

serial number .....................................

Displaying the software version ......

Software update ................................

Cleaning and care ............................ 71

Safety notes on cleaning and care..

Cleaning the ceramic glass sur-

faces....................................................

Unsuitable cleaning agents..............

Troubleshooting................................ 72

Messages in the display...................

Unexpected behaviour......................

Unsatisfactory results.......................

General problems or technical

faults....................................................

Customer Service ............................ 77

Contact in the event of a fault.........

Data plate ...........................................

Warranty..............................................

Technical data.................................... 78

Technical data.....................................

Product data sheets...........................

EU Conformity declaration ...............

UK Conformity declaration...............

Warnings and safety notes

This hob complies with all relevant local and national safety re-

quirements. Inappropriate use can, however, lead to personal injury

and material damage.

Read the operating and installation instructions carefully before us-

ing the hob. They contain important information on safety, installa-

tion, use and maintenance. This prevents both personal injury and

damage to the hob.

In accordance with standard IEC60335-1, Miele expressly and

strongly advises that you read and follow the instructions in the

chapter on installing the hob as well as the warnings and safety

notes.

Miele cannot be held liable for injury or damage caused by non-

compliance with these instructions.

Keep the operating and installation instructions in a safe place and

pass them on to any future owner.

Correct application

 This hob is intended for domestic use and use in other similar en-

vironments.

 This hob is not intended for outdoor use.

 It is intended for domestic use only to cook food and keep it warm.

Any other use is not supported by the manufacturer and could be

dangerous.

 This hob is not intended for use by people with reduced physical,

sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision and instruction concerning

its use by a person responsible for their safety. They may only use the

hob unsupervised if they have been shown how to use it in a safe

way. They must be able to recognise and understand the dangers of

misuse.

Safety with children

 Children under 8 years of age must be kept away from the hob un-

less they are constantly supervised.

Warnings and safety notes

 Children over 8years of age may use the hob without supervision

if its operation has been clearly explained to them and they are able

to use it safely. Children must be able to understand and recognise

the possible dangers caused by incorrect operation.

 Children must not be allowed to clean the hob unsupervised.

 Children should be supervised in the vicinity of the hob. Never al-

low children to play with the hob.

 The hob gets hot when in use and remains hot for a while after be-

ing switched off. Keep children well away from the hob until it has

cooled down and there is no danger of burning.

 Danger of burning. Do not store anything which might arouse a

child’s interest in storage areas above or behind the hob. Otherwise

they could be tempted to climb onto the hob.

 Risk of burning and scalding. Place pots and pans on the cooking

zone in such a way that children cannot pull them down and burn

themselves.

 Danger of suffocation! Whilst playing, children may become en-

tangled in packaging material (such as plastic wrapping) or pull it over

their head with the risk of suffocation. Keep packaging material away

from children.

 Activate the system lock to ensure that children cannot switch on

the hob inadvertently. Use the keypad lock when the hob is in use to

prevent children from altering the settings selected.

Technical safety

 Unauthorised installation, maintenance and repairs can pose a

considerable risk to the user. Installation, maintenance and repairs

must only be carried out by a Miele authorised technician.

 Damage to the hob can compromise your safety. Check the hob for

visible signs of damage. Do not use the hob if it is damaged.

Warnings and safety notes

 Temporary or permanent operation on an autonomous power sup-

ply system or a power supply system that is not synchronised with

the mains power supply (e.g. island networks, back-up systems) is

possible. A prerequisite for operation is that the power supply system

complies with the specifications of EN50160 or an equivalent stand-

ard.

The function and operation of the protective measures provided in

the domestic electrical installation and in this Miele product must

also be maintained in isolated operation or in operation that is not

synchronised with the mains power supply, or these measures must

be replaced by equivalent measures in the installation. As described,

for example, in the current version of BS OHSAS 18001–2 ISO

45001.

 The electrical safety of this hob can only be guaranteed when cor-

rectly earthed. It is essential that this basic safety requirement is ful-

filled. If in doubt, the electrical installation should be checked by a

qualified electrician.

 The connection data (voltage and frequency) on the data plate of

the hob must match the mains power supply in order to avoid the risk

of damage to the hob.

Compare this data before connecting the appliance. If in any doubt,

consult a qualified electrician.

 Do not connect the hob to the mains electrical supply by a multi-

socket adapter or extension lead. These are a fire hazard and do not

guarantee the required safety of the appliance.

 For safety reasons, this hob may only be used after it has been

built in.

 This hob must not be used in a non-stationary location (e.g. on a

ship).

 Any contact with live connections or tampering with the electrical

or mechanical components of the hob will endanger your safety and

may lead to the hob malfunctioning.

Do not open the hob housing under any circumstances.

 While the hob is under warranty, repairs should only be undertaken

by a Miele authorised service technician. Otherwise the warranty is

invalidated.

 Miele can only guarantee the safety of the appliance when genuine

original Miele replacement parts are used. Faulty components must

only be replaced by Miele spare parts.

Warnings and safety notes

 The hob is not intended for use with an external timer switch or a

remote control system.

 The hob must be connected to the mains power supply by a quali-

fied electrician.

 If the mains connection cable is damaged, it must be replaced

with a special mains connection cable by a qualified electrician.

 During installation, maintenance and repair work, the hob must be

completely disconnected from the electricity supply. It is only com-

pletely isolated from the electricity supply when:

- The mains fuse has been disconnected or

- The screw-out fuses have been fully unscrewed or

- The mains plug (if present) is removed from the socket. To do this,

pull the mains plug and not the mains connection cable.

 Risk of electric shock. Do not use the hob if it is faulty, or if the

ceramic surface is cracked, chipped or damaged in any way. Switch it

off immediately. Disconnect the hob from the mains electricity sup-

ply. Contact the Customer Service Department.

 If the hob is installed behind a furniture front, do not close the door

while the hob is in use. Heat and moisture can build up behind the

furniture front when closed. This can result in damage to the hob, the

housing unit and the floor. Do not close the furniture front until the

residual heat indicators go out.

 In areas which may be subject to infestation by cockroaches or

other vermin, pay particular attention to keeping the appliance and its

surroundings clean at all times. Any damage caused by cockroaches

or other vermin will not be covered by the warranty.

Correct use

 The hob gets hot when in use and remains hot for quite a while

after being switched off. There is a risk of burning until the residual

heat indicators go out.

 Oil and fat can overheat and catch fire. Do not leave the hob unat-

tended when cooking with oil and fat. If it does ignite do not attempt

to put the flames out with water.

Disconnect the hob from the mains and use a suitable fire blanket,

saucepan lid, damp towel or similar to smother the flames.

 Do not leave the hob unattended whilst it is being used. It should

be continually monitored whilst boiling and flash frying.

Warnings and safety notes

 Flames could set the grease filters of a cooker hood on fire. Do not

flambé under a cooker hood.

 Spray canisters, aerosols and other inflammable substances can

ignite when heated. Therefore do not store such items or substances

in a drawer under the hob. Cutlery inserts must be heat-resistant.

 Do not heat an empty pan.

 Do not heat up food in closed containers e.g. tins or sealed jars on

the hob, as pressure can build up in the container, causing it to ex-

plode.

 Do not cover the hob, e.g. with a hob cover, a cloth or protective

foil. The material could catch fire, shatter or melt if the hob is

switched on by mistake or if residual heat is still present.

 When the appliance is switched on either deliberately or by mis-

take, or when there is residual heat present, there is the risk of metal

items placed on the hob heating up. Other materials can melt or

catch fire. Damp pan lids might adhere to the ceramic surface and be

difficult to dislodge. Do not use the hob as a resting place for any-

thing. Switch the hob off after use.

 Switch the hob off after use. Do not wait until the hob switches off

automatically because there is no longer any cookware on it. This can

cause food to catch fire.

 You could burn yourself on the hot hob. Protect your hands with

heat-resistant pot holders or gloves when working on the hot hob. Do

not let them get wet or damp. Heat transfers through damp and wet

material more quickly with the risk of scalding or burning yourself.

 When using an electrical appliance (e.g. a hand mixer) near the

hob, ensure that the cable of the electrical appliance cannot come

into contact with the hot hob. The cable’s insulation could become

damaged.

 Grains of salt, sugar, or sand (e.g. from cleaning vegetables) can

cause scratches if they get under the cookware. Make sure the

ceramic glass surface and the underside of the cookware are clean

before placing down the cookware.

 Even a light object can cause damage in certain circumstances. Do

not drop anything on the ceramic surface.

 Hot items placed down on the sensor controls and displays can

damage the electronic modules underneath. Never place hot pots or

pans on the sensor controls and displays.

Warnings and safety notes

 Do not allow solid or liquid sugar, or pieces of plastic or aluminium

foil to get onto the hob when it is hot, as they can damage the

ceramic surface when it cools down. If this should occur, turn off the

hob immediately and scrape off all the sugar, plastic or aluminium

residues while still hot, using a shielded scraper blade. Wear oven

gloves when doing this. Allow the ceramic surface to cool down and

then clean it with a suitable ceramic glass cleaner.

 Do not heat empty pans on the hob as this can damage the

ceramic glass and/or the cookware. Never leave the hob unattended

during use!

 Rough bases can scratch the ceramic glass. Use only pots and

pans with smooth bases.

 Always lift cookware to move it. This will help prevent scratching.

 Because induction heating works so quickly, the base of the cook-

ware could, under certain circumstances, heat up to the temperature

at which oil or fat self-ignites within a very short time. Never leave

the hob unattended during use!

 Heat oil or fat for a maximum of one minute. Never use the

Booster function to heat oil or fat.

 For people fitted with a heart pacemaker: please note that the area

immediately surrounding the hob is electromagnetically charged

when it is switched on. It is very unlikely to affect a pacemaker. How-

ever, if in any doubt, consult the manufacturer of the pacemaker or

your doctor.

 When switched on, the electromagnetic field of the hob can impair

the function of magnetisable objects. Do not leave credit cards, di-

gital storage devices, pocket calculators, etc. in the immediate vicin-

ity of the hob.

 Metal utensils stored in a drawer under the hob can become hot if

the appliance is used intensively for a long time.

 The hob is fitted with a cooling fan. If a drawer is fitted directly un-

derneath the hob, ensure that there is sufficient space between the

drawer and its contents and the underside of the hob in order to en-

sure sufficient ventilation for the hob.

 If a drawer is fitted directly underneath the hob, do not store any

pointed or small items, paper, serviettes, etc. in the drawer. They

could get in through the ventilation slots or be sucked into the casing

by the fan and damage the fan or impair cooling.

Warnings and safety notes

 The induction generators could be damaged or even destroyed if

you use an induction adapter plate for cookware. Do not use induc-

tion adapter plates.

Cleaning and care

 The steam from a steam cleaner could reach live electrical com-

ponents and cause a short circuit.

Do not use a steam cleaner to clean the hob.

 If the hob is installed above a pyrolytic oven or cooker, do not use

the hob during a pyrolytic cleaning programme as this could trigger

the overheating protection mechanism on the hob.

 Miele will guarantee to supply functional spare parts for a min-

imum of 10years and up to 15years following the discontinuation of

your hob.

Sustainability and environmental protection

Energy saving tips when cook-

ing

- Cook in covered pots and pans if pos-

sible. This prevents heat escaping un-

necessarily.

- Cook with as little water as possible.

- Once food has come to the boil or the

pan is hot for frying, reduce the heat

to a lower power level.

- Use a pressure cooker to reduce

cooking durations.

Disposing of the packaging ma-

terial

The packaging material is used for hand-

ling and protects the appliance from

transport damage. The packaging ma-

terial used is selected from materials

which are environmentally friendly for

disposal and can generally be recycled.

Recycling the packaging material re-

duces the use of raw materials. Use ma-

terial-specific collection points for valu-

able materials and take advantage of re-

turn options. Your Miele dealer will take

the packaging material away.

Disposing of your old appliance

Electrical and electronic appliances con-

tain many valuable materials. They also

contain certain materials, compounds

and components which were essential

for their correct functioning and safety.

These could be hazardous to human

health and to the environment if dis-

posed of with household waste or if

handled incorrectly. Please do not,

therefore, dispose of your old appliance

with household waste.

Instead, please make use of officially

designated collection and disposal

points to dispose of and recycle elec-

trical and electronic appliances in your

local community, with your dealer or

with Miele, free of charge. By law, you

are solely responsible for deleting any

personal data from the old appliance

prior to disposal. You are legally obliged

to remove any old batteries which are

not securely enclosed by the appliance

and to remove any lamps without des-

troying them, where this is possible.

These must be taken to a suitable col-

lection point where they can be handed

in free of charge. Please ensure that

your old appliance poses no risk to chil-

dren while being stored for disposal.

Installation

Safety notes for installation

 Risk of damage from incor-

rect installation.

Incorrect installation can cause

damage to the hob.

The hob must only be installed

by a qualified specialist.

 Risk of electric shock from

mains voltage.

Incorrect connection to the

mains supply may result in an

electric shock.

The hob must be connected to

the electrical supply by a quali-

fied electrician only.

 Damage from falling ob-

jects.

Take care not to damage the

hob when fitting wall units or a

cooker hood above it.

Fit the wall units and the

cooker hood before the hob.

Dismantling the hob for service

purposes may damage the

sealing strip underneath the

edge of the hob.

Always replace the sealing strip

before reinstalling.

 The hob must not be installed

over refrigeration appliances,

dishwashers, washing machines,

washer-dryers or tumble dryers.

 This hob may only be installed

above a cooker or oven if they

have a built-in cooling fan.

 Ensure that the mains connec-

tion cable cannot be touched

after the hob has been installed.

 After installation, the mains

connection cable of the hob must

not come into contact with any

moving kitchen components

(such as a drawer) or be subject

to mechanical loads.

 The veneers or laminate coat-

ings of worktops must be treated

with 100°C heat-resistant ad-

hesive so they do not come loose

or warp. Any wall strips must be

of heat-resistant material.

 The installation of Diamond-

Finish models in front of a win-

dow is not recommended.

Direct sunlight causes the sur-

face to reflect more intensely and

makes the displays harder to see.

 Remember to maintain the

minimum safety distances.

Installation

Additional safety notes for surface-

mounted installation

 Damage caused by incor-

rect installation.

Using sealant under the hob

could result in damage to the

hob and the worktop if the hob

ever needs to be removed.

Do not use sealant between

the hob and the worktop.

The sealing strip under the

edge of the hob provides a suf-

ficient seal for the worktop.

 Grout lines and the hatched

area underneath the hob frame

must be smooth and even. If they

are not, the hob will not sit flush

with the worktop and the sealing

strip underneath the hob will not

provide a good seal between the

hob and the worktop.

Additional safety notes for flush-fit in-

stallation

 Damage caused by using

an unsuitable sealant.

Unsuitable sealant can damage

natural stone.

For natural stone worktops and

natural stone tiles, only use sil-

icone sealant that is temperat-

ure-resistant (min. 160°C) and

specially formulated for natural

stone. Follow the manufac-

turer’s instructions.

 The internal width of the base

unit underneath the appliance

must be at least as wide as the

inner worktop cut-out so that the

hob is easily accessible from be-

low after installation and the cas-

ing can be removed for mainten-

ance. If the underside of the hob

is not freely accessible after in-

stallation, any sealant must be

removed to enable the hob to be

lifted out.

Installation

 A flush-fit hob is suitable only

for installation in natural stone

(granite, marble), solid wood and

tiled worktops. When using a

worktop made from any other

material, please check first with

the worktop manufacturer that

the material is suitable for in-

stalling a flush-fit hob.

- Natural stone worktops: the

hob is set directly in the cut-

out.

- Solid wood worktops, tiled

worktops: the hob is secured

inside the cut-out with

wooden battens. The battens

must be provided on site and

are not included in the scope

of delivery.

Safety distances

Safety distance above the hob

The following must be ensured between

the hob and the cooker hood above it:

- The safety distance specified by the

manufacturer of the cooker hood must

be maintained.

- When two or more appliances which

have different safety distances are in-

stalled together below a cooker hood,

the greatest specified safety distance

must be maintained.

If combustible objects are installed

above the hob (e.g. cabinets, utensil rail,

etc.), a minimum safety distance of 500

mm must be maintained.

Installation

Safety distance behind and to the side of the hob

The minimum safety distances shown

below must be maintained between the

appliance and a tall unit or wall:

- Between the back of the worktop

cut-out and the rear edge of the

worktop:

50mm

and

- On the right side between the

worktop cut-out and the closest adja-

cent piece of furniture (e.g. tall unit)

or a room wall:

50mm and on the opposite side a

minimum safety distance of 200mm

- On the left side between the

worktop cut-out and the closest adja-

cent piece of furniture (e.g. tall unit)

or a room wall:

50mm and on the opposite side a

minimum safety distance of 200mm

Not permitted

Highly recommended

Not recommended

Installation

Safety distance underneath the hob

To install the hob while maintaining the

safety distances, you can choose from

3variants:

1. Without intermediate shelf or base

panel

2. With intermediate shelf

3. With an air intake-optimised base

panel

Further instructions are described in the

relevant section.

An air intake-optimised base panel

and an intermediate shelf cannot be

combined.

If they are combined, more warm air

is drawn in. The hob is not ad-

equately cooled.

The hob is ventilated from below.

A drawer underneath the hob is

heated.

If you wish to install a drawer under-

neath the hob, we recommend in-

stalling the hob with an air intake-op-

timised base panel to reduce the

waste heat from the hob.

Rear panel cut-out

For ventilation and accommodating the

mains connection cable, you will need

to create a cut-out in the rear panel.

Create a cut-out in the rear panel using

the following instructions:

≥ 45 mm

≥ 550 mm

Installation

*INSTALLATION*

1. Without intermediate shelf or base panel

To ensure sufficient ventilation to the hob, a minimum safety distance must be left

between the underside of the hob and any drawer or oven.

The minimum safety distance between the underside

of the hob and:

- Upper edge of drawer: KM 8xxx: ≥ 5 mm, KM 8xxx-2: ≥ 8 mm

- Base of drawer: ≥ 75 mm

- Upper edge of oven: KM 8xxx: ≥ 2 mm, KM 8xxx-2: ≥ 8 mm

The underside is the outside of the hob casing. Other items that are attached

lower down, such as connection boxes and shims, do not count as the lowest point

and are not relevant when calculating the minimum safety distance.

2. Intermediate shelf

The dimensions shown in brackets are recommendations.

8xxx: ≥ 2

mm, KM

8xxx-2:

≥ 8 mm

≥ 45 mm

(≥ 15 mm)

≥ 20 mm

Side view

Front

Fan

3. Air intake-optimised base panel

The performance of the hob depends on the ventilation.

The air intake-optimised base panel has openings where the fans are positioned.

This section contains instructions for creating an air intake-optimised base panel.

Installation

*INSTALLATION*

≤ 40 mm

≥ 45 mm

≥ 15 mm

≥ 20 mm

Ø 60–80 mm

Side view

Front

Fan

To ensure sufficient ventilation to the hob, a minimum safety distance must be left

between the underside of the air intake-optimised base panel and any drawer.

Minimum safety distance between the underside of the air intake-optimised base

panel to the:

- Upper edge of drawer: KM 8xxx: ≥ 5 mm, KM 8xxx-2: ≥ 8 mm

- Base of drawer: ≥ 75 mm

- Upper edge of intermediate shelf: not permitted

There must be no gap between the air intake-optimised base panel and the hob.

A gap causes more warm air to be drawn in. The hob is not adequately cooled.

Installation

*INSTALLATION*

Positions and cut-outs of the ventilation openings: KM 8765 FL Diamond

Y2.1

X2.1

X1.1

Y1.1

Not to scale. View from above. Surface-mounted cut-out shown.

Also applies to flush-fit installation.

Middle of the cut-out height

Middle of the cut-out width

Cut-out for fan, round (Ø 60–80 mm)

Gap (≥ 15 mm)

X1.1 Y1.1 X2.1 Y2.1

Distance from the middle of the cut-out in mm

KM8765FR/FL 78 133 210 133

Position the hob so that the fans are above the cut-outs.

If the fans are not positioned above the cut-outs, the air flow may be obstructed.

The hob is not adequately cooled.

Installation

*INSTALLATION*

Positions and cut-outs of the ventilation openings: KM 8885 FL Dia-

mond&MSense, KM 8895 Diamond&MSense

X1.1

X3.1

X2.1

Y2.1

Y1.1

Y3.1

Not to scale. View from above. Surface-mounted cut-out shown.

Also applies to flush-fit installation.

Middle of the cut-out height

Middle of the cut-out width

Cut-out for fan, round (Ø 60–80 mm)

Gap (≥ 15 mm)

X1.1 Y1.1 X2.1 Y2.1 X3.1 Y3.1

Distance from the middle of the cut-out in mm

KM8885-2FL

Diamond and

MSense

183 133 66 133 315 133

KM8895-2FL

Diamond and

MSense

221 133 66 133 353 133

Position the hob so that the fans are above the cut-outs.

If the fans are not positioned above the cut-outs, the air flow may be obstructed.

The hob is not adequately cooled.

Minimum safety distance from the niche cladding

If niche cladding is installed, a minimum safety distance must be maintained

between the worktop cut-out and the cladding. High temperatures can alter or

damage these materials.

Installation

*INSTALLATION*

Flush-fit installation Surface-mounted installation

Masonry

Dimensionx= thickness of the niche cladding material

Worktop

Worktop cut-out

Minimum safety distance to

combustible materials (e.g. wood)

non-combustible materials (e.g. metal, natural stone, ceramic tiles)

Side Opposite side

Material Combust-

ible

Non-combustible Combust-

ible

Non-combustible

Back 50mm 50mm – dimen-

sionx

– –

Right 50mm 50mm – dimen-

sionx

200mm 200mm – dimen-

sionx

Left 50mm 50mm – dimen-

sionx

200mm 200mm – dimen-

sionx

Example: 15mm thick non-combustible niche cladding

50mmminus15mm = minimum safety distance of 35mm

Installation

*INSTALLATION*

Installation dimensions for surface-mounted installation

KM8765FLDiamond

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Installation

*INSTALLATION*

KM8885-2FLDiamond and MSense

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Installation

*INSTALLATION*

KM8895-2FLDiamond and MSense

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Installation

*INSTALLATION*

Installation dimensions for flush-fit installation

KM8765FLDiamond

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Stepped cut-out, natural stone worktop

Wooden batten 12mm (accessories not included)

Installation

*INSTALLATION*

KM8885-2FLDiamond and MSense

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Stepped cut-out, natural stone worktop

Wooden batten 12mm (accessories not included)

Installation

*INSTALLATION*

KM8895-2FLDiamond and MSense

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Stepped cut-out, natural stone worktop

Wooden batten 12mm (accessories not included)

Installation

Installing a surface-mounted

hob

Preparing the worktop for surface-

mounted installation

 Remember to maintain the minimum

safety distances.

 Create the worktop cut-out.

 Wooden worktops:

Seal any cut surfaces with a special

varnish, silicone sealant or resin to

prevent the wood from swelling as a

result of moisture ingress. The sealant

must be heat-resistant.

Make sure that the sealant does not

come into contact with the top of the

worktop.

Installing a surface-mounted hob

The seal ensures that the hob will sit se-

curely in the cut-out without slipping.

Any gap between the appliance frame

and worktop will become smaller over

time.

 Attach the sealing strip included in

the scope of delivery underneath the

edge of the hob. The joint edge (start

and end) of the sealing strip must not

be in a corner. Apply some silicone

joint sealant to the joint edge of the

sealing strip. Do not apply the sealing

strip under tension.

 Risk of damage from incorrect

connection.

The hob electronic module may be

damaged if a short-circuit occurs.

The mains connection cable must be

connected to the hob by a qualified

electrician.

 Follow the instructions in the wiring

diagram to connect the mains con-

nection cable to the hob.

 Feed the mains connection cable for

the hob down through the worktop

cut-out.

 Place the hob centrally in the cut-out.

When doing this, make sure that the

seal of the appliance sits flush with

the worktop on all sides. This is im-

portant to ensure effective sealing all

round.

 If the seal does not sit flush with the

worktop in the corners, the corner ra-

dius (≤R4) can be carefully cut to fit

using a jigsaw.

 If an air intake-optimised base panel

is installed, position the hob so that

the fans are located above the cut-

outs.

 Connect the hob to the electricity

supply.

 Check that the hob is working.

Installing the hob flush with the

worktop

Preparing the worktop for flush-fit in-

stallation

 Remember to maintain the minimum

safety distances.

 Create the worktop cut-out.

 Solid wood and tiled worktops:

Secure the wooden frame 5,5mm be-

low the top edge of the worktop.

Installing a flush-fit hob

The seal ensures that the hob will sit se-

curely in the cut-out without slipping.

Any gap between the appliance frame

and worktop will become smaller over

time.

Installation

 Attach the sealing strip included in

the scope of delivery underneath the

edge of the hob. The joint edge (start

and end) of the sealing strip must not

be in a corner. Apply some silicone

joint sealant to the joint edge of the

sealing strip. Do not apply the sealing

strip under tension.

 Risk of damage from incorrect

connection.

The hob electronic module may be

damaged if a short-circuit occurs.

The mains connection cable must be

connected to the hob by a qualified

electrician.

 Follow the instructions in the wiring

diagram to connect the mains con-

nection cable to the hob.

 Feed the mains connection cable for

the hob down through the worktop

cut-out.

The gap between the ceramic surface

and the worktop must be at least

2mm wide.

This is required so that the hob can be

sealed.

 Centre the hob in the cut-out.

 If an air intake-optimised base panel

is installed, position the hob so that

the fans are located above the cut-

outs.

 Connect the hob to the mains power

supply.

 Check that the hob is working.

 Seal the gap between the hob and

worktop with a suitable silicone seal-

ant that is heat-resistant to at least

160°C.

Electrical connection

 Risk of damage from incorrect

connection.

Unauthorised installation, mainten-

ance and repairs can cause consider-

able danger for the user.

Miele cannot be held liable for dam-

age or injury caused by unauthorised

installation, maintenance or repair

work, or by an inadequate or faulty

on-site earthing system (e.g. electric

shock).

This hob must be connected to the

mains power supply by a qualified

electrician.

The qualified electrician must be fa-

miliar with and comply with the na-

tional regulations and any additional

regulations of the local electricity

provider.

After installation, ensure that all elec-

trical components are shielded and

cannot be accessed by users.

Total power rating

See data plate

Connection data

The connection data is quoted on the

data plate. Please ensure these match

the household mains supply.

Please see wiring diagrams for connec-

tion. (N.B. This appliance is supplied

single phase only in the UK / AUS / NZ).

Residual current device

For extra safety, it is advisable to protect

the hob with a suitable residual current

device (RCD) with a trip range of

30mA.

Installation

Disconnecting devices

It must be possible to disconnect the

hob from the mains at all poles using

disconnecting devices. A contact dis-

tance of at least 3mm must be ob-

served in the switched-off state. The

disconnecting devices include overcur-

rent protection devices and residual cur-

rent protection devices.

Disconnecting from the mains

 Risk of electric shock from mains

voltage.

There is a risk of electric shock if the

appliance is reconnected to the

mains voltage supply during repair or

service work.

After disconnection, ensure the appli-

ance cannot be switched back on by

mistake.

To disconnect the appliance from the

mains power supply, do one of the fol-

lowing depending on installation:

Fine-wire fuses

 Completely remove the fuse links

from the screw caps.

Automatic circuit breakers

 Press the test button (red) until the

middle button (black) springs out.

Built-in circuit breakers

 For circuit breakers of at least typeB

or C, switch the lever from1 (on) to

0(off).

Residual current device

 Residual current device: switch the

main switch from1 (on) to 0(off) or

press the test button.

Mains connection cable

The hob must be connected to the elec-

trical supply with a special connection

cable, type H05VV-F (PVC insulated)

with a suitable diameter.

Please see wiring diagrams for connec-

tion.

See the data plate on the hob for the

correct voltage and rated load.

Replacing the mains connection cable

 Risk of electric shock.

Incorrect connection to the power

supply may result in an electric

shock.

The mains cable must only be re-

placed by a qualified electrician.

When replacing the mains cable only

use cable type H05VV-F (PVC insu-

lated) with a suitable cross section. A

suitable connection cable is available to

order from Miele.

Wiring diagram

Some connection methods are not

permitted in all installation locations.

Ensure compliance with national reg-

ulations and any additional regula-

tions issued by the local electricity

provider.

The maximum load per connected live

conductor is 3650W.

Hob with

<5 items of cookware (≤7400W)

The first and second live conductors are

required for connecting the hob. Further

appliances can be connected to the

third live conductor.

Installation

200-240 V~

a b

c d e

L2 L3 N

a c d

(L3)

200-240 V~

b c d

(L2)

200-240 V~

Hob with

≥5 items of cookware (>7400W)

All 3 live conductors are required for

connecting the hob. No further appli-

ances can be connected to the live con-

ductors.

200-240 V~

a b

c d e

L2 L3 N

a c d

(L3)

200-240 V~

Familiarisation

Your hob

KM8765FLDiamond

Useable surface of the hob for a maximum of 4items of cookware

Controls and indicators

Display

NFC icon



Light line

Familiarisation

KM8885-2FLDiamond and MSense

Useable surface of the hob for a maximum of 6items of cookware

Controls and indicators

Display

NFC icon



Light line

Familiarisation

KM8895-2FLDiamond and MSense

Useable surface of the hob for a maximum of 6items of cookware

Controls and indicators

Display

NFC icon



Light line

Controls and indicators

Familiarisation

Hob lighting of a Miele cooker hood

sensor control

 sensor control to display the following sensor controls



Wipe protection

sensor control to lock the control elements and in-

dicators for 20seconds



Timer

sensor control: an alarm for activities that are independent of

the hob



Stop&Go

sensor control to stop/start a cooking process in progress



System lock

Keypad lock

sensor control to lock the control elements

and indicators



Professional mode

sensor control to change the power level by the

position of the cookware

On/Off

sensor control

Keeping warm

sensor control

To activate/deactivate the Keeping warm special function

Slider

– To set the power level

– To set the times

Booster

Bsensor control

Cookware display

 Cookware is ready for use

 to  Power level

:–: Time

 Residual heat indicator level 1

 Residual heat indicator level 2

 Residual heat indicator level 3

 Assistance from M Sensecookware

 Cookware missing or unsuitable

 Booster

 Keeping warm

Separator display

Display of intermediate power levels

Sensor control for

Duration

of a cooking process

Switches the heating of the cookware off automatically after a set period of time

Measures the time a cooking process takes

Familiarisation

Plus

sensor control

– To adjust the settings

– To adjust the times

Minus

sensor control

– To adjust the settings

– To adjust the times

sensor control

Ambient lighting of a Miele cooker hood

sensor control

Hob display

:–: Time

 / System lock/Keypad lock is activated/deactivated

 / Demo mode is activated/deactivated

 A software update is available.

Cooker hood

sensor control

For selecting a cooker hood to set a power level

Familiarisation

Power management

Effects of power distribution

While the Booster is in operation, some

of the power is taken away from the

other induction coils. If an induction coil

gives power to another coil, this can

have the following effects:

- Auto heat-up is deactivated.

- The power level is reduced.

- The heating is switched off.

Operation

Hob when switched off

Only the printed symbol for the On/

Off

On/Off

sensor control is visible

when the hob is switched off. More

sensor controls light up when the hob is

switched on.

Operation

Area for sensor controls and displays

This ceramic glass hob is equipped with

sensor controls which react to finger

contact.

Each time a sensor control is activated,

a buzzer sounds.

For safety reasons, the On/Off

On/

Off

sensor control needs to be touched

for a little longer than the other sensors

in order to switch the appliance on.

Networking

Your hob is equipped with an integrated

WiFi module. The hob can be connected

to your home network or just to your

Miele cooker hood. The WiFi module

enables the Miele app to be used on a

mobile device.

Once your hob has been connected via

WiFi, the connection is automatically re-

established every time it is switched on.

Make sure that your WiFi network sig-

nal is strong enough in the place where

you intend to install your hob.

Connecting your hob to your WiFi net-

work will increase energy consump-

tion, even when the hob is switched

off.

Smart Extras via the Miele app*

Networking via the Miele app gives you

access to numerous Smart Extras, in-

cluding:

- Access status information.

- Use additional helpful functions.

- Keep your hob up to date with the

latest Miele developments via soft-

ware updates (only possible via WiFi

connection).

You can find more detailed information

about Smart Extras on the Miele web-

site, in the Apple App Store

or in the

Google Play Store™.

Familiarisation

*This is a separate digital offer from

Miele & Cie. KG. The range of func-

tions can vary depending on the model

and the country. Acceptance of the

Terms and Conditions and Privacy

Policy for Miele digital products & ser-

vices in the Miele app required. Miele

reserves the right to change or discon-

tinue the digital offer at any time.

Special functions

M Sensecookware ready

The hob is suitable for M Sensecook-

ware.

M Sensecookware features sensors.

These sensors simplify the cooking pro-

cess.

M Sensecookware can be purchased as

optional accessories. It is available to

order in the Miele online shop, from

Miele Customer Service or from your

Miele dealer.

Controlling a cooker hood

Con@ctivity3.0

Con@ctivity3.0 is the direct commu-

nication system between your hob and a

Miele cooker hood. Communication is

achieved by means of networking.

Con@ctivity3.0 enables the cooker

hood to operate automatically depend-

ing on the operating status of your hob.

The Con@ctivity versions of the hob

and cooker hood must match.

Further information can be found in the

operating and installation instructions

for your cooker hood.

Permanent pan recognition

When you place cookware on the hob

surface, the Sliderfor the cookware is

activated automatically.

Pan size recognition

The size of the cookware is detected on

the hob surface. The release of energy is

adapted to the size of the pan.

Hob Booster

When the Booster function is activated,

the power is boosted so that large

quantities can be heated up quickly, e.g.

when boiling water for cooking pasta.

Stop&Go

When Stop&Go is activated, all power

levels are reduced to1.

When the function is deactivated, the

appliance switches back to the power

level that was set last.

Tip: Use this special function if there is

a danger of food boiling over.

Hob power levels

You can set the power for the cookware

in levels from 1 to 9.

There is an intermediate level between

each power level. The intermediate

levels allow you to fine-tune the power

settings.

If you do not need the intermediate

levels, you can deactivate the intermedi-

ate levels via the settings.

Auto heat-up

When auto heat-up has been activated,

the cooking zone switches on automat-

ically at the highest setting (heat-up

boost) and then switches to the power

level (continued cooking setting) which

you have previously selected.

Familiarisation

Timer functions

There are 3 timer functions:

- Timer

- Duration of a cooking process

- Elapsed time of a cooking process

You can use the functions simultan-

eously.

Timer

You can set an alarm for activities that

are independent of the hob.

Duration of a cooking process

You can set a time after which a cooking

zone will switch off automatically. This

function can be used for all cooking

zones at the same time.

Elapsed time of a cooking process

You can measure how long a cooking

process takes.

Professional mode

Example to visualise the concept.

 Cookware with power level 9

Cookware with power level 5

Cookware with power level 2

In Professional mode, the hob surface is

divided into 3 horizontal cooking areas.

Each cooking area is assigned a power

level.

Moving the cookware forwards and

backwards changes the power level

at which the cookware is heated.

You can change the power levels.

Depending on the width of the hob, dif-

ferent numbers of cookware items can

be heated in parallel.

Light line

An illuminated line indicates the bound-

ary between the cooking area and the

controls and indicators.

System lock

If the system lock is activated, then the

hob cannot be switched on.

Keypad lock

The keypad lock is activated when the

hob is switched on. When the keypad

lock is activated, the hob can be oper-

ated only under certain conditions.

Recall

If the hob is switched off by mistake

during use, this special function can be

used to restore all settings.

Keeping warm

This special function enables food to be

kept warm after it has finished cooking.

Wipe protection

The hob sensor controls can be locked

for 20seconds to remove soiling, for ex-

ample. 

On/Off

is not locked.

Settings

You can adapt the settings of the hob to

your personal needs.

Familiarisation

Demo mode

This special function enables the hob to

be demonstrated in dealer showrooms

without heating up.

Demo mode

In demo mode, cooking processes are

simulated in an infinite loop. The se-

quence of the individual steps is re-

peated after 1minute. When you touch

a sensor control or place an item of

cookware on the hob, it switches to

demo mode.

Residual heat indicator

If an area of the ceramic surface is hot,

the residual heat indicator will light up

after the hob has been switched off.

The bars of the residual heat indicator

go out one after the other as the

ceramic surface cools down. The last

bar only goes out when the ceramic sur-

face is safe to touch.

Safety switch-off

Sensor controls are covered

Your hob will switch off automatically if

one or several of the sensor controls re-

main covered for longer than

10seconds; for example, by finger con-

tact, food boiling over or by an object. 

will flash briefly in the Hob display and a

buzzer will sound.

 will go out once you have removed the

obstruction and/or soiling and the hob

will be ready to use again.

Excessive operating time

The safety switch-off is triggered auto-

matically if an area is heated for an un-

usually long period of time. This time

depends on the power level selected. If

it has been exceeded, the heat switches

off and the residual heat indicator ap-

pears. A power level can be selected in

the usual way.

You can adjust the safety switch-off by

changing the safety setting.

Familiarisation

Special function/

power level

Maximum operating time

[h:min]

Safety setting

1 2

Keeping warm 2:00 2:00 2:00

1.0 10:00 8:00 5:00

1.5 10:00 7:00 4:00

2.0/2.5 5:00 4:00 3:00

3.0/3.5 5:00 3:30 2:00

4.0/4.5 4:00 2:00 1:30

5.0/5.5 4:00 1:30 1:00

6.0/6.5 4:00 1:00 00:3

7.0/7.5 4:00 00:4

00:2

8.0 4:00 00:3

00:2

8.5 4:00 00:3

00:18

9.0 1:00 00:2

00:10

Assistance

from M

Sensecook-

ware – no

programme

active

12:00 12:00 12:00

Assistance

from M

Sensecook-

ware – pro-

gramme act-

ive

12:00 3:00 1:00

Factory default setting

Overheating protection

In order to prevent the hob from being

damaged by excessive temperatures,

the overheating protection mechanism

intervenes in one of the following ways:

Overheating protection measures

- If the Booster function is switched on,

it will stop.

- The set power level will be reduced.

- The heating will switch off automatic-

ally.  flashes alternately with  in

the Hob display.

- All cooking zones will switch off.

Triggering the overheating protection

mechanism

The overheating protection mechanism

may be activated under the following

circumstances:

- The cookware being heated is empty.

- Fat or oil is being heated on a high

power level.

- Insufficient ventilation to the under-

side of the hob.

- A hot zone being switched on after a

power cut.

Model identifier and serial number

Your hob can display the model identi-

fier and serial number.

Software version

Your hob can display its software status.

Software update

To receive updates, you must be con-

nected to your home network.

A message will appear on the Hob dis-

play as soon as a new update is avail-

able.

Familiarisation

When it comes to updates, you can:

- Install them immediately

- Postpone them and carry out at a later

date

- Switch them off permanently

If you do not install an update or install

it later, you can continue to use your hob

as usual. However, Miele recommends

installing the updates as soon as pos-

sible.

Optional accessories

Products specially tailored to your hob –

such as cookware and cleaning agents –

are available from the Miele online shop,

Miele Customer Service or your Miele

specialist dealer.

You can access the Miele online shop

via the following QR code:

Commissioning

Unpacking the hob

 Please stick the data plate for the ap-

pliance, supplied with this document-

ation, in the space provided in the

“After sales service” section of this

booklet.

 Remove any protective foil and stick-

ers.

Cleaning the hob for the first

time

 Before using for the first time, clean

the hob with a damp cloth.

 Wipe the hob dry.

Switching on the hob for the

first time

The metal components have a protect-

ive coating. When the hob is used for

the first time, this causes a smell and

possibly also vapour. The heating of the

induction coils also causes odours in

the first few hours of operation. With

each subsequent use, the odour is re-

duced until it disappears completely.

The odour and any vapours given off do

not indicate a faulty connection or appli-

ance and they are not hazardous to

health.

Networking

You can use your hob:

- To connect to your home network with

your mobile device

- To network directly with your Miele

cooker hood

Both types of networking allow you to

control your cooker hood.

Networking with your mobile device al-

lows you to utilise additional functions.

See “Familiarisation – Networking” for

more information.

Requirements for networking with

your home network

Note the following requirements for net-

working:

1. A home network is available at the

installation site.

Have the WiFi password ready.

2. The Miele app is available on a mo-

bile device.

3. You have a user account in the Miele

app.

4. There is no direct WiFi connection

between the hob and your Miele

cooker hood.

You have 2 options for connecting your

hob to the home network:

- NFC

- Scan & Connect

Both options lead to the same result.

Using NFC

The 

NFC icon

display is activated

automatically the first 20times the hob

is switched on. When you switch on the

hob for the 21st time, the 

NFC icon

display must be activated manually.

The NFC function on your mobile

device is activated.

 Switch the hob on.

 Move your mobile device gently over

the 

NFC icon

display at a distance

of ≤1cm.

If you have installed the Miele app and

have a user account, you will be taken

directly to the networking steps.

Commissioning

If you have not yet installed the Miele

app, you will be taken to the Apple App

Store

or the Google Play Store™.

 Install the Miele app and set up a user

account.

 Once again, move your mobile device

gently over the 

NFC icon

display

at a distance of >1cm.

The Miele app will guide you through

the setup process.

Tip: If you cannot find the 

NFC

icon

display on your hob, access the

model identifier, for example. The dis-

play 

NFC icon

will then light up.

Performing Scan & Connect

 Scan the QR code.

If you have installed the Miele app and

have a user account, you will be taken

directly to the networking steps.

If you have not yet installed the Miele

app, you will be taken to the Apple App

Store

or the Google Play Store™.

 Install the Miele app and set up a user

account.

 Scan the QR code again.

The Miele app will guide you through

the setup process.

Requirements for direct networking

with your Miele cooker hood

Note the following requirements for net-

working:

1. Your Miele cooker hood has

Con@ctivity3.0.

2. The hob is not networked with your

home network.

Networking your hob with your Miele

cooker hood

You can find the necessary information

on connecting the cooker hood in the

associated operating and installation in-

structions.

 Start the connection setup on the

cooker hood.

 Switch the hob on.

If the connection was successful, the

code: appears in the Hob display. If

the connection could not be estab-

lished, the Hob display will show the

code:. Repeat the steps above.

Con@ctivity3.0 is now activated.

Resetting settings

- Reset the settings when you switch

from one networking option to an-

other.

- Reset the settings if you are disposing

of your hob, selling it or putting a used

hob into operation. This is the only

way to ensure that all personal data

has been removed and the previous

owner will no longer be able to access

the hob.

Resetting is not required when replacing

the router.

 Switch the hob off.

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

Commissioning

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

 Touch 

Plus

or the Slider at the bot-

tom right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

at the bottom right next

to the Hob display.

The WiFi settings are reset.  is dis-

played in the Cookware displays.

Operation

Safety notes for operation

 Risk of fire due to over-

heated food.

Unattended food can overheat

and catch alight.

Do not leave the hob unatten-

ded whilst it is being used.

 Risk of burning due to hot

ceramic surface.

The ceramic surface will be hot

after use.

Do not touch the ceramic sur-

face while the residual heat in-

dicators are on.

 Risk of burning due to hot

items.

When the hob is switched on

either deliberately or by mis-

take, or when there is residual

heat present, there is the risk

of metal items placed on the

hob heating up.

Do not use the hob as a resting

place for anything.

After use, switch the hob off

with the sensor control.

 Placing hot cookware on

the sensor controls and dis-

plays can damage the elec-

tronic module underneath.

The sensor controls do not re-

spond.

They may be switched on or off

unintentionally.

The hob switches itself off.

Do not place hot cookware

over the sensor controls or dis-

plays.

 The hob cannot distinguish

between cookware and objects

next to cookware.

The objects will be heated too.

Touching hot objects can

cause burning.

Do not place objects on the

hob. Only place the cookware

on the hob.

 Never heat pans with a non-

stick coating with the Booster.

Switching the hob on

 Touch 

On/Off

Other sensor controls light up.

Operation

If no further entry is made, the hob will

switch itself off after a few seconds for

safety reasons.

Switching the hob/cookware off

Switching the hob off

 To switch off the hob and all cook-

ware, touch

On/Off

Switching cookware off

 Touch on the corresponding Slider.

Positioning cookware

Example to visualise the concept.

You can position the cookware any-

where on the useable hob surface.

Induction coils are located under the en-

tire useable hob surface. The induction

coils are used to heat the cookware.

The induction coils are activated as

soon as the cookware covers a certain

area of the induction coils. If you are not

satisfied with the cooking or frying res-

ults, you can reposition the cookware so

that more of the base surface is heated.

It can be a good idea to position the

cookware in a corner of the useable hob

surface.

Number of cookware items and size

- With the KM8765FLDiamond mod-

els, a maximum of 4items of cook-

ware (including a maximum of 4M

Senseitems of cookware) can be

used at the same time.

- With the KM8885FLDia-

mond&MSense, KM 8895FLDia-

mond&MSense models, a maximum

of 6items of cookware (including a

maximum of 4M Senseitems of

cookware) can be used at the same

time.

Depending on the position, cookware

with a base diameter between 100 and

145mm will not be detected in every

position on the hob. These items of

cookware are too small to guarantee

that at least one induction coil will be

covered sufficiently in every position.

Operation

Cookware with a base diameter of

<100mm is no longer detected and

cannot be used.

 If you are using several items of cook-

ware at once, position them as far

apart as possible. This will enable the

hob to detect each of them individu-

ally.

 Move items of cookware on the hob

one after the other, not all at the same

time.

When you move an item of cookware on

the hob, the associated Slider lights up.

The set power level “goes along” with it.

Tip: We recommend switching the hob

on first and then placing the cookware

on it. If you do this, the cookware will be

detected more quickly by the hob.

Hob power levels

Setting the power level for cookware

Permanent pan recognition is activated

as standard. When the hob is switched

on and you place an item of cookware

on a cooking zone, the Cookware dis-

playlights up brightly.

 Place the cookware in the required

position on the hob surface.

The corresponding Cookware display

lights up brightly.

 Swipe to the right or left on the cor-

responding Slider until the corres-

ponding Cookware display shows the

required power level.

The power level is displayed in the cor-

responding Cookware display.

Setting the power level for cookware –

without intermediate levels

Permanent pan recognition is activated

as standard. When the hob is switched

on and you place an item of cookware

on a cooking zone, the Cookware dis-

playlights up brightly.

The setting range for the power levels

without intermediate levels has been

selected in the settings.

 Place the cookware in the required

position on the hob surface.

The corresponding Cookware display

lights up brightly.

 Swipe to the right or left on the cor-

responding Slider until the corres-

ponding Cookware display shows the

required power level.

The power level is displayed in the cor-

responding Cookware display.

Changing the power level for cook-

ware

 Touch the position for the power level

you want on the corresponding Slider.

Booster

Activating the Booster

The Booster special function cannot be

operated together with activated

MSense cookware.

When the Booster is activated, the set-

tings for the linked cooking zone may be

changed.

KM8765FLDiamond:

You can use the Booster function for a

maximum of 2items of cookware at the

same time: 1 on the right-hand side of

the hob and 1 on the left-hand side.

Operation

KM8885FLDiamond&MSense, KM

8895FLDiamond&MSense:

You can use the Booster function for a

maximum of 3items of cookware at the

same time: 1 on the right-hand side of

the hob, 1 in the middle and 1 on the

left-hand side.

The Booster function is active for a max-

imum of 15minutes.

 Place the cookware in the required

position on the hob surface.

 Select a power level if necessary.

 Touch the BoosterBsensor control.

The Cookwaredisplay shows .

Deactivating the Booster

 Touch B

Booster

 Set another power level.

If you deactivate the Booster function or

the Booster time comes to an end and

- no power level was selected before

activating the Booster, the cooking

zone will revert automatically to

level9.

- a power level was selected before ac-

tivating the Booster, the cooking zone

will revert automatically to the previ-

ously selected level.

Activating/deactivating

Stop&Go

This function does not work with

MSense cookware.

All timer functions, booster times and

heat-up boost times continue to run.

The timer settings cannot be changed.

The hob can only be switched off.

The Stop&Go special function is active

for 3minutes when using M

Sensecookware.

If the special function is not deactivated

within 1hour, the hob will switch off.

 Touch 

 Touch 

Stop&Go

The active heating of the cookware is re-

duced from the set power level to

power level 1.0 or switched back again.

Cookware with Keeping warm function

is not changed.

Auto heat-up

The heat-up time depends on which

continued cooking setting has been

chosen:

Operation

Continued cook-

ing setting

Heat-up time

[min:sec]

1.0 Approx. 0:15

1.5 Approx. 0:15

2.0 Approx. 0:15

2.5 Approx. 0:15

3.0 Approx. 0:25

3.5 Approx. 0:25

4.0 Approx. 0:50

4.5 Approx. 0:50

5.0 Approx. 2:00

5.5 Approx. 5:50

6.0 Approx. 5:50

6.5 Approx. 2:50

7.0 Approx. 2:50

7.5 Approx. 2:50

8.0 Approx. 2:50

8.5 Approx. 2:50

9.0 –

If the cookware is temporarily removed

from the hob surface during the heat-up

time, the heat-up time is extended by the

time without cookware.

Activating auto heat-up

This function does not work with

MSense cookware.

No timer functions can be set during the

heat-up time. If an elapsed time display

is running, it is cancelled.

 Hold down the required continued

cooking setting on the Sliderfor ap-

prox. 3seconds until a buzzer sounds.

The power level pulsates while the heat-

up boost (power level 9) is running.

Deactivating auto heat-up

 Set another power level.

 Set the same power level again.

Timer functions

There are 3 timer functions:

- Timer

- Duration of a cooking process

- Elapsed time of a cooking process

You can use the functions simultan-

eously.

Setting the timer

 Touch 

 Touch 

Timer

The Hob display lights up brightly.



Timer

lights up brightly and pulsates.

Other sensor controls and displays light

up dimly.

 Set the required time for the timer.

Touch 

Timer

or wait 5seconds to

start the timer.



Timer

will start to flash 10seconds

before the time has elapsed.

Operation

Changing the timer

 Touch 

Timer

The Hob display lights up brightly.



Timer

lights up brightly and pulsates.

Other sensor controls and displays light

up dimly.

 Set the required time for the timer.

Touch 

Timer

or wait 5seconds to

start the timer.

Deleting the timer

 Hold down 

Timer

until the set time

is no longer shown in the Hob display.

 Set the timer to the value.

Setting the time for a duration

A time of between 1minute (:) and

9hours 59minutes (:) can be set.

Times of up to 59minutes are shown in

minutes (00:59) and times of more than

60minutes are shown in hours and

minutes.

The time is entered using the corres-

ponding Slider and can be adjusted us-

ing the corresponding 

Plus

and the

corresponding 

Minus

 Move the slider to the left or right un-

til the required time is shown in the

correspondingCookware display.

Example:

59minutes = 00:59hours,

80minutes = 1:20hours

Setting the duration of a cooking pro-

cess

The heating for an item of cookware will

switch off when the maximum operating

time has elapsed, regardless of the dur-

ation that has been set.

A power level is set for the desired

item of cookware.

 Briefly (<1.5seconds) touch the



Duration

next to the corresponding

Cookware display.

The corresponding Cookware display

lights up brightly and 

Duration

pulsates. Other sensor controls and dis-

plays light up dimly.

 Set the required time for the duration.

Touch 

Duration

or wait 5seconds to

start the duration.

The duration of a cooking process runs

down and 

Duration

lights up con-

stantly.

The corresponding 

Duration

will start

to flash 10seconds before the time has

elapsed.

Changing the duration of a cooking

process

 Briefly (<1.5seconds) touch 

Dura-

tion

for the cookware you want to use.

The corresponding Cookware display

lights up brightly and 

Duration

pulsates. Other sensor controls and dis-

plays light up dimly.

 Set the required time for the duration.

Touch 

Duration

or wait 5seconds to

start the duration.

The duration of a cooking process runs

down and 

Duration

lights up con-

stantly.

Deleting the duration of a cooking pro-

cess

 Hold down 

Duration

for the cook-

ware you want to use until the Cook-

ware display shows :.

Operation

 Touch the 

Duration

for the cook-

ware.

The corresponding Cookware display

lights up brightly. Other sensor controls

and displays light up dimly.

 Touch on the corresponding Slider.

Setting a duration for further cooking

processes

 To set a duration for a further cooking

process, follow the same steps as de-

scribed under “Operation – Setting

the duration of a cooking process”.

Starting elapsed time measurement of

a cooking process

- A power level is set for the desired

item of cookware.

- A duration must not be set for the

cookware.

 Touch and hold (>1.5seconds)



Duration

next to the corresponding

Cookware display.

The Cookware display shows the time

that has elapsed since activation.

Cancelling elapsed time measurement

of a cooking process

 Hold down 

Duration

for the cook-

ware you want to use until the corres-

ponding Cookware display shows

:.

Starting elapsed time measurement of

further cooking processes

 To set an elapsed time for a further

cooking process, follow the same

steps as described under “Operation

– Starting elapsed time measurement

of a cooking process”.

Switching between the power level

display and timer function display

 Touch the required Cookware display

to switch between the timer function

display and the power level display for

an item of cookware.

Professional mode

Activating Professional mode

The Professional mode special function

cannot be operated together with activ-

ated M Sensecookware.

Professional mode cooking areas on a hob

>60cm; the horizontal lines correspond to

the cooking areas

Professional mode cooking areas on a hob

≤60cm; the horizontal lines correspond to

the cooking areas

Operation

In Professional mode, you can place one

item of cookware on the hob per

column. This means the following ap-

plies:

- If the hob is >60cm, you can place a

total of 3 items of cookware on it.

- If the hob is ≤60cm, you can place a

total of 2 items of cookware on it.

The factory default () or ≥

(3680W) must be set in the settings

under  power management.

There must not be any cookware on

the hob.

 Touch 

 Touch 

Professional mode

 Place an induction-compatible item of

cookware on the hob.



Timer

lights up.



Keeping warm

lights up.

The Slider lights up.

In the Cookware display:

- A horizontal line indicates the area in

which the cookware is placed.

- The power level for the area in which

the cookware is placed is displayed.

Changing the power levels for the hob

areas in Professional mode

- The movement direction for the pots

is set from front to back as standard.

This means that the highest power

level is at the front and the lowest

power level is at the back.

- You can permanently change the

movement direction via Move-

ment direction for Professional mode

to suit your cooking preferences.

- The Keeping warm special function

and all power levels can be set for the

areas. The Booster special function

cannot be set.

- In line with the movement direction,

the power levels of the successive

areas must not exceed or fall below

the specified values.

 Place the cookware in the area whose

power level you want to change.

Hob

area

Hob

area

sym-

bol

De-

fault

power

level

Highe

pos-

sible

power

level

Low-

est

pos-

sible

power

level

Front 9 9 >mid

dle

hob

area

Middl

5 <fron

t hob

area

>fron

t hob

area

Back 2 <mid

dle

hob

area

Keep-

ing

warm

spe-

cial

func-

tion

When the movement direction is set from

front to back (factory default). If the move-

ment direction is switched round, the in-

formation indicated in the columns must

also be switched.

 Use the Slidersensor control to set

the power level according to the op-

tions in the table.

Deactivating Professional mode

 Touch 

Professional mode

Operation

System lock

Activating the system lock

The system lock has no effect on M

Sensecookware.

All sensor controls are locked. A set

timer continues to run.

- The hob is switched on.

- All cooking zones are switched off.

 Touch 

 Touch and hold 

System lock

for

6seconds.

The seconds can be seen counting

down in the Hob display. Once the time

has elapsed, the Hob display shows 

alternating with . The system lock is

activated.

If a disallowed sensor control is touched

while the system lock is activated, the

Hob display will show  alternating

with  for a few seconds. A buzzer

sounds.

The settings can be adjusted so that

the system lock is activated automat-

ically 5minutes after the hob has been

switched off.

Deactivating the system lock

 Touch and hold 

System lock

for

6seconds.

The seconds can be seen counting

down in the Hob display. Once the time

has elapsed, the Hob display shows 

alternating with . The system lock is

deactivated.

Keypad lock

Activating the keypad lock

This function does not work with

MSense cookware.

When the keypad lock is activated, only

the following actions can be performed:

- The heating for cookware and the hob

can only be switched off.

- A set timer can be changed.

Heating for at least one item of cook-

ware is switched on.

 Touch 

 Touch and hold 

Keypad lock

for

6seconds.

The seconds can be seen counting

down in the Hob display. Once the time

has elapsed, the Hob display shows 

alternating with . The keypad lock is

activated.

If a disallowed sensor control is touched

while the keypad lock is activated, the

Hob display will show  alternating

with  for a few seconds. A buzzer

sounds.

Deactivating the keypad lock

 Touch and hold 

Keypad lock

for

6seconds.

The seconds can be seen counting

down in the Hob display. Once the time

has elapsed, the Hob display shows 

alternating with . The keypad lock is

deactivated.

Operation

Recall

Activating the Recall function

This function does not work with

MSense cookware.

The hob must be switched on again

within 10seconds of being switched

off.

 Switch the hob on again.

 Immediately after switching the hob

on, touch the flashing 

All settings are restored.

Discarding the Recall function

 Switch the hob on again.

 Immediately after switching the hob

on, touch one of the Cookware dis-

plays that are NOT flashing.

The new setting is applied; all other set-

tings are discarded.

Wipe protection

Activating wipe protection

This function does not work with

MSense cookware.

 Touch 

 Touch 

Wipe protection

The time that wipe protection is active

counts down in the Hob display.

Deactivating wipe protection

 Touch 

Wipe protection

until the

Hob display disappears.

Using M Sensecookware

The relevant operating and installation

instructions describe how to use the M

Sensecookware.

You can use all the special functions on

your hob with the M Sensecookware,

unless otherwise specified in these op-

erating and installation instructions.

The entries on the hob take precedence

over the entries on the cookware and

can deactivate cookware actions.

M Sensecookware: activating special

functions on the hob

 Activate a programme on the cook-

ware.

 Activate the special functions on the

hob.

The corresponding Cookware display on

the hob shows the display correspond-

ing to the special functions. Alternating

with this, Assistance from M

Sensecookware is displayed.

M Sensecookware: deactivating spe-

cial functions on the hob

 Deactivate the special function on the

hob.

Assistance from M Sensecookware is

ended. The hob behaves according to

the most recent settings.

Ending assistance from M

Sensecookware

We recommend always using M

Sensecookware in assistance mode.

 Switch off the M Sensecookware.

Hob data

Displaying the model identifier/serial

number

There must not be any cookware on

the hob.

 Switch the hob off.

Operation

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

Numbers will appear in the Hob display

one after another, separated by a dash.

Example:  (model identifier

KM1234)– (serial num-

ber)

Displaying the software version

There must not be any cookware on

the hob.

 Switch the hob off.

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

3 numbers appear in the Hob display:

Example:  = software version 1.23.

Activating/deactivating demo

mode

There must not be any cookware on

the hob.

 Switch the hob off.

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

Operation

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

 Touch 

Plus

or the Slider at the bot-

tom right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

at the bottom right next

to the Hob display.

The following will flash in the Hob dis-

play for a few seconds:

-  alternating with  (demo mode

activated)

-  alternating with  (demo mode

deactivated)

Activating/deactivating demo

mode

 Activate/deactivate demo mode via

the settings ().

Setting ranges for the hob power levels

The hob is programmed with 9power levels with intermediate levels at the factory.

If you only want to use the whole-number settings for power levels, you can deac-

tivate intermediate levels via the settings.

Recommended

cookware

Setting range

Factory set-

ting

9levels

with

intermediate

levels

Whole num-

bers

9levels

without

intermediate

levels

Melting butter

Pot

1.0–1.5

1–2

Dissolving gelatine

Keeping warm food which sticks easily

Melting chocolate 1.0–2.0

Heating small quantities of liquid

2.0–3.5 2–4

Cooking rice

Defrosting frozen vegetables in a block

Making milk puddings

Warming up liquid and semi-solid food

3.5–5.5 4–6

Steaming fruit

Simmering potatoes

Rendering bacon Frying pan

Making omelettes, lightly fried eggs, etc.

Frying pan with sandwich

base and non-stick coating

5.0–6.5 5–6

Steaming fish

4.5–6.5 5–7

Steaming vegetables

PotCooking pasta and pulses

Thickening sauces, e.g. Hollandaise

Defrosting and reheating frozen food See manufacturer’s in-

structions

Gentle frying (e.g. whole fish) Frying pan with sandwich

base and non-stick coating

6.0–6.5 6

Gentle frying (e.g. meat patties, chicken

breast)

Frying pan

Frying (e.g. fish fillet, escalopes, fried eggs)

6.0–7.0 6–7

Making pancakes Frying pan with sandwich

base and non-stick coating

Searing/hot frying (e.g. steak, small quantities

of meat, fried potatoes, hash browns)

Frying pan 7.0–8.5 7–8

Frying, e.g. chips Pot with high rim

8.5–9.0 9

Searing large quantities of meat Pot with high rim or oven

dish

Bringing water to the boil Pot Booster Booster

Cook in covered pots and pans if possible. This prevents heat escaping unnecessarily.

These settings should only be taken as a guide. The power of the induction coils will vary depending on

the size and material of the cookware. For this reason, the power levels may need to be adjusted slightly

to suit your cookware. As you use the hob, you will get to know which settings suit your cookware best.

When using new cookware that you are not familiar with, set the power level to one level below the one

specified.

Setting ranges for the hob power levels

Notes for test institutes

Test food acc. to EN60350-2

Test food

cookware base

(mm)

Lid

Setting range

Pre-heat-

ing

Cooking

Heating oil up 150 No – 1.0–1.5

Pancakes 180

(sandwich base)

No 9.0 6.0–7.0

Frying frozen chips 180

(chip pan)

No 9.0 9.0

Keeping warm a lentil

stew

150

(sandwich base)

Yes

(when

keeping

warm)

7.0 Keeping

warm

Good to know

How induction hobs work

Induction coils are located under the

ceramic surface. These coils create a

magnetic field that reacts directly with

the base of the cookware and heats it

up. The ceramic surface itself is heated

up indirectly by the heat given off by the

cookware.

The position, size and shape of the

cookware are detected automatically by

the induction hob.

An induction cooking zone only works

when cookware with a magnetic base is

placed on it.

Noises

The following noises can occur in the

cookware, depending on what it is made

of and how it has been constructed:

Buzzing on the higher power levels. This

will decrease or cease altogether when

the power level is reduced.

If the cookware is made of layers of dif-

ferent materials (e.g. in a sandwiched

base), it might emit a crackling sound.

You might hear a clicking sound from

the electronic switches, especially at

lower power levels.

A whirring sound, when the cooling fan

comes on. This switches on to protect

the electronic module when the hob is

being used intensively. The fan may con-

tinue to run after the appliance has been

switched off.

Cookware

Suitable cookware

- Stainless steel cookware with a mag-

netic base

- Enamelled steel cookware

- Cast iron

Please be aware that the properties of

the cookware base can affect the even-

ness with which the food heats up (e.g.

when making pancakes). The base of

the cookware must be able to distribute

the heat evenly. Cookware with a base

made from multilayer material (sand-

wich or encapsulated base) is ideal in

this case.

The cookware base material and the po-

sitions of the cookware on the hob af-

fect the power of the induction coils.

This can affect the cooking behaviour.

Cookware size

Round cookware should preferably have

a base diameter from 145mm up to a

maximum of 350mm. Cookware with a

base diameter between 100mm and

145mm will not be detected in every

position on the hob.

Oval/square cookware must not exceed

dimensions of 380mmx300mm.

Unsuitable cookware

- Stainless steel cookware without a

magnetic base

- Aluminium or copper cookware

- Glass, ceramic or earthenware cook-

ware

Testing cookware

To test whether a pot or pan is induc-

tion-compatible, hold a magnet to the

base. If the magnet sticks, the pan is

generally suitable.

Good to know

Cookware tips

- Use only pots and pans with smooth

bases. Rough bases can scratch the

ceramic surface.

- Always lift cookware to move it. This

will help prevent scratching. If any

scratches do appear as a result of

cookware being pushed around, this

will not affect the function of the hob.

These scratches are normal signs of

use and are not grounds for making a

complaint.

- Please note that the cookware dia-

meter quoted by manufacturers often

refers to the maximum diameter or

diameter of the top rim. The diameter

of the base (generally smaller) is more

important.

- Where possible, use cookware with

vertically straight sides. If an item of

cookware has angular sides, induction

also acts on the sides of the item of

cookware. The sides of the item of

cookware may discolour or the coat-

ing may peel off.

Adjusting settings

Accessing the Settings menu

There must not be any cookware on

the hob.

 Switch the hob off.

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

 Touch 

Stop&Go

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

parameter.

Setting parameters

The Settings menu has been ac-

cessed.

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the required parameter

number is displayed in the corres-

ponding Cookware display.

 Touch 

The Slider, 

and 

Plus

at the bot-

tom right next to the Hob display light

up.

The Cookware display at the bottom

right next to the Hob display shows the

currently set code number.

Setting the code

A parameter must have been set.

 Touch 

Plus

at the bottom right next

to the Hob display repeatedly until the

required code number is displayed in

the corresponding Cookware display.

 Touch 

The setting is saved. You can now exit

the settings or adjust further settings.

Closing the Settings menu

Unsaved changes are not applied.

 Touch 

On/Off

Adjusting settings

Parameter

Code Settings

 WiFi registration  Not active/deactivated

 Active but not configured

 Active and configured (cannot be se-

lected; displays whether connection

was successful)

 Start connection via Bluetooth

 WiFi reset to default ()

 Restart wireless module

 Hob power level setting range  9 power levels

with intermediate levels + Booster

 9 power levels

without intermediate levels + Booster

 Keypad tone when a sensor con-

trol is touched



Off

 Quiet

 Medium

 Loud

 Buzzer for timer functions  Off

 Quiet

 Medium

 Loud

 Extra loud

 Buzzer for messages and faults  Off (only possible for messages)

 Quiet (minimum volume for faults)

 Medium

 Loud

 Maximum operating time  Safety setting0

 Safety setting1

 Safety setting2

 System lock  System lock can only be activated

manually

 System lock activated automatically

Adjusting settings

Parameter

Code Settings

 Sensor control reaction speed  Fast

 Normal

 Slow



Reaction speed of Slidersensor

control

 Fast

 Normal

 Slow

 Keeping warm temperature  65–75°C

 50–55°C

 80–90°C

 Hood control via hob –

Con@ctivity3.0

 Activated

 Deactivated

 Contrast of sensor control light-

ing

 10%

 20%

 40%

 Resetting settings  Reset nothing

 Reset all settings

 Reset WiFi connection

 Reset light line



Reset the MSense cookware con-

nection

 Factory default settings  Do not restore factory default set-

tings

 Restore factory default settings

Adjusting settings

Parameter

Code Settings



Power management

 Off

 1000W

 2000W

 3000W

 3680W

 4000W

 4500W

 5000W

 6000W

 7000W

 7400W

 8000W

 9000W

 10,000W

 Movement direction for Profes-

sional mode

 From the front (e.g. 9) to the back

(e.g. 1)

 From the back (e.g. 9) to the front

(e.g. 1)

 Poor cookware position indic-

ator

 Detection deactivated

 Detection activated



MSense cookware: altitude of

the installation site

 0–300m

 301–600m

 601–900m

 901–1200m

 1201–1500m

 1501–1800m

 >1800m

 0–1800m

Adjusting settings

Parameter

Code Settings



MSense pot: target temperat-

ure for frying

 140°C

 145°C

 150°C

 155°C

 160°C

 165°C

 170°C

 175°C

 180°C



MSense frying pan: target

temperature for FryingI

 130°C

 135°C

 140°C

 145°C

 150°C

 155°C

 160°C

 165°C

 170°C



MSense frying pan: target

temperature for FryingII

 170°C

 175°C

 180°C

 185°C

 190°C

 195°C

 200°C

 205°C

 210°C

Adjusting settings

Parameter

Code Settings



MSense frying pan: target

temperature for FryingIII

 190°C

 195°C

 200°C

 205°C

 210°C

 215°C

 220°C

 225°C

 230°C

 Light line  Switch off animation

 Standard

 Brighter

 Darker

 Demo mode  Demo mode off



Demo mode on



Demo mode on

Parameters not shown here have no allocation.

The factory default settings are printed in bold.

The keypad tone of 

On/Off

is not switched off.

The total hob power may be reduced in order to meet the local power supply provider’s re-

quirements.

Codes with values above the rated load of the hob are not displayed.

After the hob has been switched on,  appears alternately with  in the Hob display for a

few seconds.

Adjusting settings

Displaying the model identifier/

serial number

There must not be any cookware on

the hob.

 Switch the hob off.

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

Numbers will appear in the Hob display

one after another, separated by a dash.

Example:  (model identifier

KM1234)– (serial num-

ber)

Displaying the software version

There must not be any cookware on

the hob.

 Switch the hob off.

 Touch 

On/Off

for approx.

6seconds. The seconds can be seen

counting down in the Hob display.

The Hob display shows .

The Cookware displays show the follow-

ing:

-  and a number indicate the selected

quick parameter.

- Depending on the model:

 and a number indicate the selected

code of the selected quick parameter.

Other sensor controls light up.

The 

NFC icon

display lights up

brightly.

 Touch 

Plus

or the Slider at the top

right next to the Hob display re-

peatedly until the corresponding

Cookware display shows the follow-

ing: 

 Touch 

3 numbers appear in the Hob display:

Example:  = software version 1.23.

Software update

Carrying out a software update

Information about the content and

scope of an update is provided in the

Mieleapp.

1. Your hob is networked with your

home network

2. The Hob display shows .

 Touch 

Plus

The Hob display shows  and shortly

afterwards ..........

When the hob switches off, the update

is complete. You can use your hob as

usual again.

Adjusting settings

Postponing the software update

Information about the content and

scope of an update is provided in the

Mieleapp.

However, Miele recommends installing

the updates as soon as possible.

1. Your hob is networked with your

home network

2. The Hob display shows .

 Touch 

Minus

You can use your hob as usual.

If you restart your hob and no residual

heat indicators light up, you will be

prompted to perform the update again.

Switching off the software update

However, Miele recommends installing

updates.

 To deactivate updates permanently,

go to the Miele app or contact Miele

Customer Service.

Cleaning and care

Safety notes on cleaning and

care

 Risk of burning due to hot

surfaces.

All parts of the hob may be hot

after use.

Switch the hob off.

Allow the hob to cool down be-

fore cleaning it.

All surfaces could be discol-

oured or damaged if unsuitable

cleaning agents are used or if

residues from suitable cleaning

agents are heated on the hob.

Allow the surfaces to cool

down before cleaning the hob.

Remove all cleaning agent

residues immediately.

Never use abrasive sponges or

cleaning agents.

Using washing-up liquid will

not remove all soiling and

residues. An invisible film can

develop that can lead to discol-

ouration of the ceramic glass

surface. This discolouration

cannot be removed.

Clean the glass ceramic sur-

face regularly with a proprietary

ceramic glass cleaner.

 Do not use a steam cleaner to

clean the hob.

 Do not use pointed objects for

cleaning.

Cleaning the ceramic glass sur-

faces

Removing light soiling

 Clean the entire ceramic surface of

the hob with a damp, soft cloth and a

solution of water and a little washing-

up liquid. Please follow the cleaning

agent manufacturer’s instructions.

Removing stubborn soiling

 Remove any coarse soiling with a

damp cleaning cloth and more stub-

born soiling with a glass scraper.

 Clean the ceramic surface with the

Miele ceramic and stainless steel

cleaner or with a proprietary ceramic

glass cleaner. Please follow the clean-

ing agent manufacturer’s instructions.

Finishing the cleaning process

 Remove all cleaning agent residues

with a damp cleaning cloth.

 Dry the ceramic surface of the hob

after cleaning.

Unsuitable cleaning agents

To avoid damaging the surfaces of the

appliance, do not use:

- Cleaning agents containing soda, al-

kalines, ammonia, acids or chlorides

- Stain and rust removers

- Abrasive cleaning agents, e.g. powder

cleaners and cream cleaners

- Cleaning agents containing solvents

- Dishwasher cleaning agents

- Grill and oven sprays

- Hard, abrasive brushes

- Eraser stain remover blocks

- Sponges

Troubleshooting

Many malfunctions and faults can be easily remedied. You can save time and

money in many cases, as you do not need to contact Customer Service.

More information to help you remedy faults yourself can be found at

www.miele.de/support/customer-assistance.

Messages in the display

Problem Cause and remedy

 flashes alternately

with the set/reduced

power in the Cookware

display

The cookware has been placed in an unfavourable po-

sition.

The cookware could not be clearly assigned to a con-

trol element.

The cookware is too close together.

The cookware is too close together and the power

levels are set to very different levels.

 Reposition the cookware. Move the items of cook-

ware one after the other, not all at the same time.

After the hob has been

switched on, or after

touching a sensor con-

trol,  appears altern-

ately with  in the Hob

display for a few

seconds.

The system lock is activated.

 Deactivate the system lock.

The keypad lock is activated.

 Deactivate the keypad lock.

After the hob has been

switched on, briefly

appears alternately with

 in the Hob display.

The cookware does not

heat up.

The hob is in demo mode.

 Deactivate demo mode.

 flashes in the

Hob display and

the hob switches

off automatically.

One or more of the sensor controls are covered, e.g.

by finger contact, food boiling over or an object.

 Remove the soiling or obstruction.

The Hob display shows



A software update is available for your hob. Touch



Minus

to postpone the update. Perform the update

at the next possible time or switch off the updates

permanently.

Troubleshooting

Problem Cause and remedy

 flashes alternately

with  in the Hob dis-

play.

The overheating protection mechanism has been ac-

tivated.

 Allow the hob to cool down.

 Rectify the causes of the overheating.

 Check that the hob is working.

 If this fault message continues to appear in the dis-

play, contact the Customer Service Department.

 flashes alternately

with , ,  or  in

the Hob display.

The hob is incorrectly connected.

 Disconnect the hob from the mains power supply.

 Contact the Customer Service Department. The hob

must be connected to the mains according to the

wiring diagram.

 alternately with ,

,  or  in the

Hob display.

The fan is blocked or defective.

 Make sure it has not been blocked by an object.

 Remove the obstruction.

 If this fault message continues to appear in the Hob

display, contact Customer Service.

A message not listed in

this table is appearing

on the Hob display.

There is an electronic module fault.

 Disconnect the power supply to the hob for approx.

1minute.

 If the problem persists after the power supply has

been restored, please contact the Customer Service

Department.

Unexpected behaviour

Problem Cause and remedy

When you place an item

of cookware on the hob,

the corresponding slide

control does not appear.

The cookware cannot be detected in this position be-

cause it is very small.

 Reposition the cookware. If it is still not detected,

use a different item of cookware.

The cookware is unsuitable.

 Use suitable cookware.

You re-position a pan

and the set power level

starts to flash.

The pan cannot be detected.

 Touch the flashing power level.

 If the power level continues to flash, re-position the

pan.

Troubleshooting

Problem Cause and remedy

You re-position a pot or

a pan, the set power

level goes out and 0

lights up.

The pan cannot be detected.

 Reset the power level.

Power level9 is auto-

matically reduced if you

also set power level9 for

the connected cooking

zone.

Operating both zones at power level9 exceeds the

permitted maximum power for the two zones.

 Use a different cooking zone.

An area or the whole hob

switches off automatic-

ally.

It has been operated for too long.

 Switch the hob or area on again.

The overheating protection mechanism has been ac-

tivated.

 Allow the hob to cool down.

 Rectify the causes of the overheating.

 Check that the hob is working.

 If the problem occurs again, contact the Customer

Service Department.

The cooking zone is not

working in the usual way

with the set power level.

The overheating protection mechanism has been ac-

tivated.

 Allow the hob to cool down.

 Rectify the causes of the overheating.

 Check that the hob is working.

 If the problem occurs again, contact the Customer

Service Department.

The Booster level has

deactivated early auto-

matically.

The overheating protection mechanism has been ac-

tivated.

 Allow the hob to cool down.

 Rectify the causes of the overheating.

 Check that the hob is working.

 If the problem occurs again, contact the Customer

Service Department.

Troubleshooting

Unsatisfactory results

Problem Cause and remedy

The food in the cook-

ware does not heat up

when the auto heat-up is

switched on.

Large quantities of food are being cooked.

 Start cooking at the highest power level and then

switch back manually.

The cookware is not conducting heat properly.

 Use different cookware that is able to better con-

duct heat.

In comparable cooking

and frying processes

there are slight differ-

ences in cooking dura-

tions and browning.

This is not a fault.

The pan base material and the positions of the pans

on the hob affect the power of the induction coils.

This in turn affects the cooking behaviour.

Cookware positions are

not detected and/or

there is uneven heat dis-

tribution in the cook-

ware.

The cookware is not in the optimum position.

 Position the cookware according to the instructions.

 If you continue to have unsatisfactory cooking res-

ults, set the poor cookware position indicator ()

in the settings.

The detection of unfavourable cookware positions is

more finely tuned. The hob now also reports unfavour-

able cookware positions in addition to incompatible

cookware positions.

Troubleshooting

General problems or technical faults

Problem Cause and remedy

The hob cannot be

switched on.

There is no power to the hob.

 Check whether the circuit breaker has tripped. Con-

tact a qualified electrician or the Miele Customer

Service Department (for the minimum fuse rating,

see data plate).

There may be a technical fault.

 Disconnect the hob from the electricity supply for

approx. 1minute. To do this:

– Trip the relevant mains fuse or screw the fine-

wire fuse out completely, or

– Switch off at the residual current device

 If the hob will still not turn on after resetting the trip

switch in the fuse box or the residual current device,

contact a qualified electrician or the Miele Customer

Service Department.

A smell and vapours are

given off when the new

hob is being used.

The metal components have a protective coating.

When the hob is used for the first time, this causes a

smell and possibly also vapour. The material from

which the induction coils are made also gives off an

odour in the first few hours of operation. With each

subsequent use, the odour is reduced until it disap-

pears completely. The odour and any vapours given off

do not indicate a faulty connection or appliance and

they are not hazardous to health.

An operating noise can

be heard after the hob

has been switched off.

The cooling fan runs until the hob has cooled down

and then switches off automatically.

Various problems with

settings, e.g. problems

with networking

Changes to settings can lead to conflicts with each

other.

Fluctuations in the WiFi signal can lead to conflicts.

If you reset settings to factory defaults, existing

settings will be deleted.

Document existing settings to restore existing set-

tings.

 Reset the settings to the factory defaults.

You can reset all settings or just individual settings

such as the WiFi settings.

Customer Service

Information to help you rectify faults yourself and about Miele spare parts can be

found at www.miele.com/service.

Contact in the event of a fault

In the event of a fault which you cannot remedy yourself, please contact your Miele

dealer or Miele Customer Service.

You can book a Miele Customer Service call-out online at www.miele.com/ser-

vice.

Contact information for Miele Customer Service can be found at the end of this

document.

Please quote the model identifier and serial number of your appliance (SN) when

contacting Miele Customer Service. This information can be found on the data

plate.

Data plate

Stick the extra data plate supplied with the appliance here. Make sure that the

model identifier matches the one specified on the back cover of this document.

Warranty

For information on the appliance warranty specific to your country please contact

Miele. See back cover for address.

In the UK, your appliance warranty is valid for 2 years from the date of purchase.

However, you must activate your cover by calling 0330 160 6640 or registering on-

line at www.miele.co.uk.

Technical data

ISM band frequency 2,400GHz – 2,4835GHz

RFID/NFC frequency 13,56 Mhz

WiFi transmission power ≤ 100mW

RFID/NFC transmission power ≤ 100mW

BTLE transmission power ≤ 10mW

Power rating in off mode ≤ 0,5W

Power rating in networked standby ≤ 2W

Time until automatic switch to off mode 10Min.

Time until automatic switch to net-

worked standby

10Min.

Product data sheets

The following product data sheets apply to the models described in these operating

and installation instructions.

Information for domestic electric hobs

In acc. with regulation (EU) No. 66/2014

MIELE

Model name/identifier KM8765FLDiamond

Type of hob built-in

Number of cooking zones and/or areas 1

For circular cooking zones: diameter of useful sur-

face area/cooking zone

For non-circular cooking zones or areas: length and

width of useful surface area per electric cooking

zone or area

1. = 570x380 mm

Energy consumption per cooking zone or area cal-

culated per kg (EC

electric cooking

)

1. = 184,8 Wh/kg

Energy consumption for the hob calculated per kg

(EC

electric hob

)

184,8 Wh/kg

- Full area / Can be selected freely / Induction

Information for domestic electric hobs

In acc. with regulation (EU) No. 66/2014

Technical data

MIELE

Model name/identifier KM8885-2FLDiamond&MSense

Type of hob built-in

Number of cooking zones and/or areas 1

For circular cooking zones: diameter of useful sur-

face area/cooking zone

For non-circular cooking zones or areas: length and

width of useful surface area per electric cooking

zone or area

1. = 740x380 mm

Energy consumption per cooking zone or area cal-

culated per kg (EC

electric cooking

)

1. = 186,0 Wh/kg

Energy consumption for the hob calculated per kg

(EC

electric hob

)

186,0 Wh/kg

- Full area / Can be selected freely / Induction

Information for domestic electric hobs

In acc. with regulation (EU) No. 66/2014

MIELE

Model name/identifier KM8895-2FLDiamond&MSense

Type of hob built-in

Number of cooking zones and/or areas 1

For circular cooking zones: diameter of useful sur-

face area/cooking zone

For non-circular cooking zones or areas: length and

width of useful surface area per electric cooking

zone or area

1. = 870x380 mm

Energy consumption per cooking zone or area cal-

culated per kg (EC

electric cooking

)

1. = 187,0 Wh/kg

Energy consumption for the hob calculated per kg

(EC

electric hob

)

187,0 Wh/kg

- Full area / Can be selected freely / Induction

EU Conformity declaration

Miele hereby declares that this ceramic induction hob complies with Directive

2014/53/EU.

The complete text of the EU declaration of conformity is available from one of the

following internet addresses:

Technical data

- Products, Download from www.miele.ie

- For service, information, operating instructions etc: go to

https://miele.ie.manuals and enter the name of the product or the serial number

UK Conformity declaration

Miele hereby declares that this ceramic induction hob complies with UK Radio

Equipment Regulations 2017, as amended.

The complete text of the UK declaration of conformity is available from one of the

following internet addresses:

- Products, Download from www.miele.co.uk

- For service, information, operating instructions etc: go to https://miele.co.uk/

manuals and enter the name of the product or the serial number

ThisStatement of Compliance confirms this Miele product fully complies with the

Product Security and Telecommunications Infrastructure (Security Requirements

for Relevant Connectable Products) Regulations 2023.

Household Appliance –

Manufactured by: Miele & Cie KG,

Carl Miele Street 29, 33332 Gutersloh Germany

Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road,

Abingdon, Oxon, OX14 ITW Great Britain

The defined support period at the time of first supply is 10 years

To report vulnerabilities and cybersecurity issues please contact: [email protected]

Signature

Name: Paul Wright

Company Position: Head of Technical Management

Date of signature: 19th March 2024

Place of signature:

Abingdon, Oxfordshire

Inductions hobs IC08-02W

United Kingdom

Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW

Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]

Australia

Miele Australia Pty. Ltd.

ACN 005 635 398

ABN 96 005 635 398

Level 4, 141 Camberwell Road

Hawthorn East, VIC 3123

Tel: 1300 464 353

E-mail: [email protected]

Internet: www.miele.com.au

Miele Electrical Appliances Co. Ltd.

No. 82, Shimenyi Road, JingAn District

Shanghai, China, P.R.C

Post Code: 200040

Phone: +86 21 6157 3500

Fax: +86 21 6157 3511

E-mail: info@miele.cn

Internet: www.miele.cn

China Mainland

Miele (Hong Kong) Ltd.

41/F - 4101, Manhattan Place

23 Wang Tai Road

Kowloon Bay, Hong Kong

Tel: (852) 2610 1025

Fax: (852) 3579 1404

E-mail:

[email protected]

Website: www.miele.hk

Hong Kong, China

Miele India Pvt. Ltd.

1st Floor, Copia Corporate Suites,

Commercial Plot 9, Mathura Road,

Jasola, New Delhi - 110025

E-mail: customercare@miele.in

Website: www.miele.in

India

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus

Dublin 24

Tel: (01) 461 07 10

Fax: (01) 461 07 97

E-mail: [email protected]

Internet: www.miele.ie

Ireland

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana

Petroleum

Solaris Dutamas No. 1

Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: +603-6209-0288

Fax: +603-6205-3768

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011

Tel: 0800 464 353

Internet: www.miele.co.nz

New Zealand

Miele Pte. Ltd.

29 Media Circle

#11-04 ALICE@Mediapolis

Singapore 138565

Tel: +65 6735 1191

Fax: +65 6735 1161

E-mail: [email protected]

Internet: www.miele.sg

Singapore

Miele (Pty) Ltd.

63 Peter Place, Bryanston 2194

Tel: (011) 875 9000

Fax: (011) 875 9035

E-mail: [email protected]

Internet: www.miele.co.za

South Africa

Miele Appliances Ltd.

Showroom 1, Eiffel 1 Building

P.O. Box 114782 - Dubai

Tel. +971 4 3044 999

Fax. +971 4 3418 852

800-MIELE (64353)

E-mail: [email protected]

Website: www.miele.ae

United Arab Emirates

Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany

Thailand

Miele Appliances Ltd.

BHIRAJ TOWER at EmQuartier

43rd Floor Unit 4301-4303

689 Sukhumvit Road

North Klongton Sub-District

Vadhana District

Bangkok 10110, Thailand

Sheikh Zayed Road, Umm Al Sheif

E-mail: customercare@miele.co.nz

P.O. Box 69434, Bryanston 2021

M.-Nr. 12 985 360 / 02 / 002en-GB

KM 8765 FL Diamond, KM 8885-2 FL Diamond&MSense,

KM 8895-2 FL Diamond&MSense

Miele KM 8895-2 FL DIAMOND&MSENSE KM 8895-2 FL Diamond&MSense

Product's Documents

Operating instructions/Installation instructions

Specifications

Miele KM 8895-2 FL DIAMOND&MSENSE Questions and Answers

Related Products

Miele KM 7897-2 FL DIAMOND

Miele KM 7897-2 FL Diamond - Hobs

Miele KM 7361 FL

Miele KM 7667 FL

Miele KM 7220 FL Induction Cooktop

Miele KM 7373 FL Induction Cooktop
