www.gorenje.com
MO23A3W5
MO23A3B5
2
Instruction manual / Microwave oven
EN .....................................................................................................................................................4
3
We sincerely thank you for your purchase. We believe you
will soon fi nd ample evidence that you can really rely on
our products. To make the use of the appliance easier, we
attach these comprehensive instruction manual.
The instructions should aid you in getting familiar with
your new appliance. Please, read them carefully before
using the appliance for the fi rst time.
In any case, please make sure the appliance was supplied
to you undamaged. Should you identify and transport
damage, contact your sales representative or the regional
warehouse from where the product was delivered. You
will fi nd the telephone number on the receipt or delivery
report.
We wish you a lot of pleasure with your new household
appliance.
The appliance for household use for heating
food and beverages using electromagnetic
energy, for indoor use only.
These instructions are intended for the user.
They describe the cooker and how to use it. They also
apply to di erent types of appliances, therefore you may
fi nd some descriptions of functions that may not apply to
your appliance.
DEAR CUSTOMER
EN
INSTRUCTIONS FOR
USE
MICROWAVE OVEN
ENERGY CONSUMPTION
Product information for power consumption and maximum
time to reach applicable low power mode.
Off mode 0.8W
The maximum time needed for the microwave
oven to automatically reach the applicable
low power mode or condition.
15 minutes
4
Never touch the surfaces of heating
or cooking appliances. They will
become hot during operation. Keep
children at a safe distance. There is a
risk of burning!
Microwave energy & High voltage!
Do not remove the cover.
WARNING! The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
Children should be supervised to ensure that they do not
play with the appliance.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and maintenance shall
not be made by children unless they are older than 8 and
supervised.
Keep the appliance and its cord out of reach of children
less than 8 years.
• WARNING: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated; (Only for the model with grill function)
IMPORTANT SAFETY INSTRUCTIONS
5
• WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person;
• WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave
energy;
• WARNING: liquids and other foods must not be heated
in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do
not play with the appliance.
• Don't remove oven's feet, do not block air events of the
oven.
• Only use utensils that are suitable for use in microwave
ovens.
• When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch o or unplug the appliance
and keep the door closed in order to stifl e any fl ames;
• Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container;
• The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended;
6
• When cleaning surfaces of door, door seal, cavity of the
oven, use only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food
deposits removed;
• Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
a ect the life of the appliance and possibly result in a
hazardous situation;
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualifi ed
persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or
worktop.
• Never connect this appliance to an external timer
switch or remote control system in order to avoid a
hazardous situation.
• Never replace the light bulb inside the oven. It must
always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-
pressure cleaners, sharp objects, abrasive cleaning
agents, and abrasive sponges and stain removers.
7
Listed below are, as with all appliances, certain rules to
follow and safeguards to assure top performance from this
oven:
1. Always have the glass tray, roller arms, coupling and
roller track in place when operating the oven.
2. Do not use the oven for any reason other than food
preparation, such as for drying clothes, paper, or any
other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could
damage the oven.
4. Do not use the oven cavity for any type of storage,
such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane,such
as egg yolks, potatoes, chicken livers, etc without fi rst
being pierced several times with a fork.
6. Do not insert any object into the openings on the outer
case.
7. Do not at any time remove parts from the oven such as
the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food
in/on proper cooking utensil before placing in the oven.
IMPORTANT - COOKWARE NOT TO USE IN YOUR
MICROWAVE OVEN
– Do not use metal pans or dishes with metal handles.
– Do not use anything with metal trim.
– Do not use paper covered wire twist-ties on plastic
bags.
– Do not use melamine dishes as they contain a
material which will absorb microwave energy. This
may cause the dishes to crack or char and will slow
down the cooking speed.
– Do not use Centura Tableware. The glaze is not
suitable for microwave use. Corelle Livingware
closed handle cups should not be used.
– Do not cook in a container with a restricted opening,
such as a pop bottle or sealed oil bottle, as they
may explode if heated in a microwave oven.
– Do not use conventional meat or candy
thermometers.
– There are the thermometers available specifi cally for
microwave cooking. These may be used.
9. Microwave utensils should be used only in accordance
with manufacturer's instructions.
10. Do not attempt to deep-fry foods in this oven.
11. Please remember that a microwave oven only heats
the liquid in a container rather than the container itself.
SAFETY INSTRUCTIONS
FOR GENERAL USE
8
Therefore, even though the lid of a container is not
hot to the touch when removed from the oven, please
remember that the food/liquid inside will be releasing
the same amount of steam and/or spitting when the lid
is removed as in conventional cooking.
12. Always test the temperature of cooked food yourself
especially if you are heating or cooking food/liquid for
babies. It is advisable never to consume food/liquid
straight from the oven but allow it to stand for a few
minutes and stir food/liquid to distribute heat evenly.
13. Food containing a mixture of fat and water,
e.g.stock,should stand for 30-60 seconds in the oven
after it has been turned o . This is to allow the mixture
to settle and to prevent bubbling when a spoon is
placed in the food/liquid or a stock cube is added.
14. When preparing/cooking food/liquid and remember
that there are certain foods, e.g. Christmas puddings,
jam and mincemeat, which heat up very quickly. When
heating or cooking foods with a high fat or sugar
content do not use plastic containers.
15. Cooking utensil may become hot because of heat
transferred from the heated food. This is especially true
if plastic wrap has been covering the top and handles
of the utensil. Potholders may be needed to handle the
utensil.
16. To reduce the risk of fi re in the oven cavity:
a) Do not overcook food. Carefully attend microwave
oven if paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing
bag in oven.
c) If materials inside the oven should ignite, keep oven
door closed, turn the oven o at the wall switch, or
shut o power at the fuse or circuit breaker panel.
9
1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
6. Wave guide (please do not remove the mica
plate covering the wave guide)
CONTROL PANEL
DISPLAY UNIT
Displays the selected functions and time.
KEYS
Pause / Stop
Start
10
Defrost
Clock
Auto cooking
ECO mode
Auto clean
INSTRUCTIONS FOR USE
BEFORE COOKING
The display lights up when plugged in power supply, then
enter the standby state and display shows 1:00.
There are five microwave power levels, 100P, 80P, 50P, 30P
and 10P, respectively. In standby mode, press the “ ” button
continuously and select the desired microwave power.
Turn the knob to increase or decrease cooking time, the time
range can be selected is from 0:10 to 60:00. After select the
time, press “ ” button to start work. An buzzing sound to
notify completion of the operation.
HIGH
Med
M.High
M.Low
LOW
100% power output
80% power output
50% power output
30% power output
10% power output
(Applicable for quick and
thorough cooking)
(Applicable for quick and
thorough cooking)
(Applicable for quick and
thorough cooking)
(Applicable for quick and
thorough cooking)
(Applicable for keeping
warm)
NOTE:
d.
e.e.
At the maximum microwave power, the oven will
automatically lower the power after a certain time of
cooking to lengthen the service life.
If you turIf you turn the food during operation, press the
button once and the preset cooking procedure will
continue.
f.f.If you intend to remove the food before the preset time
you must press button once to clear the preset
a. The max time which can be set is 60 minutes.
b. Never use the grill rack during microwave cooking.
c. Never operate the oven empty.
procedure to avoid unintended operation of next time use.
the rack and cooking containers, may become very
hot. Use caution when removing any item from the
oven. Use heavy potholders or oven mitts to
PREVENT BURNS.
gg..In the mode of grill, all of the oven parts, as well as
11
time, press the button start to work. An buzzing sound
to notify completion of the operation. The dEF1 defrost
mode by weight will have a beeping sound to prompt
the food to be turned over during defrosting.
Below is some food defrosting time advice:
DEFROST
dEF1
dEF2
For defrosting, the weight range from 100 to 1500g.
For defrosting, the time range from 0:10 to 60:00.
NOTE:
a. It is necessary to turn over the food during
operation to obtain uniform effect.
b. Usually defrosting will need longer time than that
of cooking the food.
c. If the food can be cut by knife, the defrosting
process can be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as
possible, it is not advised to put back to fridge and
freeze again.
CLOCK (24-hour clock)
12
The menu functions include 20 preset automatic programs,
labeled A.1 through A.20, which correspond to Broccoli
Florets, Sliced Carrots, Green Beans, Spinach, Corn on the
Cob, Wholemeal Macaroni, Quinoa, Brown Rice, Bread
Dough, Breakfast Sausage, Melt Butter, Soften Butter,
Reheat, Pasta, Pizza, Popcorn, Beverage, Meat, Fish, and
Keep Warm, respectively. The detailed operating procedure
is as follows.
Press the button or turn the knob to select the desired
automatic menu, and the display screen will show the
corresponding code, A.1 through A.20. Press the " " button
to confirm the selected program. Turn the knob to select the
weight of the menu. After selecting the cooking weight, press
the “ ” button to start work. An buzzing sound to notify
completion of the operation.
Automatic cooking program menu
AUTO COOKING
Display Kind
Size
Operation
Wash the broccoli, cut it
into uniform small pieces,
add 60 ml (4 tablespoons)
of water and a pinch of
salt, cover with a lid or
microwave-safe plastic
wrap perforated with holes,
and place the container in
the center of the glass
turntable tray.
A.1
Broccoli
Florets
200g
Peel and clean the carrots,
cut them into thin slices
approximately 1 cm thick,
add 30 ml (2 tablespoons)
of water and a pinch of
salt, cover with a lid or
microwave-safe plastic
wrap perforated with holes,
and place the container in
the center of the glass
turntable tray.
A.2 Sliced Carrots
Rinse and clean the green
beans, add 30 ml (2
tablespoons) of water and
a pinch of salt, cover with a
lid or microwave -safe
plastic wrap perforated
with holes, place the
container in the center of
the glass turntable tray, and
stir after cooking.
A.3 Green Beans
Wash and rinse the
spinach, add 30 ml (2
tablespoons) of water and
a pinch of salt, cover with a
lid or microwave-safe
plastic wrap perforated
with holes, place the
container in the center of
the glass turntable tray,
and stir after cooking.
A.4 Spinach
200g
2
00g
200g
13
Clean the corn on the cob,
add 30 ml (2 tablespoons)
of water and a pinch of
salt, cover with a lid or
microwave-safe plastic
wrap perforated with holes,
place the container in the
center of the glass
turntable tray, stir after
cooking, and allow it to rest
for 2–3 minutes.
A.5
Corn on the
Cob
Add six times the volume
of room temperature water,
incorporate a small amount
of salt, and stir thoroughly.
Boil uncovered. Upon
completion of cooking, stir
again and allow the
mixture to rest for 1 to 3
minutes.
A.6
Wholemeal
Macaroni
Add 2.5 times the volume
of room temperature water,
cover the container, and
cook. Upon completion of
cooking, stir the contents,
season to taste, cover
again, and allow the
mixture to rest for 2 to 3
minutes.
A.7 Quinoa
Soak brown rice in three
times its volume of cold
water for 3 to 4 hours in
advance. Place the soaked
rice in a microwave -safe
container with a lid. Cover
and cook. After cooking,
season to taste, stir
thoroughly, cover again,
and allow the mixture to
rest for 5 minutes.
A.8 Brown Rice
Recipe: 250 g flour, 2.5 g
yeast, 130 –140 g water
(warm water at 40 °C).
3.Transfer the dough
A.9 Bread Dough
375g
evenly into a
microwave-safe container,
ensuring that the total
volume of the contents
occupies 50% to 70% of
the container’s capacity.
Cover with plastic wrap.
1.Dissolve the yeast in
warm water, stir
thoroughly, and allow it to
stand for 5 minutes.
2.Gradually incorporate
the activated yeast mixture
into the flour, kneading
until no dry flour remains,
then continue kneading
until the dough is smooth
and cohesive.
4.Place a 200 ml bowl of
room-
temperature water
inside the microwave and
activate the first power
level.
5.Upon completion of the
first stage, insert the dough
container and initiate the
second heating phase.
200g
100g
100g
100g
14
Place the sausage in a
ceramic dish, cover it with
a perforated lid or wrap
with plastic wrap and
puncture small holes for
ventilation. Position the
dish in the center of the
glass turntable tray and
remove from heat once
cooking is complete. Serve
immediately.
A.10
Breakfast
Sausage
200g
Place the butter in a
heat-resistant container
and cover it with a
perforated lid or wrap with
plastic wrap, puncturing
small holes for ventilation.
A.11 Melt butter
200g
Place the butter in a
heat-resistant vessel
without a lid and turn it
over halfway through
A.12 Soften butter
heating.
Place refrigerated rice,
pasta, and similar foods on
a ceramic dish, cover with
a perforated lid or plastic
wrap punctured with small
ventilation holes, and
position the dish in the
center of the glass
turntable tray. Serve
immediately upon
completion of cooking.
A.13 Reheat
200g, 400g,600g
800 , 1000g
Add eight times the volume
of room temperature water,
incorporate a small amount
of salt, and stir thoroughly.
Boil uncovered. Upon
completion of cooking,
proceed as required.
A.14 Pasta
100g
A.15 Pizza
The initial temperature is
Follow the instructions
provided on the packaging.
A.16 Popcorn
Pour milk, coffee, or tea
(approximately 250 ml)
into a mug and place it in
the center of the glass
turntable tray.
1 cup
A.17 Beverage
Wash the chicken breast
thoroughly and make
shallow cuts on the
surface. Marinate
according to taste. Place it
on a ceramic plate, cover
with a lid or plastic wrap,
puncture several
ventilation holes, and
position in the center of the
glass turntable tray.
A.18 Meat
−18 °C. Place the items on
a flat tray or pizza paper,
arranging them in a single
layer without stacking, and
do not cover with plastic
wrap.
200g
100g
200g
200g
15
Wash the fish thoroughly,
cut it into portions
approximately 2 to 2.5 cm
thick, or make several
shallow incisions on the
surface if left whole.
Marinate according to
taste, place on a ceramic
plate, cover with a lid or
plastic wrap, puncture
small ventilation holes, a nd
position in the center of the
glass turntable tray.
A.19 Fish
Position the food at the
center of the glass
turntable tray.
A.20 Keep warm
15 minutes
NOTE:
a. The temperature of food before cooking would be
℃
of cooking time.
b. The temperature, weight and shape of food will
largely influence the cooking eect. If any
deviation has been found to the factor noted on
above menu, you can adjust the cooking time for
best result.
ECO
200g
ECO stands for energy-saving mode, with the specific operation
detailed as follows.
When in standby mode, short press this “ ” button to
activate ECO mode, after which the display screen will turn off.
In ECO mode,press any button to deactivate the ECO function
and restore the display.
16
AUTO CLEAN
PAUSE/STOP
START/+30s
EXPRESS
In the process of cooking settings, can press this button
to cancel the settings and return to st
andby state. In the
process of microwave oven working, can press this
button to pause. In the paused state, can press this
button again to cancel the function and return to standby
state.
After setting the cooking time or food weight, press this
button to start the microwave oven immediately. In
working state, can press this button to increase time,
press one time to increase 30 seconds, but the menu mode
and weight defrosting mode cannot adjust time. In paused
state, can press this button to continue the microwave
oven before cooking mode.
In standby mode, after the food is put in and the door is
closed, press the button to quickly start the microwave.
The default working time is 30 seconds. In the process of
working, press the button once for 30 seconds. An
buzzing sound to notify completion of the operation.
In standby mode, turn the knob to increase or decrease
cooking time, the time range can be selected is from 0:10
to 60:00. The microwave power level is 100P.
After select the time, press the button to start work. An
buzzing sound to notify completion of the operation.
QUICK HEATING
Auto clean is an automatic cleaning function that facilitates
users in cleaning the cavity. The specific operation is as
follows.
Press and hold down this button for at least 3 seconds
to enter automatic cleaning mode,and add 250ml of clean
water. Press the
button to start work. An buzzing sound
to notify completion of the operation.After program has
finished, wait 2-3 minutes and then remove the glass and
wipe the oven with soft cloth.
17
CHILD LOCK
FUNCTION
for 3 seconds before returning to standby mode, and the beep
sound will turn on.
Use this feature to lock the control panel when you are
cleaning or so that children cannot use the oven unsupervised.
All the buttons (except the "
" button) are rendered
inoperable in this mode.
" button for
more than 3 seconds to cancel the child lock function. All the
buttons on the microwave oven have been restored to normal
functionality.
1. Set lock
In standby mode, press and hold down the " " button for
more than 3 seconds, the child lock function is activated, and
all buttons of the microwave oven cannot be operated except
the " " button.
2.. Cancel lock
2.Turn on the prompt sound
In standby mode, press and hold down the
button
SOUND PROMPT
FUNCTION
1.Turn off the prompt sound
In standby mode, press and hold down the button for
more than 3 seconds, and the screen will display "V-OF" for 3
seconds before returning to standby mode, and the beep
sound will turn off.
In the child lock state, press and hold down the "
1
8
1. Turn the oven o and remove the power plug from
the wall socket before cleaning.
2. Keep the inside of the oven clean. When food
splatters of spilled liquids adhere to oven walls,wipe
with a damp cloth. The use of harsh detergent or
abrasives is not recommended.
3. The outside oven surface should be cleaned with
a damp colth. To prevent damage to the operating
parts inside the oven, water should not be allowed to
seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean
with a soft, damp cloth, Do not use detergents,
abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside
of the oven door, wipe with a soft cloth.This may
occur when the microwave oven is operated under
high humidity conditions and in no way indicates
malfunction of the unit.
6. It is occasionally necessary to remove the glass tray
for cleaning. Wash the tray in warm sudsy water or in
a dishwasher.
7. The roller ring and oven cavity fl oor should be
cleaned regularly to avoid excessive noise. Simply
wipe the bottom surface of the oven with mild
detergent, water or window cleaner and dry. The
roller ring may be washed in mild sudsy water or dish
washer. Cooking vapours collect during repeated use
but in no way a ect the bottom surface or roller ring
wheels. When removing the roller ring from cavity
fl oor for cleaning, be sure to replace it in the proper
position.
8. Remove odors from your oven by combining a cup of
water with the juice and skin of one lemon in a deep
microwaveable bowl. Microwave for 5 minutes, wipe
thoroughly and dry with a soft cloth.
Do not throw away the appliance with the normal
household waste at the end of its life, but hand it in at an
o cial collection point for recycling. By doing this, you
help to preserve the environment.
ENVIRONMENT
CARE OF YOUR MICROWAVE OVEN
19
CAUTION: This oven is protected internally by a 250V, 8
Amp Fuse.
INSTALLATION
MOUNTING THE MICROWAVE OVEN
10. This oven requires 1.3 KVA for its input consultation with
service engineer is suggested when installing the
oven.
20
1. Make sure all the packing materials are removed from the
inside of the door.
Inspect the oven after unpacking for any visual damage
such as:
– Misaligned Door
– Damaged Door
– Dents or Holes in Door Window and Screen
– Dents in Cavity
If any of the above are visible, DO NOT use the oven.
3. This Microwave Oven weighs 8.9
kg and must be
placed on a horizontal surface strong enough to support
this weight.
The oven must be placed away from high temperature and
steam.
DO NOT place anything on top of the oven.

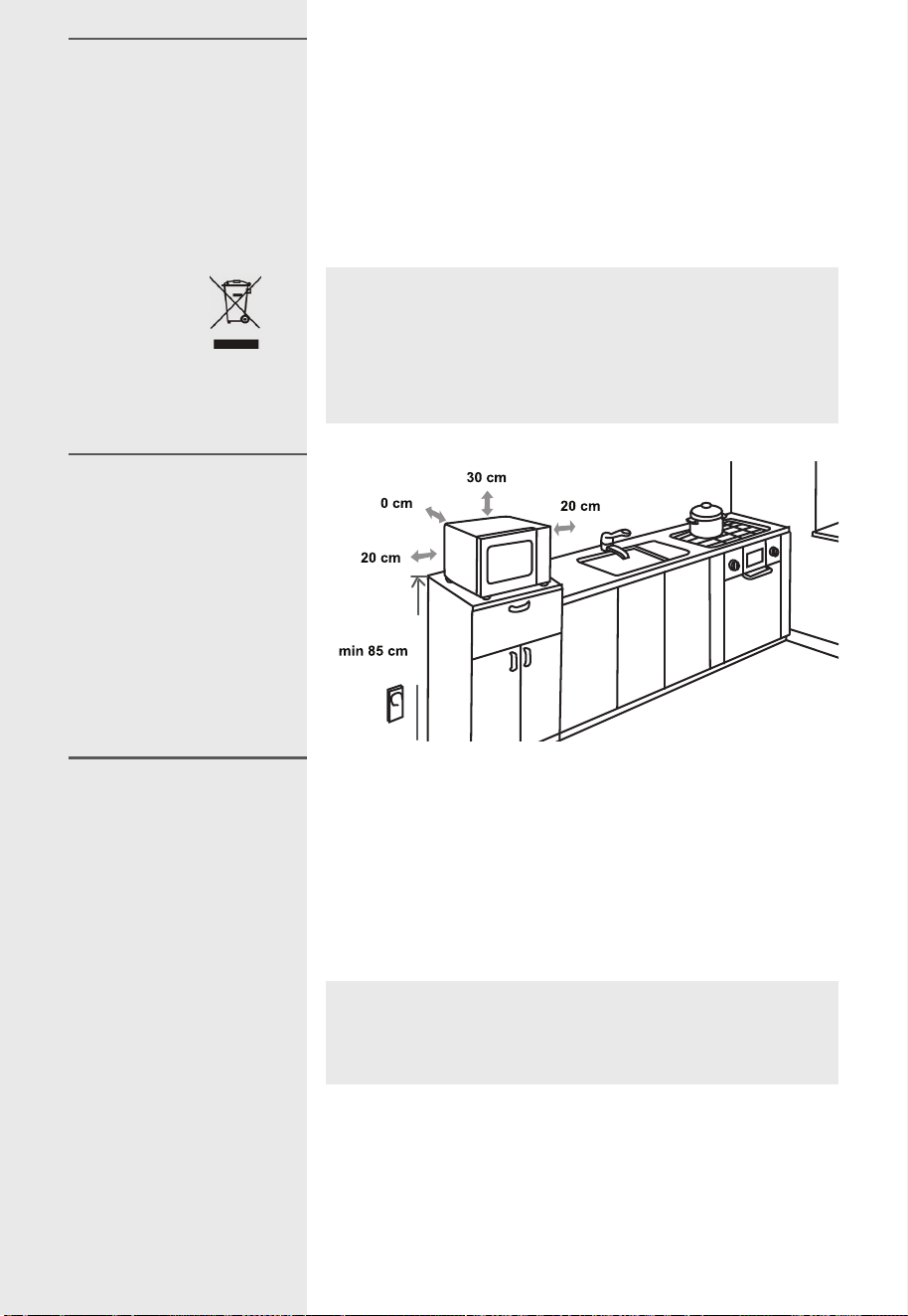

Keep the oven at least 20 cm away from both sidewalls
and
30 cm a
wa y
from r ear wall to ensure the correct
ventilation.
DO NOT remove the turn -table drive shaft.
As with any appliance, close supervision is necessary
when used by children.
Make sure that the AC outlet is easily accessible so that
the plu g can be removed quickly in an emergency.
Otherwise, it should be possible to disconnect the device
using a switch from the circuit. In this case, the existing
provisions of the electrical safety standards are
considered.
The product has to be correctly installed on earthed socket
with a single-phase AC (220-240 V/50 Hz).
W ARNING! THIS
APPLIANCE MUST BE EARTHED!
This appliance is marked according to the European
directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE).
This guideline is the frame of a European-wide
validity of return and recycling on Waste Electrical
and Electronic Equipment.
Microwave oven may cause interference to your radio, TV,
or similar equipment. When interference occurs, it may be
eliminated or reduced by the following procedures.
a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your
microwave oven as possible.
c) Use a properly installed antenna for your radio, TV,
etc. to get a strong signal reception.
WE RESERVE THE RIGHT TO MAKE ANY CHANGES
THAT DO NOT AFFECT THE FUNCTIONALITY OF THE
APPLIANCE.
SPECIFICATIONS
MOUNTING
DIMENSIONS
RADIO INTERFERENCE
21
Power consumption .................................... 220-240V~50Hz, 1280W
Output power ...................................................................................... 800W
Operating Frequency .................................................................2450MHz
Oven Capacity ..................................................................................23 litres
Noise level .............................................................................Lc < 58 dB (A)
Outside Dimensions .........480mm
(W))x292.5mm(H) x 364mm(D)
Uncrated Weight ...............................................................Approx. 8.9 kg
1. If the oven will not perform at all, the information
on the display does not appear or the display
disappeared:
a) Check to ensure that the oven is plugged in securely.
If it is not, remove the plug from the outlet, wait 10
seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a
tripped main circuit breaker. If these seem to be
operating properly, test the outlet with another
appliance.
2. If the microwave power will not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed
to engage the safety interlocks. Otherwise, the
microwave energy will not fl ow into the oven.
If none of the above rectify the situation, then
contact the nearest authorized service agent.
The appliance for household use for heating food and
beverages using electromagnetic energy, for indoor use
only.
If you need information or if you have a problem, please
contact the Gorenje Customer Care Centre in your country
(you fi nd its phone number in the worldwide guarantee
leafl et). If there is no Customer Care Centre in your
country, go to your local Gorenje dealer or contact the
Service department of Gorenje domestic appliances.
For personal use only!
Additional recommendations for cooking with
microwave and useful advices can be found on web
side:
http://www.gorenje.com
WISHES YOU A LOT OF PLEASURE WHILE USING YOUR
APPLIANCE
BEFORE YOU CALL FOR SERVICE
GUARANTEE & SERVICE
22
www.gorenje.com
23
