ELECTRIC DRILL CORDLESS
SPECIFICATIONS
MODEL
High Speed
Low Speed
Chuck Capacity
Overall Length
Net Weight
12V - YELLOW 21V - YELLOW
190×55×170mm
815g
190×80×190mm
841g
0-1600 RPM
0-430 RPM
0.8mm(1/32”) - 10mm(3/8”)
190×80×190mm
860g
21V - PINK
*Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
Specifications may differ from country to country.
WARNING! Read all instructions. Failure to follow
all instructions listed below may result in electric
shock, fire and/or serious injury. The term “power
tool” in all of the warnings listed below refers to
your mains-operated(corded) power tool or
battery-operated(cordless) power tool.
GENERAL SAFETY RULES
Work Area Safety
1. Keep work area clean and well lit. Cluttered
and dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1.
Power tool plugs must match the outlet. Never
modify the plug in anyway. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
4.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
Personal Safety
1.
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcoholor
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
2. Use safety equipment. Always wear eye
protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will
reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is
in the off-position before plugging in. Carrying
power tools with your finger on the switch or
plugging in power tools that have the switch on
invites accidents.
4.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
5.
Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6.
Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
‧1‧
Power Tool Use & Care
1.
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that can
not be controlled with the switch is dangerous
and must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tools operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions and
in the manner intended for the particular type
of power tool, taking in to account the working
conditions and the work to be performed. Use
of the power tool for operations different from
those intended could result in a hazardous
situation.
2.
Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another batter ypack.
3. Use power tools only with specifically
designated battery packs. Use of any other
batter ypacks may create a risk ofi njury and fire.
4.
When battery pack is not in use, keep it away
from other metal objects like paper clips, coins,
Battery Tool Use & Care
1.
Ensure the switch is in the off position before
inserting battery pack. Inserting the battery
pack into power tools that have the switch on
invites accidents.
5. Under abusive conditions, liquid may be
ejected from the battery, avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
keys, nails, screws or other small metal objects
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
Service
1.
Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
2. Follow instruction for lubricating and changing
accessories.
3. Keep handles dry, clean and free from oil and
grease.
6.
Keep hands away from rotating parts.
7. Do not leave the tool running. Operate the tool
only when hand-held.
8. Do not touch the drill bit or the workpiece
immediately after operation, they may be
extremely hot and could burn your skin.
9.
Some material contains chemicals which may
be toxic. Take caution to prevent dust
SPECIFIC SAFETY RULES
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict
adherence to drill safety rules. If you use this
power tool unsafely or incorrectly, you can suffer
serious personal injury.
1.
Wear ear protetors with impact drills. Exposure
to noise can cause hearing loss.
2. Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
3.
4.
Hold power tools by insulated gripping
surfaces when performing an operation where
the cutting tool may contact hidden wiring or
its own cord. Contact witha “live” wire will make
exposed metal parts of the tool “live” and shock
the operator.
Always be sure you have a firm footing. Be sure
no one is below when using the tool in high
locations.
5. Hold the tool firmly.
‧2‧
inhalation and skin contact. Follow material
supplier safety data.
MISUSE or failure to above the safety rules stated
in this instruction manual may cause serious
personal injury.
WARNING:
*Tips for maintaining maximum battery life:
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery
cartridge. Overcharging shortens the battery
service life.
SAFETY INSTRUCTIONS FOR
BATTERY CARTRIDGE
1.
Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery and （3) product
using battery.
2. Do not disassemble battery cartridge.
3.
4.
If operating time ha sbecome excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
5. Do not short the battery cartridge:
6.
Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50°C (122°F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge cane xplode in a fire.
8. Be careful not to drop or strike battery.
（1）Do not touch the terminals with any
conductive material.
（2）Avoid storing battery cartridge in a container
with other metal objects.
（3）
Do not expose battery cartridge to water
orrain. A battery short can cause a large
current flow, overheating, possible burns and
even a breakdown.
3.
Charge the battery cartridge with room
temperature at 10 - 40°C (50 -104°F). Let a hot
battery cartridge cool down before charging it.
FUNCTIONAL DESCRIPTION
•
Always be sure that the tool is switched off and
the battery cartridge is removed before adjusting
or checking functionon the tool.
• Always switch off the tool before insertion or
removal of the battery cartridge.
• To remove the battery cartridge, with draw it from
the tool while pressing the buttons on both sides
of the cartridge.
• To insert the battery cartridge, hold it so that the
battery cartridge front shape fits to that of the
battery installment opening and slip it into place.
Always insert it all the way until it locks in place
with a little click. If not, it may accidentally fall
out of the tool, causing injury to you or someone
around you.
•
Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily,
itis not being inserted correctly.

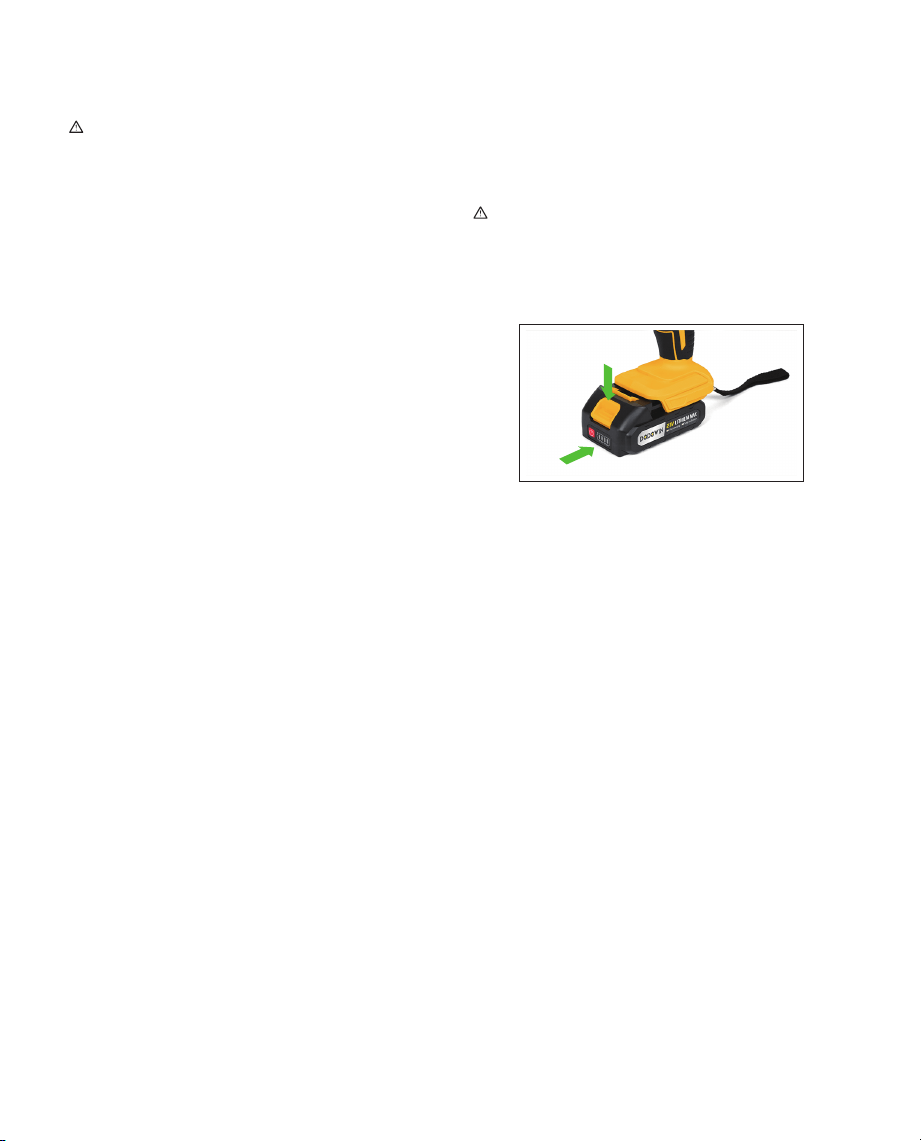

1. Button 2. Battery cartridge
Installing or removing battery cartridge
CAUTION:
‧3‧

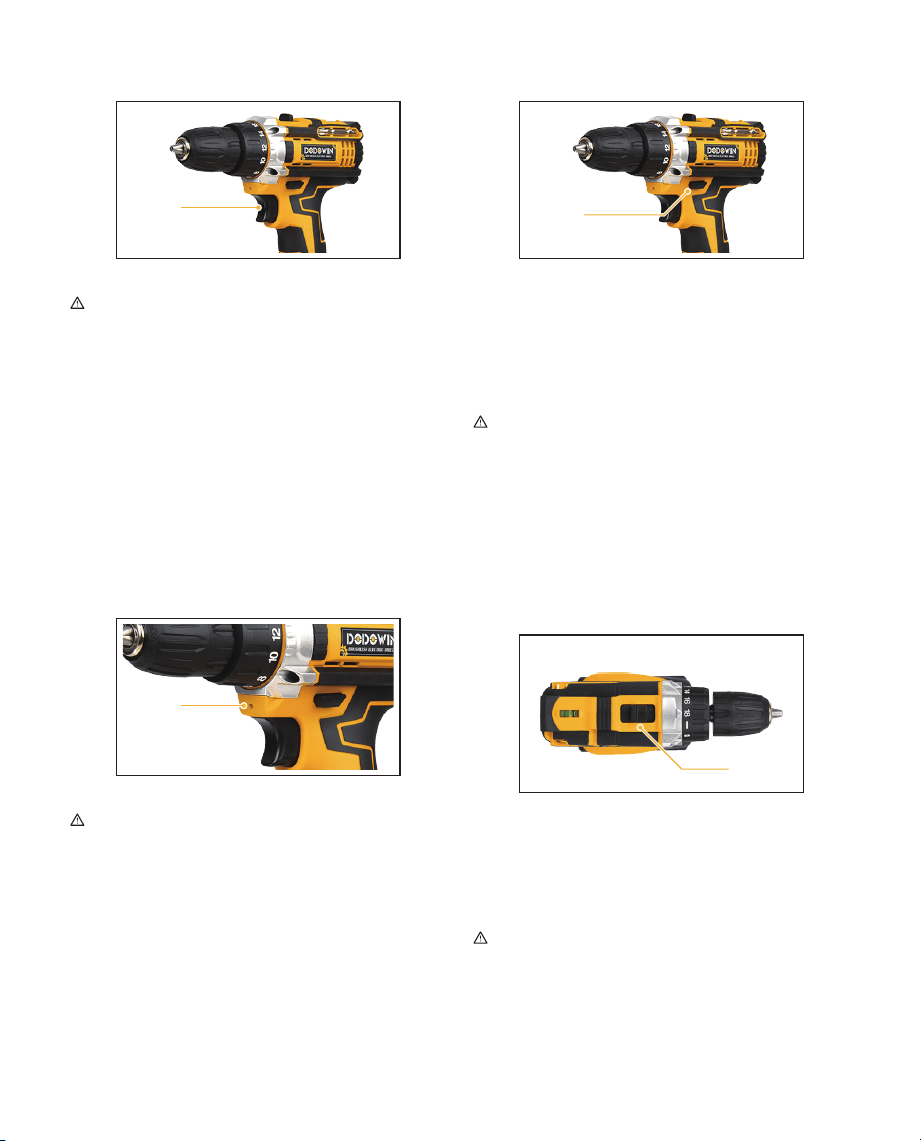

1. Switch trigger
Switch action
Before inserting the battery cartridge into the
tool, always check to see that the switch trigger
actuates properly and returns to the “OFF”
position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the
switch trigger. Release the switch trigger to stop.
CAUTION:
•
1
Electric brake
The tool is equipped with an electric brake. If the tool
consistently can not quickly stop after switch trigger
release, contact us via email or through our website.
1. Lamp
Turning on the front lamp
Do not look in the light or see the source of the
light directly.
Pull the switch trigger to turn on the light. The lamp
keeps on lighting while the switch trigger is being
pulled. The lamp turns off 10-15 seconds after
releasing the trigger.
CAUTION:
•
Use a dry cloth to wipe the dirt off the lens of
lamp. Be careful not to scratch the lens of lamp,
or it may lower the illumination.
NOTE:
•
1
1. Reversing switch lever
Reversing switch action
Always check the direction of rotation before use.
This tool has a reversing switch to change the
direction of rotation. Depress the reversing switch
lever from the A side for clockwise rotation or from
the B side for counterclockwise rotation.
When the reversing switch lever is in the neutral
position, the switch trigger can not be pulled.
CAUTION:
•
Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the
tool.
•
When not operating the tool, always set the
reversing switch lever to the neutral position.
•
1
1. Speed change lever
Speed change
Always set the speed change lever fully to the
correct position. If you use the tool with the speed
change lever positioned halfway between the “1”
side and “2” side, the tool may be damaged.
To change the speed, first switch off the tool and
then slide the speed change lever to the “2” side for
high speed or “1” side for low speed. Be sure that
the speed change lever is set to the correct position
before operation. Use the right speed for your job.
CAUTION:
•
Do not use the speed change lever while the tool
is running. The tool may be damaged.
•
1
‧4‧

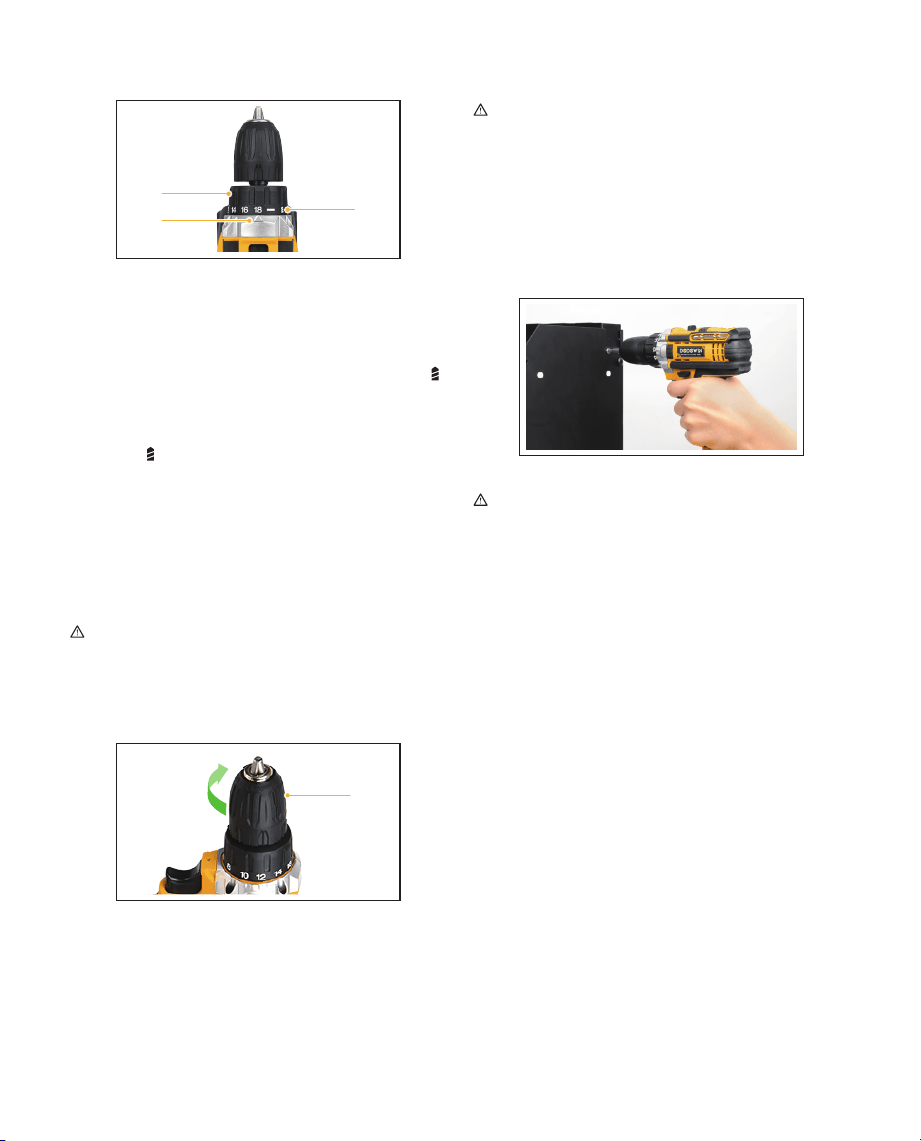

1. Pointer 2. Adjusting ring 3. Graduation
Adiusting the fastening torgue
The fastening torque can be adjusted in 18 steps by
turning the adjusting ring so that its graduations are
aligned with the pointer on the tool body. The
fastening torque is minimum when the number 1 is
aligned with the pointer, and maximum when the
marking is aligned with the pointer.
Before actual operation, drive a trial screw into your
material or a piece of duplicate material to determine
which torque level is required for a particular
application.
The clutch will slip at various torque levels when set
at the number 1 to 18. The clutch is designed not to
slip at the marking.
1
3
2
ASSEMBLY
•
Always be sure that the tool is switched off and
the battery cartridge is removed before carrying
out any work on the tool.
Turn the sleeve counterclockwise to open the chuck
jaws. Place the bit in the chuck as far as it will go.
Turn the sleeve clockwise to tighte the chuck.
To remove the bit, turn the sleeve counterclockwise.
1. Sleeve
CAUTION:
Installing or removing driver bit or drill bit
1
OPERATION
•
Always insert the battery cartridge all the way
until it locks in place. If not, it may accidentall fall
out of the tool, causing injury to you or someone
around you.
Hold the tool firmly with one hand on the grip and
the other hand on the bottom of the battery
cartridge to control the twisting action.
CAUTION:
•
Adjust the adjusting ring to the proper torque
level for your work. Place the point of the driver
bit in the screw head and apply pressure to the
tool. Start the tool slowly and then increase the
speed gradually. Release the switch trigger as
soon as the clutch cuts in.
• Make sure that the driver bit is inserted straight in
the screw head, or the screw and/or bit may be
damaged.
CAUTION:
1. Sleeve
Screwdriving operation
If you encounter any product issues, please do not
hesitate to contact us by sending an email to our
official address at.
Our team is ready to assist you with repairs,
exchanges, refunds, and other after-sales solutions.
Please be assured that we are committed to
providing you with the best possible solutions.
Thank you for your support.
AFTER-SALES SERVICE
Email Address :
Website :
dodowinoffi[email protected]om
www.dodowin.com
‧5‧
