AC2201-01A
1-Channel emitter
AC2205-01A
AC2200-01A
AC2201-15A
15-Channel emitter
AC2205-15A
AC2200-15A
Back
Open
Stop
Close
Open
Channel
Stop
Close
Channel +
Channel -
Open Confirm
Close Confirm
“S”key
Selector Switch
AAA
dry battery
DC： 3v（AAA*2）
Transmitting Power：10mW
Launching Distance：30m
Working Temperature：-10℃~55℃
Wireless Frequency:
AC2200 433MHz
AC2201 433MHz
AC2200 Series
Remote Control
One channel of transmitter controls one motor, and 15 channels control up to 15 motors. For example, the 15 channel
transmitter only uses 1-5 channels, the remaining 6-15 channels are not used and can be hidden without display
Emitter Lock Channel
Select channels to keep
② Use channel switch button
Confirm the channel to be reserved
③ Using the emitter stop key
Reserved channels can only be counted from channel 1. For example, 1-5. No support for 3-7. Repeat the operation to
adjust the final required number of channels.
Press and hold two channel switch keys at the
same time emitter display,“L” appears first,
then “15” words appear, then release the key
① Emitter access channel selection
or
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can

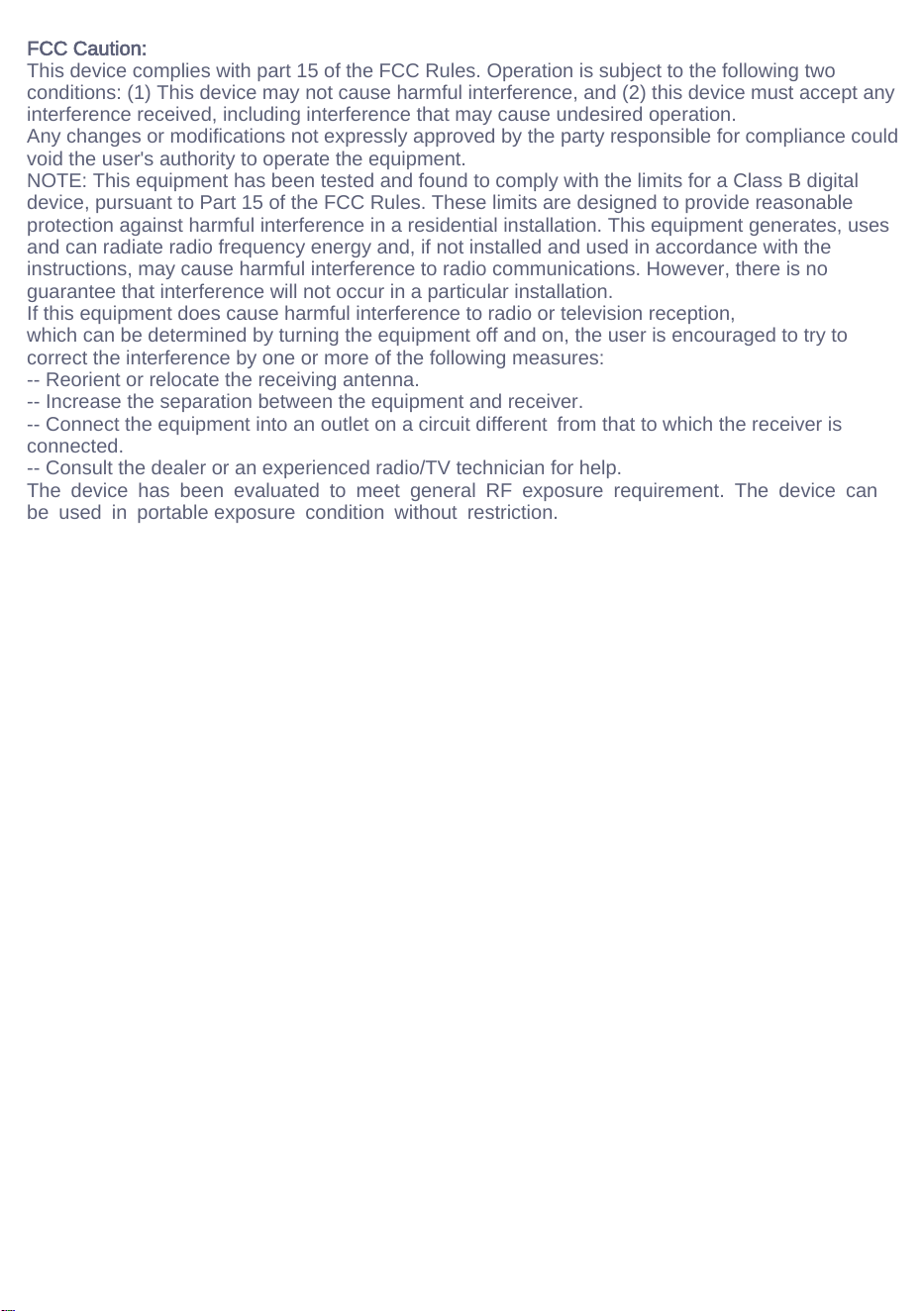

FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
be used in portable exposure condition without restriction.
