ASSEMBLY INSTRUCTIONS
Drawer Kit for Hardwood Tables
(Drawers #500772, 501571, 502941, and 502942)
EG9962 Revised 04/23
#
qty part # description
#1 2 309722 Drawer Mounting Bracket
#2 4 375948 Lag Screw
#3 2 300697 18˝ Drawer Slide
#4 4 308624 Screw #10 x
1
⁄2˝ slot, pan head
#5 4 301492 Lock Washer #10
#6 4 300755 Hex Nut #10-24
#7 1 * Drawer Pan
#1
#1
#2
#3
#3
#7
#4
#5
#6

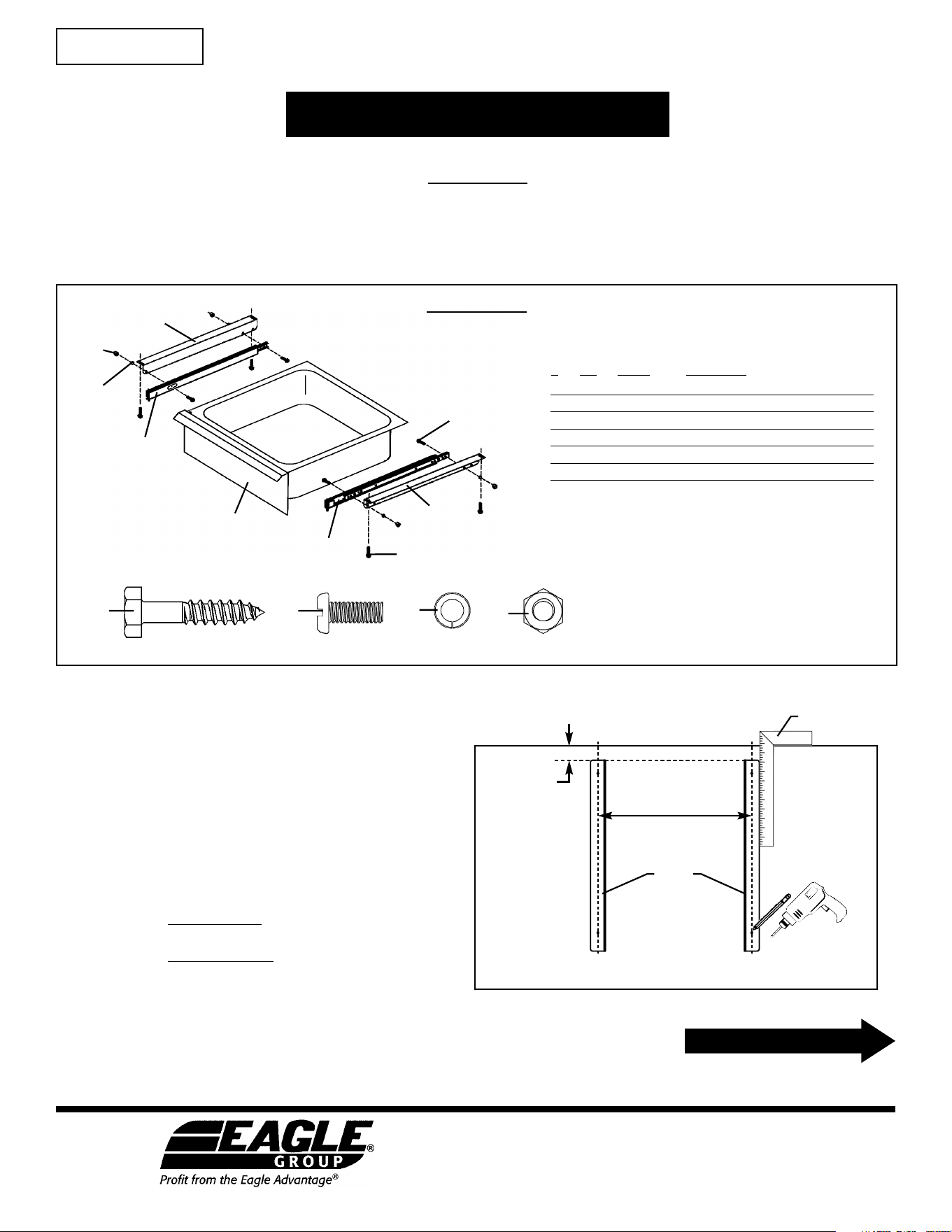

Parts List
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
BEFORE ASSEMBLY…
Mark and predrill holes onto underside of tabletop.
Refer to the illustration at right, for guidance.
• If possible, carefully flip table upside-down for access to
underside of tabletop.
• Determine location of drawer.
• Position brackets 1˝ from front edge of tabletop.
IMPORTANT: Use a square for straightness.
• Mark holes along front and rear louvered holes.
- For 20˝ x 15˝ drawers (#502941 and 502942),
mark holes 18˝ ON CENTER
.
- For 20˝ x 20˝ drawers (#500772 and 501571),
mark holes 22.5˝ ON CENTER
.
• Set aside brackets.
• Using a 3/16˝ drill bit, drill holes approximately 1˝ deep.
#6
#5
#4
* Varies per order
#2
(actual size of hardware)
(continued on back page)
INSTRUCTION SHEET
#605488
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
18˝ on center
for 15˝-long drawers,
22.5˝ on center
for 20˝-long drawers
Item #1
brackets
(UNDERSIDE OF TABLETOP)
Use a square
1˝ from
front edge
left-hand
slide/bracket
assembly
right-hand
slide/bracket
assembly
Assemblies
should look like
these when
completed.
underside of tabletop
slide/bracket assemblies
Item #2
#375948
lag screw
Item #2
#375948
lag screw
Step 4 - Remove the black cap
from the top of each pin.
Set aside but DO NOT LOSE.
drawer slide pins
drawer slides
(extended)
black caps
drawer slide pins
drawer slides
drawer
drawer handle
Step 5 - Lay drawer on top of drawer slides.
Step 6 - Return
black rubber caps
to both pins.
black cap
pin
Item #3
slide
Item #4
#308624
pan head screw
Item #5
#301492
lock washer
Item #6
#300755
hex nut
Step 2 - Attach drawer slides to drawer brackets.
Item #1
bracket
(End)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com

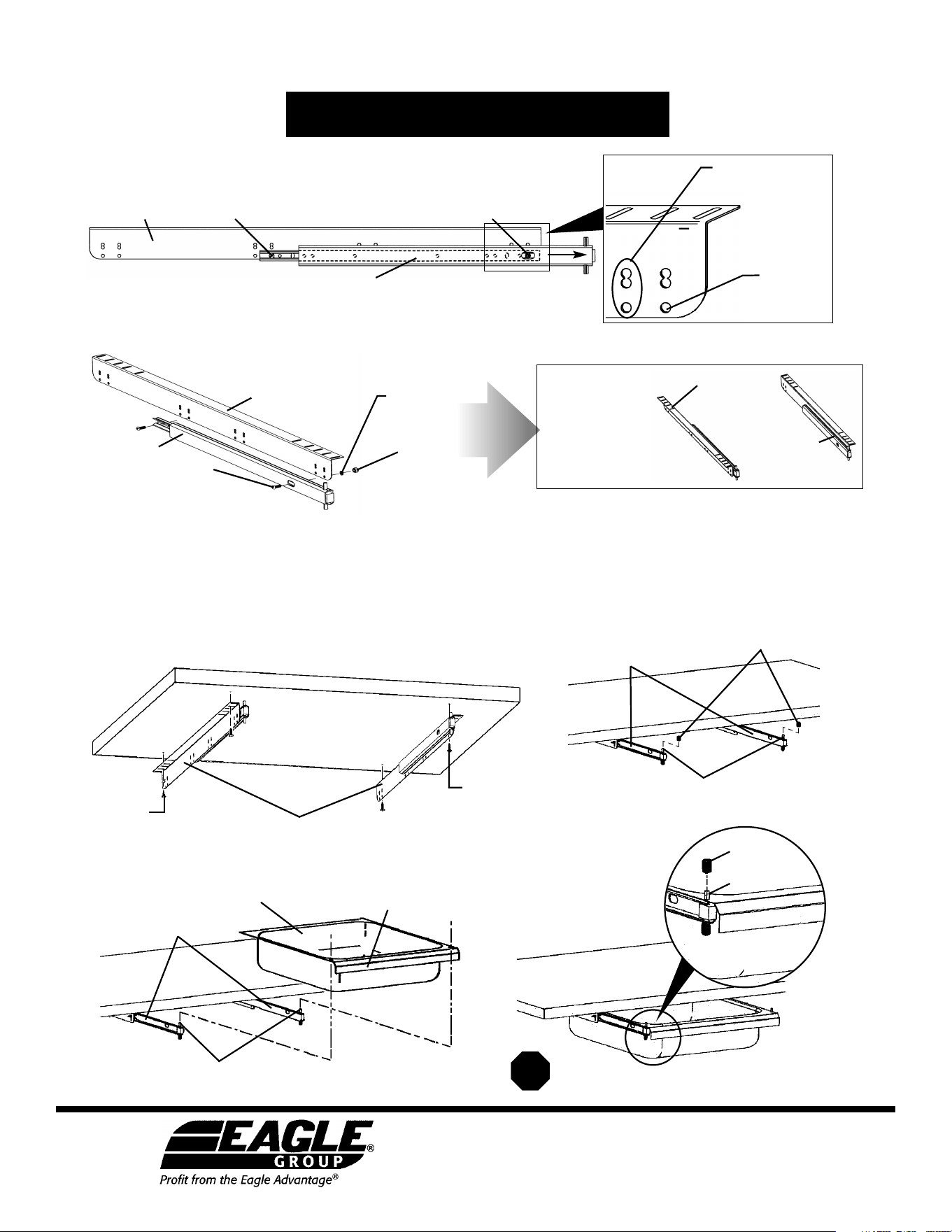

Step 1 - Locate the two screw holes of the drawer slides.
screw hole
screw hole
bracket
drawer slide
This group of holes sets
the drawer in further
under the table.
bottom set of
holes for all
applications
Step 3 - Attach slide/bracket assemblies to underside
of tabletop.
• Line up appropriate holes in drawer brackets with predrilled holes on
underside of tabletop, and run Item #2 lag screws through brackets
holes into tabletop.
• Return table to upright position.
Please note:
ASSEMBLY INSTRUCTIONS
Drawer Kit for Hardwood Tables
(Drawers #500772, 501571, 502941, and 502942)
