#1
#4
#1
#2
#3
#5

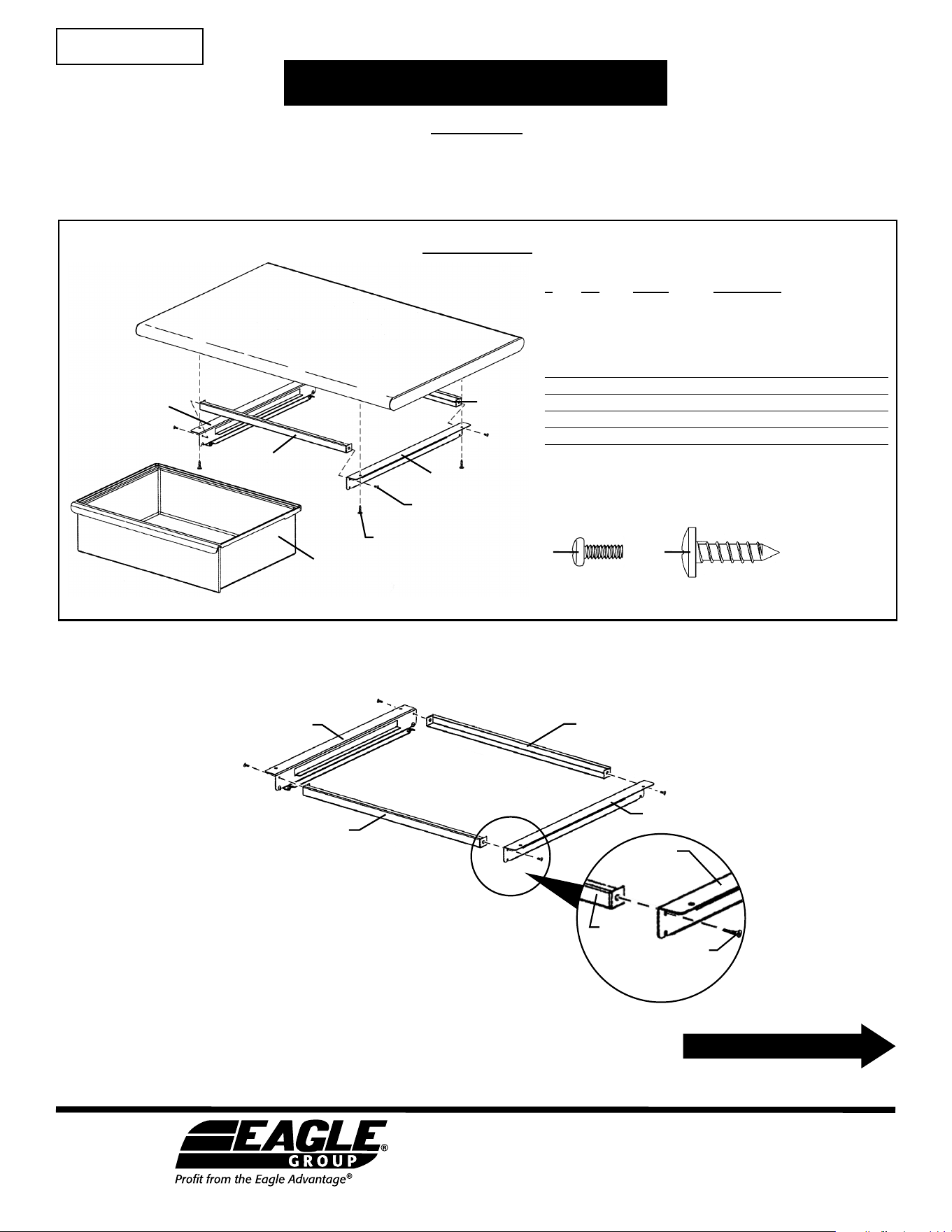

ASSEMBLY INSTRUCTIONS
Polymer Drawers
EG9951 Revised 01/24
# qty part # description
#1 2 335232 drawer slide for
24˝-wide tables
or
2 335233 drawer slide for
30˝- or 36˝-wide tables
#2 1 335238 rear crossbrace
#3 1 335239 front crossbrace
#4 1 polymer drawer
#5 4 331119 #6-32 x
3
⁄8˝ screw
#6 4 313630 #12 x
3
⁄4˝ sheet metal screw
Step 1 - Attach crossbracing to drawer slides.
Note: Front crossbrace has tab for drawer stop.
(actual size of hardware)
Item #3
front
crossbrace
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE
. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
Parts List
Item #2
rear crossbrace
Item #1 drawer slide
Item #1
drawer slide
Item #3
front
crossbrace
Item #1
drawer slide
Item #5
#331119
screw
*
These screws are premounted to the table channel framing
(underneath tabletop), and will be used to mount drawer slide.
*
(continued on back page)
#6
#6
#5
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com
INSTRUCTION SHEET
#335371
ASSEMBLY INSTRUCTIONS
Polymer Drawers
drawer slide/
crossbrace
assembly
drawer slide/crossbrace assembly
table
channel
Item #6
#313630
screw

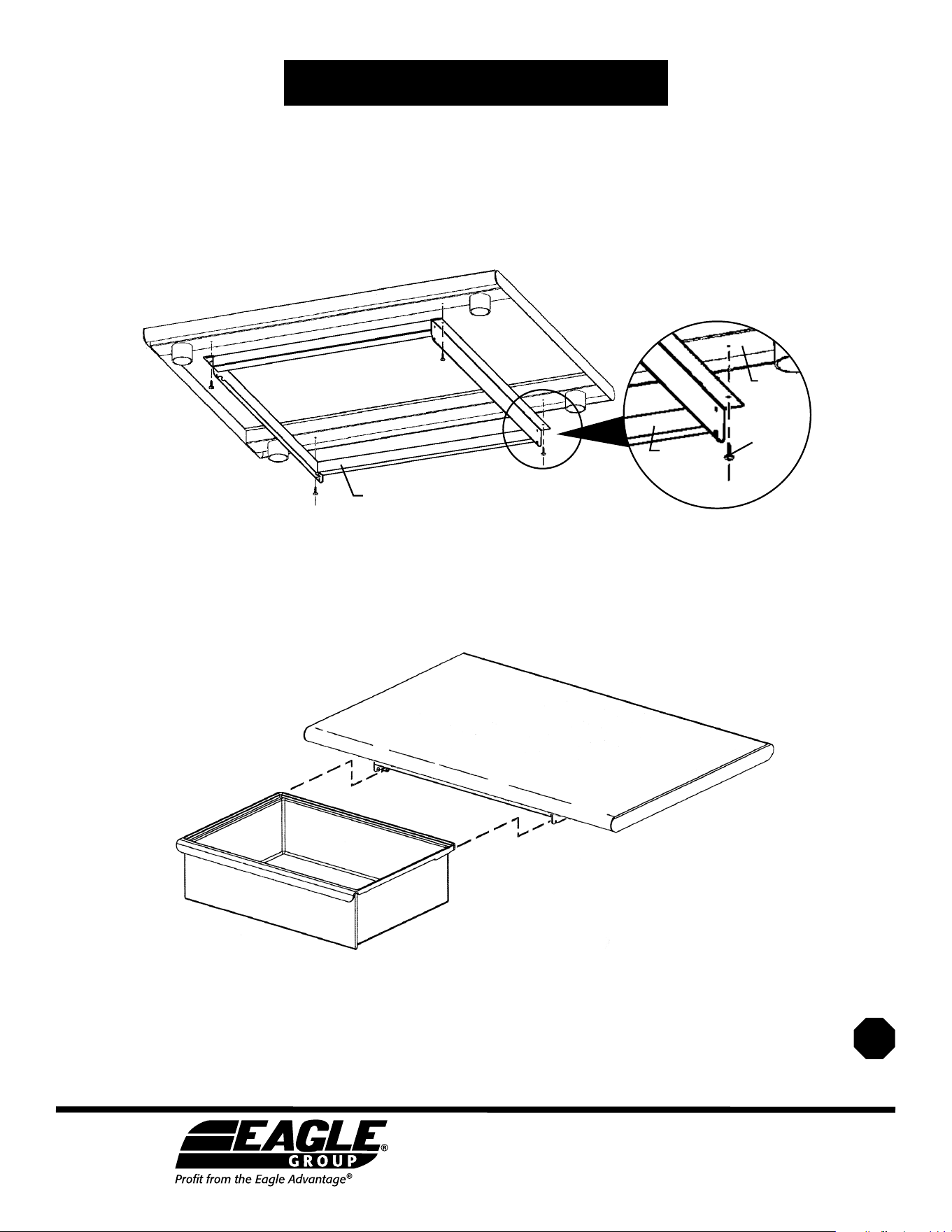

Step 2 - Attach drawer slide/crossbrace assembly to table.
Step 3 - Insert polymer drawer into drawer slides.
Underneath tabletop, attach drawer slide/crossbrace assembly to hat channels using #313630 screws
found in existing table channel framing.
(End)
