FLANAGAN III CEILING FAN
SG25871
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
Español p. 20
RATED FOR
DAMP
LOCATIONS
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................14
Care and Maintenance ............................................................16
Troubleshooting ..................................................................16
Limited Lifetime Warranty ..........................................................18
Replacement Parts List ............................................................19
3
PACKAGE CONTENTS

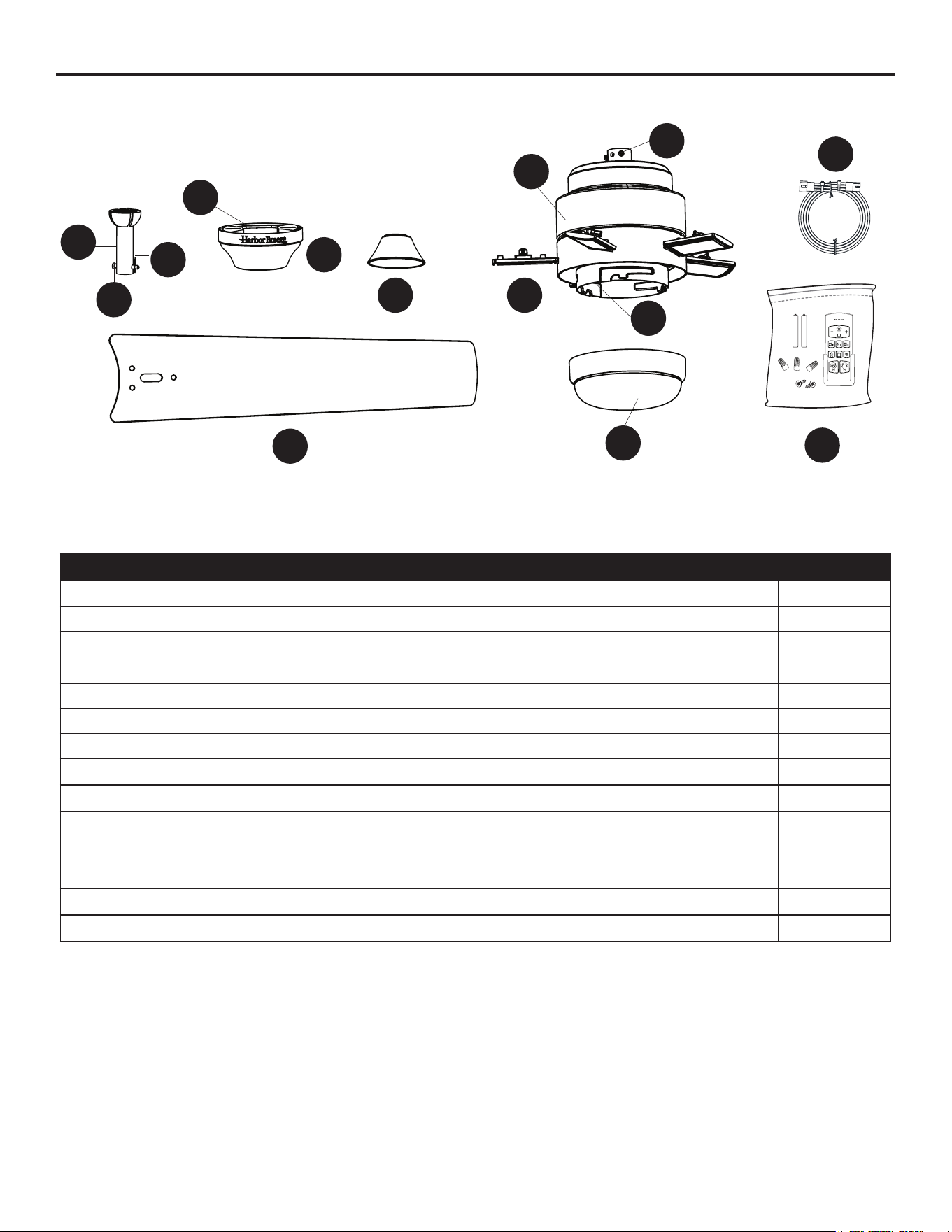

PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to the Downrod [A]) 1
C Downrod Clip (preassembled to the Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Yoke Cover 1
G Blade Arm (preassembled to the Motor Assembly [H]) 5
H Motor Assembly 1
I Set Screw (preassembled to the Motor Assembly [H]) 2
J Light Pan 1
K Optional 36-inch Lead Wire 1
L Blade 5
M Light Kit 1
N Remote Pack 1
A
F
I
G
M
N
K
J
L
H
B
C
E
D
4
HARDWARE CONTENTS
Wire Connector
Qty. 1
+ 1 extra
Lead Wire
Qty. 1
AA AI
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 17.11 lbs. (7.76 kg).
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use this fan with any solid-state
speed control device.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an outlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: 1) This device may cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7
INITIAL INSTALLATION

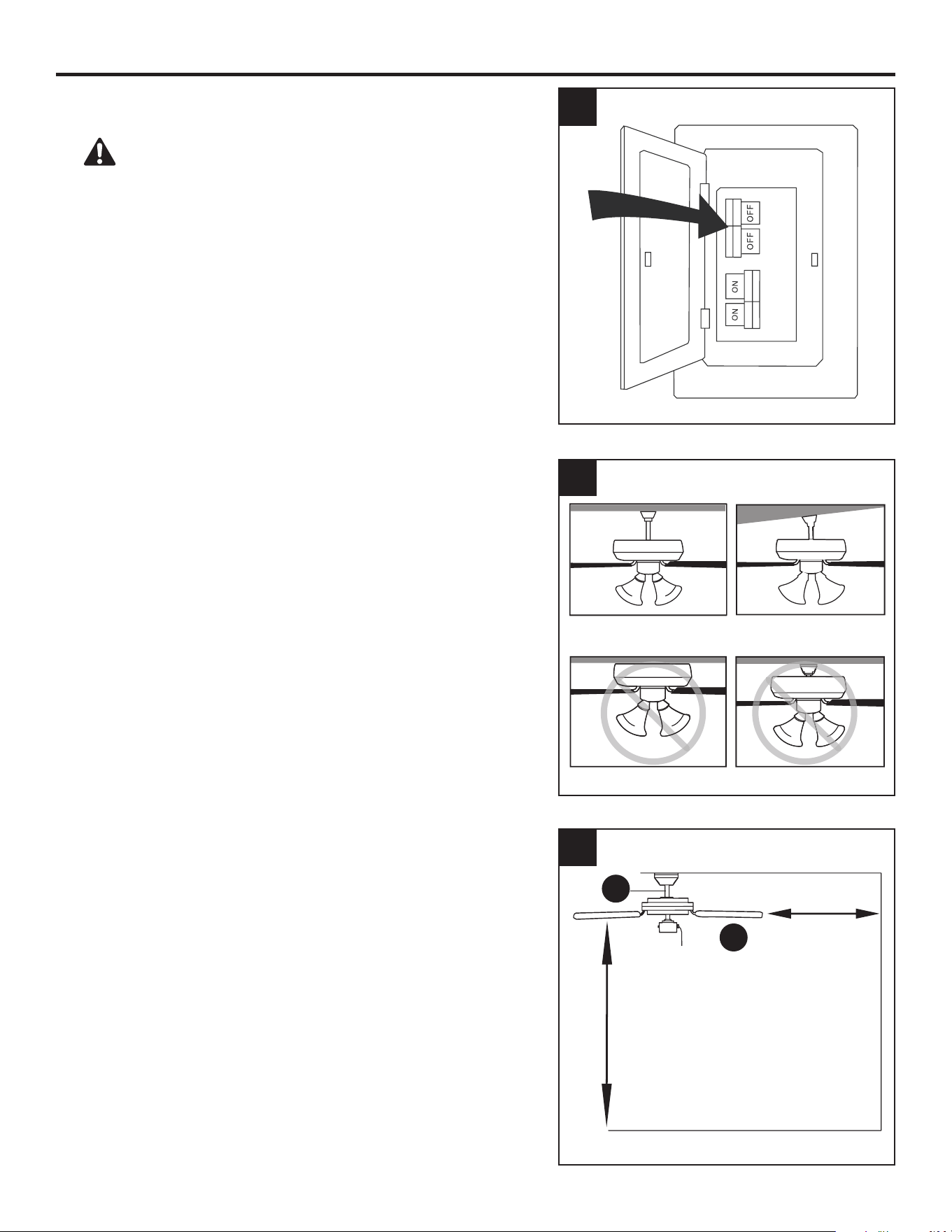

1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Flushmount is not available for this item.
Closemount is not available for this item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (L) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (L) will be at least 7 ft. above the oor.
7 feet
minimum
30 in.
minimum
1
3
L
A
2
8
INITIAL INSTALLATION

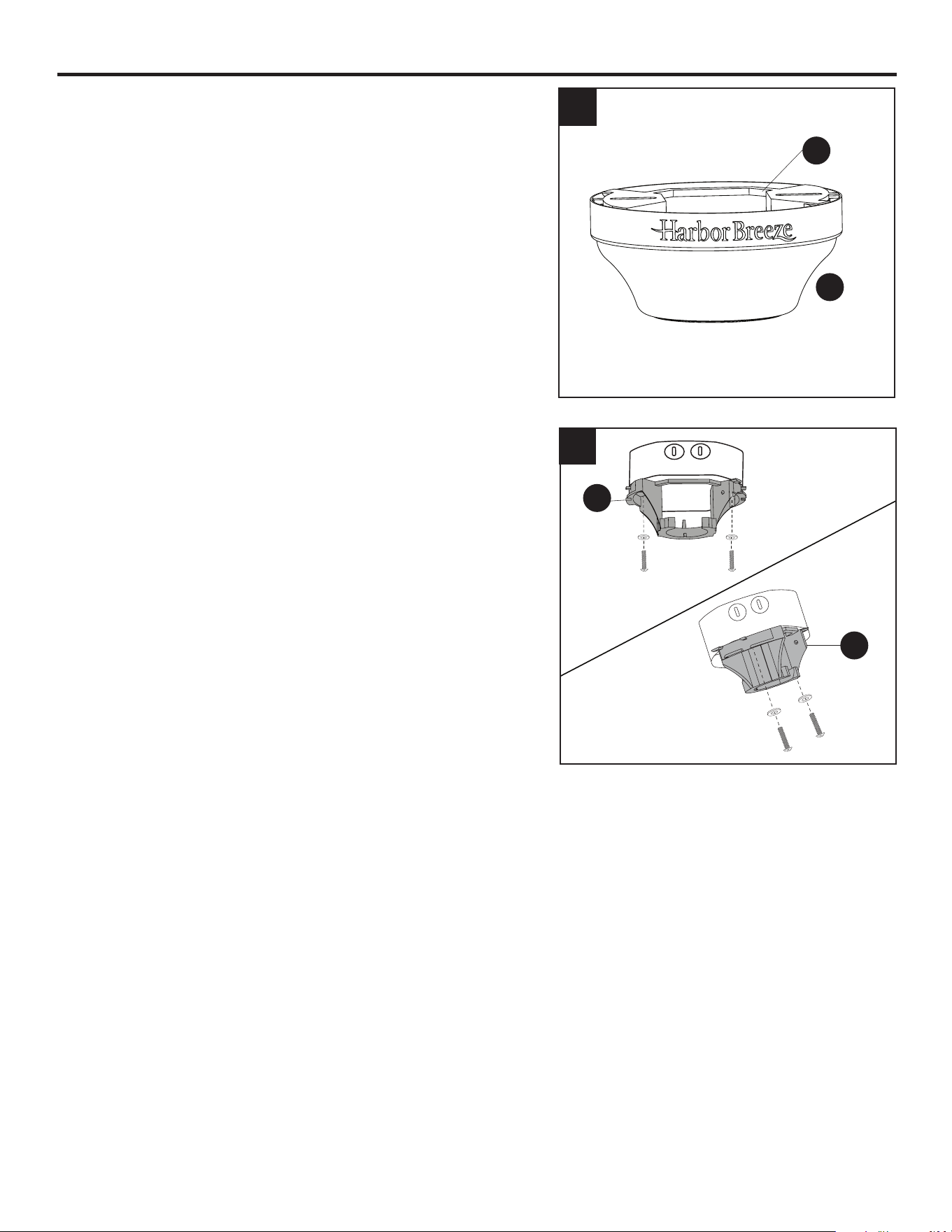

4. Firmly hold canopy (E) while twisting the mounting
bracket (D) counterclockwise to remove.
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
4
D
Standard
Mounting
Angle
Mounting
5
E
D
D
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove and dispose of the orange packing material
from the yoke of the motor assembly (H). Remove
the downrod clip (C) and downrod pin (B) from the
downrod (A). Then partially loosen the set screws
(I) in the yoke at the top of the motor assembly (H).
2. Insert the downrod (A) through the canopy (E) and
yoke cover (F). Feed the wires from the fan through
the downrod (A). Depending on the length of downrod
you use, you may need to use the 36-inch lead wire
(K) to accommodate a 36 or 48-inch downrod (sold
separately). When necessary, connect the 3-pin
extending from the center of the downrod to one
end of the 36-inch lead wires. Note: The downrod
included with this fan will not utilize the 36-inch lead
wire (K).
3. Slide the downrod (A) into the yoke, align the holes,
then re-install the downrod pin (B) and downrod clip
(C). Secure with set screws (I) and slide the yoke
cover (F) down until it rests on top of the motor
assembly (H).
C
A
I
B
F
Yoke
2
3
A
K
F
E
Yoke
C
A
B
I
H
1
10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

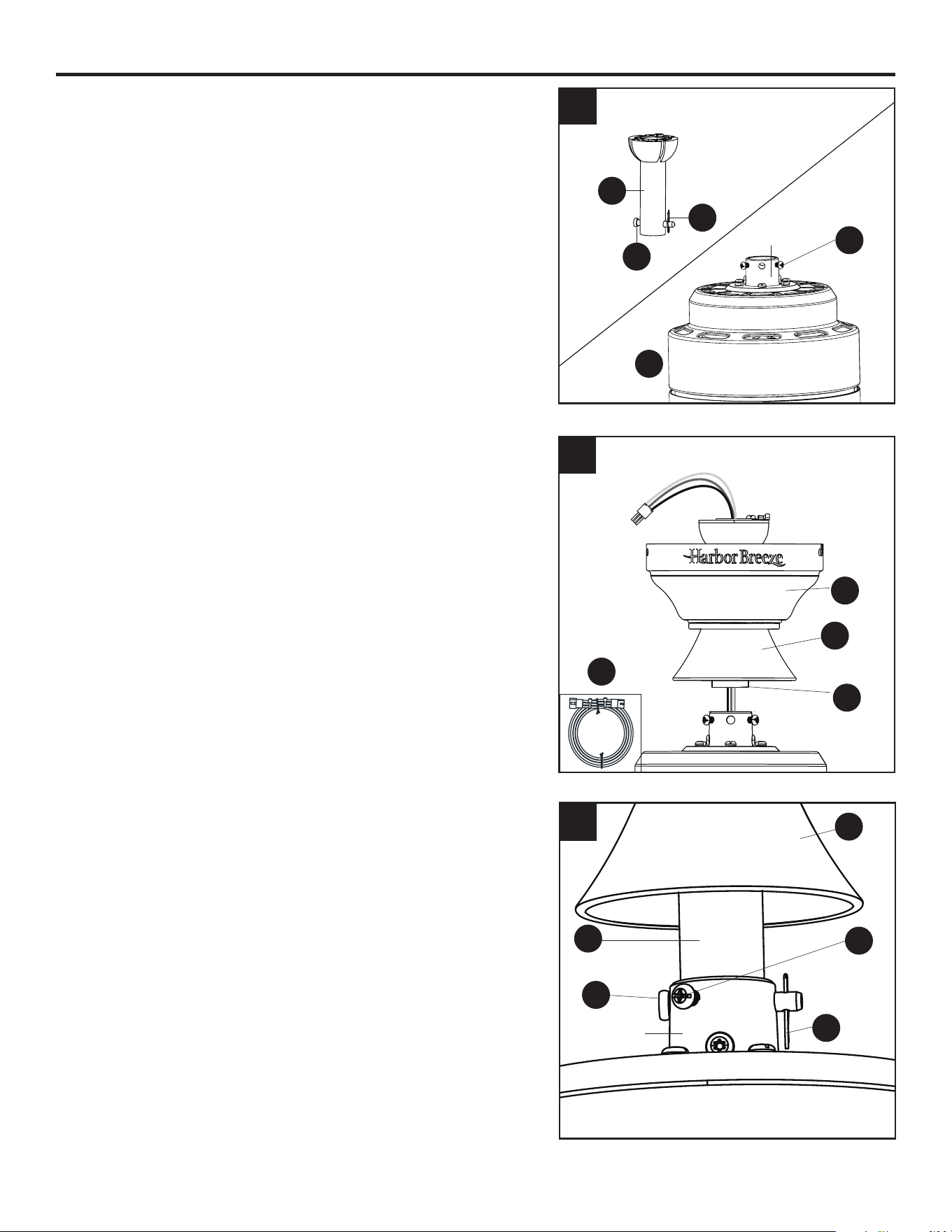

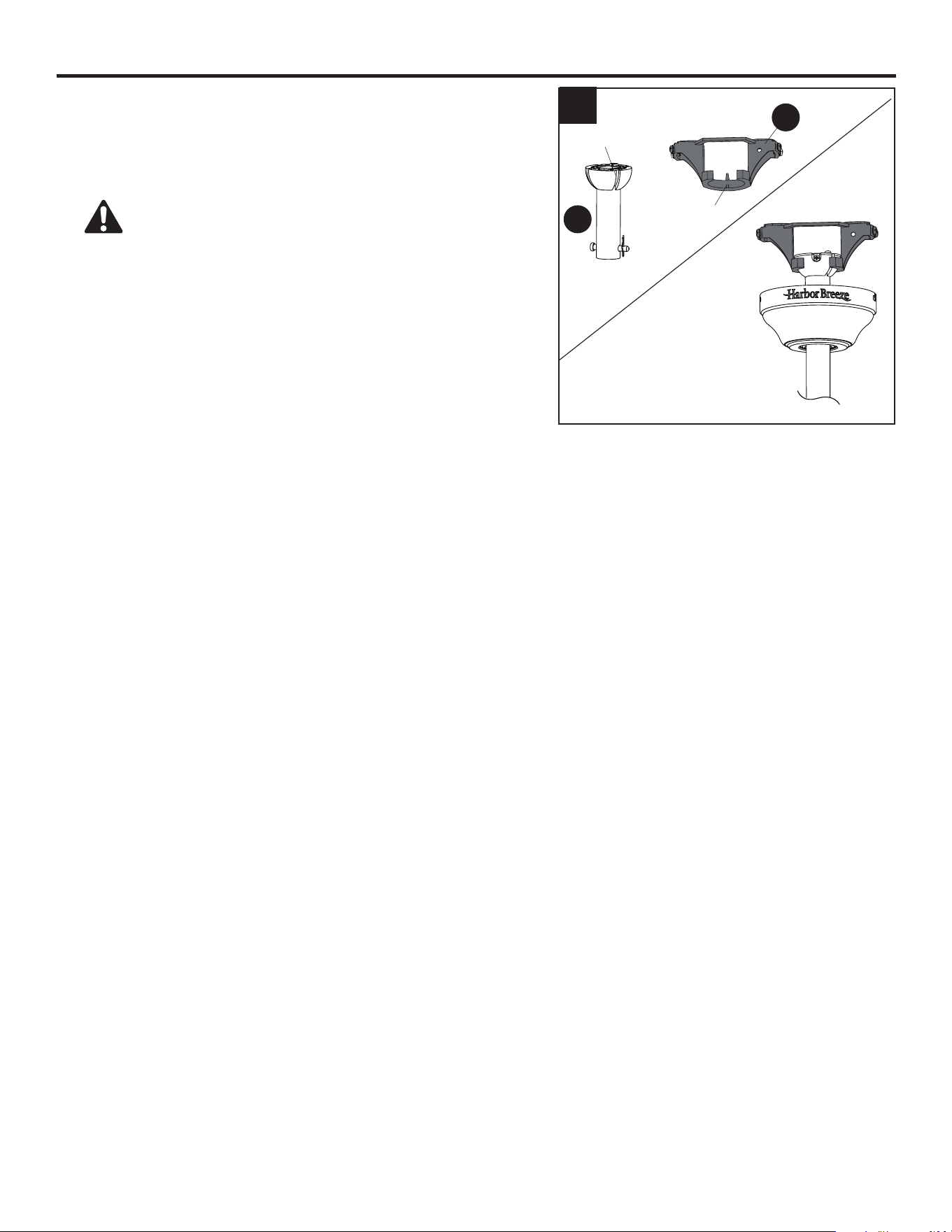

4. Install the ball end of the downrod (A) into the opening
of the mounting bracket (D). Align a slot in the ball
with the tab in the mounting bracket (D).
Important: The downrod (A) should not rotate in the
mounting bracket (D) if installed properly.
DANGER: Failure to align a slot in the ball with
the tab may cause the fan to wobble or fall, which
could result in serious injury or death.
A
D
Tab
Slot
4
11
WIRING

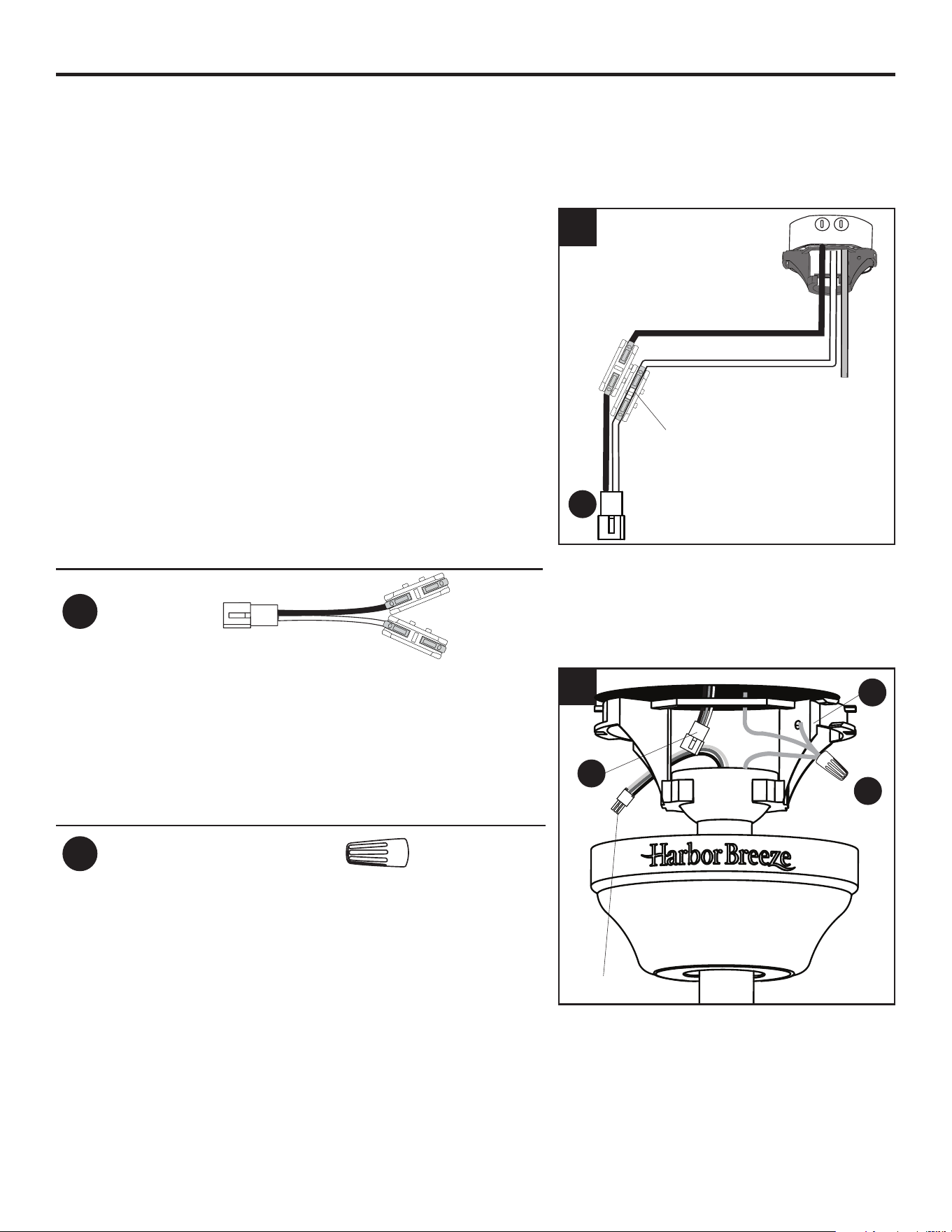

1. Use the push-in connectors to connect the lead wire
(AI) to the supply wires from outlet box according to the
wiring diagram and the following instructions:
• Lift the lever and then push the White (neutral) supply
wire into the empty hole of the push-in connector
preassembled to the white wire (AI) and then lower the
lever to secure wire.
• Lift the lever and then push the Black (hot) supply
wire into the empty hole of the push-in connector
preassembled to the black wire (AI) and then lower the
lever to secure wire.
WARNING: If household supply wires are dierent
colors than referred to above, a professional electrician
should determine proper wiring.
Hardware Used
AI
Lead Wire
x1
2. Connect the 3-pin connector extending from the
downrod (A) to the 3-pin connector on lead wire (AI).
Then, connect the green/bare (ground) supply wire to
the green wires from the downrod (A) and the mounting
bracket (D).
Hardware Used
AA
Wire Connector
x 1
1
2
Black (hot)
Bare (ground)
White (neutral)
White
Black
WARNING: Do NOT wire the
fan motor to a variable-speed
(dimmer) wall control.
AA
AI
D
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and there is more than one house wire to connect to the two
fan lead wires, consult an electrician for the proper size wire connectors to use. CAUTION: Be sure
the outlet box is properly grounded or that a ground (green or bare) wire is present.
AI
3-Pin Connector
Push-In
Connector
12
FINAL INSTALLATION

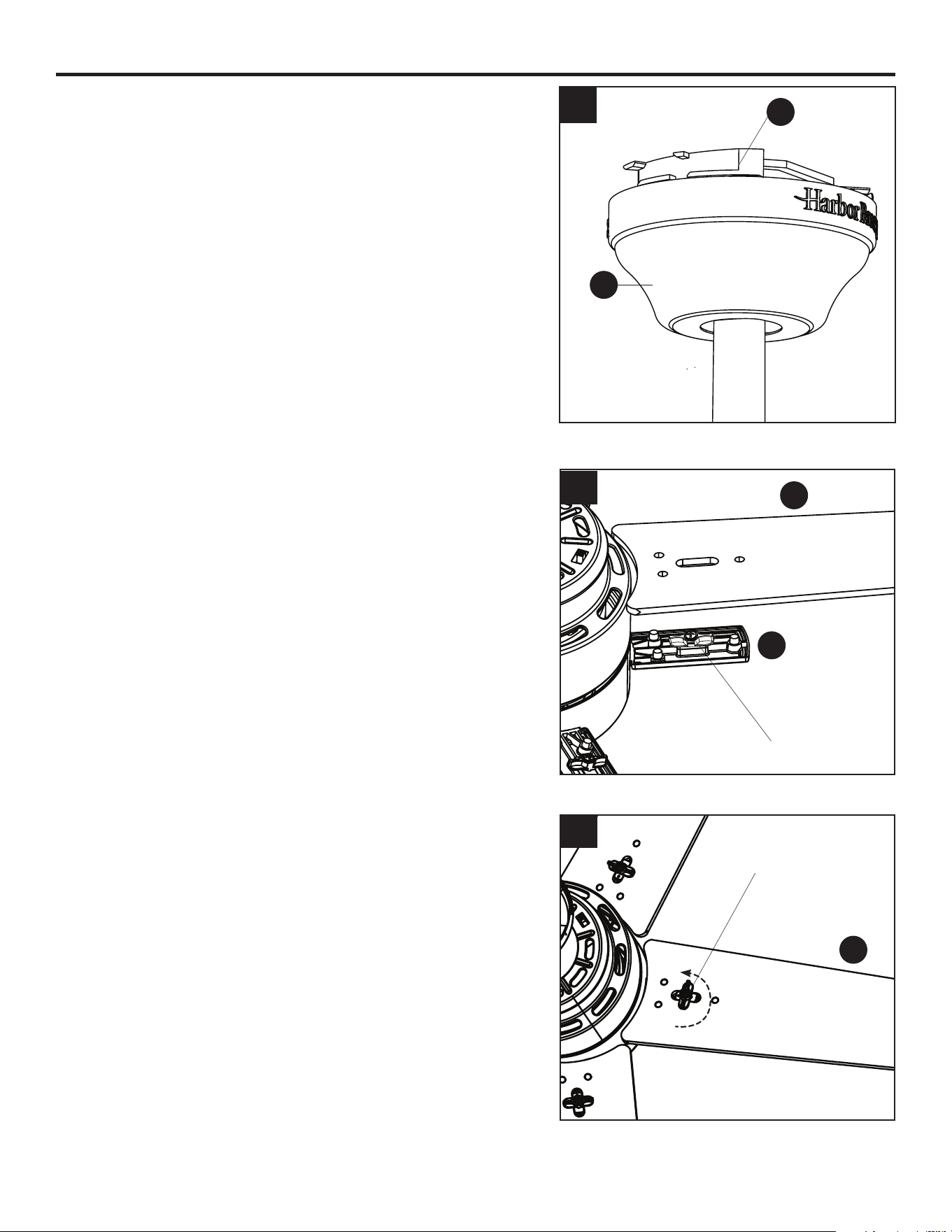

1. Lift the canopy (E) over the mounting bracket (D) and
rotate clockwise until secure.
2. Align the twist lock connector on the blade arm (G) in
the direction of its corresponding hole in the blade (L).
Place the blade (L) over the twist lock connector.
3. Rotate the twist lock connector so that it is
perpendicular to the hole in the blade (L). Repeat for
the remaining blades (L) and blade arms (G).
1
E
D
L
G
L
3
2
Twist Lock
Connector
Twist Lock
Connector
13
J
M
5
6
4
Bracket
Screw
Wall
Bracket
Small Plate
Battery
Compartment
Batteries
FINAL INSTALLATION

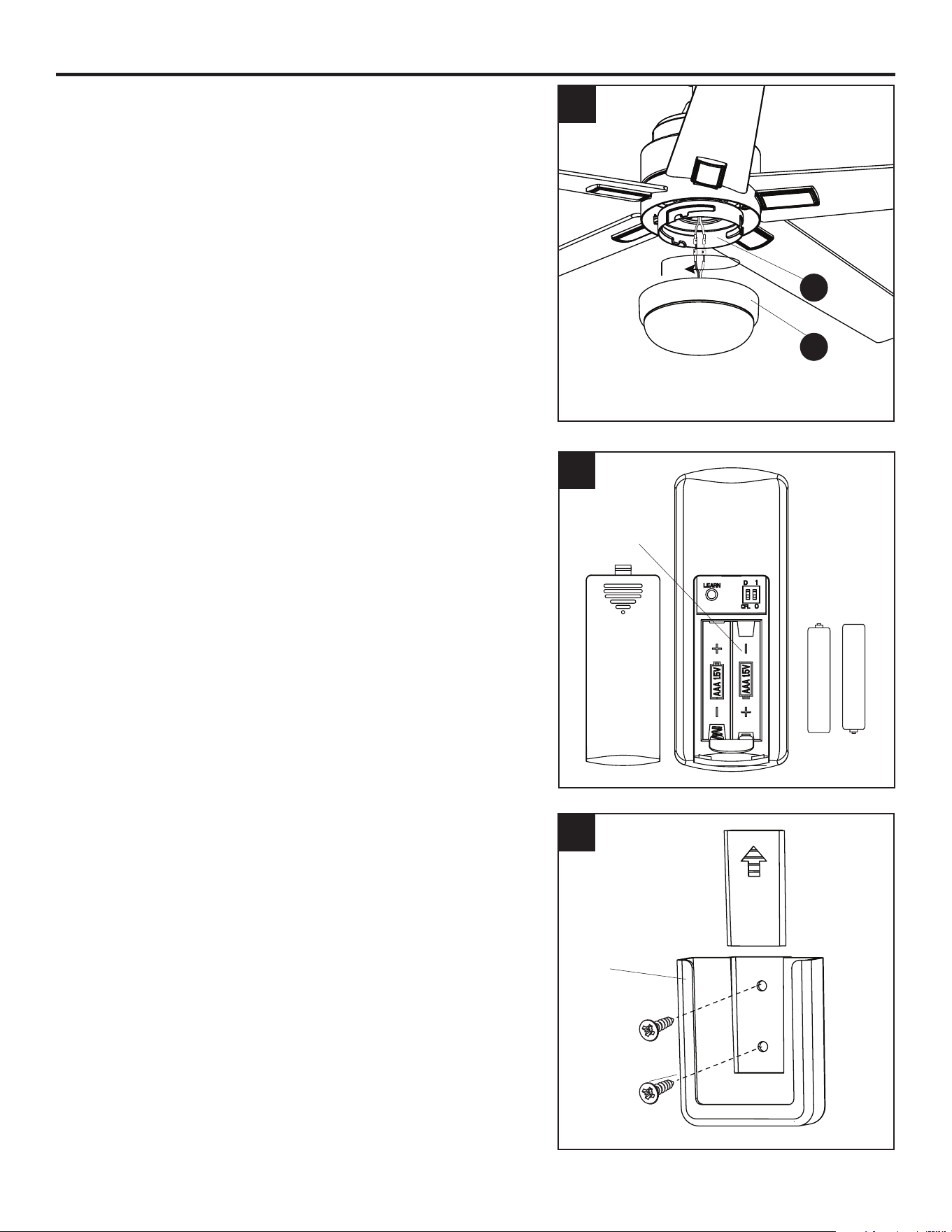

4. Connect the single-pin connectors from motor
assembly (H) to the single-pin connectors from the
light kit (M) -- blue to black and white to white. Attach
the light kit (M) to the light pan (J) by twisting the light
kit (M) rmly in a clockwise direction until it is secure.
CAUTION: Avoid cross-threading the light kit (M)
during installation. Improper installation could cause
the light kit (M) to be dicult to remove or fall, which
could cause serious injury .
5. Use a at-head screwdriver, if necessary, to remove
the battery cover from the back of the remote found
in remote pack (N). Insert the battery into the remote;
ensure polarity of battery matches the polarity indicated
in the battery compartment -- positive (+) to positive (+)
and negative (-) to negative (-). Replace the back cover
and press the fan on/o button on the remote to ensure
the LED indicator illuminates and the remote turns on
the fan.
Note: If remote doesn’t turn on the fan, see
TROUBLESHOOTING (page 17).
6. The remote control from remote pack (N) comes
equipped with a wall bracket. If you wish to install the
wall bracket, remove the small plate to expose the screw
holes. Insert wall brackets screws through holes and into
wall, then cover with the previously removed small plate.
The remote from remote pack (N) can be stored in the
mounting bracket for easy access.
Turn on the circuit breakers and the wall switch to the
fan supply line leads.
Assembly is complete.
14
OPERATING INSTRUCTIONS

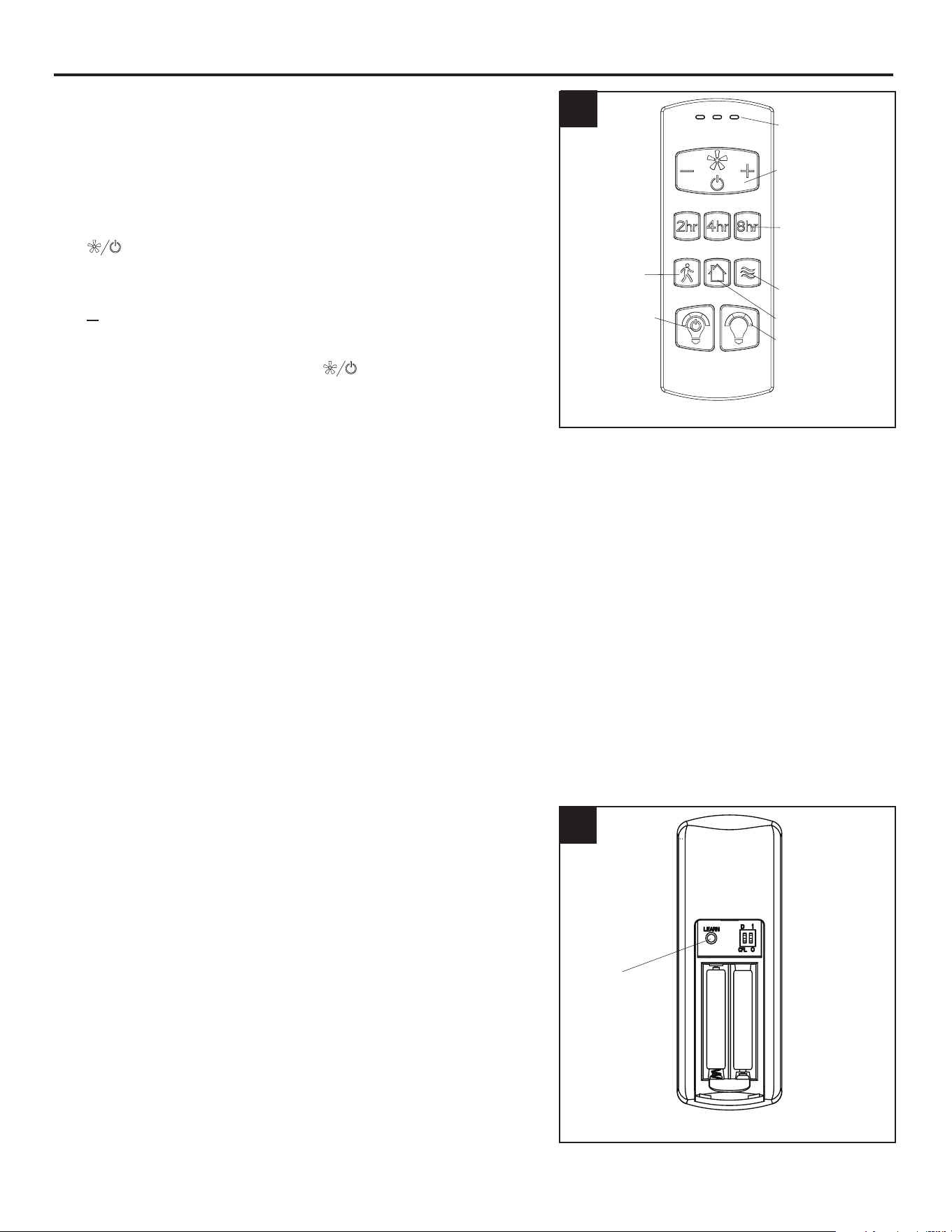

1. To operate the fan using remote control, press and
release the following buttons:
LED Indicator - Indicates the three speeds of the fan. It
should illuminate when any remote button is pressed. If
not, replace the 1.5 V, AAA batteries.
Fan Power button has three options:
( ) - Turns the fan o or turns on fan at previously
selected speed.
(
+
) - Increase fan speed
( ) - Lower fan speed
Sleep Timers - Turn o fan after 2 hours (2hr), 4 hours
(4hr), or 8 hours (8hr). Press ( ) button to deactivate.
Light Delay - Delays turning o light for one minute
which allows safe exit from room. Light blinks to
conrm function is active. Press Light Control button to
deactivate and turn the light o.
Home Shield™ - Simulates occupancy while away from
home. Fan remains o and the light randomly turns on
for a minimum of ve minutes and a maximum of 20
minutes. The light remains o for 60 minutes between
events. Press and hold button to activate. Light will blink
to conrm Home Shield is active. Press any button to
cancel.
Variable Breeze - Simulates a natural breeze, as if you
were outside.
Light Control - Tap button to turn the light o and on.
Press and hold button to dim or brighten the lights.
Light Color - Press and hold button to cycle through the
color temperatures from 2200K (warm white) to 6500K
(daylight).
2. LEARN - Syncs remote control (N) to receiver (see
troubleshooting for instructions).
2
Front
Back
2
LED
Indicator
Fan Power
Sleep Timer
LEARN
Variable Breeze
Home Shield
Light Delay
Light Control
Light Color
1
15
OPERATING INSTRUCTIONS
3. Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.

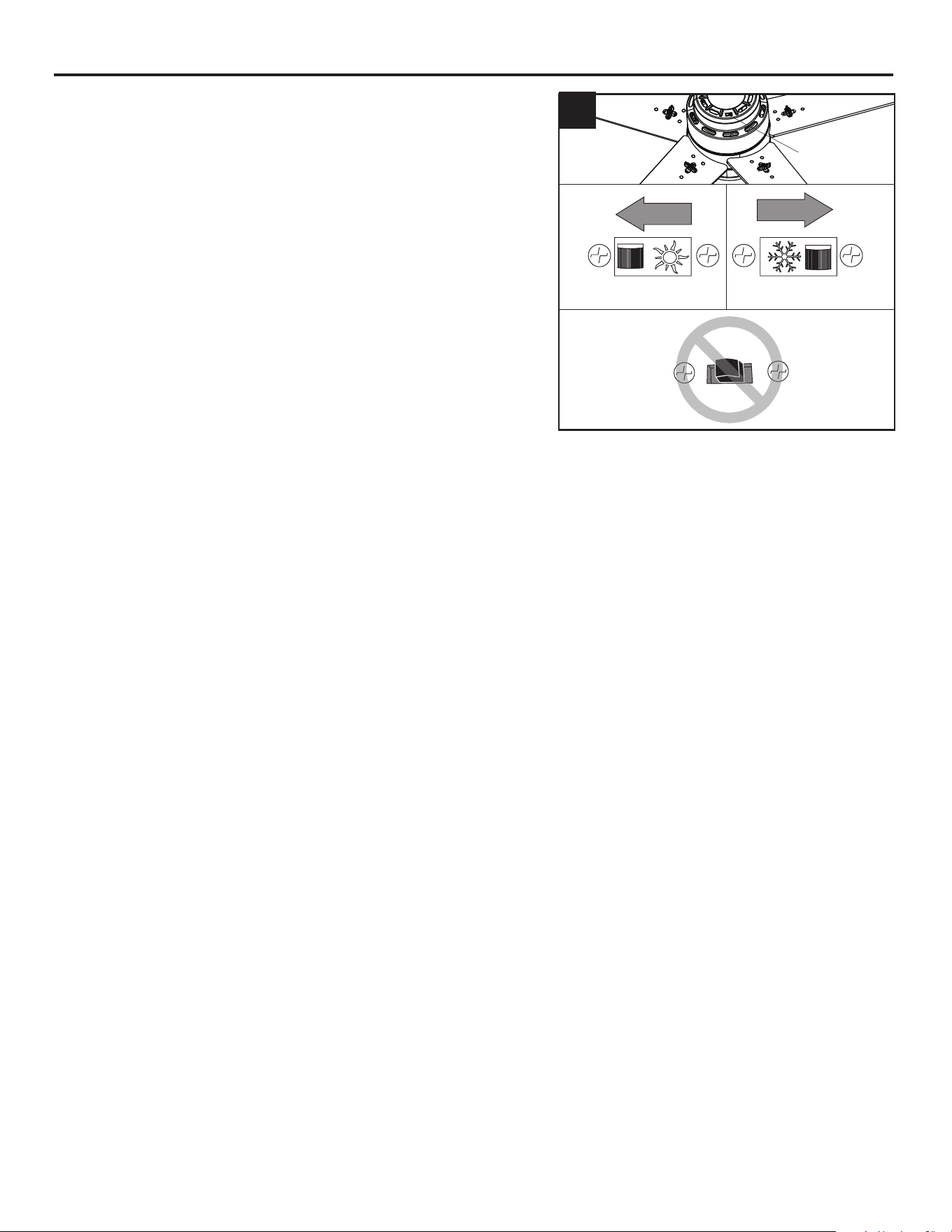

In warmer weather, push the reverse switch to the left
for downward airow creating a wind chill eect (Fig. 3a).
In cooler weather, push the reverse switch to the right
for upward airow that can help move stagnant, hot air
o the ceiling area (Fig. 3b).
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 3c).
Reverse
Switch
Fig. 3a Fig. 3b
Fig. 3c
3
16
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
the nish. Clean the blades with a lint-free cloth.
Total xture wattage is 23 watts; do not attempt to replace LED.
Battery Replacement: Use 1.5 V, AAA alkaline batteries. WARNING: Keep batteries out of reach of
children. May be fatal if swallowed. In the event that a battery is swallowed, immediately consult a
doctor. Non-rechargeable batteries are not to be recharged. Do not mix dierent types of batteries
such as alkaline, carbon-zinc, or rechargeable batteries. Do not mix old and new batteries. Batteries
are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product.
Do not dispose of batteries in re, as they may explode or leak.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o, or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit tter and fan are
connected properly.
4. Push the reverse switch
completely to the left or right.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not compatible
with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured
to the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
a blade balancing kit (sold separately).
3. Turn o the power. Loosen the canopy
and verify that the mounting bracket
is secure to the electrical outlet box.
The bracket must be ush without
movement against the outlet box.
4. Use a longer downrod (sold separately)
or move the fan to another location.
5. Lift up the yoke cover and tighten the
set screw to the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire
connection.
1. Ensure that the single-pin connectors
from the light kit are connected
properly.
2. Turn the power o and check all
connections at the ceiling outlet box.
Remote control
does not work.
1. Power surge may have cleared
memory and remote needs to
be re-synced to the receiver.
2. Battery in remote control needs
to be replaced.
3. Interference from another
remote.
1. To re-sync wall control to the fan -
Switch the power to the fan o and
back on again. Within 30 seconds,
press and hold the “LEARN” button,
located in the battery compartment) for
5 seconds. Fan will turn on and light will
blink. This conrms the syncing process
is successful.
2. Insert new AAA batteries in battery
compartment of the wall control.
3. If there are several fans in close
proximity, turn power o to other
fans and re-sync the remote (see
Corrective Action 1 above).
18
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within
the rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of
metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to
you.
19
Printed in China

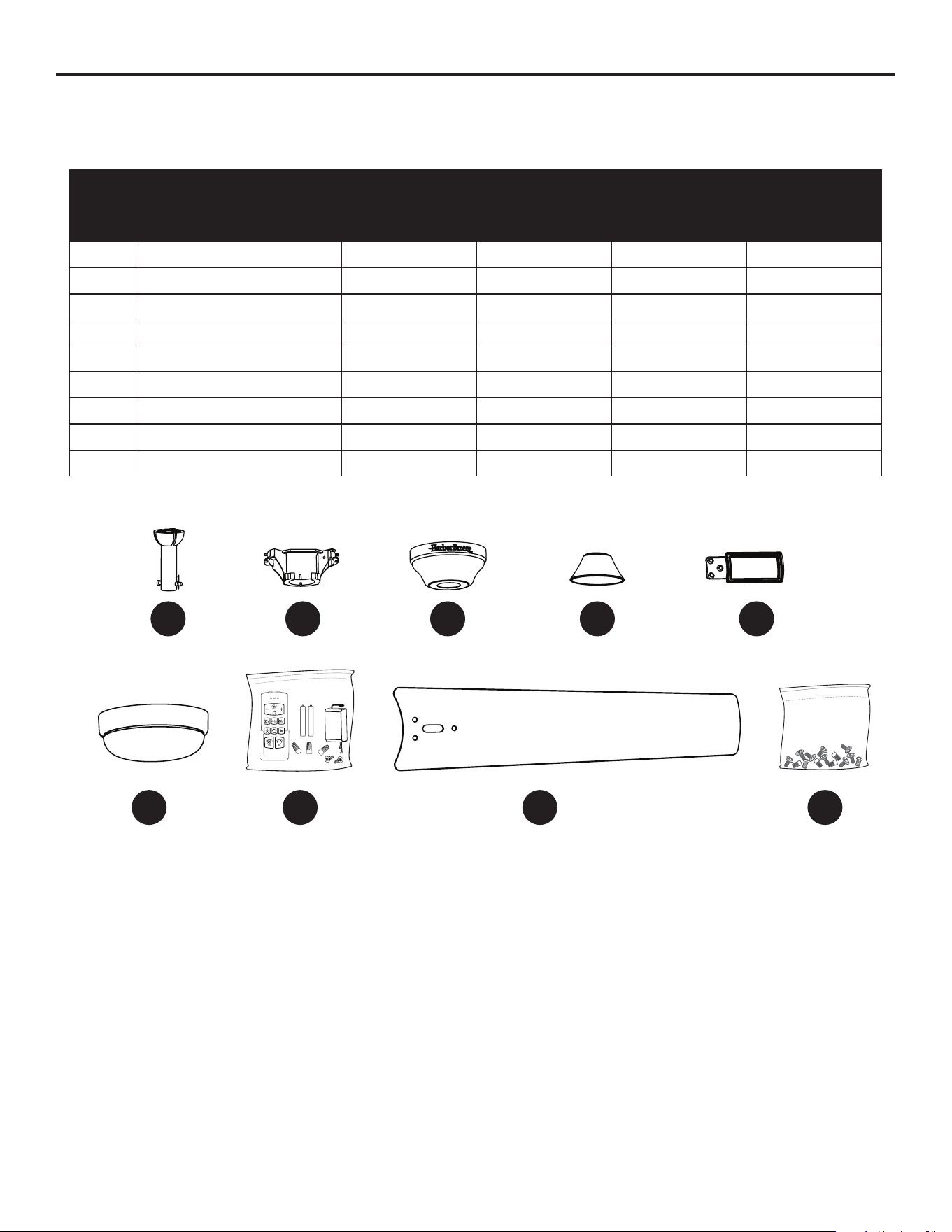

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION #5992689 #6242053 #6242054 COVERED
UNDER
WARRANTY
A Downrod 4L000017300 4L000018260 4L000017310 YES - 1 YEAR
D Mounting Bracket 4L000018300 4L000018300 4L000018300 YES - 1 YEAR
E Canopy 4L000018360 4L000018380 4L000018370 YES - 1 YEAR
F Yoke Cover 4A000009350 4A000020790 4A000008660 YES - 1 YEAR
G Blade Arm (x5) 4A074980002 4A074980001 4A074980003 YES - 1 YEAR
L Blade (x5) 4L086820001 4L086820002 4L086820003 YES - 1 YEAR
M Light Kit 4L000018490 4L000018500 4L000018510 YES - 1 YEAR
N Remote Pack 4L000016450 4L000016450 4L000016450 YES - 1 YEAR
HW Hardware Kit 4L000018520 4L000018520 4L000018520 NO
10140-PB • 063025
A D
E
F
N
G
HW
LM
