Remove the TransceiverInstall the Transceiver
25GBase SFP28 LC Transceiver

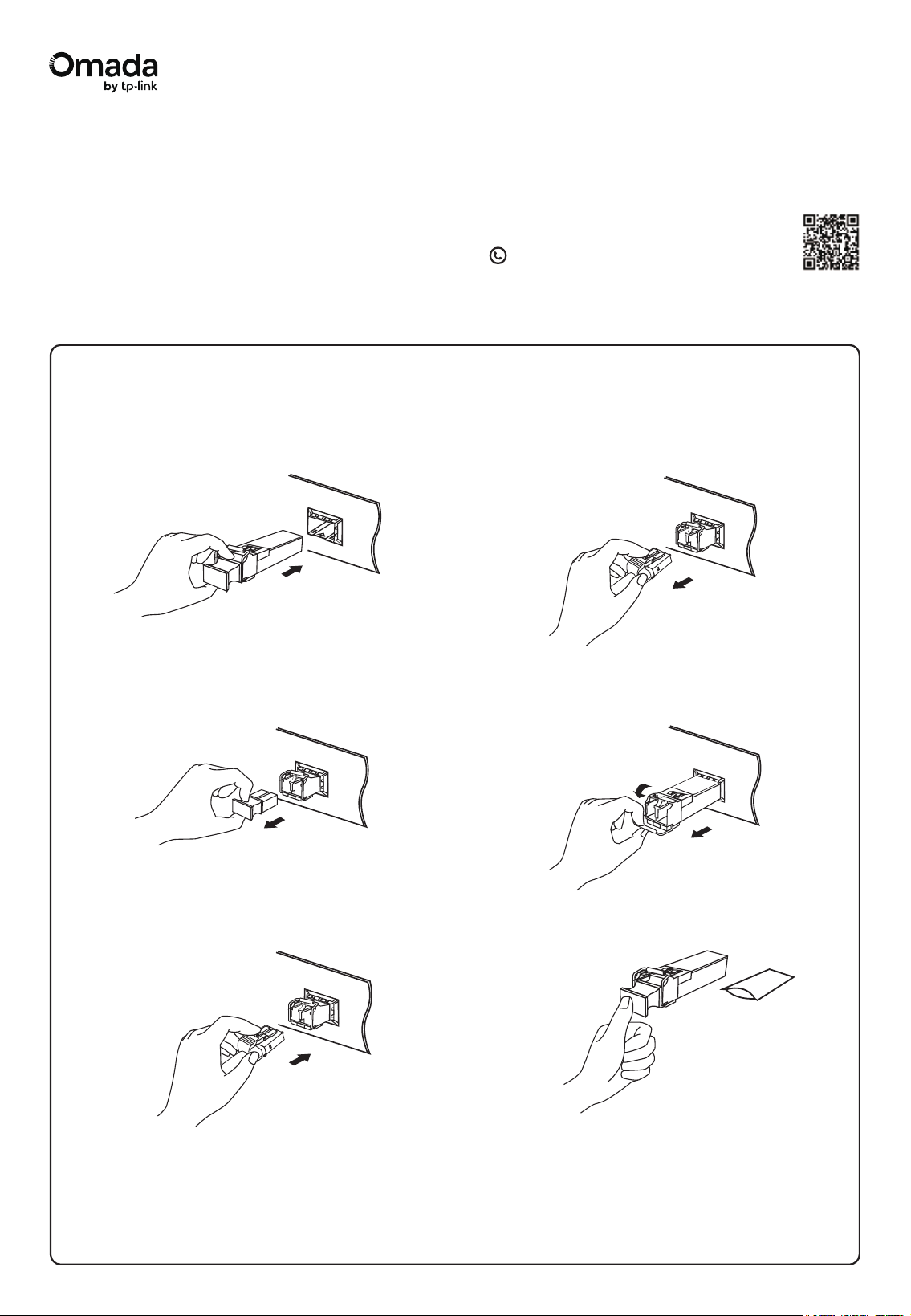

1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the transceiver into the slot and rmly press it into place.
3. Remove the protective dust plug from the transceiver.
4. Plug ber-optic cables into the transceiver. Note that the transceiver
works without any additional conguration.
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network ber-optic cables from the transceiver.
4. Reinstall the protective dust plug in the transceiver’s optical bores and
place it on antistatic mat or a static shielding bag.
3. Pull the safety latch downwards to release the transceiver, and then
pull it out from the slot.
Installation Guide
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the transceiver’s optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
©2025 TP-Link 7100001533 REV1.2.0
Note: The transceiver may be incompatible with other vendors’ devices. We recommend that you use only Omada transceivers on your Omada devices.
For technical support, replacement services, user guides, and more,
please visit https://support.omadanetworks.com/, or simply scan
the QR code.
Only use the same transceiver model between switches for fast and reliable connectivity.
Connection
Switch Switch
SM6110-SR
Fiber
SM6110-SR
For simplicity, we will take SM6110-SR as an example.
Note: This transceiver supports auto-conguration. When plugged into a switch port of 25Gbps, the module works at the speed of 25Gbps; for a switch port
of 10Gbps, it automatically changes the speed to 10Gbps.
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote risk
of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the
transceiver when it is operating, as this can injure your eyesight.
Caution – Use of controls or adjustments or performance of procedures other
than those specied herein may result in hazardous radiation
TP-Link hereby declares that the transceiver is in compliance with the essential
requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/support/ce/
EU declaration of conformity
TP-Link hereby declares that the transceiver is in compliance with the essential
requirements and other relevant provisions of the Electromagnetic
Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations
2016.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca/
UK declaration of conformity
CAN ICES-003 (A)/NMB-003(A)
Industry Canada Statement
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Product Name: Omada 25GBase-SR SFP28 LC Transceiver/Omada 25GBase-LR SFP28 LC Transceiver
Model Number: SM6110-SR/SM6110-LR
This is a class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
CE Mark Warning
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних
документів та вимогам, що передбачені чинними законодавчими актами України.
0°C to 70°C (32°F to 158°F)Operating Temperature
-40°C to 85°C (-40°F to 185°F)Storage Temperature
5% to 85% RH Non-condensingOperating Humidity
5% to 90% RH Non-condensingStorage Humidity
0°C to 70°C (32°F to 158°F)Operating Temperature
-40°C to 85°C (-40°F to 185°F)Storage Temperature
5% to 85% RH Non-condensingOperating Humidity
5% to 90% RH Non-condensingStorage Humidity
Specications
Port Type
Cable
Data Rate
Wave Length
LC Duplex
3.3 V
FCC, CE, RoHS
Standards and Protocols
Model
Max. Cable Length
Power Support
Safety & Emission
Ye sDDM
Ye sHot Swappable
850 nm
SM6110-SR
IEEE 802.3ae
IEEE 802.3by
SFF-8402
SFF-8431
SFF-8432
SFF-8472
eCPRI, CPRI
TCP/IP
MMF 50/125 um
70 m (OM3) @25.78Gbps
100 m (OM4) @25.78Gbps
300 m (OM3) @10.31Gbps
10.31 Gbps/25.78 Gbps
Wave Length
Standards and Protocols
Model
1310 nm
SM6110-LR
IEEE 802.3ae
IEEE 802.3cc
SFF-8402
SFF-8431
SFF-8432
SFF-8472
eCPRI, CPRI
TCP/IP
Cable
Max. Cable Length
SMF 9/125 um
10 km
Port Type
Data Rate
LC Duplex
3.3 V
FCC, CE, RoHS
Power Support
Safety & Emission
Ye sDDM
Ye s
Class 1
1.66 mW (2.2 dBm)
Hot Swappable
Laser Class
Max. Laser Output Power
Class 1
1.74 mW (2.4 dBm)
Laser Class
Max. Laser Output Power
10.31 Gbps/25.78 Gbps
Ye sSFP28 MSA
Ye sSFP28 MSA
Explanation of the symbols on the product label
