BG-8K-28A
2x8 8K UHD HDMI 2.1 48Gbps Splitter with Auto Downscaling/
HDR-to-SDR Conversion/Audio De-Embedding/RS-232
(8K60/4K120 and VRR/ALLM/QMS/QFT/SBTM Support)
User Manual
BZBGEAR BG-8K-28A PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-28A PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
EDID Settings 11
EDID DIP Switch Configuration 11
Notes on EDID Operation 11
IR Pin Definition 12
IR Remote 12
API Commands 13
Connection Diagram 16
Troubleshooting 17
Tech Support 18
Limited Product Warranty Terms 18
Mission Statement 18
Copyright 18
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-28A PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-28A PRODUCT MANUAL
Introduction
The BG-8K-28A is a high-performance 48Gbps HDMI™ 2×8 splitter designed for
advanced 8K and high-frame-rate AV distribution environments. It supports HDMI
2.1 features including resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz
(4:4:4, 12-bit) with full HDCP 2.3 compliance. The unit provides two HDMI inputs
that can be manually or automatically switched and simultaneously distributed to
eight HDMI outputs. Comprehensive HDR format support—including HDR10,
HDR10+, Dolby Vision, HLG, ALLM, and VRR—ensures compatibility with modern
source and display devices.
Each HDMI output supports independent downscaling (8K→4K/1080p) and
HDR-to-SDR conversion, making the BG-8K-28A ideal for mixed-resolution display
systems. The splitter also features audio de-embedding via optical S/PDIF and
balanced/unbalanced analog outputs with adjustable gain. Advanced EDID
management, a built-in HDMI signal generator for diagnostics, and robust signal
processing with equalization and re-timing provide reliable operation across long
cable runs. Control is available via front-panel buttons, IR remote, and RS-232 or
USB-C API commands, making the unit suitable for both standalone and fully
integrated AV control systems.
Features
● HDMI 2.1 & HDCP 2.3 Compliance: Supports the latest HDMI 2.1 features with full
HDCP 2.3 content protection.
● 48Gbps Bandwidth: Delivers up to 48Gbps video bandwidth for uncompressed 8K
and high-frame-rate signals.
● 8K & High Frame Rate Support: Supports up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz
(4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit).
● HDR Pass-Through: Supports HDR, HDR10, HDR10+, Dolby Vision, HLG, ALLM,
and VRR formats.
● 2×8 HDMI Distribution: Switches between two HDMI inputs and distributes the
selected source to eight HDMI outputs.
● Independent Output Downscaling: Each output supports independent 8K-to-4K or
8K-to-1080p downscaling.
● HDR to SDR Conversion: Converts HDR content to SDR independently on each
output for legacy display compatibility.
● Audio De-Embedding: Extracts HDMI audio to optical S/PDIF and
balanced/unbalanced analog outputs.
● Analog Audio Gain Control: Provides adjustable gain control for analog audio
outputs.
● Auto & Manual Input Switching: Supports automatic HDMI 5V detection and
manual switching via front panel, IR, or API.
● Built-In Signal Generator: Includes an internal test pattern generator for signal
verification and troubleshooting.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-28A PRODUCT MANUAL
● Advanced EDID Management: Provides multiple EDID presets, pass-through, and
user-defined EDID options.
● Signal Conditioning: Built-in equalization, re-timing, and signal amplification for
stable transmission.
● Multiple Control Interfaces: Supports front panel buttons, IR remote, RS-232, and
USB-C service control.
Packing List
● 1× 48Gbps 2×8 HDMI™ Splitter (BG-8K-28A)
● 1× 12V/2.5A Locking Power Supply
(Multinational Plug)
● 1× IR Remote Control
● 1× IR Wideband Receiver Cable (1.5m)
● 1× 3-pin 3.5mm Phoenix Connector
● 1× 5-pin 3.5mm Phoenix Connector
● 2× Rack Mounting Ears
● 4× Mounting Screws (KM3×6)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-28A PRODUCT MANUAL
Specifications
TECHNICAL SPECIFICATIONS
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps
Video Resolution
Up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz (4:4:4, 12-bit), 4K@120Hz
(4:4:4, 12-bit)
Color Depth
8/10/12-bit
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Support
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats (HDMI I/O)
LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS-HD Master Audio, DSD
Optical Audio Output
Up to LPCM / Dolby / DTS 5.1CH
Analog Audio Output
LPCM 2CH
Output Impedance
300 Ohm
Max Output Level
8.2dBu (2Vrms) balanced / 2.2dBu (1Vrms) unbalanced
Frequency Response
20Hz–20kHz (+0.5dB / -1dB)
Audio Sync Delay
0–2.2ms
Signal-to-Noise Ratio
99dB @ 2Vrms, 1kHz, A-weighted
THD+N
<0.2% @ 0dBV, 1kHz
IR Level
12Vp-p
IR Frequency
20–60kHz (wideband)
ESD Protection
±8kV air discharge, ±4kV contact discharge (IEC 61000-4-2)
CONNECTION SPECIFICATIONS
Input Ports
2× HDMI Type-A (19-pin female)
Output Ports
8× HDMI Type-A (19-pin female)
Optical Output
1× S/PDIF Optical
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-28A PRODUCT MANUAL
Analog Audio Output
1× L/R (5-pin 3.5mm Phoenix connector)
RS-232 Control
1× 3-pin 3.5mm Phoenix connector
IR Control
1× 3.5mm stereo mini-jack (IR IN)
Service Port
1× USB Type-C (firmware upgrade)
MECHANICAL SPECIFICATIONS
Housing
Metal enclosure
Color
Black
Dimensions
320mm (W) × 100mm (D) × 21.5mm (H)
Weight
810g
Power Supply
DC 12V / 2.5A
Power Consumption
9.6W (Max)
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Operating Humidity
20%–80% RH (non-condensing)
Storage Humidity
10%–90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-28A PRODUCT MANUAL
Operation Controls and Functions

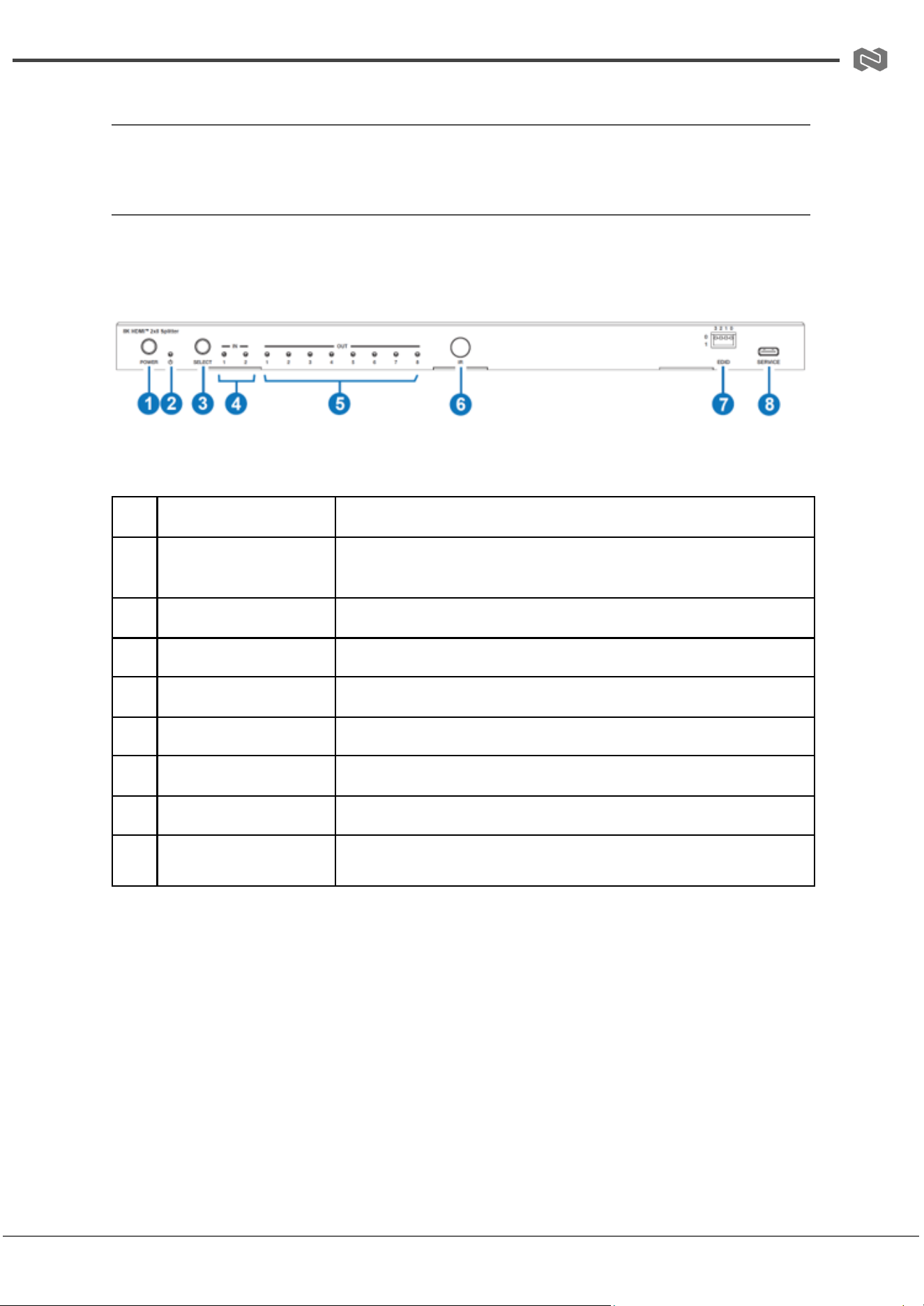

Front and Rear Panel
Front Panel
No.
Name
Description
1
POWER Button
Press to power on the unit; press and hold to enter standby mode.
2
POWER LED
Green indicates powered on; red indicates standby mode.
3
SELECT Button
Cycles between HDMI input 1 and input 2.
4
IN LED (1–2)
Indicates the currently selected active HDMI input source.
5
OUT LED (1–8)
Indicates active connection status of each HDMI output port.
6
IR Window
Receives IR remote control signals.
7
EDID DIP Switch
Used to select EDID mode based on predefined DIP settings.
8
SERVICE Port (USB-C)
USB-C service port for firmware updates and maintenance.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-28A PRODUCT MANUAL

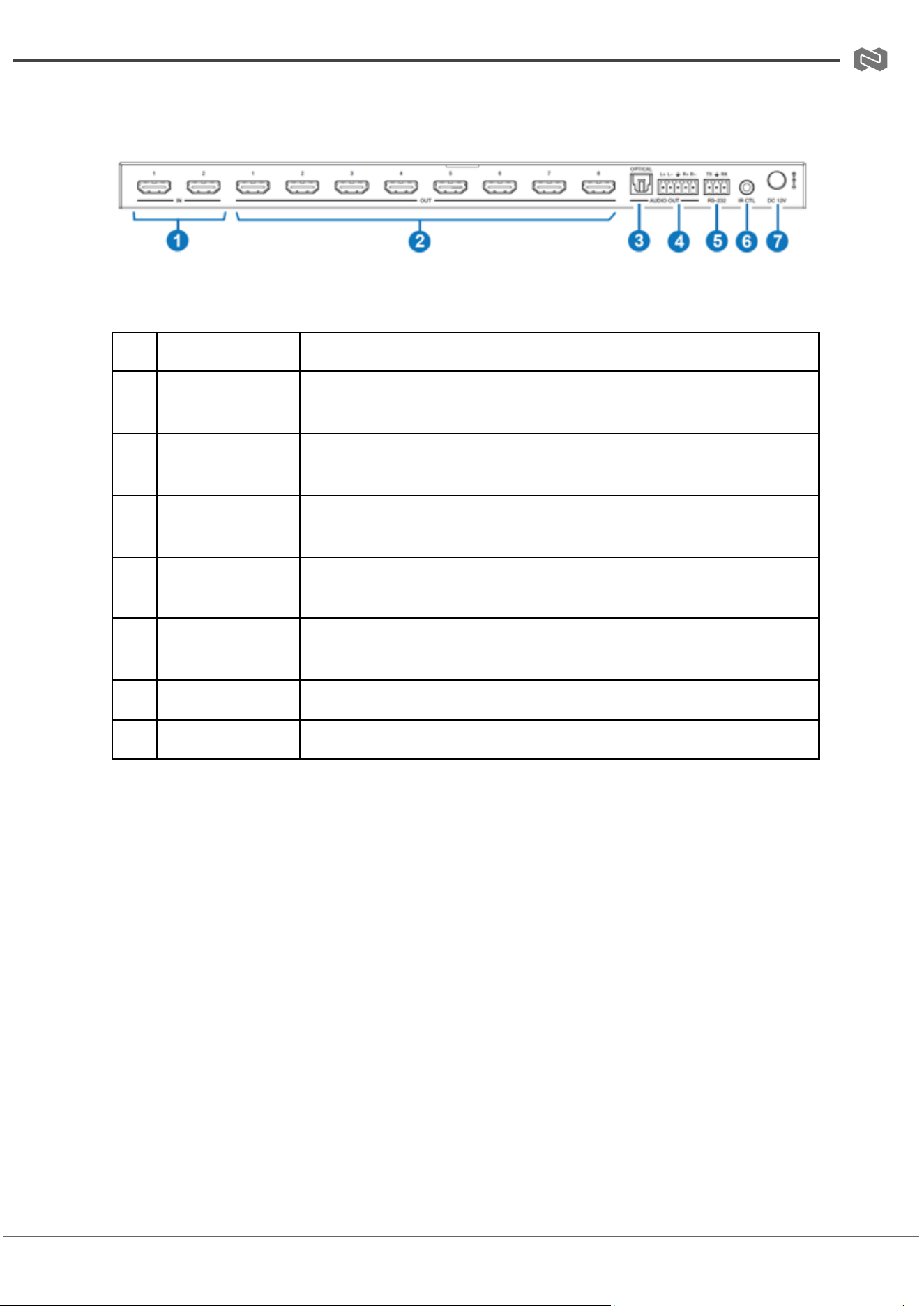

Rear Panel
No.
Name
Description
1
IN (1–2)
HDMI input ports for connecting source devices such as PCs, media
players, or game consoles.
2
OUT (1–8)
HDMI output ports for connecting displays such as TVs, monitors, or
projectors.
3
OPTICAL (S/PDIF)
Digital audio output for connection to amplifiers or audio processors.
4
L/R Audio Out
Analog audio output (balanced/unbalanced) with gain control support.
5
RS-232
Serial control port for integration with control systems and API
commands.
6
IR CTL
External IR receiver input for extended IR control.
7
DC 12V
Power input connector (12V/2.5A locking power supply).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-28A PRODUCT MANUAL
EDID Settings
The BG-8K-28A features an 8-position EDID DIP switch that allows users to select
predefined EDID modes for optimal compatibility between source and display devices.
EDID settings determine the supported resolution, audio format, and color depth
communicated to the source device.
EDID DIP Switch Configuration
DIP Setting
EDID Mode Description
0000
EDID Pass-Through (Copy from Sink 1) – Default
0001
1080p@60Hz, 2CH PCM Audio
0010
1080p@60Hz, 5.1CH DTS/Dolby Audio
0011
4K@60Hz 4:4:4 8-bit, 2CH PCM Audio
0100
4K@60Hz 4:4:4 8-bit, 5.1CH DTS/Dolby Audio
0101
4K@120Hz 4:4:4 10-bit HDR/DV, 2CH PCM Audio
0110
4K@120Hz 4:4:4 10-bit HDR/DV, 5.1CH DTS/Dolby Audio
0111
4K@120Hz 4:4:4 12-bit HDR/DV, 2CH PCM Audio
1000
4K@120Hz 4:4:4 12-bit HDR/DV, 5.1CH DTS/Dolby Audio
1001
8K@60Hz 4:2:0 10-bit HDR/DV, 2CH PCM Audio
1010
8K@60Hz 4:2:0 10-bit HDR/DV, 5.1CH DTS/Dolby Audio
1011
8K@60Hz 4:2:0 12-bit HDR/DV, 2CH PCM Audio
1100
8K@60Hz 4:2:0 12-bit HDR/DV, 5.1CH DTS/Dolby Audio
1101
8K@60Hz 4:2:0 12-bit HDR/DV with VRR/DSC, 2CH PCM Audio
1110
8K@60Hz 4:2:0 12-bit HDR/DV with VRR/DSC, 5.1CH DTS/Dolby Audio
1111
User Defined EDID / Firmware Defined Mode
Notes on EDID Operation
● EDID settings apply to all input ports unless configured otherwise via API commands.
● Pass-through mode copies EDID directly from Sink 1 (first active display).
● User-defined EDID can be uploaded and selected via API commands for custom
configurations.
● Incorrect EDID selection may result in reduced resolution or audio compatibility issues.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-28A PRODUCT MANUAL

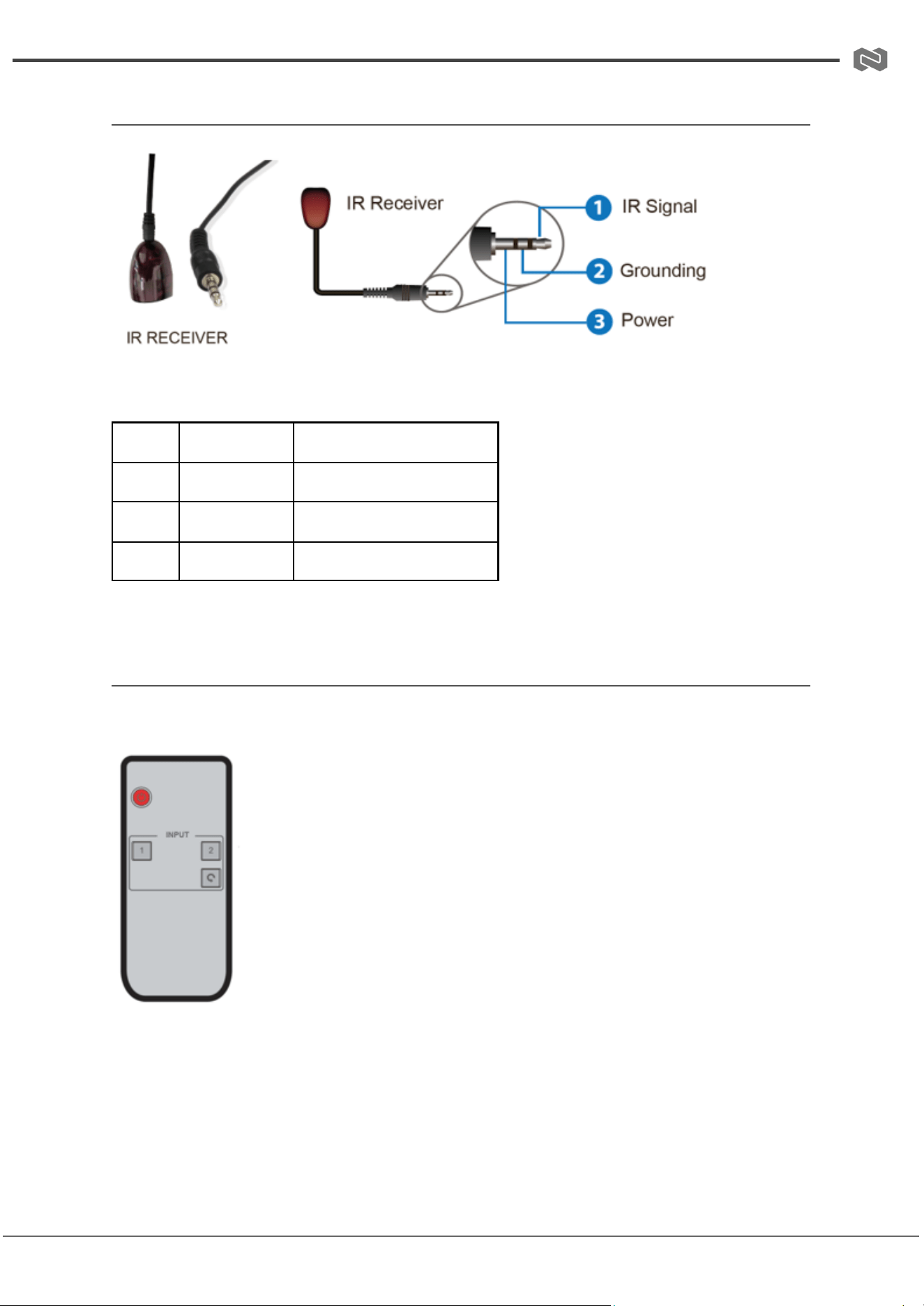

IR Pin Definition
The IR IN port supports external infrared receiver connection for extended control range.
Pin
Signal
Description
Tip
IR Signal
Infrared signal input
Ring
Power (12V)
IR receiver power supply
Sleeve
Ground
Ground reference
Note: Use only the provided IR receiver cable to avoid damage or incorrect operation.
IR Remote
The included IR remote allows basic control of input switching and power functions.
● Power Button: Turns the device ON or places it into standby
mode.
● Input 1 Button: Selects HDMI Input 1 as the active source.
● Input 2 Button: Selects HDMI Input 2 as the active source.
● Input Switch Button: Cycles between HDMI Input 1 and Input 2.
Operation Notes:
● Ensure the IR receiver is properly connected to the IR IN port for
remote functionality.
● Direct line-of-sight is recommended for optimal performance.
● Interference from strong lighting or reflective surfaces may
reduce IR range.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-8K-28A PRODUCT MANUAL
API Commands
The BG-8K-28A supports ASCII-based API control via RS-232 or USB-C service port.
Commands must be terminated with
<CR><LF>.
Communication Settings
● Service Port (USB-C Virtual RS-232): 115200bps, 8 data bits, 1 stop bit, no parity
(fixed)
● RS-232 Port (Phoenix Connector): 4800–115200bps configurable, 8 data bits, 1
stop bit, no parity
● Command Termination: <CR><LF>
Basic System Commands
Command
Function
Example
Response
?
List all available
commands
?
Command list output
help
List all available
commands
help
Command list output
get fw version
Get firmware version
get fw version
1.0.0
set power on/off
Power ON or OFF device
set power on / set
power off
Power status message
get power
Get power status
get power
On / Off
set reboot
Reboot system
set reboot
System rebooting
message
set reset
Factory reset device
set reset
Reset confirmation
prompt
get status
Get full system status
get status
System status report
Control & Interface Commands
Command
Function
Example
Response
set IR on/off
Enable or disable IR control
set IR on
IR On/Off
get IR
Get IR status
get IR
IR On/Off
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-8K-28A PRODUCT MANUAL
set key on/off
Enable or disable front panel keys
set key off
Key On/Off
get key
Get front panel key status
get key
Key status
set baud x
Set RS-232 baud rate (1–6)
set baud 6
115200
Input Control Commands
Command
Function
Example
Response
set input x
Select HDMI input (0–2)
set input 1
Input 1 selected
get input
Get active input
get input
Input HDMI 1
get hdmi5v
Check HDMI 5V detection
get hdmi5v
HDMI 1: 5V / HDMI 2:
none
set autoswitch
on/off
Enable/disable auto
switching
set autoswitch
on
On/Off
get autoswitch
Get auto-switch status
get autoswitch
On/Off
Output Control Commands
Command
Function
Example
Response
set output x downscale y
Set output scaling mode
set output 0 downscale 1
Applied
get output x downscale
Get output scaling mode
get output 0 downscale
Status list
set output x display y
Set output display mode
set output 0 display 2
Applied
get output x display
Get output display mode
get output 0 display
Status list
set output x HDCP y
Set HDCP mode
set output 0 HDCP 1
Applied
get output x HDCP
Get HDCP status
get output 0 HDCP
Status list
Internal Signal Generator
Command
Function
Example
Response
set generator x y
Set test pattern output
set generator 1 1
8K color bar
get generator
Get generator status
get generator
Resolution + pattern
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-8K-28A PRODUCT MANUAL
Generator Modes:
● Resolution selection (x = 1–15): 8K30, 4K120, 4K60, 1080p, etc.
● Pattern selection (y = 1–13): color bar, checkerboard, ramp, PRBS, etc.
Audio Commands
Command
Function
Example
Response
set analog mute on/off
Mute analog audio
set analog mute on
On/Off
get analog mute
Get mute status
get analog mute
On/Off
set analog gain x
Set analog gain (-79dB to 0dB)
set analog gain -10dB
Applied
get analog gain
Get gain level
get analog gain
Current value
EDID Commands
Command
Function
Example
Response
set edid x to y
Set EDID mode
set edid 0 to 3
Applied
get edid x
Get EDID setting
get edid 0
EDID list
get edid data x
Get EDID raw data
get edid data 0
Hex dump
set user edid x
Set custom EDID
set user edid 1
Success
get user edid x
Get user EDID
get user edid 1
EDID data
Notes
● All commands are case-sensitive.
● Invalid commands return an error or no response.
● Some settings may require reboot to take effect.
EDID and HDCP changes may temporarily interrupt video output.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-8K-28A PRODUCT MANUAL

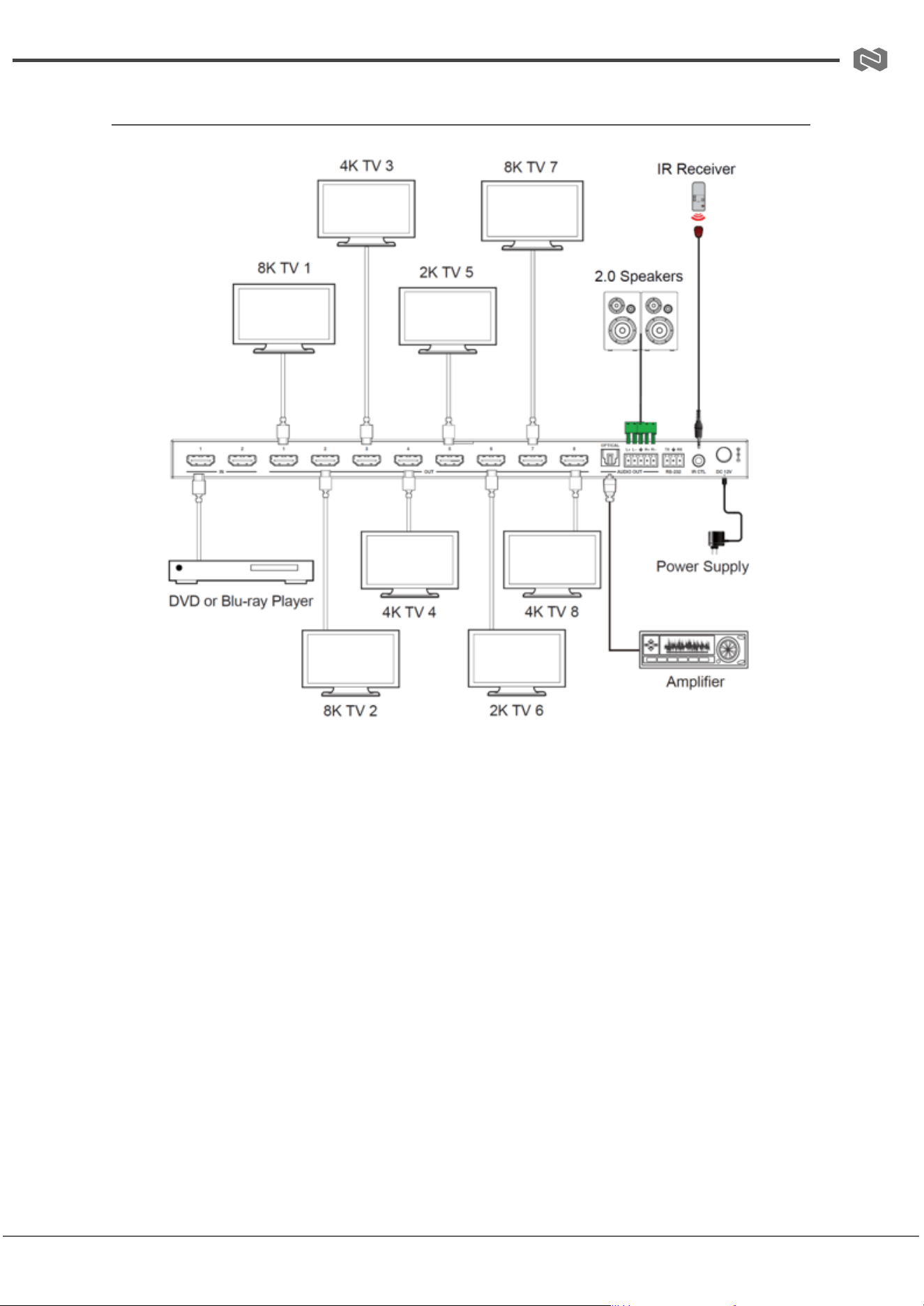

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-8K-28A PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-8K-28A PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
