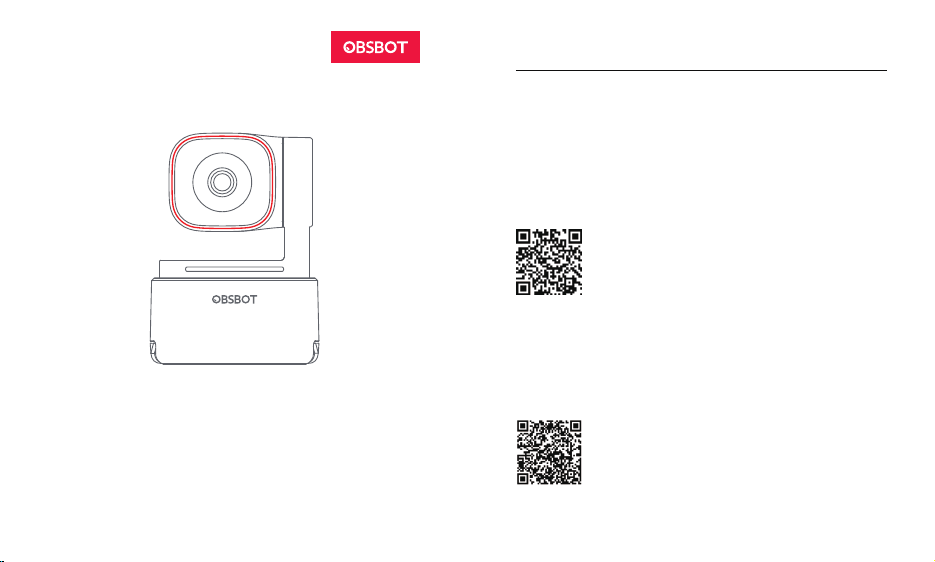

User Manual
Note
⚠ Important Consideration
Recommendation
We recommend that users watch tutorial videos and read the
user manual first to understand the usage process.
https://www.obsbot.com/download
Reading Guide
Tutorial Video
Users can access and watch tutorial videos through the
following link and QR code to learn how to use the product
correctly.
https://www.obsbot.com/explore/obsbot-tiny-3-lite
�
English
V1.0
About Tiny 3 Lite
OBSBOT Tiny 3 Lite is an AI-powered PTZ webcam equipped
with a two-axis gimbal. It further innovates the algorithm
technology, adds a variety of intelligent shooting modes, and is
supplemented by a variety of gesture control and voice control
functions to meet users’ needs from different scenarios.
OBSBOT Tiny 3 Lite is connected to the computer via USB,
plug and play. It also comes with OBSBOT Center software to
expand more advanced functions.
⚠ System Requirements
Windows 10(64-bit) or later
macOS 11.0 or later
⚠ Recommended for 1080p 120fps and 4K
Recommended Apple computers:
➀ MacBook Pro (2020, M1 chip or later)
➁ MacBook Air (2020, M1 chip or later)
➂ Mac mini (2020, M1 chip or later)
➃ iMac (2021, M1 chip or later)
Recommended PC configuration:
➀ CPU: 10th Gen Intel® Core™ i5 Processors or later
➁ RAM: 8GB
OBSBOT Tiny 3 Lite Overview
�
Placement Instructions
1. Placement on a Monitor
Please operate as shown in the following figure:
➀ Open the built-in stand at the bottom of Tiny 3 Lite.
➁ Place Tiny 3 Lite on the monitor.
➂ Adjust the angle of the stand to make the base as parallel
as possible to the horizontal plane.
Setting Up Tiny 3 Lite
Parts Info
01. 4K Ultra HD Lens
02. Camera Indicator
03. Intelligent Directional Mic System
04. USB-C Port
05. UNC 1/4-20 Interface
03
02
01
05
04
�
2. Placement on a Desktop
Place Tiny 3 Lite directly on your desktop.
3. Placement on a Tripod
OBSBOT Tiny 3 Lite is equipped with a standard UNC 1/4-20
nut connector on the base for mounting the camera to a
stand/tripod.
Connect to the Computer
OBSBOT Tiny 3 Lite is compatible with both Windows and Mac
computers. To set up your OBSBOT Tiny 3 Lite, use the standard
data cable to connect it to your laptop or the USB port on your
desktop. If necessary, use the provided USB-C to USB-A
adapter. The webcam will automatically install on your device.
Please wait a few seconds for the installation to finish before
attempting to access the webcam. After the installation is
complete, you can use popular video call platforms such as
Zoom, Microsoft Teams, Skype, or Google Meet to start
streaming with your Tiny 3 Lite.
⚠
➀ If the product is in working condition for a long time, the
bottom of the product will heat up, which is a normal situation.
➁ To avoid compatibility problems, be sure to use the standard
data cable to connect the computer.
➂ To prevent the product from malfunctioning due to
insucient power supply, please connect it directly to your
computer or use an expansion dock with an independent
power supply.
➃ 4K streaming requires compatible third-party software.
�
Gimbal
OBSBOT Tiny 3 Lite is equipped with a 2-axis brushless motor
gimbal. The controllable rotation range for the pan is ±130°, and
for the tilt is 32° to -60°.
Sleep Mode
➀ Manual Sleep
Please adjust the lens to point straight down. If the indicator
light is off, it means that the sleep mode is activated.
➁ Device Auto Sleep
You can use OBSBOT Center software to set the sleep time so
that it automatically enters sleep mode as needed.
�
Zoom to 2x (default) / Cancel
Perform the gesture control as shown in the
figure. The status light will flash twice
continuously to indicate that the zoom in/out
operation has been performed.
Dynamic Zoom
Perform gesture control as shown in the figure
until the status light starts flashing, at which
means the dynamic zoom function is activated.
Zoom in or out as the distance between your
hands changes, until no gesture is detected or
the zoom status can no longer be adjusted.
Gesture Control 2.0
Turn on/off Human Tracking
To enter human tracking mode, perform the
gesture as shown in the figure. The current
status light will flash twice in succession and
then turn to a steady blue state, indicating that
you have successfully entered human tracking
mode.
To exit human tracking mode, perform the
same gesture again. The blue status light will
flash twice continuously and then turn to a
steady green state, indicating that you have
successfully exited human tracking mode.
�
⚠ Please be careful not to cover your face with your hands and
keep your fingers open for the gesture control.
⚠ Please go to the link below to find the tutorial video for gesture
control. https://www.obsbot.com/explore/obsbot-tiny-3-lite
⚠ After adding preset positions through OBSBOT Center, then
proceed with voice control.
⚠ The sound localization function for voice control can be
enabled or disabled via OBSBOT Center.
OBSBOT Tiny 3 Lite revolutionizes the way video conferencing
cameras interact by adopting a new voice control technology that
enables active tracking of subjects based on sound source
localization.
Voice Control
Voice Commands Paraphrase
Hi, Tiny
Wake up Tiny 3 Lite
Sleep, Tiny Enter sleep mode
Track Me Turn on human tracking
Unlock Me Turn off human tracking
Zoom in Closer
Zoom to 2x (default)
Zoom out Further Back to 1x
Position One Update to preset position one
Position Two Update to preset position two
Position Three Update to preset position three
�
Zoom
➀ Auto Zoom
Enable the Auto Zoom function via OBSBOT Center. Human
tracking supports: Off (default)/Full Body/Close-Up/Upper
Body/Headless/Lower Body. Object Tracking supports: Off
(default)/Close-Up.
➁ Gesture Control
By default, the zoom settings is 2x. Users can create
customized gesture zoom settings from 1x to 4x via OBSBOT
Center software.
➂ Voice Control
By default, the zoom setting is 2x. Users can create customized
voice zoom settings from 1x to 4x via OBSBOT Center software.
➃ Manual Control
Users can do the manual control for zoom settings from 1x to
4x via OBSBOT Center software.
OBSBOT Tiny 3 Lite supports 4x digital zoom.
Focus
The OBSBOT Tiny 3 Lite supports two focusing methods.
➁ Manual Focus
Users can disable the auto focus feature and manually adjust
focus when using OBSBOT Center software.
➀ Auto Focus
Utilizing OBSBOT's advanced AI technology, the auto focus
feature intelligently adjusts the lens in real time, ensuring that
you remain in focus at all times, regardless of your proximity to
the camera.
�
⚠ The automatic rotation feature can only be used in software
that supports it, such as OBS. Some other software may
require manual rotation.
Various Shooting Modes
➀ Landscape Shooting
This mode is suitable for conventional mounted cameras.
➂ Downward Shooting
By hanging the camera above the object to be photographed
through an external accessory, it will automatically enter the
downward mode, which is suitable for painting, making
handmade crafts, or playing the piano.
➃ Up-Side-Down Shooting
The camera can be installed upside down, and the screen will
automatically rotate for use.
HDR
By default, HDR feature is disabled. However, users have the
option to enable HDR on the OBSBOT Center software to
enhance their appearance on video, even in low light or direct
sunlight.
��
The OBSBOT Tiny 3 Lite offers four shooting modes, with
landscape mode being the default.
➁ Portrait Shooting
By horizontally placing the camera through an external
accessory, it will automatically enter into the portrait mode.
Hand Tracking
To enable hand tracking, simply use the OBSBOT Center
software. OBSBOT Tiny 3 Lite will automatically detect and
track your hand on the screen, and you can adjust the tracking
area as needed.
Human Tracking
OBSBOT Tiny 3 Lite tracking mode supports single mode and
group mode. Activate human tracking using gesture or voice
control, or OBSBOT Center software. OBSBOT Tiny 3 Lite will
automatically track and ensure that the figure is in the best
composition position. Additionally, zone tracking can be
enabled through the app for more creative gameplay.
��
Indicator Description
Equipment Status Indicator Statuses
Power on initialization
Blue lights flash in a cycle, means
the product is being initialized
No target is selected Green light keeps on
Execute gesture/voice
control
The indicator for the current state
blinks twice in succession and then
switches to the state of the
identified indicator light
Firmware upgrading Blue/Yellow flash alternately
Enable human tracking
Blue light keeps on
Target losing Yellow light keeps on
Enable hand tracking Purple light keeps on
��
Firmware upgrade failed Red light flash slowly
Device malfunction, such
as AI error
Red light keeps on
Sleep mode Light off
OBSBOT Center
Software Overview
OBSBOT Tiny 3 Lite provides advanced users of Windows and
Mac with a control software for OBSBOT Center, which allows
you to perform a series of extended operations on the camera,
such as controlling the motion trajectory of the pan-tilt,
selecting or canceling tracking targets, setting presets or
expanding various creative gameplay.
Download and Installation
Download and install OBSBOT Center through
https://www.obsbot.com/download to further enhance your
user experience.
Please note that the content may be updated without prior
notice. To access the most recent version of the manual book,
please download it from:
https://www.obsbot.com
Firmware Upgrade
OBSBOT Tiny 3 Lite upgrades through OBSBOT Center
software. When firmware is available for update, there will be
corresponding prompts after connecting the device. Please
follow the info on prompts.
⚠ Do not disconnect the camera during firmware upgrade
process.
�� ��
