ITEM #5519818
MODEL #AUR52MBK5LR
Español p. 22
Purchase Date
ADJUNTE SU RECIBO AQUÍ
ATTACH YOUR RECEIPT HERE
1
AURORA LED CEILING FAN
4007498
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
2
Safety Information ..................................................................................................................................... 2
Package Contents ...........................................................................................................................
.
......... 5
Hardware Contents
..........................................................................................................................................
6
Preparation ......................................................................................................................................... 6
Initial Installation ................................................................................................................................. 6
Downrod-Style Fan Mounting ................................................................................................................... 8
Closemount-Style Fan Mounting ............................................................................................................ 10
Wiring ............................................................................................................................................... 12
Final Installation ............................................................................................................................... 13
Operating Instructions ...................................................................................................................... 16
Care and Maintenance ................................................................................................................
.
.... 19
Troubleshooting ............................................................................................................................... 20
Limited Lifetime Warranty ................................................................................................................ 21
Replacement Parts List .................................................................................................................... 21
TABLE OF CONTENTS
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 15.87 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
SAFETY INFORMATION
4
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
5

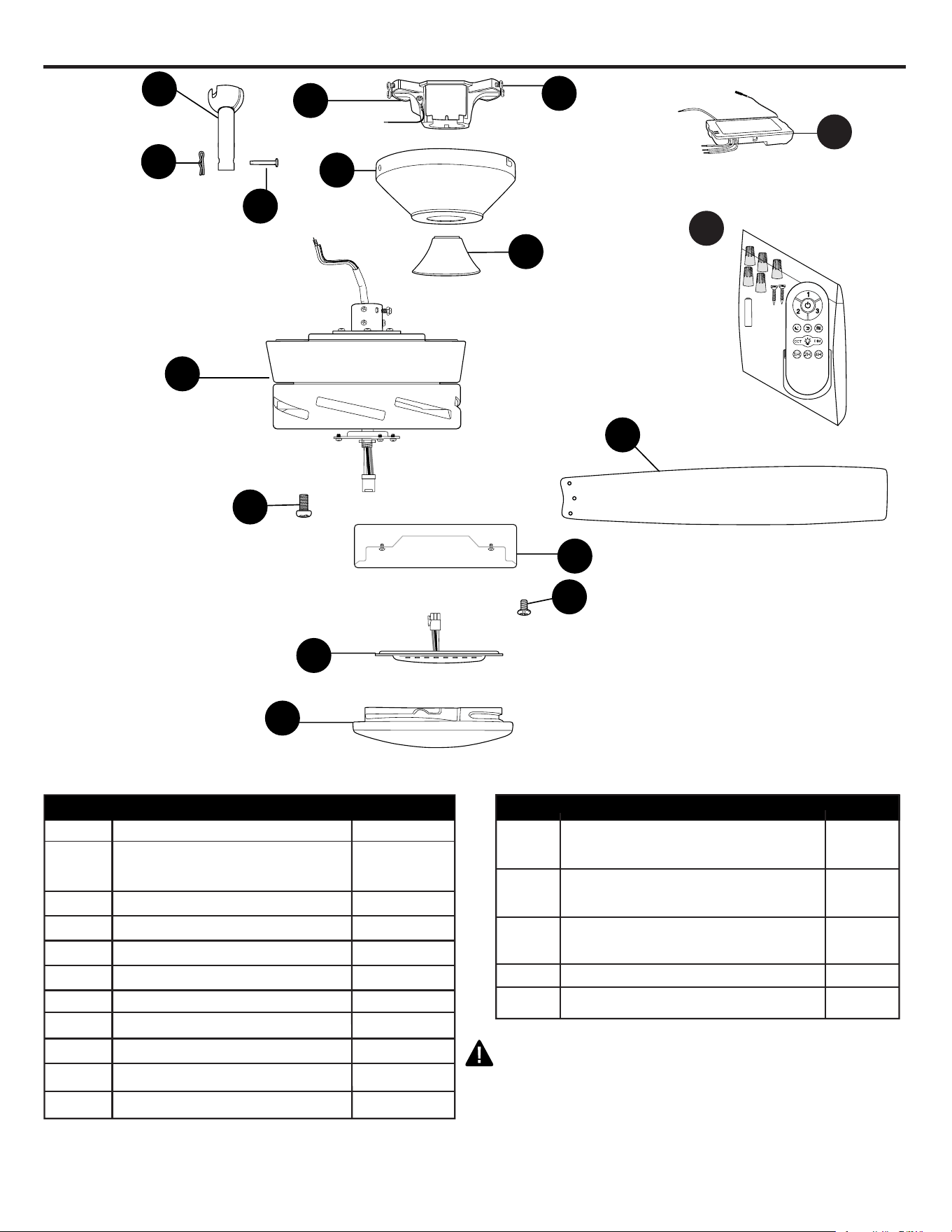

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation and
safety.
A Downrod 1
B Mounting Bracket 1
(preassembled)
C Canopy 1
D Yoke Cover 1
E Motor Housing 1
F Blade 5
G Fitter Plate 1
H LED Light Kit 1
I Shade 1
J Pin (preassembled) 1
K Clip (preassembled) 1
DESCRIPTIONPART
QUANTITY
DESCRIPTION
QUANTITY
PART
G
F
N
I
H
C
B
D
E
M
K
J
A
L
O
P
L Motor Plate Screw 3
(preassembled)
M Fitter Plate Screw 3
(preassembled)
N Canopy Mounting Screw/lock 4
washer (preassembled)
O Remote Control Receiver 1
P Remote Pack 1
6
Wire
Connector
Qty. 4

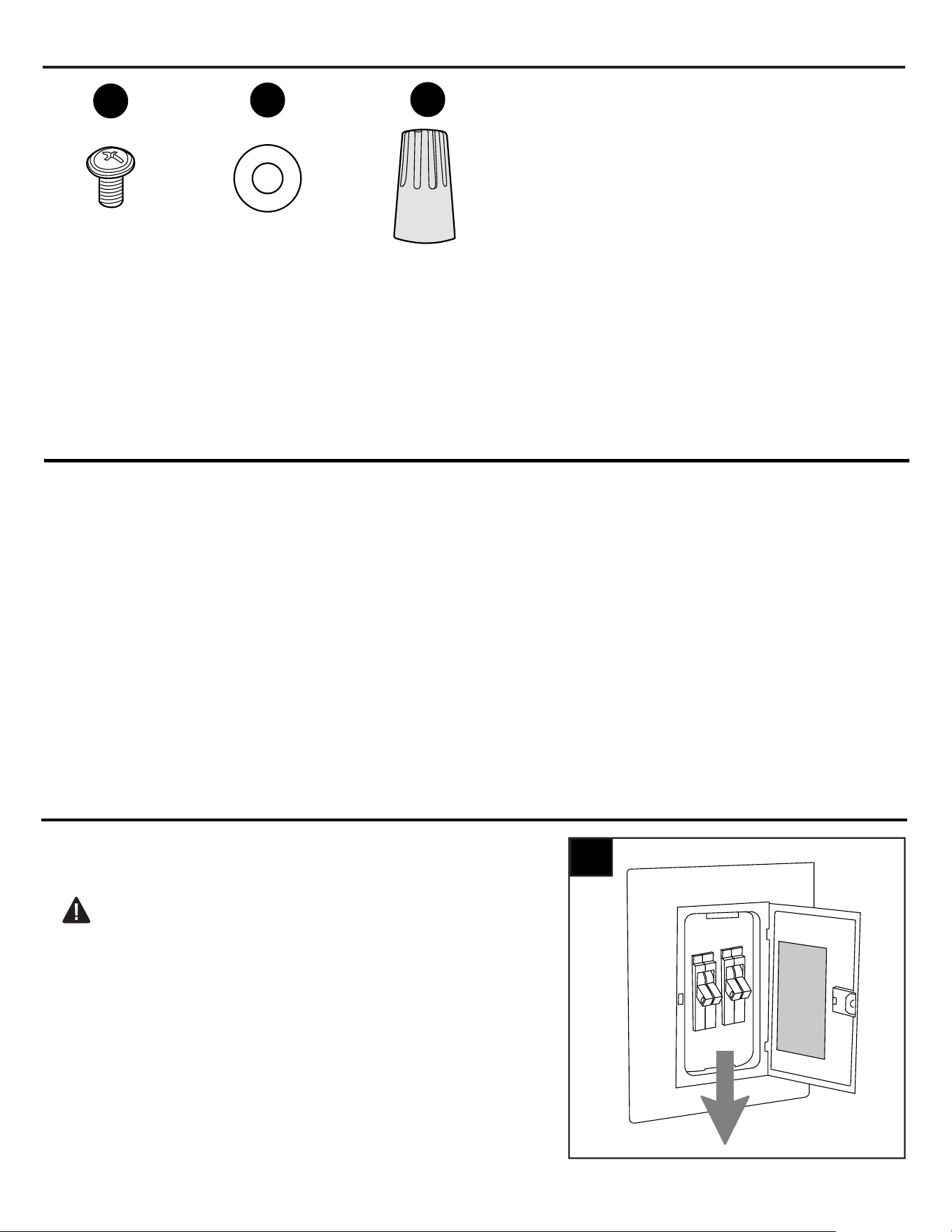

HARDWARE CONTENTS (shown actual size)
AA
BB
CC
Fiber
Washer
Qty. 15
+ 1 extra
Blade
Screw
Qty. 15
+ 1 extra
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder, Wire Strippers and Precision Screwdriver (0 x 2 in.).
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters.
PREPARATION
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
7
INITIAL INSTALLATION
4
Open End
B
B

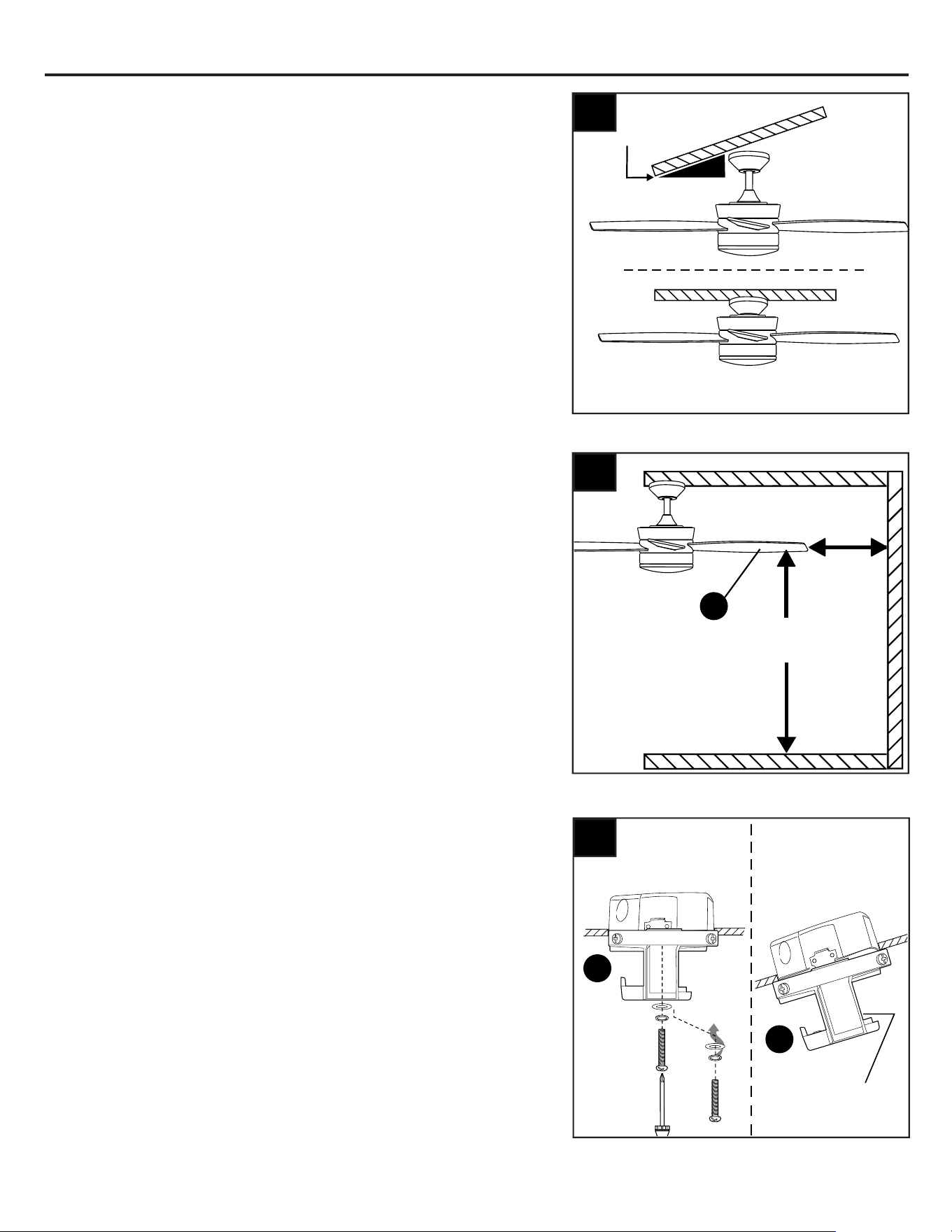

2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 20°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (F) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
ANGLE
MOUNT
STANDARD
MOUNT
A
B
20° max.
7 ft.
min.
30 in.
min.
F
2
3
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (B)
as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 20°.
4.
5
E
Motor
Stabilization
Piece
8
INITIAL INSTALLATION

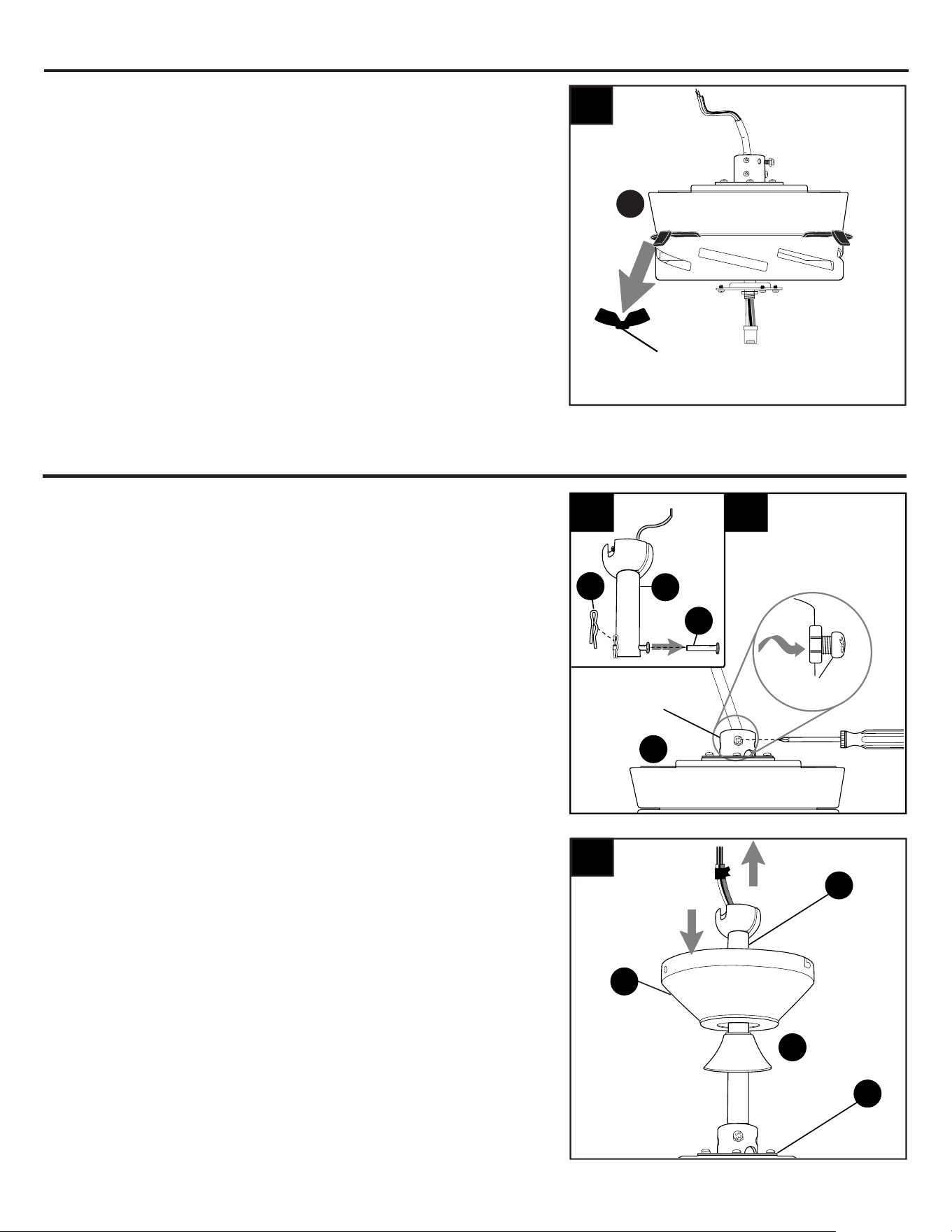

5.
Remove all three preassembled motor
stabilization pieces from motor housing (E). The
motor stabilization pieces may be discarded at
this time.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
DOWNROD-STYLE FAN MOUNTING
2.
Insert downrod (A) through yoke cover (D) and
canopy (C). Thread wires from motor housing
(E) up through downrod (A).
Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (E).
1a.
1b.
1a
K
E
J
1b
A
Set Screw
& Nut
Sideview
A
E
2
C
Yoke
D
9

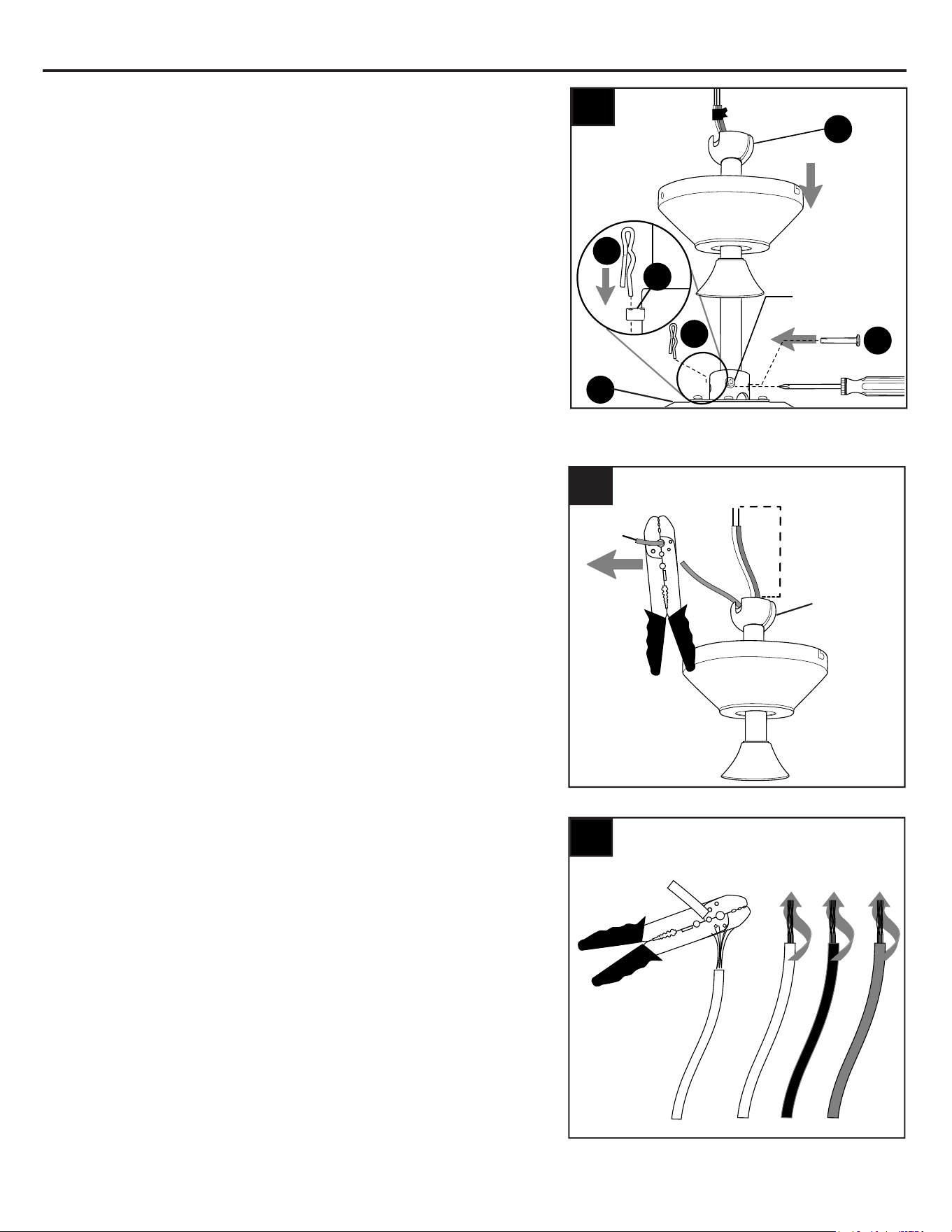

3.
Slip downrod (A) into yoke, align holes and
re-install pin (J) and clip (K). Tighten downrod
set screws and then tighten nut.
3
K
J
Set Screw
and Nut
E
A
K
J
4.
5.
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
If you cut back the lead wires in Step 4, strip 3/4 in.
of insulation from end of each wire -- WHITE,
BLACK, GREEN and BLUE (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
4
Hanging
Ball
8 in.
5
DOWNROD-STYLE FAN MOUNTING
10
DOWNROD-STYLE FAN MOUNTING
6.

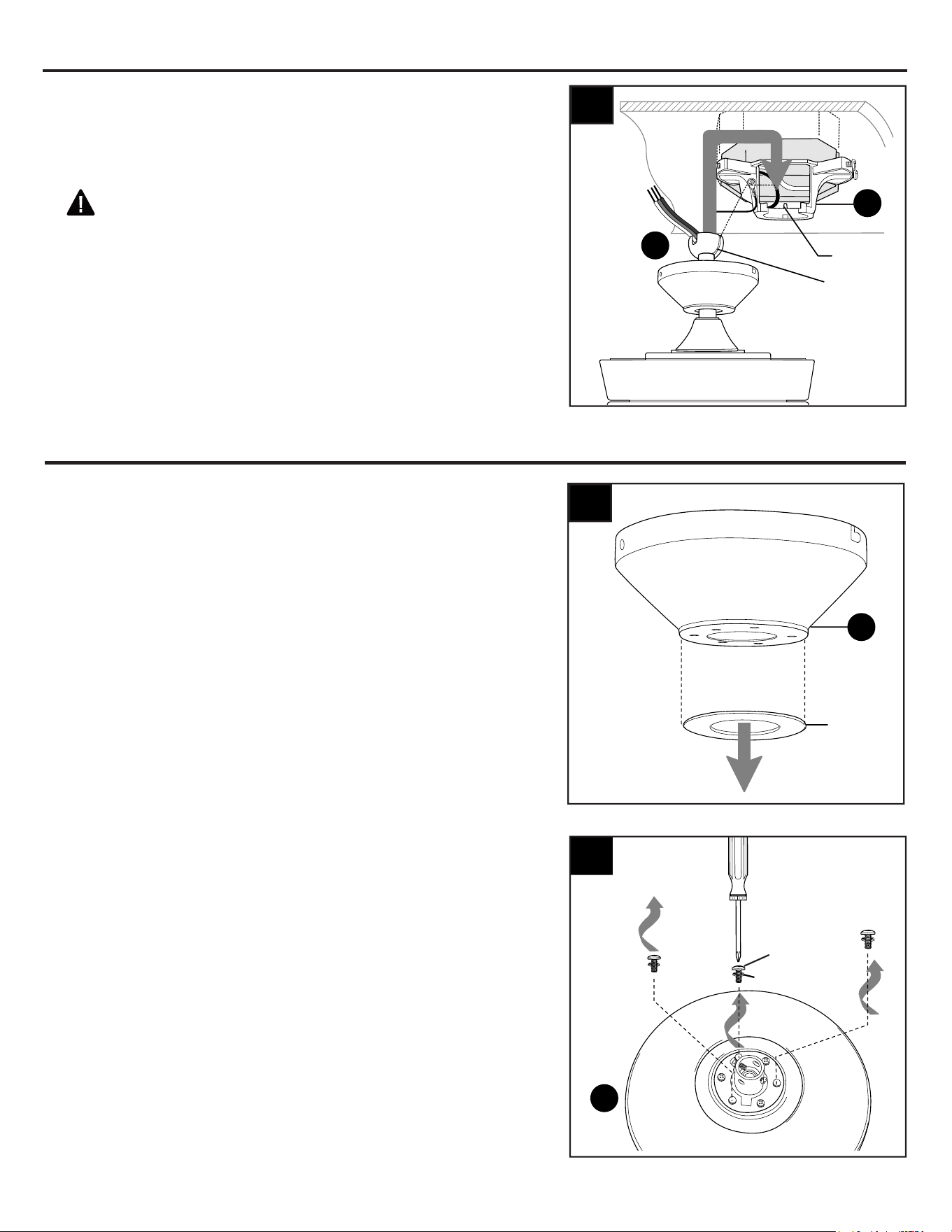

Remove preassembled canopy cover from
bottom of canopy (C).
NOTE: Turn canopy cover to the left
(counterclockwise) to remove from canopy
(C).
NOTE: The downrod (A), yoke cover (D) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
Install hanging ball of downrod (A) into
opening of mounting bracket (B). Align the
slot in hanging ball with the tab in mounting
bracket (B).
DANGER: Failure to align slot in hanging
ball with the tab in mounting bracket (B) may
result in serious injury or death.
Continue to WIRING on page 12.
Canopy
Cover
1
C
B
6
Tab
A
Slot
2.
Remove every other preassembled
screw/lock washer from top of motor
housing (E).
E
2
Screw
Lock Washer
11

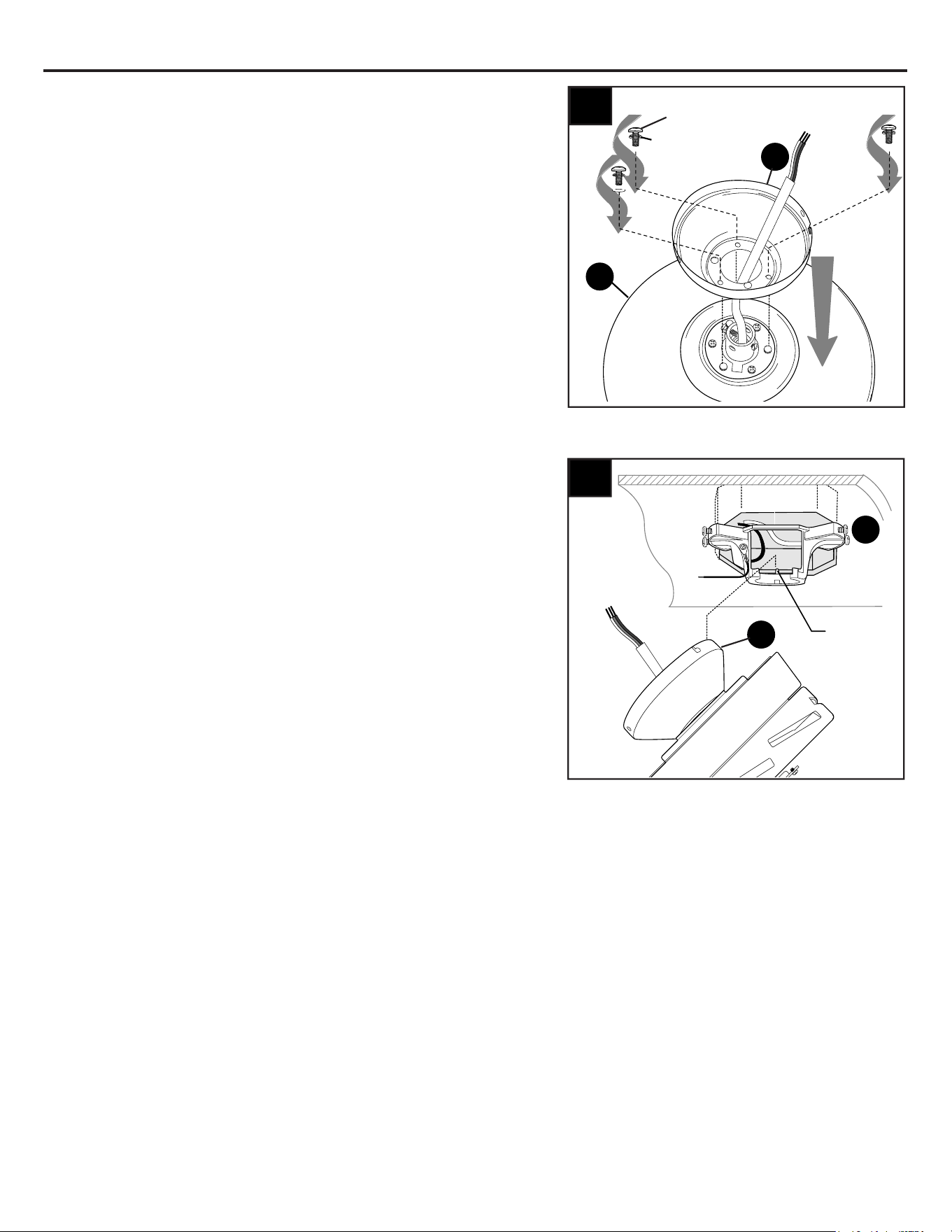

Temporarily hang fan on the tab on the
mounting bracket (B) using one of the
non-slotted holes in the canopy (C).
4.
3.
Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (E) using the three screws/lock
washers previously removed.
3
E
C
C
4
B
Screw
Lock Washer
Tab
CLOSEMOUNT-STYLE FAN MOUNTING
12
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.

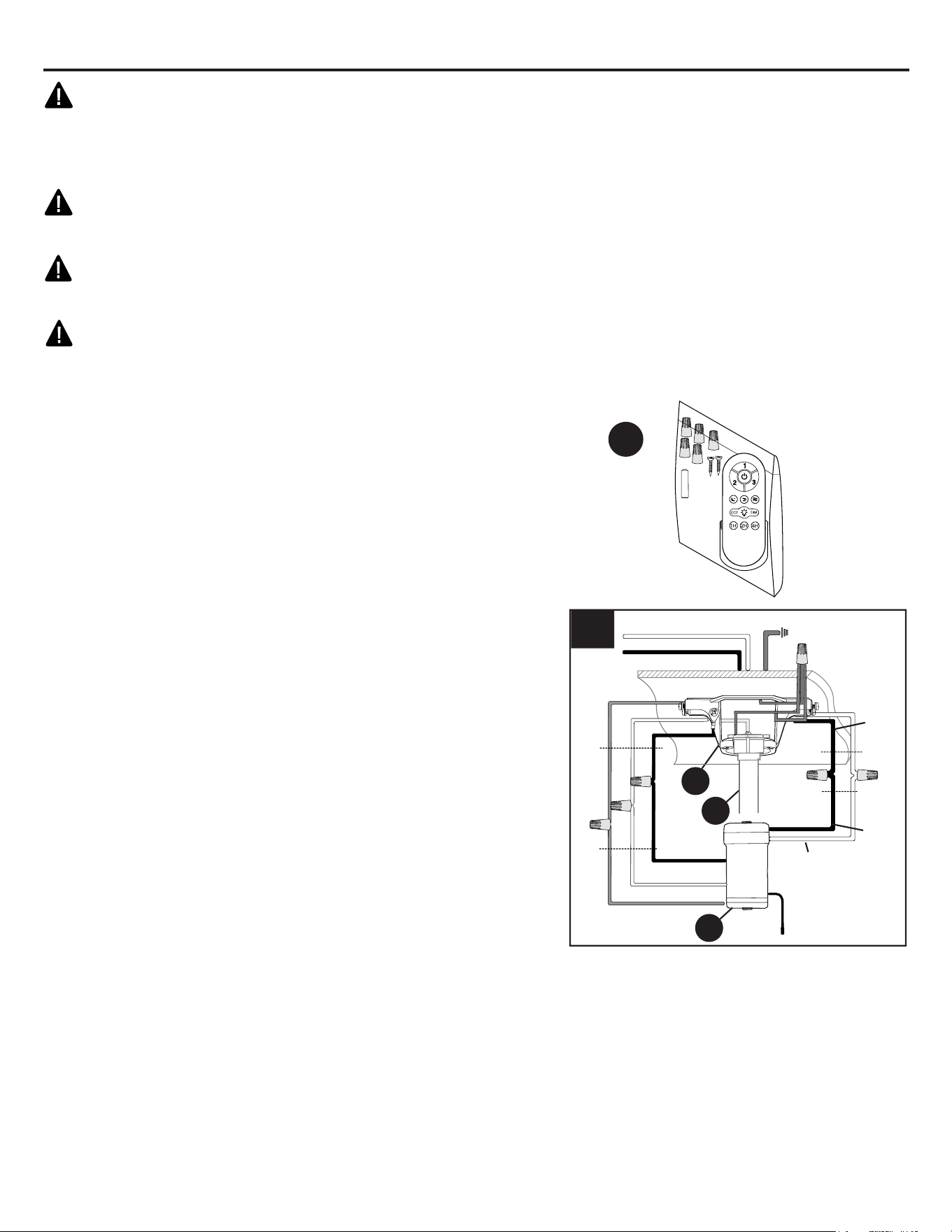

Connect all GROUND (GREEN) wires from fan (on
downrod (A), if applicable, mounting bracket (B))
and remote control receiver (O) to BARE/GREEN
supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (O) to BLACK supply wire
from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (O) to WHITE supply wire
from ceiling.
Connect BLUE wire (labeled FOR LIGHT L) from
remote control receiver (O) to BLUE wire from
motor housing (E).
Connect BLACK wire (labeled TO MOTOR L) from
remote control receiver (P) to BLACK wire from
motor housing (E).
Connect WHITE wire (labeled FOR LIGHT N) from
remote control receiver (O) to WHITE wire from
motor housing (E).
1.
IMPORTANT: Make the necessary wiring connections
for remote control operation as detailed below and in
the accompanying drawing. For each wire connection,
use wire connectors from the remote pack (P), making
sure to screw each wire connector on in a clockwise
direction.
P
A
B
O
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
Wire
Connectors
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
Wire
Connectors
1
C
N
C
Downrod
Option
Closemount
Option
N
E
E
13
WIRING

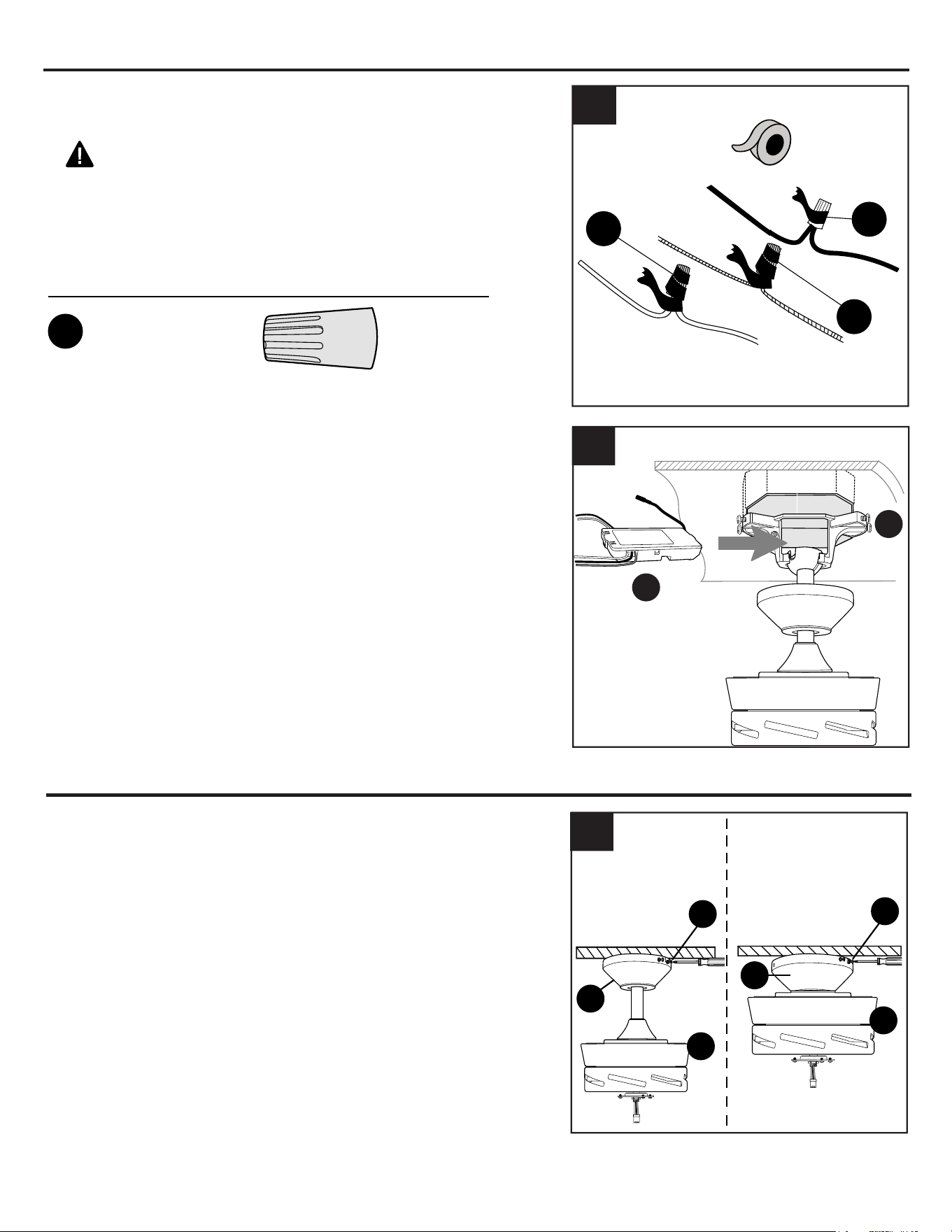

Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
CC
CC
CC
3
Gently slide remote control receiver (O) flat-side
up into mounting bracket (B). Turn spliced/taped
wires upward and gently push wires and wire
connectors (CC) into outlet box. Let antenna from
remote control receiver (O) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps: 1.25 MAX.
3.
Antenna
O
B
Hardware Used
Wire Connector x 6
CC
FINAL INSTALLATION
1.
Lift canopy (C) to mounting bracket (B) again,
aligning slotted holes in canopy (C) with
loosened canopy mounting screws (N) in
mounting bracket (B). Twist canopy (C)
clockwise to lock. Re-insert the two canopy
mounting screws/lock washers (N) that were
previously removed (Step 4a, Page 7) and
tighten all canopy mounting screws/lock
washers (N) securely.
G
M
M
3
2
BB
3
Motor
Plate
I
F
E
4
I
L
I
L
I
G
AA
E
14
FINAL INSTALLATION
2.
Hardware Used
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB

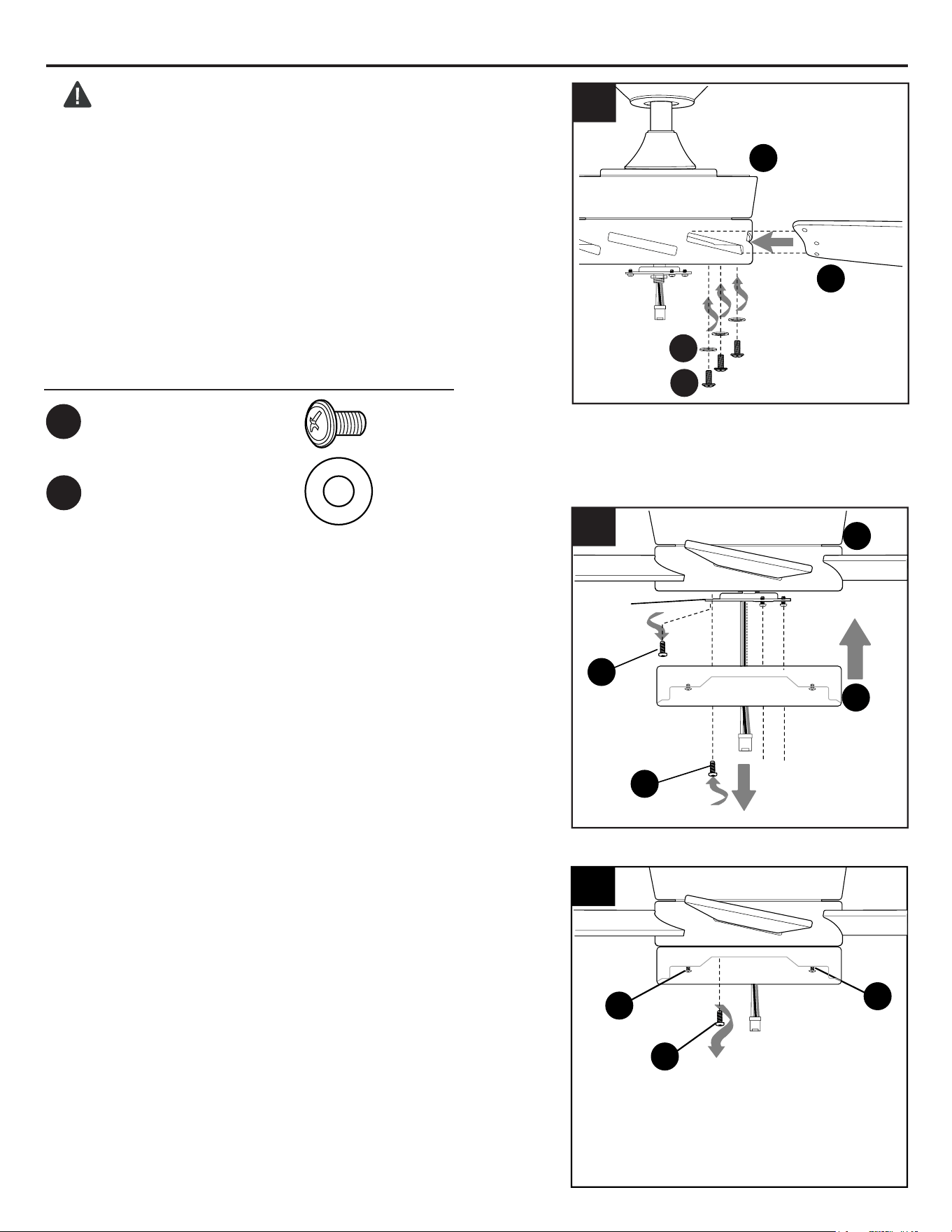

DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (F). If screws are overtightened, blades (F)
may crack and break.
Insert the blade (F) through the slot on the band of
the motor housing (E). Align holes in blade (F)
with holes on underside of motor. Attach the blade
(F) with blade screws (AA) and fiber blade
washers (BB). Then, tighten each blade screw
(AA), starting with the one in the middle. Repeat
for remaining blades (F).
4.
3.
Remove one fitter plate screw (M) from underside
of fitter plate (G) and partially loosen the other two
fitter plate screws (M).
Remove one motor plate screw (L) from motor
plate on underside of motor housing (E) and
partially loosen the other two motor plate screws
(L). Align slotted holes in fitter plate (G) with
loosened motor plate screws (L), allowing plug
from motor housing (E) to come through hole in
fitter plate (G). Twist fitter plate (G) to lock.
Re-insert the motor plate screw (L) that was
removed and securely tighten all three motor plate
screws (L).
E
H
5
male
plug
female
plug
15
FINAL INSTALLATION
6.

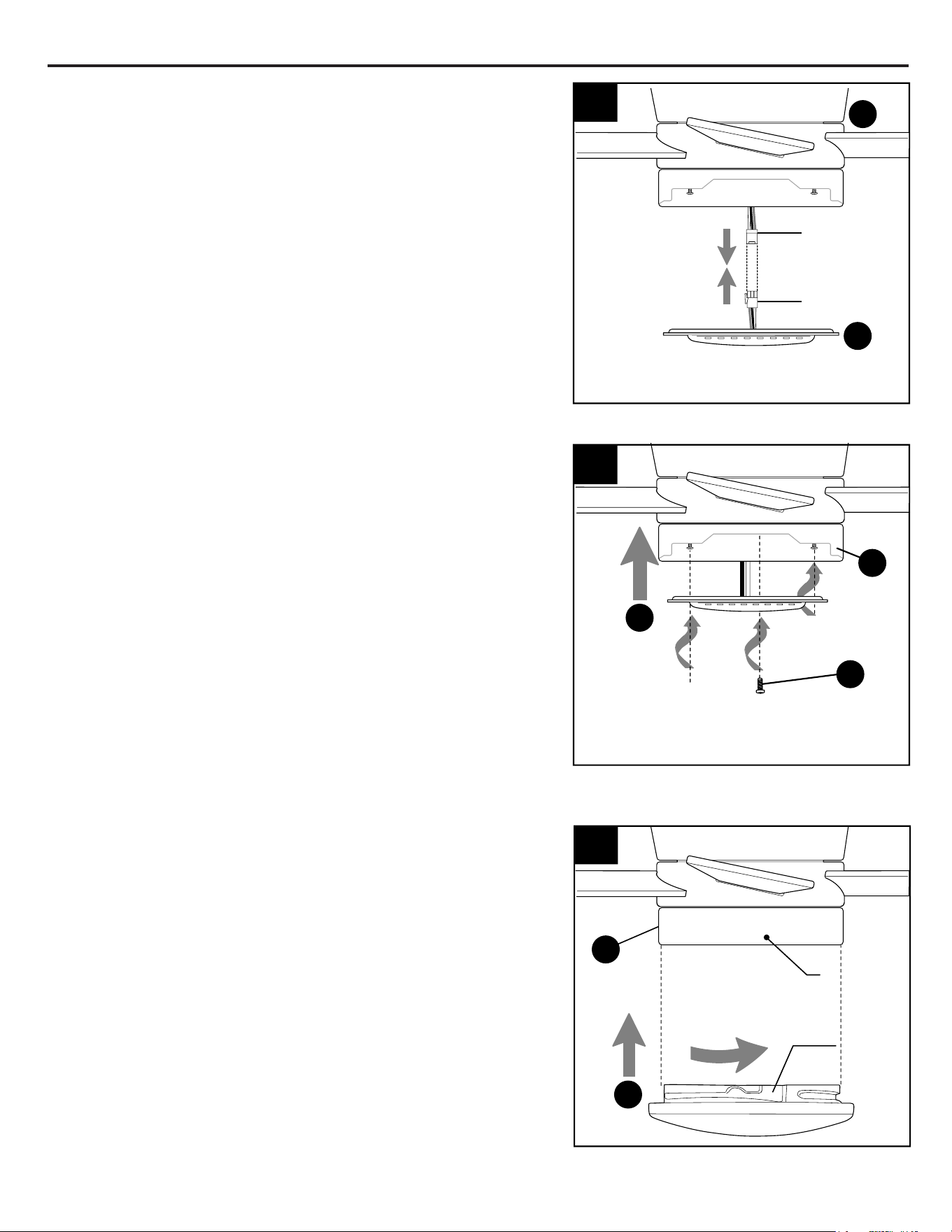

Carefully arrange wiring within the fitter plate (G) to
ensure wires do not get pinched when attaching the
LED light kit (H).
Align slotted holes in LED light kit (H) with loosened
fitter plate screws (M) on fitter plate (G). Twist LED
light kit (H) to lock in place. Re-insert the previously
removed fitter plate screw (M) (Step 4,page 14) and
securely tighten all fitter plate screws (M).
G
M
6
H
7.
Align slots on shade (I) with protrusions on
underside of fitter plate (G). Turn shade (I)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (I) to make
sure it is completely secured.
7
Slot
Protrusion
I
5.
Connect female plug from motor housing (E) to
male plug from LED light kit (H), matching up the
colors on the plugs for correct fit. Make sure plugs
connect tightly.
G
16
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Remove contents of remote pack (P). Remove
battery cover from back of remote control transmitter.
Remove protective covering from battery--protective
covering may be discarded. Install battery with
positive (+) end toward left side of remote control
transmitter.
WARNING: Battery is to be inserted with the
correct polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep battery away from children.
NOTE: Battery is NOT rechargeable. Remove battery
with low or no charge and dispose of properly.
1.
(back
side)
1
Battery
Cover
P
Remote
Control
Transmitter
Battery
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.”
- When disposing of household alkaline batteries, it is best to check with your local and state recycling or
household hazardous waste coordinators concerning the specifics of the program in your area. You may
also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
23A
17
OPERATING INSTRUCTIONS
2.

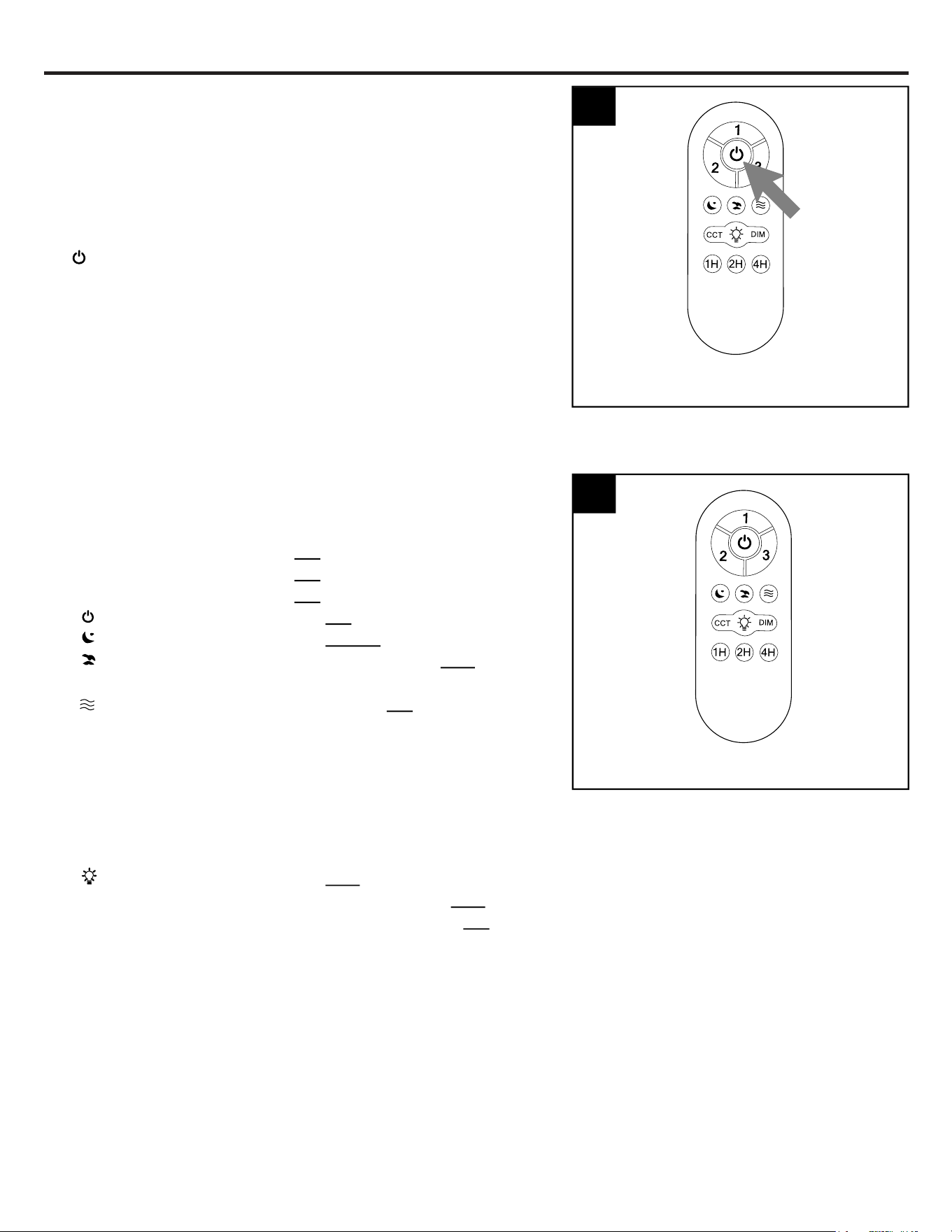

NOTE: Remove protective covering from front of
remote control transmitter and discard.
If fan and/or remote control fail(s) to operate or you
have purchased a new remote control transmitter,
make sure to turn the power off first. Restore
electrical power. Within 30 seconds of restoring
electrical power, press and hold the ON/OFF button
( ) on the remote control transmitter for 5 seconds
until light blinks twice. Use the remote control
transmitter to test the light and fan functions to
confirm the learning process is complete.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
2
Remote Control Transmitter
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
button to turn fan OFF
button to turn uplight ON or OFF
button vacation mode turns light on
for 5 minutes every 2 hours
button breeze mode: fan automatically
cycles between all speeds
CCT button to change/select color mode:
– soft white
– warm white
– cool white
– daylight
– cool daylight
button to turn light ON or OFF
DIM button press and hold to dim light
1H/2H/4H button timer may be set to run fan for
one, two or four hours
3.
3
Remote Control Transmitter
18
OPERATING INSTRUCTIONS
4.

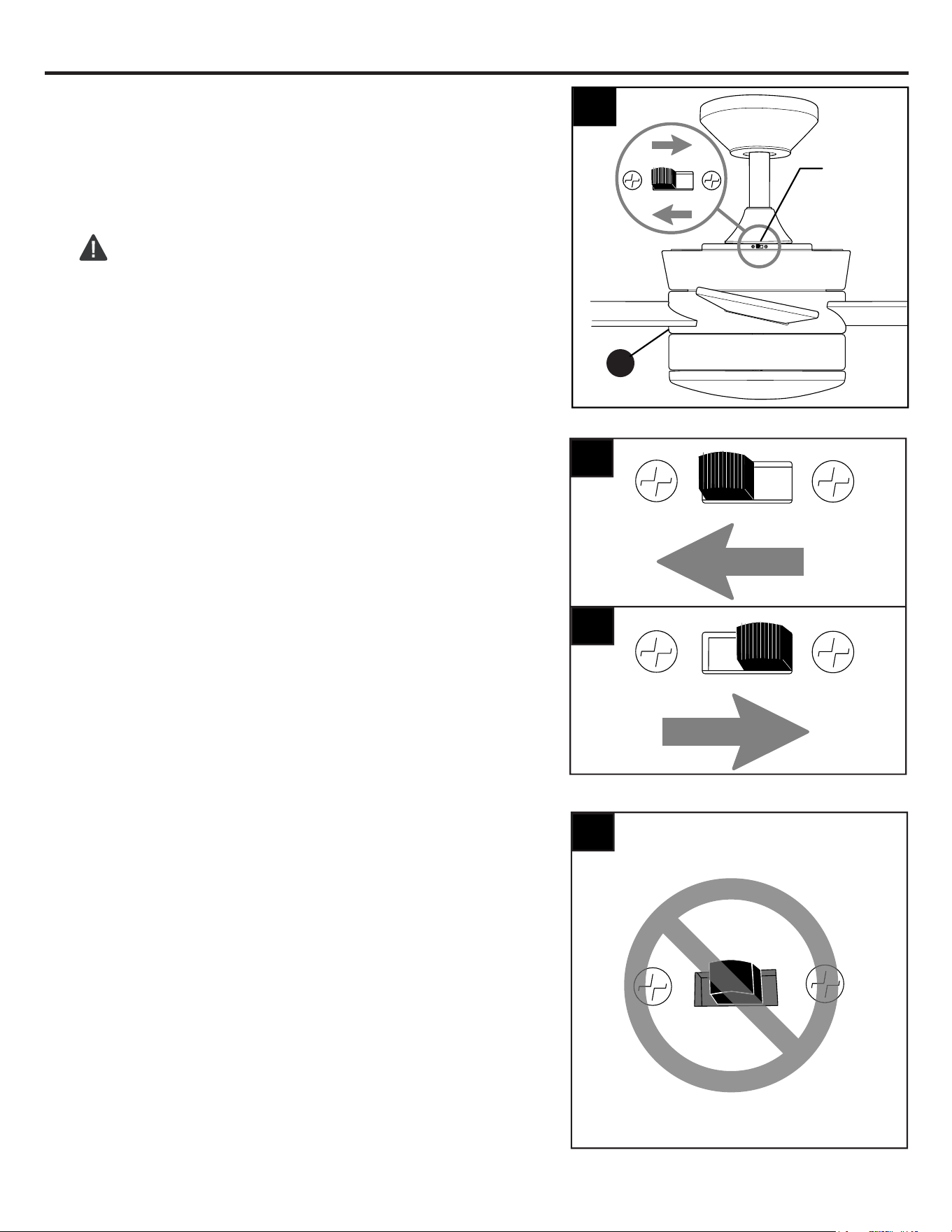

Use the fan reverse switch located on the top part of
the motor housing (E) to optimize the fan for
seasonal performance. A ceiling fan will allow you to
raise your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (F) come to a complete stop before manually
activating the reverse switch.
4
Reverse
Switch
E
4a
4b
4c
IMPORTANT: Reverse switch must be set either
completely LEFT or completely RIGHT for fan
to function. If the reverse switch is set in the
middle position, fan will not operate.
In warmer weather, setting the reverse switch in
the LEFT position will result in downward airflow
creating a wind chill effect.
In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the
ceiling area.
4a.
4b.
4c.
19
CARE AND MAINTENANCE
At least twice each year, check canopy mounting screws (N) and then tighten all screws on the fan.
Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (F) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 20 watts. Total wattage for the uplight for this fan is 5 watts;
do not attempt to replace the LEDs.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed control
device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
Excessive wobbling.
1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan to
another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 18.
4. Attach blades to fan.
20
LIMITED LIFETIME WARRANTY
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
5. Motor assembly is loose.
TROUBLESHOOTING
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 12.
2. Make sure wall switch to light is on.
3. Check that connections in LED light
kit are connected properly according
to instructions on page 15.
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
1. Refer to instructions in Step 2 on
page 17.
2. Check that battery has been installed
with correct polarity.
3. Replace battery according to
instructions on page 17.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan operates but
light fails
Remote control
fails to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
21
Printed in China
DRLI2311
A
B
C

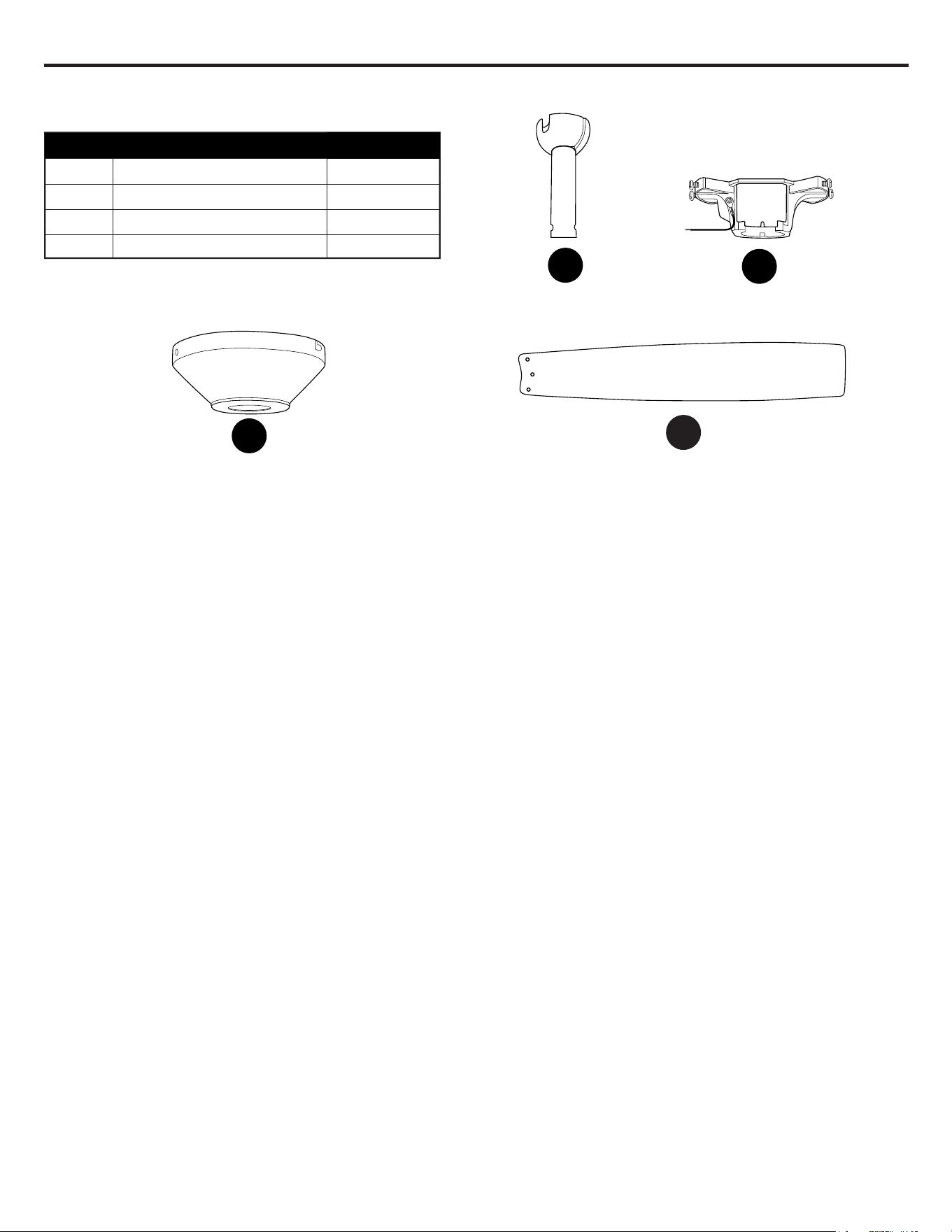

REPLACEMENT PARTS LIST
PART DESCRIPTION
A Downrod
B
Mounting Bracket
C Canopy
F Blade
5519818-A
5519818-B
5519818-C
5519818-F
PART #
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
F
