SHP 8500BK
EN
MULTIGROOMER SET FOR MEN
14 IN 1
Translation of the original manual
SHP 8500BK
A
1
3
4
5
6
2
7 8 9 10
11 12 13 14 15
16 17 18 19 20
21
22 23 25
B
– 1 –
08/2024
2024, .
EN
Multigroomer Set for Men 14 in 1
User Manual
Important Safety Instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
• This appliance may be only used by children aged
8years and older and by persons with physical, sensory
or mental impairments or lack of experience and
knowledge, if they are supervised or have been instructed
on the safe use of the appliance and understand the
potential hazards.
• Children must not play with the appliance.
• Cleaning and maintenance must not be performed by
children without supervision.
• If the charging cable is damaged, have it replaced
in aprofessional service centre in order to prevent
adangerous situation. It is forbidden to use the appliance
with the cable damaged.
WARNING: Keep the appliance dry.
• The parts that must be attached must be installed in such
away that they cannot fall into the water.
• Only use the appliance with the charging cable supplied
with the appliance. Do not use another charging cable
or use the appliance charging cable to charge other
appliances.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– 2 –
08/2024
2024, .
• Before connecting the appliance to the power adapter, make sure that the voltage indicated on the type plate of the appliance matches the voltage
on the type plate of the adapter. The power adapter is not supplied. Follow the instructions in the user manual for the power adapter.
• Do not place the charging cord over sharp objects; make sure it does not hang over the edge of atable or touch aheated surface.
• Do not connect or disconnect the charging cable with wet hands.
• Store, charge anduse the appliance at an ambient temperature of 15°C to 35°C. Do not charge the appliance for longer than necessary to fully
charge it. After charging, disconnect it from the power source.
• Do not expose the appliance to temperatures above 50°C. Otherwise damage to the built-in battery may occur.
• The appliance is equipped with abuilt-in battery with along service life. Never disassemble the appliance in order to remove the battery. Do not
short-circuit the appliance or throw it into afire. There is arisk of leakage of toxic substances, fire or explosion if improperly handled.
• Do not recharge, use, store or leave the appliance in abathroom or any place where it could fall into abathtub, wash basin or any other container
filled withwater; in aroom where volatile, flammable or explosive substances are stored or used.
• If the appliance falls into water, underno circumstances should you touch it, but immediately disconnect the power adapter from the socket. Never
use an appliance or charging cable that has been submerged in water. Take it to an authorised service centre for inspection.
• Do not use the appliance in the bath or shower. Do not clean it under the tap, spray it with water or other liquid, or immerse it in water or other liquid.
• This trimmer is designed fordomestic indoor use only and is used fortrimming human hair, beards andhair. The trimmer is not intended for
commercial purposes or fortrimming animal fur. Do not use it outdoors.
• Use the trimmer only on dry and clean hair, beard or facial hair. Do not use it on wet or freshly washed hair.
• Use the trimmer and its accessories in accordance with the instructions in this manual.
• Use only the original accessories supplied with this trimmer.
• Do not expose the trimmer and its accessories to the outdoor environment, extreme temperatures, direct sunlight, excessive humidity or excessive
dust.
• Do not place the trimmer or its accessories near heaters, open fires or other sources of heat.
• Before each use, check that the selected comb attachment is not damaged. Never use the trimmer with adamaged comb attachment.
• The trimmer may heat up when used or recharged. This is anormal occurrence.
• Keep the trimmer at asafe distance from your eyes.
• Always switch off and unplug the trimmer when not in use, when left unattended and before attaching, removing or replacing the attachment,
cleaning, maintenance or storage. Store the trimmer andits power adapter inadry environment.
• Keep the trimmer clean. Perform the cleaning and maintenance following the instructions in the Cleaning and Maintenance section.
• Do not perform any maintenance on the trimmer other than cleaning its individual components as described in the Cleaning and Maintenance
chapter.
• To avoid ahazardous situation arising, do not repair or modify the trimmer or its accessories yourself. Contact an authorised service centre for all
repairs. By interfering with the product, you risk losing the legal right to defective performance or warranty for quality.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXPLANATION OF SYMBOLS PLACED ON THE PRODUCT OR INTHE ACCOMPANYING DOCUMENTATION
This product meets all the basic requirements of the applicable EU directives.
This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal
waste.
This symbol means that the used battery does not belong in normal municipal waste. For proper disposal, take the used battery to the
designated collection points. Proper disposal of the battery will help prevent negative impacts on the environment and human health.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– 3 –
08/2024
2024, .
• Thank you for purchasing our SENCOR product; we hope it will serve
to your satisfaction.
• Before using this appliance, please familiarise yourself with the user
manual, even if you are already familiar with using similar types of
appliances. Use the appliance only as described in this user manual.
Keep the manual for future reference.
• It is recommended to keep the original packaging, packing material,
receipt and confirmation of the extent of the seller'sliability or warranty
certificate at least for the duration of the legal right of defective
performance or quality guarantee. When transporting the appliance,
we recommend packaging it again in the original box provided by the
manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE TRIMMER AND ACCESSORIES
A1 Trimmer
A2 Unlock/lock buttons
A3 On/off button
A4 Display
A5 Ergonomically shaped handle
A6 Socket to connect the
charging cable end (located at
the rear)
A7 Extra wide comb attachment
A8 Detail shaping attachment
A9 Nose hair removal attachment
A10 Razor blade attachment
A11 Beard trimmer attachment,
trimming length 3 to 7 mm
A12 Beard trimmer attachment,
trimming length 2 mm
A13 Beard trimmer attachment,
trimming length 1 mm
A14 Attachment for trimming
around the ears – left side
A15 Comb attachment, trimming
length 16 mm
A16 Comb attachment, trimming
length 12 mm
A17 Comb attachment, trimming
length 9 mm
A18 Comb attachment, trimming
length 4 mm
A19 Attachment for trimming
around the ears – right side
A20 Lubricating oil
A21 Cleaning brush
A22 USB charging cable
A23 Comb
A24 Charging adapter
A25 Stand with accessory storage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PURPOSE OF USE
• The trimmer is suitable for trimming dry or slightly damp hair or beard.
The trimmer is not intended for cutting freshly washed hair, cutting
artificial hair or animal hair. The trimmer is intended for household use
and is not designed for commercial or other professional applications.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHARGING THE TRIMMER
• The trimmer is equipped with abuilt-in Lithium-ion battery that serves
as an internal power source andallows cordless operation of the
trimmer. Allow the trimmers to fully charge for at least 3 hours before
first use or after along period of non-use. To charge, use only the
supplied charging cable.
• Check that the trimmer is turned off and plug the connector of the
charging cable into the socket at therear of the trimmer. Plug the other
end of the charging cable into the power adapter and plug its fork into
aproperly grounded power socket.
• Charging will start automatically and the charge status icon will be
lit in red.
• Once the trimmer is fully charged, the charge status icon lights up
green. Disconnect the charging cable from the trimmer and pull the
power adapter out of the power socket.
• When the charge status icon flashes during use or after switching on,
it is necessary to charge the trimmer.
• The charge status icon lights up white during use.
Note:
Charge, use andstore the trimmer at an ambient
temperature of 15–35°C inadry environment. Lower or
higher temperatures adversely affect the life of the battery.
We recommend charging the trimmer before it is fully
discharged. If you do not use the trimmer for along time,
charge it at least once every 6 months.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PREPARATION BEFORE USE
• Use the trimmer only on dry and clean or slightly damp hair. Do not
use it on wet or freshly washed hair or hair that has gel, etc.
• Seat the person whose hair you will be cutting in such away that their
head is at the height of your chest. This will provide for acomfortable
cutting position. Before the cutting hair, thoroughly comb out the hair
in the growth direction.
• Cover the neck and shoulders of the person whose hair you will be
cutting with atowel to limit cut hair from falling on their clothes.
• Make sure the trimmer is clean before each use.
• Before each use, check that the trimmer unit or the selected comb
attachment is not damaged. Never use atrimmer withadamaged
trimmer unit or adamaged comb attachment.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USE OF THE TRIMMER
• Place the desired attachment on the trimmer.
• Press the on/off button to switch the trimmer on.
• Place the trimmer perpendicular to thehair/beard so that the bottom
surface of the attachment is slightly touching the skin.
• Trim the hair/beard as needed. Move the trimmer slowly andsmoothly
along the hair andbeard line.
• When you have finished, press the on/off button to switch the trimmer
off.
• If you need to change the attachment during the trimming process,
always switch the trimmer off with the on/off button first and then
change the attachment.
Warning:
Do not attach or replace the attachment while the
trimmer is on. There is aserious risk of injury.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USING THE ATTACHMENTS

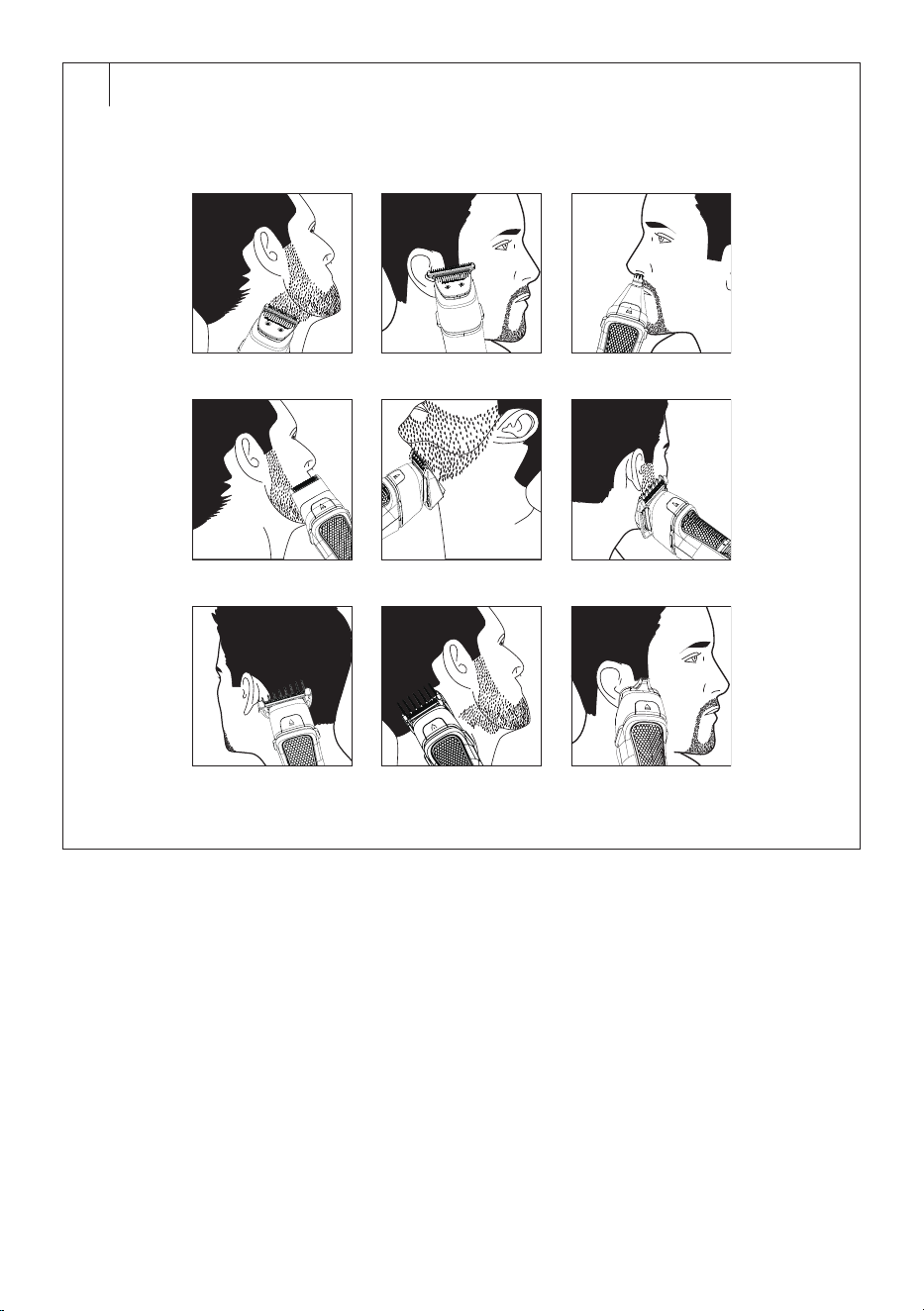

• The different techniques for using the attachments can be found in
Figure B.
Extra Wide Attachment
• Use the extra wide attachment totrim the hair on the head or around
the ears, for contouring, etc.
• When trimming the hair around the ears, first comb the hair over the
ears andthen trim it. Tilt the trimmer so that the trimmer is touching
the ends of the hair.
• When contouring the nape of the neck or cheeks, turn the trimmer and
trim with adownward stroke.
Comb Attachments
• Comb attachments are used totrim hair to aspecific length of cut. The
trimmer comes with four comb attachments with cutting lengths of
4 mm, 9 mm, 12 mm and 16 mm and two attachments for trimming
around the ears. The length of the cut is marked directly on the
attachment. The length of the cut corresponds to the resulting length
of the hair after trimming.
EN
Multigroomer Set for Men 14 in 1
User Manual
– 4 –
08/2024
2024, .
• Put the desired comb attachment on the extra wide attachment
andevenly cut your hair.
Detail Shaping Attachment
• The detail shaping attachment is used tocreate fine lines andcontours
around your face. Hold the trimmer perpendicular to the skin
andgently move the trimmer head up or down.
Beard Trimmer Attachments
• Beard trimmer attachments are used totrim the beard to aspecific
length. The trimmer comes with three beard trimmer attachments
withacutting length of 1 mm, 2 mm and3–7 mm. The length of
the cut is marked directly on the attachment. The length of the cut
corresponds to the resulting length of the hair after trimming.
• Put the desired attachment on the detail shaping attachment and trim
your beard with even strokes.
• We recommend combing your beard before trimming.
• Start with the edge of the sideburn by gently resting the attachment
against your skin. Trim the desired areas of your face with movements
toward the edge of the sideburn line.
• When trimming the nape of the neck, we recommend using asmaller
mirror if necessary. Place the index finger of one hand on the nape
of your neck where you want to trim the hair. Carefully trim the hair
at the nape of the neck, working from the bottom up to the index finger.
• When trimming ear hair, avoid inserting the attachment into the
inner ear canal. Apply the trimmer and trim the hairs with gentle
movements.
Nose Hair Removal Attachment
• Insert the attachment only at the edge of the nostril. After turning it on,
gently move it in andout to trim the hair.
Shaving Attachment
• With direct movements, move the attachment over the skin. We
recommend using it on beards shorter than 1 mm. Always move the
attachment in astraight andeven motion. Do not move incircular
motion.
• When shaving wet, proceed as follows:
• Apply ashaving cream or shaving gel to dampened skin.
• Moisten the shaving attachment so that the attachment glides
smoothly over the skin.
• Move the sleeve inacircular motion.
• After shaving, dry your face andclean the trimmer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADVICE AND TIPS
• Start cutting when setting the highest cutting height on the cutting unit
andgradually reduce the hair length setting.
• Make anote of the length setting used for aparticular style of hairstyle
so that you don't have to search for it the next time you cut.
• The most effective is cutting against the direction of hair growth.
• As the hair grows indifferent directions, it is also necessary to move
the trimmer indifferent directions (up, down or across).
• Repeat each stroke of the trimmer to cut even those hairs that you did
not catch in the previous strokes.
• Make sure that the flat part of the comb attachment is completely in
contact with the scalp. This ensures an even cutting result.
• For good results oncurly, thinner or long hair, you can try guiding your
hair through the comb towards thetrimmer.
• Trim the beard in slow movements in the opposite direction to the
growth of the beard from the bottom upwards. When trimming the
beard with the help of acomb attachment, remember that the selected
comb attachment must always be incontact with the skin to ensure
an even cut. After attaching the attachment back to the cutting unit, be
sure to adjust the cutting length again.
• Regularly clean the trimmer unit of hair and beard clippings. If alarge
amount of hair or beard hair accumulates in the trimmer, remove it
from the trimmer and blow or shake out the hair and beard hair.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
• Always switch off the trimmer before cleaning. We recommend
cleaning the trimmer after each use.
Warning:
To avoid the risk of electric shock, do not immerse the
trimmer, power cord or plug in water or other liquids.
Warning:
Do not use hard-bristled brushes, abrasive cleaners,
thinners, etc. Otherwise the surface to be cleaned
may be damaged
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING THE TRIMMER
• Remove the attachment from the trimmer, if it is attached toit.
• Brush off any remaining hair, beard or hair from theattachment
andtrimmer.
• Press the unlock/lock buttons on both sides andremove the trimmer
unit from the trimmer. Use the brush to remove any hair or beard
debris from the trimmer unit and also from the inside of the trimmer
under the trimmer unit.
• After cleaning, attach the trimmer unit back to thetrimmer. Push
slightly until you hear an audible click.
• The trimmer handle can be cleaned using aclean dry wiping cloth.
Inthe event of heavy soiling, you can use aslightly damp cloth. Clean
the surface then properly wipe dry.
Warning:
The blades of the trimmer are sharp, pay extra
attention when handlingthem.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING OF ATTACHMENTS
• The attachments can be washed under lukewarm running water.
After washing the attachment, carefully wipe it with asoft dry cloth
andthen allow it to dry freely.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LUBRICATION OF THE TRIMMER UNIT BLADE
• Toensure complete mobility of the trimmer blades, we recommend
that you regularly lubricate it always after several uses.
• If any comb attachment is attached to the cutting unit, remove it.
• Apply 1 to 2 drops of oil to the trimmer blades and spread the oil
evenly with aclean cloth. Dry off excess oil. Make sure the trimmer is
clean before using it again.
Note:
Use only light oils because they do not evaporate or slow
down the speed of the cutting blades. Do not use hair oil,
grease or other oil mixed with kerosene or solvent.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STORAGE
• Store the trimmer in adry, clean, and well-ventilated place away from
extreme temperatures and out of the reach of children or pets.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– 5 –
08/2024
2024, .
TECHNICAL SPECIFICATIONS
Power supply ...................................................................................................... 5 V, 1 A
Built-in battery .....................................................................Li-ion 3,7 V1,200 mAh
Charging time ........................................................................approximately 3 hours
Operating time...............................................................approximately 90 minutes
Dimensions .......................................................................................71 × 40 × 37mm
Weight .......................................................................................................................144 g
Noise level .........................................................................................................70 dB(A)
Water resistance ......................................................................................................IPX5
The declared noise emission level of the appliance is 70 dB(A), which
represents alevel Aof acoustic power with respect to areference acoustic
power of 1 pW.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BATTERY DISPOSAL
Before disposing of the product or returning it to adesignated collection
point, ensure that the battery is removed. The battery contains
environmentally harmful substances and should not be disposed of in
regular household waste. Proper disposal shall be ensured by the relevant
collection point.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED
PACKAGING MATERIAL
Dispose of used packaging material at the location designated by the
municipality for waste disposal.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
For proper disposal and recycling of these products, deliver them to
designated collection points. Alternatively, in some European Union states
or other European countries the products can be returned to the local
retailer when buying an equivalent new product. By properly disposing of
this product, you help preserve valuable natural resources and contribute
to preventing potential negative impacts on the environment and human
health resulting from improper waste disposal. For further details, contact
your local authorities or the nearest collection point. Fines may be
imposed for improper disposal of this type of waste in accordance with
national regulations.
For Business Entities in European Union States
To dispose of electric or electronic equipment, request necessary
information from your retailer or supplier.
Disposal in Other Countries Outside the European Union
To dispose of this product elsewhere, request necessary information on
the correct disposal method from local authorities or your retailer.
This product meets all the basic requirements of the applicable EU
directives.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changes to text and technical parameters are reserved.
– 6 –
08/2024
2024, .
