OWNER’S MANUAL AND SAFETY INSTRUCTIONS
1/2 TON UNDER HOIST STAND
ITEM # 58050
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings
and instructions may result in injury and/or property damage. Save all
warnings and instructions for future reference.
The warning and safety instructions in this manual are not meant to cover all possible
conditions and situations that may occur. Common sense, caution and care must be
exercised when operating or cleaning tools and equipment. Always contact your dealer,
distributor, service agent or manufacturer about problems or conditions you do not
understand before operating the product.
SAVE THESE WARNINGS.
1
• DO NOT use this product for anything other than it is intended.
• Make sure to keep the hoist stand clean at all times. Wipe it down after every use.
• Keep children and unauthorized persons away from the work area.
• Wear ANSI approved safety goggles when operating the hoist stand.
• DO NOT use the hoist stand if any part of it is damaged, worn or distorted.
• Keep the work area clean and well lit. Cluttered and dark spaces invite accidents.
• DO NOT allow untrained persons to operate the stand.
• DO NOT make any modications to the stand.
• Use the hoist stand on stable, at surface capable of supporting a load.
• Ensure that you read, understand and apply the safety instructions and warnings before use.
Failure to heed these instructions may result in property damage and/or personal injury.
• Do not exceed the 2 ton maximum weight capacity.
SAFETY WARNINGS ASSEMBLY / OPERATION
SAVE THESE WARNINGS.
1 2

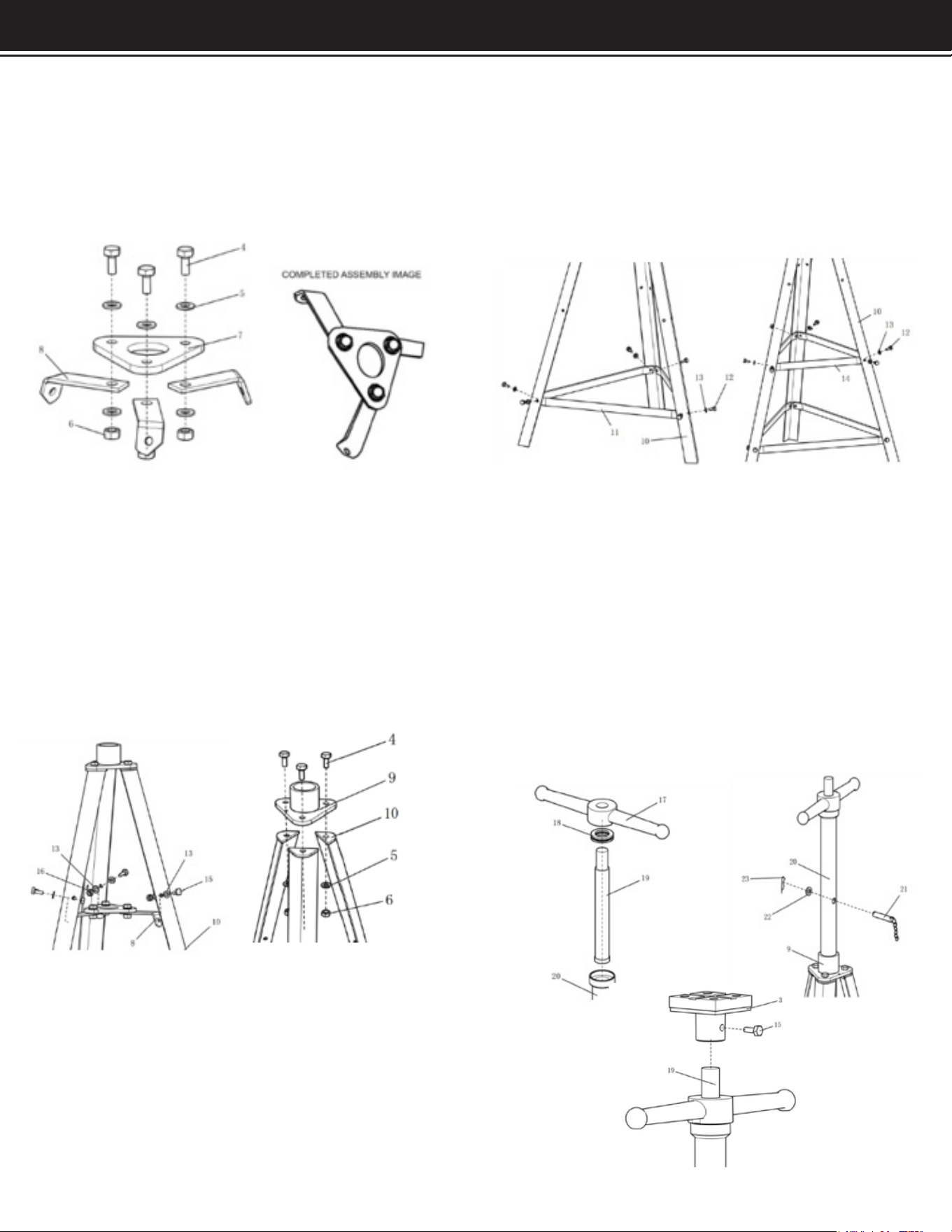

1. Attach (7) connector plate with component
hardware: (8) L-Bracket (middle bridge), (7),
using Bolt M8X20(4) ,Washer 8 (5), nut M8
(6).
2. Tri-pod Assembly: Attach the pull rod (11)
with the support pillar (10), using the plain
washer M8 (13) and Bolt M8X16 (12).
Attach the short pull rod (14) with the support
pillar (10) using the plain washer M8 （13（
and Bolt M8x16 (12).
3. Mount the middle bridge (8) with the
support pillar (10), using plain washer M8
(13) bolt M8X20 (15) and nut M8 (16).
Mount the lock plate (9) with support pillar
(10) using the plain washer M8 (5), bolt
M8X25 (4) and Nut M8 (6).
4. Attach column (20) with handle (17),
install bearing assembly: rst install bearing
base (18) screw the handle (17) into the
threaded rod (19) and insert to column (20)
To adjust the position of the stand, use the
lock bolt (21), plain washer M12 (22) and
hitch pin clip (23). Attach the saddle bracket
using bolt M8X20 (15).
4

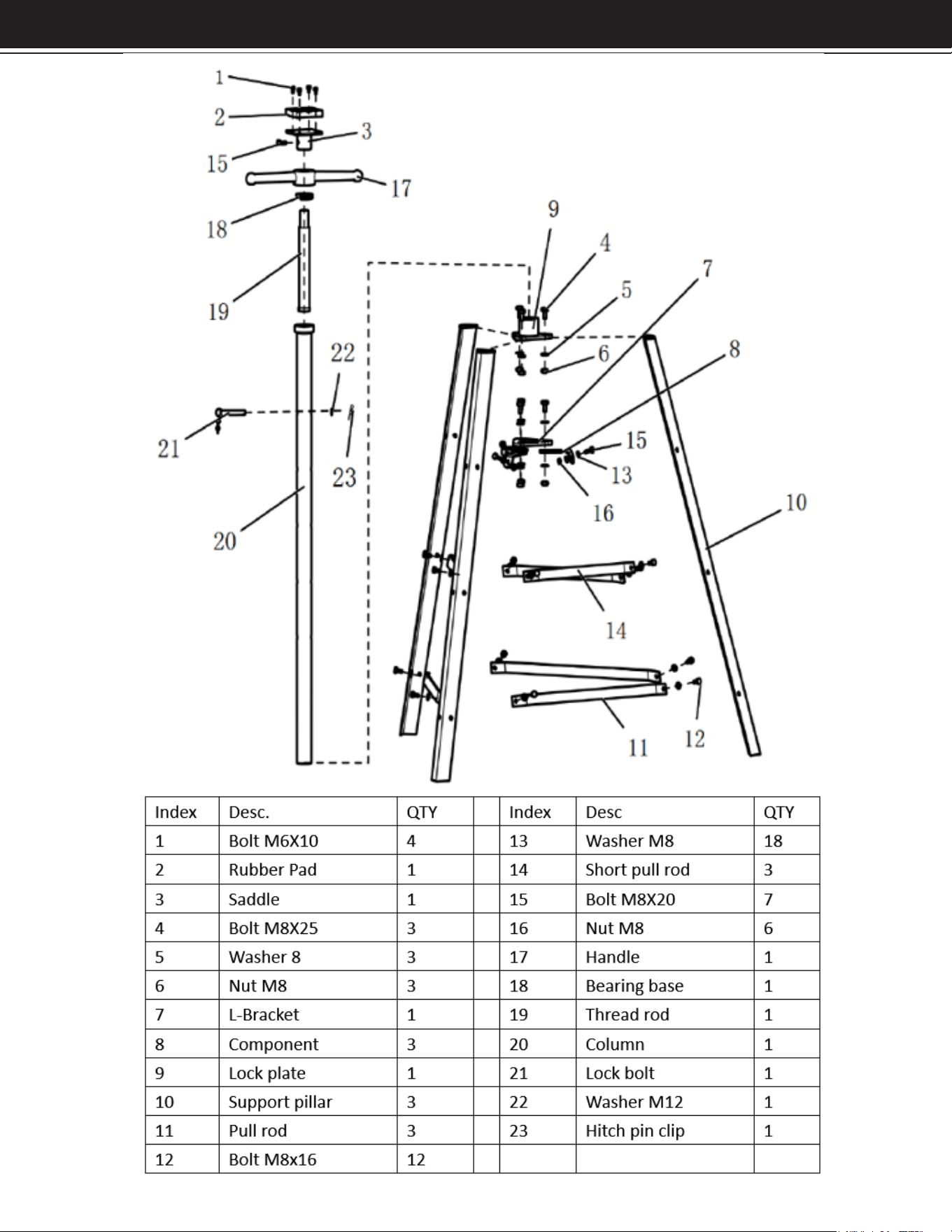

PARTS INFORMATION
3
DISCLAIMER
4
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN CHINA
