Steam Coil Cabinet Base
Compartment Cookers
SC-2S, SC-3S, SCDA-2S & SCDA-3S
Installation & Operation Manual
Model SC-2S
SOUTHBEND STEAM
A Middleby Company
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
2
OF 20
Steam Coil Cabinet Base Compartment Cookers
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
CAUTION
WARNING
NOTICE
This symbol warns of immediate hazards that will result in severe injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury, product
damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
IMPORTANT
Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read
the installation, operating and maintenance instructions thoroughly before installing, operating or servicing this equipment.
Copyright © 2022 by Southbend Steam. All rights reserved. Published in the United States of America.
Safety Precautions
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
WARNING
Do not attempt to operate this unit in the event of power failure.
Adequate clearances must be maintained for safe and proper operation.
NOTICE
This manual should be retained for future reference.
It is recommended that this manual be read thoroughly and that all instructions be followed carefully.
NOTICE
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE.
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
3
OF 20
Steam Coil Cabinet Base Compartment Cookers
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Important Notes For Installation and Operation .................................................................... 2
Service Connections ............................................................................................................. 4
Installation ............................................................................................................................. 6
Operation .............................................................................................................................. 9
Cooking Guidelines ............................................................................................................... 12
Cleaning ................................................................................................................................ 13
Maintenance ......................................................................................................................... 14
Troubleshooting .................................................................................................................... 16
Table of Contents
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
4
OF 20
Steam Coil Cabinet Base Compartment Cookers
SERVICE CONNECTIONS
Service Connections
As continued product improvement is a policy of Southbend Steam, specications are subject to change without notice.

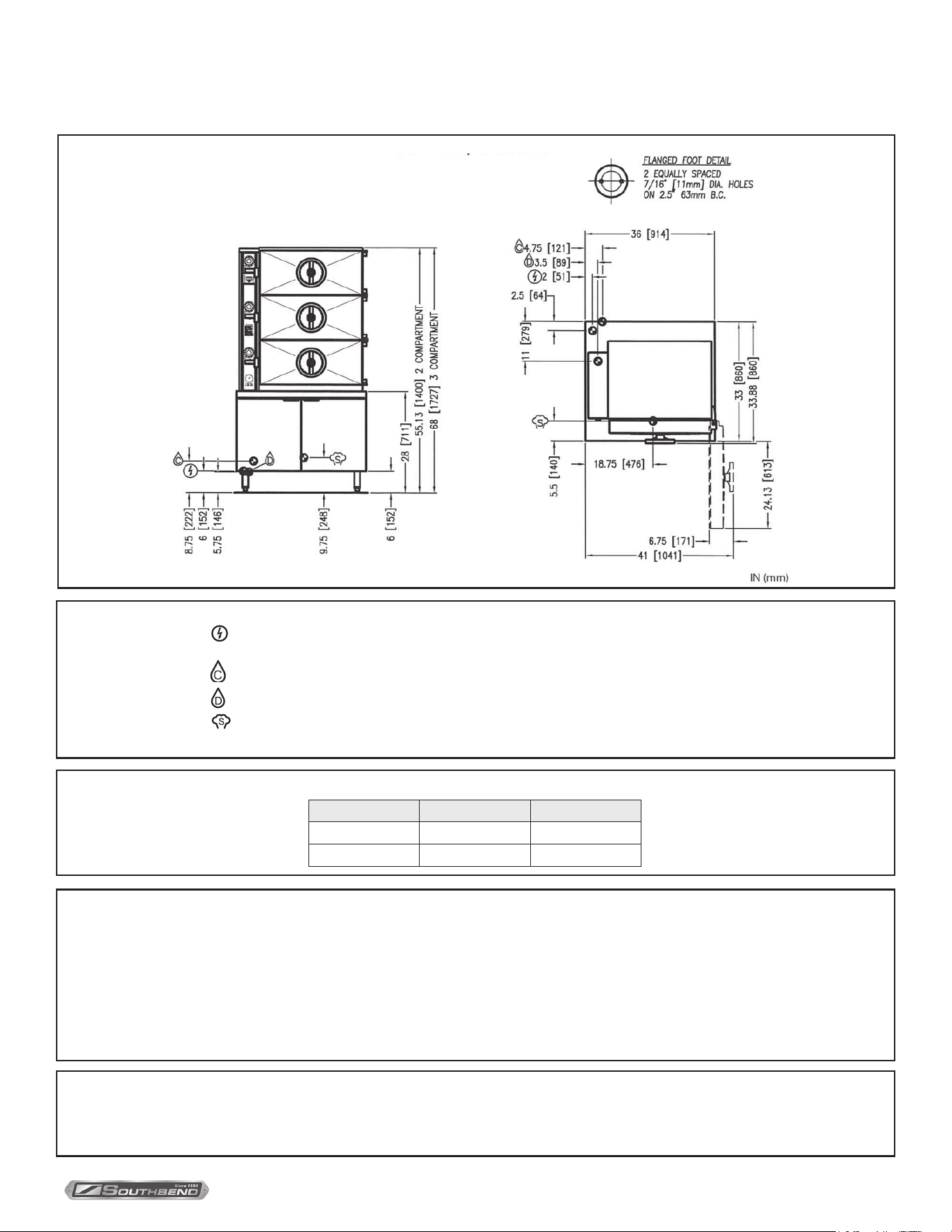

SC-2S & SC-3S
SERVICE CONNECTIONS
– ELECTRICAL CONNECTION: 1/2” (13 mm) conduit connection to controls.
2 Amps per compartment, 120-60-1 or 220-50-1.
– BOILER FEED WATER: 1/2” (13 mm) O.D. tubing at 25-50 psi (170-345 kPa).
– CONDENSATE: COLD WATER: 1/2” (13 mm) O.D. tubing at 25-50 psi (170-345 kPa).
– DRAIN: 2” (51 mm) IPS piped to open oor drain. No solid connection.
– STEAM TAKE-OFF CONNECTION: 3/4” (19 mm) IPS optional to operate adjacent equipment.
Pan Capacity per Compartment, 12” x 20”
Model
Pan Depth
1” 2-1/2” 4” 6”
SC-2S
14 6 4 2
SC-3S
COMPARTMANT PAN CAPACITY
Terry System Cartridge Changes / Installation – “2-3 gallons of water MUST be purged at each cartridge change or new installation prior to
water supply being fed to the steamer. Failure to do so can result in component damage within the steamer which is not covered under warranty.
For additional guidance on proper installation, refer to install documentation provided with each Terry System and Replacement Cartridge Set.”
DISCLAIMER
WATER QUALITY STATEMENT
Water is the essential ingredient in steam equipment, water quality is the major factor aecting the performance of your appliance. Crown Steam Group oers a
Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for
warranty coverage. Water supply to Crown Steam Group steamers must be within these guidelines.
Total dissolved solids.......................Less than 60 PPM Chlorine ............................Less than 1.5 PPM
Total alkalinity ........................................ Less than 20 PPM pH Factor .........................6.8 - 7.3
Silica ....................................................... Less than 13 PPM
Water which does not meet these standards should be treated with the installation of Middleby’s Water Treatment System. Call 919-762-1000 if you have questions
concerning your water meeting these parameters.
*Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
Reference www.crownsteamgroup.com for complete warranty details and instructions.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
5
OF 20
Steam Coil Cabinet Base Compartment Cookers Service Connections
Model Compartments Capacity
SCDA-2S 2 8-16 Pans
SCDA-3S 3 12-24 Pans
SERVICE CONNECTIONS
– ELECTRICAL CONNECTION: 1/2” conduit connection to controls.
2 AMPS per compartment, 120-60-1 or 220-50-1.
– COLD WATER: 3/8” O.D. tubing at 25-50 PSI (170-345 kPa).
– DRAIN: 2” IPS piped to open oor drain. No solid connection.
– STEAM SUPPLY: 3/4” female pipe connection for steam supply 25-45 PSI (170-310 kPa)*
* Pressure reducing valve is required if incoming pressure exceeds 50 PSI (345 kPa)
COMPARTMANT PAN CAPACITY
Terry System Cartridge Changes / Installation – “2-3 gallons of water MUST be purged at each cartridge change or new installation prior to
water supply being fed to the steamer. Failure to do so can result in component damage within the steamer which is not covered under warranty.
For additional guidance on proper installation, refer to install documentation provided with each Terry System and Replacement Cartridge Set.”
DISCLAIMER
WATER QUALITY STATEMENT
Water is the essential ingredient in steam equipment, water quality is the major factor aecting the performance of your appliance. Crown Steam Group oers a
Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for
warranty coverage. Water supply to Crown Steam Group steamers must be within these guidelines.
Total dissolved solids.......................Less than 60 PPM Chlorine ............................Less than 1.5 PPM
Total alkalinity ........................................ Less than 20 PPM pH Factor .........................6.8 - 7.3
Silica ....................................................... Less than 13 PPM
Water which does not meet these standards should be treated with the installation of Middleby’s Water Treatment System. Call 919-762-1000 if you have questions
concerning your water meeting these parameters.
*Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
Reference www.crownsteamgroup.com for complete warranty details and instructions.
As continued product improvement is a policy of Southbend Steam, specications are subject to change without notice.

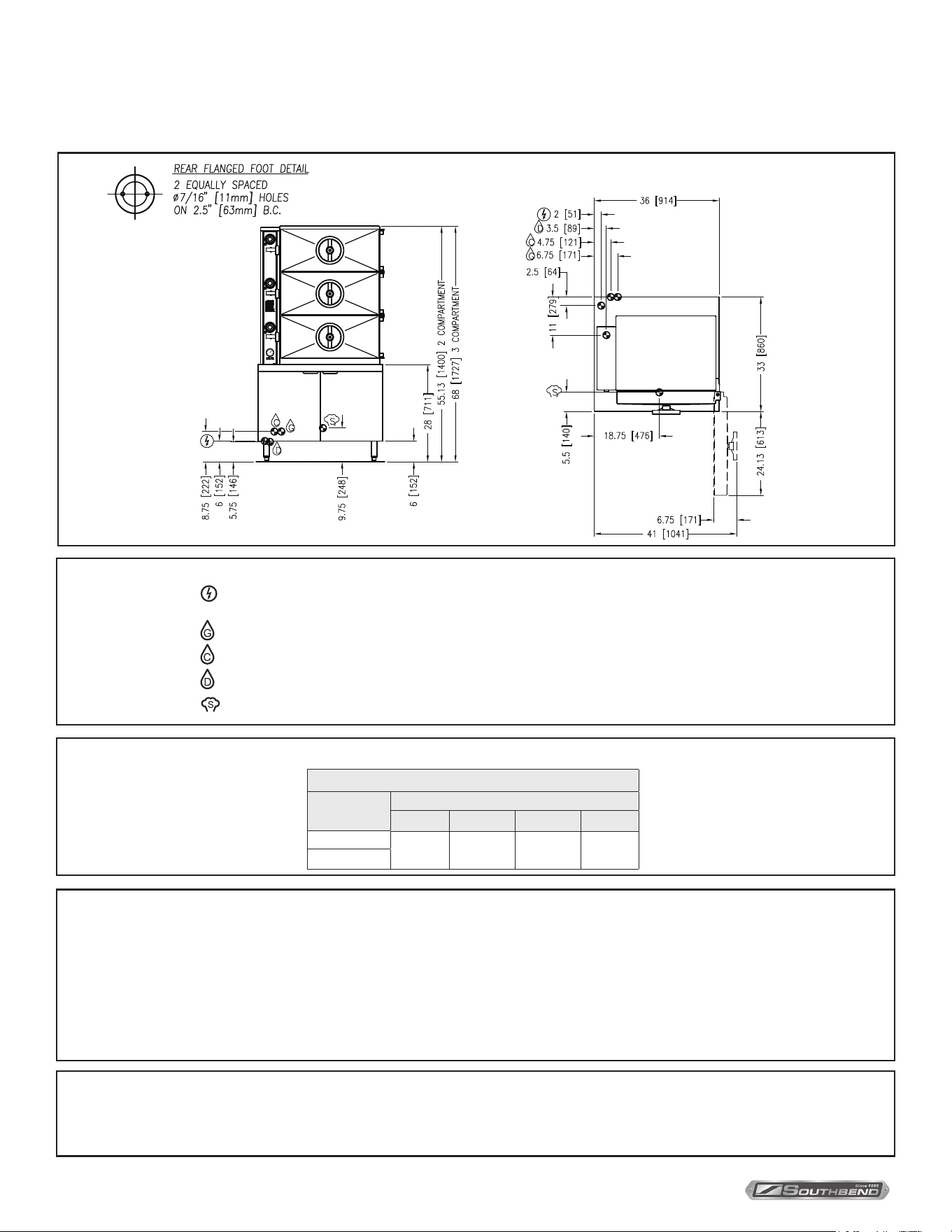

SCDA-2S & SCDA-3S
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
6
OF 20
Steam Coil Cabinet Base Compartment Cookers
General
Models SC-2S and SC-3S cookers have two or three pressurized steaming compartments for cooking vegetables, sh,
eggs and other foods. The steam boiler in the cabinet base is ASME code designed and approved as a steam heating
boiler restricted to operate at pressure not to exceed 15 psi.
Models SCDA-2S and SCDA-3S cookers also have two or three compartments; the upper compartment can be switched
to provide either pressurized or pressureless steam while the lower compartment(s) provide pressurized cooking only.
Accessory 12 × 20” stainless steel pans are available, solid or perforated, in 2.5”, 4” and 6” depth.
ACCOMMODATION
Model Compartments
Total Number of Pans Number of Pans per Compartment
2.5" Depth 4" Depth 6" Depth 2.5" Depth 4" Depth 6" Depth
SC-2S, SCDA-2S 2 16 8 4
8 4 2
SC-3S, SCDA-3S 3 24 12 6
Each compartment has a 0 to 60 minute timer and a buzzer that requires manual shut-o. Doors cannot be opened during
cooking. Each door is equipped with an interlock feature that stops delivery of steam to the compartment before the door
can be opened.
An optional Steam Take-O Connection (3/4” NPT) provides steam for adjacent equipment.
Unpacking
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
Immediately after unpacking, check for possible shipping damage. If the appliance is found to be damaged, save the
packaging material and contact the carrier within 15 days of delivery.
We cannot assume responsibility for damage or loss incurred in transit.
Before installing, verify the electrical rating agrees with the specication on the rating plate.
INSTALLATION
Installation
Location
Position the boiler in its installation location. Check that there are sucient clearances to service the controls, door swing,
etc. Also adequate clearance must be left for making the required supply and drain connections.
Allow enough space between any other piece of equipment or wall for service access.
Service to the controls may be required on the left and/or right side panels of the cabinet.
Installation Codes and Standards
The appliance must be installed in accordance with:
In Canada:
Provincial and local codes, or in the absence of local codes, with the Canadian Electric Code, CSA C22.1 (latest edition). Copies
may be obtained from the Canadian Standards Association, 178 Rexdale Blvd., Etobicoke, Ontario, Canada, M9W 1R3.
In the USA:
State and local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA-70 (latest edition). Copies
may be obtained from The National Fire Protection Association, Batterymarch Park, Quincy, MA, 02269.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
7
OF 20
Steam Coil Cabinet Base Compartment Cookers
Leveling and Anchoring the Cabinet
1. Place appliance in the installation position.
2. Using a spirit level or pan of water, level the appliance. Then elevate the right side about 1/8” to assure proper
compartment drainage.
3. Mark hole locations on the oor through the anchoring holes provided in the rear anged adjustable feet.
4. Remove appliance from installation position and drill holes in locations marked on the oor. See Installation Diagram
on page 4.) Insert proper anchoring devices (not supplied).
5. Place appliance back in the installation position.
6. Recheck level.
7. Bolt and anchor appliance securely to the oor.
8. Seal bolts and anged feet with silastic or equivalent compound.
Electrical Connections
Installation
WARNING
Electrical and grounding connections must comply with the applicable portions of the National Electrical Code
and/or other local electrical codes.
WARNING
Disconnect electrical power supply and place a tag at the disconnect switch to indicate you are working on
the circuit.
When making electrical connections, use copper wire suitable for at least 200 °F (90 °C). The steamer must
be grounded in accordance with the National Electrical Code or applicable local codes. The wiring diagram is
located on the inside of the right panel.
Exhaust Hood
An exhaust system should be located directly above the steamer to exhaust steam and heat generated by the
steamer.
Plumbing Connections
WARNING
Plumbing connections must comply with applicable sanitary, safety, and plumbing codes.
Water Supply Connection
The incoming cold water supply connection, at the rear of the boiler cabinet, requires 3/8” tubing and water
pressure of 25 to 50 psi. A manual shut-off valve must be provided convenient to the boiler; this valve should be
open when the boiler is in operation.
Drain Connection
The boiler drain (2” IPS) should be piped to a floor drain near the boiler. There should be no solid drain
connection; an “open gap” between the boiler and the floor drain is required.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
8
OF 20
Steam Coil Cabinet Base Compartment Cookers

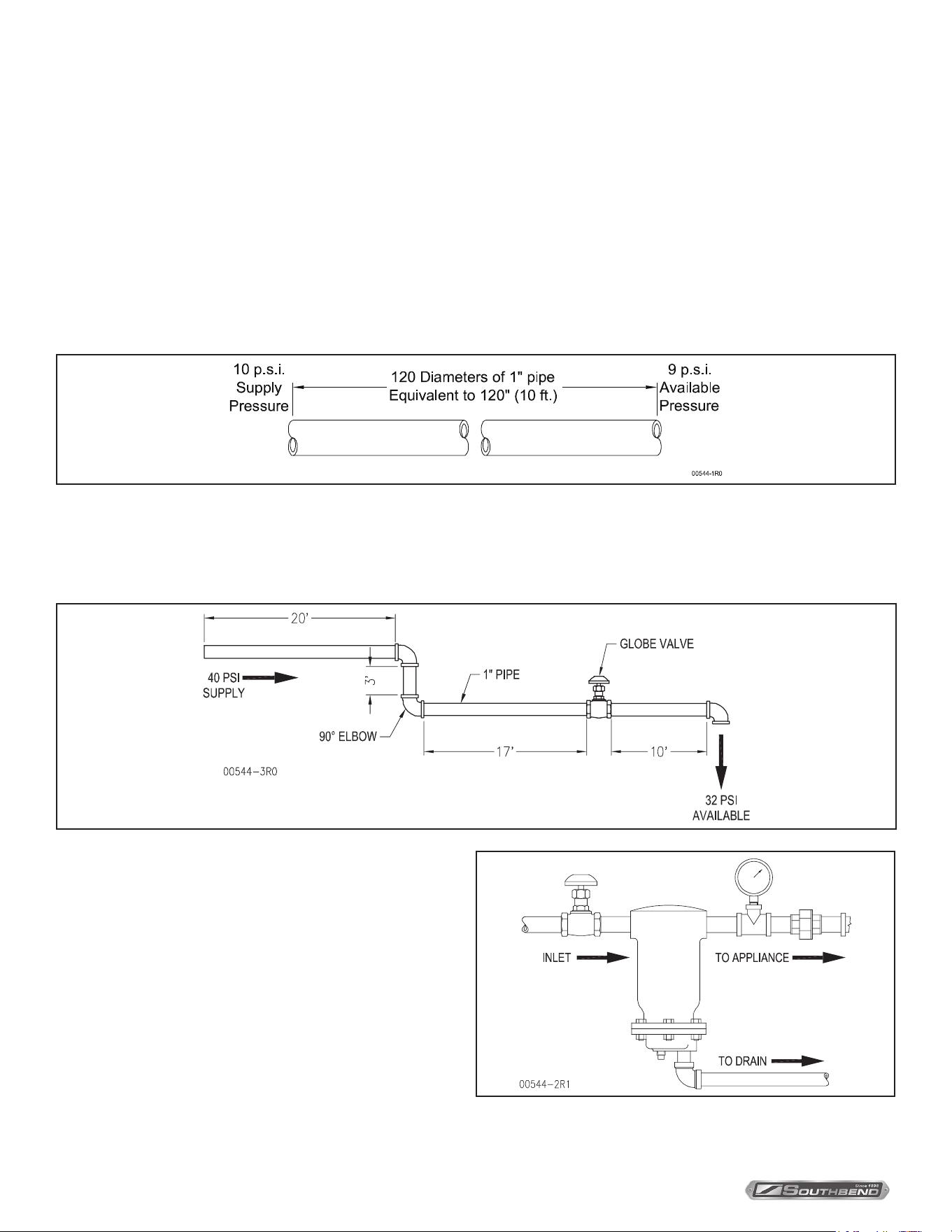

NOTE: In 3/4” pipe size, that a Standard 90º Elbow and Angle Valve and a Globe Valve are equivalent to 1.8 feet,
10 feet and 18 feet respectively of straight pipe.
Similarly, in a 1” pipe size, a standard 90º Elbow and Angle Valve and a Globe Valve are equivalent to 2.2 feet, 12 feet
and 23 feet respectively of straight pipe.
Information to Steam Fitter
Each cooking compartment requires approximately 1 BHP (34.5 lbs. of steam per hour to operate satisfactorily. Therefore
a two compartment requires 2 BHP and a three compartment requires 3 BHP.
Assuming availability of a 30 psi supply steam pressure immediately to the appliance, then pipe sizes of 1/2”, 3/4” or 1”
will deliver respectively 90, 165 or 385 lbs. of steam per hour to the appliance Heat Exchanger. From the foregoing, a 1/2”
pipe line is not recommended.
An important consideration is the pressure drop that will occur through the steam supply line from its point of origin to the
appliance. The greater the length of piping and number of valves and elbows, the greater will be the pressure losses.
Consider a pressure drop of 1 (one) psi for each straight length of pipe equivalent to 120 diameters of that pipe.Thus,
a 1” pipe having a straight length of 120” (10 feet) is equivalent to 120 diameters of that pipe and will have a pressure
loss of 1 psi through that pipe.
Installation
Example:
Total of above = 20 + 2.2 + 3 + 2.2 + 17 + 23 + 10 + 2.2 =
79.6 feet. Since each 10 feet is equivalent to 1 psi pressure
loss, 79.6 feet is equivalent to approximately 32 psi from an
original boiler supply of 40 psi.
It is suggested that, wherever possible, the steam supply line
to the appliance is a separate line from the steam source.
If the appliance must be supplied from a line supplying
other appliances, the pipe sizes and pressure will have to
be veried. Further, during idle periods, when the steam in
the supply line is not in use, water will form from condensed
steam in the supply line. It is advisable to prevent water
pockets from forming in the steam line and impeding the
steam ow when it is required. Therefore, the steam supply line should be installed level or run slightly downwards towards
the appliance. Install a Ball Float Trap near the appliance to drain out water (condensed steam) from the line to assure clean
dry steam to the appliance.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
9
OF 20
Steam Coil Cabinet Base Compartment Cookers
OPERATION
Initial Operations Check
The pressure gauge on the face of the Cooker Control Panel should indicate pressure of 5 to 6 psi. Open cooker
compartment door and set timer dial to 5 minutes and pull out operating handle and observe that steam is entering
the compartment.
Operation
CAUTION
Operating, testing, and servicing should only be performed by qualified personnel.
CAUTION
The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance.
CAUTION
Stand clear of compartment opening as live steam is being released.
Set timer at 5 minutes. Pull out operating handle and set in position. Steam should be heard entering the compartment;
also you should hear a hissing sound as compartment air exits the vent at the rear side, until replaced by steam.
Observe that door gasket seals properly and that no leaks are evident.
After ve minutes: Timer should read “0”, steam will stop entering compartment, the exhaust valve will open allowing
steam and condensate water to exit, and the buzzer will sound.
To silence the buzzer, push in the operating handle.
Observe ow at the open drain. Steam from the compartment is cooled by a ow of cold water from the thermostatically
controlled valve. Pause one minute to allow steam and condensate to exit. Turn handwheel counterclockwise to avoid
pressure on the door gasket when not in use.
Move the door latch to the left to release and open the door. Check each compartment in this manner.
The heater elements cycle on and o maintaining steam pressure in the boiler from 9 to 11 psi.
Turn main power switch OFF. Open the manual blowdown valve. This will release hot water and steam from the boiler
tank which mixes with cold water released by the thermostatically controlled solenoid valve and travels to the drain.
If equipped with automatic blowdown valve, hot water and steam will be released once the main power switch has been
turned o.
CAUTION
Live steam and accumulated hot water in the compartment may be released when the door is opened.
CAUTION
The steamer and its parts are hot. Use care when operating, cleaning, or servicing the steamer.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
10
OF 20
Steam Coil Cabinet Base Compartment Cookers

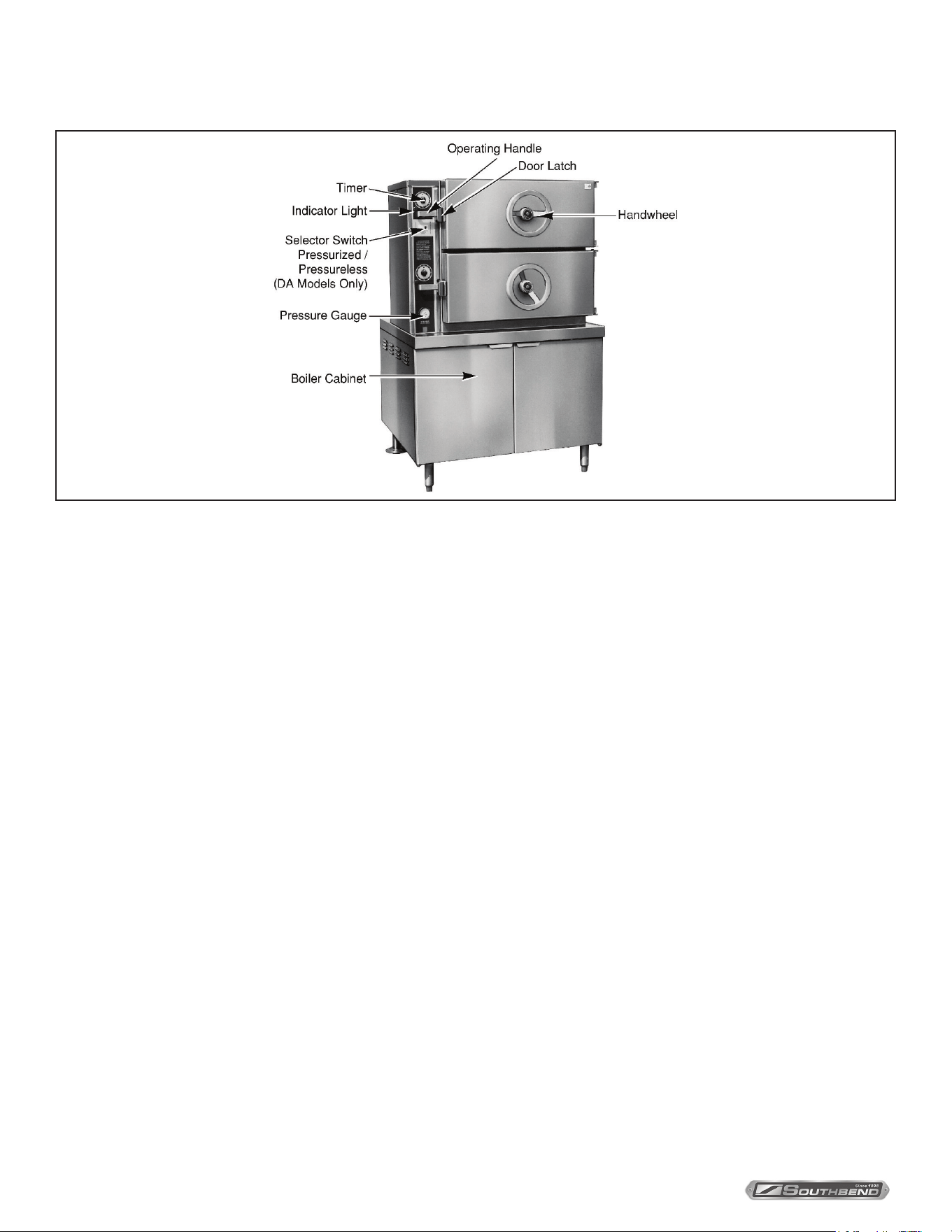

Compartment Controls
Timer (0 to 60 minutes) - Sets the steam time for the compartment.
Indicator Light - Timed cycle is in progress when lit.
Selector Switch - PRESSURIZED means top compartment operates at 6 psi.
PRESSURELESS means top compartment steams without pressure, the exhaust valve
is open to the drain.
Operating Handle - PULL OUT to send steam to compartment, lock door, and enable operation. PUSH IN
to silence buzzer at end of cycle.
Door Latch - Holds door closed and prevents door from fully opening until operating handle
is pushed in; move the door latch to the left to fully open door after steam and
condensate drain (1 minute) and handwheel is turned fully counterclockwise.
Handwheel - Turn clockwise to seal door at start of cycle. After pressure release at end of cycle,
turn counterclockwise to open.
Buzzer (not shown) - Sounds an audible signal when timer cycle is complete. To silence buzzer, push in
operating handle.
Pressure Gauge - Indicates steam pressure: 6 psi with compartments inactive, 4.5 - 6 psi during a
cooking cycle.
Operation
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
11
OF 20
Steam Coil Cabinet Base Compartment Cookers Operation
Steaming
Each steaming compartment is controlled by its own controls. When a compartment is not operating, the drain is open
and the steam inlet valve from the boiler is closed. Food, properly portioned and in appropriate solid or perforated pans, is
placed on rack supports (or wire shelves) in the steaming compartment. After closing and sealing the door, setting the timer,
and pulling out the operating handle, the steam inlet valve from the boiler opens, allowing steam at a pressure of 6 psi to
enter the compartment. Air from the sealed compartment exits through the vent until the temperature reaches 180 °F; then
the vent closes and the compartment can become pressurized. [On SCDA models only, if the top compartment has been
switched to pressureless steaming, steam enters the compartment and is exhausted to the drain without pressurizing the
compartment.] Steaming continues until the timer reaches “0” and the buzzer sounds. To silence the buzzer, push in the
operating handle. Wait one minute for steam or hot water to drain away. Open the door and remove the cooked food.
The cabinet (lower portion of steamer) contains the steam generator or boiler.
PREHEAT COMPARTMENTS
If the cooker has been standing idle and the compartments are cold, preheat before loading.
General
Turn on water and steam supply to appliance. Open left door of cabinet and turn on Power Switch. Pilot light will come
ON and steam generating will begin. In approximately 20 minutes, sucient amount of pressurized steam will have been
generated in the heat exchanger. The appliance is now ready for steam generation.
Shut Down
Turn o power switch, open manual drain valve. If unit is equipped with automatic lowdown valve, it will open and drain
exchanger. Steam valve will close cutting o supply to exchanger.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
12
OF 20
Steam Coil Cabinet Base Compartment Cookers
Cooking Guidelines
The cooking guidelines in this manual are suggestions only. You should experiment with your food products to determine
cooking times that will give you the best results. Variables which aect cooking time include size, weight, thickness of foods,
temperature, density, previous condition of the foods (fresh, pre-blanched or frozen) and degree of doneness desired.
To allow steam to circulate around the pans, food must be spread evenly throughout the pans. Best results are obtained after
the compartments are allowed to preheat. When all compartments are to be loaded at the same time, it is best to allow the
rst compartment to reach 4 - 4.5 psig before starting the next compartment. When processing frozen vegetables, use half
the suggested pan weights and allow sucient time for cooking doneness.
PRODUCT PAN DEPTH
PERFORATED
OR SOLID
WEIGHT/QUANTITY
PER PAN
STEAM TIME
MINUTES
PANS PER
COMPARTMENT
VEGETABLES (Fresh)
Beans, lima 2.5" Perforated 5 lbs.
10 – 12
13 - 15
1 - 3
4 - 6
Beans, string or wax 2.5" Perforated 6 lbs.
15 - 20
20 - 25
1 – 3
4 - 6
Broccoli, orets 2.5" Perforated 6 lbs.
8 - 10
10 - 12
1 – 3
4 - 6
Broccoli, stalks 2.5" Perforated 6 lbs.
10 - 15
15 - 20
1 – 3
4 - 6
Carrots, sliced 2.5" Perforated 9 lbs.
18 - 21
21 - 25
1 – 3
4 - 6
Corn 2.5" Perforated 5 lbs.
9 - 10
11 - 13
1 – 3
4 - 6
Peas 2.5" Perforated 5 lbs.
6 - 7
8 - 9
1 – 3
4 - 6
Potatoes, chunked 2.5" Perforated 10 lbs.
20 - 25
25 - 30
1 – 3
4 - 6
Spinach, cut, cleaned 4" Perforated 3 lbs.
3 - 5
4 - 6
1 – 2
3 -4
Vegetables, canned 2.5" Solid 7 lbs.
4 - 5
5 - 8
1 – 3
4 - 6
OTHER FOODS
Chicken 2.5" Perforated 8 lbs.
18 - 25
25 - 30
1 – 3
4 - 6
Eggs, out-of-shell 2.5" Solid 4 doz.
6 - 7
7 - 8
1 – 3
4 - 6
Eggs, in-shell 2.5" Perforated 3 doz.
2 - 3
4 - 6
1 – 3
4 - 6
Fish, llets 2.5" Perforated 3 lbs.
8 - 12
10 - 15
1 – 3
4 - 6
Meatloaf 2.5" Solid (for broth) 15 lbs.
35 - 40
40 - 45
1 – 3
4 - 6
Spaghetti, add 7 quarts
of water
4" Solid 3 lbs.
20 - 22
23 - 26
1 – 2
3 -4
Turkey 2.5" Perforated 10 - 12 lbs.
50 - 60
60 - 75
1 – 3
4 - 6
Cooking Guidelines
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
13
OF 20
Steam Coil Cabinet Base Compartment Cookers
Cleaning
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
CAUTION
Do not use cleaning agents that are corrosive.
CAUTION
The appliance and its parts are hot. Use care when operating, cleaning or servicing the appliance.
WARNING
Never spray water into electric controls.
Keep exposed cleanable areas of unit clean at all times. Use a mild soap and warm clean water. Rinse thoroughly with
clean water and wipe dry with a clean soft cloth.
Remove pans, shelves, slide racks and compartment strainers and clean using mild warm clean soapy water.
Remove food sediment from compartment and thoroughly wash oven cavities, door liners and door gaskets at the end of
each day or as required.
Never use steel wool on stainless steel.
Do not apply food oils or petroleum lubricants to the door gaskets.
Replace racks, shelves and compartment strainers.
Turn handwheel fully counterclockwise to retract the gasket plate and avoid pressure on the door gasket when the
steamer is not in use.
Cleaning
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
14
OF 20
Steam Coil Cabinet Base Compartment Cookers
CAUTION
An obstructed drain can cause personal injury or property damage.
Maintenance
Maintenance
1. Water level control should be opened daily to blowdown sediment and scalant.
2. Observe that the water in gauge glass is clean and clear. Extreme murkiness in water indicates inadequate water
quality.
3. Safety valve should be tripped during operation once a week to assure that it functions properly.
4. Keep all exposed cleanable areas of unit clean at all times.
5. De-scaling is based on water quality and usage.
NOTICE
As a safety precaution, disconnect the power supply before cleaning or servicing.
Do not allow any sediment to be exhausted through exhaust valves (compartment drains). Remove all sediment and
clean. Greasy foods may leave deposits that will accumulate in the exhaust drain and drain lines. To remove close doors
and seal, set timers and at frequent intervals release operating arm and blowdown unit, releasing steam through valves
and drain lines to dissolve grease.
The thrust screw in each compartment door should be lubricated each month to prevent handwheel from becoming
dicult to turn. To lubricate, turn handwheel clockwise until gasket plate is fully extended. Grasp nger hooks on door
plate and lift up and out. Apply grease NLG12 consistency of 285W60 viscosity liberally on thrust screw, rotate handwheel
to ensure complete coverage. Replace gasket plate.
Be sure to ush your boiler water level control daily. Failure to follow this procedure can cause the control to malfunction
resulting in serious boiler damage.
IMPORTANT INSTRUCTIONS
Be sure to ush your boiler water level control daily. Failure to follow this procedure can cause the control to malfunction
resulting in serious boiler damage.
The Boiler Water Level Control installed on your boiler requires periodic maintenance. As boiler water circulates into
the oat chamber, sand, scale and other sediment may be deposited in the oat chamber. While the chamber has been
designed with a large accumulation bowl, it is necessary to ush the sediment from the chamber by blowing down the
control so that the accumulation of sediment does not interfere with the movement of the oat in the control.
Control must be ushed at least once a day.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
15
OF 20
Steam Coil Cabinet Base Compartment Cookers Maintenance
When flushing control, note water level in gauge glass, allow the boiler to fill if necessary, and also to come up to
temperature.

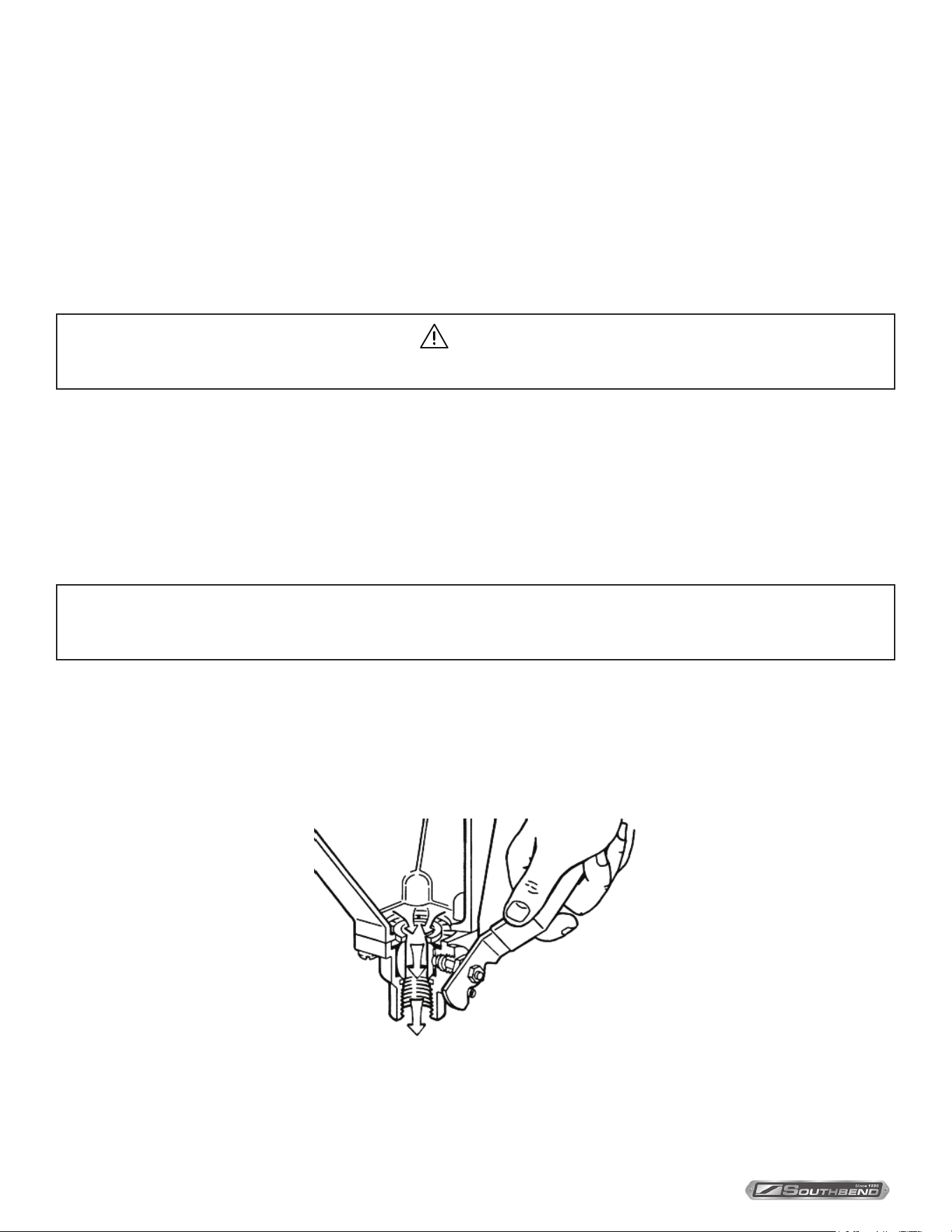

Before flushing control, note that water level in gauge glass is within operating range and the boiler pressure is
at least 6 psi. While the boiler is being operated, open blowdown valve at bottom of control by rotating the handle
counterclockwise about 1/4 turn to fully open the valve.
Opening the blowdown valve also checks the cut-o operation. Float should drop shutting steam o, hot water and
steam will ow out the drain ushing away sediment.
CAUTION
If steam supply does not shut o during blowdown, immediately discontinue use of appliance and call for service.
Continue draining water for about fteen (15) seconds, from control until water is clean. Manually close valve.
Recheck gauge glass. If water level has dropped signicantly, wait for the boiler to restore water level and pressure
and repeat if necessary.
CAUTION
Do not use cleaning agents that are corrosive.
Descaling Boiler
CAUTION
Improper use of this procedure may damage your appliance!
1. With Generator tank empty, close manual blowdown valve.
If appliance is equipped with Automatic Blowdown, turn water supply OFF to appliance. Turn power switch ON, this
will energize and close blowdown valve.
2. For appliance on 24” Cabinet, remove union tting at connection to base of water level control and generator tank.
For appliance on 36”, 48” etc. cabinet, remove 3/4” pipe cap from tting located at top front of generator tank.
3. Insert appropriate hose or tube through opening in generator tank and pour in (1/2) half U.S. gallon of CLR Descaling
Solution.
4. Replace 3/4” pipe cap OR union tting.
5. Open water supply to appliance allowing water to ll Generator tank to required level. On appliances with Manual
Blowdown, turn ON power switch, boiler will ll to the required level.
6. Let appliance cycle, allow two hours for descaling and cleaning. DO NOT TURN STEAM ON.
7. Open both the blowdown and water level control valves for complete drainage and then close both valves.
On appliances equipped with automatic blowdown, turn OFF power switch and open water level control valve, this will
allow complete drainage. Once drained, close water level control valve.
8. Turn appliance switch ON. When generator tank is completely lled, turn power switch OFF, this will rinse and drain
Generator Tank. Appliances with manual blowdown valve must be opened to drain.
9. Complete Step 8 twice to assure boiler is completely rinsed.
10. Appliance is now ready for use.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
16
OF 20
Steam Coil Cabinet Base Compartment Cookers
Troubleshooting
Cooker
Door Hasp Will Not Engage
1. Door loose and requires new bushings.
2. Hasp requires adjustment by adding or removing of washers under hasp.
Handwheel Hard to Turn
1. Foreign matter on thrust screw or lack of lubricant.
2. Thrust screw bent or worn.
Door Gasket Leaks
1. Gasket screw loose.
2. Gasket damaged or at end of useful life.
3. Door loose and not aligned correctly.
4. Gasket plate installed incorrectly.
5. Handwheel binding so that not enough pressure to seal door.
Water Accumulates in Compartments
1. Appliance not levelled properly.
2. Compartment screen plugged.
3. Exhaust valve plugged or defective.
4. Exhaust drain line plugged.
Compartment Pressurized at End of Cooking Cycle
1. Exhaust valve plugged or defective.
Steam Escapes from Compartment During Cooking Cycle
1. Compartment vent plugged.
2. Exhaust valve plugged or defective.
Cooking Cycle Cannot Be Activated
1. Loose wire terminations.
2. Steam valve plugged or defective.
3. Timer defective.
4. Micro switch on operation arm defective or requires adjustment.
Troubleshooting
NOTICE
At least twice a year have an authorized service person clean and adjust the unit for maximum performance.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
17
OF 20
Steam Coil Cabinet Base Compartment Cookers
Water Enters Compartment Through Steam Valve
1. Water level control defective or requires cleaning.
Boiler
Water Not Being Supplied to Heat Exchanger
1. Water supply is “OFF”.
2. Defective water ll solenoid.
3. Water level control clogged or defective, unable to operate ll valve.
4. Check drain valve is closed.
5. Supply water pressure too low.
Automatic Blowdown Valve Does Not Drain
1. Defective blowdown valve.
2. Heat exchanger build up of scalant clogging drain lines and valve.
Heat Exchanger Achieves Pressure Slower Than Normal
1. Heavy build up of lime on copper steam coils.
2. Insucient steam supply to heat exchanger.
3. Defective steam supply solenoid valve.
Safety Valve Blows
1. Defective safety valve.
2. Pressure too high, pressure switch requires adjustment (lower) or may be defective.
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
18
OF 20
Steam Coil Cabinet Base Compartment Cookers
Notes
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
19
OF 20
Steam Coil Cabinet Base Compartment Cookers
Notes
INSTALLATION & OPERATION MANUAL 10045-SB REV 0 (07/22)
PAGE
20
OF 20
Steam Coil Cabinet Base Compartment Cookers
SC-2S, SC-3S,
SCDA-2S & SCDA-3S
Steam Coil Cabinet Base
Compartment Cookers
A product with the Southbend Steam name incorporates the best in durability and low maintenance. We all recognize,
however, that replacement parts and occasional professional service may be necessary to extend the useful life of this
appliance. When service is needed, contact a Southbend Steam Authorized Service Agency, or your dealer. To avoid
confusion, always refer to the model number, serial number, and type of your appliance.
SOUTHBEND STEAM
A Middleby Company
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
